Making Java REST with JAX-RS 2.0
The document discusses REST and JAX-RS 2.0. It defines REST as an architectural style for building lightweight web services using HTTP. The key REST principles include giving everything a unique ID, linking resources together, using standard HTTP methods, supporting multiple representations, communicating statelessly, and enabling caching. JAX-RS 2.0 is a Java specification that makes it easy to build RESTful web services by using annotations to define resources and HTTP methods. It supports the REST principles and features like content negotiation, hypermedia links, and caching controls.
Making Java REST with JAX-RS 2.0
- 2. Making Java REST withJAX-RS 2.0 April 24, 2014 Dmytro Chyzhykov
- 3. Disclaimer The views andopinions expressed in this presentation expressed by the speaker are solely his own and do not necessary represent the views and opinions of companies he is working or worked for. 3
- 4. Agenda - What isREST? - REST Principles and JAX-RS 2.0 - Q & A 4

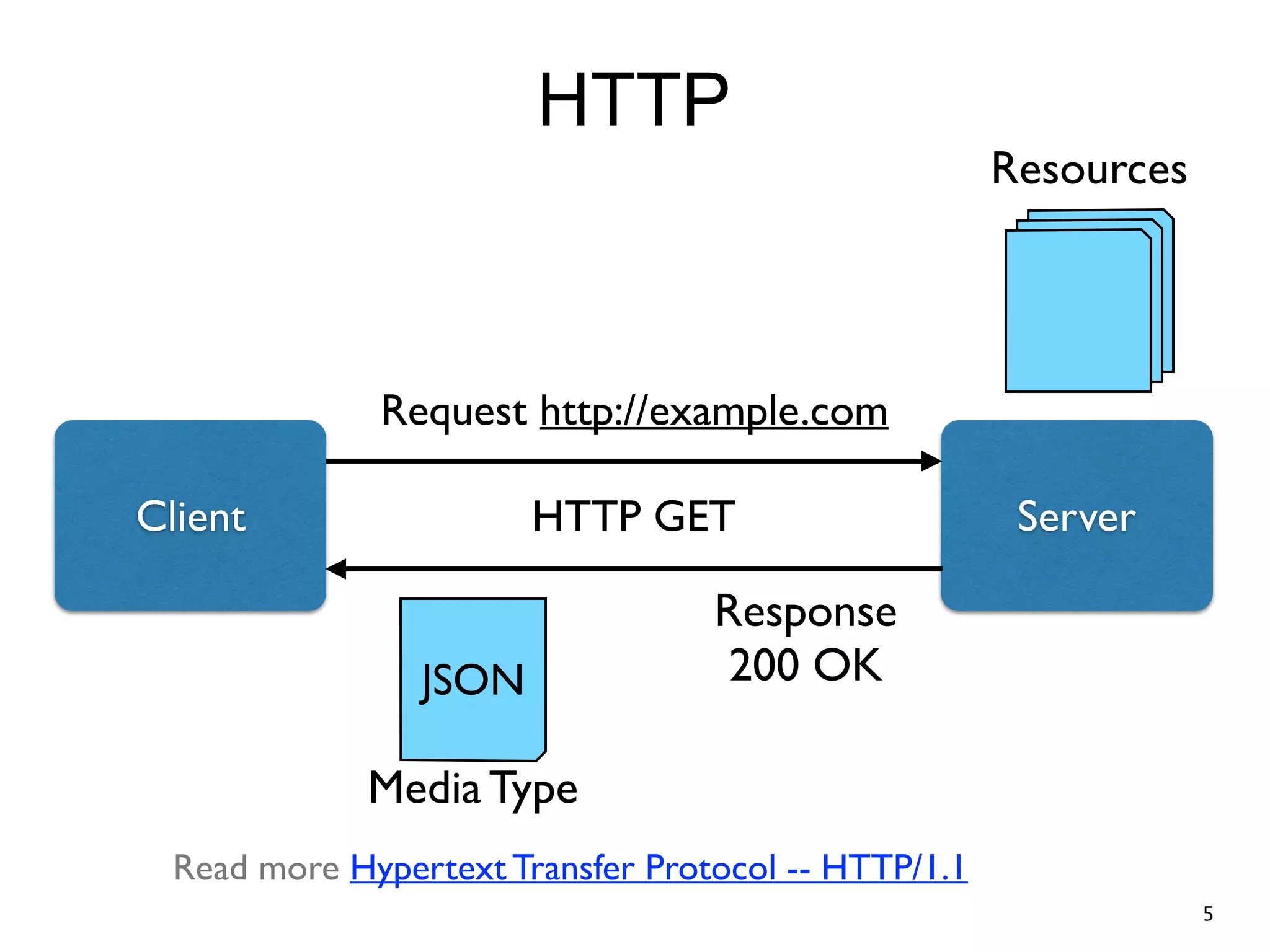

- 5. HTTP Response 200 OKJSON Media Type ClientServerHTTP GET Resources Request http://example.com Read more Hypertext Transfer Protocol -- HTTP/1.1 5
- 6.
- 7.

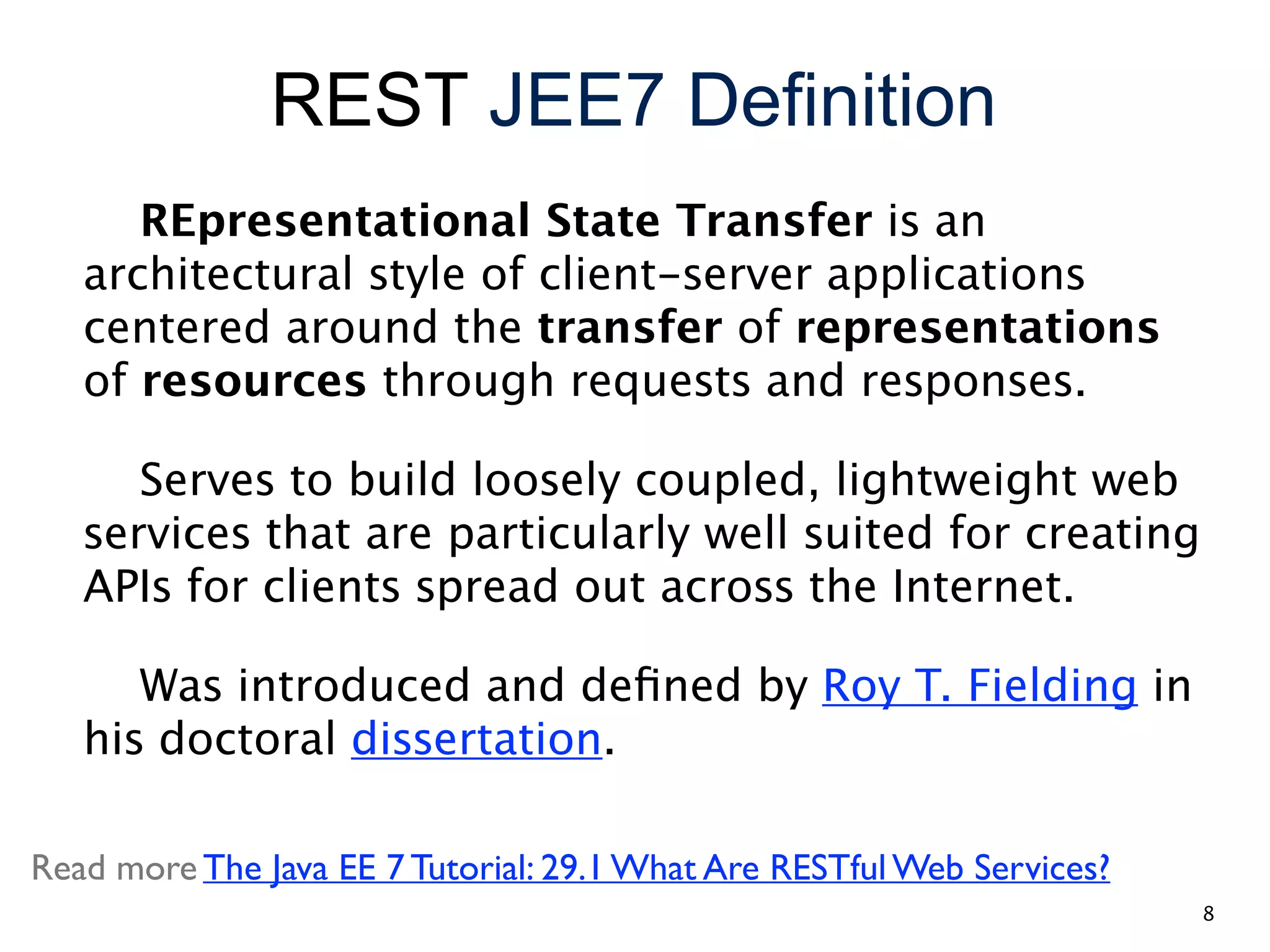

- 8. REST JEE7 Definition REpresentationalState Transfer is an architectural style of client-server applications centered around the transfer of representations of resources through requests and responses. Serves to build loosely coupled, lightweight web services that are particularly well suited for creating APIs for clients spread out across the Internet. Was introduced and defined by Roy T. Fielding in his doctoral dissertation. Read more The Java EE 7 Tutorial: 29.1 What Are RESTful Web Services? 8

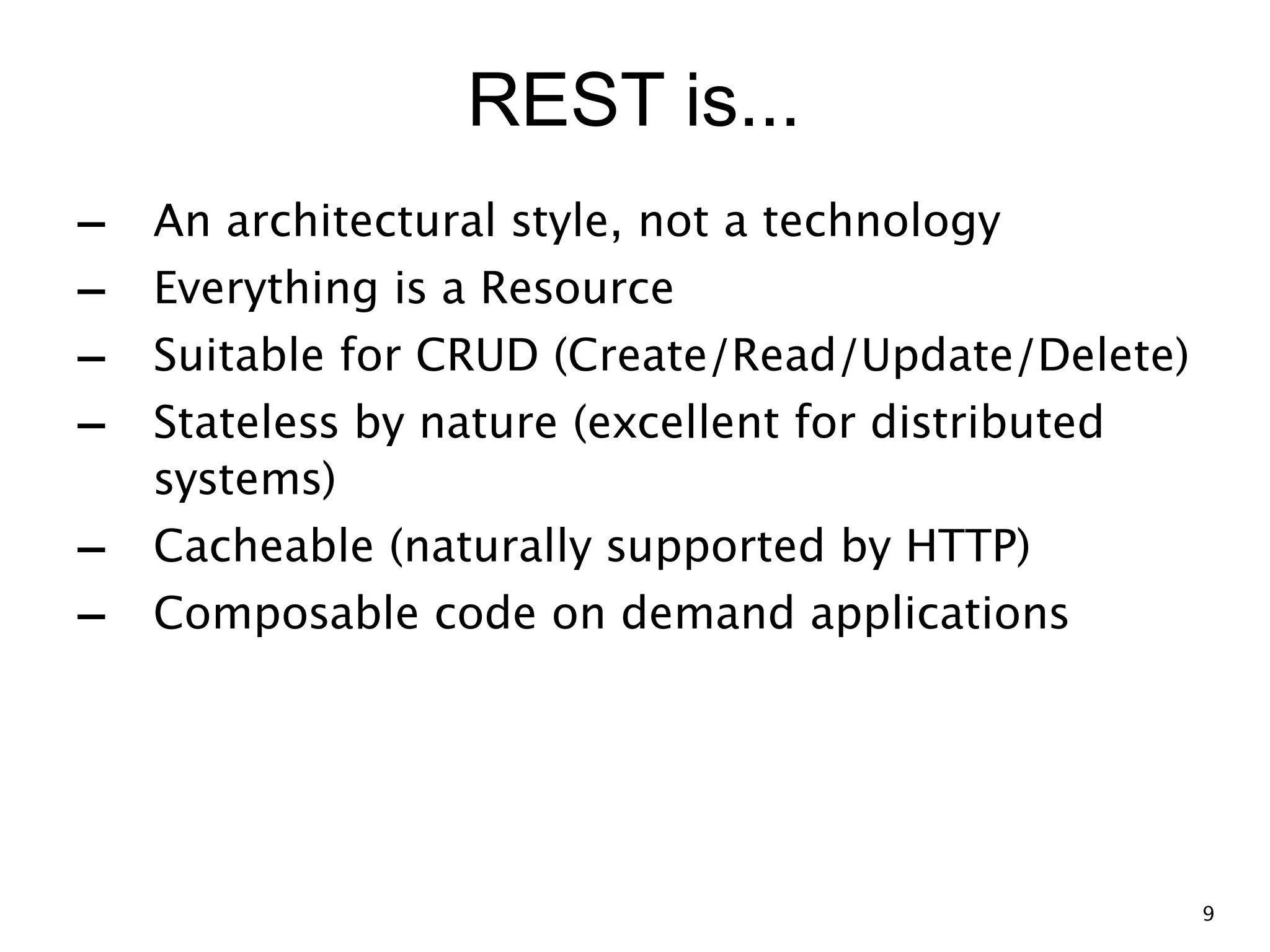

- 9. REST is... - Anarchitectural style, not a technology - Everything is a Resource - Suitable for CRUD (Create/Read/Update/Delete) - Stateless by nature (excellent for distributed systems) - Cacheable (naturally supported by HTTP) - Composable code on demand applications 9

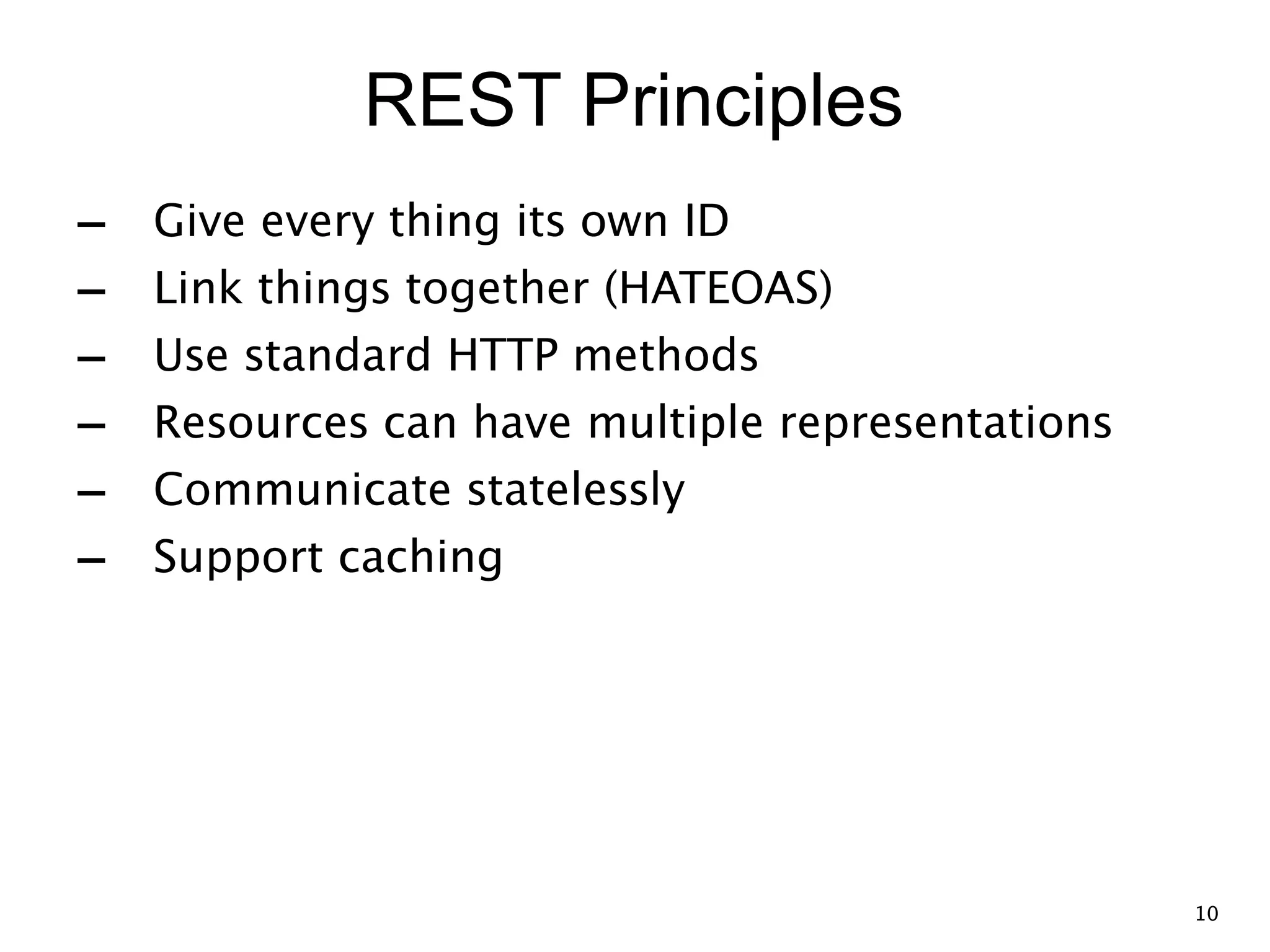

- 10. REST Principles - Giveevery thing its own ID - Link things together (HATEOAS) - Use standard HTTP methods - Resources can have multiple representations - Communicate statelessly - Support caching 10
- 11. Give every thingits own ID 11

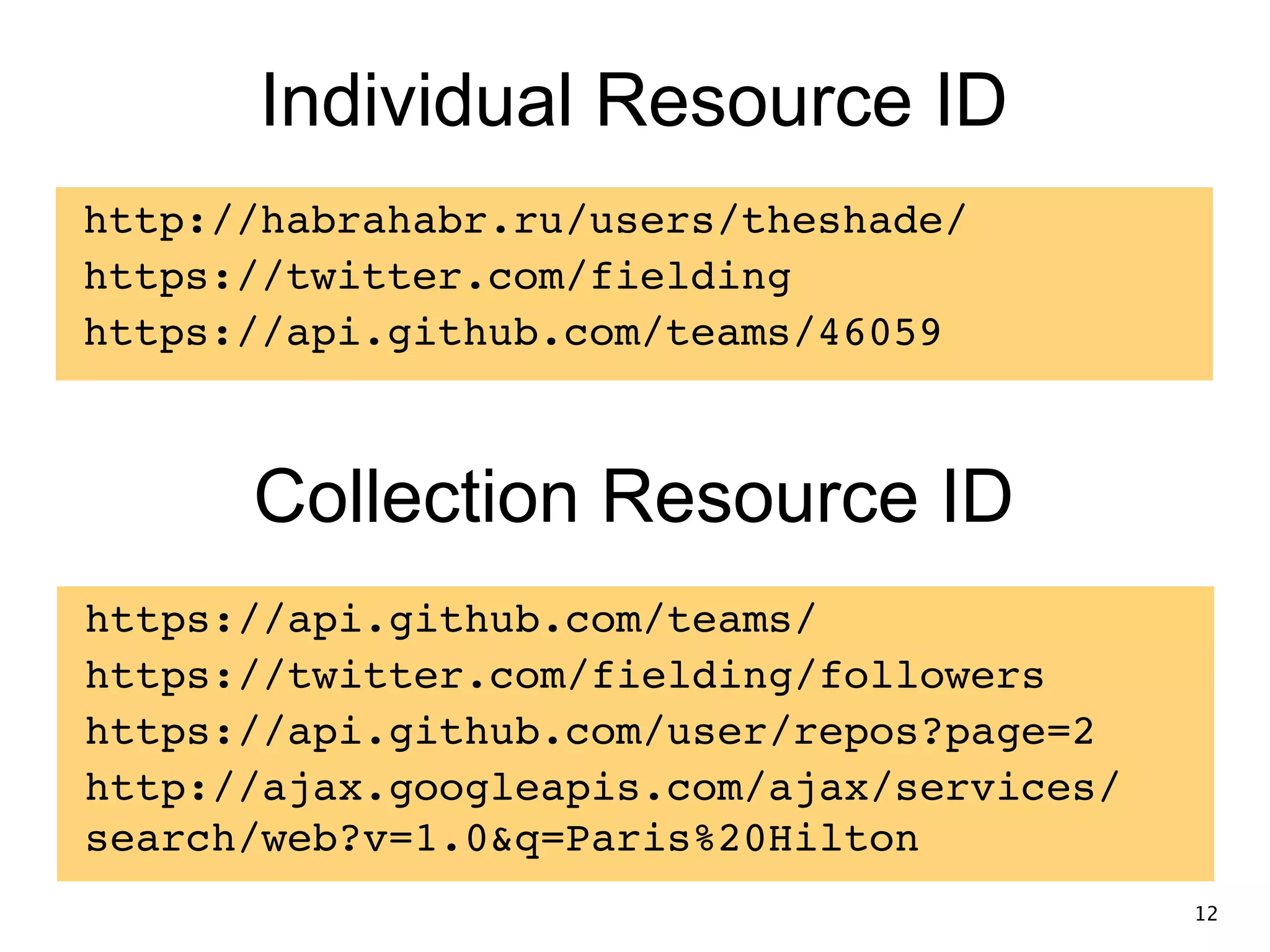

- 12. Individual Resource ID http://habrahabr.ru/users/theshade/! https://twitter.com/fielding! https://api.github.com/teams/46059! CollectionResource ID https://api.github.com/teams/! https://twitter.com/fielding/followers! https://api.github.com/user/repos?page=2! http://ajax.googleapis.com/ajax/services/ search/web?v=1.0&q=Paris%20Hilton 12

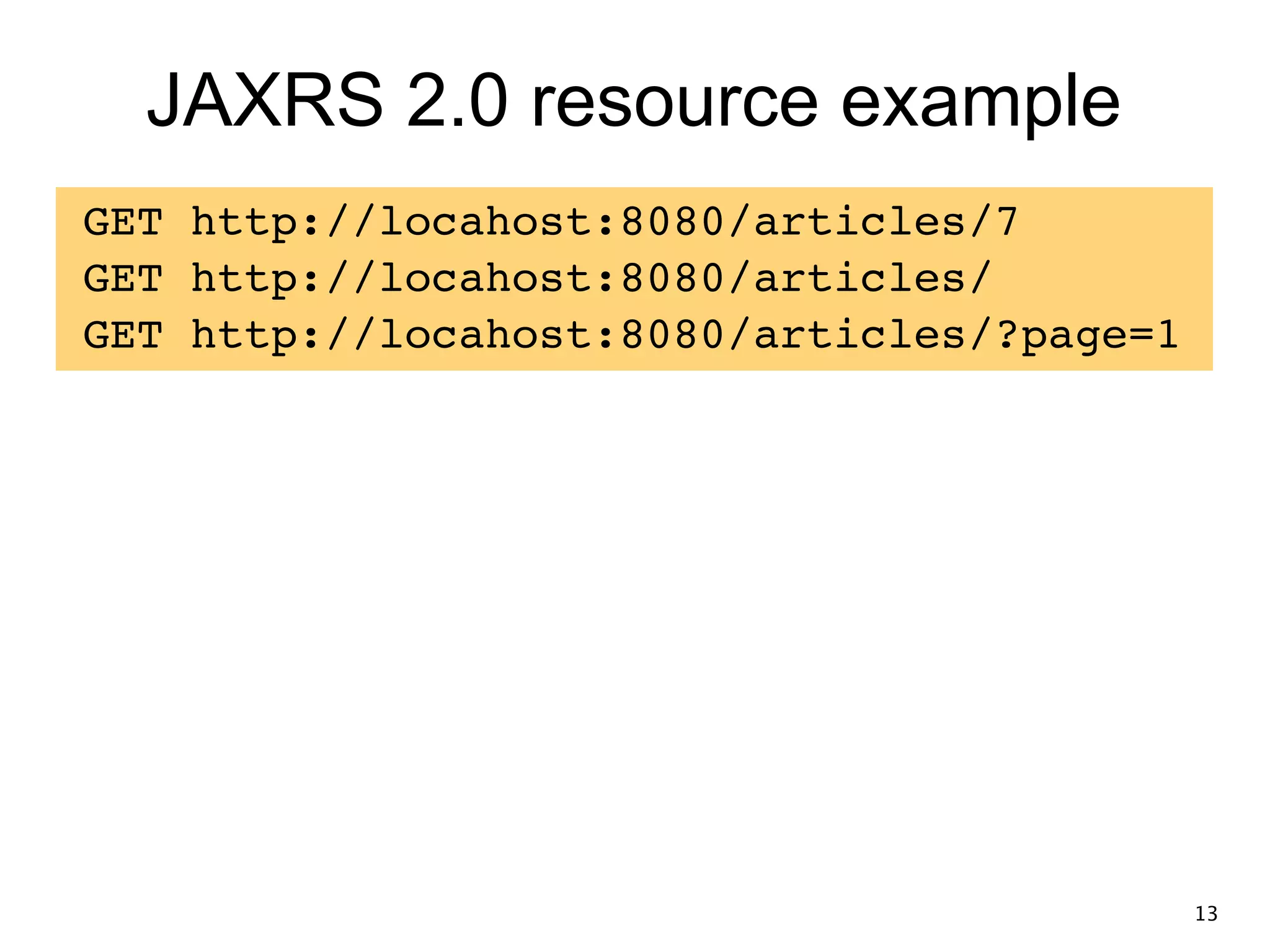

- 13. JAXRS 2.0 resourceexample GET http://locahost:8080/articles/7! GET http://locahost:8080/articles/! GET http://locahost:8080/articles/?page=1! 13

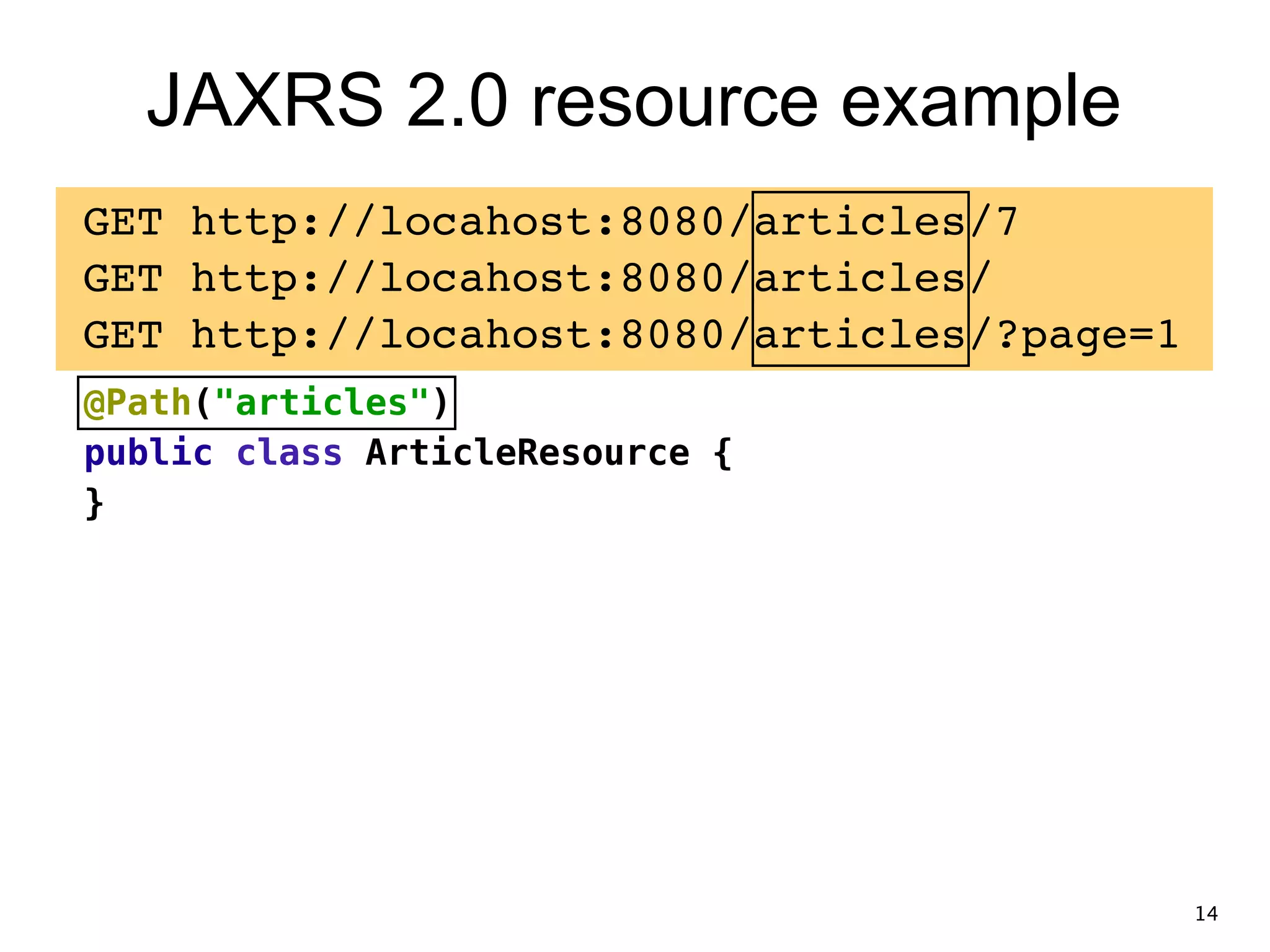

- 14. JAXRS 2.0 resourceexample GET http://locahost:8080/articles/7! GET http://locahost:8080/articles/! GET http://locahost:8080/articles/?page=1! @Path("articles") public class ArticleResource { } 14

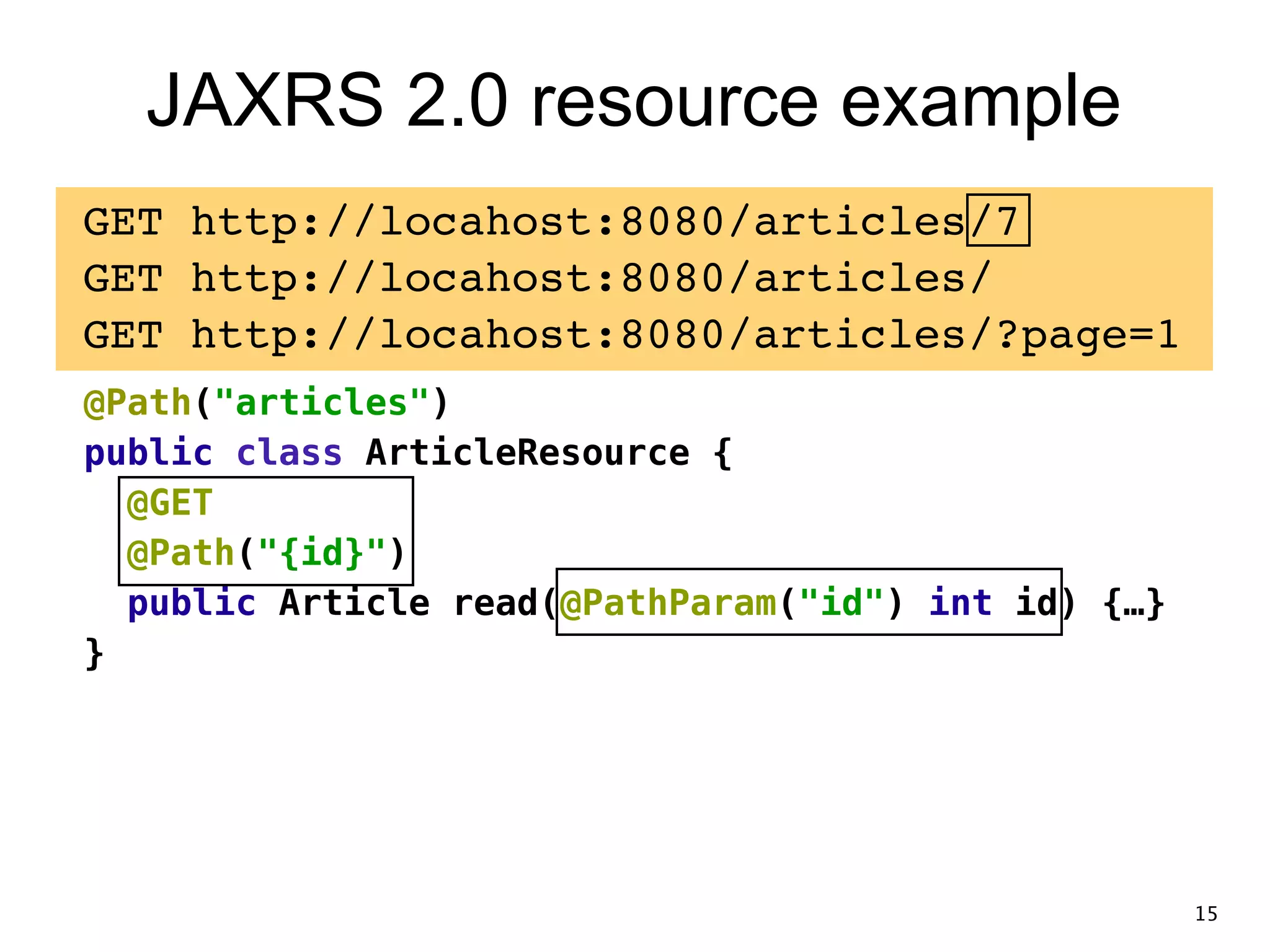

- 15. JAXRS 2.0 resourceexample GET http://locahost:8080/articles/7! GET http://locahost:8080/articles/! GET http://locahost:8080/articles/?page=1! @Path("articles") public class ArticleResource { @GET @Path("{id}") public Article read(@PathParam("id") int id) {…} } 15

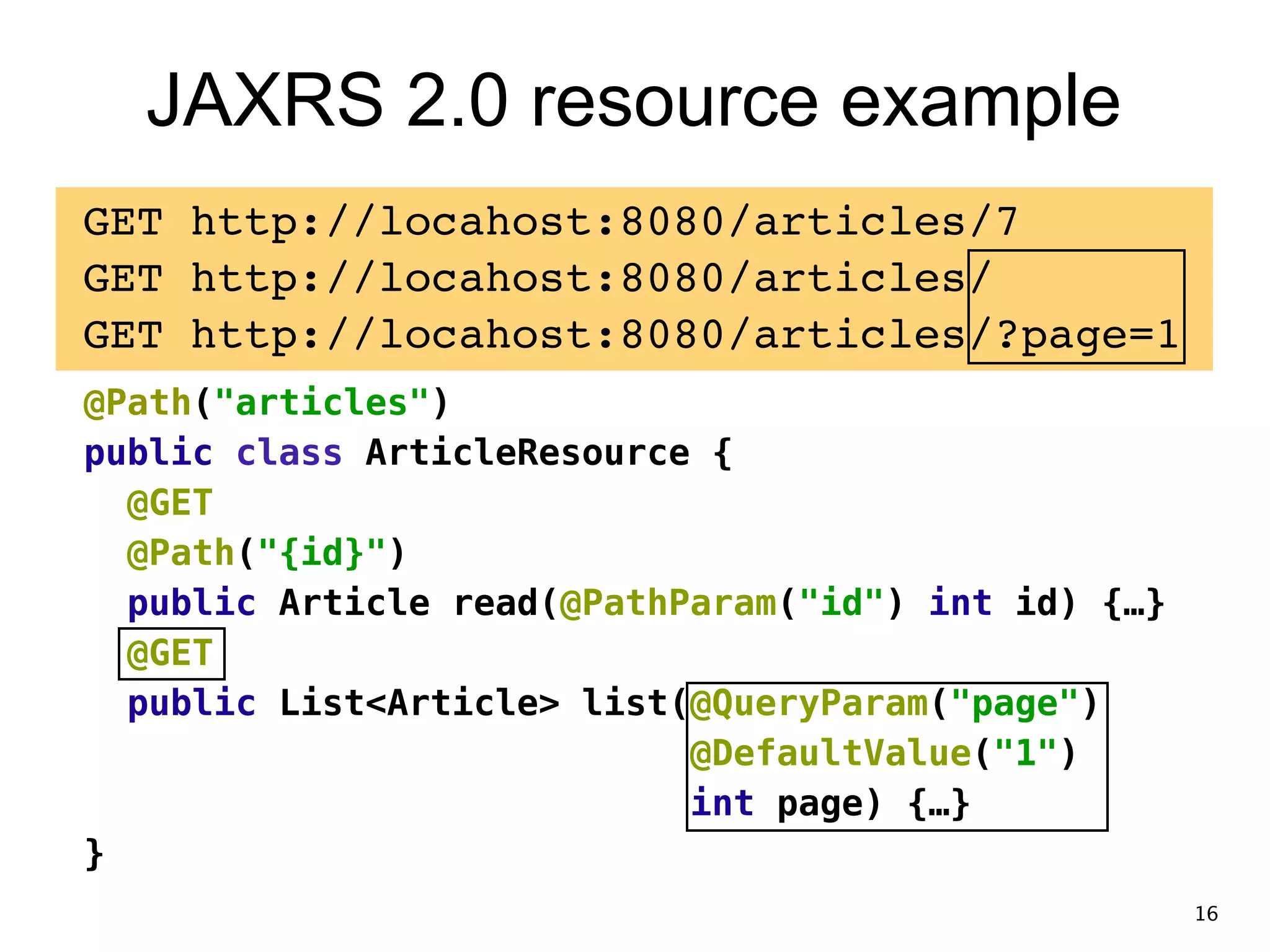

- 16. JAXRS 2.0 resourceexample GET http://locahost:8080/articles/7! GET http://locahost:8080/articles/! GET http://locahost:8080/articles/?page=1! @Path("articles") public class ArticleResource { @GET @Path("{id}") public Article read(@PathParam("id") int id) {…} @GET public List<Article> list(@QueryParam("page") @DefaultValue("1") int page) {…} } 16

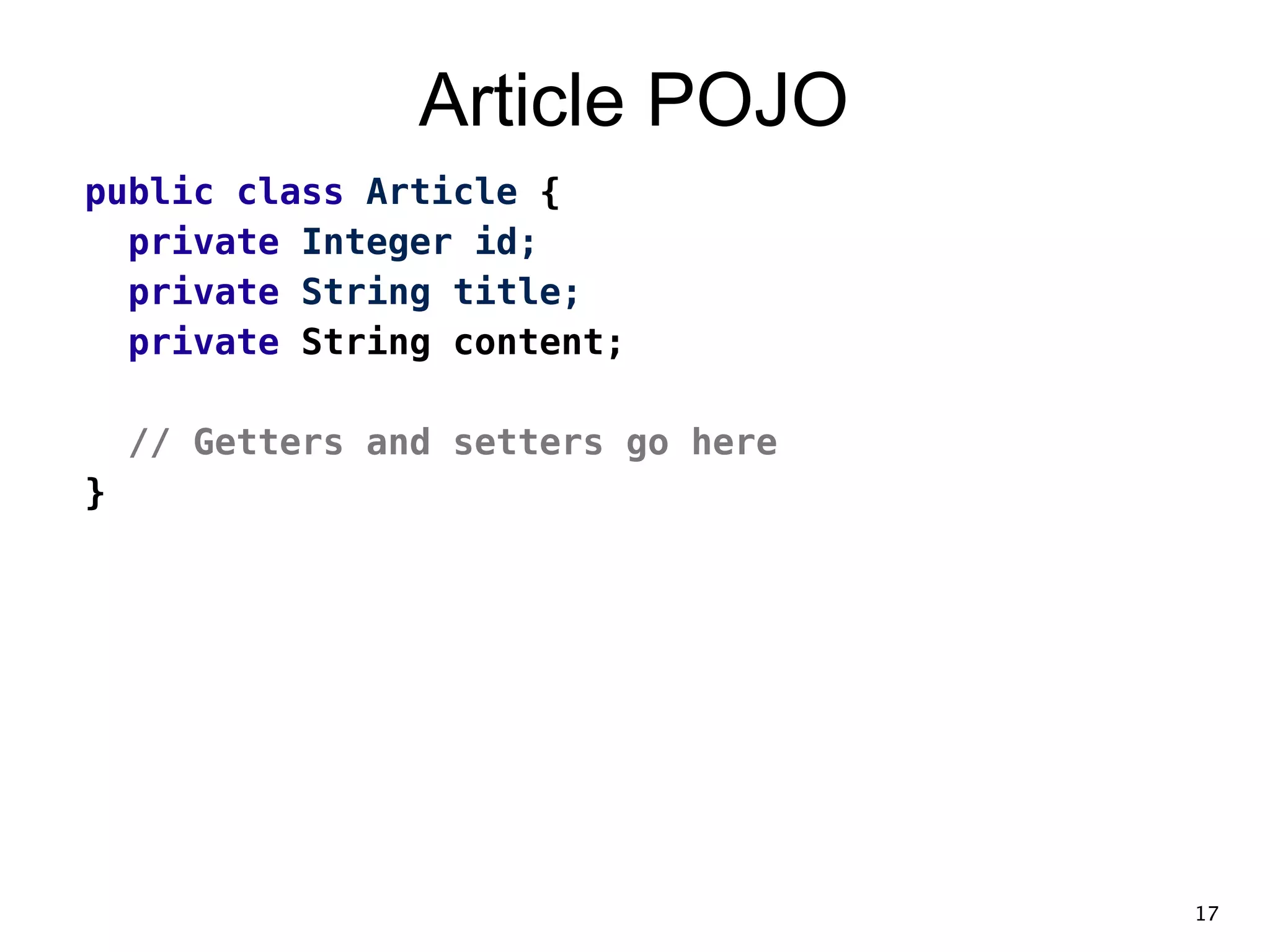

- 17. Article POJO public classArticle { private Integer id; private String title; private String content; ! // Getters and setters go here } 17

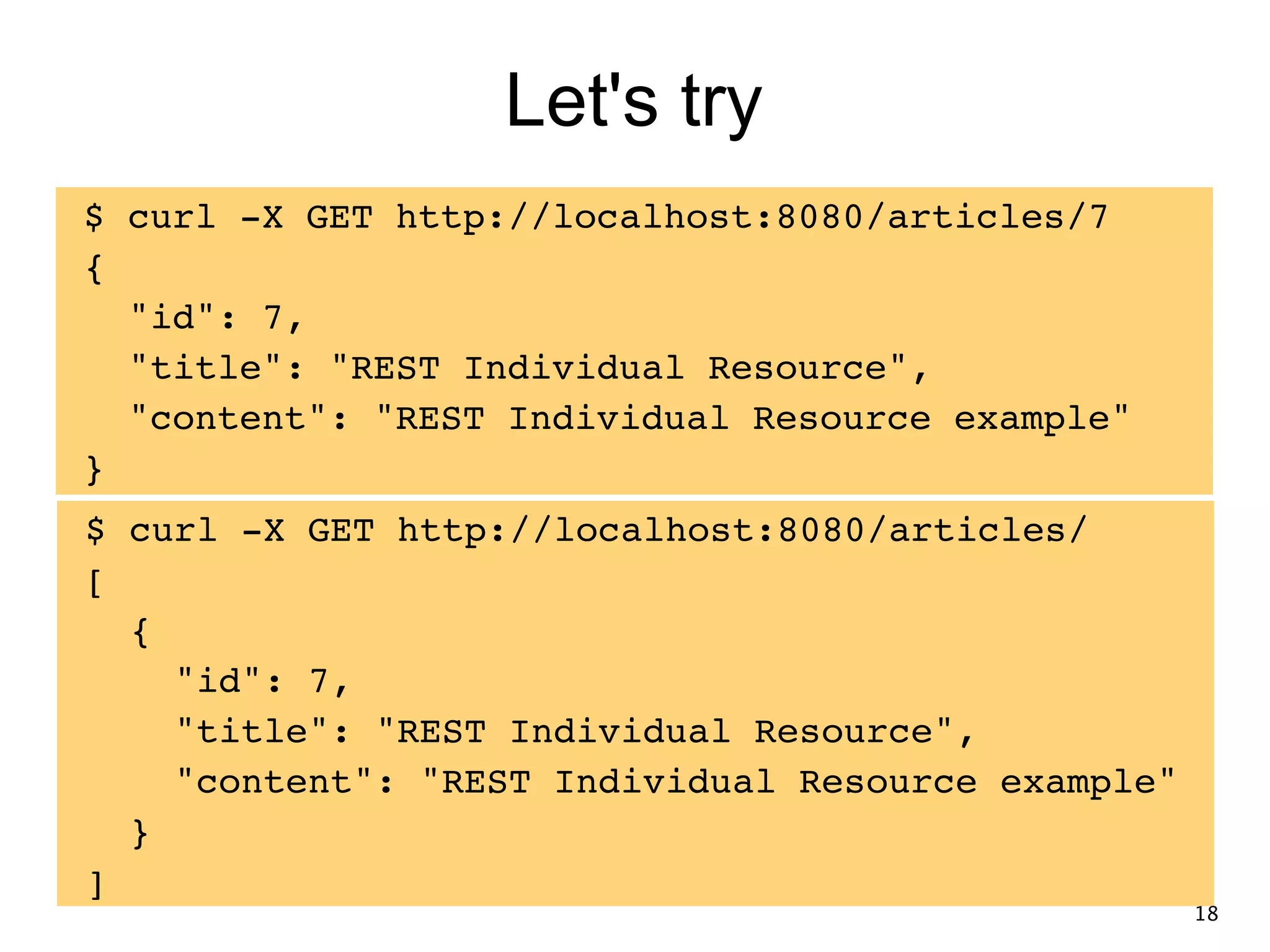

- 18. Let's try $ curl-X GET http://localhost:8080/articles/7! {! "id": 7,! "title": "REST Individual Resource",! "content": "REST Individual Resource example"! } $ curl -X GET http://localhost:8080/articles/! [! {! "id": 7,! "title": "REST Individual Resource",! "content": "REST Individual Resource example"! }! ] 18
- 19.

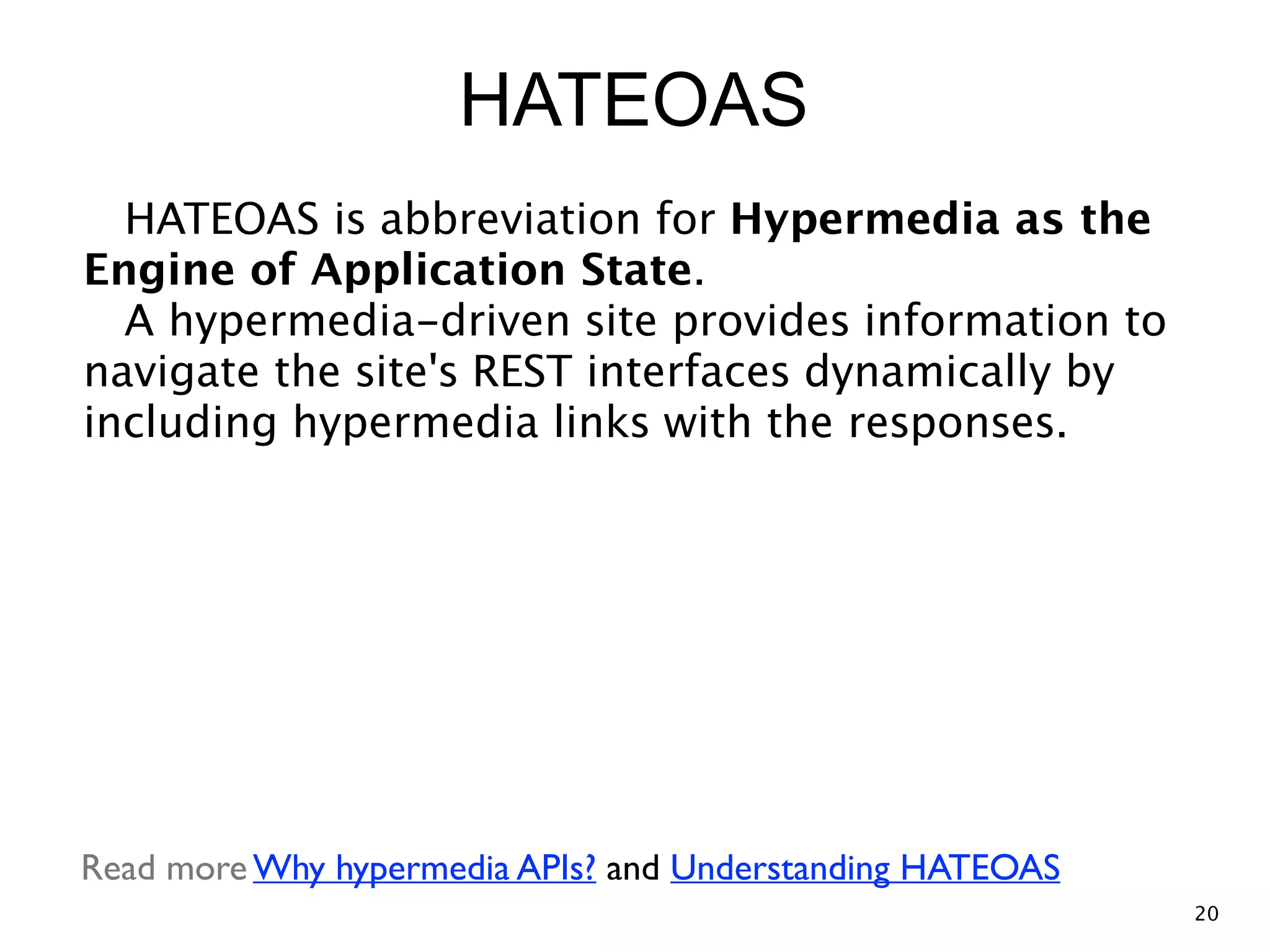

- 20. HATEOAS HATEOAS is abbreviationfor Hypermedia as the Engine of Application State. A hypermedia-driven site provides information to navigate the site's REST interfaces dynamically by including hypermedia links with the responses. Read more Why hypermedia APIs? and Understanding HATEOAS 20

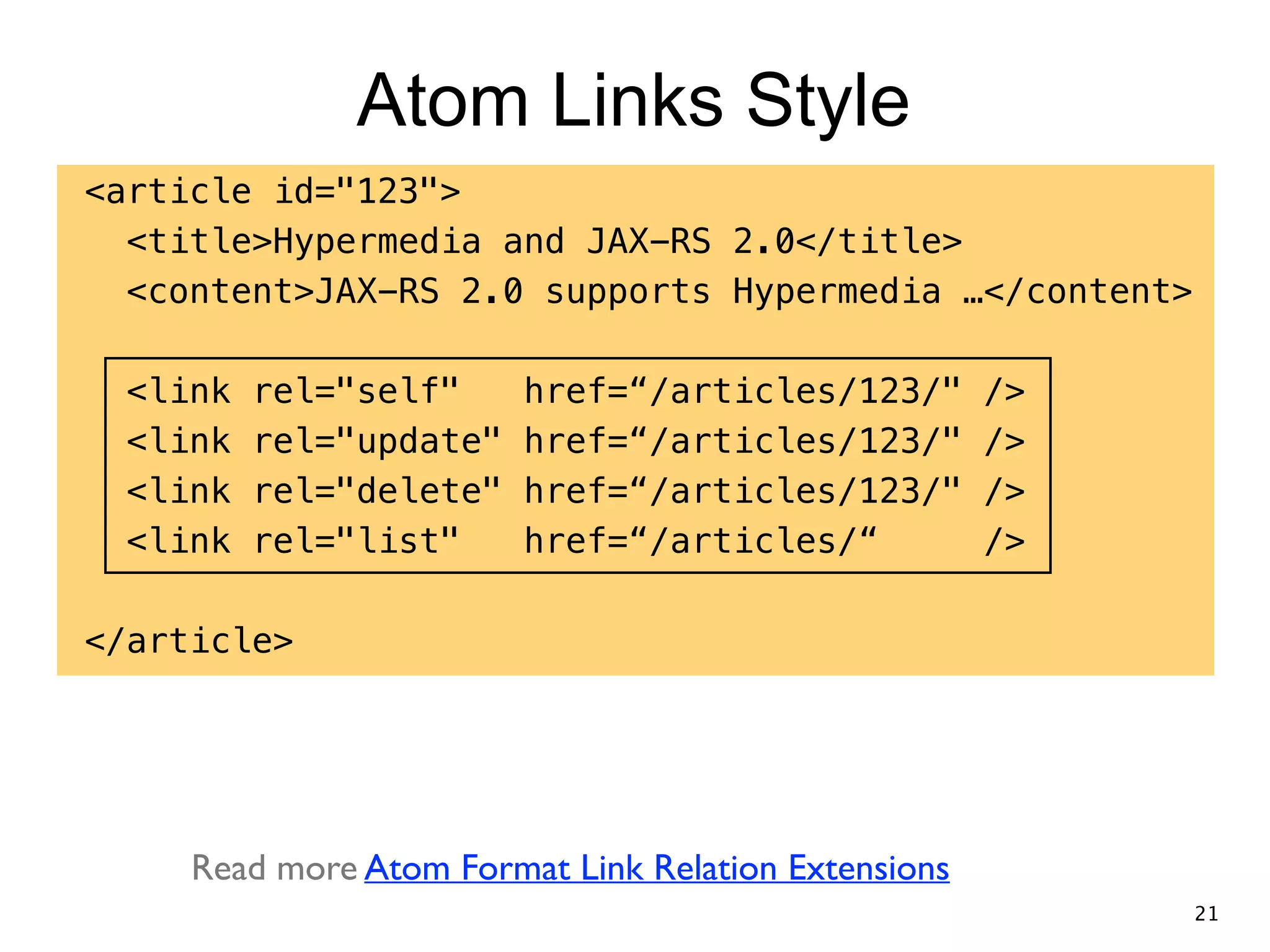

- 21. Atom Links Style <articleid="123"> <title>Hypermedia and JAX-RS 2.0</title> <content>JAX-RS 2.0 supports Hypermedia …</content> ! <link rel="self" href=“/articles/123/" /> <link rel="update" href=“/articles/123/" /> <link rel="delete" href=“/articles/123/" /> <link rel="list" href=“/articles/“ /> ! </article> Read more Atom Format Link Relation Extensions 21

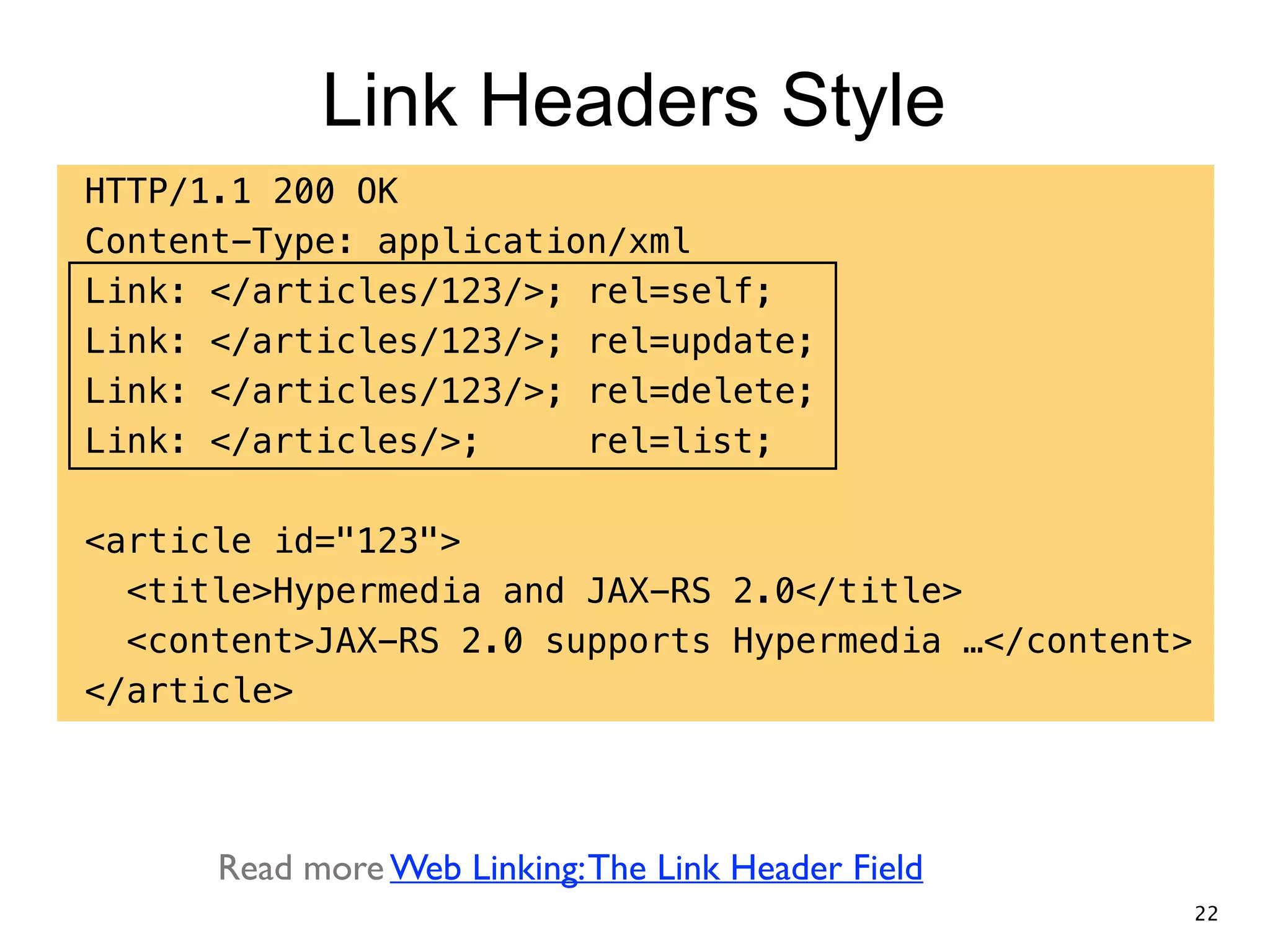

- 22. Link Headers Style HTTP/1.1200 OK Content-Type: application/xml Link: </articles/123/>; rel=self; Link: </articles/123/>; rel=update; Link: </articles/123/>; rel=delete; Link: </articles/>; rel=list; ! <article id="123"> <title>Hypermedia and JAX-RS 2.0</title> <content>JAX-RS 2.0 supports Hypermedia …</content> </article> Read more Web Linking:The Link Header Field 22

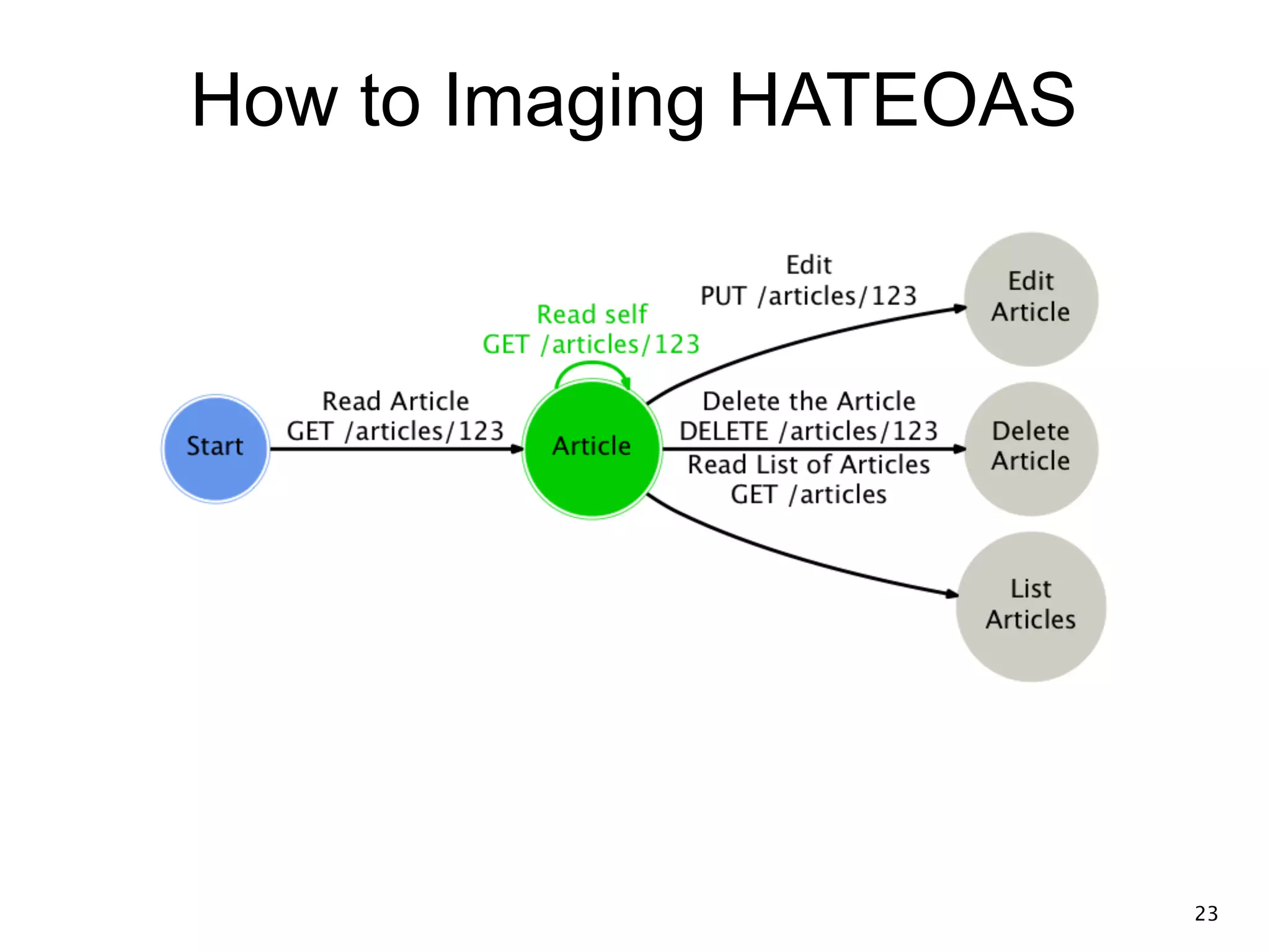

- 23. How to ImagingHATEOAS 23

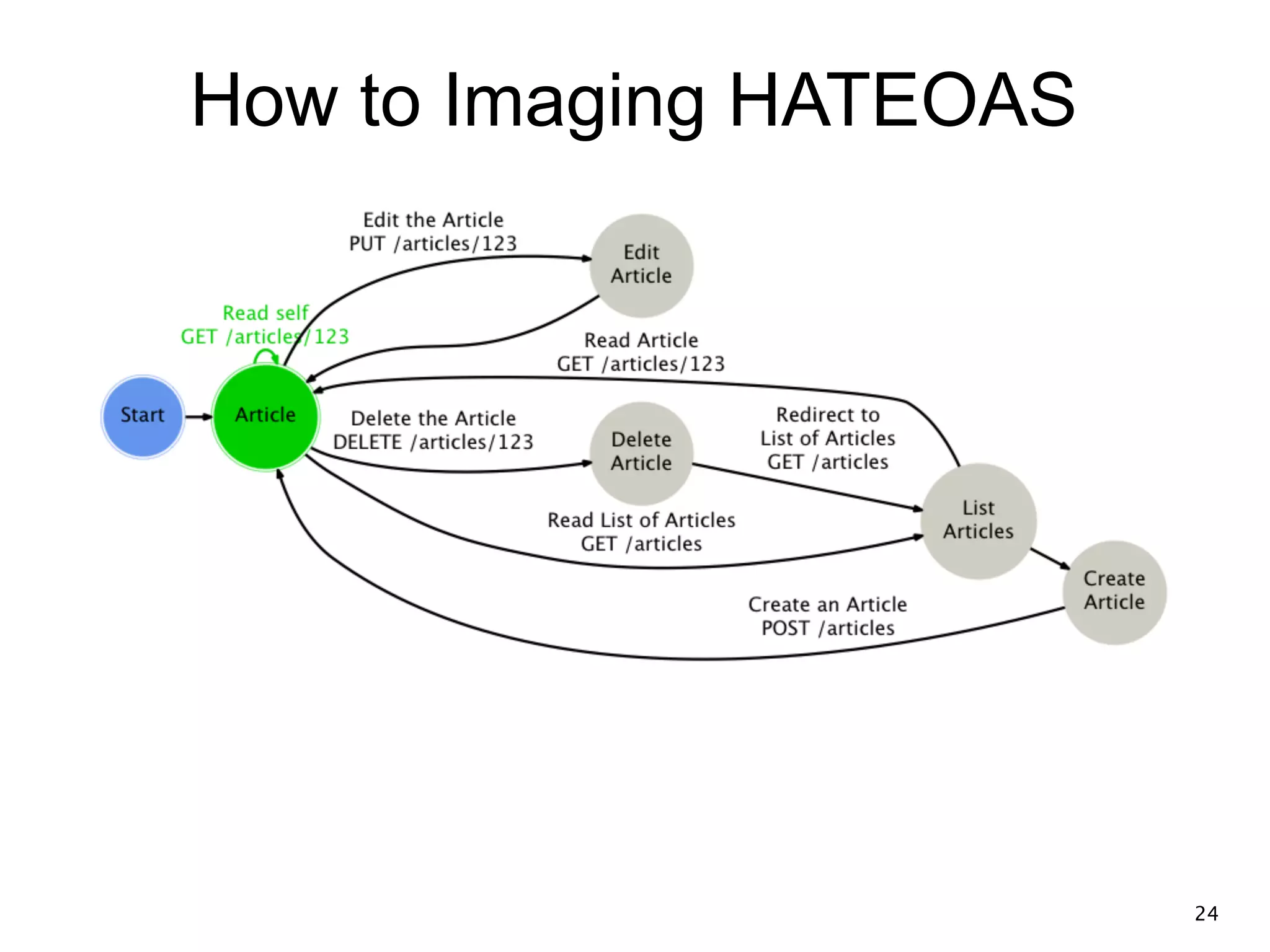

- 24. How to ImagingHATEOAS 24

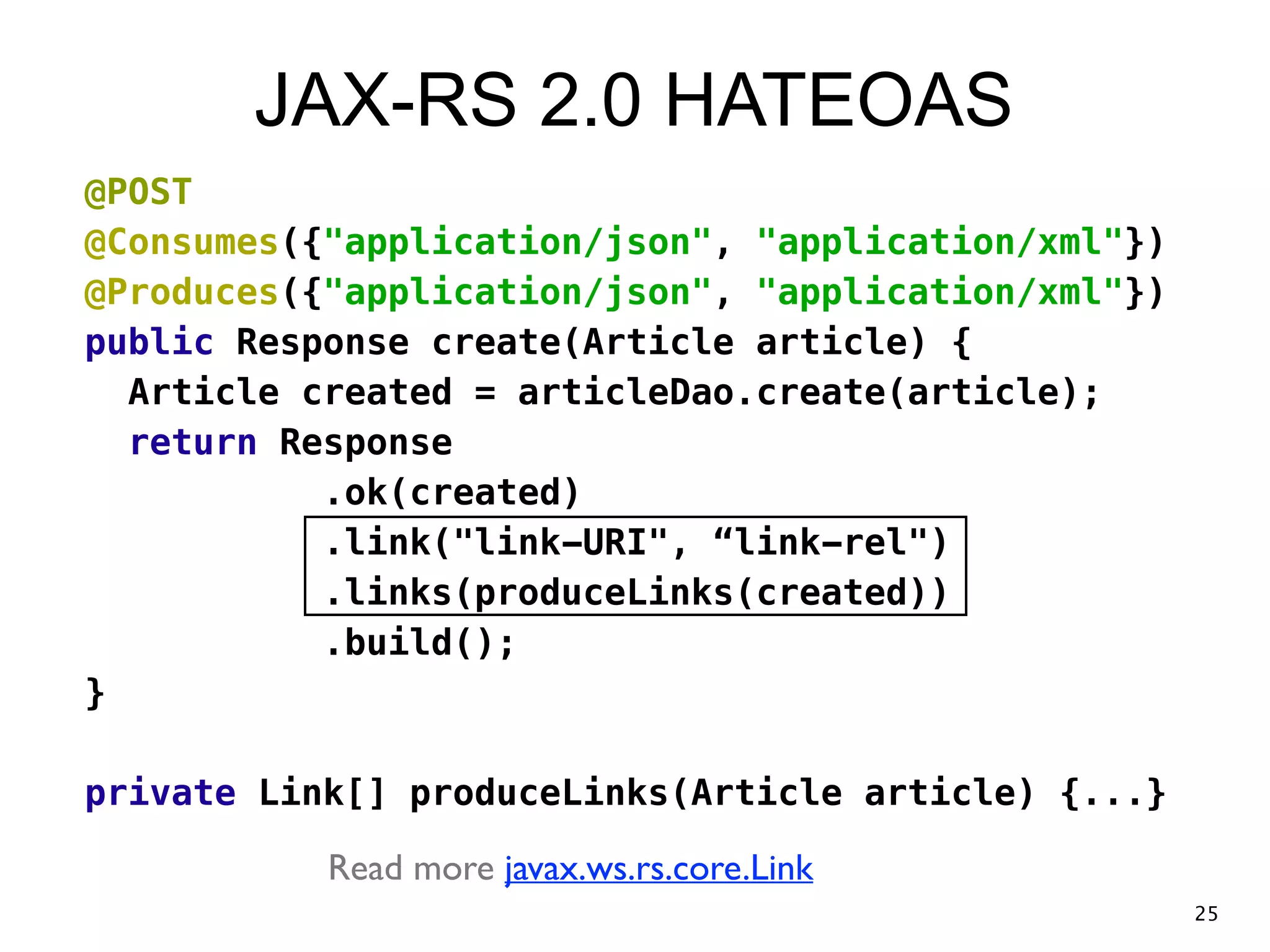

- 25. JAX-RS 2.0 HATEOAS @POST @Consumes({"application/json","application/xml"}) @Produces({"application/json", "application/xml"}) public Response create(Article article) { Article created = articleDao.create(article); return Response .ok(created) .link("link-URI", “link-rel") .links(produceLinks(created)) .build(); } ! private Link[] produceLinks(Article article) {...} Read more javax.ws.rs.core.Link 25

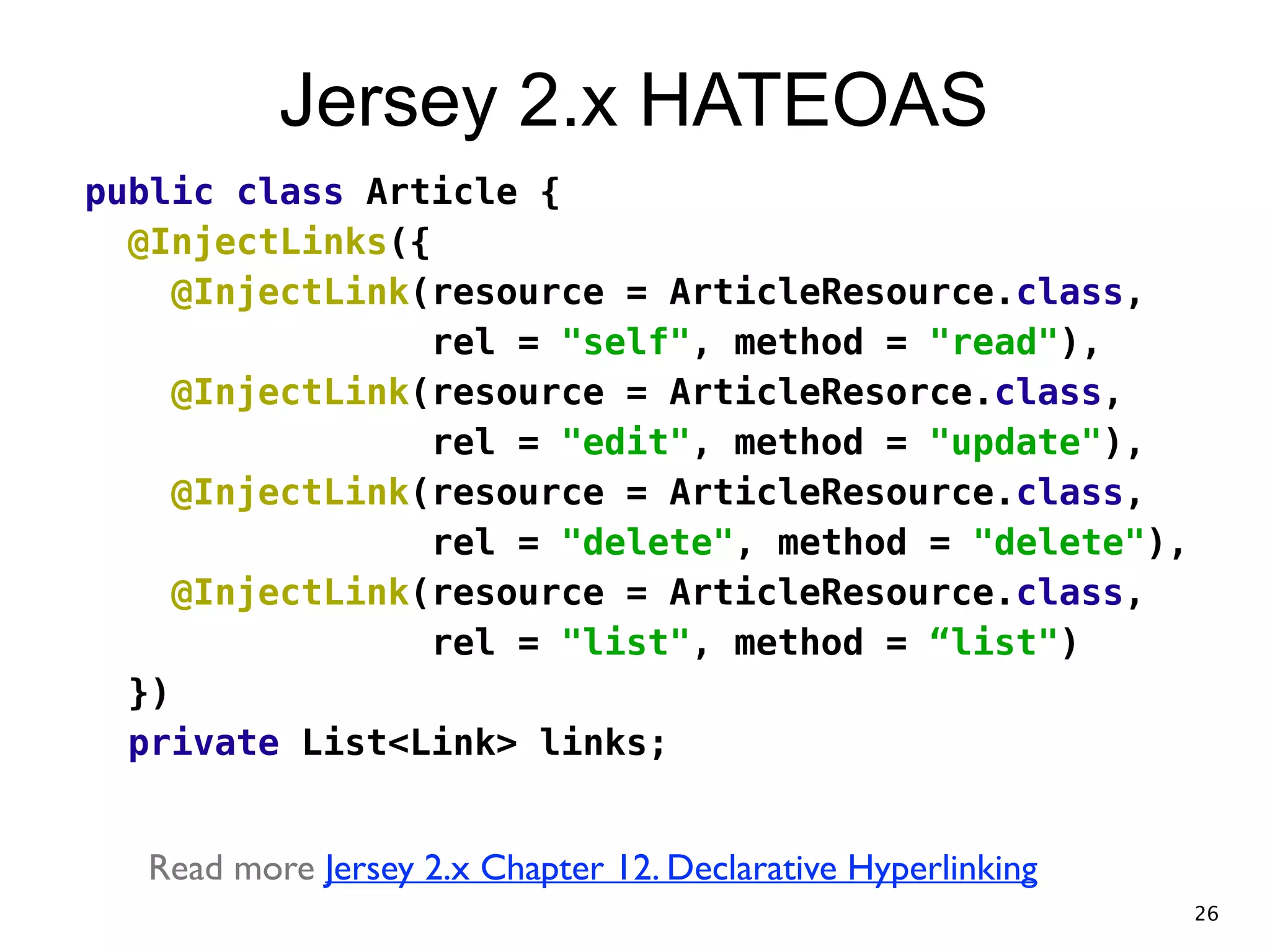

- 26. Jersey 2.x HATEOAS publicclass Article { @InjectLinks({ @InjectLink(resource = ArticleResource.class, rel = "self", method = "read"), @InjectLink(resource = ArticleResorce.class, rel = "edit", method = "update"), @InjectLink(resource = ArticleResource.class, rel = "delete", method = "delete"), @InjectLink(resource = ArticleResource.class, rel = "list", method = “list") }) private List<Link> links; ! Read more Jersey 2.x Chapter 12. Declarative Hyperlinking 26

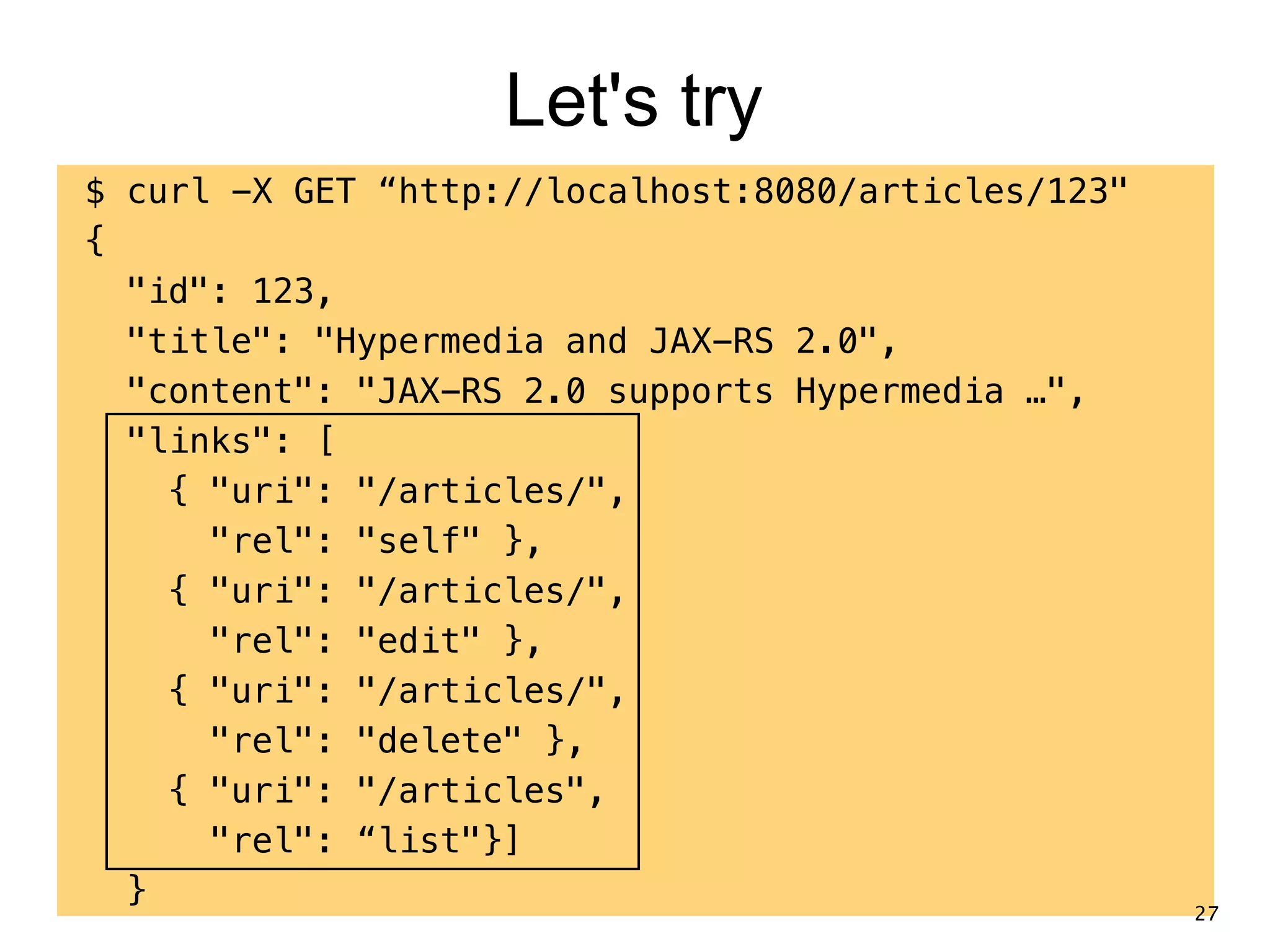

- 27. Let's try $ curl-X GET “http://localhost:8080/articles/123" { "id": 123, "title": "Hypermedia and JAX-RS 2.0", "content": "JAX-RS 2.0 supports Hypermedia …", "links": [ { "uri": "/articles/", "rel": "self" }, { "uri": "/articles/", "rel": "edit" }, { "uri": "/articles/", "rel": "delete" }, { "uri": "/articles", "rel": “list"}] } 27

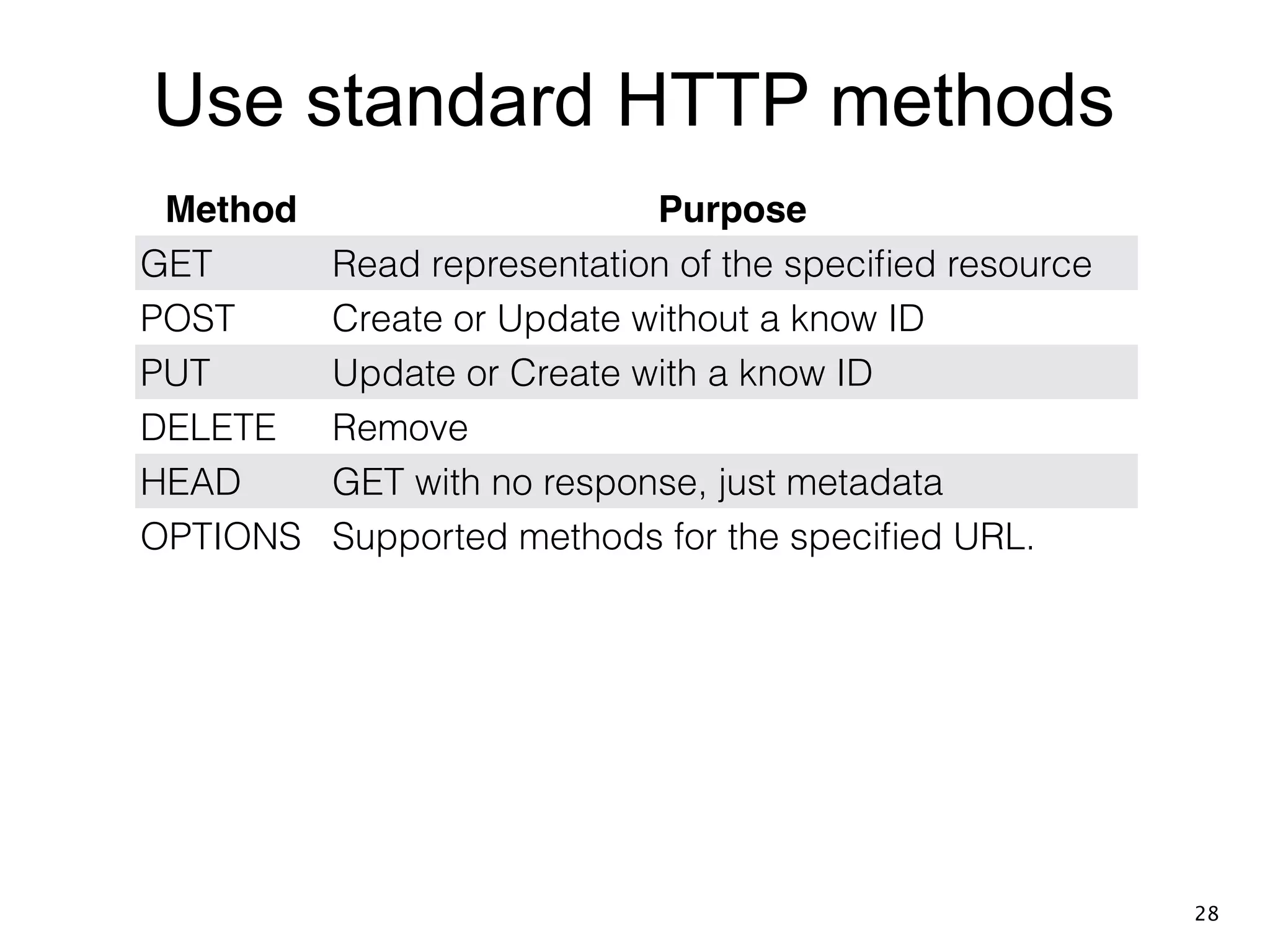

- 28. Use standard HTTPmethods Method Purpose GET Read representation of the specified resource POST Create or Update without a know ID PUT Update or Create with a know ID DELETE Remove HEAD GET with no response, just metadata OPTIONS Supported methods for the specified URL. 28

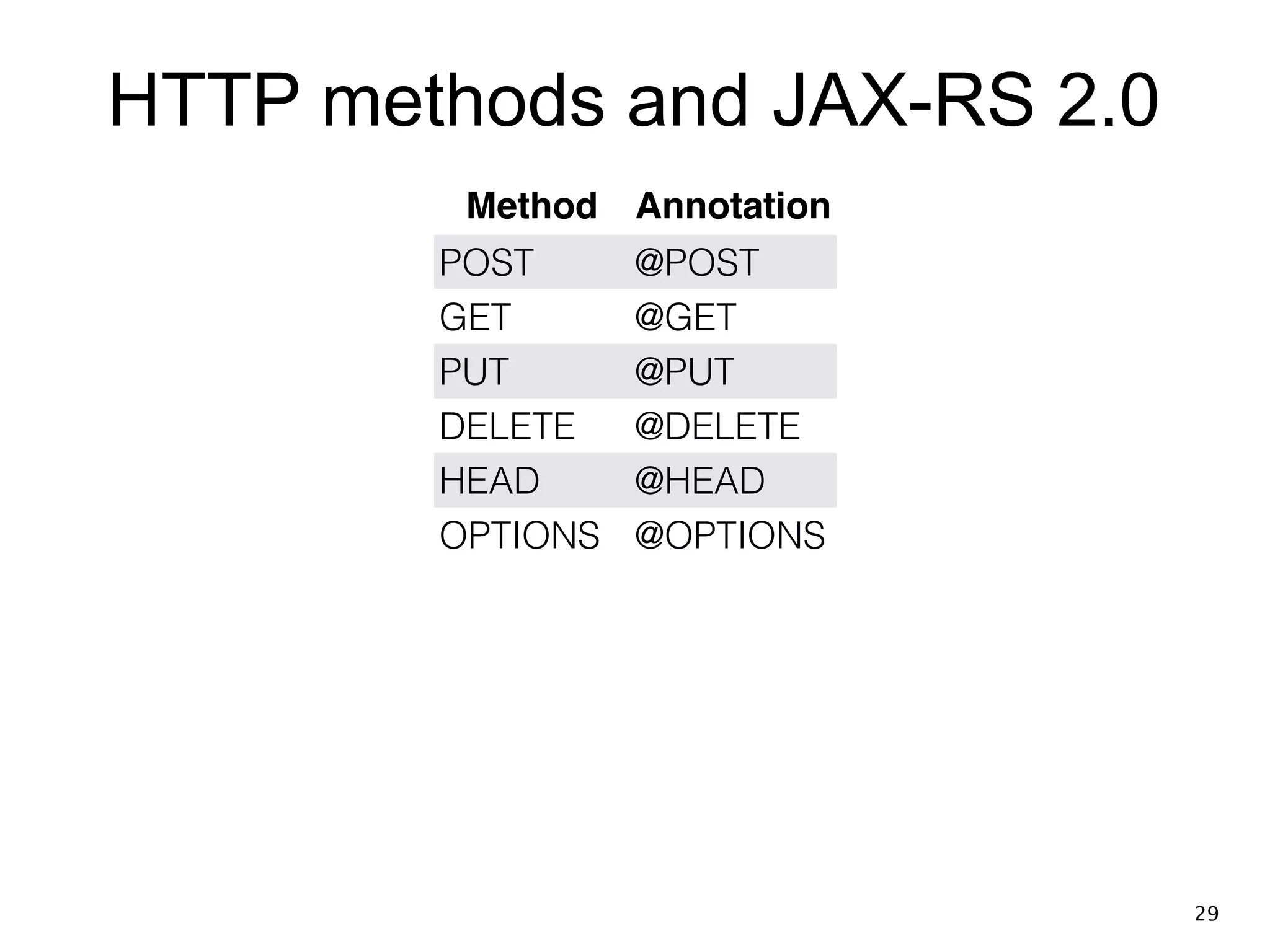

- 29. HTTP methods andJAX-RS 2.0 Method Annotation POST @POST GET @GET PUT @PUT DELETE @DELETE HEAD @HEAD OPTIONS @OPTIONS 29
- 30.

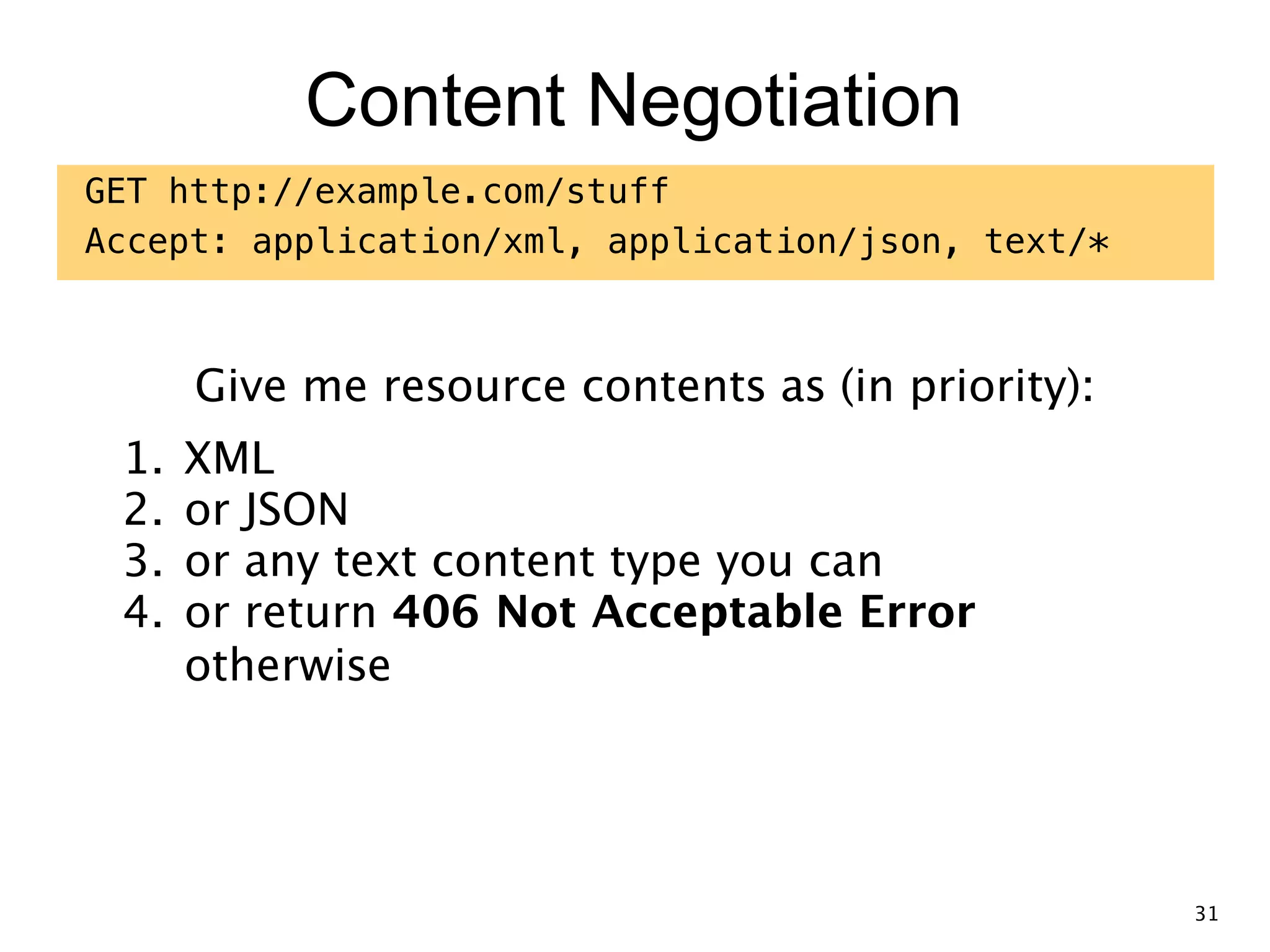

- 31. Content Negotiation GET http://example.com/stuff Accept:application/xml, application/json, text/* Give me resource contents as (in priority): 1. XML 2. or JSON 3. or any text content type you can 4. or return 406 Not Acceptable Error otherwise 31

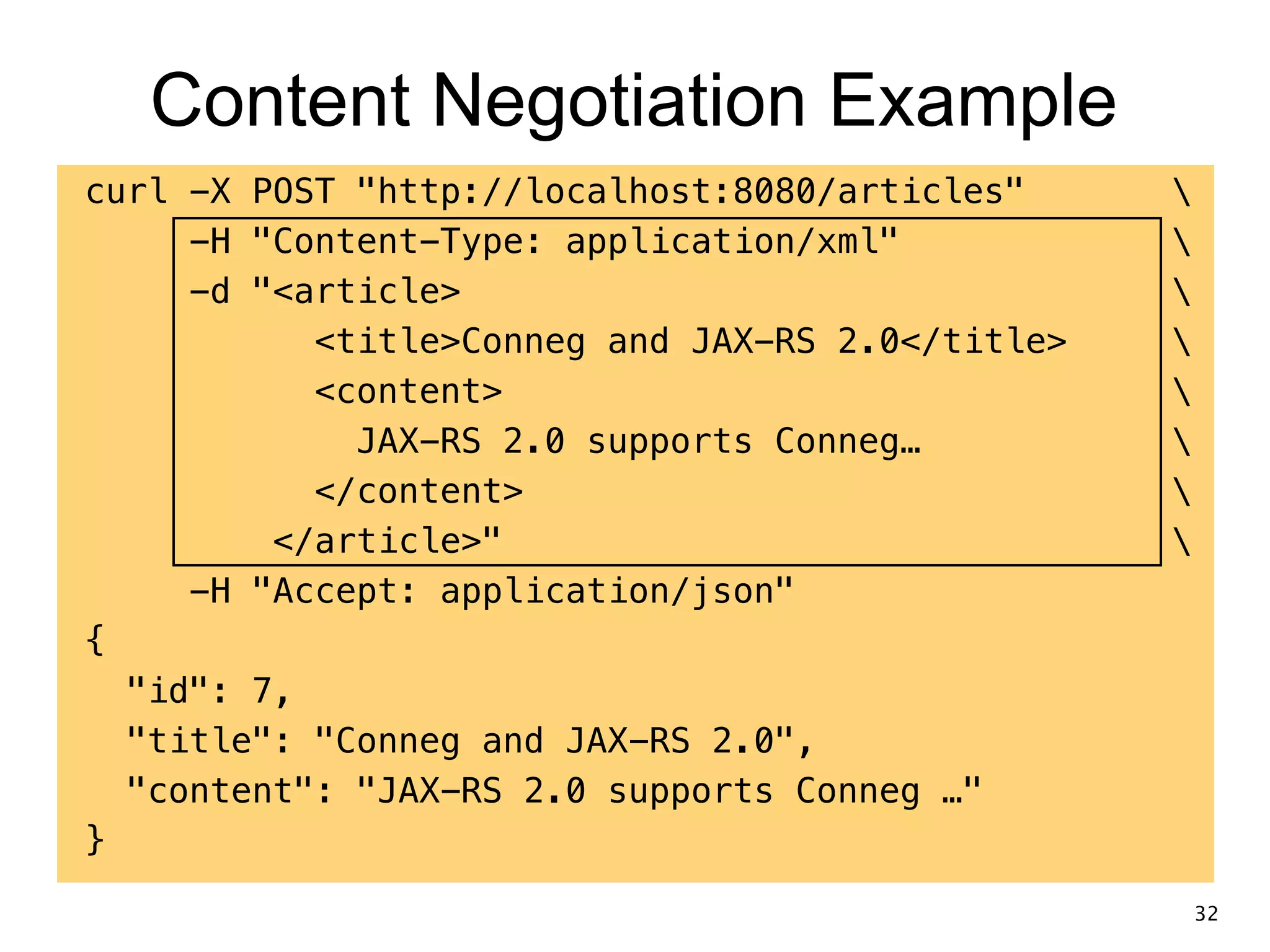

- 32. Content Negotiation Example curl-X POST "http://localhost:8080/articles" -H "Content-Type: application/xml" -d "<article> <title>Conneg and JAX-RS 2.0</title> <content> JAX-RS 2.0 supports Conneg… </content> </article>" -H "Accept: application/json" { "id": 7, "title": "Conneg and JAX-RS 2.0", "content": "JAX-RS 2.0 supports Conneg …" } 32

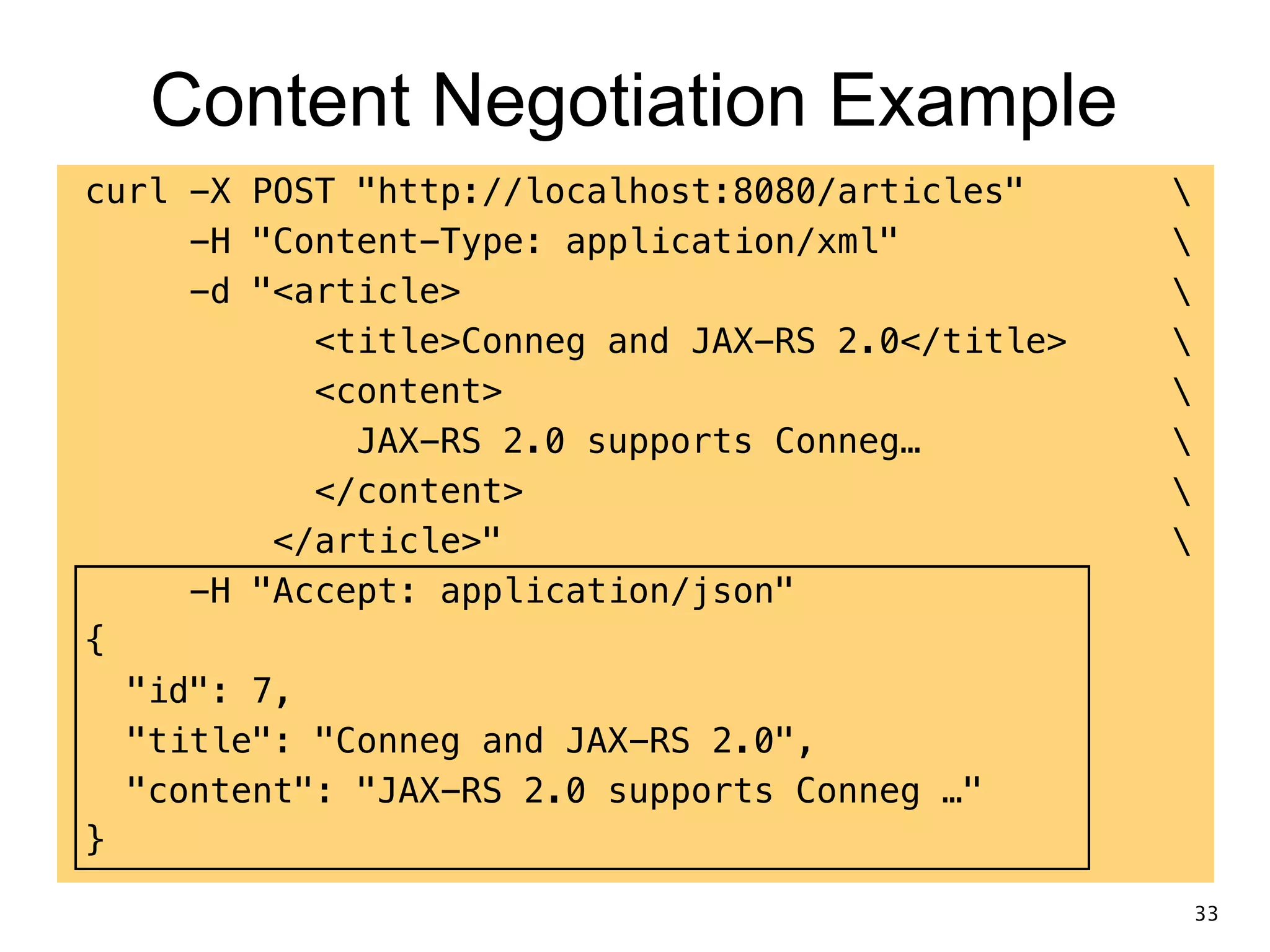

- 33. Content Negotiation Example curl-X POST "http://localhost:8080/articles" -H "Content-Type: application/xml" -d "<article> <title>Conneg and JAX-RS 2.0</title> <content> JAX-RS 2.0 supports Conneg… </content> </article>" -H "Accept: application/json" { "id": 7, "title": "Conneg and JAX-RS 2.0", "content": "JAX-RS 2.0 supports Conneg …" } 33

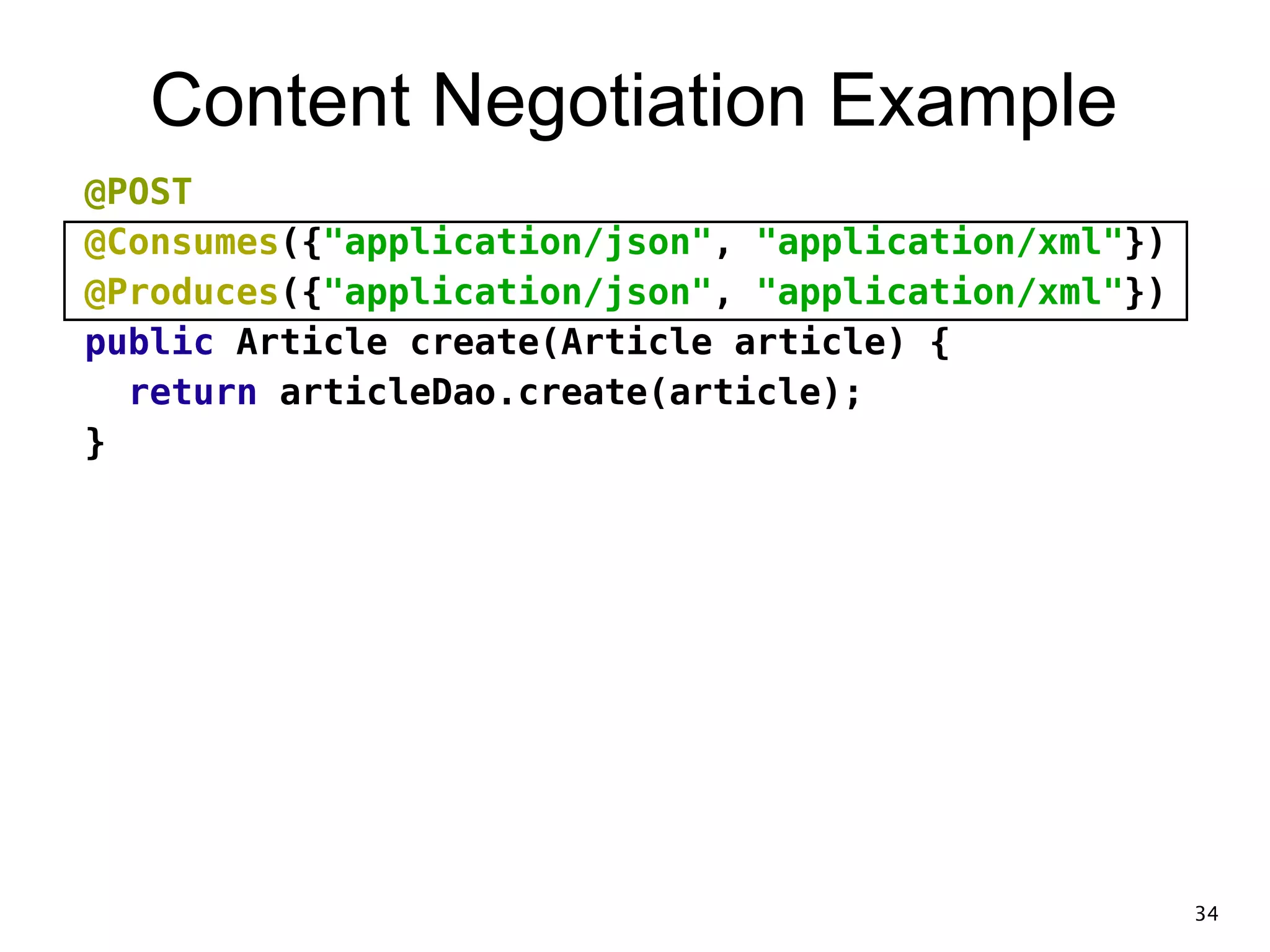

- 34. Content Negotiation Example @POST @Consumes({"application/json","application/xml"}) @Produces({"application/json", "application/xml"}) public Article create(Article article) { return articleDao.create(article); } 34

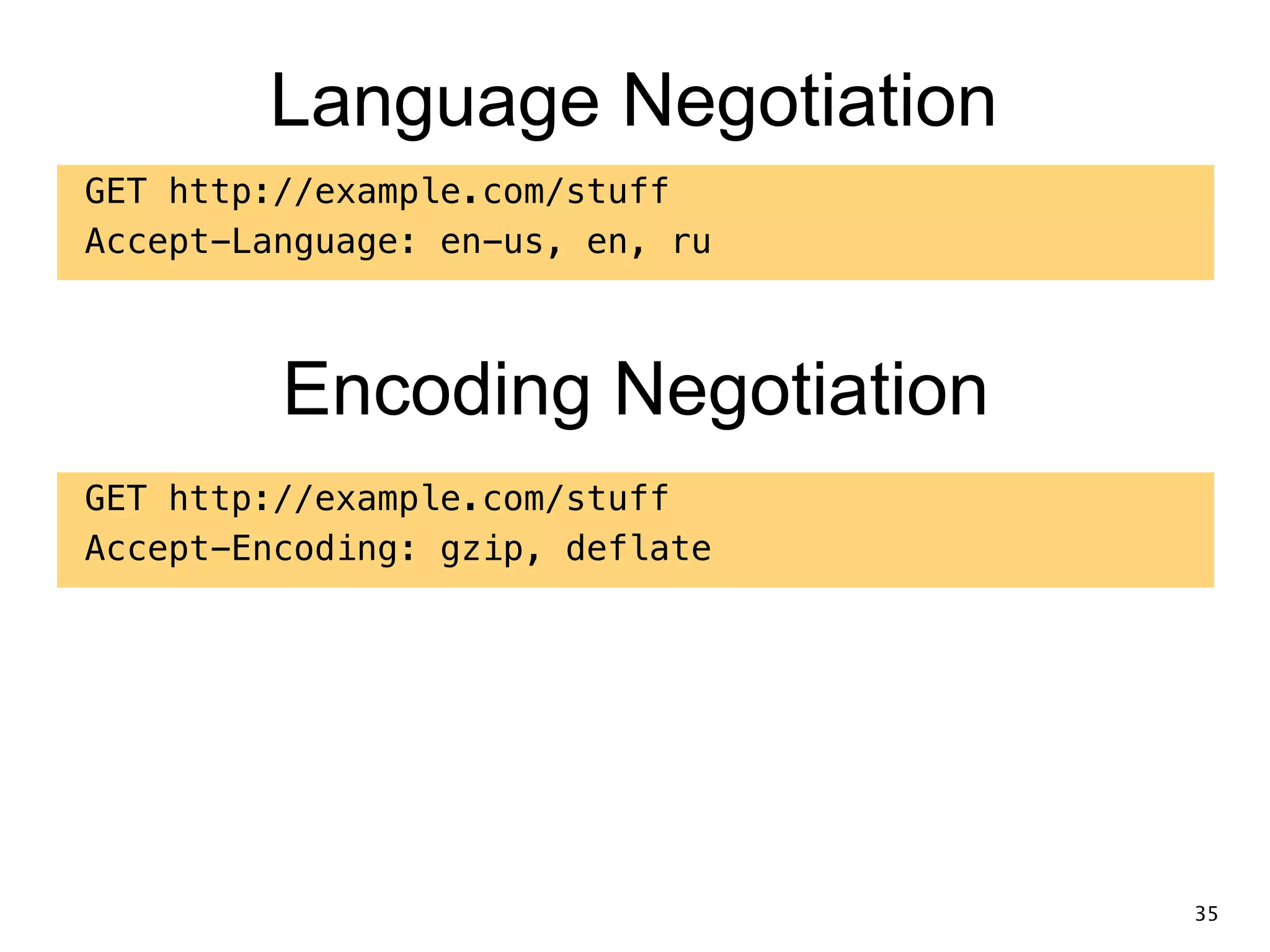

- 35. Language Negotiation GET http://example.com/stuff Accept-Language:en-us, en, ru Encoding Negotiation GET http://example.com/stuff Accept-Encoding: gzip, deflate 35
- 36.

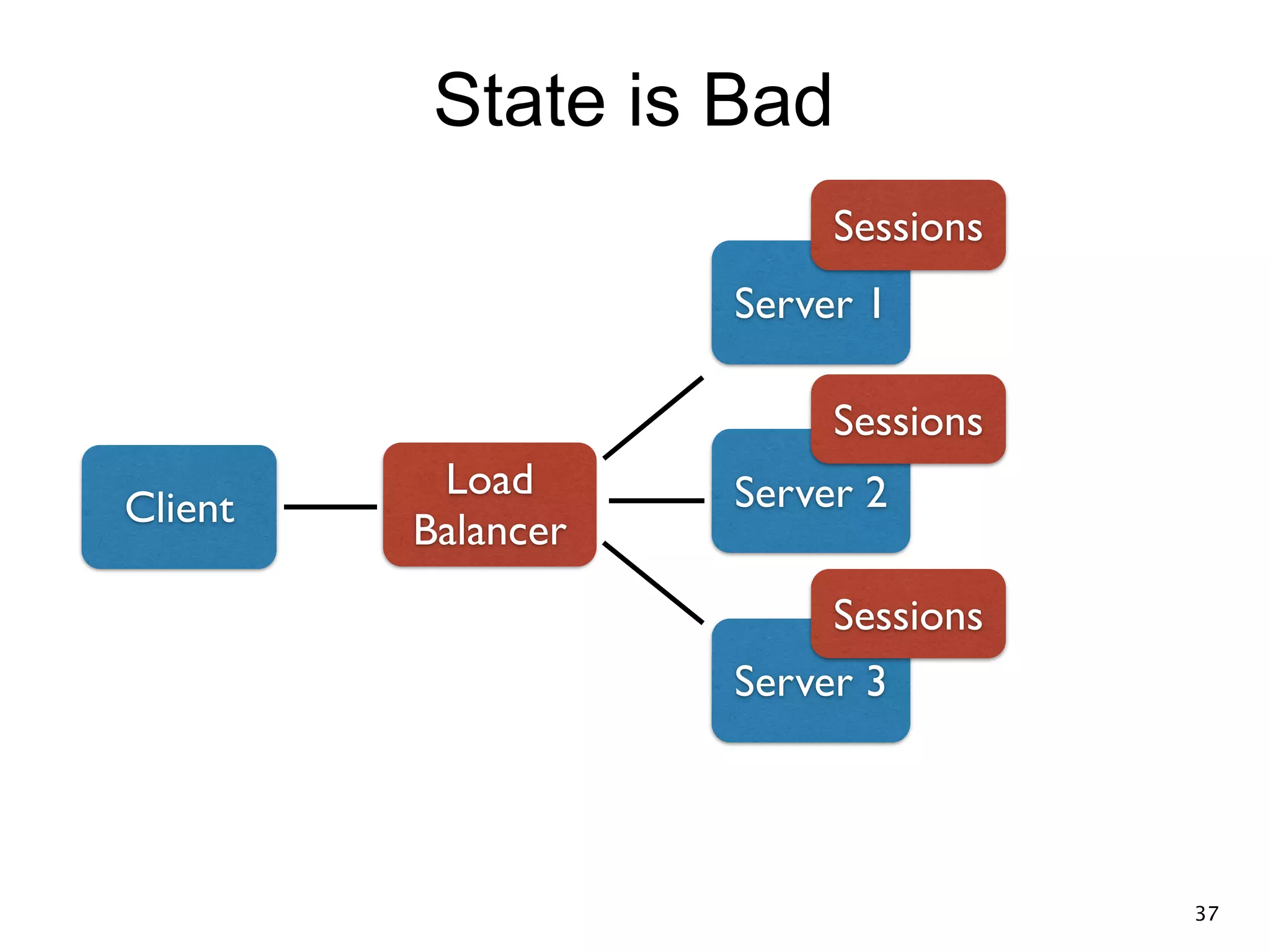

- 37. State is Bad Client Load Balancer Server1 Sessions Server 3 Sessions Server 2 Sessions 37

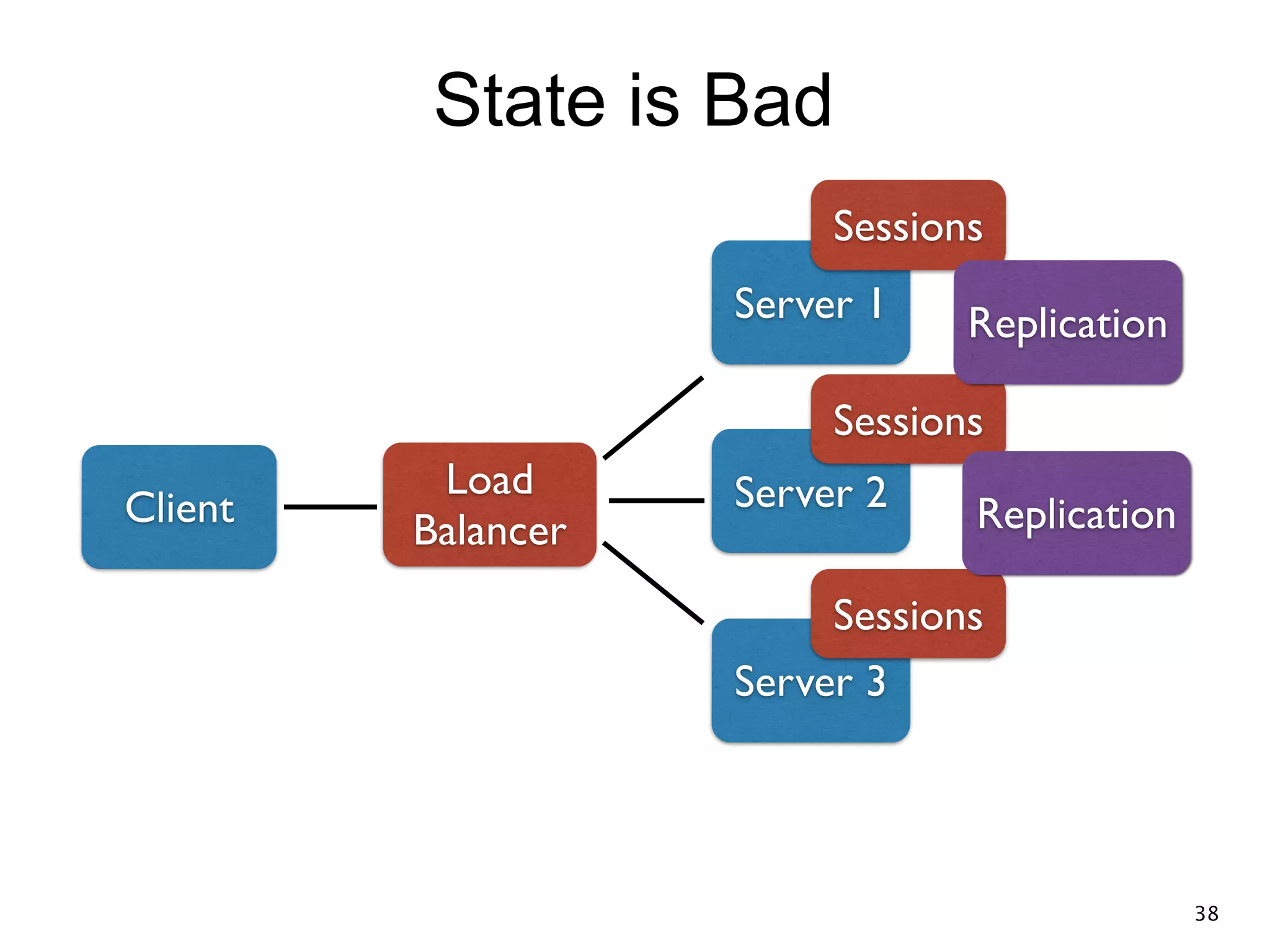

- 38. State is Bad Client Load Balancer Server1 Sessions Server 3 Sessions Server 2 Sessions Replication Replication 38

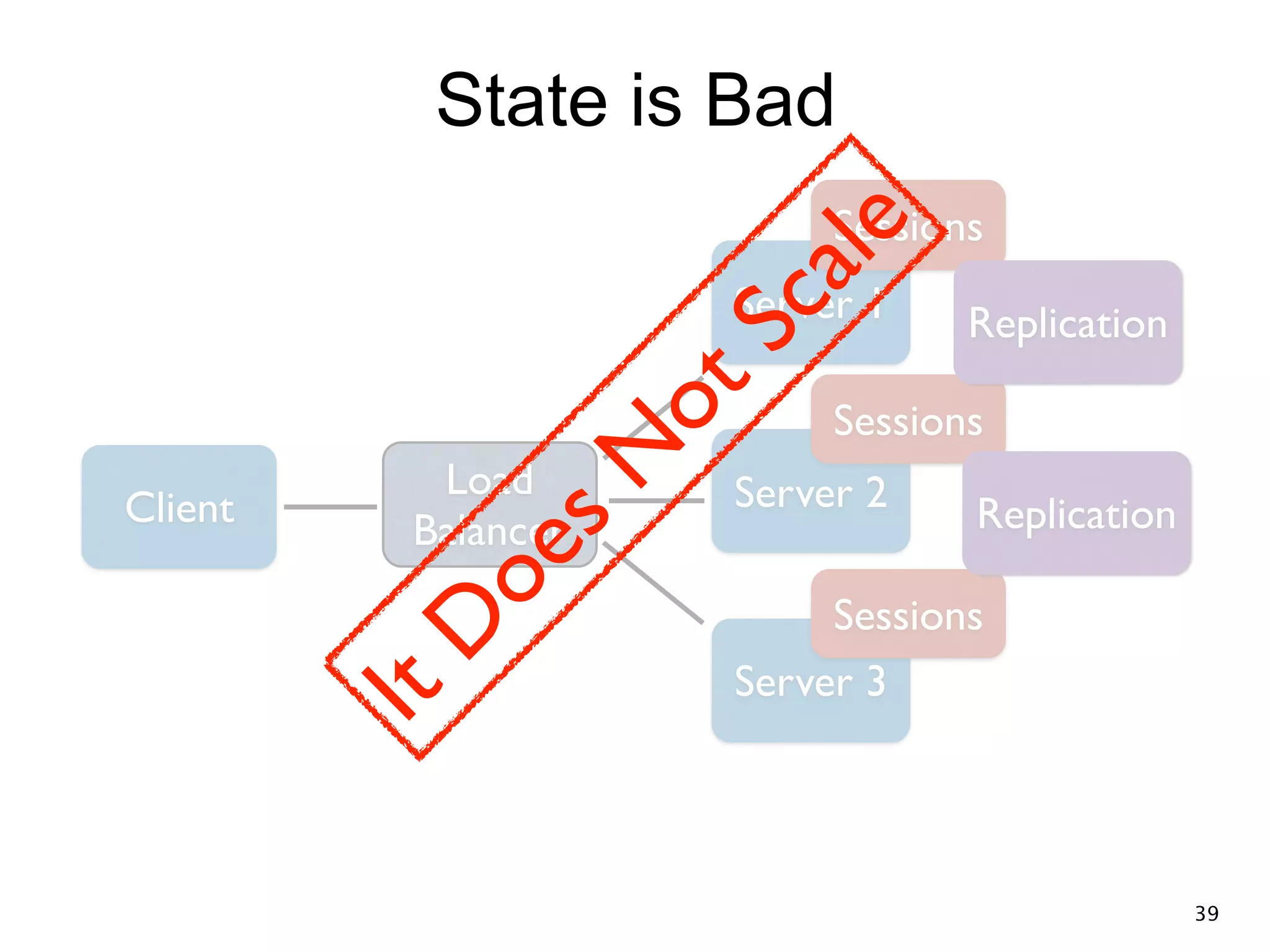

- 39. State is Bad Client Load Balancer Server1 Sessions Server 3 Sessions Server 2 Sessions Replication Replication ItD oesN otScale 39

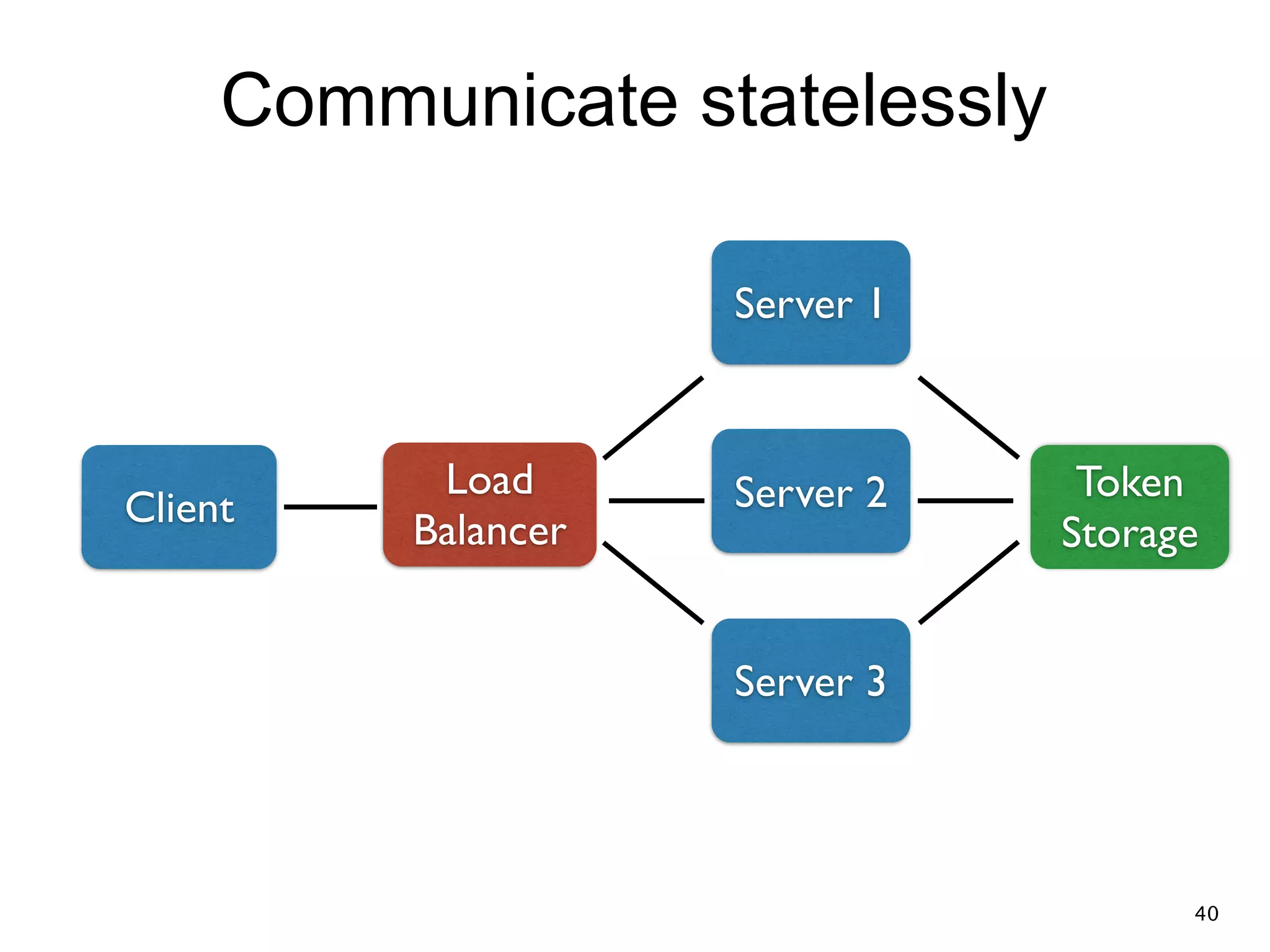

- 40. Communicate statelessly Client Load Balancer Server 1 Server3 Server 2 Token Storage 40

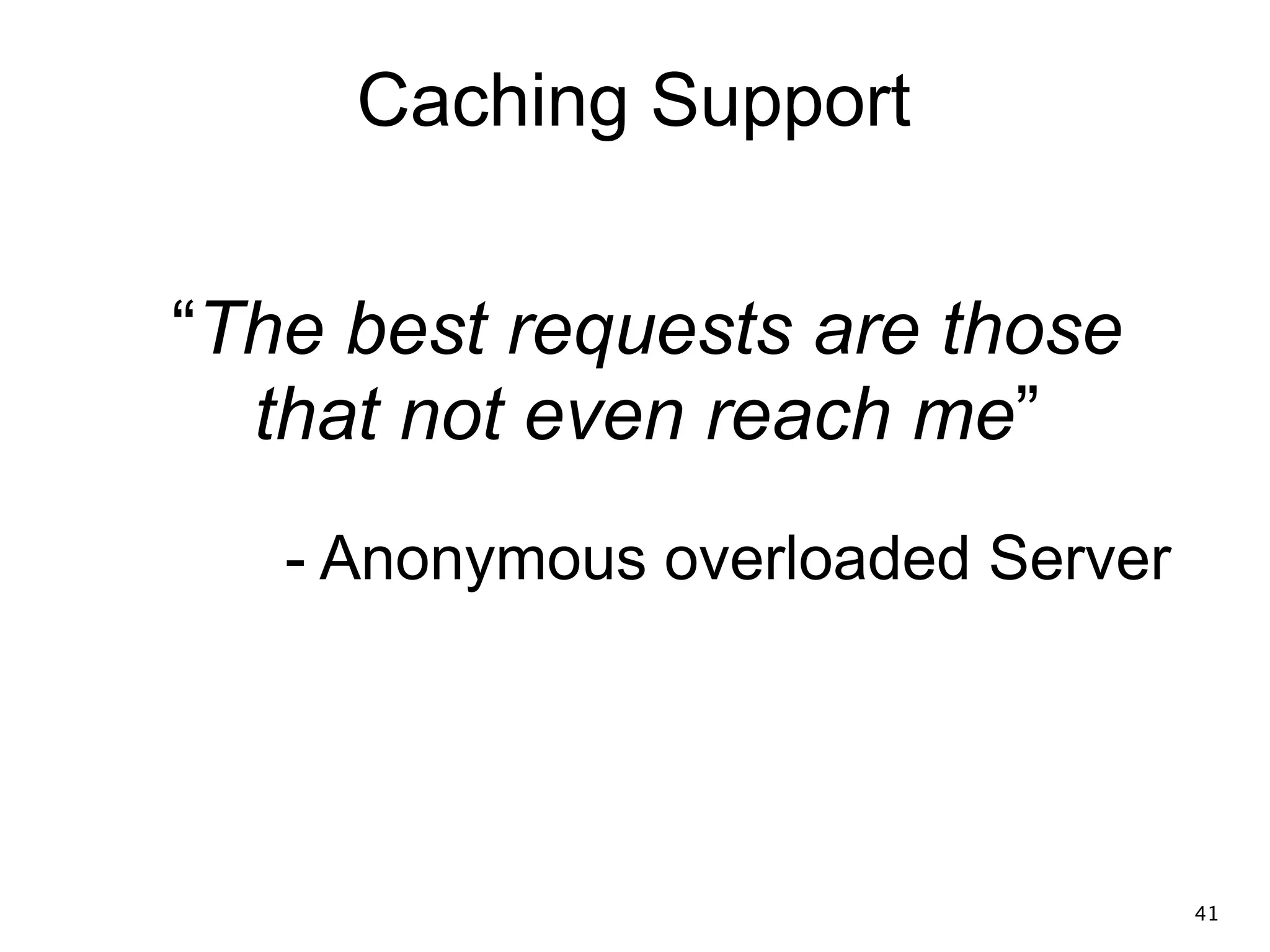

- 41. Caching Support “The bestrequests are those that not even reach me” - Anonymous overloaded Server 41

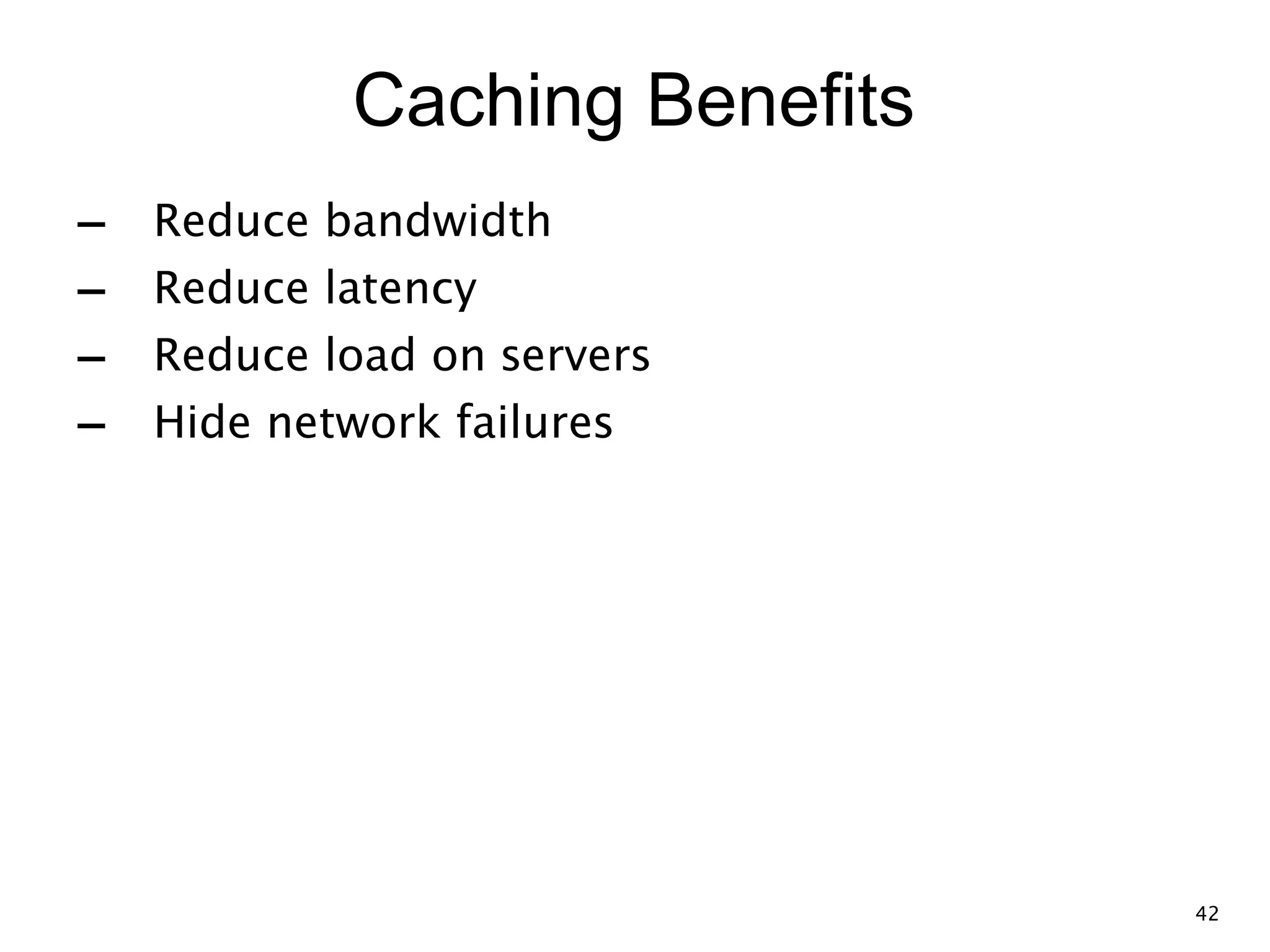

- 42. Caching Benefits - Reducebandwidth - Reduce latency - Reduce load on servers - Hide network failures 42
- 43.

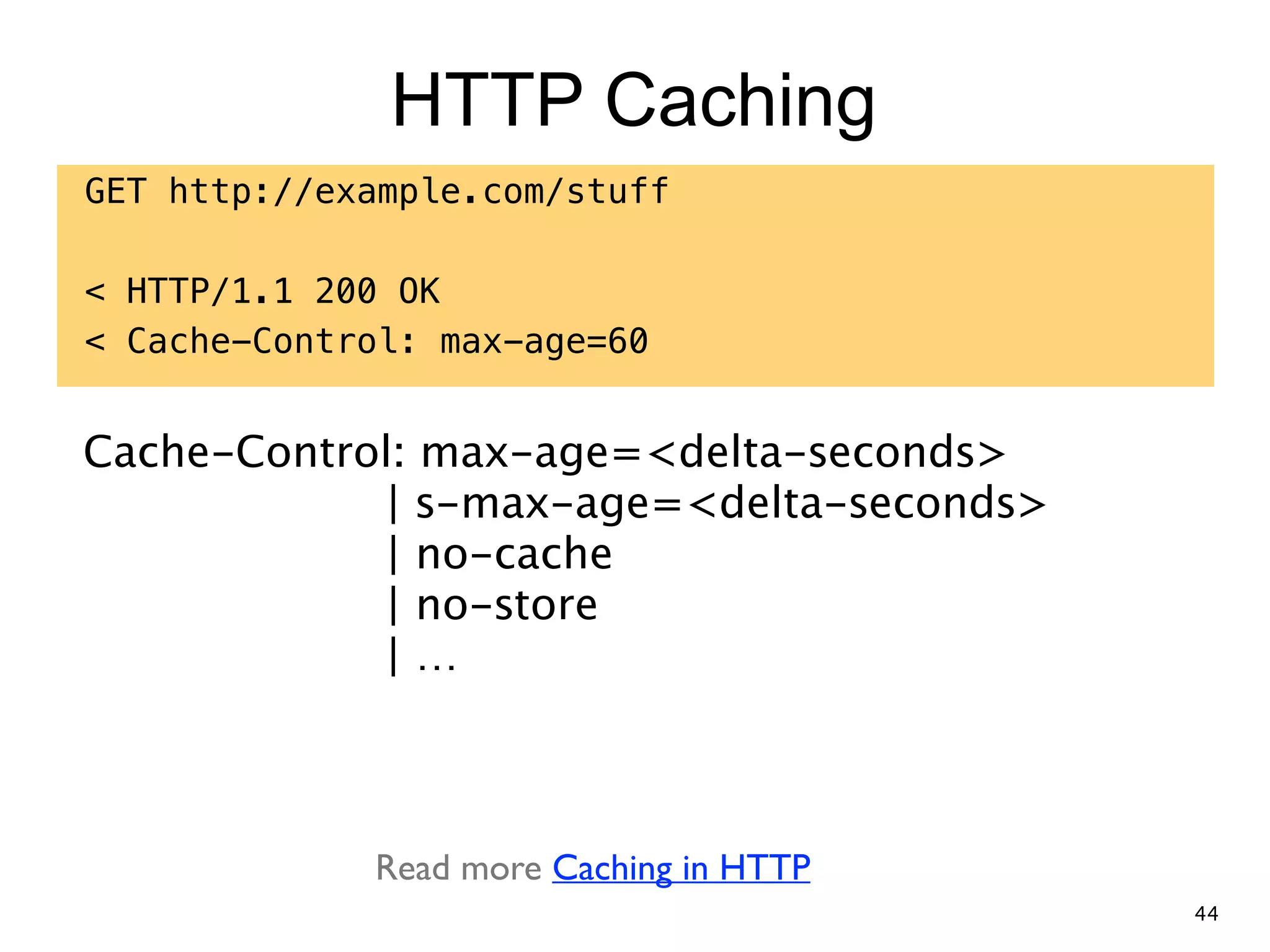

- 44. HTTP Caching GET http://example.com/stuff ! <HTTP/1.1 200 OK < Cache-Control: max-age=60 Cache-Control: max-age=<delta-seconds> | s-max-age=<delta-seconds> | no-cache | no-store | … Read more Caching in HTTP 44

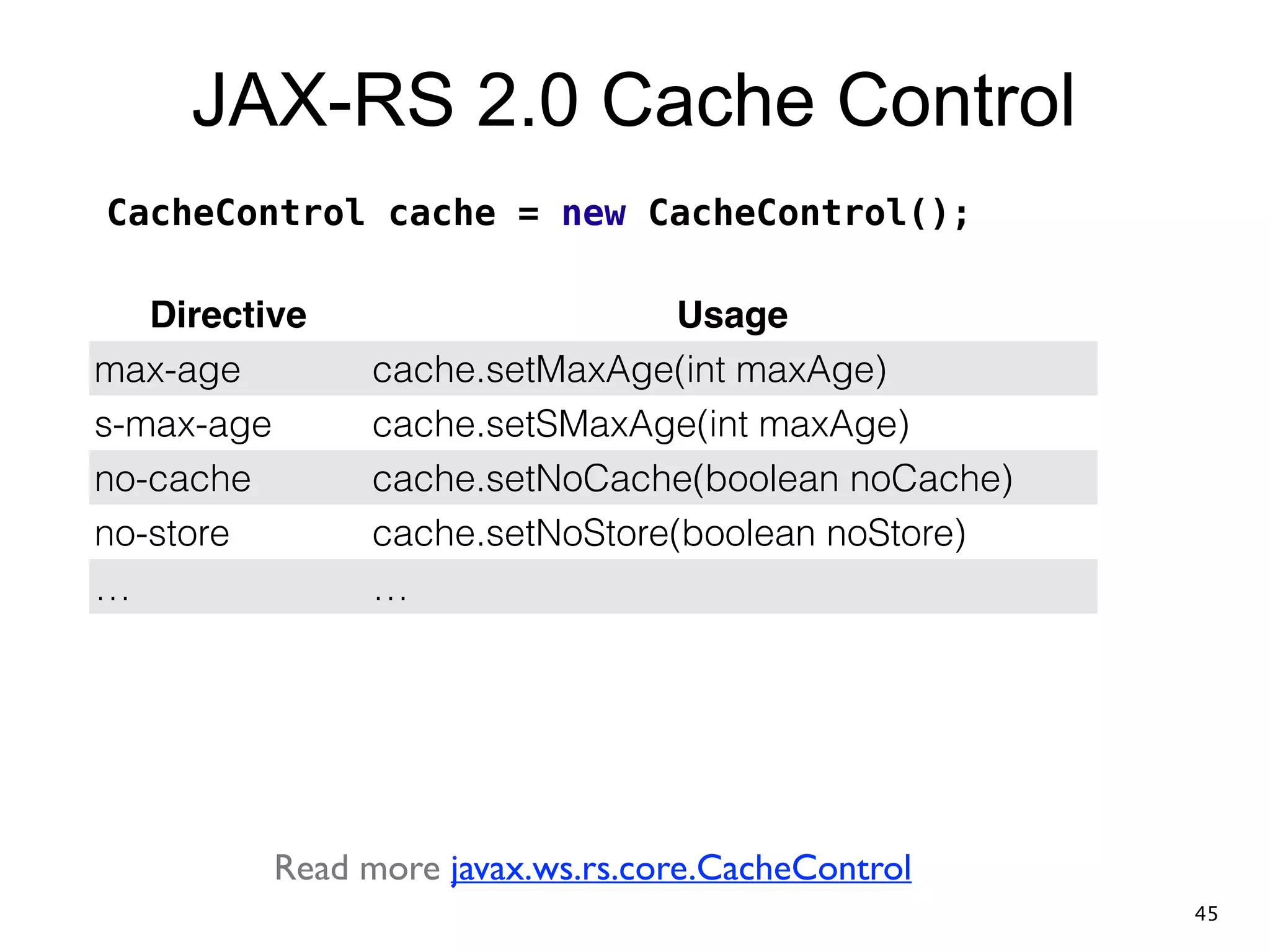

- 45. JAX-RS 2.0 CacheControl Directive Usage max-age cache.setMaxAge(int maxAge) s-max-age cache.setSMaxAge(int maxAge) no-cache cache.setNoCache(boolean noCache) no-store cache.setNoStore(boolean noStore) … … CacheControl cache = new CacheControl(); Read more javax.ws.rs.core.CacheControl 45

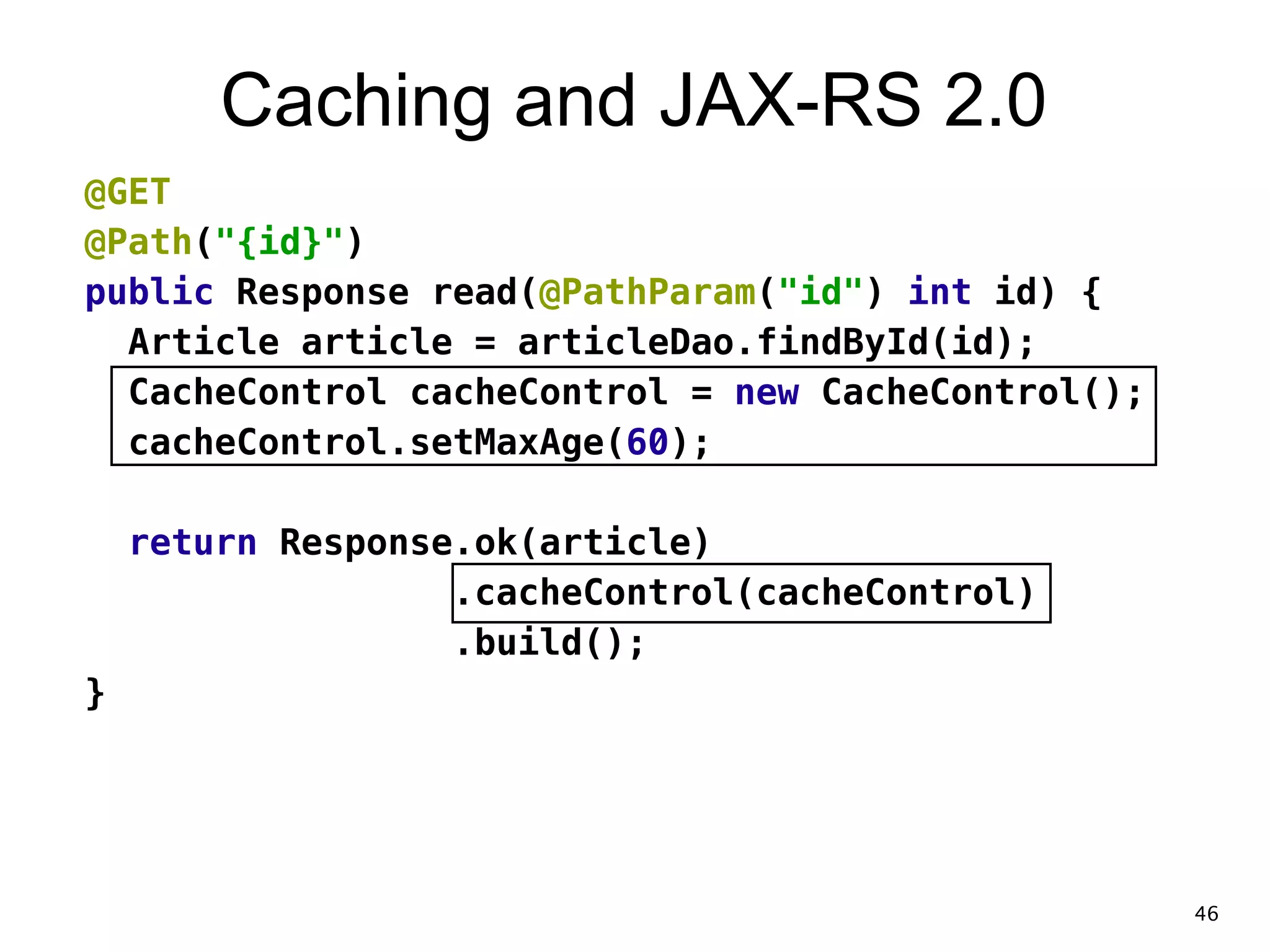

- 46. Caching and JAX-RS2.0 @GET @Path("{id}") public Response read(@PathParam("id") int id) { Article article = articleDao.findById(id); CacheControl cacheControl = new CacheControl(); cacheControl.setMaxAge(60); ! return Response.ok(article) .cacheControl(cacheControl) .build(); } 46

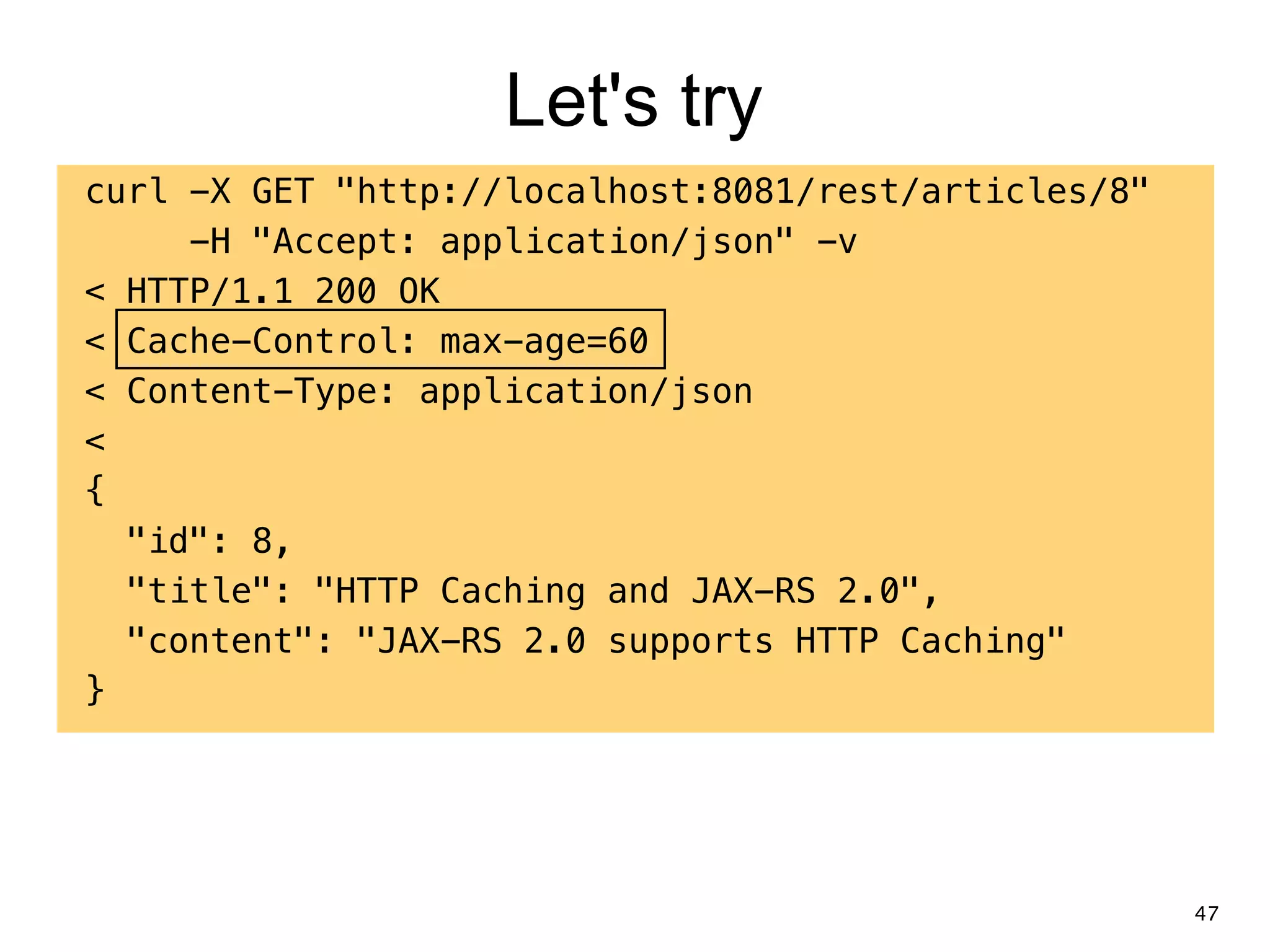

- 47. Let's try curl -XGET "http://localhost:8081/rest/articles/8" -H "Accept: application/json" -v < HTTP/1.1 200 OK < Cache-Control: max-age=60 < Content-Type: application/json < { "id": 8, "title": "HTTP Caching and JAX-RS 2.0", "content": "JAX-RS 2.0 supports HTTP Caching" } 47

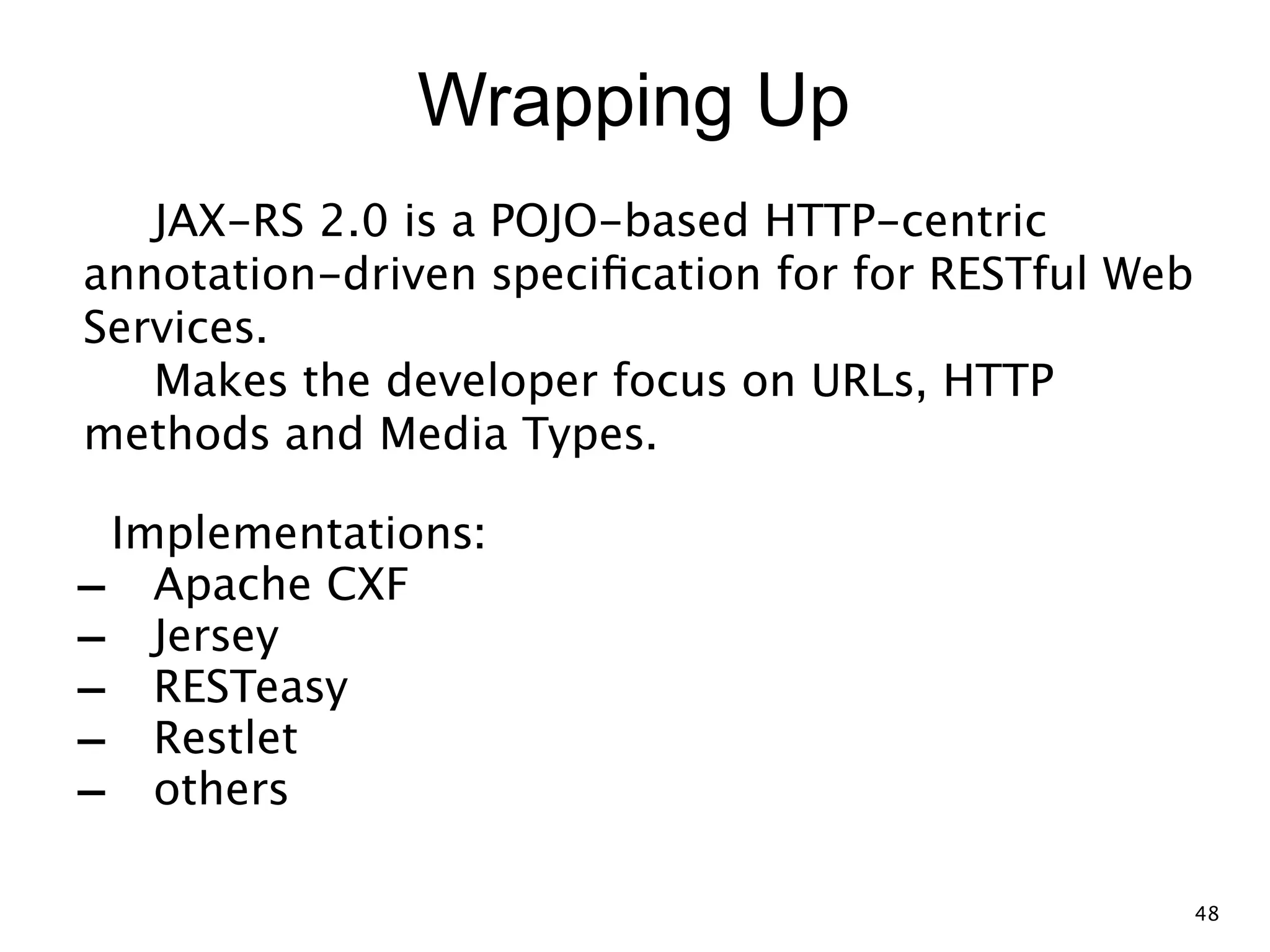

- 48. Wrapping Up JAX-RS 2.0is a POJO-based HTTP-centric annotation-driven specification for for RESTful Web Services. Makes the developer focus on URLs, HTTP methods and Media Types. Implementations: - Apache CXF - Jersey - RESTeasy - Restlet - others 48
