M2M Protocol Interoperability using IoT Toolkit

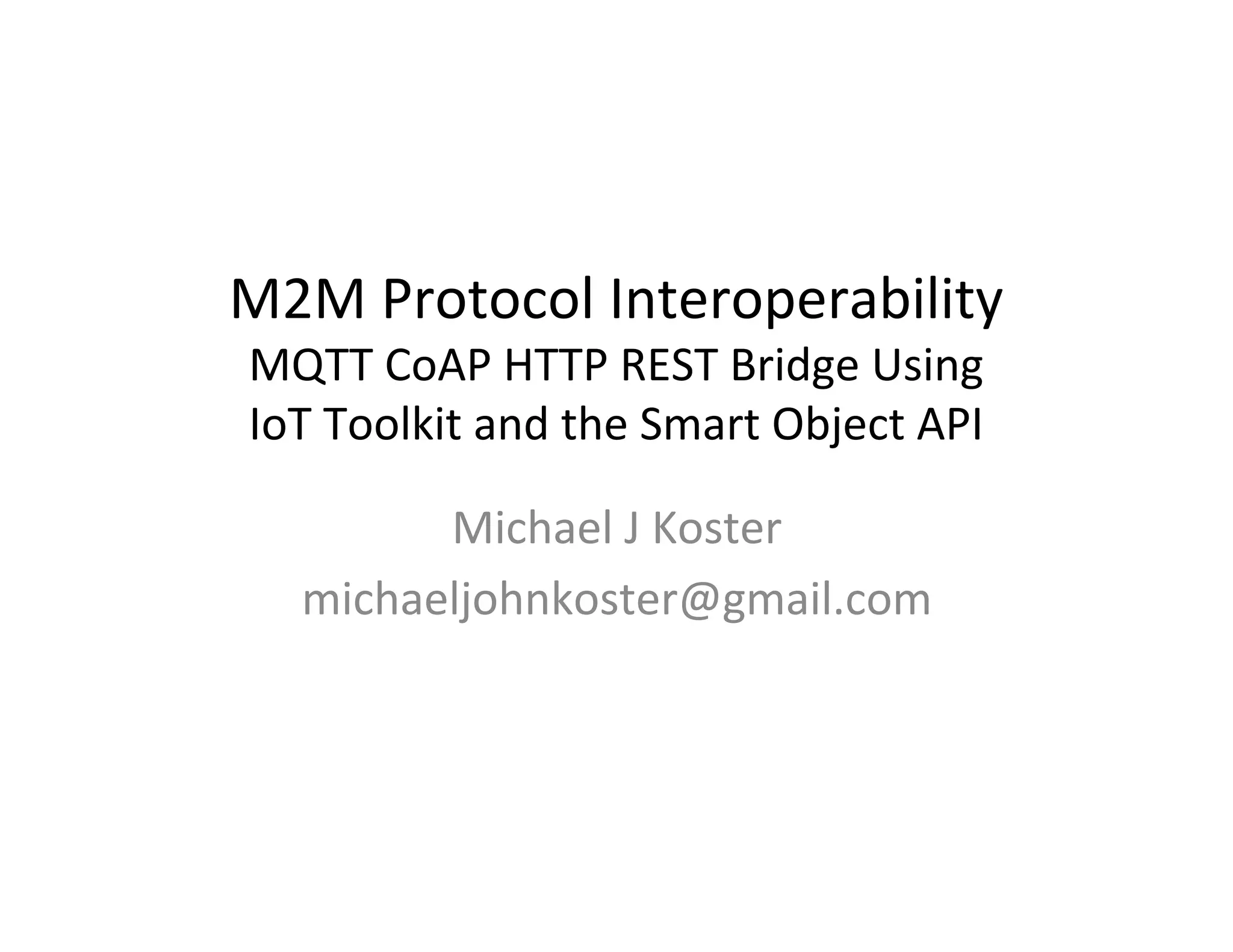

M2M Protocol Interoperability MQTT CoAP HTTP REST Bridge Using IoT Toolkit and the Smart Object API Michael J Koster michaeljohnkoster@gmail.com

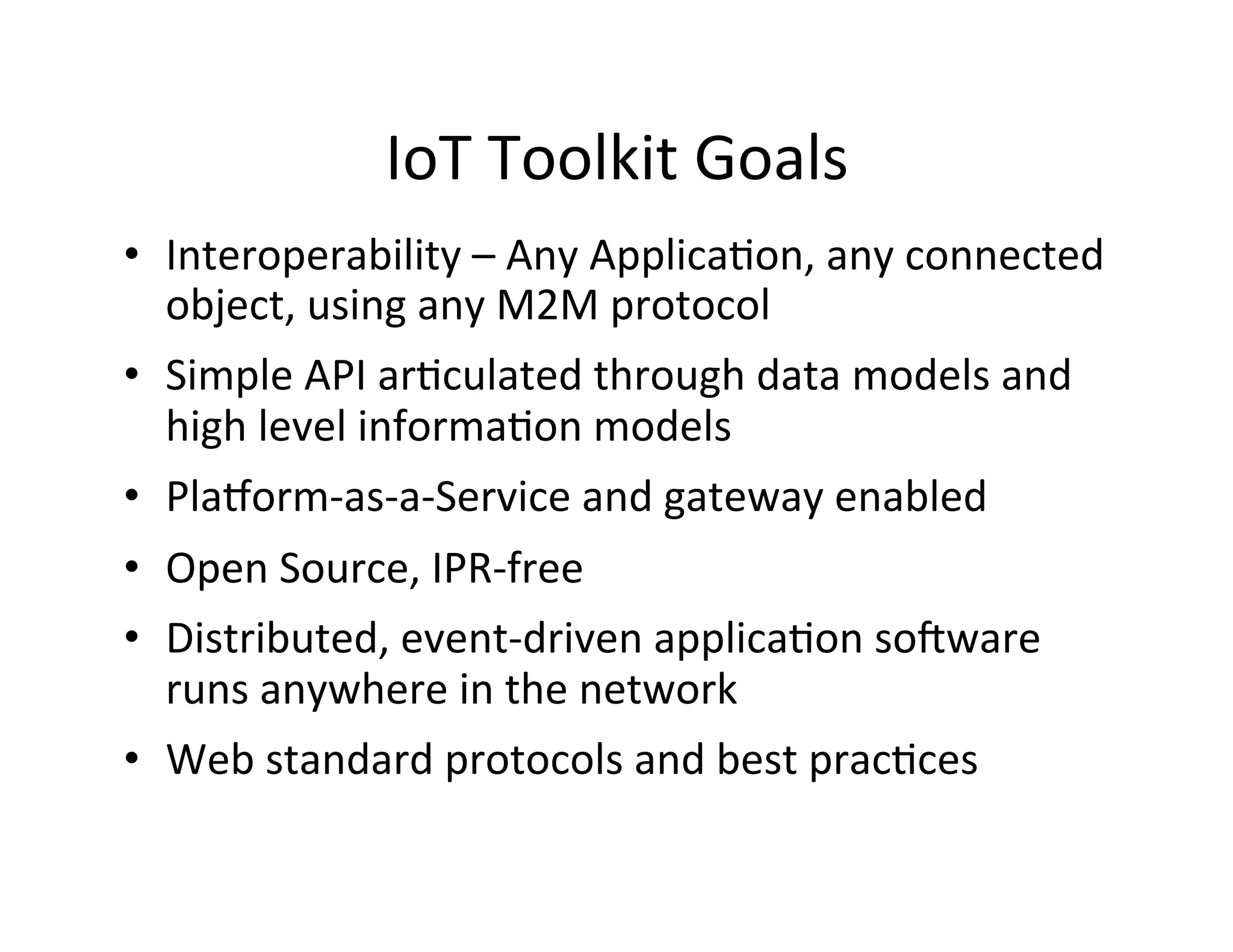

IoT Toolkit Goals •  Interoperability – Any ApplicaJon, any connected object, using any M2M protocol •  Simple API arJculated through data models and high level informaJon models •  PlaOorm-‐as-‐a-‐Service and gateway enabled •  Open Source, IPR-‐free •  Distributed, event-‐driven applicaJon soSware runs anywhere in the network •  Web standard protocols and best pracJces

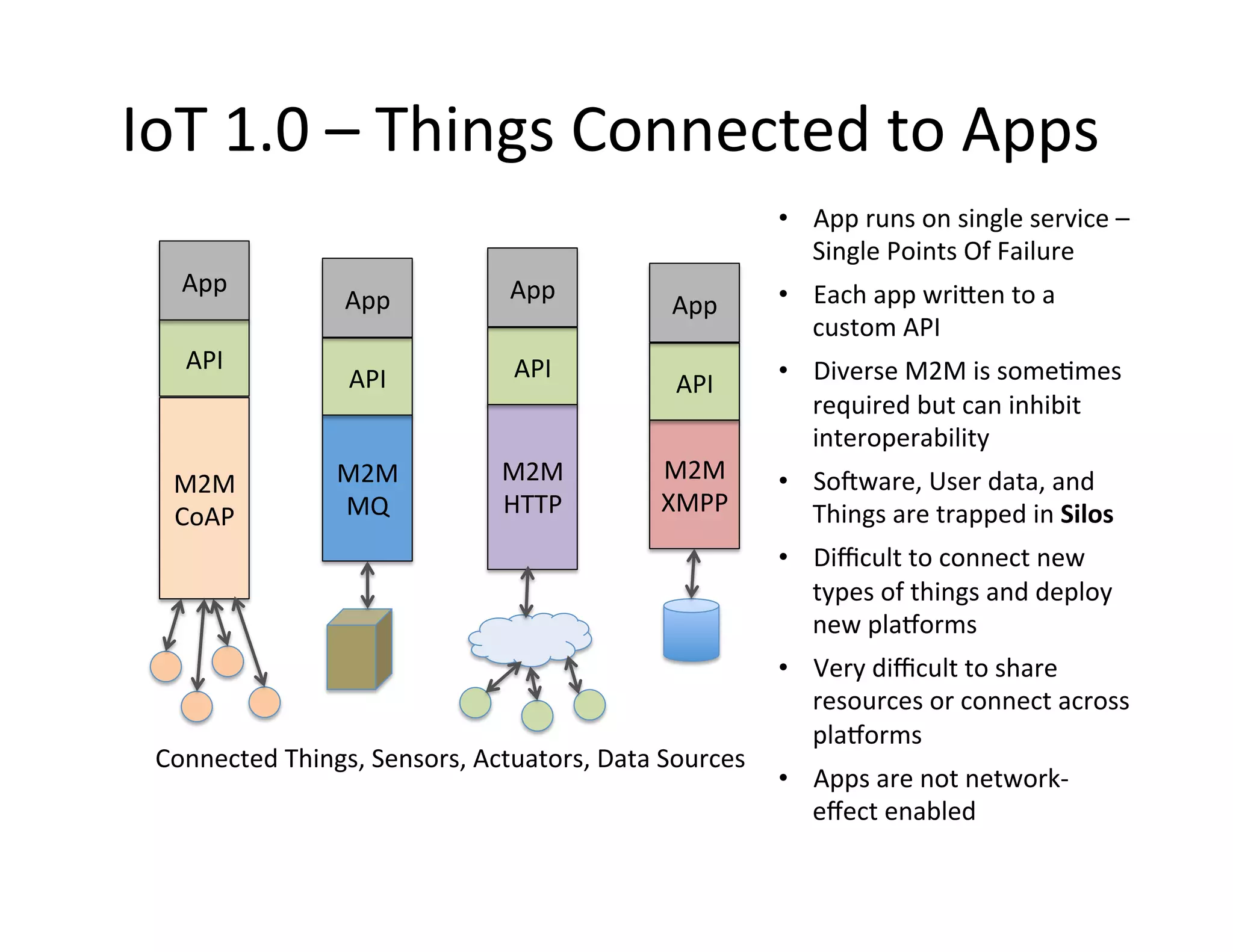

API IoT 1.0 – Things Connected to Apps M2M CoAP M2M MQ M2M XMPP M2M HTTP App API App API App API App •  App runs on single service – Single Points Of Failure •  Each app wriYen to a custom API •  Diverse M2M is someJmes required but can inhibit interoperability •  SoSware, User data, and Things are trapped in Silos •  Difficult to connect new types of things and deploy new plaOorms •  Very difficult to share resources or connect across plaOorms •  Apps are not network-‐ effect enabled Connected Things, Sensors, Actuators, Data Sources

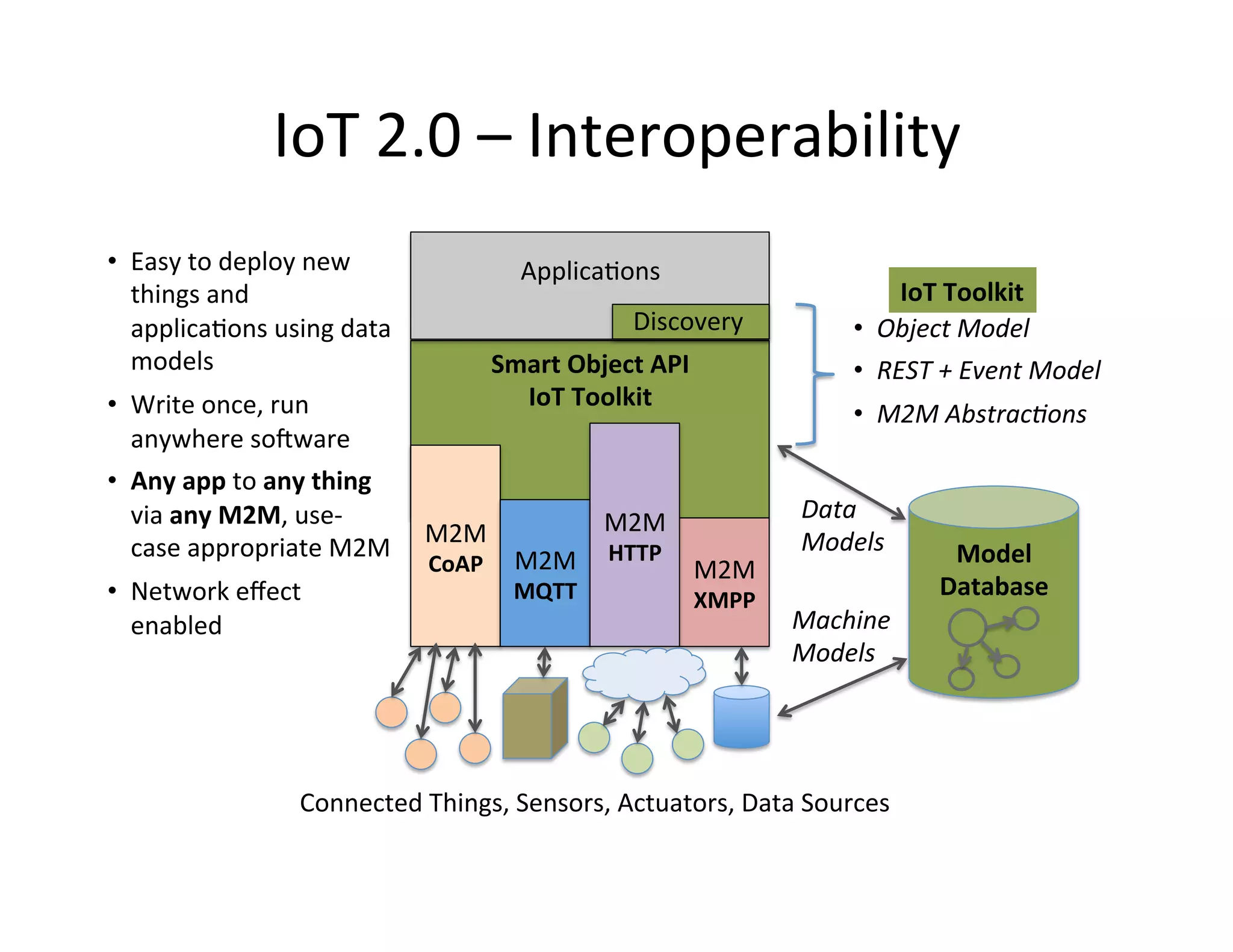

IoT 2.0 – Interoperability M2M CoAP M2M MQTT M2M XMPP M2M HTTP Smart Object API IoT Toolkit Discovery ApplicaJons Data Models •  Object Model •  REST + Event Model •  M2M Abstrac9ons IoT Toolkit Connected Things, Sensors, Actuators, Data Sources Model Database •  Easy to deploy new things and applicaJons using data models •  Write once, run anywhere soSware •  Any app to any thing via any M2M, use-‐ case appropriate M2M •  Network eﬀect enabled Machine Models

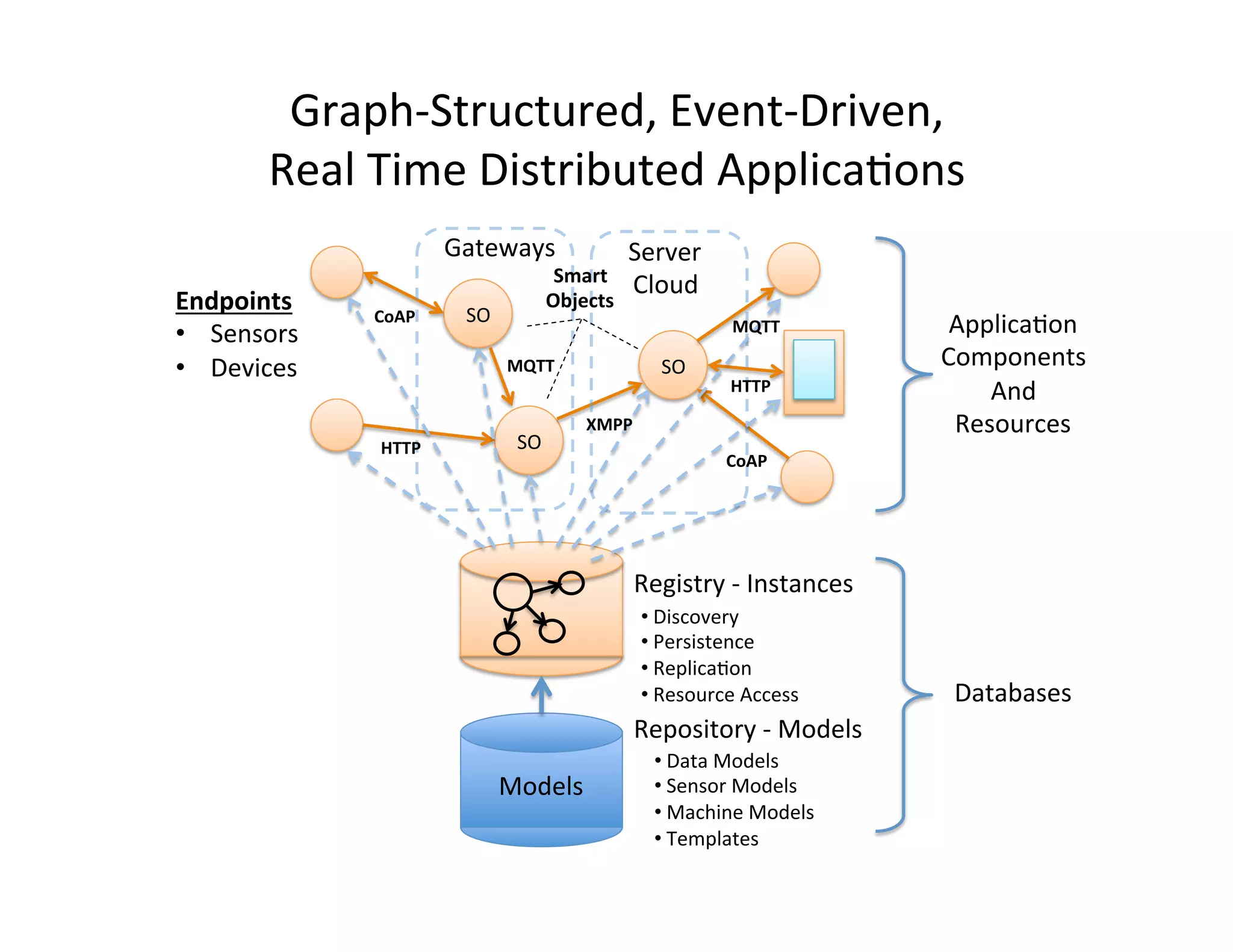

Graph-‐Structured, Event-‐Driven, Real Time Distributed ApplicaJons SO SO SO Gateways Server Cloud Endpoints •  Sensors •  Devices ApplicaJon Components And Resources Databases Registry -‐ Instances Repository -‐ Models Models • Discovery • Persistence • ReplicaJon • Resource Access • Data Models • Sensor Models • Machine Models • Templates HTTP MQTT CoAP XMPP HTTP CoAP MQTT Smart Objects

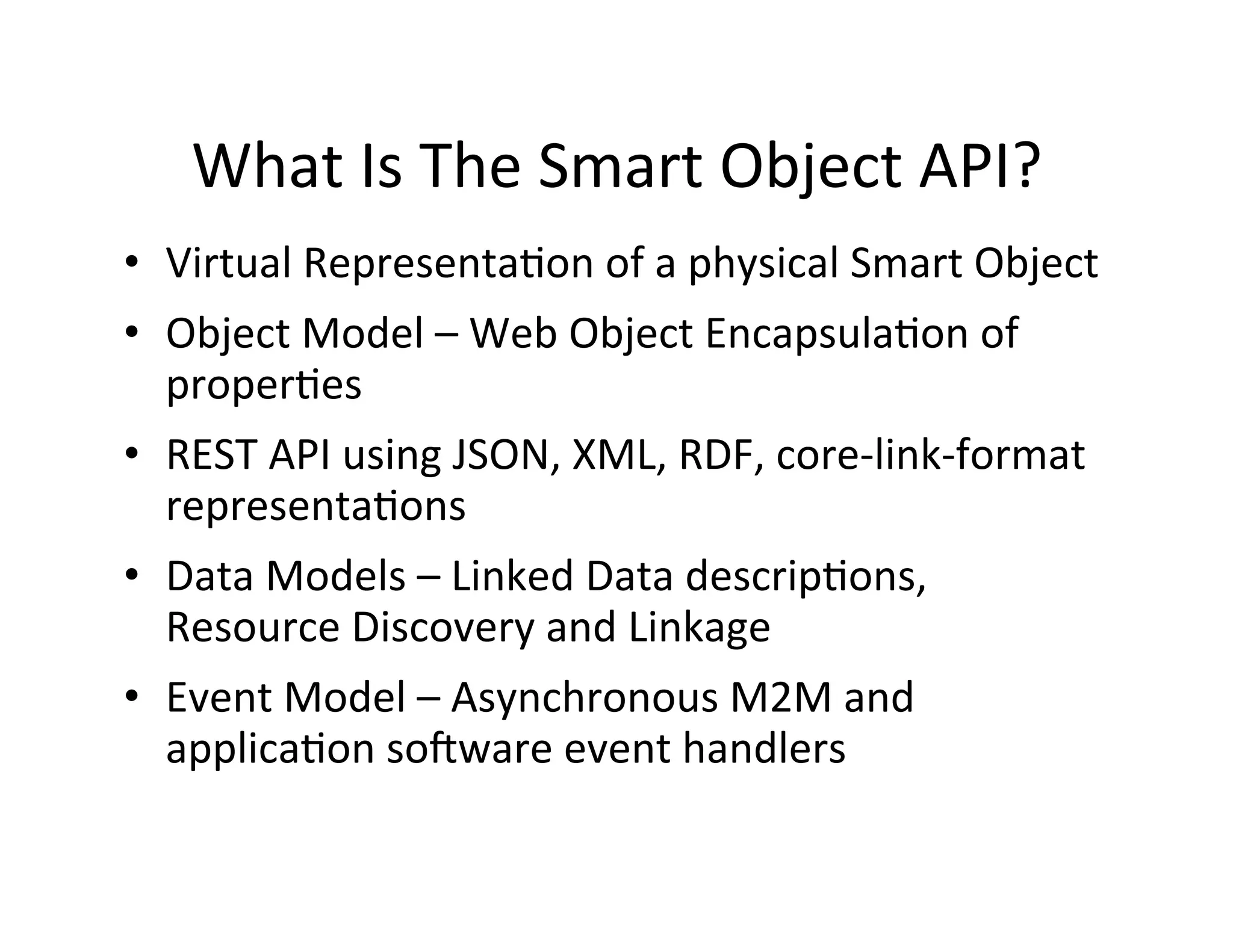

What Is The Smart Object API? •  Virtual RepresentaJon of a physical Smart Object •  Object Model – Web Object EncapsulaJon of properJes •  REST API using JSON, XML, RDF, core-‐link-‐format representaJons •  Data Models – Linked Data descripJons, Resource Discovery and Linkage •  Event Model – Asynchronous M2M and applicaJon soSware event handlers

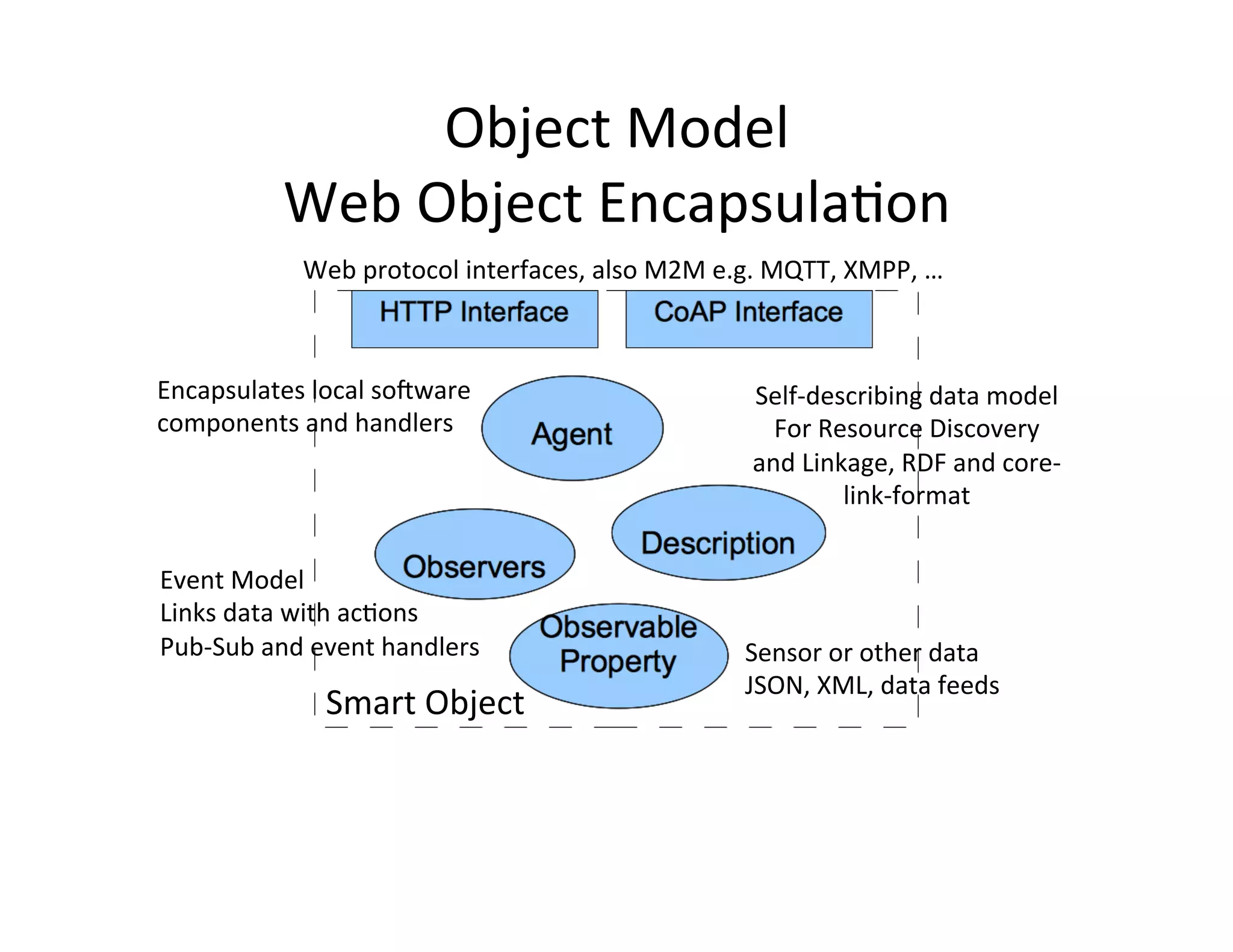

Object Model Web Object EncapsulaJon Smart Object Web protocol interfaces, also M2M e.g. MQTT, XMPP, … Event Model Links data with acJons Pub-‐Sub and event handlers Encapsulates local soSware components and handlers Self-‐describing data model For Resource Discovery and Linkage, RDF and core-‐ link-‐format Sensor or other data JSON, XML, data feeds

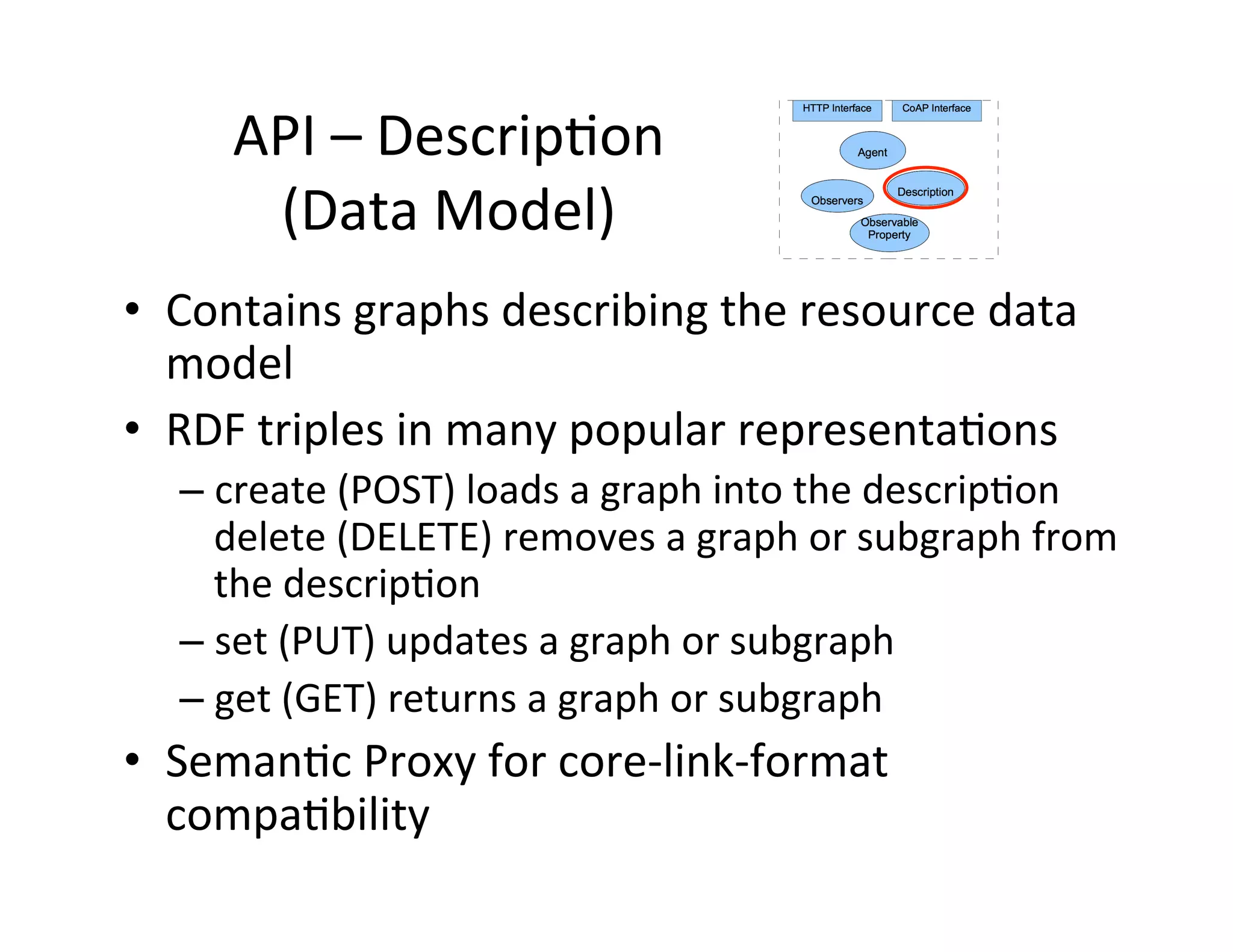

API – DescripJon (Data Model) •  Contains graphs describing the resource data model •  RDF triples in many popular representaJons – create (POST) loads a graph into the descripJon delete (DELETE) removes a graph or subgraph from the descripJon – set (PUT) updates a graph or subgraph – get (GET) returns a graph or subgraph •  SemanJc Proxy for core-‐link-‐format compaJbility

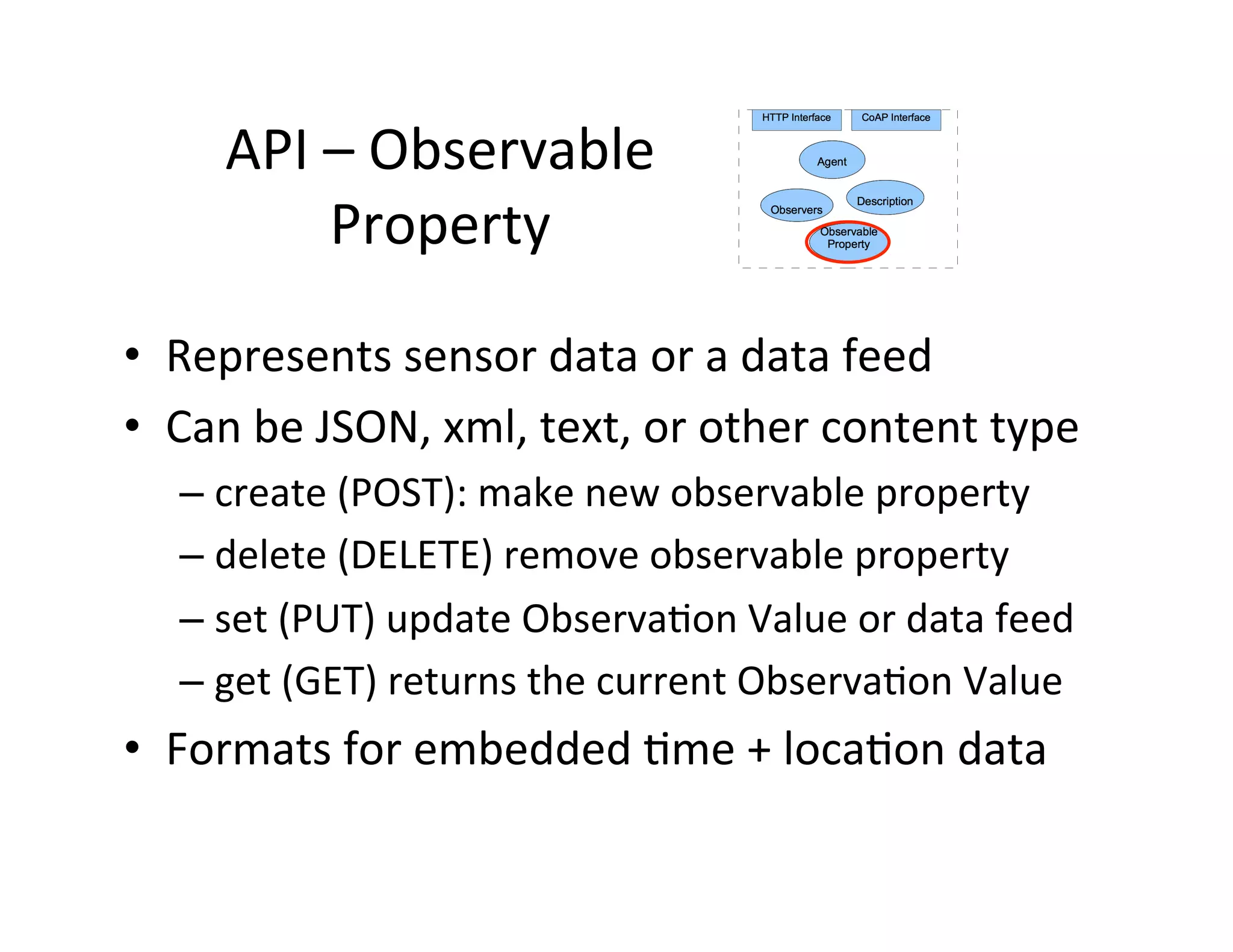

API – Observable Property •  Represents sensor data or a data feed •  Can be JSON, xml, text, or other content type – create (POST): make new observable property – delete (DELETE) remove observable property – set (PUT) update ObservaJon Value or data feed – get (GET) returns the current ObservaJon Value •  Formats for embedded Jme + locaJon data

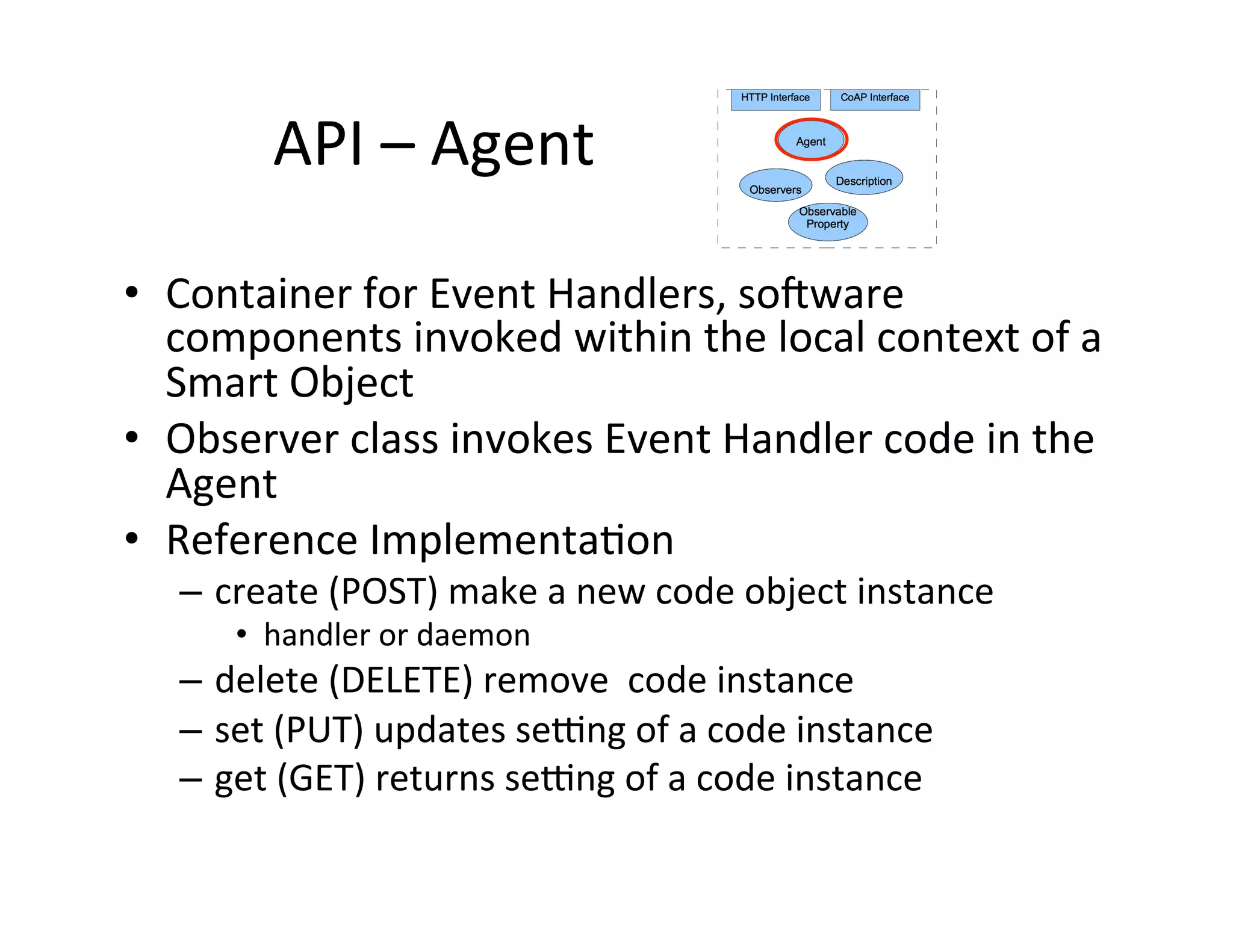

API – Agent •  Container for Event Handlers, soSware components invoked within the local context of a Smart Object •  Observer class invokes Event Handler code in the Agent •  Reference ImplementaJon –  create (POST) make a new code object instance •  handler or daemon –  delete (DELETE) remove code instance –  set (PUT) updates segng of a code instance –  get (GET) returns segng of a code instance

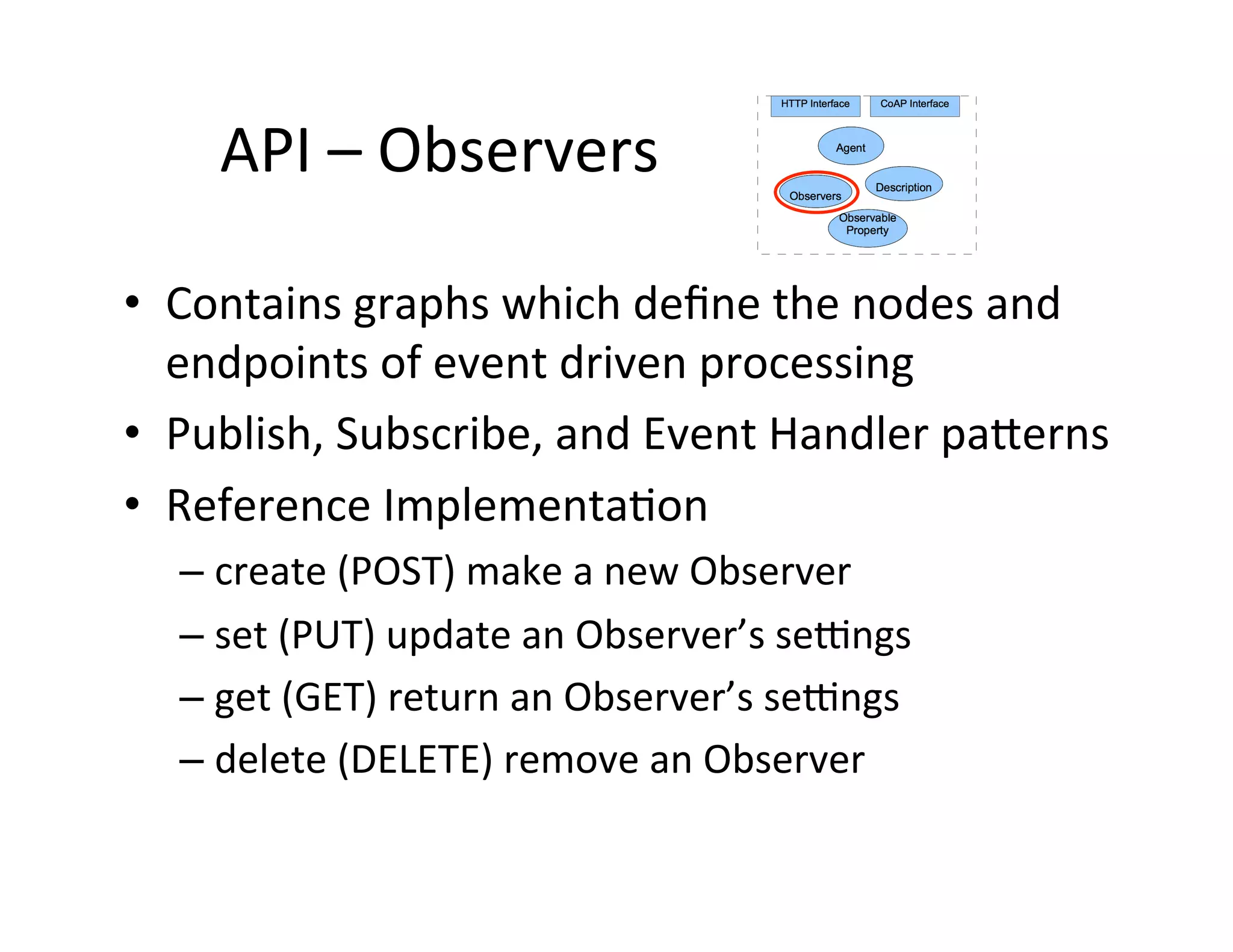

API – Observers •  Contains graphs which deﬁne the nodes and endpoints of event driven processing •  Publish, Subscribe, and Event Handler paYerns •  Reference ImplementaJon – create (POST) make a new Observer – set (PUT) update an Observer’s segngs – get (GET) return an Observer’s segngs – delete (DELETE) remove an Observer

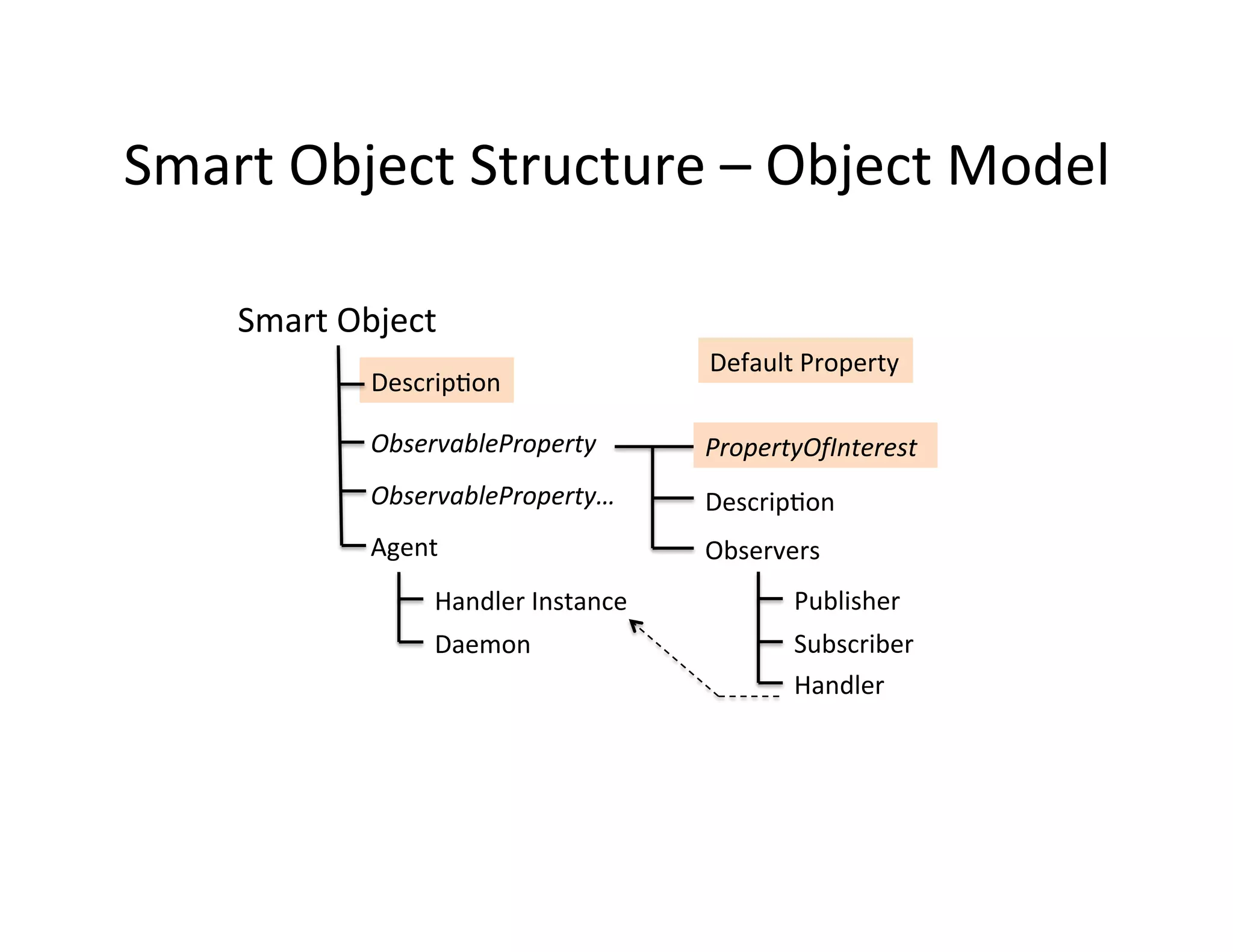

Smart Object Structure – Object Model Smart Object DescripJon ObservableProperty ObservableProperty… Agent Publisher Subscriber Handler PropertyOfInterest DescripJon Observers Handler Instance Daemon Default Property

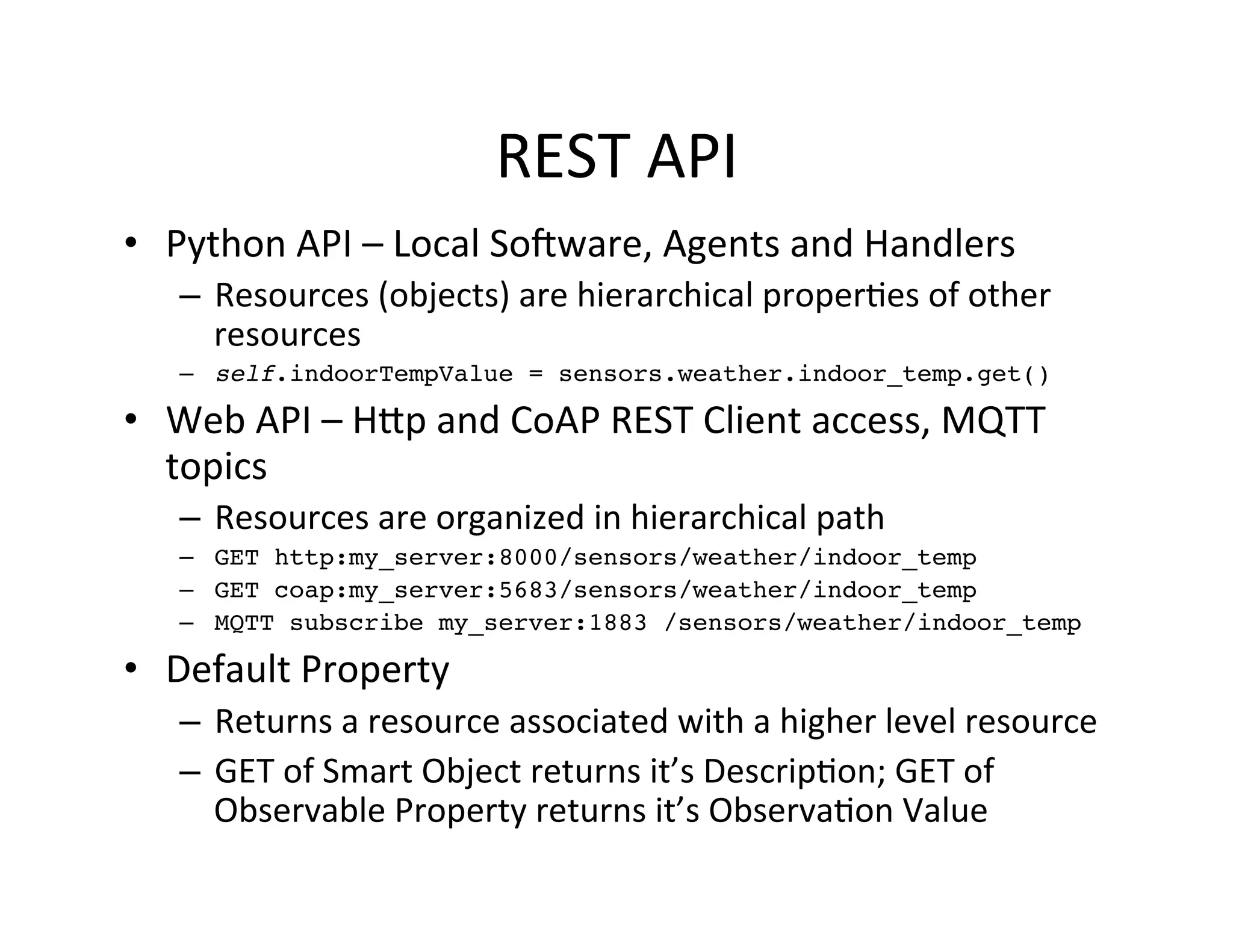

REST API •  Python API – Local SoSware, Agents and Handlers –  Resources (objects) are hierarchical properJes of other resources –  self.indoorTempValue = sensors.weather.indoor_temp.get()! •  Web API – HYp and CoAP REST Client access, MQTT topics –  Resources are organized in hierarchical path –  GET http:my_server:8000/sensors/weather/indoor_temp! –  GET coap:my_server:5683/sensors/weather/indoor_temp! –  MQTT subscribe my_server:1883 /sensors/weather/indoor_temp! •  Default Property –  Returns a resource associated with a higher level resource –  GET of Smart Object returns it’s DescripJon; GET of Observable Property returns it’s ObservaJon Value

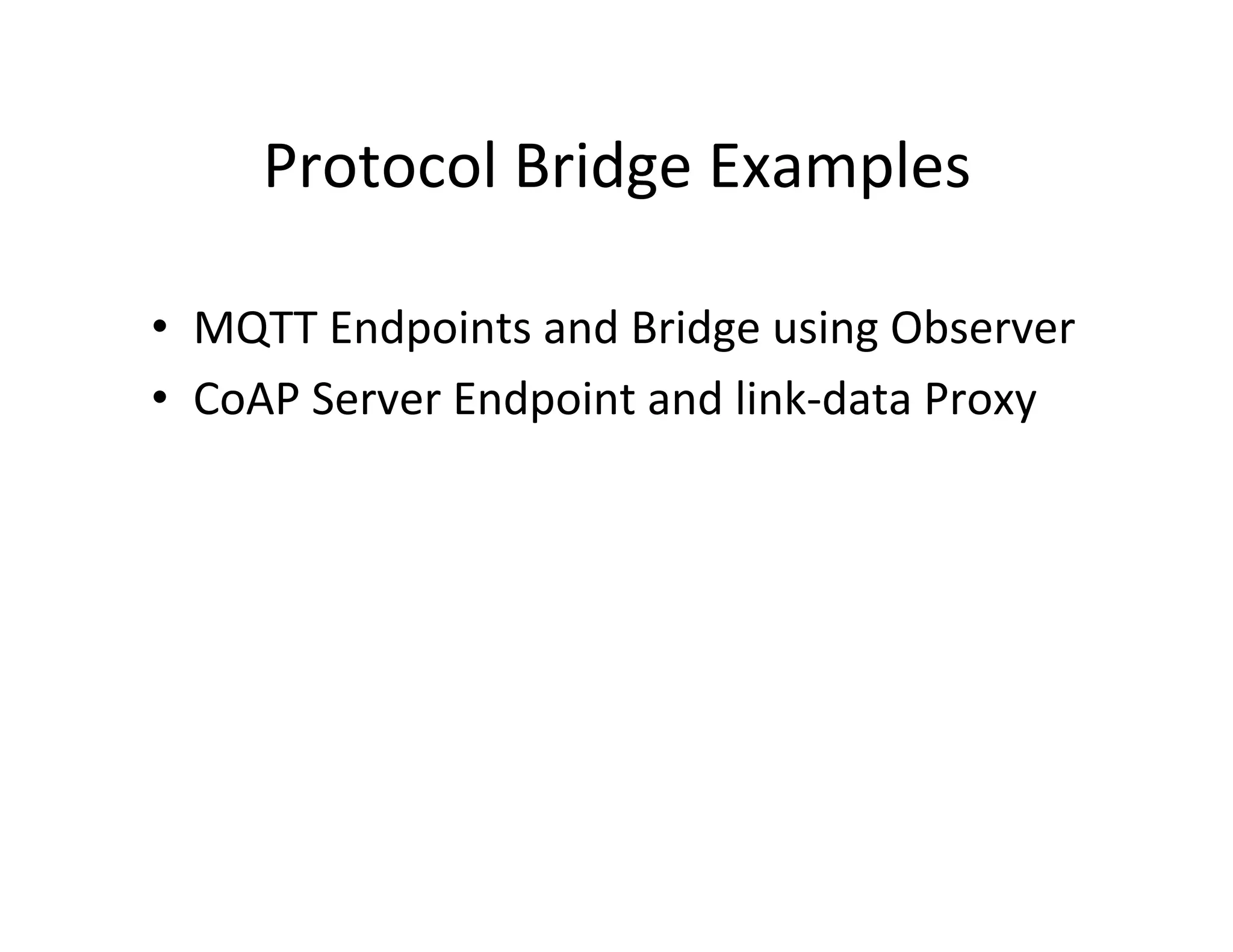

Protocol Bridge Examples •  MQTT Endpoints and Bridge using Observer •  CoAP Server Endpoint and link-‐data Proxy

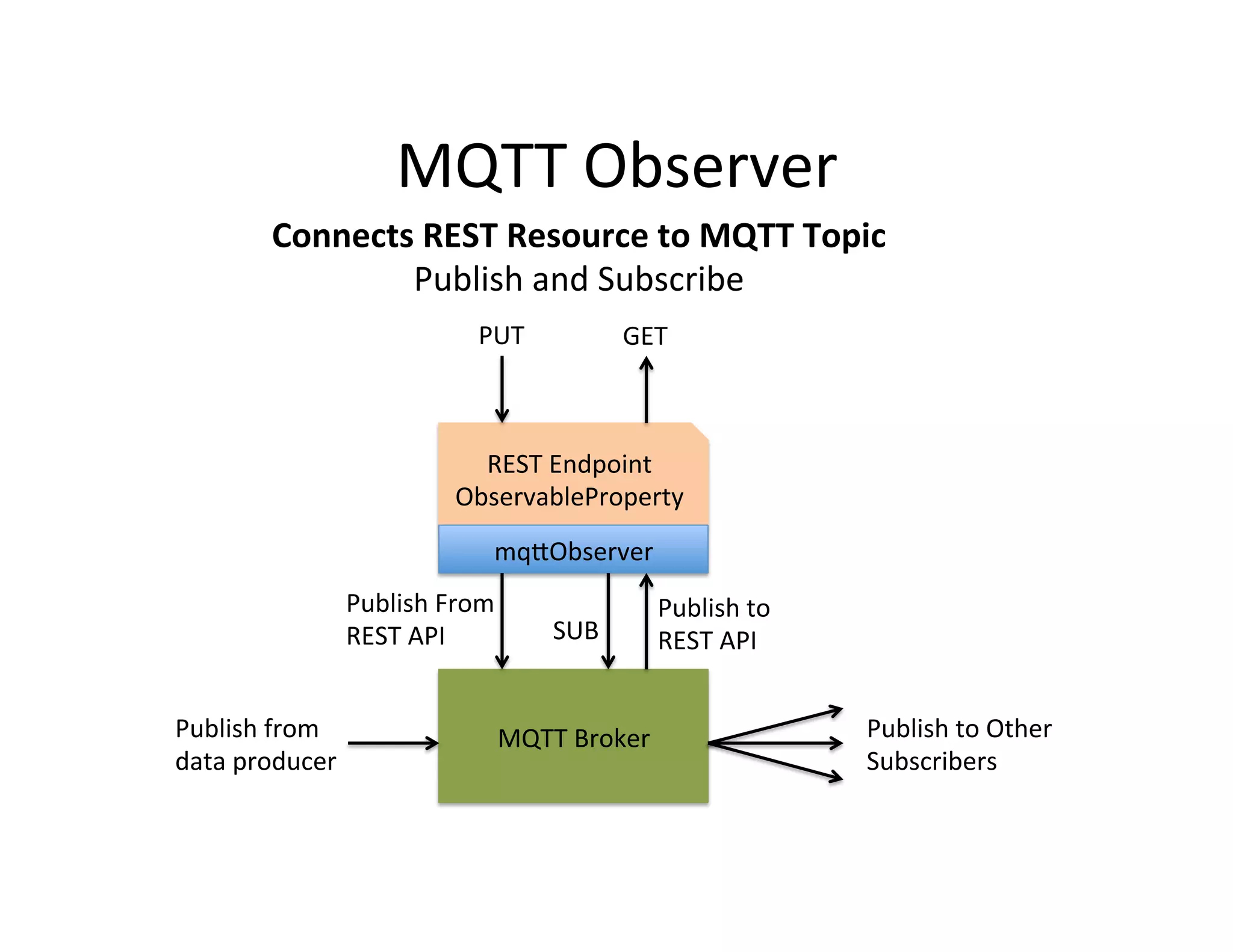

MQTT Observer MQTT Broker REST Endpoint ObservableProperty mqYObserver PUT GET Publish from data producer Publish From REST API Publish to Other Subscribers SUB Publish to REST API Connects REST Resource to MQTT Topic Publish and Subscribe

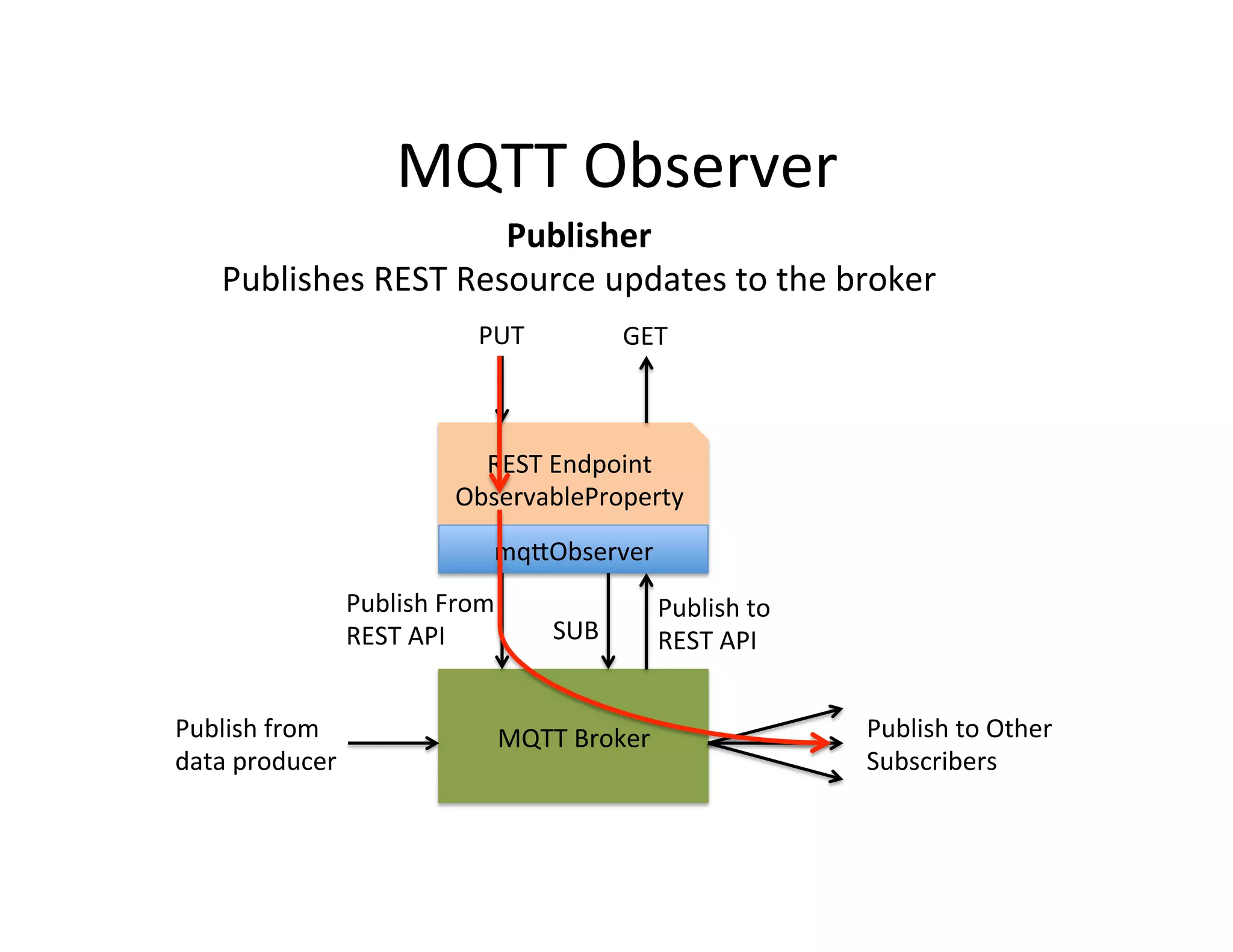

MQTT Observer MQTT Broker REST Endpoint ObservableProperty mqYObserver PUT GET Publish from data producer Publish From REST API Publish to Other Subscribers SUB Publish to REST API Publisher Publishes REST Resource updates to the broker

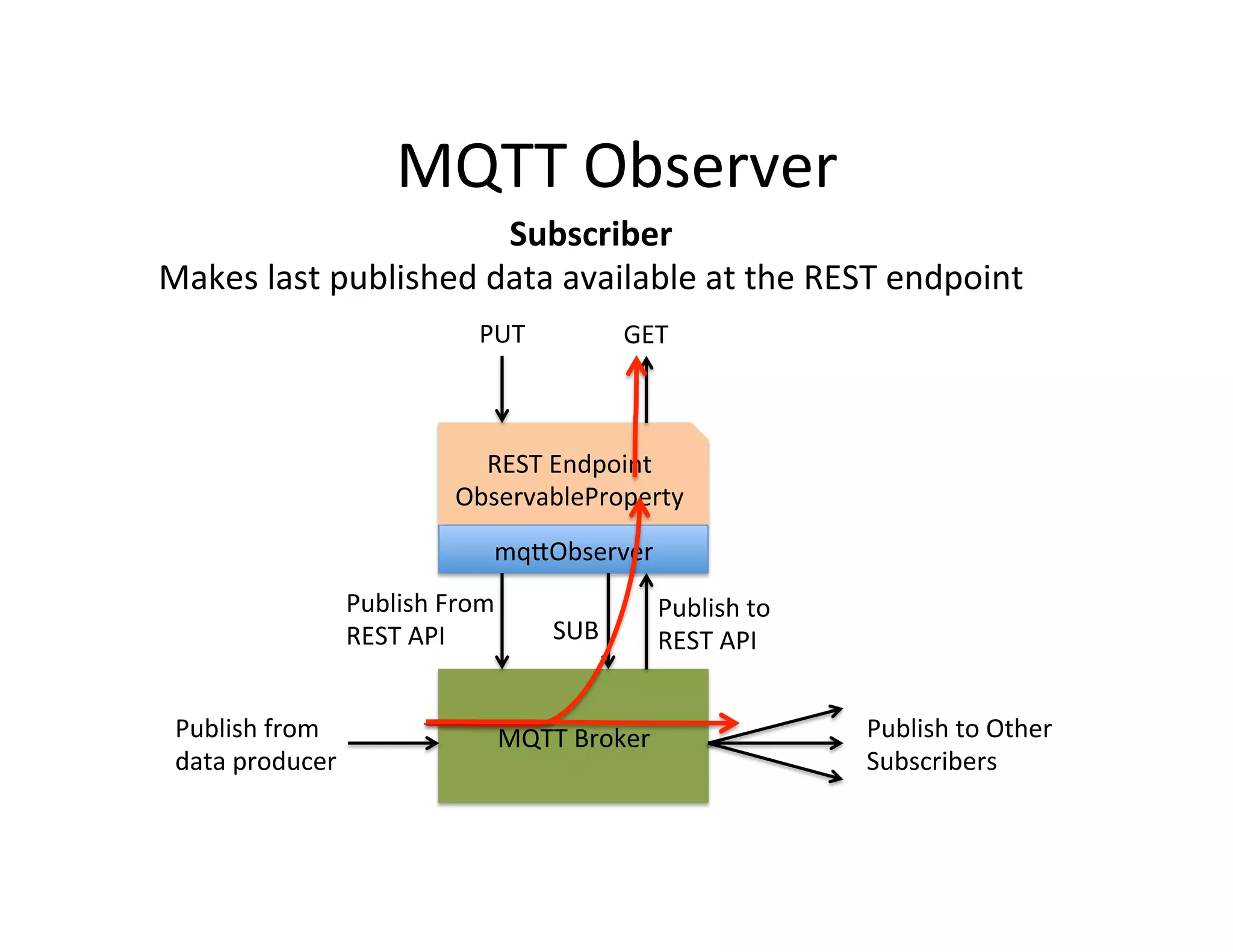

MQTT Observer MQTT Broker REST Endpoint ObservableProperty mqYObserver PUT GET Publish from data producer Publish From REST API Publish to Other Subscribers SUB Publish to REST API Subscriber Makes last published data available at the REST endpoint

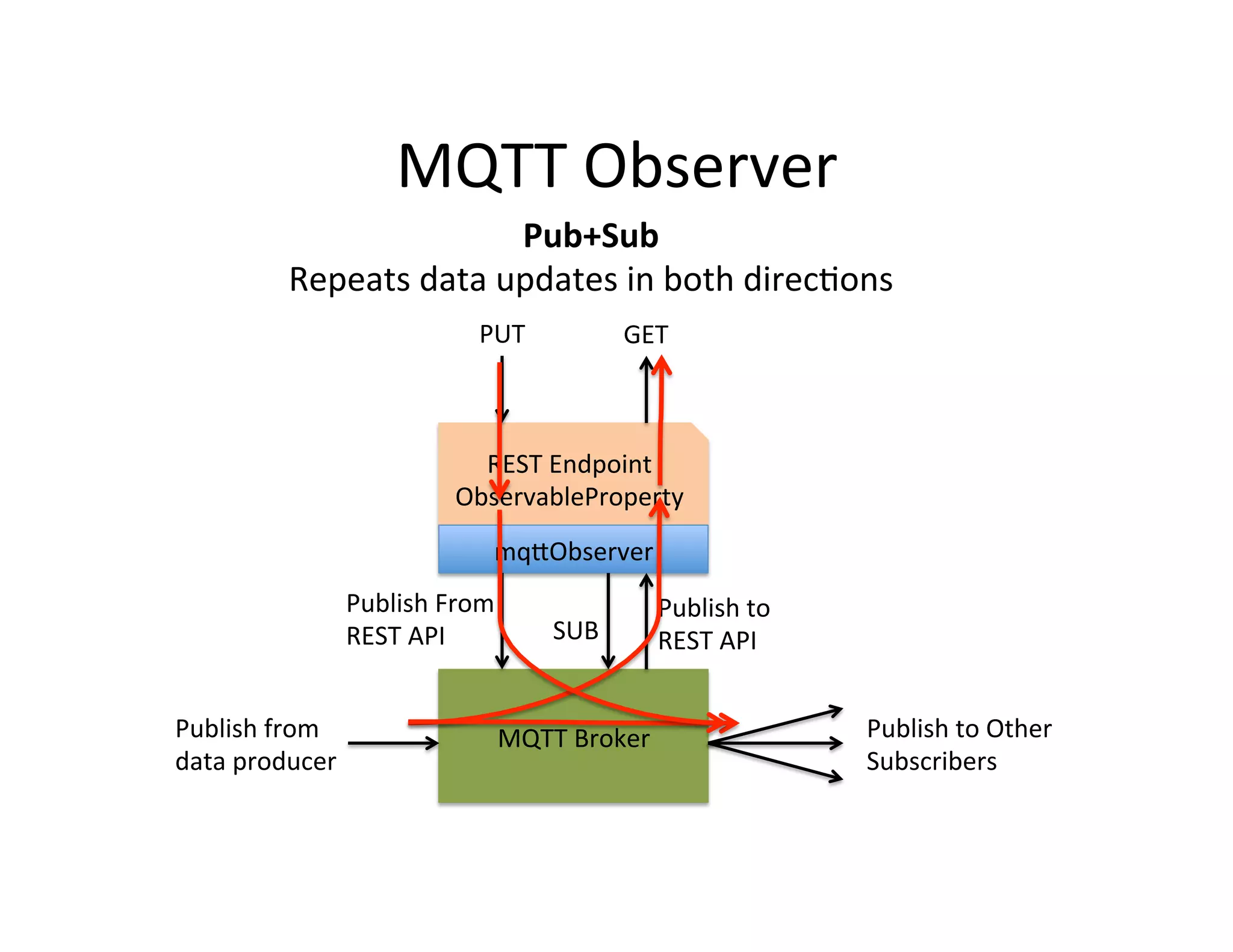

MQTT Observer MQTT Broker REST Endpoint ObservableProperty mqYObserver PUT GET Publish from data producer Publish From REST API Publish to Other Subscribers SUB Publish to REST API Pub+Sub Repeats data updates in both direcJons

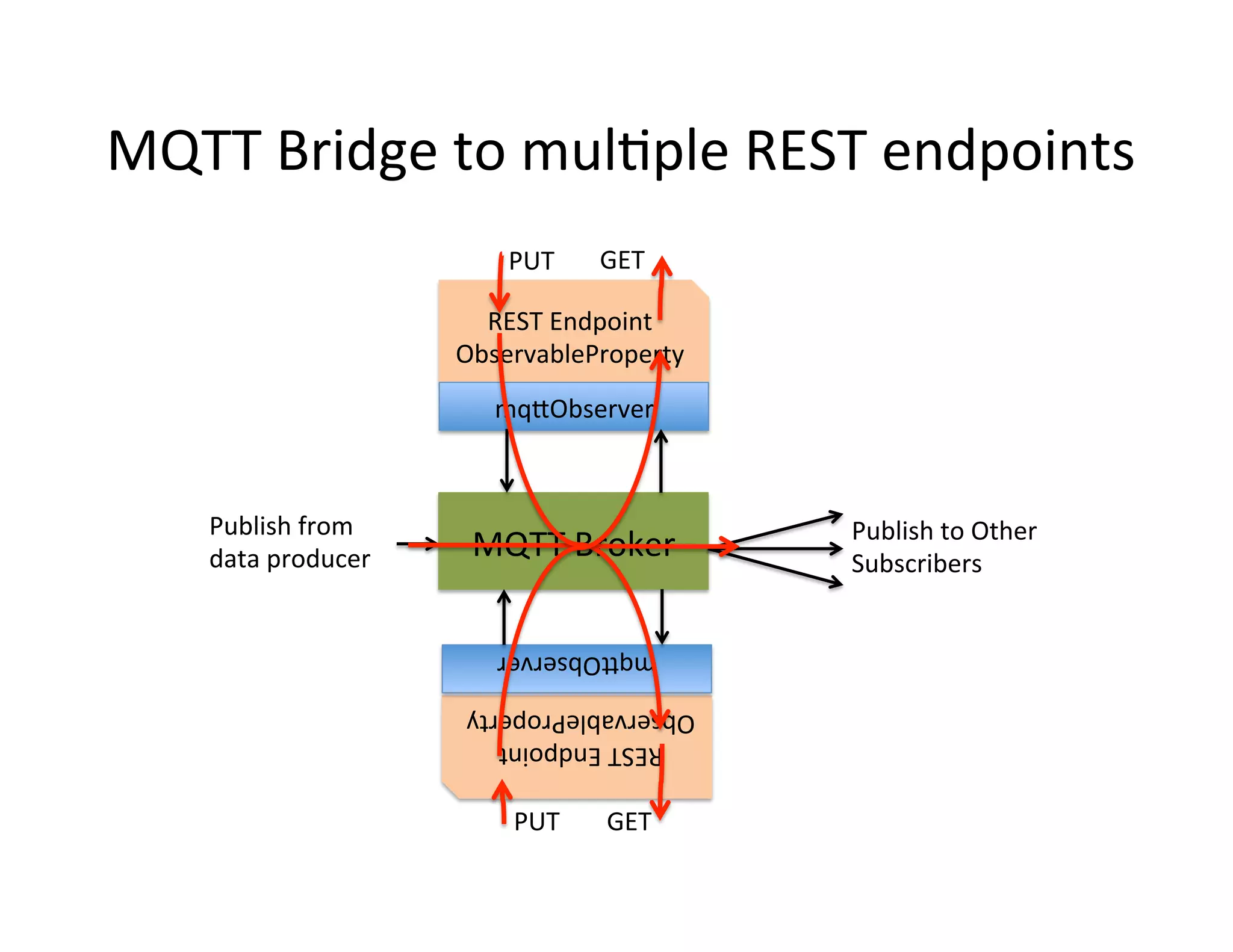

MQTT Bridge to mulJple REST endpoints MQTT Broker REST Endpoint ObservableProperty mqYObserver PUT GET Publish from data producer Publish to Other Subscribers REST Endpoint ObservableProperty mqYObserver PUT GET

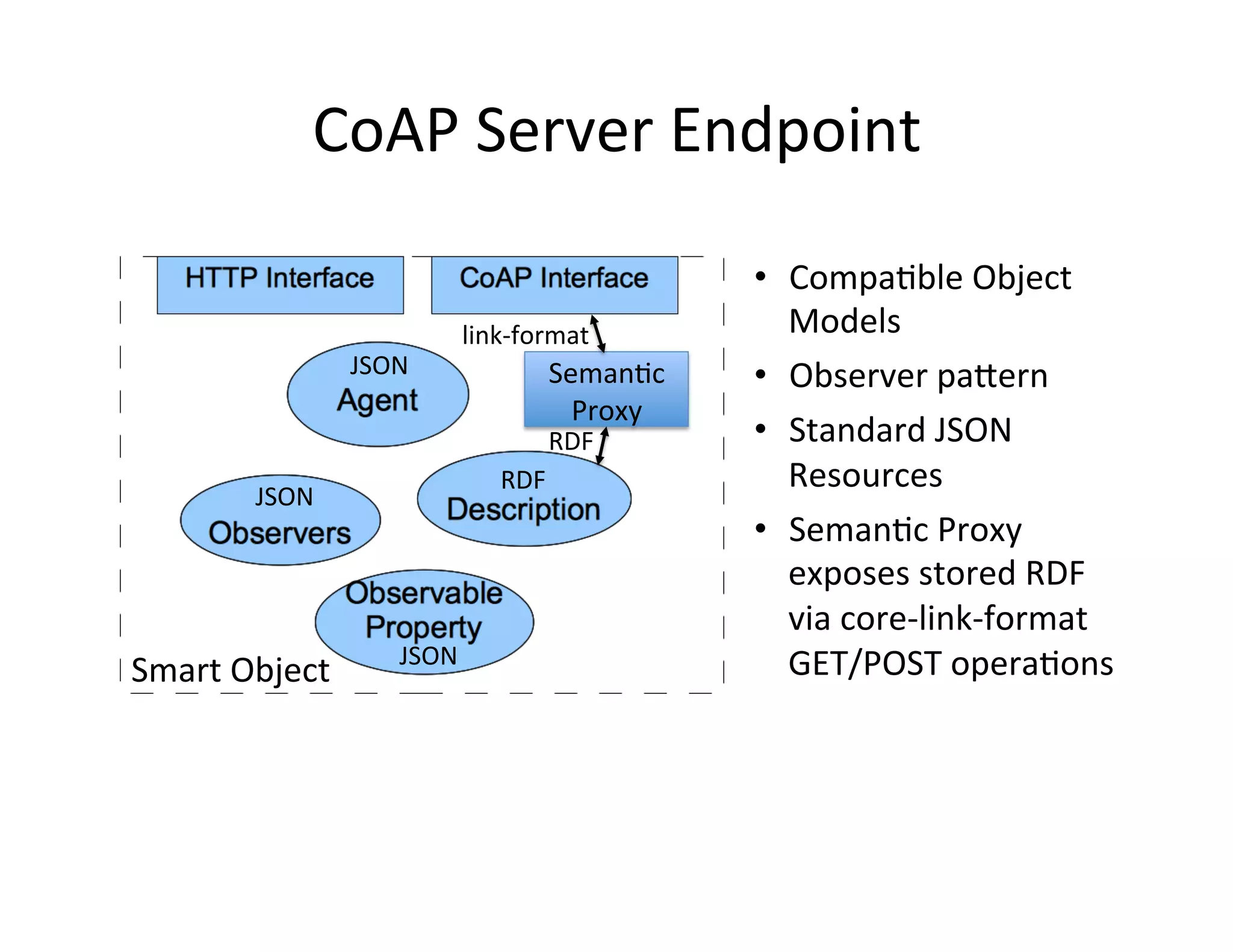

CoAP Server Endpoint Smart Object JSON JSON JSON RDF SemanJc Proxy RDF link-‐format •  CompaJble Object Models •  Observer paYern •  Standard JSON Resources •  SemanJc Proxy exposes stored RDF via core-‐link-‐format GET/POST operaJons

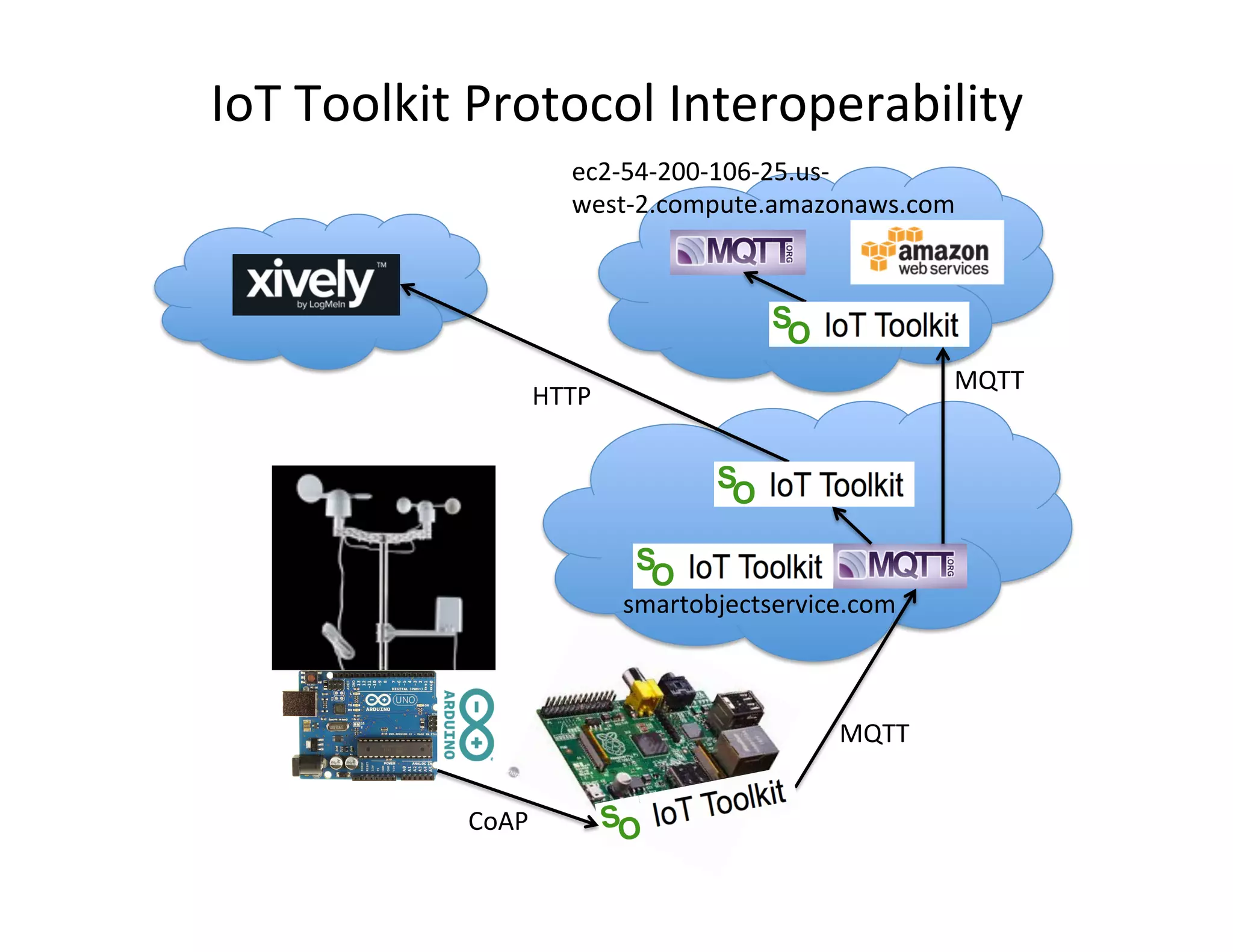

IoT Toolkit Protocol Interoperability CoAP MQTT MQTT HTTP smartobjectservice.com ec2-‐54-‐200-‐106-‐25.us-‐ west-‐2.compute.amazonaws.com

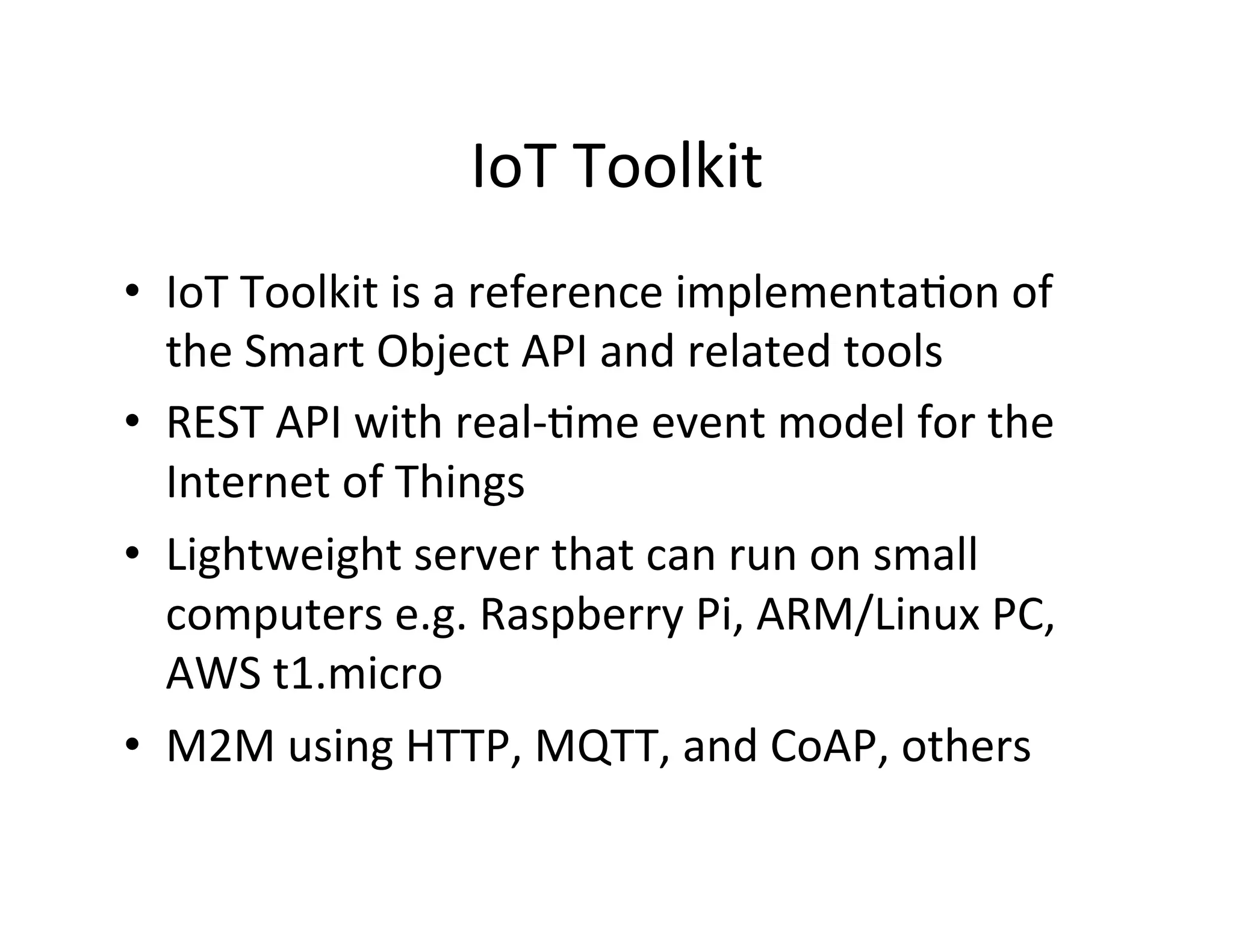

IoT Toolkit •  IoT Toolkit is a reference implementaJon of the Smart Object API and related tools •  REST API with real-‐Jme event model for the Internet of Things •  Lightweight server that can run on small computers e.g. Raspberry Pi, ARM/Linux PC, AWS t1.micro •  M2M using HTTP, MQTT, and CoAP, others

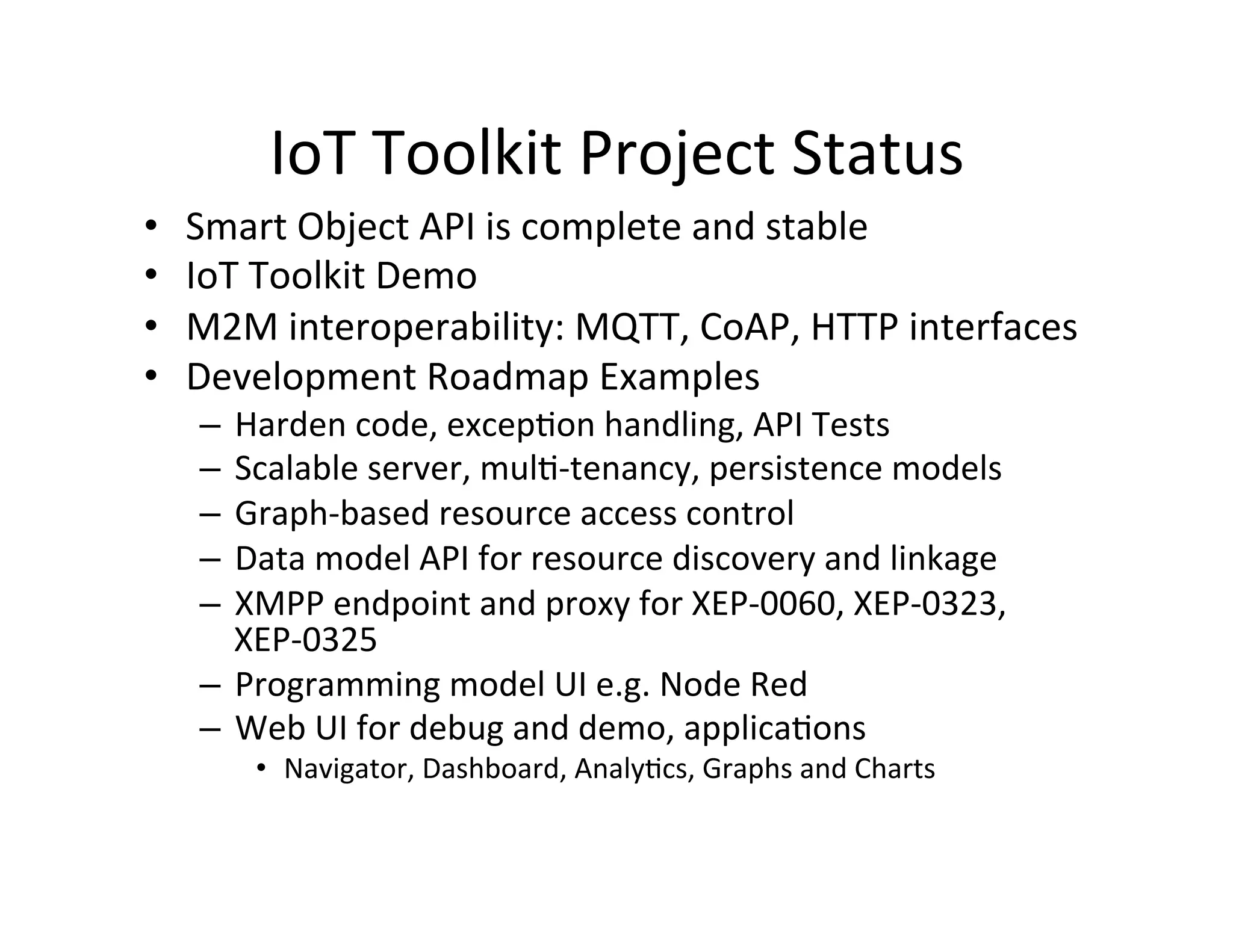

IoT Toolkit Project Status •  Smart Object API is complete and stable •  IoT Toolkit Demo •  M2M interoperability: MQTT, CoAP, HTTP interfaces •  Development Roadmap Examples –  Harden code, excepJon handling, API Tests –  Scalable server, mulJ-‐tenancy, persistence models –  Graph-‐based resource access control –  Data model API for resource discovery and linkage –  XMPP endpoint and proxy for XEP-‐0060, XEP-‐0323, XEP-‐0325 –  Programming model UI e.g. Node Red –  Web UI for debug and demo, applicaJons •  Navigator, Dashboard, AnalyJcs, Graphs and Charts
