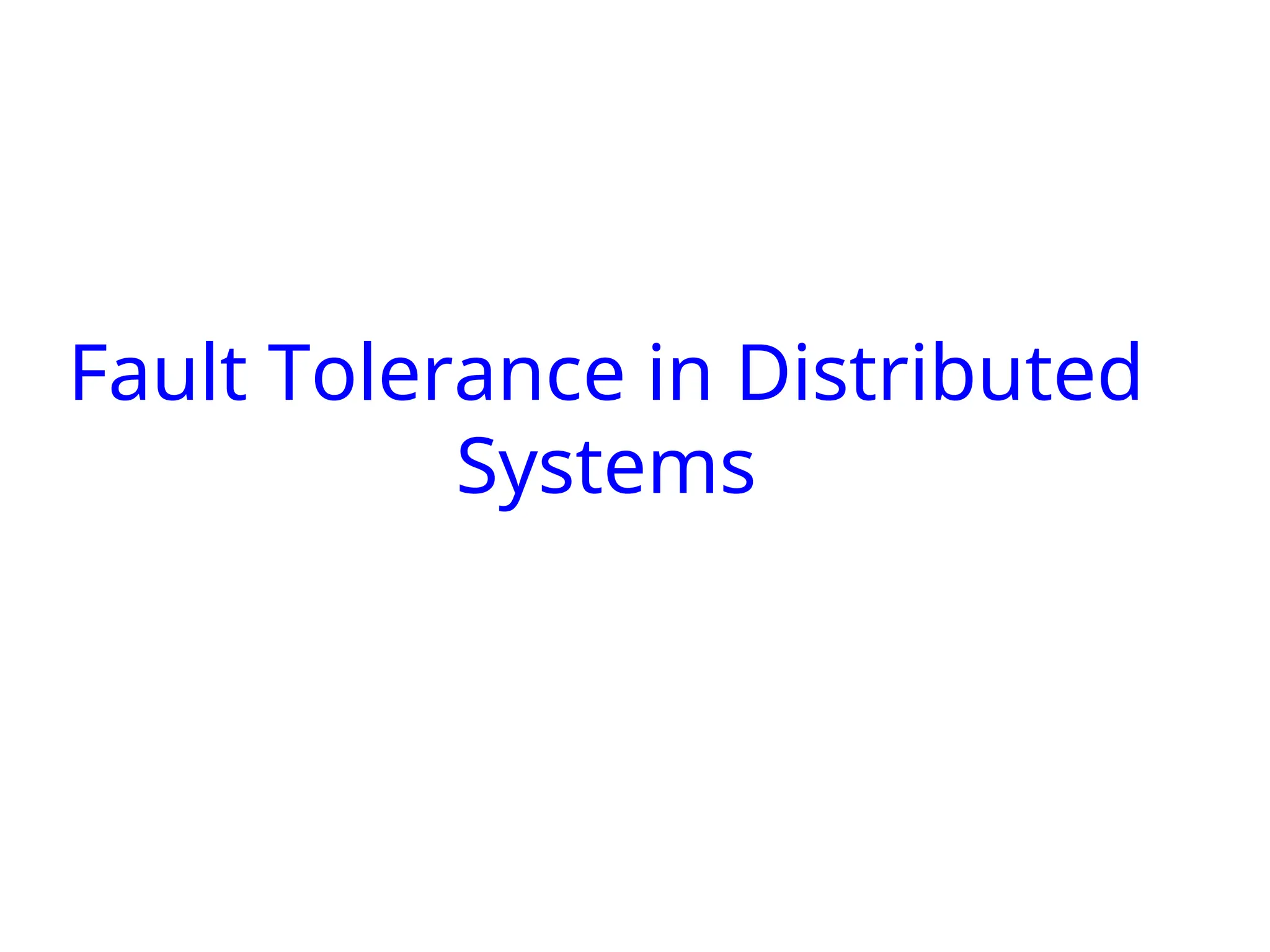

  Fault Tolerance inDistributed Systems
• 2.
  A system’s abilityto tolerate failure-1 • Reliability: the likelihood that a system will remain operational for the duration of a mission – requirement might be stated as 0.999999 availability for a 10 hr mission -> the probability of failure during the mission must be at most 10-6 – Very high reliability is most important in critical applications - space shuttle, industrial control, in which failure could mean loss of life
• 3.

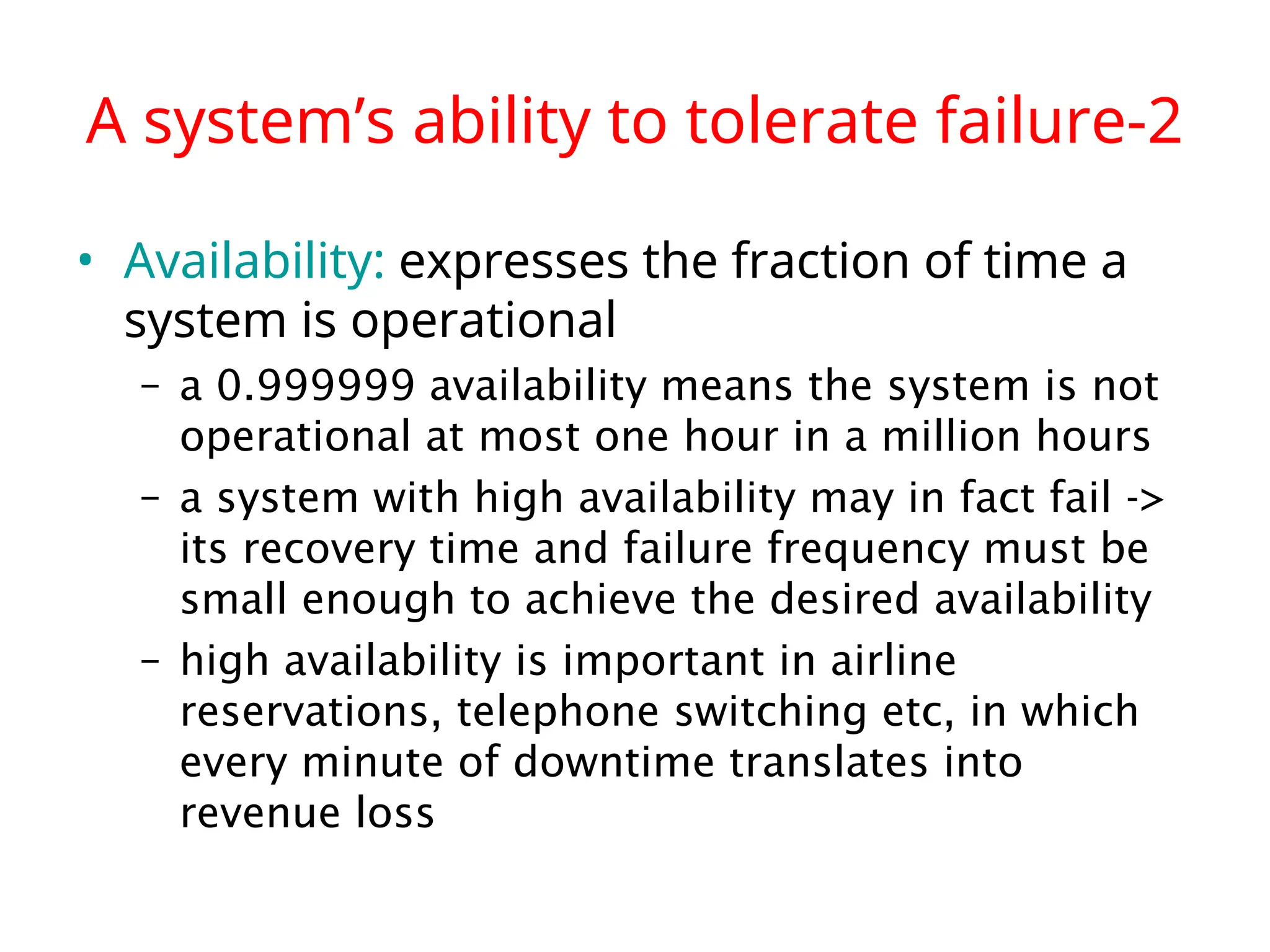

  A system’s abilityto tolerate failure-2 • Availability: expresses the fraction of time a system is operational – a 0.999999 availability means the system is not operational at most one hour in a million hours – a system with high availability may in fact fail -> its recovery time and failure frequency must be small enough to achieve the desired availability – high availability is important in airline reservations, telephone switching etc, in which every minute of downtime translates into revenue loss
• 4.

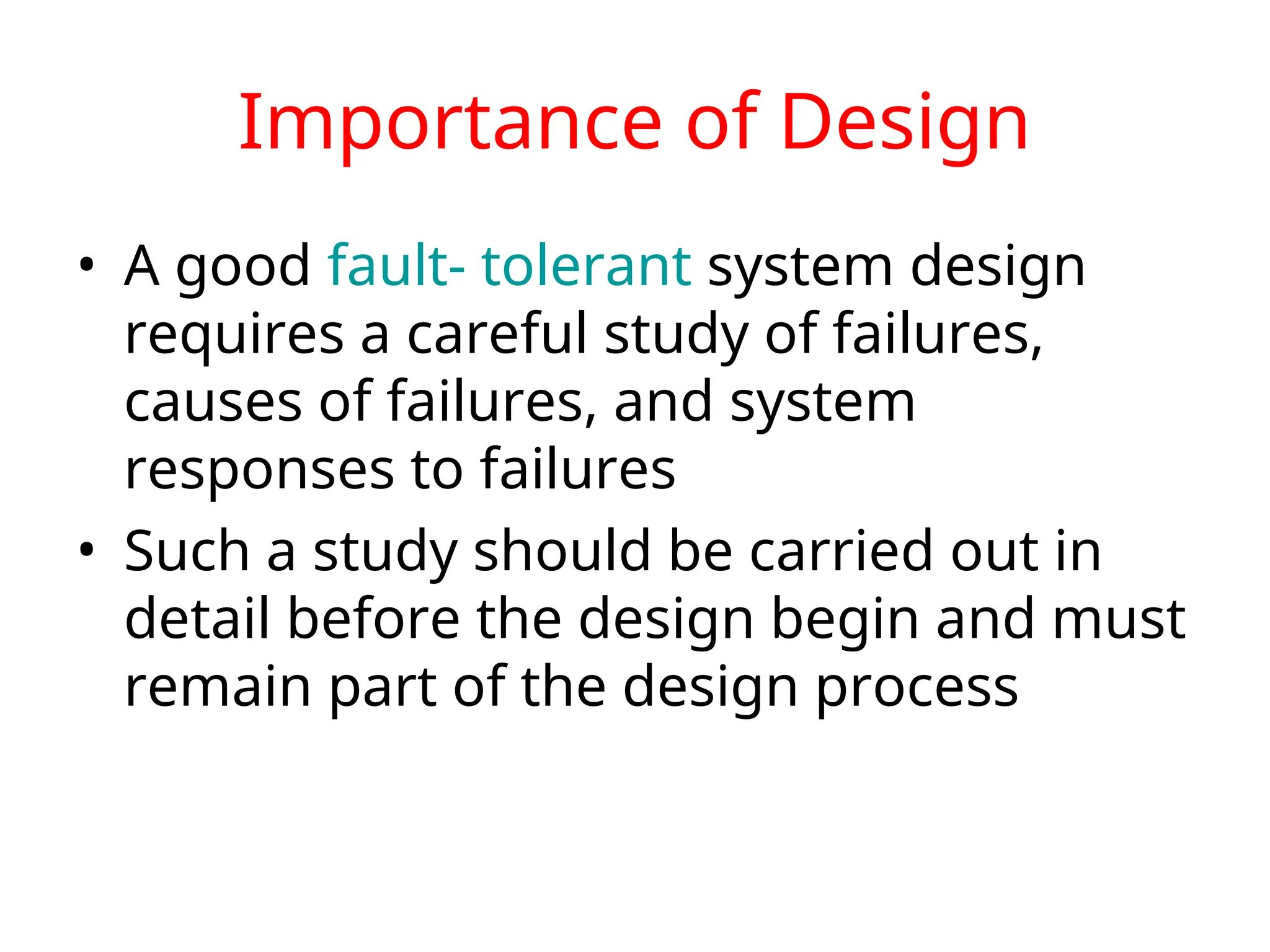

  Importance of Design •A good fault- tolerant system design requires a careful study of failures, causes of failures, and system responses to failures • Such a study should be carried out in detail before the design begin and must remain part of the design process
• 5.

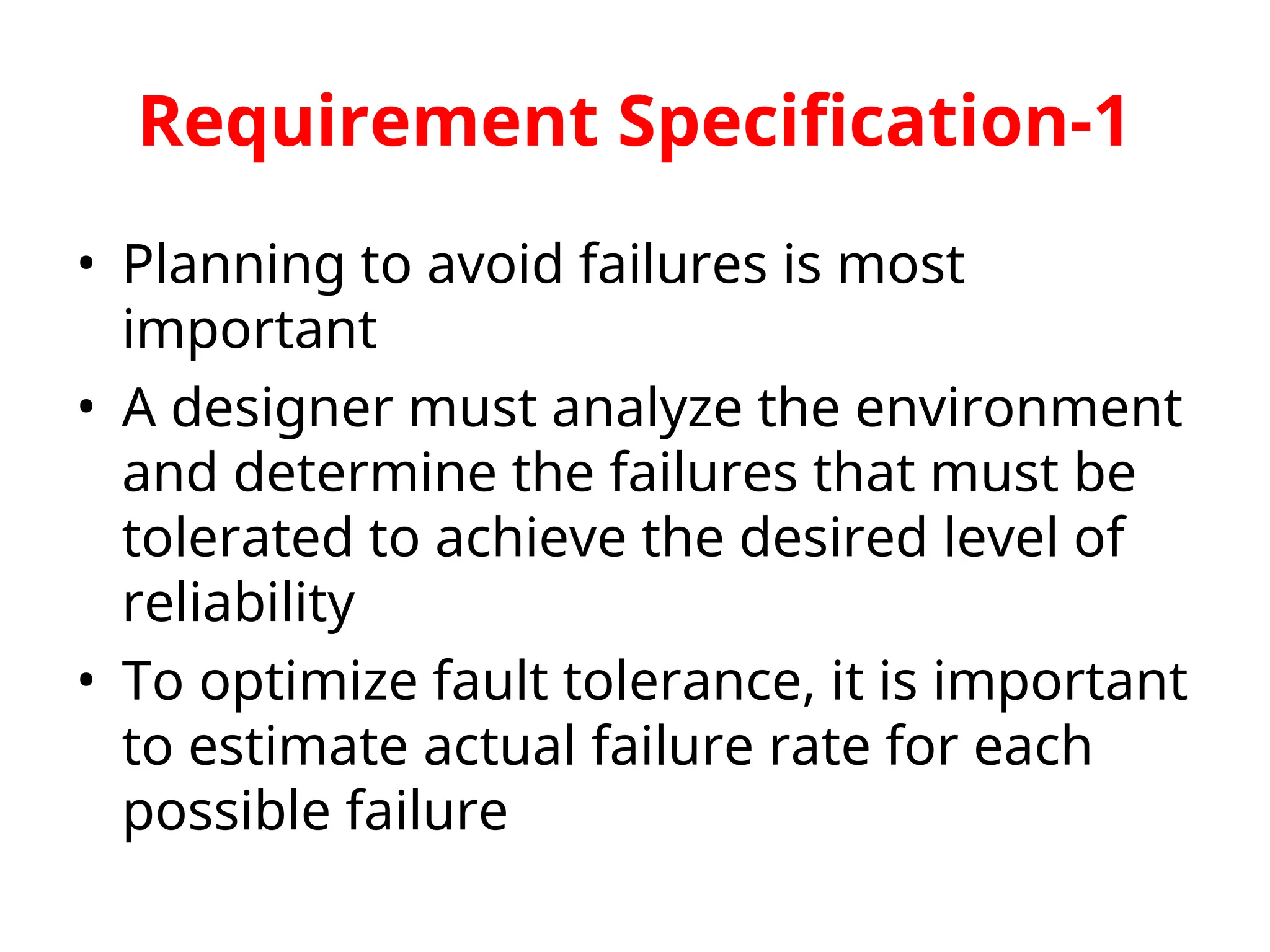

  Requirement Specification-1 • Planningto avoid failures is most important • A designer must analyze the environment and determine the failures that must be tolerated to achieve the desired level of reliability • To optimize fault tolerance, it is important to estimate actual failure rate for each possible failure
• 6.

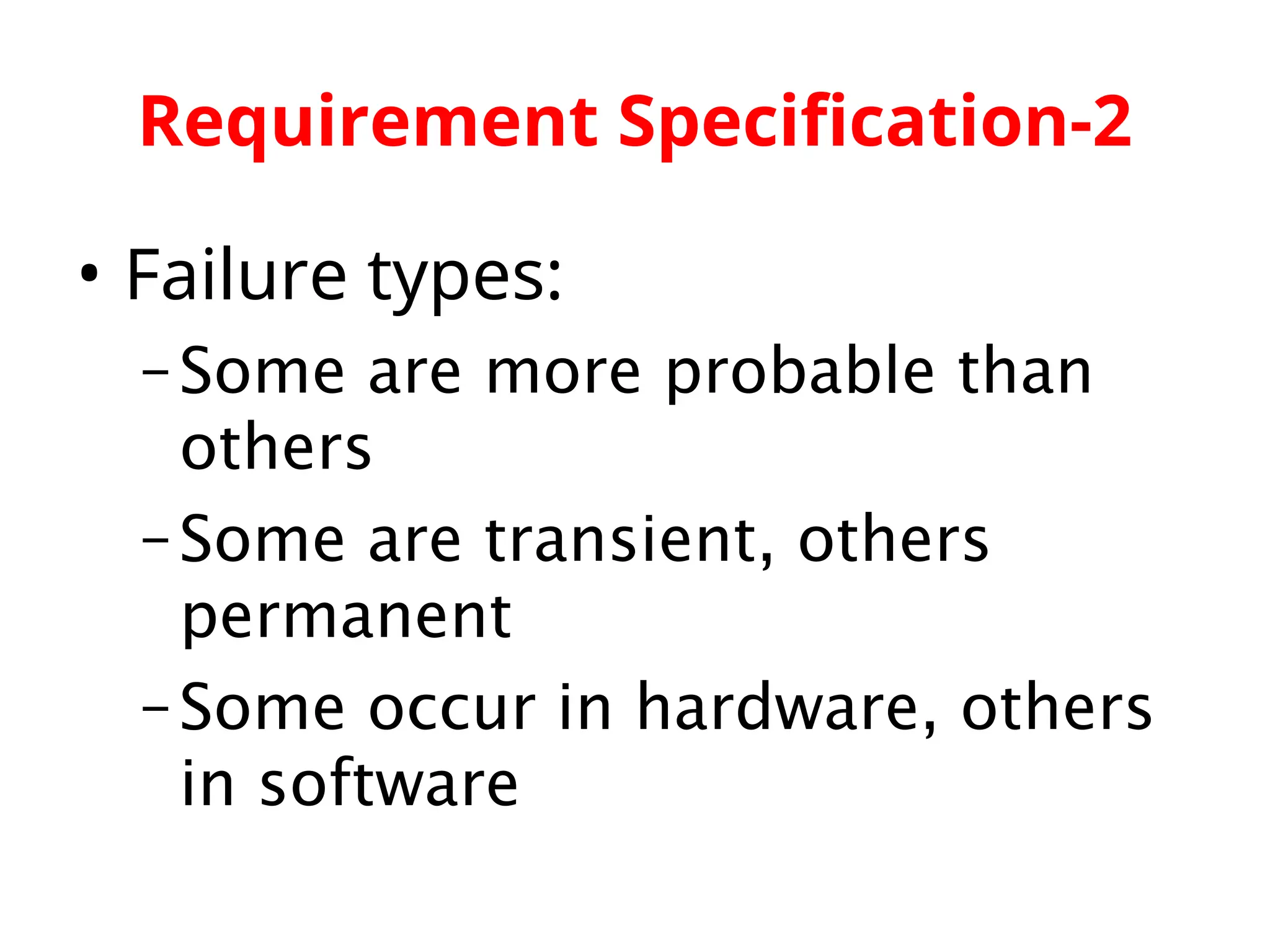

  Requirement Specification-2 • Failuretypes: –Some are more probable than others –Some are transient, others permanent –Some occur in hardware, others in software
• 7.

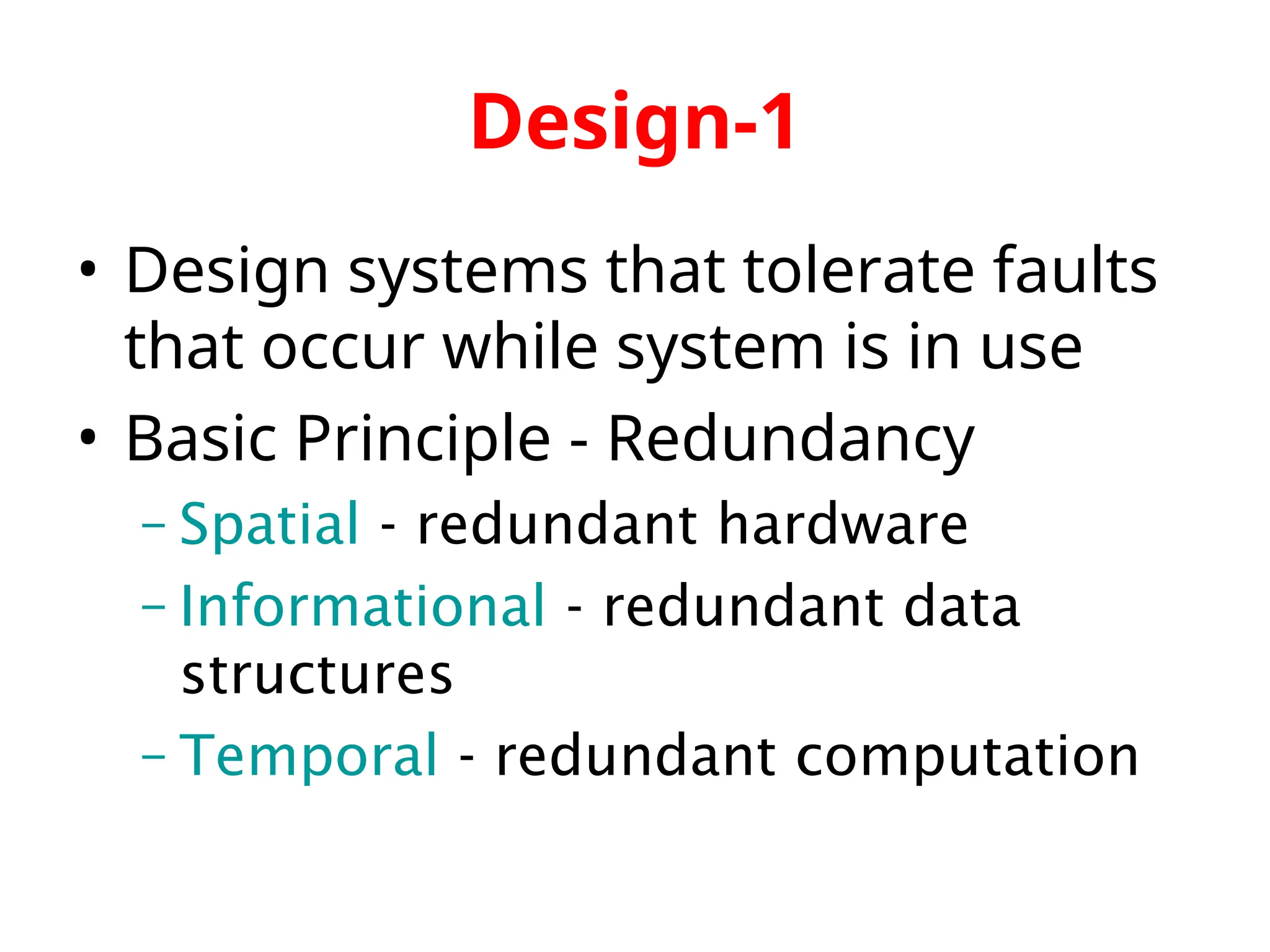

  Design-1 • Design systemsthat tolerate faults that occur while system is in use • Basic Principle - Redundancy – Spatial - redundant hardware – Informational - redundant data structures – Temporal - redundant computation
• 8.

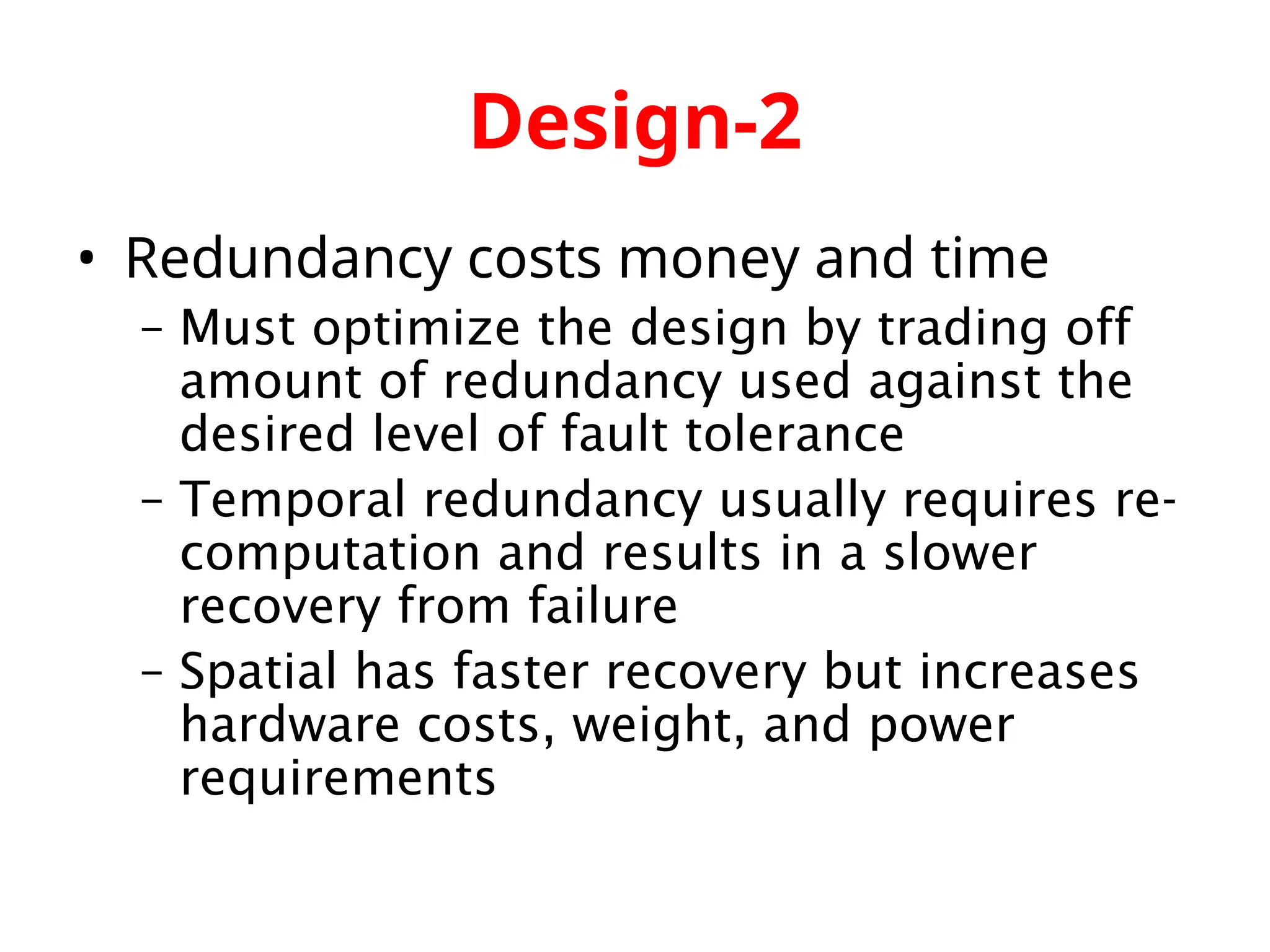

  Design-2 • Redundancy costsmoney and time – Must optimize the design by trading off amount of redundancy used against the desired level of fault tolerance – Temporal redundancy usually requires re- computation and results in a slower recovery from failure – Spatial has faster recovery but increases hardware costs, weight, and power requirements
• 9.

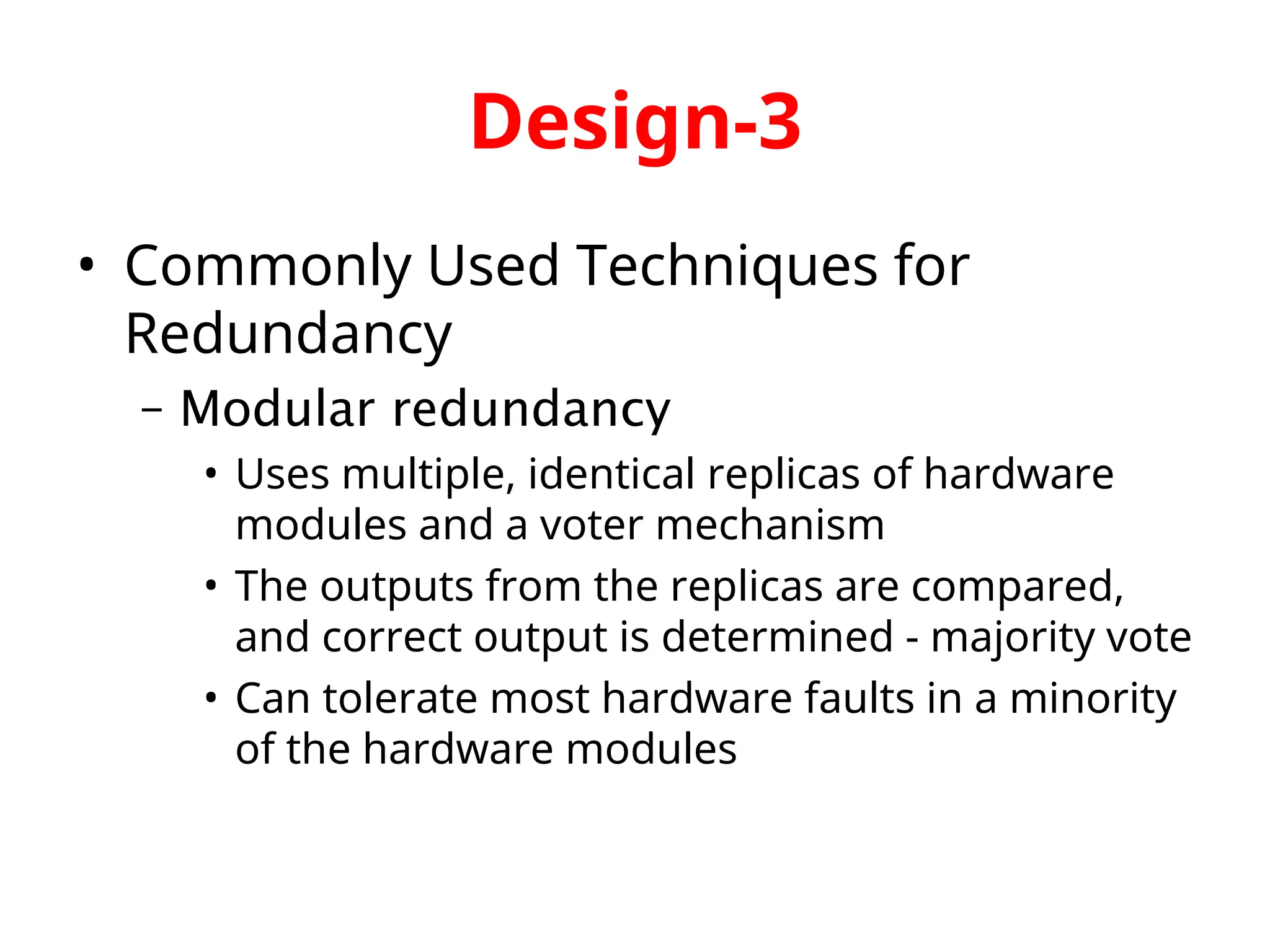

  Design-3 • Commonly UsedTechniques for Redundancy – Modular redundancy • Uses multiple, identical replicas of hardware modules and a voter mechanism • The outputs from the replicas are compared, and correct output is determined - majority vote • Can tolerate most hardware faults in a minority of the hardware modules
• 10.

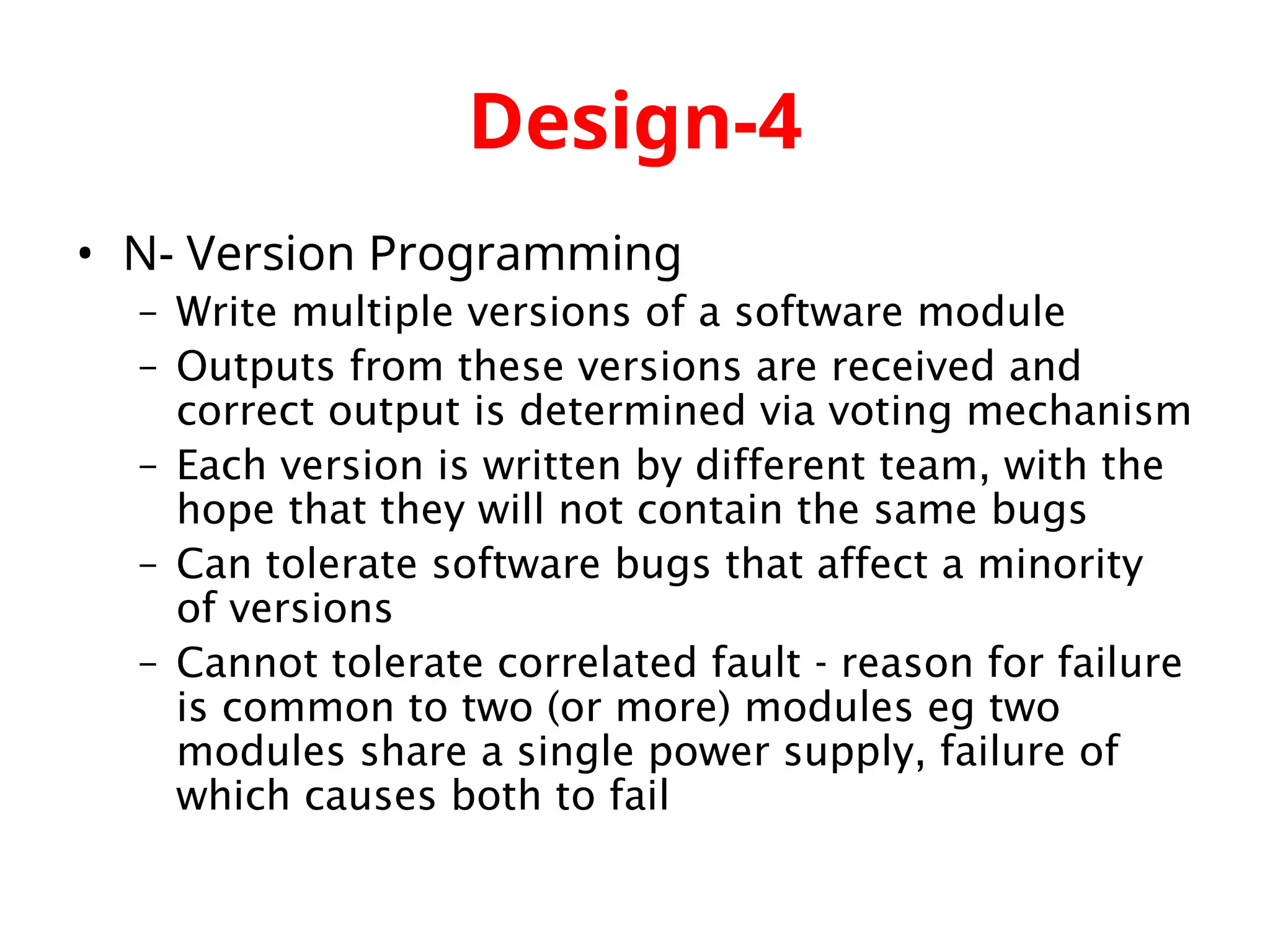

  Design-4 • N- VersionProgramming – Write multiple versions of a software module – Outputs from these versions are received and correct output is determined via voting mechanism – Each version is written by different team, with the hope that they will not contain the same bugs – Can tolerate software bugs that affect a minority of versions – Cannot tolerate correlated fault - reason for failure is common to two (or more) modules eg two modules share a single power supply, failure of which causes both to fail
• 11.

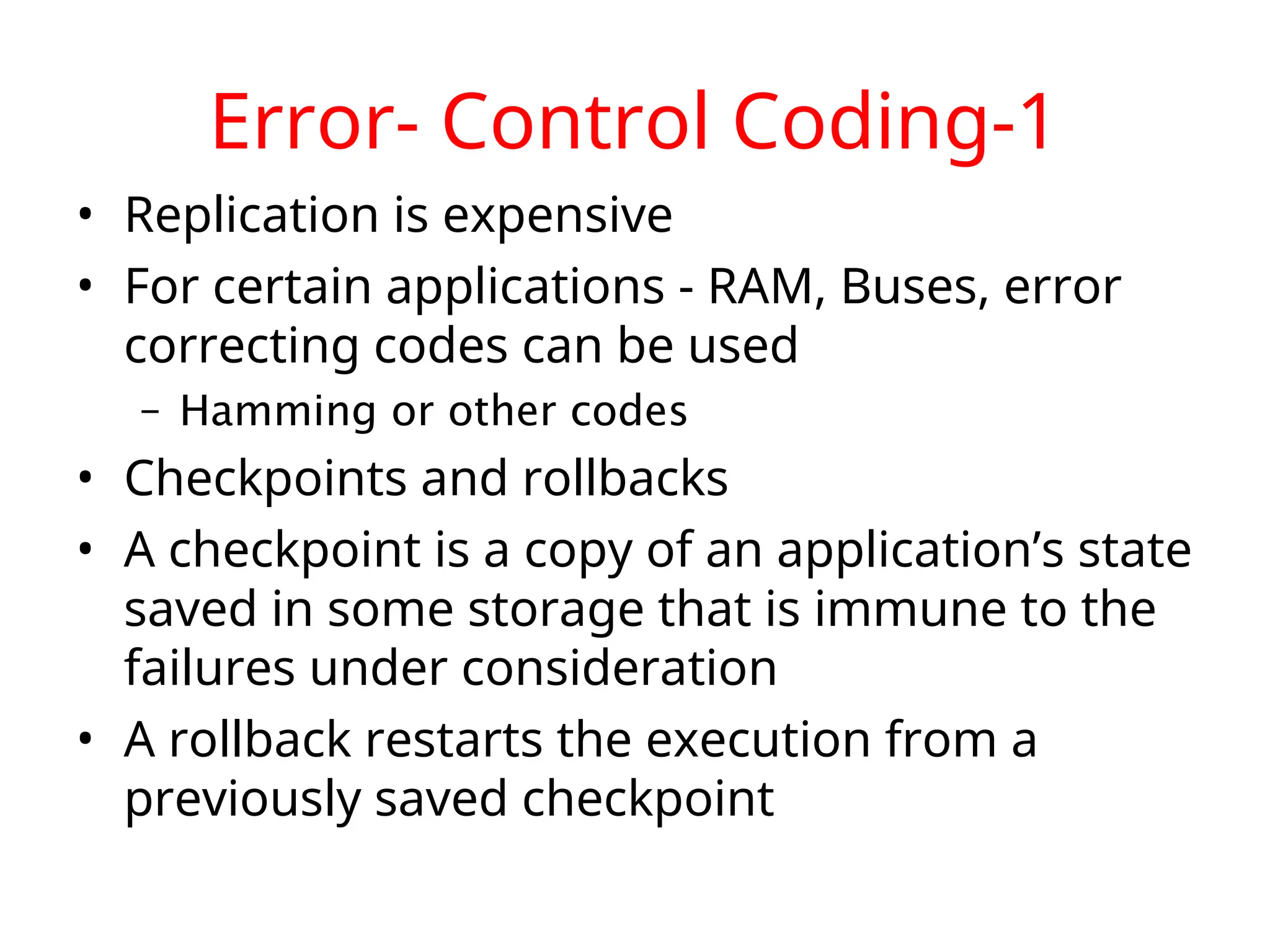

  Error- Control Coding-1 •Replication is expensive • For certain applications - RAM, Buses, error correcting codes can be used – Hamming or other codes • Checkpoints and rollbacks • A checkpoint is a copy of an application’s state saved in some storage that is immune to the failures under consideration • A rollback restarts the execution from a previously saved checkpoint
• 12.

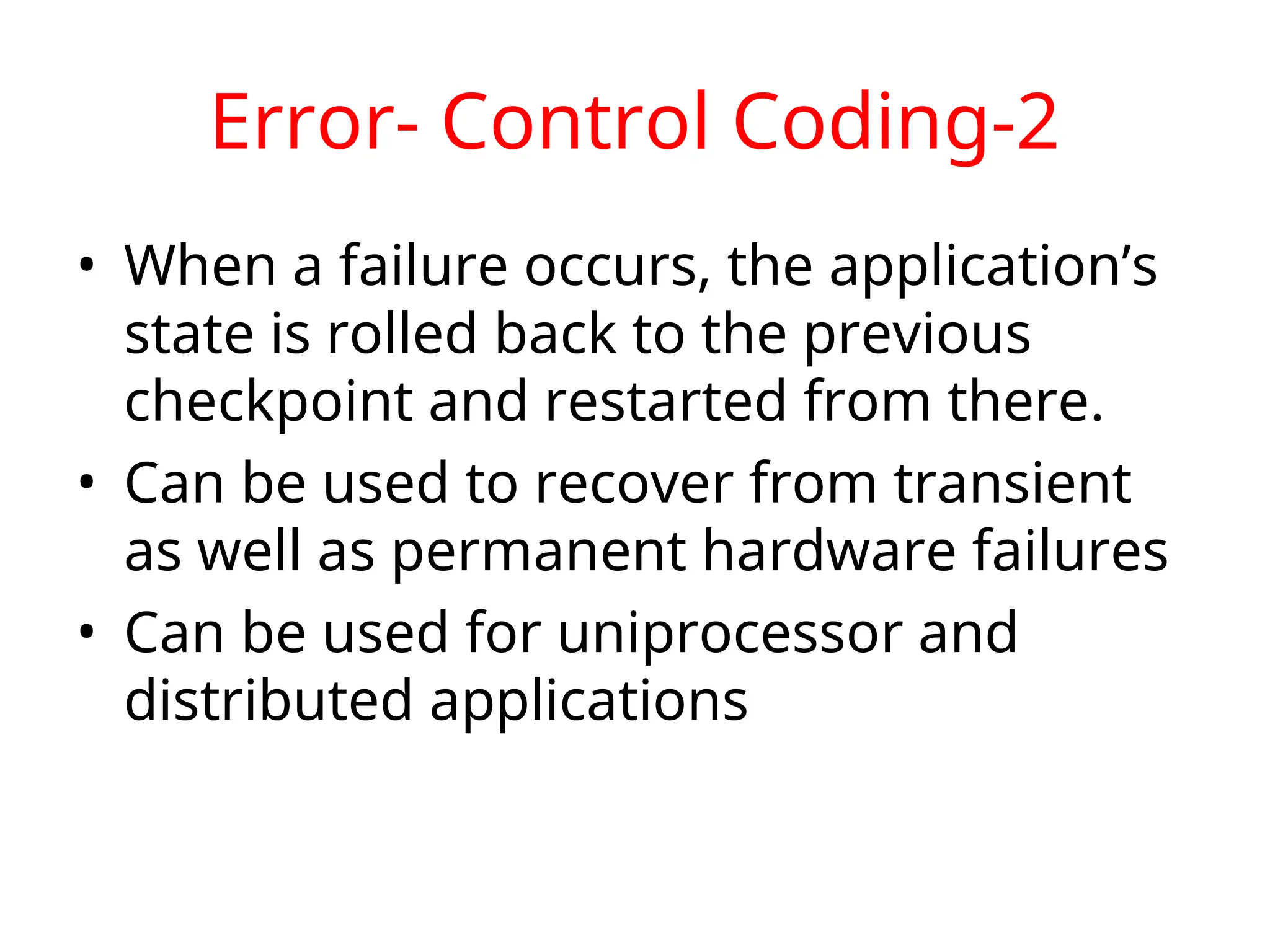

  Error- Control Coding-2 •When a failure occurs, the application’s state is rolled back to the previous checkpoint and restarted from there. • Can be used to recover from transient as well as permanent hardware failures • Can be used for uniprocessor and distributed applications
• 13.

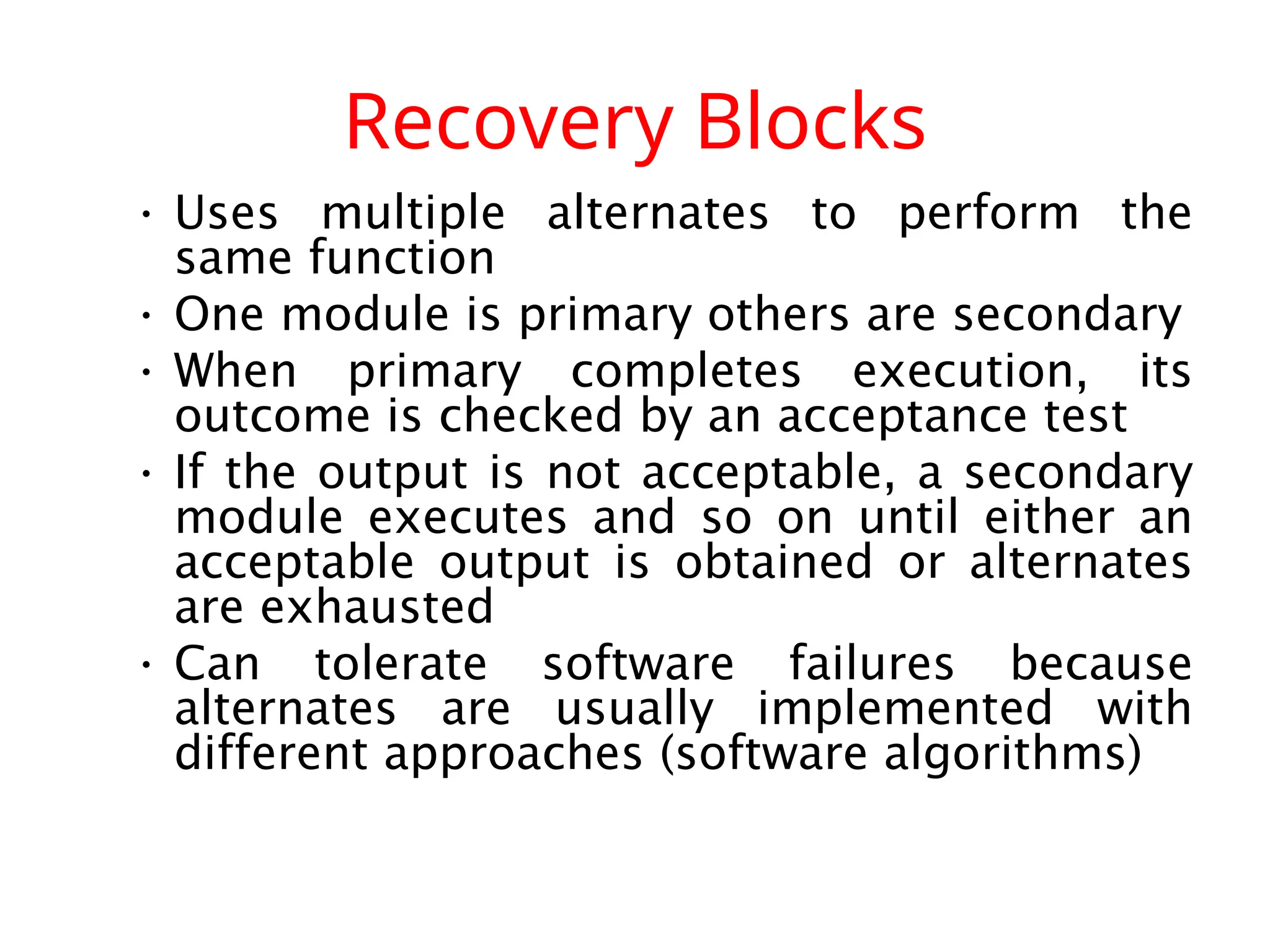

  Recovery Blocks • Usesmultiple alternates to perform the same function • One module is primary others are secondary • When primary completes execution, its outcome is checked by an acceptance test • If the output is not acceptable, a secondary module executes and so on until either an acceptable output is obtained or alternates are exhausted • Can tolerate software failures because alternates are usually implemented with different approaches (software algorithms)
• 14.

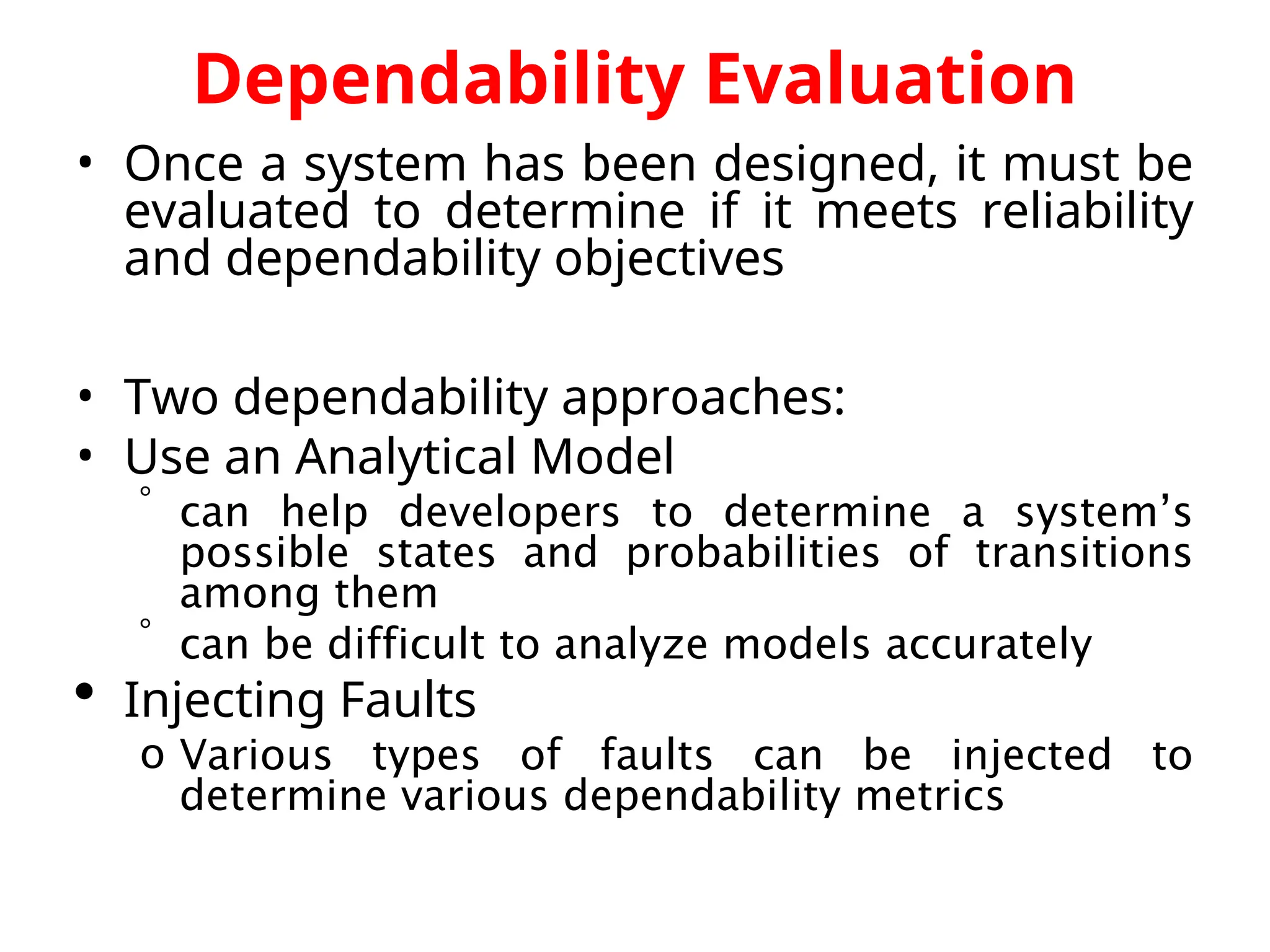

  Dependability Evaluation • Oncea system has been designed, it must be evaluated to determine if it meets reliability and dependability objectives • Two dependability approaches: • Use an Analytical Model  can help developers to determine a system’s possible states and probabilities of transitions among them  can be difficult to analyze models accurately  Injecting Faults o Various types of faults can be injected to determine various dependability metrics
• 15.

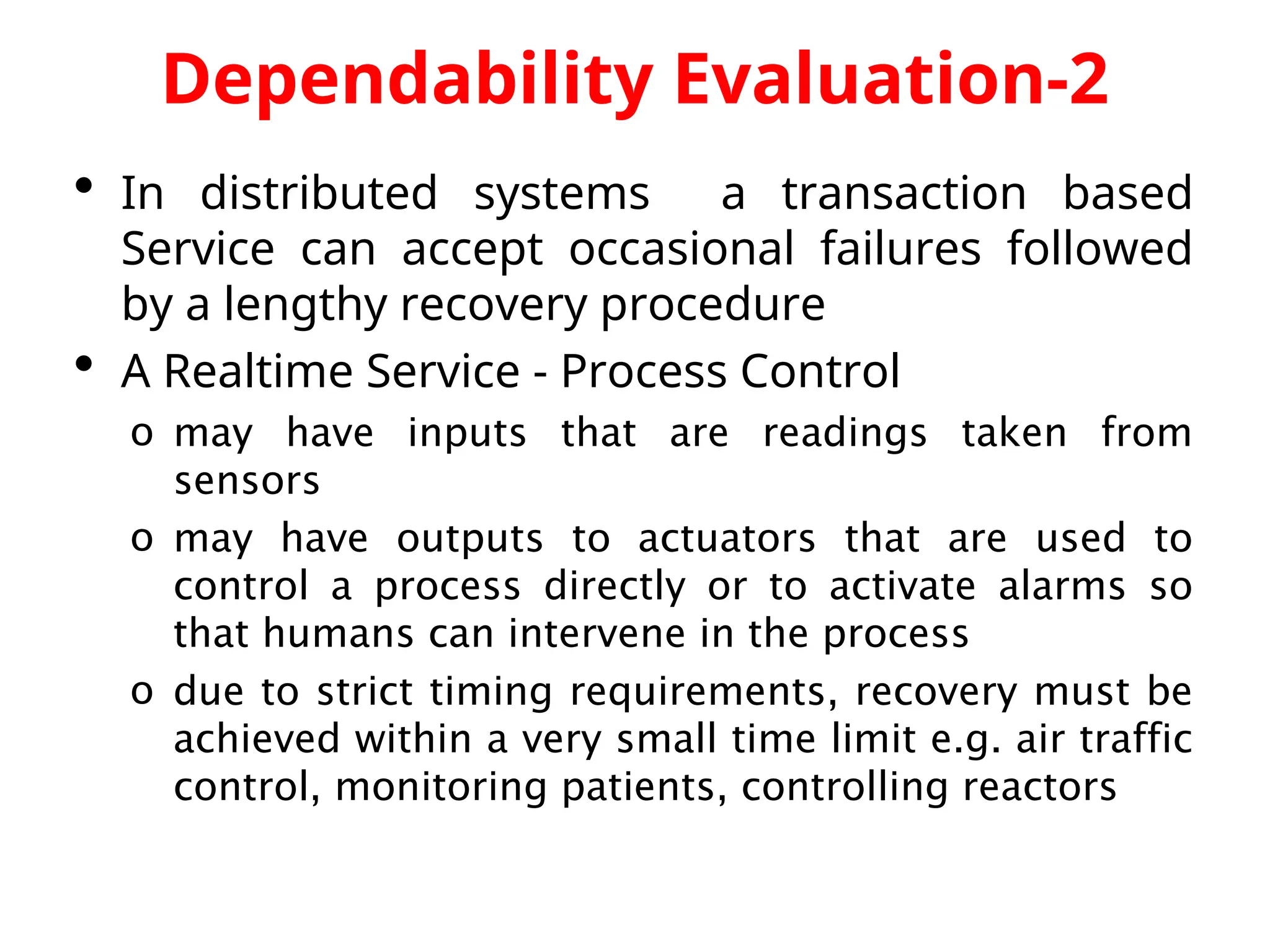

  Dependability Evaluation-2  Indistributed systems a transaction based Service can accept occasional failures followed by a lengthy recovery procedure  A Realtime Service - Process Control o may have inputs that are readings taken from sensors o may have outputs to actuators that are used to control a process directly or to activate alarms so that humans can intervene in the process o due to strict timing requirements, recovery must be achieved within a very small time limit e.g. air traffic control, monitoring patients, controlling reactors
• 16.

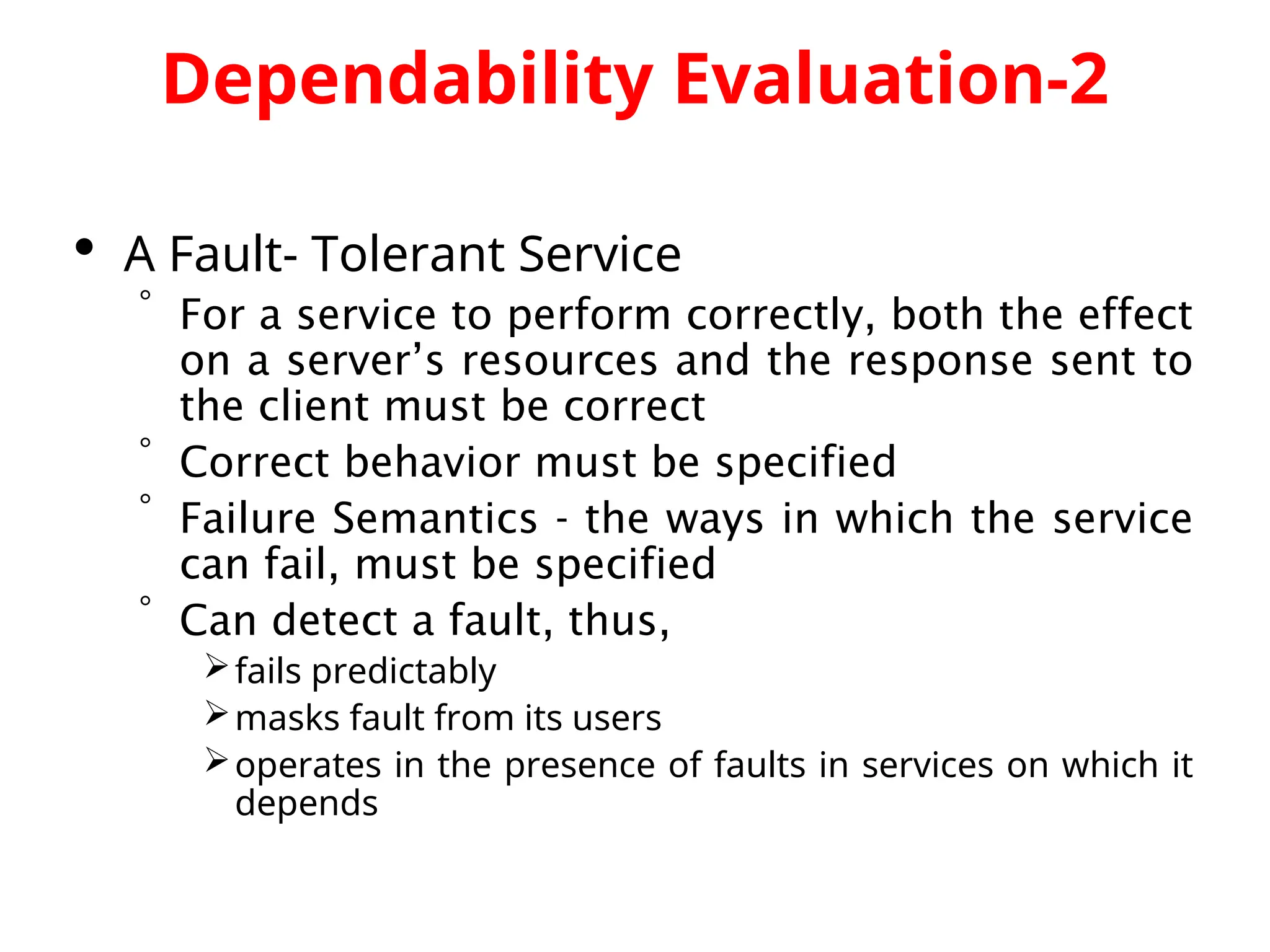

  Dependability Evaluation-2  AFault- Tolerant Service  For a service to perform correctly, both the effect on a server’s resources and the response sent to the client must be correct  Correct behavior must be specified  Failure Semantics - the ways in which the service can fail, must be specified  Can detect a fault, thus, fails predictably masks fault from its users operates in the presence of faults in services on which it depends
• 17.

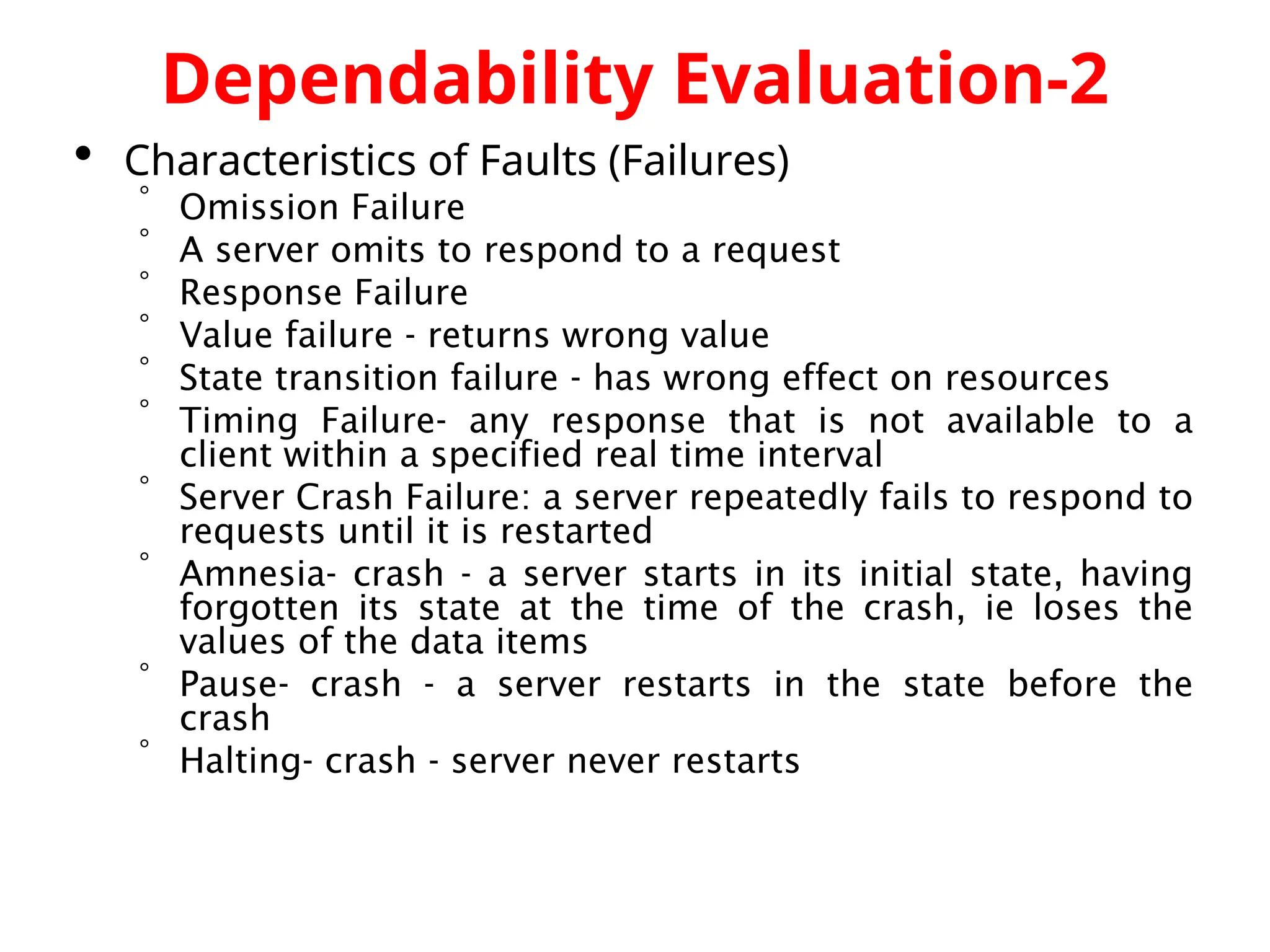

  Dependability Evaluation-2  Characteristicsof Faults (Failures)  Omission Failure  A server omits to respond to a request  Response Failure  Value failure - returns wrong value  State transition failure - has wrong effect on resources  Timing Failure- any response that is not available to a client within a specified real time interval  Server Crash Failure: a server repeatedly fails to respond to requests until it is restarted  Amnesia- crash - a server starts in its initial state, having forgotten its state at the time of the crash, ie loses the values of the data items  Pause- crash - a server restarts in the state before the crash  Halting- crash - server never restarts
• 18.

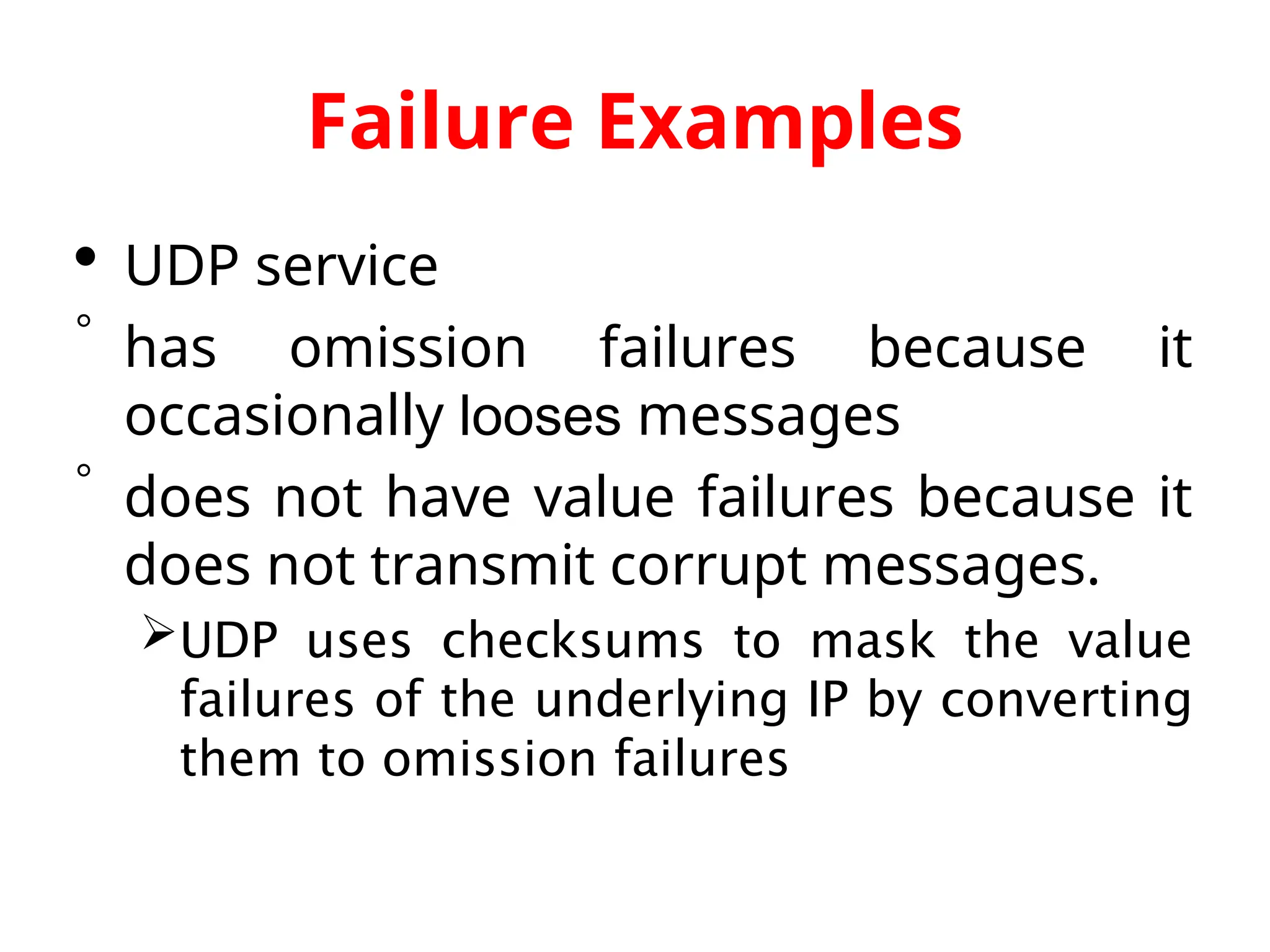

  Failure Examples  UDPservice  has omission failures because it occasionally looses messages  does not have value failures because it does not transmit corrupt messages. UDP uses checksums to mask the value failures of the underlying IP by converting them to omission failures
• 19.

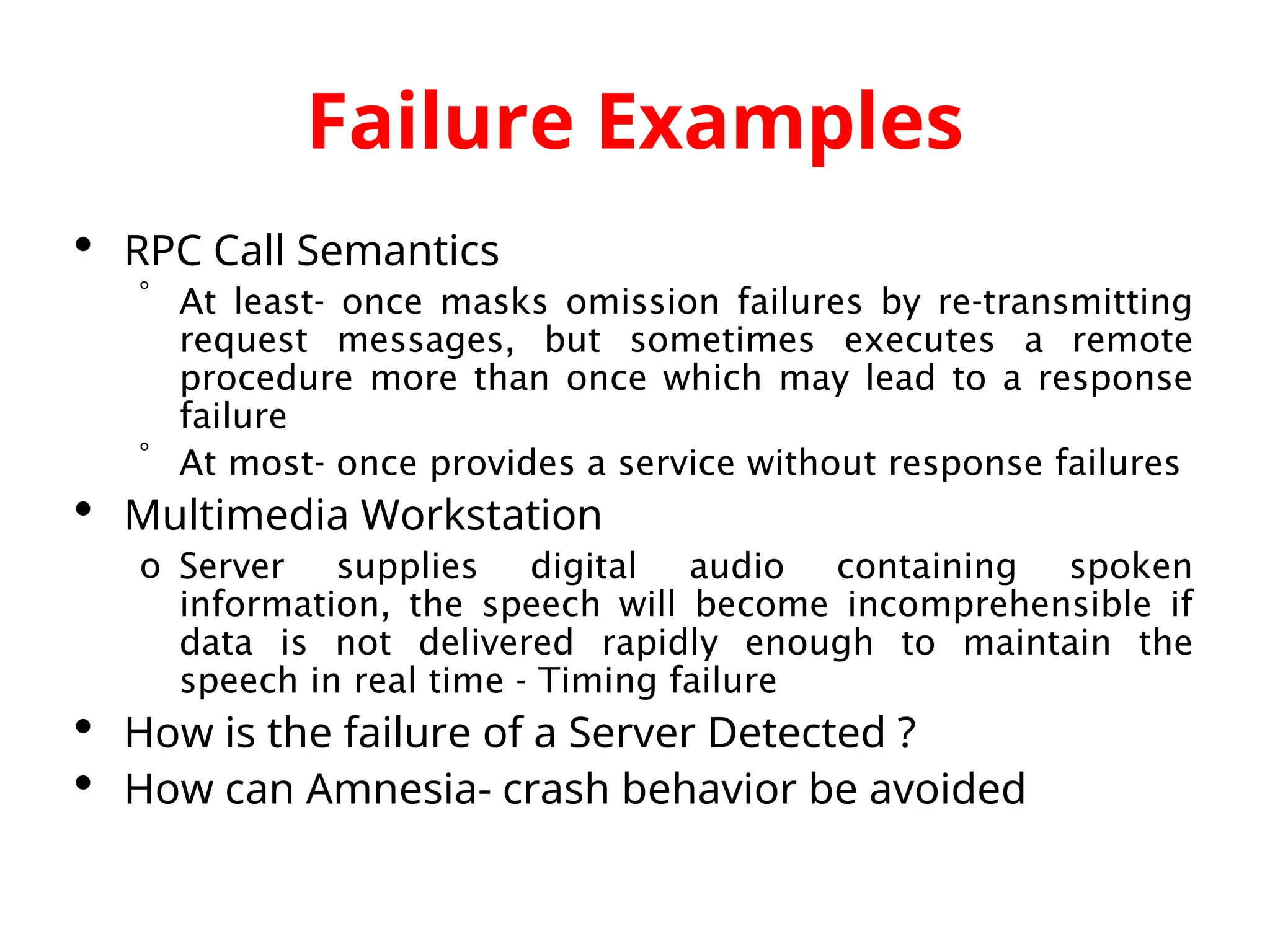

  Failure Examples  RPCCall Semantics  At least- once masks omission failures by re-transmitting request messages, but sometimes executes a remote procedure more than once which may lead to a response failure  At most- once provides a service without response failures  Multimedia Workstation o Server supplies digital audio containing spoken information, the speech will become incomprehensible if data is not delivered rapidly enough to maintain the speech in real time - Timing failure  How is the failure of a Server Detected ?  How can Amnesia- crash behavior be avoided
• 20.

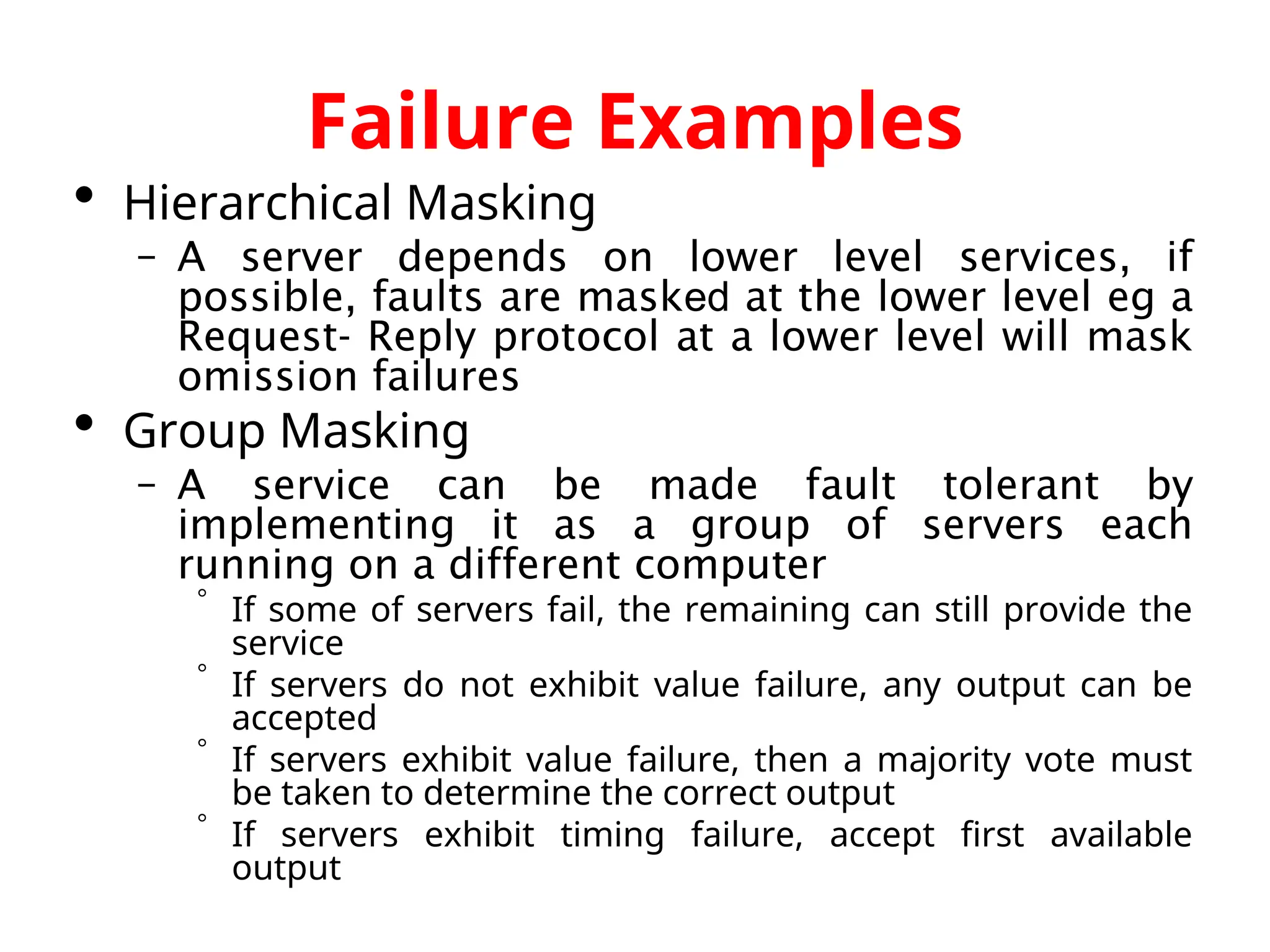

  Failure Examples  HierarchicalMasking – A server depends on lower level services, if possible, faults are masked at the lower level eg a Request- Reply protocol at a lower level will mask omission failures  Group Masking – A service can be made fault tolerant by implementing it as a group of servers each running on a different computer  If some of servers fail, the remaining can still provide the service  If servers do not exhibit value failure, any output can be accepted  If servers exhibit value failure, then a majority vote must be taken to determine the correct output  If servers exhibit timing failure, accept first available output
• 21.

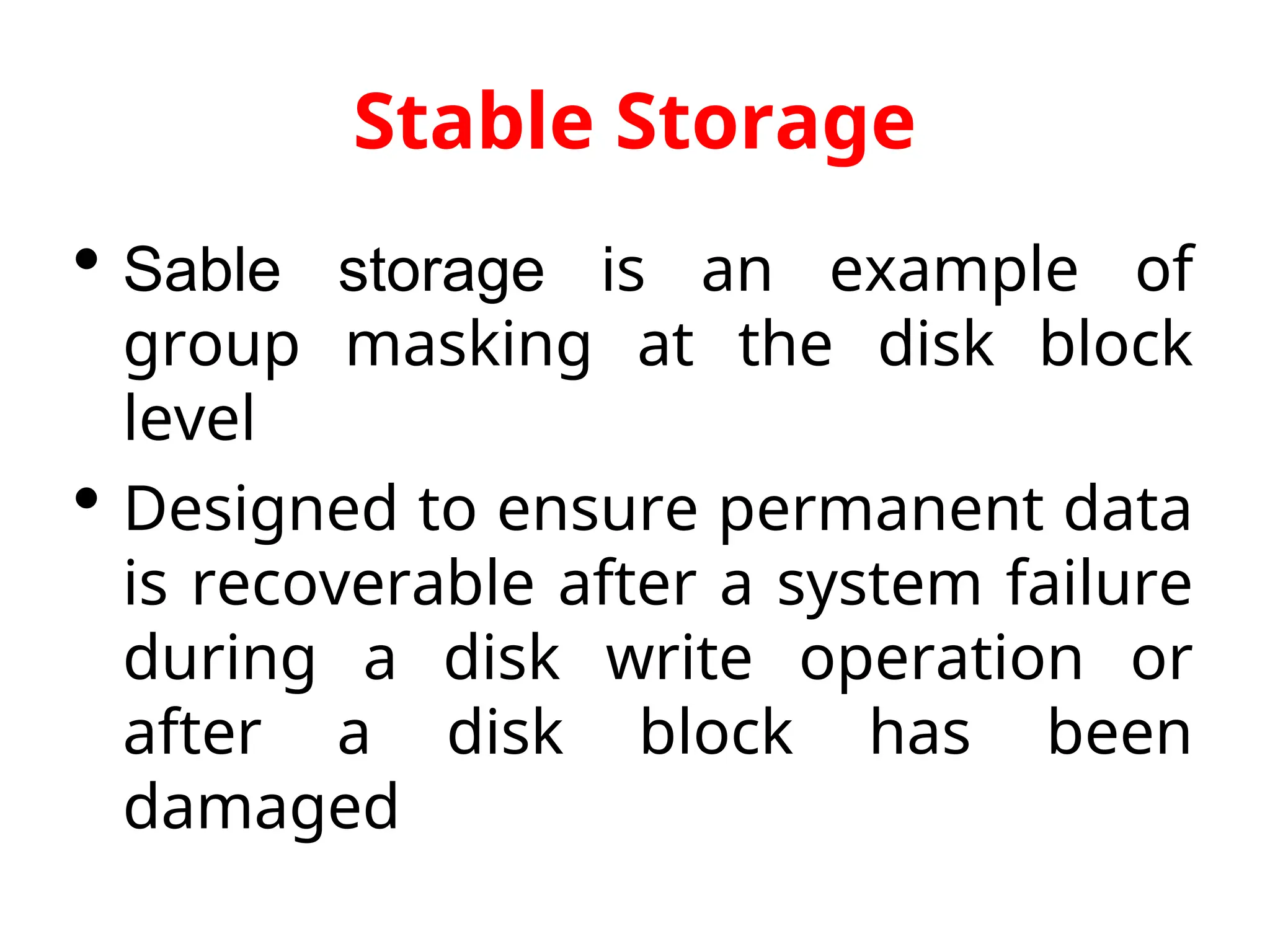

  Stable Storage  Sablestorage is an example of group masking at the disk block level  Designed to ensure permanent data is recoverable after a system failure during a disk write operation or after a disk block has been damaged
• 22.

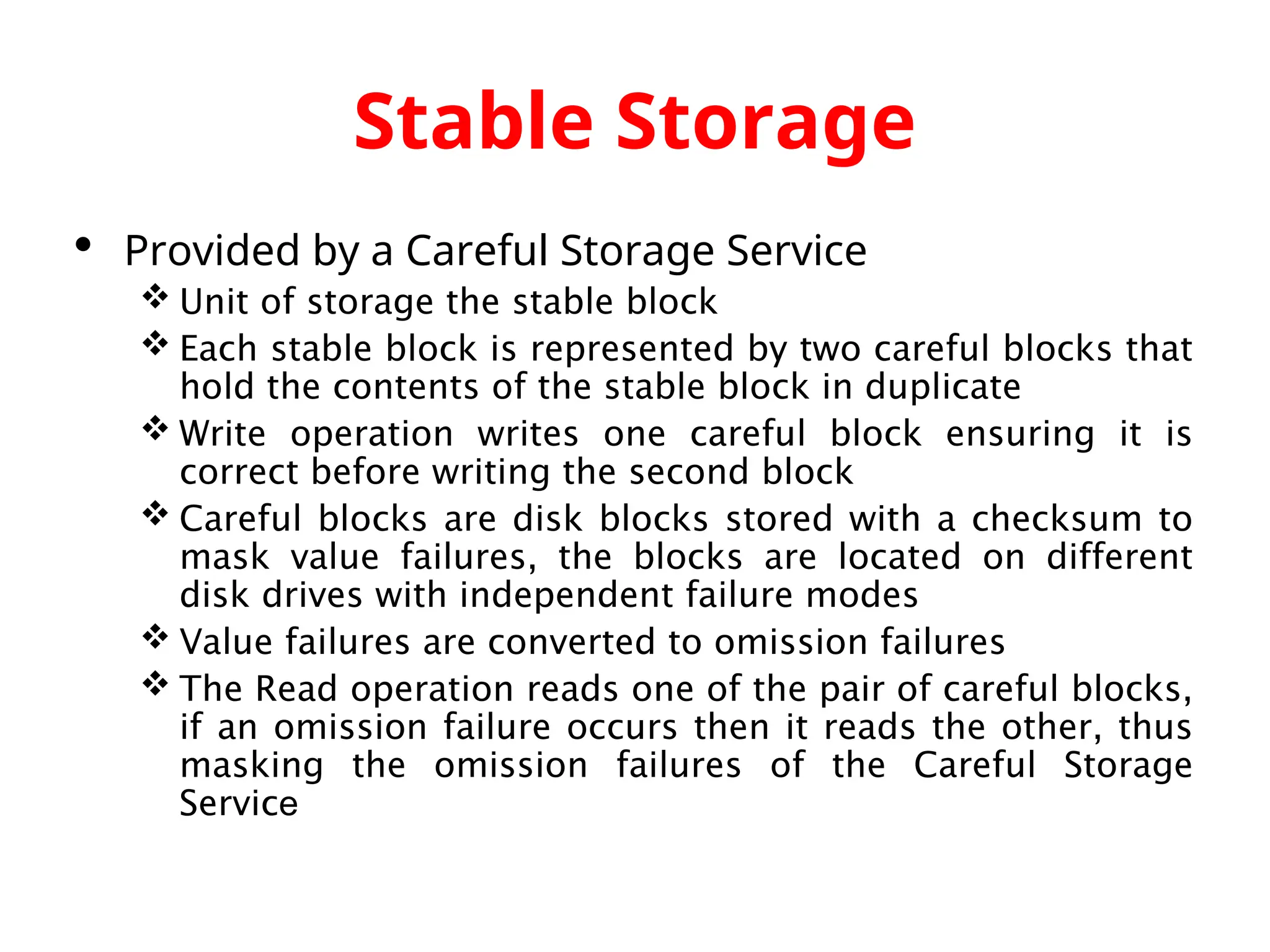

  Stable Storage  Providedby a Careful Storage Service  Unit of storage the stable block  Each stable block is represented by two careful blocks that hold the contents of the stable block in duplicate  Write operation writes one careful block ensuring it is correct before writing the second block  Careful blocks are disk blocks stored with a checksum to mask value failures, the blocks are located on different disk drives with independent failure modes  Value failures are converted to omission failures  The Read operation reads one of the pair of careful blocks, if an omission failure occurs then it reads the other, thus masking the omission failures of the Careful Storage Service

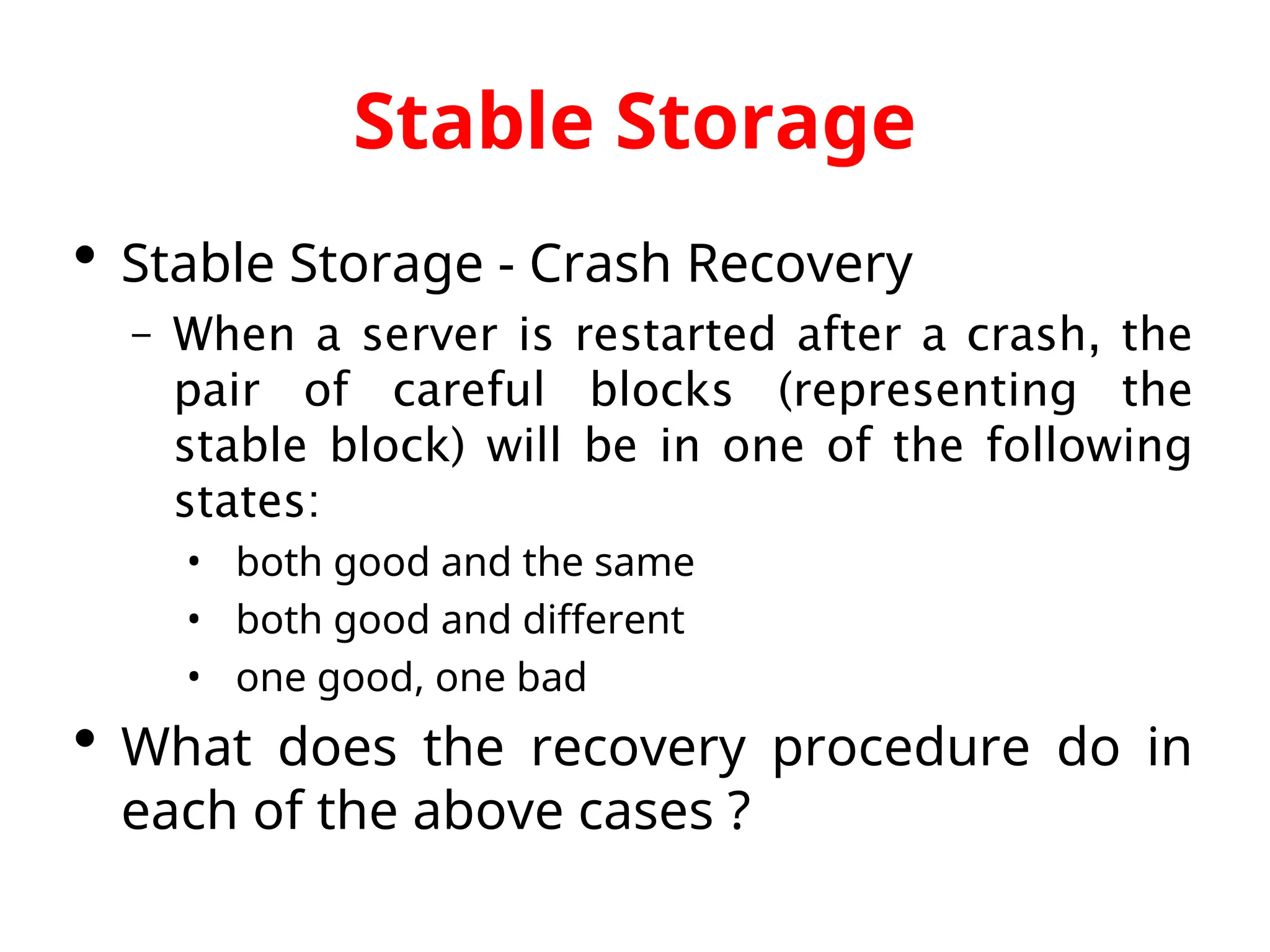

• 23.
  Stable Storage  StableStorage - Crash Recovery – When a server is restarted after a crash, the pair of careful blocks (representing the stable block) will be in one of the following states: • both good and the same • both good and different • one good, one bad  What does the recovery procedure do in each of the above cases ?
