Lecture 03 Embedded Software CE346 – Microprocessor System Design Branden Ghena – Fall 2021 Some slides borrowed from: Josiah Hester (Northwestern), Prabal Dutta (UC Berkeley)

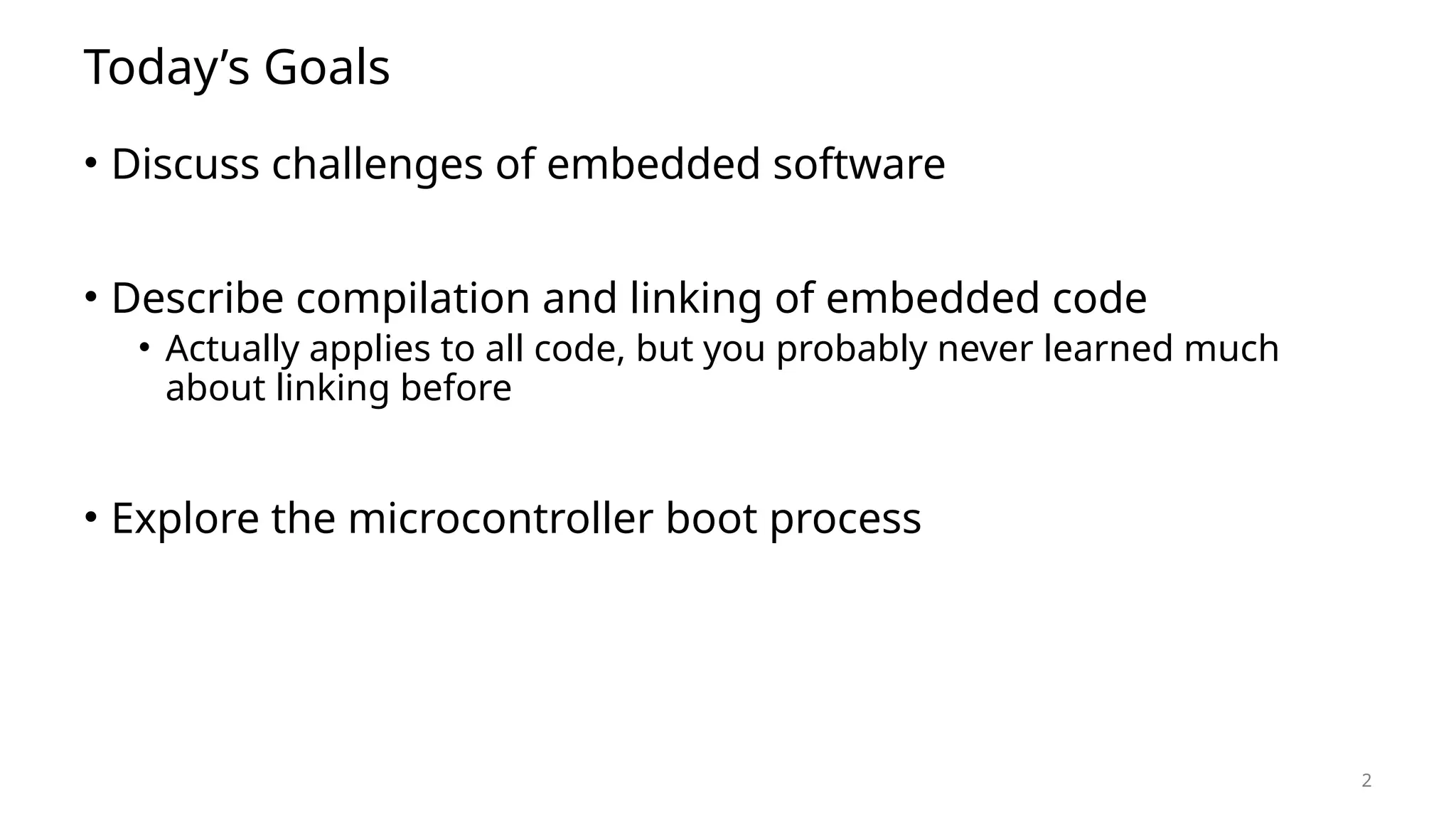

2 Today’s Goals • Discuss challenges of embedded software • Describe compilation and linking of embedded code • Actually applies to all code, but you probably never learned much about linking before • Explore the microcontroller boot process

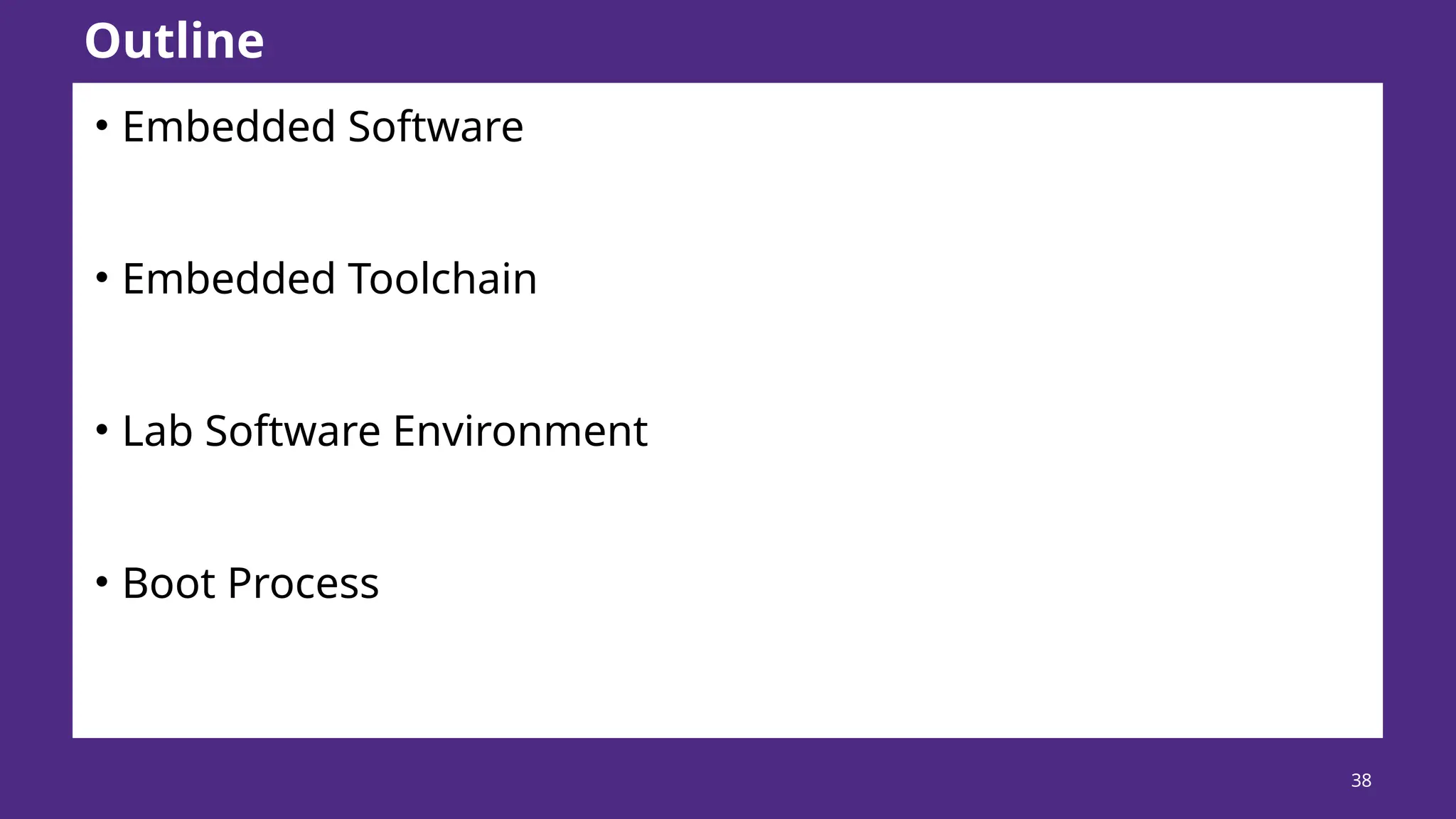

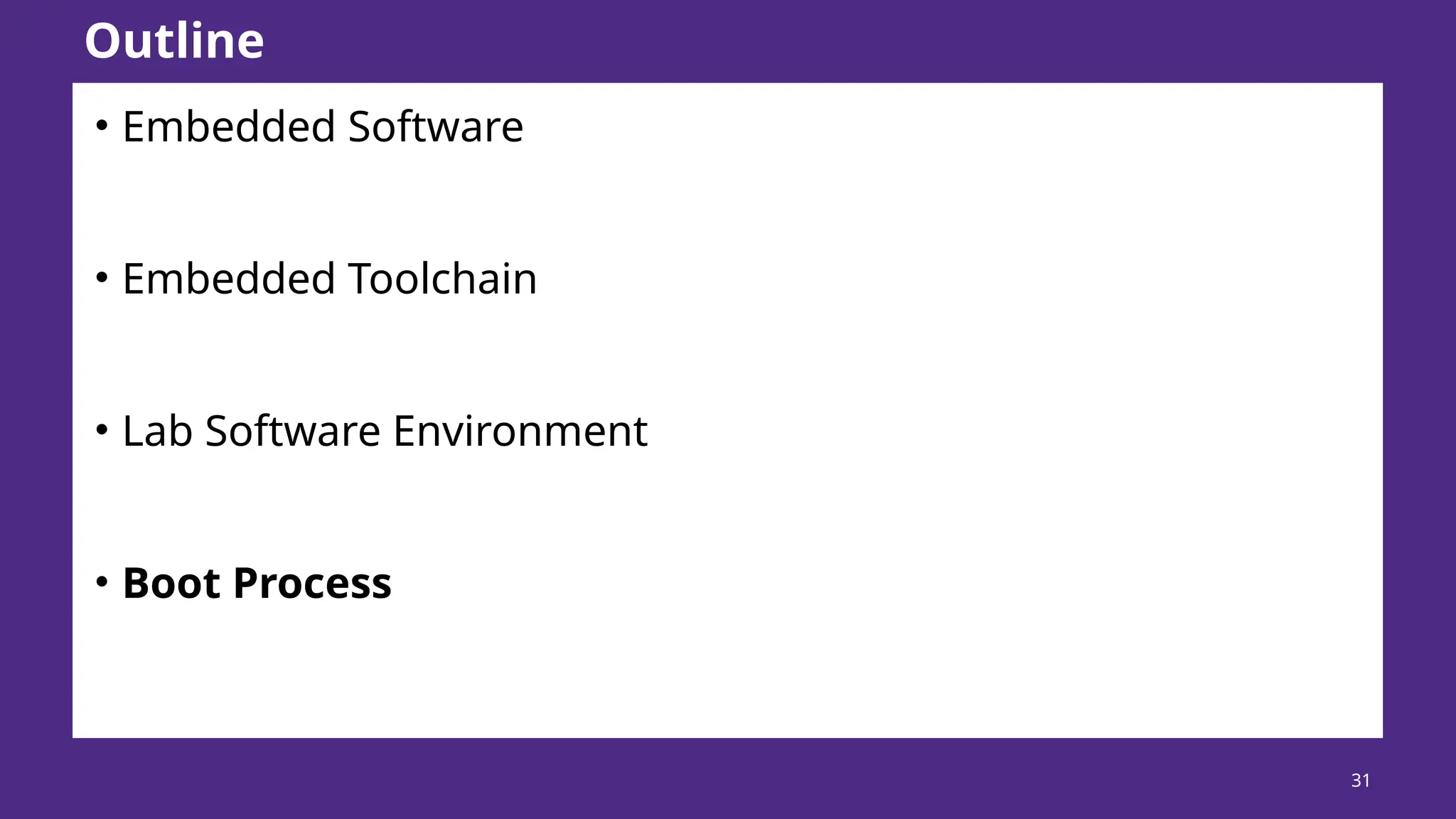

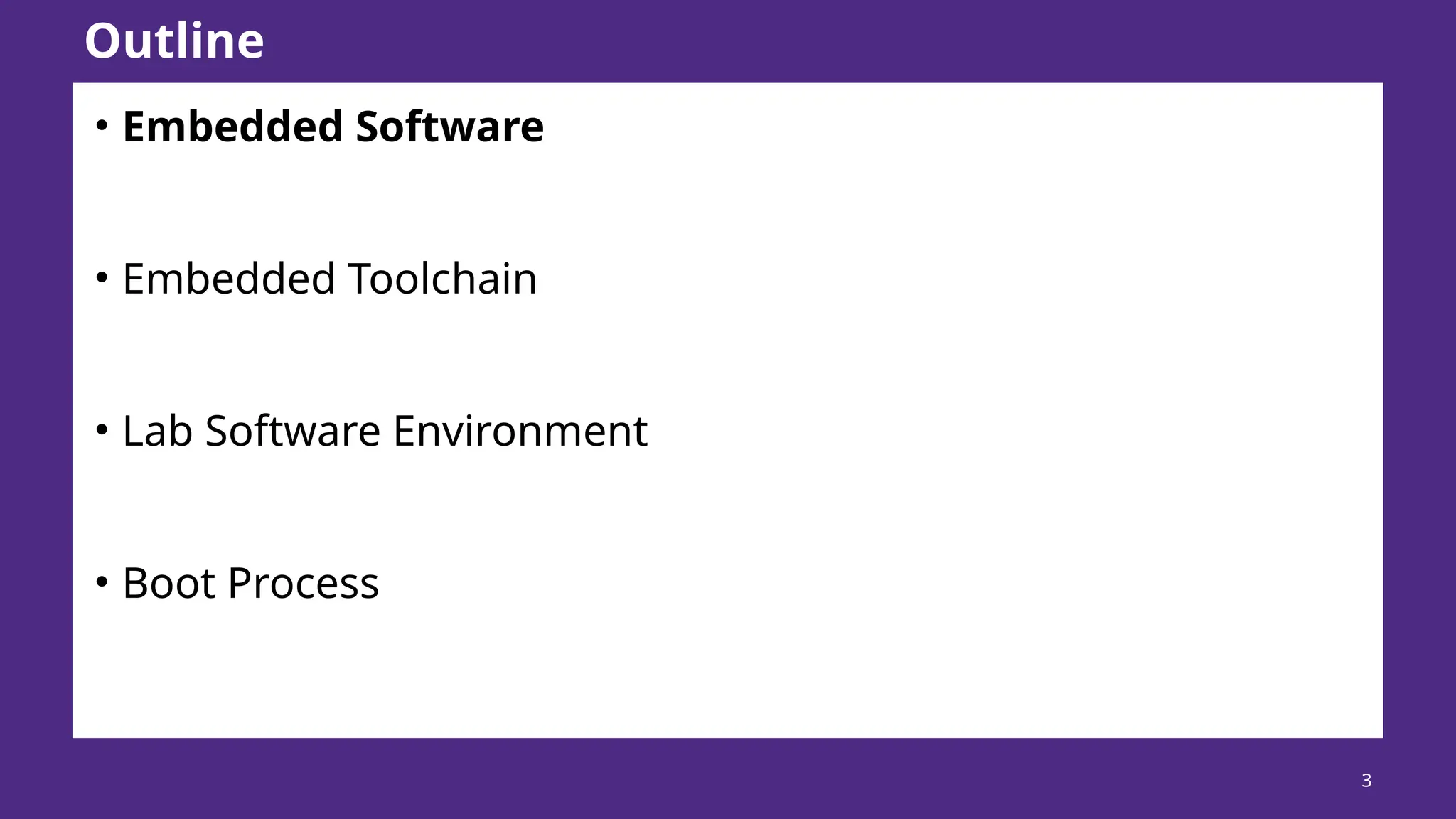

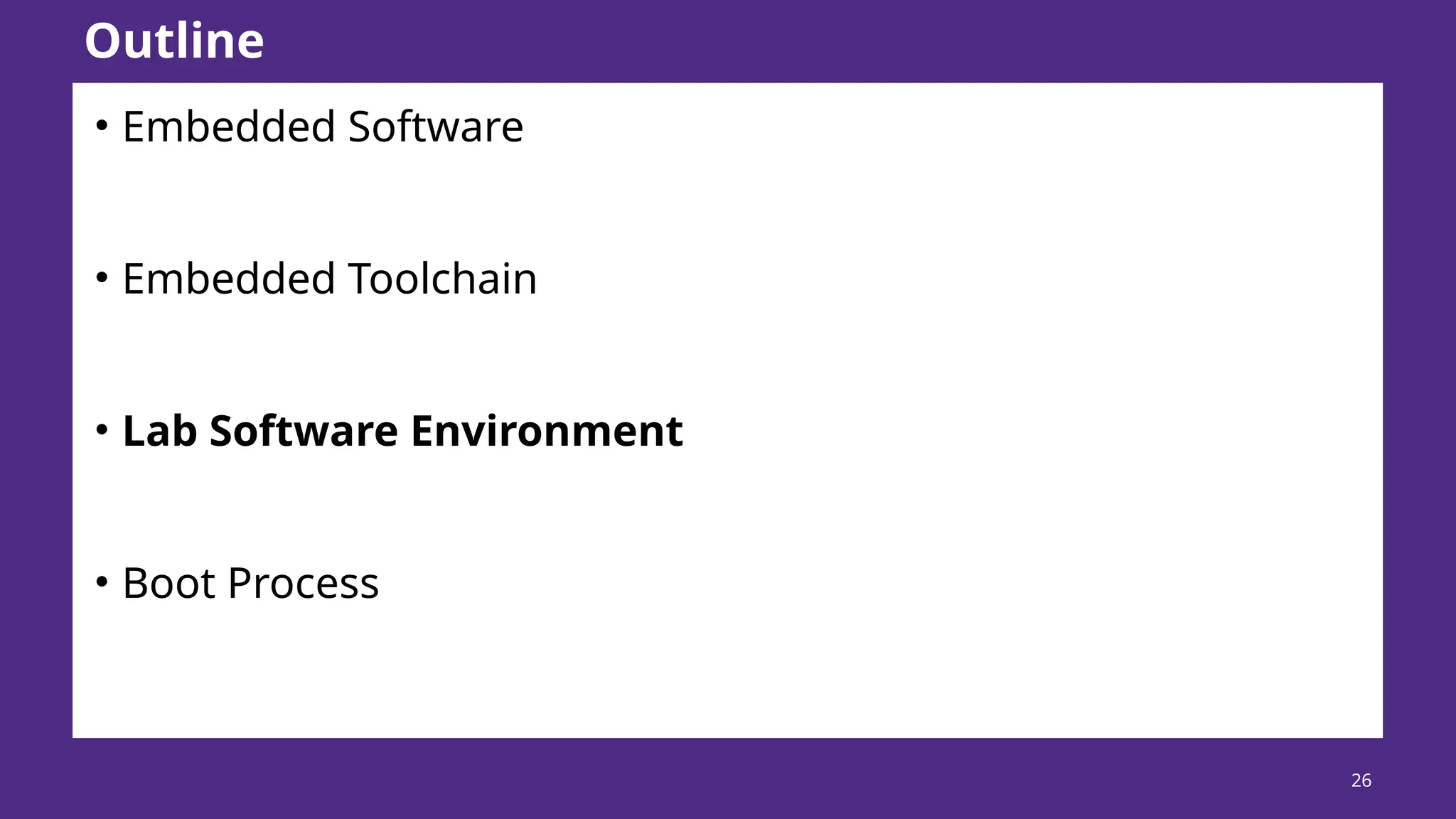

3 • Embedded Software • Embedded Toolchain • Lab Software Environment • Boot Process Outline

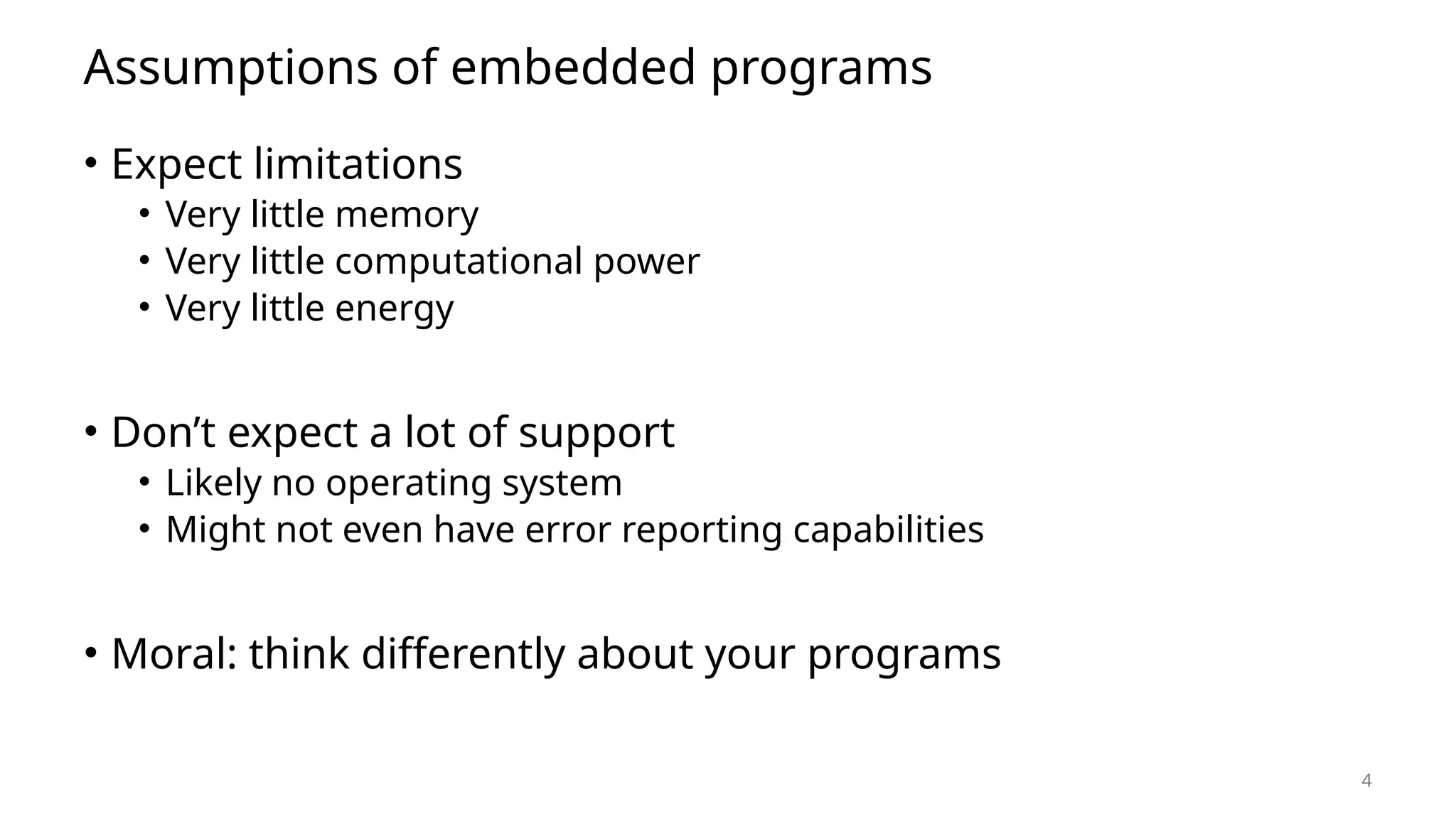

4 Assumptions of embedded programs • Expect limitations • Very little memory • Very little computational power • Very little energy • Don’t expect a lot of support • Likely no operating system • Might not even have error reporting capabilities • Moral: think differently about your programs

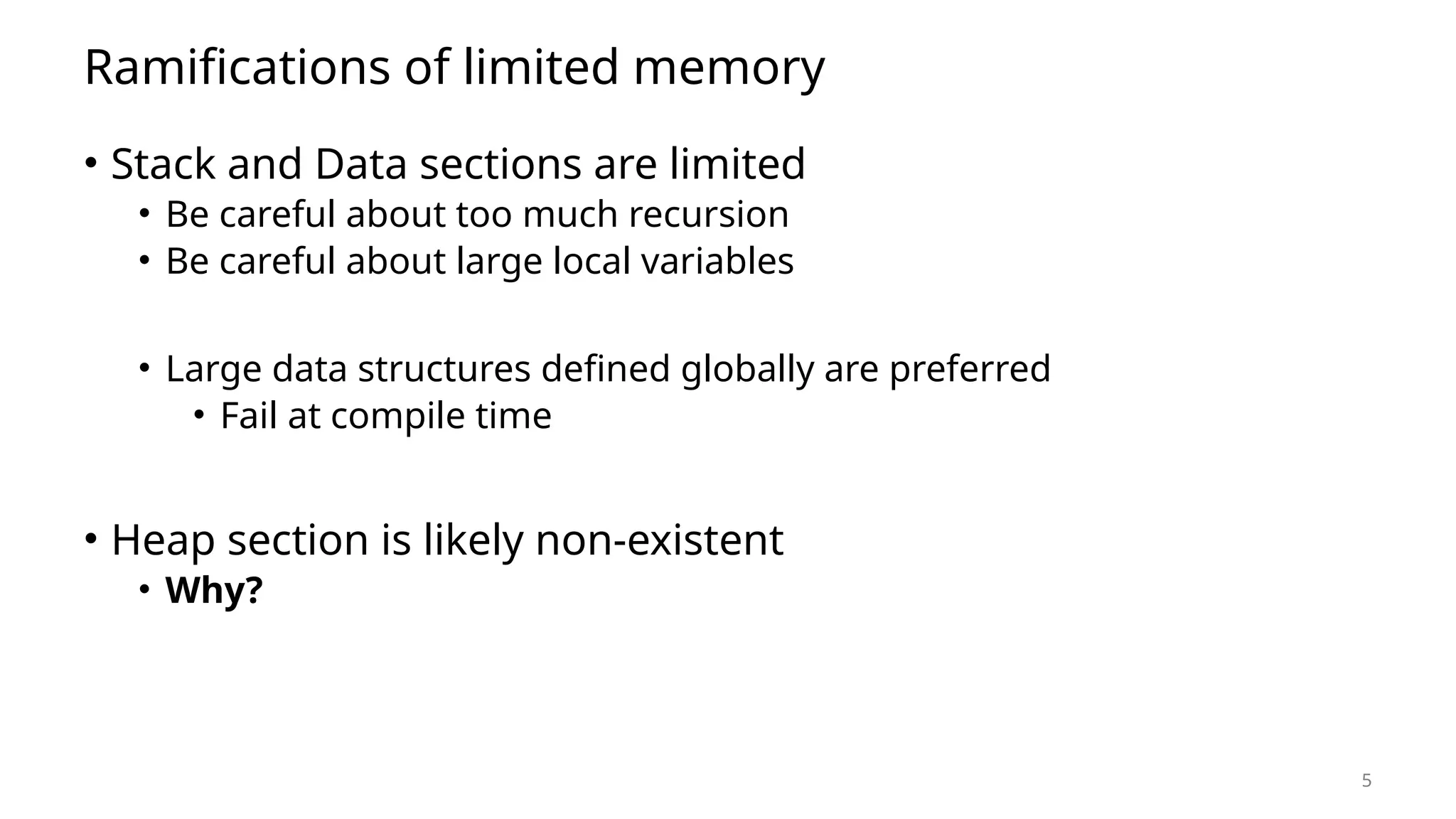

5 Ramifications of limited memory • Stack and Data sections are limited • Be careful about too much recursion • Be careful about large local variables • Large data structures defined globally are preferred • Fail at compile time • Heap section is likely non-existent • Why?

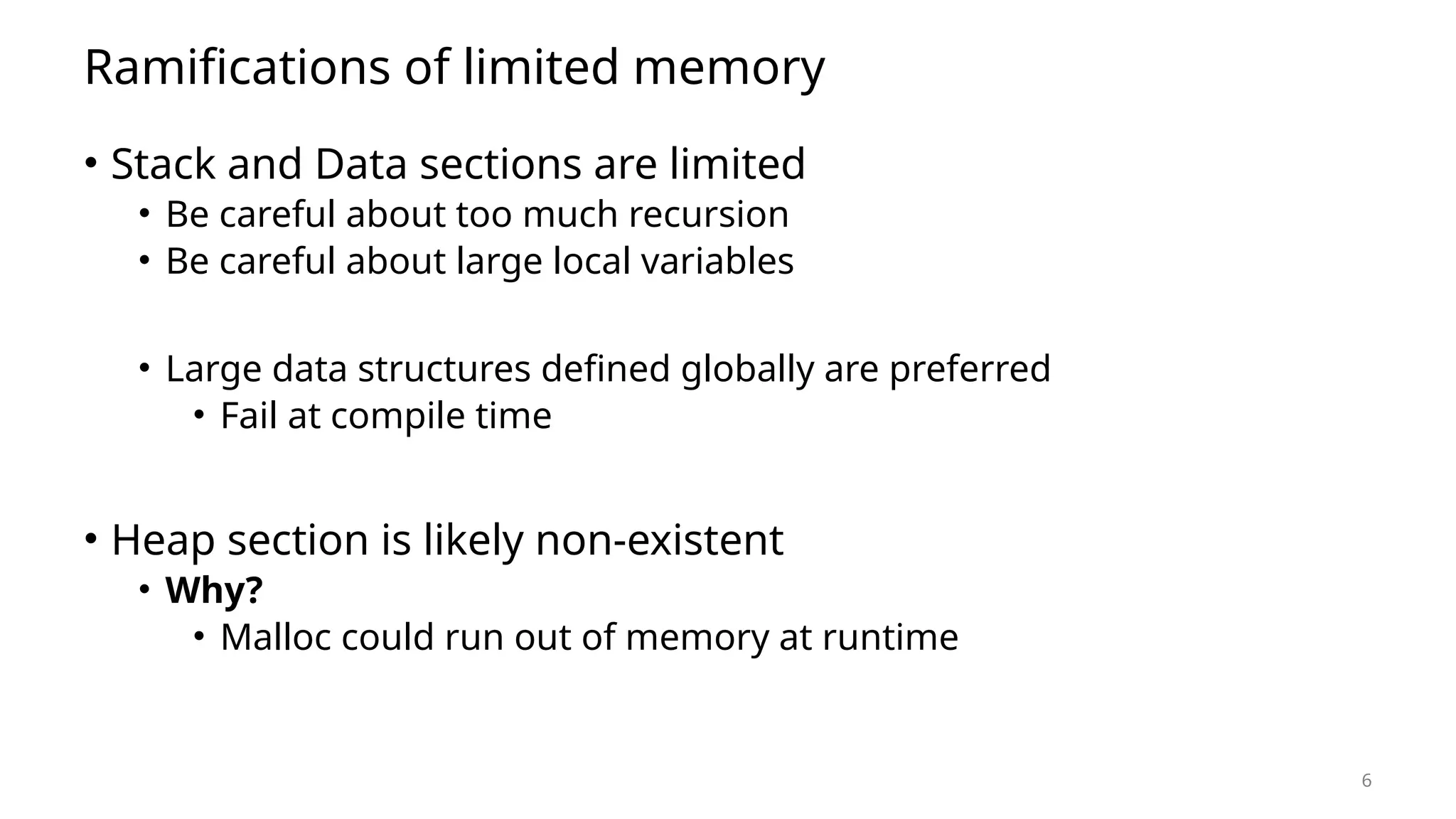

6 Ramifications of limited memory • Stack and Data sections are limited • Be careful about too much recursion • Be careful about large local variables • Large data structures defined globally are preferred • Fail at compile time • Heap section is likely non-existent • Why? • Malloc could run out of memory at runtime

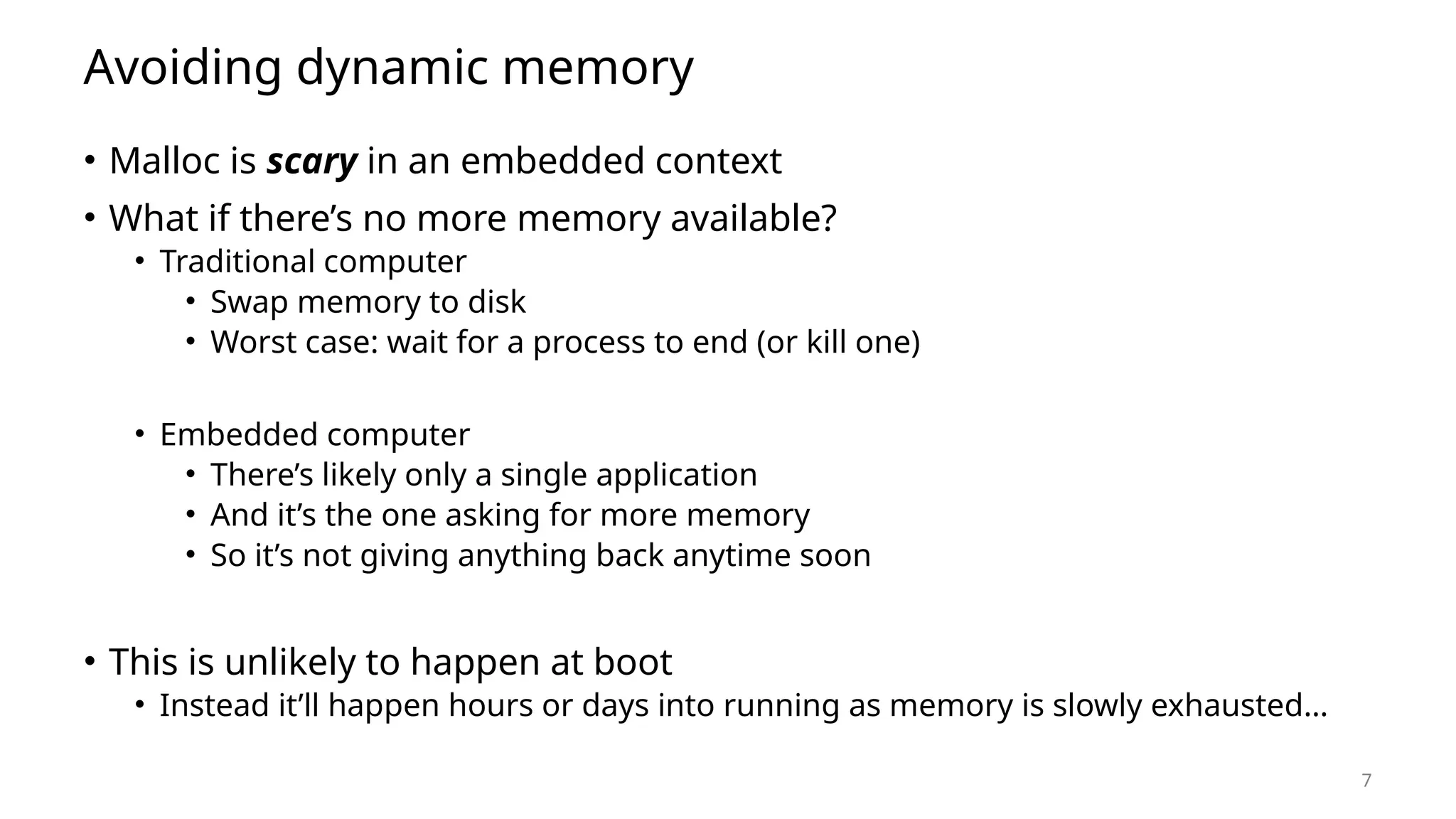

7 Avoiding dynamic memory • Malloc is scary in an embedded context • What if there’s no more memory available? • Traditional computer • Swap memory to disk • Worst case: wait for a process to end (or kill one) • Embedded computer • There’s likely only a single application • And it’s the one asking for more memory • So it’s not giving anything back anytime soon • This is unlikely to happen at boot • Instead it’ll happen hours or days into running as memory is slowly exhausted…

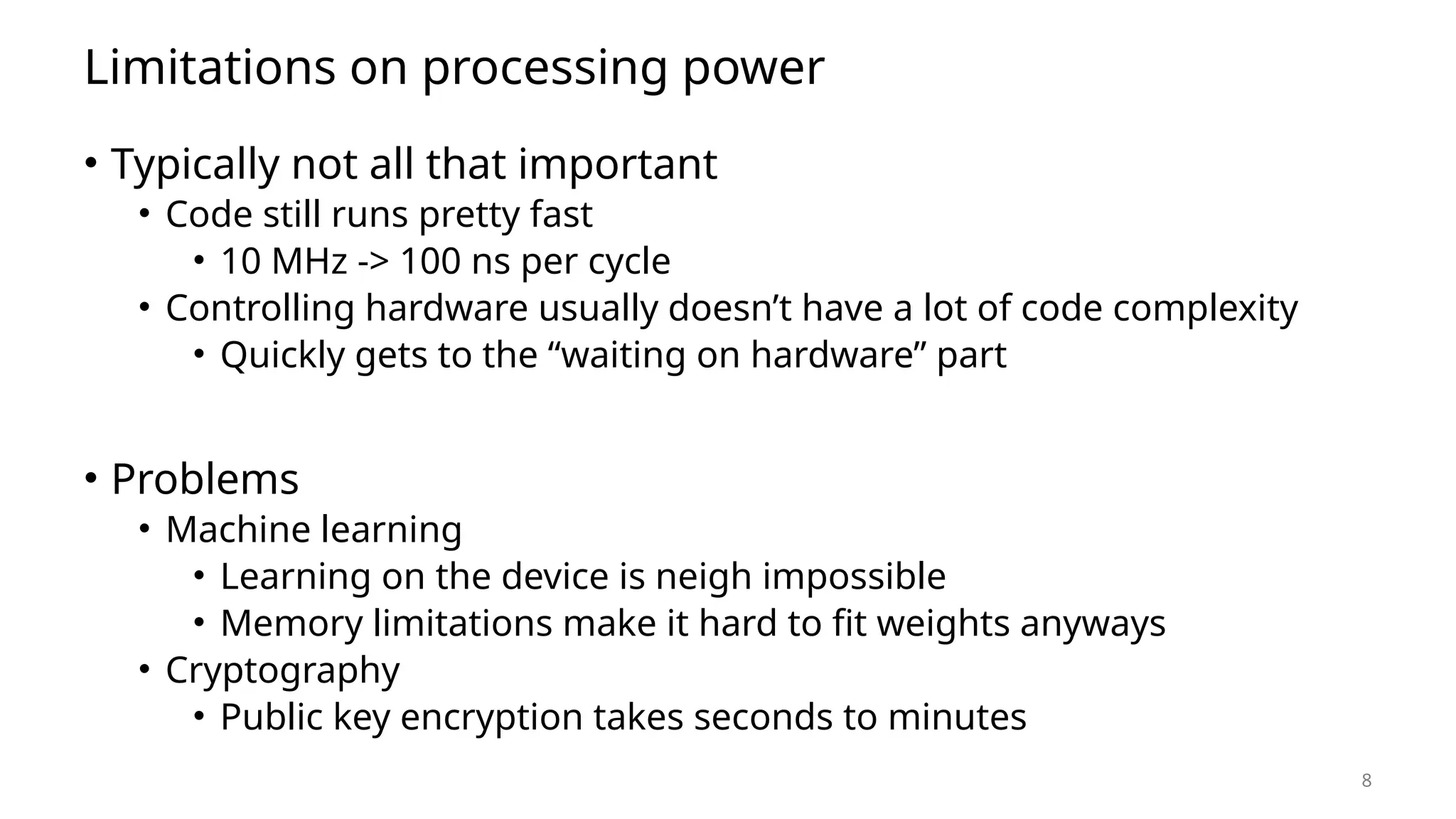

8 Limitations on processing power • Typically not all that important • Code still runs pretty fast • 10 MHz -> 100 ns per cycle • Controlling hardware usually doesn’t have a lot of code complexity • Quickly gets to the “waiting on hardware” part • Problems • Machine learning • Learning on the device is neigh impossible • Memory limitations make it hard to fit weights anyways • Cryptography • Public key encryption takes seconds to minutes

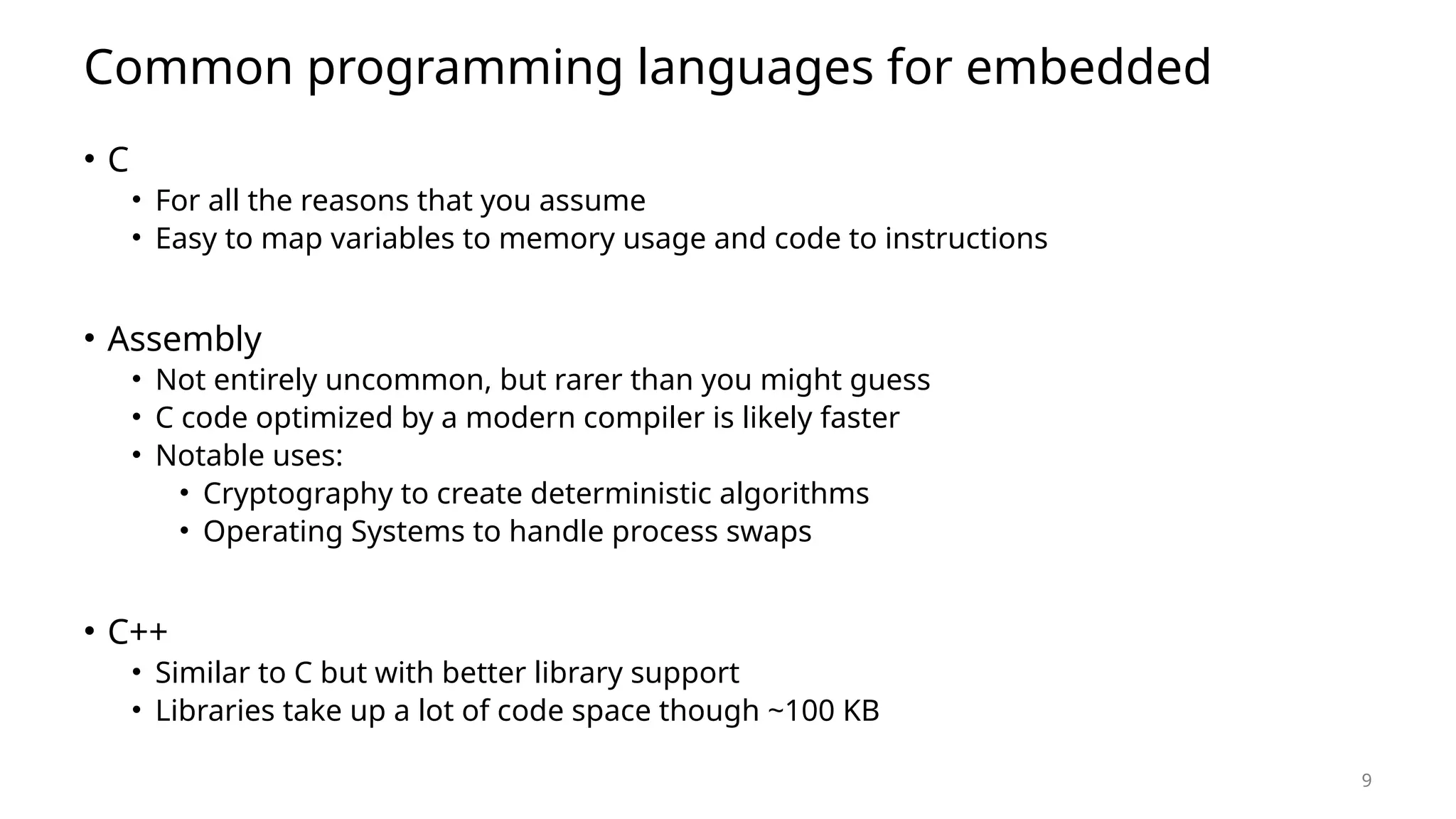

9 Common programming languages for embedded • C • For all the reasons that you assume • Easy to map variables to memory usage and code to instructions • Assembly • Not entirely uncommon, but rarer than you might guess • C code optimized by a modern compiler is likely faster • Notable uses: • Cryptography to create deterministic algorithms • Operating Systems to handle process swaps • C++ • Similar to C but with better library support • Libraries take up a lot of code space though ~100 KB

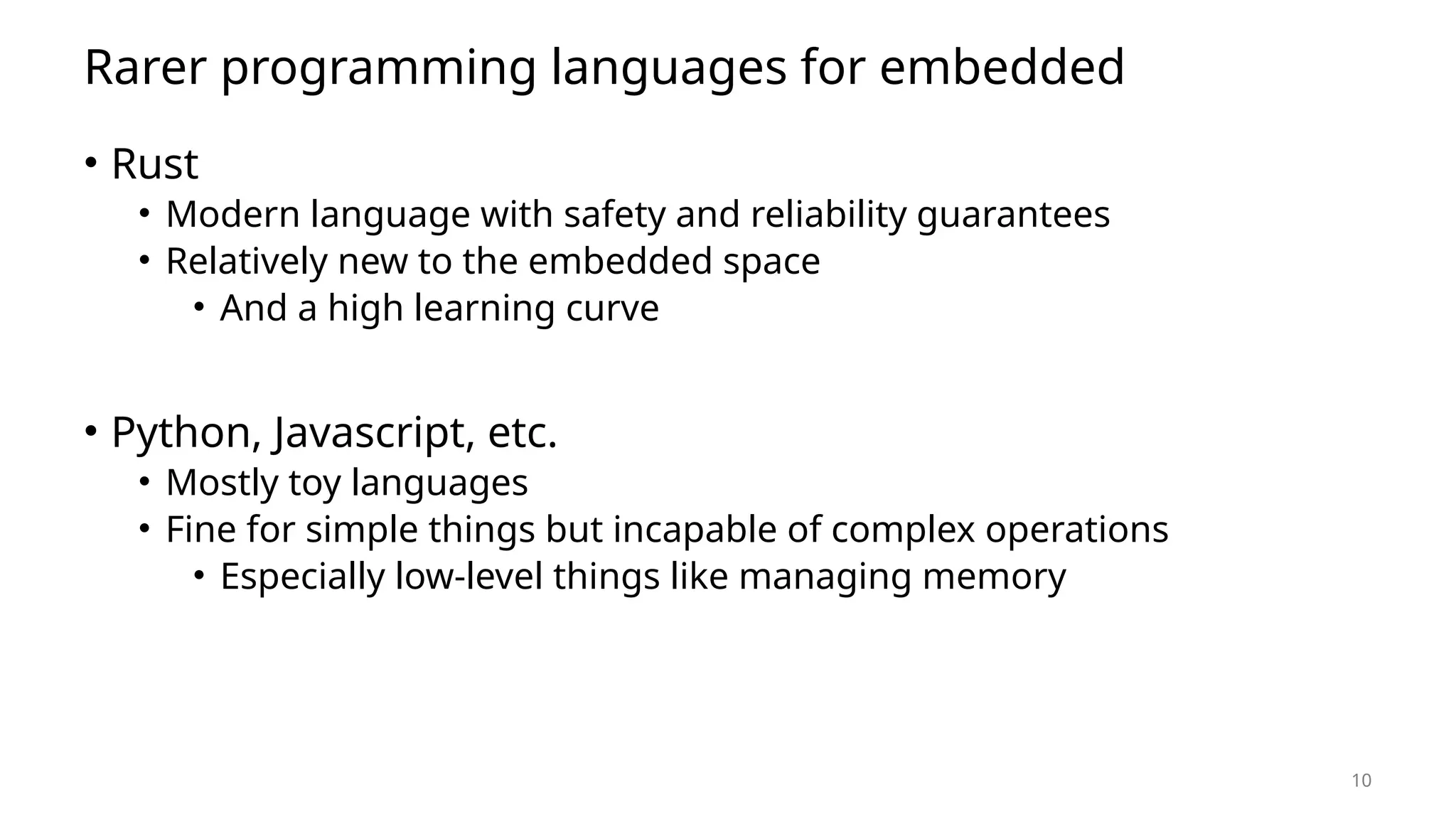

10 Rarer programming languages for embedded • Rust • Modern language with safety and reliability guarantees • Relatively new to the embedded space • And a high learning curve • Python, Javascript, etc. • Mostly toy languages • Fine for simple things but incapable of complex operations • Especially low-level things like managing memory

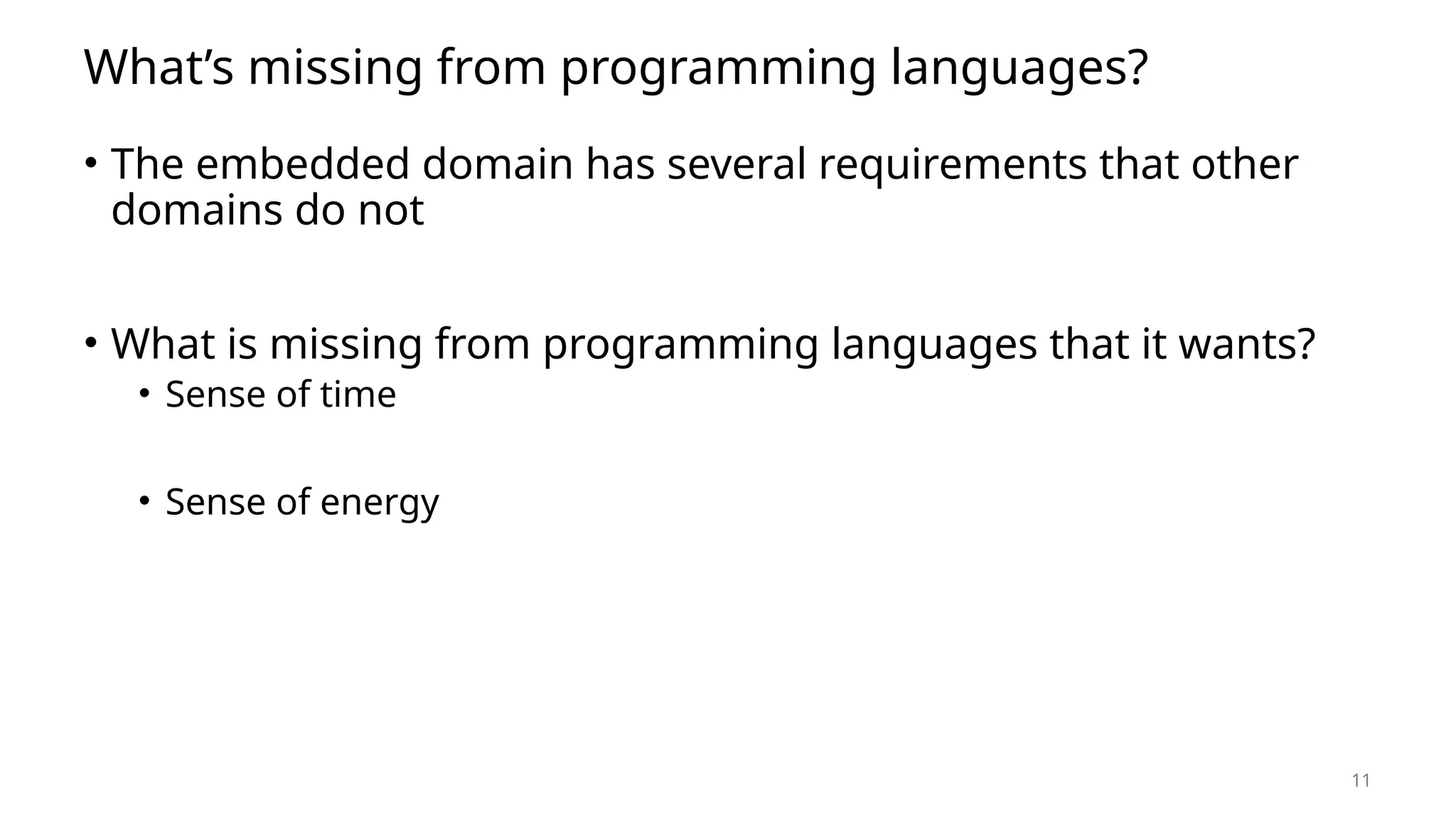

11 What’s missing from programming languages? • The embedded domain has several requirements that other domains do not • What is missing from programming languages that it wants? • Sense of time • Sense of energy

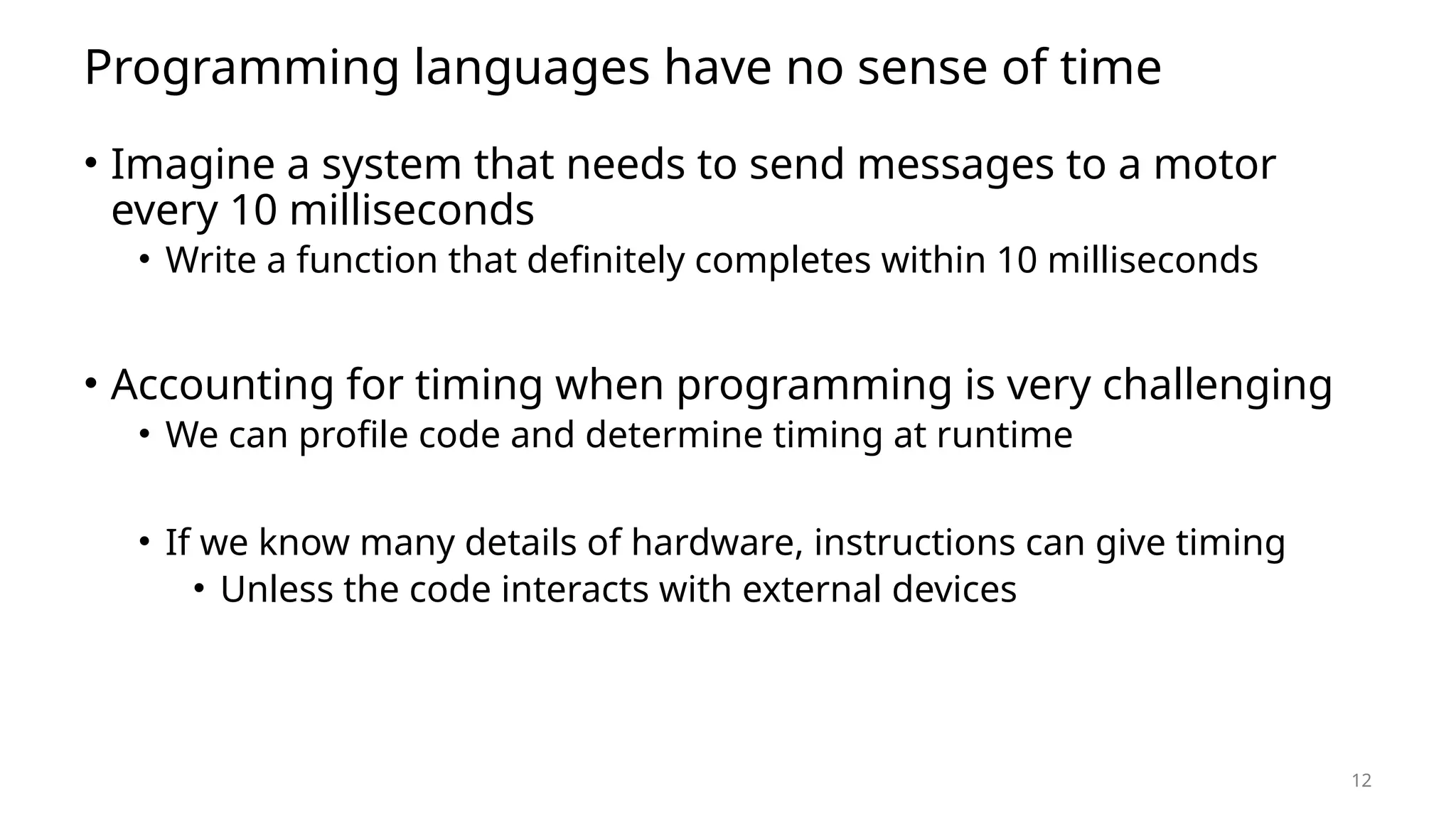

12 Programming languages have no sense of time • Imagine a system that needs to send messages to a motor every 10 milliseconds • Write a function that definitely completes within 10 milliseconds • Accounting for timing when programming is very challenging • We can profile code and determine timing at runtime • If we know many details of hardware, instructions can give timing • Unless the code interacts with external devices

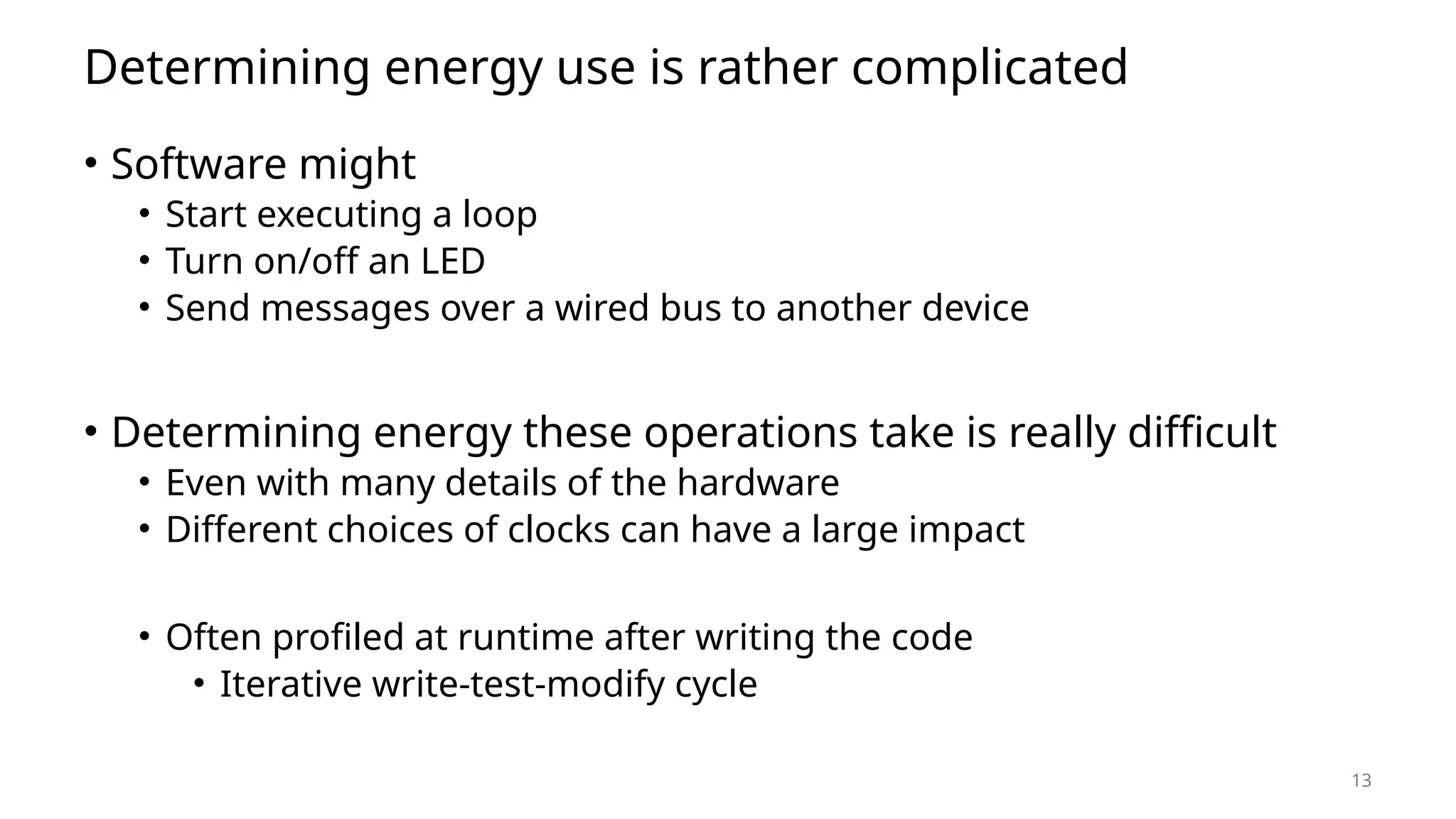

13 Determining energy use is rather complicated • Software might • Start executing a loop • Turn on/off an LED • Send messages over a wired bus to another device • Determining energy these operations take is really difficult • Even with many details of the hardware • Different choices of clocks can have a large impact • Often profiled at runtime after writing the code • Iterative write-test-modify cycle

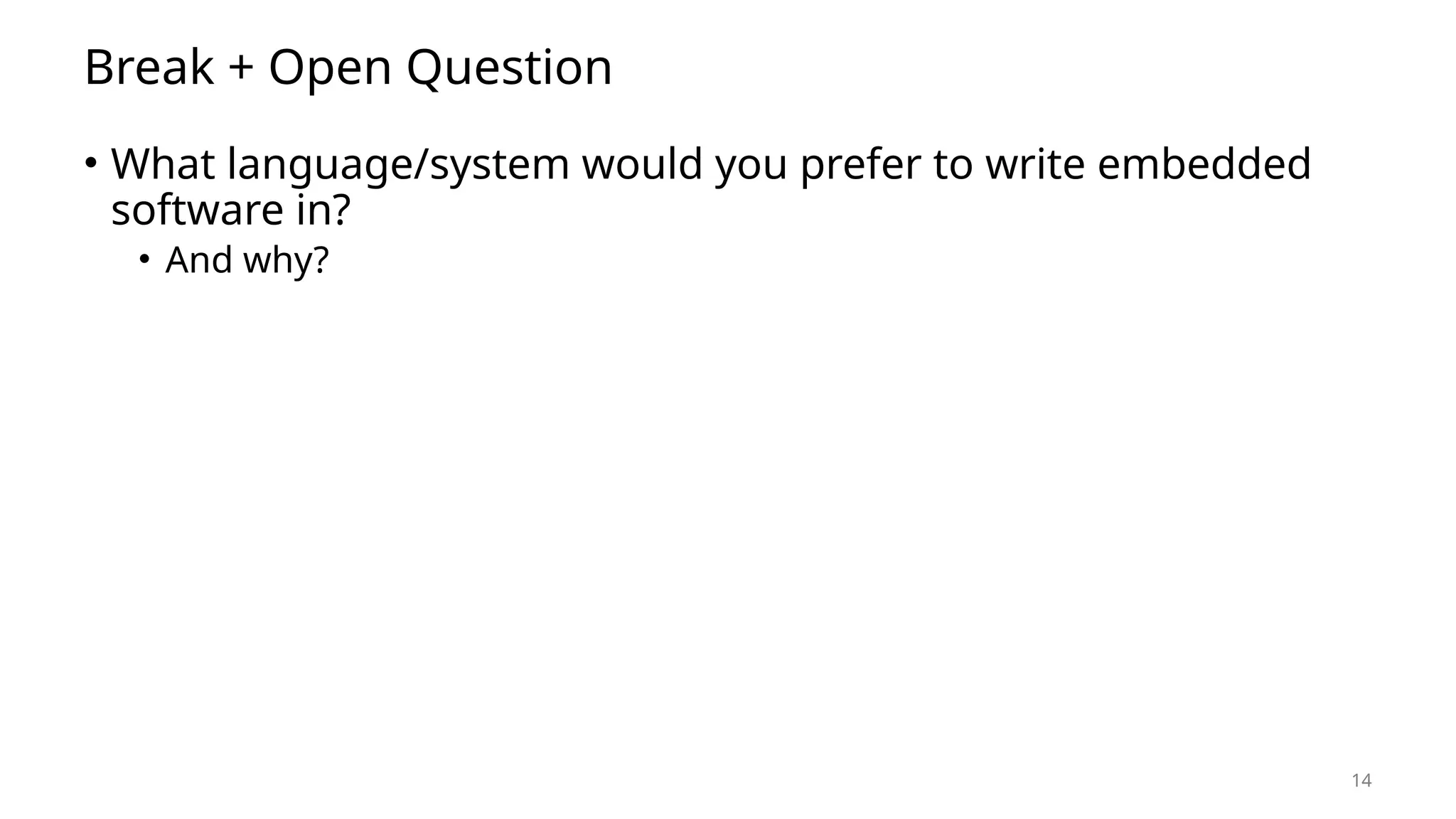

14 Break + Open Question • What language/system would you prefer to write embedded software in? • And why?

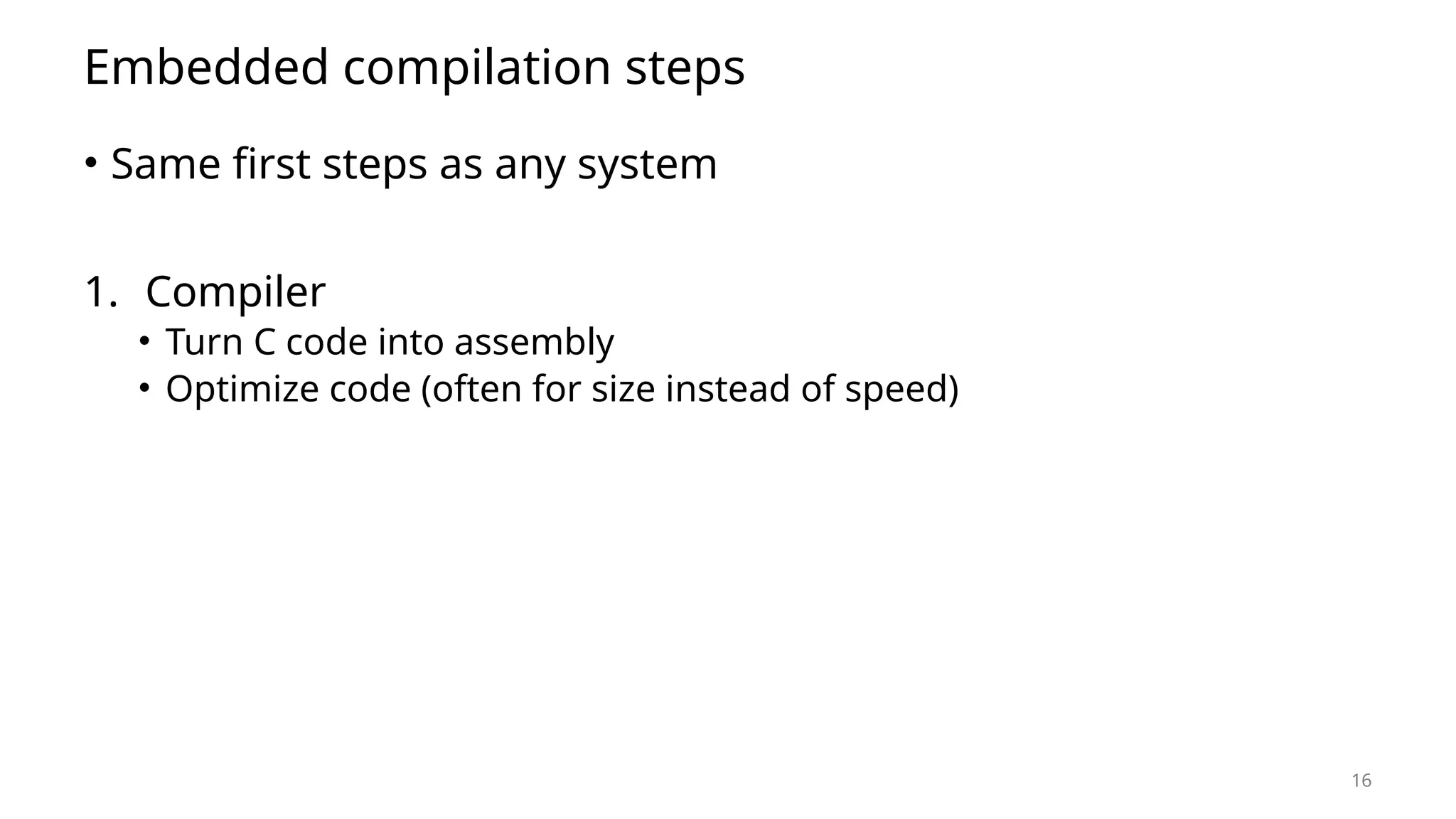

16 Embedded compilation steps • Same first steps as any system 1. Compiler • Turn C code into assembly • Optimize code (often for size instead of speed)

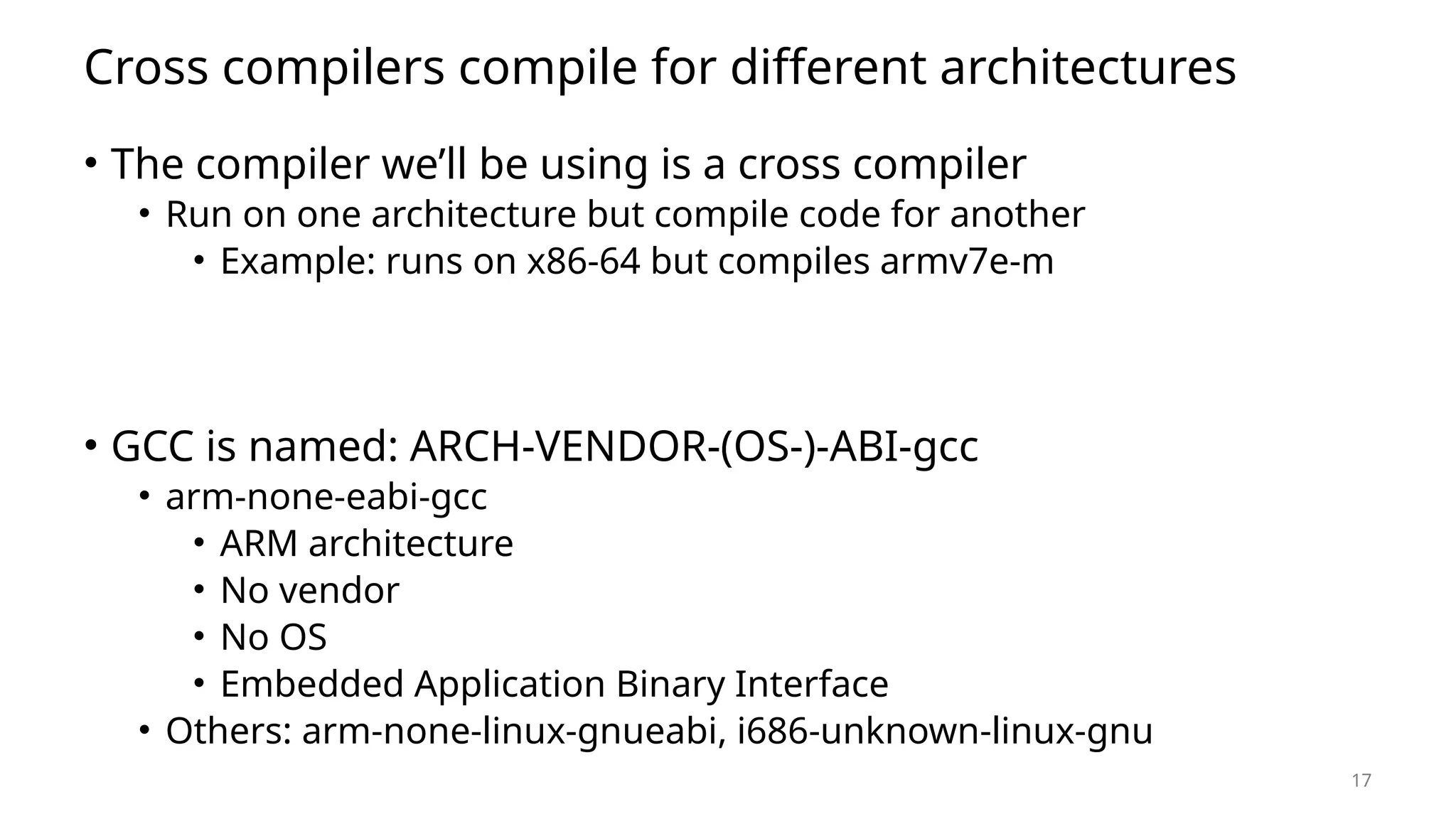

17 Cross compilers compile for different architectures • The compiler we’ll be using is a cross compiler • Run on one architecture but compile code for another • Example: runs on x86-64 but compiles armv7e-m • GCC is named: ARCH-VENDOR-(OS-)-ABI-gcc • arm-none-eabi-gcc • ARM architecture • No vendor • No OS • Embedded Application Binary Interface • Others: arm-none-linux-gnueabi, i686-unknown-linux-gnu

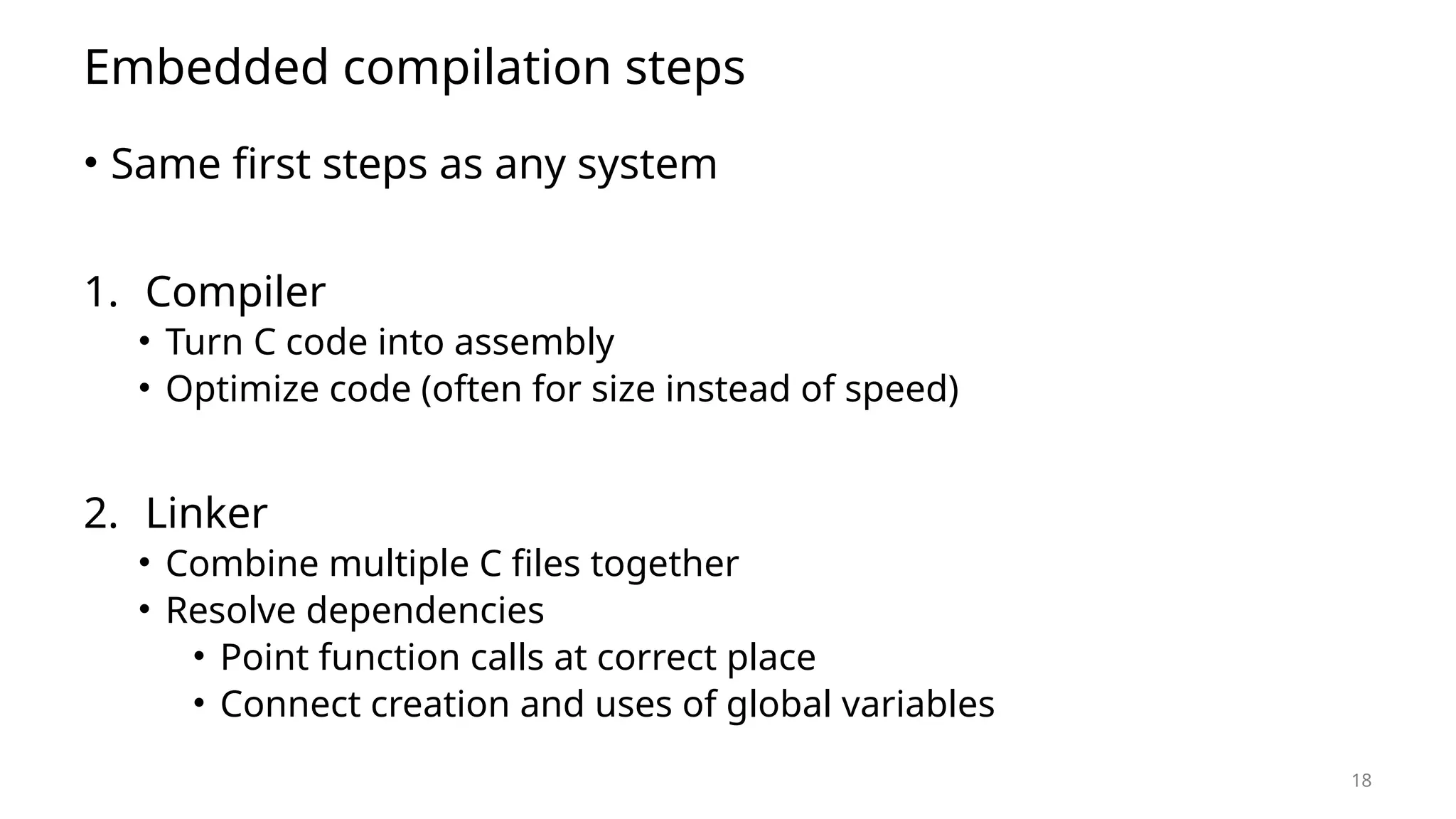

18 Embedded compilation steps • Same first steps as any system 1. Compiler • Turn C code into assembly • Optimize code (often for size instead of speed) 2. Linker • Combine multiple C files together • Resolve dependencies • Point function calls at correct place • Connect creation and uses of global variables

19 Informing linker of system memory • Linker actually places code and variables in memory • It needs to know where to place things • How do traditional computers handle this?

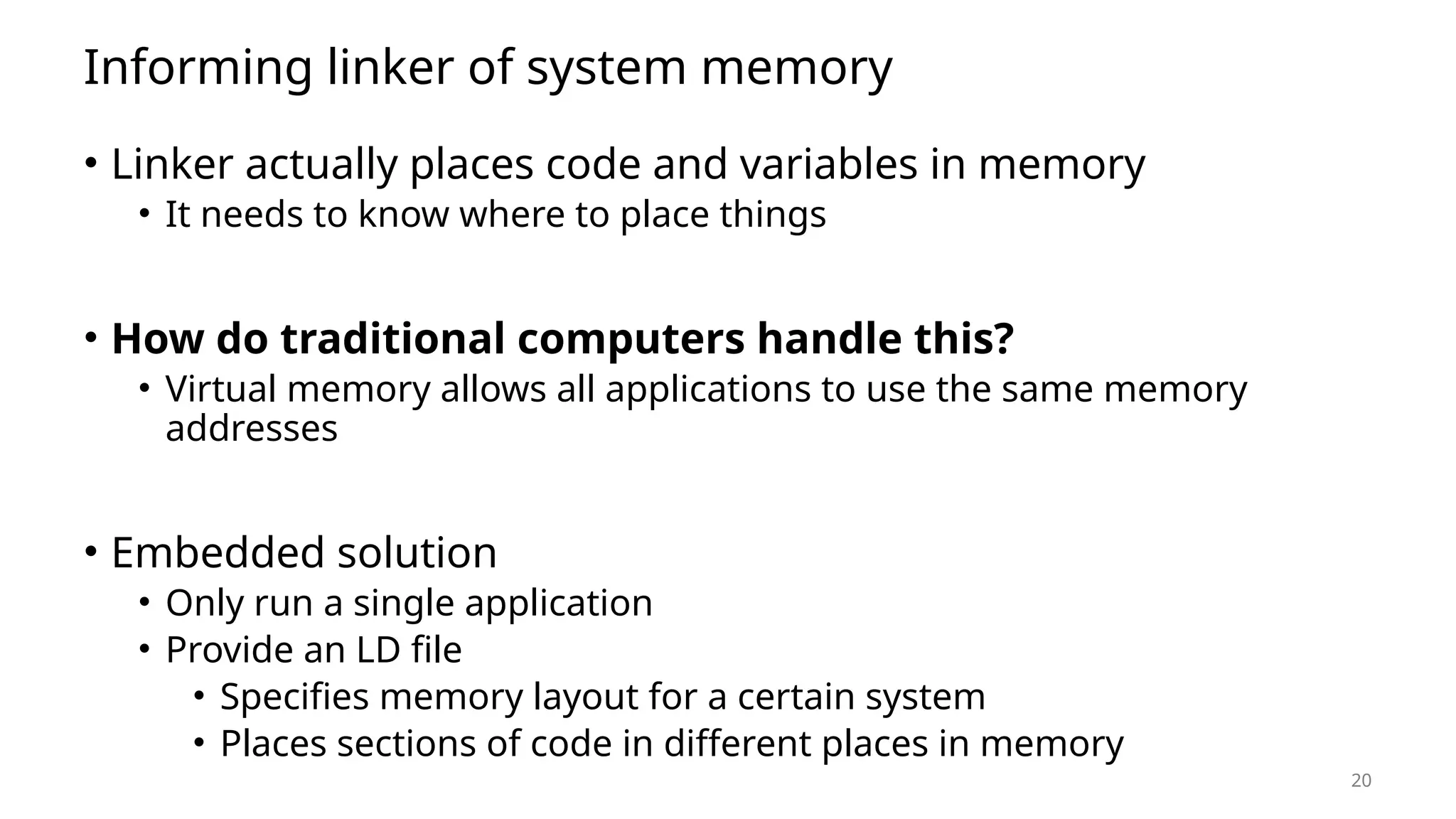

20 Informing linker of system memory • Linker actually places code and variables in memory • It needs to know where to place things • How do traditional computers handle this? • Virtual memory allows all applications to use the same memory addresses • Embedded solution • Only run a single application • Provide an LD file • Specifies memory layout for a certain system • Places sections of code in different places in memory

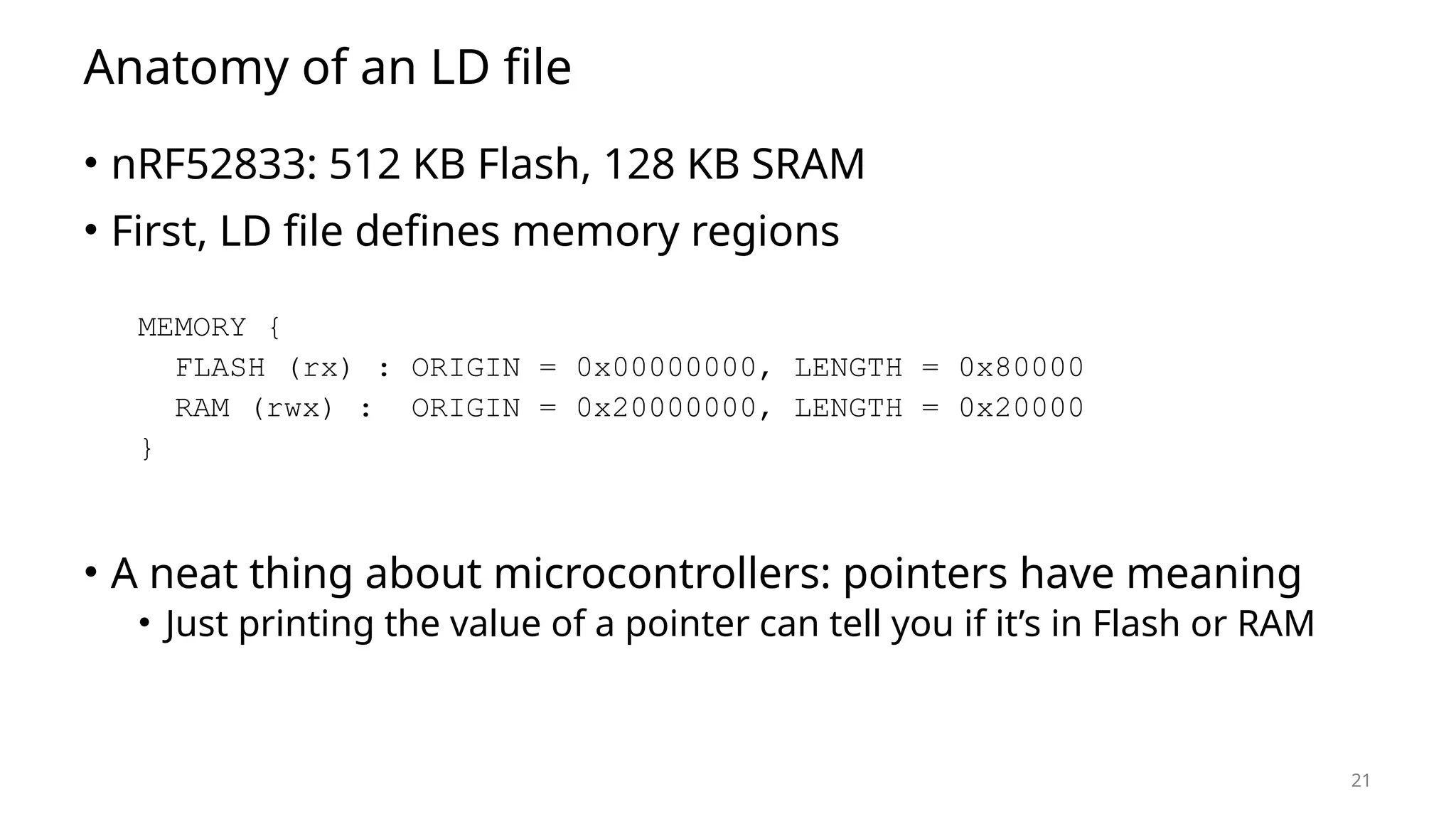

21 Anatomy of an LD file • nRF52833: 512 KB Flash, 128 KB SRAM • First, LD file defines memory regions MEMORY { FLASH (rx) : ORIGIN = 0x00000000, LENGTH = 0x80000 RAM (rwx) : ORIGIN = 0x20000000, LENGTH = 0x20000 } • A neat thing about microcontrollers: pointers have meaning • Just printing the value of a pointer can tell you if it’s in Flash or RAM

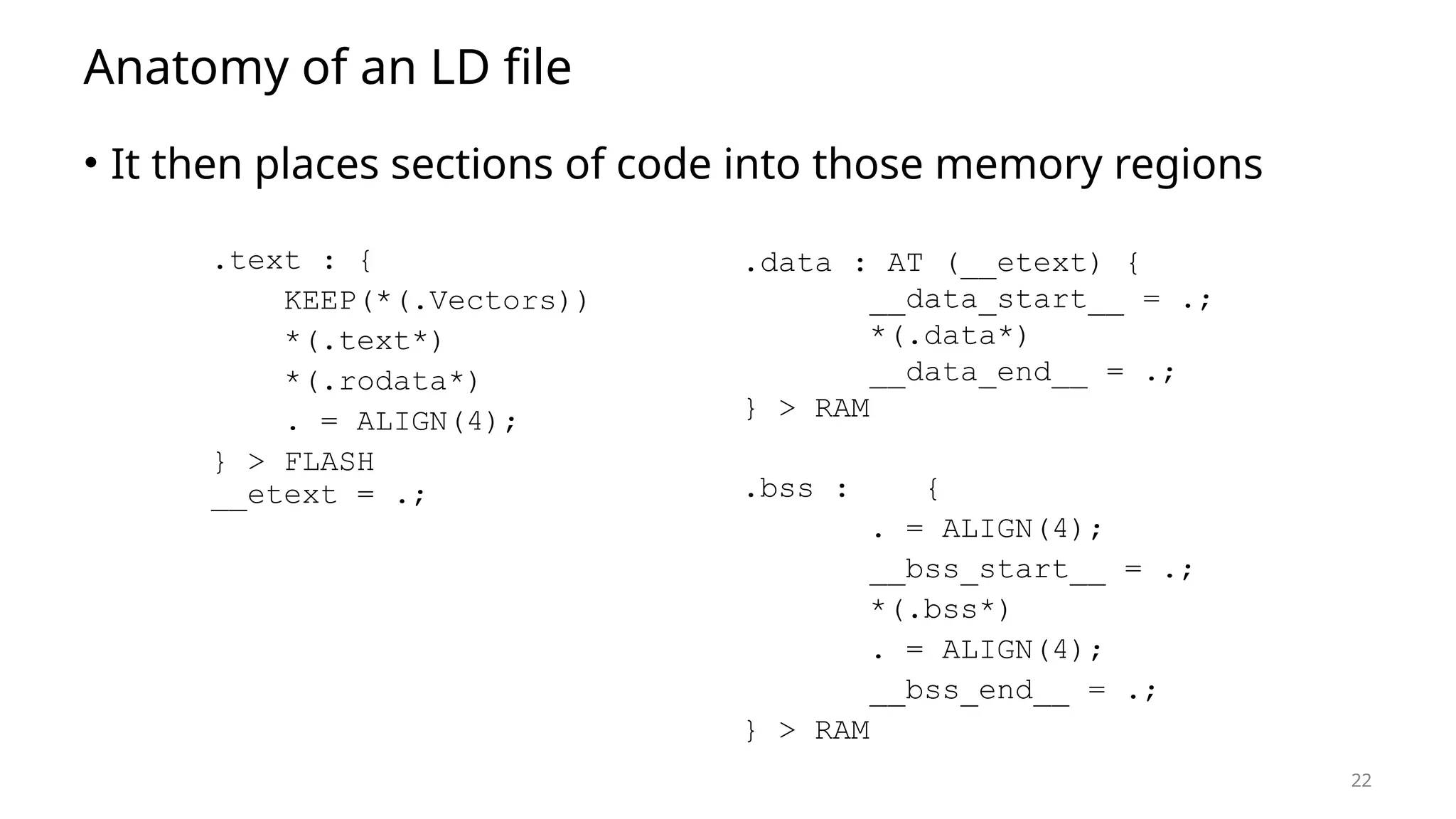

22 Anatomy of an LD file • It then places sections of code into those memory regions .text : { KEEP(*(.Vectors)) *(.text*) *(.rodata*) . = ALIGN(4); } > FLASH __etext = .; .data : AT (__etext) { __data_start__ = .; *(.data*) __data_end__ = .; } > RAM .bss : { . = ALIGN(4); __bss_start__ = .; *(.bss*) . = ALIGN(4); __bss_end__ = .; } > RAM

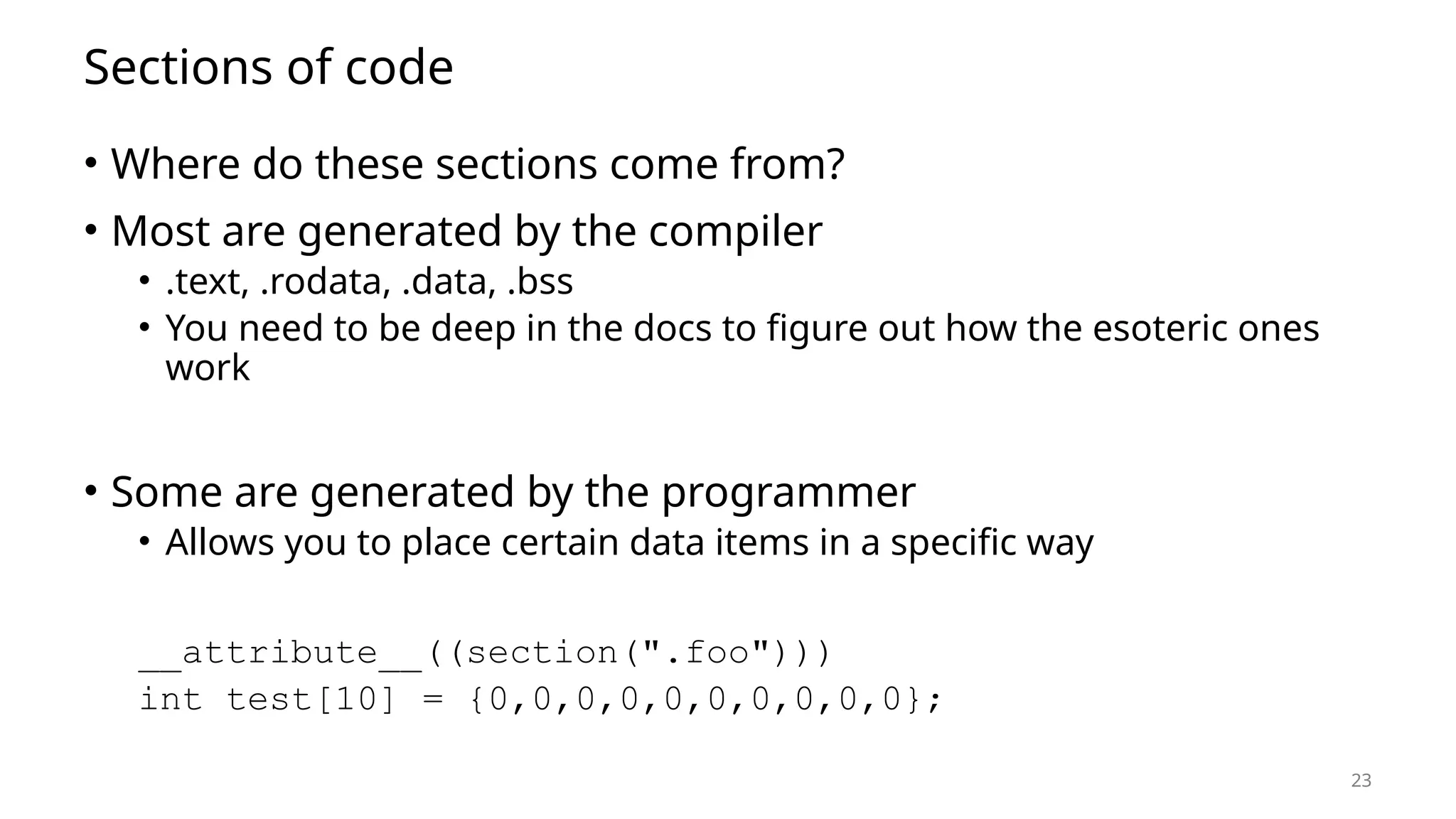

23 Sections of code • Where do these sections come from? • Most are generated by the compiler • .text, .rodata, .data, .bss • You need to be deep in the docs to figure out how the esoteric ones work • Some are generated by the programmer • Allows you to place certain data items in a specific way __attribute__((section(".foo"))) int test[10] = {0,0,0,0,0,0,0,0,0,0};

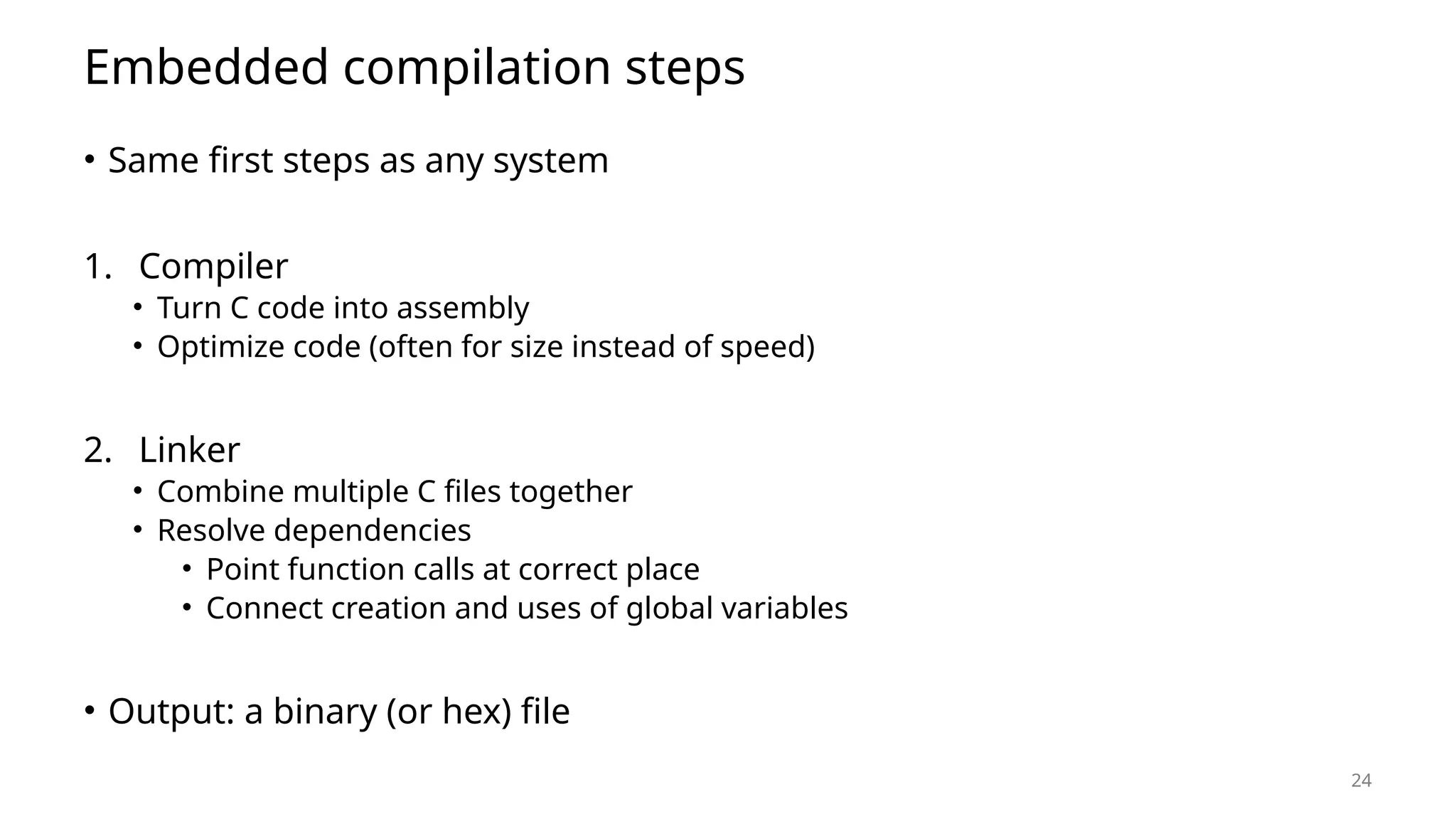

24 Embedded compilation steps • Same first steps as any system 1. Compiler • Turn C code into assembly • Optimize code (often for size instead of speed) 2. Linker • Combine multiple C files together • Resolve dependencies • Point function calls at correct place • Connect creation and uses of global variables • Output: a binary (or hex) file

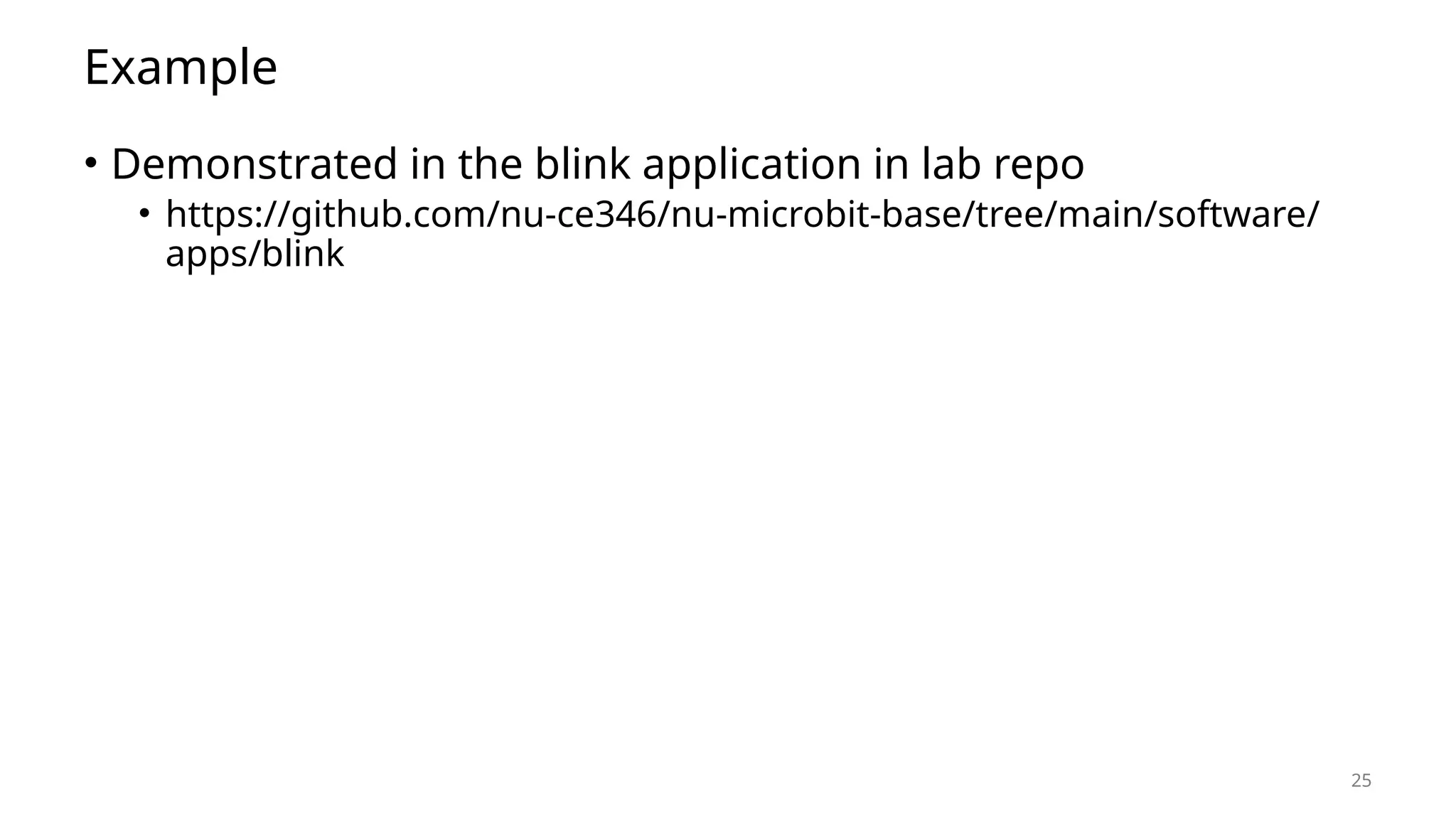

25 Example • Demonstrated in the blink application in lab repo • https://github.com/nu-ce346/nu-microbit-base/tree/main/software/ apps/blink

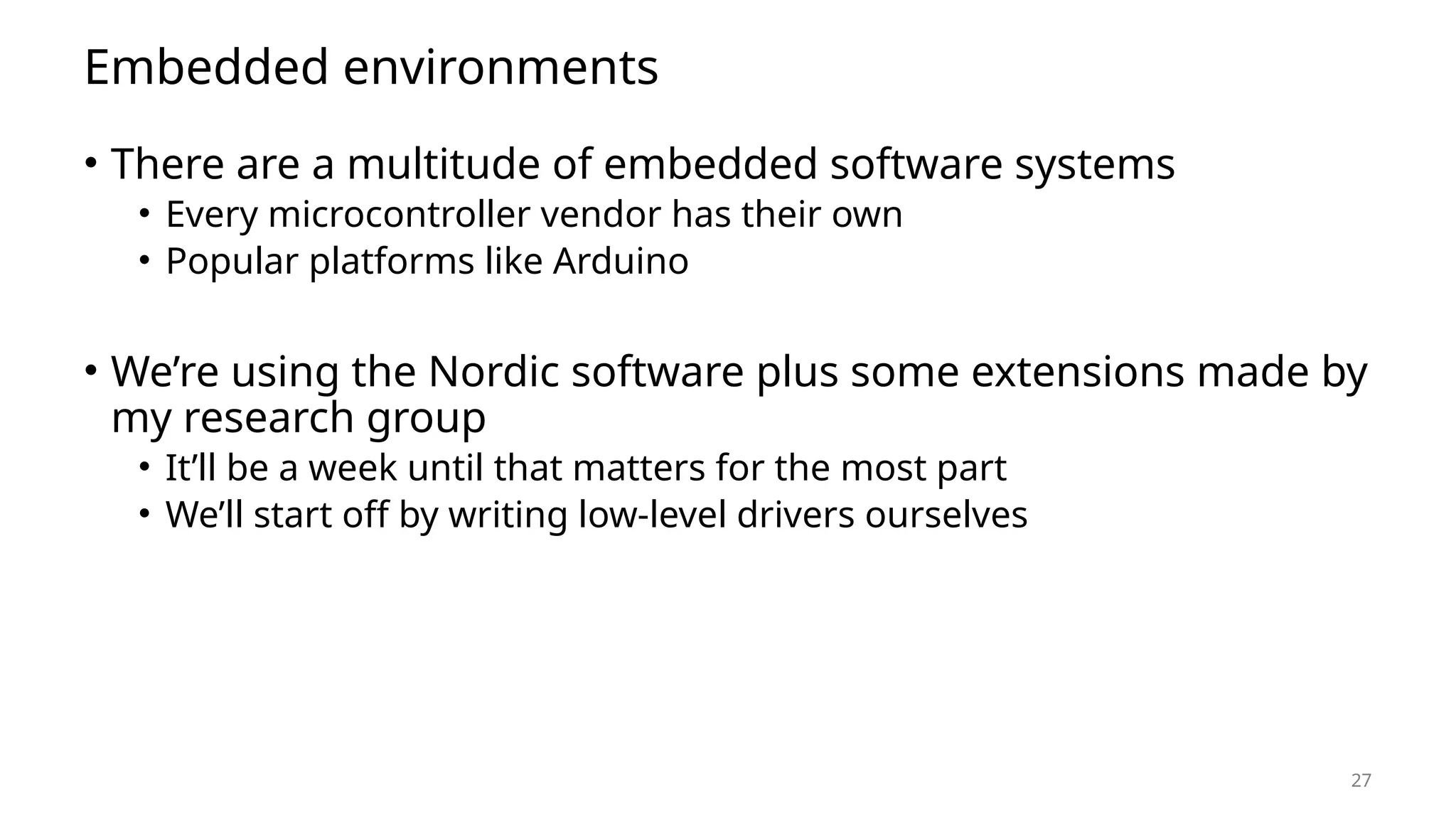

27 Embedded environments • There are a multitude of embedded software systems • Every microcontroller vendor has their own • Popular platforms like Arduino • We’re using the Nordic software plus some extensions made by my research group • It’ll be a week until that matters for the most part • We’ll start off by writing low-level drivers ourselves

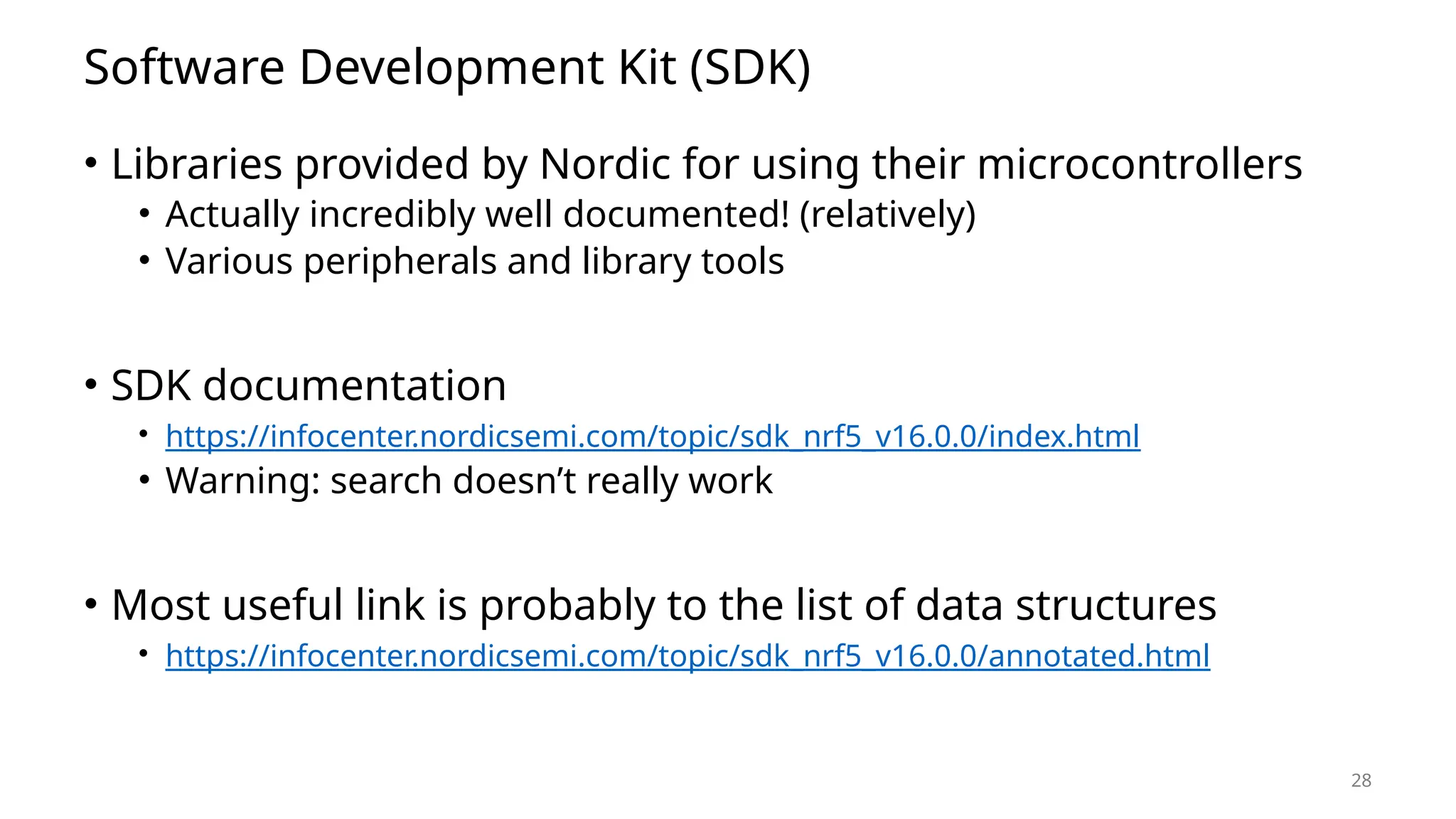

28 Software Development Kit (SDK) • Libraries provided by Nordic for using their microcontrollers • Actually incredibly well documented! (relatively) • Various peripherals and library tools • SDK documentation • https://infocenter.nordicsemi.com/topic/sdk_nrf5_v16.0.0/index.html • Warning: search doesn’t really work • Most useful link is probably to the list of data structures • https://infocenter.nordicsemi.com/topic/sdk_nrf5_v16.0.0/annotated.html

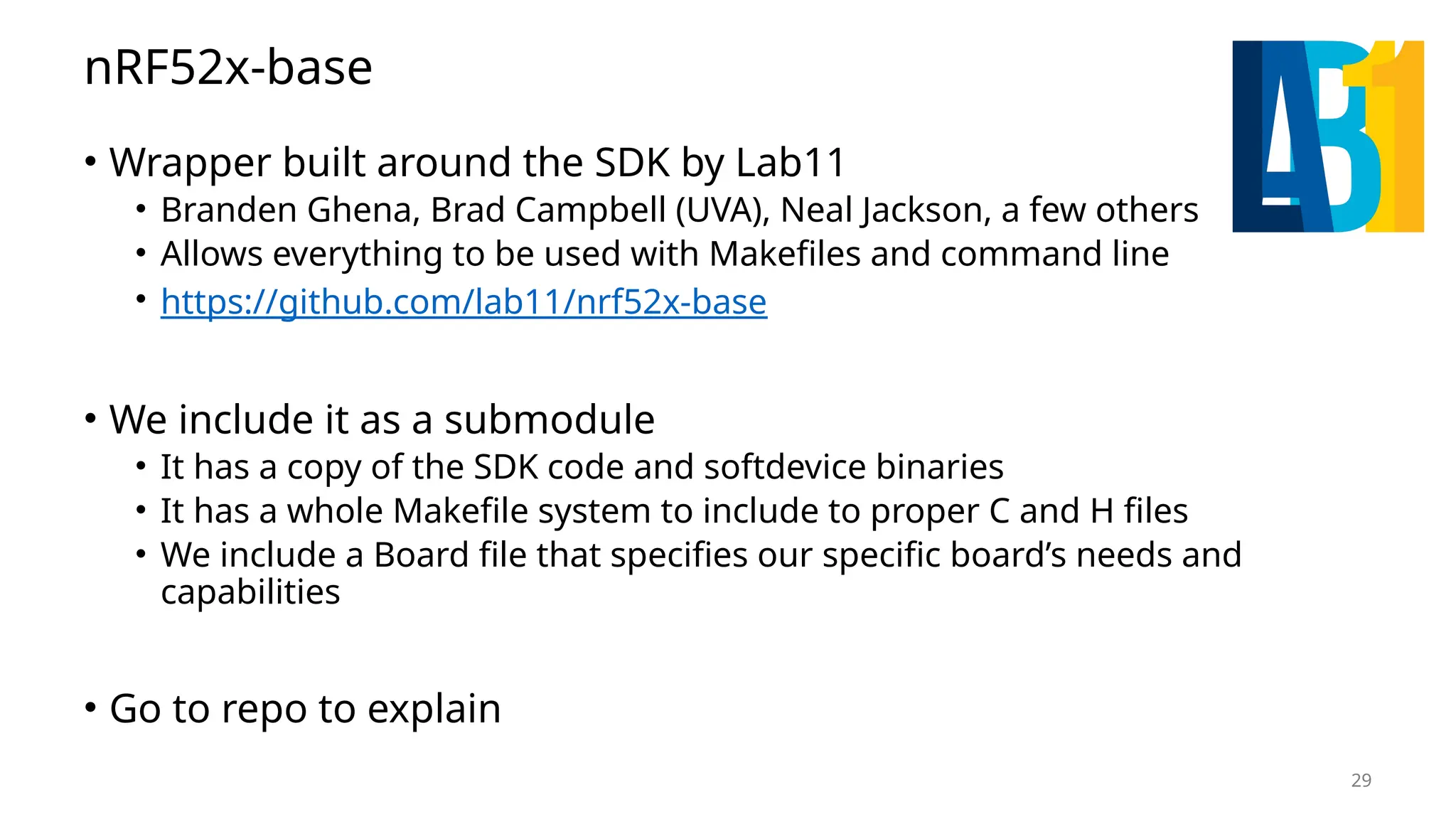

29 nRF52x-base • Wrapper built around the SDK by Lab11 • Branden Ghena, Brad Campbell (UVA), Neal Jackson, a few others • Allows everything to be used with Makefiles and command line • https://github.com/lab11/nrf52x-base • We include it as a submodule • It has a copy of the SDK code and softdevice binaries • It has a whole Makefile system to include to proper C and H files • We include a Board file that specifies our specific board’s needs and capabilities • Go to repo to explain

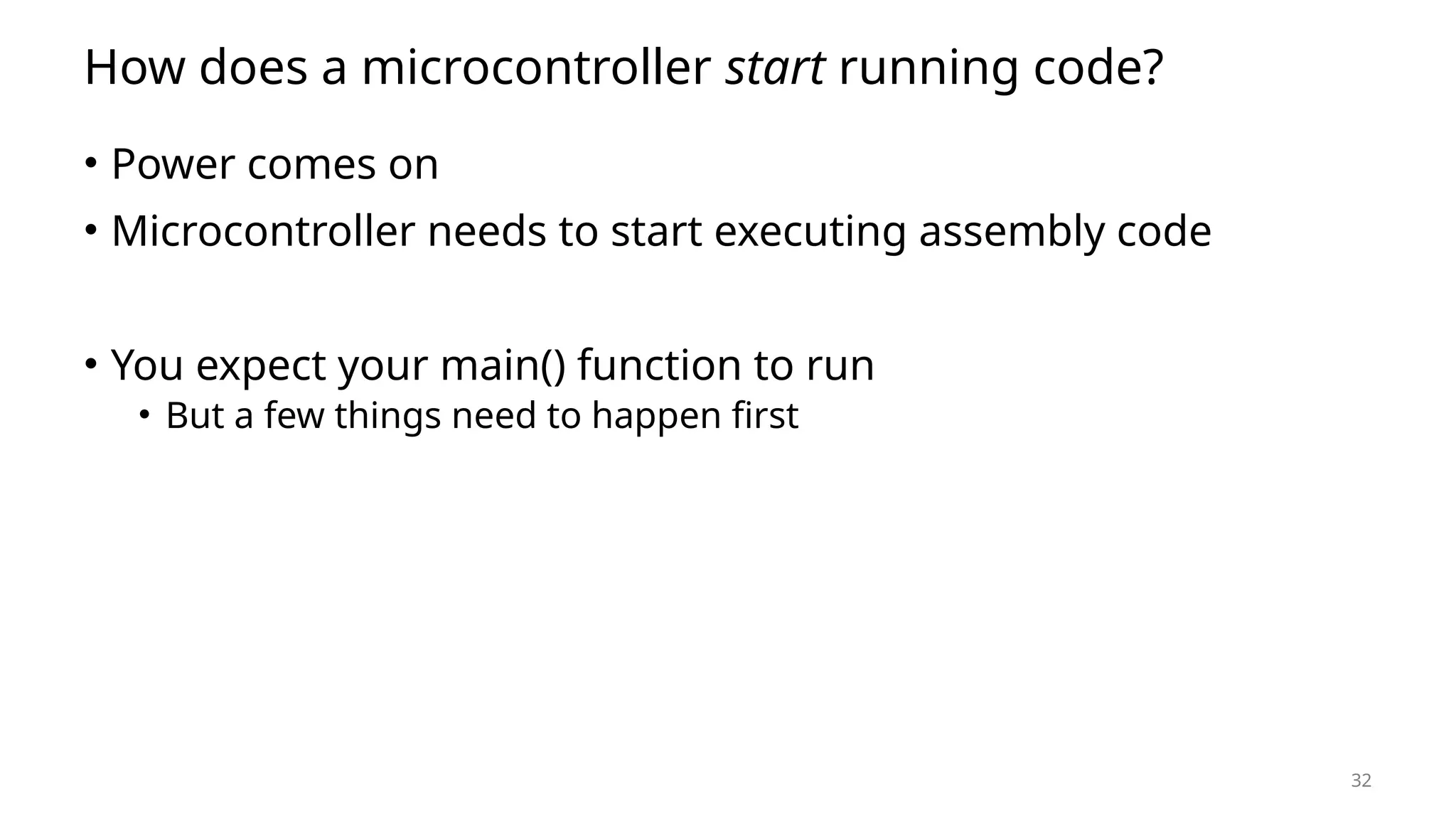

32 How does a microcontroller start running code? • Power comes on • Microcontroller needs to start executing assembly code • You expect your main() function to run • But a few things need to happen first

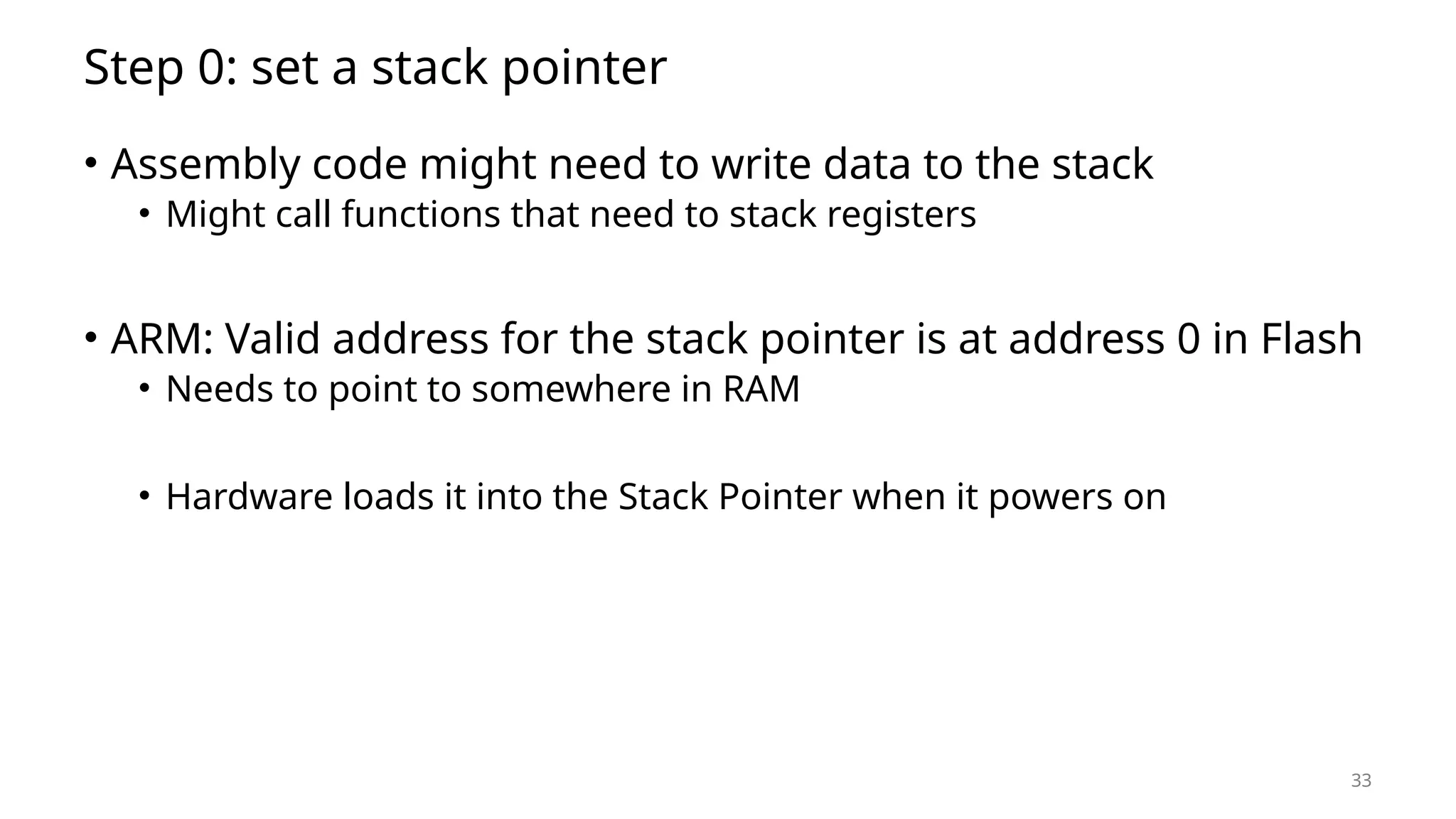

33 Step 0: set a stack pointer • Assembly code might need to write data to the stack • Might call functions that need to stack registers • ARM: Valid address for the stack pointer is at address 0 in Flash • Needs to point to somewhere in RAM • Hardware loads it into the Stack Pointer when it powers on

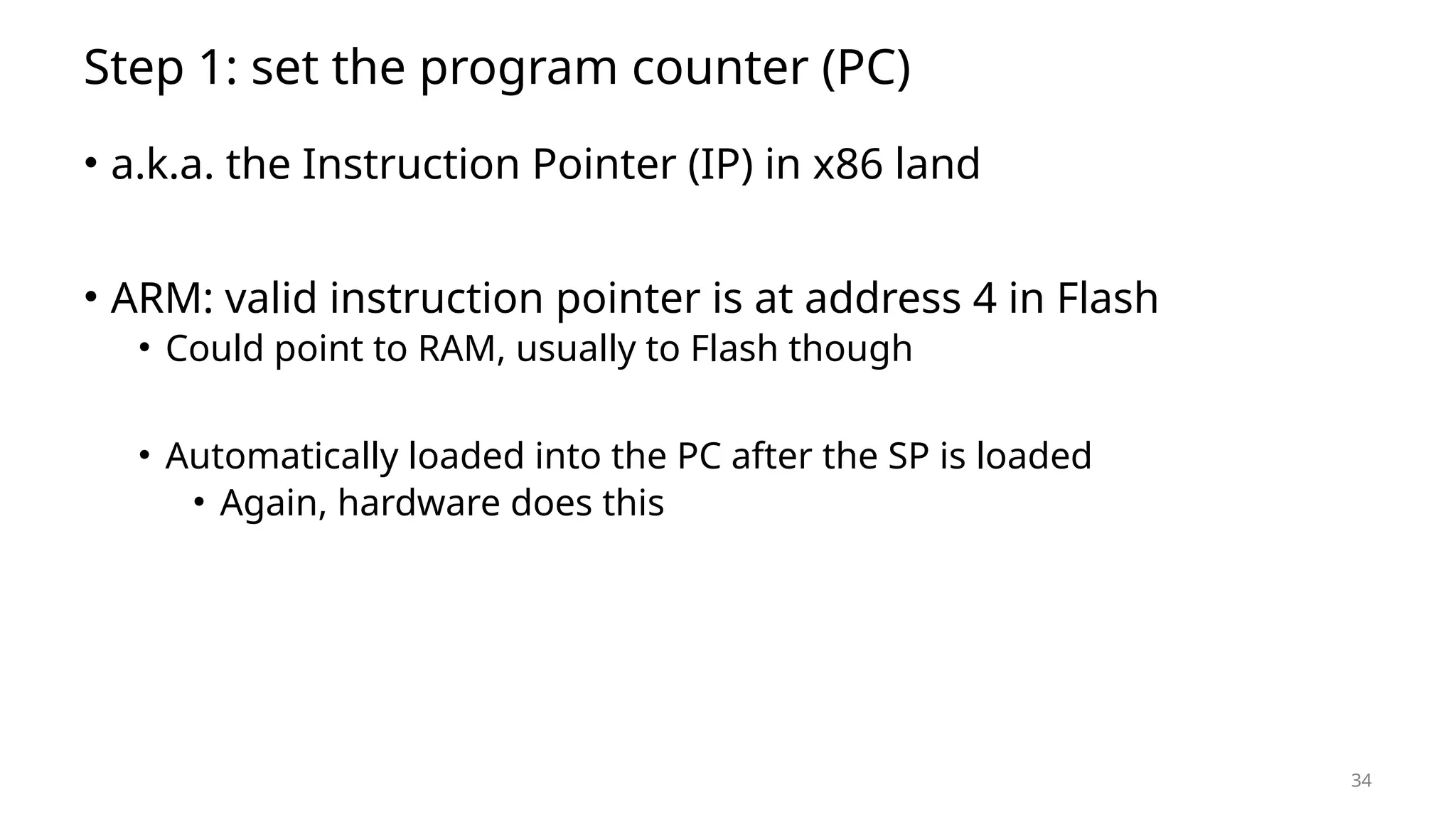

34 Step 1: set the program counter (PC) • a.k.a. the Instruction Pointer (IP) in x86 land • ARM: valid instruction pointer is at address 4 in Flash • Could point to RAM, usually to Flash though • Automatically loaded into the PC after the SP is loaded • Again, hardware does this

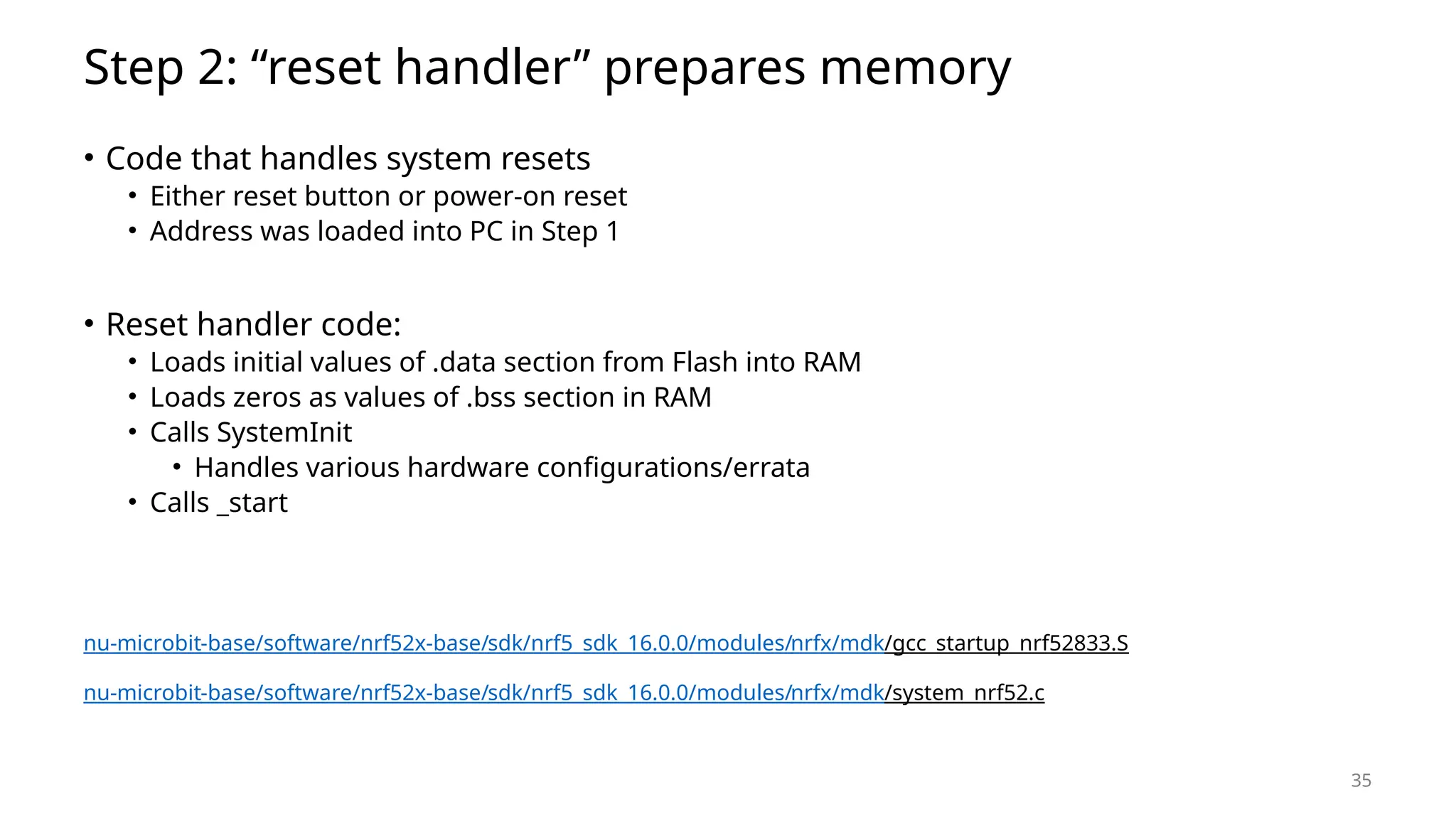

35 Step 2: “reset handler” prepares memory • Code that handles system resets • Either reset button or power-on reset • Address was loaded into PC in Step 1 • Reset handler code: • Loads initial values of .data section from Flash into RAM • Loads zeros as values of .bss section in RAM • Calls SystemInit • Handles various hardware configurations/errata • Calls _start nu-microbit-base/software/nrf52x-base/sdk/nrf5_sdk_16.0.0/modules/nrfx/mdk/gcc_startup_nrf52833.S nu-microbit-base/software/nrf52x-base/sdk/nrf5_sdk_16.0.0/modules/nrfx/mdk/system_nrf52.c

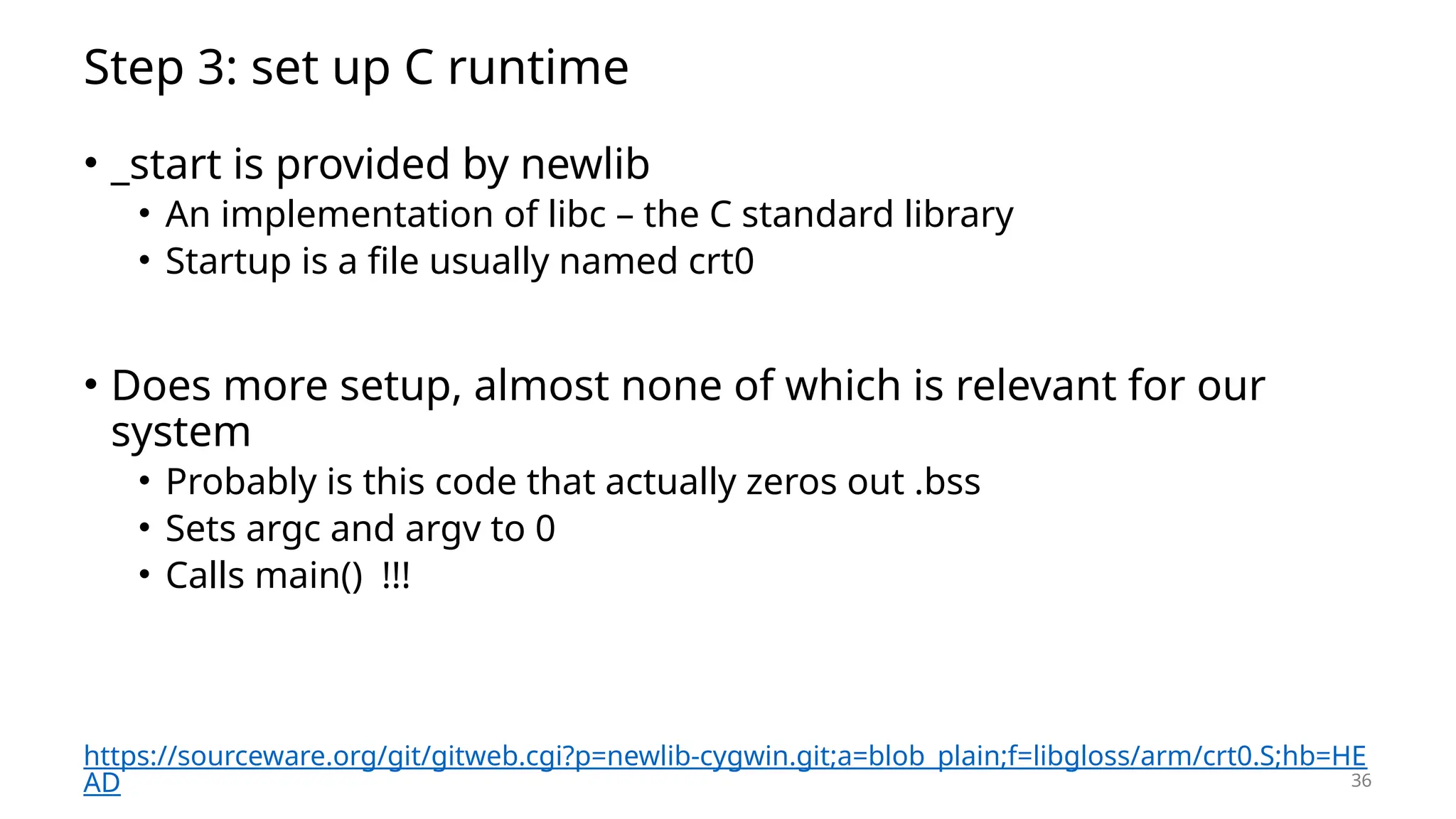

36 Step 3: set up C runtime • _start is provided by newlib • An implementation of libc – the C standard library • Startup is a file usually named crt0 • Does more setup, almost none of which is relevant for our system • Probably is this code that actually zeros out .bss • Sets argc and argv to 0 • Calls main() !!! https://sourceware.org/git/gitweb.cgi?p=newlib-cygwin.git;a=blob_plain;f=libgloss/arm/crt0.S;hb=HE AD

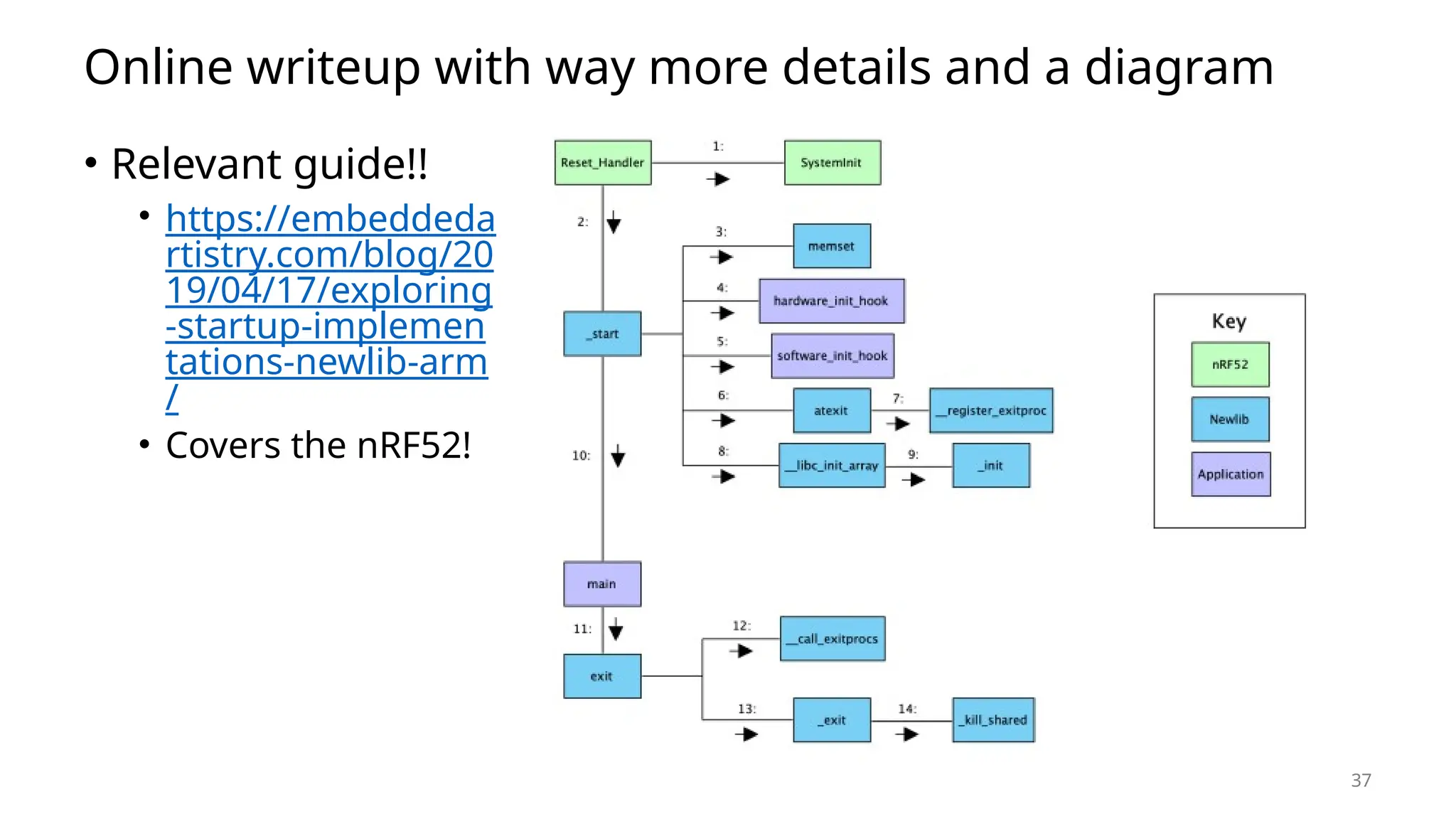

37 Online writeup with way more details and a diagram • Relevant guide!! • https://embeddeda rtistry.com/blog/20 19/04/17/exploring -startup-implemen tations-newlib-arm / • Covers the nRF52!
