Agenda How to Add Original Library to Android NDK Build OpenCV Only C/C++ World on Android ©SIProp Project, 2006-2008 2

How to Add New Library ©SIProp Project, 2006-2008 3

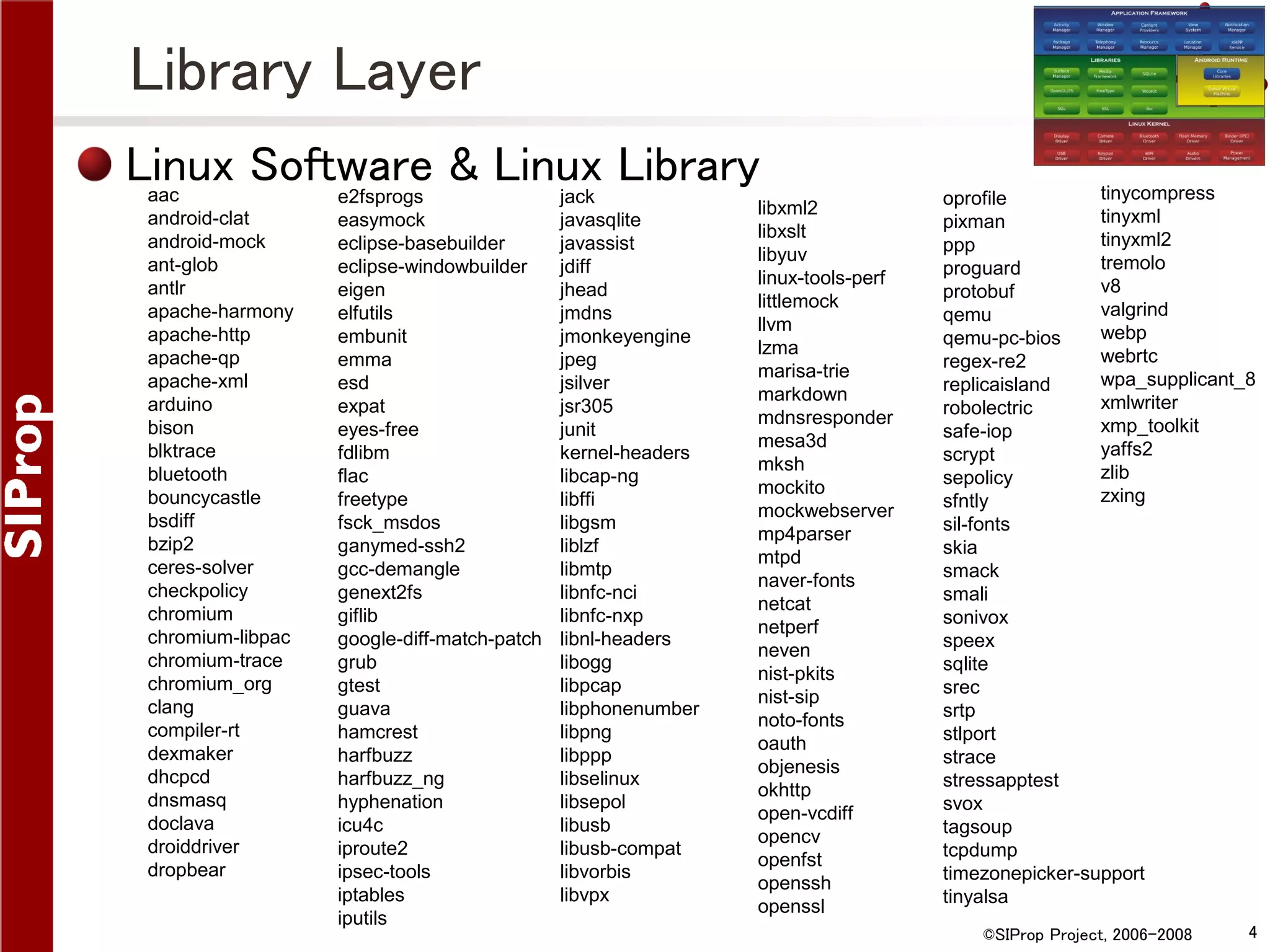

Library Layer Linux Software & Linux Library aac android-clat android-mock ant-glob antlr apache-harmony apache-http apache-qp apache-xml arduino bison blktrace bluetooth bouncycastle bsdiff bzip2 ceres-solver checkpolicy chromium chromium-libpac chromium-trace chromium_org clang compiler-rt dexmaker dhcpcd dnsmasq doclava droiddriver dropbear e2fsprogs easymock eclipse-basebuilder eclipse-windowbuilder eigen elfutils embunit emma esd expat eyes-free fdlibm flac freetype fsck_msdos ganymed-ssh2 gcc-demangle genext2fs giflib google-diff-match-patch grub gtest guava hamcrest harfbuzz harfbuzz_ng hyphenation icu4c iproute2 ipsec-tools iptables iputils jack javasqlite javassist jdiff jhead jmdns jmonkeyengine jpeg jsilver jsr305 junit kernel-headers libcap-ng libffi libgsm liblzf libmtp libnfc-nci libnfc-nxp libnl-headers libogg libpcap libphonenumber libpng libppp libselinux libsepol libusb libusb-compat libvorbis libvpx libxml2 libxslt libyuv linux-tools-perf littlemock llvm lzma marisa-trie markdown mdnsresponder mesa3d mksh mockito mockwebserver mp4parser mtpd naver-fonts netcat netperf neven nist-pkits nist-sip noto-fonts oauth objenesis okhttp open-vcdiff opencv openfst openssh openssl tinycompress oprofile tinyxml pixman tinyxml2 ppp tremolo proguard v8 protobuf valgrind qemu webp qemu-pc-bios webrtc regex-re2 wpa_supplicant_8 replicaisland xmlwriter robolectric xmp_toolkit safe-iop yaffs2 scrypt zlib sepolicy zxing sfntly sil-fonts skia smack smali sonivox speex sqlite srec srtp stlport strace stressapptest svox tagsoup tcpdump timezonepicker-support tinyalsa ©SIProp Project, 2006-2008 4

How to Develop? NDK wo/ADT Standard Android Application for C/C++ Only C/C++ on Limited Library Layer Call Stack APK File(Your Application) (C/C++) Advantage Only C/C++ DirectCall C/C++ API Dis-Advantage Use a few Android Tools A few Docs from Google Developer Site & Blogs Call as C/C++ APIs Library Layer (C/C++) Call as SysCall(C/ASM Kernel/Driver Layer (C/ASM)Project, 2006-2008 ©SIProp 5

How to Build OpenCV for Android ©SIProp Project, 2006-2008 6

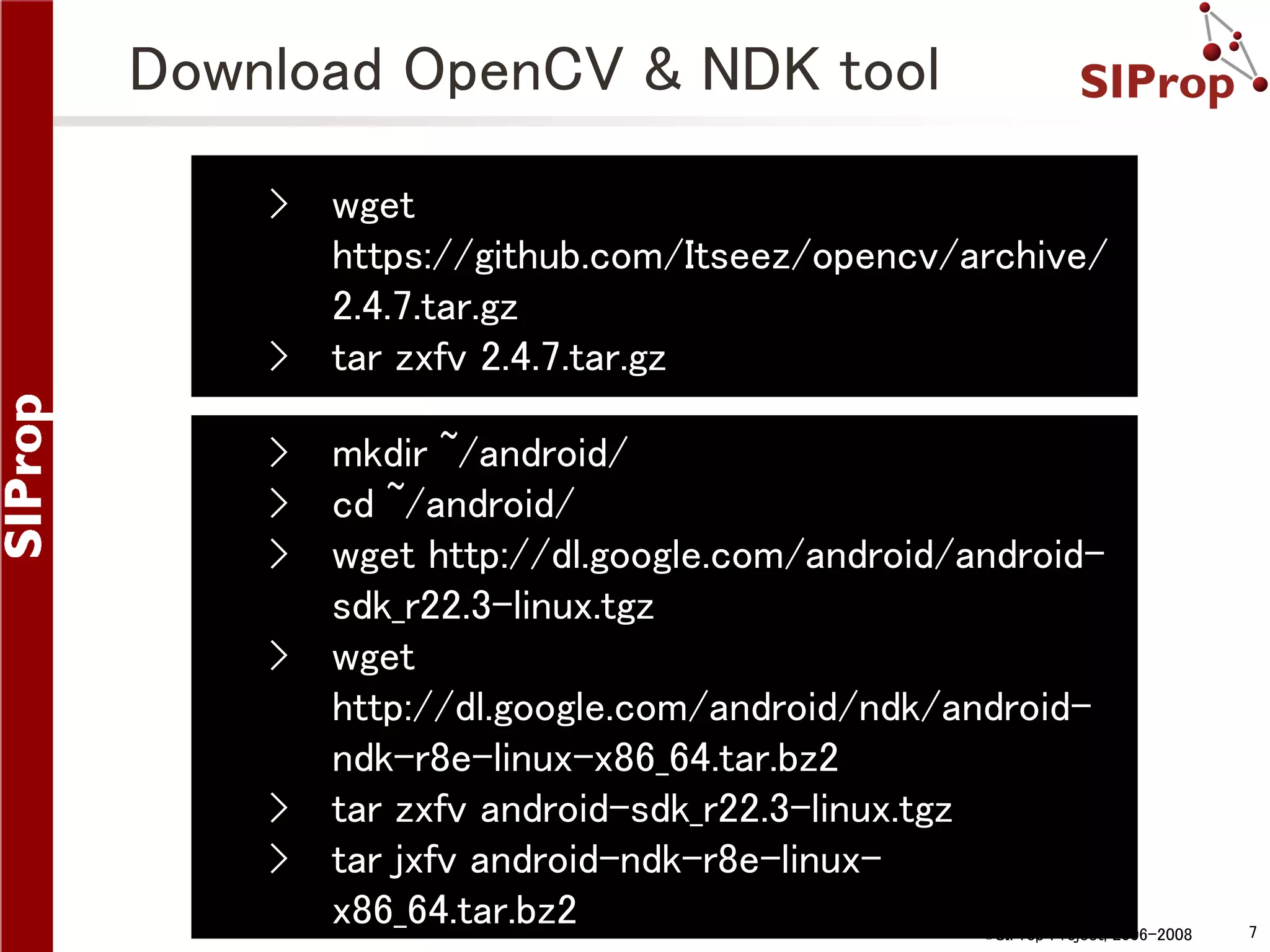

Download OpenCV & NDK tool › › wget https://github.com/Itseez/opencv/archive/ 2.4.7.tar.gz tar zxfv 2.4.7.tar.gz › mkdir ~/android/ › cd ~/android/ › wget http://dl.google.com/android/androidsdk_r22.3-linux.tgz › wget http://dl.google.com/android/ndk/androidndk-r8e-linux-x86_64.tar.bz2 › tar zxfv android-sdk_r22.3-linux.tgz › tar jxfv android-ndk-r8e-linuxx86_64.tar.bz2 ©SIProp Project, 2006-2008 7

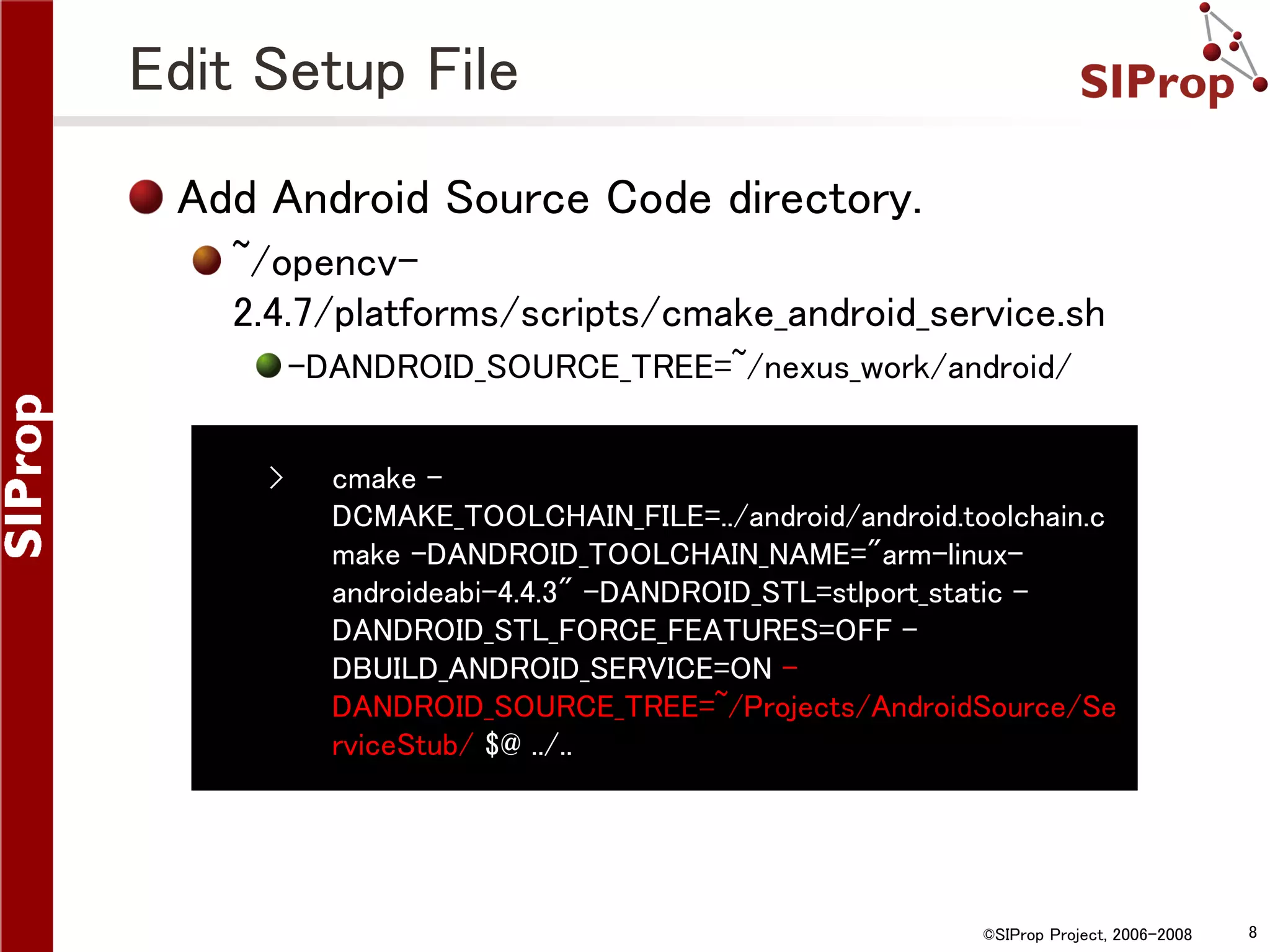

Edit Setup File Add Android Source Code directory. ~/opencv2.4.7/platforms/scripts/cmake_android_service.sh -DANDROID_SOURCE_TREE=~/nexus_work/android/ › cmake DCMAKE_TOOLCHAIN_FILE=../android/android.toolchain.c make -DANDROID_TOOLCHAIN_NAME="arm-linuxandroideabi-4.4.3" -DANDROID_STL=stlport_static DANDROID_STL_FORCE_FEATURES=OFF DBUILD_ANDROID_SERVICE=ON DANDROID_SOURCE_TREE=~/Projects/AndroidSource/Se rviceStub/ $@ ../.. ©SIProp Project, 2006-2008 8

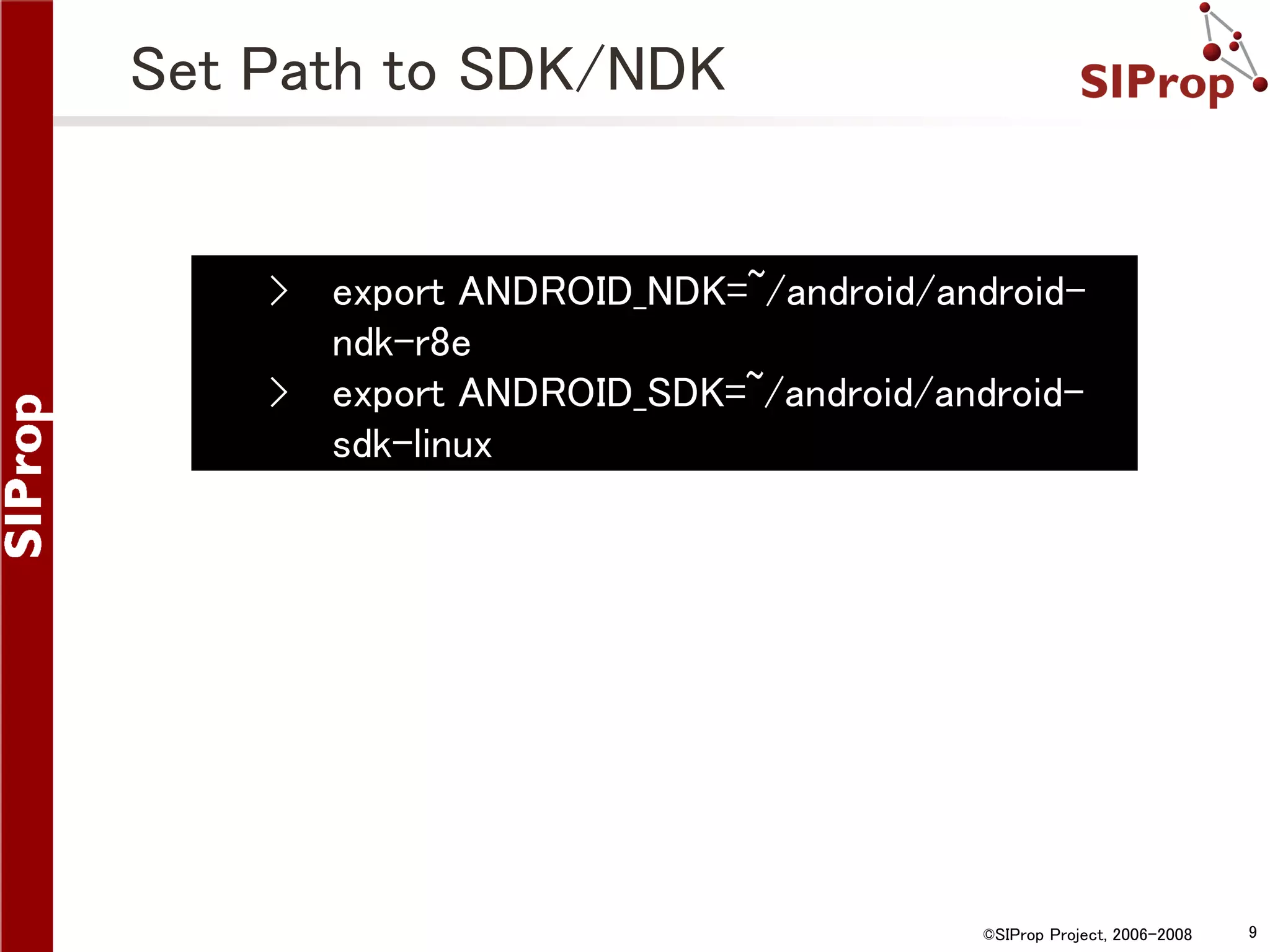

Set Path to SDK/NDK › › export ANDROID_NDK=~/android/androidndk-r8e export ANDROID_SDK=~/android/androidsdk-linux ©SIProp Project, 2006-2008 9

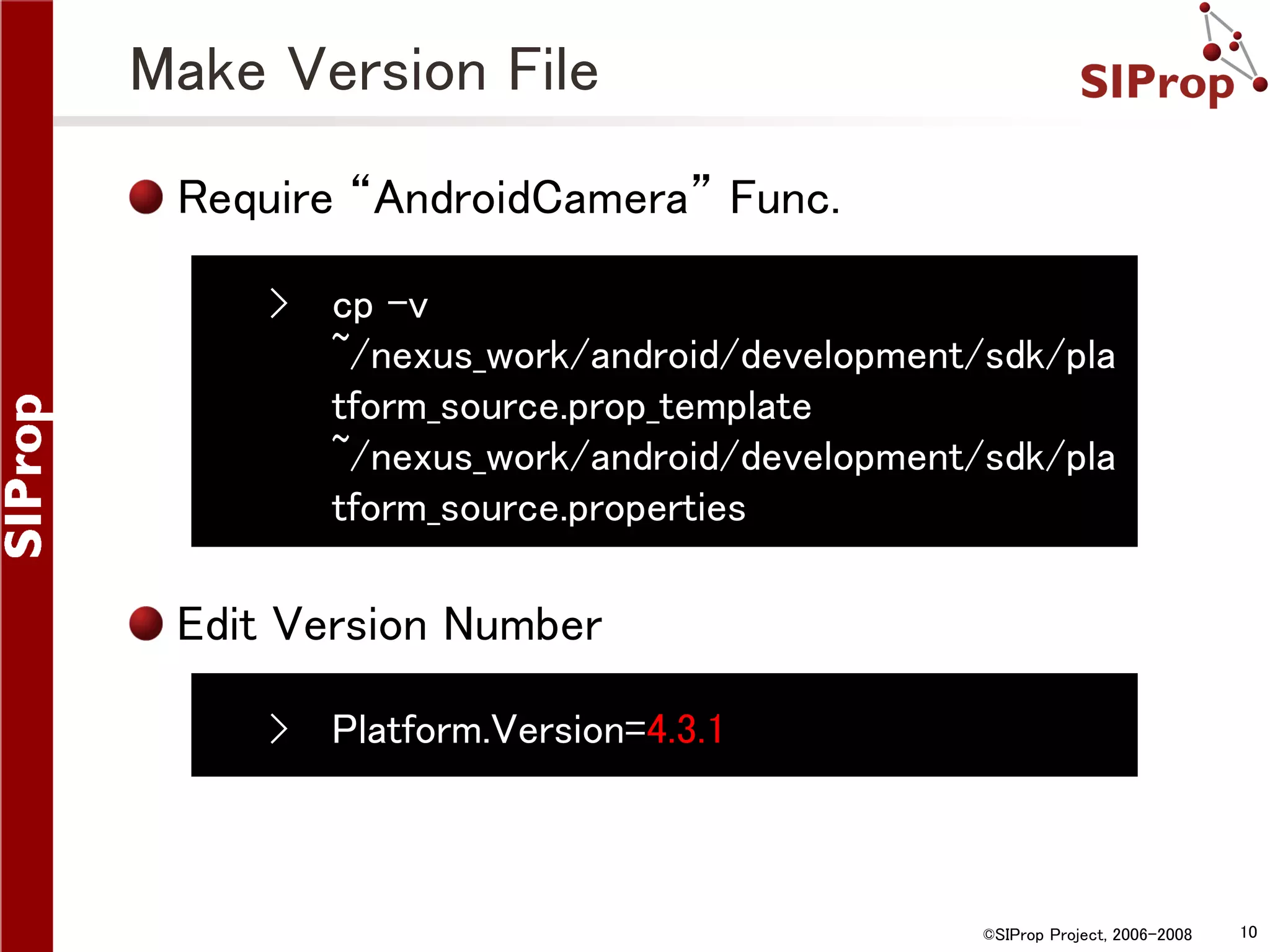

Make Version File Require “AndroidCamera” Func. › cp -v ~/nexus_work/android/development/sdk/pla tform_source.prop_template ~/nexus_work/android/development/sdk/pla tform_source.properties Edit Version Number › Platform.Version=4.3.1 ©SIProp Project, 2006-2008 10

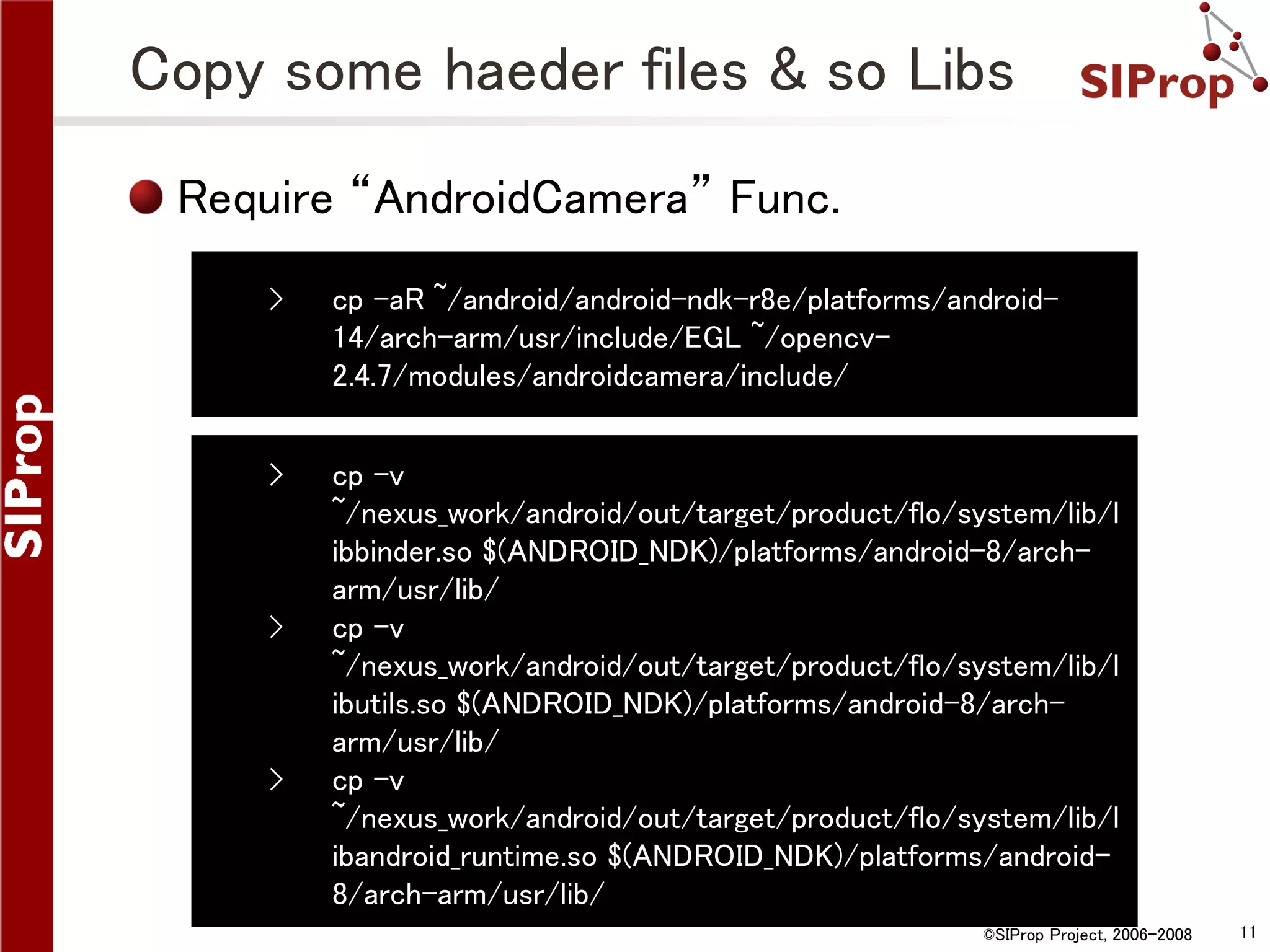

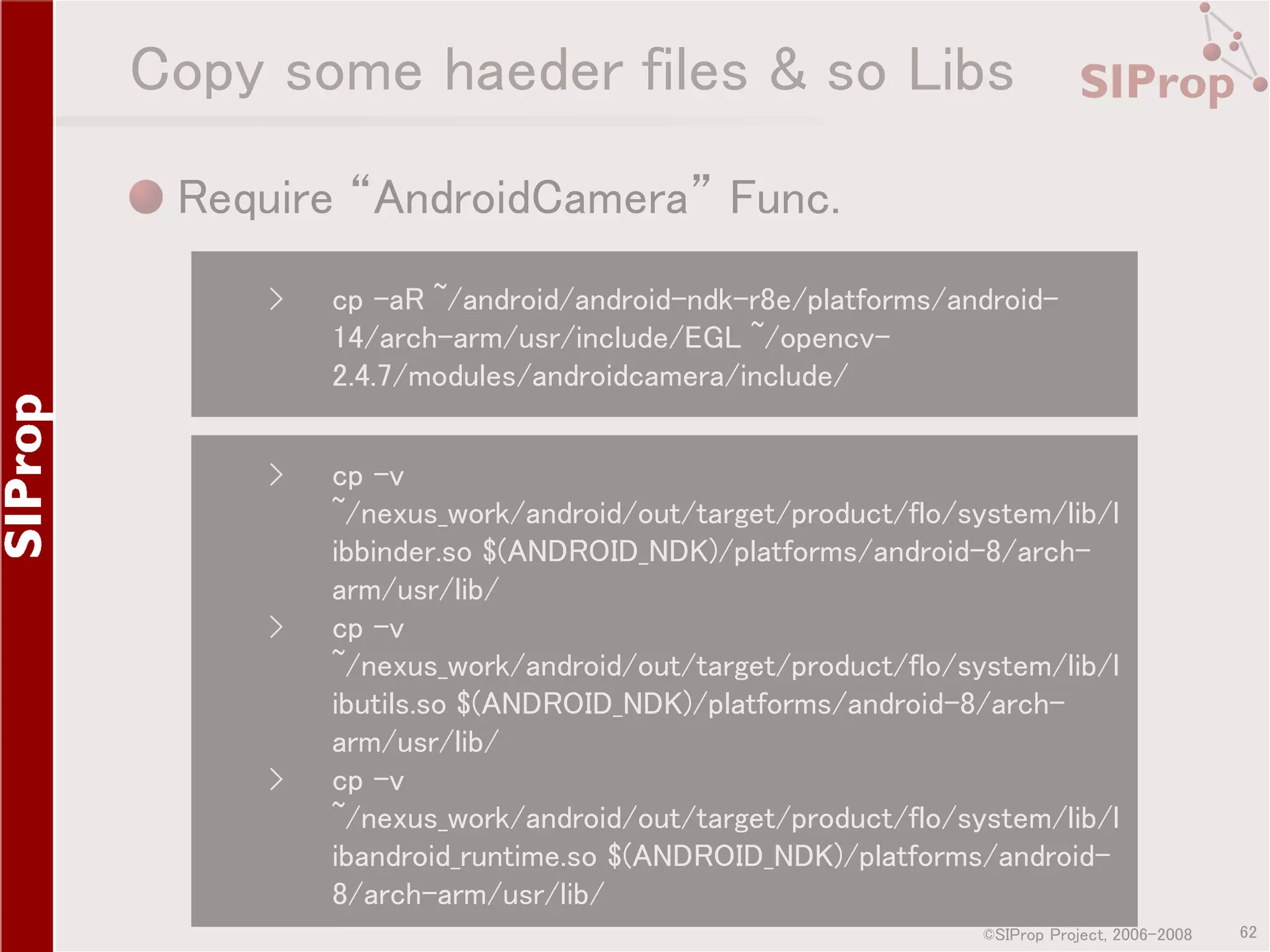

Copy some haeder files & so Libs Require “AndroidCamera” Func. › cp -aR ~/android/android-ndk-r8e/platforms/android14/arch-arm/usr/include/EGL ~/opencv2.4.7/modules/androidcamera/include/ › cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibbinder.so $(ANDROID_NDK)/platforms/android-8/archarm/usr/lib/ cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibutils.so $(ANDROID_NDK)/platforms/android-8/archarm/usr/lib/ cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibandroid_runtime.so $(ANDROID_NDK)/platforms/android8/arch-arm/usr/lib/ › › ©SIProp Project, 2006-2008 11

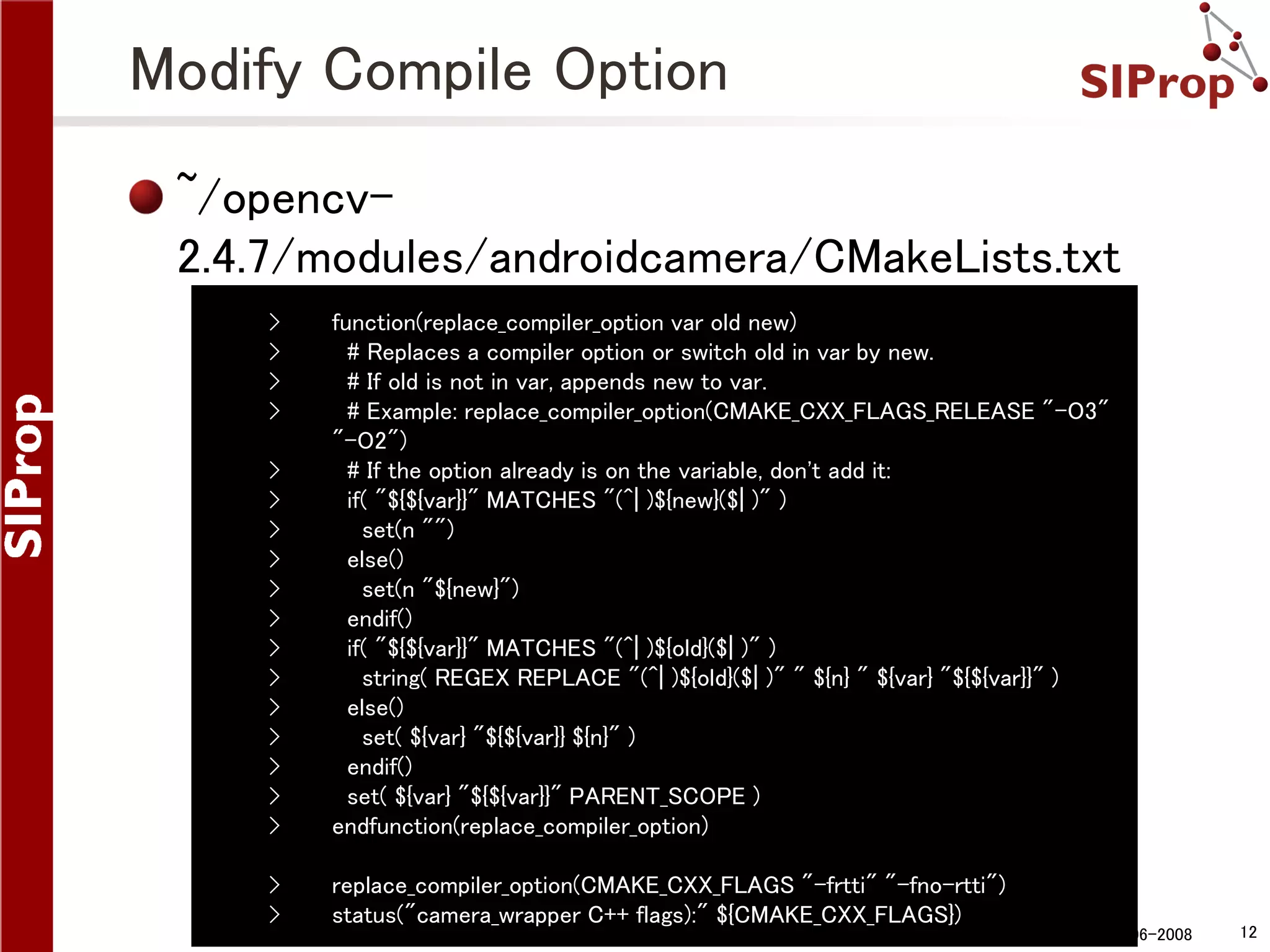

Modify Compile Option ~/opencv2.4.7/modules/androidcamera/CMakeLists.txt › › › › › › › › › › › › › › › › › function(replace_compiler_option var old new) # Replaces a compiler option or switch old in var by new. # If old is not in var, appends new to var. # Example: replace_compiler_option(CMAKE_CXX_FLAGS_RELEASE "-O3" "-O2") # If the option already is on the variable, don't add it: if( "${${var}}" MATCHES "(^| )${new}($| )" ) set(n "") else() set(n "${new}") endif() if( "${${var}}" MATCHES "(^| )${old}($| )" ) string( REGEX REPLACE "(^| )${old}($| )" " ${n} " ${var} "${${var}}" ) else() set( ${var} "${${var}} ${n}" ) endif() set( ${var} "${${var}}" PARENT_SCOPE ) endfunction(replace_compiler_option) › › replace_compiler_option(CMAKE_CXX_FLAGS "-frtti" "-fno-rtti") status("camera_wrapper C++ flags):" ${CMAKE_CXX_FLAGS}) ©SIProp Project, 2006-2008 12

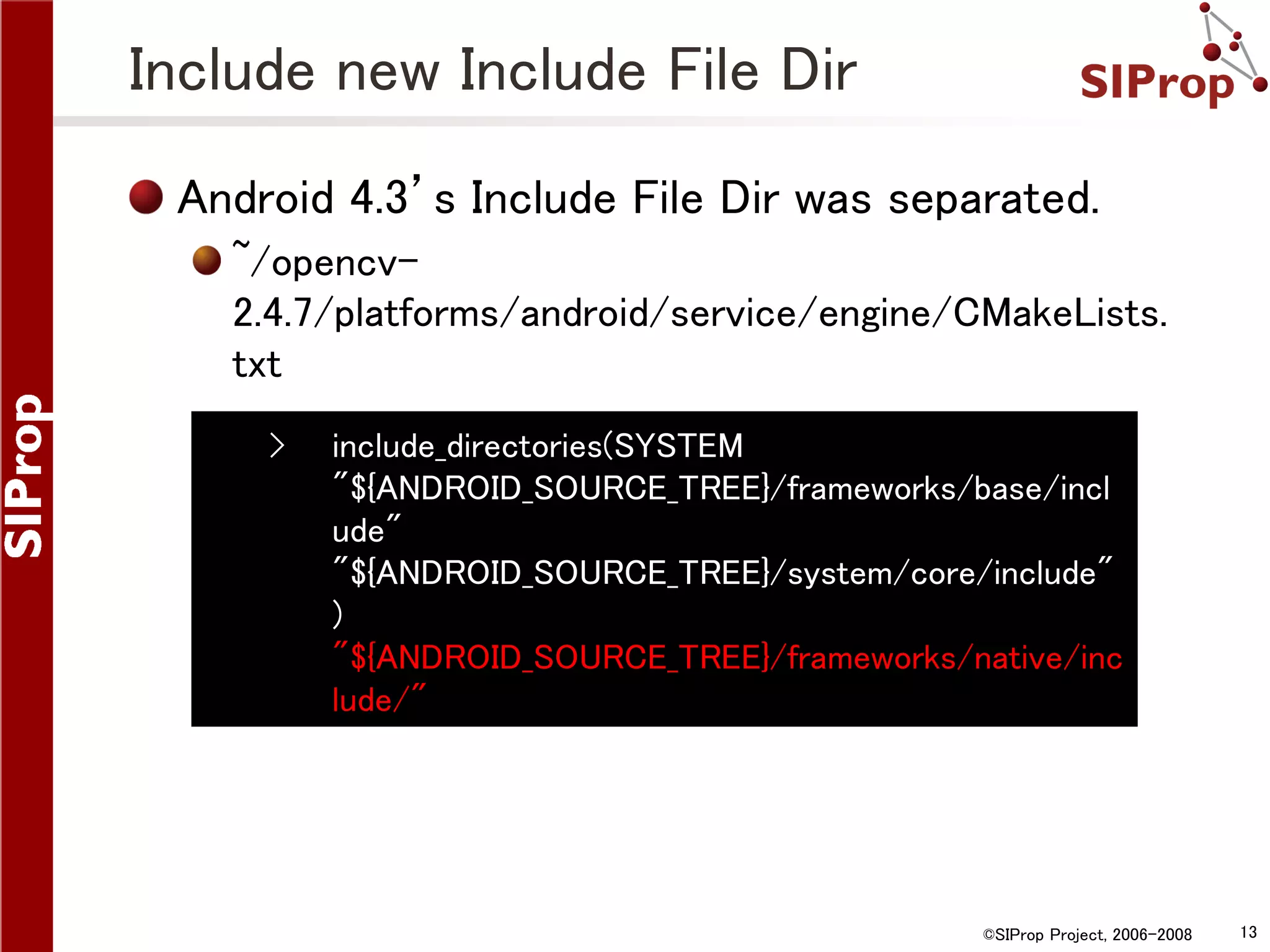

Include new Include File Dir Android 4.3’s Include File Dir was separated. ~/opencv2.4.7/platforms/android/service/engine/CMakeLists. txt › include_directories(SYSTEM "${ANDROID_SOURCE_TREE}/frameworks/base/incl ude" "${ANDROID_SOURCE_TREE}/system/core/include" ) "${ANDROID_SOURCE_TREE}/frameworks/native/inc lude/" ©SIProp Project, 2006-2008 13

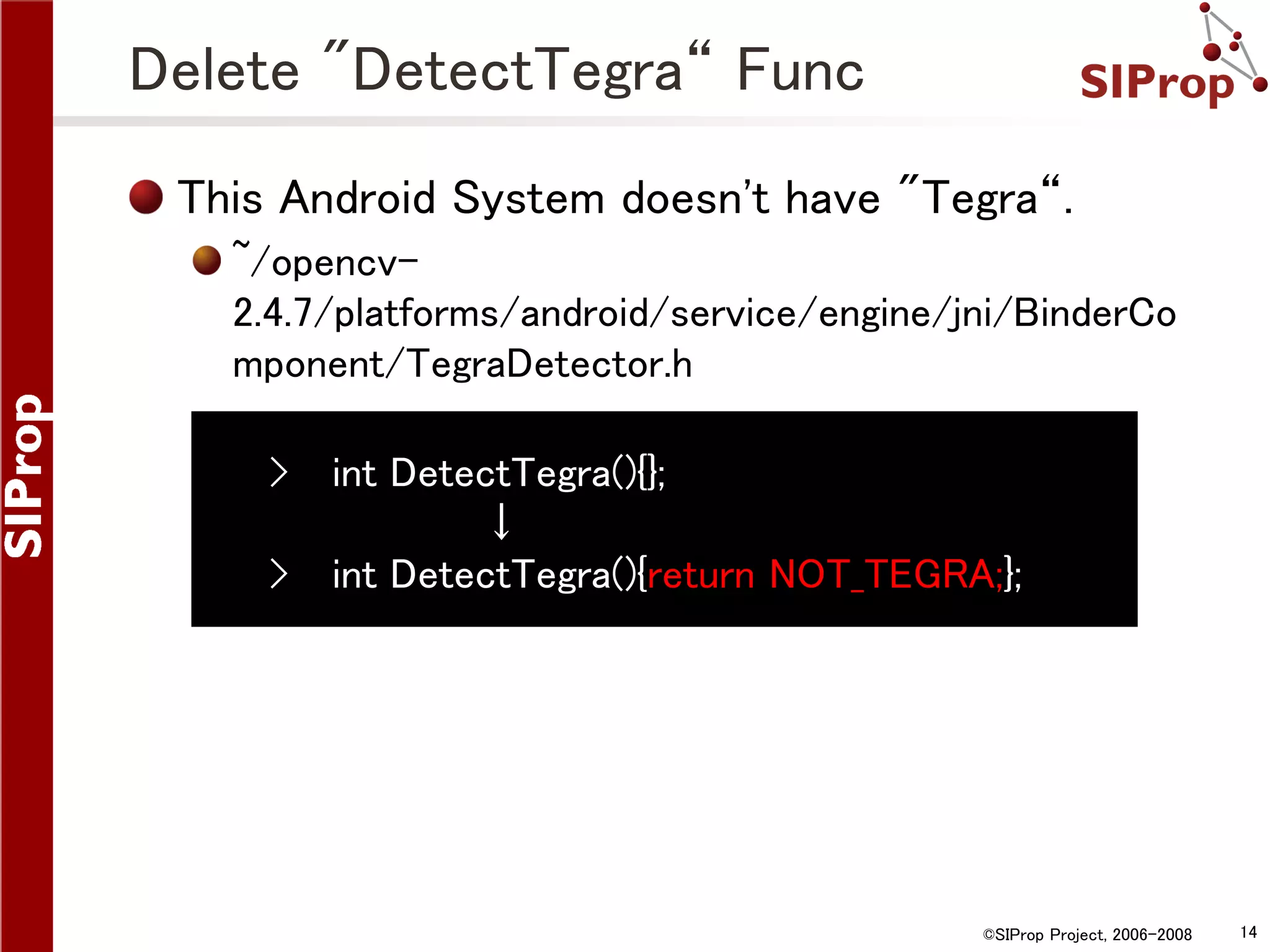

Delete "DetectTegra“ Func This Android System doesn't have "Tegra“. ~/opencv2.4.7/platforms/android/service/engine/jni/BinderCo mponent/TegraDetector.h › int DetectTegra(){}; ↓ › int DetectTegra(){return NOT_TEGRA;}; ©SIProp Project, 2006-2008 14

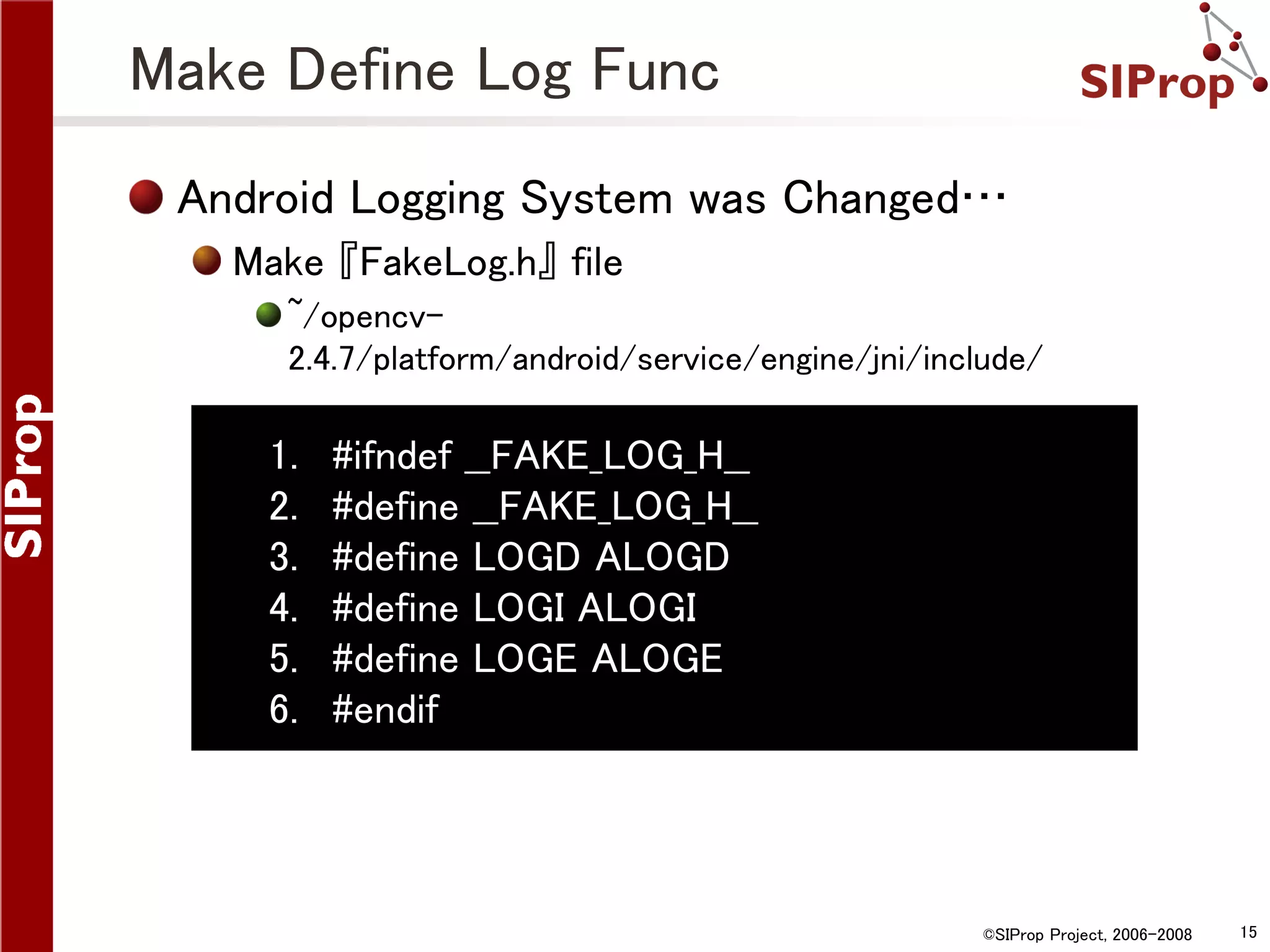

Make Define Log Func Android Logging System was Changed… Make 『FakeLog.h』 file ~/opencv2.4.7/platform/android/service/engine/jni/include/ 1. 2. 3. 4. 5. 6. #ifndef __FAKE_LOG_H__ #define __FAKE_LOG_H__ #define LOGD ALOGD #define LOGI ALOGI #define LOGE ALOGE #endif ©SIProp Project, 2006-2008 15

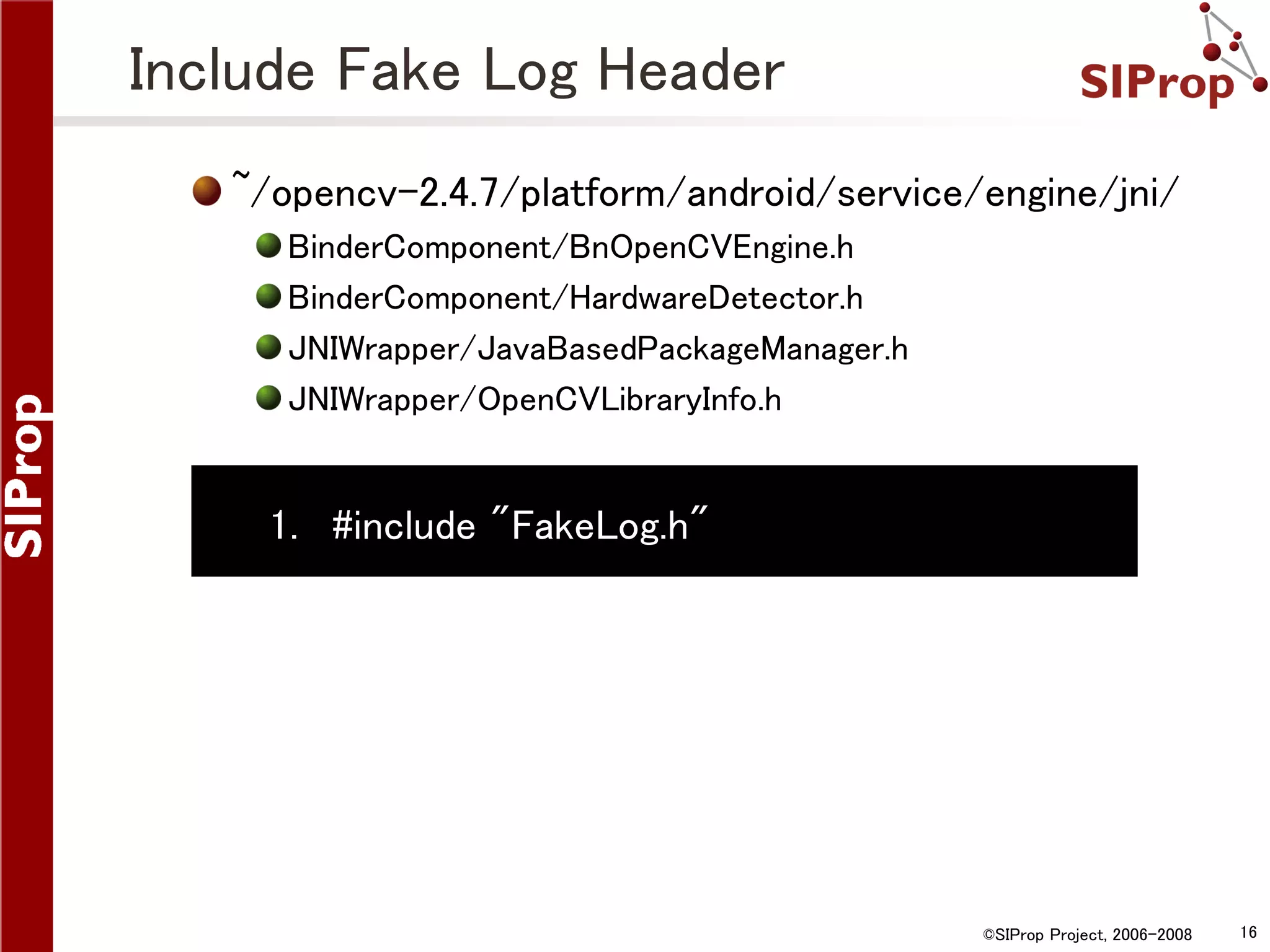

Include Fake Log Header ~/opencv-2.4.7/platform/android/service/engine/jni/ BinderComponent/BnOpenCVEngine.h BinderComponent/HardwareDetector.h JNIWrapper/JavaBasedPackageManager.h JNIWrapper/OpenCVLibraryInfo.h 1. #include "FakeLog.h" ©SIProp Project, 2006-2008 16

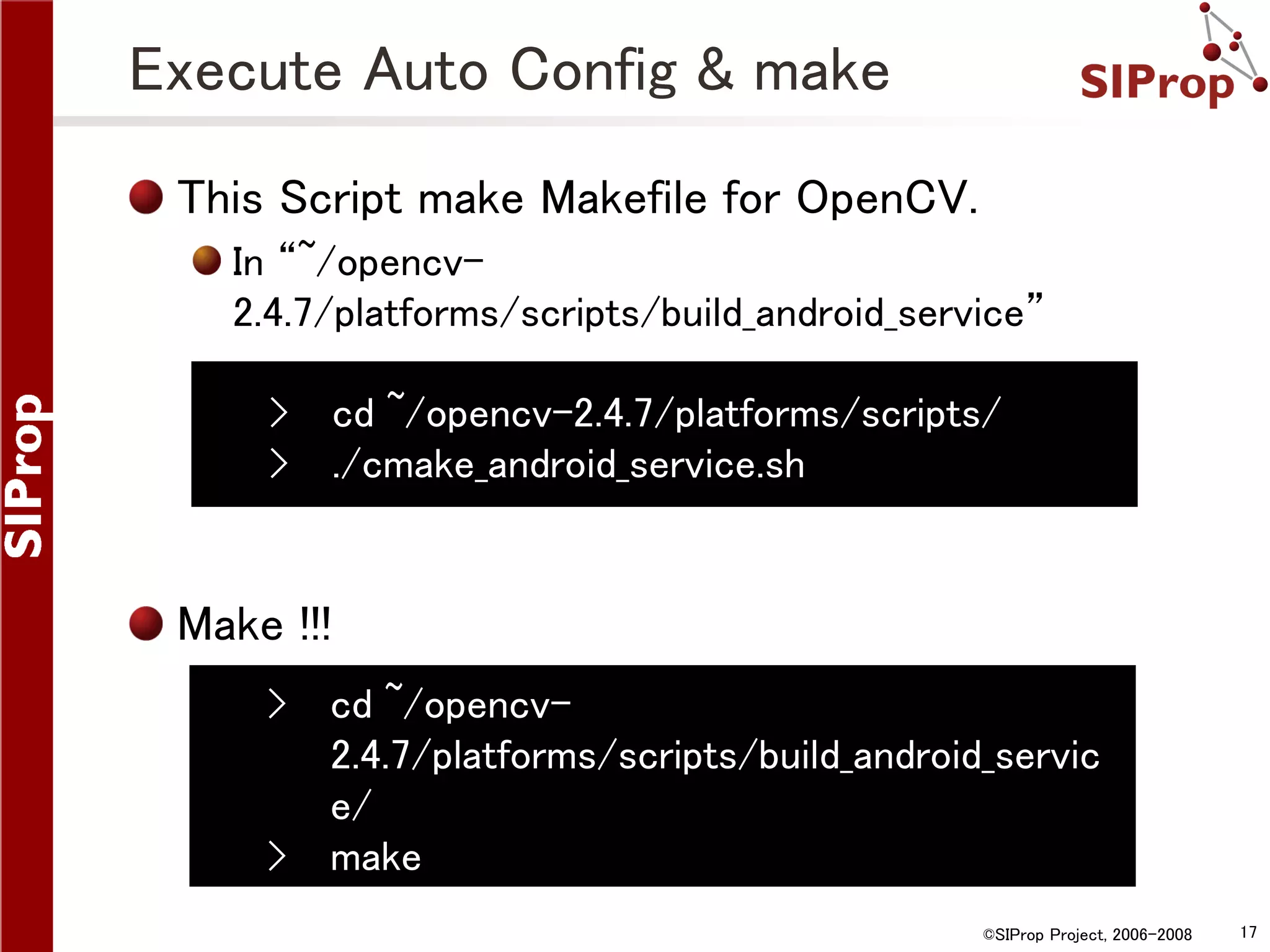

Execute Auto Config & make This Script make Makefile for OpenCV. In “~/opencv2.4.7/platforms/scripts/build_android_service” › cd ~/opencv-2.4.7/platforms/scripts/ › ./cmake_android_service.sh Make !!! › › cd ~/opencv2.4.7/platforms/scripts/build_android_servic e/ make ©SIProp Project, 2006-2008 17

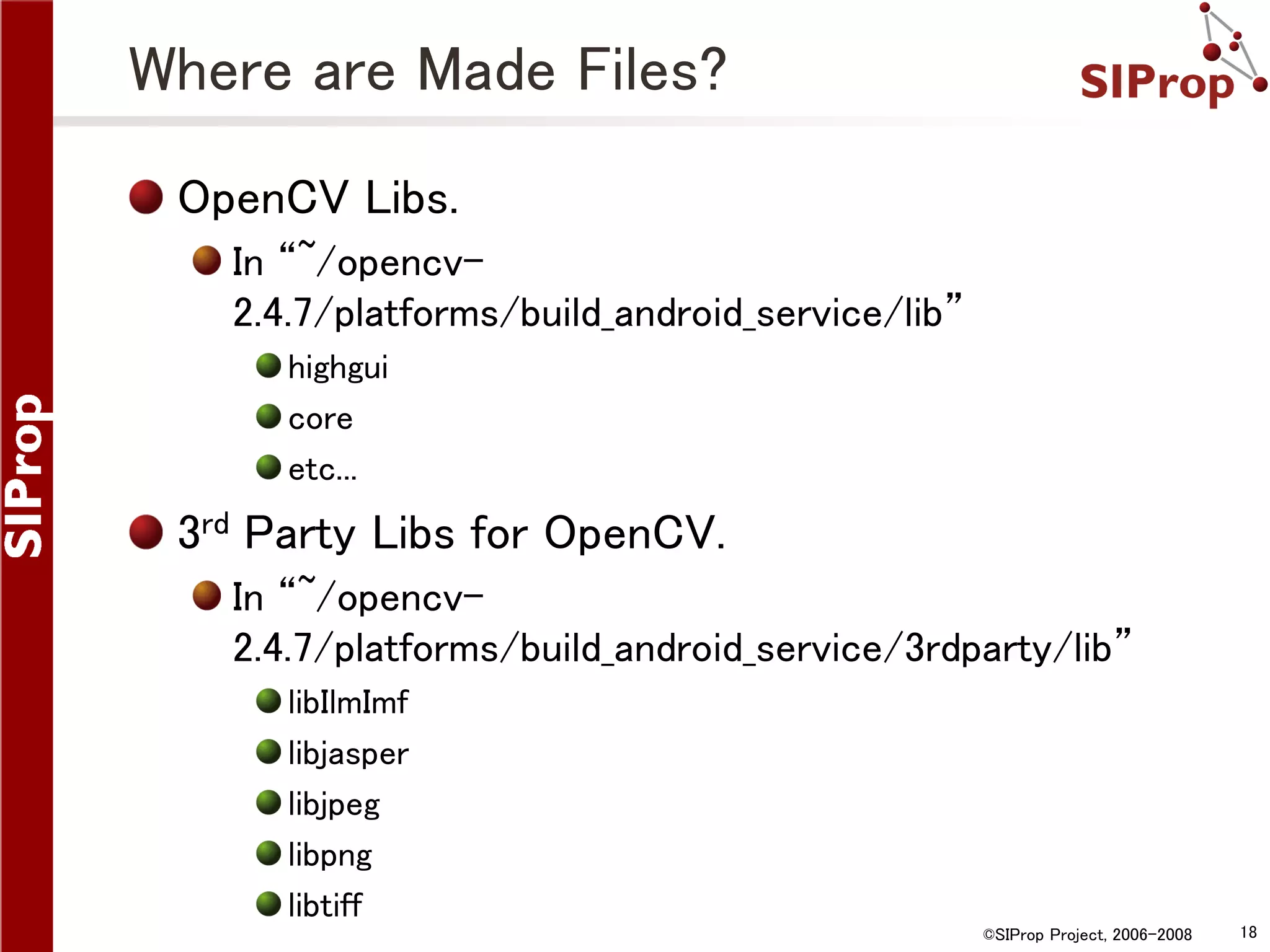

Where are Made Files? OpenCV Libs. In “~/opencv2.4.7/platforms/build_android_service/lib” highgui core etc... 3rd Party Libs for OpenCV. In “~/opencv2.4.7/platforms/build_android_service/3rdparty/lib” libIlmImf libjasper libjpeg libpng libtiff ©SIProp Project, 2006-2008 18

How to Build Android Camera ©SIProp Project, 2006-2008 19

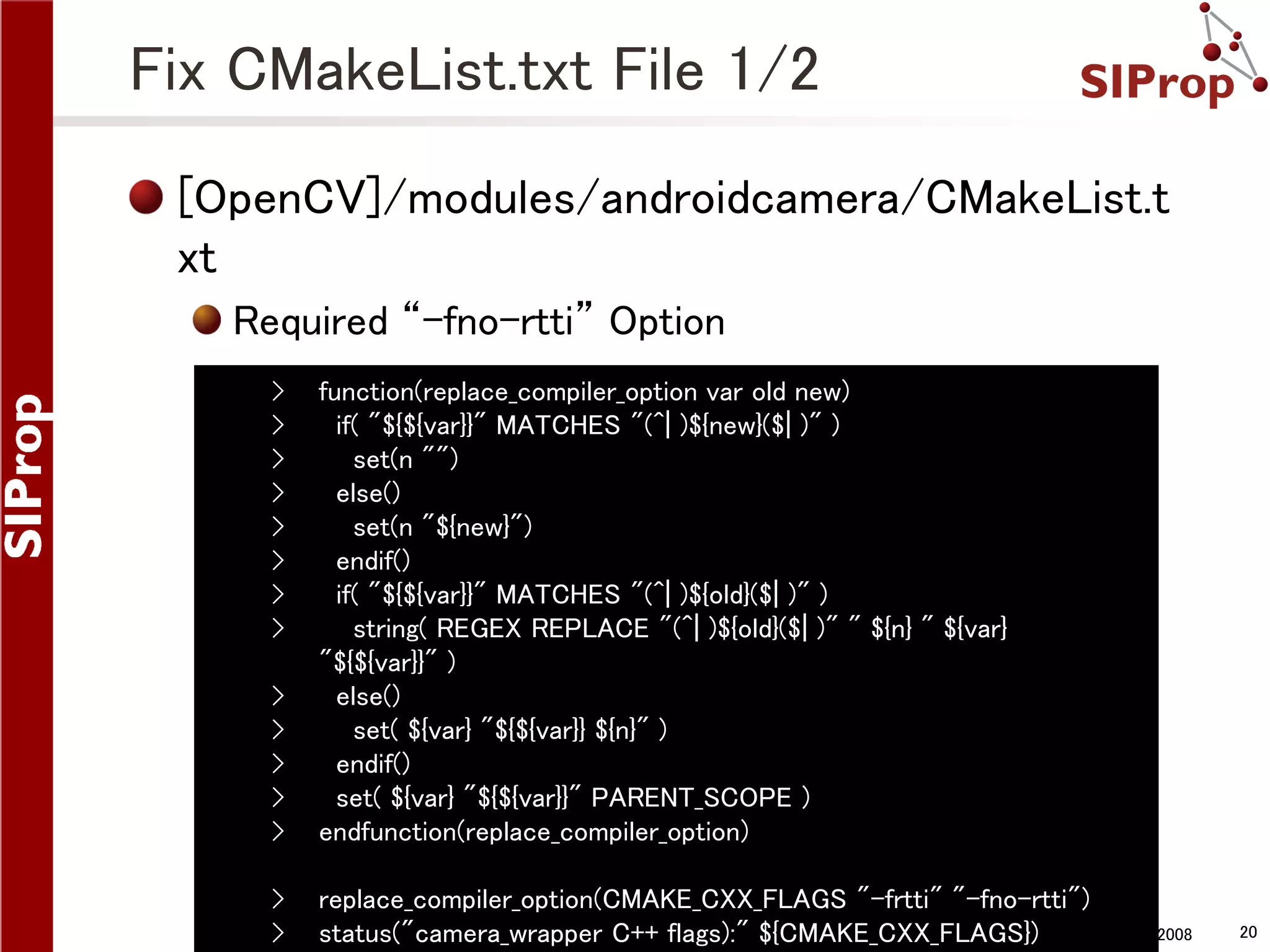

Fix CMakeList.txt File 1/2 [OpenCV]/modules/androidcamera/CMakeList.t xt Required “-fno-rtti” Option › › › › › › › › › › › › › function(replace_compiler_option var old new) if( "${${var}}" MATCHES "(^| )${new}($| )" ) set(n "") else() set(n "${new}") endif() if( "${${var}}" MATCHES "(^| )${old}($| )" ) string( REGEX REPLACE "(^| )${old}($| )" " ${n} " ${var} "${${var}}" ) else() set( ${var} "${${var}} ${n}" ) endif() set( ${var} "${${var}}" PARENT_SCOPE ) endfunction(replace_compiler_option) › › replace_compiler_option(CMAKE_CXX_FLAGS "-frtti" "-fno-rtti") ©SIProp status("camera_wrapper C++ flags):" ${CMAKE_CXX_FLAGS}) Project, 2006-2008 20

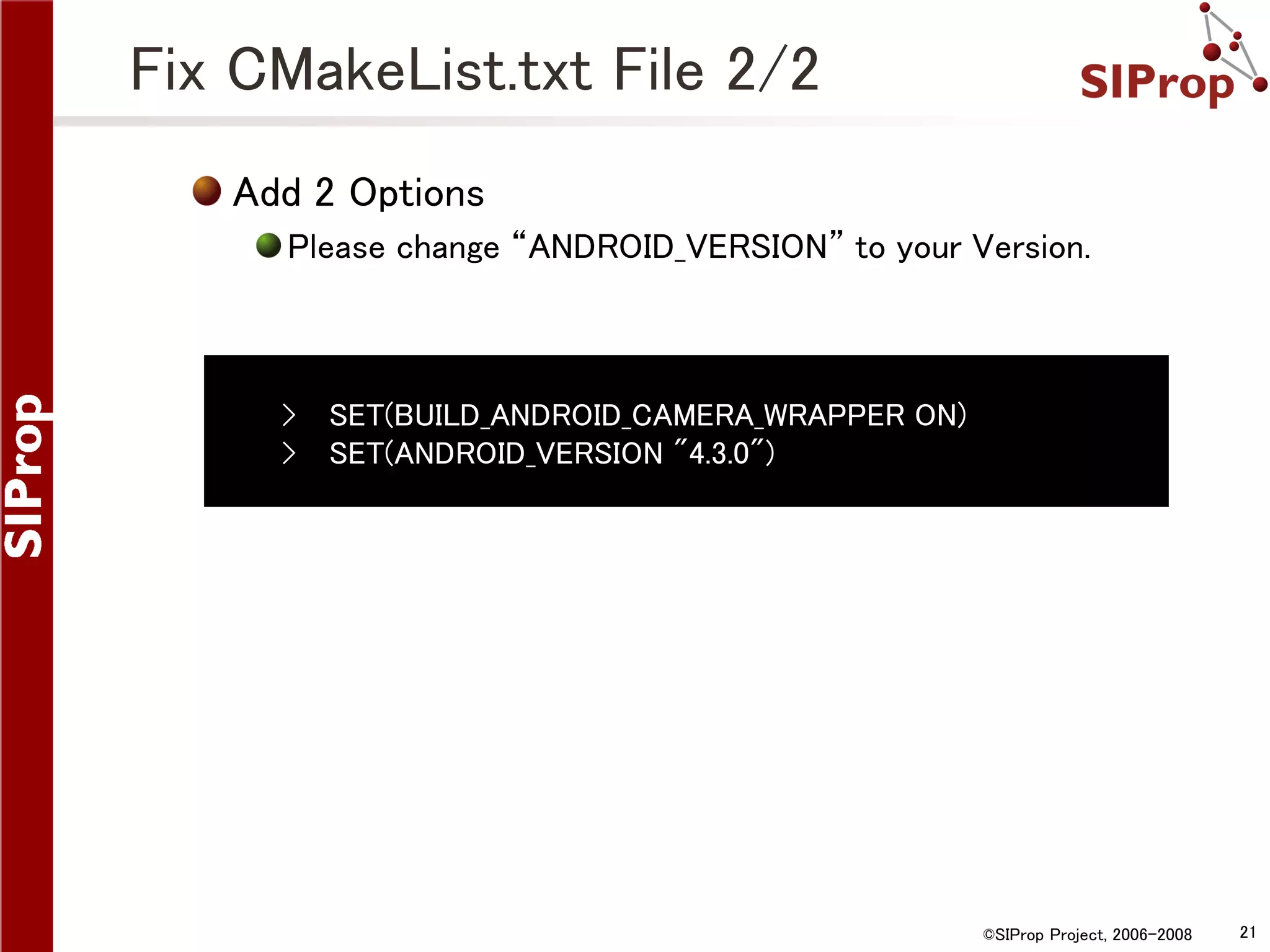

Fix CMakeList.txt File 2/2 Add 2 Options Please change “ANDROID_VERSION” to your Version. › › SET(BUILD_ANDROID_CAMERA_WRAPPER ON) SET(ANDROID_VERSION "4.3.0") ©SIProp Project, 2006-2008 21

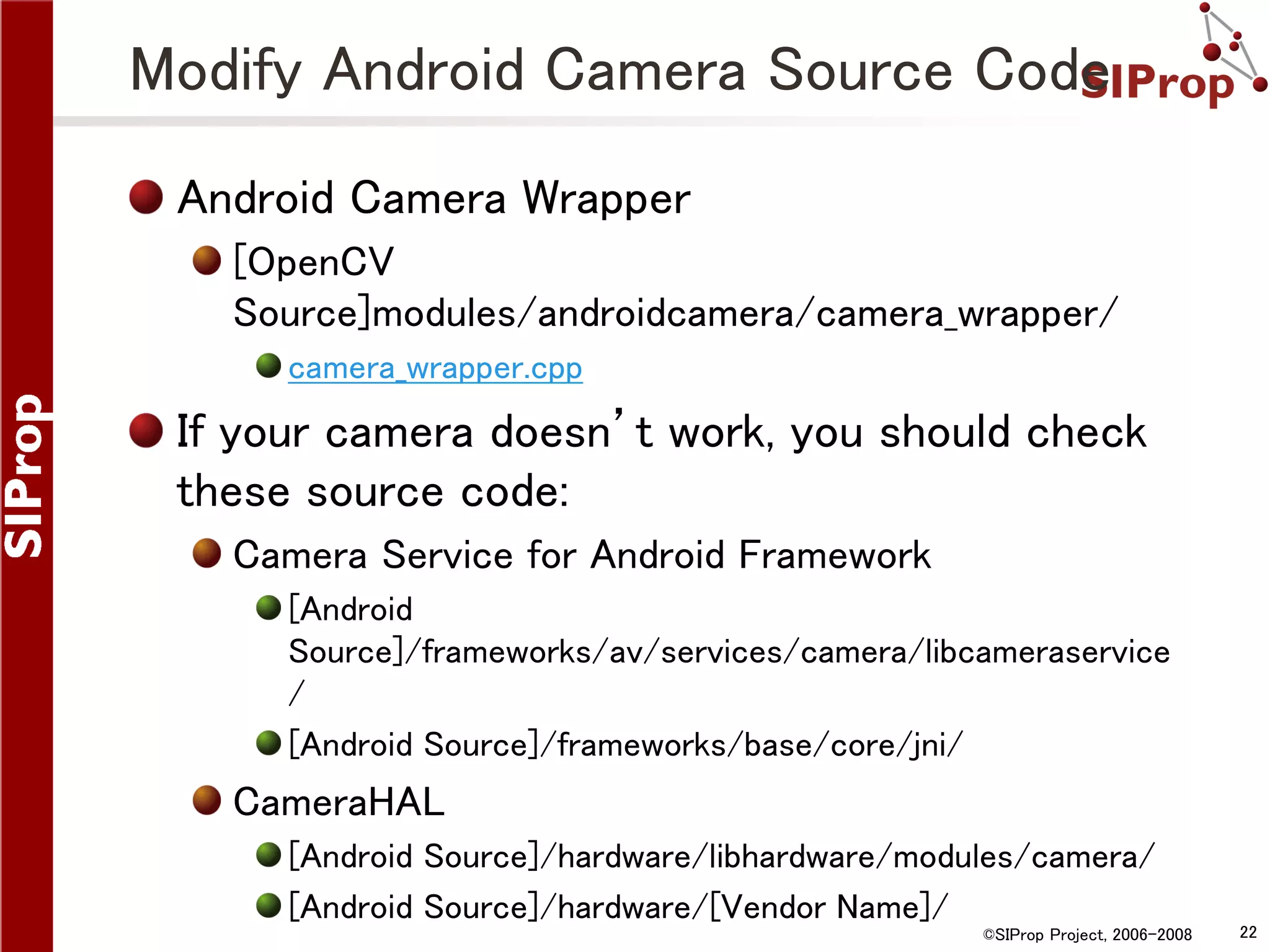

Modify Android Camera Source Code Android Camera Wrapper [OpenCV Source]modules/androidcamera/camera_wrapper/ camera_wrapper.cpp If your camera doesn’t work, you should check these source code: Camera Service for Android Framework [Android Source]/frameworks/av/services/camera/libcameraservice / [Android Source]/frameworks/base/core/jni/ CameraHAL [Android Source]/hardware/libhardware/modules/camera/ [Android Source]/hardware/[Vendor Name]/ ©SIProp Project, 2006-2008 22

How to Use OpenCV for Android ©SIProp Project, 2006-2008 23

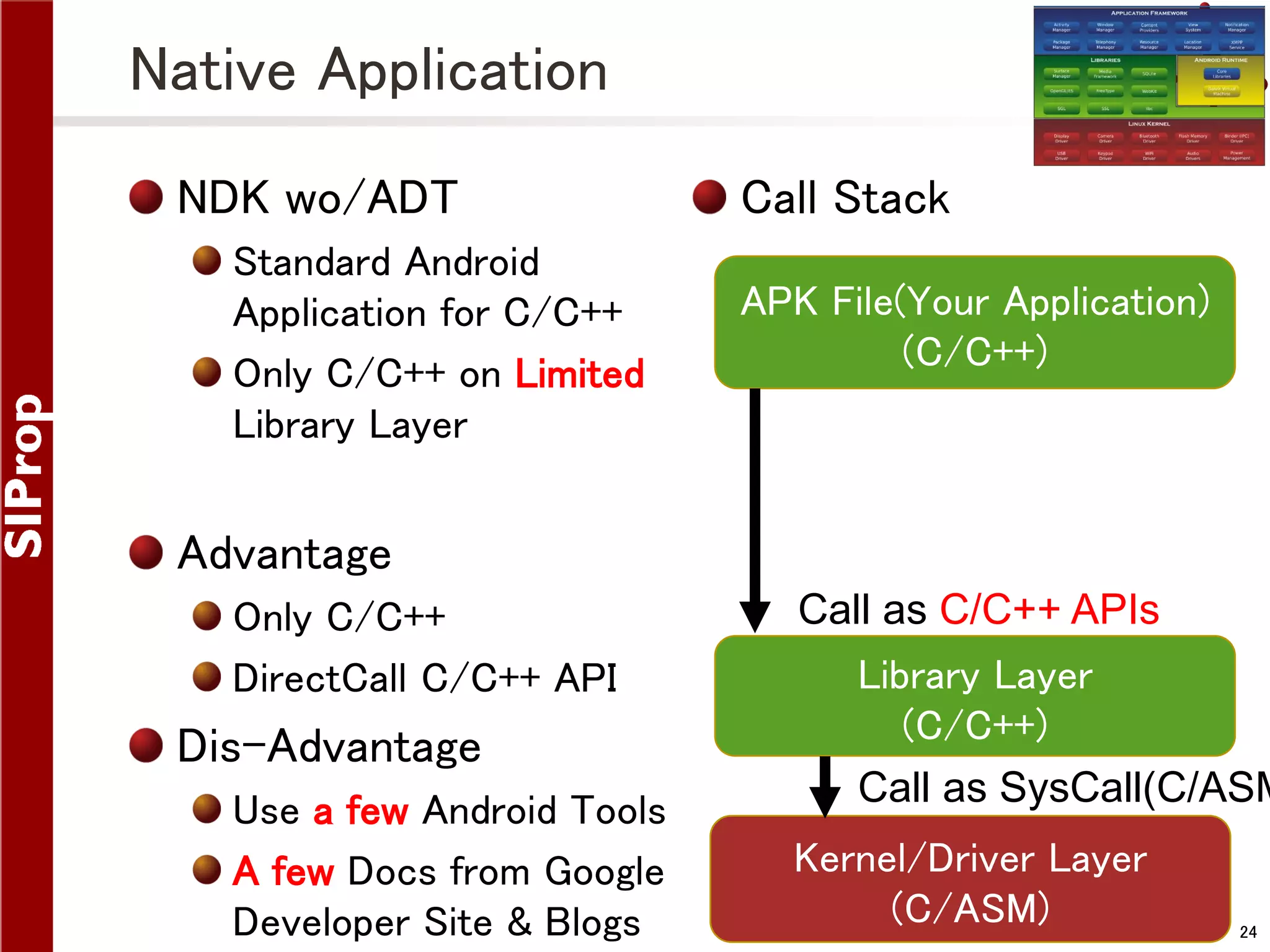

Native Application NDK wo/ADT Standard Android Application for C/C++ Only C/C++ on Limited Library Layer Call Stack APK File(Your Application) (C/C++) Advantage Only C/C++ DirectCall C/C++ API Dis-Advantage Use a few Android Tools A few Docs from Google Developer Site & Blogs Call as C/C++ APIs Library Layer (C/C++) Call as SysCall(C/ASM Kernel/Driver Layer (C/ASM)Project, 2006-2008 ©SIProp 24

Use NativeActivity of OpenCV This Sample uses Only C/C++ Code. ~/opencv-2.4.7/samples/android/native-activity Structure of NativeActivity AndroidManifest.xml <- Property File for Android res <- Directory that has Resource file(Image,Voice) jni <- Directory that has files for NDK Android.mk <- make file of NDK Application.mk <- property file of NDK native.cpp <- Sample App Other Files/Dir, don’t use. ©SIProp Project, 2006-2008 25

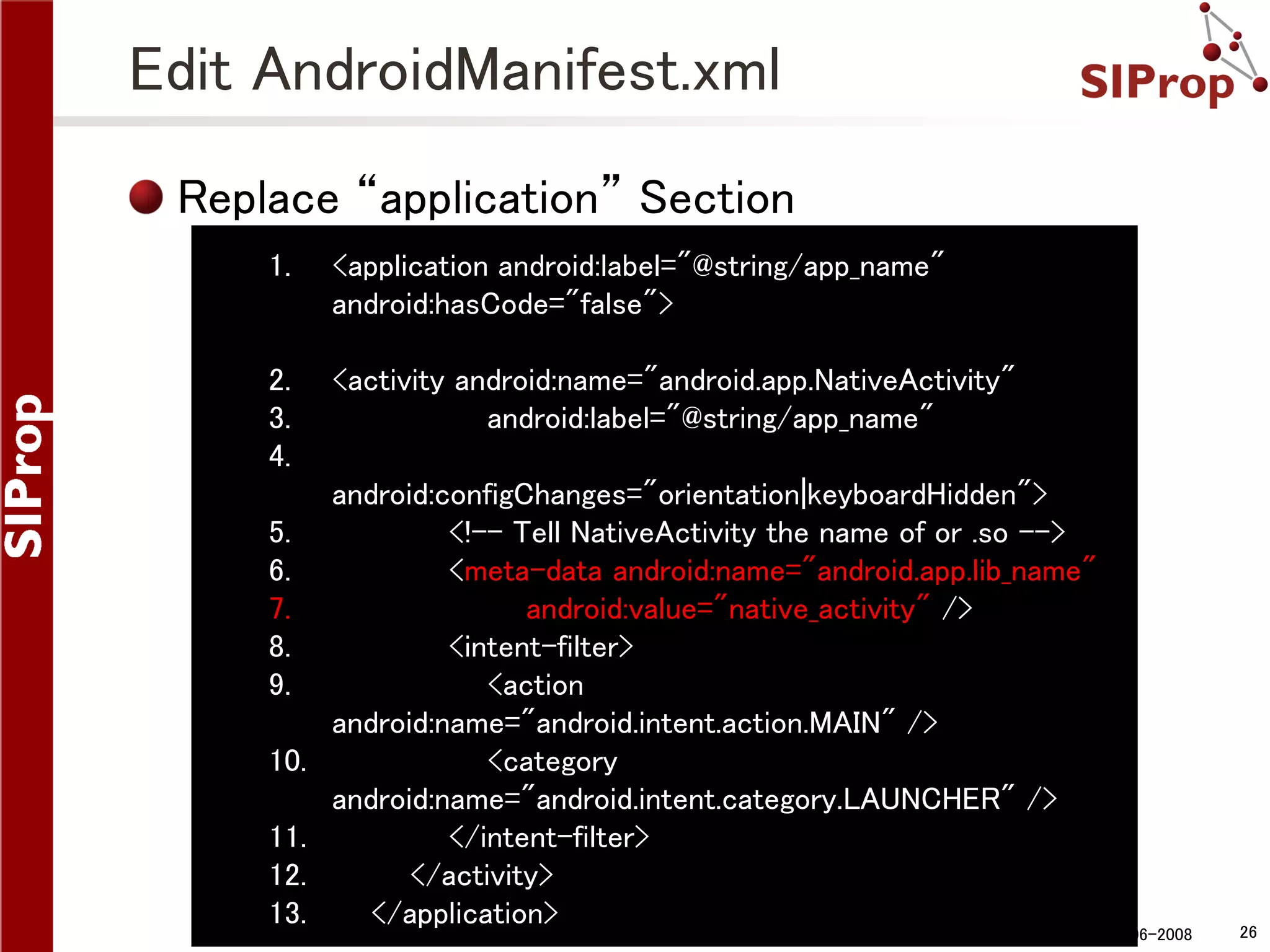

Edit AndroidManifest.xml Replace “application” Section 1. <application android:label="@string/app_name" android:hasCode="false"> 2. 3. 4. <activity android:name="android.app.NativeActivity" android:label="@string/app_name" 5. 6. 7. 8. 9. 10. 11. 12. 13. android:configChanges="orientation|keyboardHidden">  <meta-data android:name="android.app.lib_name" android:value="native_activity" /> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> ©SIProp Project, 2006-2008 26

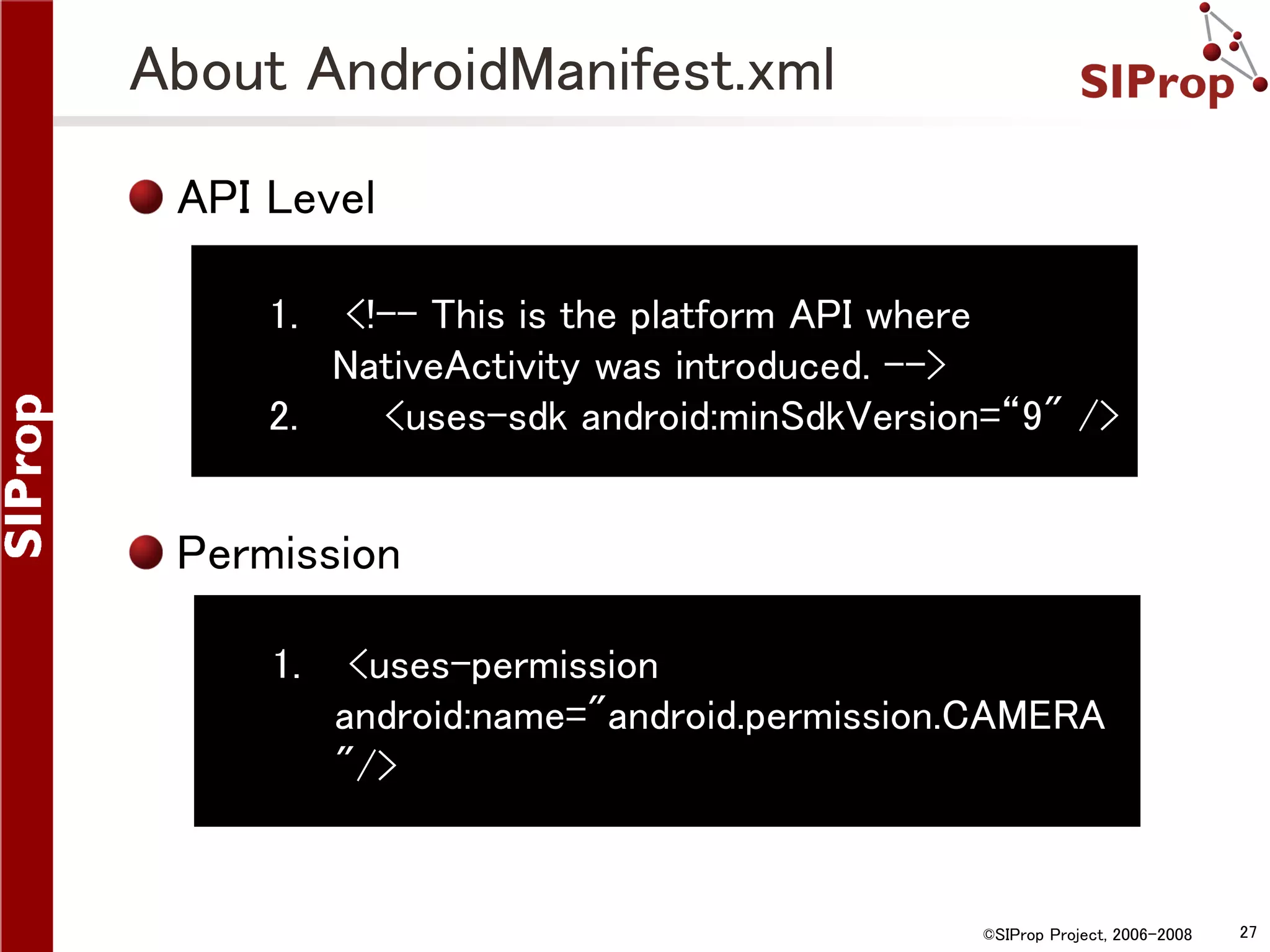

About AndroidManifest.xml API Level 1.  2. <uses-sdk android:minSdkVersion=“9" /> Permission 1. <uses-permission android:name="android.permission.CAMERA "/> ©SIProp Project, 2006-2008 27

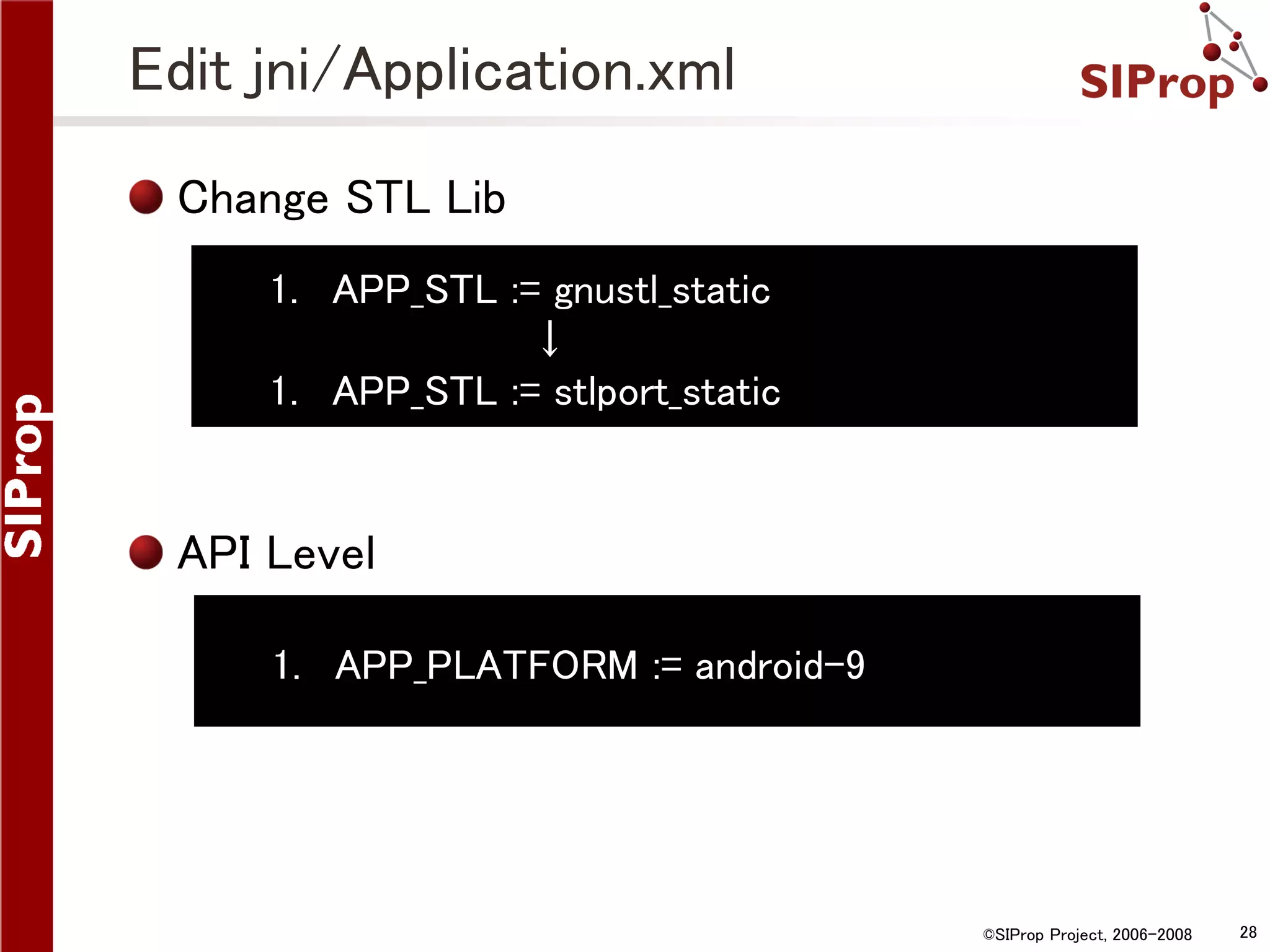

Edit jni/Application.xml Change STL Lib 1. APP_STL := gnustl_static ↓ 1. APP_STL := stlport_static API Level 1. APP_PLATFORM := android-9 ©SIProp Project, 2006-2008 28

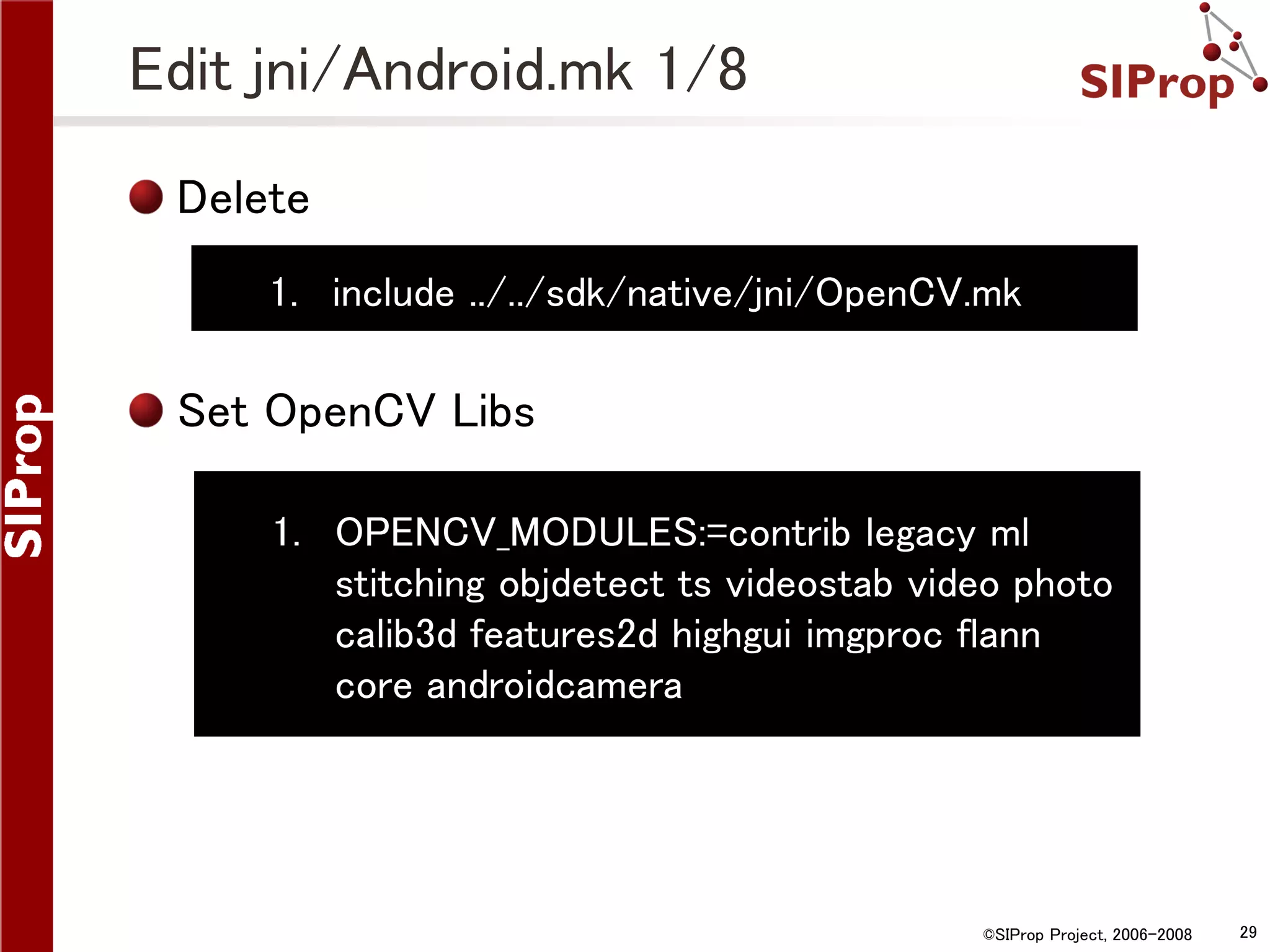

Edit jni/Android.mk 1/8 Delete 1. include ../../sdk/native/jni/OpenCV.mk Set OpenCV Libs 1. OPENCV_MODULES:=contrib legacy ml stitching objdetect ts videostab video photo calib3d features2d highgui imgproc flann core androidcamera ©SIProp Project, 2006-2008 29

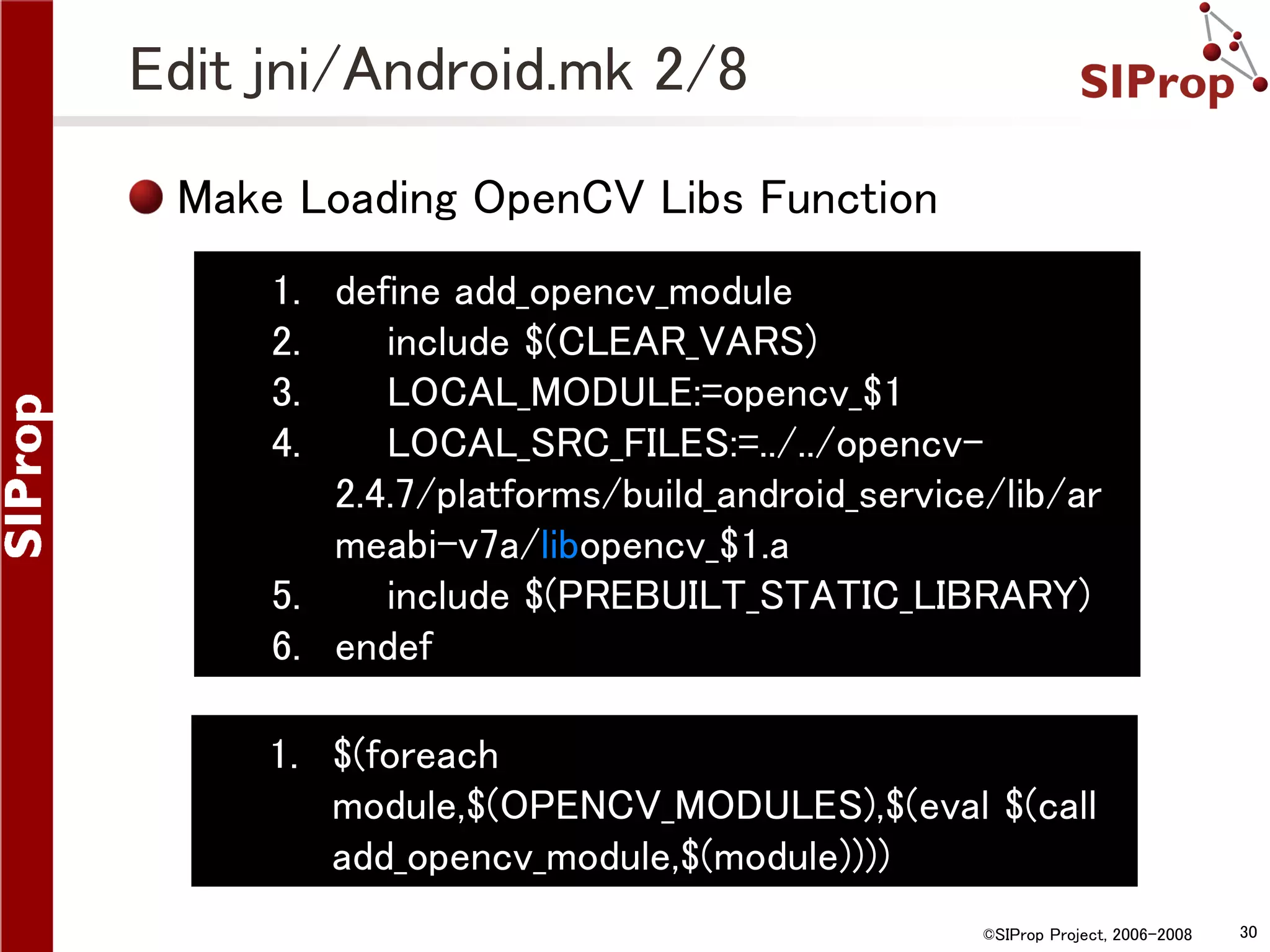

Edit jni/Android.mk 2/8 Make Loading OpenCV Libs Function 1. define add_opencv_module 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=opencv_$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/lib/ar meabi-v7a/libopencv_$1.a 5. include $(PREBUILT_STATIC_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_MODULES),$(eval $(call add_opencv_module,$(module)))) ©SIProp Project, 2006-2008 30

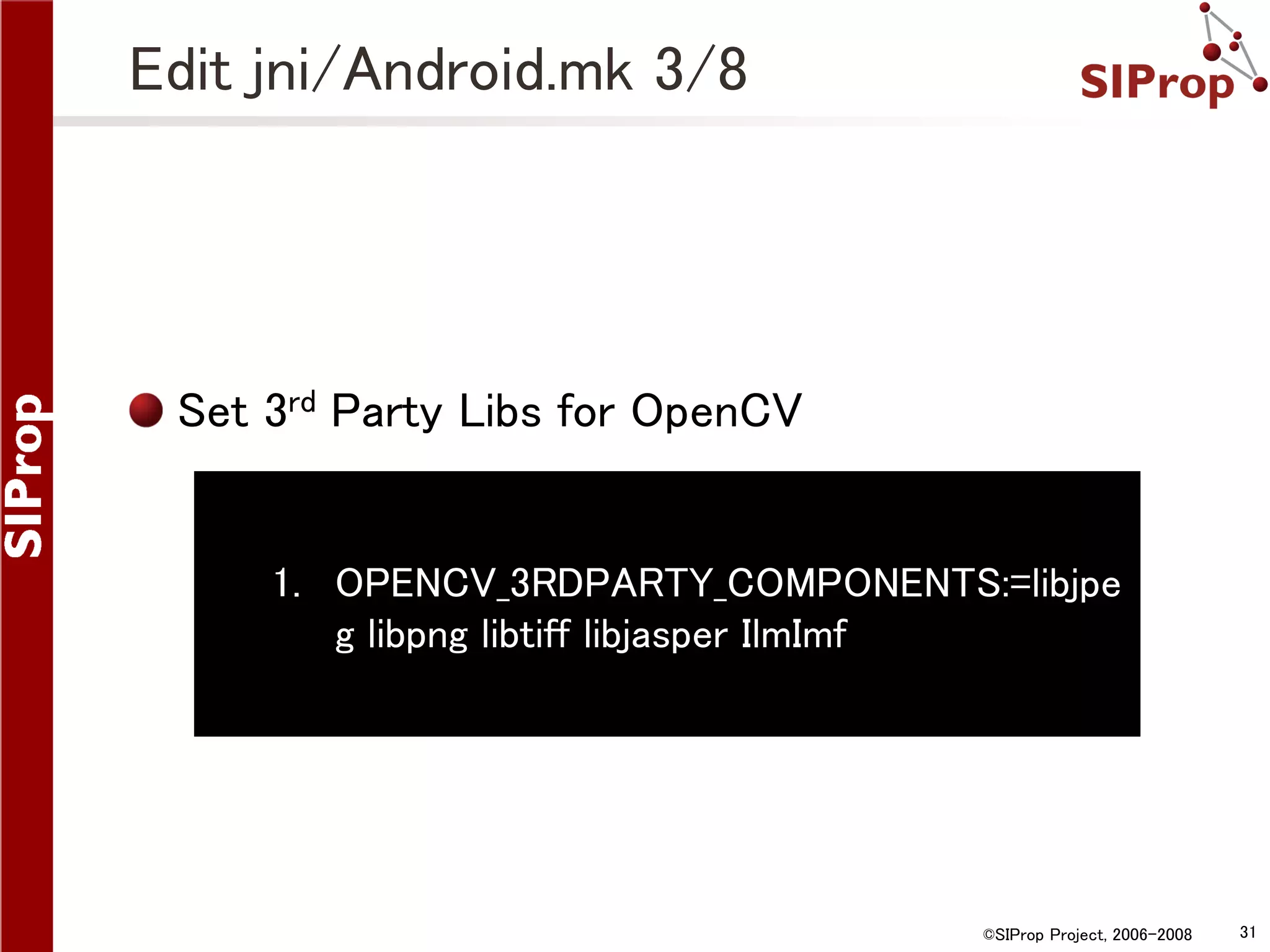

Edit jni/Android.mk 3/8 Set 3rd Party Libs for OpenCV 1. OPENCV_3RDPARTY_COMPONENTS:=libjpe g libpng libtiff libjasper IlmImf ©SIProp Project, 2006-2008 31

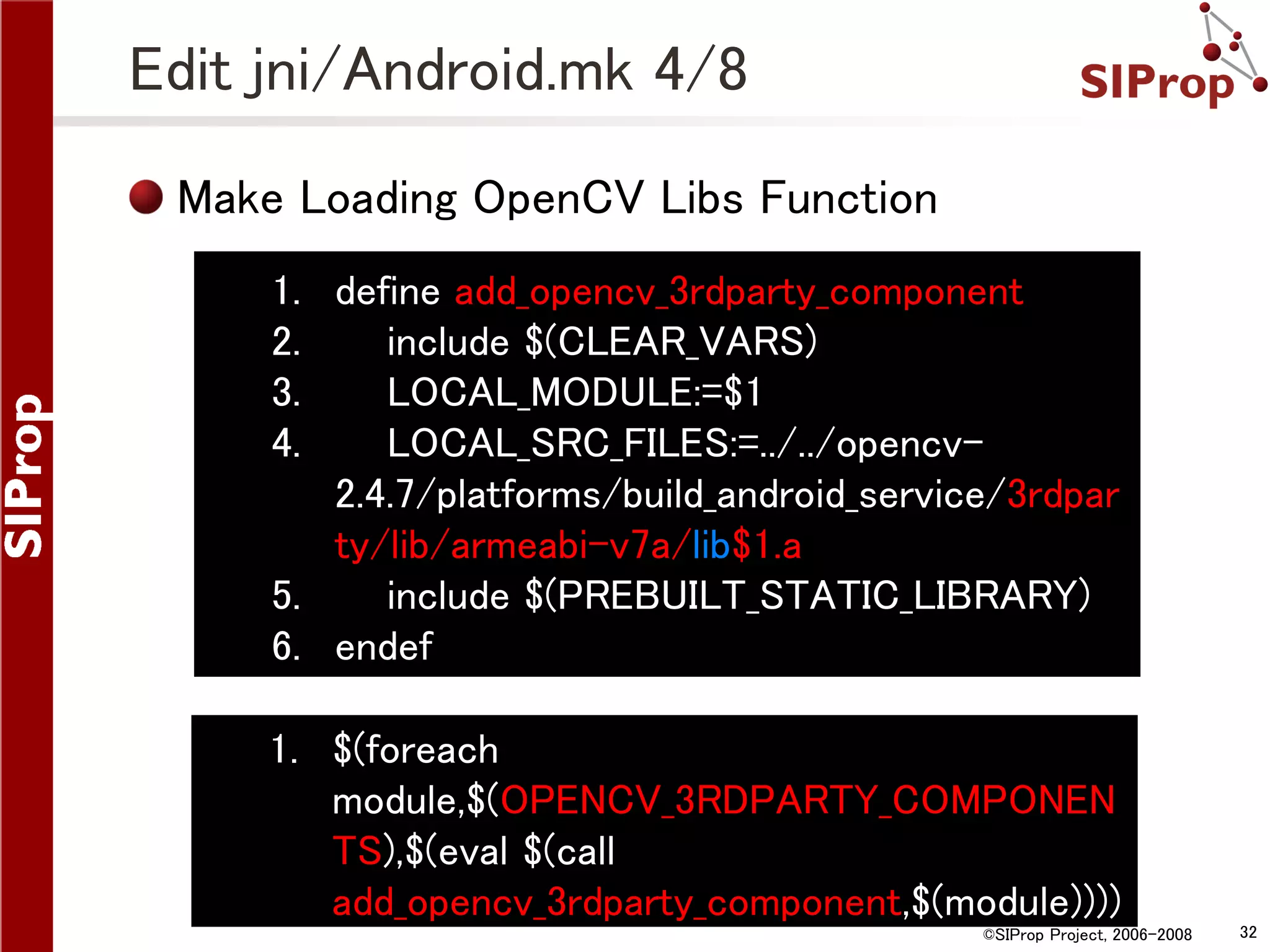

Edit jni/Android.mk 4/8 Make Loading OpenCV Libs Function 1. define add_opencv_3rdparty_component 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/3rdpar ty/lib/armeabi-v7a/lib$1.a 5. include $(PREBUILT_STATIC_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_3RDPARTY_COMPONEN TS),$(eval $(call add_opencv_3rdparty_component,$(module)))) ©SIProp Project, 2006-2008 32

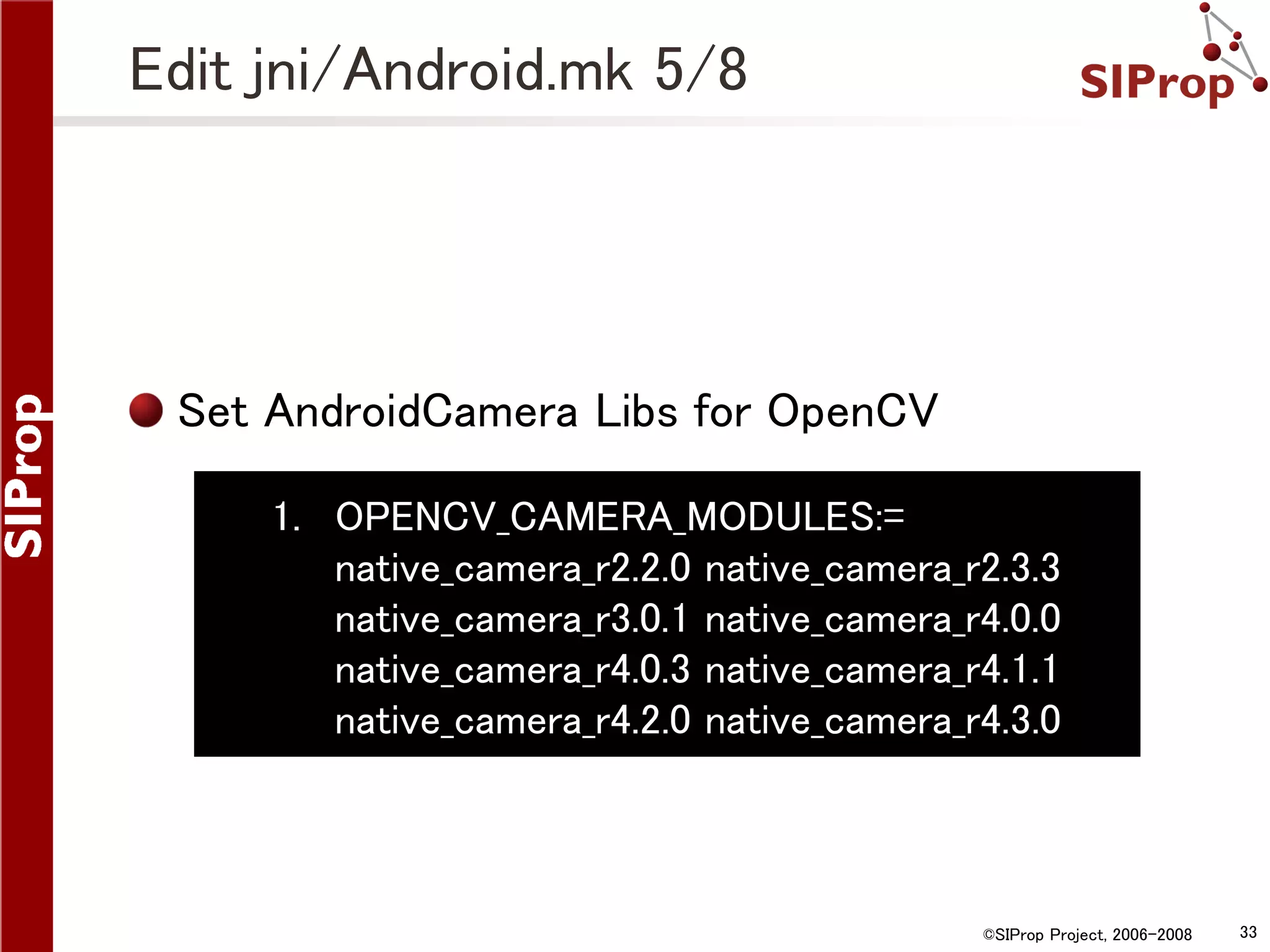

Edit jni/Android.mk 5/8 Set AndroidCamera Libs for OpenCV 1. OPENCV_CAMERA_MODULES:= native_camera_r2.2.0 native_camera_r2.3.3 native_camera_r3.0.1 native_camera_r4.0.0 native_camera_r4.0.3 native_camera_r4.1.1 native_camera_r4.2.0 native_camera_r4.3.0 ©SIProp Project, 2006-2008 33

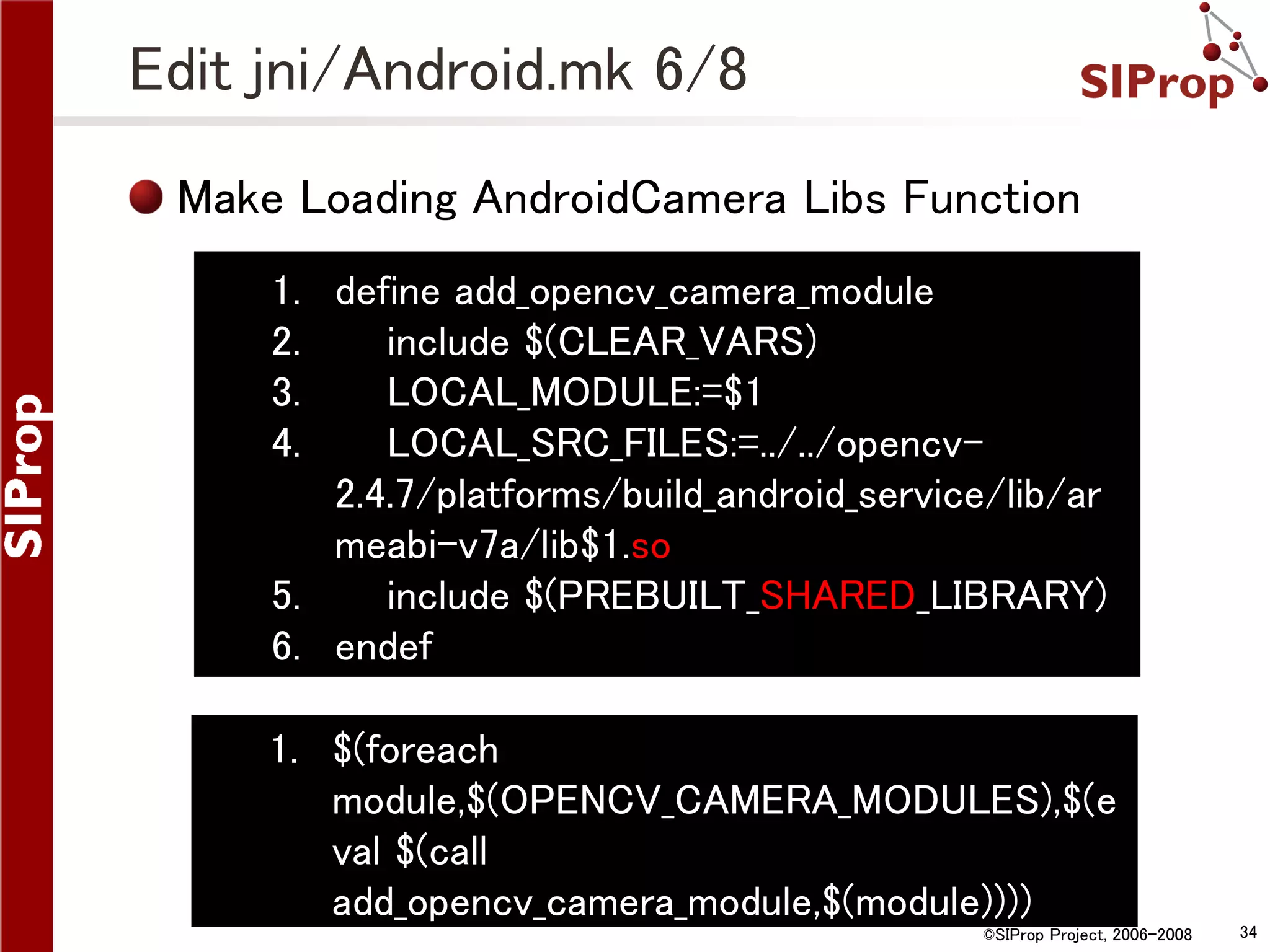

Edit jni/Android.mk 6/8 Make Loading AndroidCamera Libs Function 1. define add_opencv_camera_module 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/lib/ar meabi-v7a/lib$1.so 5. include $(PREBUILT_SHARED_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_CAMERA_MODULES),$(e val $(call add_opencv_camera_module,$(module)))) ©SIProp Project, 2006-2008 34

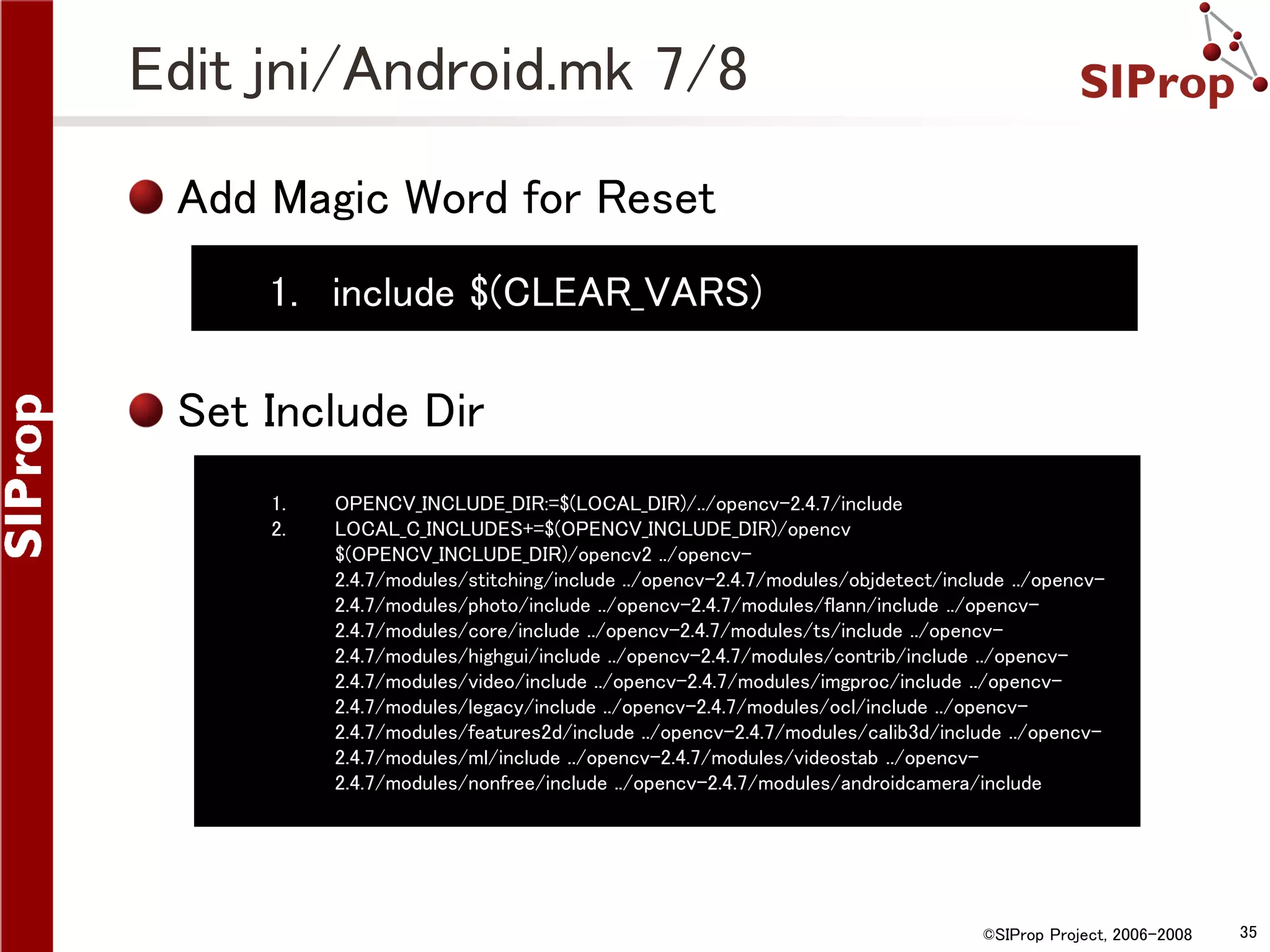

Edit jni/Android.mk 7/8 Add Magic Word for Reset 1. include $(CLEAR_VARS) Set Include Dir 1. 2. OPENCV_INCLUDE_DIR:=$(LOCAL_DIR)/../opencv-2.4.7/include LOCAL_C_INCLUDES+=$(OPENCV_INCLUDE_DIR)/opencv $(OPENCV_INCLUDE_DIR)/opencv2 ../opencv2.4.7/modules/stitching/include ../opencv-2.4.7/modules/objdetect/include ../opencv2.4.7/modules/photo/include ../opencv-2.4.7/modules/flann/include ../opencv2.4.7/modules/core/include ../opencv-2.4.7/modules/ts/include ../opencv2.4.7/modules/highgui/include ../opencv-2.4.7/modules/contrib/include ../opencv2.4.7/modules/video/include ../opencv-2.4.7/modules/imgproc/include ../opencv2.4.7/modules/legacy/include ../opencv-2.4.7/modules/ocl/include ../opencv2.4.7/modules/features2d/include ../opencv-2.4.7/modules/calib3d/include ../opencv2.4.7/modules/ml/include ../opencv-2.4.7/modules/videostab ../opencv2.4.7/modules/nonfree/include ../opencv-2.4.7/modules/androidcamera/include ©SIProp Project, 2006-2008 35

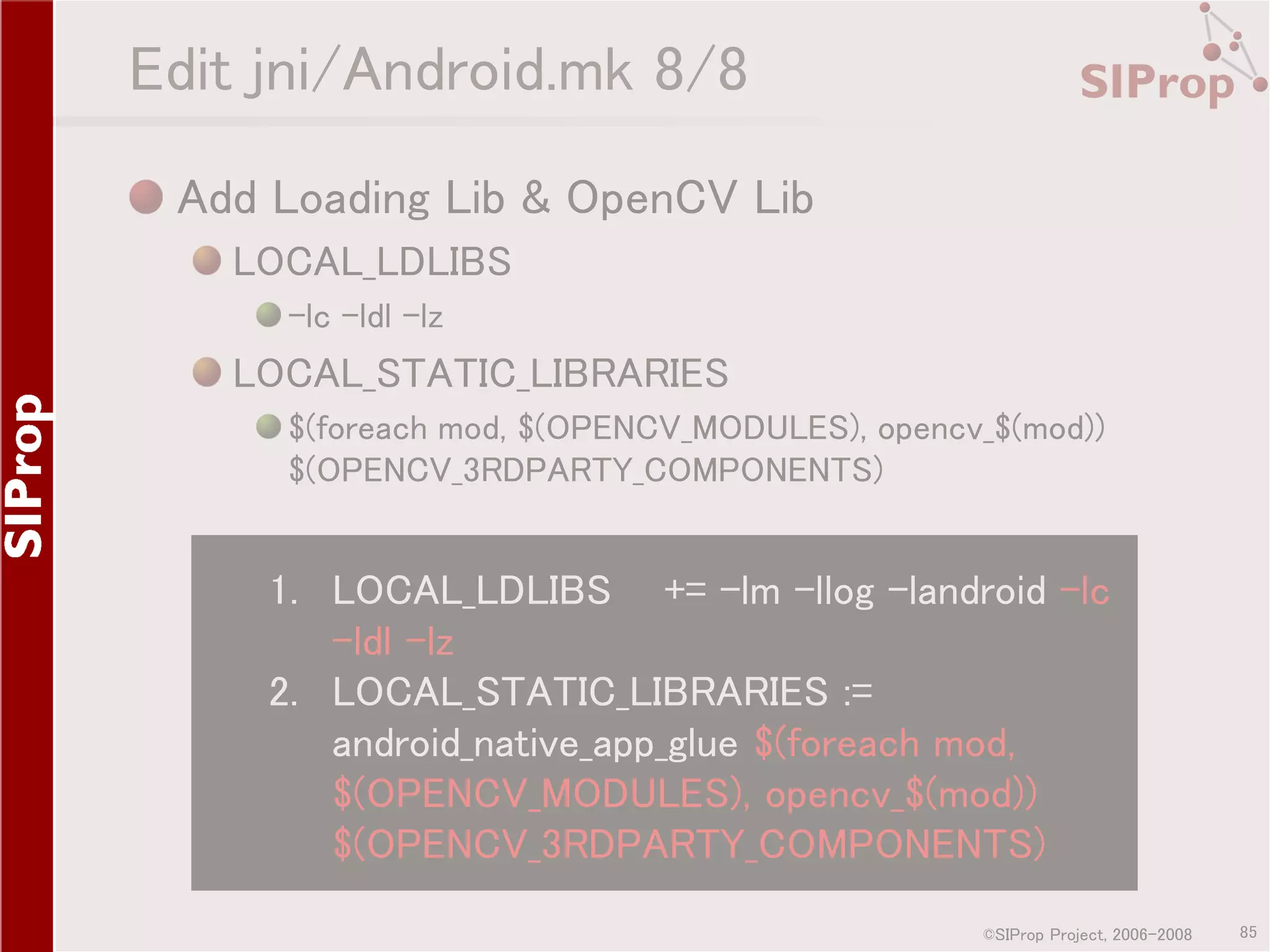

Edit jni/Android.mk 8/8 Add Loading Lib & OpenCV Lib LOCAL_LDLIBS -lc -ldl -lz LOCAL_STATIC_LIBRARIES $(foreach mod, $(OPENCV_MODULES), opencv_$(mod)) $(OPENCV_3RDPARTY_COMPONENTS) 1. LOCAL_LDLIBS += -lm -llog -landroid -lc -ldl -lz 2. LOCAL_STATIC_LIBRARIES := android_native_app_glue $(foreach mod, $(OPENCV_MODULES), opencv_$(mod)) $(OPENCV_3RDPARTY_COMPONENTS) ©SIProp Project, 2006-2008 36

Setup/Make Build.xml 1/2 Making Setting File for Android using ANT Today, Development on CUI Only!!! Don’t use Eclipse! › android list target › › › › › › › › › › › › › › › › › › Available Android targets: ---------id: 1 or "android-9" Name: Android 2.3.1 Type: Platform API level: 9 Revision: 2 Skins: WQVGA400, QVGA, HVGA, WVGA800 (default), WVGA854 ABIs : armeabi ---------id: 2 or "android-18" Name: Android 4.3 Type: Platform API level: 18 Revision: 2 Skins: WXGA800, WQVGA400, QVGA, WQVGA432, WXGA800-7in, WVGA800 (default), HVGA, WXGA720, WSVGA, WVGA854 ABIs : armeabi-v7a ---------©SIProp Project, 2006-2008 37

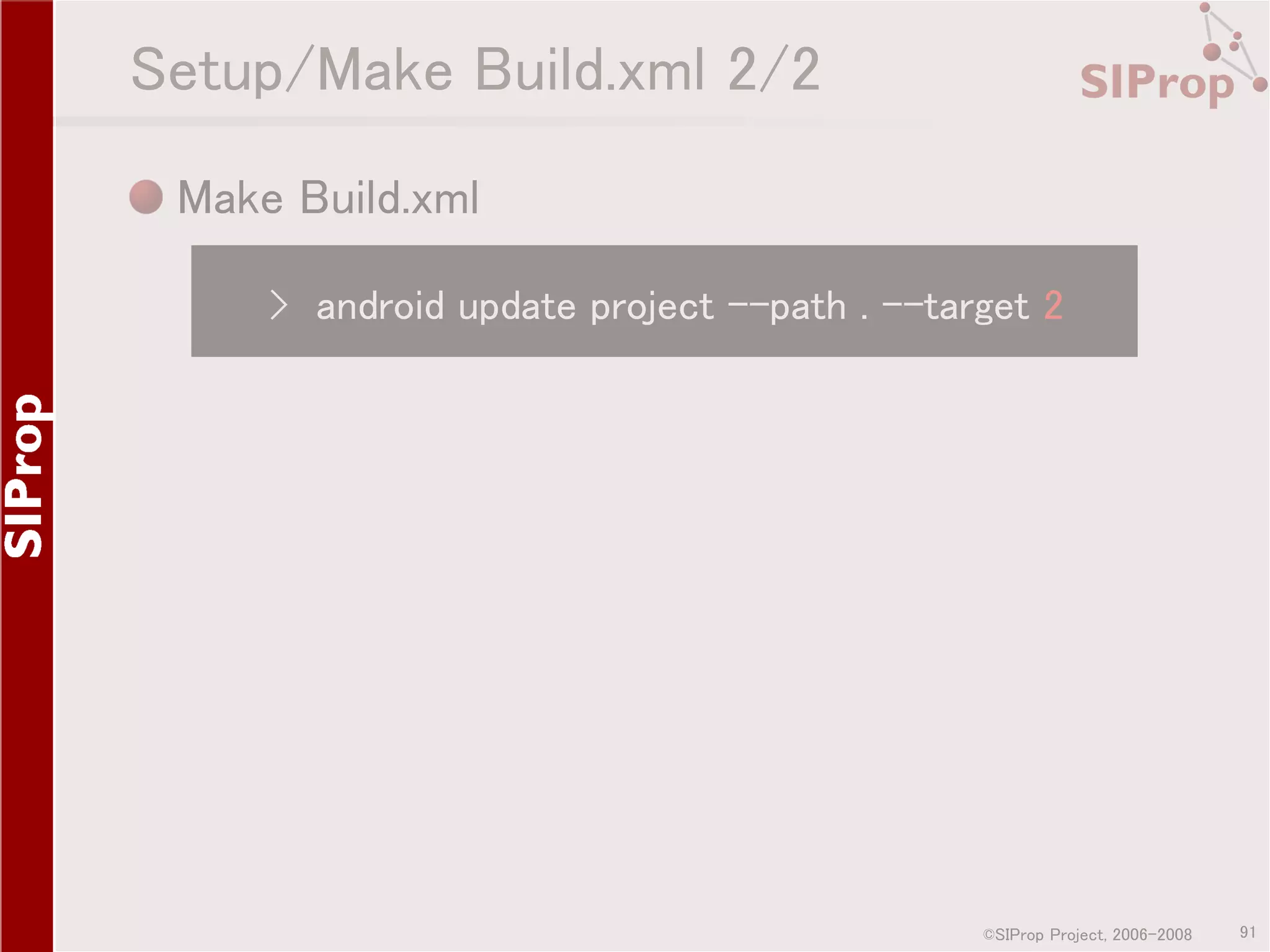

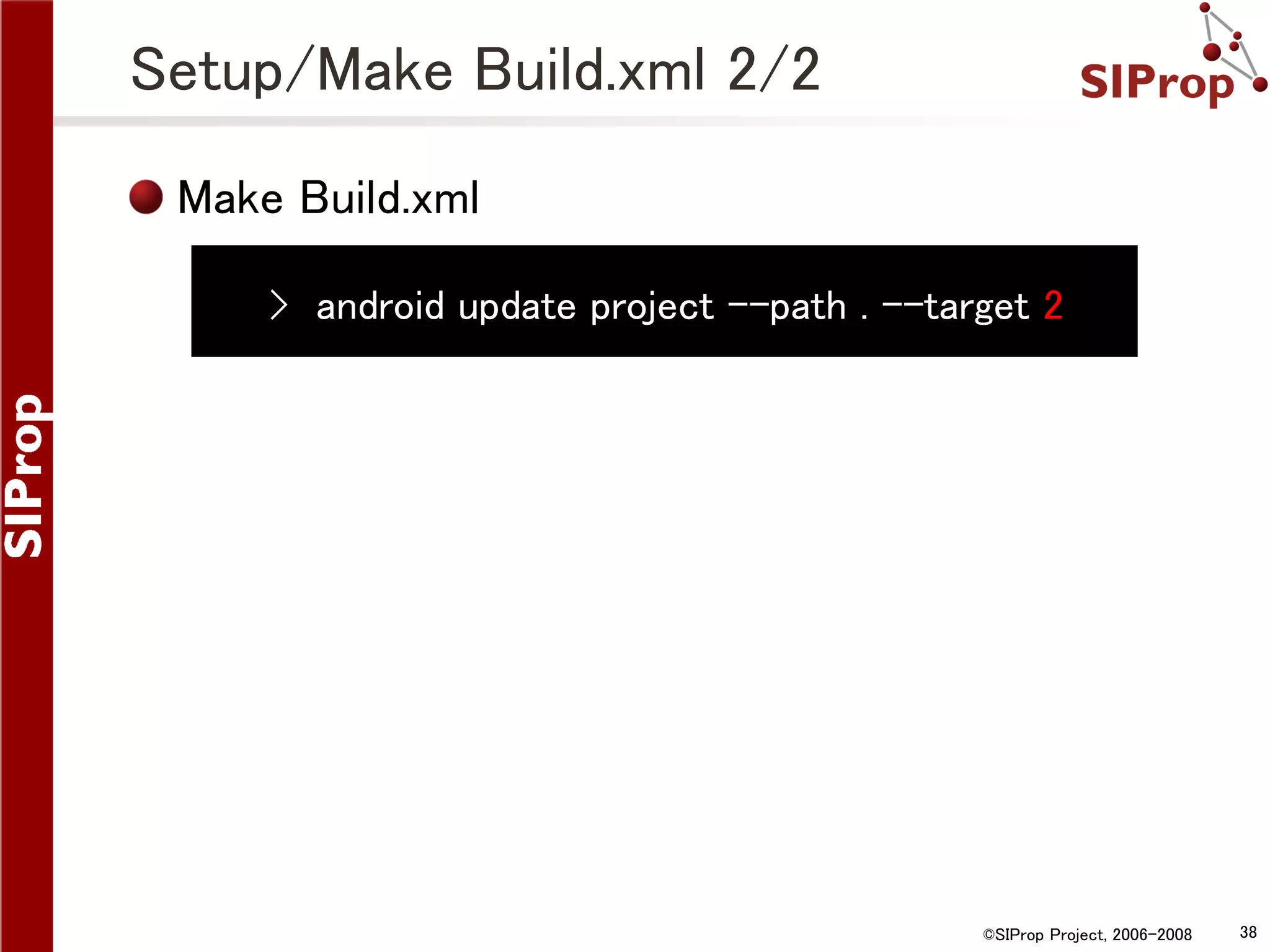

Setup/Make Build.xml 2/2 Make Build.xml › android update project --path . --target 2 ©SIProp Project, 2006-2008 38

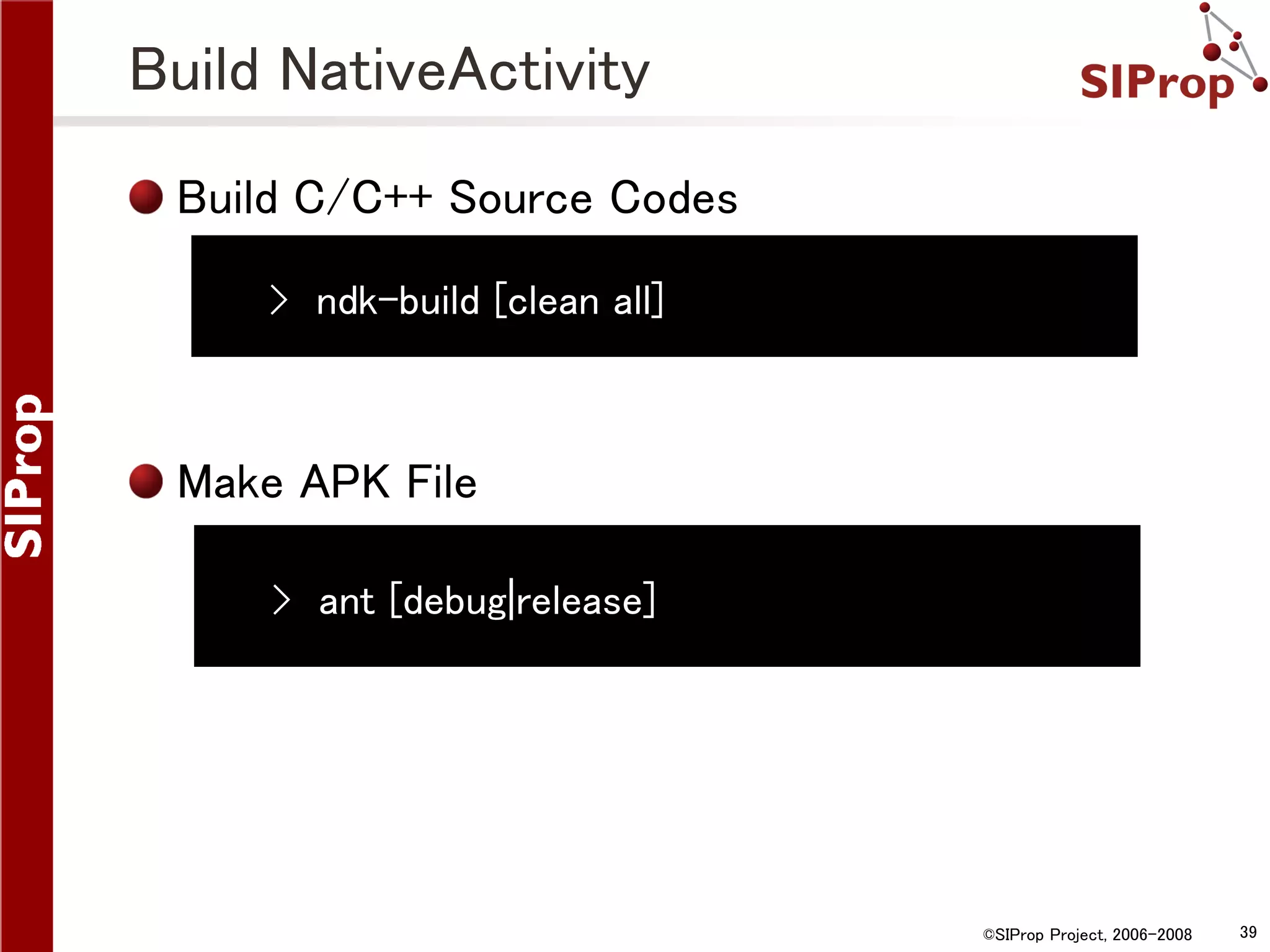

Build NativeActivity Build C/C++ Source Codes › ndk-build [clean all] Make APK File › ant [debug|release] ©SIProp Project, 2006-2008 39

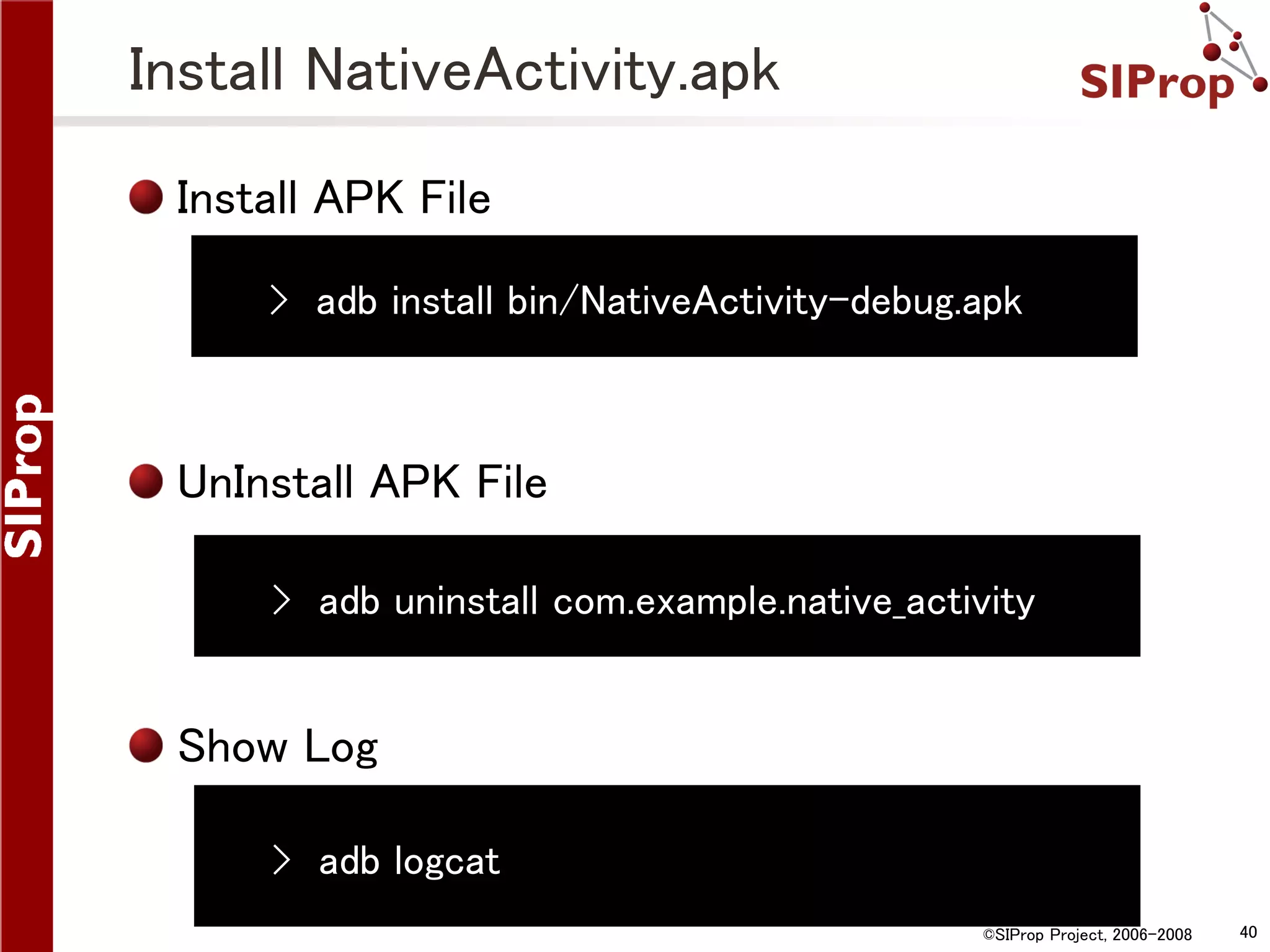

Install NativeActivity.apk Install APK File › adb install bin/NativeActivity-debug.apk UnInstall APK File › adb uninstall com.example.native_activity Show Log › adb logcat ©SIProp Project, 2006-2008 40

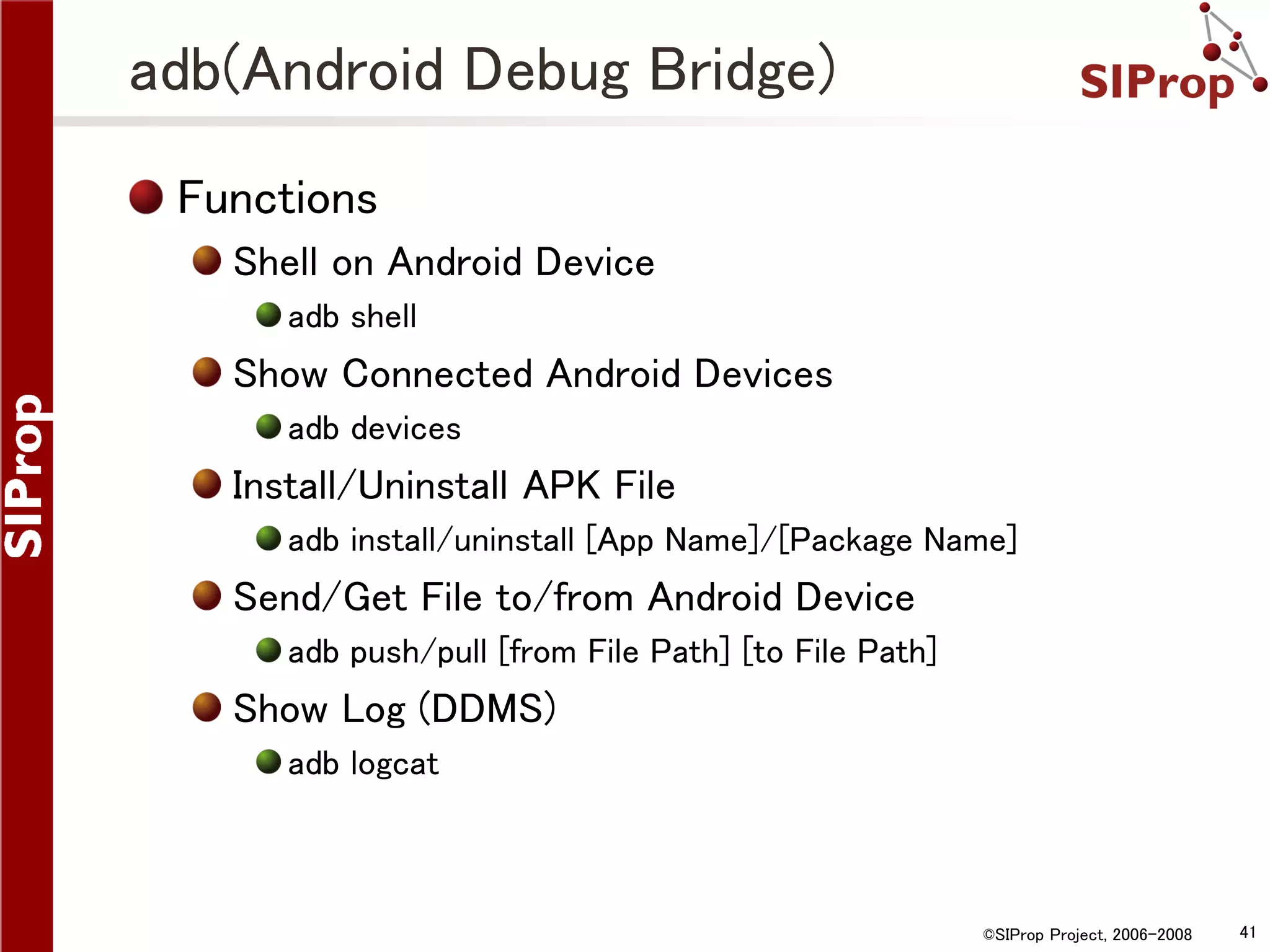

adb(Android Debug Bridge) Functions Shell on Android Device adb shell Show Connected Android Devices adb devices Install/Uninstall APK File adb install/uninstall [App Name]/[Package Name] Send/Get File to/from Android Device adb push/pull [from File Path] [to File Path] Show Log (DDMS) adb logcat ©SIProp Project, 2006-2008 41

How About NativeActivity ©SIProp Project, 2006-2008 42

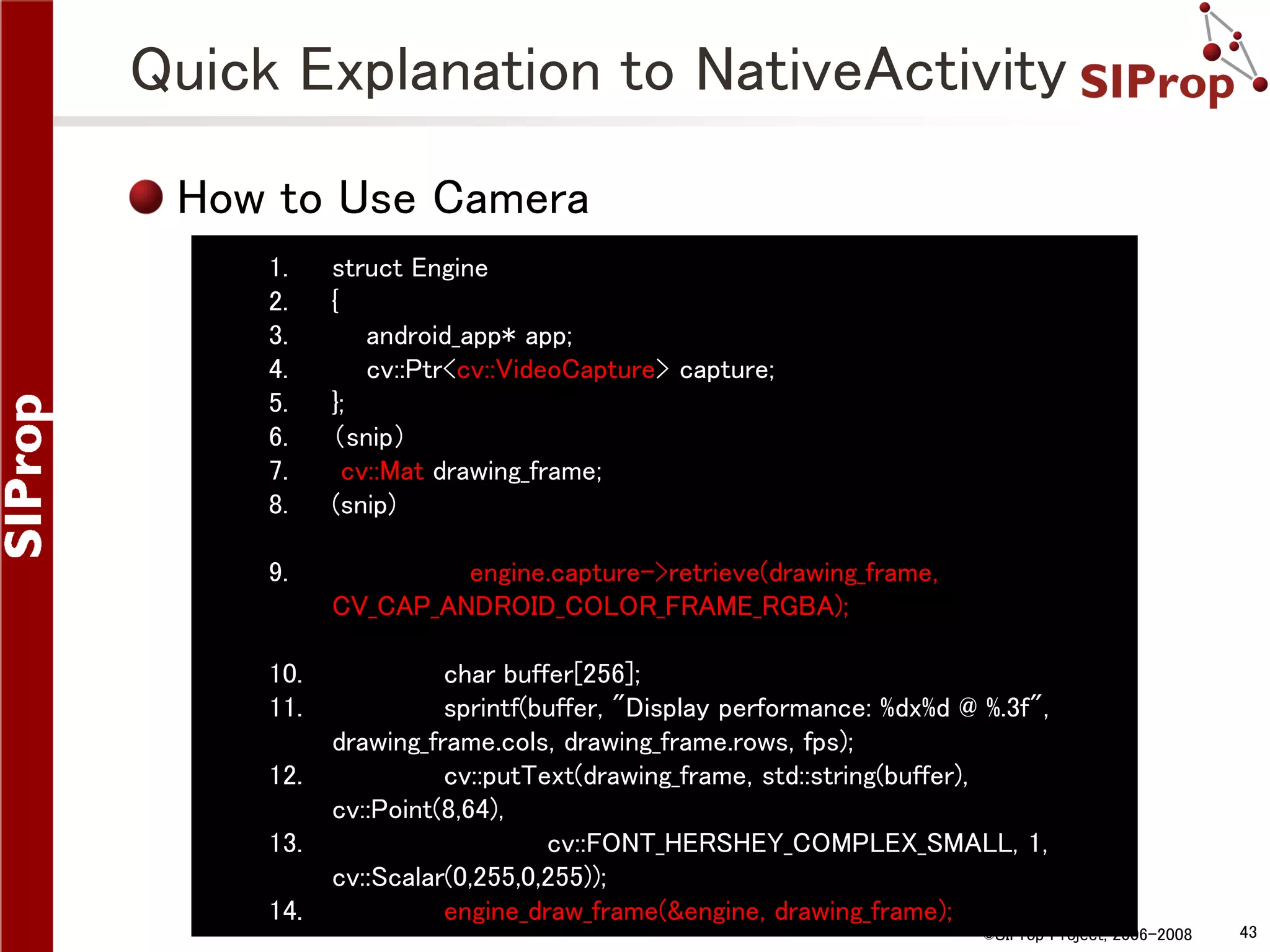

Quick Explanation to NativeActivity How to Use Camera 1. 2. 3. 4. 5. 6. 7. 8. struct Engine { android_app* app; cv::Ptr<cv::VideoCapture> capture; }; （snip） cv::Mat drawing_frame; (snip) 9. engine.capture->retrieve(drawing_frame, CV_CAP_ANDROID_COLOR_FRAME_RGBA); 10. 11. char buffer[256]; sprintf(buffer, "Display performance: %dx%d @ %.3f", drawing_frame.cols, drawing_frame.rows, fps); cv::putText(drawing_frame, std::string(buffer), cv::Point(8,64), cv::FONT_HERSHEY_COMPLEX_SMALL, 1, cv::Scalar(0,255,0,255)); engine_draw_frame(&engine, drawing_frame); 12. 13. 14. ©SIProp Project, 2006-2008 43

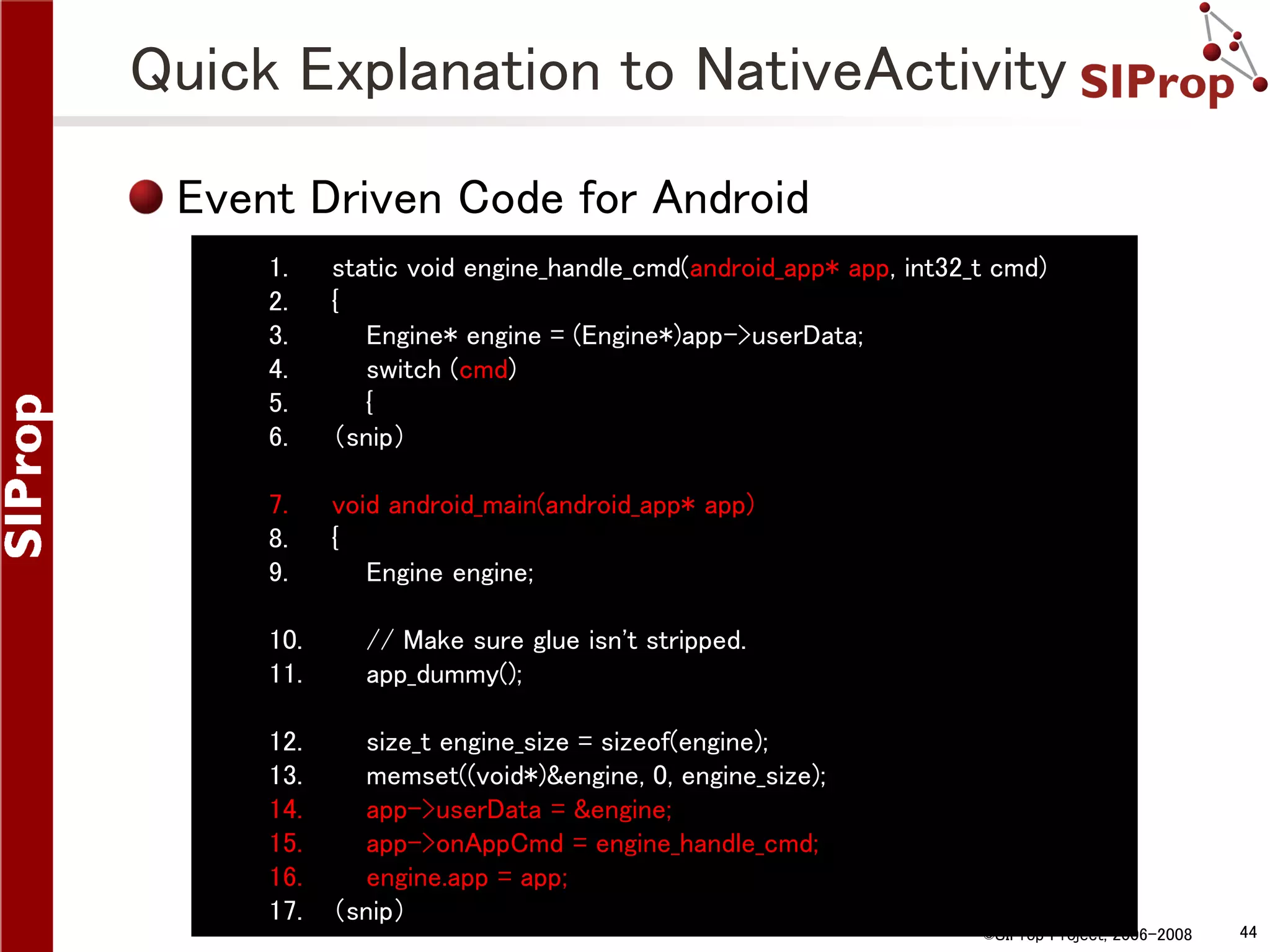

Quick Explanation to NativeActivity Event Driven Code for Android 1. 2. 3. 4. 5. 6. static void engine_handle_cmd(android_app* app, int32_t cmd) { Engine* engine = (Engine*)app->userData; switch (cmd) { （snip） 7. 8. 9. void android_main(android_app* app) { Engine engine; 10. 11. 12. 13. 14. 15. 16. 17. // Make sure glue isn't stripped. app_dummy(); size_t engine_size = sizeof(engine); memset((void*)&engine, 0, engine_size); app->userData = &engine; app->onAppCmd = engine_handle_cmd; engine.app = app; （snip） ©SIProp Project, 2006-2008 44

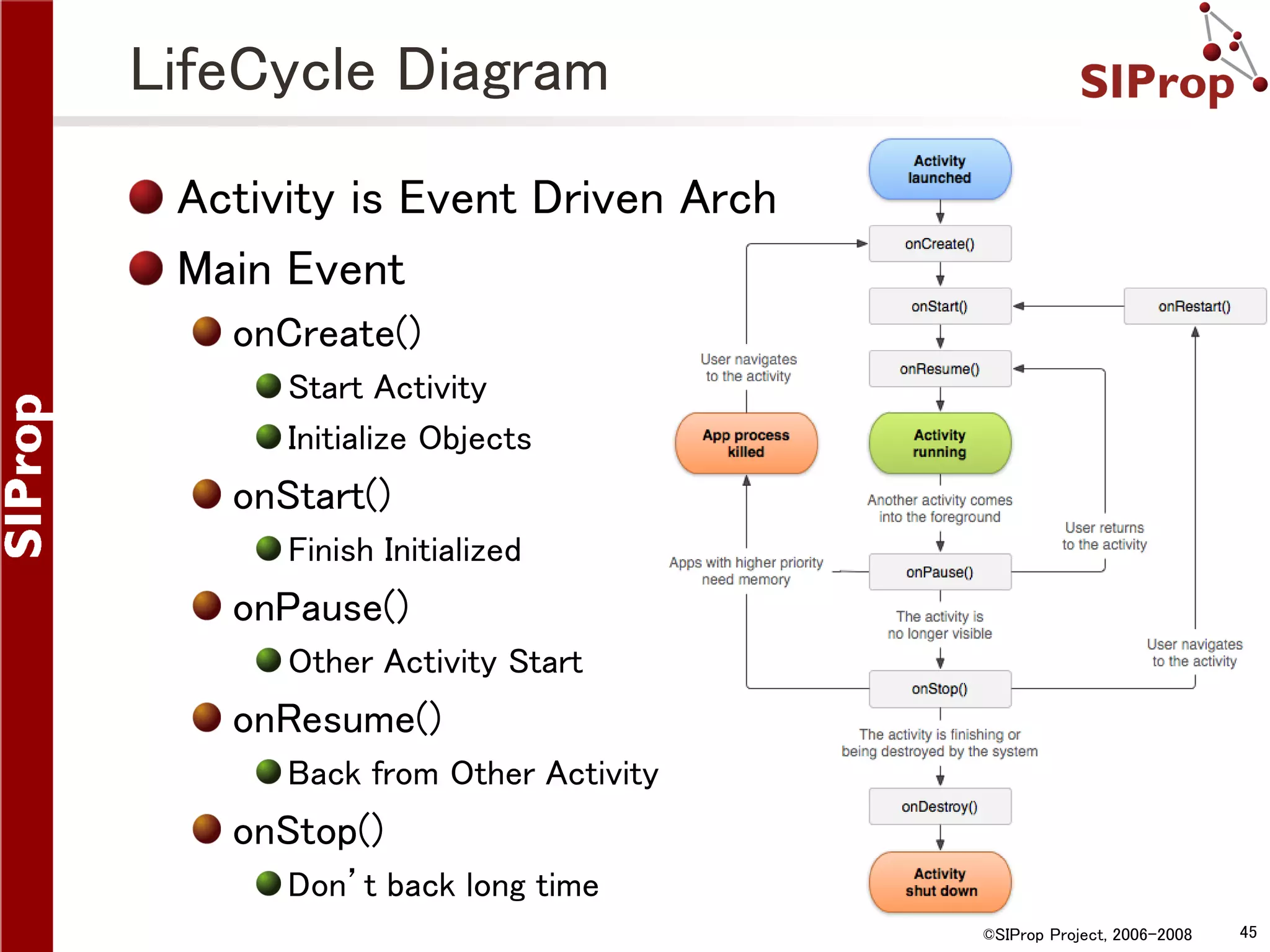

LifeCycle Diagram Activity is Event Driven Arch Main Event onCreate() Start Activity Initialize Objects onStart() Finish Initialized onPause() Other Activity Start onResume() Back from Other Activity onStop() Don’t back long time ©SIProp Project, 2006-2008 45

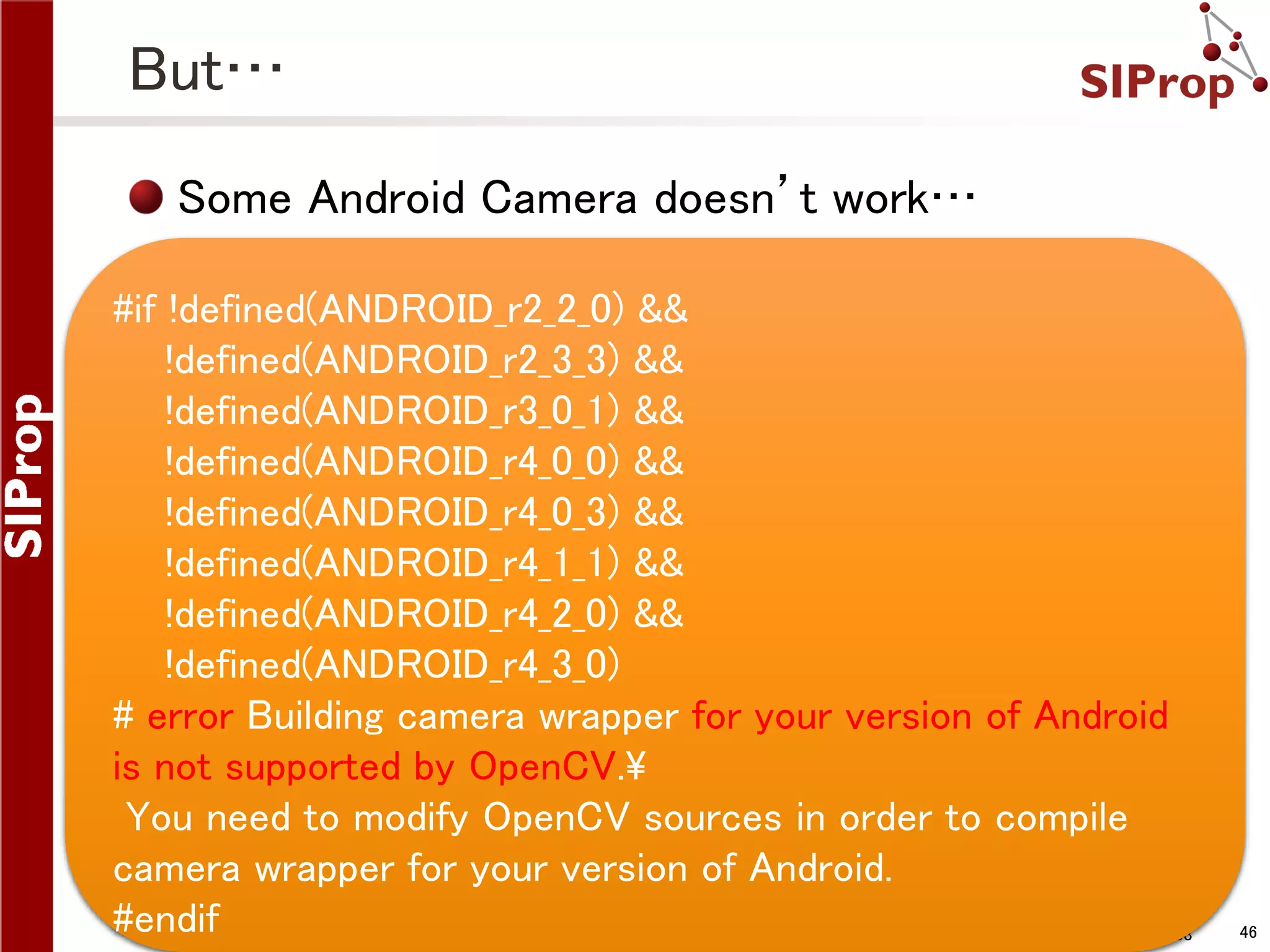

But… Some Android Camera doesn’t work… #if !defined(ANDROID_r2_2_0) && !defined(ANDROID_r2_3_3) && !defined(ANDROID_r3_0_1) && !defined(ANDROID_r4_0_0) && !defined(ANDROID_r4_0_3) && !defined(ANDROID_r4_1_1) && !defined(ANDROID_r4_2_0) && !defined(ANDROID_r4_3_0) # error Building camera wrapper for your version of Android is not supported by OpenCV. You need to modify OpenCV sources in order to compile camera wrapper for your version of Android. #endif ©SIProp Project, 2006-2008 46

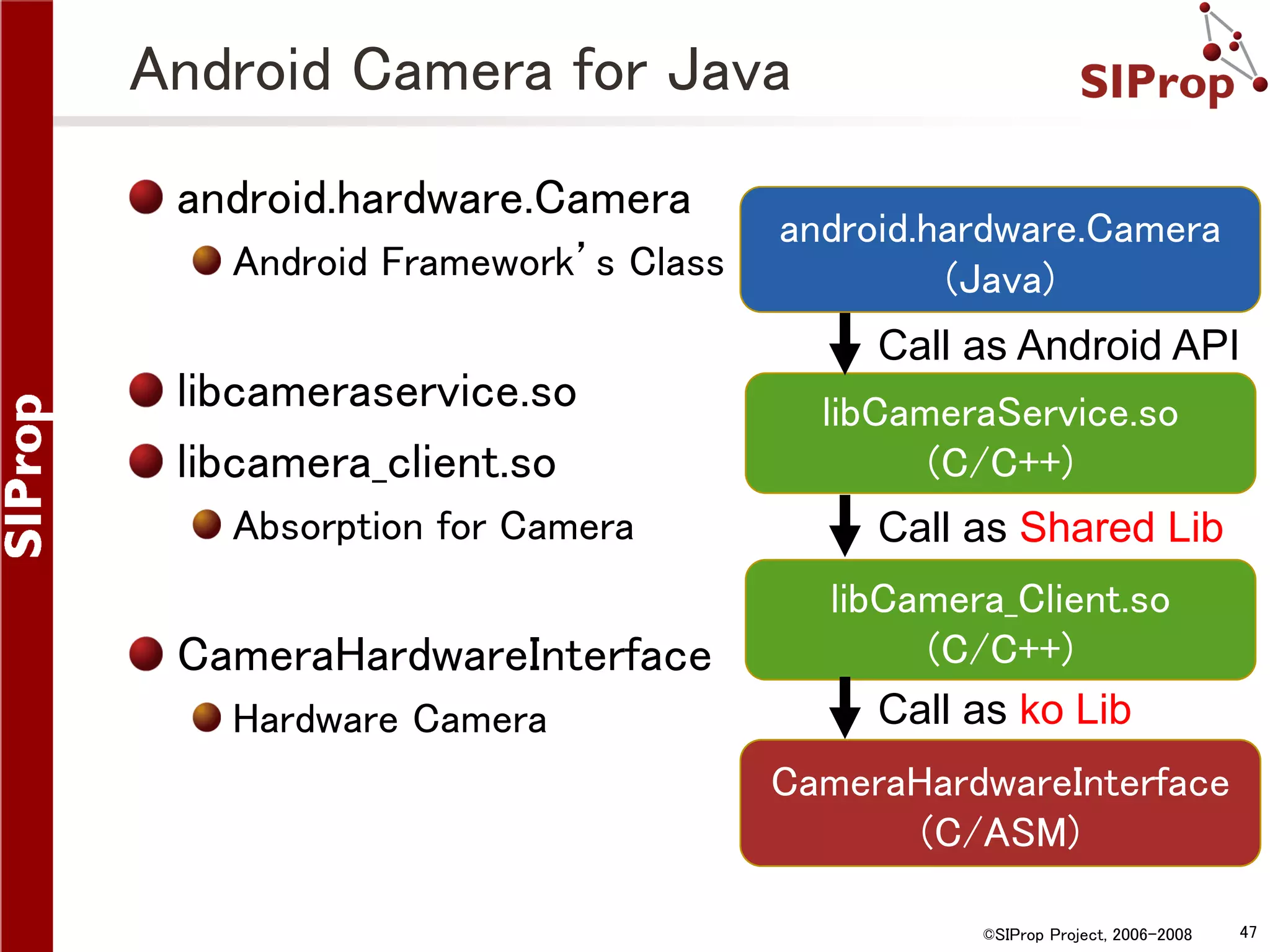

Android Camera for Java android.hardware.Camera Android Framework’s Class libcameraservice.so libcamera_client.so Absorption for Camera CameraHardwareInterface Hardware Camera android.hardware.Camera (Java) Call as Android API libCameraService.so (C/C++) Call as Shared Lib libCamera_Client.so (C/C++) Call as ko Lib CameraHardwareInterface (C/ASM) ©SIProp Project, 2006-2008 47

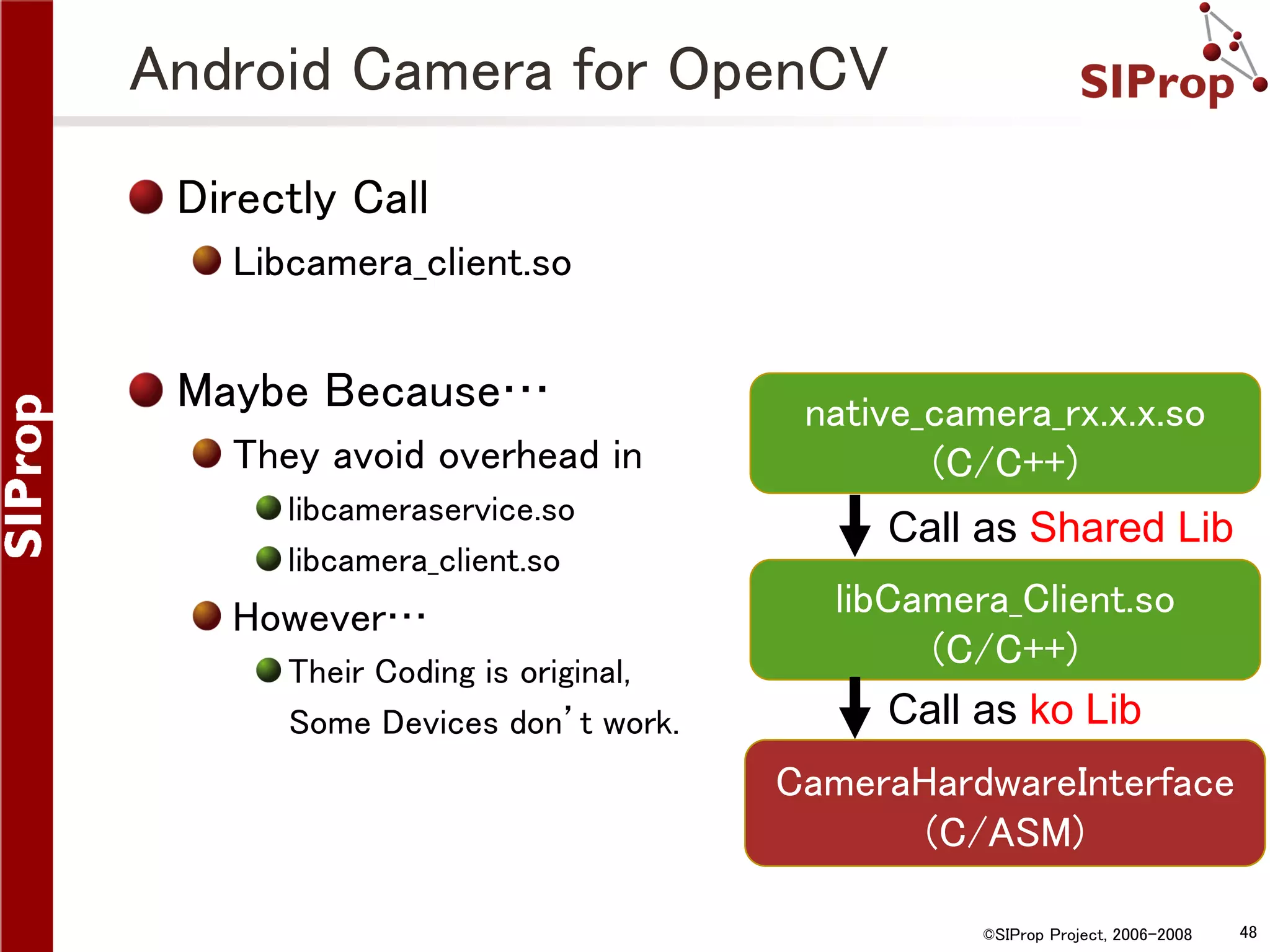

Android Camera for OpenCV Directly Call Libcamera_client.so Maybe Because… They avoid overhead in libcameraservice.so libcamera_client.so However… Their Coding is original, Some Devices don’t work. native_camera_rx.x.x.so (C/C++) Call as Shared Lib libCamera_Client.so (C/C++) Call as ko Lib CameraHardwareInterface (C/ASM) ©SIProp Project, 2006-2008 48

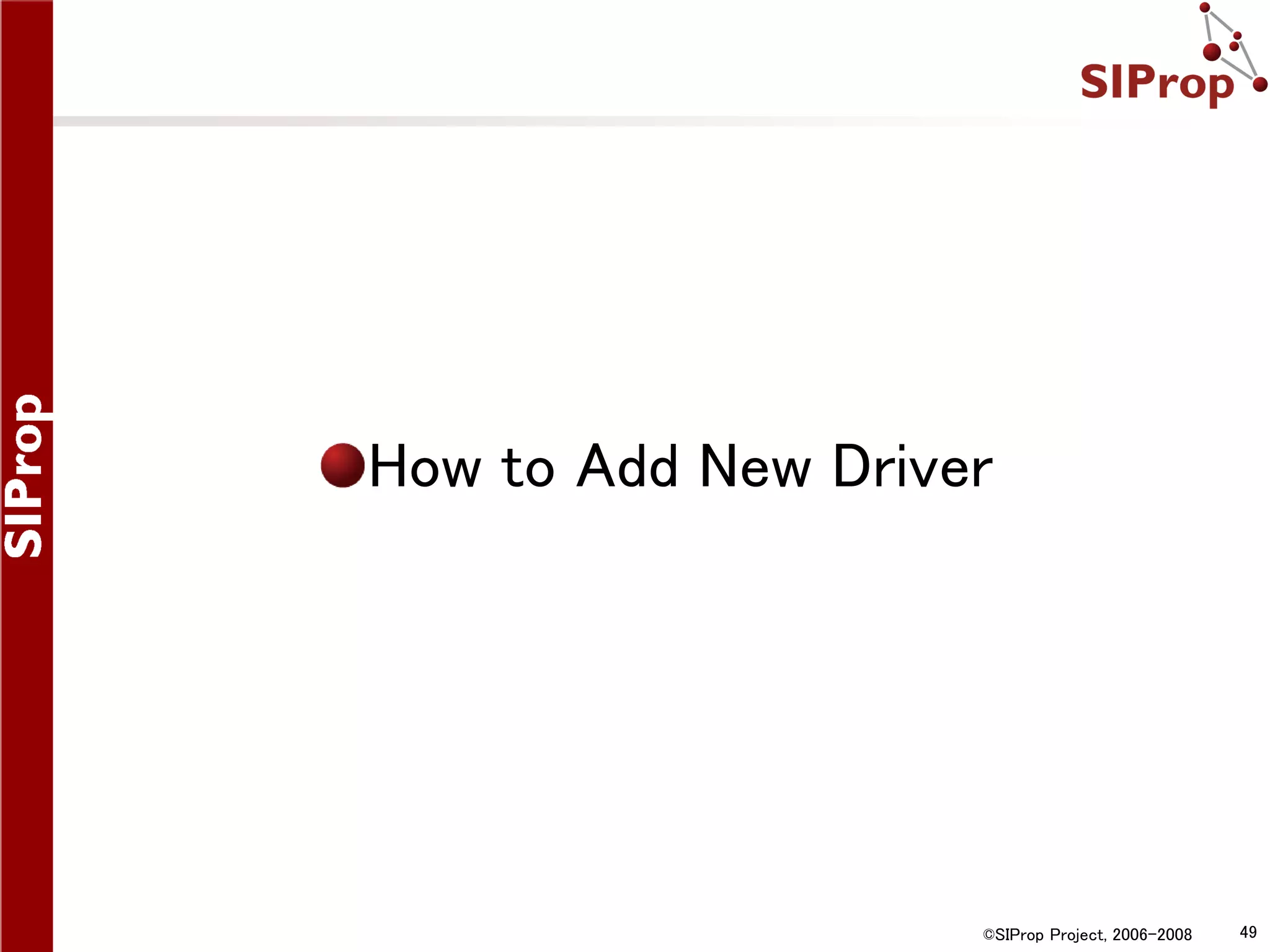

How to Add New Driver ©SIProp Project, 2006-2008 49

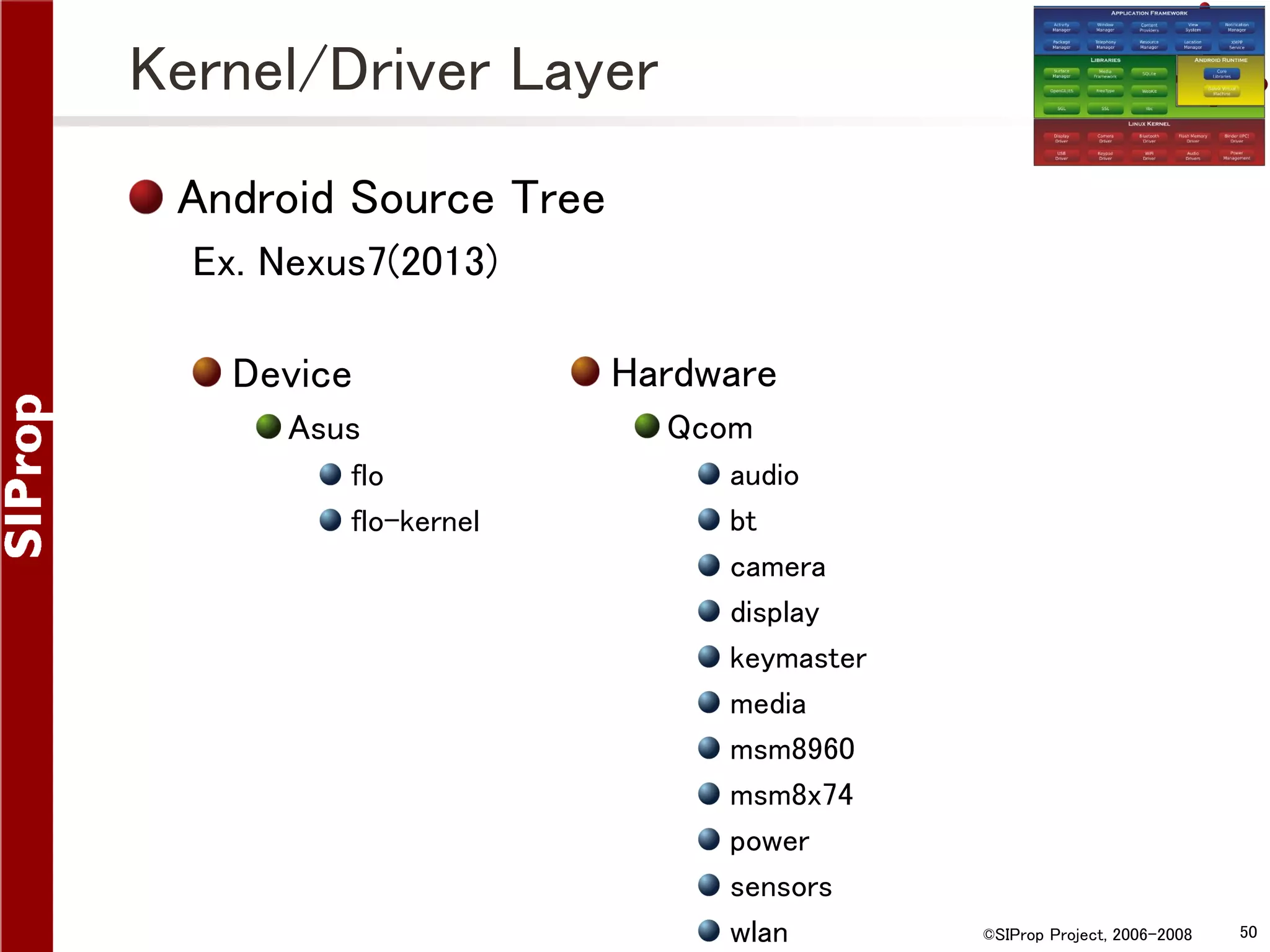

Kernel/Driver Layer Android Source Tree Ex. Nexus7(2013) Device Asus flo flo-kernel Hardware Qcom audio bt camera display keymaster media msm8960 msm8x74 power sensors wlan ©SIProp Project, 2006-2008 50

How to Add V4L for OpenCV ©SIProp Project, 2006-2008 51

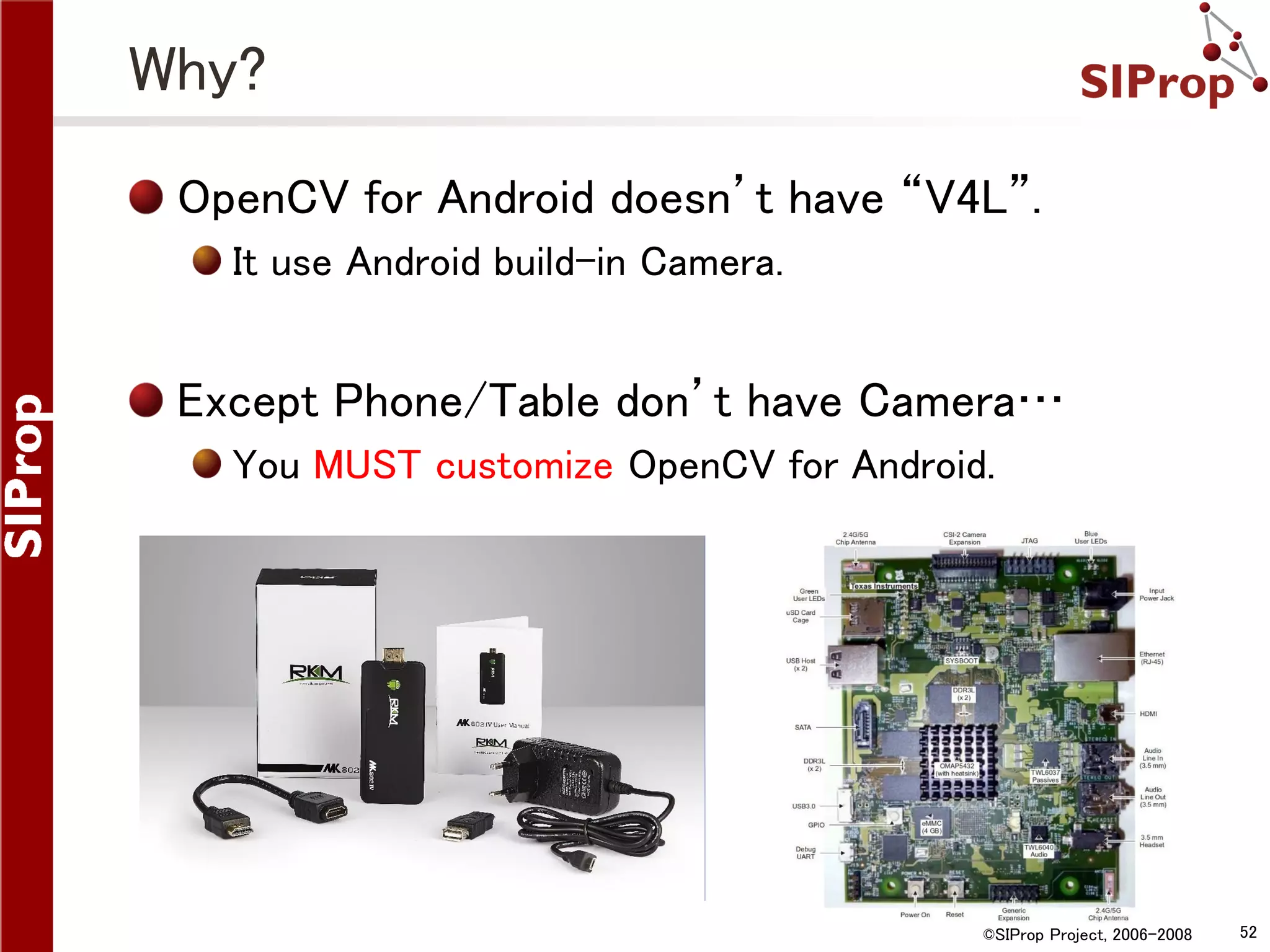

Why? OpenCV for Android doesn’t have “V4L”. It use Android build-in Camera. Except Phone/Table don’t have Camera… You MUST customize OpenCV for Android. ©SIProp Project, 2006-2008 52

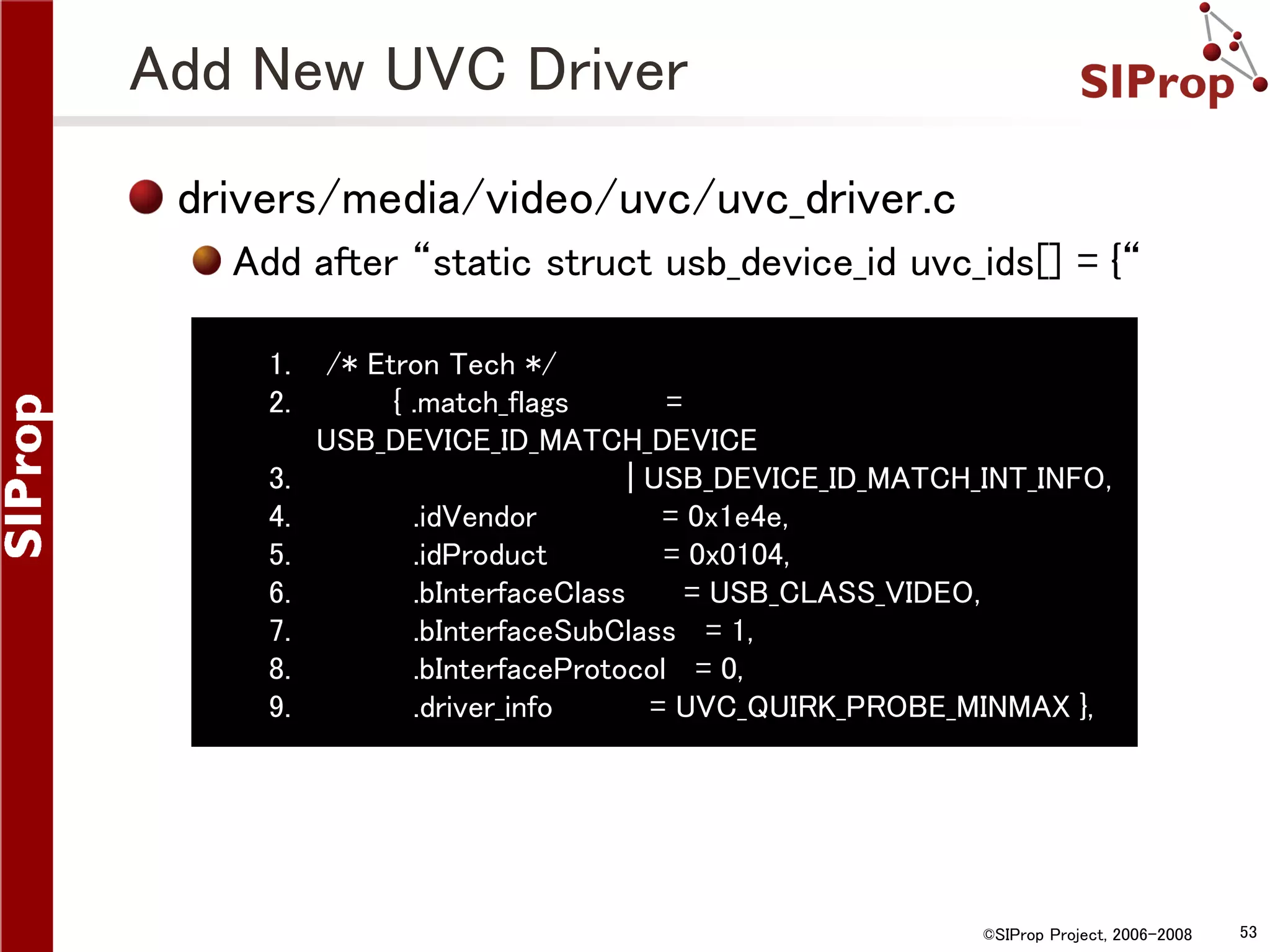

Add New UVC Driver drivers/media/video/uvc/uvc_driver.c Add after “static struct usb_device_id uvc_ids[] = {“ 1. 2. 3. 4. 5. 6. 7. 8. 9. /* Etron Tech */ { .match_flags = USB_DEVICE_ID_MATCH_DEVICE | USB_DEVICE_ID_MATCH_INT_INFO, .idVendor = 0x1e4e, .idProduct = 0x0104, .bInterfaceClass = USB_CLASS_VIDEO, .bInterfaceSubClass = 1, .bInterfaceProtocol = 0, .driver_info = UVC_QUIRK_PROBE_MINMAX }, ©SIProp Project, 2006-2008 53

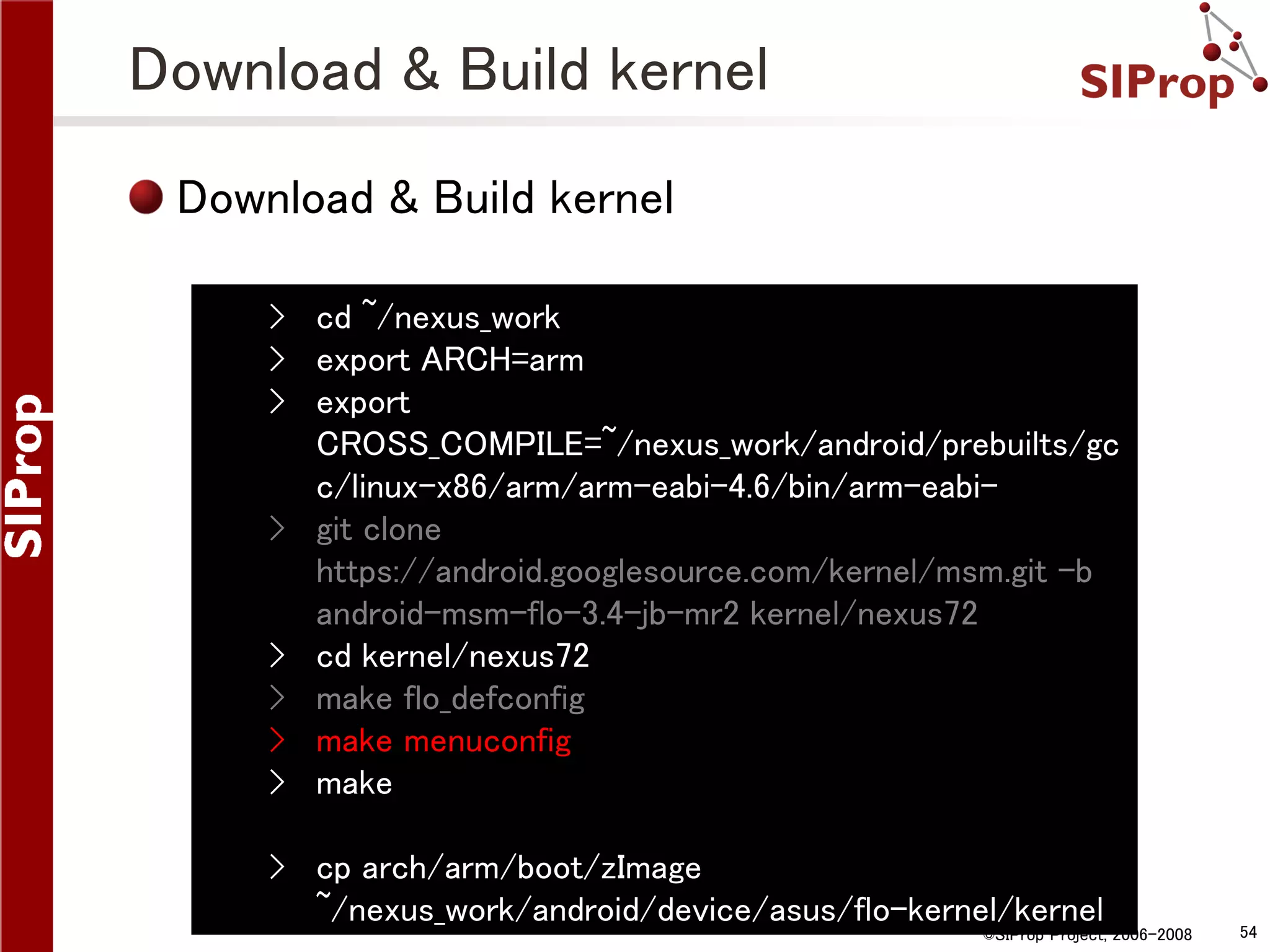

Download & Build kernel Download & Build kernel › cd ~/nexus_work › export ARCH=arm › export CROSS_COMPILE=~/nexus_work/android/prebuilts/gc c/linux-x86/arm/arm-eabi-4.6/bin/arm-eabi› git clone https://android.googlesource.com/kernel/msm.git -b android-msm-flo-3.4-jb-mr2 kernel/nexus72 › cd kernel/nexus72 › make flo_defconfig › make menuconfig › make › cp arch/arm/boot/zImage ~/nexus_work/android/device/asus/flo-kernel/kernel ©SIProp Project, 2006-2008 54

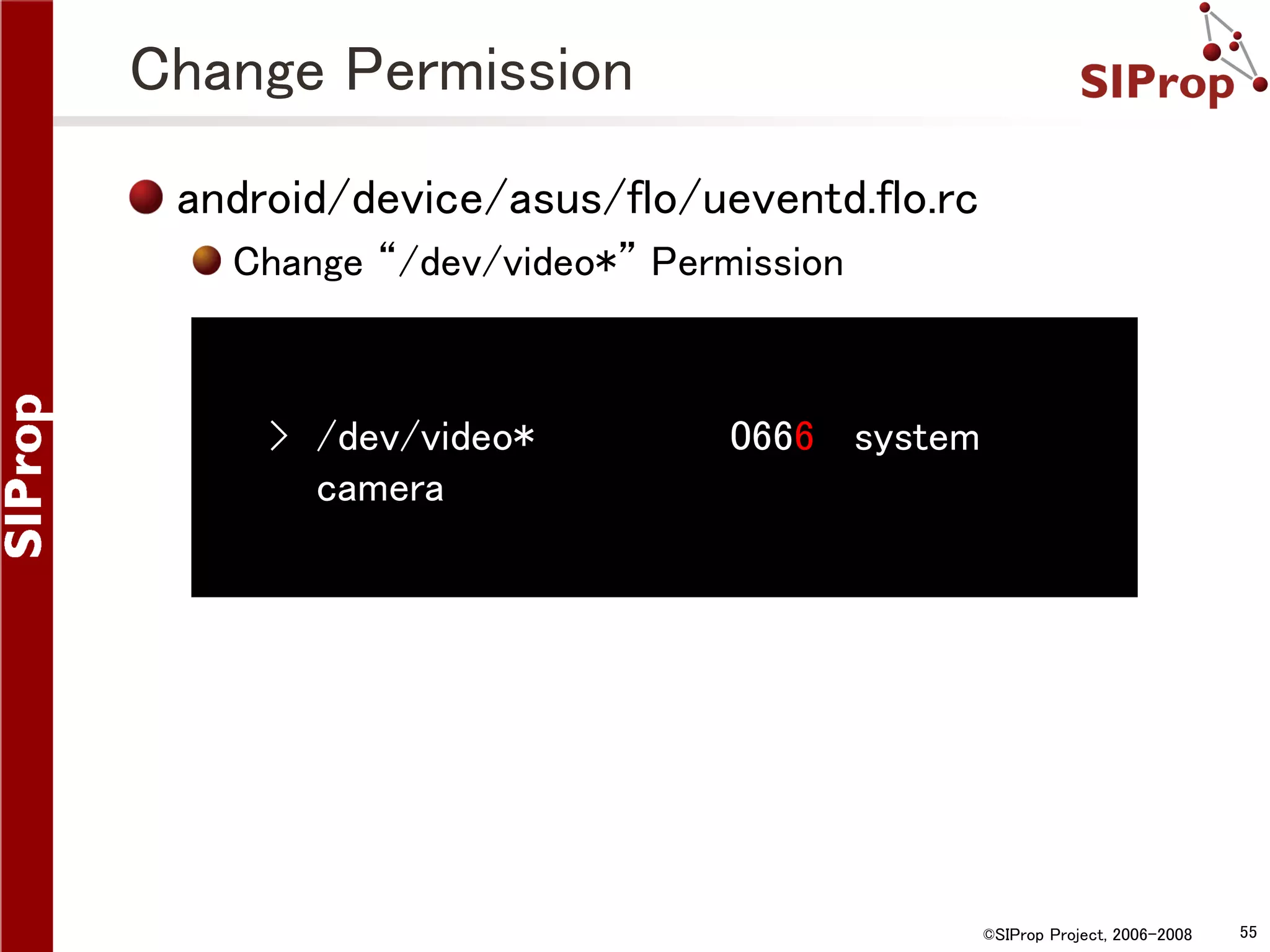

Change Permission android/device/asus/flo/ueventd.flo.rc Change “/dev/video*” Permission › /dev/video* camera 0666 system ©SIProp Project, 2006-2008 55

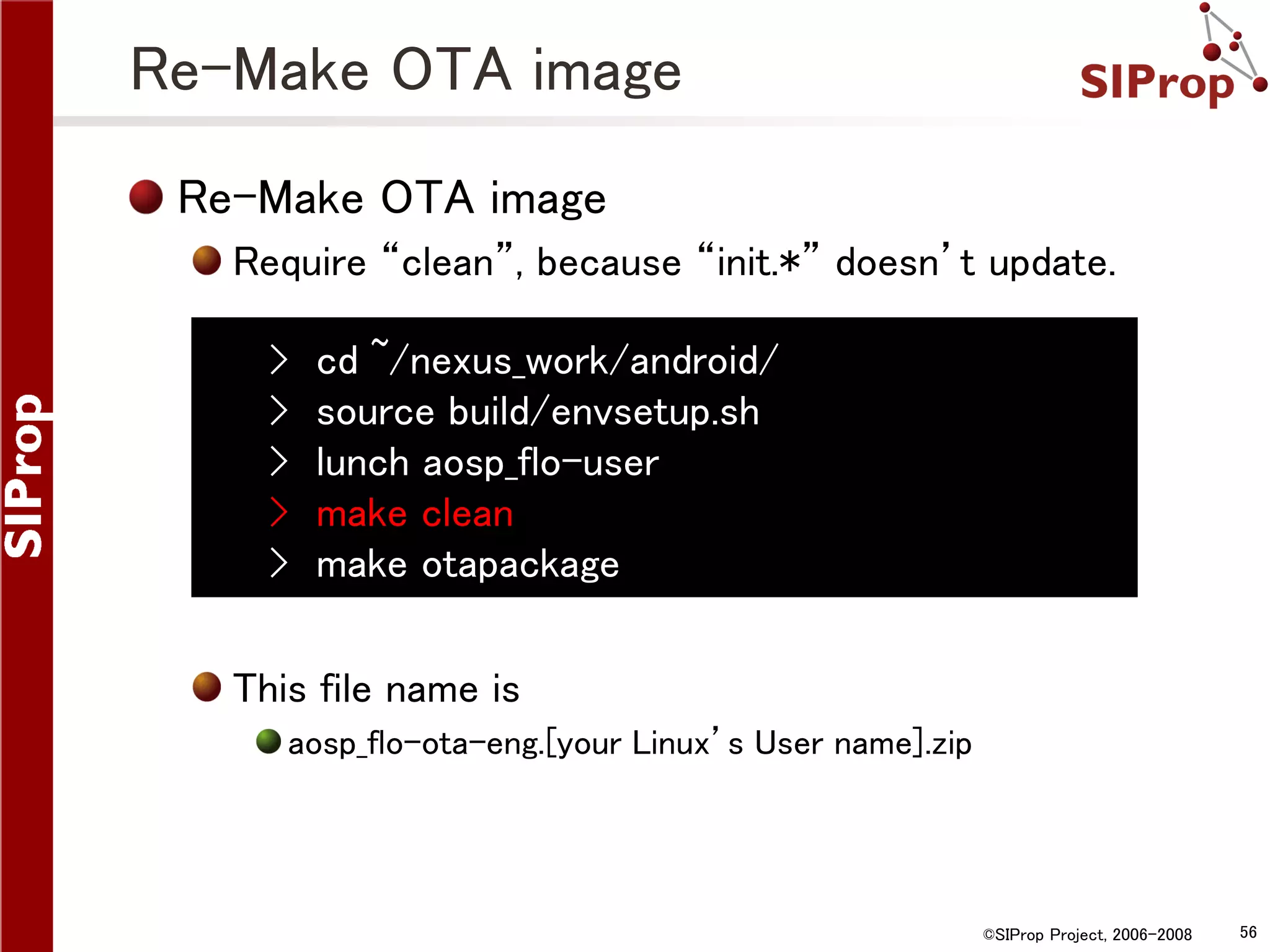

Re-Make OTA image Re-Make OTA image Require “clean”, because “init.*” doesn’t update. › › › › › cd ~/nexus_work/android/ source build/envsetup.sh lunch aosp_flo-user make clean make otapackage This file name is aosp_flo-ota-eng.[your Linux’s User name].zip ©SIProp Project, 2006-2008 56

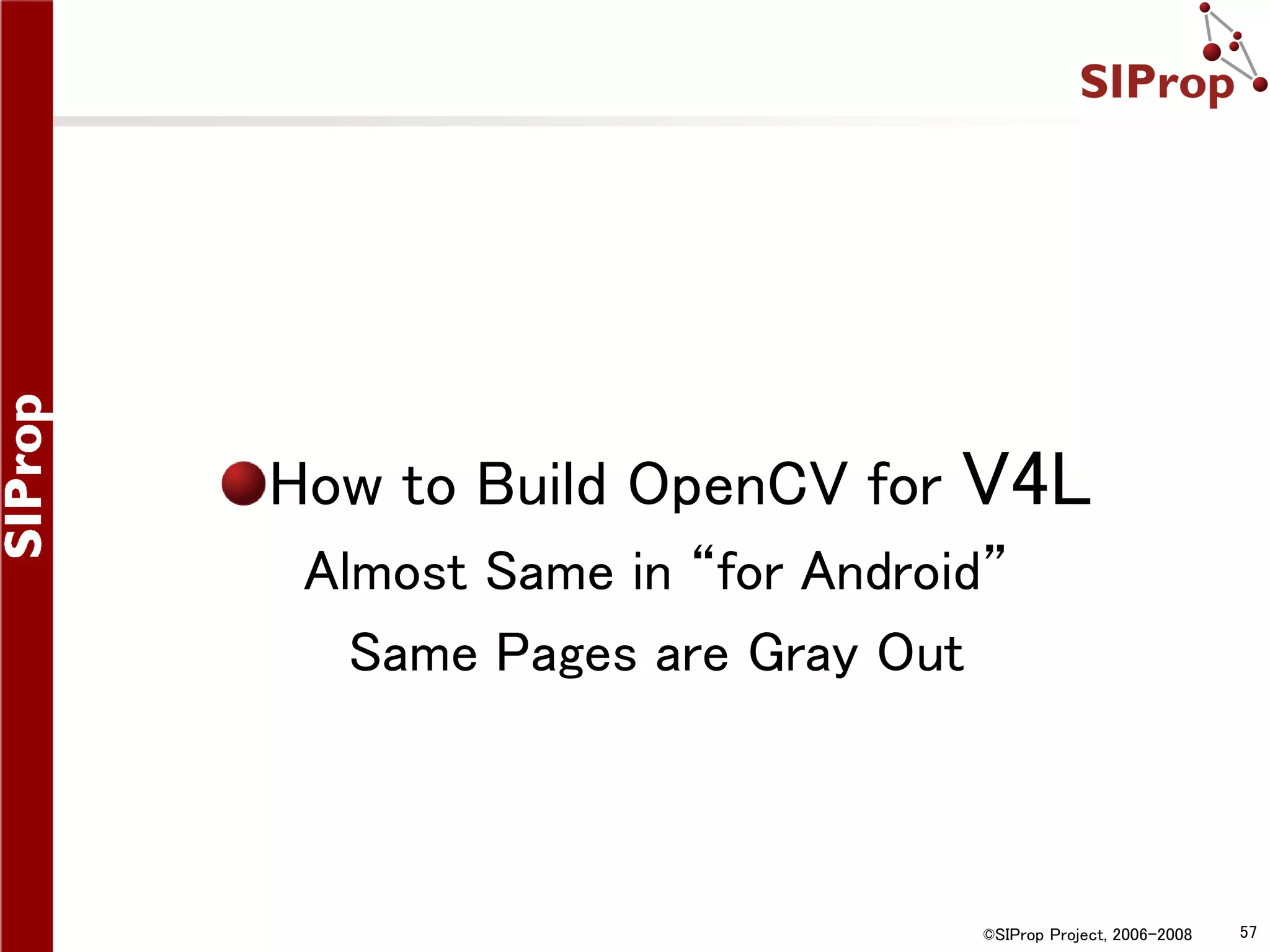

How to Build OpenCV for V4L Almost Same in “for Android” Same Pages are Gray Out ©SIProp Project, 2006-2008 57

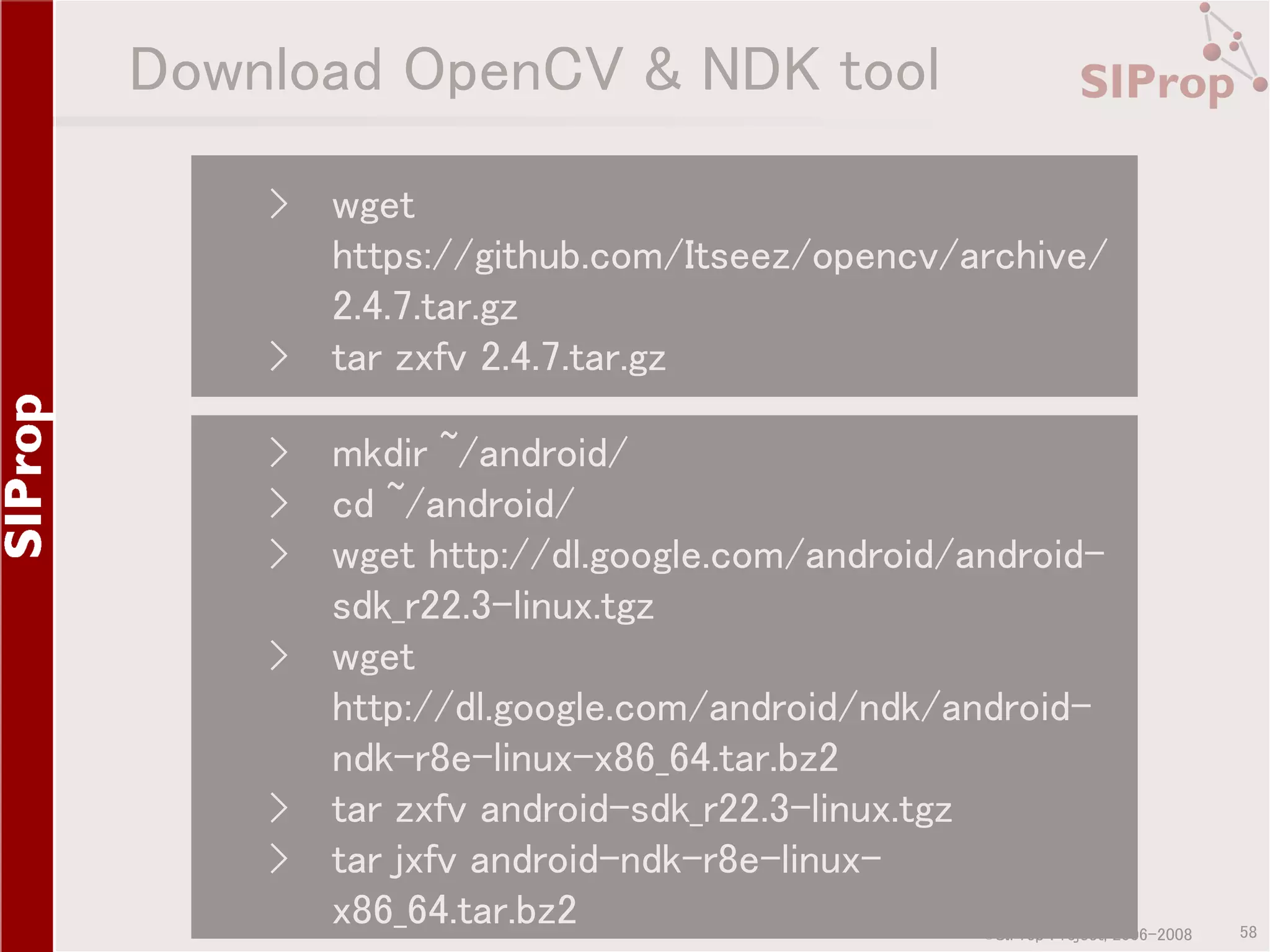

Download OpenCV & NDK tool › › wget https://github.com/Itseez/opencv/archive/ 2.4.7.tar.gz tar zxfv 2.4.7.tar.gz › mkdir ~/android/ › cd ~/android/ › wget http://dl.google.com/android/androidsdk_r22.3-linux.tgz › wget http://dl.google.com/android/ndk/androidndk-r8e-linux-x86_64.tar.bz2 › tar zxfv android-sdk_r22.3-linux.tgz › tar jxfv android-ndk-r8e-linuxx86_64.tar.bz2 ©SIProp Project, 2006-2008 58

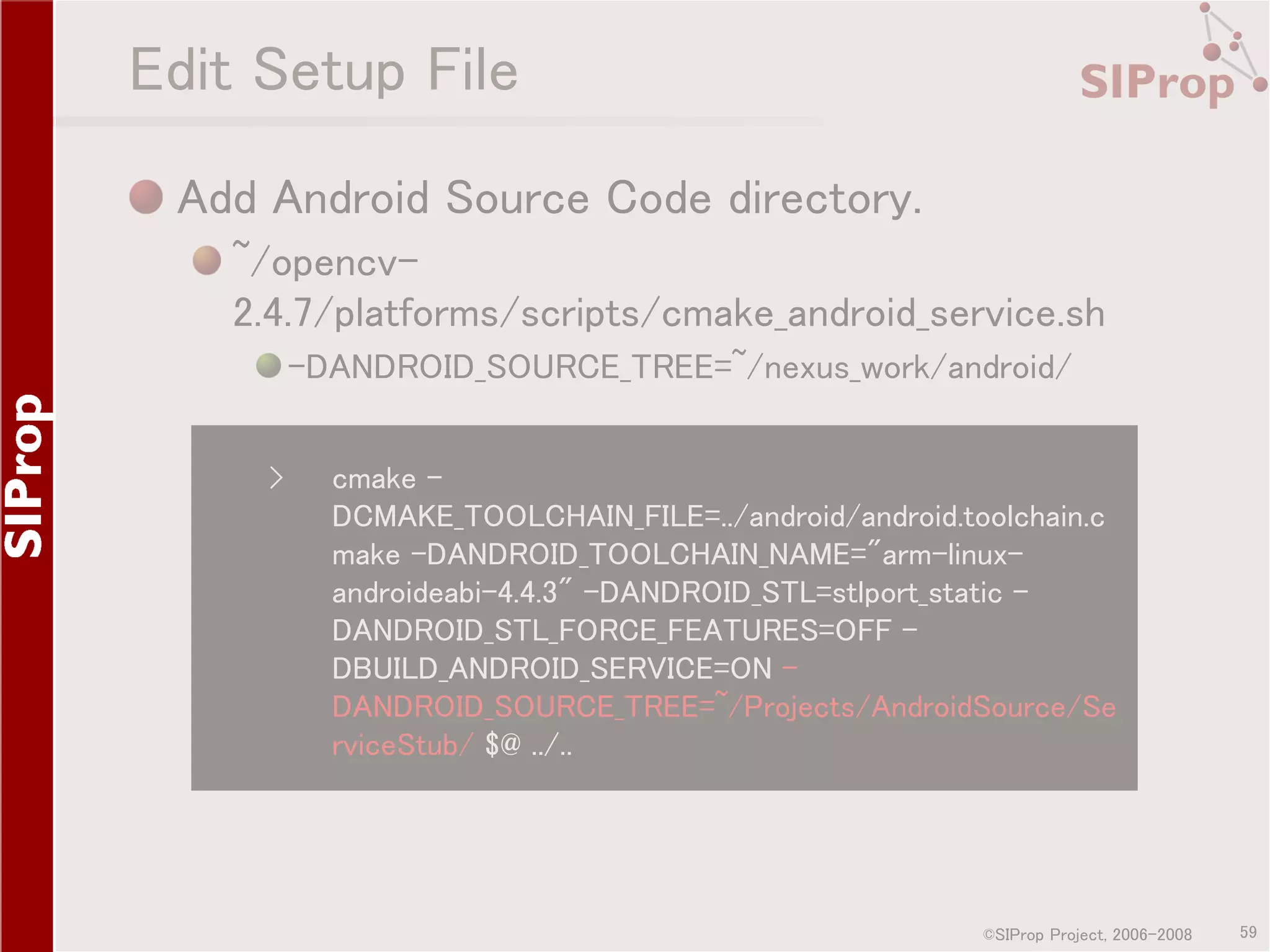

Edit Setup File Add Android Source Code directory. ~/opencv2.4.7/platforms/scripts/cmake_android_service.sh -DANDROID_SOURCE_TREE=~/nexus_work/android/ › cmake DCMAKE_TOOLCHAIN_FILE=../android/android.toolchain.c make -DANDROID_TOOLCHAIN_NAME="arm-linuxandroideabi-4.4.3" -DANDROID_STL=stlport_static DANDROID_STL_FORCE_FEATURES=OFF DBUILD_ANDROID_SERVICE=ON DANDROID_SOURCE_TREE=~/Projects/AndroidSource/Se rviceStub/ $@ ../.. ©SIProp Project, 2006-2008 59

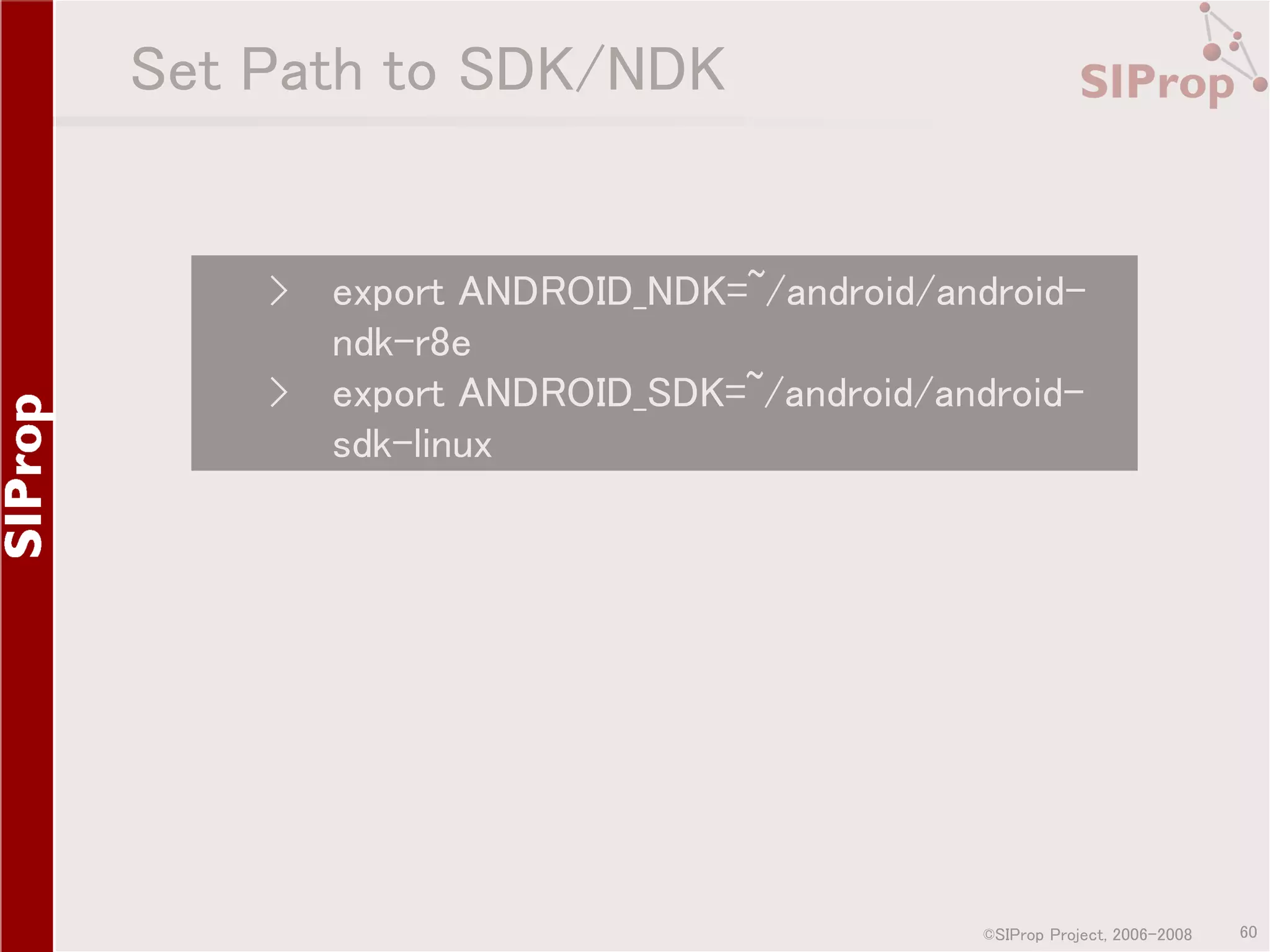

Set Path to SDK/NDK › › export ANDROID_NDK=~/android/androidndk-r8e export ANDROID_SDK=~/android/androidsdk-linux ©SIProp Project, 2006-2008 60

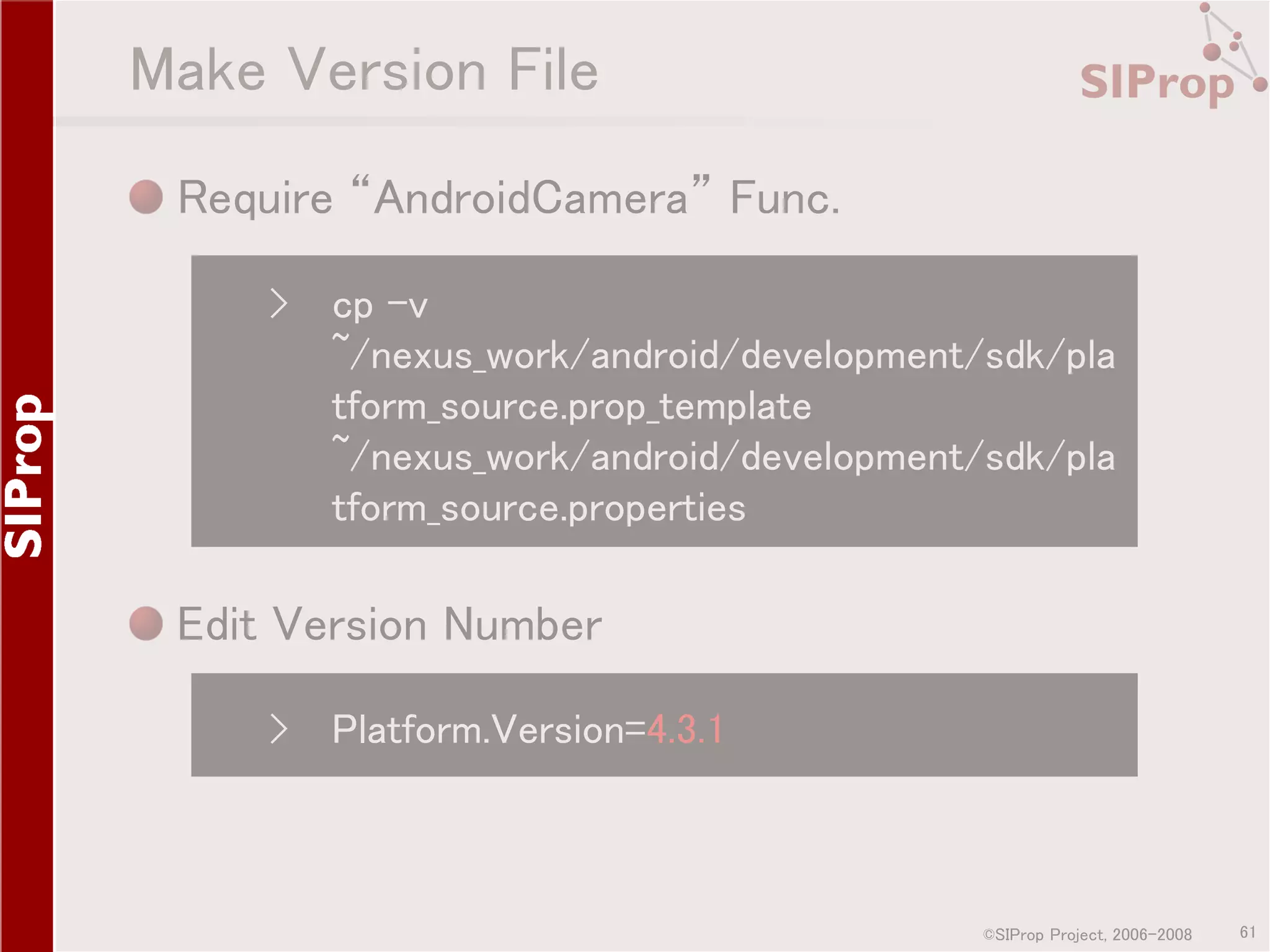

Make Version File Require “AndroidCamera” Func. › cp -v ~/nexus_work/android/development/sdk/pla tform_source.prop_template ~/nexus_work/android/development/sdk/pla tform_source.properties Edit Version Number › Platform.Version=4.3.1 ©SIProp Project, 2006-2008 61

Copy some haeder files & so Libs Require “AndroidCamera” Func. › cp -aR ~/android/android-ndk-r8e/platforms/android14/arch-arm/usr/include/EGL ~/opencv2.4.7/modules/androidcamera/include/ › cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibbinder.so $(ANDROID_NDK)/platforms/android-8/archarm/usr/lib/ cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibutils.so $(ANDROID_NDK)/platforms/android-8/archarm/usr/lib/ cp -v ~/nexus_work/android/out/target/product/flo/system/lib/l ibandroid_runtime.so $(ANDROID_NDK)/platforms/android8/arch-arm/usr/lib/ › › ©SIProp Project, 2006-2008 62

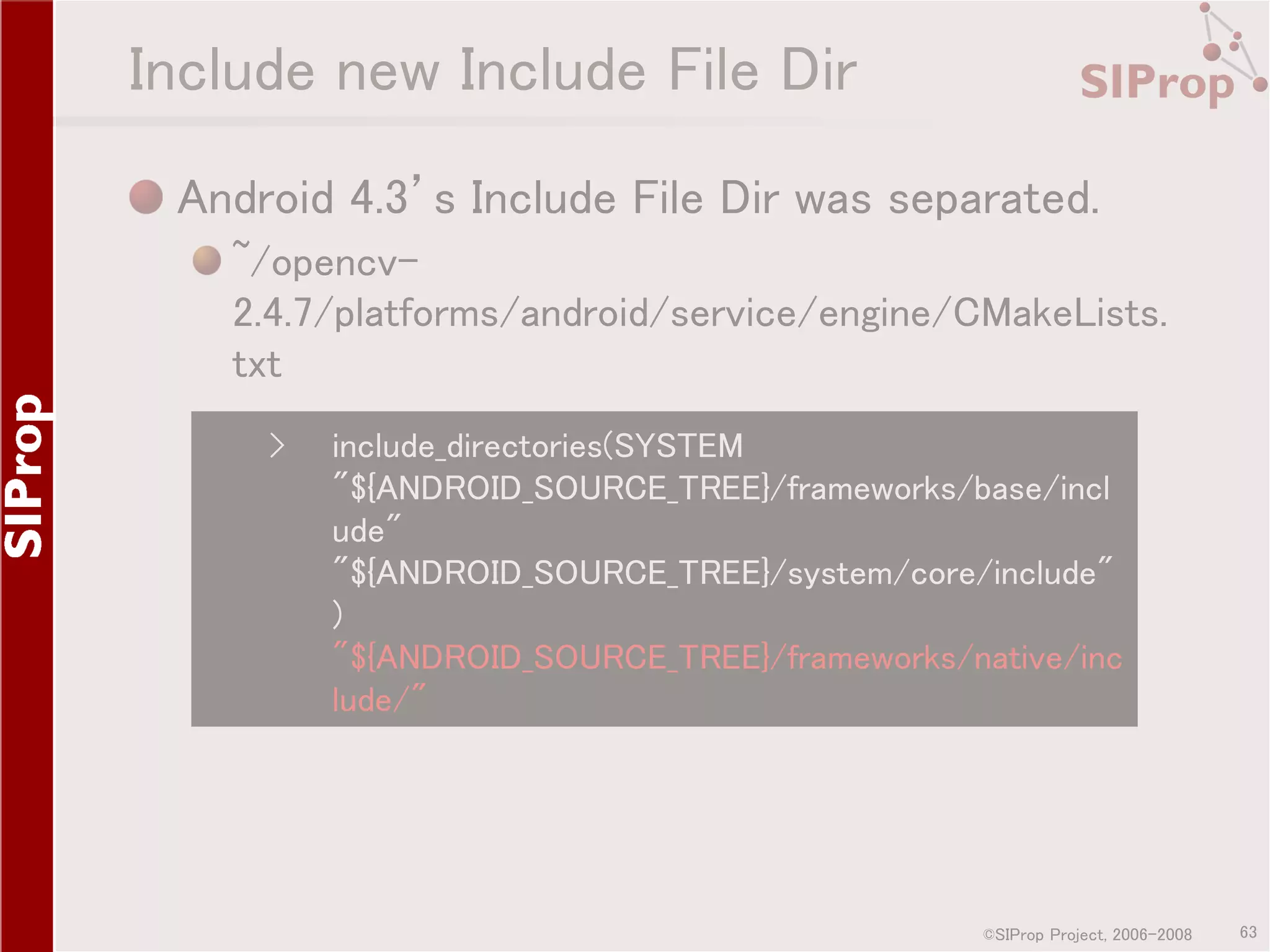

Include new Include File Dir Android 4.3’s Include File Dir was separated. ~/opencv2.4.7/platforms/android/service/engine/CMakeLists. txt › include_directories(SYSTEM "${ANDROID_SOURCE_TREE}/frameworks/base/incl ude" "${ANDROID_SOURCE_TREE}/system/core/include" ) "${ANDROID_SOURCE_TREE}/frameworks/native/inc lude/" ©SIProp Project, 2006-2008 63

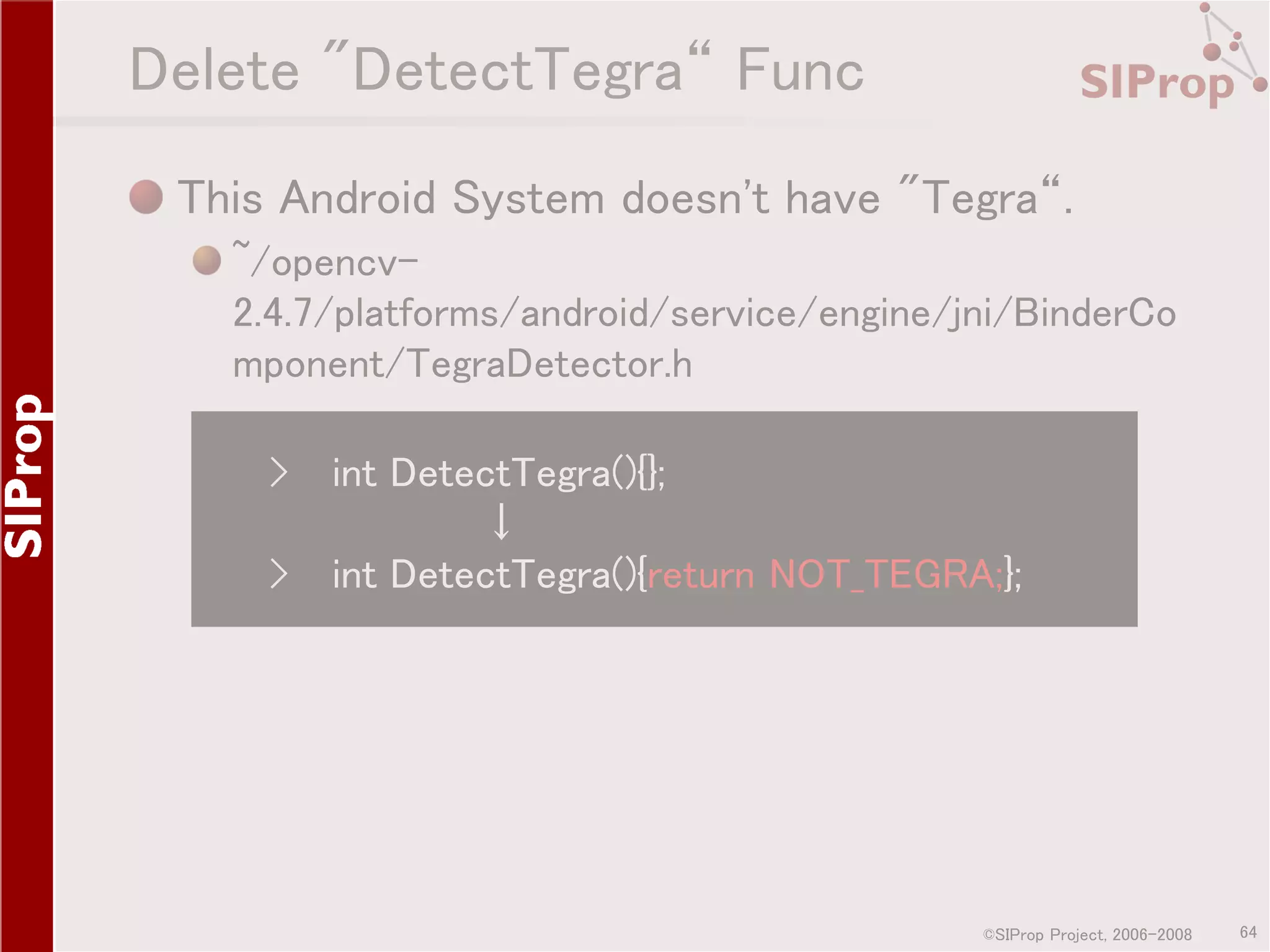

Delete "DetectTegra“ Func This Android System doesn't have "Tegra“. ~/opencv2.4.7/platforms/android/service/engine/jni/BinderCo mponent/TegraDetector.h › int DetectTegra(){}; ↓ › int DetectTegra(){return NOT_TEGRA;}; ©SIProp Project, 2006-2008 64

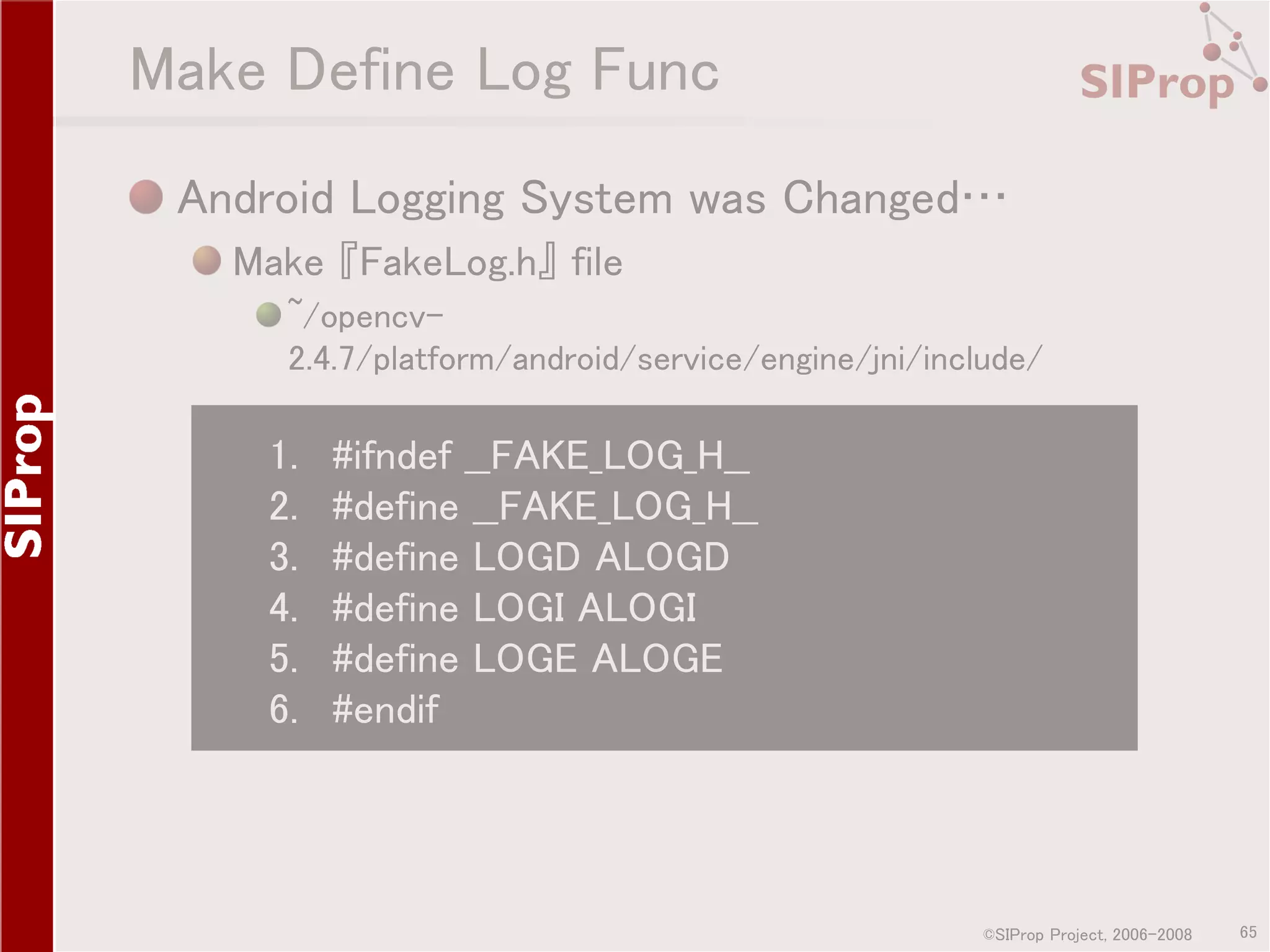

Make Define Log Func Android Logging System was Changed… Make 『FakeLog.h』 file ~/opencv2.4.7/platform/android/service/engine/jni/include/ 1. 2. 3. 4. 5. 6. #ifndef __FAKE_LOG_H__ #define __FAKE_LOG_H__ #define LOGD ALOGD #define LOGI ALOGI #define LOGE ALOGE #endif ©SIProp Project, 2006-2008 65

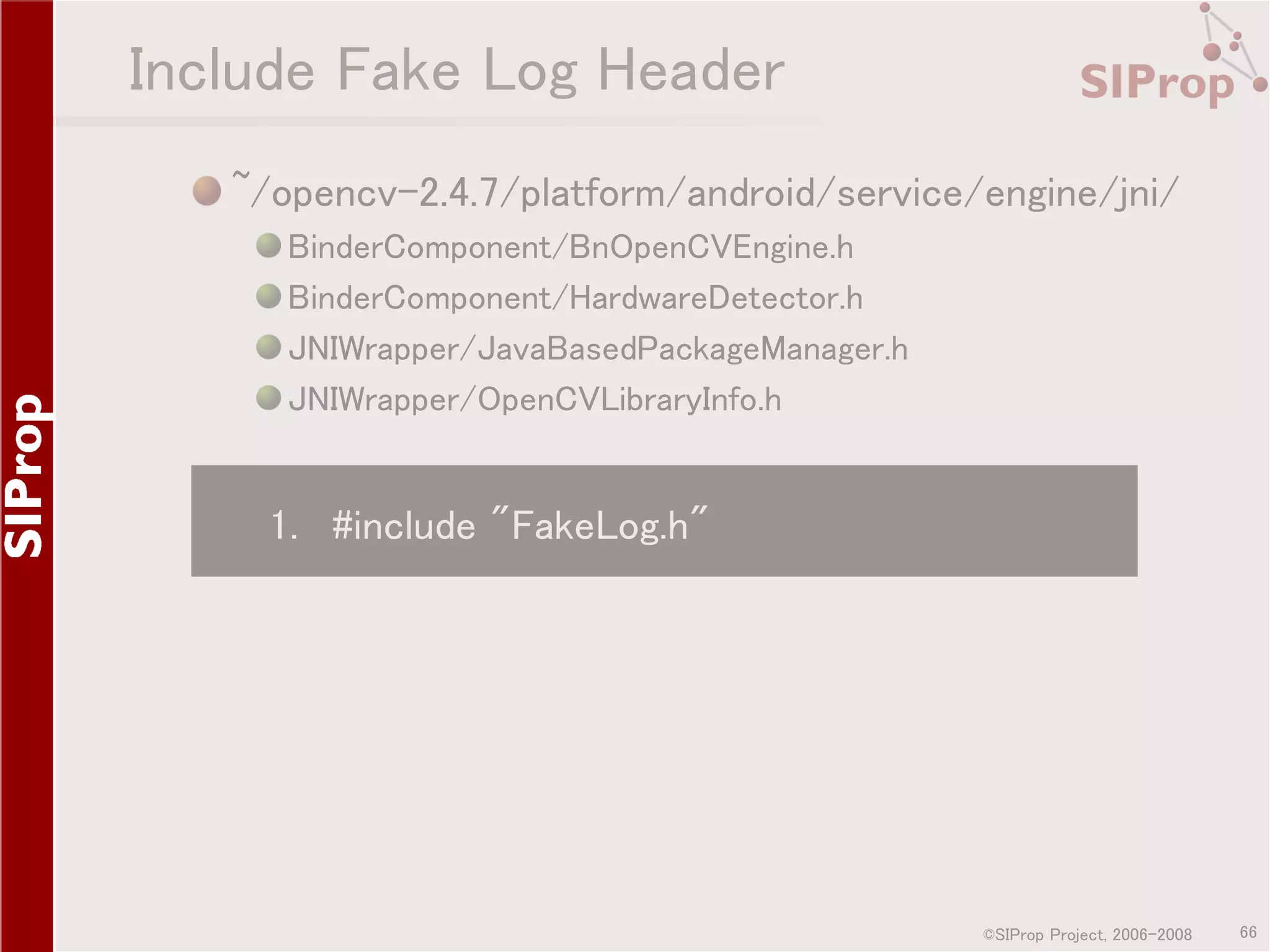

Include Fake Log Header ~/opencv-2.4.7/platform/android/service/engine/jni/ BinderComponent/BnOpenCVEngine.h BinderComponent/HardwareDetector.h JNIWrapper/JavaBasedPackageManager.h JNIWrapper/OpenCVLibraryInfo.h 1. #include "FakeLog.h" ©SIProp Project, 2006-2008 66

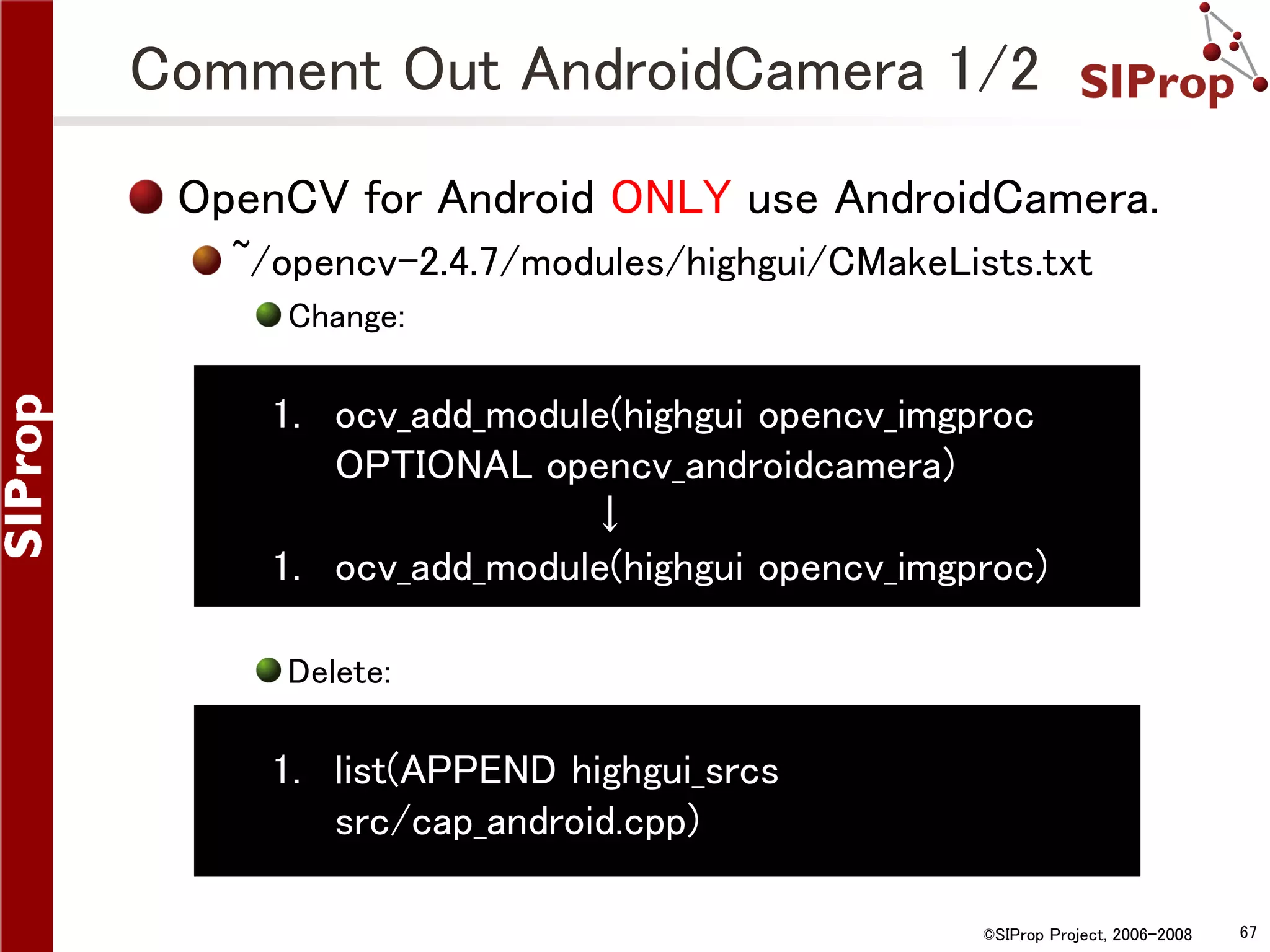

Comment Out AndroidCamera 1/2 OpenCV for Android ONLY use AndroidCamera. ~/opencv-2.4.7/modules/highgui/CMakeLists.txt Change: 1. ocv_add_module(highgui opencv_imgproc OPTIONAL opencv_androidcamera) ↓ 1. ocv_add_module(highgui opencv_imgproc) Delete: 1. list(APPEND highgui_srcs src/cap_android.cpp) ©SIProp Project, 2006-2008 67

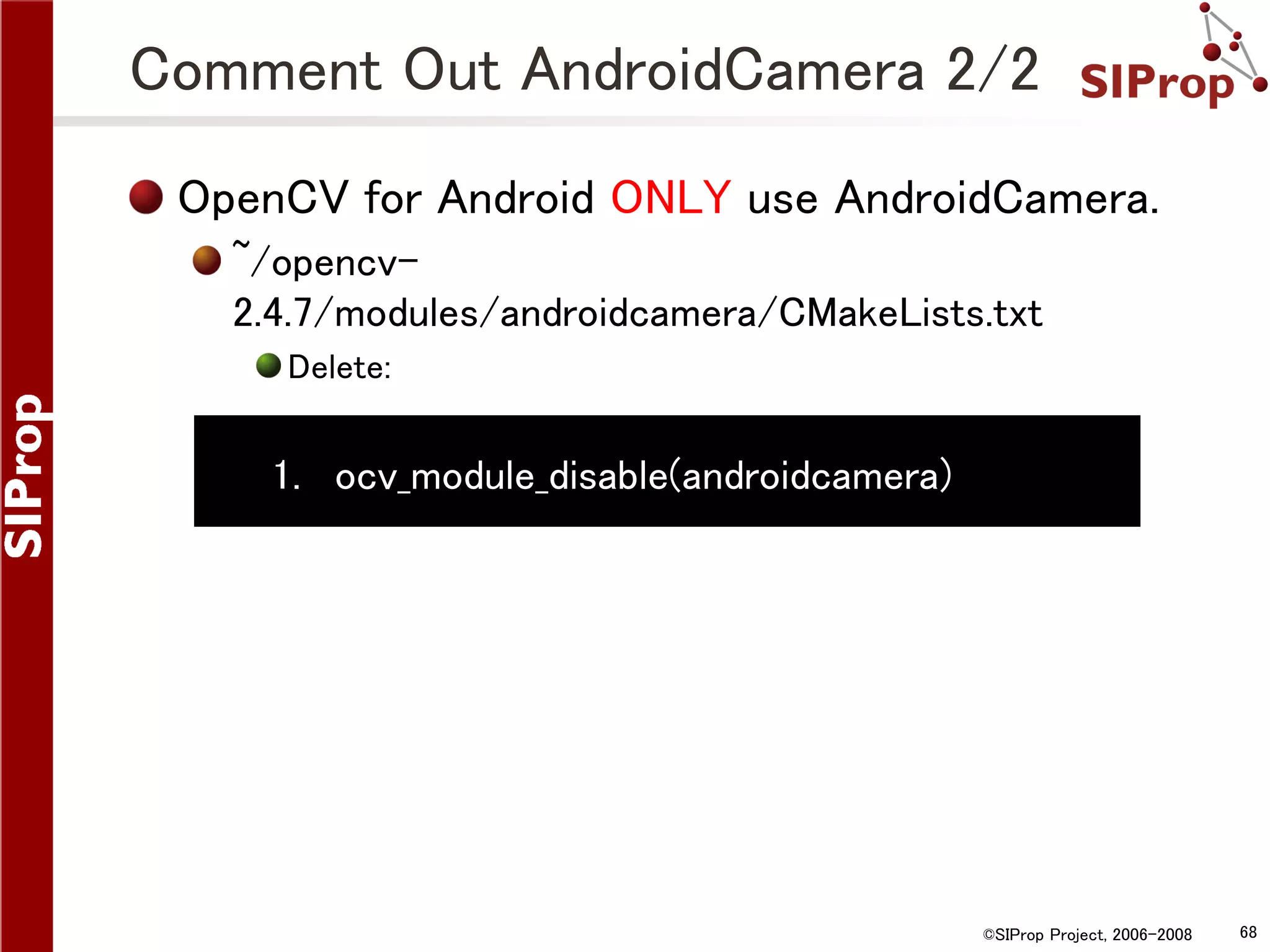

Comment Out AndroidCamera 2/2 OpenCV for Android ONLY use AndroidCamera. ~/opencv2.4.7/modules/androidcamera/CMakeLists.txt Delete: 1. ocv_module_disable(androidcamera) ©SIProp Project, 2006-2008 68

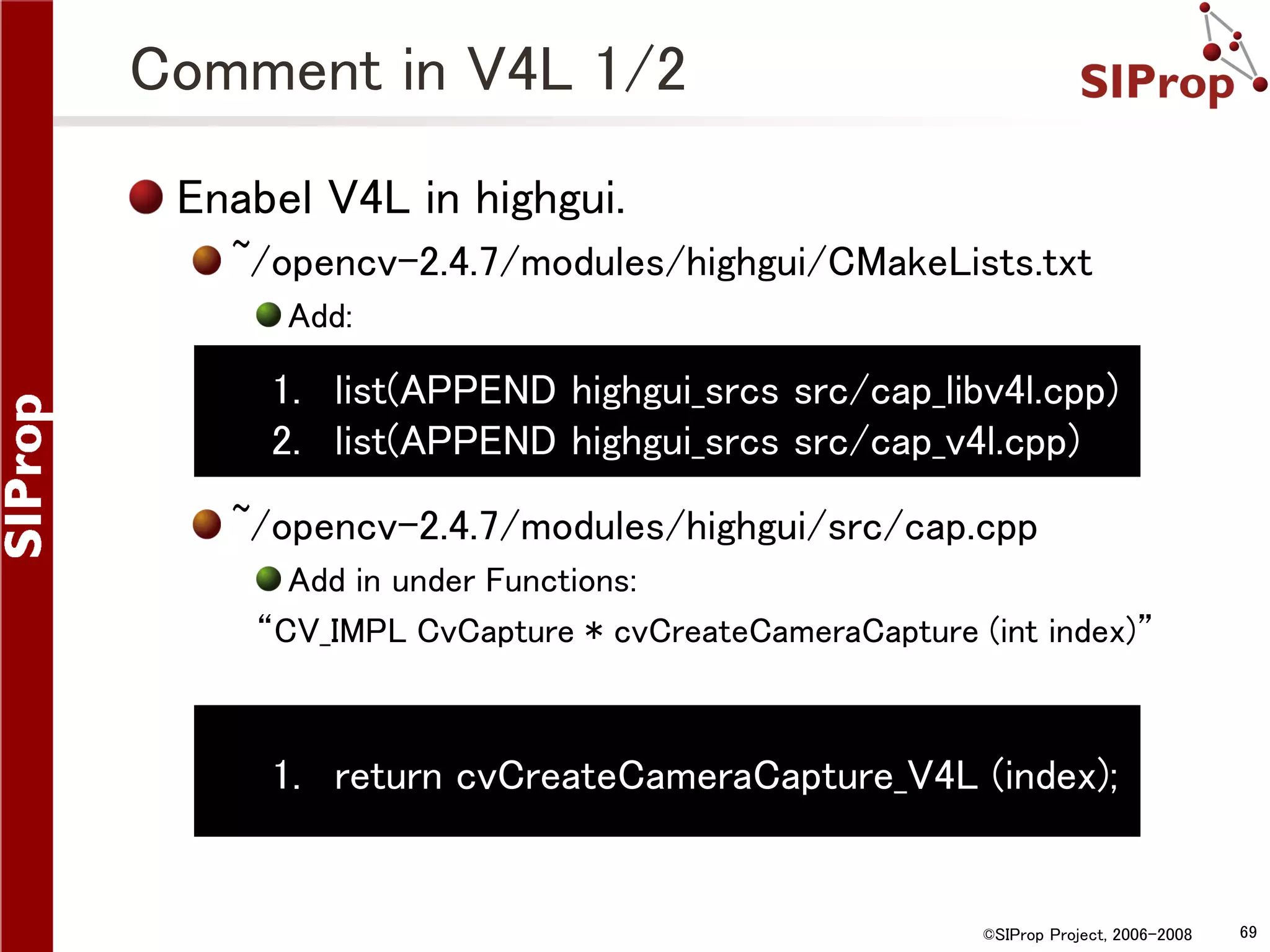

Comment in V4L 1/2 Enabel V4L in highgui. ~/opencv-2.4.7/modules/highgui/CMakeLists.txt Add: 1. list(APPEND highgui_srcs src/cap_libv4l.cpp) 2. list(APPEND highgui_srcs src/cap_v4l.cpp) ~/opencv-2.4.7/modules/highgui/src/cap.cpp Add in under Functions: “CV_IMPL CvCapture * cvCreateCameraCapture (int index)” 1. return cvCreateCameraCapture_V4L (index); ©SIProp Project, 2006-2008 69

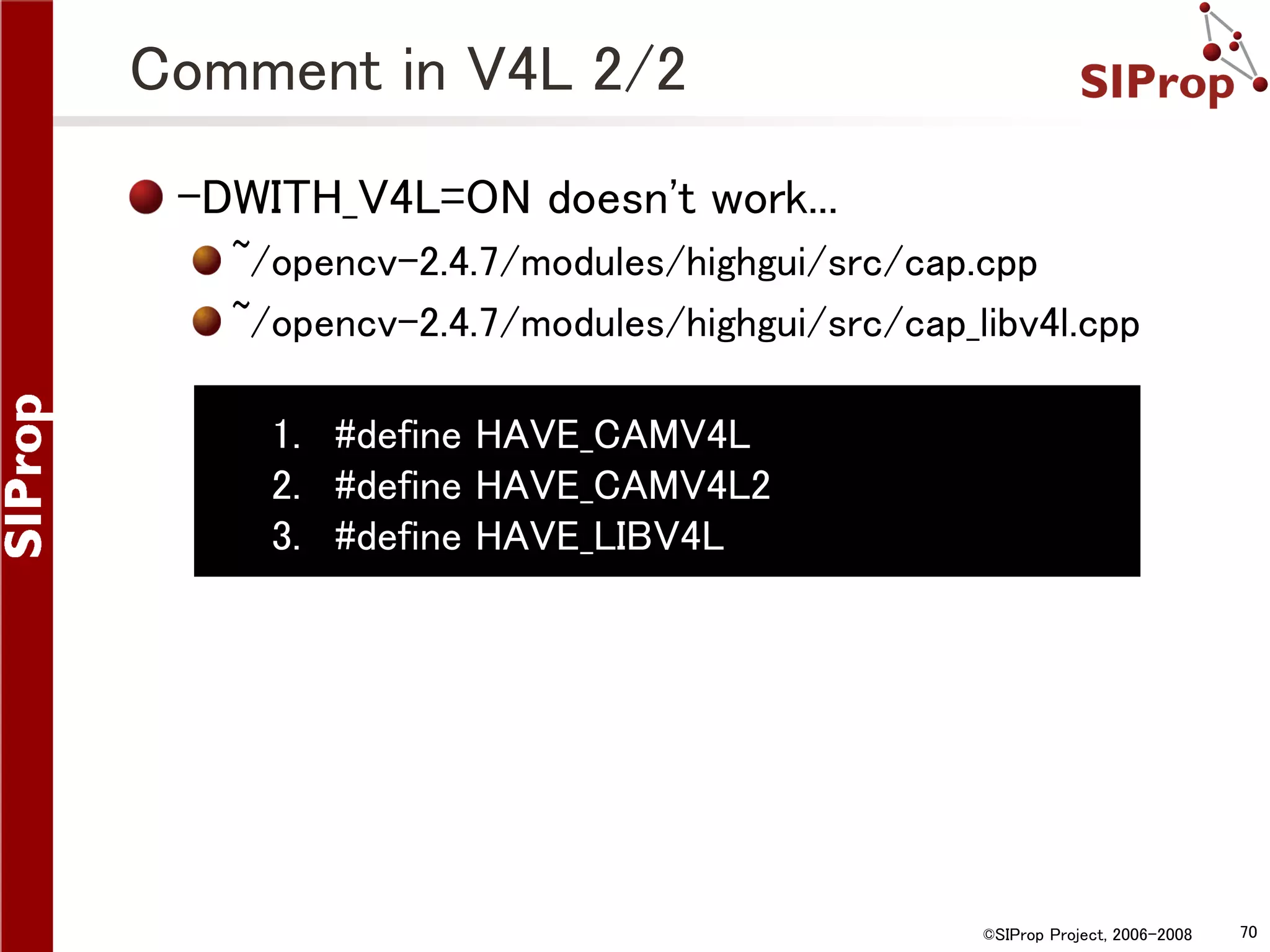

Comment in V4L 2/2 -DWITH_V4L=ON doesn't work... ~/opencv-2.4.7/modules/highgui/src/cap.cpp ~/opencv-2.4.7/modules/highgui/src/cap_libv4l.cpp 1. #define HAVE_CAMV4L 2. #define HAVE_CAMV4L2 3. #define HAVE_LIBV4L ©SIProp Project, 2006-2008 70

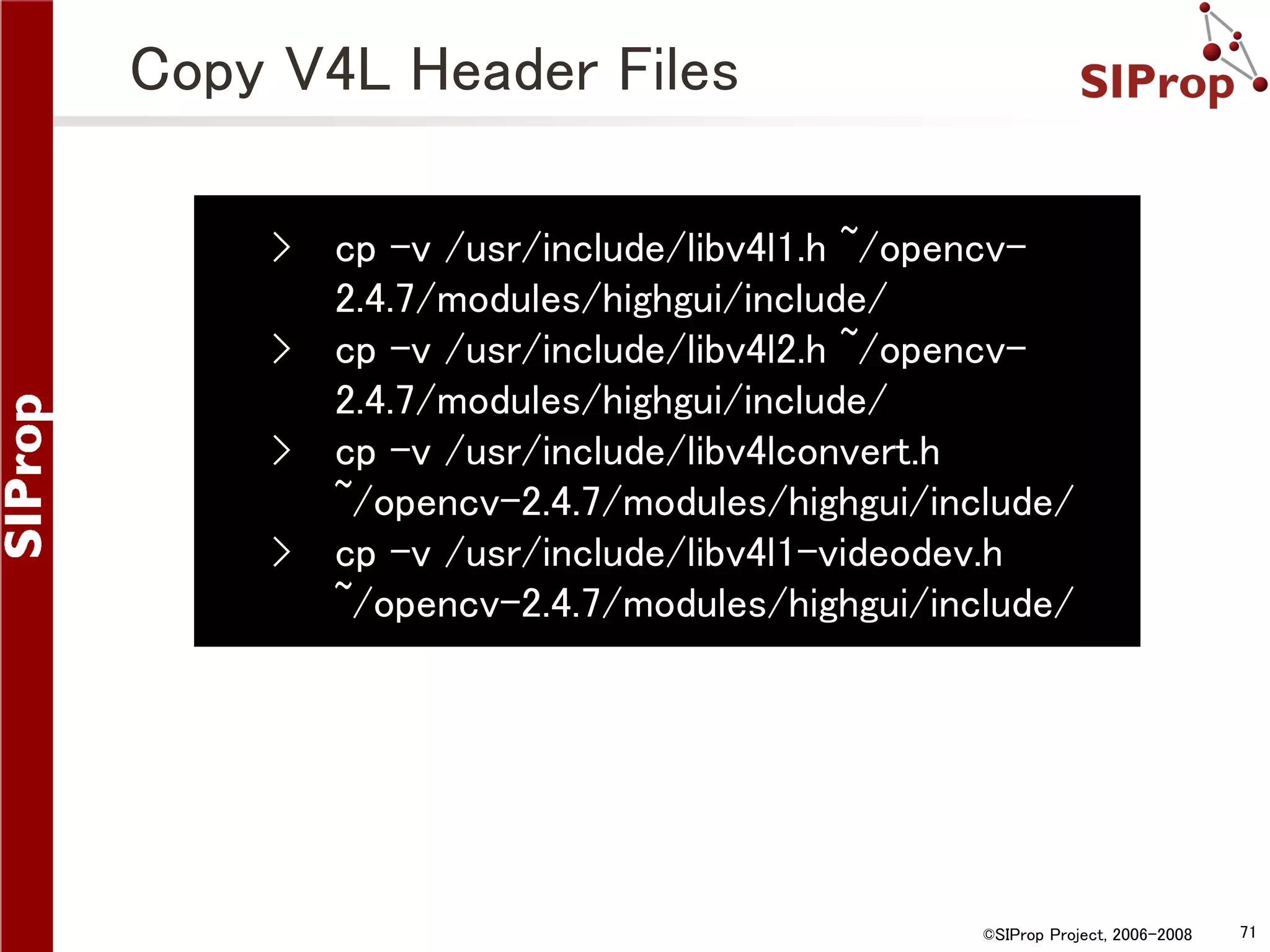

Copy V4L Header Files › › › › cp -v /usr/include/libv4l1.h ~/opencv2.4.7/modules/highgui/include/ cp -v /usr/include/libv4l2.h ~/opencv2.4.7/modules/highgui/include/ cp -v /usr/include/libv4lconvert.h ~/opencv-2.4.7/modules/highgui/include/ cp -v /usr/include/libv4l1-videodev.h ~/opencv-2.4.7/modules/highgui/include/ ©SIProp Project, 2006-2008 71

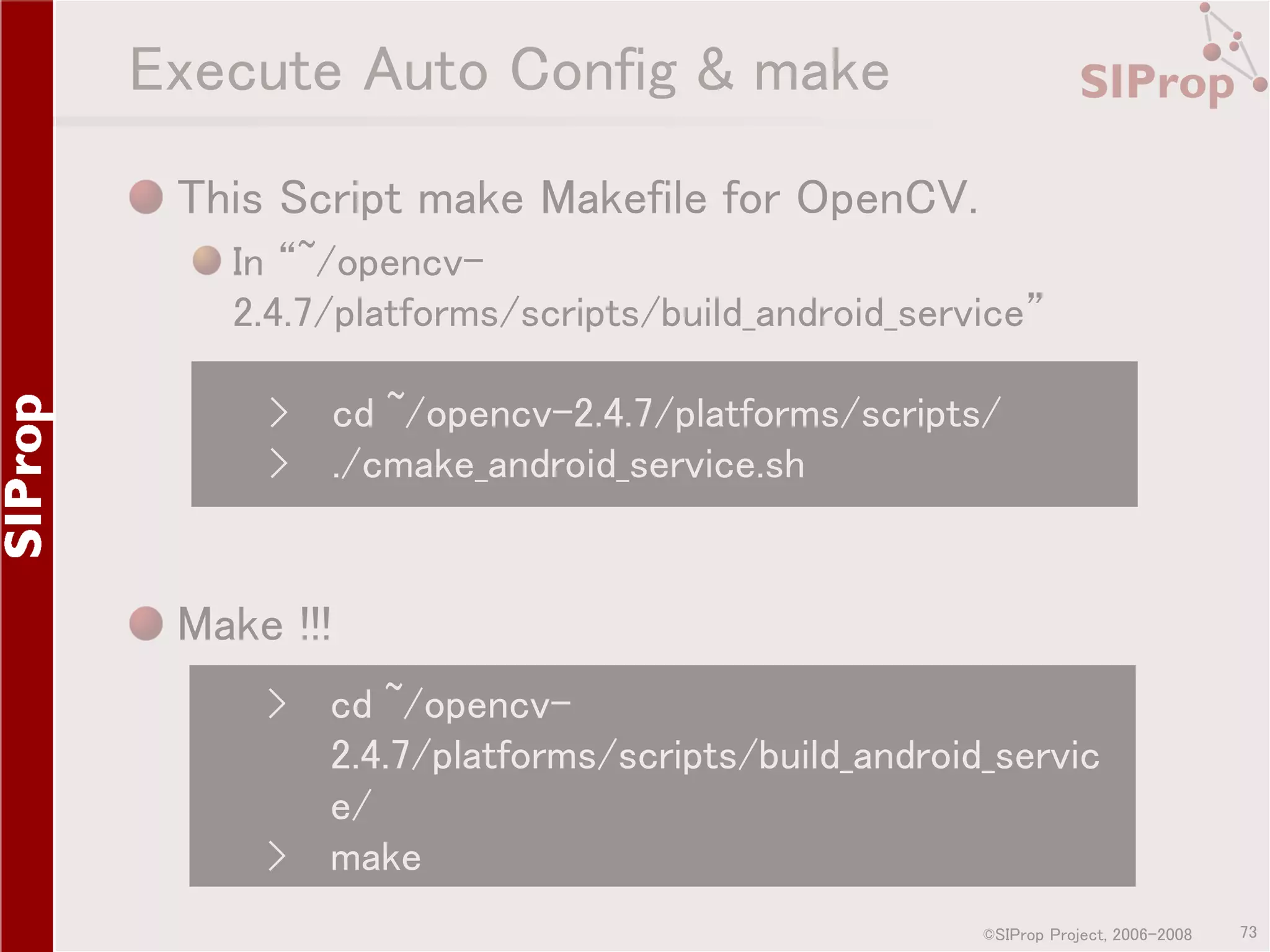

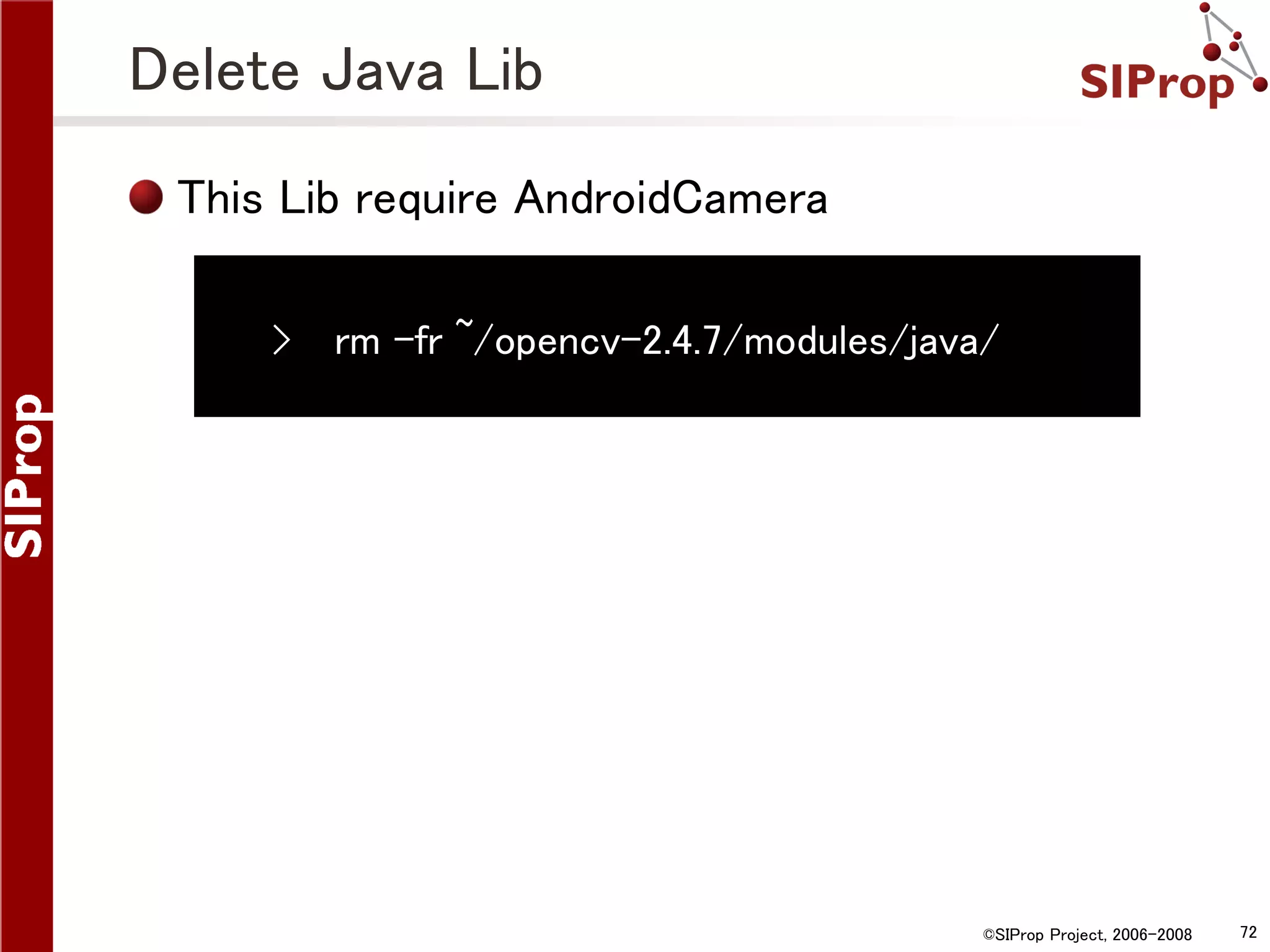

Execute Auto Config & make This Script make Makefile for OpenCV. In “~/opencv2.4.7/platforms/scripts/build_android_service” › cd ~/opencv-2.4.7/platforms/scripts/ › ./cmake_android_service.sh Make !!! › › cd ~/opencv2.4.7/platforms/scripts/build_android_servic e/ make ©SIProp Project, 2006-2008 73

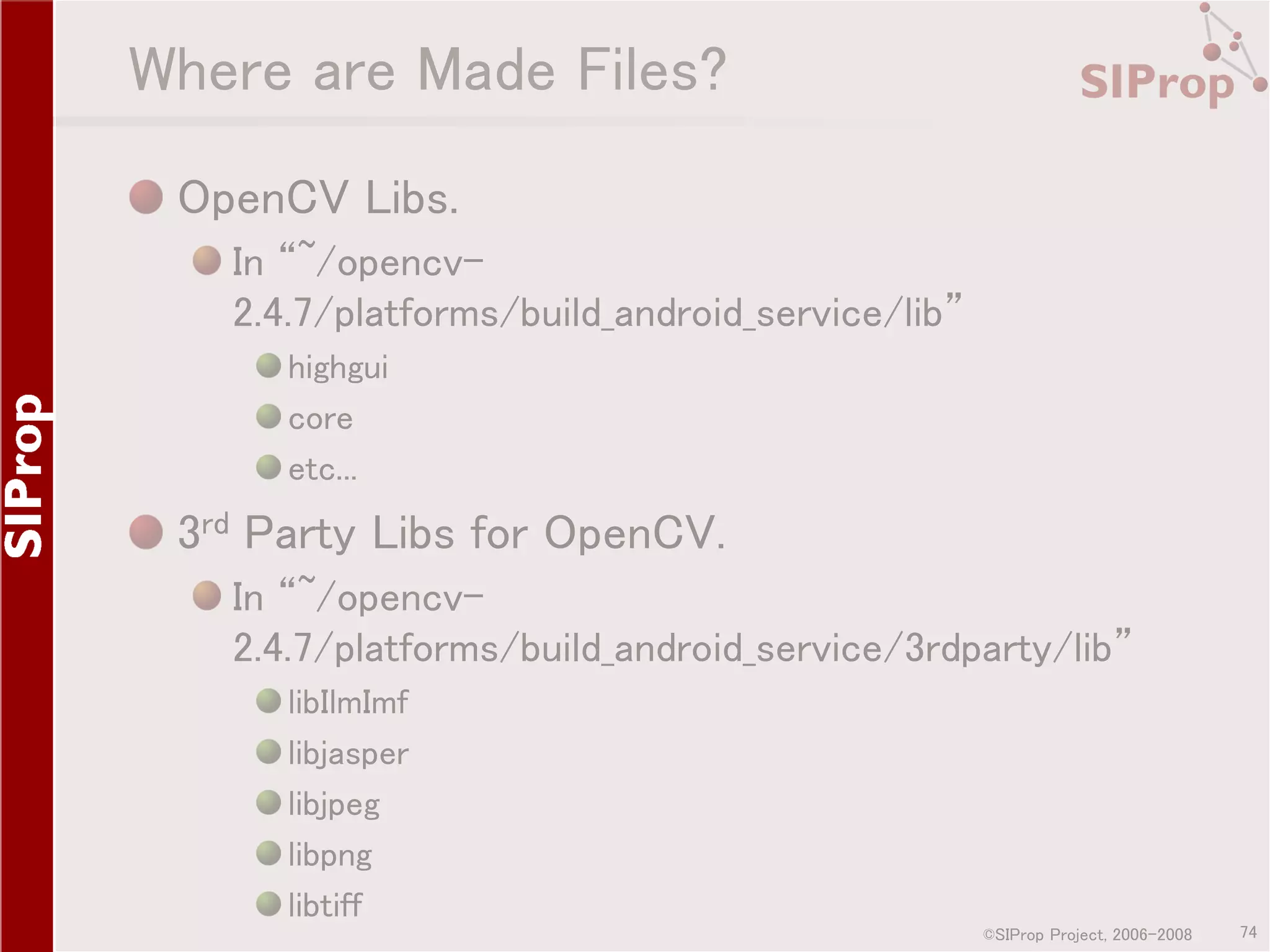

Where are Made Files? OpenCV Libs. In “~/opencv2.4.7/platforms/build_android_service/lib” highgui core etc... 3rd Party Libs for OpenCV. In “~/opencv2.4.7/platforms/build_android_service/3rdparty/lib” libIlmImf libjasper libjpeg libpng libtiff ©SIProp Project, 2006-2008 74

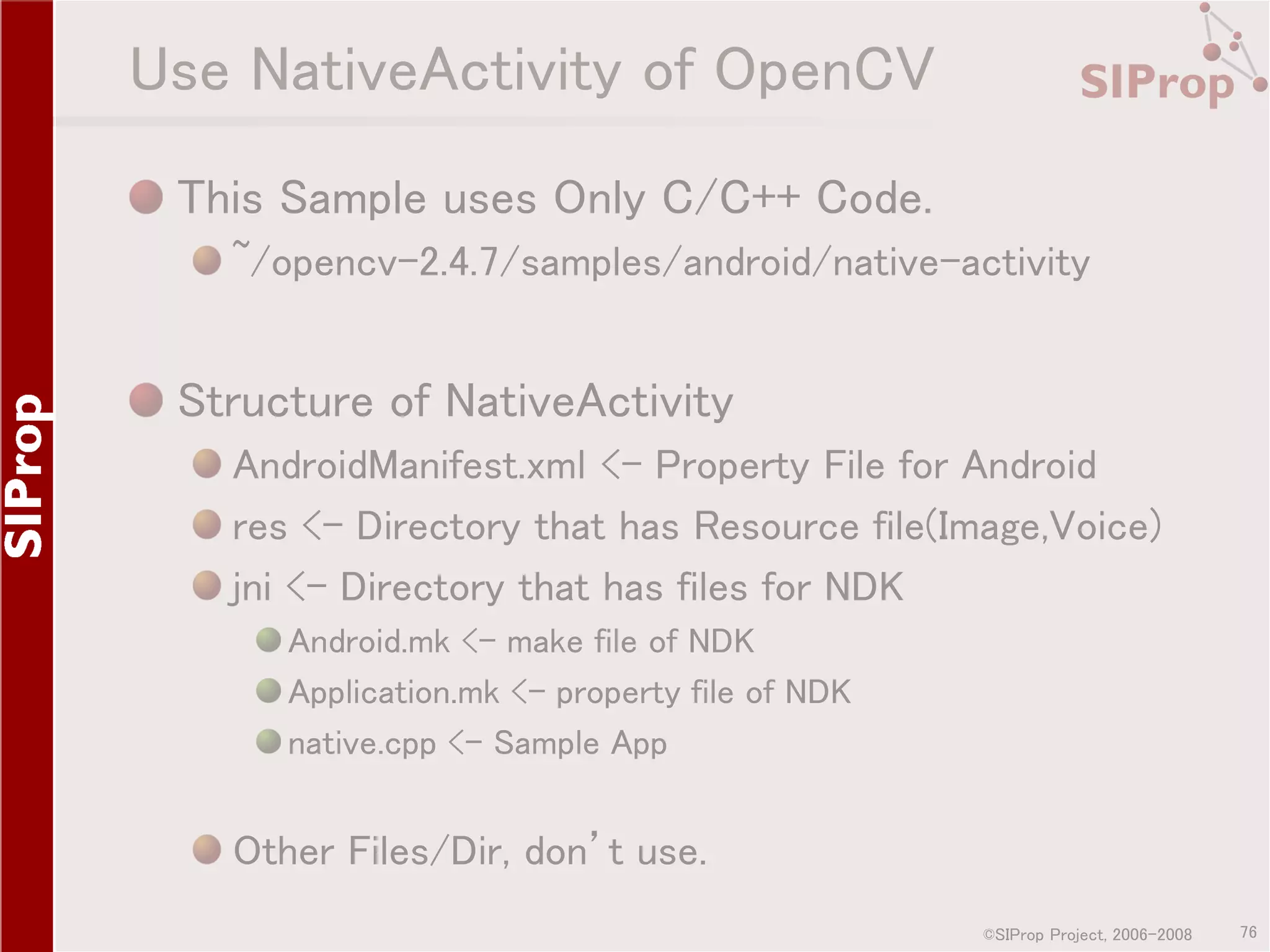

Use NativeActivity of OpenCV This Sample uses Only C/C++ Code. ~/opencv-2.4.7/samples/android/native-activity Structure of NativeActivity AndroidManifest.xml <- Property File for Android res <- Directory that has Resource file(Image,Voice) jni <- Directory that has files for NDK Android.mk <- make file of NDK Application.mk <- property file of NDK native.cpp <- Sample App Other Files/Dir, don’t use. ©SIProp Project, 2006-2008 76

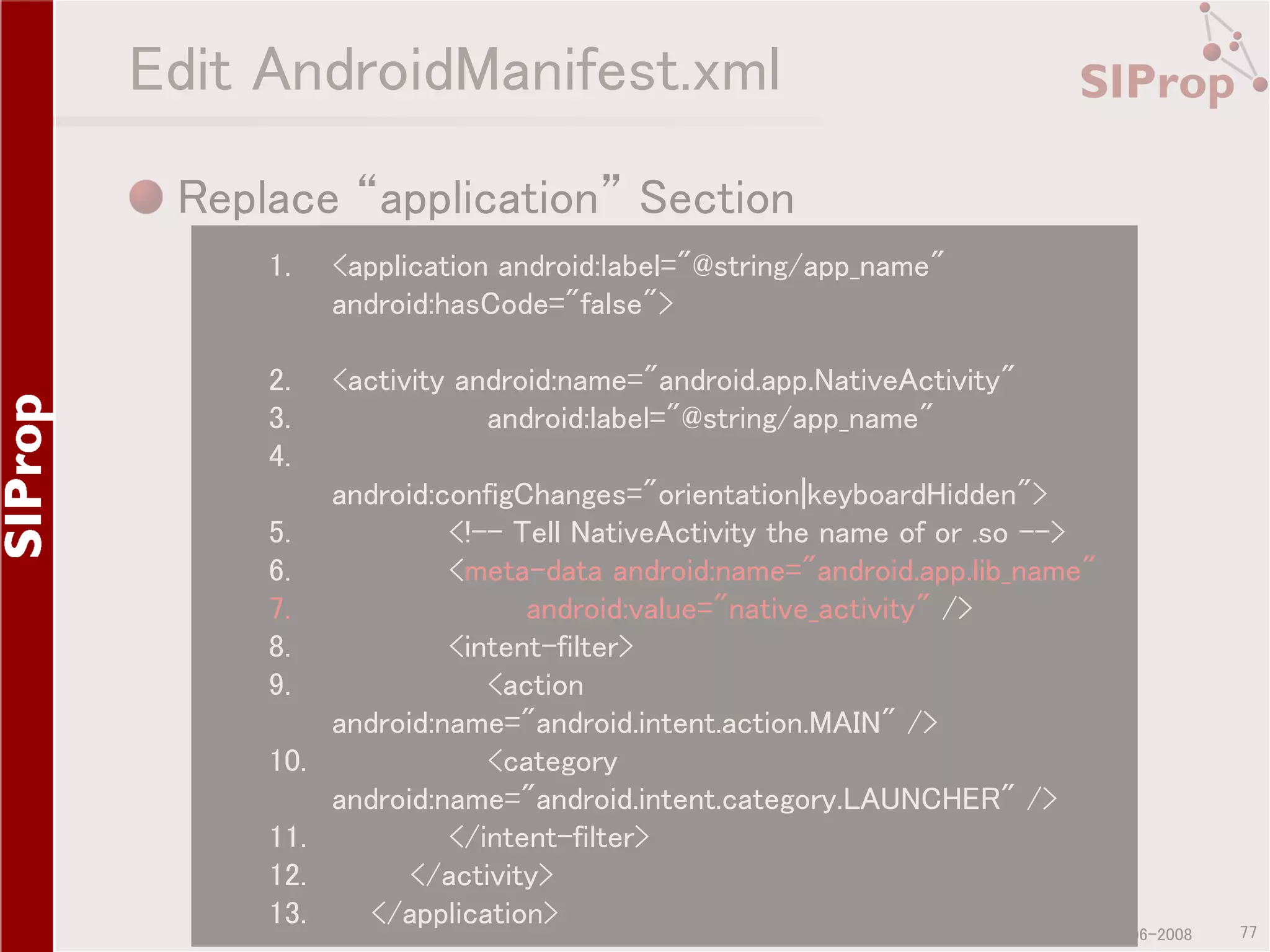

Edit AndroidManifest.xml Replace “application” Section 1. <application android:label="@string/app_name" android:hasCode="false"> 2. 3. 4. <activity android:name="android.app.NativeActivity" android:label="@string/app_name" 5. 6. 7. 8. 9. 10. 11. 12. 13. android:configChanges="orientation|keyboardHidden">  <meta-data android:name="android.app.lib_name" android:value="native_activity" /> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> ©SIProp Project, 2006-2008 77

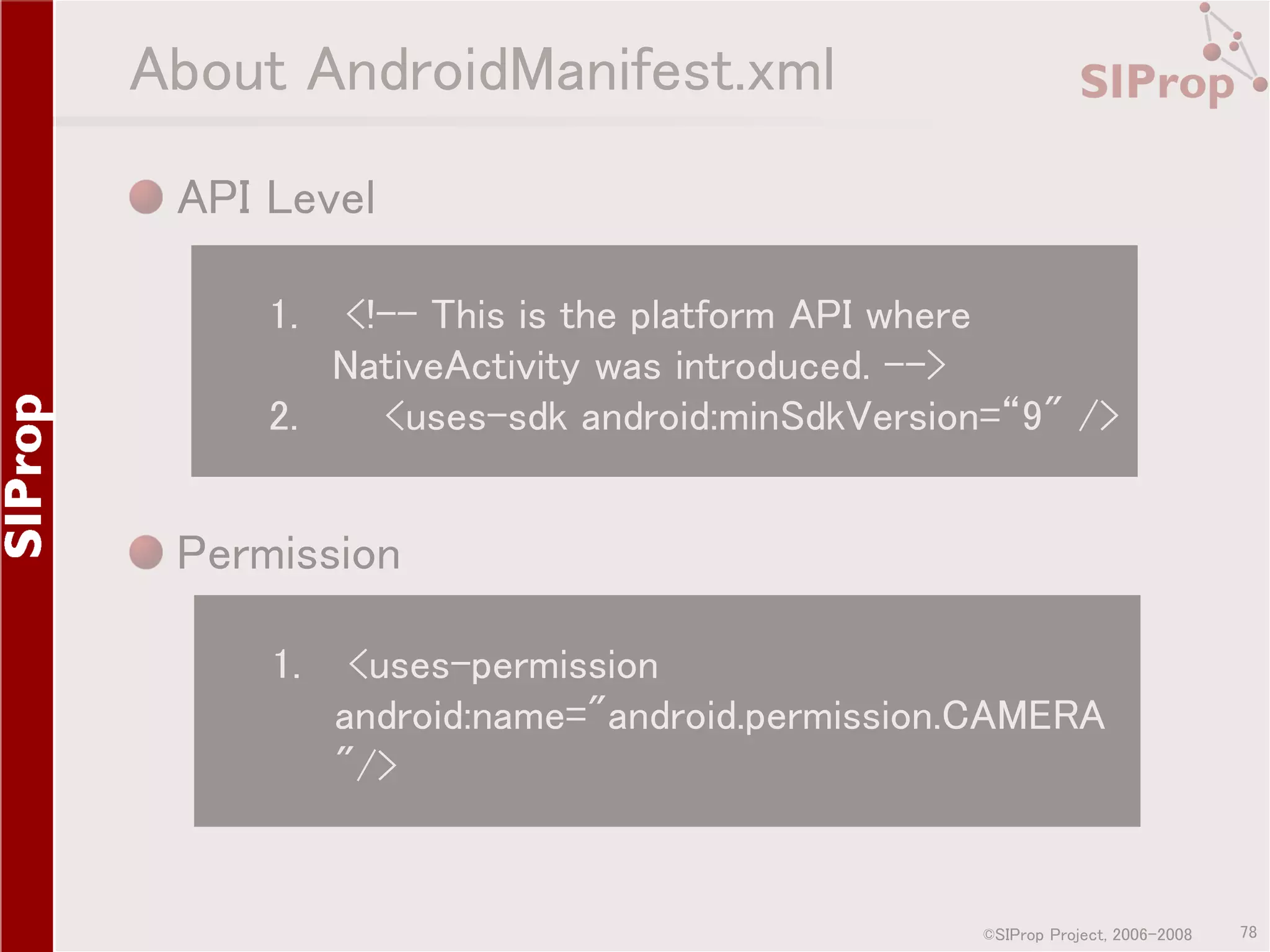

About AndroidManifest.xml API Level 1.  2. <uses-sdk android:minSdkVersion=“9" /> Permission 1. <uses-permission android:name="android.permission.CAMERA "/> ©SIProp Project, 2006-2008 78

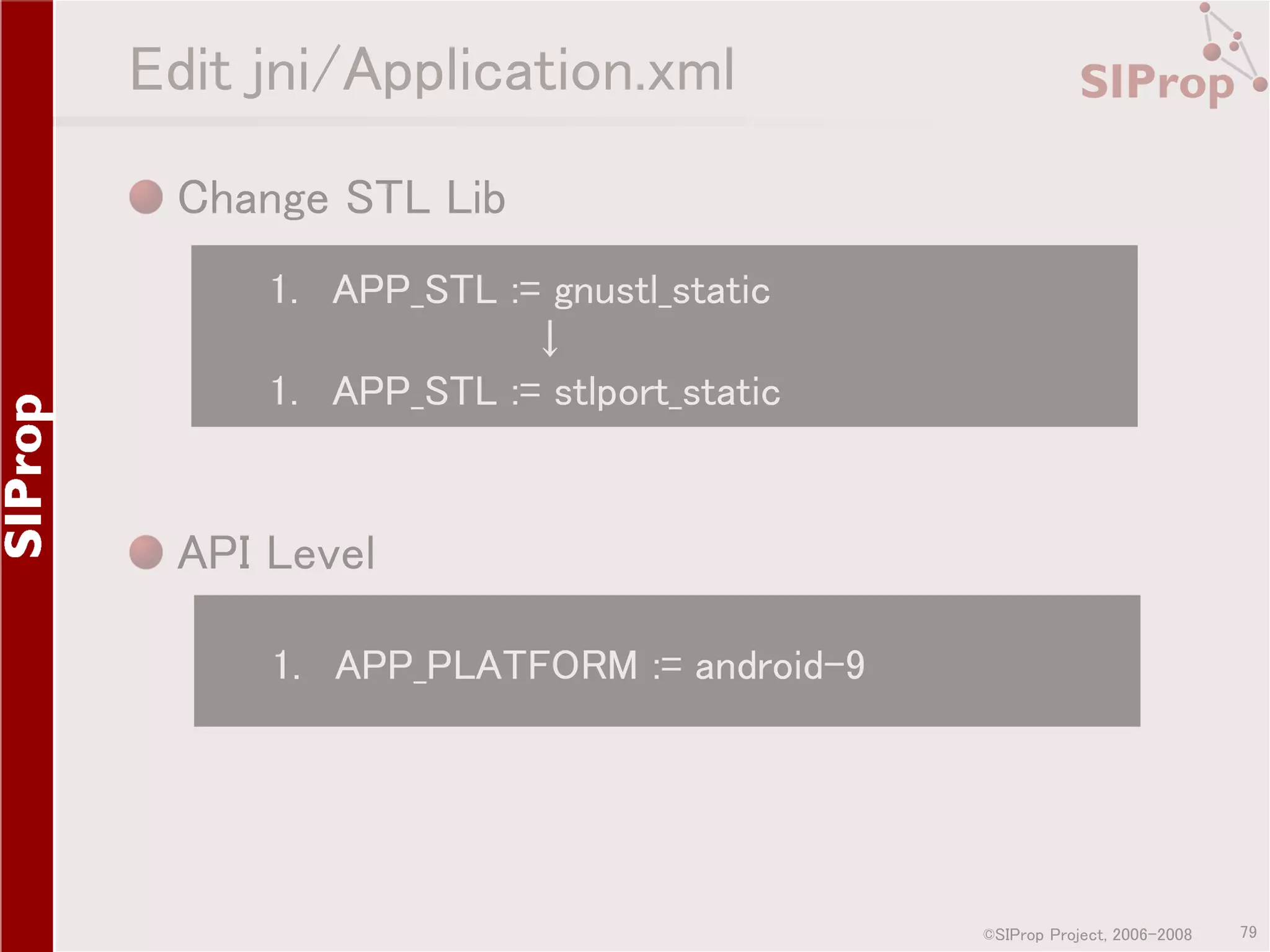

Edit jni/Application.xml Change STL Lib 1. APP_STL := gnustl_static ↓ 1. APP_STL := stlport_static API Level 1. APP_PLATFORM := android-9 ©SIProp Project, 2006-2008 79

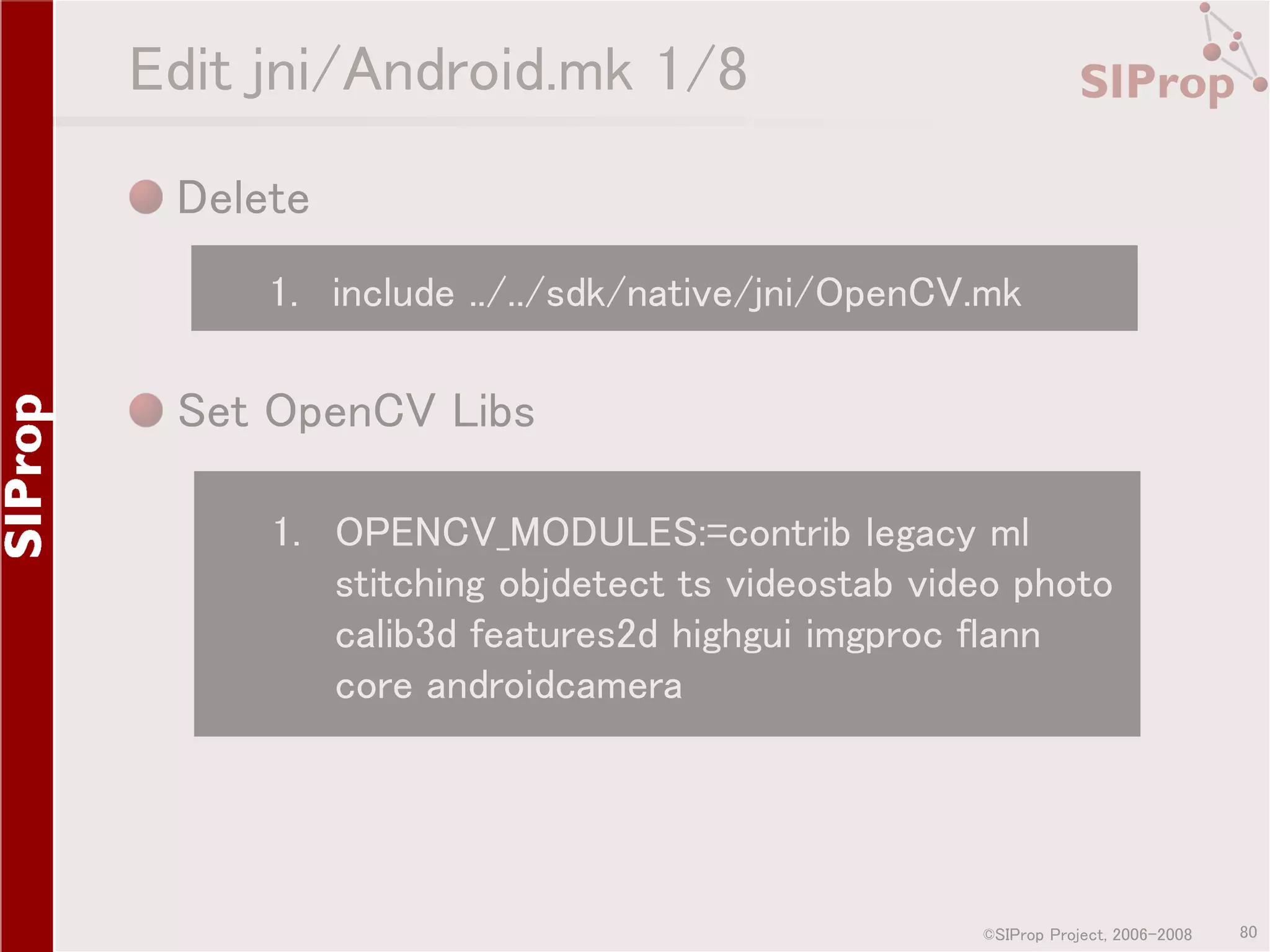

Edit jni/Android.mk 1/8 Delete 1. include ../../sdk/native/jni/OpenCV.mk Set OpenCV Libs 1. OPENCV_MODULES:=contrib legacy ml stitching objdetect ts videostab video photo calib3d features2d highgui imgproc flann core androidcamera ©SIProp Project, 2006-2008 80

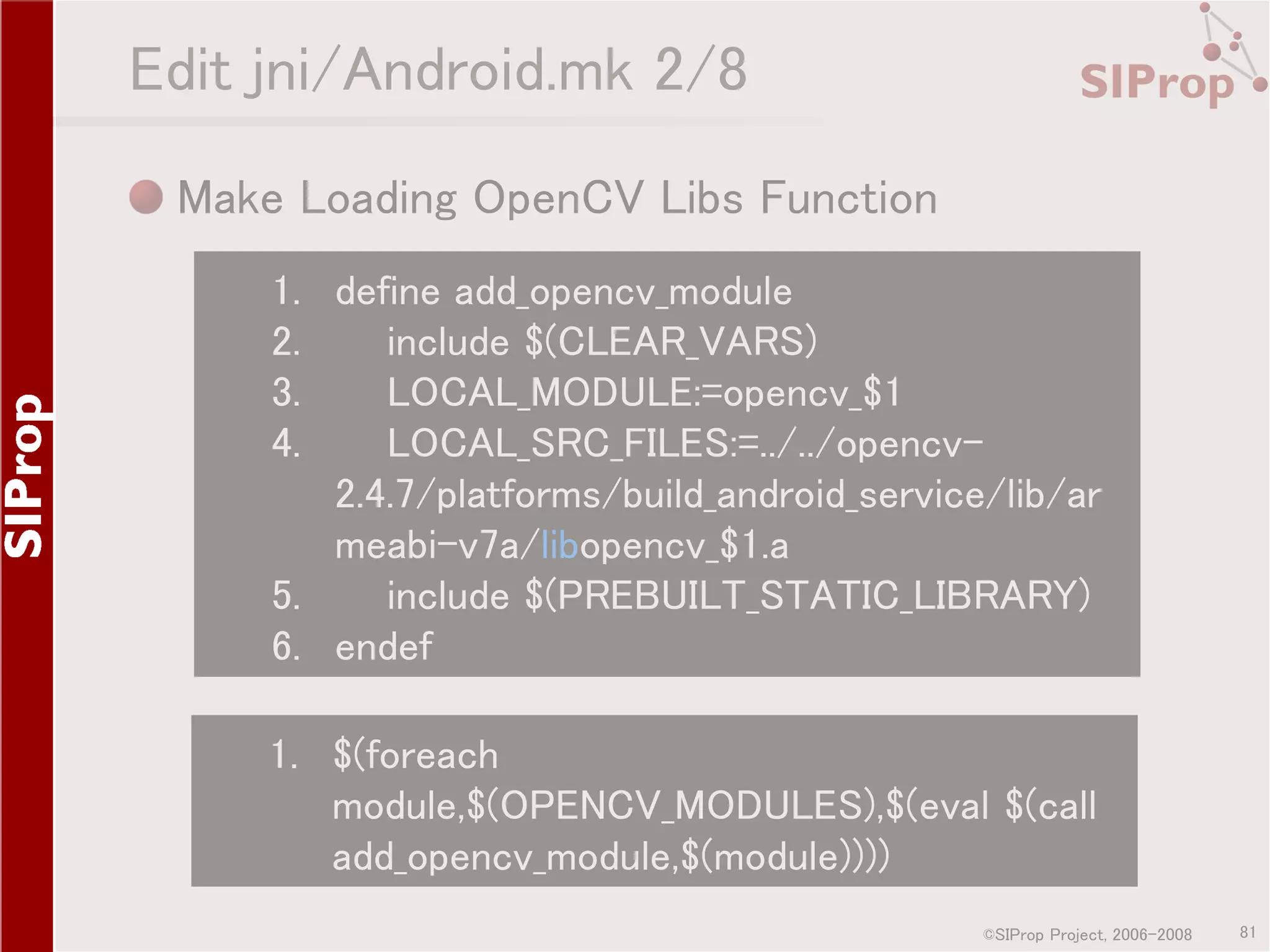

Edit jni/Android.mk 2/8 Make Loading OpenCV Libs Function 1. define add_opencv_module 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=opencv_$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/lib/ar meabi-v7a/libopencv_$1.a 5. include $(PREBUILT_STATIC_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_MODULES),$(eval $(call add_opencv_module,$(module)))) ©SIProp Project, 2006-2008 81

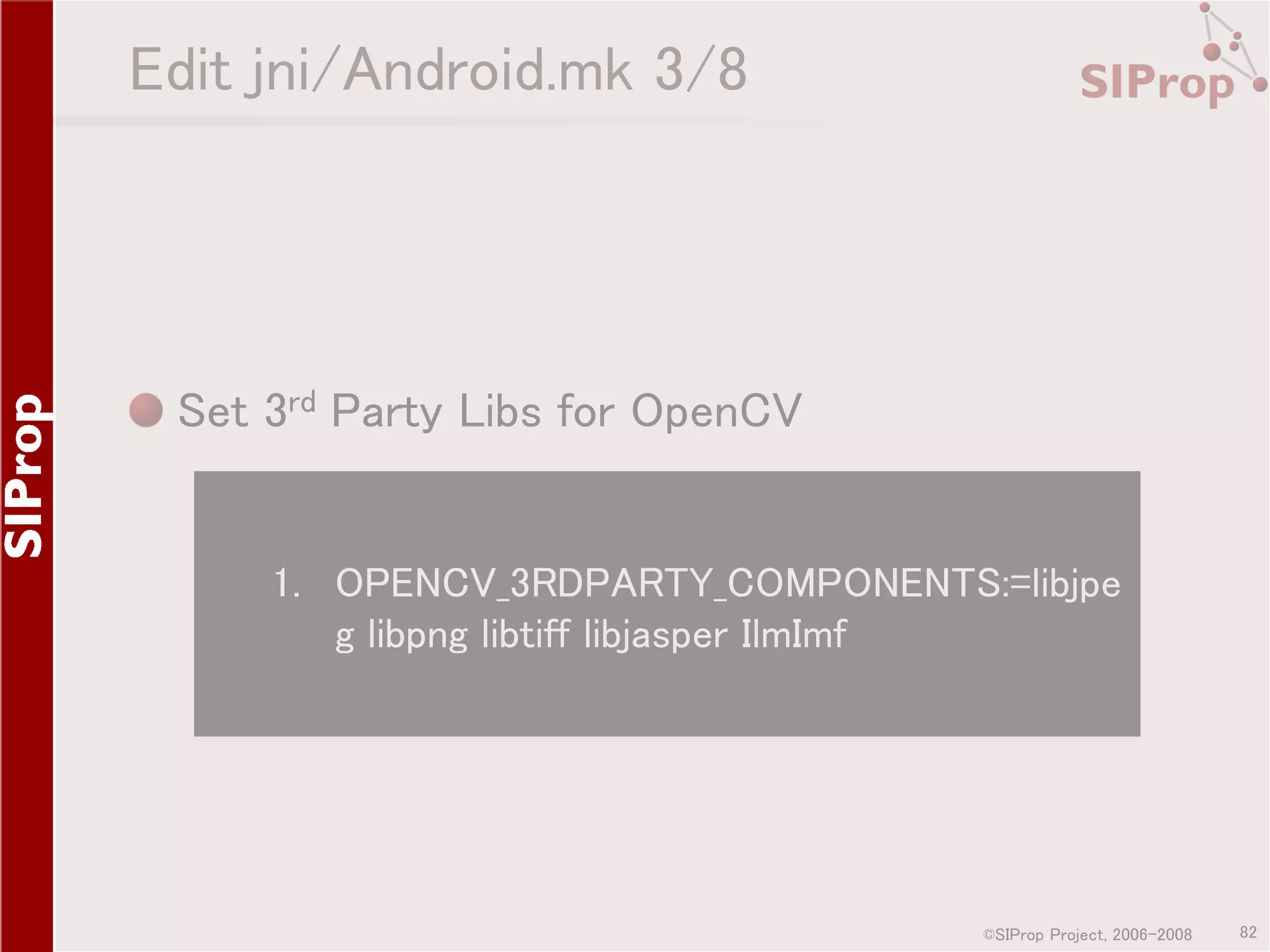

Edit jni/Android.mk 3/8 Set 3rd Party Libs for OpenCV 1. OPENCV_3RDPARTY_COMPONENTS:=libjpe g libpng libtiff libjasper IlmImf ©SIProp Project, 2006-2008 82

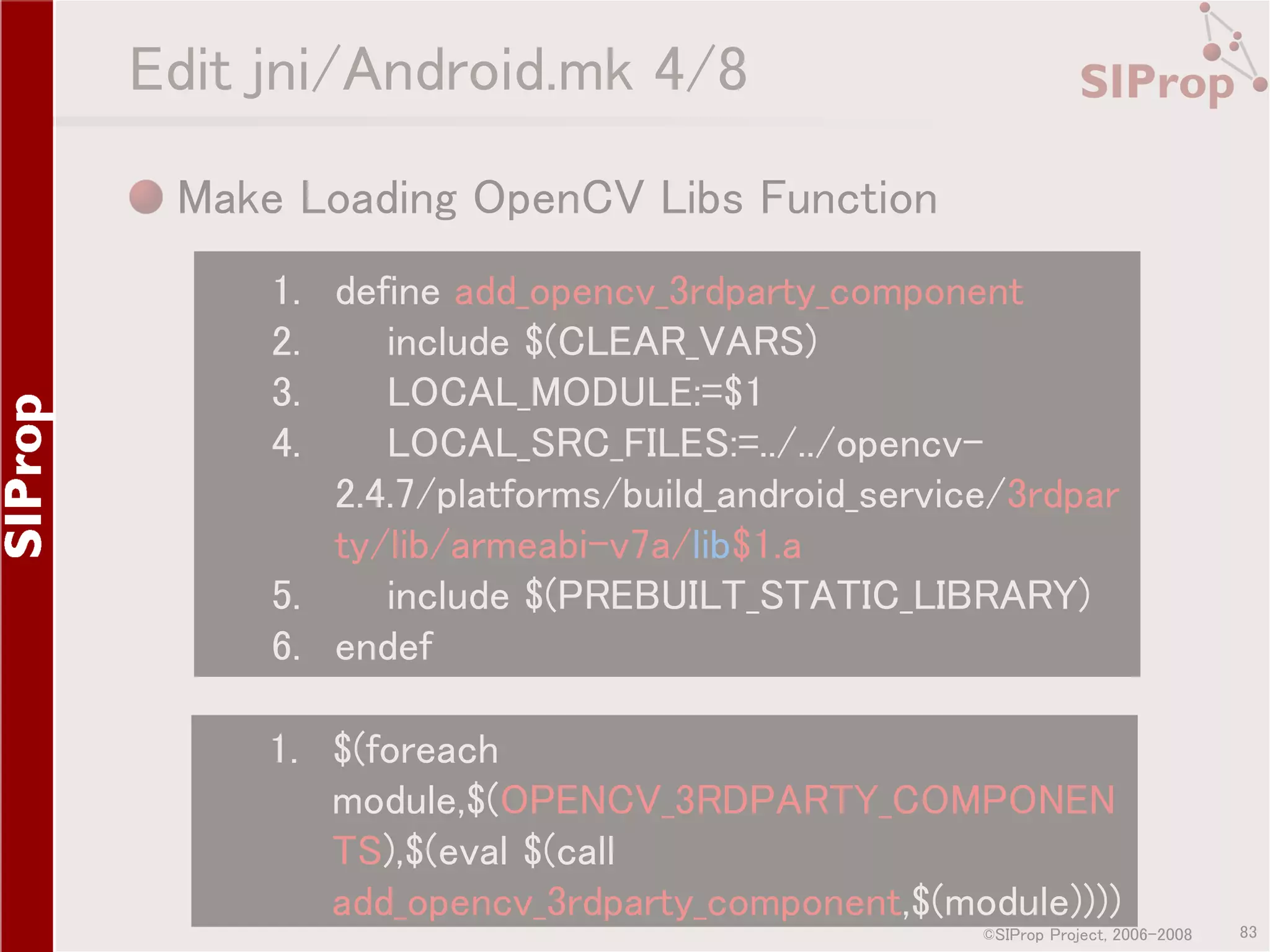

Edit jni/Android.mk 4/8 Make Loading OpenCV Libs Function 1. define add_opencv_3rdparty_component 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/3rdpar ty/lib/armeabi-v7a/lib$1.a 5. include $(PREBUILT_STATIC_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_3RDPARTY_COMPONEN TS),$(eval $(call add_opencv_3rdparty_component,$(module)))) ©SIProp Project, 2006-2008 83

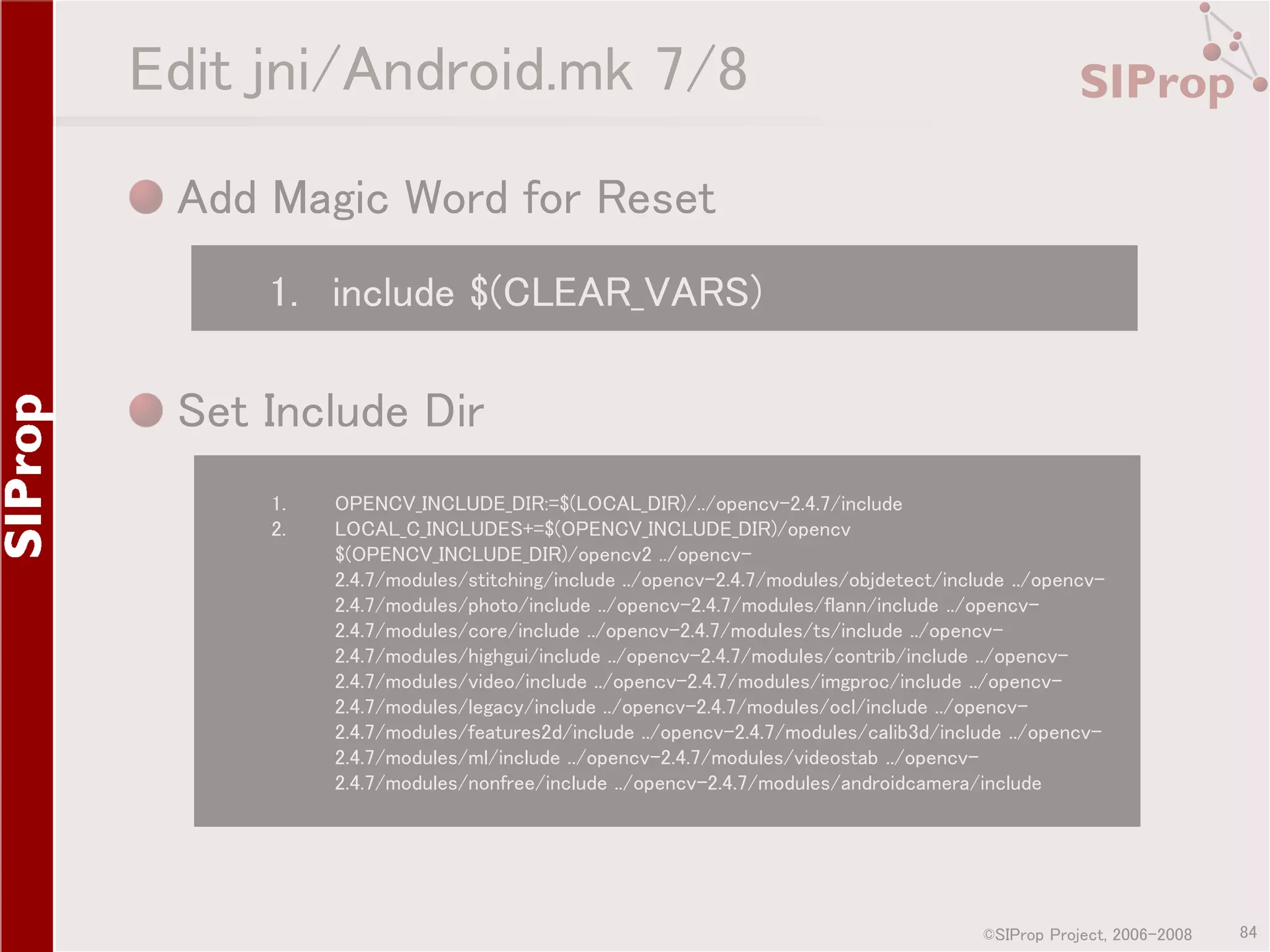

Edit jni/Android.mk 7/8 Add Magic Word for Reset 1. include $(CLEAR_VARS) Set Include Dir 1. 2. OPENCV_INCLUDE_DIR:=$(LOCAL_DIR)/../opencv-2.4.7/include LOCAL_C_INCLUDES+=$(OPENCV_INCLUDE_DIR)/opencv $(OPENCV_INCLUDE_DIR)/opencv2 ../opencv2.4.7/modules/stitching/include ../opencv-2.4.7/modules/objdetect/include ../opencv2.4.7/modules/photo/include ../opencv-2.4.7/modules/flann/include ../opencv2.4.7/modules/core/include ../opencv-2.4.7/modules/ts/include ../opencv2.4.7/modules/highgui/include ../opencv-2.4.7/modules/contrib/include ../opencv2.4.7/modules/video/include ../opencv-2.4.7/modules/imgproc/include ../opencv2.4.7/modules/legacy/include ../opencv-2.4.7/modules/ocl/include ../opencv2.4.7/modules/features2d/include ../opencv-2.4.7/modules/calib3d/include ../opencv2.4.7/modules/ml/include ../opencv-2.4.7/modules/videostab ../opencv2.4.7/modules/nonfree/include ../opencv-2.4.7/modules/androidcamera/include ©SIProp Project, 2006-2008 84

Edit jni/Android.mk 8/8 Add Loading Lib & OpenCV Lib LOCAL_LDLIBS -lc -ldl -lz LOCAL_STATIC_LIBRARIES $(foreach mod, $(OPENCV_MODULES), opencv_$(mod)) $(OPENCV_3RDPARTY_COMPONENTS) 1. LOCAL_LDLIBS += -lm -llog -landroid -lc -ldl -lz 2. LOCAL_STATIC_LIBRARIES := android_native_app_glue $(foreach mod, $(OPENCV_MODULES), opencv_$(mod)) $(OPENCV_3RDPARTY_COMPONENTS) ©SIProp Project, 2006-2008 85

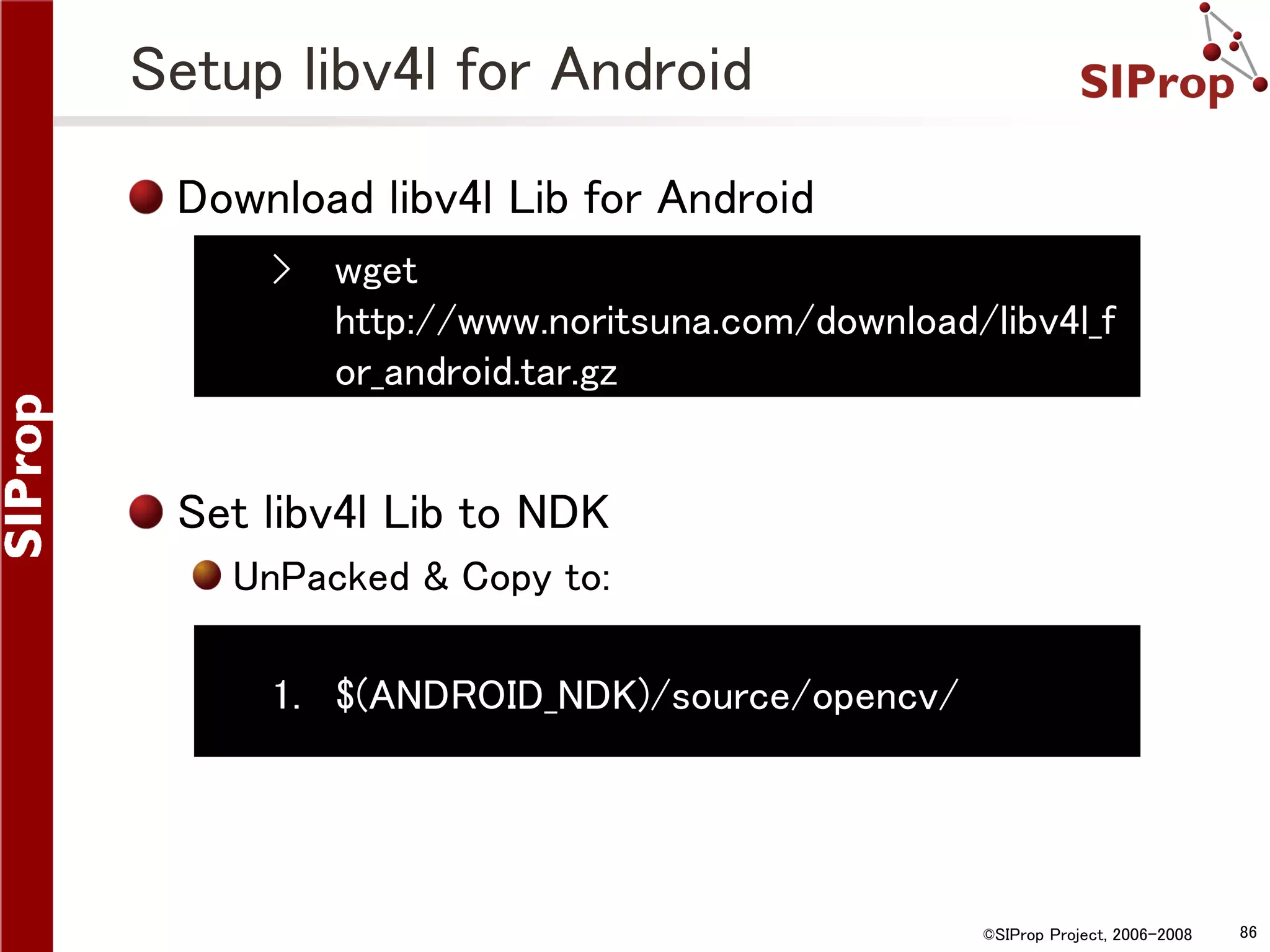

Setup libv4l for Android Download libv4l Lib for Android › wget http://www.noritsuna.com/download/libv4l_f or_android.tar.gz Set libv4l Lib to NDK UnPacked & Copy to: 1. $(ANDROID_NDK)/source/opencv/ ©SIProp Project, 2006-2008 86

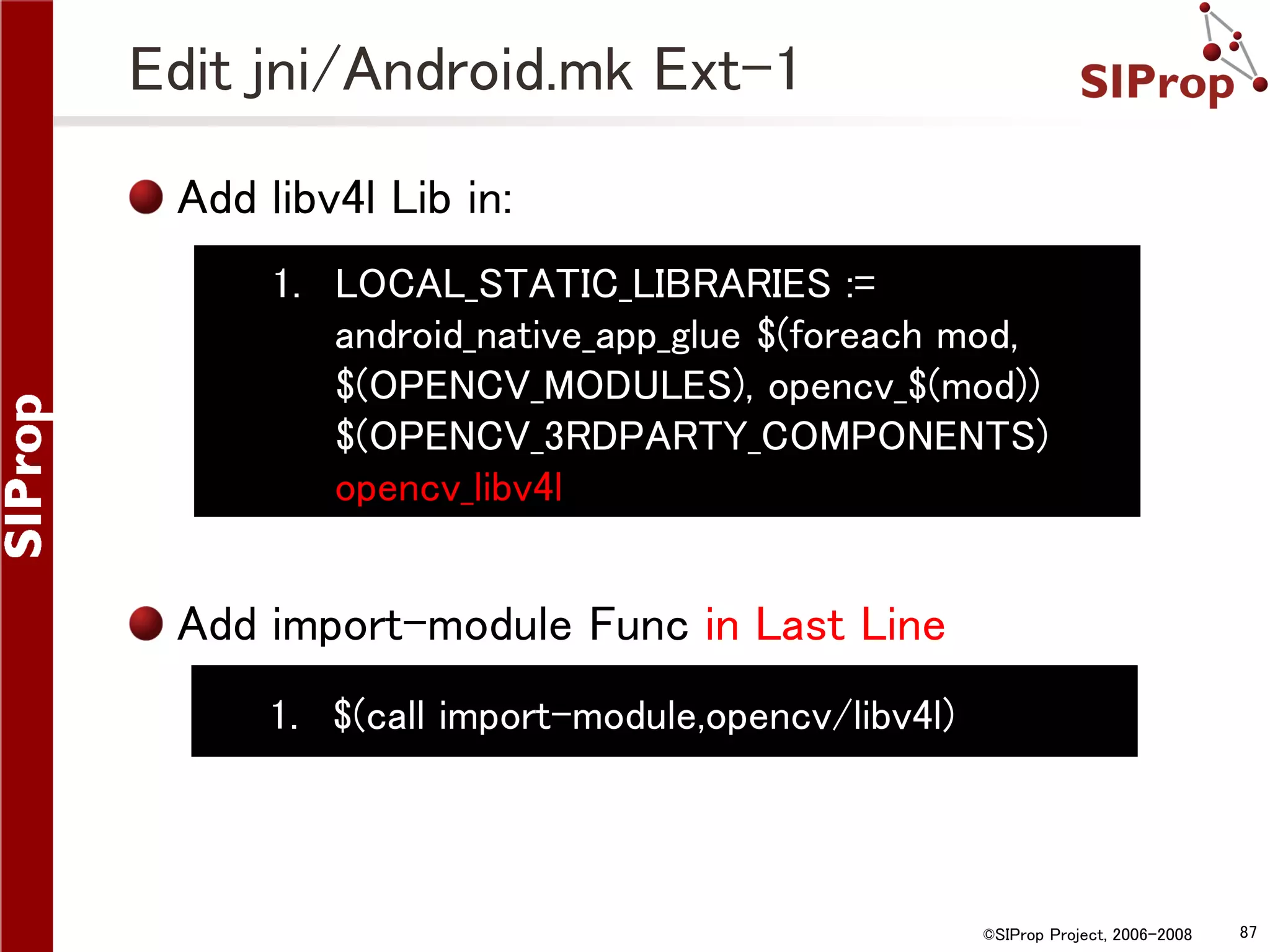

Edit jni/Android.mk Ext-1 Add libv4l Lib in: 1. LOCAL_STATIC_LIBRARIES := android_native_app_glue $(foreach mod, $(OPENCV_MODULES), opencv_$(mod)) $(OPENCV_3RDPARTY_COMPONENTS) opencv_libv4l Add import-module Func in Last Line 1. $(call import-module,opencv/libv4l) ©SIProp Project, 2006-2008 87

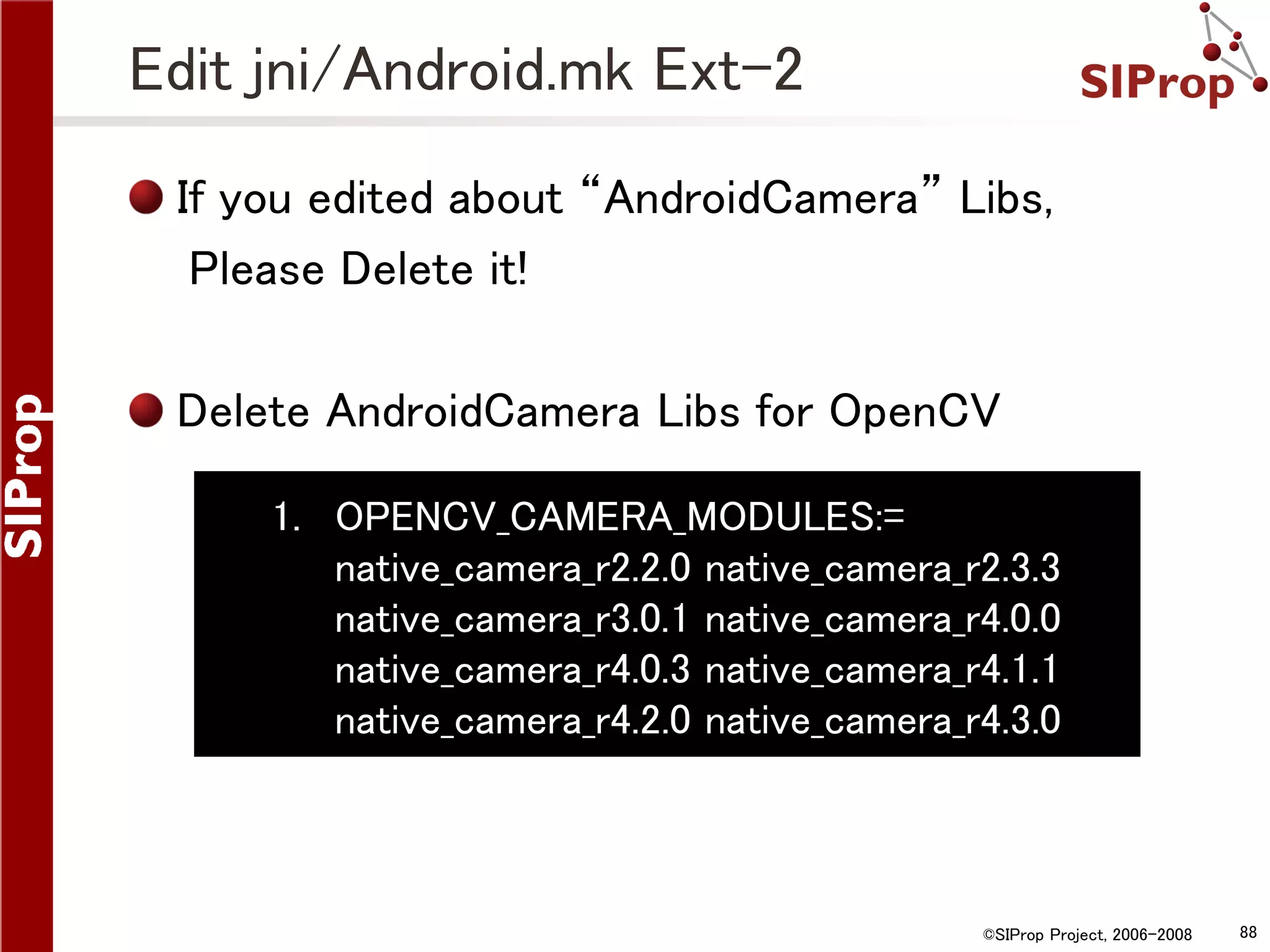

Edit jni/Android.mk Ext-2 If you edited about “AndroidCamera” Libs, Please Delete it! Delete AndroidCamera Libs for OpenCV 1. OPENCV_CAMERA_MODULES:= native_camera_r2.2.0 native_camera_r2.3.3 native_camera_r3.0.1 native_camera_r4.0.0 native_camera_r4.0.3 native_camera_r4.1.1 native_camera_r4.2.0 native_camera_r4.3.0 ©SIProp Project, 2006-2008 88

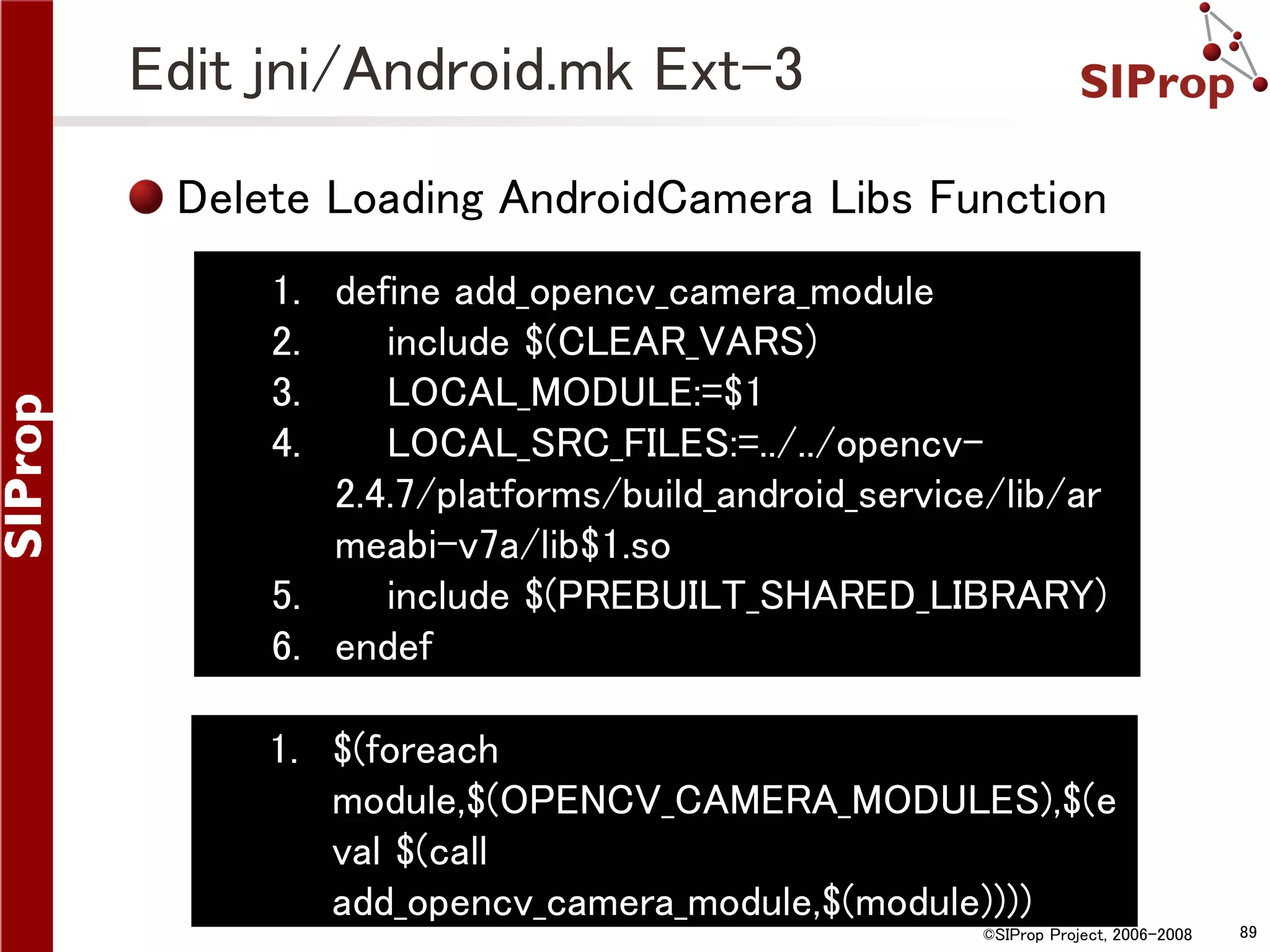

Edit jni/Android.mk Ext-3 Delete Loading AndroidCamera Libs Function 1. define add_opencv_camera_module 2. include $(CLEAR_VARS) 3. LOCAL_MODULE:=$1 4. LOCAL_SRC_FILES:=../../opencv2.4.7/platforms/build_android_service/lib/ar meabi-v7a/lib$1.so 5. include $(PREBUILT_SHARED_LIBRARY) 6. endef 1. $(foreach module,$(OPENCV_CAMERA_MODULES),$(e val $(call add_opencv_camera_module,$(module)))) ©SIProp Project, 2006-2008 89

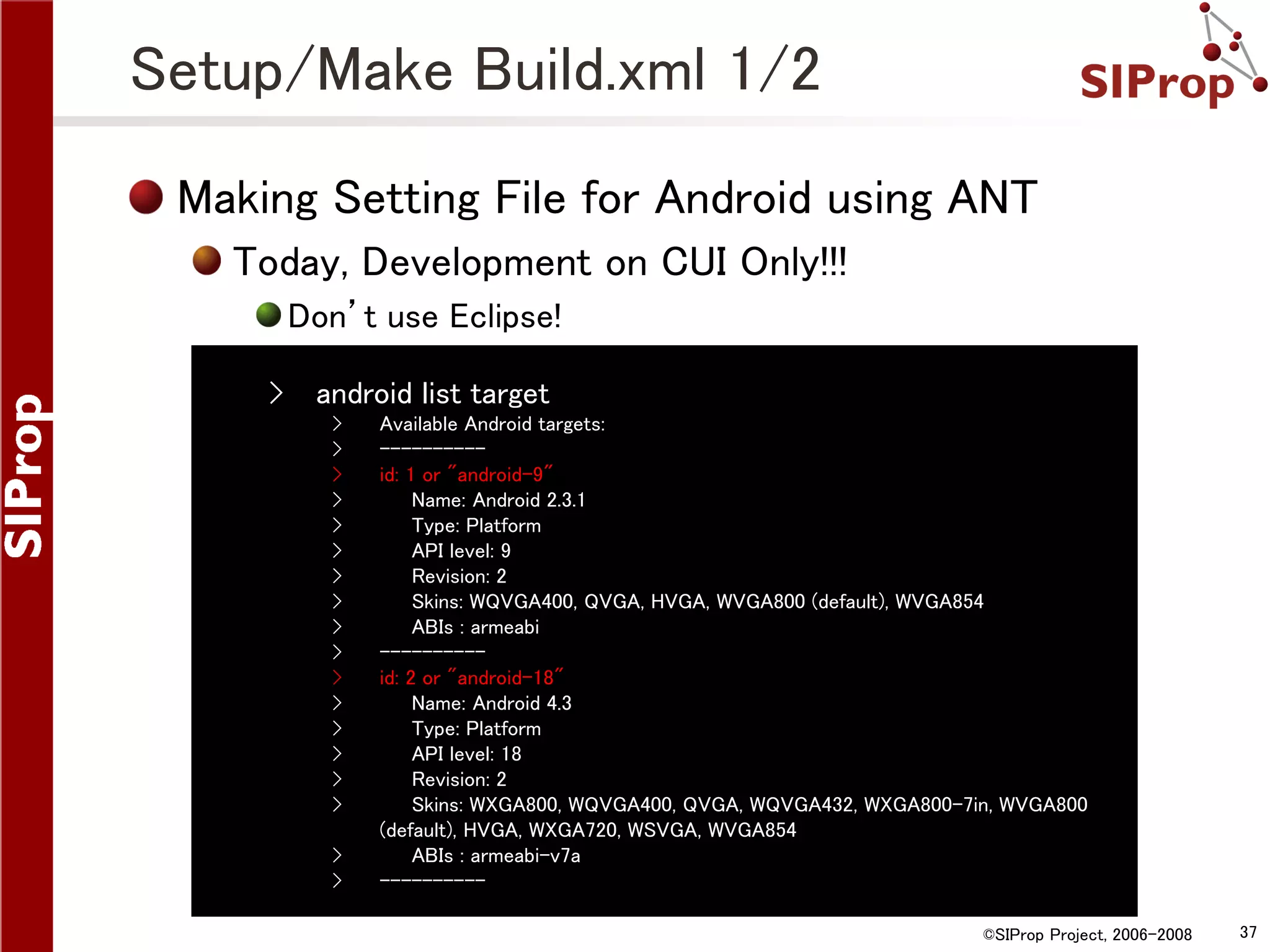

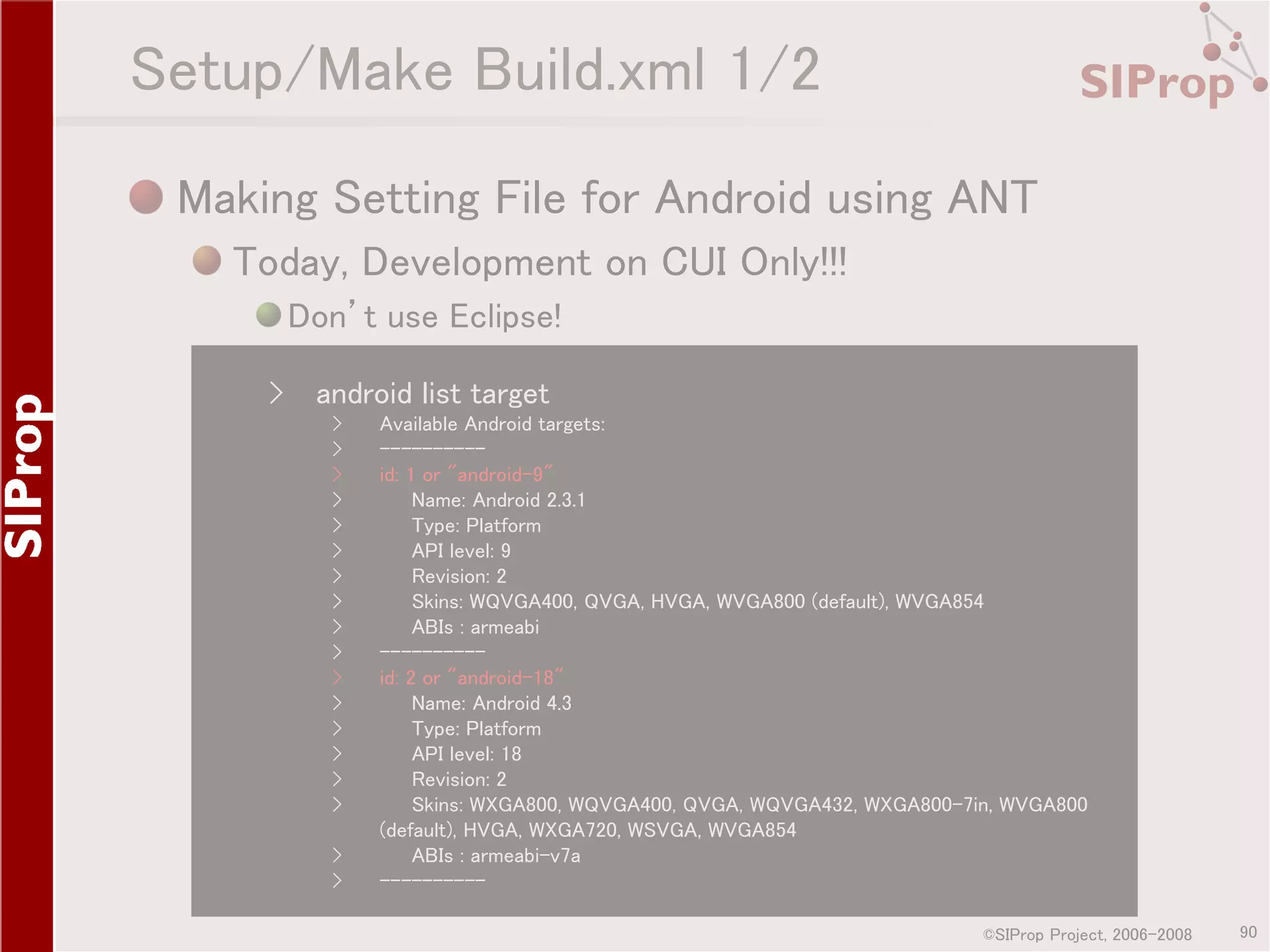

Setup/Make Build.xml 1/2 Making Setting File for Android using ANT Today, Development on CUI Only!!! Don’t use Eclipse! › android list target › › › › › › › › › › › › › › › › › › Available Android targets: ---------id: 1 or "android-9" Name: Android 2.3.1 Type: Platform API level: 9 Revision: 2 Skins: WQVGA400, QVGA, HVGA, WVGA800 (default), WVGA854 ABIs : armeabi ---------id: 2 or "android-18" Name: Android 4.3 Type: Platform API level: 18 Revision: 2 Skins: WXGA800, WQVGA400, QVGA, WQVGA432, WXGA800-7in, WVGA800 (default), HVGA, WXGA720, WSVGA, WVGA854 ABIs : armeabi-v7a ---------©SIProp Project, 2006-2008 90

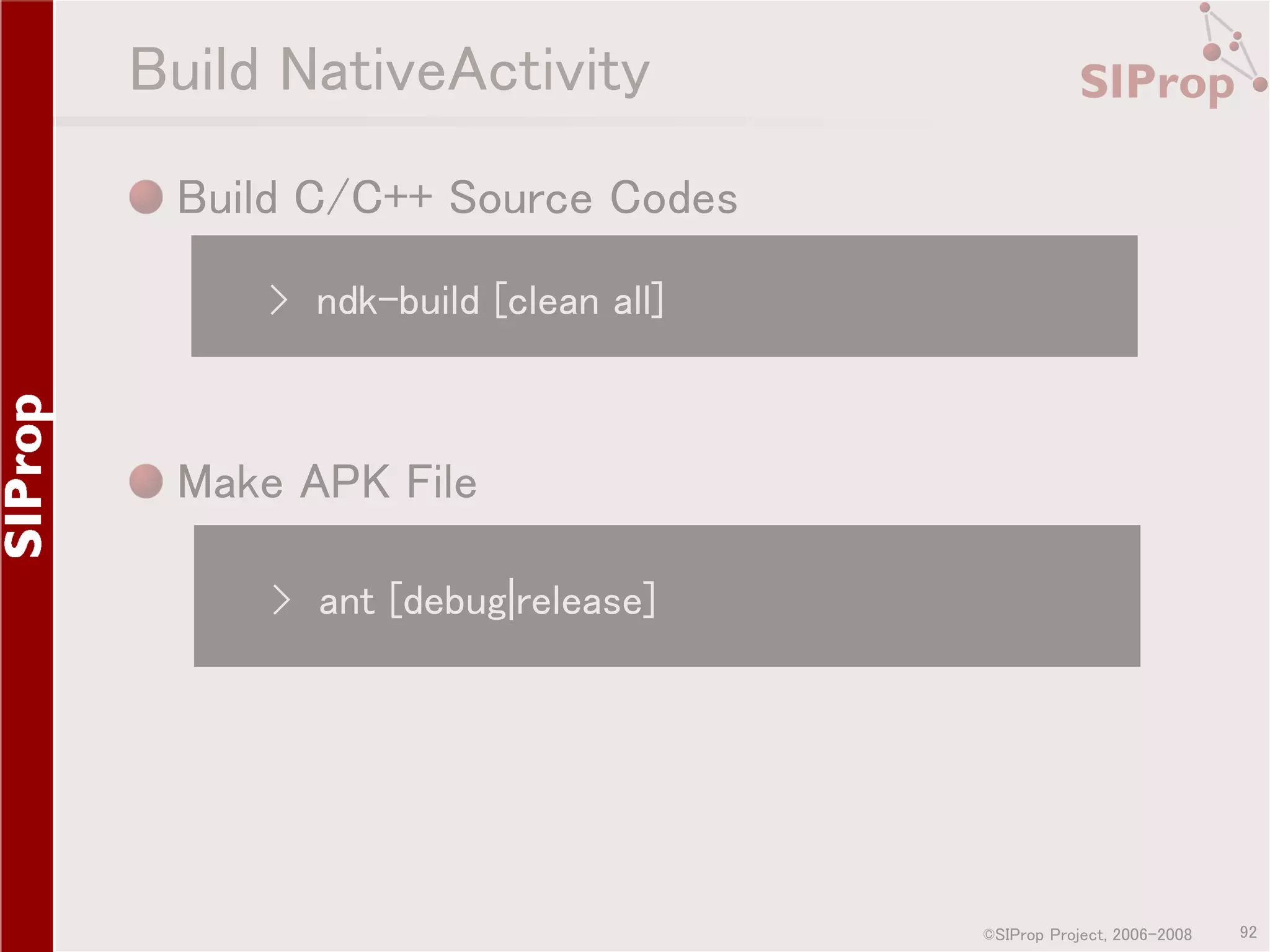

Build NativeActivity Build C/C++ Source Codes › ndk-build [clean all] Make APK File › ant [debug|release] ©SIProp Project, 2006-2008 92

Install NativeActivity.apk Install APK File › adb install bin/NativeActivity-debug.apk UnInstall APK File › adb uninstall com.example.native_activity Show Log › adb logcat ©SIProp Project, 2006-2008 93

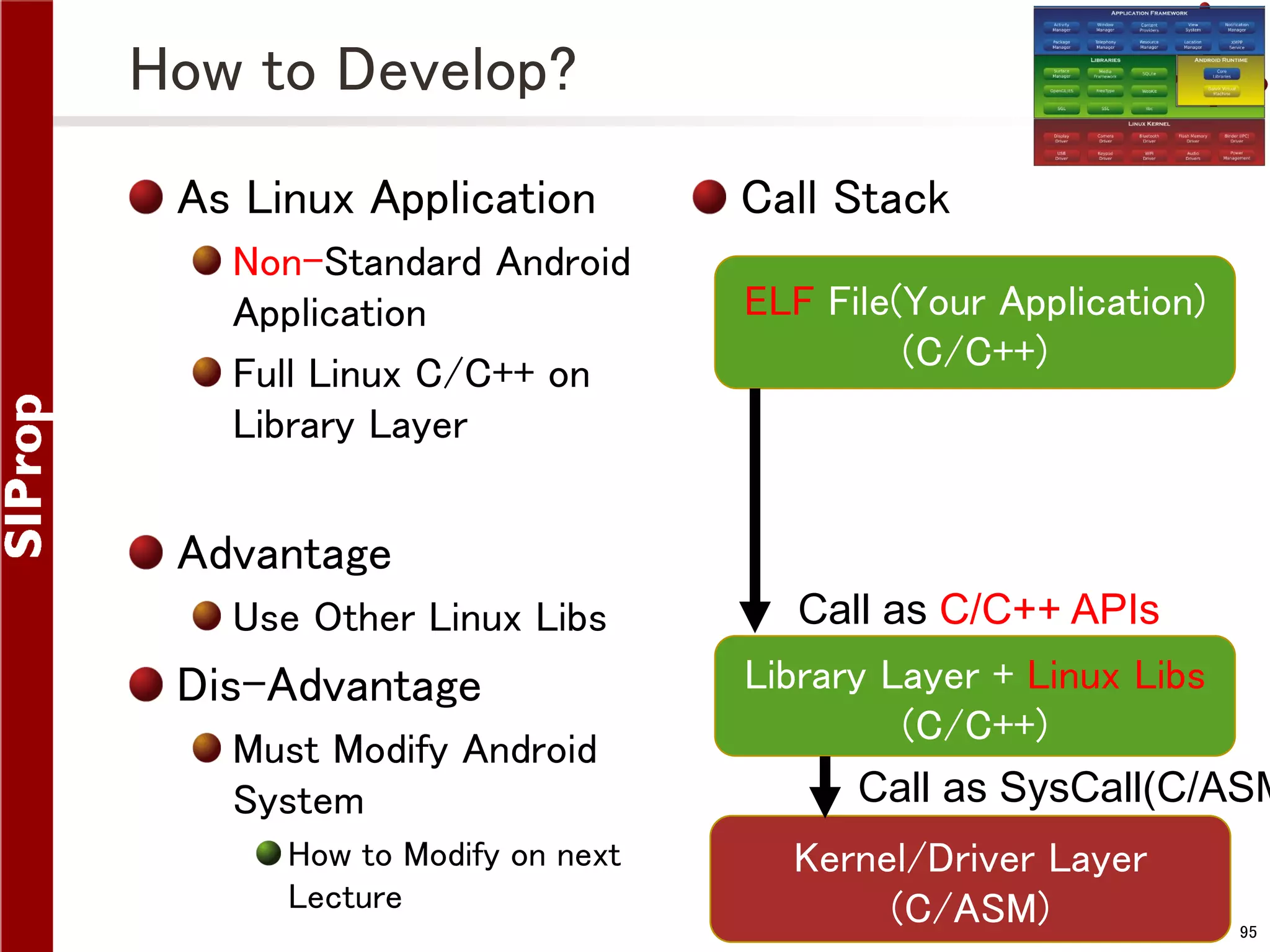

How to Develop? As Linux Application Non-Standard Android Application Full Linux C/C++ on Library Layer Call Stack ELF File(Your Application) (C/C++) Advantage Use Other Linux Libs Dis-Advantage Must Modify Android System How to Modify on next Lecture Call as C/C++ APIs Library Layer + Linux Libs (C/C++) Call as SysCall(C/ASM Kernel/Driver Layer (C/ASM)Project, 2006-2008 ©SIProp 95

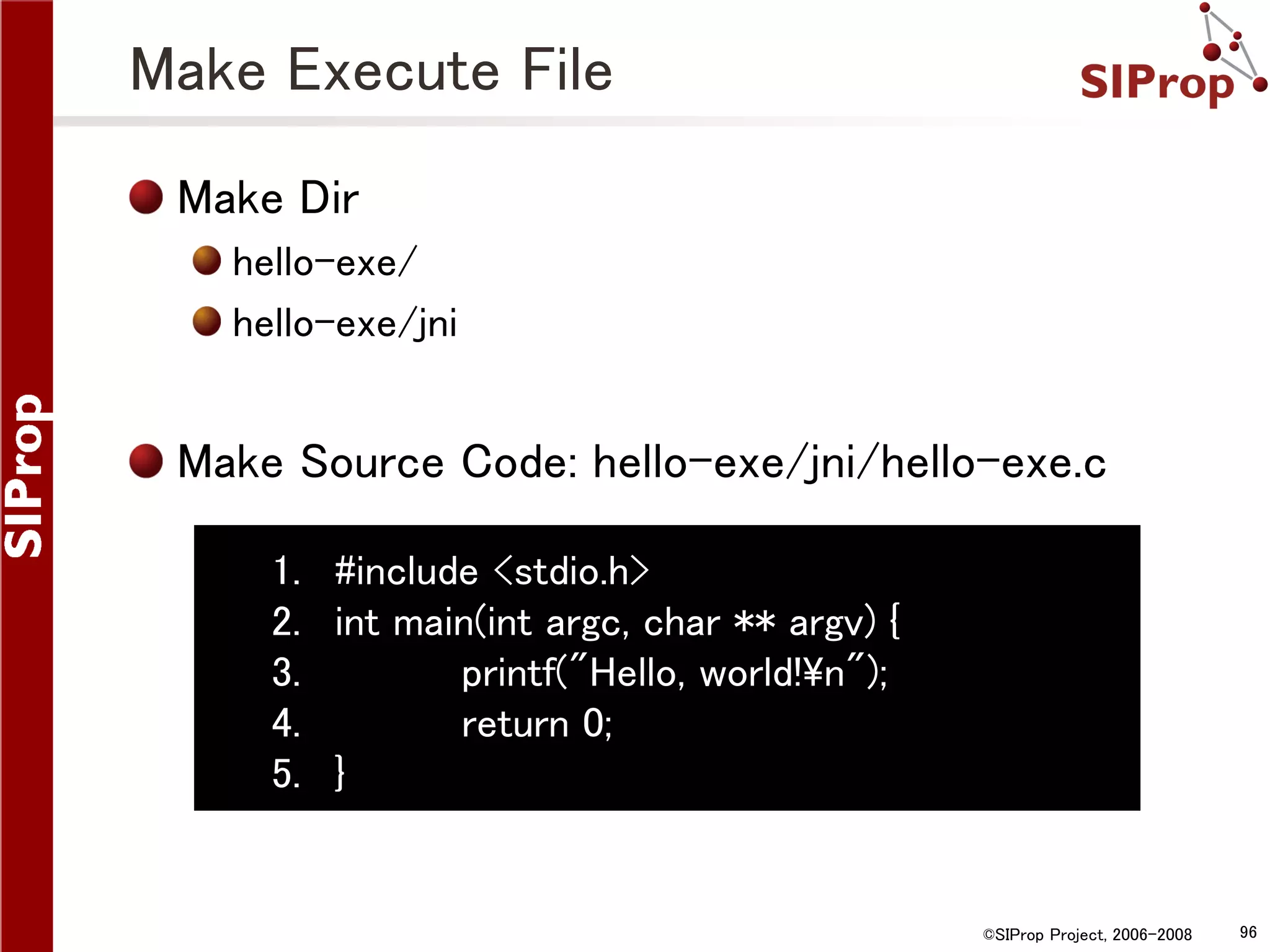

Make Execute File Make Dir hello-exe/ hello-exe/jni Make Source Code: hello-exe/jni/hello-exe.c 1. #include <stdio.h> 2. int main(int argc, char ** argv) { 3. printf("Hello, world!n"); 4. return 0; 5. } ©SIProp Project, 2006-2008 96

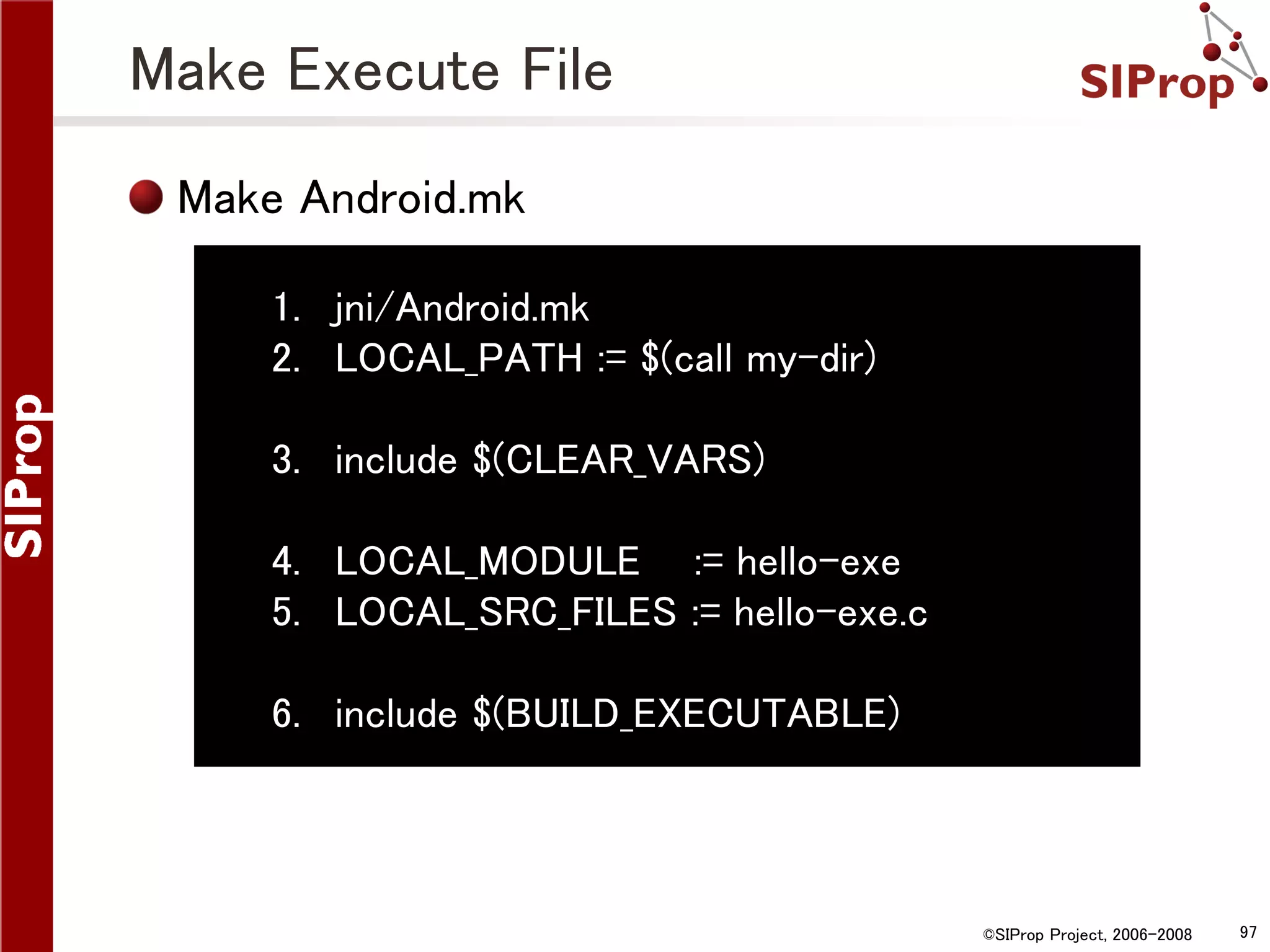

Make Execute File Make Android.mk 1. jni/Android.mk 2. LOCAL_PATH := $(call my-dir) 3. include $(CLEAR_VARS) 4. LOCAL_MODULE := hello-exe 5. LOCAL_SRC_FILES := hello-exe.c 6. include $(BUILD_EXECUTABLE) ©SIProp Project, 2006-2008 97

Build Execute File Build C/C++ Source Codes › ndk-build [clean all] Setup & Execute Execute File › › › › › adb push obj/local/armeabi/hello-exe /bin/ adb shell $ cd bin $ chmod +x hello-exe ./hello-exe Required “root permission” ©SIProp Project, 2006-2008 98

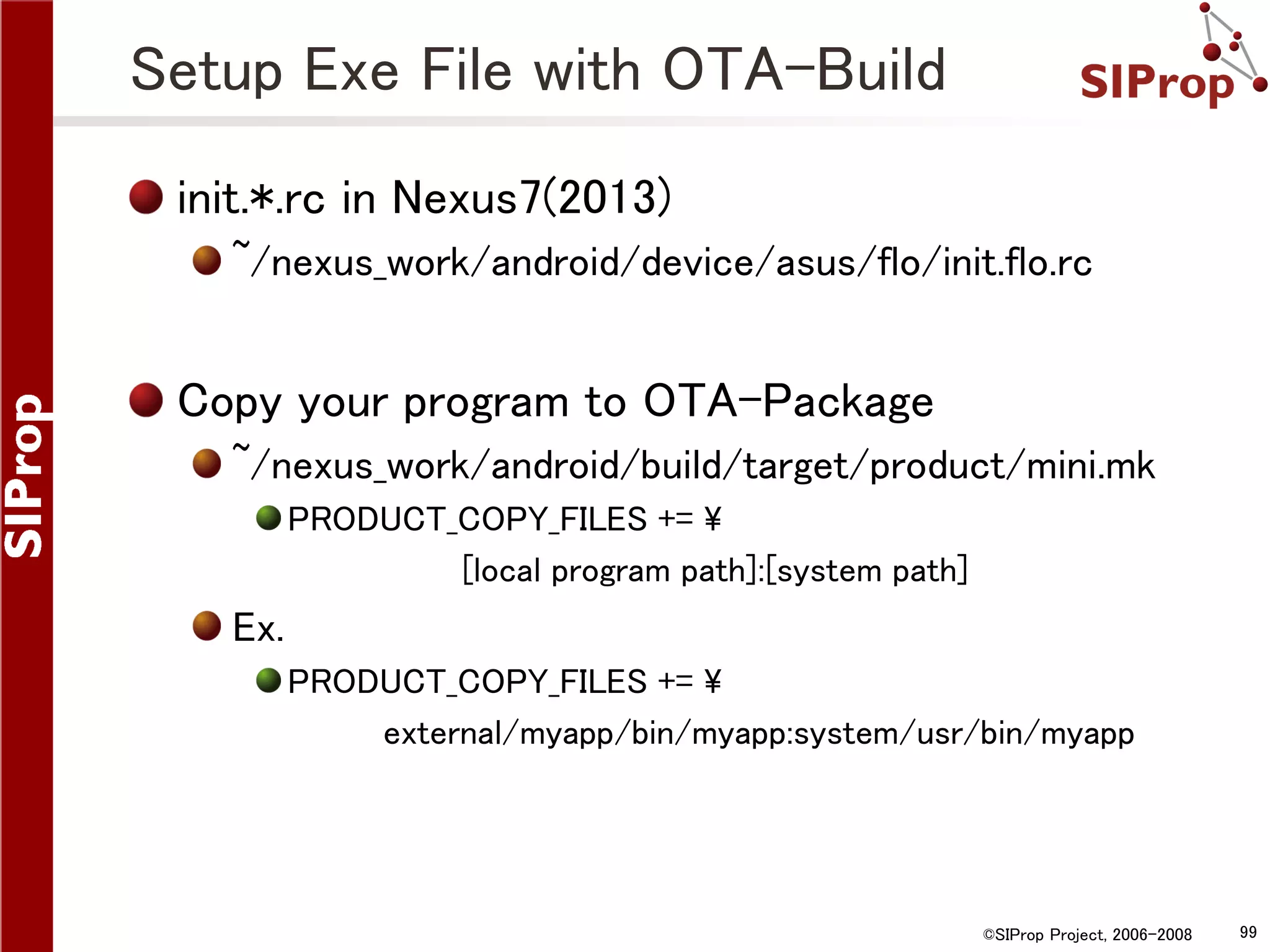

Setup Exe File with OTA-Build init.*.rc in Nexus7(2013) ~/nexus_work/android/device/asus/flo/init.flo.rc Copy your program to OTA-Package ~/nexus_work/android/build/target/product/mini.mk PRODUCT_COPY_FILES += [local program path]:[system path] Ex. PRODUCT_COPY_FILES += external/myapp/bin/myapp:system/usr/bin/myapp ©SIProp Project, 2006-2008 99

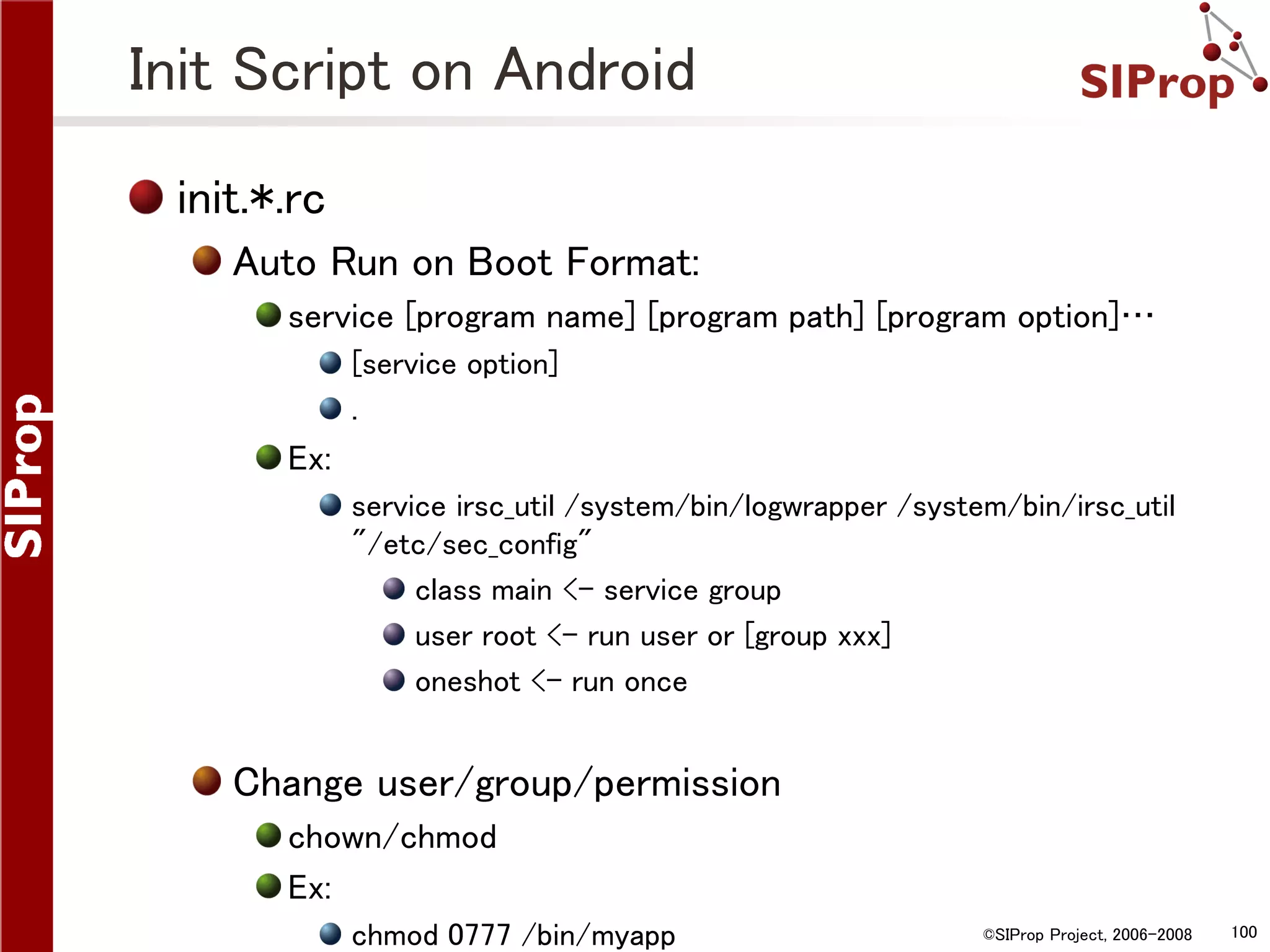

Init Script on Android init.*.rc Auto Run on Boot Format: service [program name] [program path] [program option]… [service option] . Ex: service irsc_util /system/bin/logwrapper /system/bin/irsc_util "/etc/sec_config" class main <- service group user root <- run user or [group xxx] oneshot <- run once Change user/group/permission chown/chmod Ex: chmod 0777 /bin/myapp ©SIProp Project, 2006-2008 100

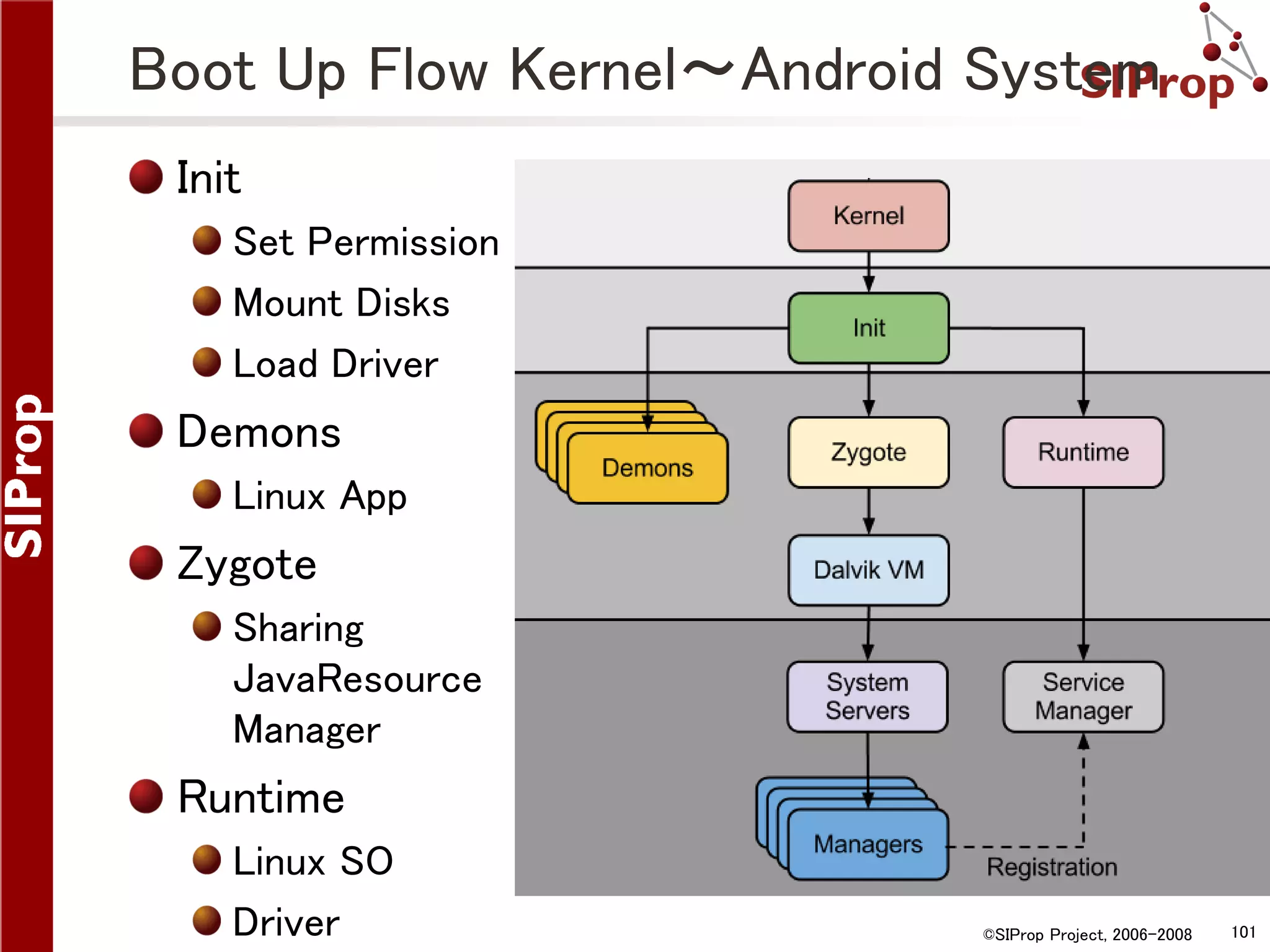

Boot Up Flow Kernel～Android System Init Set Permission Mount Disks Load Driver Demons Linux App Zygote Sharing JavaResource Manager Runtime Linux SO Driver ©SIProp Project, 2006-2008 101

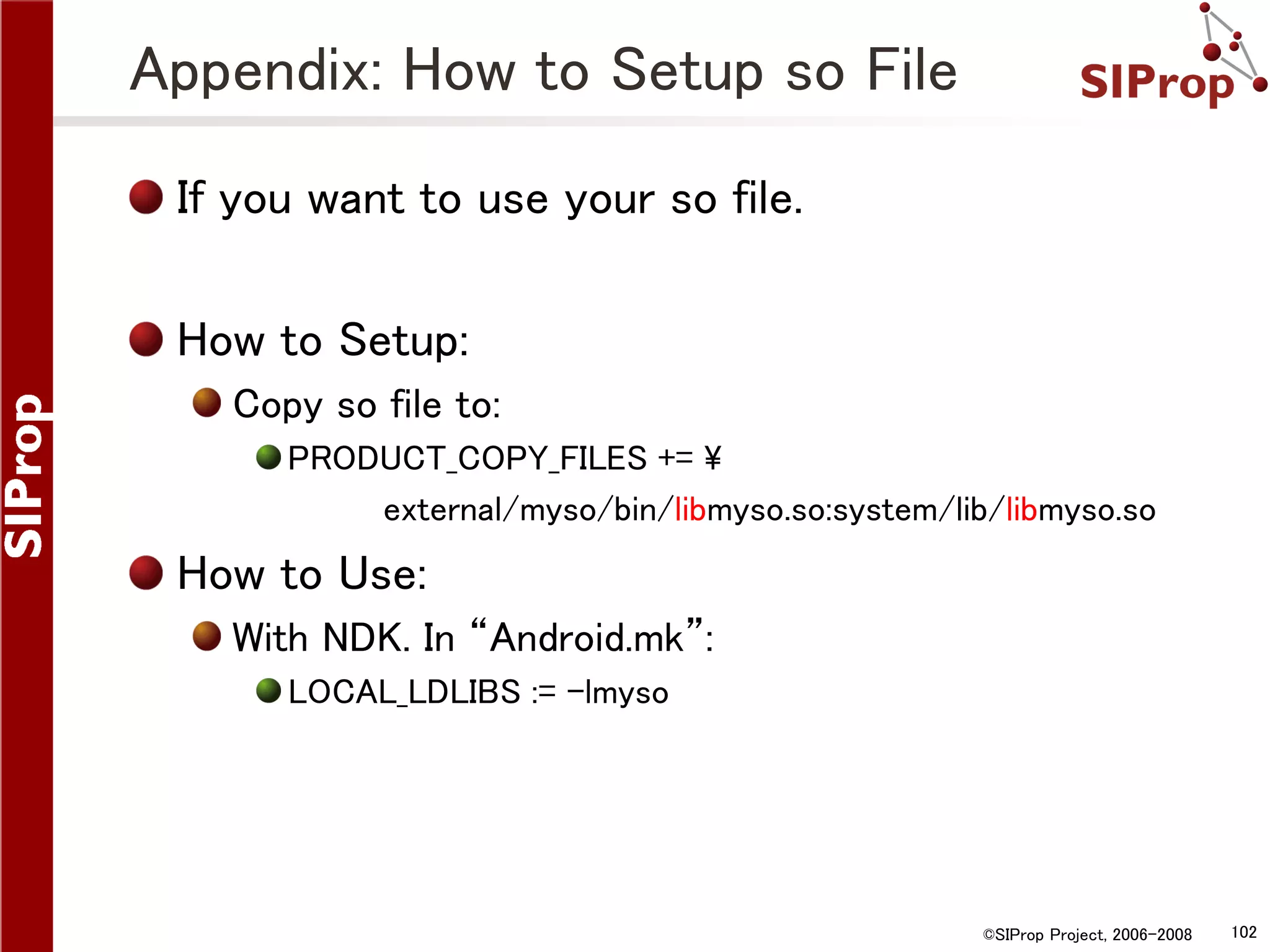

Appendix: How to Setup so File If you want to use your so file. How to Setup: Copy so file to: PRODUCT_COPY_FILES += external/myso/bin/libmyso.so:system/lib/libmyso.so How to Use: With NDK. In “Android.mk”: LOCAL_LDLIBS := -lmyso ©SIProp Project, 2006-2008 102
