Lecture 16 requirements modeling - scenario, information and analysis classes
This document provides an overview and agenda for a lecture on requirements modeling using various UML diagrams. It discusses use case models and how activity diagrams, swimlane diagrams, and data models can supplement use cases. It describes how to develop activity diagrams and swimlane diagrams, representing flows and responsibilities. It also covers data modeling, including entities, attributes, relationships, degrees of relationships, and cardinalities. The document is intended to introduce students to different techniques for requirements modeling using UML diagrams beyond basic use cases.
Lecture 16 requirements modeling - scenario, information and analysis classes
- 1. Introduction to SoftwareEngineering Muhammad Nasir Requirements Modeling - Scenario, Information and Analysis Classes m.nasir@iiu.edu.pk

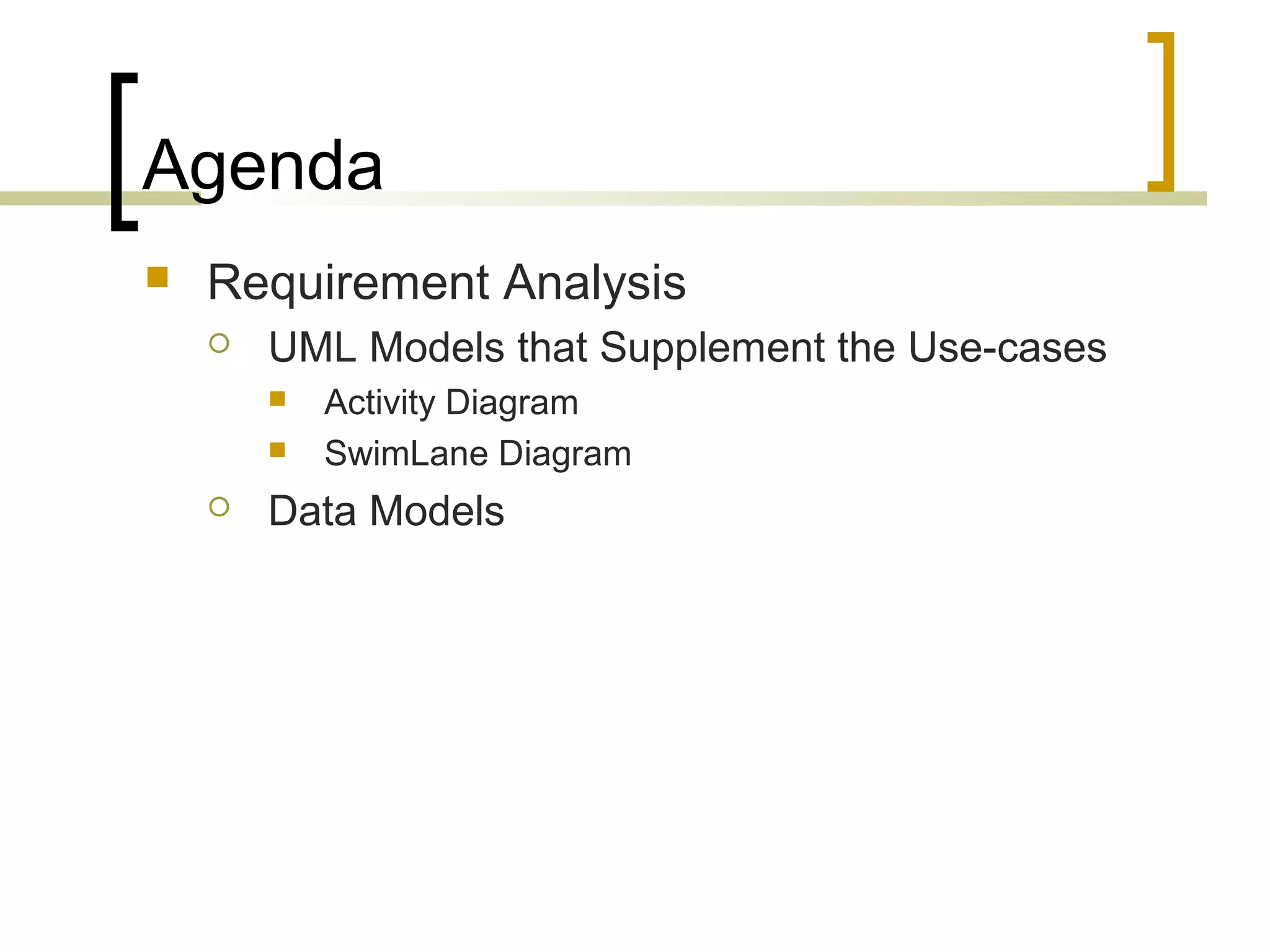

- 2. Agenda RequirementAnalysis UML Models that Supplement the Use-cases Activity Diagram SwimLane Diagram Data Models

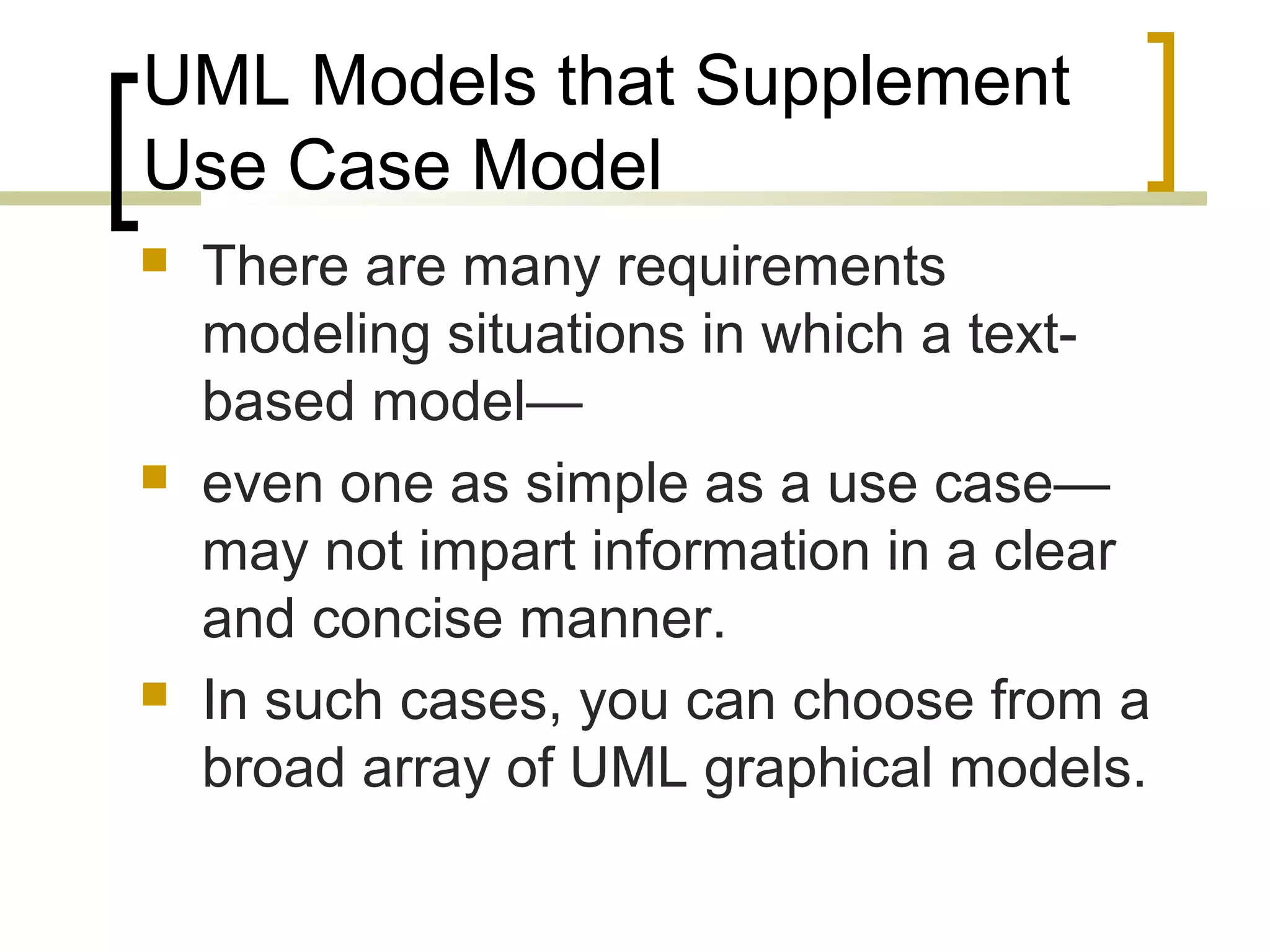

- 3. UML Models thatSupplement Use Case Model There are many requirements modeling situations in which a text-based model— even one as simple as a use case— may not impart information in a clear and concise manner. In such cases, you can choose from a broad array of UML graphical models.

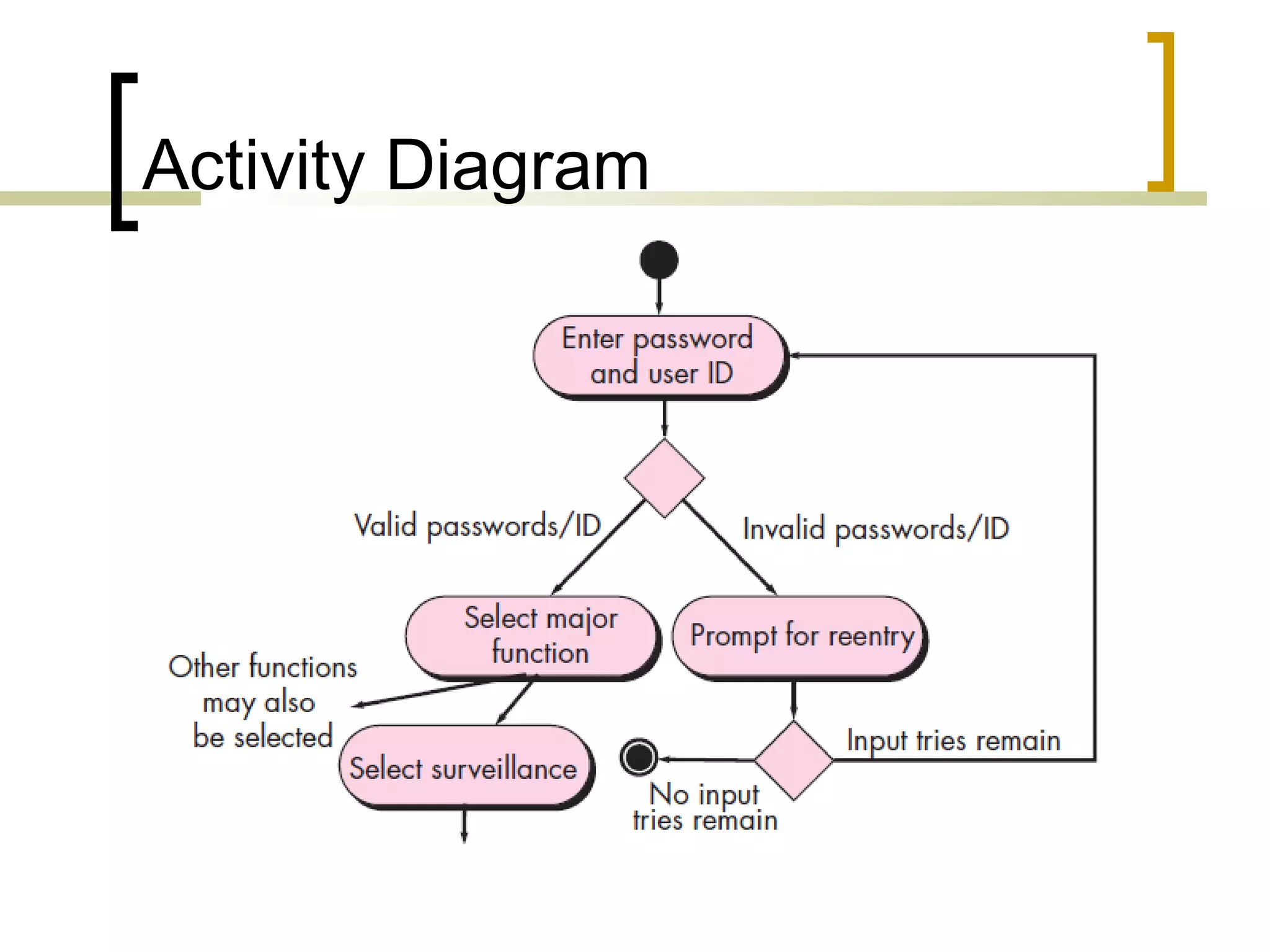

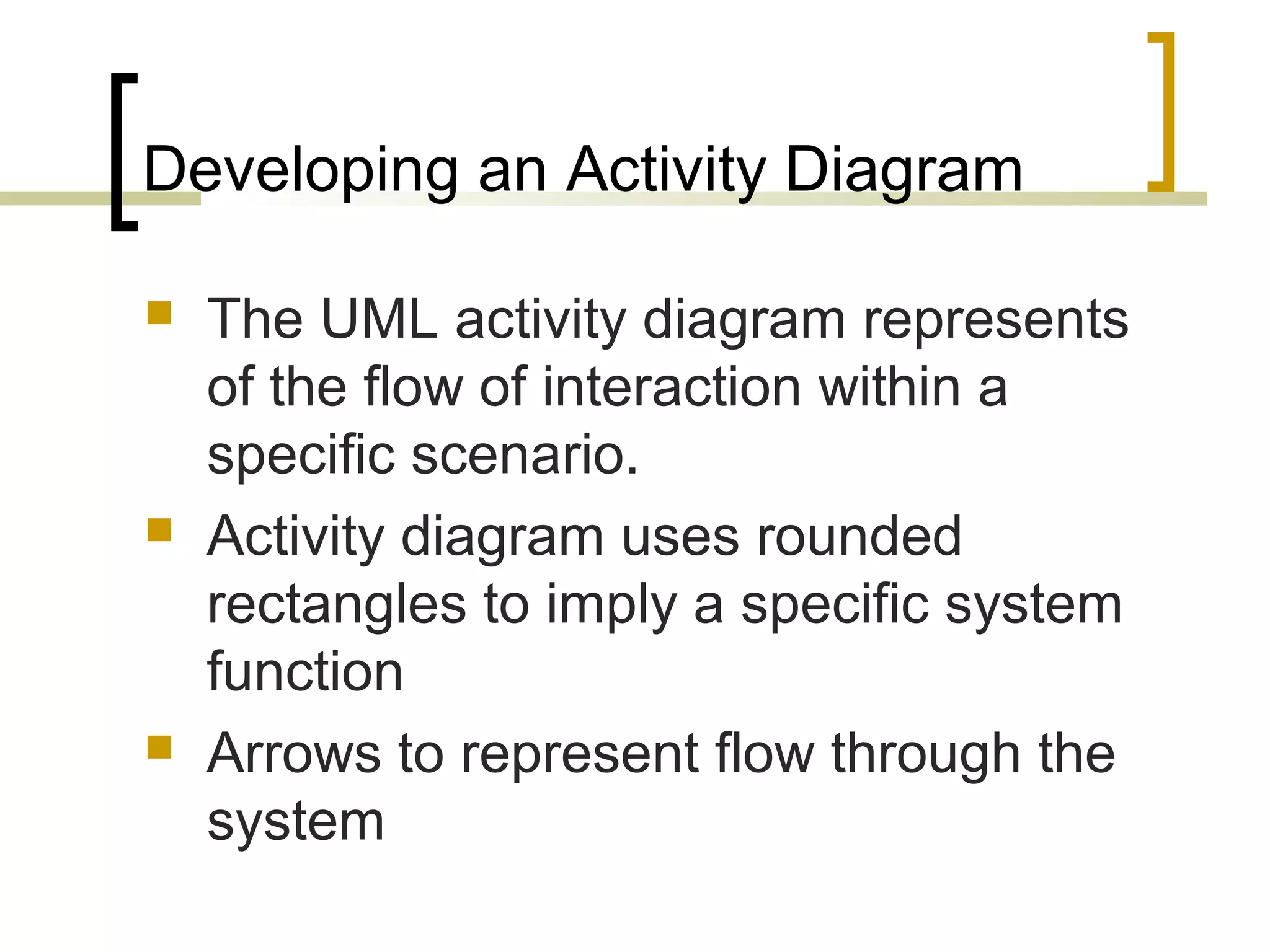

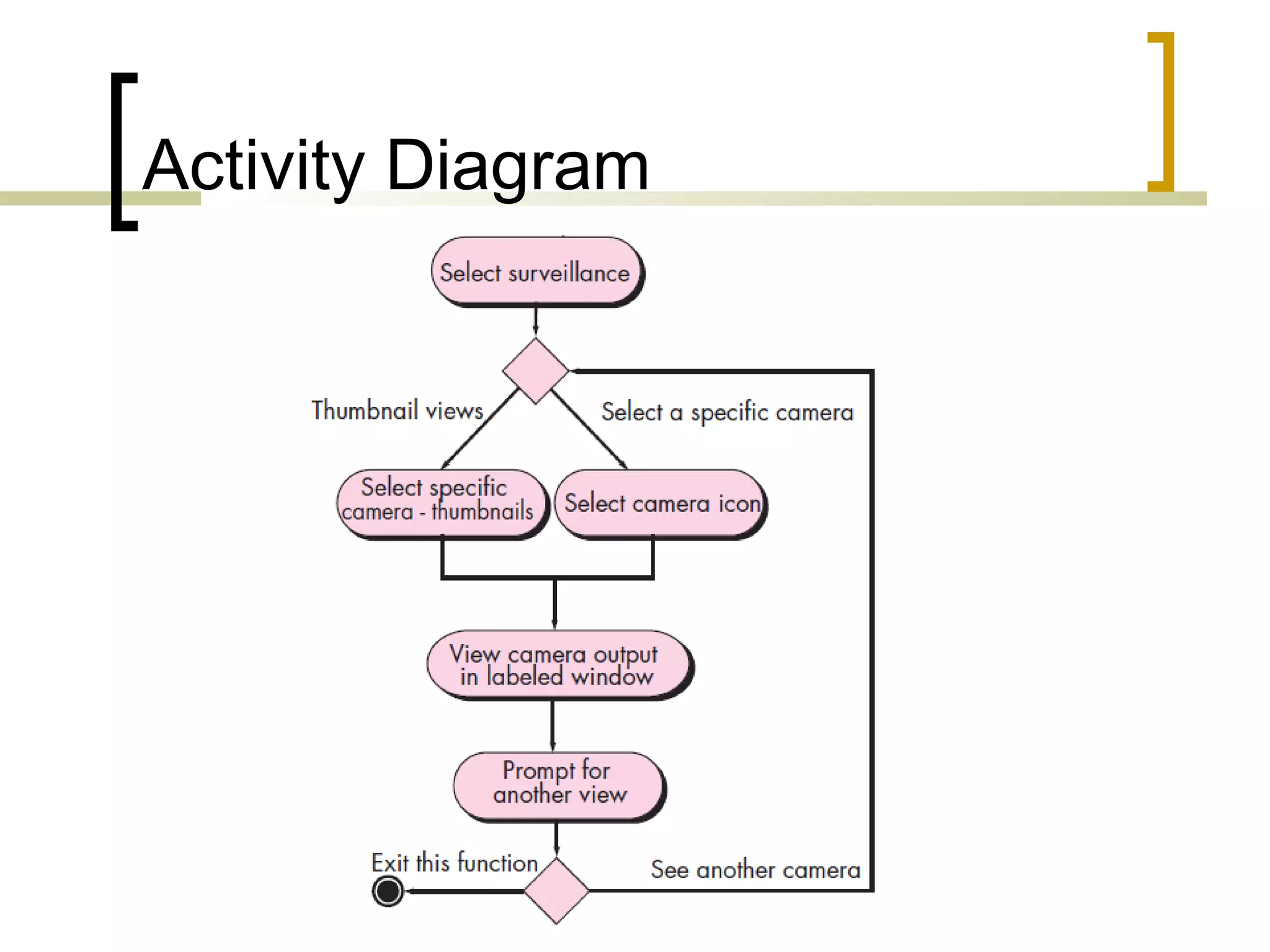

- 4. Developing an ActivityDiagram The UML activity diagram represents of the flow of interaction within a specific scenario. Activity diagram uses rounded rectangles to imply a specific system function Arrows to represent flow through the system

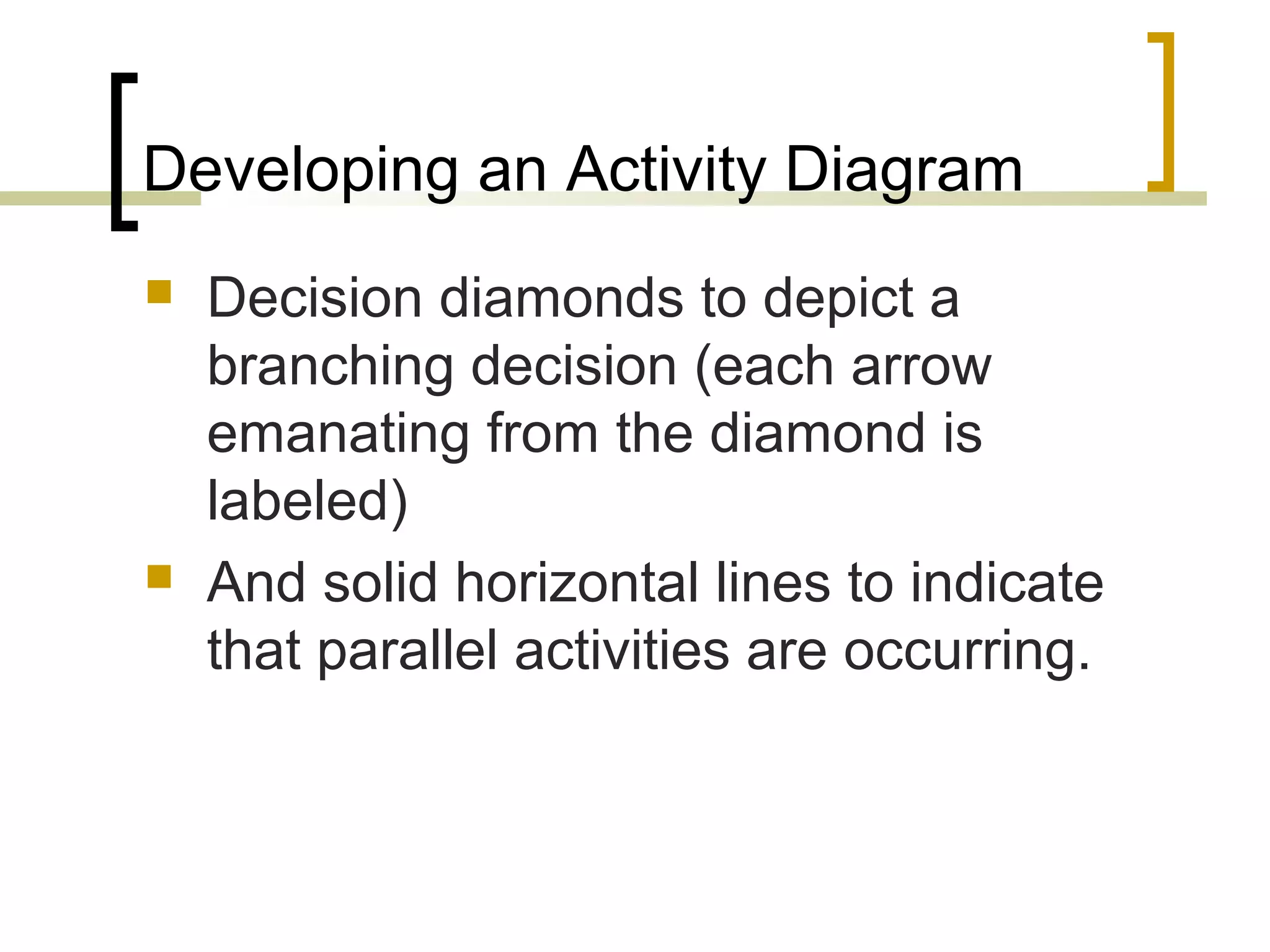

- 5. Developing an ActivityDiagram Decision diamonds to depict a branching decision (each arrow emanating from the diamond is labeled) And solid horizontal lines to indicate that parallel activities are occurring.
- 6.
- 7.

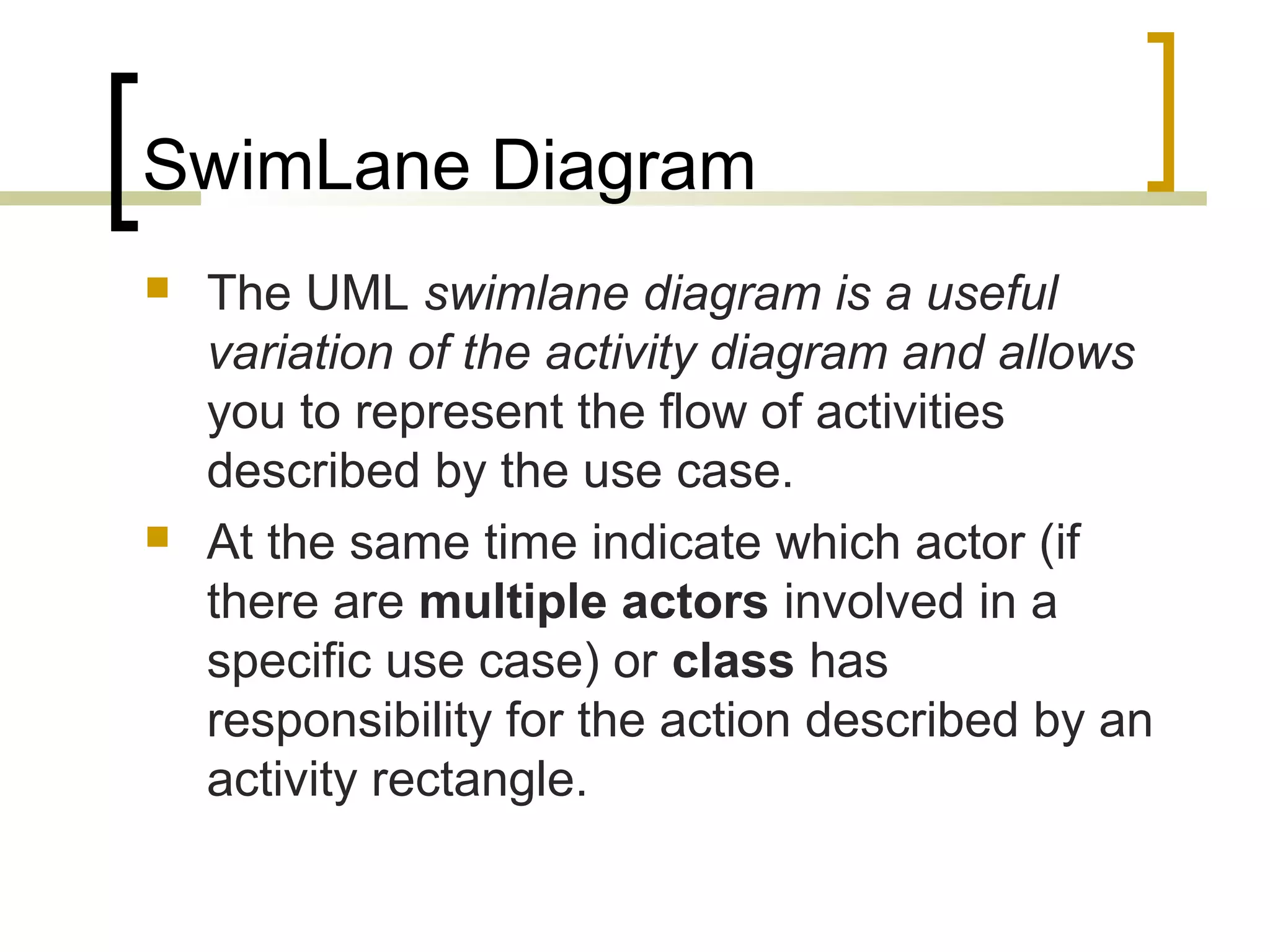

- 8. SwimLane Diagram The UML swimlane diagram is a useful variation of the activity diagram and allows you to represent the flow of activities described by the use case. At the same time indicate which actor (if there are multiple actors involved in a specific use case) or class has responsibility for the action described by an activity rectangle.

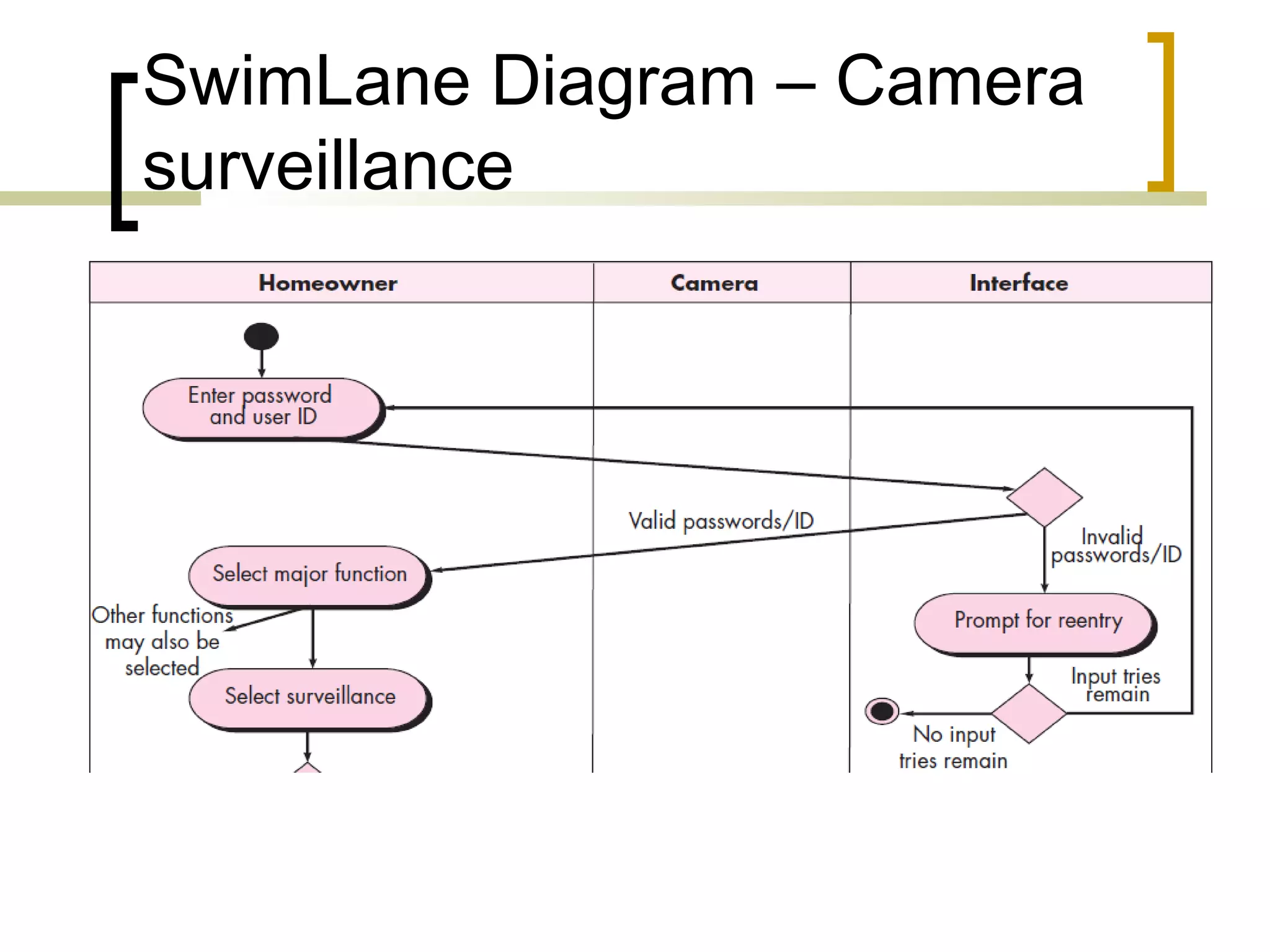

- 9. SwimLane Diagram –Camera surveillance

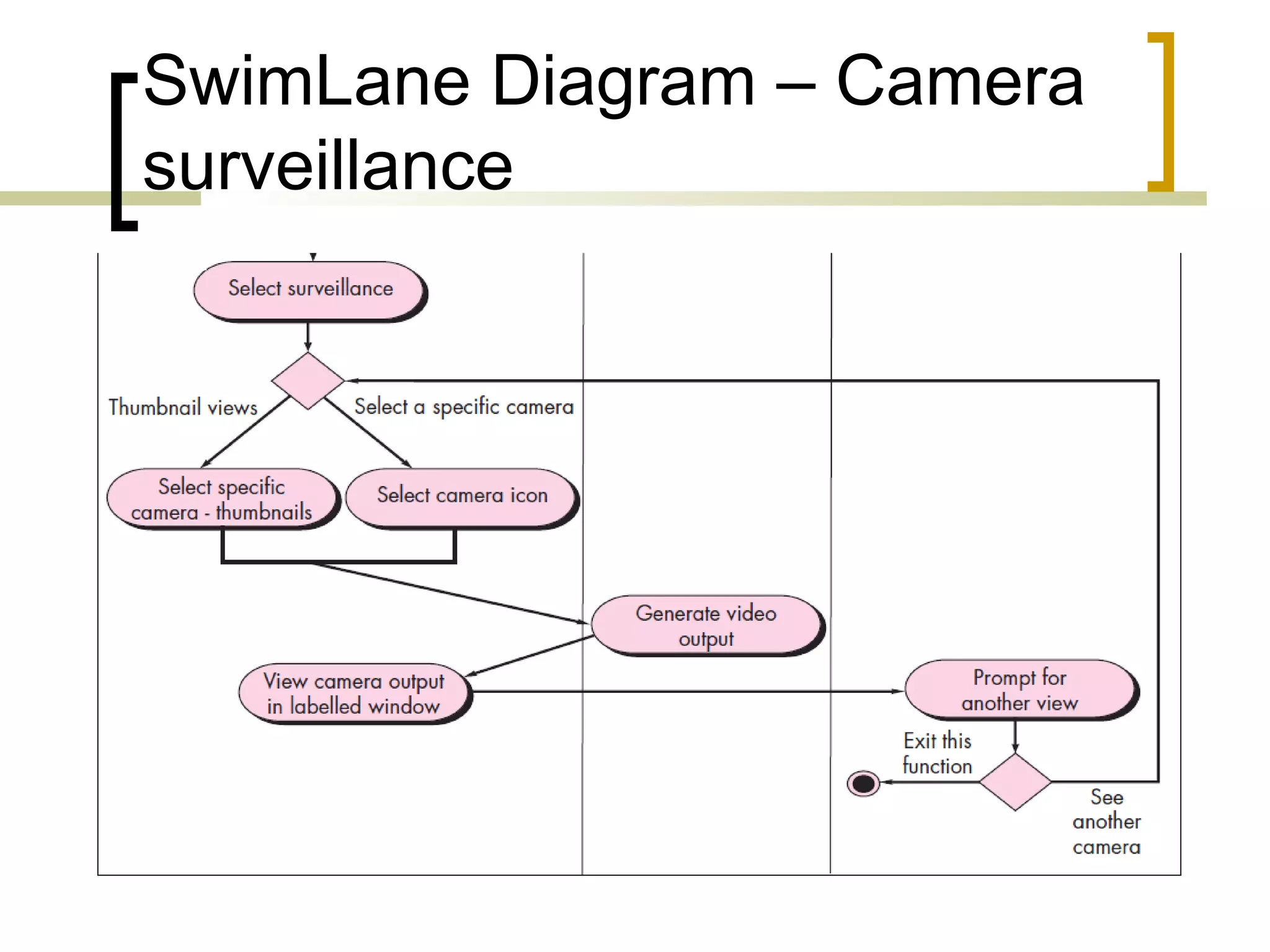

- 10. SwimLane Diagram –Camera surveillance

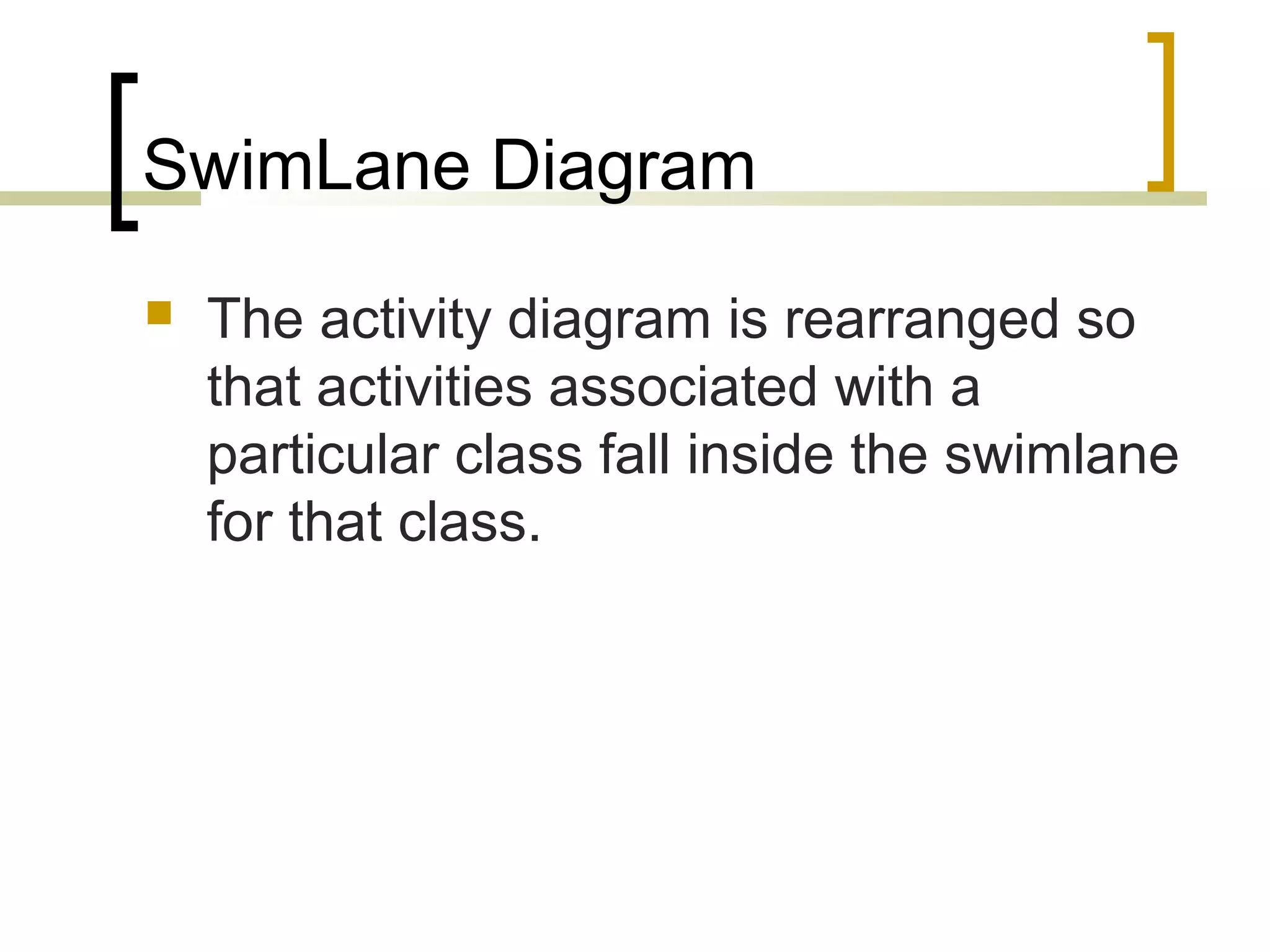

- 11. SwimLane Diagram The activity diagram is rearranged so that activities associated with a particular class fall inside the swimlane for that class.

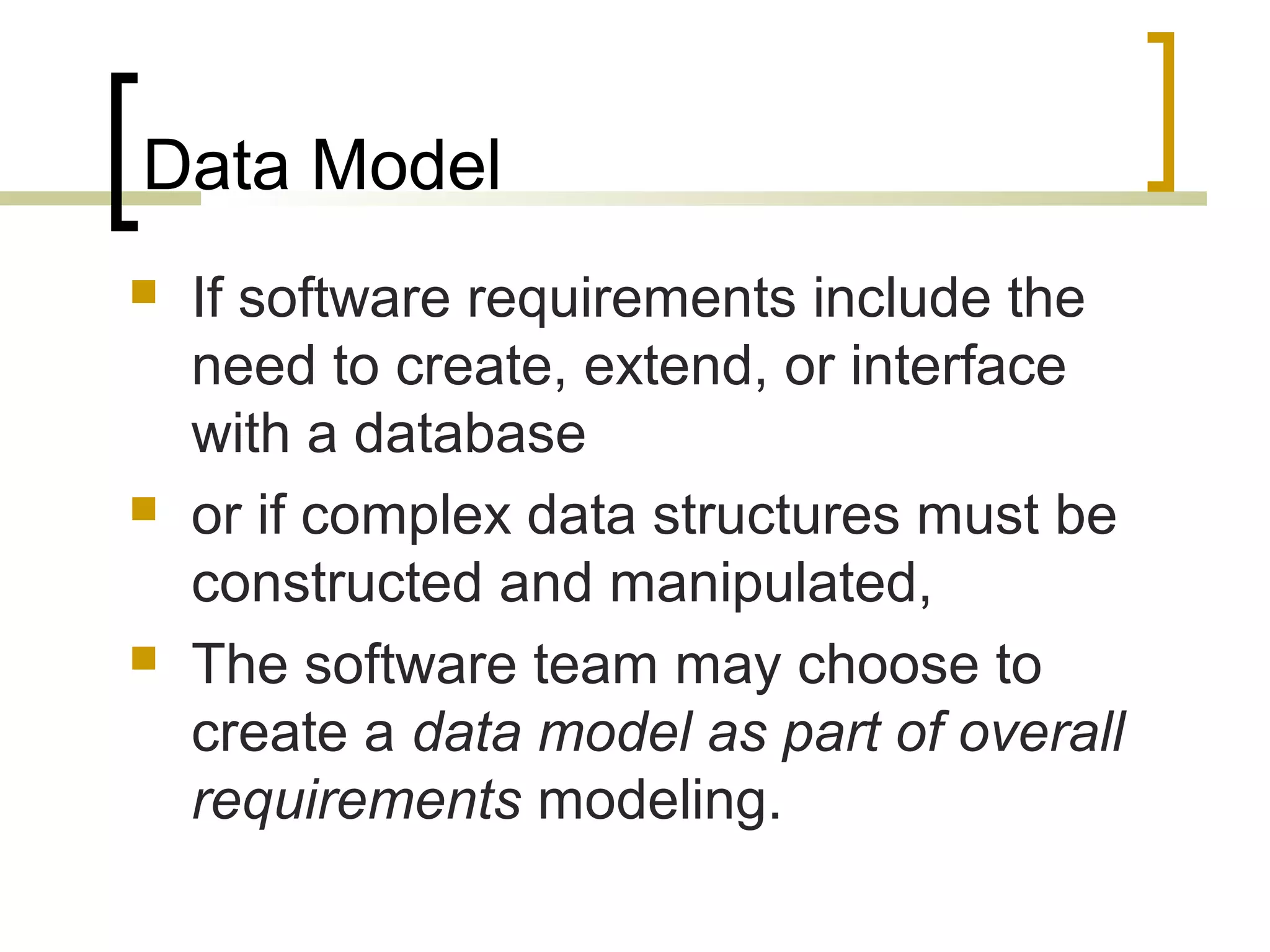

- 12. Data Model If software requirements include the need to create, extend, or interface with a database or if complex data structures must be constructed and manipulated, The software team may choose to create a data model as part of overall requirements modeling.

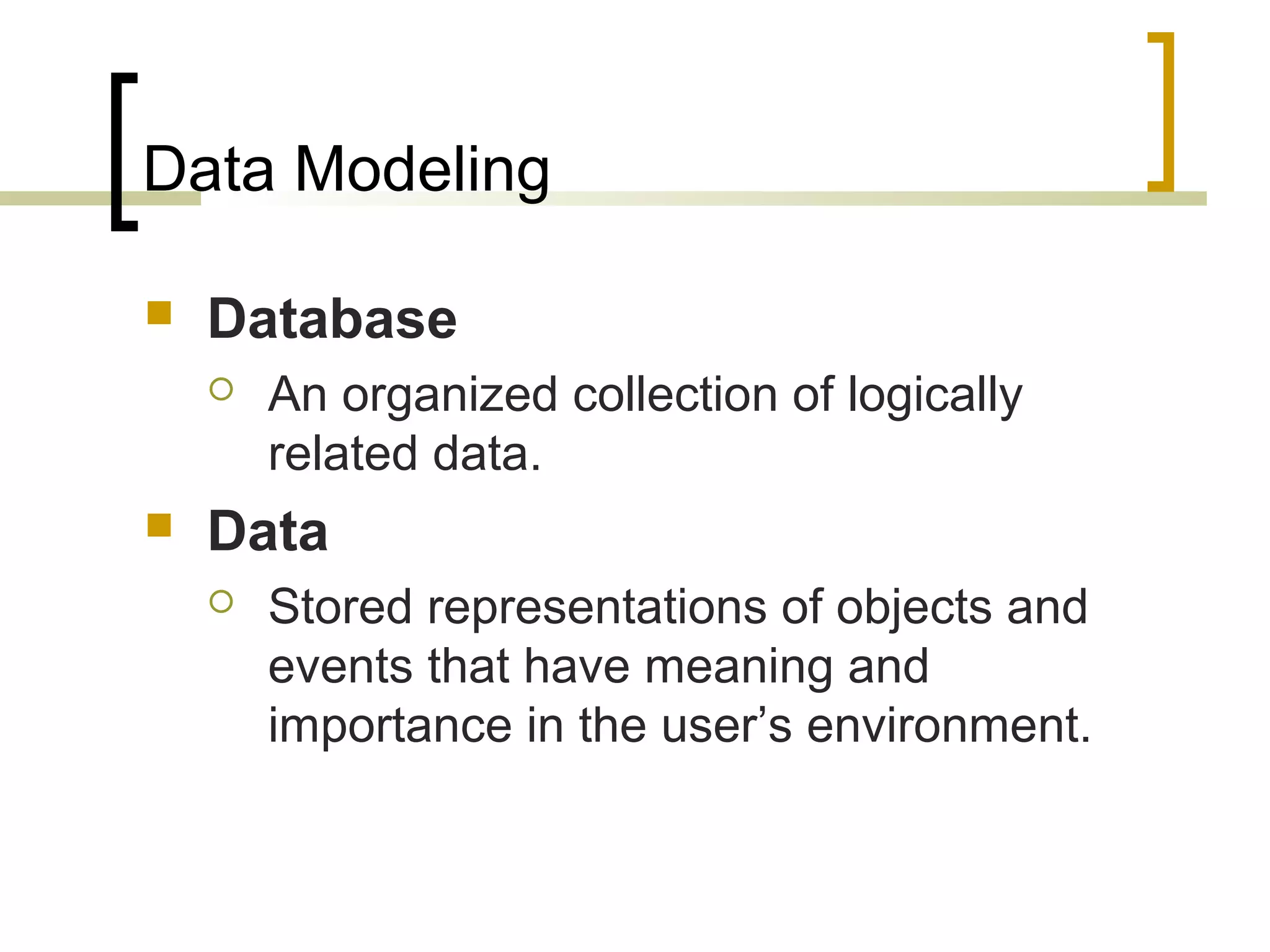

- 13. Data Modeling Database An organized collection of logically related data. Data Stored representations of objects and events that have meaning and importance in the user’s environment.

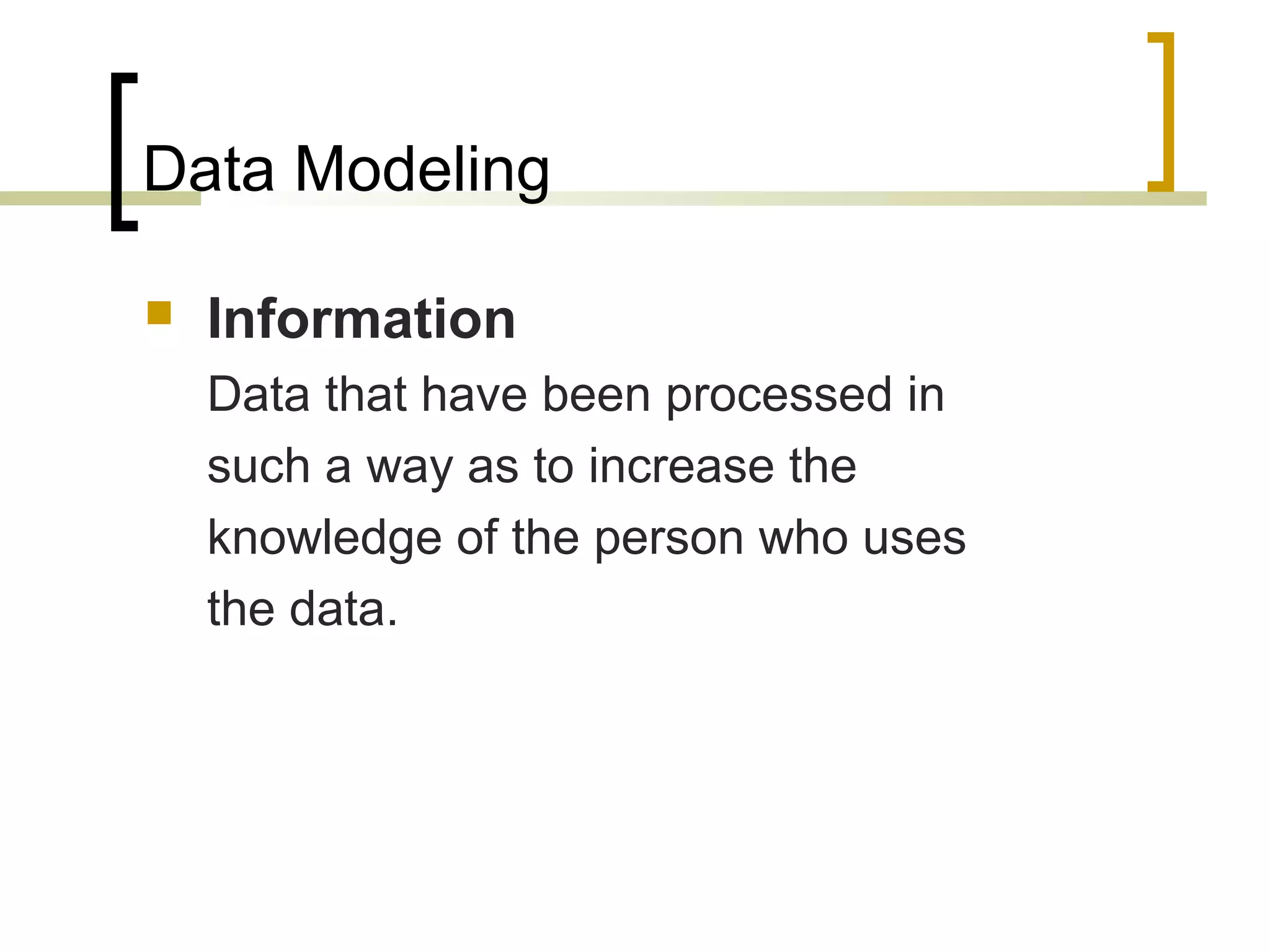

- 14. Data Modeling Information Data that have been processed in such a way as to increase the knowledge of the person who uses the data.

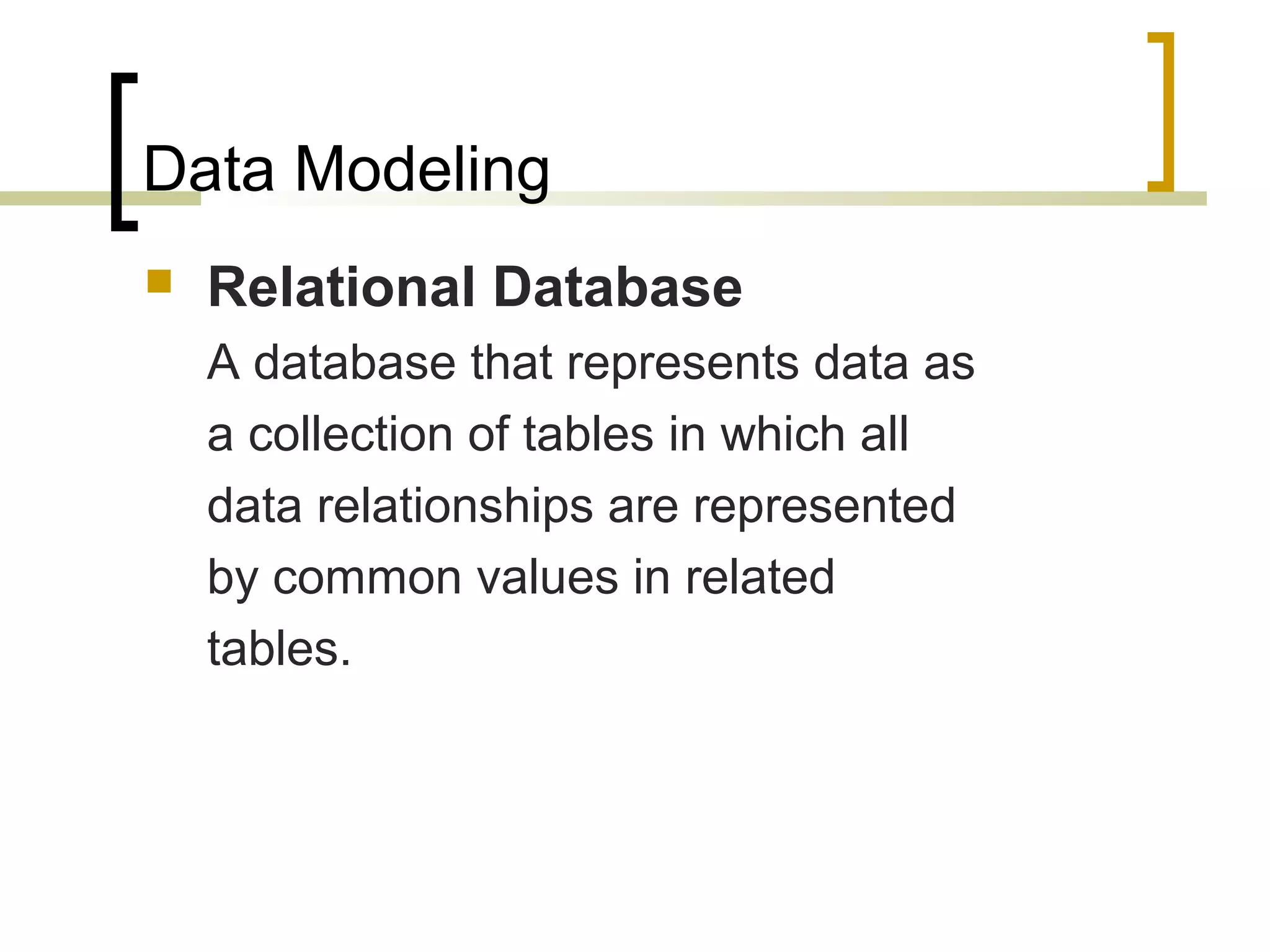

- 15. Data Modeling Relational Database A database that represents data as a collection of tables in which all data relationships are represented by common values in related tables.

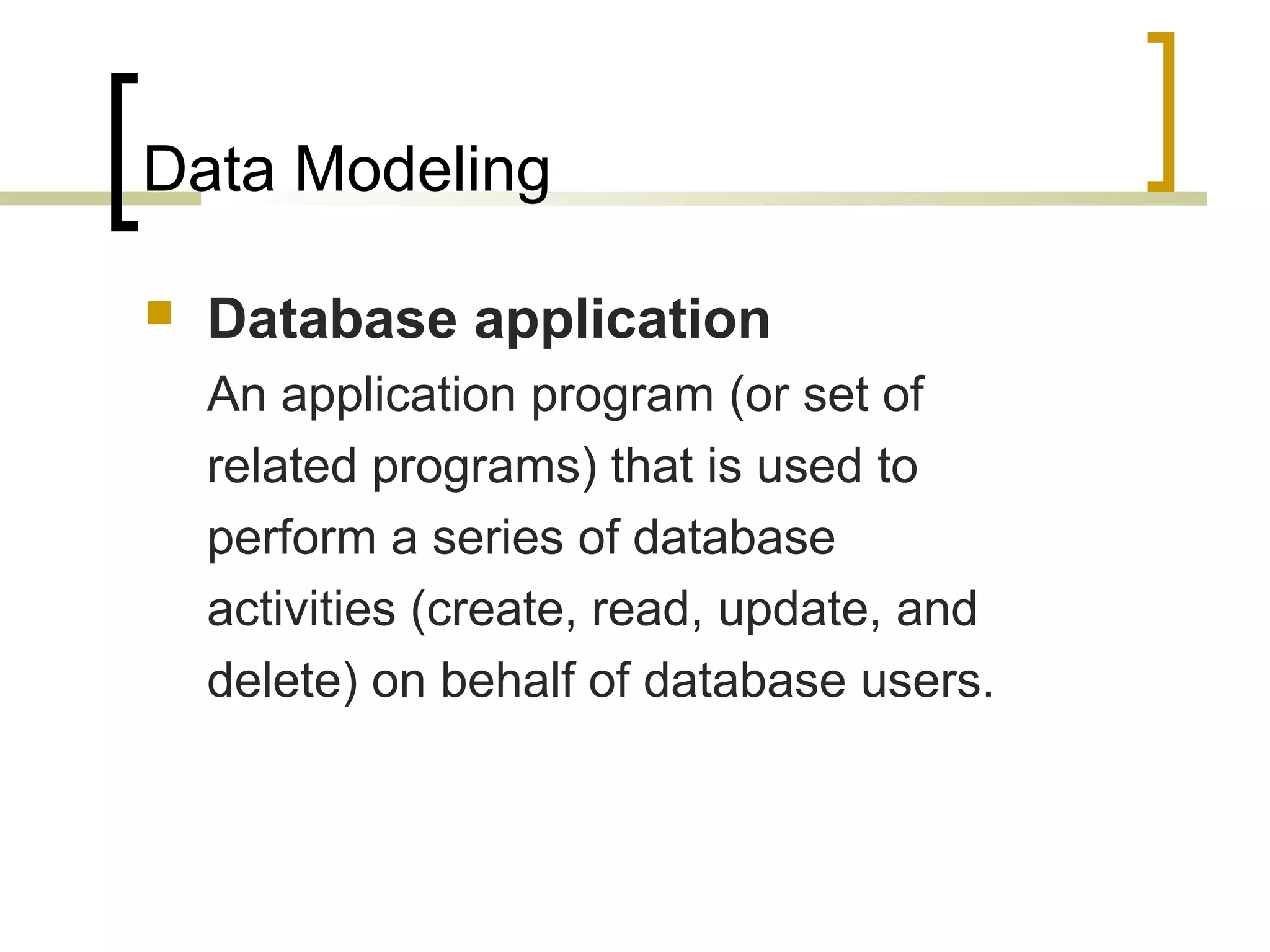

- 16. Data Modeling Database application An application program (or set of related programs) that is used to perform a series of database activities (create, read, update, and delete) on behalf of database users.

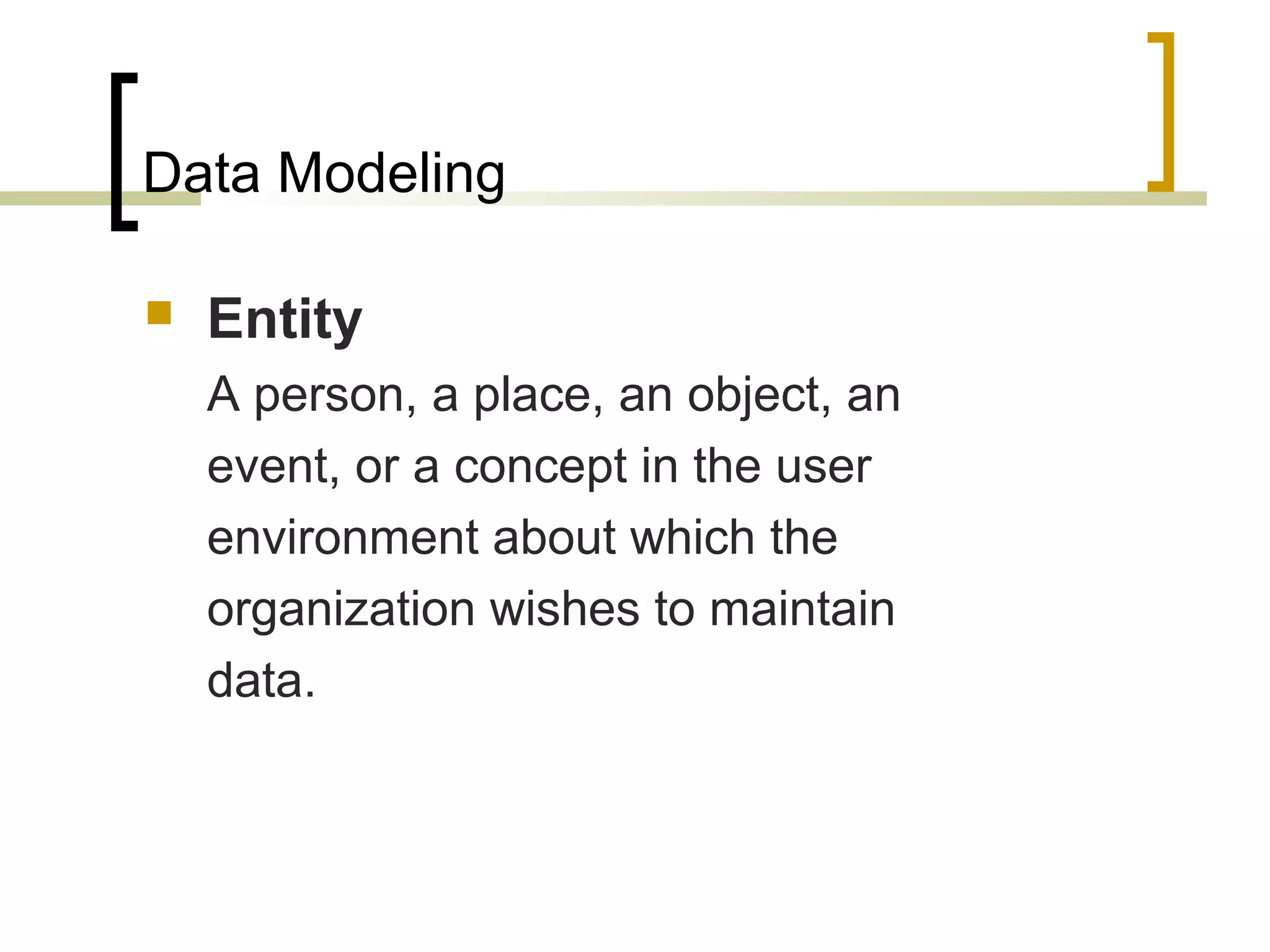

- 17. Data Modeling Entity A person, a place, an object, an event, or a concept in the user environment about which the organization wishes to maintain data.

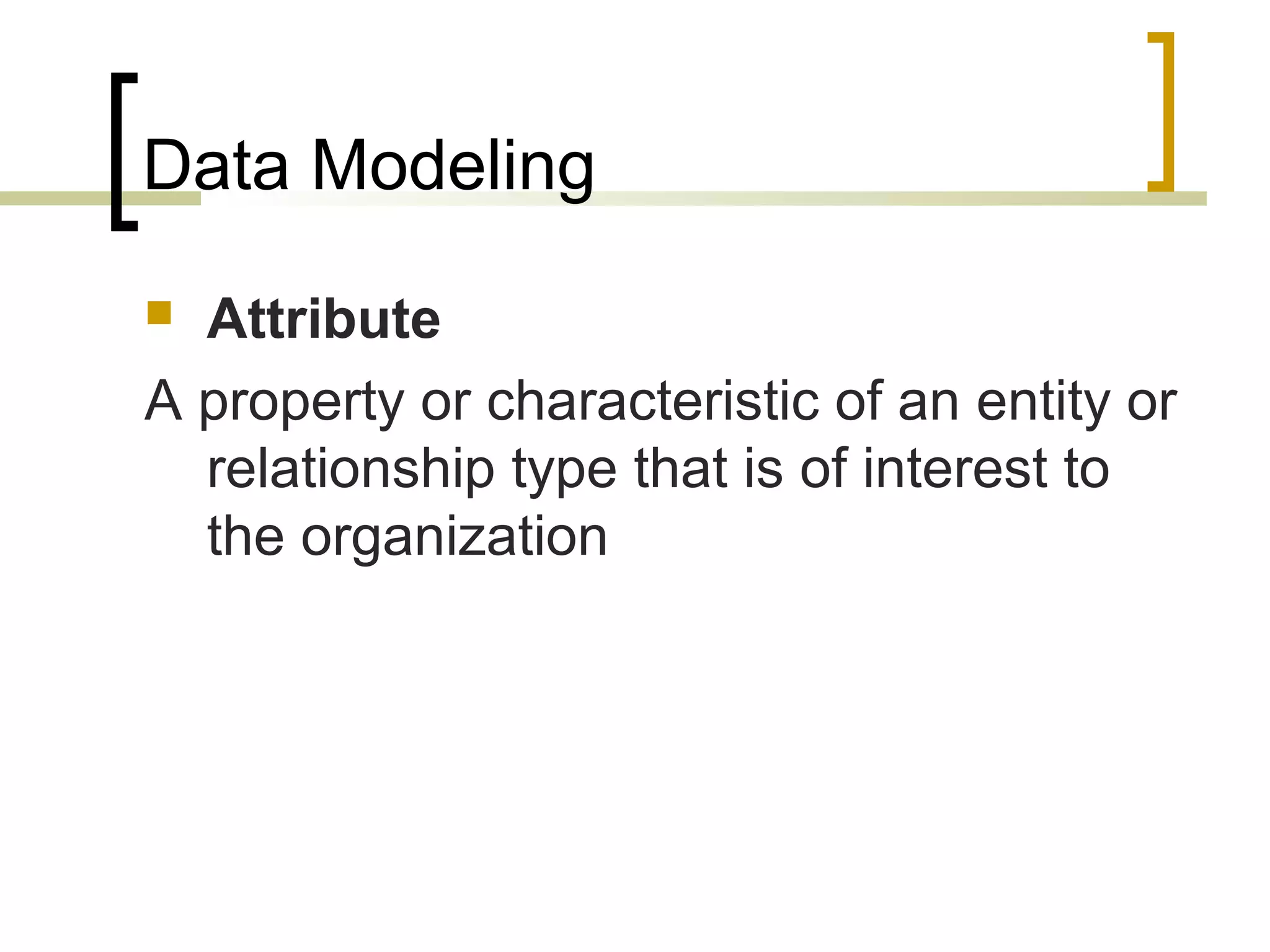

- 18. Data Modeling Attribute A property or characteristic of an entity or relationship type that is of interest to the organization

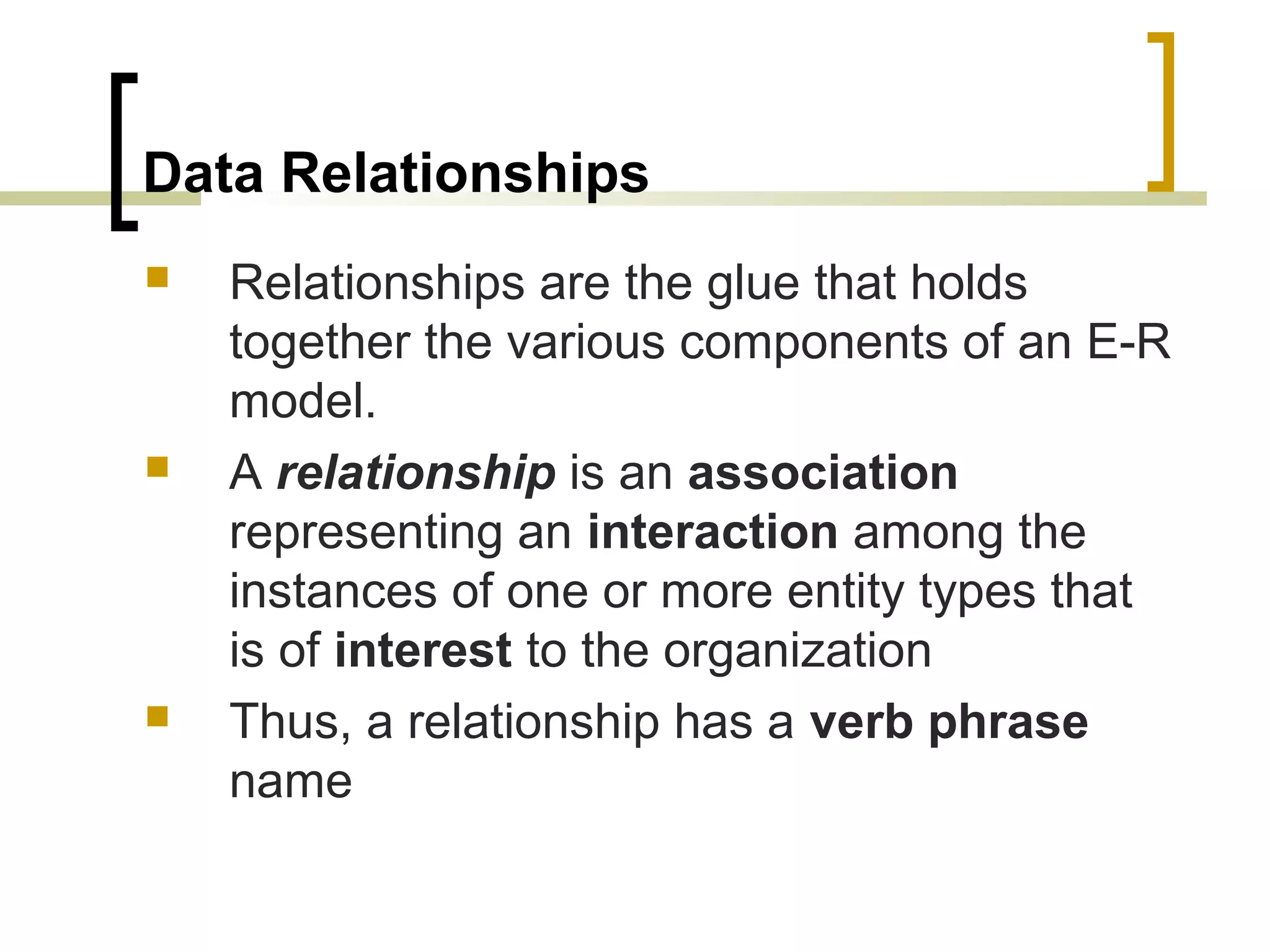

- 19. Data Relationships Relationships are the glue that holds together the various components of an E-R model. A relationship is an association representing an interaction among the instances of one or more entity types that is of interest to the organization Thus, a relationship has a verb phrase name

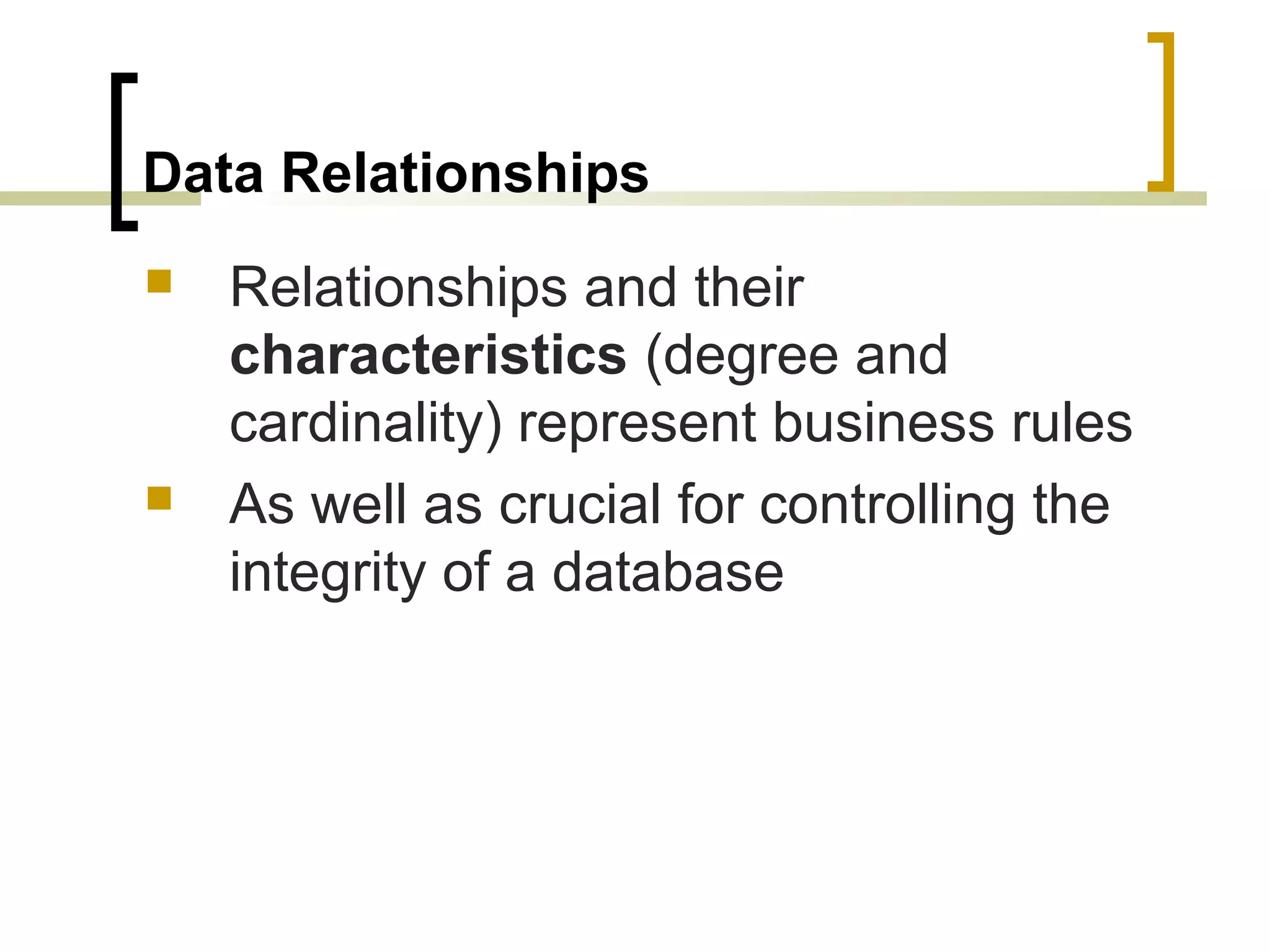

- 20. Data Relationships Relationships and their characteristics (degree and cardinality) represent business rules As well as crucial for controlling the integrity of a database

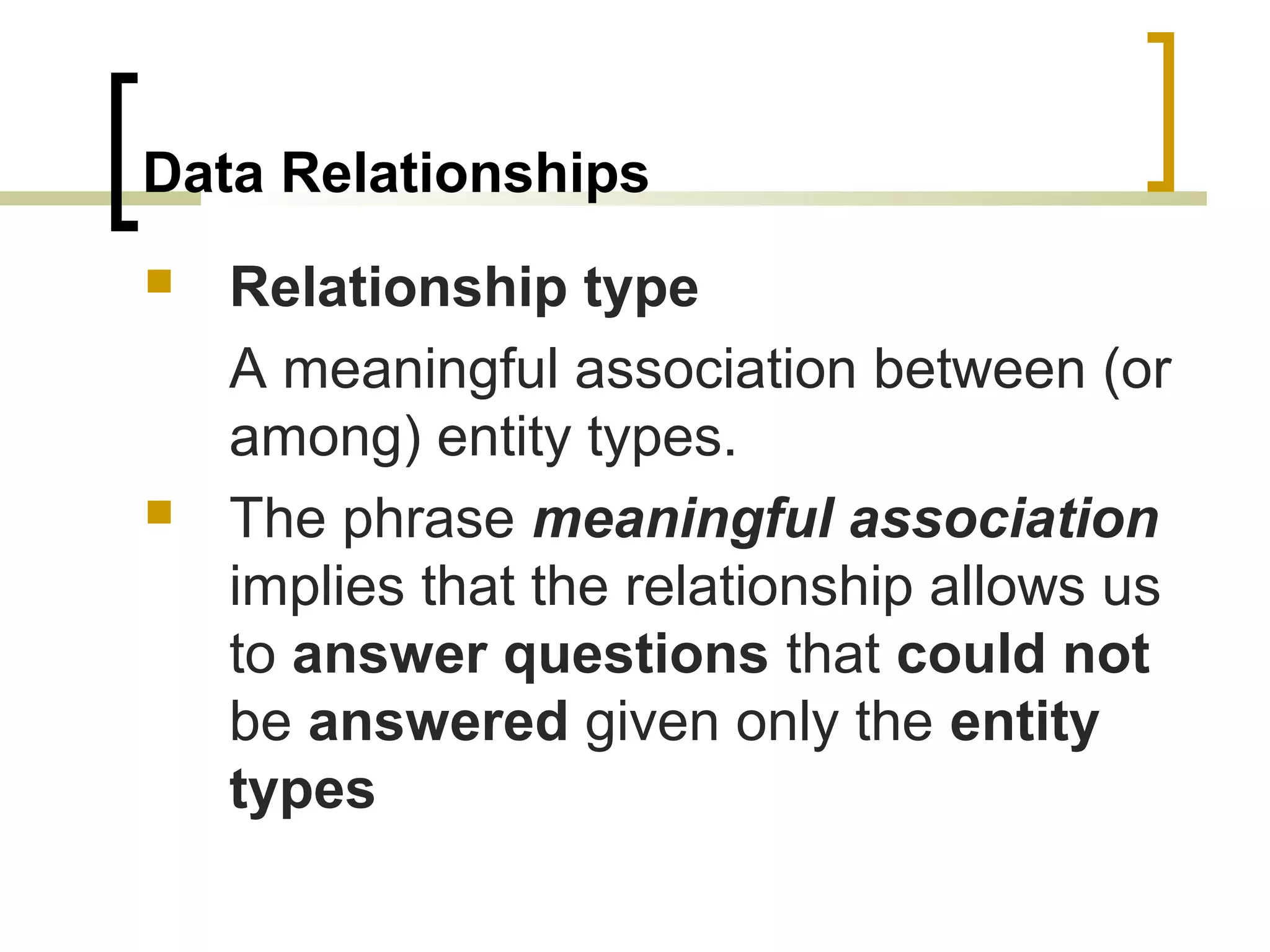

- 21. Data Relationships Relationship type A meaningful association between (or among) entity types. The phrase meaningful association implies that the relationship allows us to answer questions that could not be answered given only the entity types

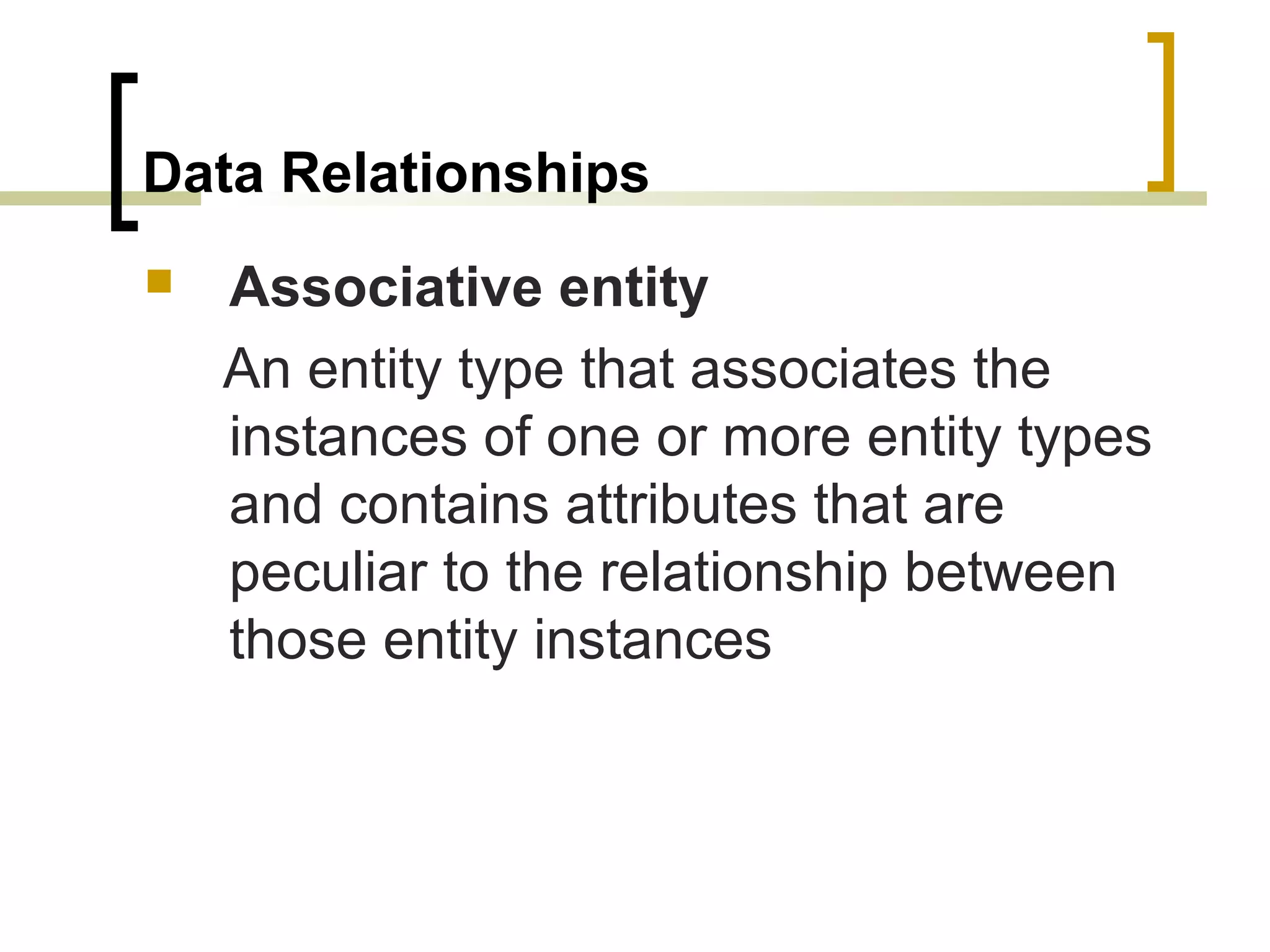

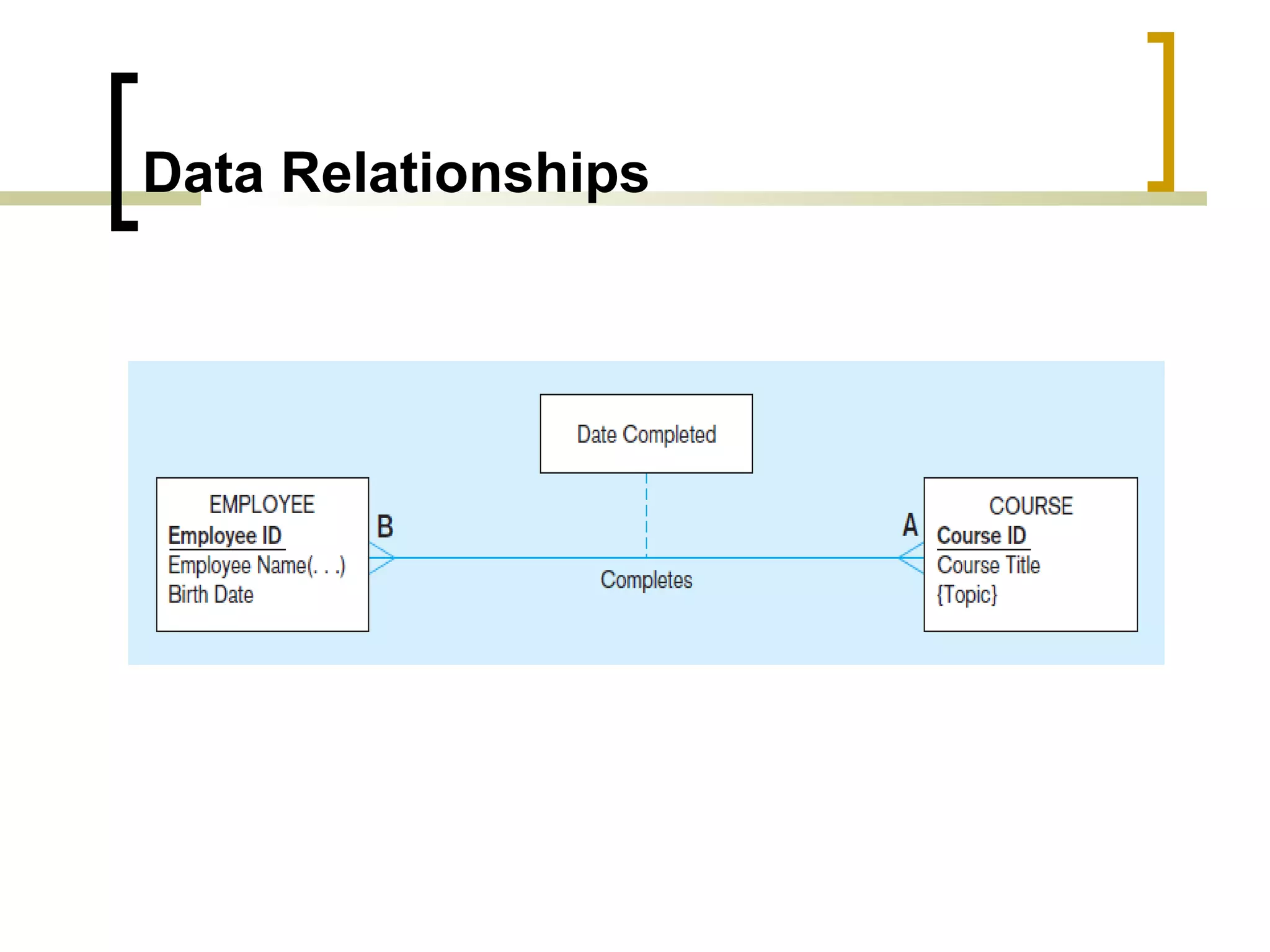

- 22. Data Relationships Associative entity An entity type that associates the instances of one or more entity types and contains attributes that are peculiar to the relationship between those entity instances
- 23.

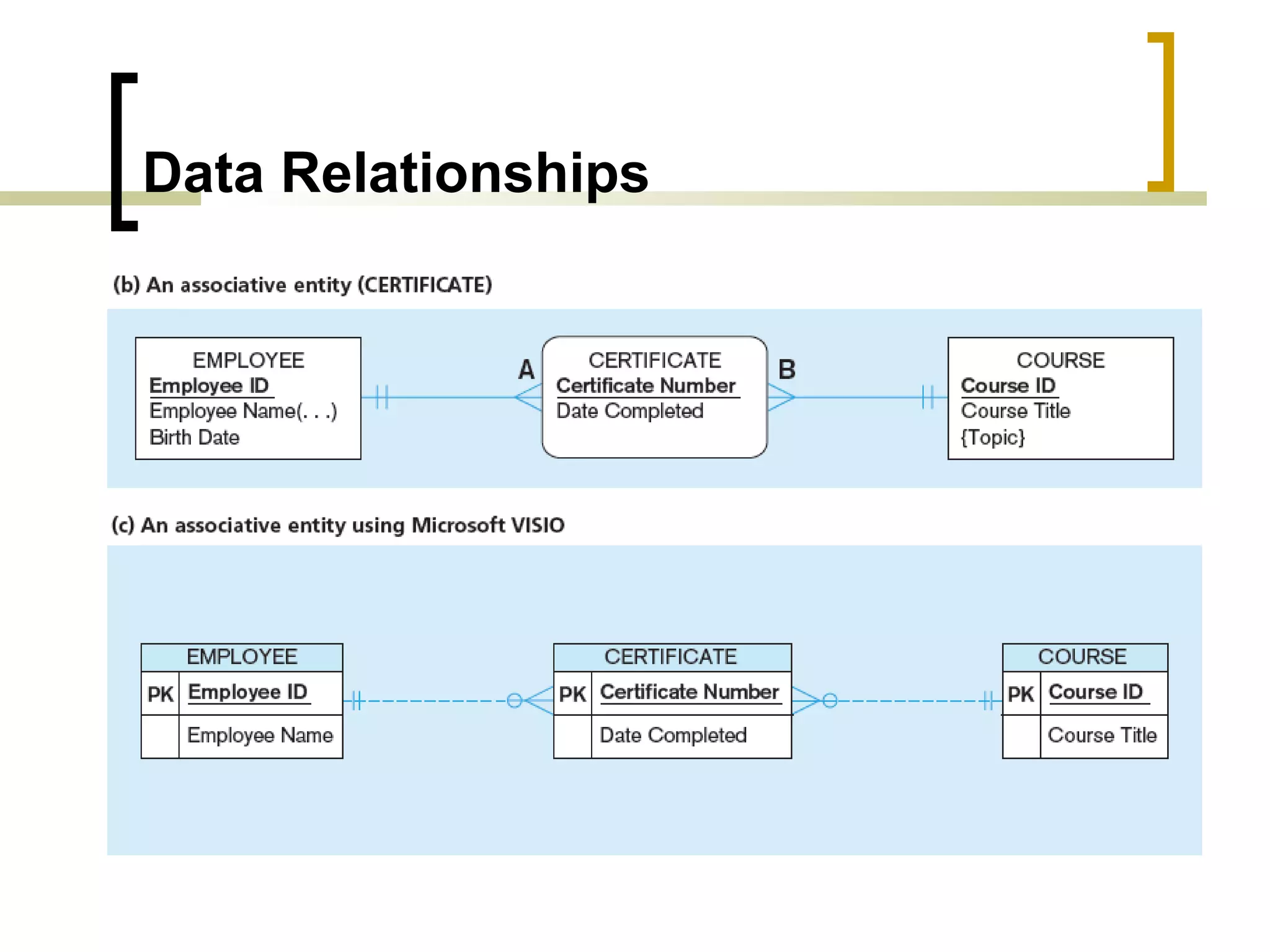

- 24.

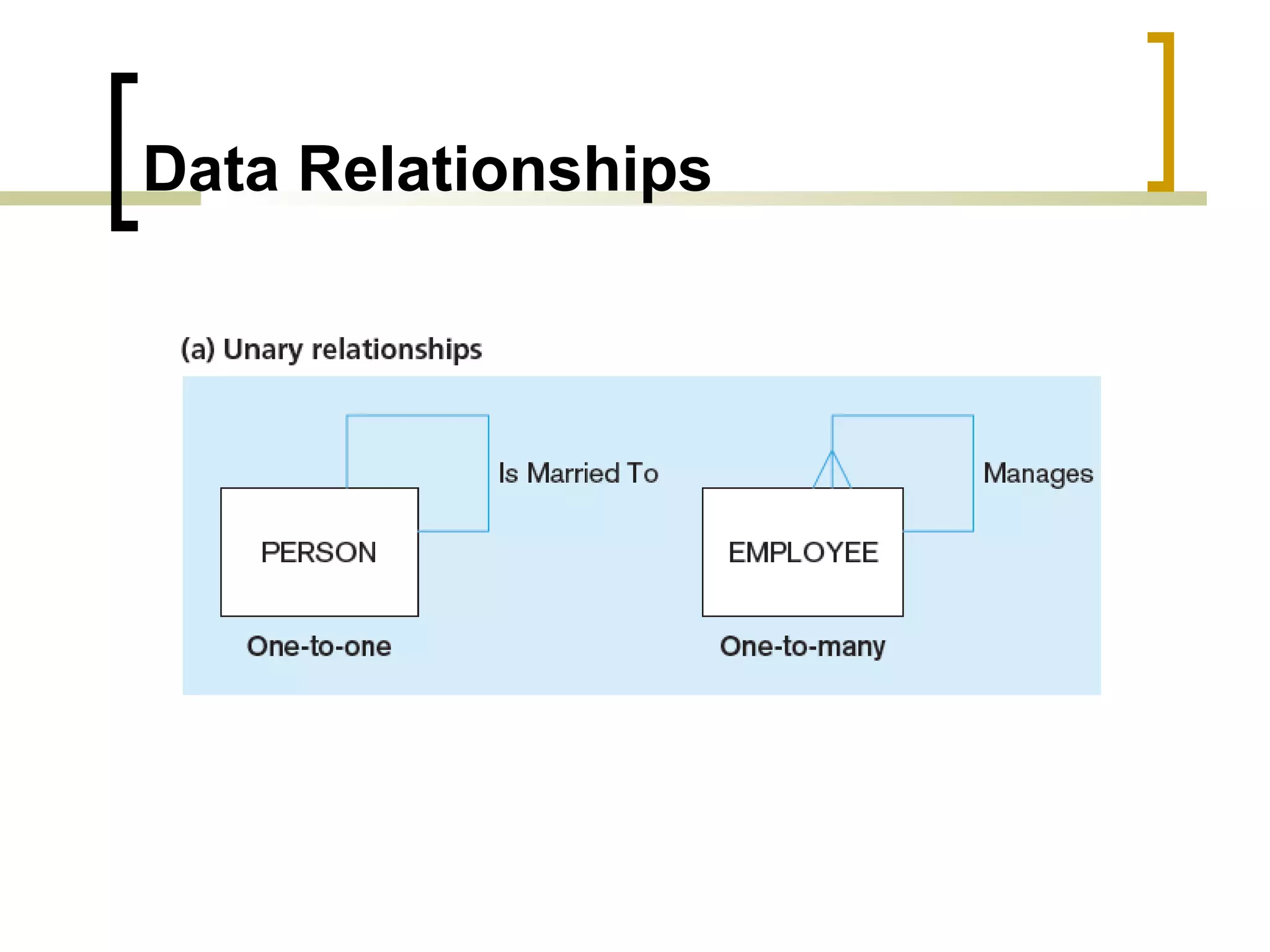

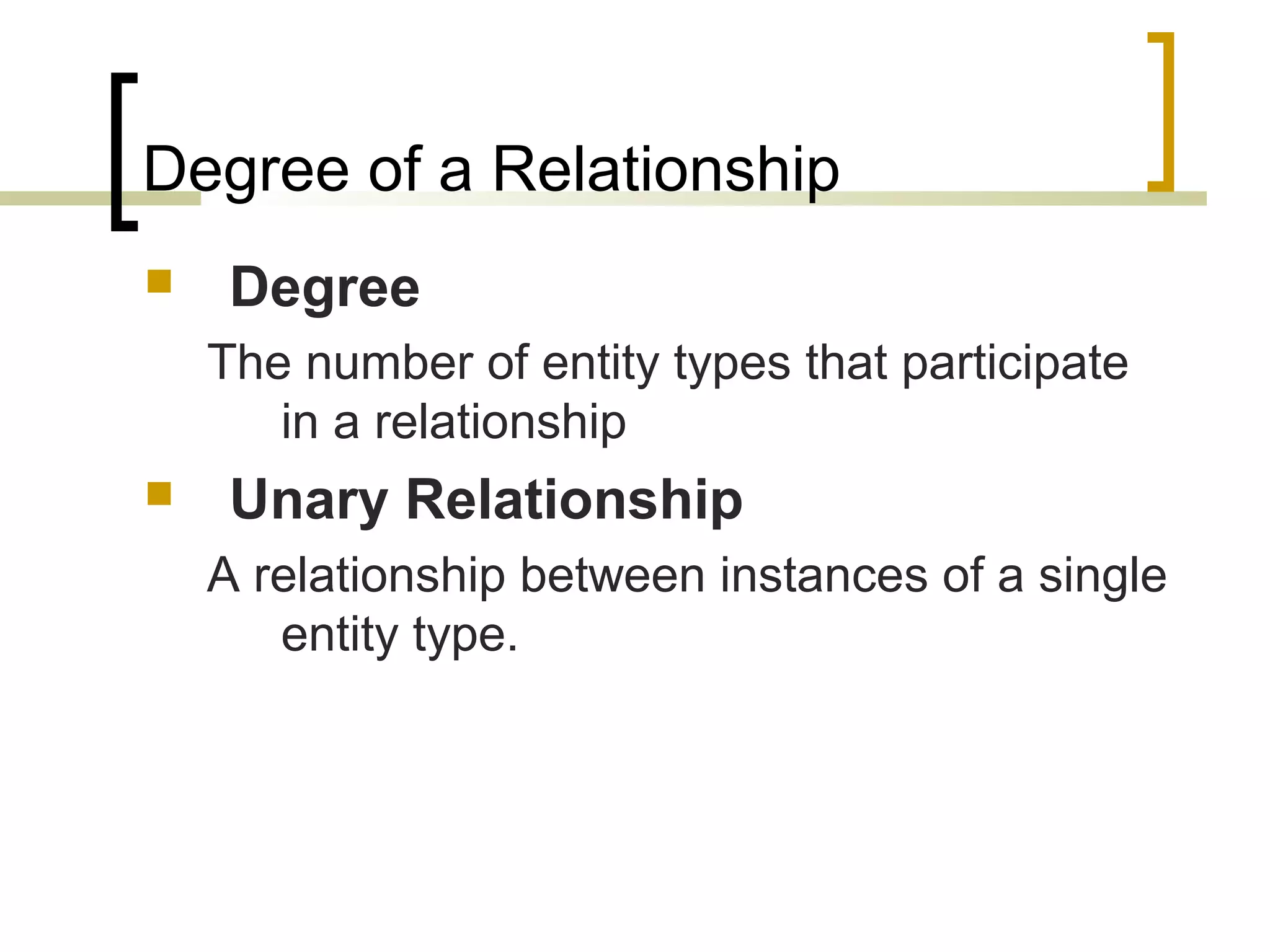

- 25. Degree of aRelationship Degree The number of entity types that participate in a relationship Unary Relationship A relationship between instances of a single entity type.

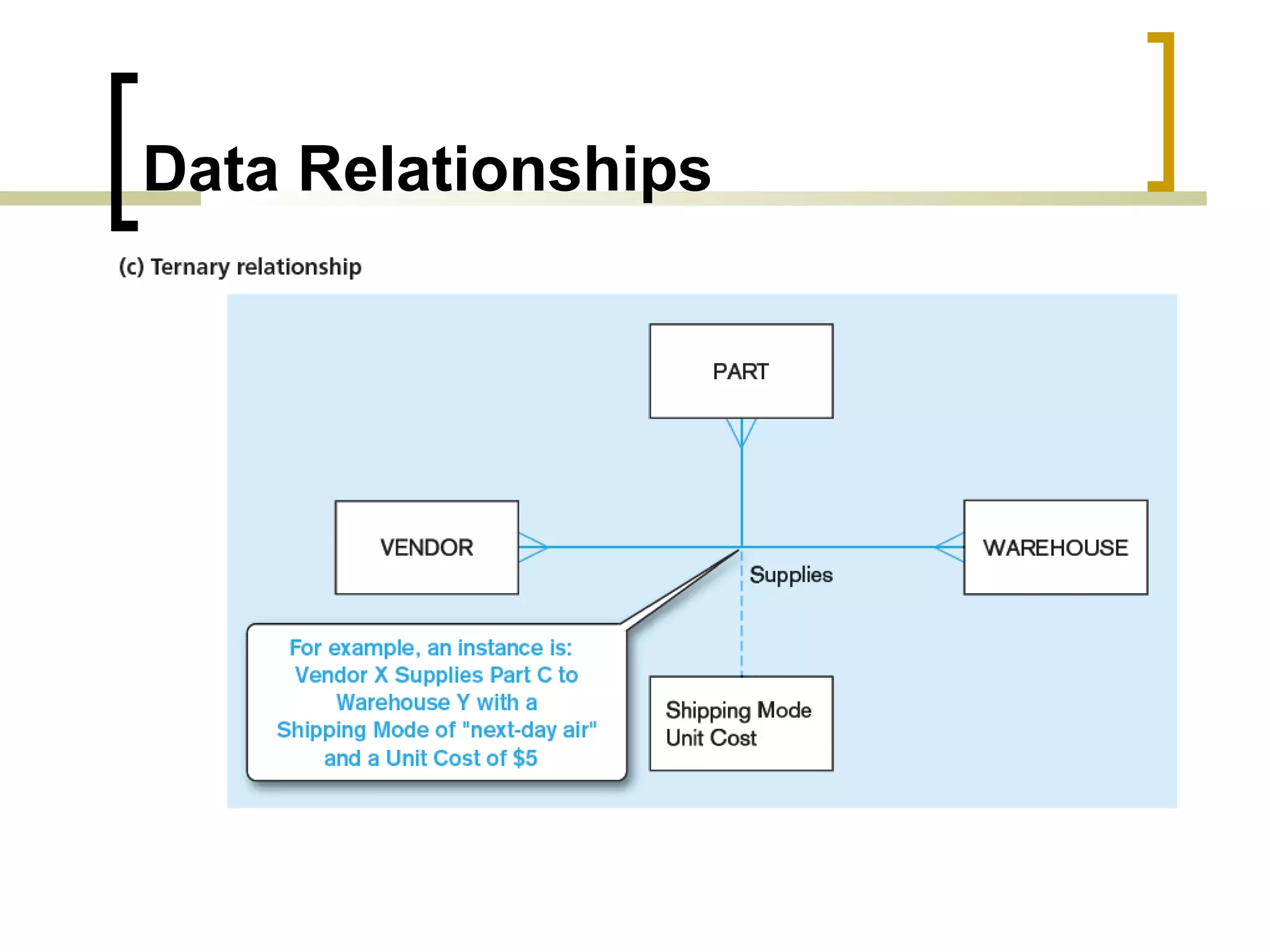

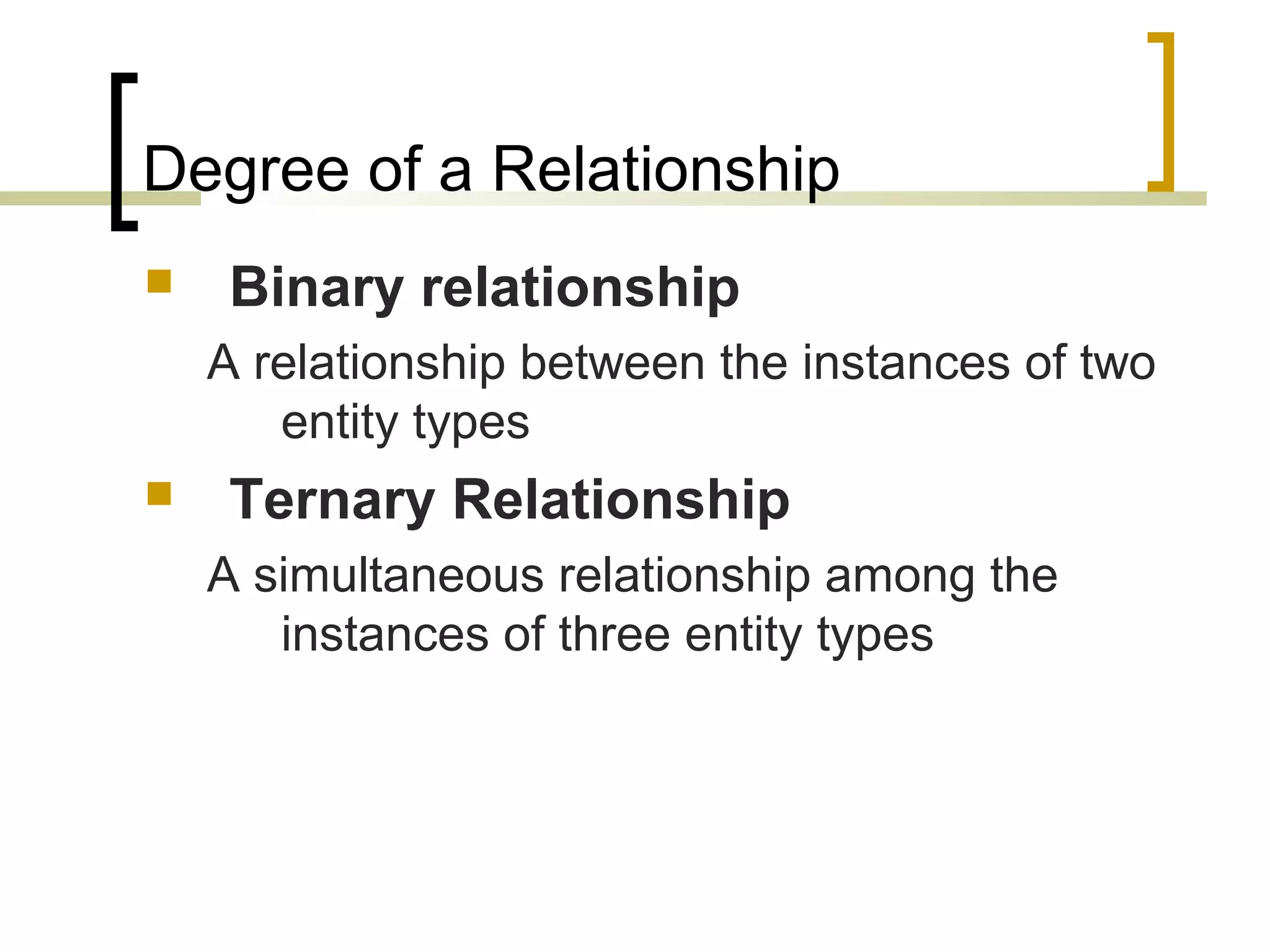

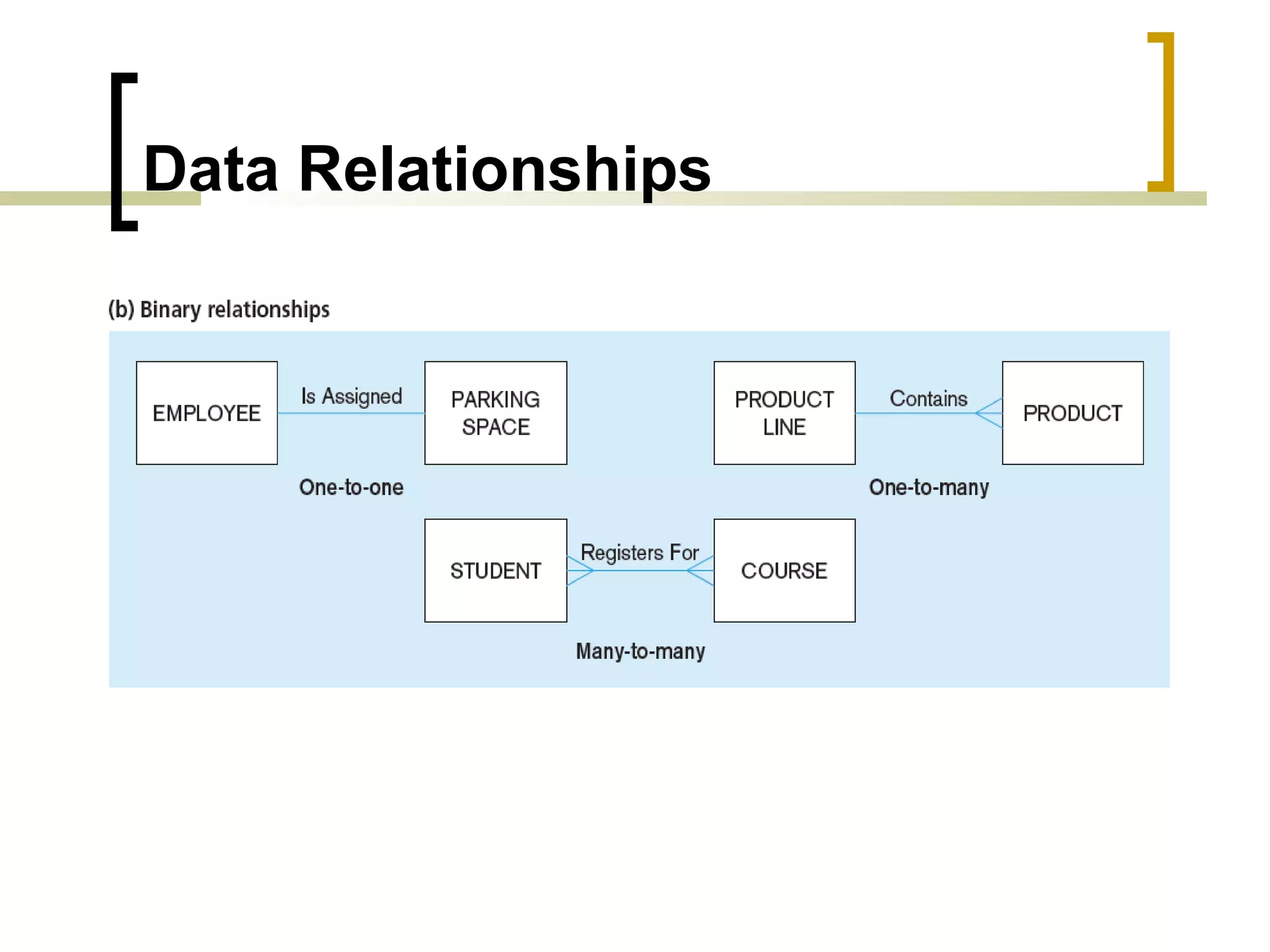

- 26. Degree of aRelationship Binary relationship A relationship between the instances of two entity types Ternary Relationship A simultaneous relationship among the instances of three entity types
- 27.
- 28.
- 29.

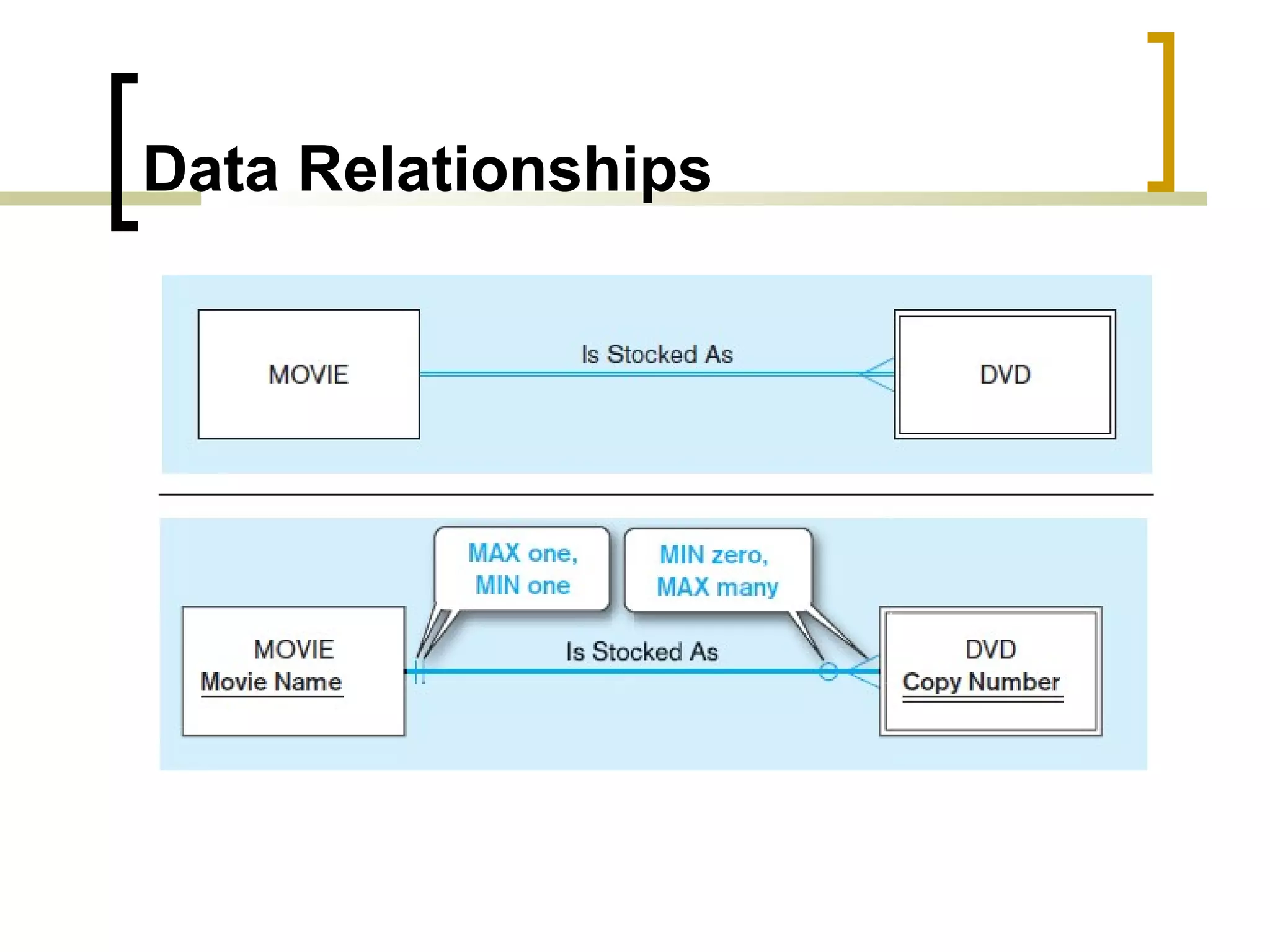

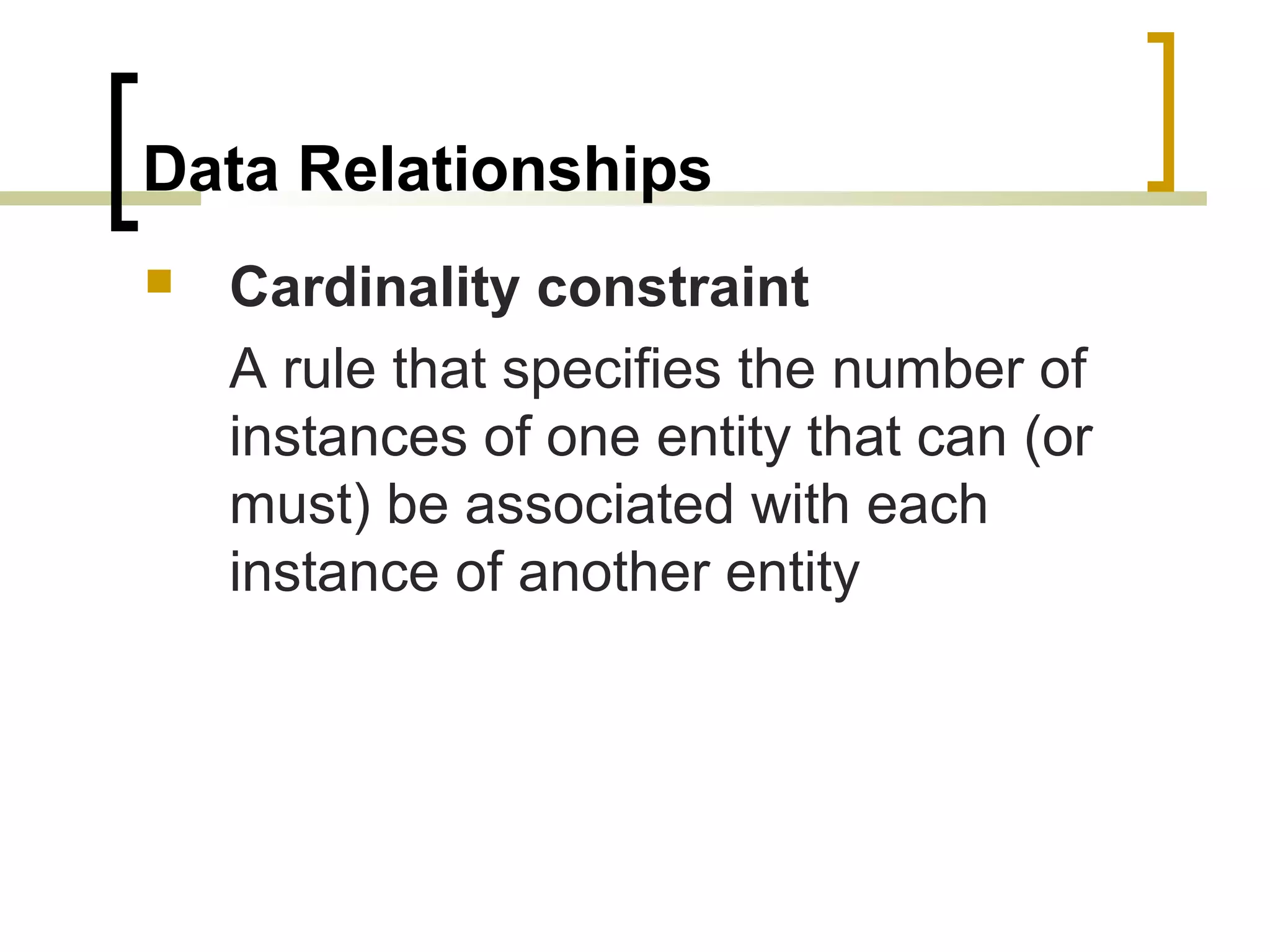

- 30. Data Relationships Cardinality constraint A rule that specifies the number of instances of one entity that can (or must) be associated with each instance of another entity

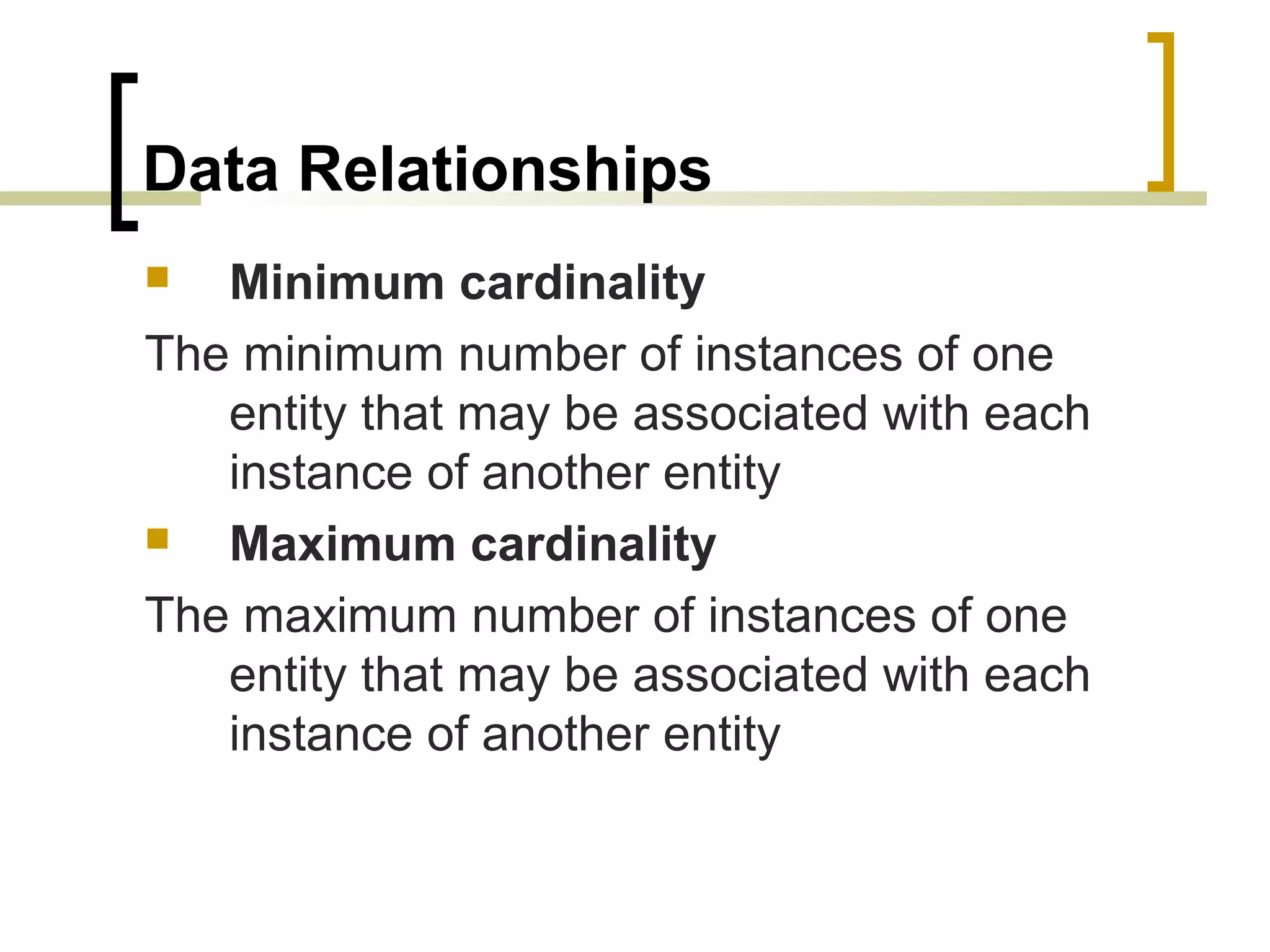

- 31. Data Relationships Minimum cardinality The minimum number of instances of one entity that may be associated with each instance of another entity Maximum cardinality The maximum number of instances of one entity that may be associated with each instance of another entity
- 32.

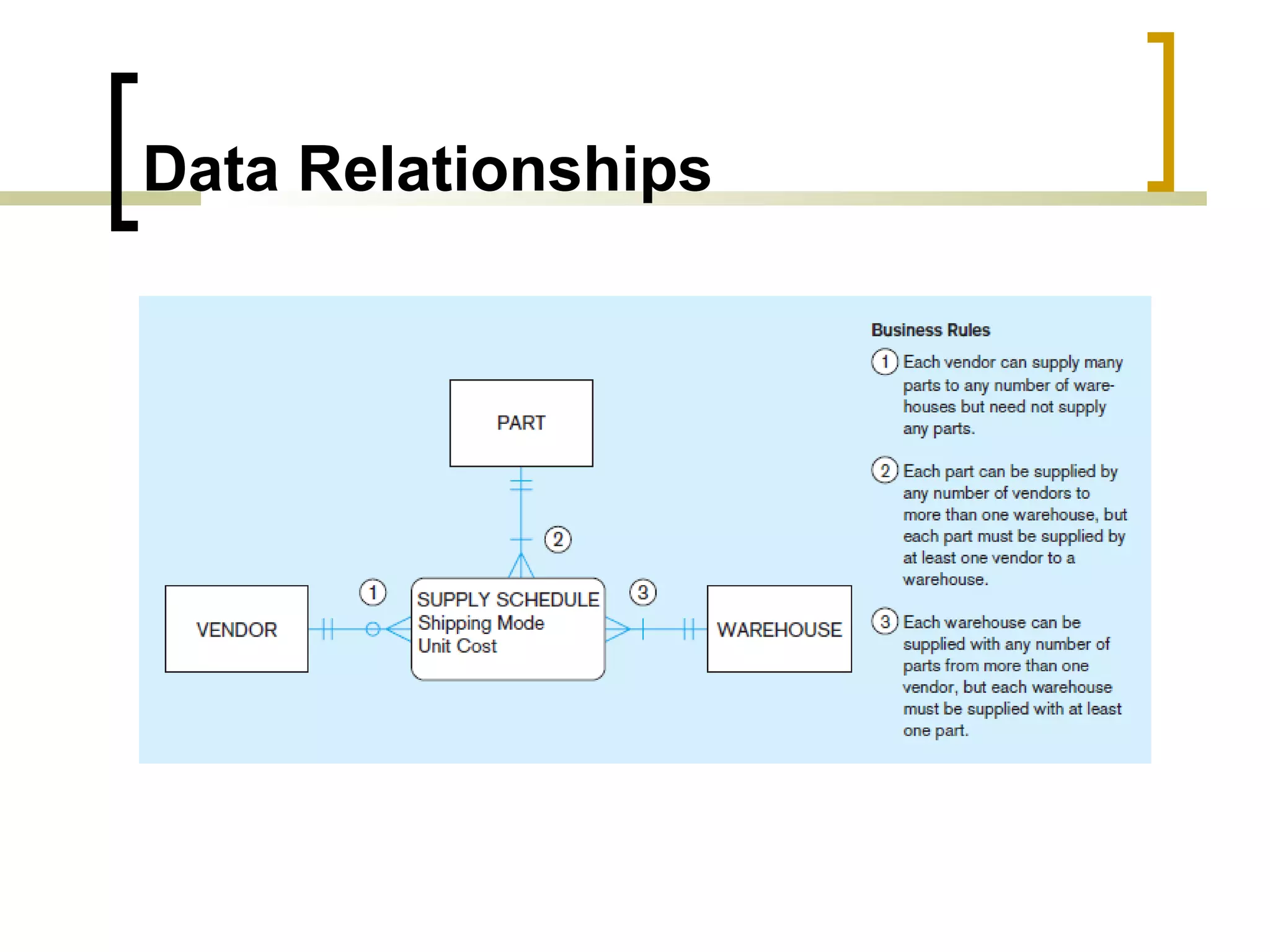

- 33.
- 34. The End Thanks for listening Questions would be appreciated.
