Kubernetes GitOps featuring GitHub, Kustomize and ArgoCD
The document presents an overview of GitOps, a workflow for managing infrastructure-as-code using Git repositories for declarative configurations, emphasizing the role of tools like GitHub, ArgoCD, and Kustomize. It details the GitOps operation model, deployment processes, and benefits, including auditing and process enforcement, while providing examples from a Java application setup. Additionally, resources and links for further exploration of GitOps practices and tools are included.
Kubernetes GitOps featuring GitHub, Kustomize and ArgoCD
- 1. Denis Maggiorotto Sunnyvale S.r.l. KubernetesGitOps Featuring GitHub, ArgoCD and Kustomize @Home 05/11/2020 Kubernetes GitOps featuring GitHub, Kustomize and ArgoCD
- 2. About me Denis Maggiorotto •CTO and shareholder @ Sunnyvale S.r.l. • 20 years of experience in IT consulting • Senior Software / Enterprise Architect @ Major companies in public utility, telco, TV broadcasting and banking sector • Oracle University Principal Instructor regarding Java technologies (Micro Edition, Standard Edition and Enterprise Edition) and Oracle's middleware products. • Cloud/DevOps Engineer • Independent IT professional trainer and public speaker

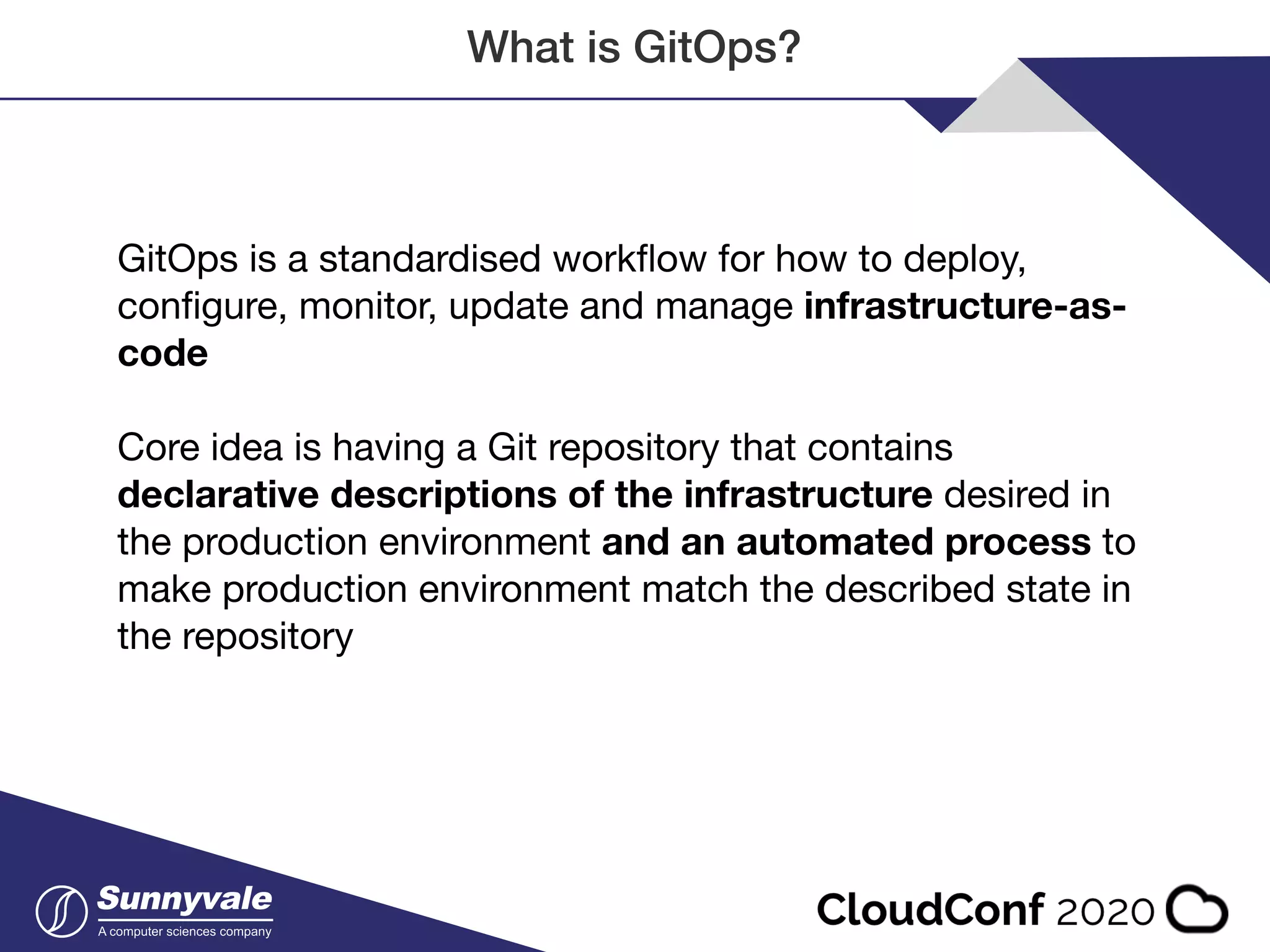

- 3. What is GitOps? GitOpsis a standardised workflow for how to deploy, configure, monitor, update and manage infrastructure-as- code Core idea is having a Git repository that contains declarative descriptions of the infrastructure desired in the production environment and an automated process to make production environment match the described state in the repository
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.

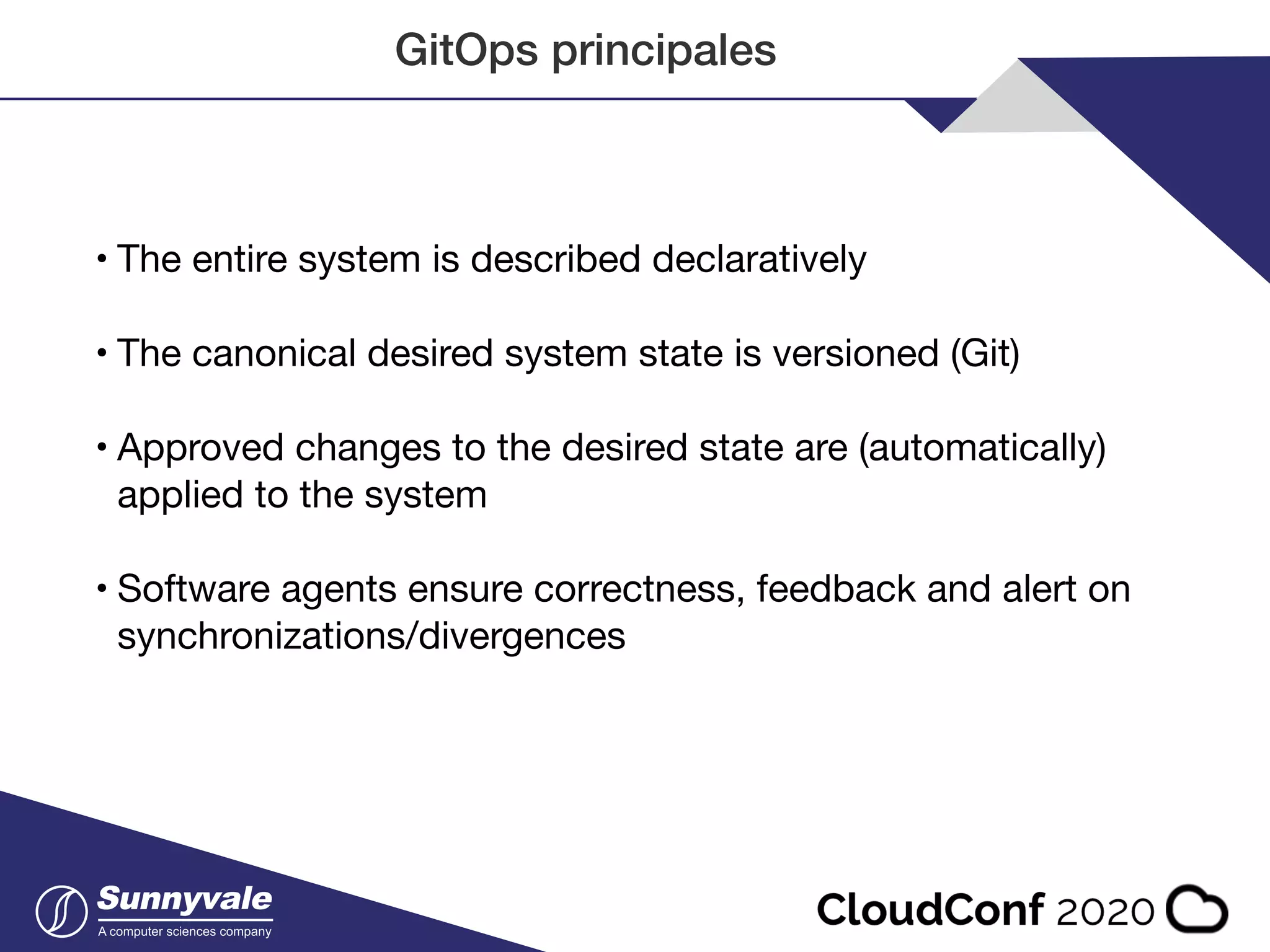

- 12. GitOps principales • Theentire system is described declaratively • The canonical desired system state is versioned (Git) • Approved changes to the desired state are (automatically) applied to the system • Software agents ensure correctness, feedback and alert on synchronizations/divergences
- 13.

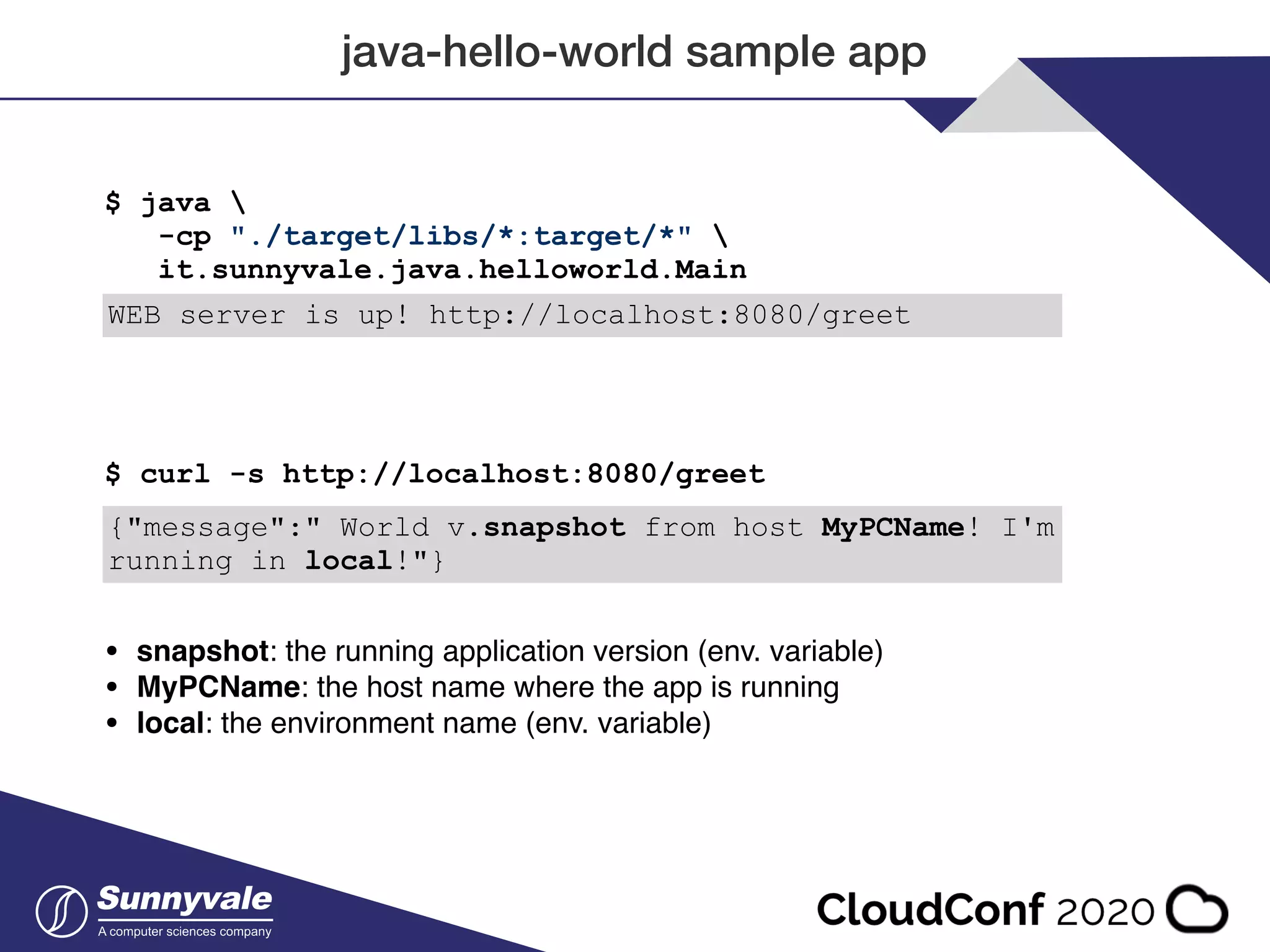

- 15. java-hello-world sample app WEBserver is up! http://localhost:8080/greet $ java -cp "./target/libs/*:target/*" it.sunnyvale.java.helloworld.Main {"message":" World v.snapshot from host MyPCName! I'm running in local!"} $ curl -s http://localhost:8080/greet • snapshot: the running application version (env. variable) • MyPCName: the host name where the app is running • local: the environment name (env. variable)

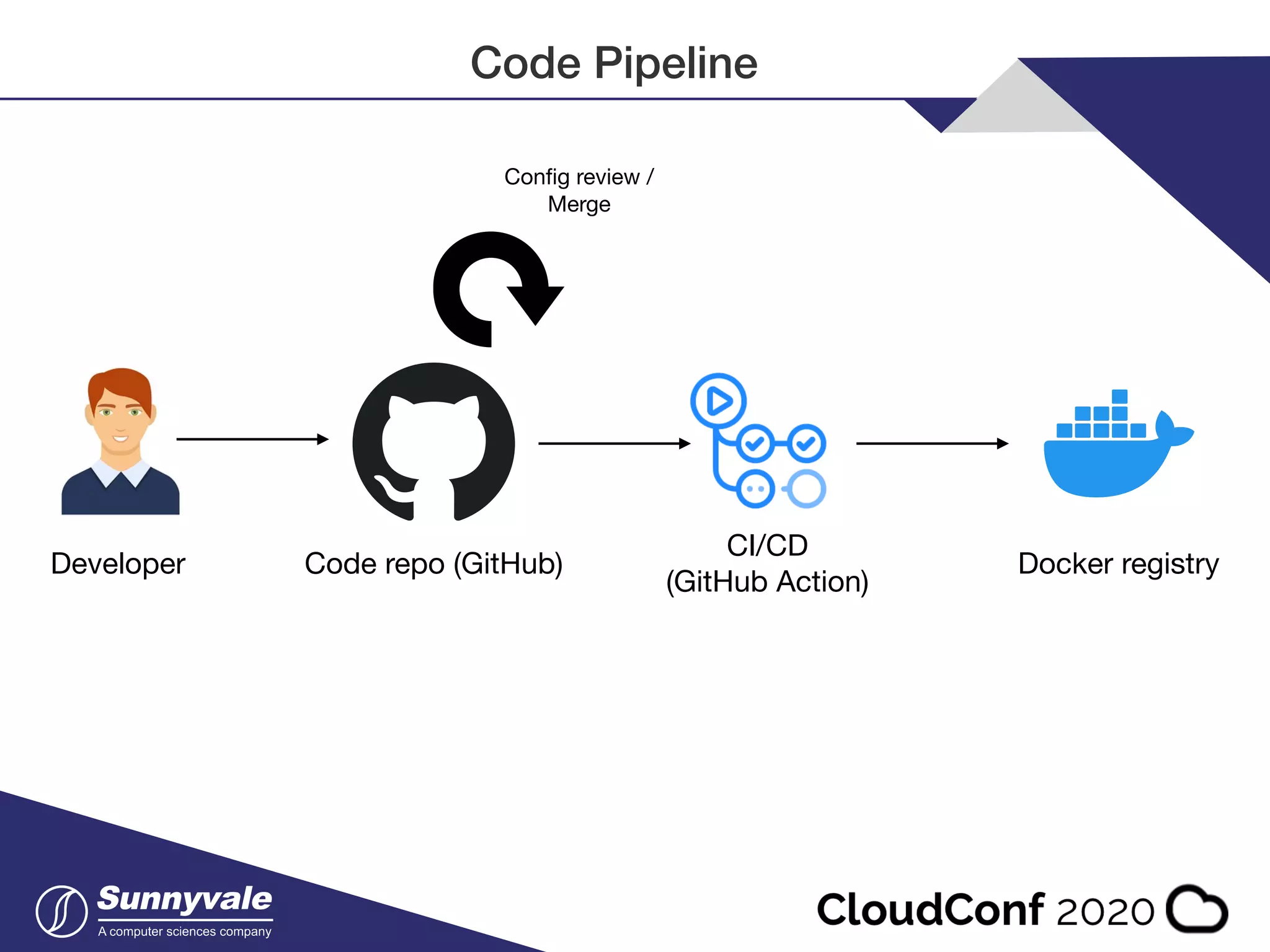

- 16. Code Pipeline Developer Coderepo (GitHub) CI/CD (GitHub Action) Docker registry Config review / Merge
- 17.

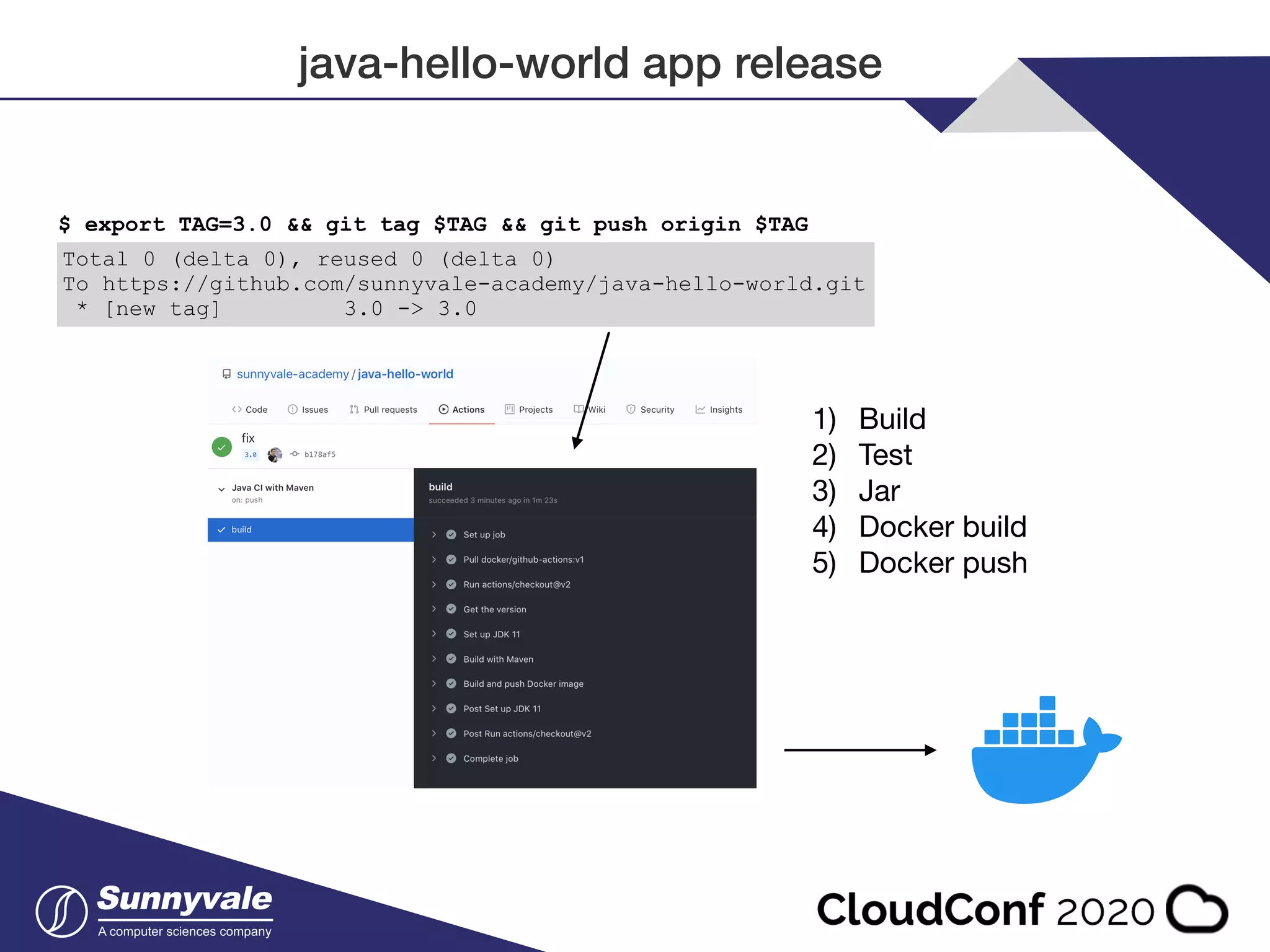

- 18. java-hello-world app release Total0 (delta 0), reused 0 (delta 0) To https://github.com/sunnyvale-academy/java-hello-world.git * [new tag] 3.0 -> 3.0 $ export TAG=3.0 && git tag $TAG && git push origin $TAG 1) Build 2) Test 3) Jar 4) Docker build 5) Docker push

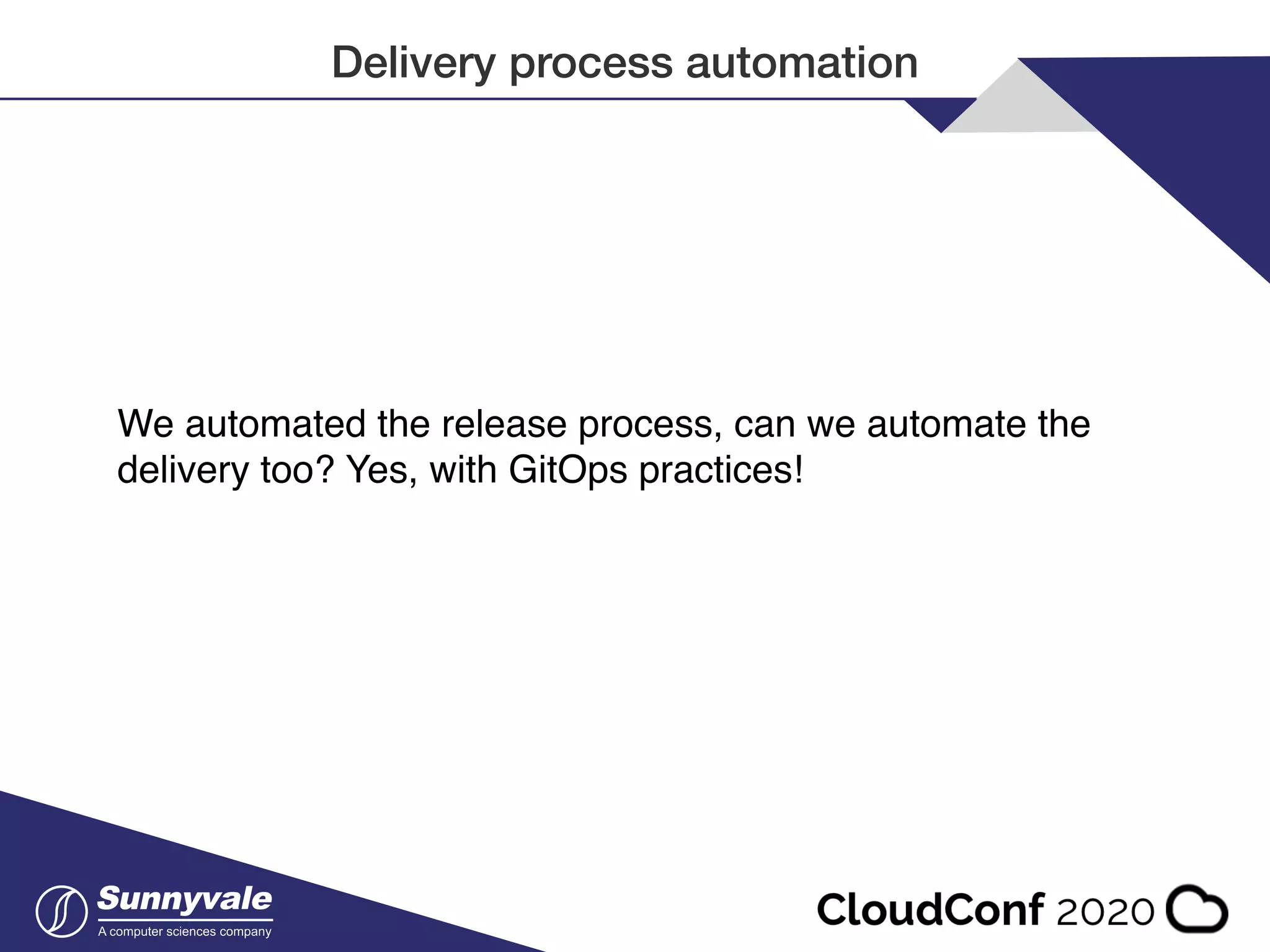

- 19. Delivery process automation Weautomated the release process, can we automate the delivery too? Yes, with GitOps practices!

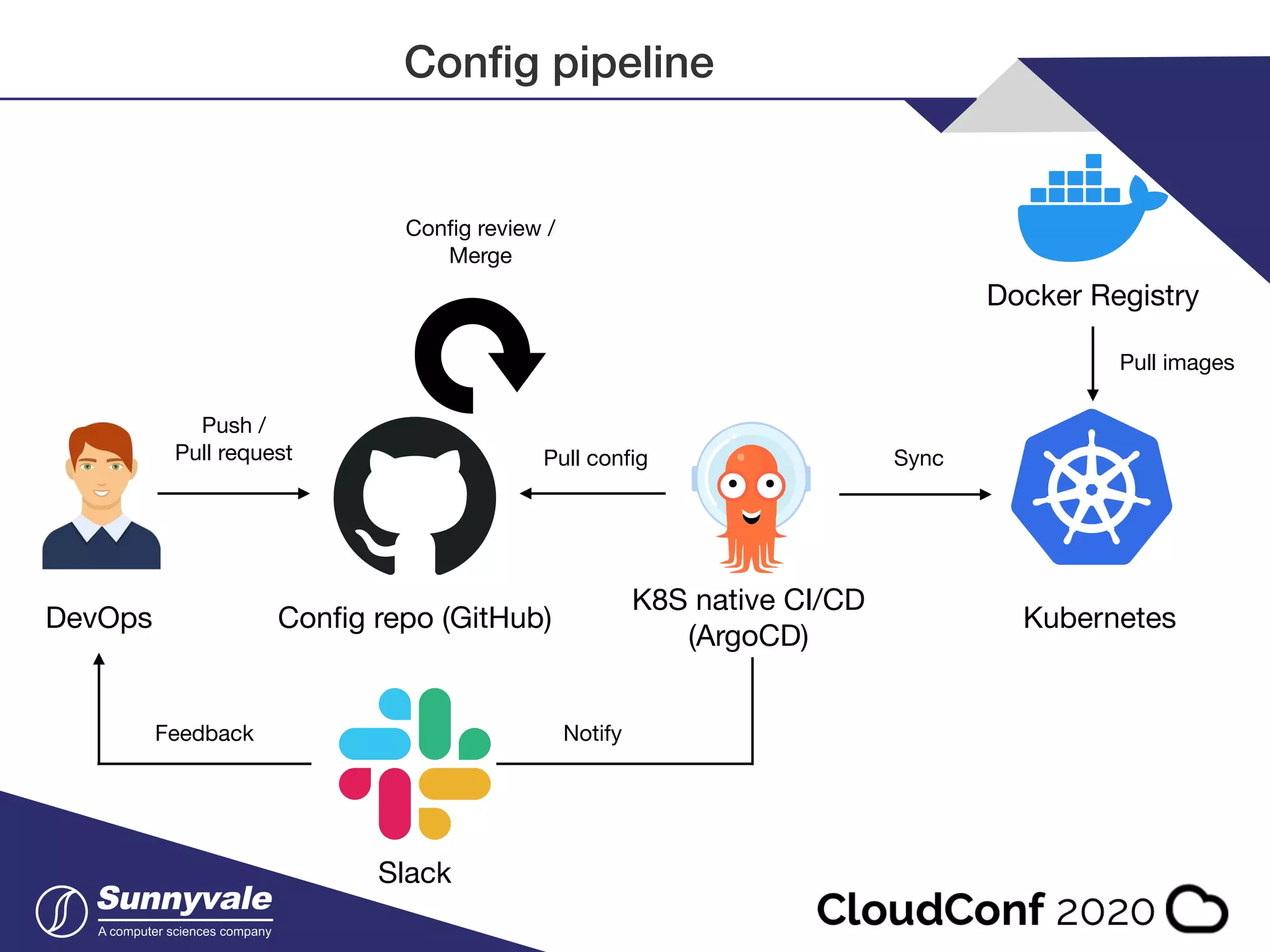

- 20. Config pipeline DevOps Configrepo (GitHub) K8S native CI/CD (ArgoCD) Kubernetes Docker Registry Push / Pull request Config review / Merge Pull config Sync Pull images Slack NotifyFeedback
- 21.

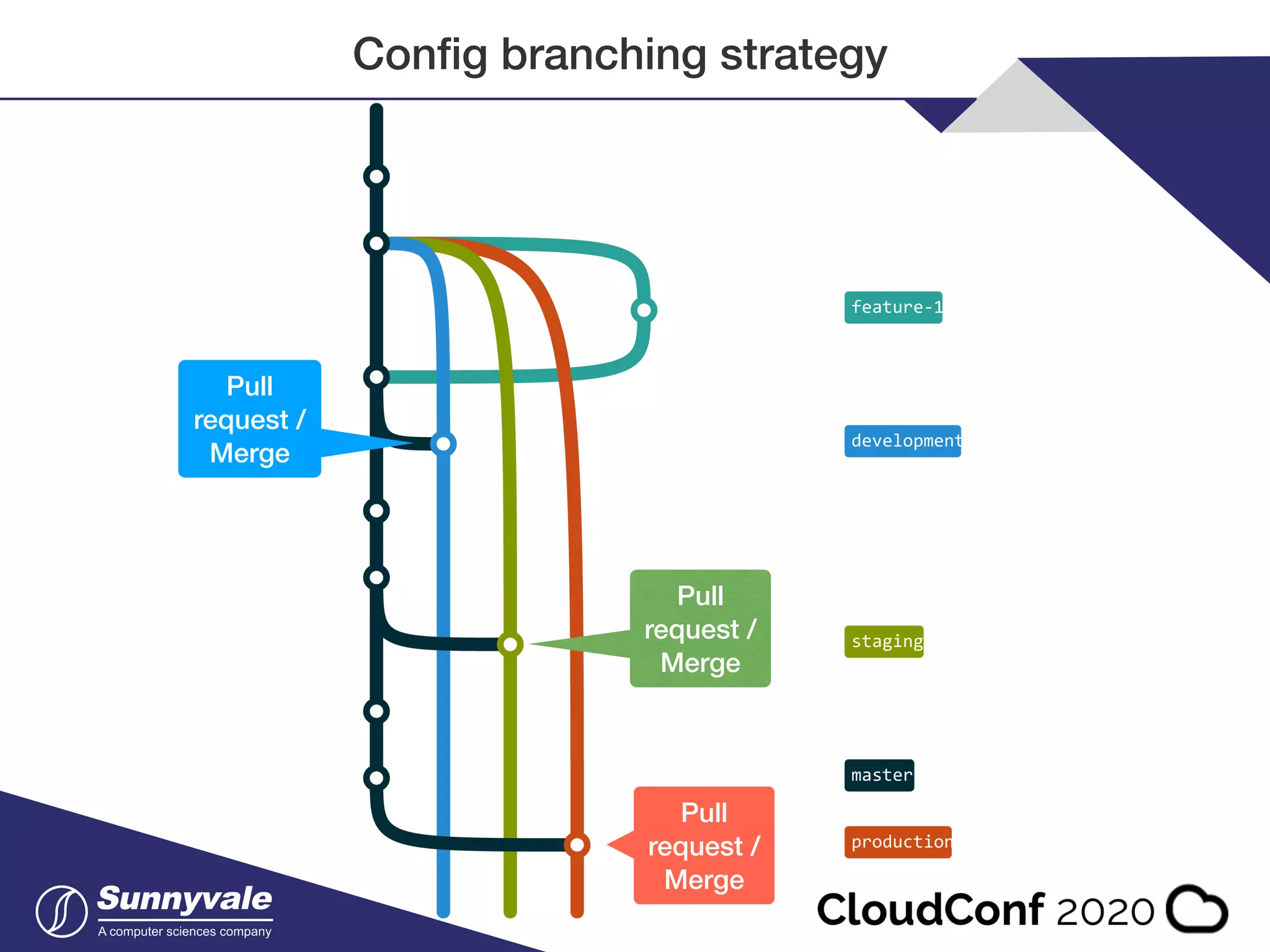

- 22. Config branching strategy Pull request/ Merge Pull request / Merge Pull request / Merge

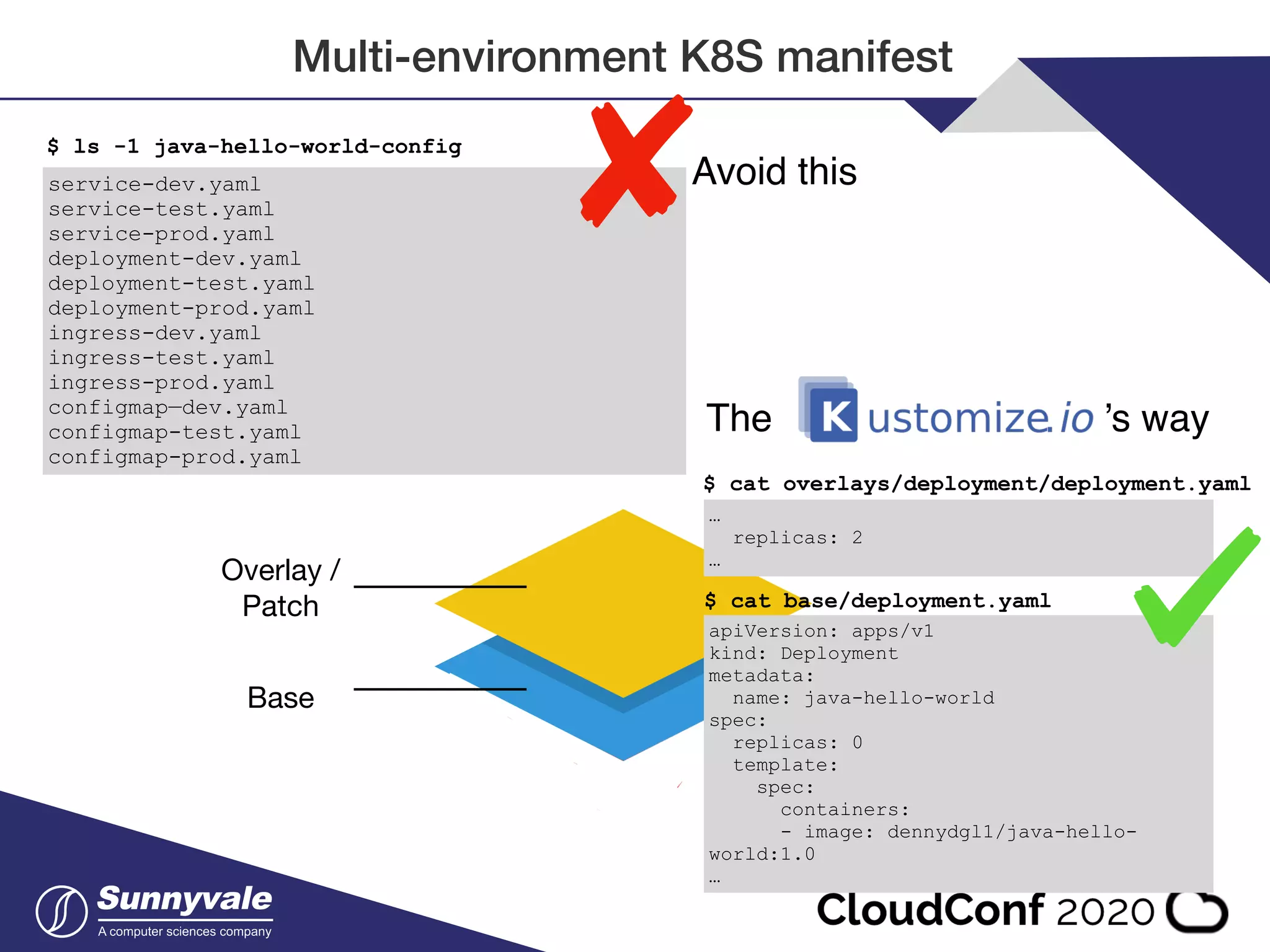

- 23. Multi-environment K8S manifest service-dev.yaml service-test.yaml service-prod.yaml deployment-dev.yaml deployment-test.yaml deployment-prod.yaml ingress-dev.yaml ingress-test.yaml ingress-prod.yaml configmap—dev.yaml configmap-test.yaml configmap-prod.yaml $ls -1 java-hello-world-config … replicas: 2 … apiVersion: apps/v1 kind: Deployment metadata: name: java-hello-world spec: replicas: 0 template: spec: containers: - image: dennydgl1/java-hello- world:1.0 … Base Overlay / Patch Avoid this The ’s way $ cat overlays/deployment/deployment.yaml $ cat base/deployment.yaml

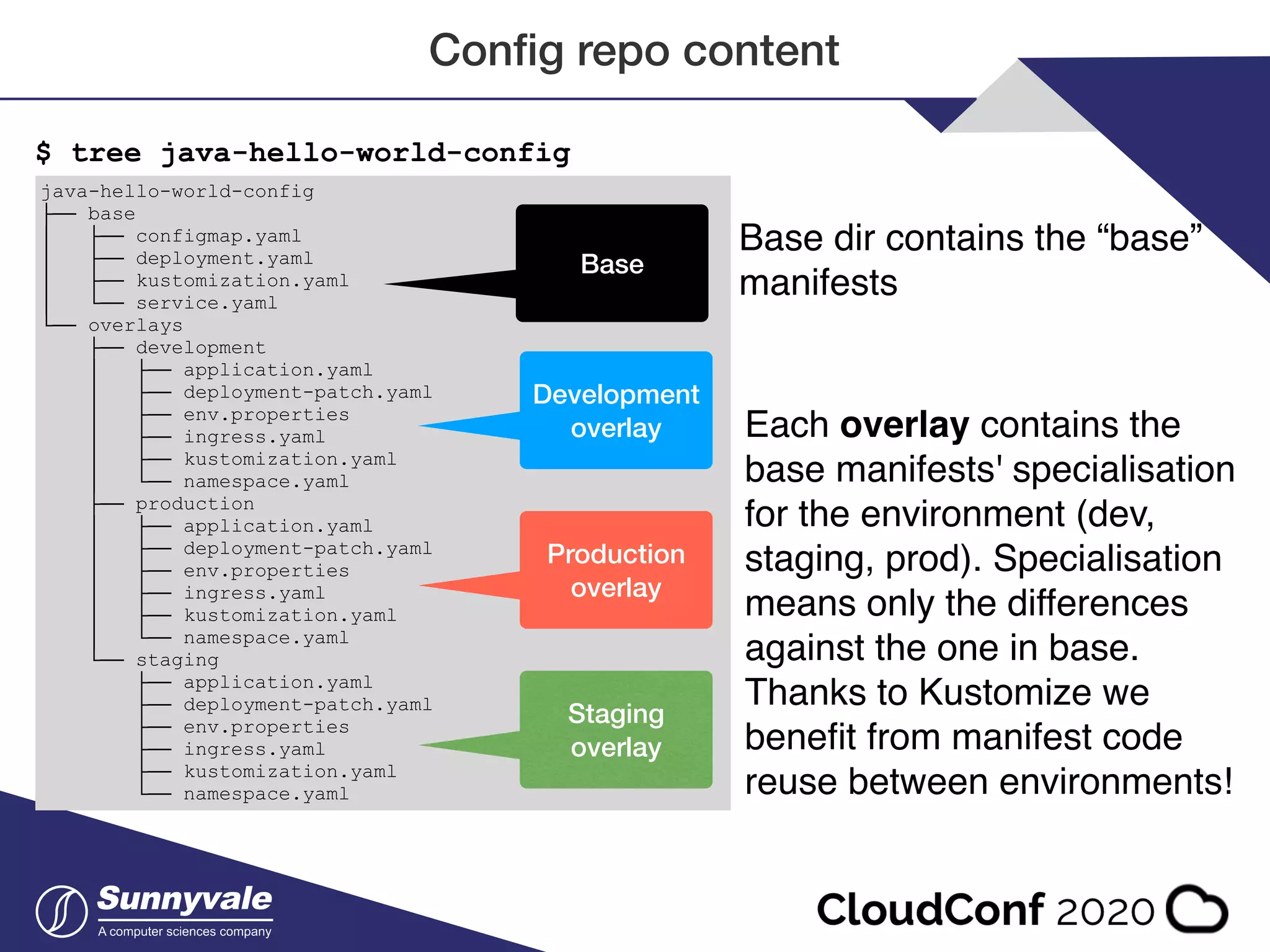

- 24. Config repo content java-hello-world-config ├──base │ ├── configmap.yaml │ ├── deployment.yaml │ ├── kustomization.yaml │ └── service.yaml └── overlays ├── development │ ├── application.yaml │ ├── deployment-patch.yaml │ ├── env.properties │ ├── ingress.yaml │ ├── kustomization.yaml │ └── namespace.yaml ├── production │ ├── application.yaml │ ├── deployment-patch.yaml │ ├── env.properties │ ├── ingress.yaml │ ├── kustomization.yaml │ └── namespace.yaml └── staging ├── application.yaml ├── deployment-patch.yaml ├── env.properties ├── ingress.yaml ├── kustomization.yaml └── namespace.yaml $ tree java-hello-world-config Base Development overlay Production overlay Staging overlay Base dir contains the “base” manifests Each overlay contains the base manifests' specialisation for the environment (dev, staging, prod). Specialisation means only the differences against the one in base. Thanks to Kustomize we benefit from manifest code reuse between environments!
- 25. Release 3.0 indevelopment env $ git checkout master $ git branch feature-30 $ perl -p -i -e 's/newTag: "2.1"/newTag: "3.0"/g' overlay/developmnt/ kustomization.yaml $ git add . && git commit -m "Release 3.0" && git push $ git checkout master $ git merge feature-30 master branchdevelopment branch Pull request / Merge (1) Change the app release for dev env (2) Actuate changes on the environment

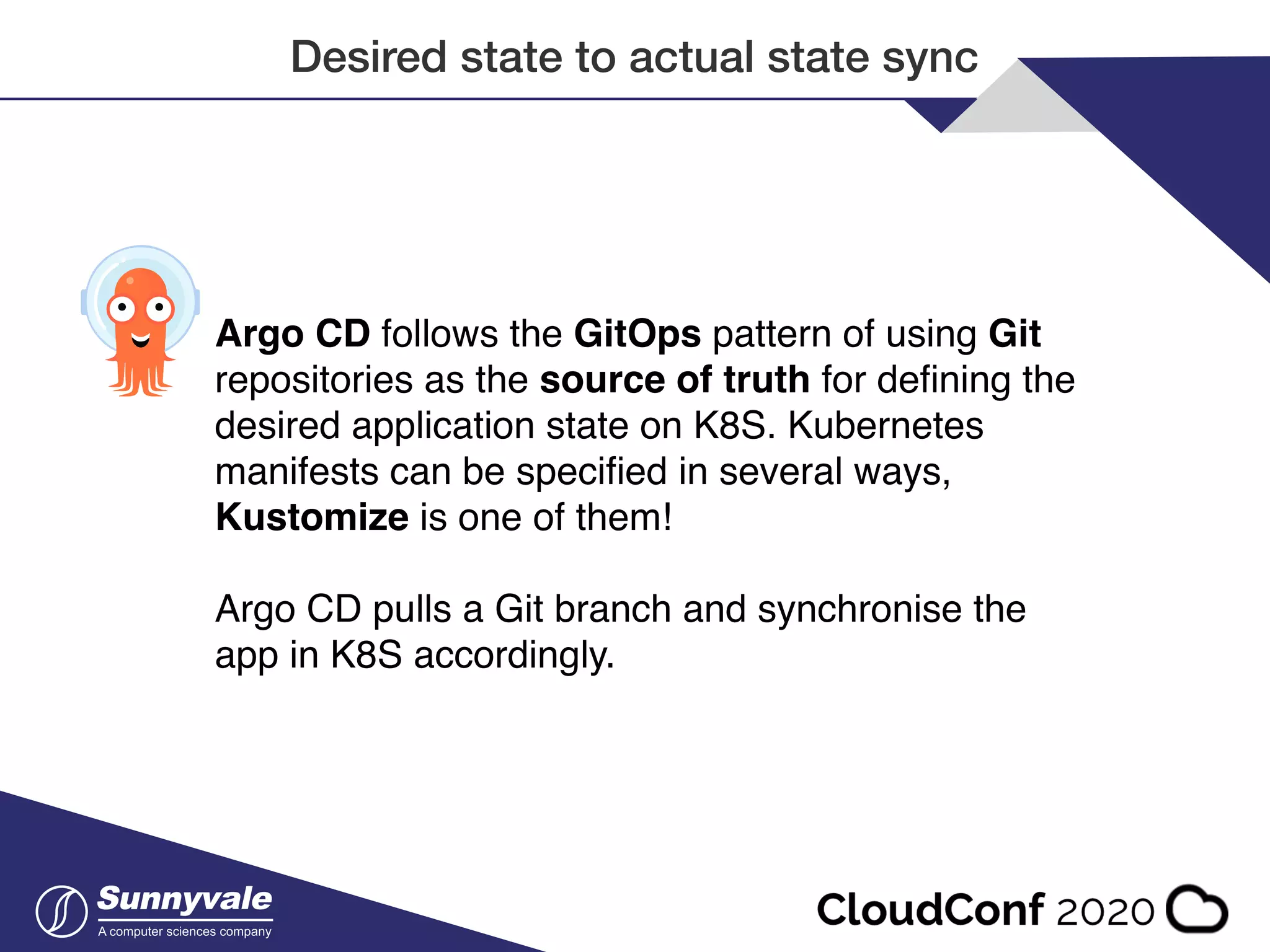

- 26. Desired state toactual state sync Argo CD follows the GitOps pattern of using Git repositories as the source of truth for defining the desired application state on K8S. Kubernetes manifests can be specified in several ways, Kustomize is one of them! Argo CD pulls a Git branch and synchronise the app in K8S accordingly.

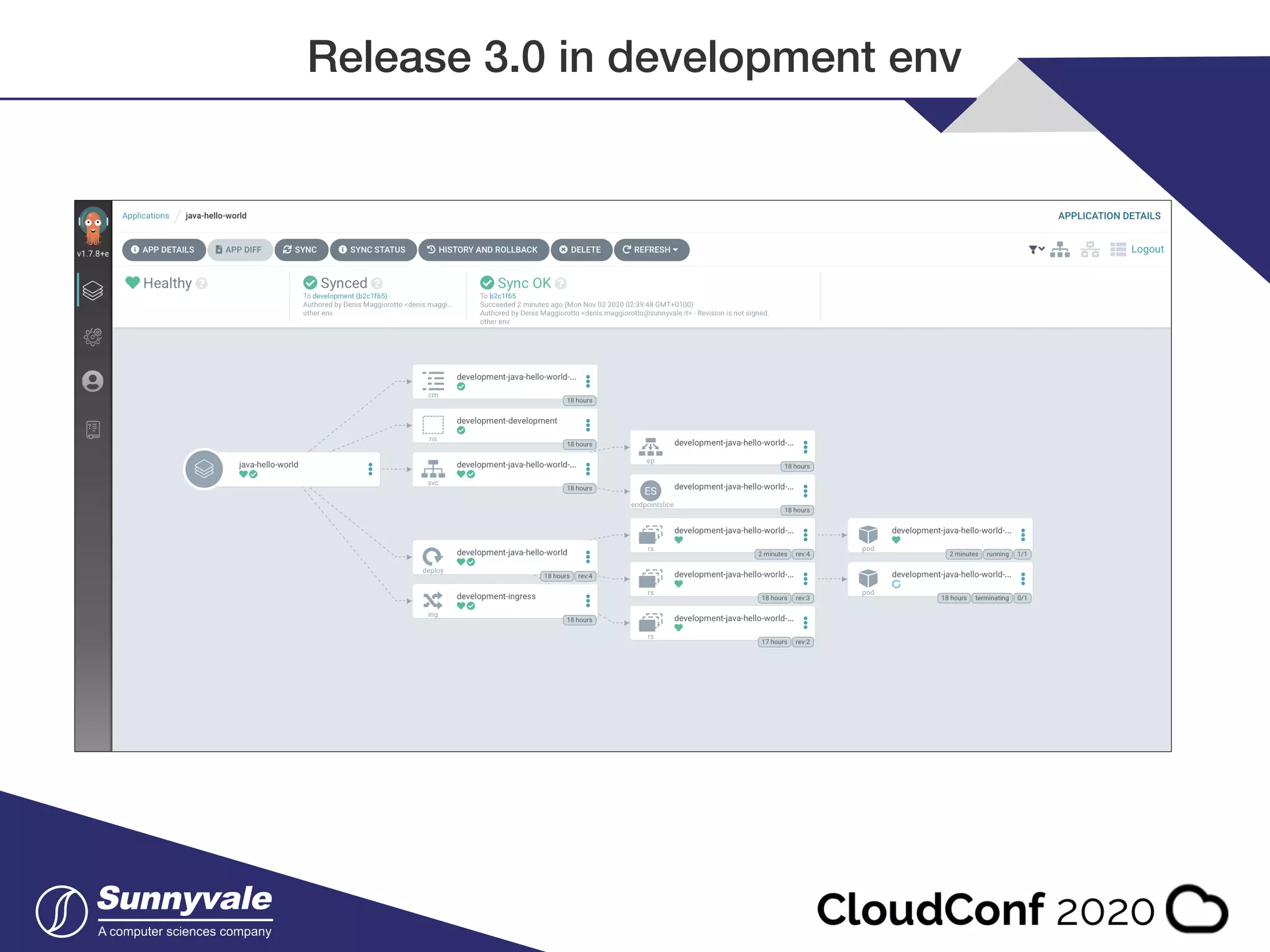

- 27. Release 3.0 indevelopment env
- 28. Get feedbacks fromthe infrastructure Argo CD integrates with Slack and send you messages about synchronisations it makes
- 29. Release 3.0 indevelopment env { "message":"Hello World v.3.0 from host development- java-hello-world-59dfb6b554-mz4qs! I'm running in development!” } $ curl -s http://development.app.127-0-0-1.nip.io/greet
- 30. Rollback 2.1 indevelopment env
- 31. GitOps benefits • Auditingand attribution • Separation of concerns • No crossing security boundary • Process & constraints enforcement • Great software human collaboration point • Easy to validate for correctness (policies) • System can self heal
- 32.
- 33. • https://www.gitops.tech • https://github.com/weaveworks/awesome-gitops •https://thenewstack.io/what-is-gitops-and-why-it-might-be-the-nextbig-thing-for-devops/ Resources
