KOTLIN COROUTINES AND ANDROID SITTING IN A TREE... KAI KOENIG (@AGENTK)

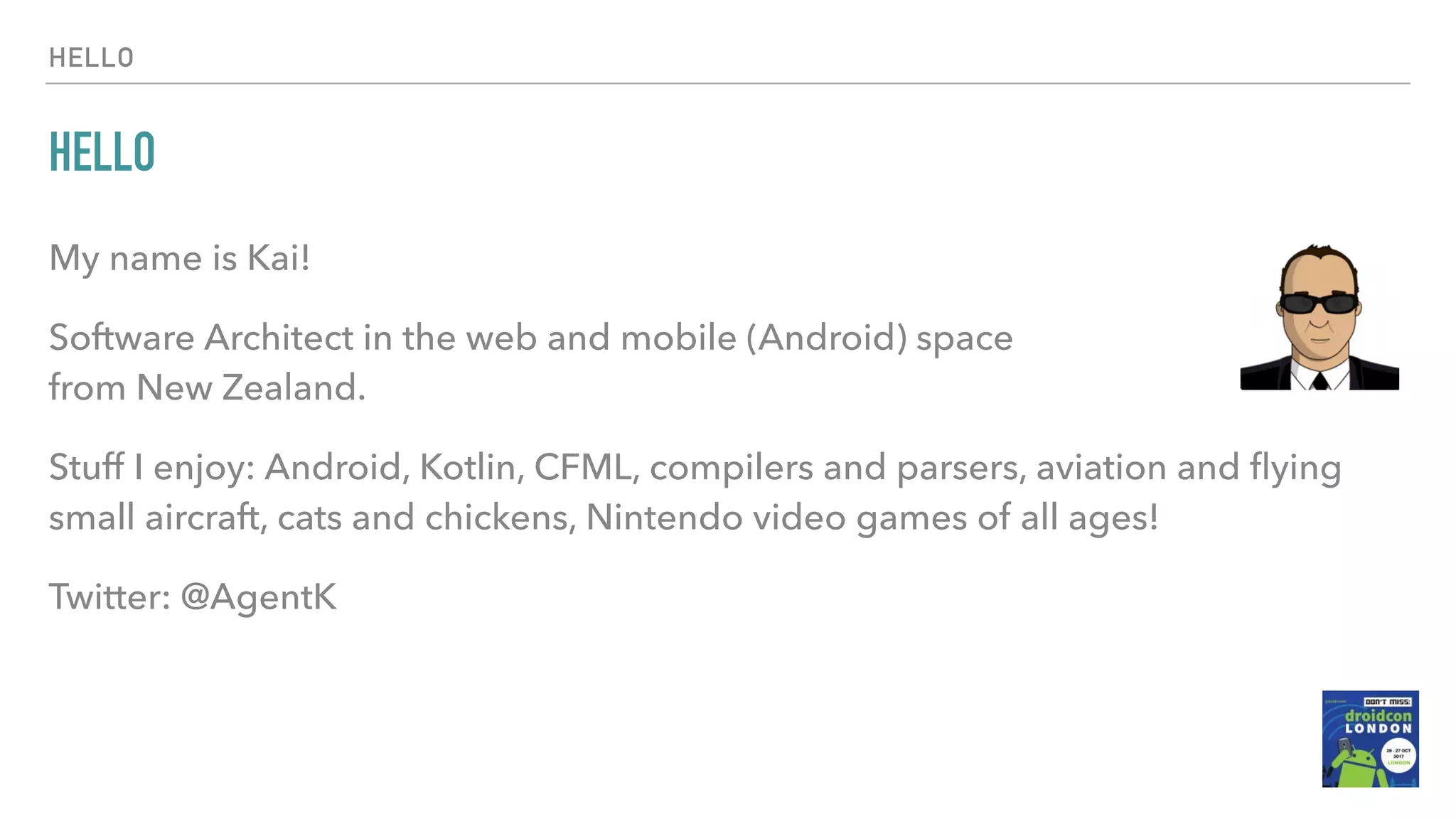

HELLO HELLO My name is Kai! Software Architect in the web and mobile (Android) space   from New Zealand. Stuff I enjoy: Android, Kotlin, CFML, compilers and parsers, aviation and ﬂying small aircraft, cats and chickens, Nintendo video games of all ages! Twitter: @AgentK

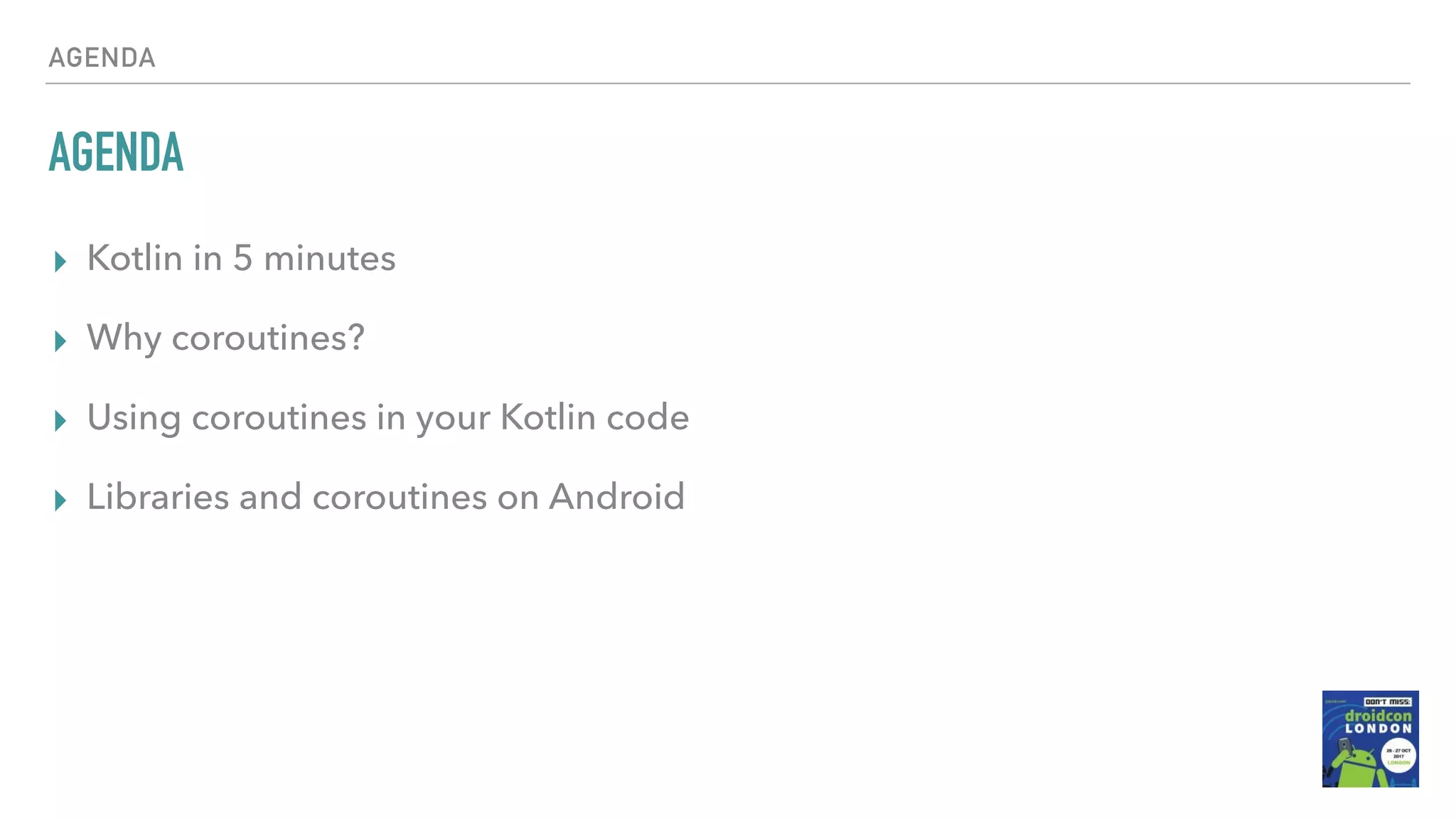

AGENDA AGENDA ▸ Kotlin in 5 minutes ▸ Why coroutines? ▸ Using coroutines in your Kotlin code ▸ Libraries and coroutines on Android

KOTLIN IN 5 MINUTES https://www.ﬂickr.com/photos/tschiae/8080742303/

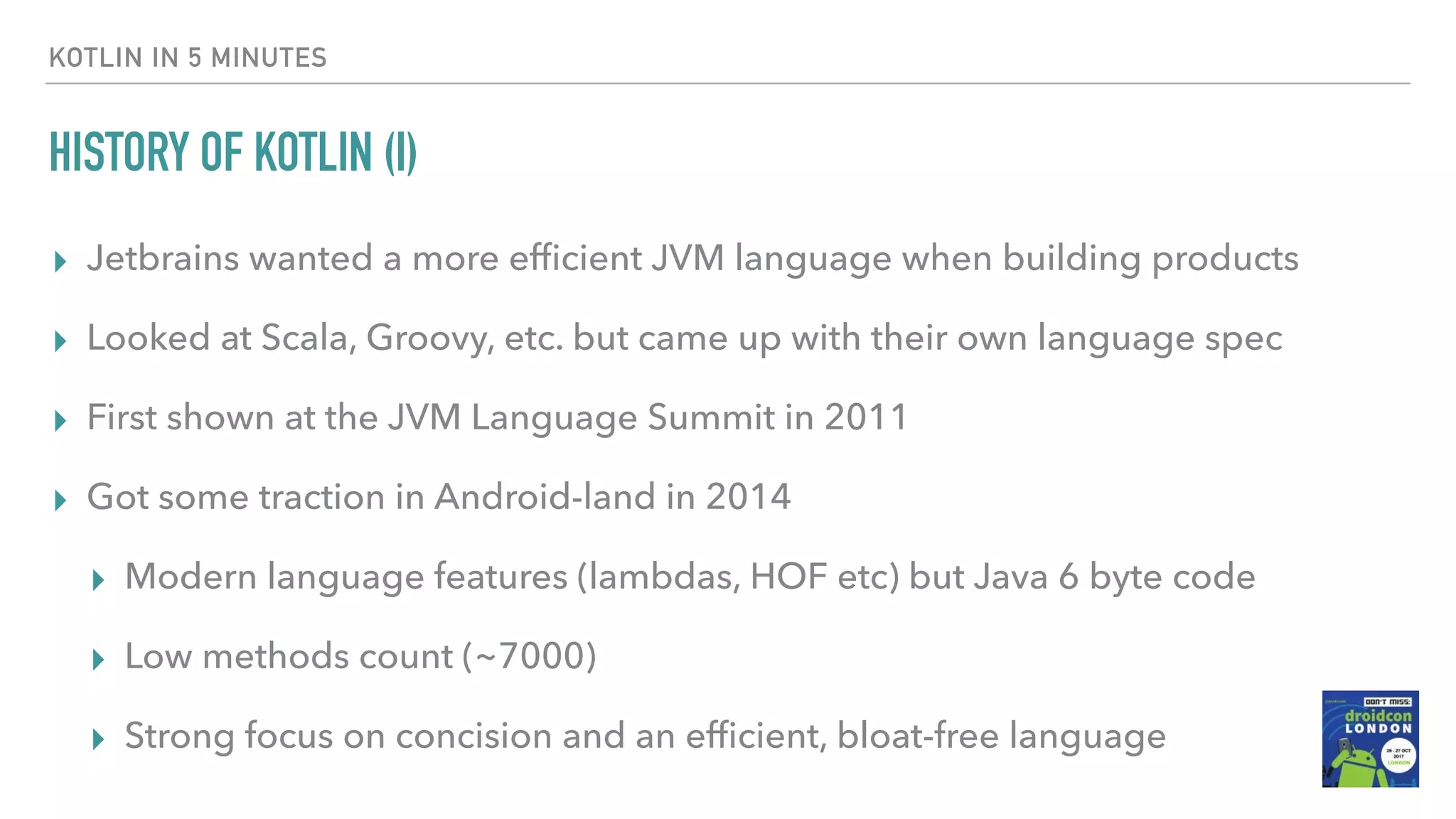

HISTORY OF KOTLIN (I) ▸ Jetbrains wanted a more efﬁcient JVM language when building products ▸ Looked at Scala, Groovy, etc. but came up with their own language spec ▸ First shown at the JVM Language Summit in 2011 ▸ Got some traction in Android-land in 2014 ▸ Modern language features (lambdas, HOF etc) but Java 6 byte code ▸ Low methods count (~7000) ▸ Strong focus on concision and an efﬁcient, bloat-free language KOTLIN IN 5 MINUTES

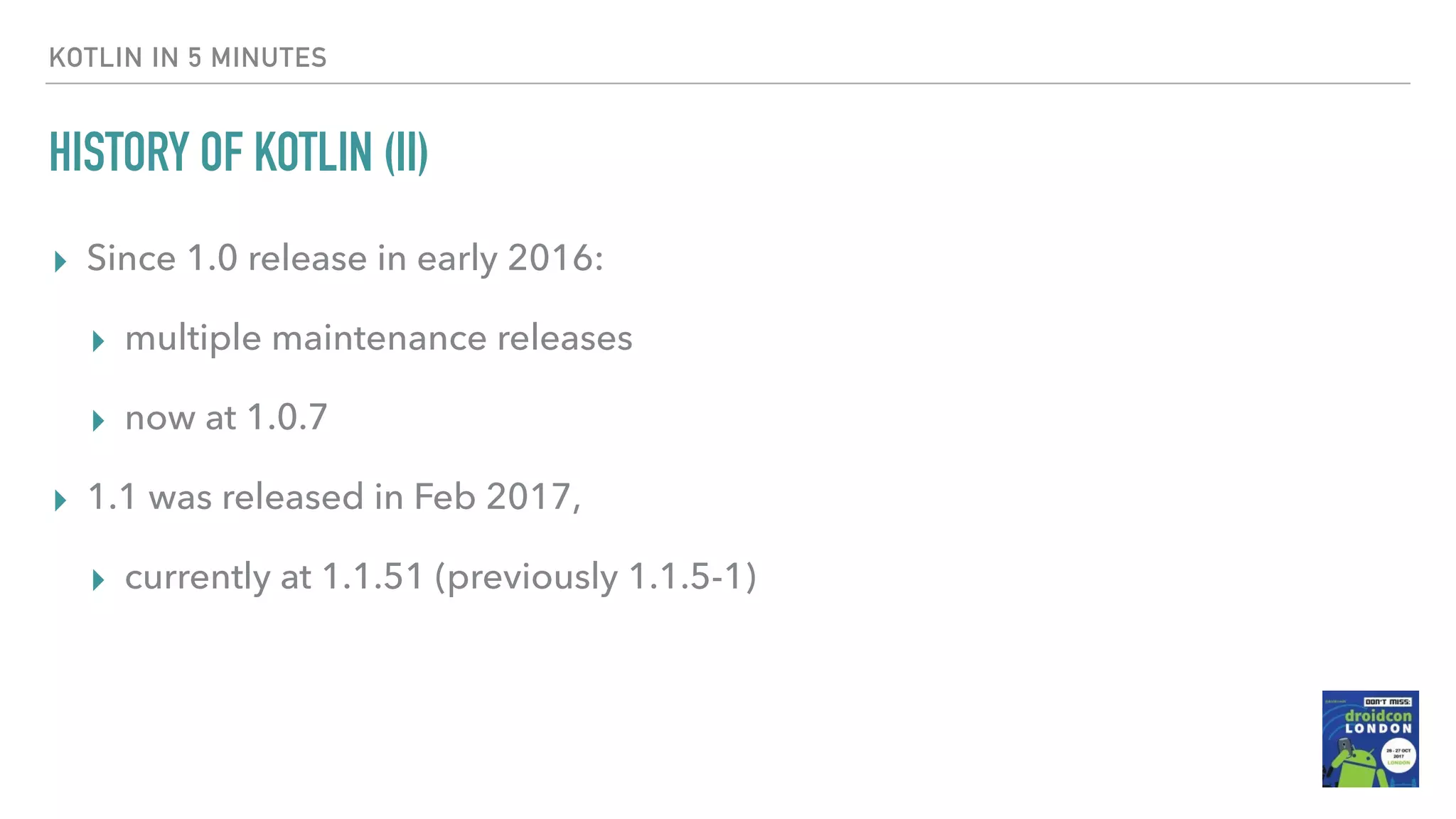

HISTORY OF KOTLIN (II) ▸ Since 1.0 release in early 2016: ▸ multiple maintenance releases ▸ now at 1.0.7 ▸ 1.1 was released in Feb 2017, ▸ currently at 1.1.51 (previously 1.1.5-1) KOTLIN IN 5 MINUTES

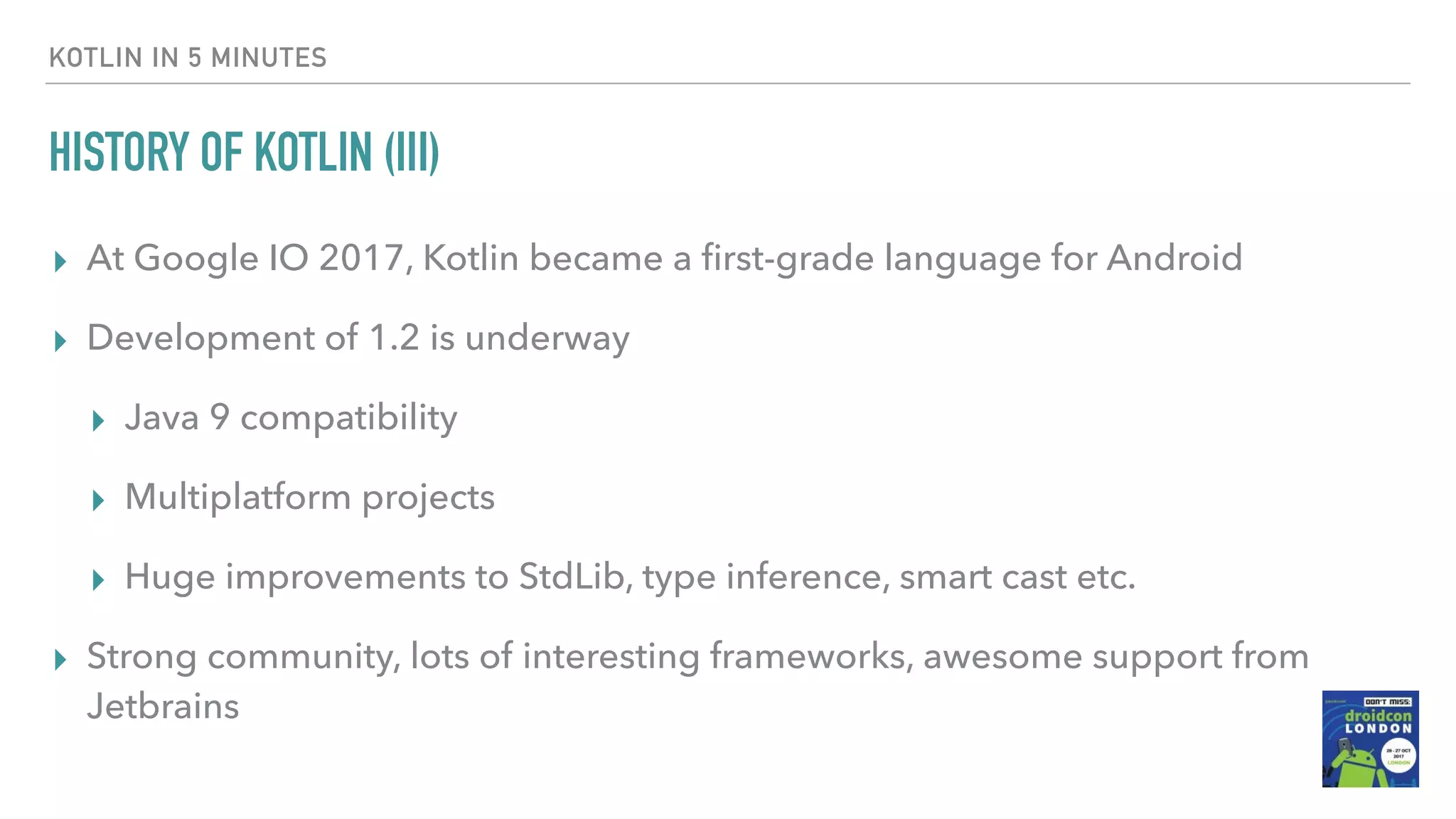

HISTORY OF KOTLIN (III) ▸ At Google IO 2017, Kotlin became a ﬁrst-grade language for Android ▸ Development of 1.2 is underway ▸ Java 9 compatibility ▸ Multiplatform projects ▸ Huge improvements to StdLib, type inference, smart cast etc. ▸ Strong community, lots of interesting frameworks, awesome support from Jetbrains KOTLIN IN 5 MINUTES

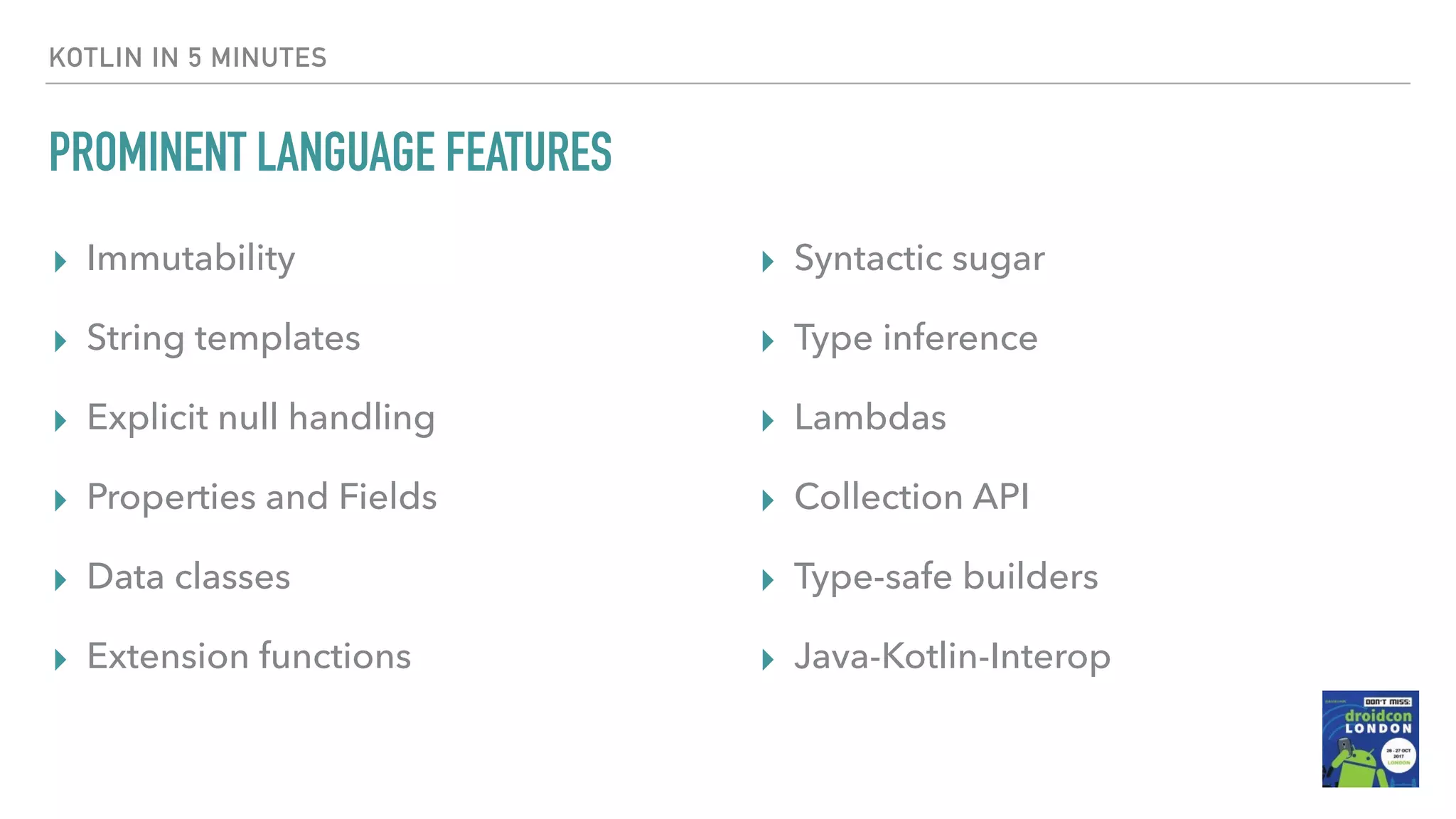

KOTLIN IN 5 MINUTES PROMINENT LANGUAGE FEATURES ▸ Immutability ▸ String templates ▸ Explicit null handling ▸ Properties and Fields ▸ Data classes ▸ Extension functions ▸ Syntactic sugar ▸ Type inference ▸ Lambdas ▸ Collection API ▸ Type-safe builders ▸ Java-Kotlin-Interop

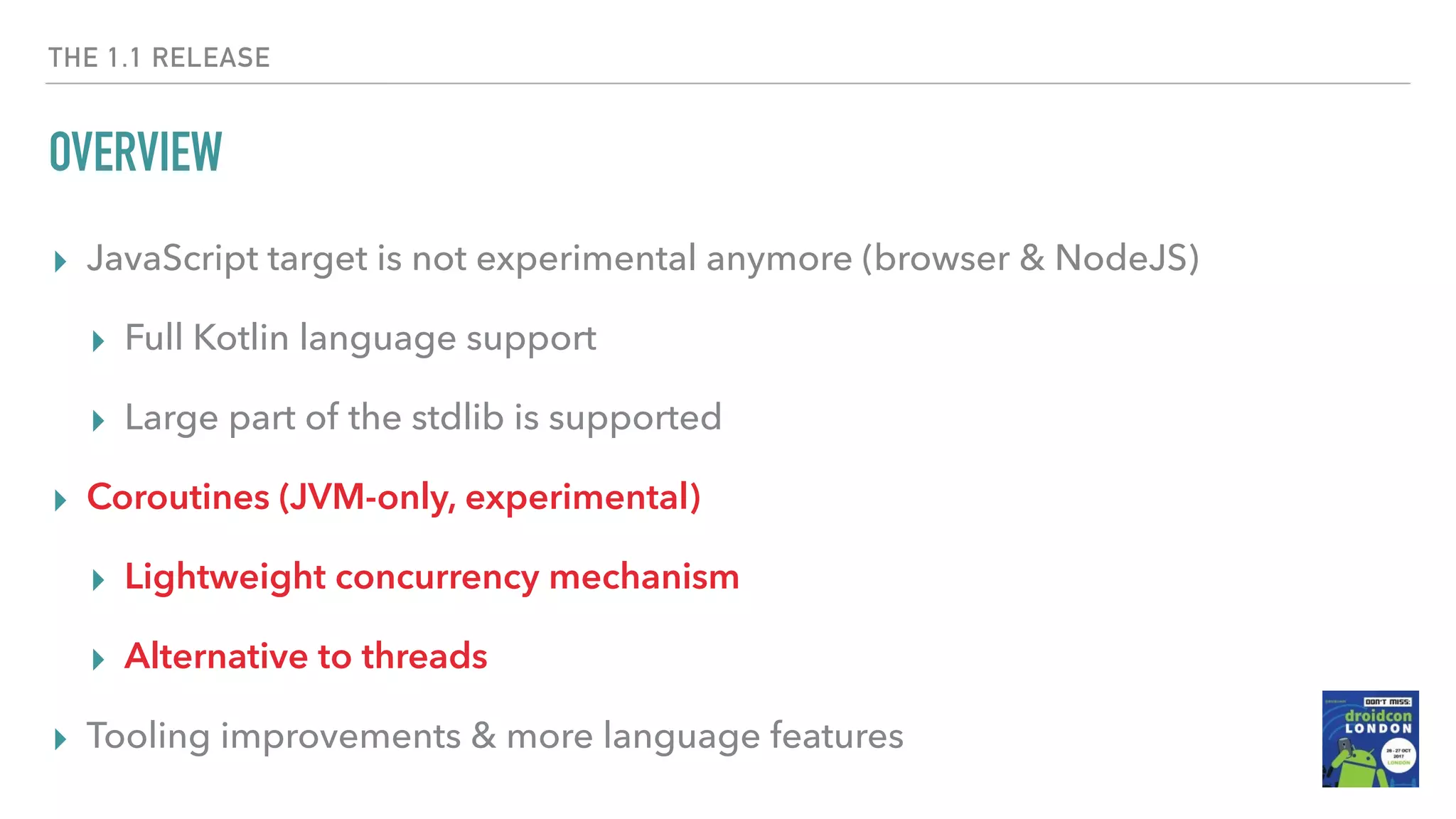

THE 1.1 RELEASE OVERVIEW ▸ JavaScript target is not experimental anymore (browser & NodeJS) ▸ Full Kotlin language support ▸ Large part of the stdlib is supported ▸ Coroutines (JVM-only, experimental) ▸ Lightweight concurrency mechanism ▸ Alternative to threads ▸ Tooling improvements & more language features

WHY COROUTINES? https://www.ﬂickr.com/photos/61299367@N05/9448165205

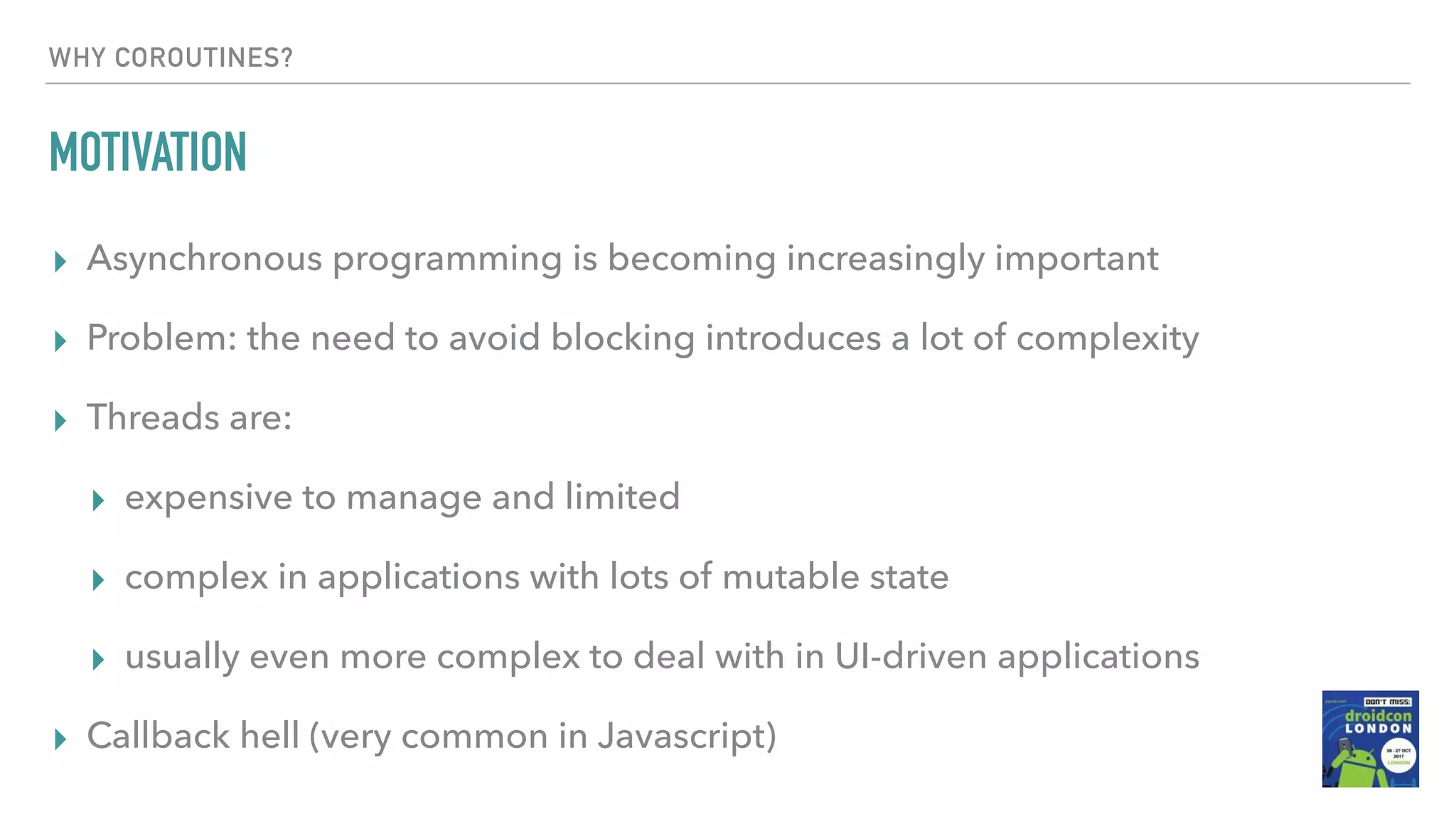

WHY COROUTINES? MOTIVATION ▸ Asynchronous programming is becoming increasingly important ▸ Problem: the need to avoid blocking introduces a lot of complexity ▸ Threads are: ▸ expensive to manage and limited ▸ complex in applications with lots of mutable state ▸ usually even more complex to deal with in UI-driven applications ▸ Callback hell (very common in Javascript)

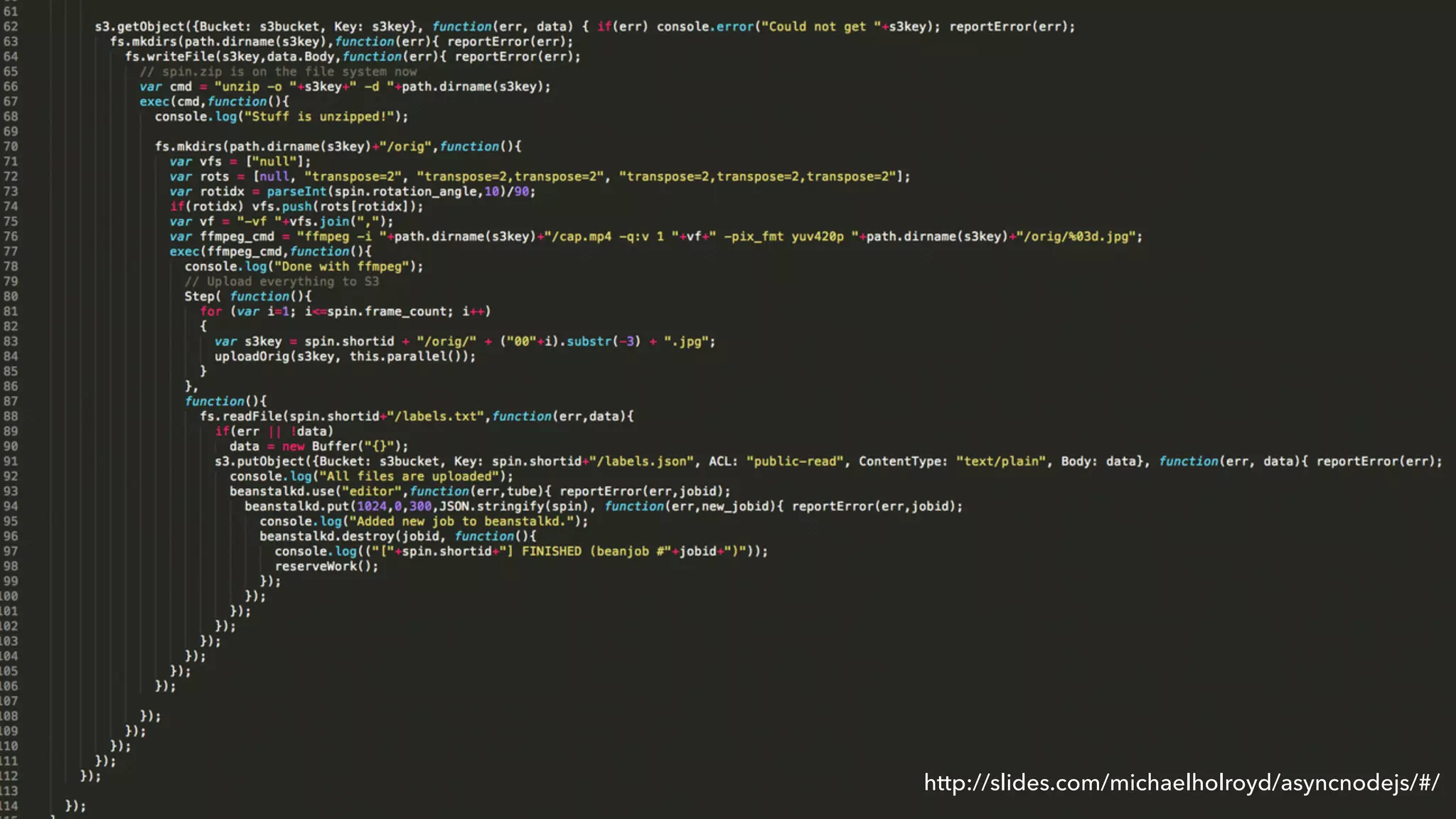

http://slides.com/michaelholroyd/asyncnodejs/#/

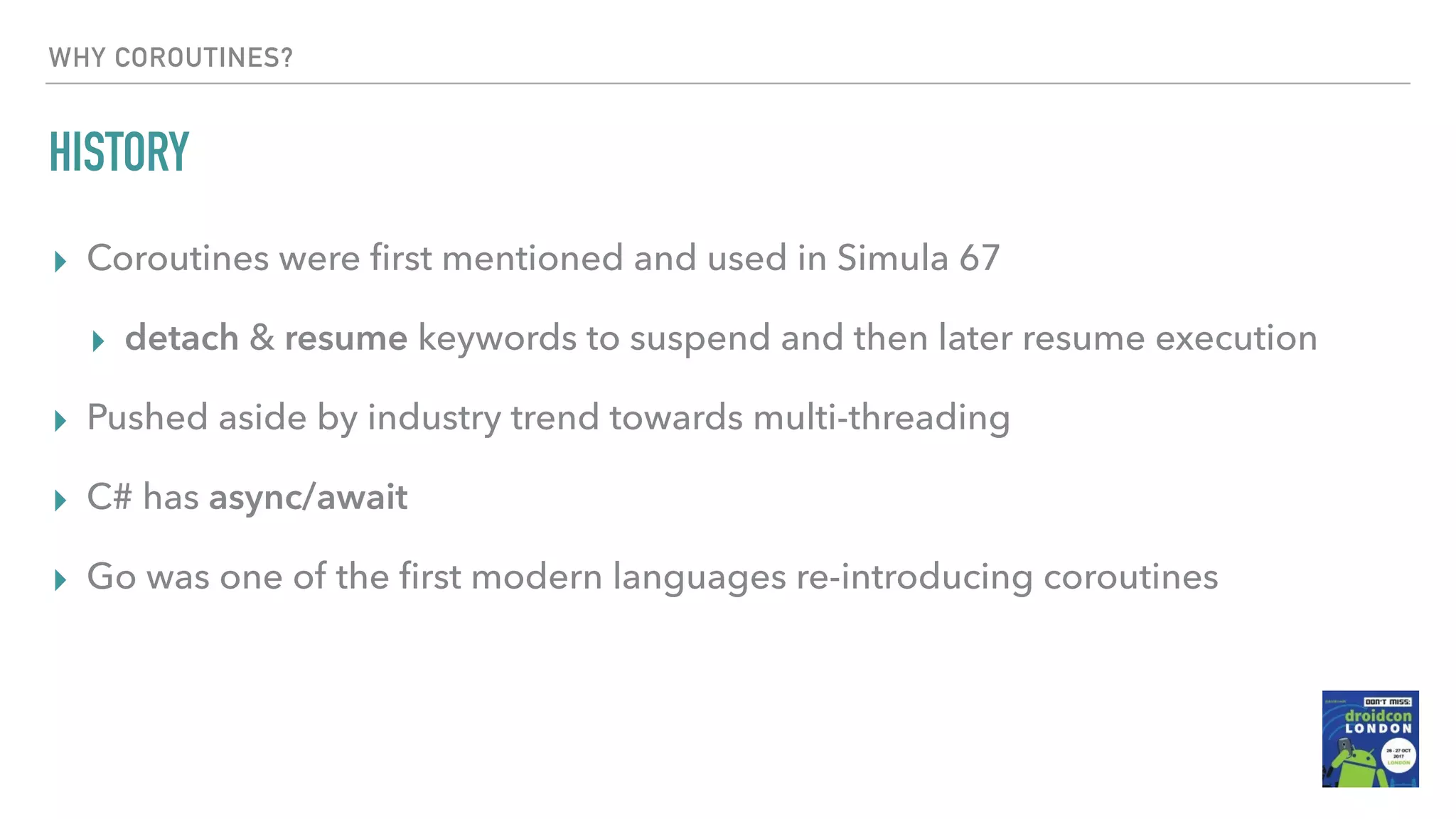

WHY COROUTINES? HISTORY ▸ Coroutines were ﬁrst mentioned and used in Simula 67 ▸ detach & resume keywords to suspend and then later resume execution ▸ Pushed aside by industry trend towards multi-threading ▸ C# has async/await ▸ Go was one of the ﬁrst modern languages re-introducing coroutines

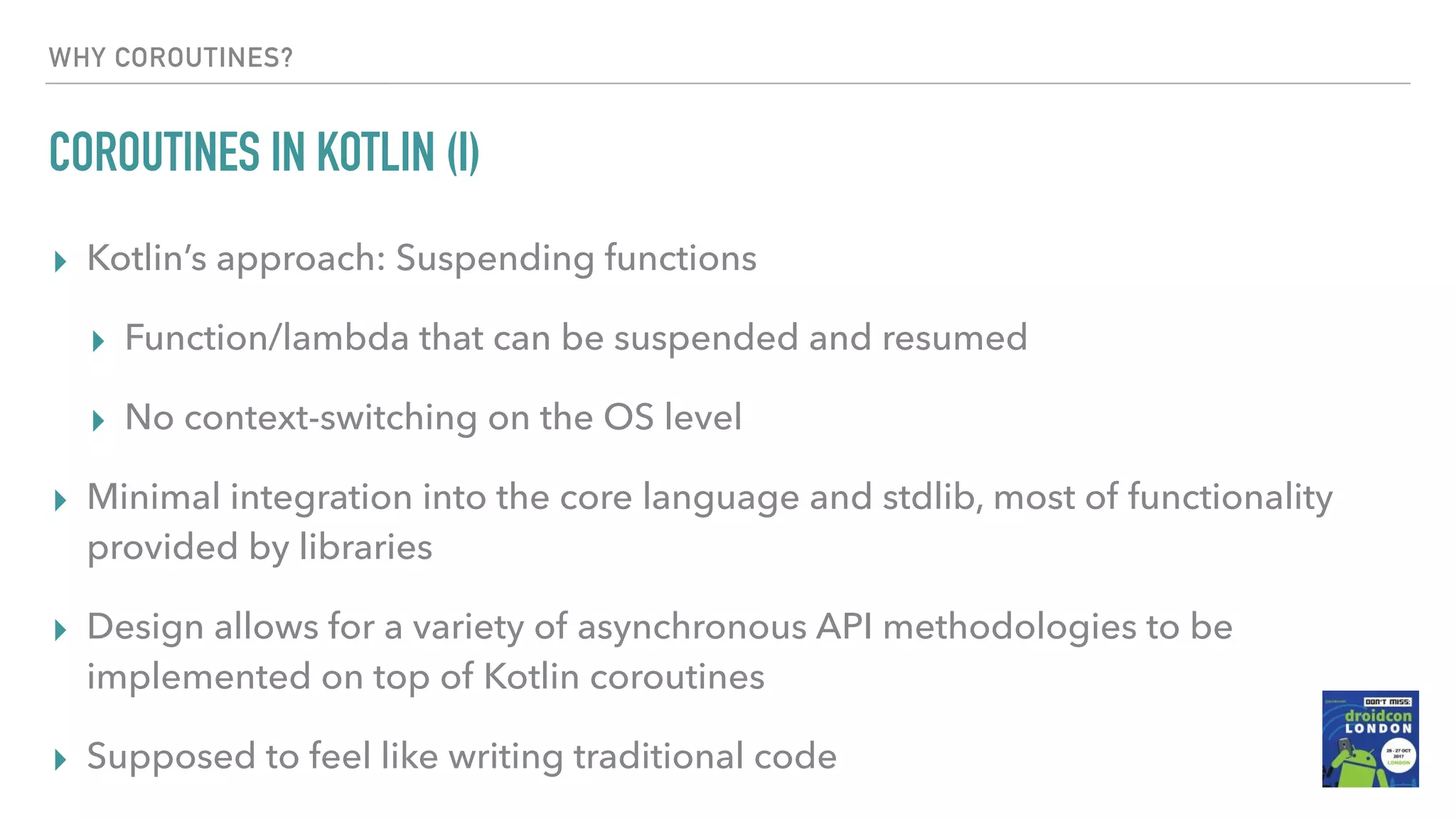

WHY COROUTINES? COROUTINES IN KOTLIN (I) ▸ Kotlin’s approach: Suspending functions ▸ Function/lambda that can be suspended and resumed ▸ No context-switching on the OS level ▸ Minimal integration into the core language and stdlib, most of functionality provided by libraries ▸ Design allows for a variety of asynchronous API methodologies to be implemented on top of Kotlin coroutines ▸ Supposed to feel like writing traditional code

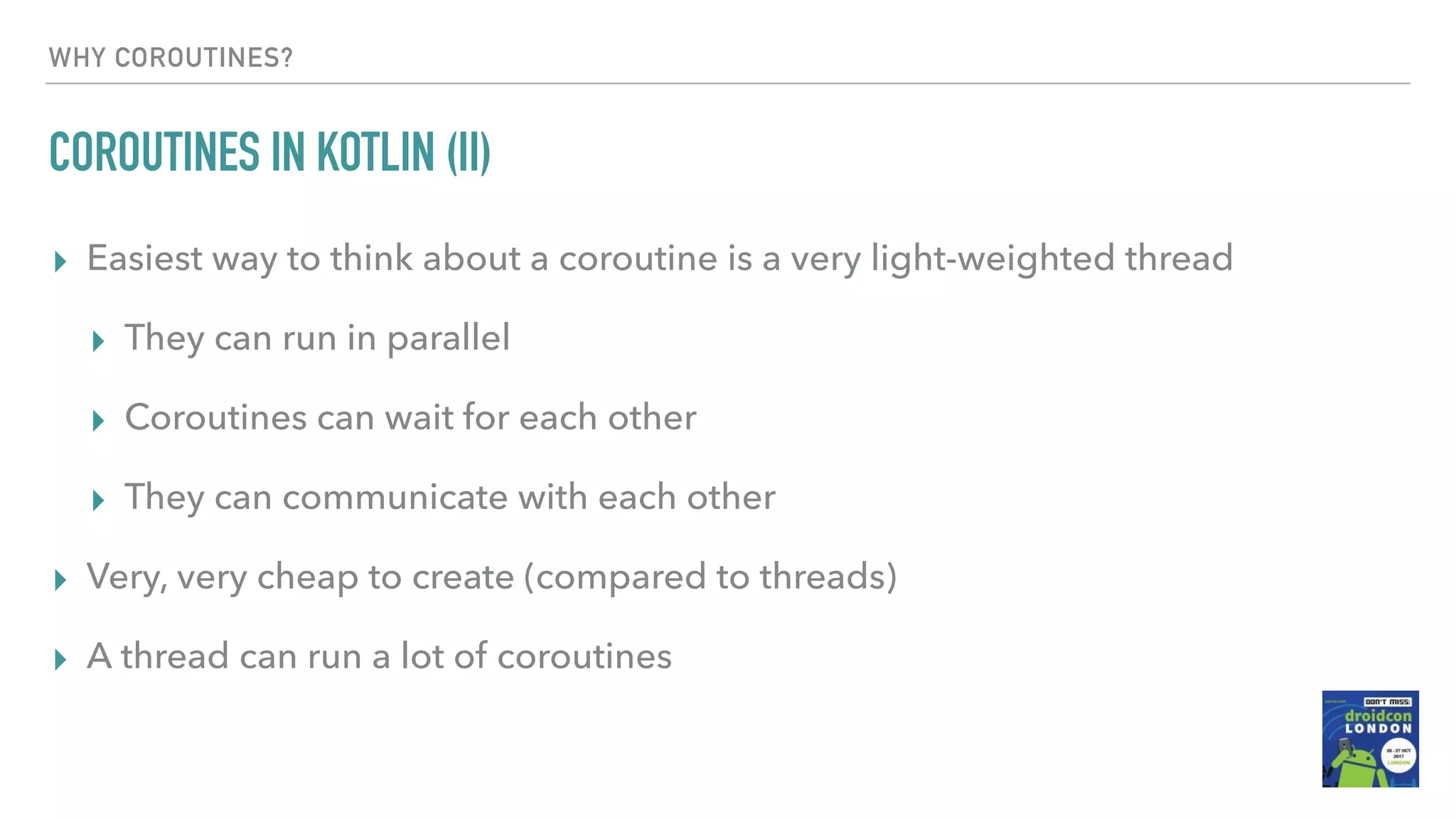

WHY COROUTINES? COROUTINES IN KOTLIN (II) ▸ Easiest way to think about a coroutine is a very light-weighted thread ▸ They can run in parallel ▸ Coroutines can wait for each other ▸ They can communicate with each other ▸ Very, very cheap to create (compared to threads) ▸ A thread can run a lot of coroutines

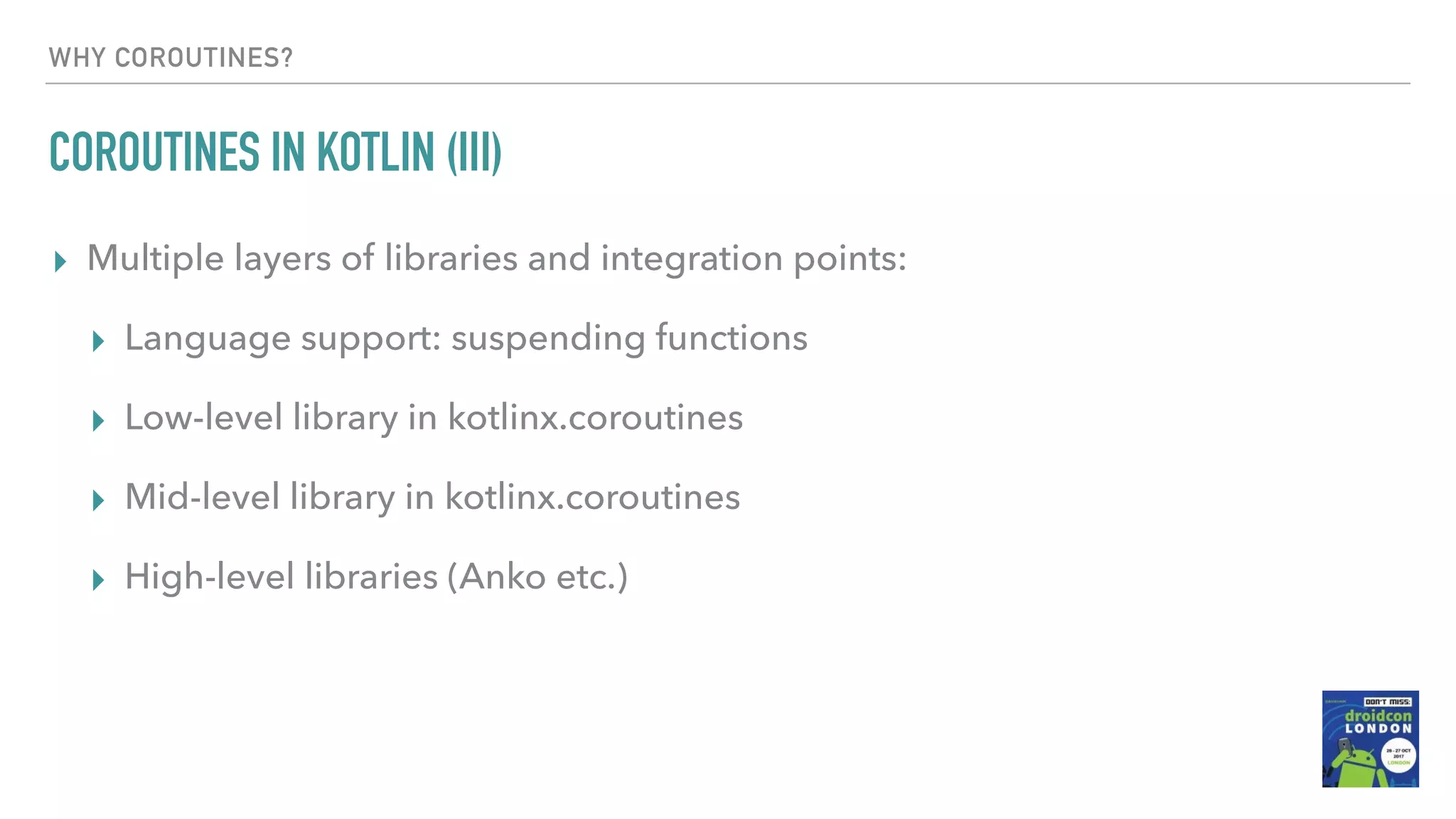

WHY COROUTINES? COROUTINES IN KOTLIN (III) ▸ Multiple layers of libraries and integration points: ▸ Language support: suspending functions ▸ Low-level library in kotlinx.coroutines ▸ Mid-level library in kotlinx.coroutines ▸ High-level libraries (Anko etc.)

USING COROUTINES IN YOUR KOTLIN CODE https://www.ﬂickr.com/photos/97114911@N05/14720054418

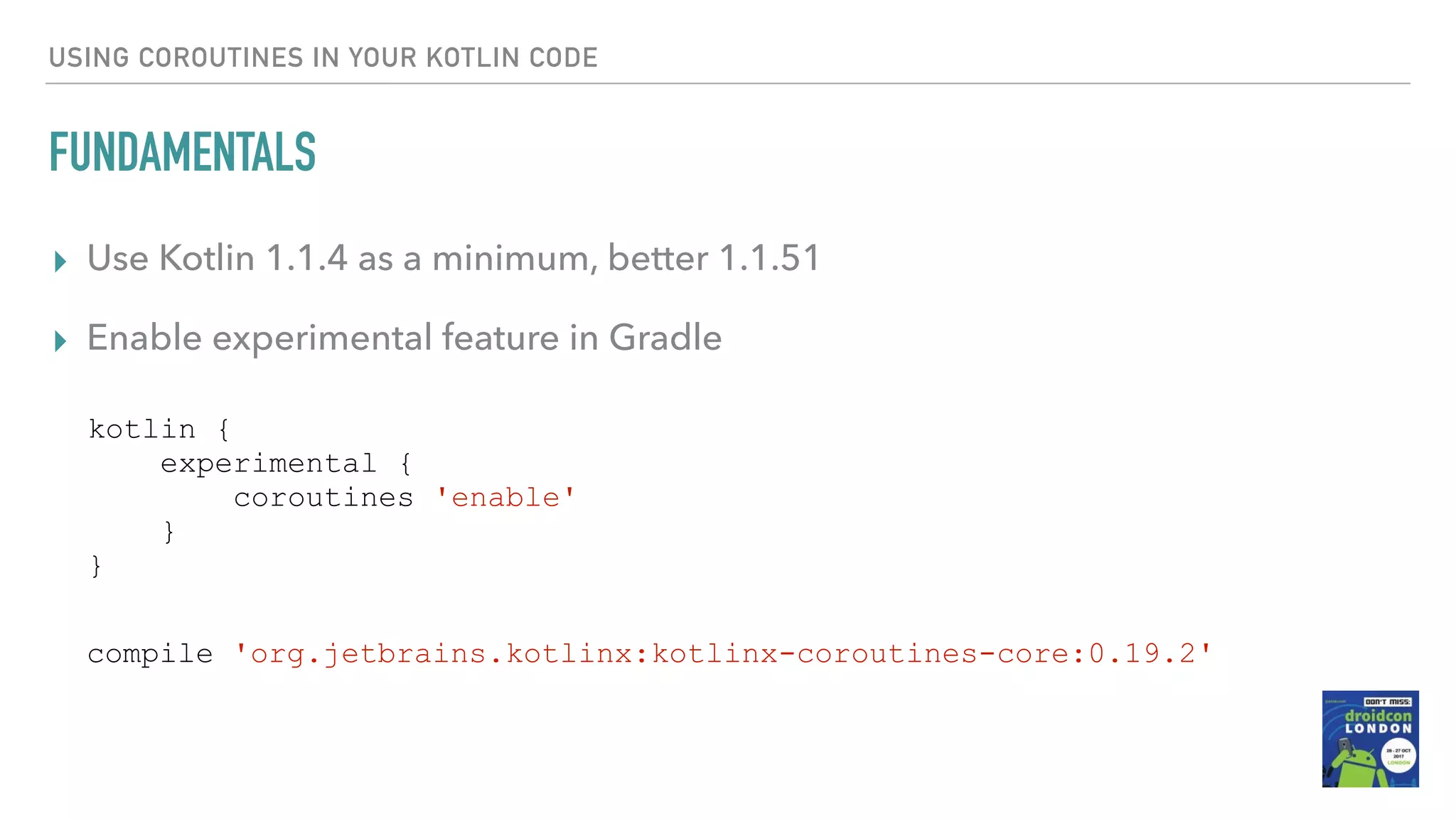

USING COROUTINES IN YOUR KOTLIN CODE FUNDAMENTALS ▸ Use Kotlin 1.1.4 as a minimum, better 1.1.51 ▸ Enable experimental feature in Gradle kotlin { experimental { coroutines 'enable' } } compile 'org.jetbrains.kotlinx:kotlinx-coroutines-core:0.19.2'

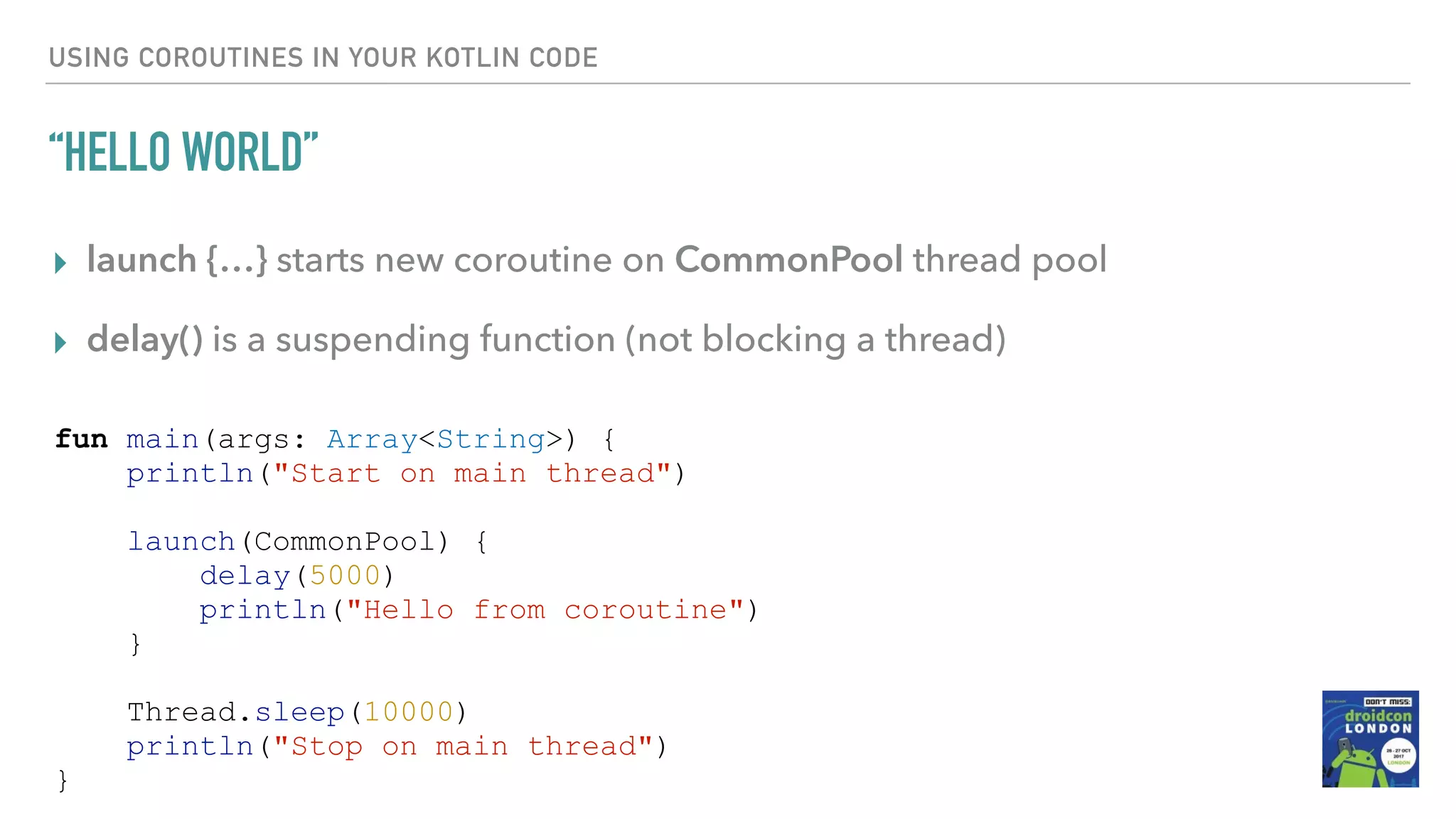

USING COROUTINES IN YOUR KOTLIN CODE “HELLO WORLD” ▸ launch {…} starts new coroutine on CommonPool thread pool ▸ delay() is a suspending function (not blocking a thread) fun main(args: Array<String>) { println("Start on main thread") launch(CommonPool) { delay(5000) println("Hello from coroutine") } Thread.sleep(10000) println("Stop on main thread") }

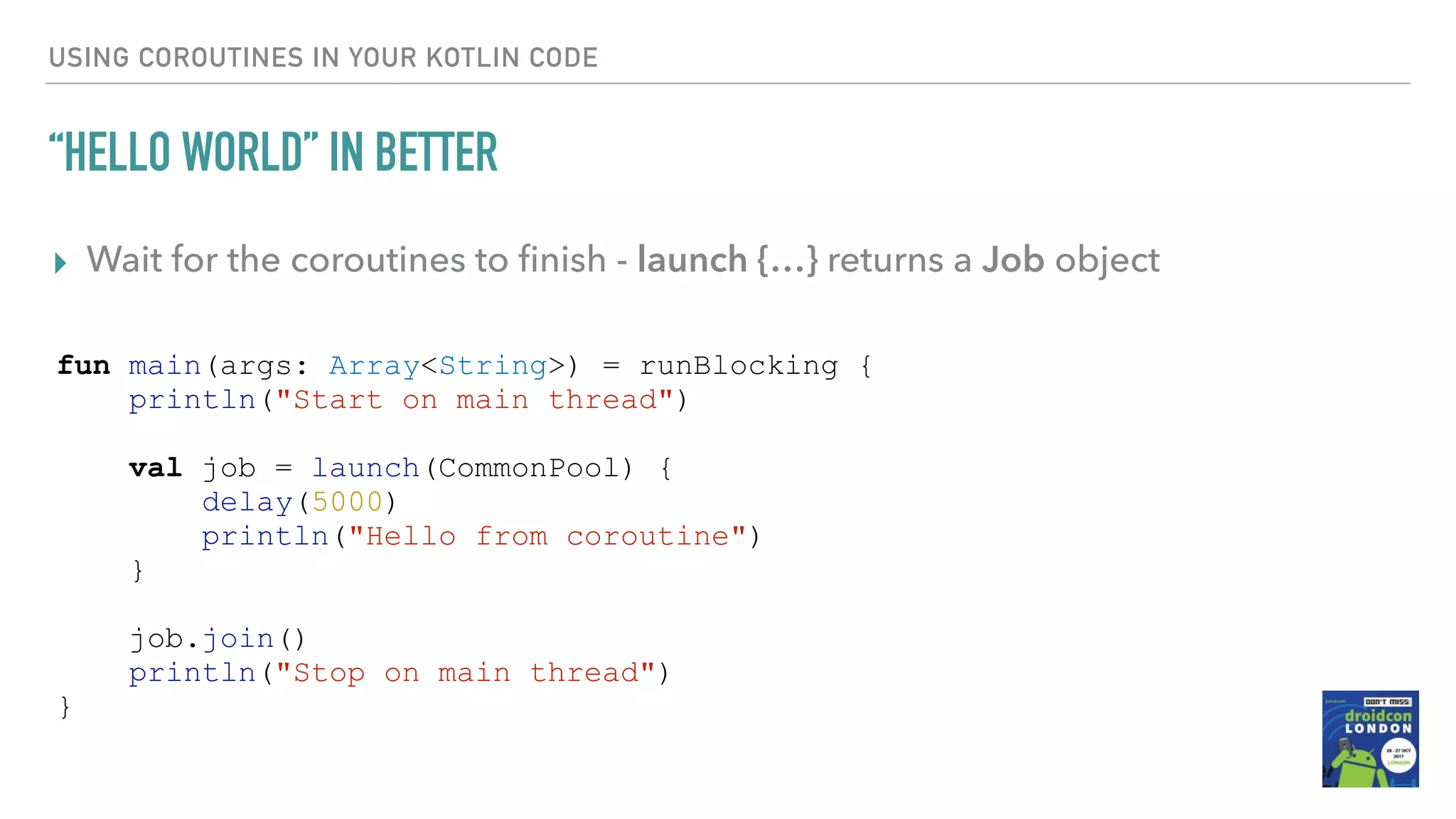

USING COROUTINES IN YOUR KOTLIN CODE “HELLO WORLD” IN BETTER ▸ Wait for the coroutines to ﬁnish - launch {…} returns a Job object fun main(args: Array<String>) = runBlocking { println("Start on main thread") val job = launch(CommonPool) { delay(5000) println("Hello from coroutine") } job.join() println("Stop on main thread") }

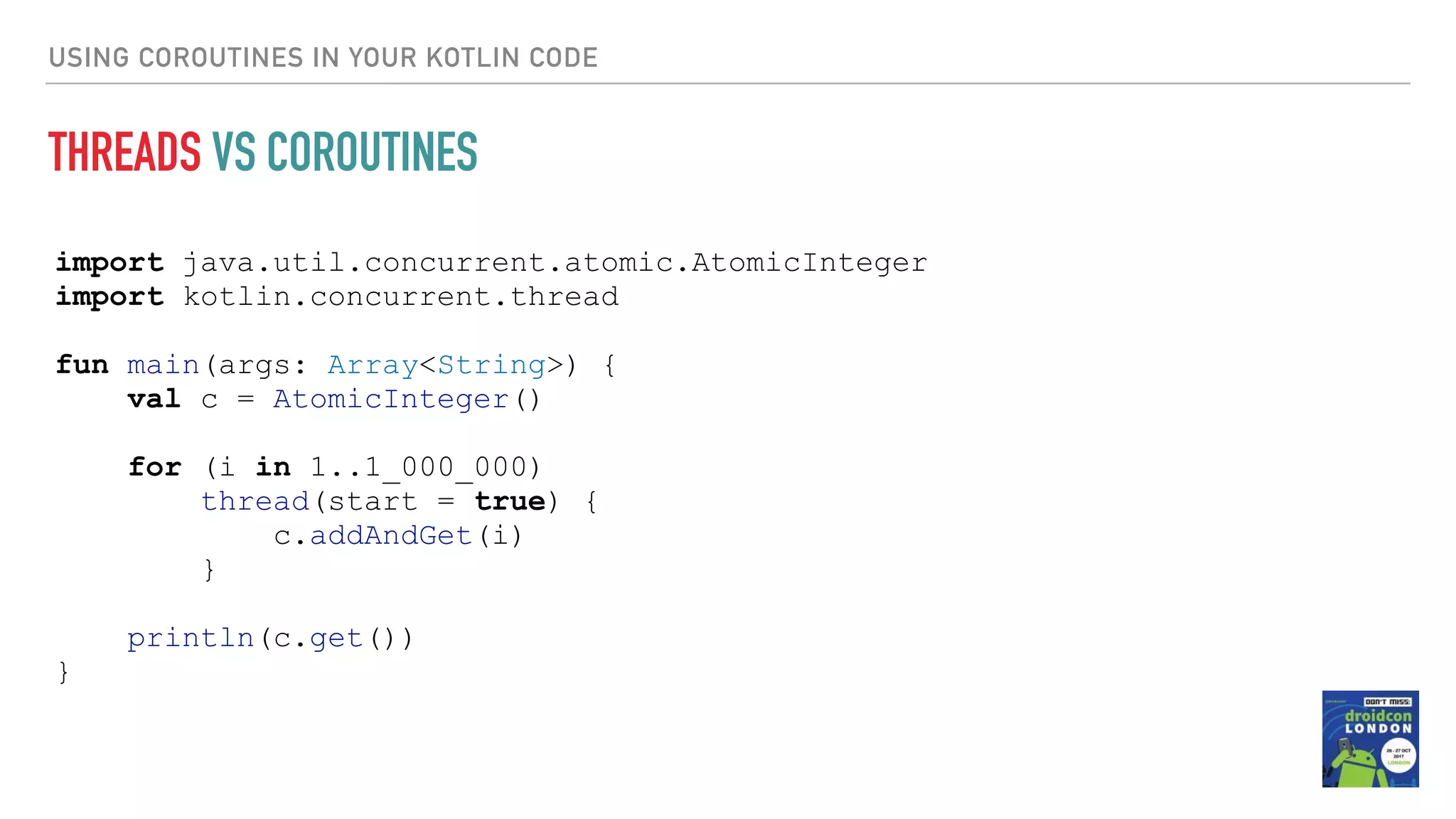

USING COROUTINES IN YOUR KOTLIN CODE THREADS VS COROUTINES import java.util.concurrent.atomic.AtomicInteger import kotlin.concurrent.thread fun main(args: Array<String>) { val c = AtomicInteger() for (i in 1..1_000_000) thread(start = true) { c.addAndGet(i) } println(c.get()) }

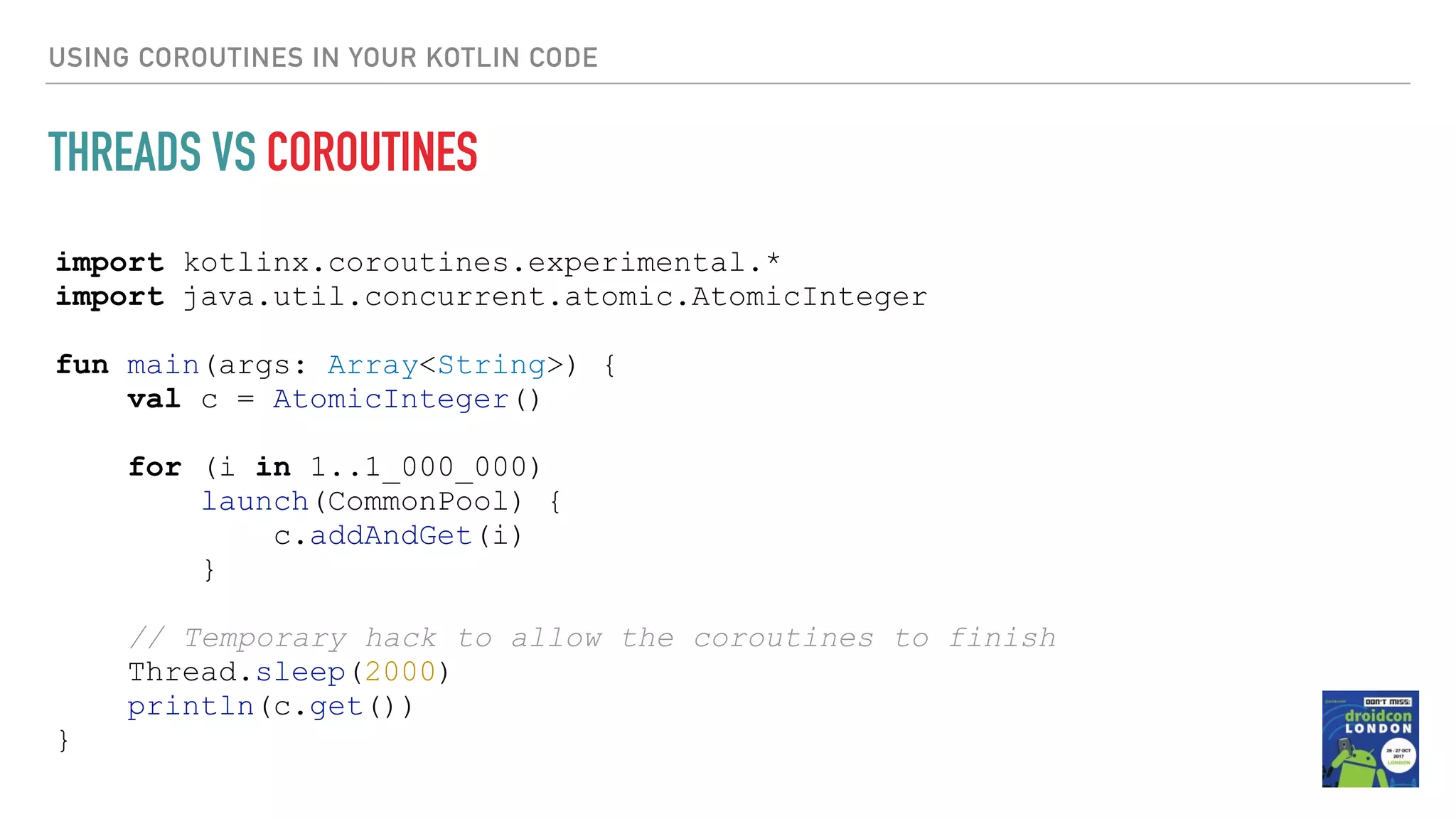

import kotlinx.coroutines.experimental.* import java.util.concurrent.atomic.AtomicInteger fun main(args: Array<String>) { val c = AtomicInteger() for (i in 1..1_000_000) launch(CommonPool) { c.addAndGet(i) } // Temporary hack to allow the coroutines to finish Thread.sleep(2000) println(c.get()) } USING COROUTINES IN YOUR KOTLIN CODE THREADS VS COROUTINES

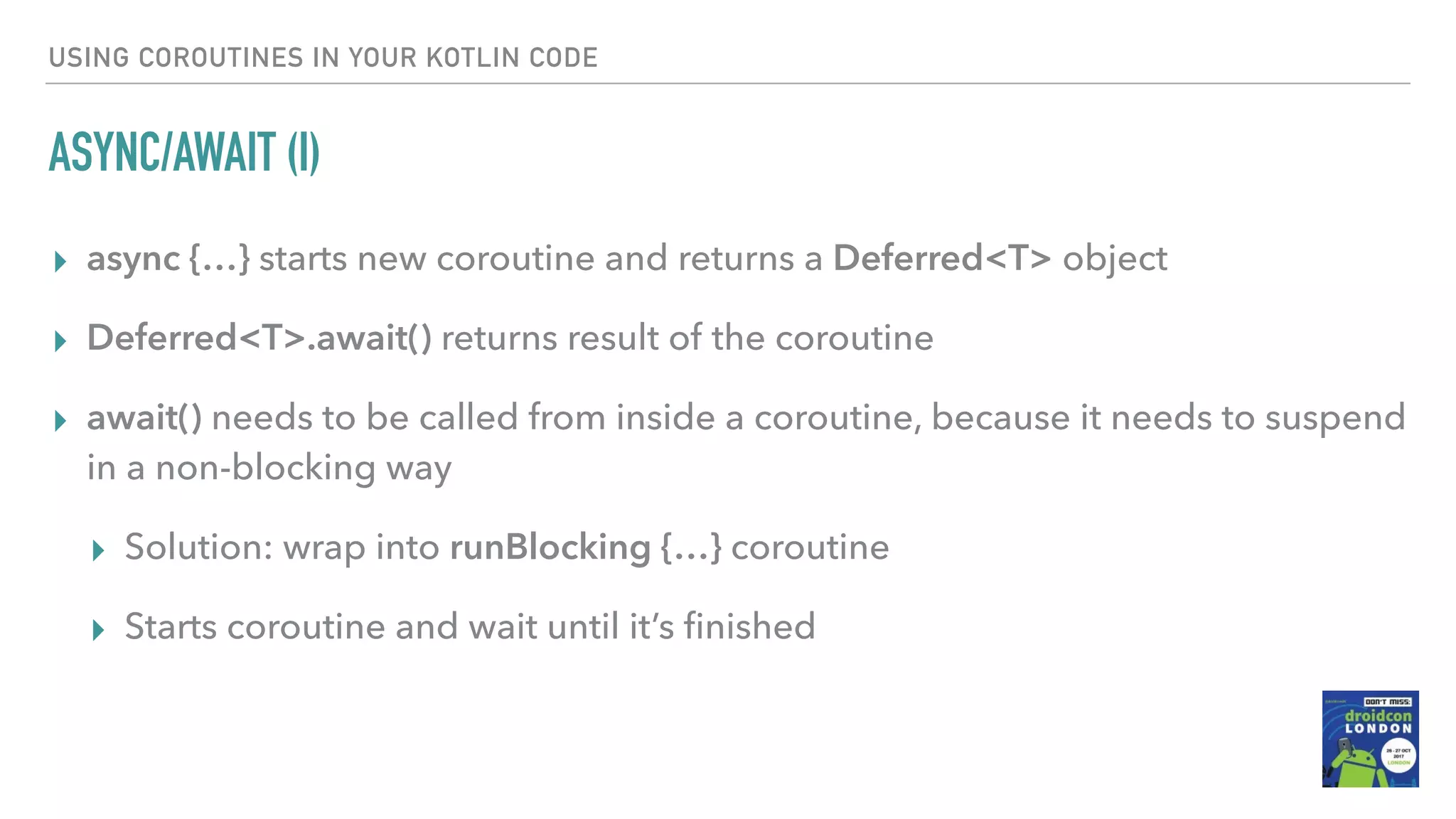

USING COROUTINES IN YOUR KOTLIN CODE ASYNC/AWAIT (I) ▸ async {…} starts new coroutine and returns a Deferred<T> object ▸ Deferred<T>.await() returns result of the coroutine ▸ await() needs to be called from inside a coroutine, because it needs to suspend in a non-blocking way ▸ Solution: wrap into runBlocking {…} coroutine ▸ Starts coroutine and wait until it’s ﬁnished

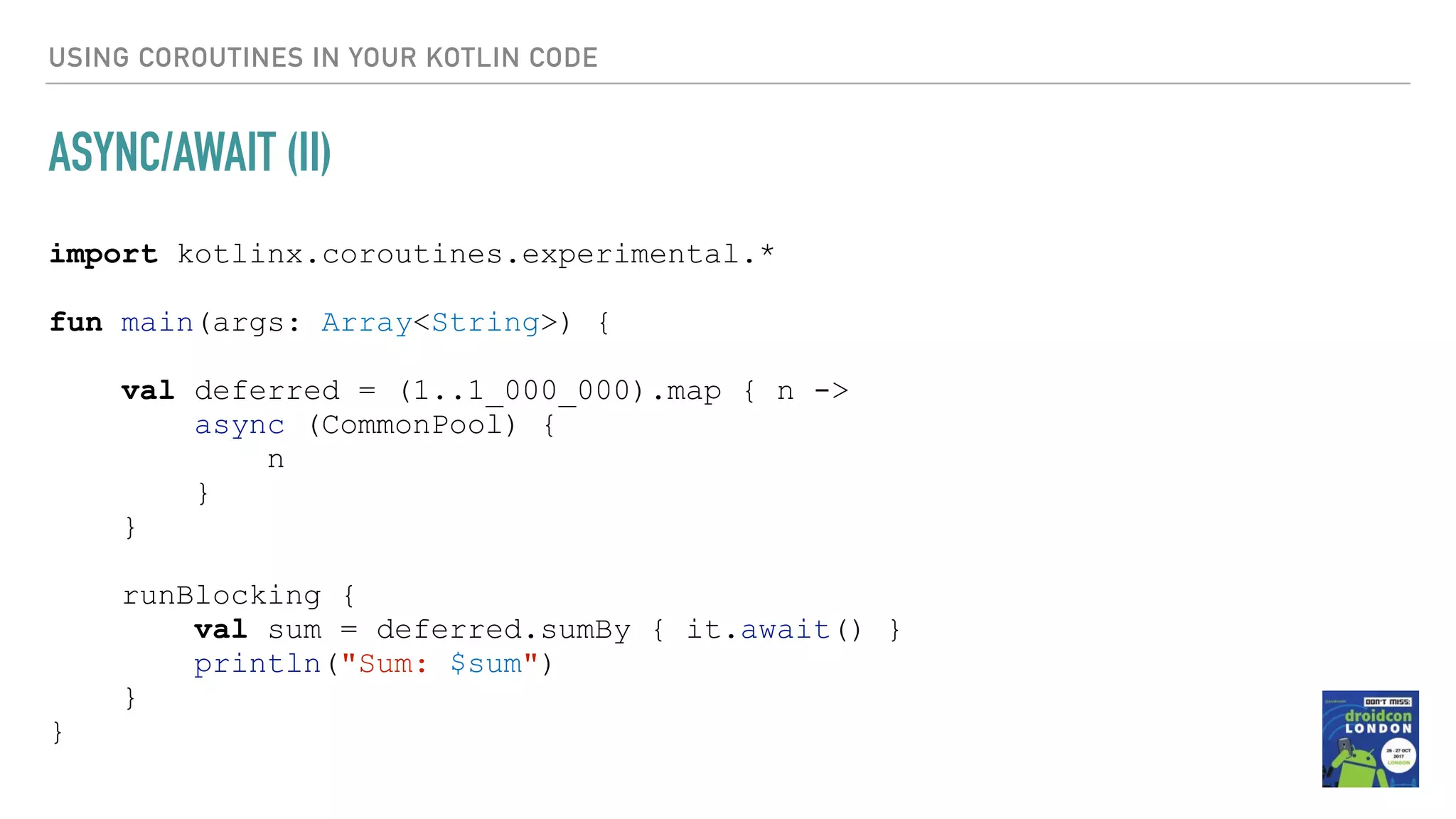

USING COROUTINES IN YOUR KOTLIN CODE ASYNC/AWAIT (II) import kotlinx.coroutines.experimental.* fun main(args: Array<String>) { val deferred = (1..1_000_000).map { n -> async (CommonPool) { n } } runBlocking { val sum = deferred.sumBy { it.await() } println("Sum: $sum") } }

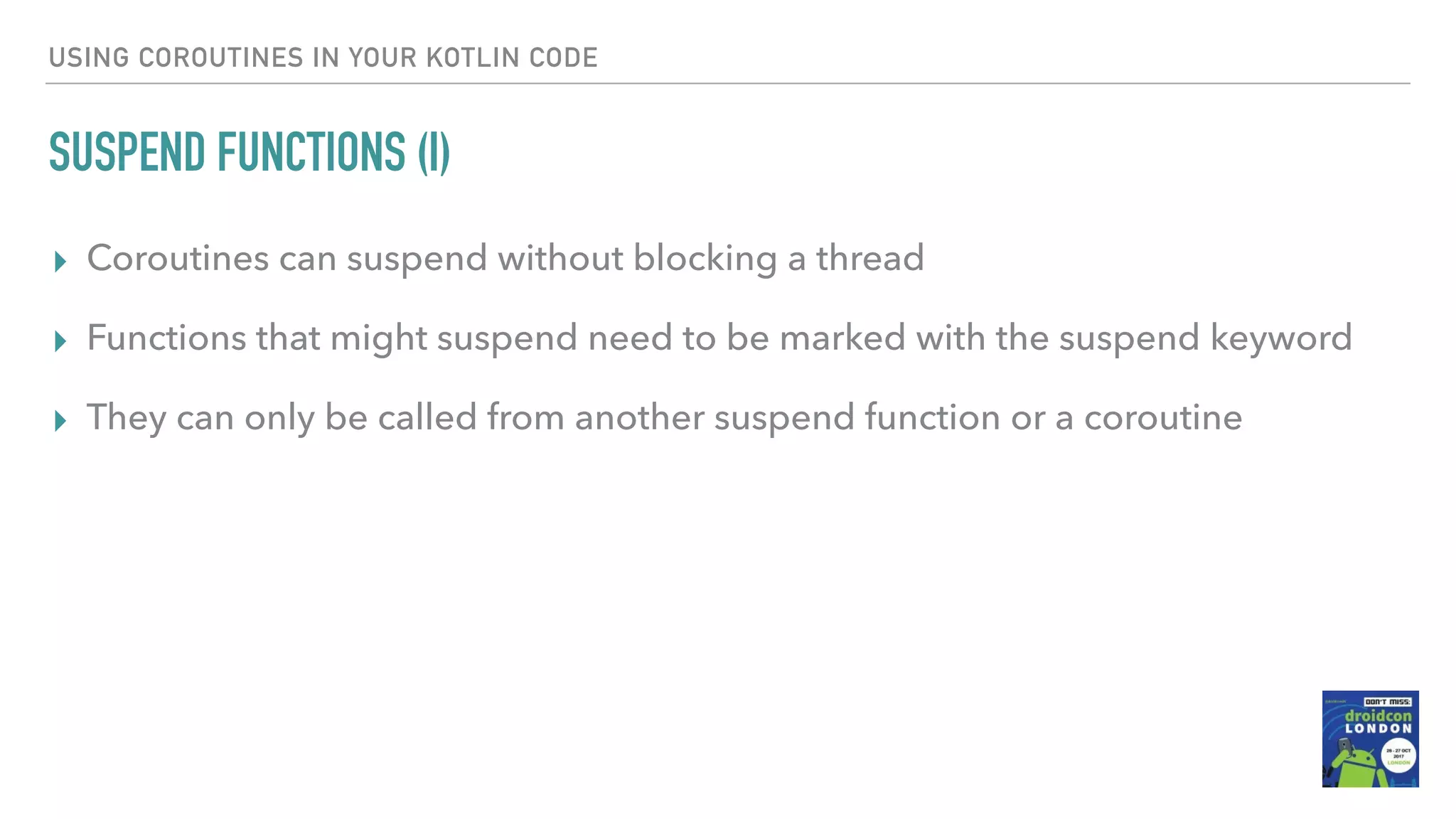

USING COROUTINES IN YOUR KOTLIN CODE SUSPEND FUNCTIONS (I) ▸ Coroutines can suspend without blocking a thread ▸ Functions that might suspend need to be marked with the suspend keyword ▸ They can only be called from another suspend function or a coroutine

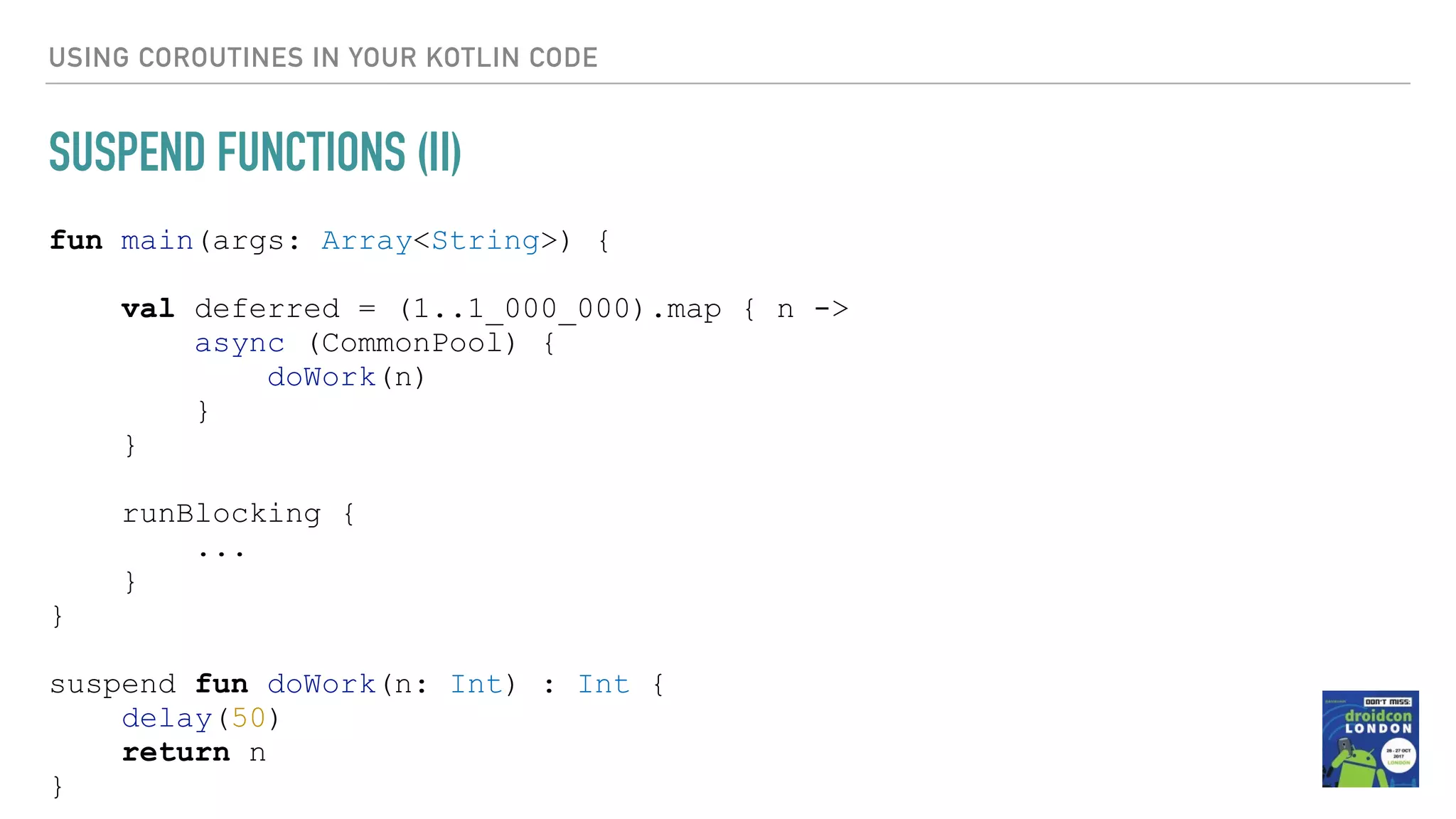

USING COROUTINES IN YOUR KOTLIN CODE SUSPEND FUNCTIONS (II) fun main(args: Array<String>) { val deferred = (1..1_000_000).map { n -> async (CommonPool) { doWork(n) } } runBlocking { ... } } suspend fun doWork(n: Int) : Int { delay(50) return n }

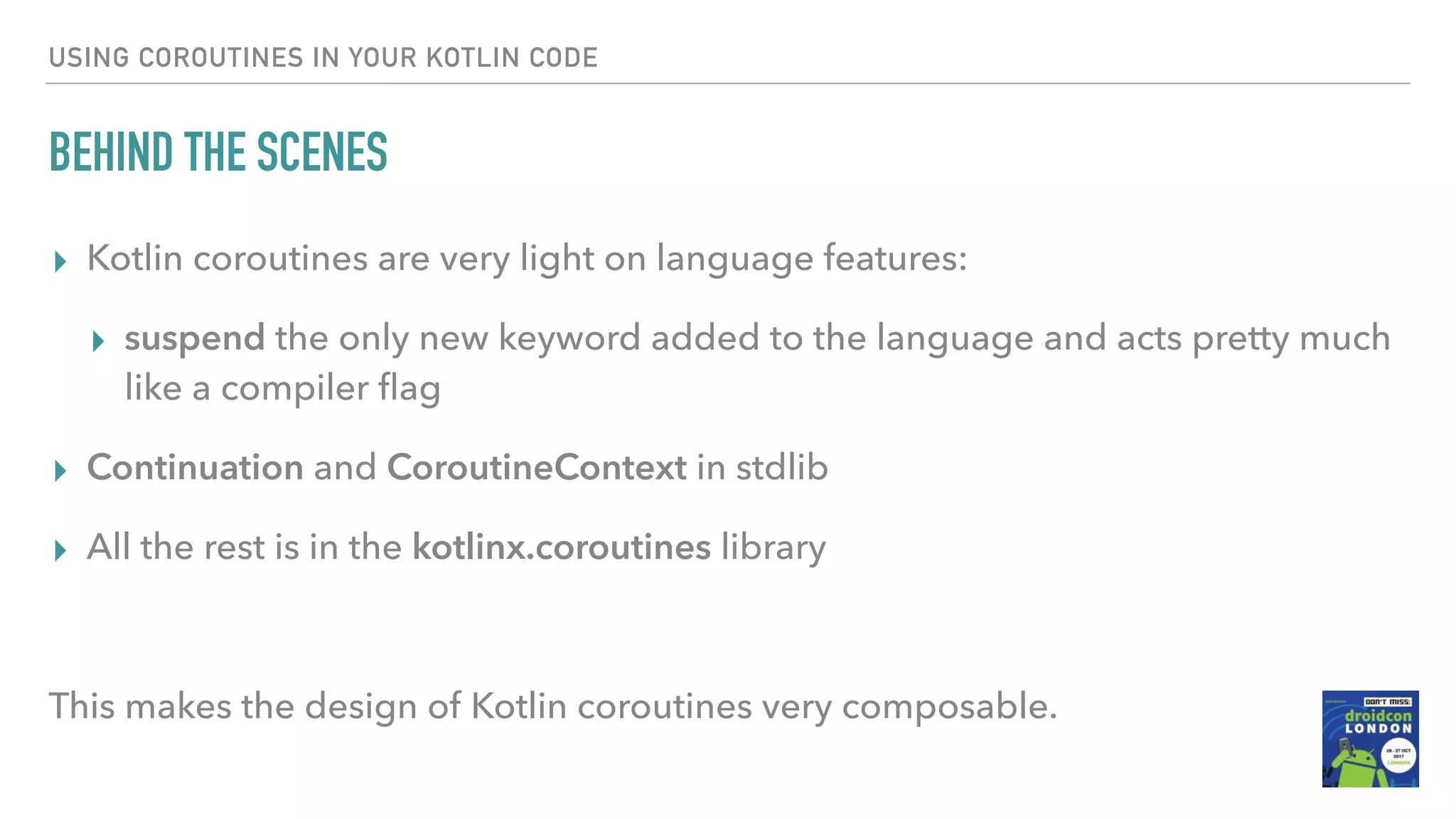

USING COROUTINES IN YOUR KOTLIN CODE BEHIND THE SCENES ▸ Kotlin coroutines are very light on language features: ▸ suspend the only new keyword added to the language and acts pretty much like a compiler ﬂag ▸ Continuation and CoroutineContext in stdlib ▸ All the rest is in the kotlinx.coroutines library This makes the design of Kotlin coroutines very composable.

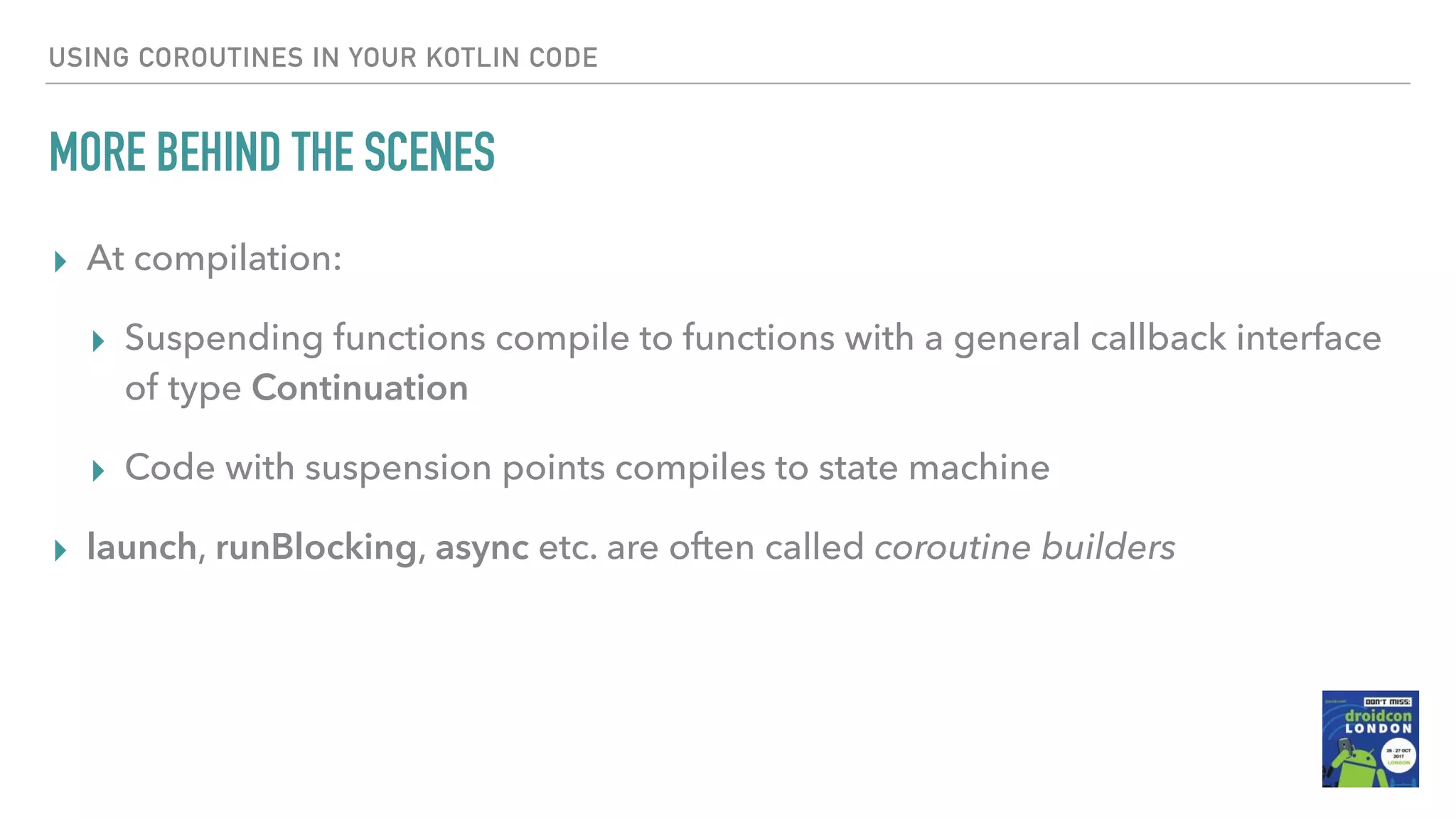

USING COROUTINES IN YOUR KOTLIN CODE MORE BEHIND THE SCENES ▸ At compilation: ▸ Suspending functions compile to functions with a general callback interface of type Continuation ▸ Code with suspension points compiles to state machine ▸ launch, runBlocking, async etc. are often called coroutine builders

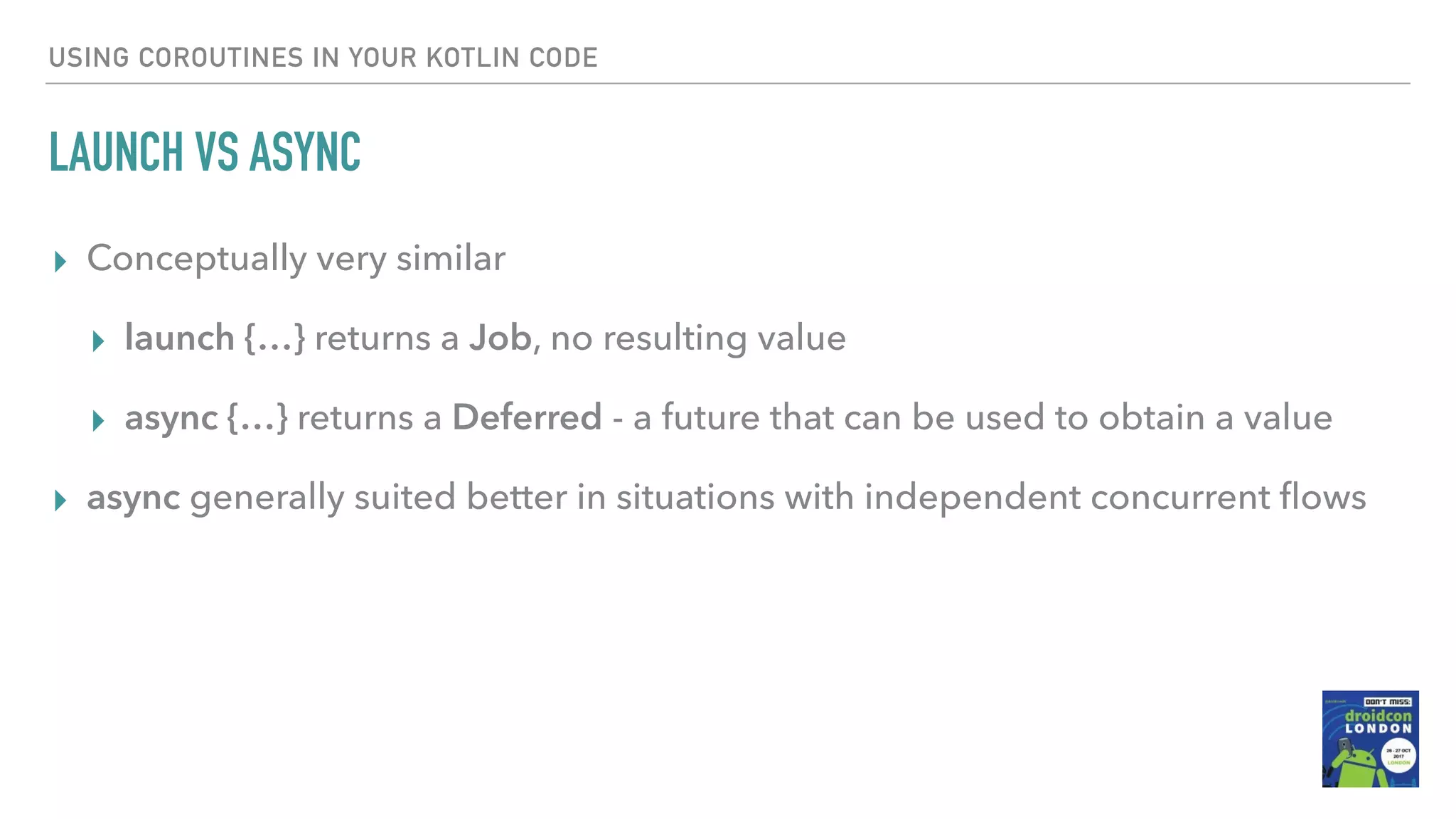

USING COROUTINES IN YOUR KOTLIN CODE LAUNCH VS ASYNC ▸ Conceptually very similar ▸ launch {…} returns a Job, no resulting value ▸ async {…} returns a Deferred - a future that can be used to obtain a value ▸ async generally suited better in situations with independent concurrent ﬂows

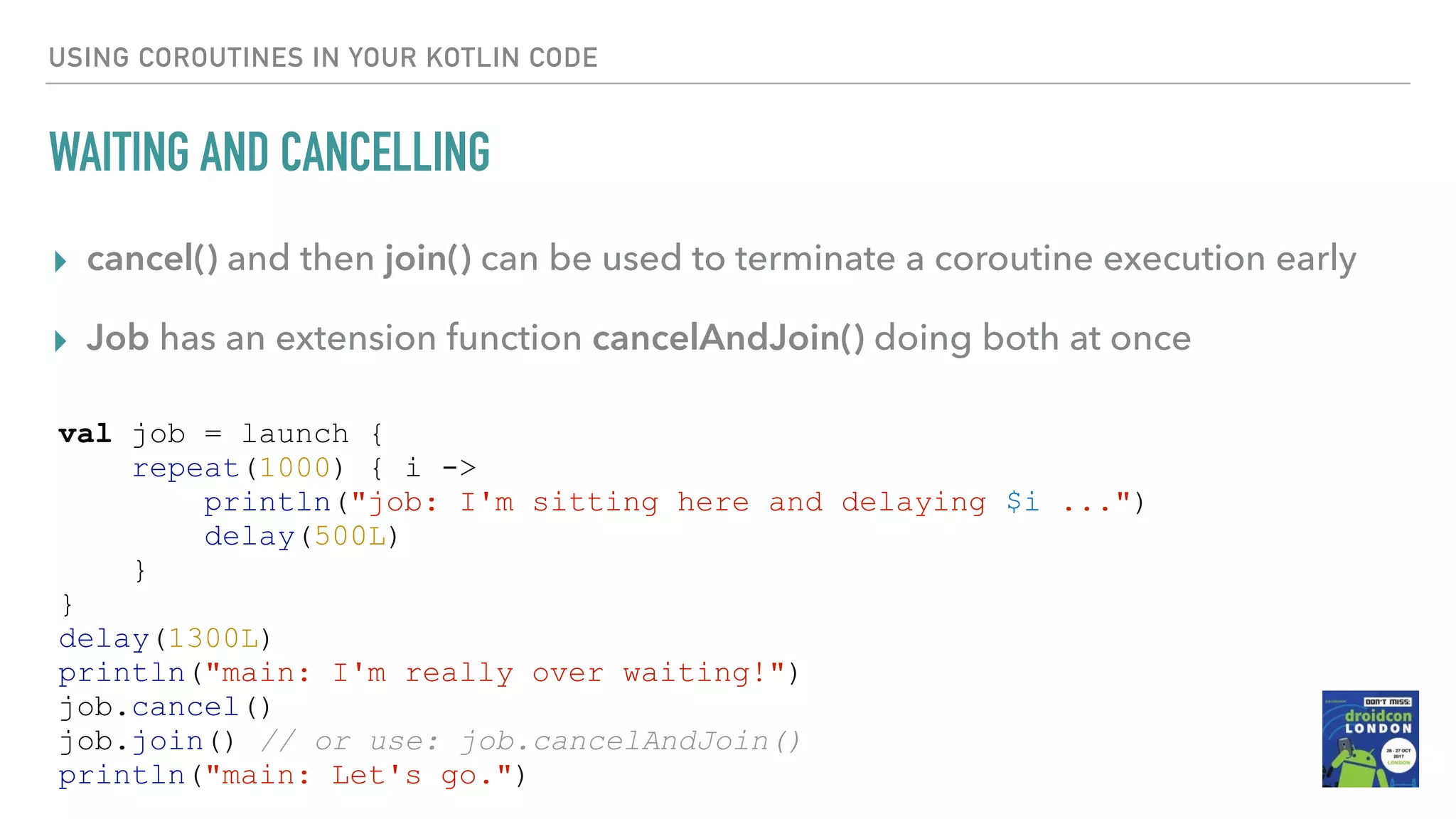

USING COROUTINES IN YOUR KOTLIN CODE WAITING AND CANCELLING ▸ cancel() and then join() can be used to terminate a coroutine execution early ▸ Job has an extension function cancelAndJoin() doing both at once val job = launch { repeat(1000) { i -> println("job: I'm sitting here and delaying $i ...") delay(500L) } } delay(1300L) println("main: I'm really over waiting!") job.cancel() job.join() // or use: job.cancelAndJoin() println("main: Let's go.")

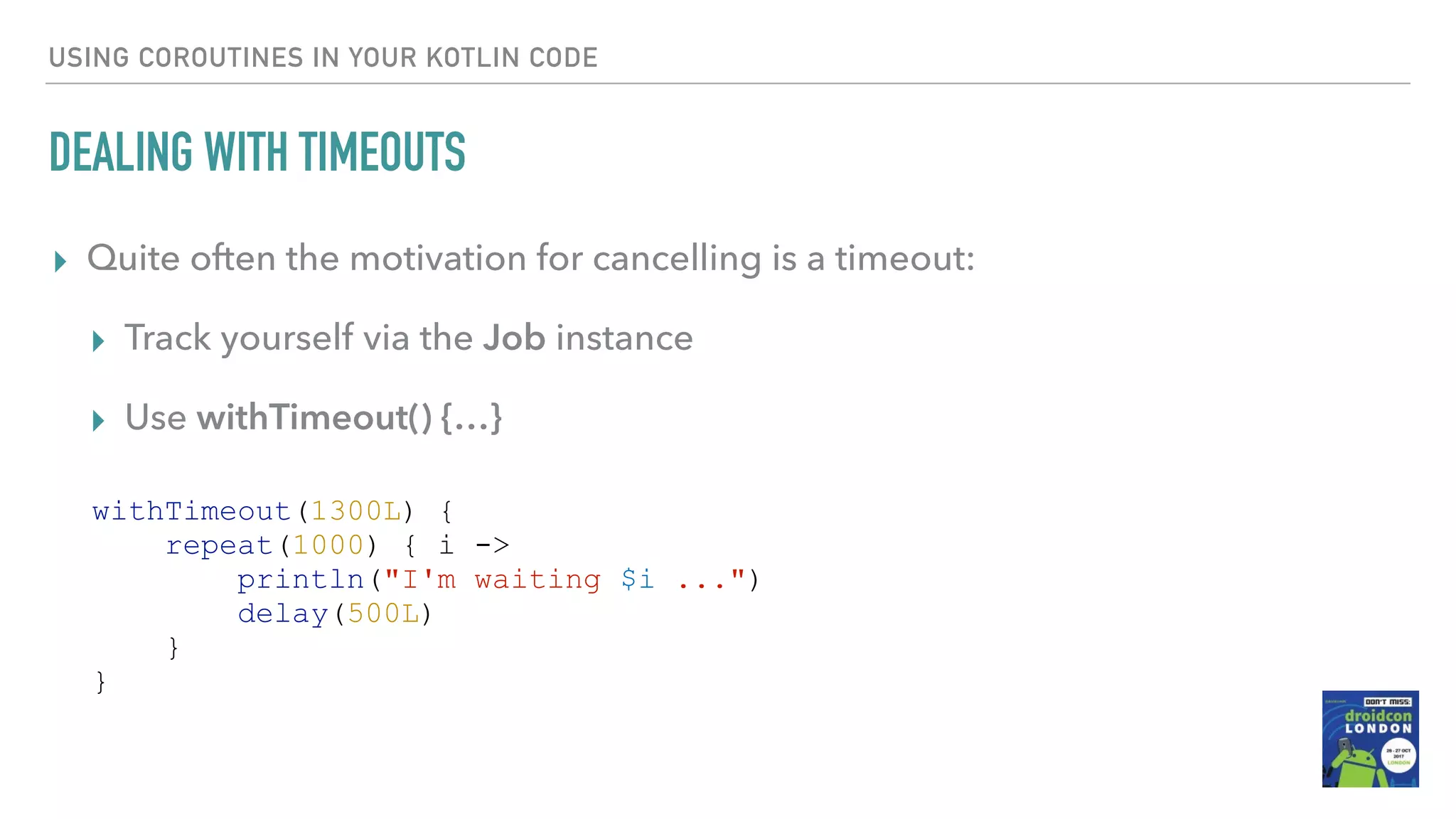

USING COROUTINES IN YOUR KOTLIN CODE DEALING WITH TIMEOUTS ▸ Quite often the motivation for cancelling is a timeout: ▸ Track yourself via the Job instance ▸ Use withTimeout() {…} withTimeout(1300L) { repeat(1000) { i -> println("I'm waiting $i ...") delay(500L) } }

USING COROUTINES IN YOUR KOTLIN CODE THAT’S NOT ALL OF IT YET ▸ Coroutine context ▸ Coroutines and threads ▸ Channels ▸ Pipelines ▸ Dealing with state ▸ Shared (mutable) state & Actors Compare Coroutines with Java Futures API

LIBRARIES AND COROUTINES ON ANDROID https://www.ﬂickr.com/photos/qiaomeng/4665885561/

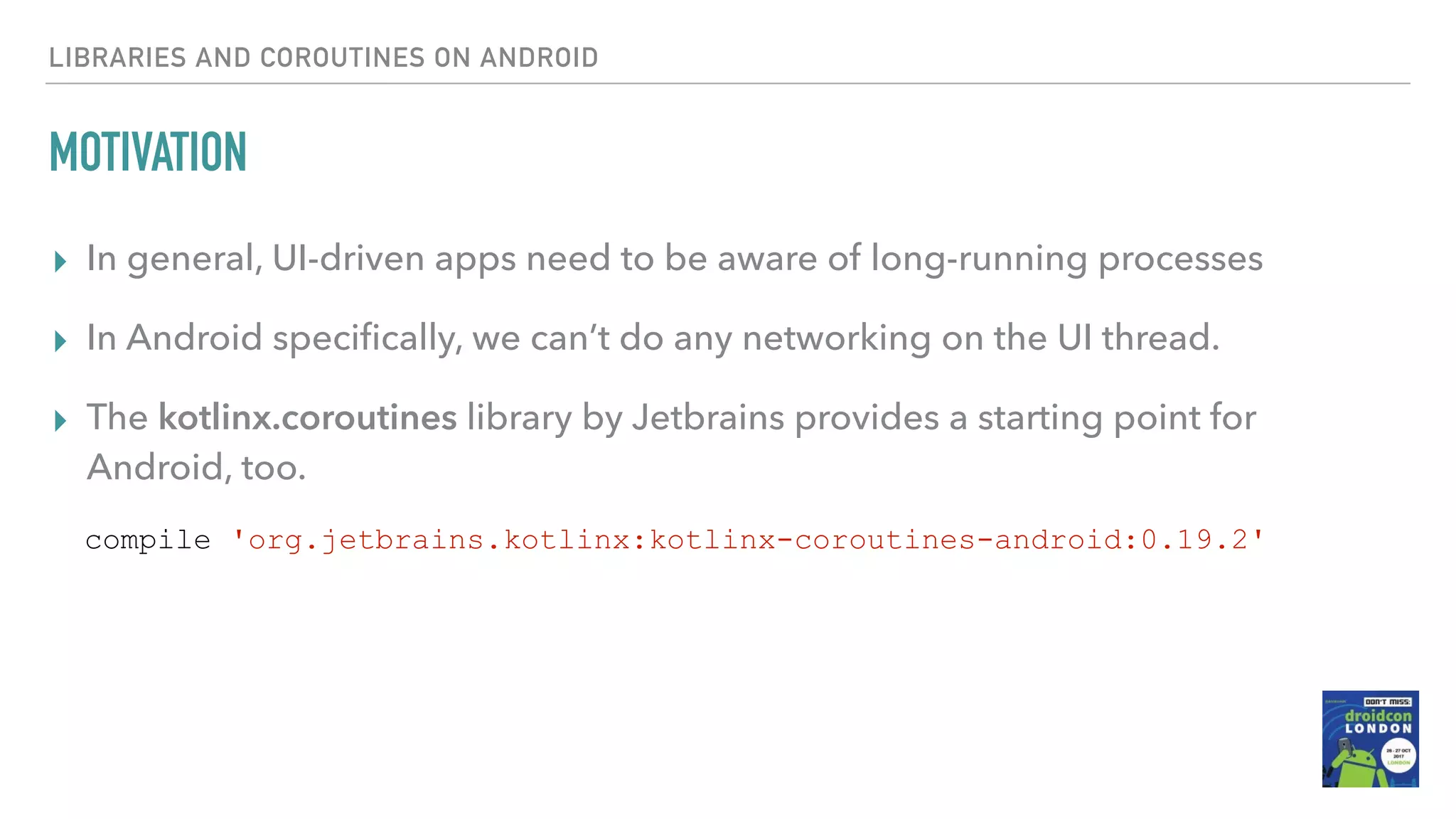

MOTIVATION ▸ In general, UI-driven apps need to be aware of long-running processes ▸ In Android speciﬁcally, we can’t do any networking on the UI thread. ▸ The kotlinx.coroutines library by Jetbrains provides a starting point for Android, too. LIBRARIES AND COROUTINES ON ANDROID compile 'org.jetbrains.kotlinx:kotlinx-coroutines-android:0.19.2'

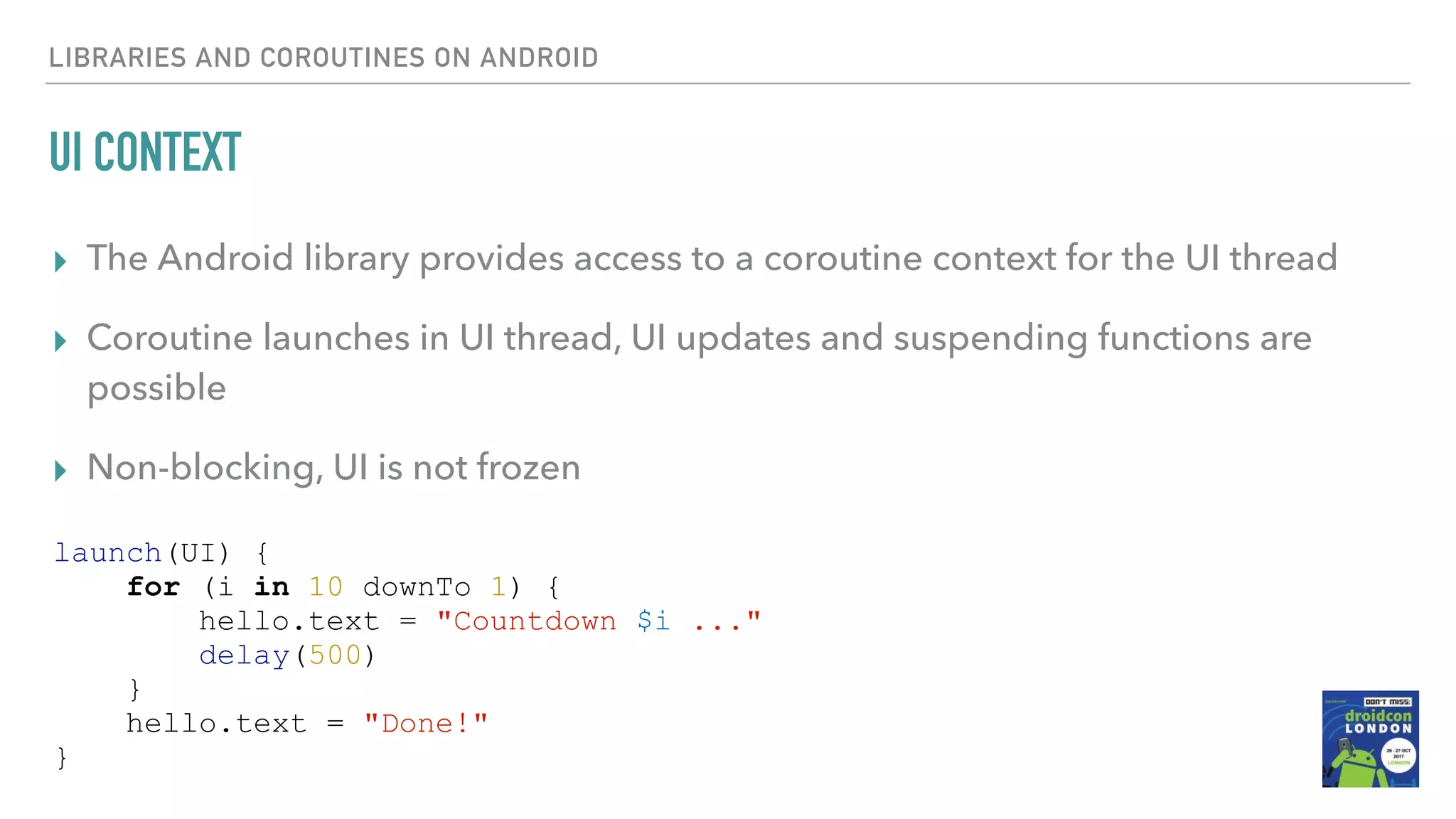

UI CONTEXT ▸ The Android library provides access to a coroutine context for the UI thread ▸ Coroutine launches in UI thread, UI updates and suspending functions are possible ▸ Non-blocking, UI is not frozen LIBRARIES AND COROUTINES ON ANDROID launch(UI) { for (i in 10 downTo 1) { hello.text = "Countdown $i ..." delay(500) } hello.text = "Done!" }

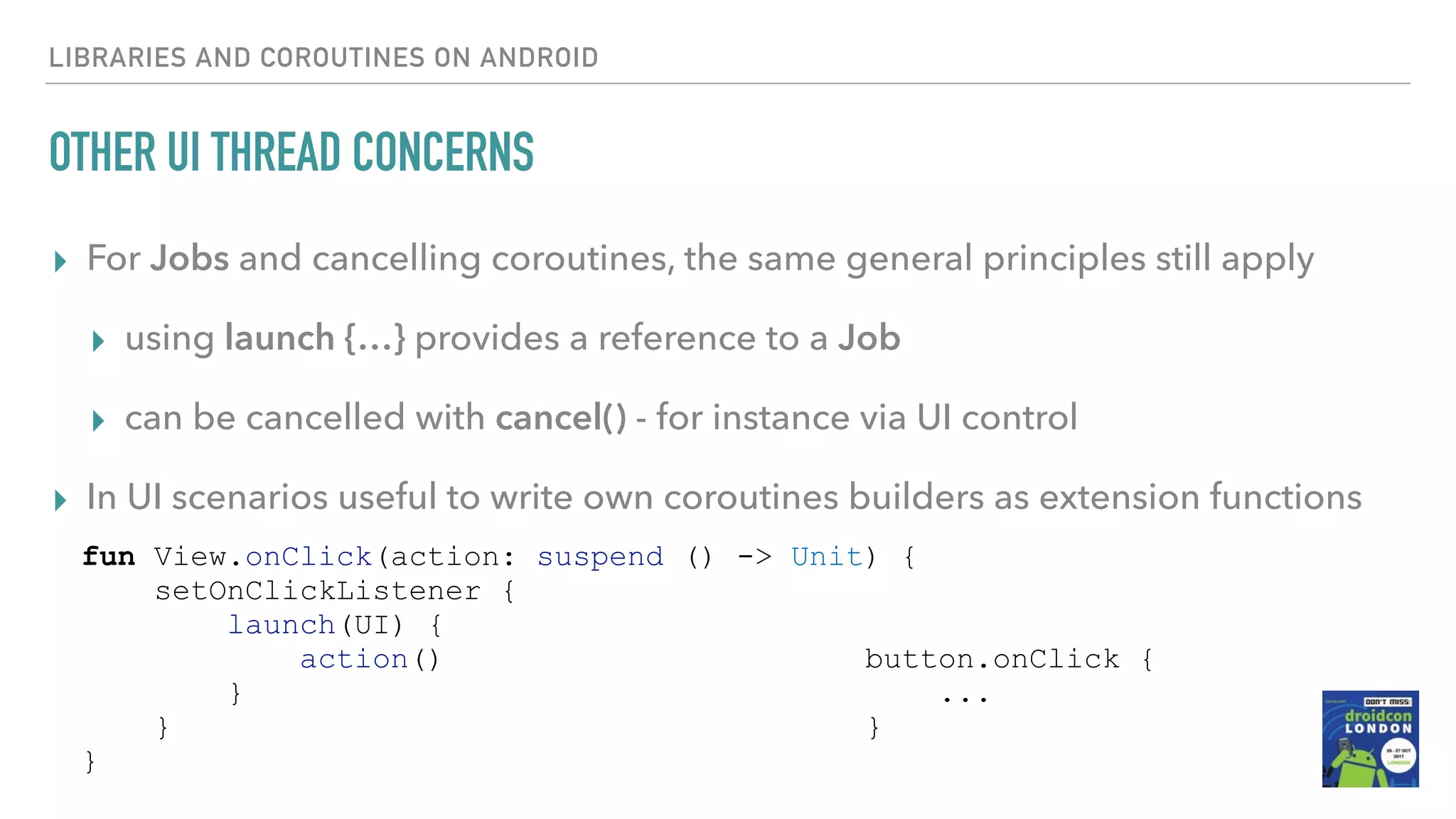

OTHER UI THREAD CONCERNS ▸ For Jobs and cancelling coroutines, the same general principles still apply ▸ using launch {…} provides a reference to a Job ▸ can be cancelled with cancel() - for instance via UI control ▸ In UI scenarios useful to write own coroutines builders as extension functions LIBRARIES AND COROUTINES ON ANDROID button.onClick { ... } fun View.onClick(action: suspend () -> Unit) { setOnClickListener { launch(UI) { action() } } }

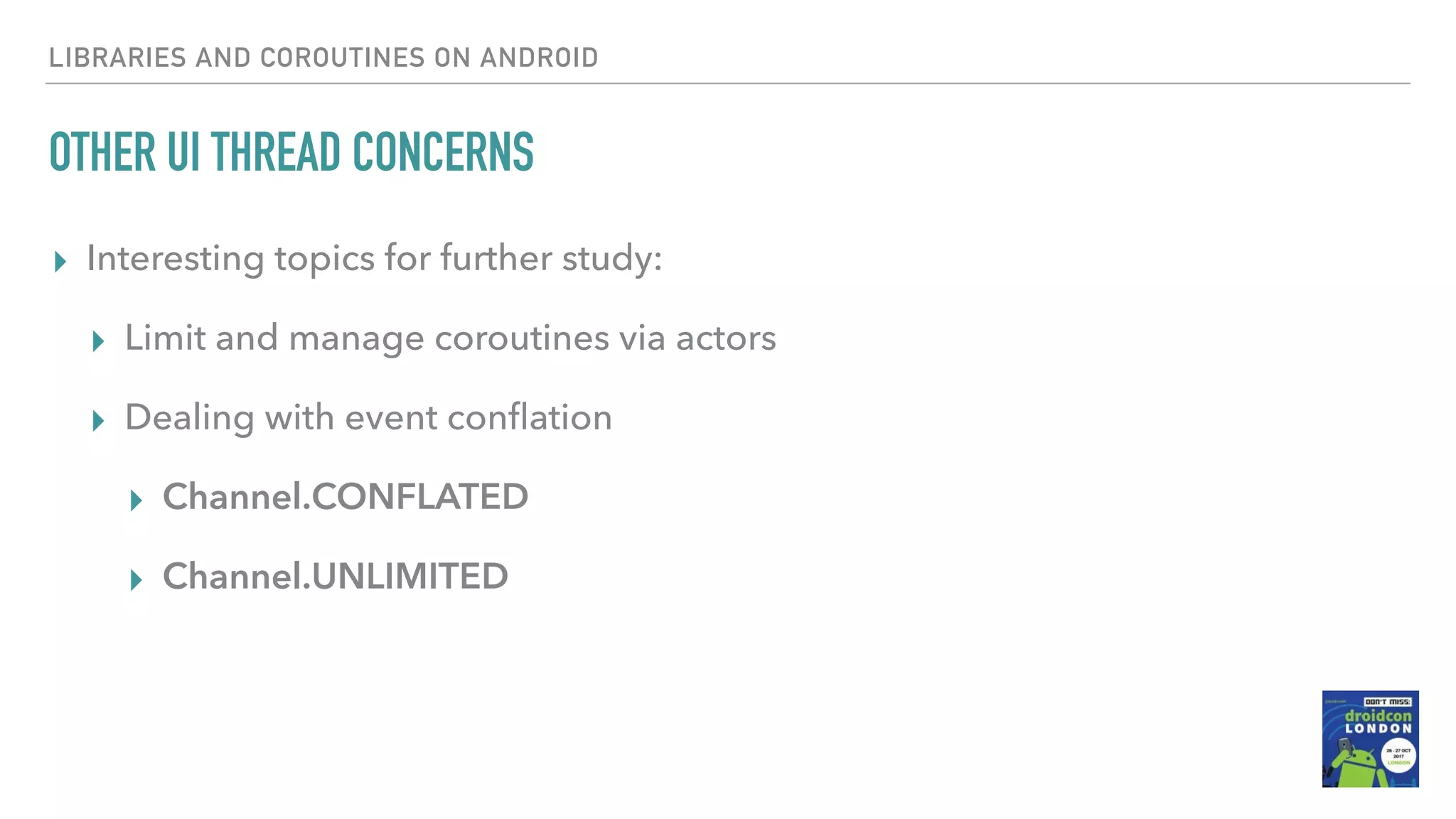

OTHER UI THREAD CONCERNS ▸ Interesting topics for further study: ▸ Limit and manage coroutines via actors ▸ Dealing with event conﬂation ▸ Channel.CONFLATED ▸ Channel.UNLIMITED LIBRARIES AND COROUTINES ON ANDROID

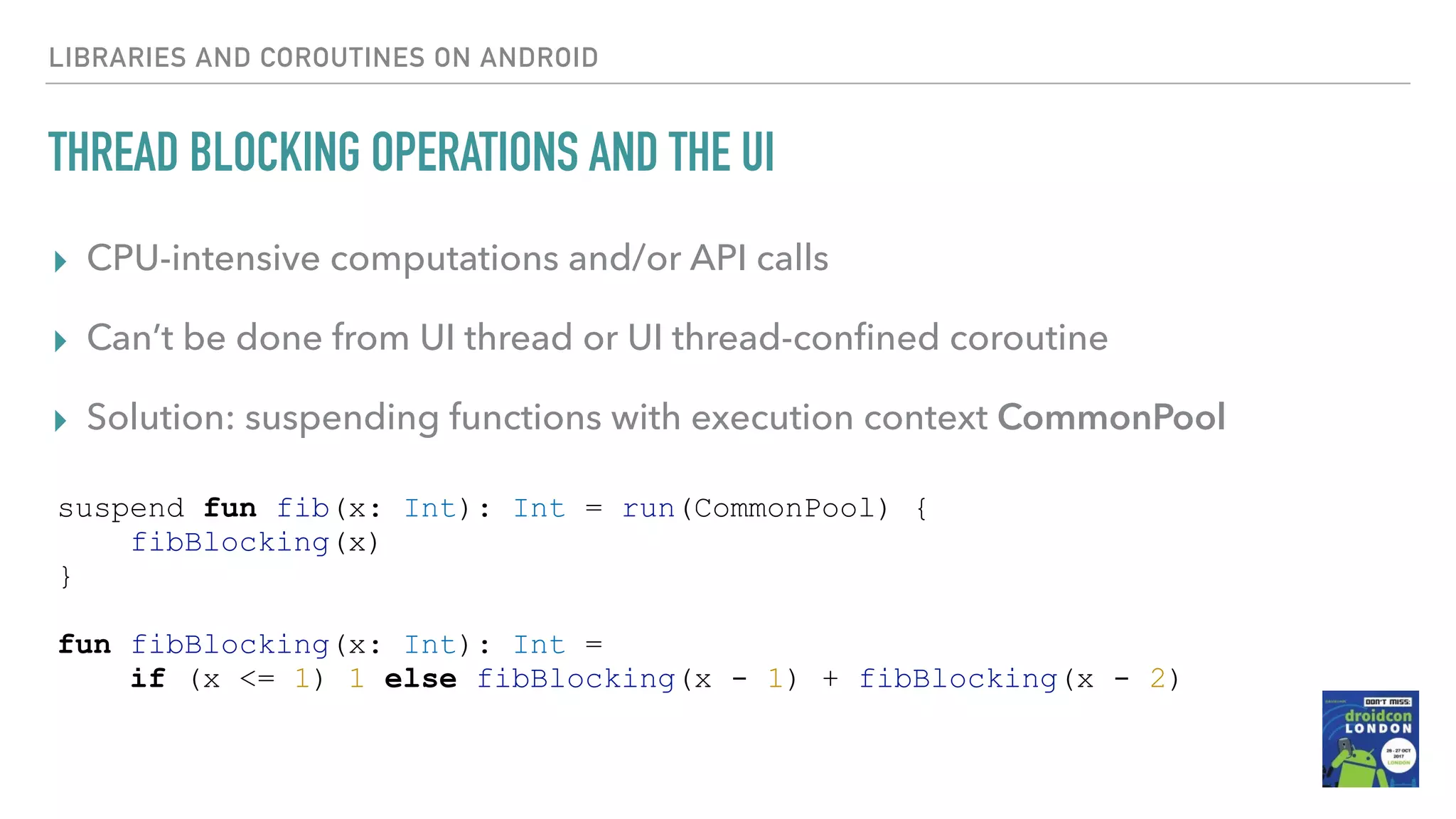

THREAD BLOCKING OPERATIONS AND THE UI ▸ CPU-intensive computations and/or API calls ▸ Can’t be done from UI thread or UI thread-conﬁned coroutine ▸ Solution: suspending functions with execution context CommonPool LIBRARIES AND COROUTINES ON ANDROID suspend fun fib(x: Int): Int = run(CommonPool) { fibBlocking(x) } fun fibBlocking(x: Int): Int = if (x <= 1) 1 else fibBlocking(x - 1) + fibBlocking(x - 2)

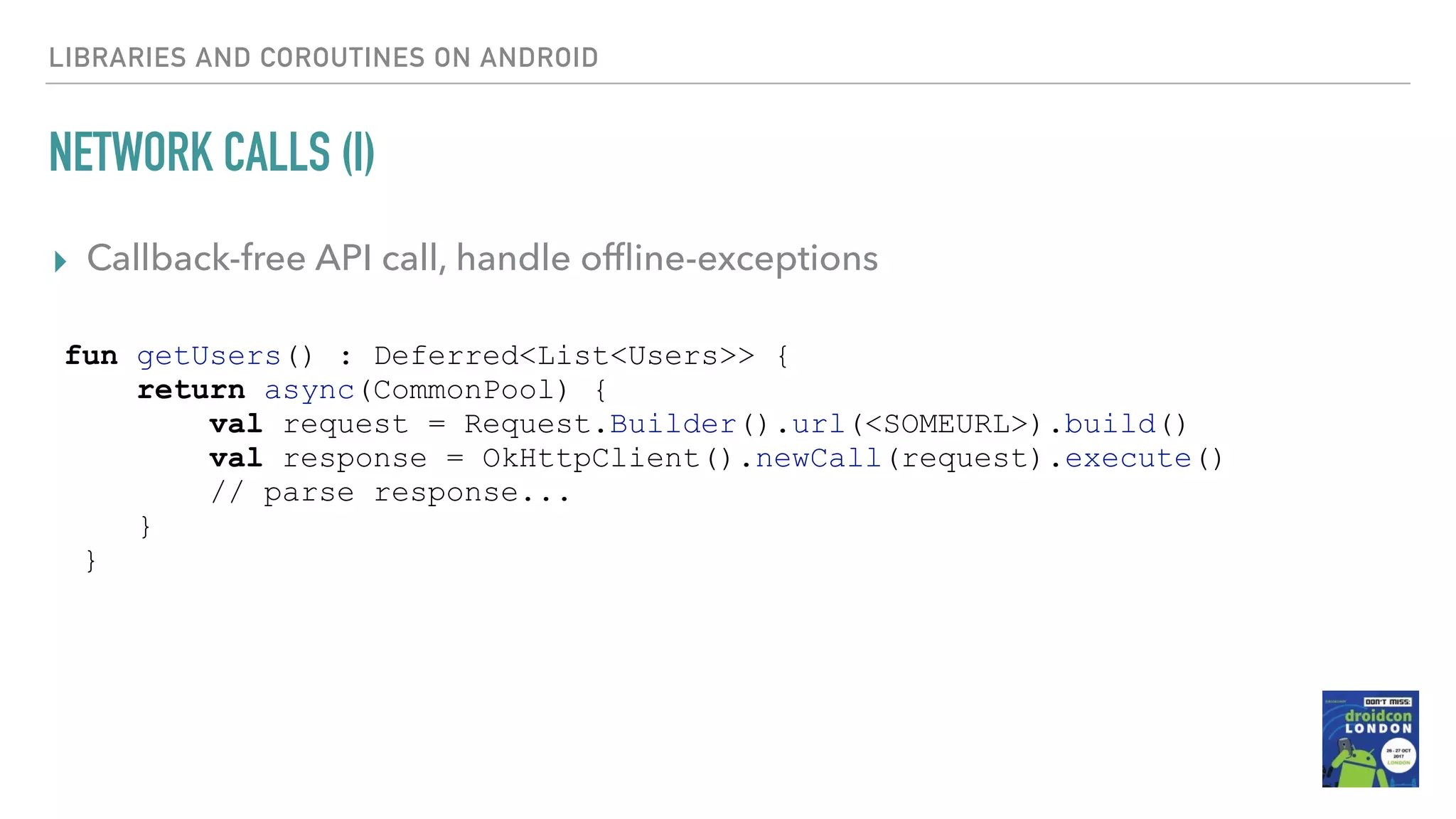

NETWORK CALLS (I) ▸ Callback-free API call, handle ofﬂine-exceptions LIBRARIES AND COROUTINES ON ANDROID fun getUsers() : Deferred<List<Users>> { return async(CommonPool) { val request = Request.Builder().url(<SOMEURL>).build() val response = OkHttpClient().newCall(request).execute() // parse response... } }

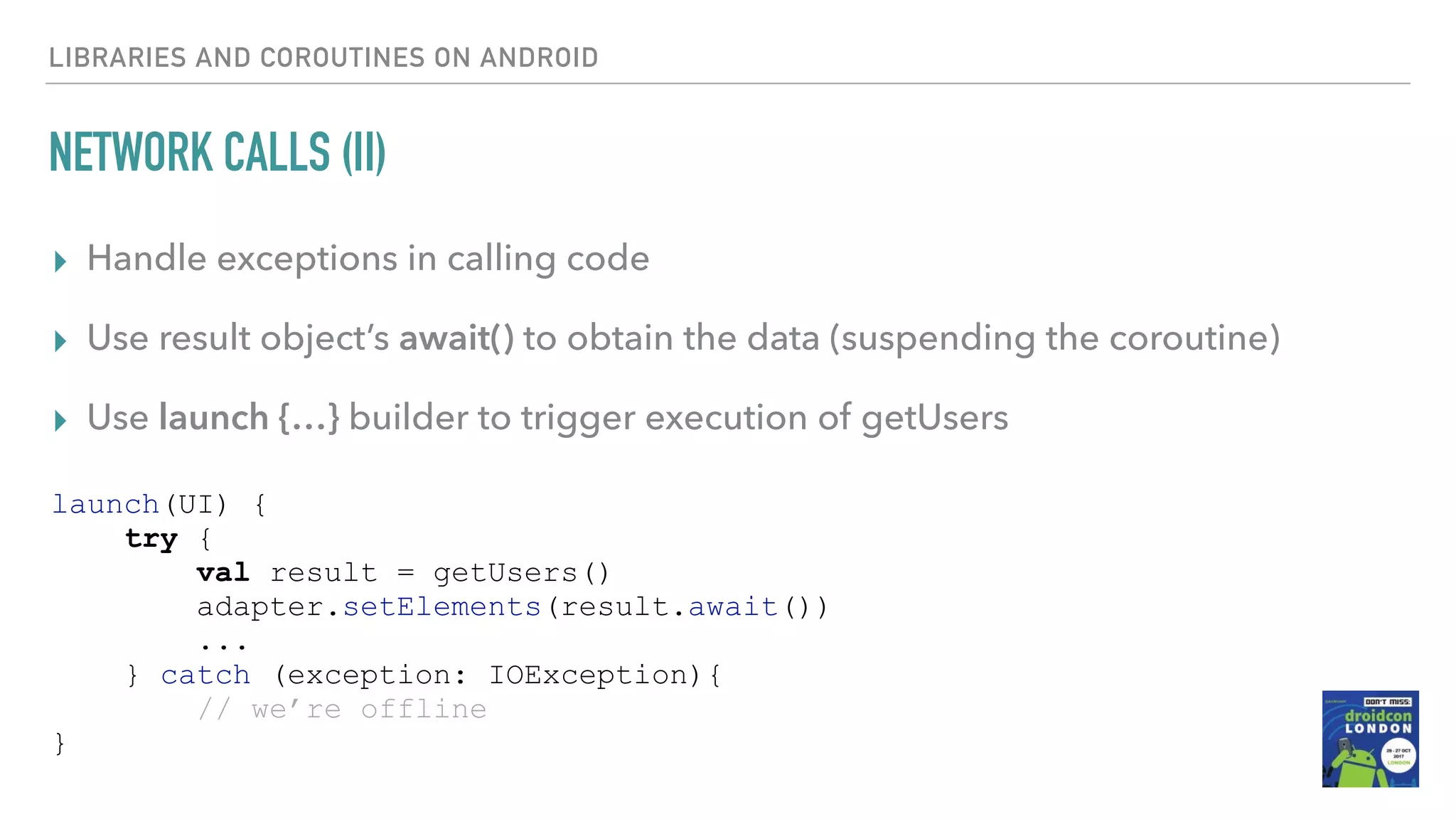

NETWORK CALLS (II) ▸ Handle exceptions in calling code ▸ Use result object’s await() to obtain the data (suspending the coroutine) ▸ Use launch {…} builder to trigger execution of getUsers LIBRARIES AND COROUTINES ON ANDROID launch(UI) { try { val result = getUsers() adapter.setElements(result.await()) ... } catch (exception: IOException){ // we’re offline }

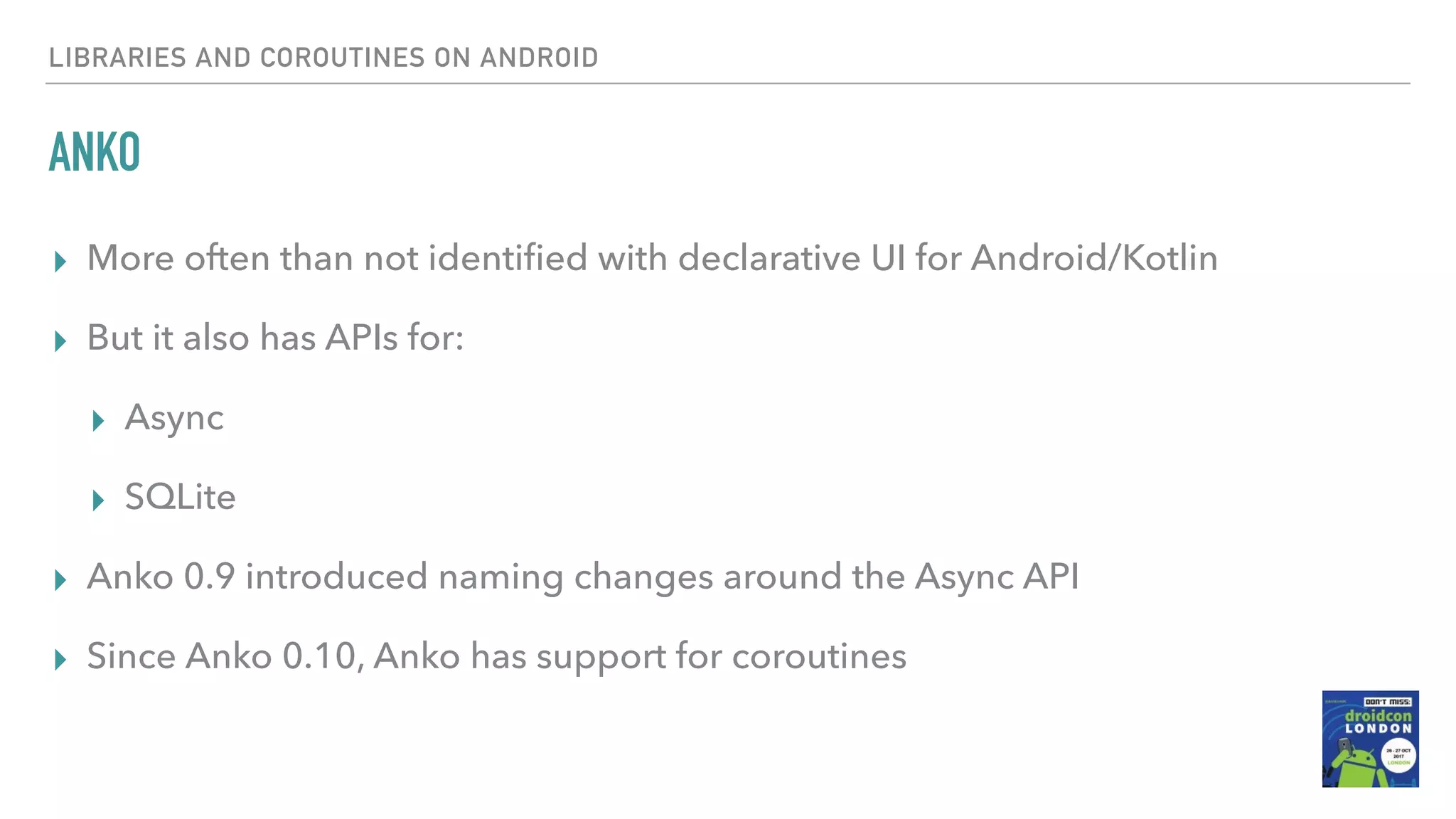

ANKO ▸ More often than not identiﬁed with declarative UI for Android/Kotlin ▸ But it also has APIs for: ▸ Async ▸ SQLite ▸ Anko 0.9 introduced naming changes around the Async API ▸ Since Anko 0.10, Anko has support for coroutines LIBRARIES AND COROUTINES ON ANDROID

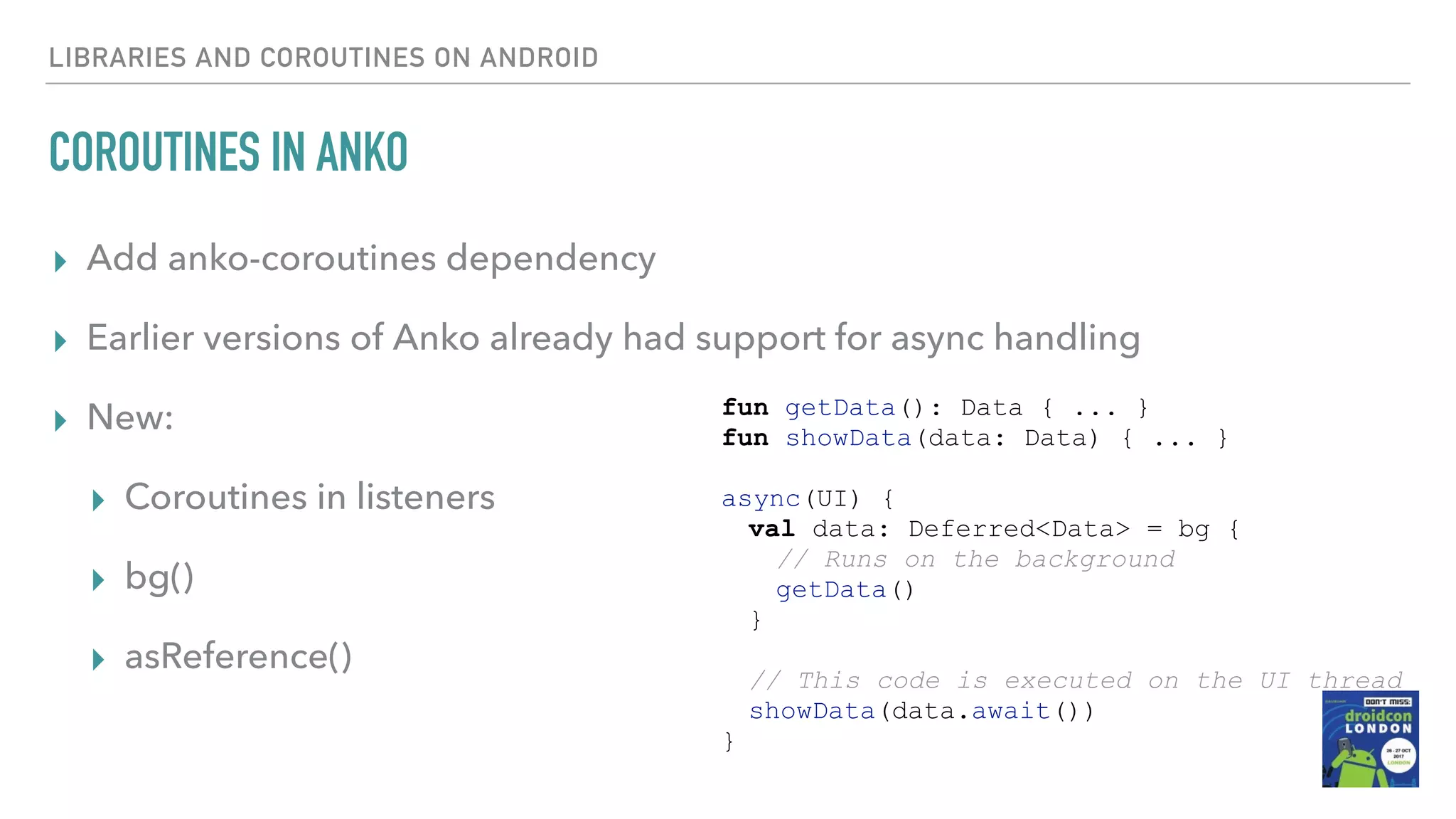

LIBRARIES AND COROUTINES ON ANDROID COROUTINES IN ANKO ▸ Add anko-coroutines dependency ▸ Earlier versions of Anko already had support for async handling ▸ New: ▸ Coroutines in listeners ▸ bg() ▸ asReference() fun getData(): Data { ... } fun showData(data: Data) { ... } async(UI) { val data: Deferred<Data> = bg { // Runs on the background getData() } // This code is executed on the UI thread showData(data.await()) }

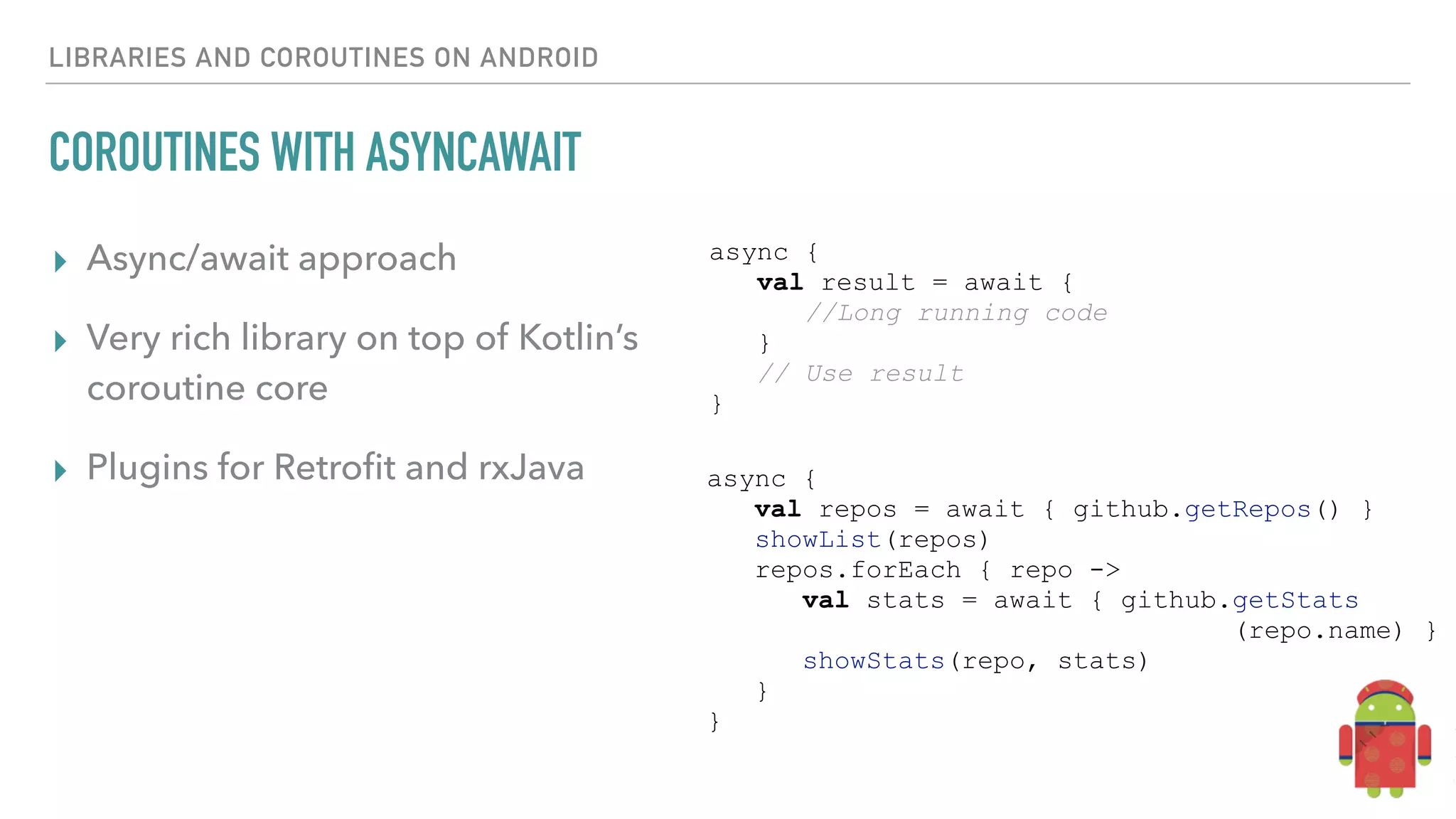

LIBRARIES AND COROUTINES ON ANDROID COROUTINES WITH ASYNCAWAIT ▸ Async/await approach ▸ Very rich library on top of Kotlin’s coroutine core ▸ Plugins for Retroﬁt and rxJava async { val result = await { //Long running code } // Use result } async { val repos = await { github.getRepos() } showList(repos) repos.forEach { repo -> val stats = await { github.getStats (repo.name) } showStats(repo, stats) } }

OTHER THINGS AND FINAL THOUGHTS https://www.ﬂickr.com/photos/chrispiascik/4054331891

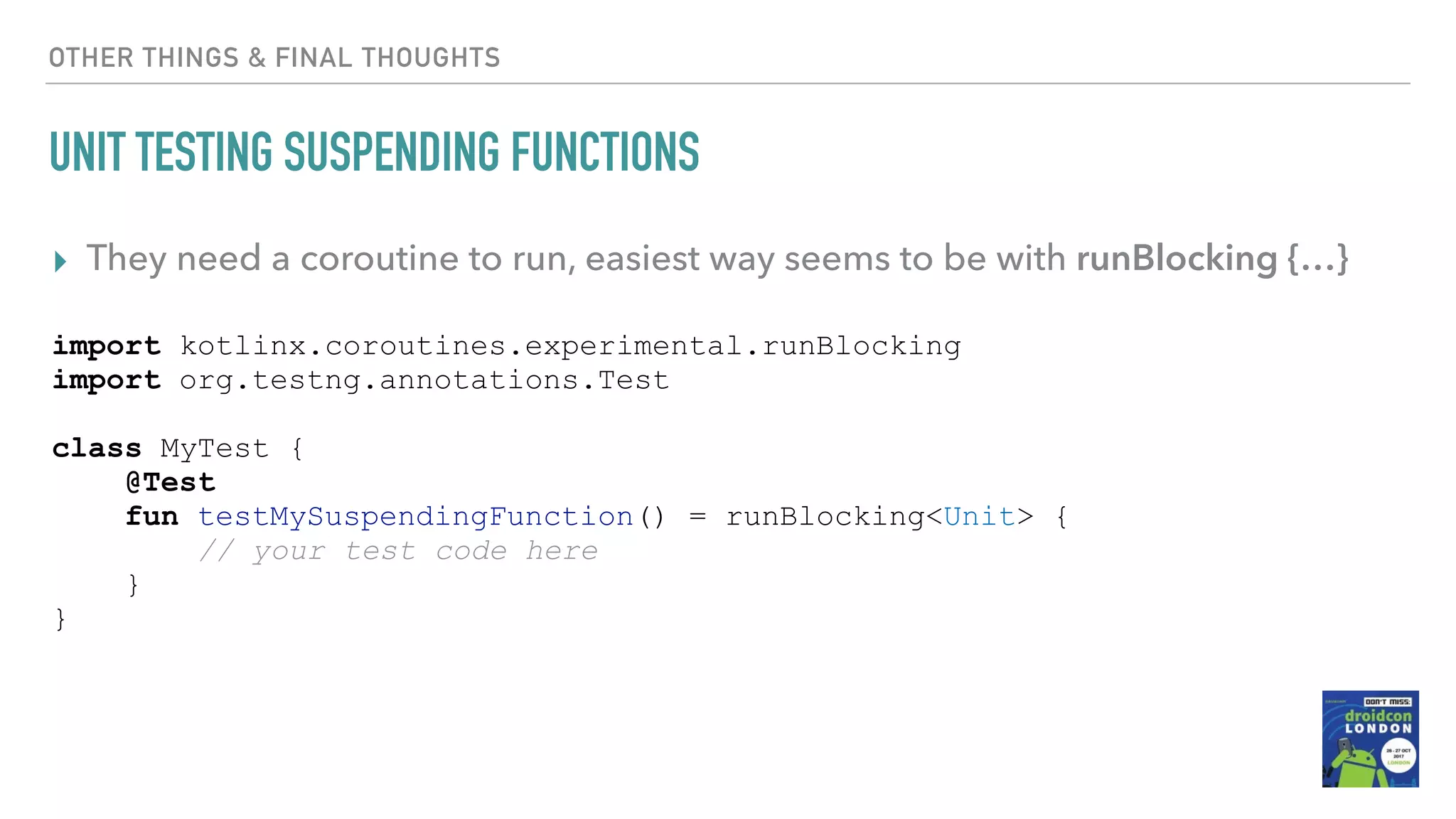

OTHER THINGS & FINAL THOUGHTS UNIT TESTING SUSPENDING FUNCTIONS ▸ They need a coroutine to run, easiest way seems to be with runBlocking {…} import kotlinx.coroutines.experimental.runBlocking import org.testng.annotations.Test class MyTest { @Test fun testMySuspendingFunction() = runBlocking<Unit> { // your test code here } }

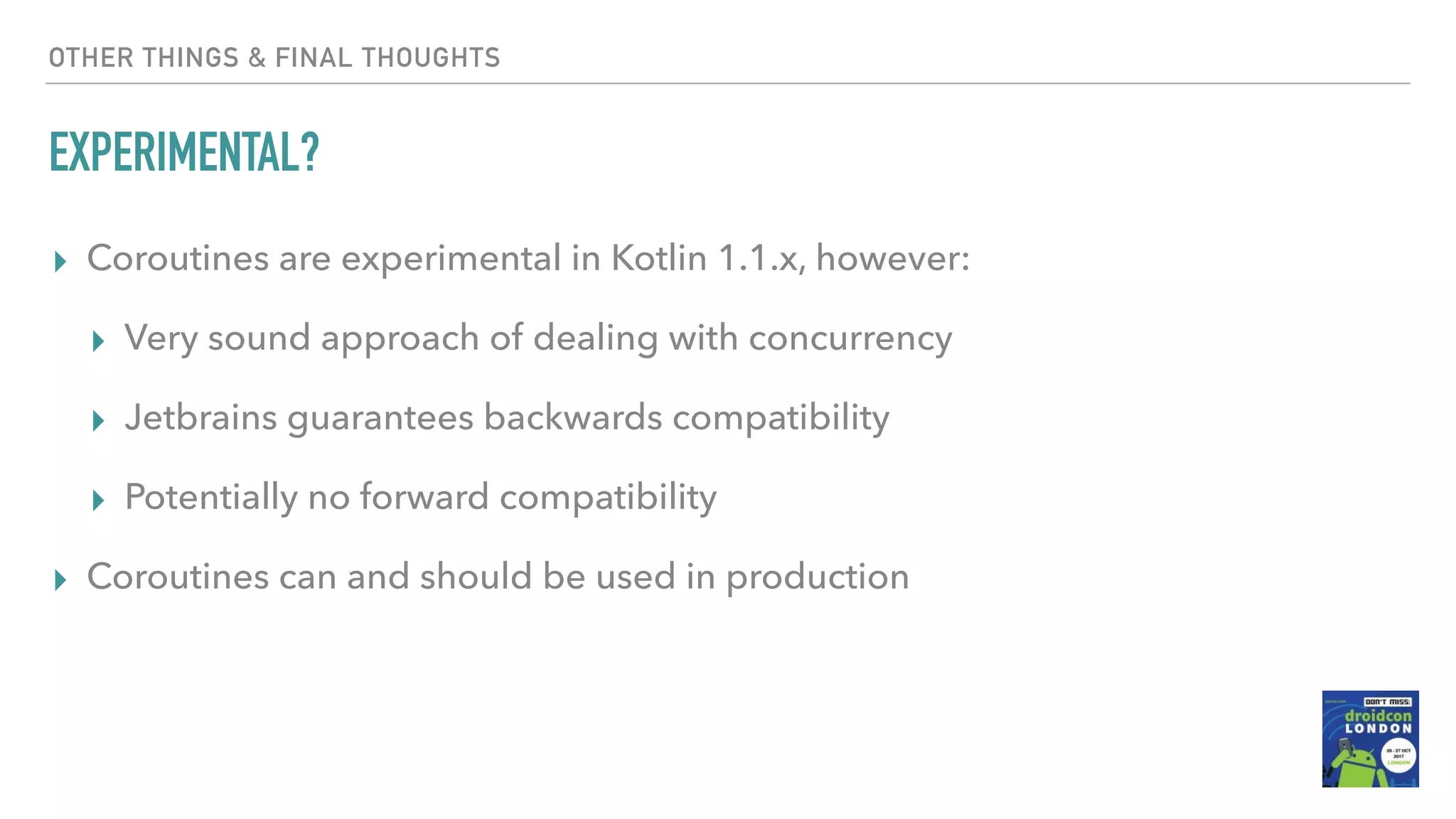

OTHER THINGS & FINAL THOUGHTS EXPERIMENTAL? ▸ Coroutines are experimental in Kotlin 1.1.x, however: ▸ Very sound approach of dealing with concurrency ▸ Jetbrains guarantees backwards compatibility ▸ Potentially no forward compatibility ▸ Coroutines can and should be used in production

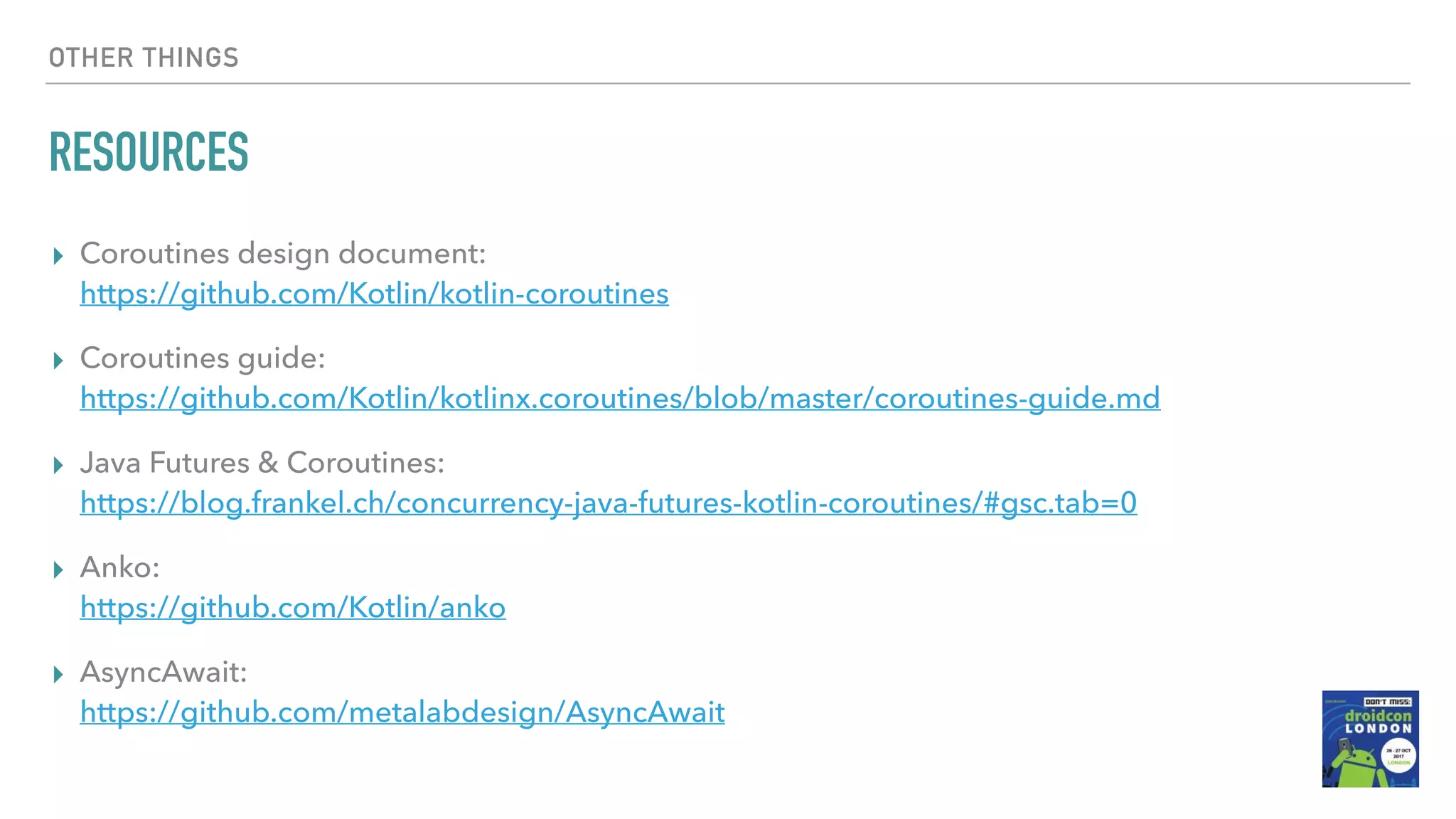

OTHER THINGS RESOURCES ▸ Coroutines design document:  https://github.com/Kotlin/kotlin-coroutines ▸ Coroutines guide:  https://github.com/Kotlin/kotlinx.coroutines/blob/master/coroutines-guide.md ▸ Java Futures & Coroutines:  https://blog.frankel.ch/concurrency-java-futures-kotlin-coroutines/#gsc.tab=0 ▸ Anko:   https://github.com/Kotlin/anko ▸ AsyncAwait:  https://github.com/metalabdesign/AsyncAwait

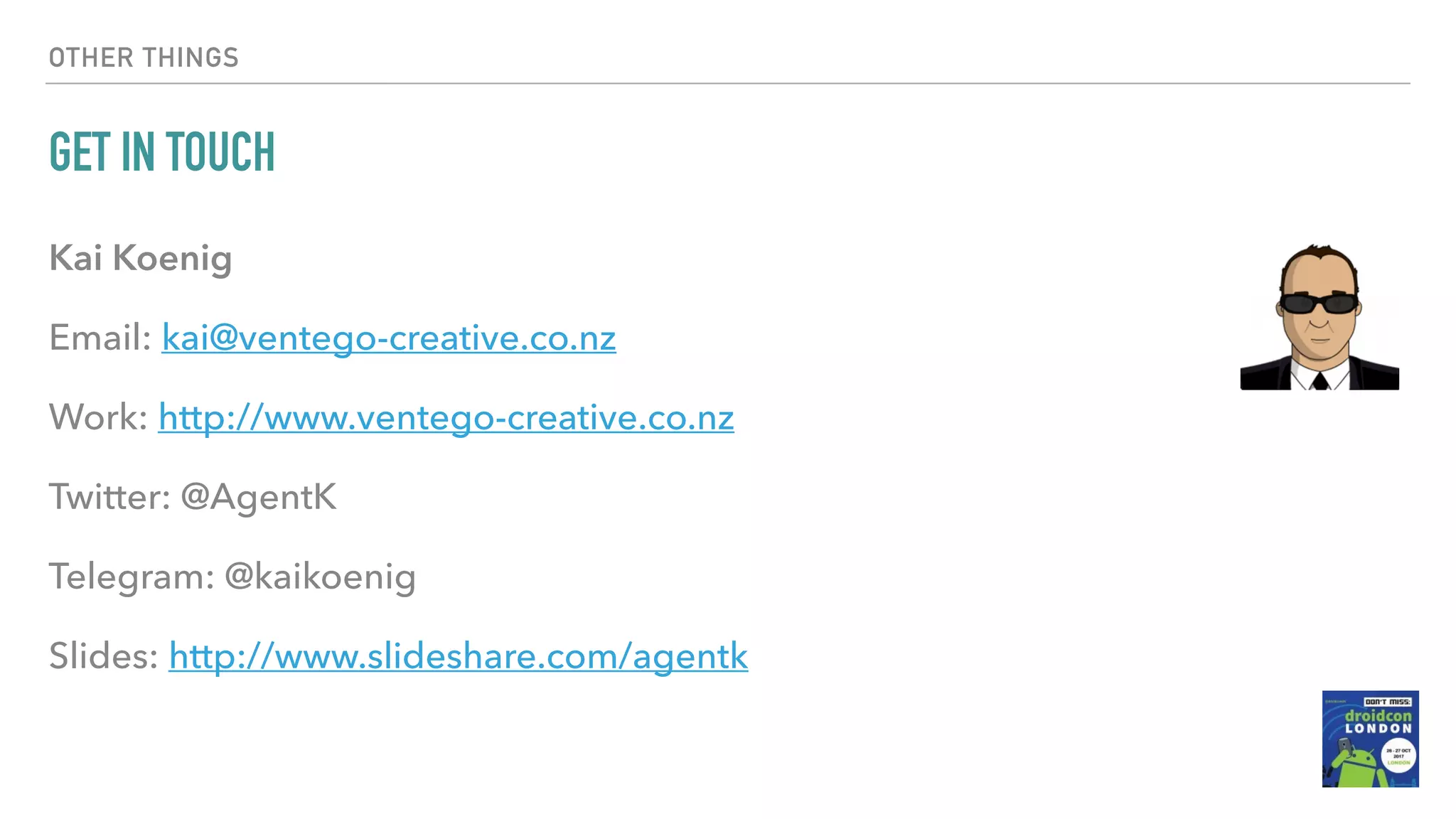

OTHER THINGS GET IN TOUCH Kai Koenig Email: kai@ventego-creative.co.nz Work: http://www.ventego-creative.co.nz Twitter: @AgentK Telegram: @kaikoenig Slides: http://www.slideshare.com/agentk
