Javascript MVC & Backbone Tips & Tricks

MVC Frameworks in Javascript Hjörtur Hilmarsson @hjortureh

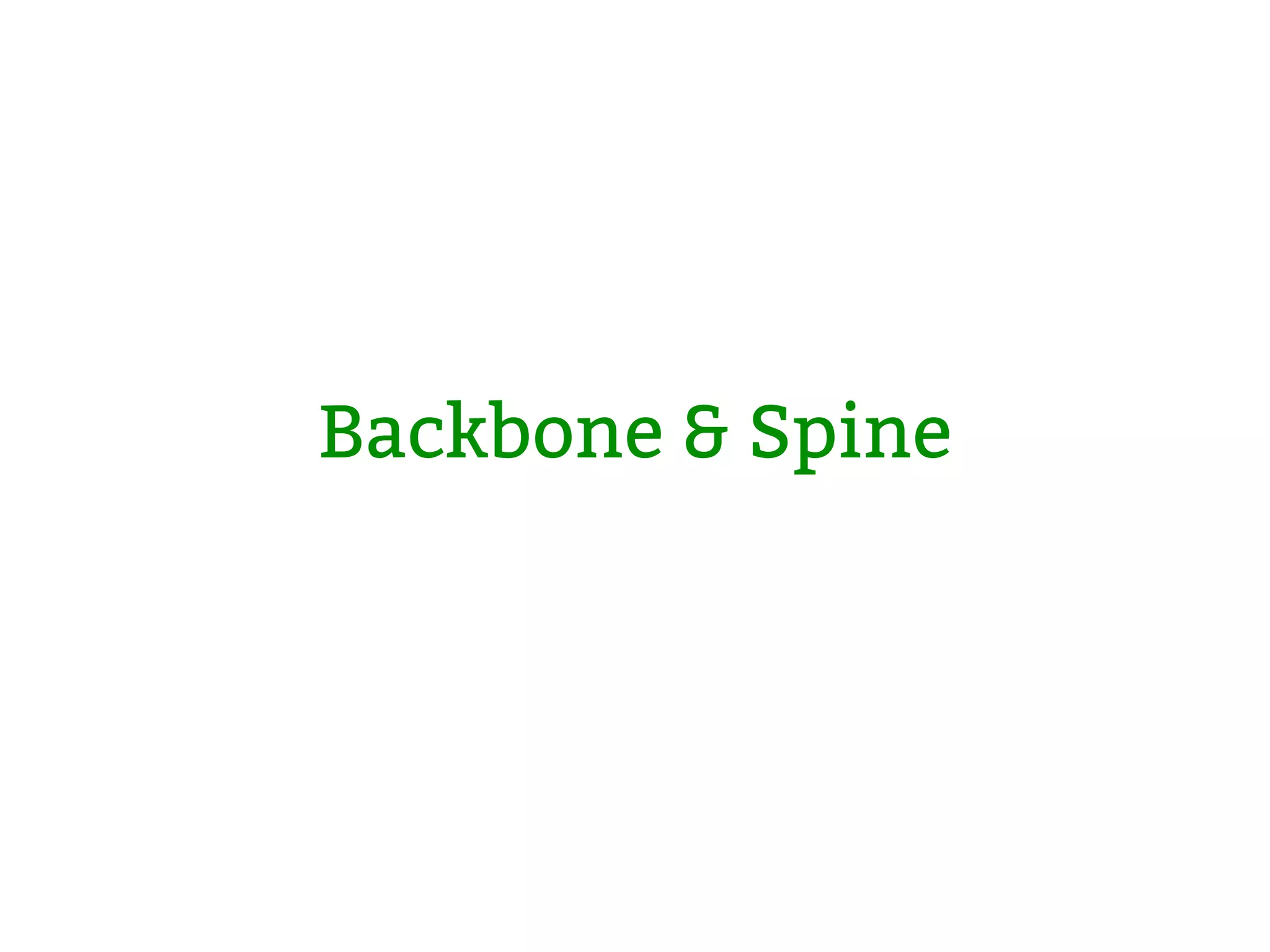

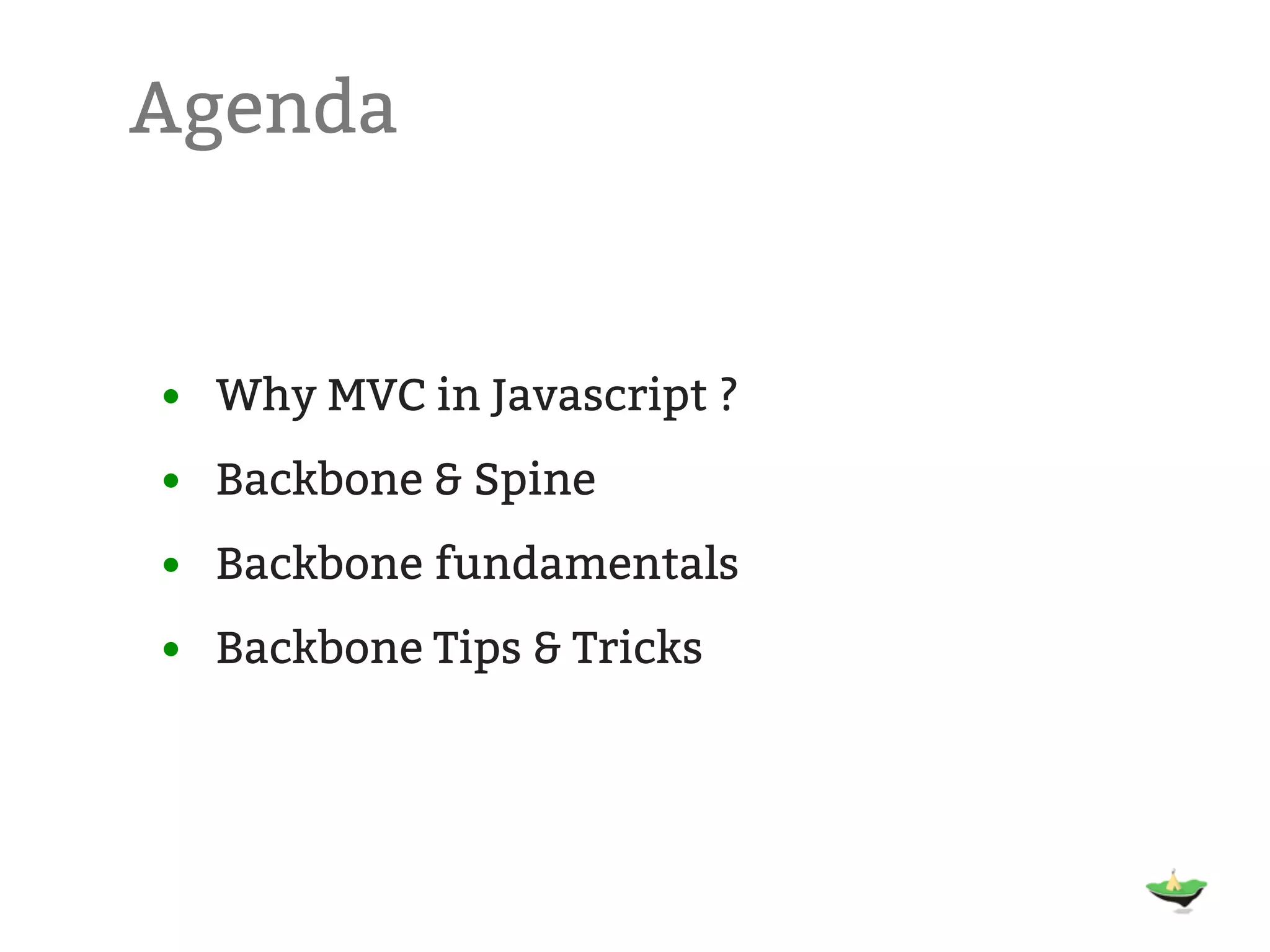

Agenda • Why MVC in Javascript ? • Backbone & Spine • Backbone fundamentals • Backbone Tips & Tricks

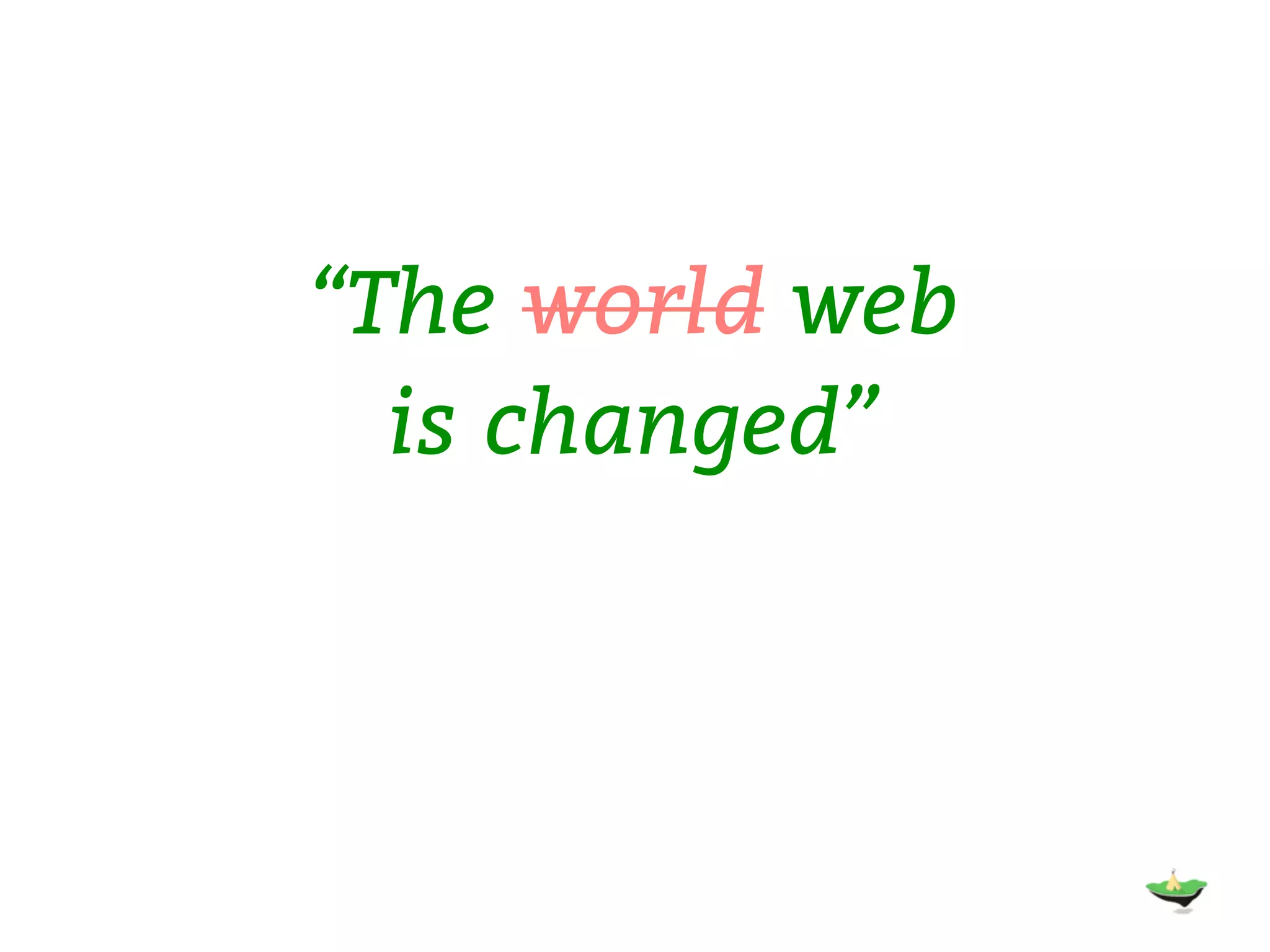

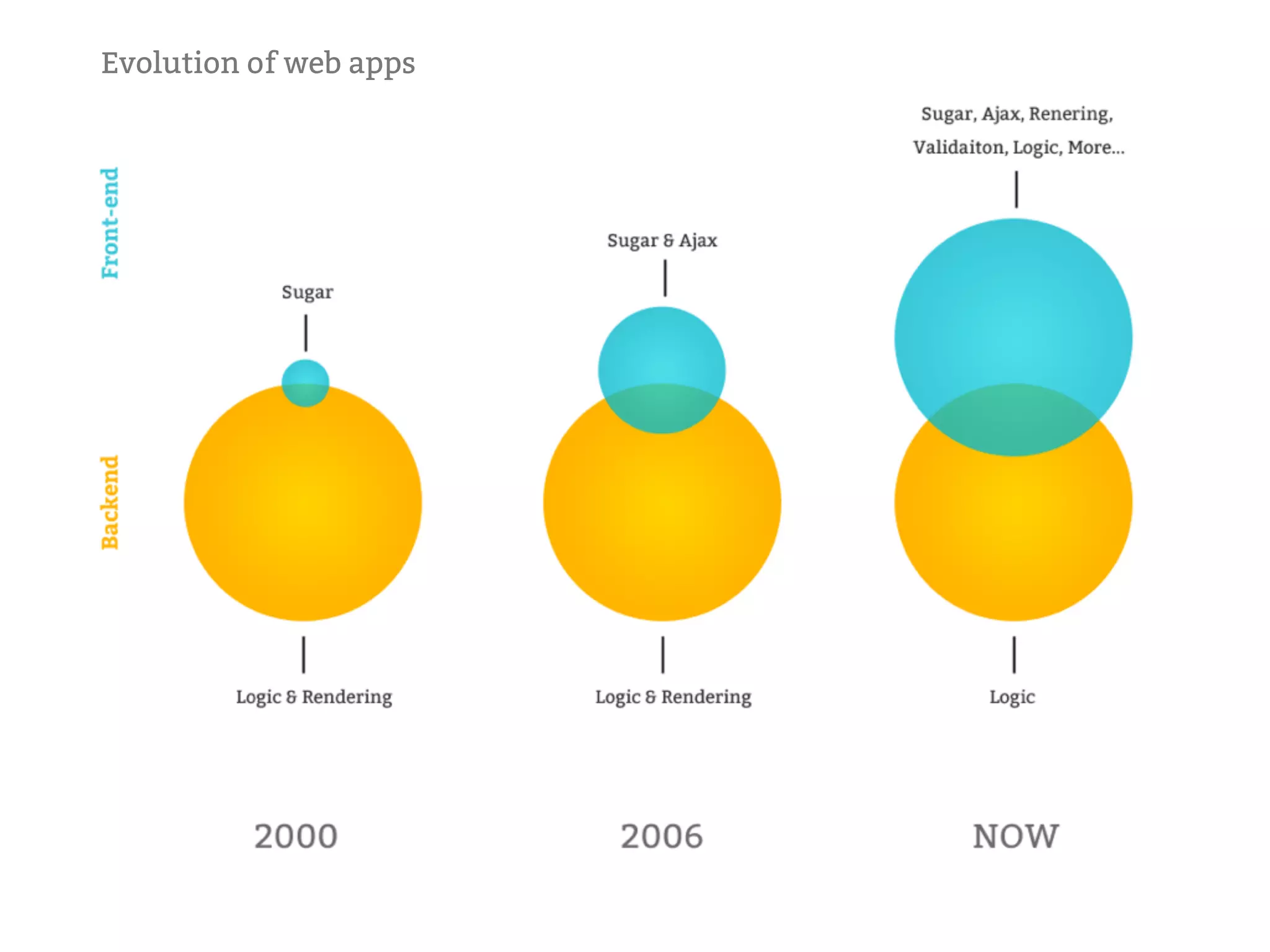

“The world web is changed”

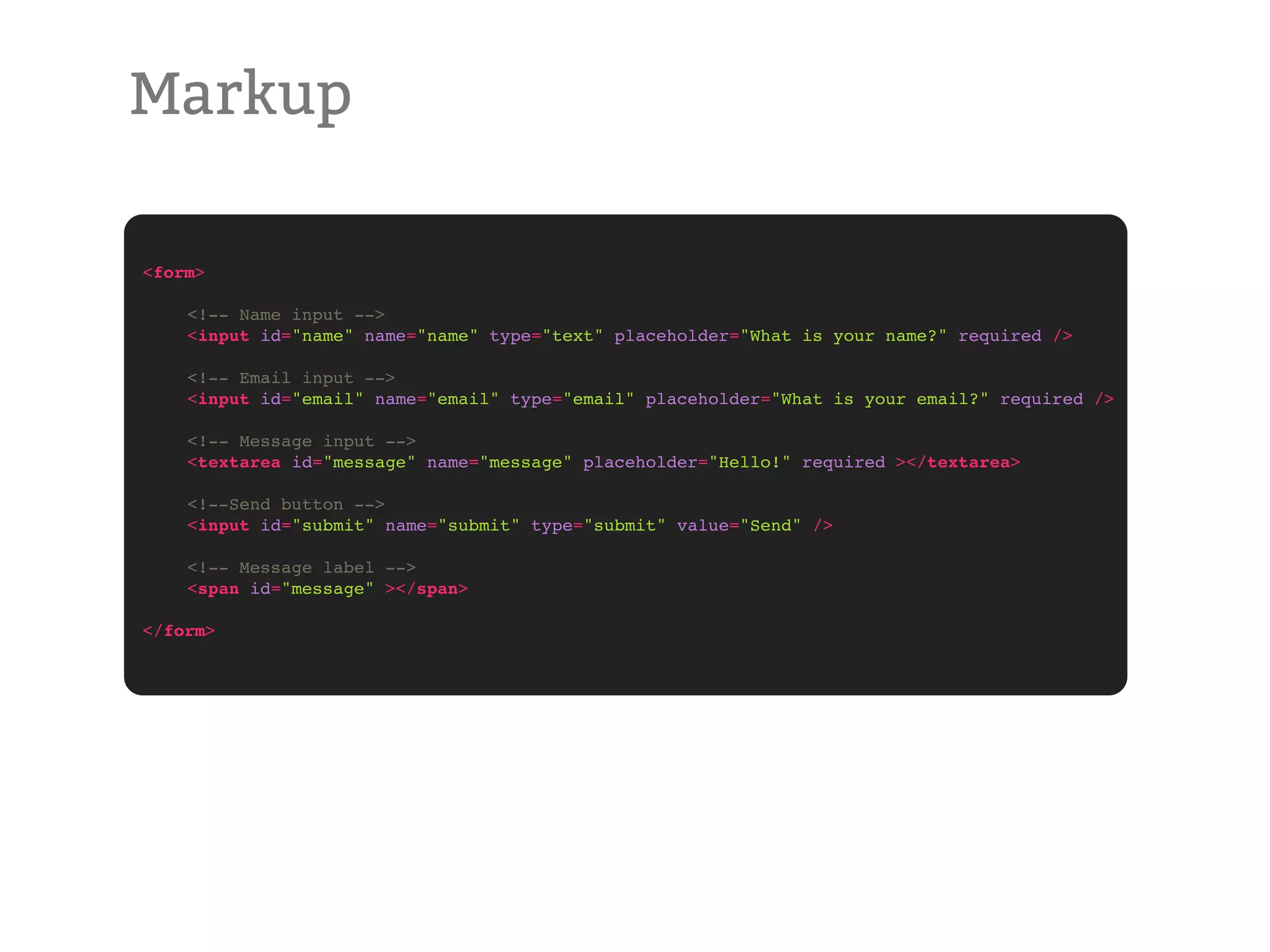

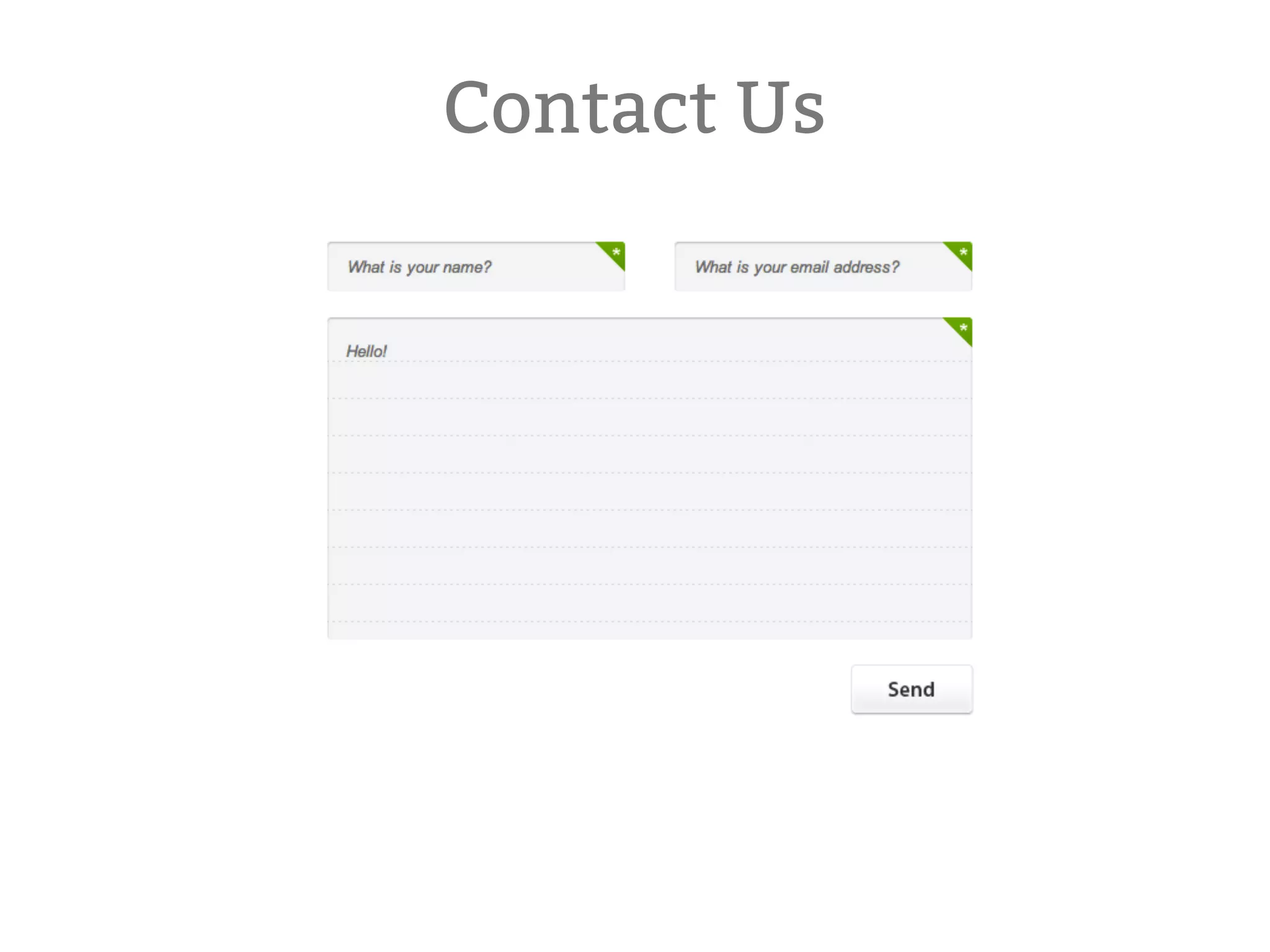

Markup <form> !  ! <input id="name" name="name" type="text" placeholder="What is your name?" required /> !  ! <input id="email" name="email" type="email" placeholder="What is your email?" required /> !  ! <textarea id="message" name="message" placeholder="Hello!" required ></textarea> !  ! <input id="submit" name="submit" type="submit" value="Send" /> !  ! <span id="message" ></span> </form>

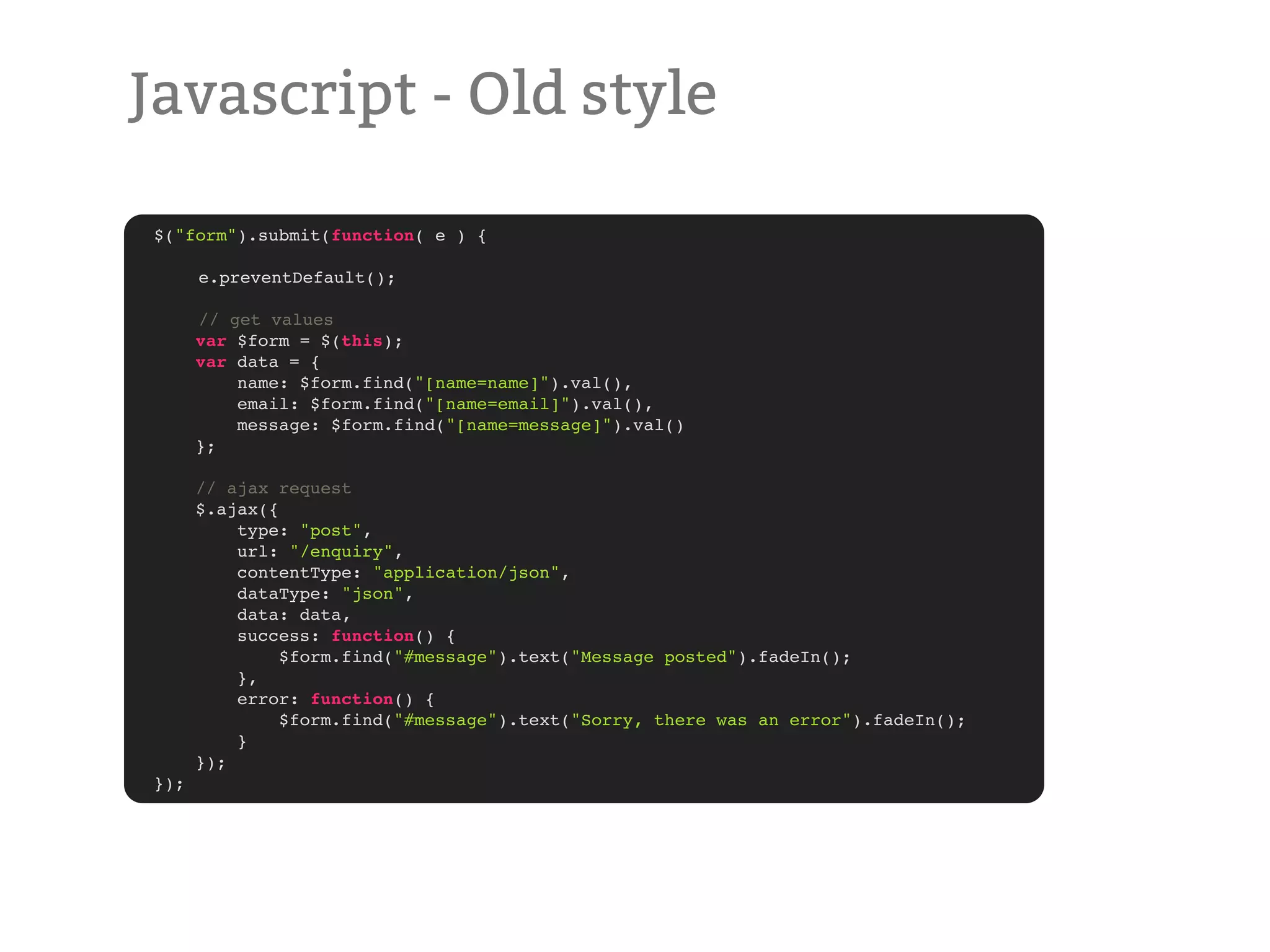

Javascript - Old style $("form").submit(function( e ) { ! ! ! ! ! e.preventDefault(); ! // get values var $form = $(this); var data = { name: $form.find("[name=name]").val(), email: $form.find("[name=email]").val(), message: $form.find("[name=message]").val() }; // ajax request $.ajax({ type: "post", url: "/enquiry", contentType: "application/json", dataType: "json", data: data, success: function() { $form.find("#message").text("Message posted").fadeIn(); }, error: function() { $form.find("#message").text("Sorry, there was an error").fadeIn(); } }); });

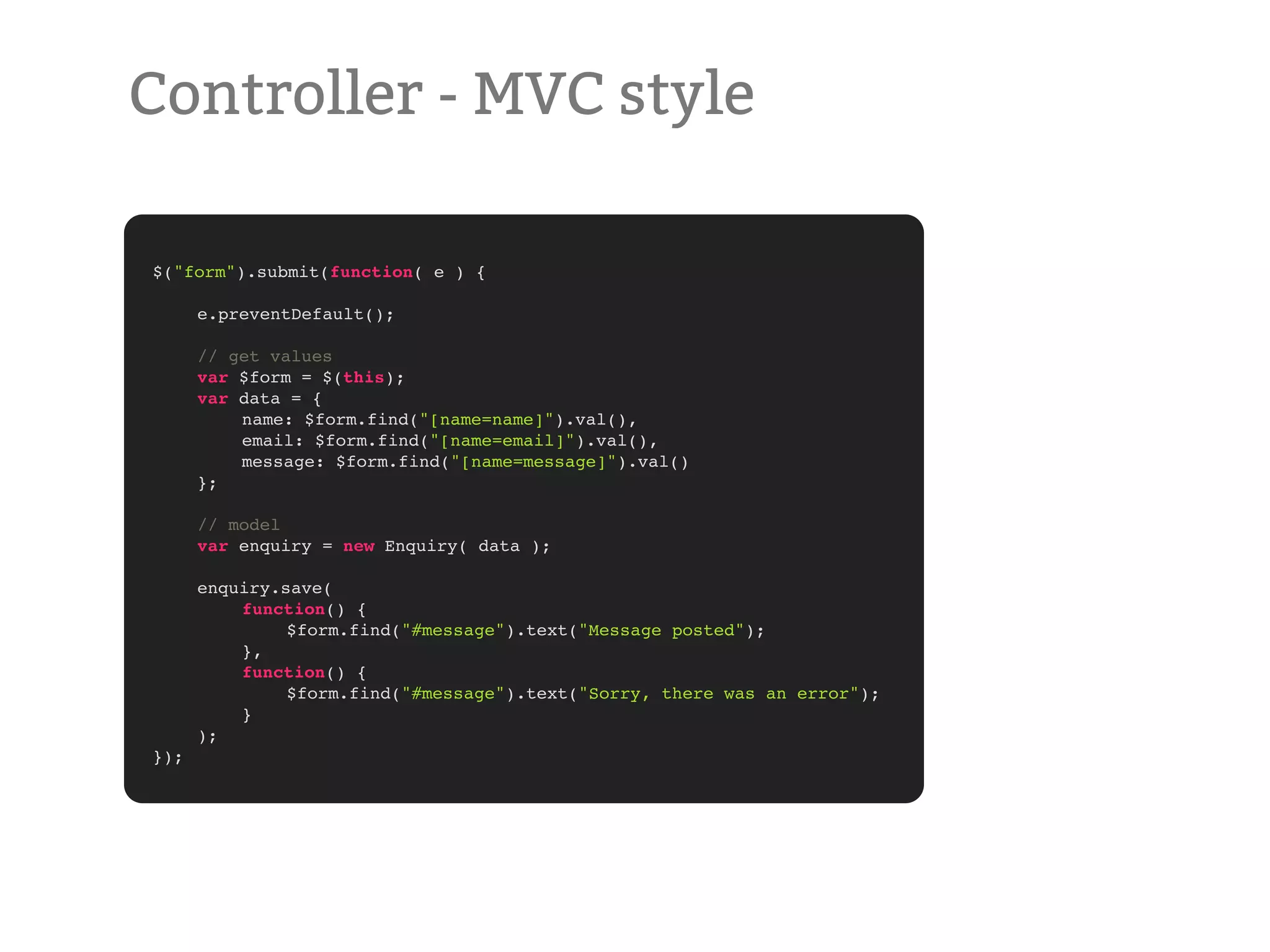

Controller - MVC style $("form").submit(function( e ) { ! ! ! ! ! e.preventDefault(); ! // get values ! var $form = $(this); ! var data = { ! ! name: $form.find("[name=name]").val(), ! ! email: $form.find("[name=email]").val(), ! ! message: $form.find("[name=message]").val() ! }; ! // model ! var enquiry = new Enquiry( data ); ! ! enquiry.save( ! ! function() { ! ! ! $form.find("#message").text("Message posted"); ! ! }, ! ! function() { ! ! ! $form.find("#message").text("Sorry, there was an error"); ! ! } ! ); });

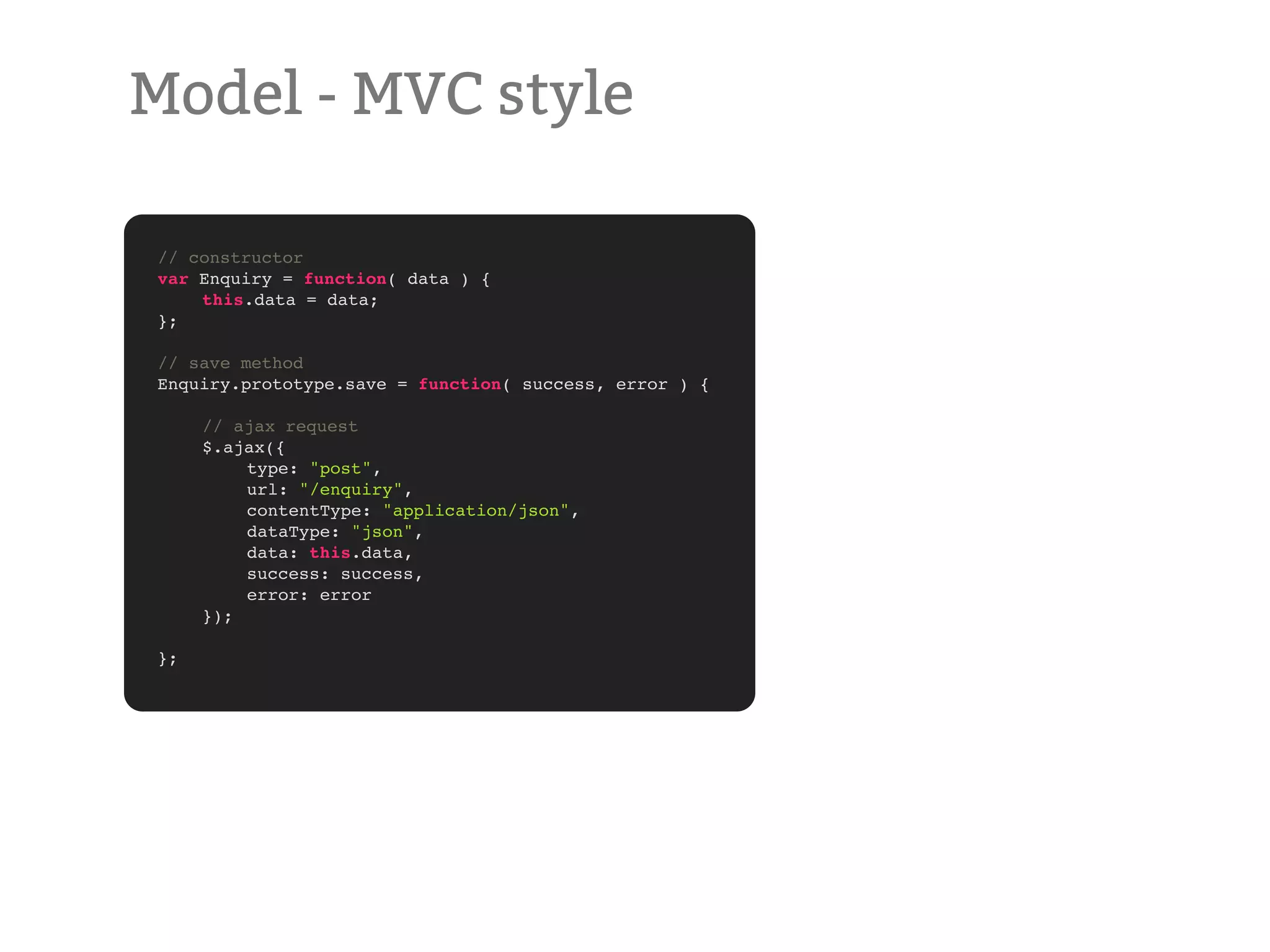

Model - MVC style // constructor var Enquiry = function( data ) { ! this.data = data; }; // save method Enquiry.prototype.save = function( success, error ) { ! // ajax request ! $.ajax({ ! ! type: "post", ! ! url: "/enquiry", ! ! contentType: "application/json", ! ! dataType: "json", ! ! data: this.data, ! ! success: success, ! ! error: error ! }); };

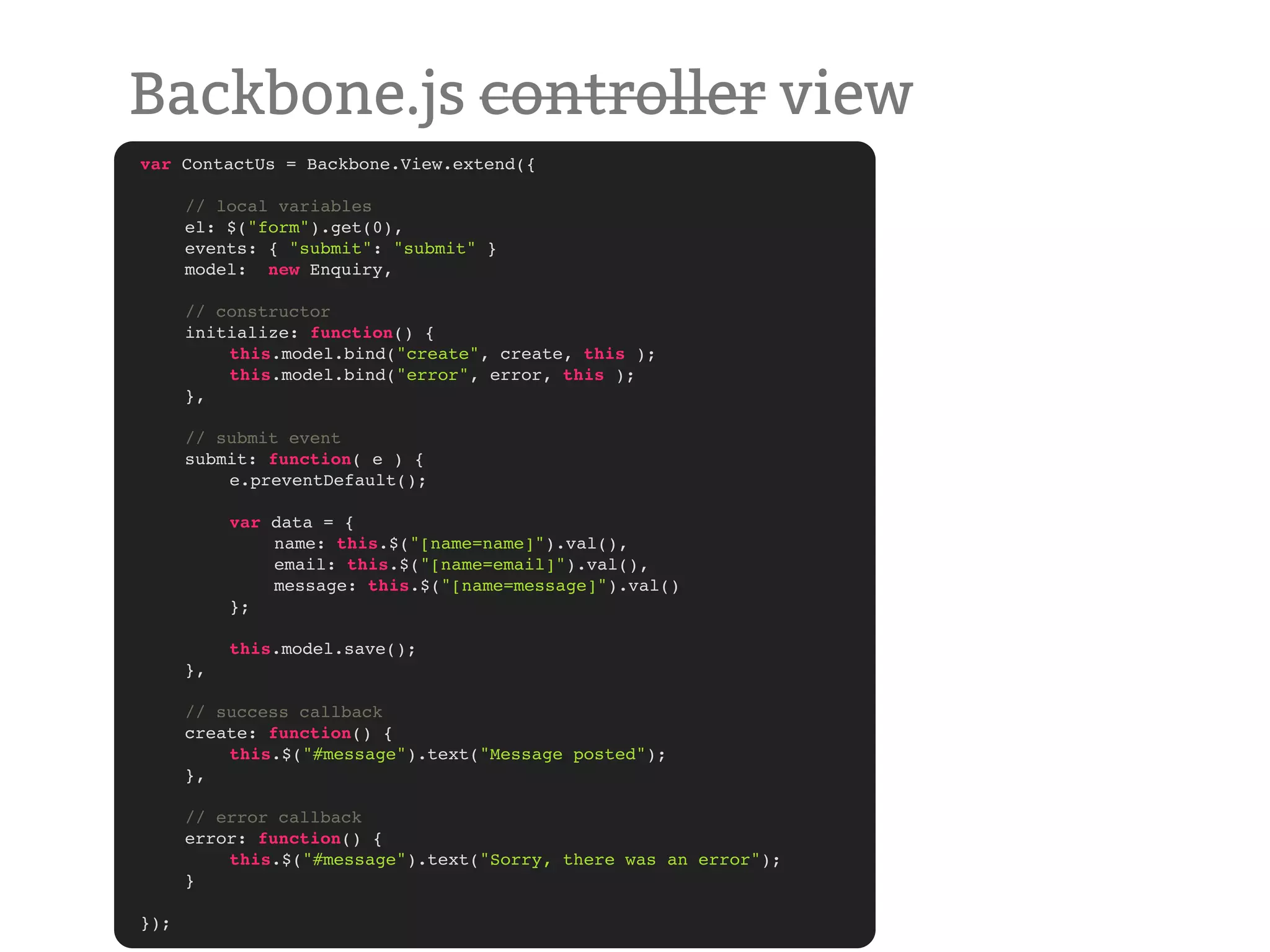

Backbone.js controller view var ContactUs = Backbone.View.extend({ ! ! // local variables ! el: $("form").get(0), ! events: { "submit": "submit" } ! model: new Enquiry, ! // constructor ! initialize: function() { ! ! this.model.bind("create", create, this );! ! ! this.model.bind("error", error, this );! ! }, ! // submit event ! submit: function( e ) { ! ! e.preventDefault(); ! ! ! ! var data = { ! ! ! name: this.$("[name=name]").val(), ! ! ! email: this.$("[name=email]").val(), ! ! ! message: this.$("[name=message]").val() ! ! }; ! ! this.model.save(); ! }, ! // success callback ! create: function() { ! ! this.$("#message").text("Message posted"); ! }, ! // error callback ! error: function() { ! ! this.$("#message").text("Sorry, there was an error"); ! } });

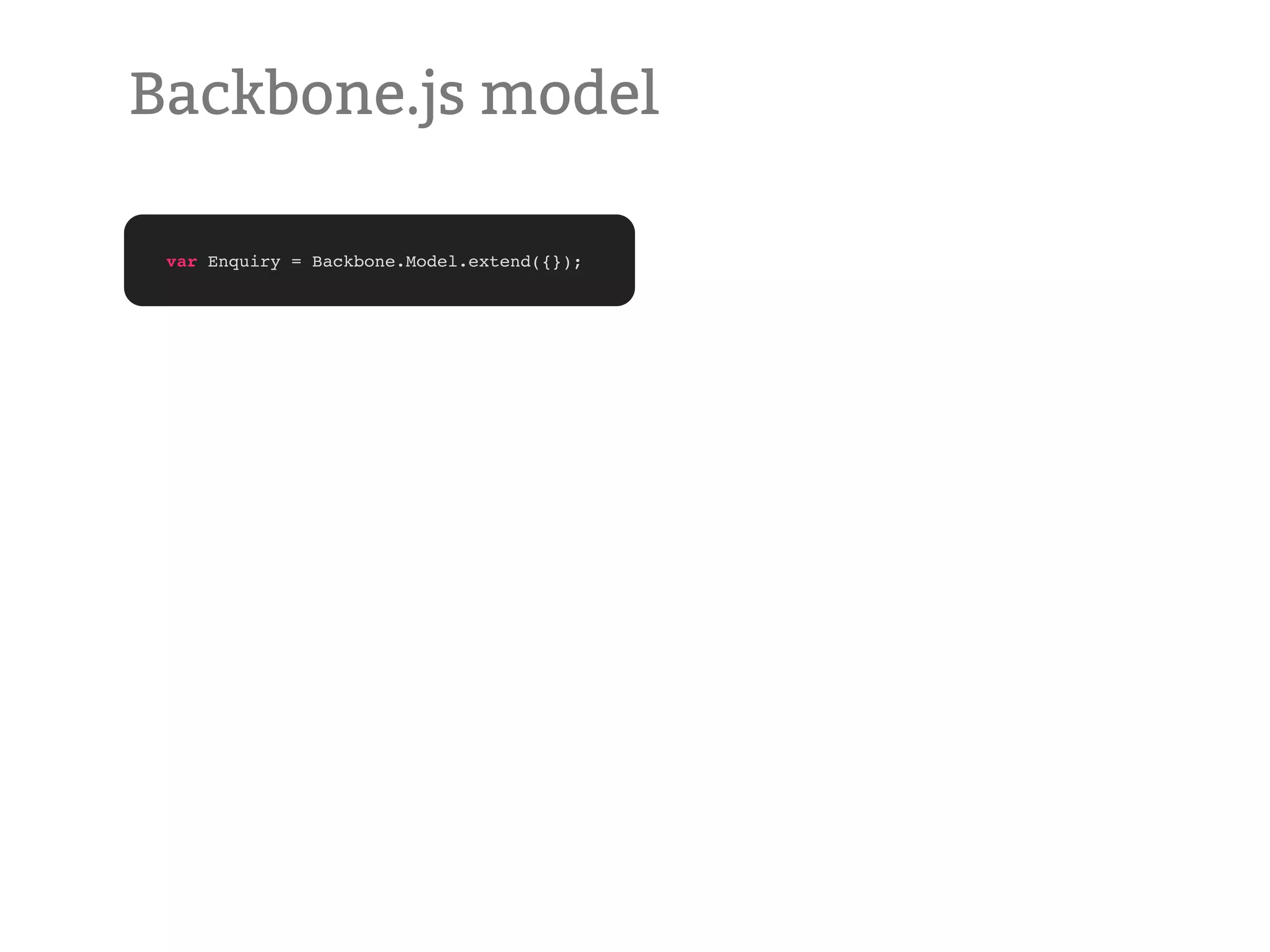

Backbone.js model var Enquiry = Backbone.Model.extend({});

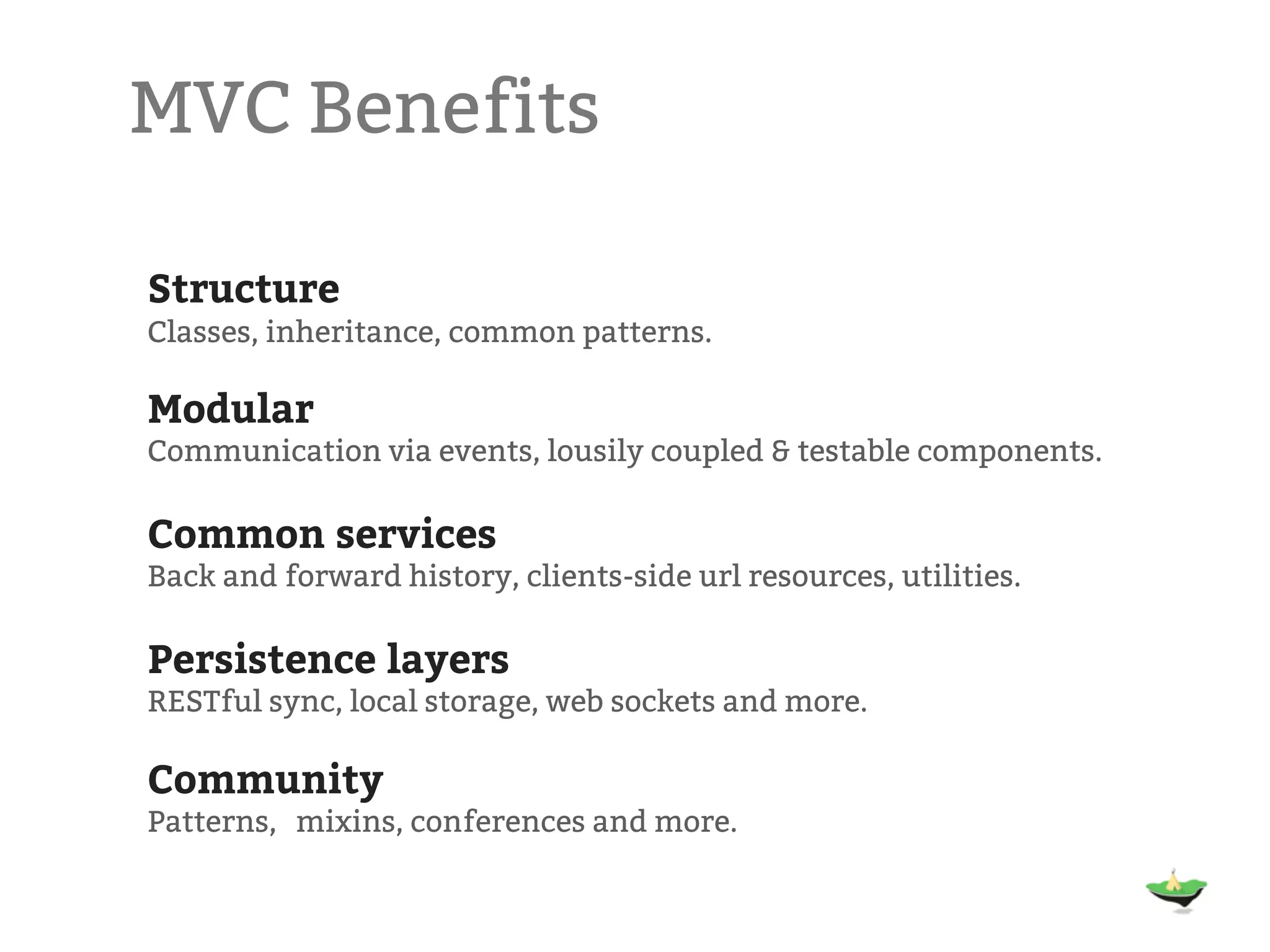

MVC Benefits Structure Classes, inheritance, common patterns. Modular Communication via events, lousily coupled & testable components. Common services Back and forward history, clients-side url resources, utilities. Persistence layers RESTful sync, local storage, web sockets and more. Community Patterns, mixins, conferences and more.

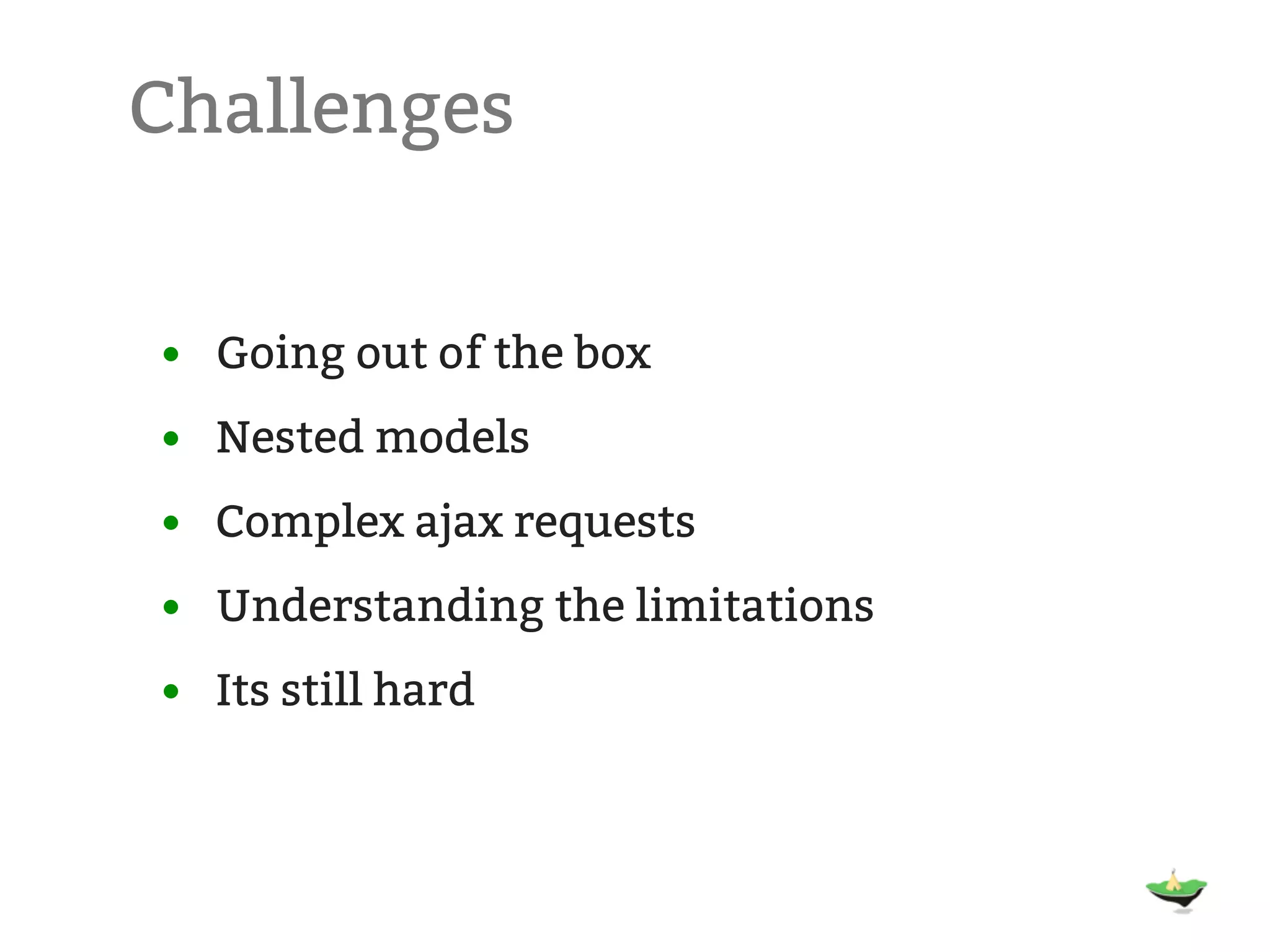

Challenges • Going out of the box • Nested models • Complex ajax requests • Understanding the limitations • Its still hard

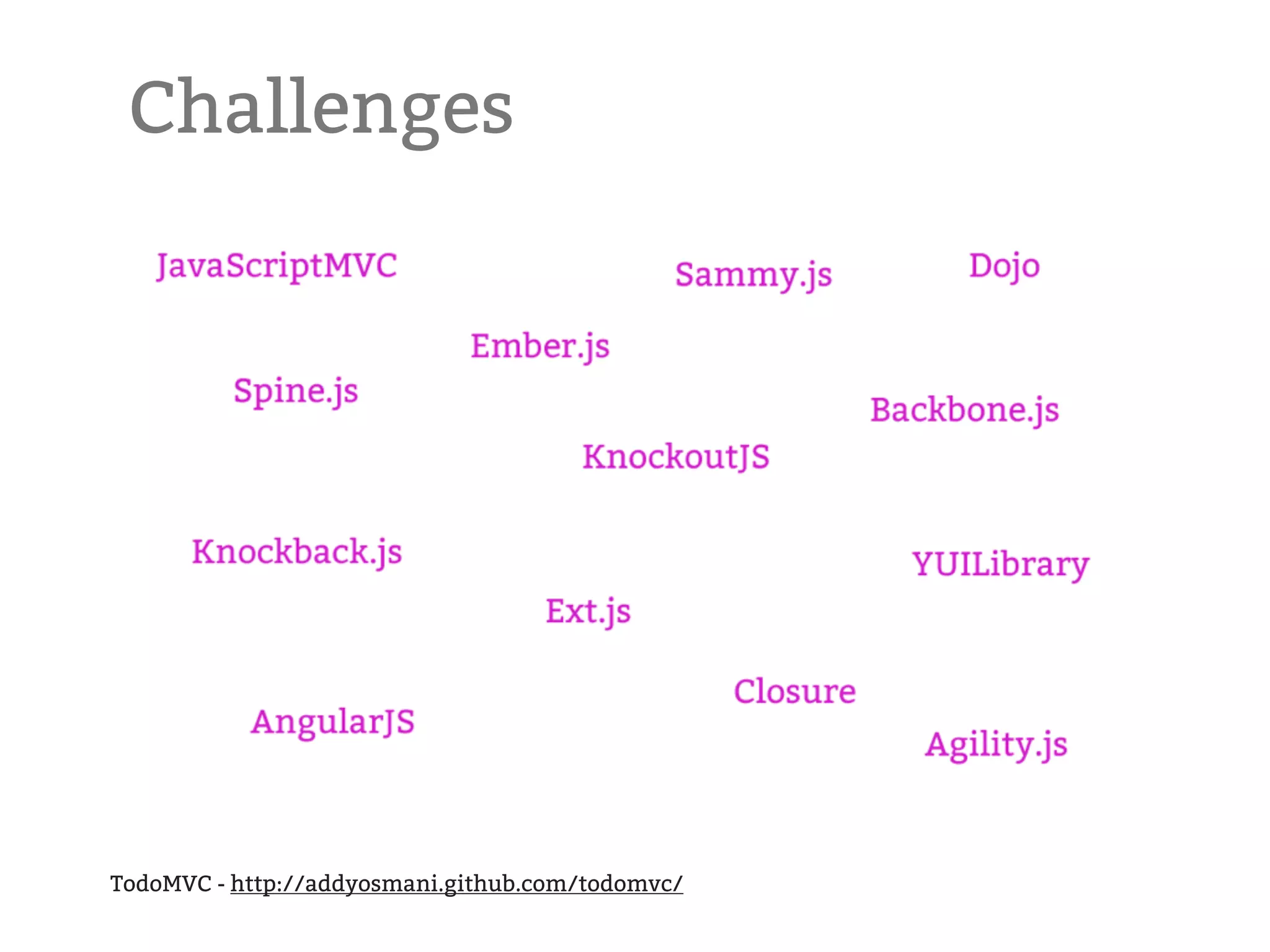

Challenges TodoMVC - http://addyosmani.github.com/todomvc/

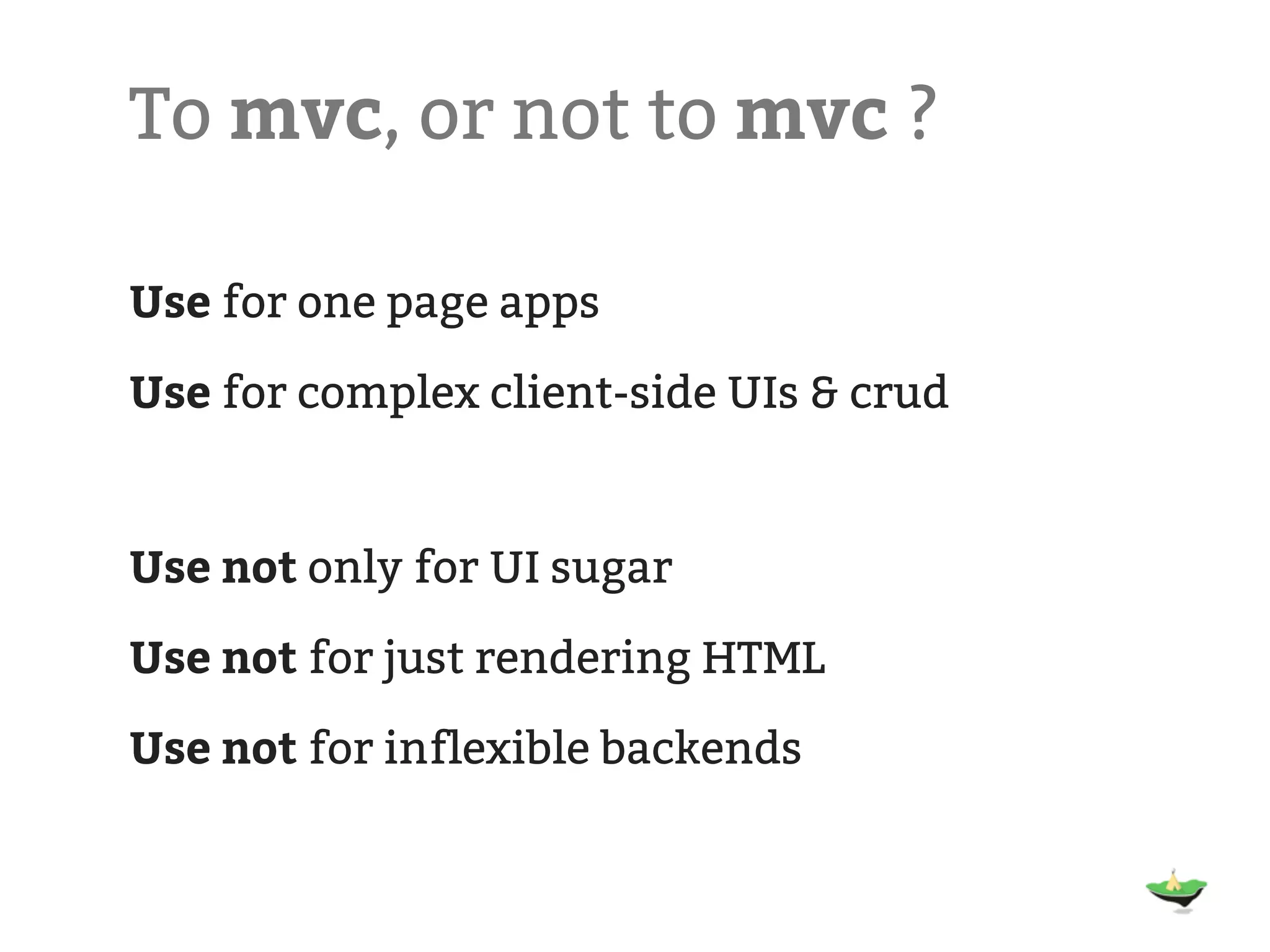

To mvc, or not to mvc ? Use for one page apps Use for complex client-side UIs & crud Use not only for UI sugar Use not for just rendering HTML Use not for inflexible backends

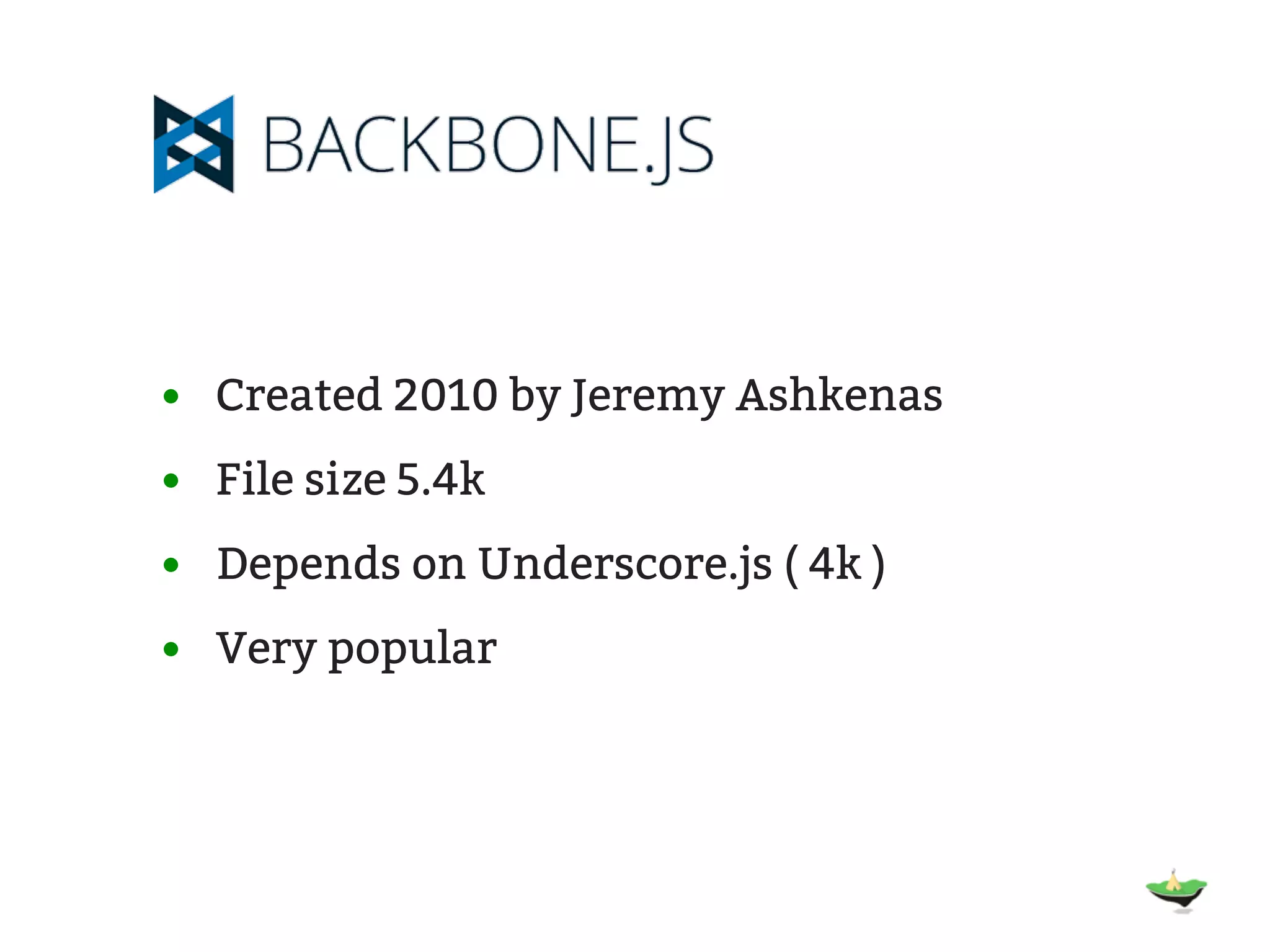

• Created 2010 by Jeremy Ashkenas • File size 5.4k • Depends on Underscore.js ( 4k ) • Very popular

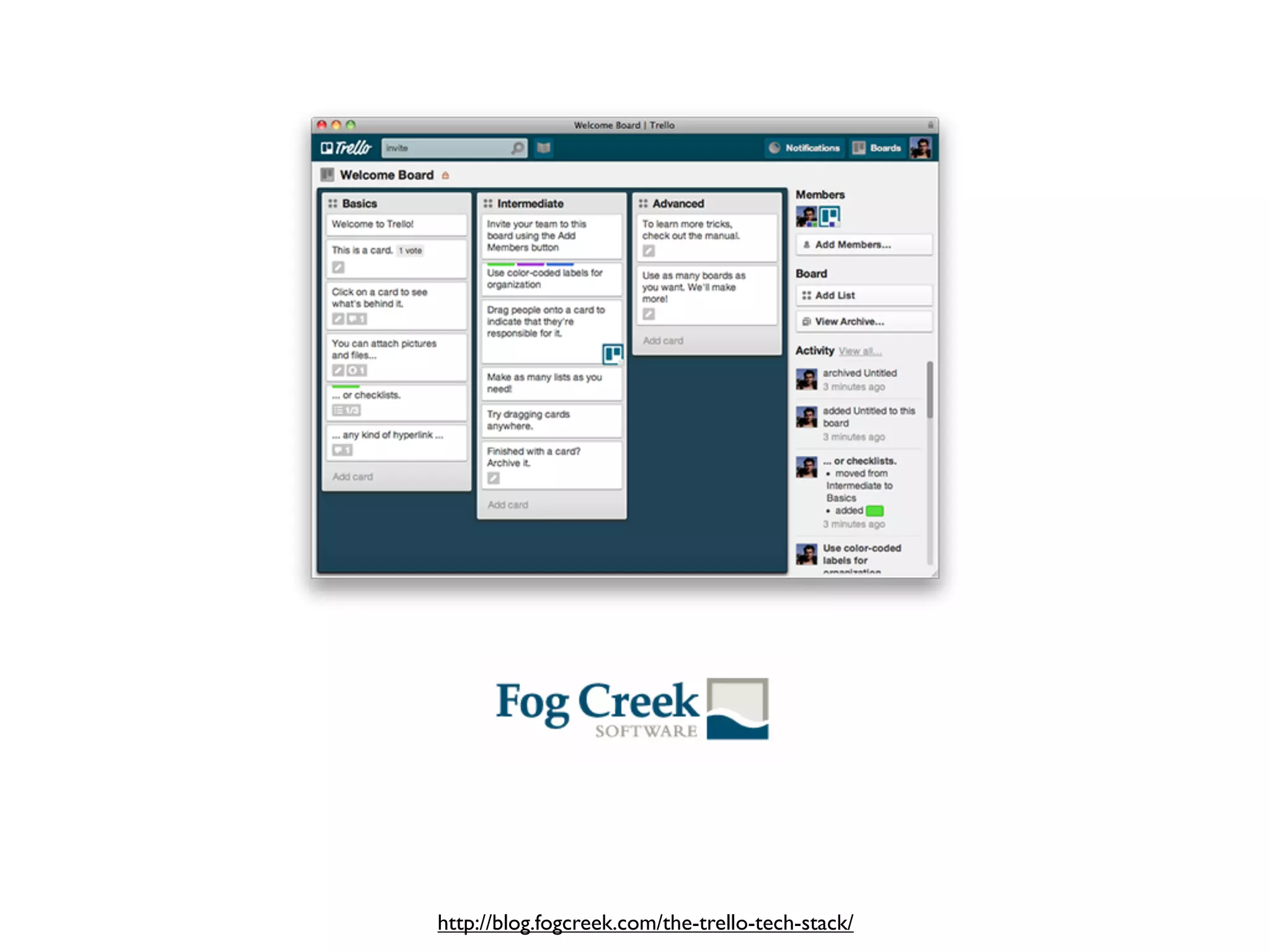

http://blog.fogcreek.com/the-trello-tech-stack/

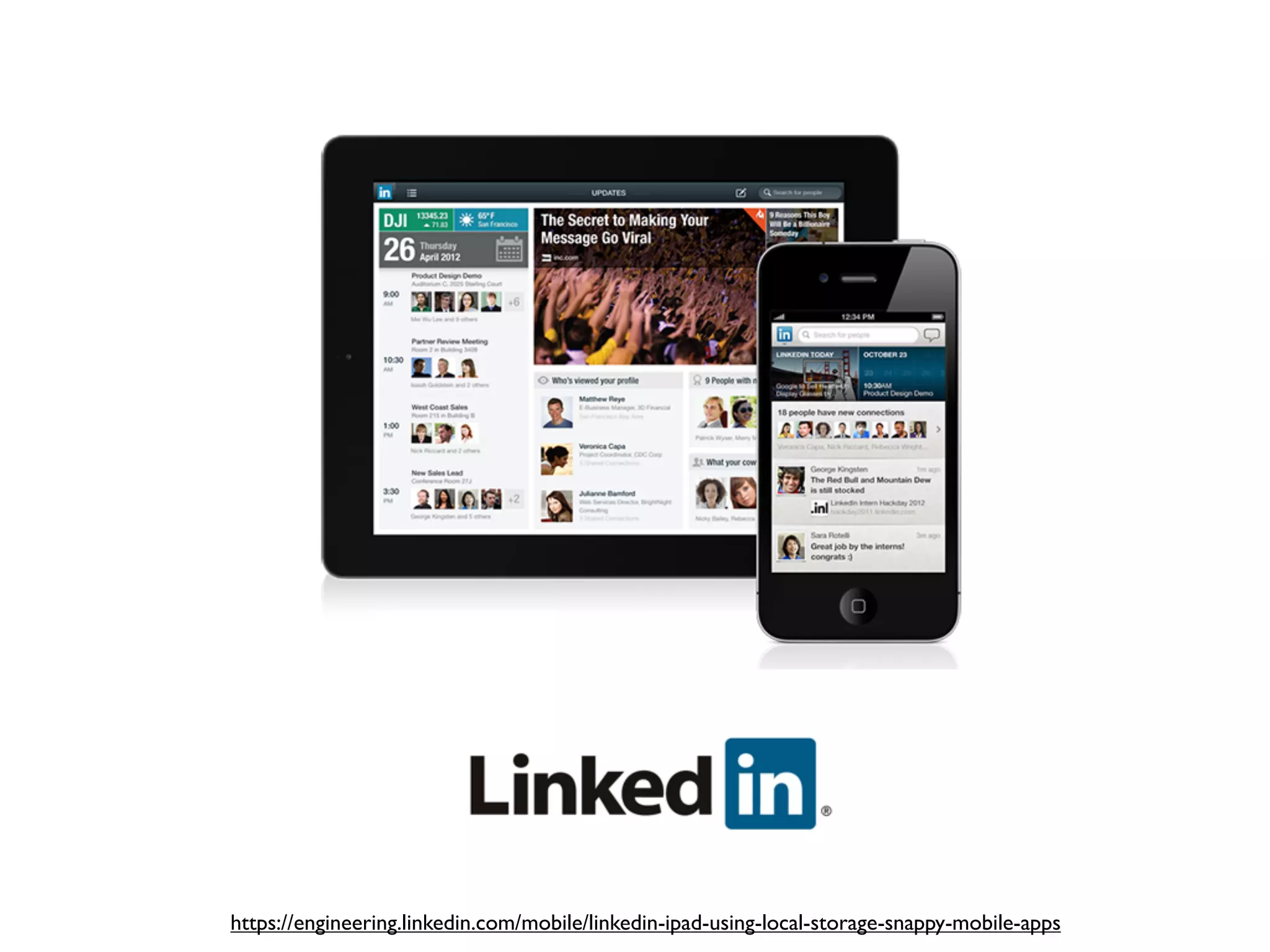

https://engineering.linkedin.com/mobile/linkedin-ipad-using-local-storage-snappy-mobile-apps

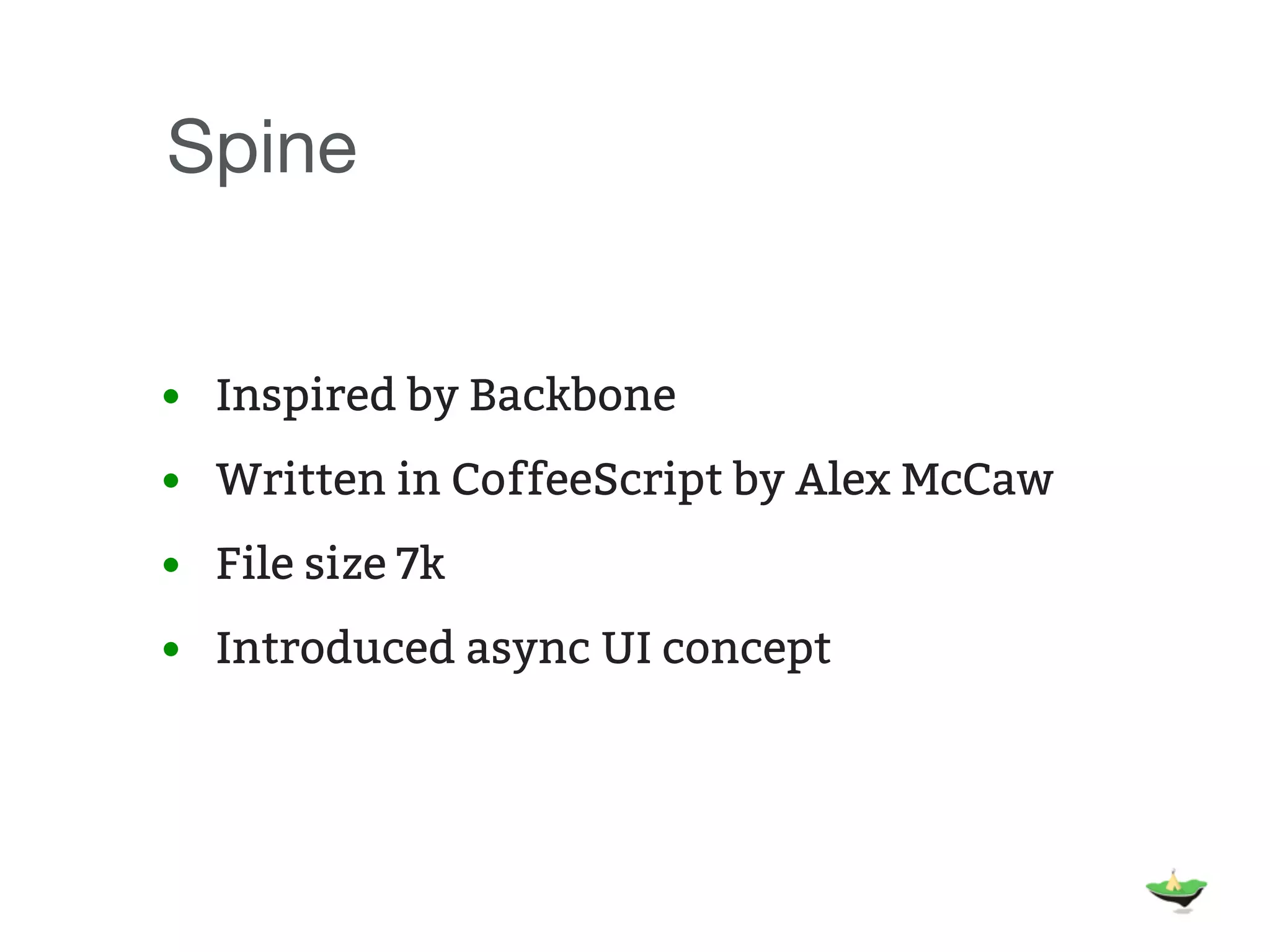

Spine • Inspired by Backbone • Written in CoffeeScript by Alex McCaw • File size 7k • Introduced async UI concept

Text http://hjortureh.tumblr.com/post/22117245794/spine-js-vs-backbone-js

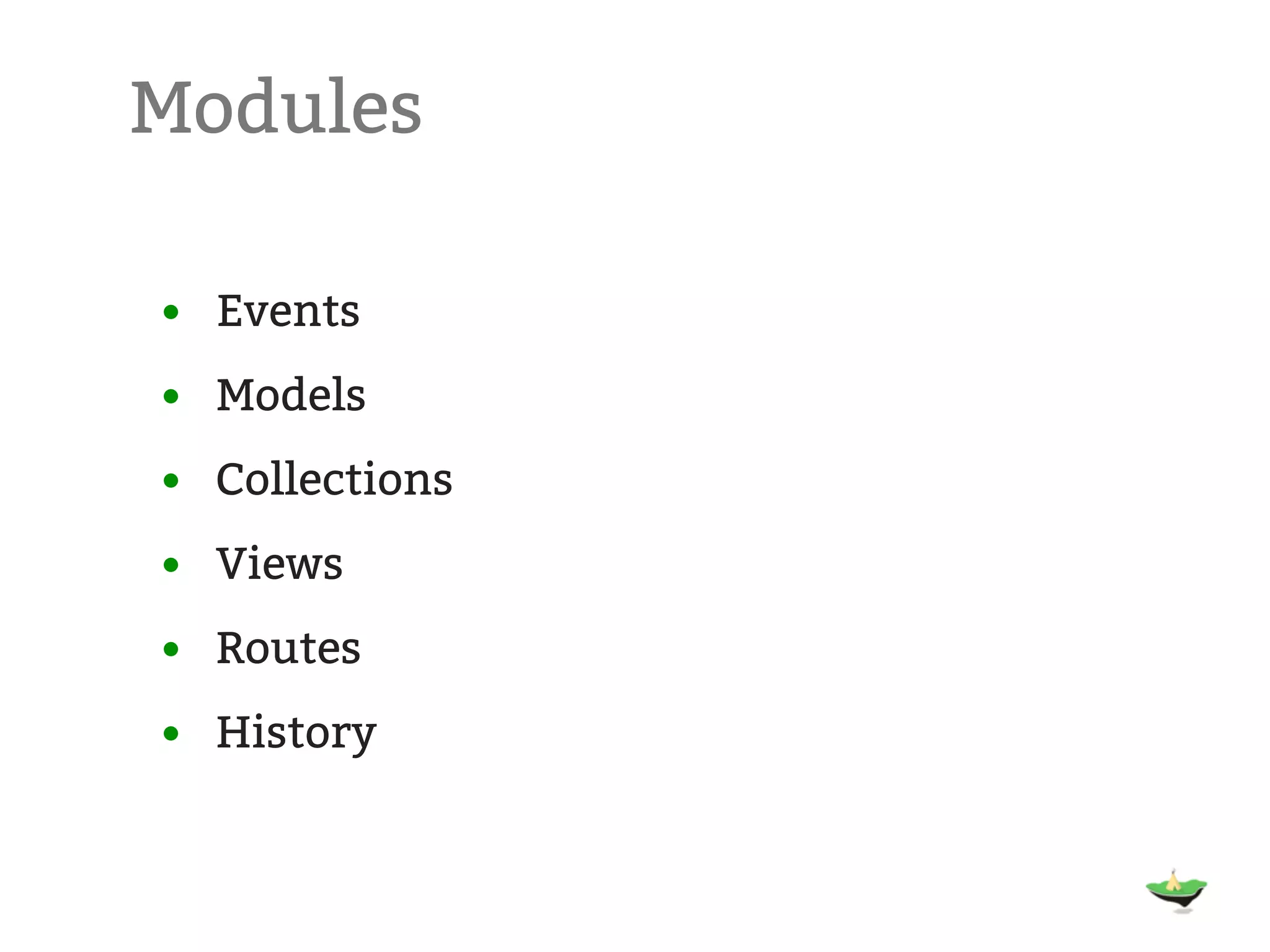

Modules • Events • Models • Collections • Views • Routes • History

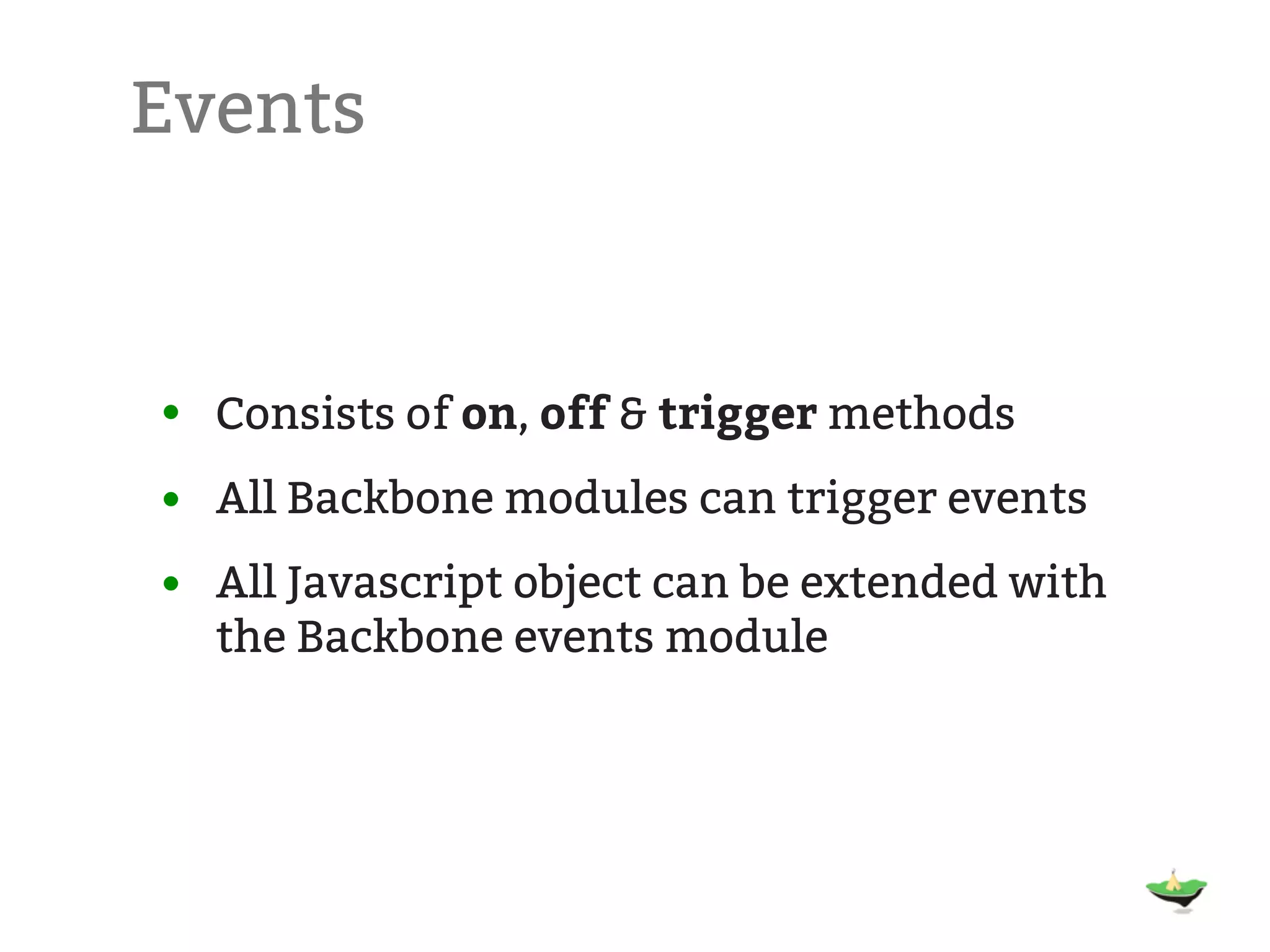

Events • Consists of on, off & trigger methods • All Backbone modules can trigger events • All Javascript object can be extended with the Backbone events module

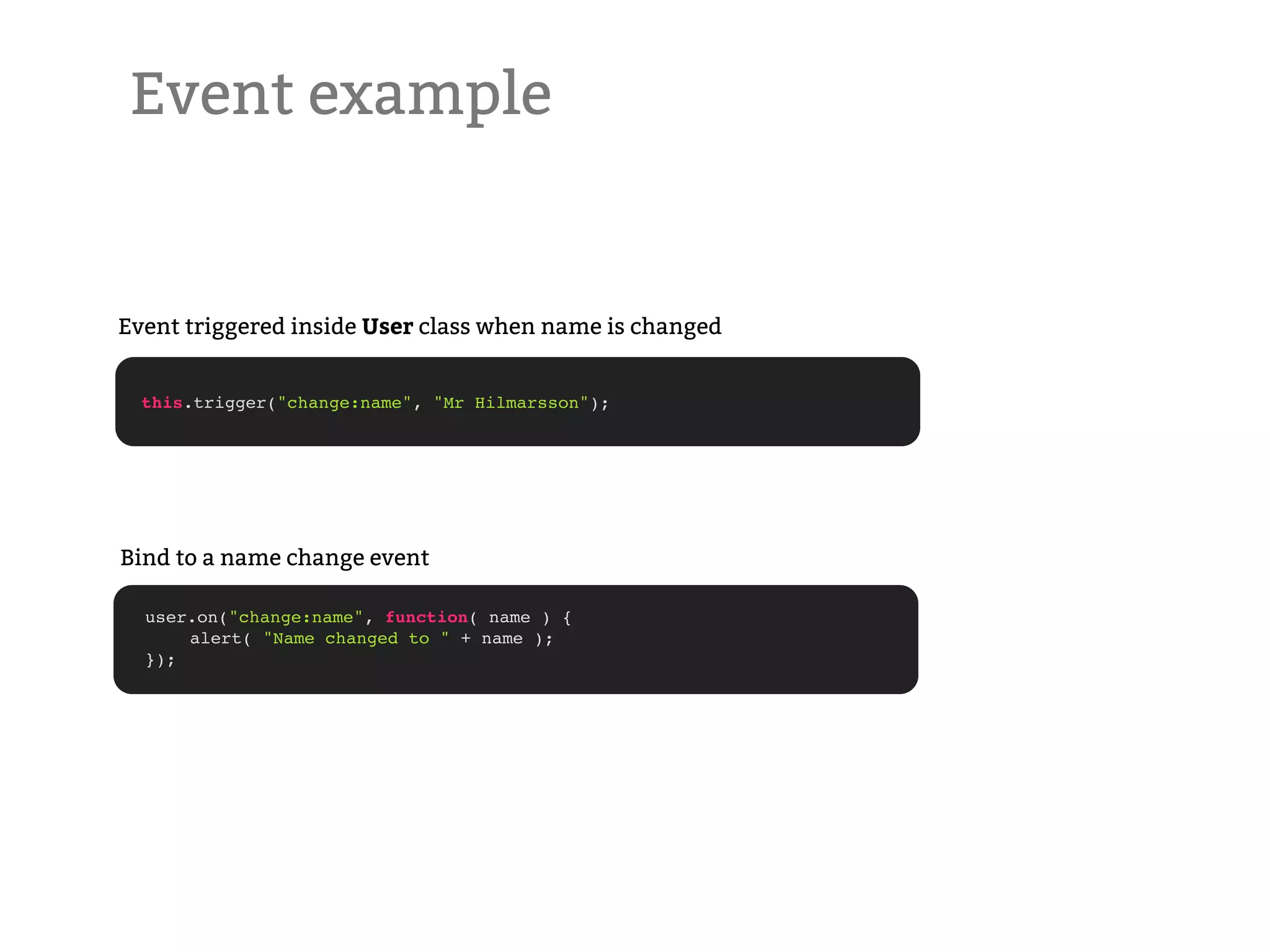

Event example Event triggered inside User class when name is changed this.trigger("change:name", "Mr Hilmarsson"); Bind to a name change event user.on("change:name", function( name ) { ! alert( "Name changed to " + name ); });

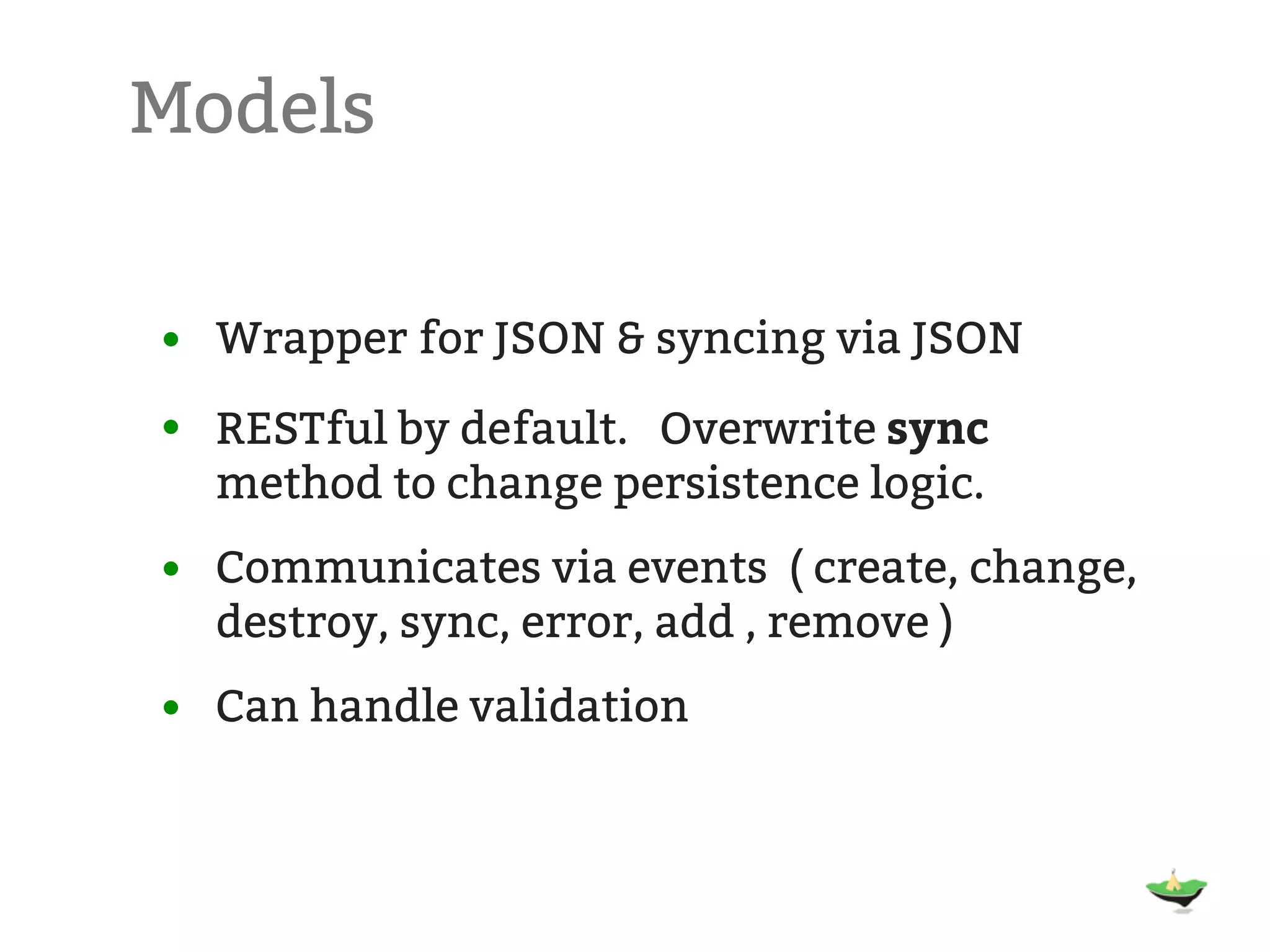

Models • Wrapper for JSON & syncing via JSON • RESTful by default. Overwrite sync method to change persistence logic. • Communicates via events ( create, change, destroy, sync, error, add , remove ) • Can handle validation

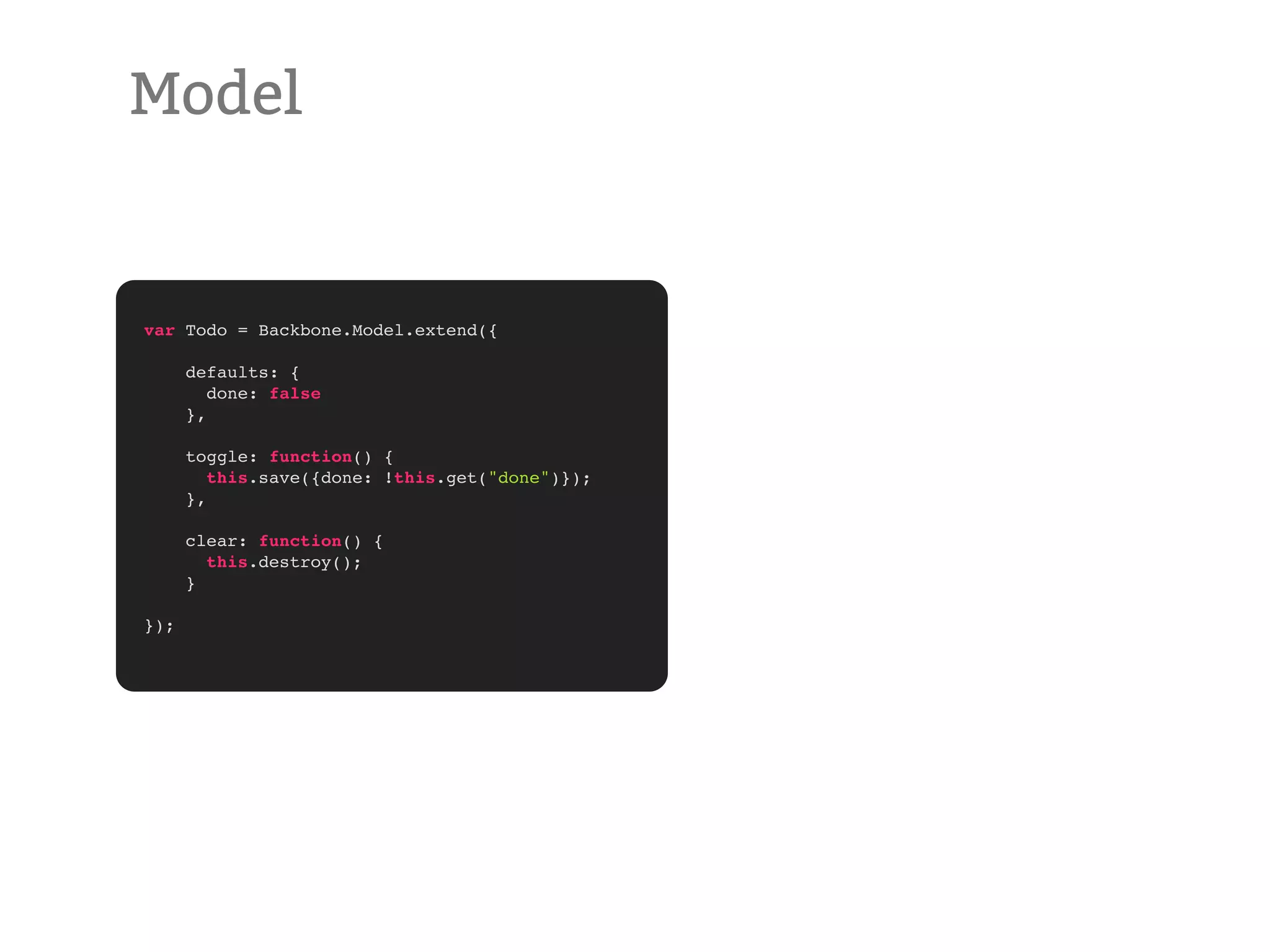

Model var Todo = Backbone.Model.extend({ defaults: { done: false }, toggle: function() { this.save({done: !this.get("done")}); }, clear: function() { this.destroy(); } });

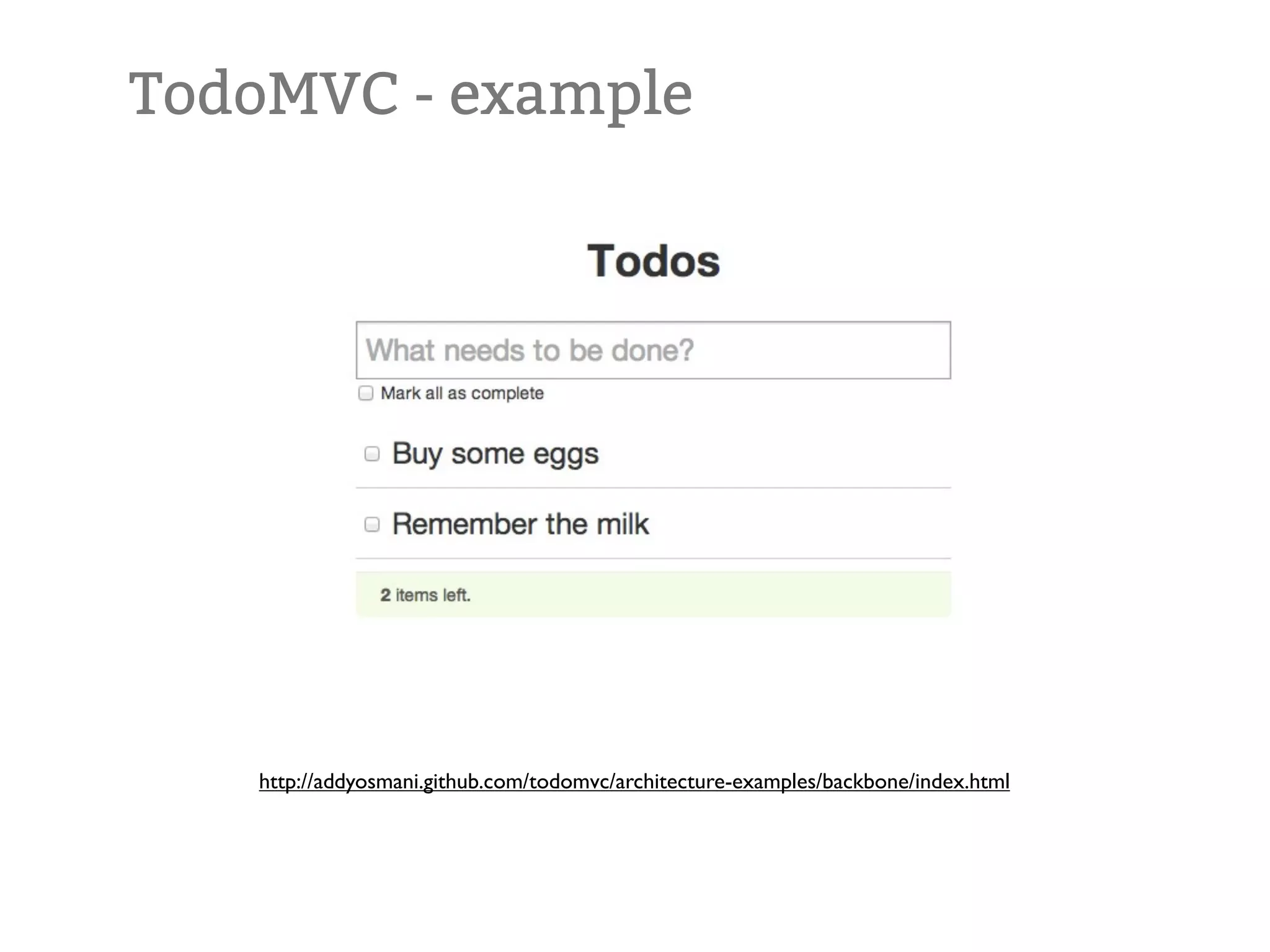

TodoMVC - example http://addyosmani.github.com/todomvc/architecture-examples/backbone/index.html

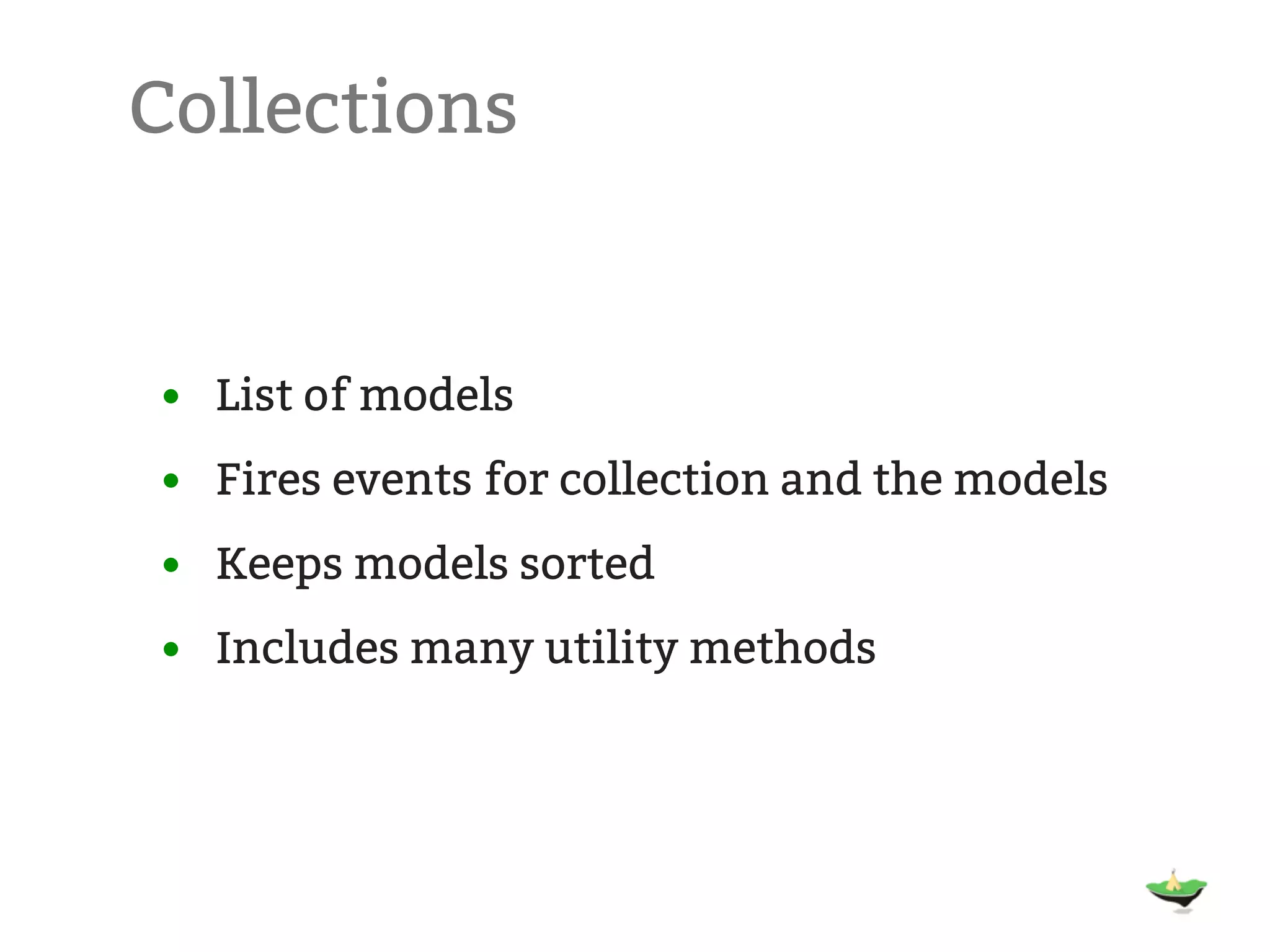

Collections • List of models • Fires events for collection and the models • Keeps models sorted • Includes many utility methods

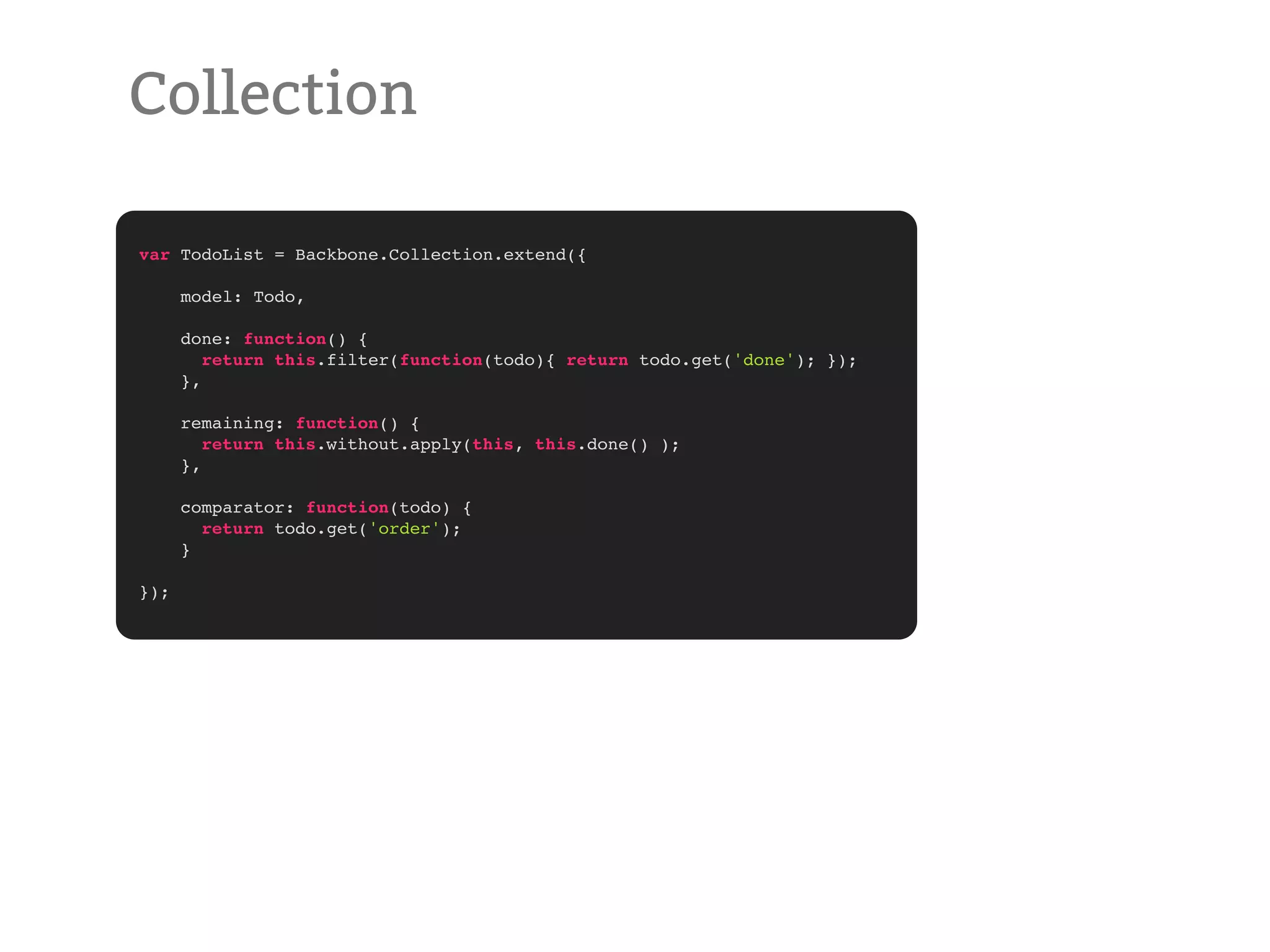

Collection var TodoList = Backbone.Collection.extend({ model: Todo, done: function() { return this.filter(function(todo){ return todo.get('done'); }); }, remaining: function() { return this.without.apply(this, this.done() ); }, comparator: function(todo) { return todo.get('order'); } });

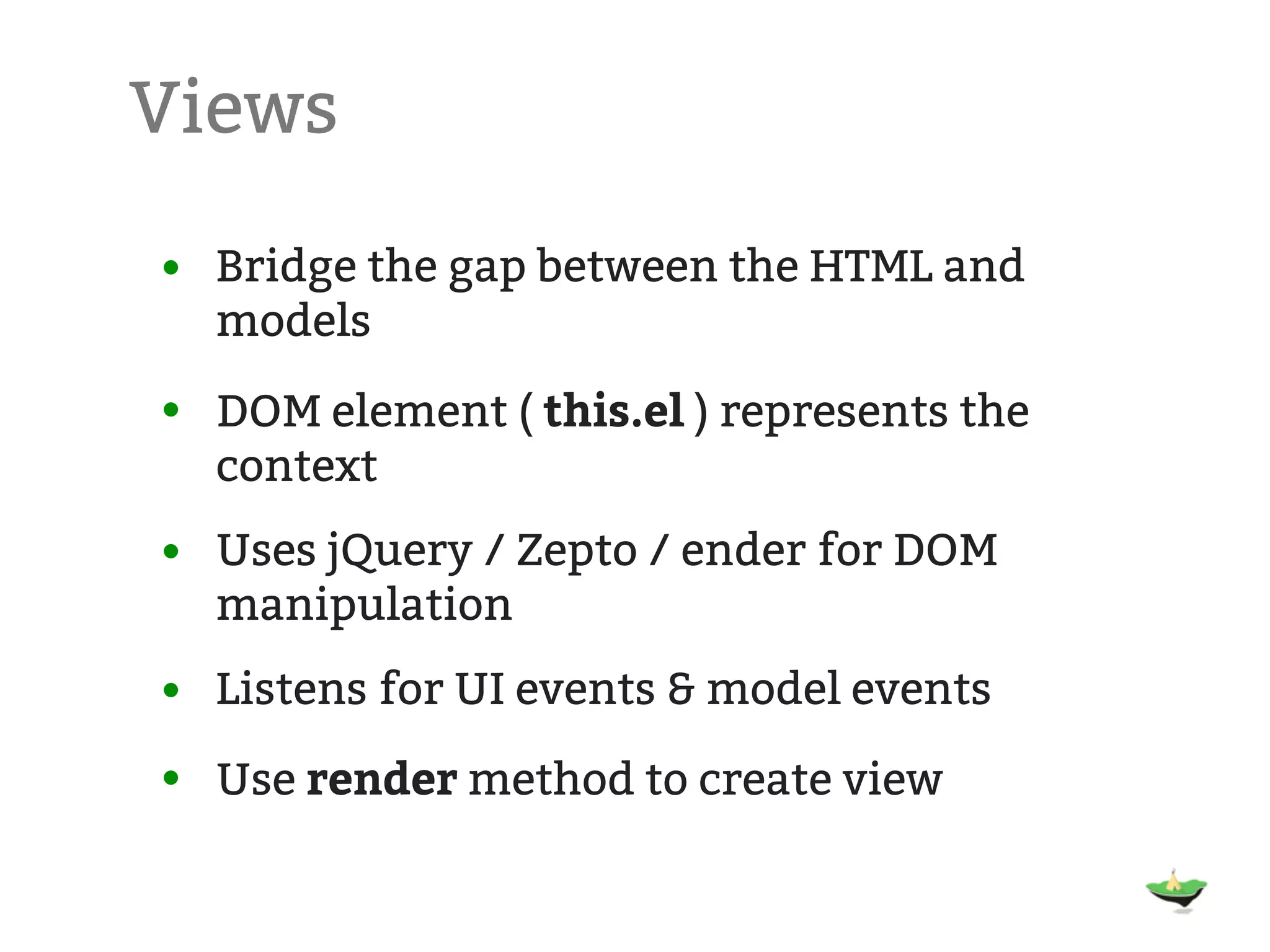

Views • Bridge the gap between the HTML and models • DOM element ( this.el ) represents the context • Uses jQuery / Zepto / ender for DOM manipulation • Listens for UI events & model events • Use render method to create view

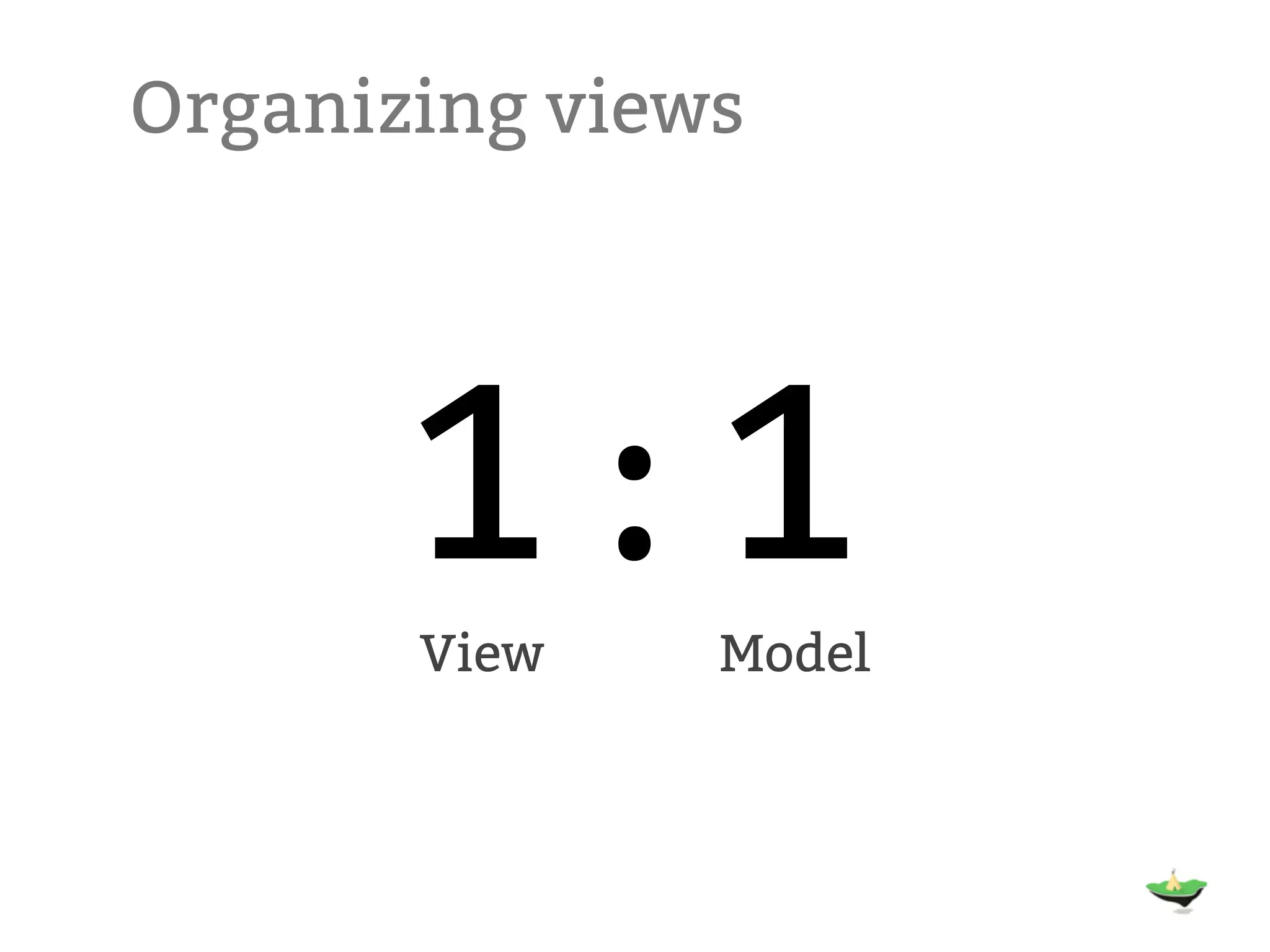

Organizing views 1:1 View Model

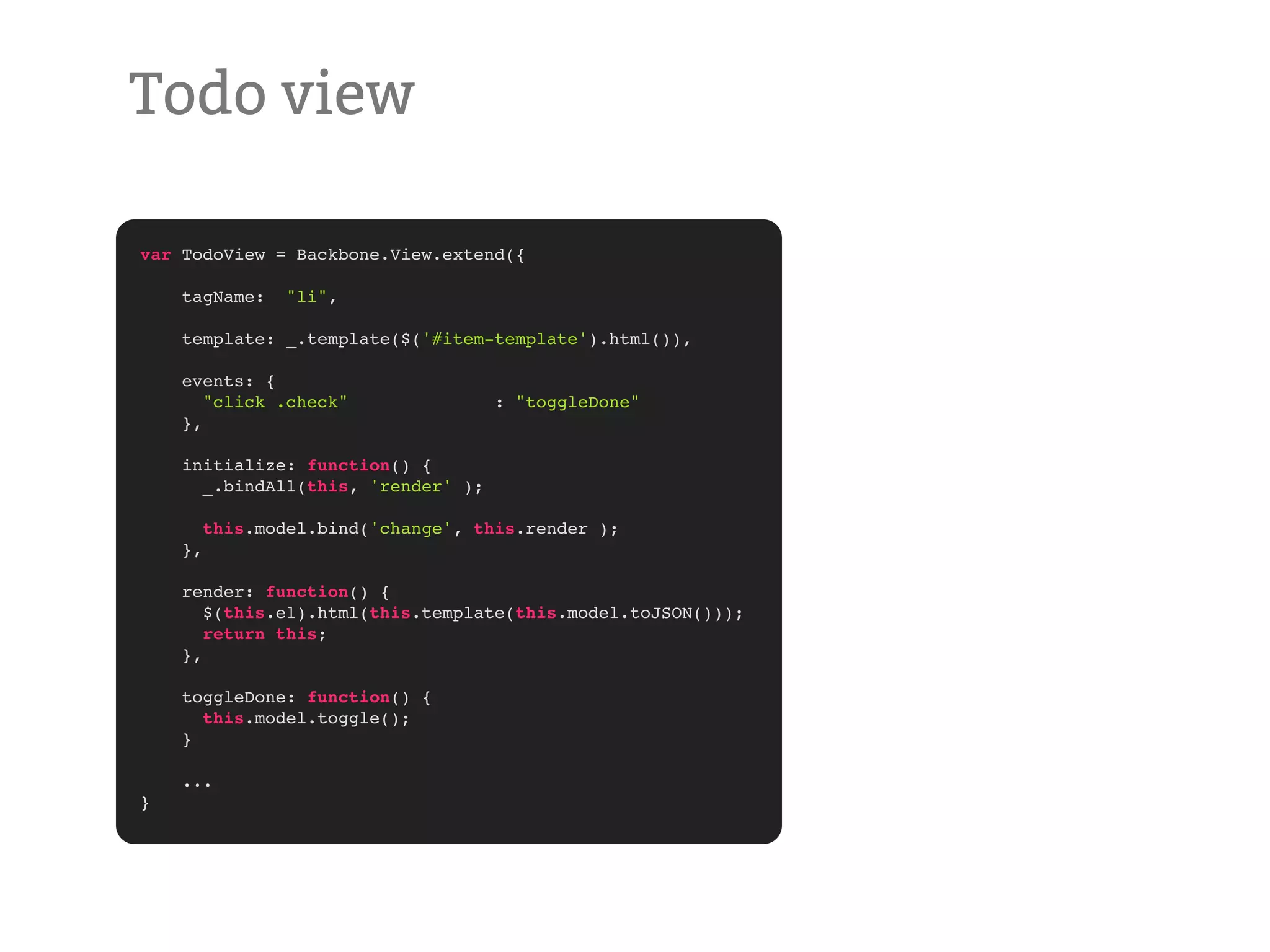

Todo view var TodoView = Backbone.View.extend({ tagName: "li", template: _.template($('#item-template').html()), events: { "click .check" : "toggleDone" }, initialize: function() { _.bindAll(this, 'render' ); this.model.bind('change', this.render ); }, render: function() { $(this.el).html(this.template(this.model.toJSON())); return this; }, toggleDone: function() { this.model.toggle(); } ... }

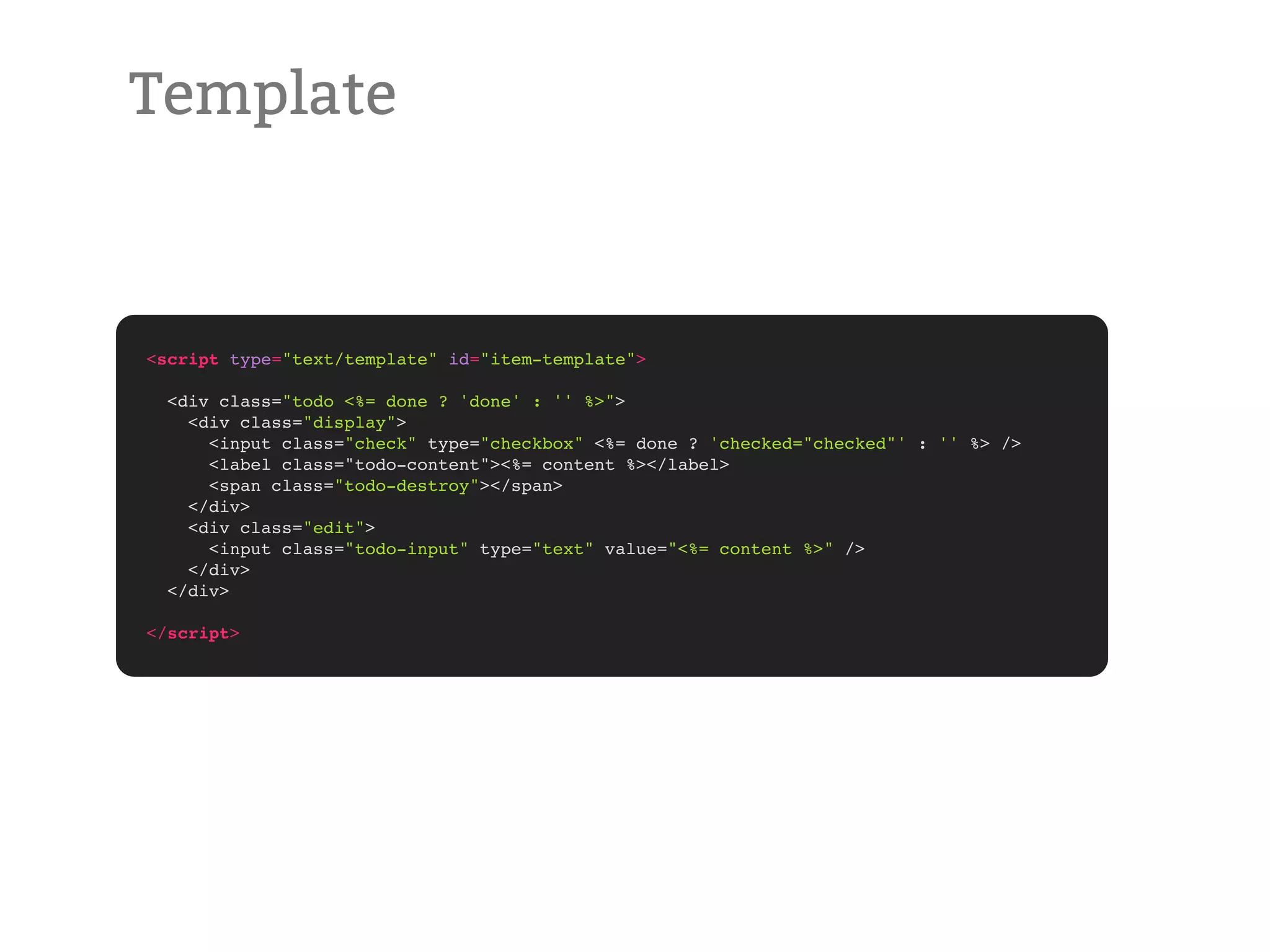

Template <script type="text/template" id="item-template"> <div class="todo <%= done ? 'done' : '' %>"> <div class="display"> <input class="check" type="checkbox" <%= done ? 'checked="checked"' : '' %> /> <label class="todo-content"><%= content %></label> <span class="todo-destroy"></span> </div> <div class="edit"> <input class="todo-input" type="text" value="<%= content %>" /> </div> </div> </script>

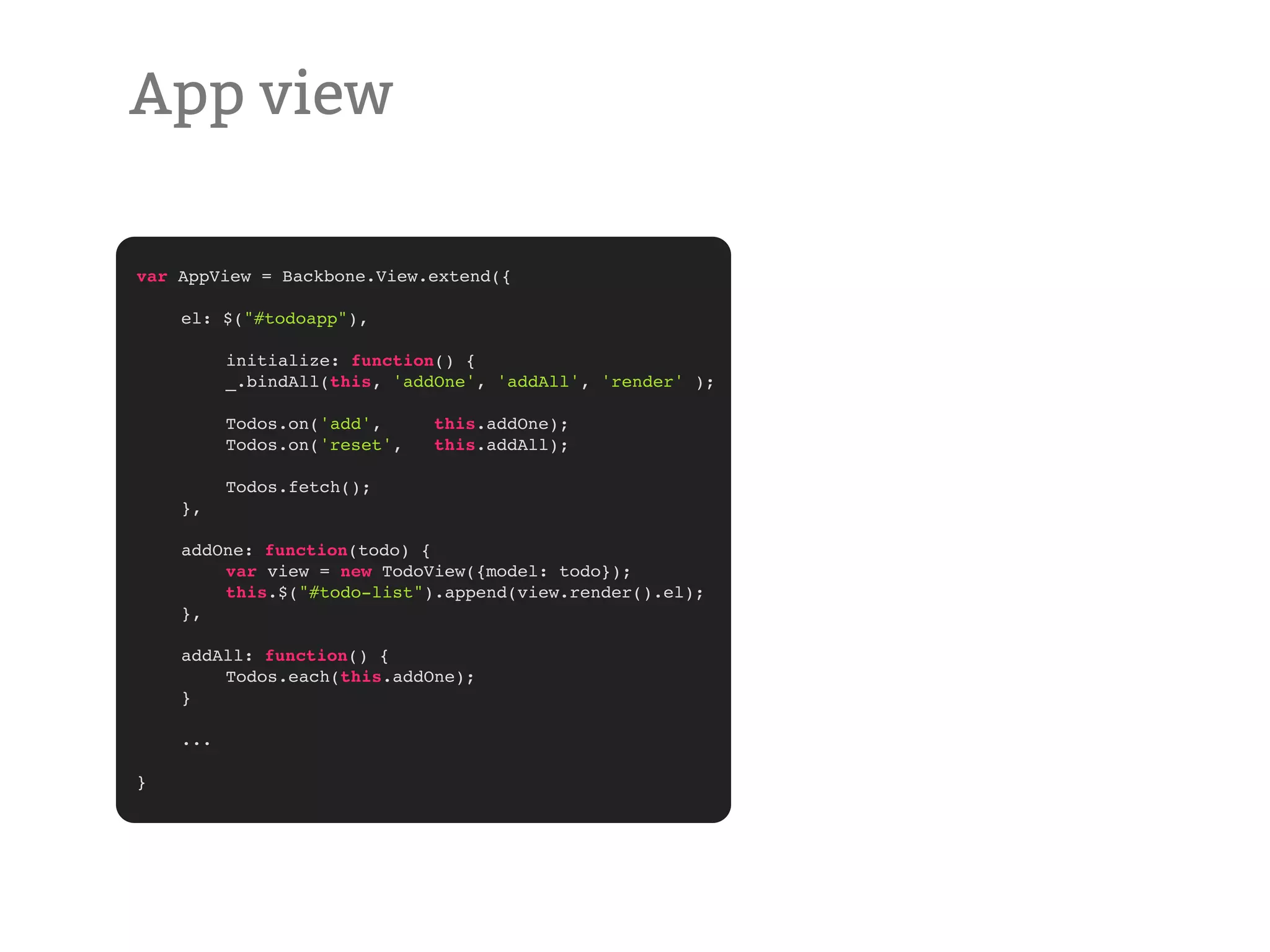

App view var AppView = Backbone.View.extend({ ! el: $("#todoapp"), ! ! initialize: function() { ! ! _.bindAll(this, 'addOne', 'addAll', 'render' ); ! ! Todos.on('add', this.addOne); ! ! Todos.on('reset', this.addAll); ! ! Todos.fetch(); ! }, ! addOne: function(todo) { ! ! var view = new TodoView({model: todo}); ! ! this.$("#todo-list").append(view.render().el); ! }, ! addAll: function() { ! ! Todos.each(this.addOne); ! } ! ... }

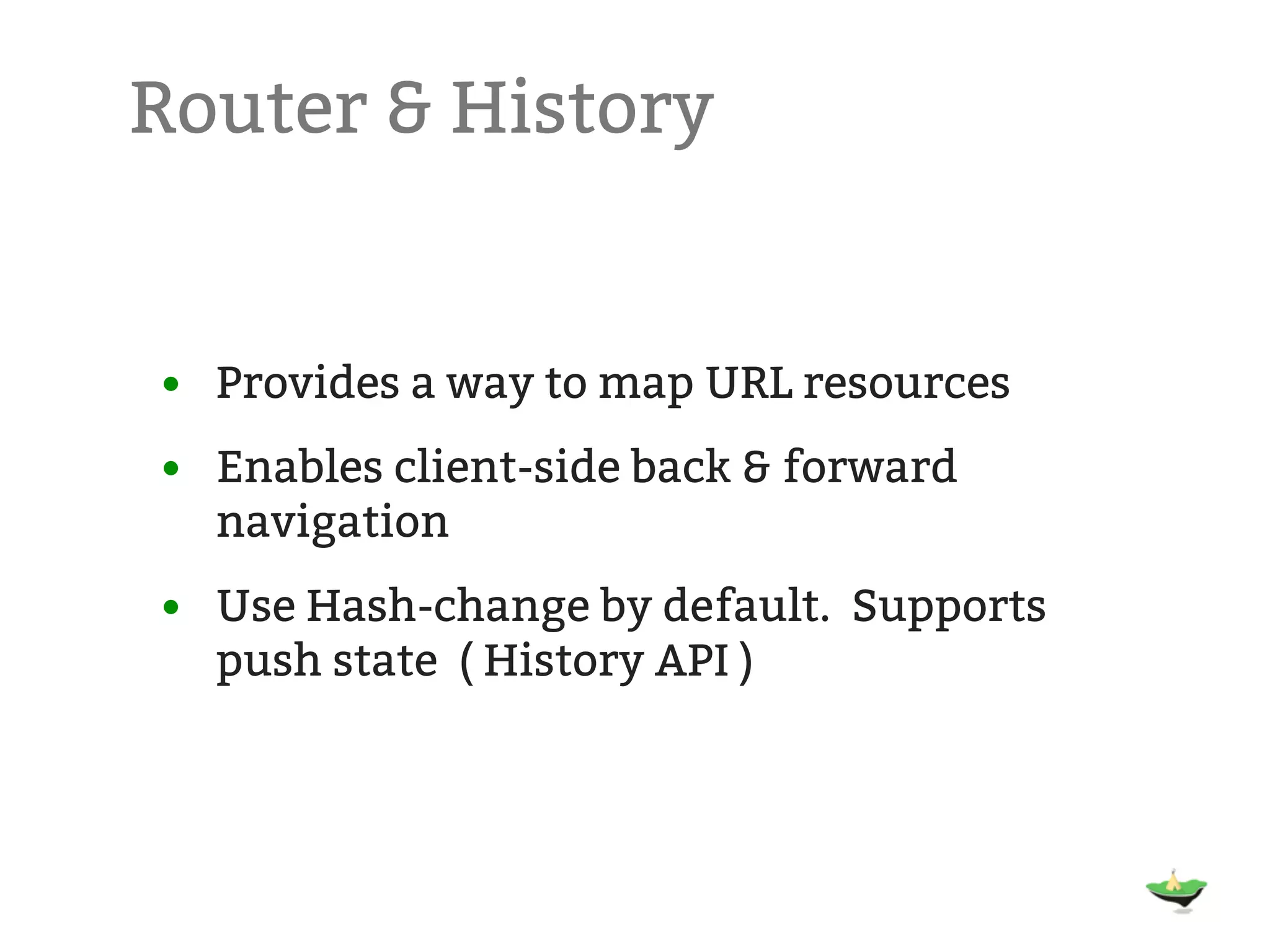

Router & History • Provides a way to map URL resources • Enables client-side back & forward navigation • Use Hash-change by default. Supports push state ( History API )

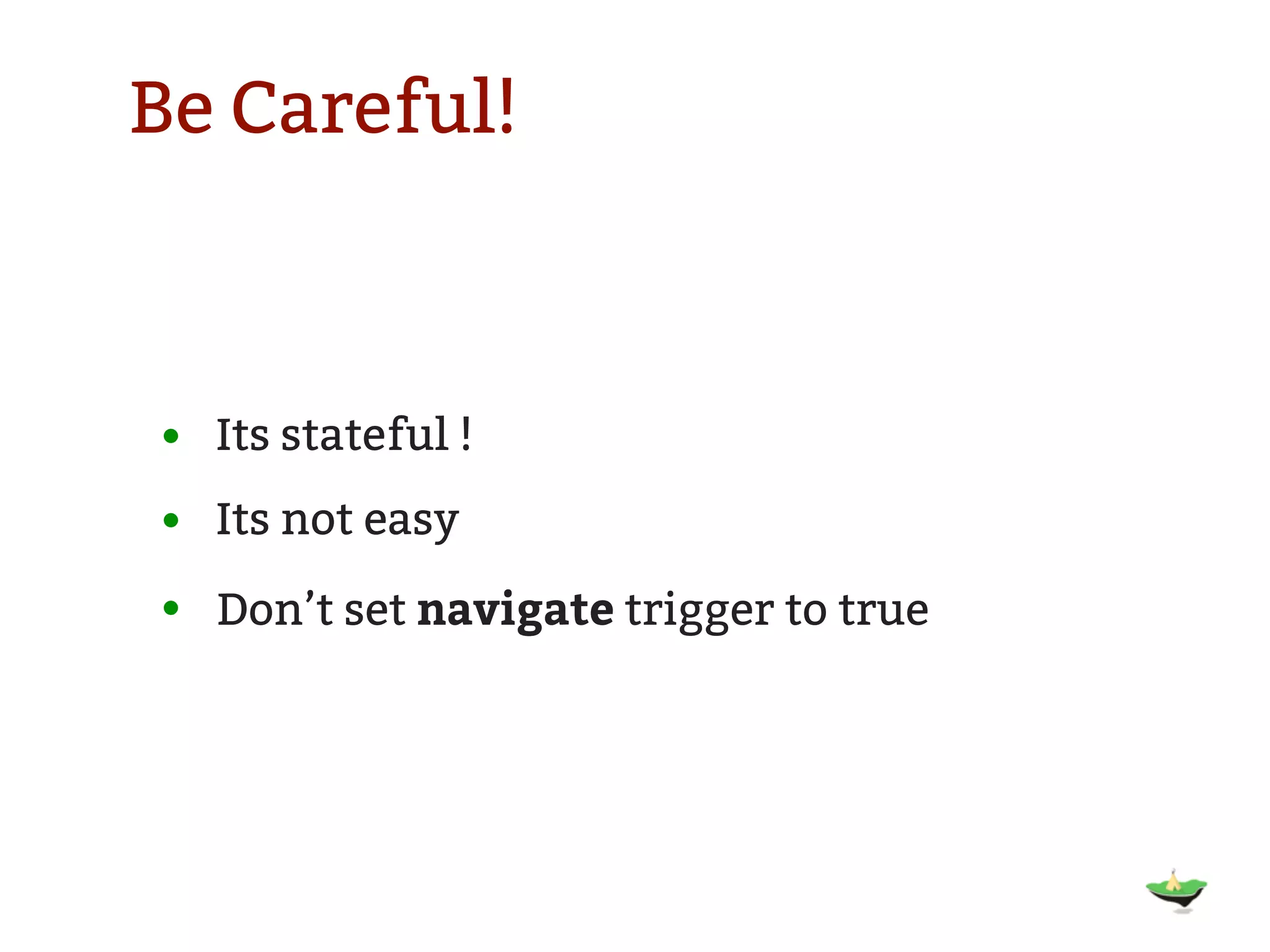

Be Careful! • Its stateful ! • Its not easy • Don’t set navigate trigger to true

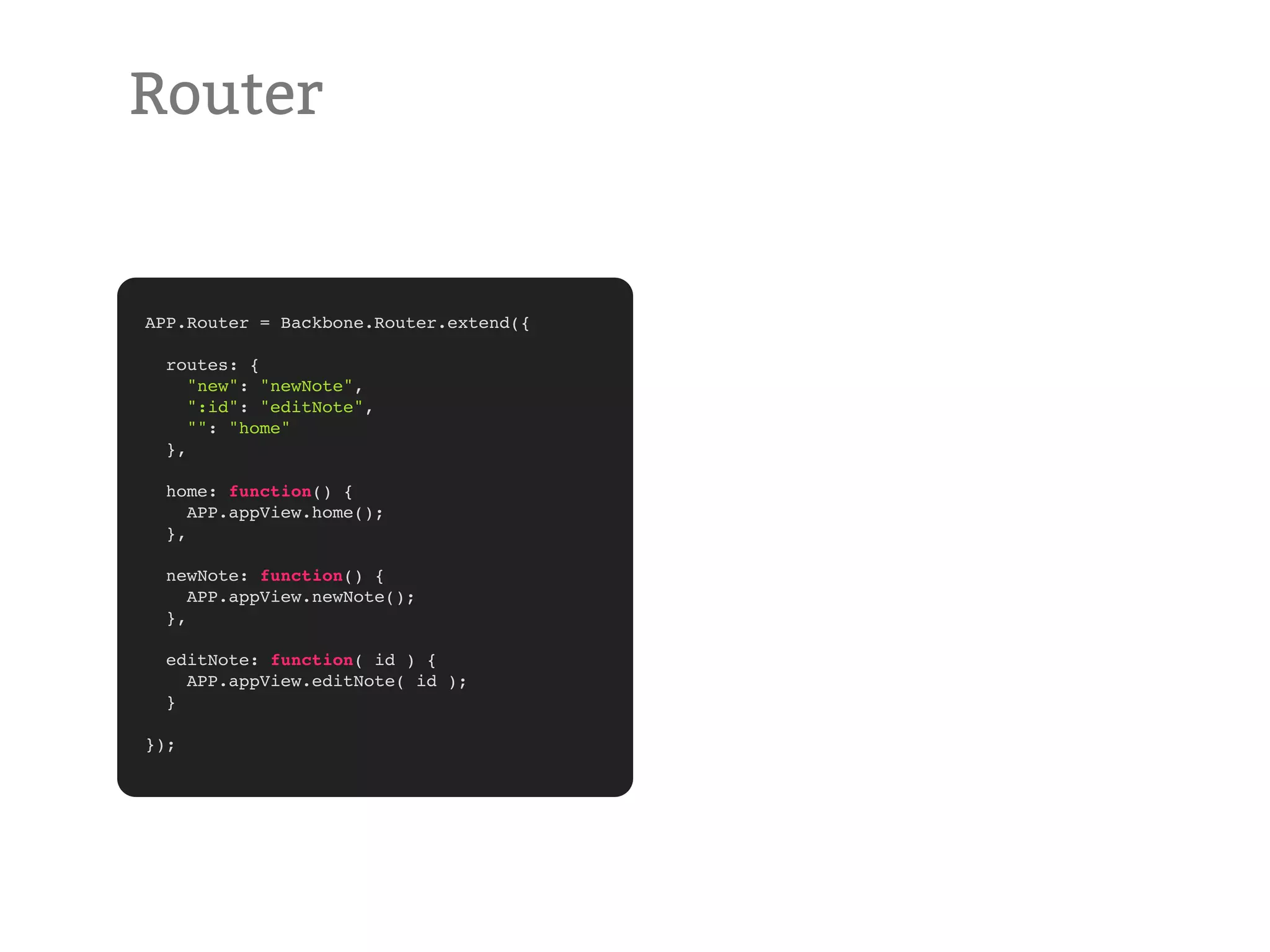

Router APP.Router = Backbone.Router.extend({ routes: { "new": "newNote", ":id": "editNote", "": "home" }, home: function() { APP.appView.home(); }, newNote: function() { APP.appView.newNote(); }, editNote: function( id ) { APP.appView.editNote( id ); } });

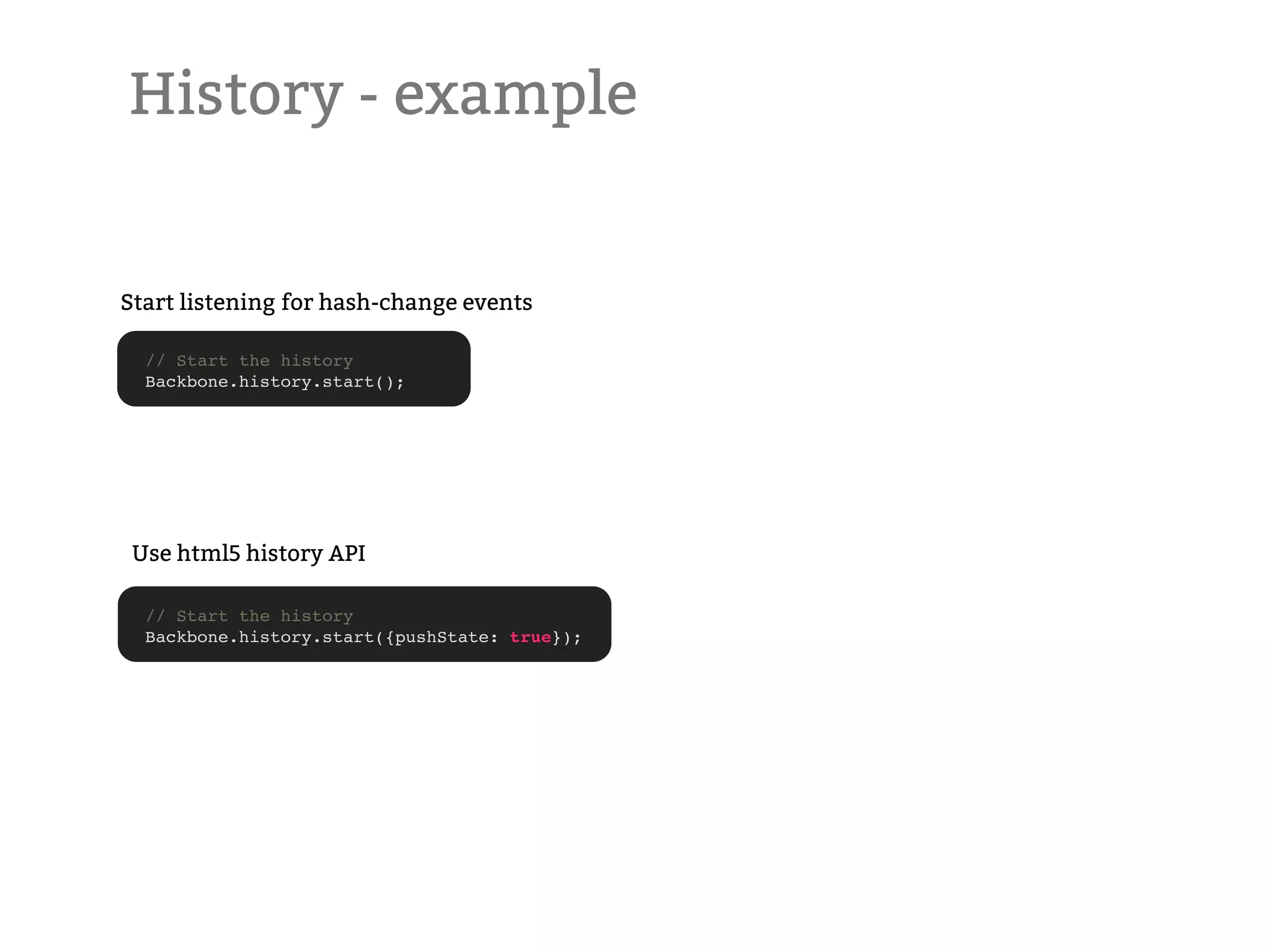

History - example Start listening for hash-change events // Start the history Backbone.history.start(); Use html5 history API // Start the history Backbone.history.start({pushState: true});

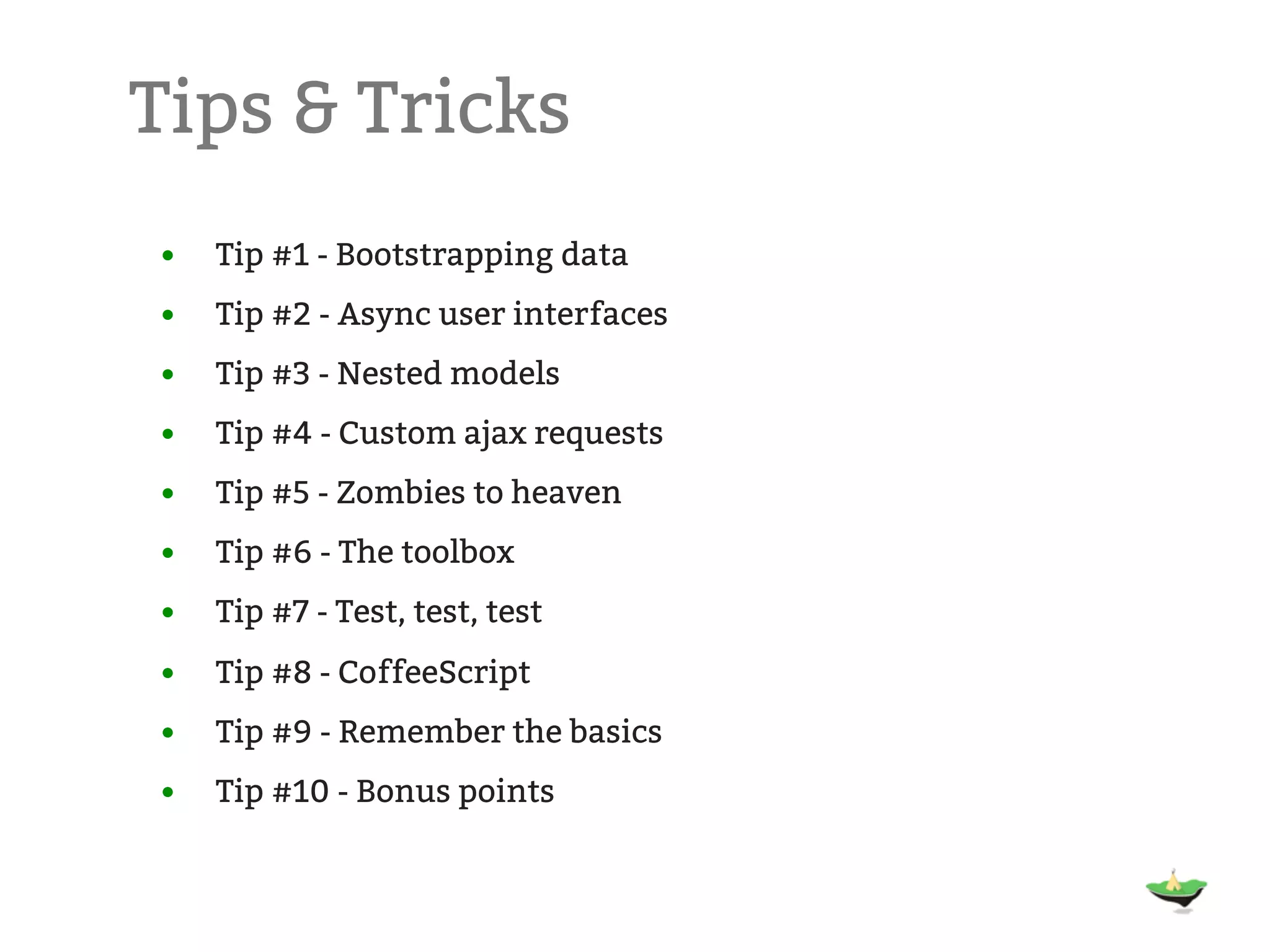

Tips & Tricks • Tip #1 - Bootstrapping data • Tip #2 - Async user interfaces • Tip #3 - Nested models • Tip #4 - Custom ajax requests • Tip #5 - Zombies to heaven • Tip #6 - The toolbox • Tip #7 - Test, test, test • Tip #8 - CoffeeScript • Tip #9 - Remember the basics • Tip #10 - Bonus points

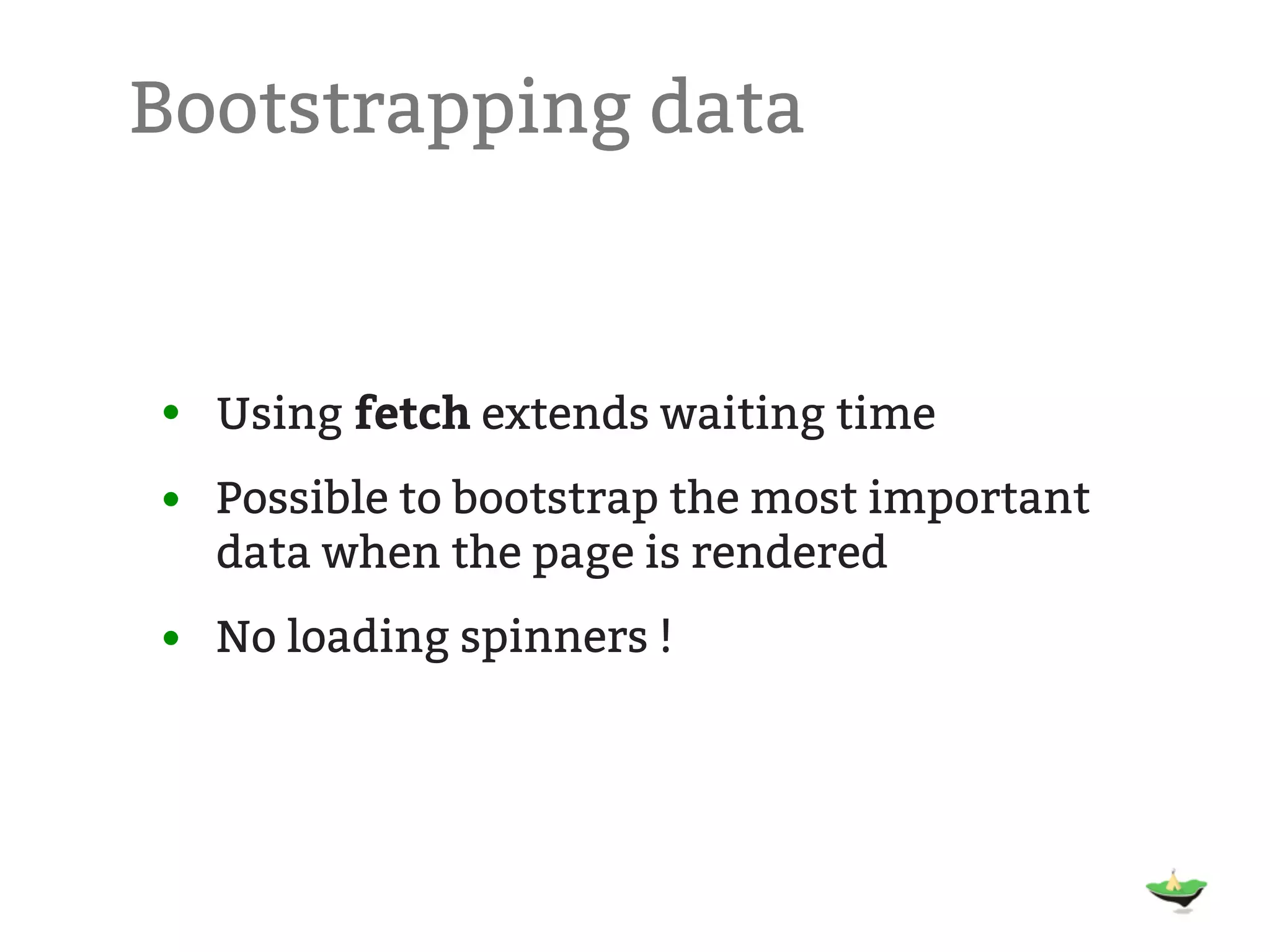

Bootstrapping data • Using fetch extends waiting time • Possible to bootstrap the most important data when the page is rendered • No loading spinners !

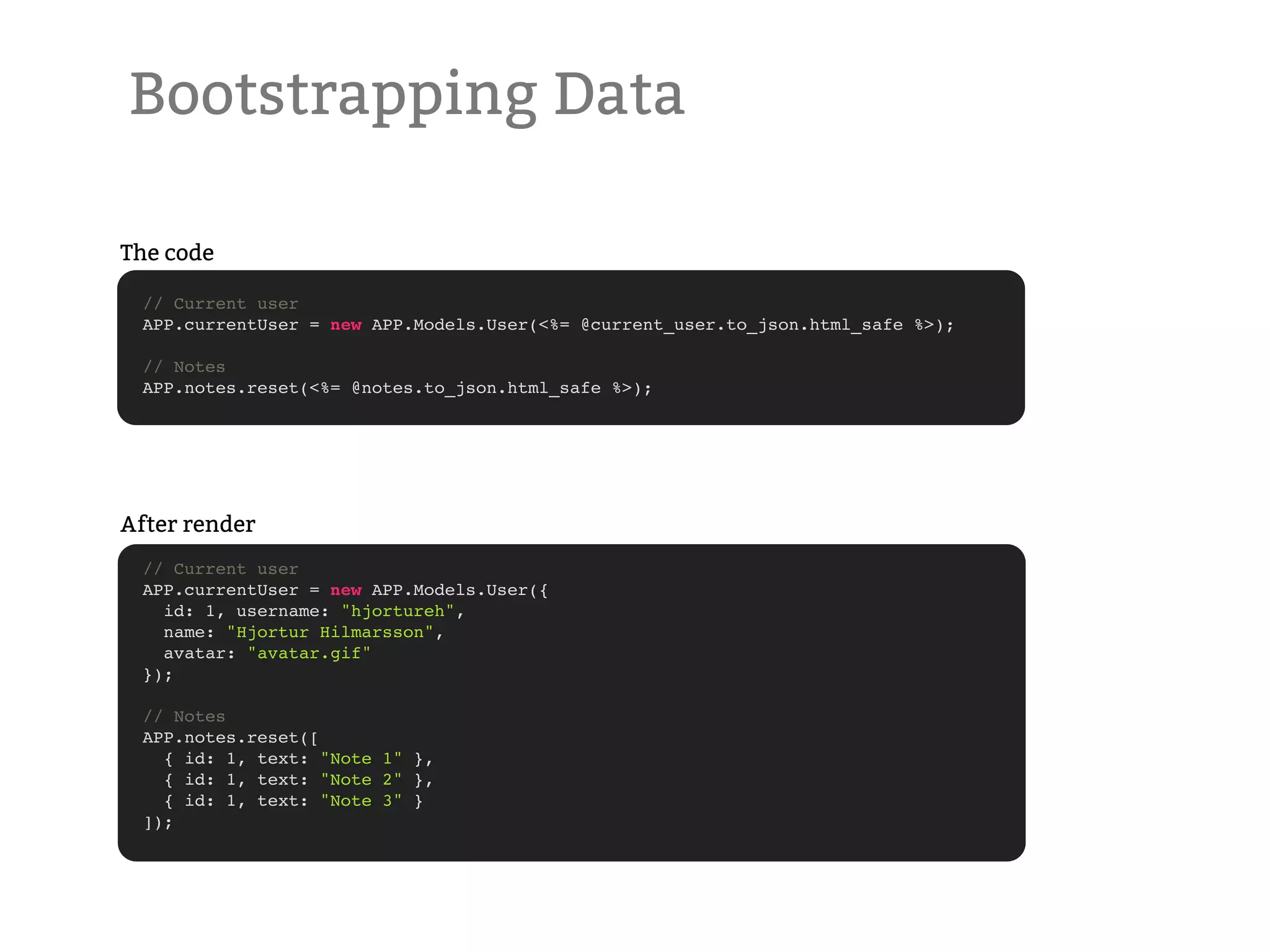

Bootstrapping Data The code // Current user APP.currentUser = new APP.Models.User(<%= @current_user.to_json.html_safe %>); // Notes APP.notes.reset(<%= @notes.to_json.html_safe %>); After render // Current user APP.currentUser = new APP.Models.User({ id: 1, username: "hjortureh", name: "Hjortur Hilmarsson", avatar: "avatar.gif" }); // Notes APP.notes.reset([ { id: 1, text: "Note 1" }, { id: 1, text: "Note 2" }, { id: 1, text: "Note 3" } ]);

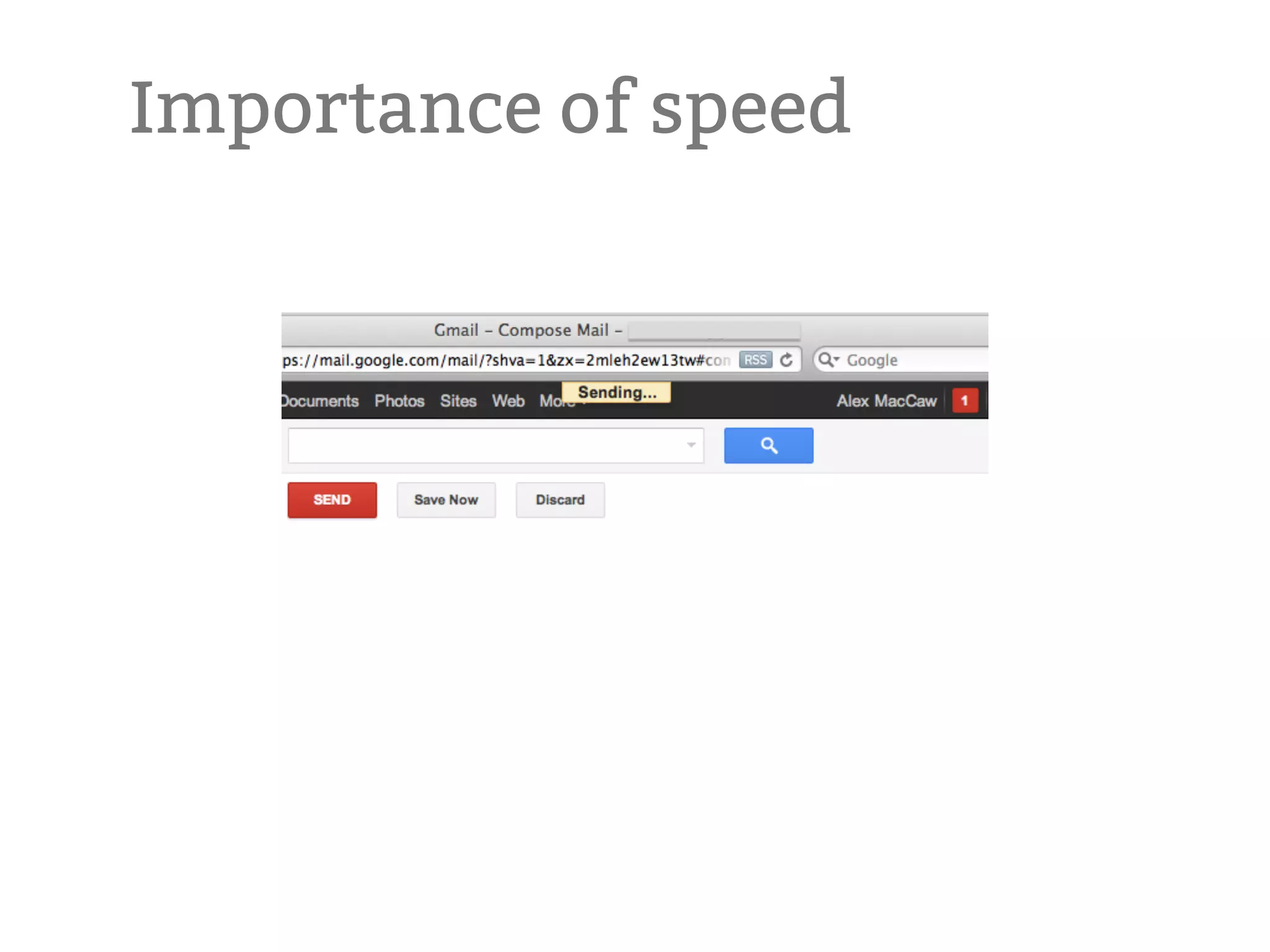

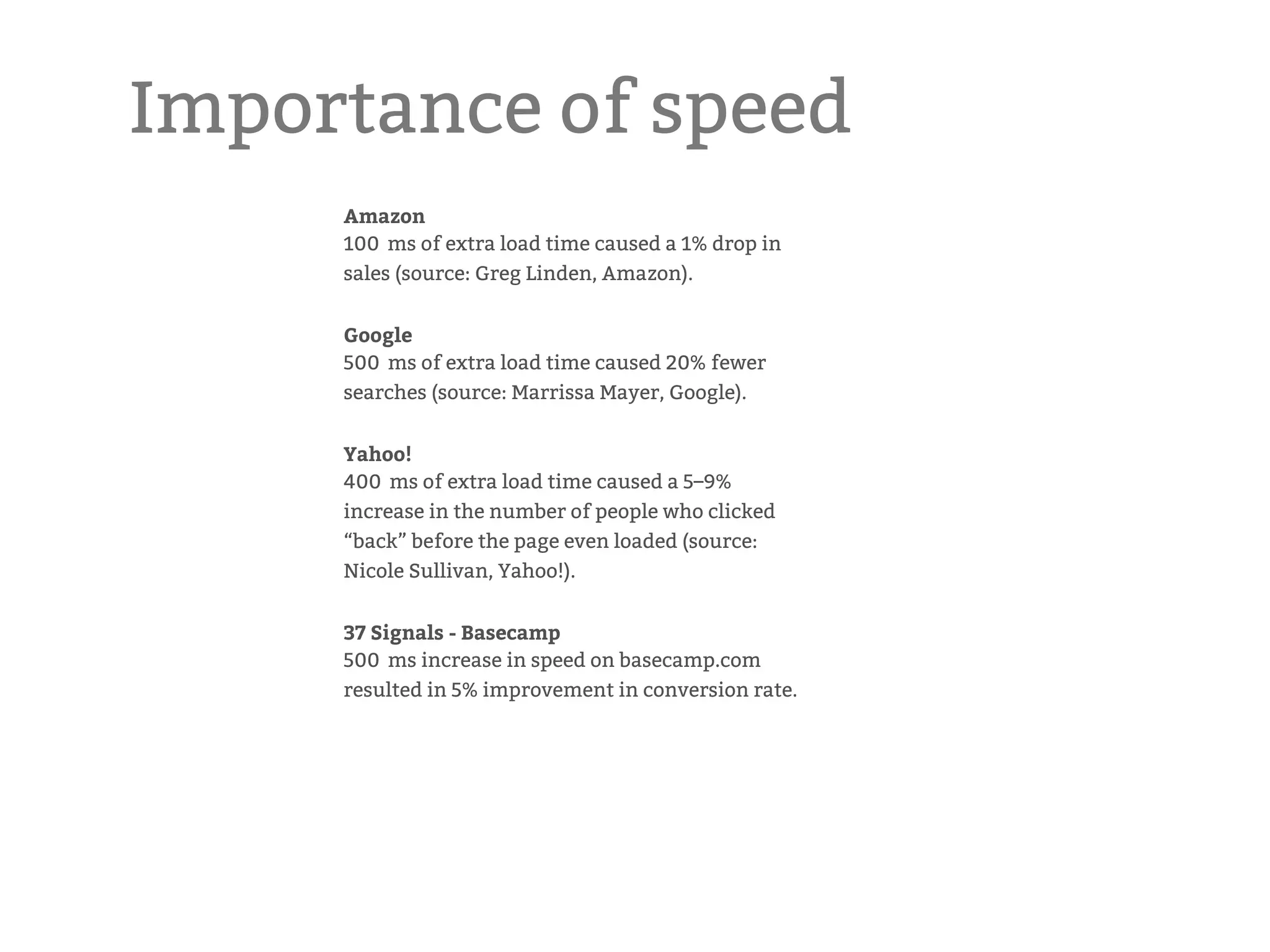

Importance of speed Amazon 100 ms of extra load time caused a 1% drop in sales (source: Greg Linden, Amazon). Google 500 ms of extra load time caused 20% fewer searches (source: Marrissa Mayer, Google). Yahoo! 400 ms of extra load time caused a 5–9% increase in the number of people who clicked “back” before the page even loaded (source: Nicole Sullivan, Yahoo!). 37 Signals - Basecamp 500 ms increase in speed on basecamp.com resulted in 5% improvement in conversion rate.

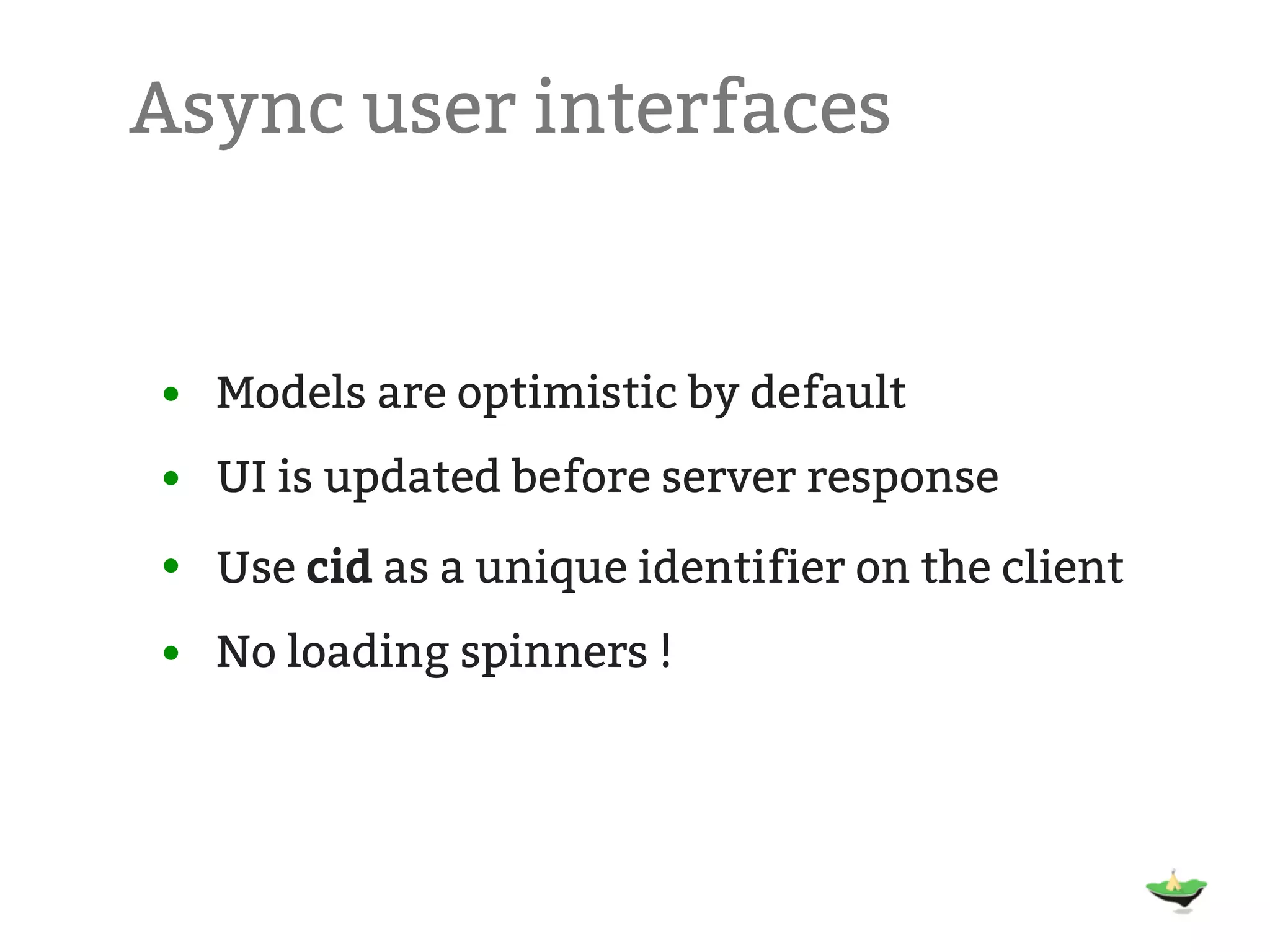

Async user interfaces • Models are optimistic by default • UI is updated before server response • Use cid as a unique identifier on the client • No loading spinners !

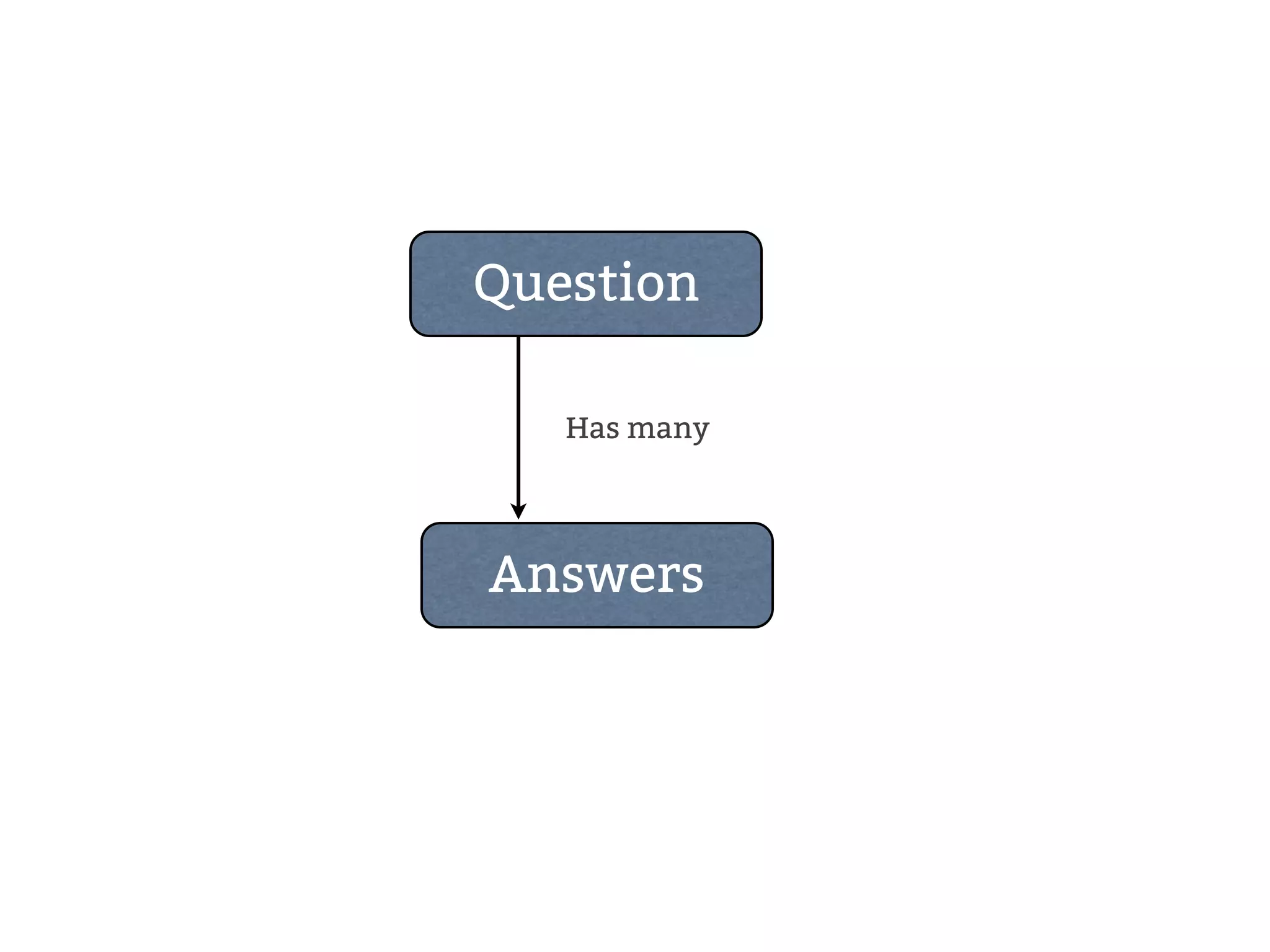

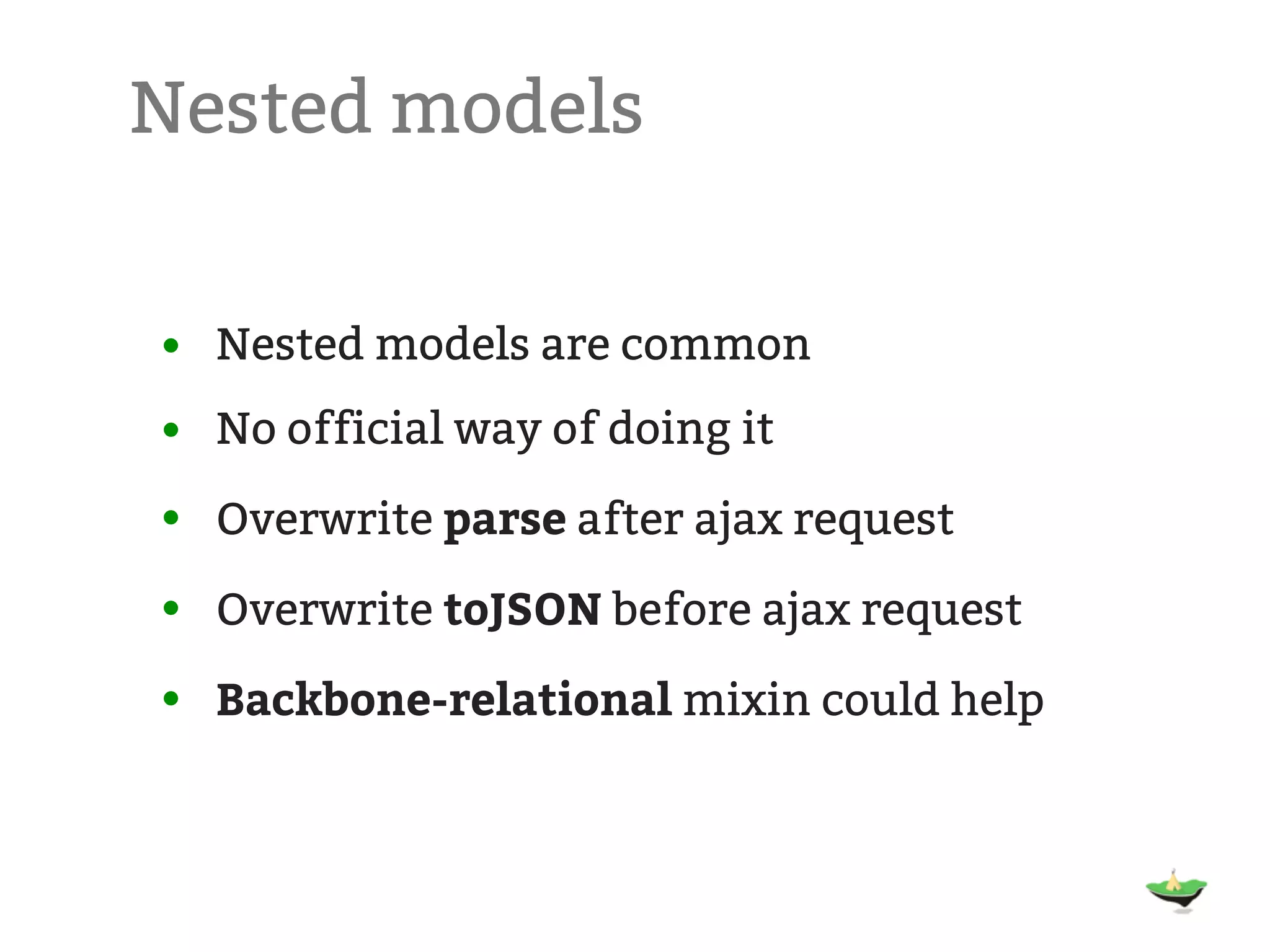

Nested models • Nested models are common • No official way of doing it • Overwrite parse after ajax request • Overwrite toJSON before ajax request • Backbone-relational mixin could help

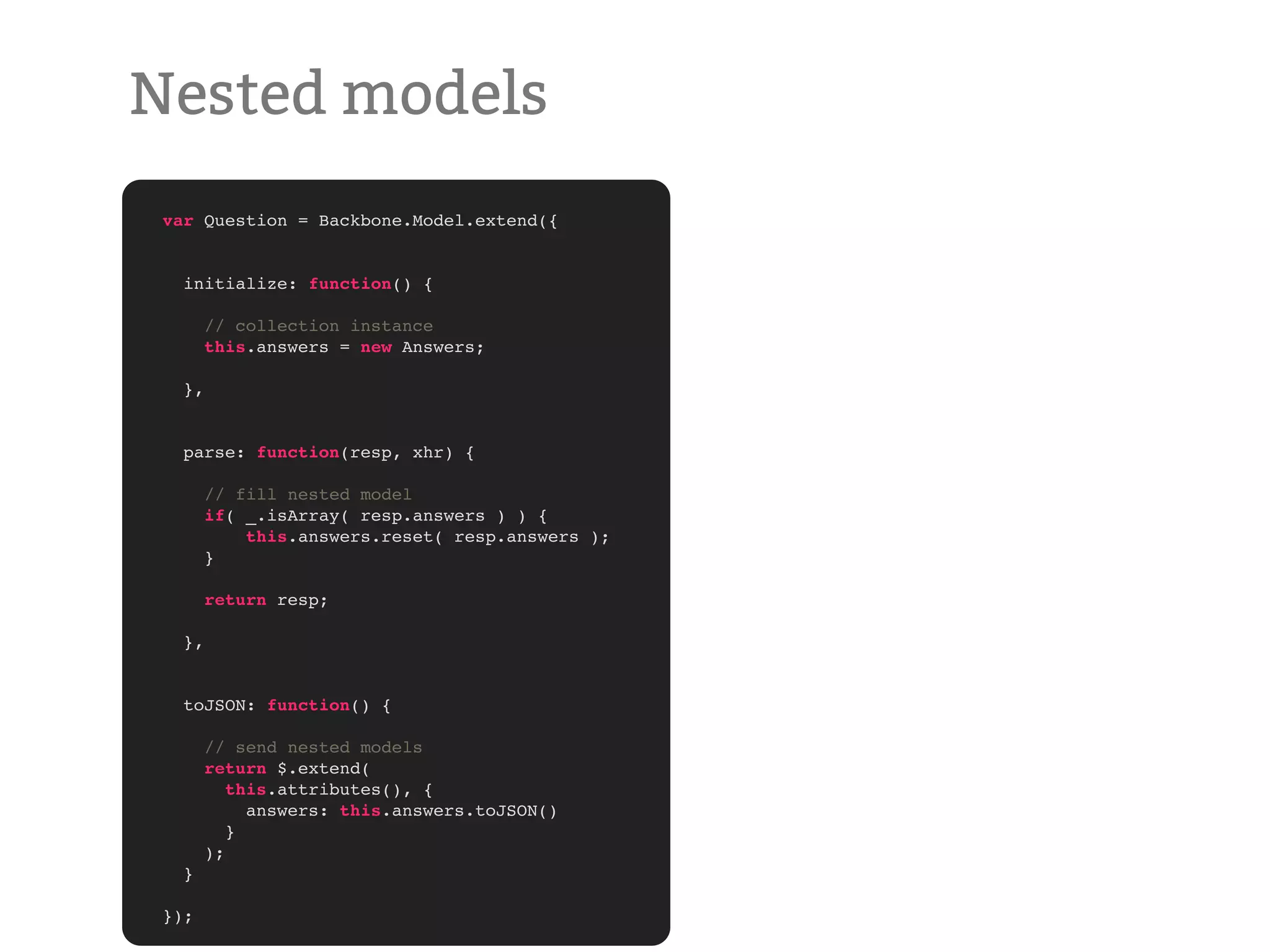

Nested models var Question = Backbone.Model.extend({ initialize: function() { // collection instance this.answers = new Answers; }, parse: function(resp, xhr) { // fill nested model if( _.isArray( resp.answers ) ) { this.answers.reset( resp.answers ); } return resp; }, toJSON: function() { // send nested models return $.extend( this.attributes(), { answers: this.answers.toJSON() } ); } });

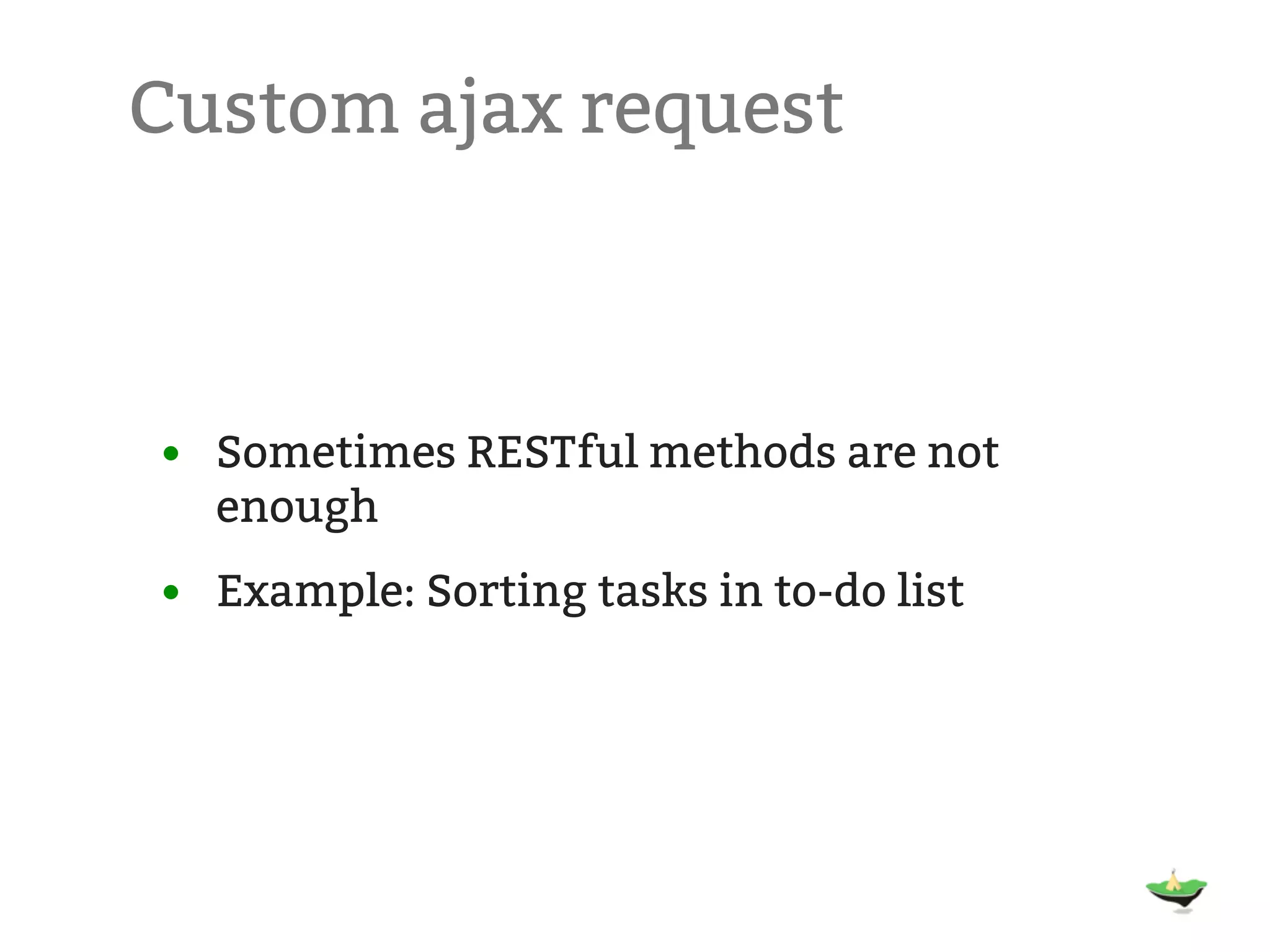

Custom ajax request • Sometimes RESTful methods are not enough • Example: Sorting tasks in to-do list

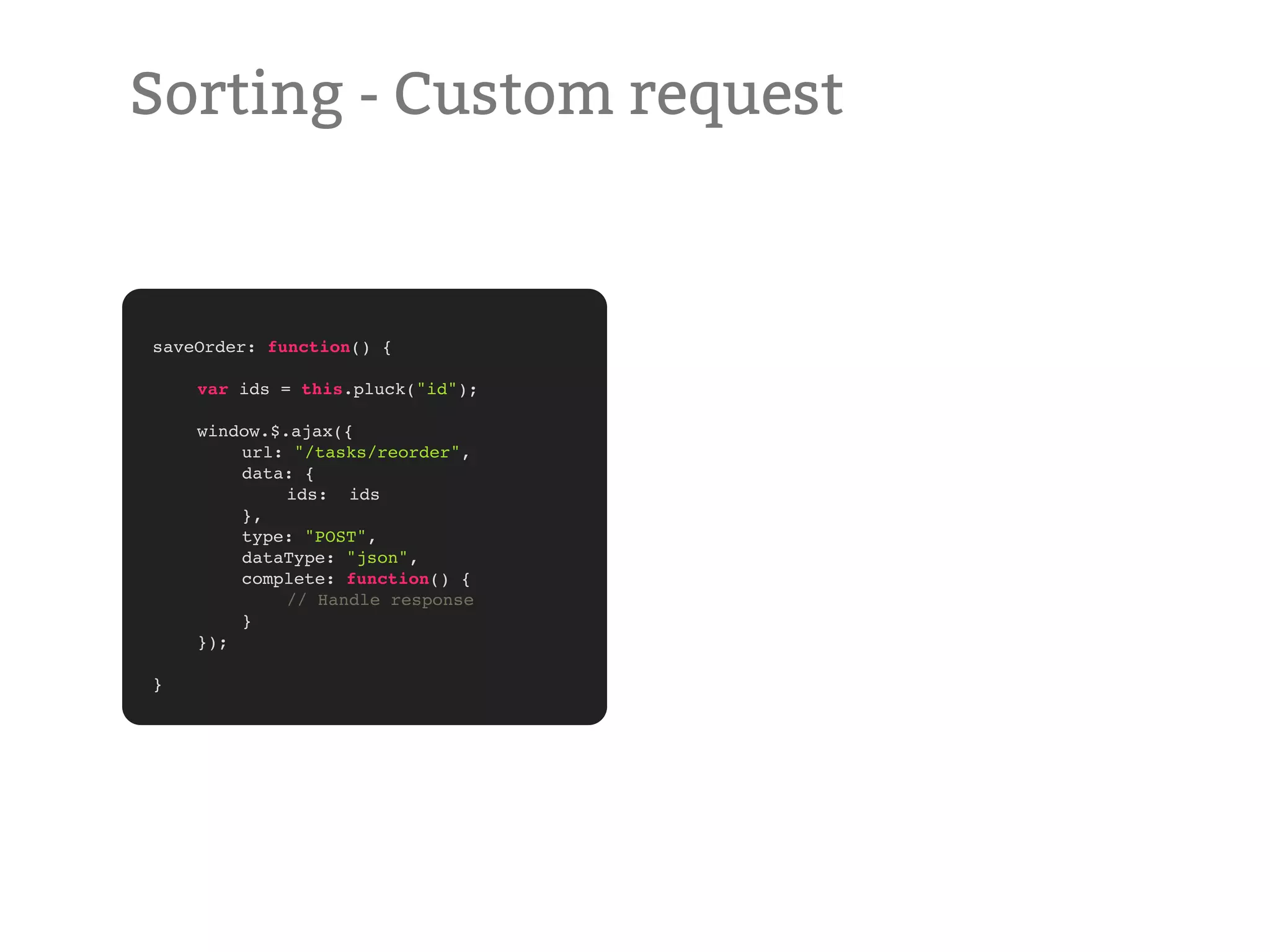

Sorting - Custom request saveOrder: function() { ! ! var ids = this.pluck("id"); ! ! window.$.ajax({ ! ! url: "/tasks/reorder", ! ! data: { ! ! ! ids: ids ! ! }, ! ! type: "POST", ! ! dataType: "json", ! ! complete: function() { ! ! ! // Handle response ! ! } ! }); ! }

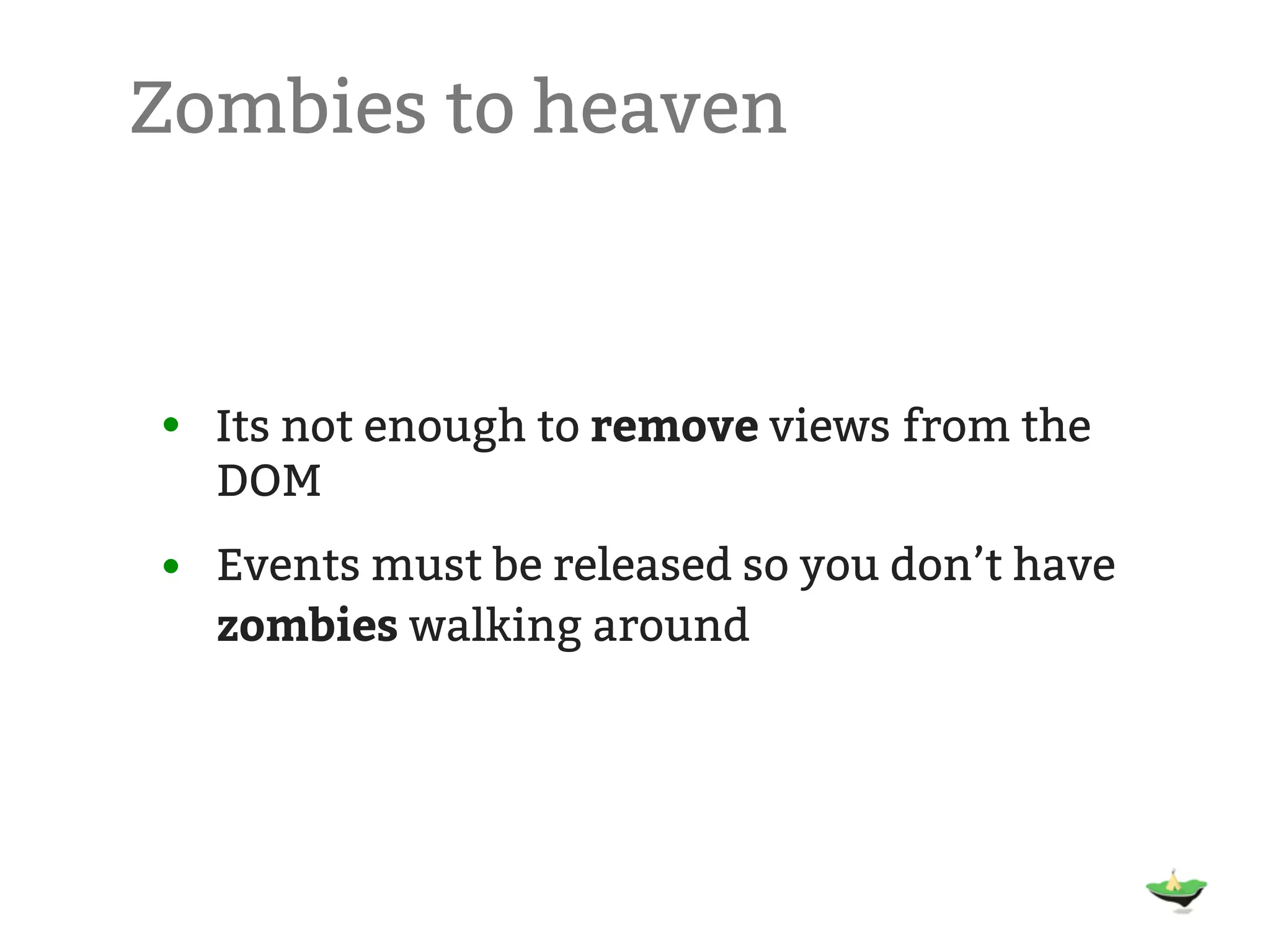

Zombies to heaven • Its not enough to remove views from the DOM • Events must be released so you don’t have zombies walking around

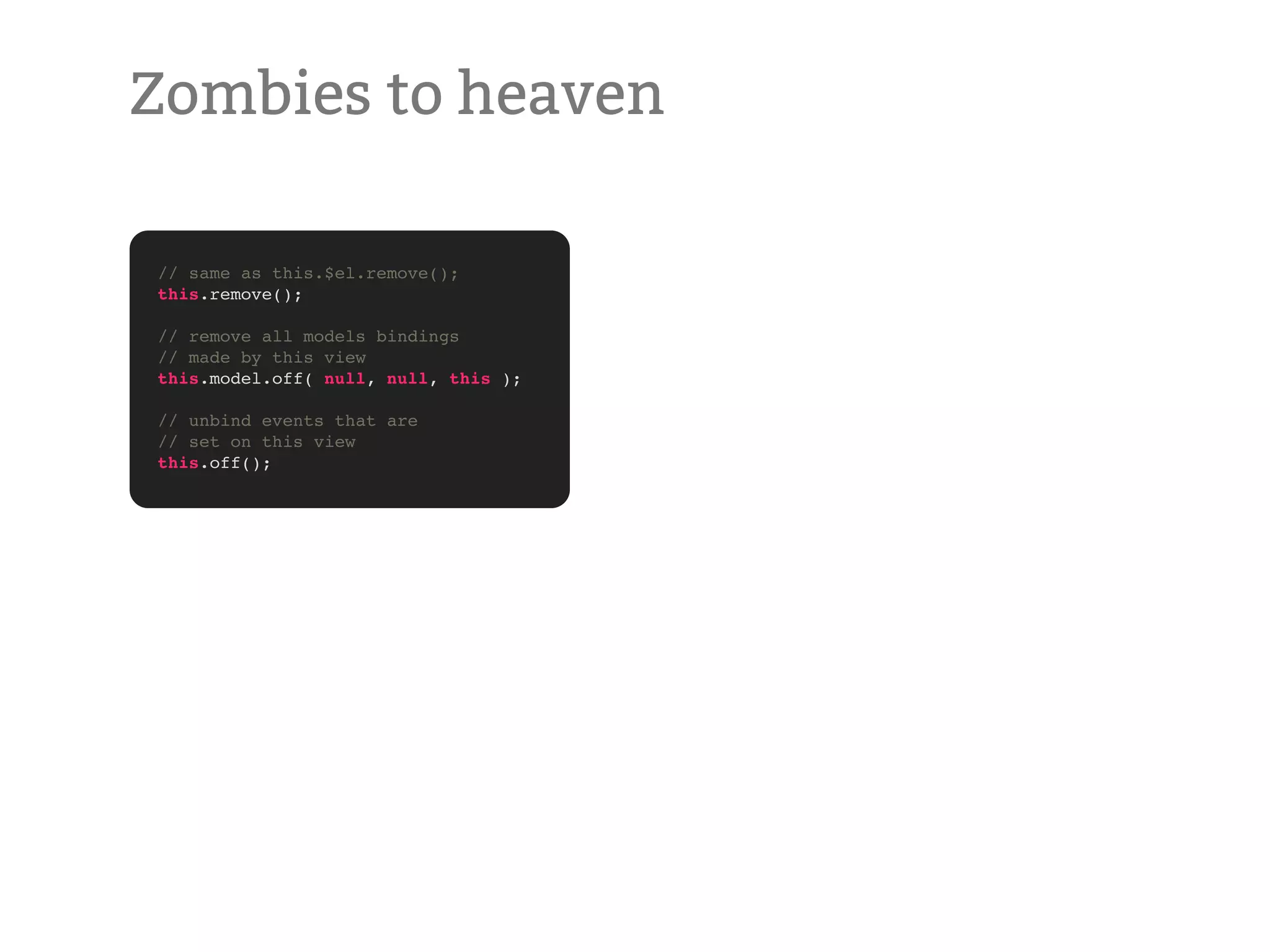

Zombies to heaven // same as this.$el.remove(); this.remove(); // remove all models bindings // made by this view this.model.off( null, null, this ); // unbind events that are // set on this view this.off();

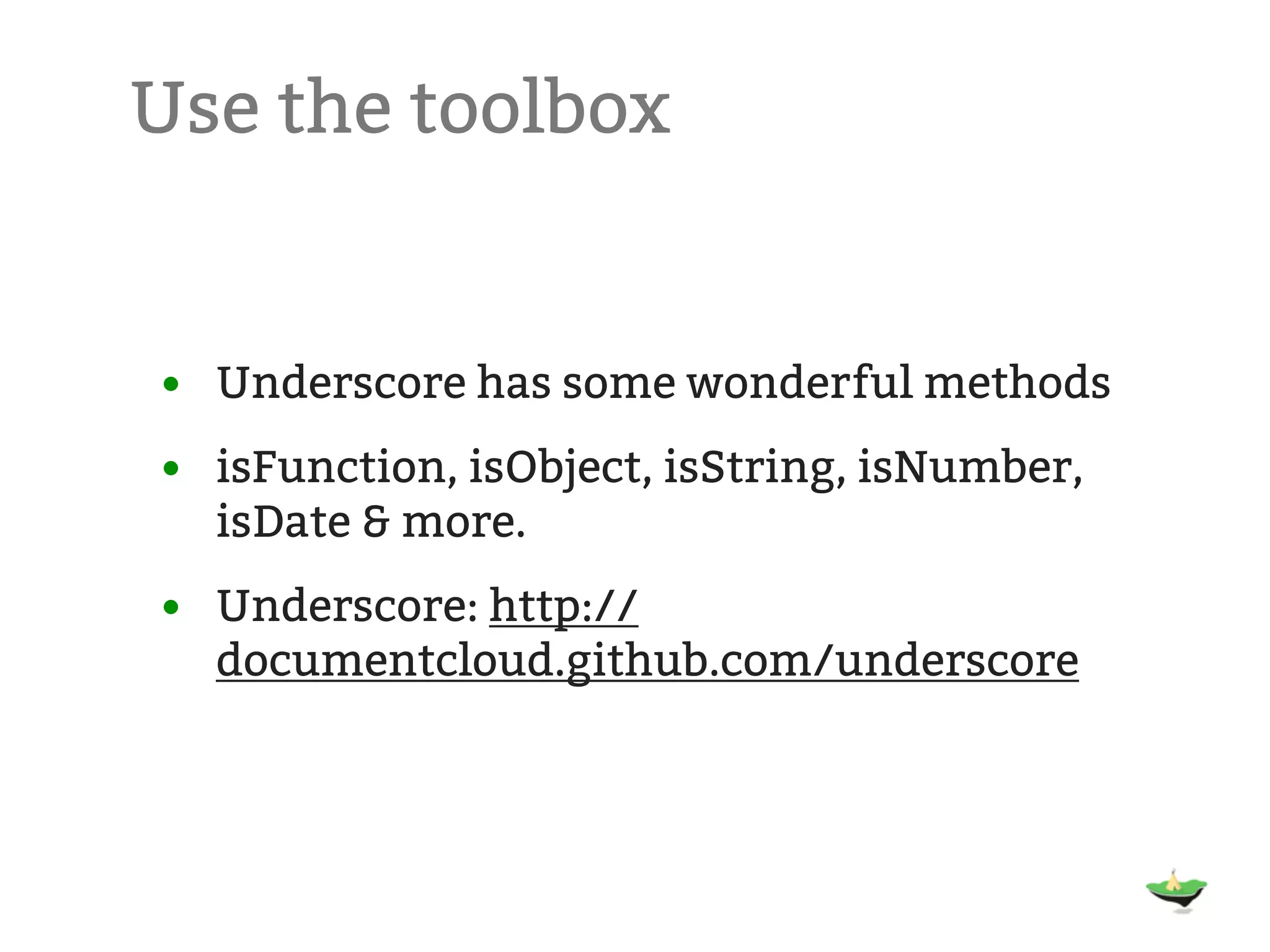

Use the toolbox • Underscore has some wonderful methods • isFunction, isObject, isString, isNumber, isDate & more. • Underscore: http:// documentcloud.github.com/underscore

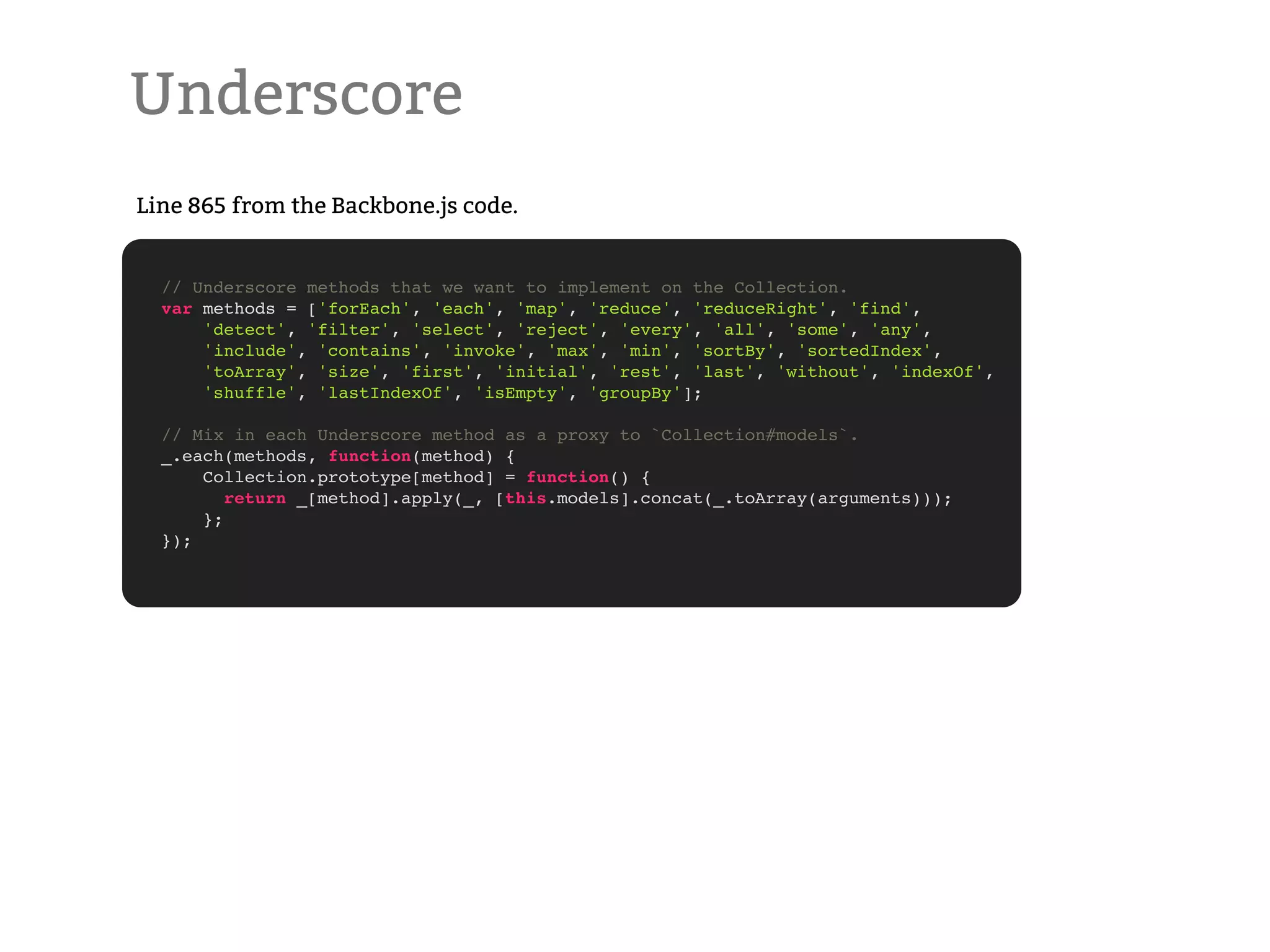

Underscore Line 865 from the Backbone.js code. // Underscore methods that we want to implement on the Collection. var methods = ['forEach', 'each', 'map', 'reduce', 'reduceRight', 'find', 'detect', 'filter', 'select', 'reject', 'every', 'all', 'some', 'any', 'include', 'contains', 'invoke', 'max', 'min', 'sortBy', 'sortedIndex', 'toArray', 'size', 'first', 'initial', 'rest', 'last', 'without', 'indexOf', 'shuffle', 'lastIndexOf', 'isEmpty', 'groupBy']; // Mix in each Underscore method as a proxy to `Collection#models`. _.each(methods, function(method) { Collection.prototype[method] = function() { return _[method].apply(_, [this.models].concat(_.toArray(arguments))); }; });

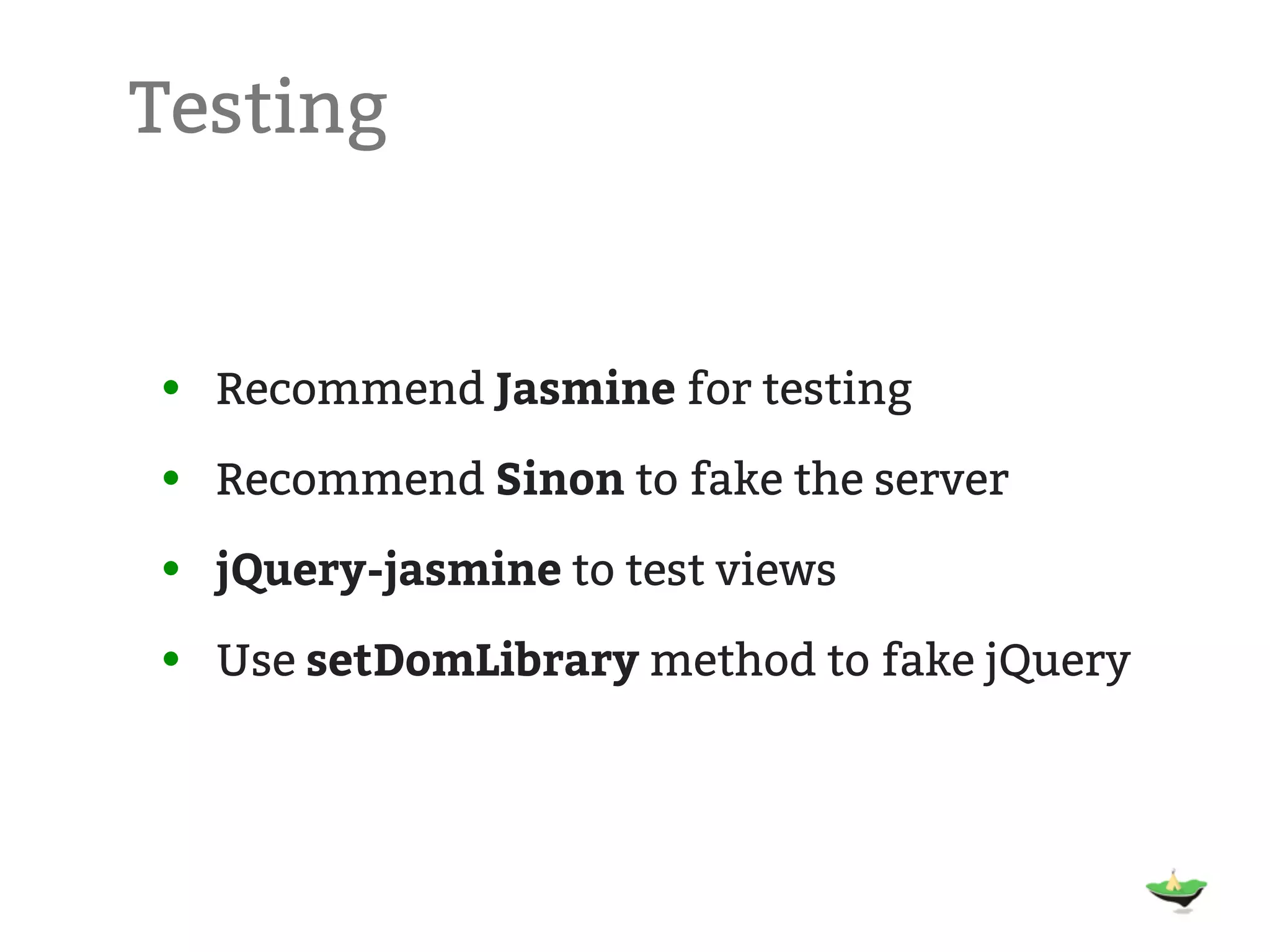

Testing • Recommend Jasmine for testing • Recommend Sinon to fake the server • jQuery-jasmine to test views • Use setDomLibrary method to fake jQuery

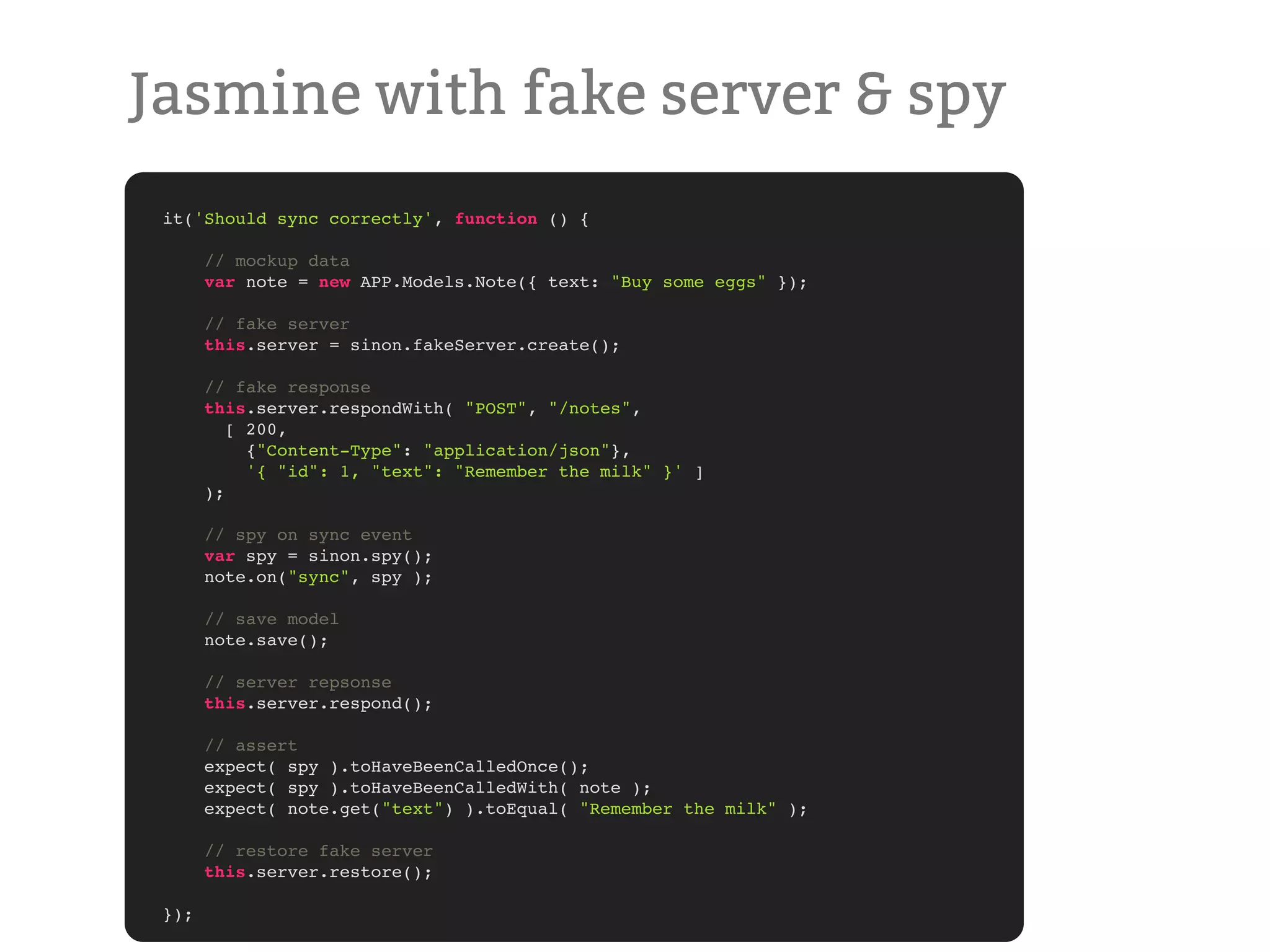

Jasmine with fake server & spy it('Should sync correctly', function () { // mockup data var note = new APP.Models.Note({ text: "Buy some eggs" }); // fake server this.server = sinon.fakeServer.create(); // fake response this.server.respondWith( "POST", "/notes", [ 200, {"Content-Type": "application/json"}, '{ "id": 1, "text": "Remember the milk" }' ] ); // spy on sync event var spy = sinon.spy(); note.on("sync", spy ); // save model note.save(); // server repsonse this.server.respond(); // assert expect( spy ).toHaveBeenCalledOnce(); expect( spy ).toHaveBeenCalledWith( note ); expect( note.get("text") ).toEqual( "Remember the milk" ); // restore fake server this.server.restore(); });

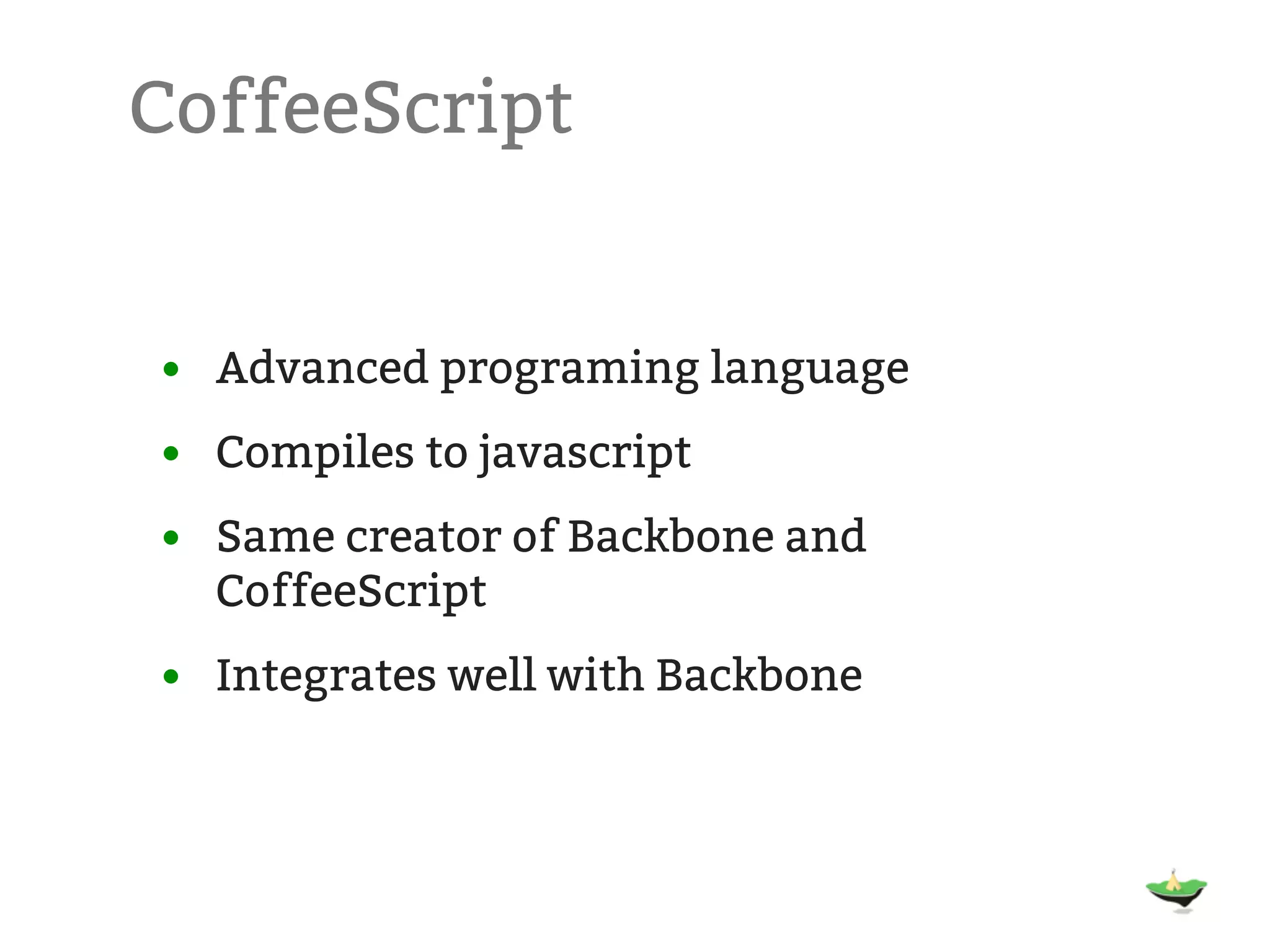

CoffeeScript • Advanced programing language • Compiles to javascript • Same creator of Backbone and CoffeeScript • Integrates well with Backbone

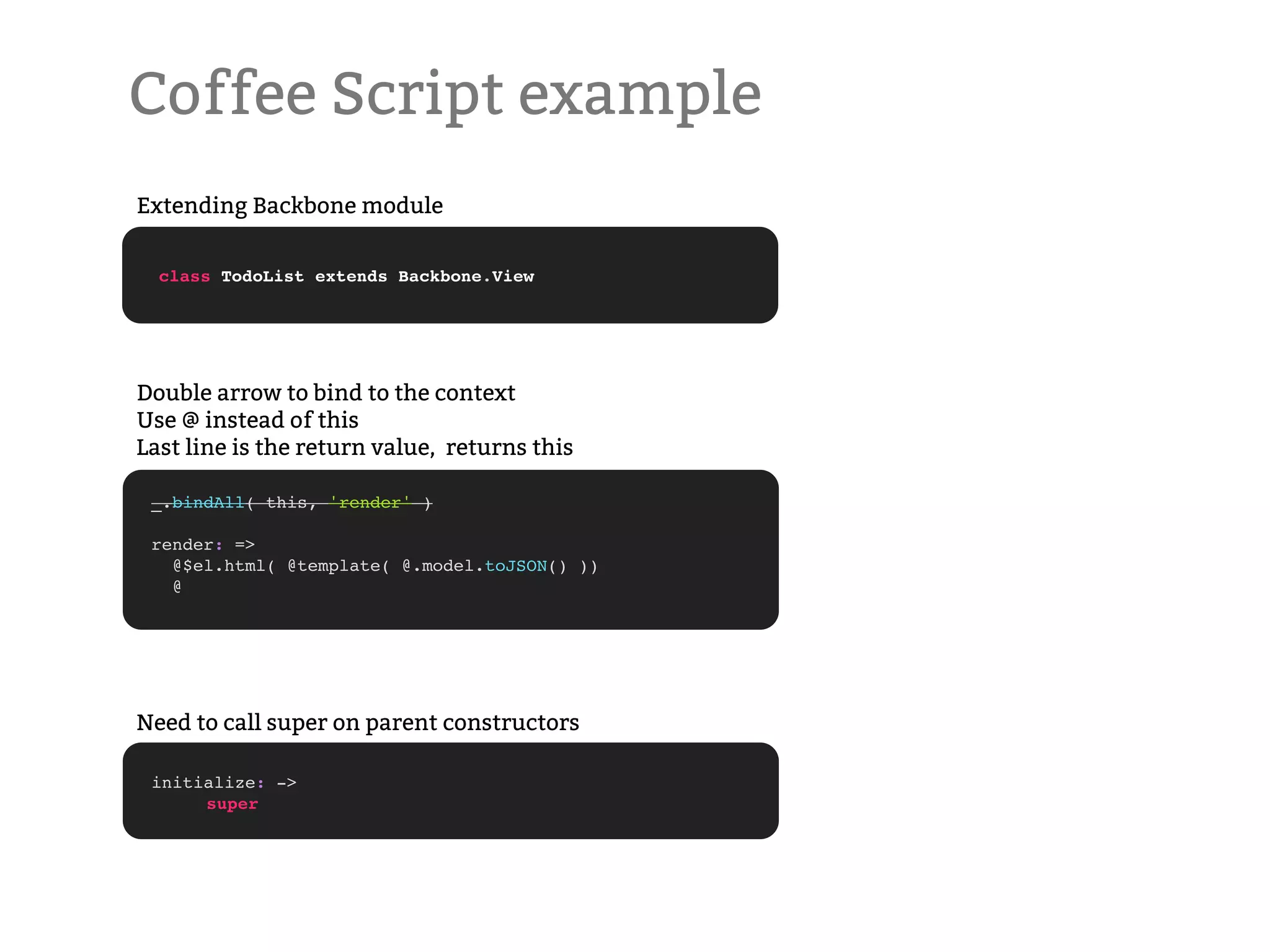

Coffee Script example Extending Backbone module class TodoList extends Backbone.View Double arrow to bind to the context Use @ instead of this Last line is the return value, returns this _.bindAll( this, 'render' ) render: => @$el.html( @template( @.model.toJSON() )) @ Need to call super on parent constructors initialize: -> ! super

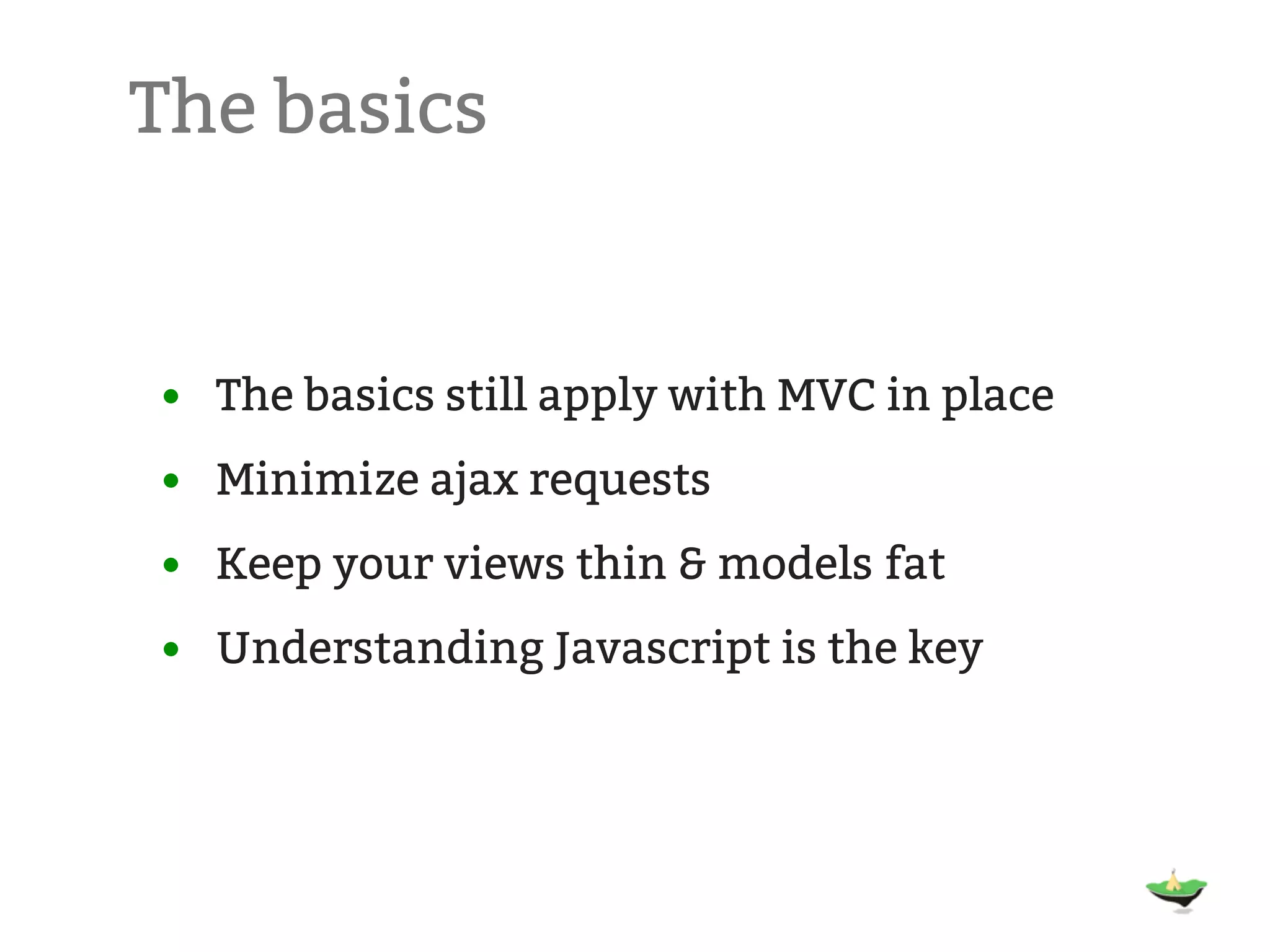

The basics • The basics still apply with MVC in place • Minimize ajax requests • Keep your views thin & models fat • Understanding Javascript is the key

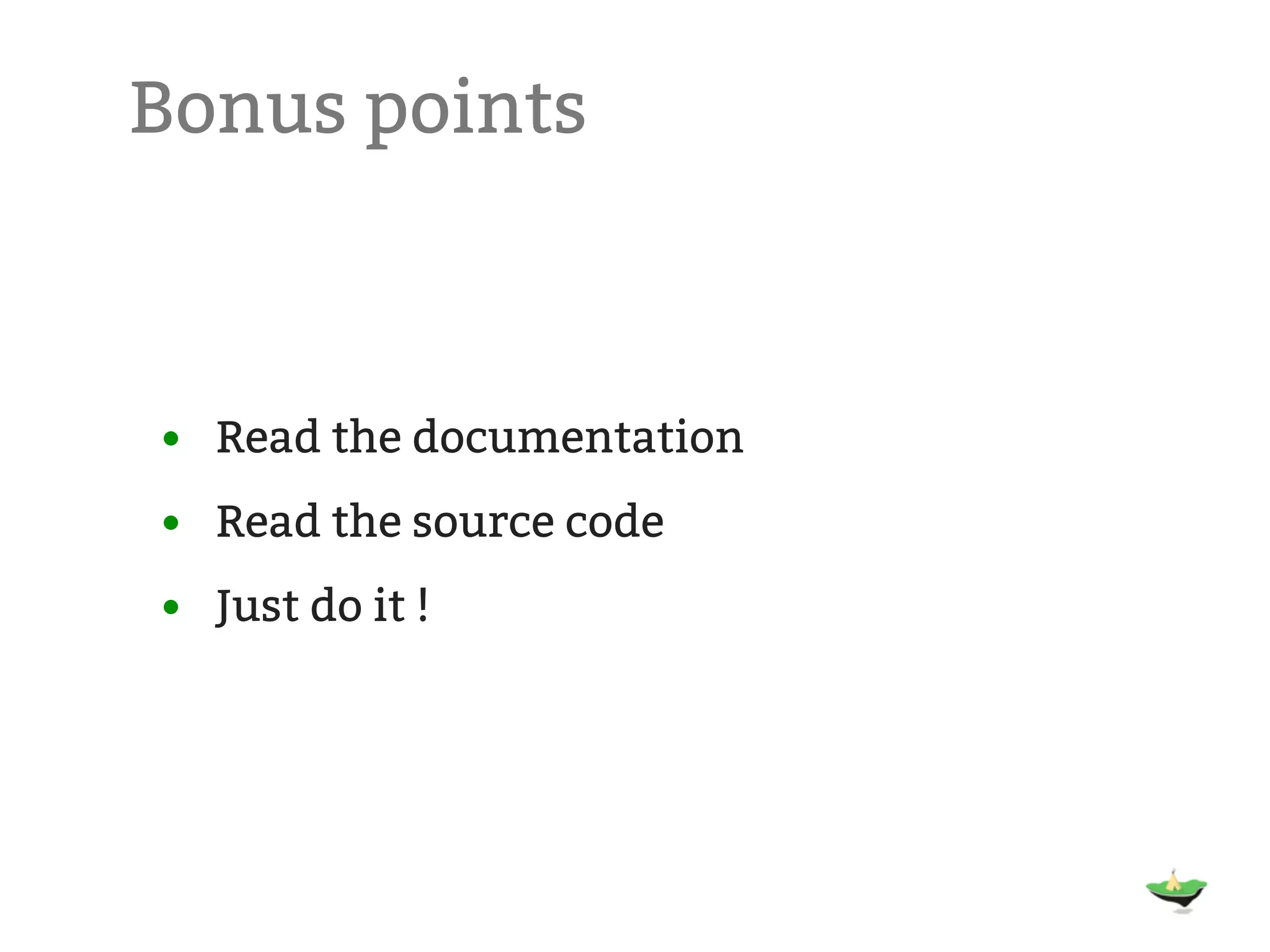

Bonus points • Read the documentation • Read the source code • Just do it !

Tack så mycket Hjörtur Elvar Hilmarsson @hjortureh
