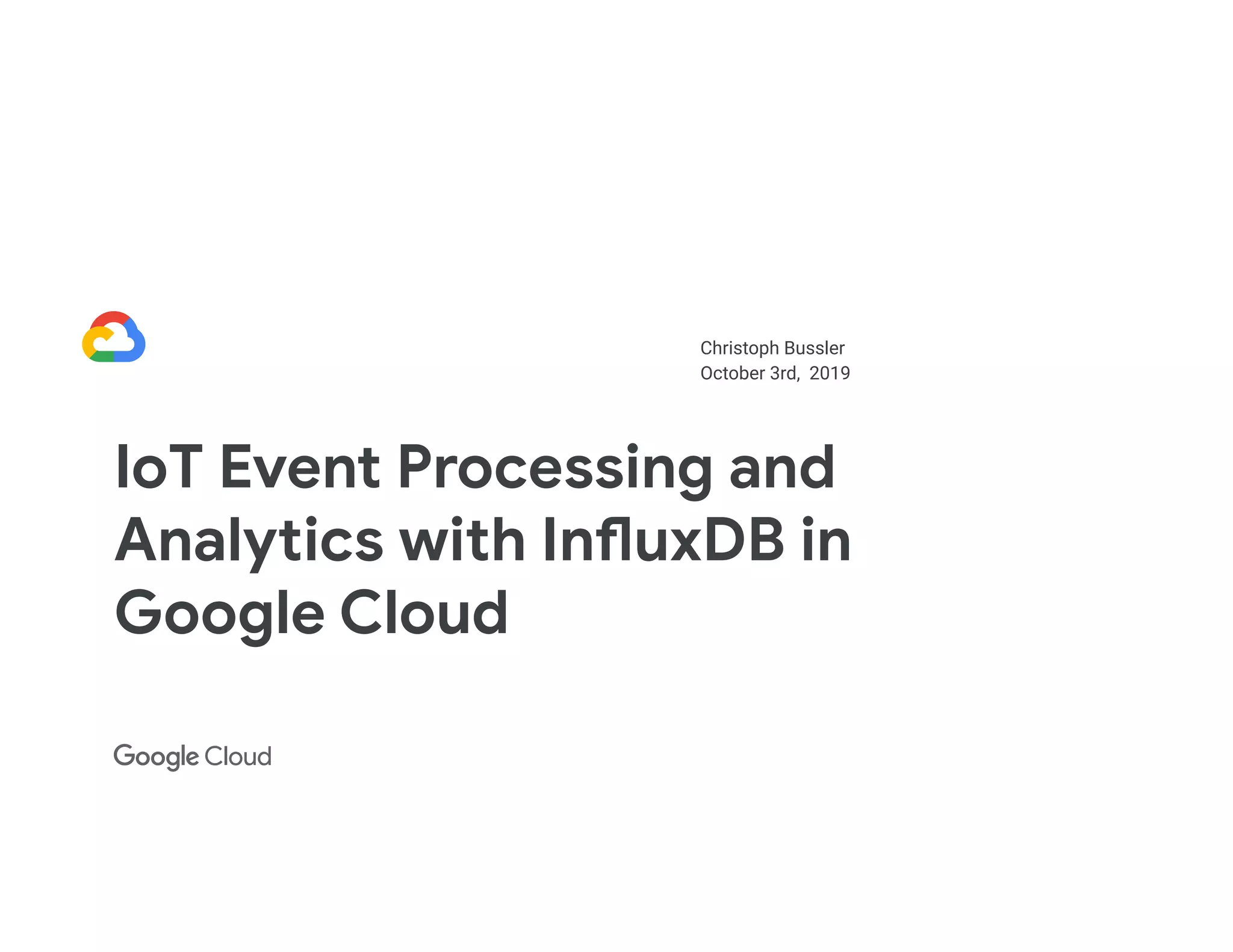

- 1. Christoph Bussler October 3rd,2019 IoT Event Processing and Analytics with InfluxDB in Google Cloud

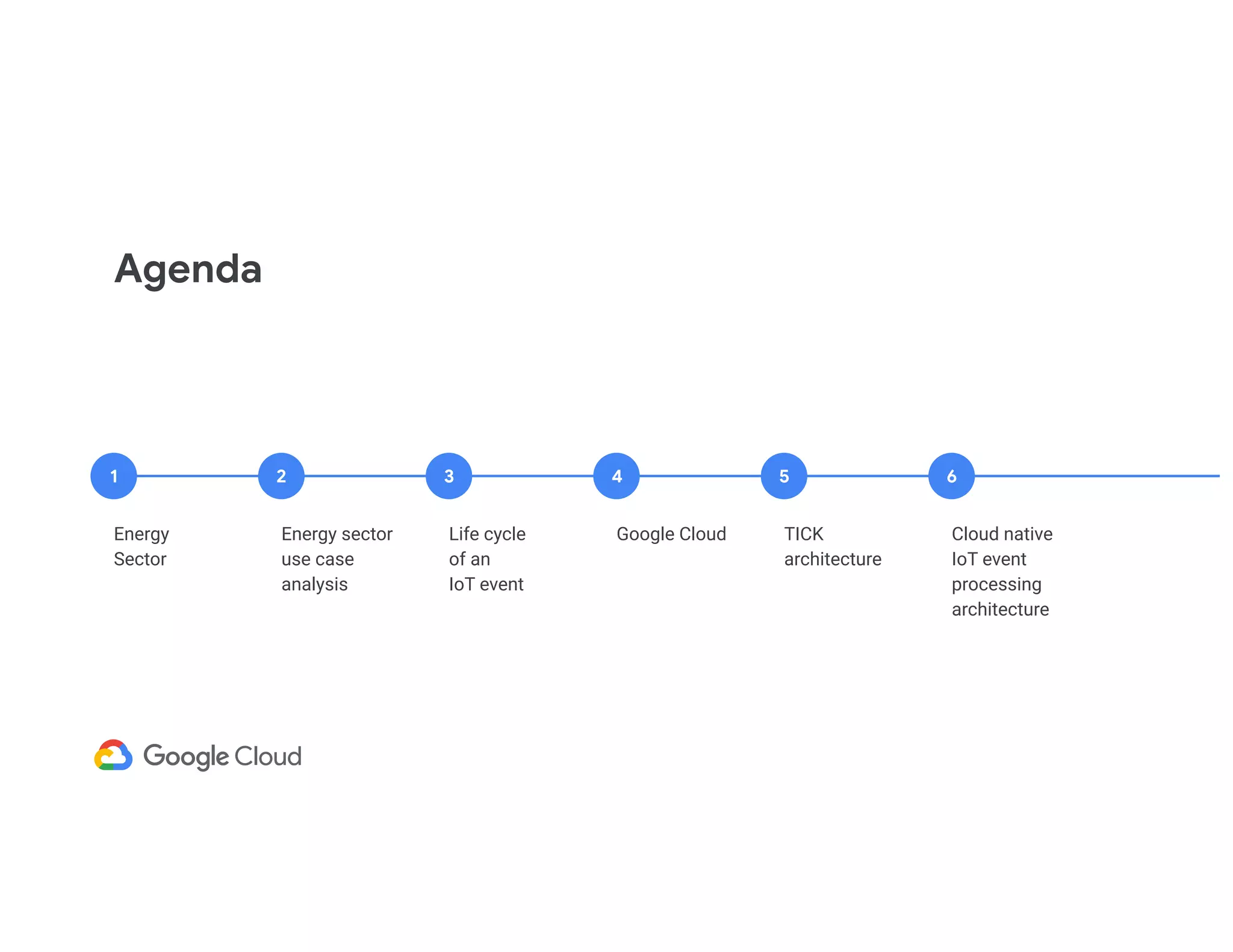

- 2. Agenda Energy Sector Energy sector use case analysis Lifecycle of an IoT event Google Cloud 1 2 3 4 5 6 TICK architecture Cloud native IoT event processing architecture

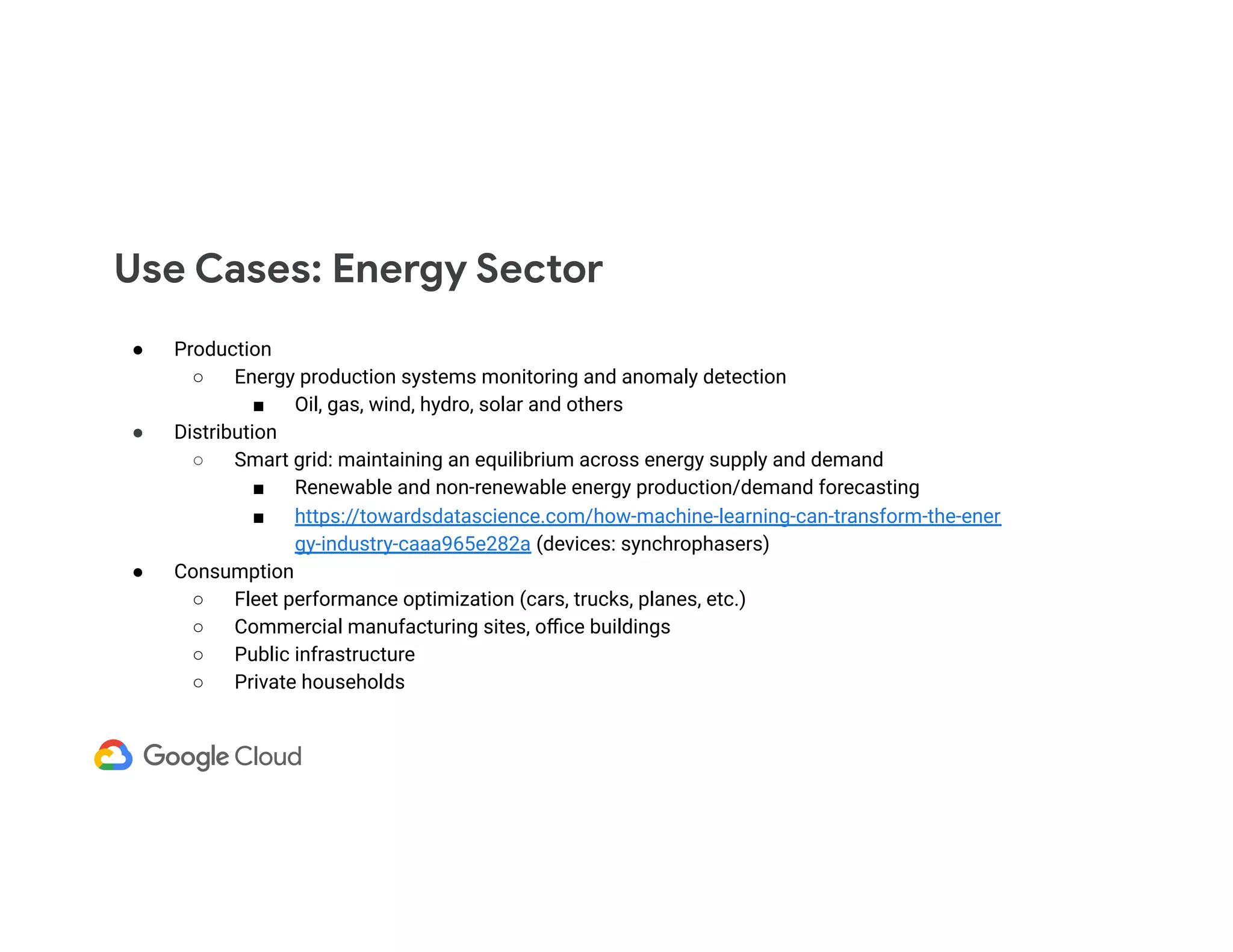

- 3. ● Production ○ Energyproduction systems monitoring and anomaly detection ■ Oil, gas, wind, hydro, solar and others ● Distribution ○ Smart grid: maintaining an equilibrium across energy supply and demand ■ Renewable and non-renewable energy production/demand forecasting ■ https://towardsdatascience.com/how-machine-learning-can-transform-the-ener gy-industry-caaa965e282a (devices: synchrophasers) ● Consumption ○ Fleet performance optimization (cars, trucks, planes, etc.) ○ Commercial manufacturing sites, office buildings ○ Public infrastructure ○ Private households Use Cases: Energy Sector

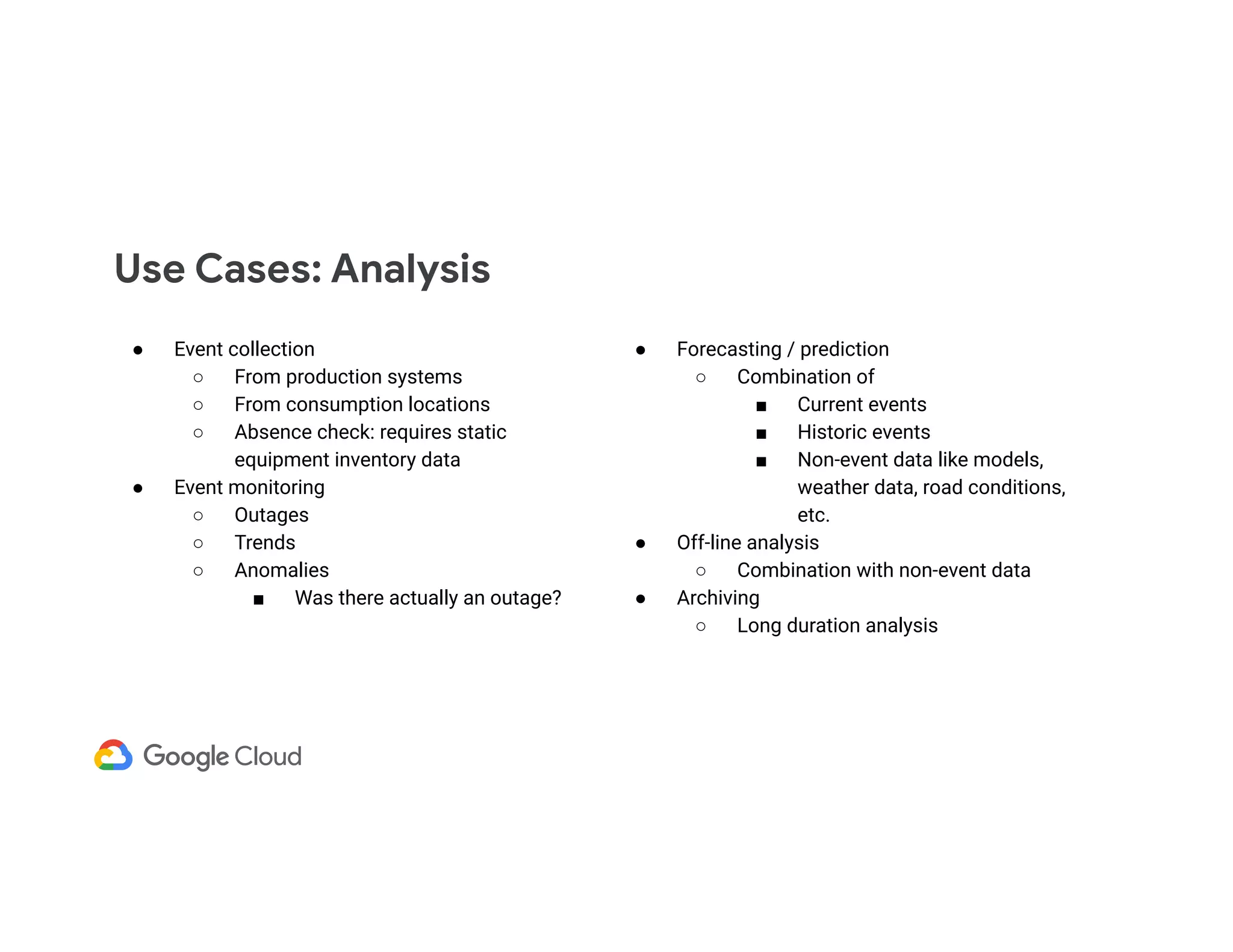

- 4. ● Event collection ○From production systems ○ From consumption locations ○ Absence check: requires static equipment inventory data ● Event monitoring ○ Outages ○ Trends ○ Anomalies ■ Was there actually an outage? Use Cases: Analysis ● Forecasting / prediction ○ Combination of ■ Current events ■ Historic events ■ Non-event data like models, weather data, road conditions, etc. ● Off-line analysis ○ Combination with non-event data ● Archiving ○ Long duration analysis

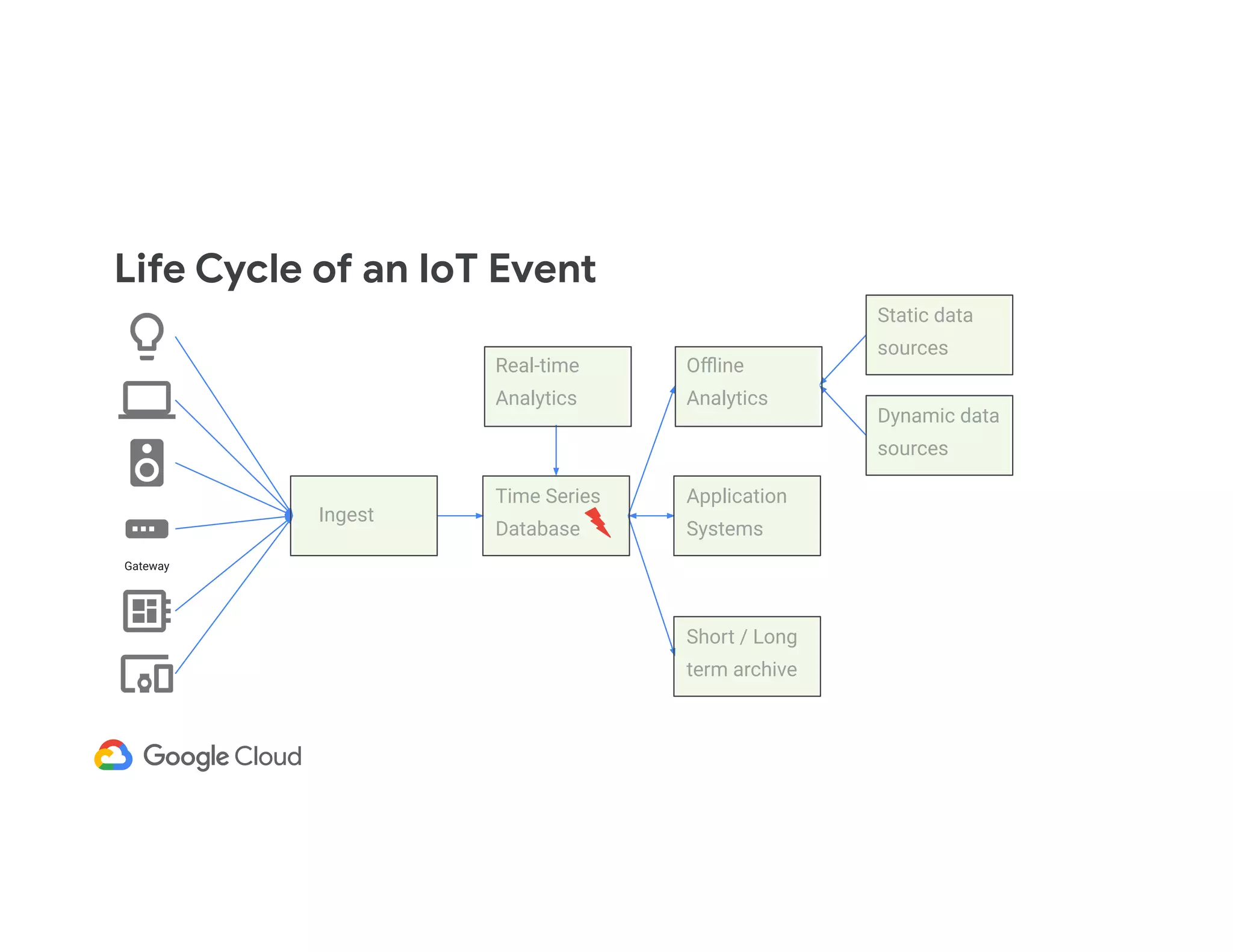

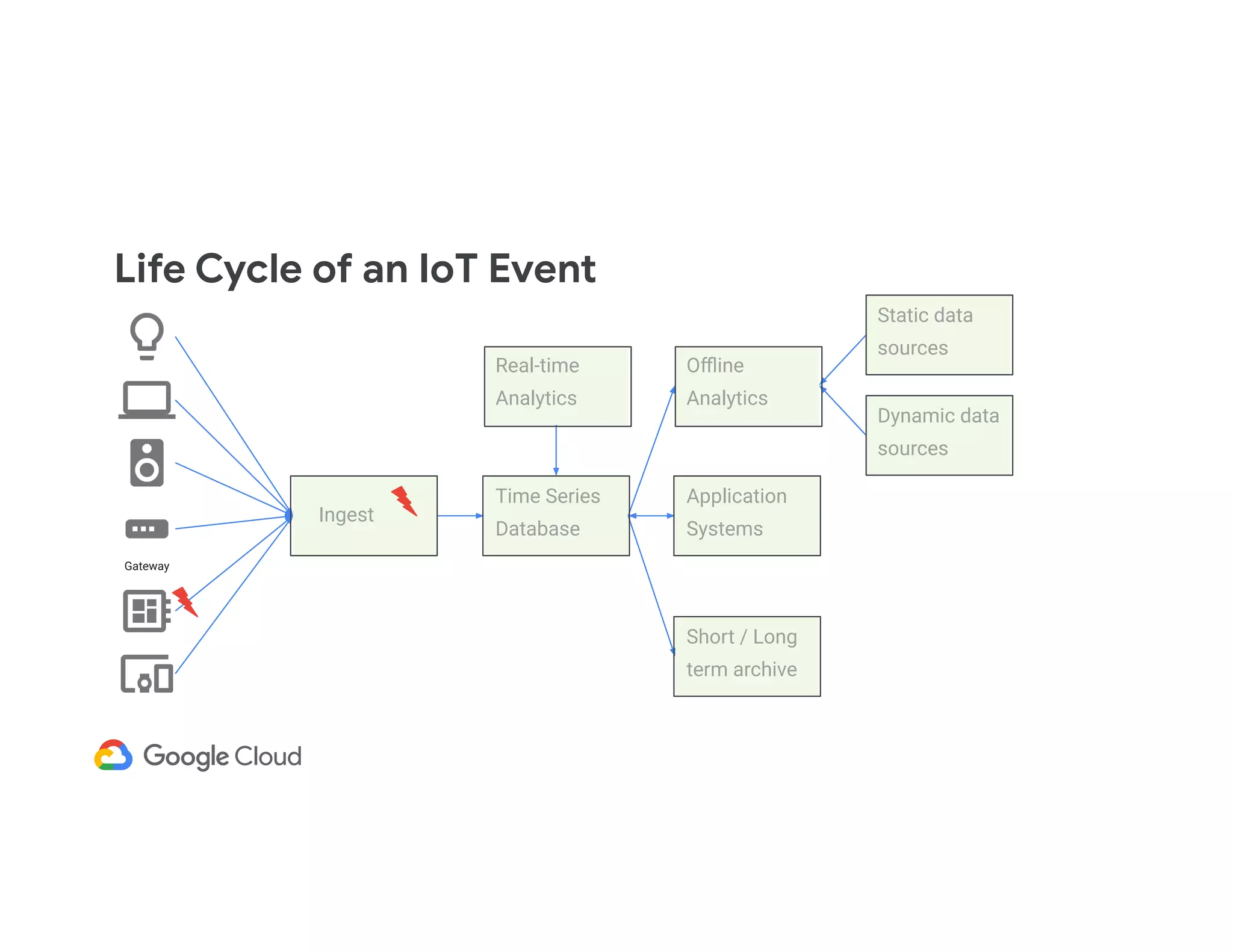

- 5. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive
- 6. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive
- 7. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive

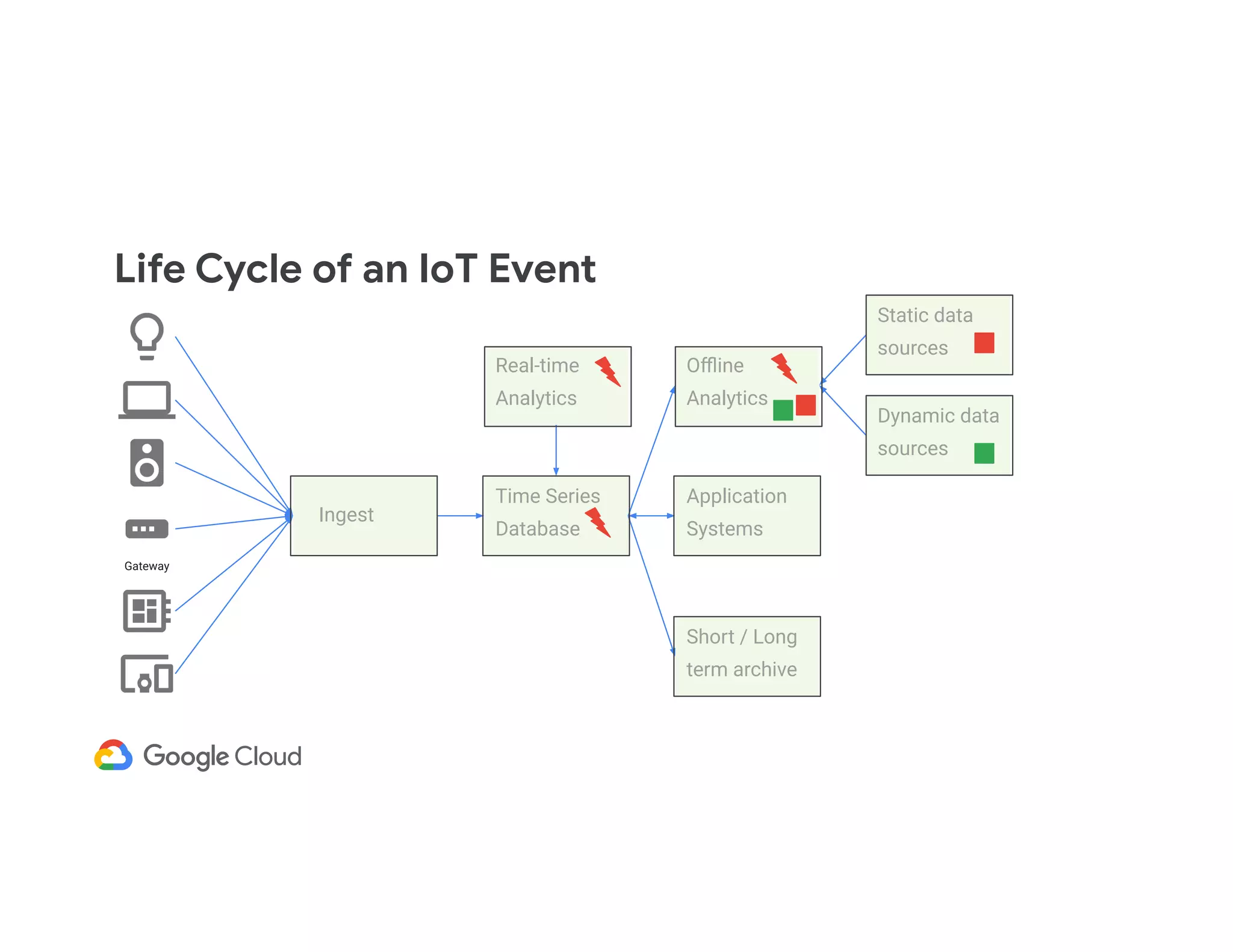

- 8. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive

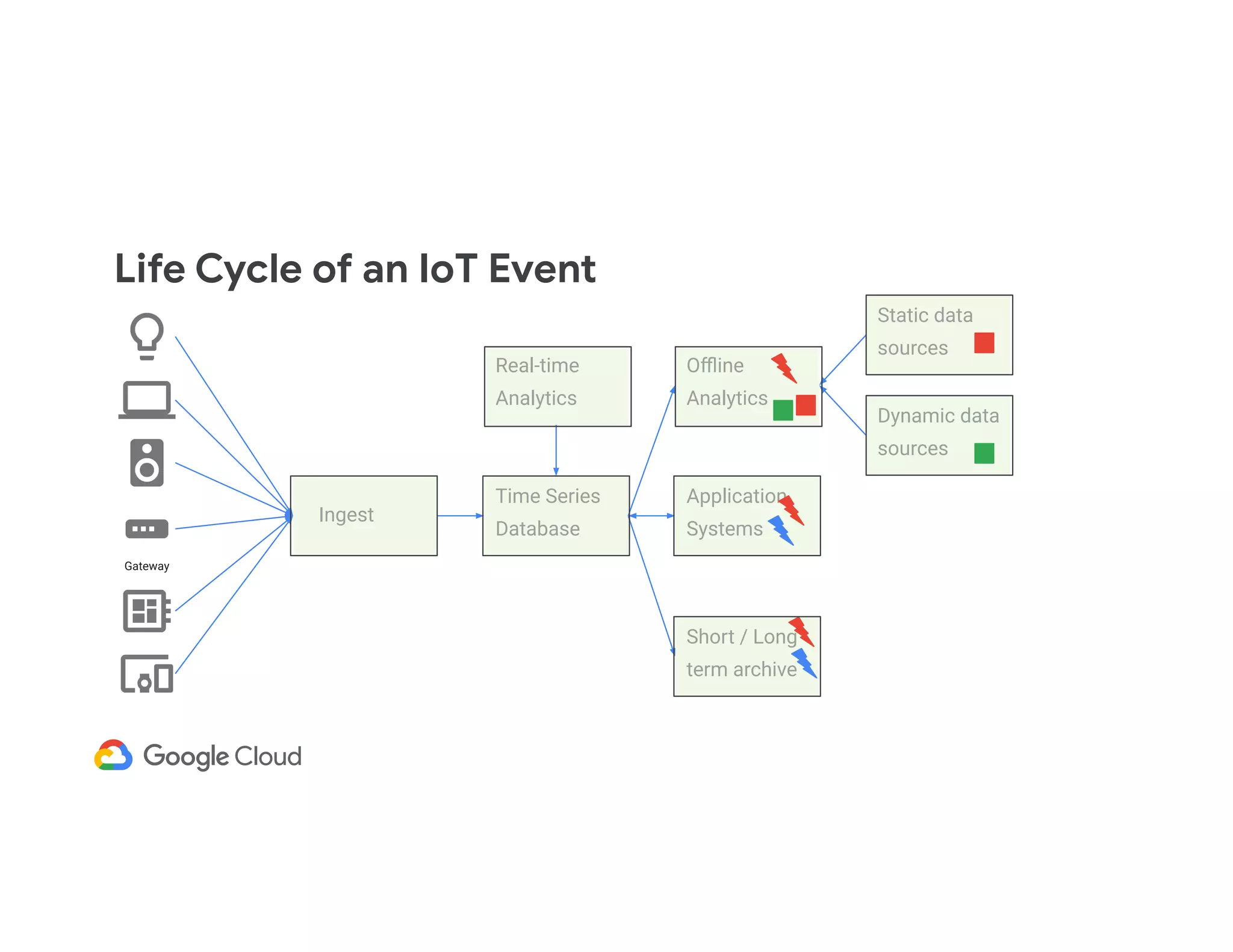

- 9. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive
- 10. Life Cycle ofan IoT Event Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamic data sources Application Systems Short / Long term archive

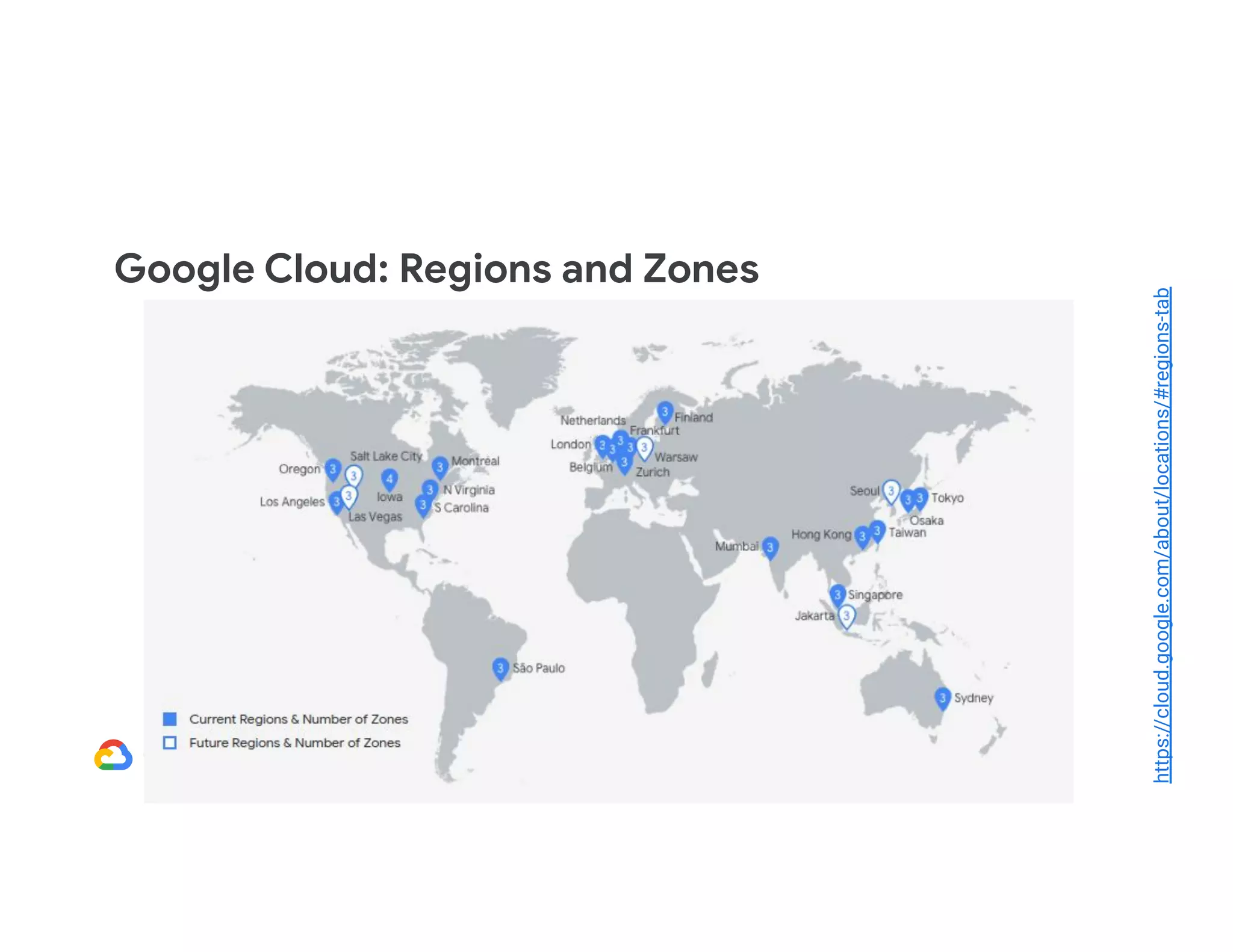

- 11. Google Cloud: Regionsand Zones https://cloud.google.com/about/locations/#regions-tab

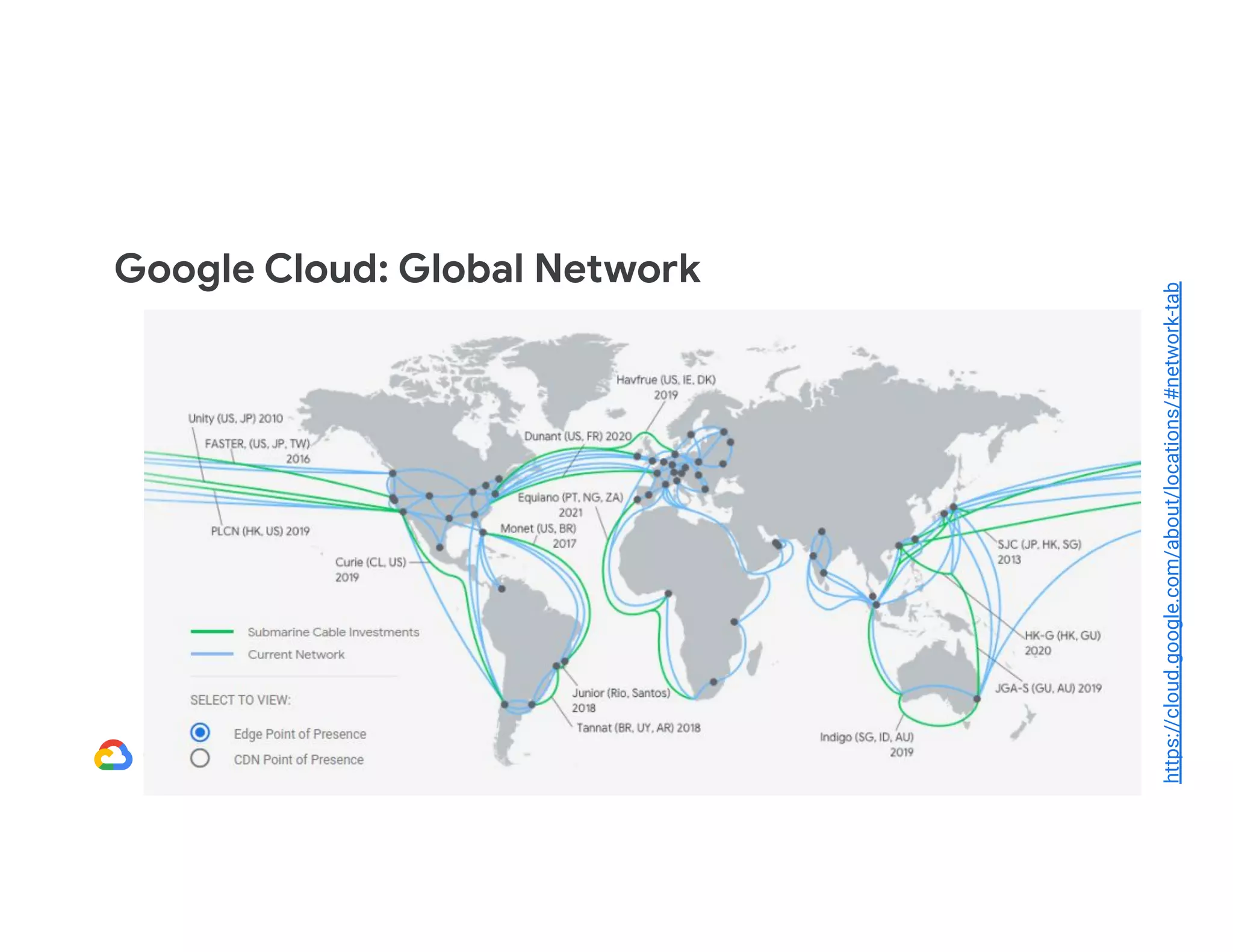

- 12. Google Cloud: GlobalNetwork https://cloud.google.com/about/locations/#network-tab

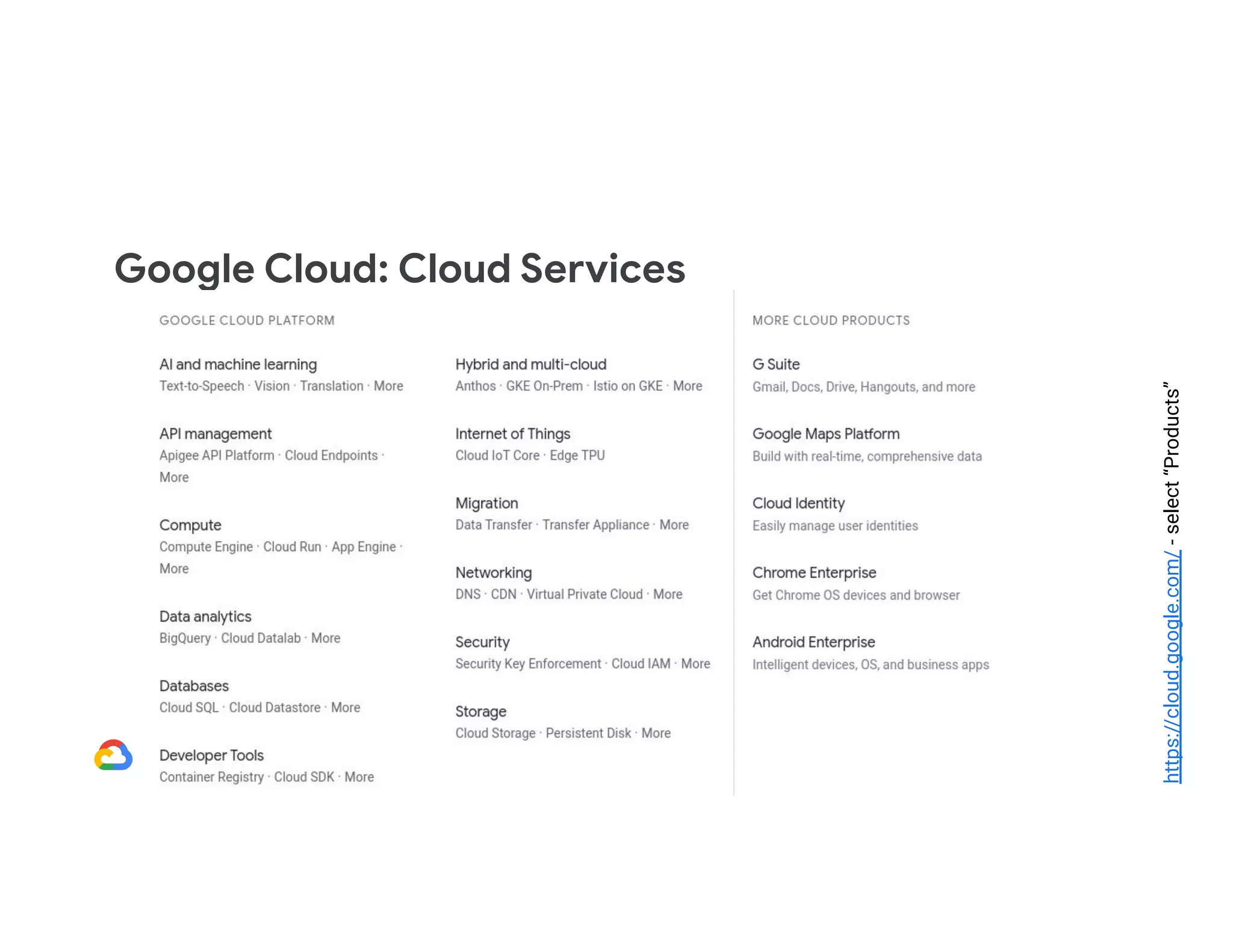

- 13. Google Cloud: CloudServices https://cloud.google.com/-select“Products”

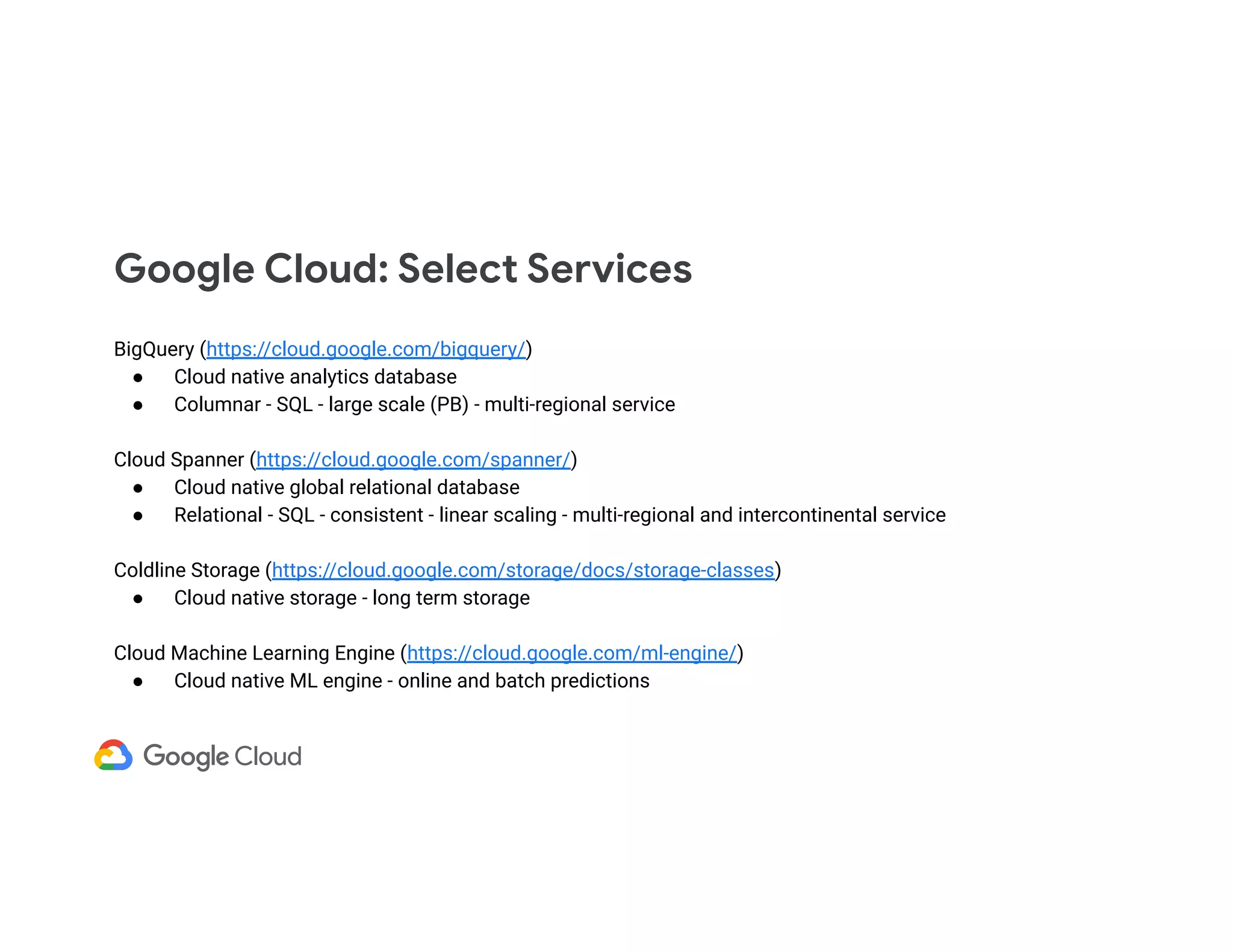

- 14. Google Cloud: SelectServices BigQuery (https://cloud.google.com/bigquery/) ● Cloud native analytics database ● Columnar - SQL - large scale (PB) - multi-regional service Cloud Spanner (https://cloud.google.com/spanner/) ● Cloud native global relational database ● Relational - SQL - consistent - linear scaling - multi-regional and intercontinental service Coldline Storage (https://cloud.google.com/storage/docs/storage-classes) ● Cloud native storage - long term storage Cloud Machine Learning Engine (https://cloud.google.com/ml-engine/) ● Cloud native ML engine - online and batch predictions

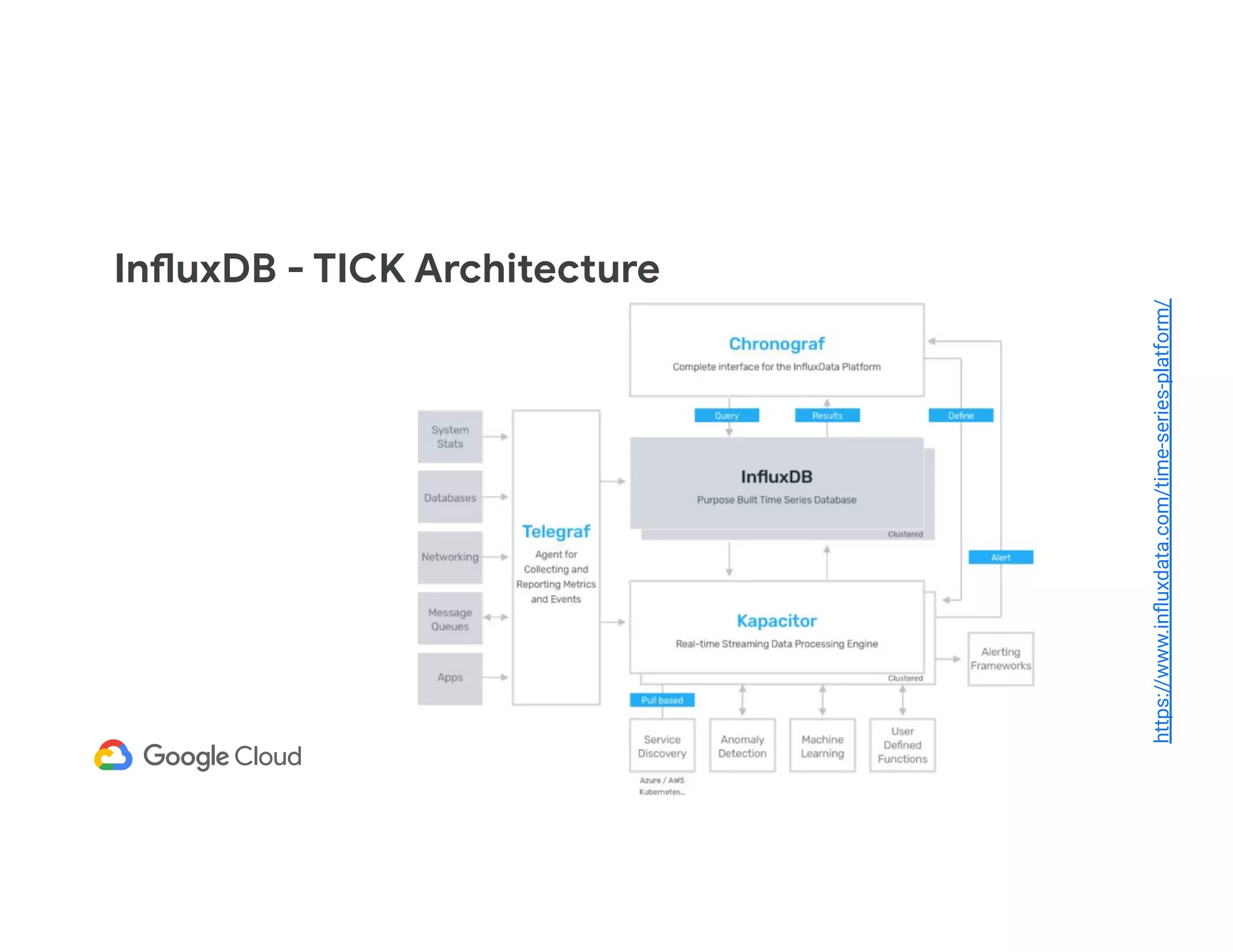

- 15. InfluxDB - TICKArchitecture https://www.influxdata.com/time-series-platform/

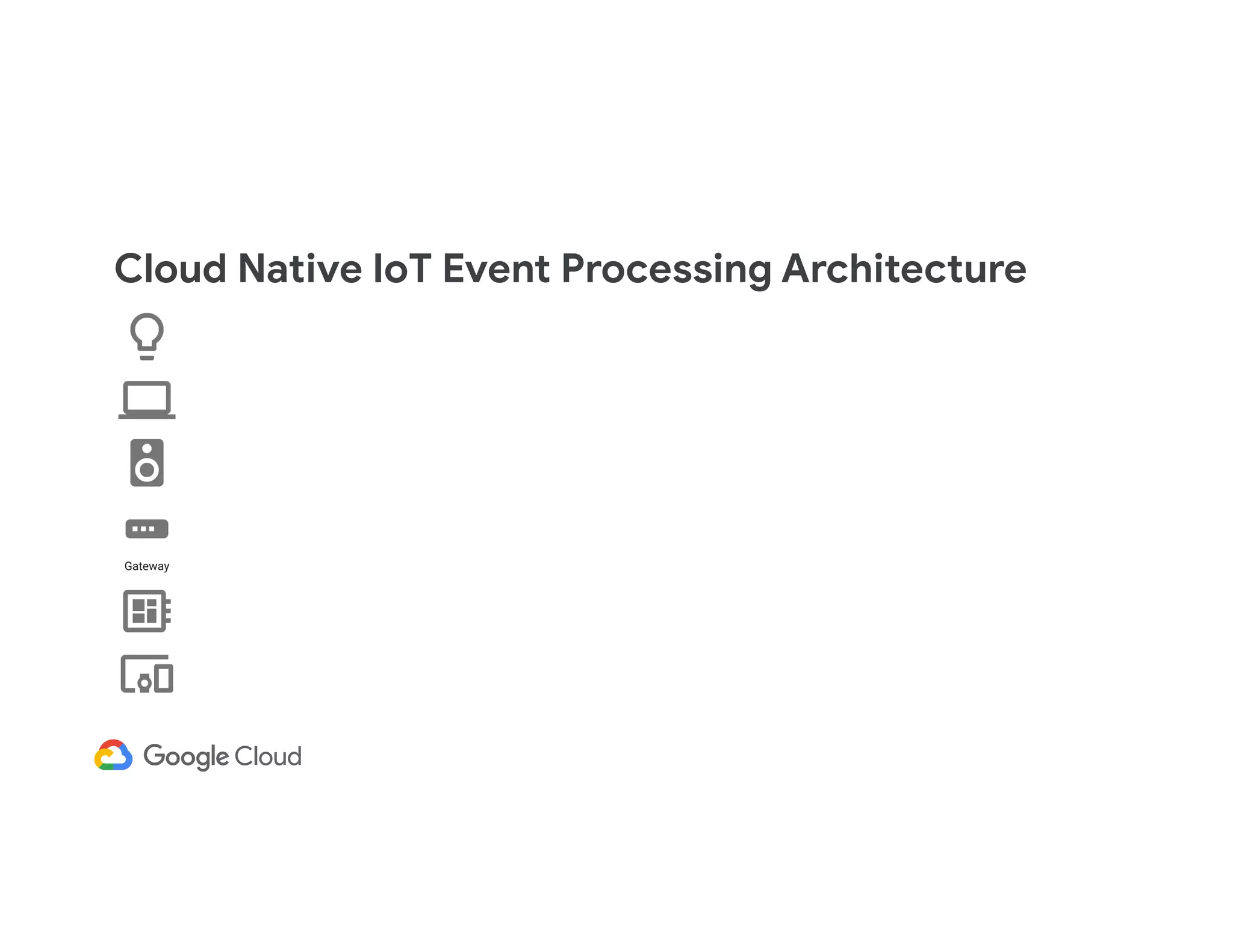

- 16. Cloud Native IoTEvent Processing Architecture Gateway

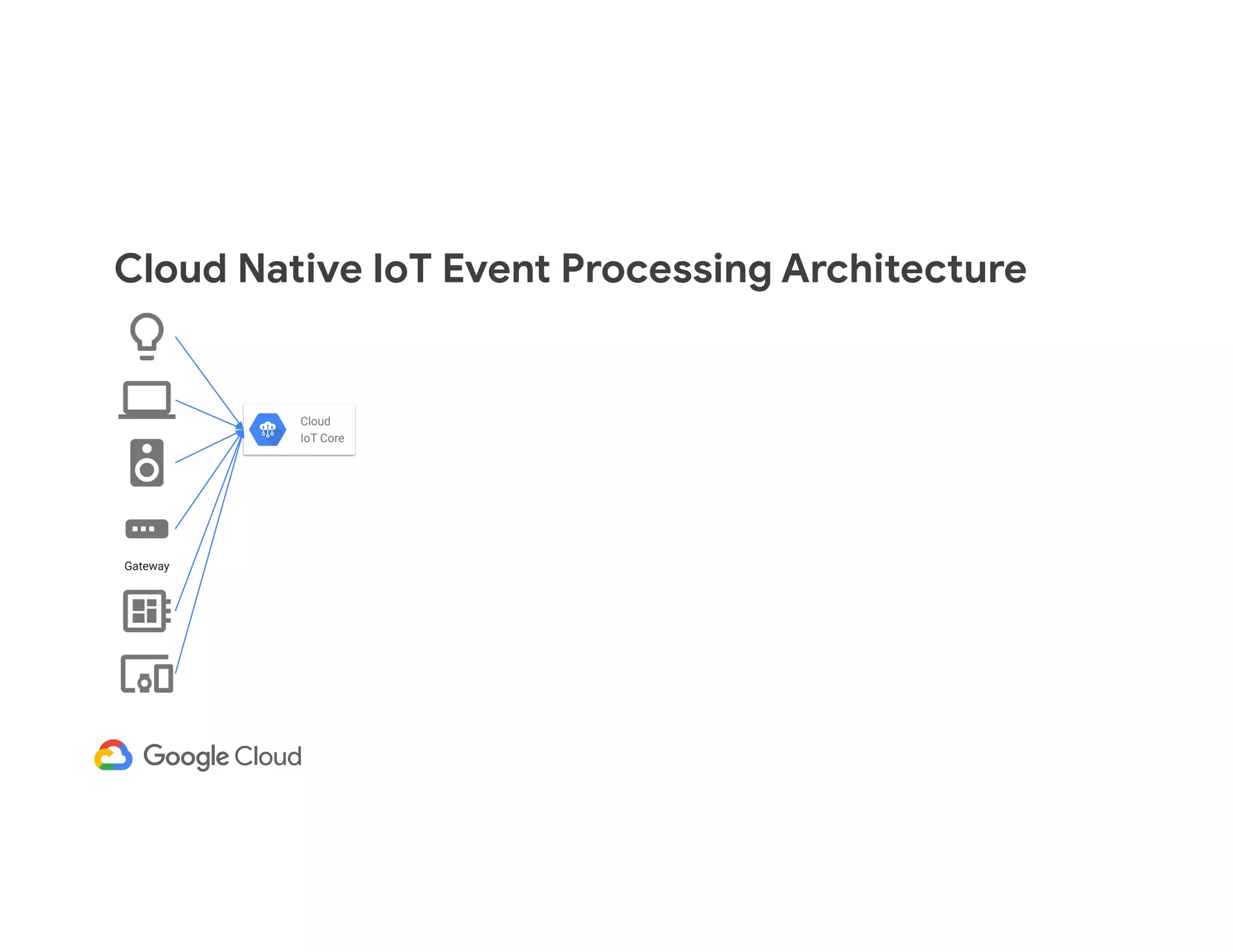

- 17. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core

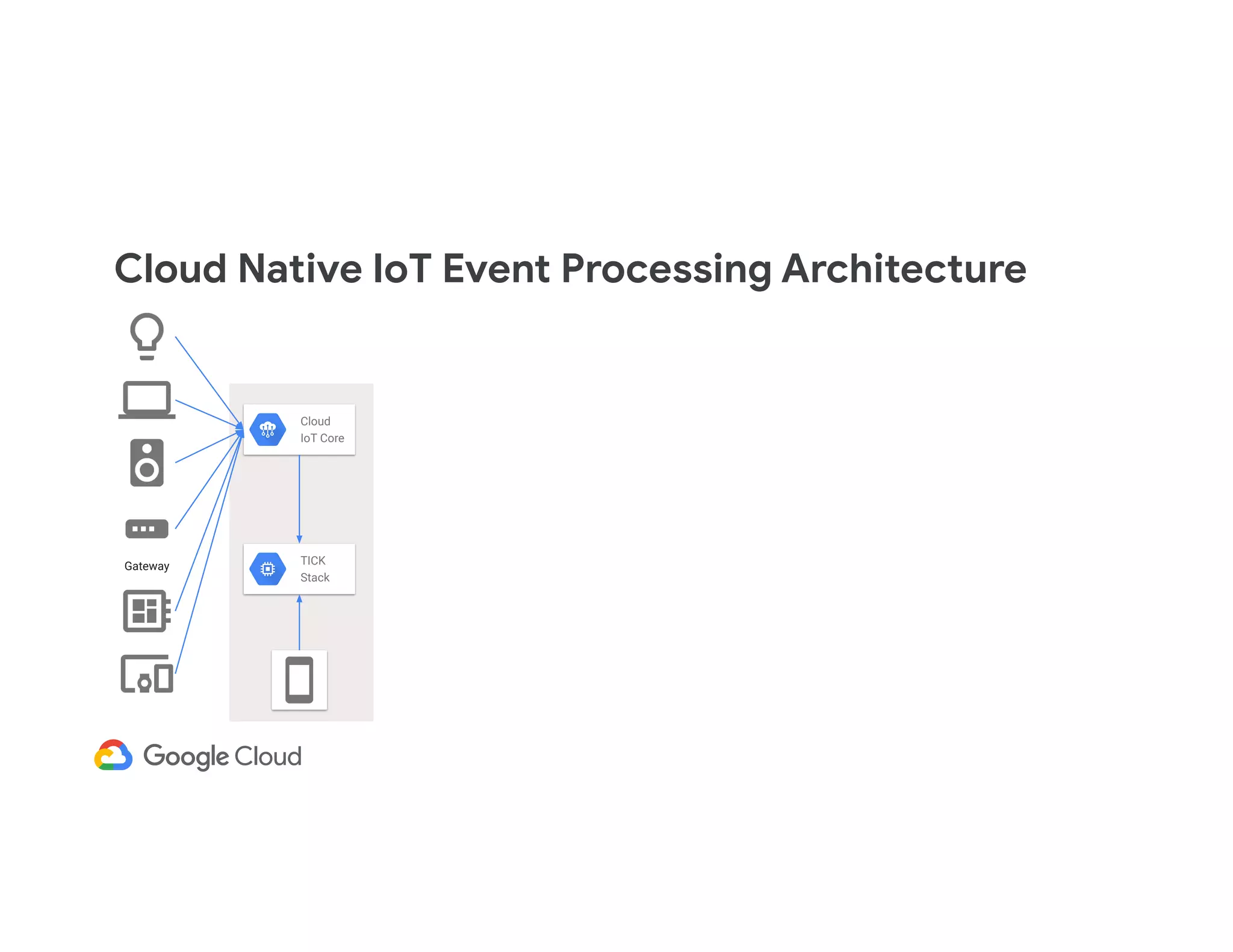

- 18. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack

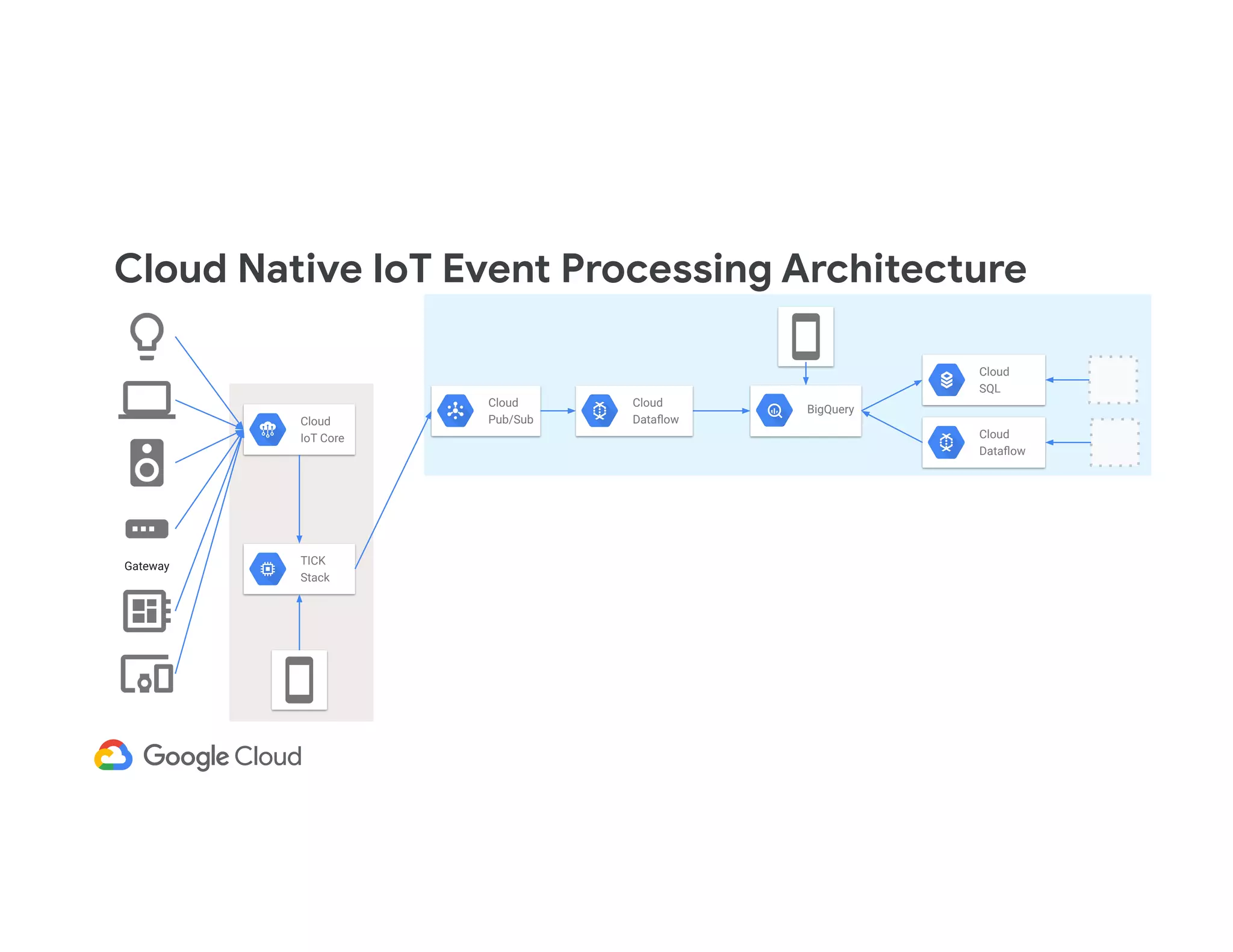

- 19. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack Cloud Pub/Sub BigQuery Cloud Dataflow Cloud SQL Cloud Dataflow

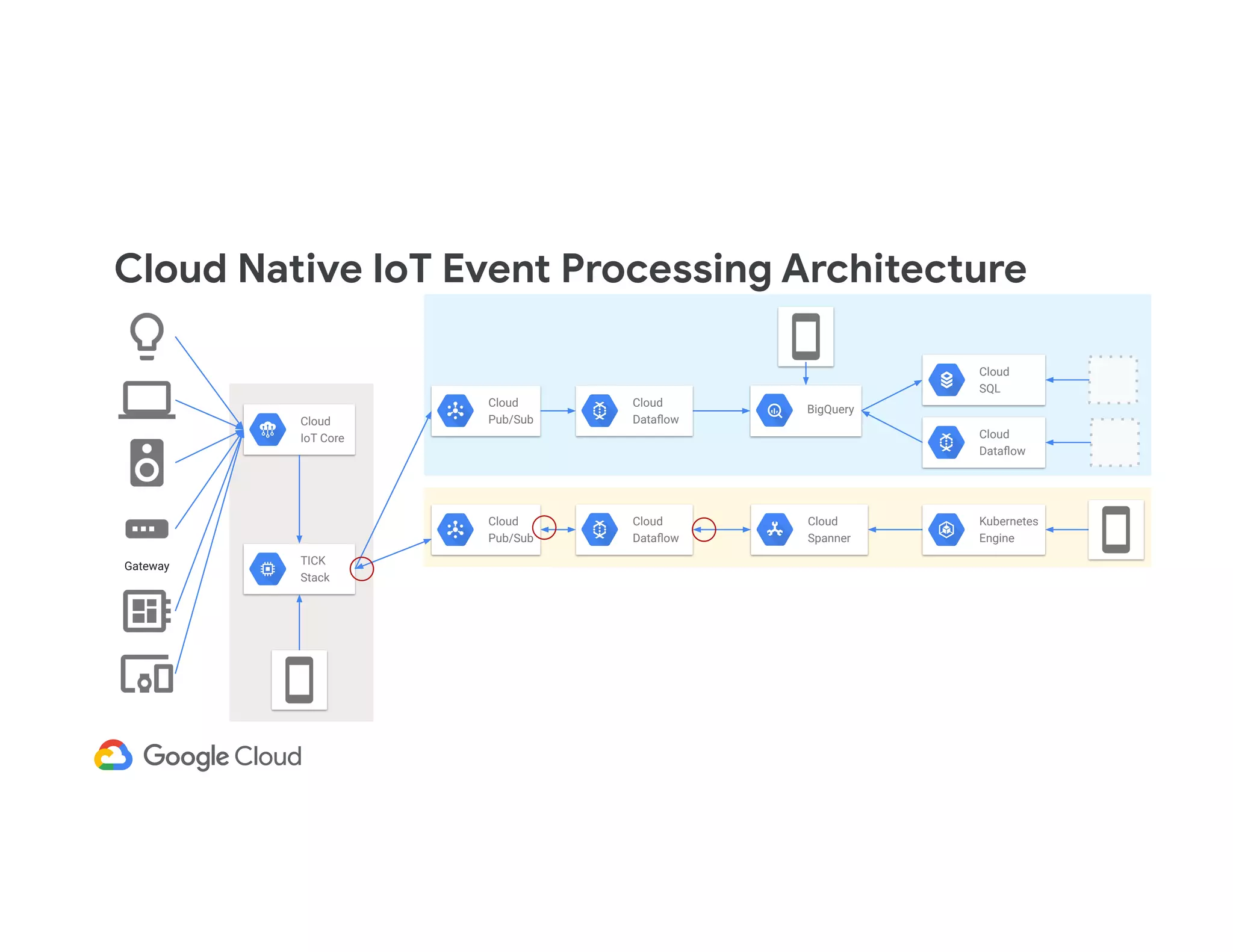

- 20. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack Cloud Pub/Sub BigQuery Cloud Dataflow Cloud SQL Cloud Dataflow Cloud Pub/Sub Cloud Spanner Kubernetes Engine Cloud Dataflow
- 21. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack Cloud Pub/Sub BigQuery Cloud Dataflow Cloud SQL Cloud Dataflow Cloud Pub/Sub Cloud Spanner Kubernetes Engine Cloud Dataflow

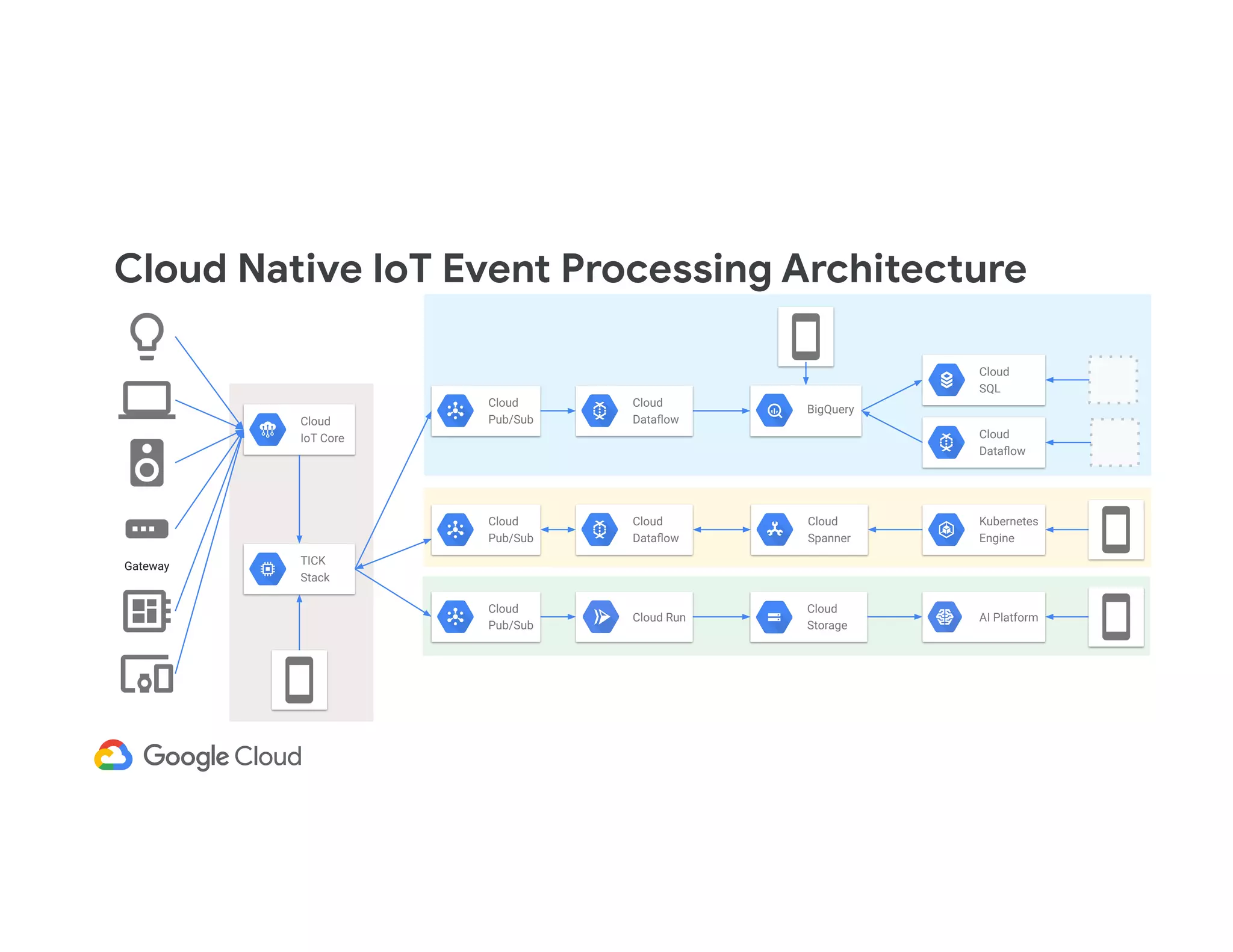

- 22. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack Cloud Pub/Sub BigQuery Cloud Dataflow Cloud SQL Cloud Pub/Sub Cloud Dataflow Cloud Pub/Sub Cloud Spanner Kubernetes Engine Cloud Run Cloud Storage AI Platform Cloud Dataflow

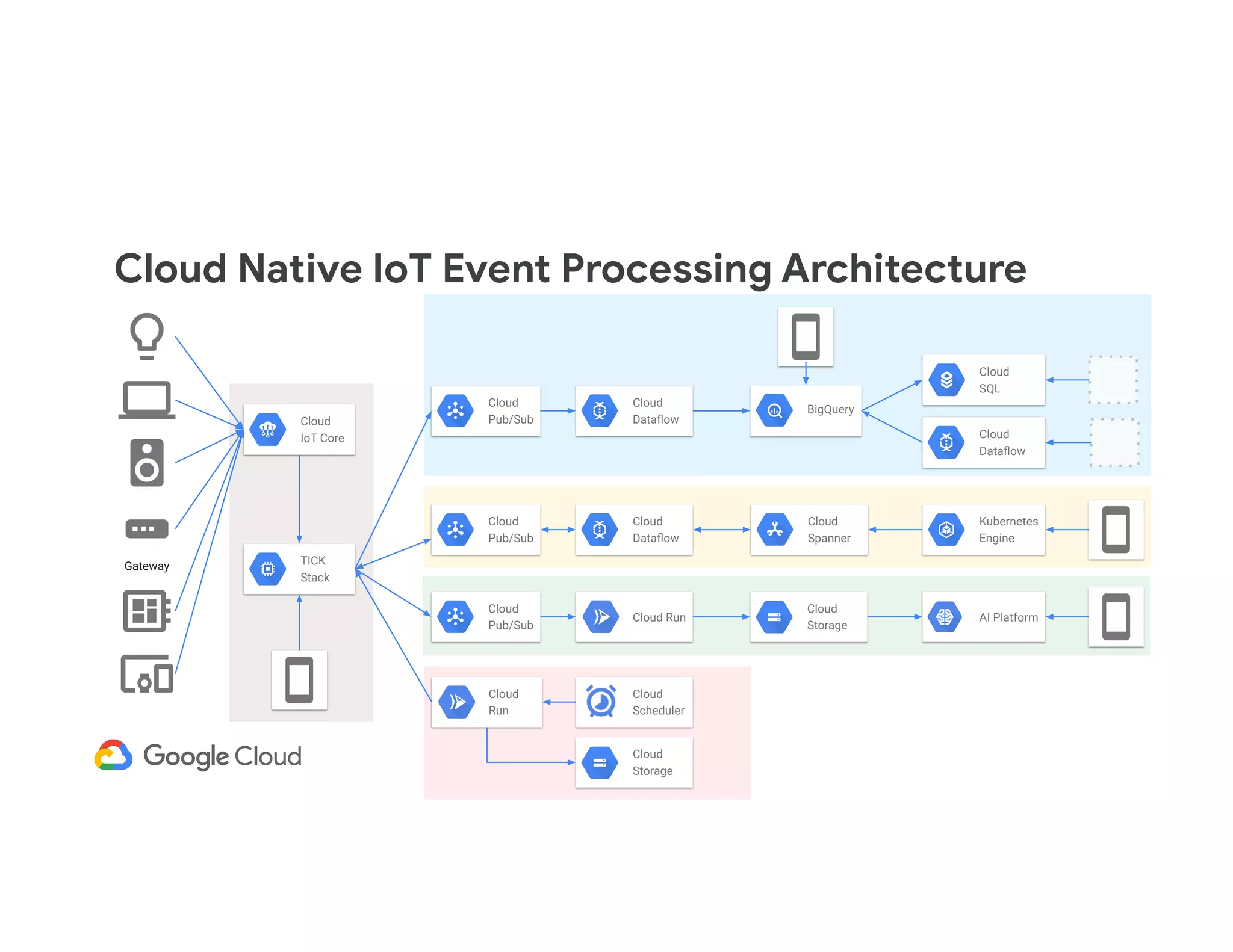

- 23. Cloud Native IoTEvent Processing Architecture Gateway Cloud IoT Core TICK Stack Cloud Pub/Sub BigQuery Cloud Dataflow Cloud SQL Cloud Run Cloud Storage Cloud Pub/Sub Cloud Dataflow Cloud Pub/Sub Cloud Spanner Kubernetes Engine Cloud Scheduler Cloud Run Cloud Storage AI Platform Cloud Dataflow

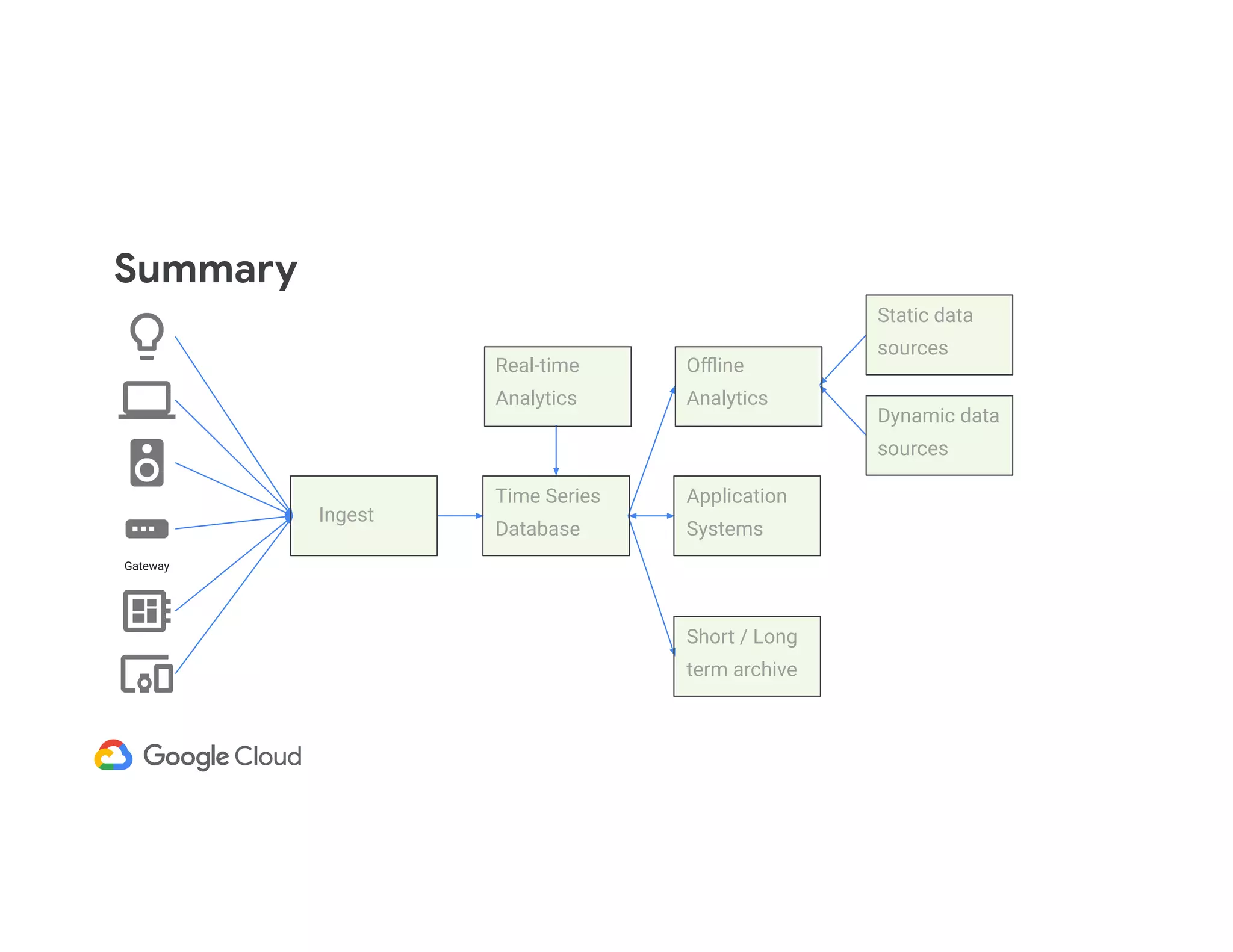

- 24. Summary Gateway Ingest Time Series Database Real-time Analytics Offline Analytics Static data sources Dynamicdata sources Application Systems Short / Long term archive
