Introduction to FreeNAS development by John Hixson

Introduction to FreeNAS Development John Hixson john@ixsystems.com iXsystems, Inc.

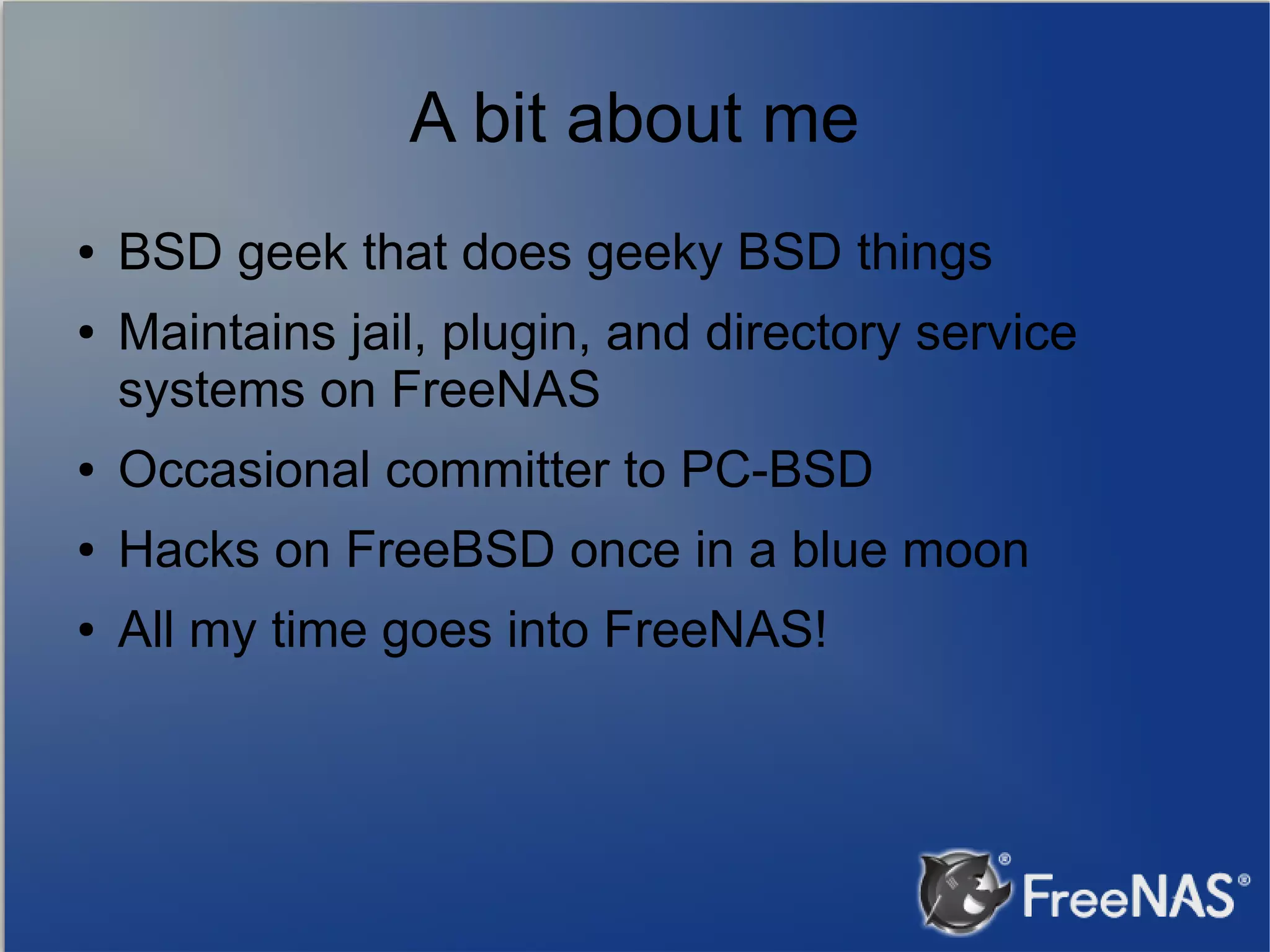

A bit about me ● ● BSD geek that does geeky BSD things Maintains jail, plugin, and directory service systems on FreeNAS ● Occasional committer to PC-BSD ● Hacks on FreeBSD once in a blue moon ● All my time goes into FreeNAS!

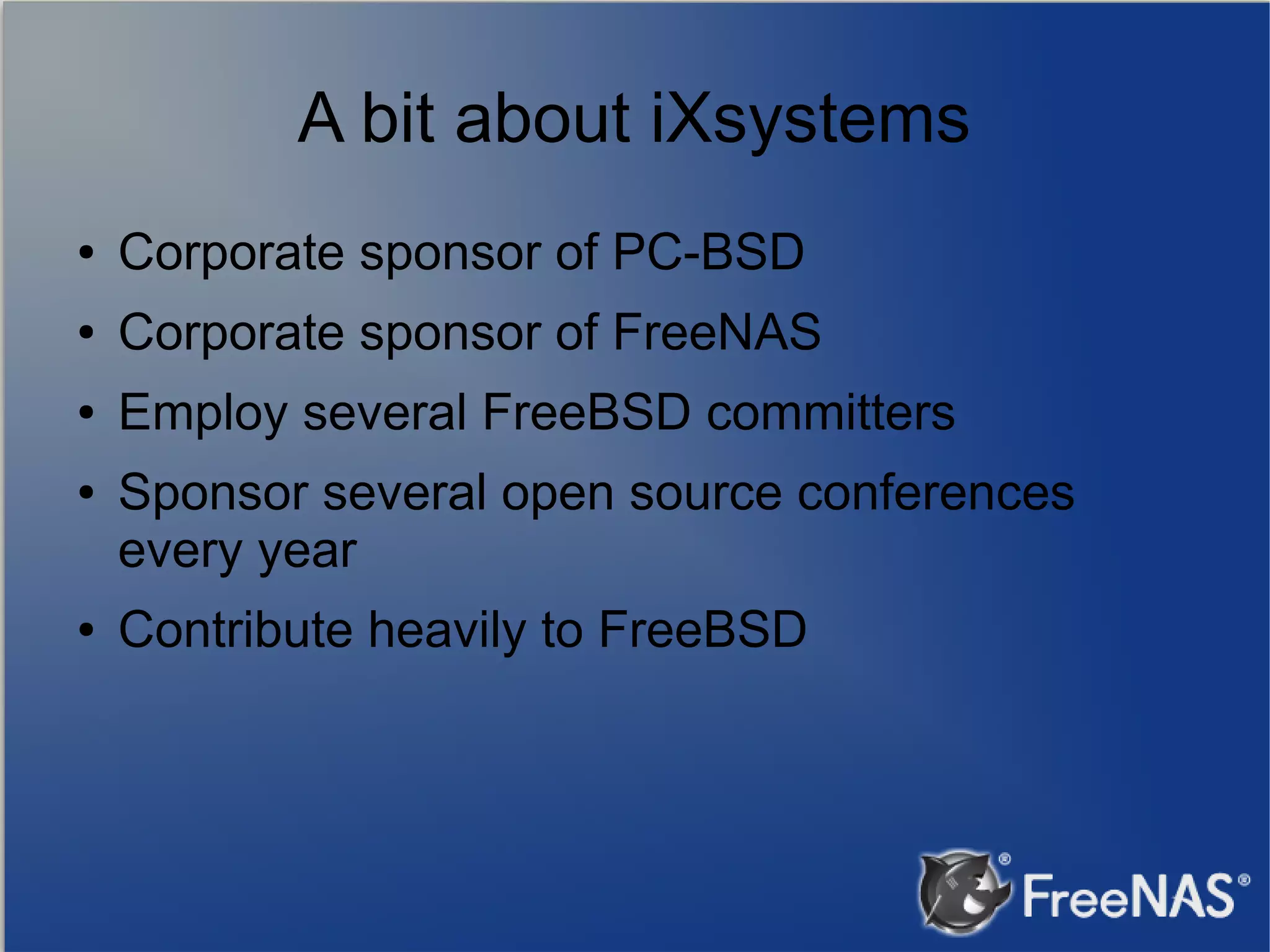

A bit about iXsystems ● Corporate sponsor of PC-BSD ● Corporate sponsor of FreeNAS ● Employ several FreeBSD committers ● ● Sponsor several open source conferences every year Contribute heavily to FreeBSD

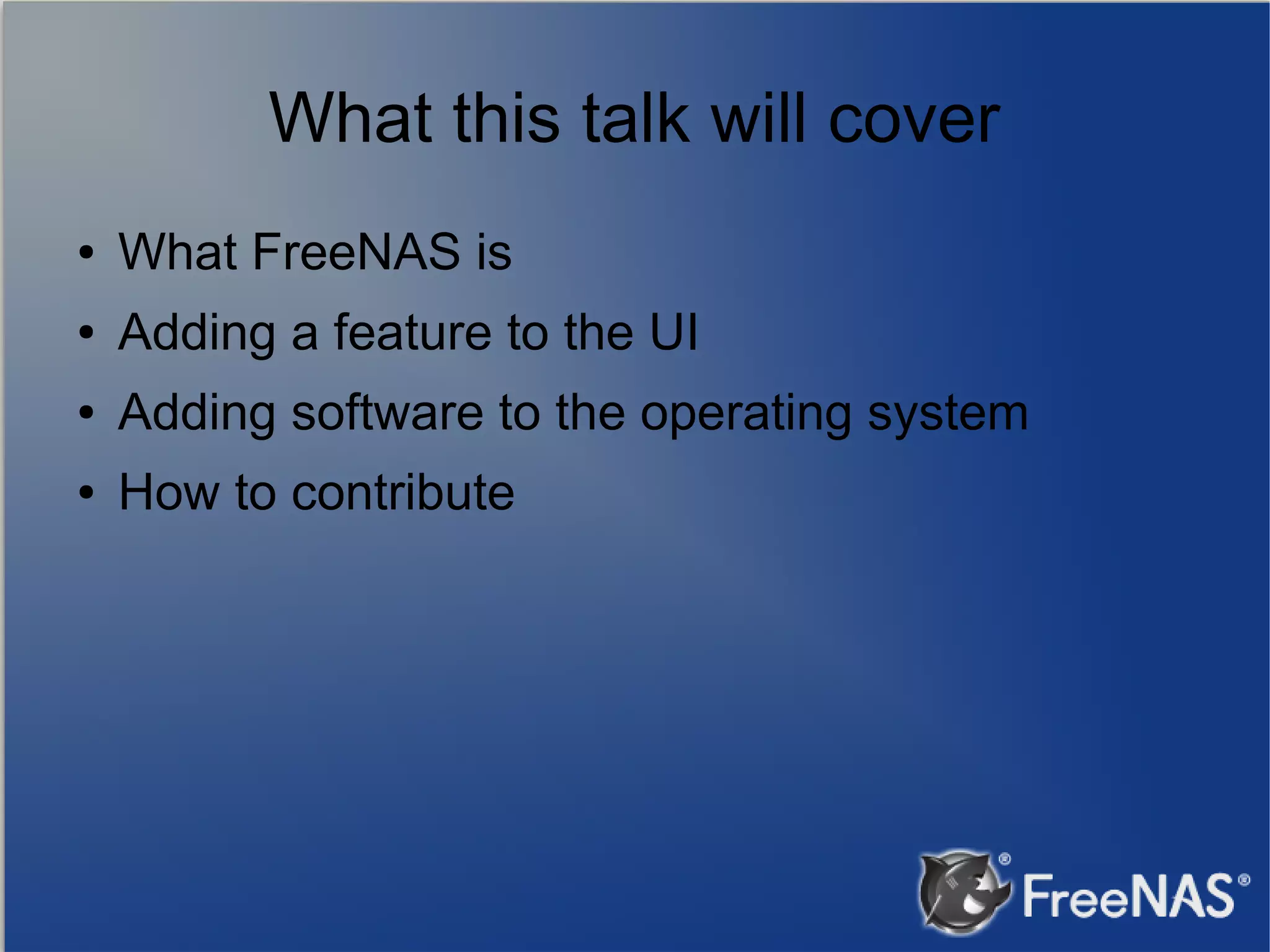

What this talk will cover ● What FreeNAS is ● Adding a feature to the UI ● Adding software to the operating system ● How to contribute

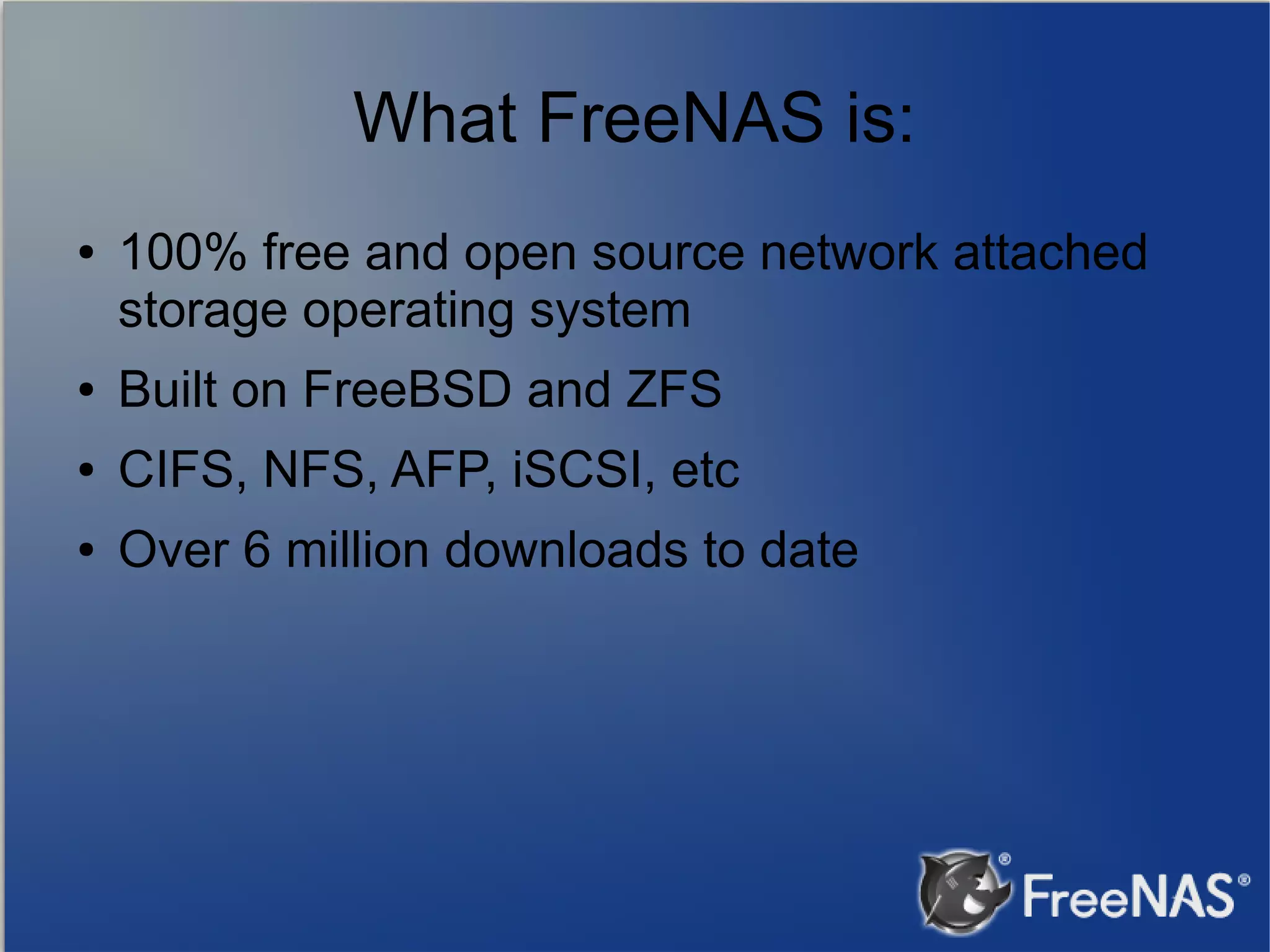

What FreeNAS is: ● 100% free and open source network attached storage operating system ● Built on FreeBSD and ZFS ● CIFS, NFS, AFP, iSCSI, etc ● Over 6 million downloads to date

Adding a feature to the UI ● Add service entry for the feature ● Create feature model, form and view ● Make the middleware aware of feature ● Add a startup / shutdown script for the feature ● Javascript to toggle feature on and off

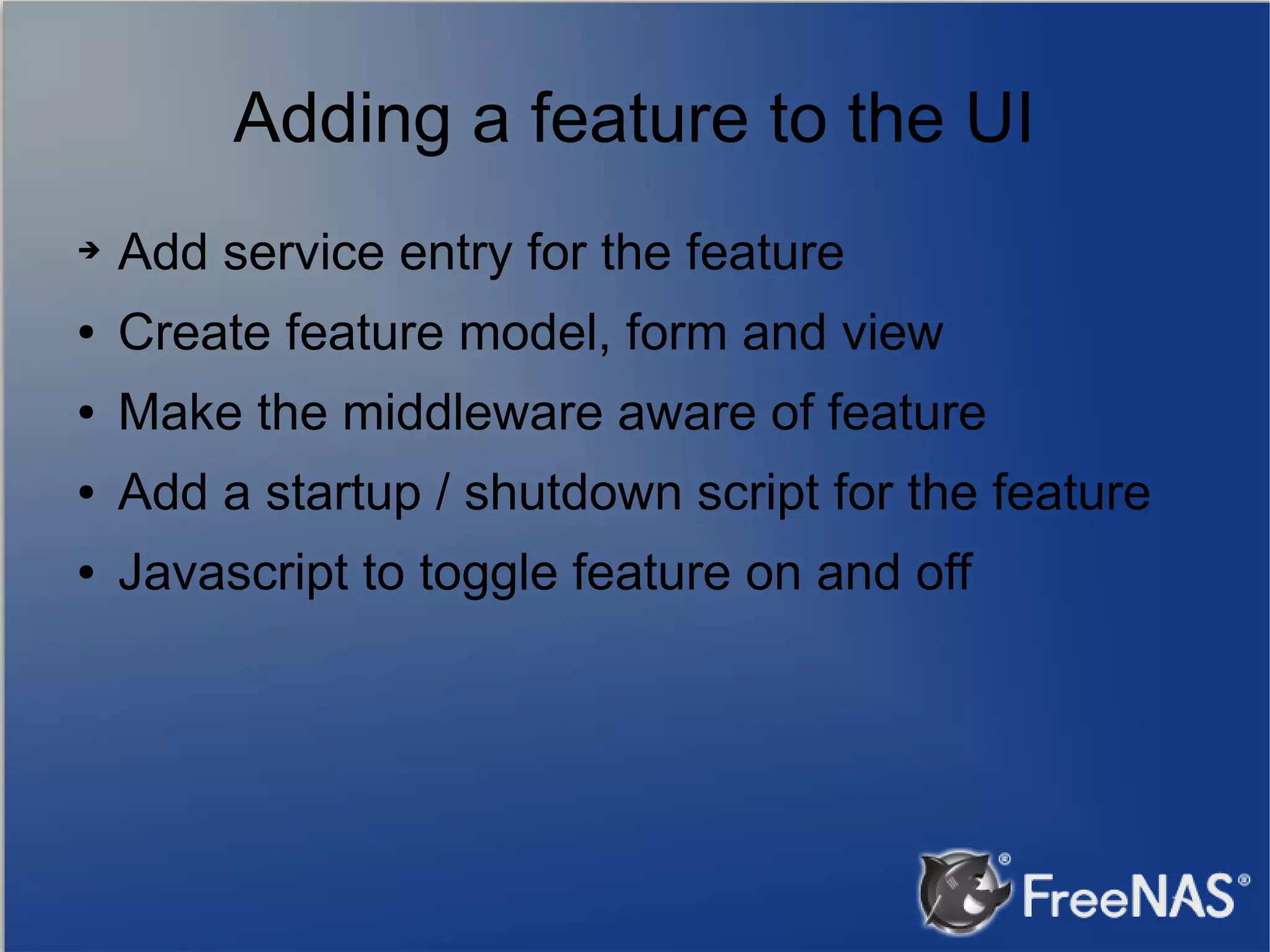

Adding a feature to the UI ➔ Add service entry for the feature ● Create feature model, form and view ● Make the middleware aware of feature ● Add a startup / shutdown script for the feature ● Javascript to toggle feature on and off

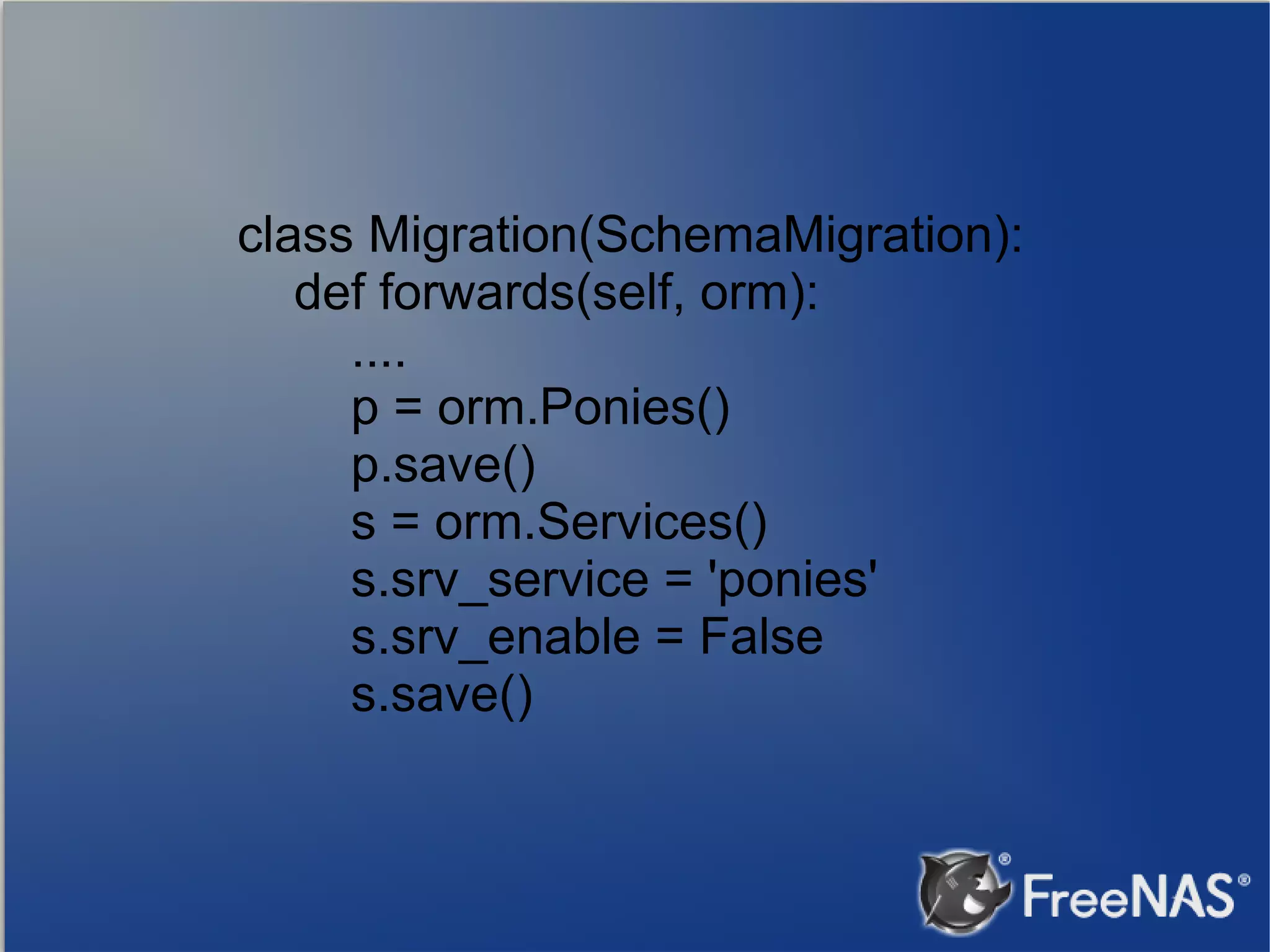

class Migration(SchemaMigration): def forwards(self, orm): .... p = orm.Ponies() p.save() s = orm.Services() s.srv_service = 'ponies' s.srv_enable = False s.save()

Adding a feature to the UI ● Add service entry for the feature ➔ Create feature model, form and view ● Make the middleware aware of feature ● Add a startup / shutdown script for the feature ● Javascript to toggle feature on and off

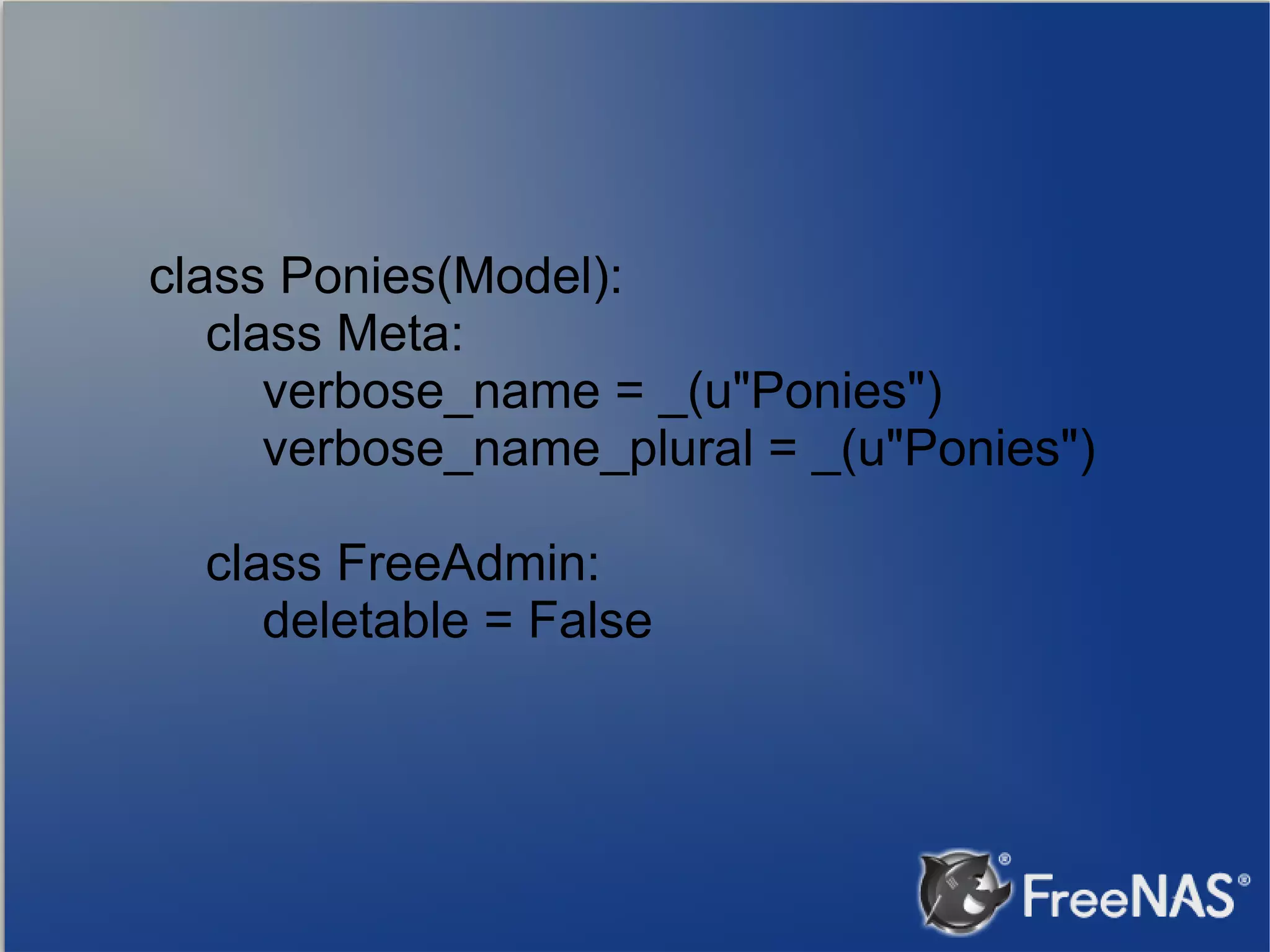

class Ponies(Model): class Meta: verbose_name = _(u"Ponies") verbose_name_plural = _(u"Ponies") class FreeAdmin: deletable = False

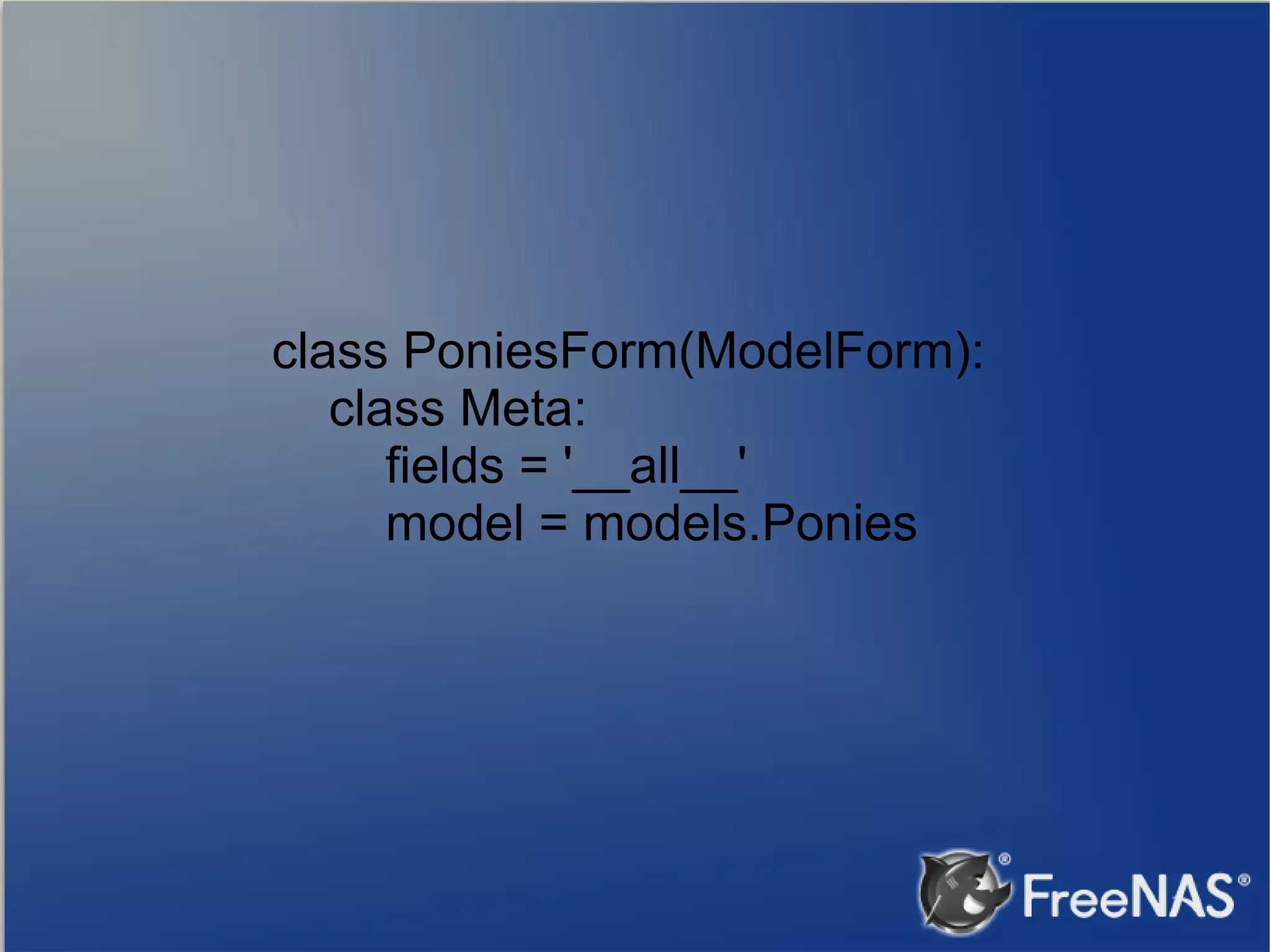

class PoniesForm(ModelForm): class Meta: fields = '__all__' model = models.Ponies

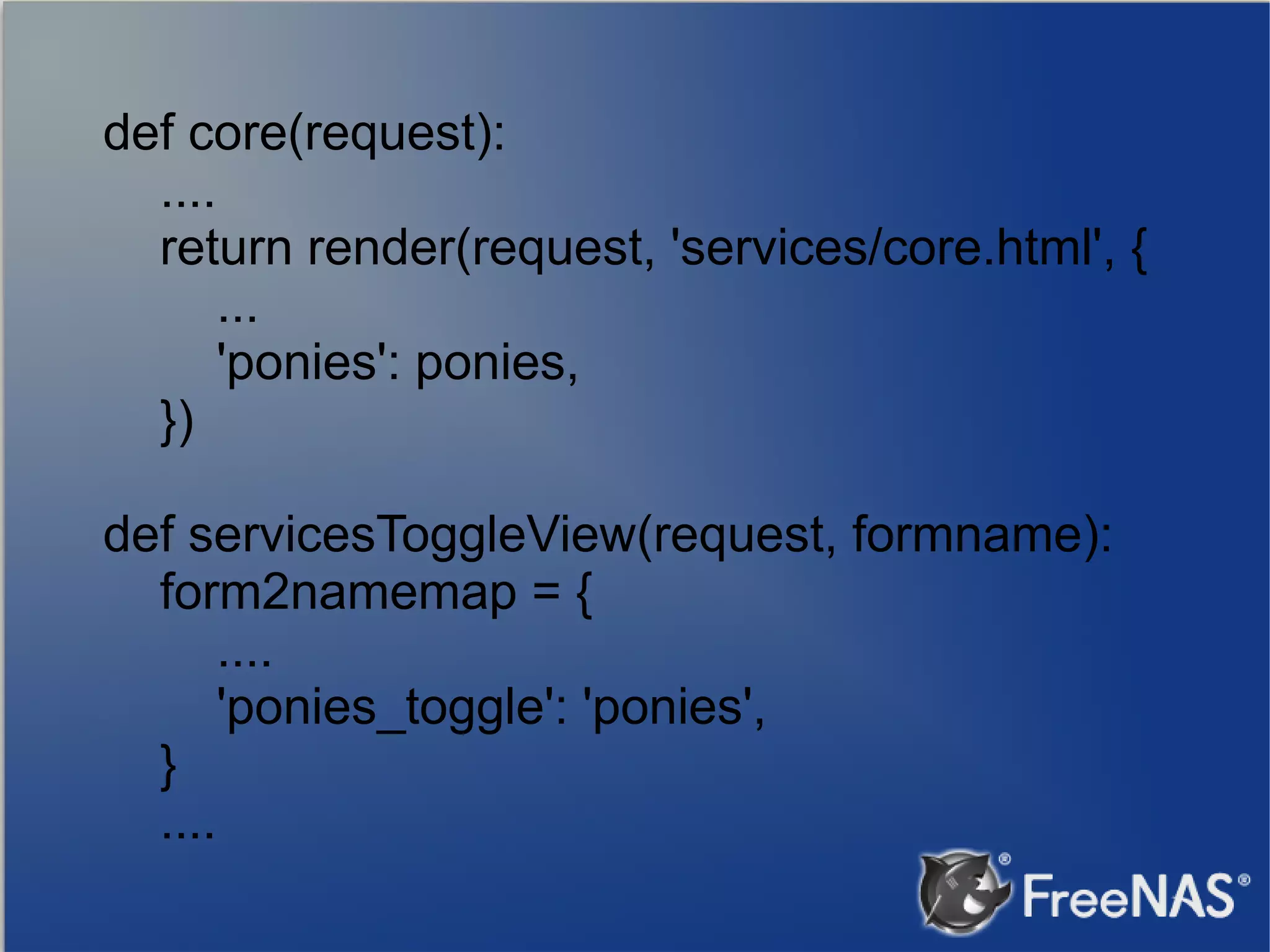

def core(request): .... return render(request, 'services/core.html', { ... 'ponies': ponies, }) def servicesToggleView(request, formname): form2namemap = { .... 'ponies_toggle': 'ponies', } ....

Adding a feature to the UI ● Add service entry for the feature ● Create feature model, form and view ➔ Make the middleware aware of feature ● Add a startup / shutdown script for the feature ● Javascript to toggle feature on and off

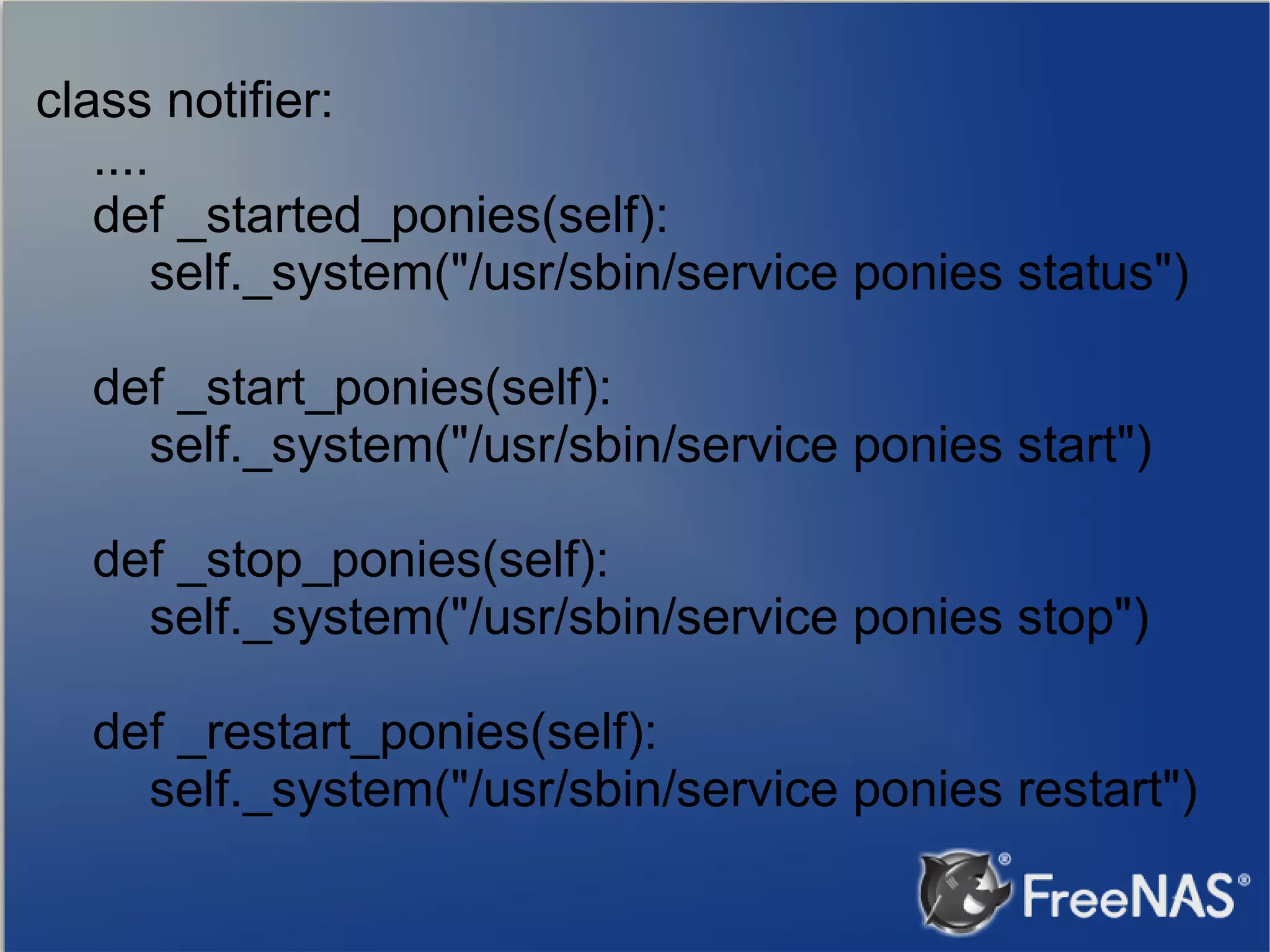

class notifier: .... def _started_ponies(self): self._system("/usr/sbin/service ponies status") def _start_ponies(self): self._system("/usr/sbin/service ponies start") def _stop_ponies(self): self._system("/usr/sbin/service ponies stop") def _restart_ponies(self): self._system("/usr/sbin/service ponies restart")

Adding a feature to the UI ● Add service entry for the feature ● Create feature model, form and view ● Make the middleware aware of feature ➔ Add a startup / shutdown script for the feature ● Javascript to toggle feature on and off

Adding a feature to the UI ● Add service entry for the feature ● Create feature model, form and view ● Make the middleware aware of feature ● Add a startup / shutdown script for the feature ➔ Javascript to toggle feature on and off

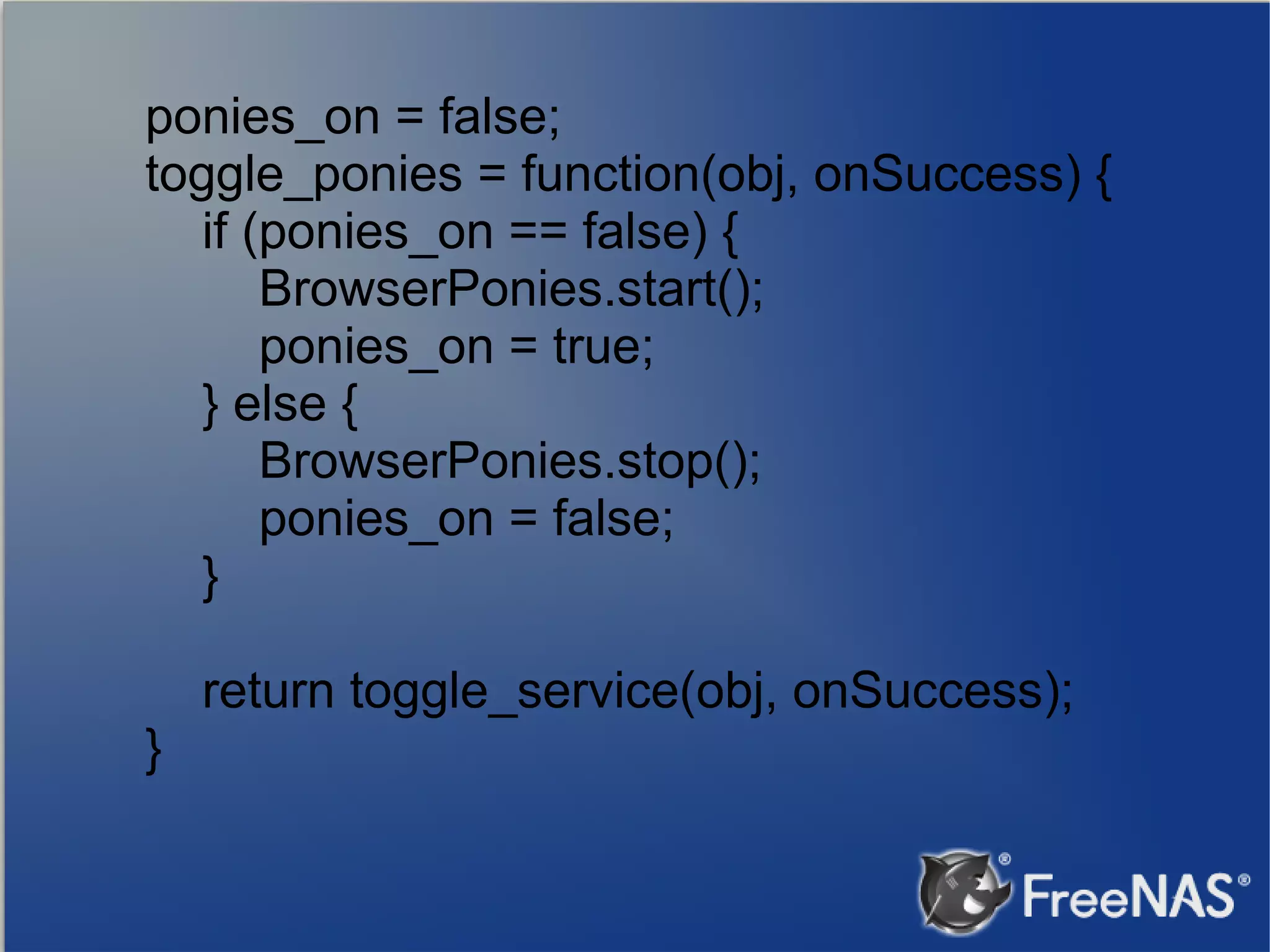

ponies_on = false; toggle_ponies = function(obj, onSuccess) { if (ponies_on == false) { BrowserPonies.start(); ponies_on = true; } else { BrowserPonies.stop(); ponies_on = false; } return toggle_service(obj, onSuccess); }

Let's see the newly added feature

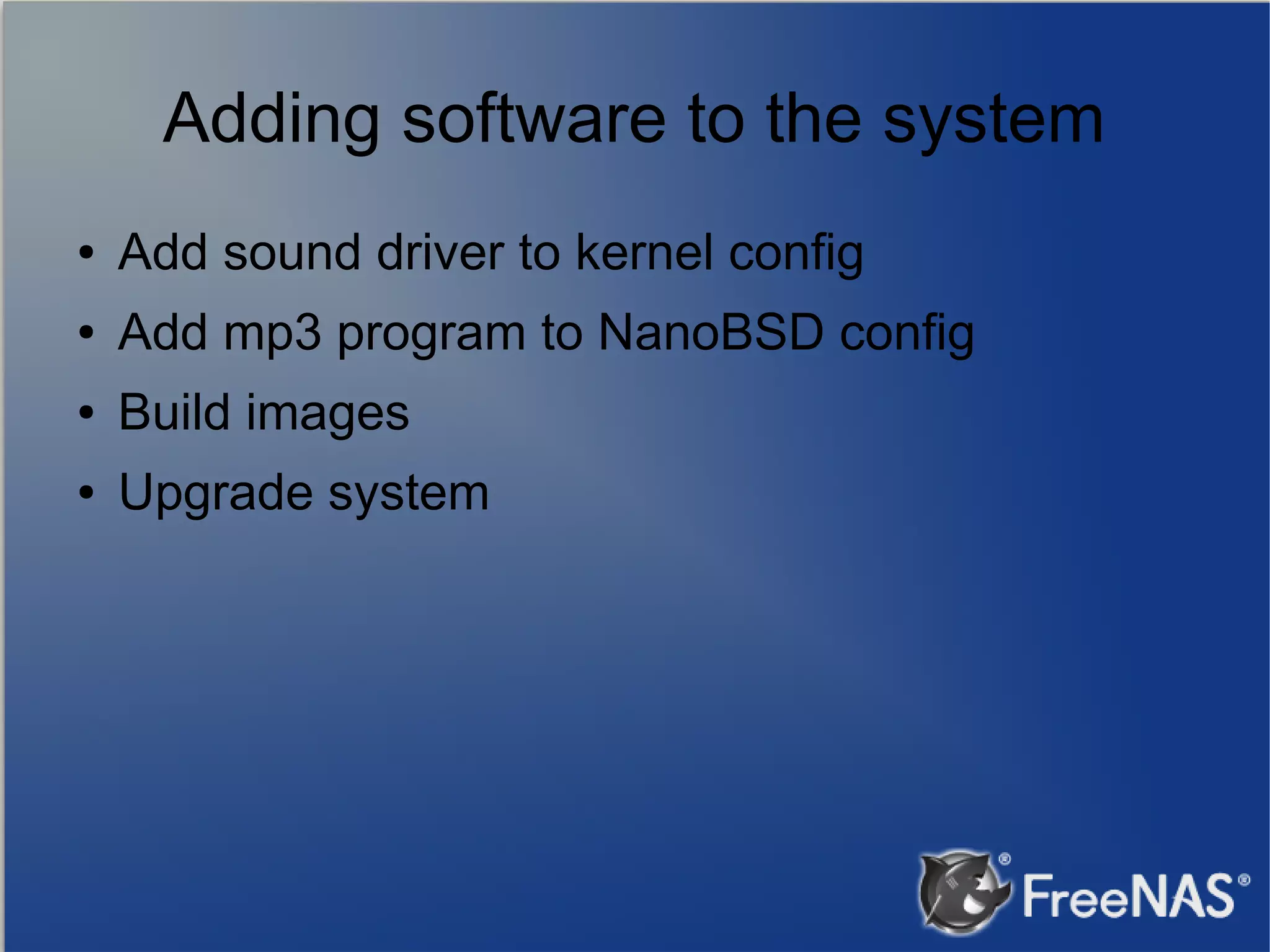

Adding software to the system ● Add sound driver to kernel config ● Add mp3 program to NanoBSD config ● Build images ● Upgrade system

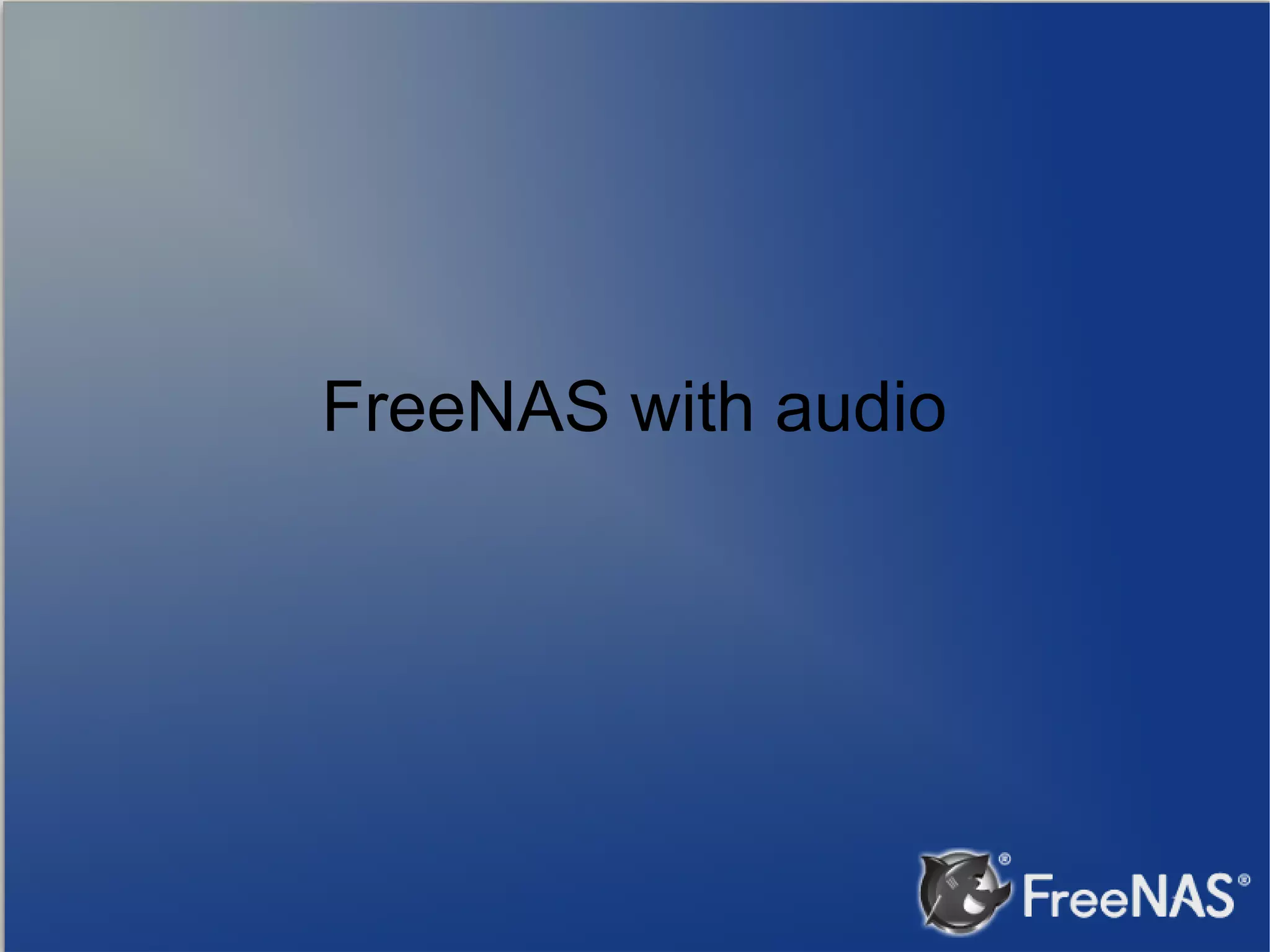

Adding audio to FreeNAS ➔ Add sound driver to kernel config ● Add mp3 program to NanoBSD config ● Build images ● Upgrade system

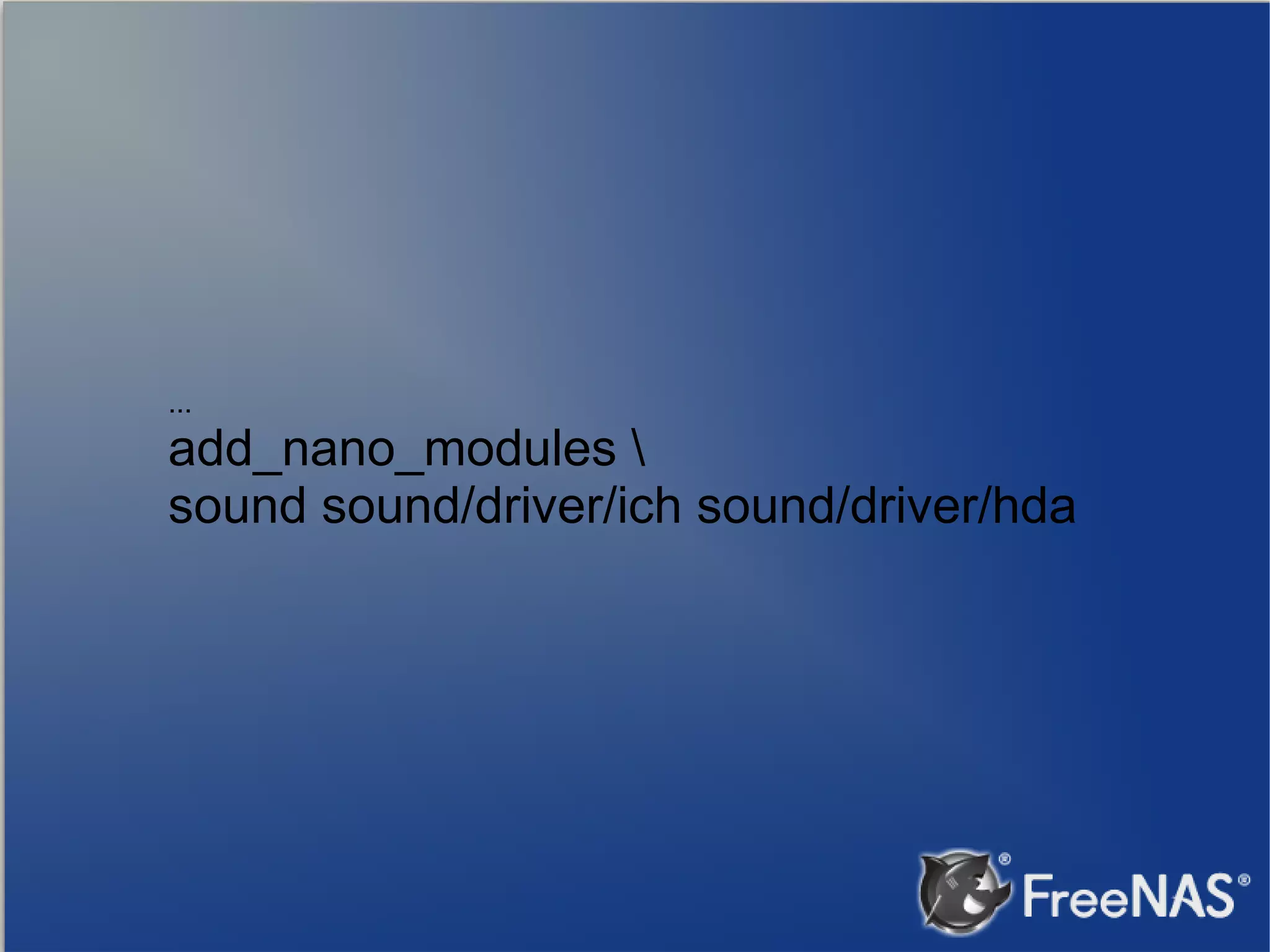

... add_nano_modules sound sound/driver/ich sound/driver/hda

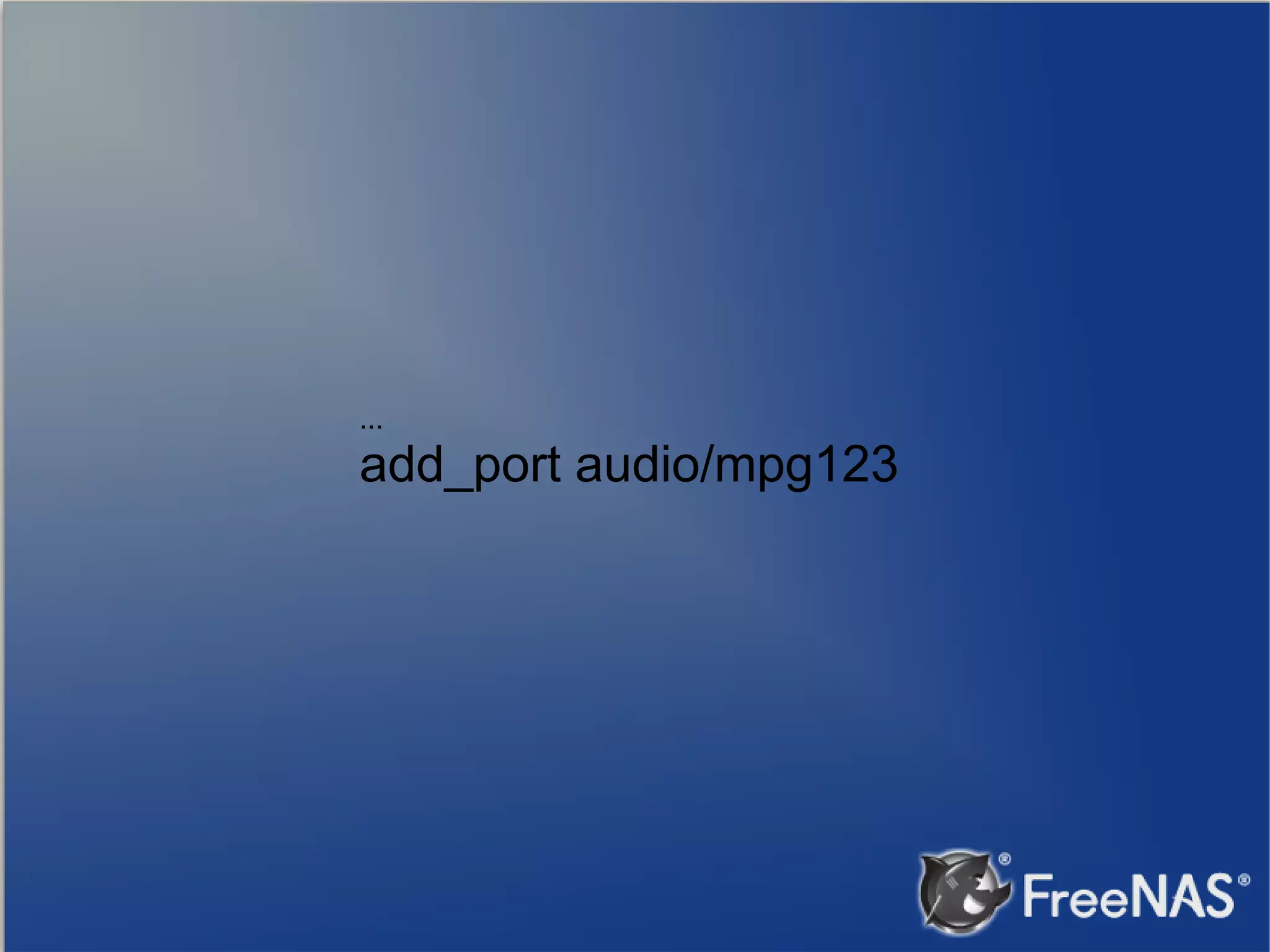

Adding audio to FreeNAS ● Add sound driver to kernel config ➔ Add mp3 program to NanoBSD config ● Build images ● Upgrade system

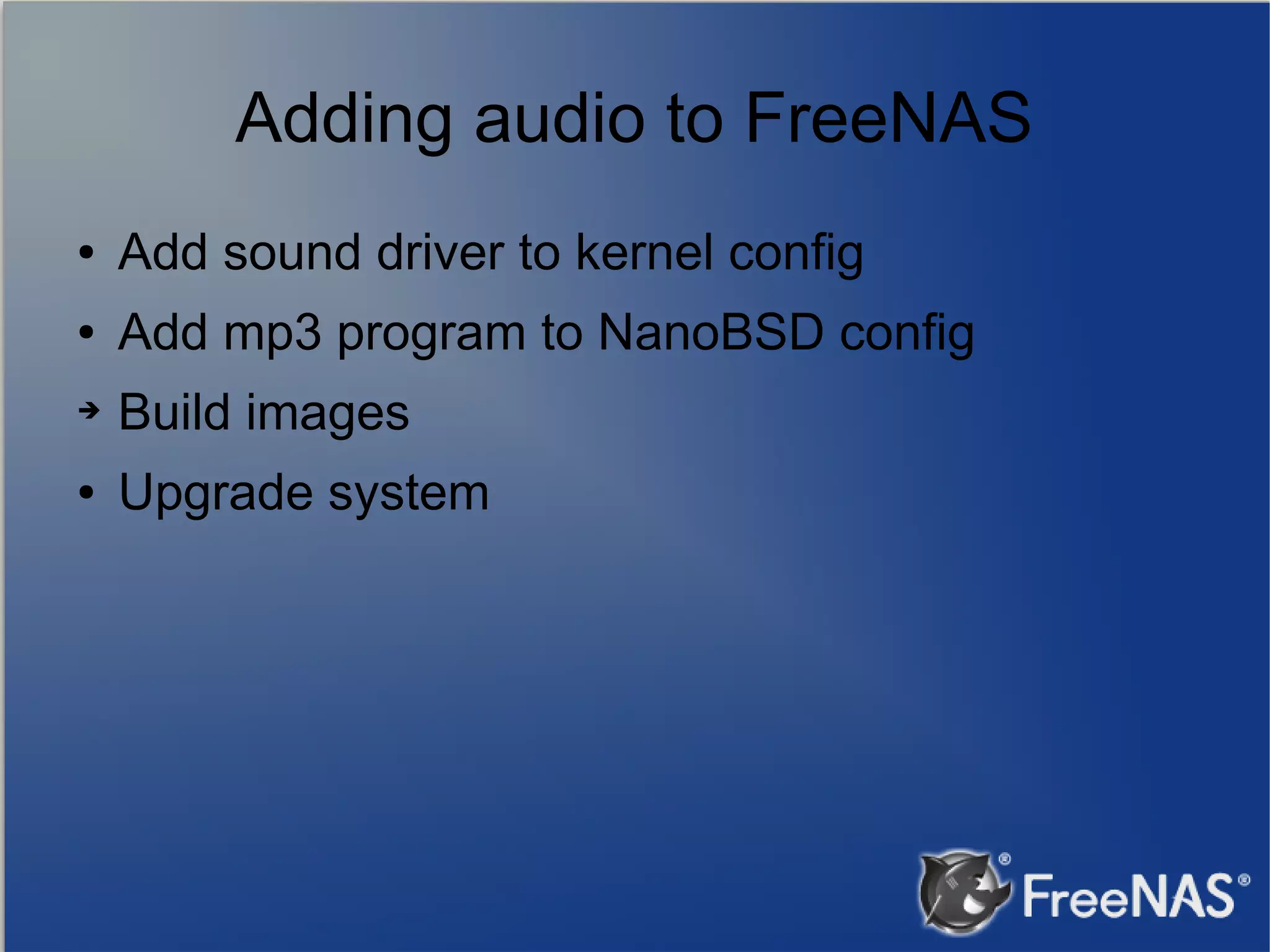

Adding audio to FreeNAS ● Add sound driver to kernel config ● Add mp3 program to NanoBSD config ➔ Build images ● Upgrade system

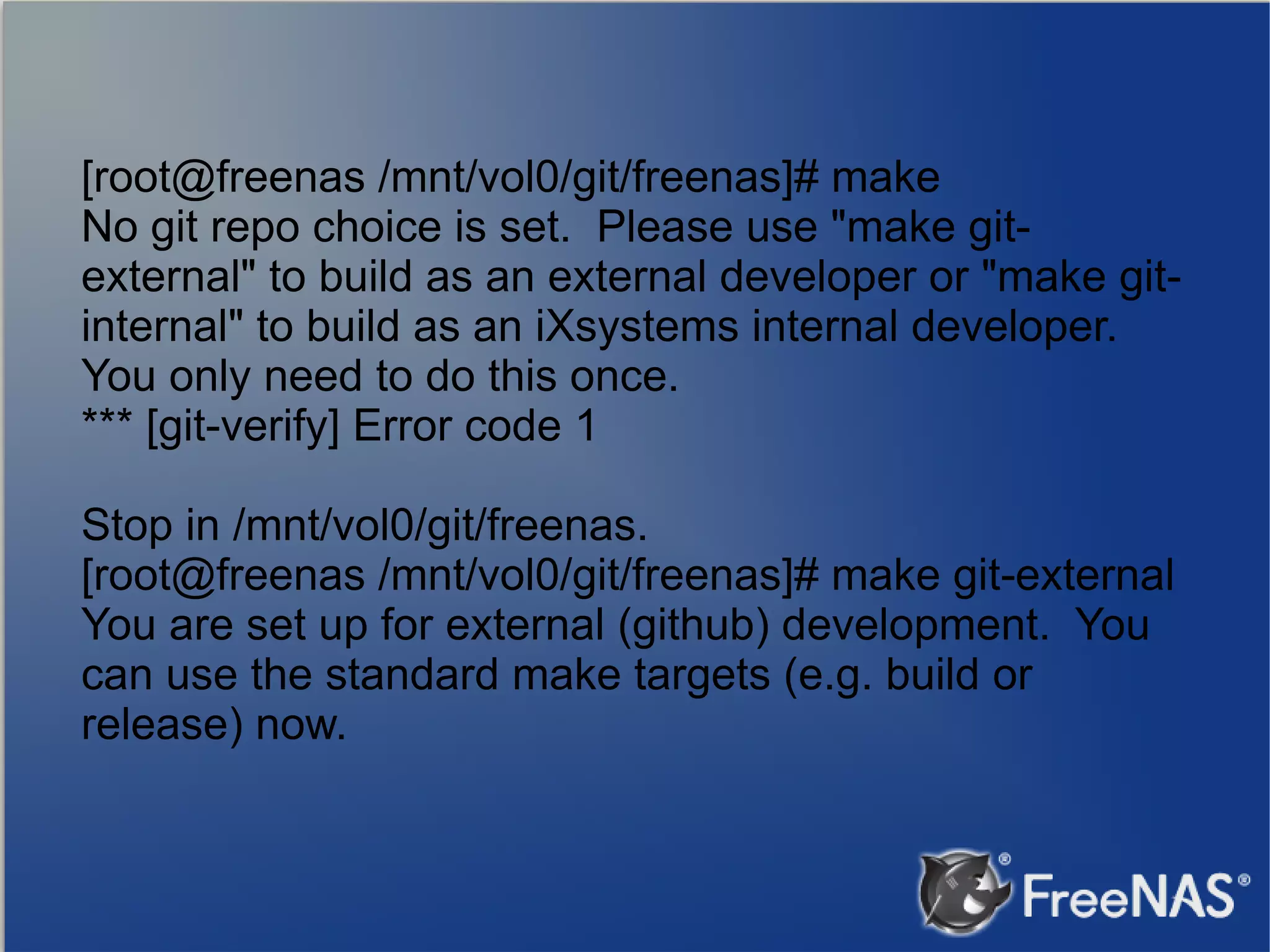

[root@freenas /mnt/vol0/git/freenas]# make No git repo choice is set. Please use "make gitexternal" to build as an external developer or "make gitinternal" to build as an iXsystems internal developer. You only need to do this once. *** [git-verify] Error code 1 Stop in /mnt/vol0/git/freenas. [root@freenas /mnt/vol0/git/freenas]# make git-external You are set up for external (github) development. You can use the standard make targets (e.g. build or release) now.

Adding audio to FreeNAS ● Add sound driver to kernel config ● Add mp3 program to NanoBSD config ● Build images ➔ Upgrade system

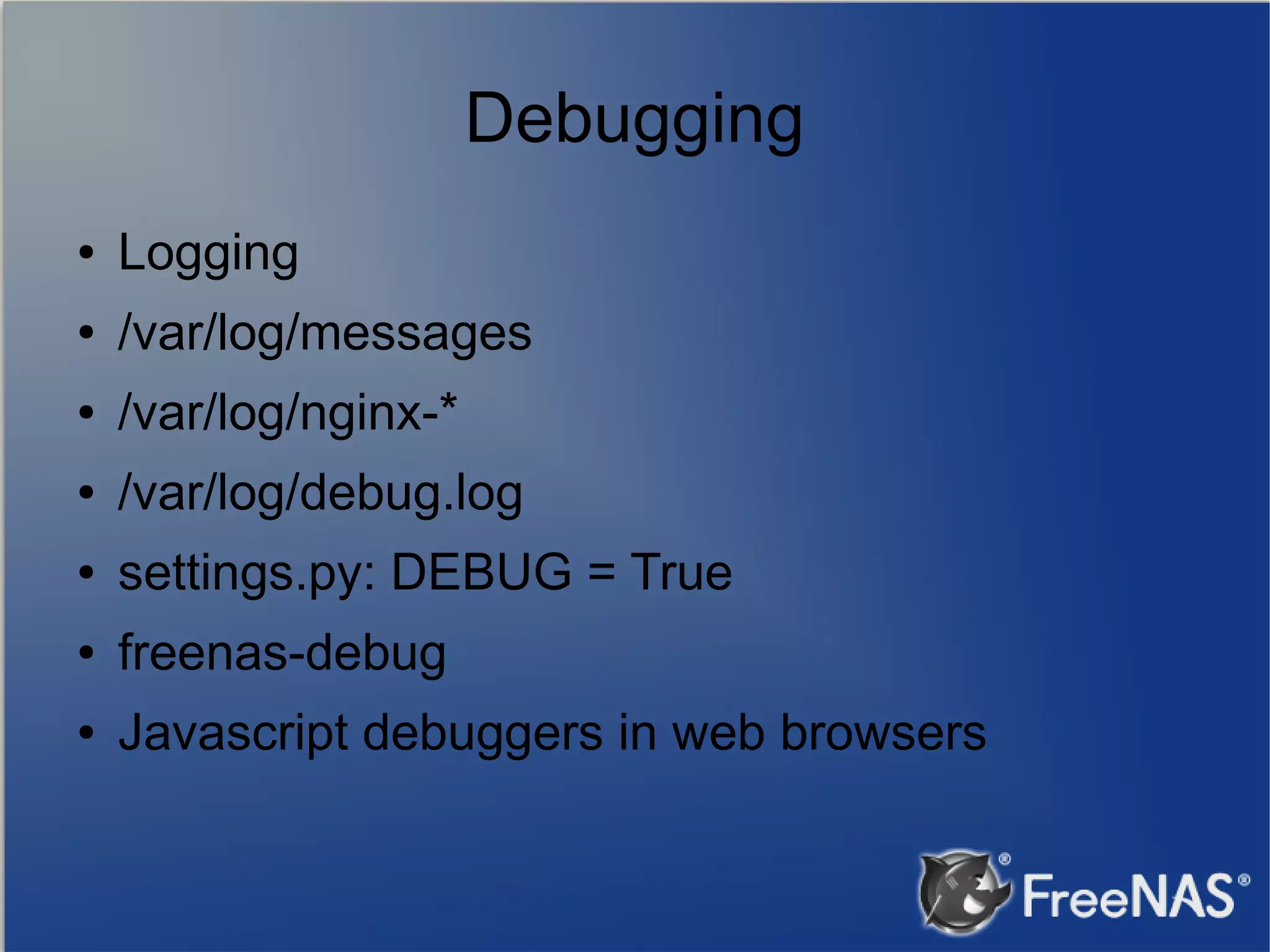

Debugging ● Logging ● /var/log/messages ● /var/log/nginx-* ● /var/log/debug.log ● settings.py: DEBUG = True ● freenas-debug ● Javascript debuggers in web browsers

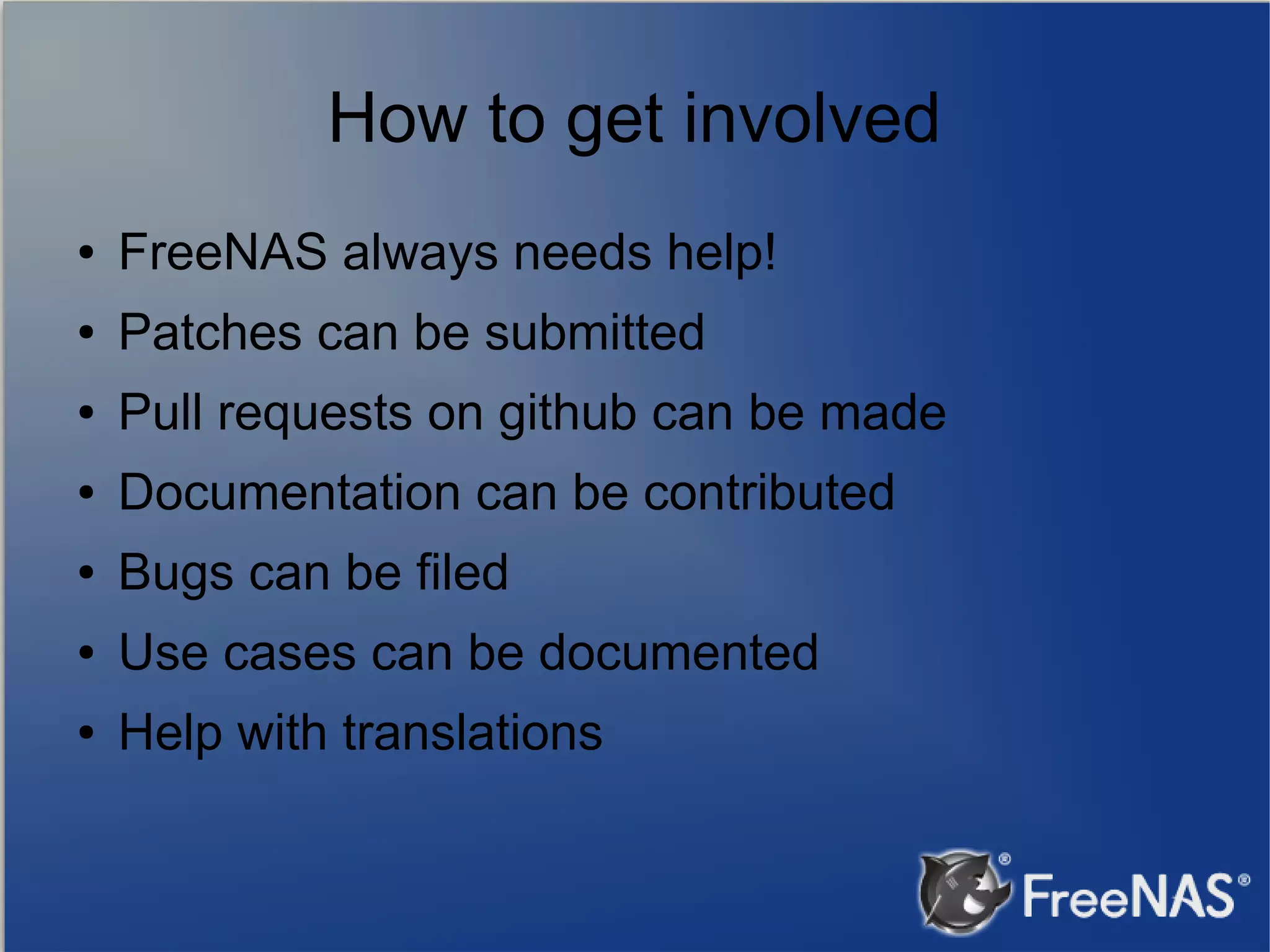

How to get involved ● FreeNAS always needs help! ● Patches can be submitted ● Pull requests on github can be made ● Documentation can be contributed ● Bugs can be filed ● Use cases can be documented ● Help with translations

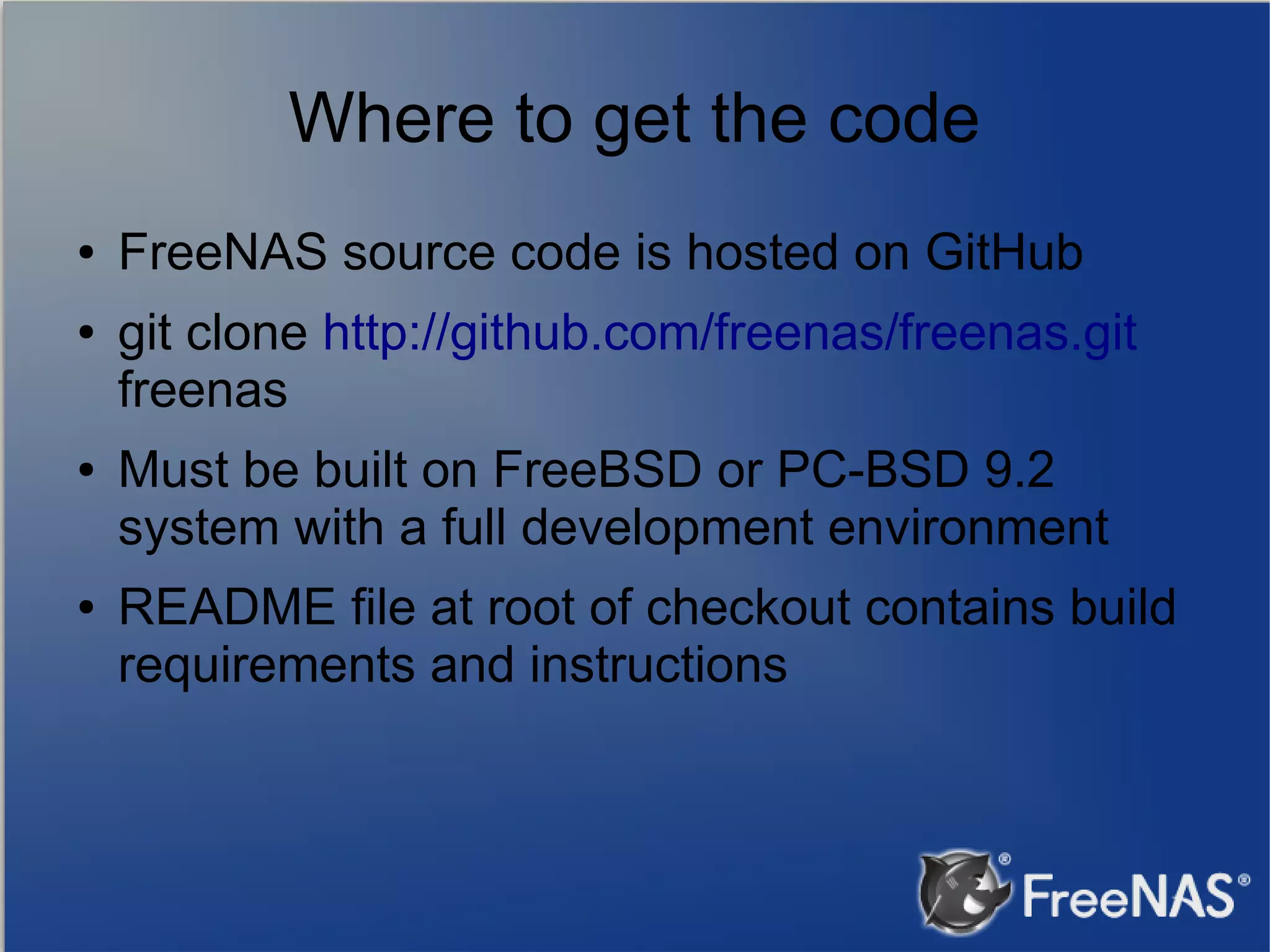

Where to get the code ● ● ● ● FreeNAS source code is hosted on GitHub git clone http://github.com/freenas/freenas.git freenas Must be built on FreeBSD or PC-BSD 9.2 system with a full development environment README file at root of checkout contains build requirements and instructions

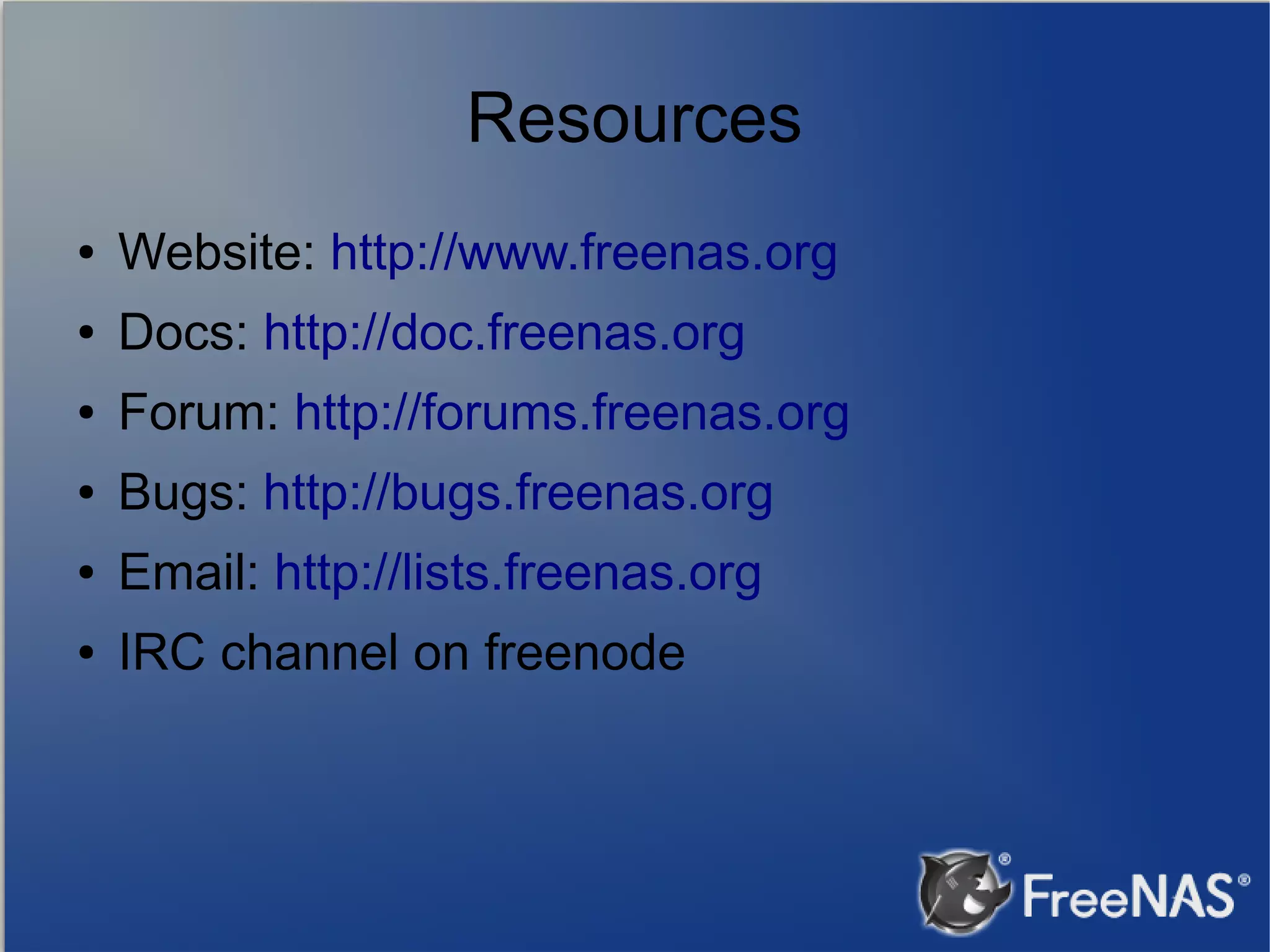

Resources ● Website: http://www.freenas.org ● Docs: http://doc.freenas.org ● Forum: http://forums.freenas.org ● Bugs: http://bugs.freenas.org ● Email: http://lists.freenas.org ● IRC channel on freenode

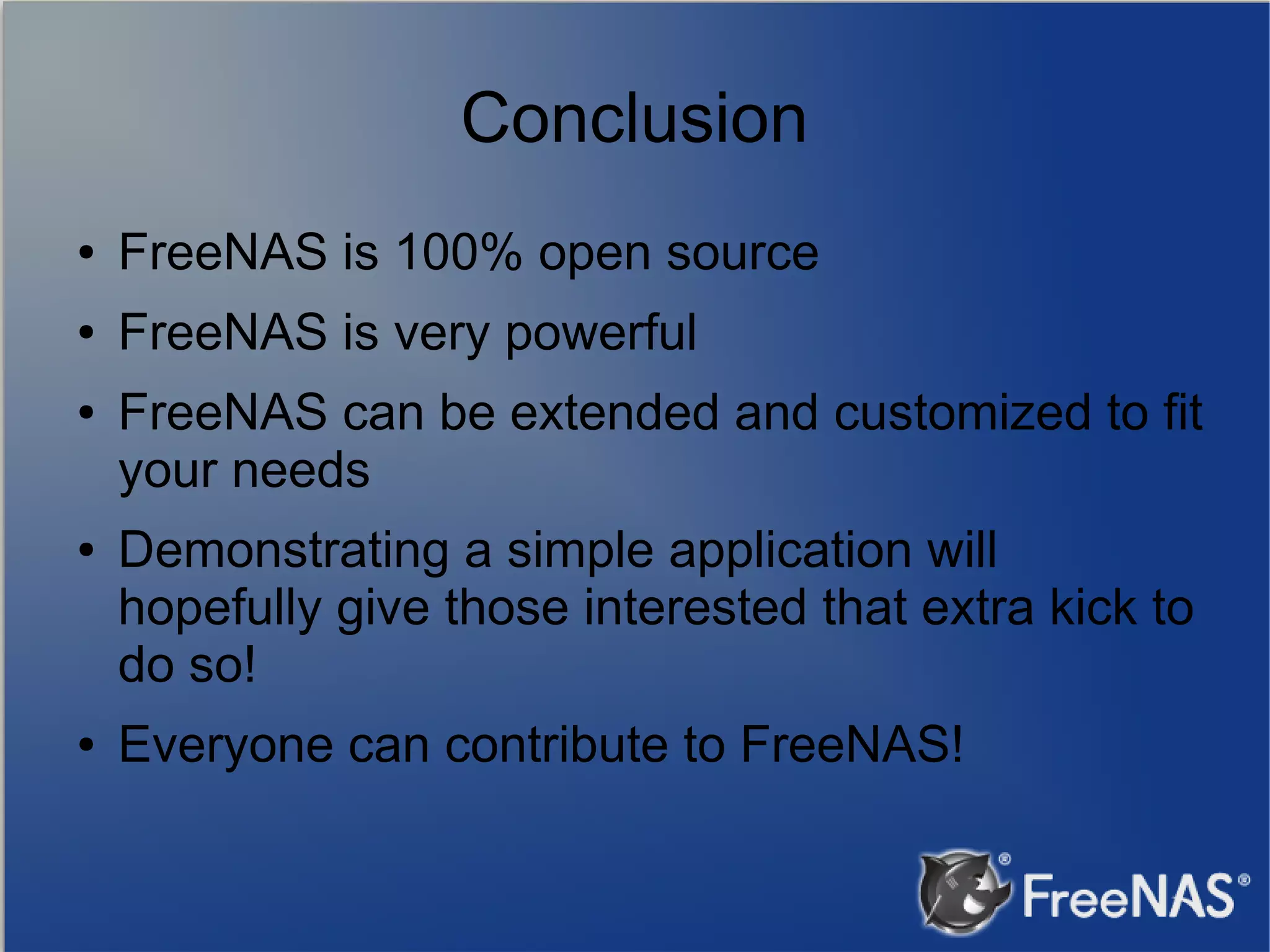

Conclusion ● FreeNAS is 100% open source ● FreeNAS is very powerful ● ● ● FreeNAS can be extended and customized to fit your needs Demonstrating a simple application will hopefully give those interested that extra kick to do so! Everyone can contribute to FreeNAS!
