Installing configuringdevelopingwithxampp

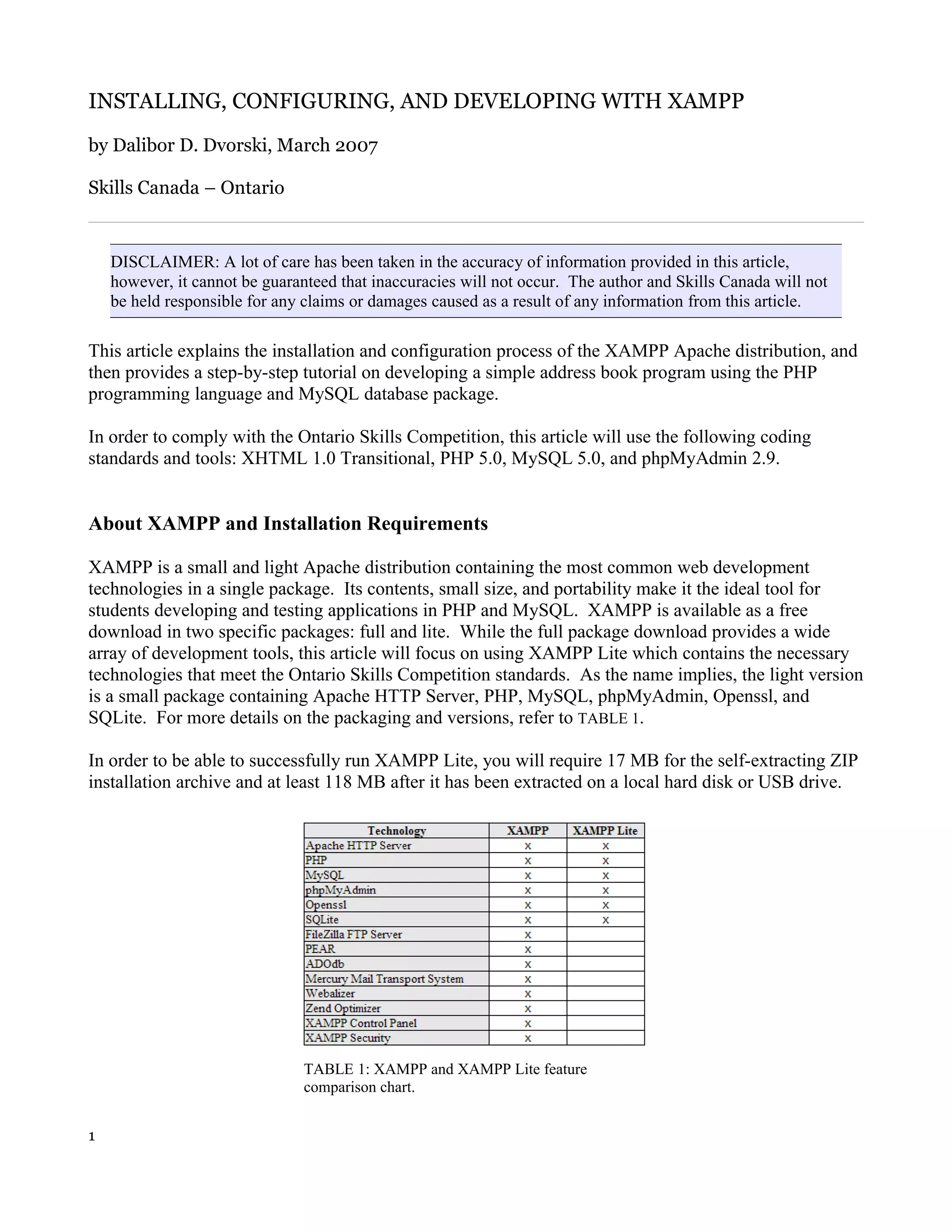

- 1. INSTALLING, CONFIGURING, ANDDEVELOPING WITH XAMPP by Dalibor D. Dvorski, March 2007 Skills Canada – Ontario DISCLAIMER: A lot of care has been taken in the accuracy of information provided in this article, however, it cannot be guaranteed that inaccuracies will not occur. The author and Skills Canada will not be held responsible for any claims or damages caused as a result of any information from this article. This article explains the installation and configuration process of the XAMPP Apache distribution, and then provides a step-by-step tutorial on developing a simple address book program using the PHP programming language and MySQL database package. In order to comply with the Ontario Skills Competition, this article will use the following coding standards and tools: XHTML 1.0 Transitional, PHP 5.0, MySQL 5.0, and phpMyAdmin 2.9. About XAMPP and Installation Requirements XAMPP is a small and light Apache distribution containing the most common web development technologies in a single package. Its contents, small size, and portability make it the ideal tool for students developing and testing applications in PHP and MySQL. XAMPP is available as a free download in two specific packages: full and lite. While the full package download provides a wide array of development tools, this article will focus on using XAMPP Lite which contains the necessary technologies that meet the Ontario Skills Competition standards. As the name implies, the light version is a small package containing Apache HTTP Server, PHP, MySQL, phpMyAdmin, Openssl, and SQLite. For more details on the packaging and versions, refer to TABLE 1. In order to be able to successfully run XAMPP Lite, you will require 17 MB for the self-extracting ZIP installation archive and at least 118 MB after it has been extracted on a local hard disk or USB drive. TABLE 1: XAMPP and XAMPP Lite feature comparison chart. 1

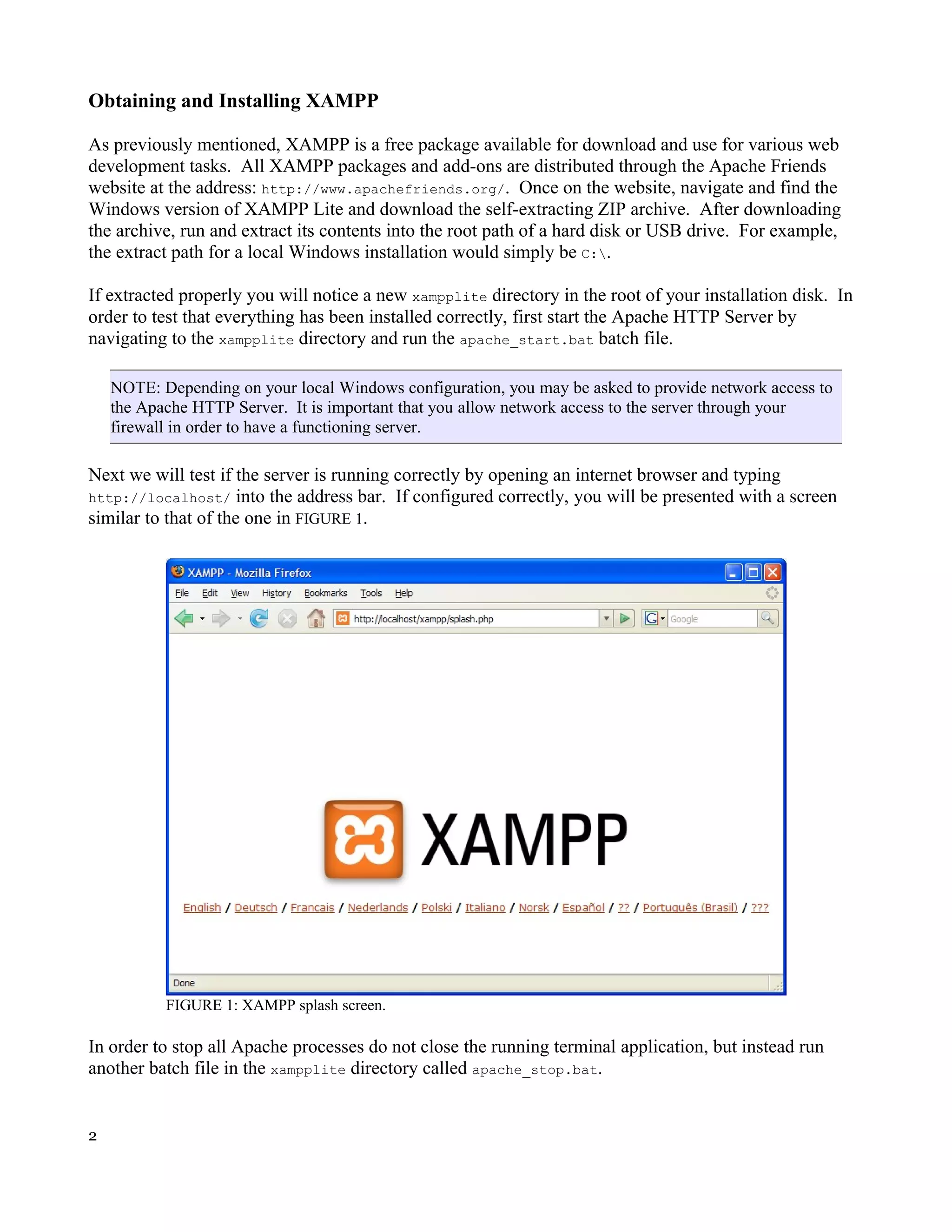

- 2. Obtaining and InstallingXAMPP As previously mentioned, XAMPP is a free package available for download and use for various web development tasks. All XAMPP packages and add-ons are distributed through the Apache Friends website at the address: http://www.apachefriends.org/. Once on the website, navigate and find the Windows version of XAMPP Lite and download the self-extracting ZIP archive. After downloading the archive, run and extract its contents into the root path of a hard disk or USB drive. For example, the extract path for a local Windows installation would simply be C:. If extracted properly you will notice a new xampplite directory in the root of your installation disk. In order to test that everything has been installed correctly, first start the Apache HTTP Server by navigating to the xampplite directory and run the apache_start.bat batch file. NOTE: Depending on your local Windows configuration, you may be asked to provide network access to the Apache HTTP Server. It is important that you allow network access to the server through your firewall in order to have a functioning server. Next we will test if the server is running correctly by opening an internet browser and typing http://localhost/ into the address bar. If configured correctly, you will be presented with a screen similar to that of the one in FIGURE 1. FIGURE 1: XAMPP splash screen. In order to stop all Apache processes do not close the running terminal application, but instead run another batch file in the xampplite directory called apache_stop.bat. 2

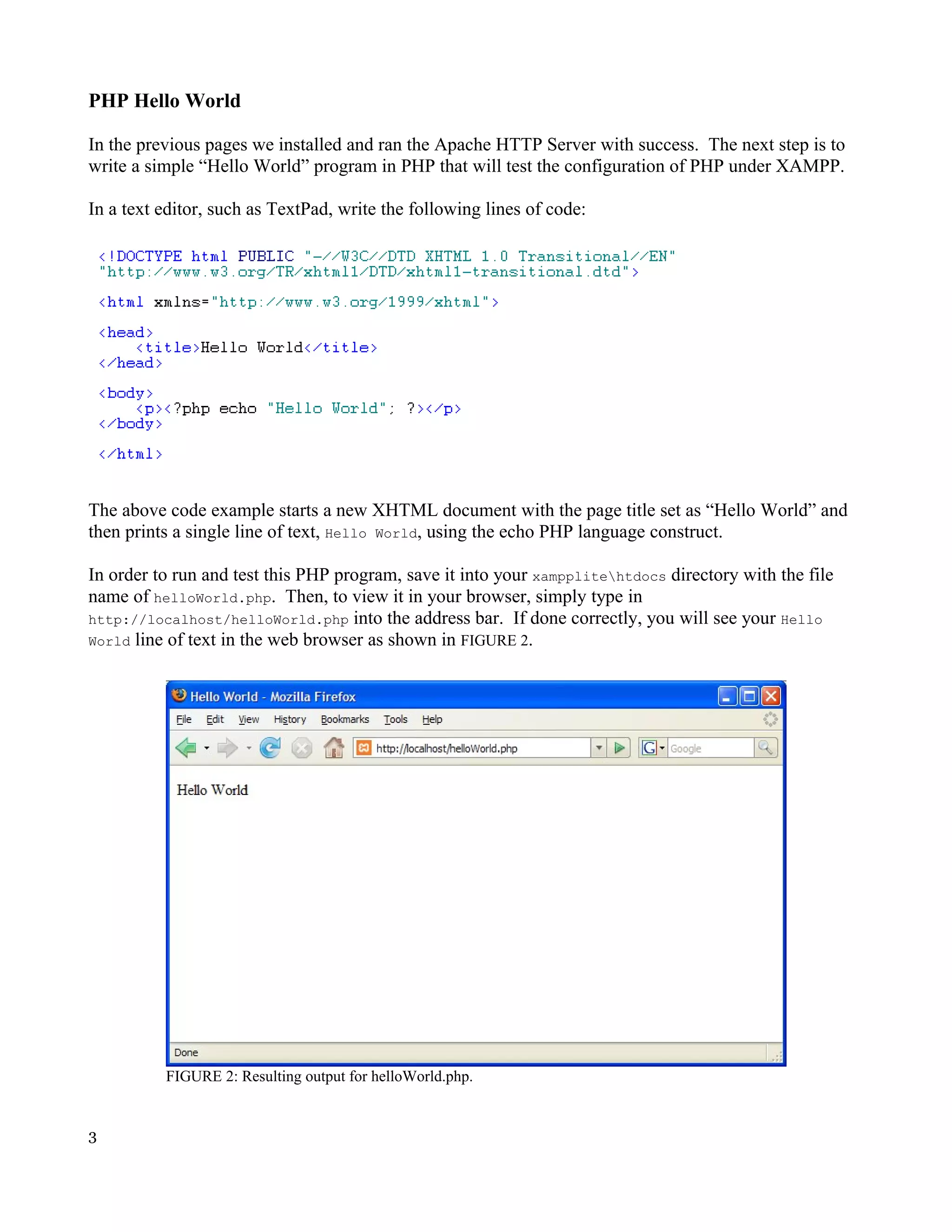

- 3. PHP Hello World Inthe previous pages we installed and ran the Apache HTTP Server with success. The next step is to write a simple “Hello World” program in PHP that will test the configuration of PHP under XAMPP. In a text editor, such as TextPad, write the following lines of code: The above code example starts a new XHTML document with the page title set as “Hello World” and then prints a single line of text, Hello World, using the echo PHP language construct. In order to run and test this PHP program, save it into your xampplitehtdocs directory with the file name of helloWorld.php. Then, to view it in your browser, simply type in http://localhost/helloWorld.php into the address bar. If done correctly, you will see your Hello World line of text in the web browser as shown in FIGURE 2. FIGURE 2: Resulting output for helloWorld.php. 3

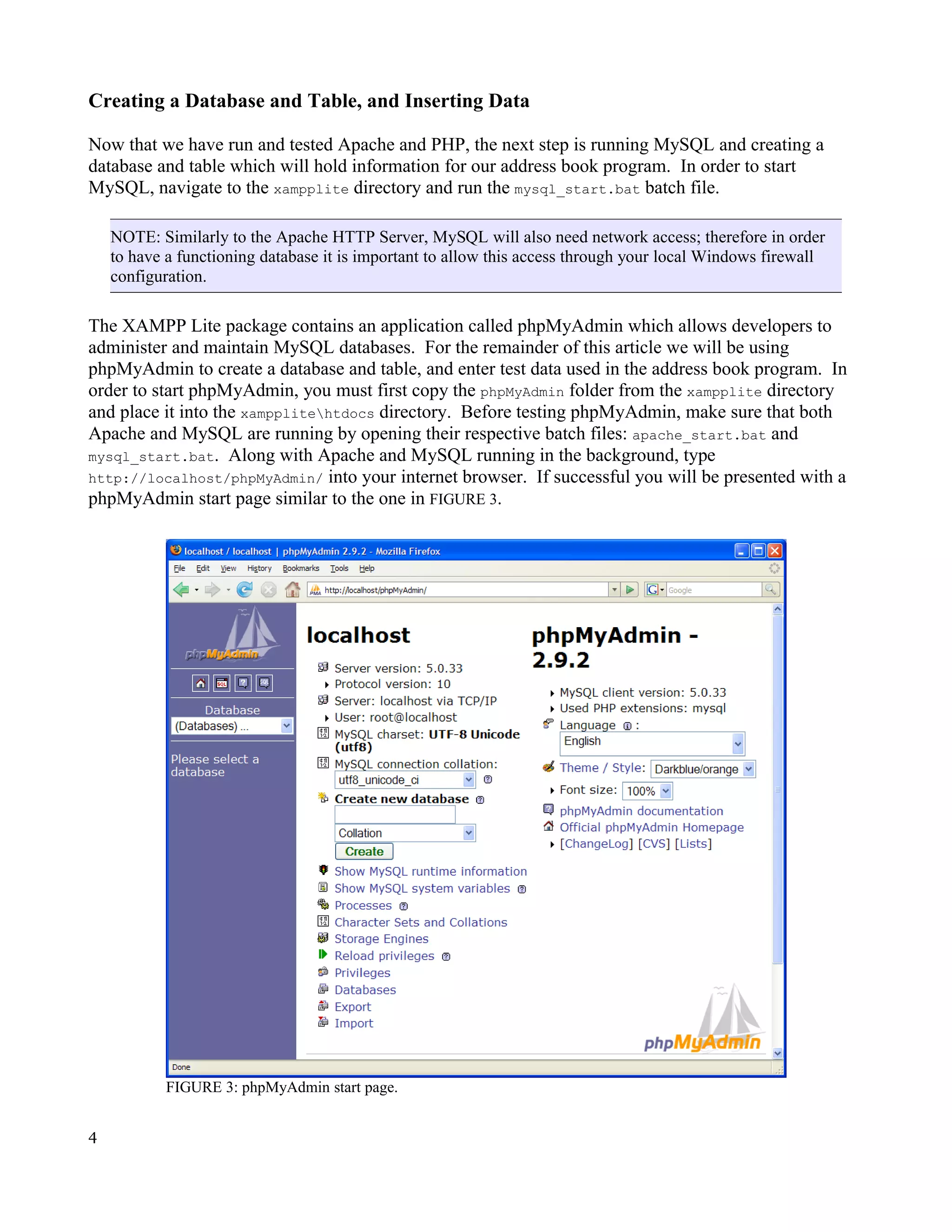

- 4. Creating a Databaseand Table, and Inserting Data Now that we have run and tested Apache and PHP, the next step is running MySQL and creating a database and table which will hold information for our address book program. In order to start MySQL, navigate to the xampplite directory and run the mysql_start.bat batch file. NOTE: Similarly to the Apache HTTP Server, MySQL will also need network access; therefore in order to have a functioning database it is important to allow this access through your local Windows firewall configuration. The XAMPP Lite package contains an application called phpMyAdmin which allows developers to administer and maintain MySQL databases. For the remainder of this article we will be using phpMyAdmin to create a database and table, and enter test data used in the address book program. In order to start phpMyAdmin, you must first copy the phpMyAdmin folder from the xampplite directory and place it into the xampplitehtdocs directory. Before testing phpMyAdmin, make sure that both Apache and MySQL are running by opening their respective batch files: apache_start.bat and mysql_start.bat. Along with Apache and MySQL running in the background, type http://localhost/phpMyAdmin/ into your internet browser. If successful you will be presented with a phpMyAdmin start page similar to the one in FIGURE 3. FIGURE 3: phpMyAdmin start page. 4

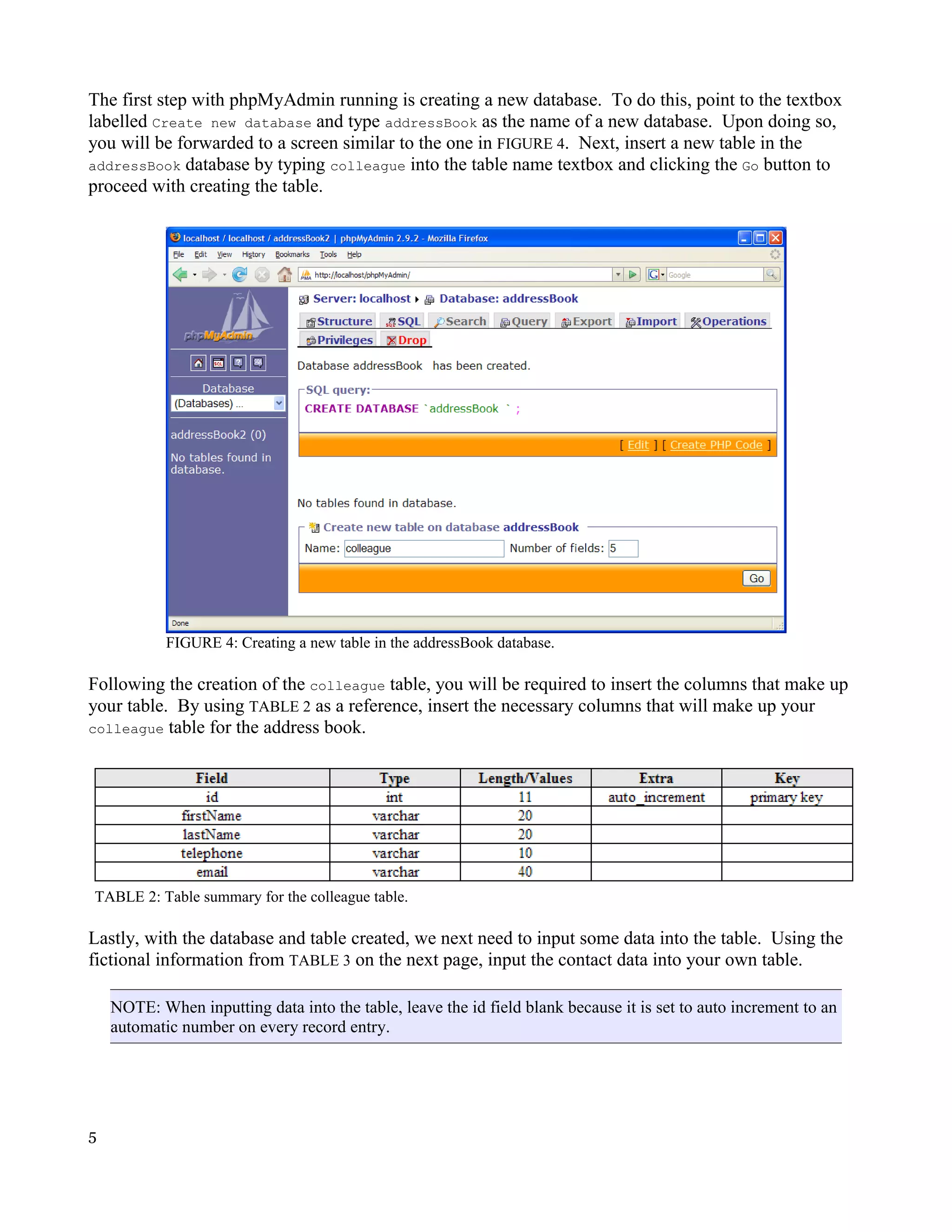

- 5. The first stepwith phpMyAdmin running is creating a new database. To do this, point to the textbox labelled Create new database and type addressBook as the name of a new database. Upon doing so, you will be forwarded to a screen similar to the one in FIGURE 4. Next, insert a new table in the addressBook database by typing colleague into the table name textbox and clicking the Go button to proceed with creating the table. FIGURE 4: Creating a new table in the addressBook database. Following the creation of the colleague table, you will be required to insert the columns that make up your table. By using TABLE 2 as a reference, insert the necessary columns that will make up your colleague table for the address book. TABLE 2: Table summary for the colleague table. Lastly, with the database and table created, we next need to input some data into the table. Using the fictional information from TABLE 3 on the next page, input the contact data into your own table. NOTE: When inputting data into the table, leave the id field blank because it is set to auto increment to an automatic number on every record entry. 5

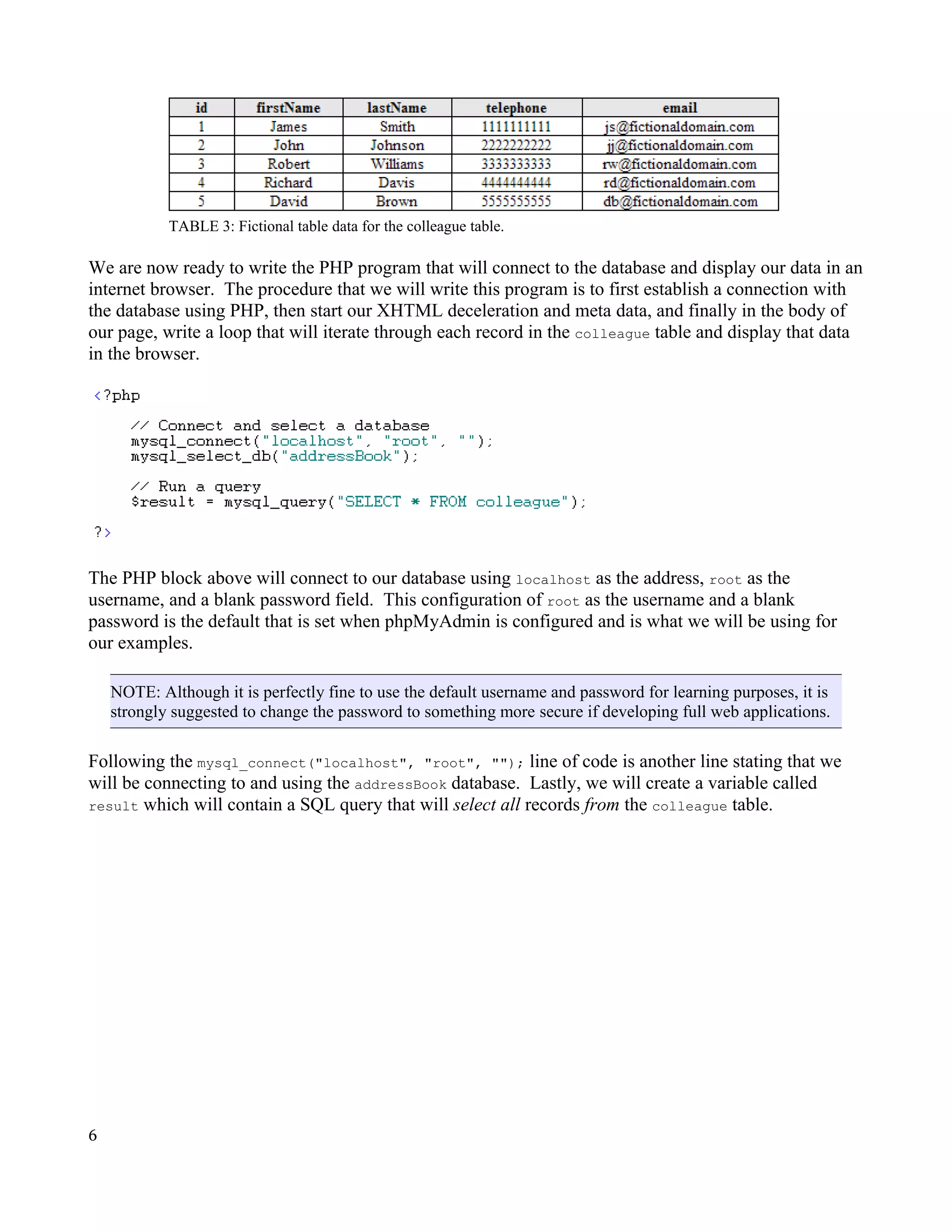

- 6. TABLE 3: Fictionaltable data for the colleague table. We are now ready to write the PHP program that will connect to the database and display our data in an internet browser. The procedure that we will write this program is to first establish a connection with the database using PHP, then start our XHTML deceleration and meta data, and finally in the body of our page, write a loop that will iterate through each record in the colleague table and display that data in the browser. The PHP block above will connect to our database using localhost as the address, root as the username, and a blank password field. This configuration of root as the username and a blank password is the default that is set when phpMyAdmin is configured and is what we will be using for our examples. NOTE: Although it is perfectly fine to use the default username and password for learning purposes, it is strongly suggested to change the password to something more secure if developing full web applications. Following the mysql_connect("localhost", "root", ""); line of code is another line stating that we will be connecting to and using the addressBook database. Lastly, we will create a variable called result which will contain a SQL query that will select all records from the colleague table. 6

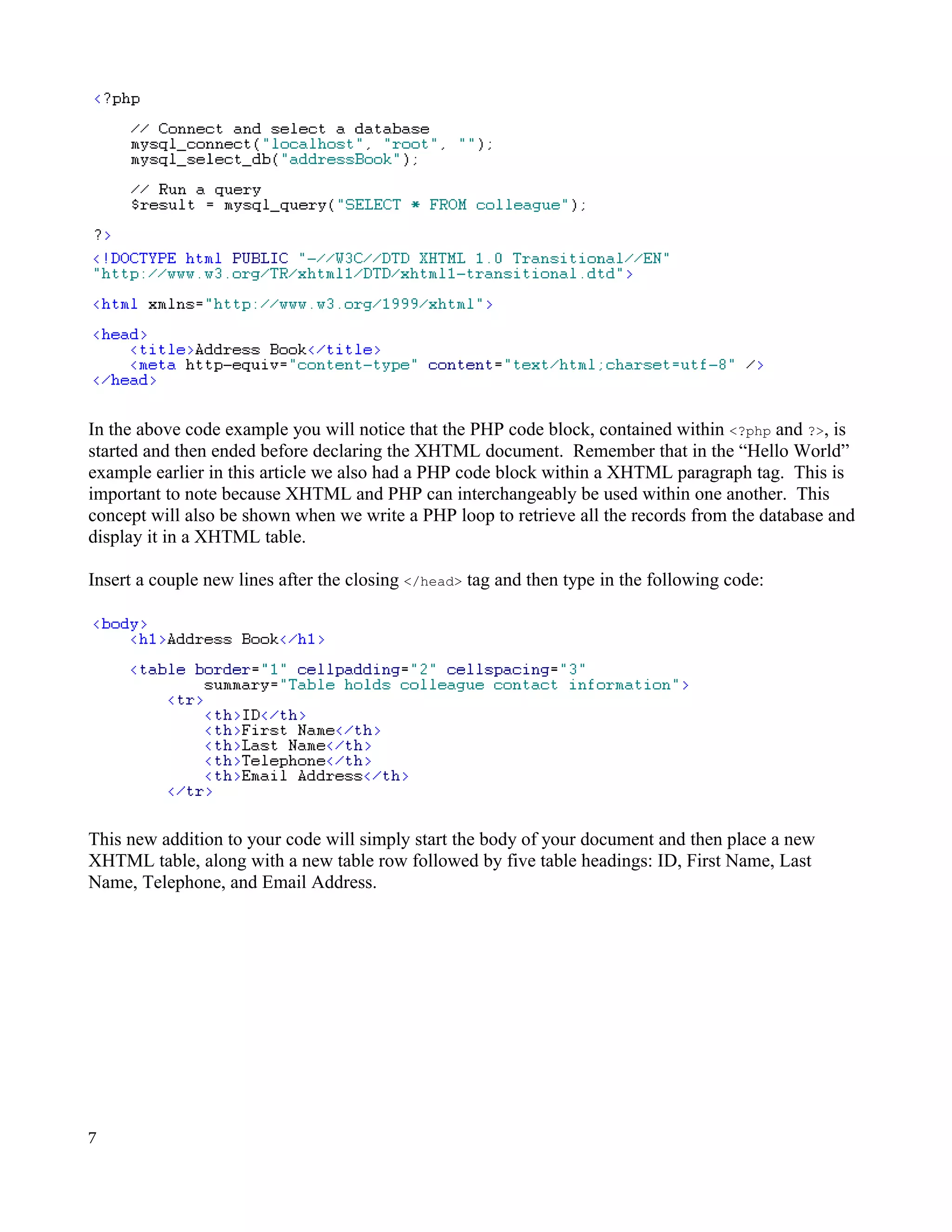

- 7. In the abovecode example you will notice that the PHP code block, contained within <?php and ?>, is started and then ended before declaring the XHTML document. Remember that in the “Hello World” example earlier in this article we also had a PHP code block within a XHTML paragraph tag. This is important to note because XHTML and PHP can interchangeably be used within one another. This concept will also be shown when we write a PHP loop to retrieve all the records from the database and display it in a XHTML table. Insert a couple new lines after the closing </head> tag and then type in the following code: This new addition to your code will simply start the body of your document and then place a new XHTML table, along with a new table row followed by five table headings: ID, First Name, Last Name, Telephone, and Email Address. 7

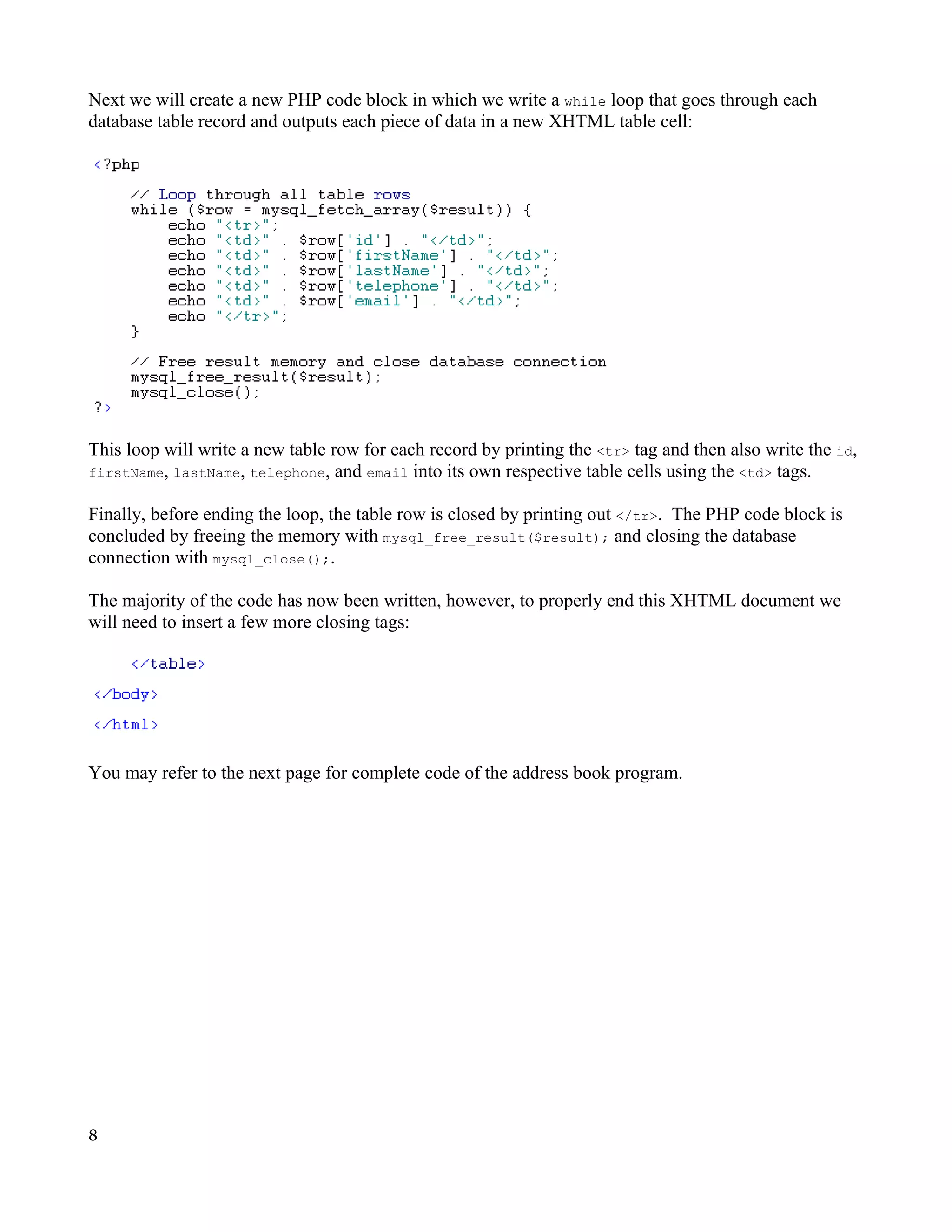

- 8. Next we willcreate a new PHP code block in which we write a while loop that goes through each database table record and outputs each piece of data in a new XHTML table cell: This loop will write a new table row for each record by printing the <tr> tag and then also write the id, firstName, lastName, telephone, and email into its own respective table cells using the <td> tags. Finally, before ending the loop, the table row is closed by printing out </tr>. The PHP code block is concluded by freeing the memory with mysql_free_result($result); and closing the database connection with mysql_close();. The majority of the code has now been written, however, to properly end this XHTML document we will need to insert a few more closing tags: You may refer to the next page for complete code of the address book program. 8
- 9.

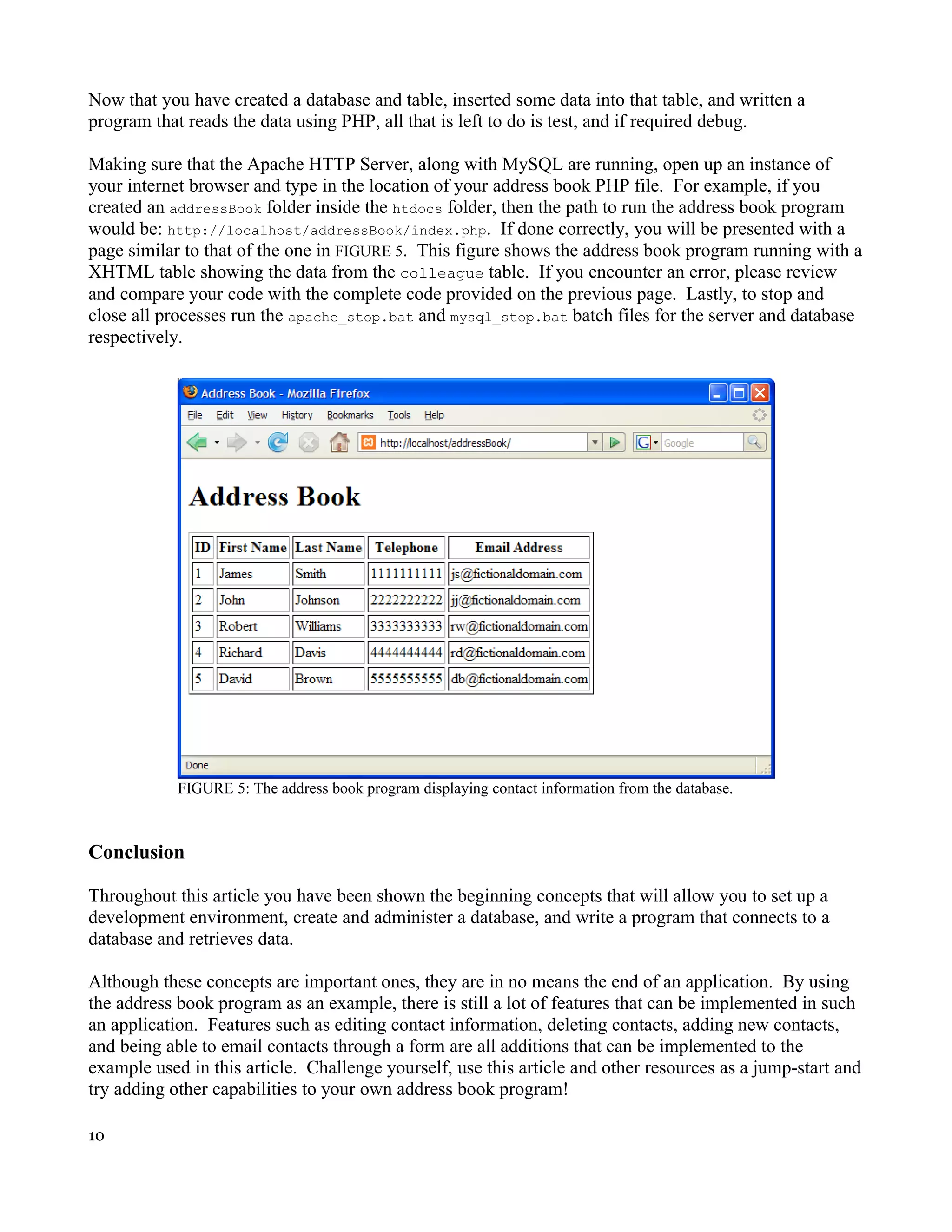

- 10. Now that youhave created a database and table, inserted some data into that table, and written a program that reads the data using PHP, all that is left to do is test, and if required debug. Making sure that the Apache HTTP Server, along with MySQL are running, open up an instance of your internet browser and type in the location of your address book PHP file. For example, if you created an addressBook folder inside the htdocs folder, then the path to run the address book program would be: http://localhost/addressBook/index.php. If done correctly, you will be presented with a page similar to that of the one in FIGURE 5. This figure shows the address book program running with a XHTML table showing the data from the colleague table. If you encounter an error, please review and compare your code with the complete code provided on the previous page. Lastly, to stop and close all processes run the apache_stop.bat and mysql_stop.bat batch files for the server and database respectively. FIGURE 5: The address book program displaying contact information from the database. Conclusion Throughout this article you have been shown the beginning concepts that will allow you to set up a development environment, create and administer a database, and write a program that connects to a database and retrieves data. Although these concepts are important ones, they are in no means the end of an application. By using the address book program as an example, there is still a lot of features that can be implemented in such an application. Features such as editing contact information, deleting contacts, adding new contacts, and being able to email contacts through a form are all additions that can be implemented to the example used in this article. Challenge yourself, use this article and other resources as a jump-start and try adding other capabilities to your own address book program! 10
