Grails & Angular: unleashing the dynamic duo

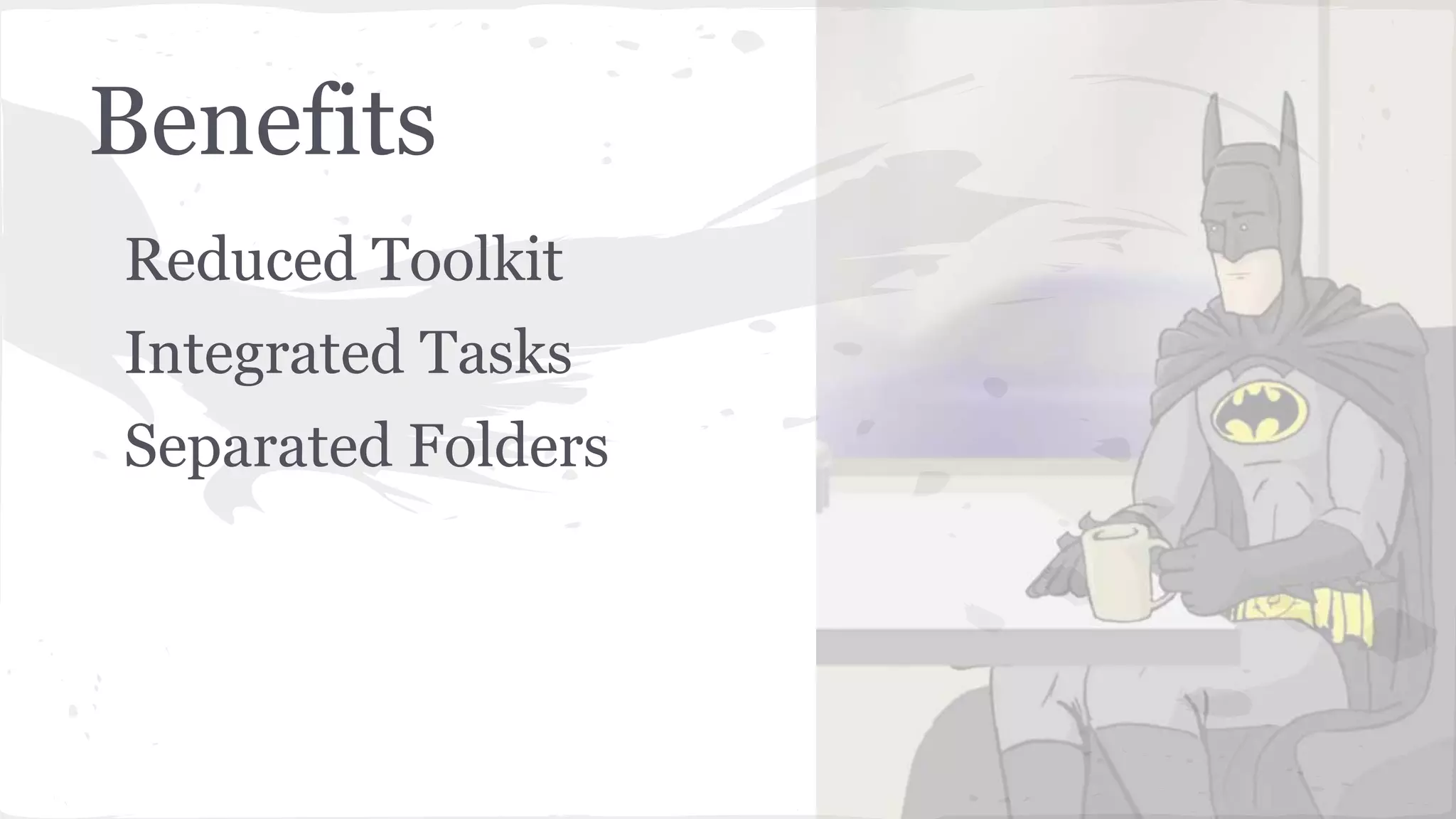

This document discusses combining Grails and Angular frameworks. It describes using Grails 3.2.1 or higher with the Angular2 profile to separate the back-end and front-end into different folders. The Angular CLI is used to scaffold components, services, and classes in TypeScript. Both the back-end and front-end can be run locally and deployed together, with the back-end providing REST APIs and the front-end consuming them via an Angular service. Benefits include reduced tooling, integrated tasks, and separated concerns, while improvements could include better client scaffolding and support for additional SPA frameworks.
Grails & Angular: unleashing the dynamic duo
- 1. Unleashing the DynamicDuo Dr. Rubén Mondéjar Grails & Angular

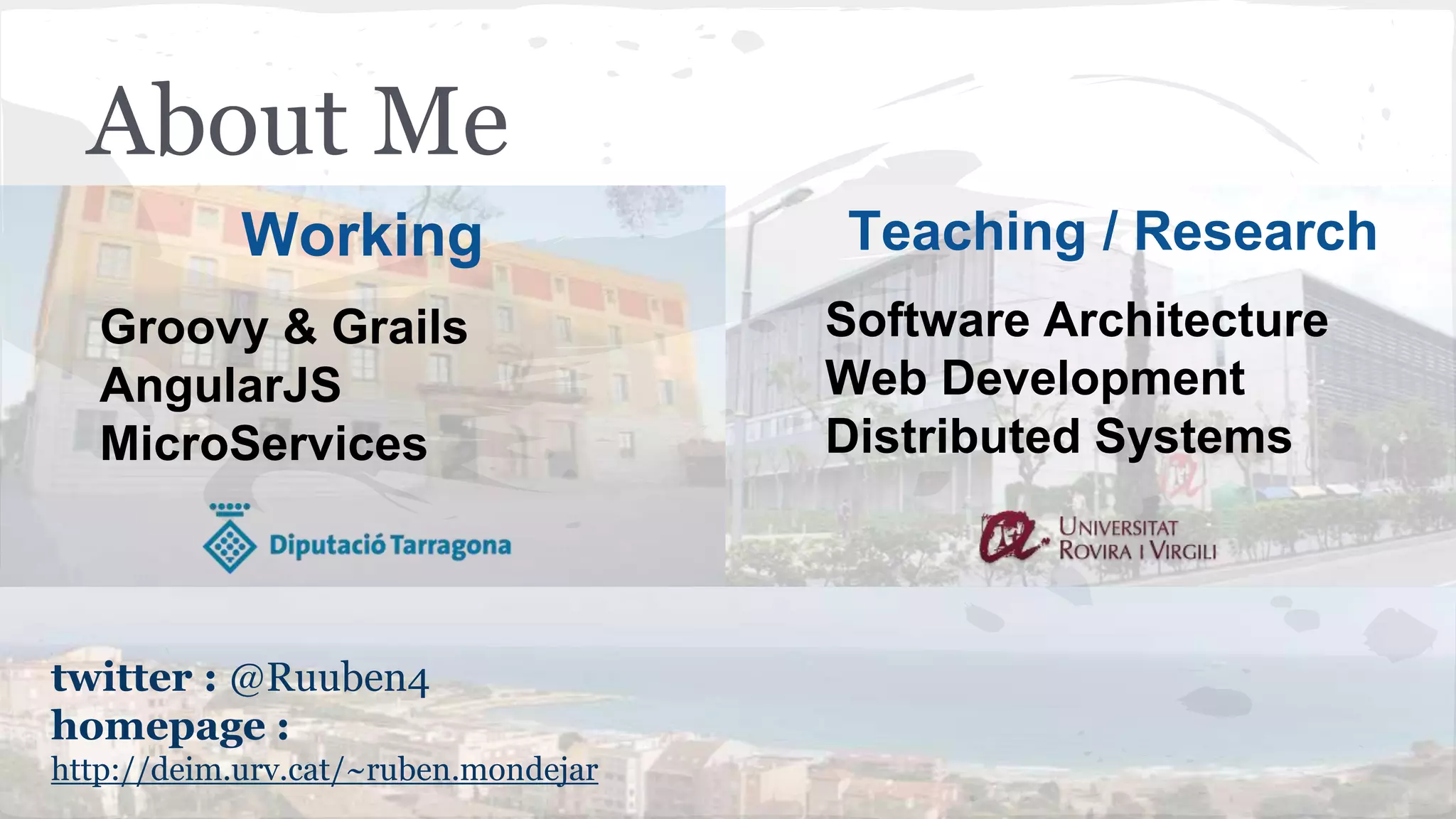

- 2. About Me twitter :@Ruuben4 homepage : http://deim.urv.cat/~ruben.mondejar Working Groovy & Grails AngularJS MicroServices Teaching / Research Software Architecture Web Development Distributed Systems

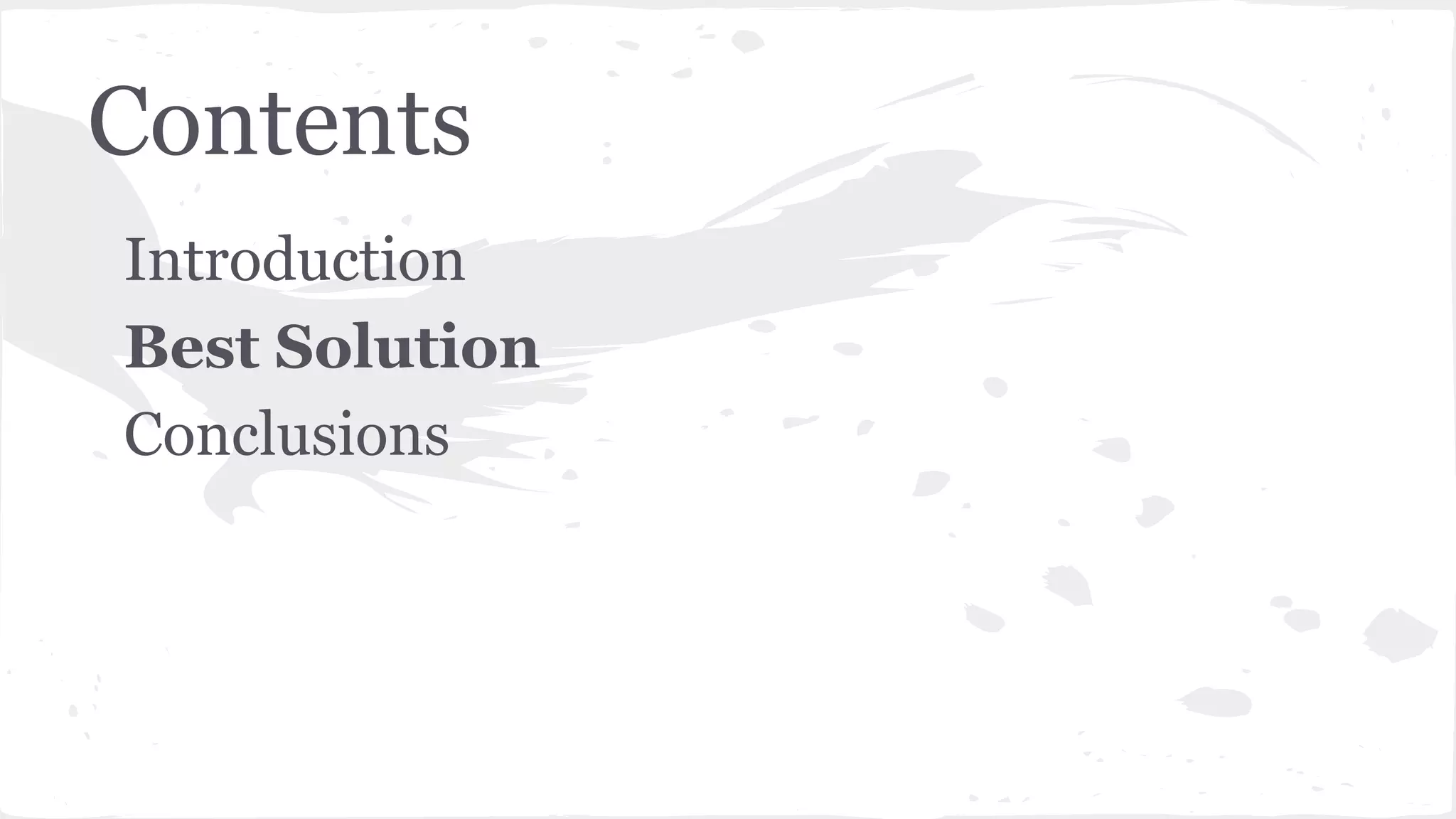

- 3.

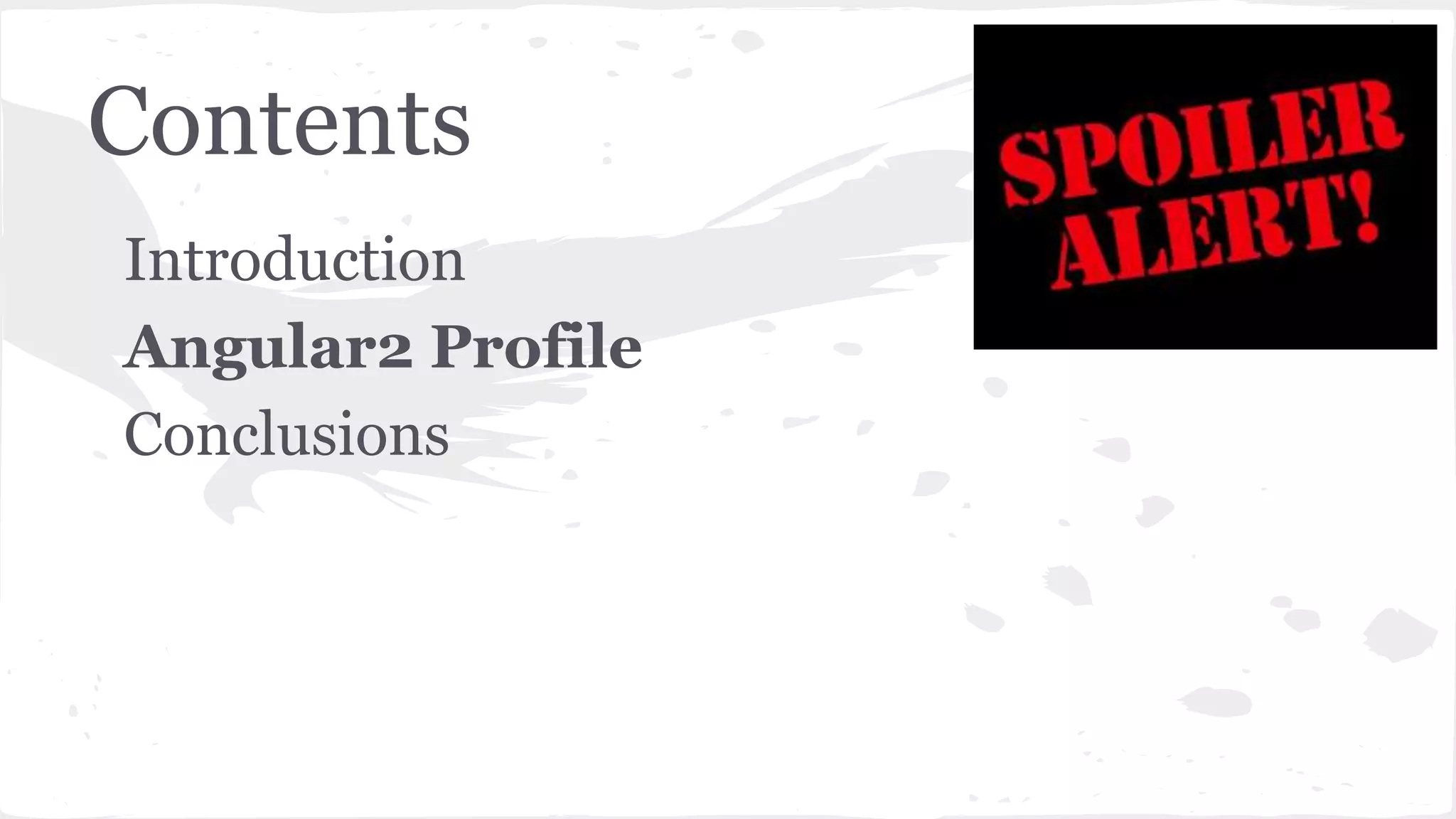

- 4.

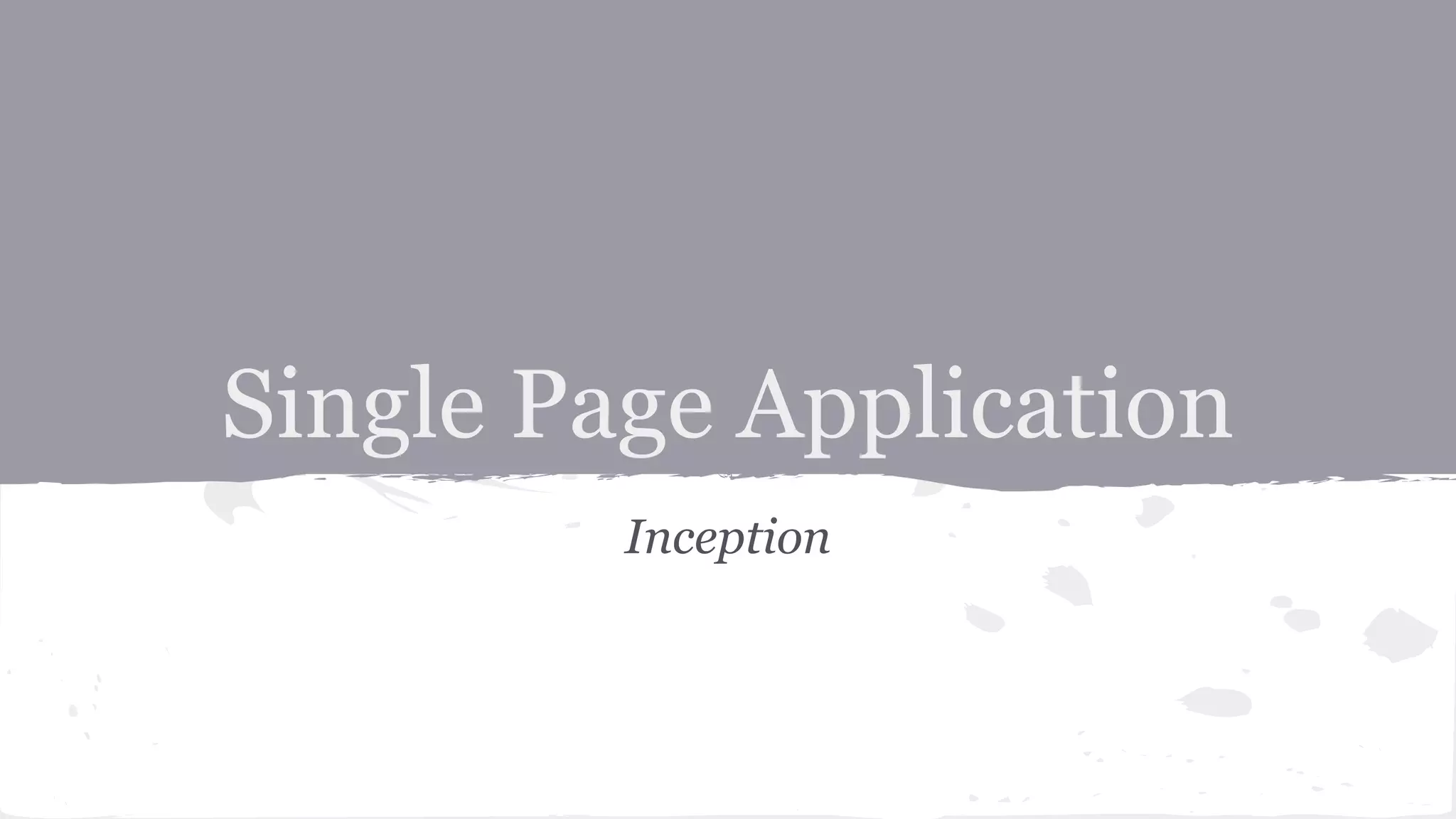

- 5.

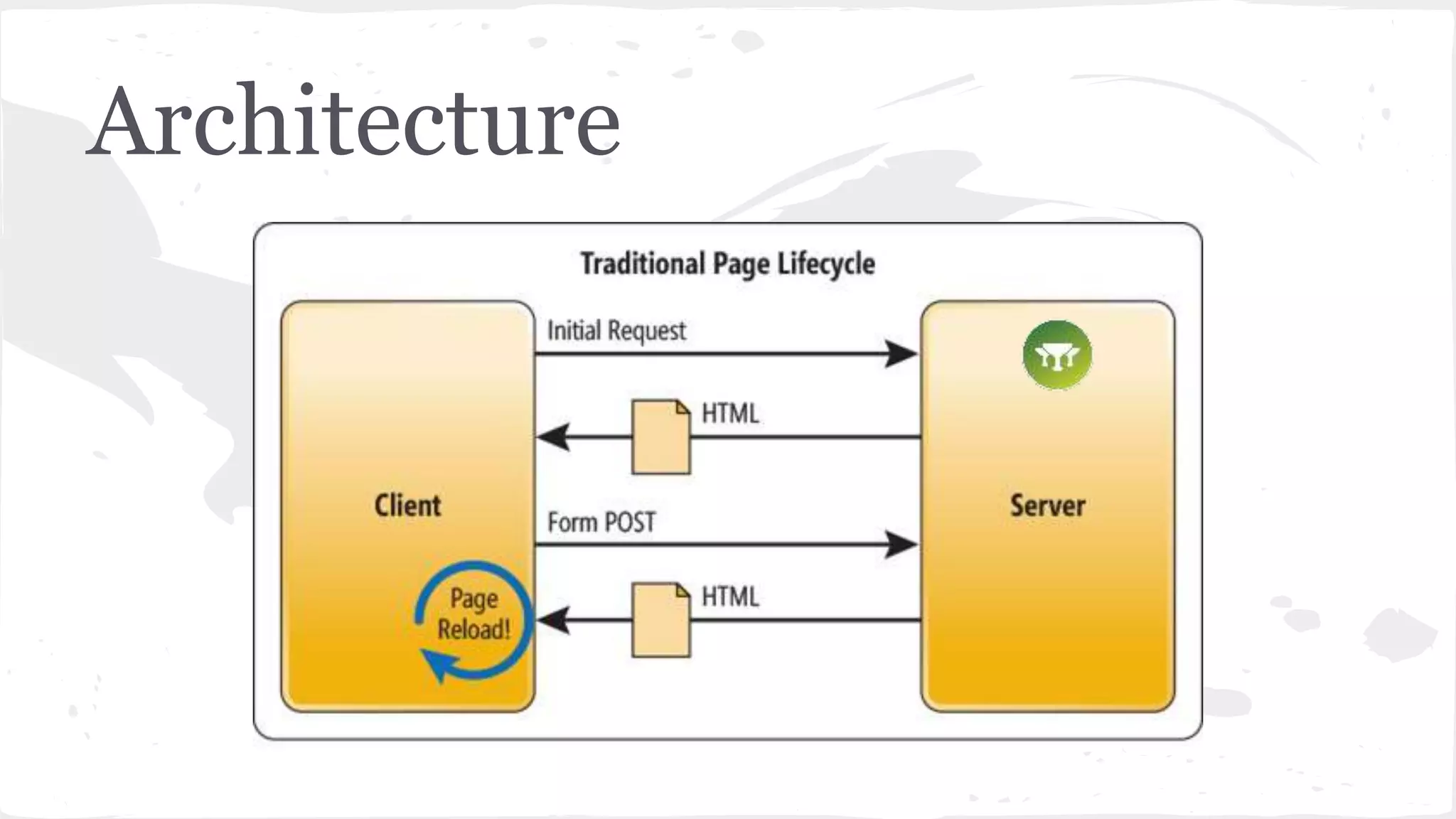

- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13. How it feelsto learn JavaScript (2016) https://hackernoon.com/how-it-feels-to-learn-javascript-in-2016-d3a717dd577f
- 14.

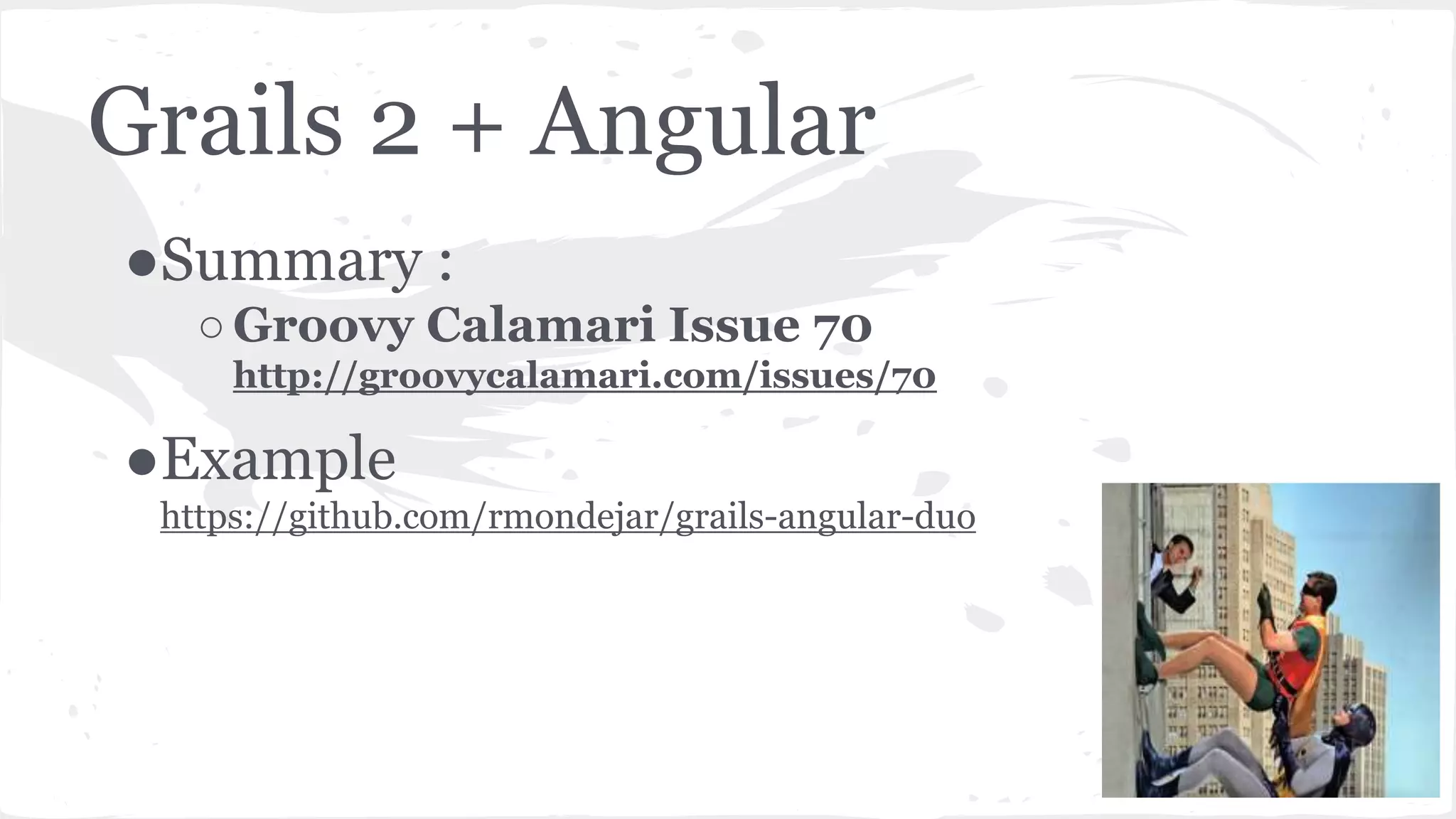

- 15. Grails 2 +Angular ●Summary : ○Groovy Calamari Issue 70 http://groovycalamari.com/issues/70 ●Example https://github.com/rmondejar/grails-angular-duo

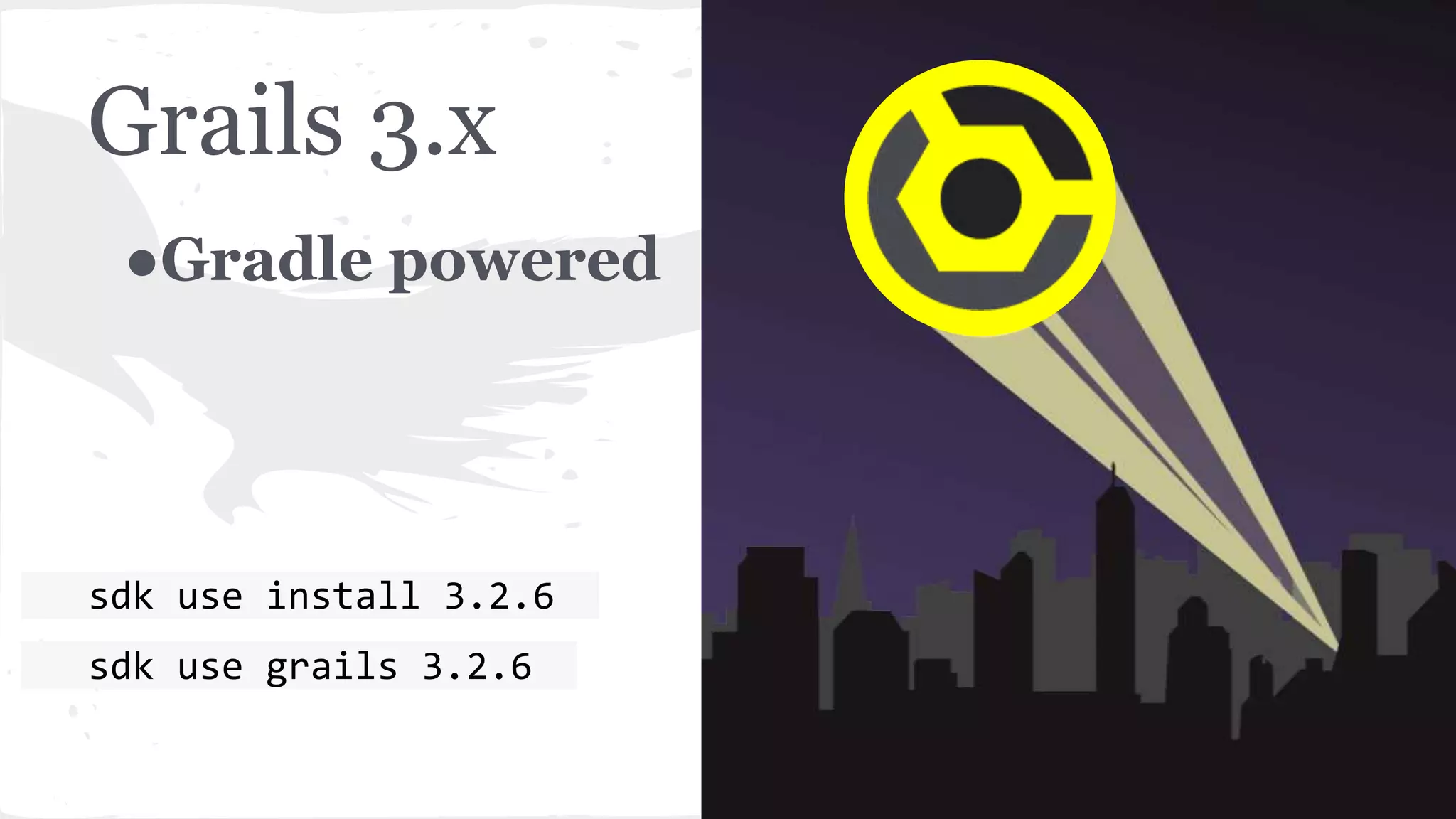

- 16. Grails 3.x ●Gradle powered sdkuse install 3.2.6 sdk use grails 3.2.6

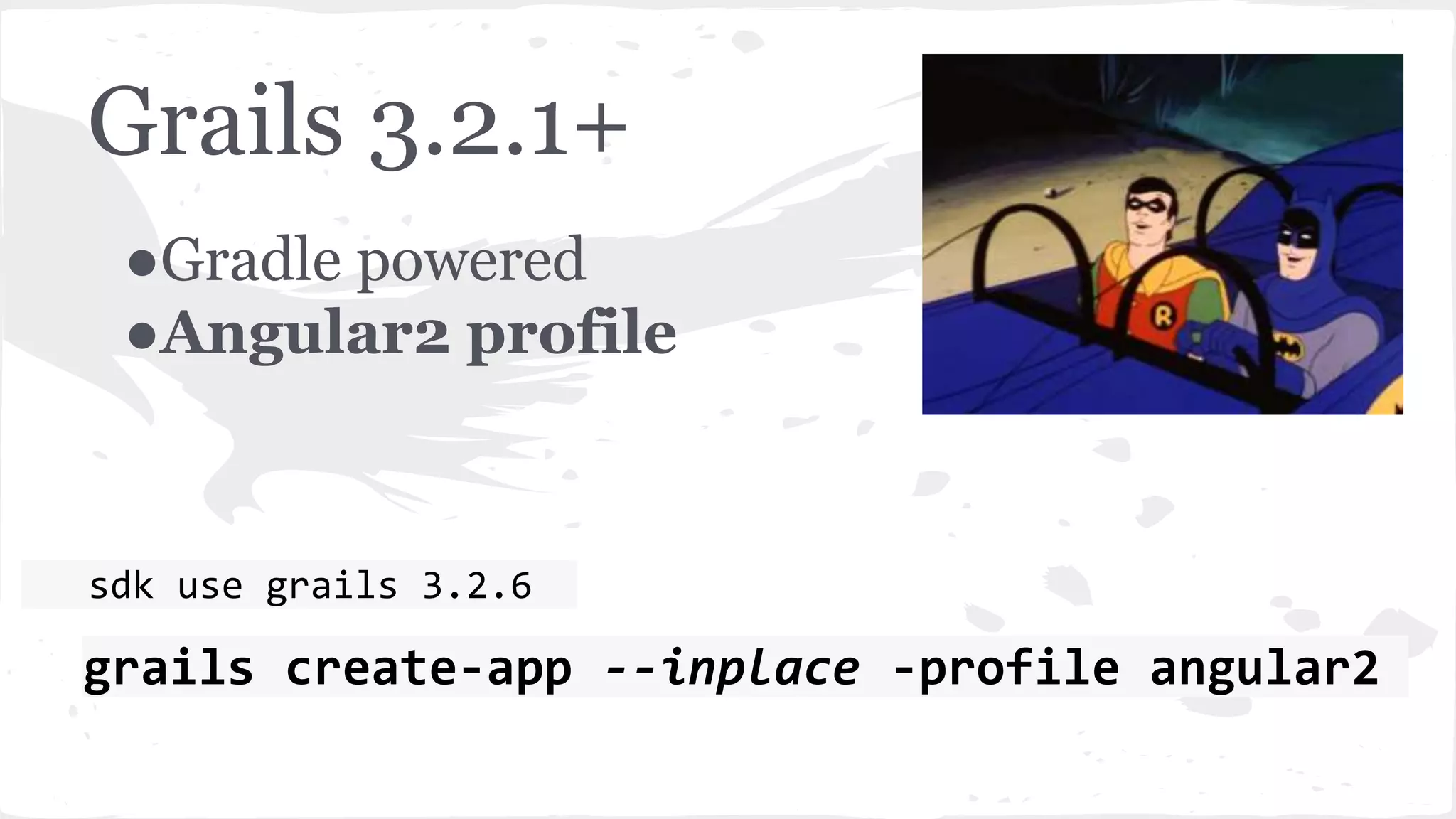

- 17. ●Gradle powered ●Angular2 profile Grails3.2.1+ sdk use grails 3.2.6 grails create-app --inplace -profile angular2
- 18. client/ gradle/ gradlew gradlew.bat server/ settings.gradle Grails 3.2.1+ ●Gradle powered ●Angular2profile ○Folder separation sdk use grails 3.2.6 grails create-app --inplace -profile angular2

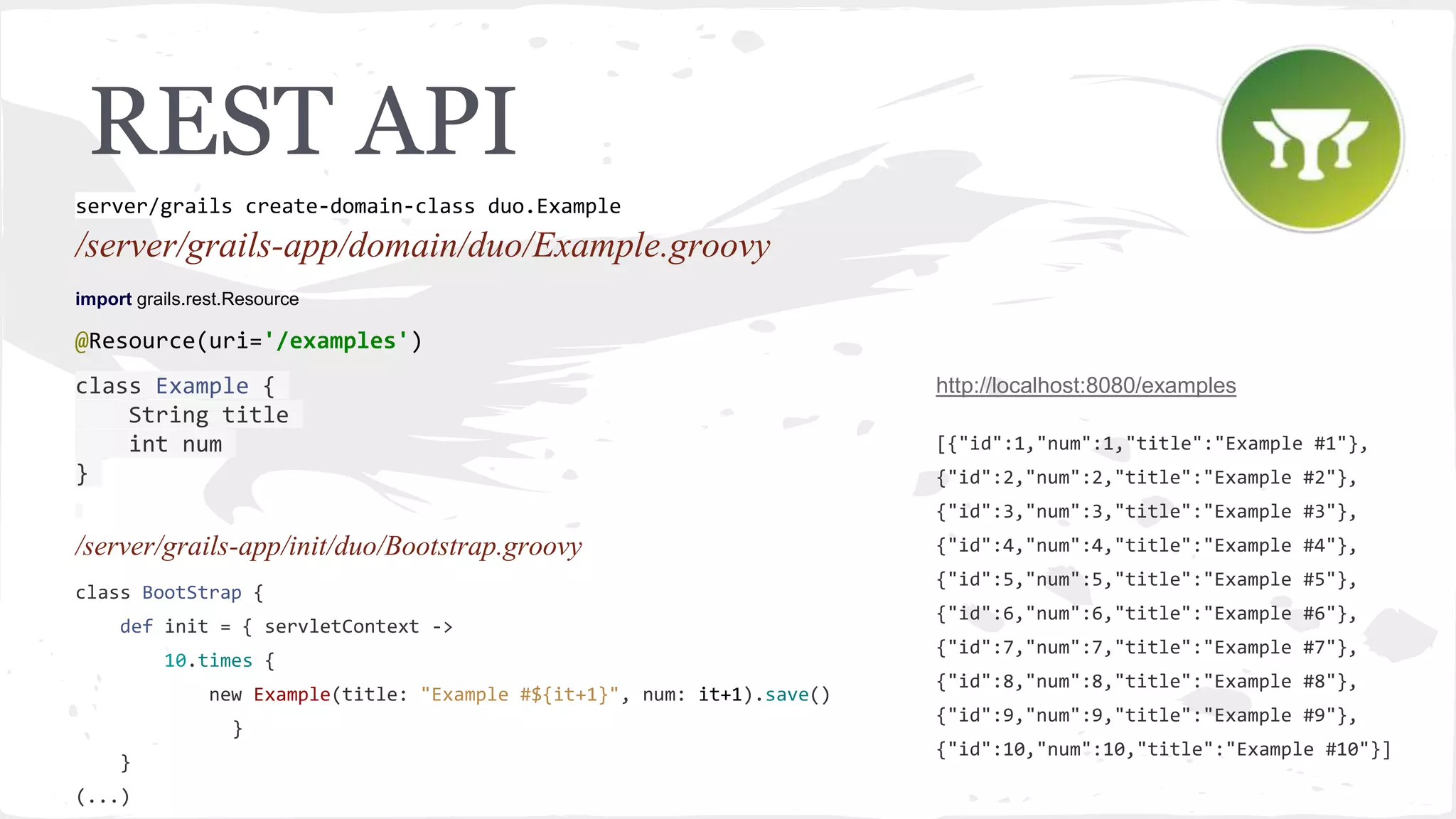

- 19. REST API /server/grails-app/domain/duo/Example.groovy import grails.rest.Resource @Resource(uri='/examples') classExample { String title int num } /server/grails-app/init/duo/Bootstrap.groovy class BootStrap { def init = { servletContext -> 10.times { new Example(title: "Example #${it+1}", num: it+1).save() } } (...) server/grails create-domain-class duo.Example http://localhost:8080/examples [{"id":1,"num":1,"title":"Example #1"}, {"id":2,"num":2,"title":"Example #2"}, {"id":3,"num":3,"title":"Example #3"}, {"id":4,"num":4,"title":"Example #4"}, {"id":5,"num":5,"title":"Example #5"}, {"id":6,"num":6,"title":"Example #6"}, {"id":7,"num":7,"title":"Example #7"}, {"id":8,"num":8,"title":"Example #8"}, {"id":9,"num":9,"title":"Example #9"}, {"id":10,"num":10,"title":"Example #10"}]

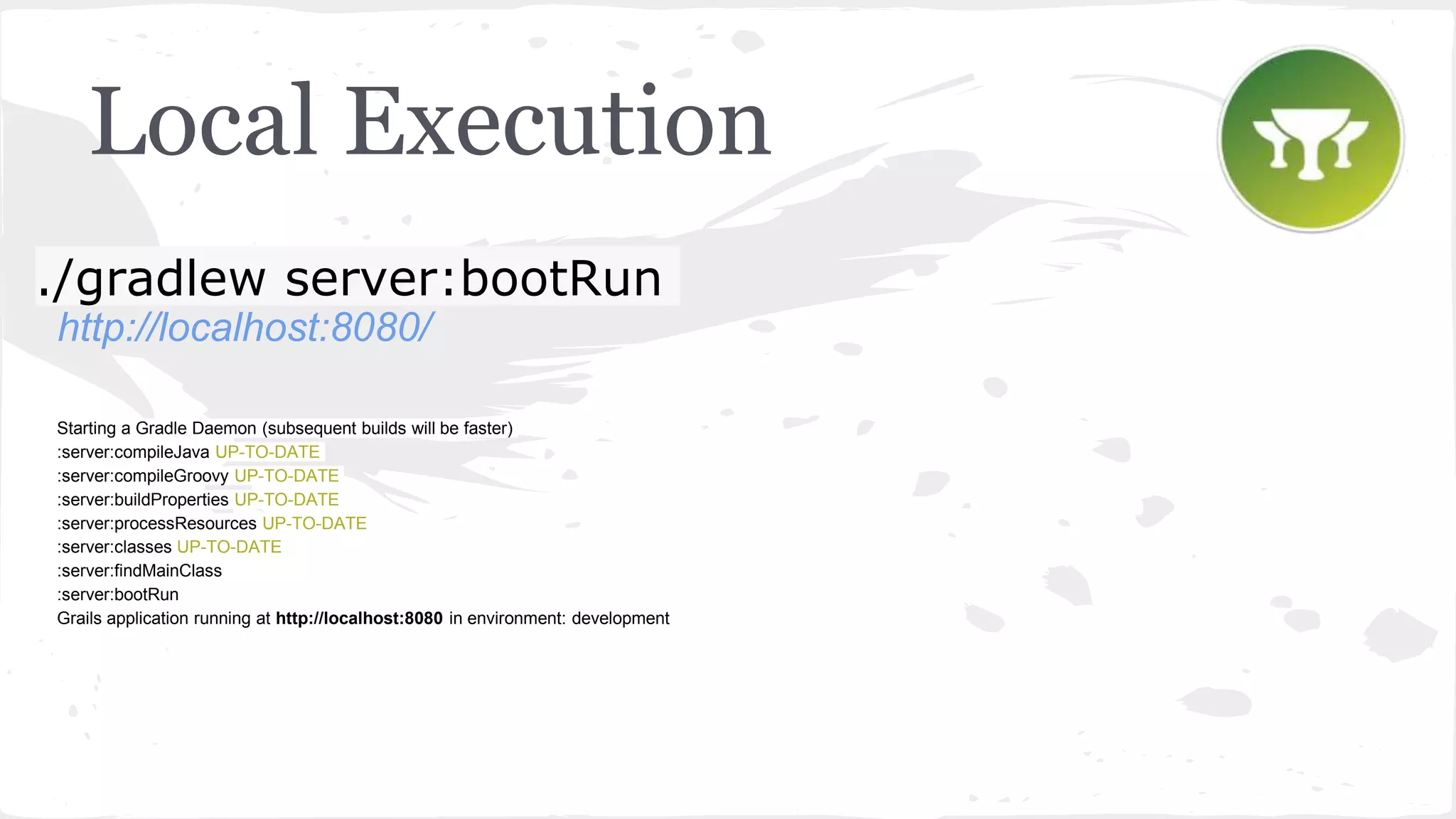

- 20. Local Execution ./gradlew server:bootRun http://localhost:8080/ Startinga Gradle Daemon (subsequent builds will be faster) :server:compileJava UP-TO-DATE :server:compileGroovy UP-TO-DATE :server:buildProperties UP-TO-DATE :server:processResources UP-TO-DATE :server:classes UP-TO-DATE :server:findMainClass :server:bootRun Grails application running at http://localhost:8080 in environment: development

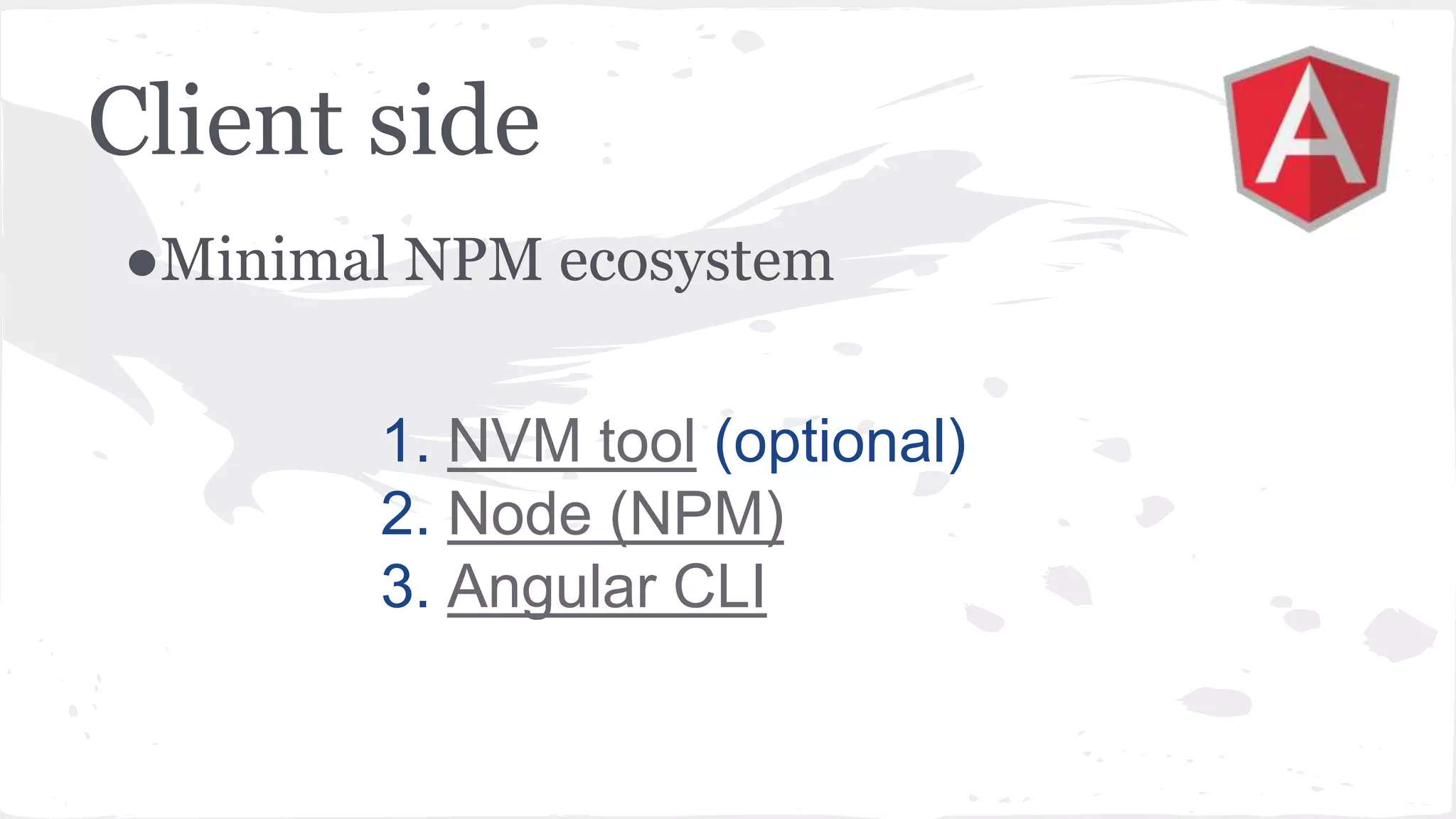

- 21. Client side ●Minimal NPMecosystem 1. NVM tool (optional) 2. Node (NPM) 3. Angular CLI

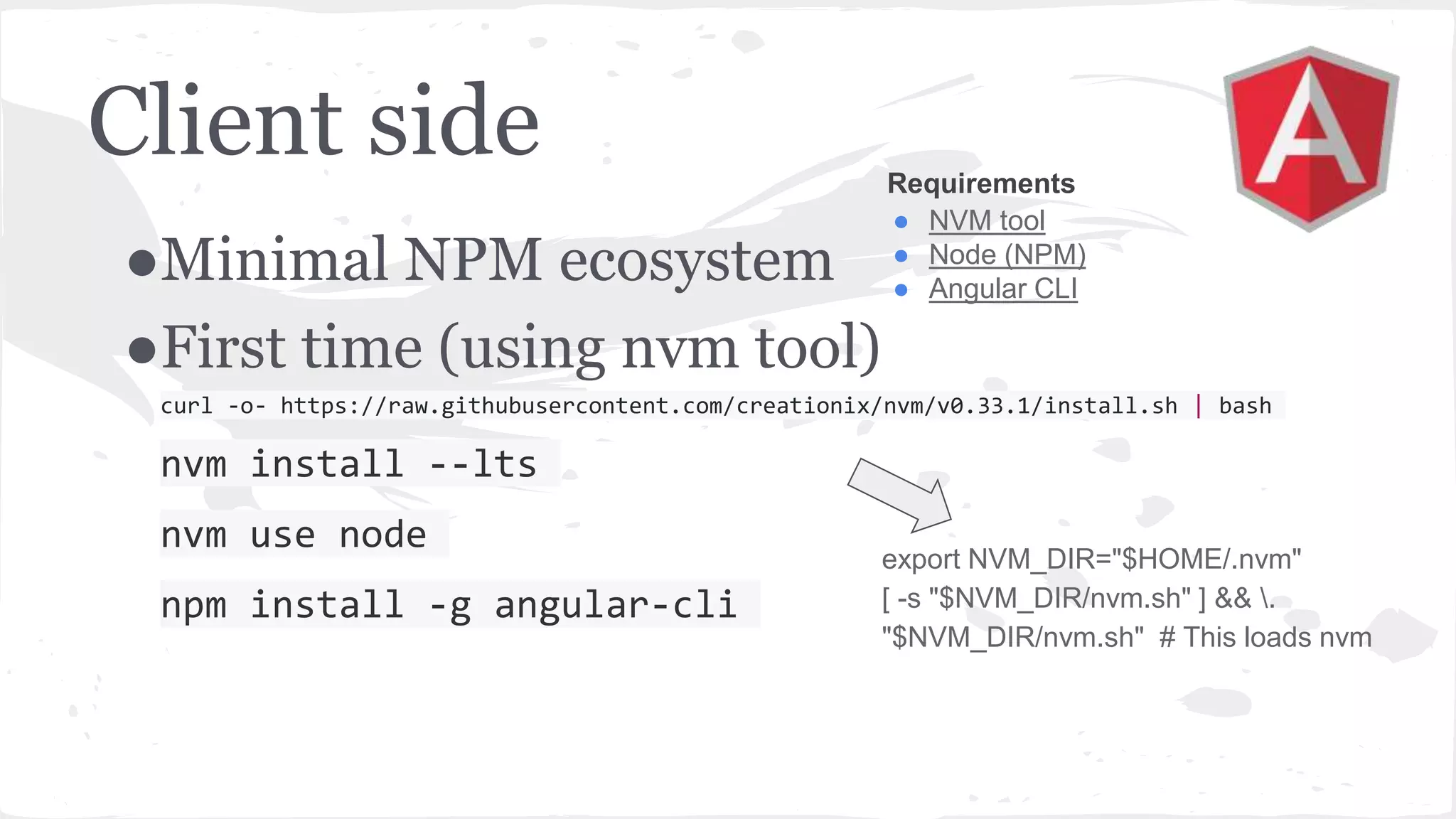

- 22. Client side ●Minimal NPMecosystem ●First time (using nvm tool) curl -o- https://raw.githubusercontent.com/creationix/nvm/v0.33.1/install.sh | bash nvm install --lts nvm use node npm install -g angular-cli Requirements ● NVM tool ● Node (NPM) ● Angular CLI export NVM_DIR="$HOME/.nvm" [ -s "$NVM_DIR/nvm.sh" ] && . "$NVM_DIR/nvm.sh" # This loads nvm

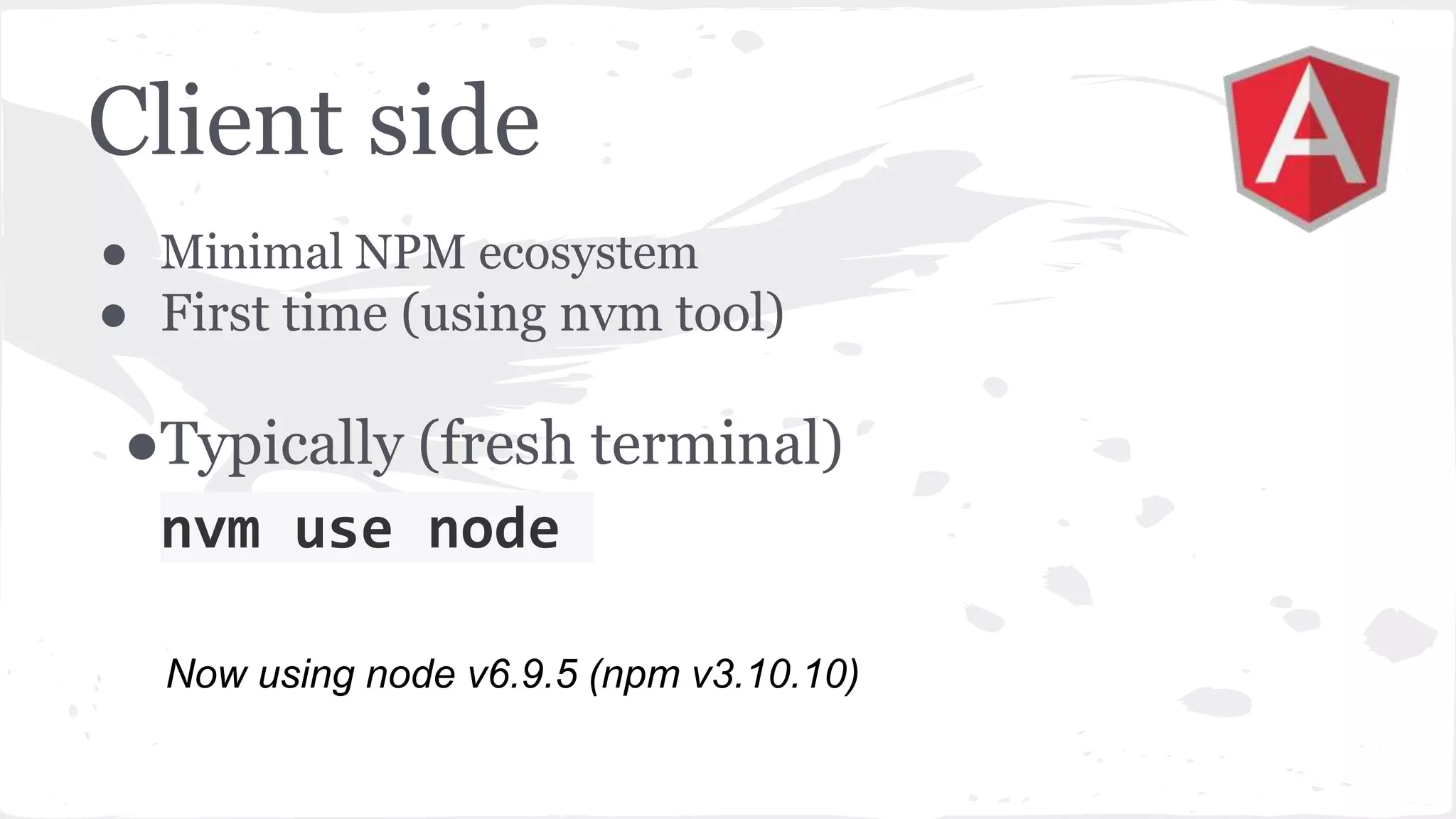

- 23. Client side ● MinimalNPM ecosystem ● First time (using nvm tool) ●Typically (fresh terminal) nvm use node Now using node v6.9.5 (npm v3.10.10)

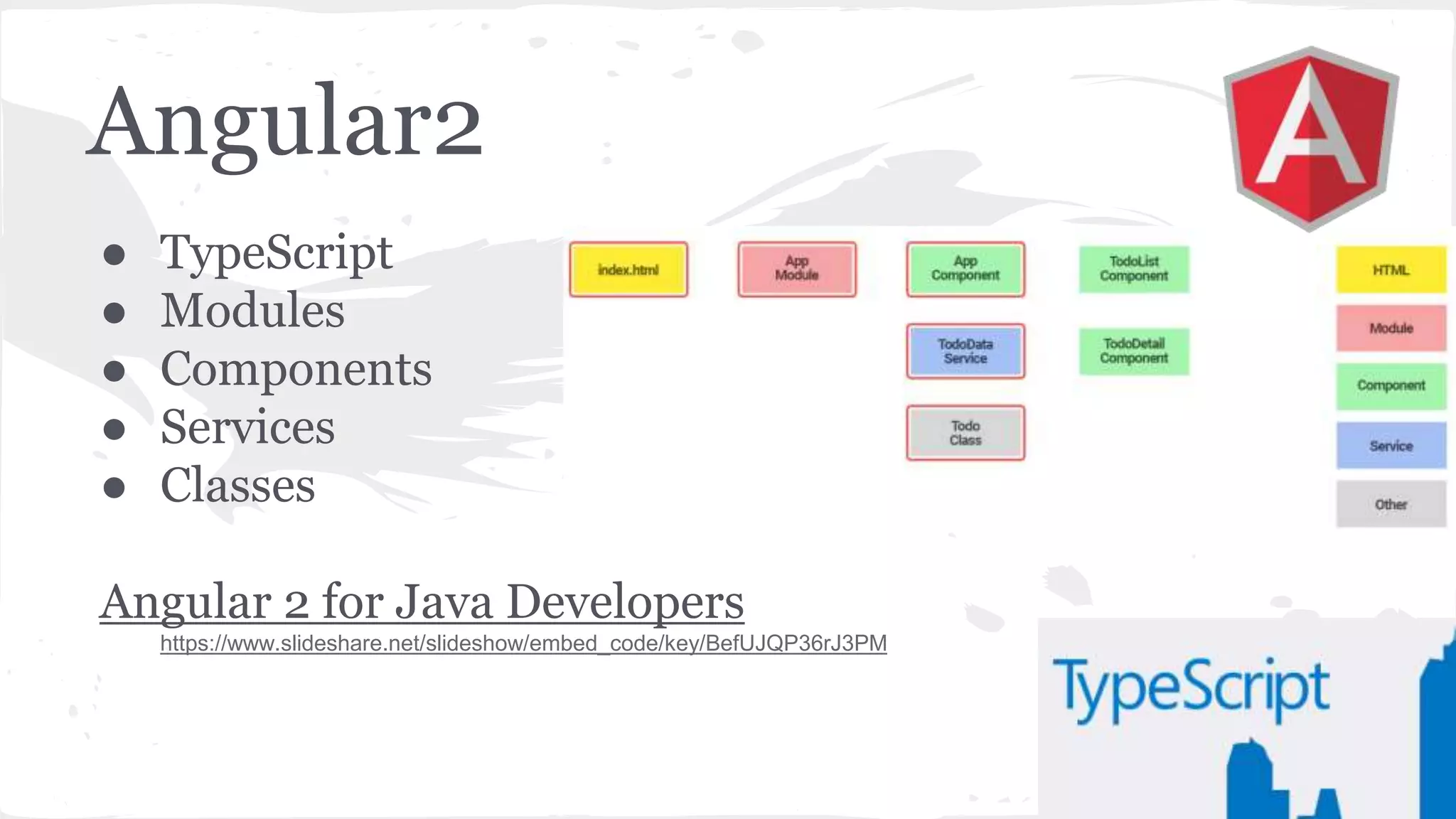

- 24. Angular2 ● TypeScript ● Modules ●Components ● Services ● Classes Angular 2 for Java Developers https://www.slideshare.net/slideshow/embed_code/key/BefUJQP36rJ3PM
- 25.

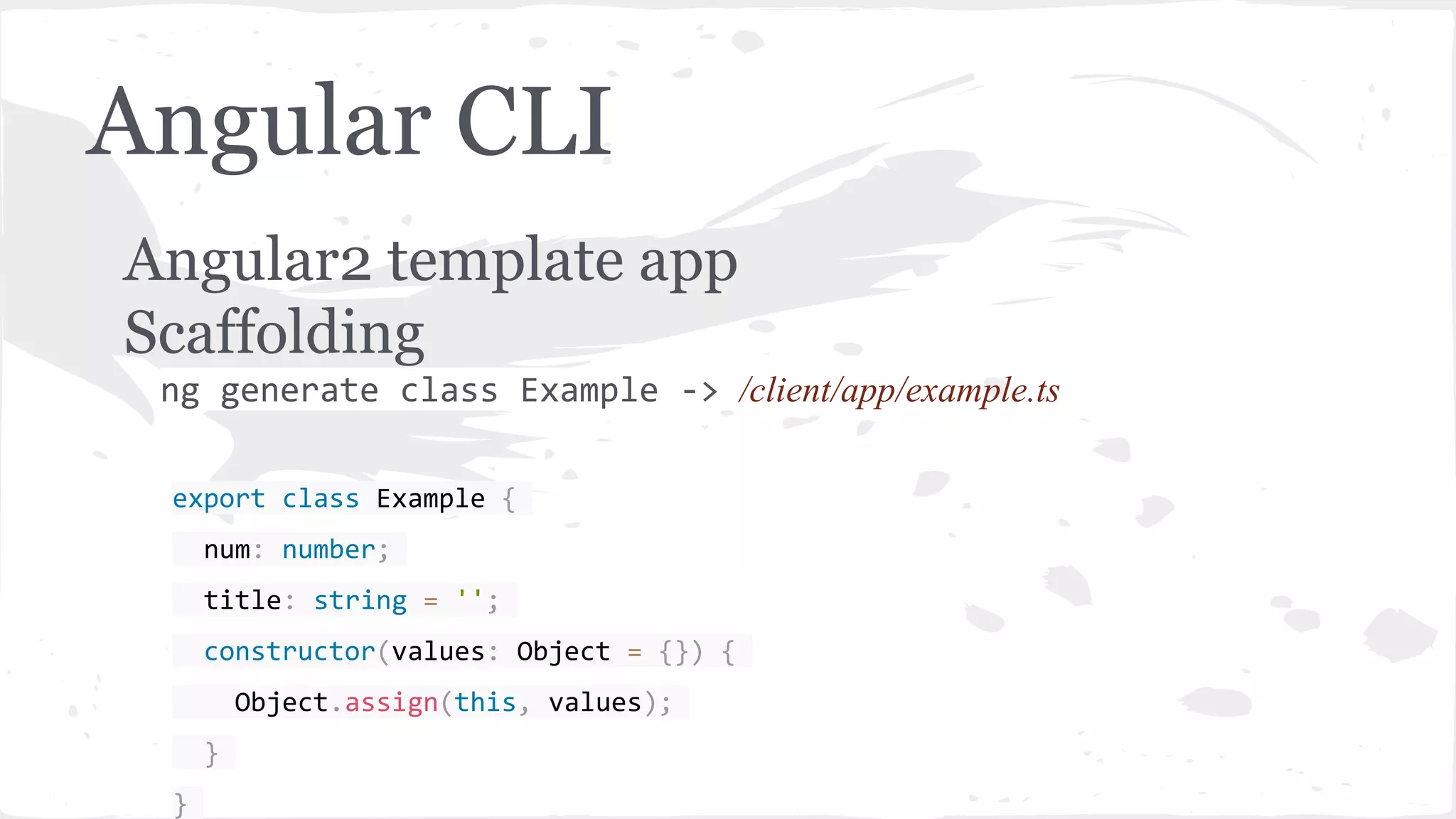

- 26. Angular CLI Angular2 templateapp Scaffolding ng generate class Example -> /client/app/example.ts export class Example { num: number; title: string = ''; constructor(values: Object = {}) { Object.assign(this, values); } }

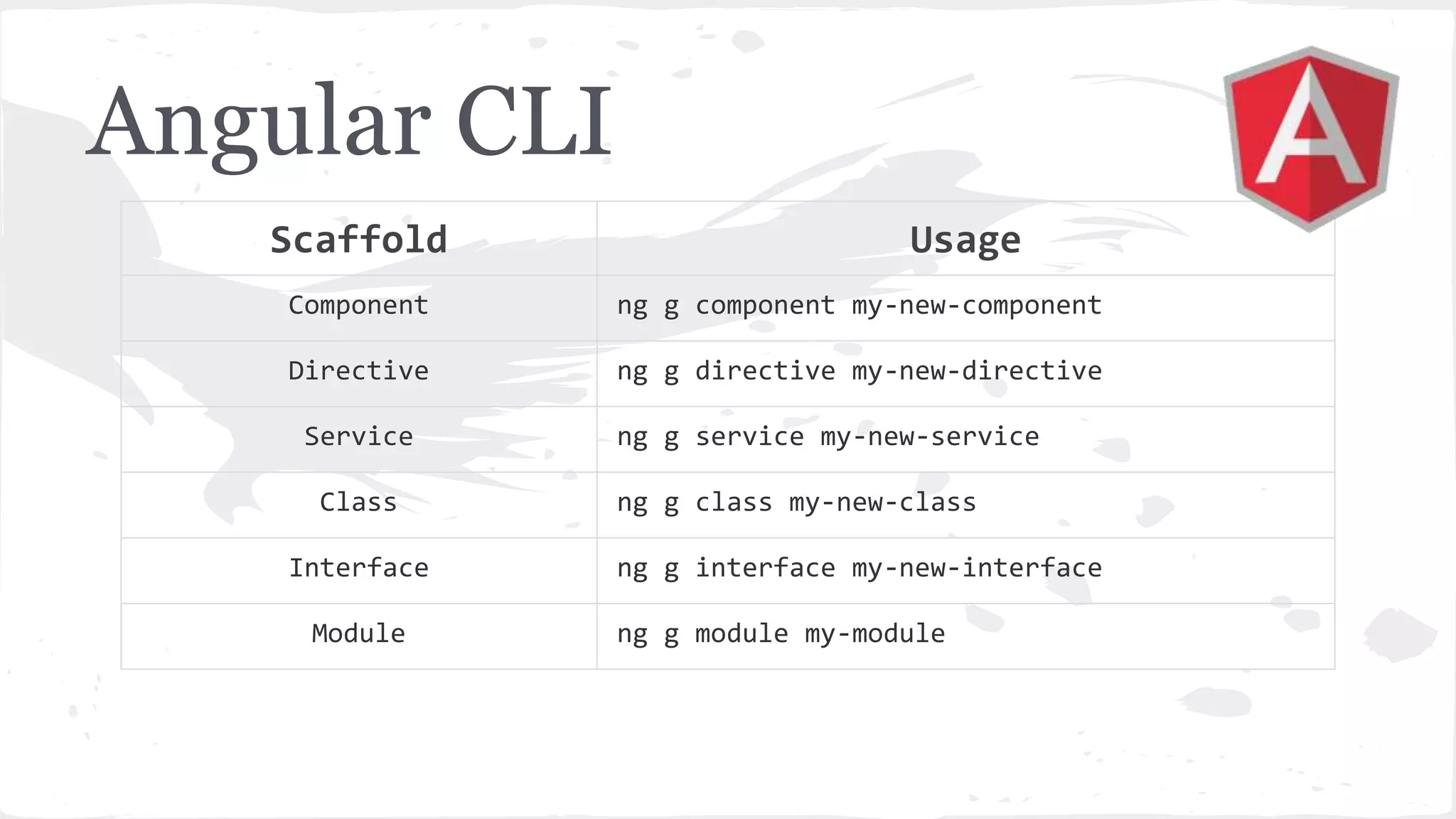

- 27. Angular CLI Scaffold Usage Componentng g component my-new-component Directive ng g directive my-new-directive Service ng g service my-new-service Class ng g class my-new-class Interface ng g interface my-new-interface Module ng g module my-module

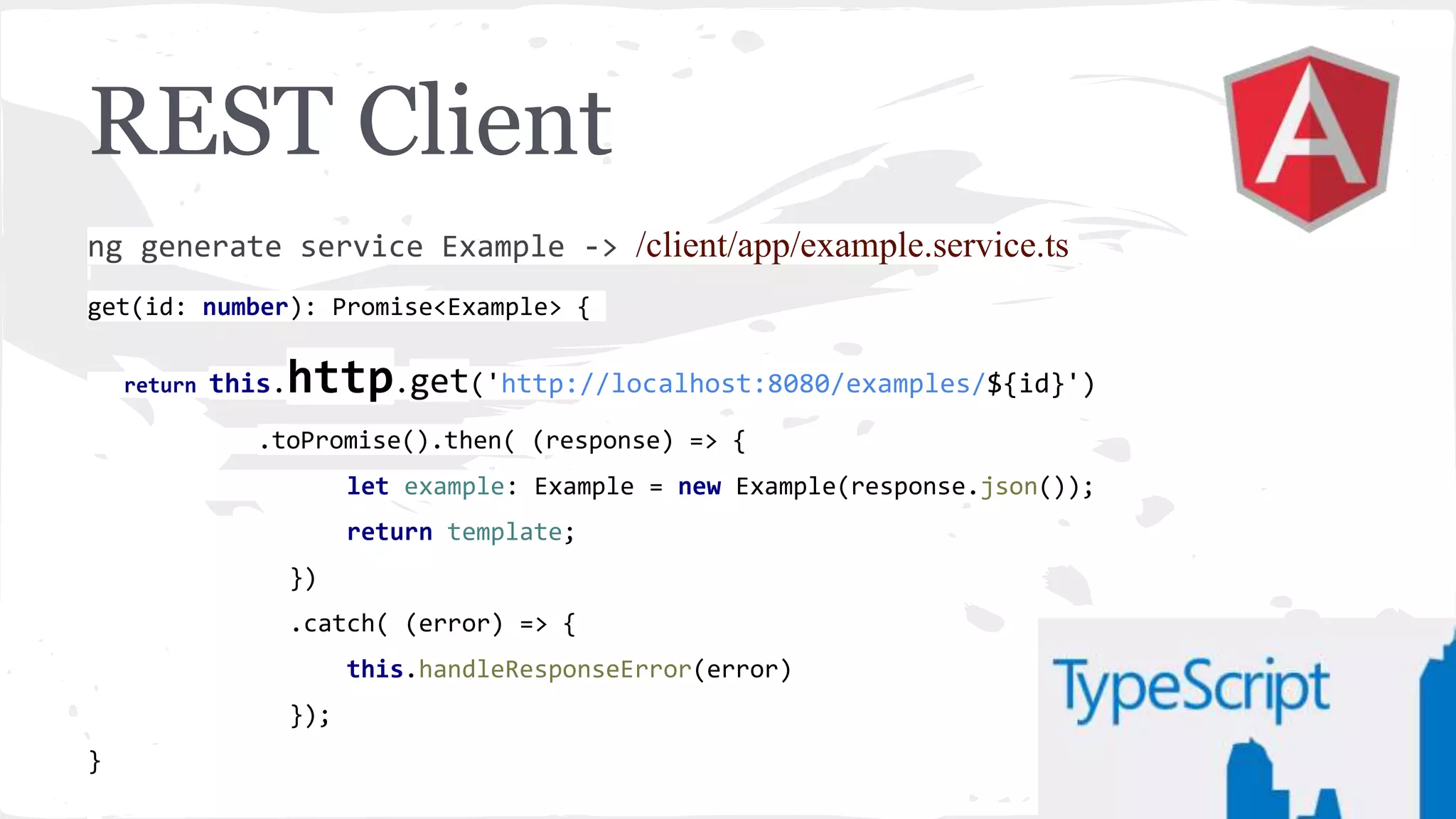

- 28. REST Client ng generateservice Example -> /client/app/example.service.ts get(id: number): Promise<Example> { return this.http.get('http://localhost:8080/examples/${id}') .toPromise().then( (response) => { let example: Example = new Example(response.json()); return template; }) .catch( (error) => { this.handleResponseError(error) }); }

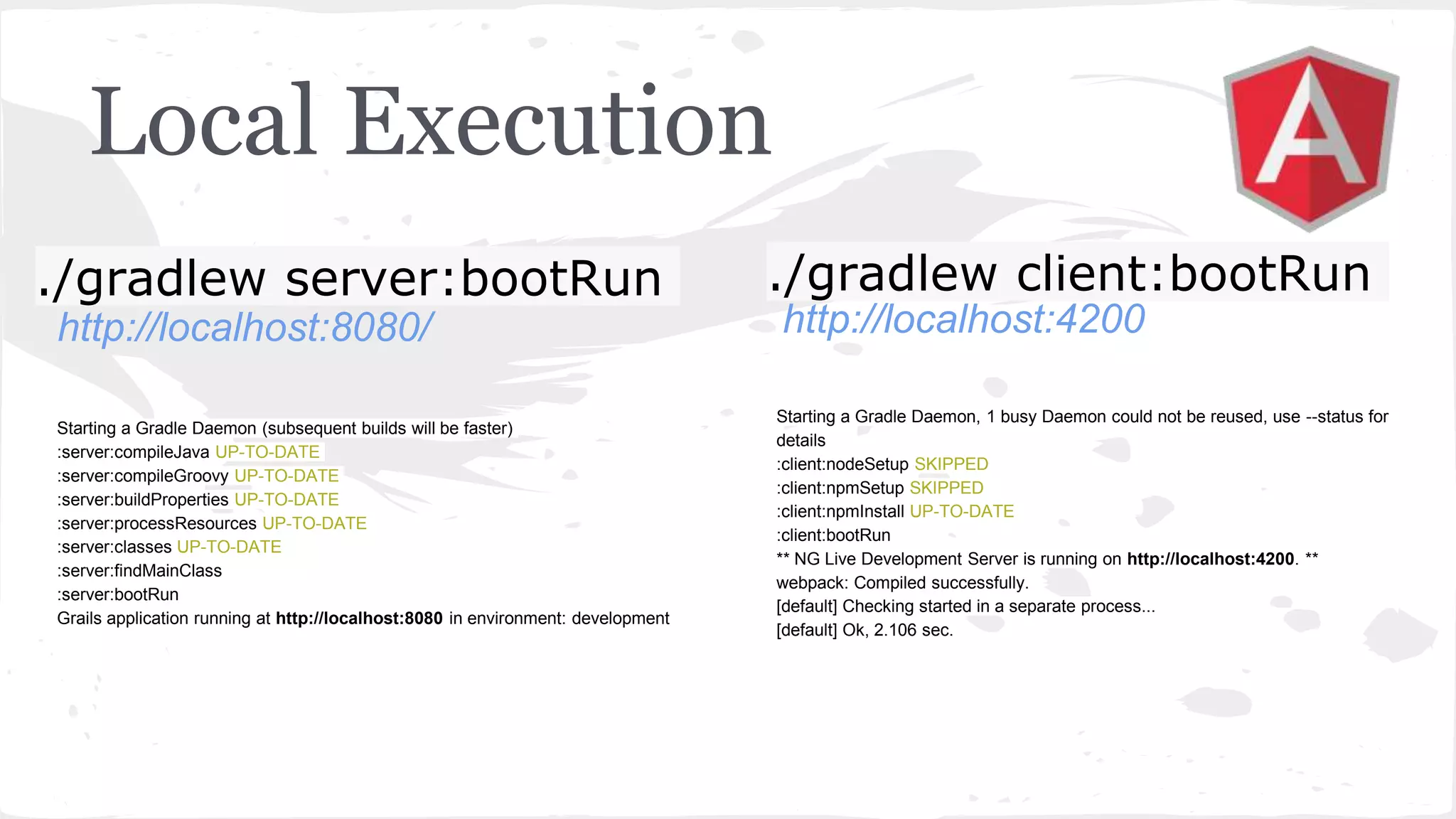

- 29. Local Execution ./gradlew server:bootRun./gradlew client:bootRun http://localhost:8080/ http://localhost:4200 Starting a Gradle Daemon (subsequent builds will be faster) :server:compileJava UP-TO-DATE :server:compileGroovy UP-TO-DATE :server:buildProperties UP-TO-DATE :server:processResources UP-TO-DATE :server:classes UP-TO-DATE :server:findMainClass :server:bootRun Grails application running at http://localhost:8080 in environment: development Starting a Gradle Daemon, 1 busy Daemon could not be reused, use --status for details :client:nodeSetup SKIPPED :client:npmSetup SKIPPED :client:npmInstall UP-TO-DATE :client:bootRun ** NG Live Development Server is running on http://localhost:4200. ** webpack: Compiled successfully. [default] Checking started in a separate process... [default] Ok, 2.106 sec.

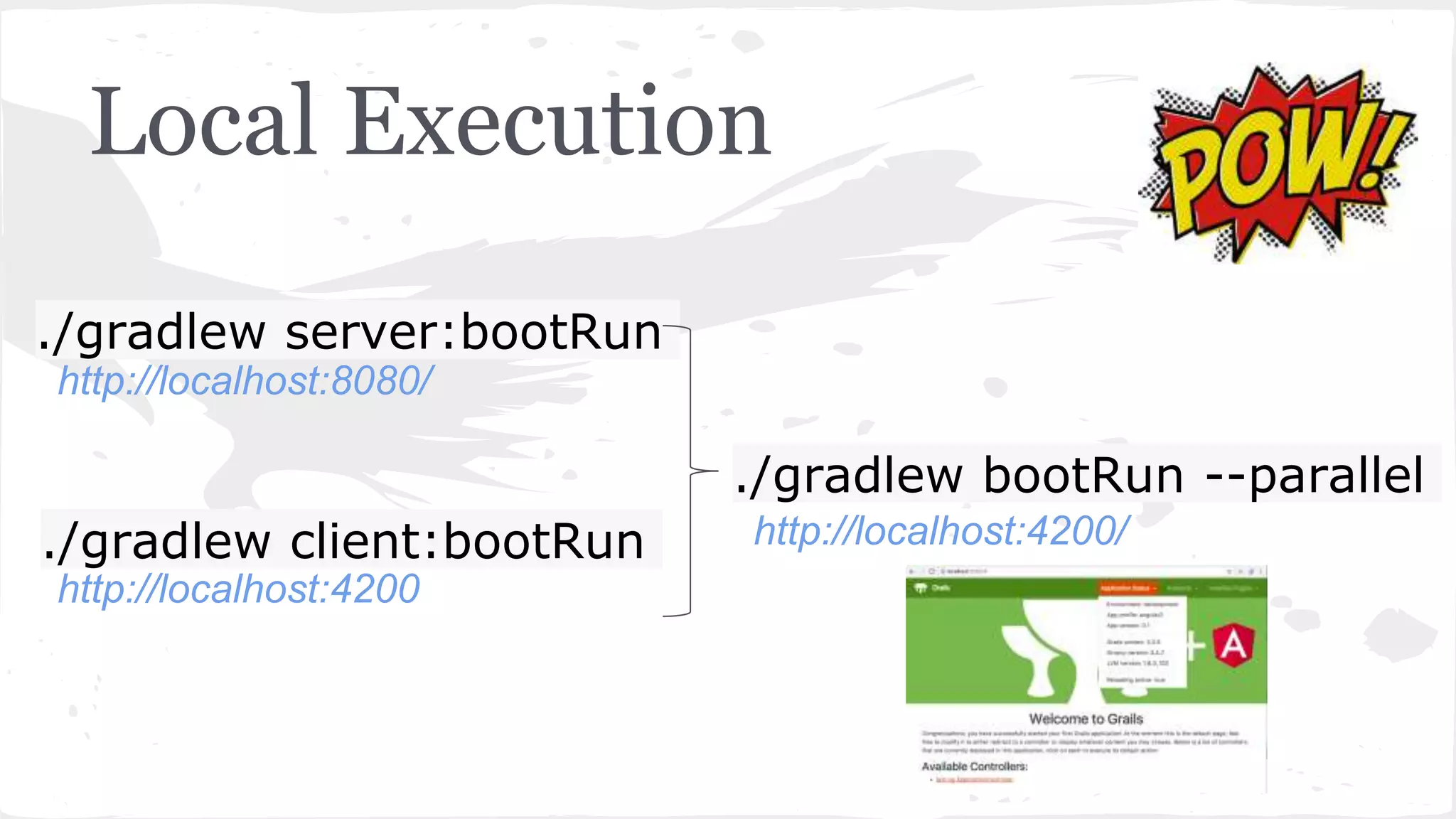

- 30. Local Execution ./gradlew server:bootRun ./gradlewbootRun --parallel ./gradlew client:bootRun http://localhost:8080/ http://localhost:4200 http://localhost:4200/

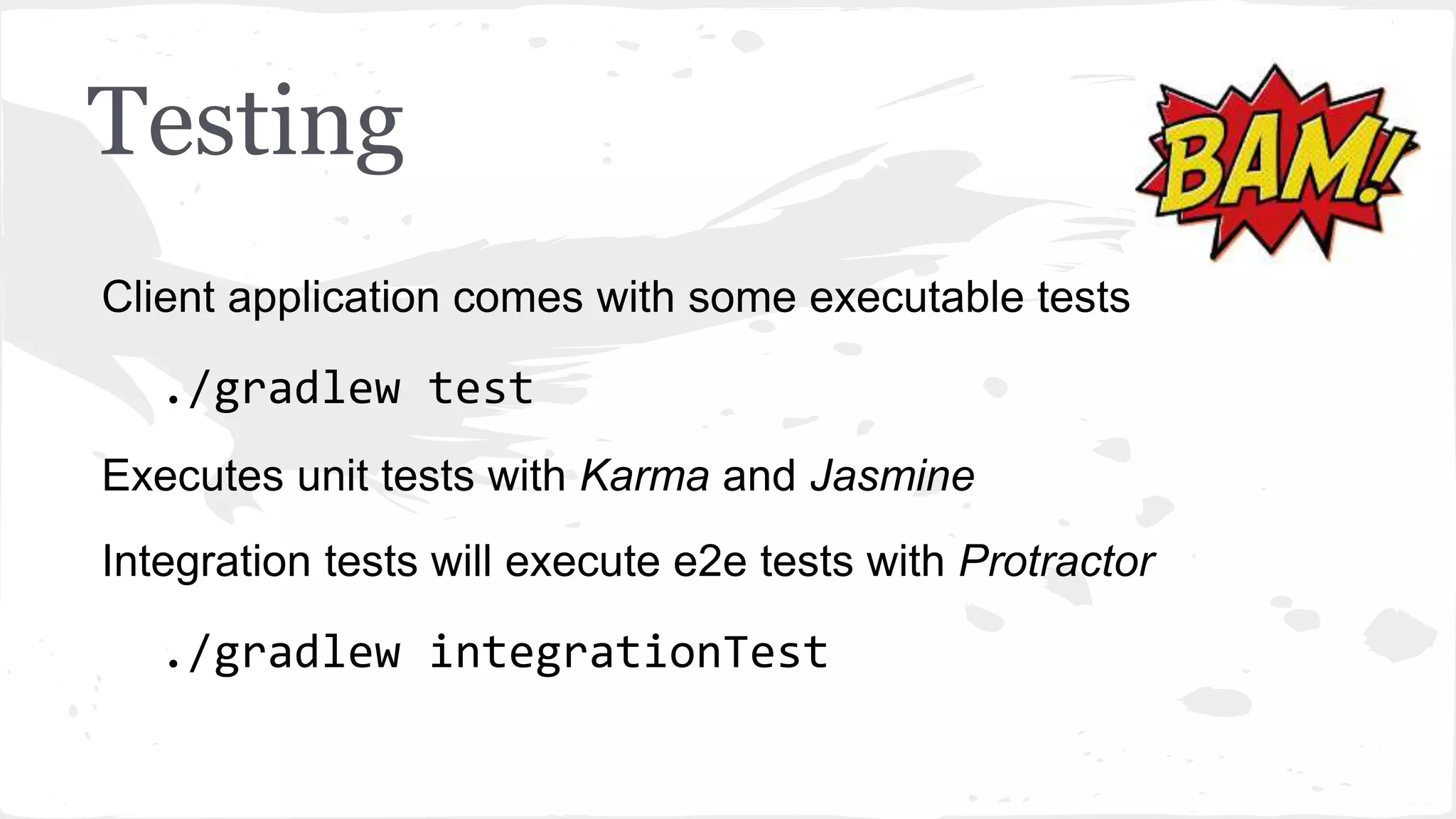

- 31. Testing Client application comeswith some executable tests ./gradlew test Executes unit tests with Karma and Jasmine Integration tests will execute e2e tests with Protractor ./gradlew integrationTest
- 32.
- 33.
- 34.

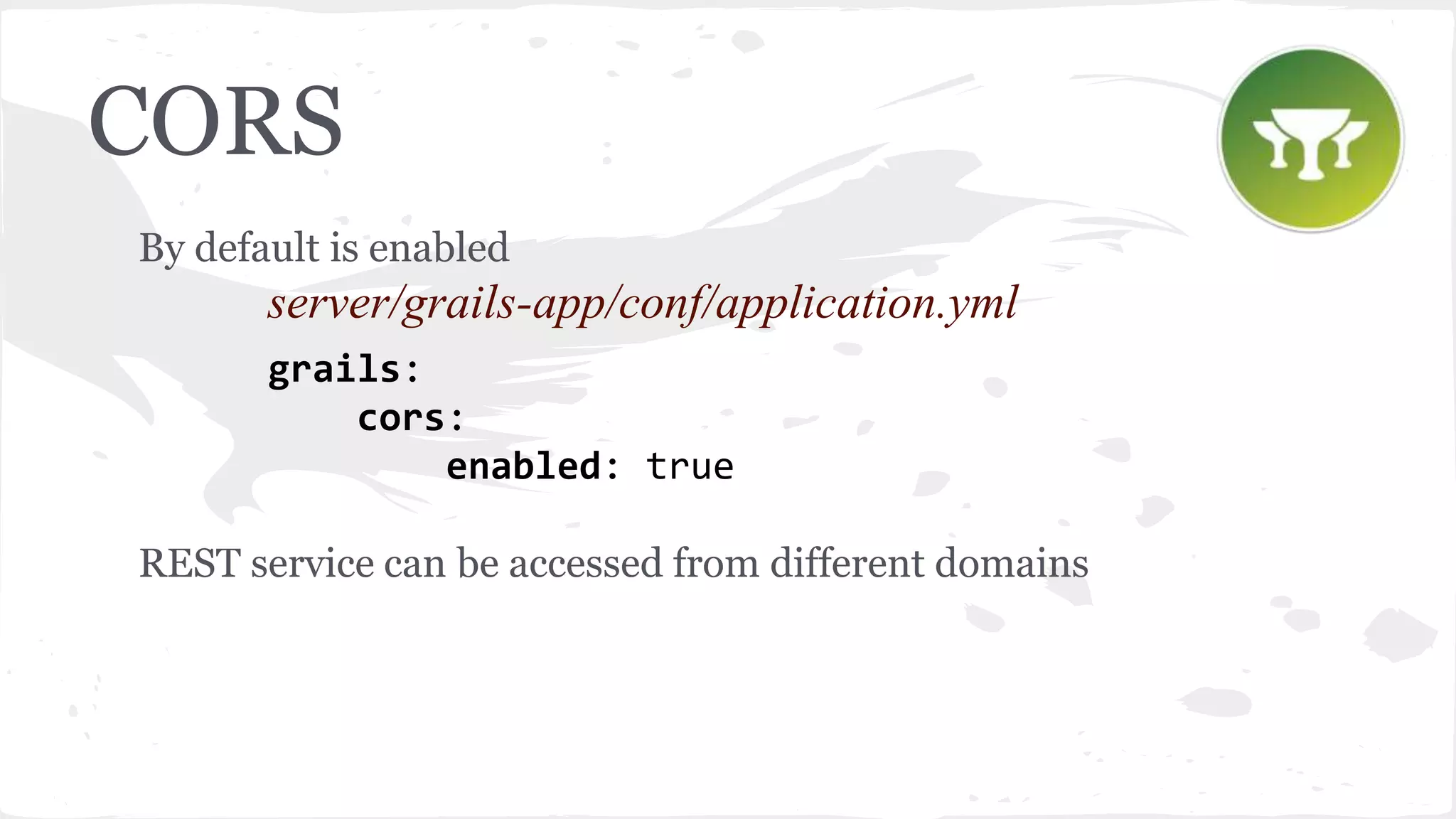

- 35. CORS By default isenabled server/grails-app/conf/application.yml grails: cors: enabled: true REST service can be accessed from different domains

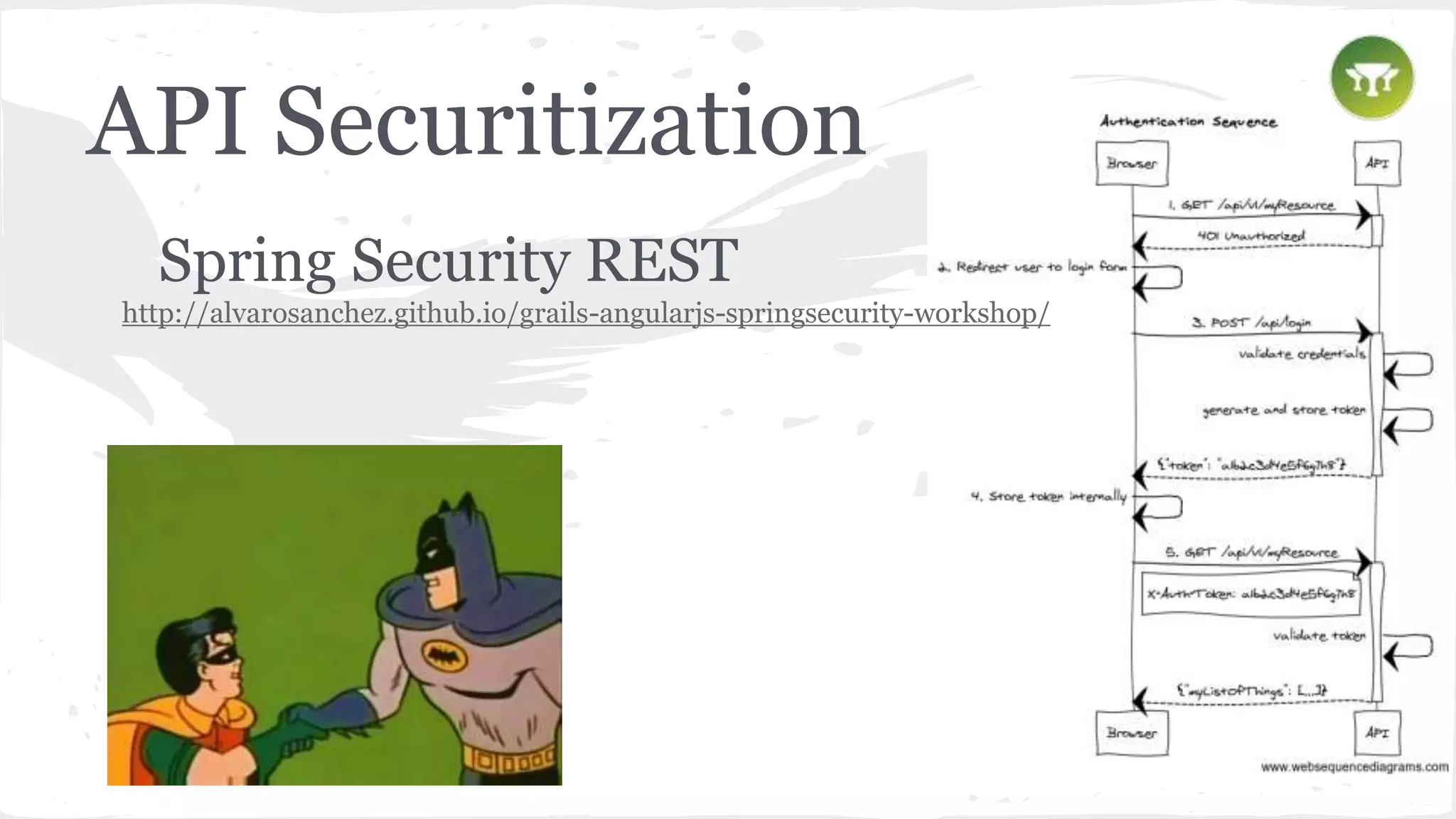

- 36. API Securitization Spring SecurityREST http://alvarosanchez.github.io/grails-angularjs-springsecurity-workshop/
- 37.
- 38.
- 39.
- 40.

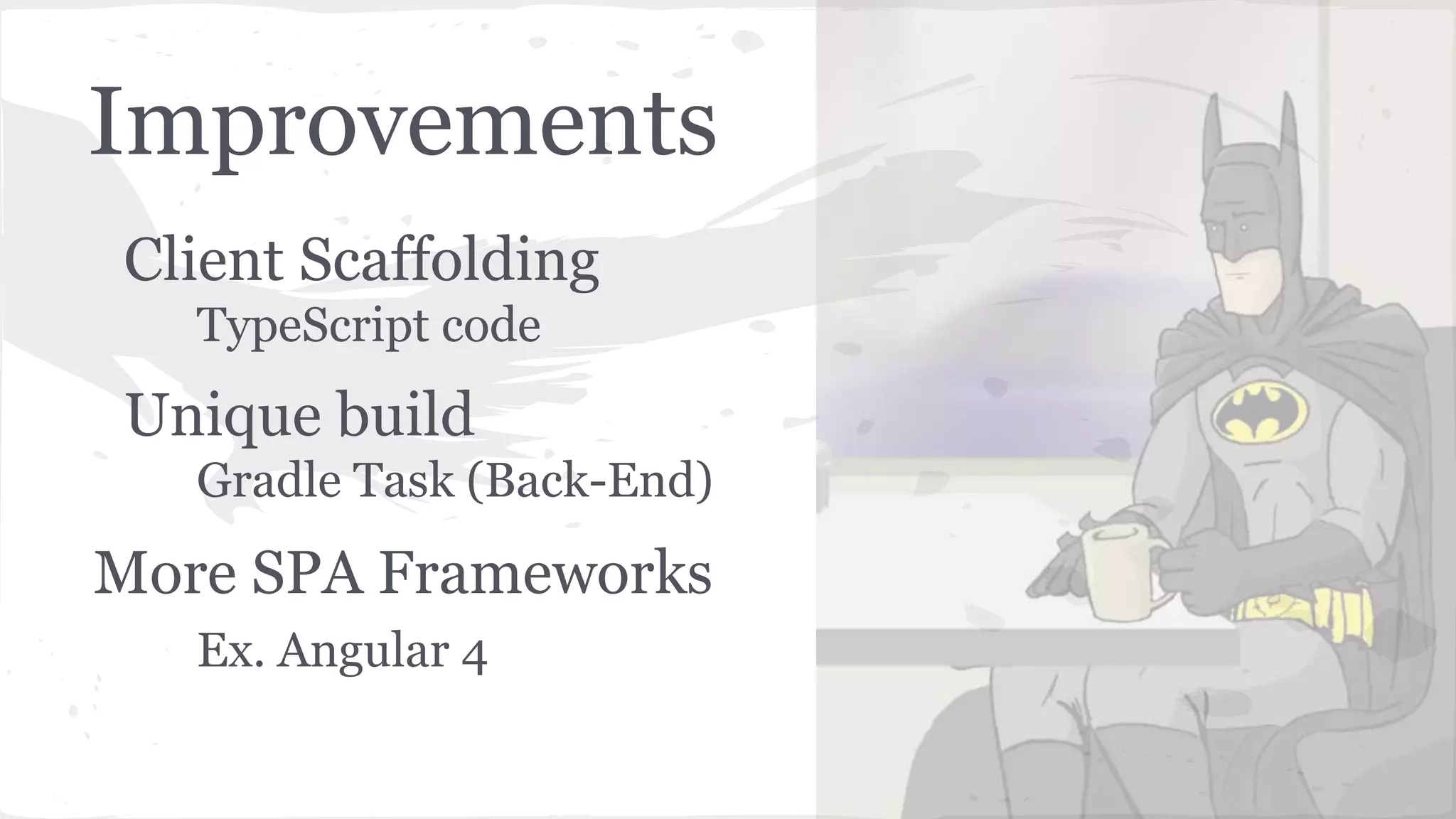

- 41. Improvements Client Scaffolding TypeScript code Uniquebuild Gradle Task (Back-End) More SPA Frameworks Ex. Angular 4
- 42. Unleashing the DynamicDuo Dr. Rubén Mondéjar Grails & Angular
