Getting Started Hacking OpenNebula - Fosdem-2013
The document discusses OpenNebula, an open-source cloud computing platform. It provides an overview of OpenNebula's architecture and components, and how developers can create custom drivers to integrate new virtualization technologies, storage solutions, and cloud interfaces. The presentation also explains how OpenNebula uses drivers to manage tasks like virtual machine deployment and image transfer between components.
Getting Started Hacking OpenNebula - Fosdem-2013
- 1. Fosdem 2013 Brussels, Belgium, February 3rd, 2013 Getting Started Hacking OpenNebula Jaime Melis Project Engineer © OpenNebula Project. Creative Commons Attribution-NonCommercial-ShareAlike License

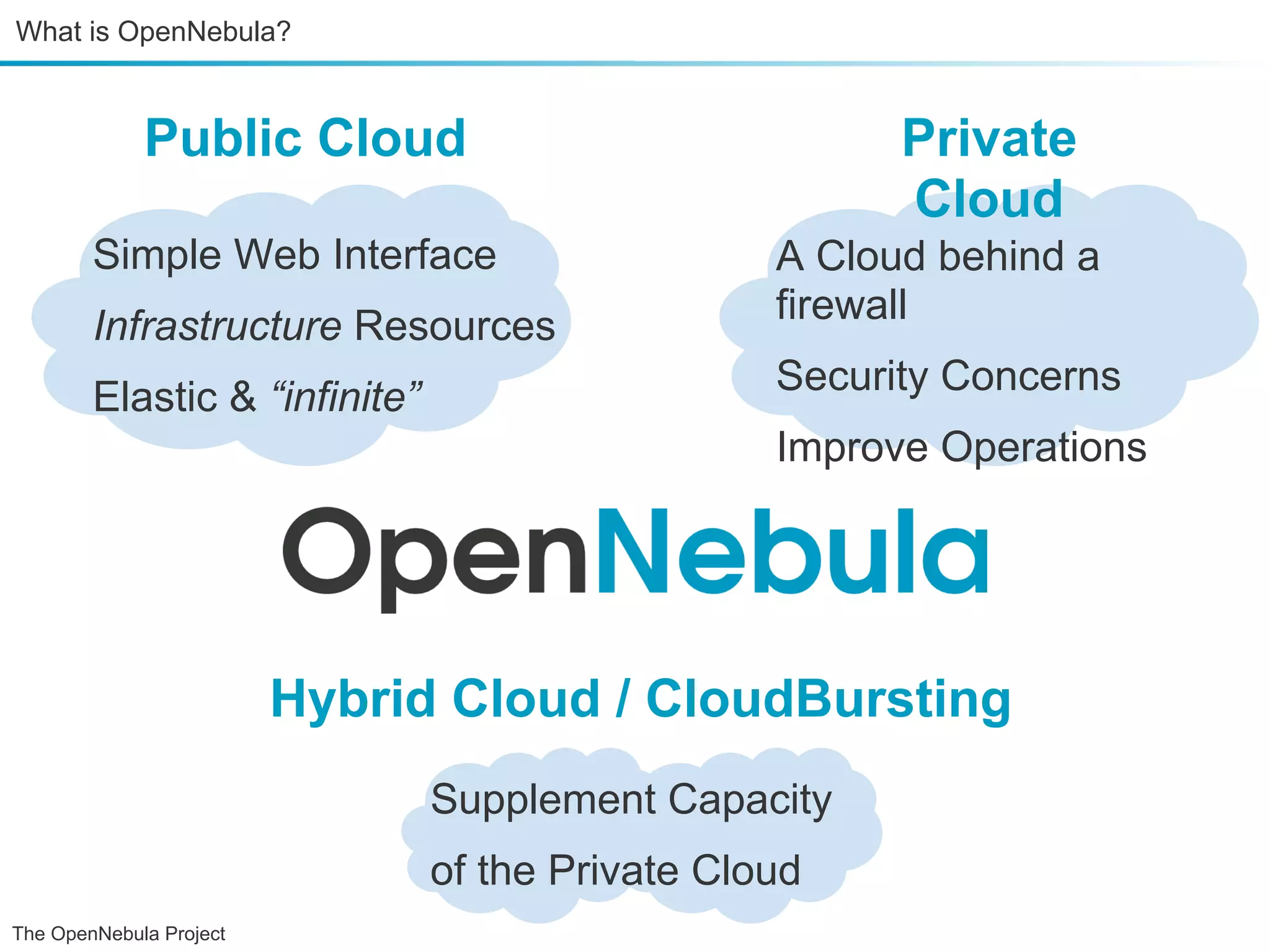

- 2. What is OpenNebula? Public Cloud Private Cloud Simple Web Interface A Cloud behind a Infrastructure Resources firewall Elastic & “infinite” Security Concerns Improve Operations Hybrid Cloud / CloudBursting Supplement Capacity of the Private Cloud The OpenNebula Project

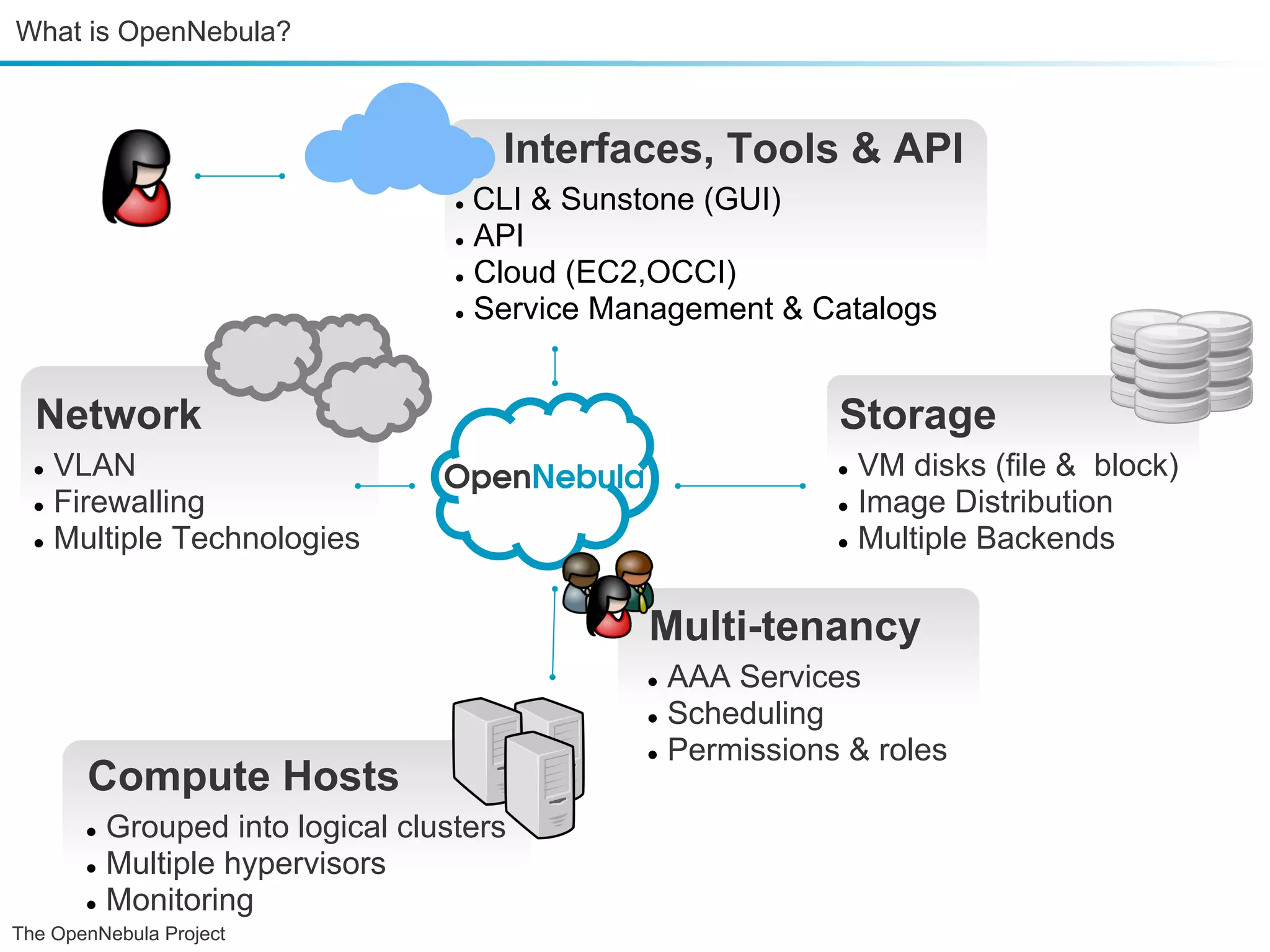

- 3. What is OpenNebula? Interfaces, Tools & API ● CLI & Sunstone (GUI) ● API ● Cloud (EC2,OCCI) ● Service Management & Catalogs Network Storage ● VLAN ● VM disks (file & block) ● Firewalling ● Image Distribution ● Multiple Technologies ● Multiple Backends Multi-tenancy ● AAA Services ● Scheduling ● Permissions & roles Compute Hosts ● Grouped into logical clusters ● Multiple hypervisors ● Monitoring The OpenNebula Project

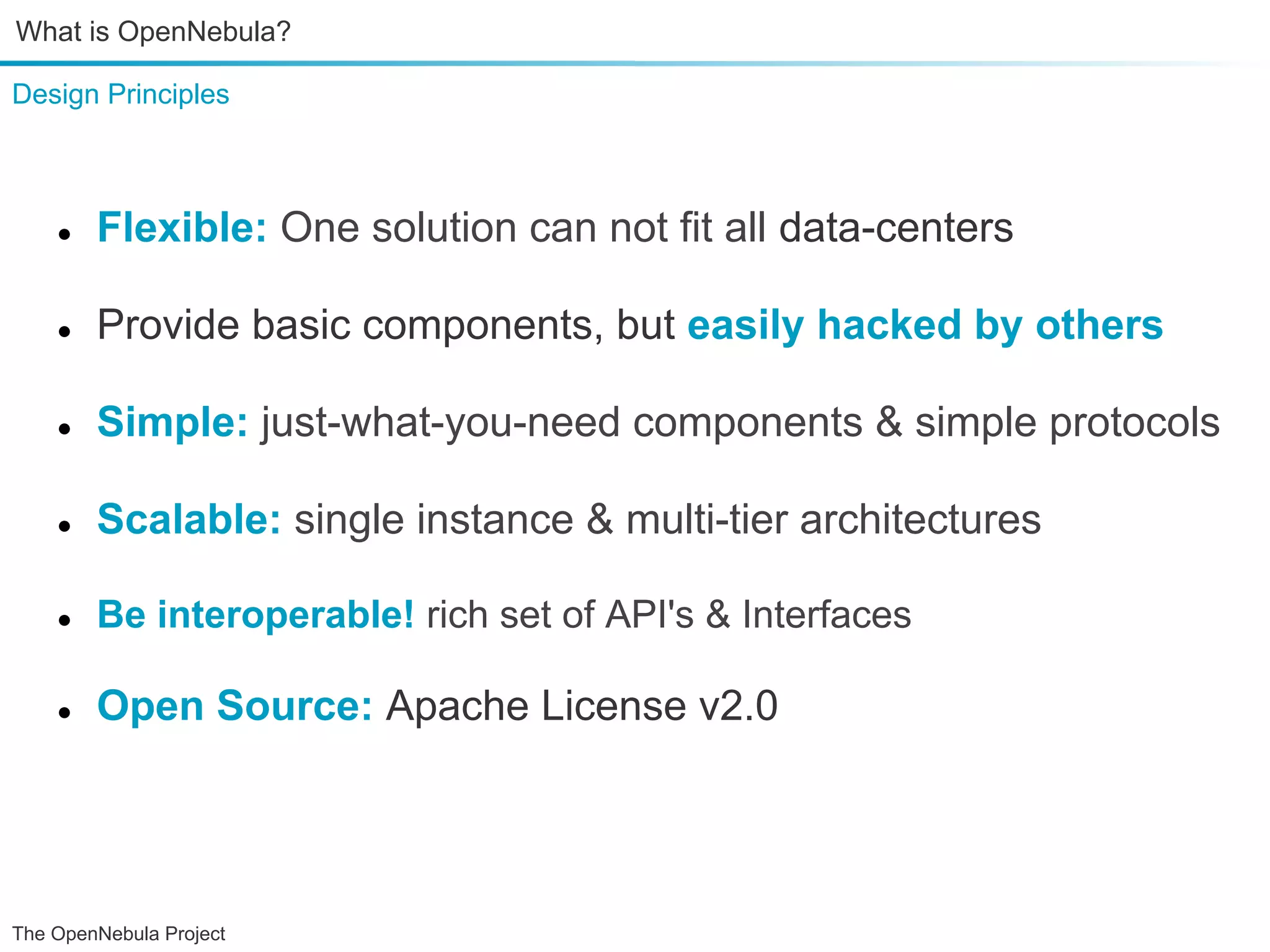

- 4. What is OpenNebula? DesignPrinciples ● Flexible: One solution can not fit all data-centers ● Provide basic components, but easily hacked by others ● Simple: just-what-you-need components & simple protocols ● Scalable: single instance & multi-tier architectures ● Be interoperable! rich set of API's & Interfaces ● Open Source: Apache License v2.0000 The OpenNebula Project

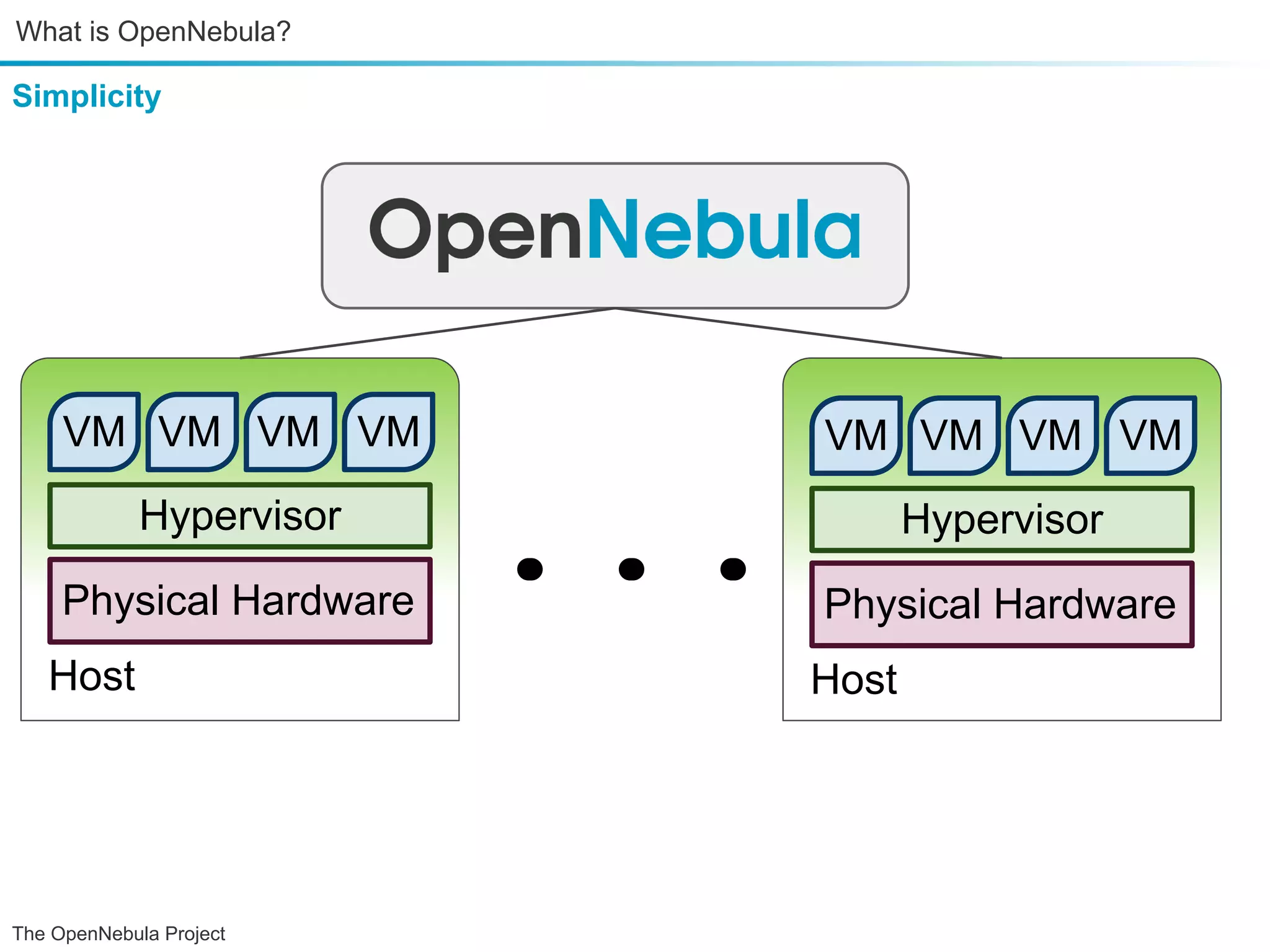

- 5. What is OpenNebula? Simplicity VM VM VM VM VM VM VM VM Hypervisor Physical Hardware ... Hypervisor Physical Hardware Host Host The OpenNebula Project

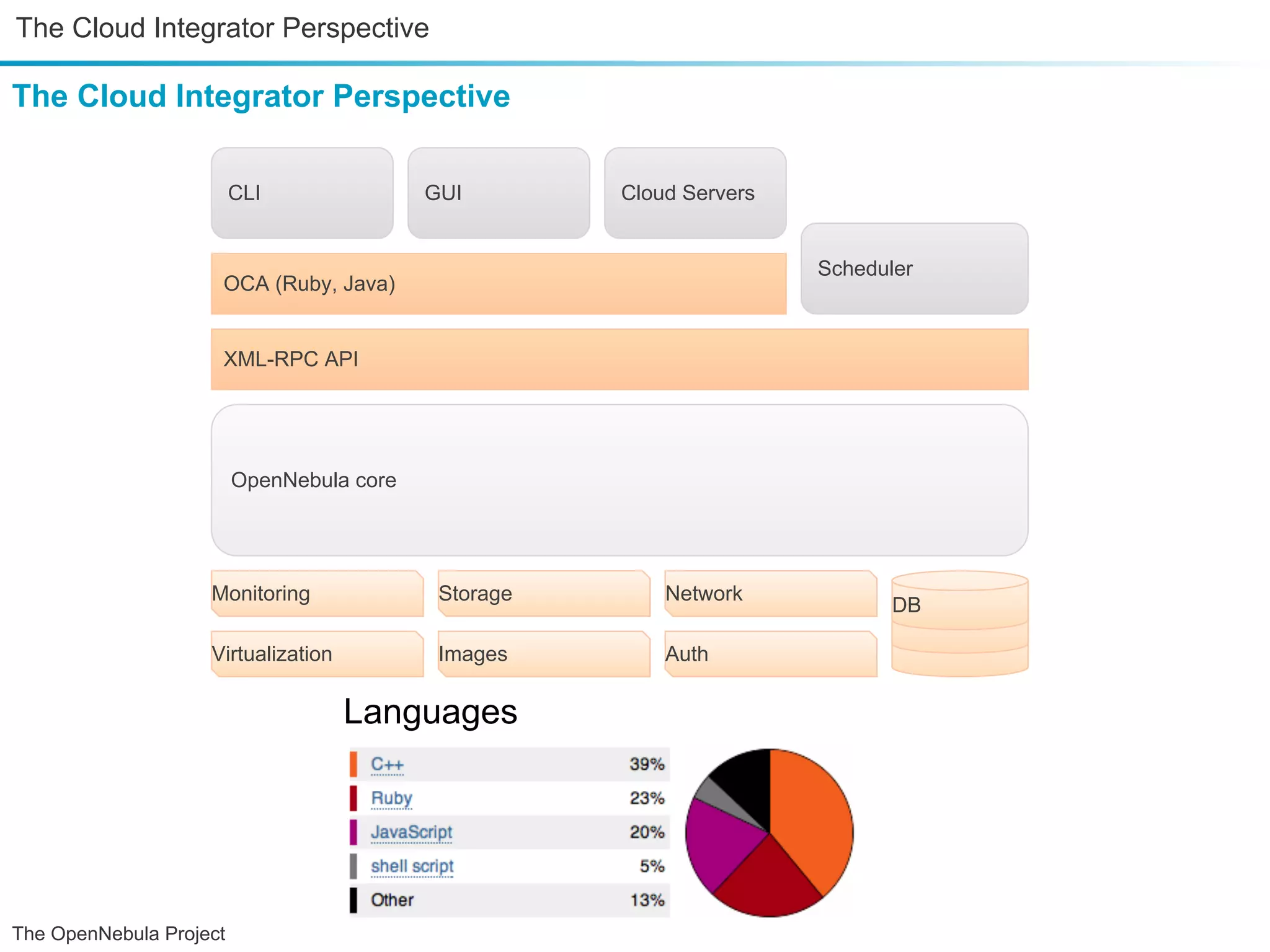

- 6. The Cloud IntegratorPerspective The Cloud Integrator Perspective CLI GUI Cloud Servers Scheduler OCA (Ruby, Java) XML-RPC API OpenNebula core Monitoring Storage Network DB Virtualization Images Auth Languages The OpenNebula Project

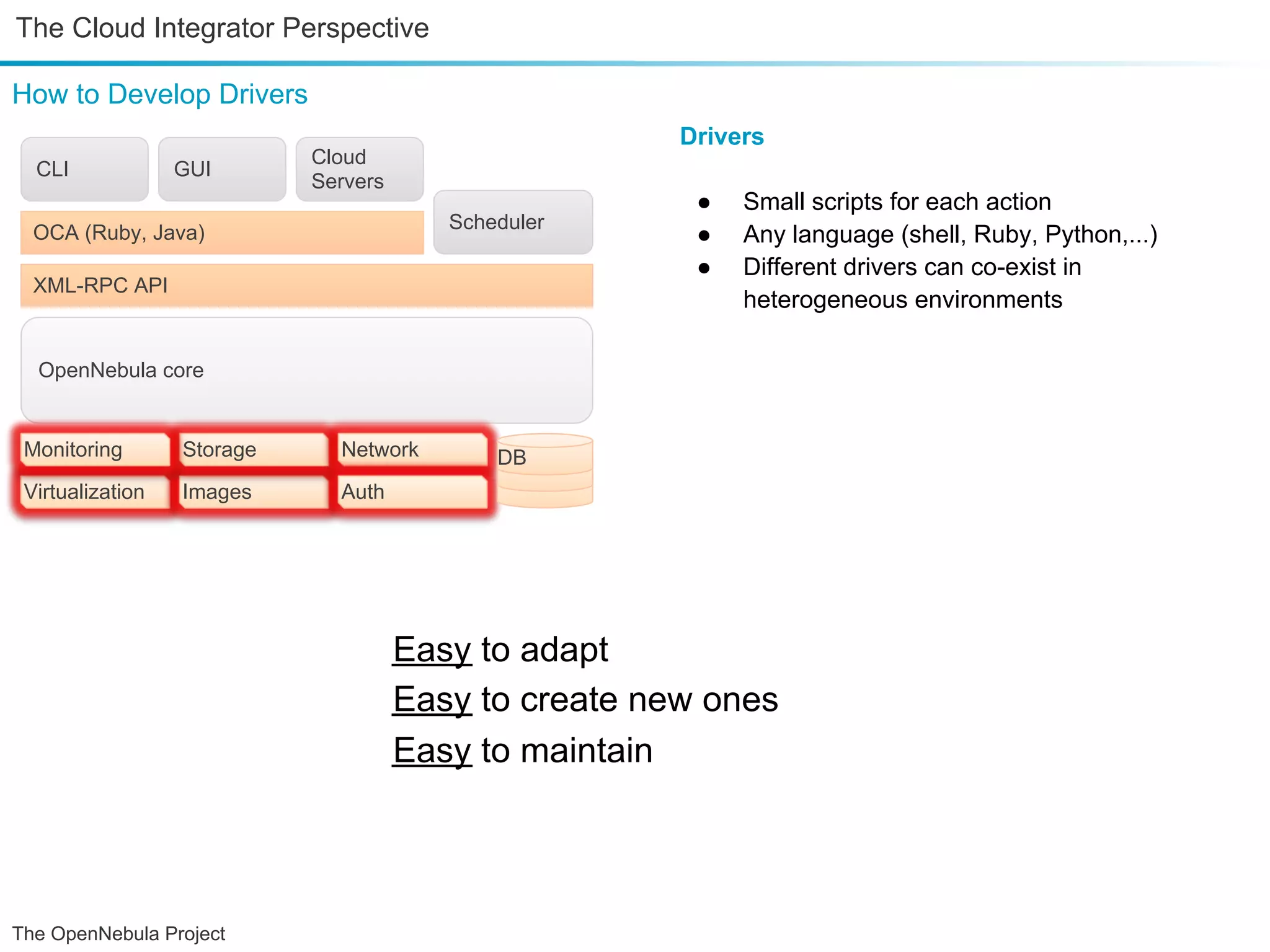

- 7. The Cloud IntegratorPerspective How to Develop Drivers Drivers Cloud CLI GUI Servers ● Small scripts for each action OCA (Ruby, Java) Scheduler ● Any language (shell, Ruby, Python,...) ● Different drivers can co-exist in XML-RPC API heterogeneous environments OpenNebula core Monitoring Storage Network DB Virtualization Images Auth Easy to adapt Easy to create new ones Easy to maintain The OpenNebula Project

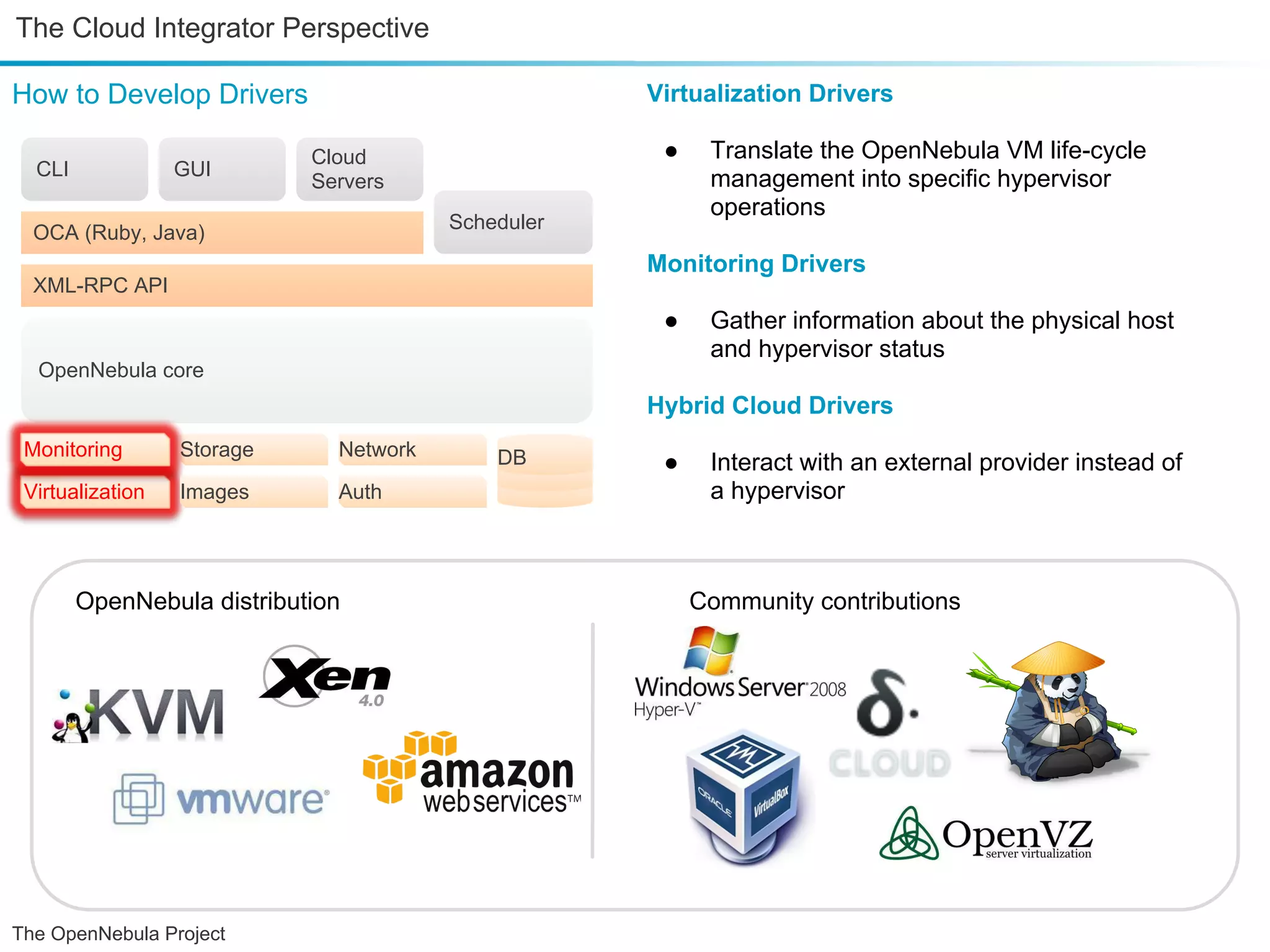

- 8. The Cloud IntegratorPerspective How to Develop Drivers Virtualization Drivers Cloud ● Translate the OpenNebula VM life-cycle CLI GUI management into specific hypervisor Servers operations OCA (Ruby, Java) Scheduler Monitoring Drivers XML-RPC API ● Gather information about the physical host and hypervisor status OpenNebula core Hybrid Cloud Drivers Monitoring Storage Network DB ● Interact with an external provider instead of Virtualization Images Auth a hypervisor OpenNebula distribution Community contributions The OpenNebula Project

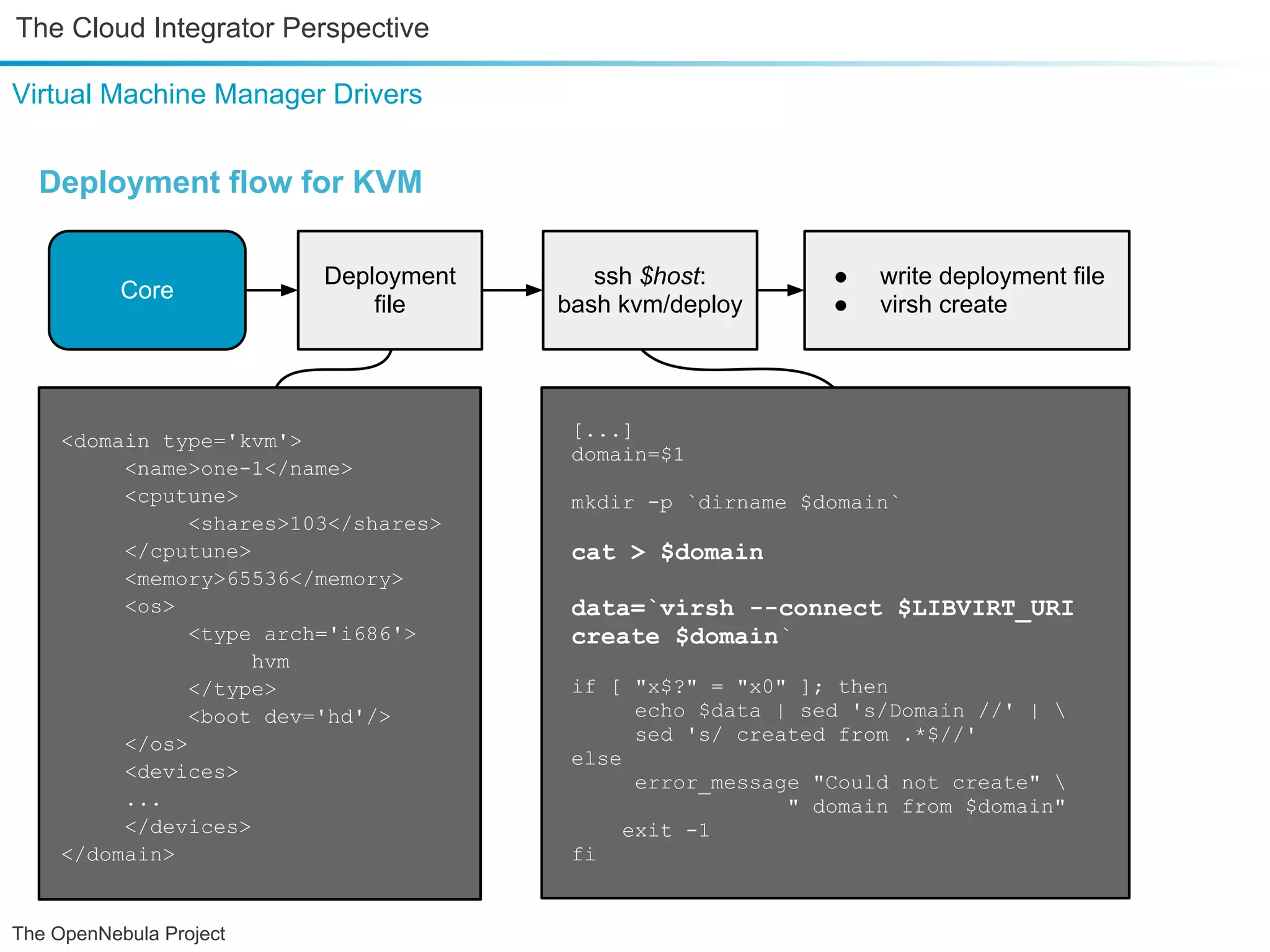

- 9. The Cloud IntegratorPerspective Virtual Machine Manager Drivers Deployment flow for KVM Deployment ssh $host: ● write deployment file Core file bash kvm/deploy ● virsh create [...] <domain type='kvm'> domain=$1 <name>one-1</name> <cputune> mkdir -p `dirname $domain` <shares>103</shares> </cputune> cat > $domain <memory>65536</memory> <os> data=`virsh --connect $LIBVIRT_URI <type arch='i686'> create $domain` hvm </type> if [ "x$?" = "x0" ]; then <boot dev='hd'/> echo $data | sed 's/Domain //' | </os> sed 's/ created from .*$//' else <devices> error_message "Could not create" ... " domain from $domain" </devices> exit -1 </domain> fi The OpenNebula Project

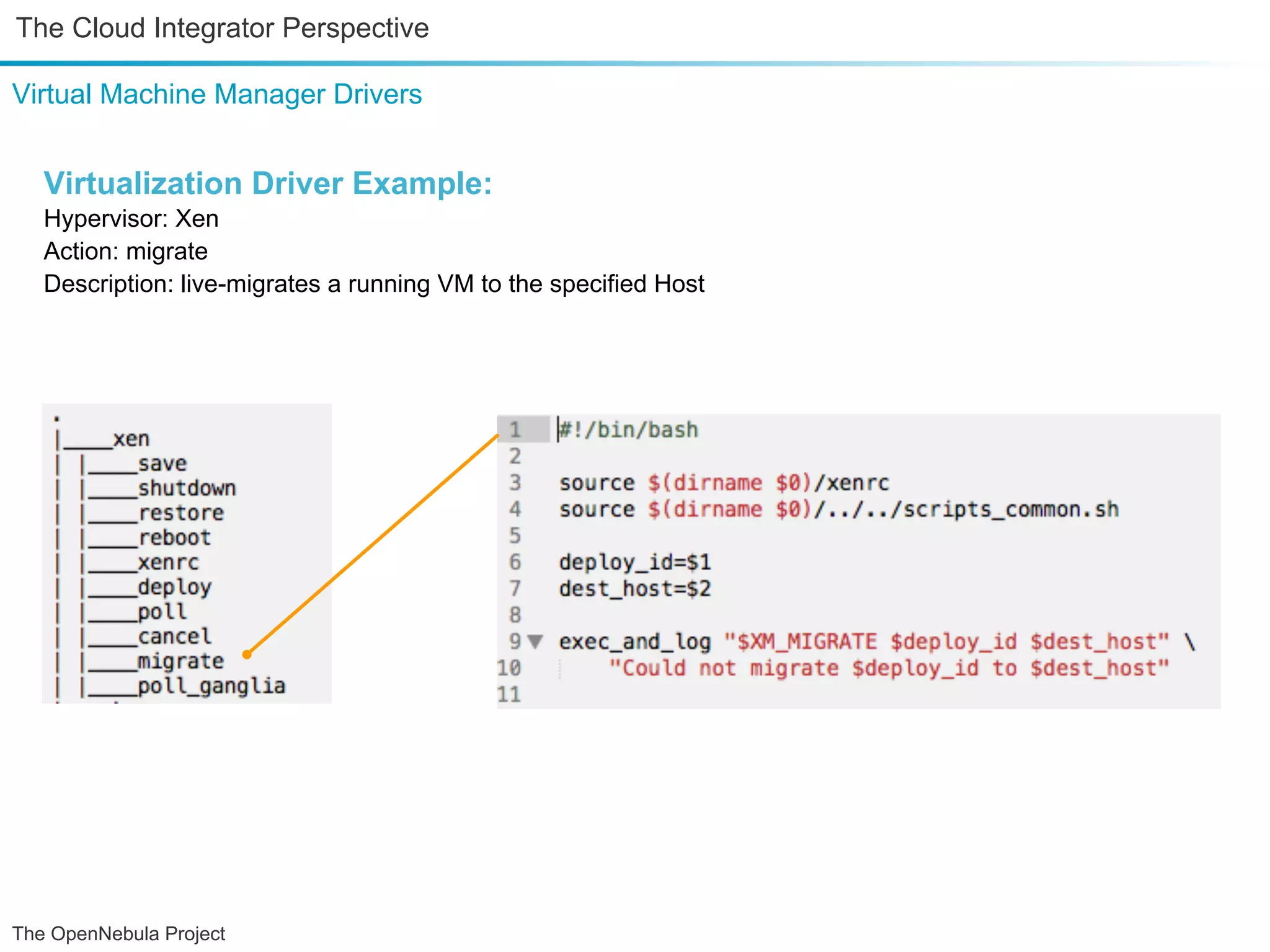

- 10. The Cloud IntegratorPerspective Virtual Machine Manager Drivers Virtualization Driver Example: Hypervisor: Xen Action: migrate Description: live-migrates a running VM to the specified Host The OpenNebula Project

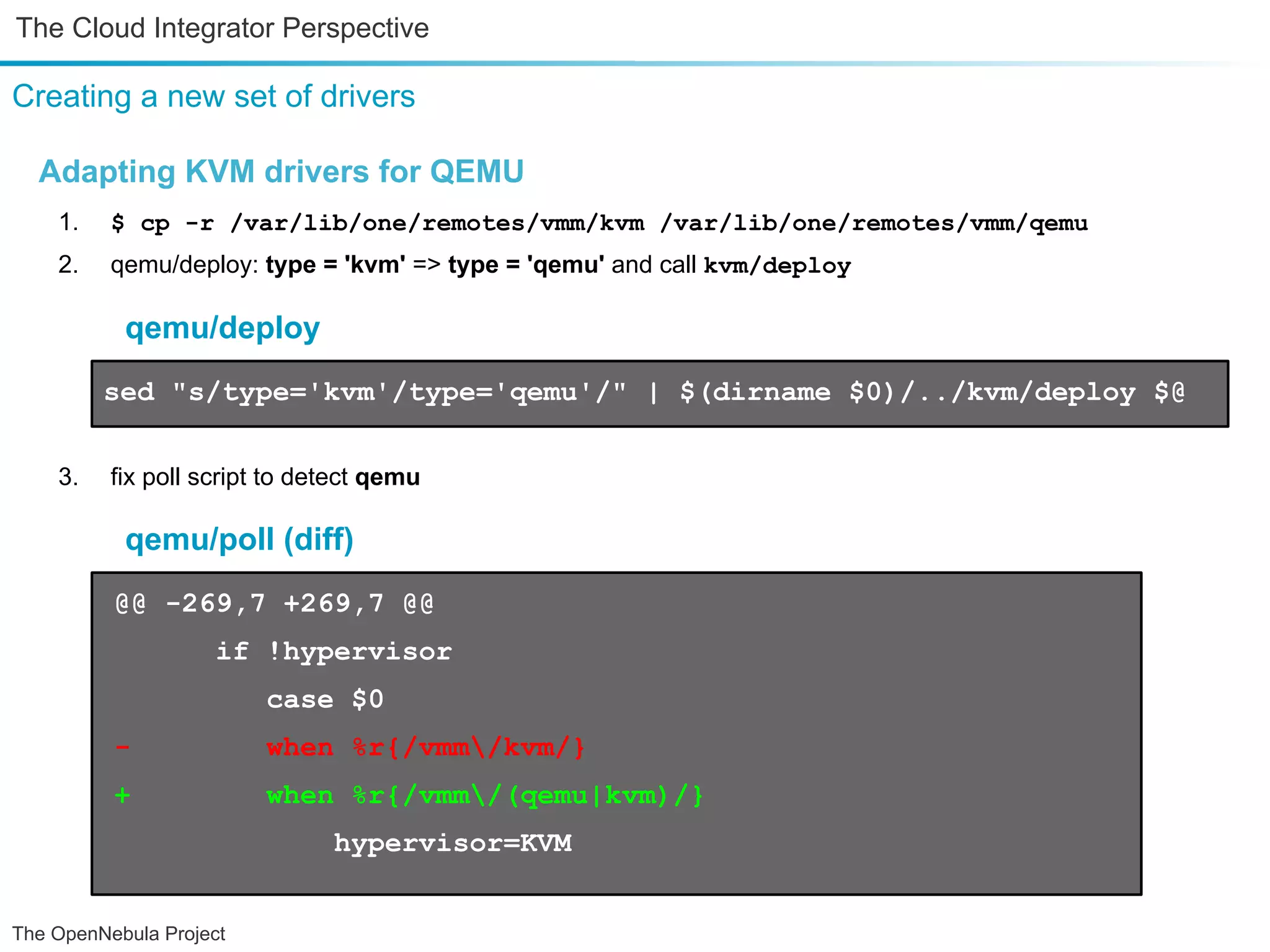

- 11. The Cloud IntegratorPerspective Creating a new set of drivers Adapting KVM drivers for QEMU 1. $ cp -r /var/lib/one/remotes/vmm/kvm /var/lib/one/remotes/vmm/qemu 2. qemu/deploy: type = 'kvm' => type = 'qemu' and call kvm/deploy qemu/deploy sed "s/type='kvm'/type='qemu'/" | $(dirname $0)/../kvm/deploy $@ 3. fix poll script to detect qemu qemu/poll (diff) @@ -269,7 +269,7 @@ if !hypervisor case $0 - when %r{/vmm/kvm/} + when %r{/vmm/(qemu|kvm)/} hypervisor=KVM The OpenNebula Project

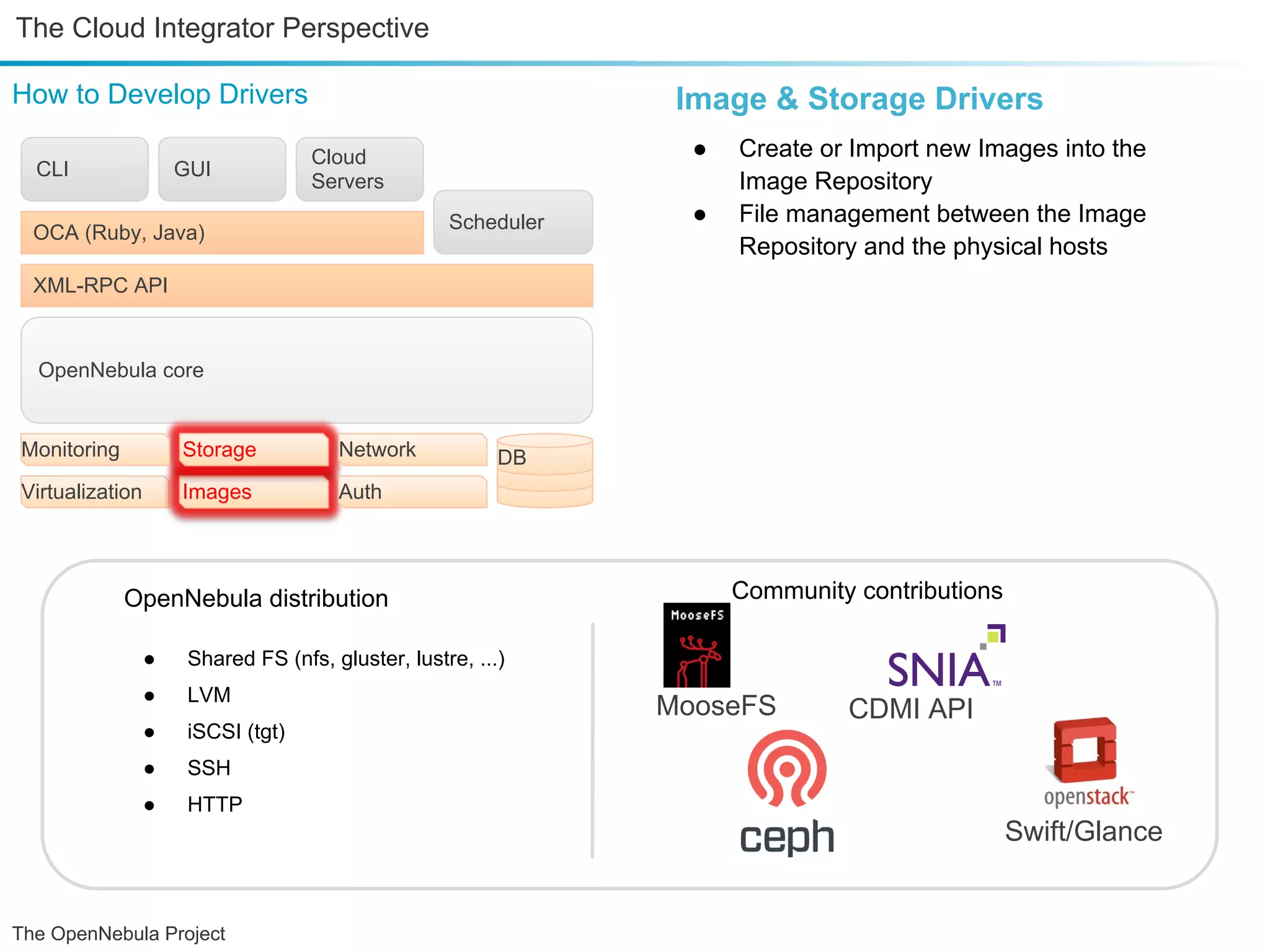

- 12. The Cloud IntegratorPerspective How to Develop Drivers Image & Storage Drivers Cloud ● Create or Import new Images into the CLI GUI Servers Image Repository Scheduler ● File management between the Image OCA (Ruby, Java) Repository and the physical hosts XML-RPC API OpenNebula core Monitoring Storage Network DB Virtualization Images Auth OpenNebula distribution Community contributions ● Shared FS (nfs, gluster, lustre, ...) ● LVM MooseFS CDMI API ● iSCSI (tgt) ● SSH ● HTTP Swift/Glance The OpenNebula Project

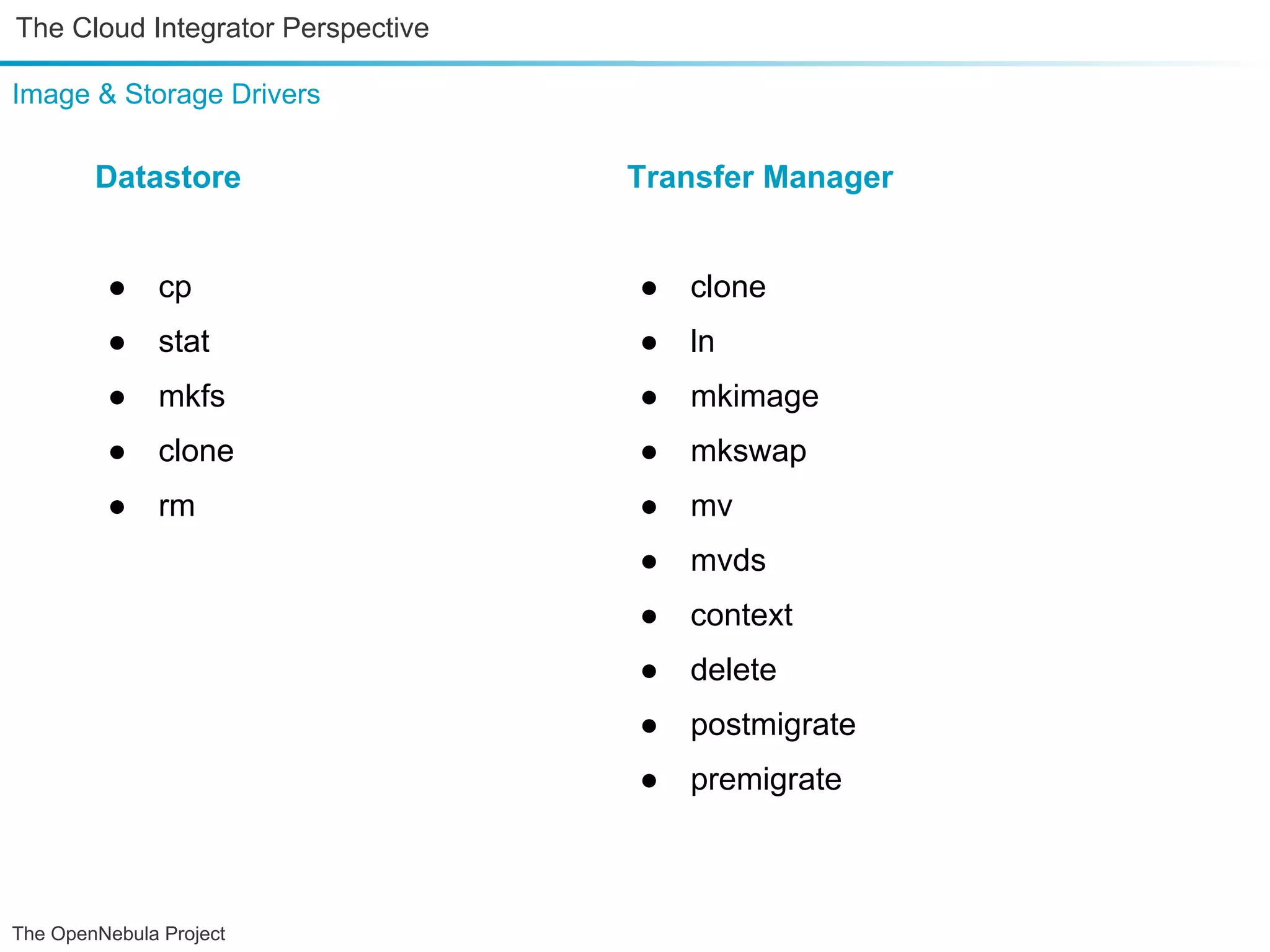

- 13. The Cloud IntegratorPerspective Image & Storage Drivers Datastore Transfer Manager ● cp ● clone ● stat ● ln ● mkfs ● mkimage ● clone ● mkswap ● rm ● mv ● mvds ● context ● delete ● postmigrate ● premigrate The OpenNebula Project

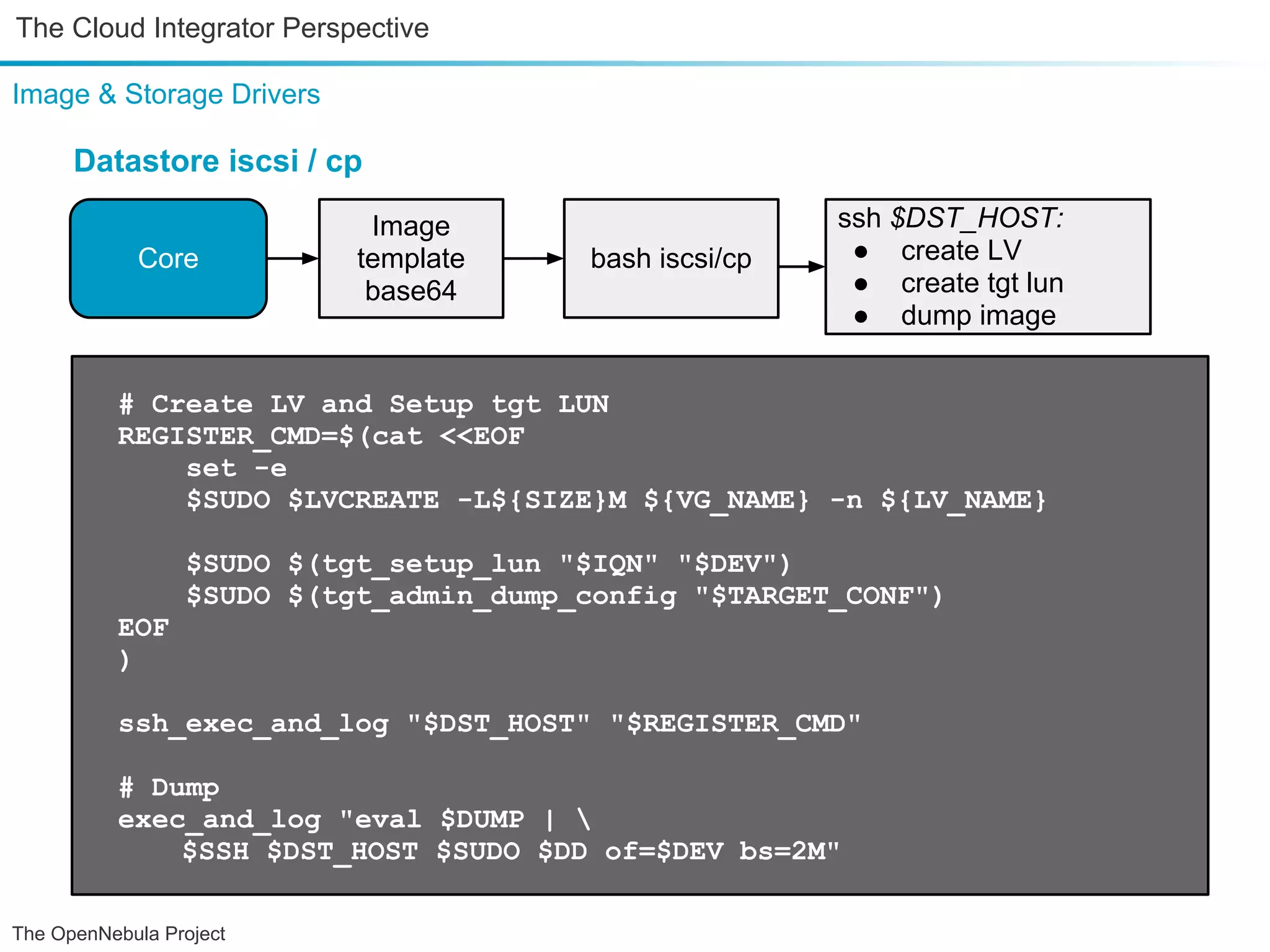

- 14. The Cloud IntegratorPerspective Image & Storage Drivers Datastore iscsi / cp Image ssh $DST_HOST: Core template bash iscsi/cp ● create LV base64 ● create tgt lun ● dump image # Create LV and Setup tgt LUN REGISTER_CMD=$(cat <<EOF set -e $SUDO $LVCREATE -L${SIZE}M ${VG_NAME} -n ${LV_NAME} $SUDO $(tgt_setup_lun "$IQN" "$DEV") $SUDO $(tgt_admin_dump_config "$TARGET_CONF") EOF ) ssh_exec_and_log "$DST_HOST" "$REGISTER_CMD" # Dump exec_and_log "eval $DUMP | $SSH $DST_HOST $SUDO $DD of=$DEV bs=2M" The OpenNebula Project

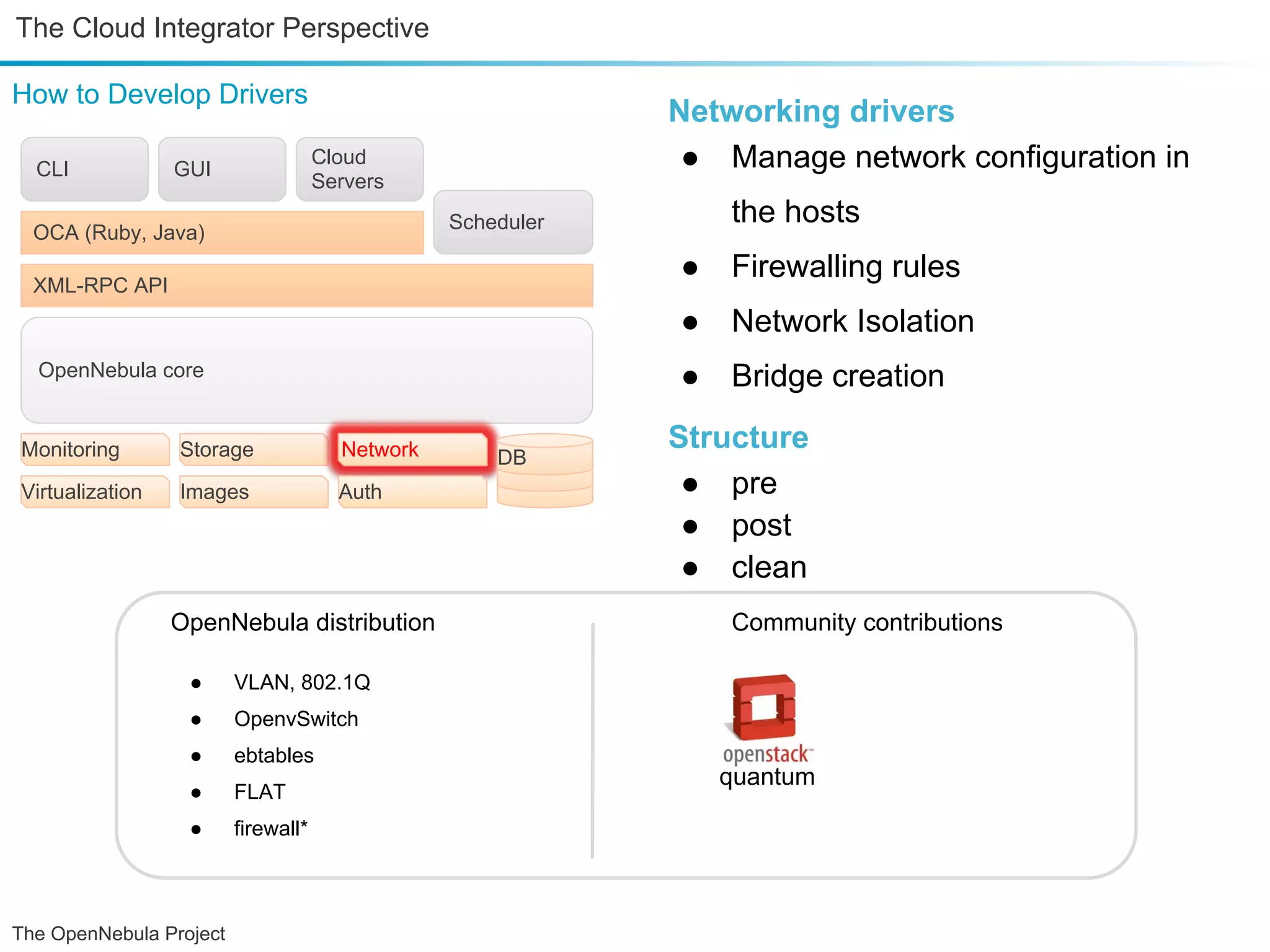

- 15. The Cloud IntegratorPerspective How to Develop Drivers Networking drivers CLI GUI Cloud ● Manage network configuration in Servers Scheduler the hosts OCA (Ruby, Java) XML-RPC API ● Firewalling rules ● Network Isolation OpenNebula core ● Bridge creation Monitoring Storage Network Structure DB Virtualization Images Auth ● pre ● post ● clean OpenNebula distribution Community contributions ● VLAN, 802.1Q ● OpenvSwitch ● ebtables quantum ● FLAT ● firewall* The OpenNebula Project

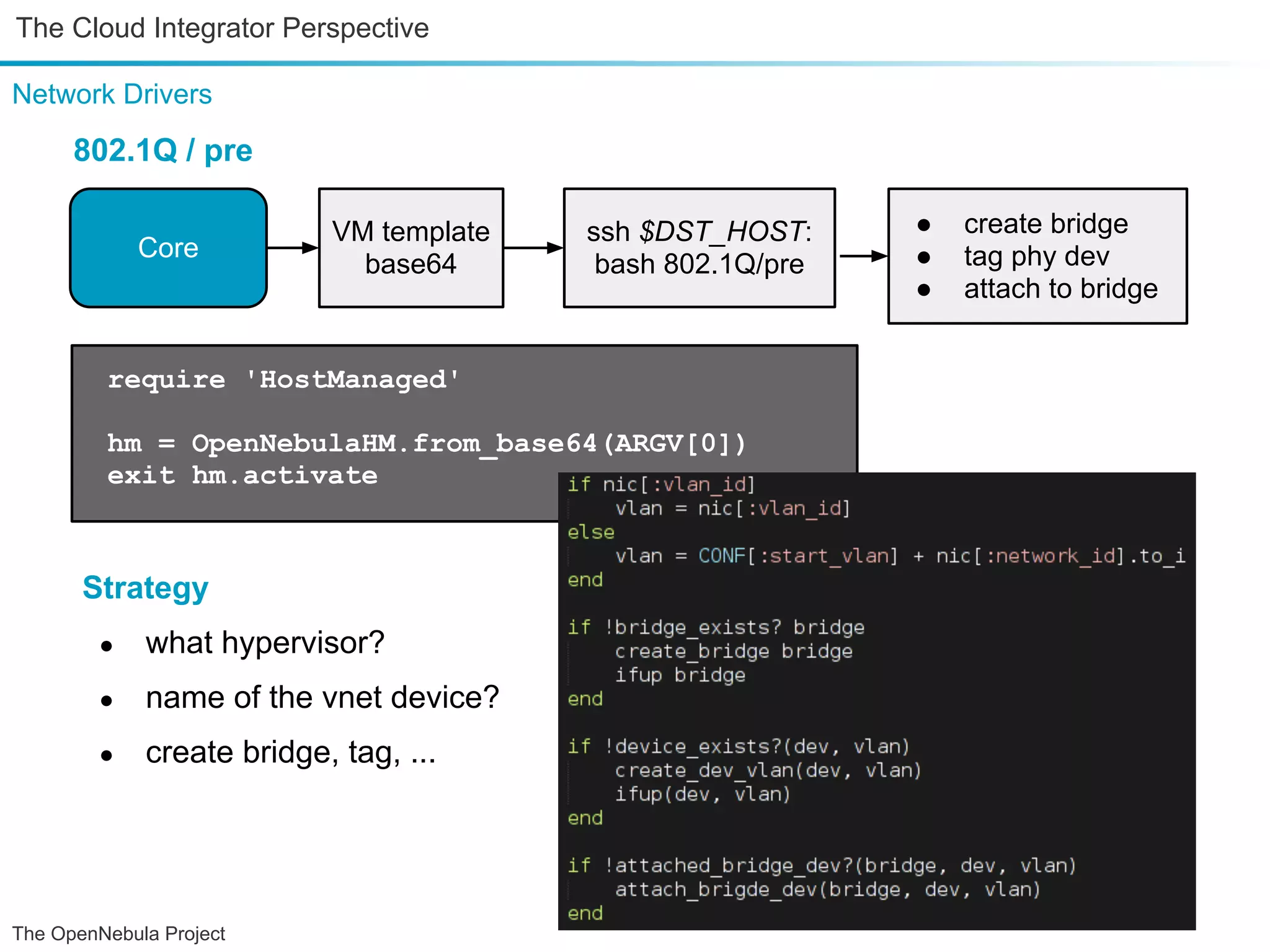

- 16. The Cloud IntegratorPerspective Network Drivers 802.1Q / pre VM template ssh $DST_HOST: ● create bridge Core ● tag phy dev base64 bash 802.1Q/pre ● attach to bridge require 'HostManaged' hm = OpenNebulaHM.from_base64(ARGV[0]) exit hm.activate Strategy ● what hypervisor? ● name of the vnet device? ● create bridge, tag, ... The OpenNebula Project

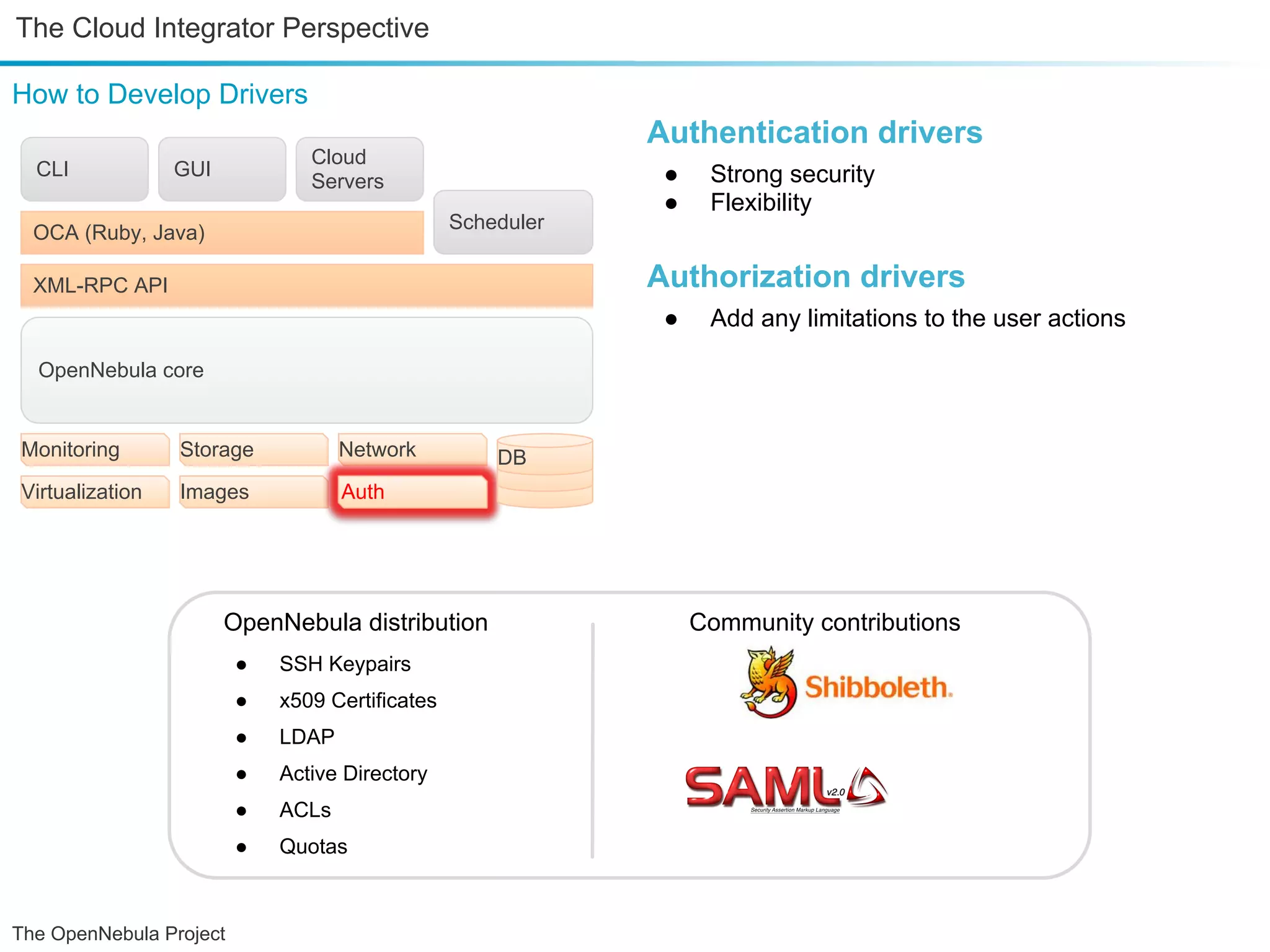

- 17. The Cloud IntegratorPerspective How to Develop Drivers Authentication drivers Cloud CLI GUI ● Strong security Servers ● Flexibility OCA (Ruby, Java) Scheduler XML-RPC API Authorization drivers ● Add any limitations to the user actions OpenNebula core Monitoring Storage Network DB Virtualization Images Auth OpenNebula distribution Community contributions ● SSH Keypairs ● x509 Certificates ● LDAP ● Active Directory ● ACLs ● Quotas The OpenNebula Project

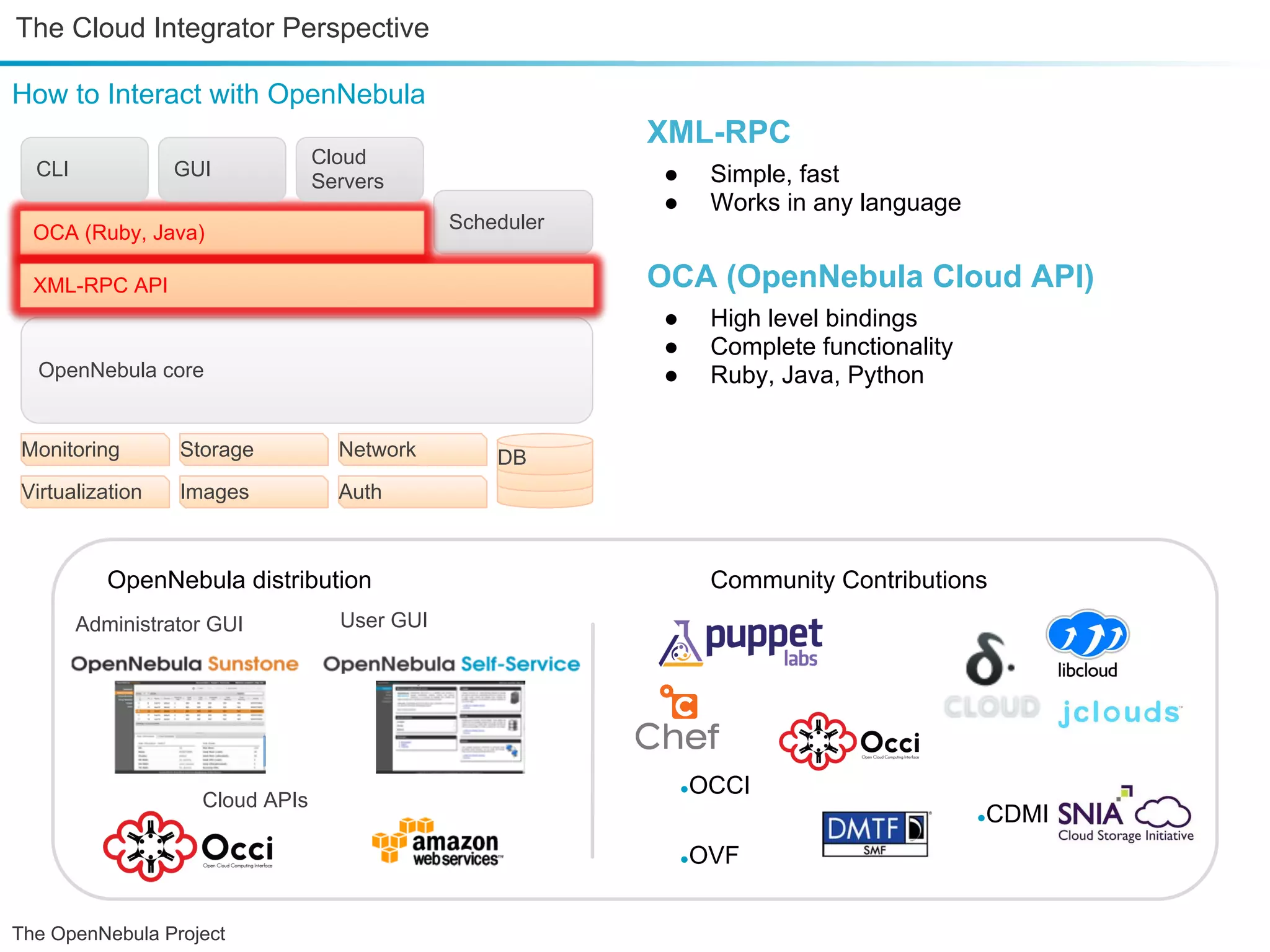

- 18. The Cloud IntegratorPerspective How to Interact with OpenNebula XML-RPC Cloud CLI GUI ● Simple, fast Servers ● Works in any language OCA (Ruby, Java) Scheduler XML-RPC API OCA (OpenNebula Cloud API) ● High level bindings ● Complete functionality OpenNebula core ● Ruby, Java, Python Monitoring Storage Network DB Virtualization Images Auth OpenNebula distribution Community Contributions Administrator GUI User GUI OCCI ● Cloud APIs CDMI ● OVF ● The OpenNebula Project

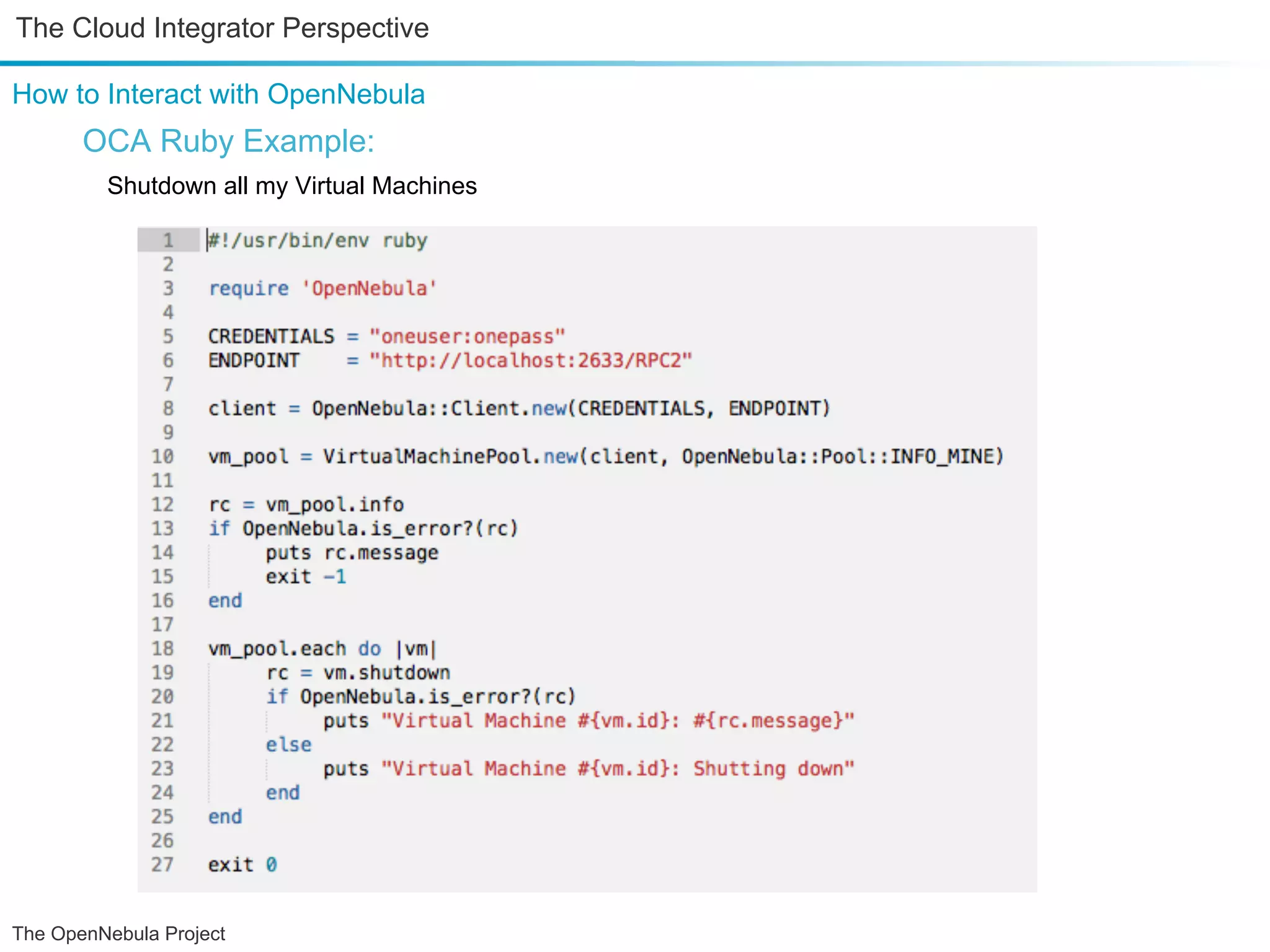

- 19. The Cloud IntegratorPerspective How to Interact with OpenNebula OCA Ruby Example: Shutdown all my Virtual Machines The OpenNebula Project

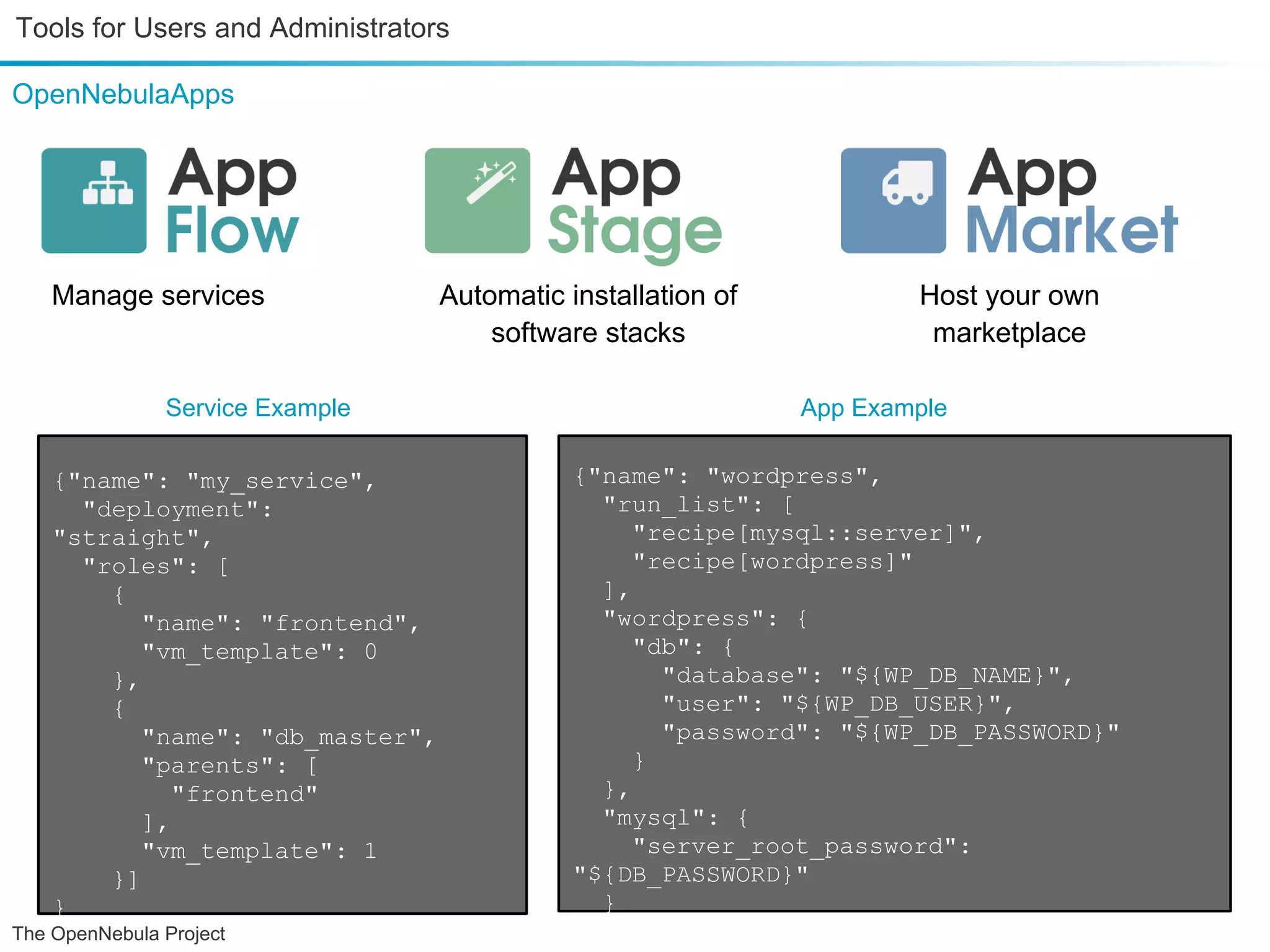

- 20. Tools for Usersand Administrators OpenNebulaApps Manage services Automatic installation of Host your own software stacks marketplace Service Example App Example {"name": "my_service", {"name": "wordpress", "deployment": "run_list": [ "straight", "recipe[mysql::server]", "roles": [ "recipe[wordpress]" { ], "name": "frontend", "wordpress": { "vm_template": 0 "db": { }, "database": "${WP_DB_NAME}", { "user": "${WP_DB_USER}", "name": "db_master", "password": "${WP_DB_PASSWORD}" "parents": [ } "frontend" }, ], "mysql": { "vm_template": 1 "server_root_password": }] "${DB_PASSWORD}" } } The OpenNebula Project }

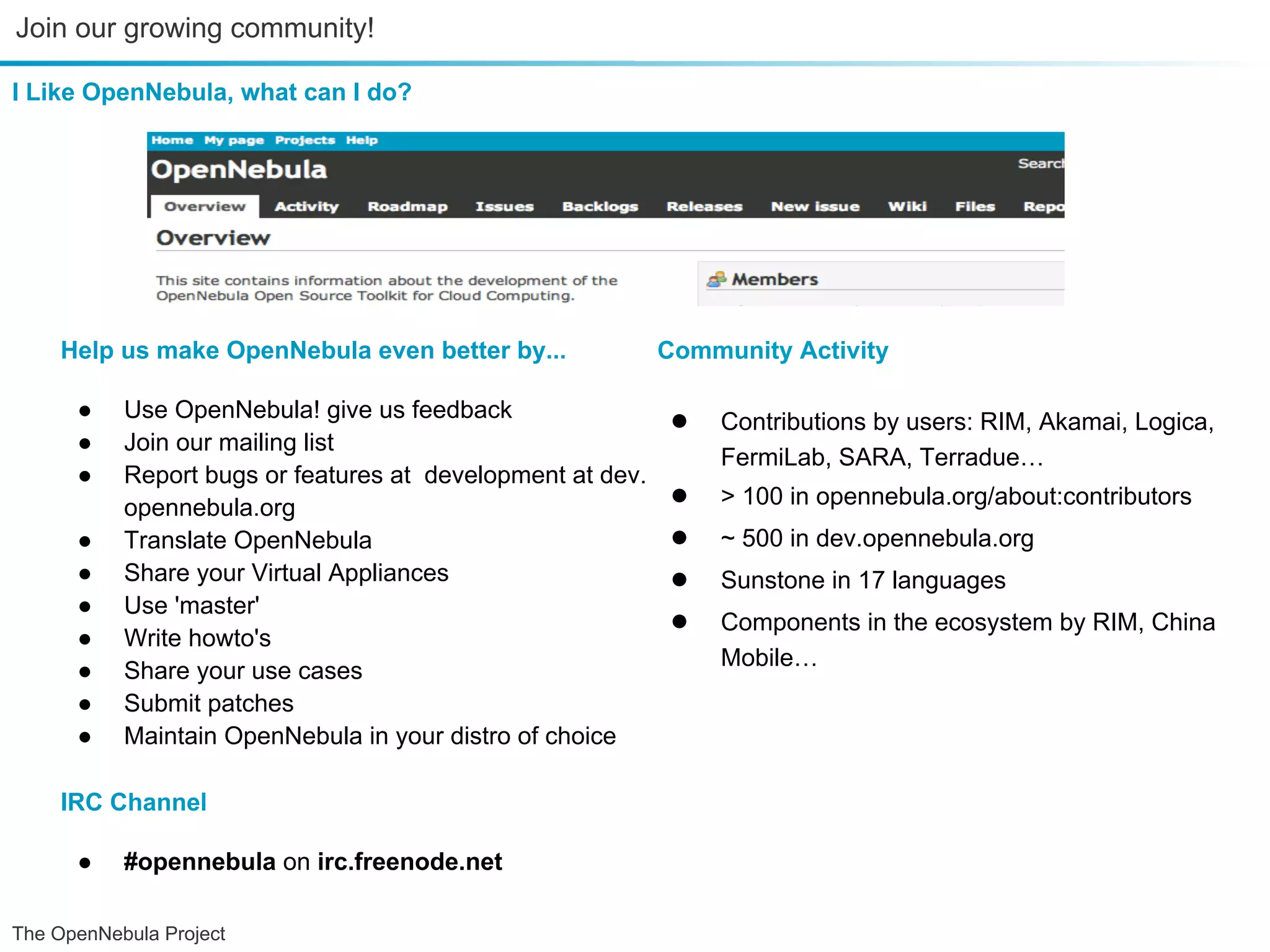

- 21. Join our growingcommunity! I Like OpenNebula, what can I do? Help us make OpenNebula even better by... Community Activity ● Use OpenNebula! give us feedback ● Contributions by users: RIM, Akamai, Logica, ● Join our mailing list FermiLab, SARA, Terradue… ● Report bugs or features at development at dev. opennebula.org ● > 100 in opennebula.org/about:contributors ● Translate OpenNebula ● ~ 500 in dev.opennebula.org ● Share your Virtual Appliances ● Sunstone in 17 languages ● Use 'master' ● Components in the ecosystem by RIM, China ● Write howto's Mobile… ● Share your use cases ● Submit patches ● Maintain OpenNebula in your distro of choice IRC Channel ● #opennebula on irc.freenode.net The OpenNebula Project

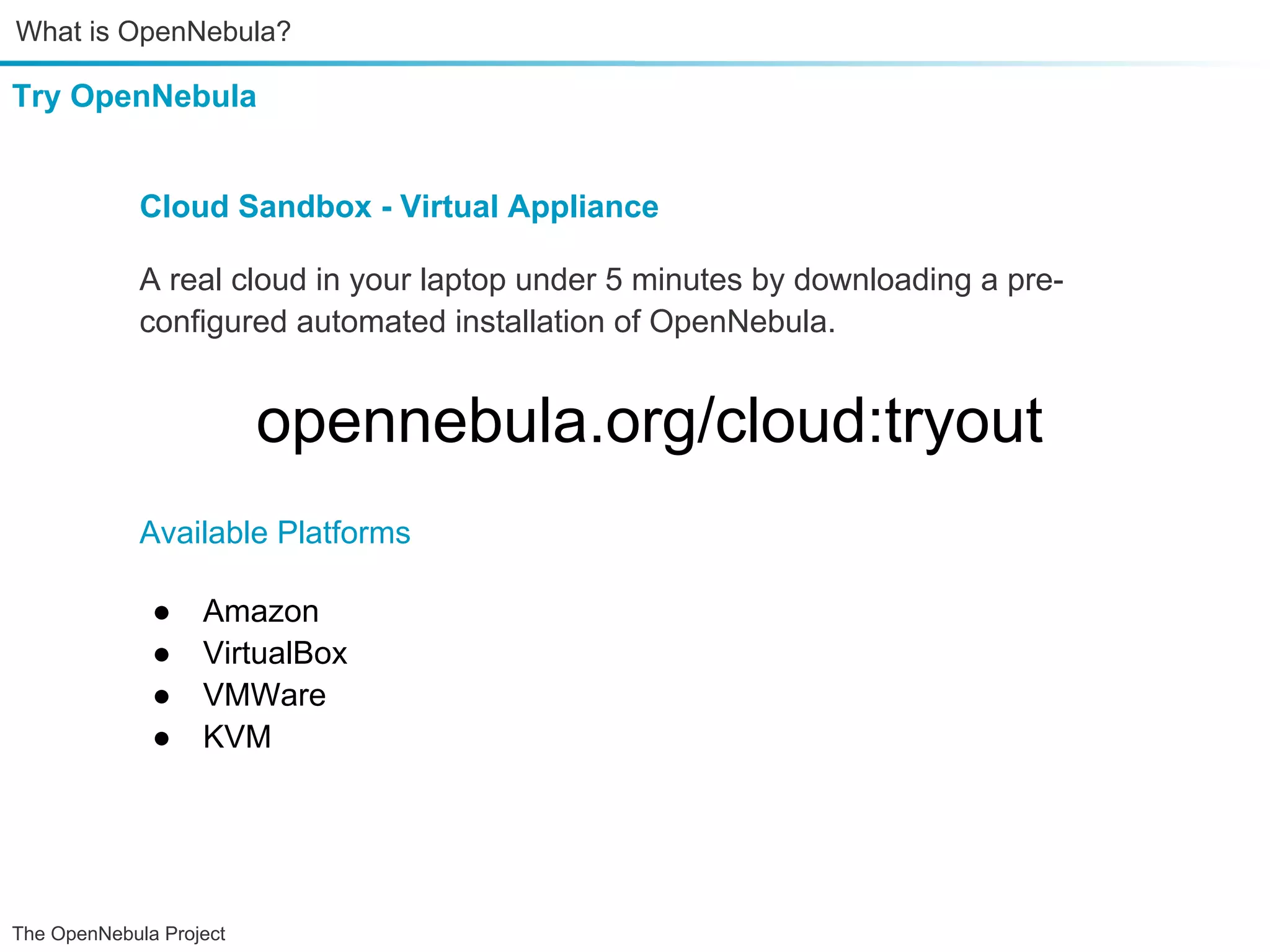

- 22. What is OpenNebula? TryOpenNebula Cloud Sandbox - Virtual Appliance A real cloud in your laptop under 5 minutes by downloading a pre- configured automated installation of OpenNebula. opennebula.org/cloud:tryout Available Platforms ● Amazon ● VirtualBox ● VMWare ● KVM The OpenNebula Project
- 23. Want more? More OpenNebula@FOSDEM Enabling cloud for e-Science with OpenNebula 11:30. Chavanne. Zeeshan Ali BuildSys and QA in CentOS using a Private Cloud: OpenNebula 12:00. H.1302. Karanbir Singh & Jaime Melis Raindrops 13:00. H.1301. Karanbir Singh & Jaime Melis The OpenNebula Project
- 24. Questions? We Will BeHappy to Answer any Question TL; DR: OpenNebula is awesome, go check it out! @opennebula The OpenNebula Project

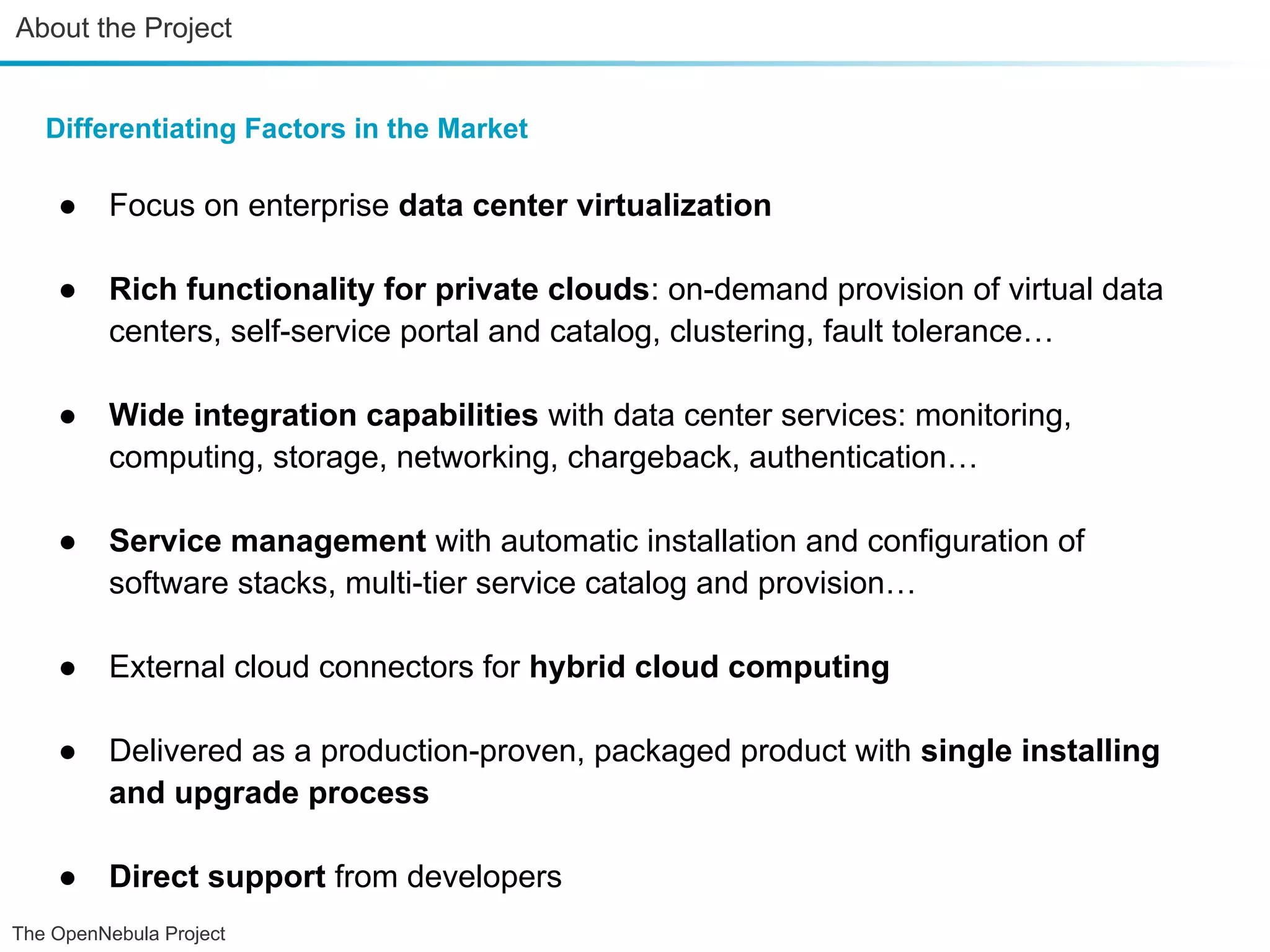

- 25. About the Project Differentiating Factors in the Market ● Focus on enterprise data center virtualization ● Rich functionality for private clouds: on-demand provision of virtual data centers, self-service portal and catalog, clustering, fault tolerance… ● Wide integration capabilities with data center services: monitoring, computing, storage, networking, chargeback, authentication… ● Service management with automatic installation and configuration of software stacks, multi-tier service catalog and provision… ● External cloud connectors for hybrid cloud computing ● Delivered as a production-proven, packaged product with single installing and upgrade process ● Direct support from developers The OpenNebula Project
