File Handling in C Programming for Beginners

File Handling in C Programming for Beginners

• 1.
  File Handling inC 1
• 2.
  Console oriented Input/Output •Console oriented – use terminal (keyboard/screen) • scanf(“%d”,&i) – read data from keyboard • printf(“%d”,i) – print data to monitor • Suitable for small volumes of data • Data lost when program terminated
• 3.

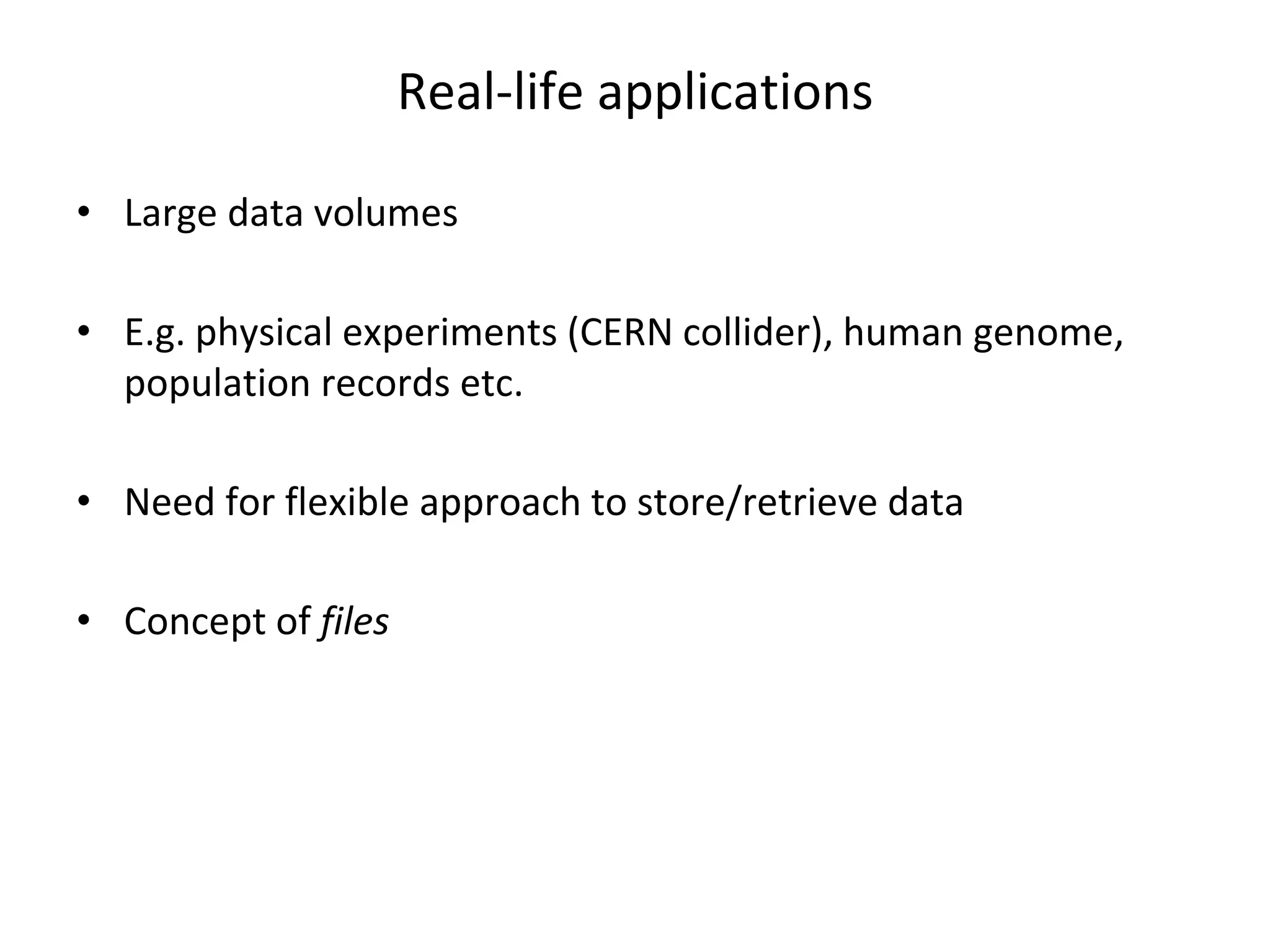

  Real-life applications • Largedata volumes • E.g. physical experiments (CERN collider), human genome, population records etc. • Need for flexible approach to store/retrieve data • Concept of files
• 4.

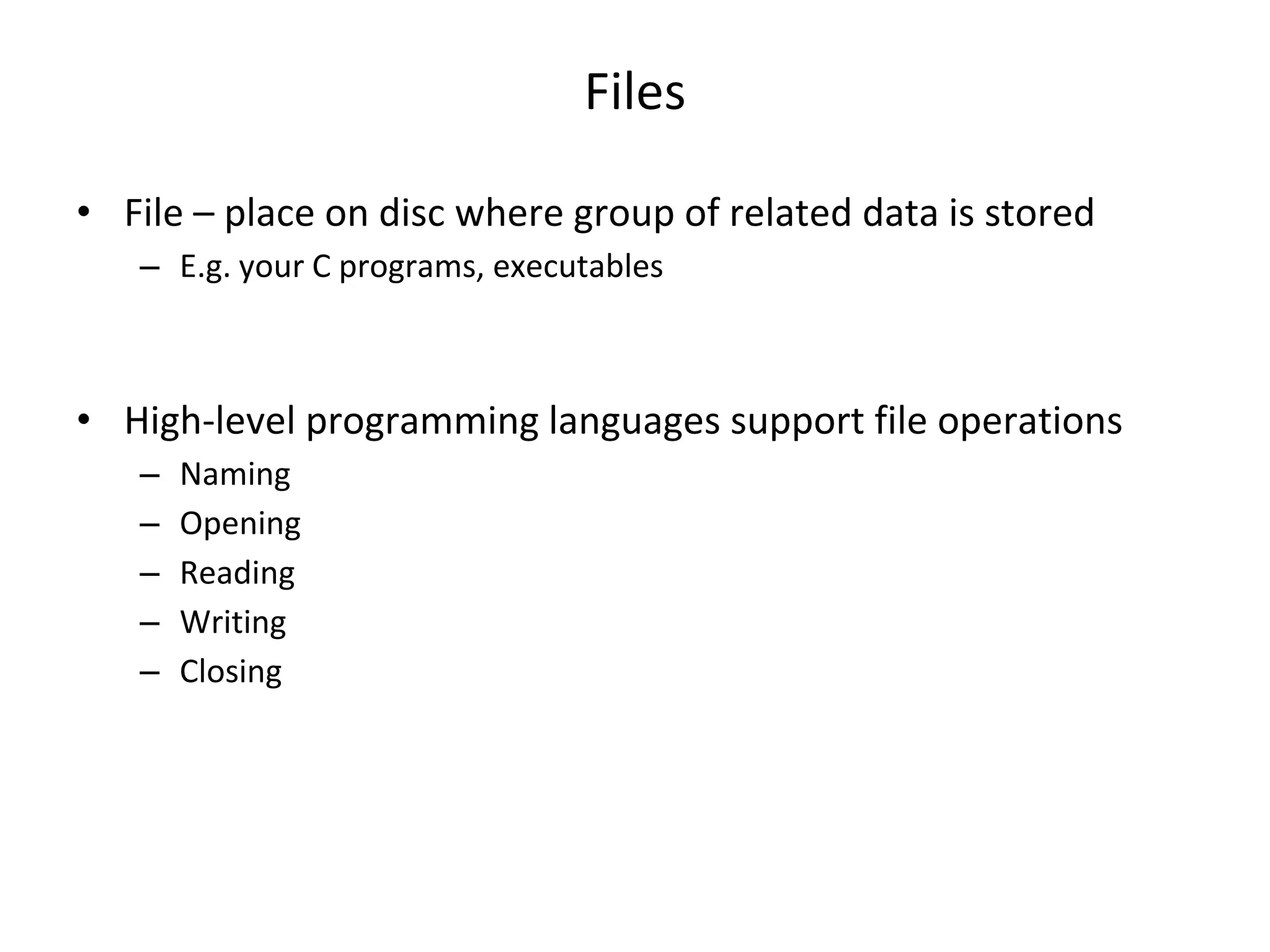

  Files • File –place on disc where group of related data is stored – E.g. your C programs, executables • High-level programming languages support file operations – Naming – Opening – Reading – Writing – Closing
• 5.

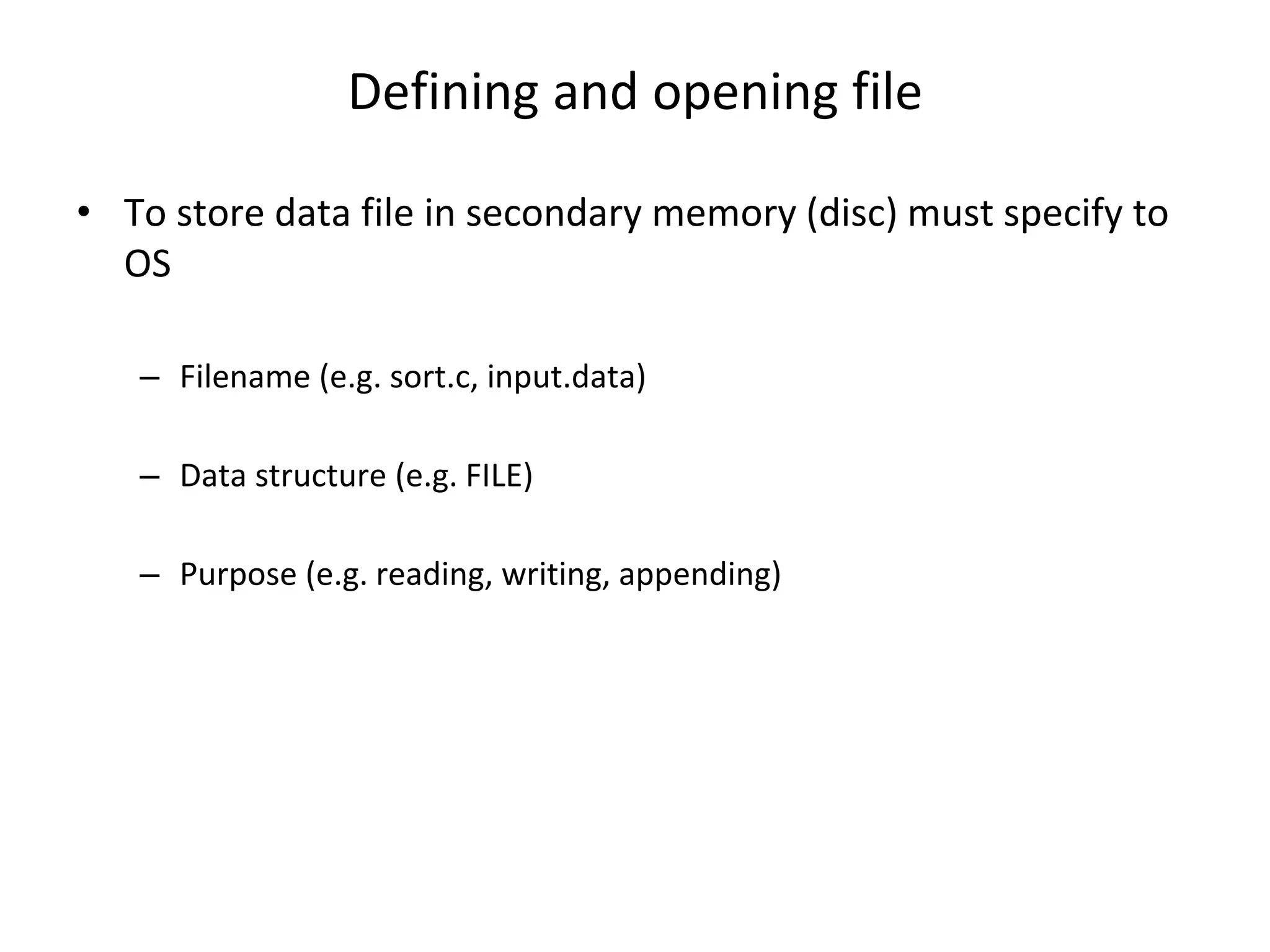

  Defining and openingfile • To store data file in secondary memory (disc) must specify to OS – Filename (e.g. sort.c, input.data) – Data structure (e.g. FILE) – Purpose (e.g. reading, writing, appending)
• 6.

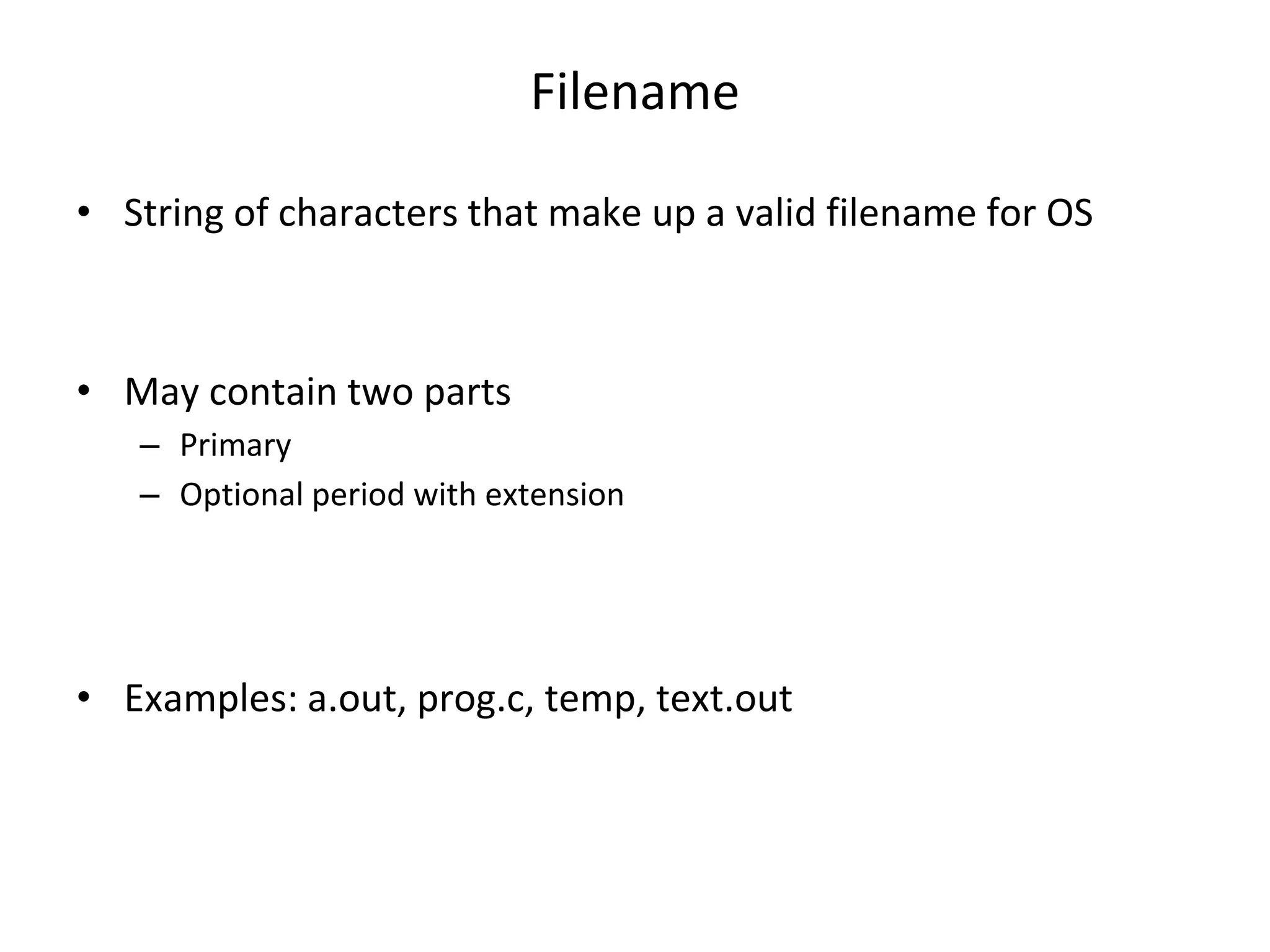

  Filename • String ofcharacters that make up a valid filename for OS • May contain two parts – Primary – Optional period with extension • Examples: a.out, prog.c, temp, text.out
• 7.

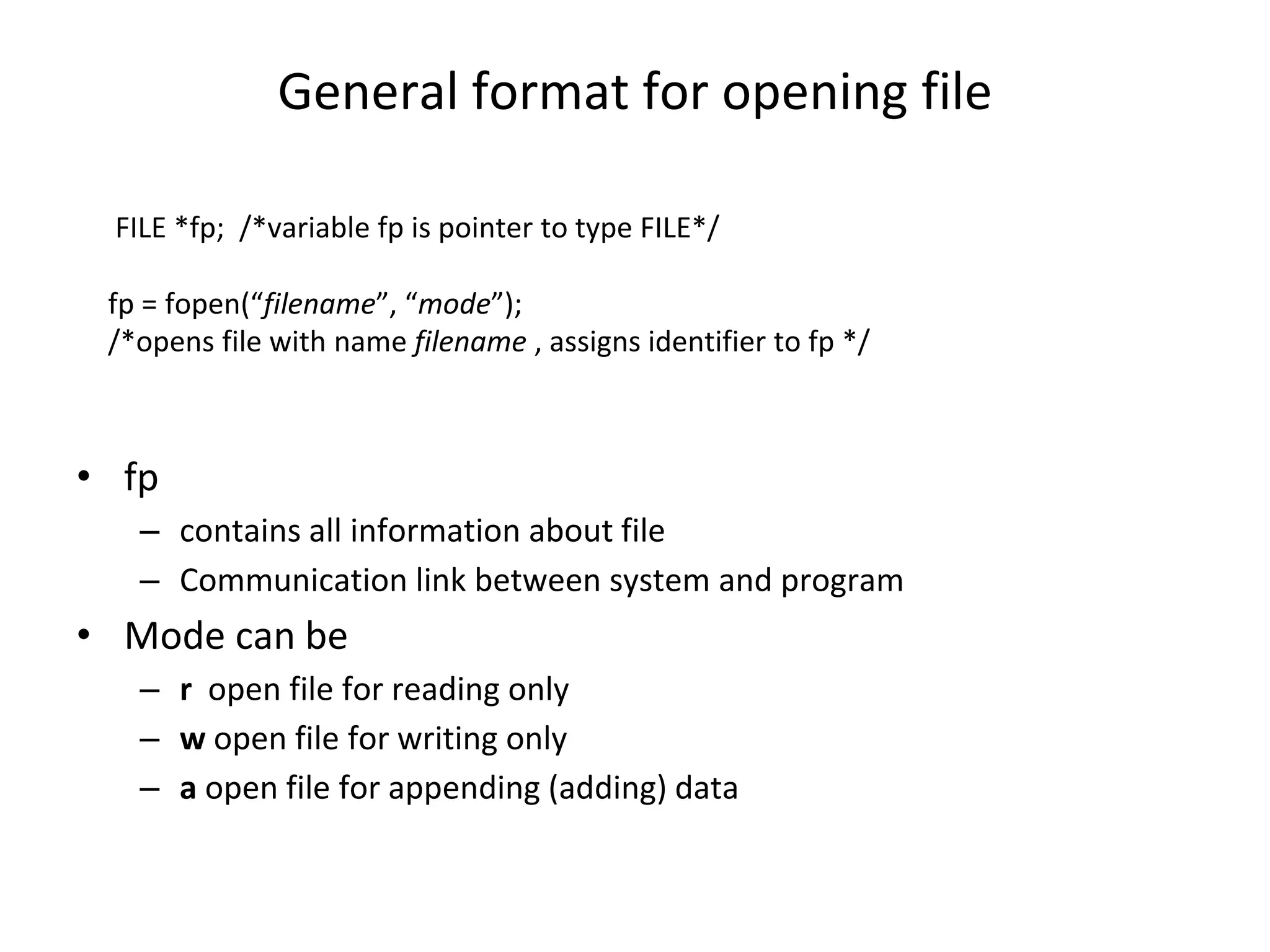

  General format foropening file • fp – contains all information about file – Communication link between system and program • Mode can be – r open file for reading only – w open file for writing only – a open file for appending (adding) data FILE *fp; /*variable fp is pointer to type FILE*/ fp = fopen(“filename”, “mode”); /*opens file with name filename , assigns identifier to fp */
• 8.

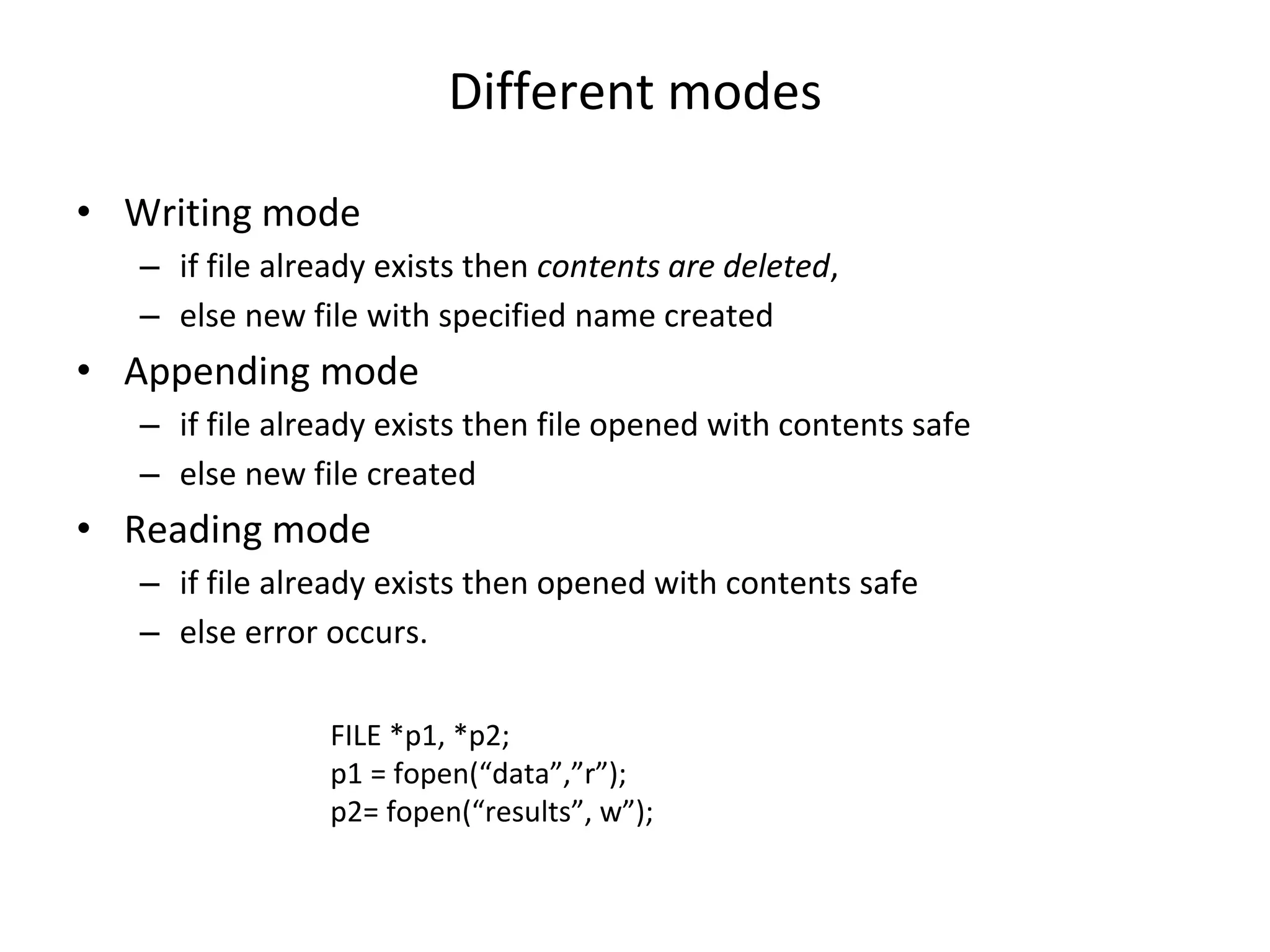

  Different modes • Writingmode – if file already exists then contents are deleted, – else new file with specified name created • Appending mode – if file already exists then file opened with contents safe – else new file created • Reading mode – if file already exists then opened with contents safe – else error occurs. FILE *p1, *p2; p1 = fopen(“data”,”r”); p2= fopen(“results”, w”);
• 9.

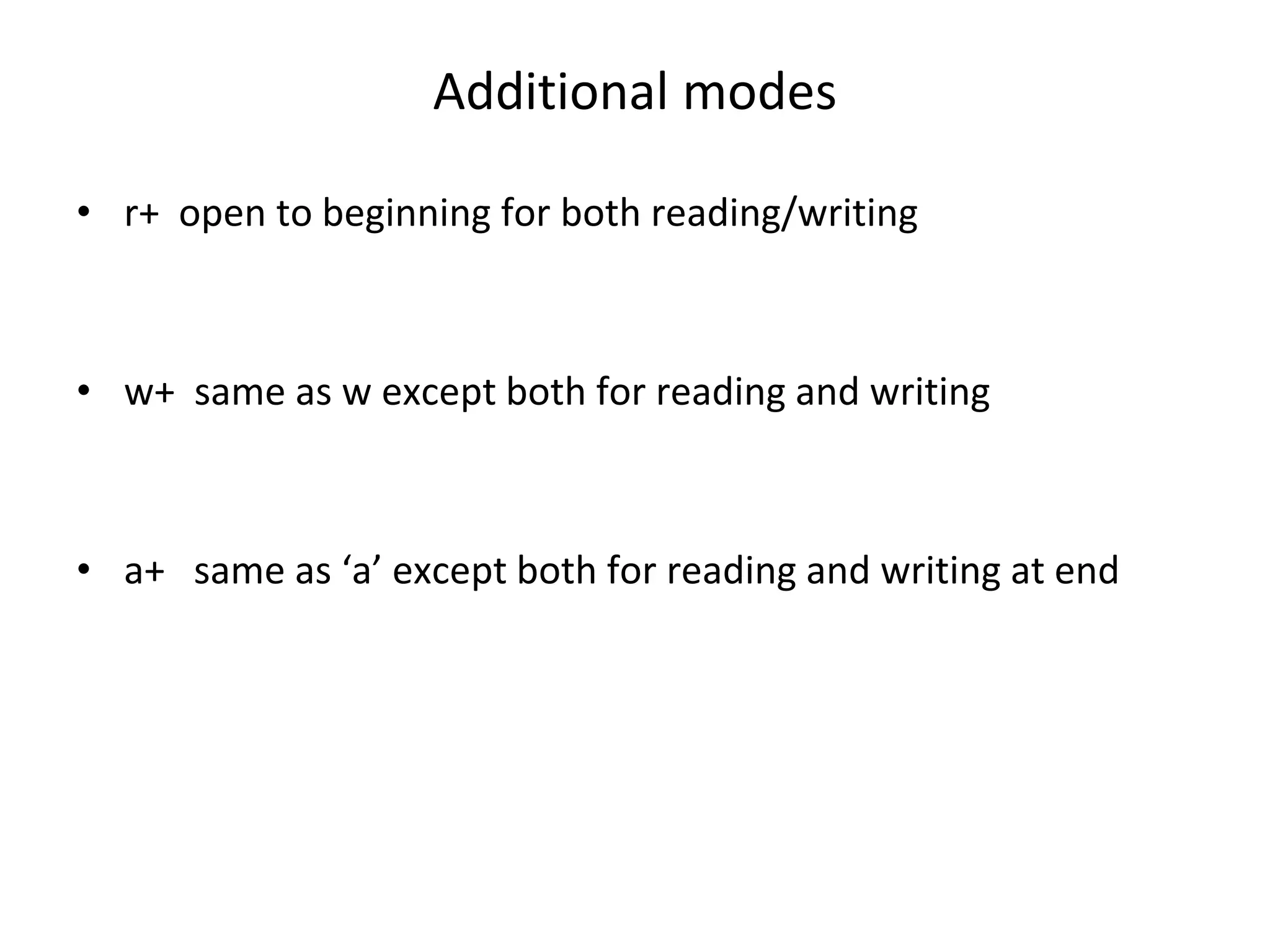

  Additional modes • r+open to beginning for both reading/writing • w+ same as w except both for reading and writing • a+ same as ‘a’ except both for reading and writing at end
• 10.

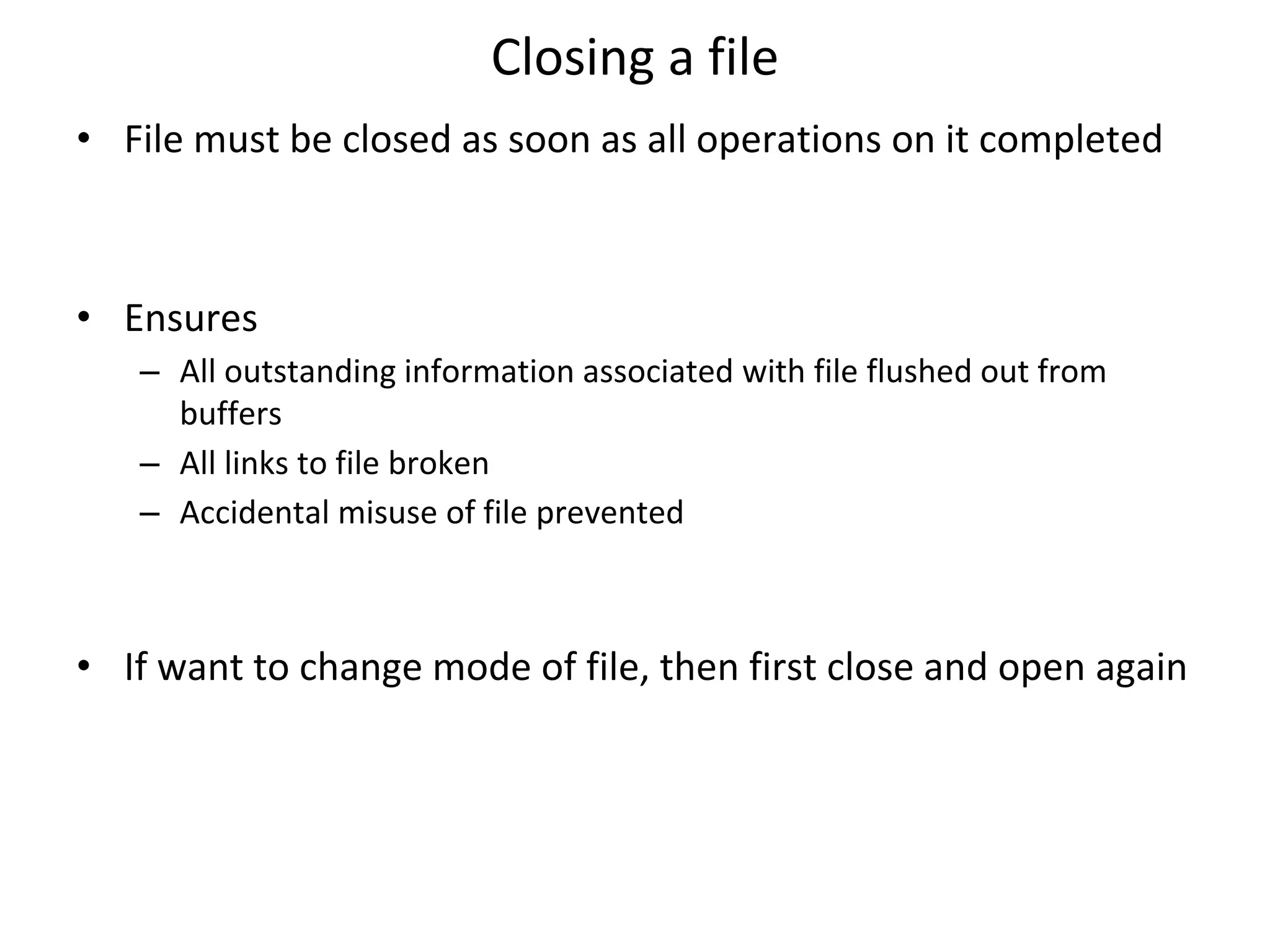

  Closing a file •File must be closed as soon as all operations on it completed • Ensures – All outstanding information associated with file flushed out from buffers – All links to file broken – Accidental misuse of file prevented • If want to change mode of file, then first close and open again
• 11.

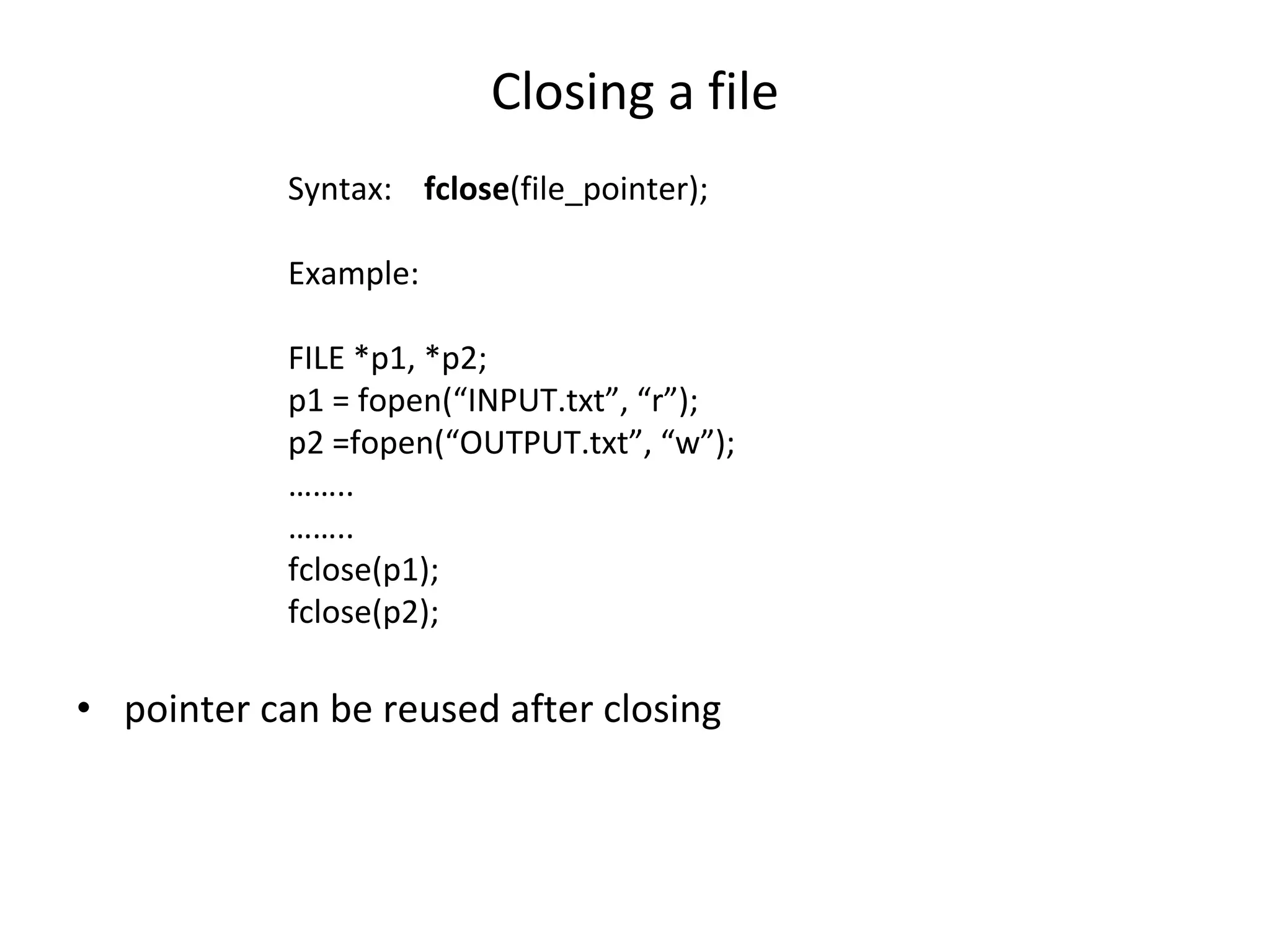

  Closing a file •pointer can be reused after closing Syntax: fclose(file_pointer); Example: FILE *p1, *p2; p1 = fopen(“INPUT.txt”, “r”); p2 =fopen(“OUTPUT.txt”, “w”); …….. …….. fclose(p1); fclose(p2);
• 12.

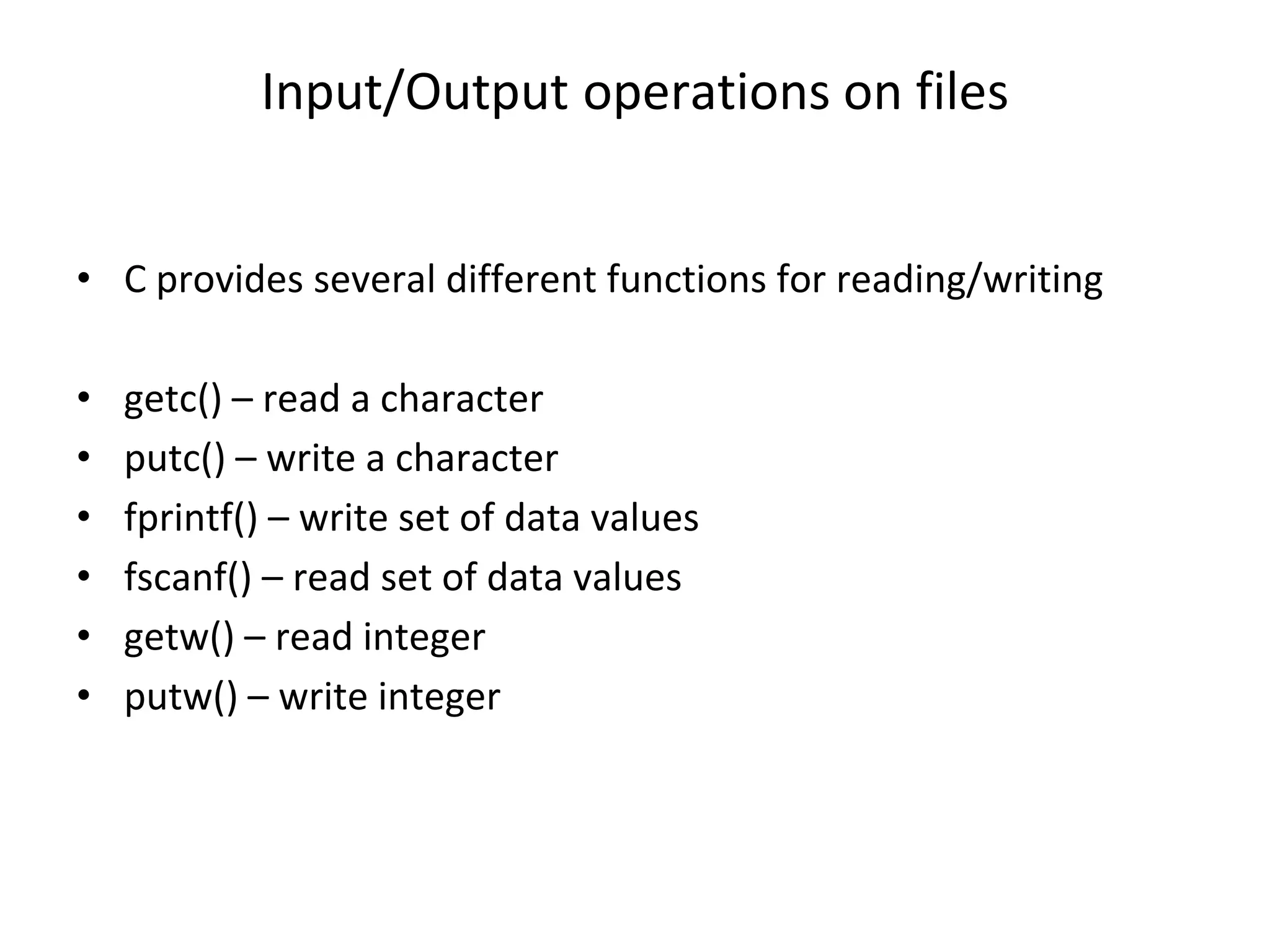

  Input/Output operations onfiles • C provides several different functions for reading/writing • getc() – read a character • putc() – write a character • fprintf() – write set of data values • fscanf() – read set of data values • getw() – read integer • putw() – write integer
• 13.

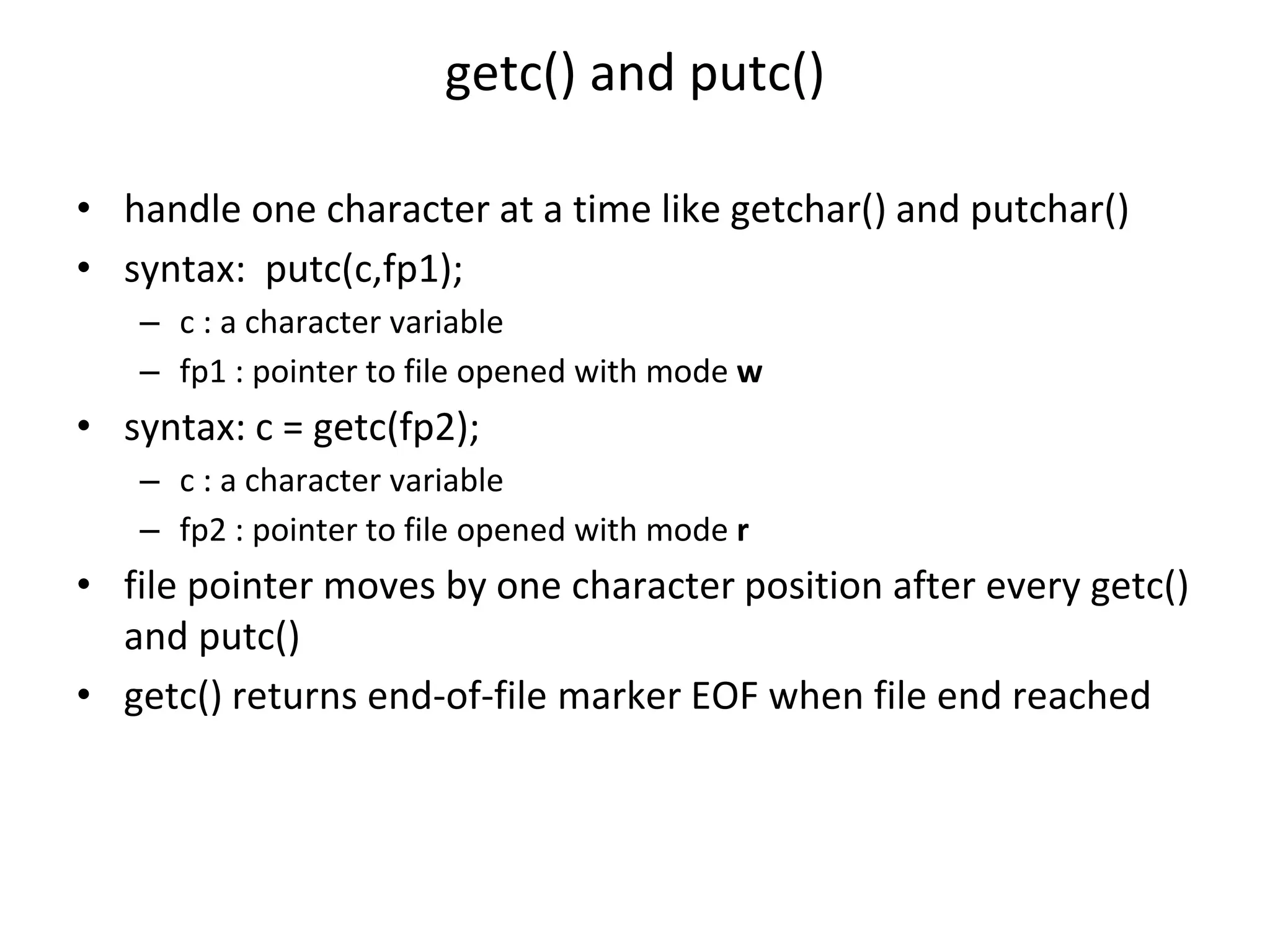

  getc() and putc() •handle one character at a time like getchar() and putchar() • syntax: putc(c,fp1); – c : a character variable – fp1 : pointer to file opened with mode w • syntax: c = getc(fp2); – c : a character variable – fp2 : pointer to file opened with mode r • file pointer moves by one character position after every getc() and putc() • getc() returns end-of-file marker EOF when file end reached
• 14.
  Program to read/writeusing getc/putc #include <stdio.h> main() { FILE *fp1; char c; f1= fopen(“INPUT”, “w”); /* open file for writing */ while((c=getchar()) != EOF) /*get char from keyboard until CTL-Z*/ putc(c,f1); /*write a character to INPUT */ fclose(f1); /* close INPUT */ f1=fopen(“INPUT”, “r”); /* reopen file */ while((c=getc(f1))!=EOF) /*read character from file INPUT*/ printf(“%c”, c); /* print character to screen */
• 15.

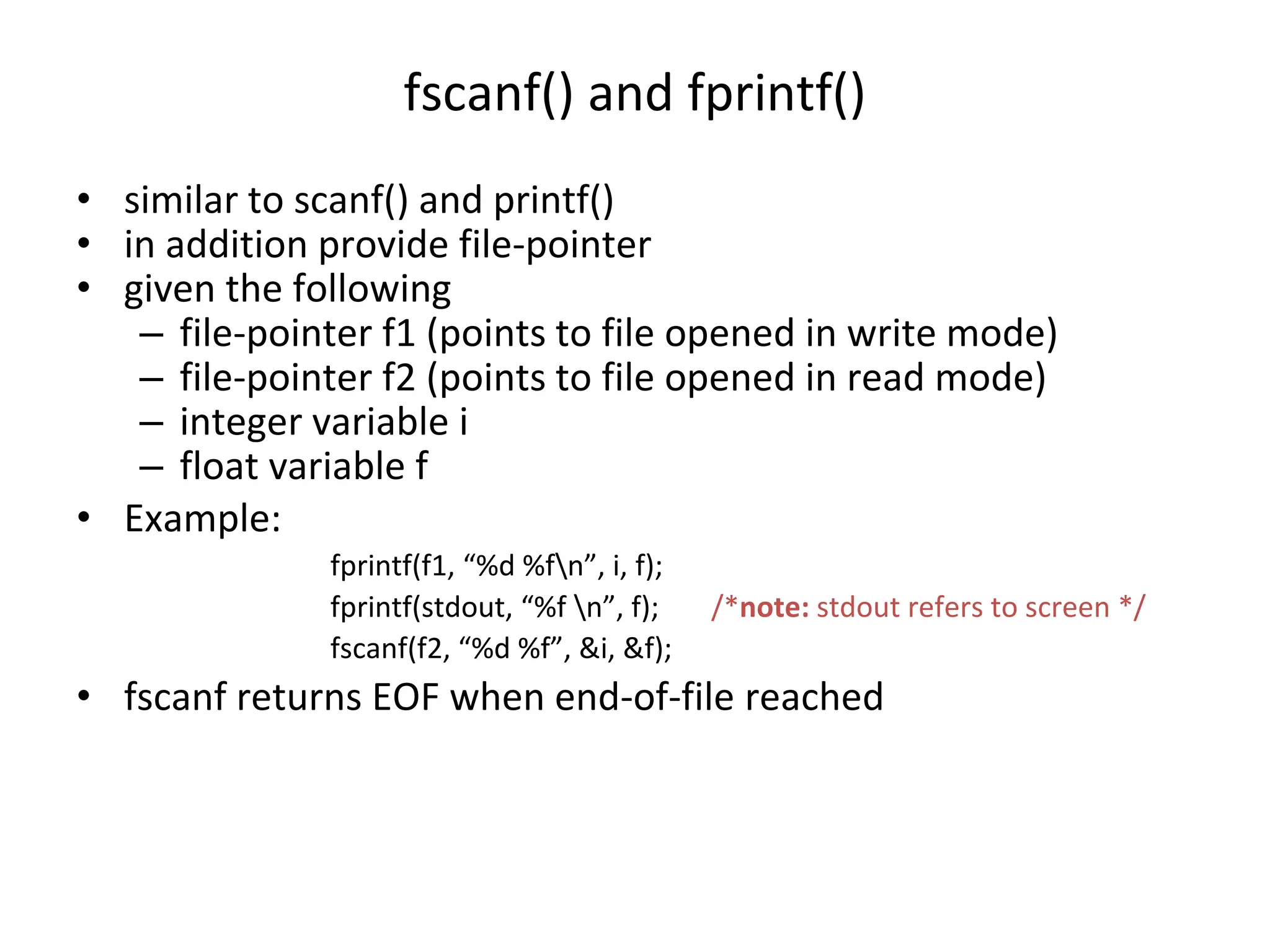

  fscanf() and fprintf() •similar to scanf() and printf() • in addition provide file-pointer • given the following – file-pointer f1 (points to file opened in write mode) – file-pointer f2 (points to file opened in read mode) – integer variable i – float variable f • Example: fprintf(f1, “%d %fn”, i, f); fprintf(stdout, “%f n”, f); /*note: stdout refers to screen */ fscanf(f2, “%d %f”, &i, &f); • fscanf returns EOF when end-of-file reached
• 16.

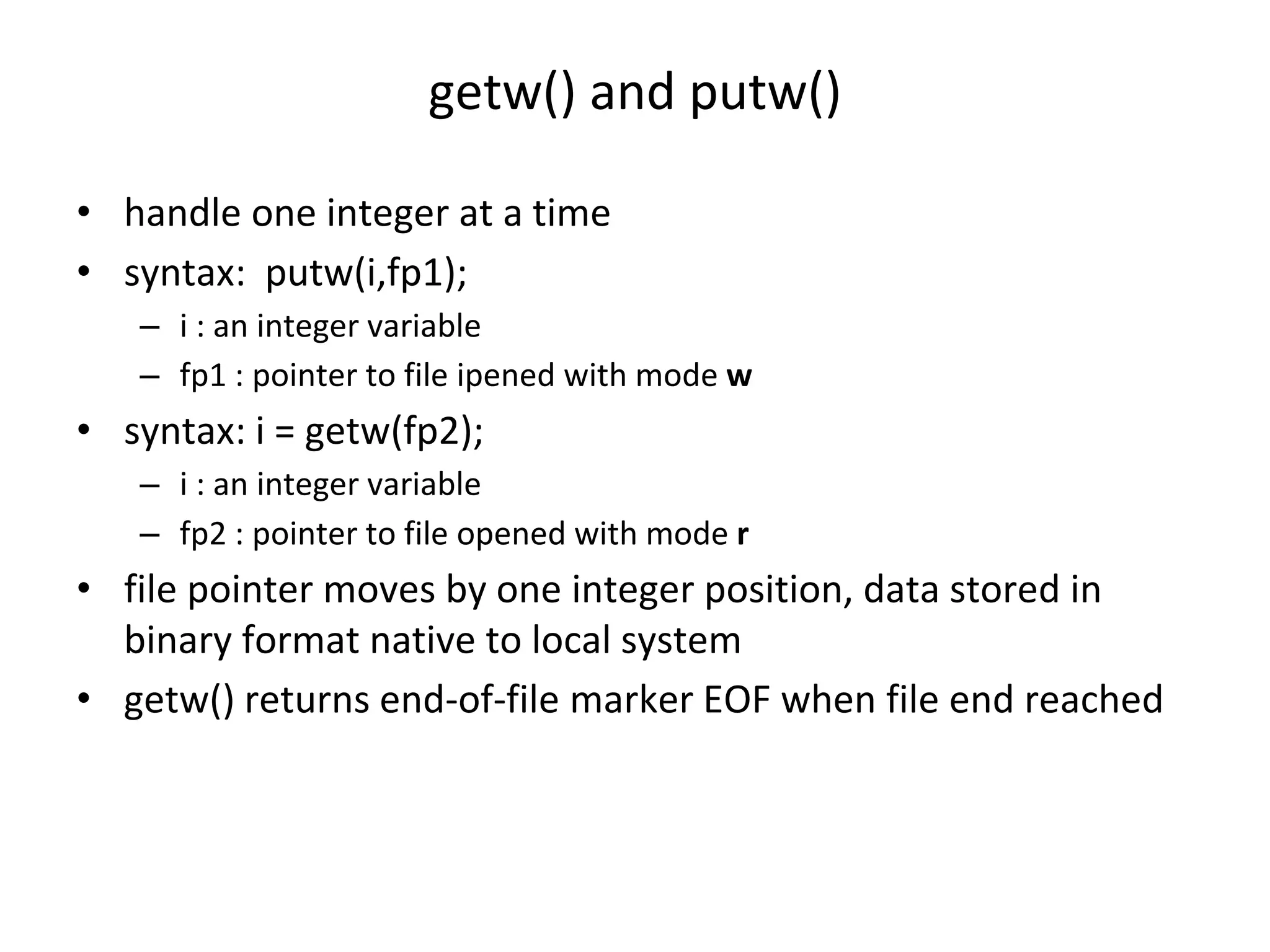

  getw() and putw() •handle one integer at a time • syntax: putw(i,fp1); – i : an integer variable – fp1 : pointer to file ipened with mode w • syntax: i = getw(fp2); – i : an integer variable – fp2 : pointer to file opened with mode r • file pointer moves by one integer position, data stored in binary format native to local system • getw() returns end-of-file marker EOF when file end reached
• 17.

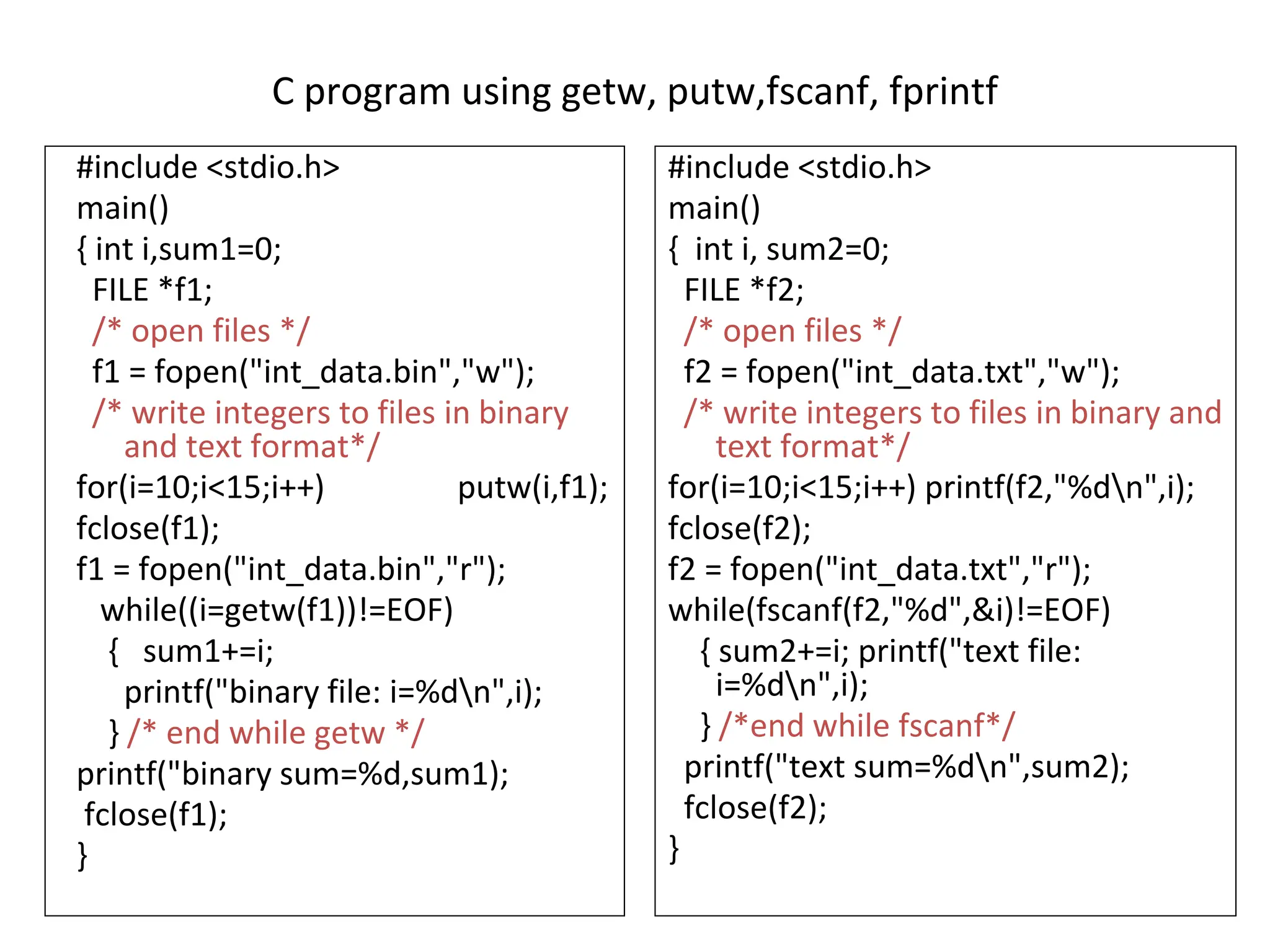

  C program usinggetw, putw,fscanf, fprintf #include <stdio.h> main() { int i,sum1=0; FILE *f1; /* open files */ f1 = fopen("int_data.bin","w"); /* write integers to files in binary and text format*/ for(i=10;i<15;i++) putw(i,f1); fclose(f1); f1 = fopen("int_data.bin","r"); while((i=getw(f1))!=EOF) { sum1+=i; printf("binary file: i=%dn",i); } /* end while getw */ printf("binary sum=%d,sum1); fclose(f1); } #include <stdio.h> main() { int i, sum2=0; FILE *f2; /* open files */ f2 = fopen("int_data.txt","w"); /* write integers to files in binary and text format*/ for(i=10;i<15;i++) printf(f2,"%dn",i); fclose(f2); f2 = fopen("int_data.txt","r"); while(fscanf(f2,"%d",&i)!=EOF) { sum2+=i; printf("text file: i=%dn",i); } /*end while fscanf*/ printf("text sum=%dn",sum2); fclose(f2); }
• 18.

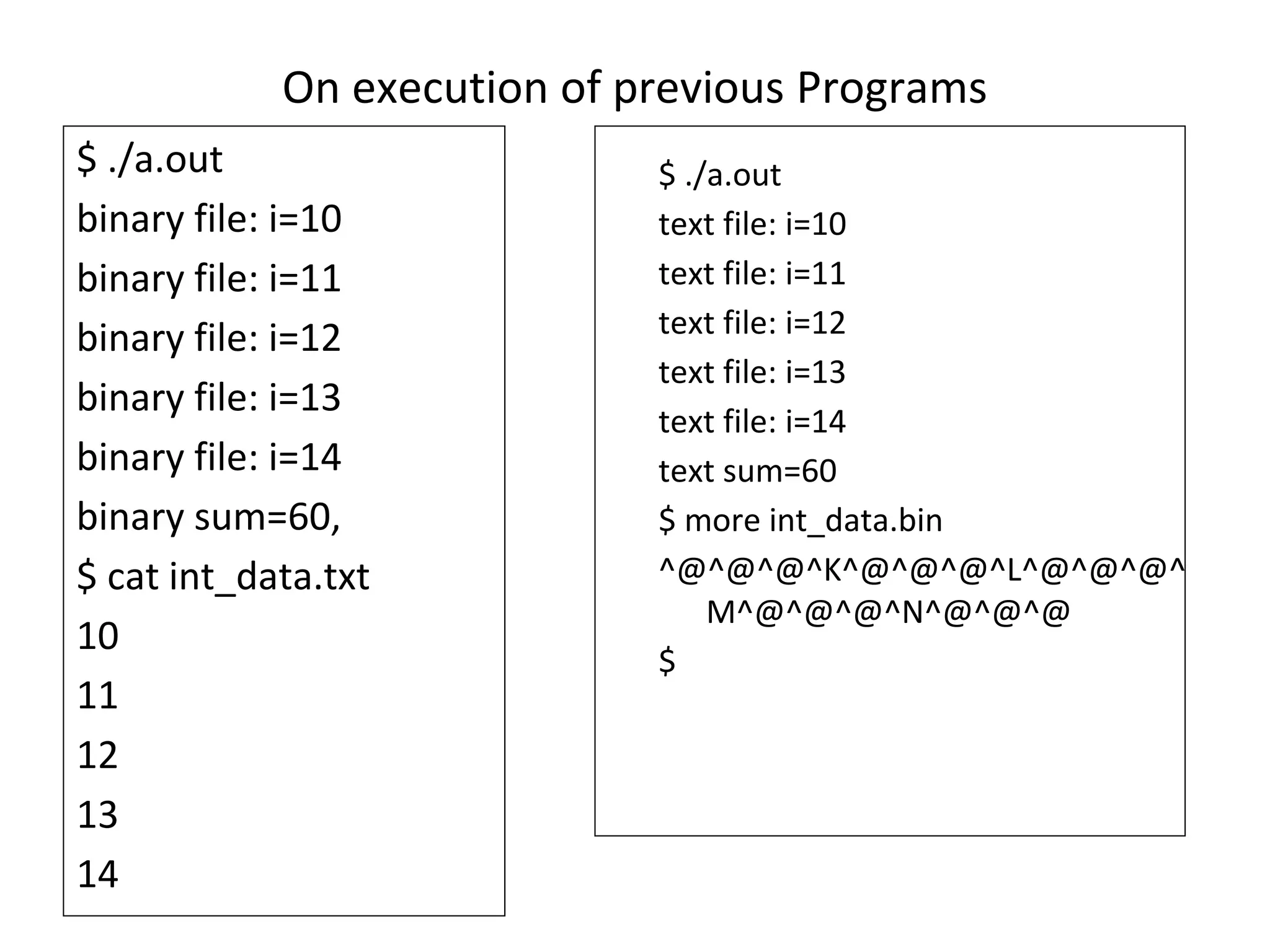

  On execution ofprevious Programs $ ./a.out binary file: i=10 binary file: i=11 binary file: i=12 binary file: i=13 binary file: i=14 binary sum=60, $ cat int_data.txt 10 11 12 13 14 $ ./a.out text file: i=10 text file: i=11 text file: i=12 text file: i=13 text file: i=14 text sum=60 $ more int_data.bin ^@^@^@^K^@^@^@^L^@^@^@^ M^@^@^@^N^@^@^@ $
• 19.

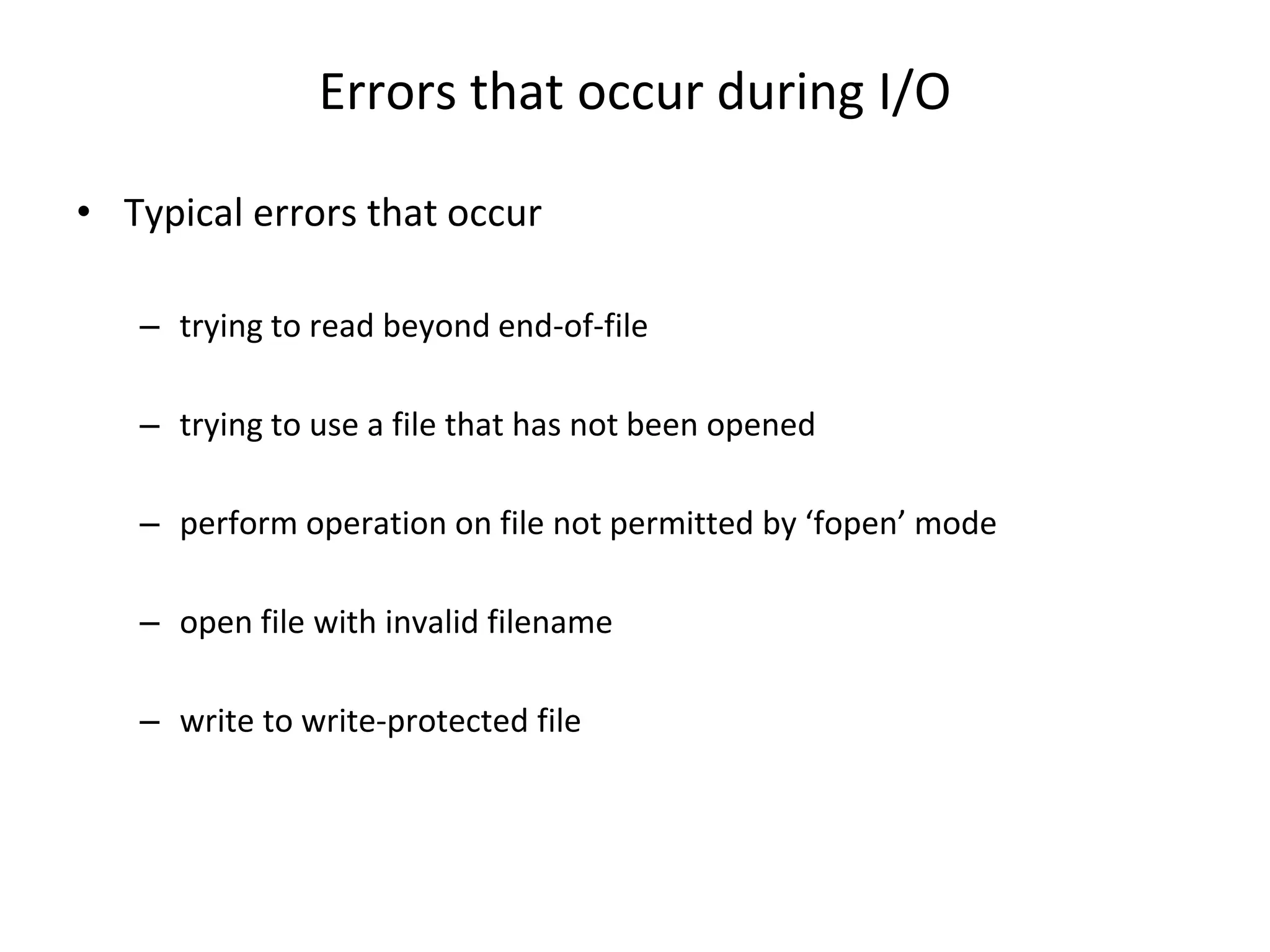

  Errors that occurduring I/O • Typical errors that occur – trying to read beyond end-of-file – trying to use a file that has not been opened – perform operation on file not permitted by ‘fopen’ mode – open file with invalid filename – write to write-protected file
• 20.

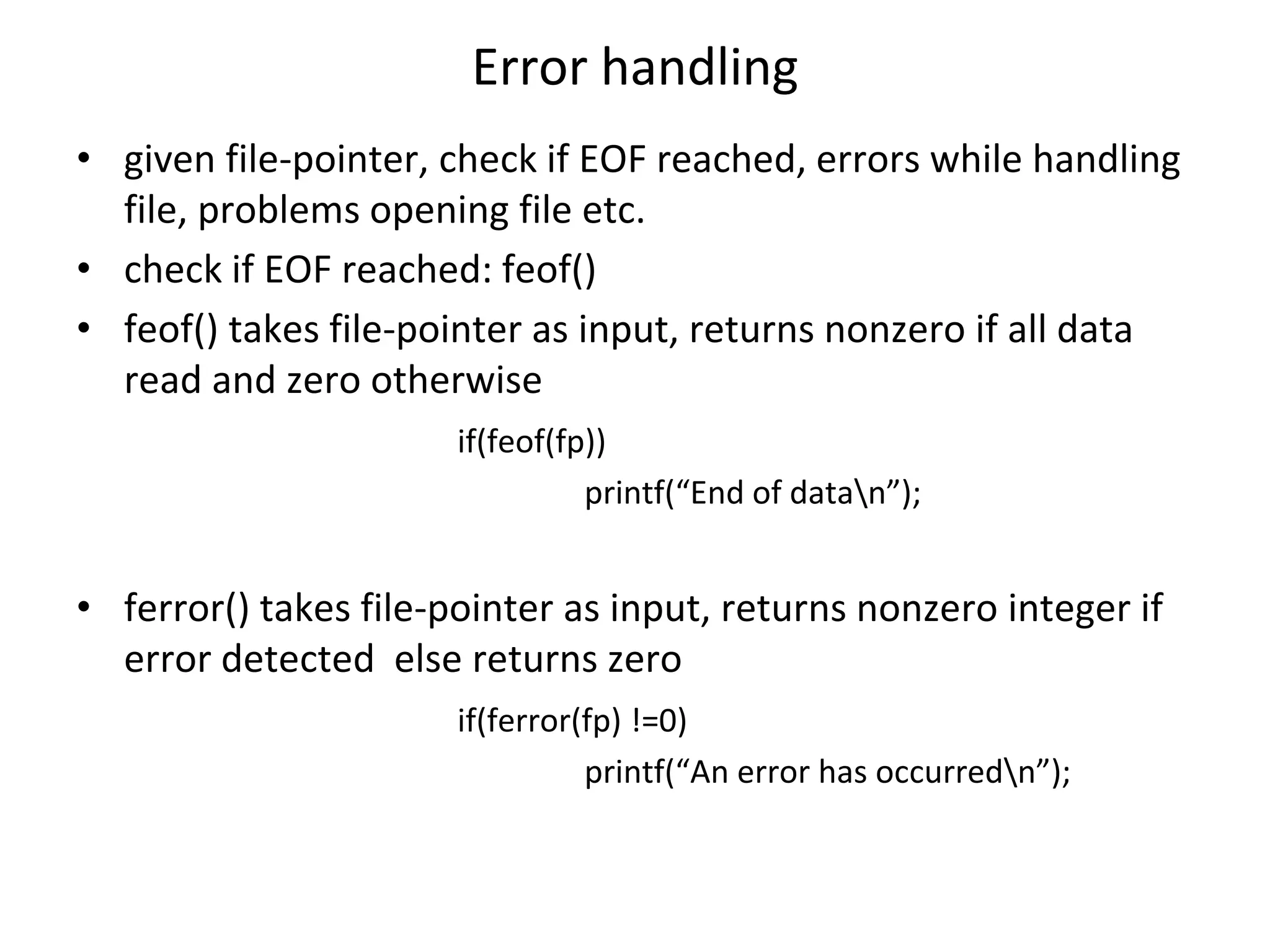

  Error handling • givenfile-pointer, check if EOF reached, errors while handling file, problems opening file etc. • check if EOF reached: feof() • feof() takes file-pointer as input, returns nonzero if all data read and zero otherwise if(feof(fp)) printf(“End of datan”); • ferror() takes file-pointer as input, returns nonzero integer if error detected else returns zero if(ferror(fp) !=0) printf(“An error has occurredn”);
• 21.

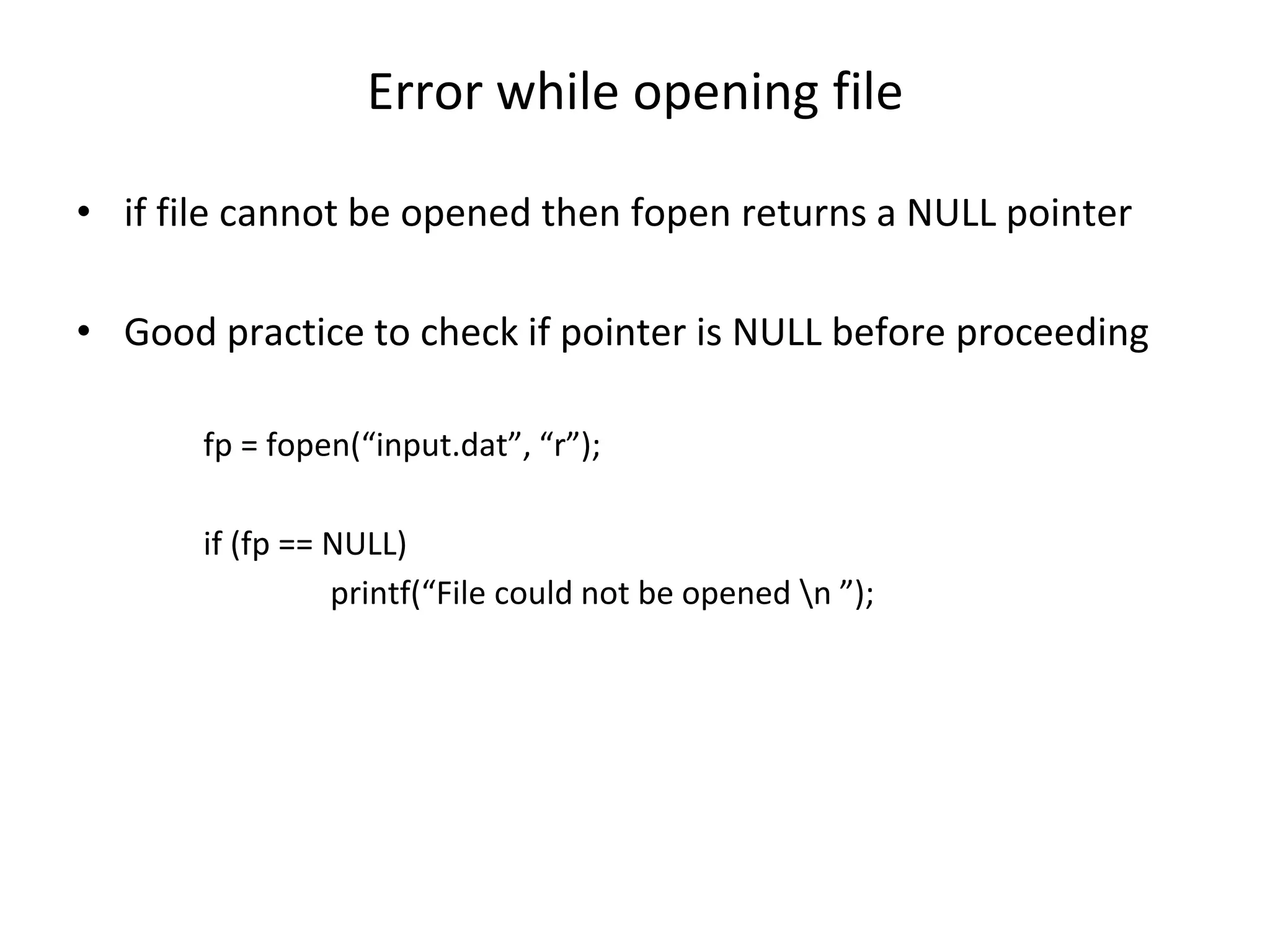

  Error while openingfile • if file cannot be opened then fopen returns a NULL pointer • Good practice to check if pointer is NULL before proceeding fp = fopen(“input.dat”, “r”); if (fp == NULL) printf(“File could not be opened n ”);
• 22.

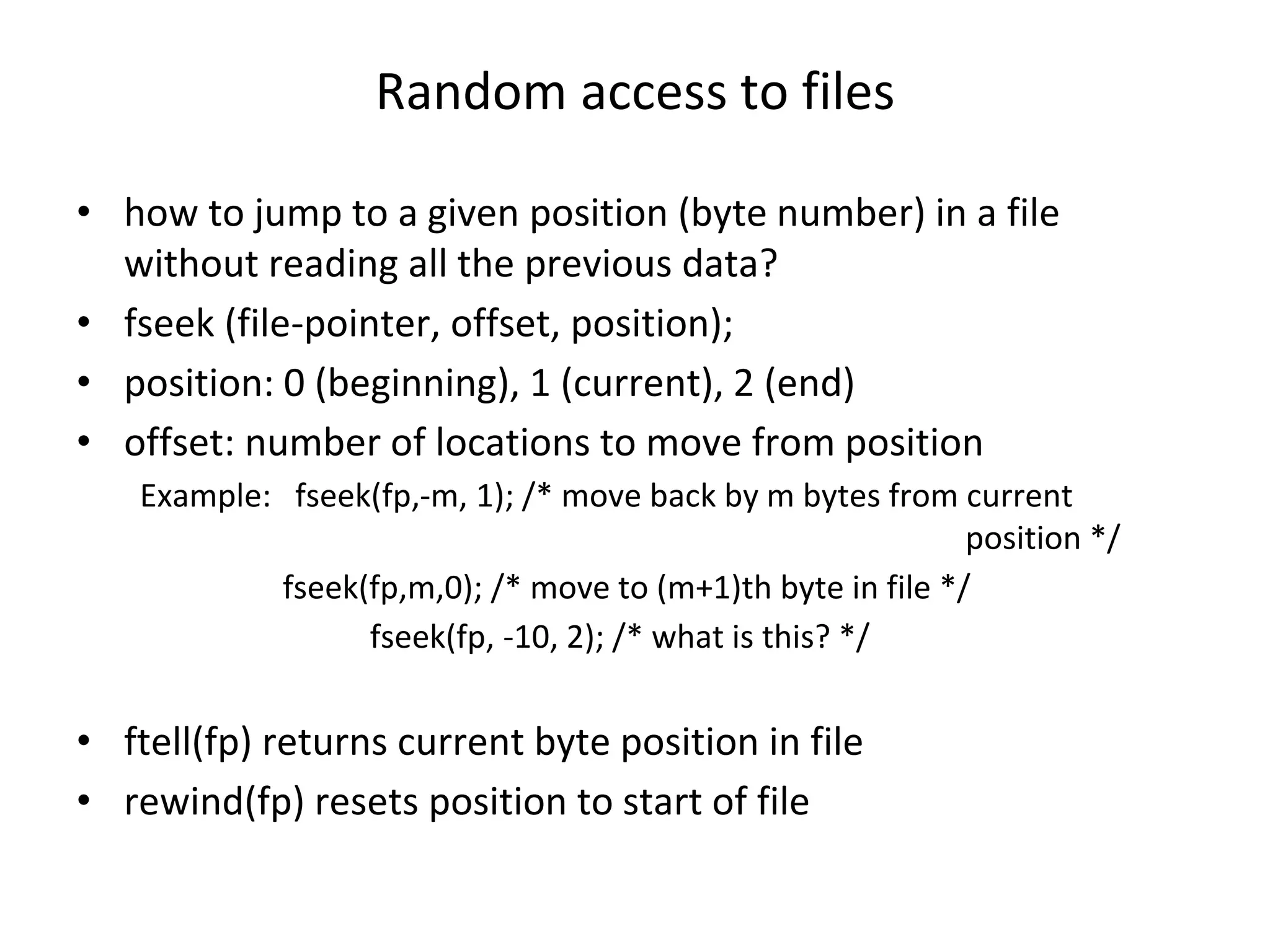

  Random access tofiles • how to jump to a given position (byte number) in a file without reading all the previous data? • fseek (file-pointer, offset, position); • position: 0 (beginning), 1 (current), 2 (end) • offset: number of locations to move from position Example: fseek(fp,-m, 1); /* move back by m bytes from current position */ fseek(fp,m,0); /* move to (m+1)th byte in file */ fseek(fp, -10, 2); /* what is this? */ • ftell(fp) returns current byte position in file • rewind(fp) resets position to start of file
