Exploring Adaptive Interfaces [Generate 2017]
The document emphasizes the complexities of designing adaptive web interfaces given the diverse range of screen sizes, devices, and user interactions. It outlines a step-by-step approach to creating adaptive designs, focusing on key principles such as importance prioritization, semantics, comprehension, and various interaction methods. Ultimately, it highlights the necessity for inclusive design and iterative processes to enhance user experience across different platforms.
Exploring Adaptive Interfaces [Generate 2017]
- 1.
- 2. Building for the Webis hard. © Brad Frost
- 3. Created by VectorsMarket from the Noun Project 640 × 480 In the beginning…
- 4. 800 × 600 Createdby Vectors Market from the Noun Project Ok, we can go a little larger.
- 5. Created by VectorsMarket from the Noun Project 1024 × 768 Ok, a bit larger, but that’s it.

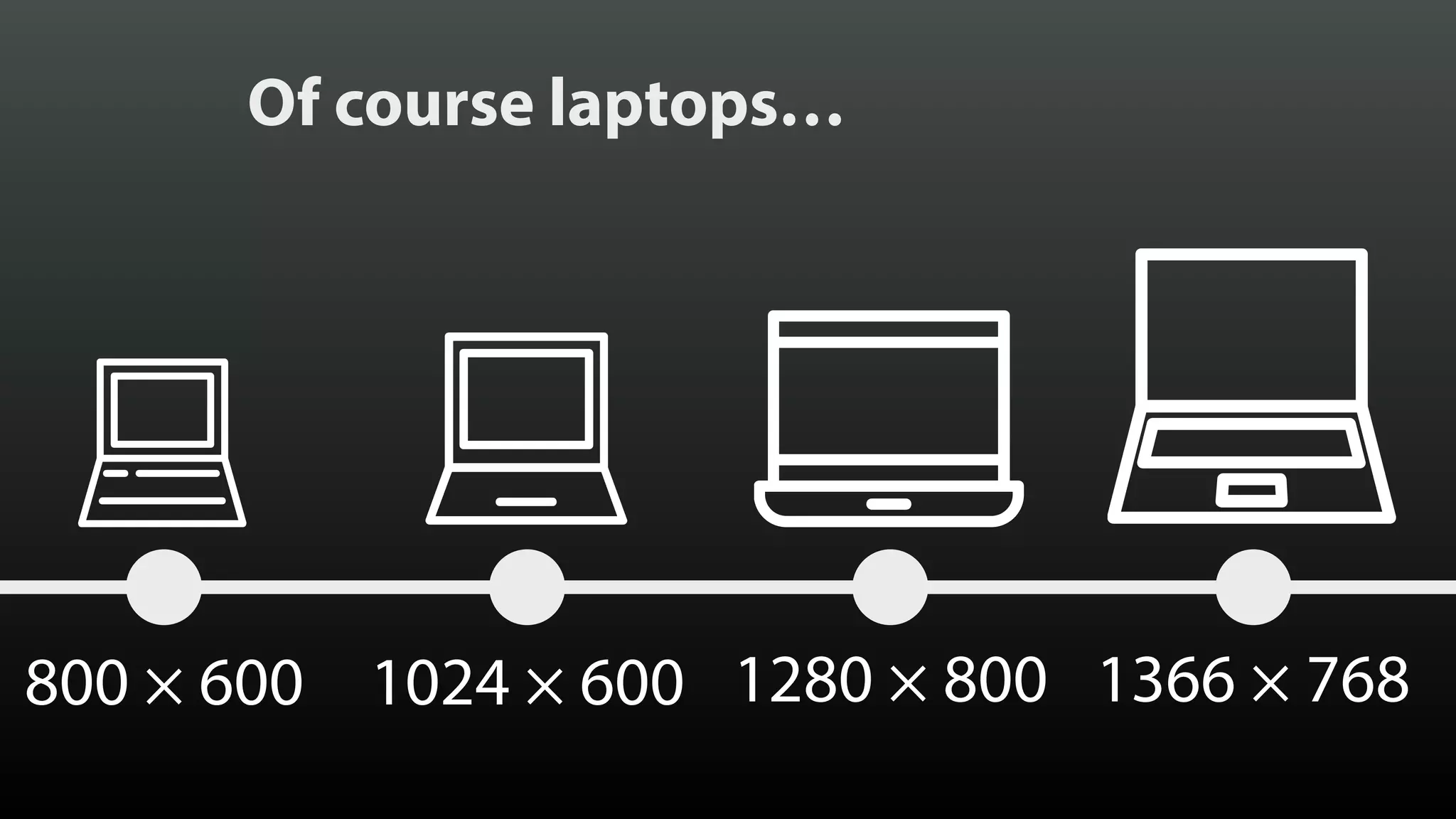

- 6. Created by VectorsMark from the Noun Project 1366 × 7681024 × 600 Created by Vectors Market from the Noun Project 1280 × 800 Created by Vectors Market from the Noun Project 800 × 600 Created by Vectors Market from the Noun Project Of course laptops…
- 7. 1024 × 768 Createdby Vectors Market from the Noun Project The web’s“happy place”.
- 8. 640 × 200 Createdby Douglas Santos from the Noun Project Created by creative outlet from the Noun Project 240 × 240 We were ignoring mobile…

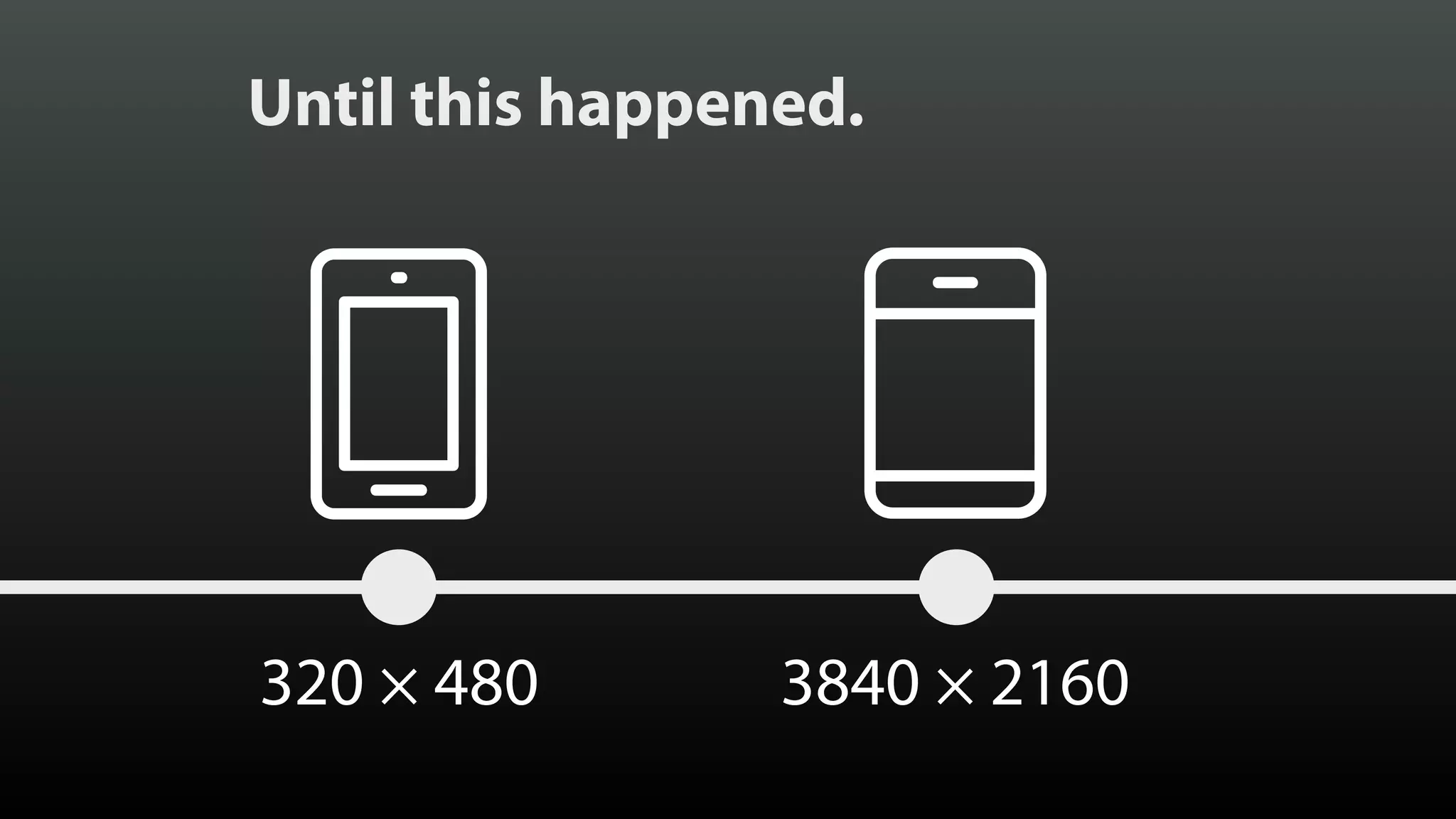

- 9. 3840 × 2160320× 480 Created by Vectors Market from the Noun Project Created by Vectors Market from the Noun Project Until this happened.
- 10. Don’t even getme started on tablets. © Brad Frost

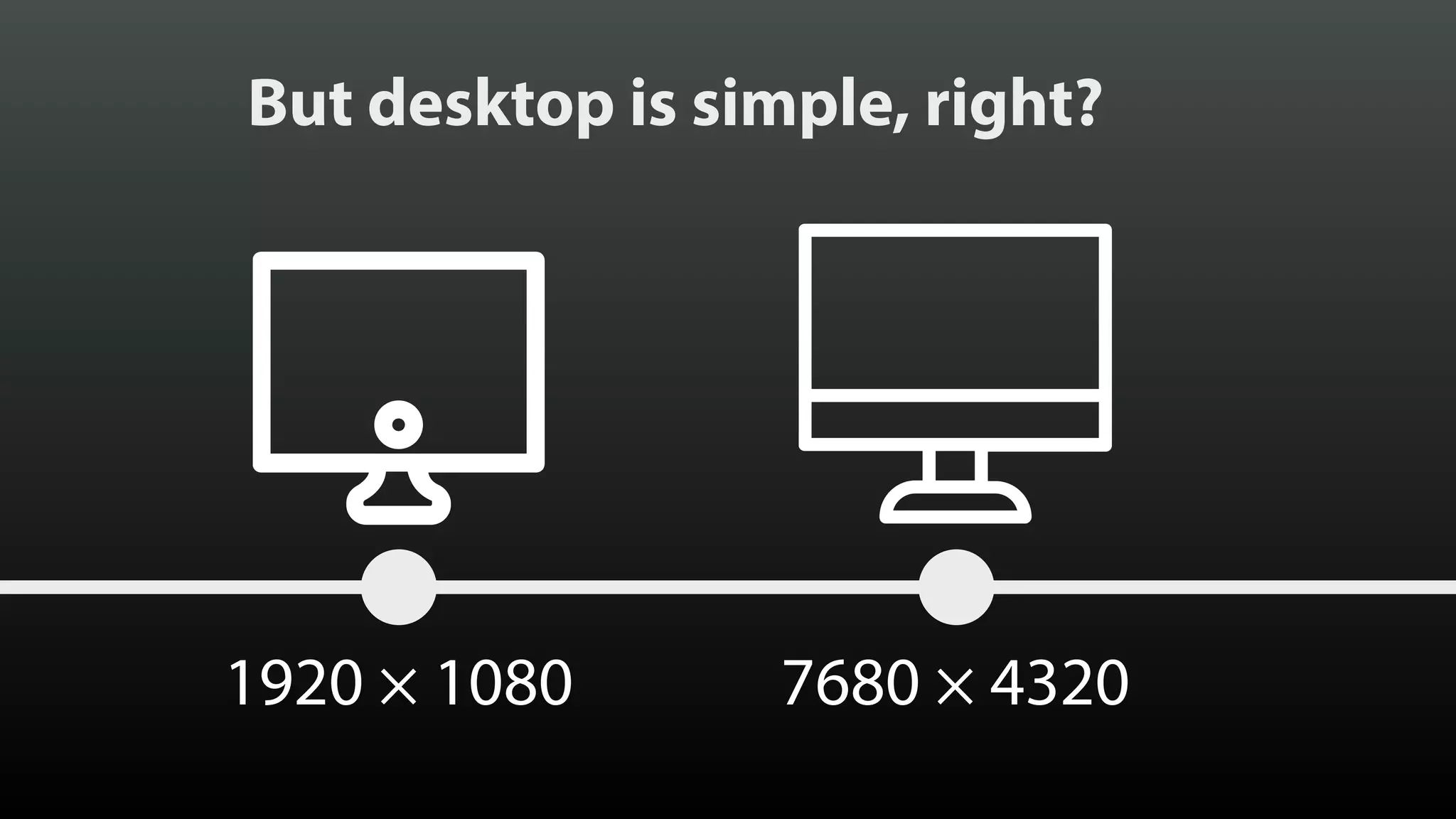

- 11. 1920 × 1080 Createdby Vectors Market from the Noun Project 7680 × 4320 Created by Vectors Market from the Noun Project But desktop is simple, right?
- 12. Chasing screen sizes isclearly a fool’s errand. © Brad Frost
- 13. In the secondquarter of 2008 we detected 71 different screen resolutions among our visitors. In the first quarter of 2014 we detected — Jason Samuels IT Manager, National Council on Family Relations Source “ 1062 One year after the iPhone 3 years ago!
- 14. “ 200 In 2008,27 screen resolutions showed up with more than 10 visits, in 2014 that number was — Jason Samuels IT Manager, National Council on Family Relations Source
- 15. Chasing screen sizes isclearly a fool’s errand. © Brad Frost
- 16. Designing for screens is hard. ©Brad Frost
- 17. And then there’s everythingelse. © Brad Frost

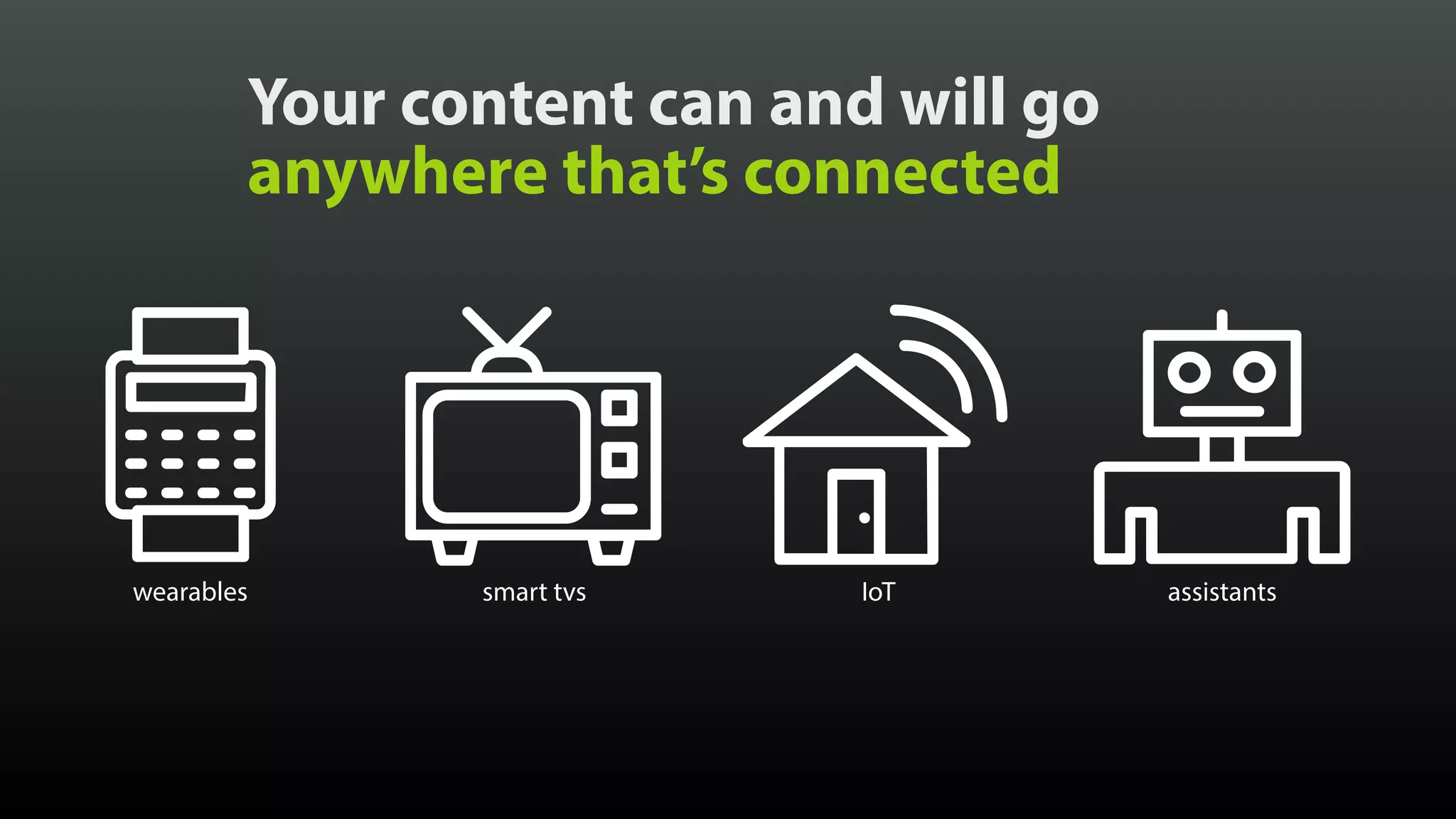

- 18. Your content canand will go anywhere that’s connected Created by Vectors Market from the Noun Project Created by Vectors Market from the Noun Project Created by Vectors Market from the Noun Project Created by Vectors Market from the Noun Project wearables smart tvs IoT assistants

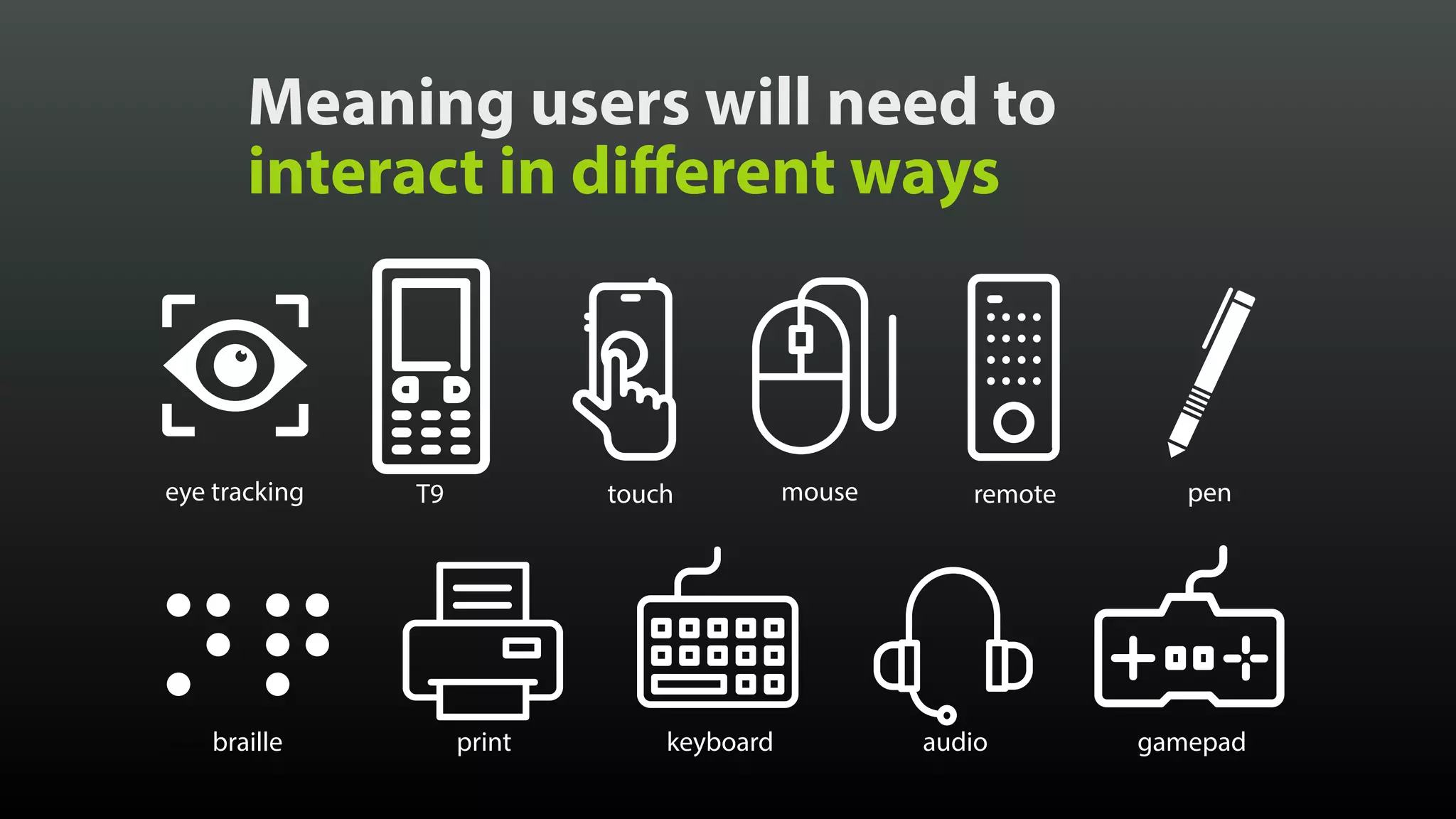

- 19. Meaning users willneed to interact in different ways Created by Vectors Market from the Noun Project touch Created by Vectors Market from the Noun Project mouse Created by bezier master from the Noun Project T9 Created by Christopher Holm-Hansen from the Noun Project eye tracking Created by Vectors Market from the Noun Project remote Created by Setyo Ari Wibowo from the Noun Project pen Created by Vectors Market from the Noun Project keyboard Created by Vectors Market from the Noun Project audio Created by Vectors Market from the Noun Project gamepad Created by Vectors Market from the Noun Project printCreated by Adriano Emerick from the Noun Project braille

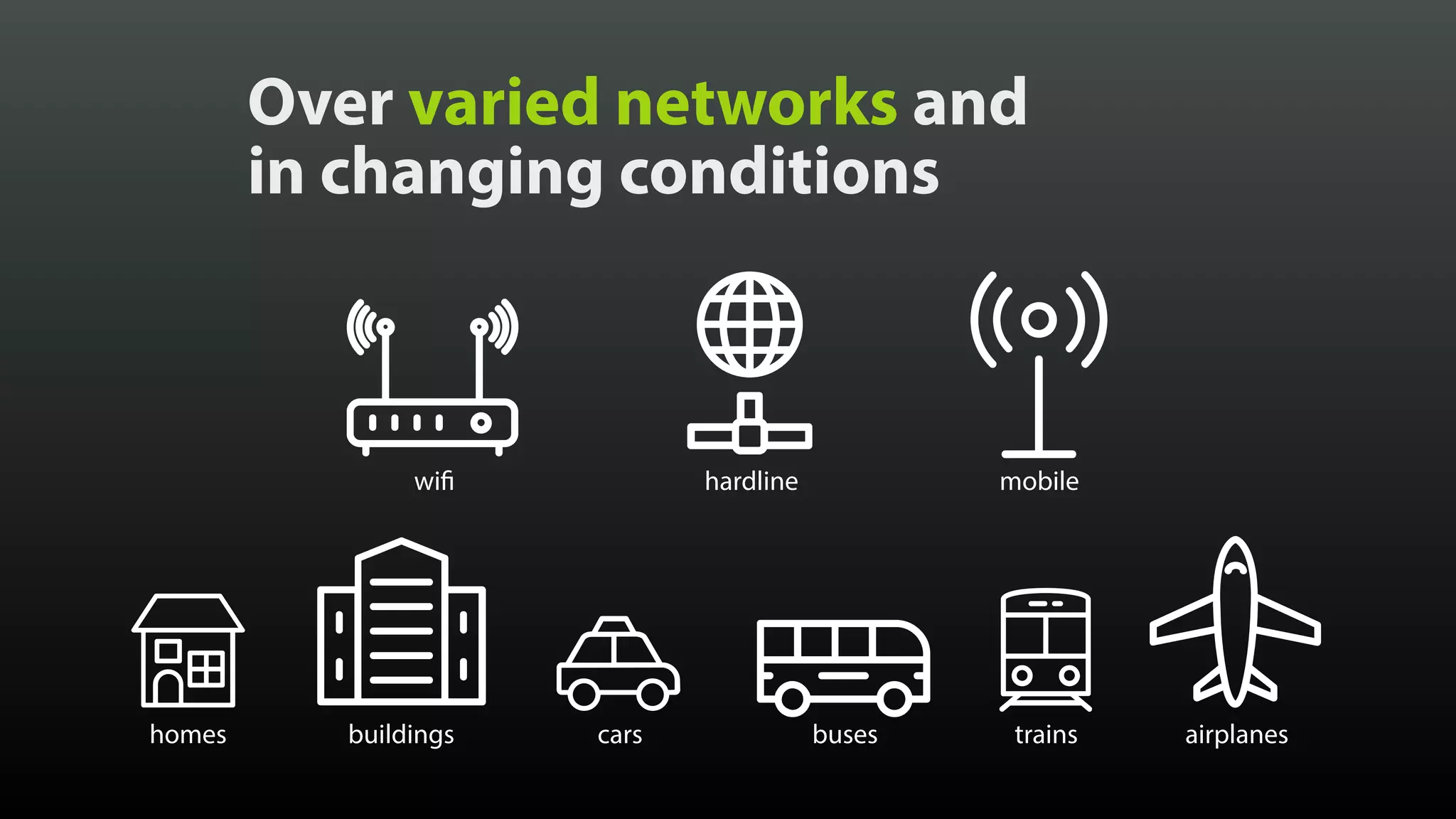

- 20. Over varied networksand in changing conditions Created by Vectors Market from the Noun Project hardline Created by Vectors Market from the Noun Project wifi Created by Vectors Market from the Noun Project mobile Created by Vectors Market from the Noun Project homes Created by Vectors Market from the Noun Project buildings Created by Vectors Market from the Noun Project cars Created by Vectors Market buses Created by Vectors Market from the Noun Project trains Created by Vectors Market from the Noun Project airplanes
- 21. And, ultimately, ourusers all have different needs too.
- 22. Anyone notice I haven’teven mentioned browsers? ;-) © Brad Frost
- 23.
- 24. Reality check: Nothing aboutour users’ experiences of the web has ever been as homogenous as we imagine. © Brad Frost
- 25. The challenges of webdesign today are the same as they were yesterday. © Brad Frost
- 26. The web cango anywhere there’s even a temporary network connection. © Brad Frost
- 27.
- 28.
- 29. © Brad Frost Photo Credit: ClimateChange, Agriculture and Food Security
- 30.
- 31.
- 32. Inclusive design creates giantripples. © Brad Frost
- 33.

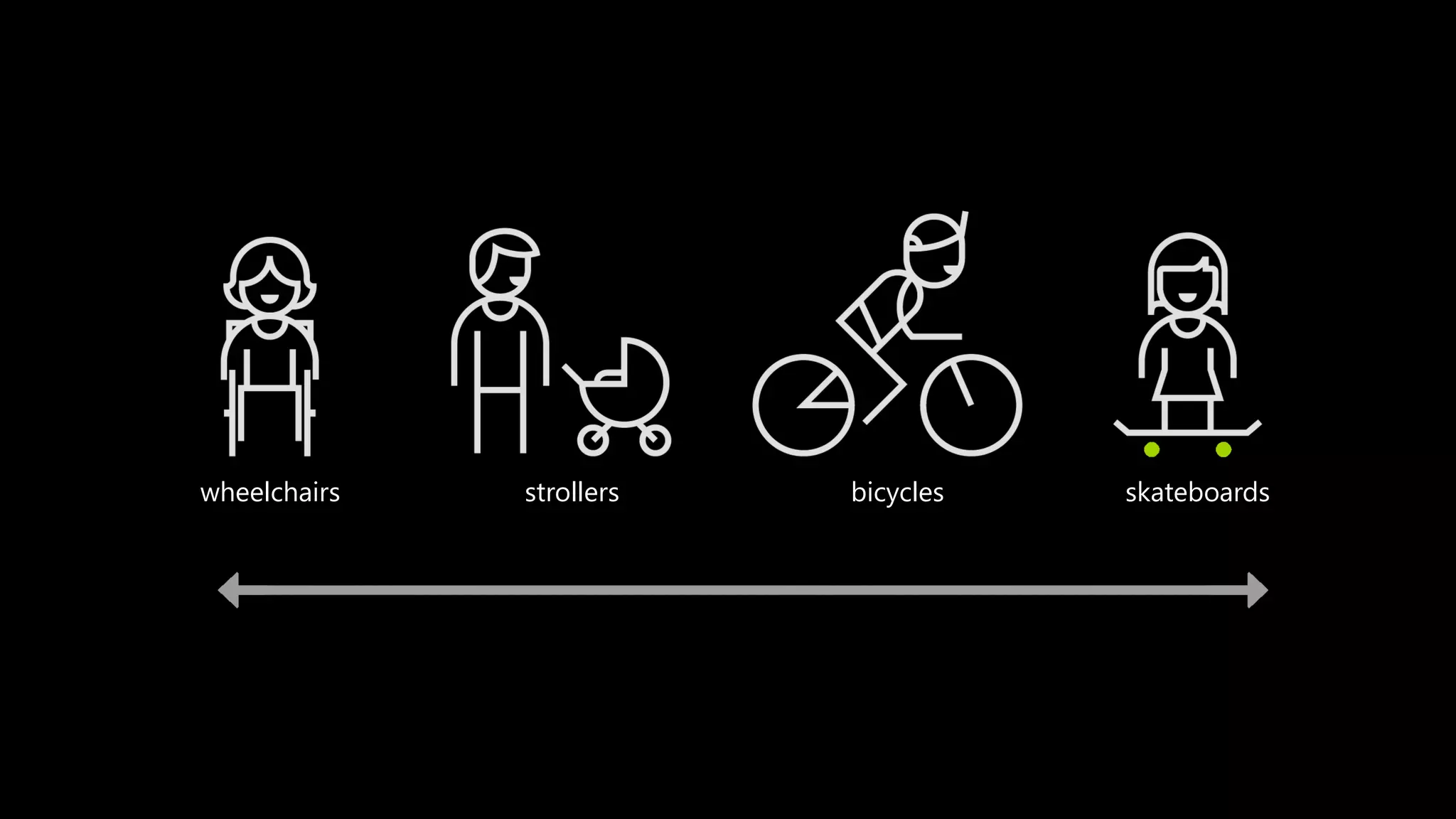

- 34. wheelchairs strollers bicyclesskateboards

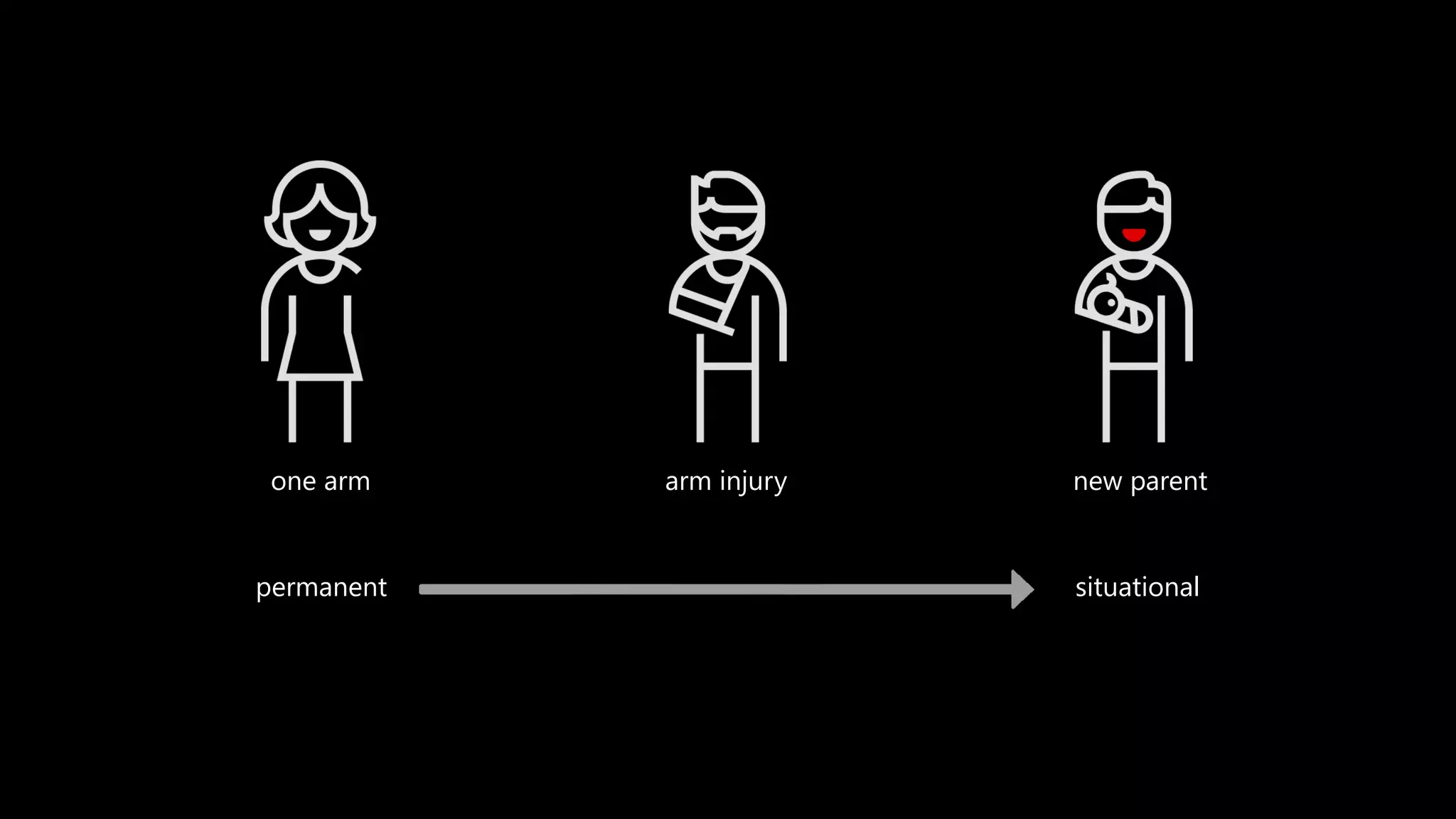

- 35. one arm arminjury new parent permanent situational

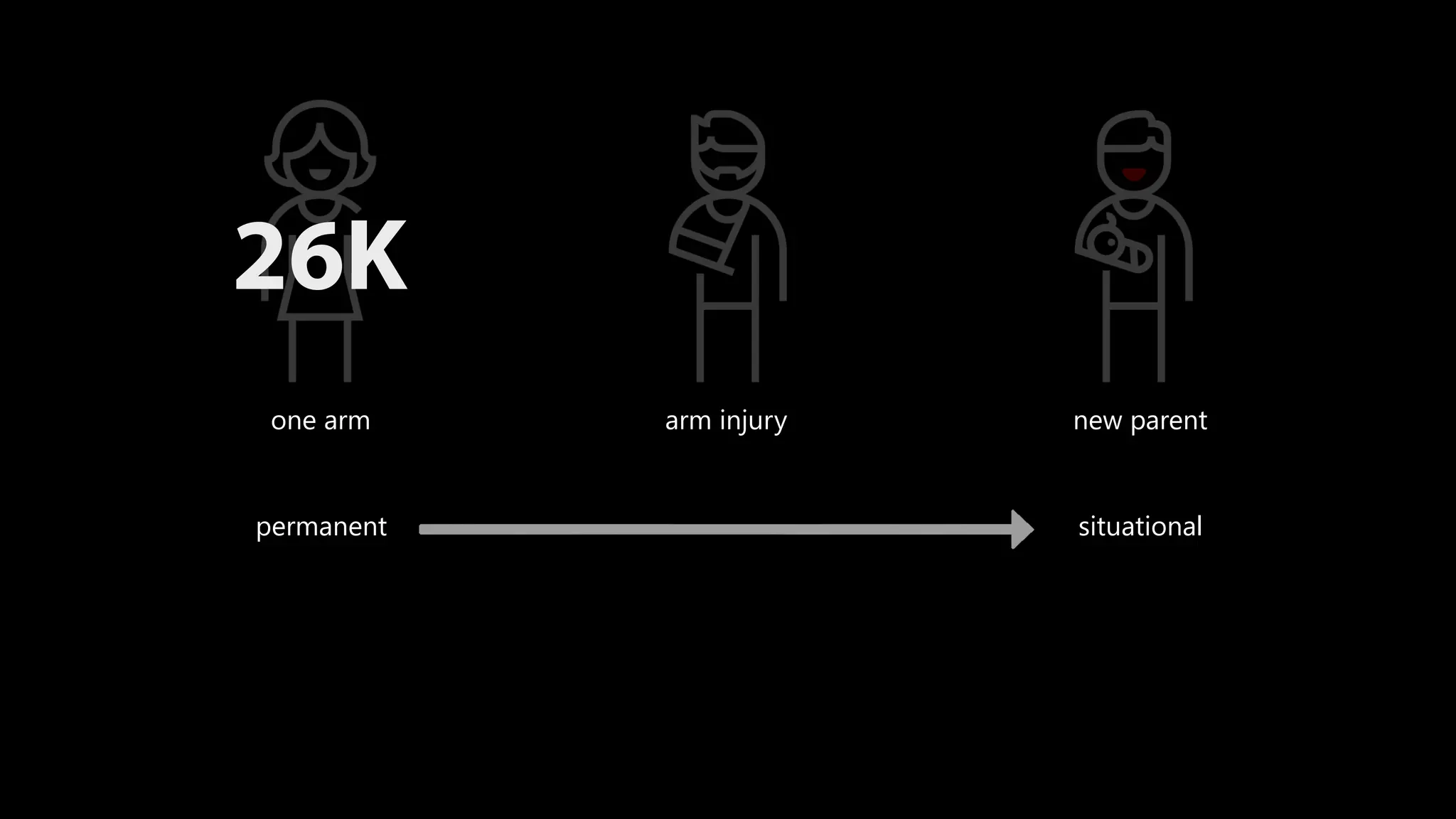

- 36. one arm arminjury new parent permanent situational 26K

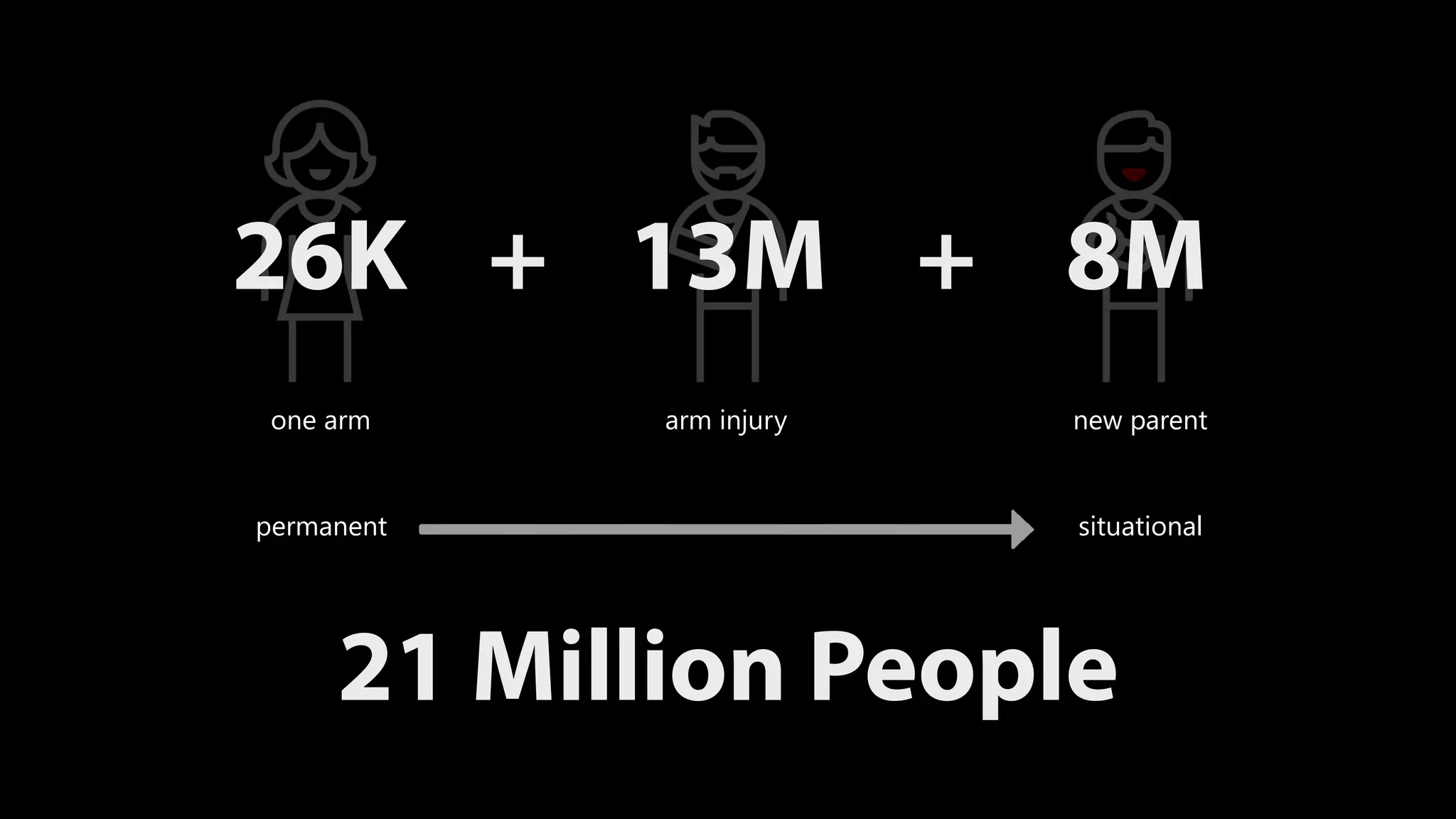

- 37. one arm arminjury new parent permanent situational 26K 13M 8M+ + 21 Million People
- 38. So how canwe make our interfaces more adaptive? © Brad Frost
- 39. Let’s dissect an example. ©Brad Frost

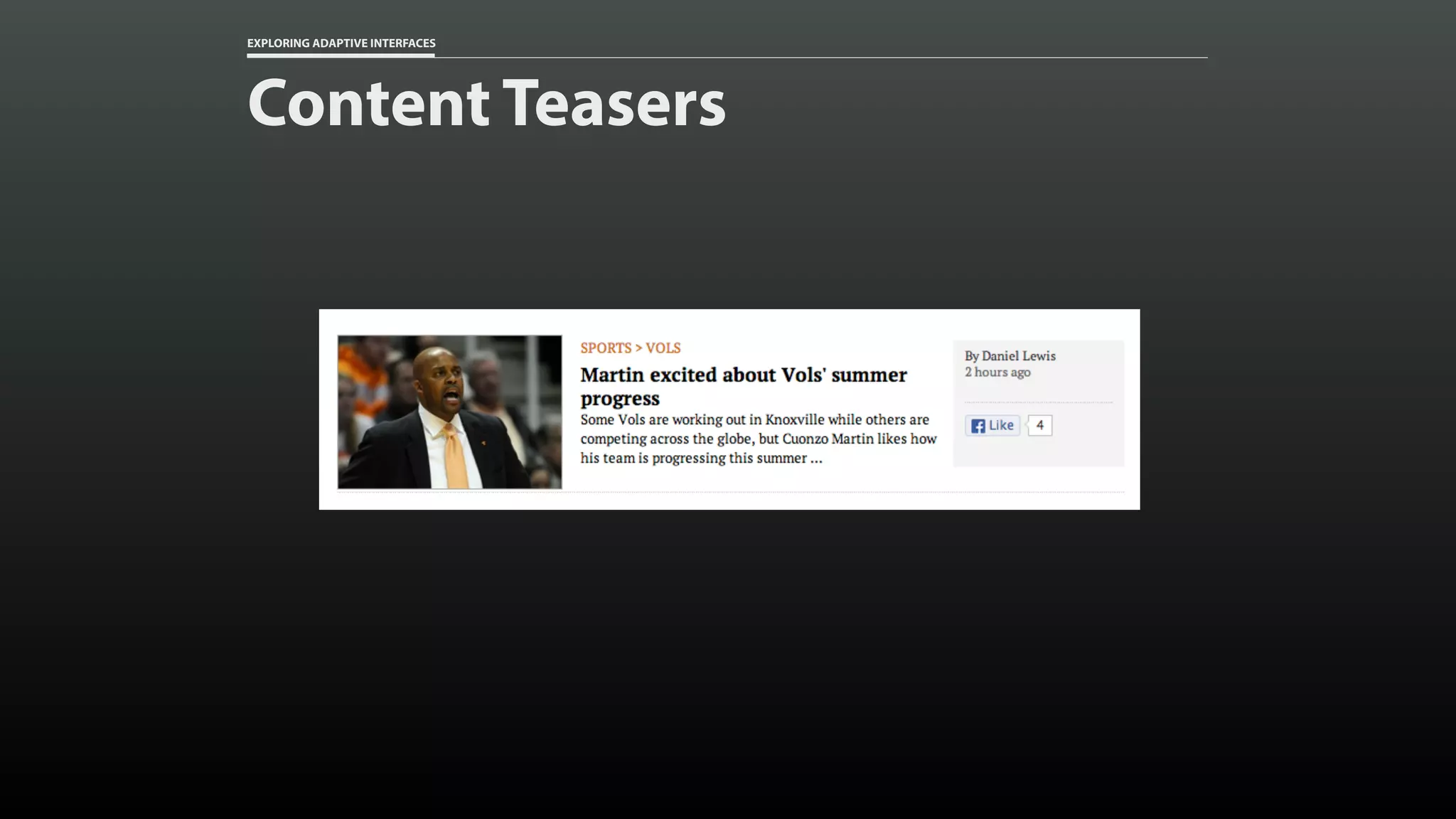

- 40.
- 41.

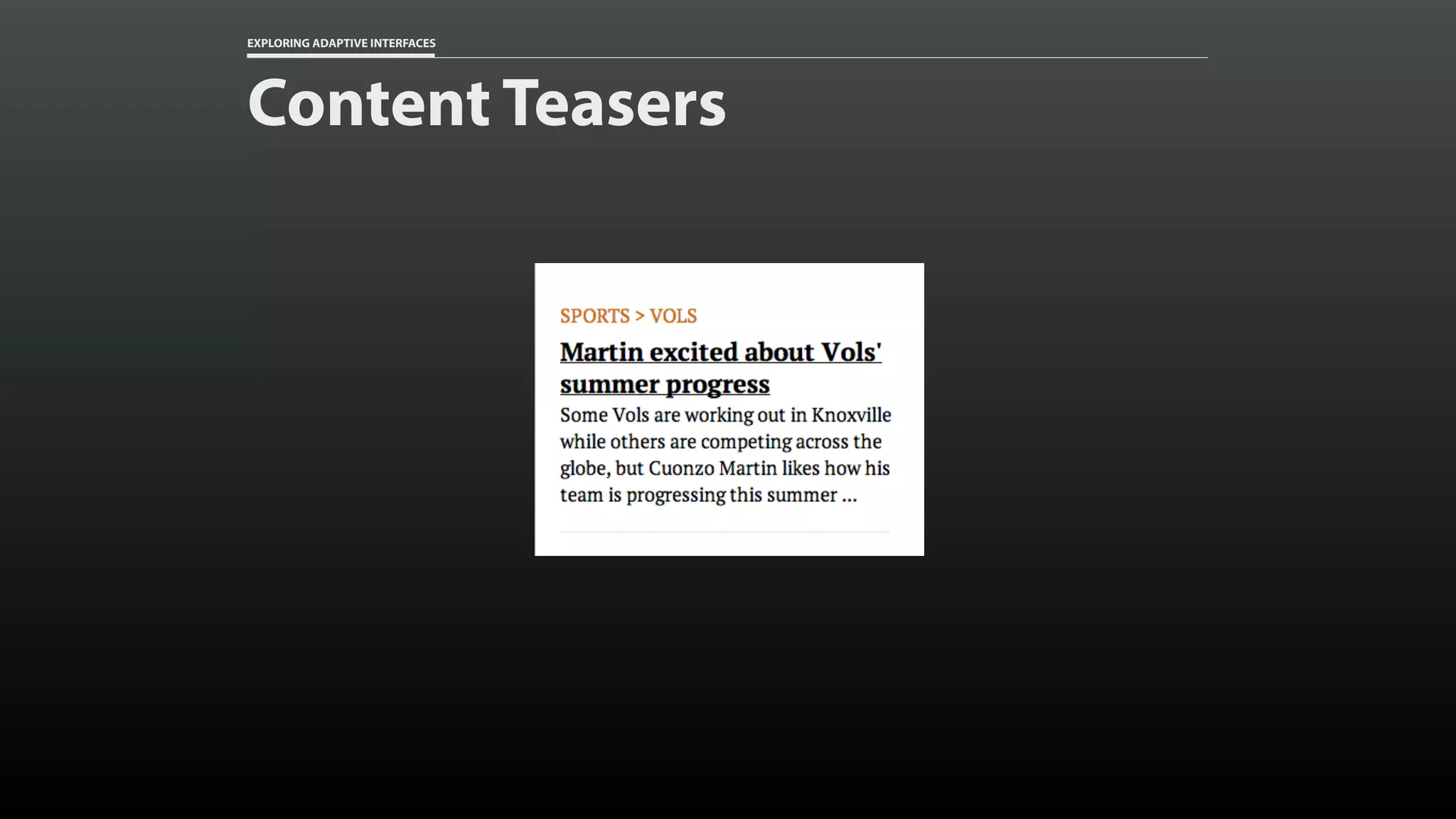

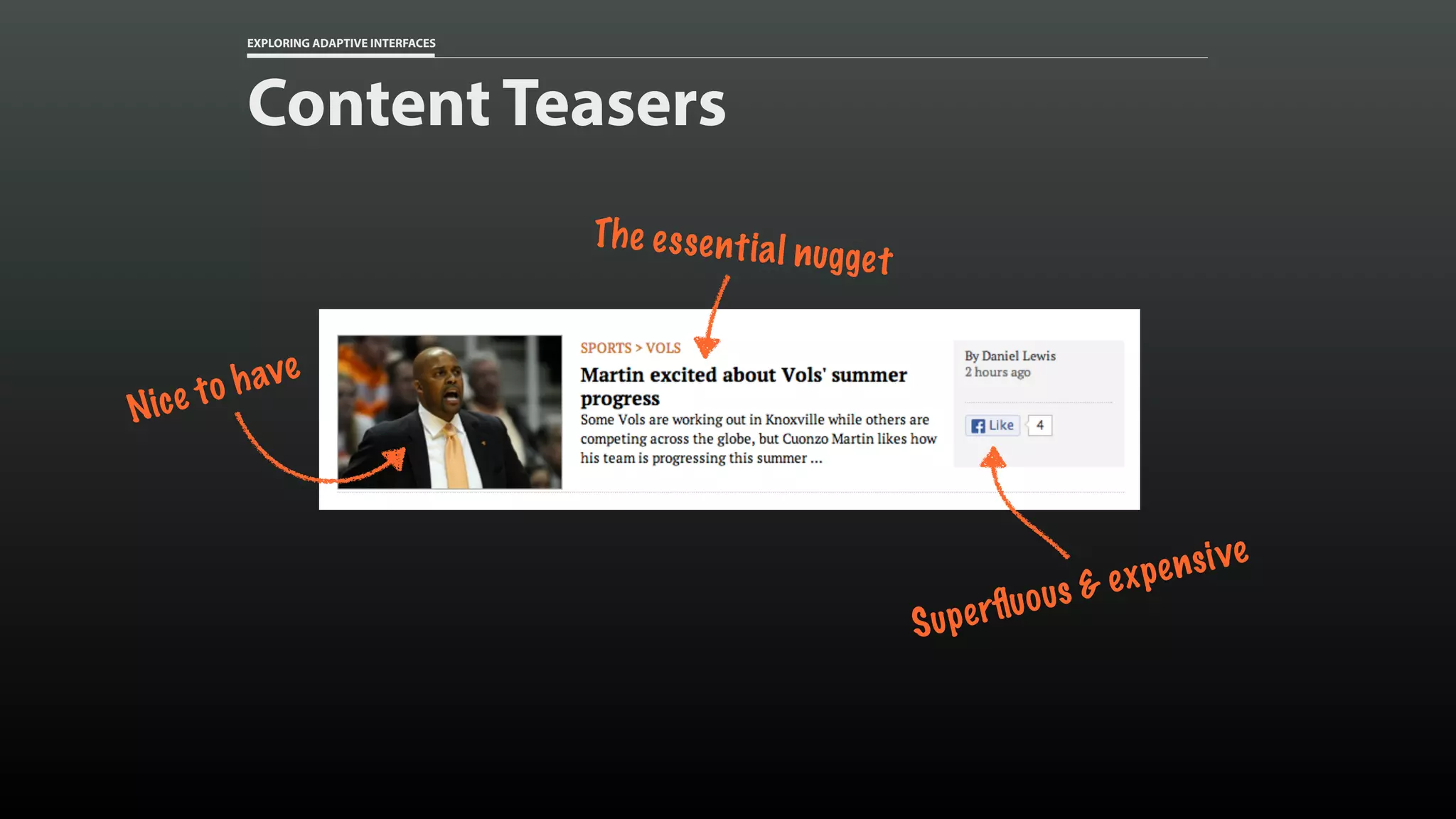

- 42. EXPLORING ADAPTIVE INTERFACES ContentTeasers Superfluous & expensive Nice to have The essential nugget
- 43. EXPLORING ADAPTIVE INTERFACES ContentTeasers ideal minimum viable interface

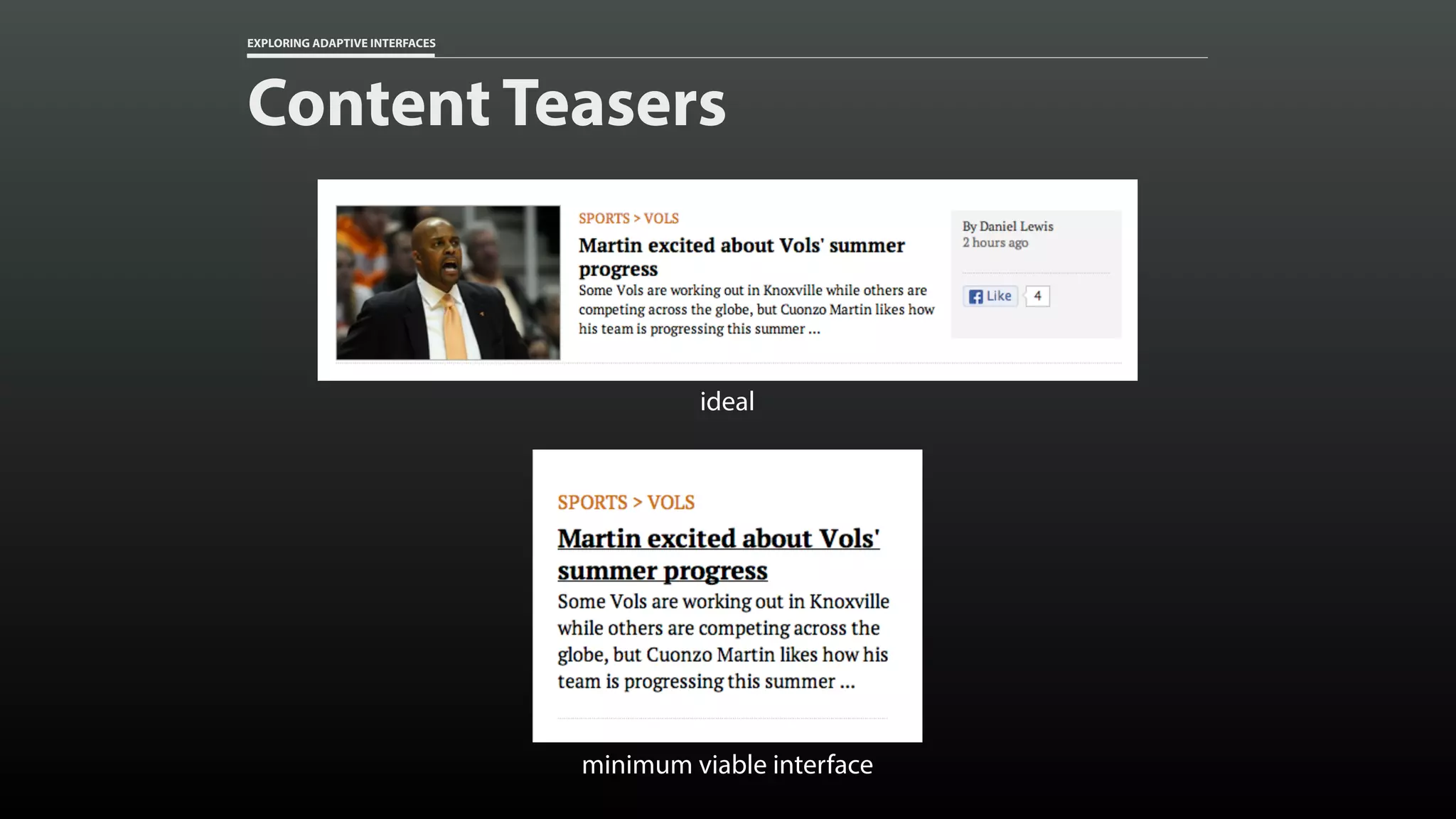

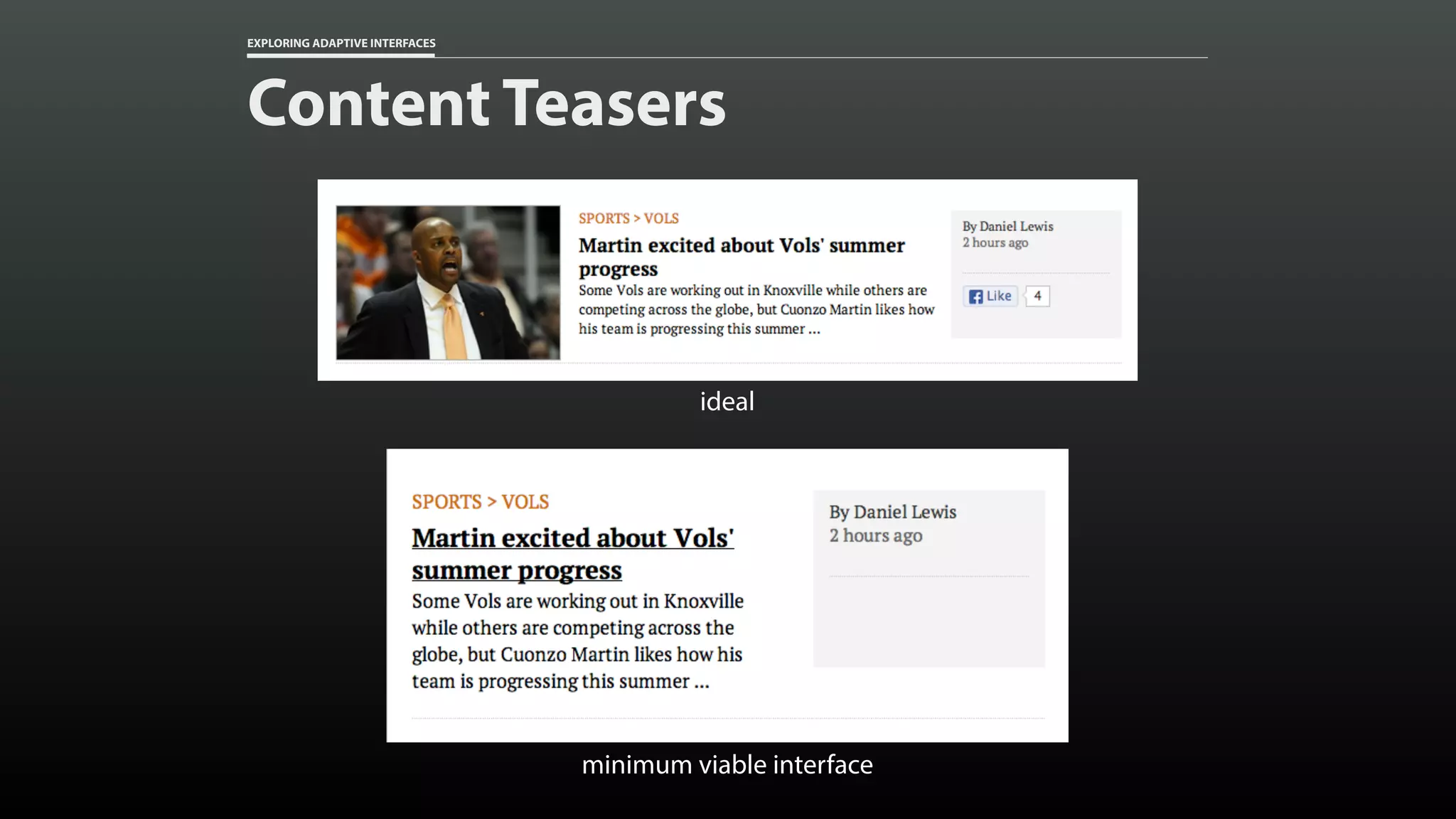

- 44. EXPLORING ADAPTIVE INTERFACES ContentTeasers ideal minimum viable interface

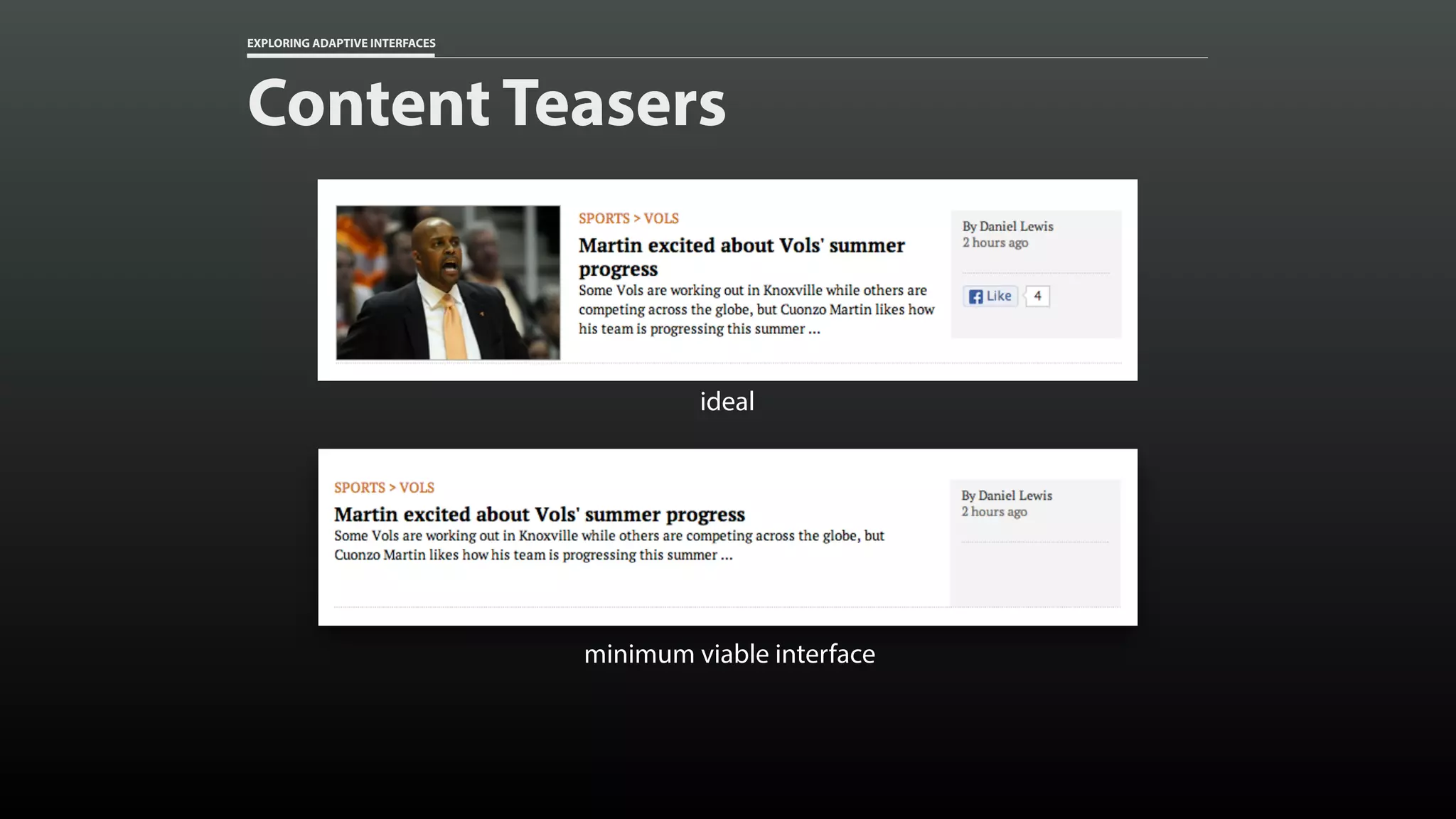

- 45. EXPLORING ADAPTIVE INTERFACES ContentTeasers ideal minimum viable interface
- 46. EXPLORING ADAPTIVE INTERFACES ContentTeasers ideal minimum viable interface Lazy load

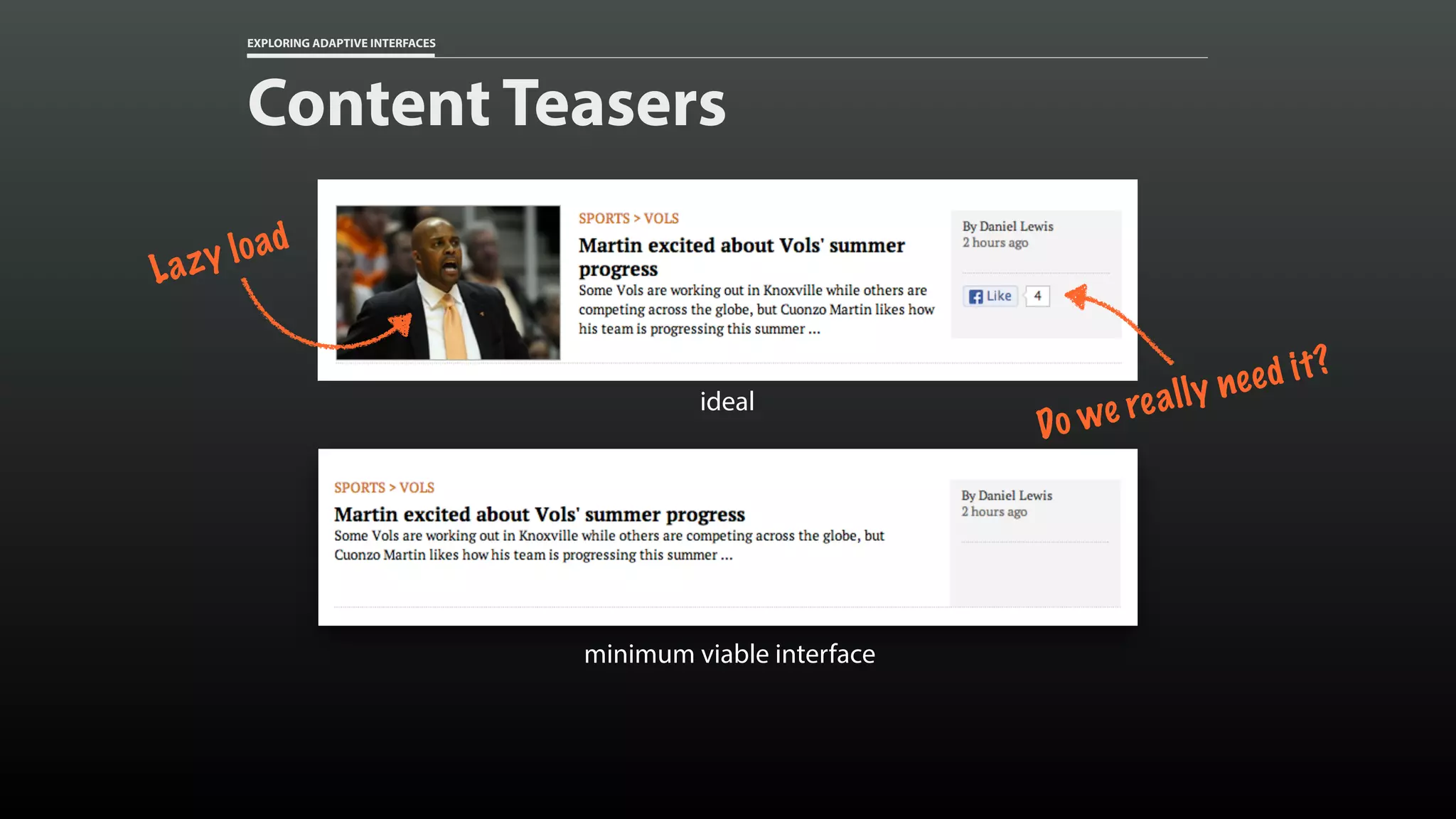

- 47. EXPLORING ADAPTIVE INTERFACES ContentTeasers ideal minimum viable interface Do we really need it? Lazy load

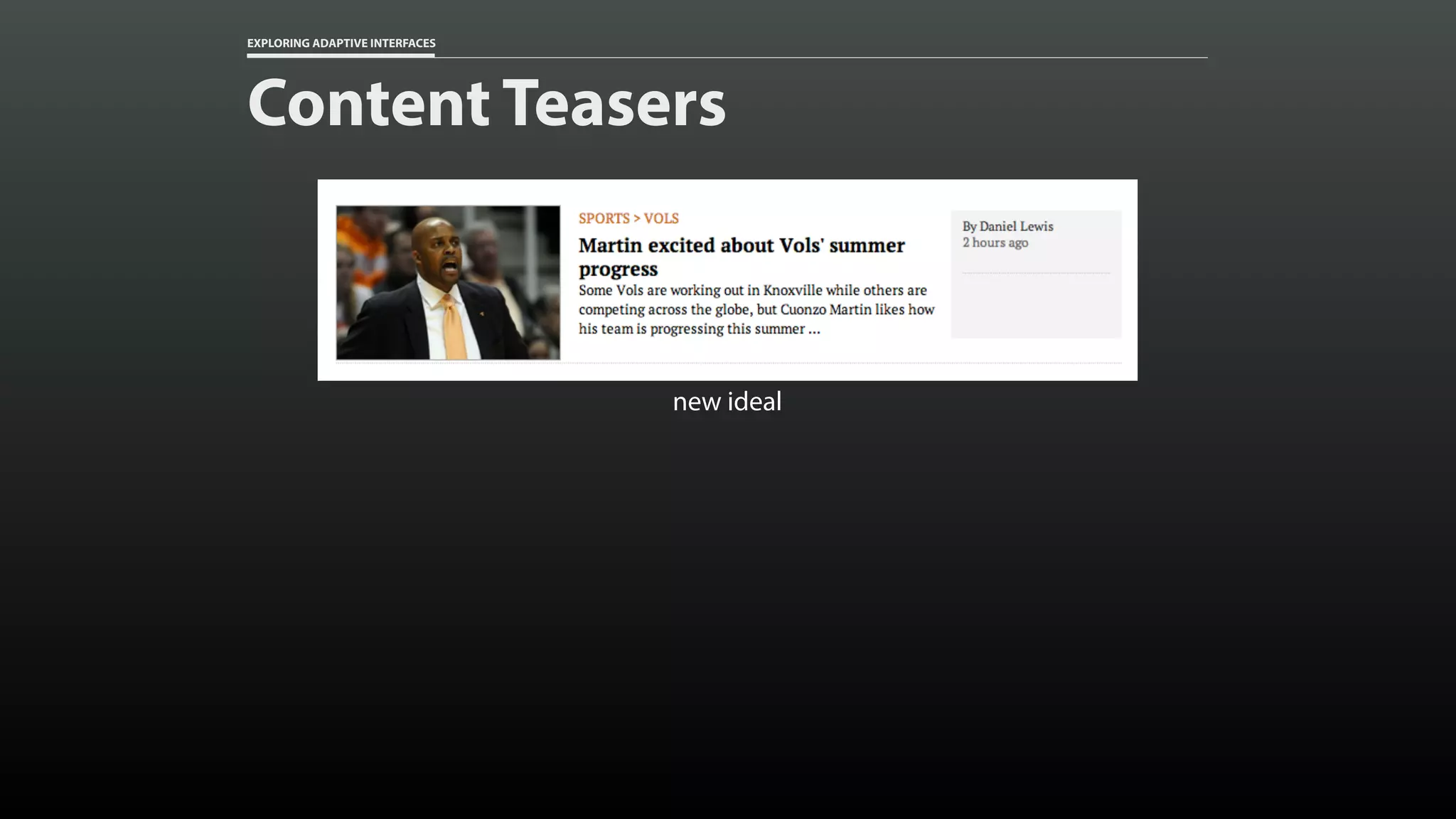

- 48. EXPLORING ADAPTIVE INTERFACES ContentTeasers new ideal
- 49. How do weplan adaptive designs? © Brad Frost

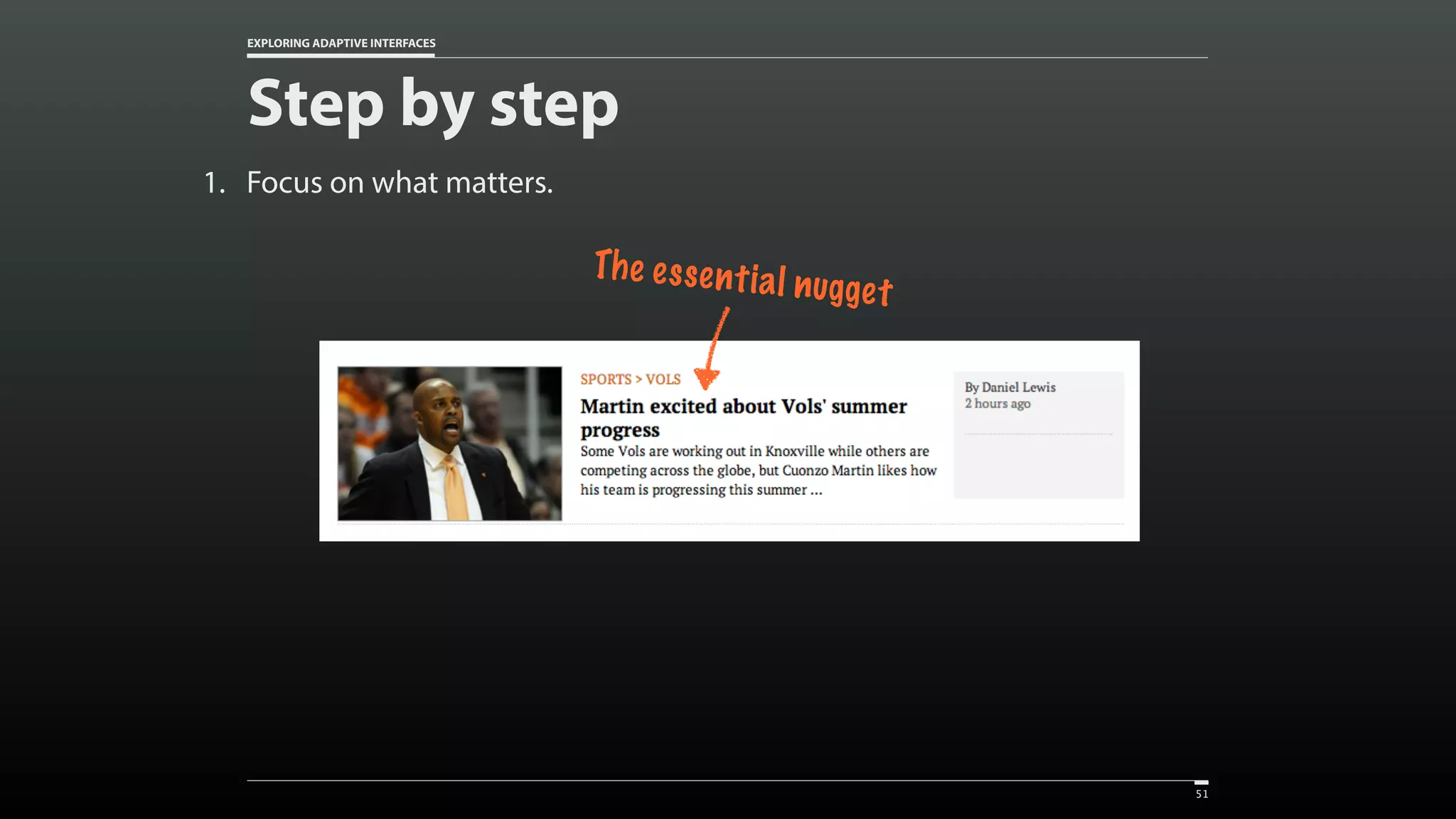

- 50. EXPLORING ADAPTIVE INTERFACES Stepby step 1. Focus on what matters. 51 The essential nugget

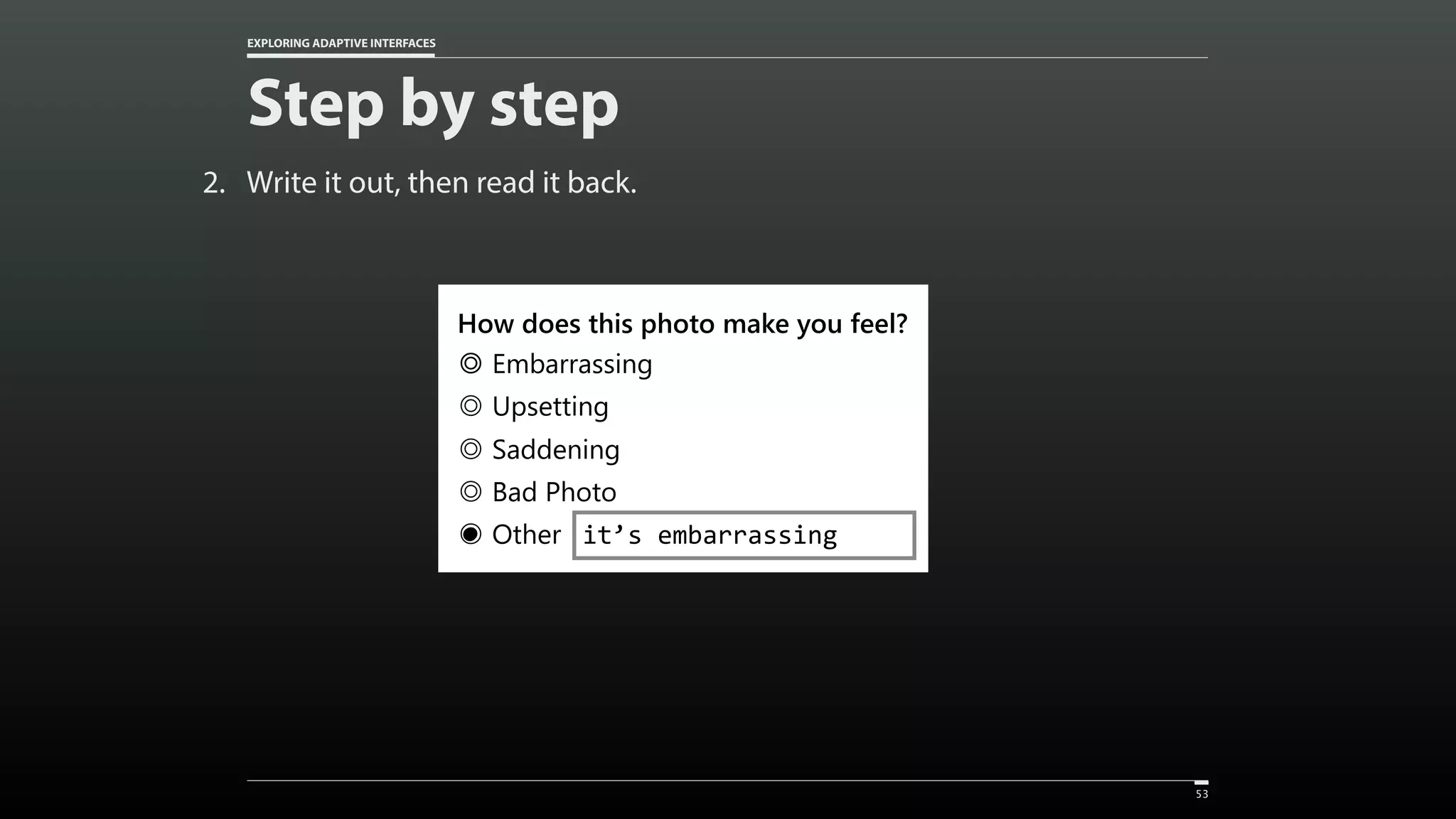

- 51. EXPLORING ADAPTIVE INTERFACES Stepby step 2. Write it out, then read it back. 53 How does this photo make you feel? Embarrassing Upsetting Saddening Bad Photo Other it’s embarrassing•

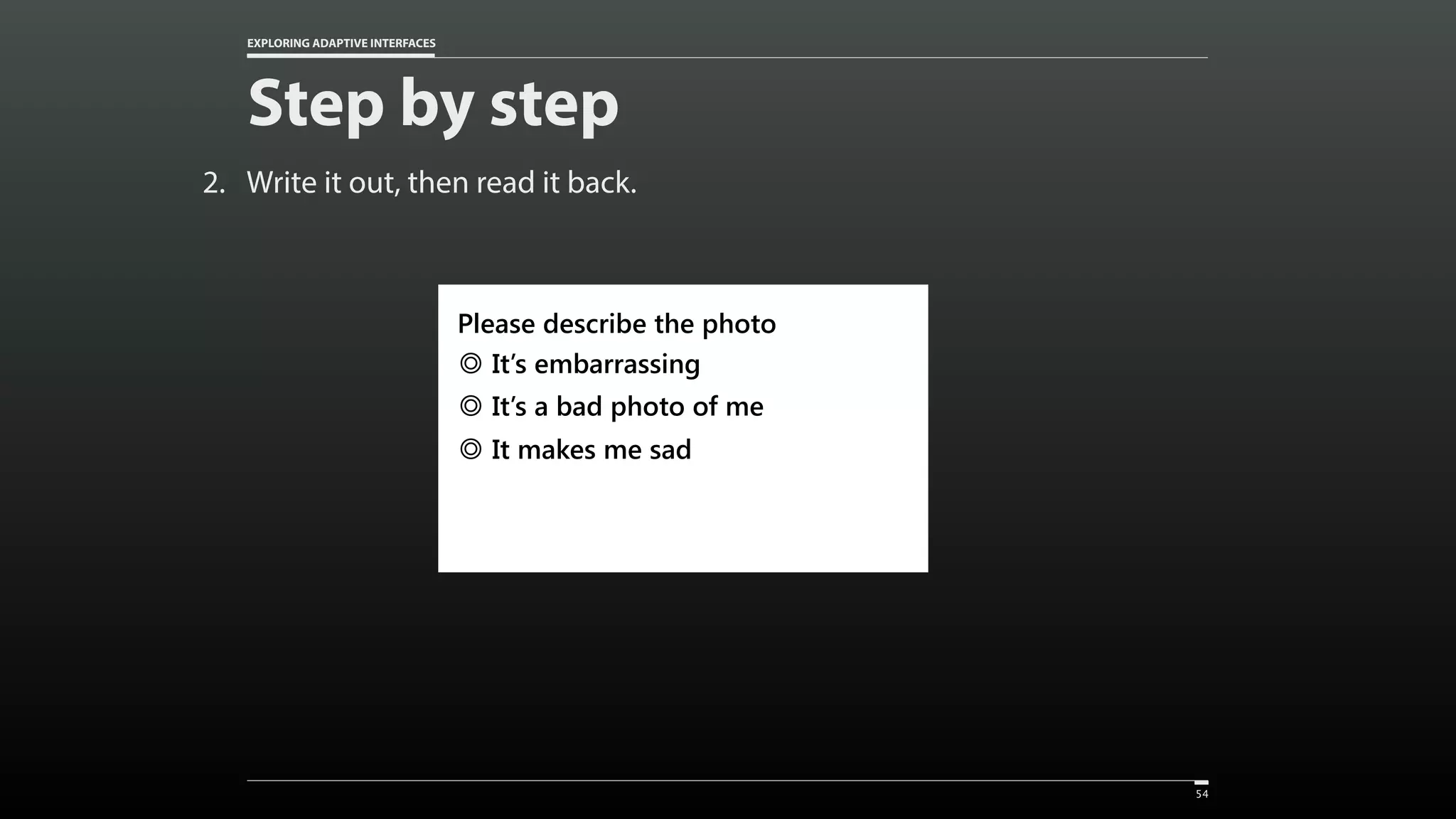

- 52. EXPLORING ADAPTIVE INTERFACES Stepby step 2. Write it out, then read it back. 54 Please describe the photo It’s embarrassing It’s a bad photo of me It makes me sad

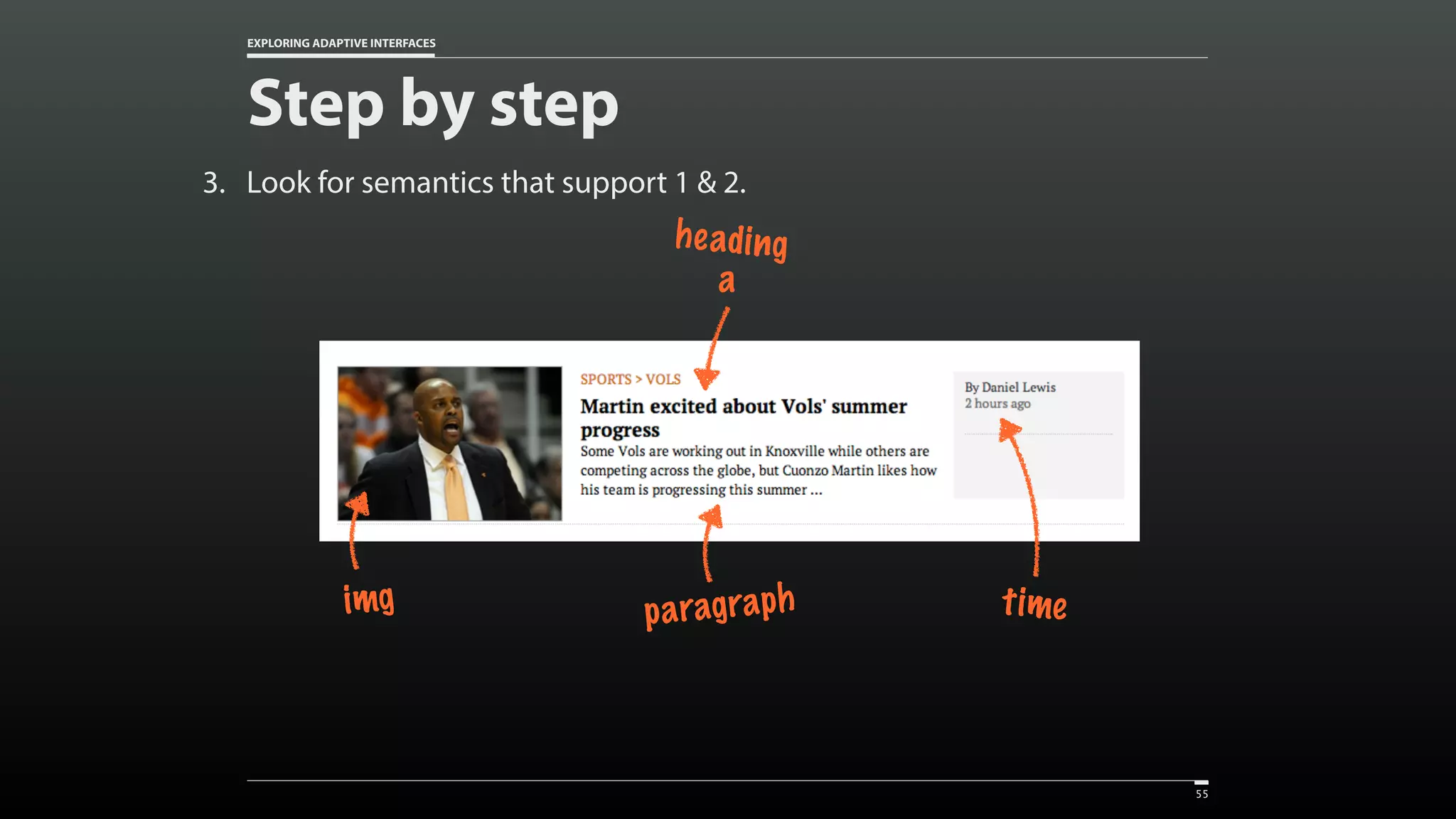

- 53. EXPLORING ADAPTIVE INTERFACES Stepby step 3. Look for semantics that support 1 & 2. 55 heading a paragraphimg time

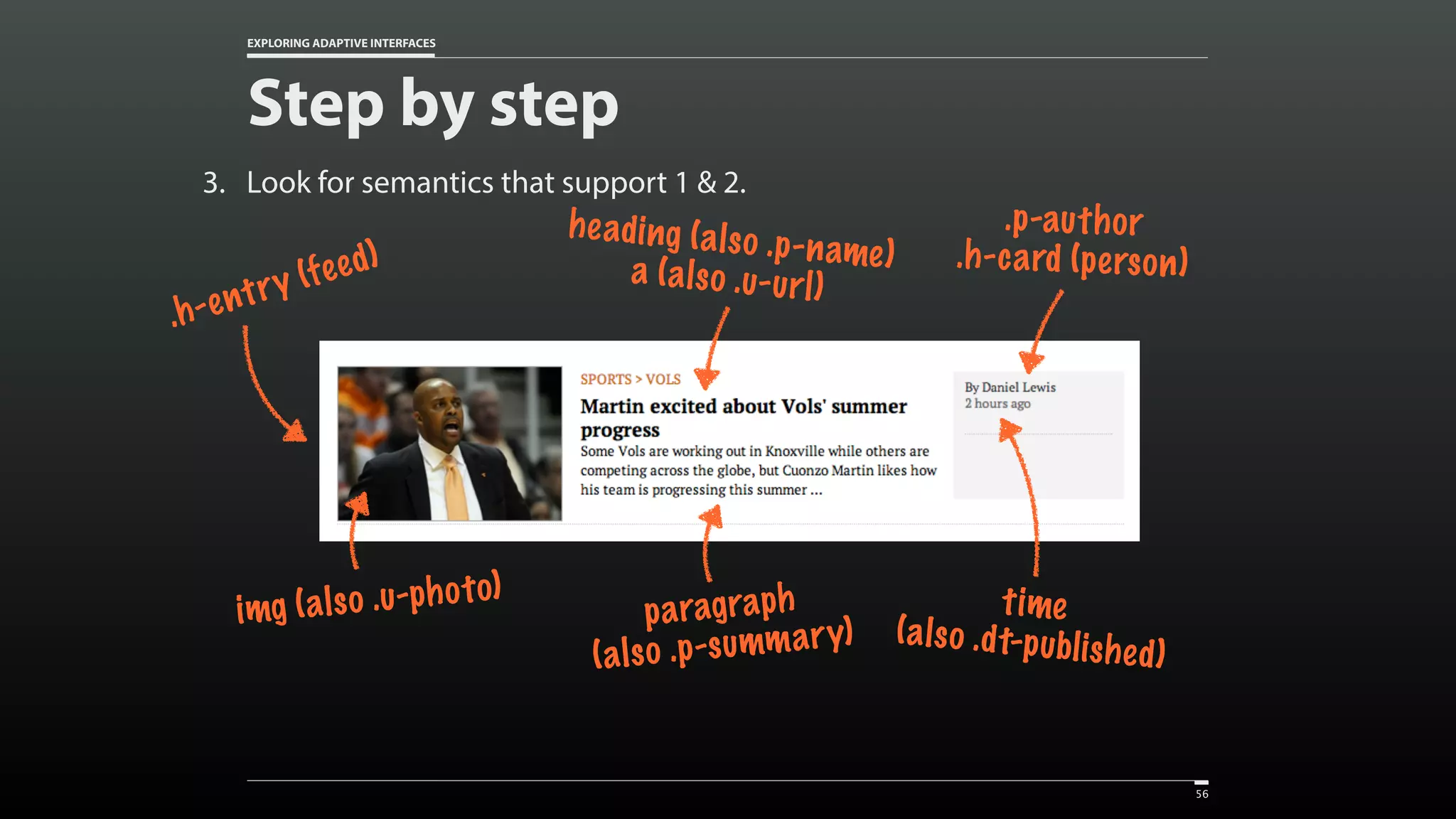

- 54. EXPLORING ADAPTIVE INTERFACES Stepby step 3. Look for semantics that support 1 & 2. 56 heading (also .p-name)a (also .u-url) paragraph (also .p-summary) .p-author .h-card (person) .h-entry (feed) img (also .u-photo) time (also .dt-published)

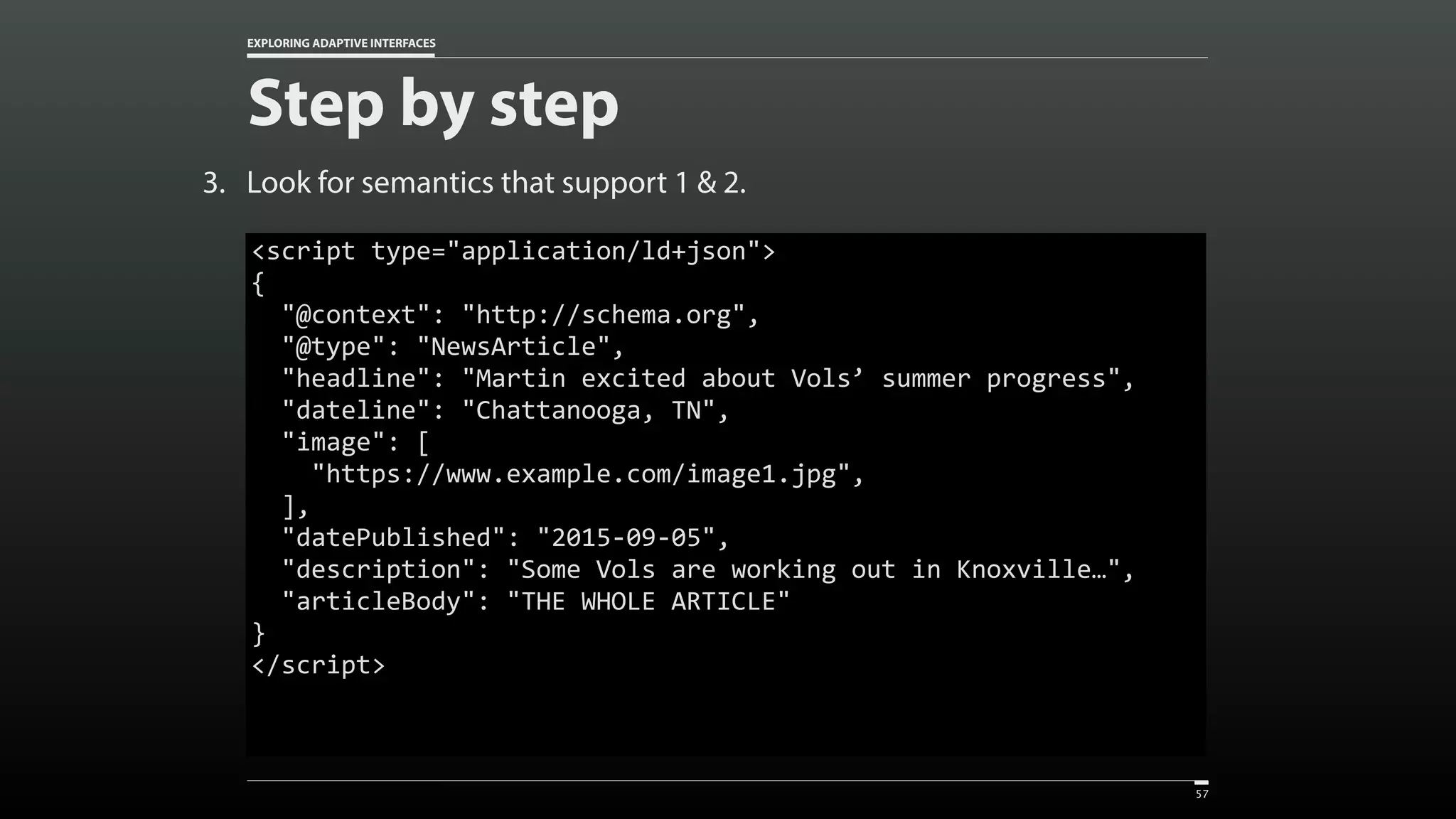

- 55. EXPLORING ADAPTIVE INTERFACES Stepby step 3. Look for semantics that support 1 & 2. 57 <script type="application/ld+json"> { "@context": "http://schema.org", "@type": "NewsArticle", "headline": "Martin excited about Vols’ summer progress", "dateline": "Chattanooga, TN", "image": [ "https://www.example.com/image1.jpg", ], "datePublished": "2015-09-05", "description": "Some Vols are working out in Knoxville…", "articleBody": "THE WHOLE ARTICLE" } </script>

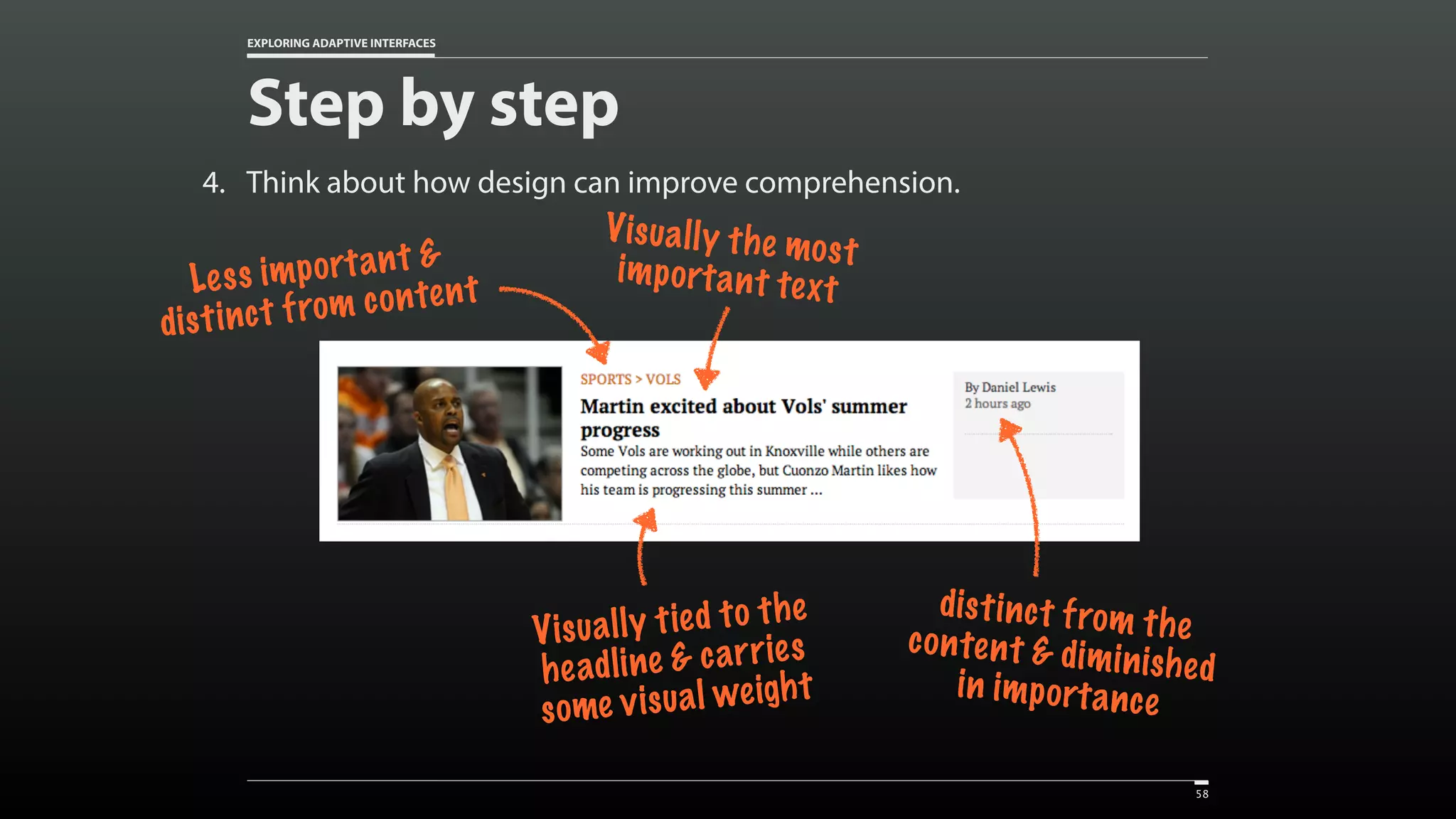

- 56. EXPLORING ADAPTIVE INTERFACES Stepby step 4. Think about how design can improve comprehension. 58 Visually the mostimportant text Visually tied to the headline & carries some visual weight distinct from thecontent & diminishedin importance Less important & distinct from content

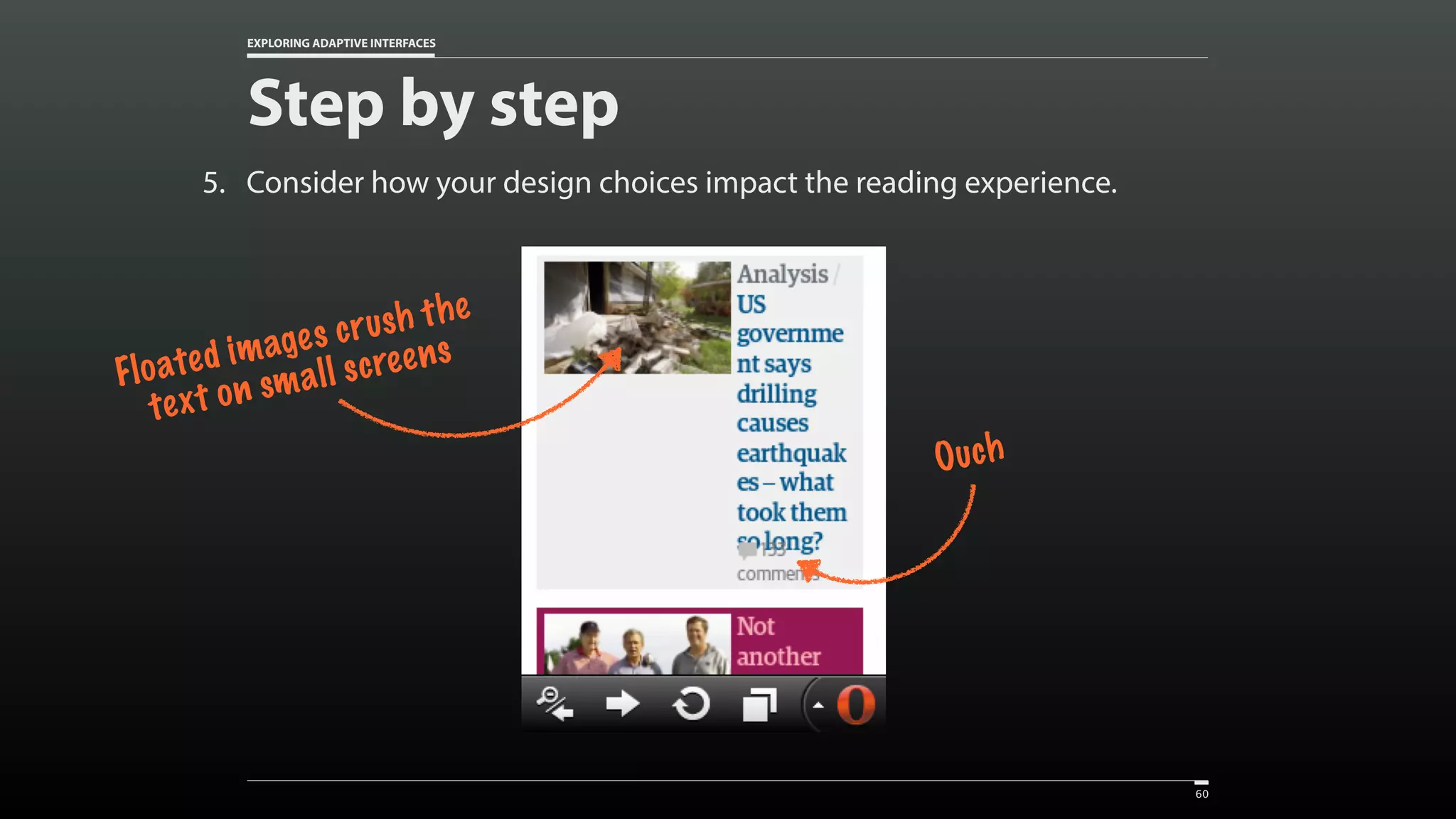

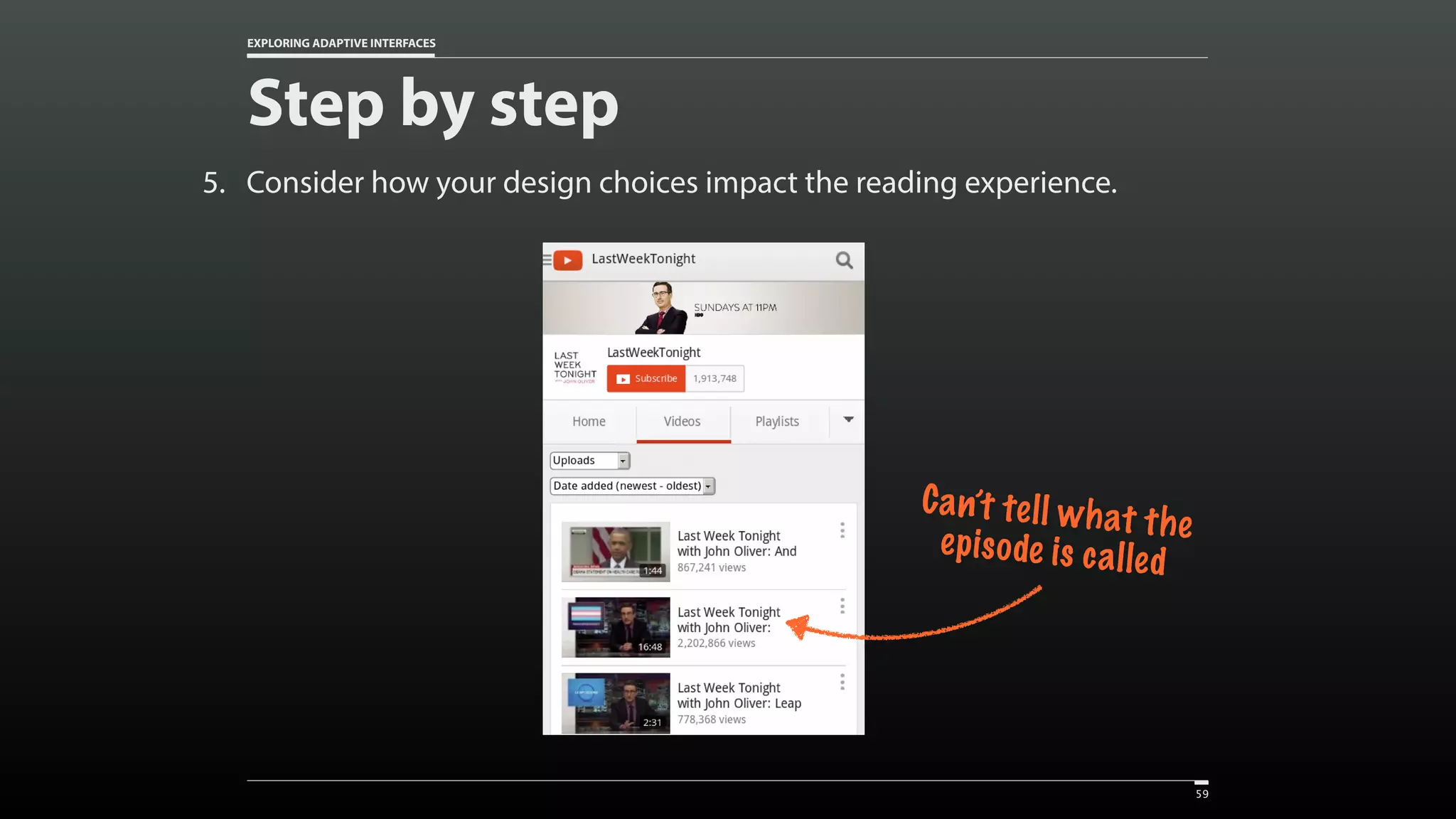

- 57. EXPLORING ADAPTIVE INTERFACES Stepby step 5. Consider how your design choices impact the reading experience. 59 Can’t tell what theepisode is called
- 58. EXPLORING ADAPTIVE INTERFACES Stepby step 5. Consider how your design choices impact the reading experience. 60 Floated images crush the text on small screens Ouch

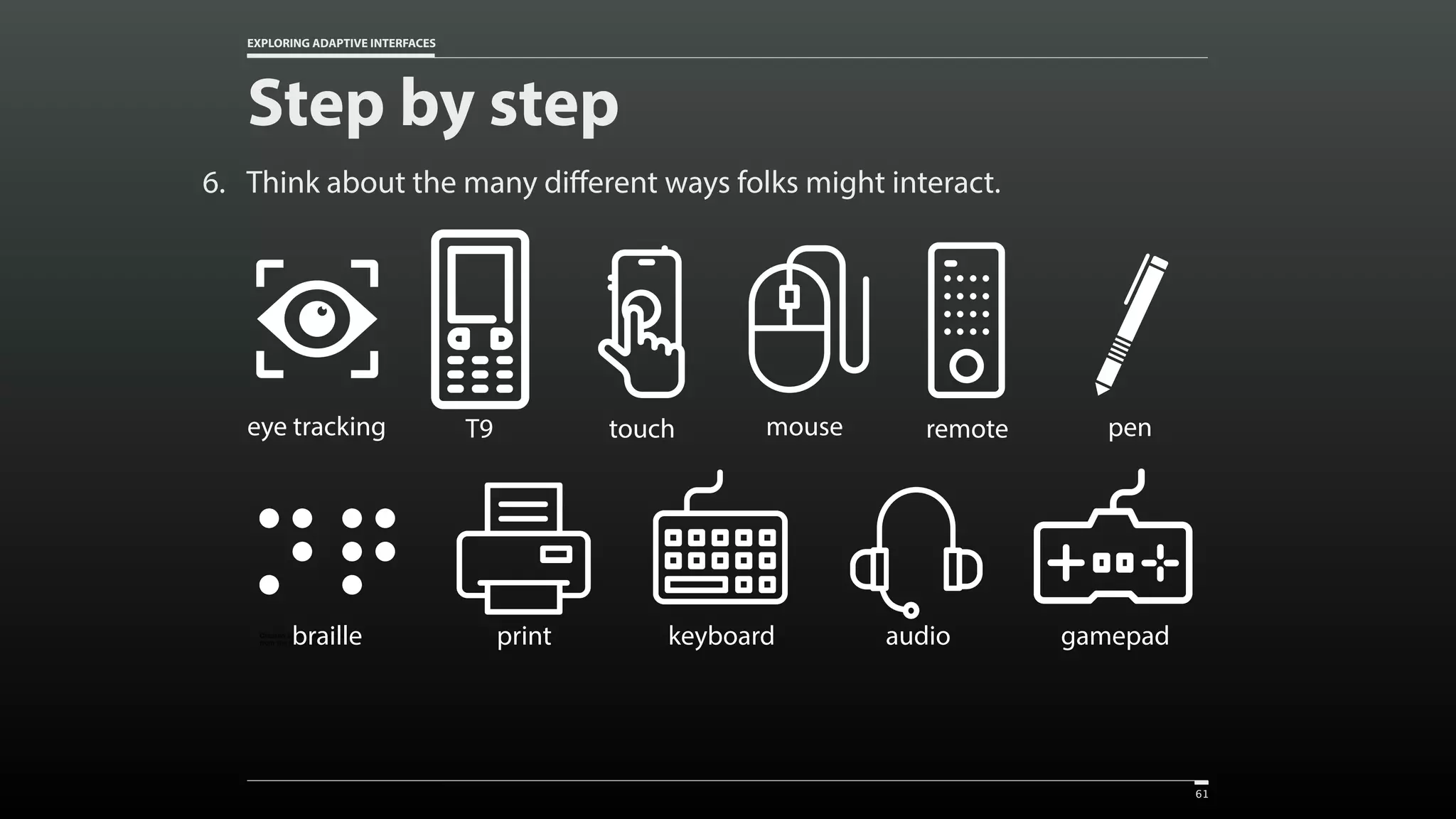

- 59. EXPLORING ADAPTIVE INTERFACES 6.Think about the many different ways folks might interact. Step by step 61 Created by Vectors Market from the Noun Project touch Created by Vectors Market from the Noun Project mouse Created by bezier master from the Noun Project T9 Created by Christopher Holm-Hansen from the Noun Project eye tracking Created by Vectors Market from the Noun Project remote Created by Setyo Ari Wibowo from the Noun Project pen Created by Vectors Market from the Noun Project keyboard Created by Vectors Market from the Noun Project gamepadCreated by Vectors Market from the Noun Project printCreated by Adriano Emerick from the Noun Projectbraille Created by Vectors Market from the Noun Project audio

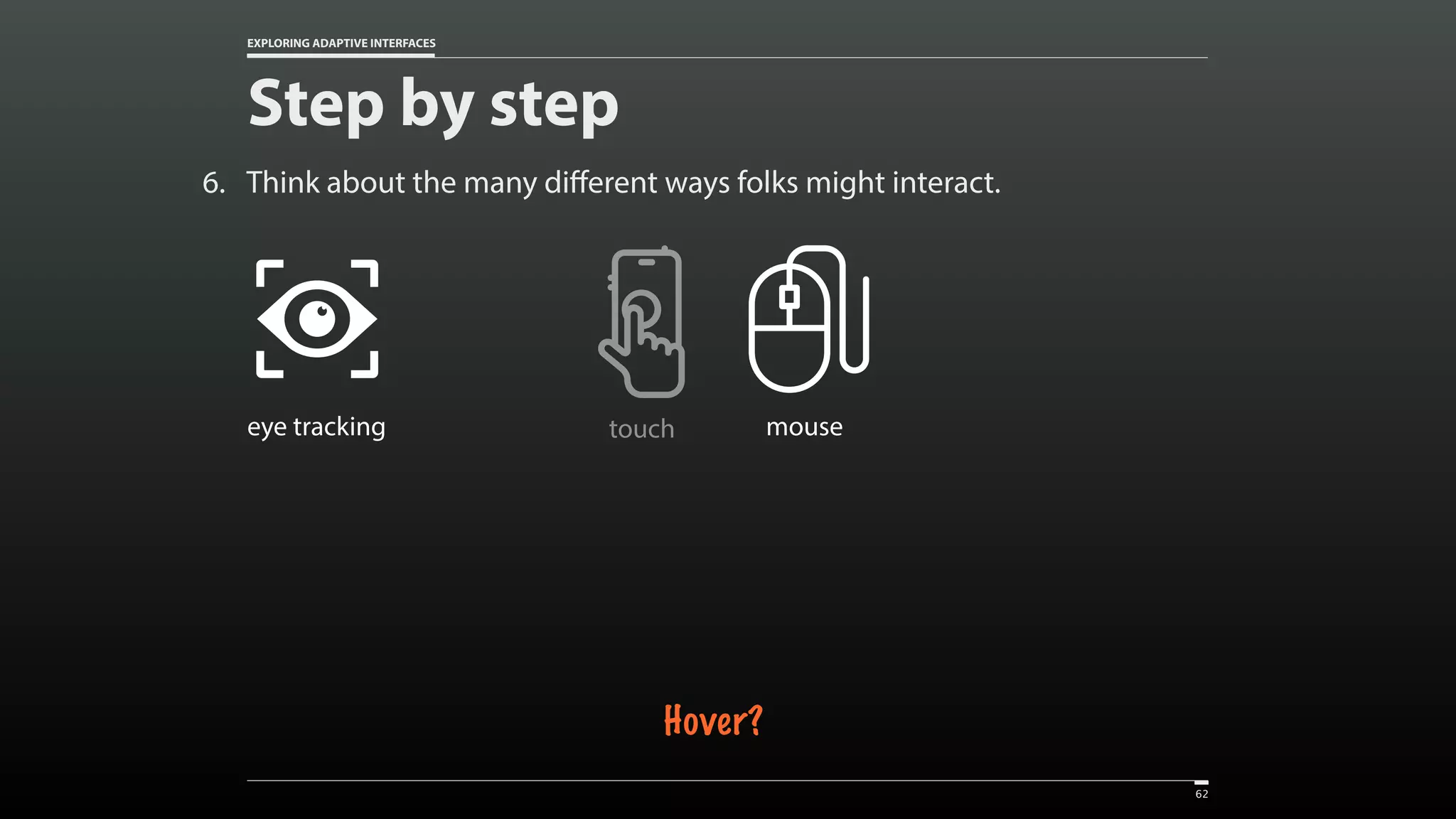

- 60. EXPLORING ADAPTIVE INTERFACES 6.Think about the many different ways folks might interact. Step by step 62 touch Created by Vectors Market from the Noun Project mouse Created by Christopher Holm-Hansen from the Noun Project eye tracking Hover?

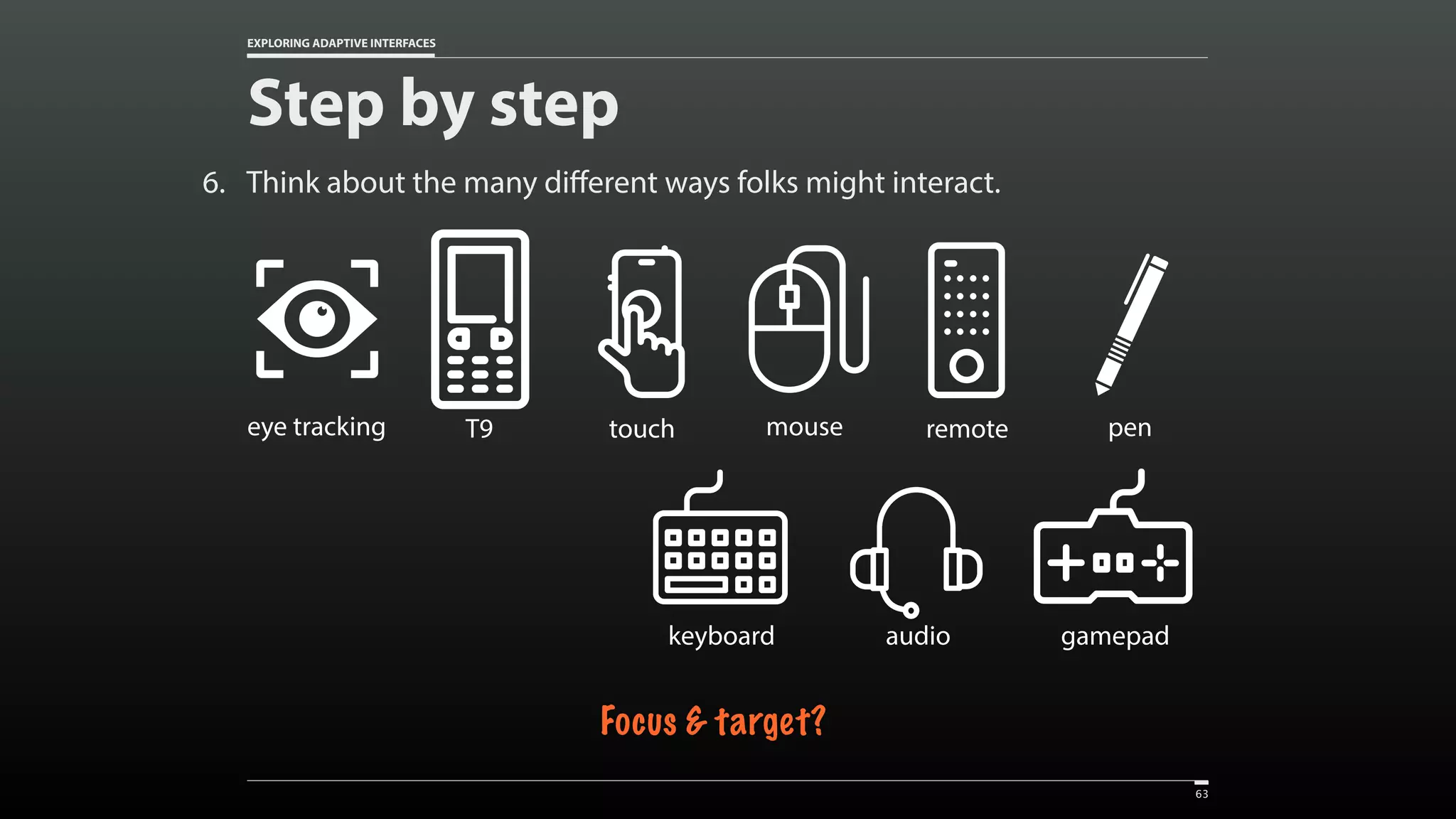

- 61. EXPLORING ADAPTIVE INTERFACES 6.Think about the many different ways folks might interact. Step by step 63 Created by Vectors Market from the Noun Project touch Created by Vectors Market from the Noun Project mouse Created by bezier master from the Noun Project T9 Created by Christopher Holm-Hansen from the Noun Project eye tracking Created by Vectors Market from the Noun Project remote Created by Setyo Ari Wibowo from the Noun Project pen Created by Vectors Market from the Noun Project keyboard Created by Vectors Market from the Noun Project gamepad Focus & target? Created by Vectors Market from the Noun Project audio

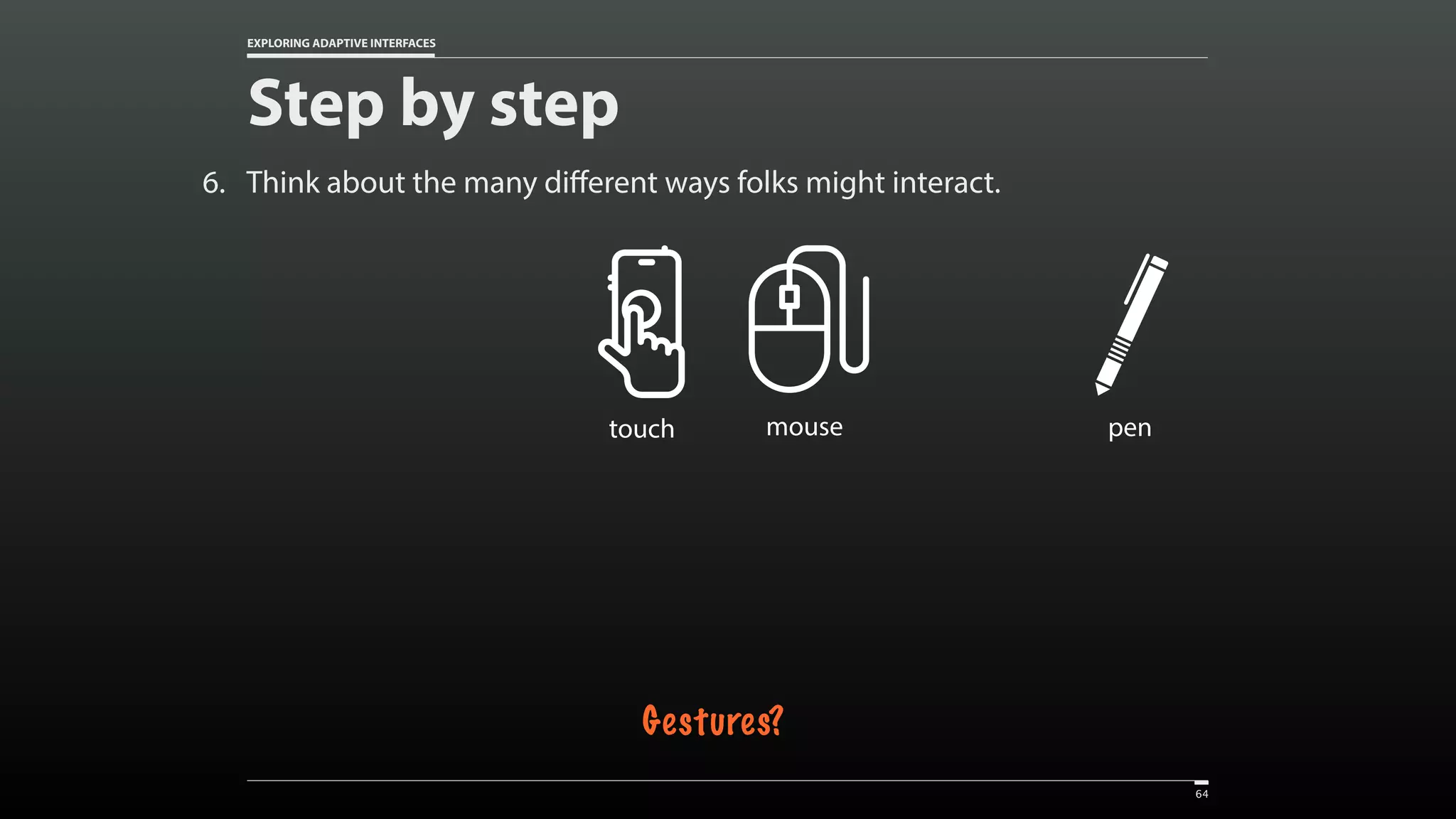

- 62. EXPLORING ADAPTIVE INTERFACES 6.Think about the many different ways folks might interact. Step by step 64 Created by Vectors Market from the Noun Project touch Created by Vectors Market from the Noun Project mouse Created by Setyo Ari Wibowo from the Noun Project pen Gestures?

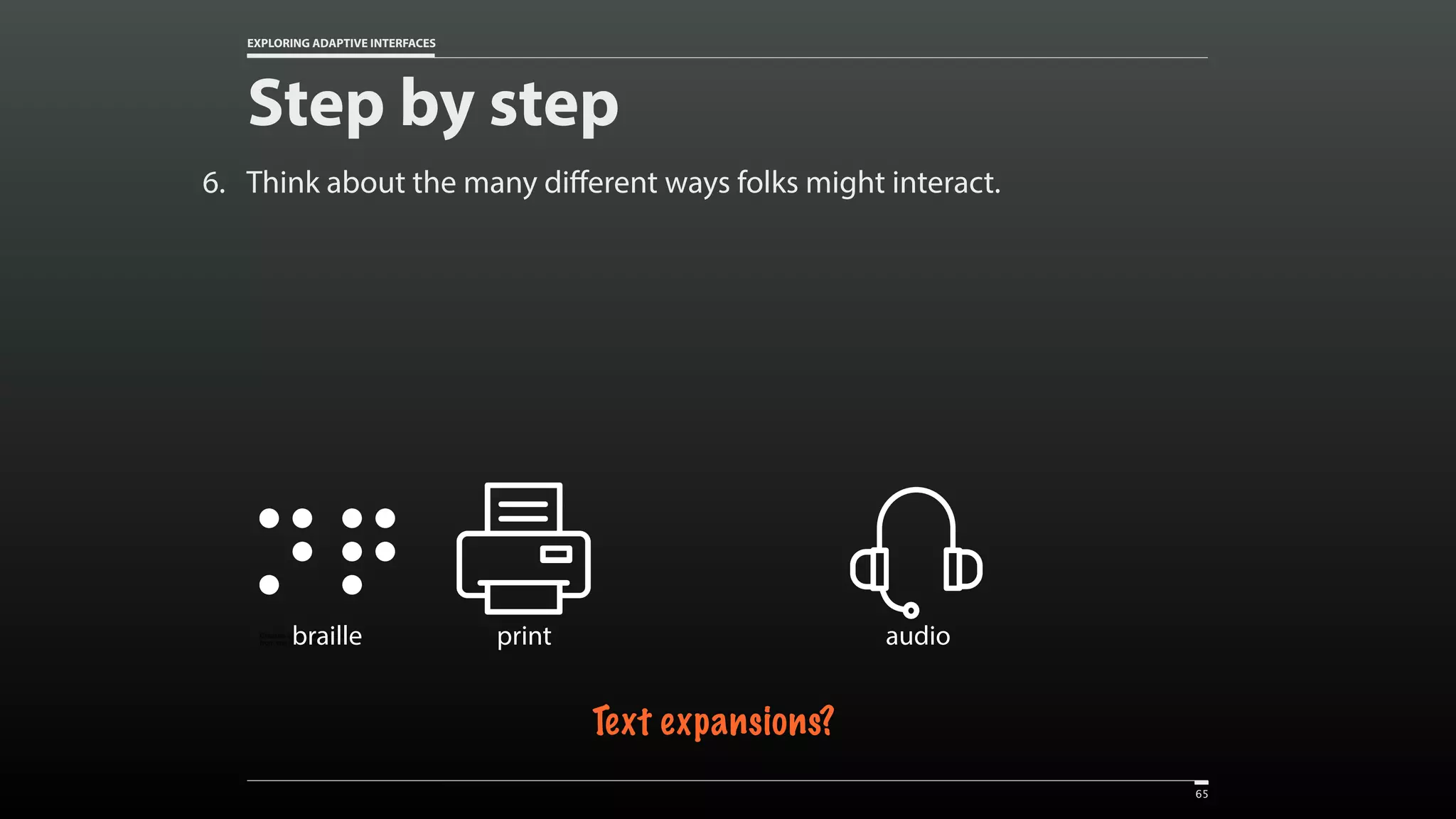

- 63. EXPLORING ADAPTIVE INTERFACES 6.Think about the many different ways folks might interact. Step by step 65 Created by Vectors Market from the Noun Project printCreated by Adriano Emerick from the Noun Projectbraille Text expansions? Created by Vectors Market from the Noun Project audio

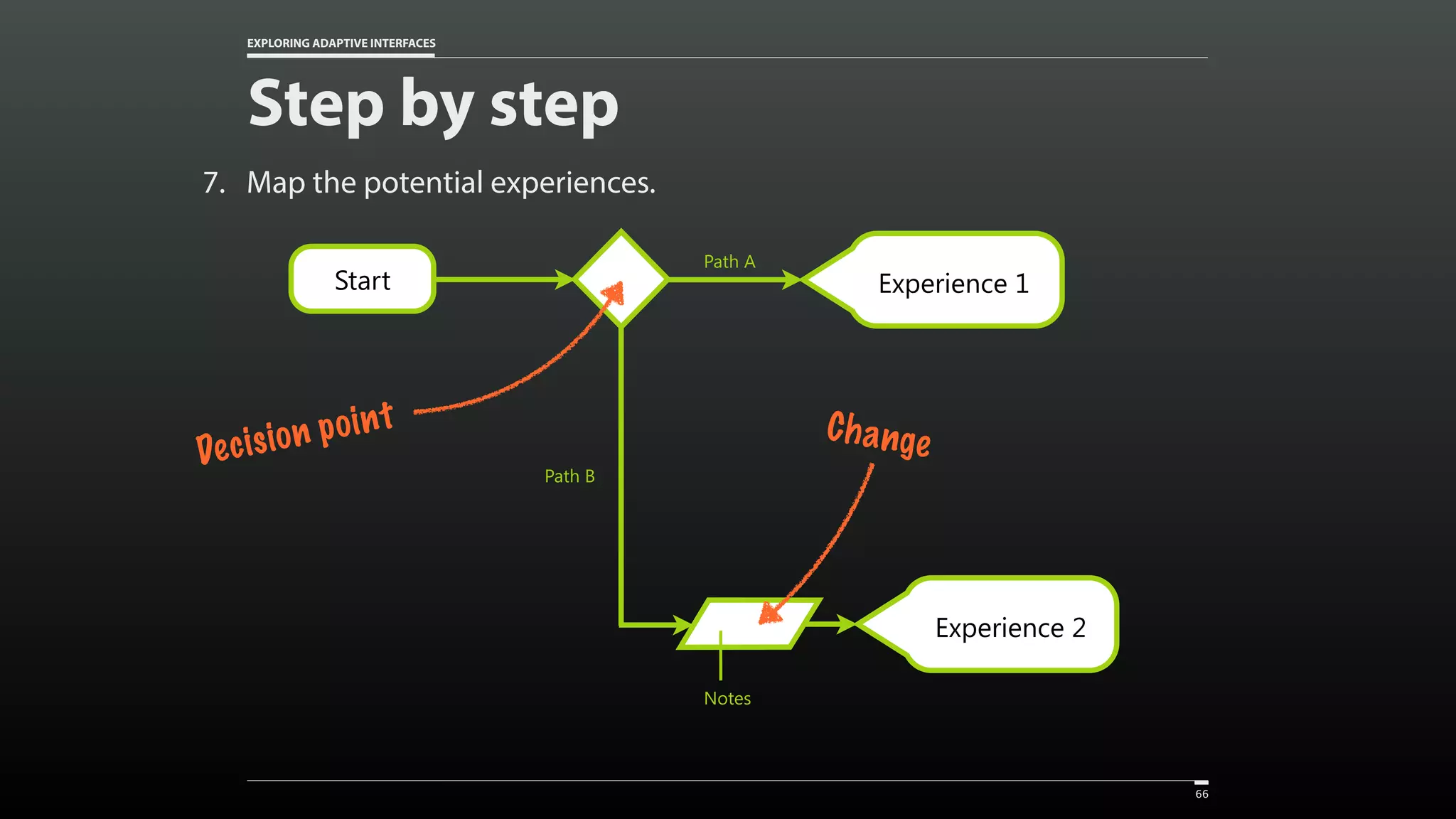

- 64. EXPLORING ADAPTIVE INTERFACES 7.Map the potential experiences. Step by step 66 Path A Experience 1Start Path B Experience 2 Notes Decision point Change

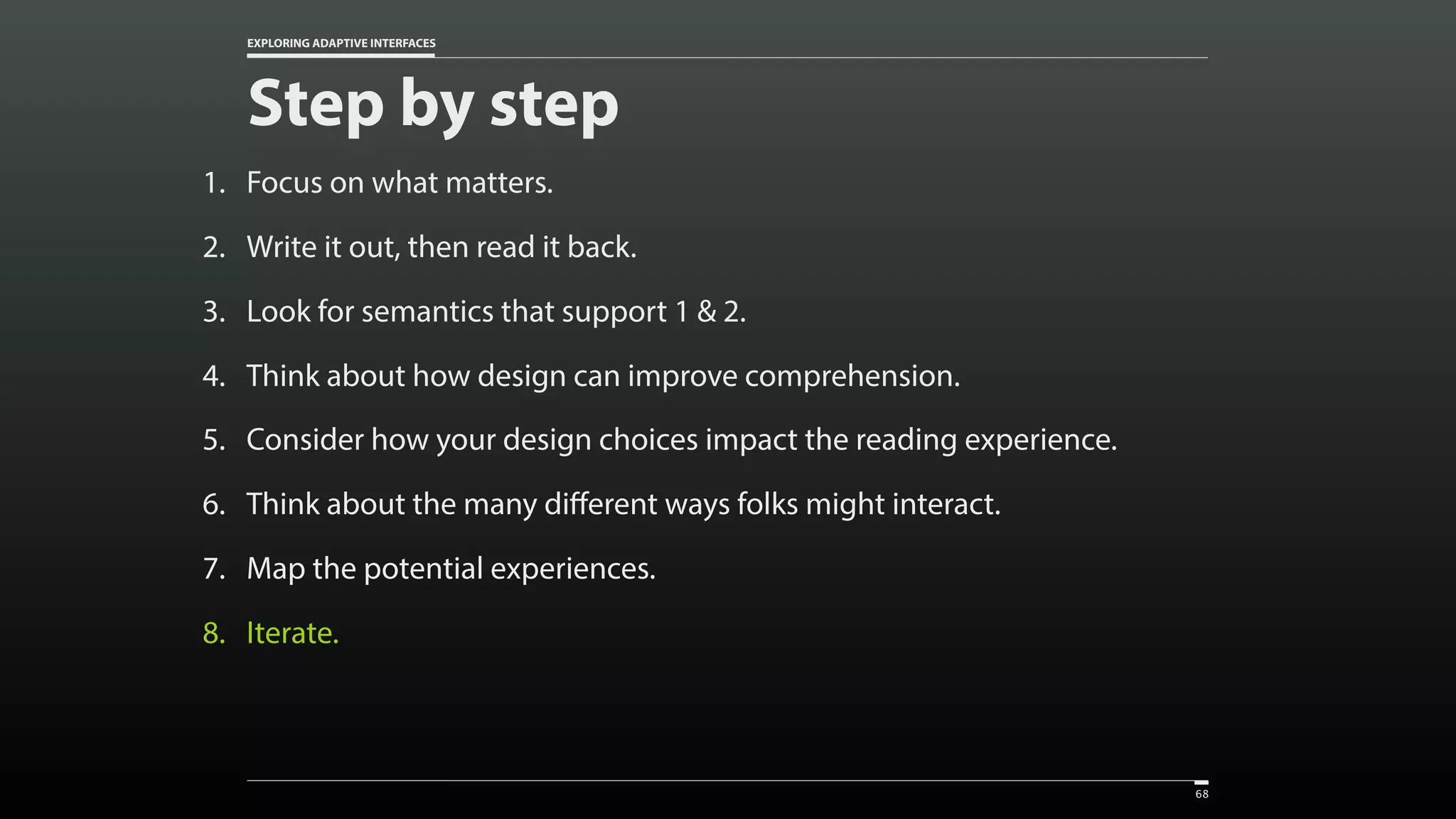

- 65. EXPLORING ADAPTIVE INTERFACES 1.Focus on what matters. 2. Write it out, then read it back. 3. Look for semantics that support 1 & 2. 4. Think about how design can improve comprehension. 5. Consider how your design choices impact the reading experience. 6. Think about the many different ways folks might interact. 7. Map the potential experiences. 8. Iterate. Step by step 68
- 66.
- 67.
- 68. I like anescalator because an escalator can never break, it can only become stairs. — Mitch Hedberg
- 69.
- 73.
- 74. Let’s get adaptive. ©Brad Frost
- 75.

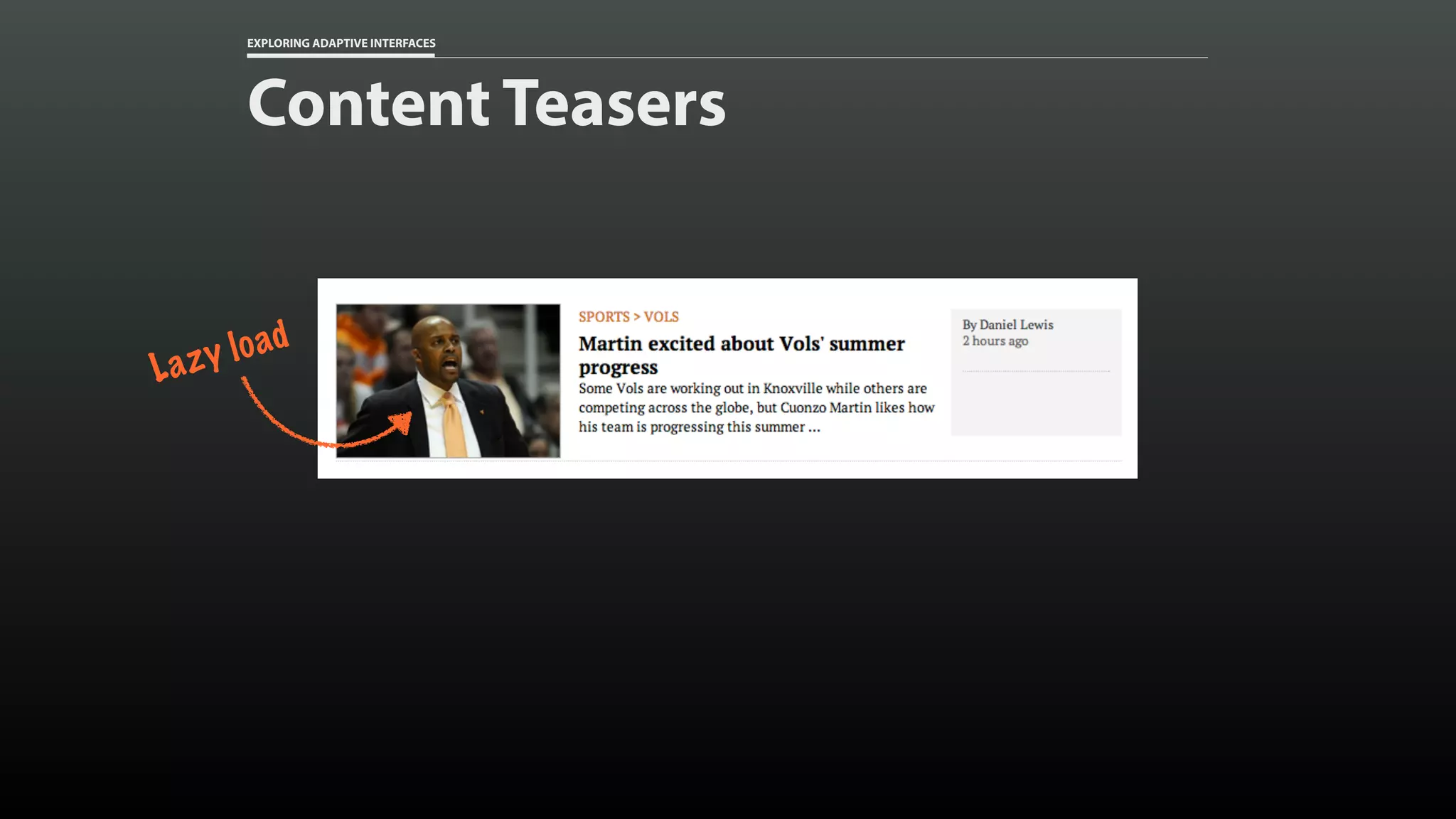

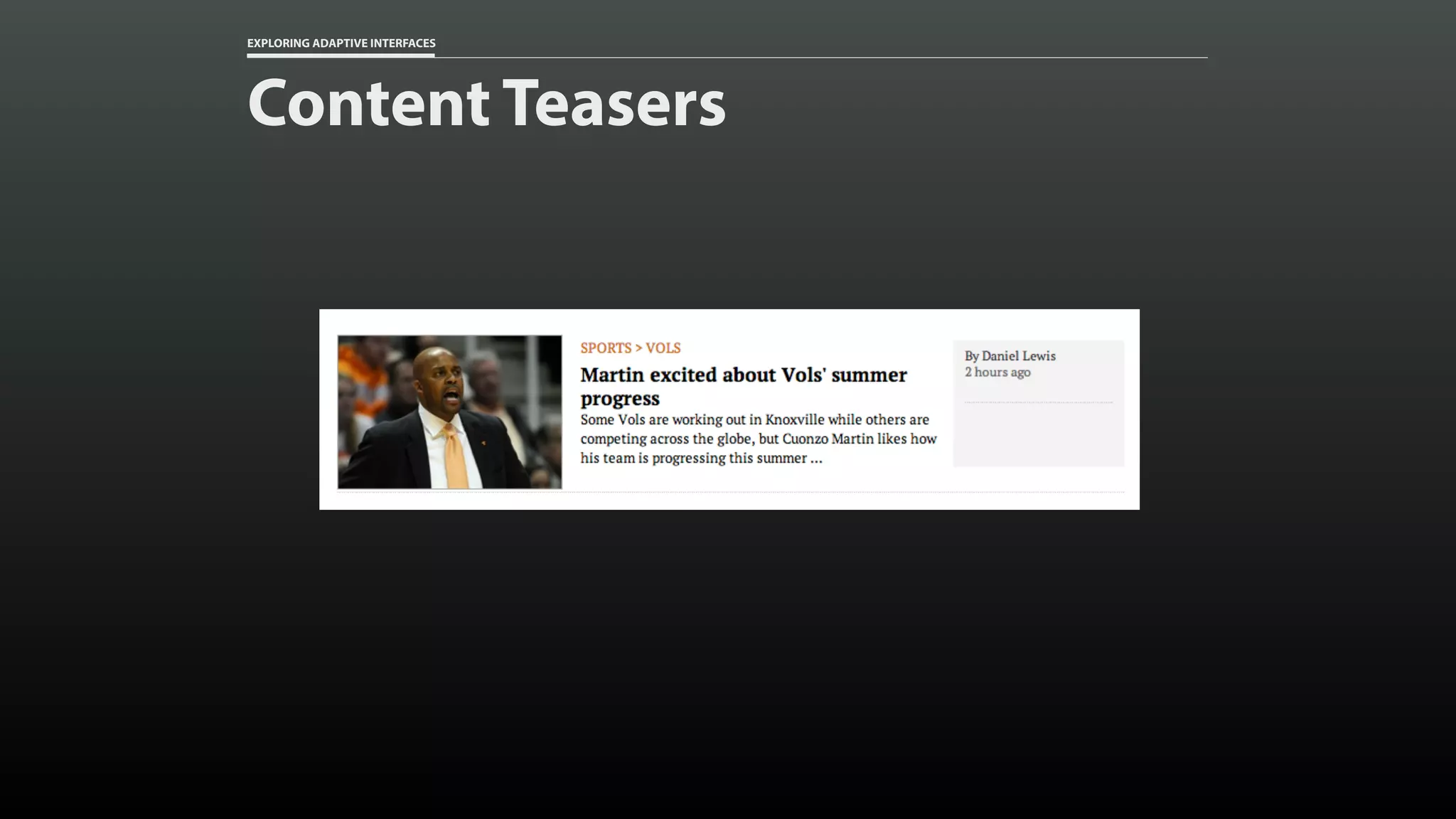

- 76. EXPLORING ADAPTIVE INTERFACES ContentTeasers Lazy load
- 77.
- 78.

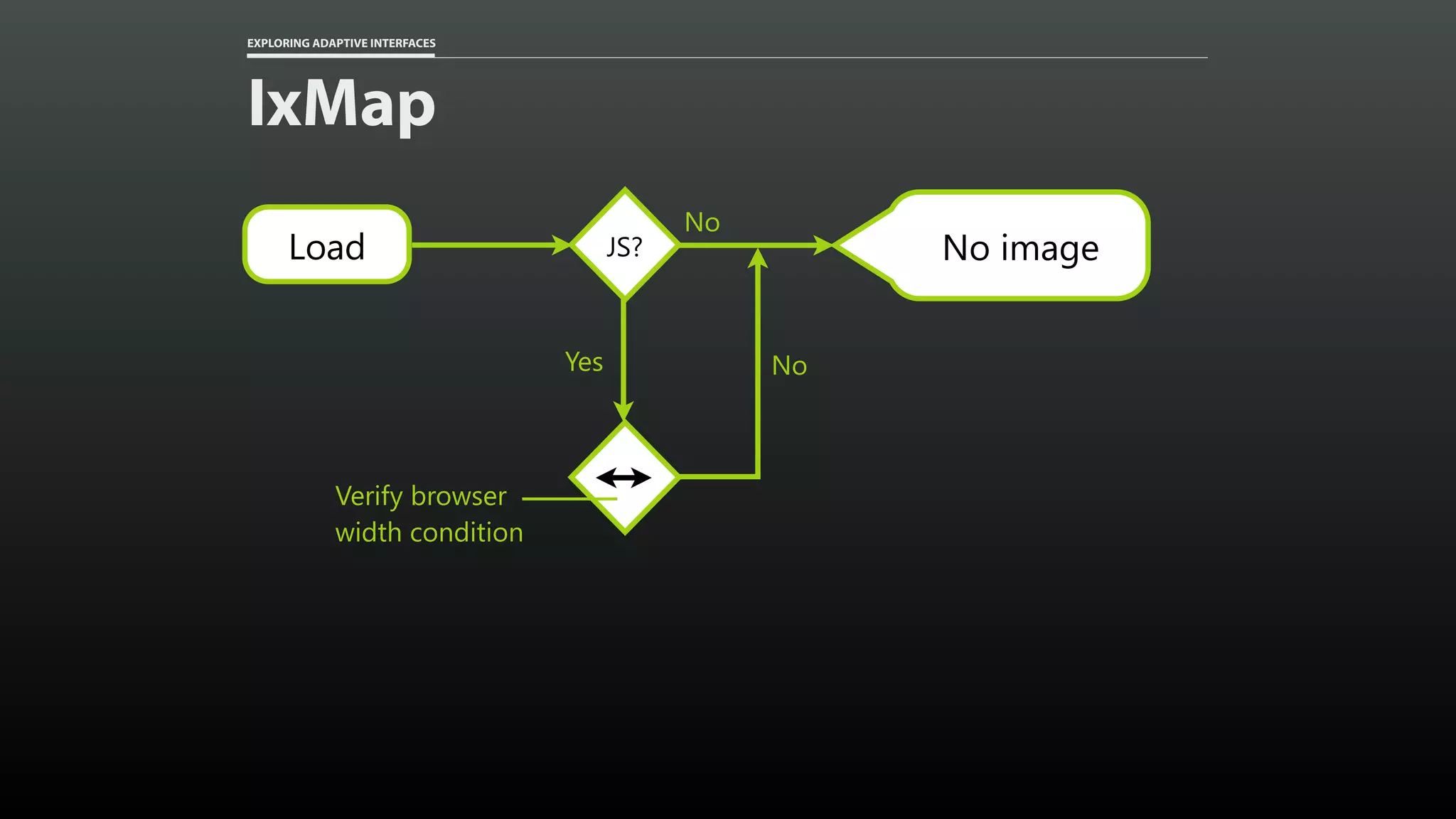

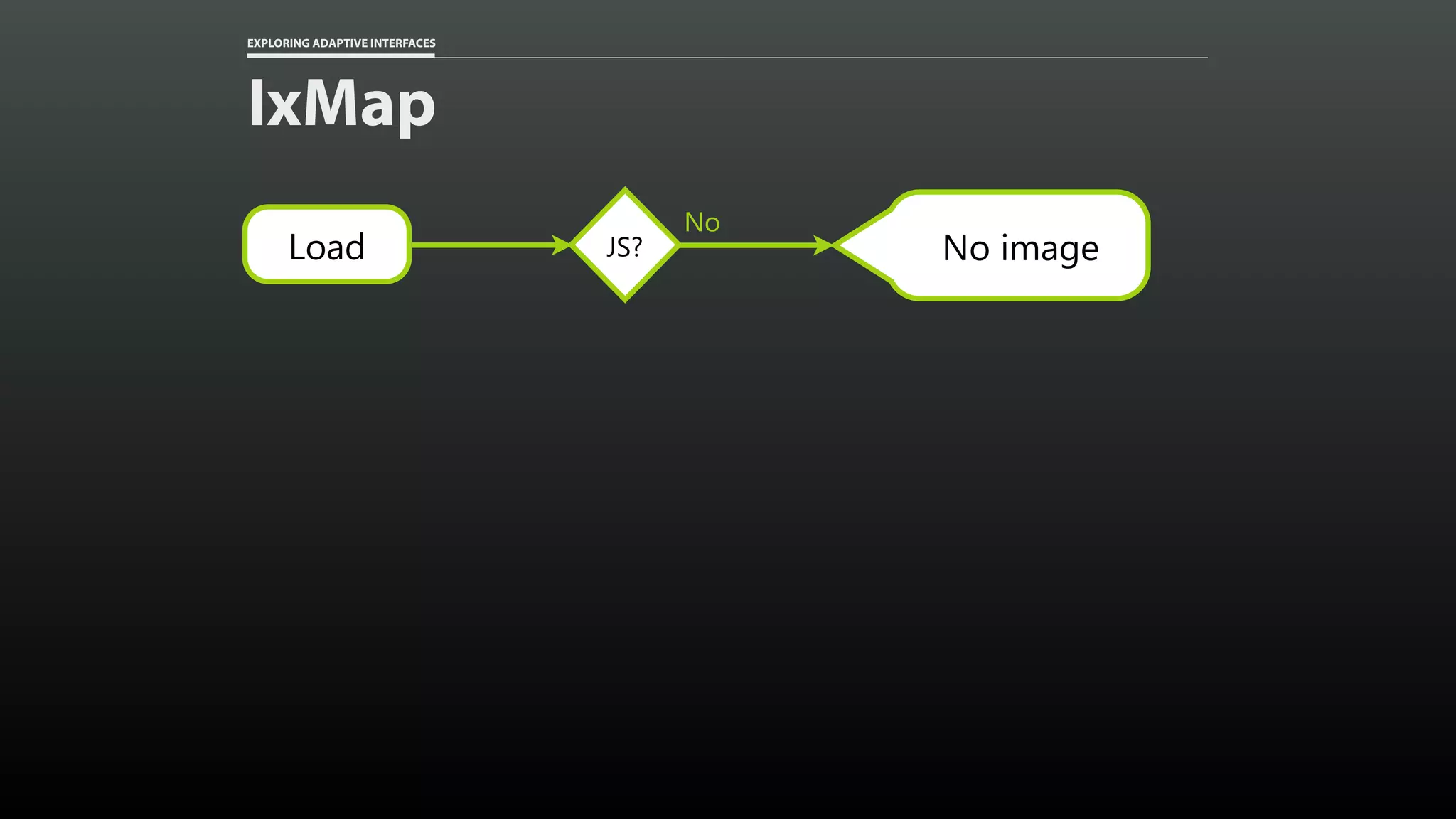

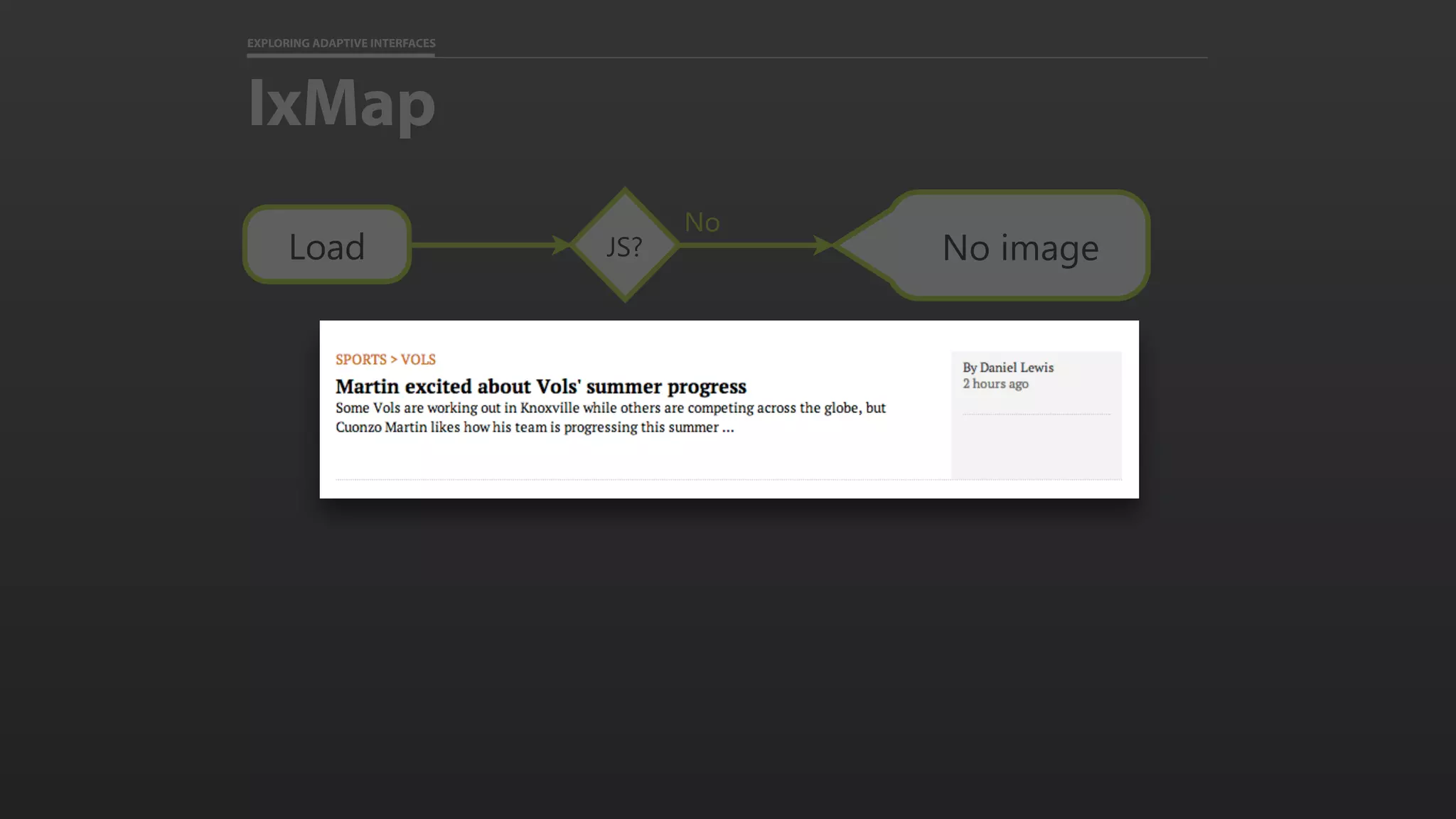

- 79. EXPLORING ADAPTIVE INTERFACES IxMap JS? No NoimageLoad NoYes Verify browser width condition

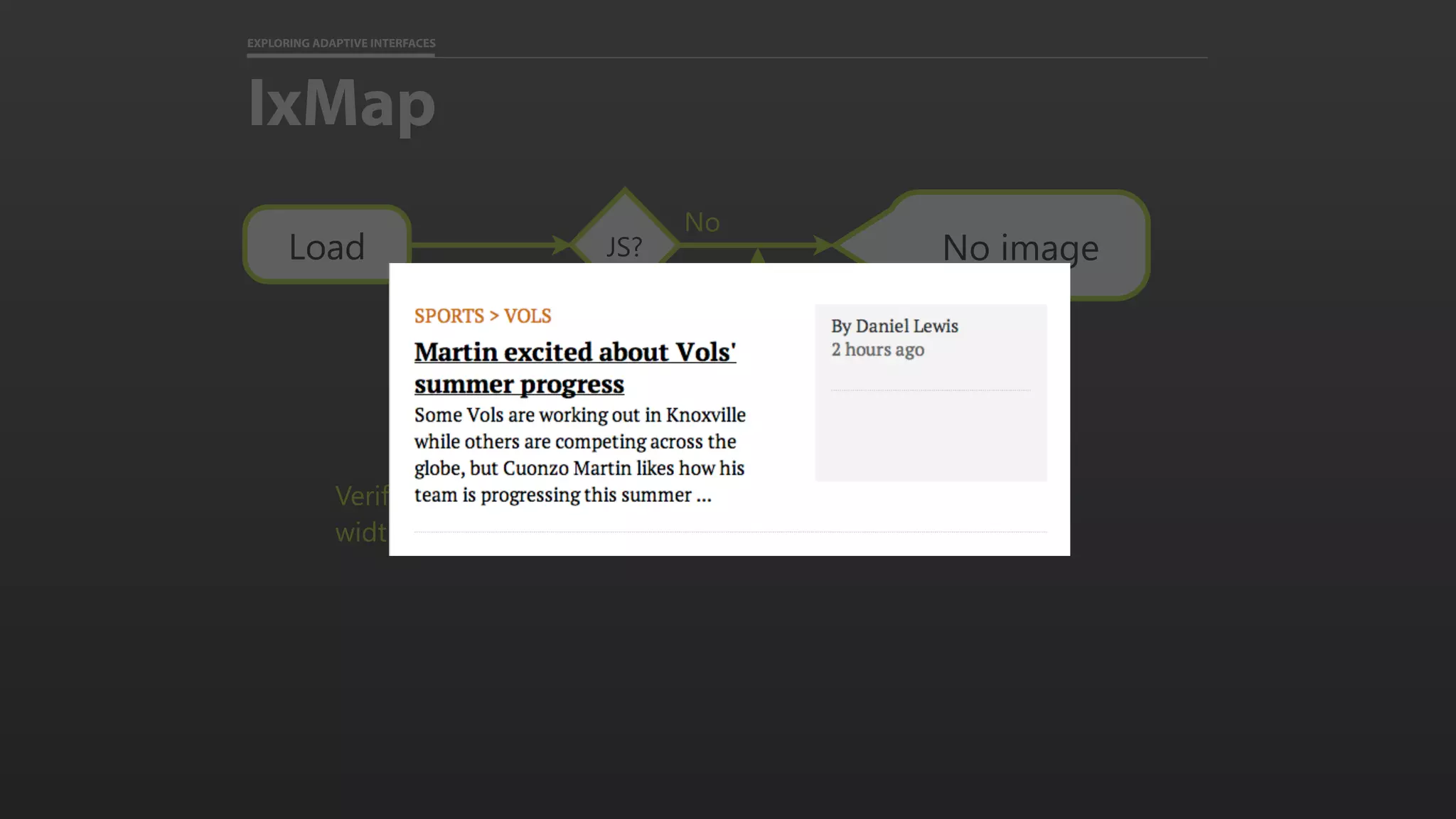

- 80. EXPLORING ADAPTIVE INTERFACES IxMap JS? No NoimageLoad NoYes Verify browser width condition
- 81. EXPLORING ADAPTIVE INTERFACES IxMap JS? No NoimageLoad NoYes Verify browser width condition Yes Image Adjust markup Add custom CSS
- 82. EXPLORING ADAPTIVE INTERFACES IxMap JS? No NoimageLoad NoYes Verify browser width condition Yes Image Adjust markup Add custom CSS
- 83. EXPLORING ADAPTIVE INTERFACES Thereis no image… <div class="entry-image" data-image-src="/i/sample.jpg"></div> 87

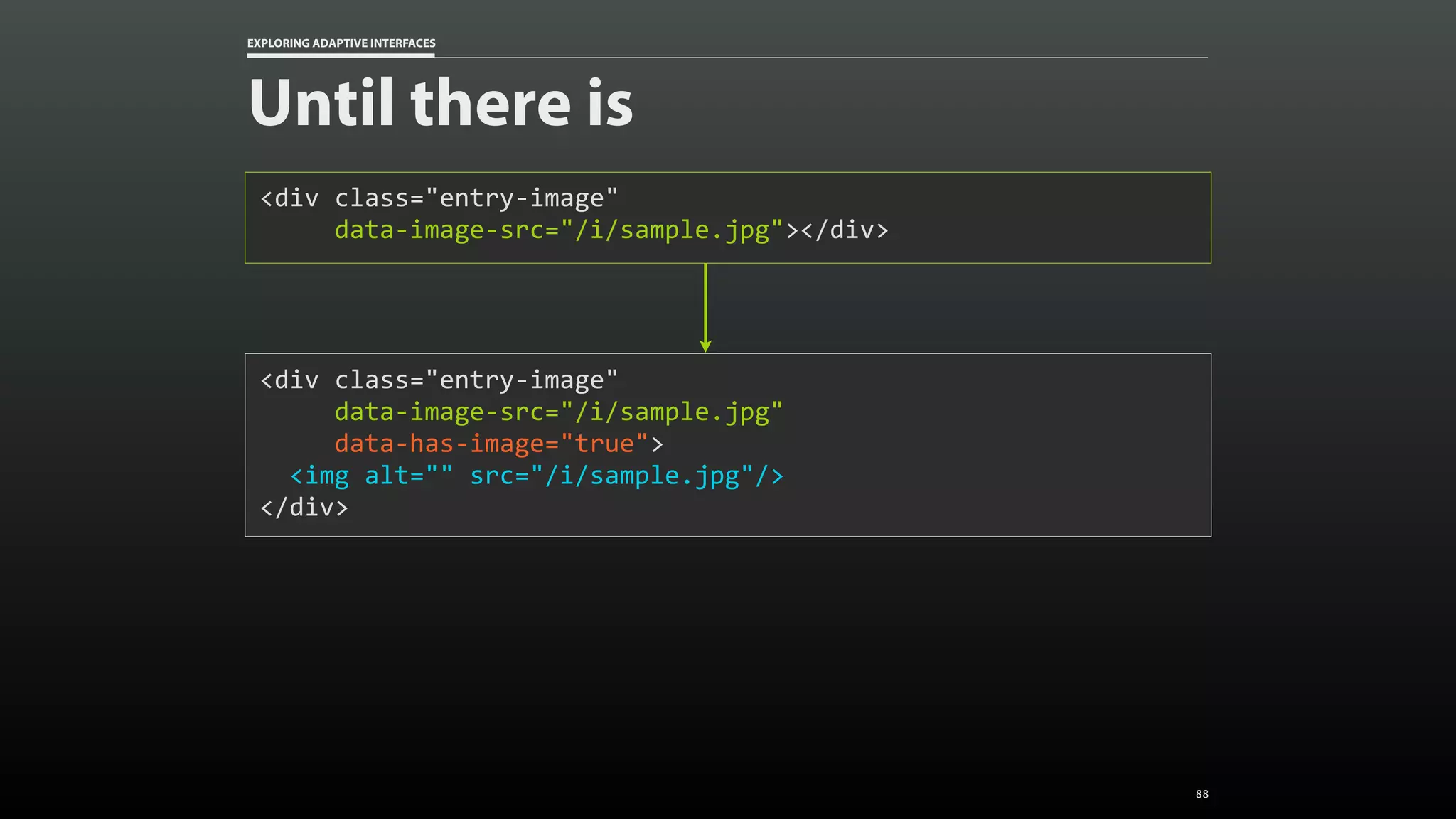

- 84. EXPLORING ADAPTIVE INTERFACES Untilthere is <div class="entry-image" data-image-src="/i/sample.jpg"></div> <div class="entry-image" data-image-src="/i/sample.jpg" data-has-image="true"> <img alt="" src="/i/sample.jpg"/> </div> 88

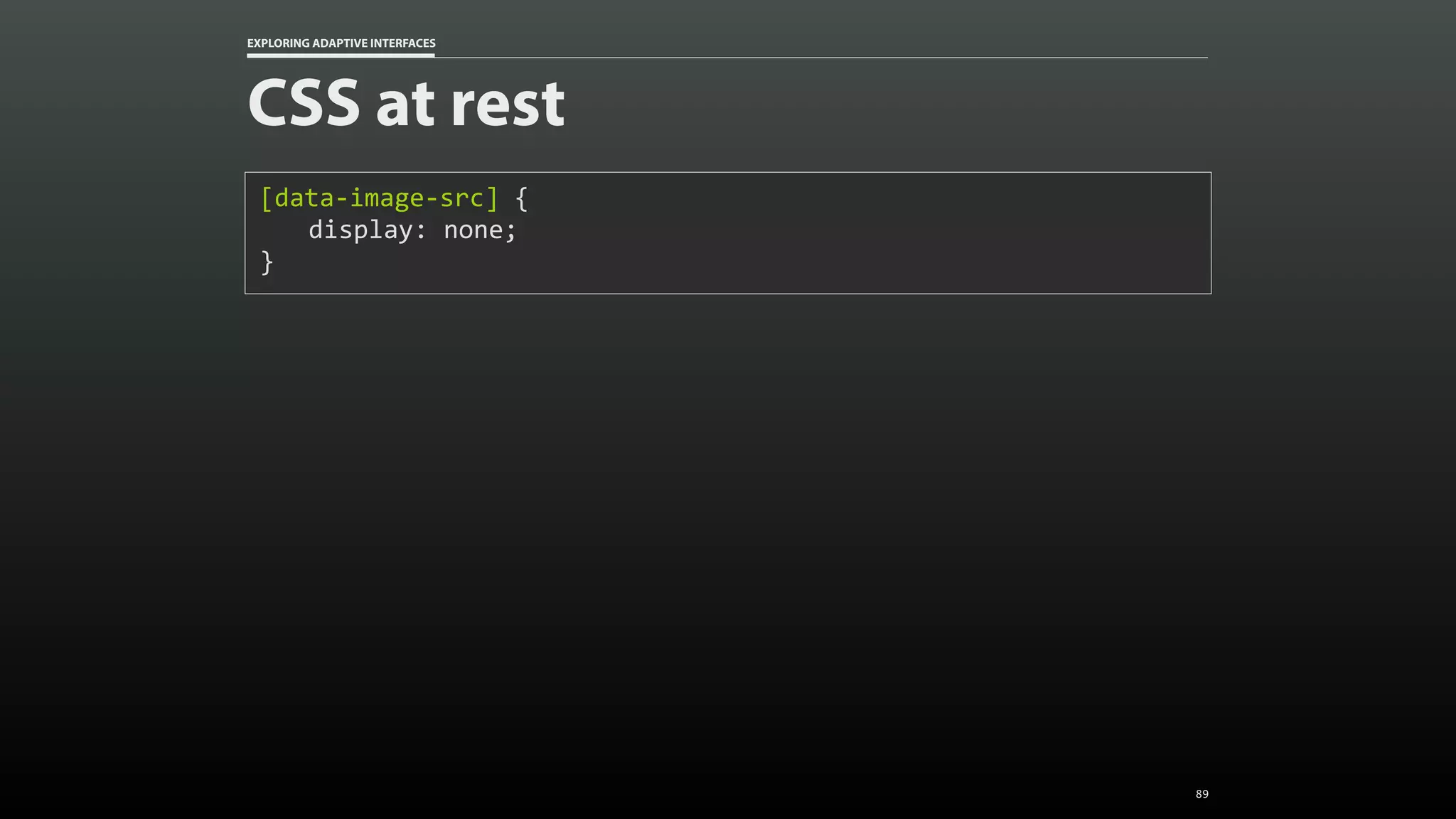

- 85. EXPLORING ADAPTIVE INTERFACES CSSat rest [data-image-src] { display: none; } 89

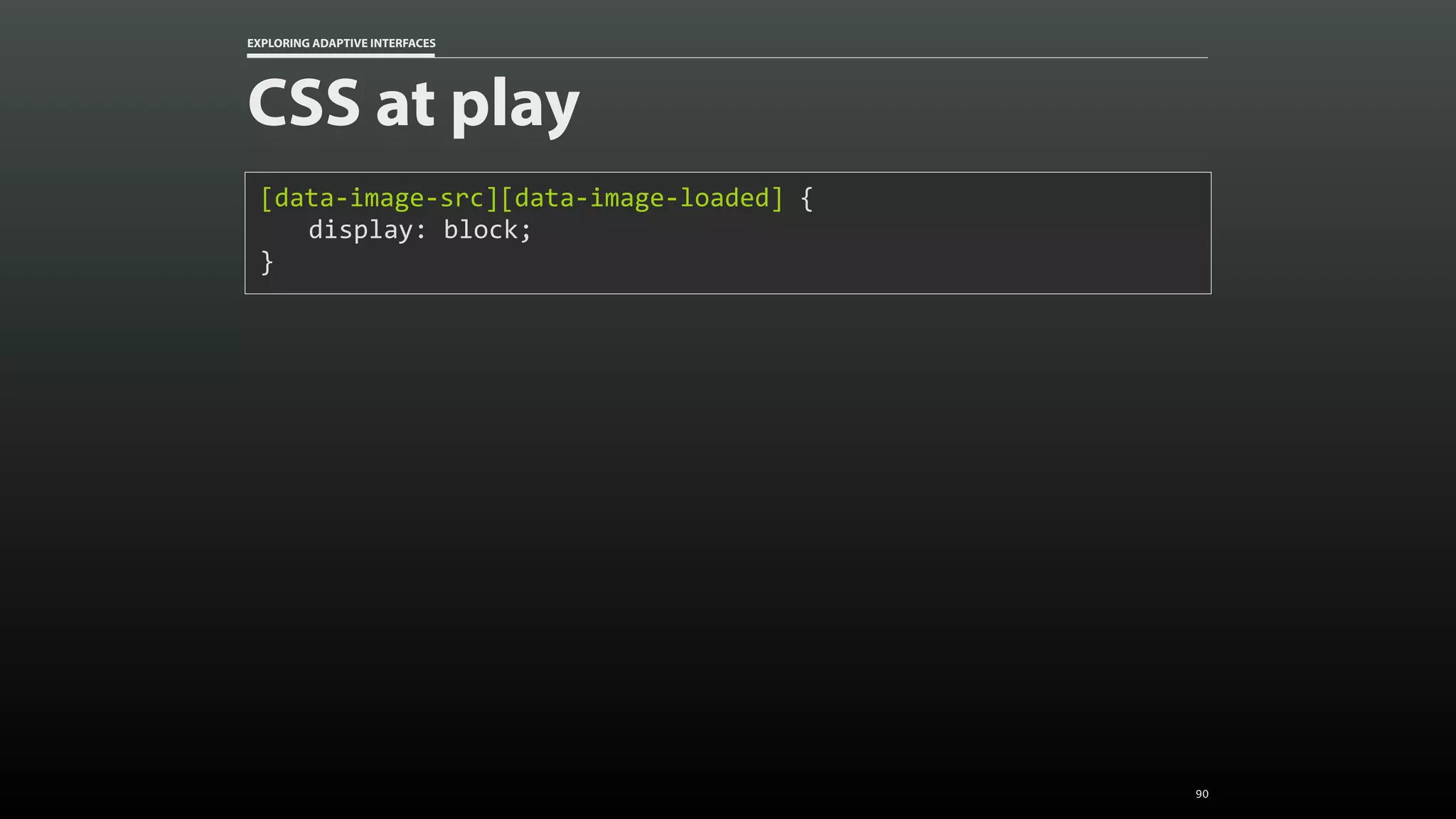

- 86. EXPLORING ADAPTIVE INTERFACES CSSat play [data-image-src][data-image-loaded] { display: block; } 90

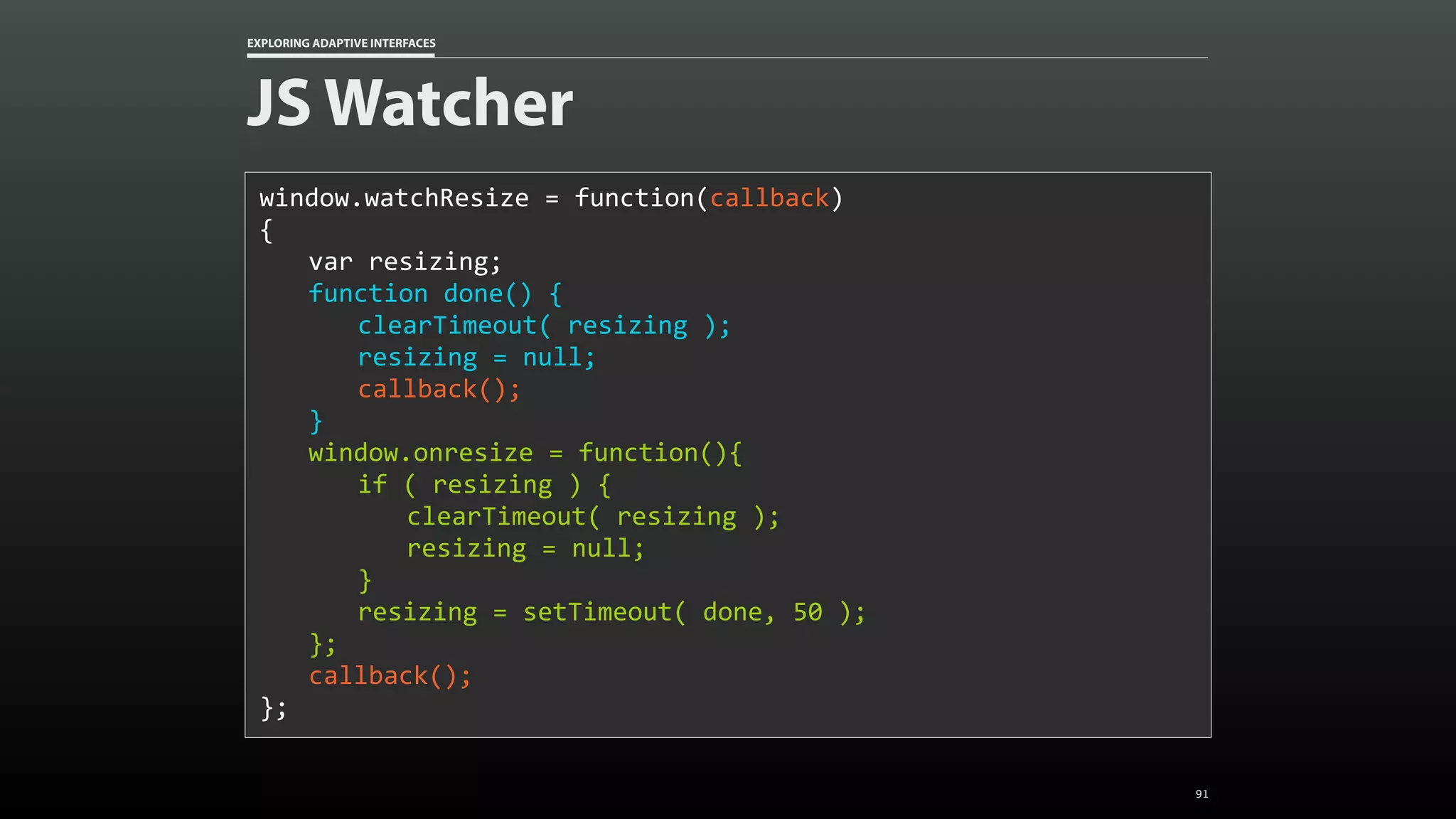

- 87. EXPLORING ADAPTIVE INTERFACES JSWatcher window.watchResize = function(callback) { var resizing; function done() { clearTimeout( resizing ); resizing = null; callback(); } window.onresize = function(){ if ( resizing ) { clearTimeout( resizing ); resizing = null; } resizing = setTimeout( done, 50 ); }; callback(); }; 91

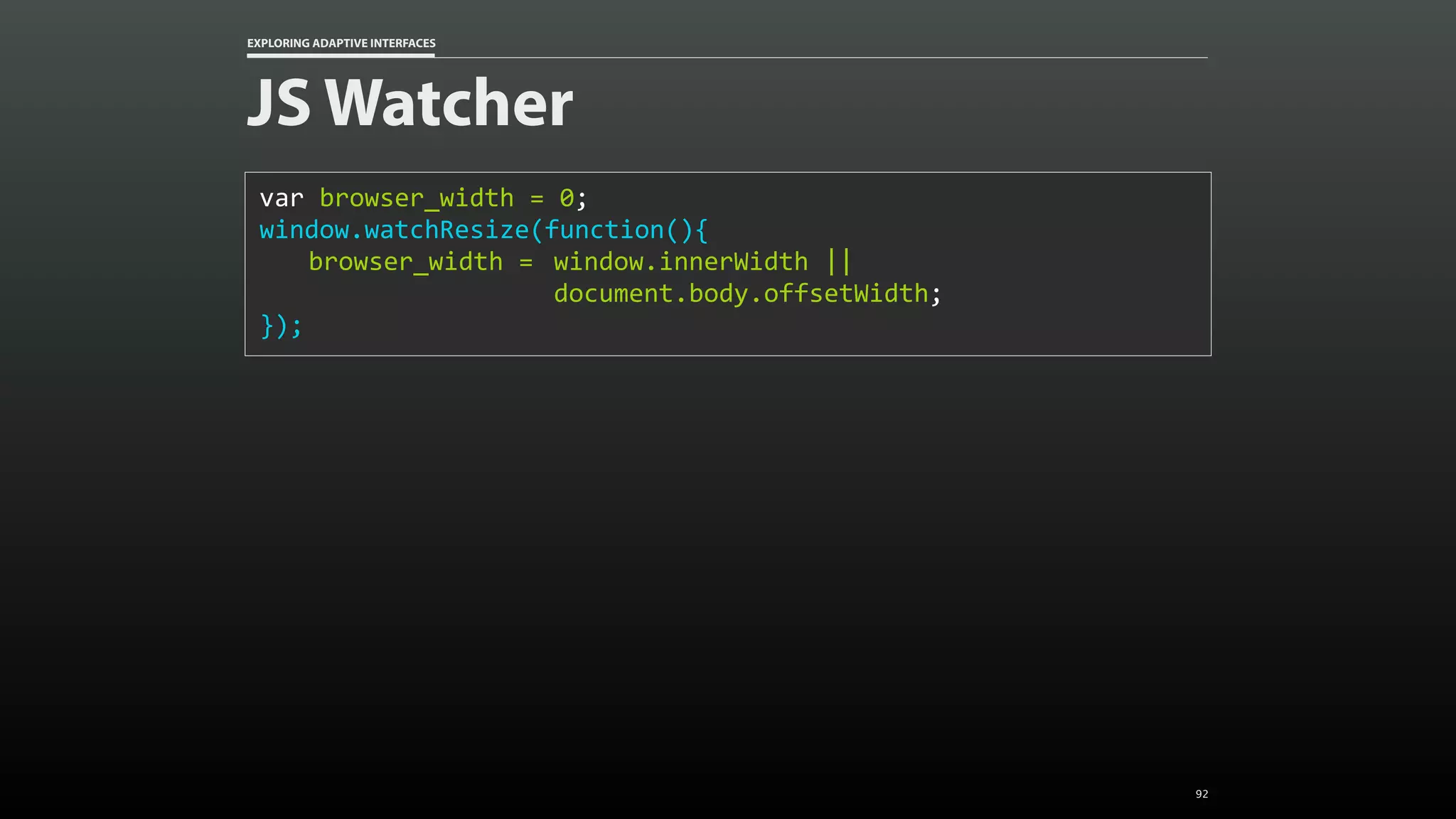

- 88. EXPLORING ADAPTIVE INTERFACES JSWatcher var browser_width = 0; window.watchResize(function(){ browser_width = window.innerWidth || document.body.offsetWidth; }); 92

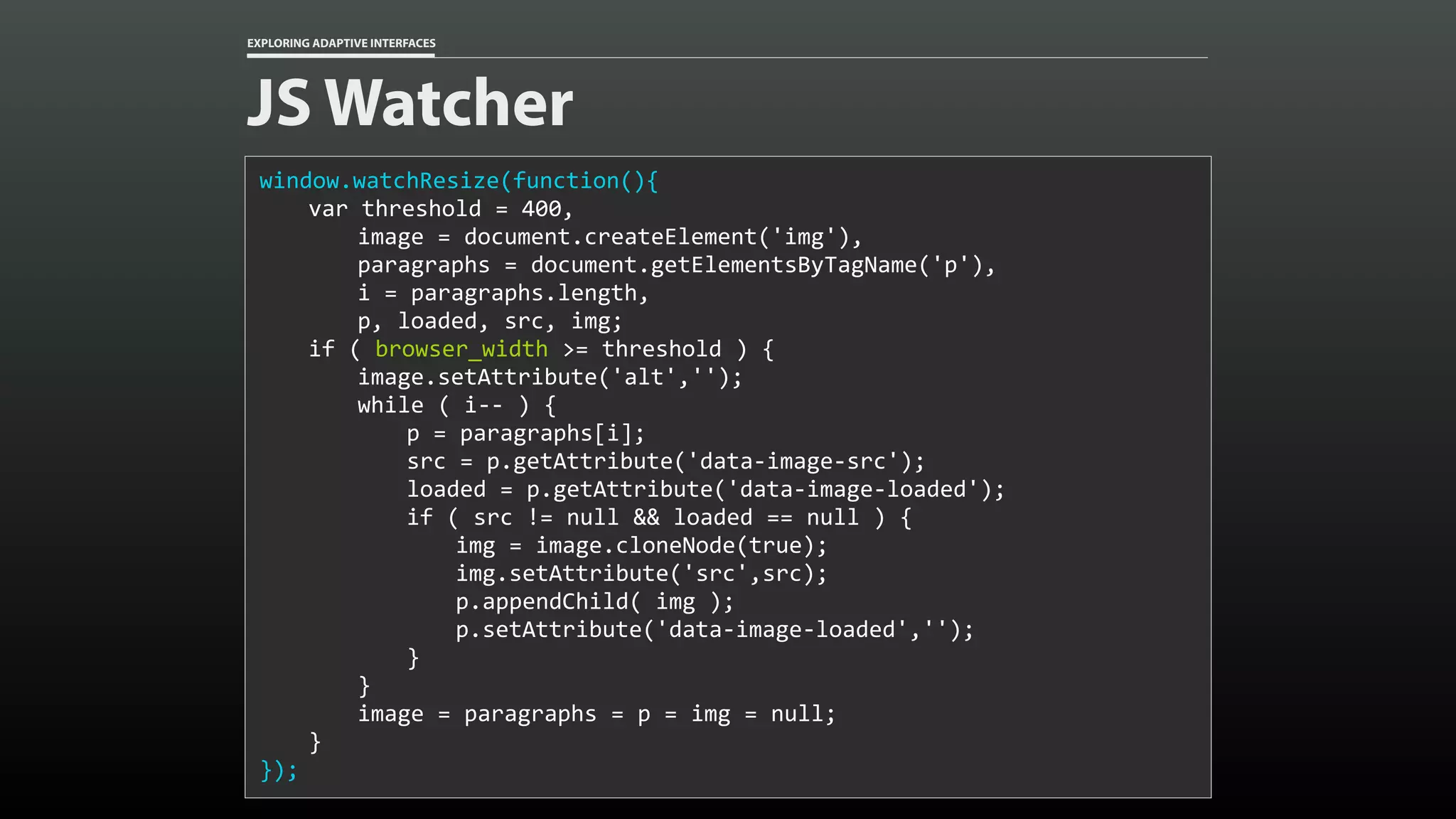

- 89. EXPLORING ADAPTIVE INTERFACES JSWatcher window.watchResize(function(){ var threshold = 400, image = document.createElement('img'), paragraphs = document.getElementsByTagName('p'), i = paragraphs.length, p, loaded, src, img; if ( browser_width >= threshold ) { image.setAttribute('alt',''); while ( i-- ) { p = paragraphs[i]; src = p.getAttribute('data-image-src'); loaded = p.getAttribute('data-image-loaded'); if ( src != null && loaded == null ) { img = image.cloneNode(true); img.setAttribute('src',src); p.appendChild( img ); p.setAttribute('data-image-loaded',''); } } image = paragraphs = p = img = null; } });

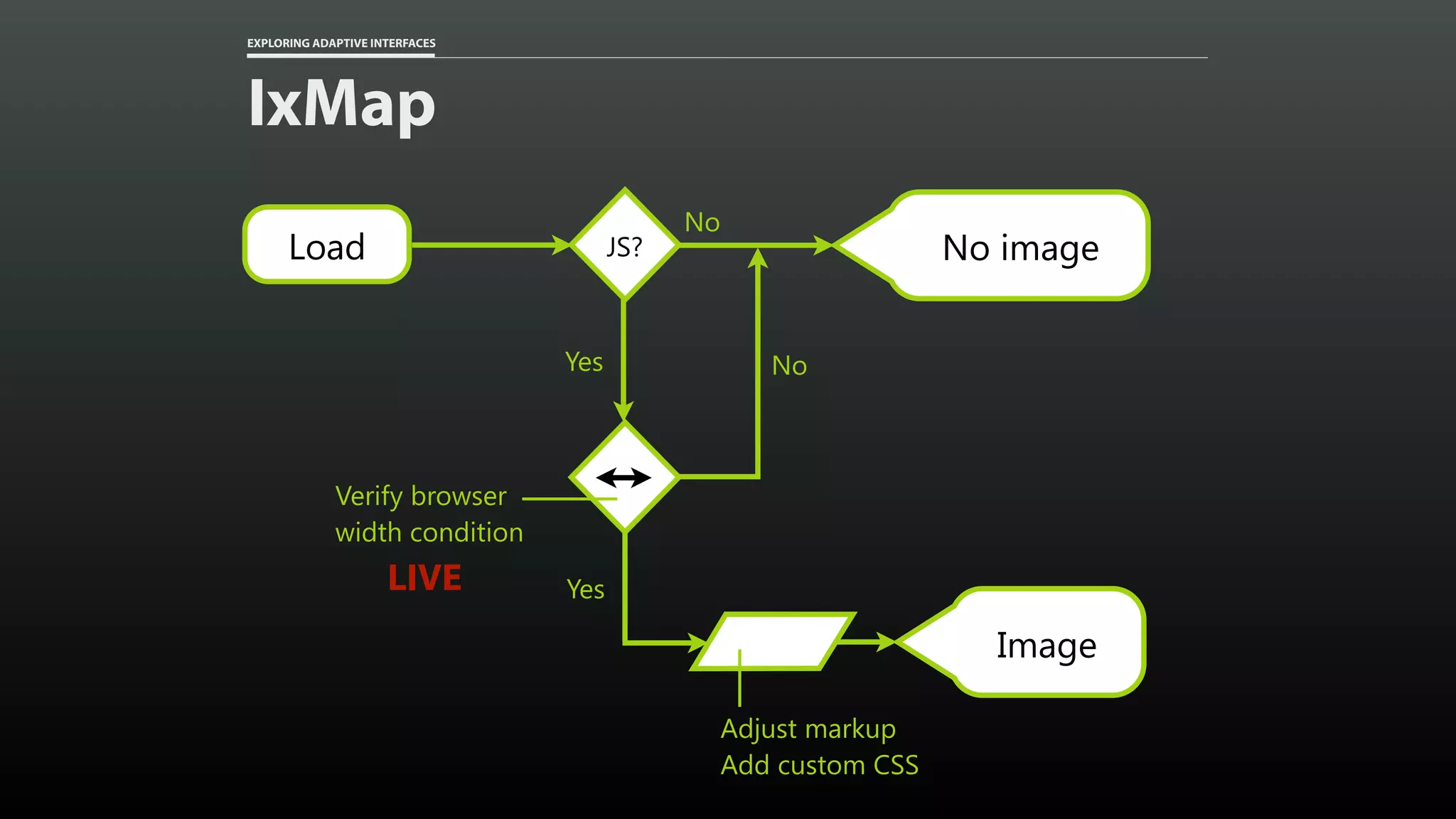

- 90. EXPLORING ADAPTIVE INTERFACES IxMap JS? No NoimageLoad NoYes Verify browser width condition Yes Image Adjust markup Add custom CSS LIVE

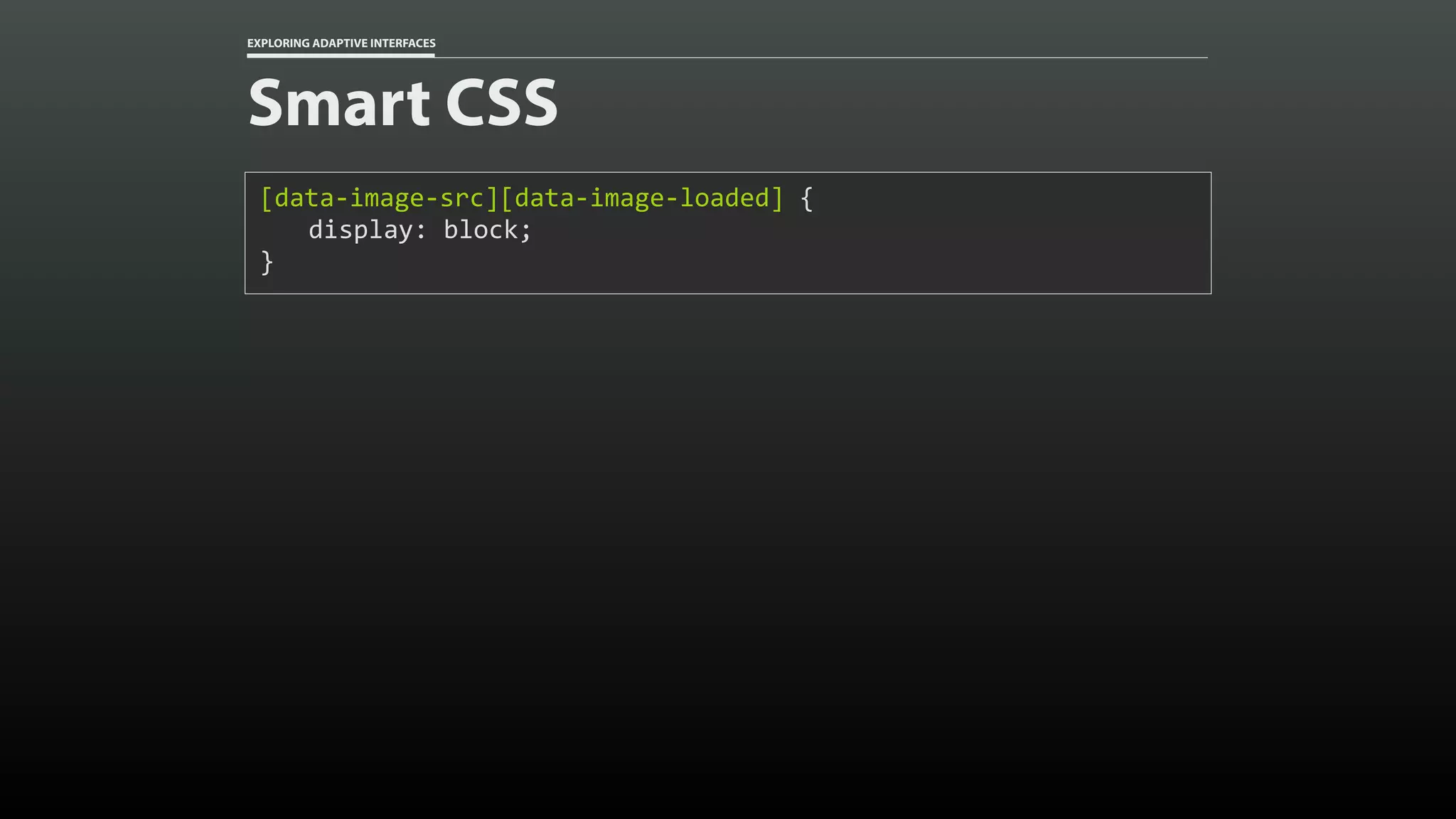

- 91. EXPLORING ADAPTIVE INTERFACES SmartCSS [data-image-src][data-image-loaded] { display: block; }

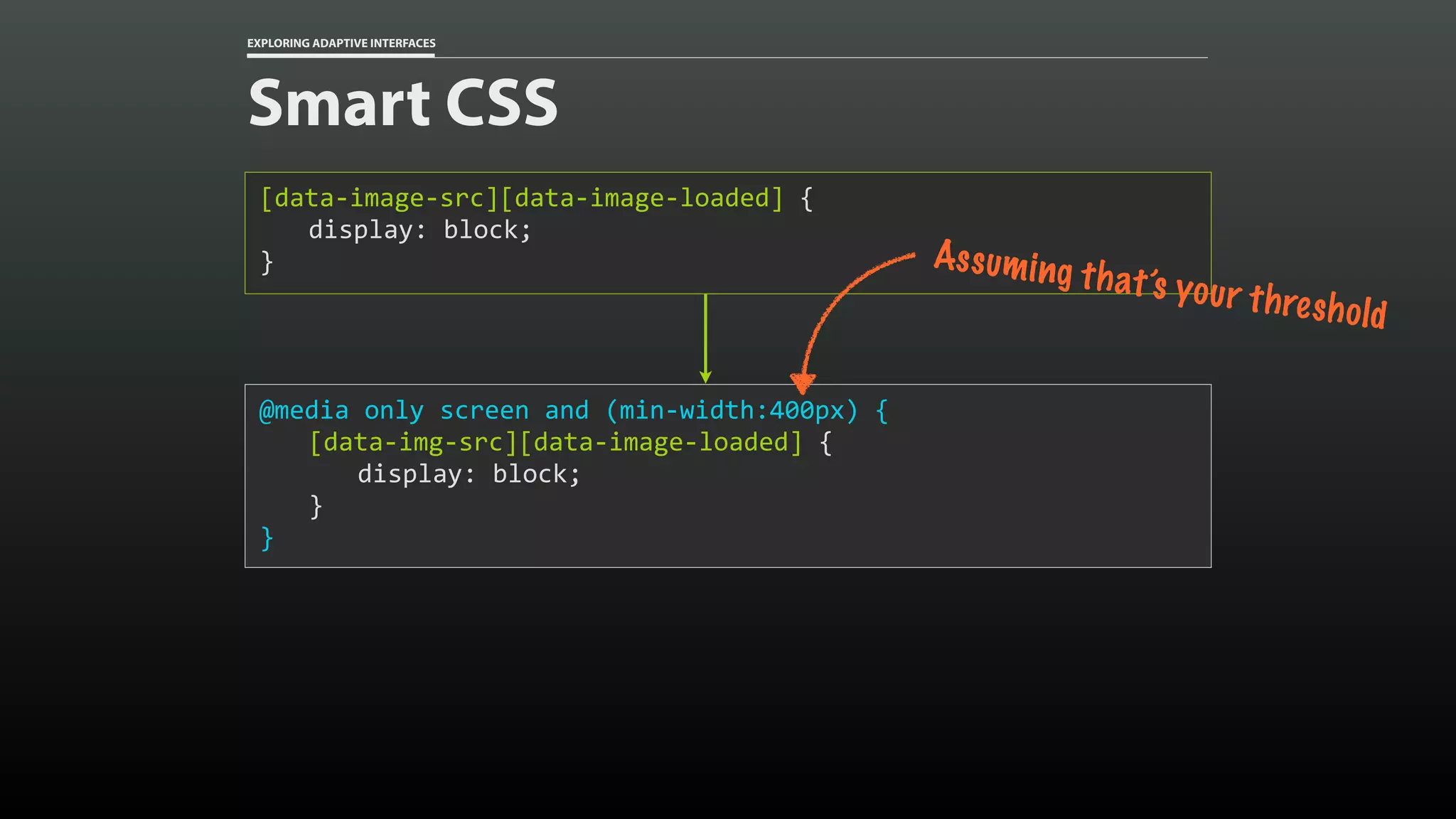

- 92. EXPLORING ADAPTIVE INTERFACES SmartCSS [data-image-src][data-image-loaded] { display: block; } @media only screen and (min-width:400px) { [data-img-src][data-image-loaded] { display: block; } } Assuming that’s your threshold
- 93.
- 94.
- 95.
- 96.
- 97.

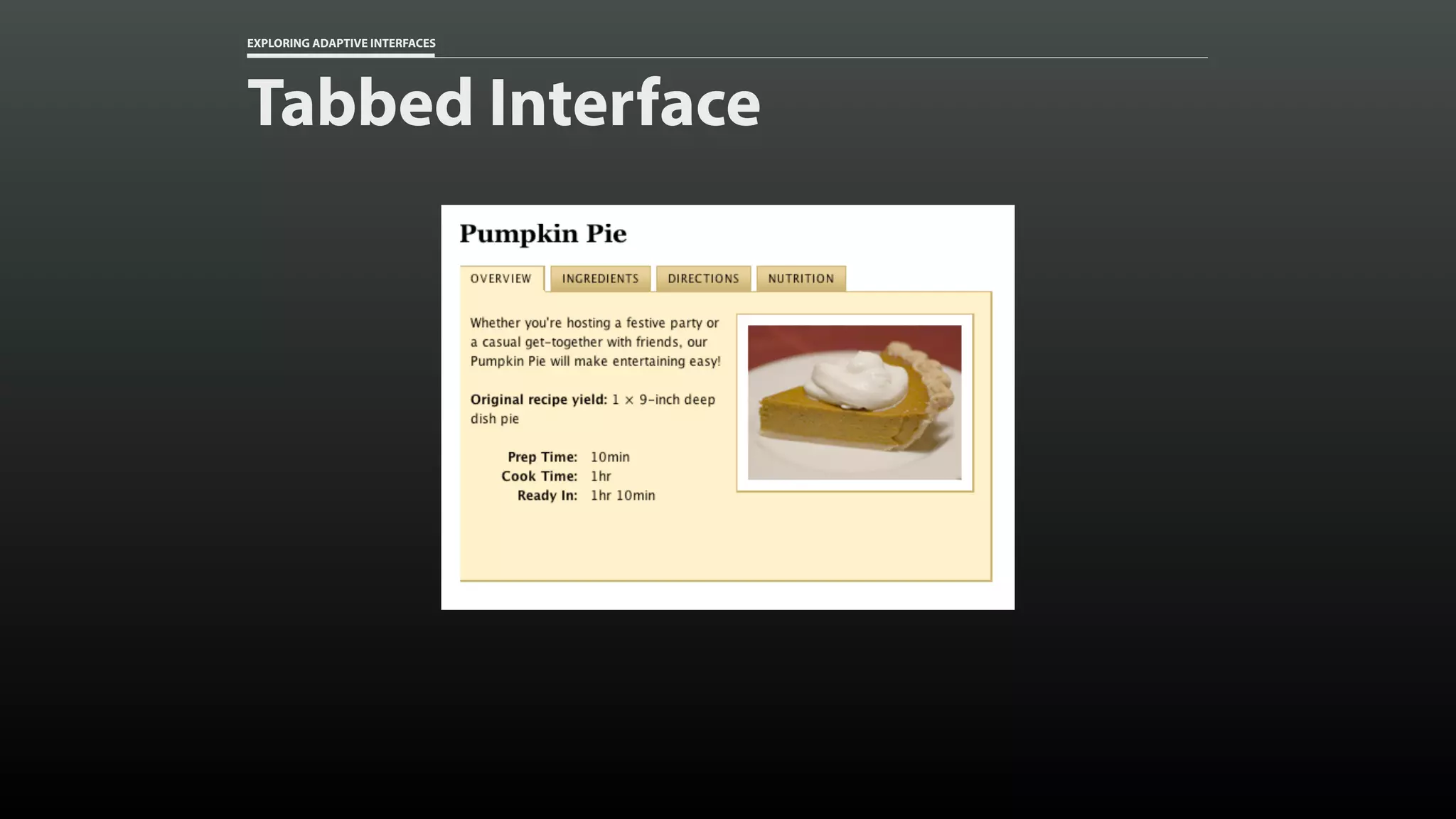

- 98. EXPLORING ADAPTIVE INTERFACES TabbedInterface
- 99. EXPLORING ADAPTIVE INTERFACES Traditionalapproach <h1>Pumpkin Pie</h1> <div class="container"> <ul class="tabs"> <li><a href="#">Overview</a></li> <li><a href="#">Ingredients</a></li> <li><a href="#">Directions</a></li> <li><a href="#">Nutrition</a></li> </ul> <div class="section"> <h2>Overview</h2> <img src="pie.jpg" alt=""> <p>Whether you're hosting a festive party or a casual get-together with friends, our Pumpkin Pie will make entertaining easy!</p> <!-- ... --> </div> <!-- ... --> </div>
- 100. EXPLORING ADAPTIVE INTERFACES Cleanerapproach <h1>Pumpkin Pie</h1> <div class="tabbed-interface"> <h2>Overview</h2> <img src="pie.jpg" alt="" /> <p>Whether you're hosting a festive party or a casual get-together with friends, our Pumpkin Pie will make entertaining easy!</p> <!-- ... --> <h2>Ingredients</h2> <ul> <li>1 (9<abbr title="inch">in</abbr>) unbaked deep dish pie crust</li> <li>½ cup white sugar</li> <!-- ... --> </ul> <h2>Directions</h2> <!-- ... --> </div>
- 101. EXPLORING ADAPTIVE INTERFACES Cleanerapproach <h1>Pumpkin Pie</h1> <div class="tabbed-interface"> <h2>Overview</h2> <img src="pie.jpg" alt="" /> <p>Whether you're hosting a festive party or a casual get-together with friends, our Pumpkin Pie will make entertaining easy!</p> <!-- ... --> <h2>Ingredients</h2> <ul> <li>1 (9<abbr title="inch">in</abbr>) unbaked deep dish pie crust</li> <li>½ cup white sugar</li> <!-- ... --> </ul> <h2>Directions</h2> <!-- ... --> </div>
- 102. EXPLORING ADAPTIVE INTERFACES NoJS, basic CSS
- 103.
- 104.

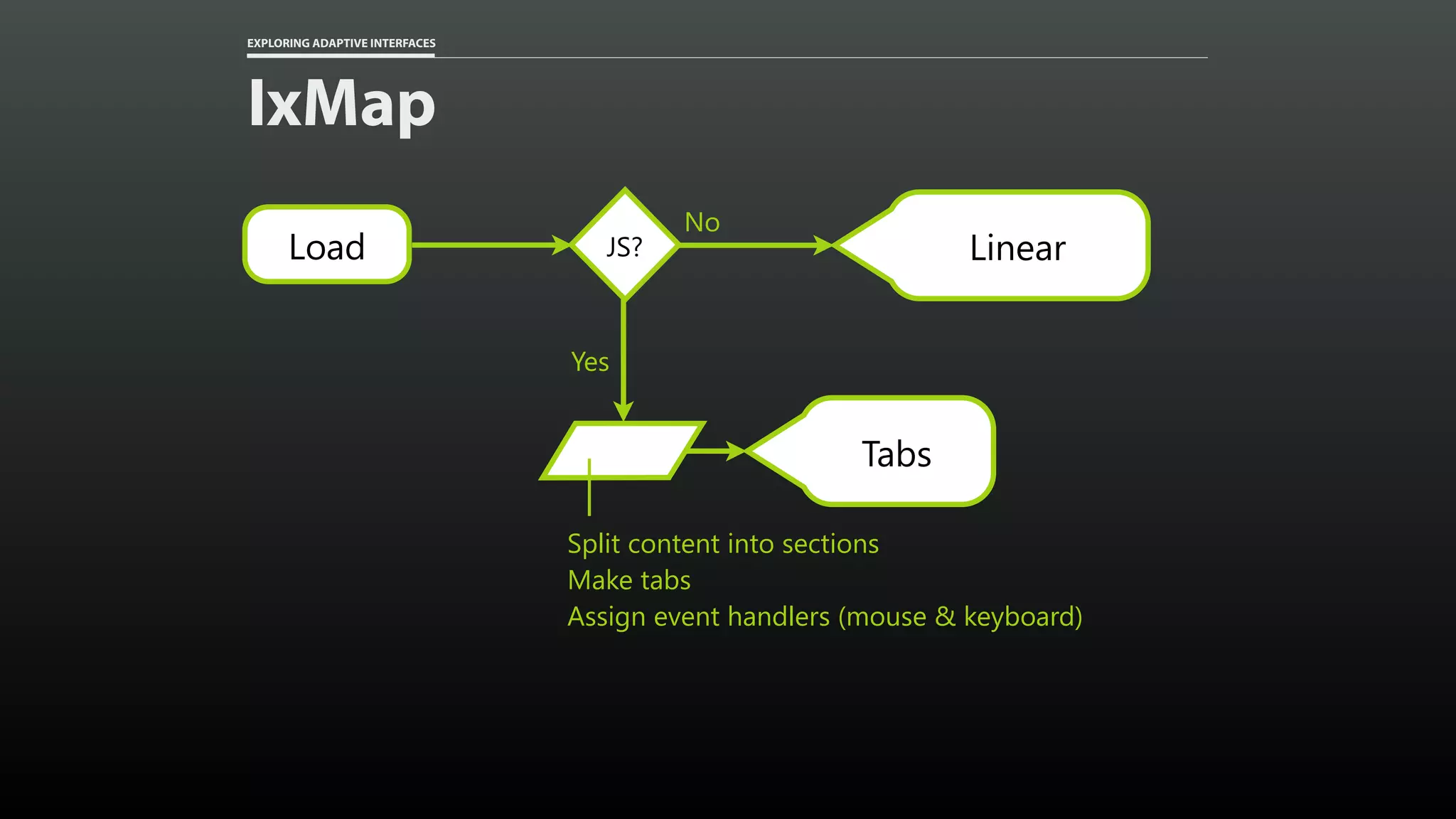

- 105. EXPLORING ADAPTIVE INTERFACES IxMap Yes Tabs Splitcontent into sections Make tabs Assign event handlers (mouse & keyboard) JS? No LinearLoad

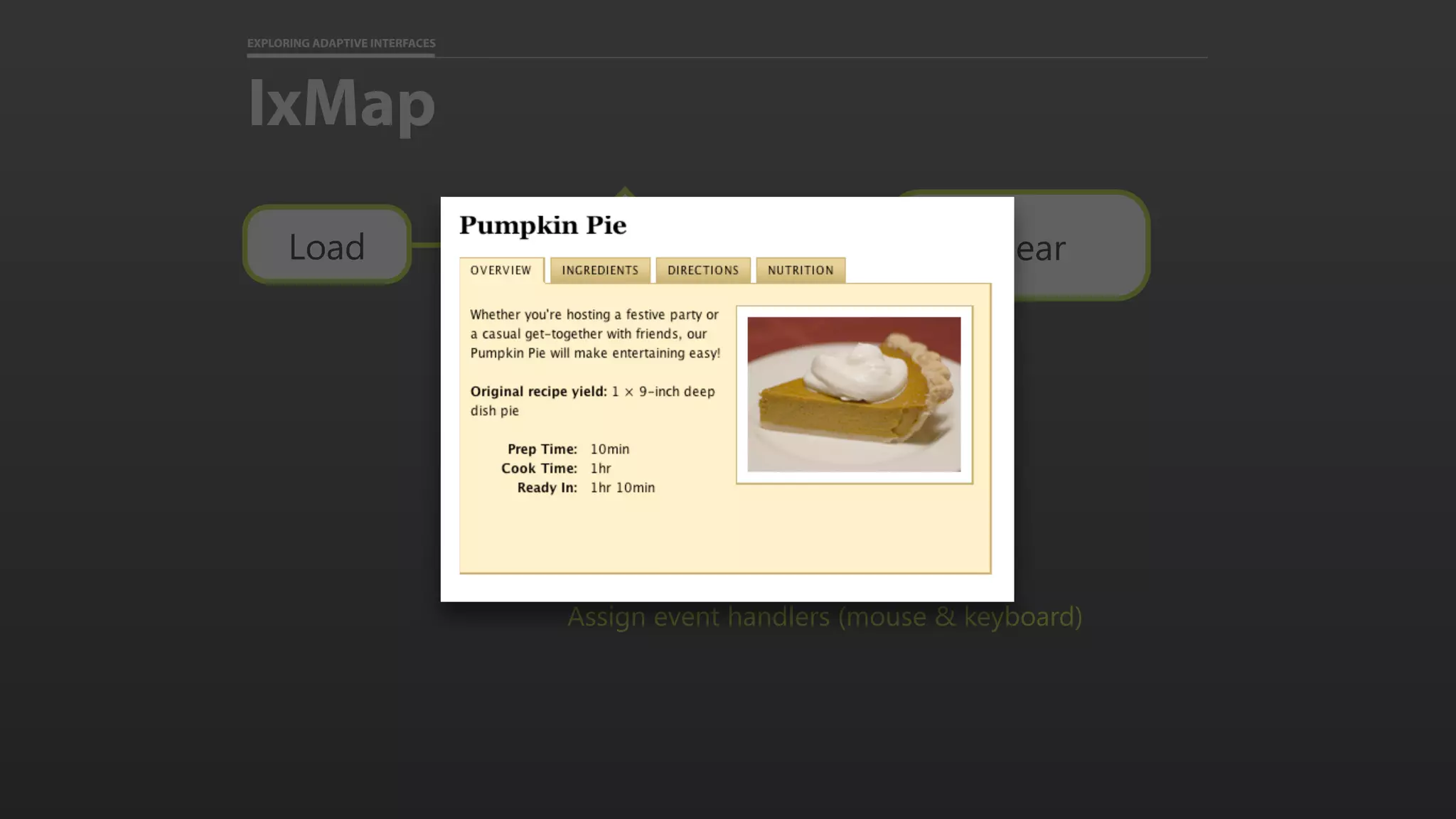

- 106. EXPLORING ADAPTIVE INTERFACES Yes Tabs Splitcontent into sections Make tabs Assign event handlers (mouse & keyboard) JS? No LinearLoad IxMap

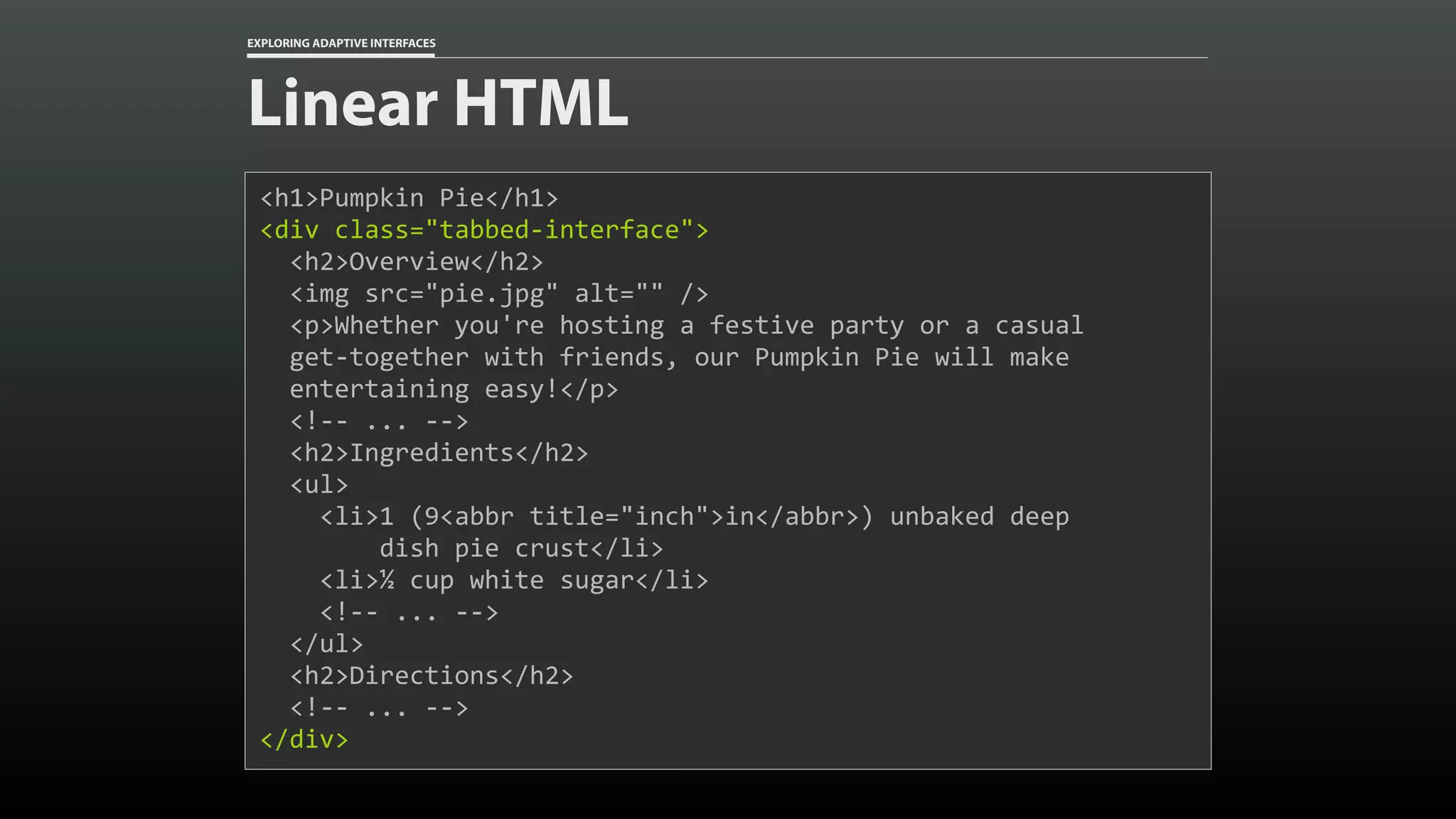

- 107. EXPLORING ADAPTIVE INTERFACES LinearHTML <h1>Pumpkin Pie</h1> <div class="tabbed-interface"> <h2>Overview</h2> <img src="pie.jpg" alt="" /> <p>Whether you're hosting a festive party or a casual get-together with friends, our Pumpkin Pie will make entertaining easy!</p> <!-- ... --> <h2>Ingredients</h2> <ul> <li>1 (9<abbr title="inch">in</abbr>) unbaked deep dish pie crust</li> <li>½ cup white sugar</li> <!-- ... --> </ul> <h2>Directions</h2> <!-- ... --> </div>
- 108.
- 109.
- 110. EXPLORING ADAPTIVE INTERFACES Yes Tabs Splitcontent into sections Make tabs Assign event handlers (mouse & keyboard) IxMap Yes Verify space for tabs No Accordion Build accordion JS? No LinearLoad

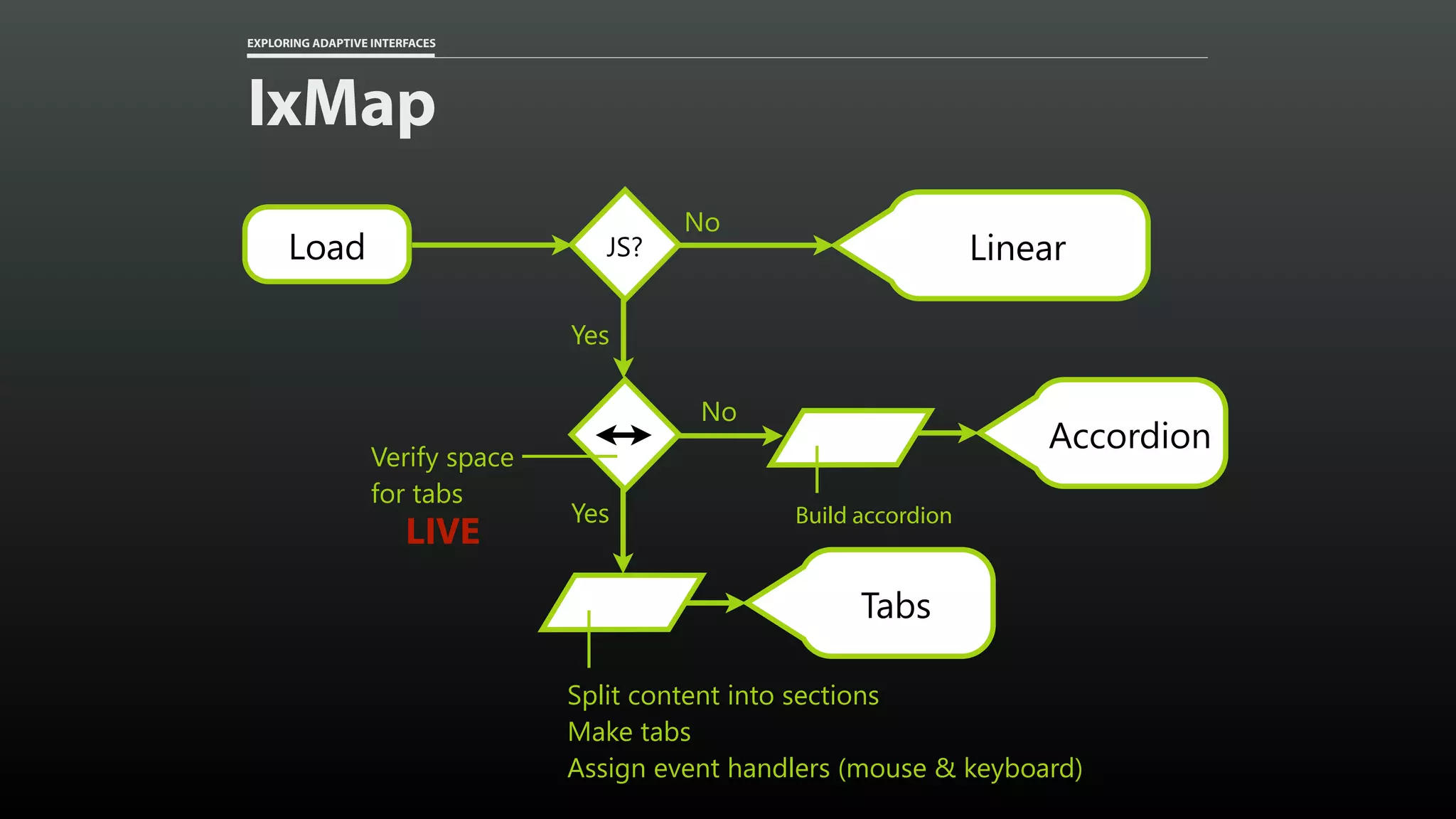

- 111. EXPLORING ADAPTIVE INTERFACES Yes Tabs Splitcontent into sections Make tabs Assign event handlers (mouse & keyboard) IxMap Yes Verify space for tabs No Accordion Build accordion JS? No LinearLoad LIVE

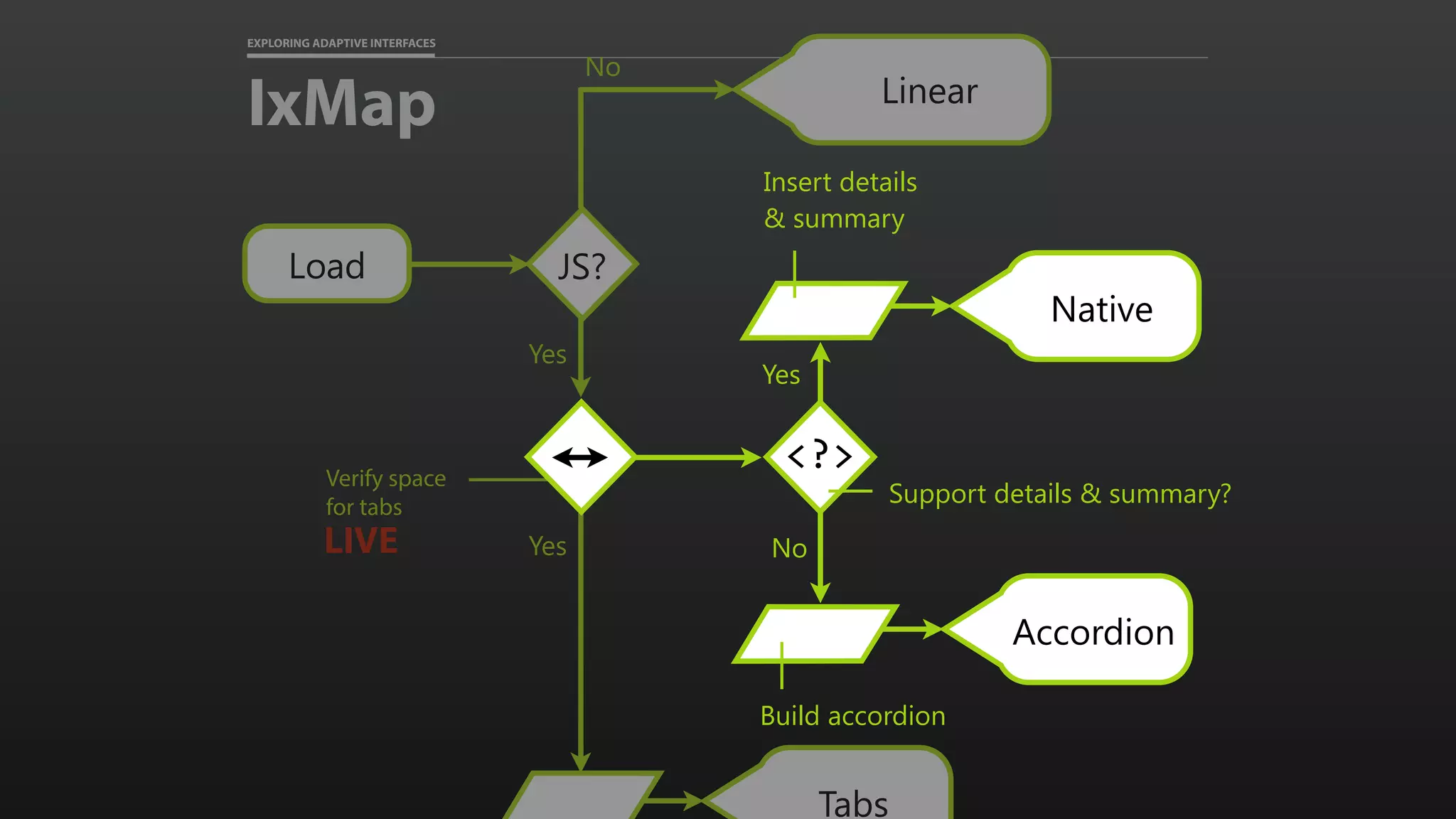

- 112. EXPLORING ADAPTIVE INTERFACES JS?Load IxMap Yes Tabs Yes Verifyspace for tabs LIVE No Linear No Accordion Build accordion <?> Yes Native Insert details & summary Support details & summary?

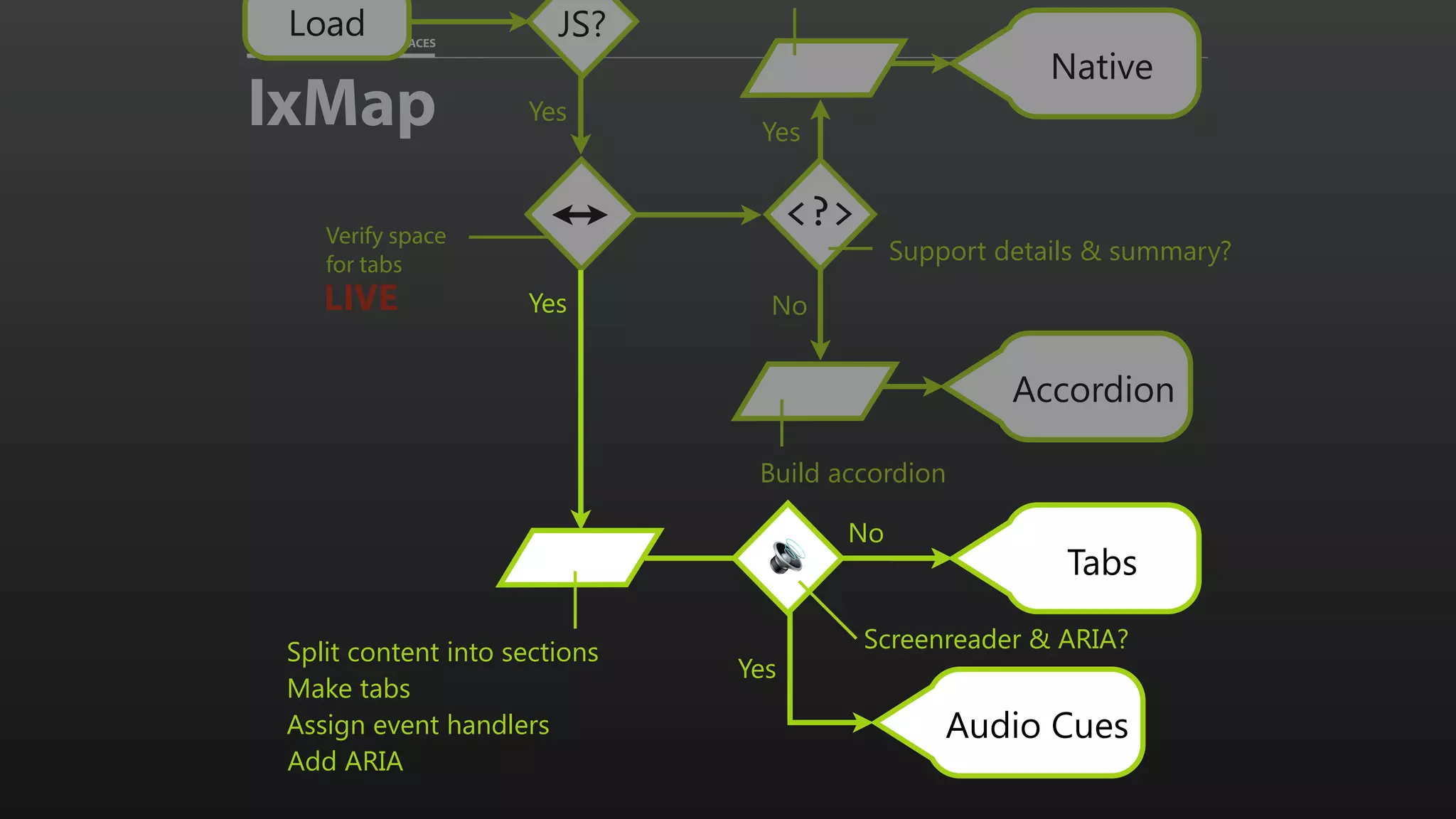

- 113. EXPLORING ADAPTIVE INTERFACES JS?Load IxMapYes Verify space for tabs LIVE No Accordion Build accordion <?> Yes Native Support details & summary? Yes Tabs Split content into sections Make tabs Assign event handlers ! Screenreader & ARIA? No Audio Cues Yes Add ARIA
- 114.
- 115.
- 116.
- 117.
- 118.
- 119.
- 120. Together we can makethe web a little better every day. © Brad Frost
