Enterprise Architectures with Ruby (and Rails)

Enterprise Architecture with Ruby (and Rails) Building amazing products, companies and technology using Ruby on Rails and friends. An opinionated overview for MagmaRails.MX by Konstantin Gredeskoul, CTO, Wanelo, Inc twitter: @kig, github.com/kigster

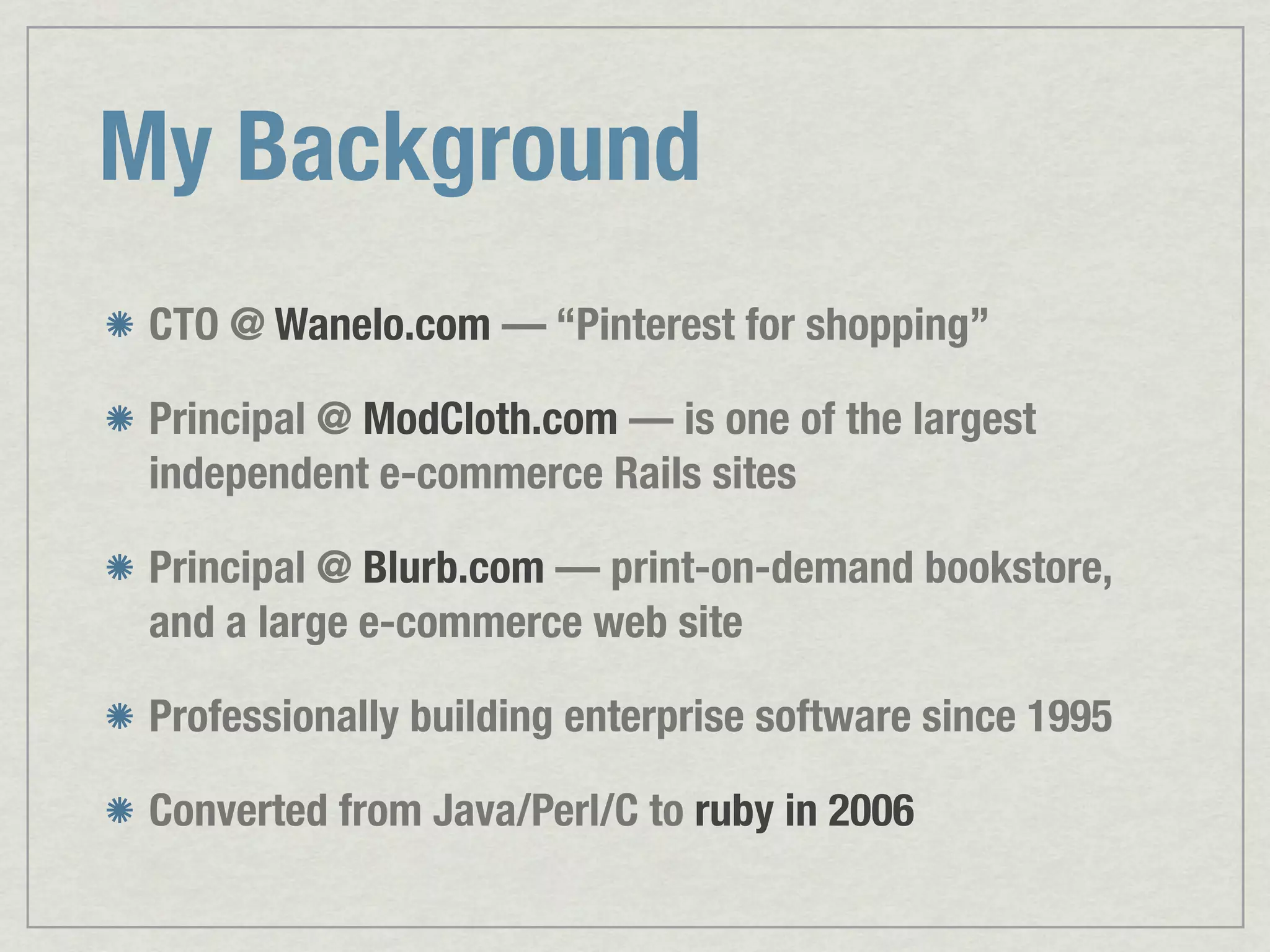

My Background CTO @ Wanelo.com — “Pinterest for shopping” Principal @ ModCloth.com — is one of the largest independent e-commerce Rails sites Principal @ Blurb.com — print-on-demand bookstore, and a large e-commerce web site Professionally building enterprise software since 1995 Converted from Java/Perl/C to ruby in 2006

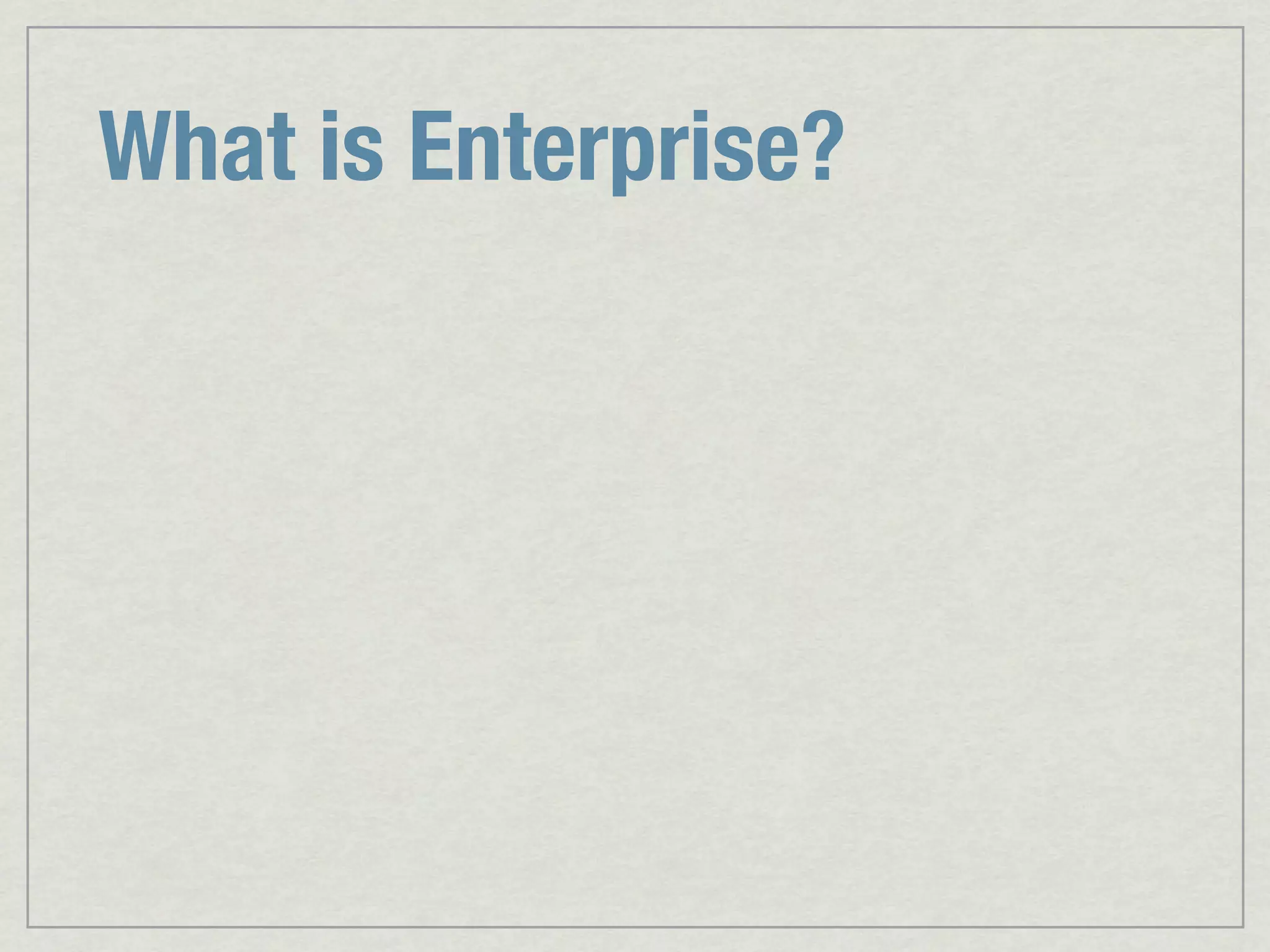

What is Enterprise? It’s an organization with many people, services, technologies

What is Enterprise? It’s an organization with many people, services, technologies Enterprise architecture is an ongoing business function that helps an 'enterprise' ﬁgure out how to best execute the strategies that drive its development [ref: wikipedia]

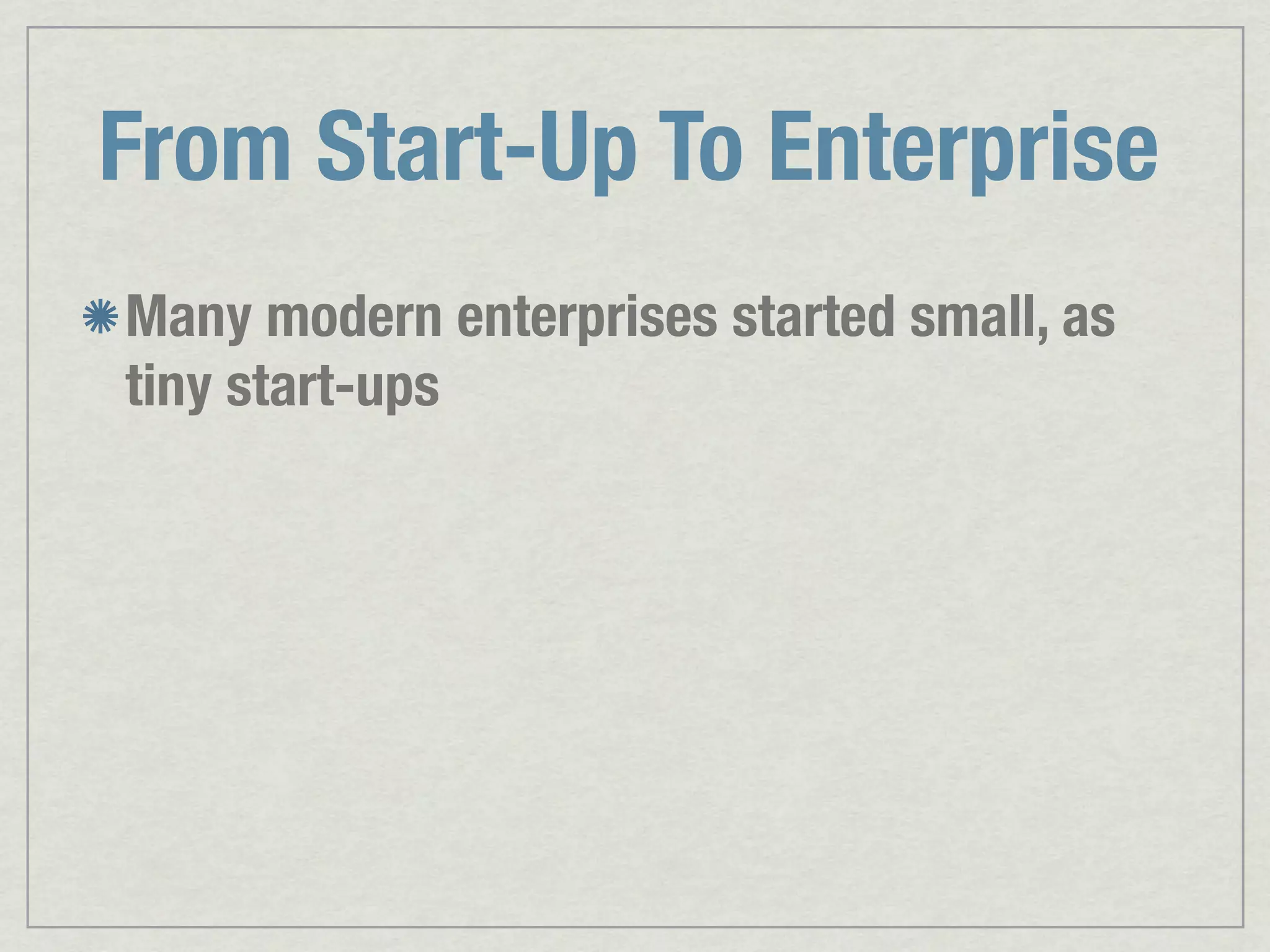

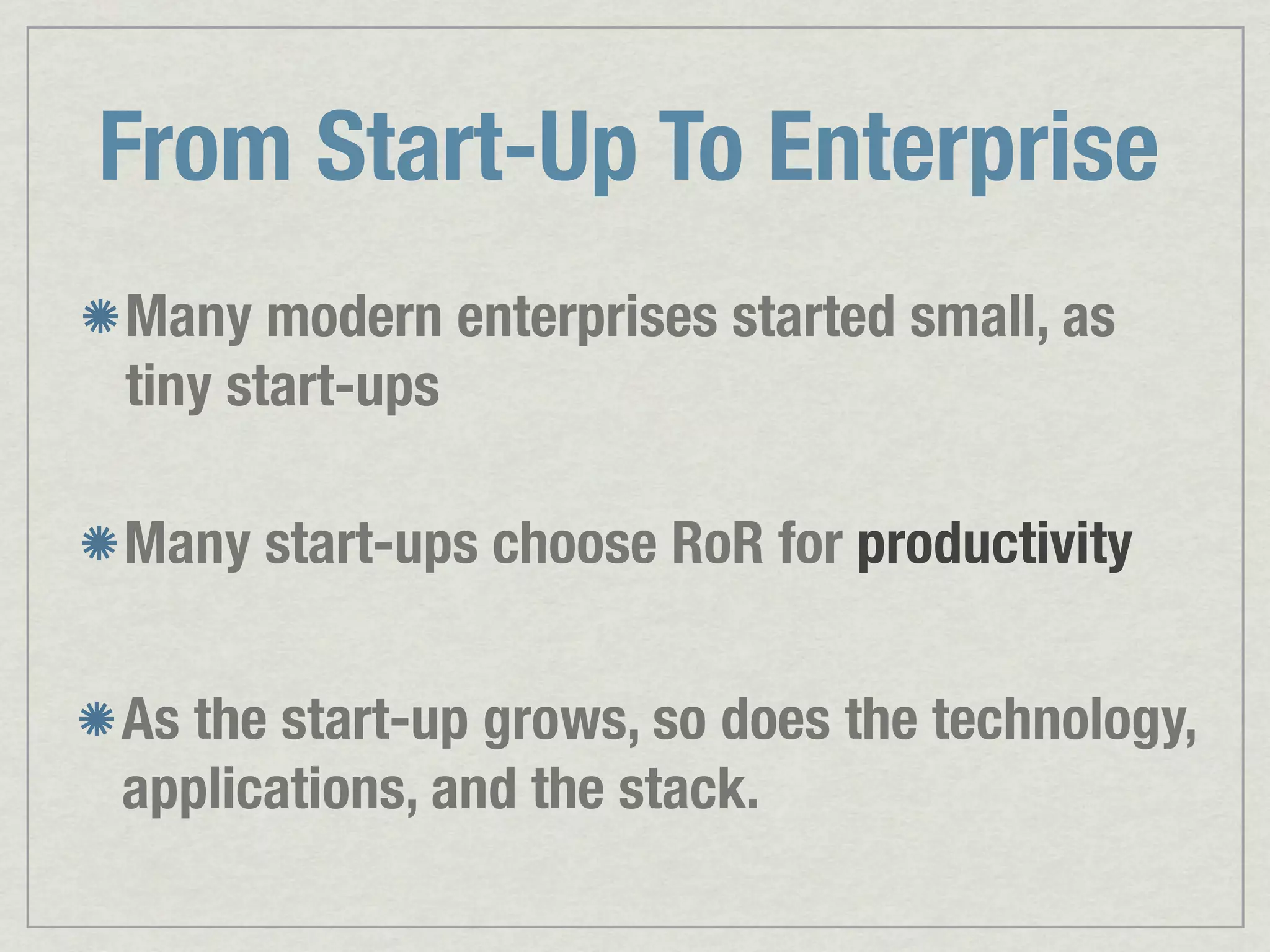

From Start-Up To Enterprise Many modern enterprises started small, as tiny start-ups

From Start-Up To Enterprise Many modern enterprises started small, as tiny start-ups Many start-ups choose RoR for productivity

From Start-Up To Enterprise Many modern enterprises started small, as tiny start-ups Many start-ups choose RoR for productivity As the start-up grows, so does the technology, applications, and the stack.

Teams using RoR can be very productive

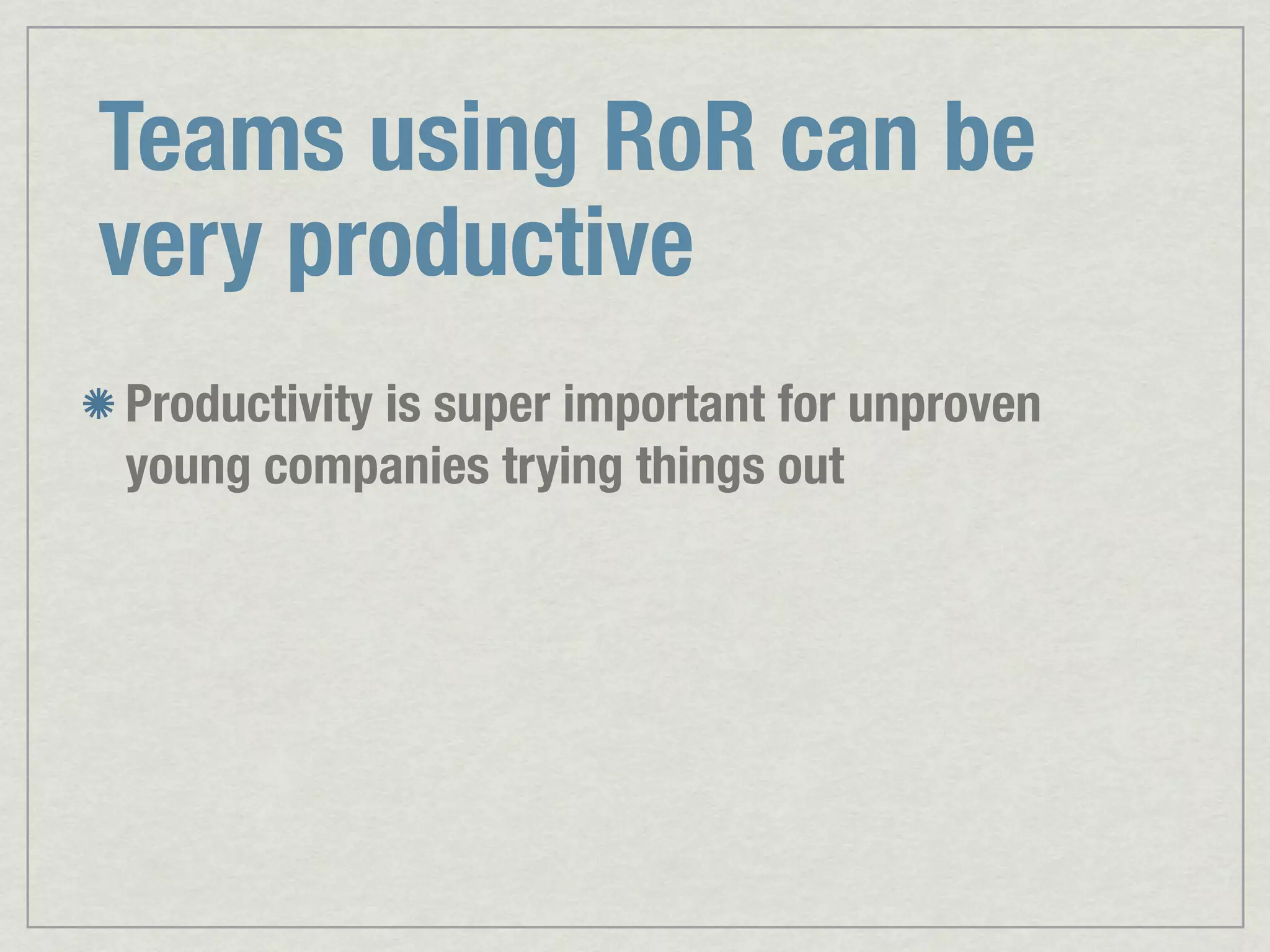

Teams using RoR can be very productive Productivity is super important for unproven young companies trying things out

Teams using RoR can be very productive Productivity is super important for unproven young companies trying things out “Build quickly, iterate, avoid building features users don’t need” — Lean Start-Up Movement

Teams using RoR can be very productive Productivity is super important for unproven young companies trying things out “Build quickly, iterate, avoid building features users don’t need” — Lean Start-Up Movement Do not optimize “prematurely”, but think about tomorrow’s scalability when building today.

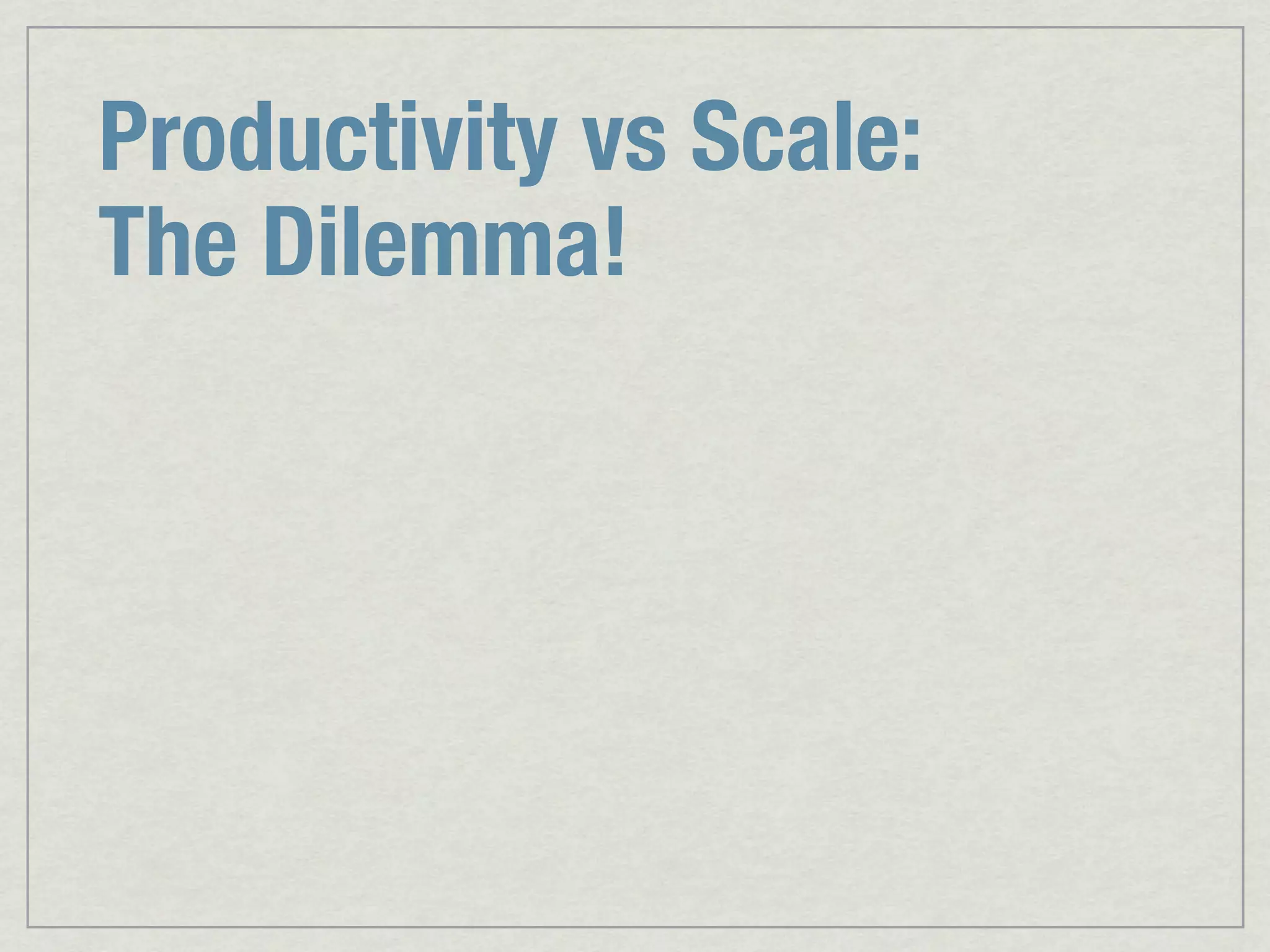

Productivity vs Scale: The Dilemma!

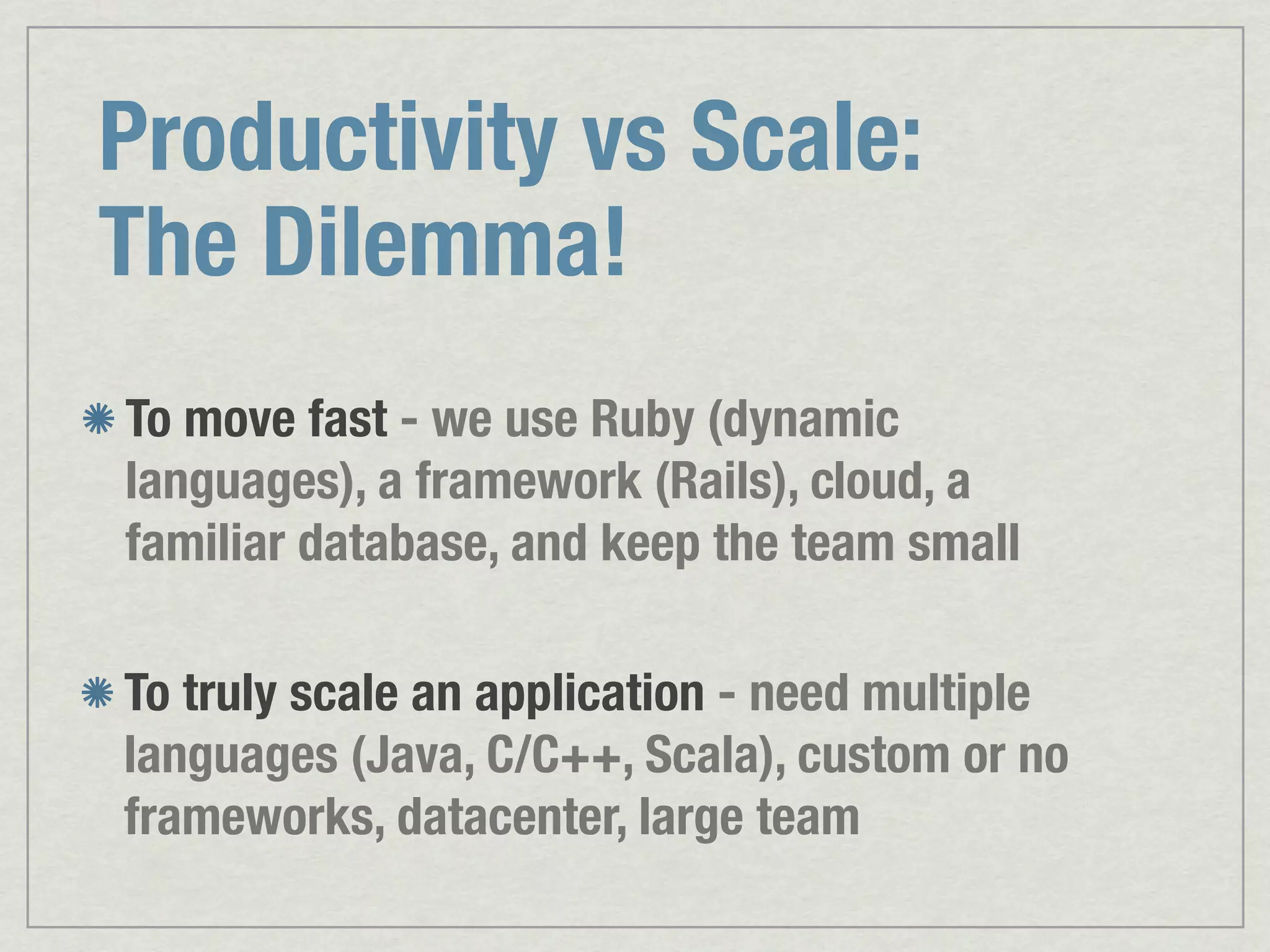

Productivity vs Scale: The Dilemma! To move fast - we use Ruby (dynamic languages), a framework (Rails), cloud, a familiar database, and keep the team small

Productivity vs Scale: The Dilemma! To move fast - we use Ruby (dynamic languages), a framework (Rails), cloud, a familiar database, and keep the team small To truly scale an application - need multiple languages (Java, C/C++, Scala), custom or no frameworks, datacenter, large team

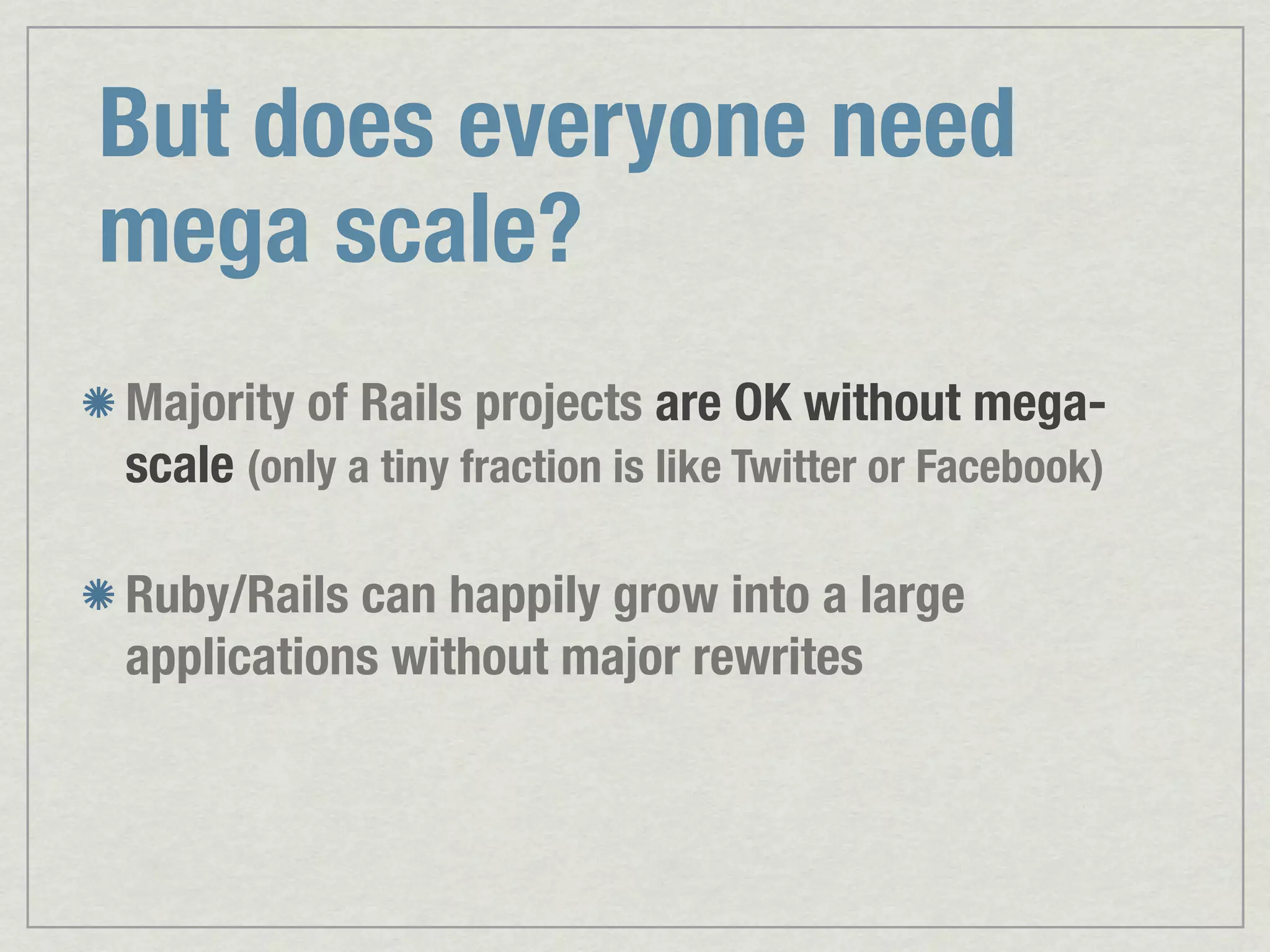

But does everyone need mega scale?

But does everyone need mega scale? Majority of Rails projects are OK without mega- scale (only a tiny fraction is like Twitter or Facebook)

But does everyone need mega scale? Majority of Rails projects are OK without mega- scale (only a tiny fraction is like Twitter or Facebook) Ruby/Rails can happily grow into a large applications without major rewrites

But does everyone need mega scale? Majority of Rails projects are OK without mega- scale (only a tiny fraction is like Twitter or Facebook) Ruby/Rails can happily grow into a large applications without major rewrites Best assurance that an application will grow well with it’s use, is to follow best practices.

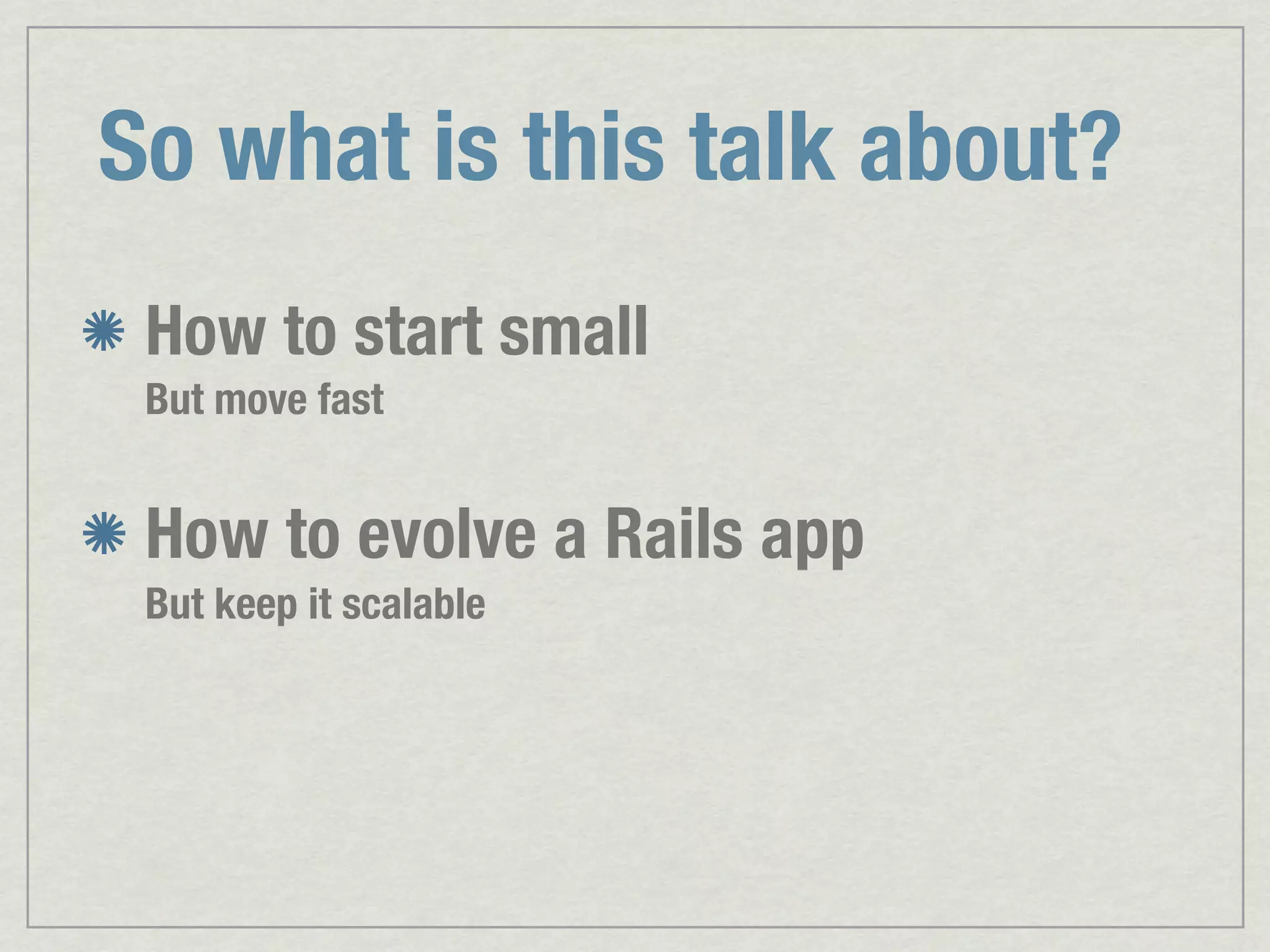

So what is this talk about? How to start small But move fast

So what is this talk about? How to start small But move fast How to evolve a Rails app But keep it scalable

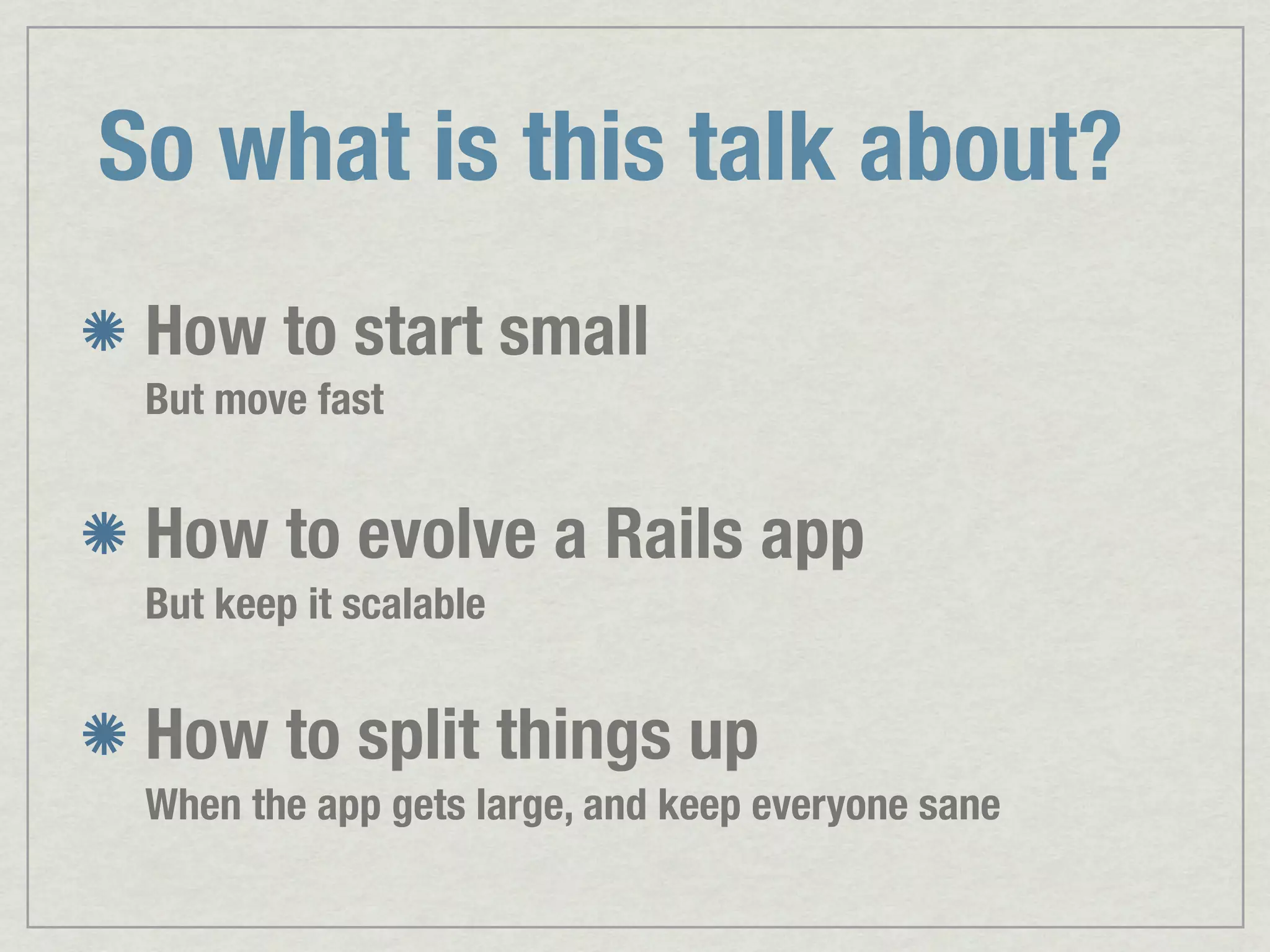

So what is this talk about? How to start small But move fast How to evolve a Rails app But keep it scalable How to split things up When the app gets large, and keep everyone sane

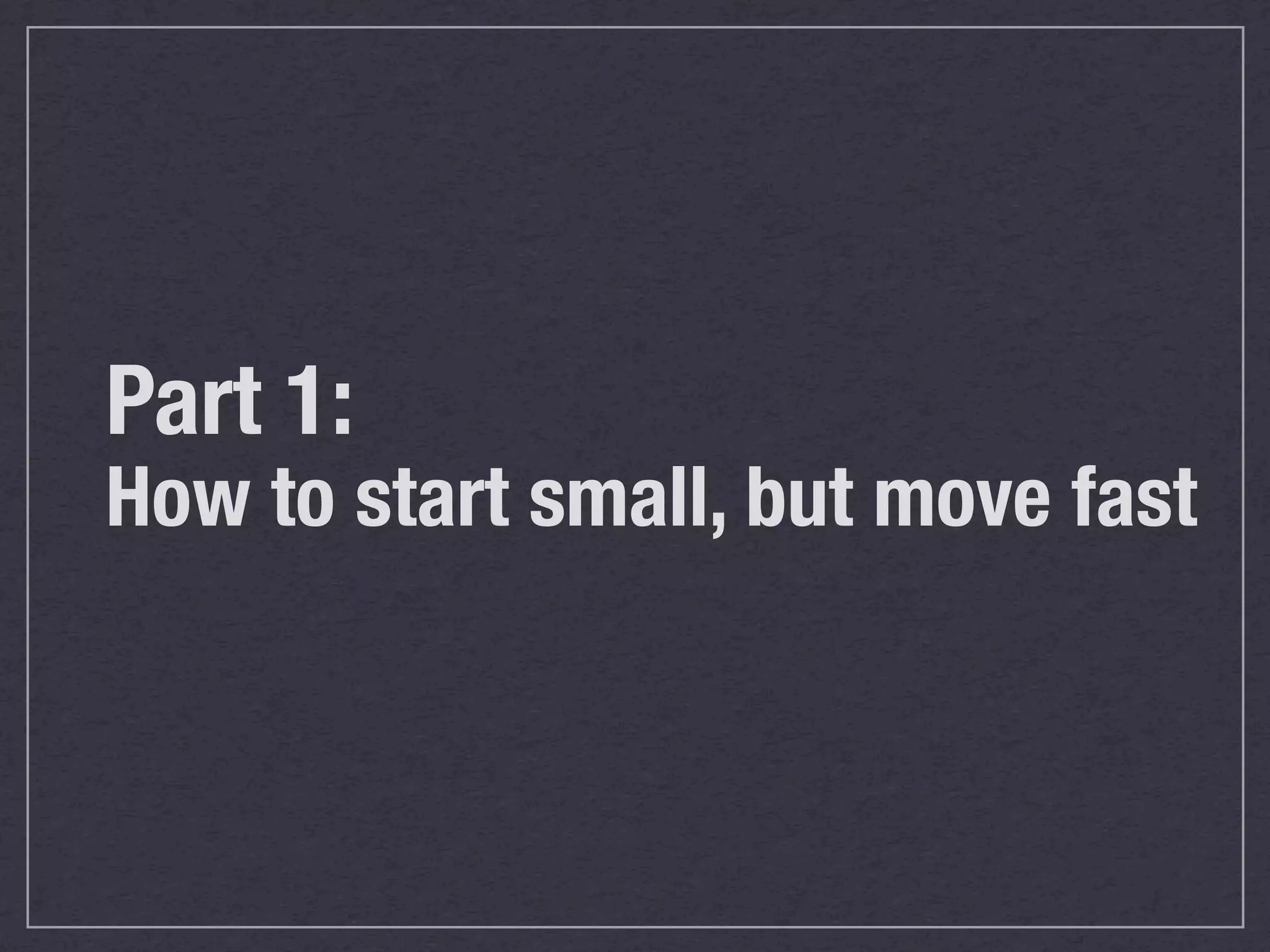

Part 1: How to start small, but move fast

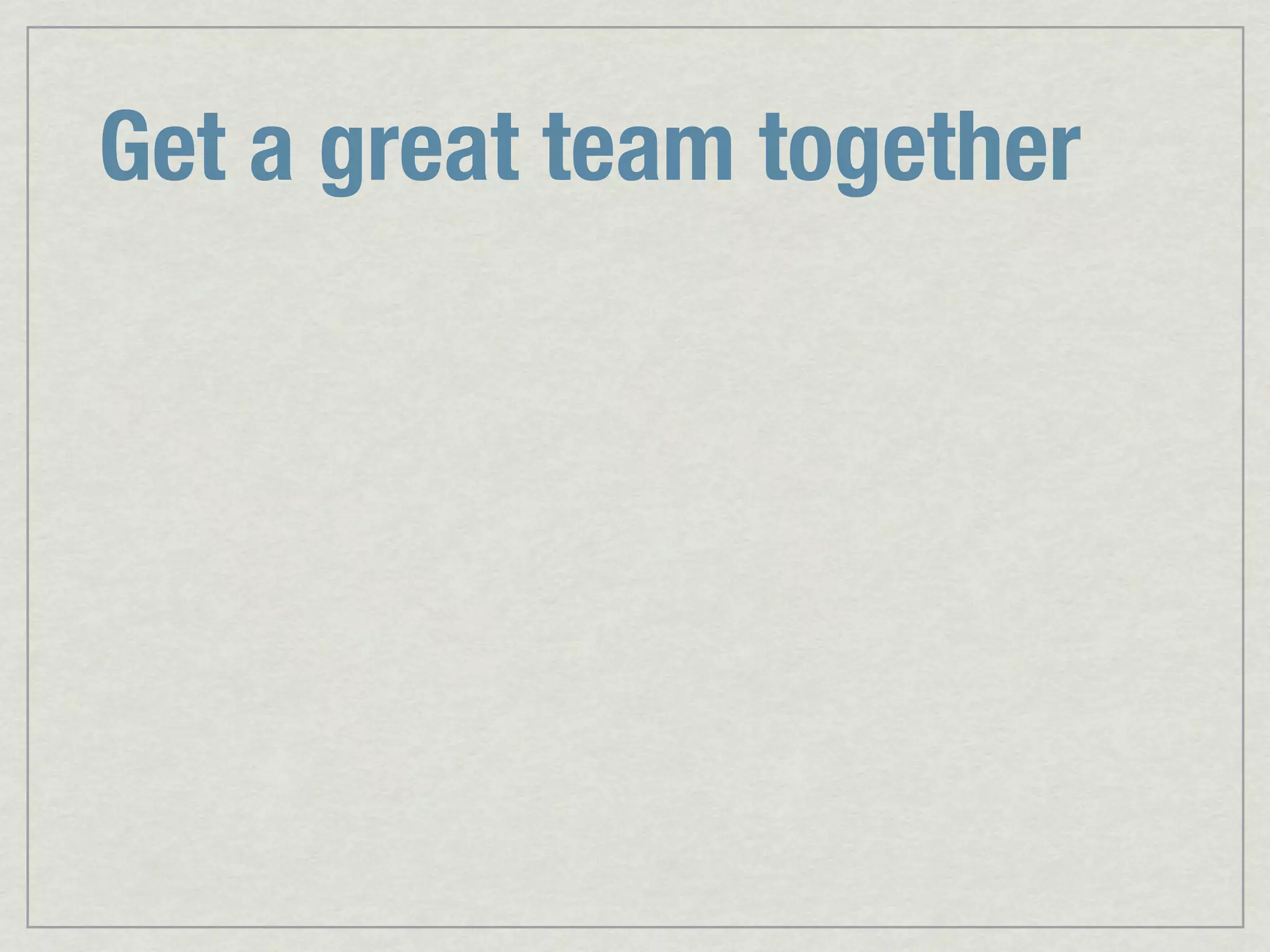

Get a great team together Keep team size small, 4-6 developers is ideal

Get a great team together Keep team size small, 4-6 developers is ideal Have at least 2-3 ruby/rails/front-end experts on the team

Get a great team together Keep team size small, 4-6 developers is ideal Have at least 2-3 ruby/rails/front-end experts on the team Do automated testing (and TDD) from the beginning. Hard to add later.

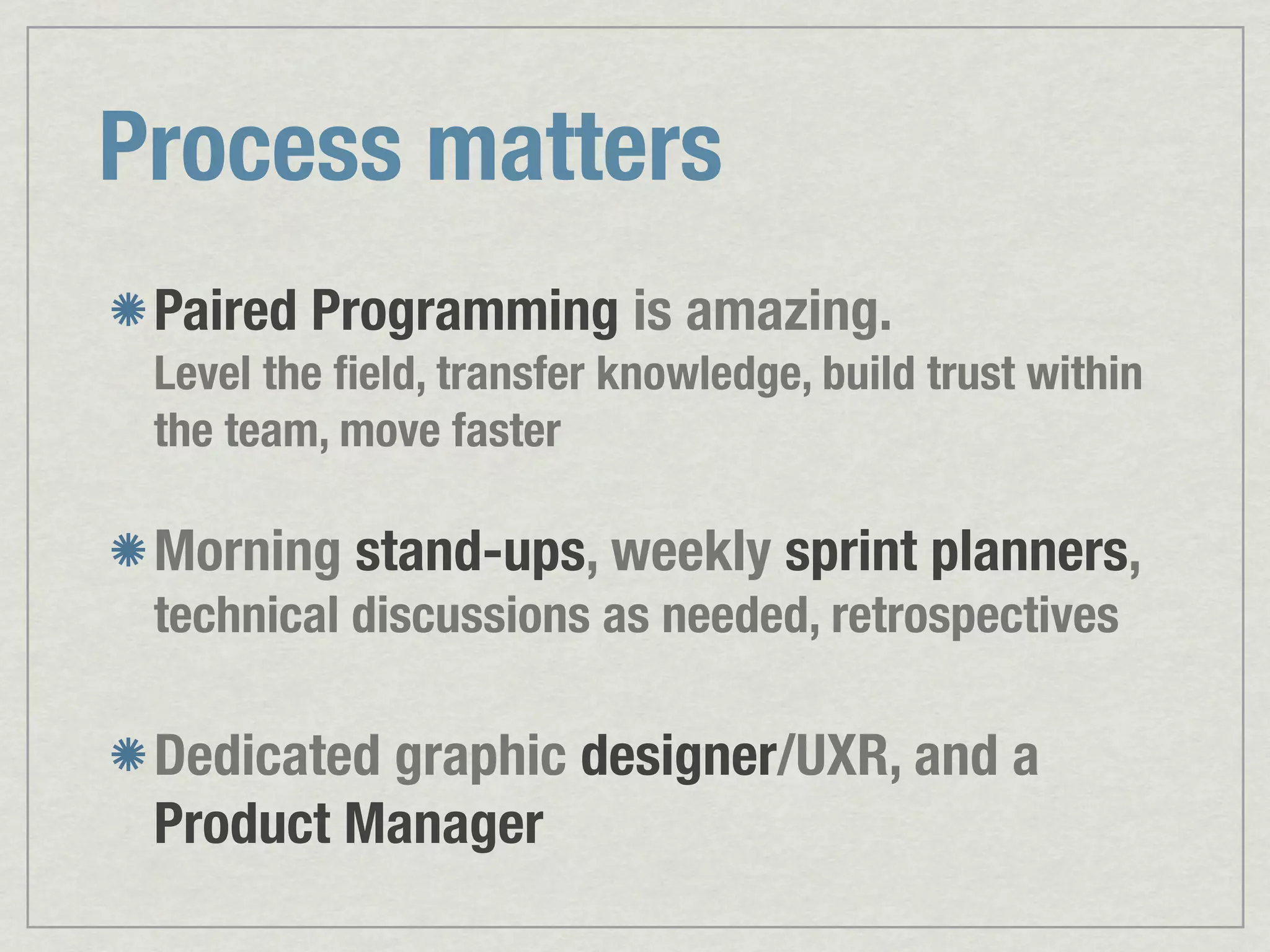

Process matters Paired Programming is amazing. Level the ﬁeld, transfer knowledge, build trust within the team, move faster

Process matters Paired Programming is amazing. Level the ﬁeld, transfer knowledge, build trust within the team, move faster Morning stand-ups, weekly sprint planners, technical discussions as needed, retrospectives

Process matters Paired Programming is amazing. Level the ﬁeld, transfer knowledge, build trust within the team, move faster Morning stand-ups, weekly sprint planners, technical discussions as needed, retrospectives Dedicated graphic designer/UXR, and a Product Manager

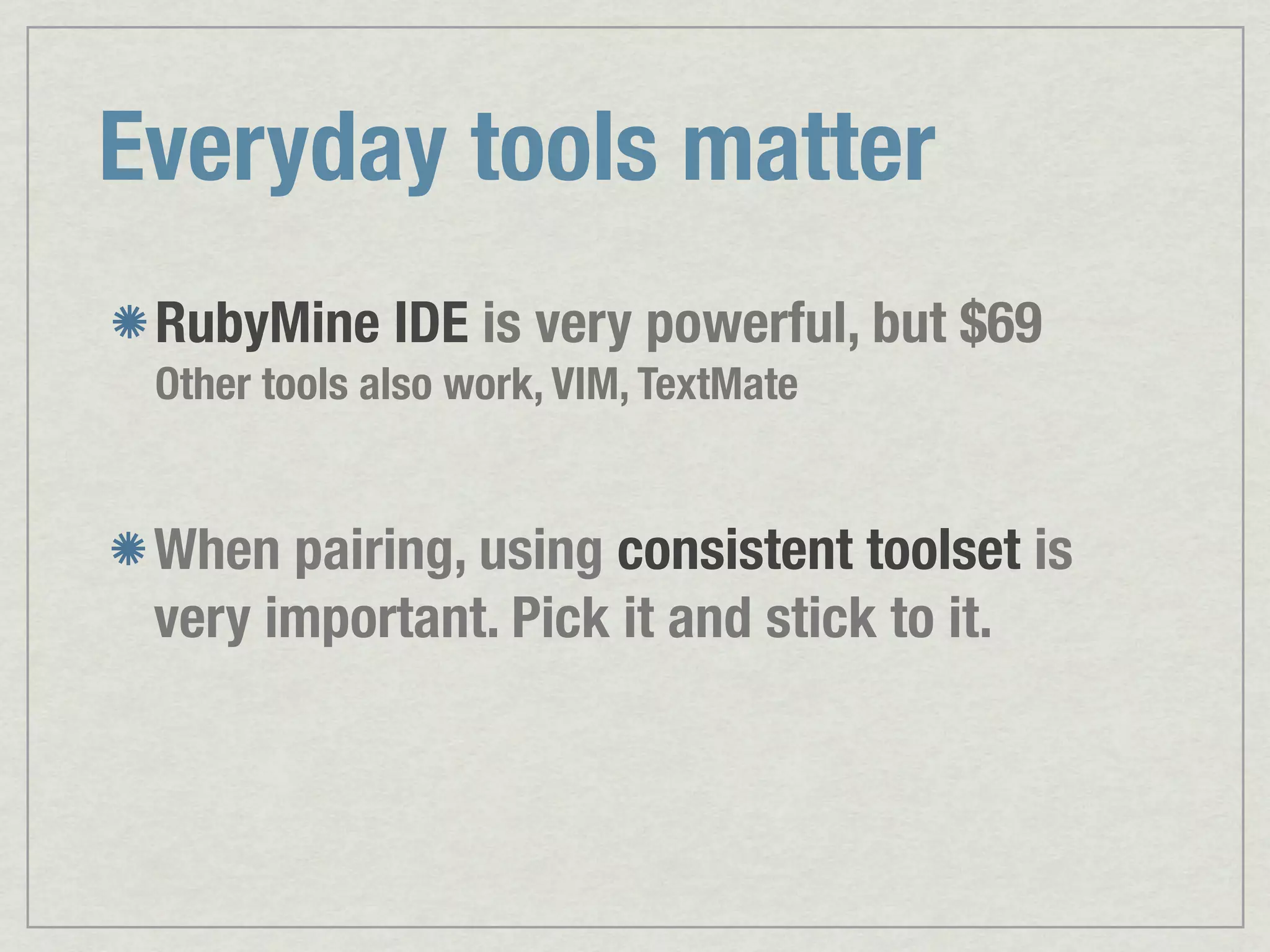

Everyday tools matter RubyMine IDE is very powerful, but $69 Other tools also work, VIM, TextMate

Everyday tools matter RubyMine IDE is very powerful, but $69 Other tools also work, VIM, TextMate When pairing, using consistent toolset is very important. Pick it and stick to it.

Everyday tools matter RubyMine IDE is very powerful, but $69 Other tools also work, VIM, TextMate When pairing, using consistent toolset is very important. Pick it and stick to it. If everyone has their own laptop, create a common OS account and use it to pair

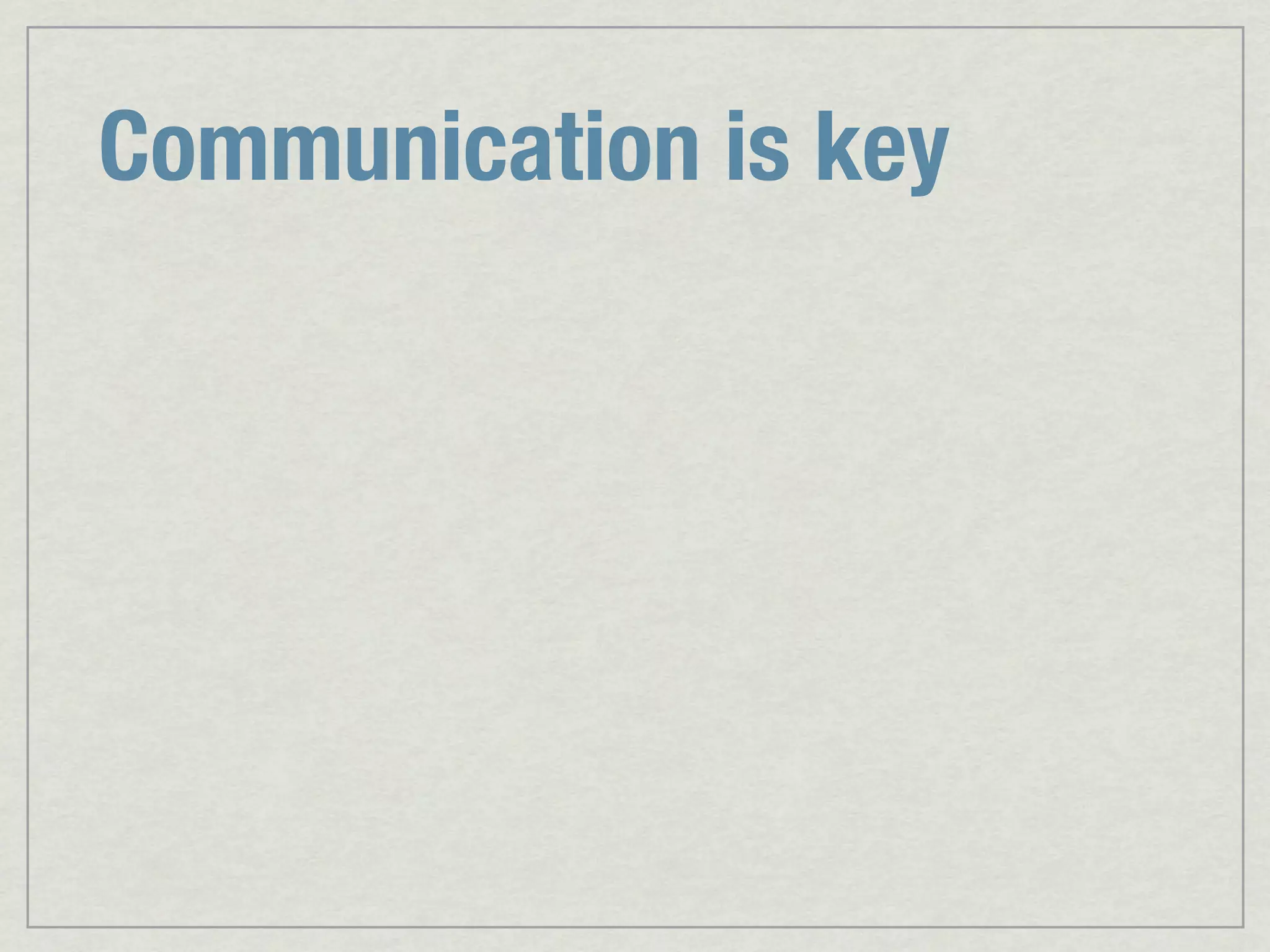

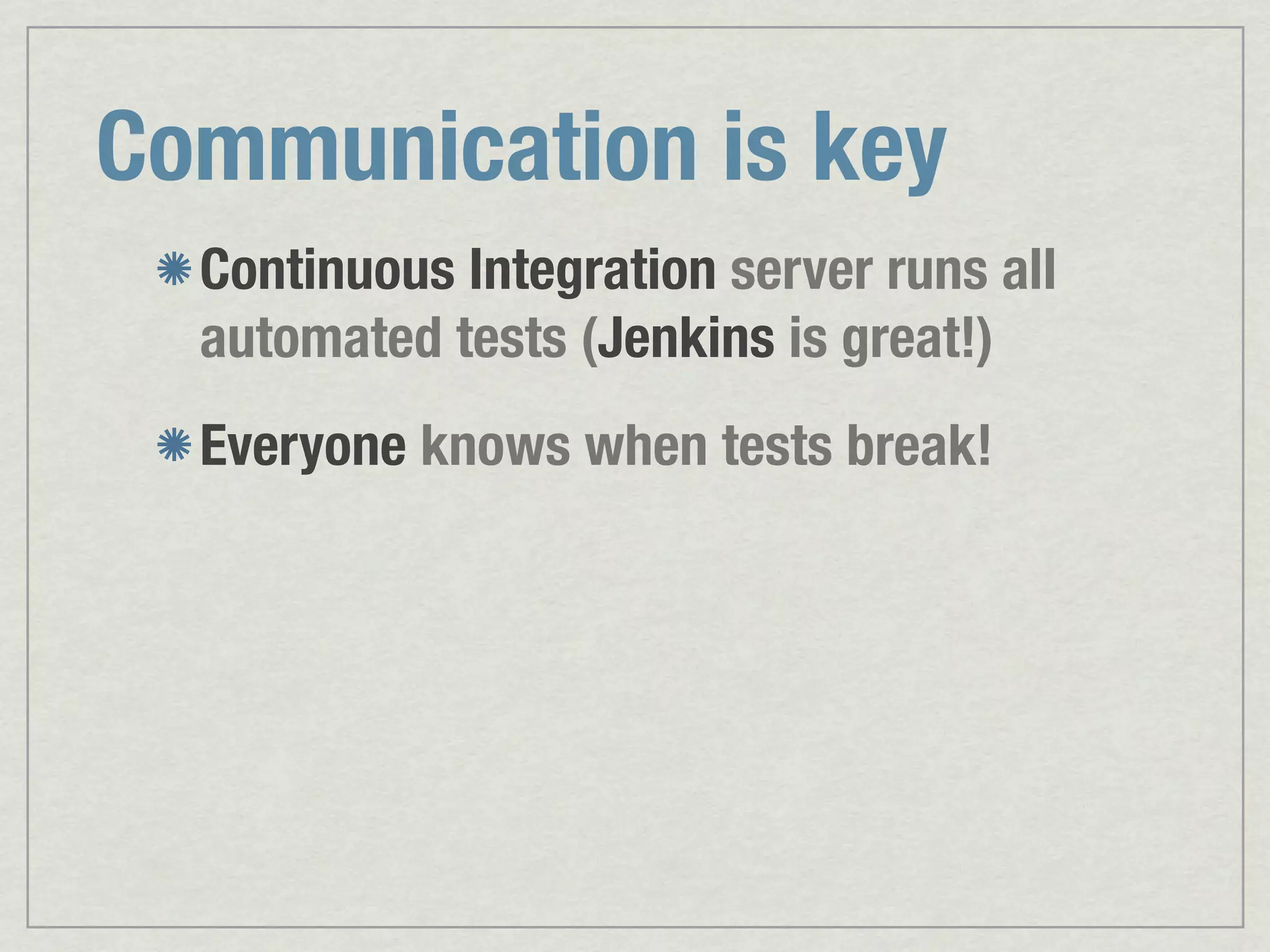

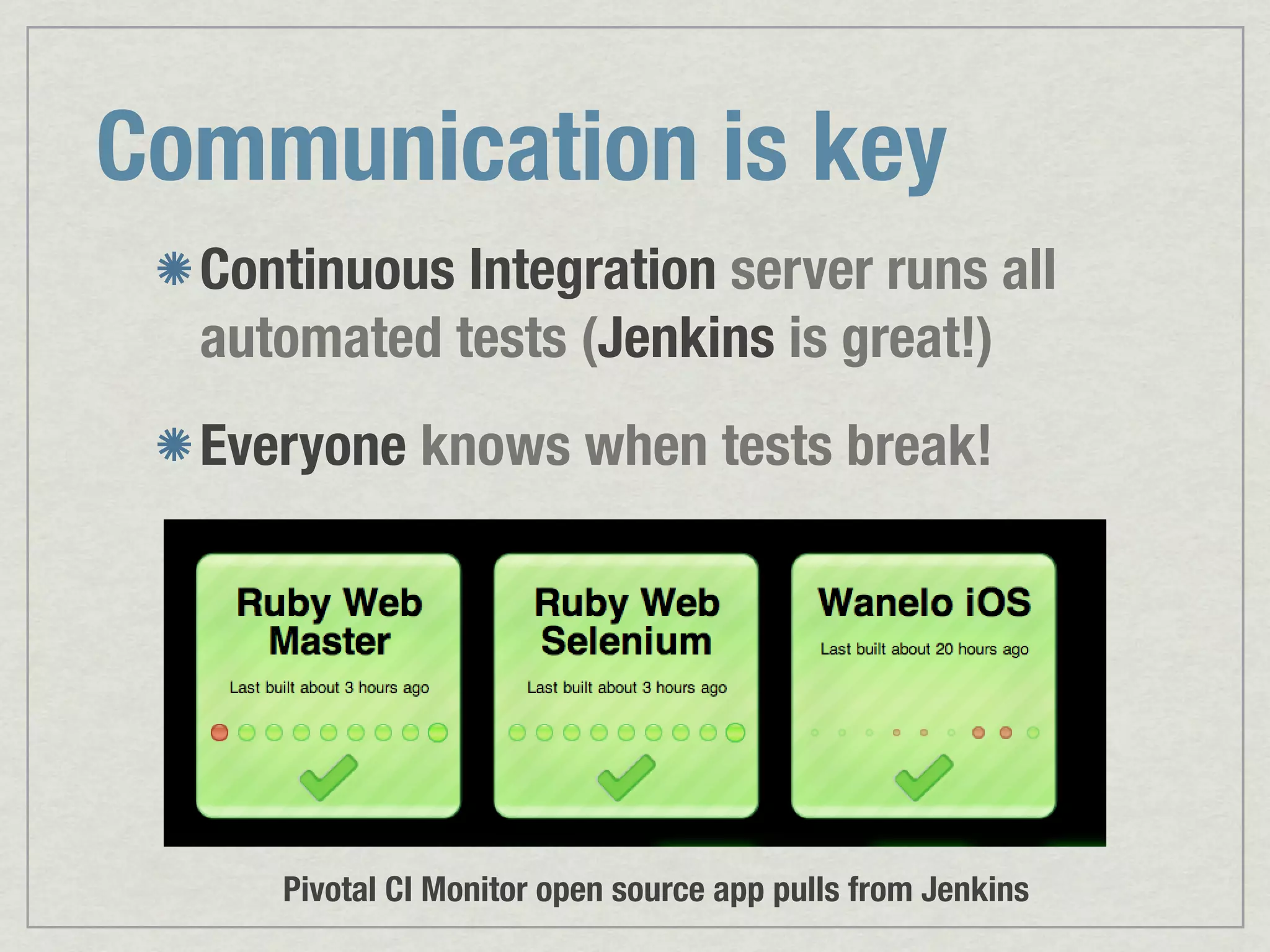

Communication is key Continuous Integration server runs all automated tests (Jenkins is great!) Everyone knows when tests break!

Communication is key Continuous Integration server runs all automated tests (Jenkins is great!) Everyone knows when tests break! Pivotal CI Monitor open source app pulls from Jenkins

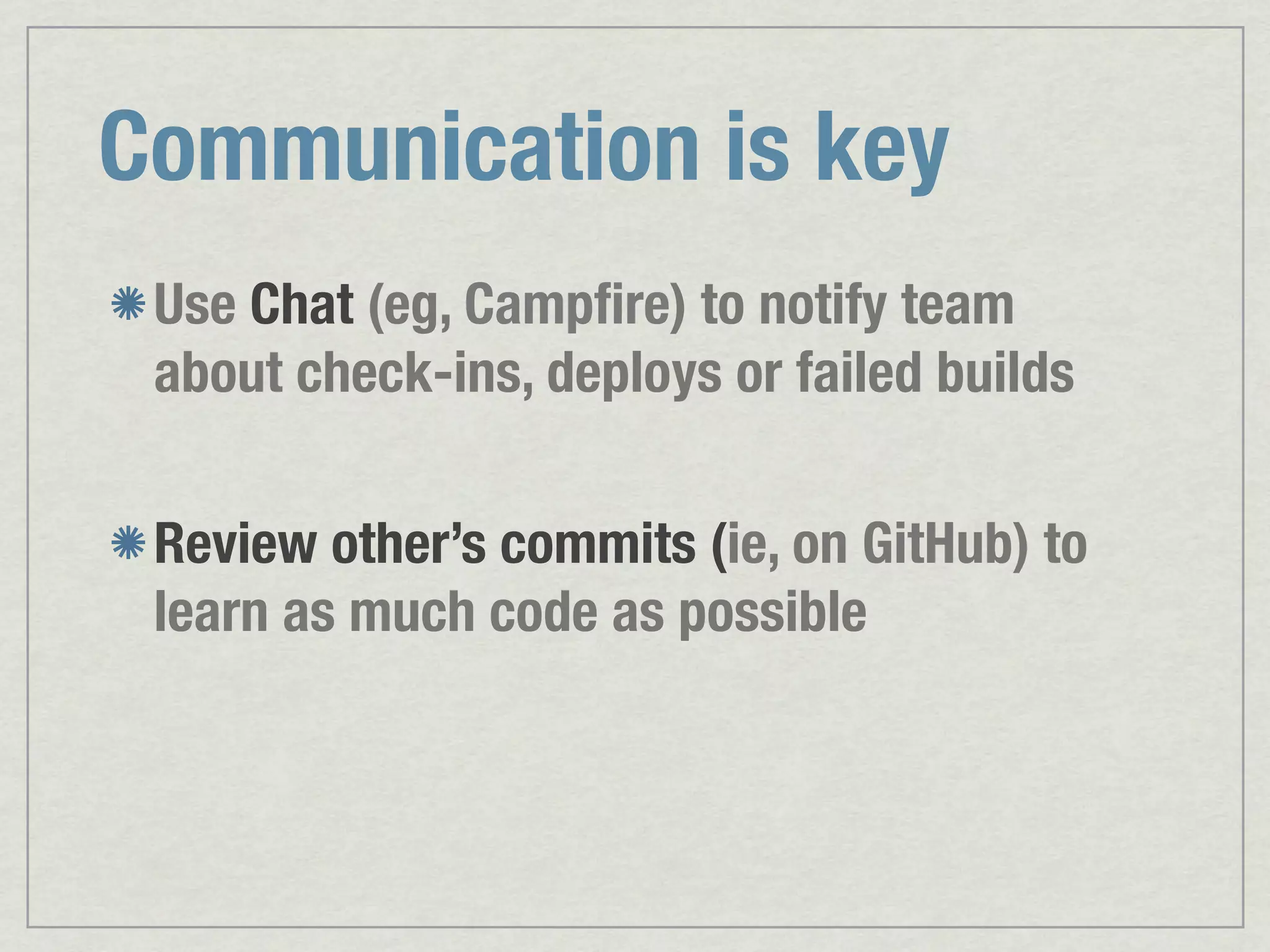

Communication is key Use Chat (eg, Campﬁre) to notify team about check-ins, deploys or failed builds

Communication is key Use Chat (eg, Campﬁre) to notify team about check-ins, deploys or failed builds Review other’s commits (ie, on GitHub) to learn as much code as possible

Communication is key Use Chat (eg, Campﬁre) to notify team about check-ins, deploys or failed builds Review other’s commits (ie, on GitHub) to learn as much code as possible Take care of your team mates, and do worry about the project. Success depends on it.

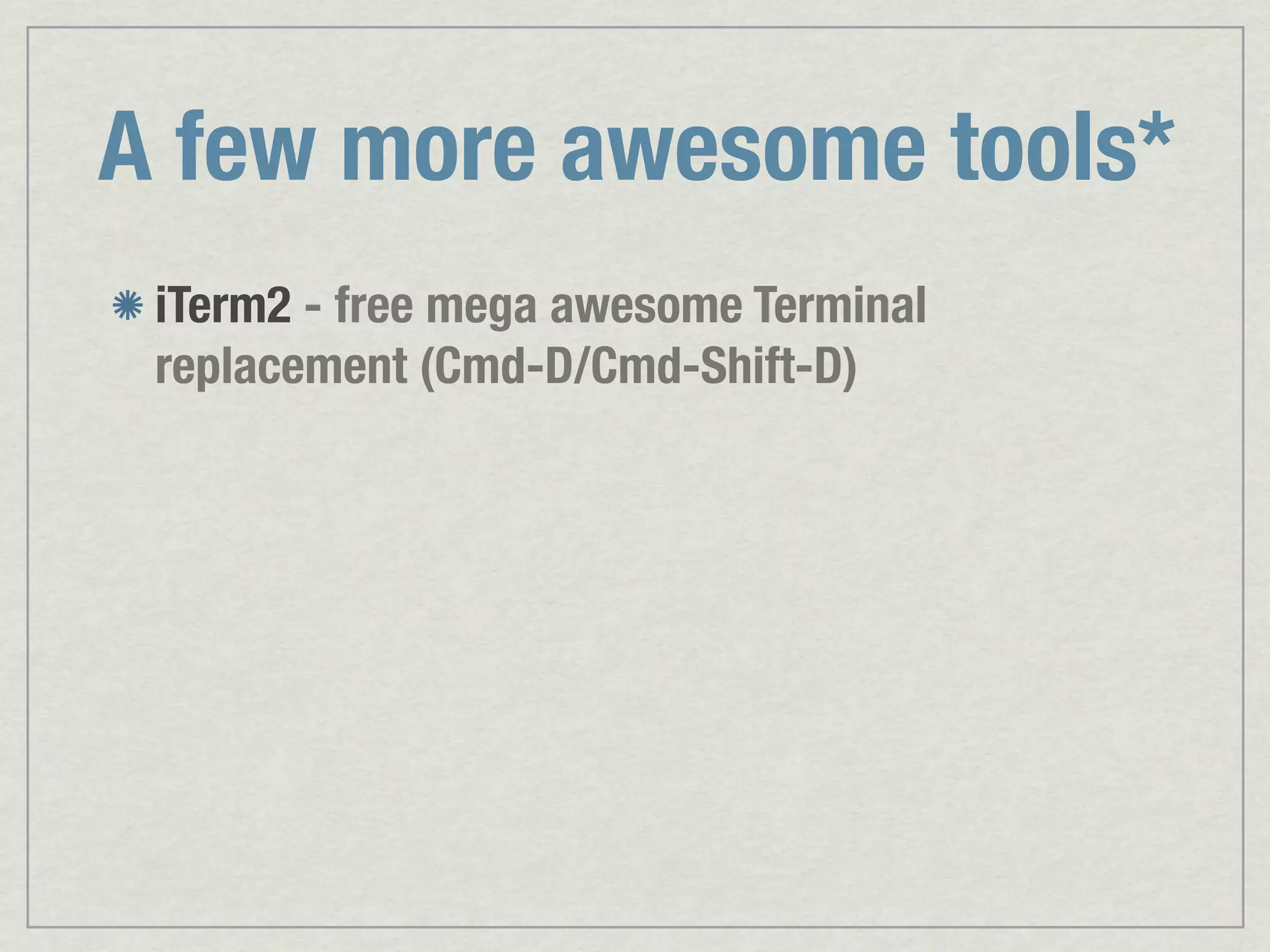

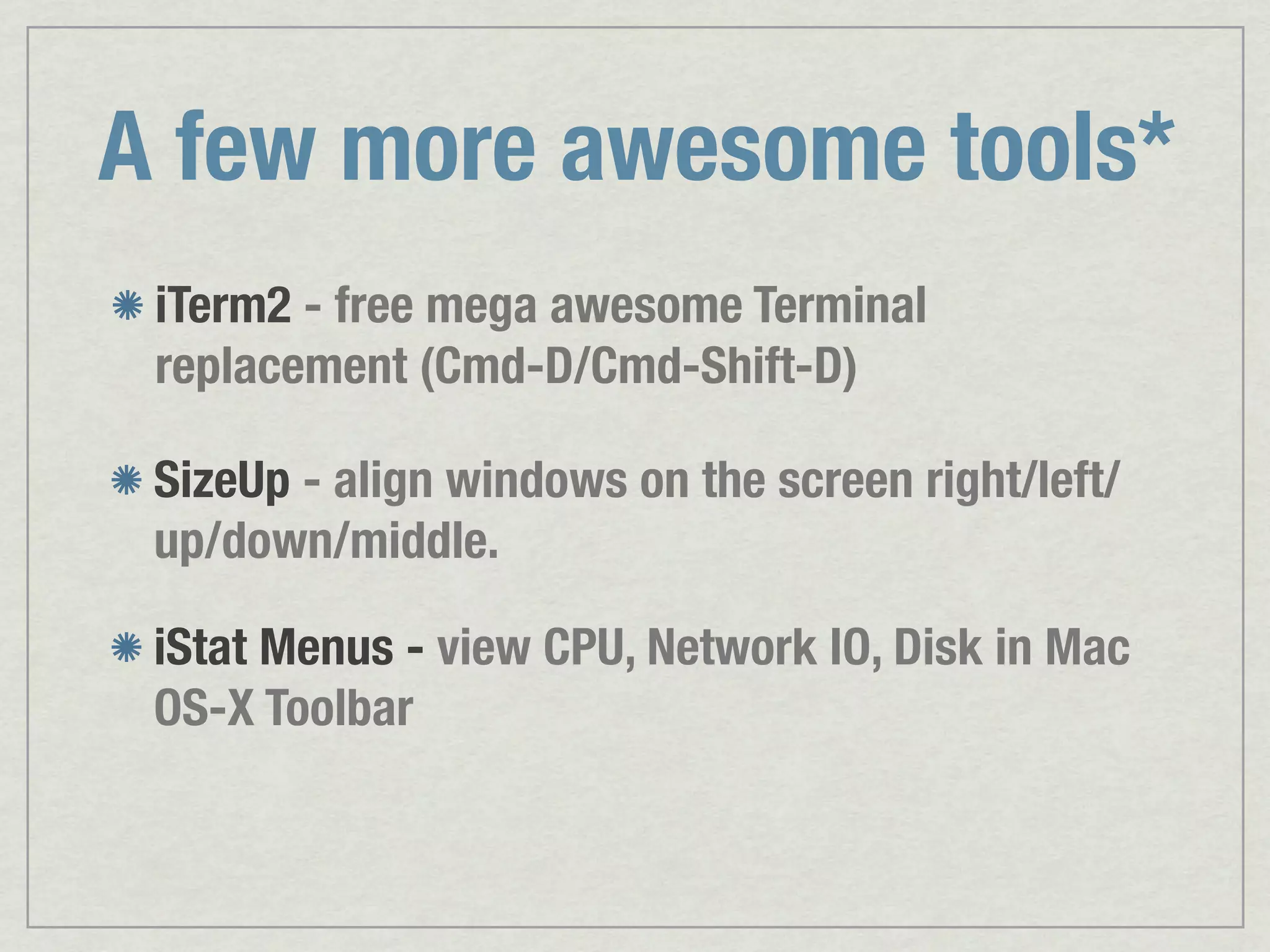

A few more awesome tools* iTerm2 - free mega awesome Terminal replacement (Cmd-D/Cmd-Shift-D)

A few more awesome tools* iTerm2 - free mega awesome Terminal replacement (Cmd-D/Cmd-Shift-D) SizeUp - align windows on the screen right/left/ up/down/middle.

A few more awesome tools* iTerm2 - free mega awesome Terminal replacement (Cmd-D/Cmd-Shift-D) SizeUp - align windows on the screen right/left/ up/down/middle. iStat Menus - view CPU, Network IO, Disk in Mac OS-X Toolbar

A few more awesome tools* iTerm2 - free mega awesome Terminal replacement (Cmd-D/Cmd-Shift-D) SizeUp - align windows on the screen right/left/ up/down/middle. iStat Menus - view CPU, Network IO, Disk in Mac OS-X Toolbar CCMenu - view results of CI in your toolbar

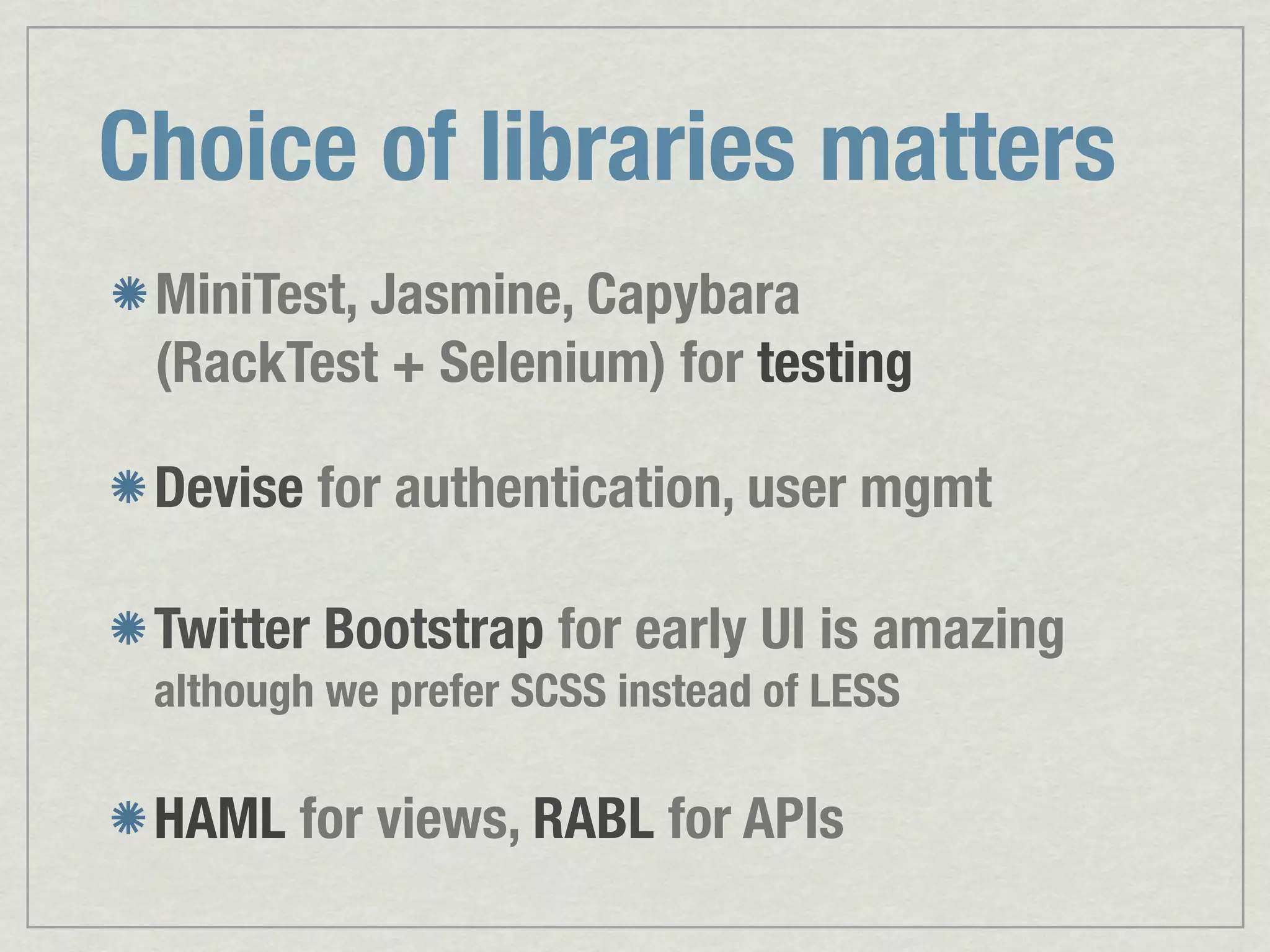

Choice of libraries matters MiniTest, Jasmine, Capybara (RackTest + Selenium) for testing

Choice of libraries matters MiniTest, Jasmine, Capybara (RackTest + Selenium) for testing Devise for authentication, user mgmt

Choice of libraries matters MiniTest, Jasmine, Capybara (RackTest + Selenium) for testing Devise for authentication, user mgmt Twitter Bootstrap for early UI is amazing although we prefer SCSS instead of LESS

Choice of libraries matters MiniTest, Jasmine, Capybara (RackTest + Selenium) for testing Devise for authentication, user mgmt Twitter Bootstrap for early UI is amazing although we prefer SCSS instead of LESS HAML for views, RABL for APIs

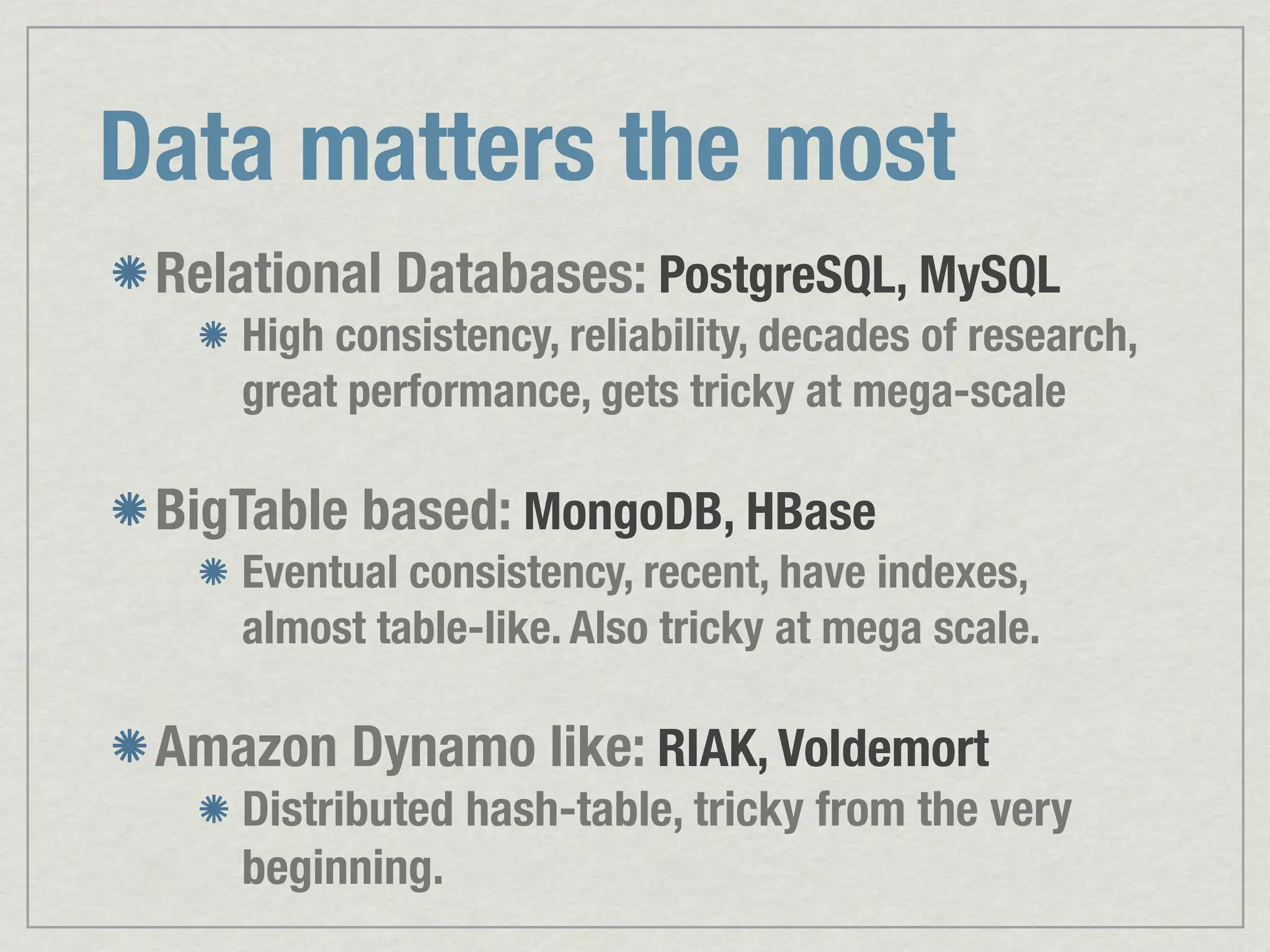

Data matters the most Relational Databases: PostgreSQL, MySQL High consistency, reliability, decades of research, great performance, gets tricky at mega-scale

Data matters the most Relational Databases: PostgreSQL, MySQL High consistency, reliability, decades of research, great performance, gets tricky at mega-scale BigTable based: MongoDB, HBase Eventual consistency, recent, have indexes, almost table-like. Also tricky at mega scale.

Data matters the most Relational Databases: PostgreSQL, MySQL High consistency, reliability, decades of research, great performance, gets tricky at mega-scale BigTable based: MongoDB, HBase Eventual consistency, recent, have indexes, almost table-like. Also tricky at mega scale. Amazon Dynamo like: RIAK, Voldemort Distributed hash-table, tricky from the very beginning.

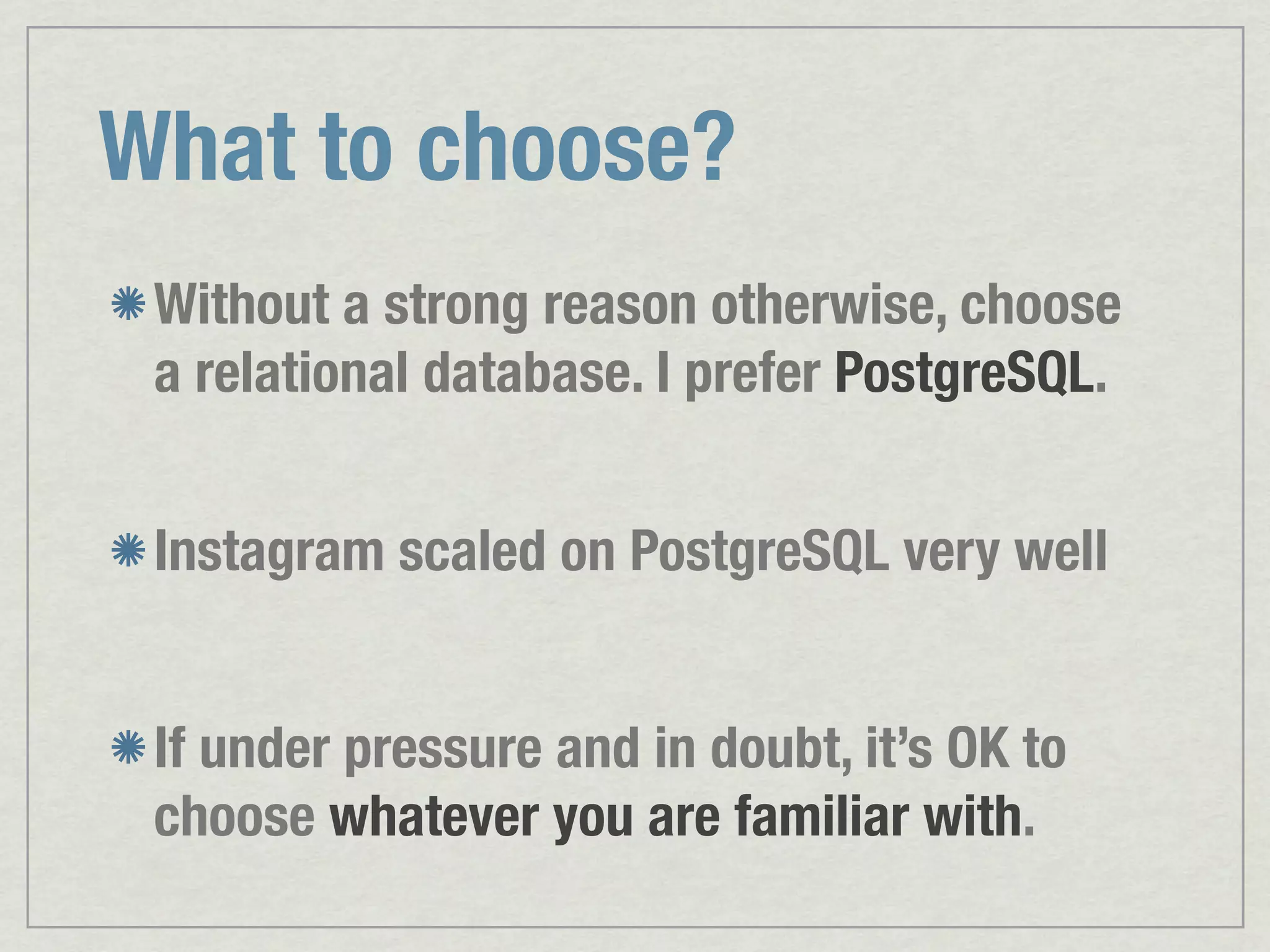

What to choose? Without a strong reason otherwise, choose a relational database. I prefer PostgreSQL.

What to choose? Without a strong reason otherwise, choose a relational database. I prefer PostgreSQL. Instagram scaled on PostgreSQL very well

What to choose? Without a strong reason otherwise, choose a relational database. I prefer PostgreSQL. Instagram scaled on PostgreSQL very well If under pressure and in doubt, it’s OK to choose whatever you are familiar with.

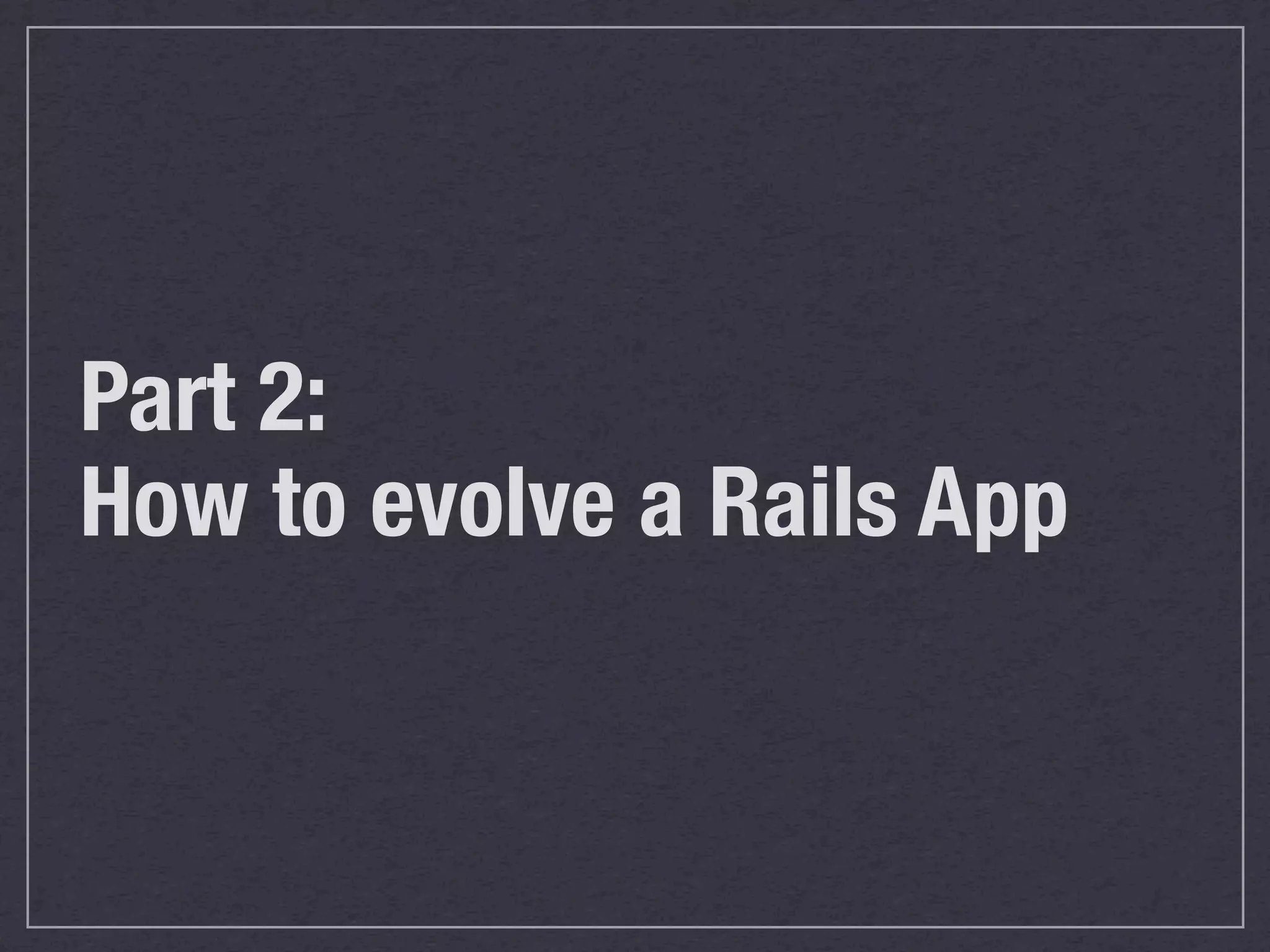

Part 2: How to evolve a Rails App

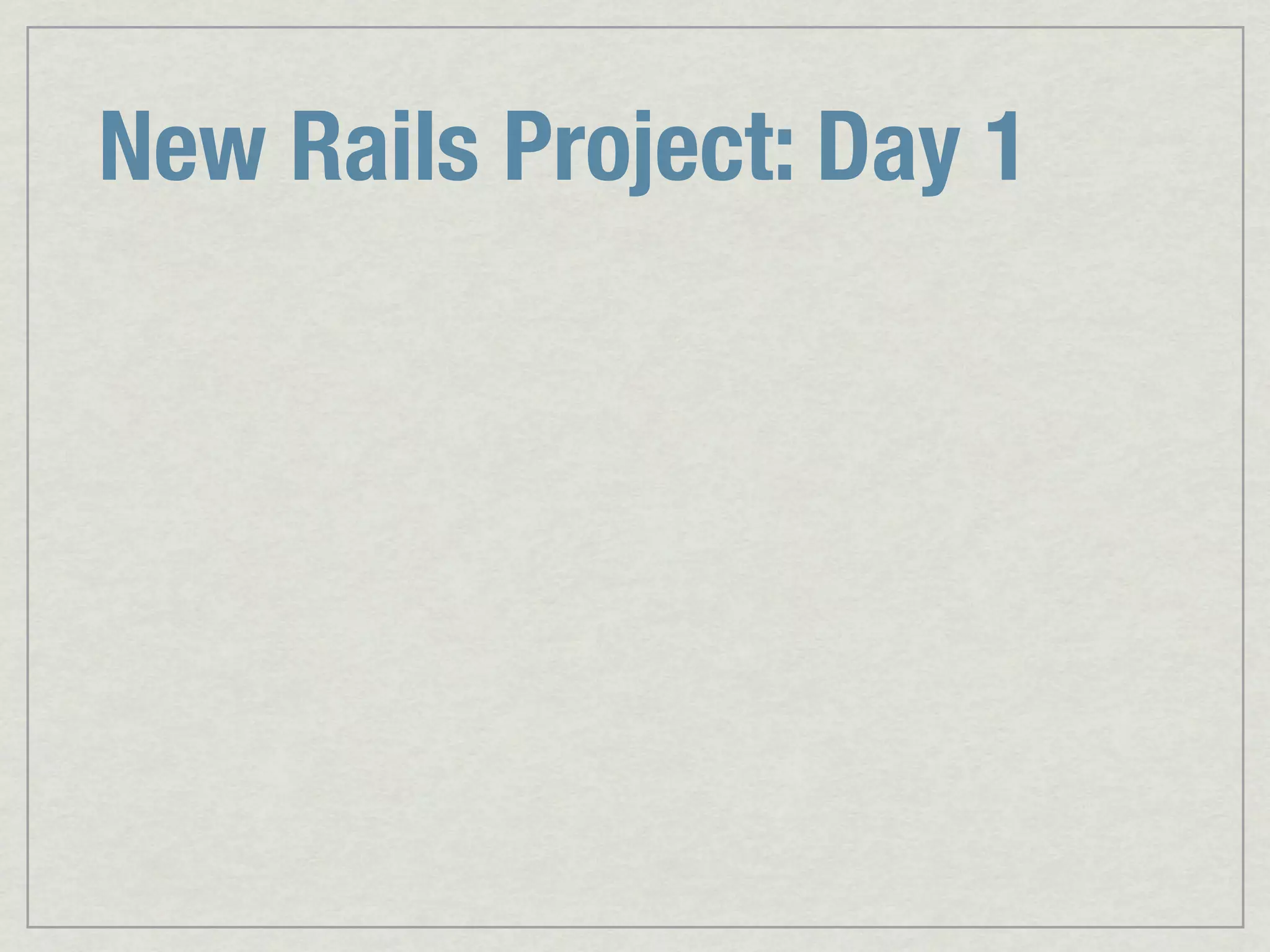

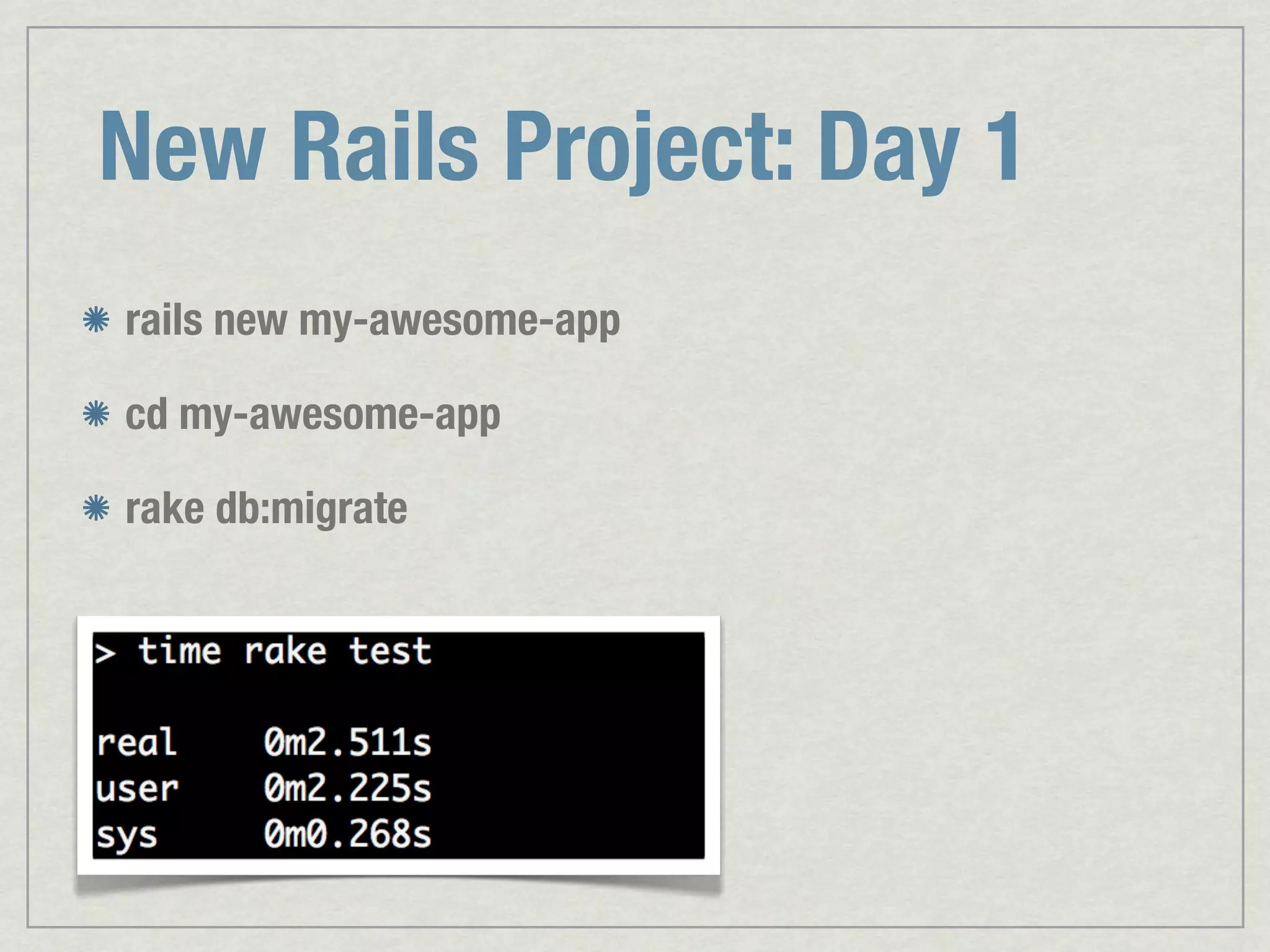

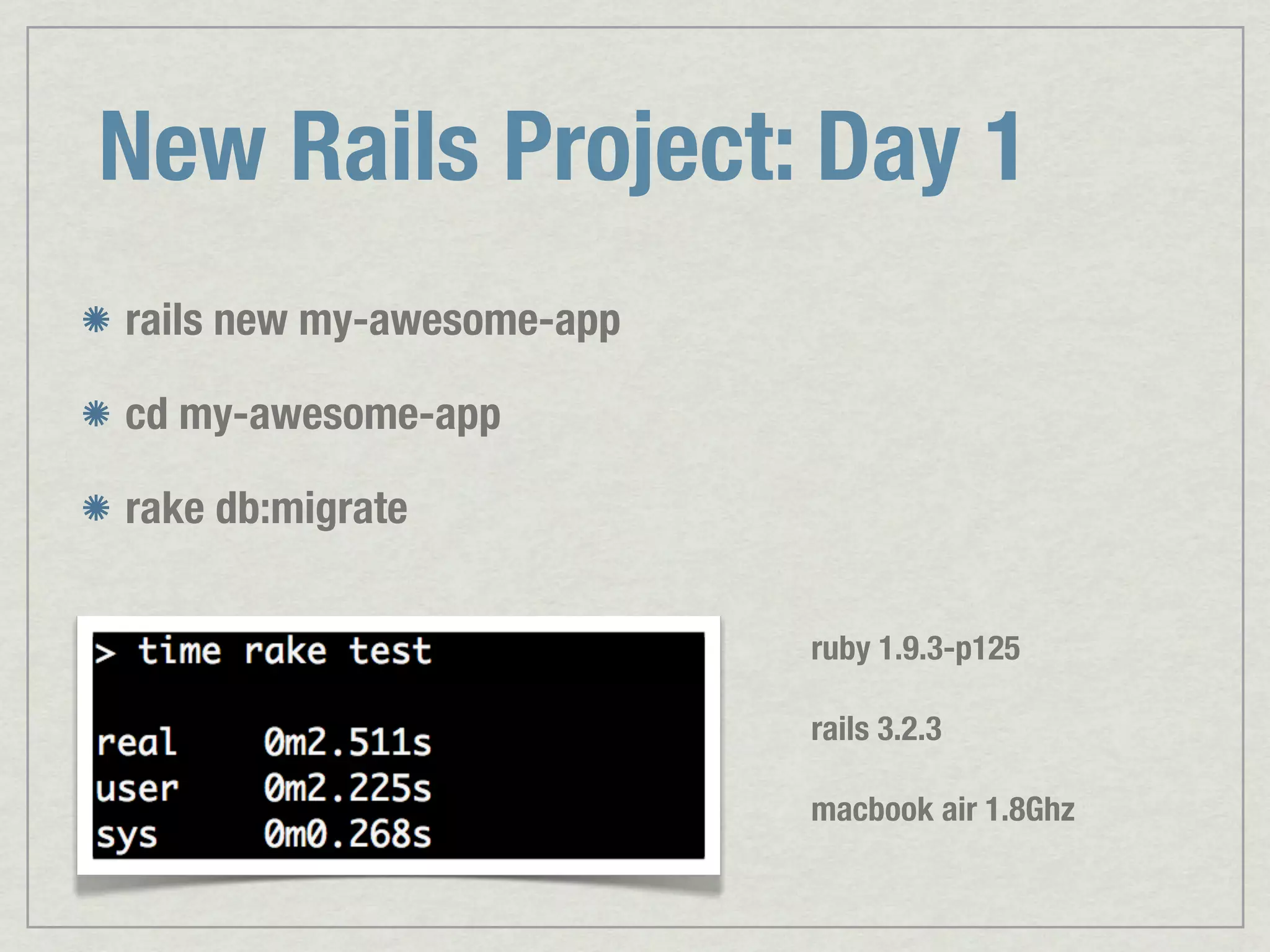

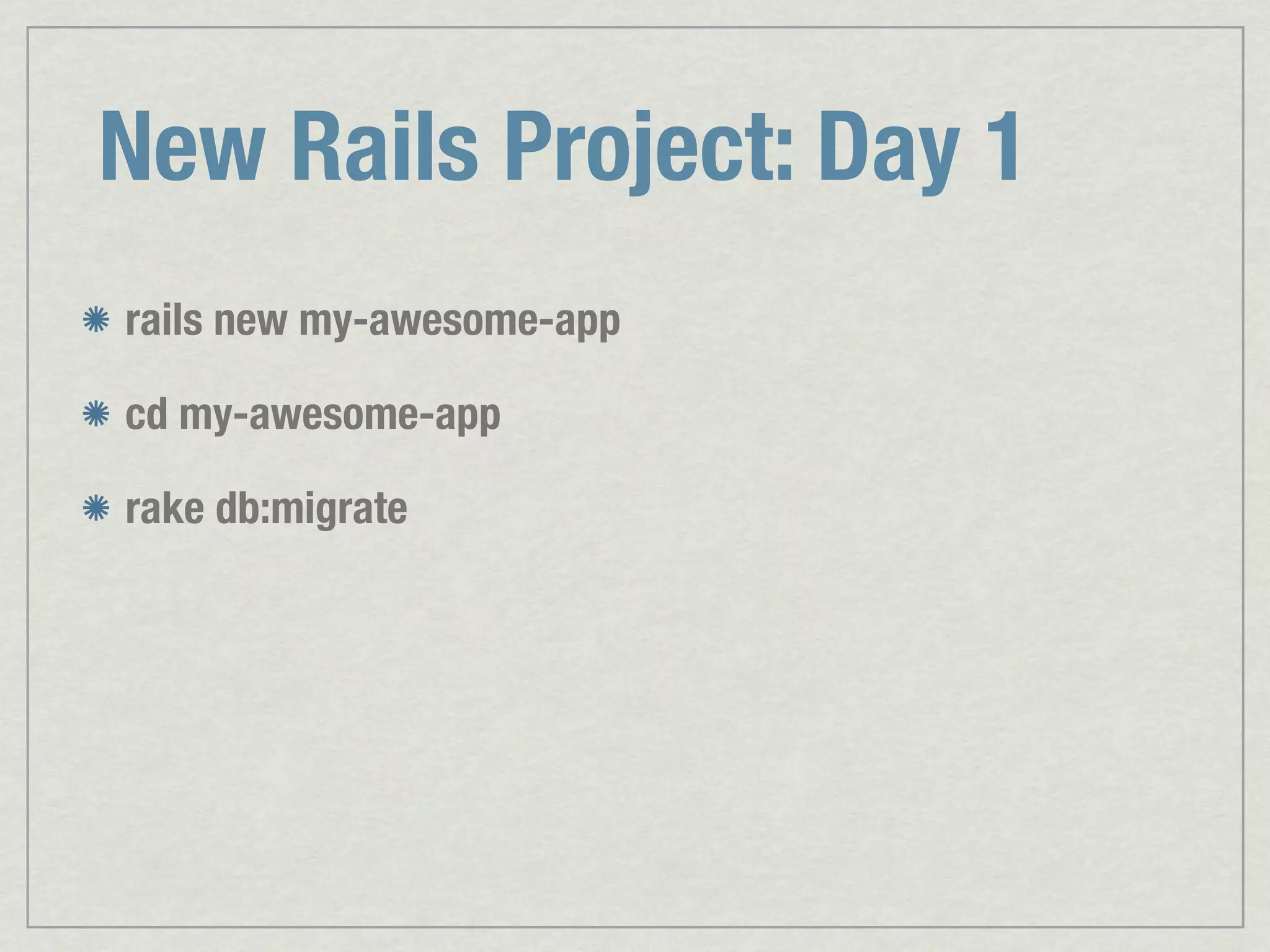

New Rails Project: Day 1 rails new my-awesome-app cd my-awesome-app rake db:migrate

New Rails Project: Day 1 rails new my-awesome-app cd my-awesome-app rake db:migrate ruby 1.9.3-p125 rails 3.2.3 macbook air 1.8Ghz

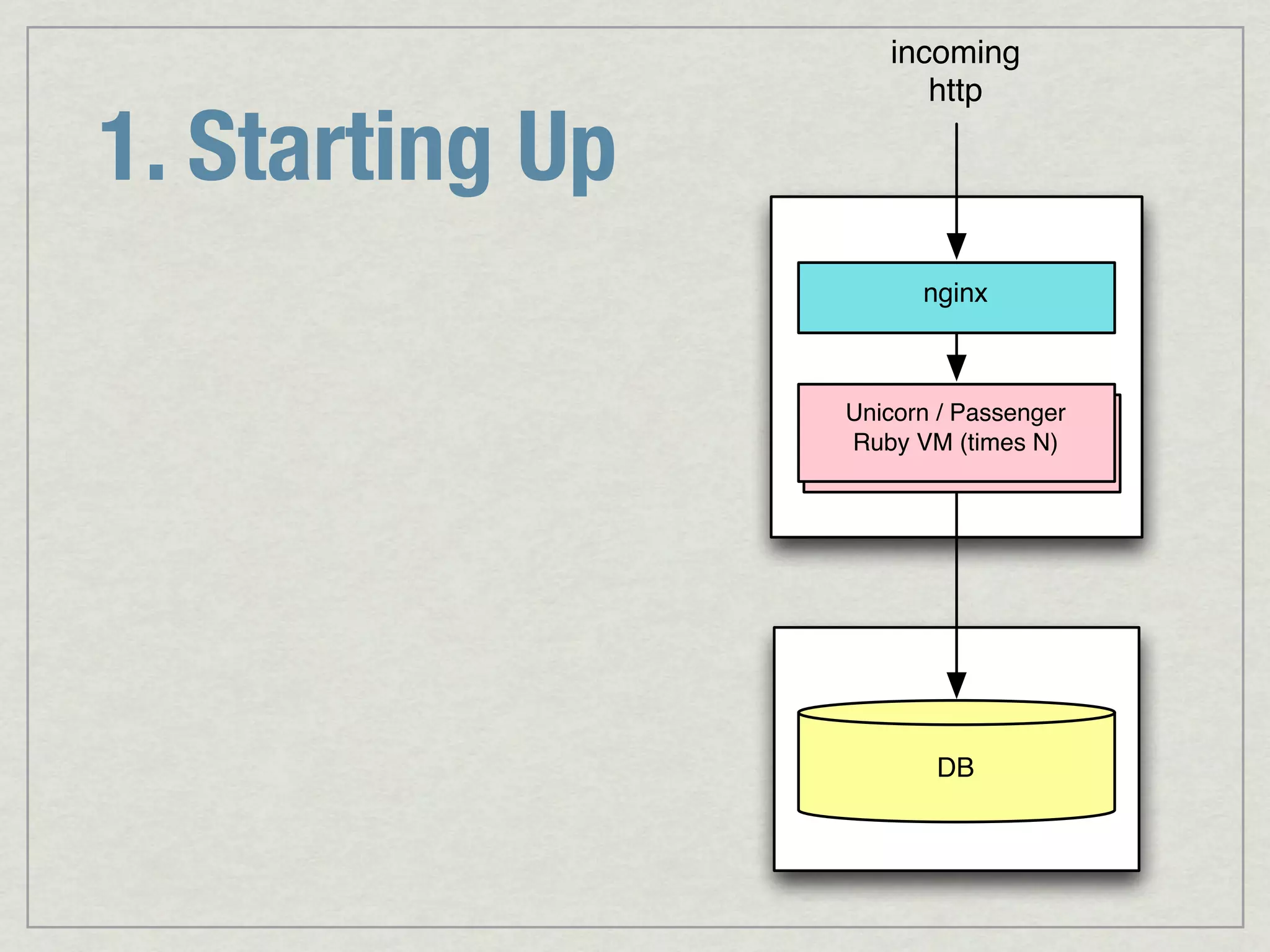

incoming http 1. Starting Up One app server, one db, nginx 10 unicorns per app server Unicorn // Passenger Unicorn Passenger Ruby Ruby VM N) VM (times nginx for static assets PostgreSQL for data Always put your DB on a separate server DB Cloud

incoming http 1. Starting Up nginx Unicorn // Passenger Unicorn Passenger Ruby Ruby VM N) VM (times DB

incoming http 1. Starting Up nginx Simple, but no app server Unicorn // Passenger Unicorn Passenger redundancy, limited Ruby Ruby VM N) VM (times throughput DB

incoming http 1. Starting Up nginx Simple, but no app server Unicorn // Passenger Unicorn Passenger redundancy, limited Ruby Ruby VM N) VM (times throughput 10 unicorns = 10 concurrent requests at any DB one time

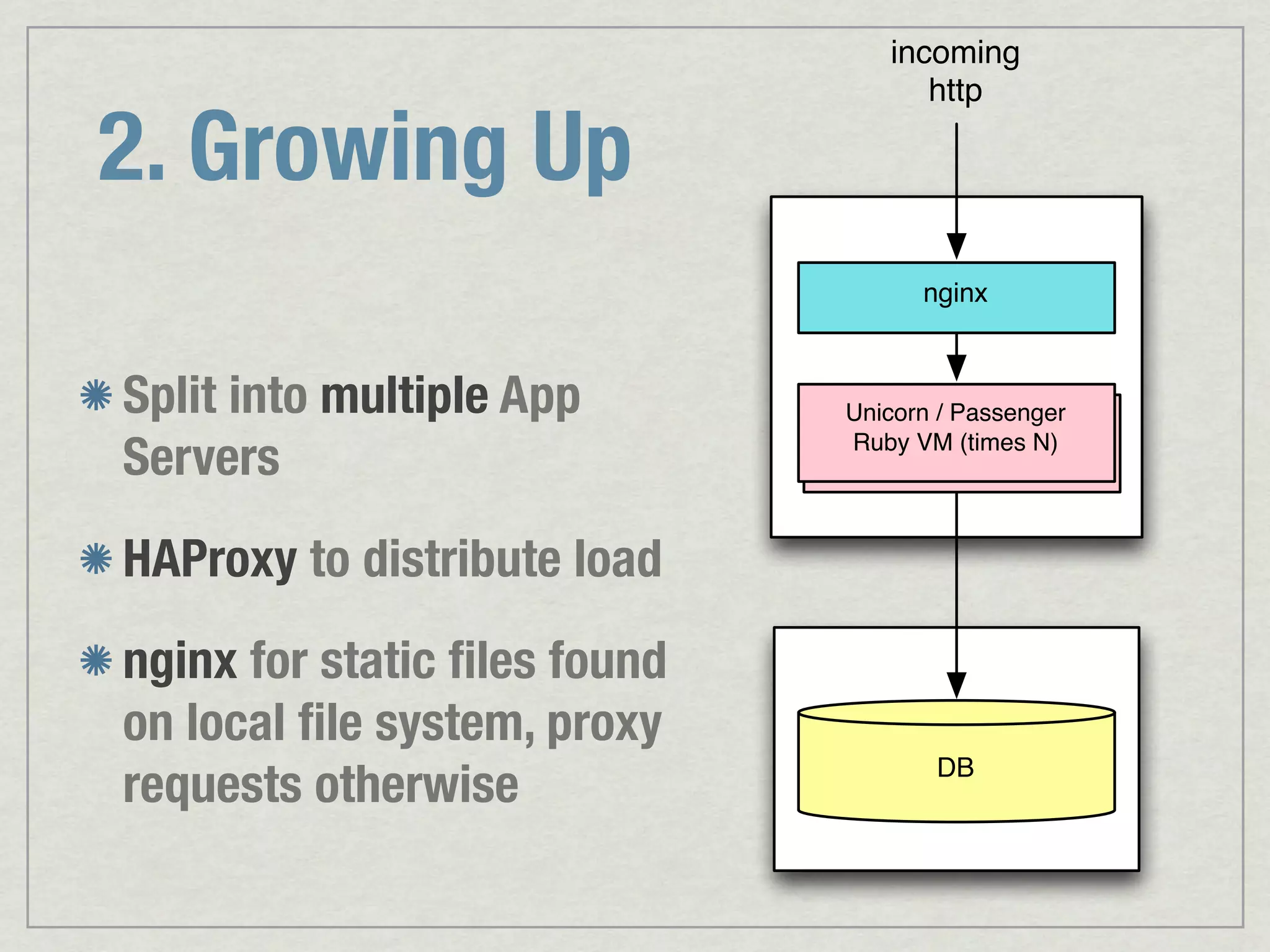

incoming http 2. Growing Up nginx Split into multiple App Unicorn // Passenger Unicorn Passenger Servers Ruby Ruby VM N) VM (times HAProxy to distribute load nginx for static ﬁles found on local ﬁle system, proxy requests otherwise DB

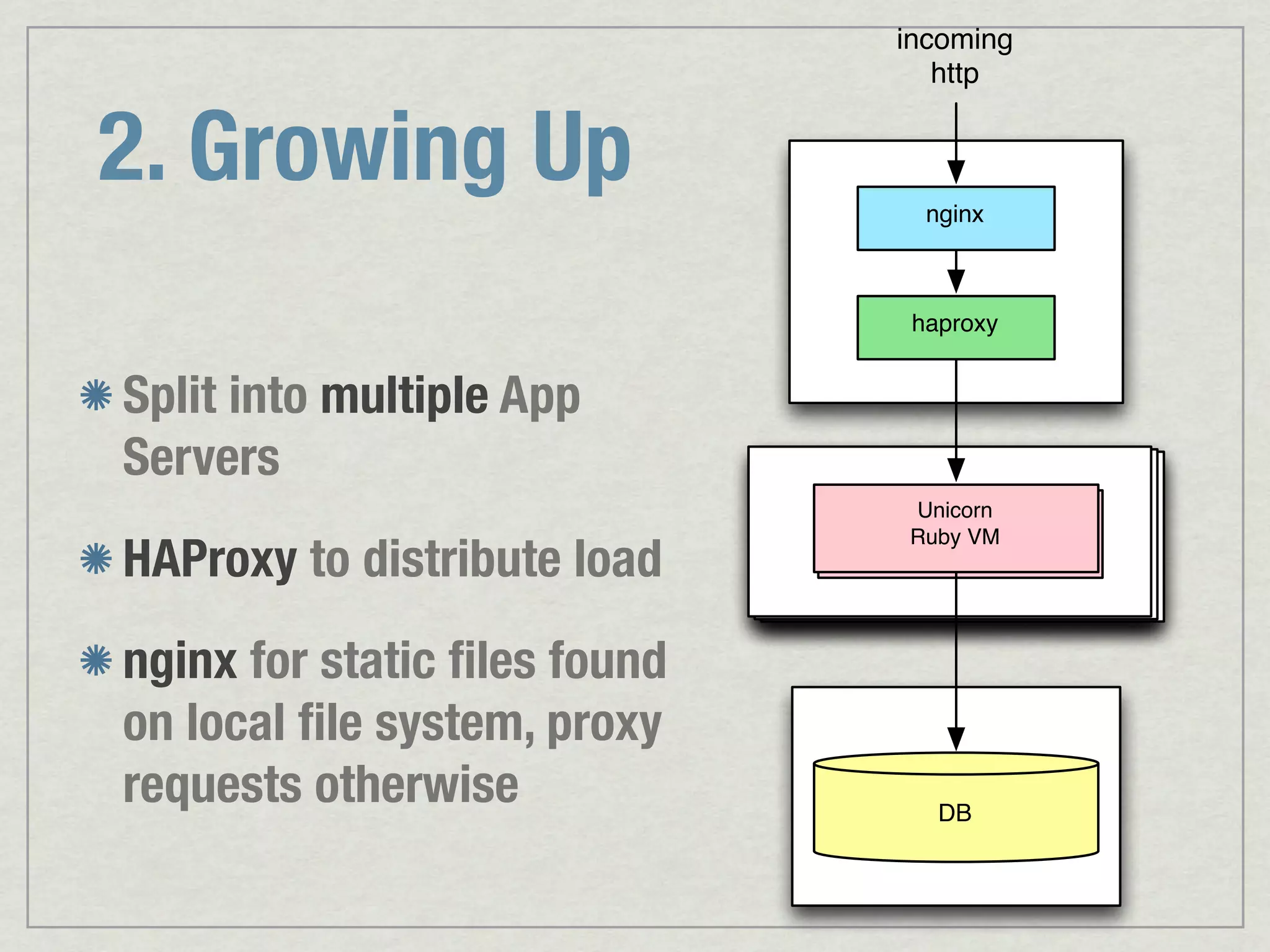

incoming http 2. Growing Up nginx haproxy Split into multiple App Servers Unicorn Unicorn / Passenger HAProxy to distribute load Ruby VM Ruby VM nginx for static ﬁles found on local ﬁle system, proxy requests otherwise DB

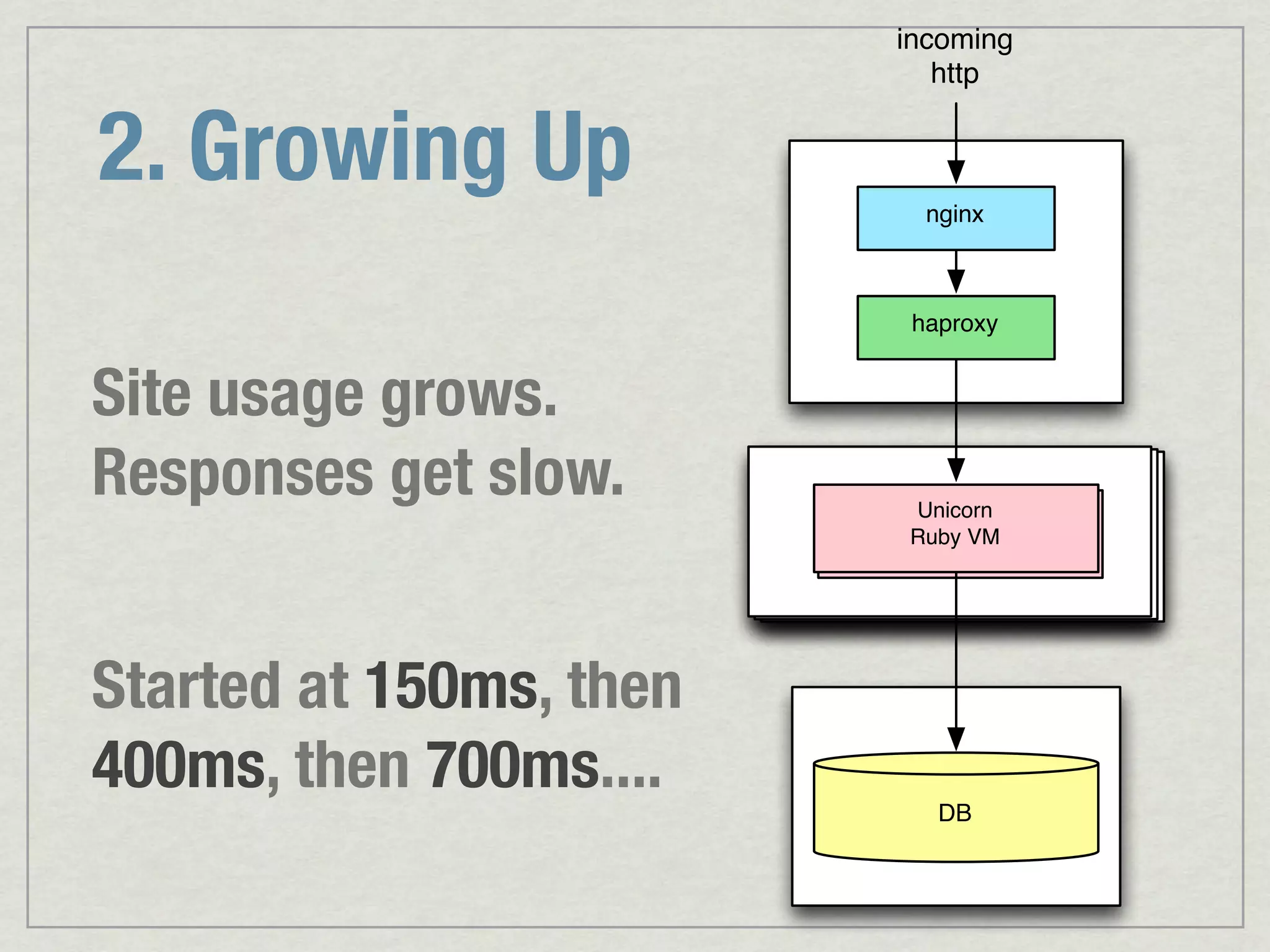

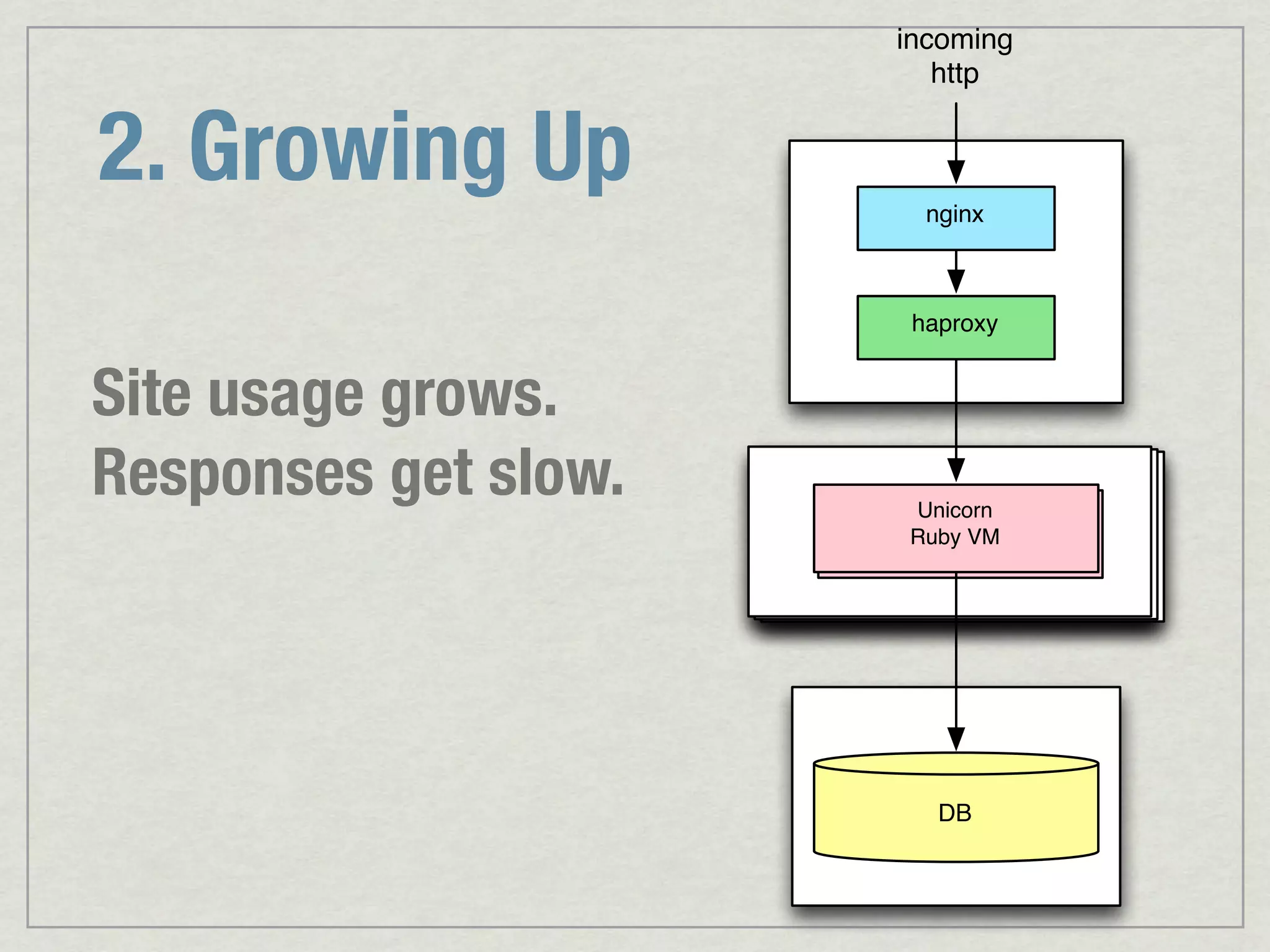

incoming http 2. Growing Up nginx haproxy Site usage grows. Responses get slow. Unicorn Unicorn / Passenger Ruby VM Ruby VM DB

incoming http 2. Growing Up nginx haproxy Site usage grows. Responses get slow. Unicorn Unicorn / Passenger Ruby VM Ruby VM Started at 150ms, then 400ms, then 700ms.... DB

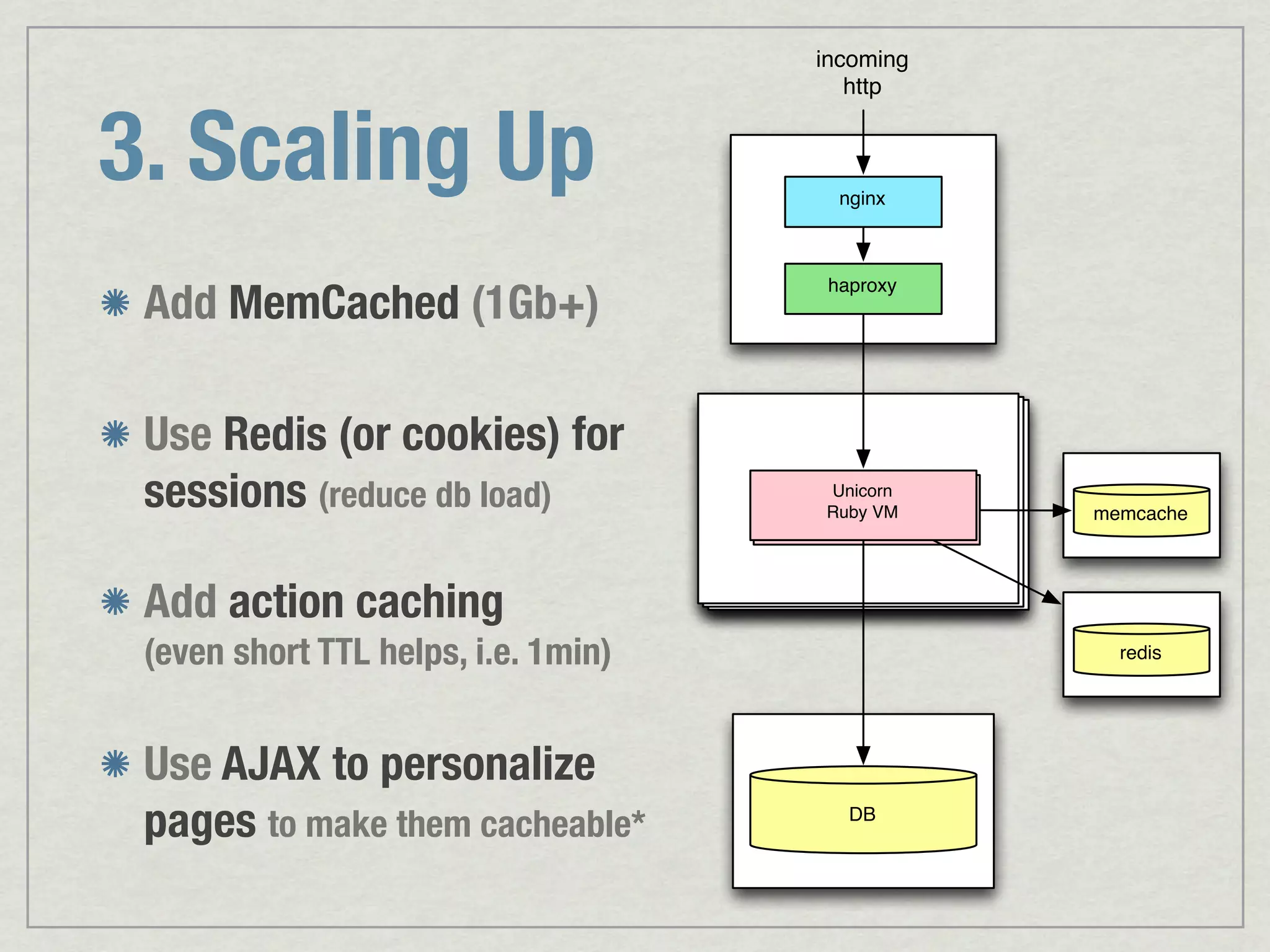

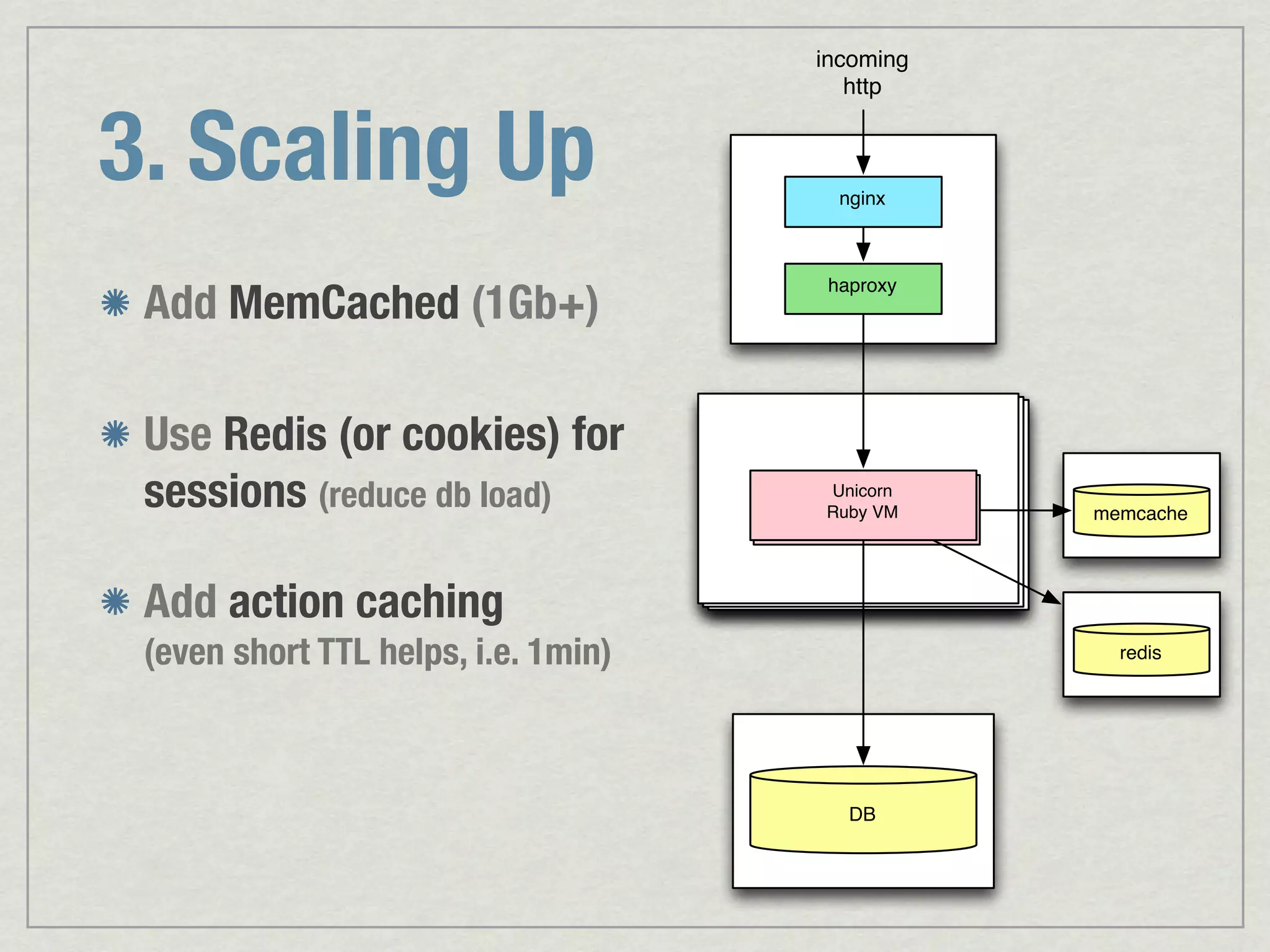

incoming http 3. Scaling Up nginx haproxy Unicorn Unicorn / Passenger Ruby VM Ruby VM DB

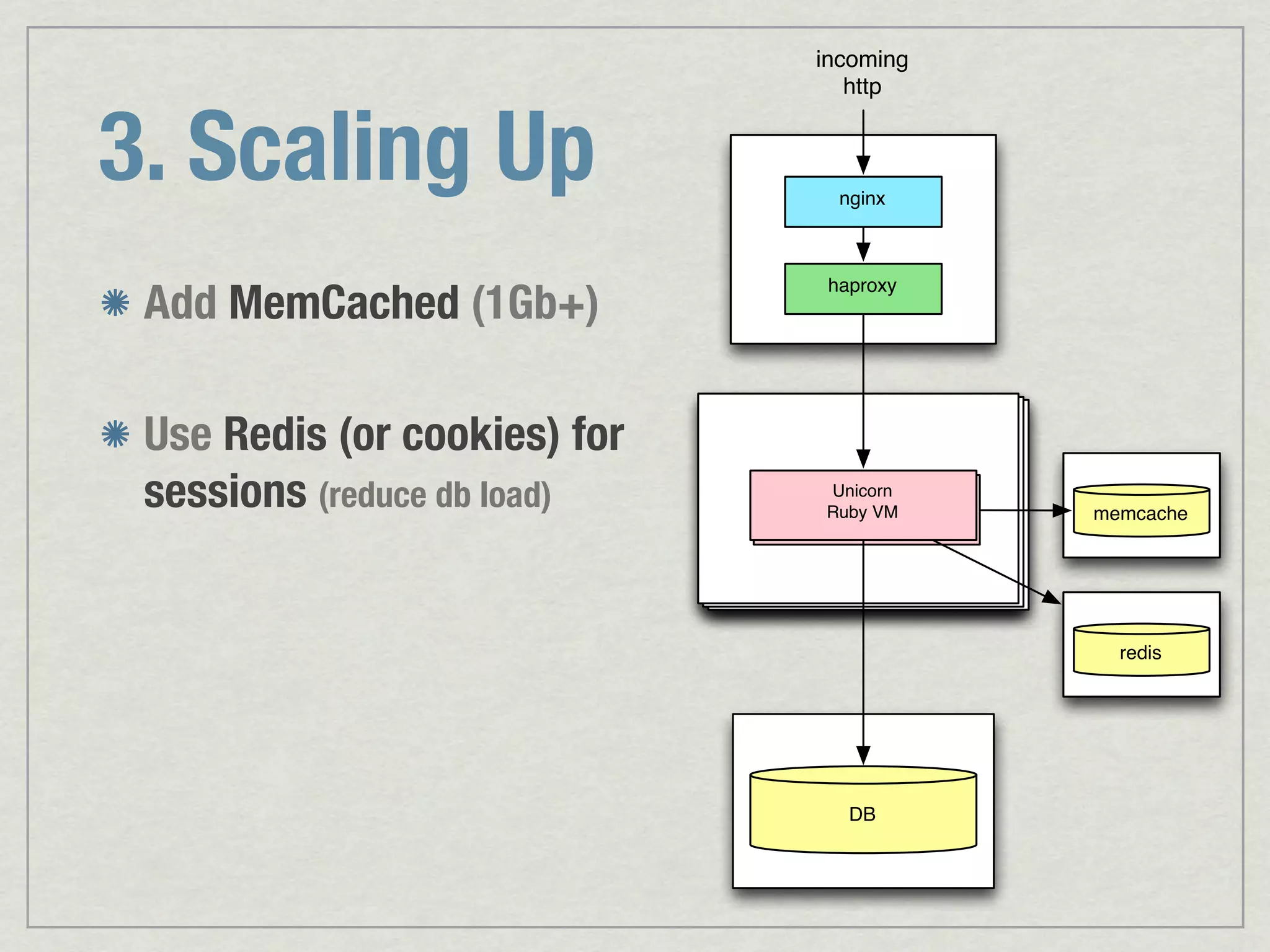

incoming http 3. Scaling Up nginx Add MemCached (1Gb+) haproxy Unicorn Unicorn / Passenger Ruby VM Ruby VM DB

incoming http 3. Scaling Up nginx Add MemCached (1Gb+) haproxy Use Redis (or cookies) for sessions (reduce db load) Unicorn Unicorn / Passenger Ruby VM Ruby VM DB

incoming http 3. Scaling Up nginx Add MemCached (1Gb+) haproxy Use Redis (or cookies) for sessions (reduce db load) Unicorn Unicorn / Passenger Ruby VM Ruby VM memcache redis DB

incoming http 3. Scaling Up nginx Add MemCached (1Gb+) haproxy Use Redis (or cookies) for sessions (reduce db load) Unicorn Unicorn / Passenger Ruby VM Ruby VM memcache Add action caching (even short TTL helps, i.e. 1min) redis DB

incoming http 3. Scaling Up nginx Add MemCached (1Gb+) haproxy Use Redis (or cookies) for sessions (reduce db load) Unicorn Unicorn / Passenger Ruby VM Ruby VM memcache Add action caching (even short TTL helps, i.e. 1min) redis Use AJAX to personalize pages to make them cacheable* DB

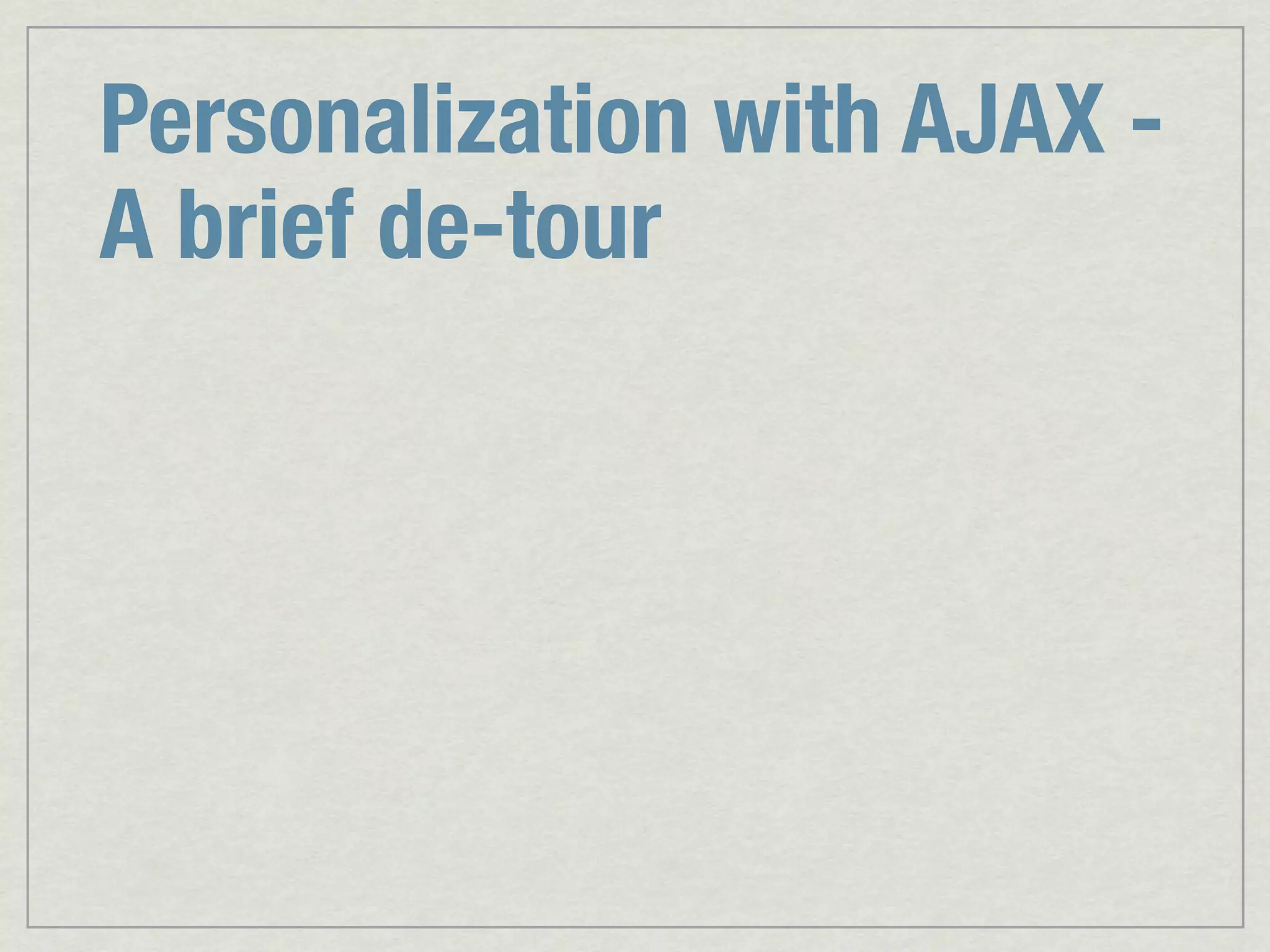

Personalization with AJAX - A brief de-tour

Personalization with AJAX - A brief de-tour 1. Logged in (or not) user requests a page...

Personalization with AJAX - A brief de-tour 1. Logged in (or not) user requests a page... 2. Page is served from the cache without any personalization (no “Hi John!”, “Logout”, etc)

Personalization with AJAX - A brief de-tour 1. Logged in (or not) user requests a page... 2. Page is served from the cache without any personalization (no “Hi John!”, “Logout”, etc) 3. on document.ready: AJAX hits the server, gets tiny JSON data of the current user (or “not logged in”)

Personalization with AJAX - A brief de-tour 1. Logged in (or not) user requests a page... 2. Page is served from the cache without any personalization (no “Hi John!”, “Logout”, etc) 3. on document.ready: AJAX hits the server, gets tiny JSON data of the current user (or “not logged in”) 4. JS modiﬁes the DOM to show user’s logged in state, any other personalization, or “Log In”.

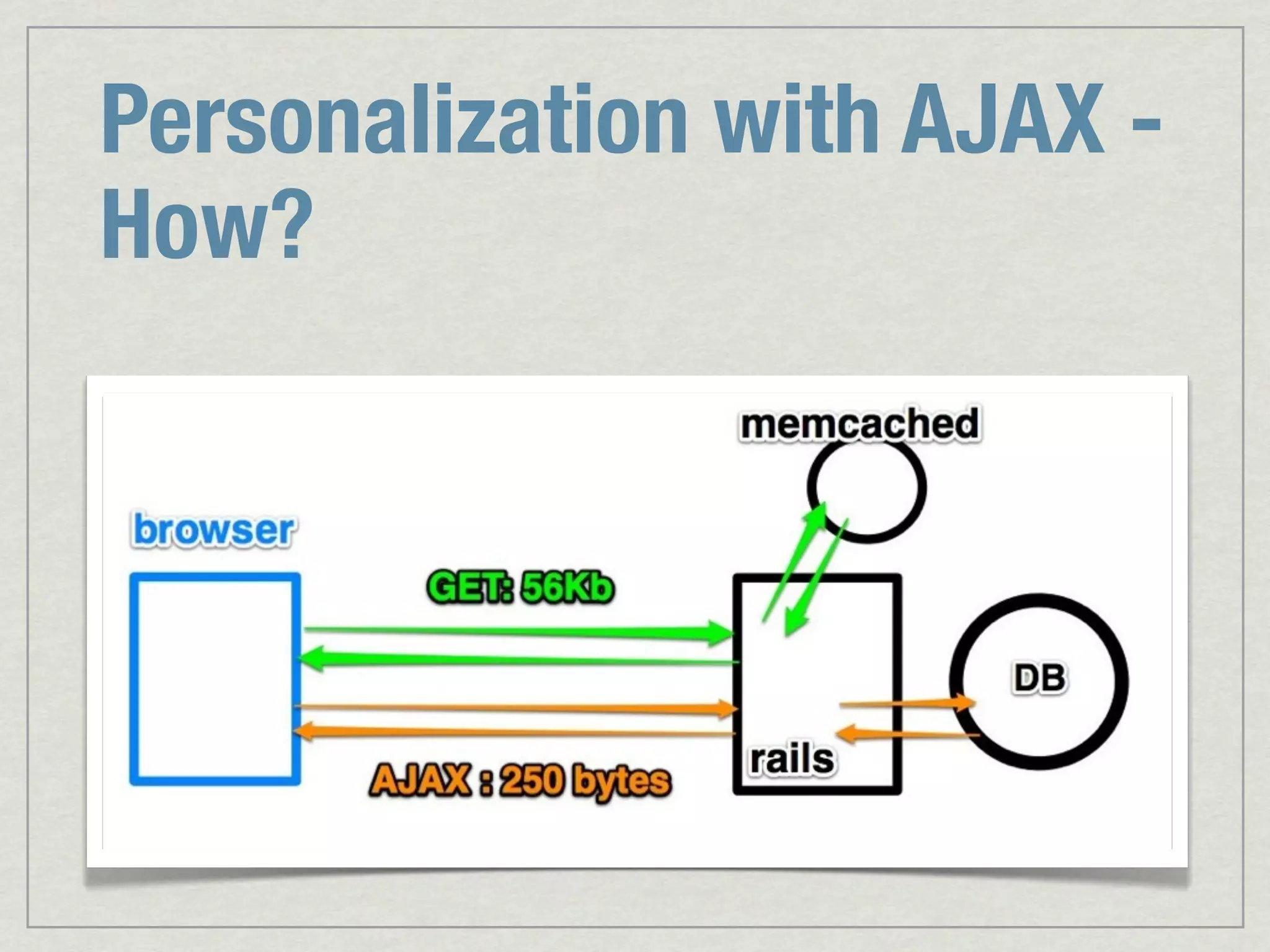

Personalization with AJAX - How?

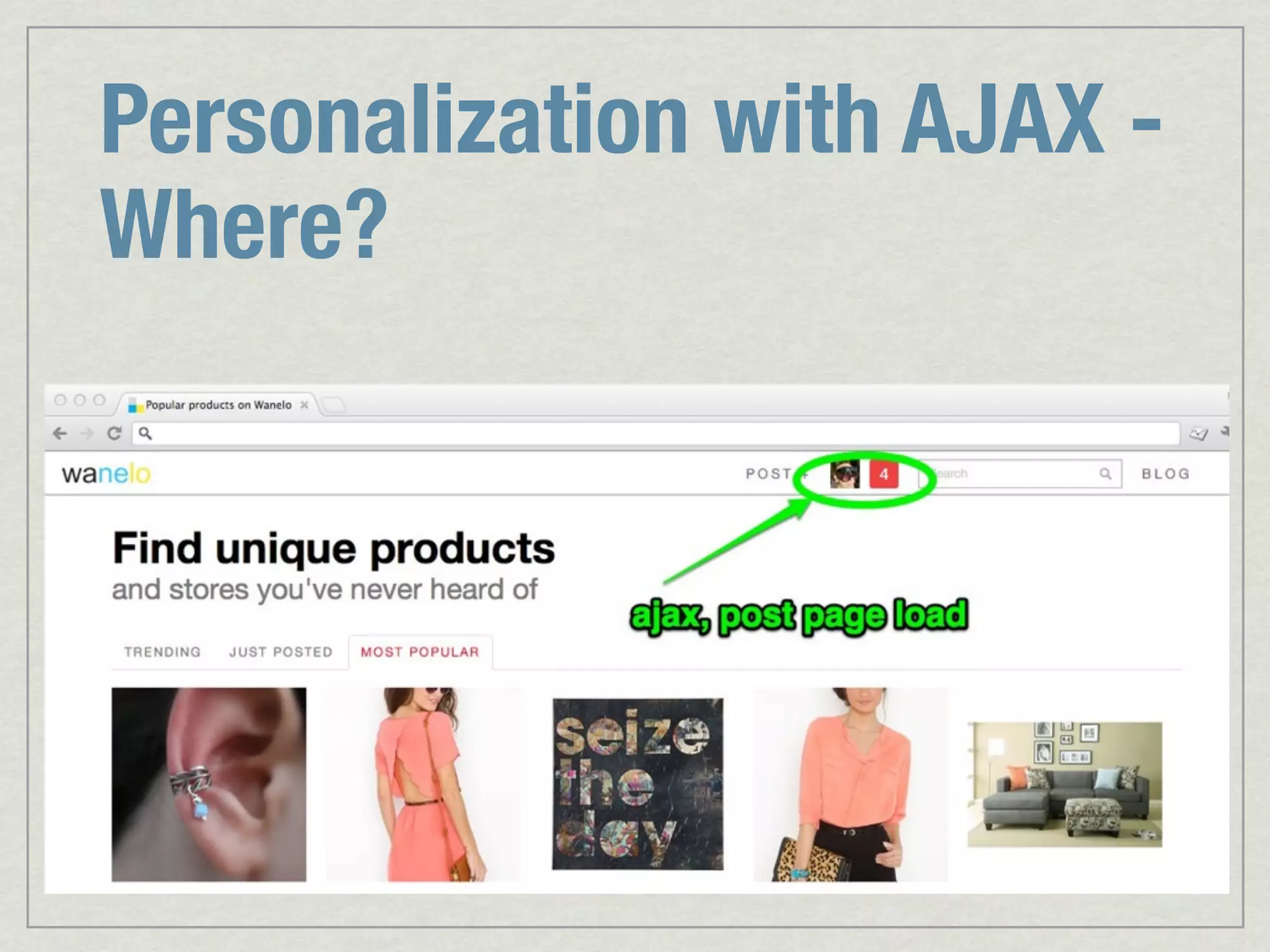

Personalization with AJAX - Where?

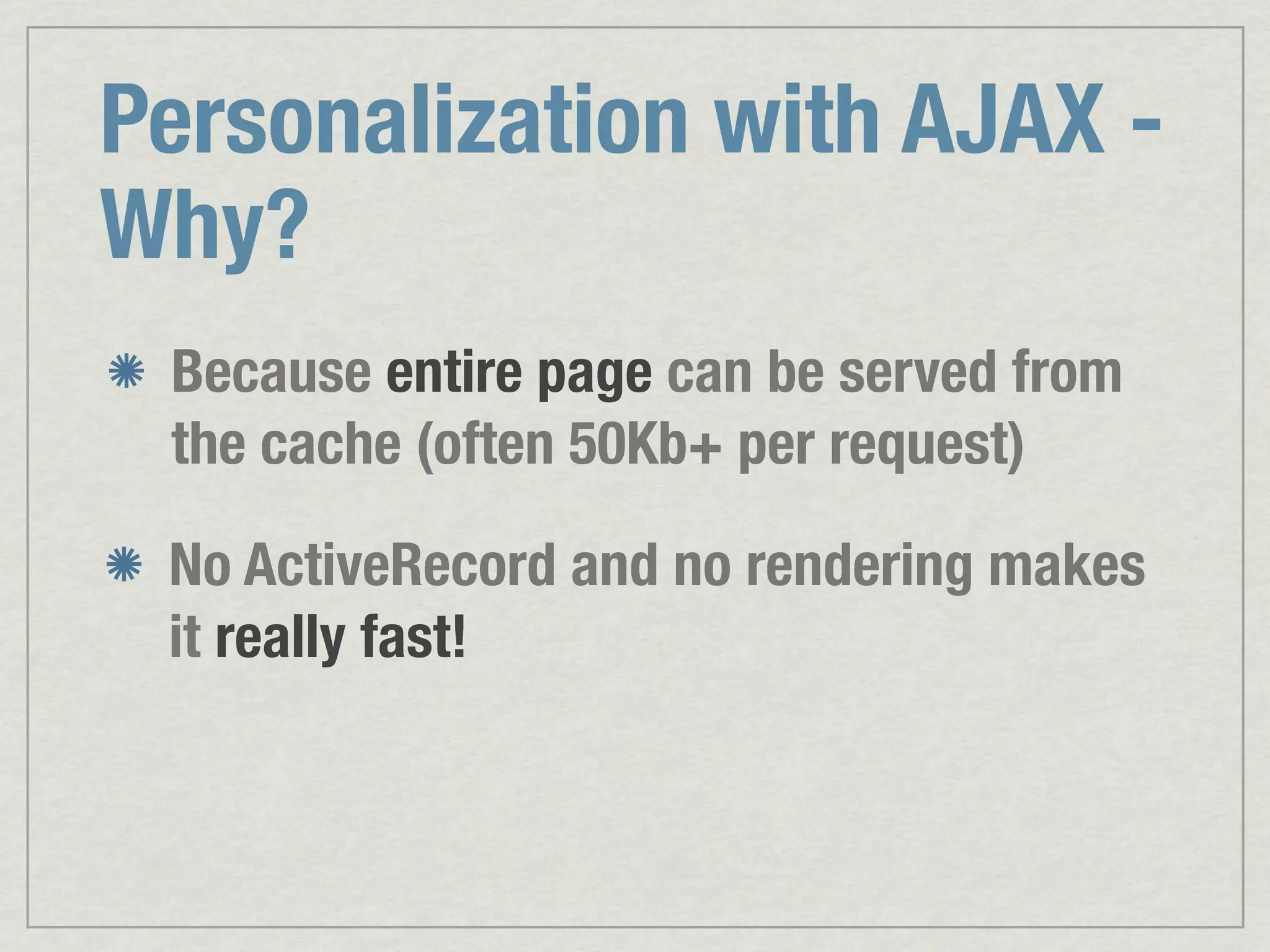

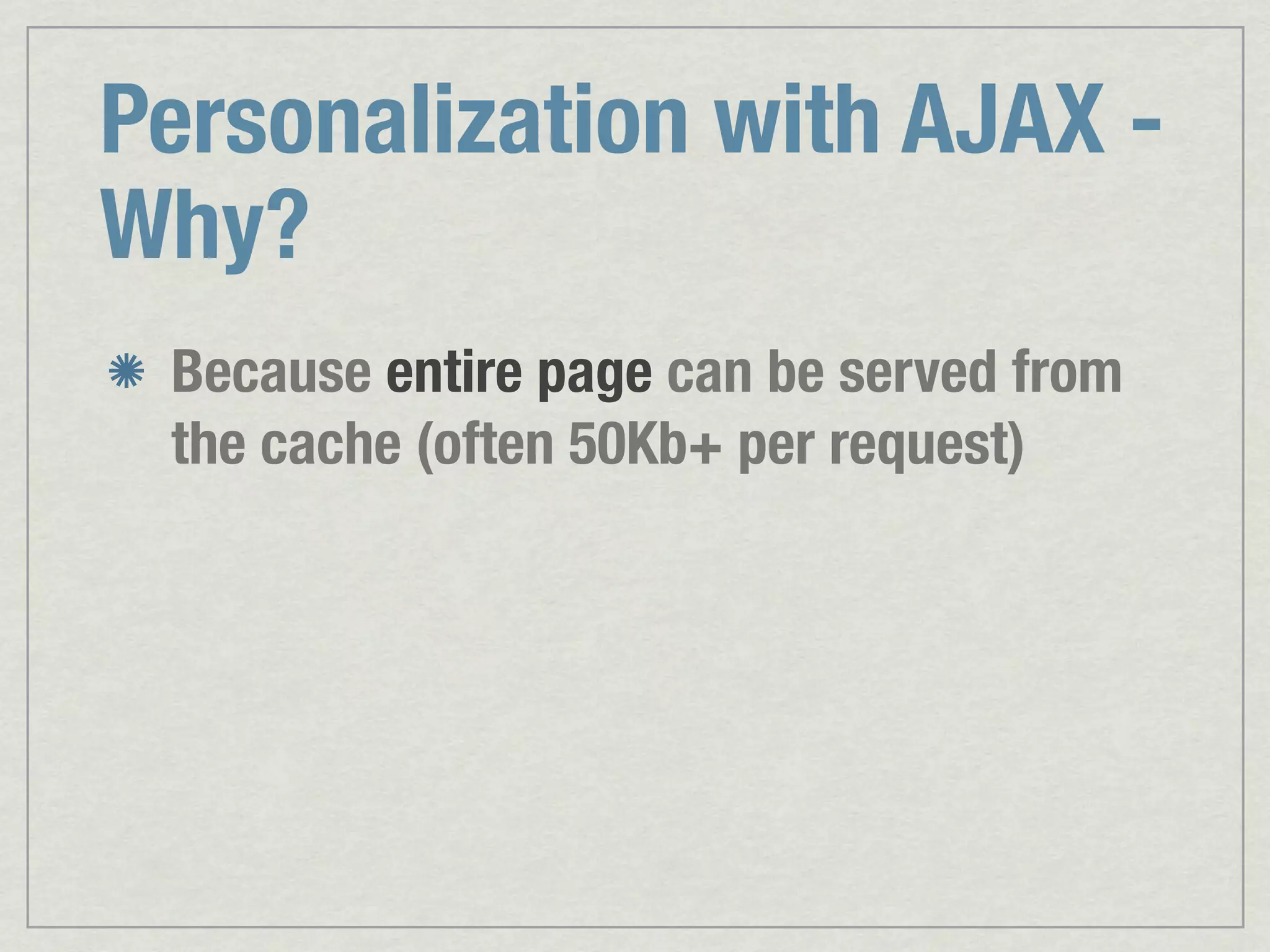

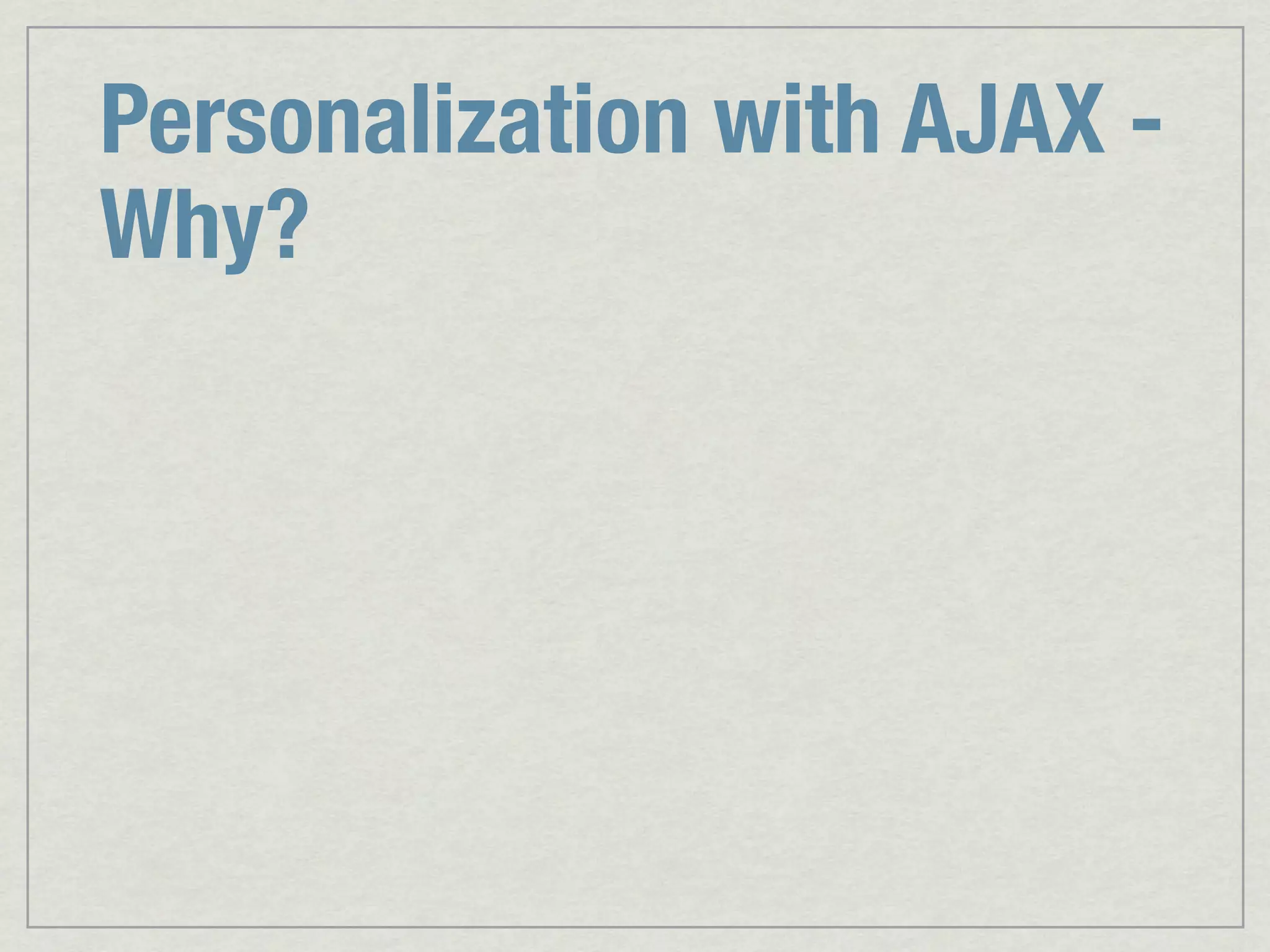

Personalization with AJAX - Why?

Personalization with AJAX - Why? Because entire page can be served from the cache (often 50Kb+ per request)

Personalization with AJAX - Why? Because entire page can be served from the cache (often 50Kb+ per request) No ActiveRecord and no rendering makes it really fast!

Personalization with AJAX - Why? Because entire page can be served from the cache (often 50Kb+ per request) No ActiveRecord and no rendering makes it really fast! Recent rough test using Rails 3.2.3, ruby 1.9.3-p194, memcached: 4ms latency!!!

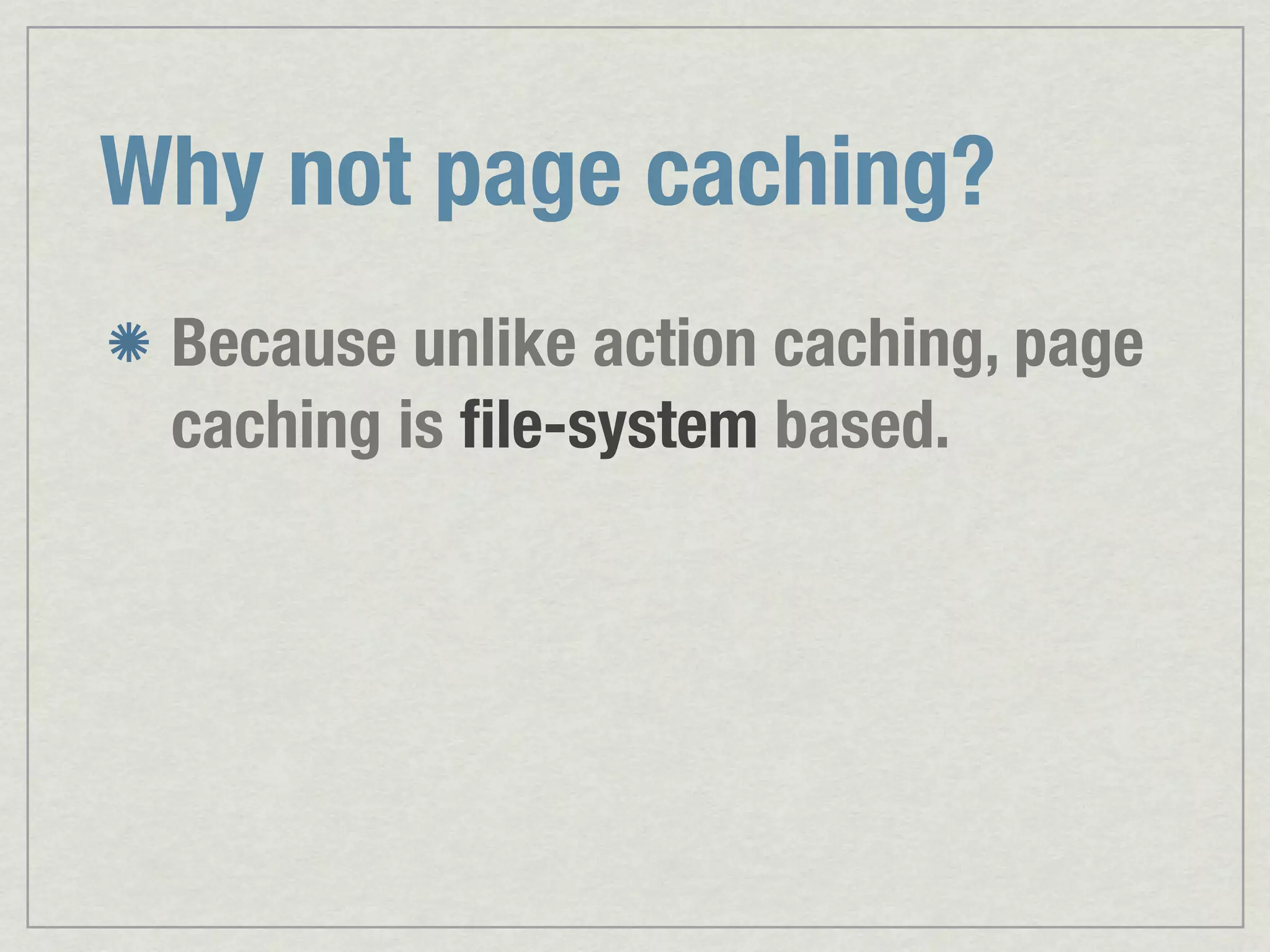

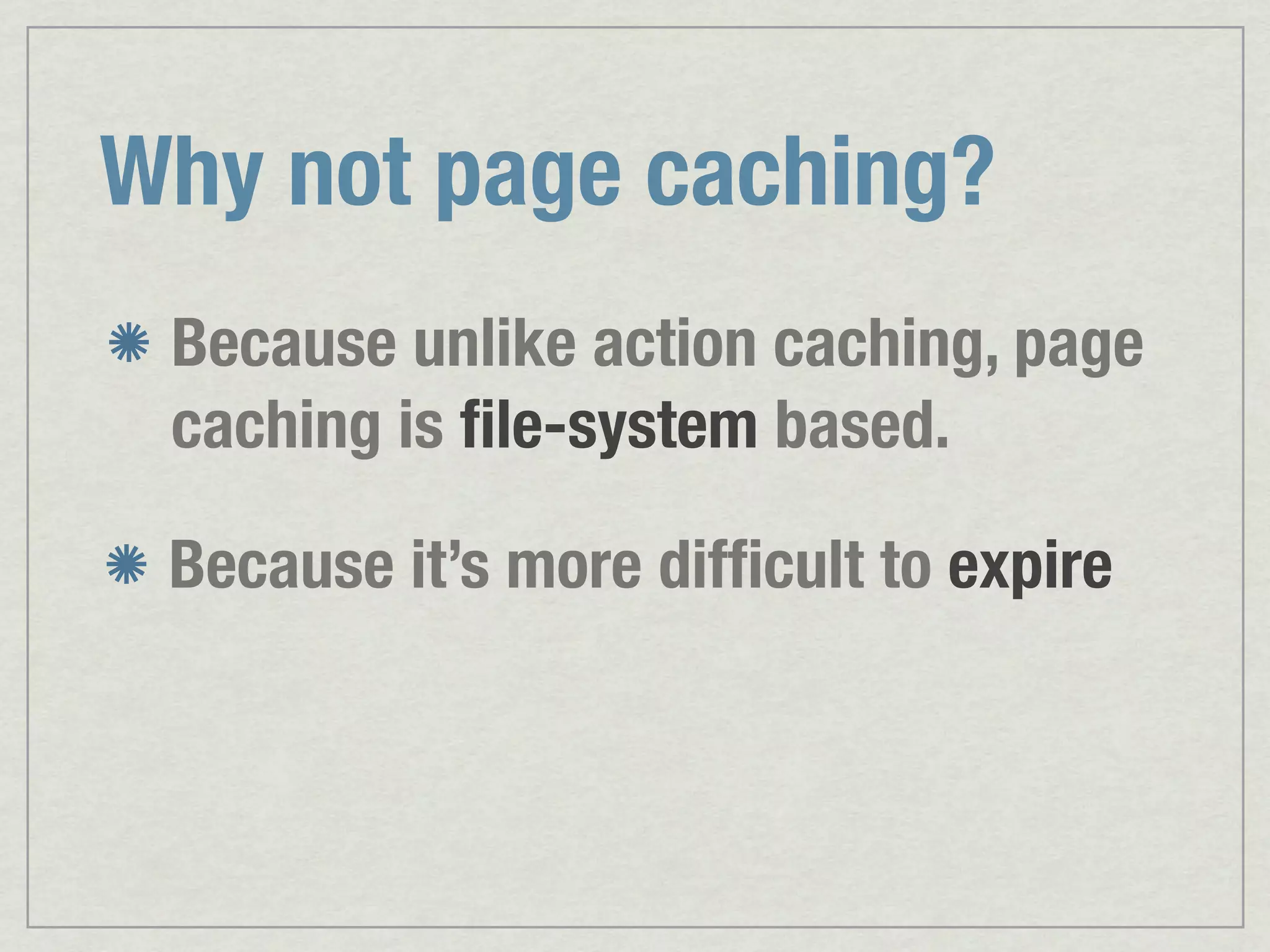

Why not page caching? Because unlike action caching, page caching is ﬁle-system based.

Why not page caching? Because unlike action caching, page caching is ﬁle-system based. Because it’s more difﬁcult to expire

Why not page caching? Because unlike action caching, page caching is file-system based. Because it’s more difficult to expire Because it’s more difficult to share across many servers

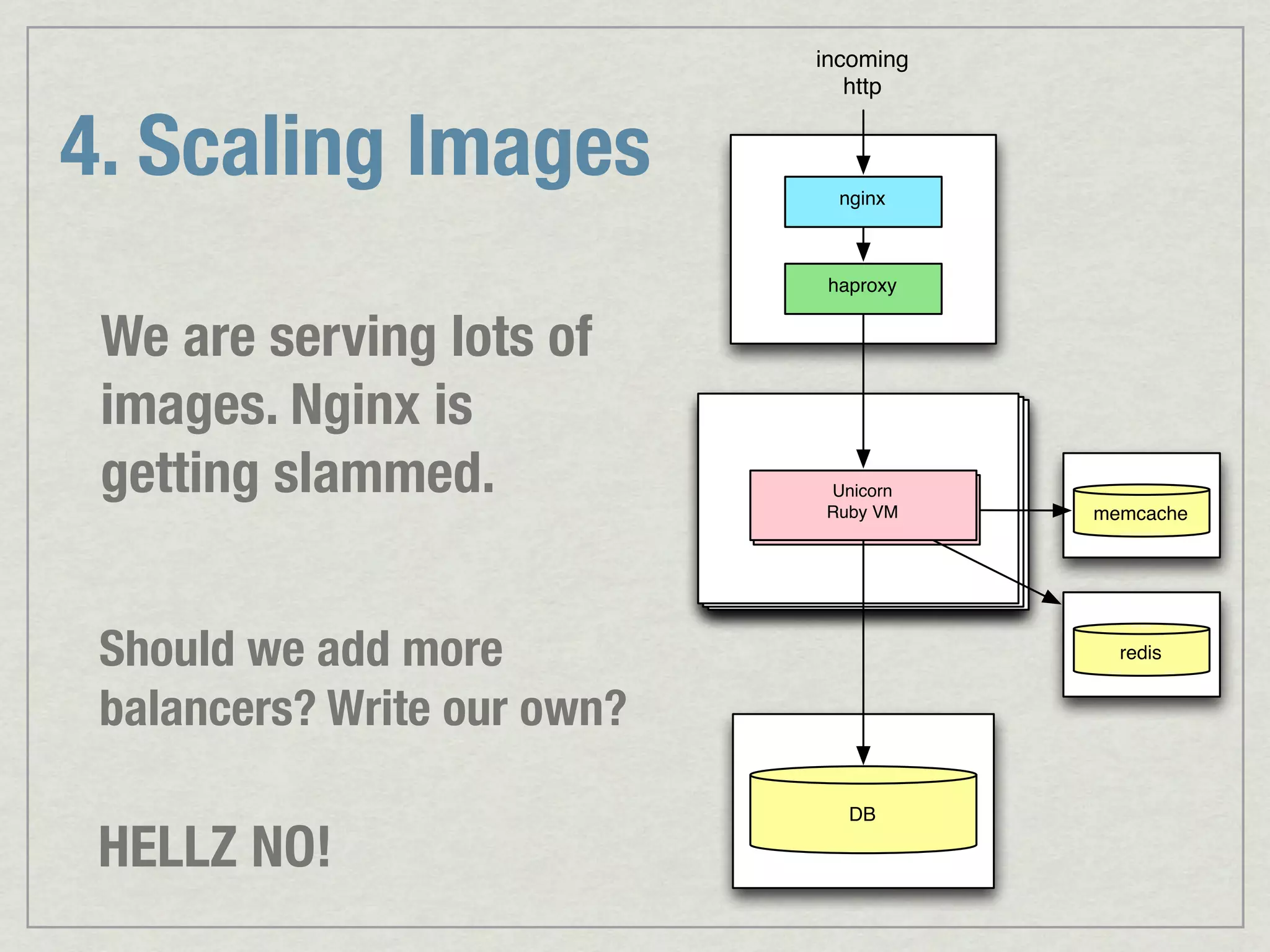

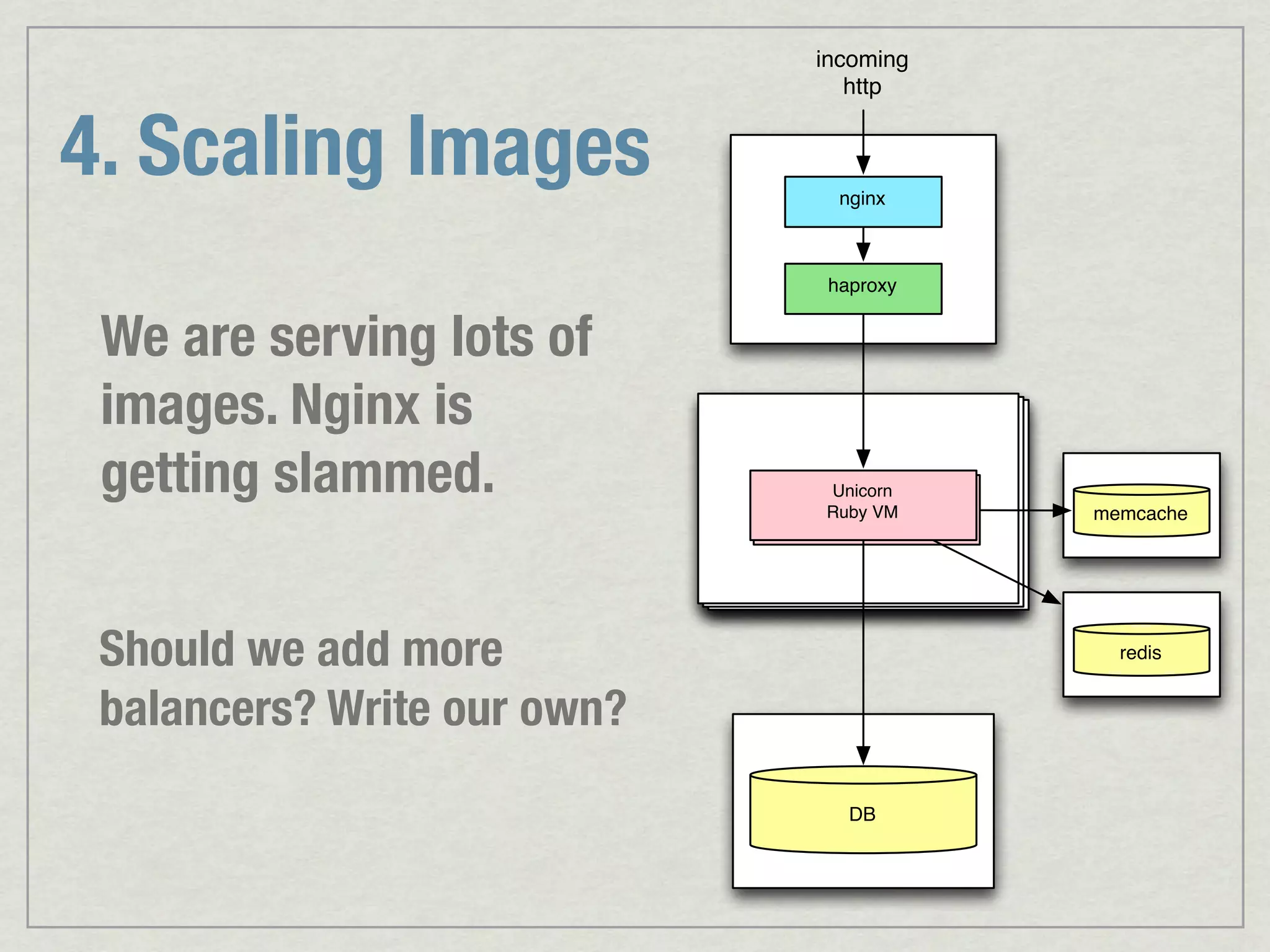

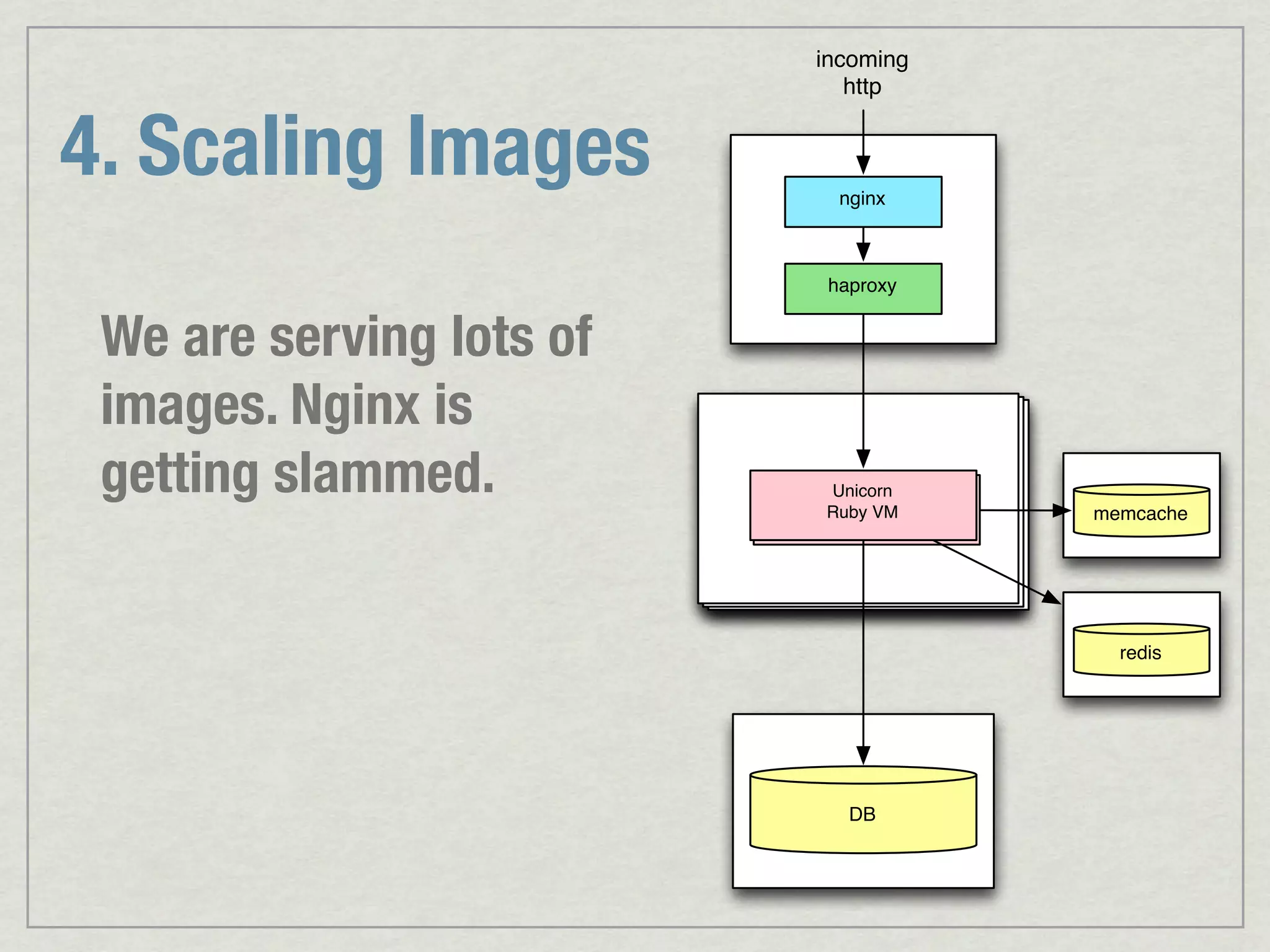

incoming http 4. Scaling Images nginx haproxy We are serving lots of images. Nginx is getting slammed. Unicorn Unicorn / Passenger Ruby VM memcache Ruby VM redis DB

incoming http 4. Scaling Images nginx haproxy We are serving lots of images. Nginx is getting slammed. Unicorn Unicorn / Passenger Ruby VM memcache Ruby VM Should we add more redis balancers? Write our own? DB

incoming http 4. Scaling Images nginx haproxy We are serving lots of images. Nginx is getting slammed. Unicorn Unicorn / Passenger Ruby VM memcache Ruby VM Should we add more redis balancers? Write our own? DB HELLZ NO!

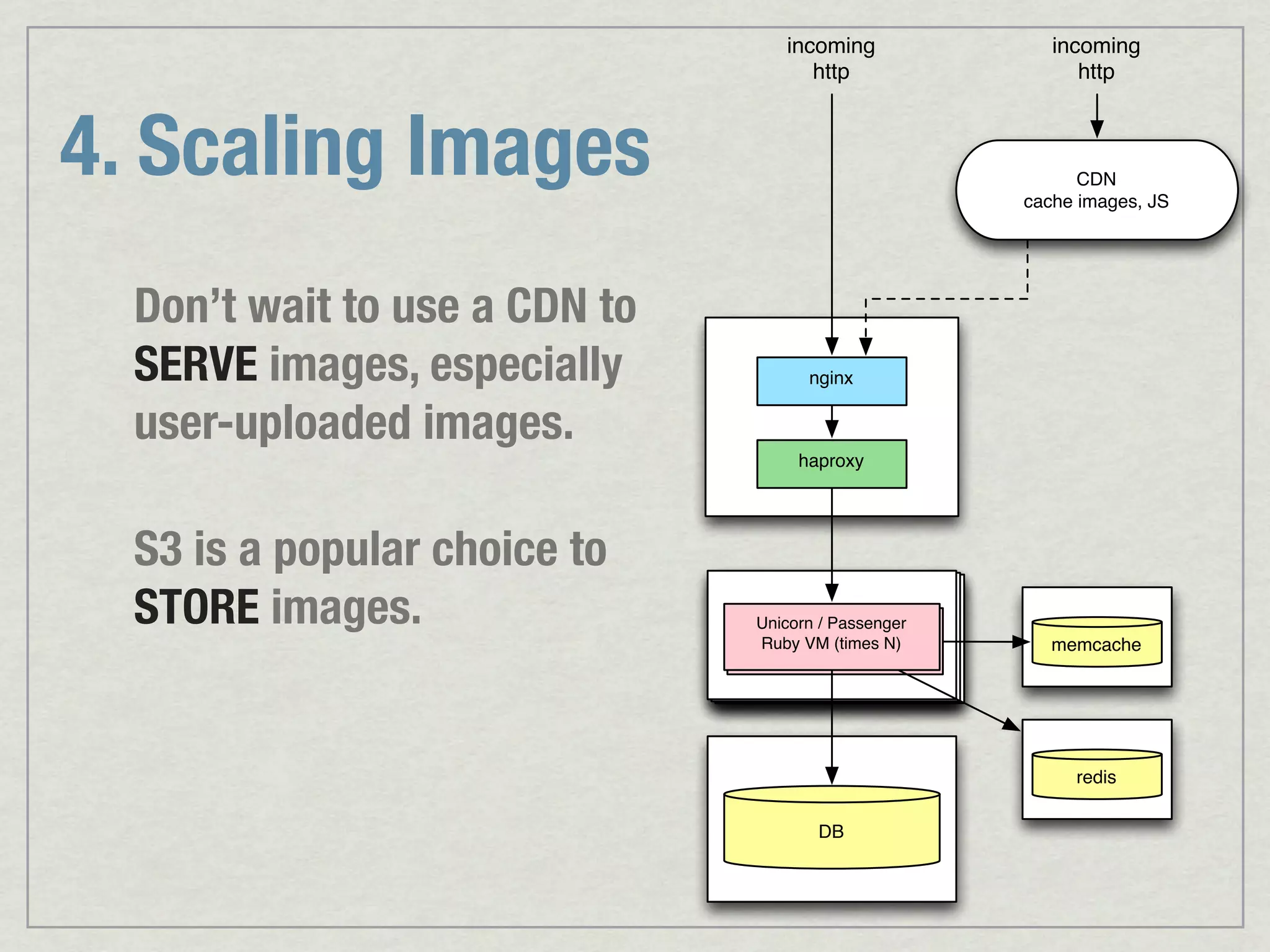

incoming incoming http http 4. Scaling Images CDN cache images, JS nginx haproxy Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache redis DB

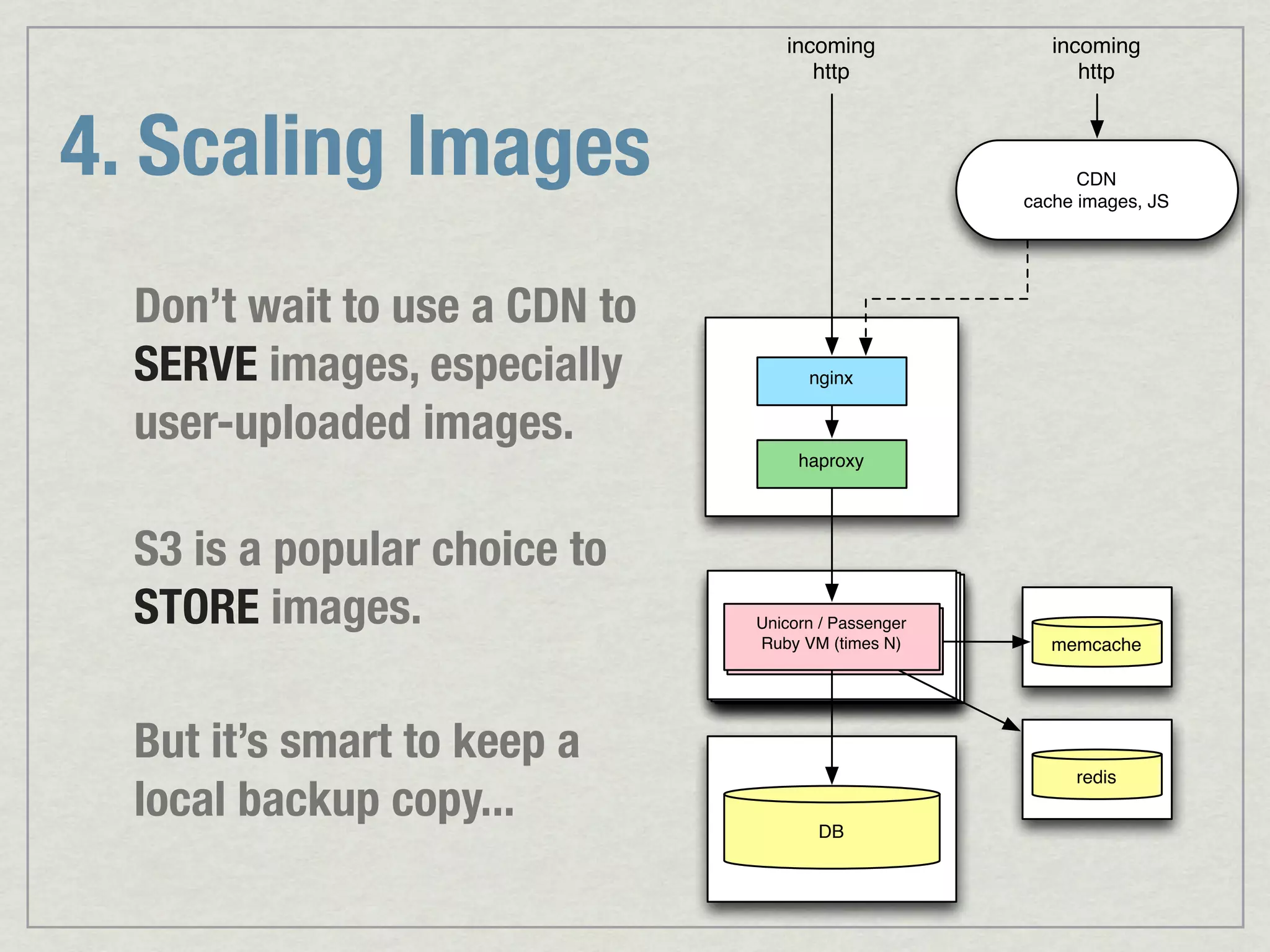

incoming incoming http http 4. Scaling Images CDN cache images, JS Don’t wait to use a CDN to SERVE images, especially nginx user-uploaded images. haproxy Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache redis DB

incoming incoming http http 4. Scaling Images CDN cache images, JS Don’t wait to use a CDN to SERVE images, especially nginx user-uploaded images. haproxy S3 is a popular choice to STORE images. Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache redis DB

incoming incoming http http 4. Scaling Images CDN cache images, JS Don’t wait to use a CDN to SERVE images, especially nginx user-uploaded images. haproxy S3 is a popular choice to STORE images. Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache But it’s smart to keep a redis local backup copy... DB

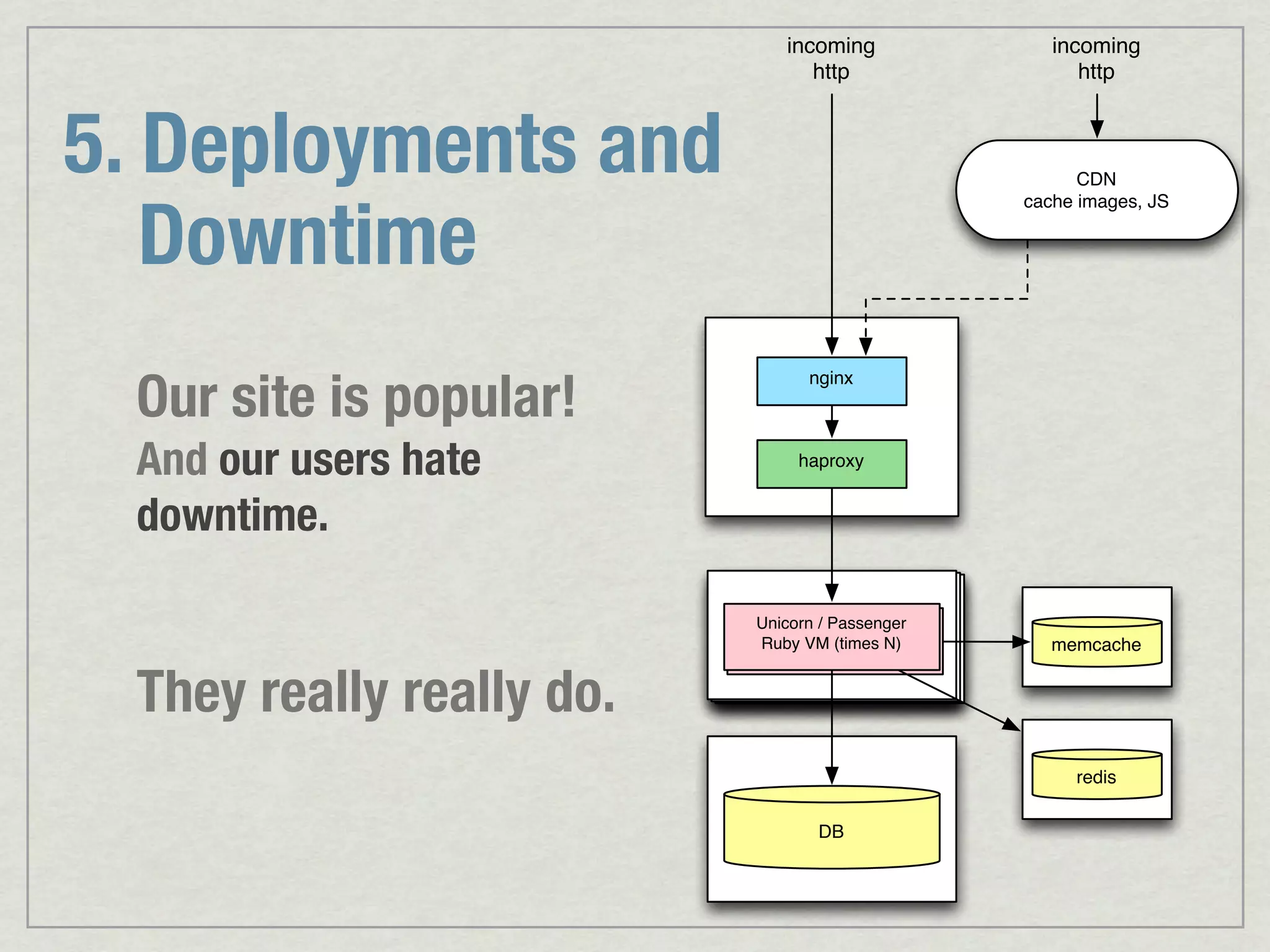

incoming incoming http http 5. Deployments and CDN Downtime cache images, JS Our site is popular! nginx And our users hate haproxy downtime. Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache redis DB

incoming incoming http http 5. Deployments and CDN Downtime cache images, JS Our site is popular! nginx And our users hate haproxy downtime. Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache They really really do. redis DB

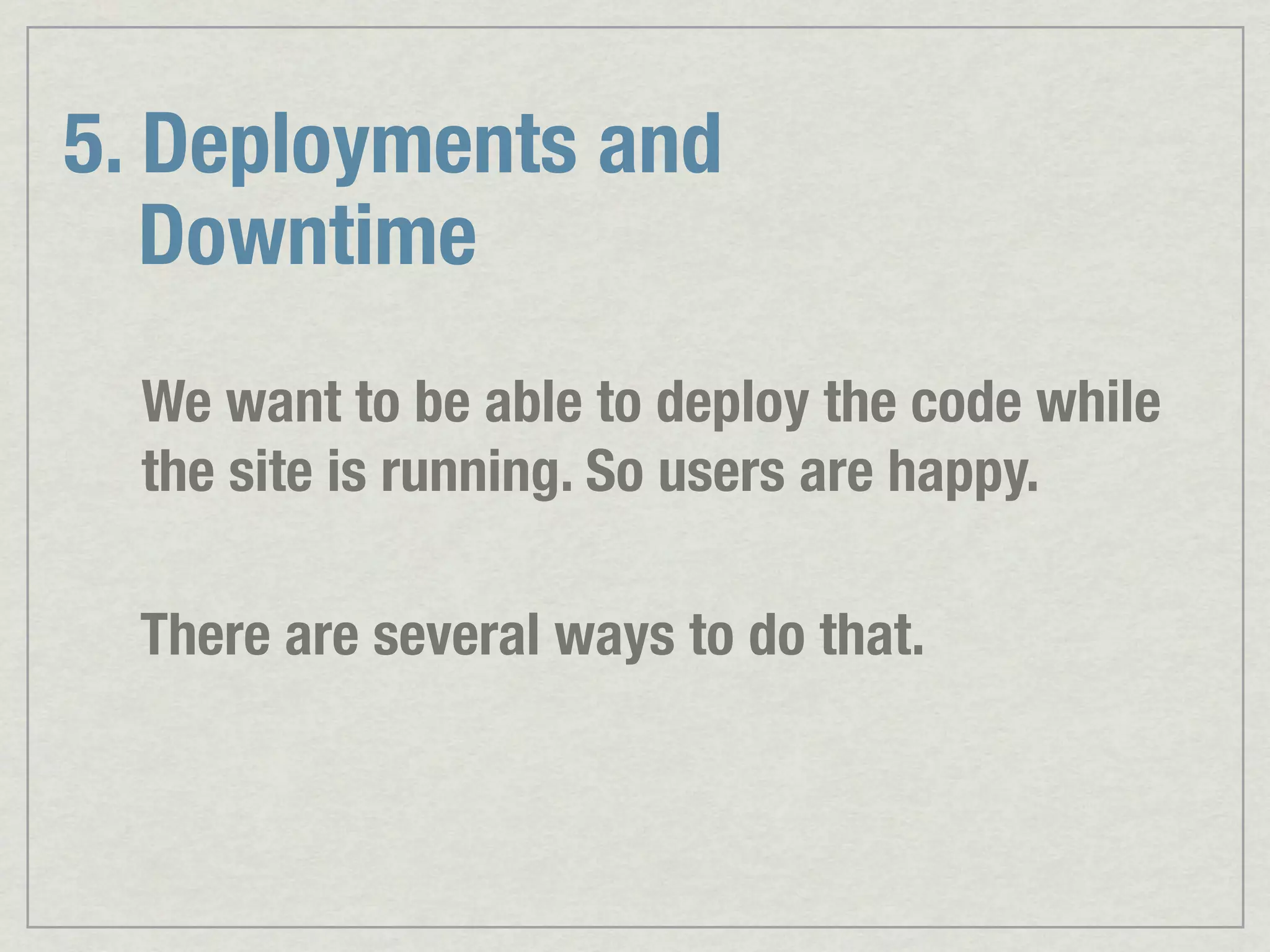

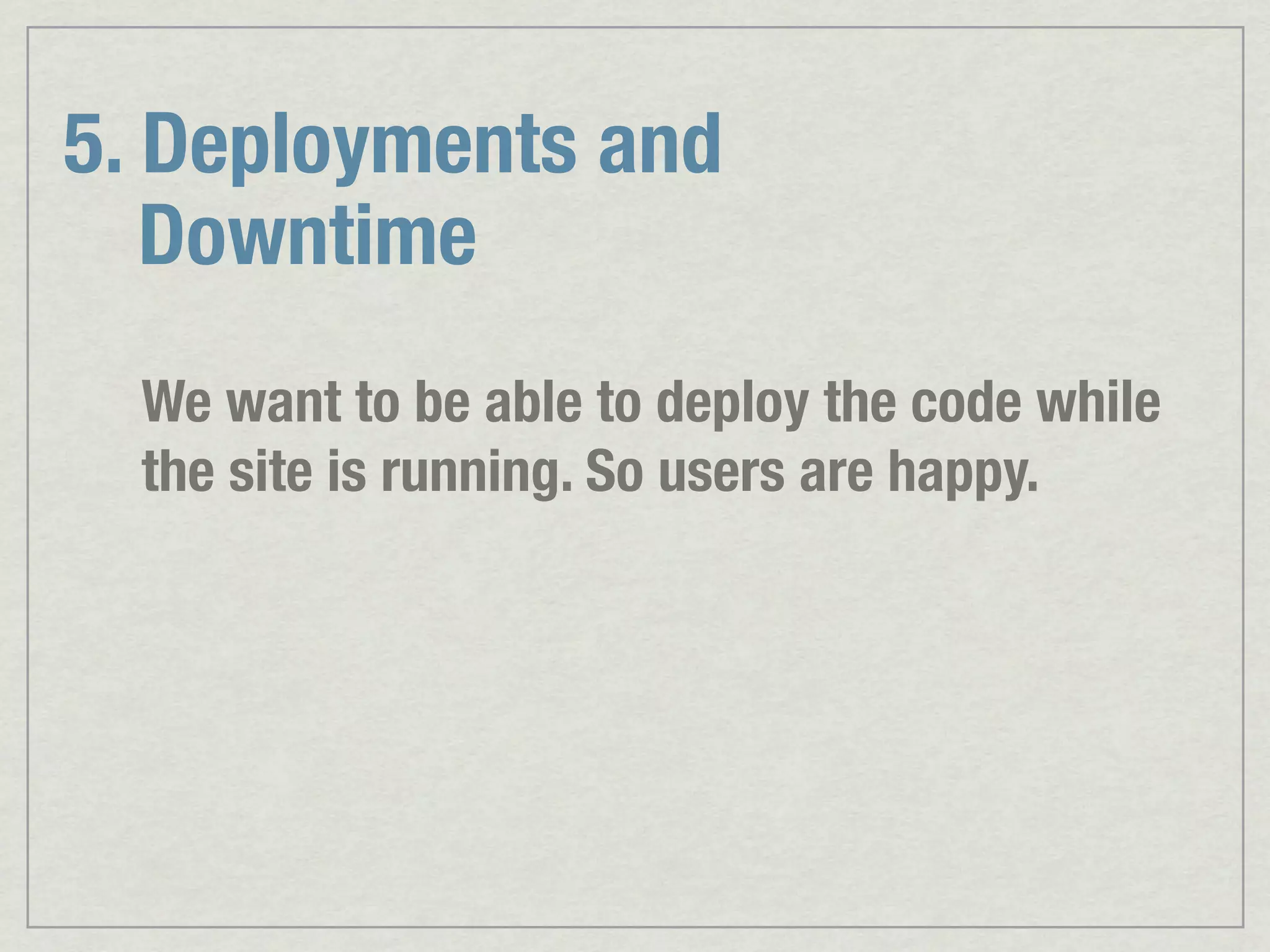

5. Deployments and Downtime We want to be able to deploy the code while the site is running. So users are happy.

5. Deployments and Downtime We want to be able to deploy the code while the site is running. So users are happy. There are several ways to do that.

5. Deployments and Downtime We want to be able to deploy the code while the site is running. So users are happy. There are several ways to do that. This solution uses DNS round robin with two balancers, and two public IP addresses.

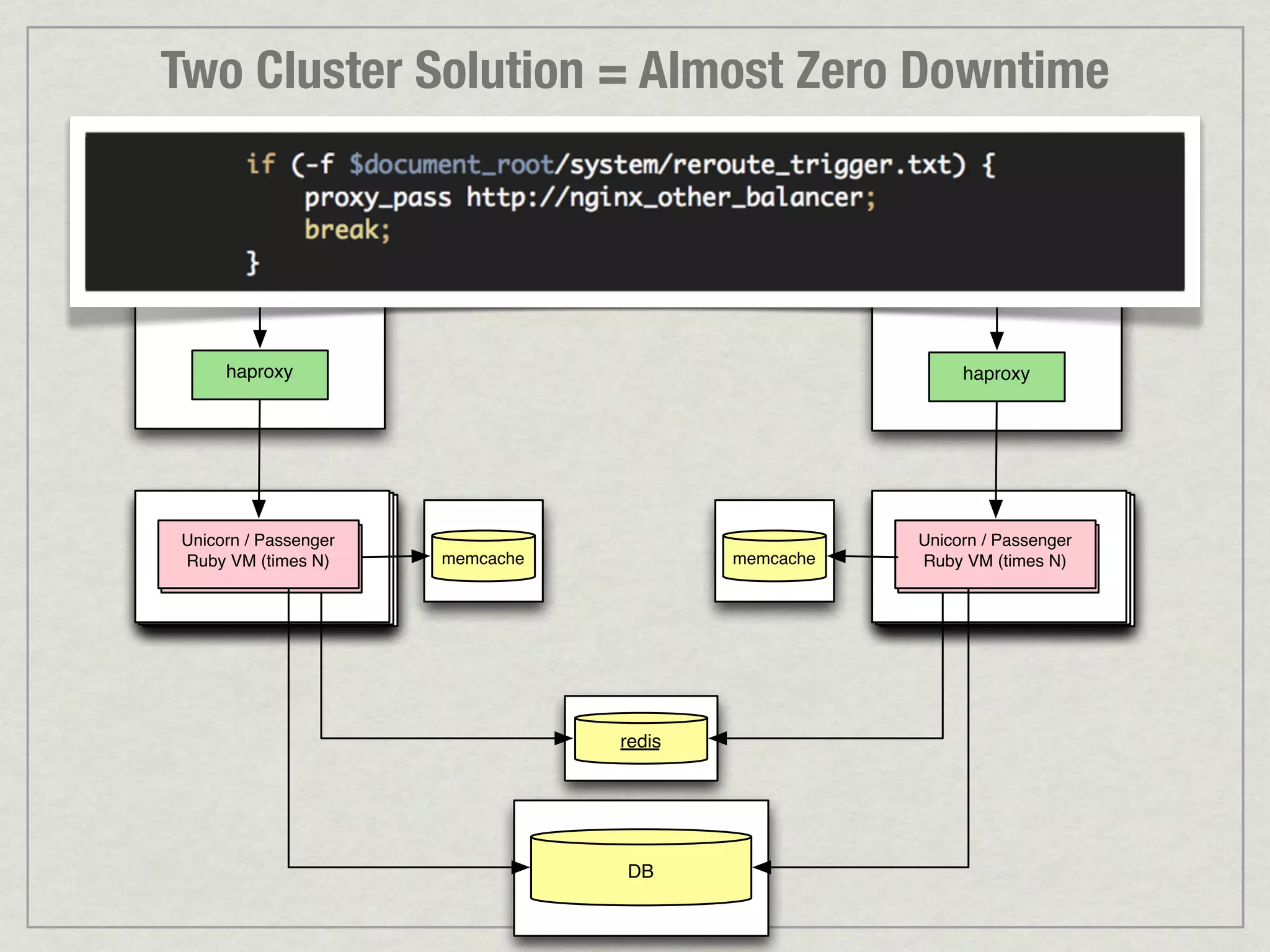

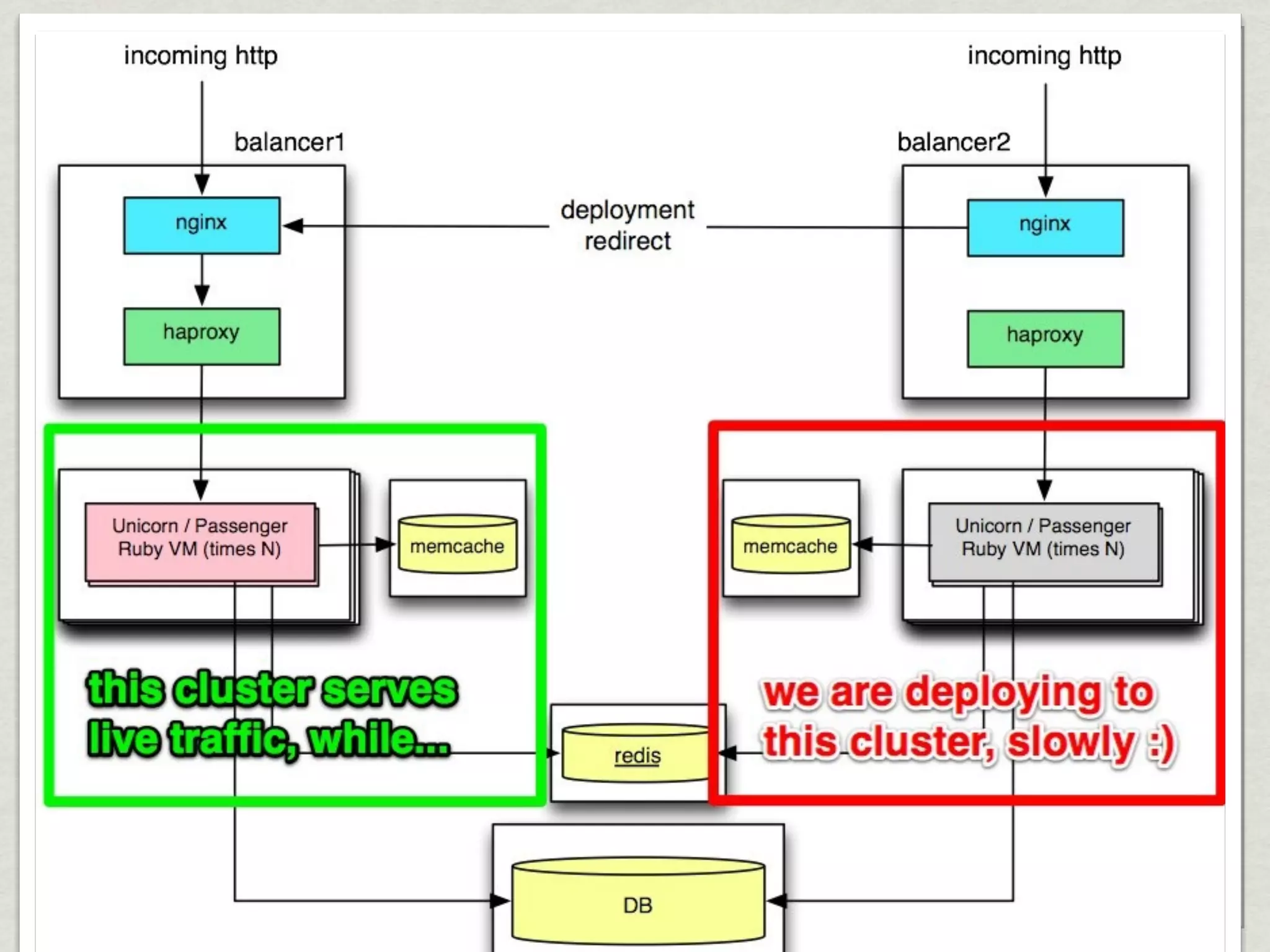

Two Cluster Solution = Almost Zero Downtime incoming http incoming http balancer1 balancer2 nginx nginx haproxy haproxy Unicorn // Passenger Unicorn Passenger Unicorn // Passenger Unicorn Passenger RubyRuby VM N) VM (times memcache memcache RubyRuby VM N) VM (times redis DB

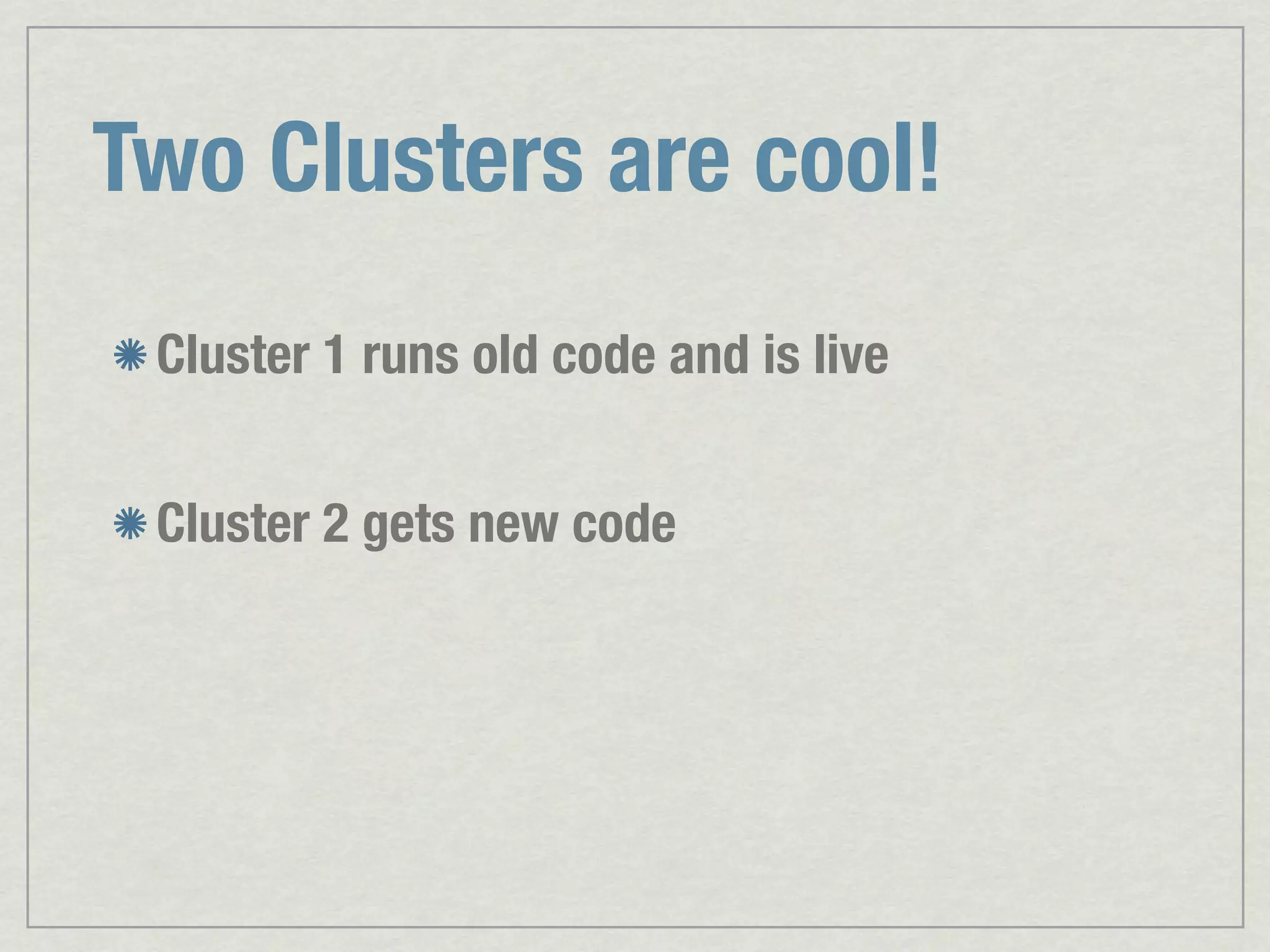

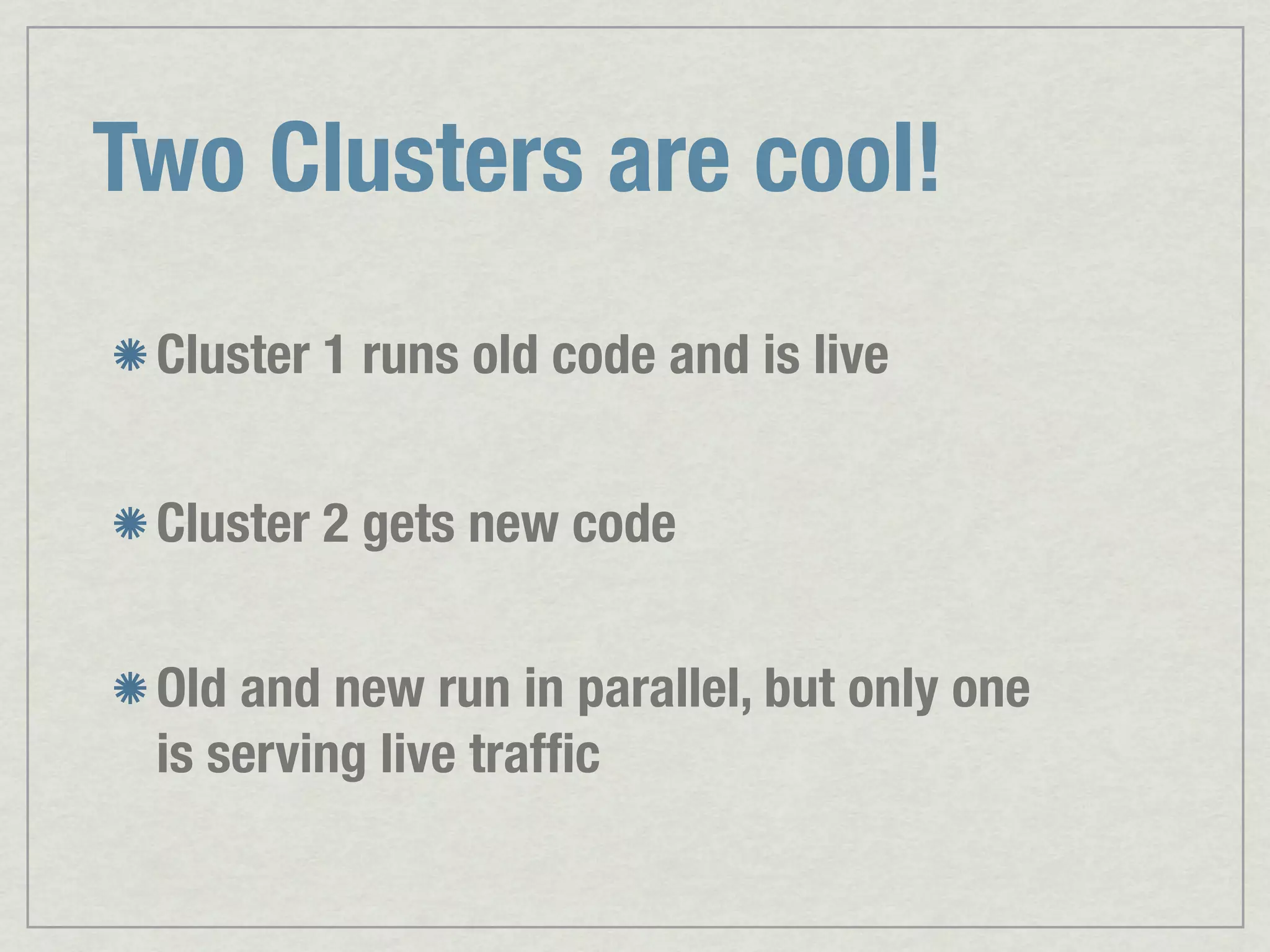

Two Clusters are cool! Cluster 1 runs old code and is live

Two Clusters are cool! Cluster 1 runs old code and is live Cluster 2 gets new code

Two Clusters are cool! Cluster 1 runs old code and is live Cluster 2 gets new code Old and new run in parallel, but only one is serving live trafﬁc

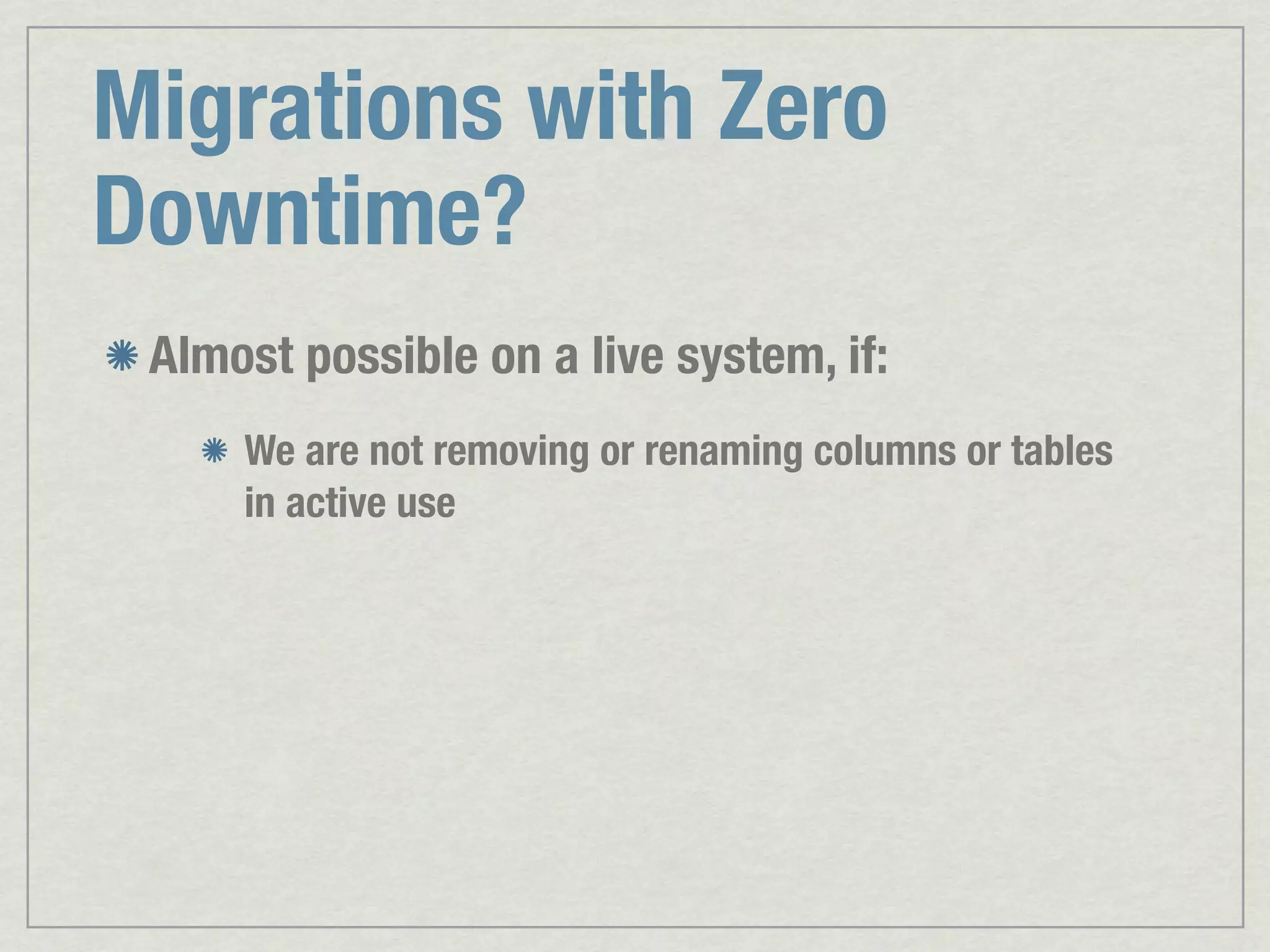

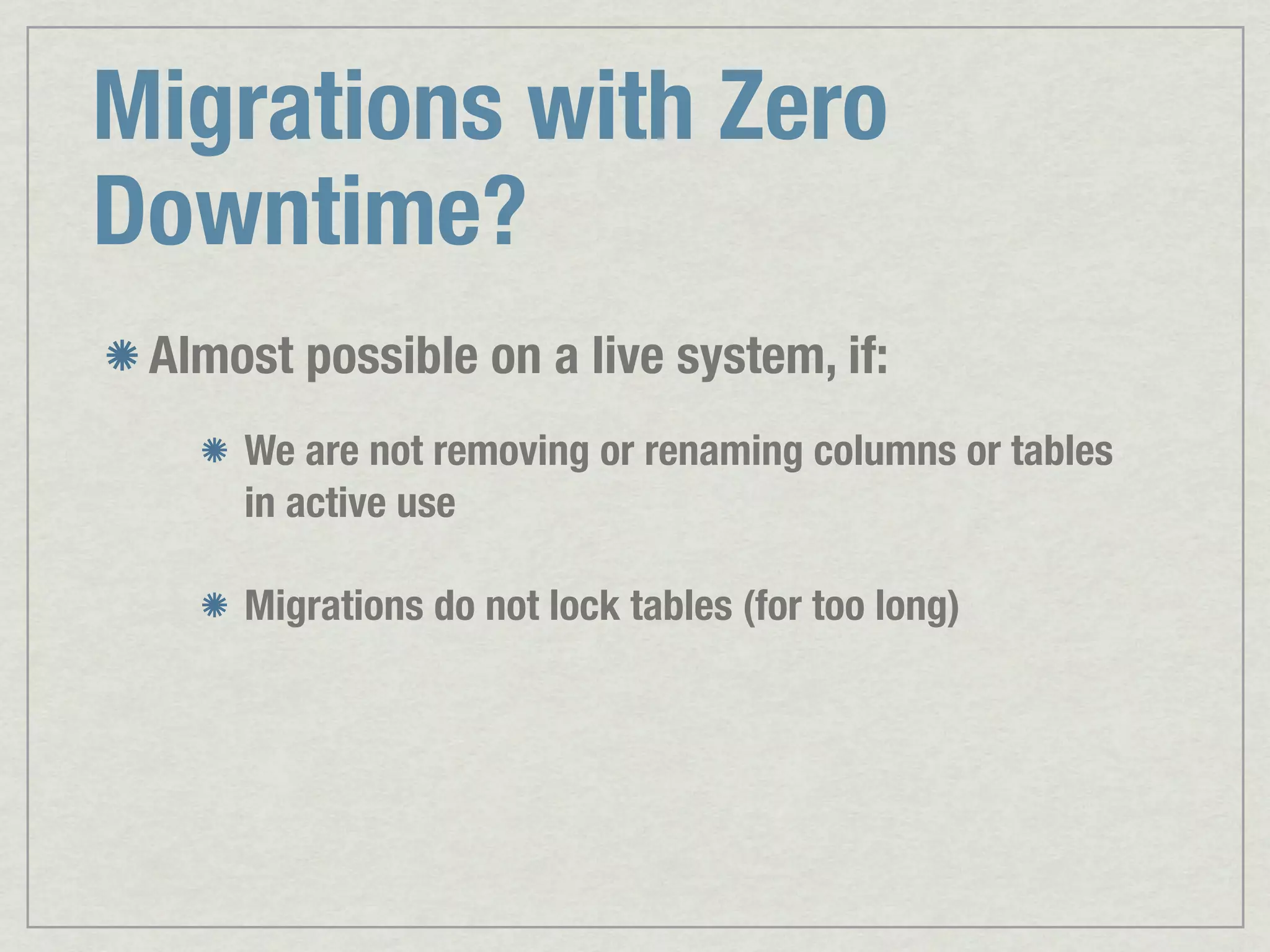

Migrations with Zero Downtime?

Migrations with Zero Downtime? Almost possible on a live system, if:

Migrations with Zero Downtime? Almost possible on a live system, if: We are not removing or renaming columns or tables in active use

Migrations with Zero Downtime? Almost possible on a live system, if: We are not removing or renaming columns or tables in active use Migrations do not lock tables (for too long)

Migrations with Zero Downtime? Almost possible on a live system, if: We are not removing or renaming columns or tables in active use Migrations do not lock tables (for too long) Column/Table renames/deletes can be done in two deployments instead of one

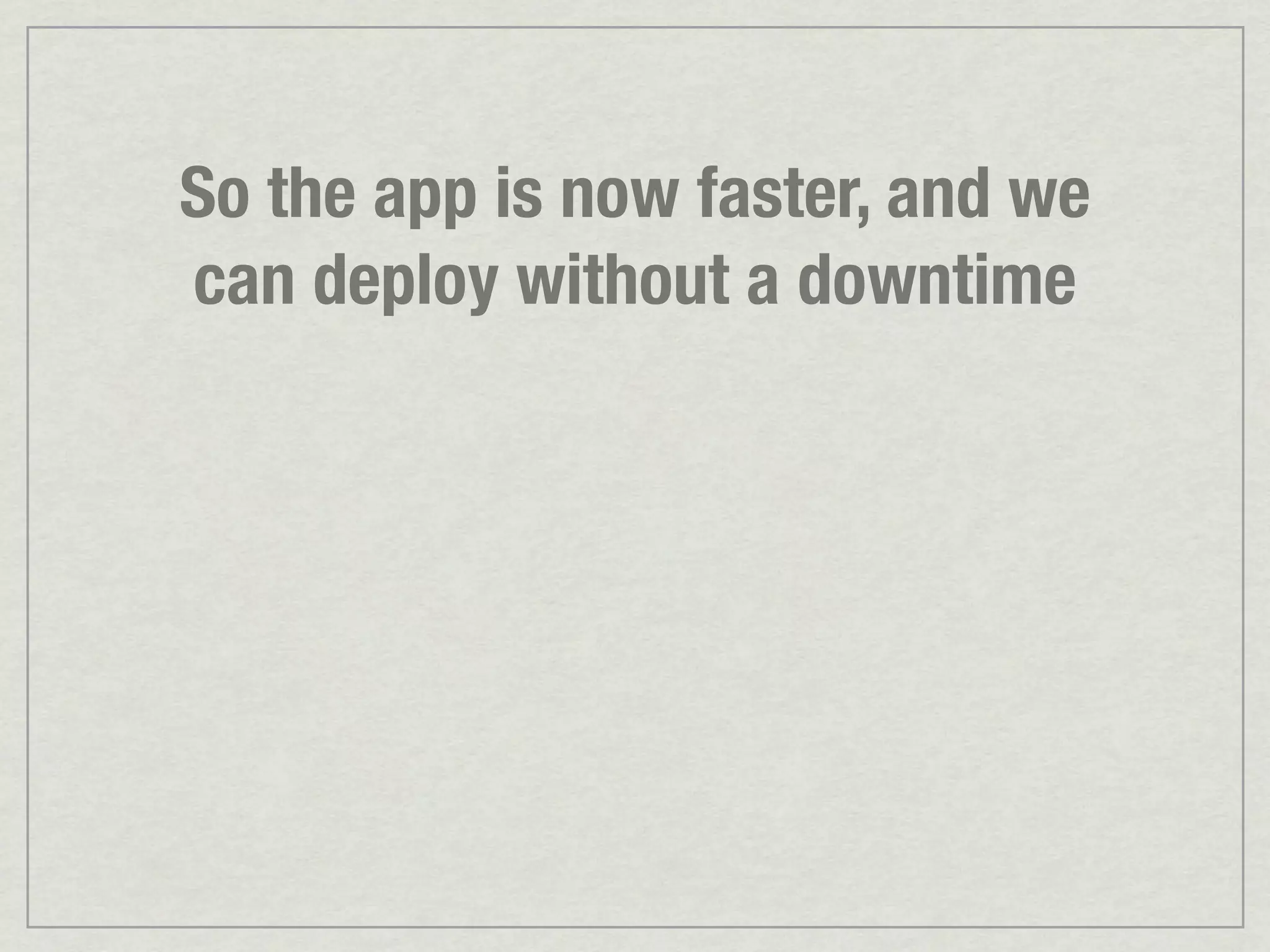

So the app is now faster, and we can deploy without a downtime

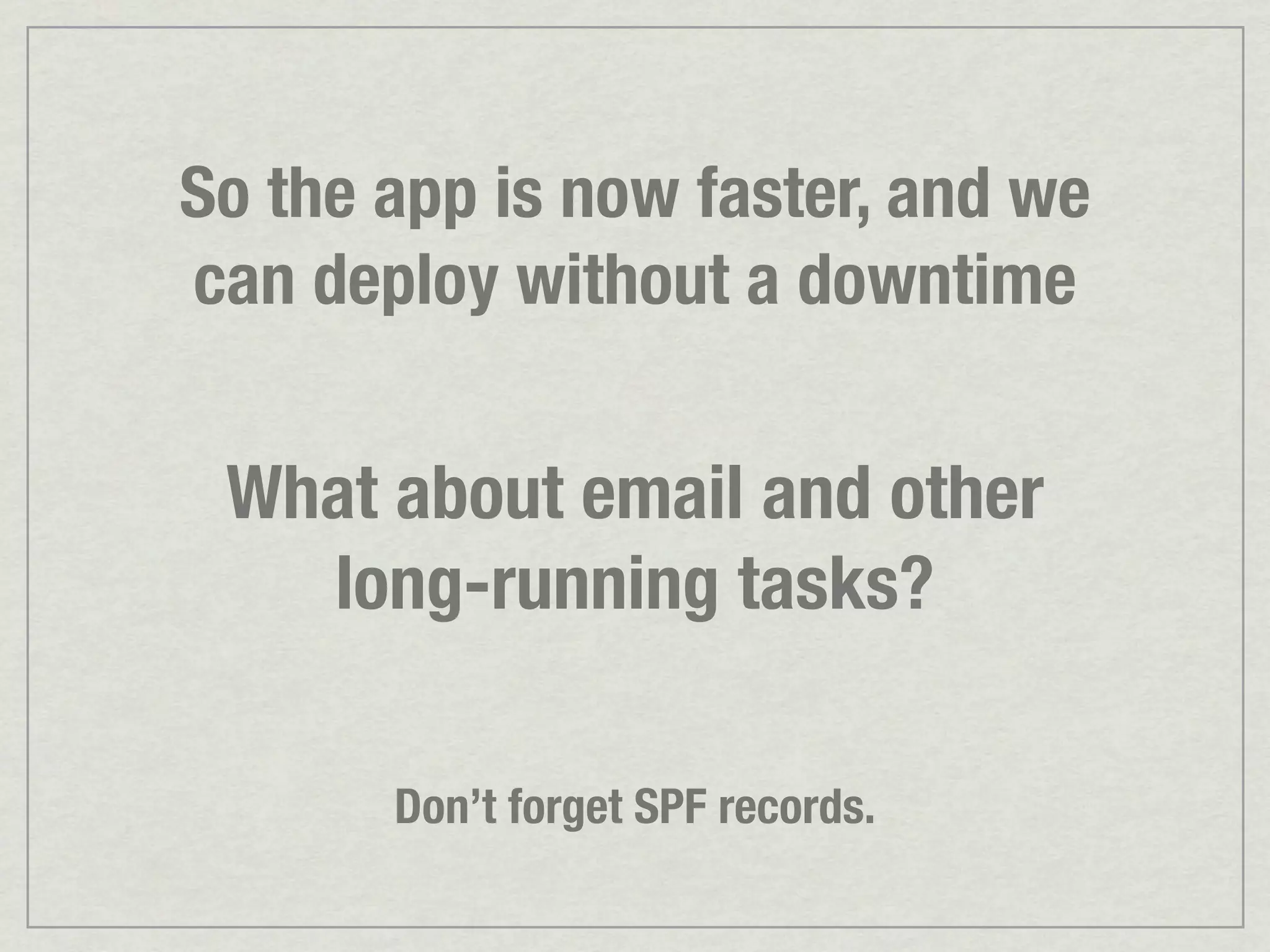

So the app is now faster, and we can deploy without a downtime What about email and other long-running tasks?

So the app is now faster, and we can deploy without a downtime What about email and other long-running tasks? Don’t forget SPF records.

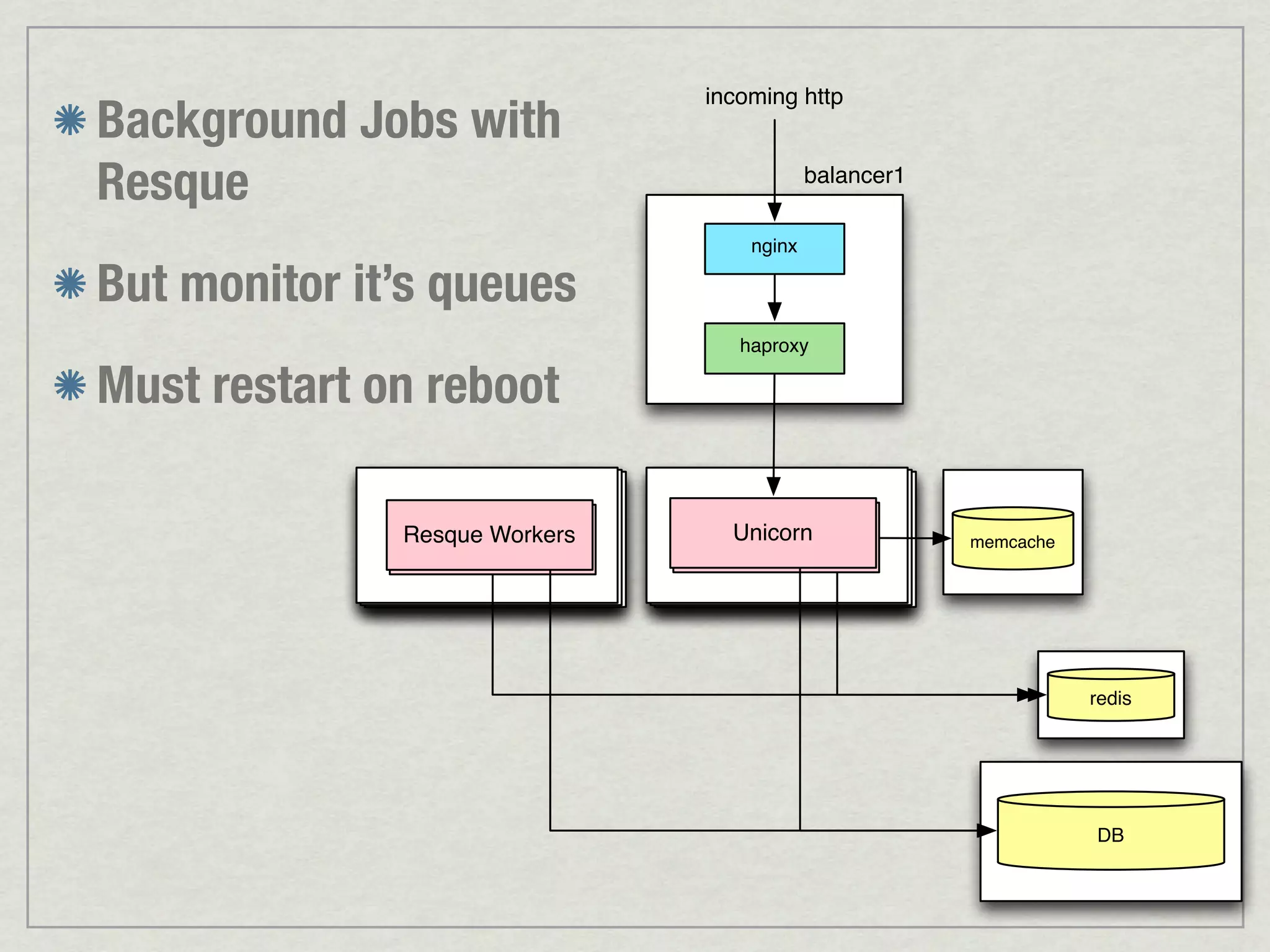

incoming http Background Jobs with Resque balancer1 nginx But monitor it’s queues haproxy Must restart on reboot Resque Workers Unicorn memcache redis DB

incoming http Background Jobs with Resque balancer1 nginx But monitor it’s queues haproxy Must restart on reboot Resque Workers Unicorn memcache redis resque-cleaner is awesome! DB

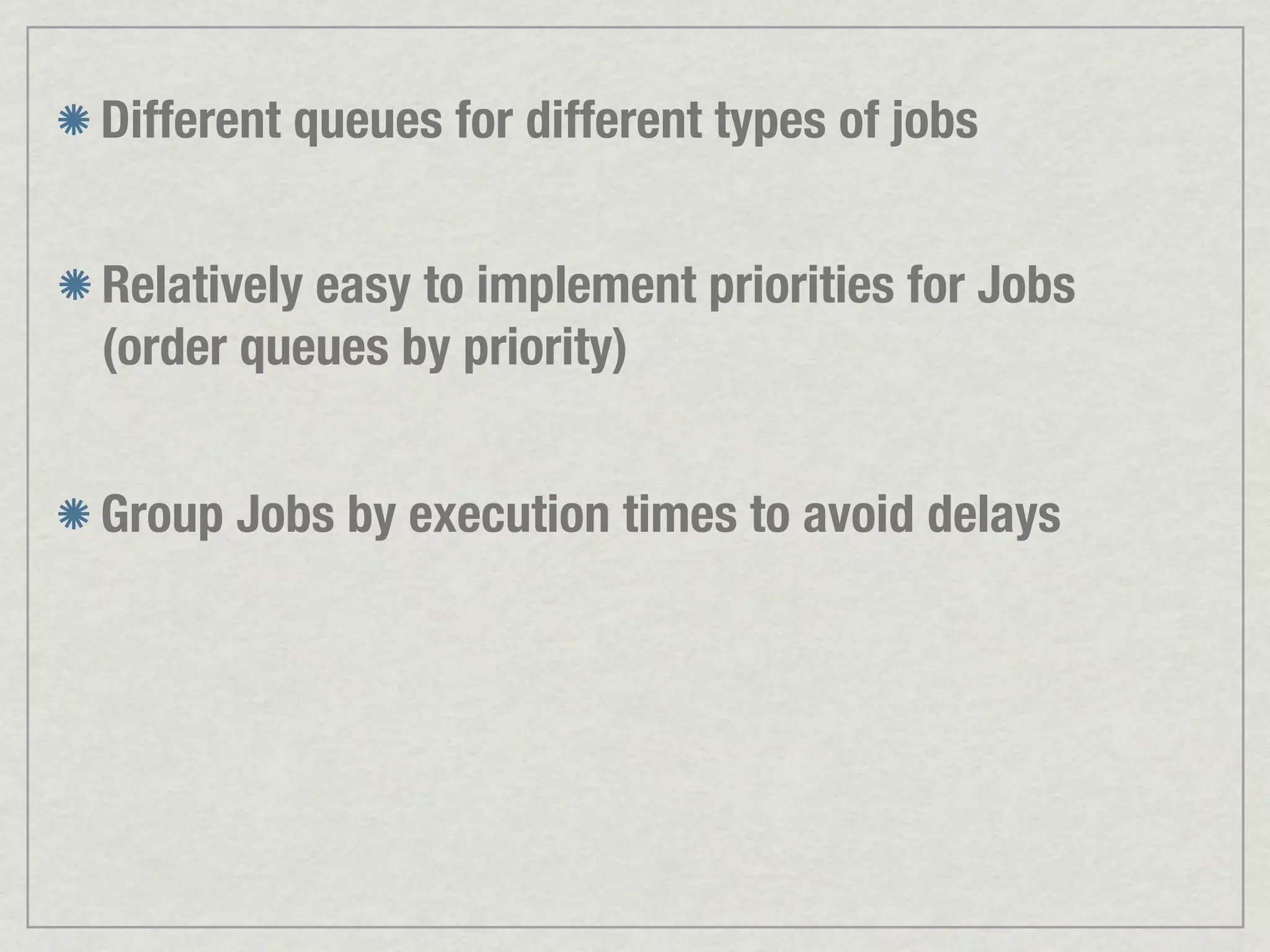

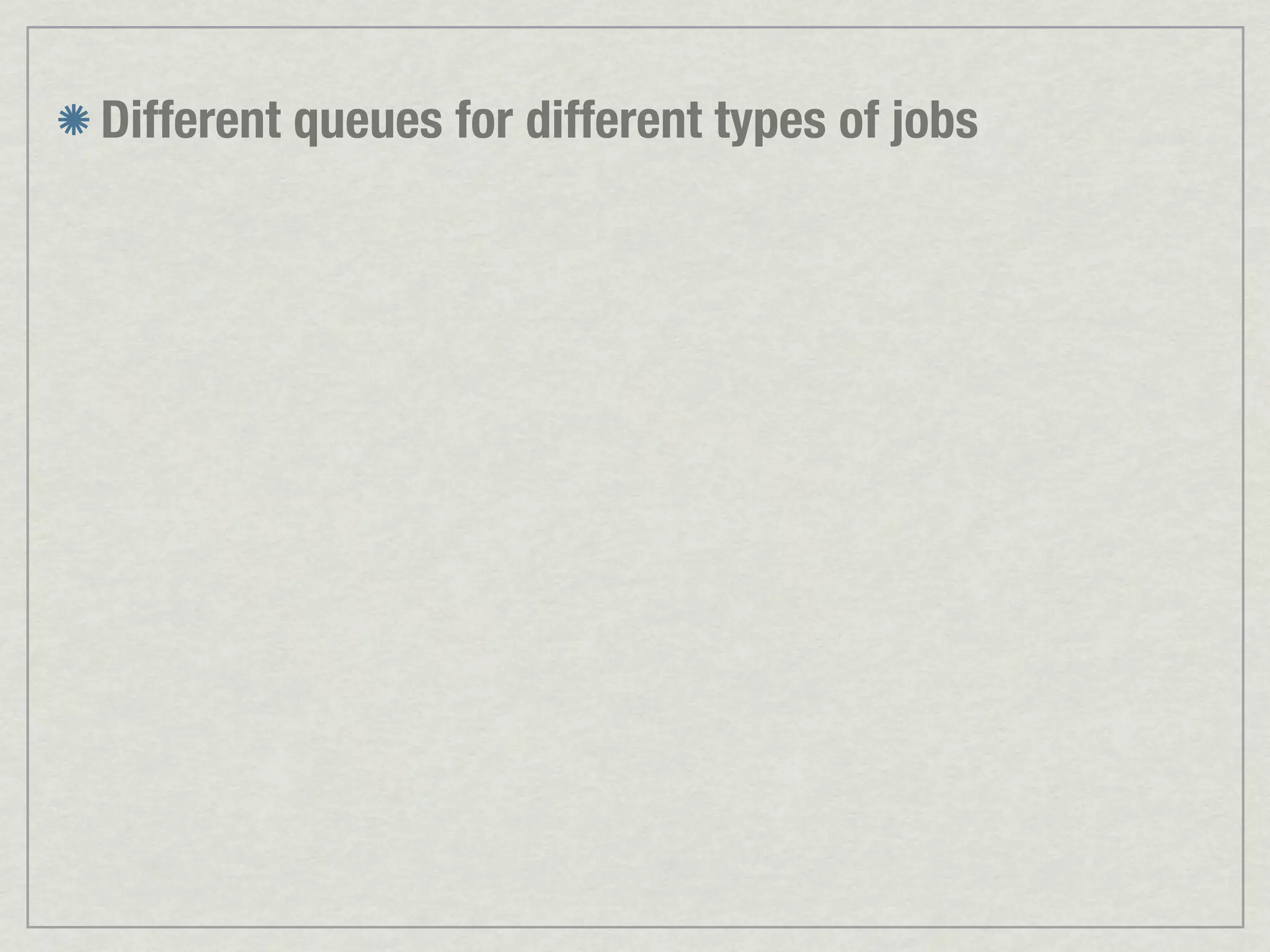

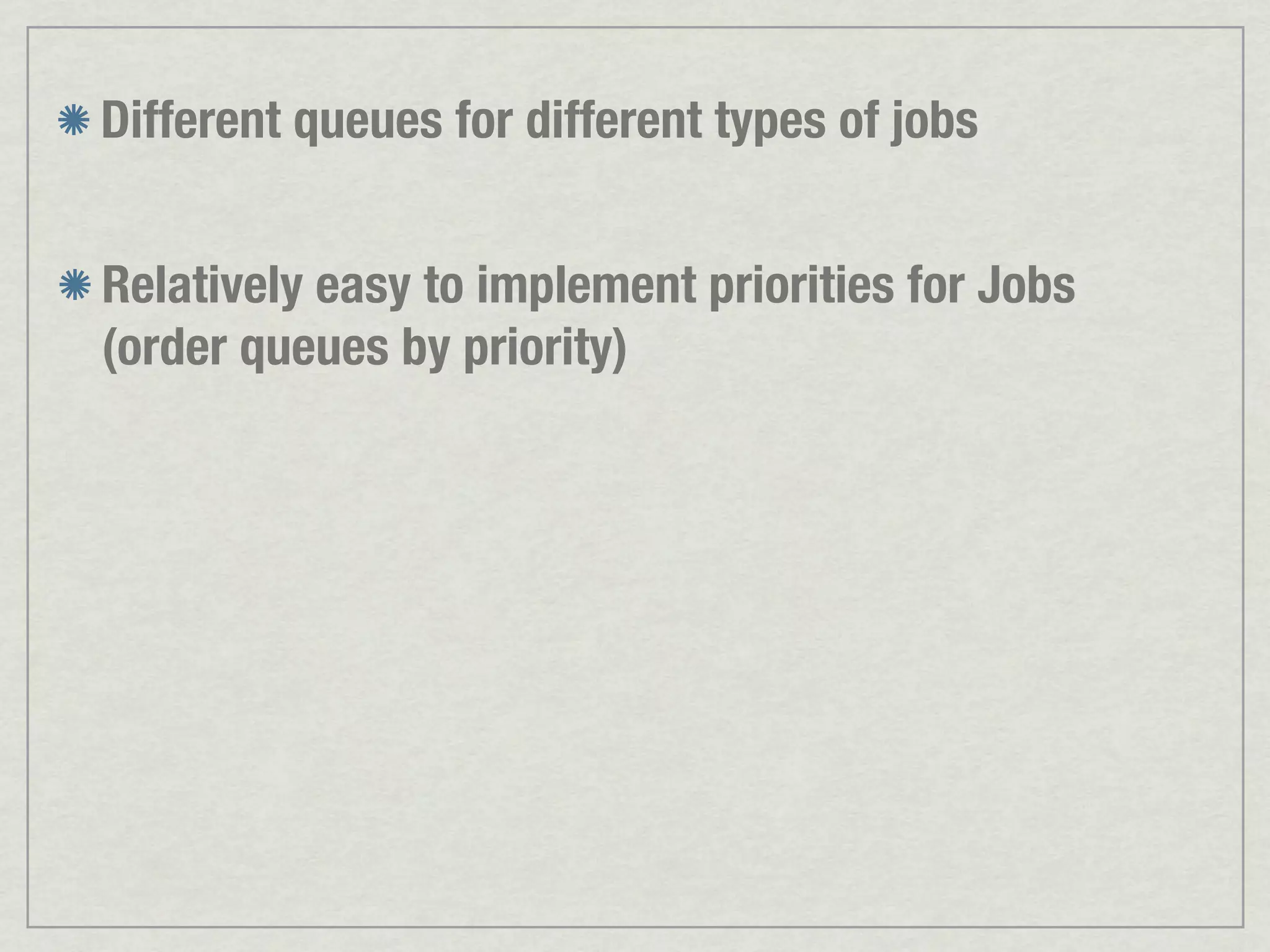

Different queues for different types of jobs

Different queues for different types of jobs Relatively easy to implement priorities for Jobs (order queues by priority)

Different queues for different types of jobs Relatively easy to implement priorities for Jobs (order queues by priority) Group Jobs by execution times to avoid delays

Different queues for different types of jobs Relatively easy to implement priorities for Jobs (order queues by priority) Group Jobs by execution times to avoid delays Resque::Worker x N QUEUE=SlowQueue1,SlowQueue2 redis Resque::Worker x M QUEUE=FastQueue1,FastQueue2

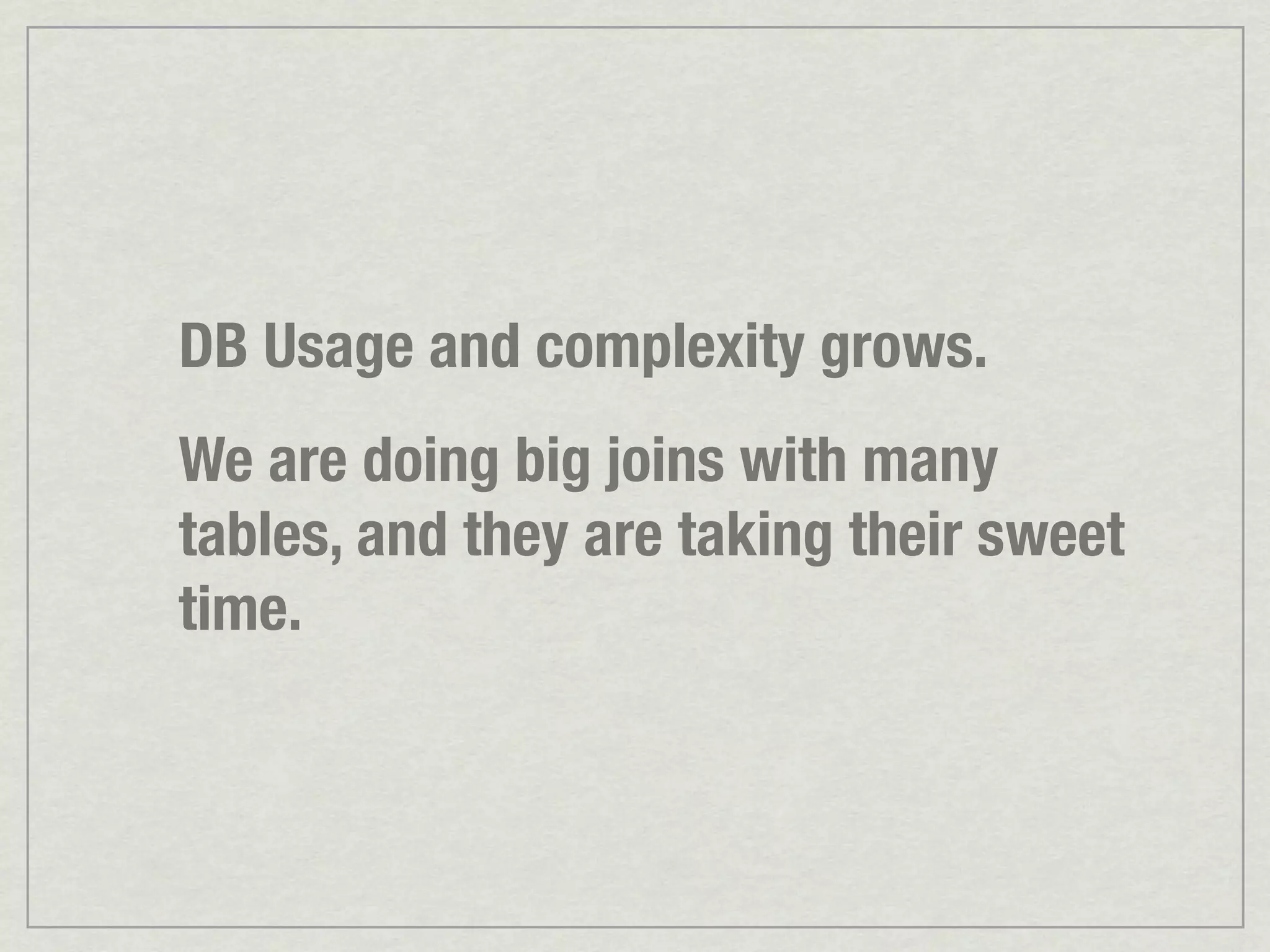

DB Usage and complexity grows. We are doing big joins with many tables, and they are taking their sweet time.

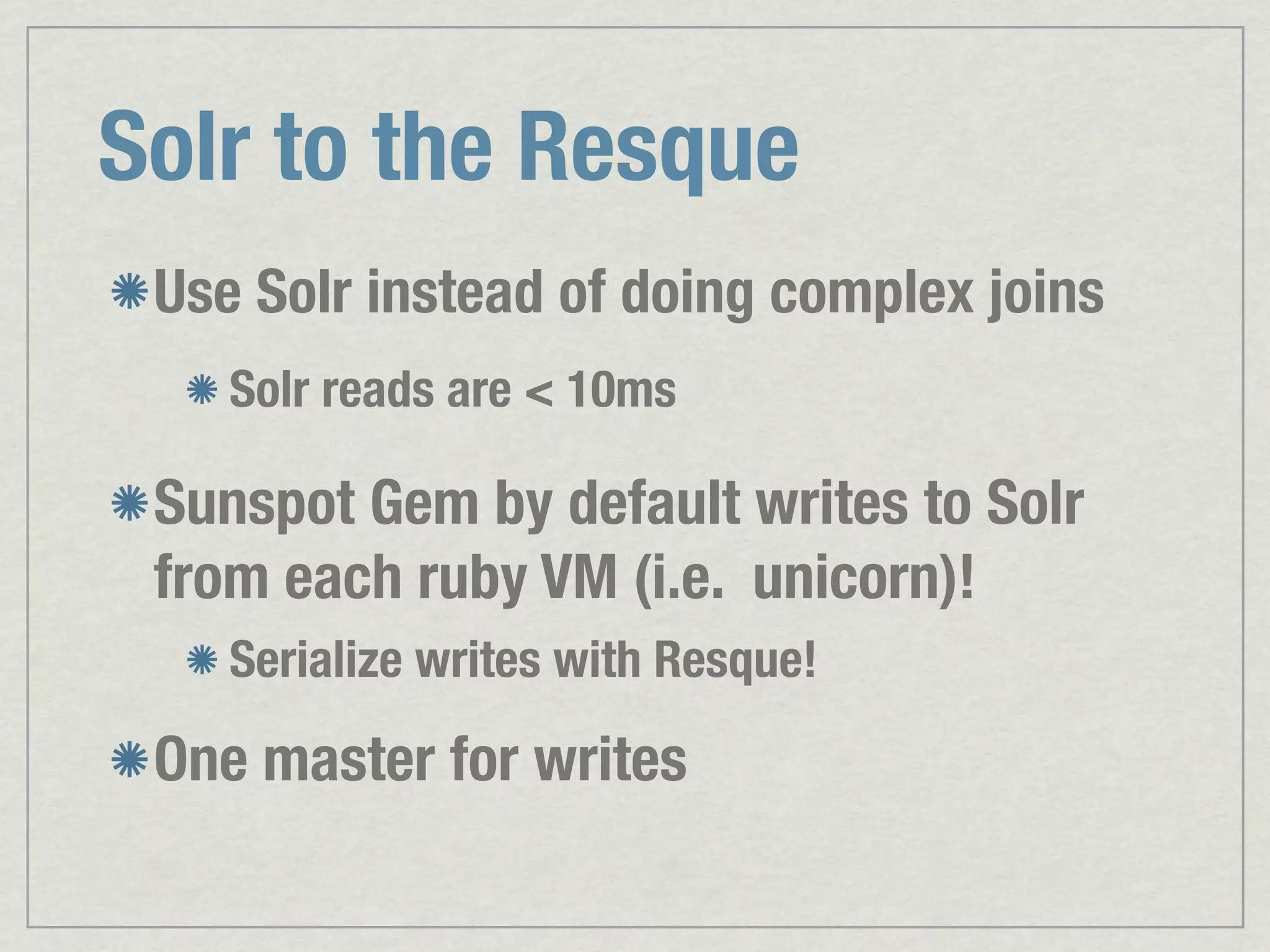

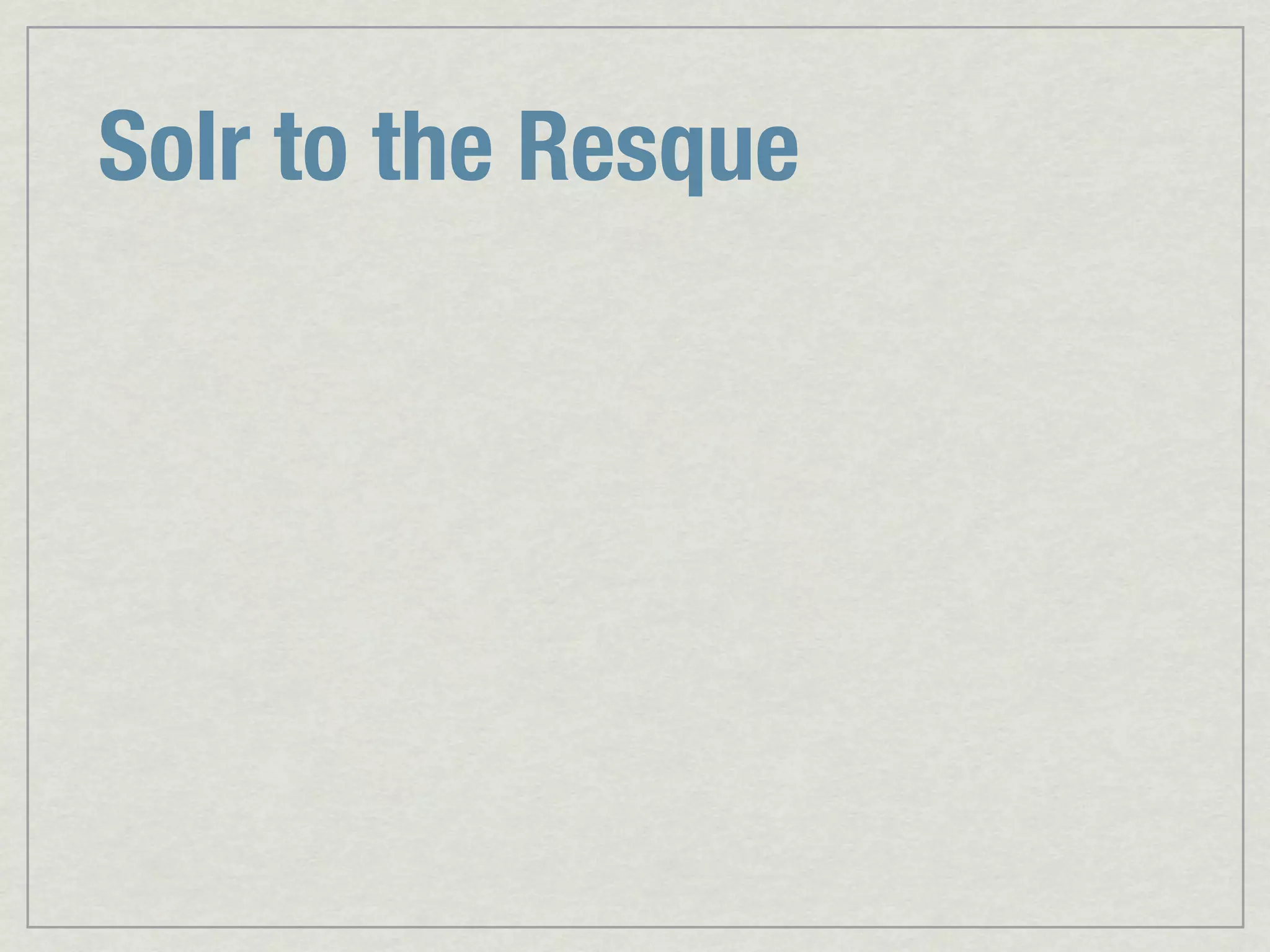

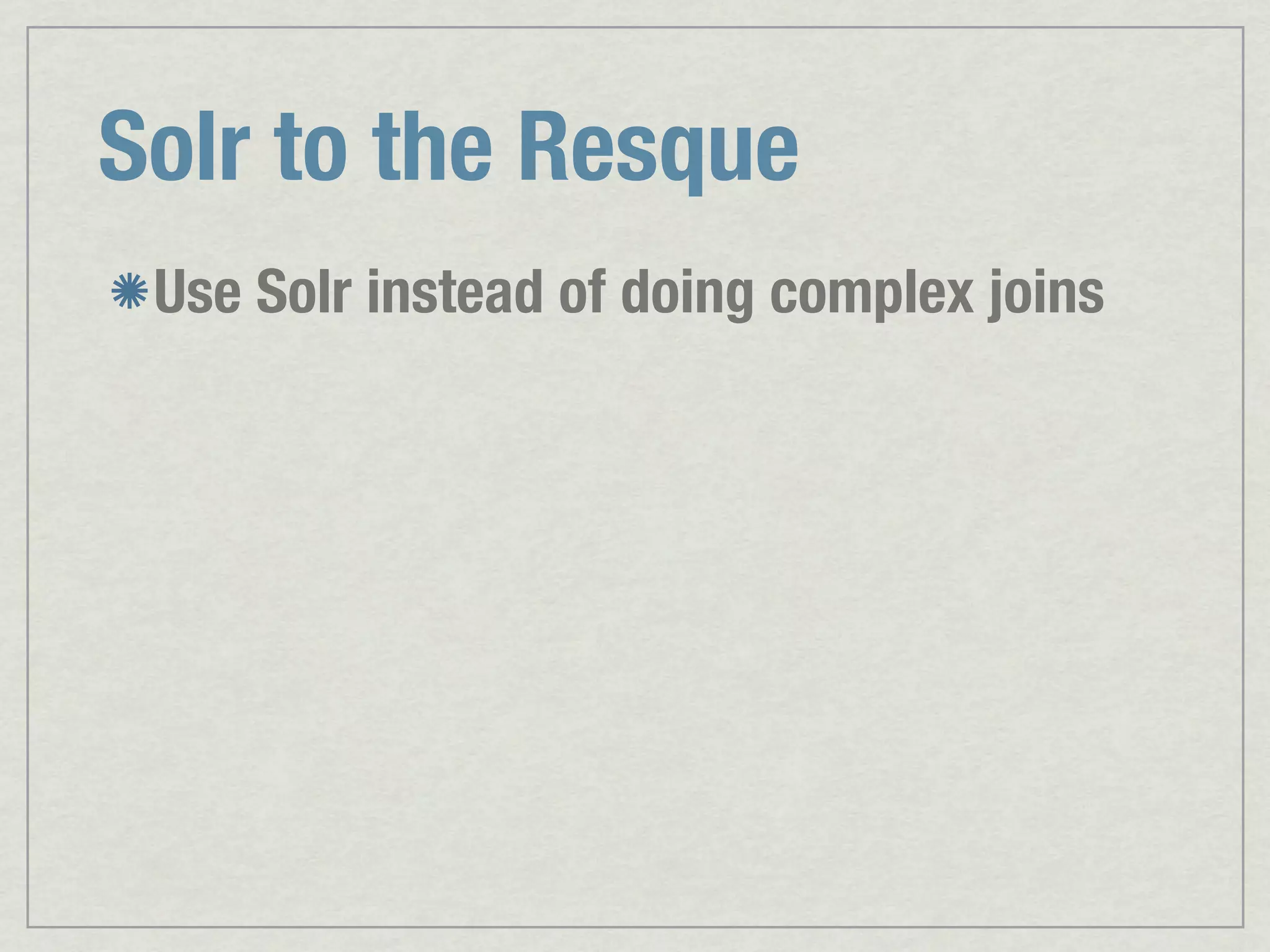

Solr to the Resque Use Solr instead of doing complex joins

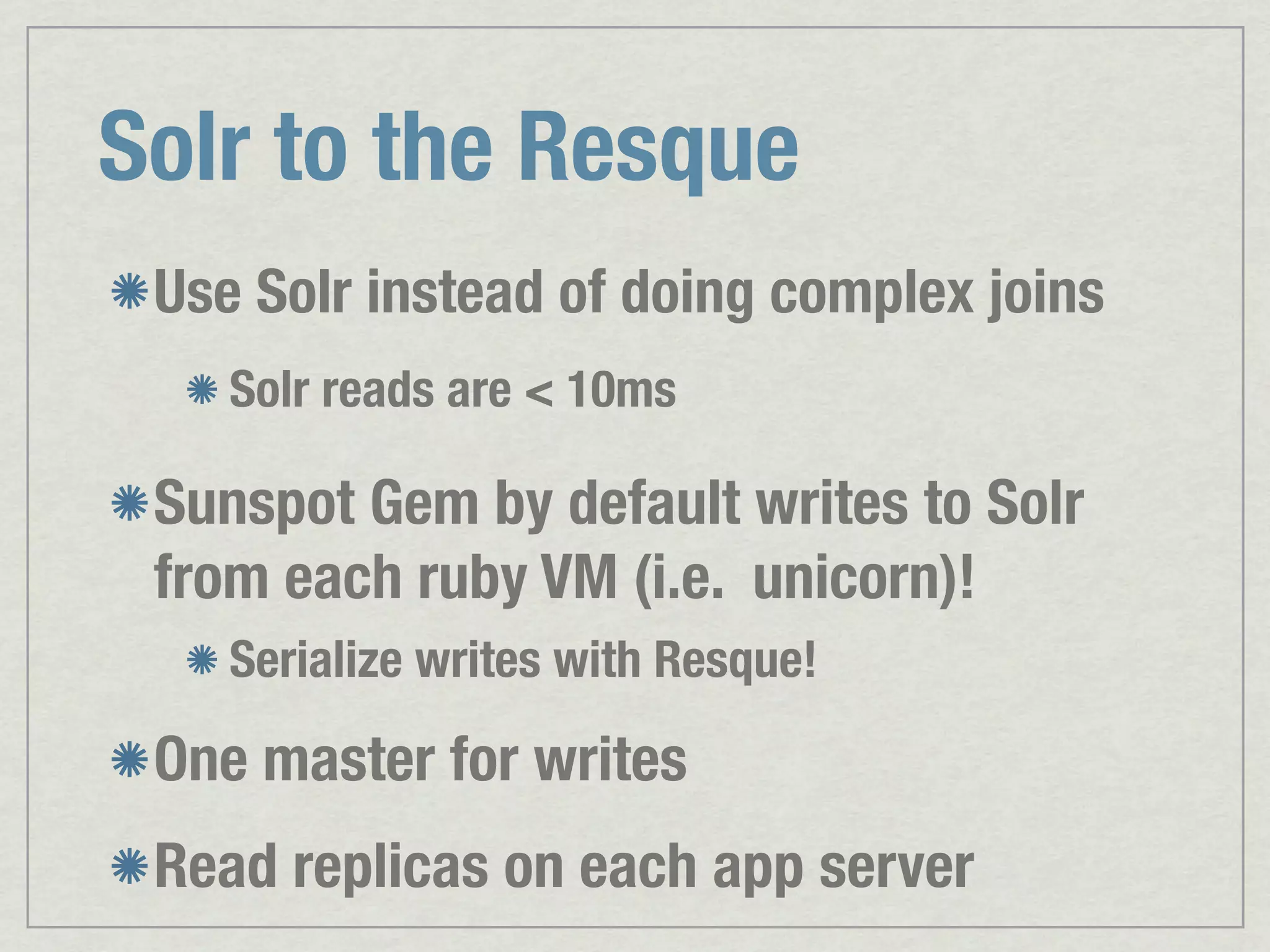

Solr to the Resque Use Solr instead of doing complex joins Solr reads are < 10ms

Solr to the Resque Use Solr instead of doing complex joins Solr reads are < 10ms Sunspot Gem by default writes to Solr from each ruby VM (i.e. unicorn)!

Solr to the Resque Use Solr instead of doing complex joins Solr reads are < 10ms Sunspot Gem by default writes to Solr from each ruby VM (i.e. unicorn)! Serialize writes with Resque!

Solr to the Resque Use Solr instead of doing complex joins Solr reads are < 10ms Sunspot Gem by default writes to Solr from each ruby VM (i.e. unicorn)! Serialize writes with Resque! One master for writes

Solr to the Resque Use Solr instead of doing complex joins Solr reads are < 10ms Sunspot Gem by default writes to Solr from each ruby VM (i.e. unicorn)! Serialize writes with Resque! One master for writes Read replicas on each app server

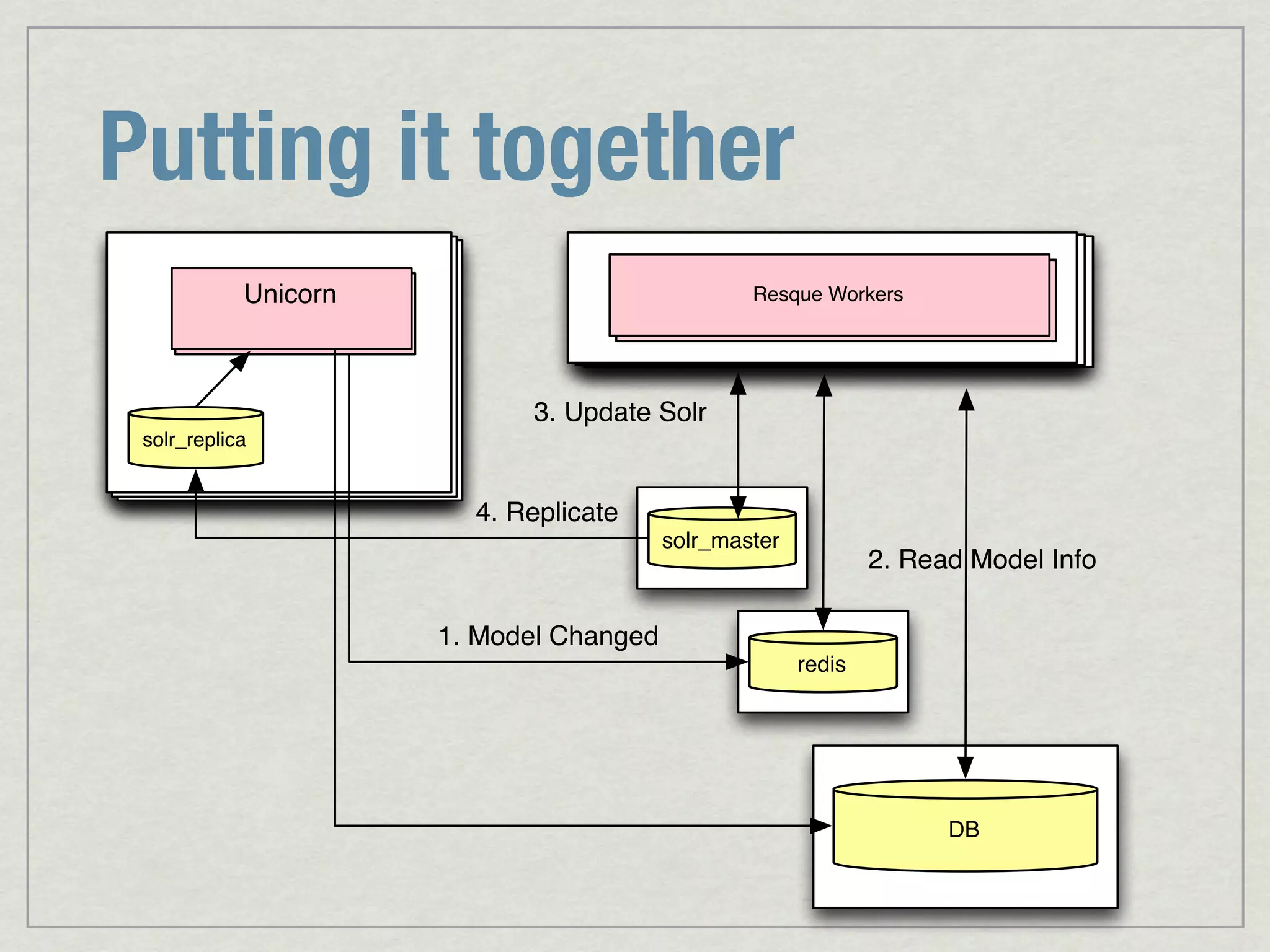

Putting it together Unicorn Unicorn / Workers Resque Passenger Unicorn / Passenger Ruby VM Ruby VM 3. Update Solr solr_replica 4. Replicate solr_master 2. Read Model Info 1. Model Changed redis DB

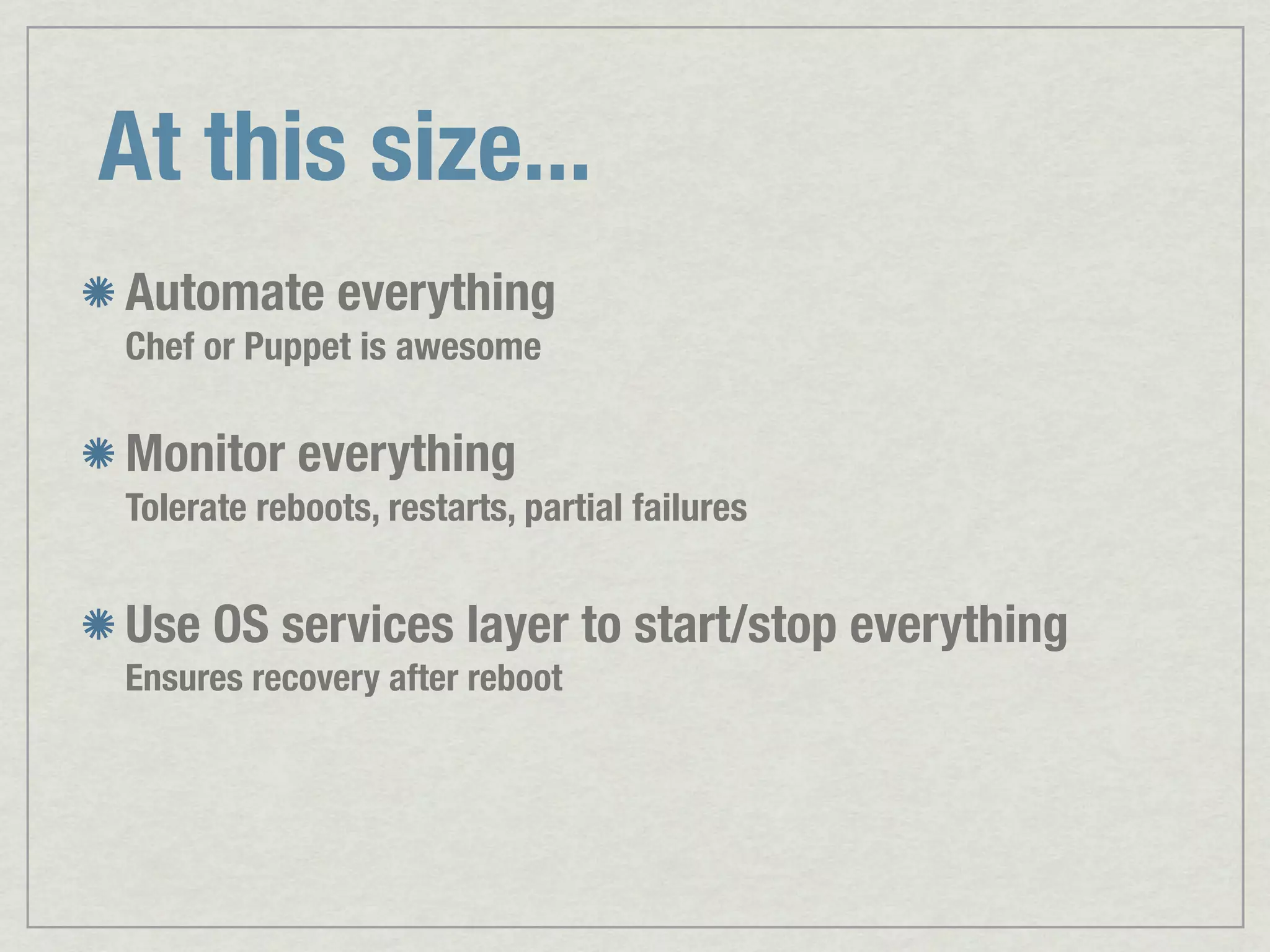

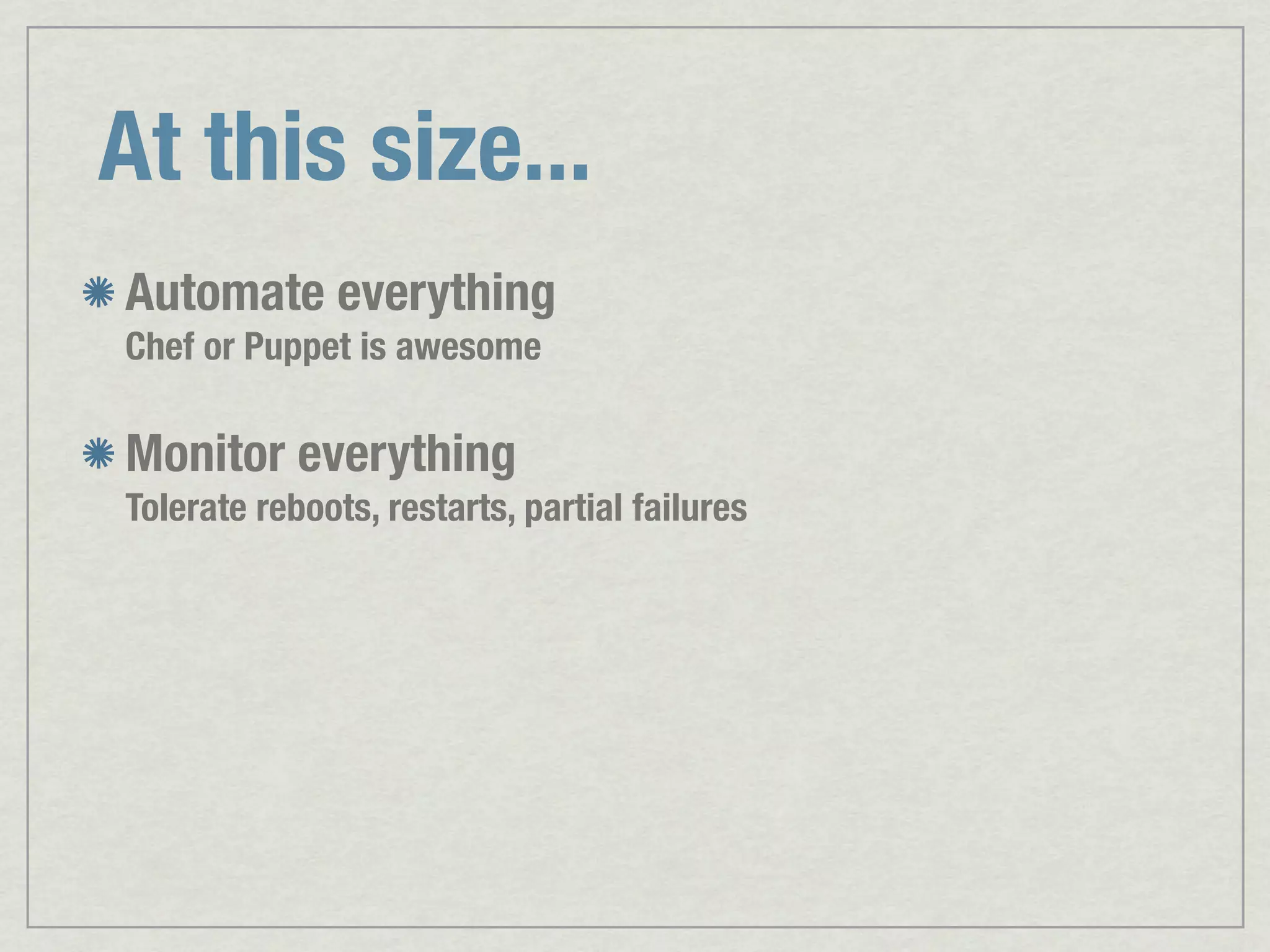

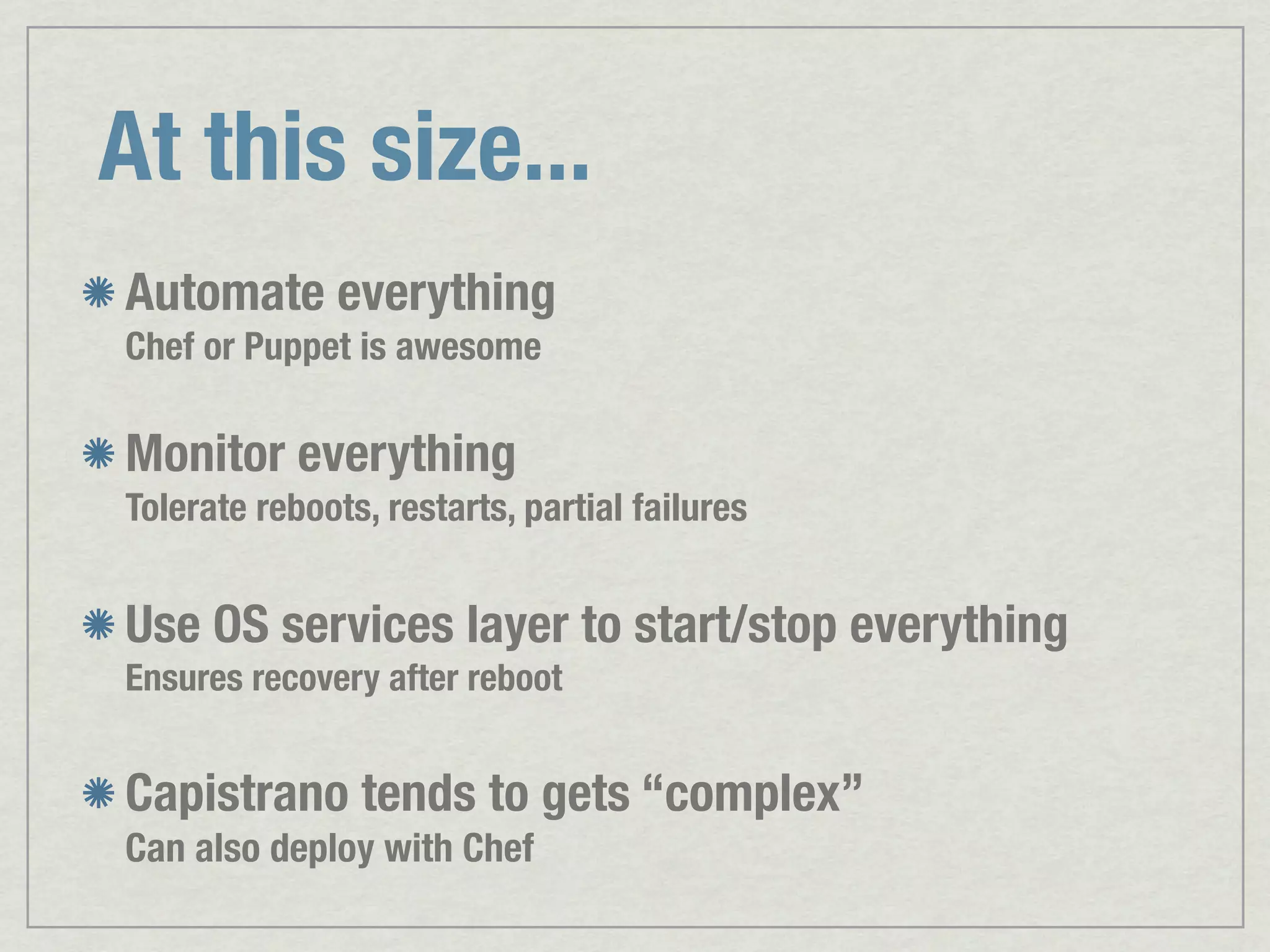

At this size... Automate everything Chef or Puppet is awesome

At this size... Automate everything Chef or Puppet is awesome Monitor everything Tolerate reboots, restarts, partial failures

At this size... Automate everything Chef or Puppet is awesome Monitor everything Tolerate reboots, restarts, partial failures Use OS services layer to start/stop everything Ensures recovery after reboot

At this size... Automate everything Chef or Puppet is awesome Monitor everything Tolerate reboots, restarts, partial failures Use OS services layer to start/stop everything Ensures recovery after reboot Capistrano tends to gets “complex” Can also deploy with Chef

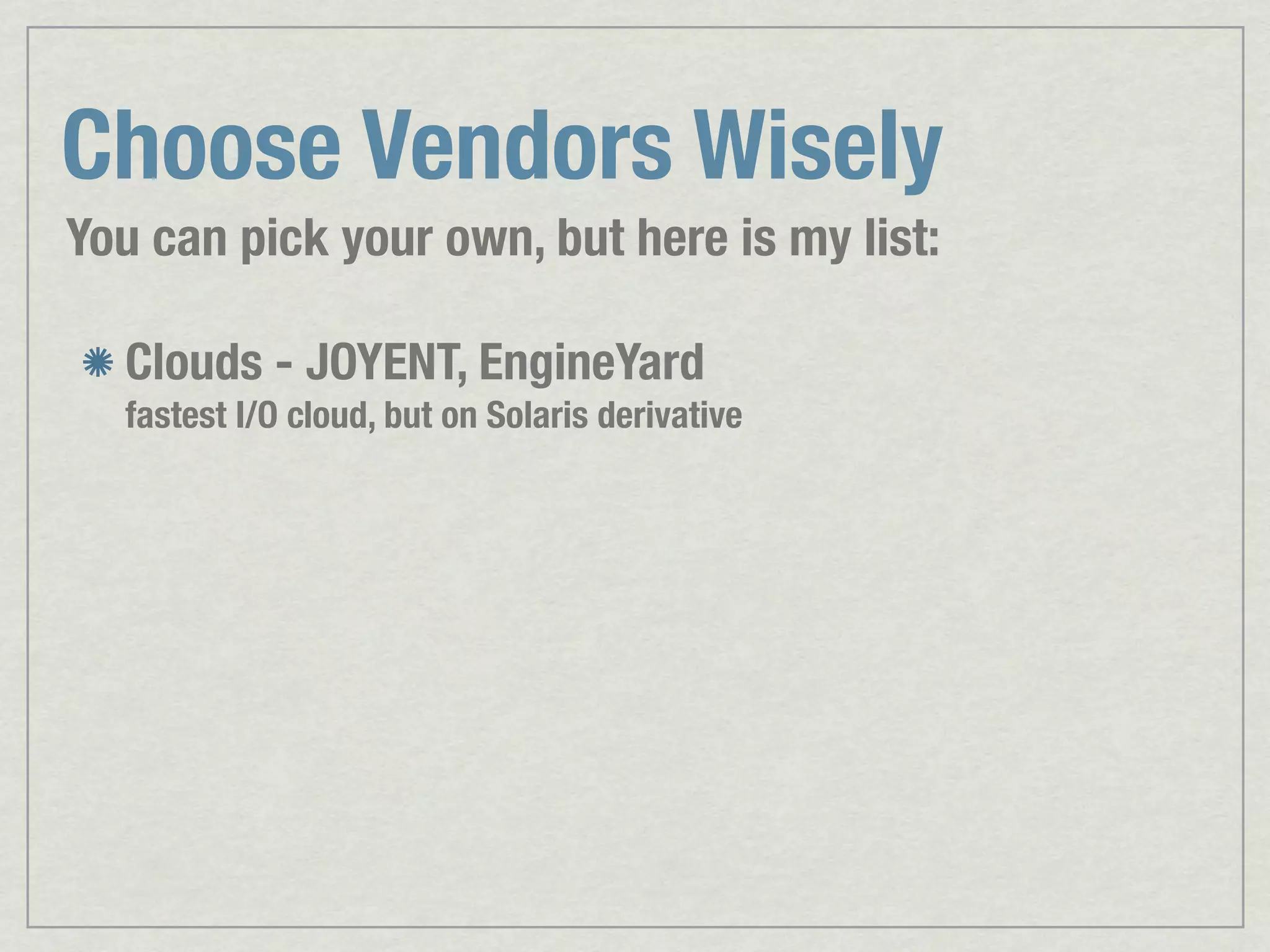

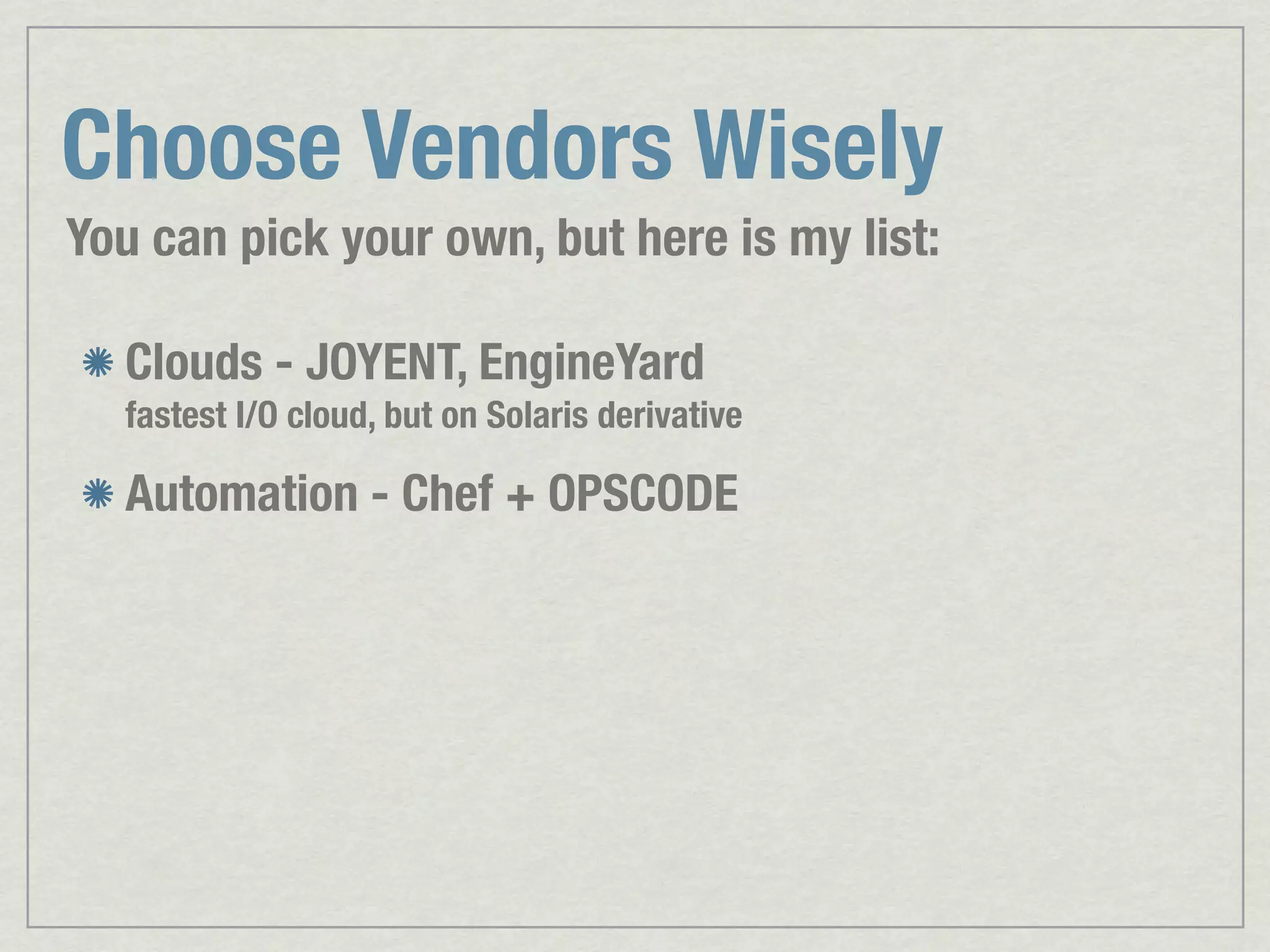

Choose Vendors Wisely You can pick your own, but here is my list:

Choose Vendors Wisely You can pick your own, but here is my list: Clouds - JOYENT, EngineYard fastest I/O cloud, but on Solaris derivative

Choose Vendors Wisely You can pick your own, but here is my list: Clouds - JOYENT, EngineYard fastest I/O cloud, but on Solaris derivative Automation - Chef + OPSCODE

Choose Vendors Wisely You can pick your own, but here is my list: Clouds - JOYENT, EngineYard fastest I/O cloud, but on Solaris derivative Automation - Chef + OPSCODE Caching/CDN - FASTLY.COM varnish based CDN, very fast, full power of VCL conﬁguration

Choose Vendors Wisely You can pick your own, but here is my list: Clouds - JOYENT, EngineYard fastest I/O cloud, but on Solaris derivative Automation - Chef + OPSCODE Caching/CDN - FASTLY.COM varnish based CDN, very fast, full power of VCL conﬁguration Metrics and Performance - NewRelic Turnkey solution, getting better every day

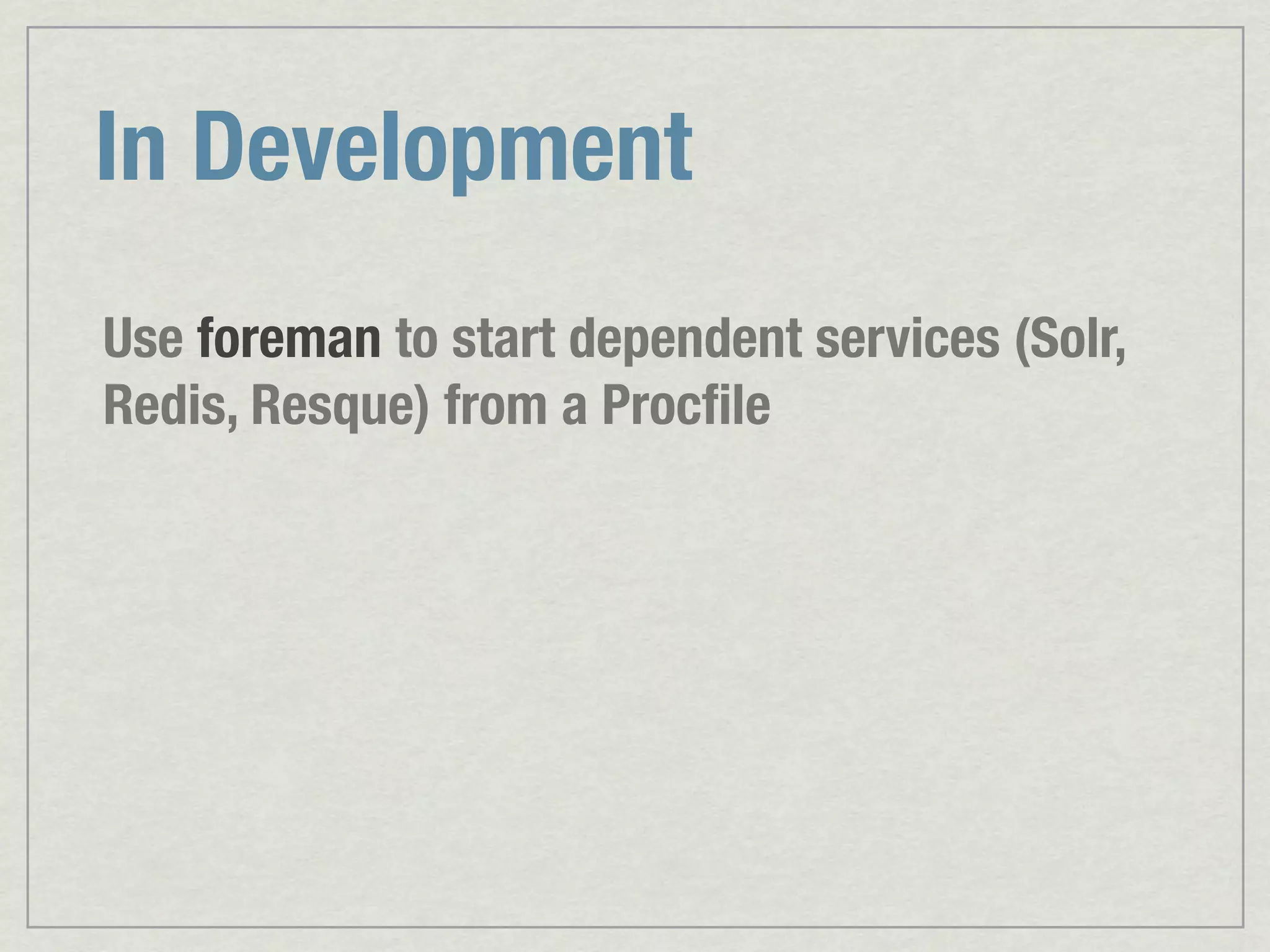

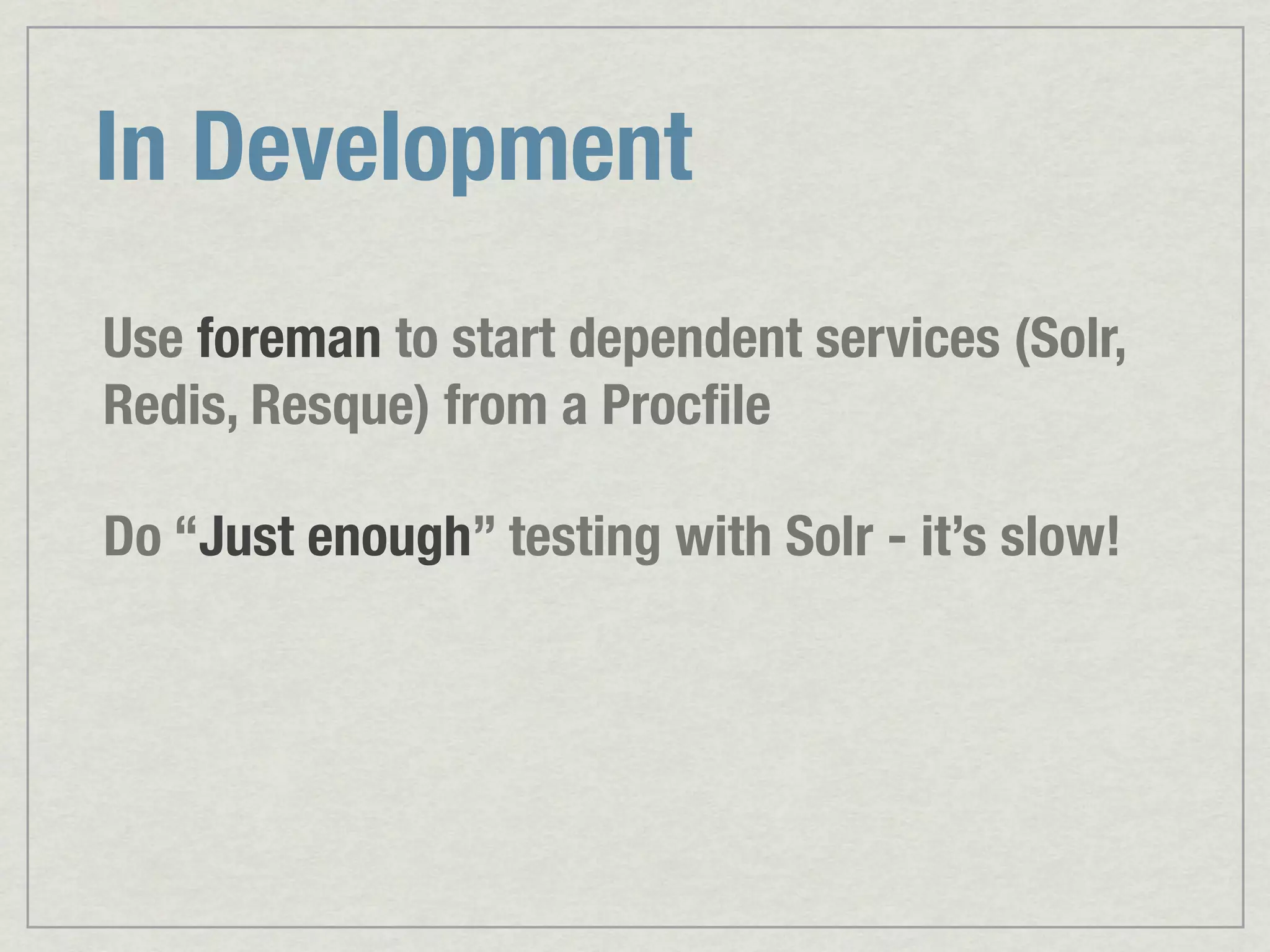

In Development Use foreman to start dependent services (Solr, Redis, Resque) from a Procﬁle

In Development Use foreman to start dependent services (Solr, Redis, Resque) from a Procﬁle Do “Just enough” testing with Solr - it’s slow!

In Development Use foreman to start dependent services (Solr, Redis, Resque) from a Procﬁle Do “Just enough” testing with Solr - it’s slow! Deploy to single-box demo servers often using the same Capistrano scripts used for production

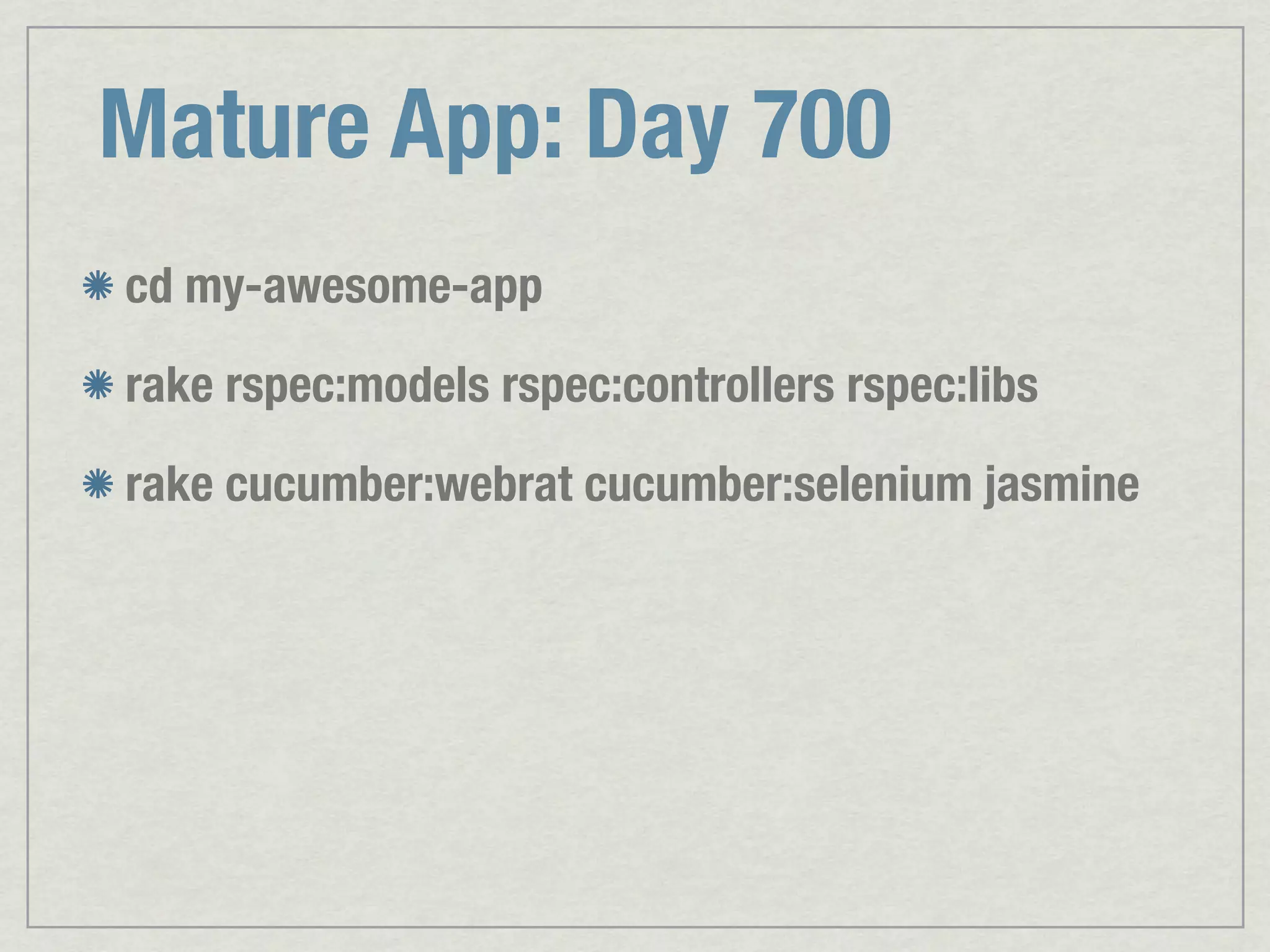

Mature App: Day 700 cd my-awesome-app rake rspec:models rspec:controllers rspec:libs rake cucumber:webrat cucumber:selenium jasmine

How Big Exactly? 200+ models 200K+ lines of RUBY source code without gems 100K+ lines of ERB, HTML and HAML templates 100+ gem dependencies

How Big Exactly? 200+ models 200K+ lines of RUBY source code without gems 100K+ lines of ERB, HTML and HAML templates 100+ gem dependencies this is a real world application that’s in production today.

Is that too big? This cat’s name is Lenin

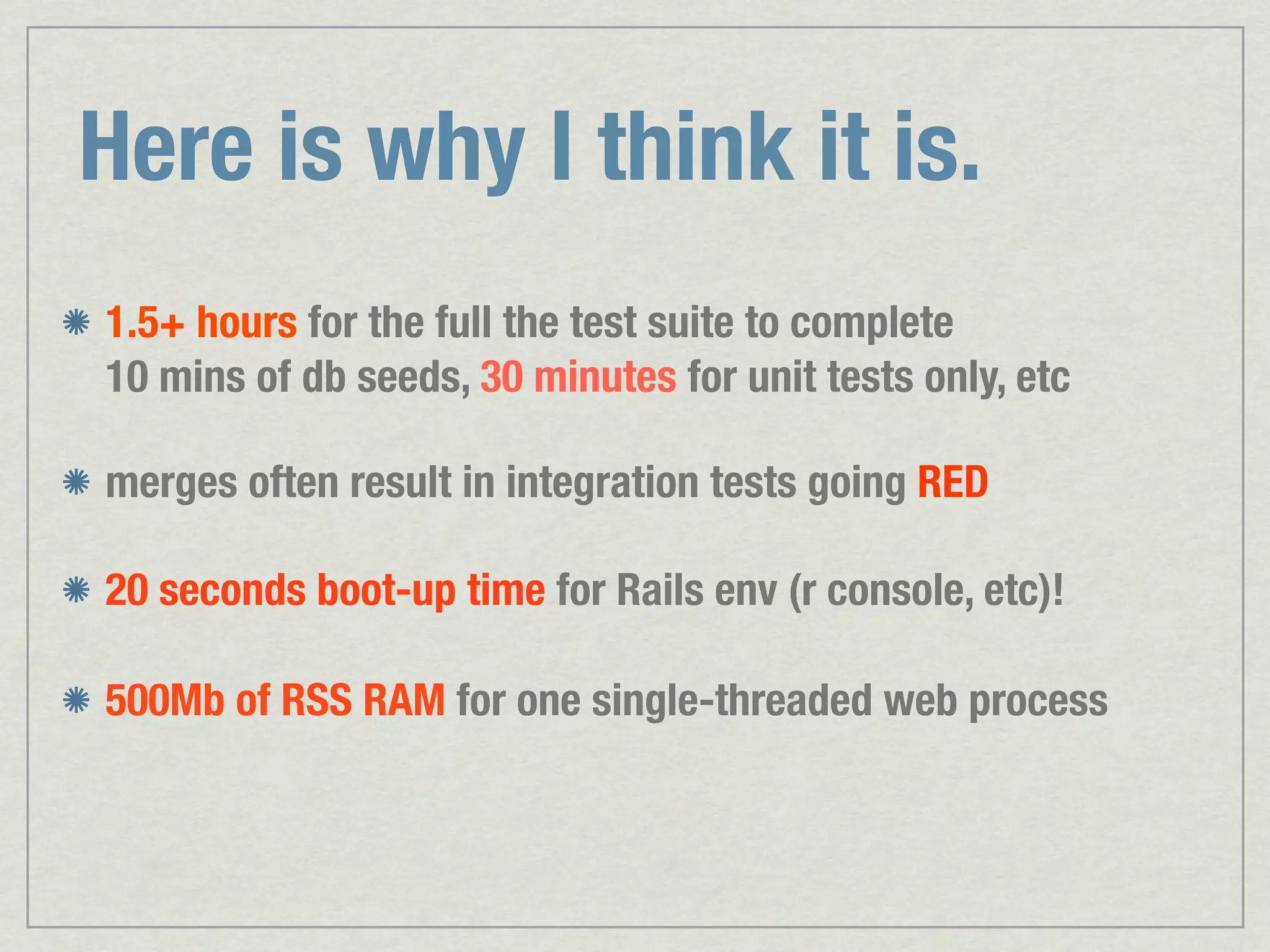

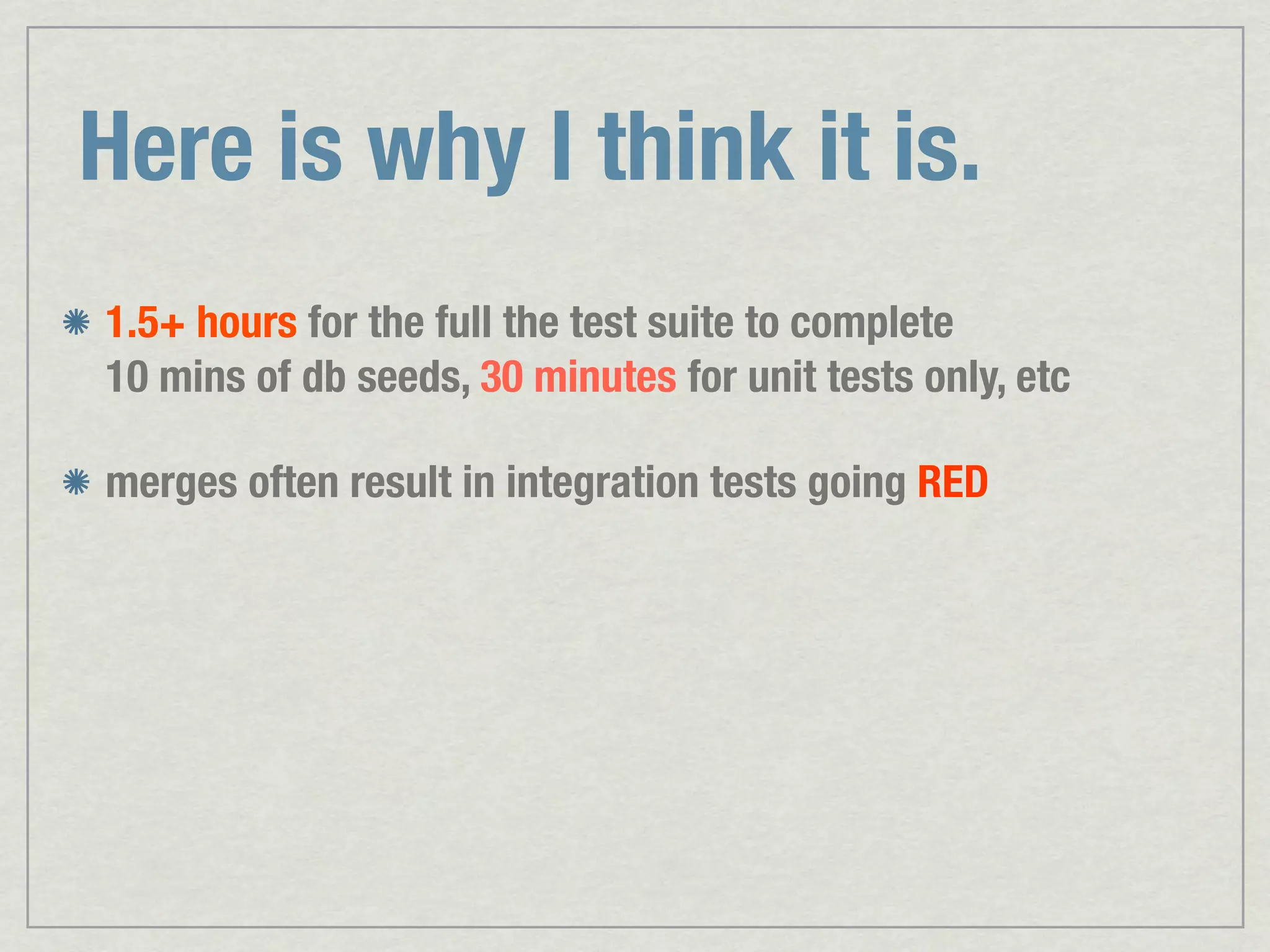

Here is why I think it is. 1.5+ hours for the full the test suite to complete 10 mins of db seeds, 30 minutes for unit tests only, etc

Here is why I think it is. 1.5+ hours for the full the test suite to complete 10 mins of db seeds, 30 minutes for unit tests only, etc merges often result in integration tests going RED

Here is why I think it is. 1.5+ hours for the full the test suite to complete 10 mins of db seeds, 30 minutes for unit tests only, etc merges often result in integration tests going RED 20 seconds boot-up time for Rails env (r console, etc)!

Here is why I think it is. 1.5+ hours for the full the test suite to complete 10 mins of db seeds, 30 minutes for unit tests only, etc merges often result in integration tests going RED 20 seconds boot-up time for Rails env (r console, etc)! 500Mb of RSS RAM for one single-threaded web process

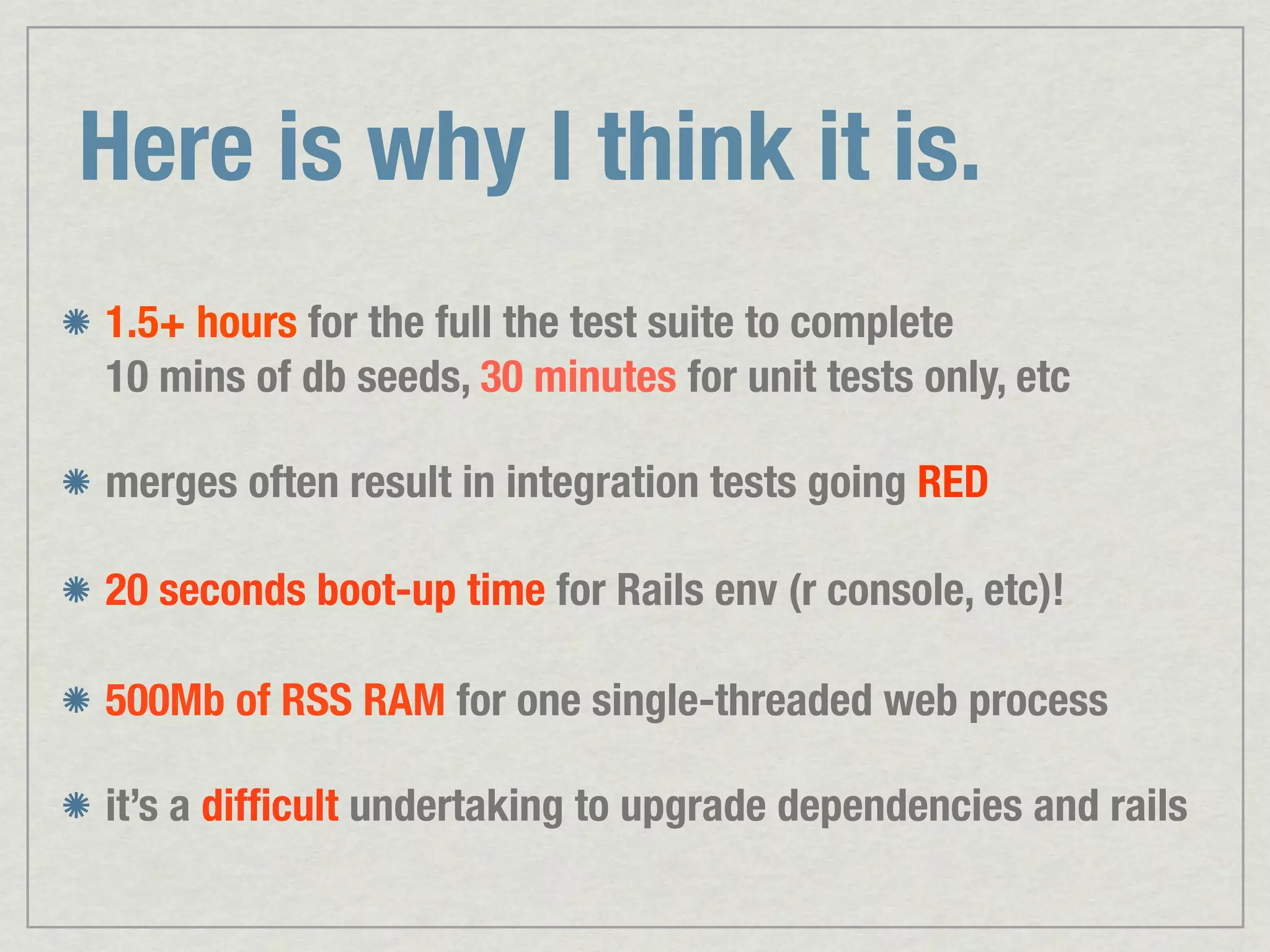

Here is why I think it is. 1.5+ hours for the full the test suite to complete 10 mins of db seeds, 30 minutes for unit tests only, etc merges often result in integration tests going RED 20 seconds boot-up time for Rails env (r console, etc)! 500Mb of RSS RAM for one single-threaded web process it’s a difﬁcult undertaking to upgrade dependencies and rails

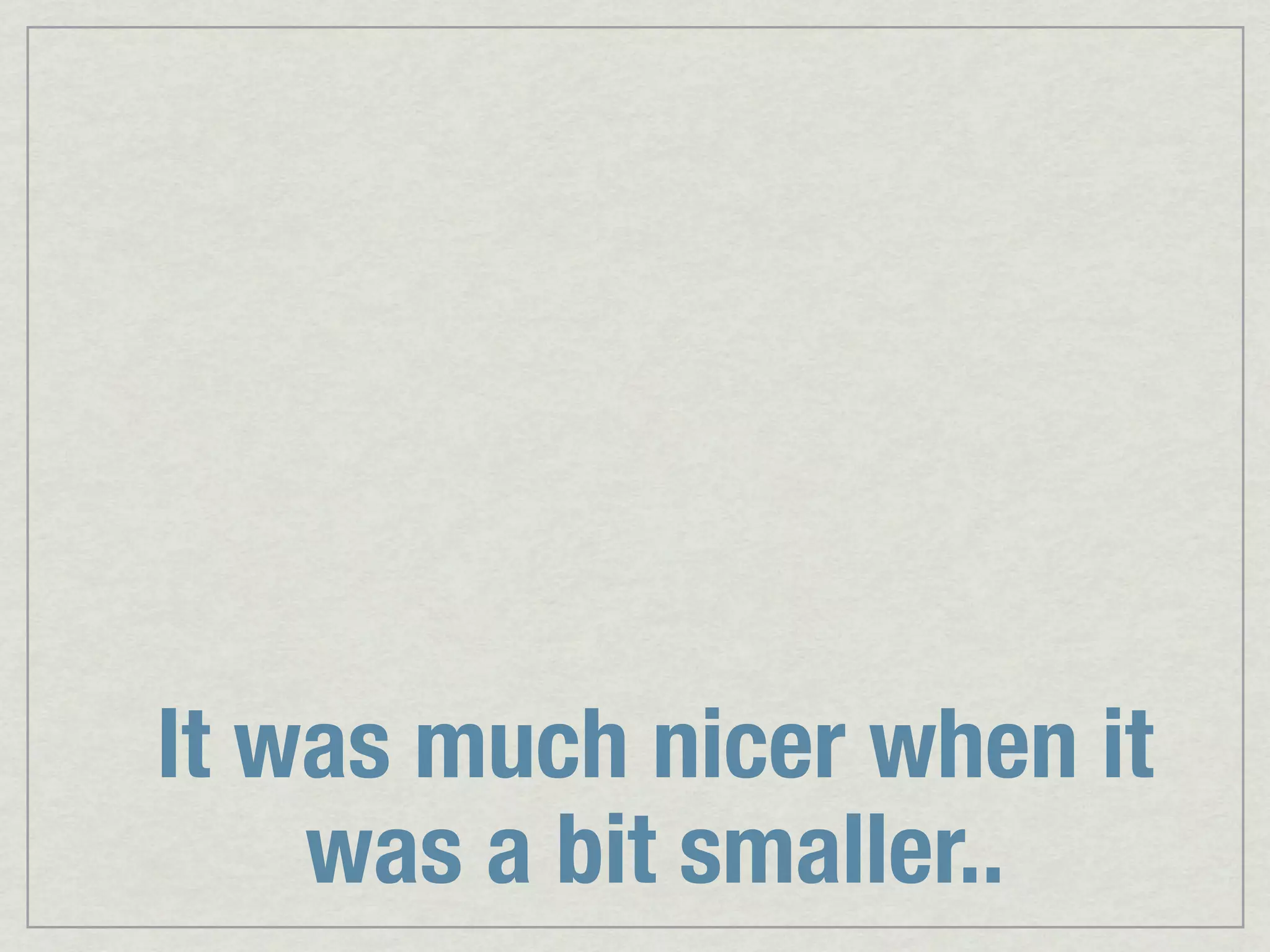

It was much nicer when it was a bit smaller..

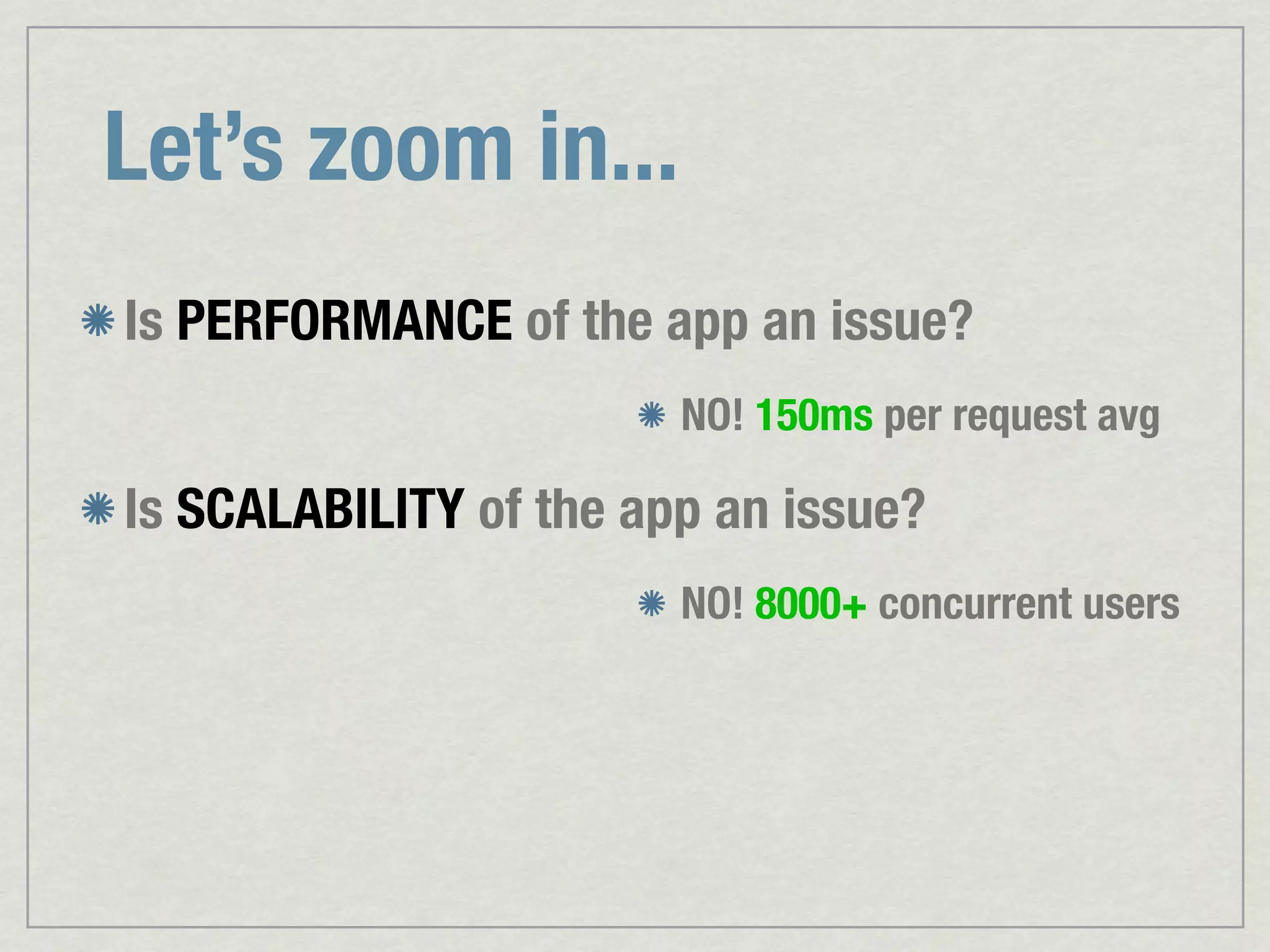

Let’s zoom in... Is PERFORMANCE of the app an issue?

Let’s zoom in... Is PERFORMANCE of the app an issue? NO! 150ms per request avg

Let’s zoom in... Is PERFORMANCE of the app an issue? NO! 150ms per request avg Is SCALABILITY of the app an issue?

Let’s zoom in... Is PERFORMANCE of the app an issue? NO! 150ms per request avg Is SCALABILITY of the app an issue? NO! 8000+ concurrent users

Let’s zoom in... Is PERFORMANCE of the app an issue? NO! 150ms per request avg Is SCALABILITY of the app an issue? NO! 8000+ concurrent users Is RELIABILITY of the app an issue?

Let’s zoom in... Is PERFORMANCE of the app an issue? NO! 150ms per request avg Is SCALABILITY of the app an issue? NO! 8000+ concurrent users Is RELIABILITY of the app an issue? NO! barely any downtime in over one year

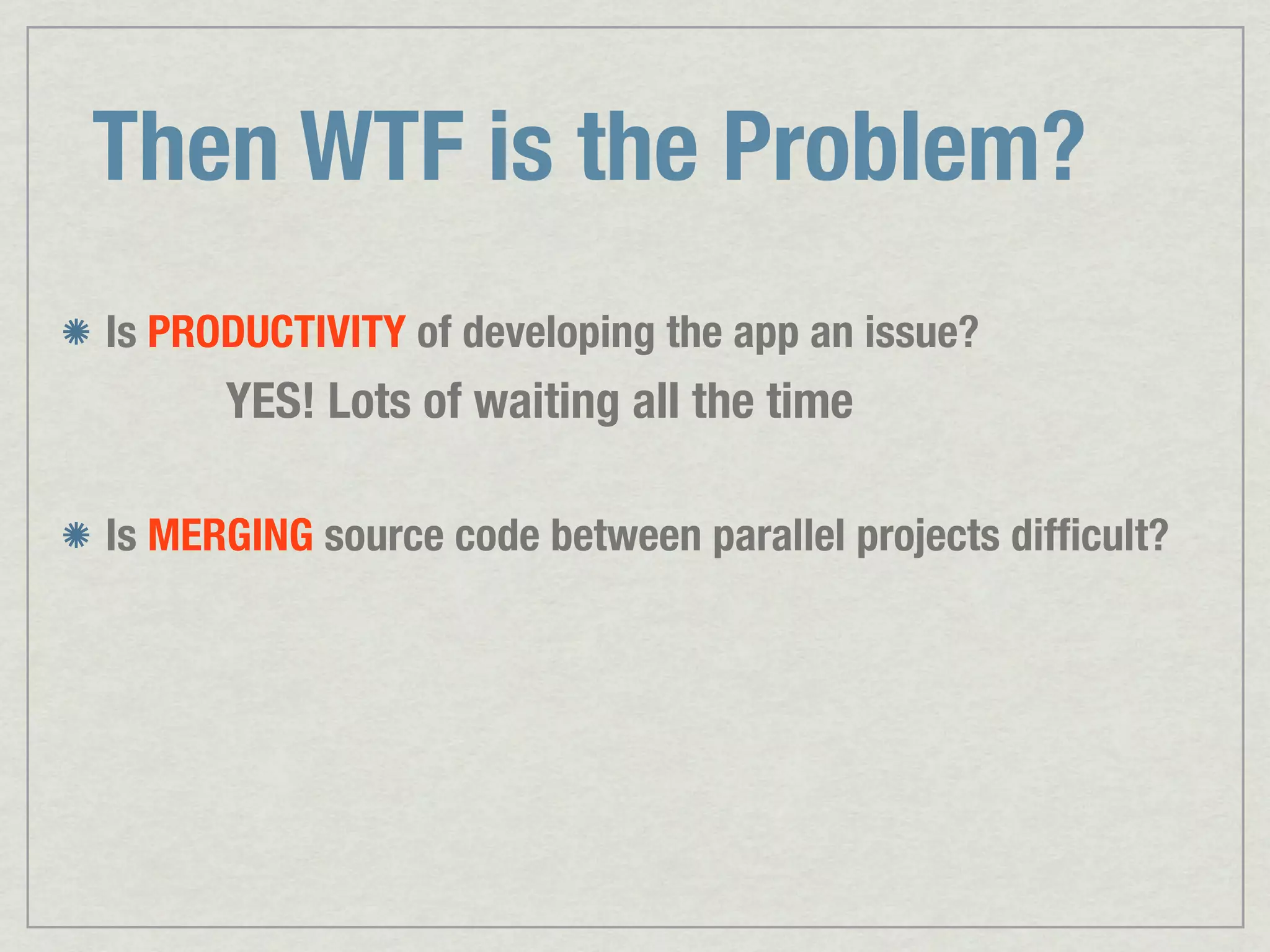

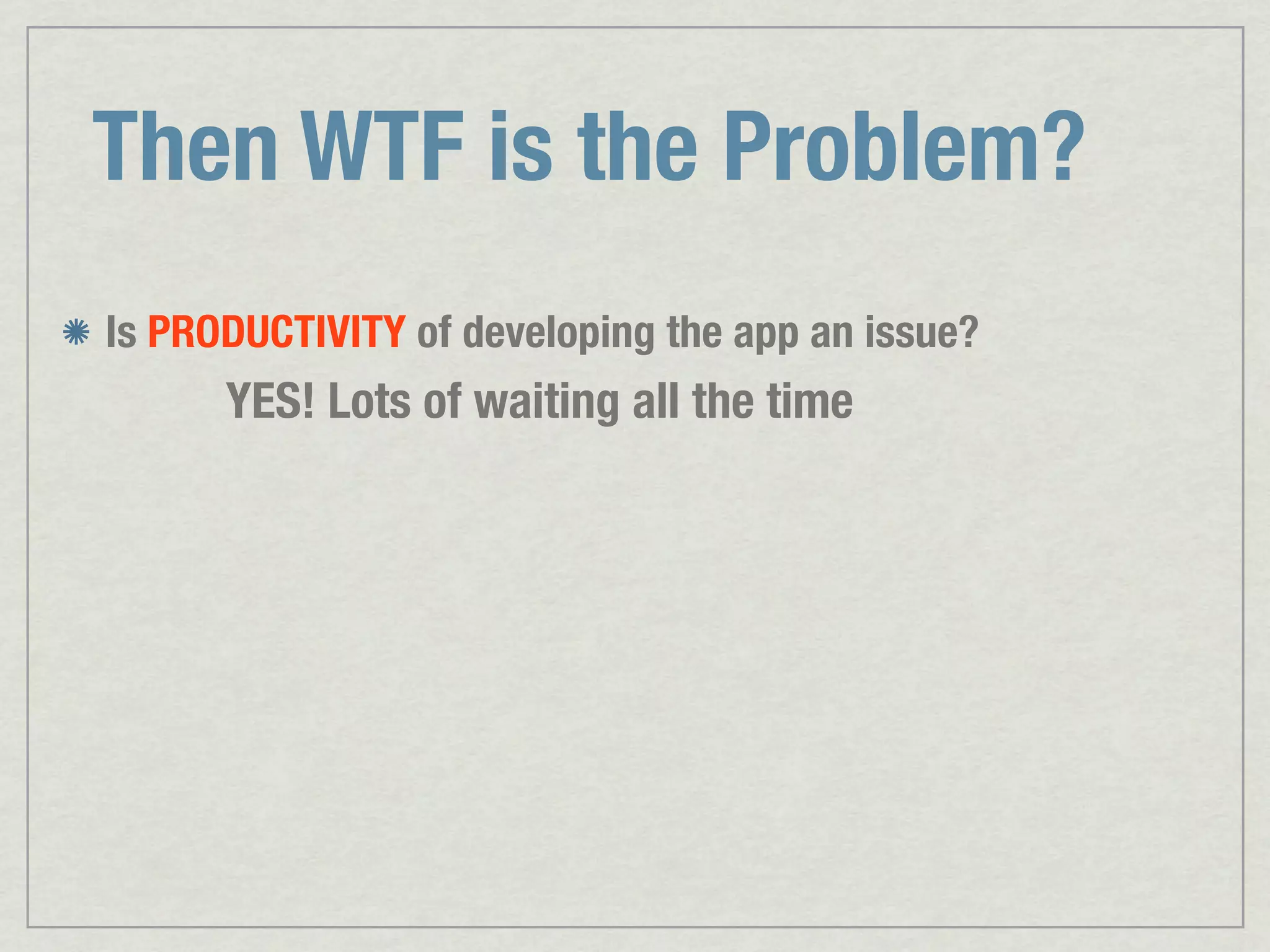

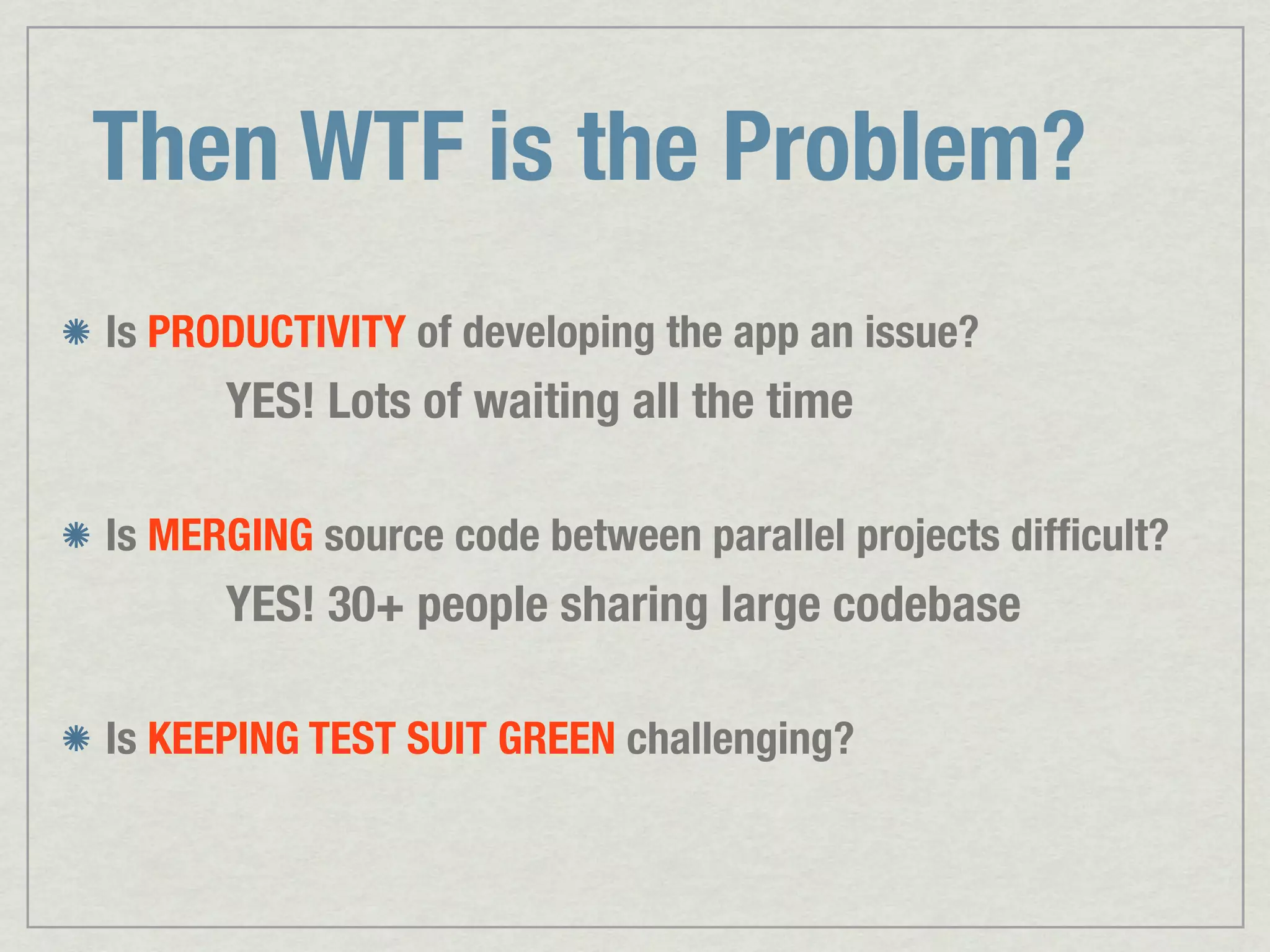

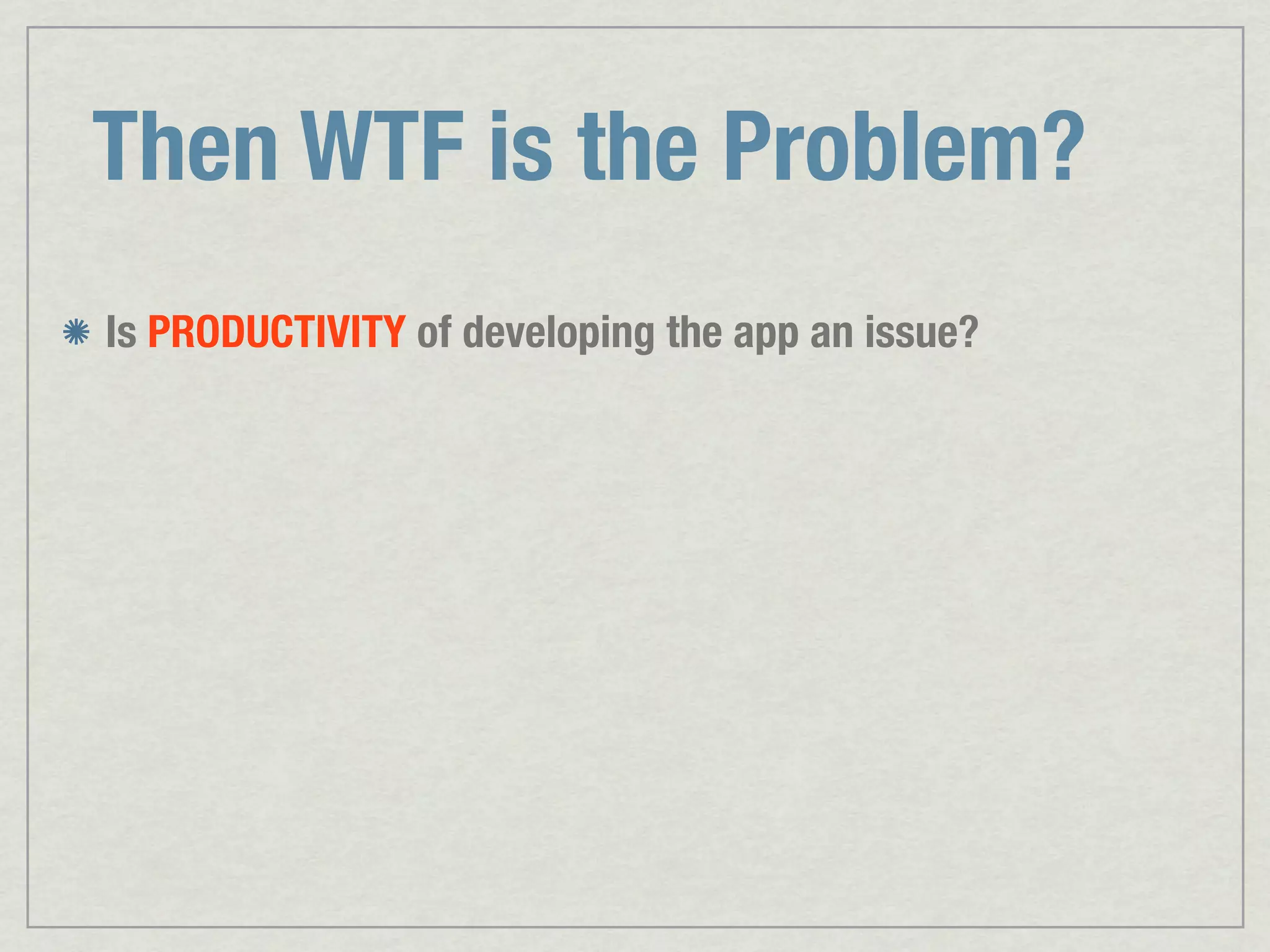

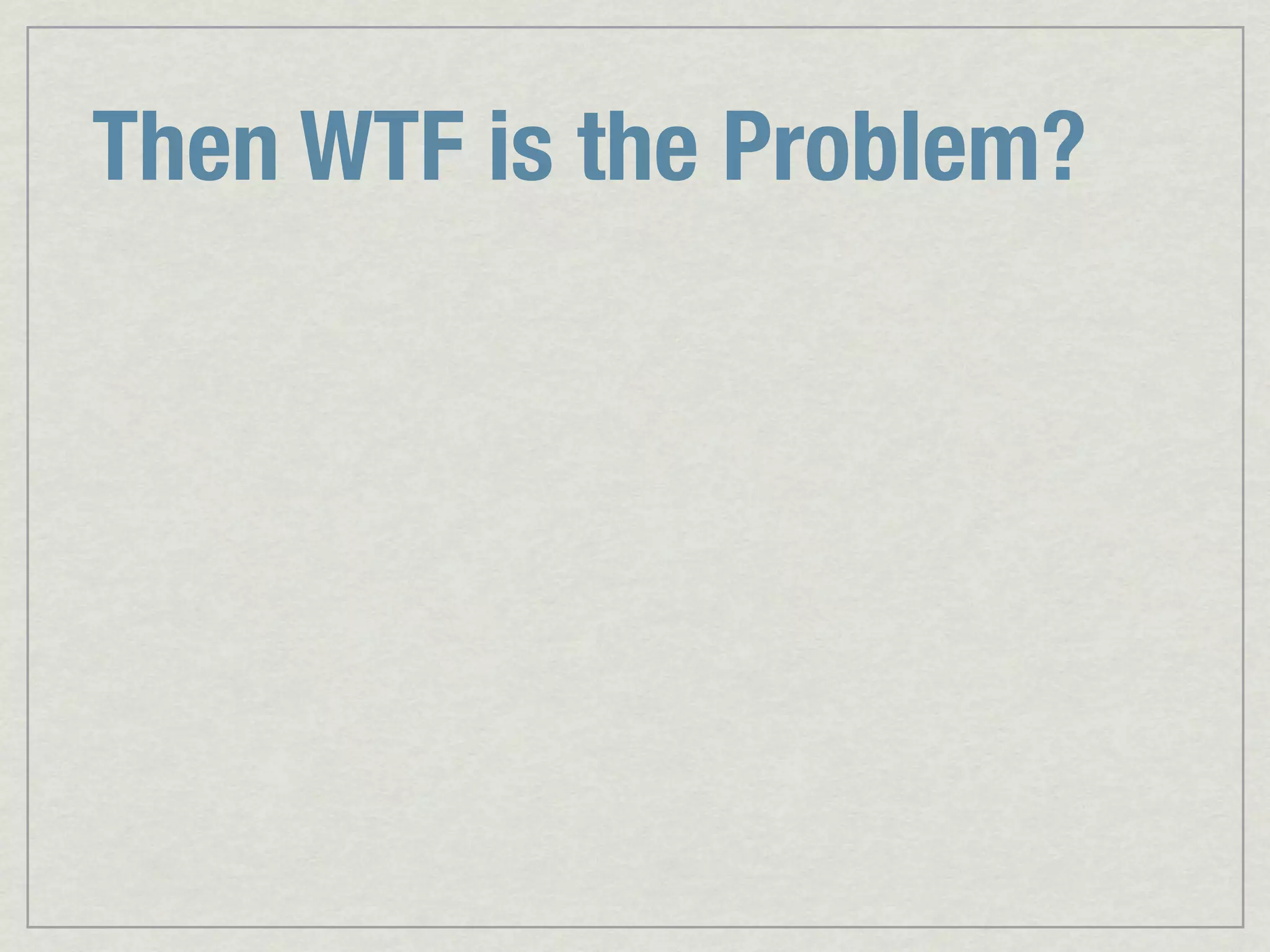

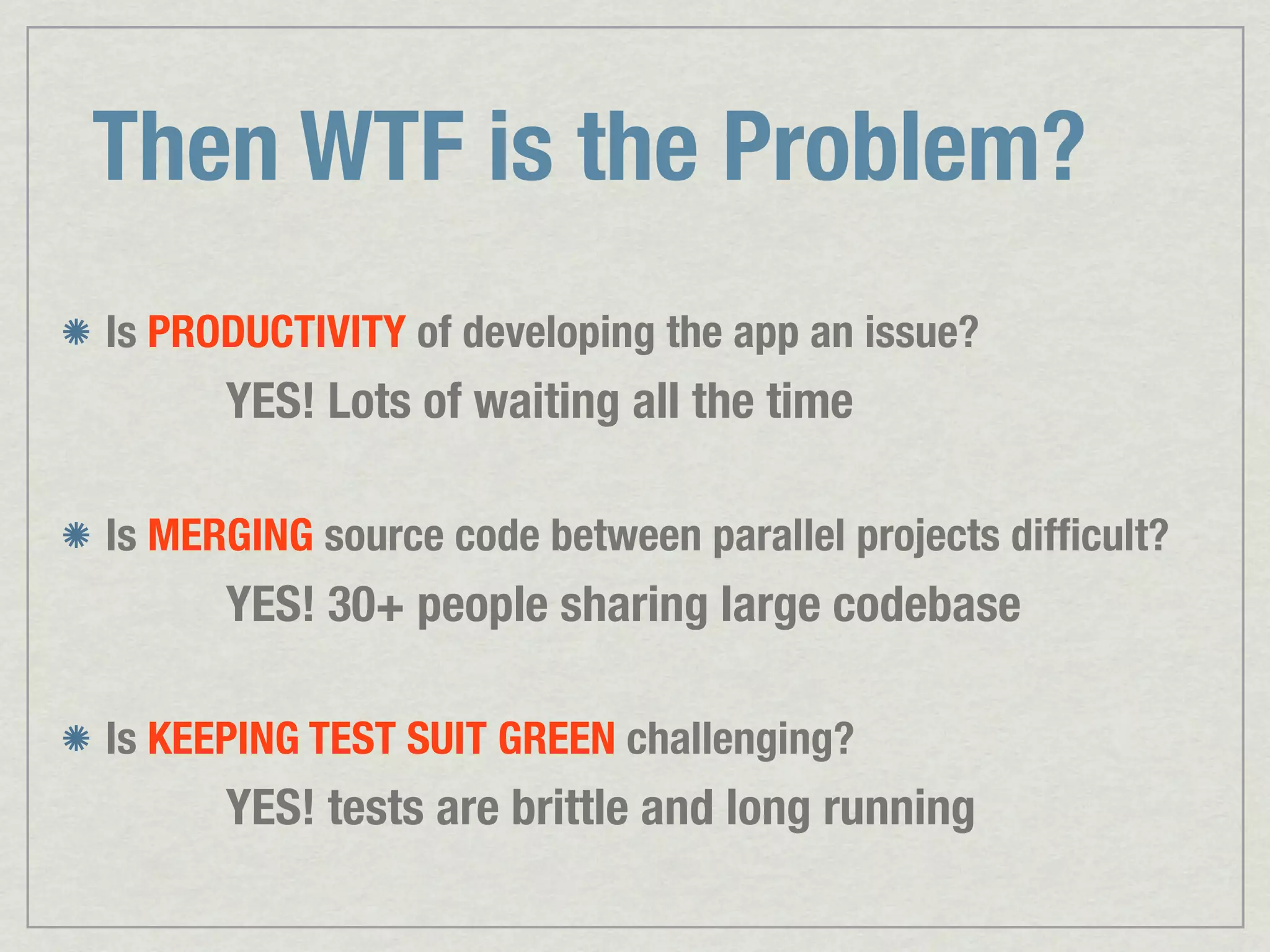

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue?

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue? YES! Lots of waiting all the time

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue? YES! Lots of waiting all the time Is MERGING source code between parallel projects difﬁcult?

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue? YES! Lots of waiting all the time Is MERGING source code between parallel projects difﬁcult? YES! 30+ people sharing large codebase

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue? YES! Lots of waiting all the time Is MERGING source code between parallel projects difﬁcult? YES! 30+ people sharing large codebase Is KEEPING TEST SUIT GREEN challenging?

Then WTF is the Problem? Is PRODUCTIVITY of developing the app an issue? YES! Lots of waiting all the time Is MERGING source code between parallel projects difﬁcult? YES! 30+ people sharing large codebase Is KEEPING TEST SUIT GREEN challenging? YES! tests are brittle and long running

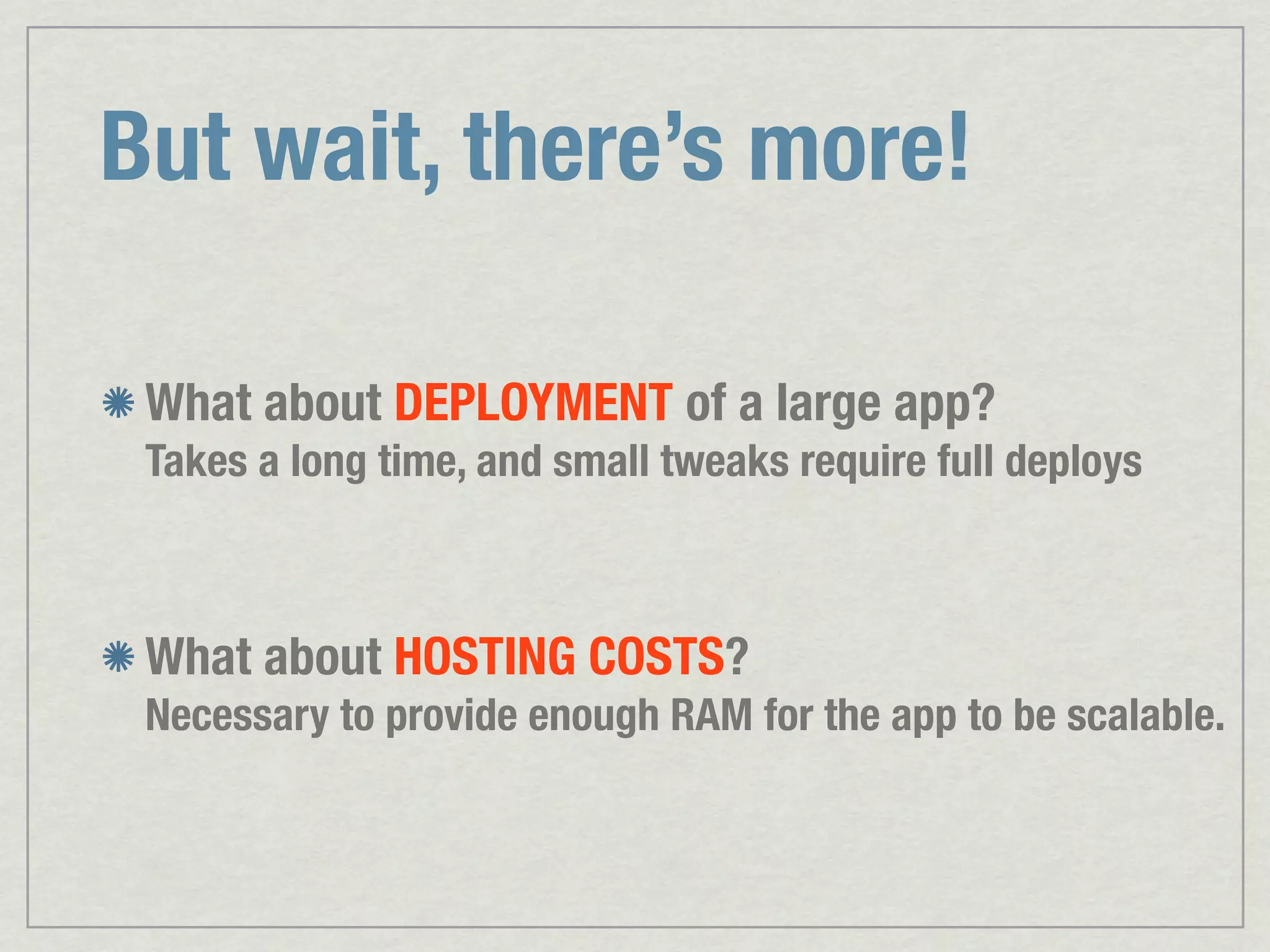

But wait, there’s more! What about DEPLOYMENT of a large app? Takes a long time, and small tweaks require full deploys

But wait, there’s more! What about DEPLOYMENT of a large app? Takes a long time, and small tweaks require full deploys What about HOSTING COSTS? Necessary to provide enough RAM for the app to be scalable.

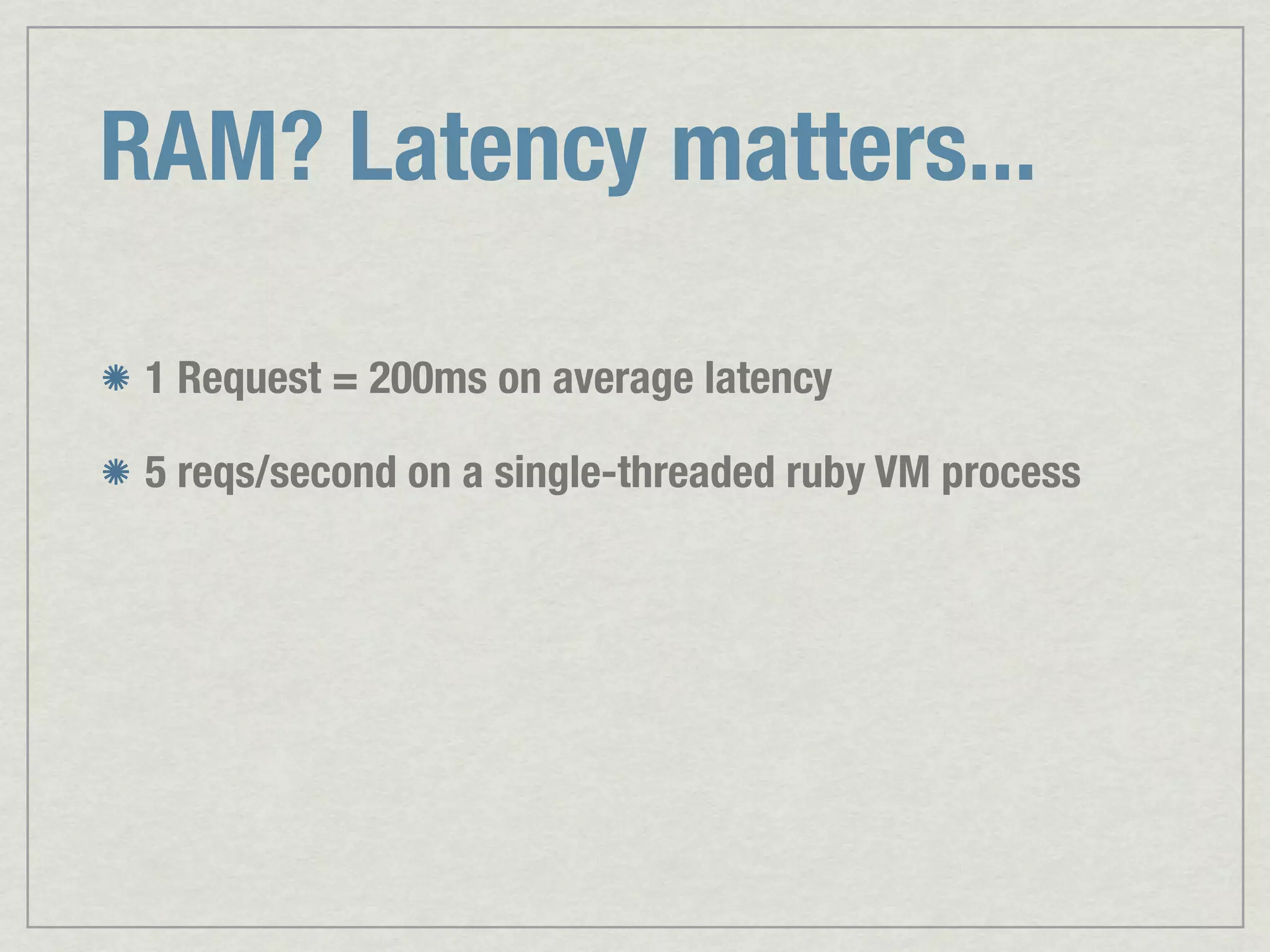

RAM? Latency matters... 1 Request = 200ms on average latency 5 reqs/second on a single-threaded ruby VM process

RAM? Latency matters... 1 Request = 200ms on average latency 5 reqs/second on a single-threaded ruby VM process 30,000 RPM = 500 r/sec = 100 processes 50Gb of RAM @ 200ms latency If average latency is 600ms, need 150Gb of RAM !!!

Part 3: How to split things up

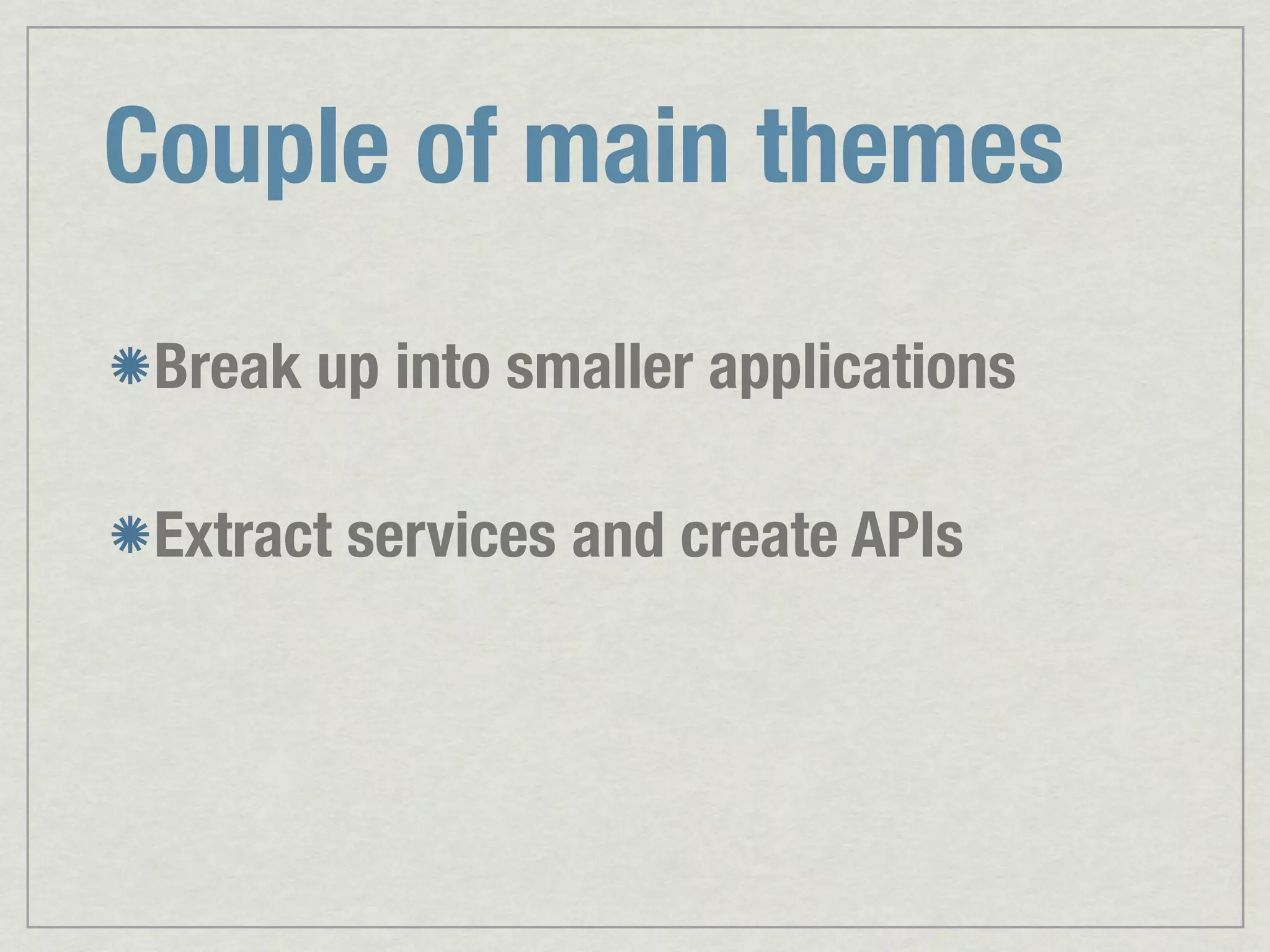

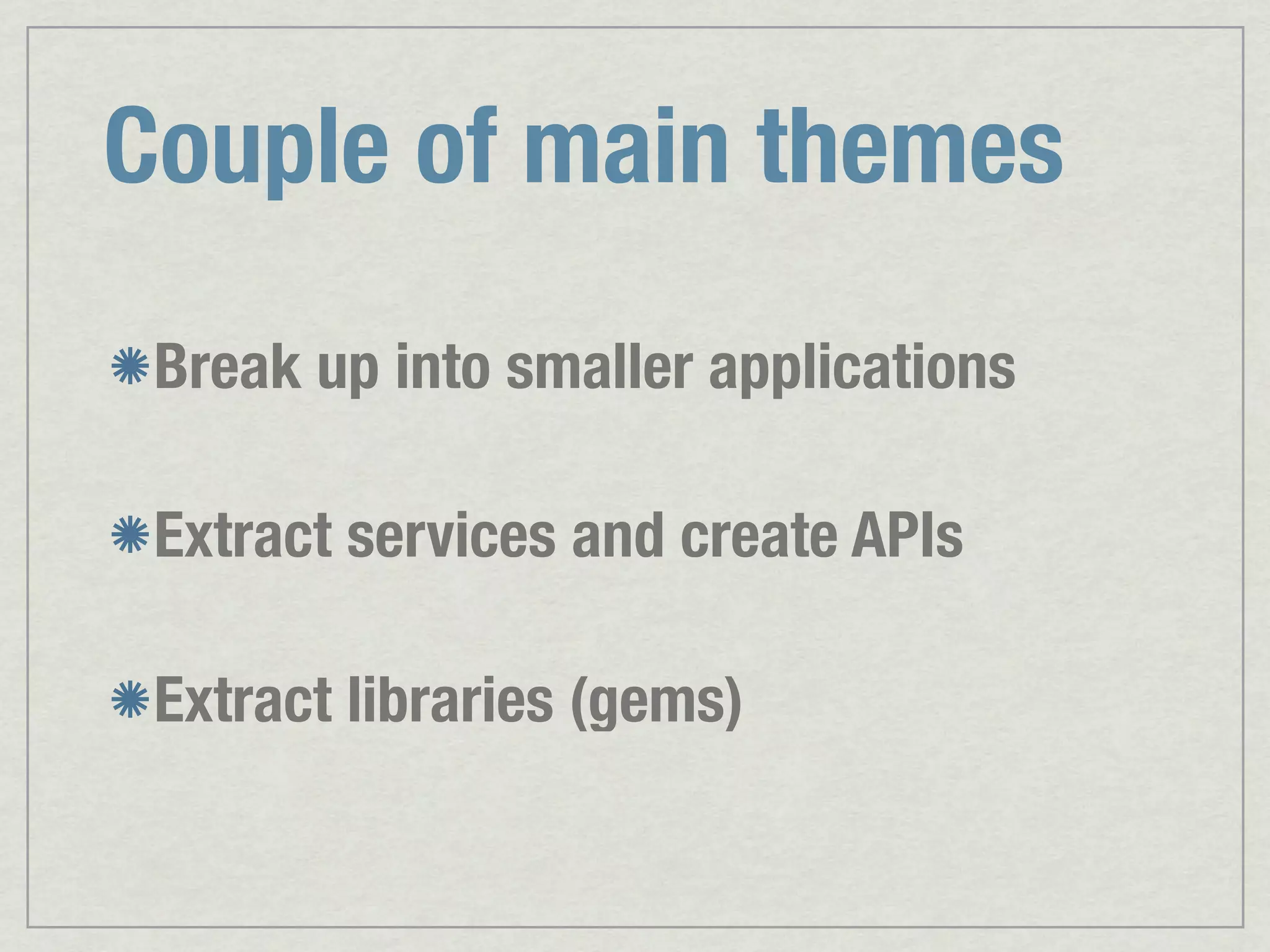

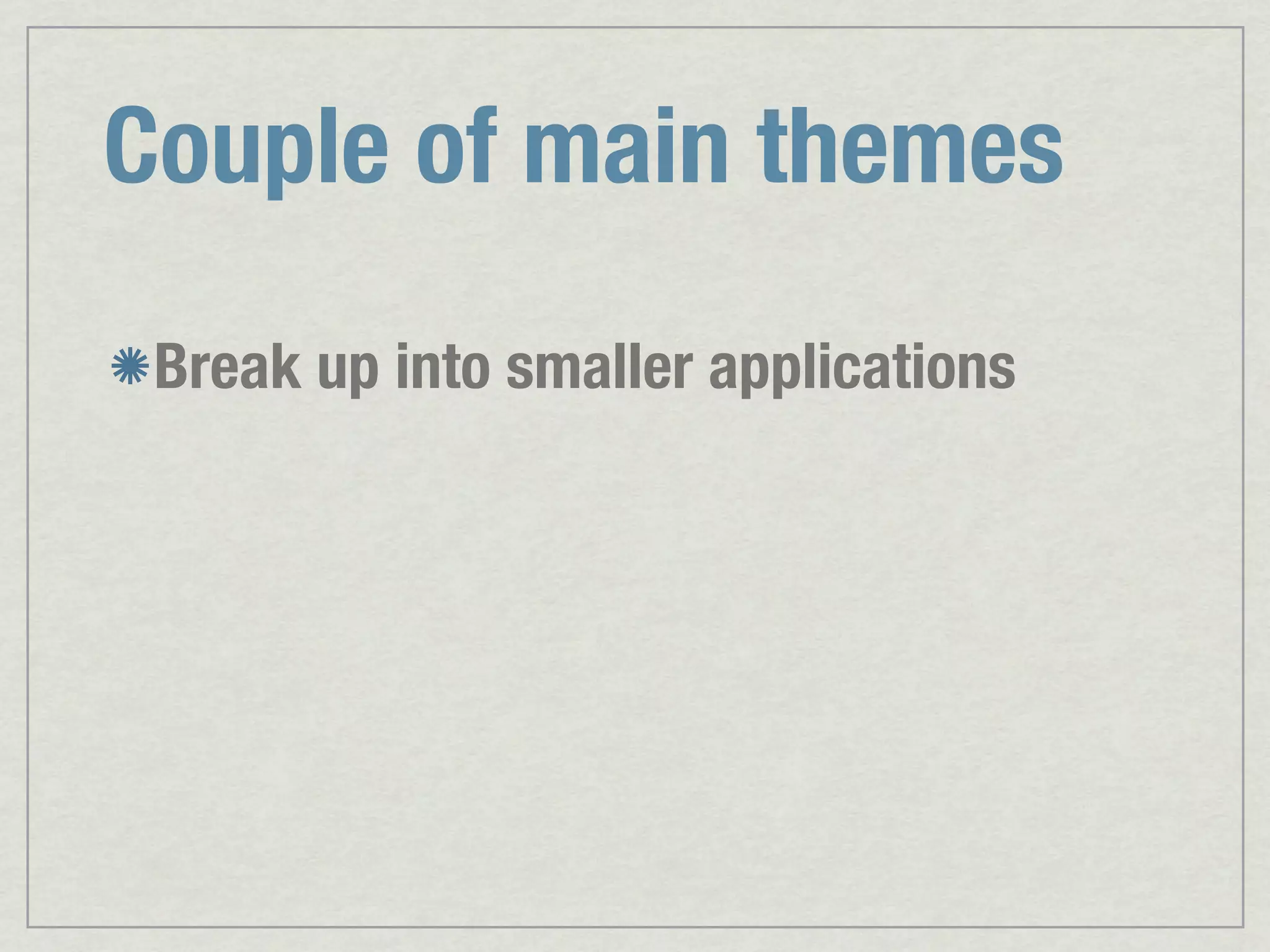

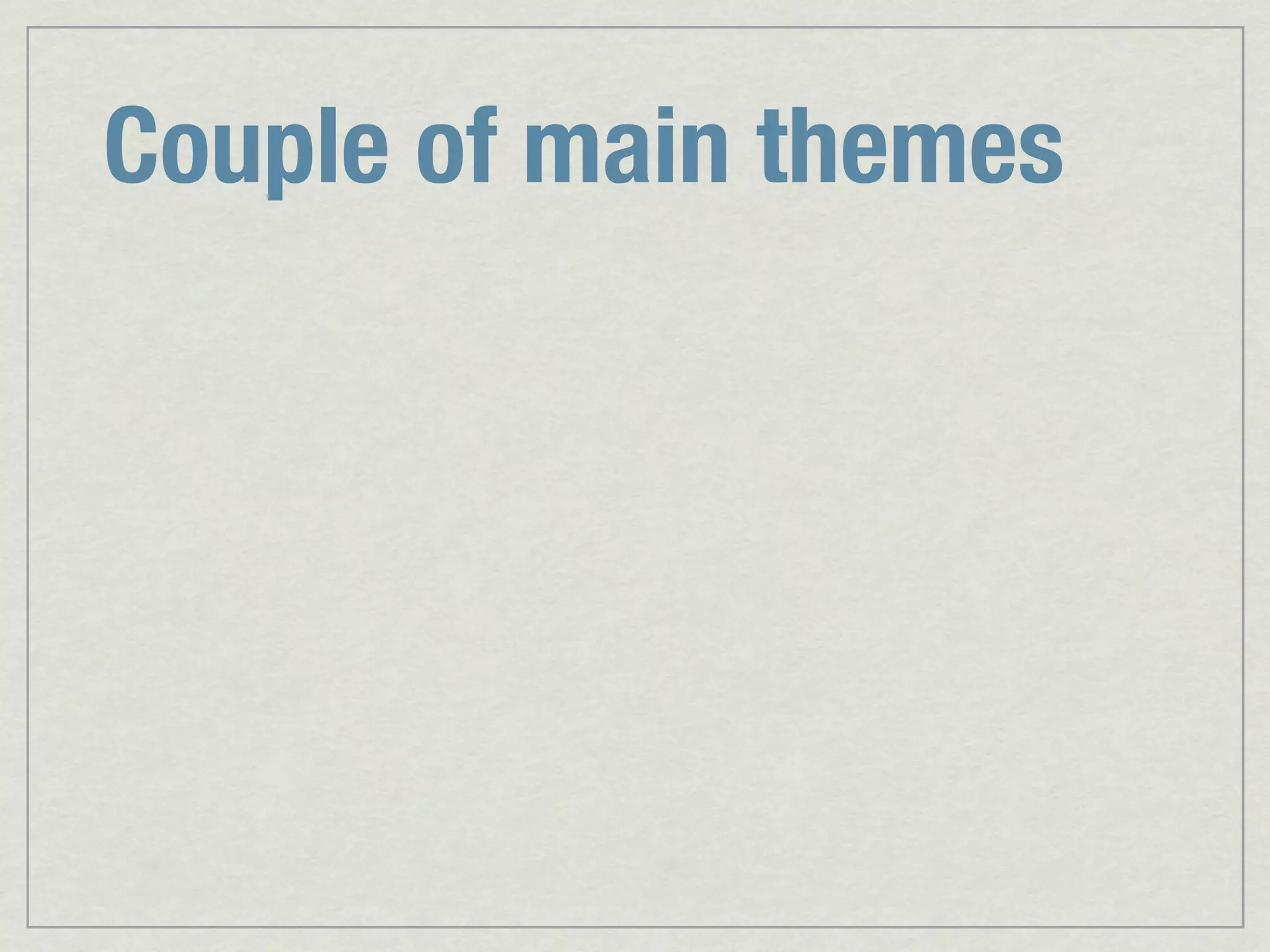

Couple of main themes Break up into smaller applications

Couple of main themes Break up into smaller applications Extract services and create APIs

Couple of main themes Break up into smaller applications Extract services and create APIs Extract libraries (gems)

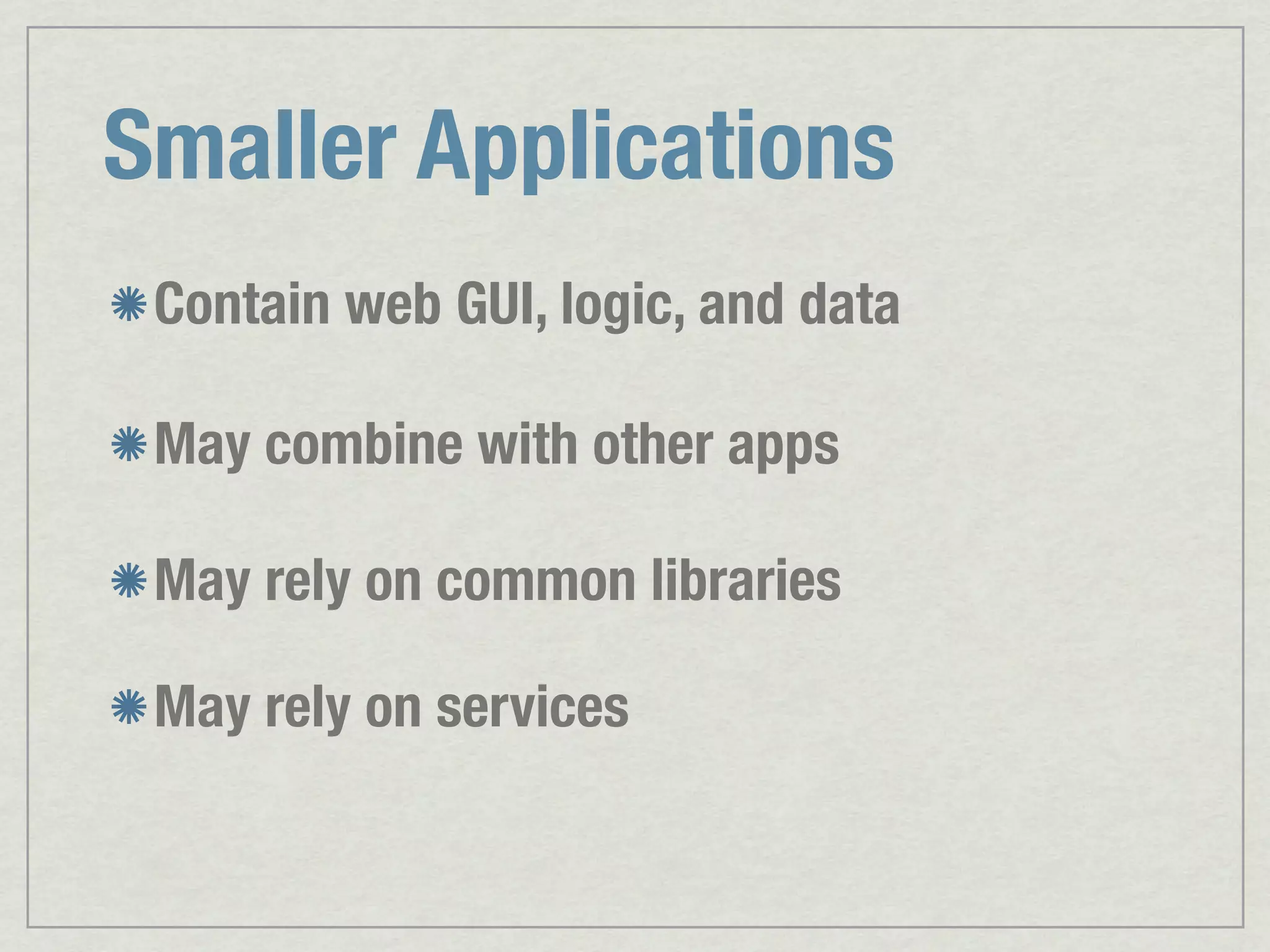

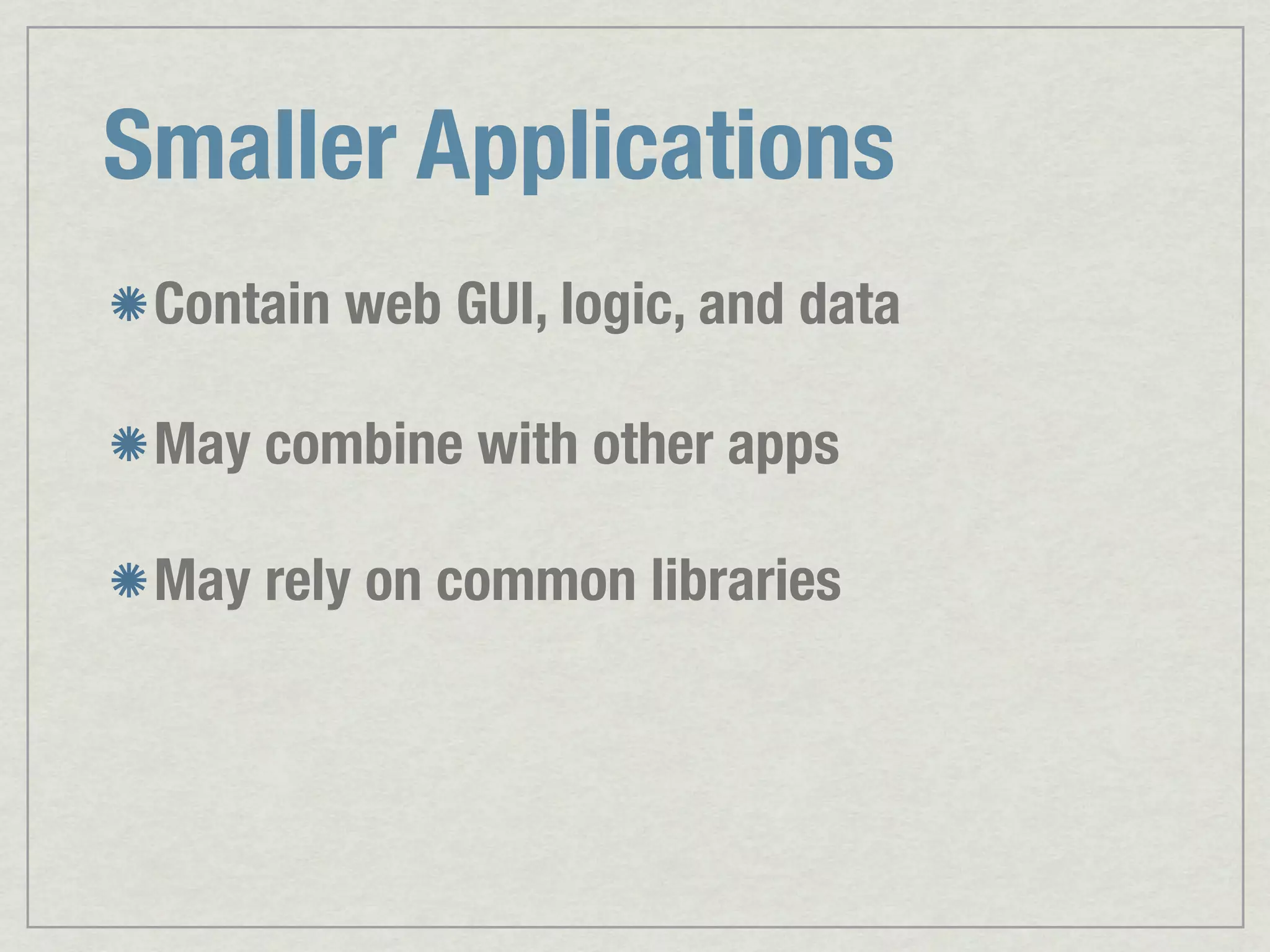

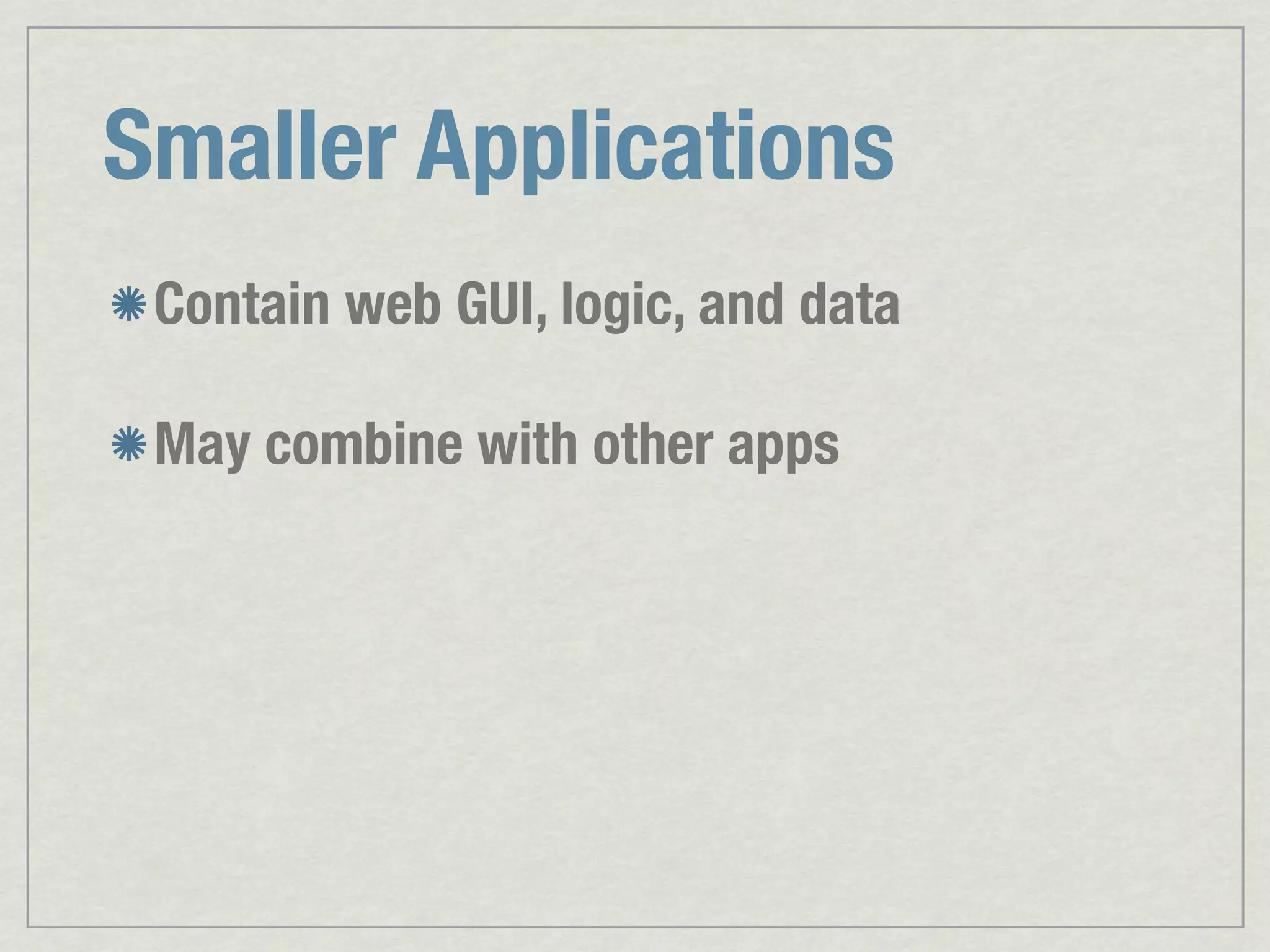

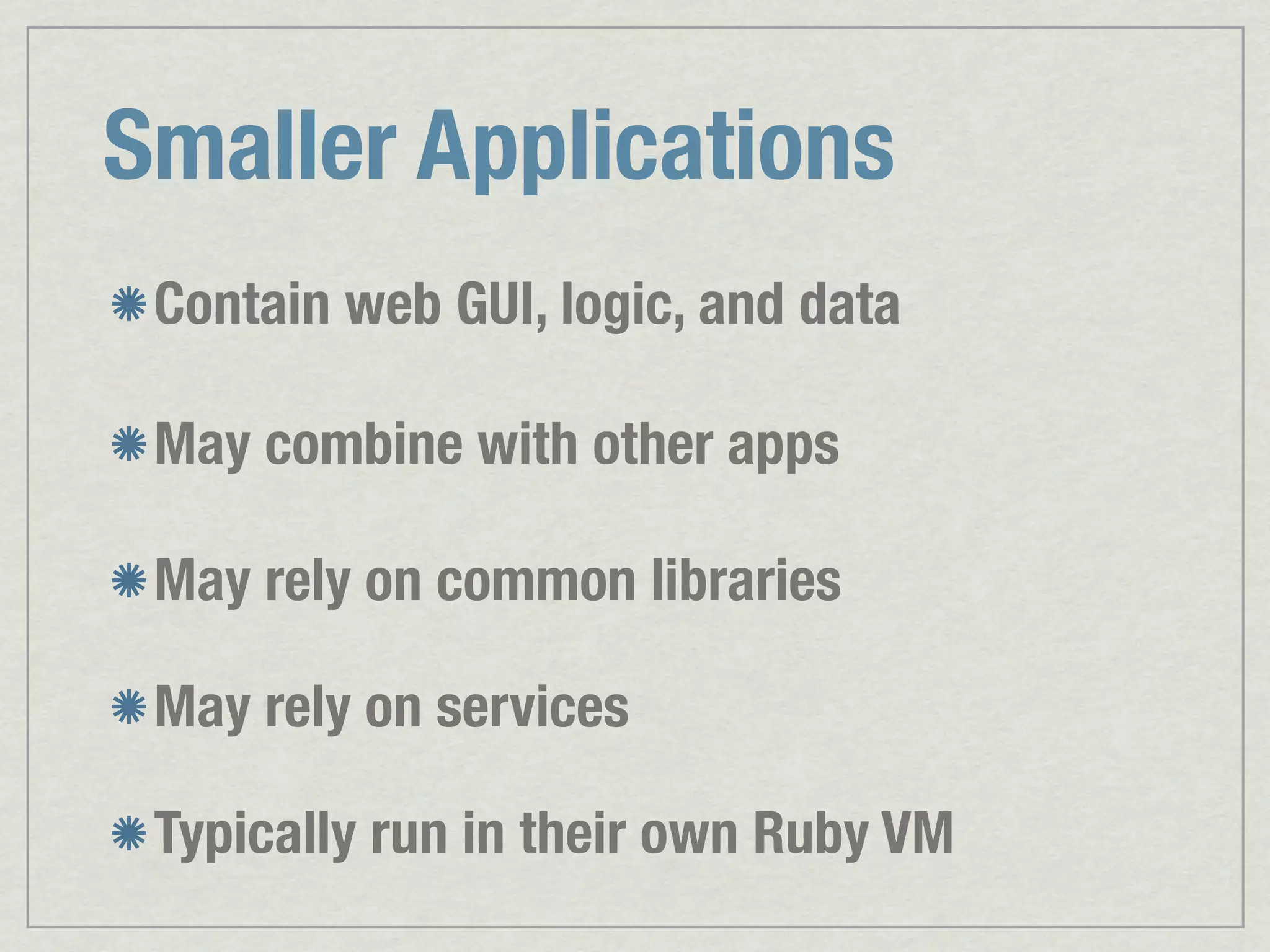

Smaller Applications Contain web GUI, logic, and data

Smaller Applications Contain web GUI, logic, and data May combine with other apps

Smaller Applications Contain web GUI, logic, and data May combine with other apps May rely on common libraries

Smaller Applications Contain web GUI, logic, and data May combine with other apps May rely on common libraries May rely on services

Smaller Applications Contain web GUI, logic, and data May combine with other apps May rely on common libraries May rely on services Typically run in their own Ruby VM

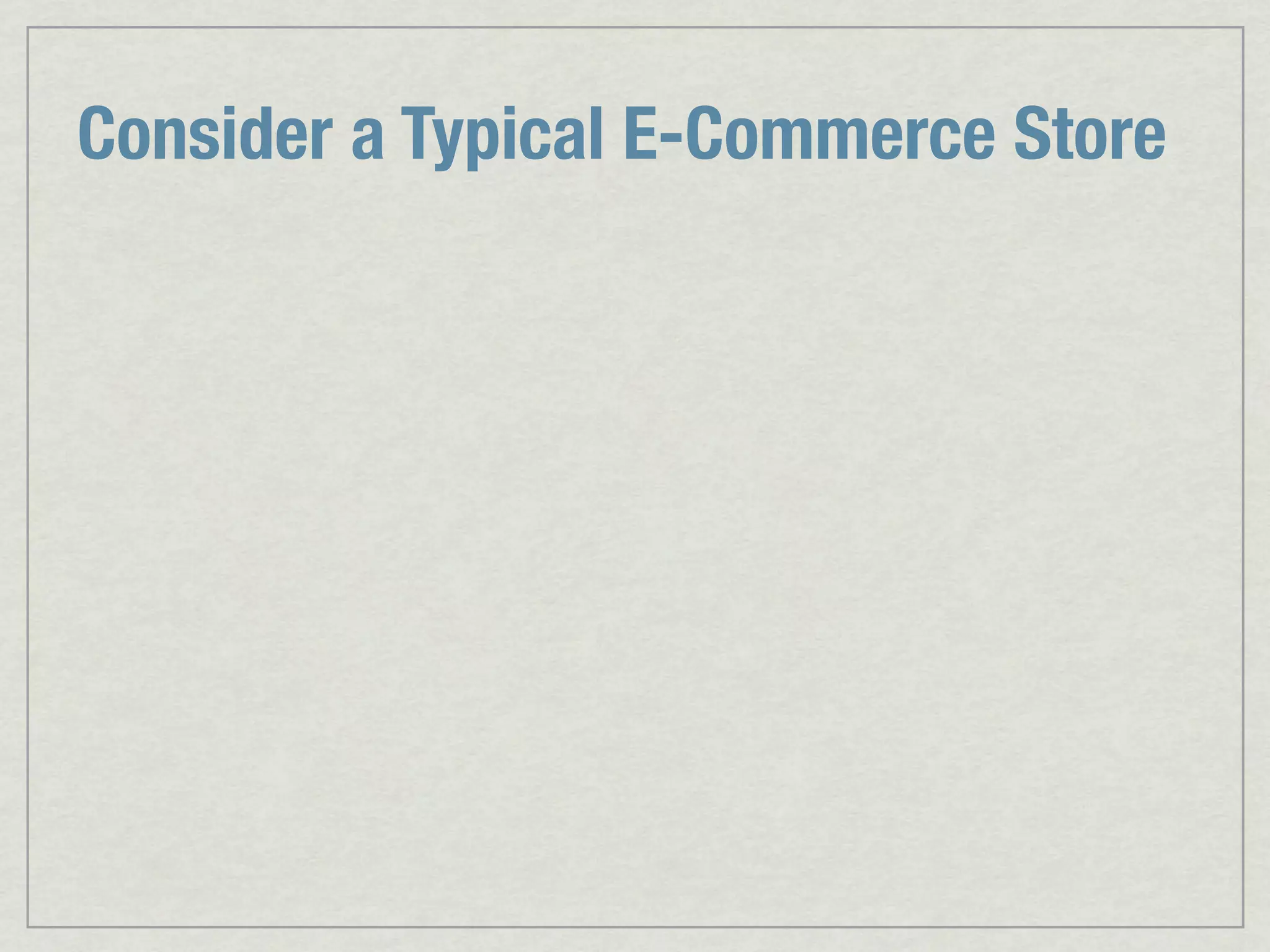

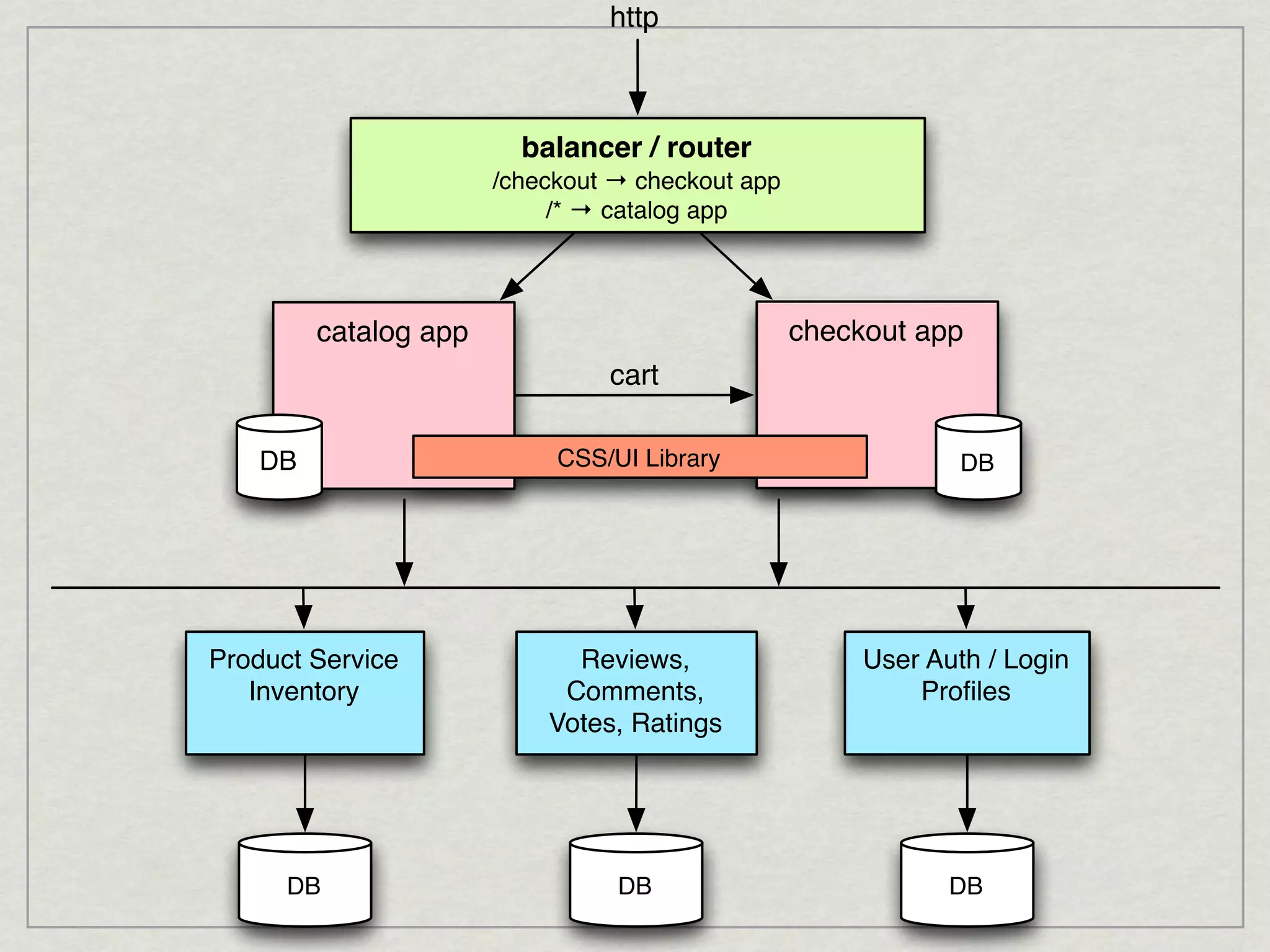

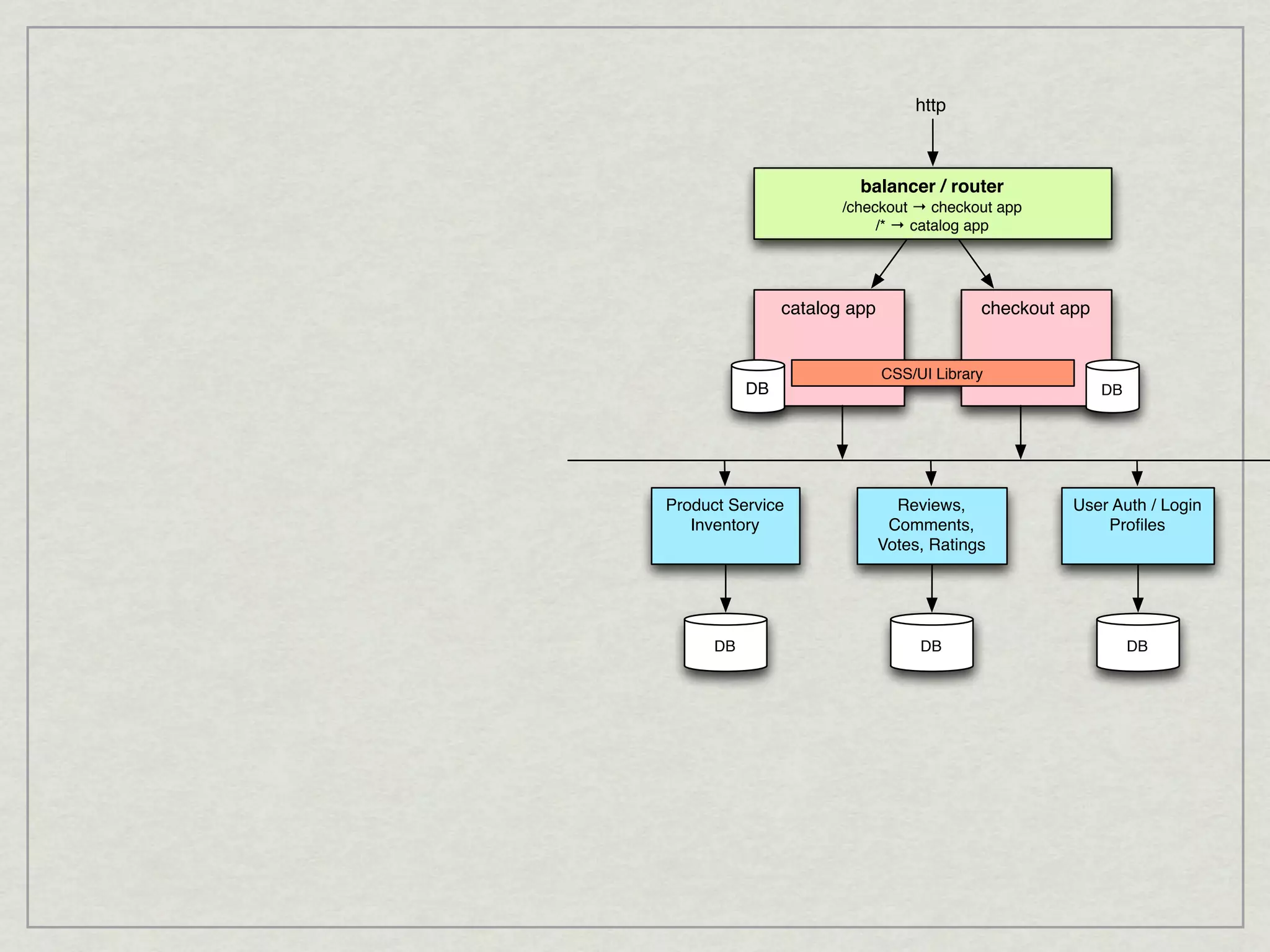

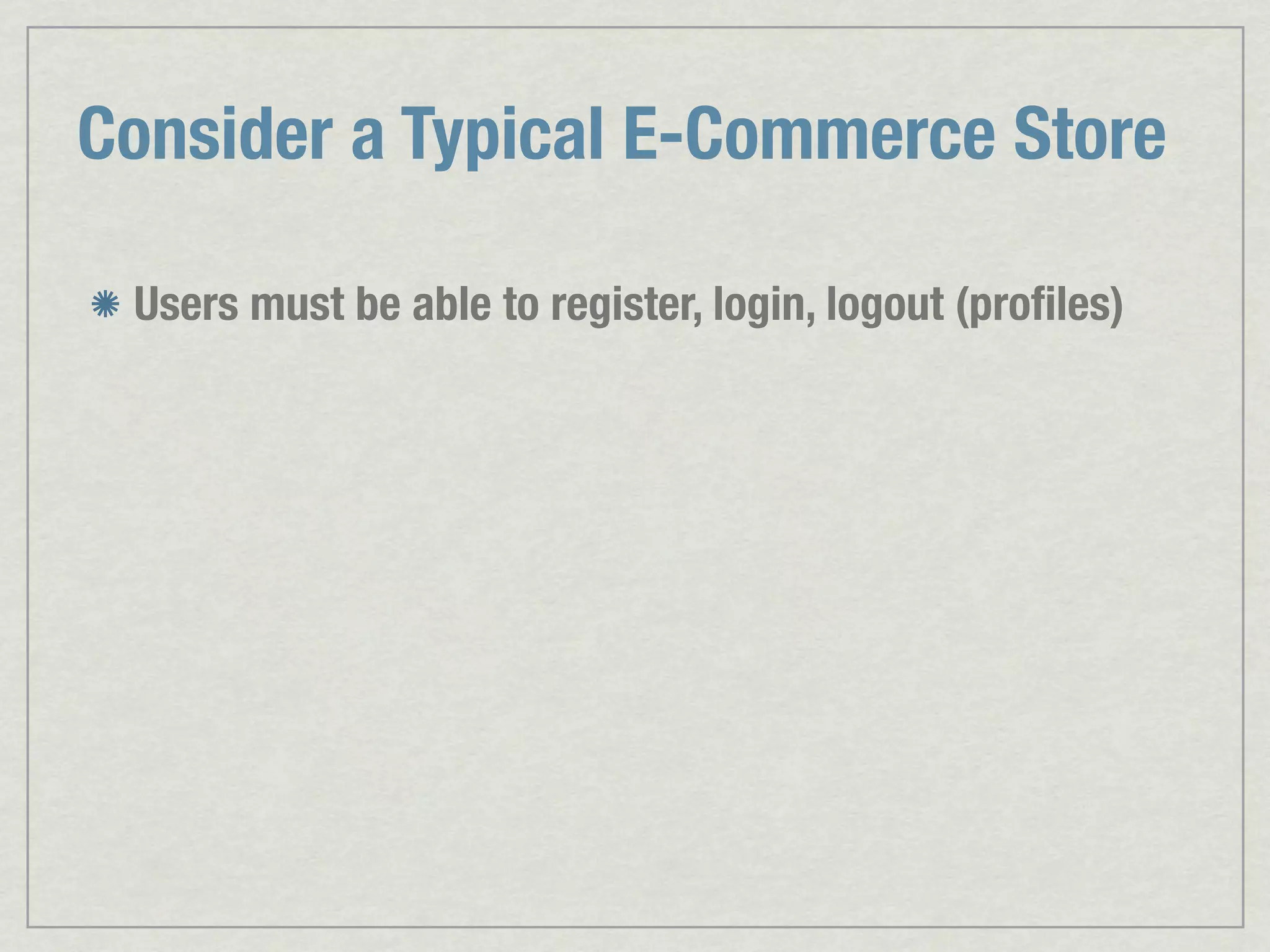

Consider a Typical E-Commerce Store

Consider a Typical E-Commerce Store Users must be able to register, login, logout (proﬁles)

Consider a Typical E-Commerce Store Users must be able to register, login, logout (proﬁles) Users must be able to browse and search products, view, and add to cart

Consider a Typical E-Commerce Store Users must be able to register, login, logout (proﬁles) Users must be able to browse and search products, view, and add to cart Users must be able to checkout

Consider a Typical E-Commerce Store Users must be able to register, login, logout (proﬁles) Users must be able to browse and search products, view, and add to cart Users must be able to checkout Probably many other stories, such as admin, but we’ll ignore for now.

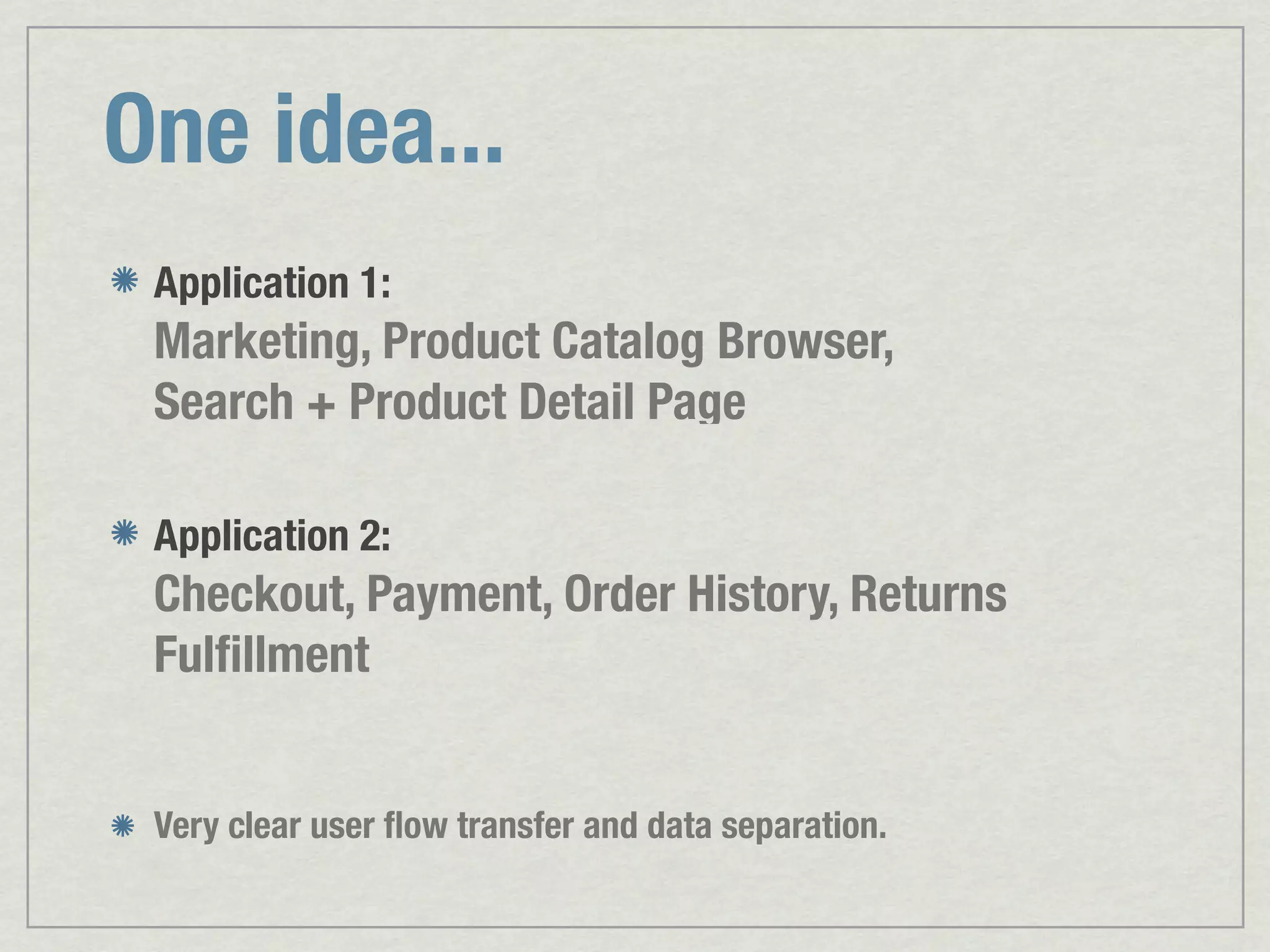

One idea... Application 1: Marketing, Product Catalog Browser, Search + Product Detail Page

One idea... Application 1: Marketing, Product Catalog Browser, Search + Product Detail Page Application 2: Checkout, Payment, Order History, Returns Fulﬁllment

One idea... Application 1: Marketing, Product Catalog Browser, Search + Product Detail Page Application 2: Checkout, Payment, Order History, Returns Fulﬁllment Very clear user ﬂow transfer and data separation.

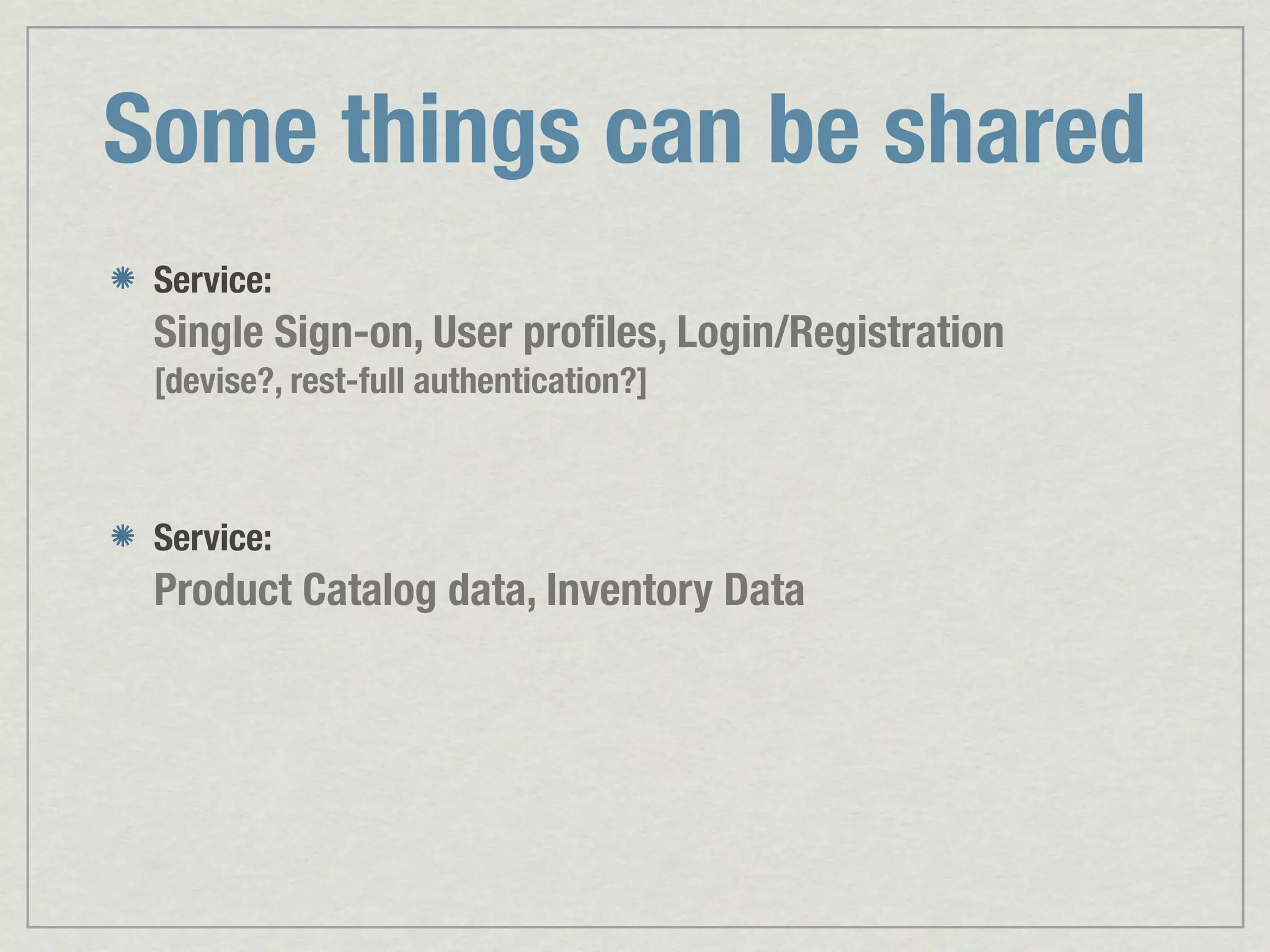

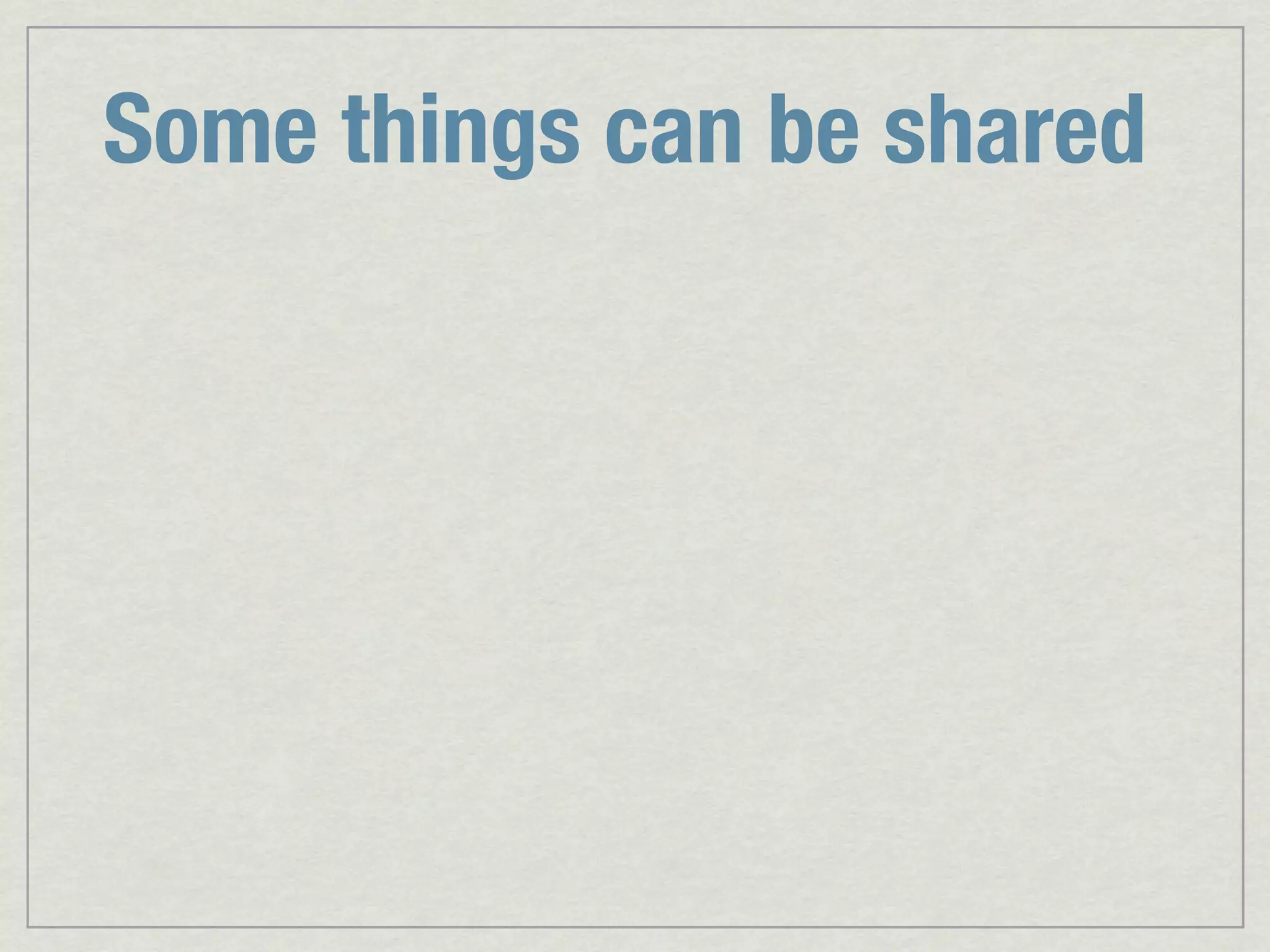

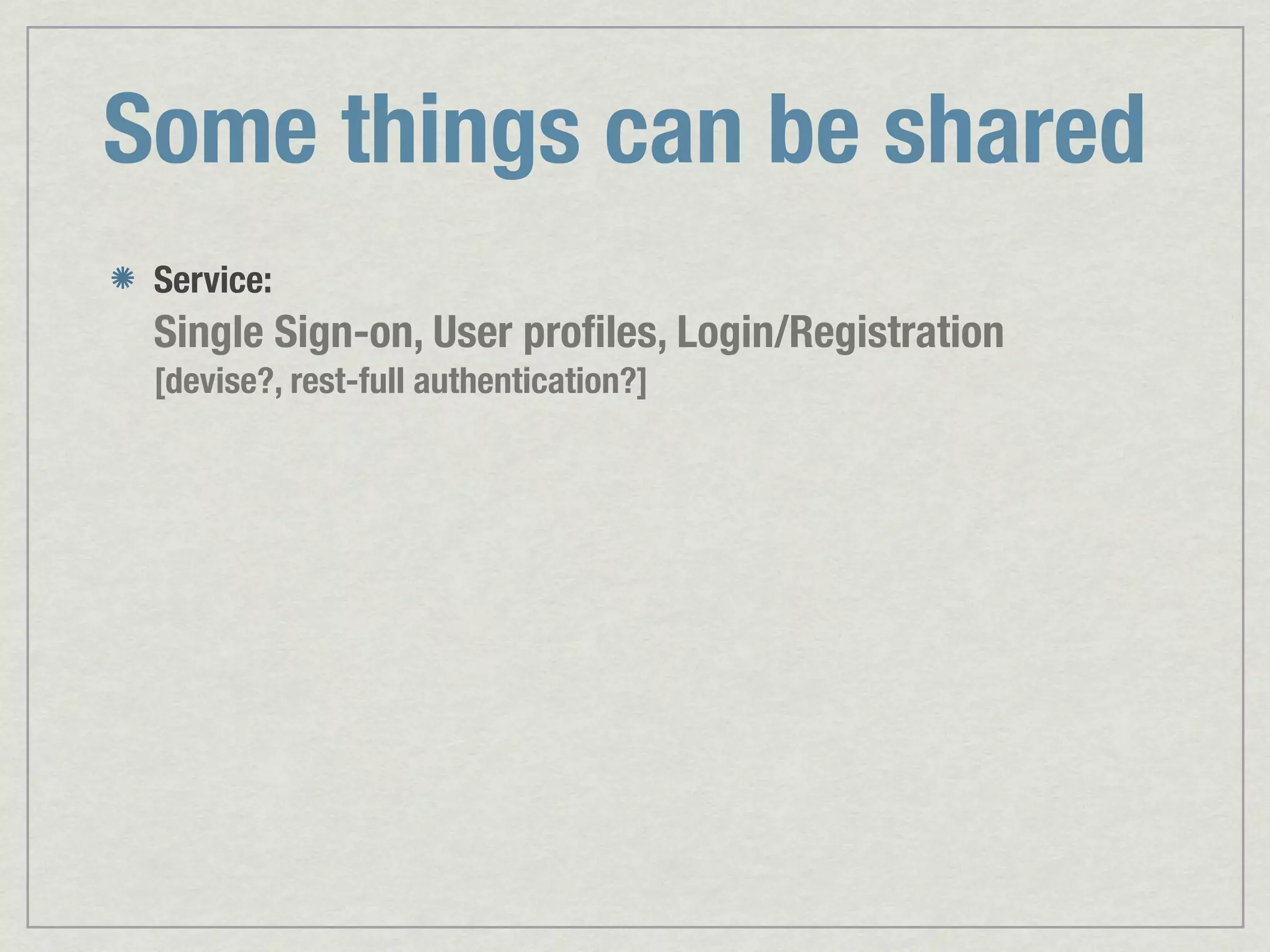

Some things can be shared Service: Single Sign-on, User proﬁles, Login/Registration [devise?, rest-full authentication?]

Some things can be shared Service: Single Sign-on, User proﬁles, Login/Registration [devise?, rest-full authentication?] Service: Product Catalog data, Inventory Data

Some things can be shared Service: Single Sign-on, User proﬁles, Login/Registration [devise?, rest-full authentication?] Service: Product Catalog data, Inventory Data Service: Comments, Votes, Ratings, Reviews

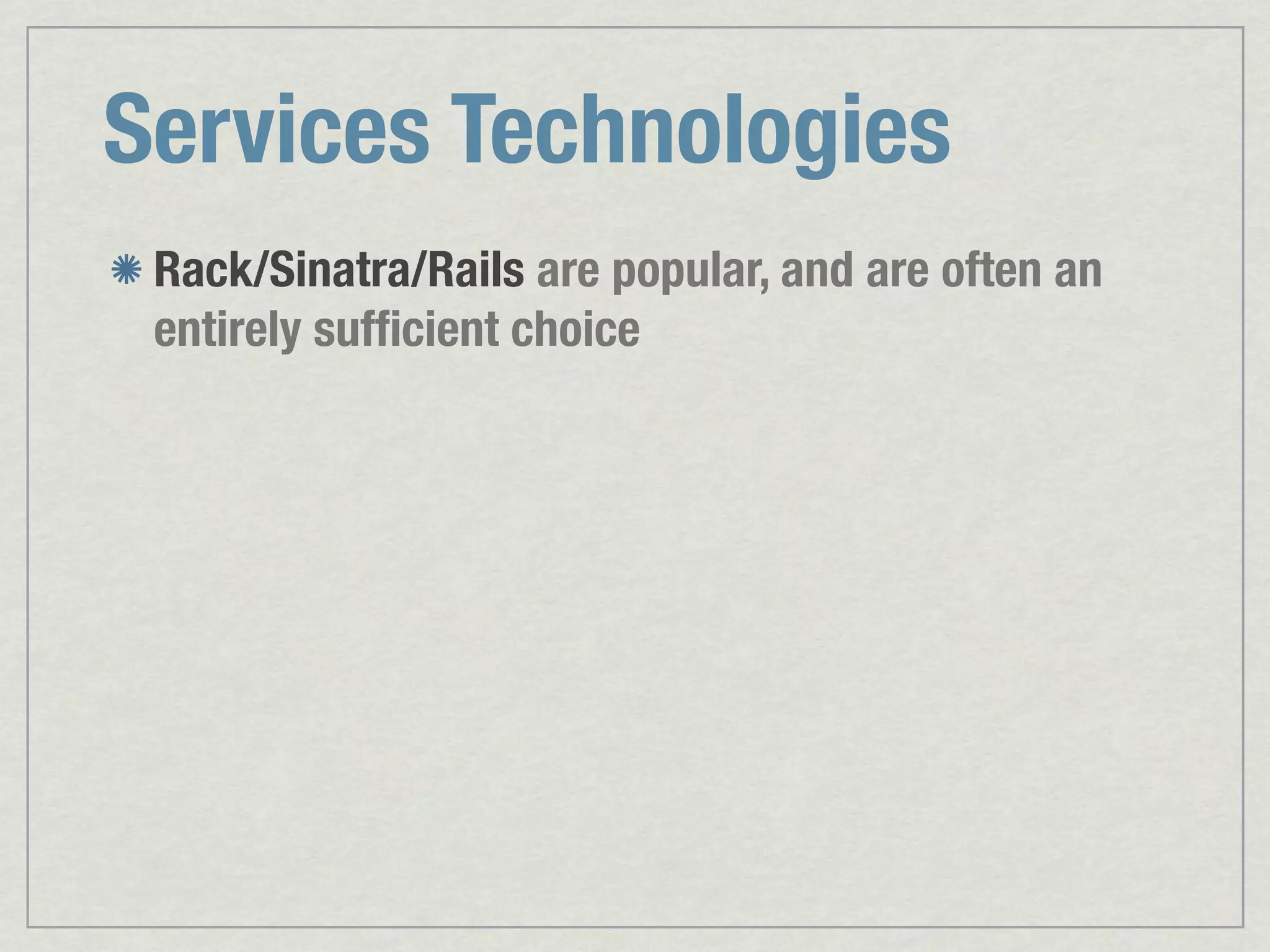

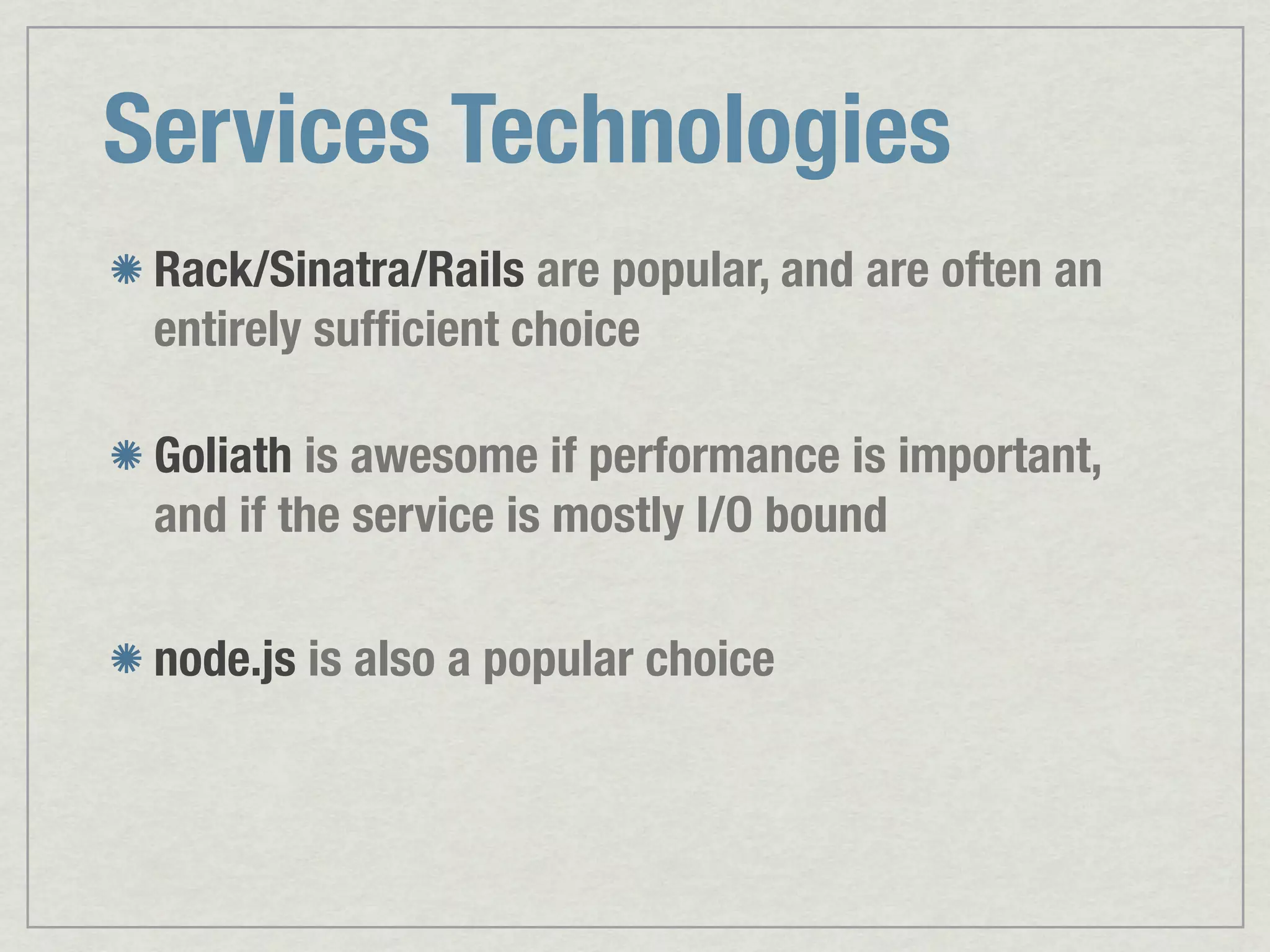

Services Technologies Rack/Sinatra/Rails are popular, and are often an entirely sufﬁcient choice

Services Technologies Rack/Sinatra/Rails are popular, and are often an entirely sufﬁcient choice Goliath is awesome if performance is important, and if the service is mostly I/O bound

Services Technologies Rack/Sinatra/Rails are popular, and are often an entirely sufﬁcient choice Goliath is awesome if performance is important, and if the service is mostly I/O bound node.js is also a popular choice

Services Technologies Rack/Sinatra/Rails are popular, and are often an entirely sufﬁcient choice Goliath is awesome if performance is important, and if the service is mostly I/O bound node.js is also a popular choice Implementation may change in the future, as long as the API stays consistent

http balancer / router /checkout → checkout app /* → catalog app catalog app checkout app cart DB CSS/UI Library DB Product Service Reviews, User Auth / Login Inventory Comments, Proﬁles Votes, Ratings DB DB DB

http balancer / router /checkout → checkout app /* → catalog app catalog app checkout app CSS/UI Library DB DB Product Service Reviews, User Auth / Login Inventory Comments, Proﬁles Votes, Ratings DB DB DB

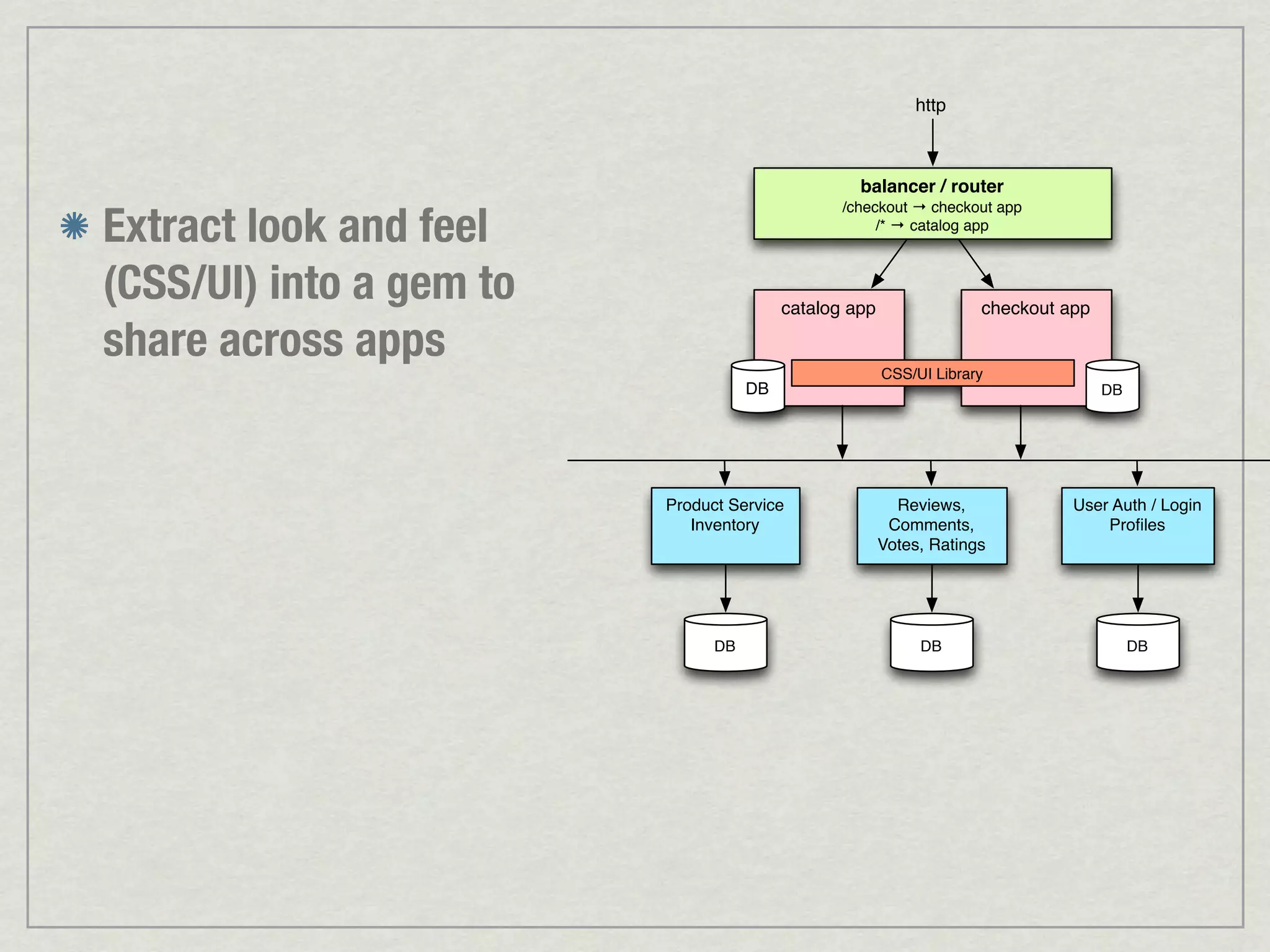

http balancer / router Extract look and feel /checkout → checkout app /* → catalog app (CSS/UI) into a gem to catalog app checkout app share across apps CSS/UI Library DB DB Product Service Reviews, User Auth / Login Inventory Comments, Proﬁles Votes, Ratings DB DB DB

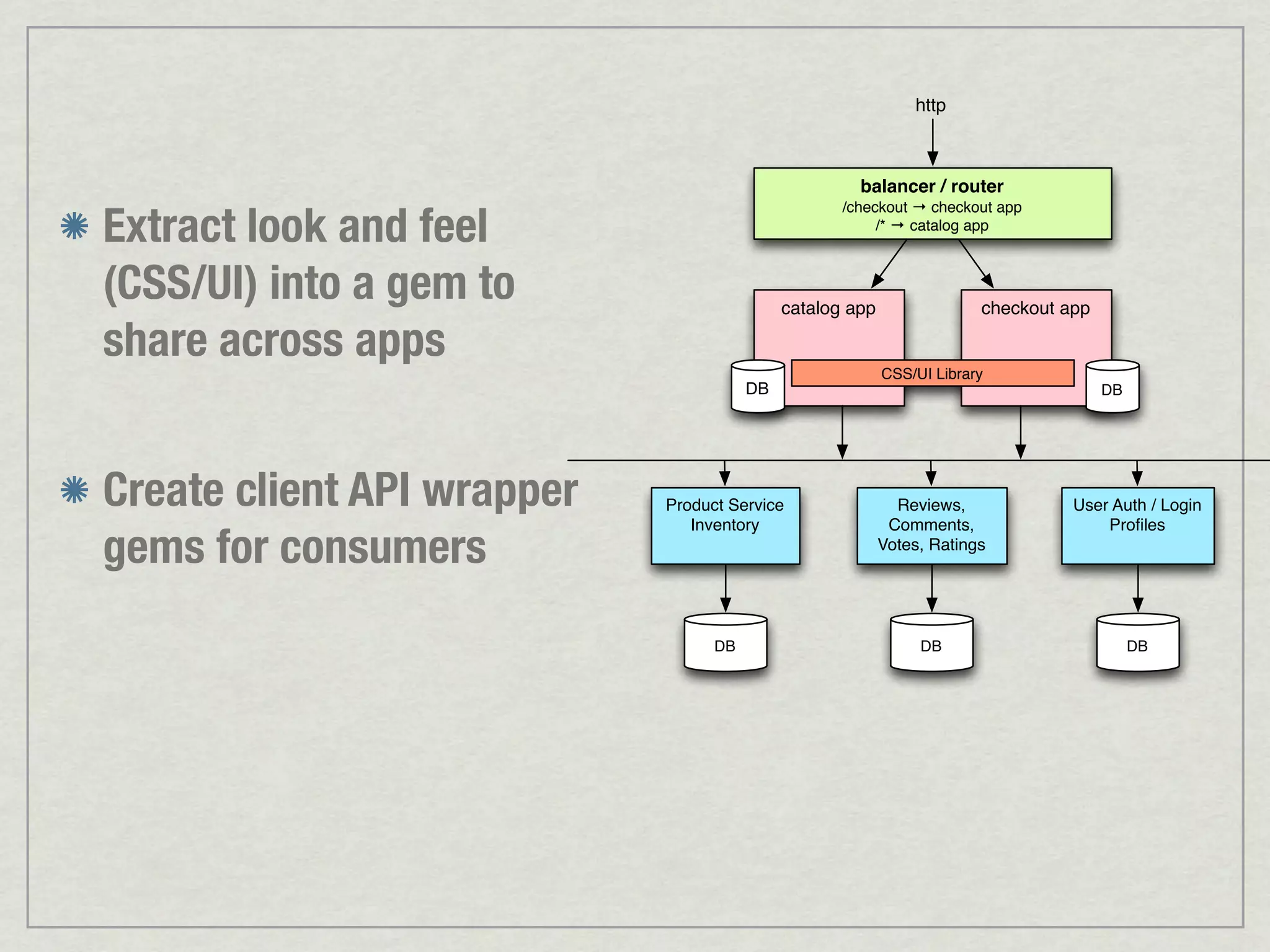

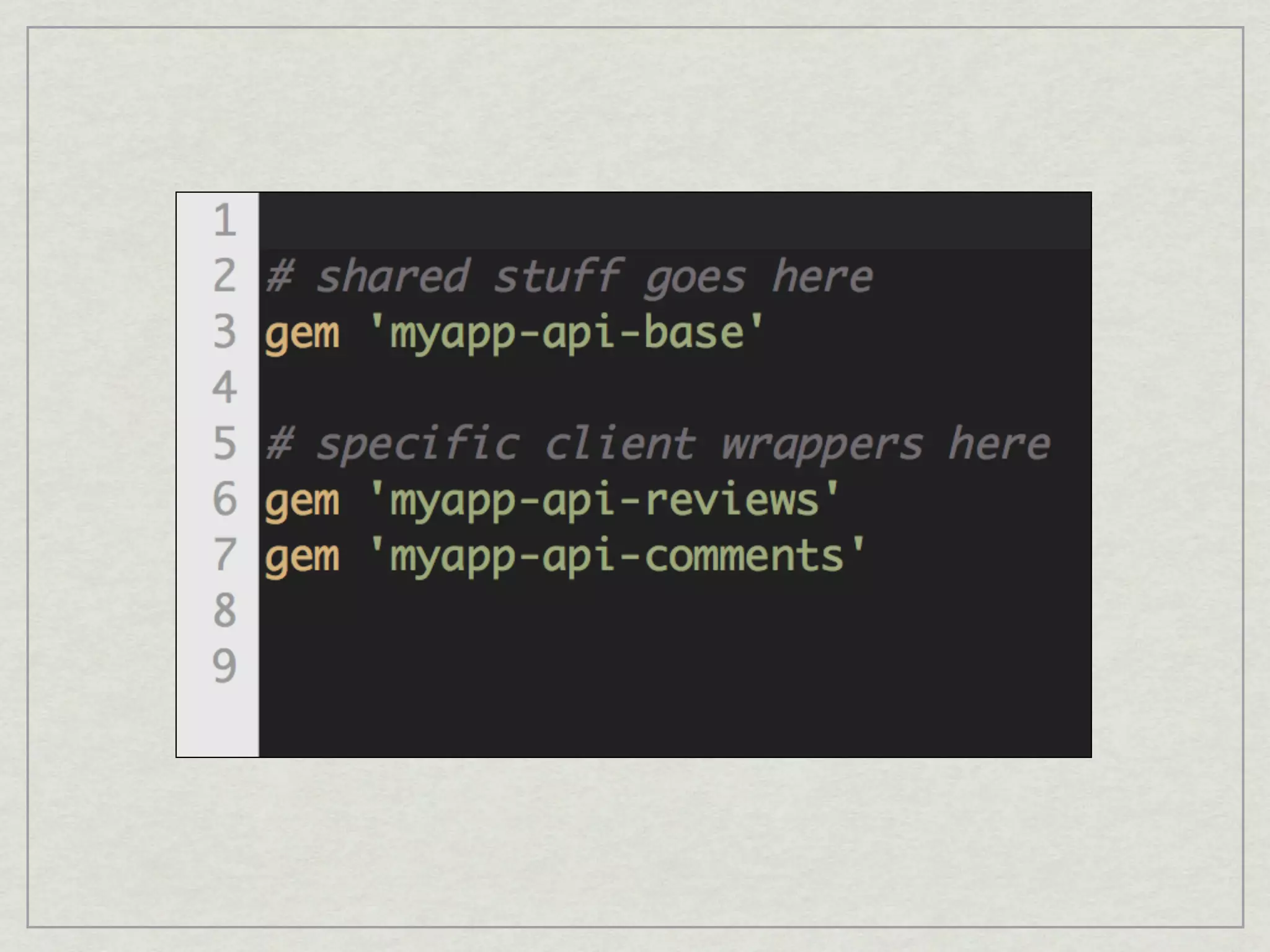

http balancer / router Extract look and feel /checkout → checkout app /* → catalog app (CSS/UI) into a gem to catalog app checkout app share across apps CSS/UI Library DB DB Create client API wrapper Product Service Reviews, User Auth / Login gems for consumers Inventory Comments, Proﬁles Votes, Ratings DB DB DB

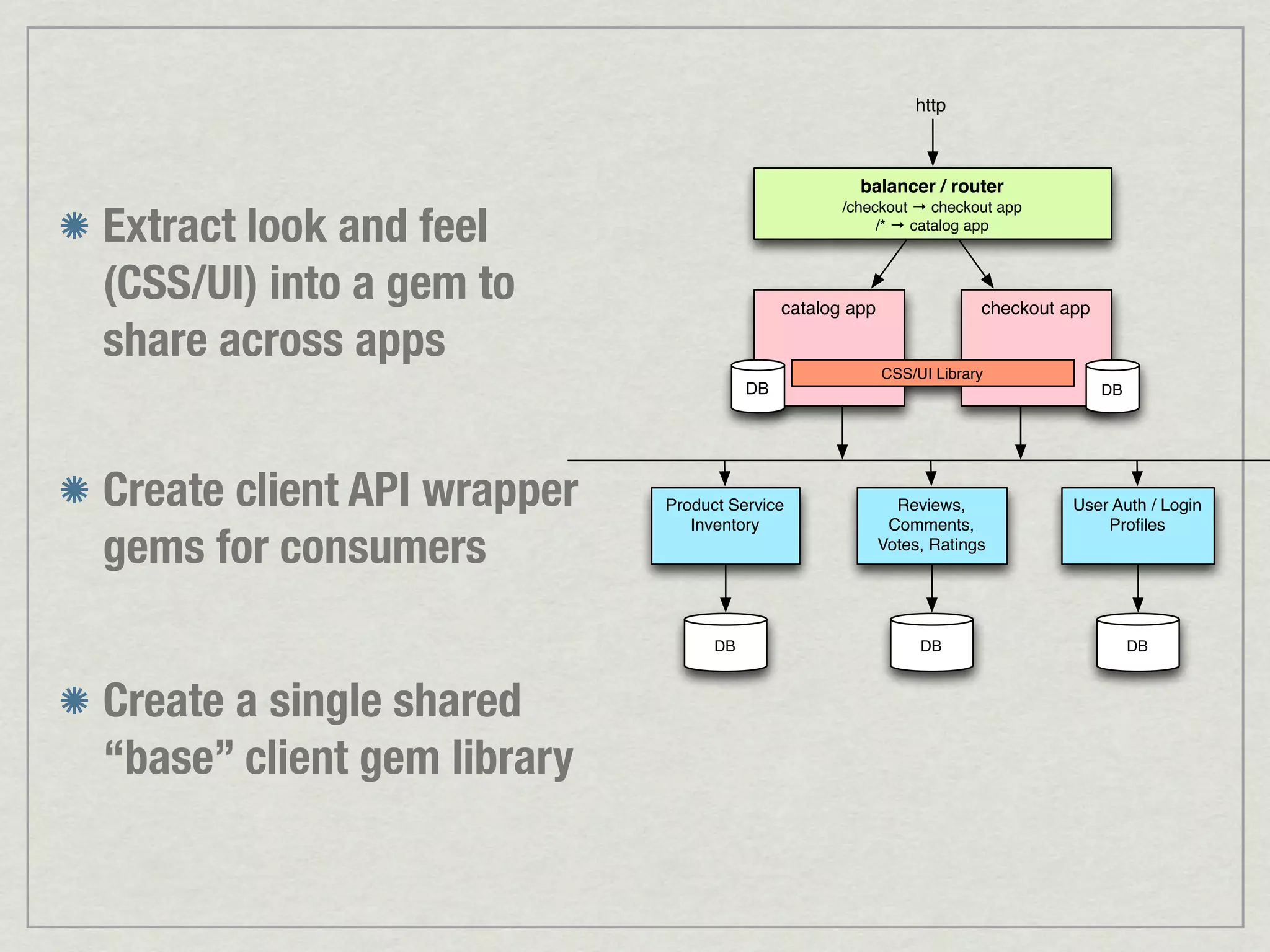

http balancer / router Extract look and feel /checkout → checkout app /* → catalog app (CSS/UI) into a gem to catalog app checkout app share across apps CSS/UI Library DB DB Create client API wrapper Product Service Reviews, User Auth / Login gems for consumers Inventory Comments, Proﬁles Votes, Ratings DB DB DB Create a single shared “base” client gem library

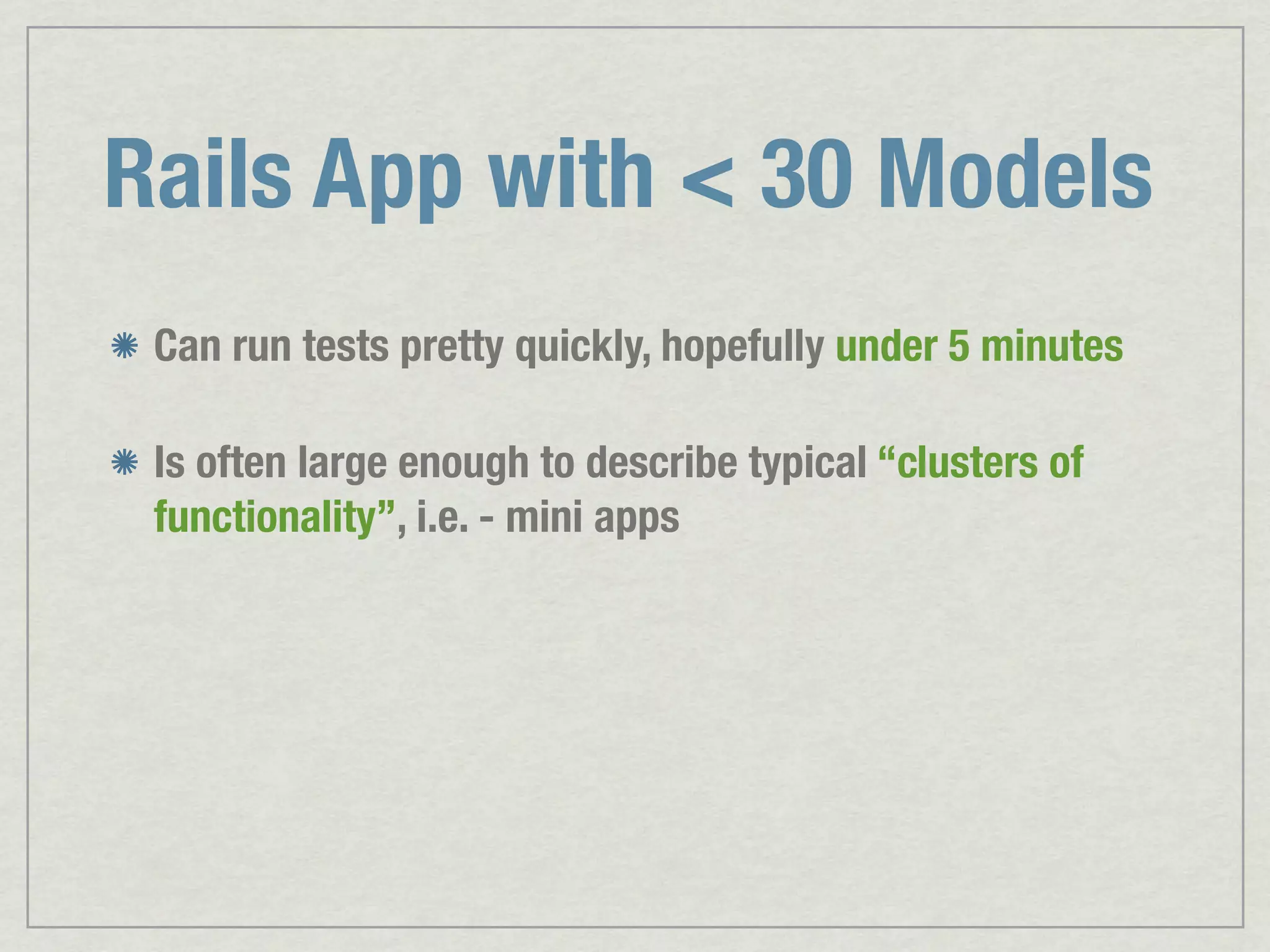

Rails App with < 30 Models Can run tests pretty quickly, hopefully under 5 minutes

Rails App with < 30 Models Can run tests pretty quickly, hopefully under 5 minutes Is often large enough to describe typical “clusters of functionality”, i.e. - mini apps

Rails App with < 30 Models Can run tests pretty quickly, hopefully under 5 minutes Is often large enough to describe typical “clusters of functionality”, i.e. - mini apps Ruby VM might actually stay under 100Mb of RSS RAM

Rails App with < 30 Models Can run tests pretty quickly, hopefully under 5 minutes Is often large enough to describe typical “clusters of functionality”, i.e. - mini apps Ruby VM might actually stay under 100Mb of RSS RAM Is more comprehensible and can be effectively maintained by a small dev team.

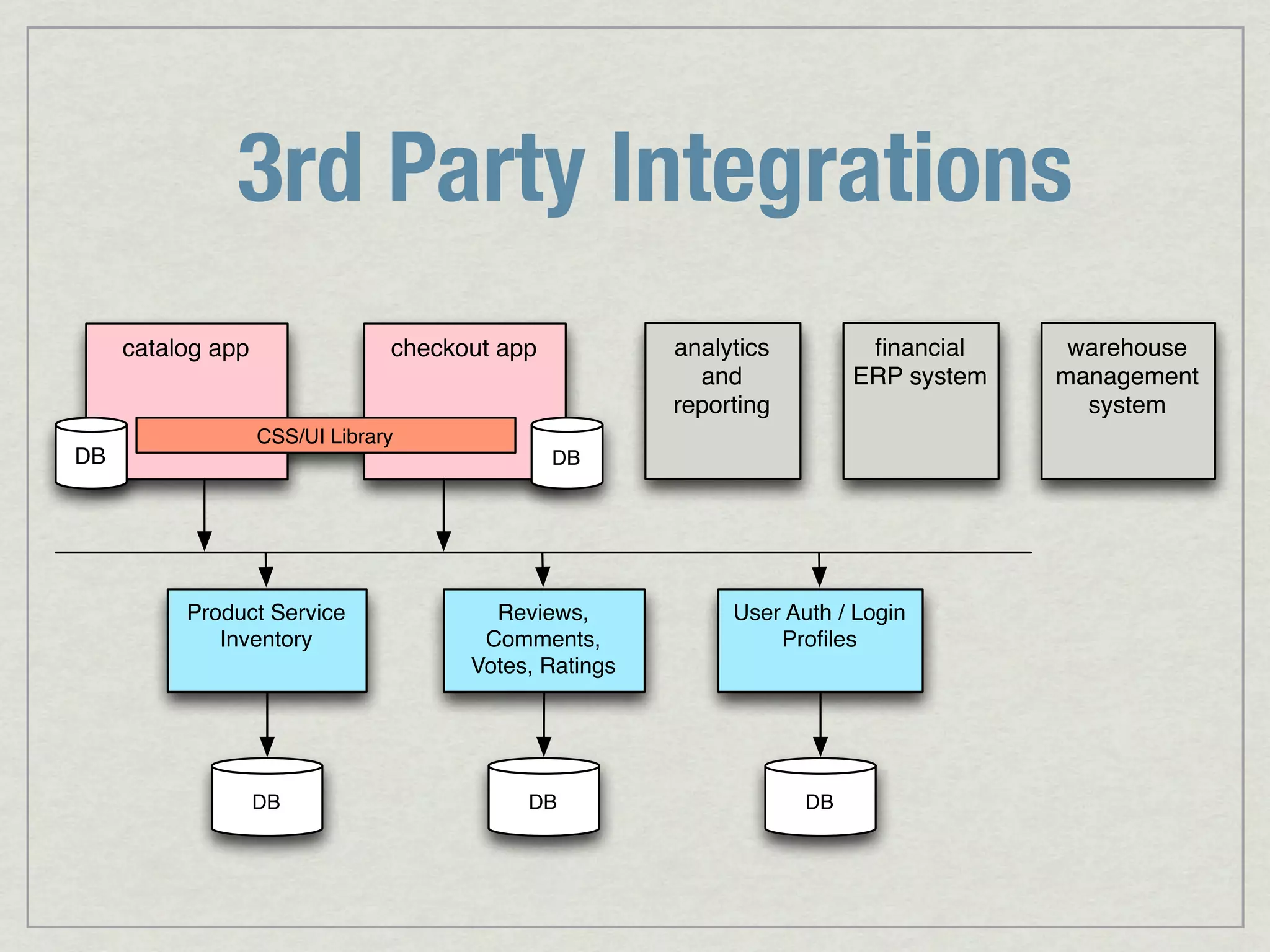

3rd Party Integrations catalog app checkout app analytics ﬁnancial warehouse and ERP system management reporting system CSS/UI Library DB DB Product Service Reviews, User Auth / Login Inventory Comments, Proﬁles Votes, Ratings DB DB DB

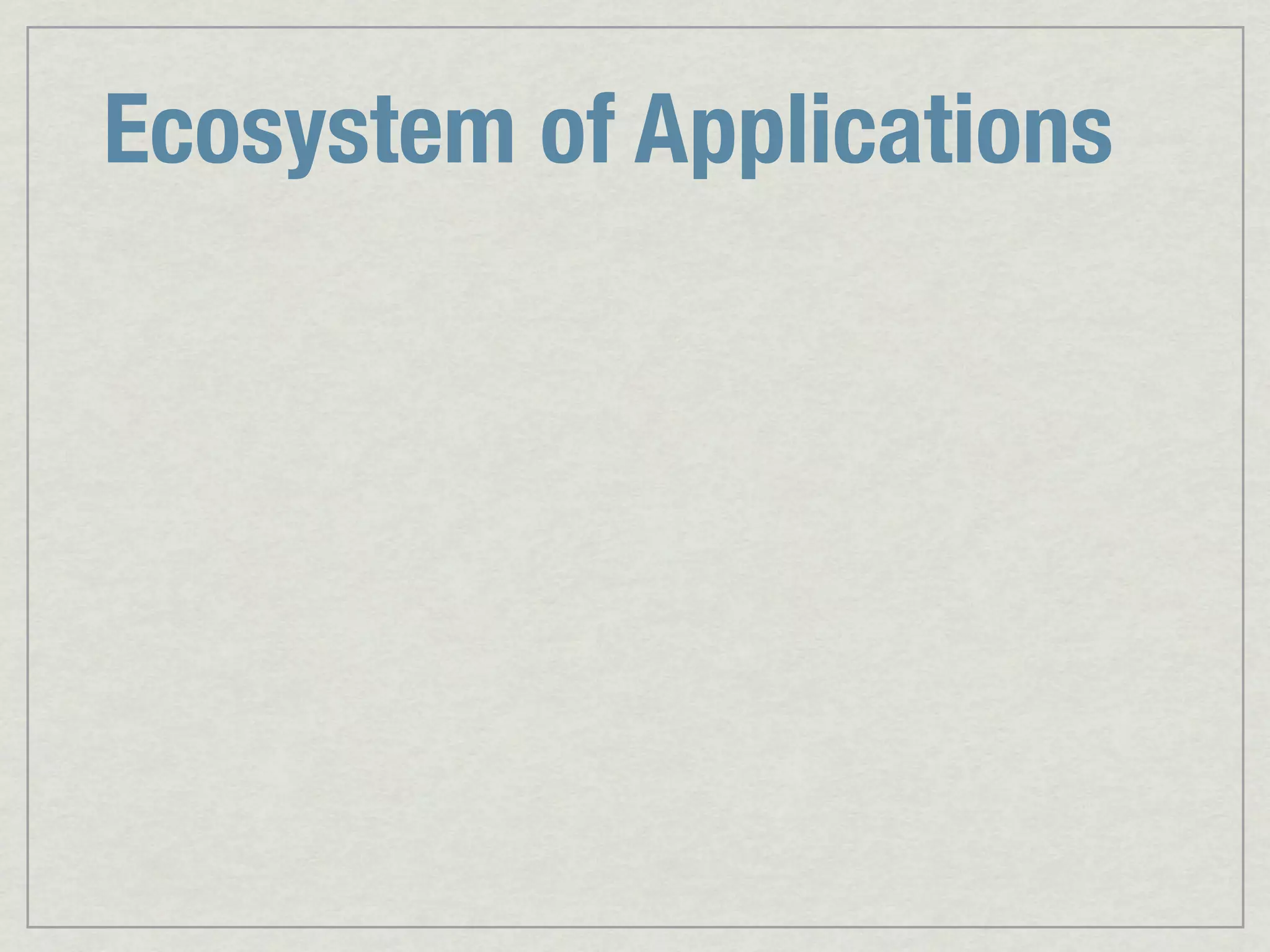

Ecosystem of Applications Is inevitable in large companies

Ecosystem of Applications Is inevitable in large companies Scale better from team perspective

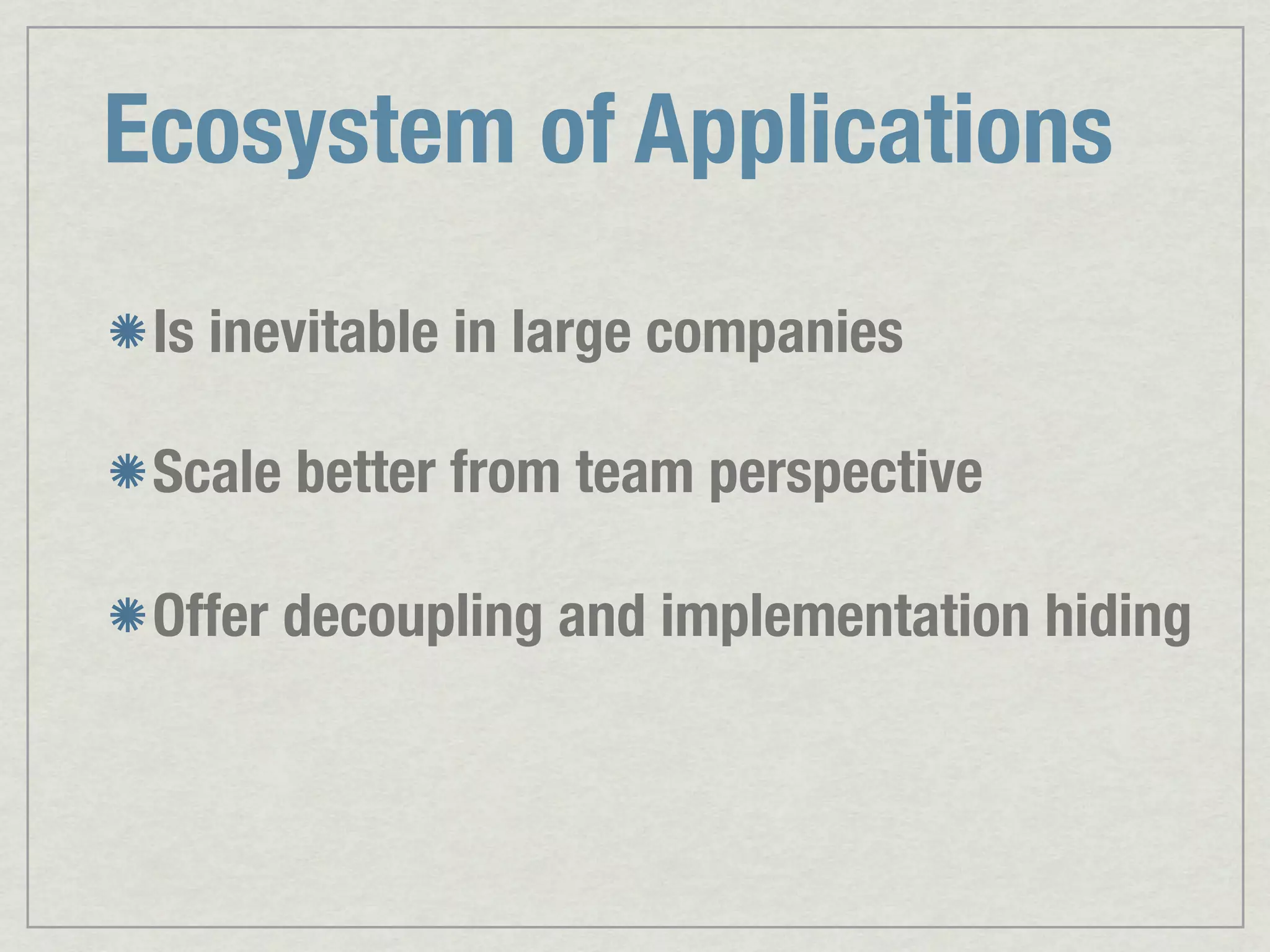

Ecosystem of Applications Is inevitable in large companies Scale better from team perspective Offer decoupling and implementation hiding

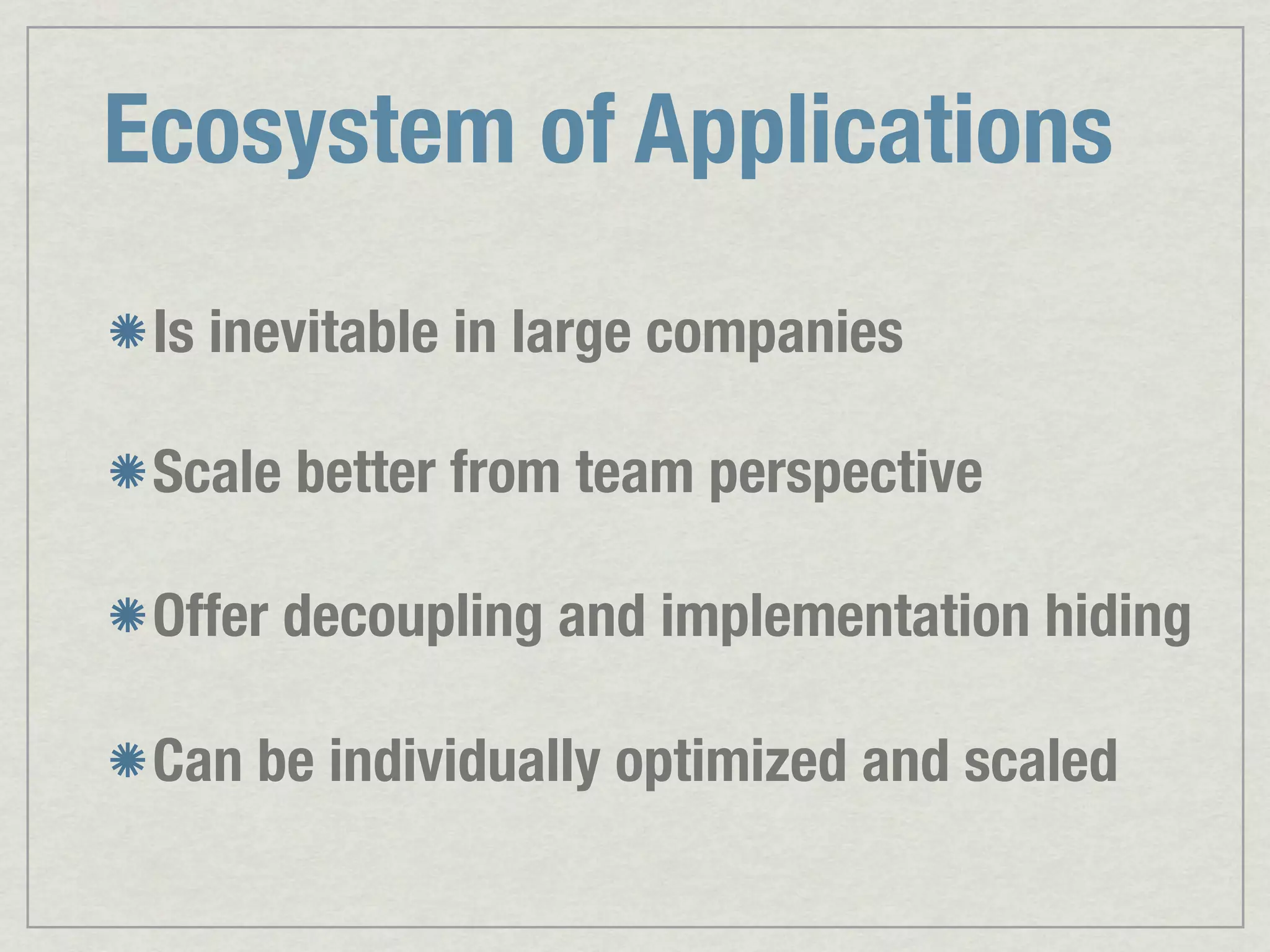

Ecosystem of Applications Is inevitable in large companies Scale better from team perspective Offer decoupling and implementation hiding Can be individually optimized and scaled

But then... Must every app know about every other app?

API Proxy / Router catalog app checkout app analytics ﬁnancial and ERP CSS/UI Library DB DB reporting system http://api.mycompany.com/ Product Service Reviews, User Auth / Login Inventory Comments, Proﬁles Votes, Ratings DB DB DB

Example: Order Placed Warehouse Management System needs to be updated

Example: Order Placed Warehouse Management System needs to be updated Analytics Engine needs to be notiﬁed

Example: Order Placed Warehouse Management System needs to be updated Analytics Engine needs to be notiﬁed Financials needs to be updated

Example: Order Placed Warehouse Management System needs to be updated Analytics Engine needs to be notiﬁed Financials needs to be updated Question: which component is responsible for updating each application?

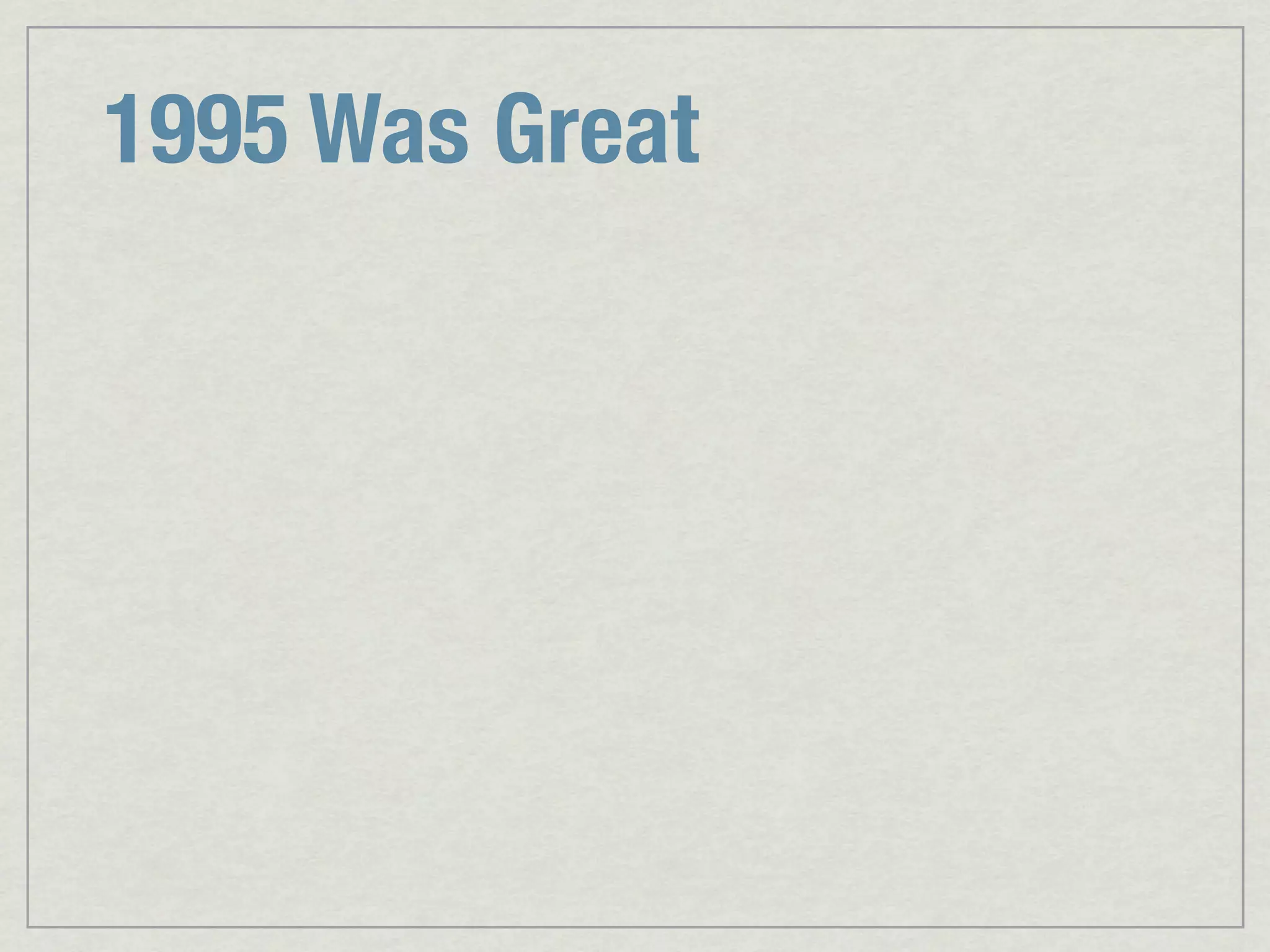

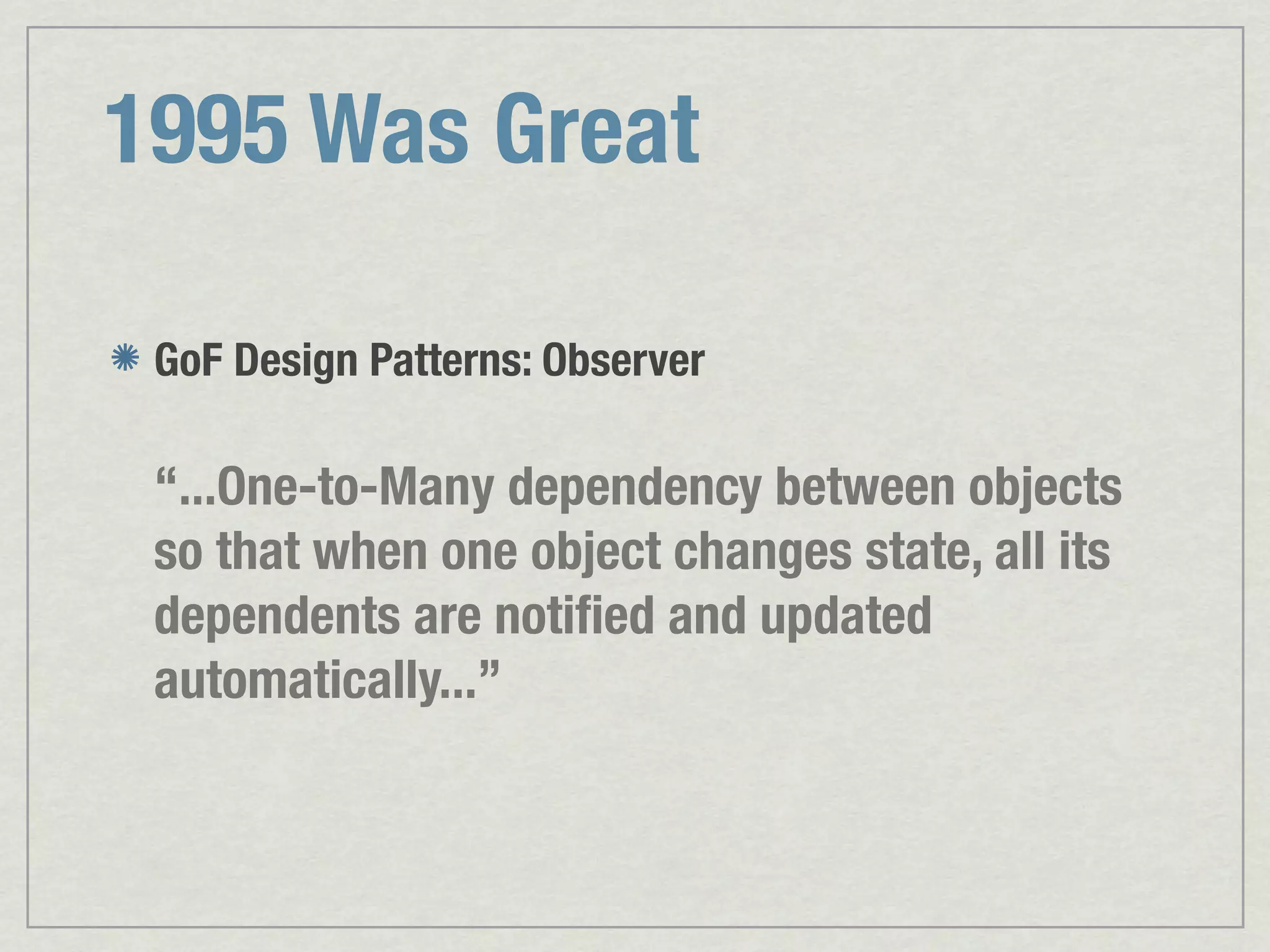

1995 Was Great GoF Design Patterns: Observer “...One-to-Many dependency between objects so that when one object changes state, all its dependents are notiﬁed and updated automatically...”

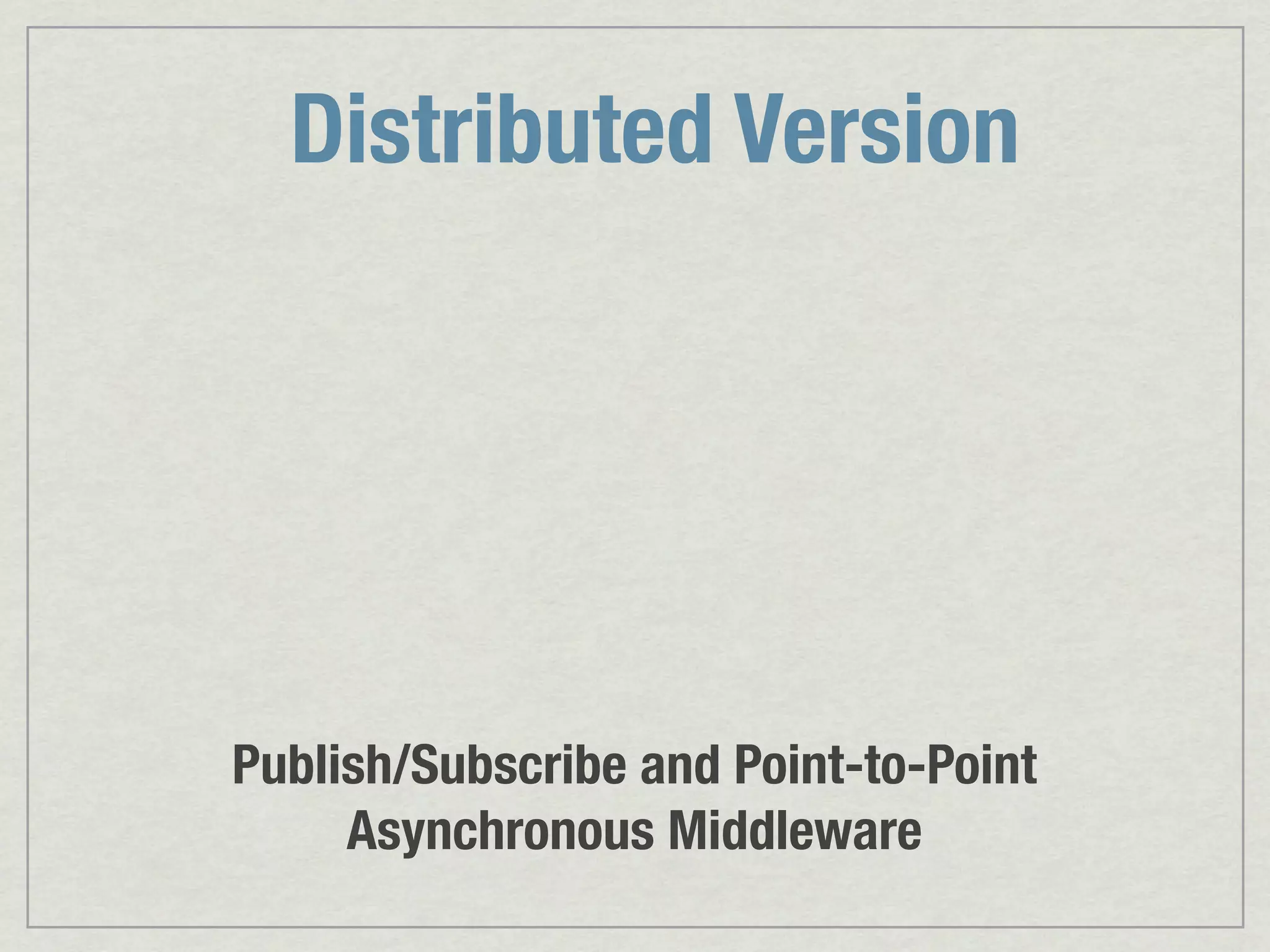

Distributed Version Publish/Subscribe and Point-to-Point Asynchronous Middleware

Some Options for Pub/Sub RabbitMQ ruby-amqp gem to interface

Some Options for Pub/Sub RabbitMQ ruby-amqp gem to interface EventMachine::Channel

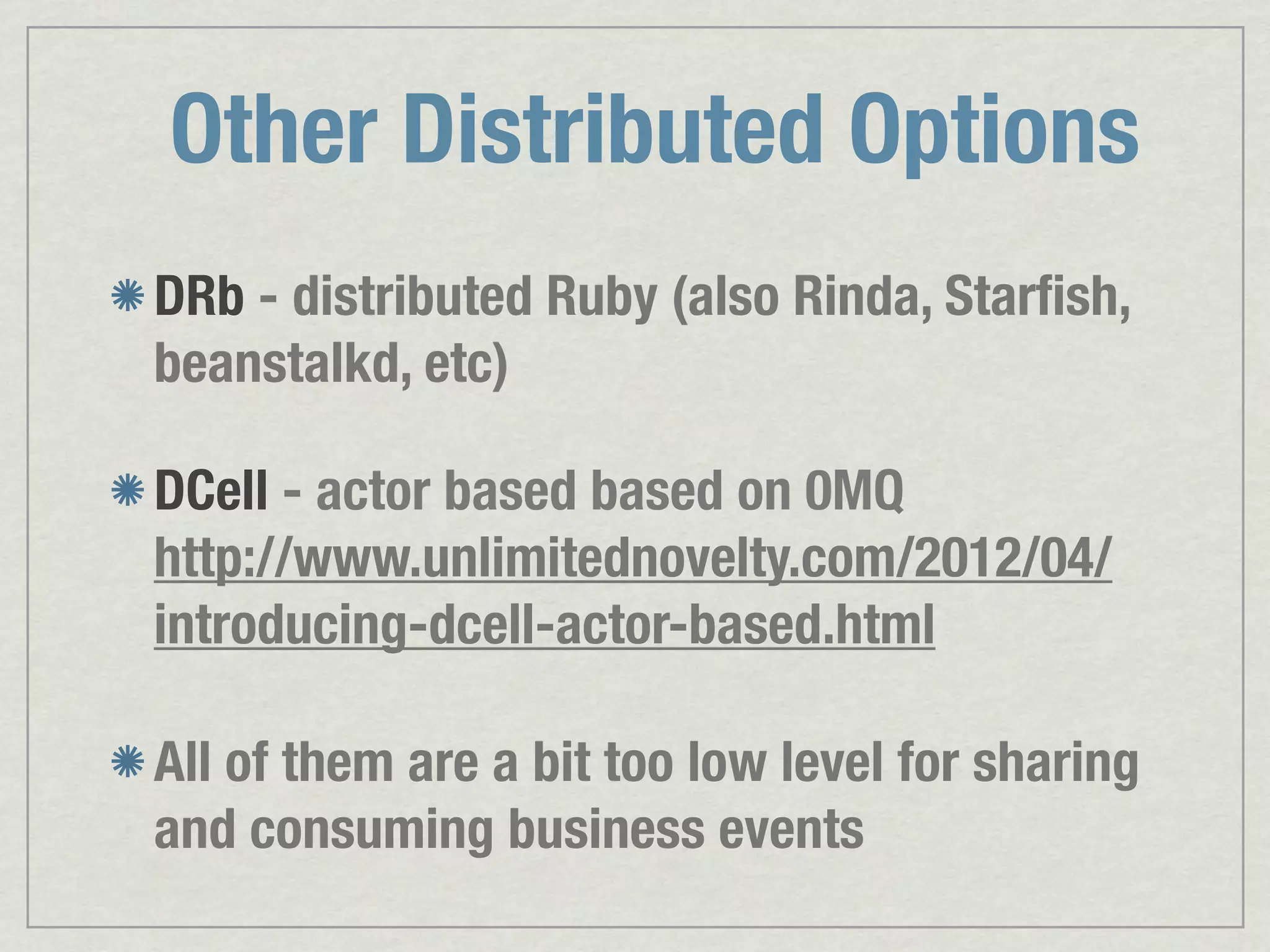

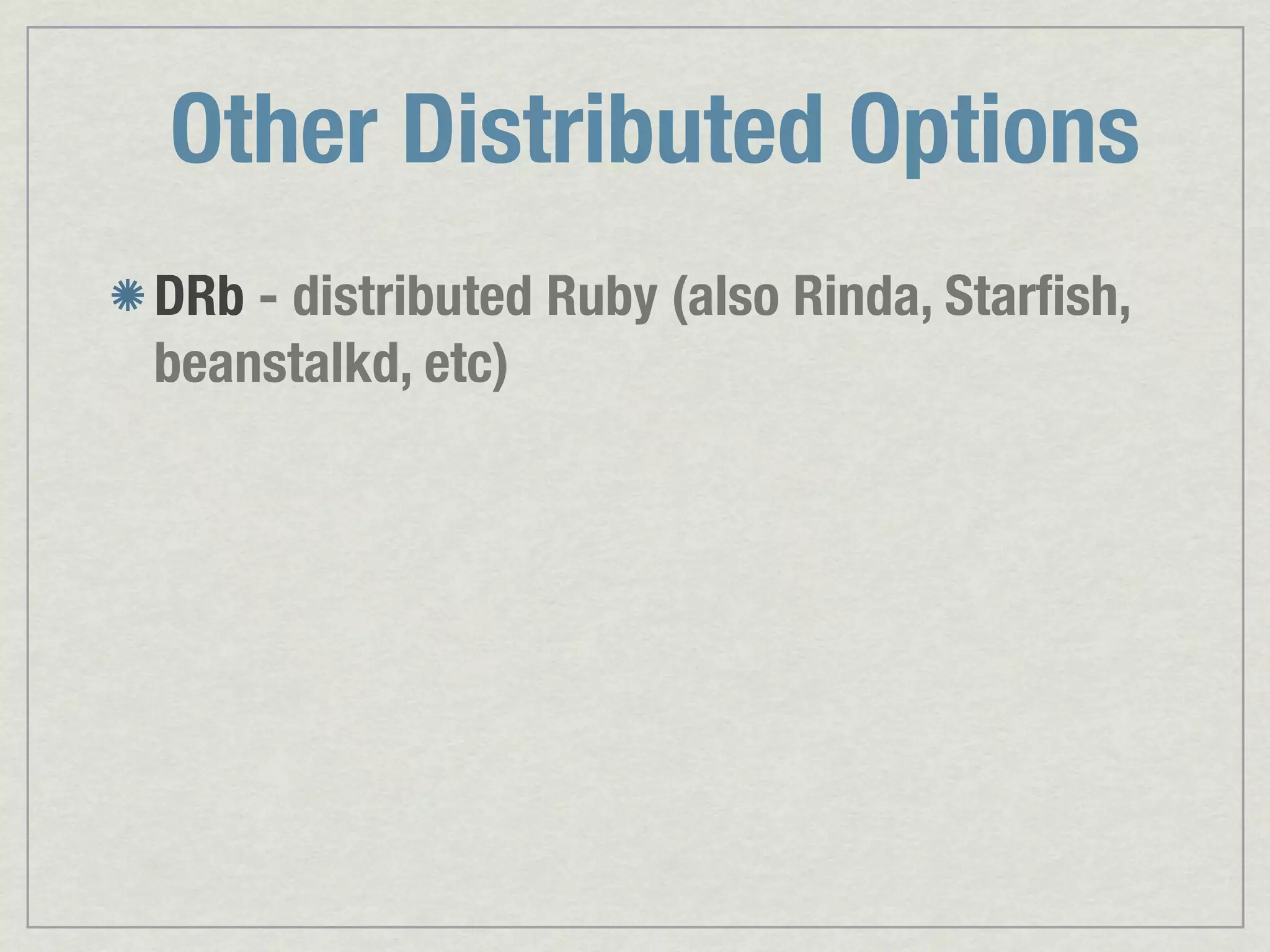

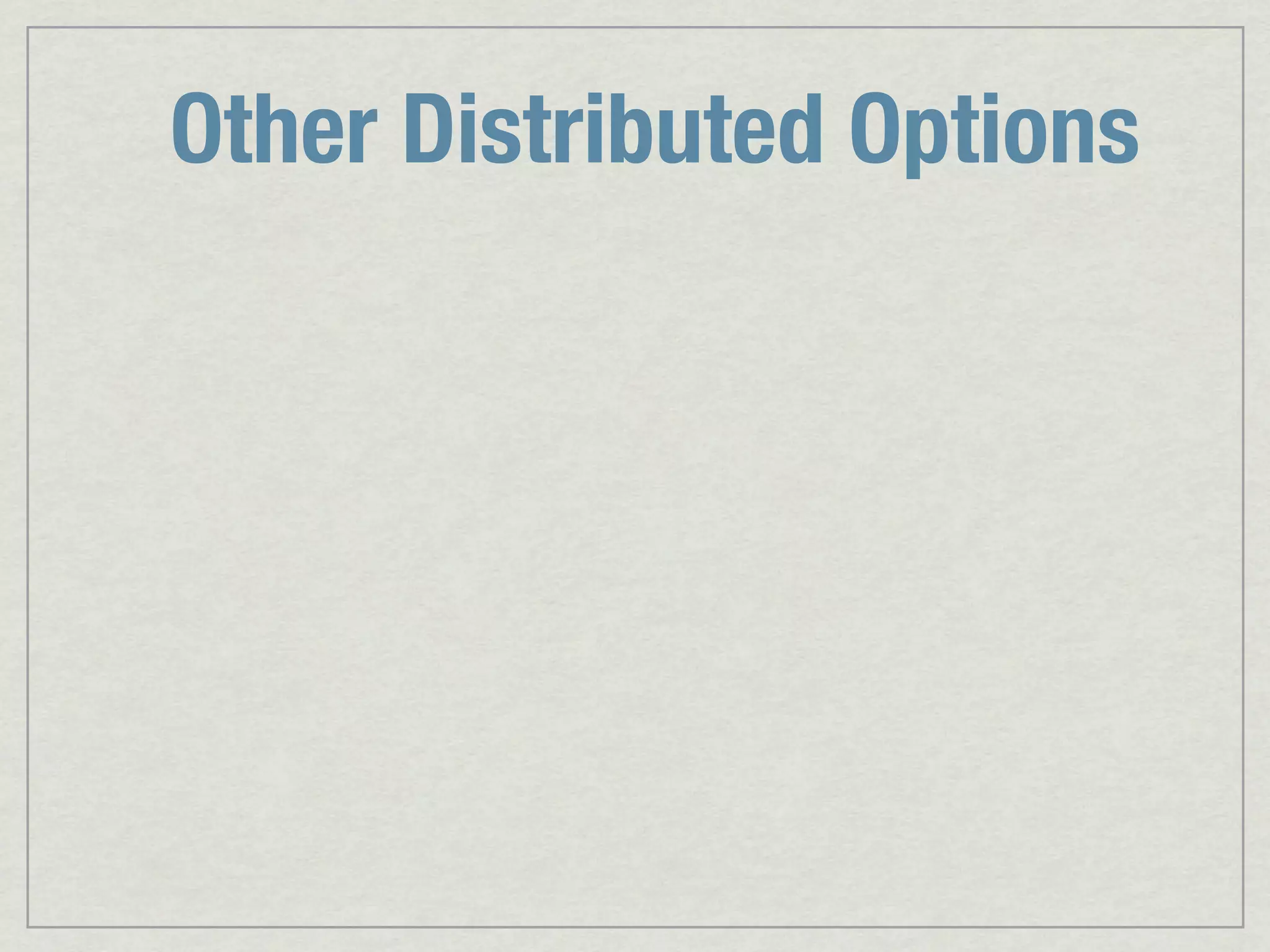

Other Distributed Options DRb - distributed Ruby (also Rinda, Starﬁsh, beanstalkd, etc)

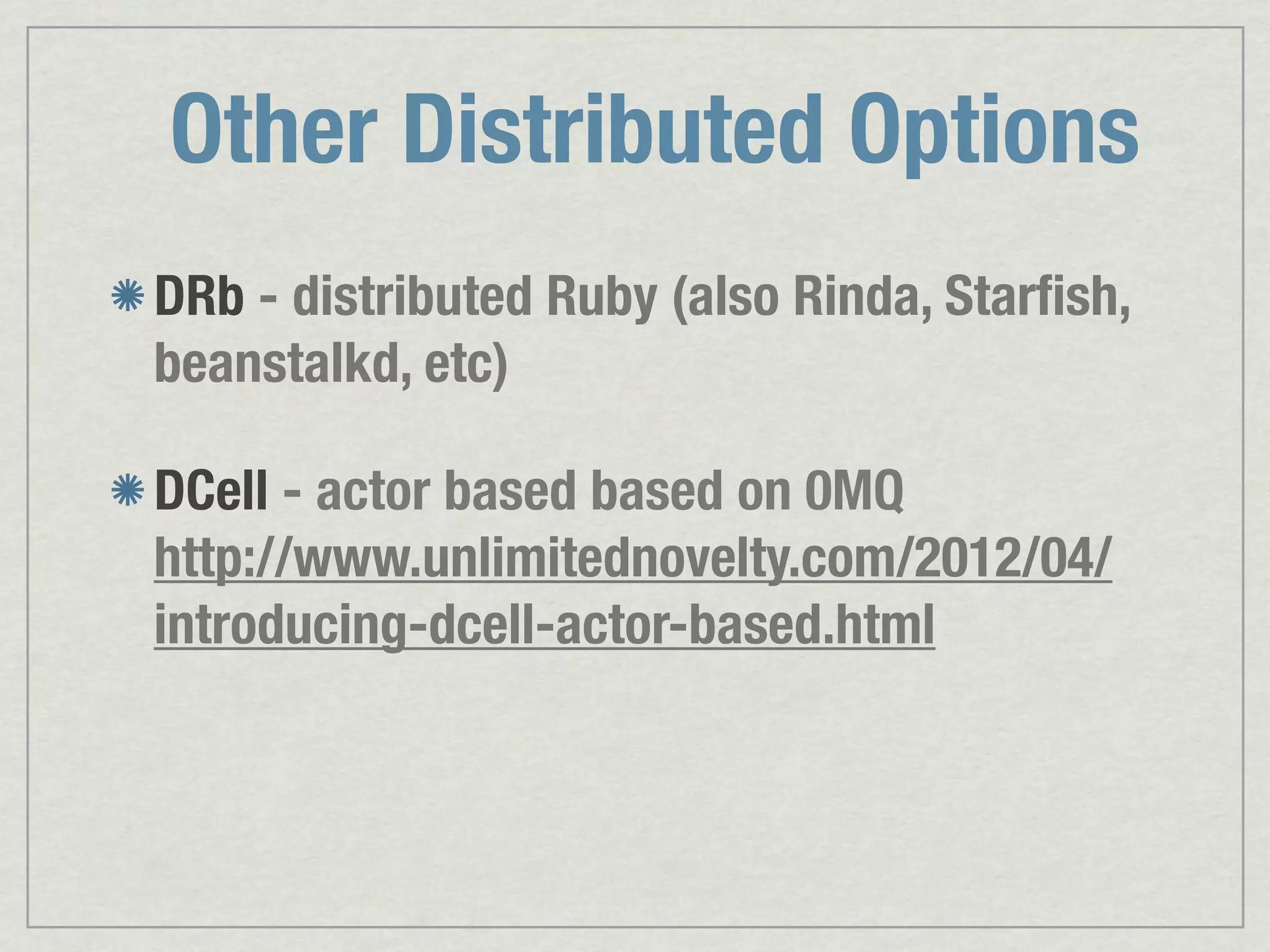

Other Distributed Options DRb - distributed Ruby (also Rinda, Starﬁsh, beanstalkd, etc) DCell - actor based based on 0MQ http://www.unlimitednovelty.com/2012/04/ introducing-dcell-actor-based.html

Other Distributed Options DRb - distributed Ruby (also Rinda, Starﬁsh, beanstalkd, etc) DCell - actor based based on 0MQ http://www.unlimitednovelty.com/2012/04/ introducing-dcell-actor-based.html All of them are a bit too low level for sharing and consuming business events

I would love a library for publishing business events built on top

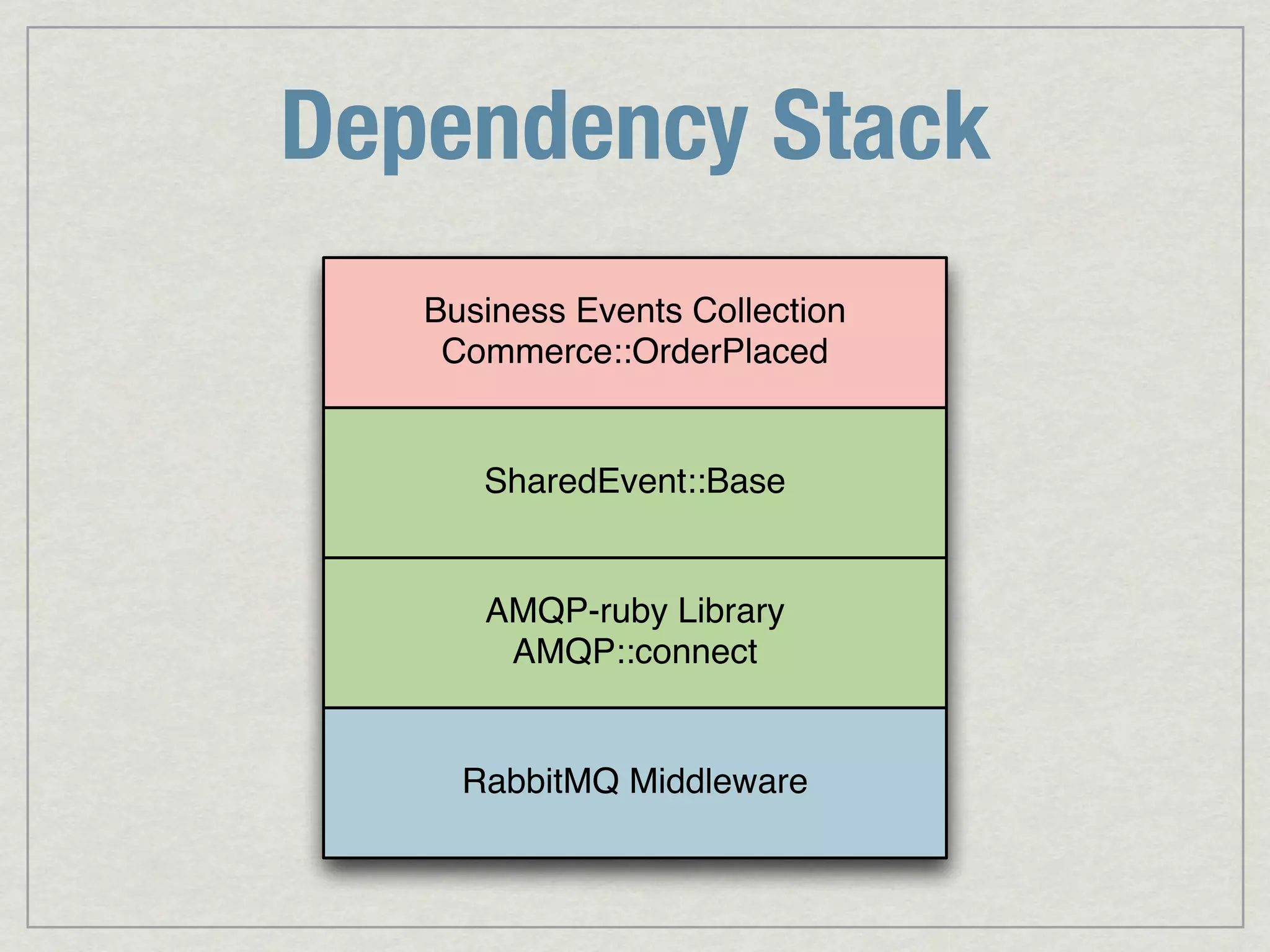

Dependency Stack Business Events Collection Commerce::OrderPlaced SharedEvent::Base AMQP-ruby Library AMQP::connect RabbitMQ Middleware

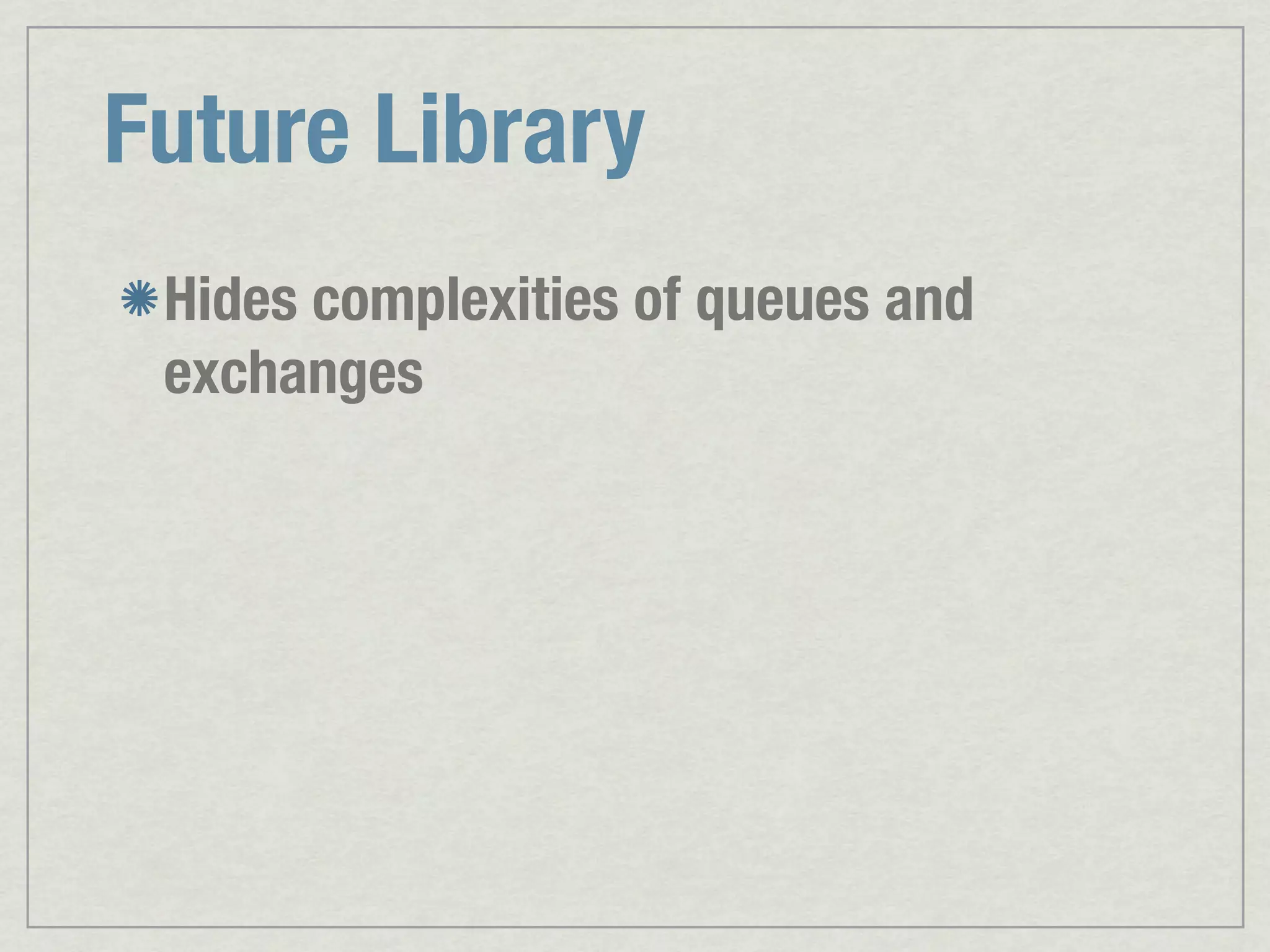

Future Library Hides complexities of queues and exchanges

Future Library Hides complexities of queues and exchanges Consumers declare interest in events they care about, deﬁne persistence and retry policy

Future Library Hides complexities of queues and exchanges Consumers declare interest in events they care about, deﬁne persistence and retry policy Publishers ﬁre! events and forget about it

Future Library, ctd. Once registered, consumers get messages even after being ofﬂine

Future Library, ctd. Once registered, consumers get messages even after being ofﬂine When publisher can submit an event to the queue, it’s job is done.

Future Library, ctd. Once registered, consumers get messages even after being ofﬂine When publisher can submit an event to the queue, it’s job is done. Library of business events becomes a compliment to the set of business APIs

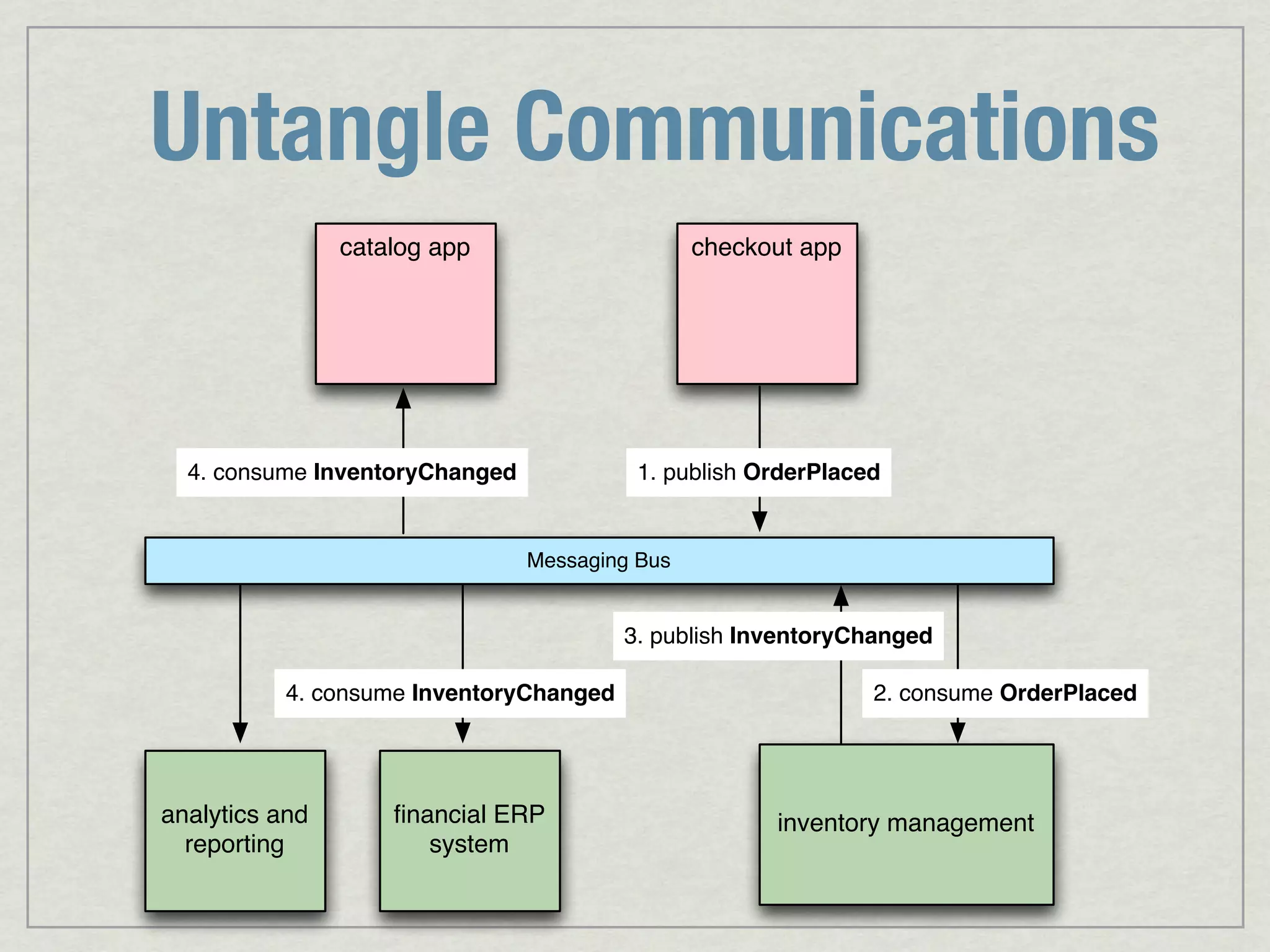

Untangle Communications catalog app checkout app 4. consume InventoryChanged 1. publish OrderPlaced Messaging Bus 3. publish InventoryChanged 4. consume InventoryChanged 2. consume OrderPlaced analytics and ﬁnancial ERP inventory management reporting system

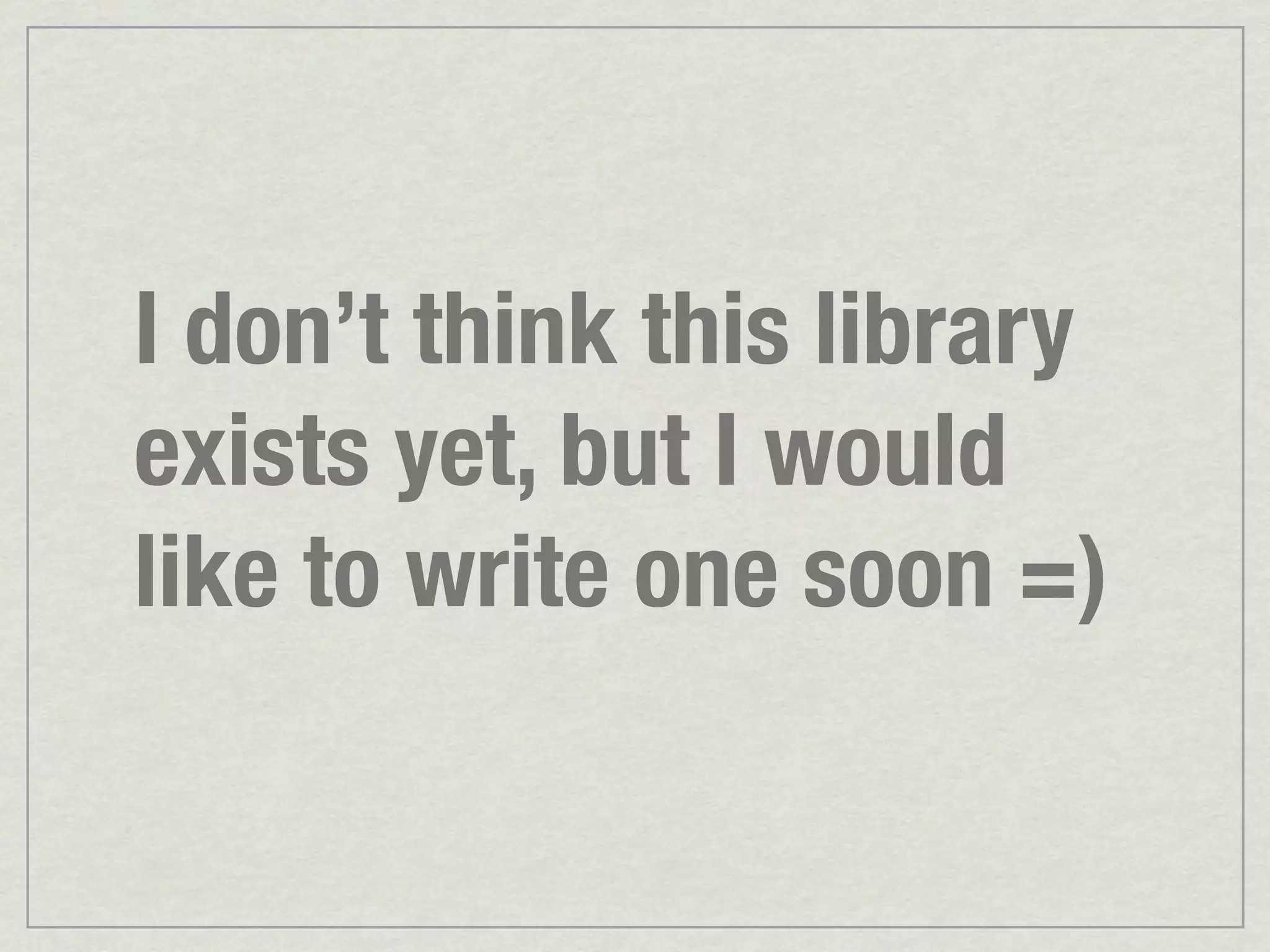

I don’t think this library exists yet, but I would like to write one soon =)

Thank you. twitter: @kig github/kigster

Enterprise Architectures with Ruby (and Rails)

More Related Content

What's hot

Viewers also liked

Similar to Enterprise Architectures with Ruby (and Rails)

Recently uploaded

Enterprise Architectures with Ruby (and Rails)

Editor's Notes
