Efficient Memory and Thread Management in Highly Parallel Java Applications

Phillip Koza IBM Efficient Memory and Thread Management in Highly Parallel Applications JavaOneJavaOne

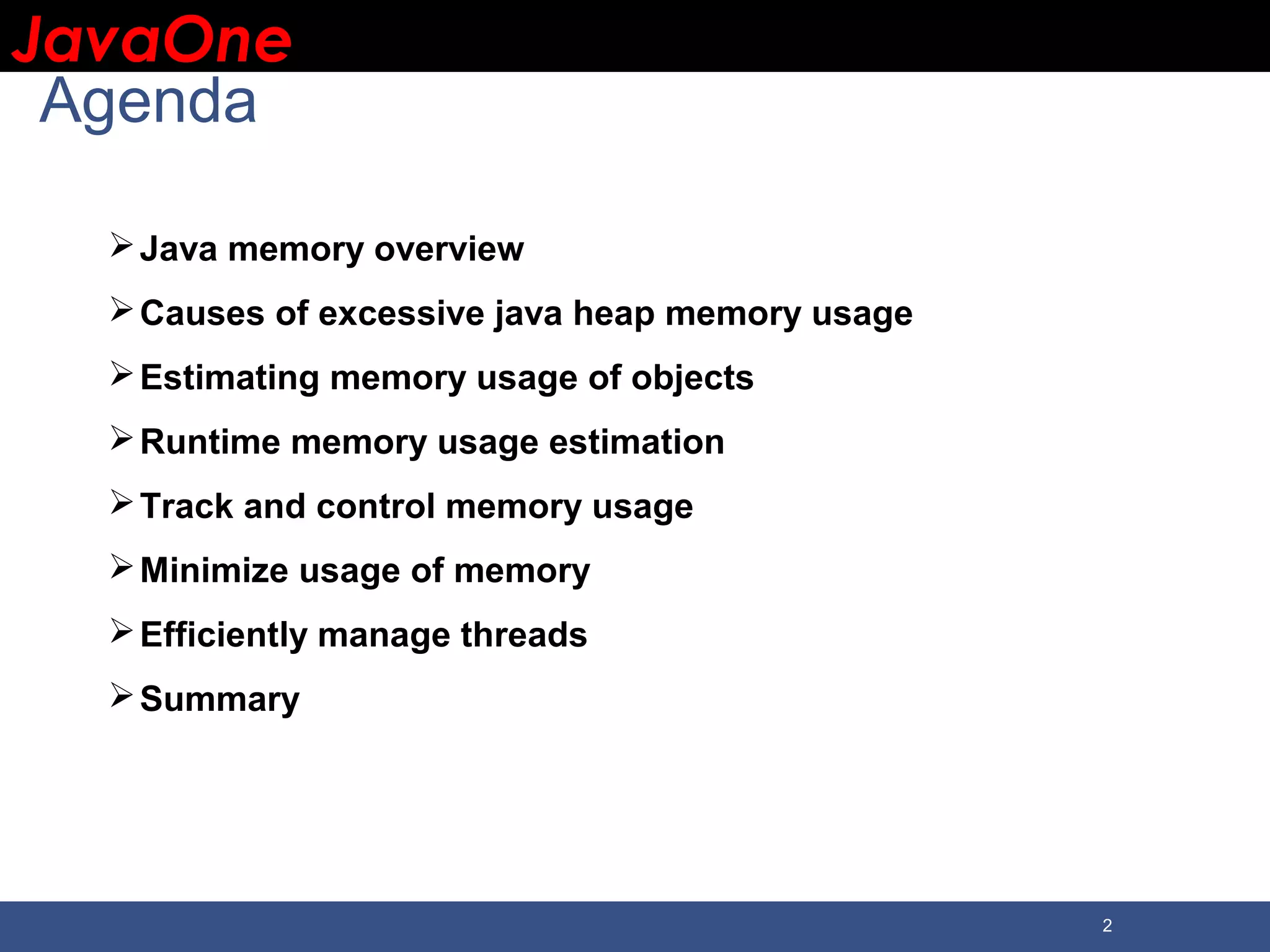

JavaOneJavaOne 2 Agenda Java memory overview Causes of excessive java heap memory usage Estimating memory usage of objects Runtime memory usage estimation Track and control memory usage Minimize usage of memory Efficiently manage threads Summary

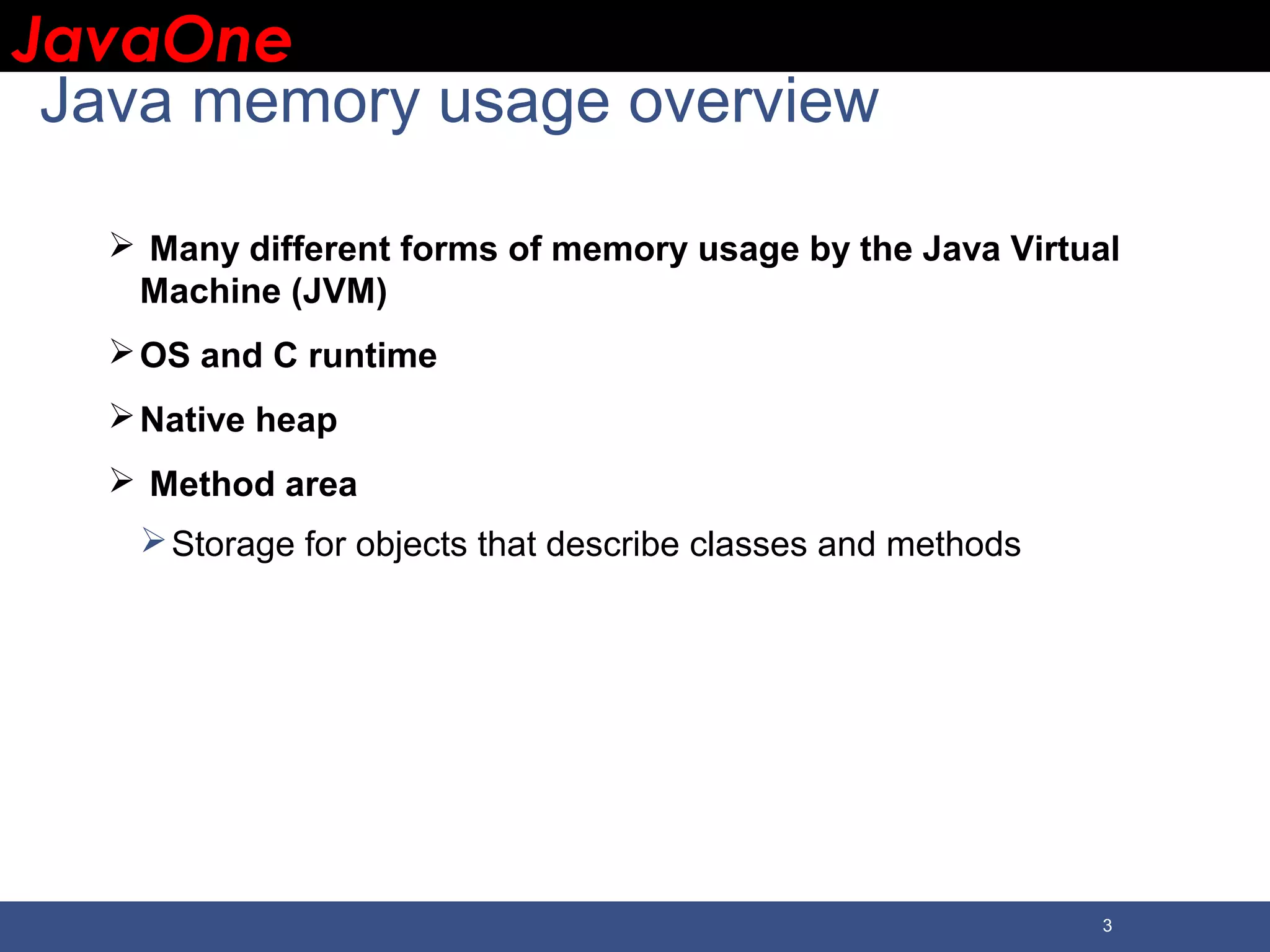

JavaOneJavaOne 3 Java memory usage overview  Many different forms of memory usage by the Java Virtual Machine (JVM) OS and C runtime Native heap  Method area Storage for objects that describe classes and methods

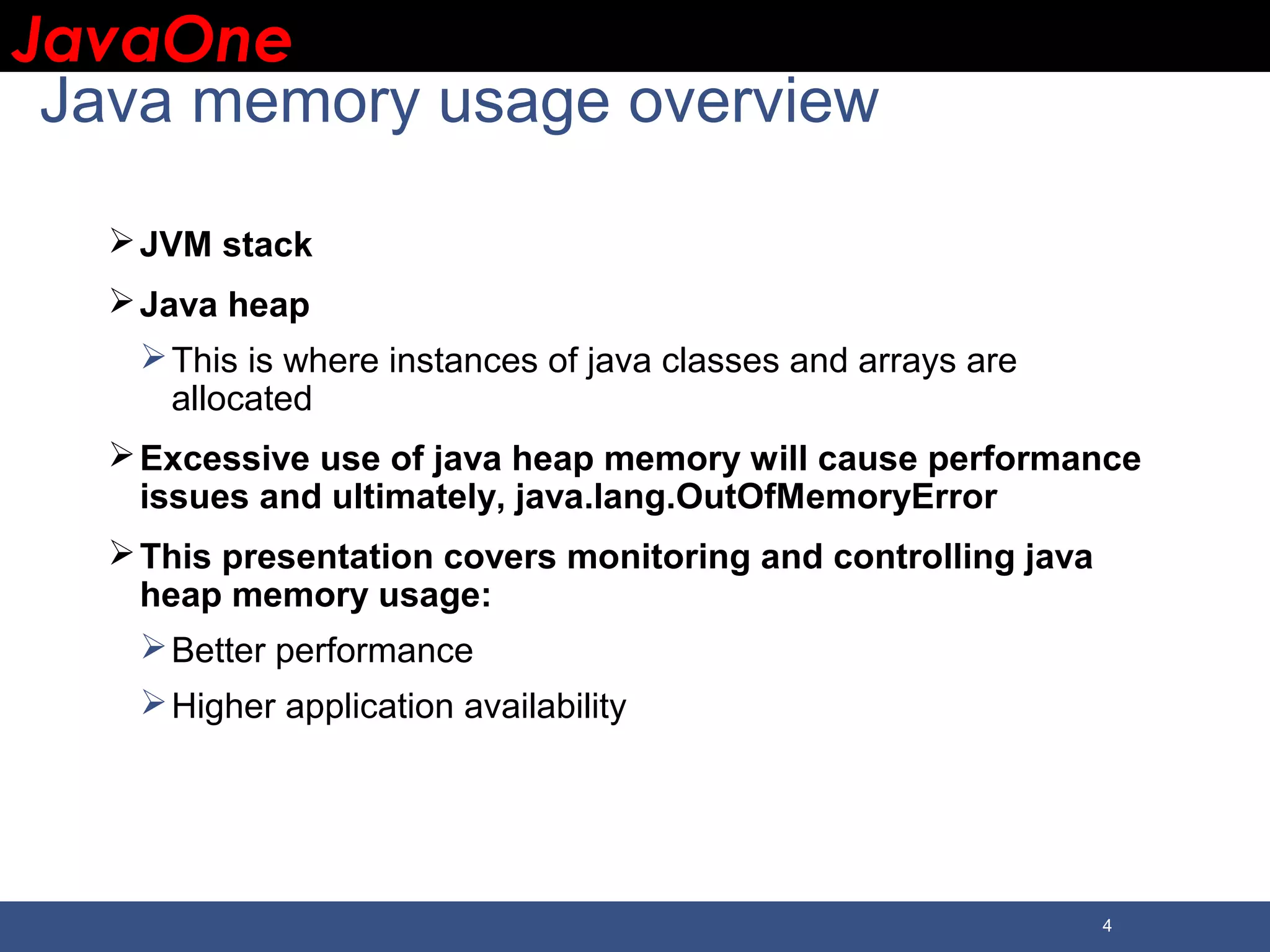

JavaOneJavaOne 4 Java memory usage overview JVM stack Java heap This is where instances of java classes and arrays are allocated Excessive use of java heap memory will cause performance issues and ultimately, java.lang.OutOfMemoryError This presentation covers monitoring and controlling java heap memory usage: Better performance Higher application availability

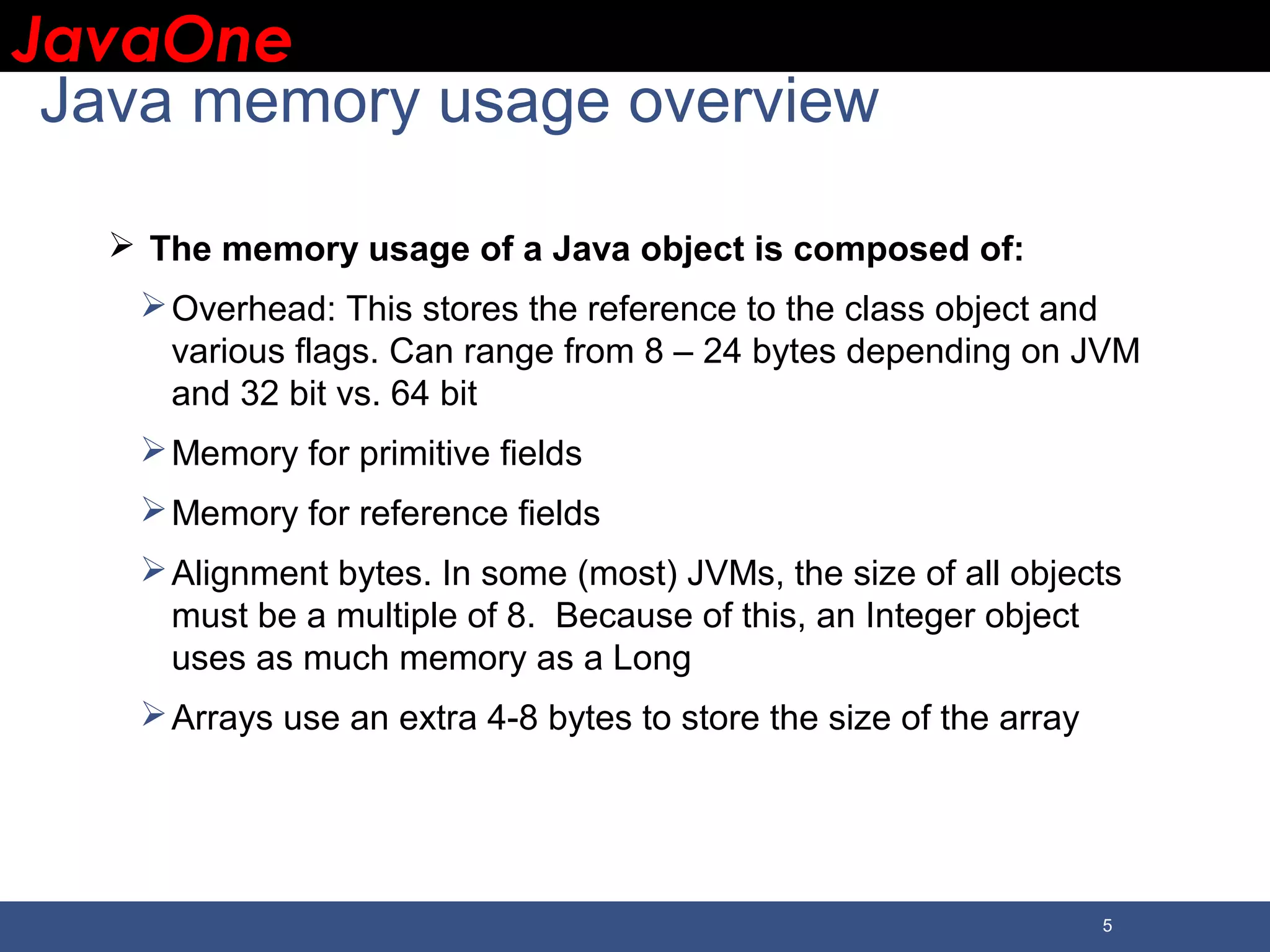

JavaOneJavaOne 5 Java memory usage overview  The memory usage of a Java object is composed of: Overhead: This stores the reference to the class object and various flags. Can range from 8 – 24 bytes depending on JVM and 32 bit vs. 64 bit Memory for primitive fields Memory for reference fields Alignment bytes. In some (most) JVMs, the size of all objects must be a multiple of 8. Because of this, an Integer object uses as much memory as a Long Arrays use an extra 4-8 bytes to store the size of the array

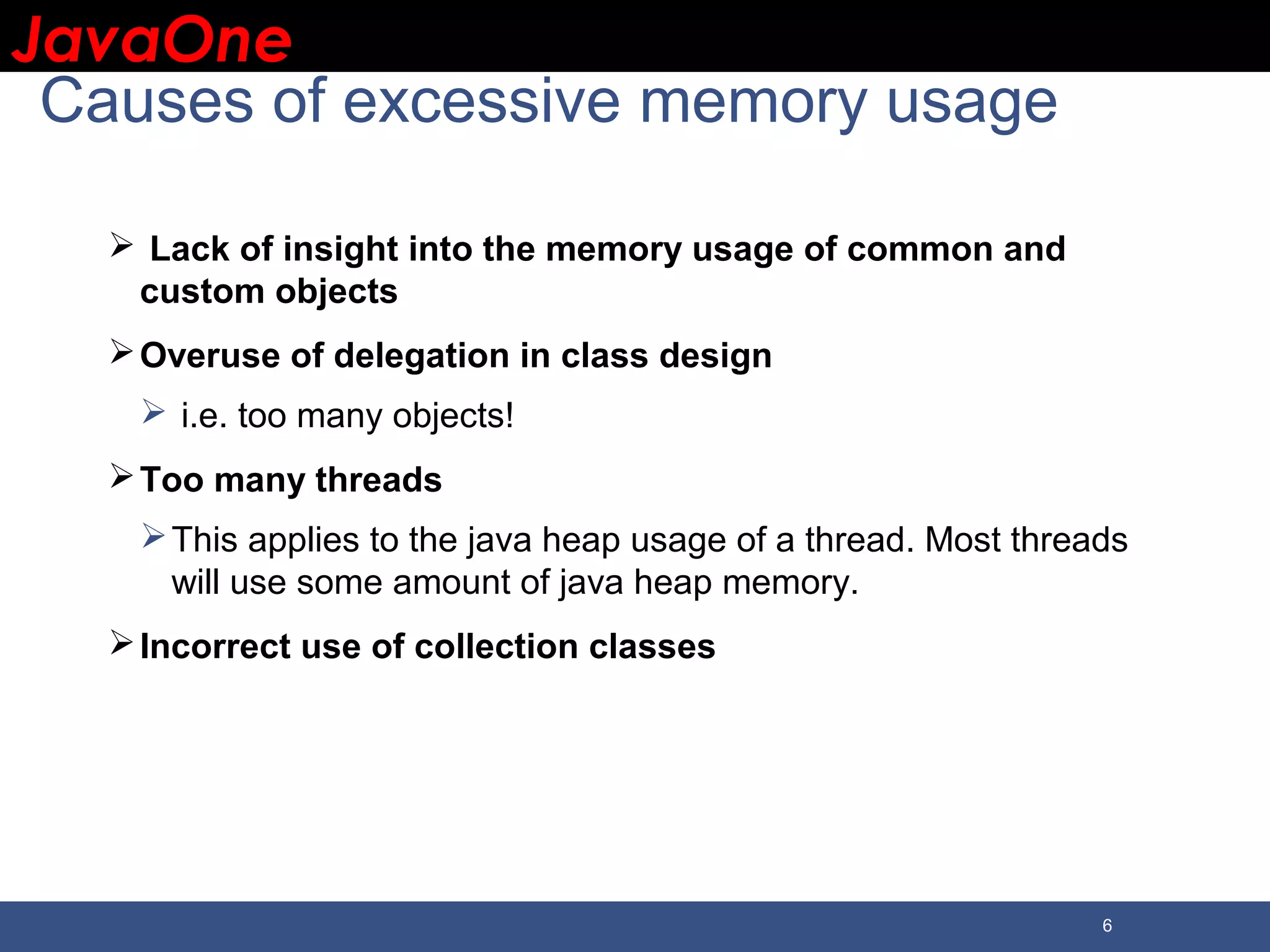

JavaOneJavaOne 6 Causes of excessive memory usage  Lack of insight into the memory usage of common and custom objects Overuse of delegation in class design  i.e. too many objects! Too many threads This applies to the java heap usage of a thread. Most threads will use some amount of java heap memory. Incorrect use of collection classes

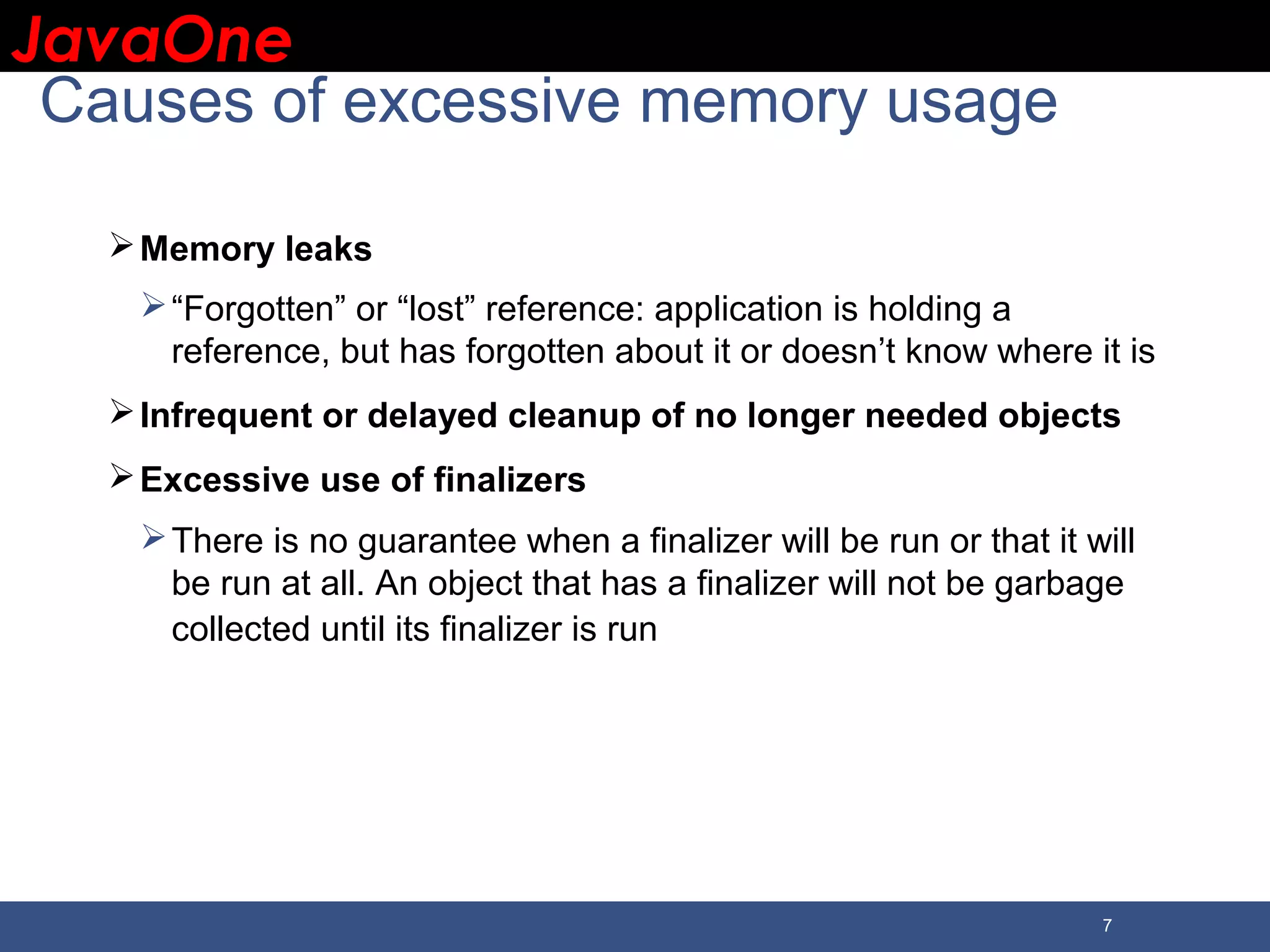

JavaOneJavaOne 7 Causes of excessive memory usage Memory leaks “Forgotten” or “lost” reference: application is holding a reference, but has forgotten about it or doesn’t know where it is Infrequent or delayed cleanup of no longer needed objects Excessive use of finalizers There is no guarantee when a finalizer will be run or that it will be run at all. An object that has a finalizer will not be garbage collected until its finalizer is run

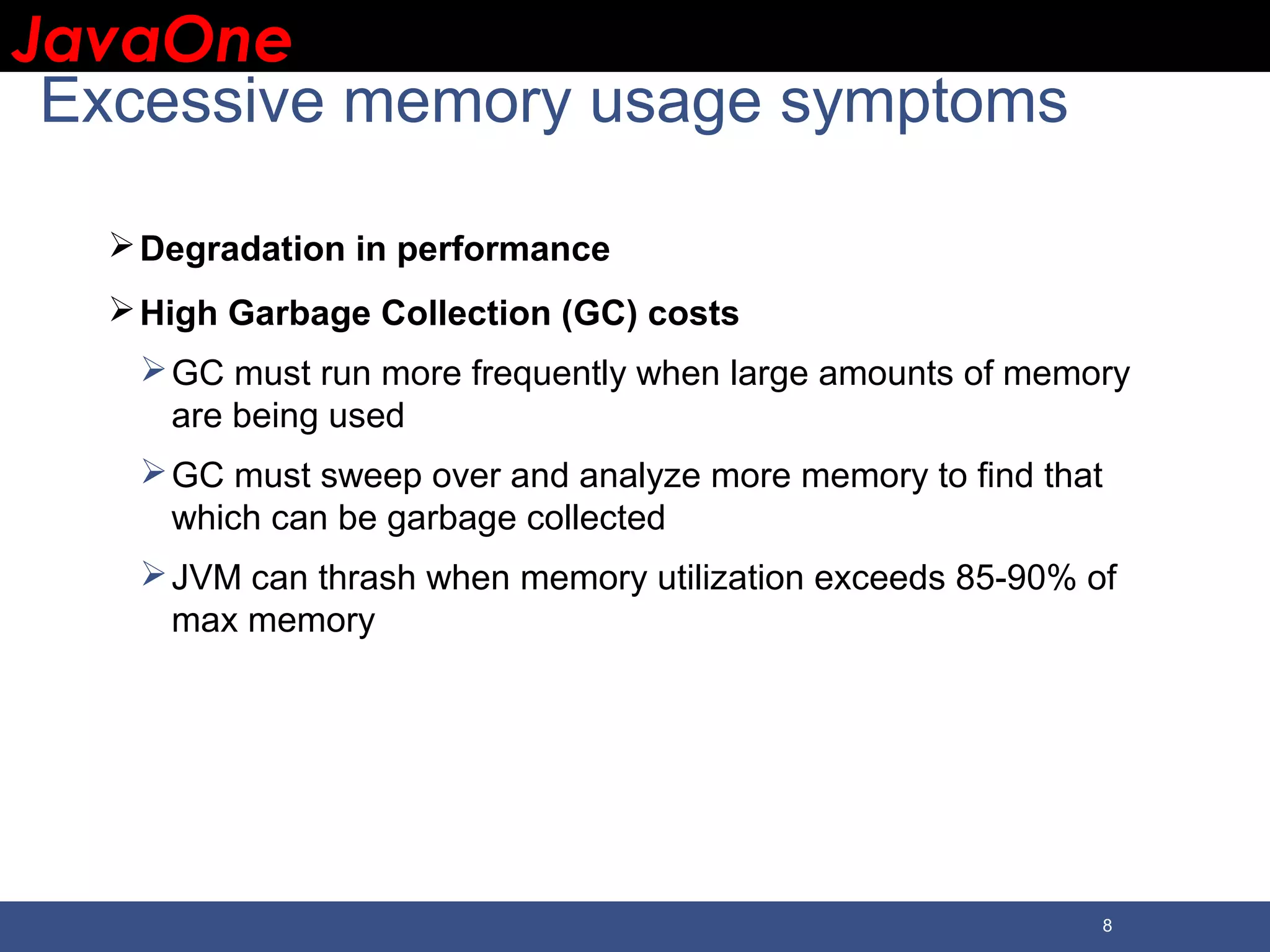

JavaOneJavaOne 8 Excessive memory usage symptoms Degradation in performance High Garbage Collection (GC) costs GC must run more frequently when large amounts of memory are being used GC must sweep over and analyze more memory to find that which can be garbage collected JVM can thrash when memory utilization exceeds 85-90% of max memory

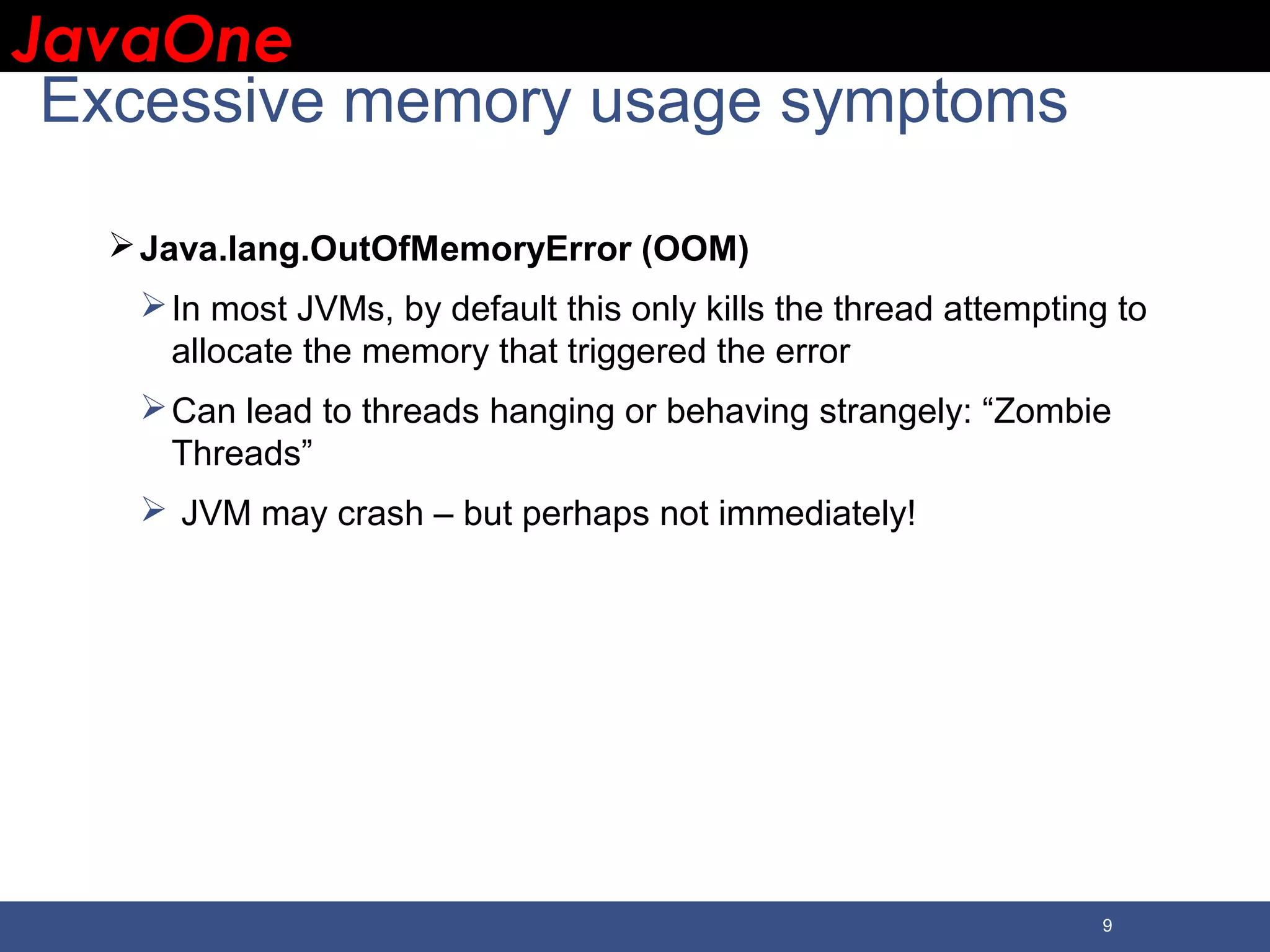

JavaOneJavaOne 9 Excessive memory usage symptoms Java.lang.OutOfMemoryError (OOM) In most JVMs, by default this only kills the thread attempting to allocate the memory that triggered the error Can lead to threads hanging or behaving strangely: “Zombie Threads”  JVM may crash – but perhaps not immediately!

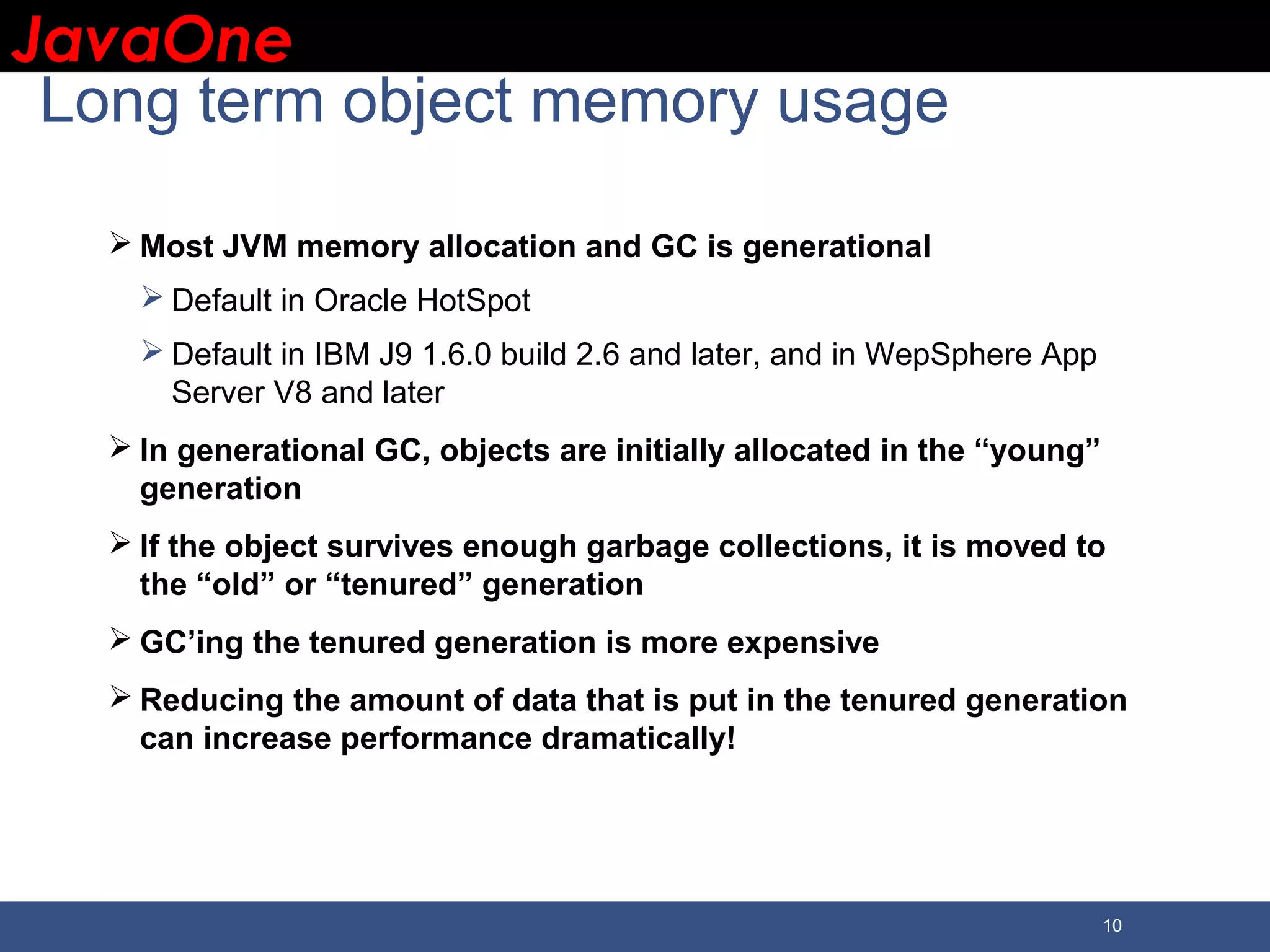

JavaOneJavaOne 10 Long term object memory usage  Most JVM memory allocation and GC is generational  Default in Oracle HotSpot  Default in IBM J9 1.6.0 build 2.6 and later, and in WepSphere App Server V8 and later  In generational GC, objects are initially allocated in the “young” generation  If the object survives enough garbage collections, it is moved to the “old” or “tenured” generation  GC’ing the tenured generation is more expensive  Reducing the amount of data that is put in the tenured generation can increase performance dramatically!

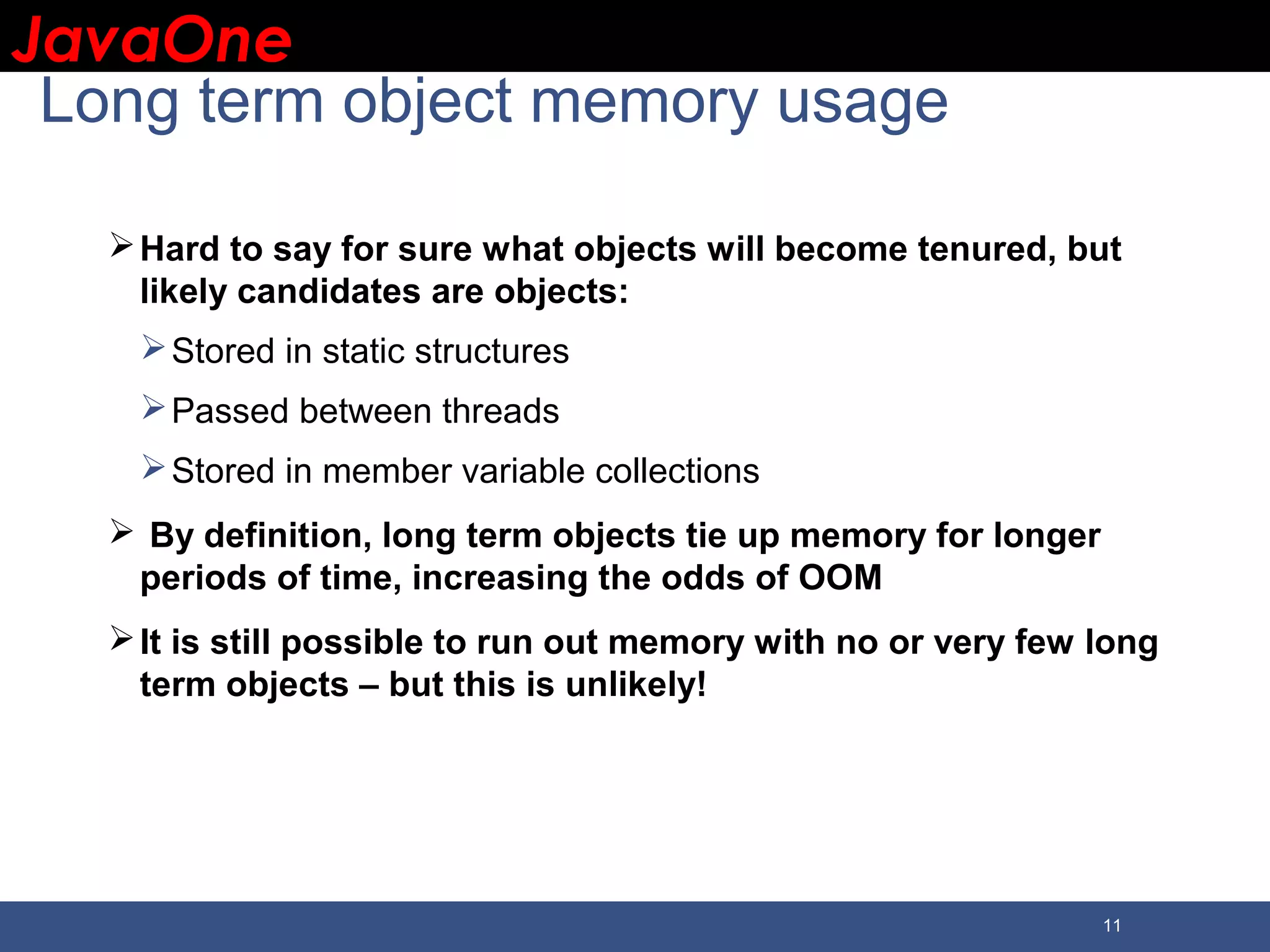

JavaOneJavaOne 11 Long term object memory usage Hard to say for sure what objects will become tenured, but likely candidates are objects: Stored in static structures Passed between threads Stored in member variable collections  By definition, long term objects tie up memory for longer periods of time, increasing the odds of OOM It is still possible to run out memory with no or very few long term objects – but this is unlikely!

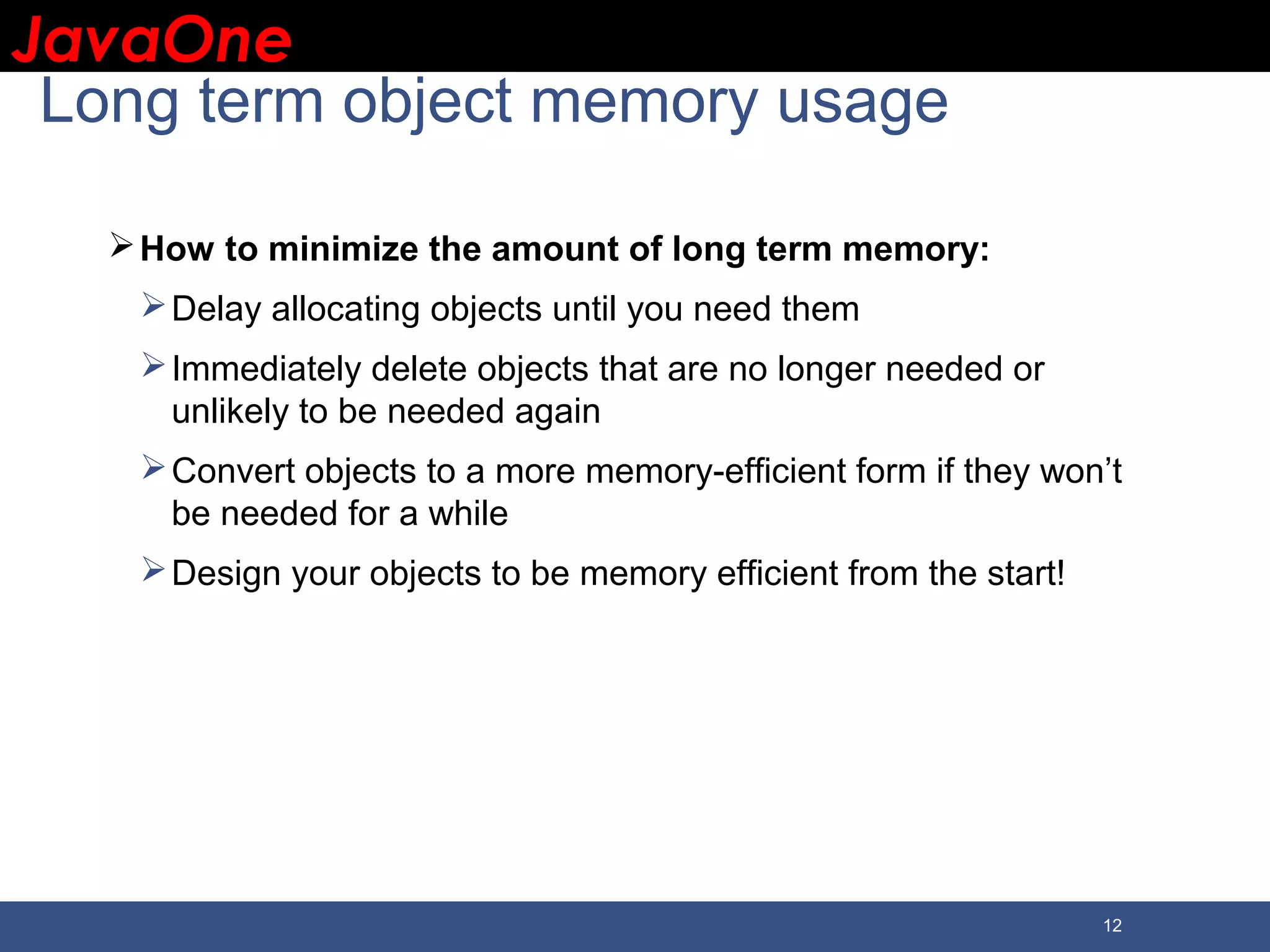

JavaOneJavaOne 12 Long term object memory usage How to minimize the amount of long term memory: Delay allocating objects until you need them Immediately delete objects that are no longer needed or unlikely to be needed again Convert objects to a more memory-efficient form if they won’t be needed for a while Design your objects to be memory efficient from the start!

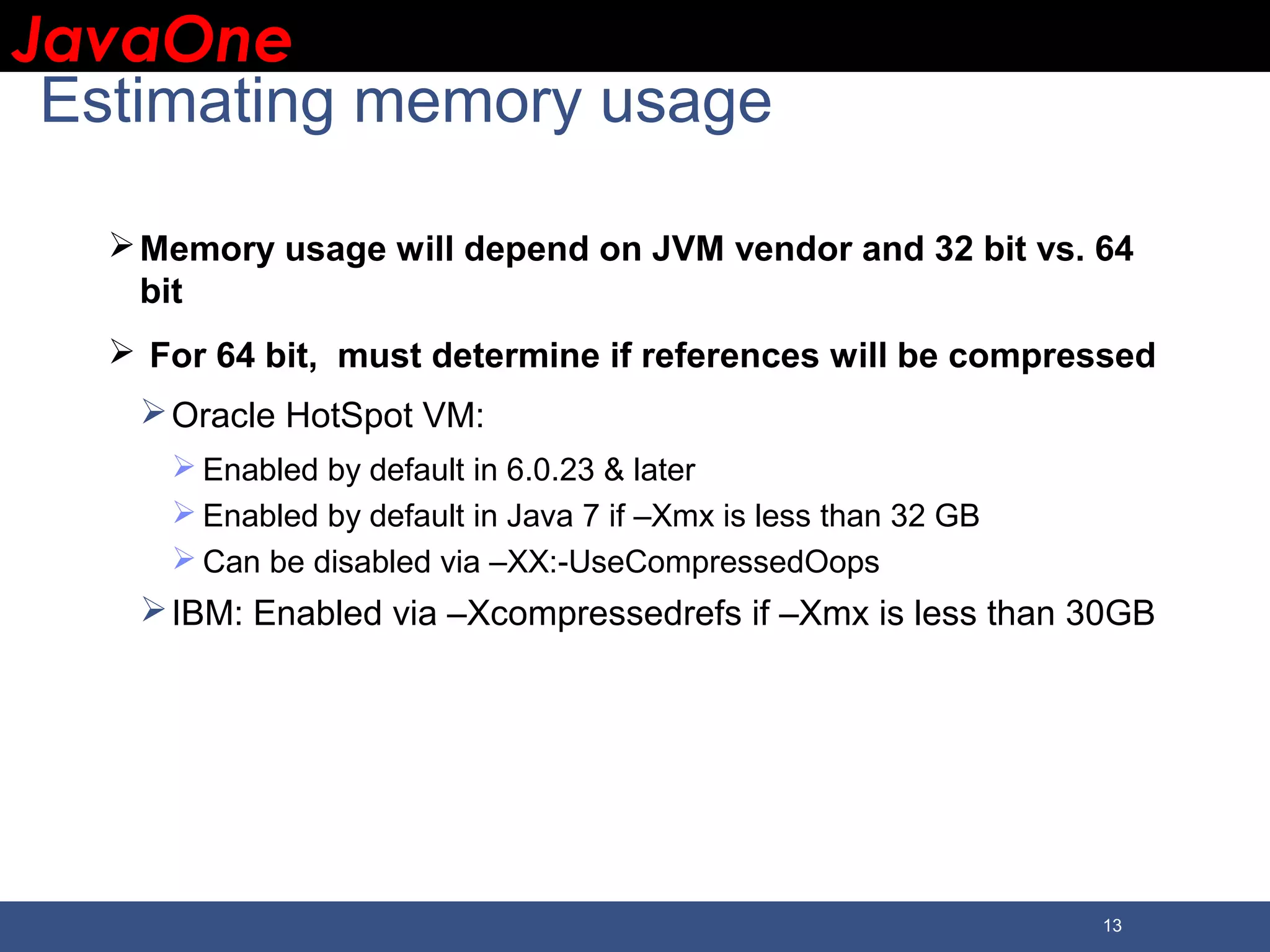

JavaOneJavaOne 13 Estimating memory usage Memory usage will depend on JVM vendor and 32 bit vs. 64 bit  For 64 bit, must determine if references will be compressed Oracle HotSpot VM:  Enabled by default in 6.0.23 & later  Enabled by default in Java 7 if –Xmx is less than 32 GB  Can be disabled via –XX:-UseCompressedOops IBM: Enabled via –Xcompressedrefs if –Xmx is less than 30GB

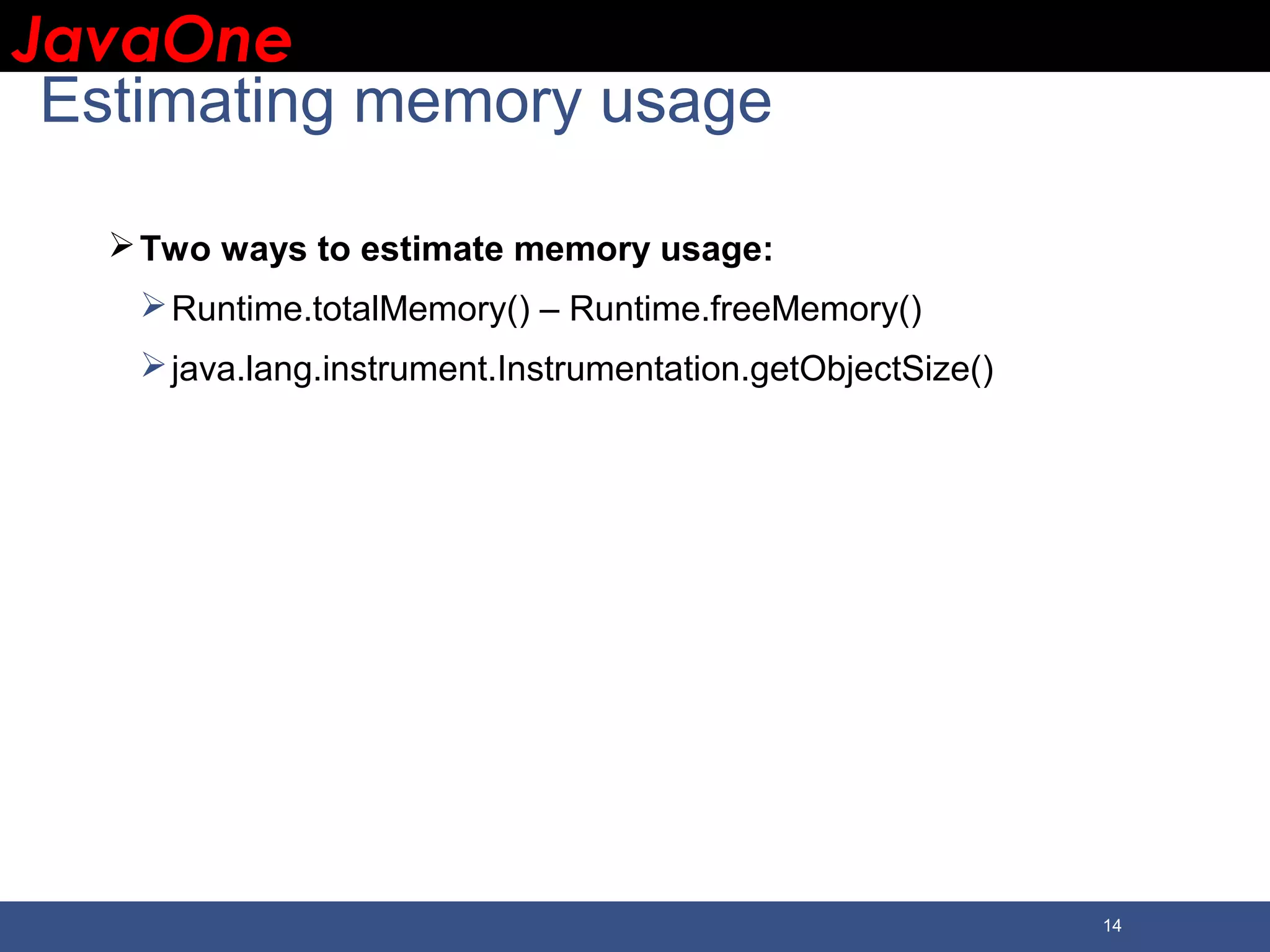

JavaOneJavaOne 14 Estimating memory usage Two ways to estimate memory usage: Runtime.totalMemory() – Runtime.freeMemory() java.lang.instrument.Instrumentation.getObjectSize()

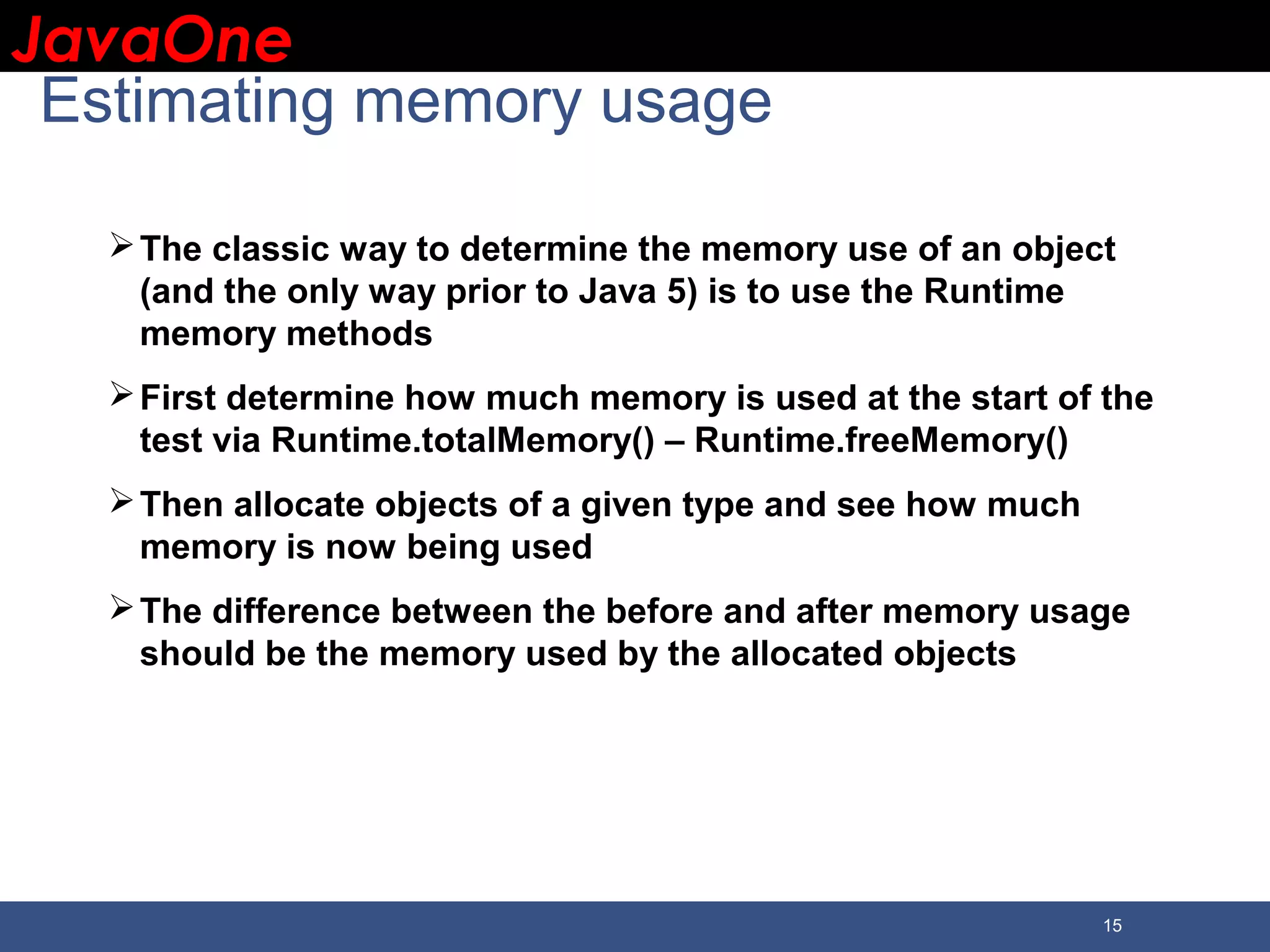

JavaOneJavaOne 15 Estimating memory usage The classic way to determine the memory use of an object (and the only way prior to Java 5) is to use the Runtime memory methods First determine how much memory is used at the start of the test via Runtime.totalMemory() – Runtime.freeMemory() Then allocate objects of a given type and see how much memory is now being used The difference between the before and after memory usage should be the memory used by the allocated objects

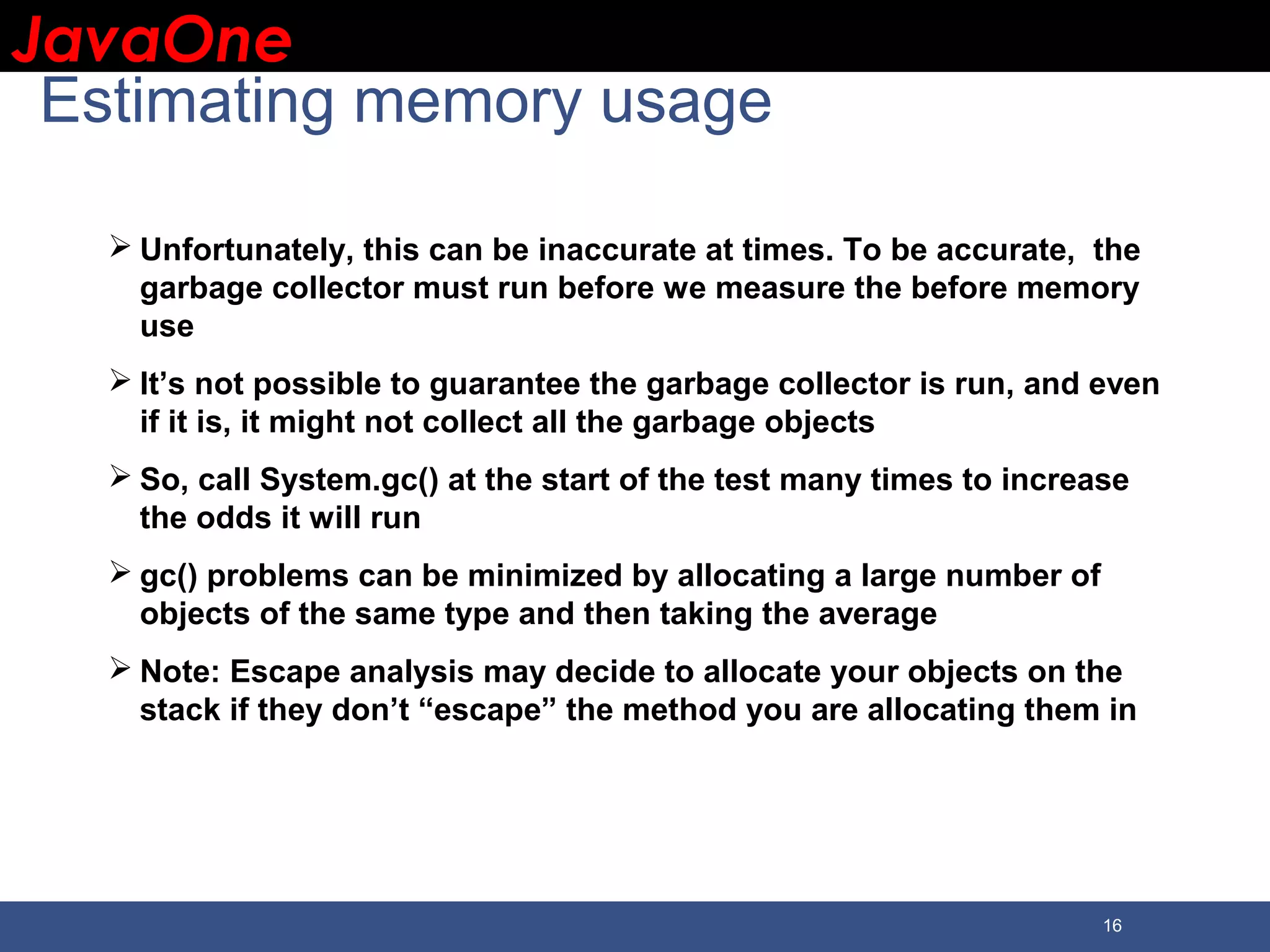

JavaOneJavaOne 16 Estimating memory usage  Unfortunately, this can be inaccurate at times. To be accurate, the garbage collector must run before we measure the before memory use  It’s not possible to guarantee the garbage collector is run, and even if it is, it might not collect all the garbage objects  So, call System.gc() at the start of the test many times to increase the odds it will run  gc() problems can be minimized by allocating a large number of objects of the same type and then taking the average  Note: Escape analysis may decide to allocate your objects on the stack if they don’t “escape” the method you are allocating them in

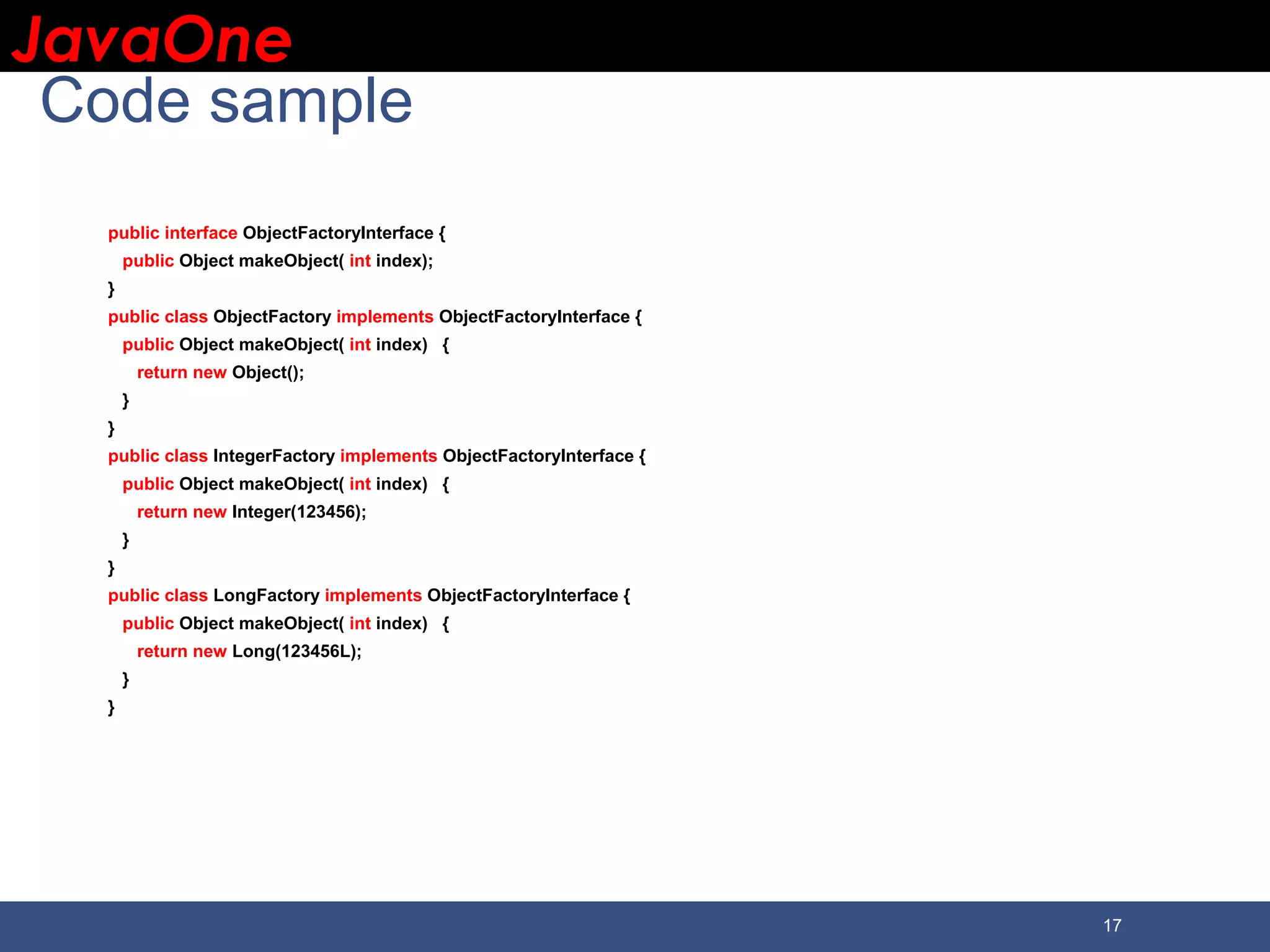

JavaOneJavaOne 17 Code sample public interface ObjectFactoryInterface { public Object makeObject( int index); } public class ObjectFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new Object(); } } public class IntegerFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new Integer(123456); } } public class LongFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new Long(123456L); } }

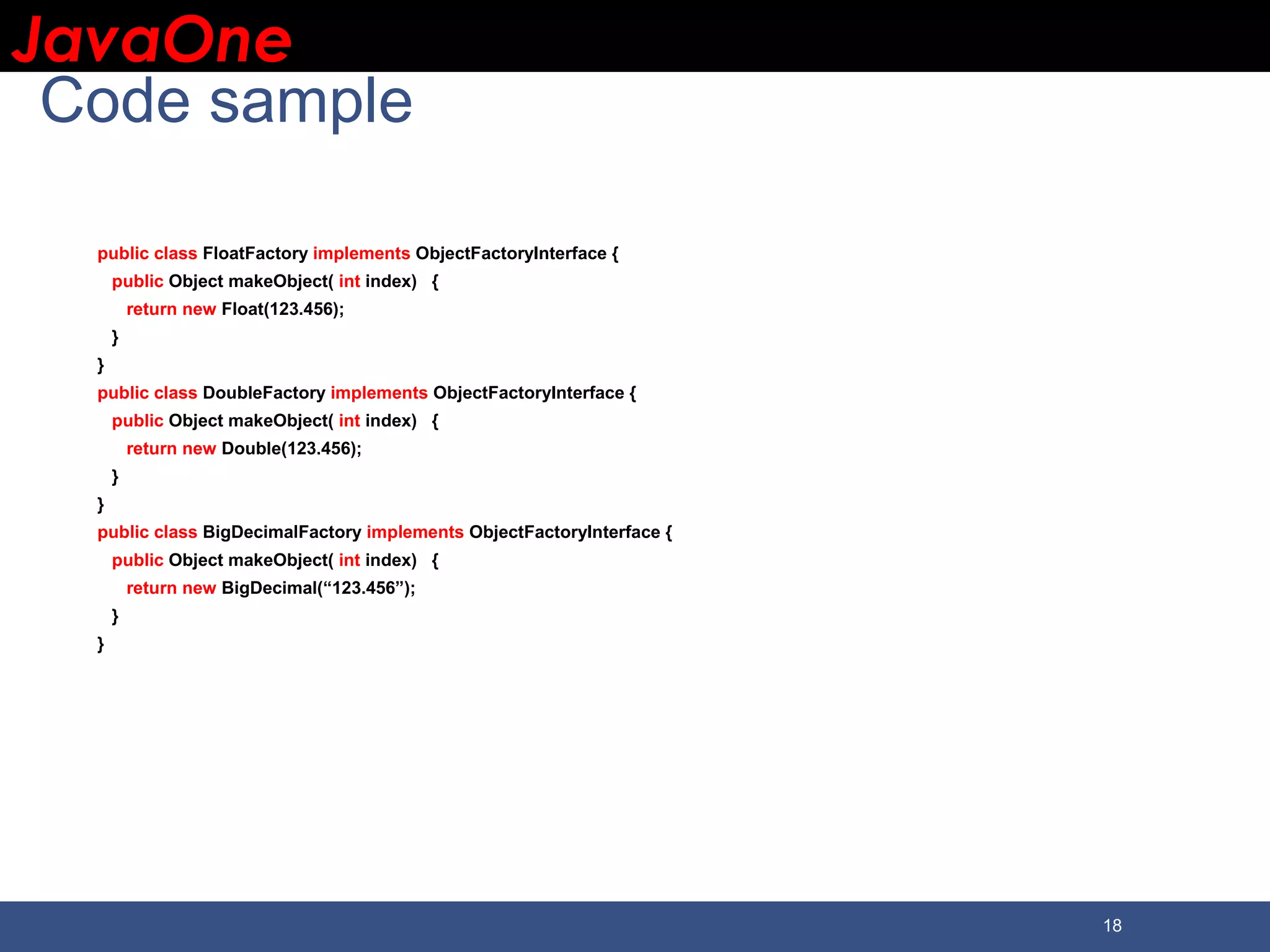

JavaOneJavaOne 18 Code sample public class FloatFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new Float(123.456); } } public class DoubleFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new Double(123.456); } } public class BigDecimalFactory implements ObjectFactoryInterface { public Object makeObject( int index) { return new BigDecimal(“123.456”); } }

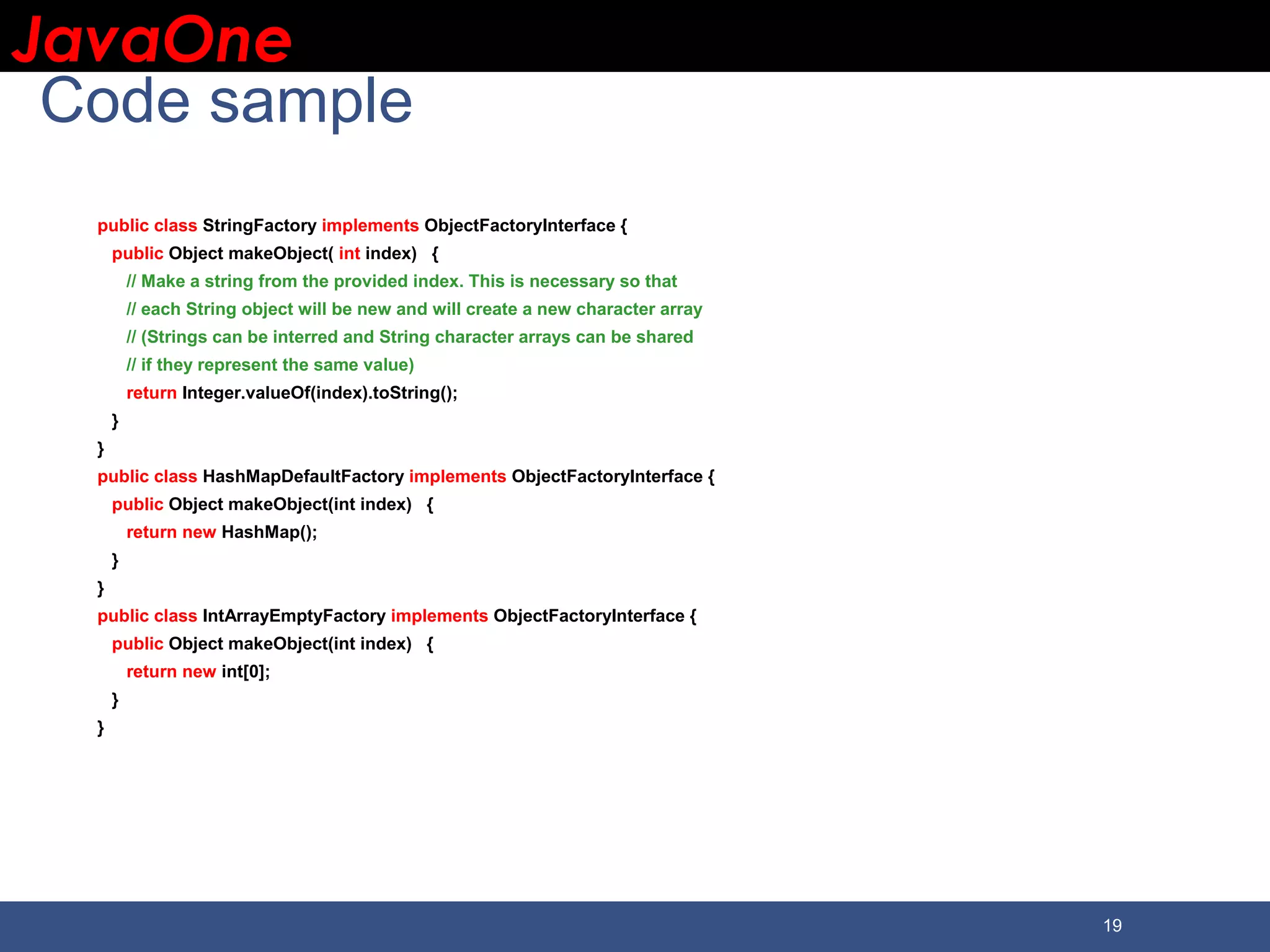

JavaOneJavaOne 19 Code sample public class StringFactory implements ObjectFactoryInterface { public Object makeObject( int index) { // Make a string from the provided index. This is necessary so that // each String object will be new and will create a new character array // (Strings can be interred and String character arrays can be shared // if they represent the same value) return Integer.valueOf(index).toString(); } } public class HashMapDefaultFactory implements ObjectFactoryInterface { public Object makeObject(int index) { return new HashMap(); } } public class IntArrayEmptyFactory implements ObjectFactoryInterface { public Object makeObject(int index) { return new int[0]; } }

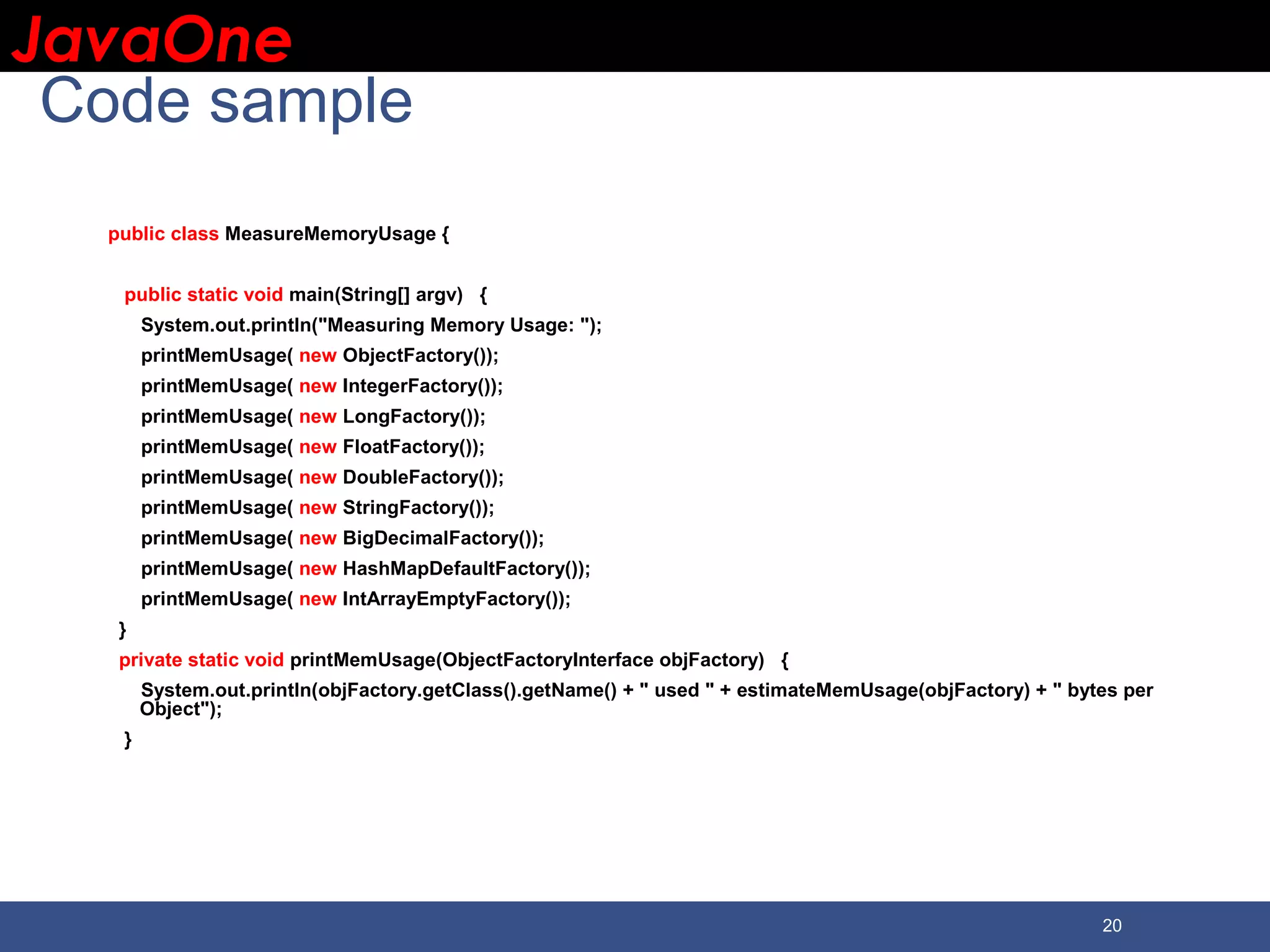

JavaOneJavaOne 20 Code sample public class MeasureMemoryUsage { public static void main(String[] argv) { System.out.println("Measuring Memory Usage: "); printMemUsage( new ObjectFactory()); printMemUsage( new IntegerFactory()); printMemUsage( new LongFactory()); printMemUsage( new FloatFactory()); printMemUsage( new DoubleFactory()); printMemUsage( new StringFactory()); printMemUsage( new BigDecimalFactory()); printMemUsage( new HashMapDefaultFactory()); printMemUsage( new IntArrayEmptyFactory()); } private static void printMemUsage(ObjectFactoryInterface objFactory) { System.out.println(objFactory.getClass().getName() + " used " + estimateMemUsage(objFactory) + " bytes per Object"); }

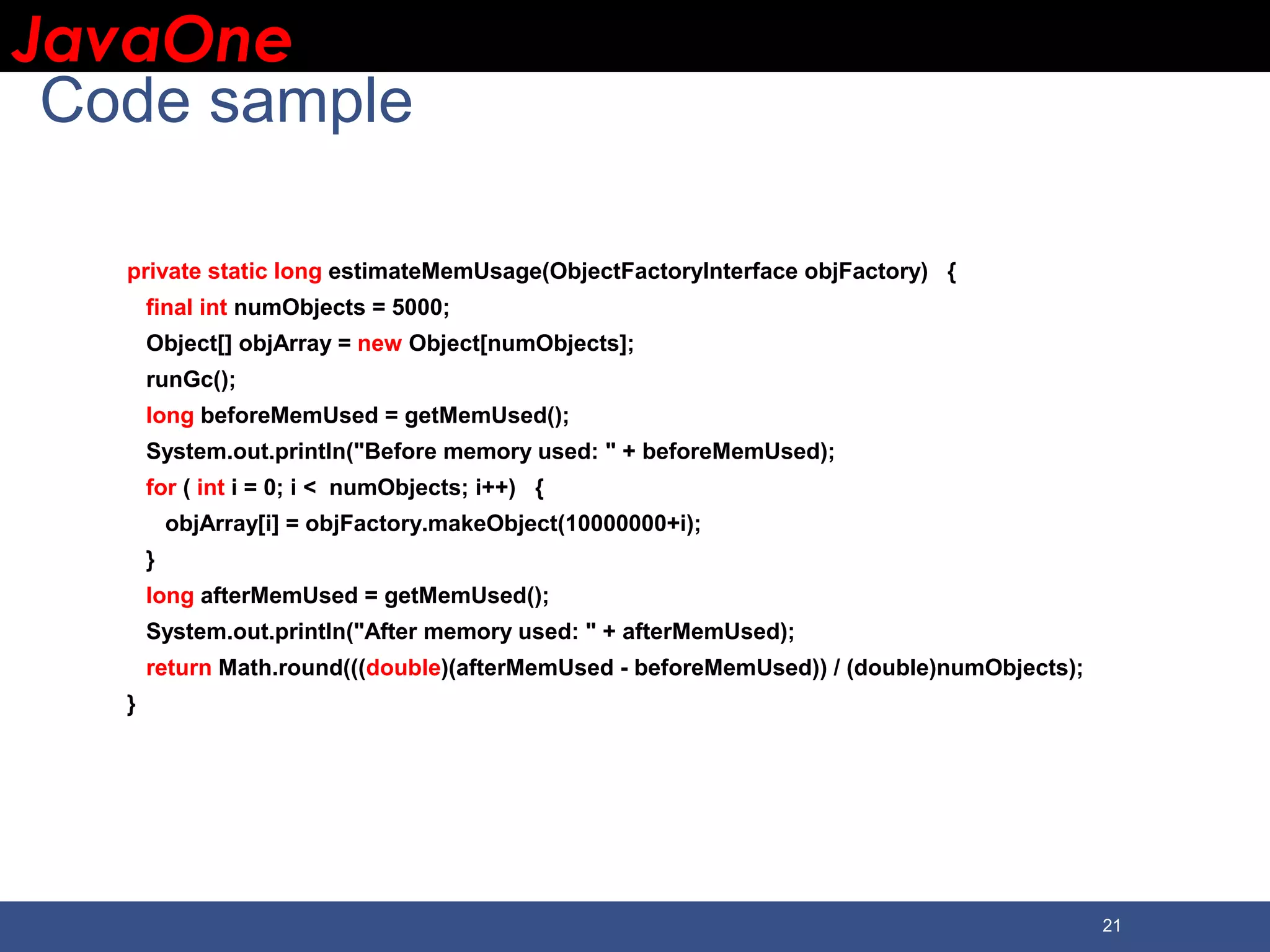

JavaOneJavaOne 21 Code sample private static long estimateMemUsage(ObjectFactoryInterface objFactory) { final int numObjects = 5000; Object[] objArray = new Object[numObjects]; runGc(); long beforeMemUsed = getMemUsed(); System.out.println("Before memory used: " + beforeMemUsed); for ( int i = 0; i < numObjects; i++) { objArray[i] = objFactory.makeObject(10000000+i); } long afterMemUsed = getMemUsed(); System.out.println("After memory used: " + afterMemUsed); return Math.round(((double)(afterMemUsed - beforeMemUsed)) / (double)numObjects); }

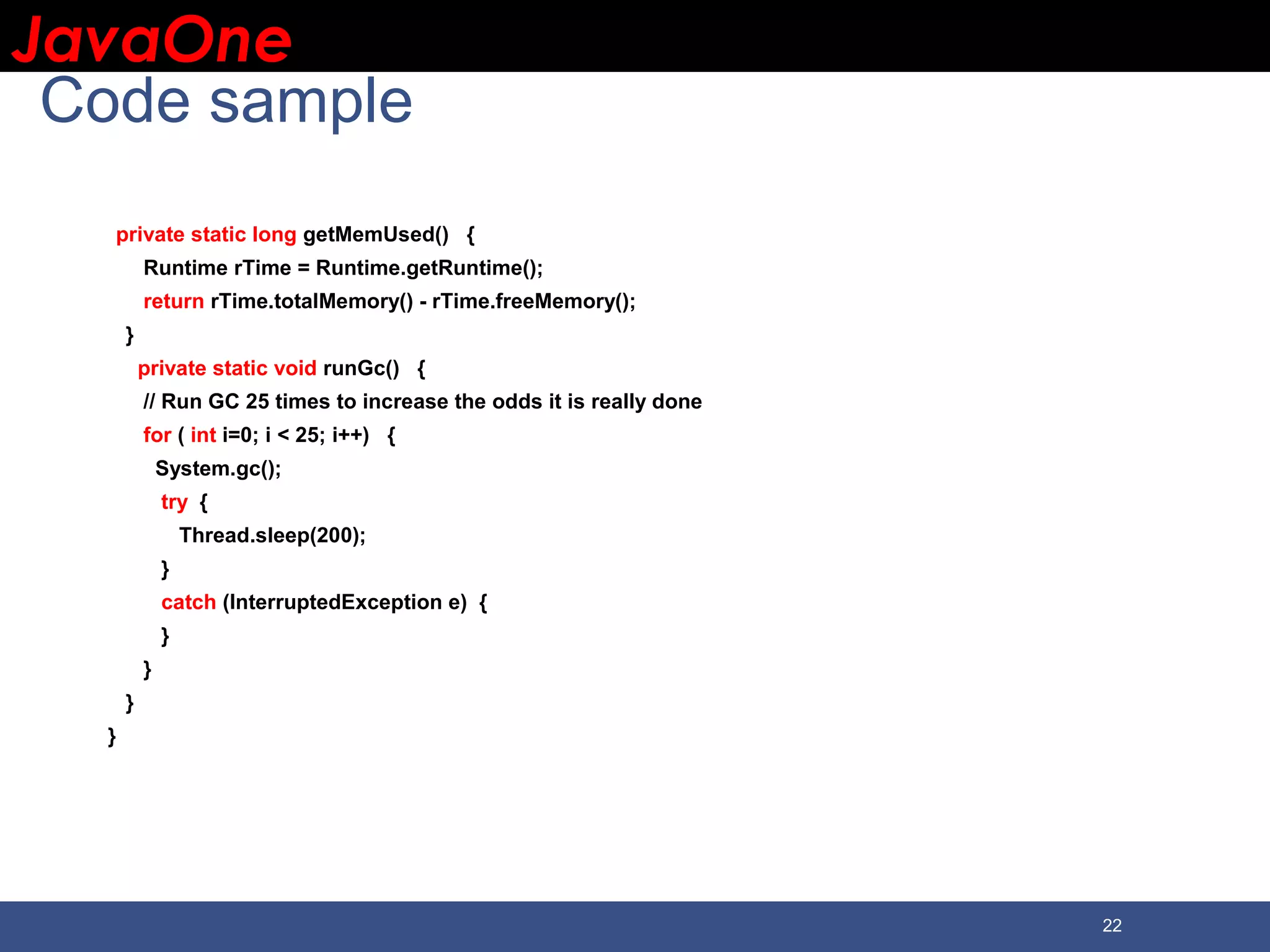

JavaOneJavaOne 22 Code sample private static long getMemUsed() { Runtime rTime = Runtime.getRuntime(); return rTime.totalMemory() - rTime.freeMemory(); } private static void runGc() { // Run GC 25 times to increase the odds it is really done for ( int i=0; i < 25; i++) { System.gc(); try { Thread.sleep(200); } catch (InterruptedException e) { } } } }

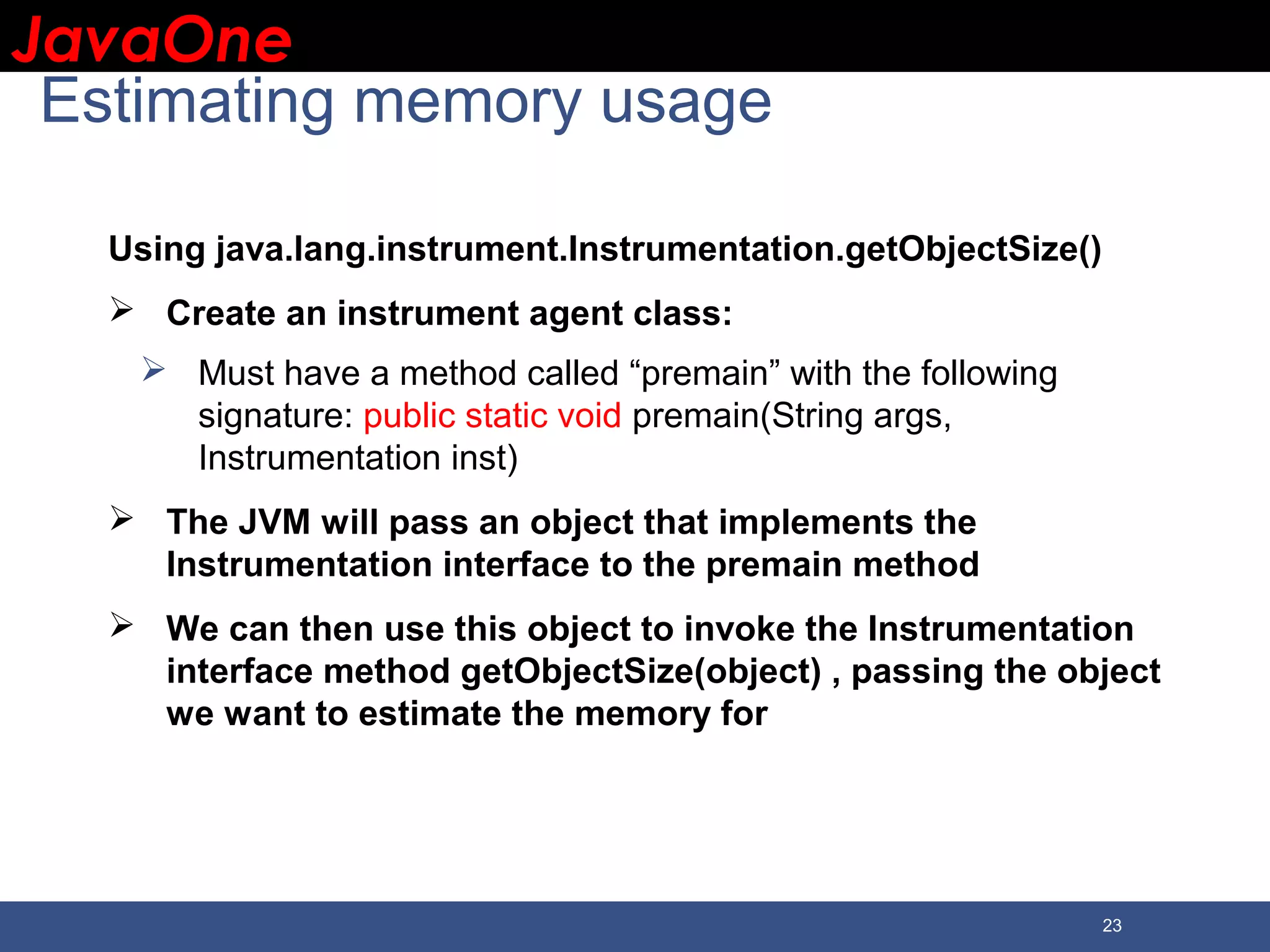

JavaOneJavaOne 23 Estimating memory usage Using java.lang.instrument.Instrumentation.getObjectSize()  Create an instrument agent class:  Must have a method called “premain” with the following signature: public static void premain(String args, Instrumentation inst)  The JVM will pass an object that implements the Instrumentation interface to the premain method  We can then use this object to invoke the Instrumentation interface method getObjectSize(object) , passing the object we want to estimate the memory for

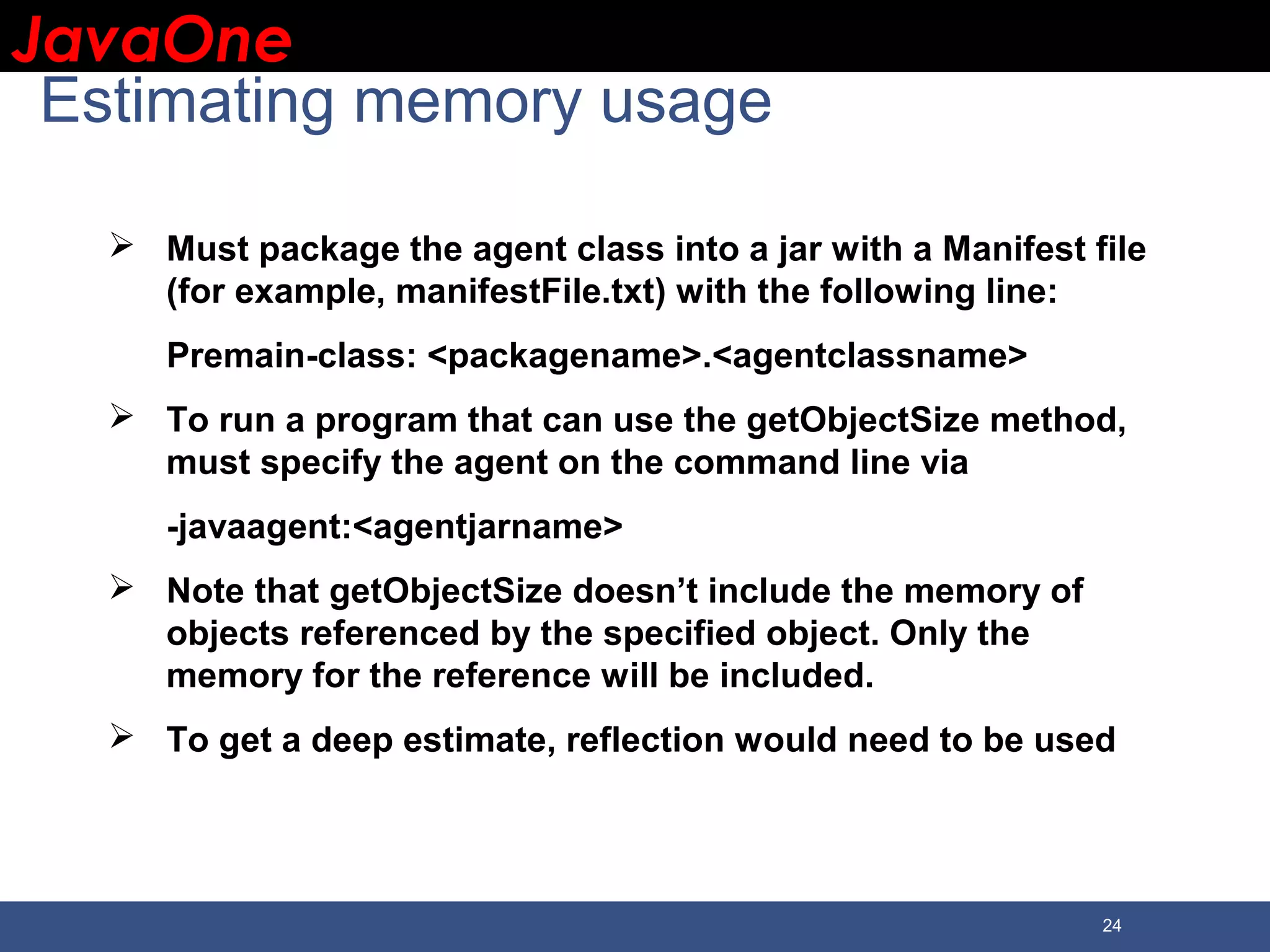

JavaOneJavaOne 24 Estimating memory usage  Must package the agent class into a jar with a Manifest file (for example, manifestFile.txt) with the following line: Premain-class: <packagename>.<agentclassname>  To run a program that can use the getObjectSize method, must specify the agent on the command line via -javaagent:<agentjarname>  Note that getObjectSize doesn’t include the memory of objects referenced by the specified object. Only the memory for the reference will be included.  To get a deep estimate, reflection would need to be used

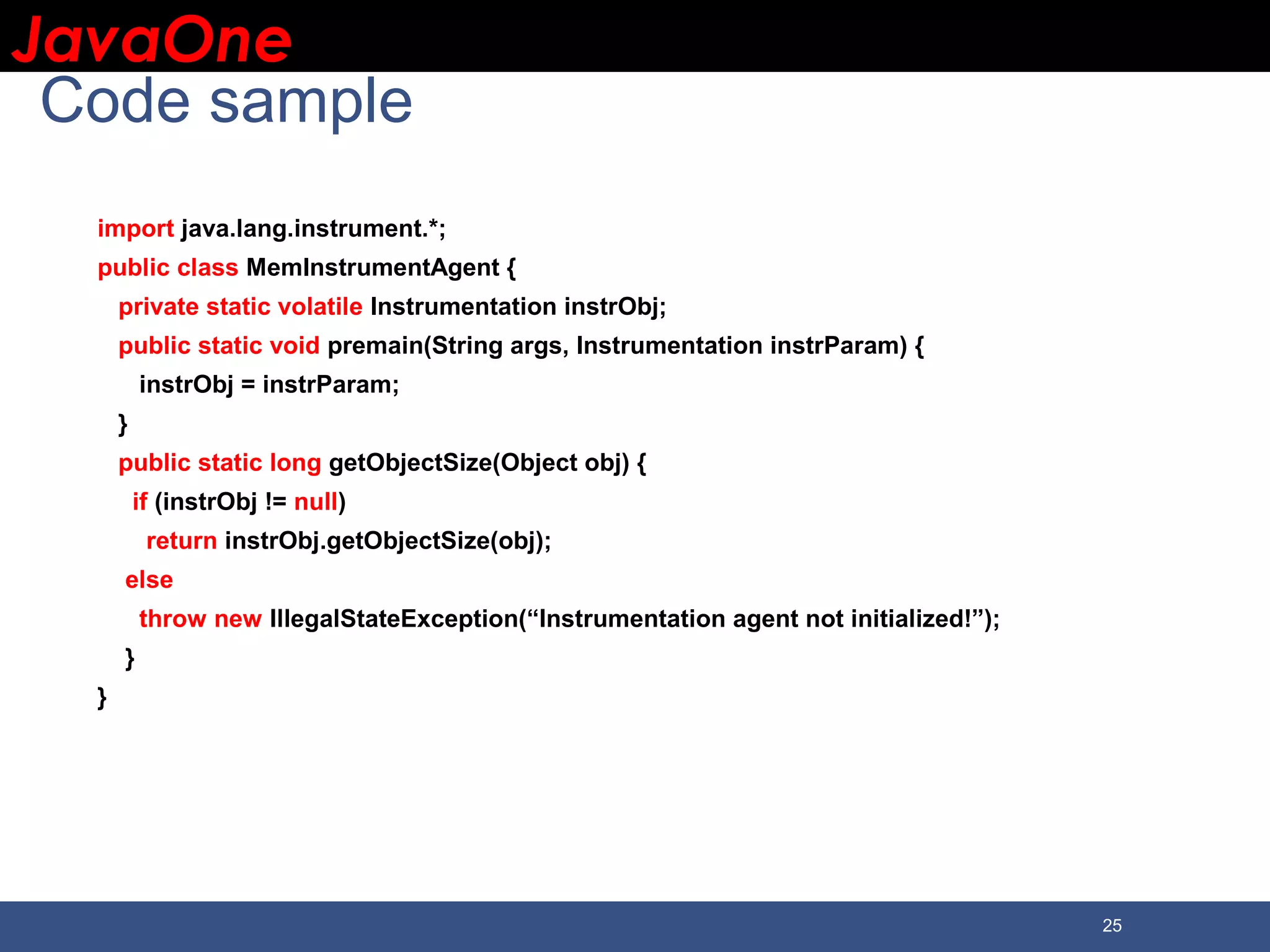

JavaOneJavaOne 25 Code sample import java.lang.instrument.*; public class MemInstrumentAgent { private static volatile Instrumentation instrObj; public static void premain(String args, Instrumentation instrParam) { instrObj = instrParam; } public static long getObjectSize(Object obj) { if (instrObj != null) return instrObj.getObjectSize(obj); else throw new IllegalStateException(“Instrumentation agent not initialized!”); } }

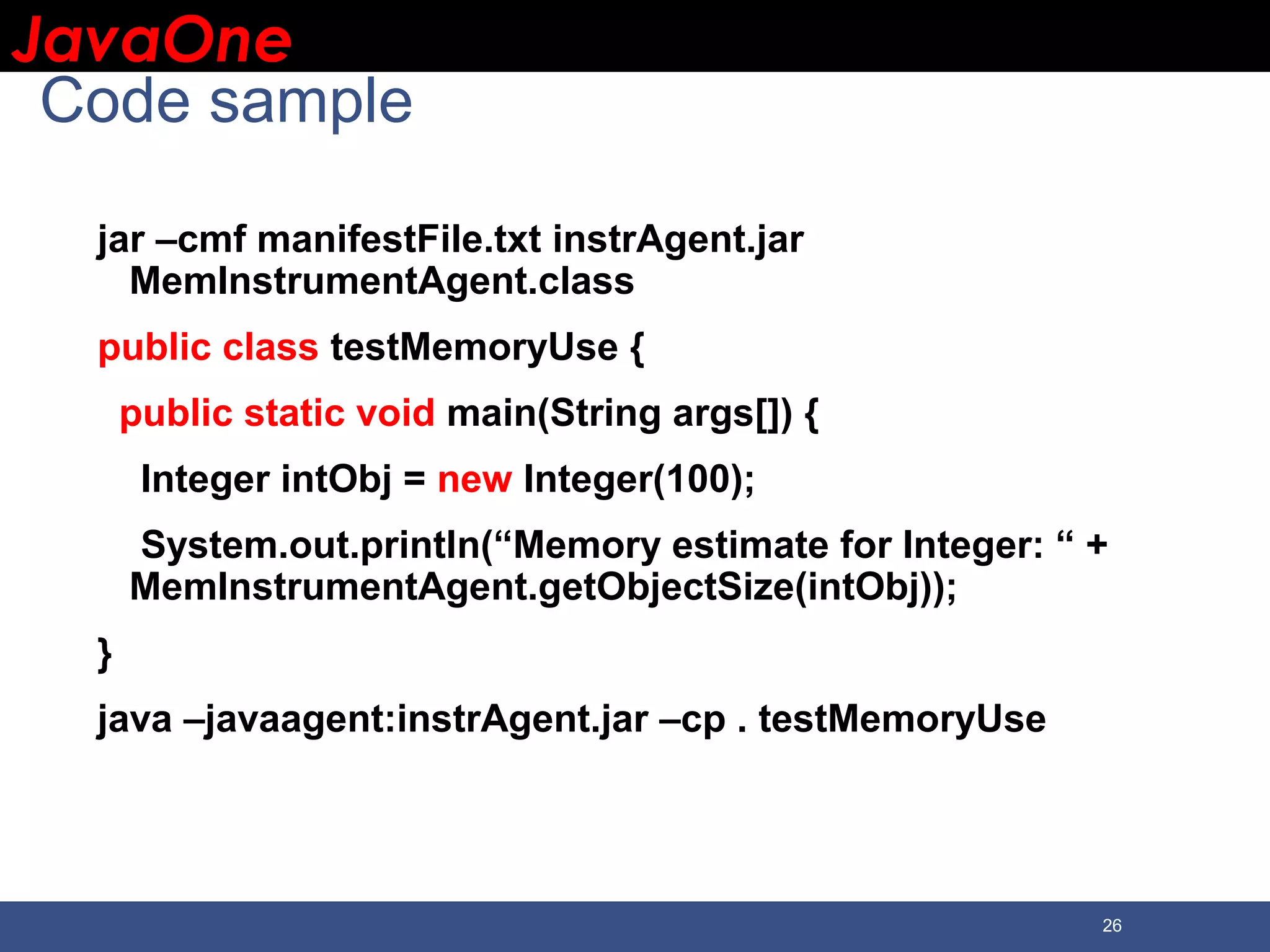

JavaOneJavaOne 26 Code sample jar –cmf manifestFile.txt instrAgent.jar MemInstrumentAgent.class public class testMemoryUse { public static void main(String args[]) { Integer intObj = new Integer(100); System.out.println(“Memory estimate for Integer: “ + MemInstrumentAgent.getObjectSize(intObj)); } java –javaagent:instrAgent.jar –cp . testMemoryUse

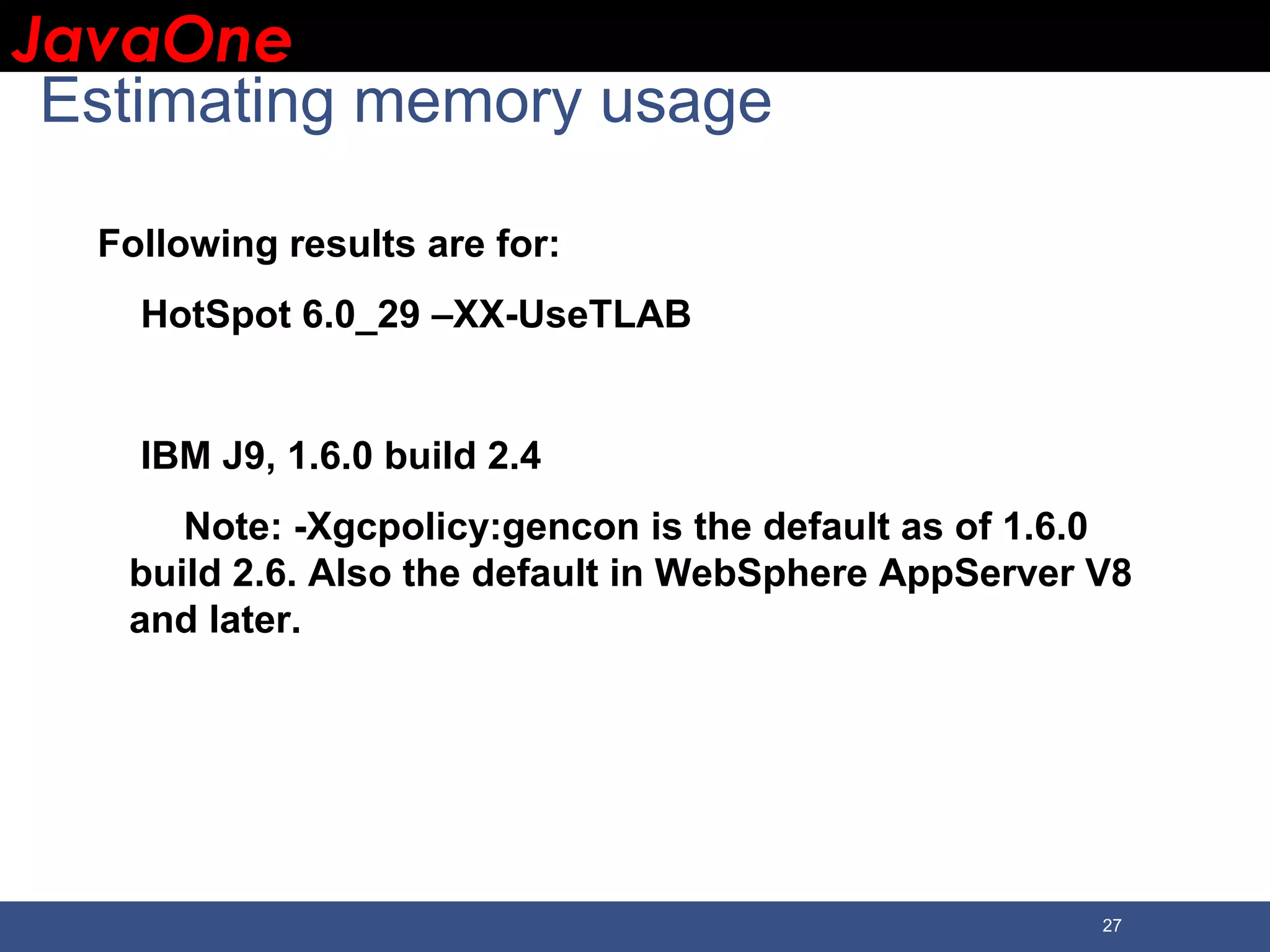

JavaOneJavaOne 27 Estimating memory usage Following results are for: HotSpot 6.0_29 –XX-UseTLAB IBM J9, 1.6.0 build 2.4 Note: -Xgcpolicy:gencon is the default as of 1.6.0 build 2.6. Also the default in WebSphere AppServer V8 and later.

JavaOneJavaOne 28 Estimating memory usage HotSpot32 HotSpot64 HotSpot CompOops IBM32 IBM64 IBM64 CompRefs Object 8 16 16 12 24 16 Integer 16 24 16 16 32 16 Long 16 24 24 24 32 24 Float 16 24 16 16 32 16 Double 16 24 24 24 32 24 String (8 chars) 56 82 65 64 90 65 BigDecimal (123.456) 96 148 123 104 156 115 HashMap (16,0.75) 120 216 128 128 224 128 int[0] 16 24 16 16 24 16 int[100] 416 424 416 416 424 416

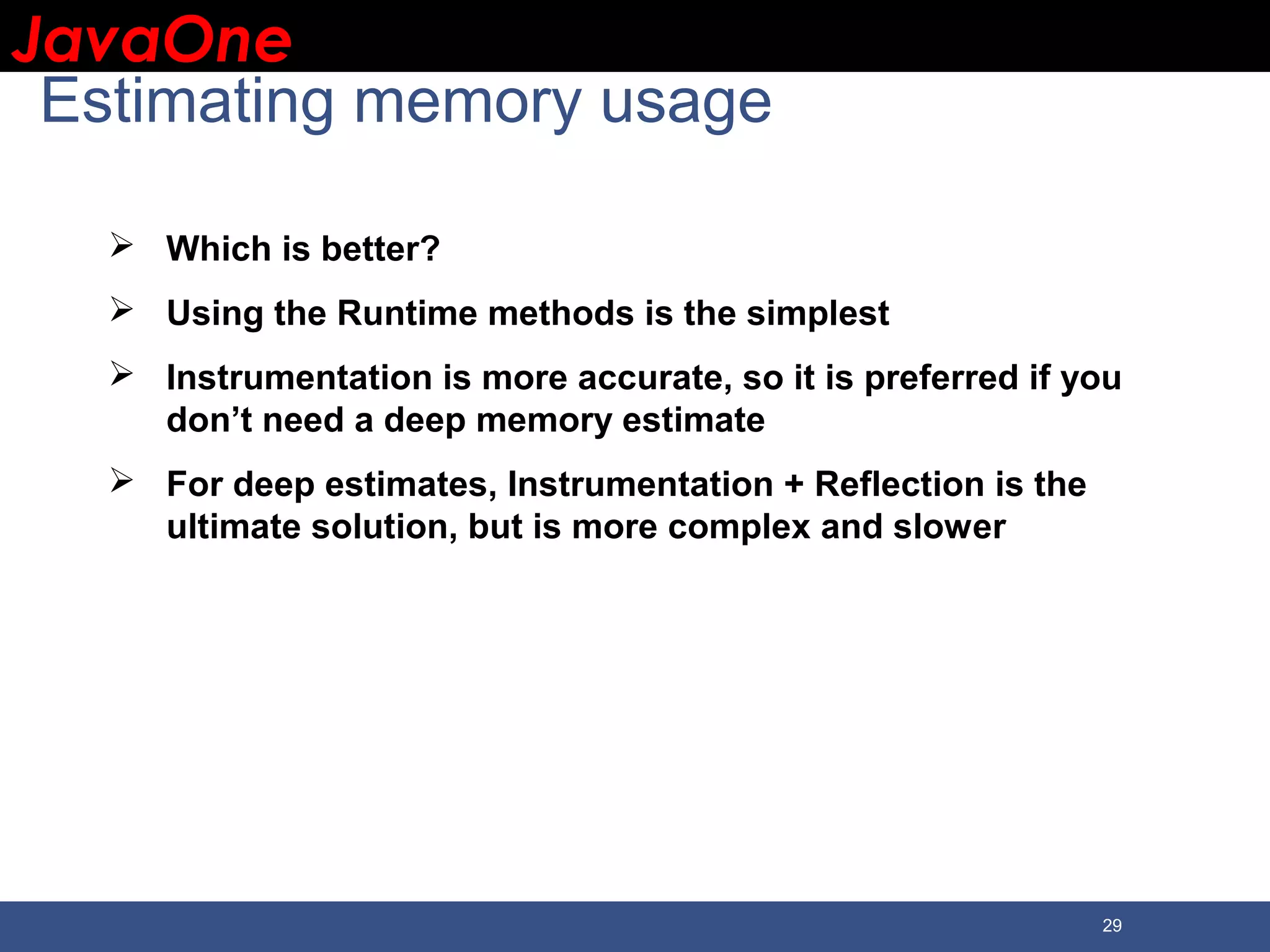

JavaOneJavaOne 29 Estimating memory usage  Which is better?  Using the Runtime methods is the simplest  Instrumentation is more accurate, so it is preferred if you don’t need a deep memory estimate  For deep estimates, Instrumentation + Reflection is the ultimate solution, but is more complex and slower

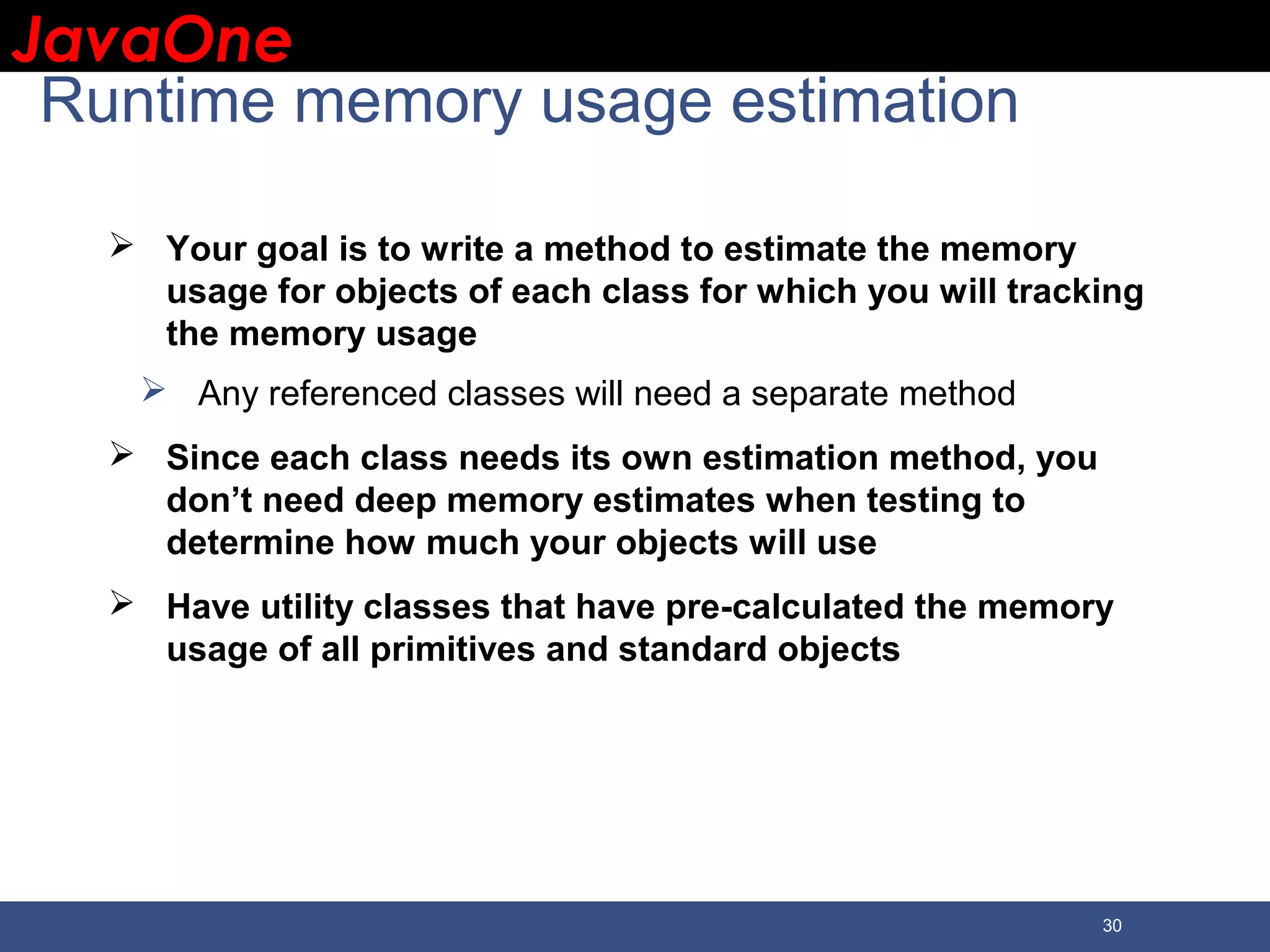

JavaOneJavaOne 30 Runtime memory usage estimation  Your goal is to write a method to estimate the memory usage for objects of each class for which you will tracking the memory usage  Any referenced classes will need a separate method  Since each class needs its own estimation method, you don’t need deep memory estimates when testing to determine how much your objects will use  Have utility classes that have pre-calculated the memory usage of all primitives and standard objects

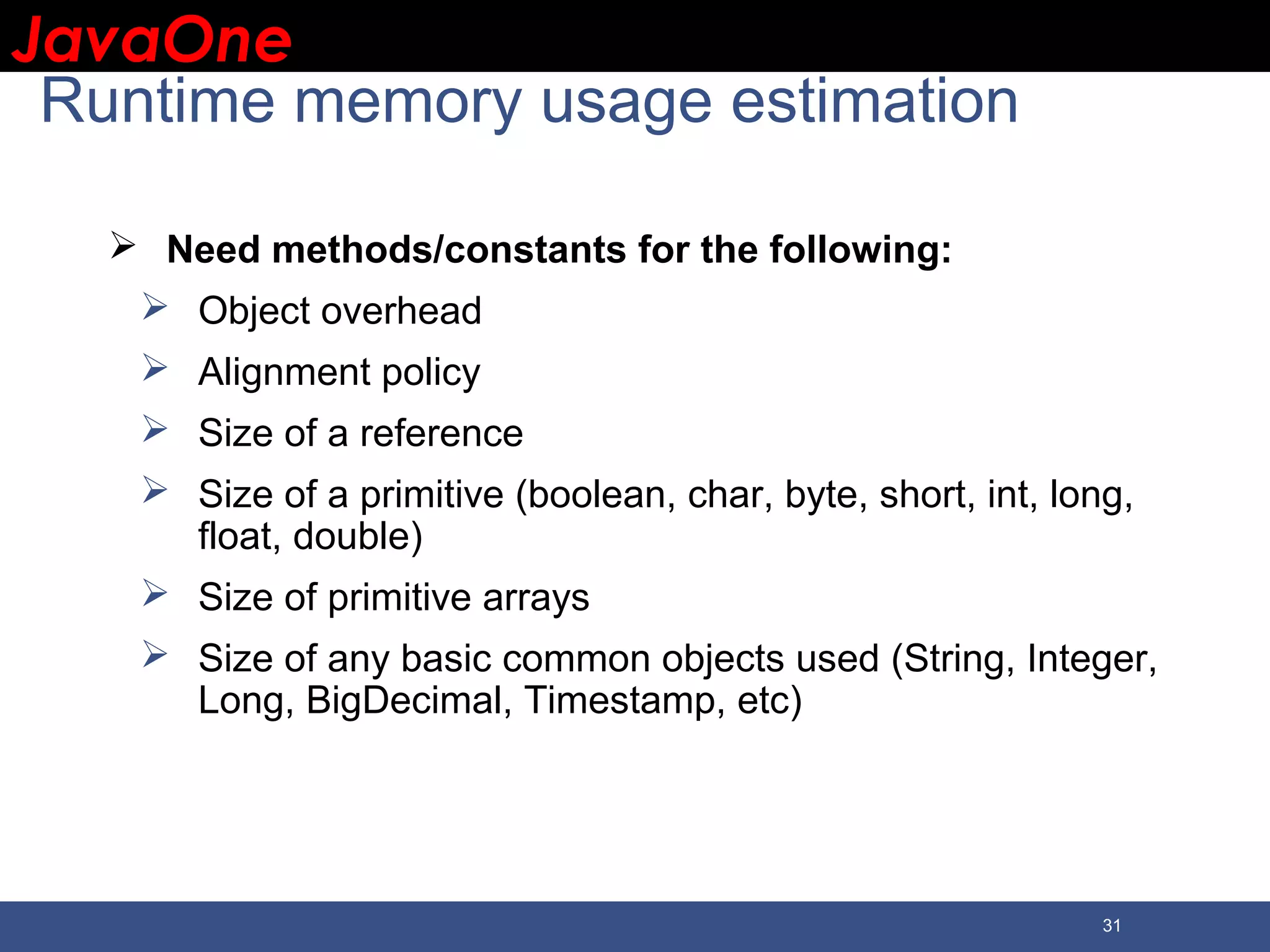

JavaOneJavaOne 31 Runtime memory usage estimation  Need methods/constants for the following:  Object overhead  Alignment policy  Size of a reference  Size of a primitive (boolean, char, byte, short, int, long, float, double)  Size of primitive arrays  Size of any basic common objects used (String, Integer, Long, BigDecimal, Timestamp, etc)

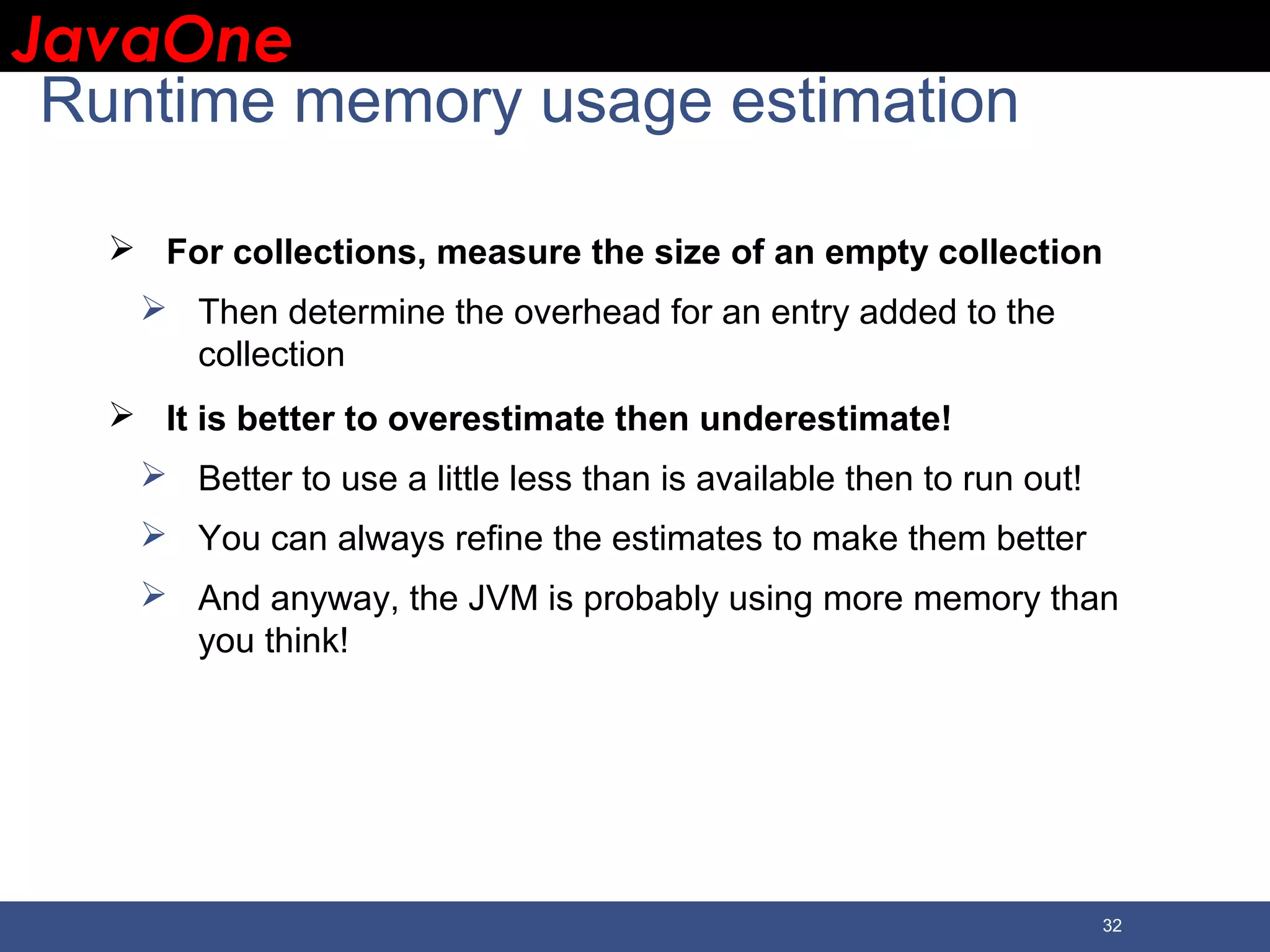

JavaOneJavaOne 32 Runtime memory usage estimation  For collections, measure the size of an empty collection  Then determine the overhead for an entry added to the collection  It is better to overestimate then underestimate!  Better to use a little less than is available then to run out!  You can always refine the estimates to make them better  And anyway, the JVM is probably using more memory than you think!

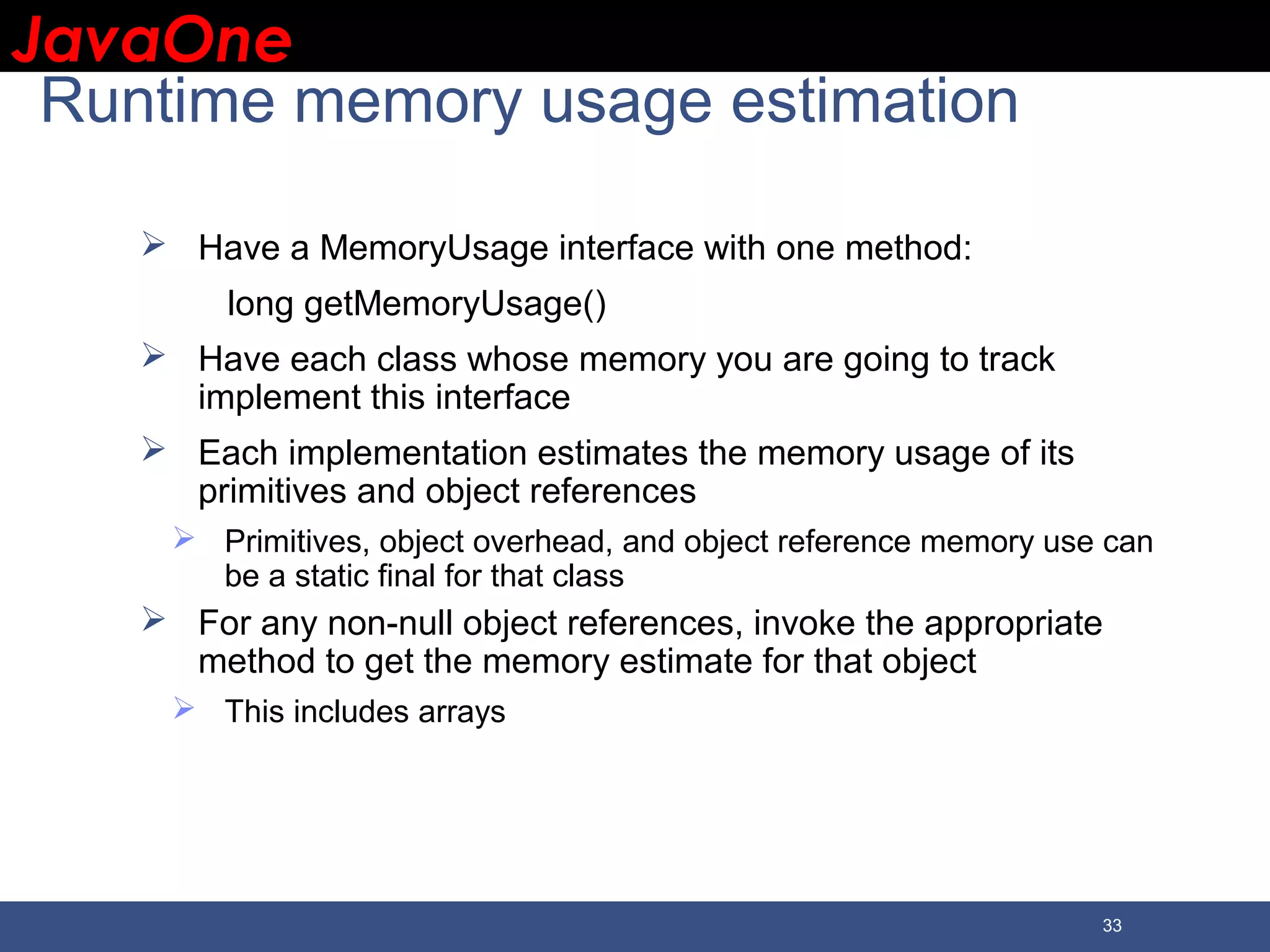

JavaOneJavaOne 33 Runtime memory usage estimation  Have a MemoryUsage interface with one method: long getMemoryUsage()  Have each class whose memory you are going to track implement this interface  Each implementation estimates the memory usage of its primitives and object references  Primitives, object overhead, and object reference memory use can be a static final for that class  For any non-null object references, invoke the appropriate method to get the memory estimate for that object  This includes arrays

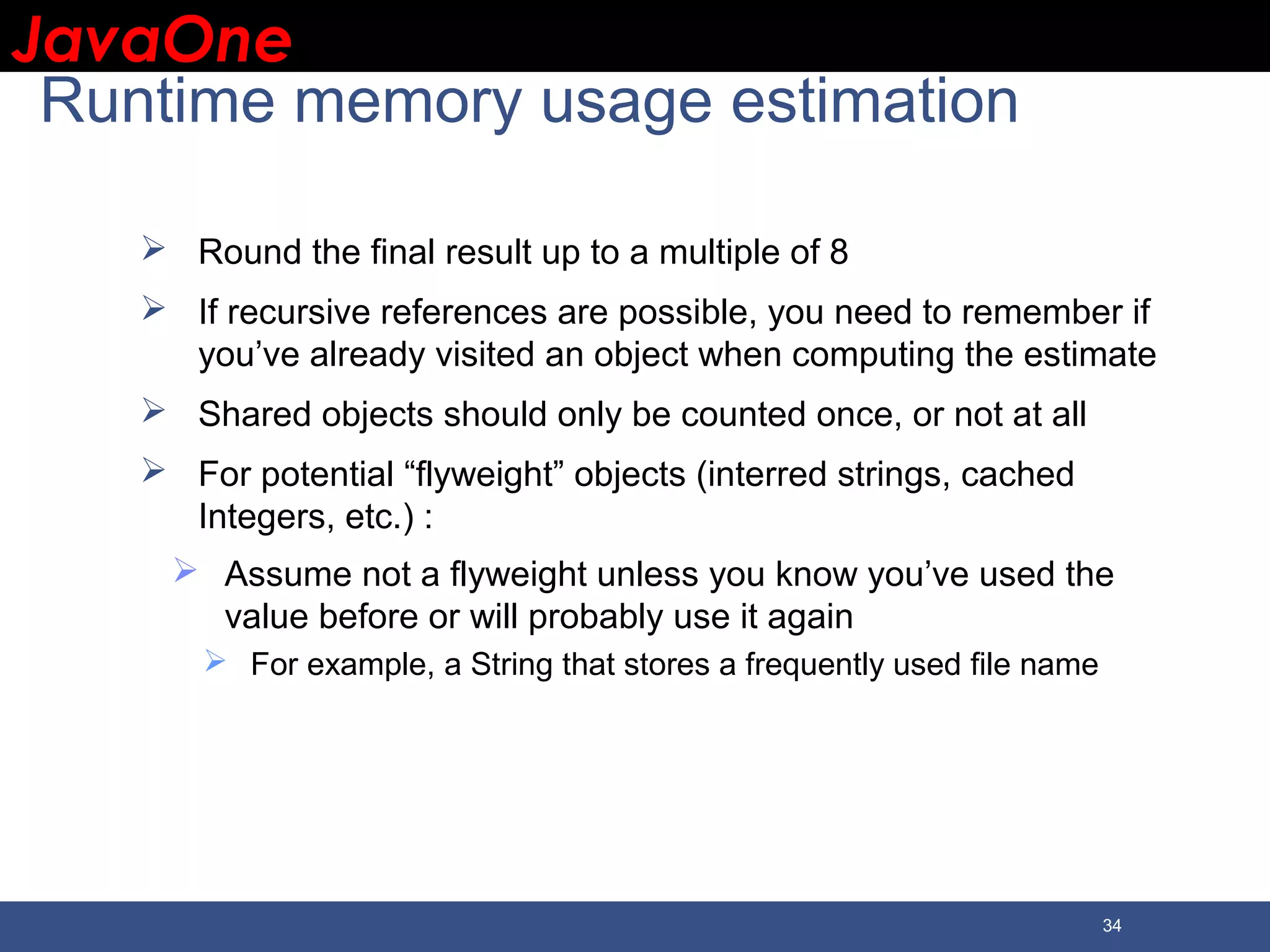

JavaOneJavaOne 34 Runtime memory usage estimation  Round the final result up to a multiple of 8  If recursive references are possible, you need to remember if you’ve already visited an object when computing the estimate  Shared objects should only be counted once, or not at all  For potential “flyweight” objects (interred strings, cached Integers, etc.) :  Assume not a flyweight unless you know you’ve used the value before or will probably use it again  For example, a String that stores a frequently used file name

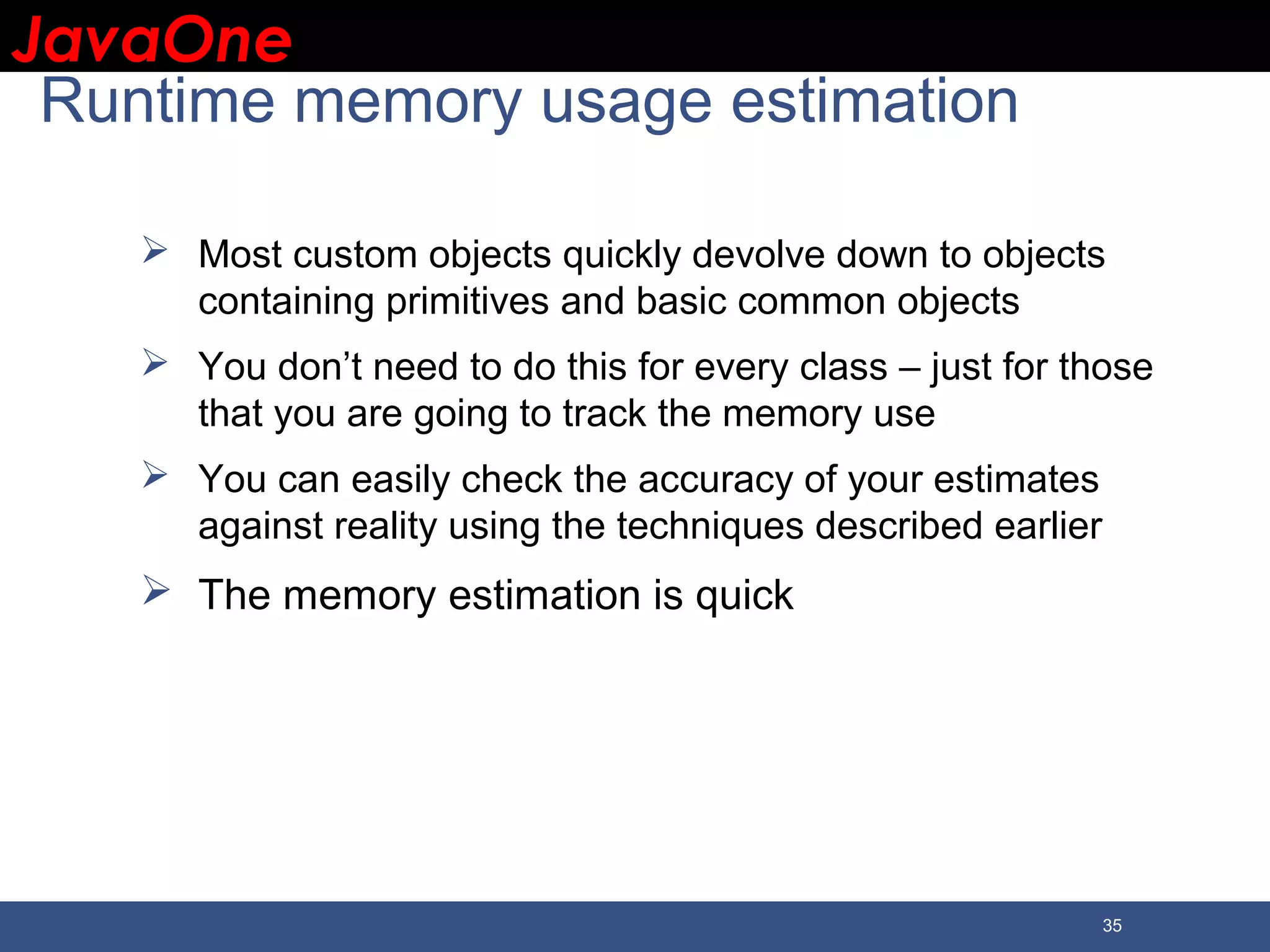

JavaOneJavaOne 35 Runtime memory usage estimation  Most custom objects quickly devolve down to objects containing primitives and basic common objects  You don’t need to do this for every class – just for those that you are going to track the memory use  You can easily check the accuracy of your estimates against reality using the techniques described earlier  The memory estimation is quick

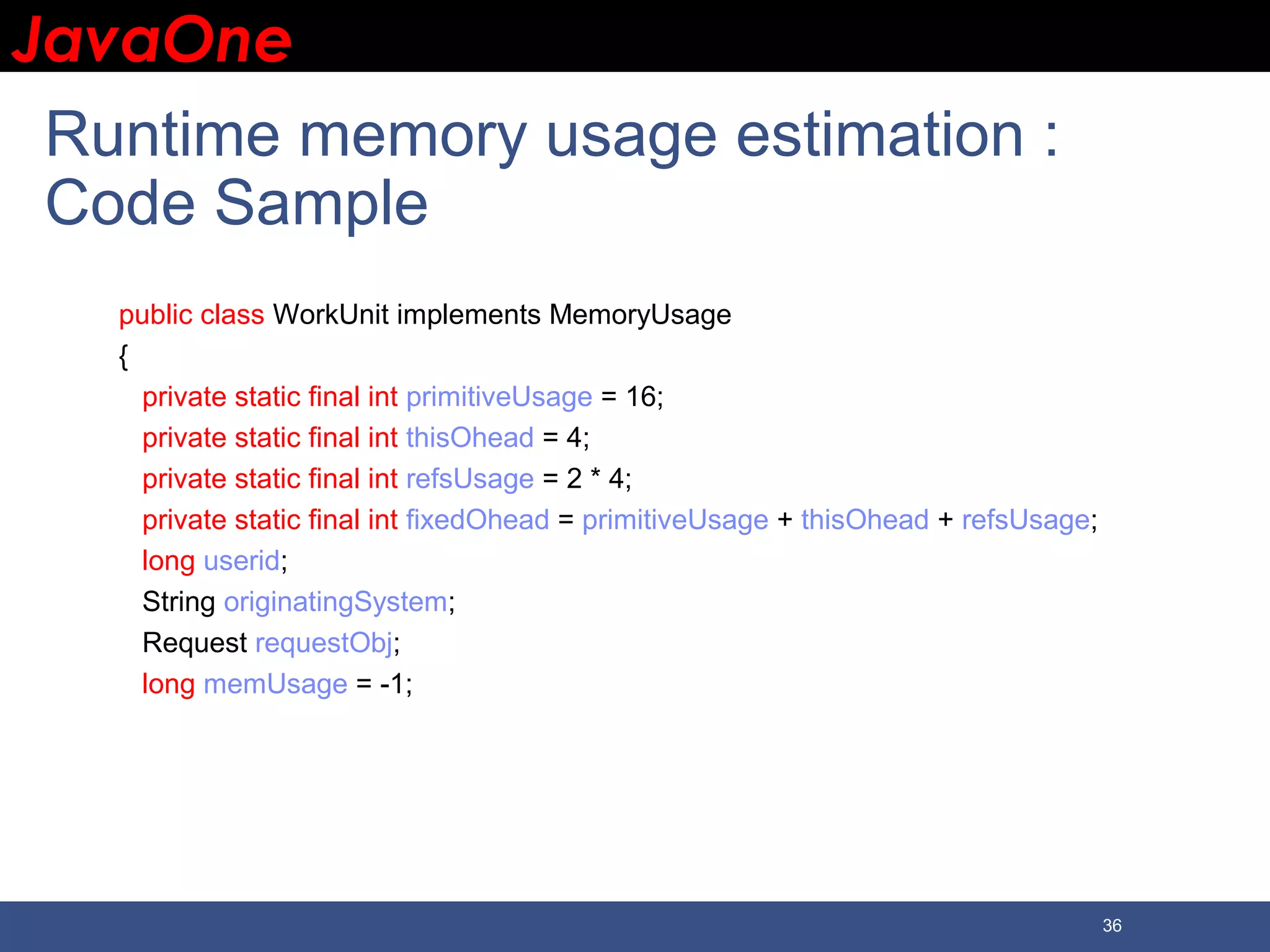

JavaOneJavaOne 36 Runtime memory usage estimation : Code Sample public class WorkUnit implements MemoryUsage { private static final int primitiveUsage = 16; private static final int thisOhead = 4; private static final int refsUsage = 2 * 4; private static final int fixedOhead = primitiveUsage + thisOhead + refsUsage; long userid; String originatingSystem; Request requestObj; long memUsage = -1;

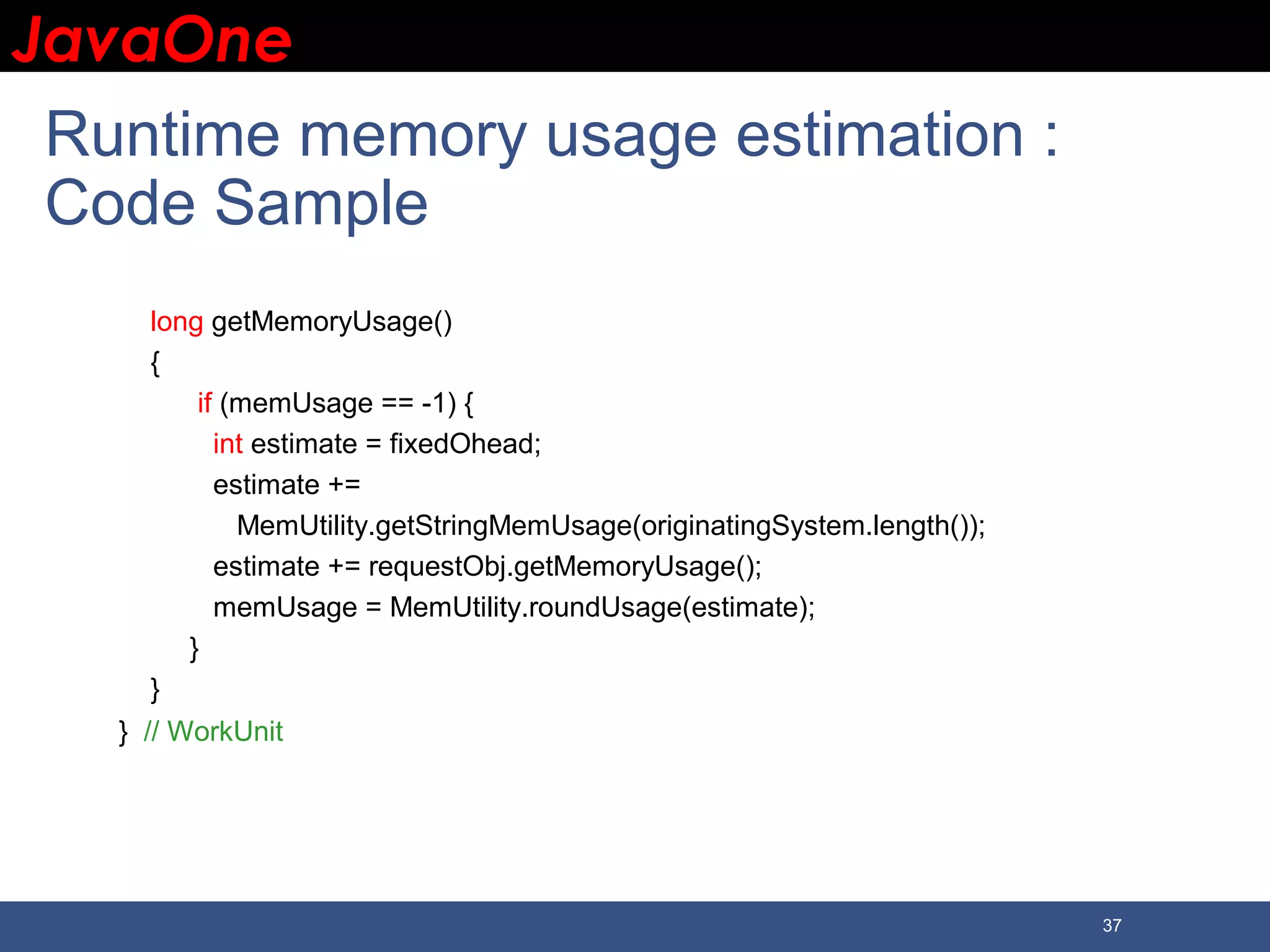

JavaOneJavaOne 37 Runtime memory usage estimation : Code Sample long getMemoryUsage() { if (memUsage == -1) { int estimate = fixedOhead; estimate += MemUtility.getStringMemUsage(originatingSystem.length()); estimate += requestObj.getMemoryUsage(); memUsage = MemUtility.roundUsage(estimate); } } } // WorkUnit

JavaOneJavaOne 38 Runtime memory usage estimation : Code Sample public class Request implements MemoryUsage { private static final int primitiveUsage = 16; private static final int thisOhead = 4; private static final int refsUsage = 2 * 4; private static final int fixedOhead = primitiveUsage + thisOhead + refsUsage; long requestId; String request; String discountCode; long memUsage = -1;

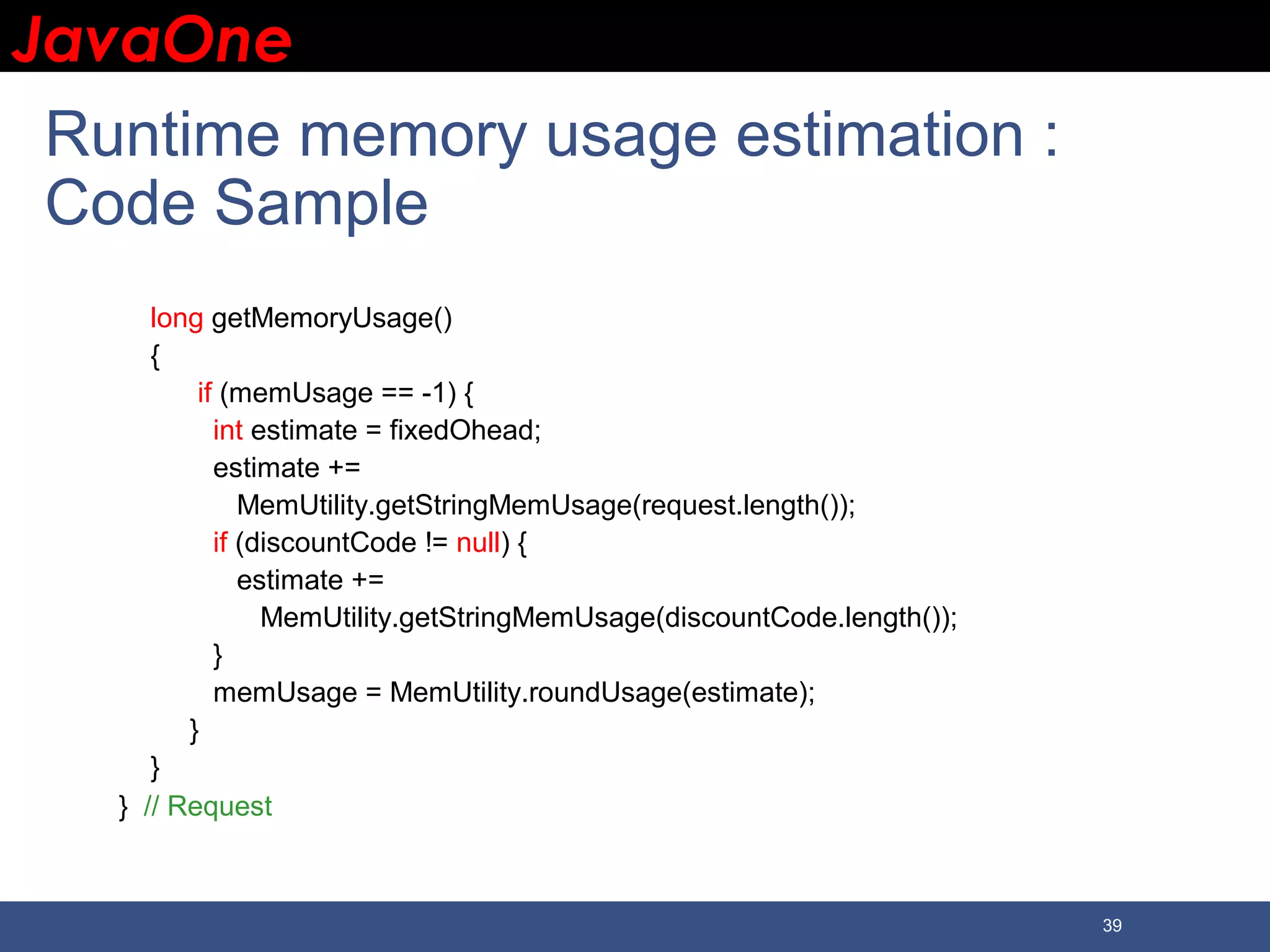

JavaOneJavaOne 39 Runtime memory usage estimation : Code Sample long getMemoryUsage() { if (memUsage == -1) { int estimate = fixedOhead; estimate += MemUtility.getStringMemUsage(request.length()); if (discountCode != null) { estimate += MemUtility.getStringMemUsage(discountCode.length()); } memUsage = MemUtility.roundUsage(estimate); } } } // Request

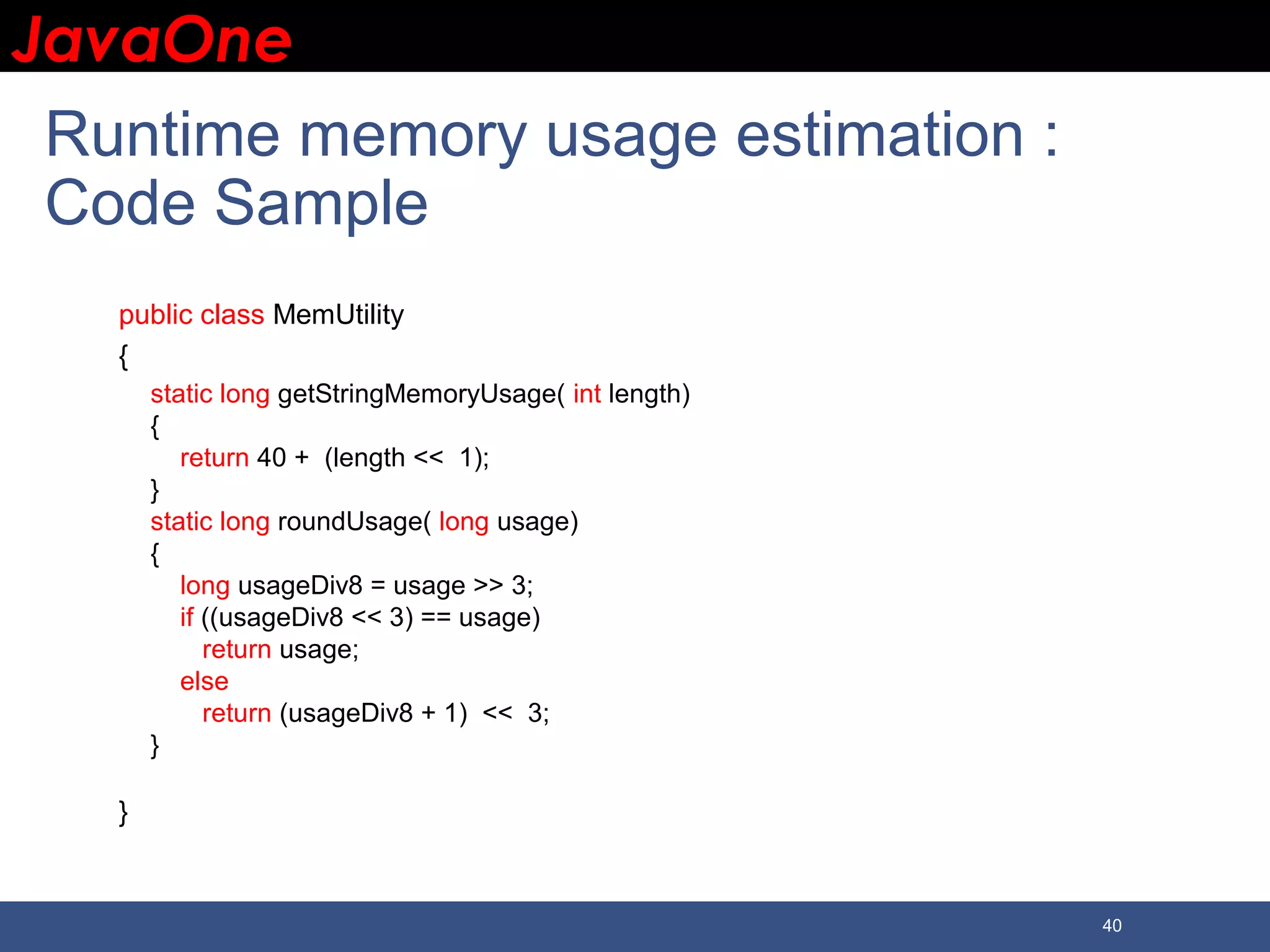

JavaOneJavaOne 40 Runtime memory usage estimation : Code Sample public class MemUtility { static long getStringMemoryUsage( int length) { return 40 + (length << 1); } static long roundUsage( long usage) { long usageDiv8 = usage >> 3; if ((usageDiv8 << 3) == usage) return usage; else return (usageDiv8 + 1) << 3; } }

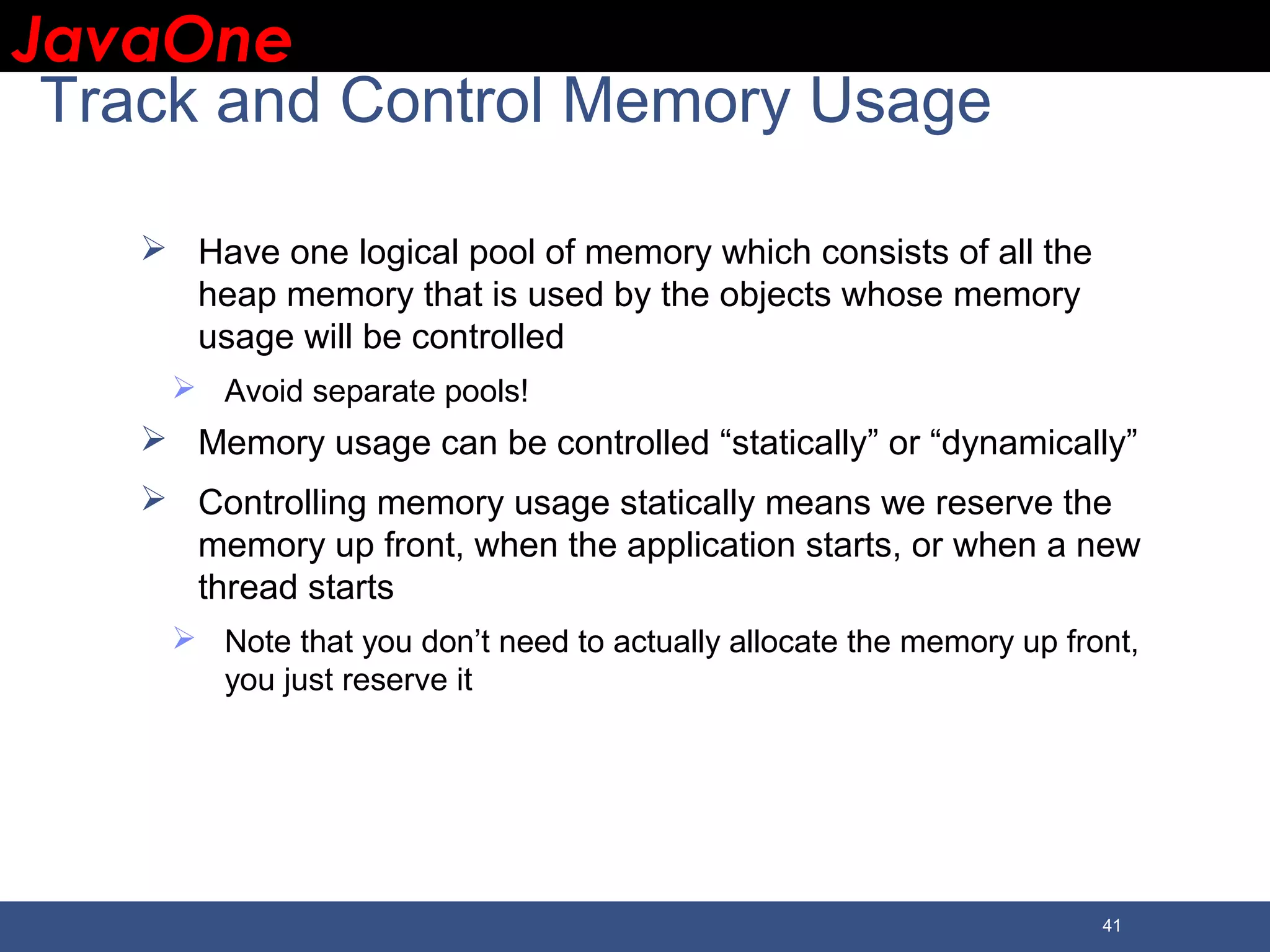

JavaOneJavaOne 41 Track and Control Memory Usage  Have one logical pool of memory which consists of all the heap memory that is used by the objects whose memory usage will be controlled  Avoid separate pools!  Memory usage can be controlled “statically” or “dynamically”  Controlling memory usage statically means we reserve the memory up front, when the application starts, or when a new thread starts  Note that you don’t need to actually allocate the memory up front, you just reserve it

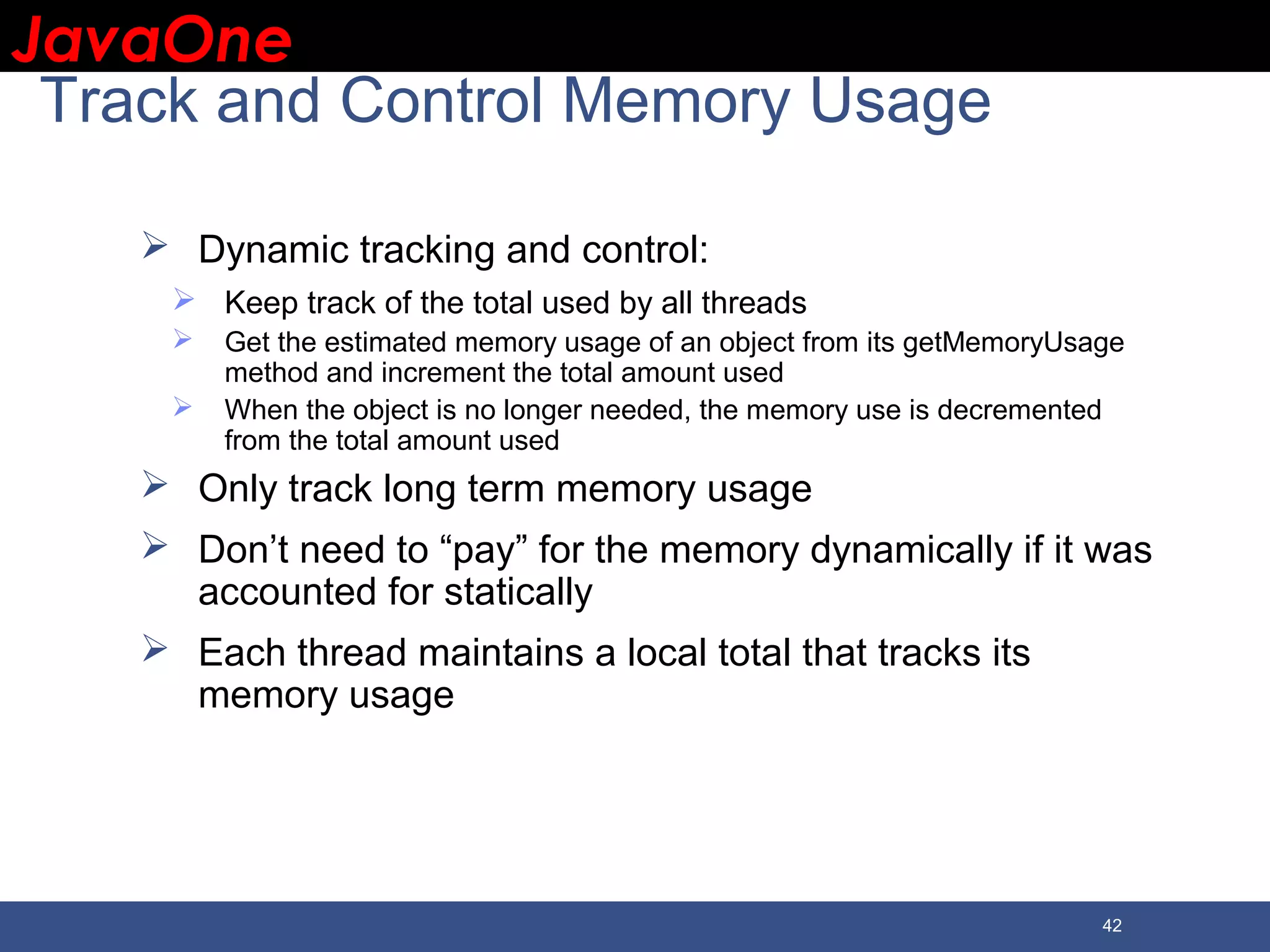

JavaOneJavaOne 42 Track and Control Memory Usage  Dynamic tracking and control:  Keep track of the total used by all threads  Get the estimated memory usage of an object from its getMemoryUsage method and increment the total amount used  When the object is no longer needed, the memory use is decremented from the total amount used  Only track long term memory usage  Don’t need to “pay” for the memory dynamically if it was accounted for statically  Each thread maintains a local total that tracks its memory usage

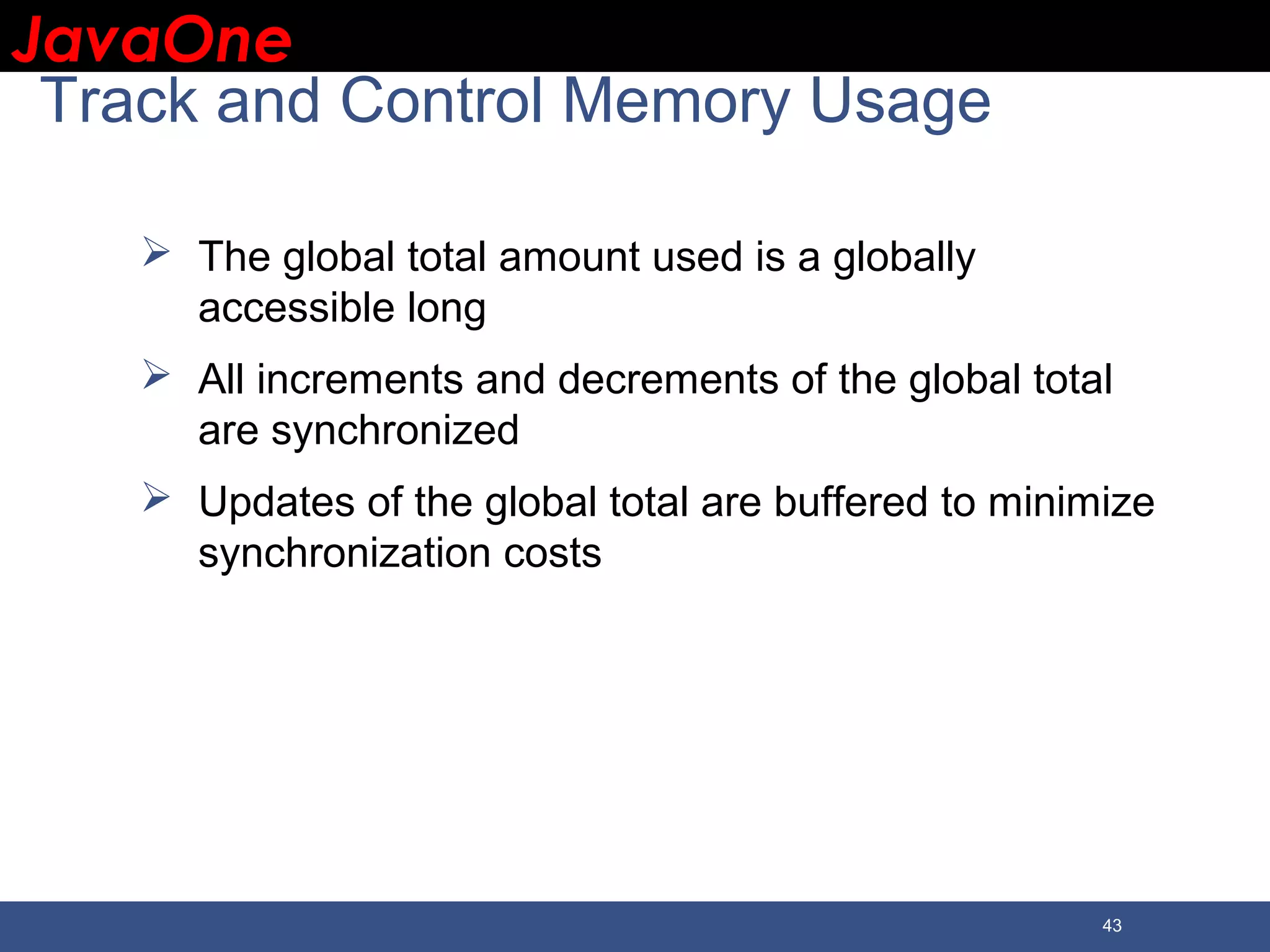

JavaOneJavaOne 43 Track and Control Memory Usage  The global total amount used is a globally accessible long  All increments and decrements of the global total are synchronized  Updates of the global total are buffered to minimize synchronization costs

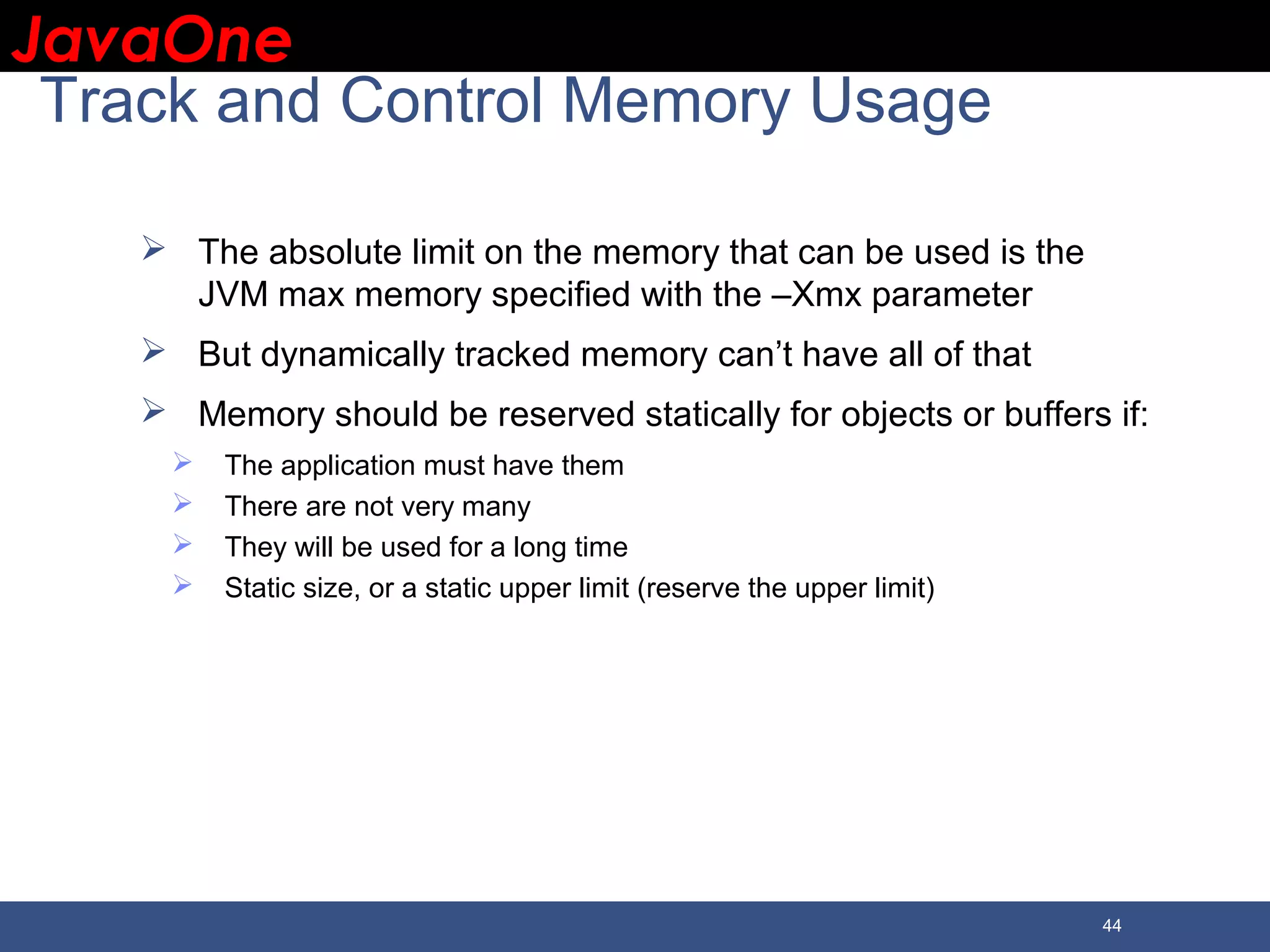

JavaOneJavaOne 44 Track and Control Memory Usage  The absolute limit on the memory that can be used is the JVM max memory specified with the –Xmx parameter  But dynamically tracked memory can’t have all of that  Memory should be reserved statically for objects or buffers if:  The application must have them  There are not very many  They will be used for a long time  Static size, or a static upper limit (reserve the upper limit)

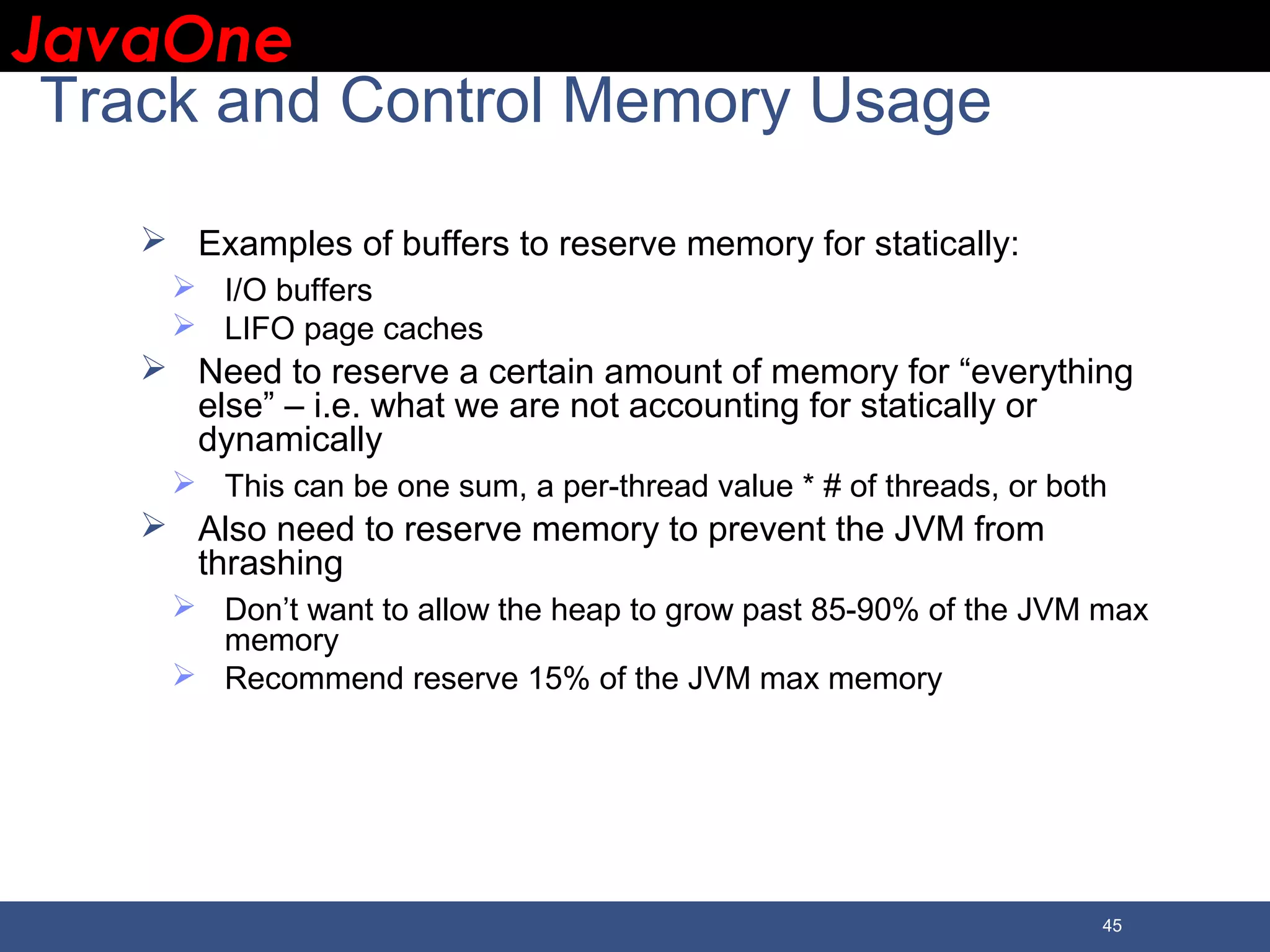

JavaOneJavaOne 45 Track and Control Memory Usage  Examples of buffers to reserve memory for statically:  I/O buffers  LIFO page caches  Need to reserve a certain amount of memory for “everything else” – i.e. what we are not accounting for statically or dynamically  This can be one sum, a per-thread value * # of threads, or both  Also need to reserve memory to prevent the JVM from thrashing  Don’t want to allow the heap to grow past 85-90% of the JVM max memory  Recommend reserve 15% of the JVM max memory

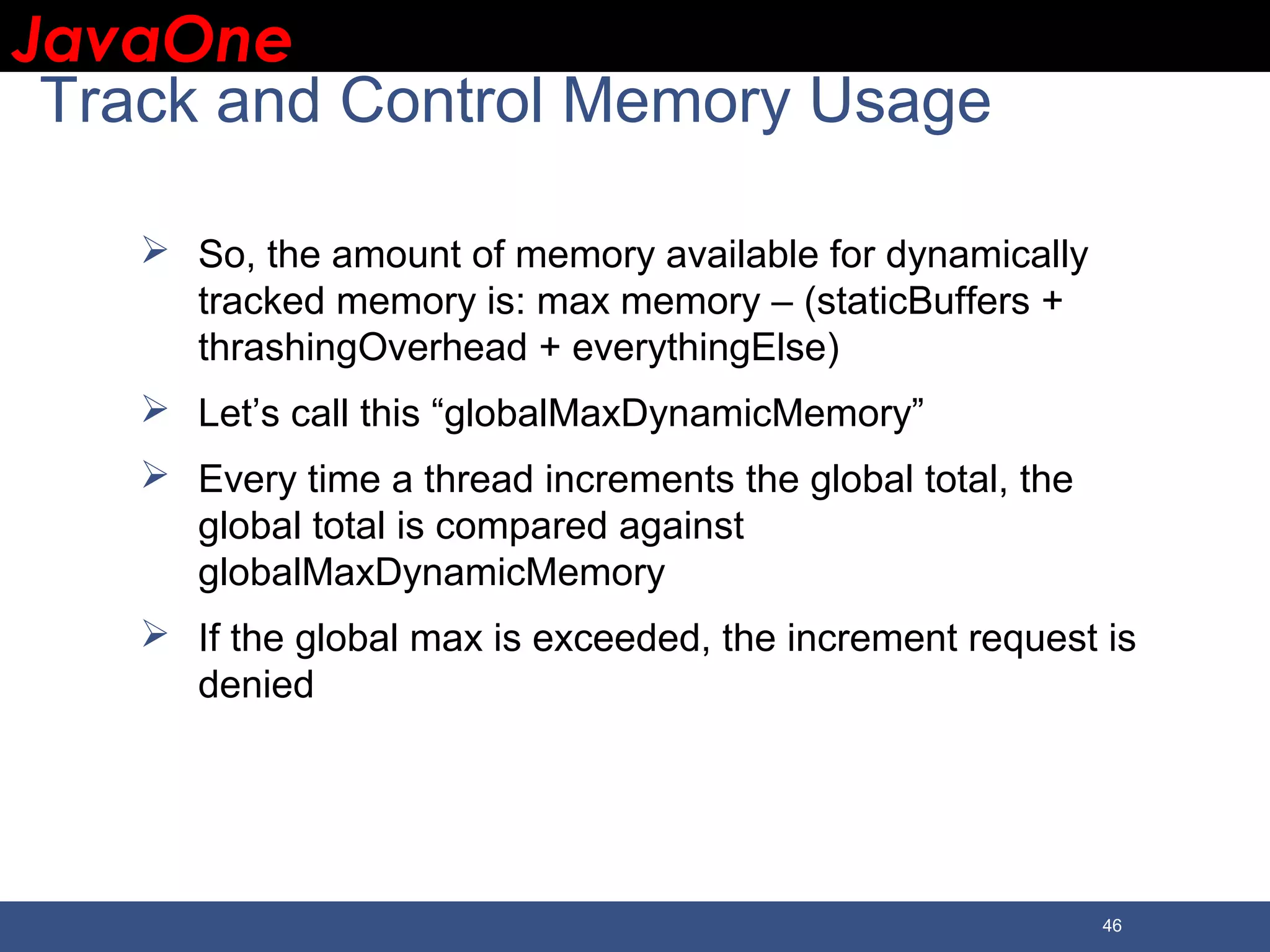

JavaOneJavaOne 46 Track and Control Memory Usage  So, the amount of memory available for dynamically tracked memory is: max memory – (staticBuffers + thrashingOverhead + everythingElse)  Let’s call this “globalMaxDynamicMemory”  Every time a thread increments the global total, the global total is compared against globalMaxDynamicMemory  If the global max is exceeded, the increment request is denied

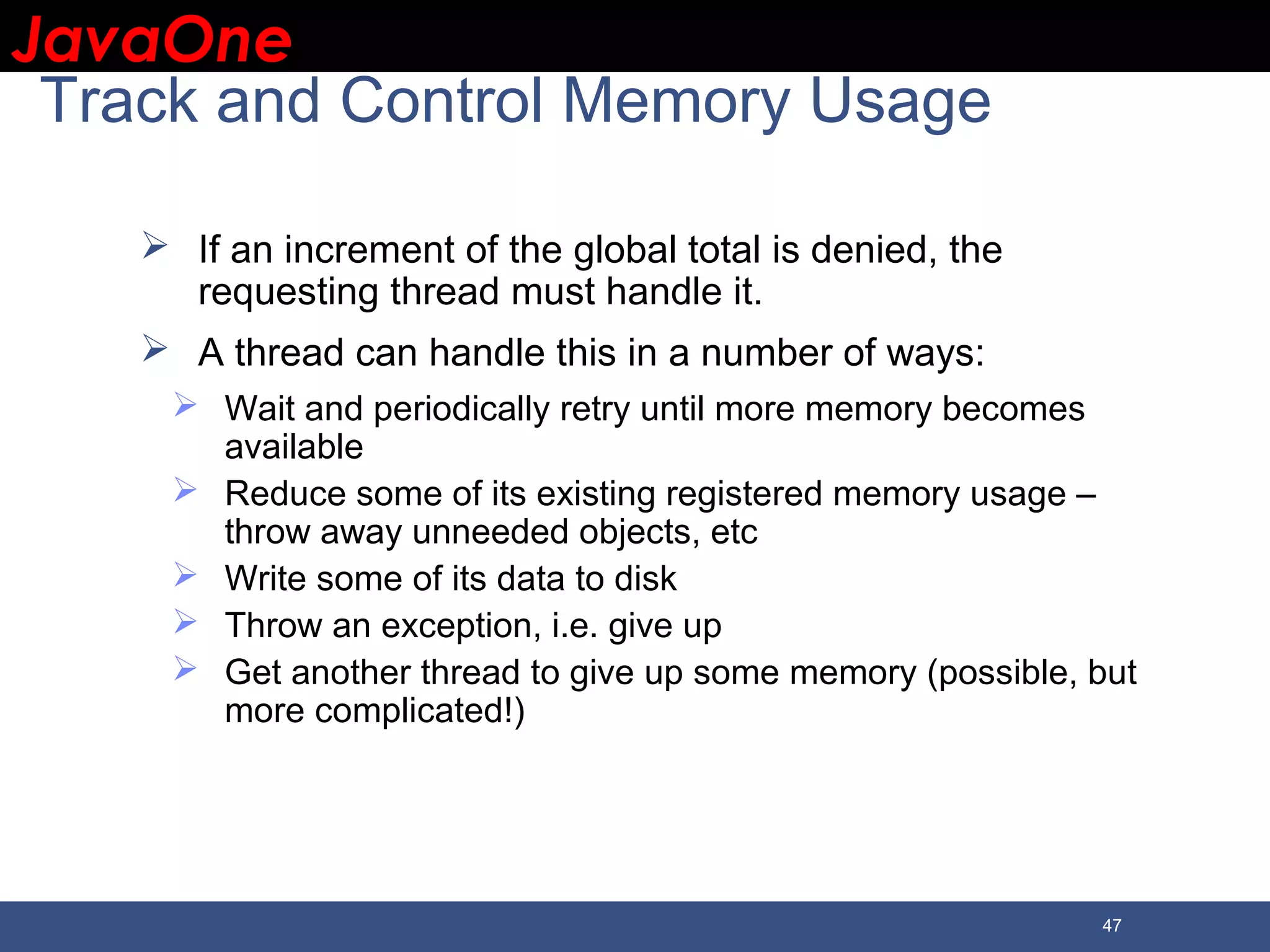

JavaOneJavaOne 47 Track and Control Memory Usage  If an increment of the global total is denied, the requesting thread must handle it.  A thread can handle this in a number of ways:  Wait and periodically retry until more memory becomes available  Reduce some of its existing registered memory usage – throw away unneeded objects, etc  Write some of its data to disk  Throw an exception, i.e. give up  Get another thread to give up some memory (possible, but more complicated!)

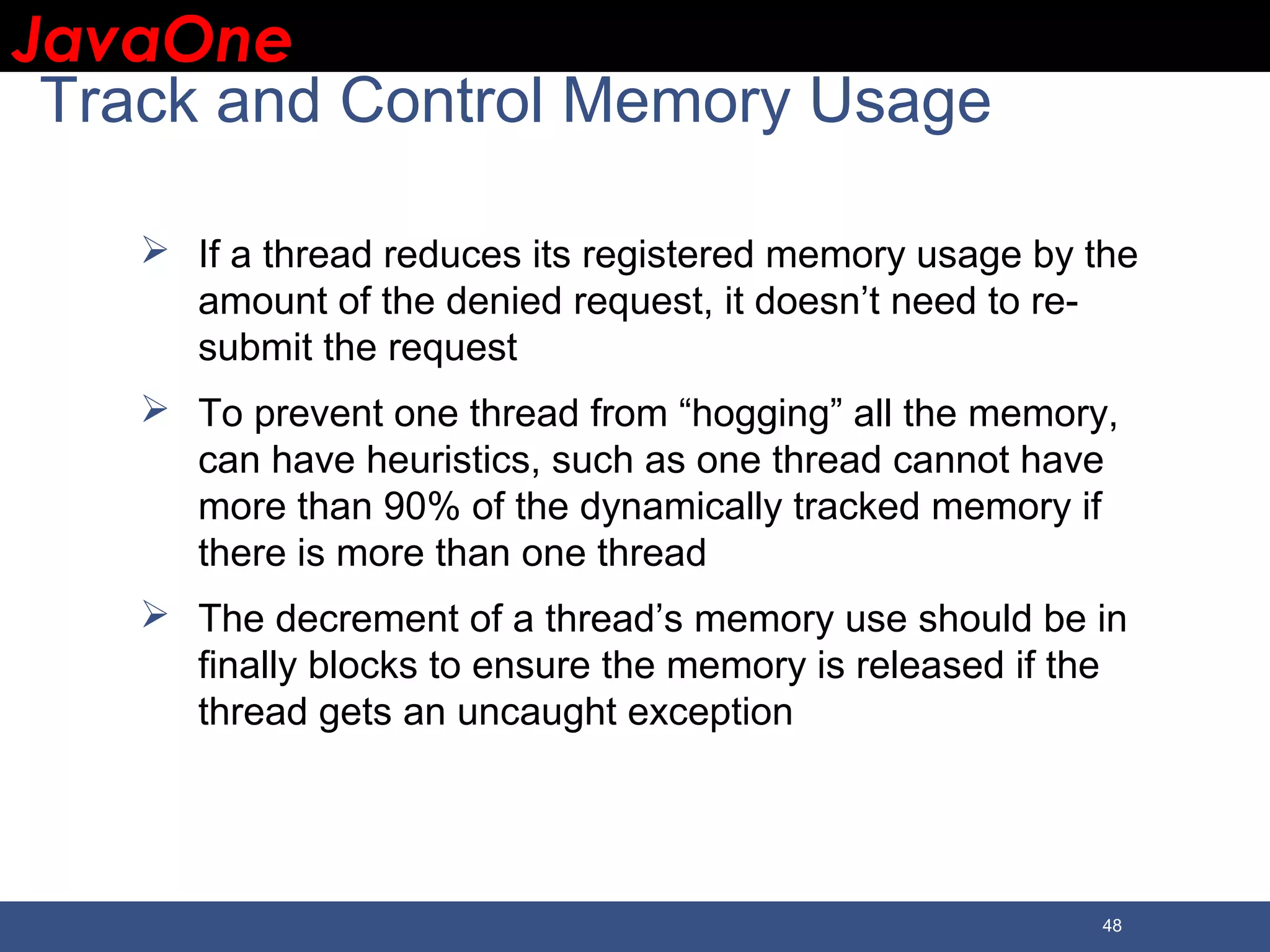

JavaOneJavaOne 48 Track and Control Memory Usage  If a thread reduces its registered memory usage by the amount of the denied request, it doesn’t need to re- submit the request  To prevent one thread from “hogging” all the memory, can have heuristics, such as one thread cannot have more than 90% of the dynamically tracked memory if there is more than one thread  The decrement of a thread’s memory use should be in finally blocks to ensure the memory is released if the thread gets an uncaught exception

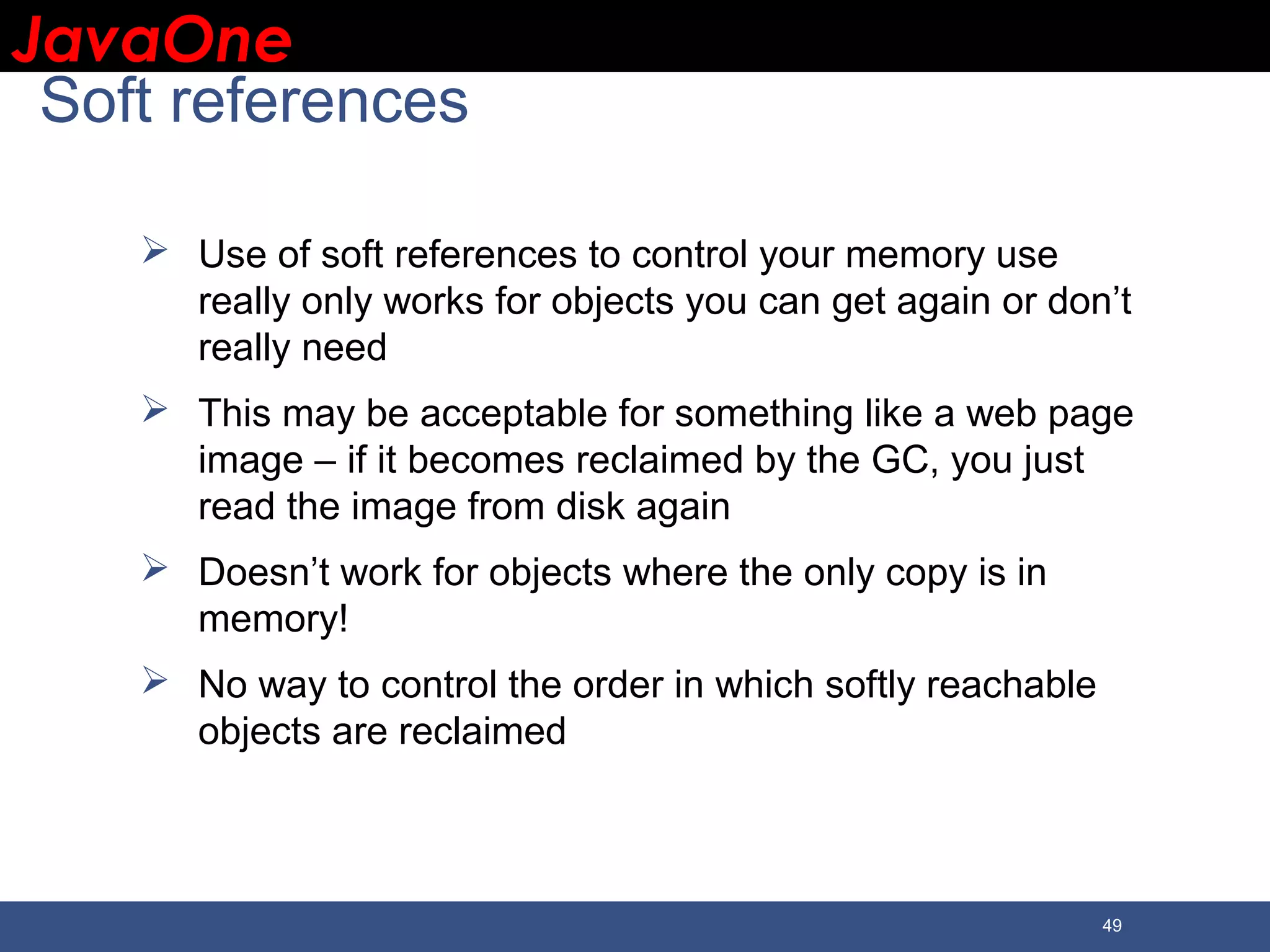

JavaOneJavaOne 49 Soft references  Use of soft references to control your memory use really only works for objects you can get again or don’t really need  This may be acceptable for something like a web page image – if it becomes reclaimed by the GC, you just read the image from disk again  Doesn’t work for objects where the only copy is in memory!  No way to control the order in which softly reachable objects are reclaimed

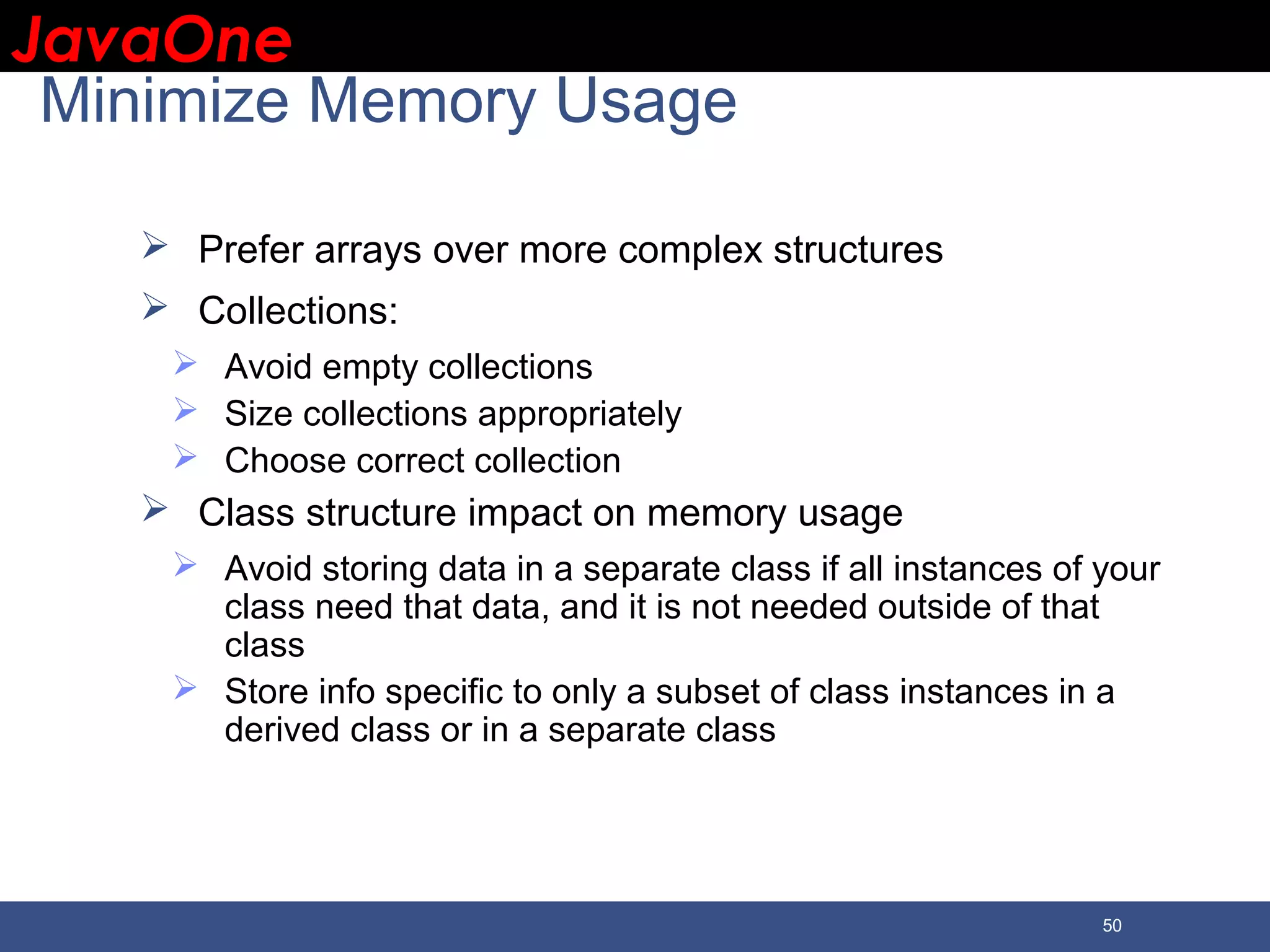

JavaOneJavaOne 50 Minimize Memory Usage  Prefer arrays over more complex structures  Collections:  Avoid empty collections  Size collections appropriately  Choose correct collection  Class structure impact on memory usage  Avoid storing data in a separate class if all instances of your class need that data, and it is not needed outside of that class  Store info specific to only a subset of class instances in a derived class or in a separate class

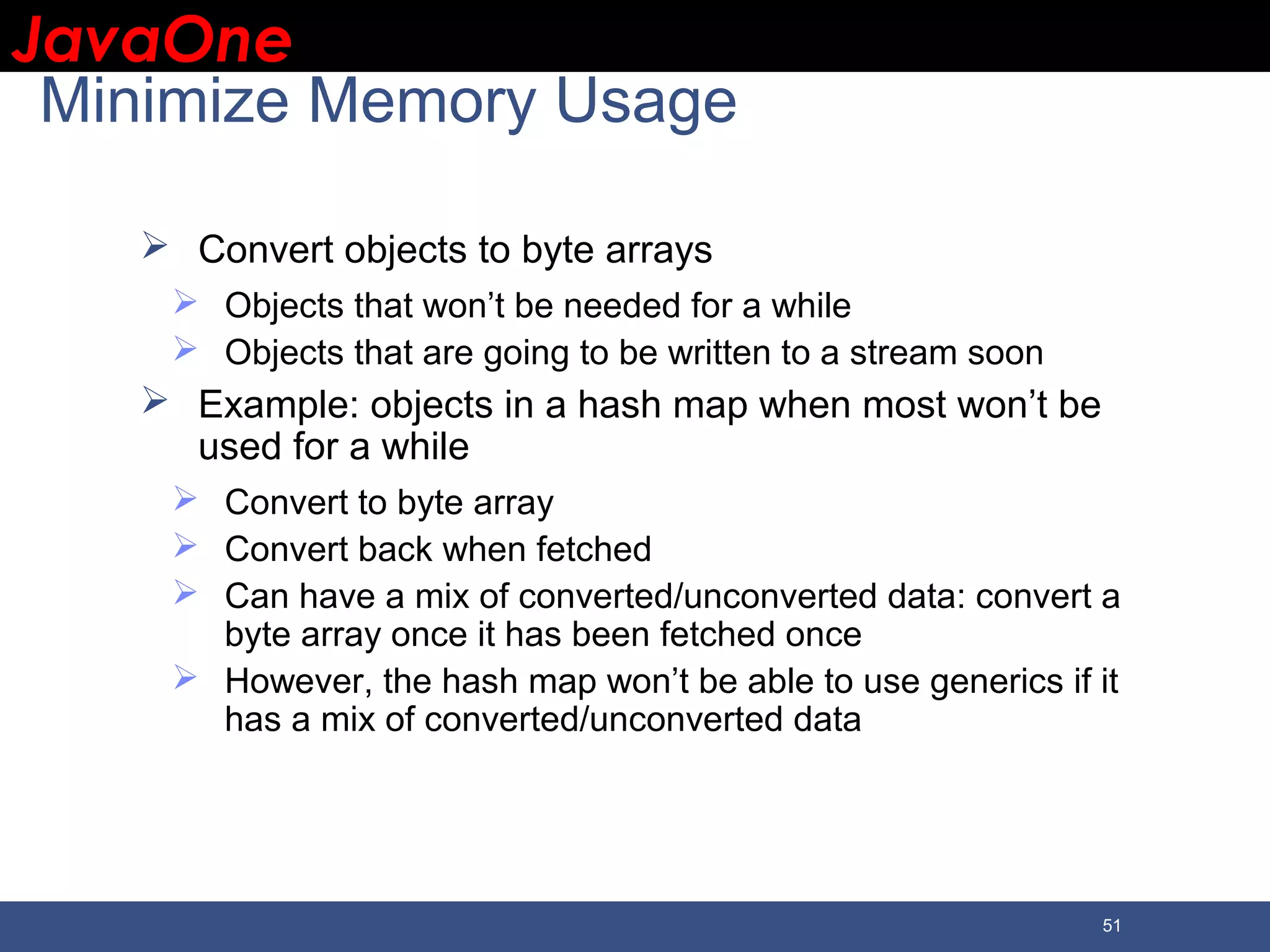

JavaOneJavaOne 51 Minimize Memory Usage  Convert objects to byte arrays  Objects that won’t be needed for a while  Objects that are going to be written to a stream soon  Example: objects in a hash map when most won’t be used for a while  Convert to byte array  Convert back when fetched  Can have a mix of converted/unconverted data: convert a byte array once it has been fetched once  However, the hash map won’t be able to use generics if it has a mix of converted/unconverted data

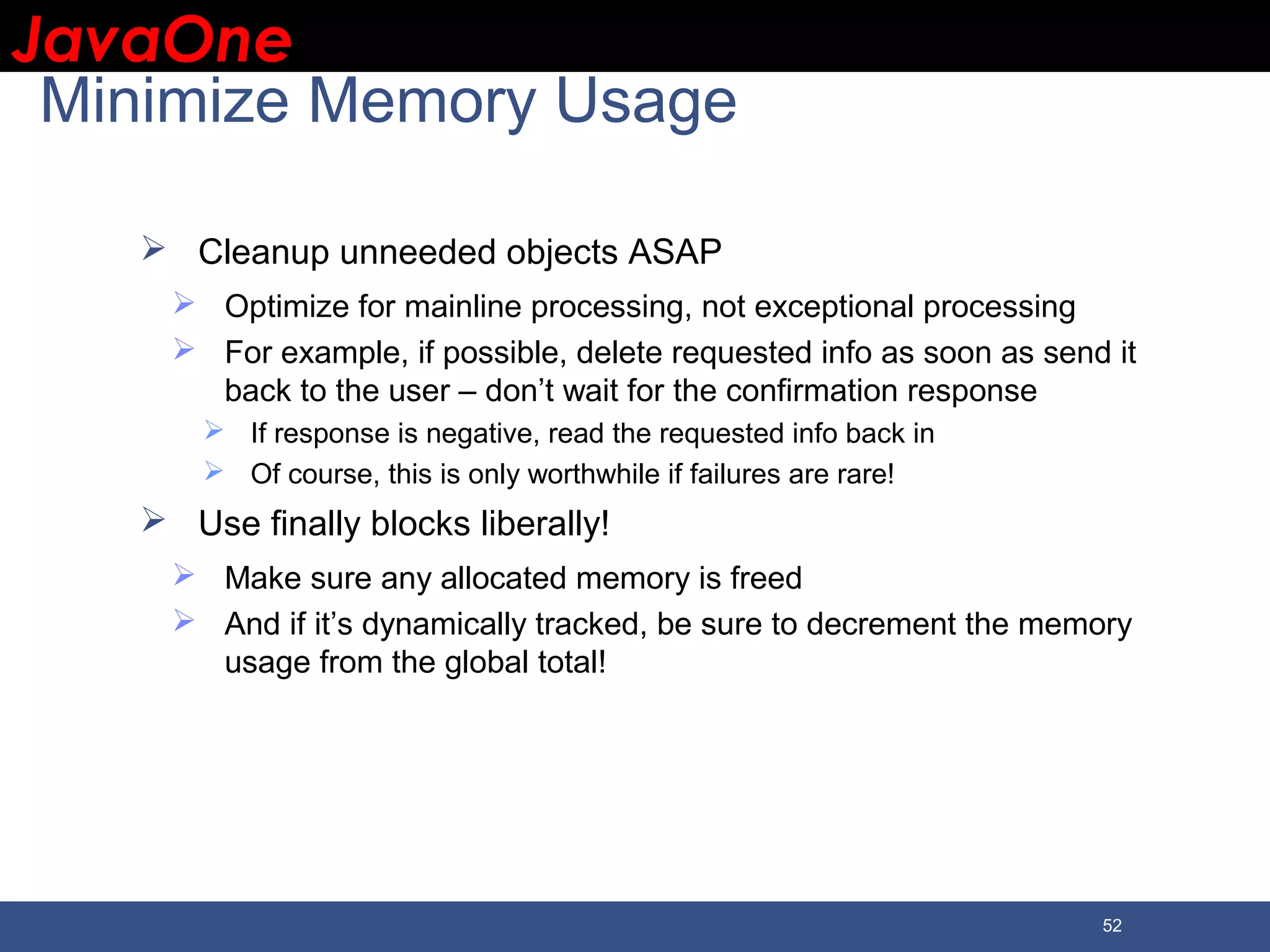

JavaOneJavaOne 52 Minimize Memory Usage  Cleanup unneeded objects ASAP  Optimize for mainline processing, not exceptional processing  For example, if possible, delete requested info as soon as send it back to the user – don’t wait for the confirmation response  If response is negative, read the requested info back in  Of course, this is only worthwhile if failures are rare!  Use finally blocks liberally!  Make sure any allocated memory is freed  And if it’s dynamically tracked, be sure to decrement the memory usage from the global total!

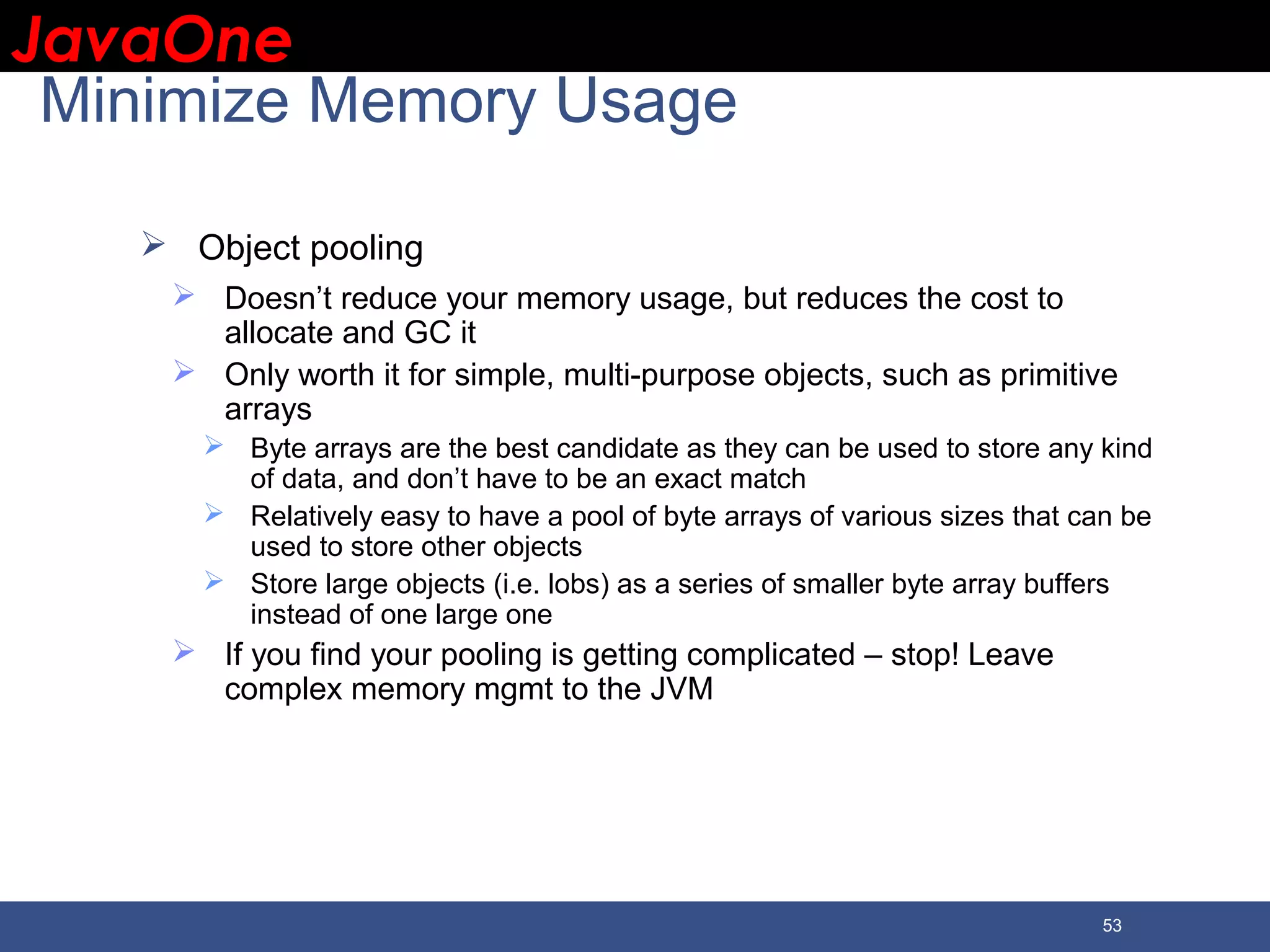

JavaOneJavaOne 53 Minimize Memory Usage  Object pooling  Doesn’t reduce your memory usage, but reduces the cost to allocate and GC it  Only worth it for simple, multi-purpose objects, such as primitive arrays  Byte arrays are the best candidate as they can be used to store any kind of data, and don’t have to be an exact match  Relatively easy to have a pool of byte arrays of various sizes that can be used to store other objects  Store large objects (i.e. lobs) as a series of smaller byte array buffers instead of one large one  If you find your pooling is getting complicated – stop! Leave complex memory mgmt to the JVM

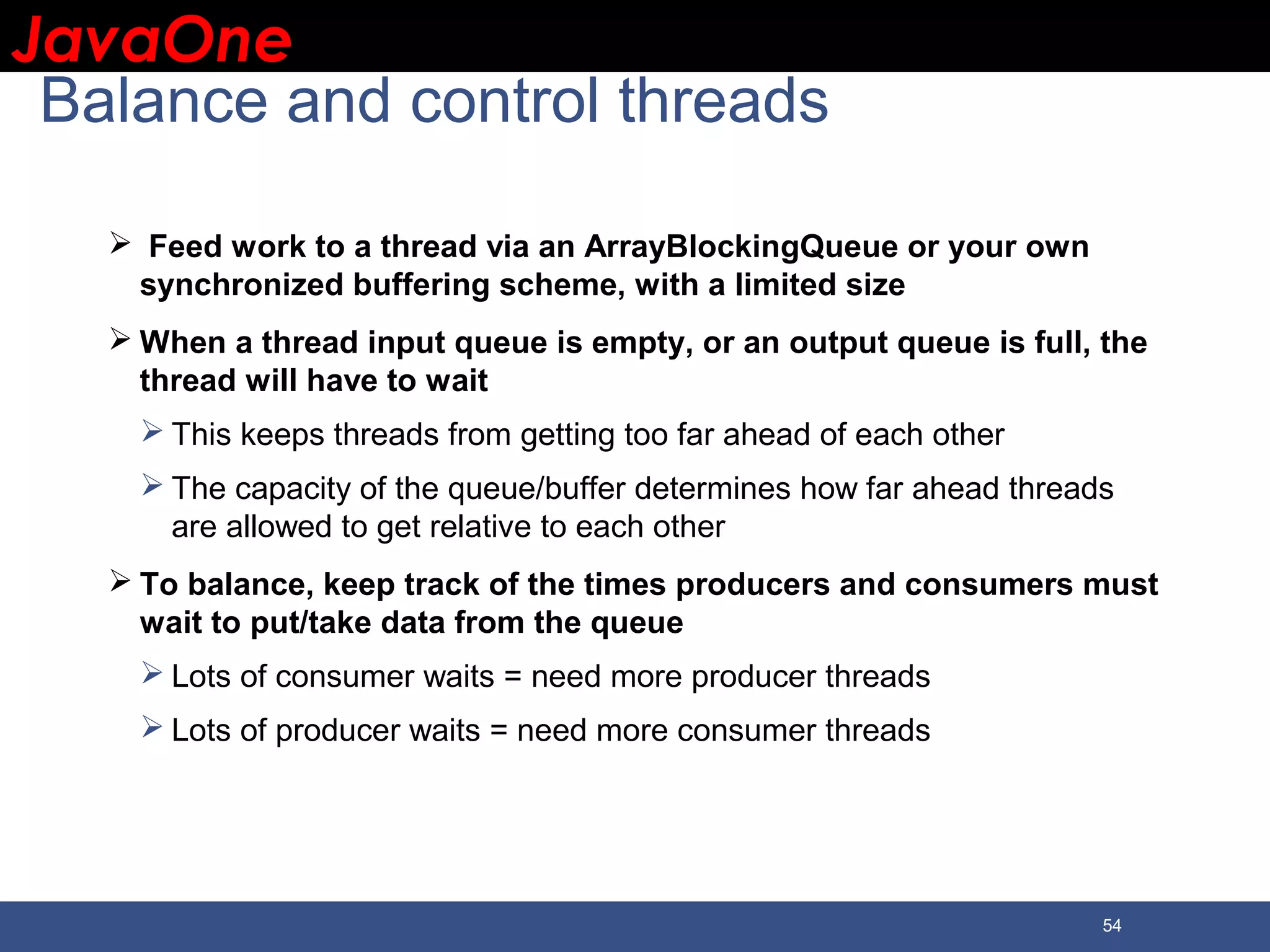

JavaOneJavaOne 54 Balance and control threads  Feed work to a thread via an ArrayBlockingQueue or your own synchronized buffering scheme, with a limited size  When a thread input queue is empty, or an output queue is full, the thread will have to wait  This keeps threads from getting too far ahead of each other  The capacity of the queue/buffer determines how far ahead threads are allowed to get relative to each other  To balance, keep track of the times producers and consumers must wait to put/take data from the queue  Lots of consumer waits = need more producer threads  Lots of producer waits = need more consumer threads

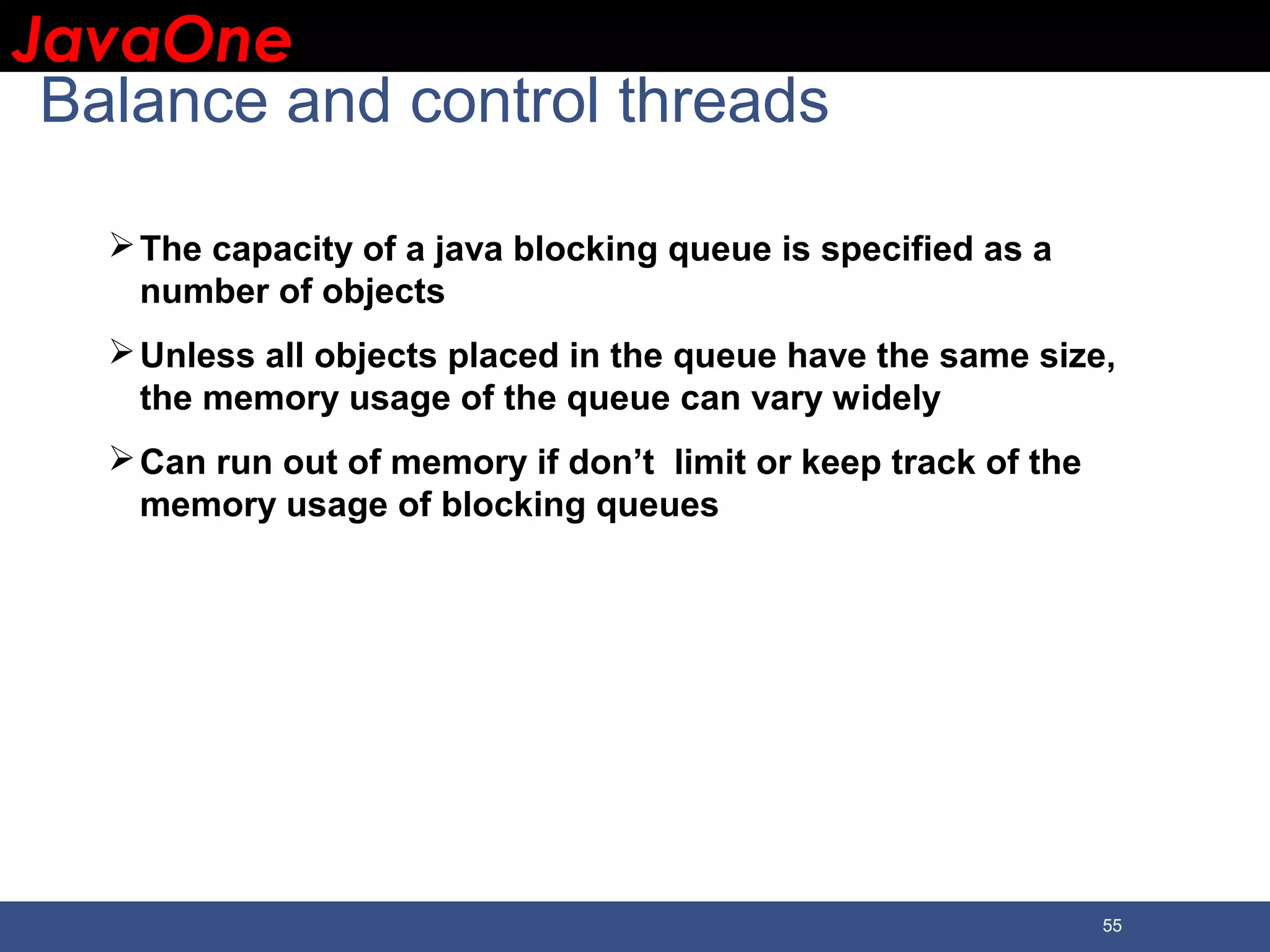

JavaOneJavaOne 55 Balance and control threads The capacity of a java blocking queue is specified as a number of objects Unless all objects placed in the queue have the same size, the memory usage of the queue can vary widely Can run out of memory if don’t limit or keep track of the memory usage of blocking queues

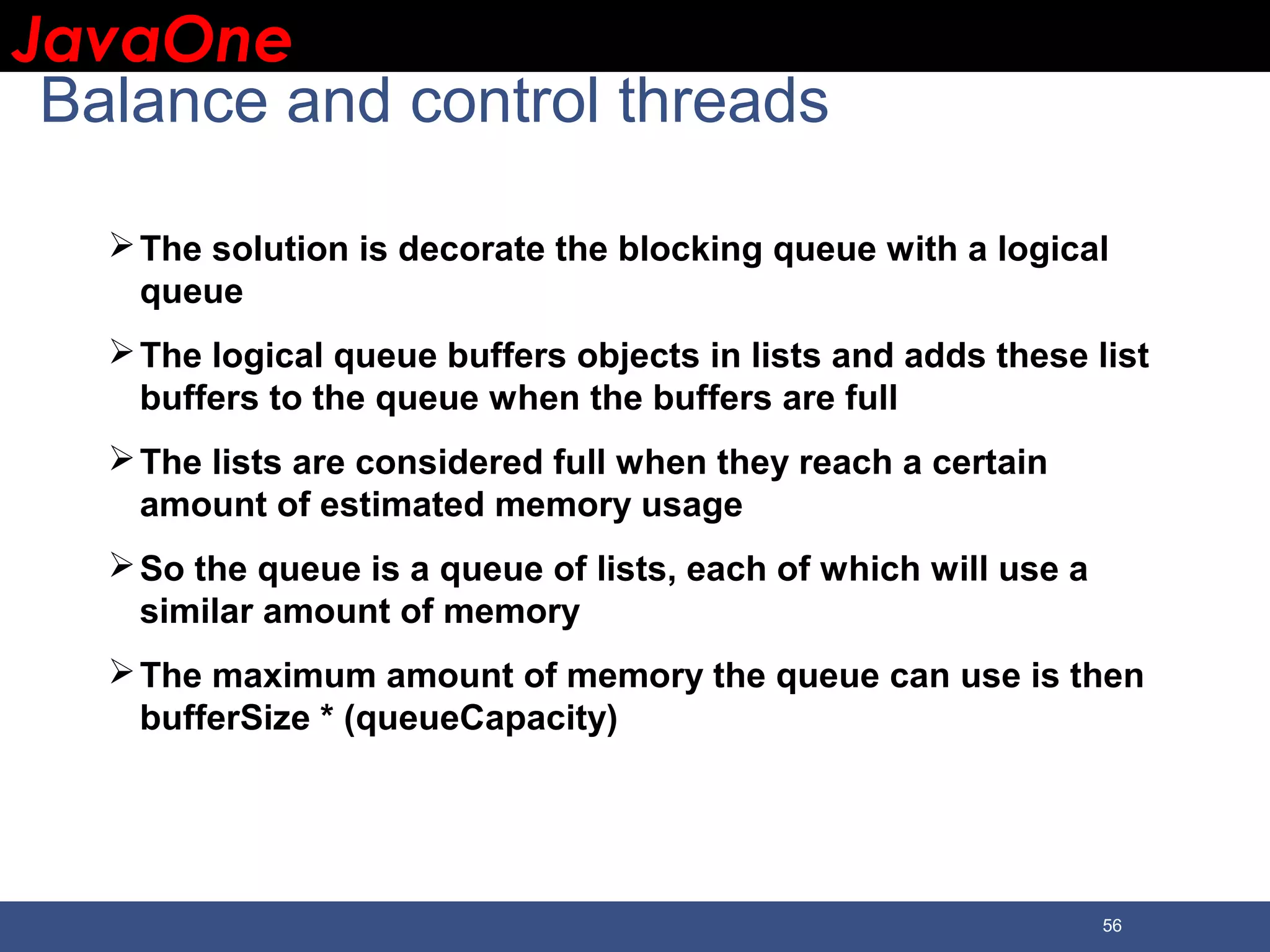

JavaOneJavaOne 56 Balance and control threads The solution is decorate the blocking queue with a logical queue The logical queue buffers objects in lists and adds these list buffers to the queue when the buffers are full The lists are considered full when they reach a certain amount of estimated memory usage So the queue is a queue of lists, each of which will use a similar amount of memory The maximum amount of memory the queue can use is then bufferSize * (queueCapacity)

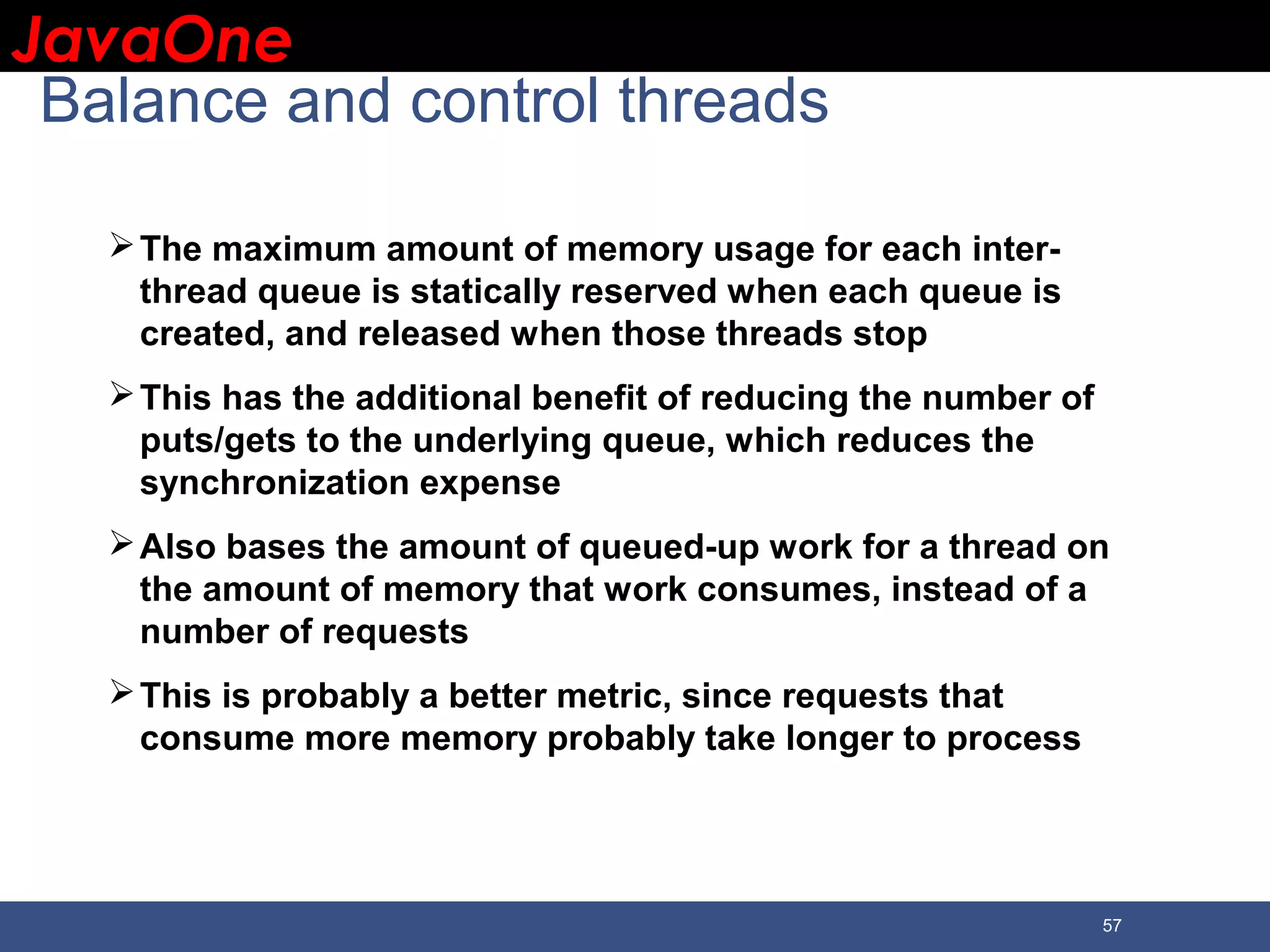

JavaOneJavaOne 57 Balance and control threads The maximum amount of memory usage for each inter- thread queue is statically reserved when each queue is created, and released when those threads stop This has the additional benefit of reducing the number of puts/gets to the underlying queue, which reduces the synchronization expense Also bases the amount of queued-up work for a thread on the amount of memory that work consumes, instead of a number of requests This is probably a better metric, since requests that consume more memory probably take longer to process

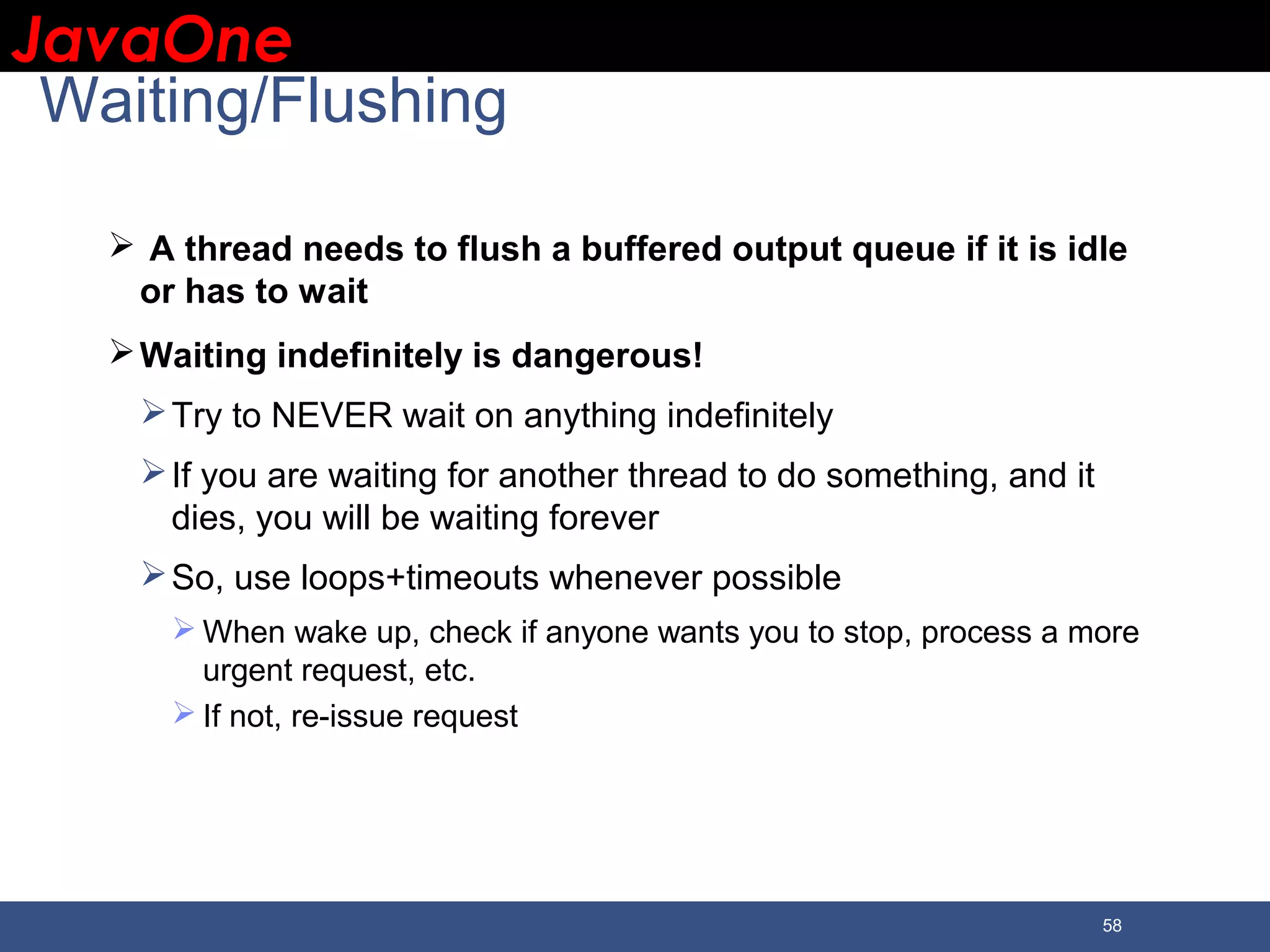

JavaOneJavaOne 58 Waiting/Flushing  A thread needs to flush a buffered output queue if it is idle or has to wait Waiting indefinitely is dangerous! Try to NEVER wait on anything indefinitely If you are waiting for another thread to do something, and it dies, you will be waiting forever So, use loops+timeouts whenever possible  When wake up, check if anyone wants you to stop, process a more urgent request, etc.  If not, re-issue request

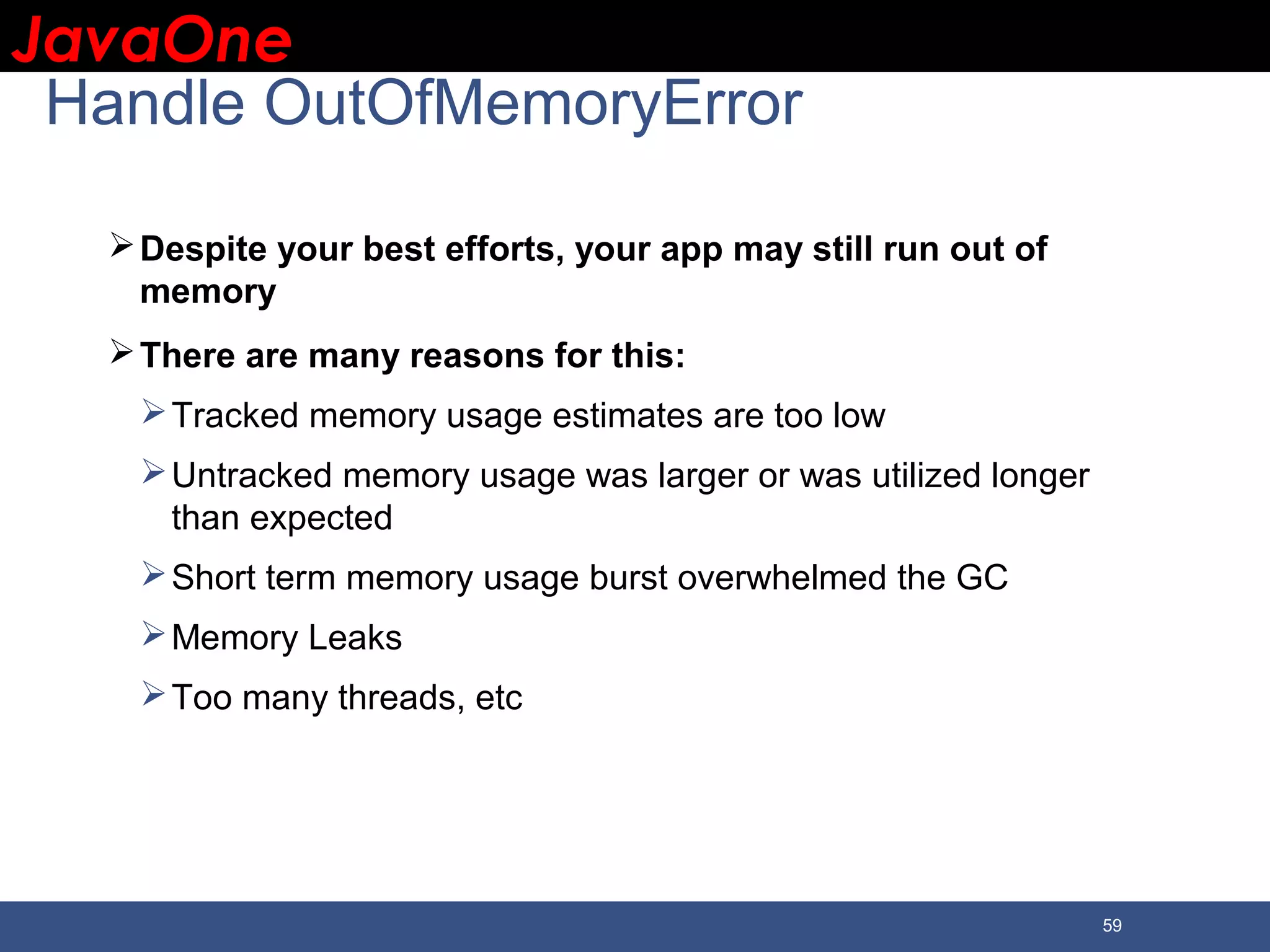

JavaOneJavaOne 59 Handle OutOfMemoryError Despite your best efforts, your app may still run out of memory There are many reasons for this: Tracked memory usage estimates are too low Untracked memory usage was larger or was utilized longer than expected Short term memory usage burst overwhelmed the GC Memory Leaks Too many threads, etc

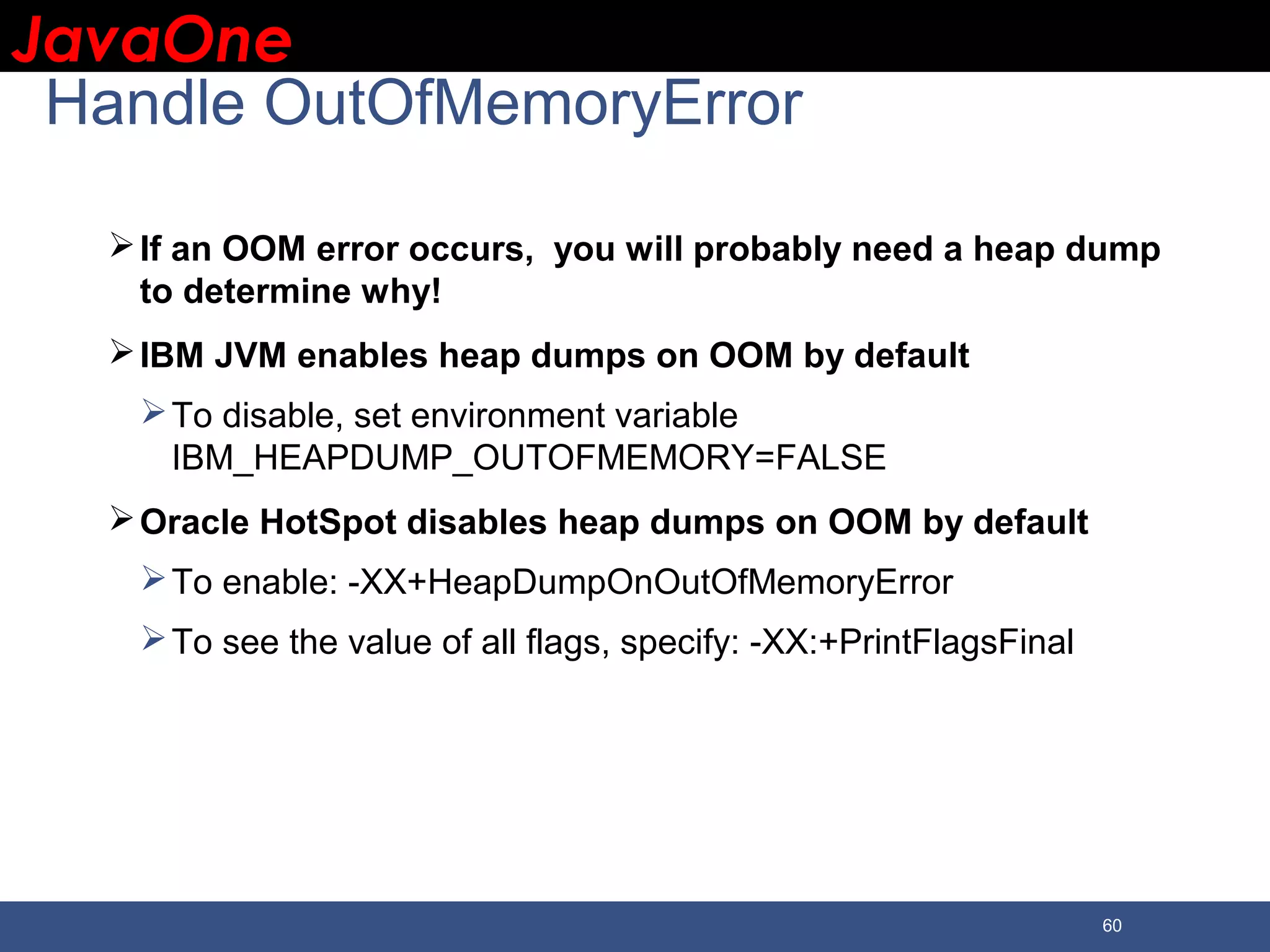

JavaOneJavaOne 60 Handle OutOfMemoryError If an OOM error occurs, you will probably need a heap dump to determine why! IBM JVM enables heap dumps on OOM by default To disable, set environment variable IBM_HEAPDUMP_OUTOFMEMORY=FALSE Oracle HotSpot disables heap dumps on OOM by default To enable: -XX+HeapDumpOnOutOfMemoryError To see the value of all flags, specify: -XX:+PrintFlagsFinal

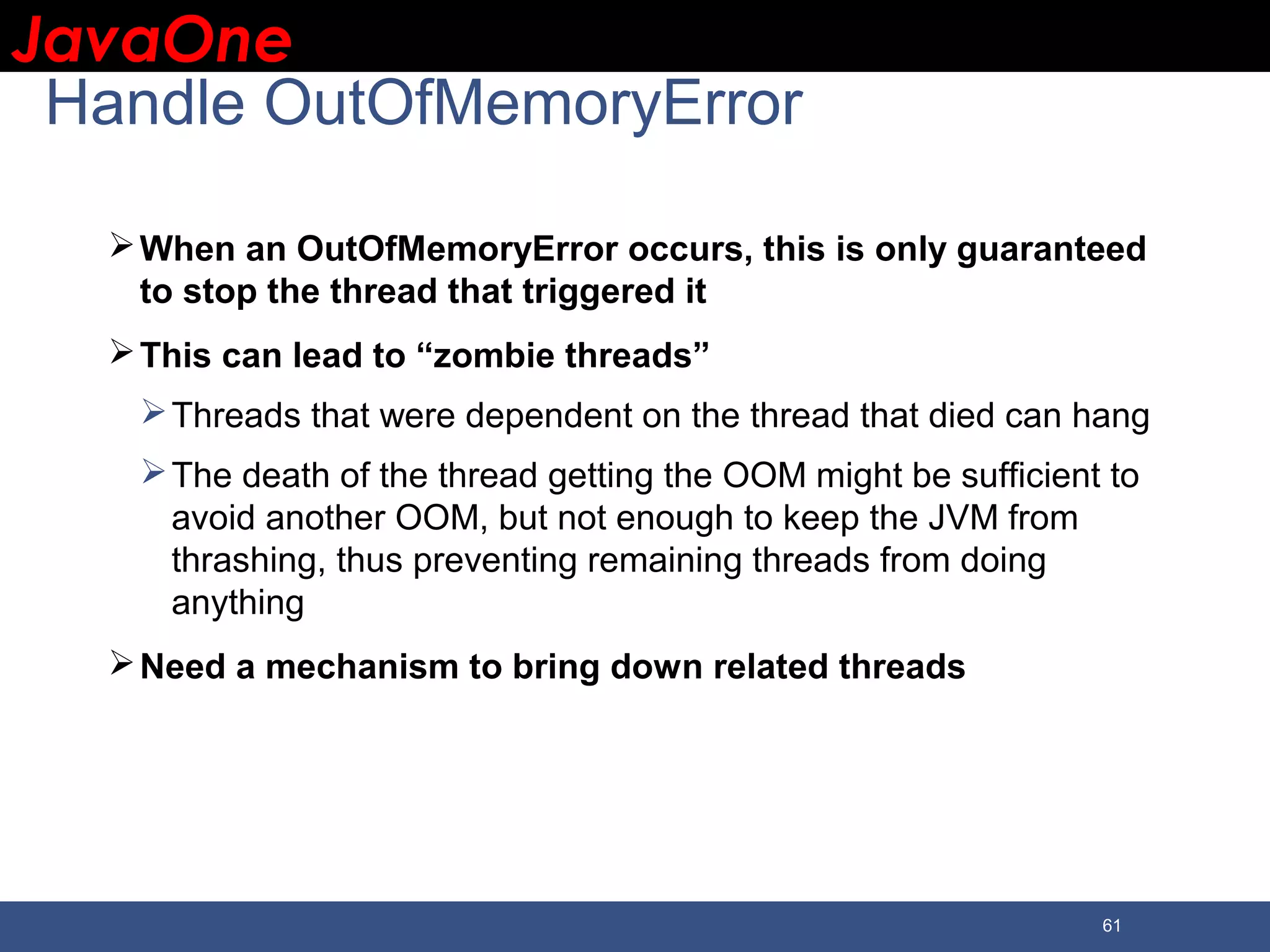

JavaOneJavaOne 61 Handle OutOfMemoryError When an OutOfMemoryError occurs, this is only guaranteed to stop the thread that triggered it This can lead to “zombie threads” Threads that were dependent on the thread that died can hang The death of the thread getting the OOM might be sufficient to avoid another OOM, but not enough to keep the JVM from thrashing, thus preventing remaining threads from doing anything Need a mechanism to bring down related threads

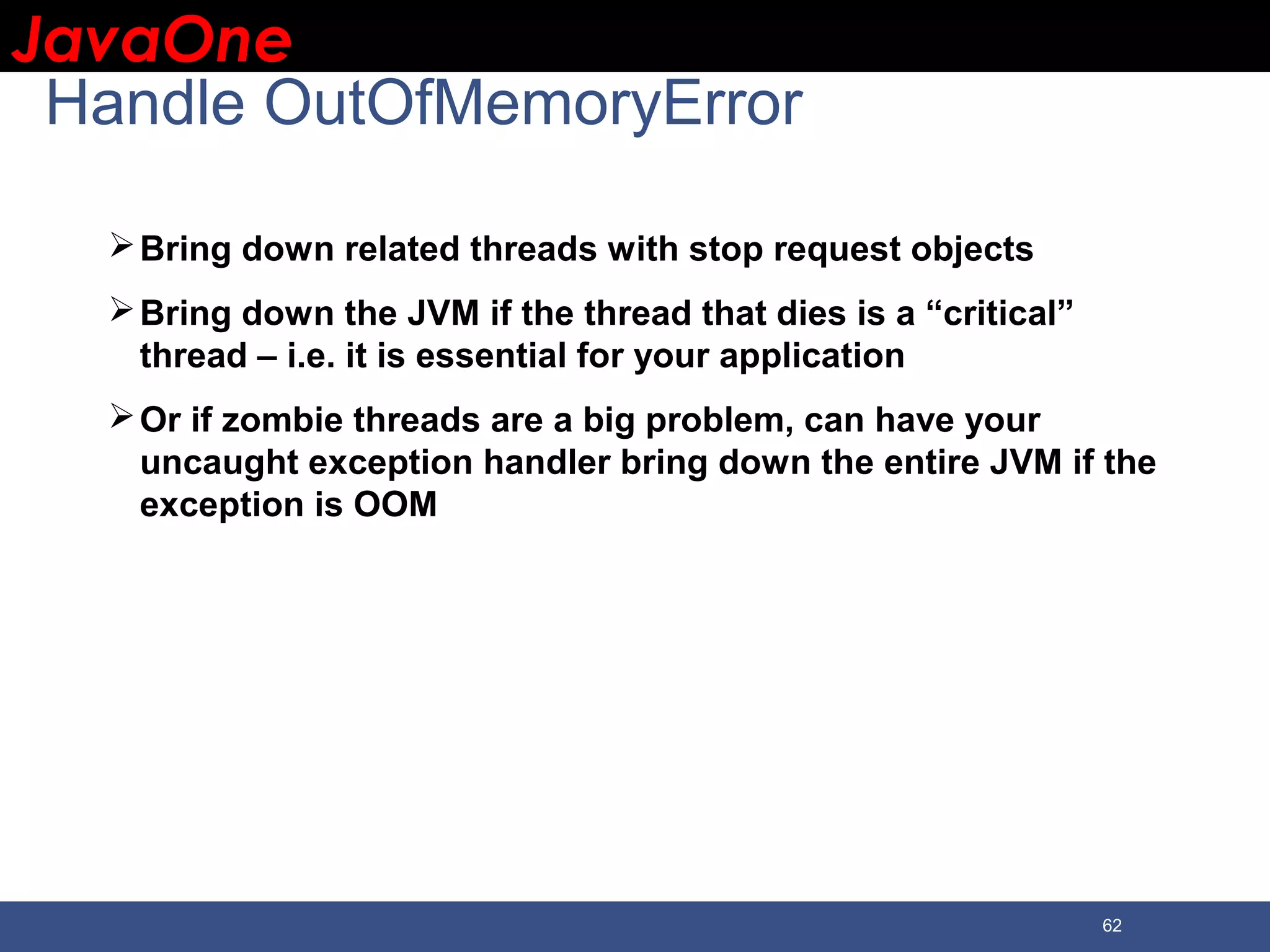

JavaOneJavaOne 62 Handle OutOfMemoryError Bring down related threads with stop request objects Bring down the JVM if the thread that dies is a “critical” thread – i.e. it is essential for your application Or if zombie threads are a big problem, can have your uncaught exception handler bring down the entire JVM if the exception is OOM

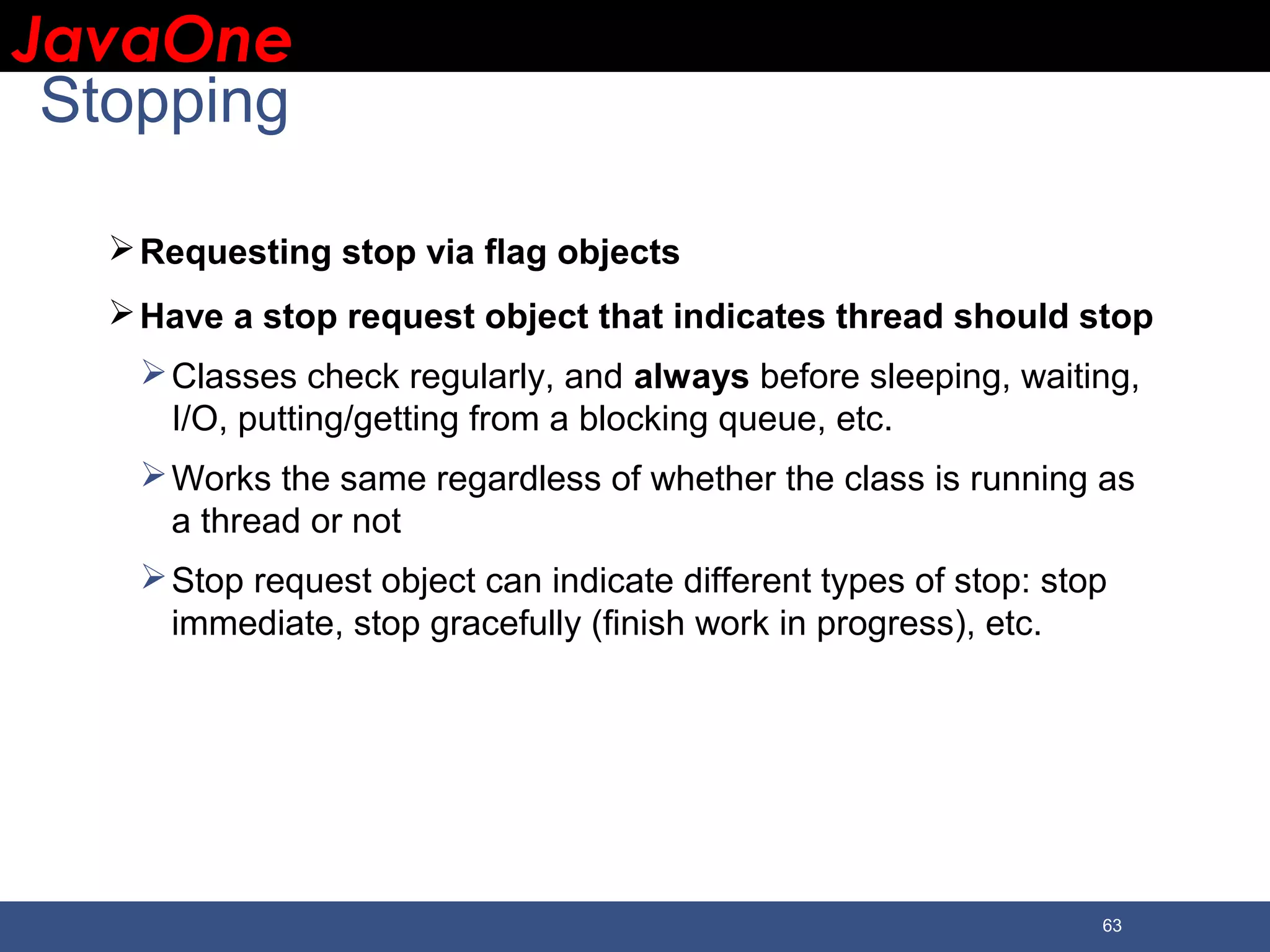

JavaOneJavaOne 63 Stopping Requesting stop via flag objects Have a stop request object that indicates thread should stop Classes check regularly, and always before sleeping, waiting, I/O, putting/getting from a blocking queue, etc. Works the same regardless of whether the class is running as a thread or not Stop request object can indicate different types of stop: stop immediate, stop gracefully (finish work in progress), etc.

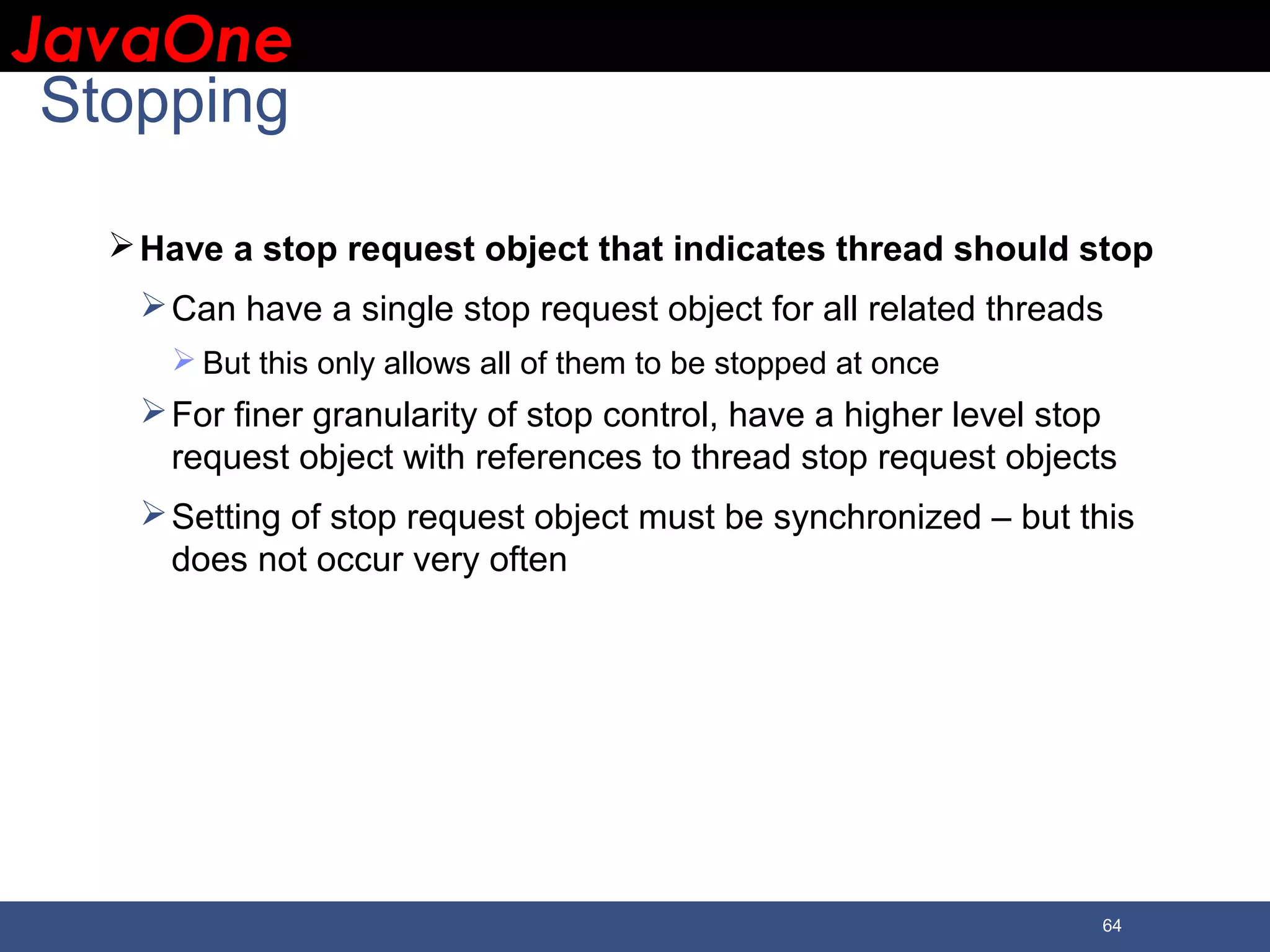

JavaOneJavaOne 64 Stopping Have a stop request object that indicates thread should stop Can have a single stop request object for all related threads  But this only allows all of them to be stopped at once For finer granularity of stop control, have a higher level stop request object with references to thread stop request objects Setting of stop request object must be synchronized – but this does not occur very often

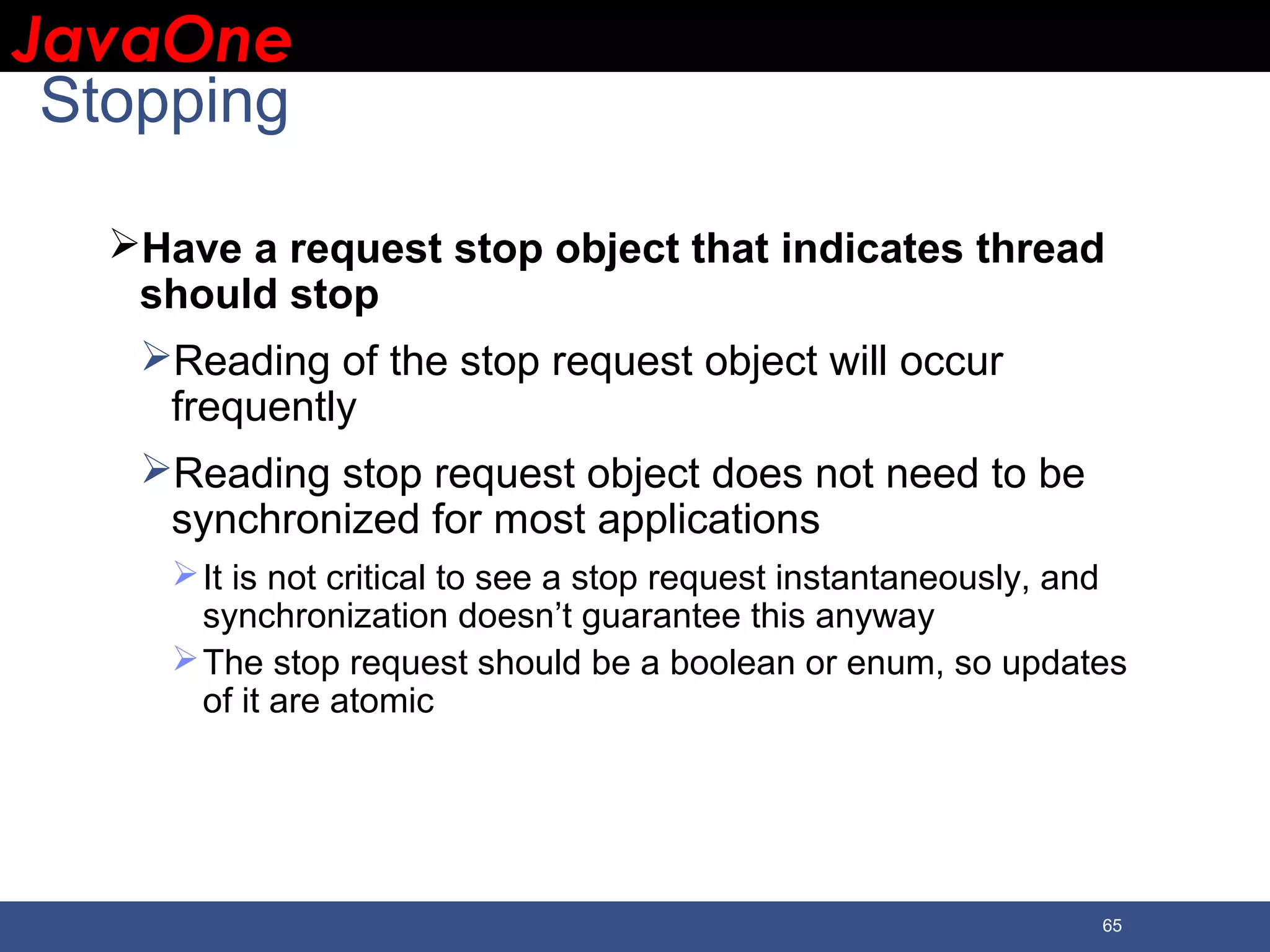

JavaOneJavaOne 65 Stopping Have a request stop object that indicates thread should stop Reading of the stop request object will occur frequently Reading stop request object does not need to be synchronized for most applications It is not critical to see a stop request instantaneously, and synchronization doesn’t guarantee this anyway The stop request should be a boolean or enum, so updates of it are atomic

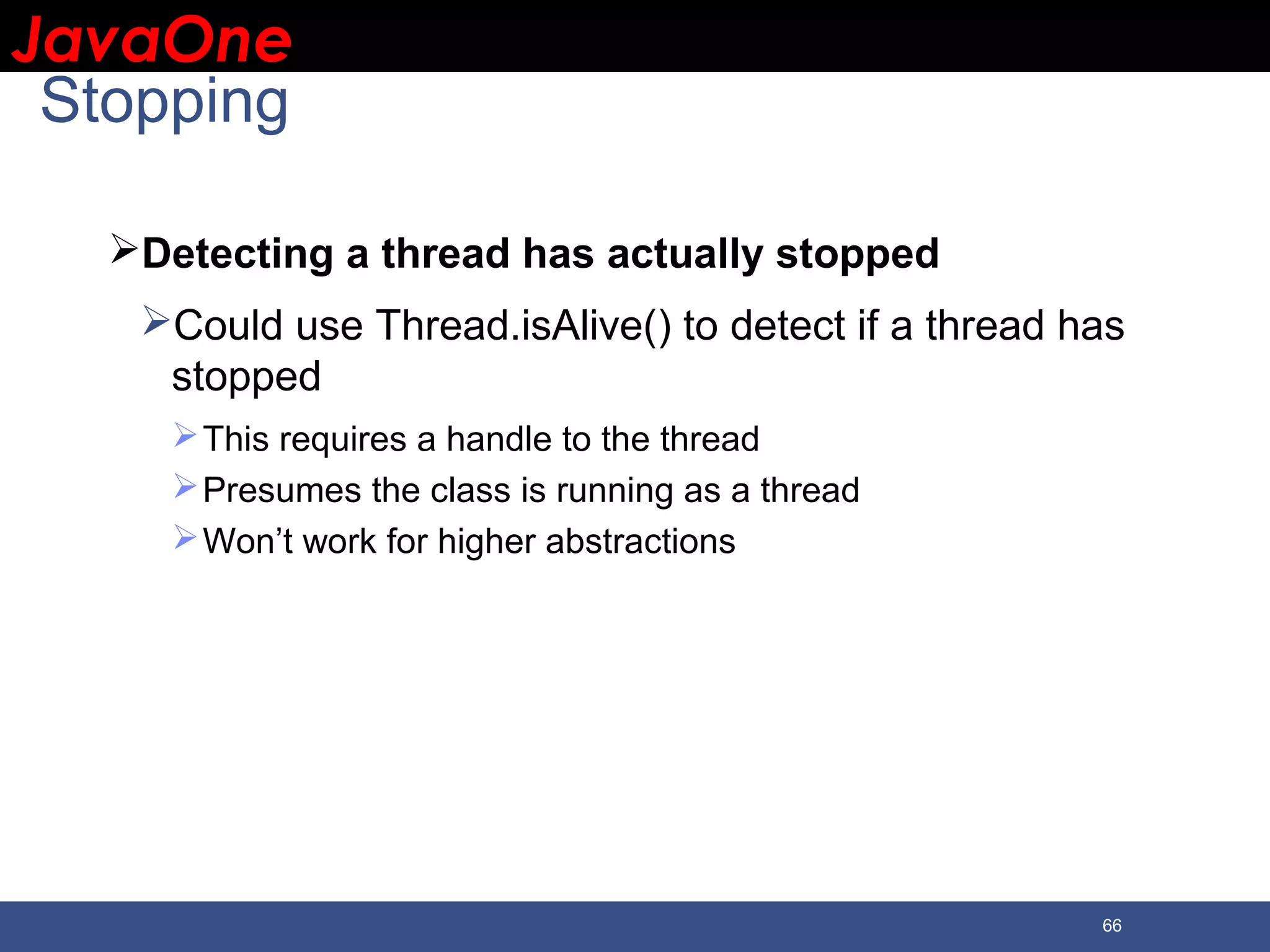

JavaOneJavaOne 66 Stopping Detecting a thread has actually stopped Could use Thread.isAlive() to detect if a thread has stopped This requires a handle to the thread Presumes the class is running as a thread Won’t work for higher abstractions

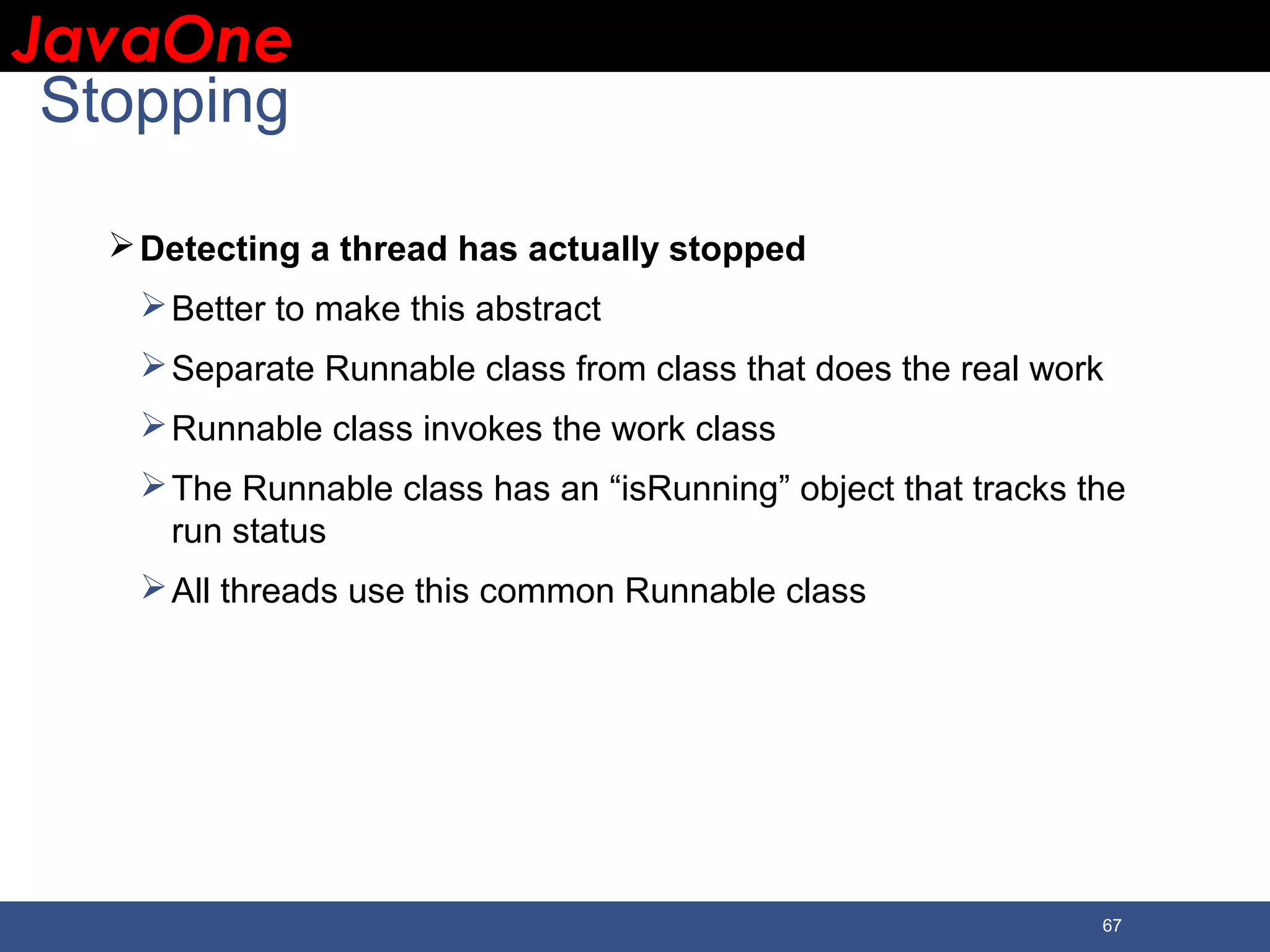

JavaOneJavaOne 67 Stopping Detecting a thread has actually stopped Better to make this abstract Separate Runnable class from class that does the real work Runnable class invokes the work class The Runnable class has an “isRunning” object that tracks the run status All threads use this common Runnable class

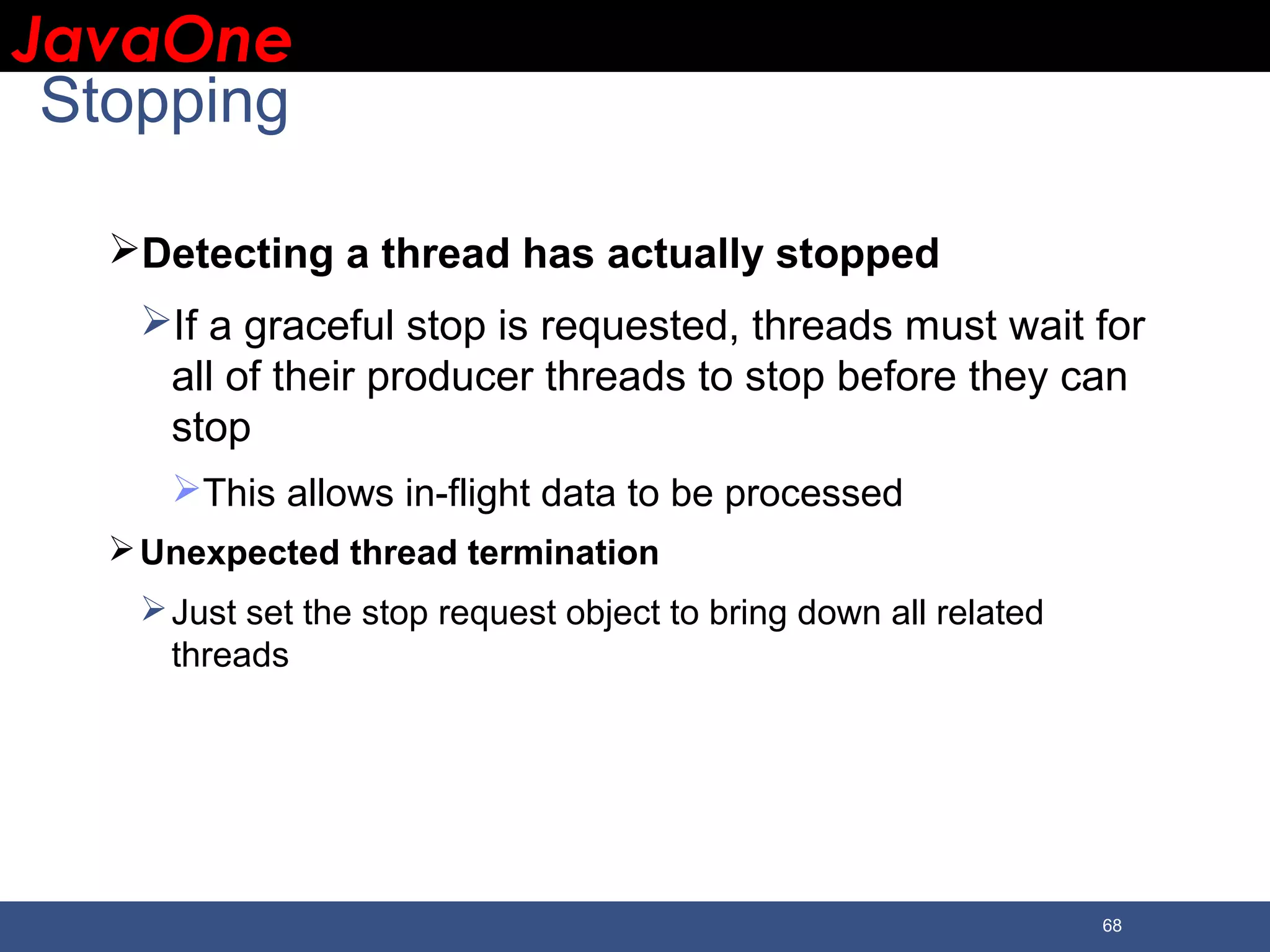

JavaOneJavaOne 68 Stopping Detecting a thread has actually stopped If a graceful stop is requested, threads must wait for all of their producer threads to stop before they can stop This allows in-flight data to be processed Unexpected thread termination Just set the stop request object to bring down all related threads

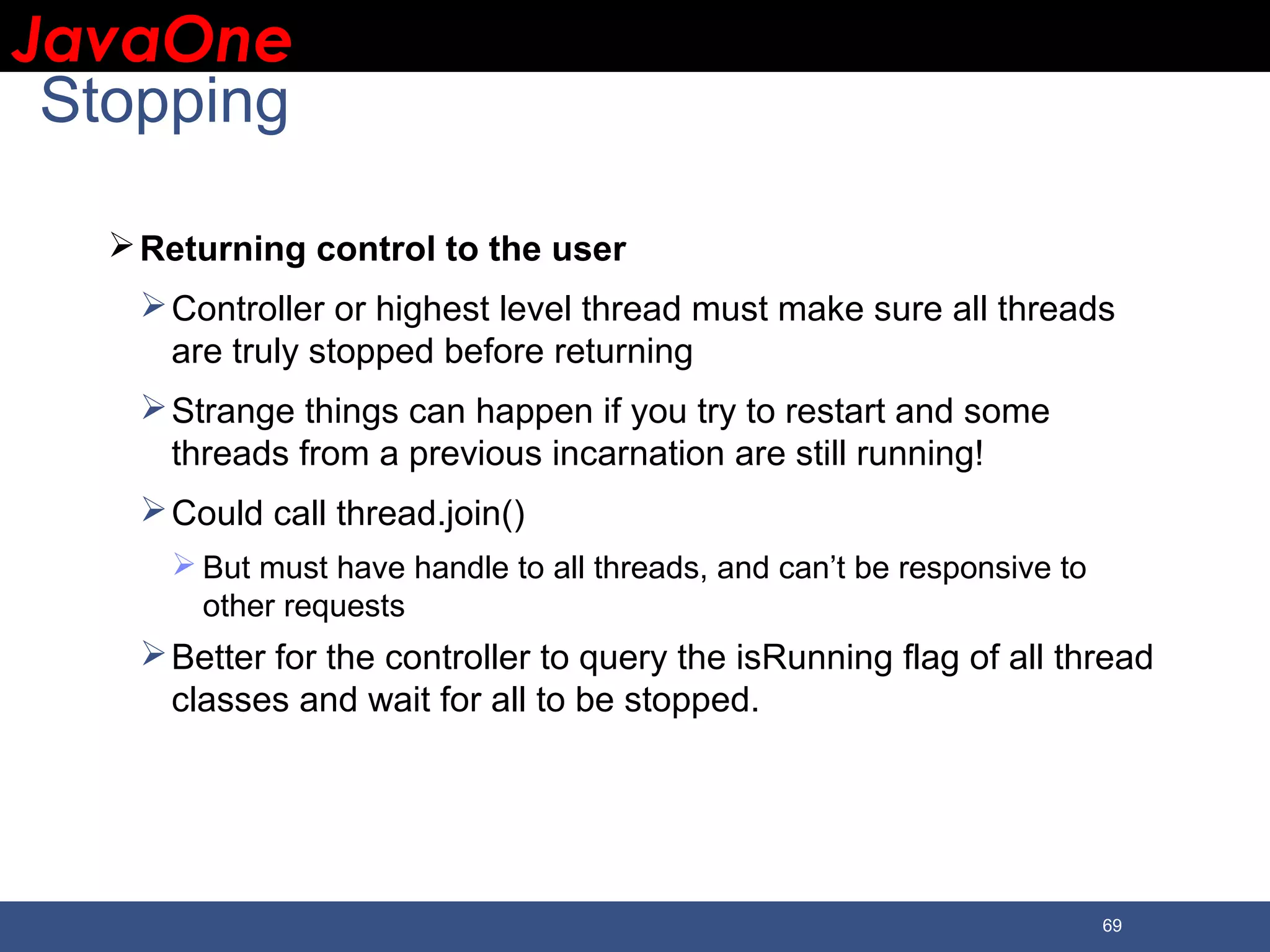

JavaOneJavaOne 69 Stopping Returning control to the user Controller or highest level thread must make sure all threads are truly stopped before returning Strange things can happen if you try to restart and some threads from a previous incarnation are still running! Could call thread.join()  But must have handle to all threads, and can’t be responsive to other requests Better for the controller to query the isRunning flag of all thread classes and wait for all to be stopped.

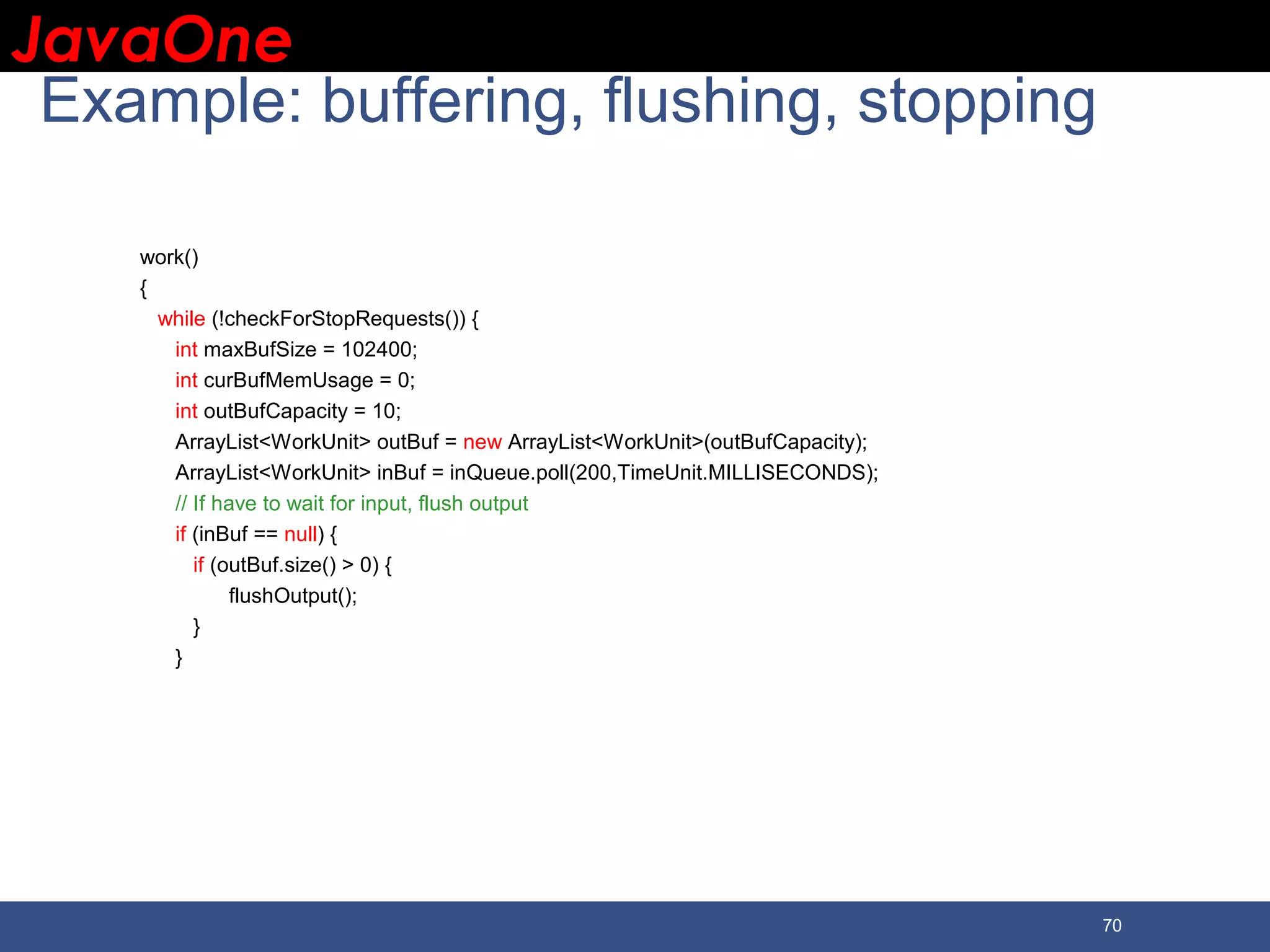

JavaOneJavaOne 70 Example: buffering, flushing, stopping work() { while (!checkForStopRequests()) { int maxBufSize = 102400; int curBufMemUsage = 0; int outBufCapacity = 10; ArrayList<WorkUnit> outBuf = new ArrayList<WorkUnit>(outBufCapacity); ArrayList<WorkUnit> inBuf = inQueue.poll(200,TimeUnit.MILLISECONDS); // If have to wait for input, flush output if (inBuf == null) { if (outBuf.size() > 0) { flushOutput(); } }

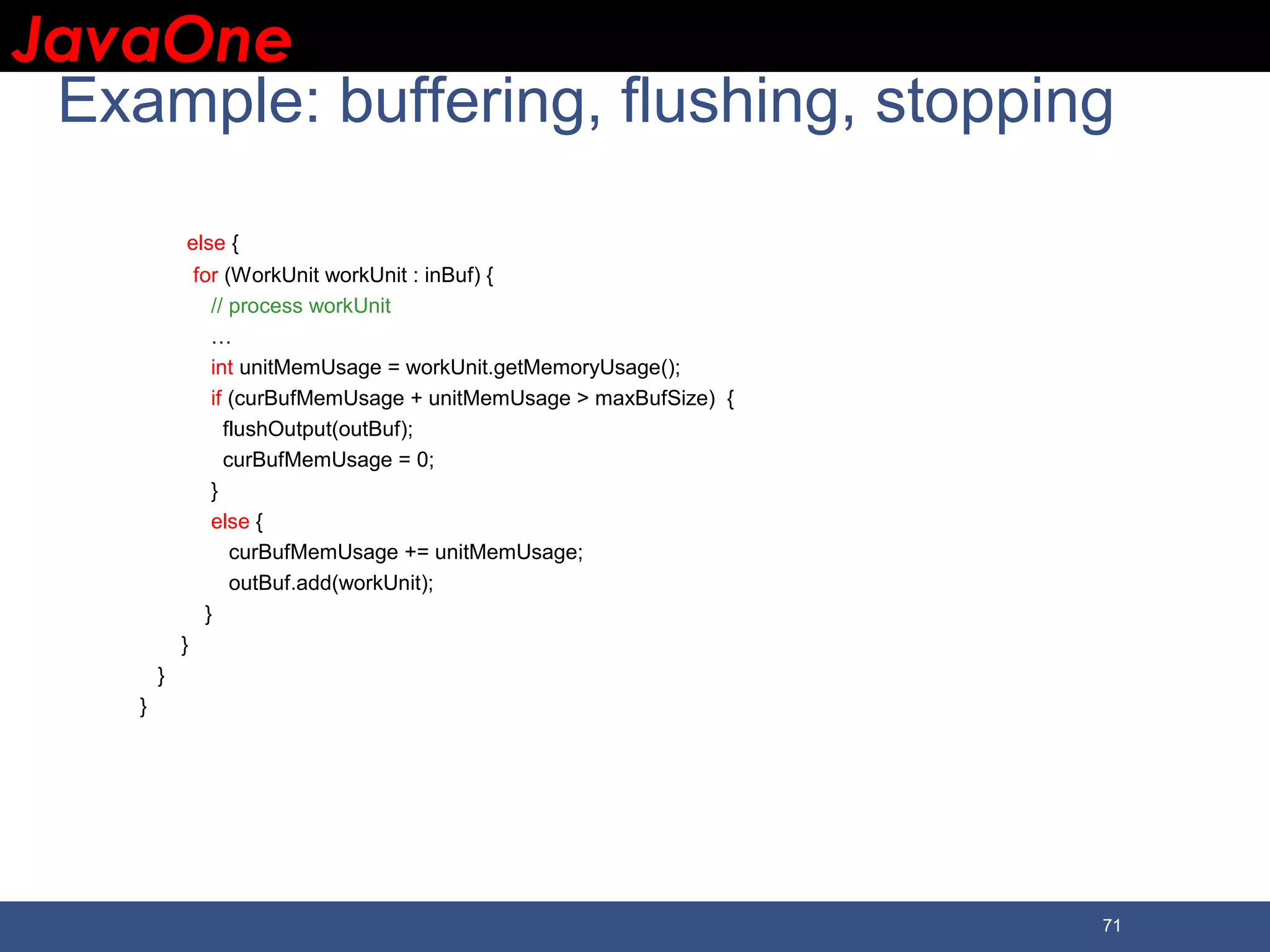

JavaOneJavaOne 71 Example: buffering, flushing, stopping else { for (WorkUnit workUnit : inBuf) { // process workUnit … int unitMemUsage = workUnit.getMemoryUsage(); if (curBufMemUsage + unitMemUsage > maxBufSize) { flushOutput(outBuf); curBufMemUsage = 0; } else { curBufMemUsage += unitMemUsage; outBuf.add(workUnit); } } } }

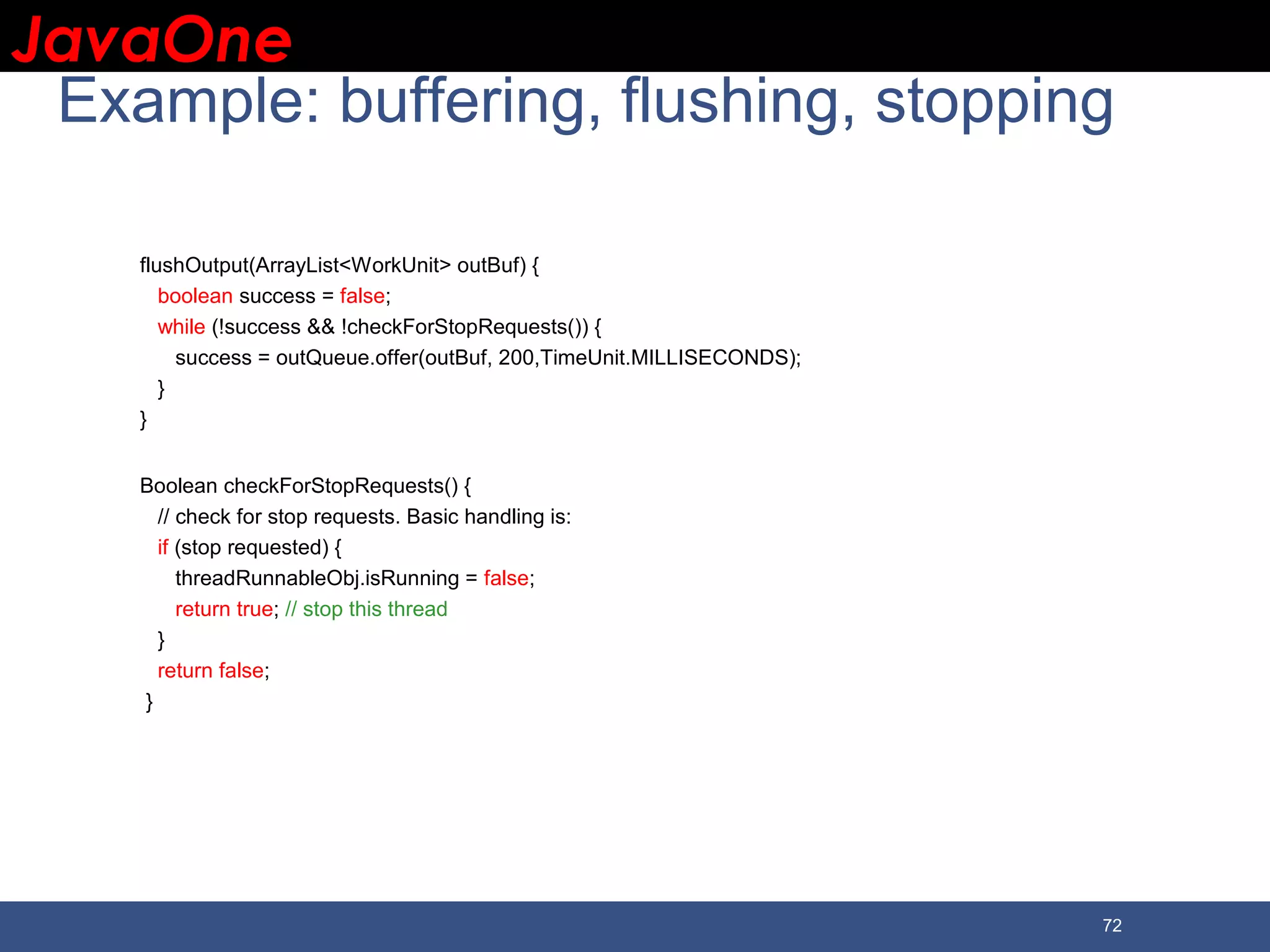

JavaOneJavaOne 72 Example: buffering, flushing, stopping flushOutput(ArrayList<WorkUnit> outBuf) { boolean success = false; while (!success && !checkForStopRequests()) { success = outQueue.offer(outBuf, 200,TimeUnit.MILLISECONDS); } } Boolean checkForStopRequests() { // check for stop requests. Basic handling is: if (stop requested) { threadRunnableObj.isRunning = false; return true; // stop this thread } return false; }

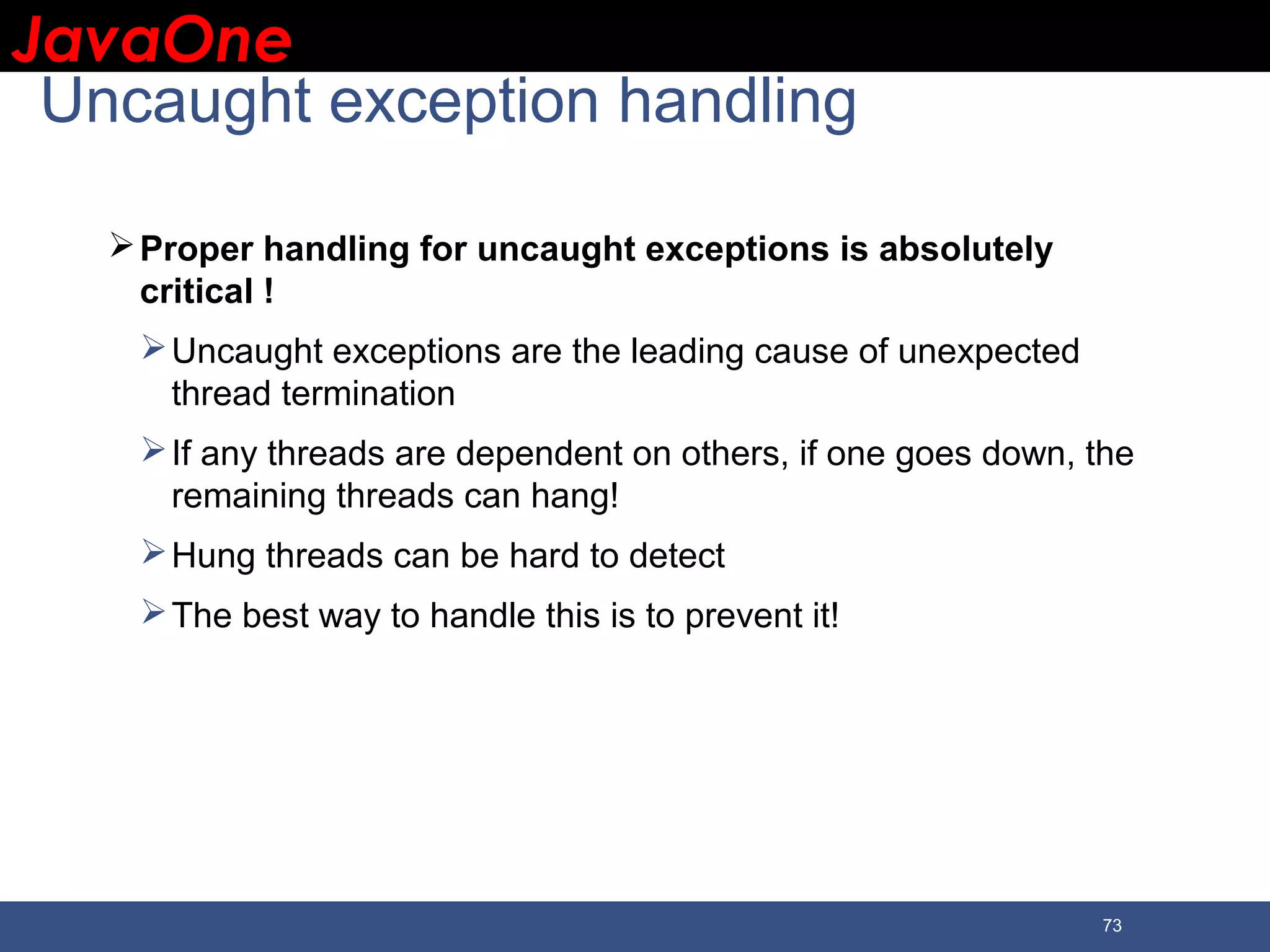

JavaOneJavaOne 73 Uncaught exception handling Proper handling for uncaught exceptions is absolutely critical ! Uncaught exceptions are the leading cause of unexpected thread termination If any threads are dependent on others, if one goes down, the remaining threads can hang! Hung threads can be hard to detect The best way to handle this is to prevent it!

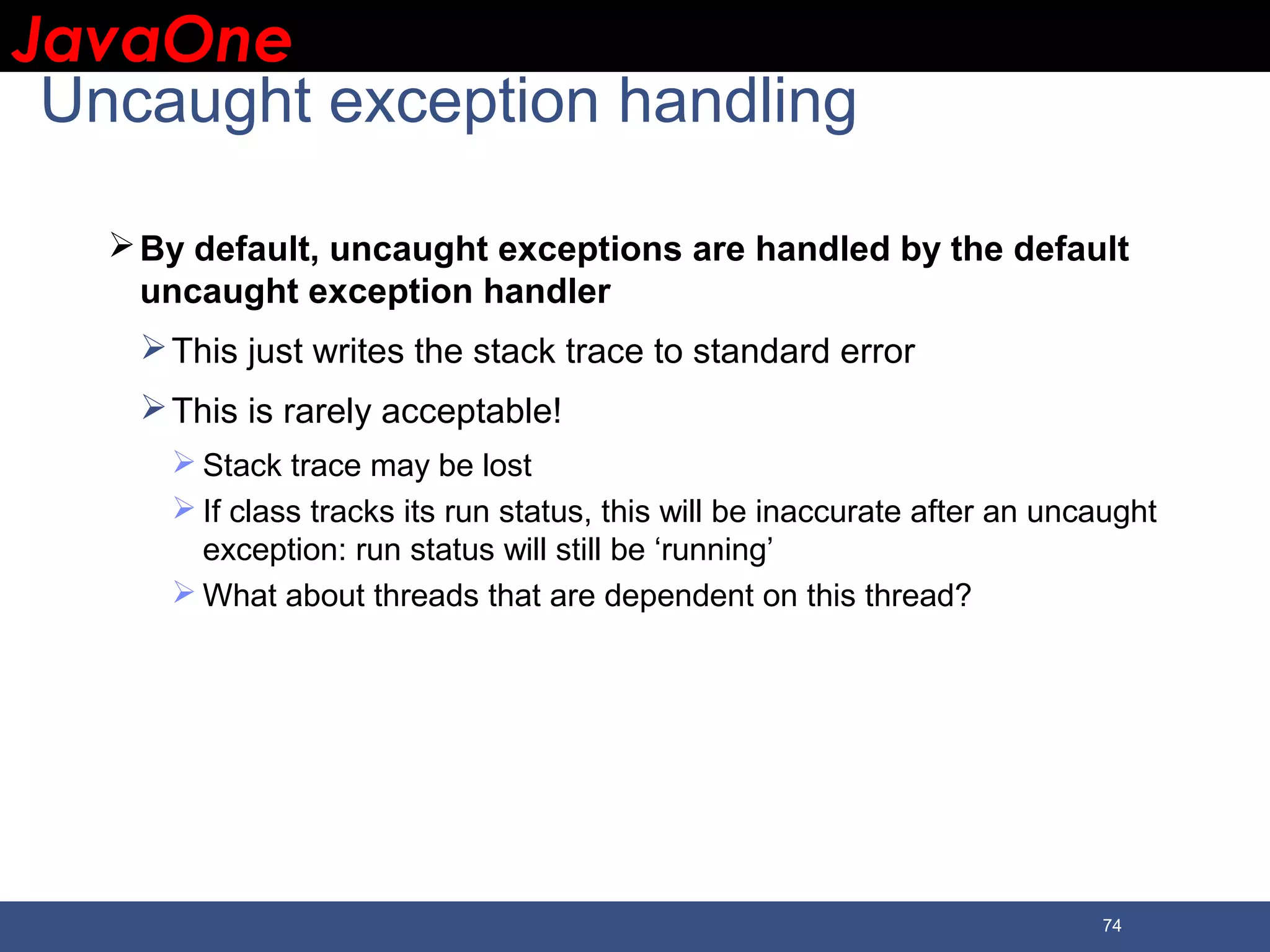

JavaOneJavaOne 74 Uncaught exception handling By default, uncaught exceptions are handled by the default uncaught exception handler This just writes the stack trace to standard error This is rarely acceptable!  Stack trace may be lost  If class tracks its run status, this will be inaccurate after an uncaught exception: run status will still be ‘running’  What about threads that are dependent on this thread?

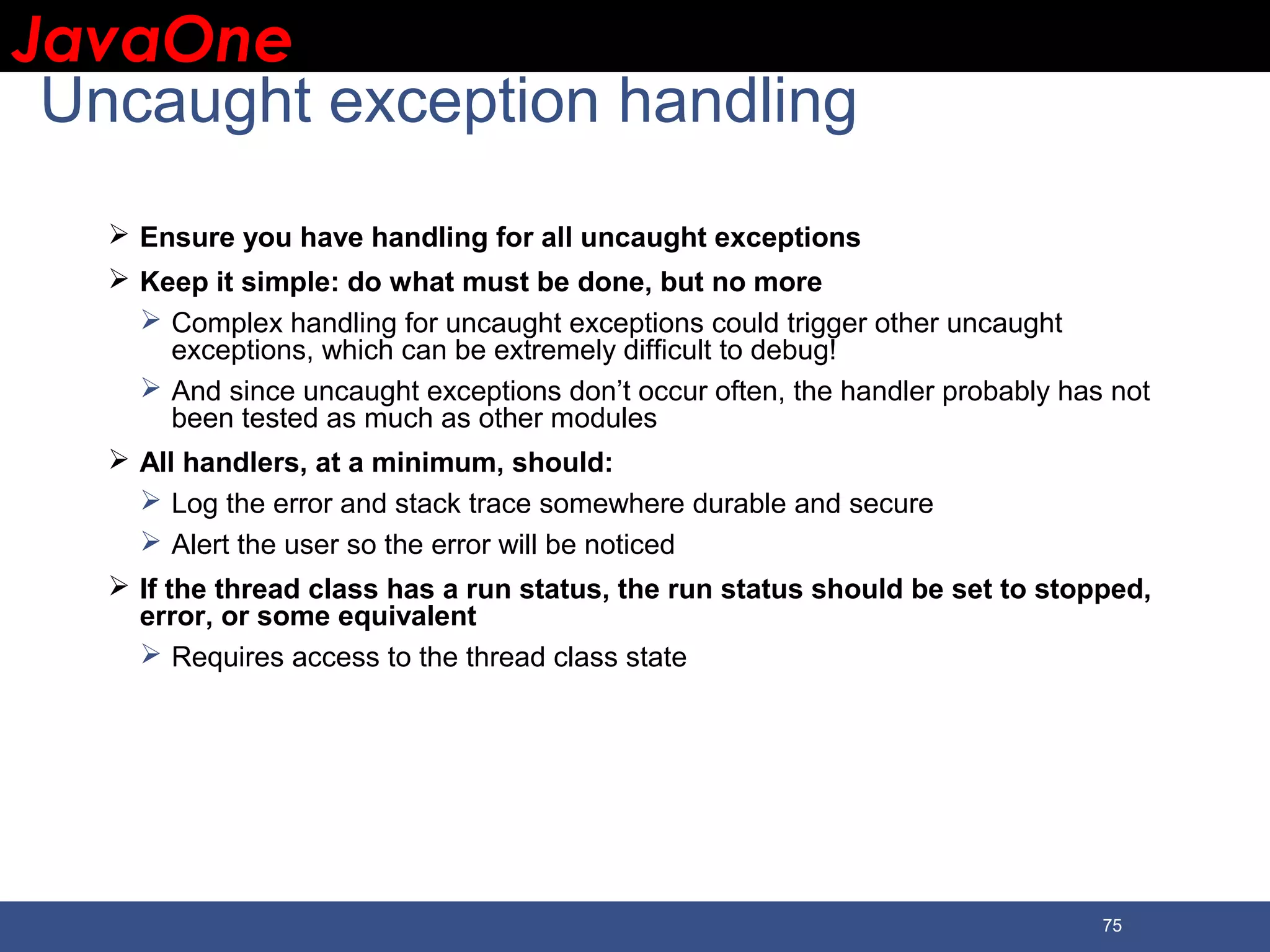

JavaOneJavaOne 75 Uncaught exception handling  Ensure you have handling for all uncaught exceptions  Keep it simple: do what must be done, but no more  Complex handling for uncaught exceptions could trigger other uncaught exceptions, which can be extremely difficult to debug!  And since uncaught exceptions don’t occur often, the handler probably has not been tested as much as other modules  All handlers, at a minimum, should:  Log the error and stack trace somewhere durable and secure  Alert the user so the error will be noticed  If the thread class has a run status, the run status should be set to stopped, error, or some equivalent  Requires access to the thread class state

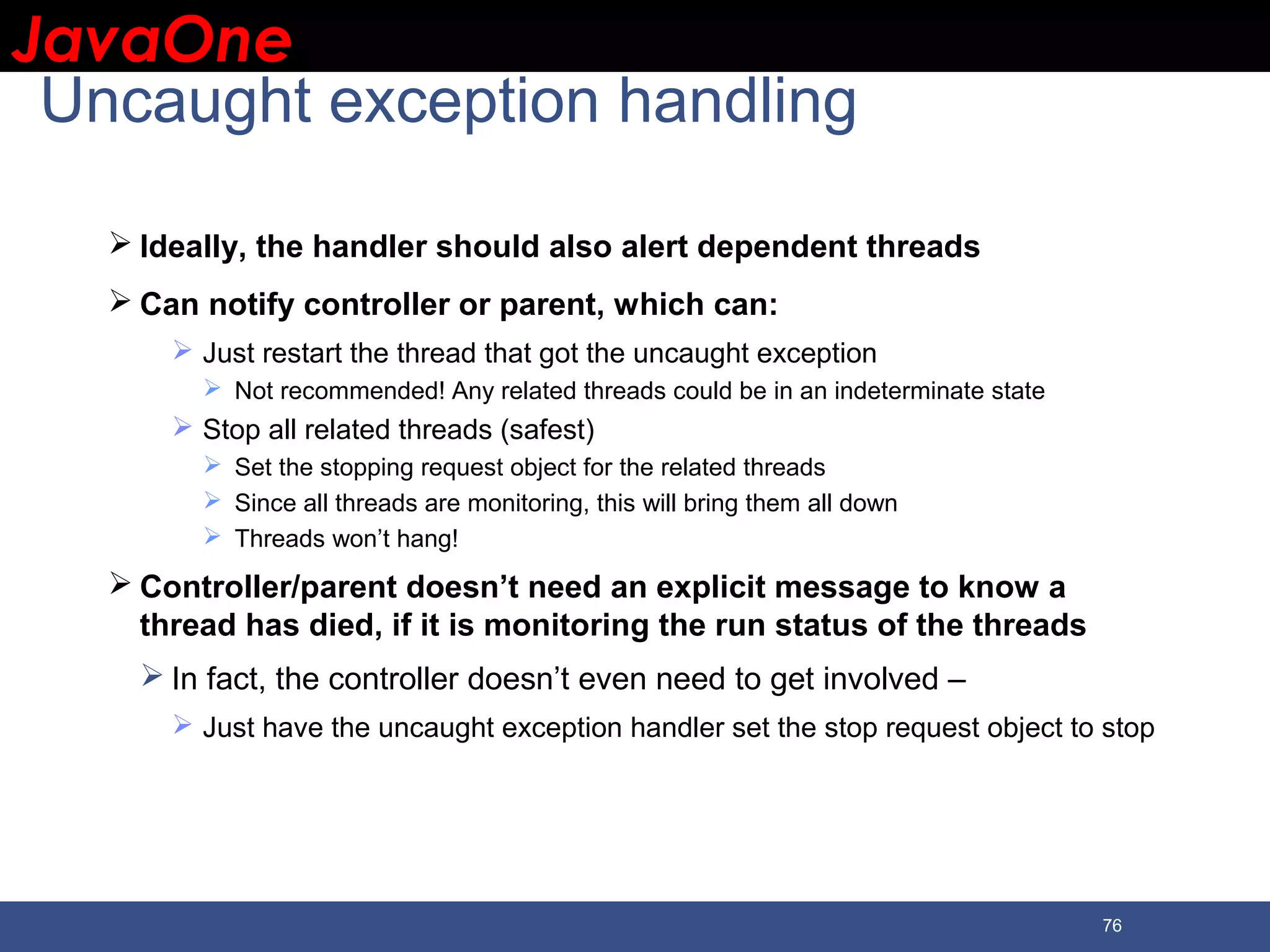

JavaOneJavaOne 76 Uncaught exception handling  Ideally, the handler should also alert dependent threads  Can notify controller or parent, which can:  Just restart the thread that got the uncaught exception  Not recommended! Any related threads could be in an indeterminate state  Stop all related threads (safest)  Set the stopping request object for the related threads  Since all threads are monitoring, this will bring them all down  Threads won’t hang!  Controller/parent doesn’t need an explicit message to know a thread has died, if it is monitoring the run status of the threads  In fact, the controller doesn’t even need to get involved –  Just have the uncaught exception handler set the stop request object to stop

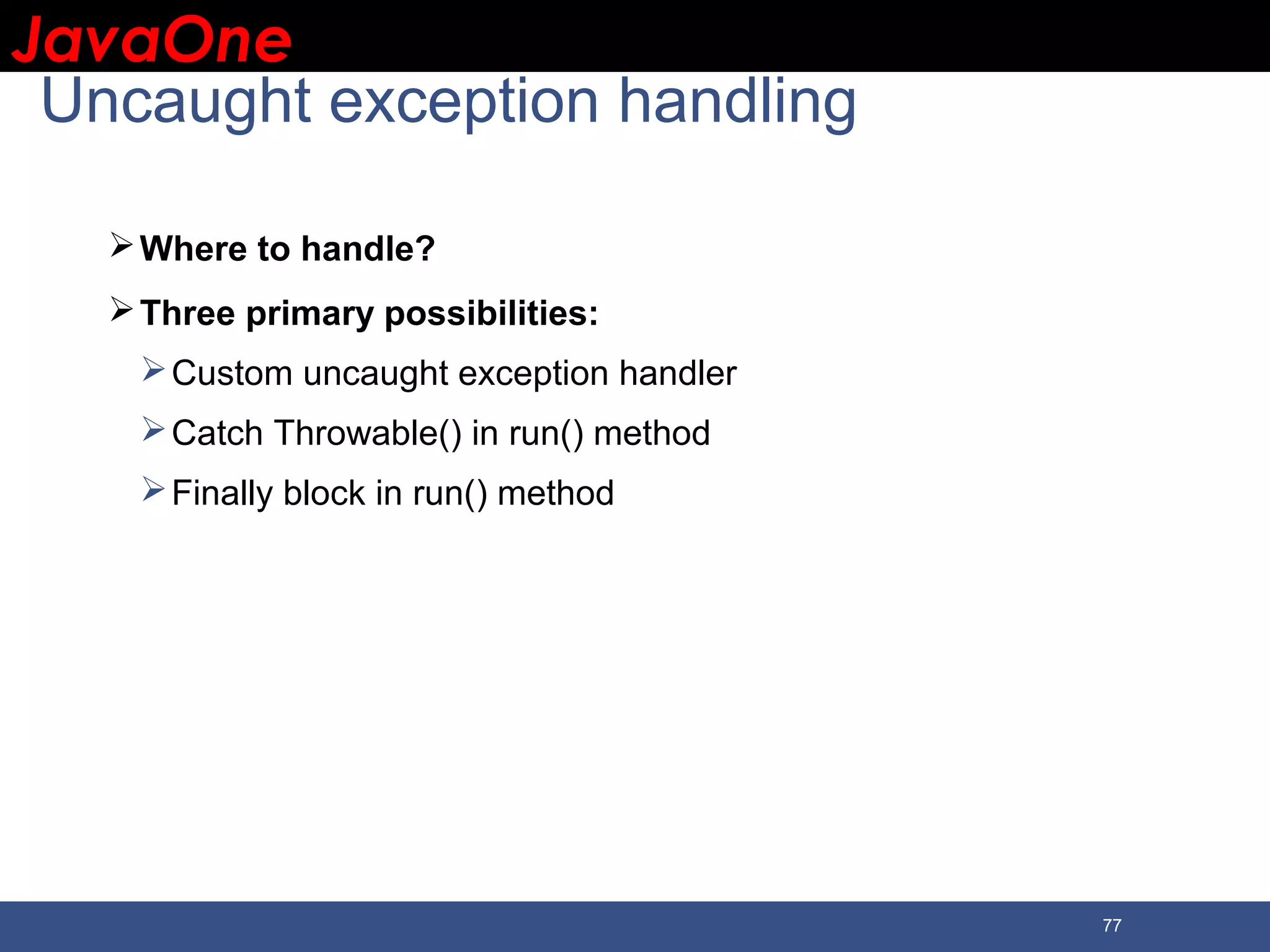

JavaOneJavaOne 77 Uncaught exception handling Where to handle? Three primary possibilities: Custom uncaught exception handler Catch Throwable() in run() method Finally block in run() method

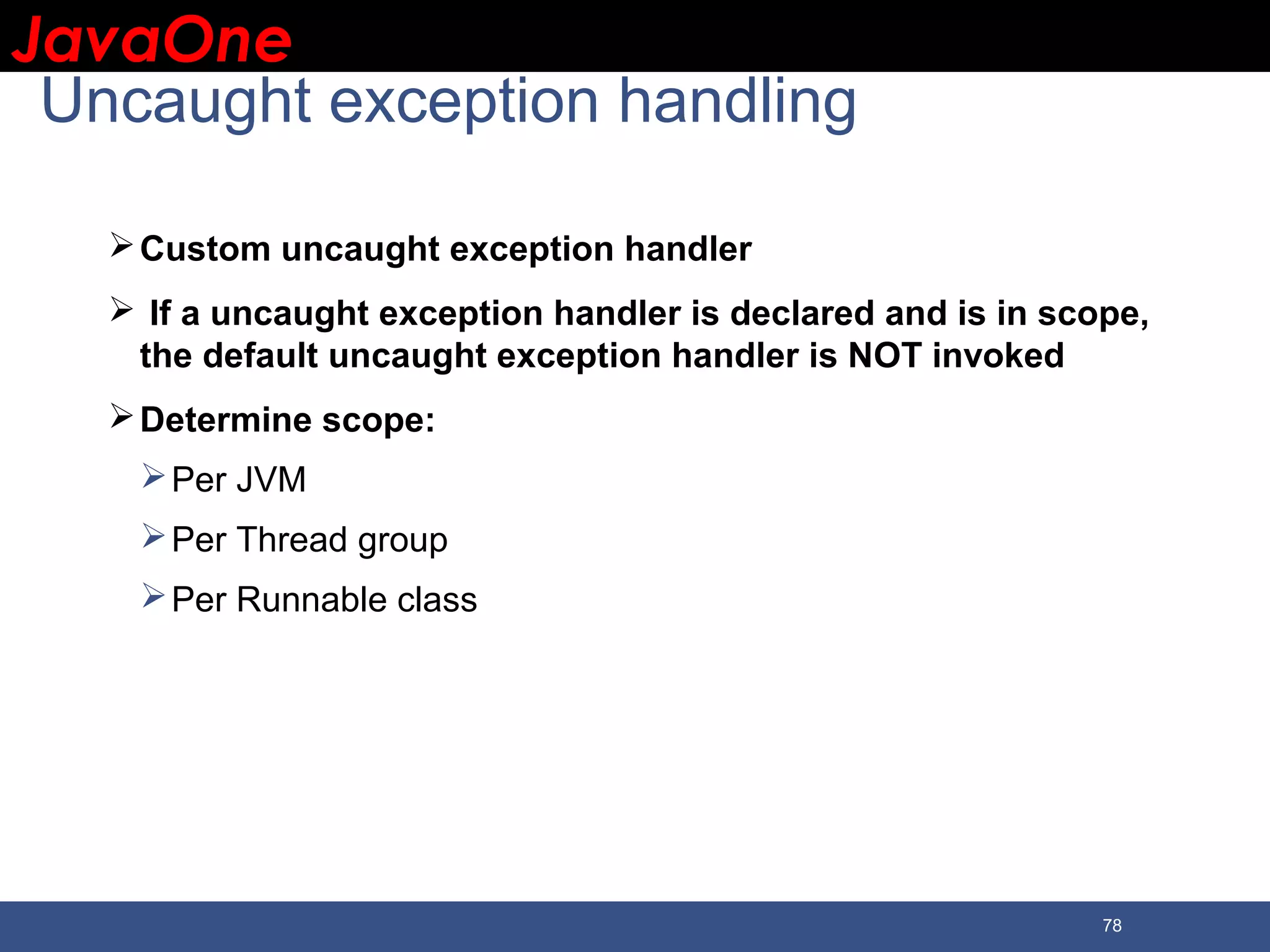

JavaOneJavaOne 78 Uncaught exception handling Custom uncaught exception handler  If a uncaught exception handler is declared and is in scope, the default uncaught exception handler is NOT invoked Determine scope: Per JVM Per Thread group Per Runnable class

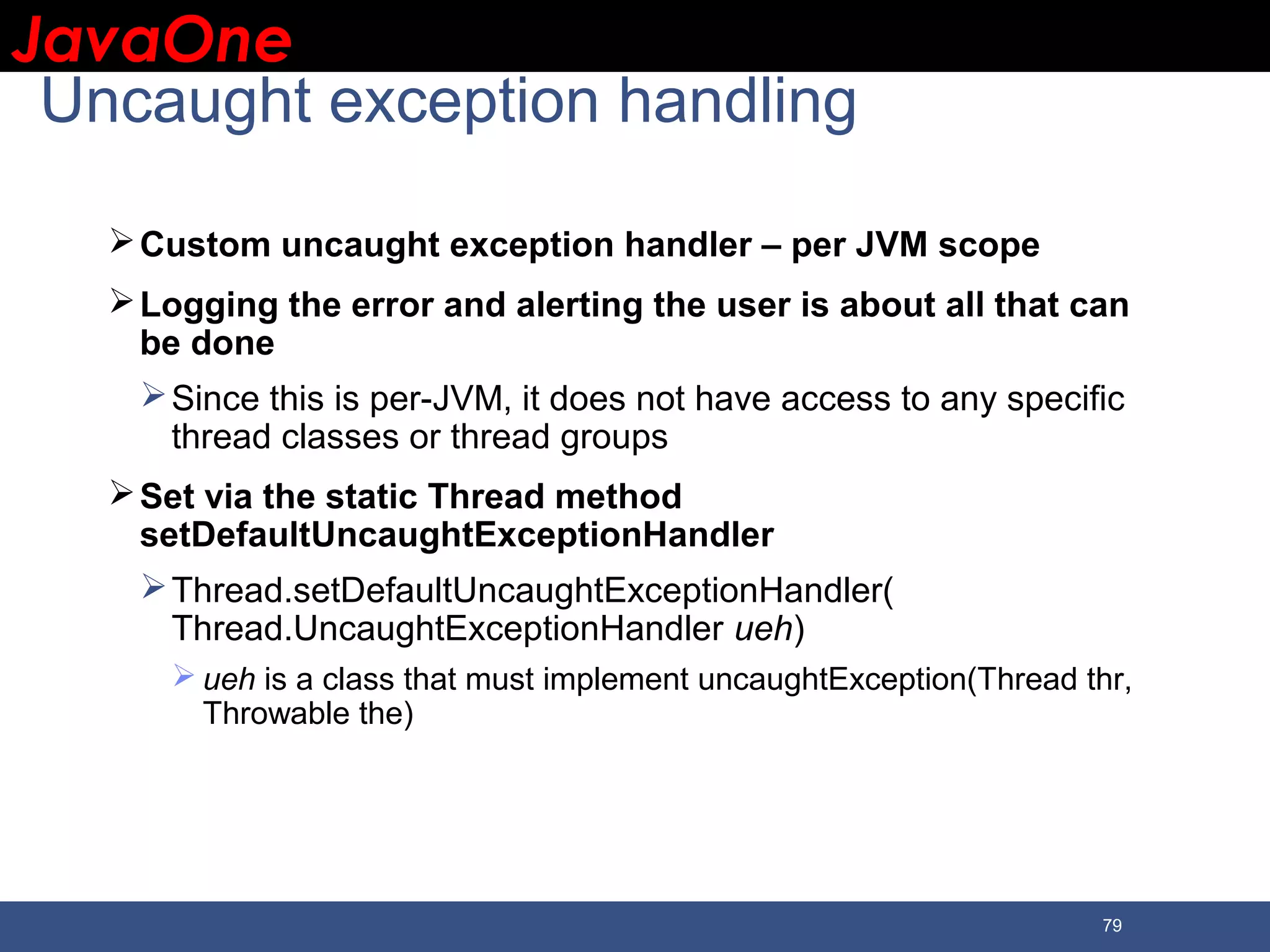

JavaOneJavaOne 79 Uncaught exception handling Custom uncaught exception handler – per JVM scope Logging the error and alerting the user is about all that can be done Since this is per-JVM, it does not have access to any specific thread classes or thread groups Set via the static Thread method setDefaultUncaughtExceptionHandler Thread.setDefaultUncaughtExceptionHandler( Thread.UncaughtExceptionHandler ueh)  ueh is a class that must implement uncaughtException(Thread thr, Throwable the)

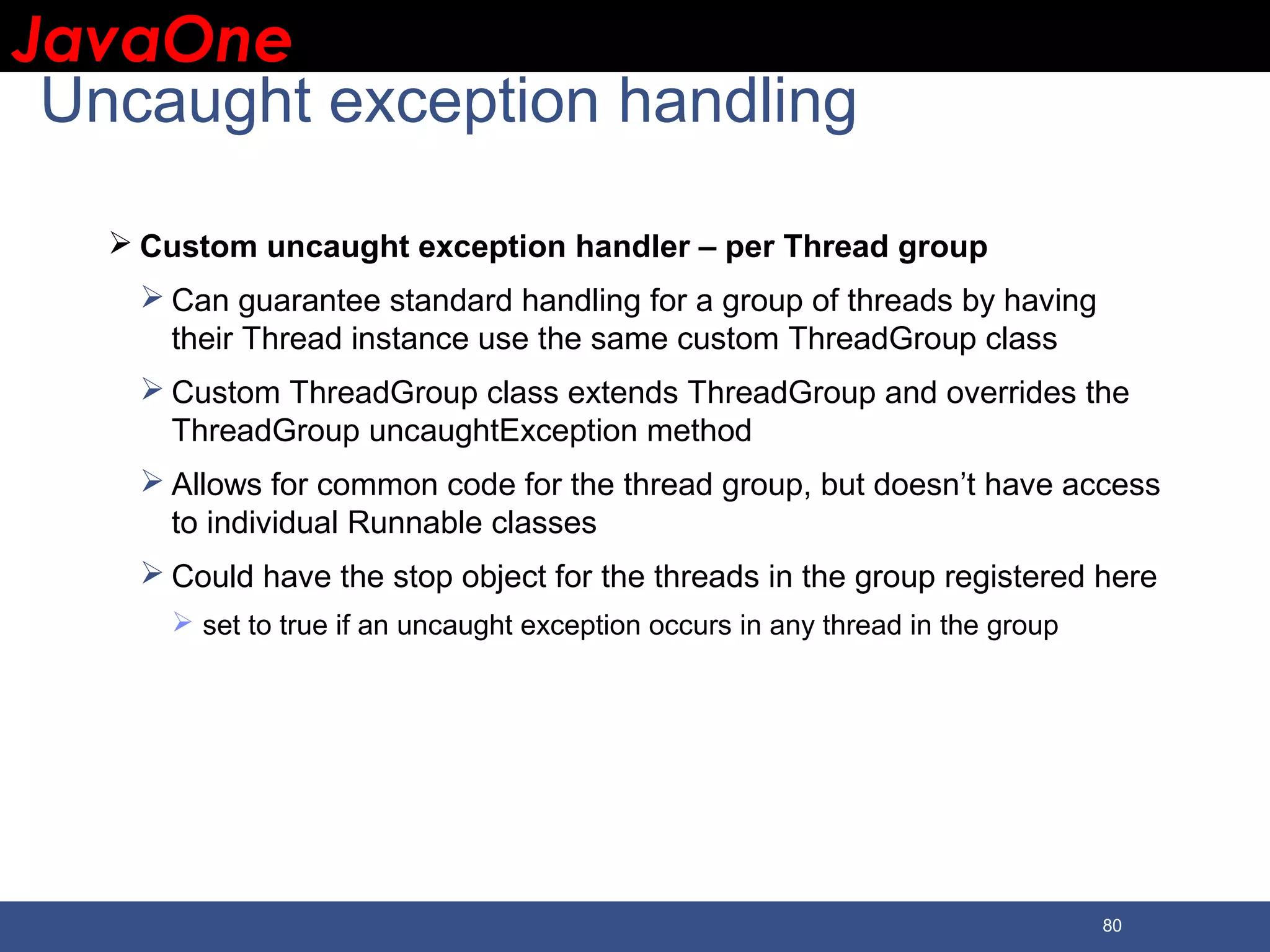

JavaOneJavaOne 80 Uncaught exception handling  Custom uncaught exception handler – per Thread group  Can guarantee standard handling for a group of threads by having their Thread instance use the same custom ThreadGroup class  Custom ThreadGroup class extends ThreadGroup and overrides the ThreadGroup uncaughtException method  Allows for common code for the thread group, but doesn’t have access to individual Runnable classes  Could have the stop object for the threads in the group registered here  set to true if an uncaught exception occurs in any thread in the group

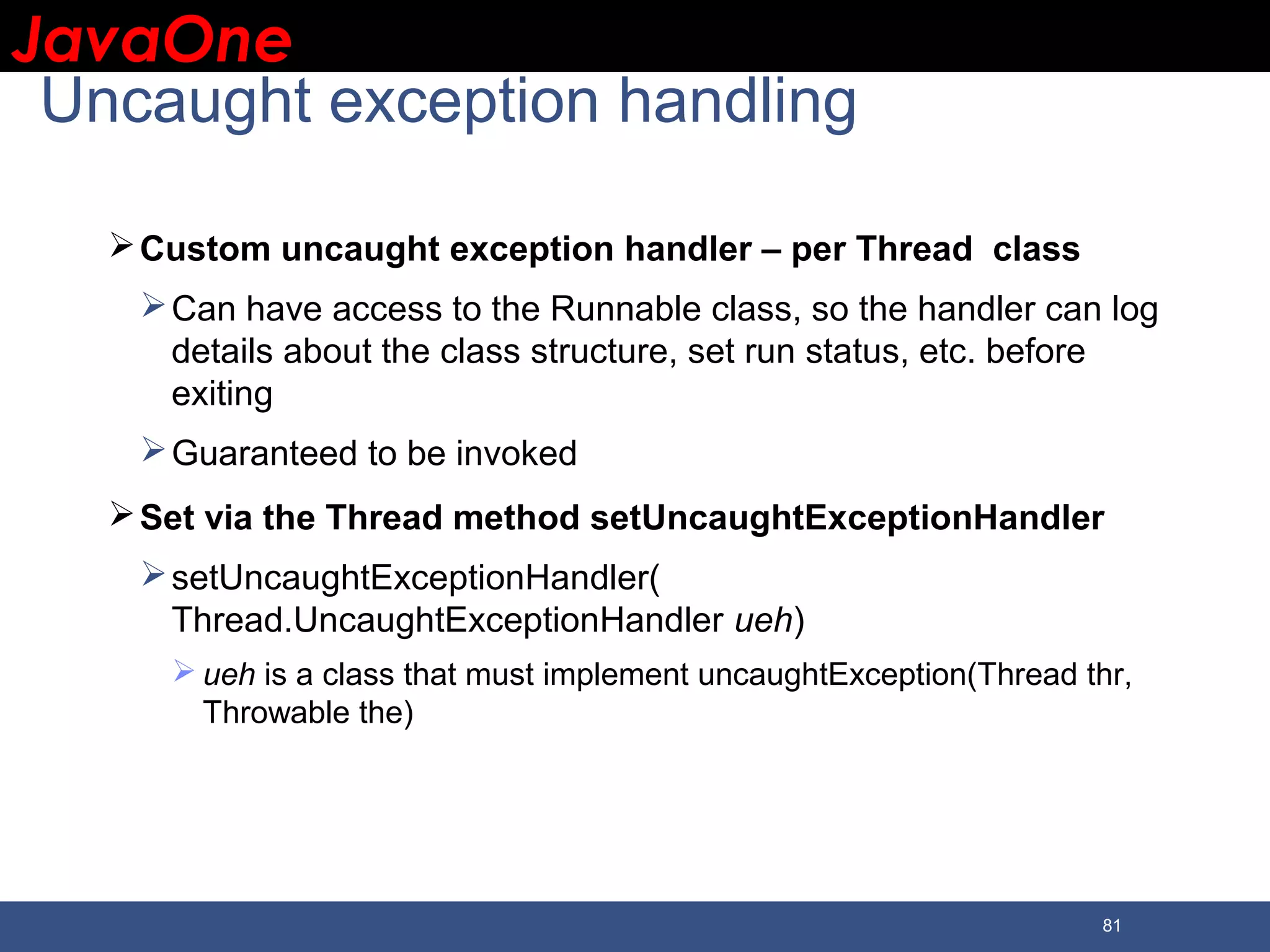

JavaOneJavaOne 81 Uncaught exception handling Custom uncaught exception handler – per Thread class Can have access to the Runnable class, so the handler can log details about the class structure, set run status, etc. before exiting Guaranteed to be invoked Set via the Thread method setUncaughtExceptionHandler setUncaughtExceptionHandler( Thread.UncaughtExceptionHandler ueh)  ueh is a class that must implement uncaughtException(Thread thr, Throwable the)

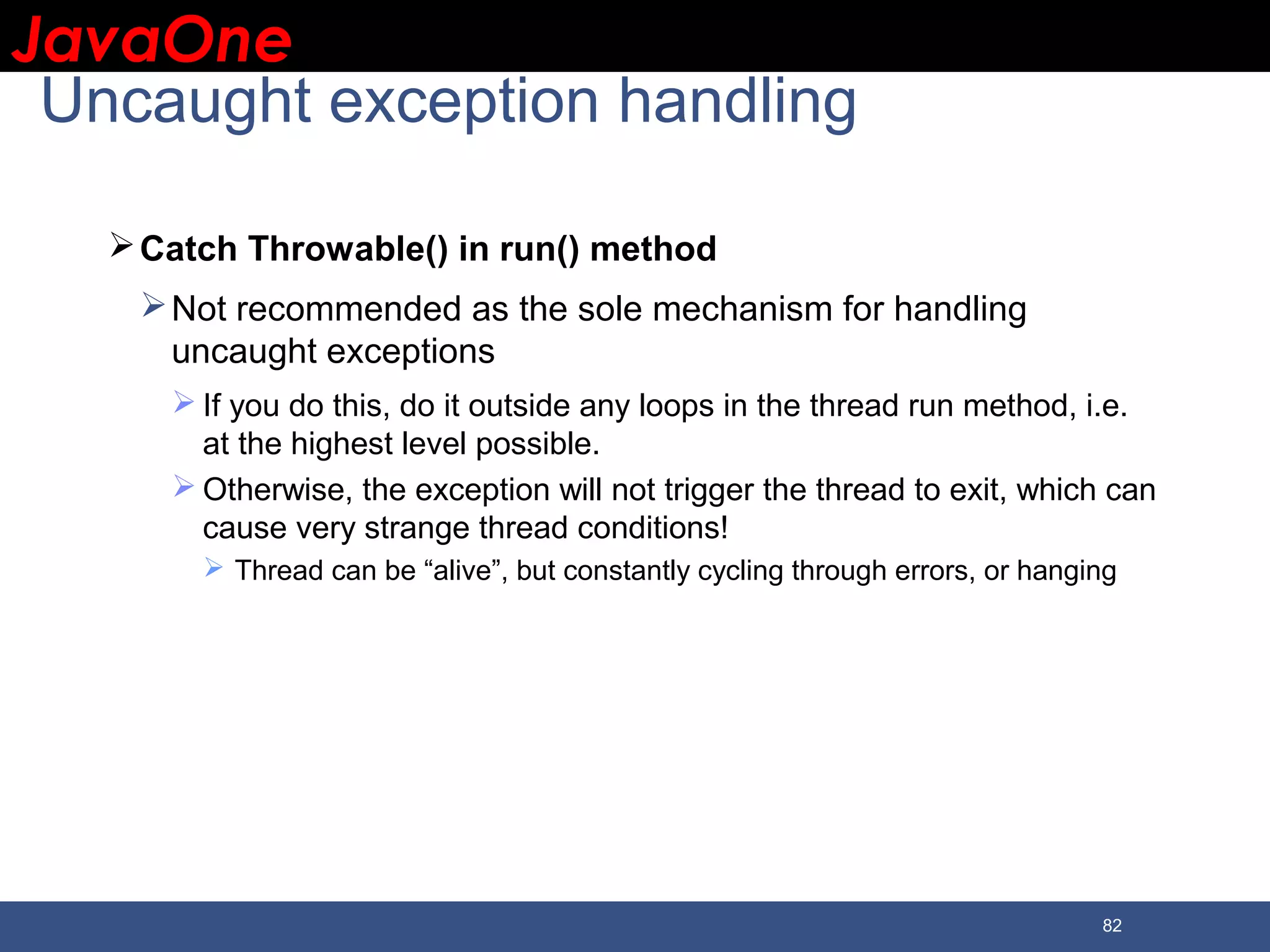

JavaOneJavaOne 82 Uncaught exception handling Catch Throwable() in run() method Not recommended as the sole mechanism for handling uncaught exceptions  If you do this, do it outside any loops in the thread run method, i.e. at the highest level possible.  Otherwise, the exception will not trigger the thread to exit, which can cause very strange thread conditions!  Thread can be “alive”, but constantly cycling through errors, or hanging

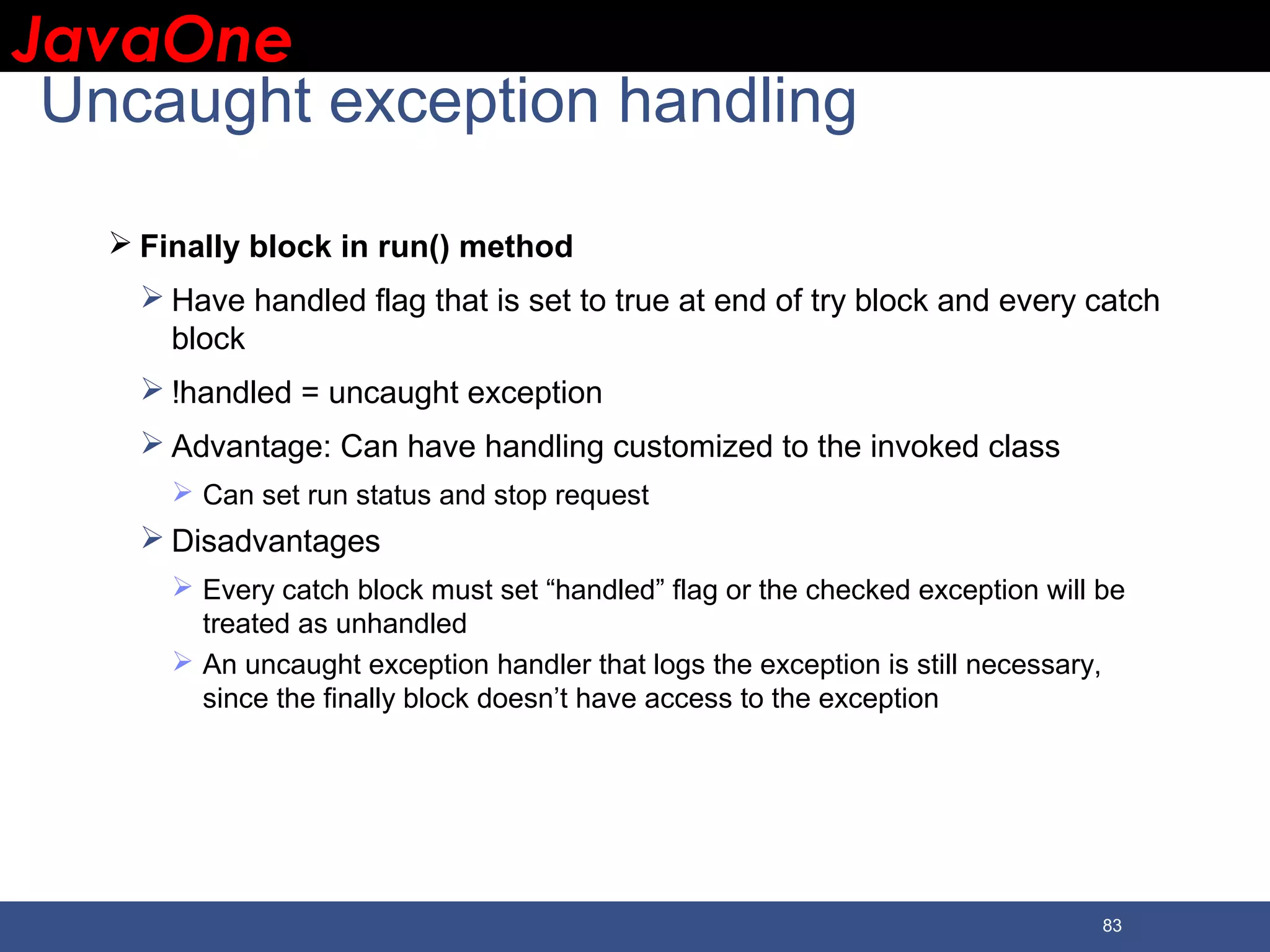

JavaOneJavaOne 83 Uncaught exception handling  Finally block in run() method  Have handled flag that is set to true at end of try block and every catch block  !handled = uncaught exception  Advantage: Can have handling customized to the invoked class  Can set run status and stop request  Disadvantages  Every catch block must set “handled” flag or the checked exception will be treated as unhandled  An uncaught exception handler that logs the exception is still necessary, since the finally block doesn’t have access to the exception

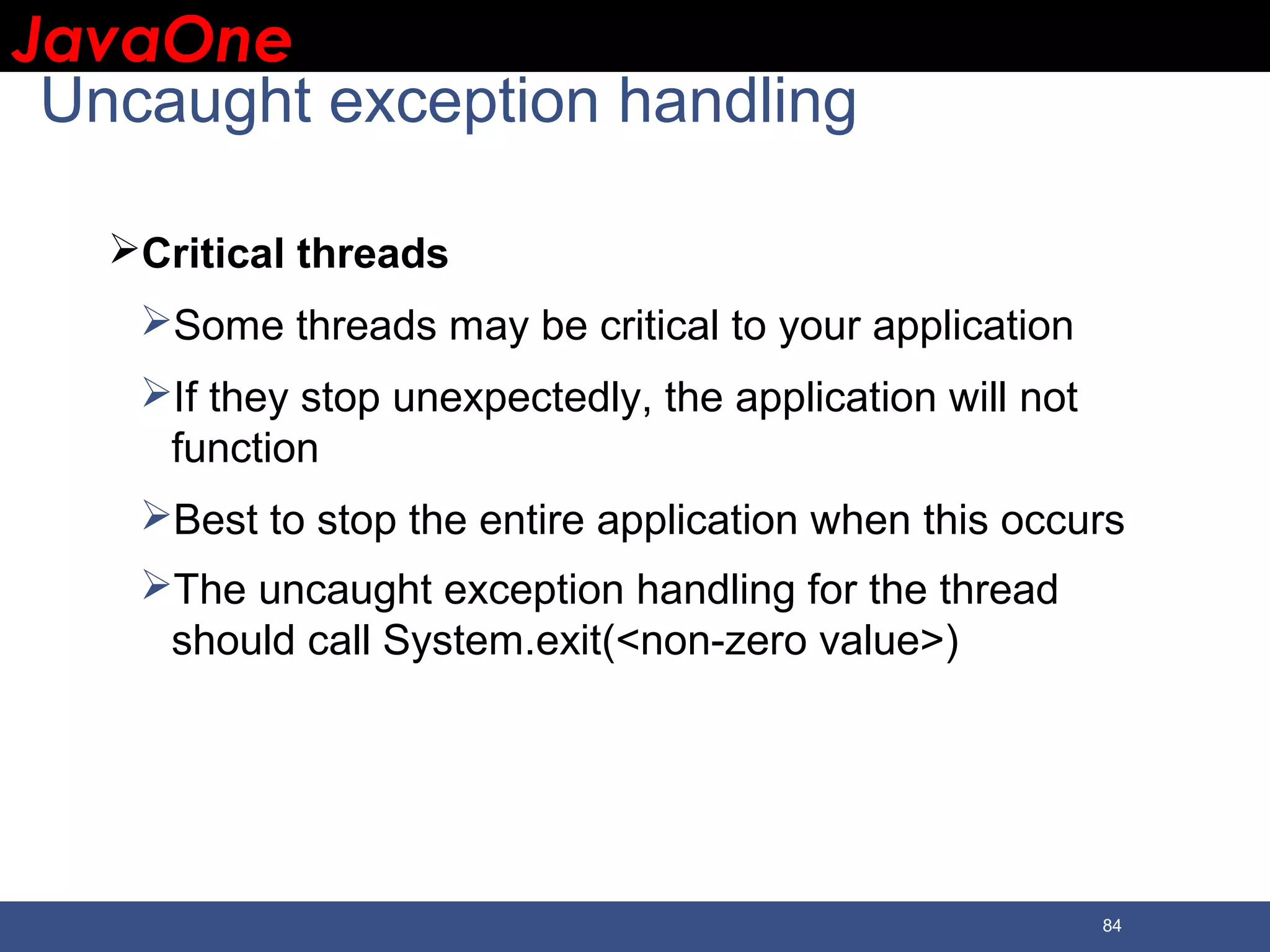

JavaOneJavaOne 84 Uncaught exception handling Critical threads Some threads may be critical to your application If they stop unexpectedly, the application will not function Best to stop the entire application when this occurs The uncaught exception handling for the thread should call System.exit(<non-zero value>)

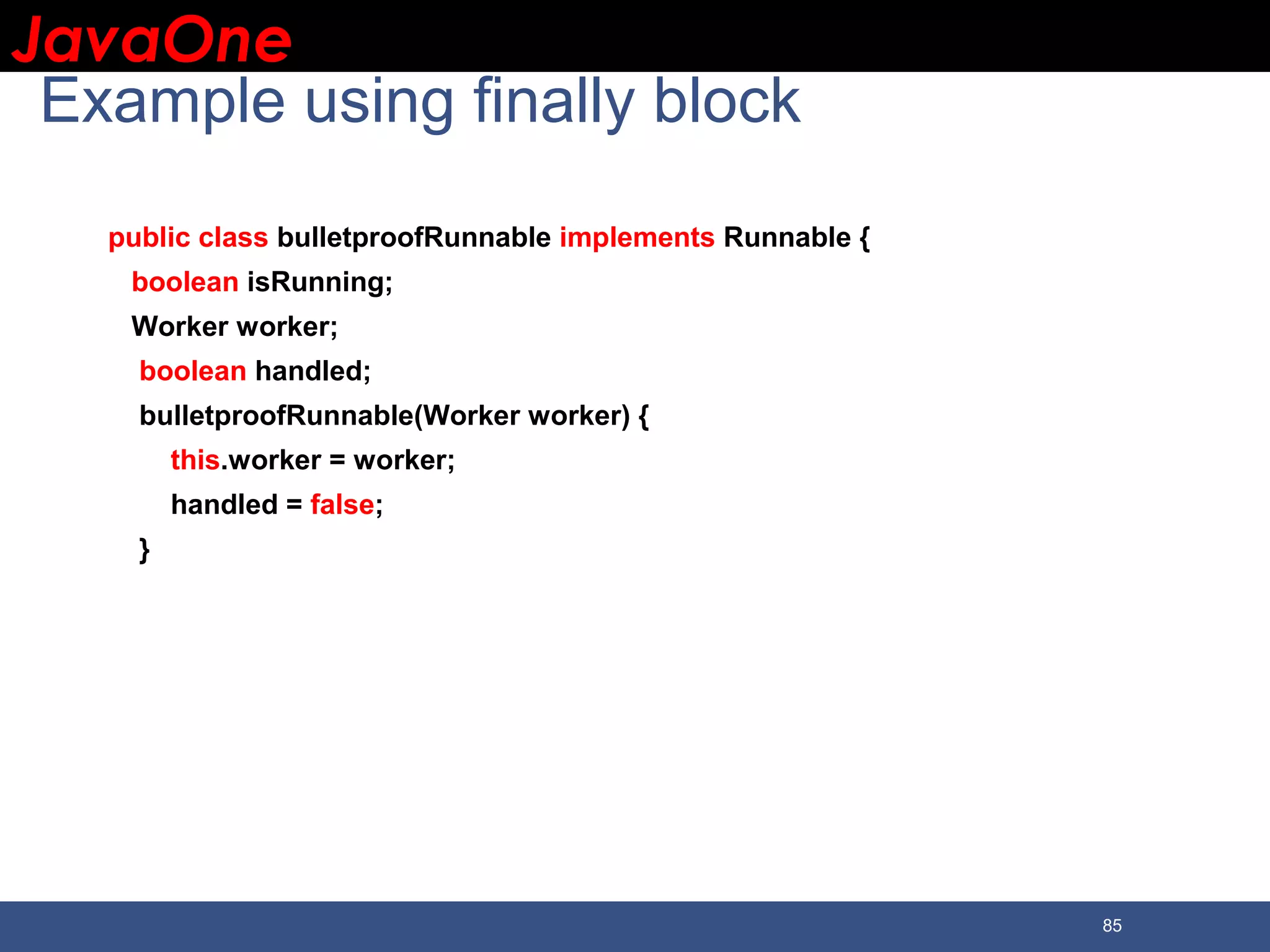

JavaOneJavaOne 85 Example using finally block public class bulletproofRunnable implements Runnable { boolean isRunning; Worker worker; boolean handled; bulletproofRunnable(Worker worker) { this.worker = worker; handled = false; }

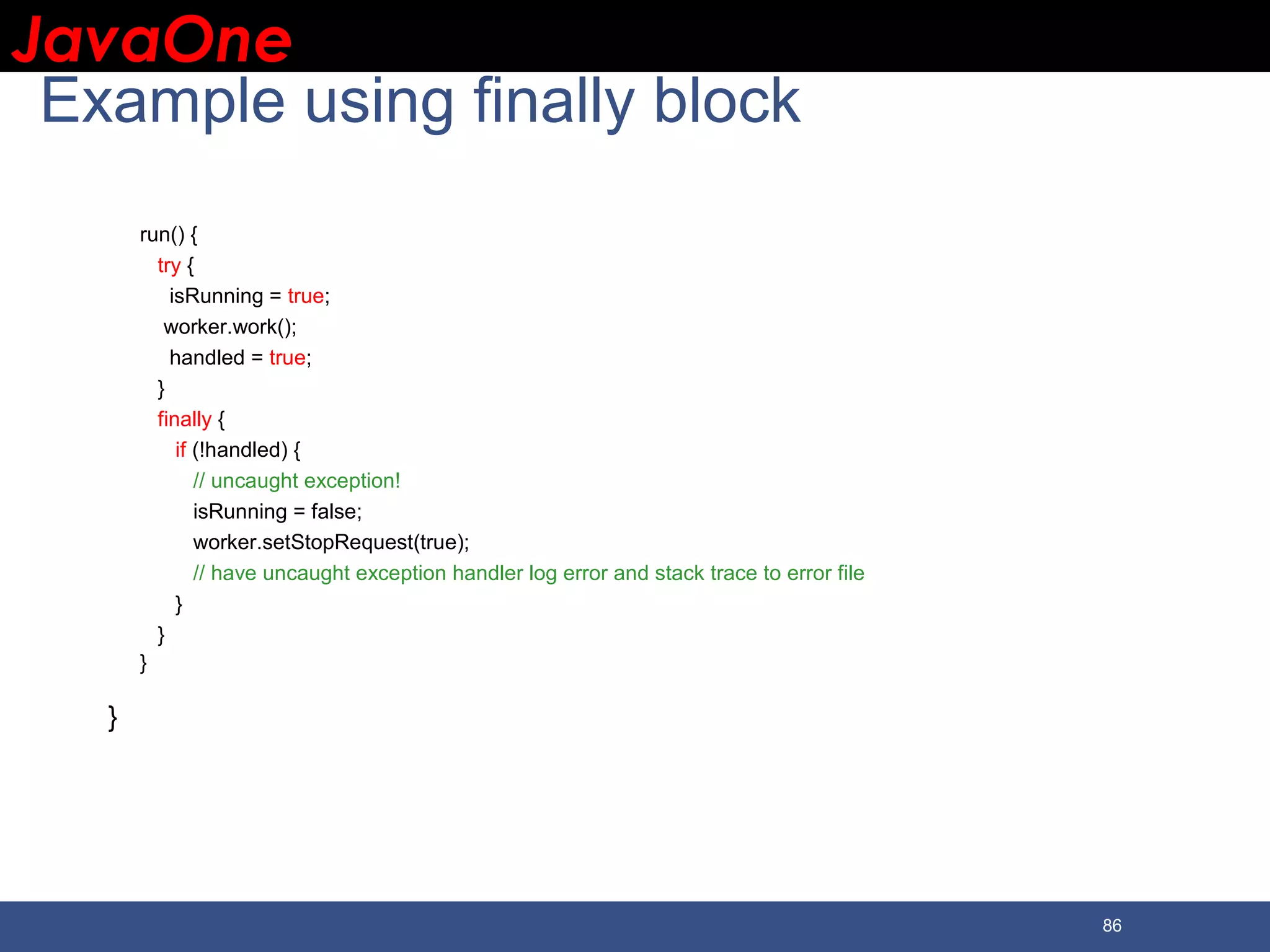

JavaOneJavaOne 86 Example using finally block run() { try { isRunning = true; worker.work(); handled = true; } finally { if (!handled) { // uncaught exception! isRunning = false; worker.setStopRequest(true); // have uncaught exception handler log error and stack trace to error file } } } }

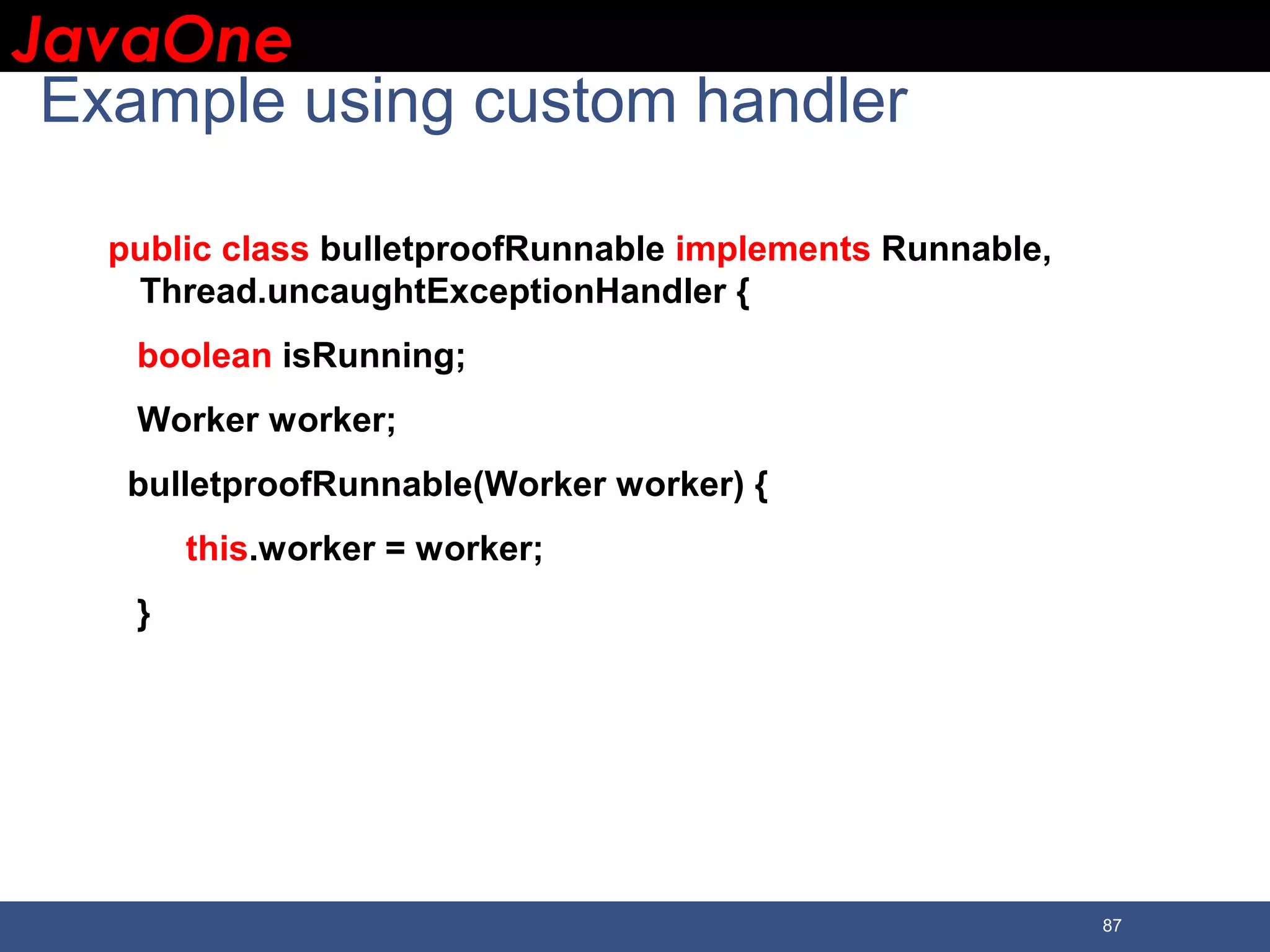

JavaOneJavaOne 87 Example using custom handler public class bulletproofRunnable implements Runnable, Thread.uncaughtExceptionHandler { boolean isRunning; Worker worker; bulletproofRunnable(Worker worker) { this.worker = worker; }

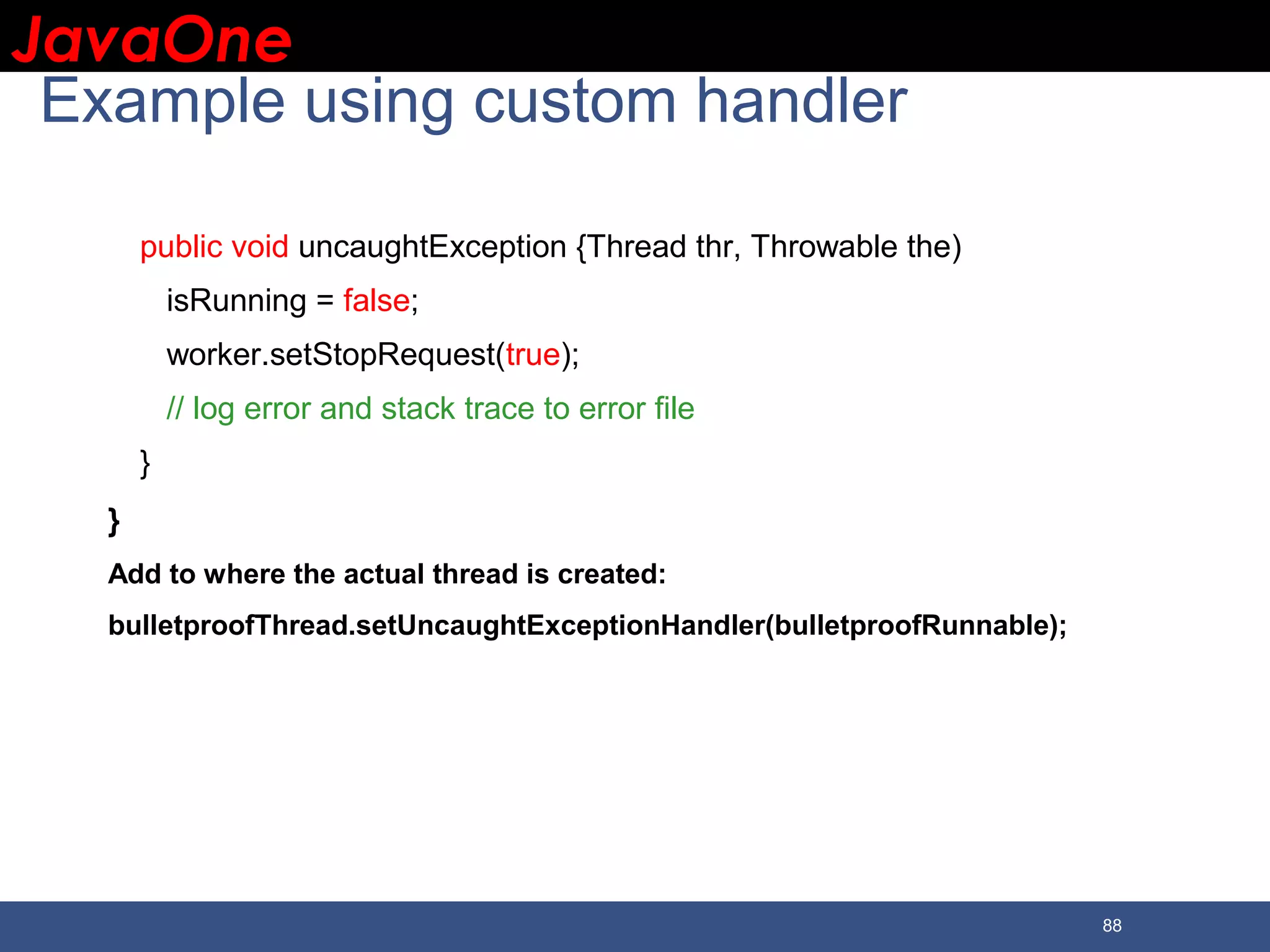

JavaOneJavaOne 88 Example using custom handler public void uncaughtException {Thread thr, Throwable the) isRunning = false; worker.setStopRequest(true); // log error and stack trace to error file } } Add to where the actual thread is created: bulletproofThread.setUncaughtExceptionHandler(bulletproofRunnable);

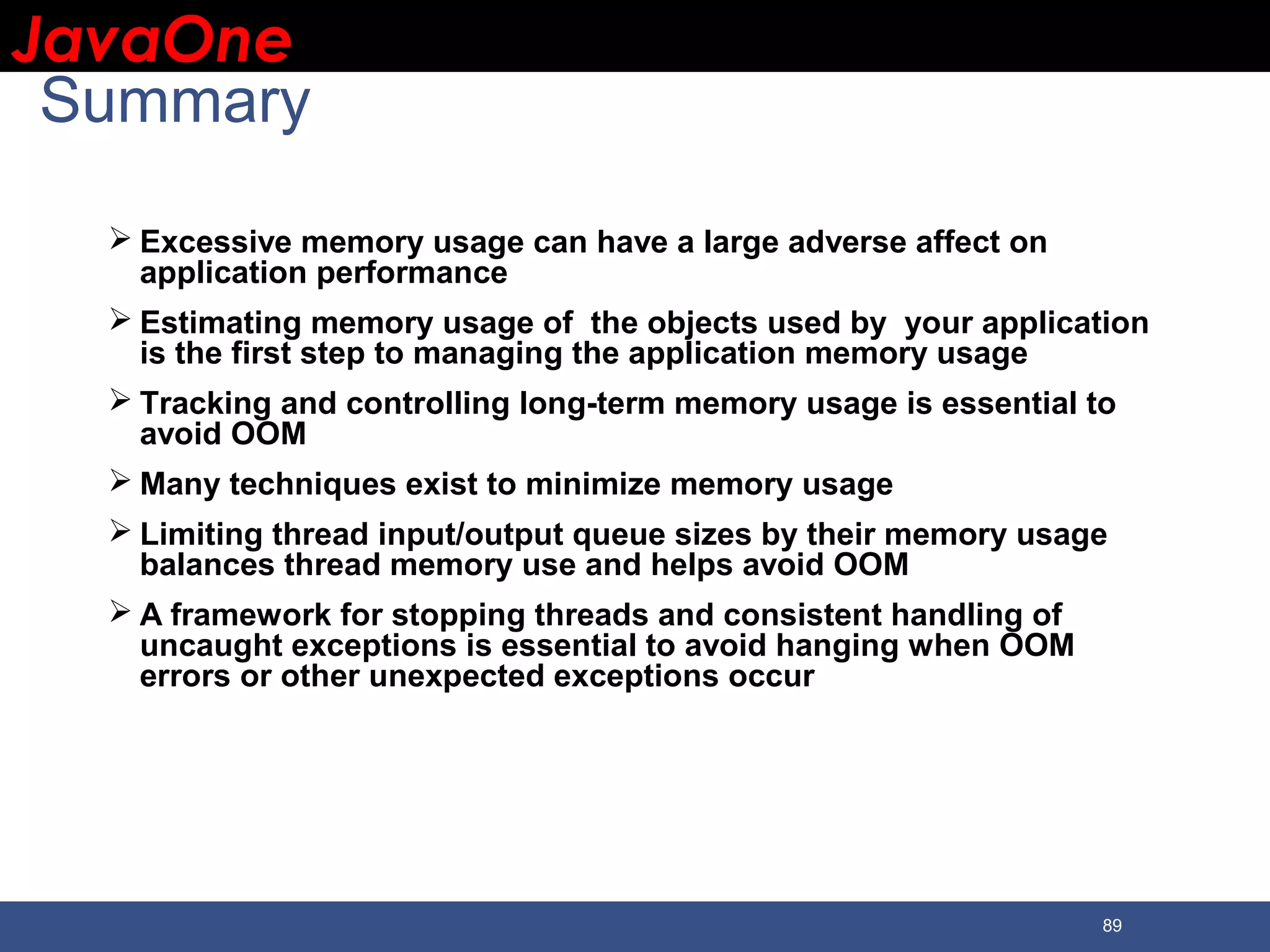

JavaOneJavaOne 89 Summary  Excessive memory usage can have a large adverse affect on application performance  Estimating memory usage of the objects used by your application is the first step to managing the application memory usage  Tracking and controlling long-term memory usage is essential to avoid OOM  Many techniques exist to minimize memory usage  Limiting thread input/output queue sizes by their memory usage balances thread memory use and helps avoid OOM  A framework for stopping threads and consistent handling of uncaught exceptions is essential to avoid hanging when OOM errors or other unexpected exceptions occur

Phillip Koza pkoza@us.ibm.com JavaOneJavaOne Thank YouThank You
