DNN Connect - Mobile Development With Xamarin
The document discusses mobile development using Xamarin, highlighting the advantages of building cross-platform applications with C# and F#. It outlines the integration of native APIs, performance comparisons, and the development process for iOS, Android, and Windows platforms. Additionally, it details the use of Xamarin.Forms for creating UI layouts and controls, emphasizing a unified approach to coding across different platforms.
DNN Connect - Mobile Development With Xamarin
- 1. Mobile Development with Xamarin MarkAllan Ranyart Systems @MarkXA
- 2. Modern DNN SPA modules– UI talking to web services MVC APIs now a truly first class citizen Since your module(s) now work through an API, building equivalent apps is an obvious next step

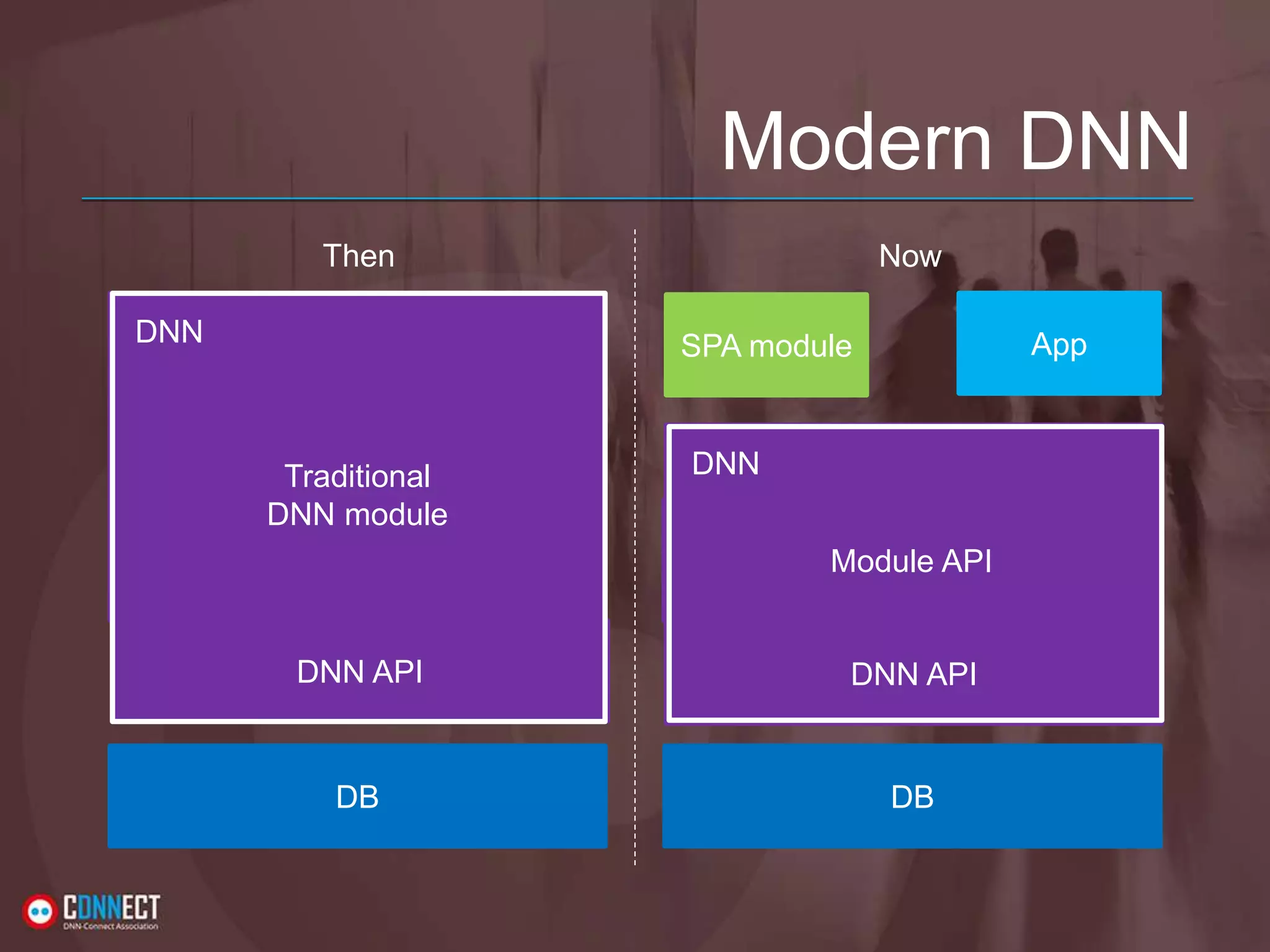

- 3. Modern DNN DNN API SPAmodule App DB Module API Traditional DNN module DNN API DB DNN DNN Then Now

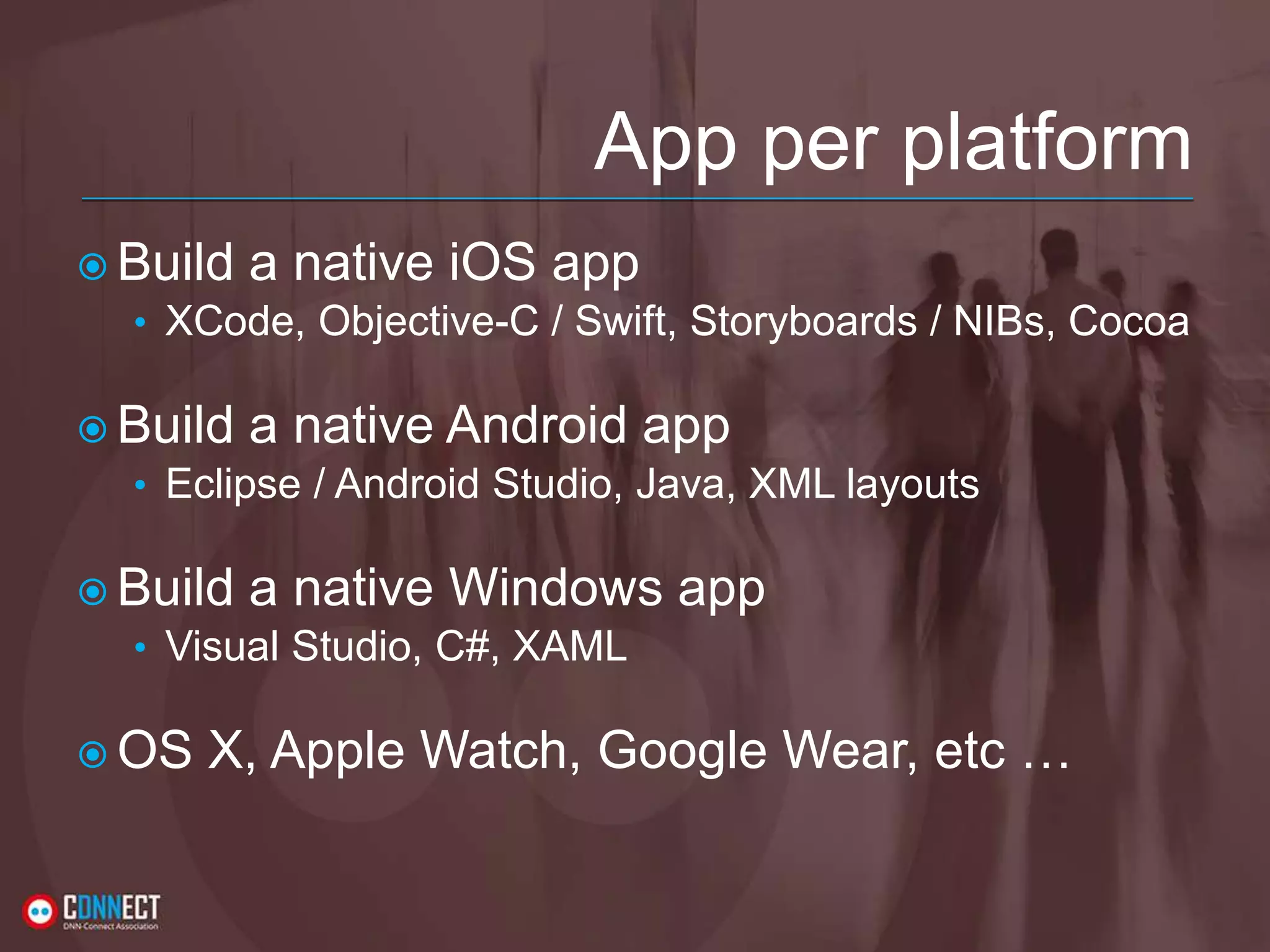

- 4. App per platform Build a native iOS app • XCode, Objective-C / Swift, Storyboards / NIBs, Cocoa Build a native Android app • Eclipse / Android Studio, Java, XML layouts Build a native Windows app • Visual Studio, C#, XAML OS X, Apple Watch, Google Wear, etc …

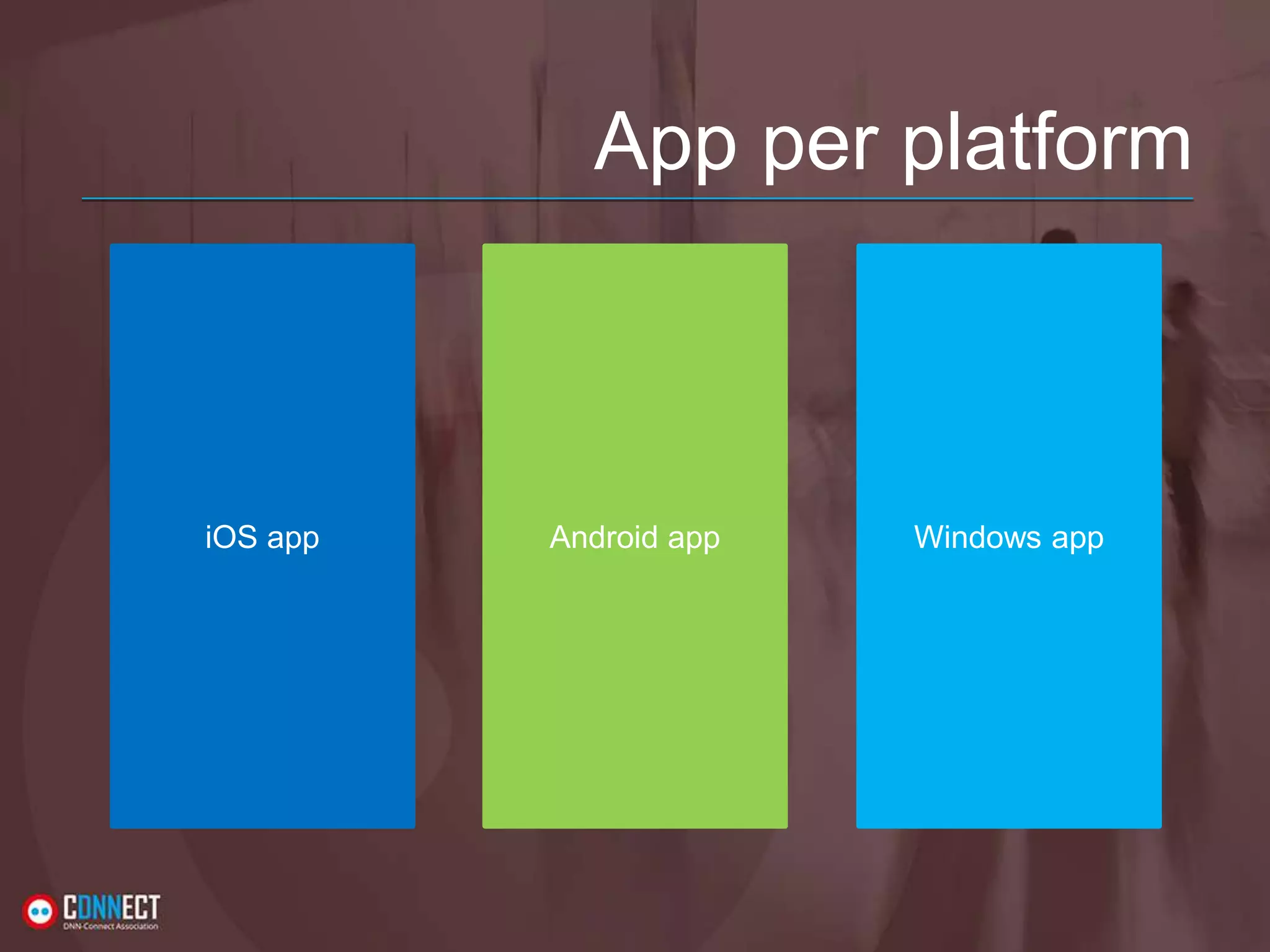

- 5. App per platform Androidapp Windows appiOS app

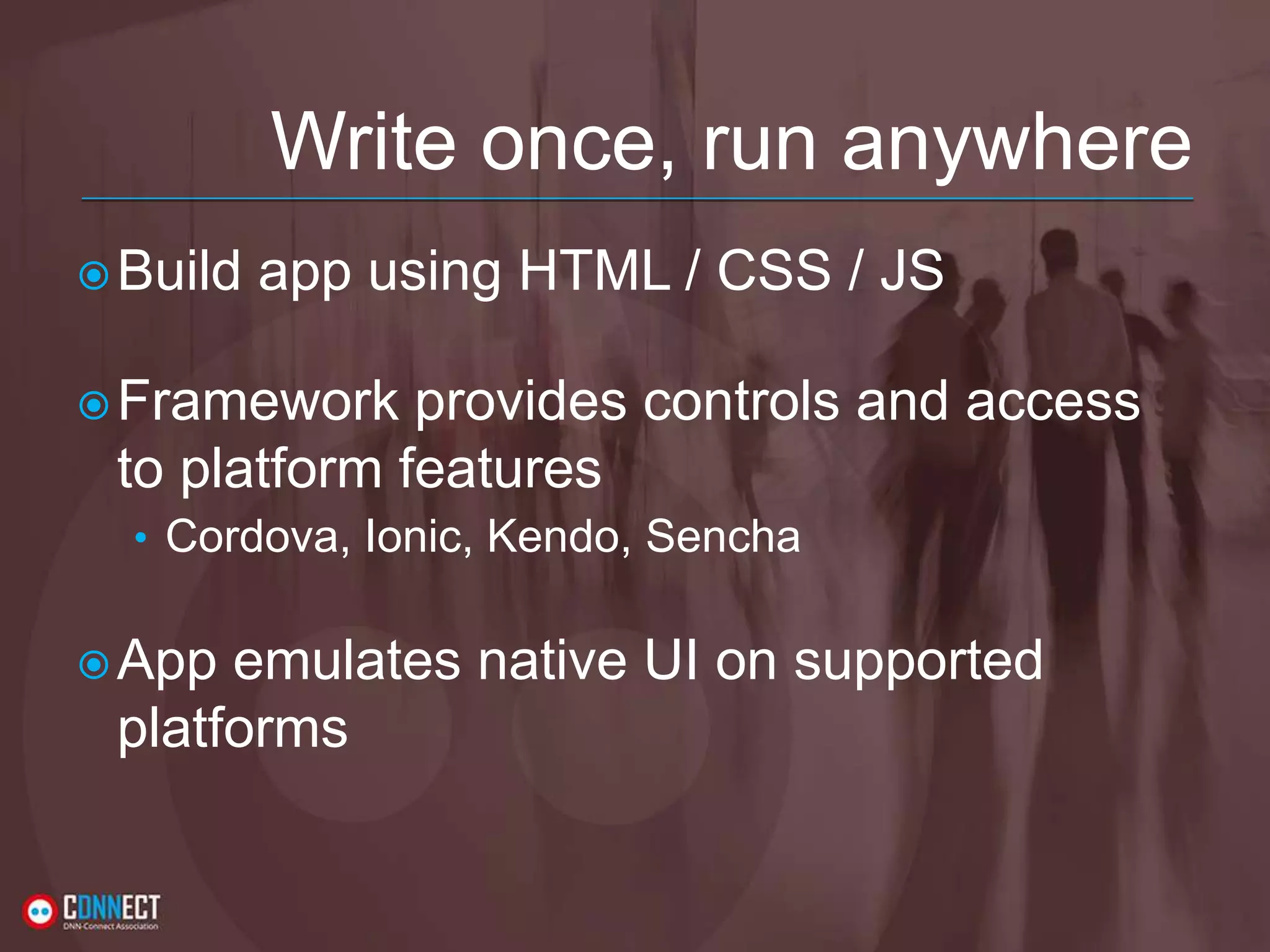

- 6. Write once, runanywhere Build app using HTML / CSS / JS Framework provides controls and access to platform features • Cordova, Ionic, Kendo, Sencha App emulates native UI on supported platforms

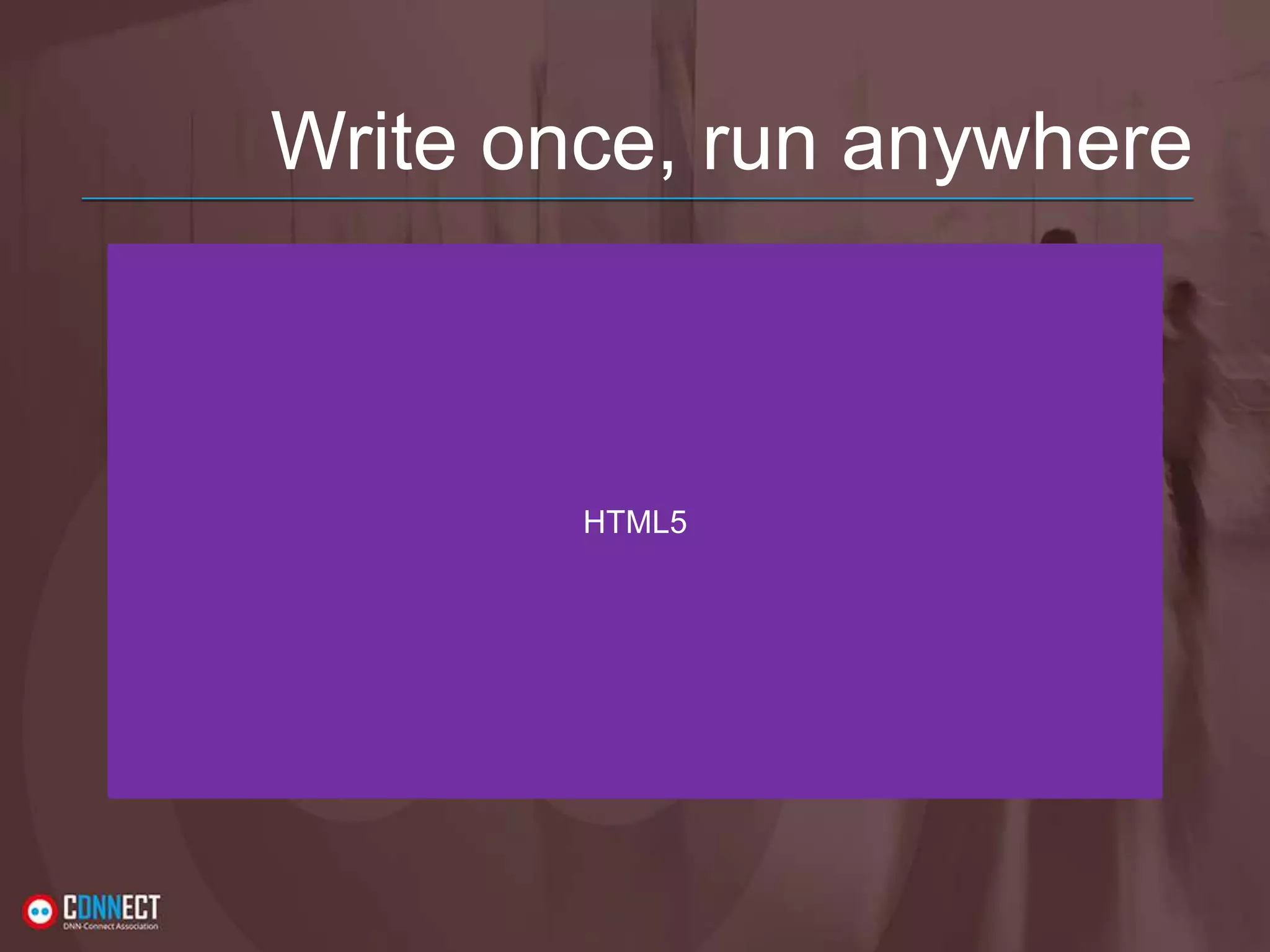

- 7. Write once, runanywhere HTML5

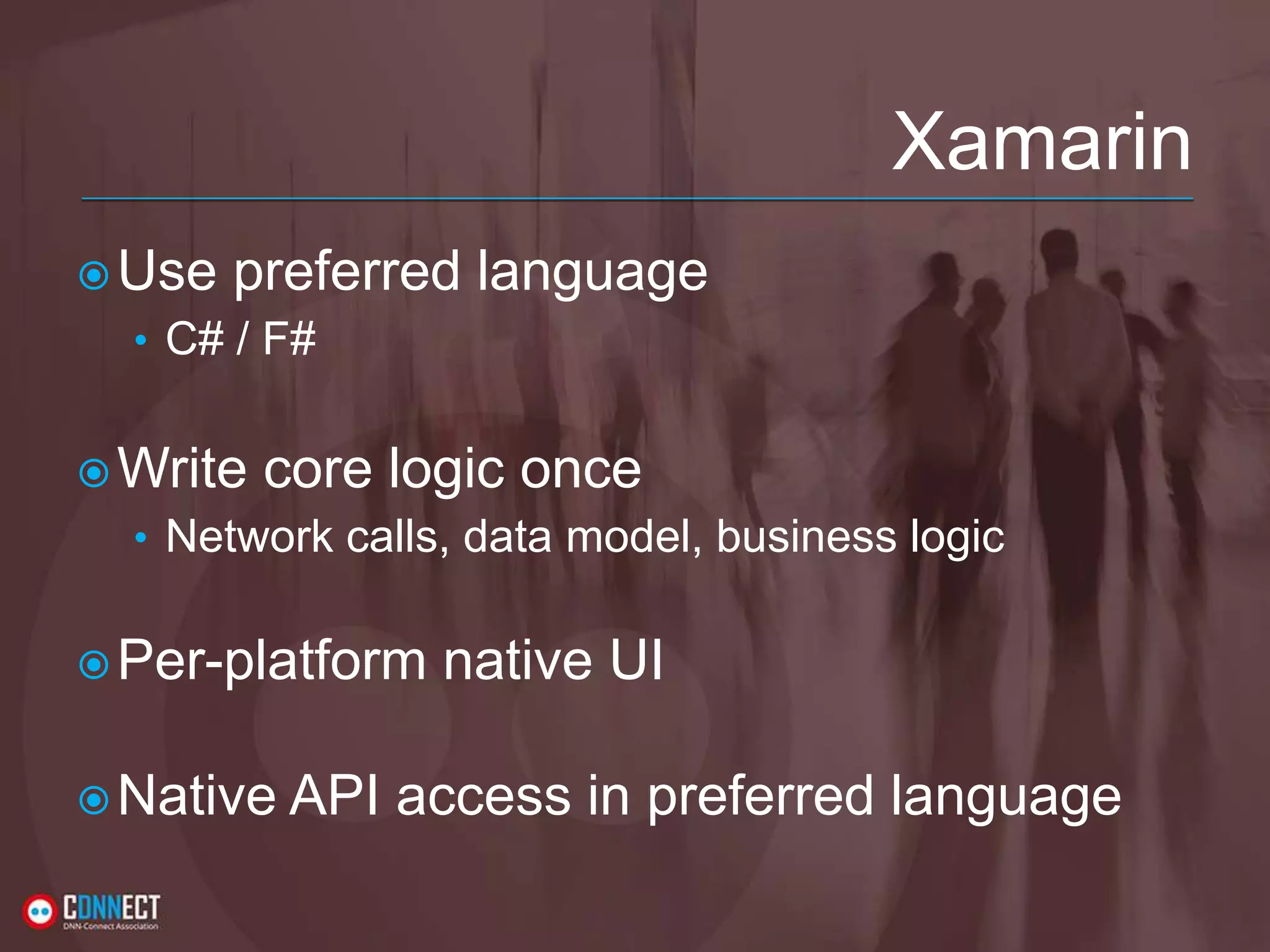

- 8. Xamarin Use preferred language •C# / F# Write core logic once • Network calls, data model, business logic Per-platform native UI Native API access in preferred language

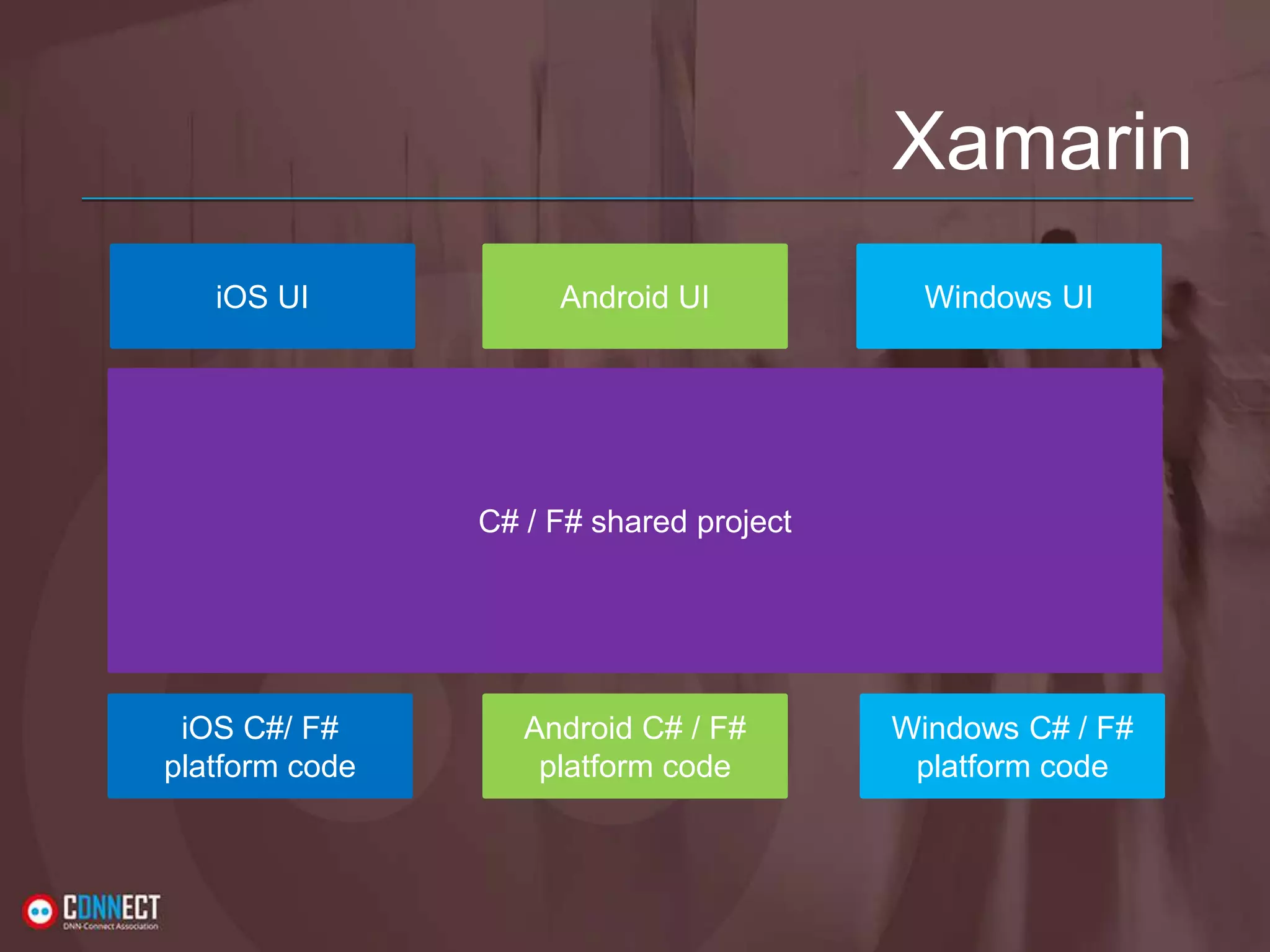

- 9. Xamarin C# / F#shared project Android UI Windows UIiOS UI iOS C#/ F# platform code Android C# / F# platform code Windows C# / F# platform code
- 10.
- 11.

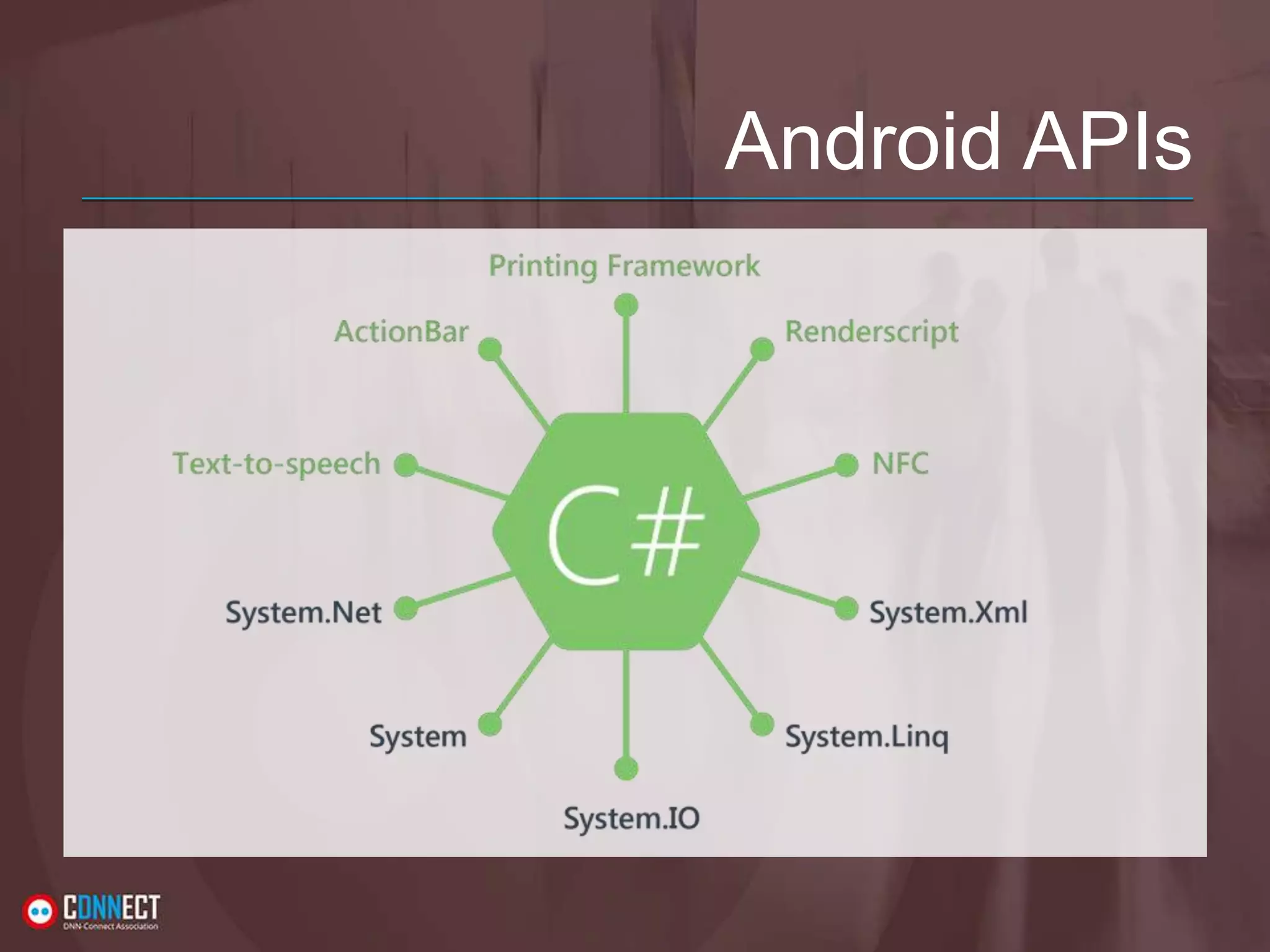

- 12.

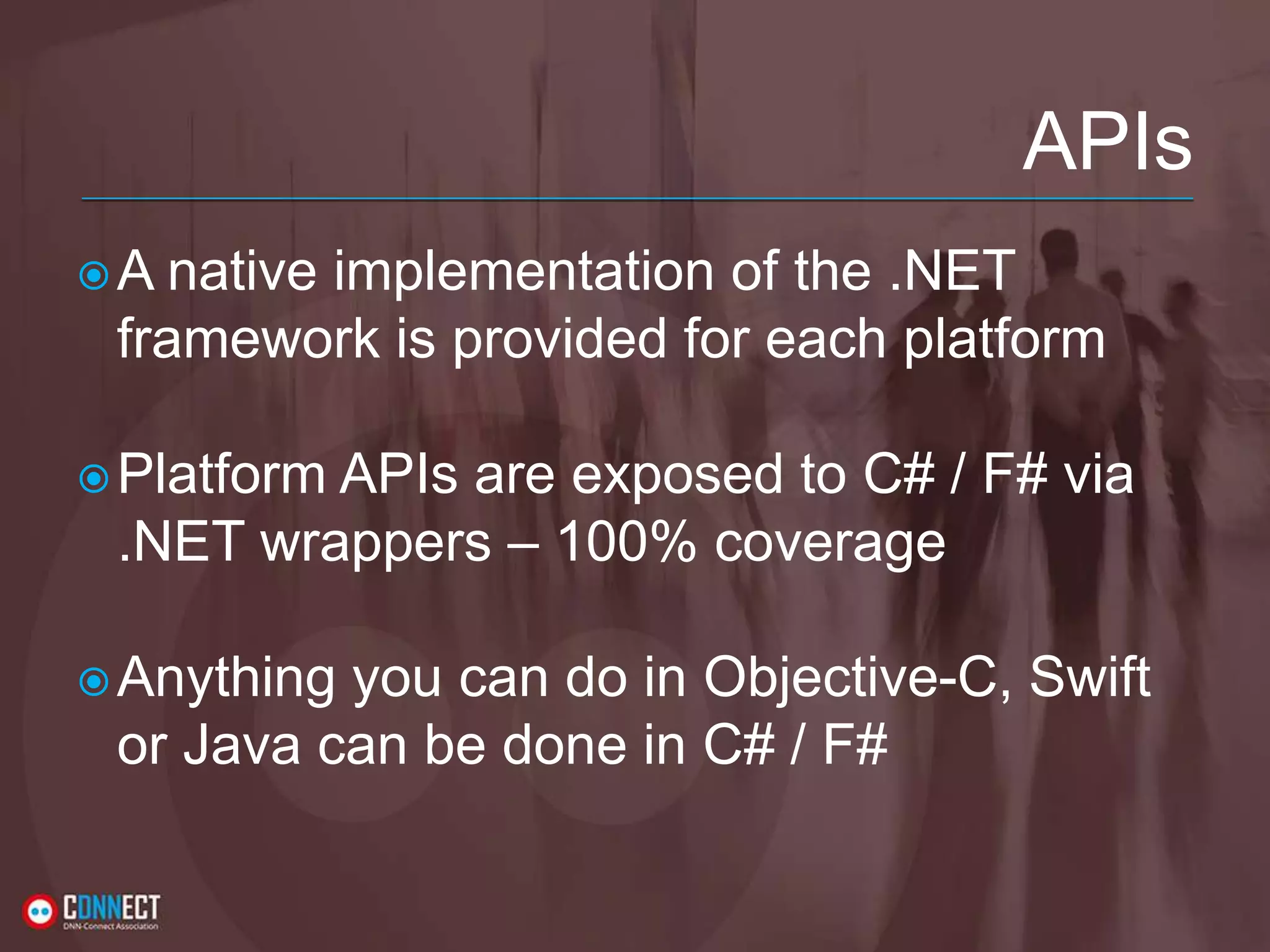

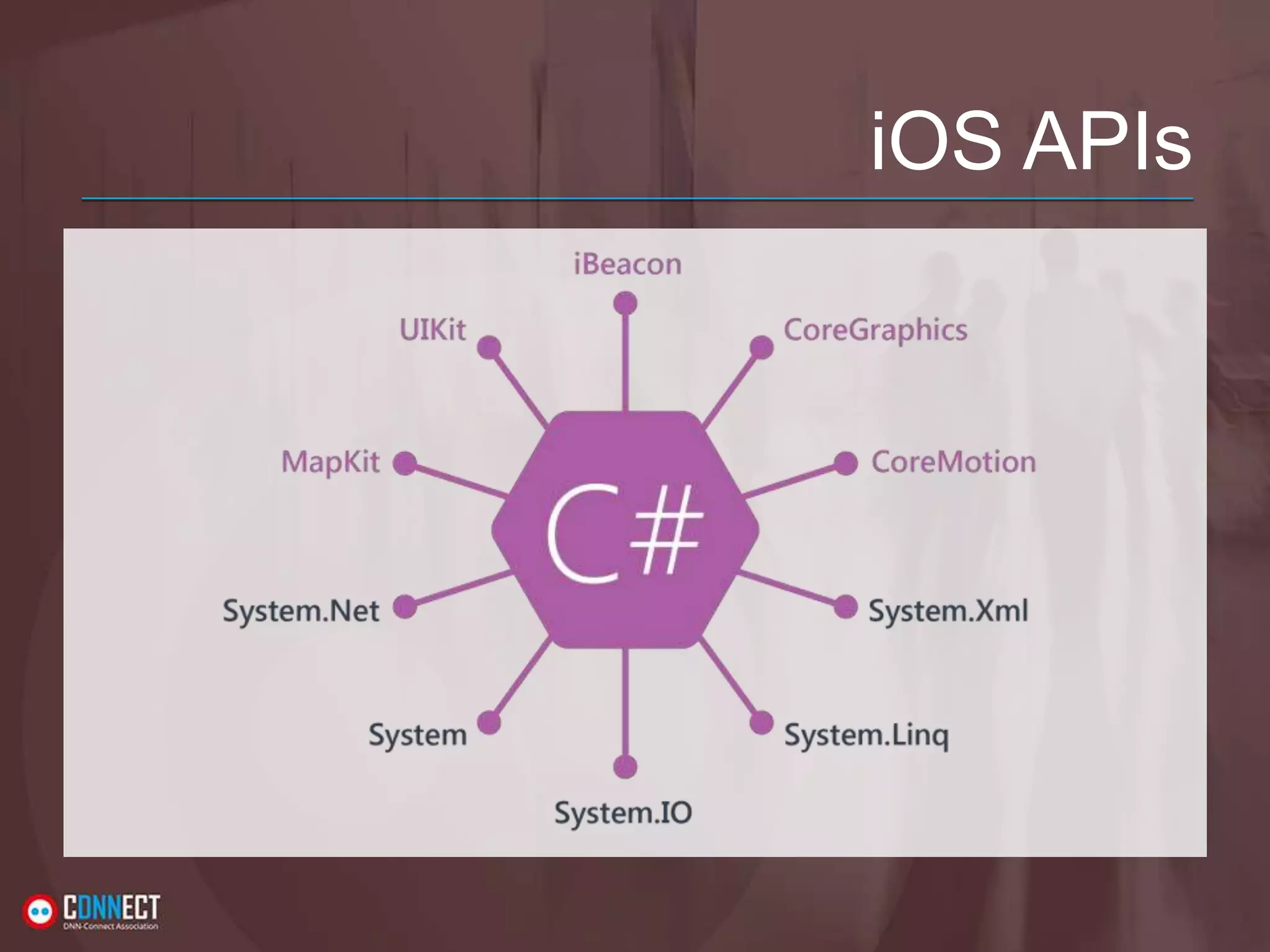

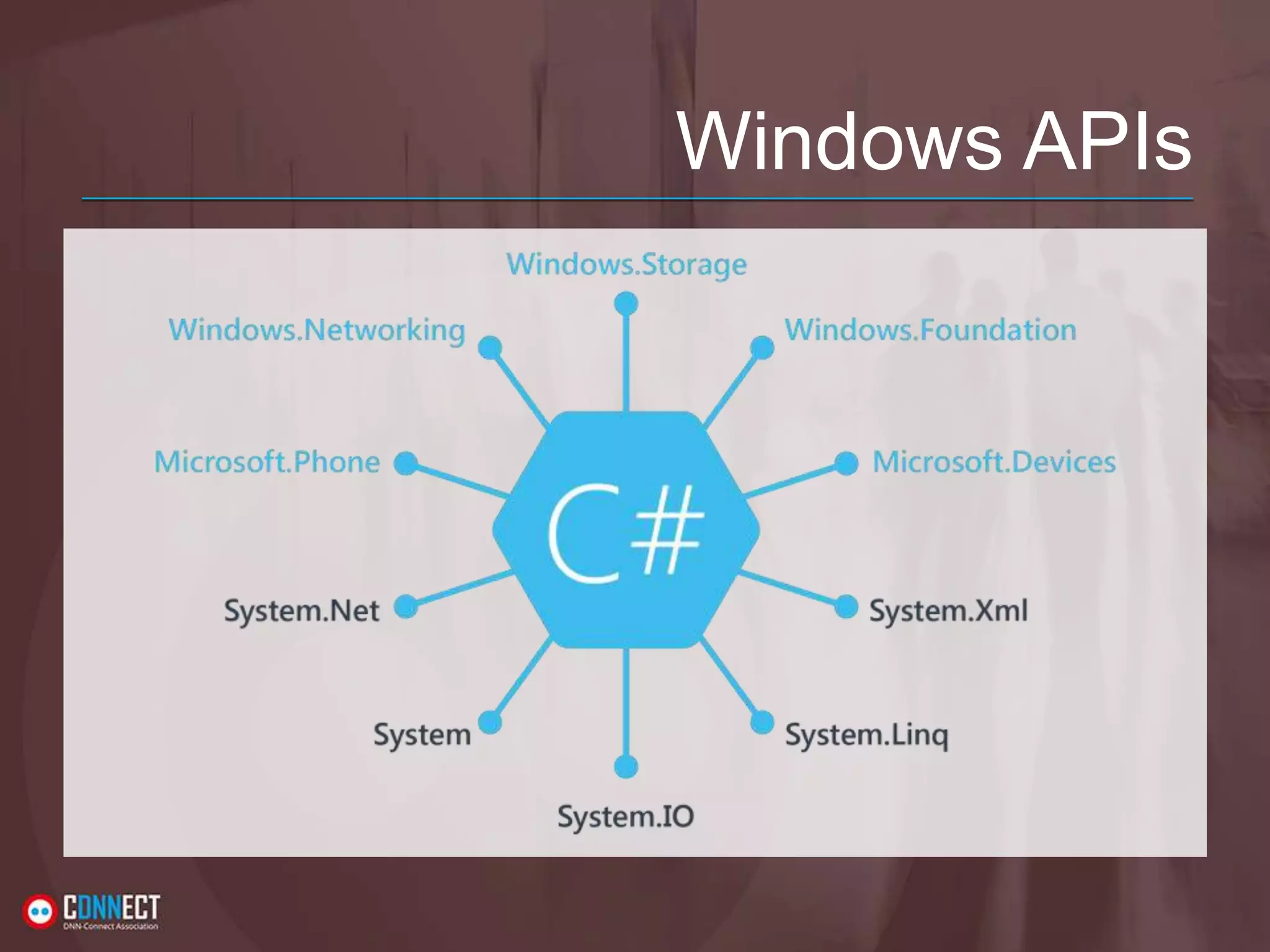

- 13. APIs A native implementationof the .NET framework is provided for each platform Platform APIs are exposed to C# / F# via .NET wrappers – 100% coverage Anything you can do in Objective-C, Swift or Java can be done in C# / F#

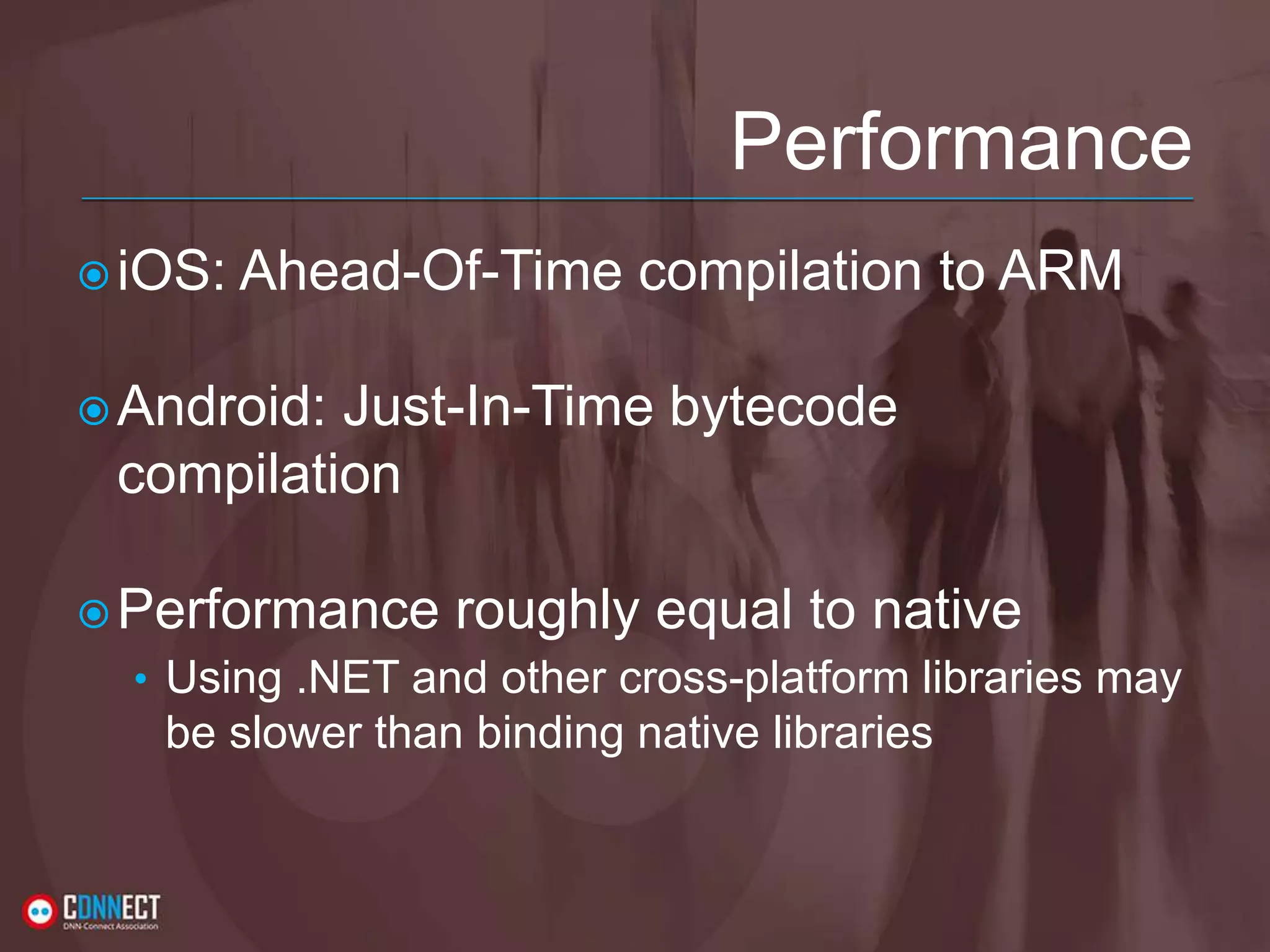

- 14. Performance iOS: Ahead-Of-Time compilationto ARM Android: Just-In-Time bytecode compilation Performance roughly equal to native • Using .NET and other cross-platform libraries may be slower than binding native libraries

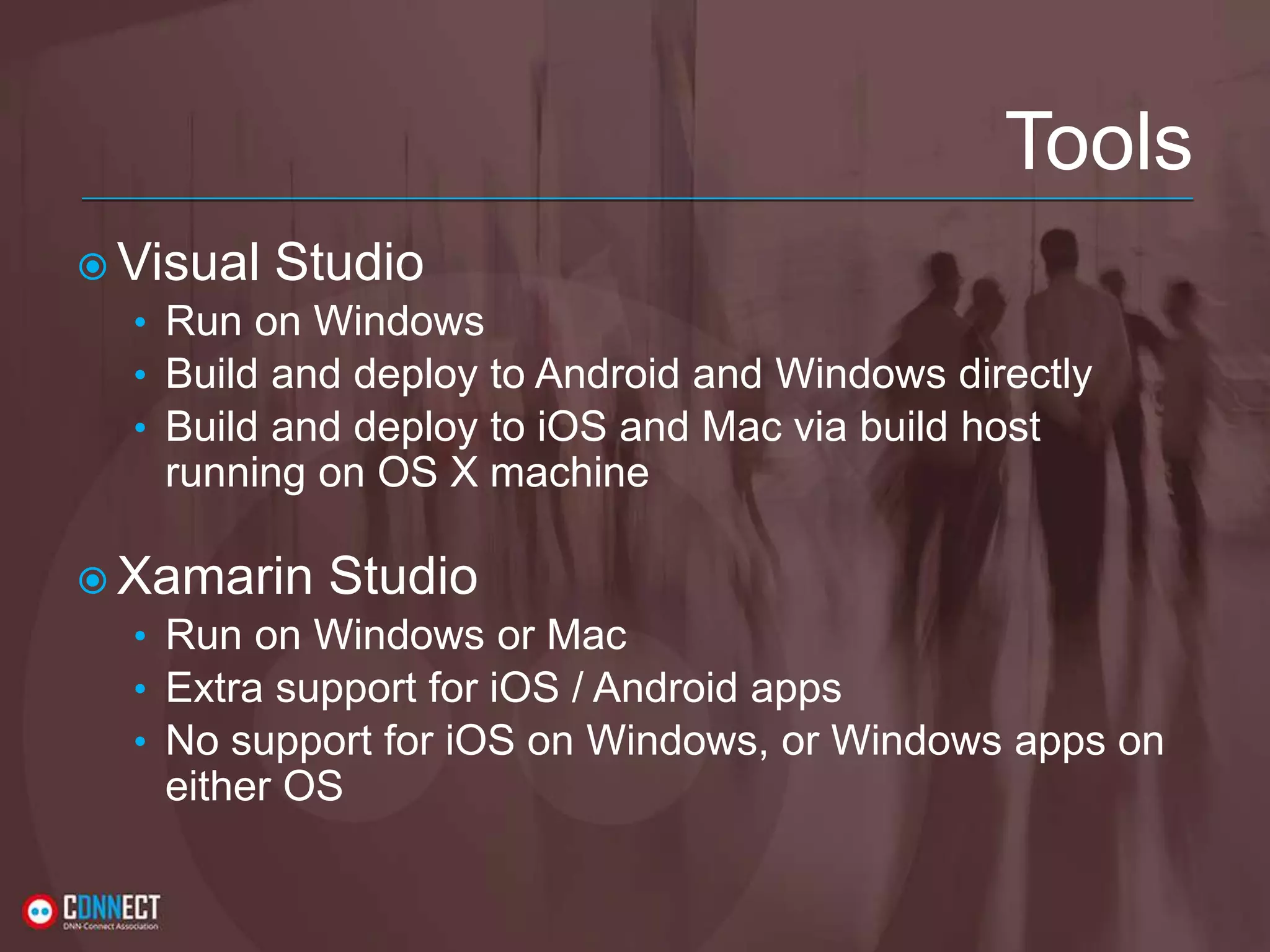

- 15. Tools Visual Studio •Run on Windows • Build and deploy to Android and Windows directly • Build and deploy to iOS and Mac via build host running on OS X machine Xamarin Studio • Run on Windows or Mac • Extra support for iOS / Android apps • No support for iOS on Windows, or Windows apps on either OS
- 16.

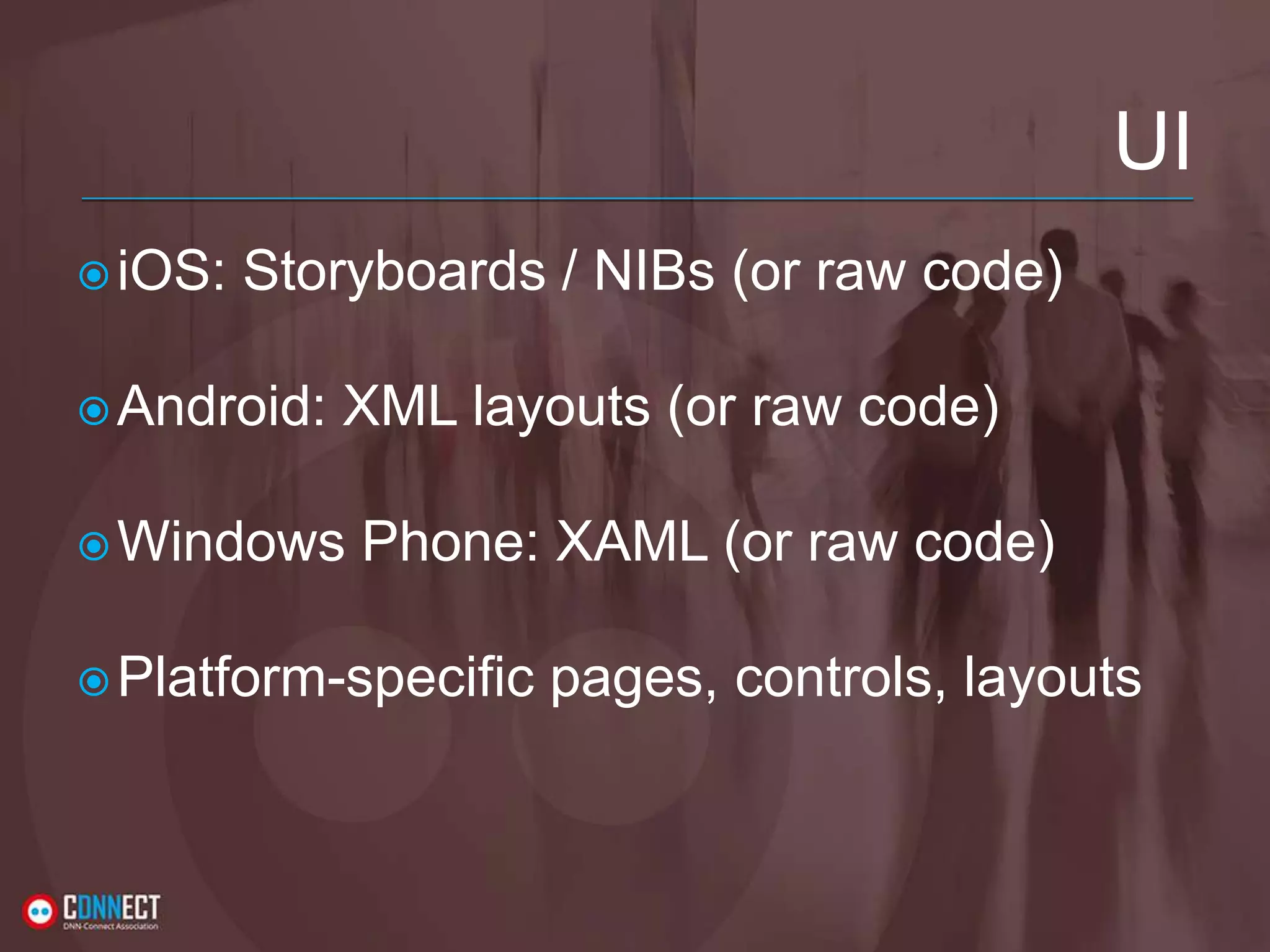

- 17. UI iOS: Storyboards /NIBs (or raw code) Android: XML layouts (or raw code) Windows Phone: XAML (or raw code) Platform-specific pages, controls, layouts

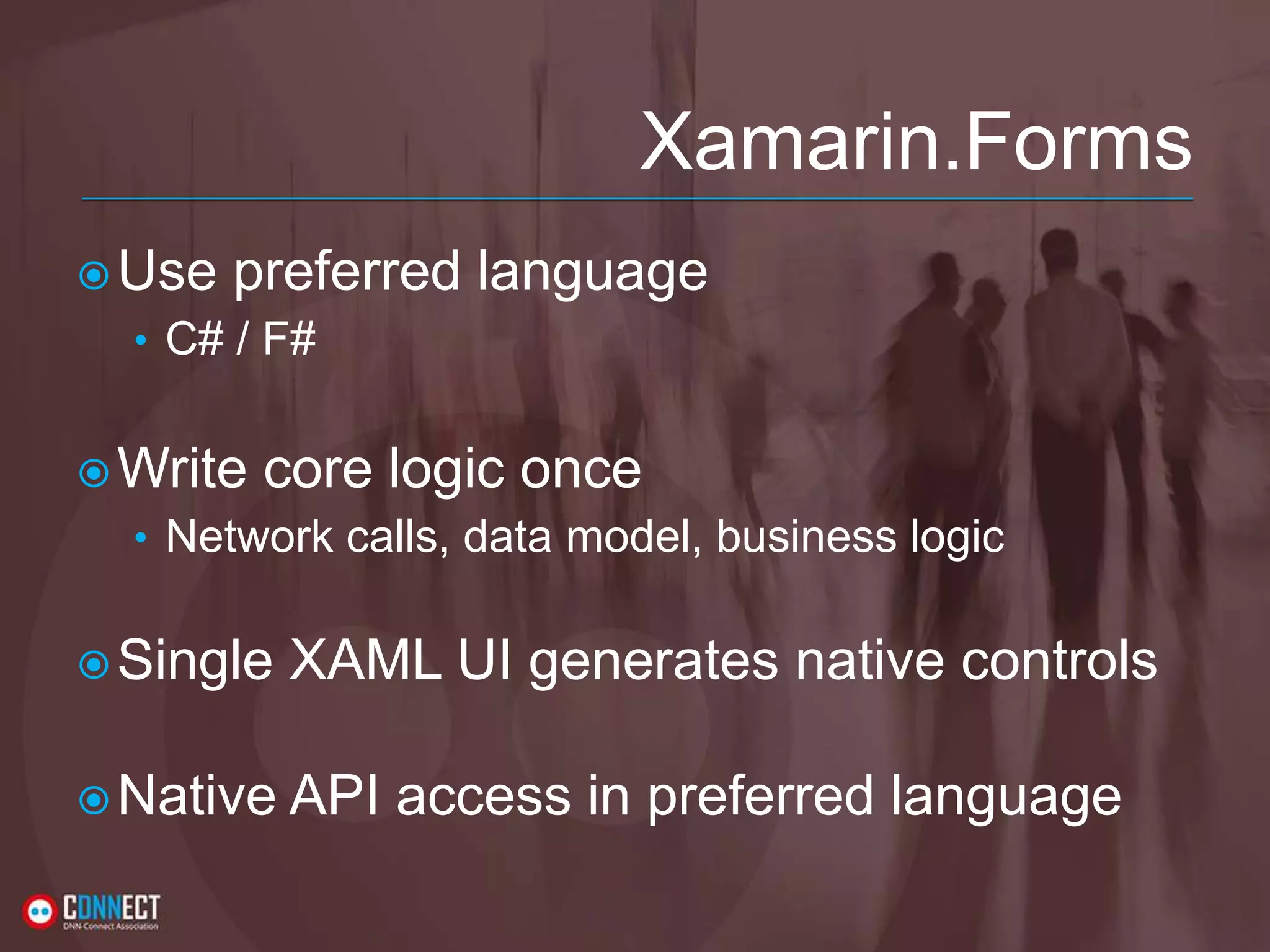

- 18. Xamarin.Forms Use preferred language •C# / F# Write core logic once • Network calls, data model, business logic Single XAML UI generates native controls Native API access in preferred language

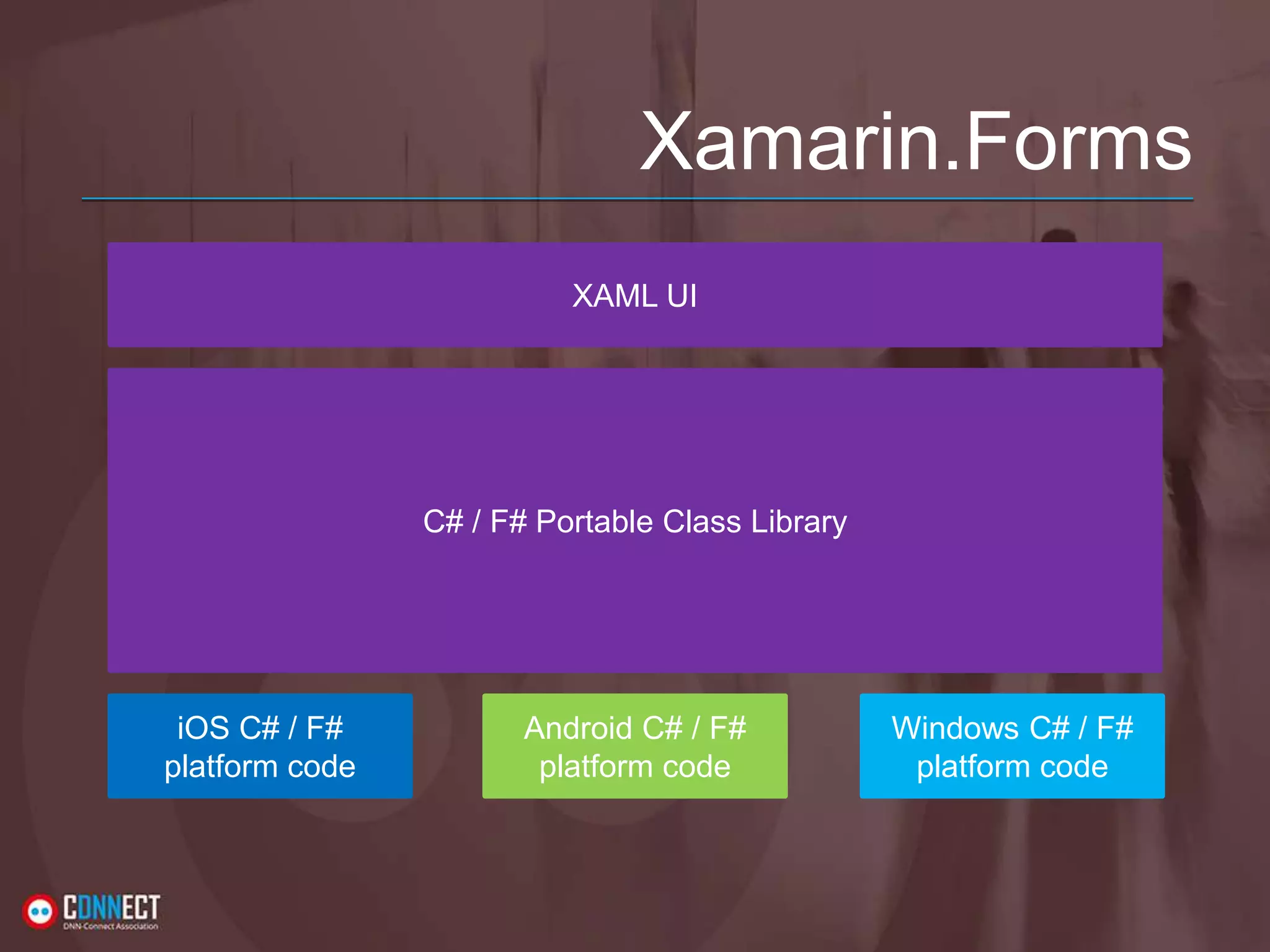

- 19. Xamarin.Forms C# / F#Portable Class Library iOS C# / F# platform code Android C# / F# platform code Windows C# / F# platform code XAML UI

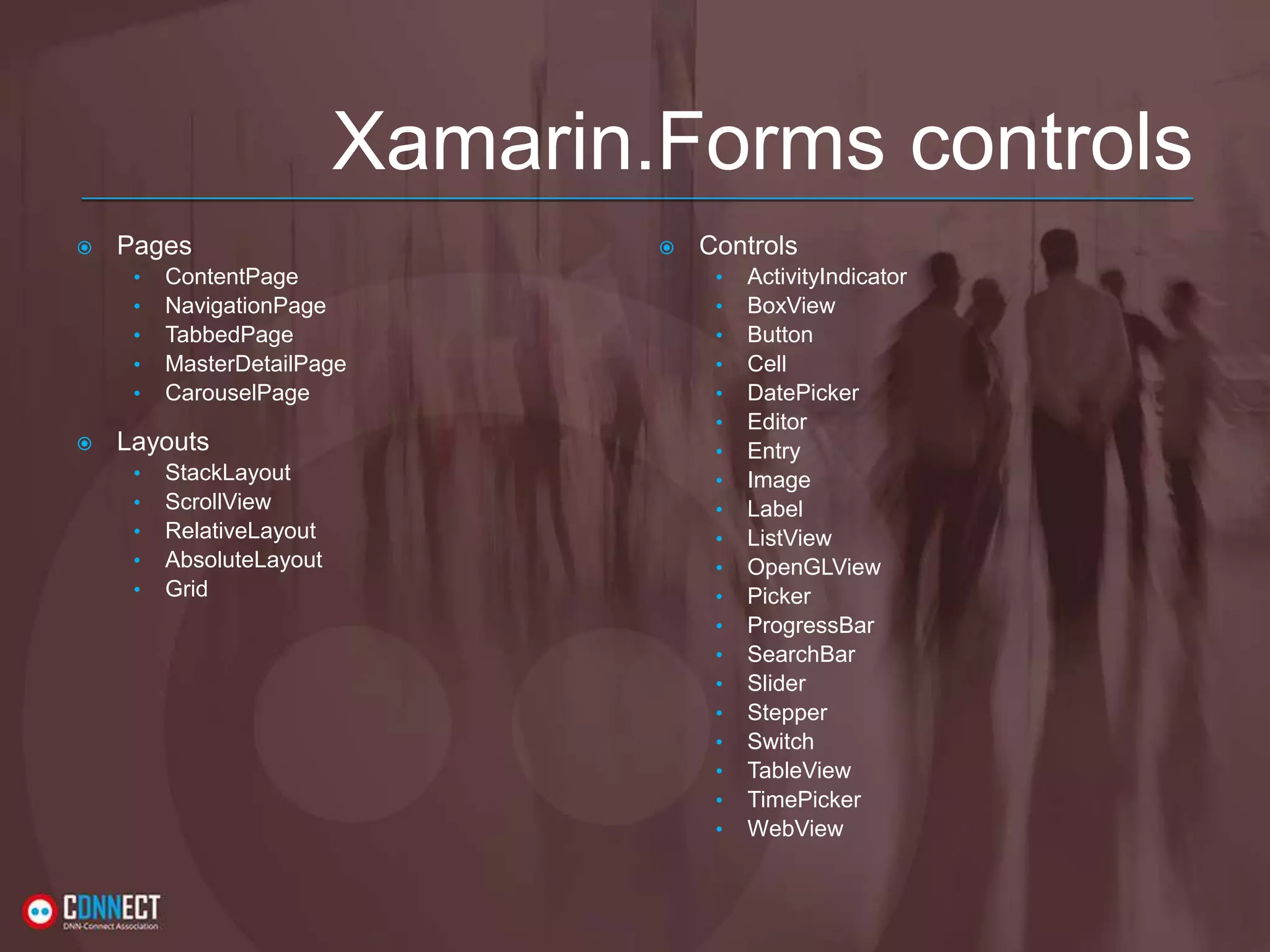

- 20. Xamarin.Forms controls Pages •ContentPage • NavigationPage • TabbedPage • MasterDetailPage • CarouselPage Layouts • StackLayout • ScrollView • RelativeLayout • AbsoluteLayout • Grid Controls • ActivityIndicator • BoxView • Button • Cell • DatePicker • Editor • Entry • Image • Label • ListView • OpenGLView • Picker • ProgressBar • SearchBar • Slider • Stepper • Switch • TableView • TimePicker • WebView

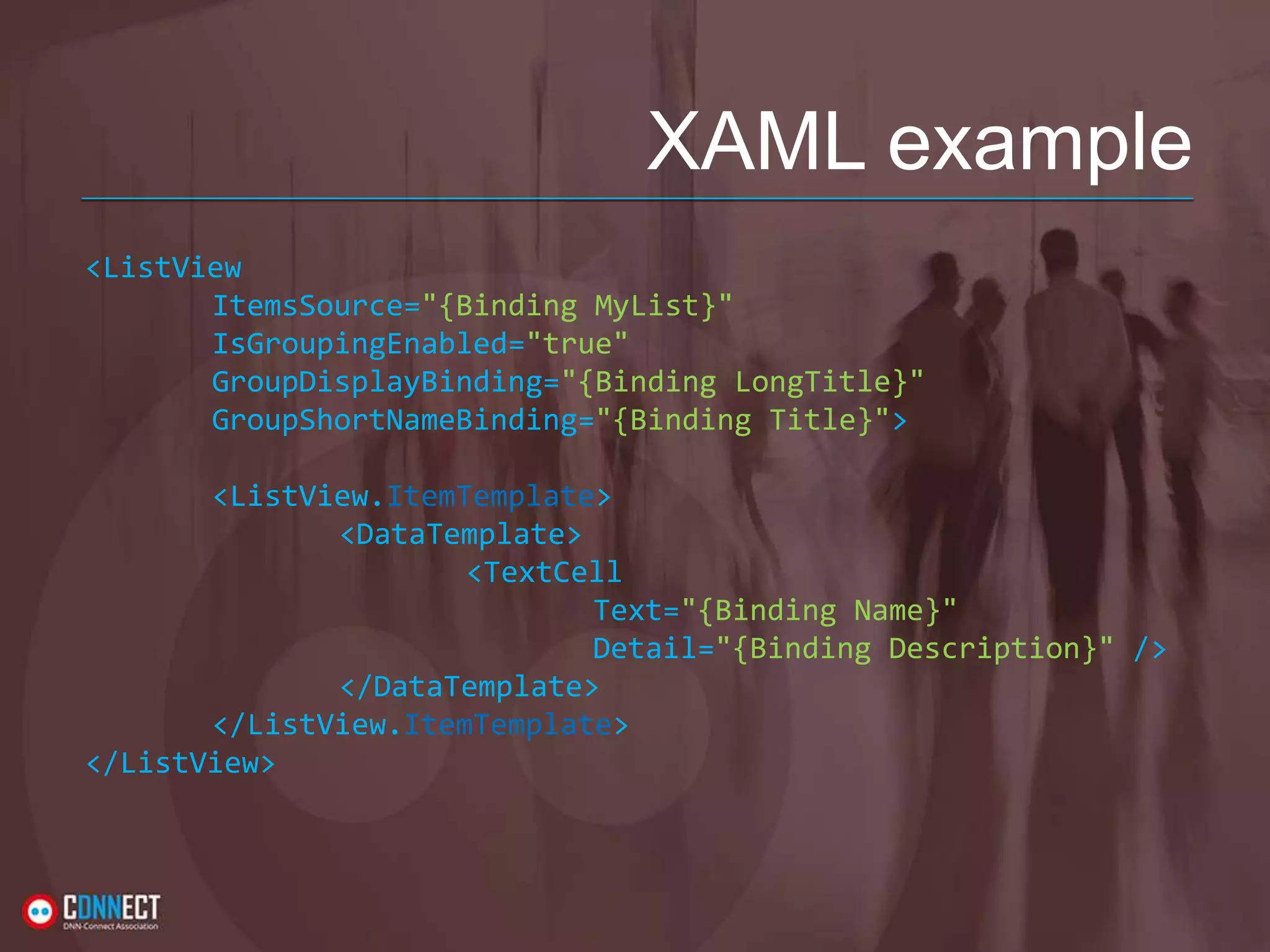

- 21. XAML example <ListView ItemsSource="{Binding MyList}" IsGroupingEnabled="true" GroupDisplayBinding="{BindingLongTitle}" GroupShortNameBinding="{Binding Title}"> <ListView.ItemTemplate> <DataTemplate> <TextCell Text="{Binding Name}" Detail="{Binding Description}" /> </DataTemplate> </ListView.ItemTemplate> </ListView>
- 22.

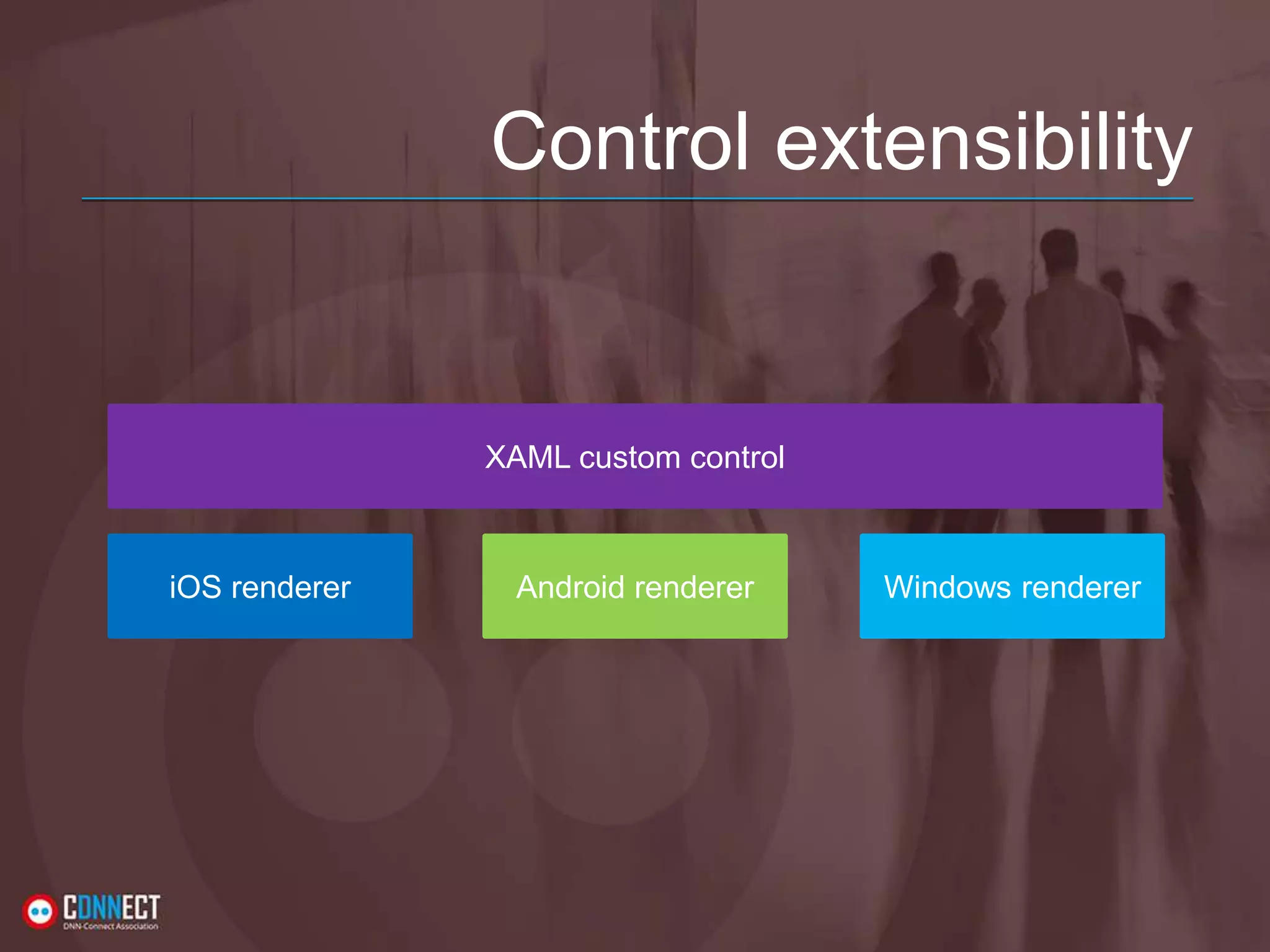

- 23. Control extensibility iOS rendererAndroid renderer Windows renderer XAML custom control
- 24.
- 25.
