Designing REST services with Spring MVC
This document discusses designing REST services with Spring MVC. It covers REST concepts like CRUD operations, status codes, and media types. It also discusses Spring MVC tools for building REST APIs, including @RestController, @RequestMapping, and testing with MockMVC. Additional topics include caching, version handling, and scaling with a CDN.
Designing REST services with Spring MVC
- 1. Designing REST serviceswith Spring MVC Serhii Kartashov December 2015 Softjourn Internship

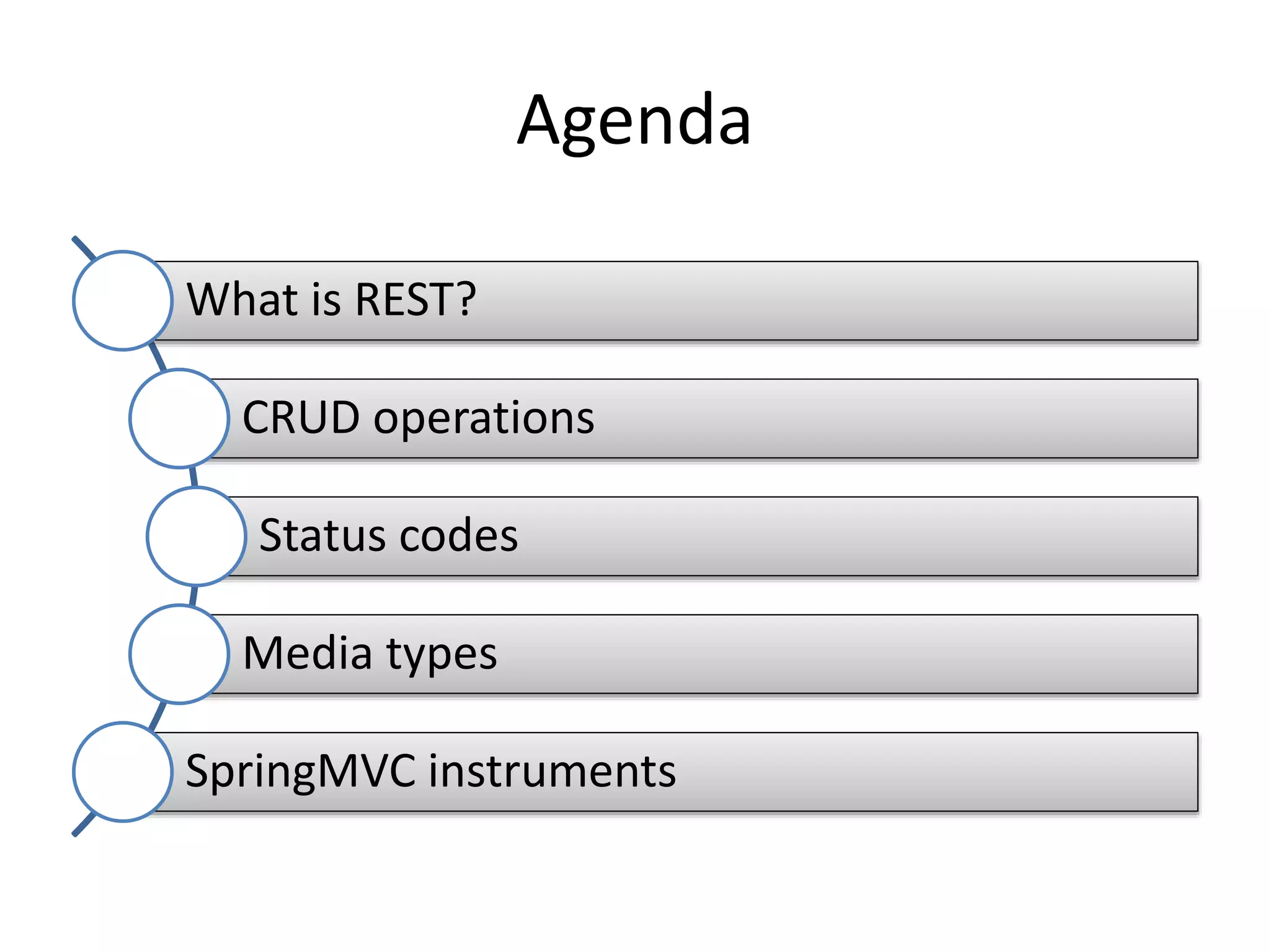

- 2. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

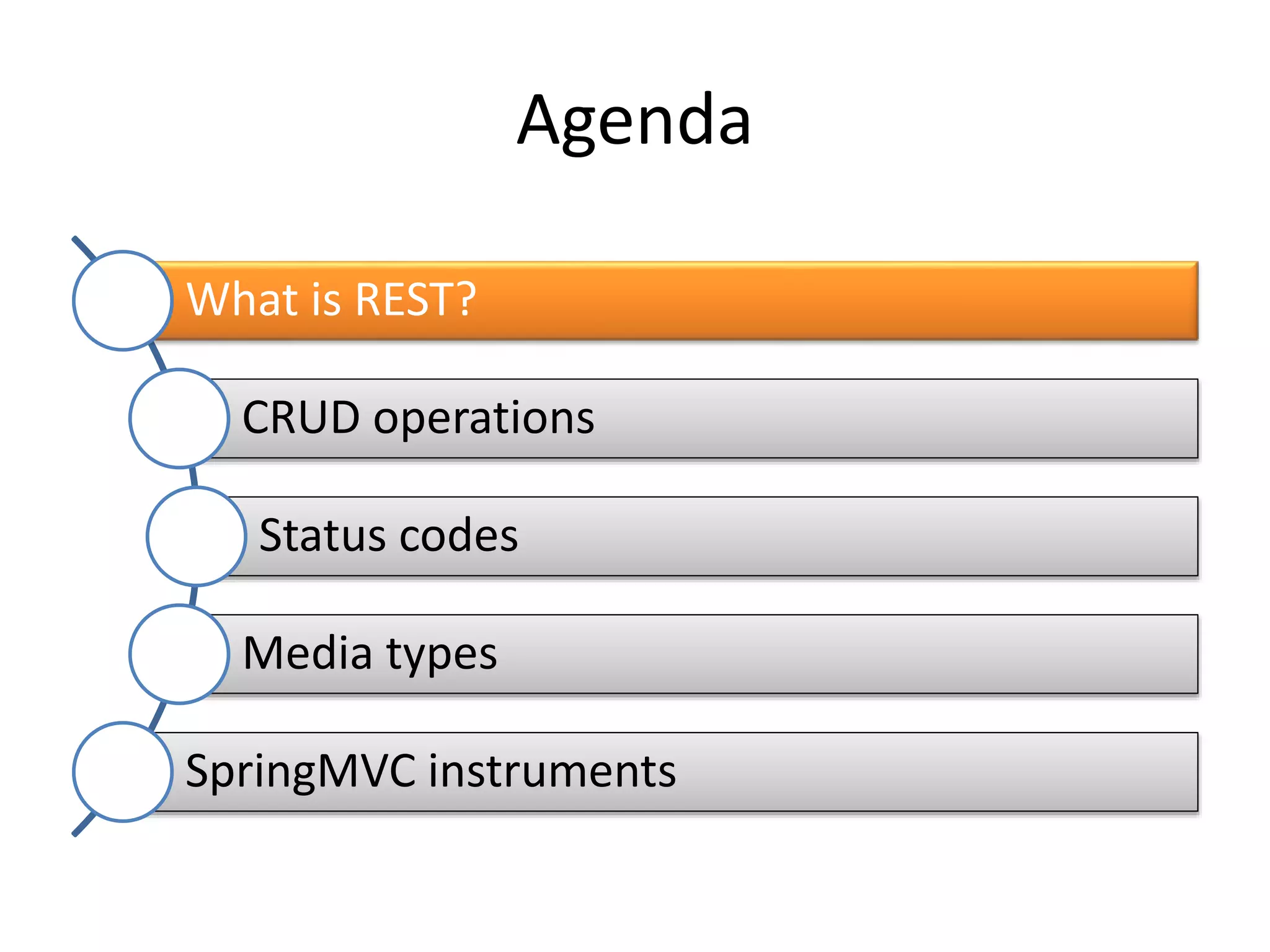

- 3. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

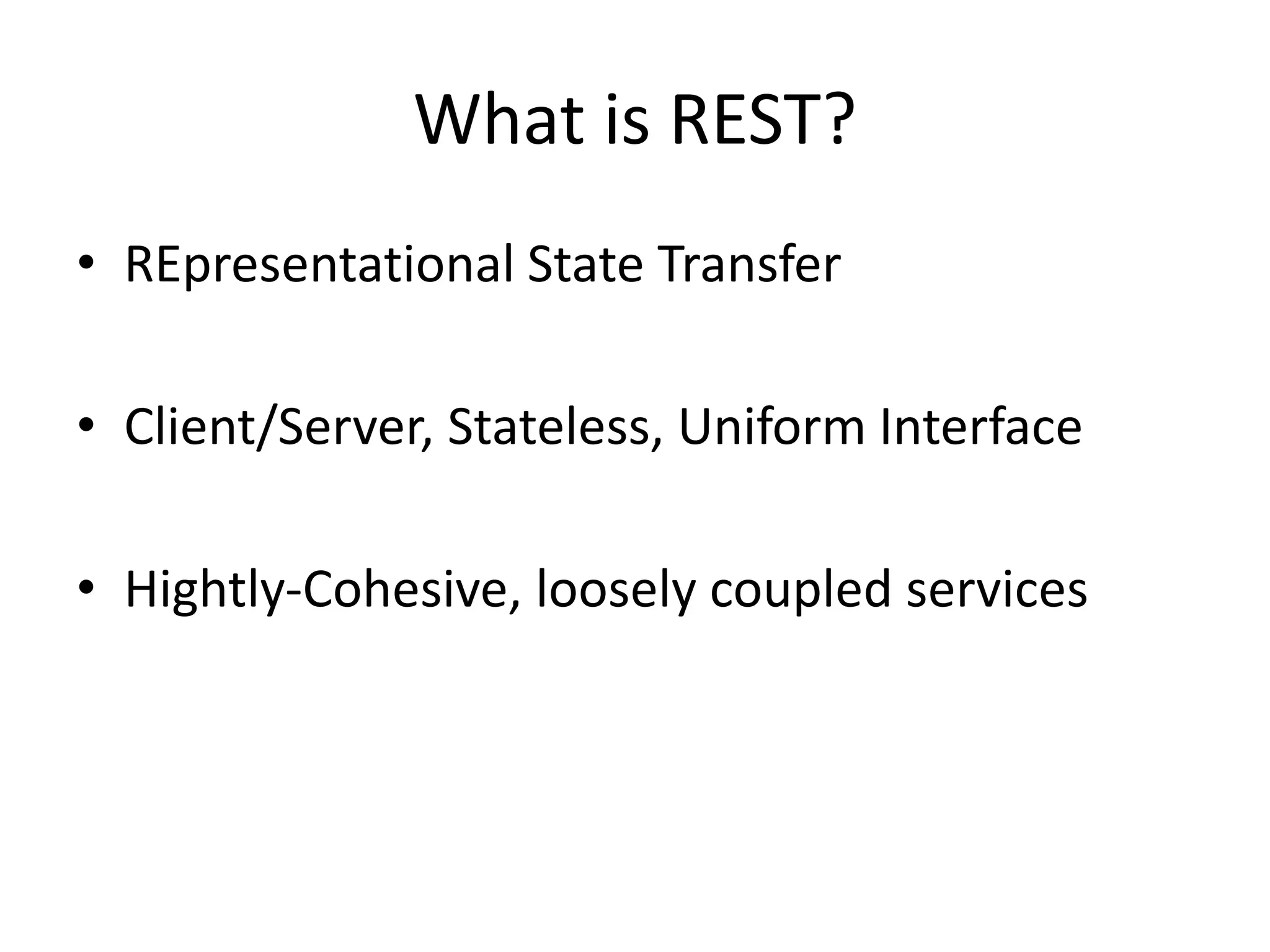

- 4. What is REST? •REpresentational State Transfer • Client/Server, Stateless, Uniform Interface • Hightly-Cohesive, loosely coupled services

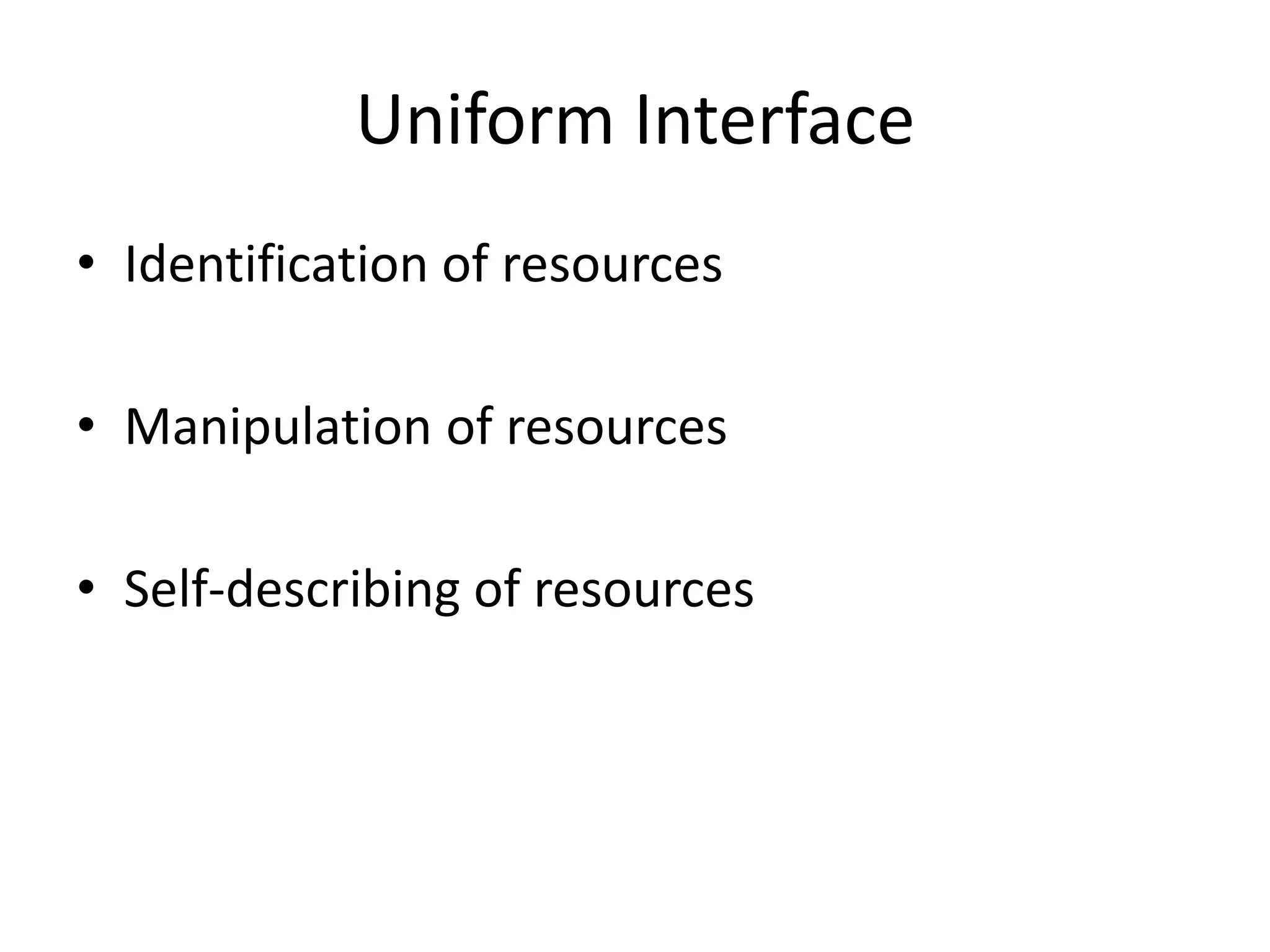

- 5. Uniform Interface • Identificationof resources • Manipulation of resources • Self-describing of resources

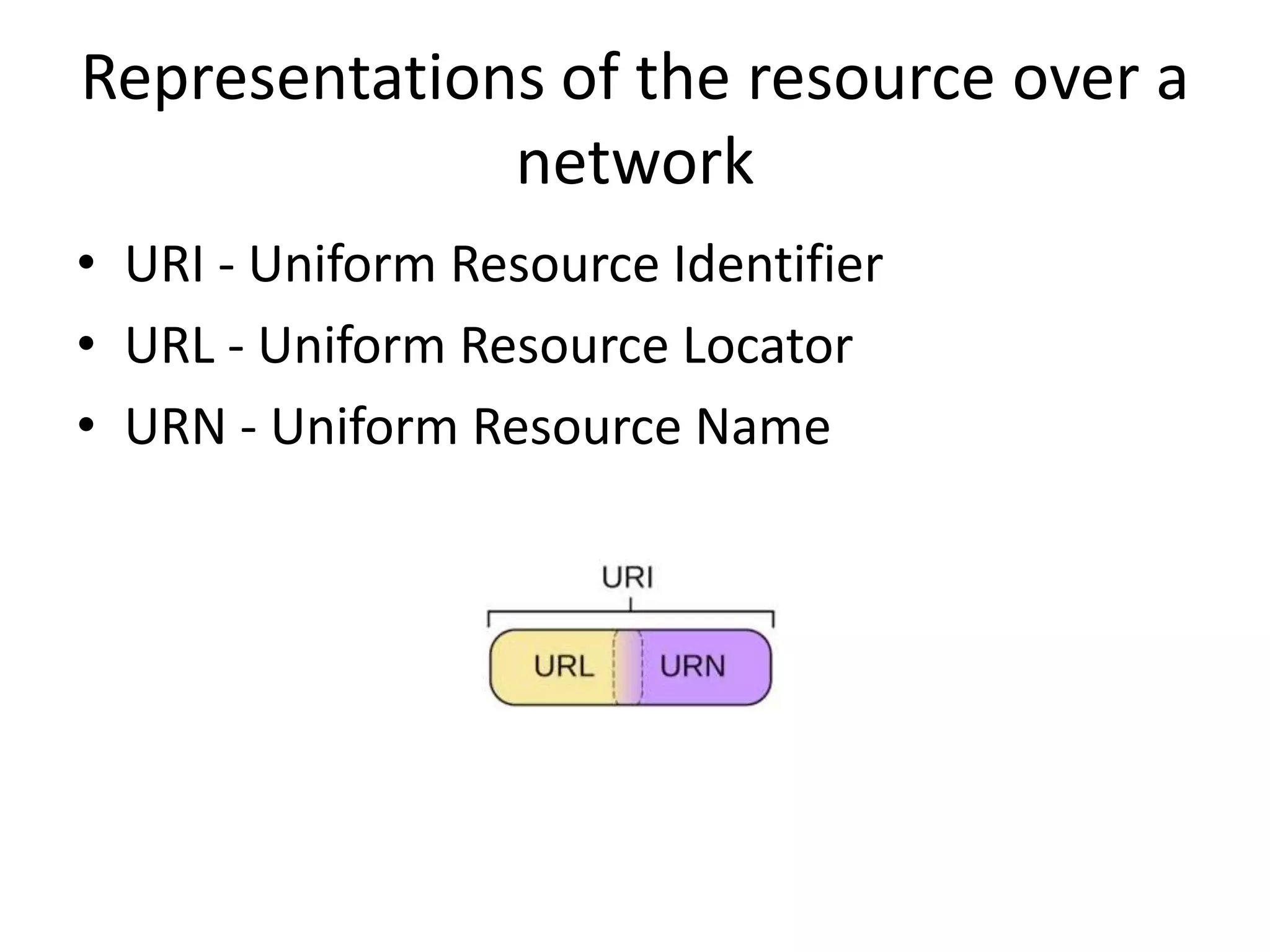

- 6. Representations of theresource over a network • URI - Uniform Resource Identifier • URL - Uniform Resource Locator • URN - Uniform Resource Name

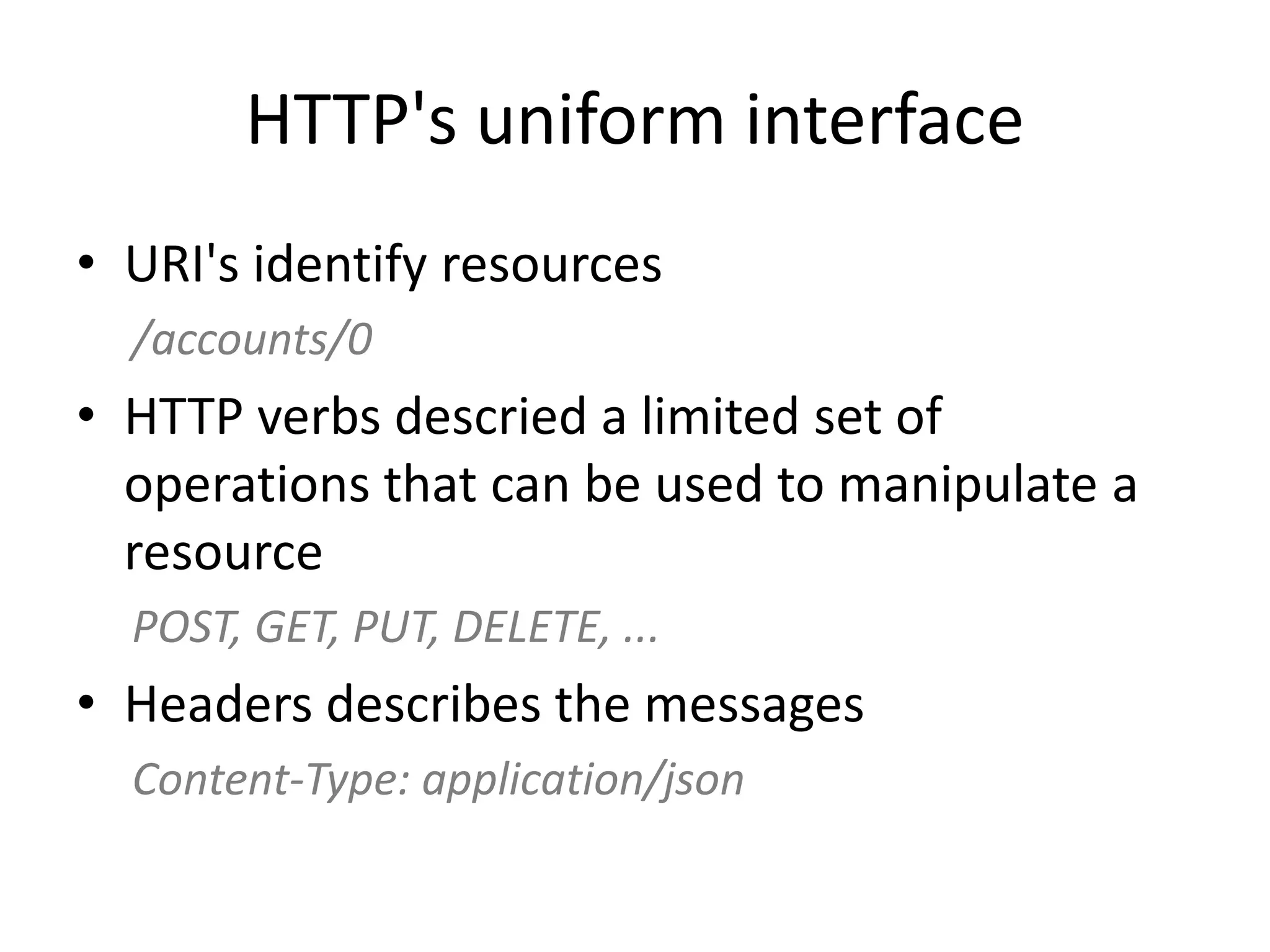

- 7. HTTP's uniform interface •URI's identify resources /accounts/0 • HTTP verbs descried a limited set of operations that can be used to manipulate a resource POST, GET, PUT, DELETE, ... • Headers describes the messages Content-Type: application/json

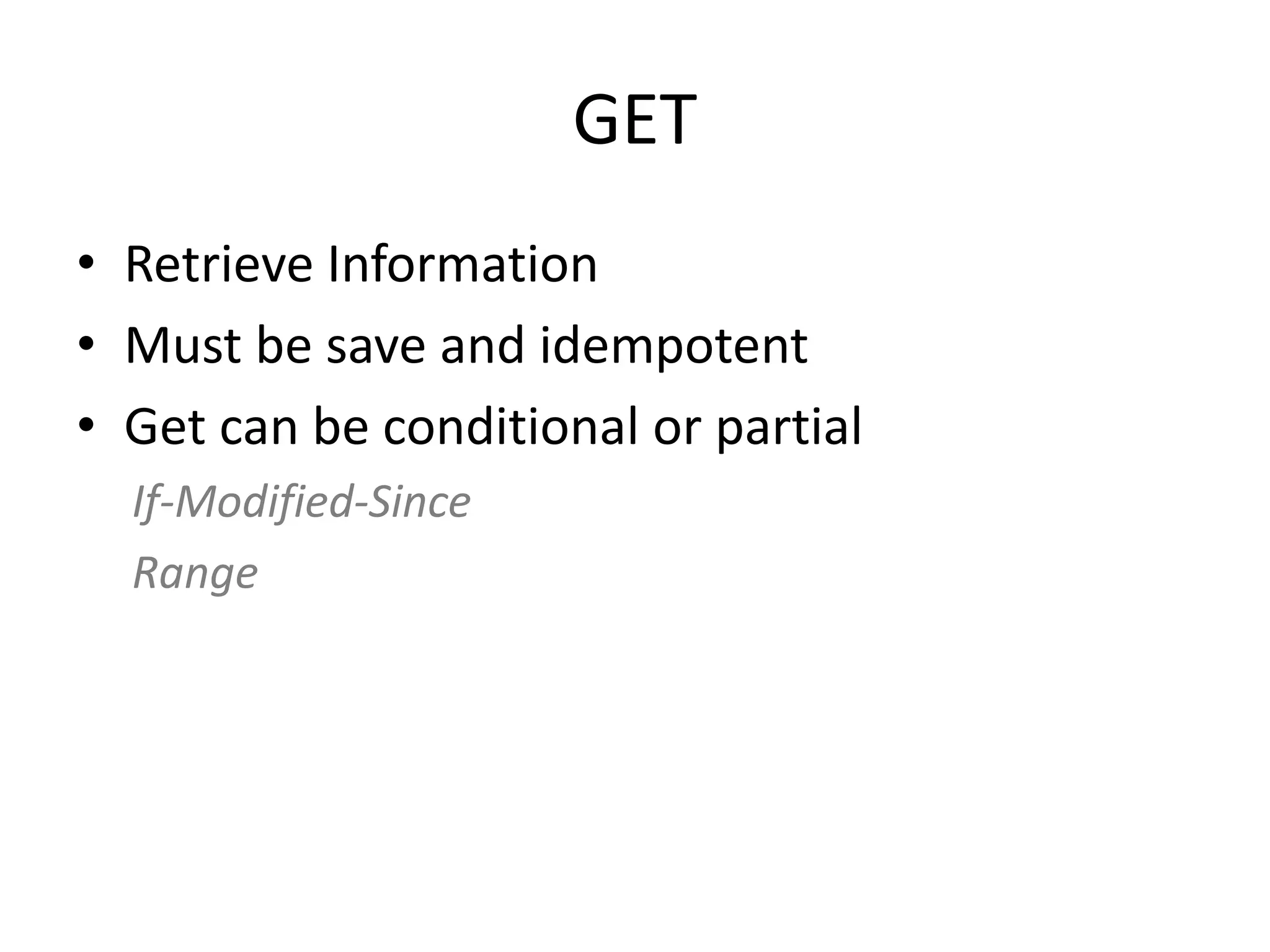

- 8. GET • Retrieve Information •Must be save and idempotent • Get can be conditional or partial If-Modified-Since Range

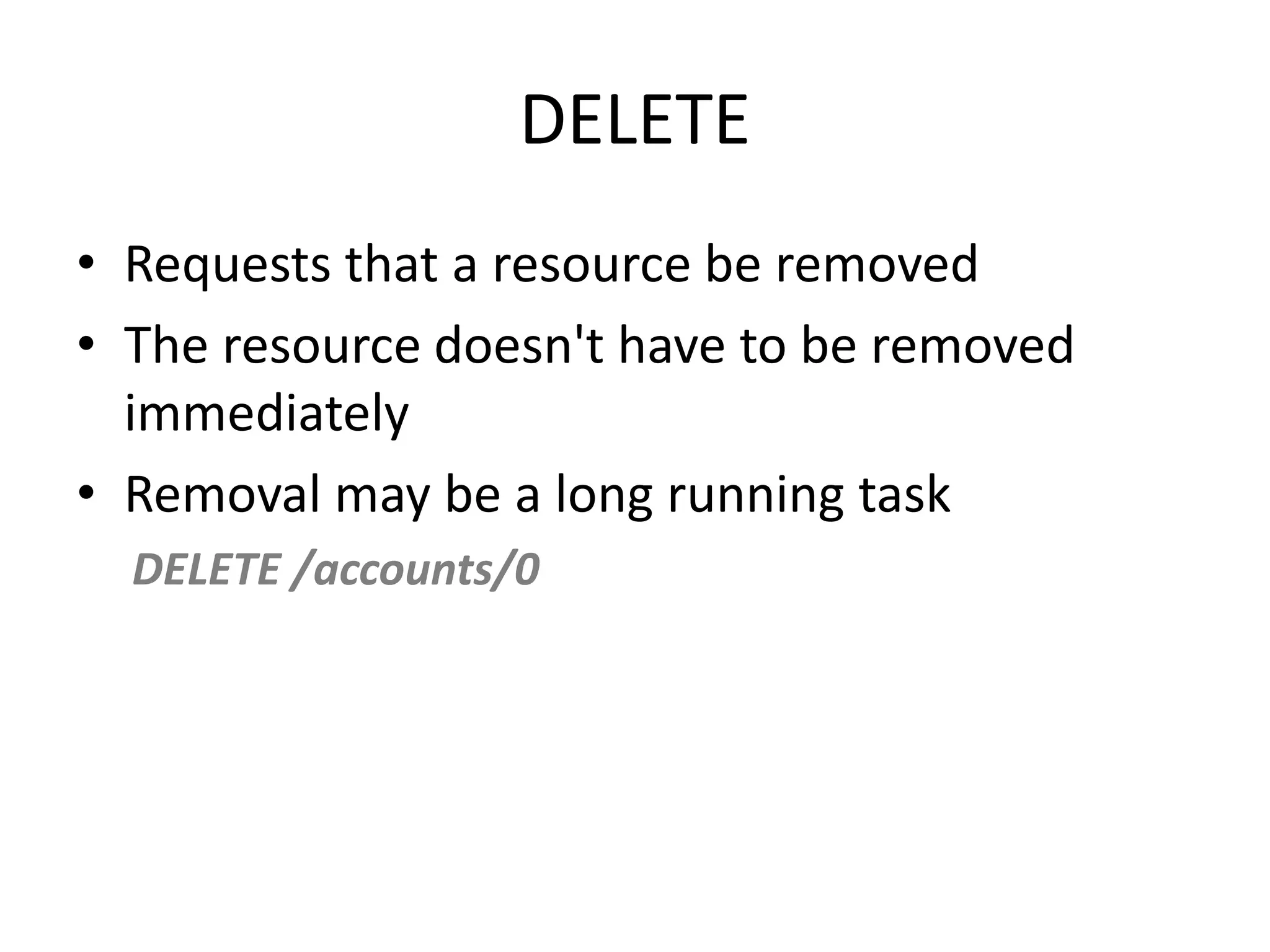

- 9. DELETE • Requests thata resource be removed • The resource doesn't have to be removed immediately • Removal may be a long running task DELETE /accounts/0

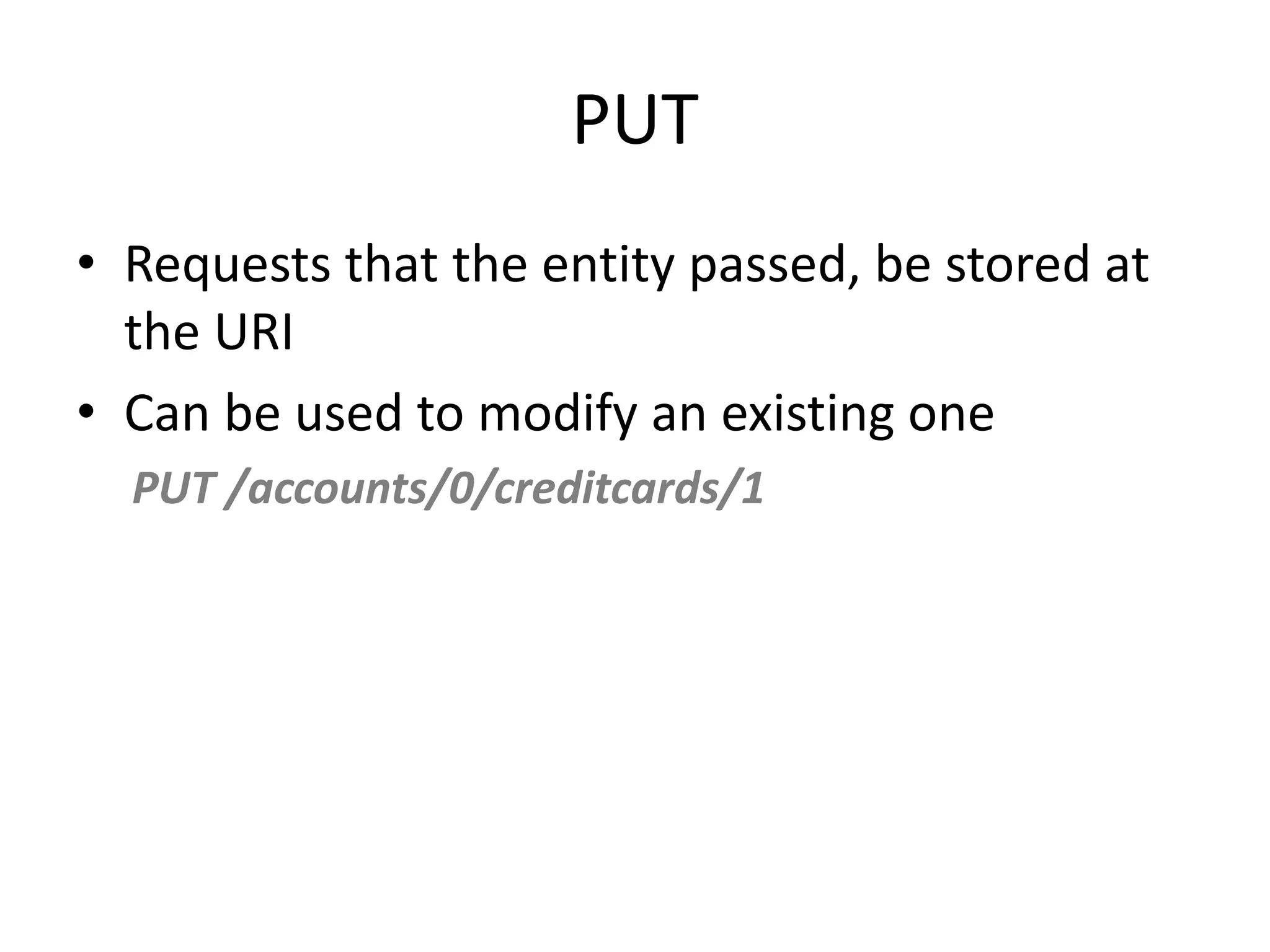

- 10. PUT • Requests thatthe entity passed, be stored at the URI • Can be used to modify an existing one PUT /accounts/0/creditcards/1

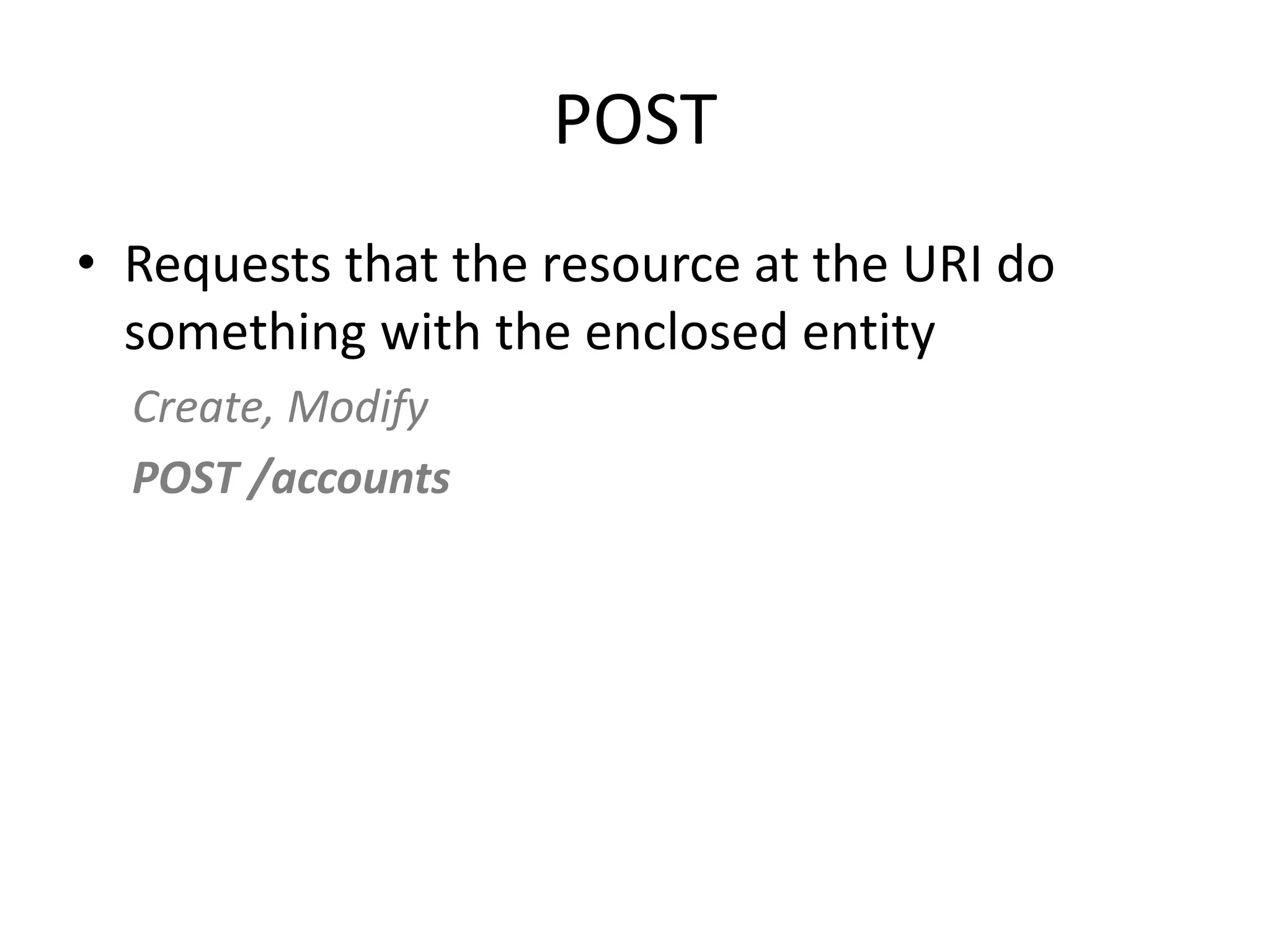

- 11. POST • Requests thatthe resource at the URI do something with the enclosed entity Create, Modify POST /accounts

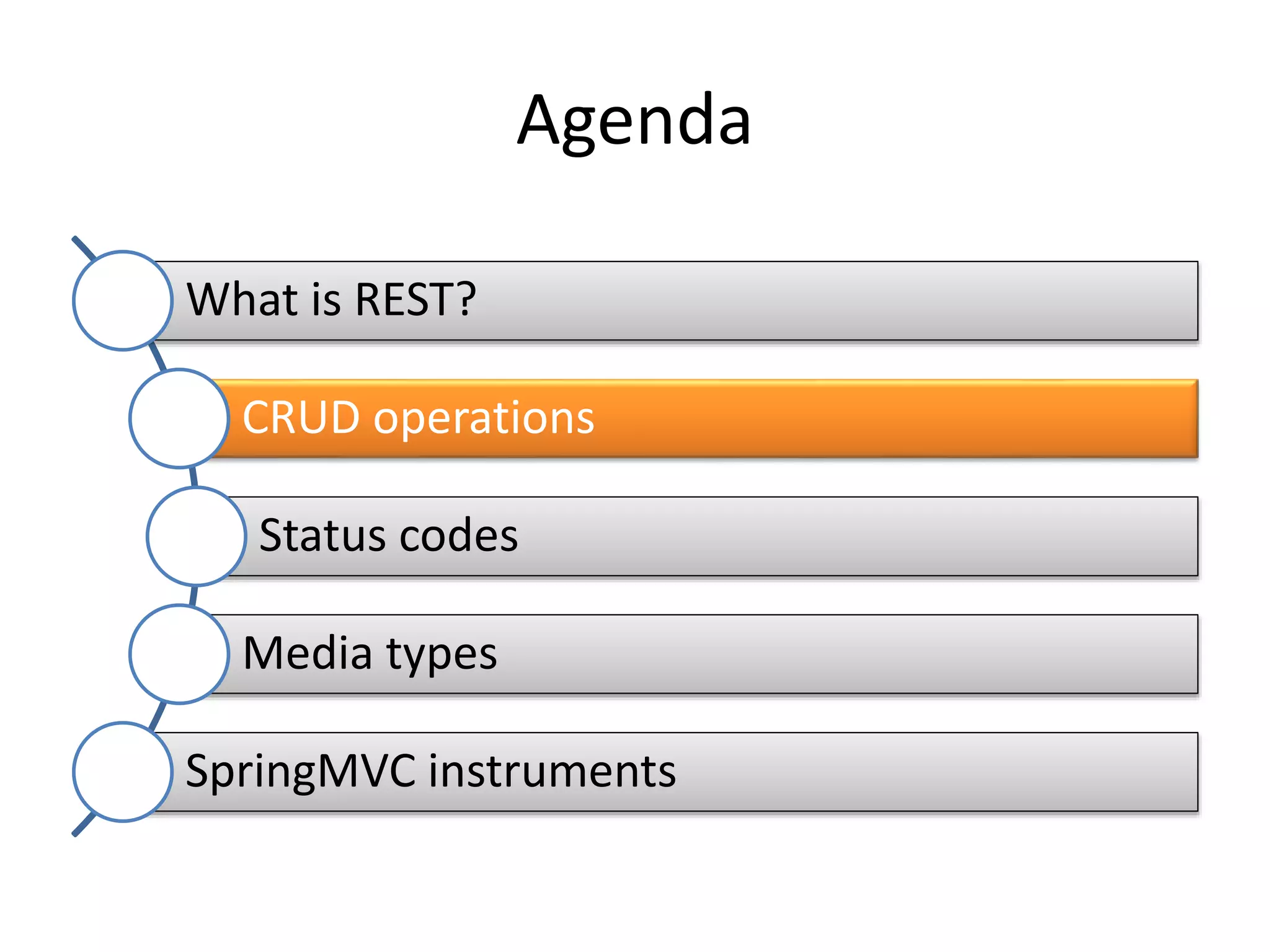

- 12. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

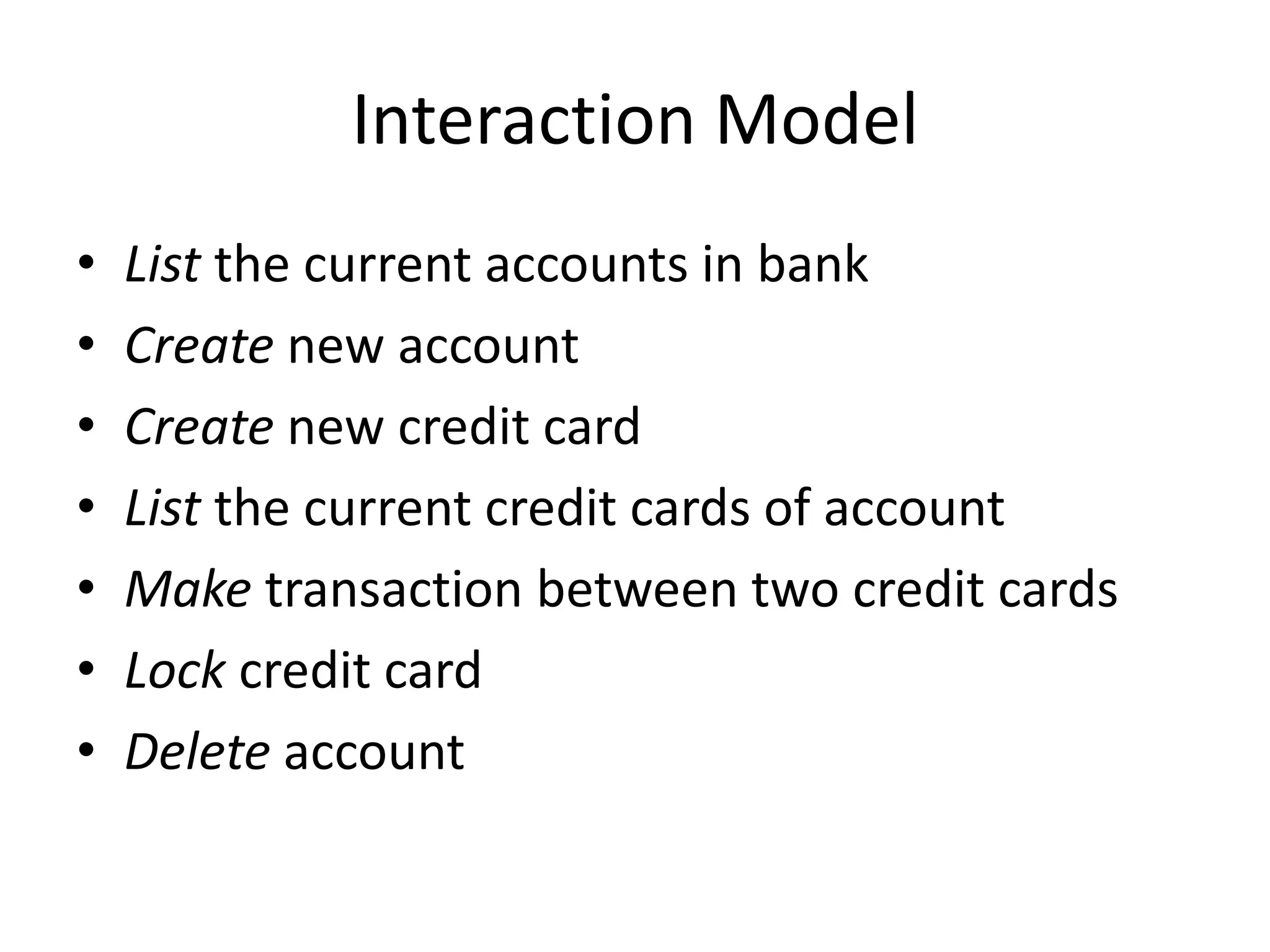

- 13. Interaction Model • Listthe current accounts in bank • Create new account • Create new credit card • List the current credit cards of account • Make transaction between two credit cards • Lock credit card • Delete account

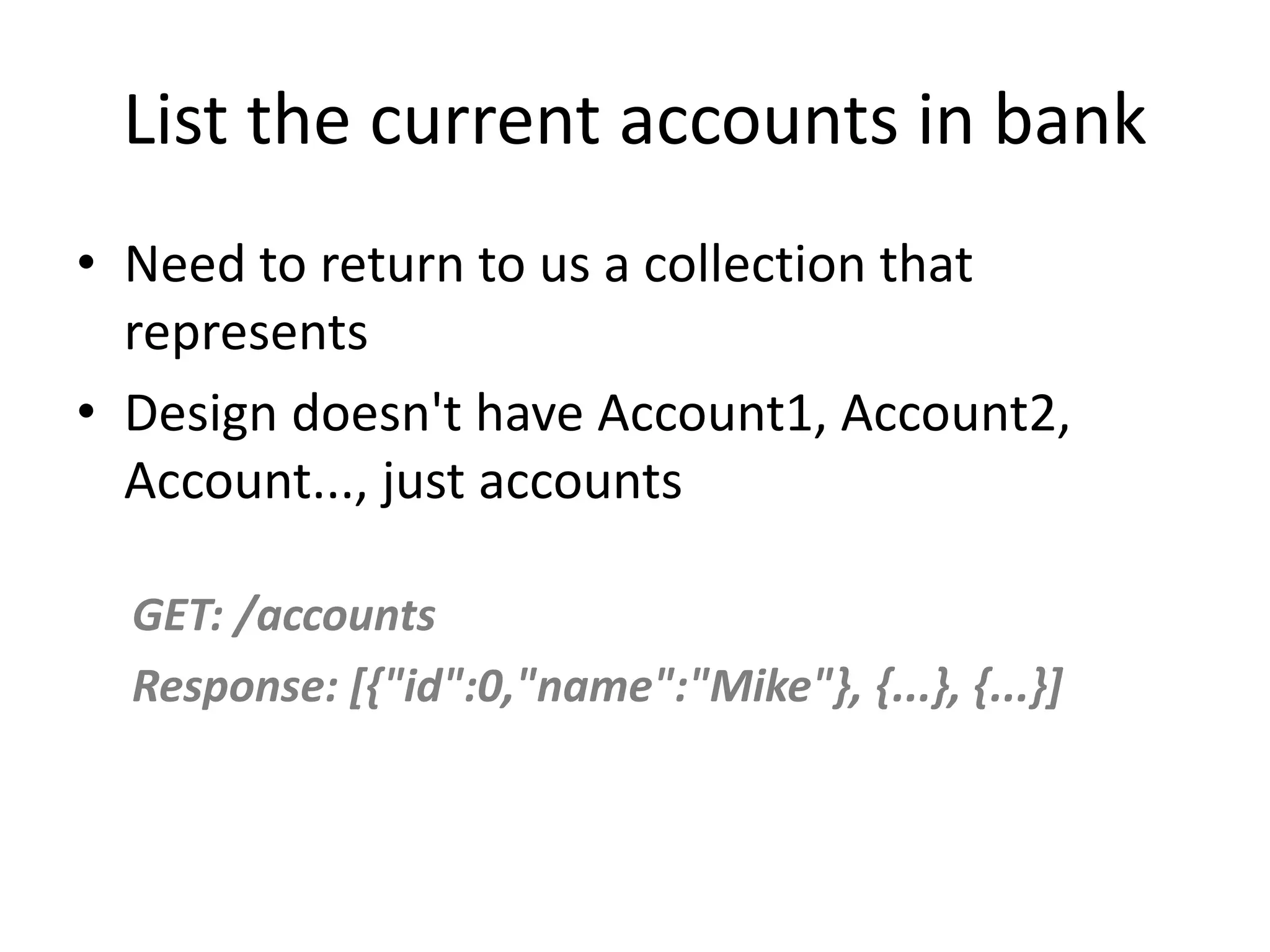

- 14. List the currentaccounts in bank • Need to return to us a collection that represents • Design doesn't have Account1, Account2, Account..., just accounts GET: /accounts Response: [{"id":0,"name":"Mike"}, {...}, {...}]

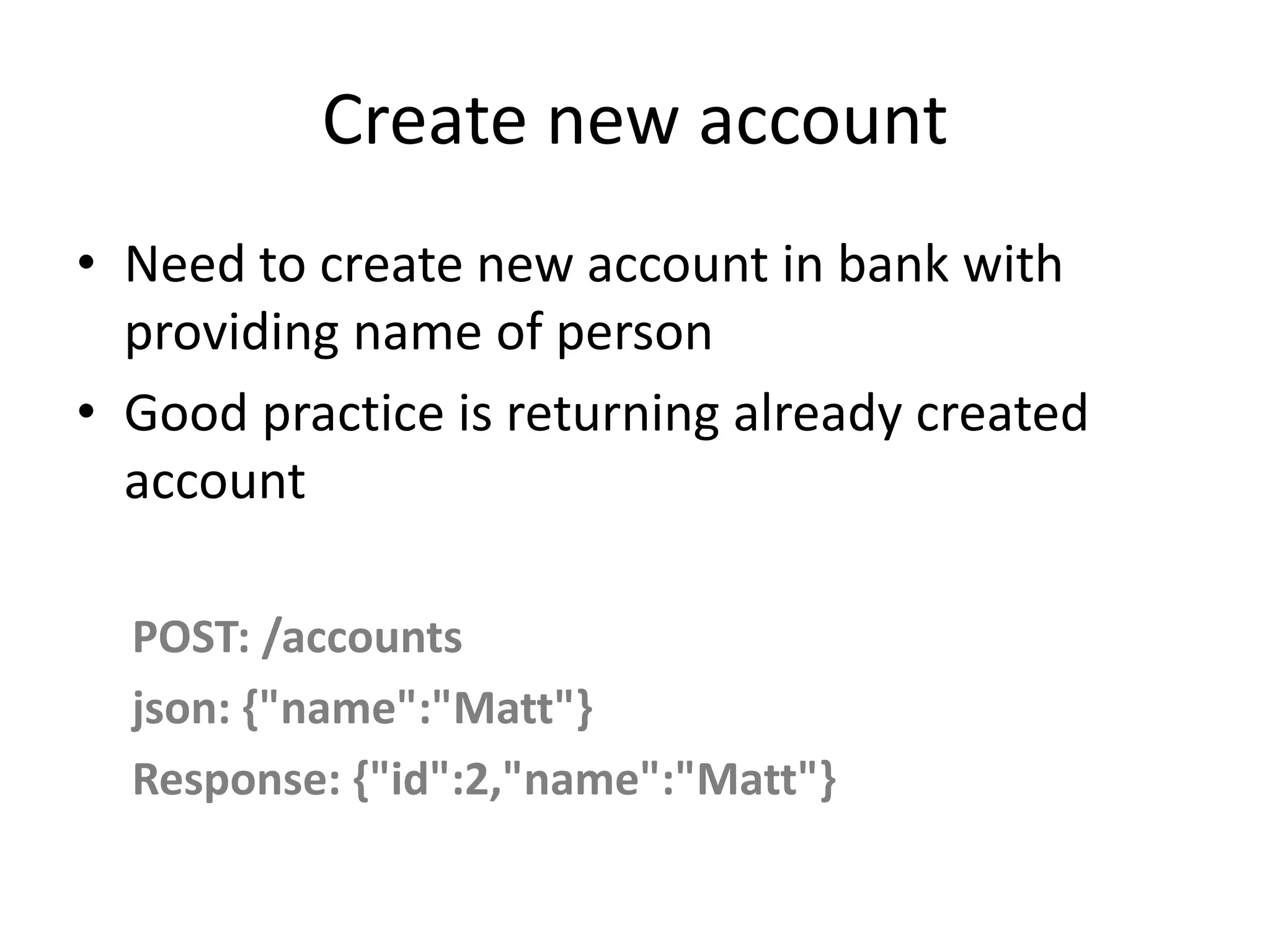

- 15. Create new account •Need to create new account in bank with providing name of person • Good practice is returning already created account POST: /accounts json: {"name":"Matt"} Response: {"id":2,"name":"Matt"}

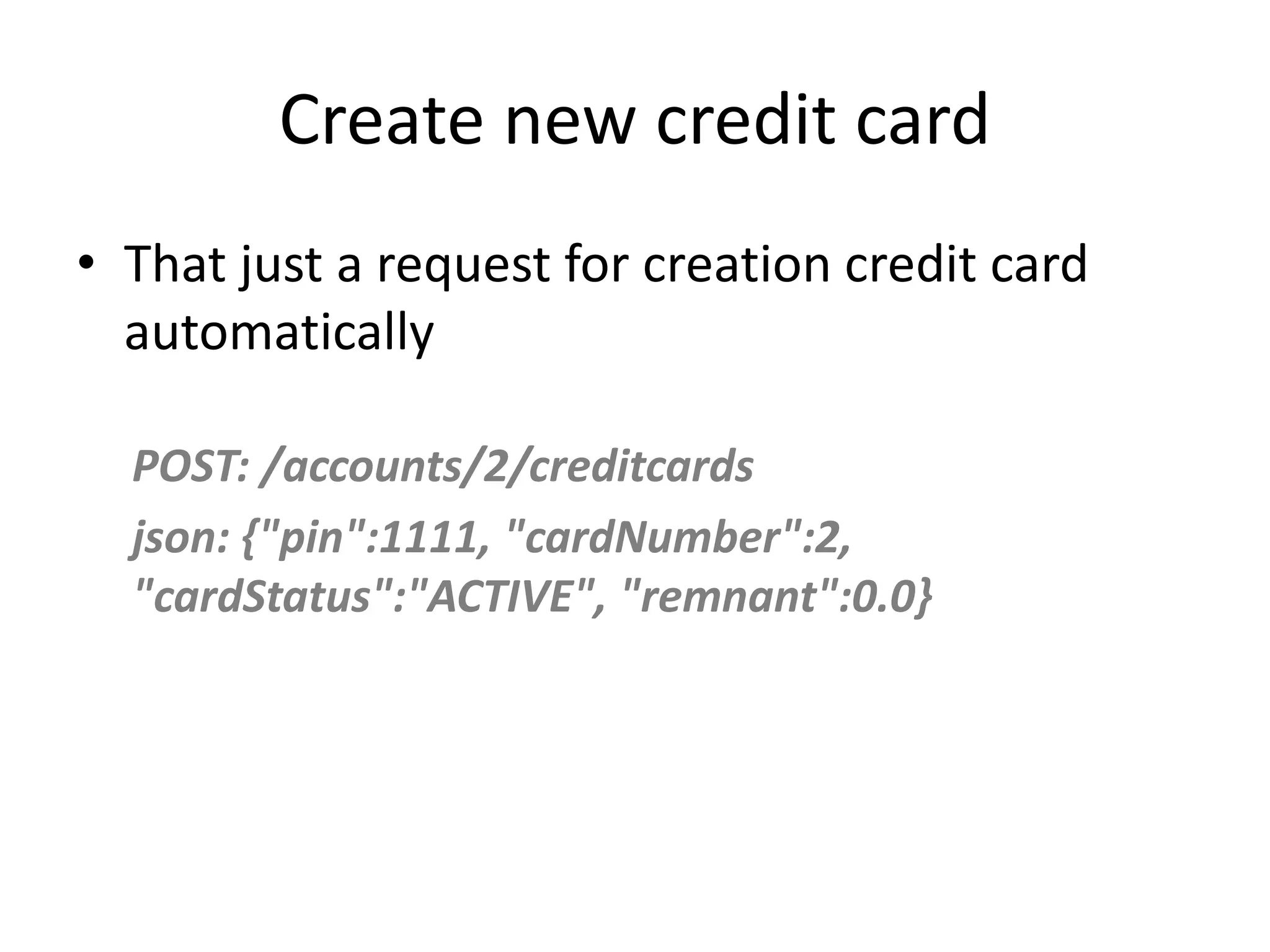

- 16. Create new creditcard • That just a request for creation credit card automatically POST: /accounts/2/creditcards json: {"pin":1111, "cardNumber":2, "cardStatus":"ACTIVE", "remnant":0.0}

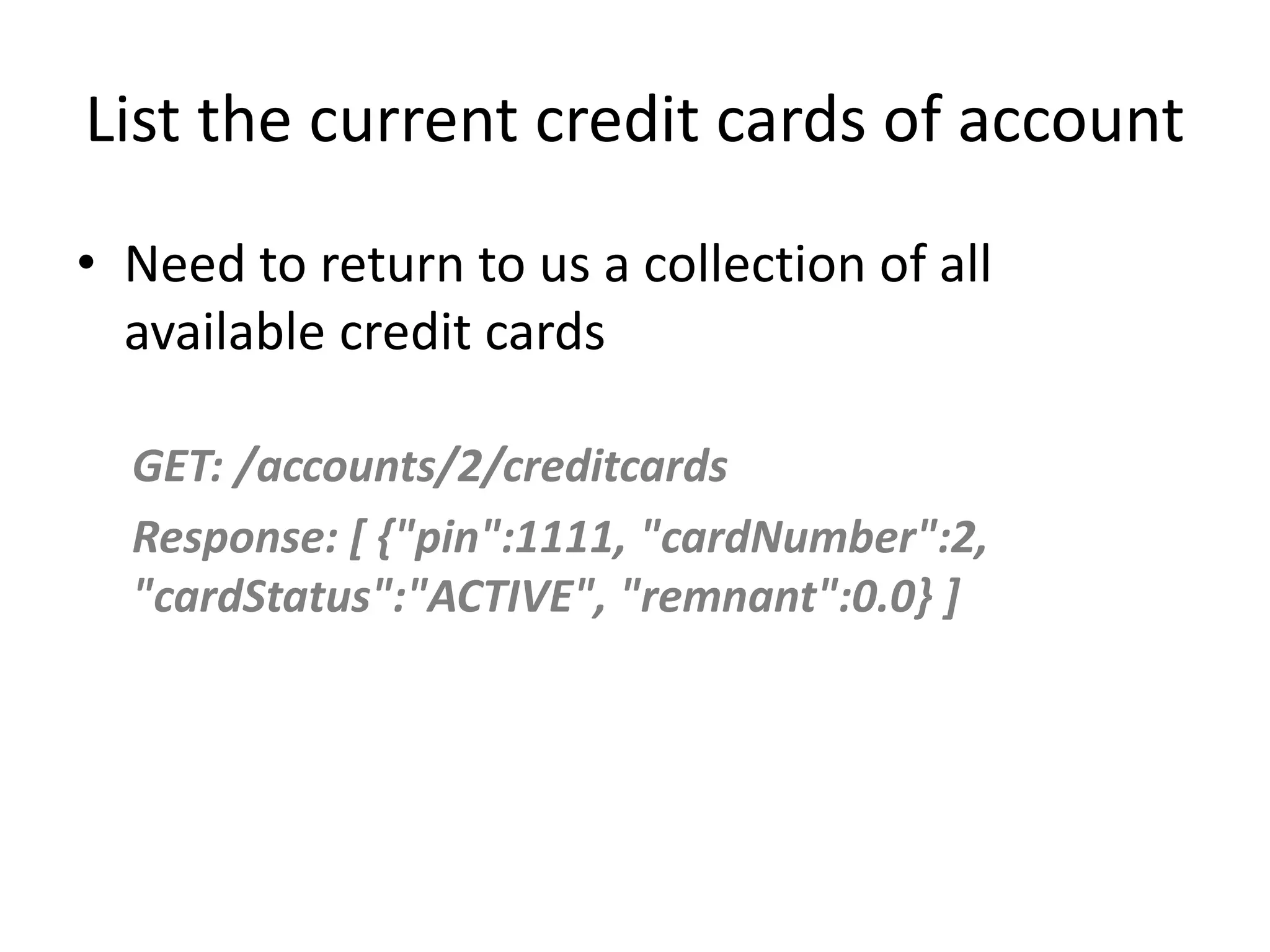

- 17. List the currentcredit cards of account • Need to return to us a collection of all available credit cards GET: /accounts/2/creditcards Response: [ {"pin":1111, "cardNumber":2, "cardStatus":"ACTIVE", "remnant":0.0} ]

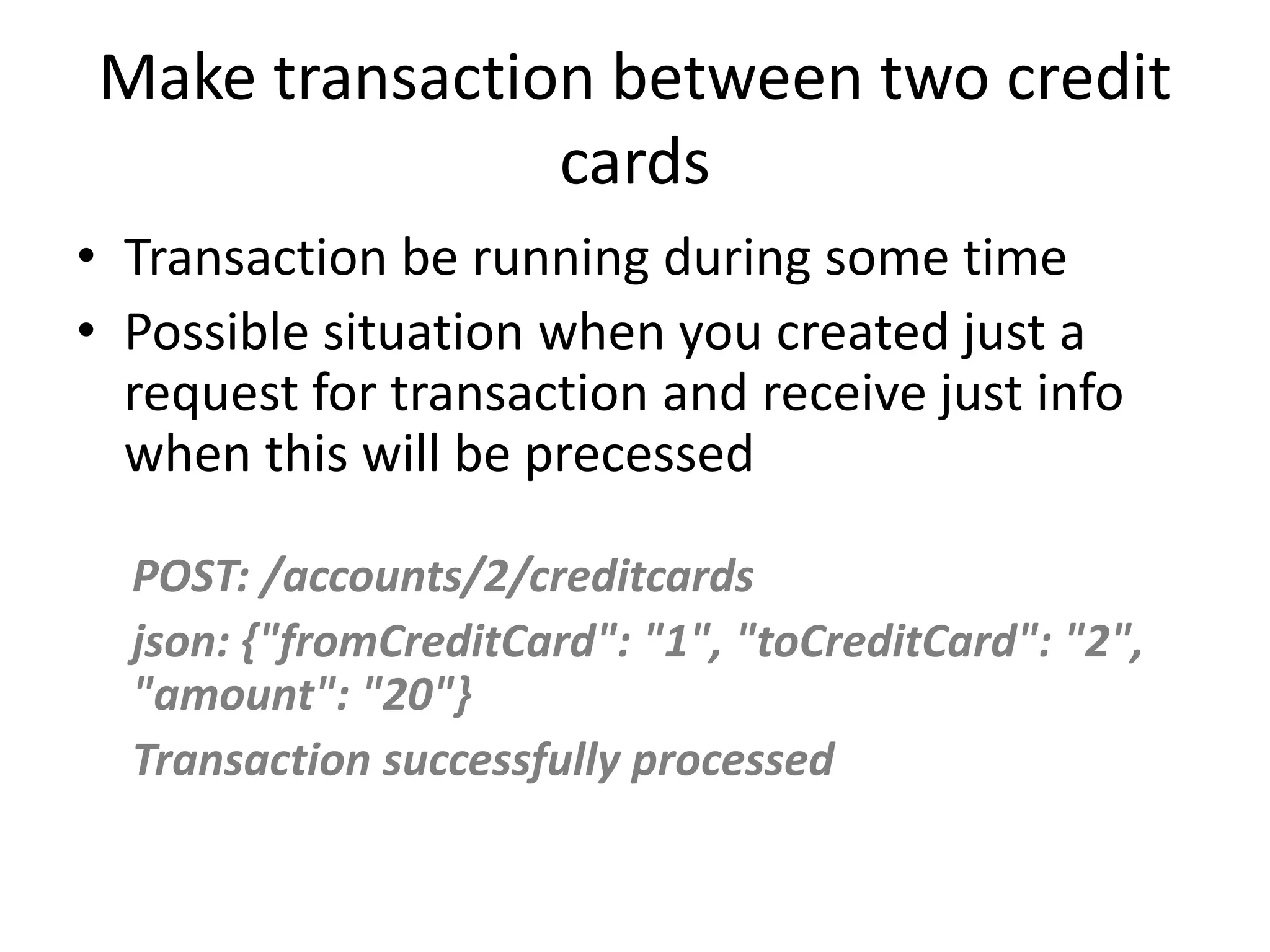

- 18. Make transaction betweentwo credit cards • Transaction be running during some time • Possible situation when you created just a request for transaction and receive just info when this will be precessed POST: /accounts/2/creditcards json: {"fromCreditCard": "1", "toCreditCard": "2", "amount": "20"} Transaction successfully processed

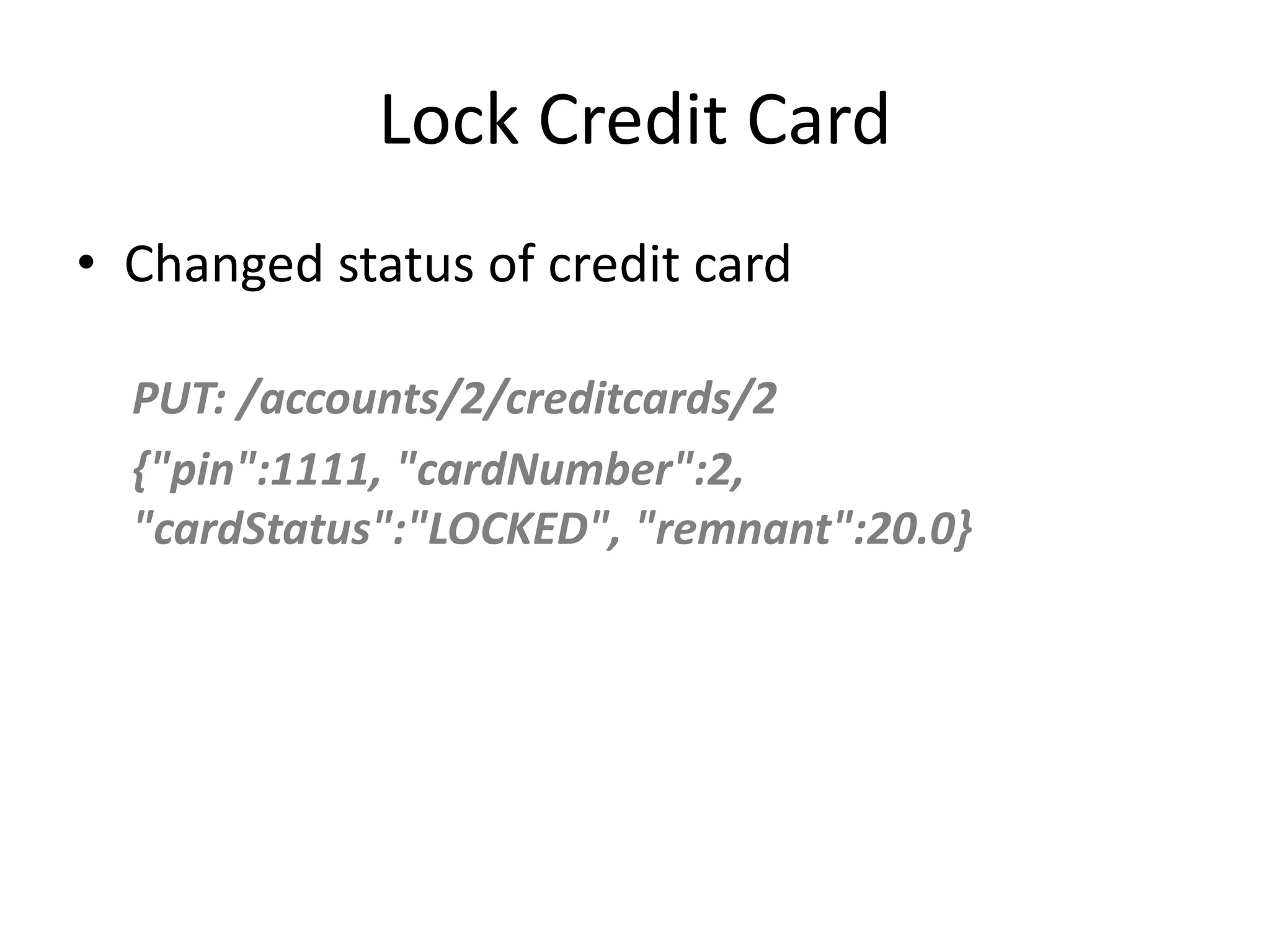

- 19. Lock Credit Card •Changed status of credit card PUT: /accounts/2/creditcards/2 {"pin":1111, "cardNumber":2, "cardStatus":"LOCKED", "remnant":20.0}

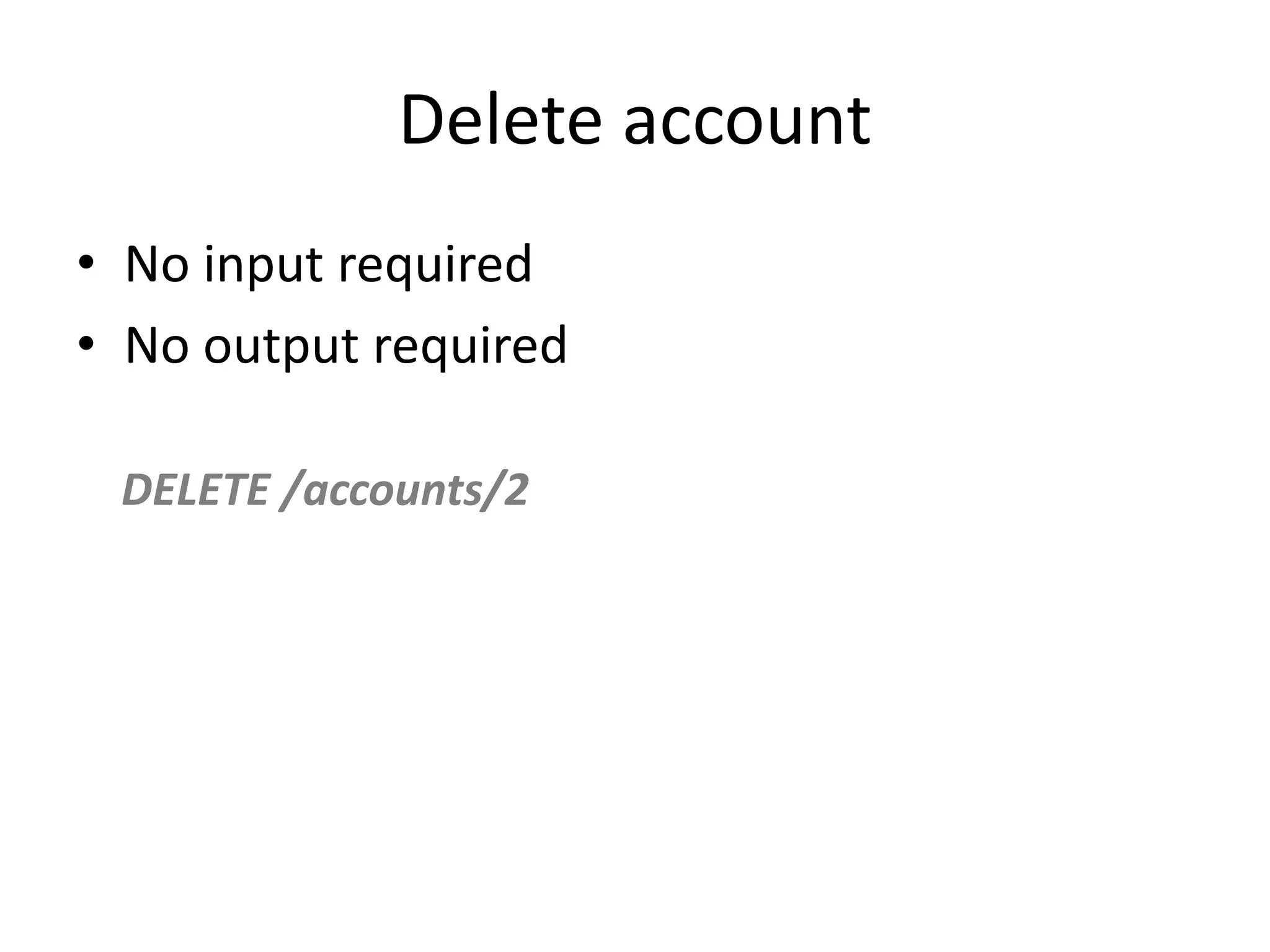

- 20. Delete account • Noinput required • No output required DELETE /accounts/2

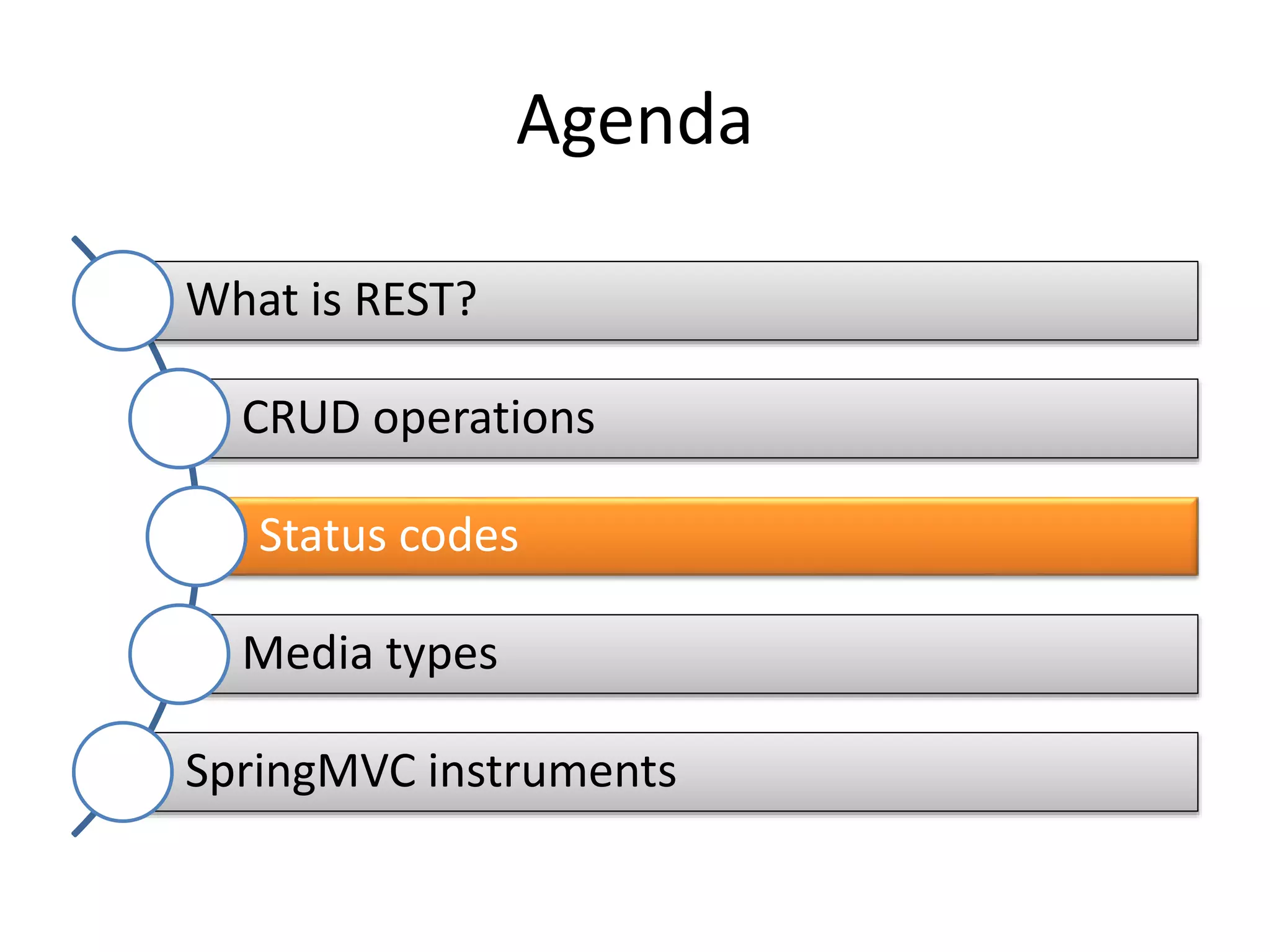

- 22. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

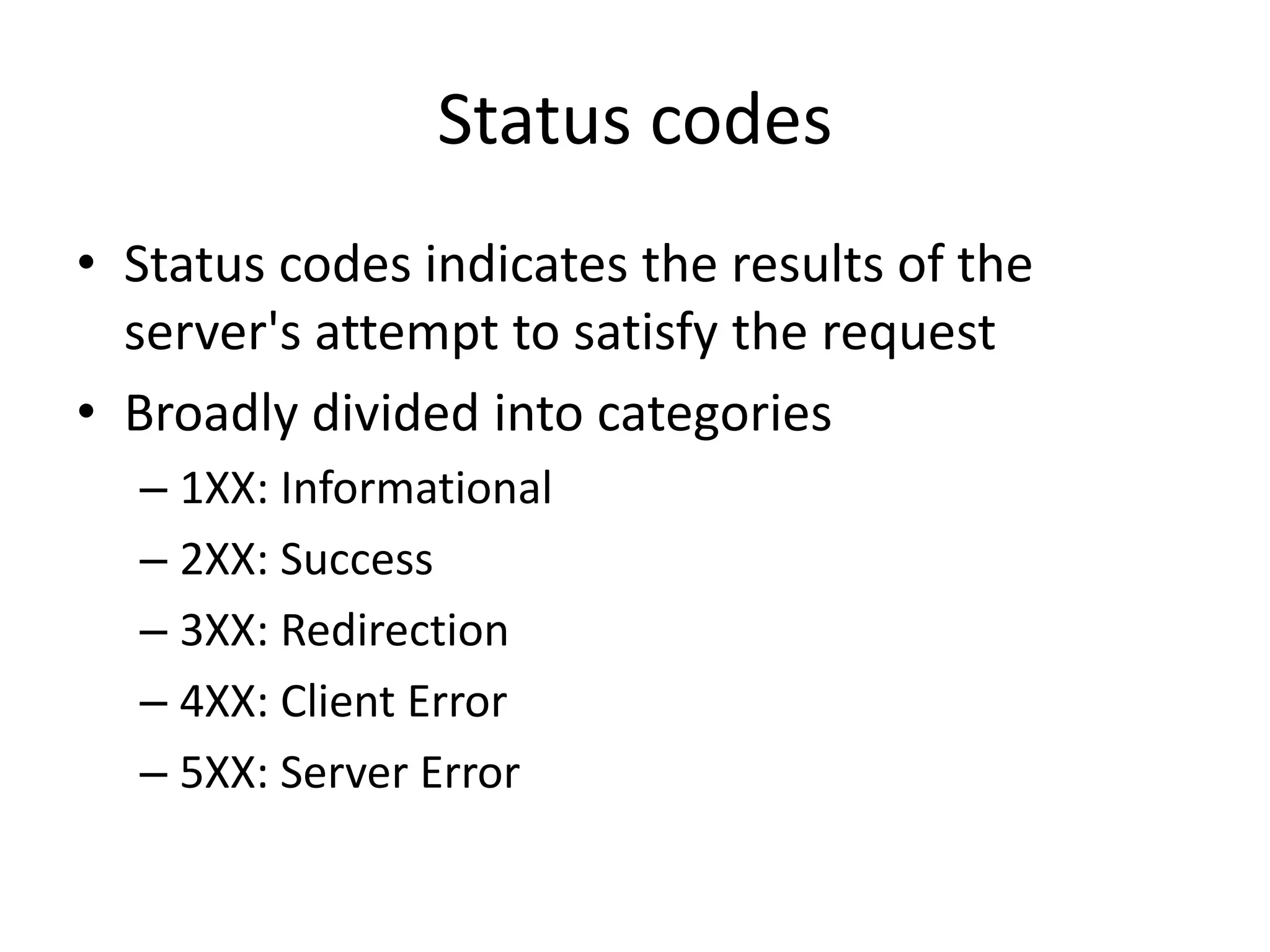

- 23. Status codes • Statuscodes indicates the results of the server's attempt to satisfy the request • Broadly divided into categories – 1XX: Informational – 2XX: Success – 3XX: Redirection – 4XX: Client Error – 5XX: Server Error

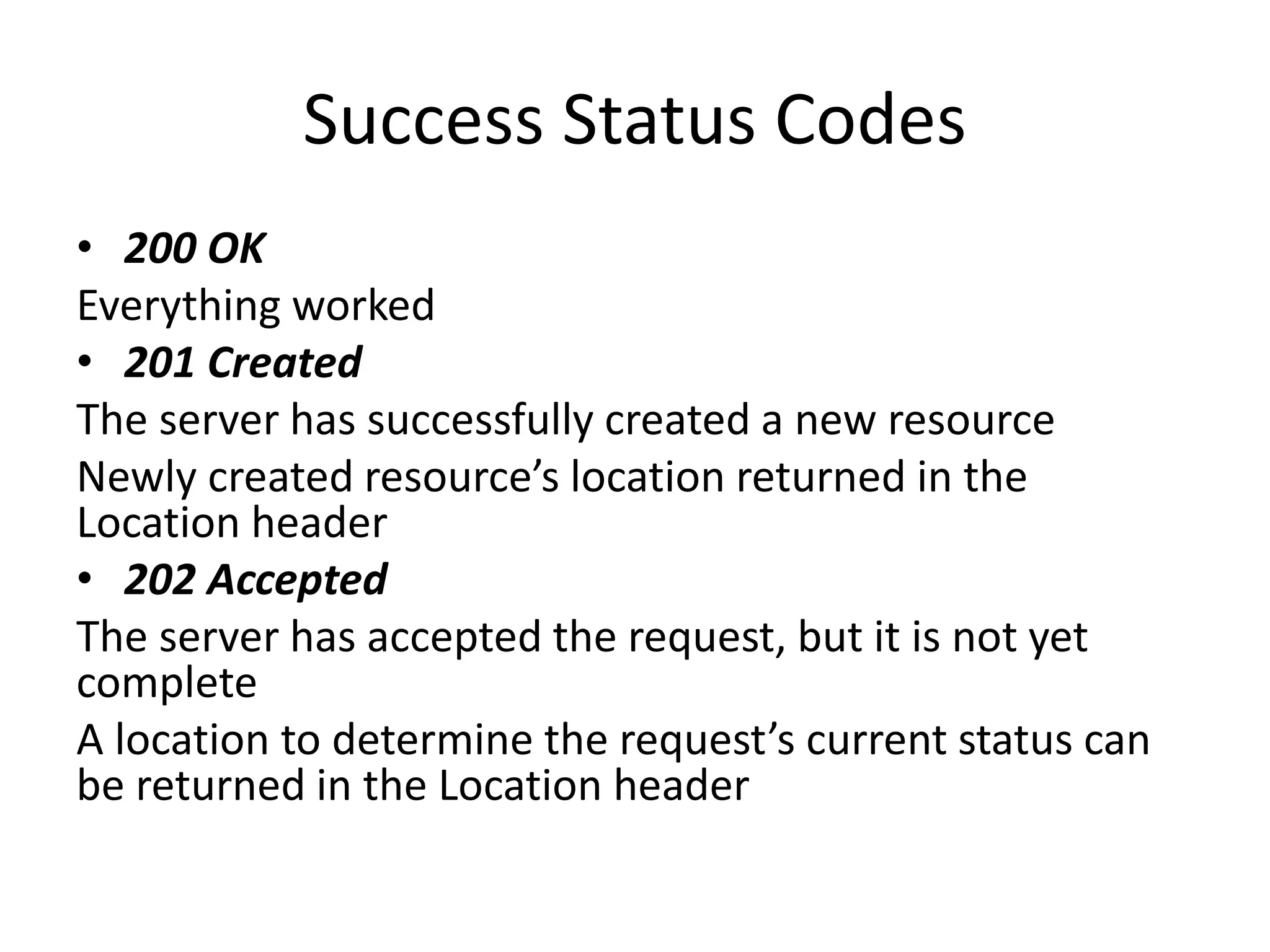

- 24. Success Status Codes •200 OK Everything worked • 201 Created The server has successfully created a new resource Newly created resource’s location returned in the Location header • 202 Accepted The server has accepted the request, but it is not yet complete A location to determine the request’s current status can be returned in the Location header

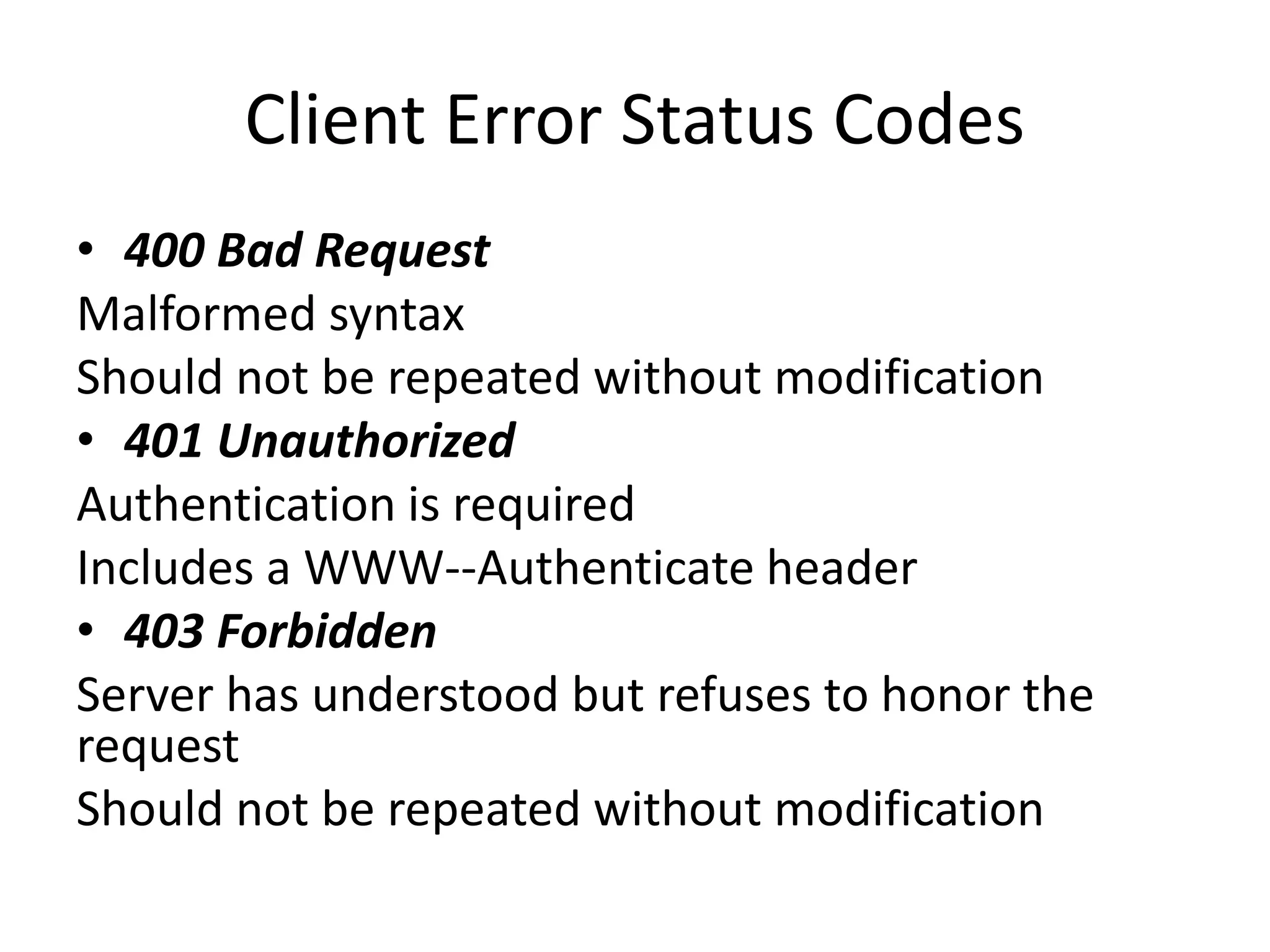

- 25. Client Error StatusCodes • 400 Bad Request Malformed syntax Should not be repeated without modification • 401 Unauthorized Authentication is required Includes a WWW-‐Authenticate header • 403 Forbidden Server has understood but refuses to honor the request Should not be repeated without modification

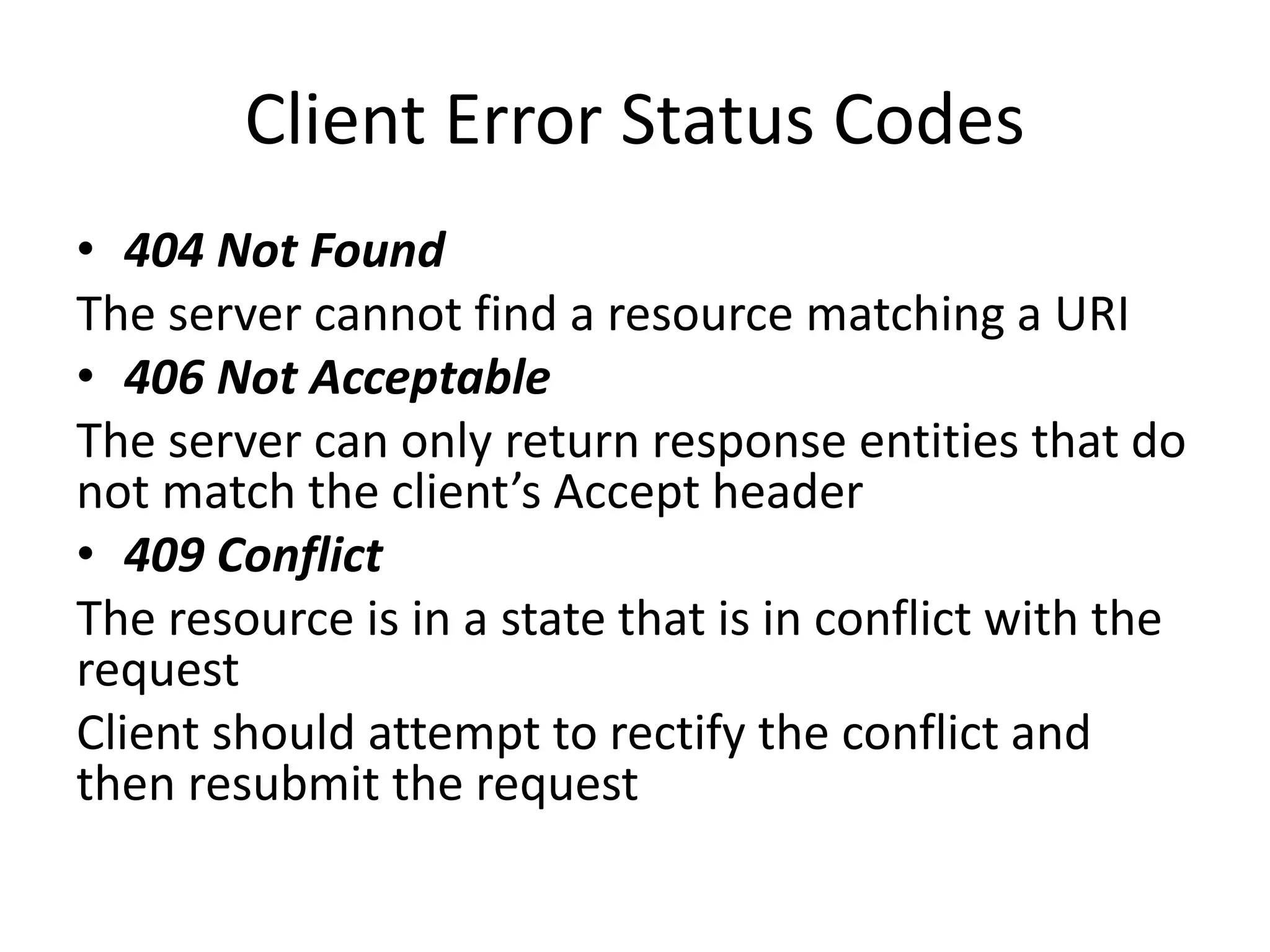

- 26. Client Error StatusCodes • 404 Not Found The server cannot find a resource matching a URI • 406 Not Acceptable The server can only return response entities that do not match the client’s Accept header • 409 Conflict The resource is in a state that is in conflict with the request Client should attempt to rectify the conflict and then resubmit the request

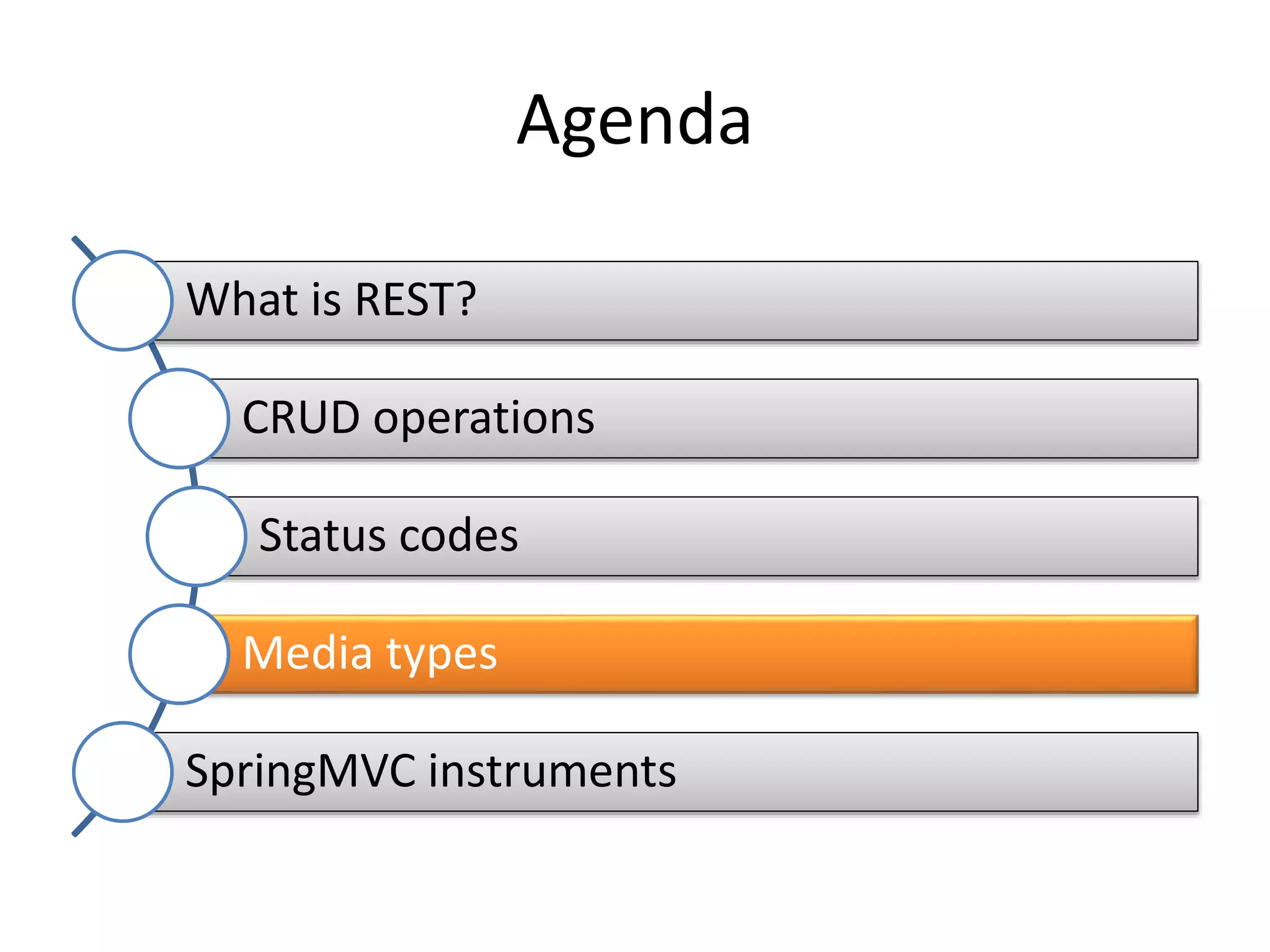

- 28. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

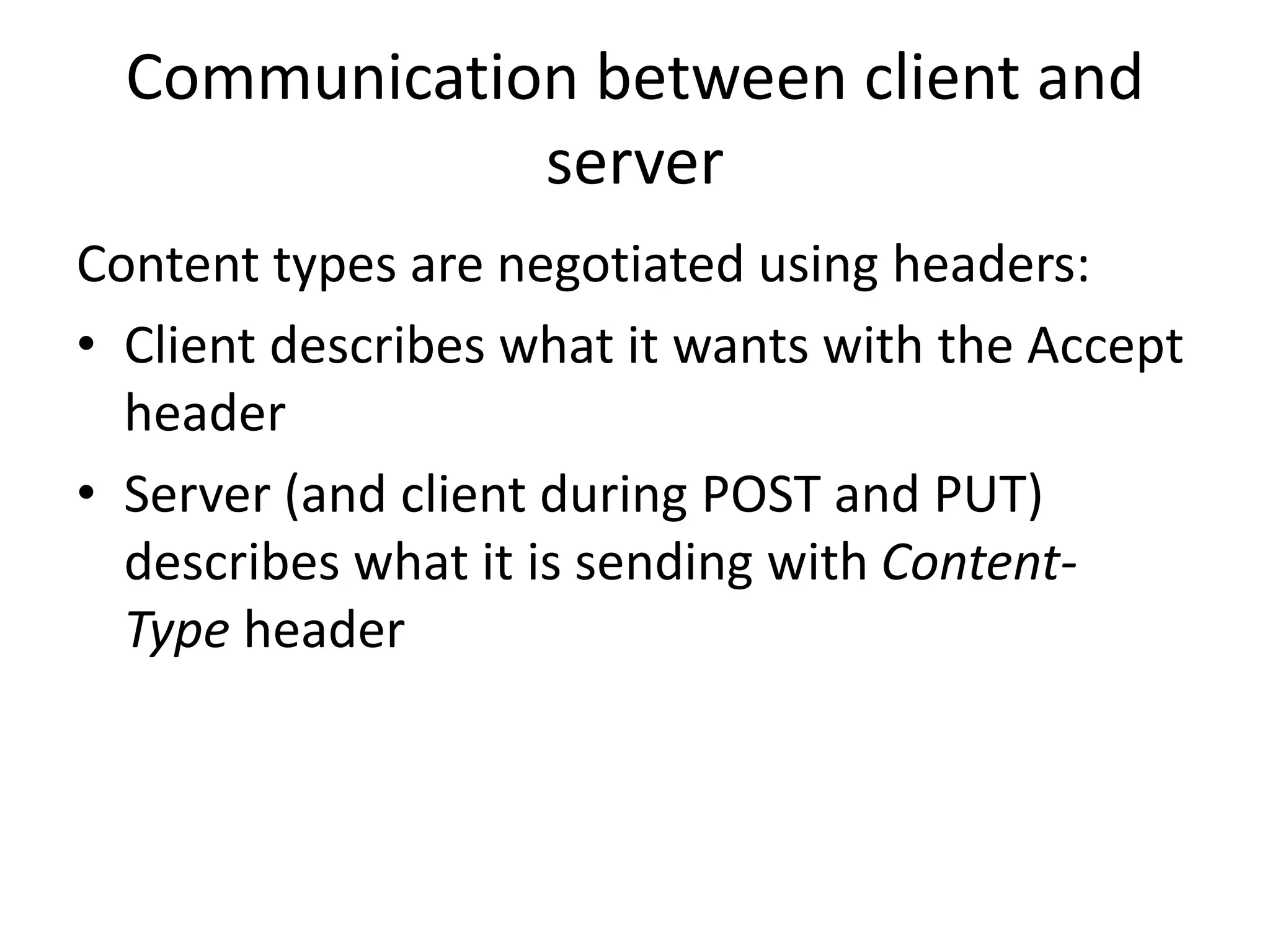

- 29. Communication between clientand server Content types are negotiated using headers: • Client describes what it wants with the Accept header • Server (and client during POST and PUT) describes what it is sending with Content- Type header

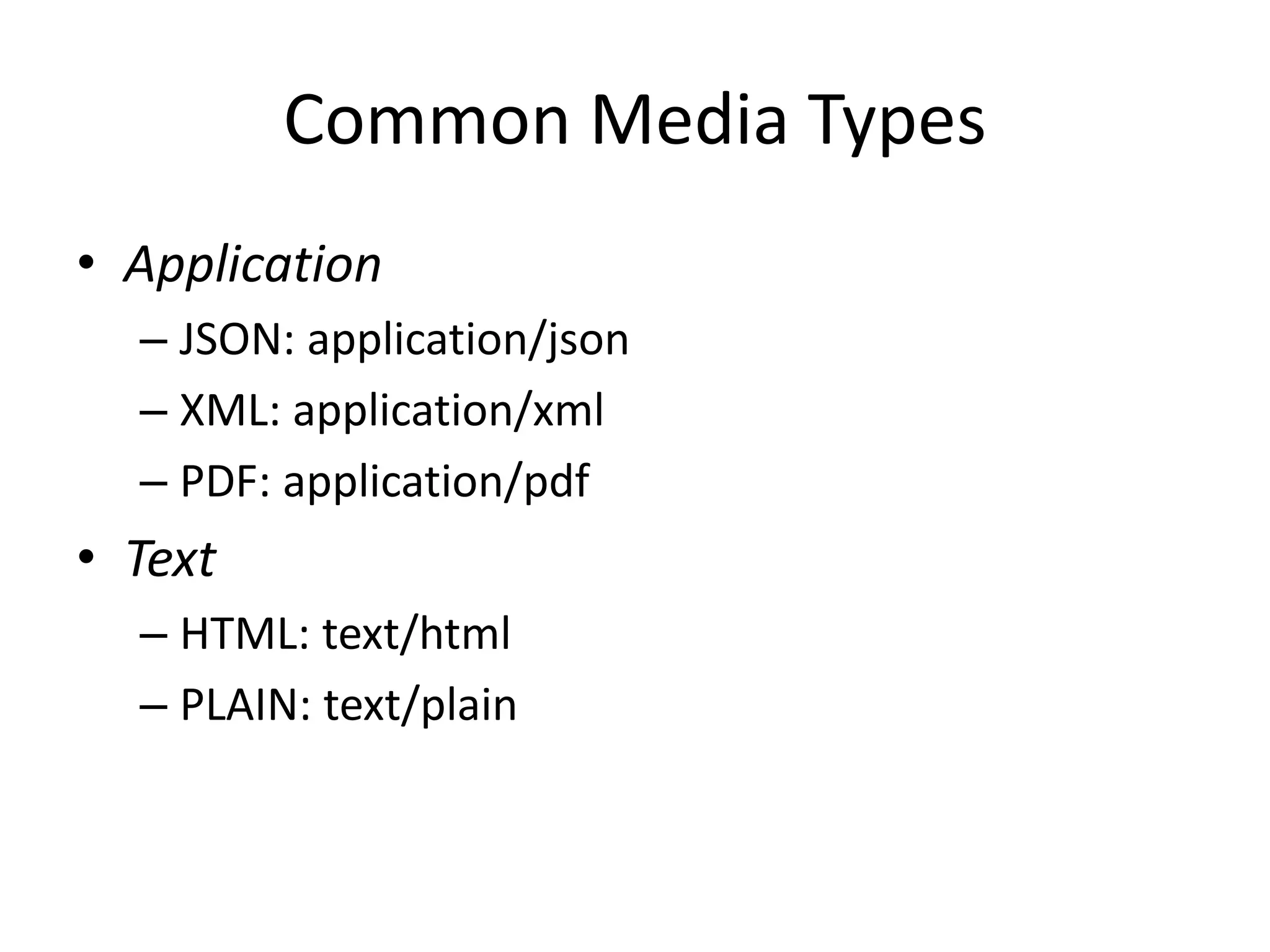

- 30. Common Media Types •Application – JSON: application/json – XML: application/xml – PDF: application/pdf • Text – HTML: text/html – PLAIN: text/plain

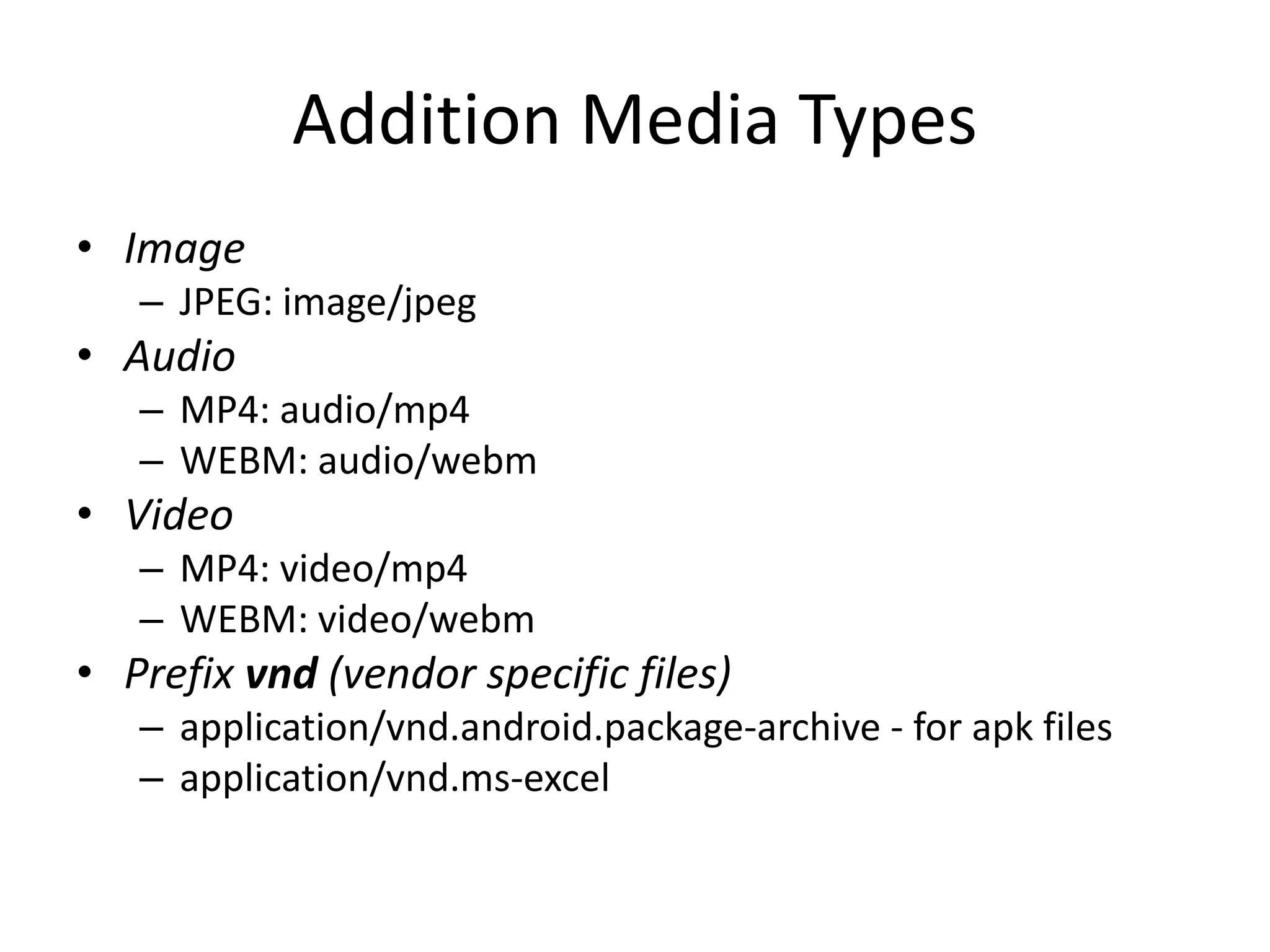

- 31. Addition Media Types •Image – JPEG: image/jpeg • Audio – MP4: audio/mp4 – WEBM: audio/webm • Video – MP4: video/mp4 – WEBM: video/webm • Prefix vnd (vendor specific files) – application/vnd.android.package-archive - for apk files – application/vnd.ms-excel

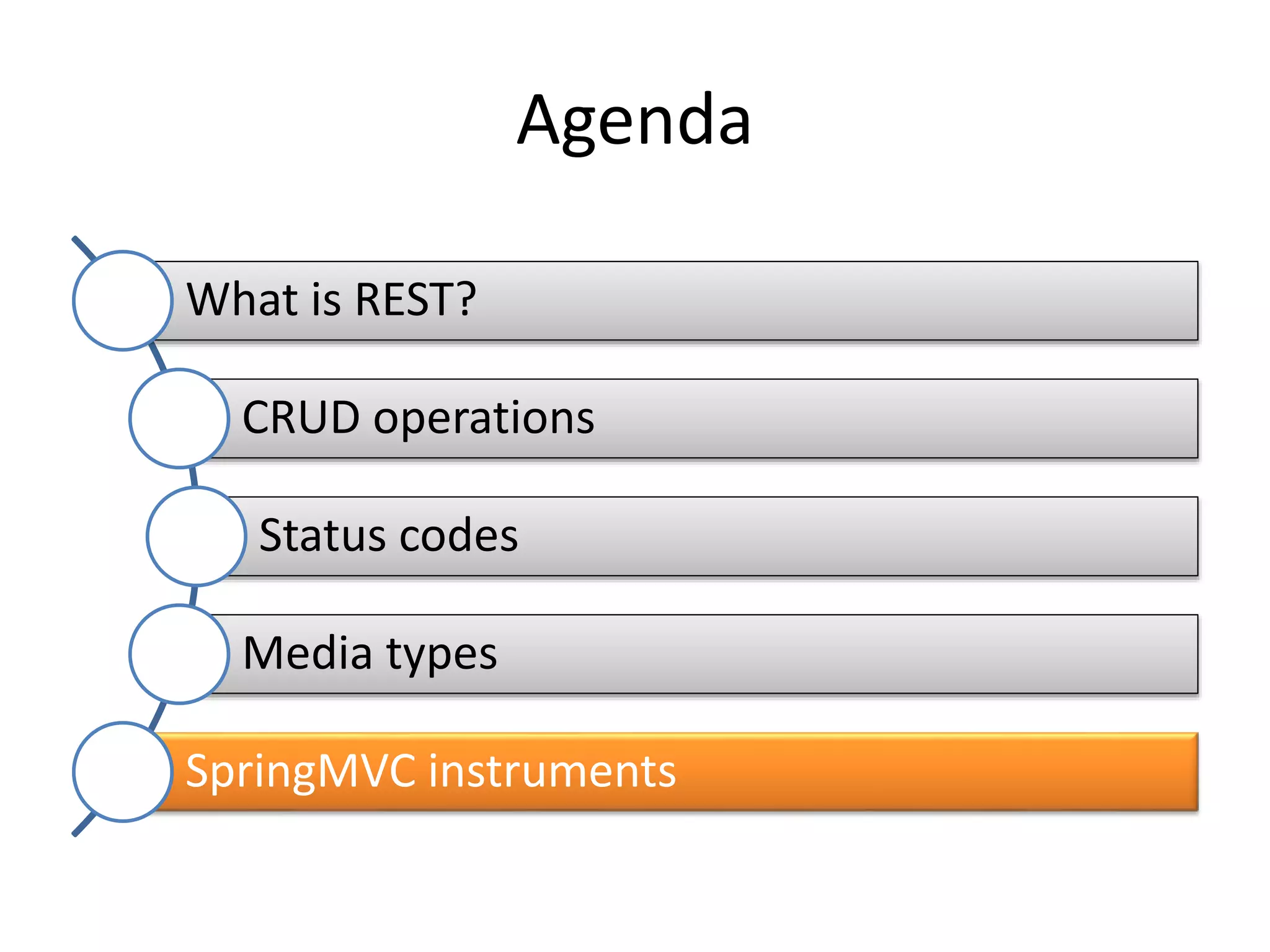

- 32. Agenda What is REST? CRUDoperations Status codes Media types SpringMVC instruments

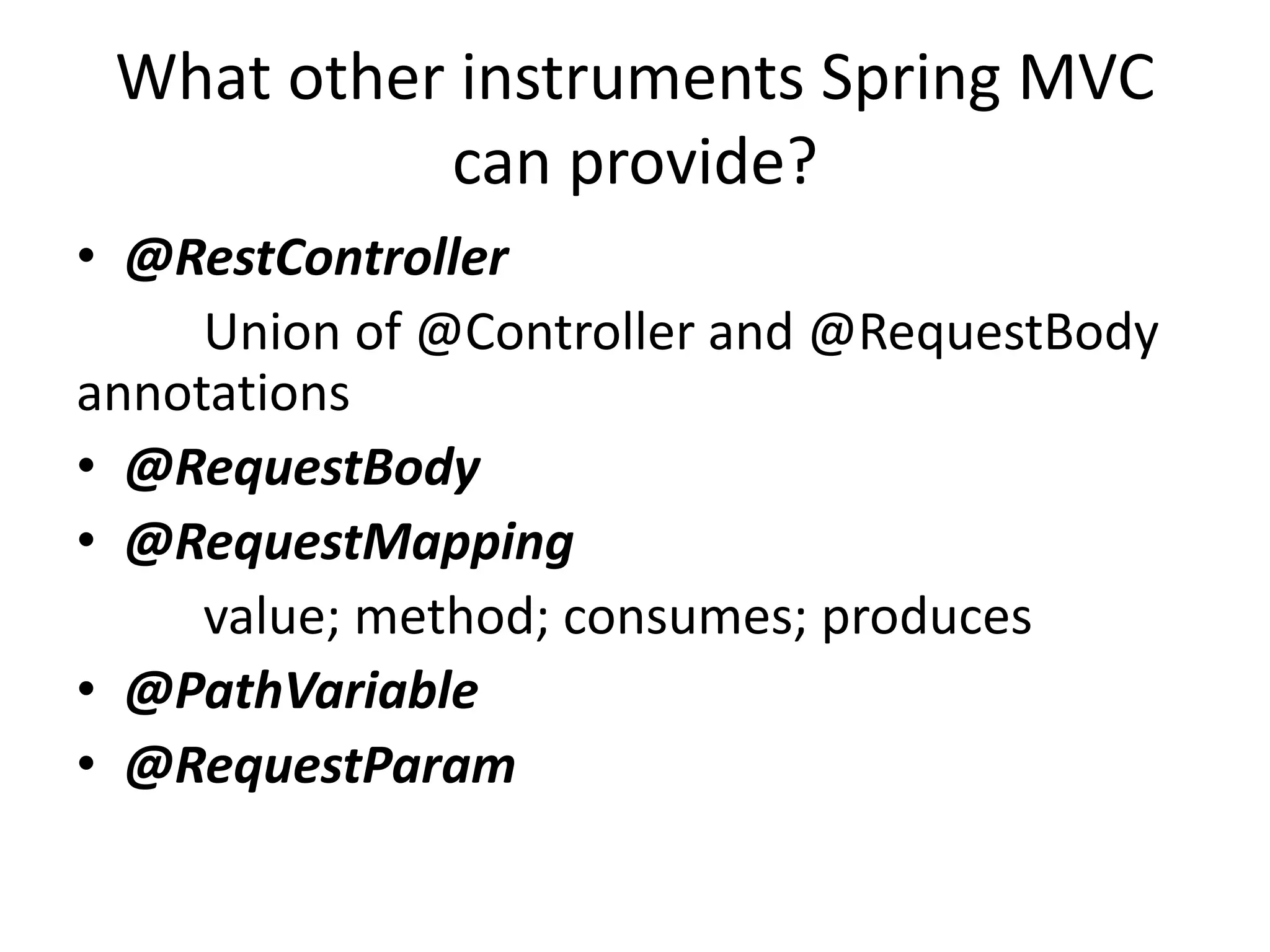

- 33. What other instrumentsSpring MVC can provide? • @RestController Union of @Controller and @RequestBody annotations • @RequestBody • @RequestMapping value; method; consumes; produces • @PathVariable • @RequestParam

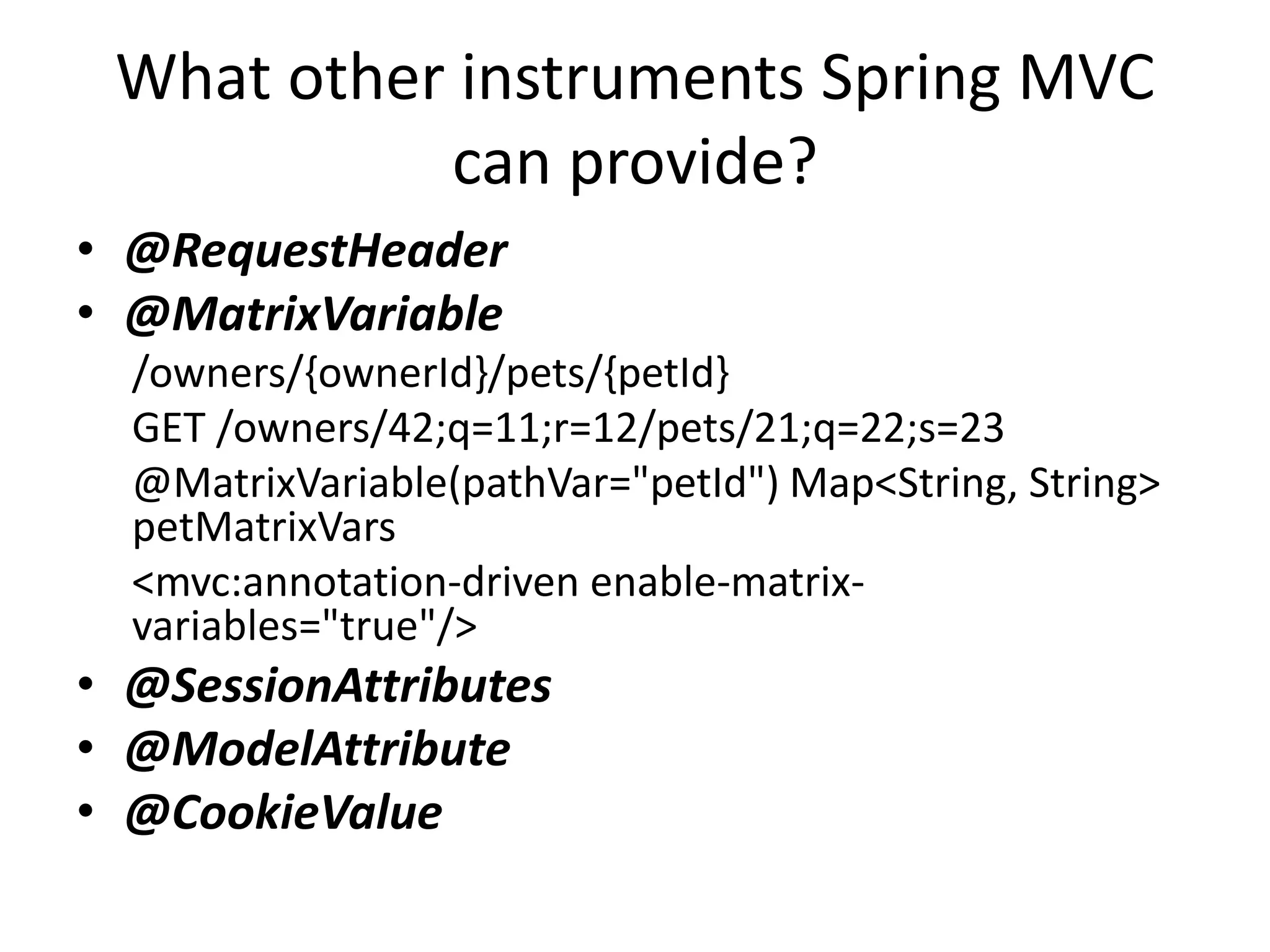

- 34. What other instrumentsSpring MVC can provide? • @RequestHeader • @MatrixVariable /owners/{ownerId}/pets/{petId} GET /owners/42;q=11;r=12/pets/21;q=22;s=23 @MatrixVariable(pathVar="petId") Map<String, String> petMatrixVars <mvc:annotation-driven enable-matrix- variables="true"/> • @SessionAttributes • @ModelAttribute • @CookieValue

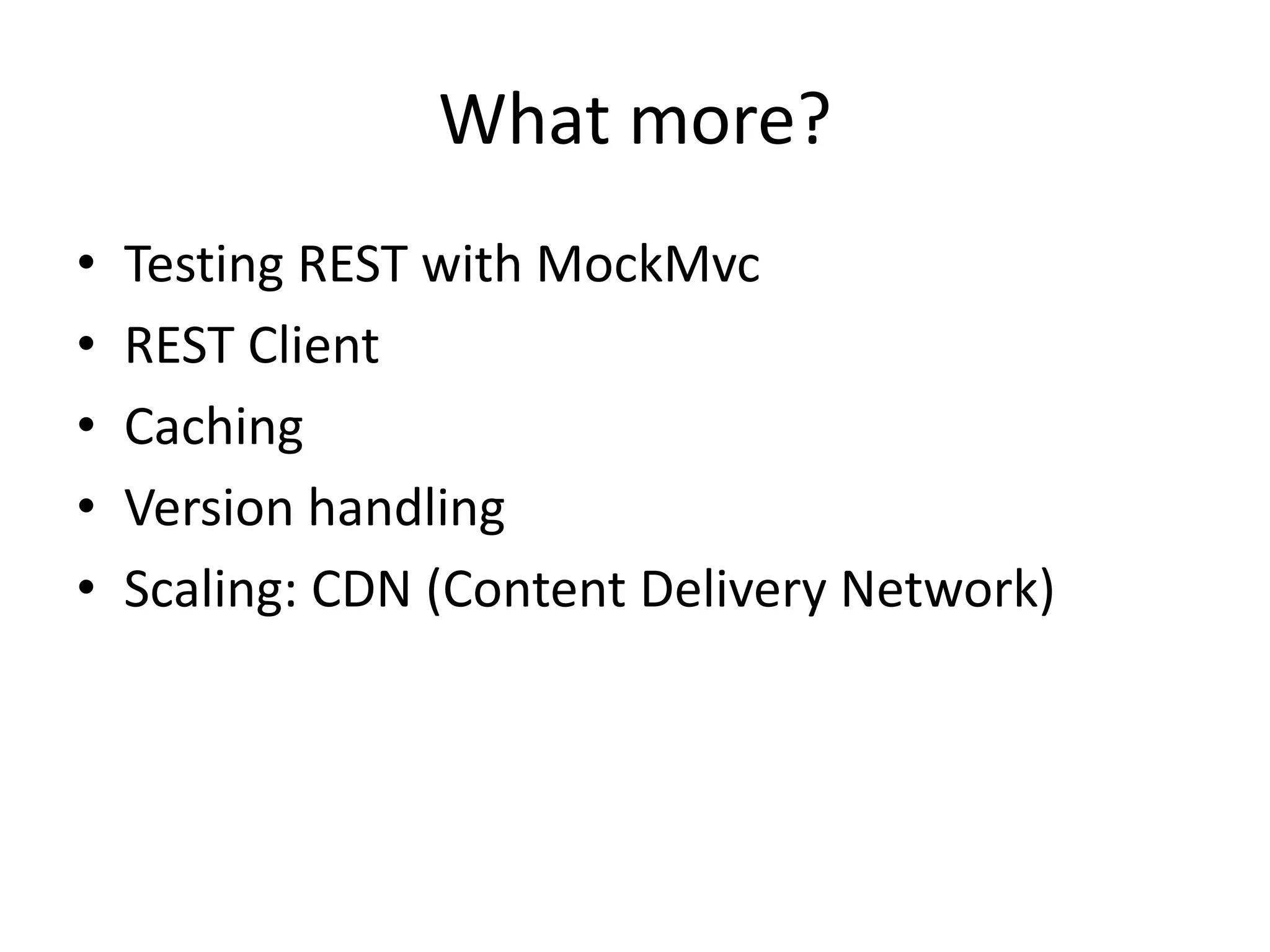

- 35. What more? • TestingREST with MockMvc • REST Client • Caching • Version handling • Scaling: CDN (Content Delivery Network)

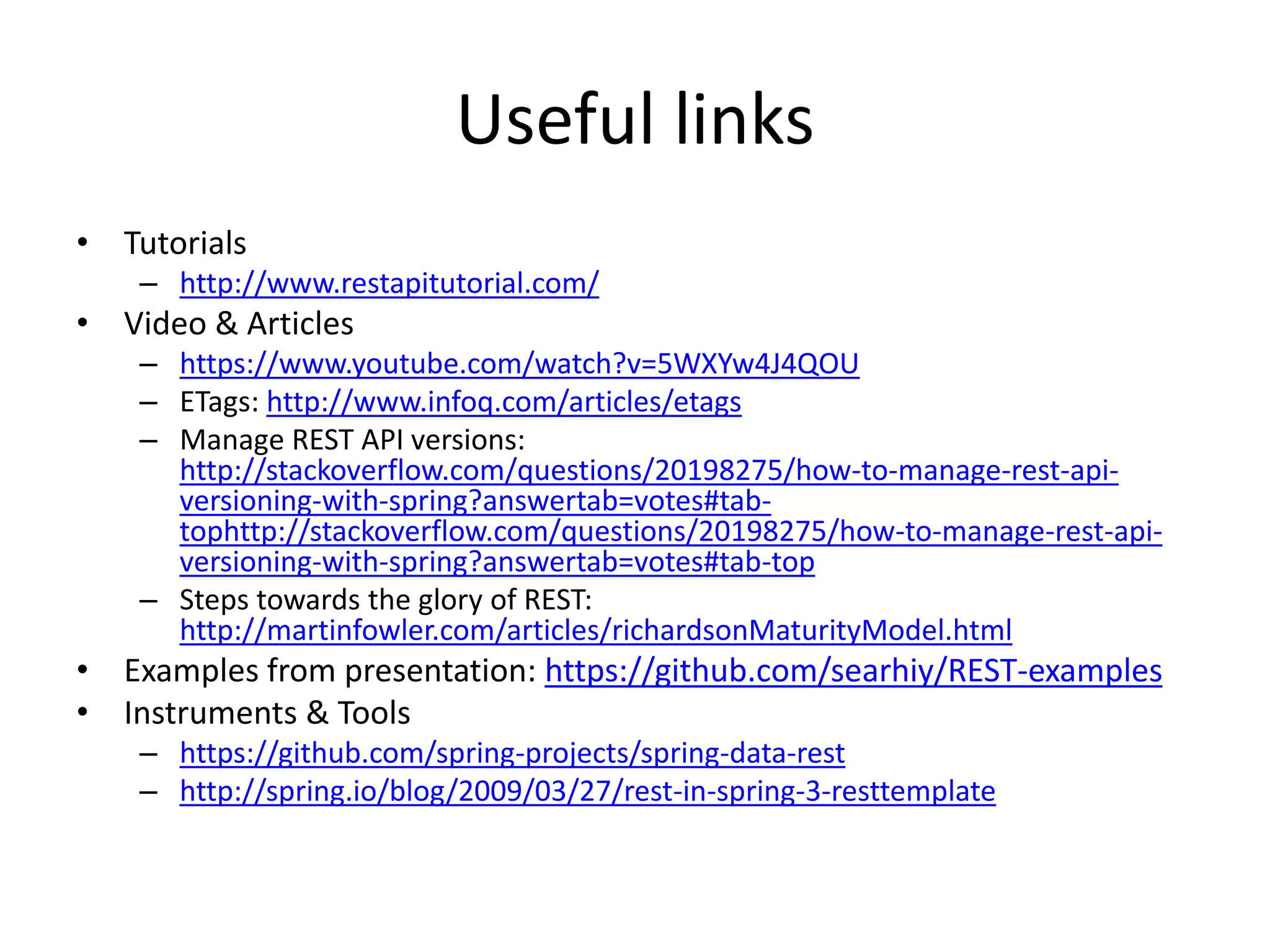

- 36. Useful links • Tutorials –http://www.restapitutorial.com/ • Video & Articles – https://www.youtube.com/watch?v=5WXYw4J4QOU – ETags: http://www.infoq.com/articles/etags – Manage REST API versions: http://stackoverflow.com/questions/20198275/how-to-manage-rest-api- versioning-with-spring?answertab=votes#tab- tophttp://stackoverflow.com/questions/20198275/how-to-manage-rest-api- versioning-with-spring?answertab=votes#tab-top – Steps towards the glory of REST: http://martinfowler.com/articles/richardsonMaturityModel.html • Examples from presentation: https://github.com/searhiy/REST-examples • Instruments & Tools – https://github.com/spring-projects/spring-data-rest – http://spring.io/blog/2009/03/27/rest-in-spring-3-resttemplate
