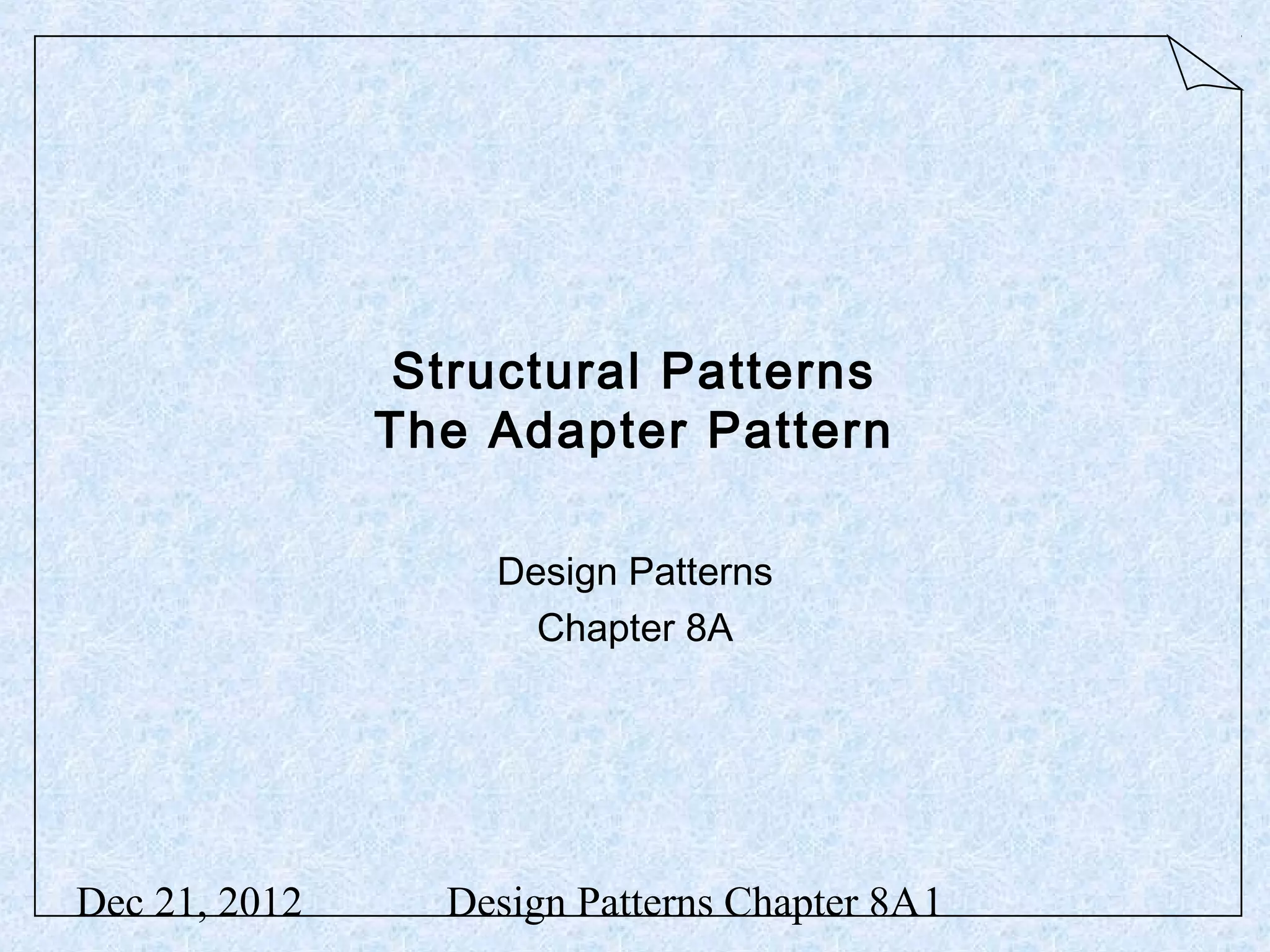

Structural Patterns The Adapter Pattern Design Patterns Chapter 8A Dec 21, 2012 Design Patterns Chapter 8A1

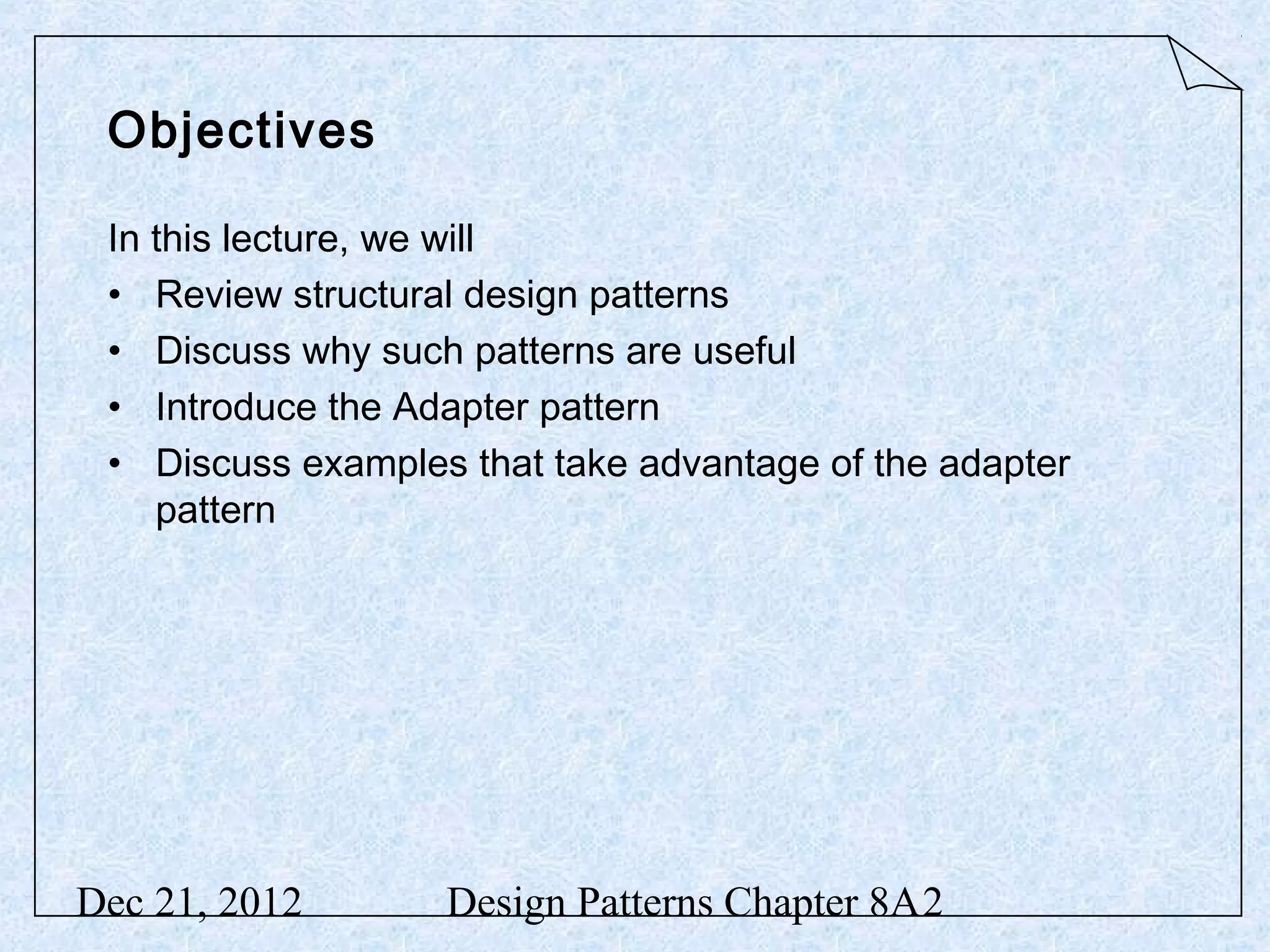

Objectives In this lecture, we will • Review structural design patterns • Discuss why such patterns are useful • Introduce the Adapter pattern • Discuss examples that take advantage of the adapter pattern Dec 21, 2012 Design Patterns Chapter 8A2

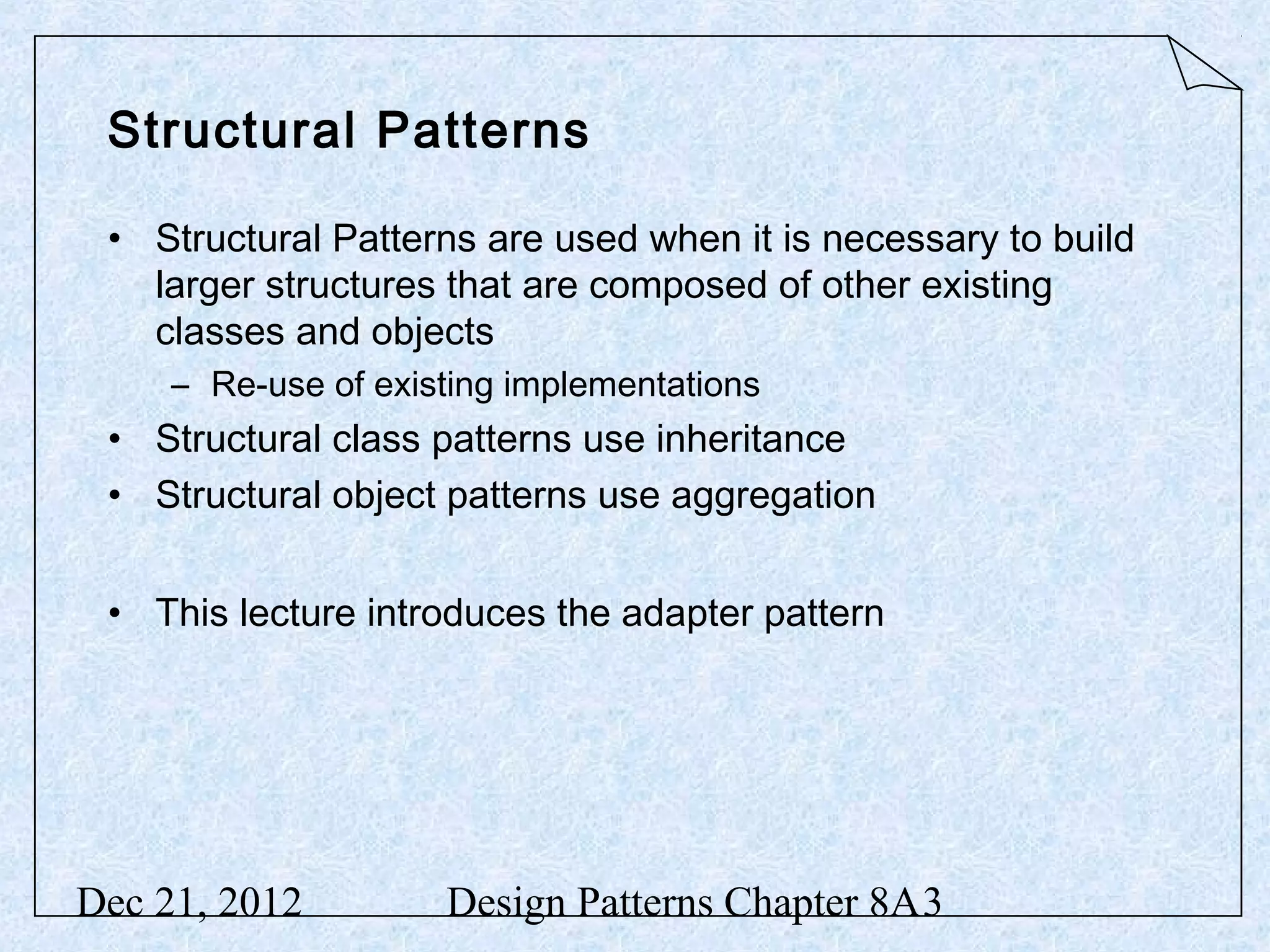

Structural Patterns • Structural Patterns are used when it is necessary to build larger structures that are composed of other existing classes and objects – Re-use of existing implementations • Structural class patterns use inheritance • Structural object patterns use aggregation • This lecture introduces the adapter pattern Dec 21, 2012 Design Patterns Chapter 8A3

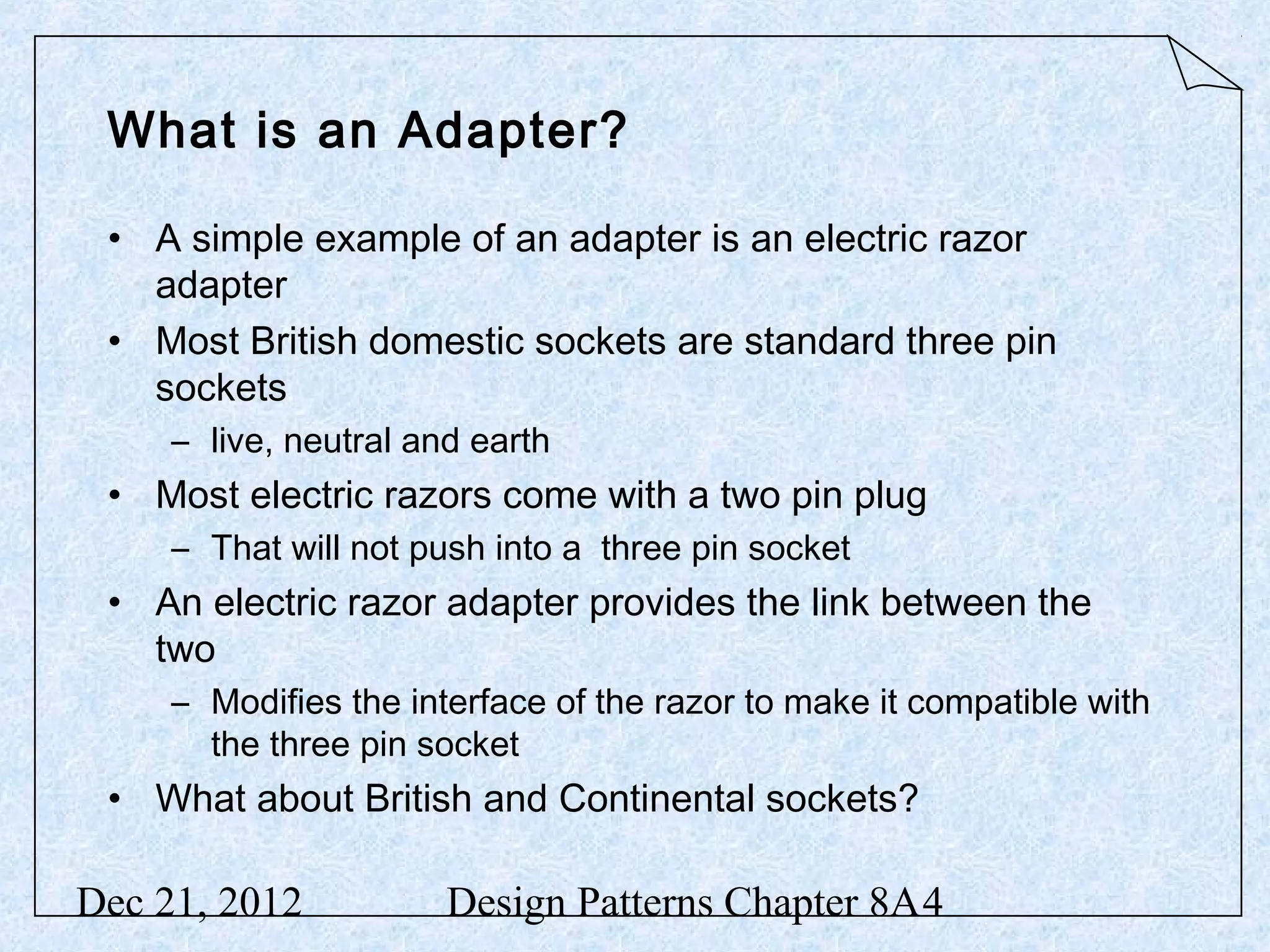

What is an Adapter? • A simple example of an adapter is an electric razor adapter • Most British domestic sockets are standard three pin sockets – live, neutral and earth • Most electric razors come with a two pin plug – That will not push into a three pin socket • An electric razor adapter provides the link between the two – Modifies the interface of the razor to make it compatible with the three pin socket • What about British and Continental sockets? Dec 21, 2012 Design Patterns Chapter 8A4

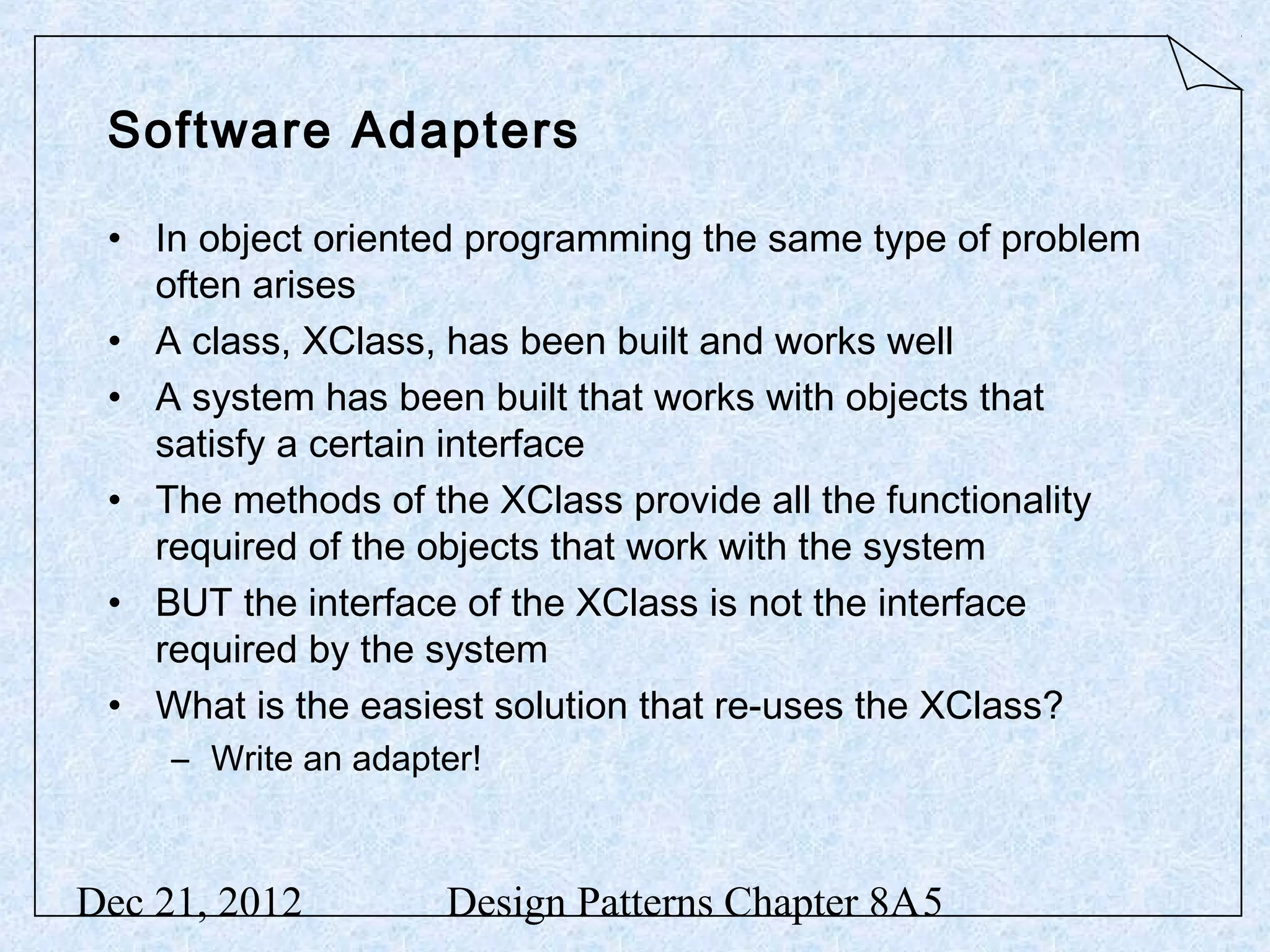

Software Adapters • In object oriented programming the same type of problem often arises • A class, XClass, has been built and works well • A system has been built that works with objects that satisfy a certain interface • The methods of the XClass provide all the functionality required of the objects that work with the system • BUT the interface of the XClass is not the interface required by the system • What is the easiest solution that re-uses the XClass? – Write an adapter! Dec 21, 2012 Design Patterns Chapter 8A5

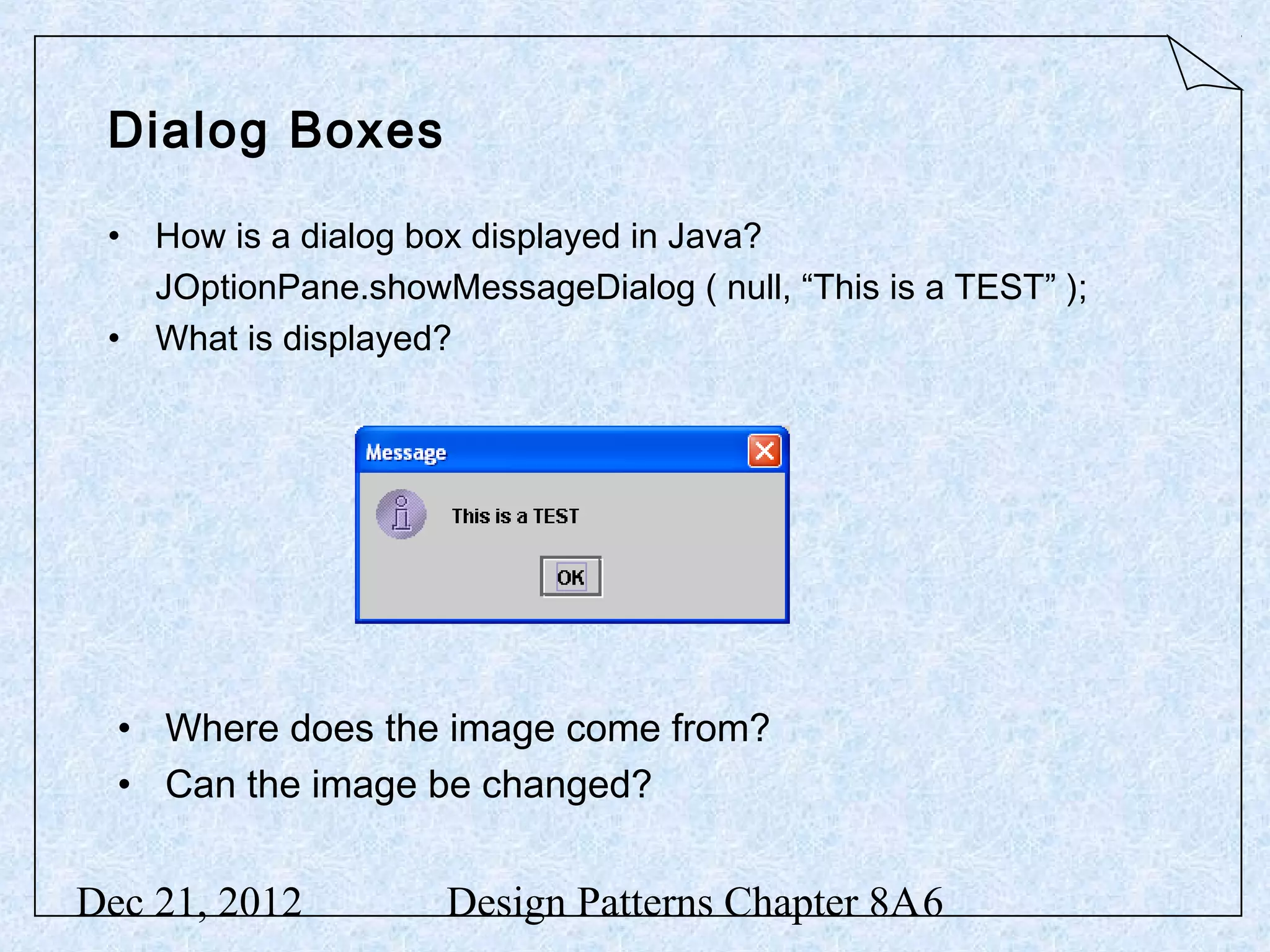

Dialog Boxes • How is a dialog box displayed in Java? JOptionPane.showMessageDialog ( null, “This is a TEST” ); • What is displayed? • Where does the image come from? • Can the image be changed? Dec 21, 2012 Design Patterns Chapter 8A6

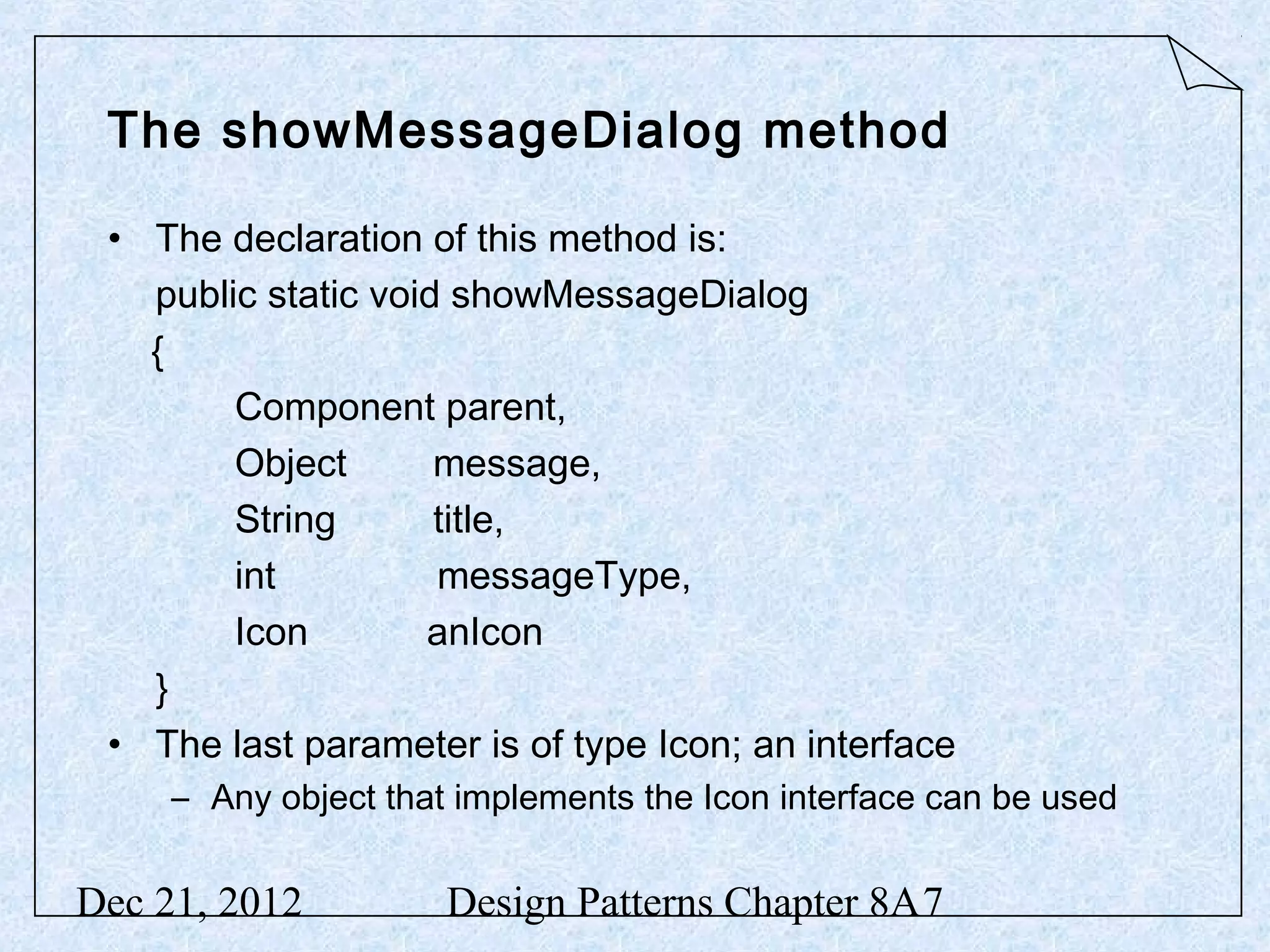

The showMessageDialog method • The declaration of this method is: public static void showMessageDialog { Component parent, Object message, String title, int messageType, Icon anIcon } • The last parameter is of type Icon; an interface – Any object that implements the Icon interface can be used Dec 21, 2012 Design Patterns Chapter 8A7

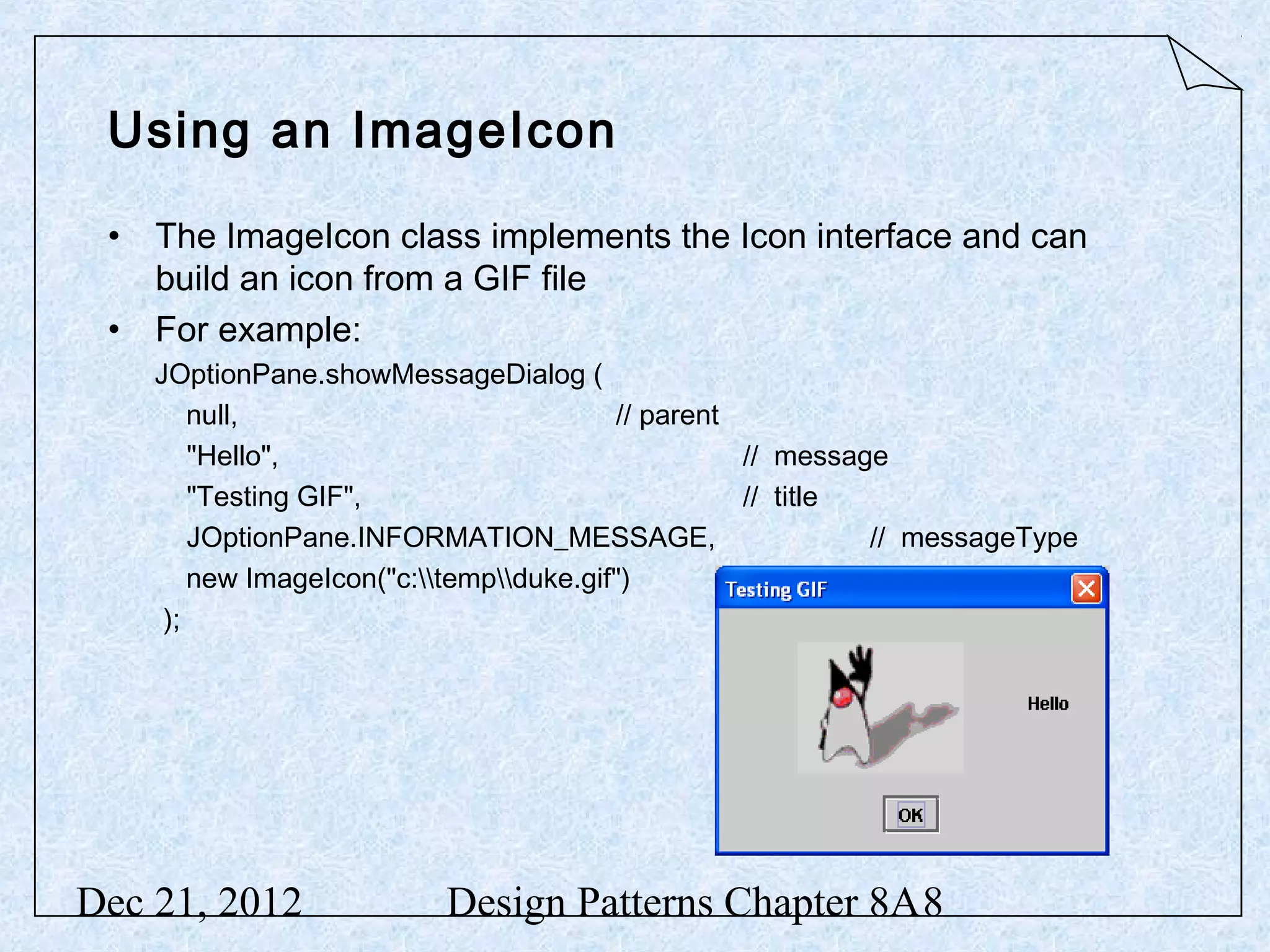

Using an ImageIcon • The ImageIcon class implements the Icon interface and can build an icon from a GIF file • For example: JOptionPane.showMessageDialog ( null, // parent "Hello", // message "Testing GIF", // title JOptionPane.INFORMATION_MESSAGE, // messageType new ImageIcon("c:tempduke.gif") // anIcon ); Dec 21, 2012 Design Patterns Chapter 8A8

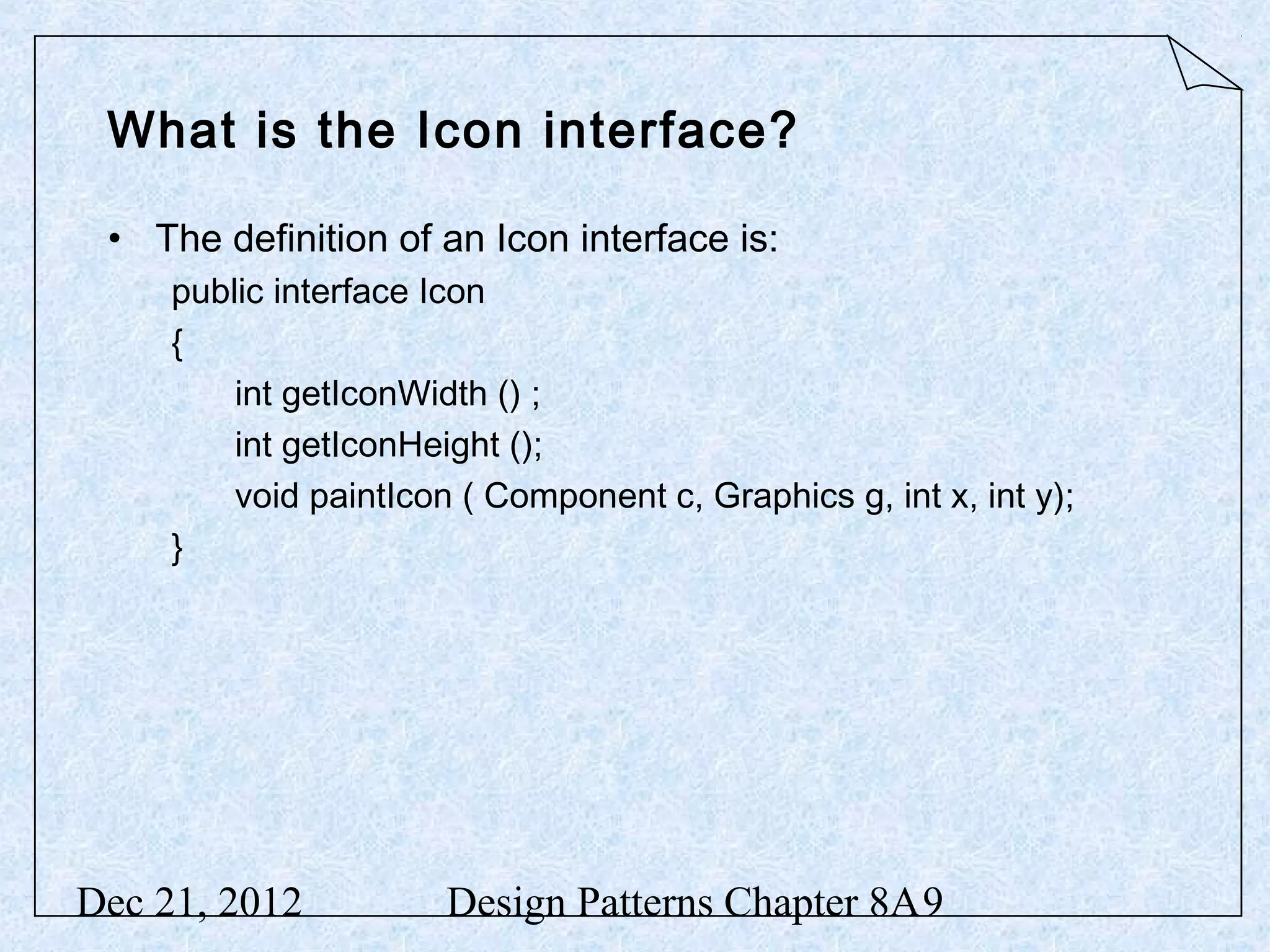

What is the Icon interface? • The definition of an Icon interface is: public interface Icon { int getIconWidth () ; int getIconHeight (); void paintIcon ( Component c, Graphics g, int x, int y); } Dec 21, 2012 Design Patterns Chapter 8A9

A Simple Icon Class public class PeteIcon implements Icon { private int size; public PeteIcon(int aSize) { size = aSize; } public int getIconWidth() { return size; } public int getIconHeight() { return size; } public void paintIcon (Component c, Graphics g, int x, int y) { Graphics2D g2 = (Graphics2D) g; Ellipse2D.Double e = new Ellipse2D.Double (x,y,size,size); g2.setColor (Color.RED); g2.fill(e); g2.setColor(Color.BLACK); g2.drawString("Pete",size/3,size/2); } } Dec 21, 2012 Design Patterns Chapter 8A10

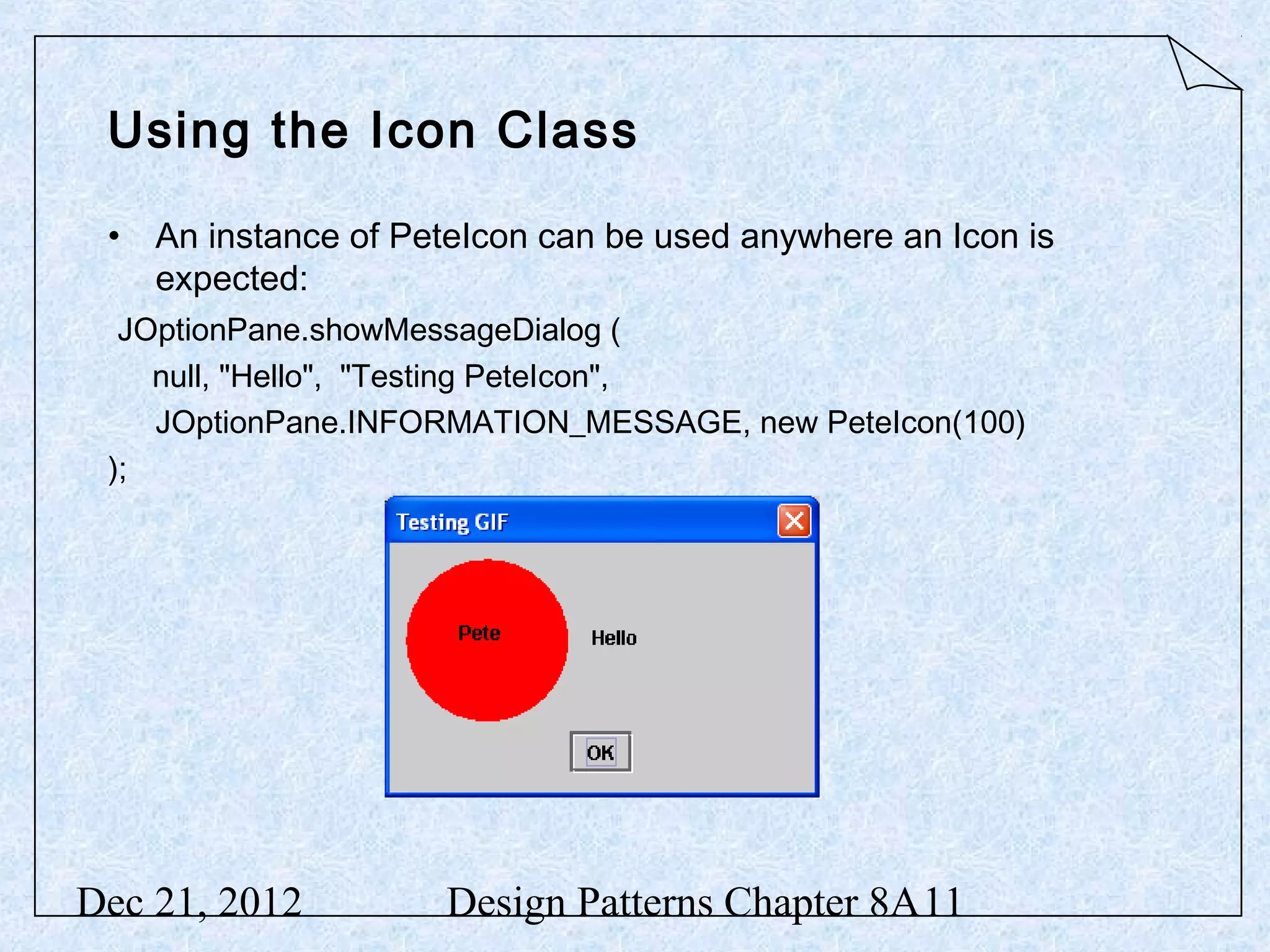

Using the Icon Class • An instance of PeteIcon can be used anywhere an Icon is expected: JOptionPane.showMessageDialog ( null, "Hello", "Testing PeteIcon", JOptionPane.INFORMATION_MESSAGE, new PeteIcon(100) ); Dec 21, 2012 Design Patterns Chapter 8A11

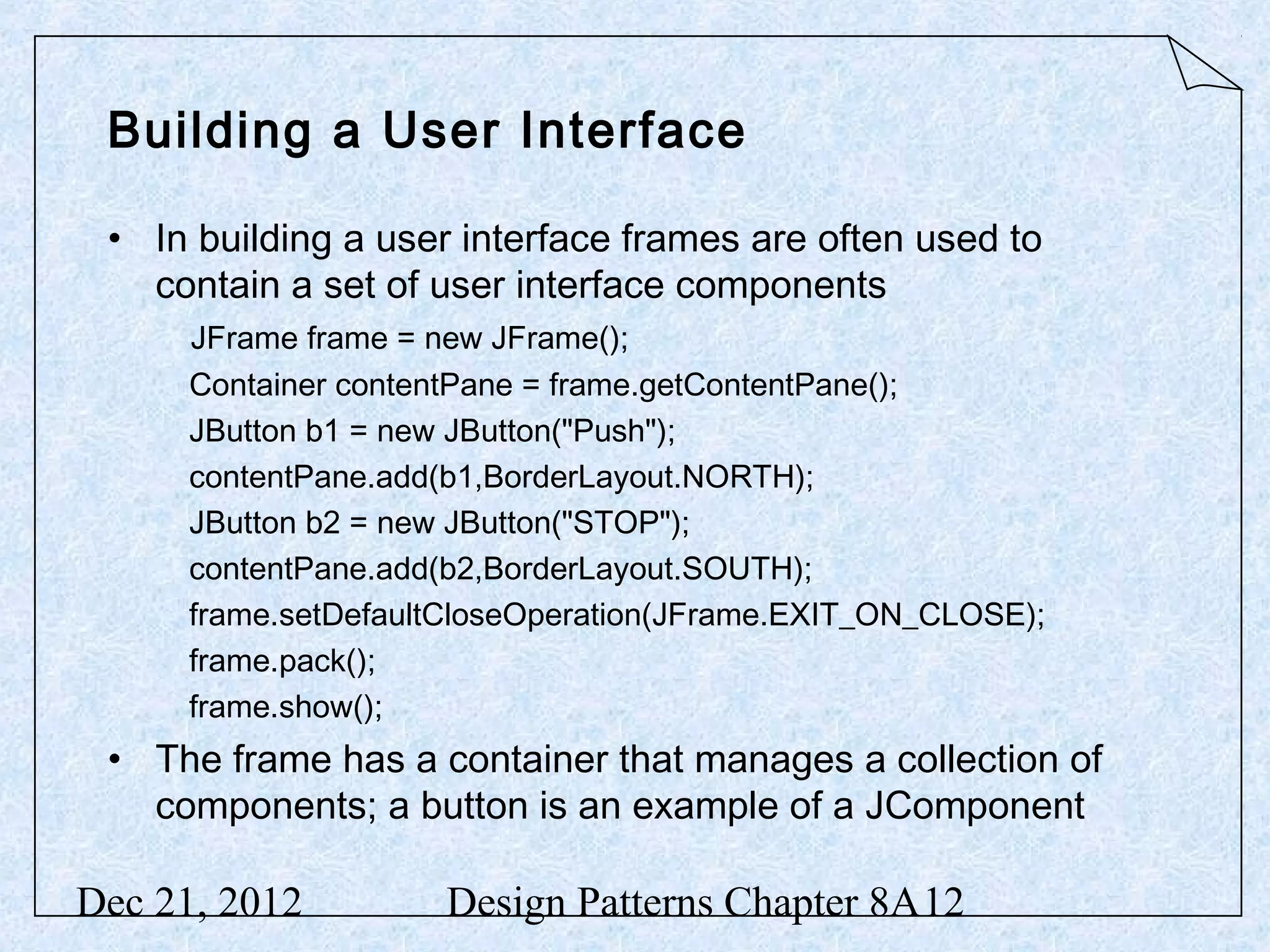

Building a User Interface • In building a user interface frames are often used to contain a set of user interface components JFrame frame = new JFrame(); Container contentPane = frame.getContentPane(); JButton b1 = new JButton("Push"); contentPane.add(b1,BorderLayout.NORTH); JButton b2 = new JButton("STOP"); contentPane.add(b2,BorderLayout.SOUTH); frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); frame.pack(); frame.show(); • The frame has a container that manages a collection of components; a button is an example of a JComponent Dec 21, 2012 Design Patterns Chapter 8A12

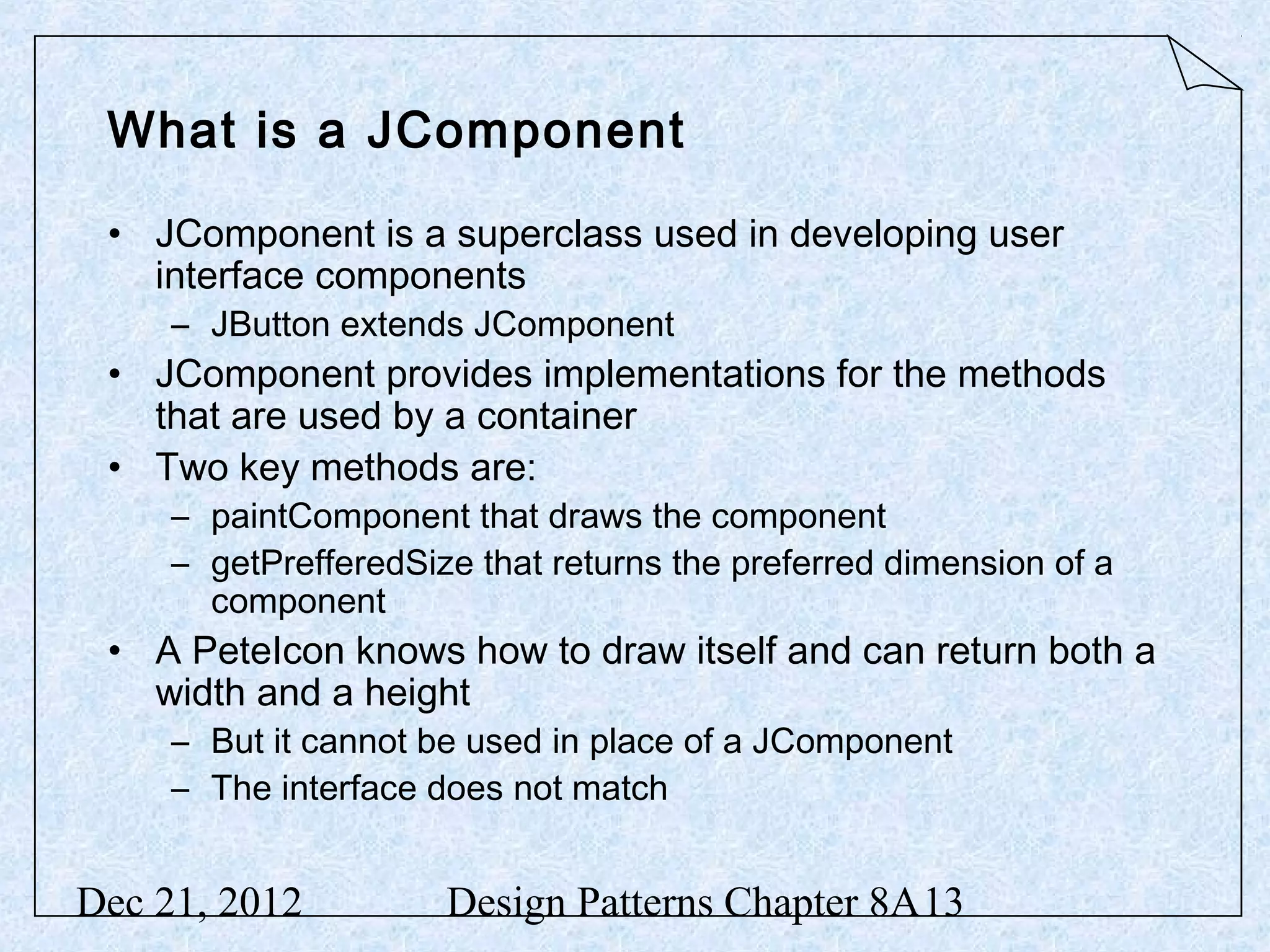

What is a JComponent • JComponent is a superclass used in developing user interface components – JButton extends JComponent • JComponent provides implementations for the methods that are used by a container • Two key methods are: – paintComponent that draws the component – getPrefferedSize that returns the preferred dimension of a component • A PeteIcon knows how to draw itself and can return both a width and a height – But it cannot be used in place of a JComponent – The interface does not match Dec 21, 2012 Design Patterns Chapter 8A13

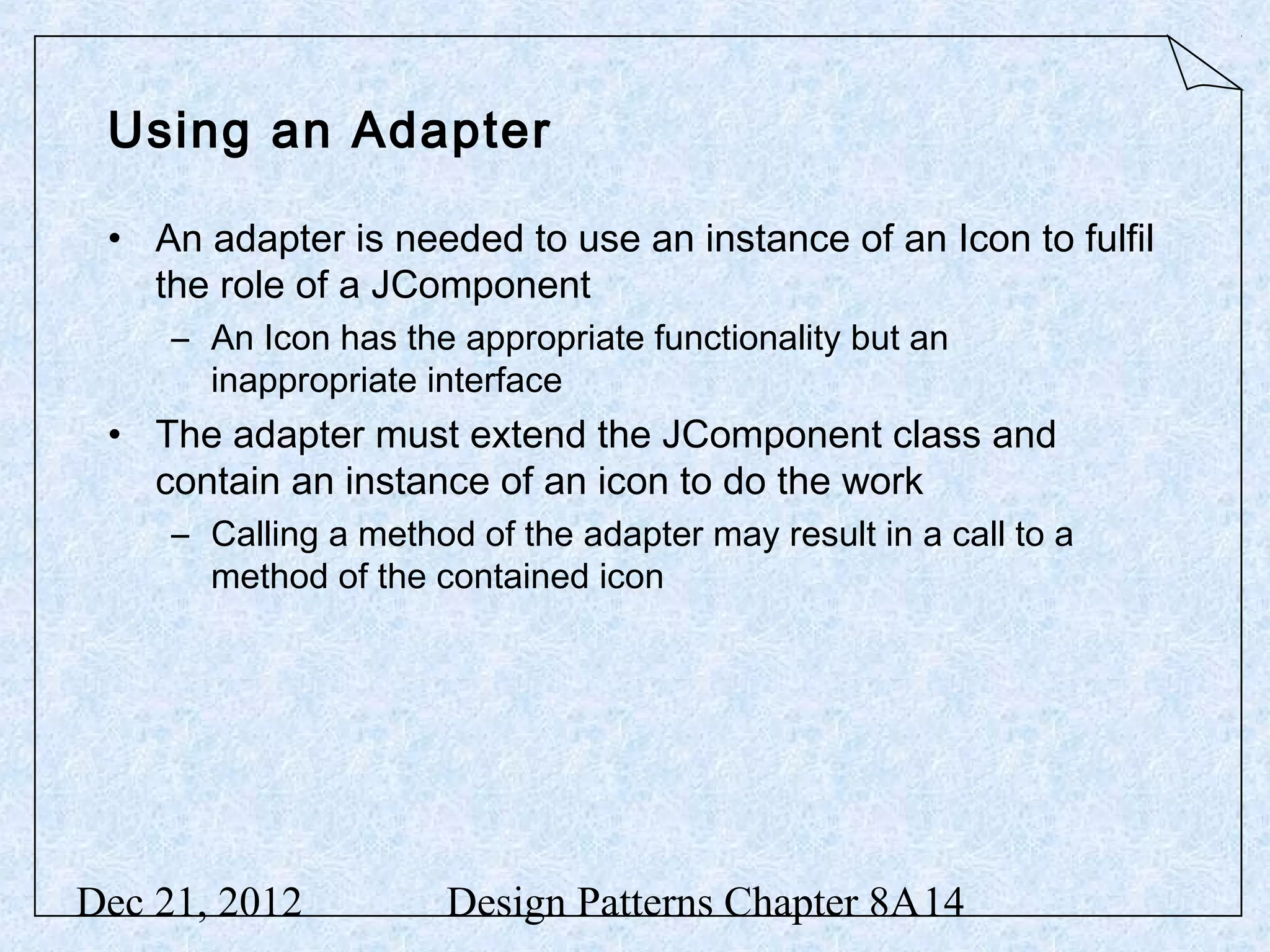

Using an Adapter • An adapter is needed to use an instance of an Icon to fulfil the role of a JComponent – An Icon has the appropriate functionality but an inappropriate interface • The adapter must extend the JComponent class and contain an instance of an icon to do the work – Calling a method of the adapter may result in a call to a method of the contained icon Dec 21, 2012 Design Patterns Chapter 8A14

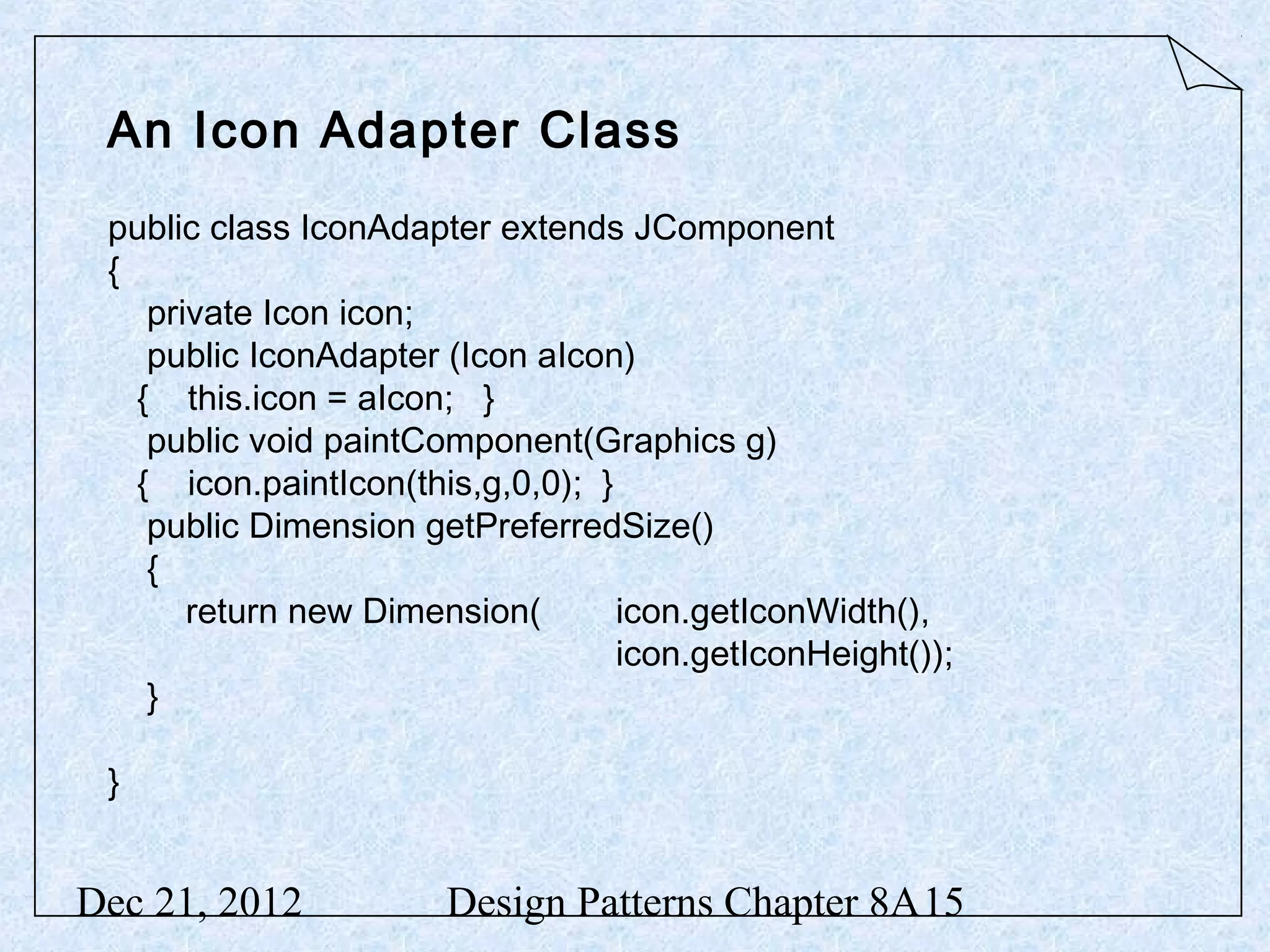

An Icon Adapter Class public class IconAdapter extends JComponent { private Icon icon; public IconAdapter (Icon aIcon) { this.icon = aIcon; } public void paintComponent(Graphics g) { icon.paintIcon(this,g,0,0); } public Dimension getPreferredSize() { return new Dimension( icon.getIconWidth(), icon.getIconHeight()); } } Dec 21, 2012 Design Patterns Chapter 8A15

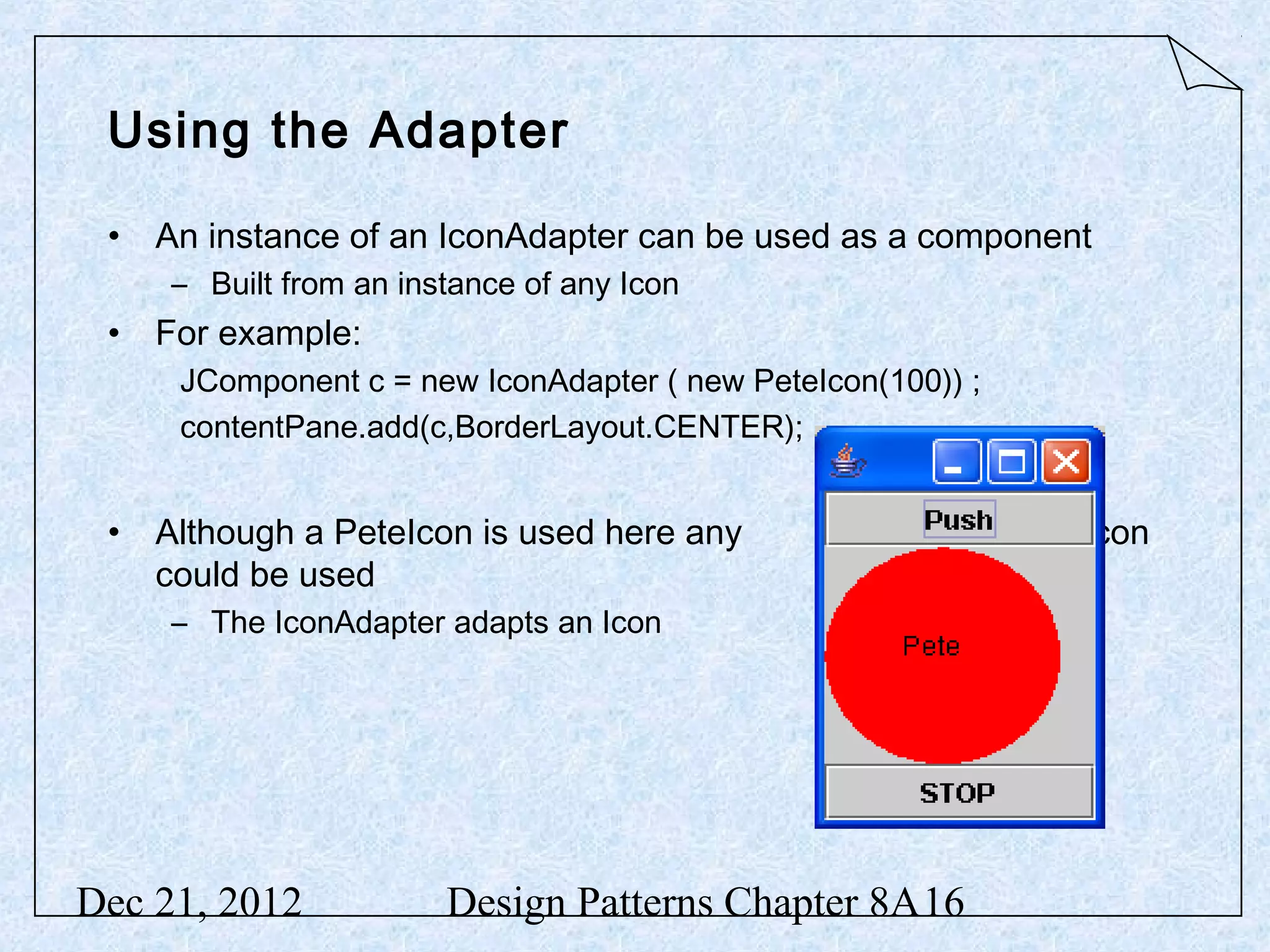

Using the Adapter • An instance of an IconAdapter can be used as a component – Built from an instance of any Icon • For example: JComponent c = new IconAdapter ( new PeteIcon(100)) ; contentPane.add(c,BorderLayout.CENTER); • Although a PeteIcon is used here any Icon could be used – The IconAdapter adapts an Icon Dec 21, 2012 Design Patterns Chapter 8A16

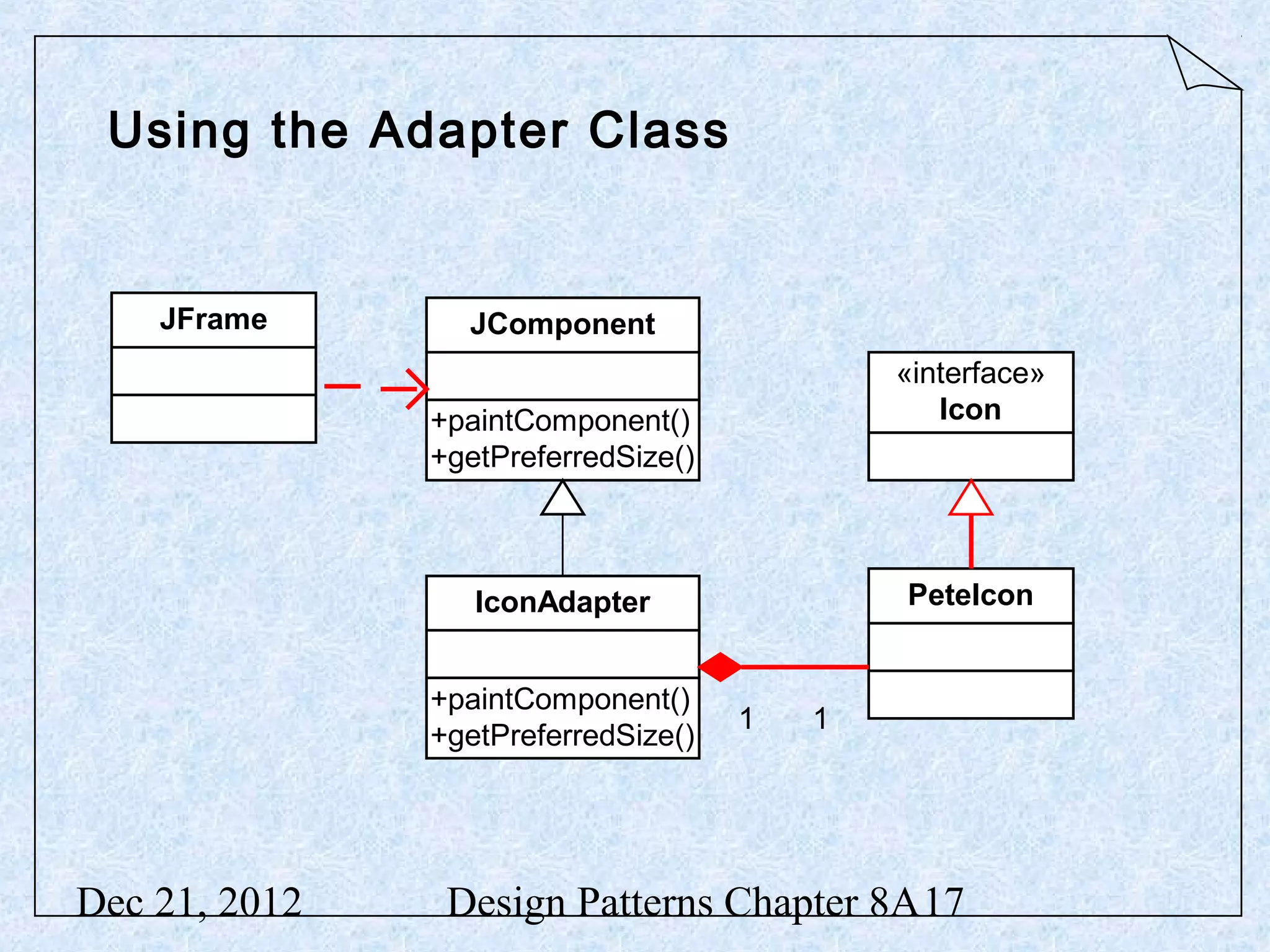

Using the Adapter Class JFrame JComponent «interface» +paintComponent() Icon +getPreferredSize() IconAdapter PeteIcon +paintComponent() 1 1 +getPreferredSize() Dec 21, 2012 Design Patterns Chapter 8A17

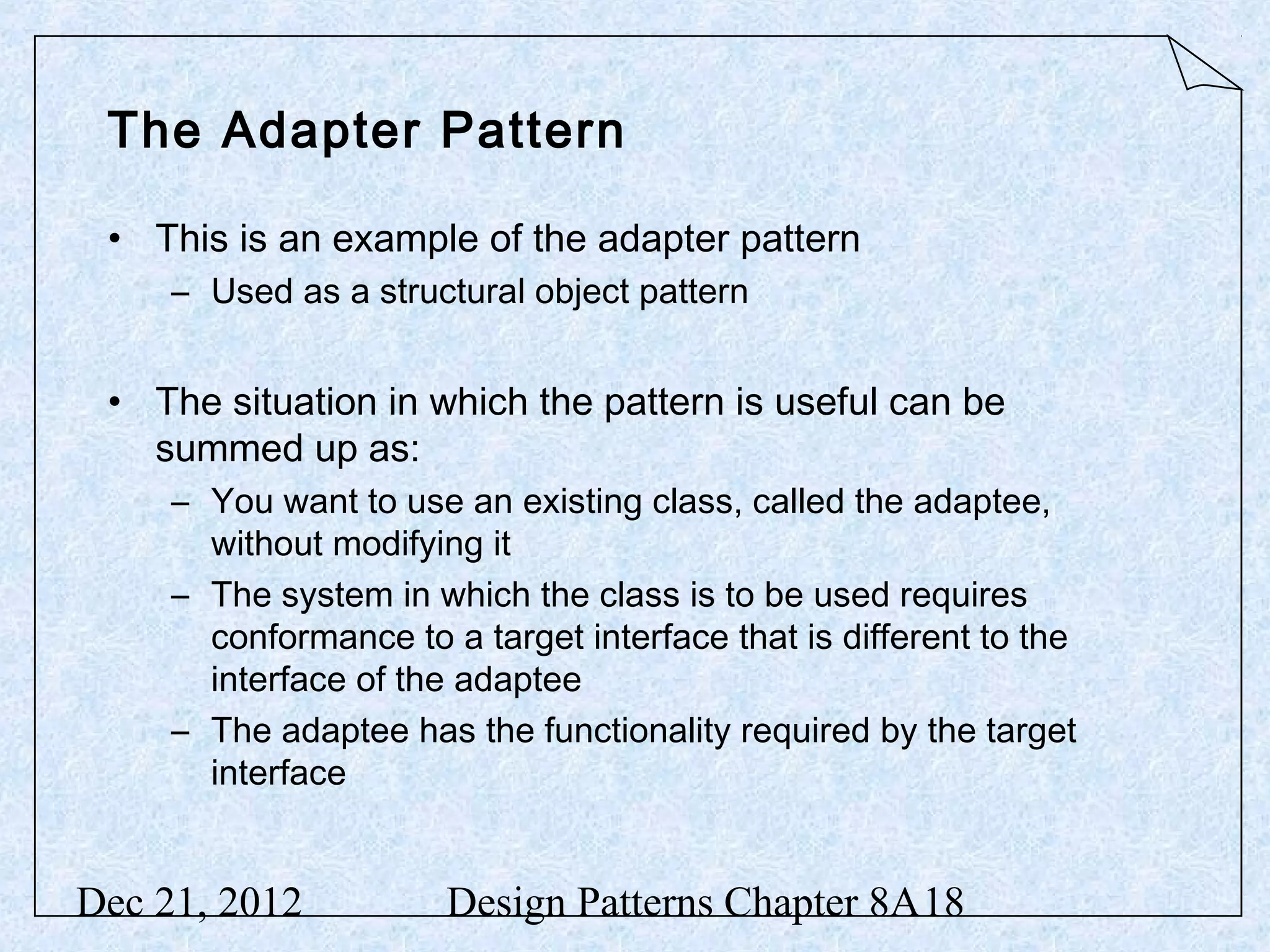

The Adapter Pattern • This is an example of the adapter pattern – Used as a structural object pattern • The situation in which the pattern is useful can be summed up as: – You want to use an existing class, called the adaptee, without modifying it – The system in which the class is to be used requires conformance to a target interface that is different to the interface of the adaptee – The adaptee has the functionality required by the target interface Dec 21, 2012 Design Patterns Chapter 8A18

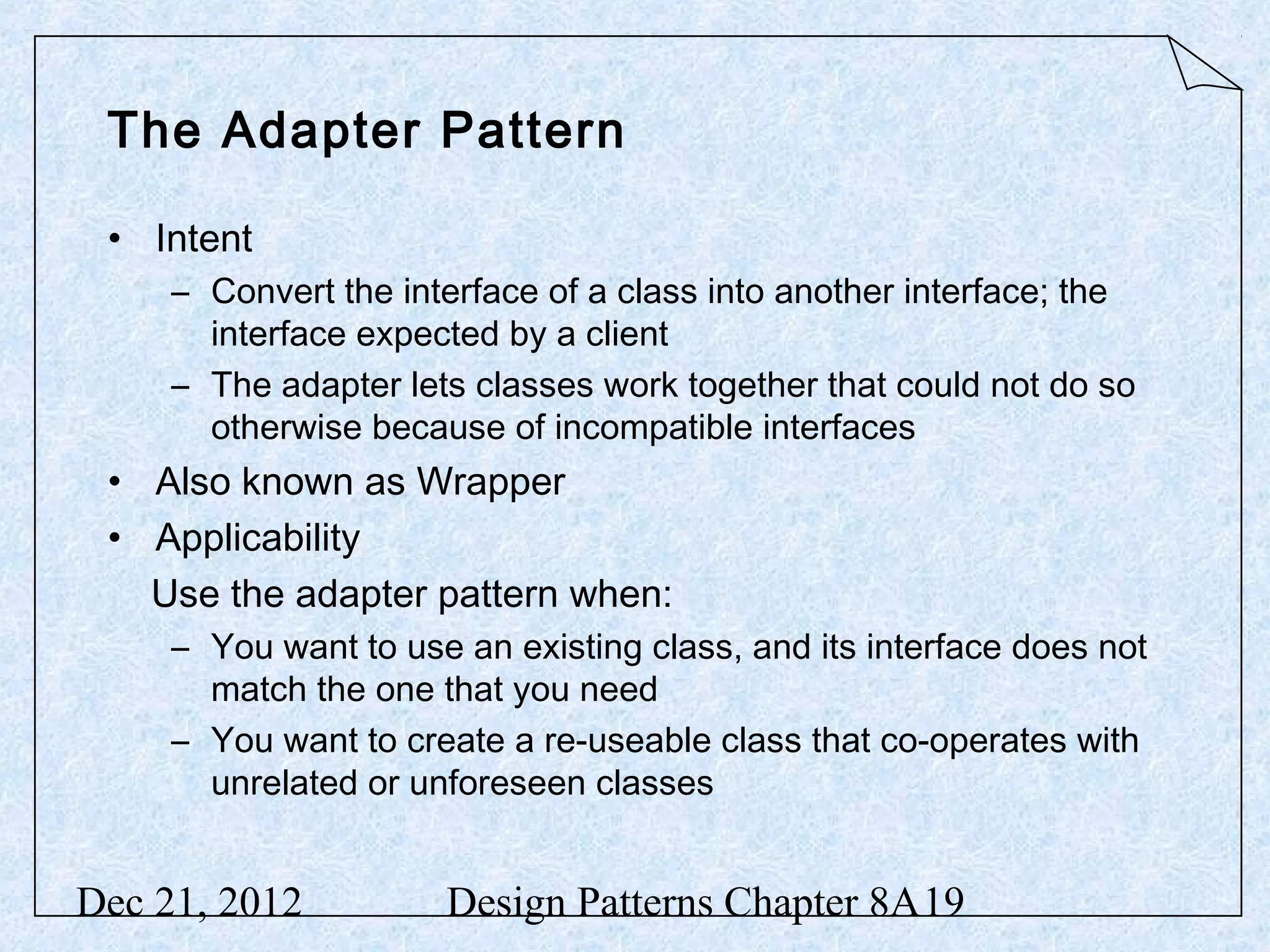

The Adapter Pattern • Intent – Convert the interface of a class into another interface; the interface expected by a client – The adapter lets classes work together that could not do so otherwise because of incompatible interfaces • Also known as Wrapper • Applicability Use the adapter pattern when: – You want to use an existing class, and its interface does not match the one that you need – You want to create a re-useable class that co-operates with unrelated or unforeseen classes Dec 21, 2012 Design Patterns Chapter 8A19

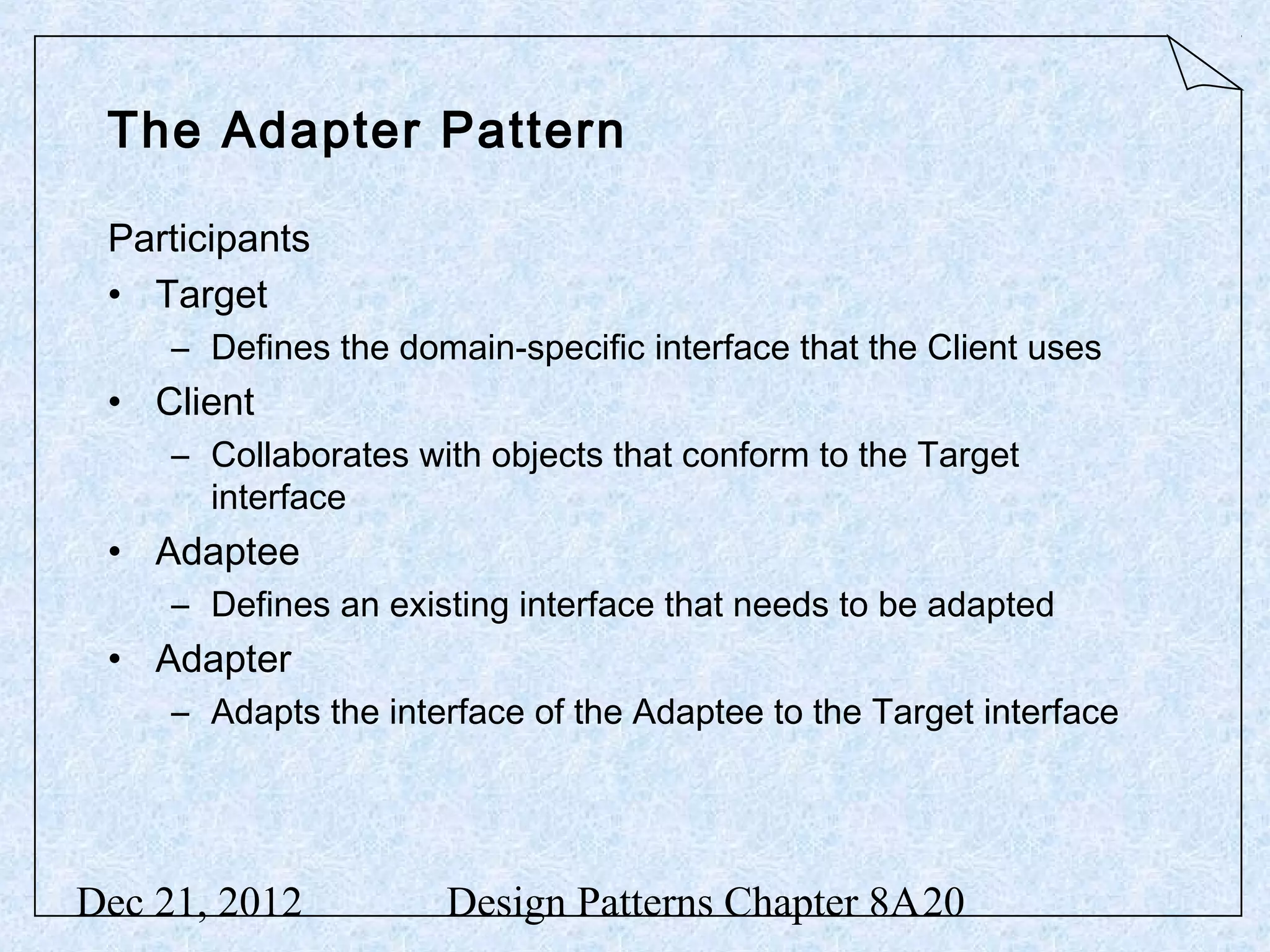

The Adapter Pattern Participants • Target – Defines the domain-specific interface that the Client uses • Client – Collaborates with objects that conform to the Target interface • Adaptee – Defines an existing interface that needs to be adapted • Adapter – Adapts the interface of the Adaptee to the Target interface Dec 21, 2012 Design Patterns Chapter 8A20

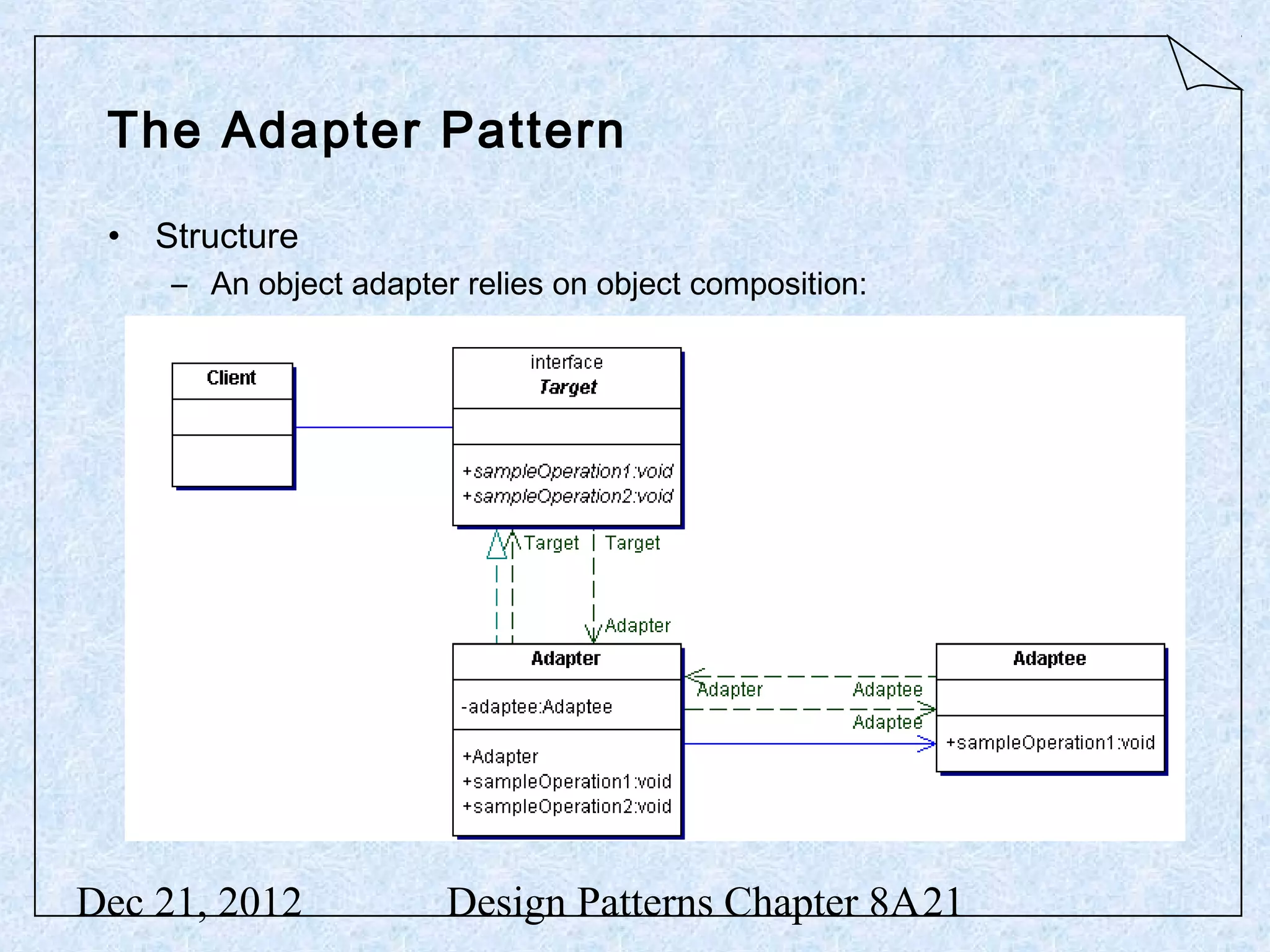

The Adapter Pattern • Structure – An object adapter relies on object composition: Dec 21, 2012 Design Patterns Chapter 8A21

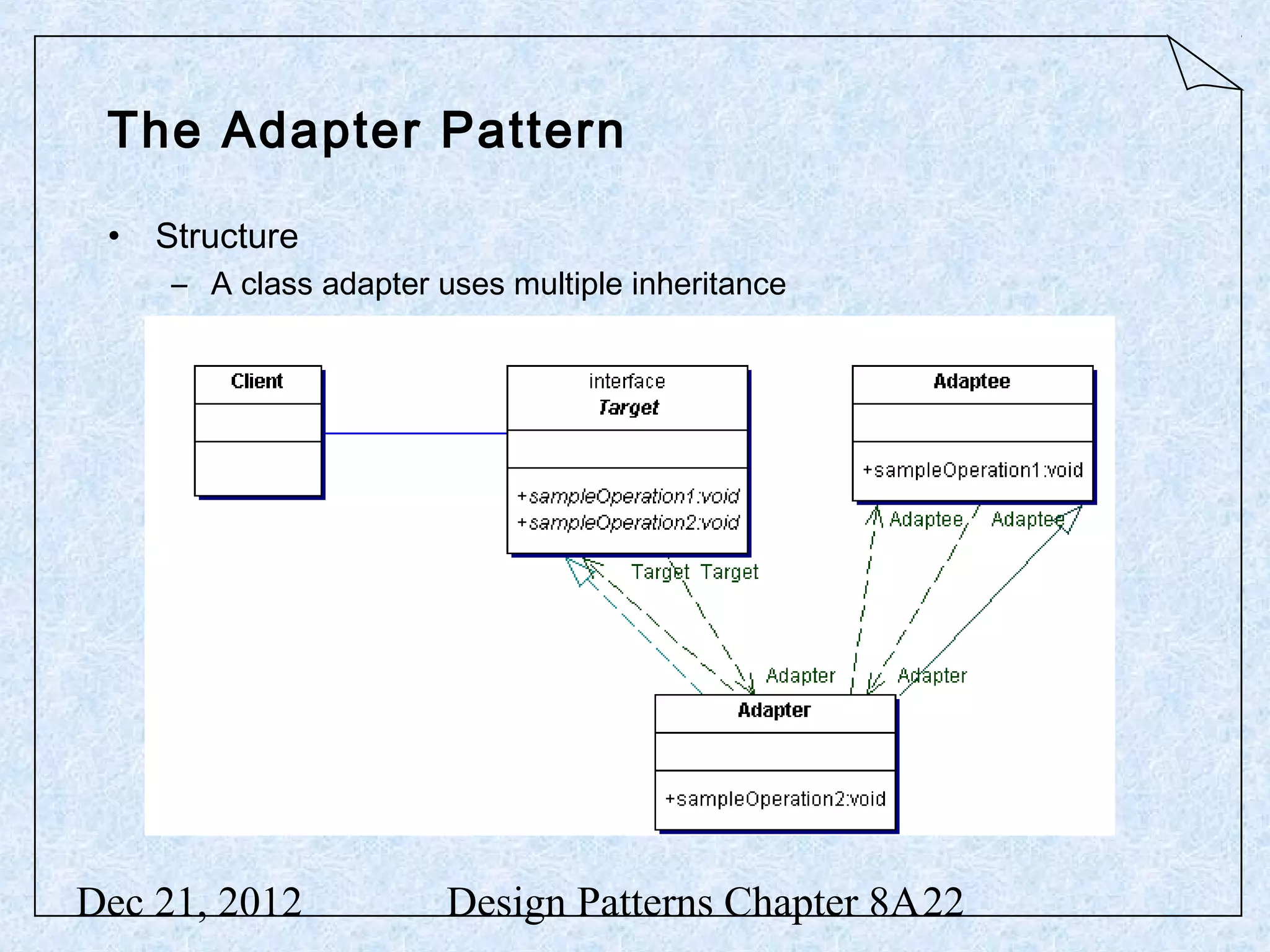

The Adapter Pattern • Structure – A class adapter uses multiple inheritance Dec 21, 2012 Design Patterns Chapter 8A22

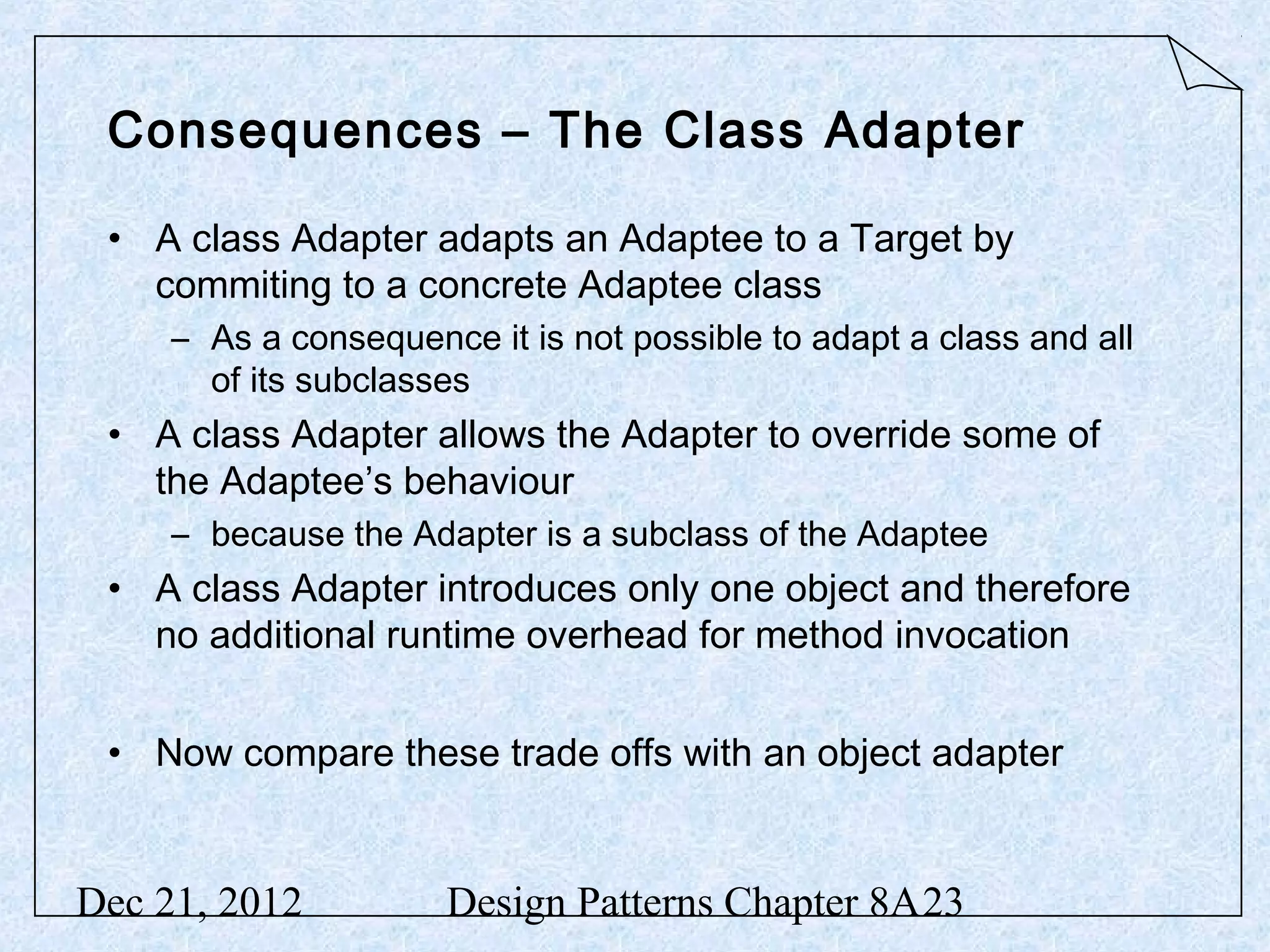

Consequences – The Class Adapter • A class Adapter adapts an Adaptee to a Target by commiting to a concrete Adaptee class – As a consequence it is not possible to adapt a class and all of its subclasses • A class Adapter allows the Adapter to override some of the Adaptee’s behaviour – because the Adapter is a subclass of the Adaptee • A class Adapter introduces only one object and therefore no additional runtime overhead for method invocation • Now compare these trade offs with an object adapter Dec 21, 2012 Design Patterns Chapter 8A23

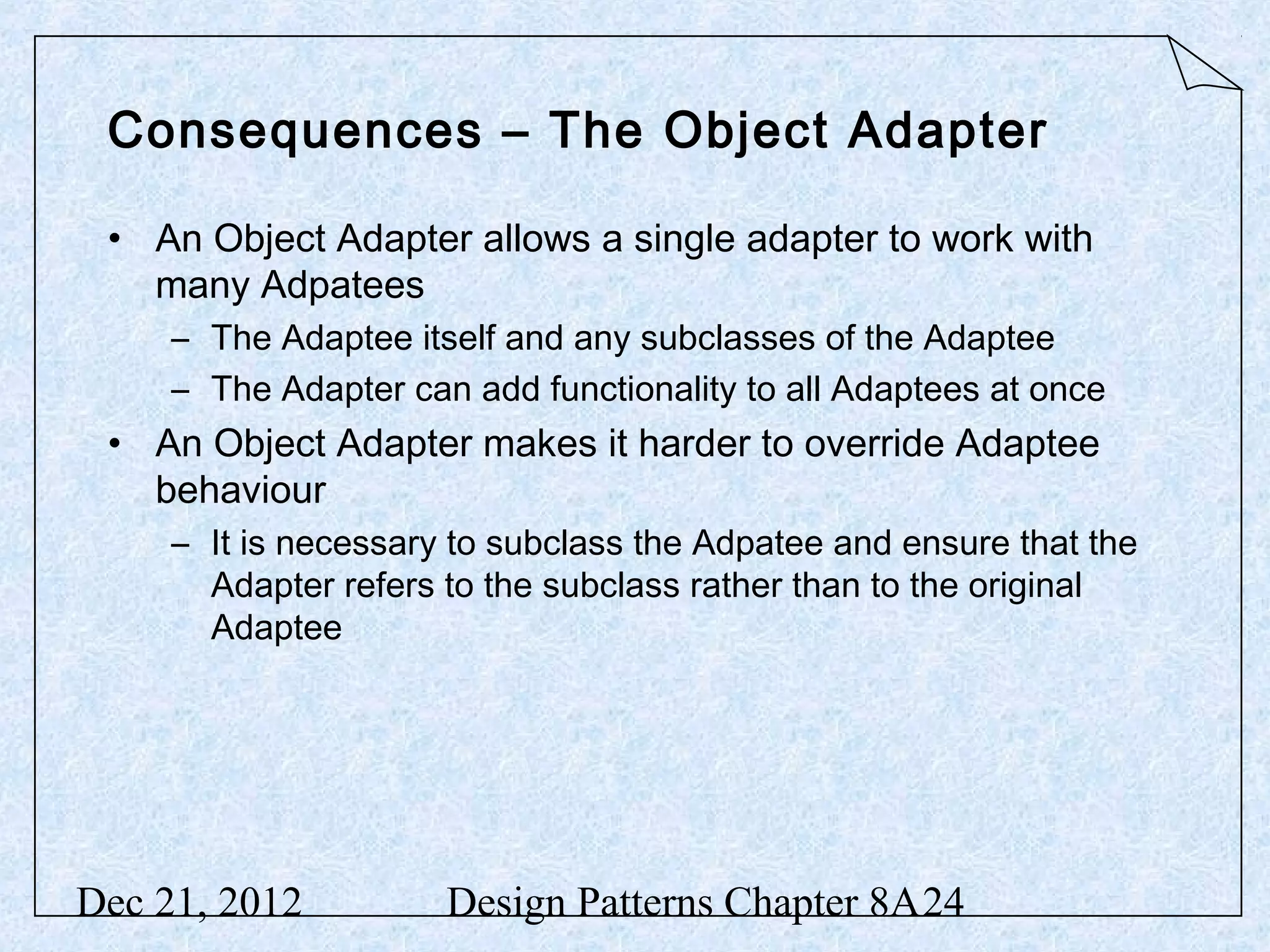

Consequences – The Object Adapter • An Object Adapter allows a single adapter to work with many Adpatees – The Adaptee itself and any subclasses of the Adaptee – The Adapter can add functionality to all Adaptees at once • An Object Adapter makes it harder to override Adaptee behaviour – It is necessary to subclass the Adpatee and ensure that the Adapter refers to the subclass rather than to the original Adaptee Dec 21, 2012 Design Patterns Chapter 8A24

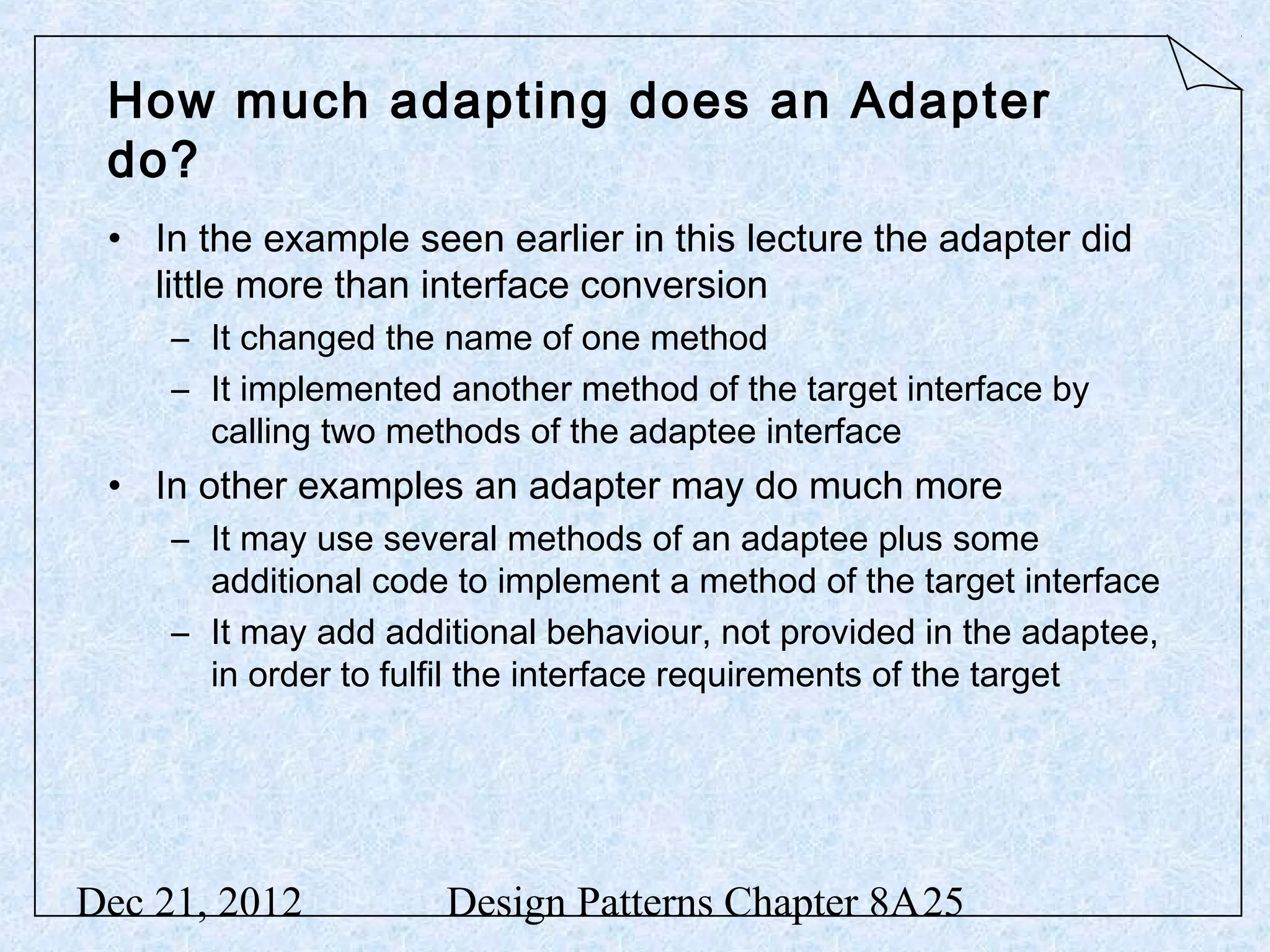

How much adapting does an Adapter do? • In the example seen earlier in this lecture the adapter did little more than interface conversion – It changed the name of one method – It implemented another method of the target interface by calling two methods of the adaptee interface • In other examples an adapter may do much more – It may use several methods of an adaptee plus some additional code to implement a method of the target interface – It may add additional behaviour, not provided in the adaptee, in order to fulfil the interface requirements of the target Dec 21, 2012 Design Patterns Chapter 8A25

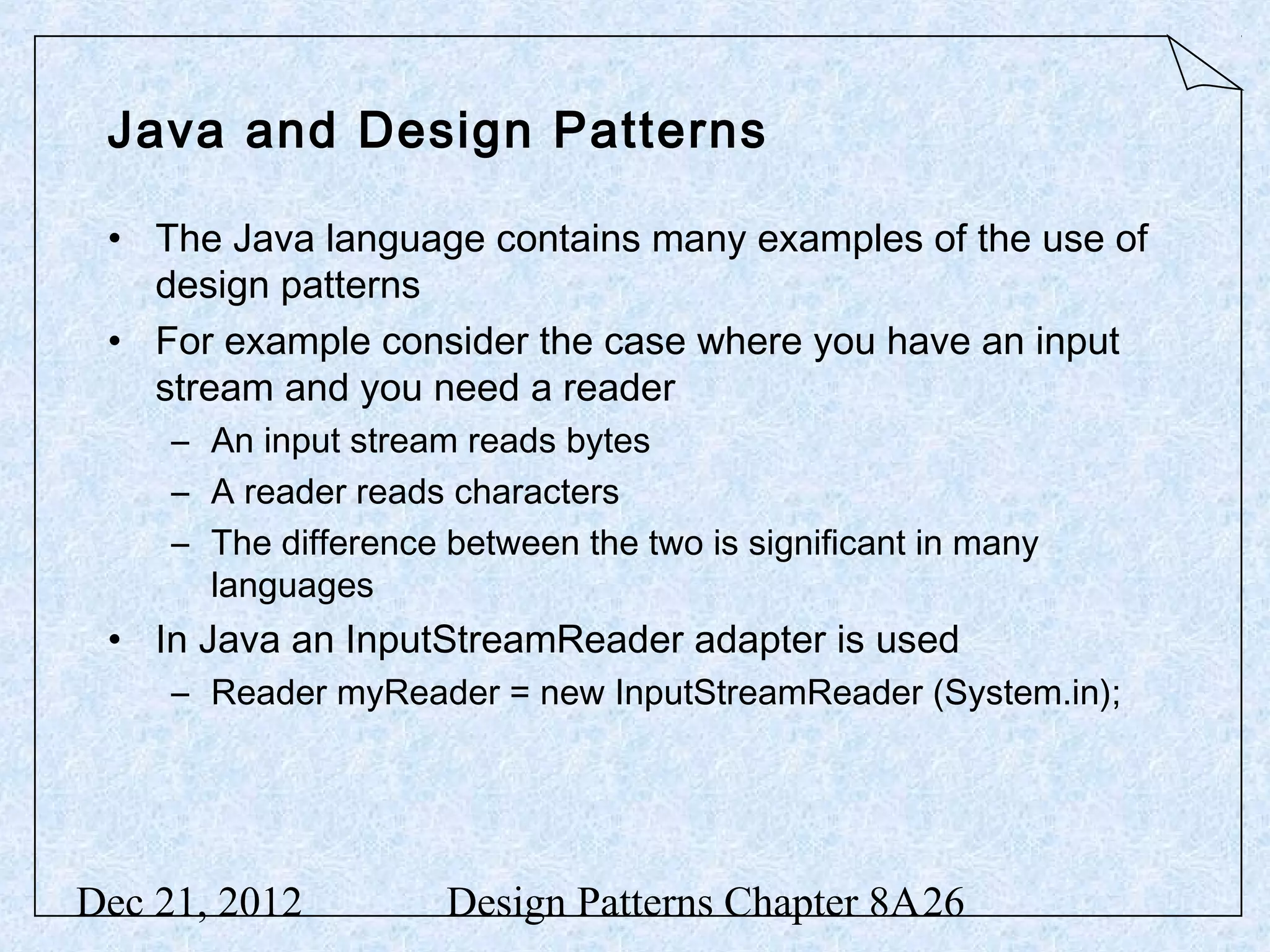

Java and Design Patterns • The Java language contains many examples of the use of design patterns • For example consider the case where you have an input stream and you need a reader – An input stream reads bytes – A reader reads characters – The difference between the two is significant in many languages • In Java an InputStreamReader adapter is used – Reader myReader = new InputStreamReader (System.in); Dec 21, 2012 Design Patterns Chapter 8A26

Java InputStreamReader Adapter • In this case: Adaptee InputStream Target Reader Adapter InputStreamReader Client the class that wants to read text from an input stream • As an exercise search for as many examples of the use of the adapter pattern as you can find in Java Dec 21, 2012 Design Patterns Chapter 8A27

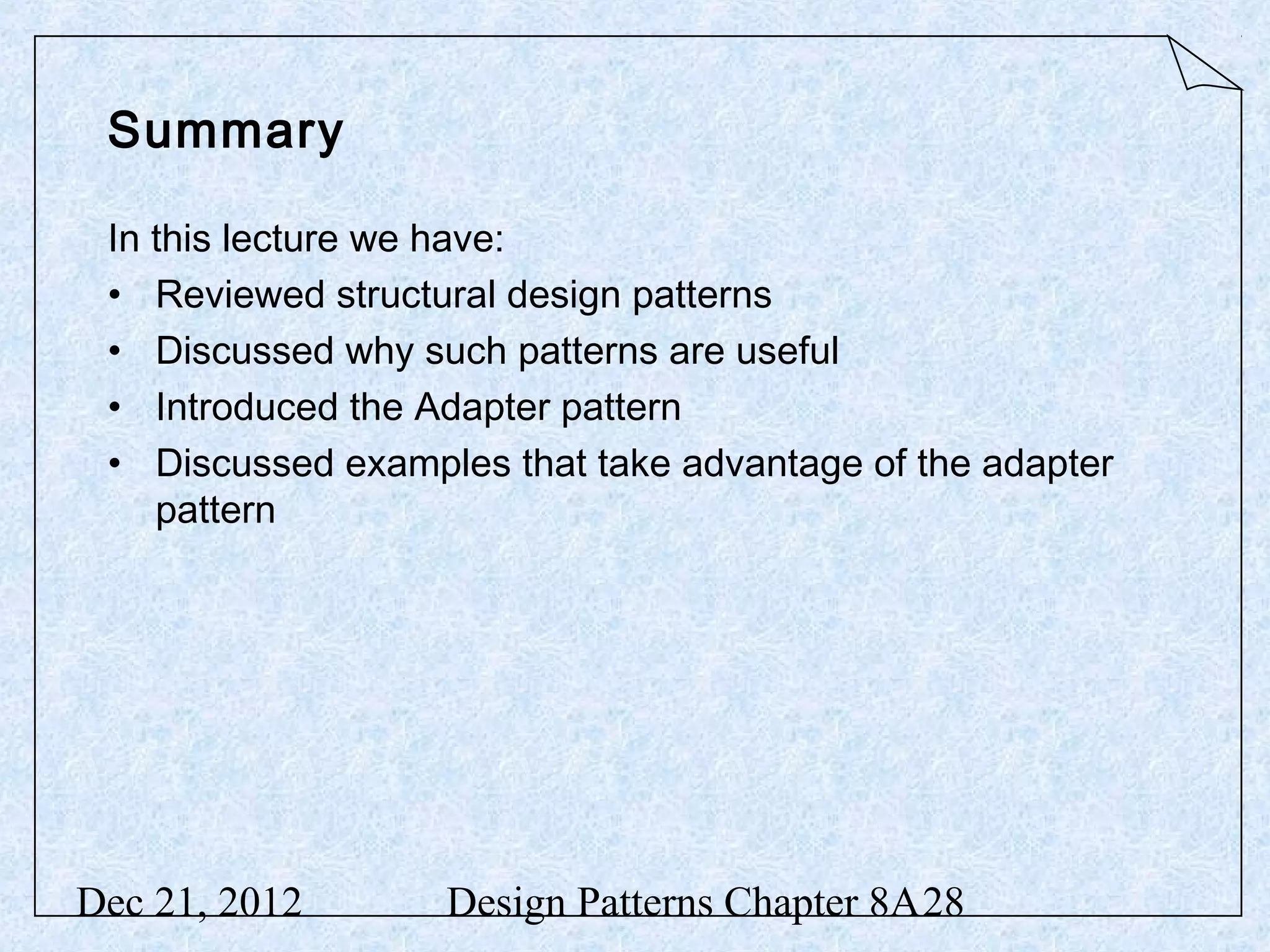

Summary In this lecture we have: • Reviewed structural design patterns • Discussed why such patterns are useful • Introduced the Adapter pattern • Discussed examples that take advantage of the adapter pattern Dec 21, 2012 Design Patterns Chapter 8A28
