Chapter 5 Pointers and Dynamic Memory

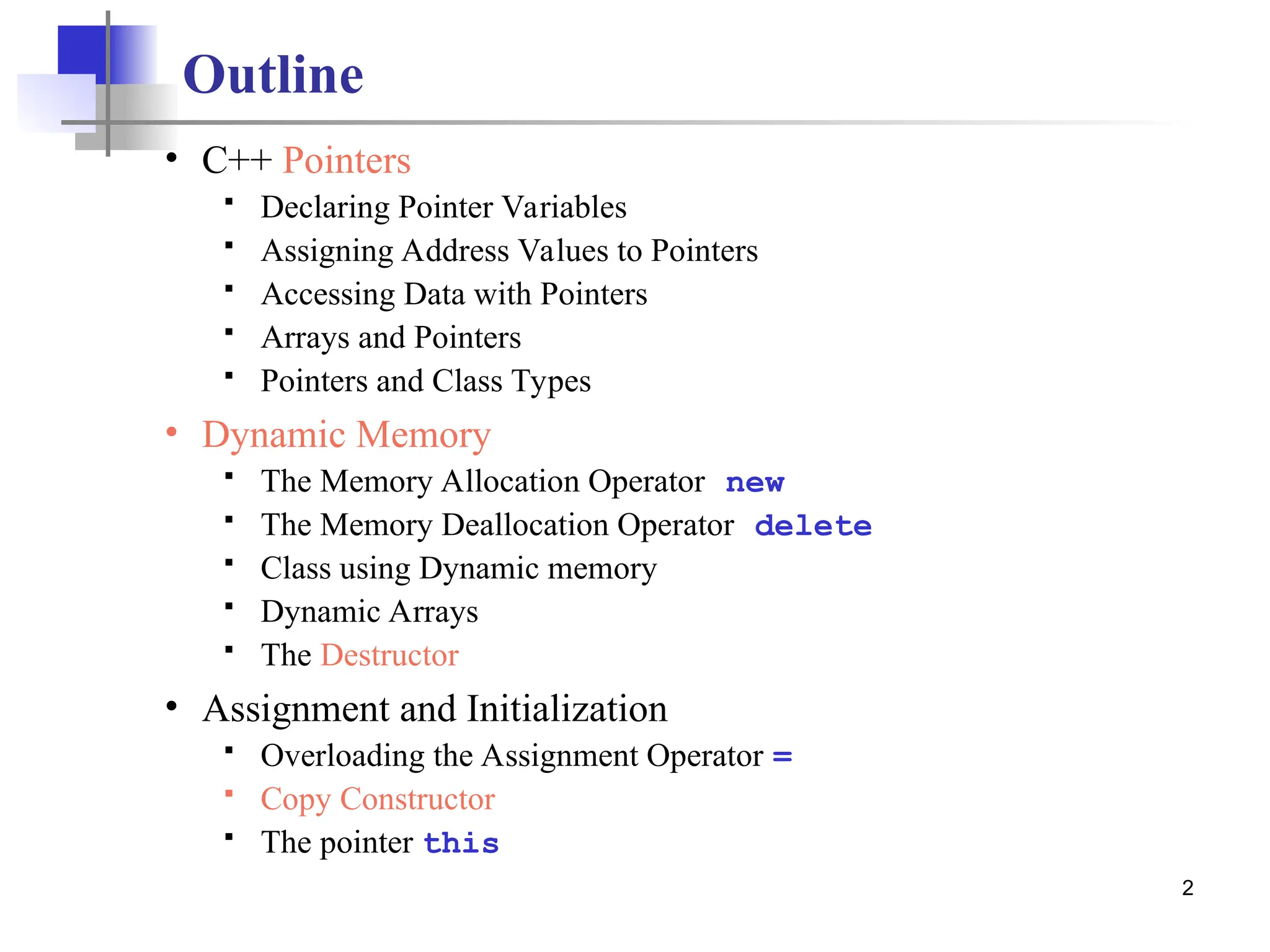

2 Outline • C++ Pointers  Declaring Pointer Variables  Assigning Address Values to Pointers  Accessing Data with Pointers  Arrays and Pointers  Pointers and Class Types • Dynamic Memory  The Memory Allocation Operator new  The Memory Deallocation Operator delete  Class using Dynamic memory  Dynamic Arrays  The Destructor • Assignment and Initialization  Overloading the Assignment Operator =  Copy Constructor  The pointer this

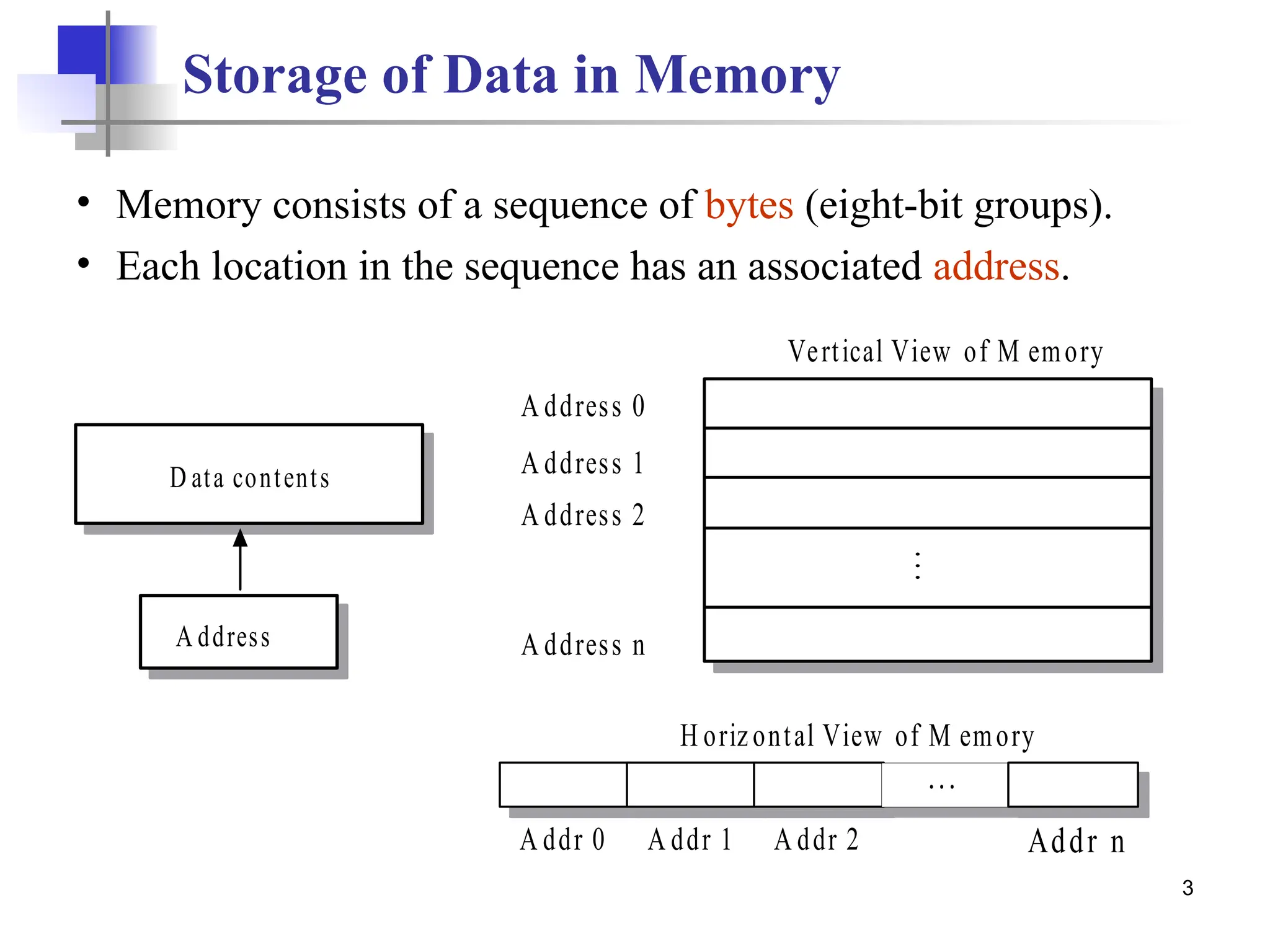

3 Storage of Data in Memory A ddress D ata contents A ddress 0 A ddress n A ddress 2 A ddress 1 A ddr 0 A ddr 1 A ddr 2 Addr n Vertical View of M emory H orizontal View of M emory . . . ... • Memory consists of a sequence of bytes (eight-bit groups). • Each location in the sequence has an associated address.

4 Data Addresses in Memory 50 integer char 5000 S 5004 5005 • The number of bytes to store a data item depends on its type  An integer typically requires four bytes  A character uses a single byte • In the case where a data item occupies more than one byte, we associate with the item the address of its first byte.  Integer 50 is stored at address 5000  Character ‘S’ is stored at address 5004

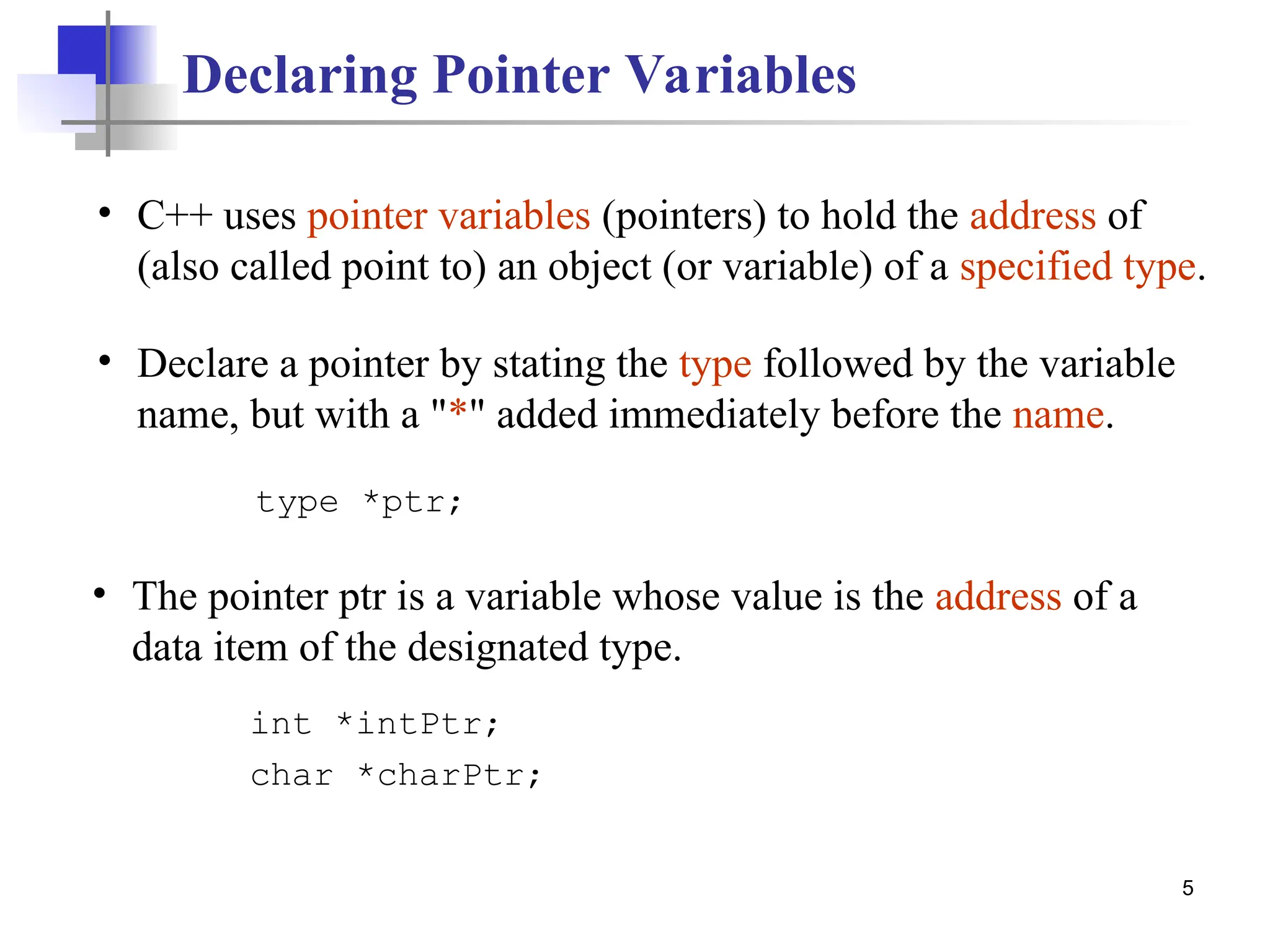

5 • The pointer ptr is a variable whose value is the address of a data item of the designated type. Declaring Pointer Variables int *intPtr; char *charPtr; type *ptr; • Declare a pointer by stating the type followed by the variable name, but with a "*" added immediately before the name. • C++ uses pointer variables (pointers) to hold the address of (also called point to) an object (or variable) of a specified type.

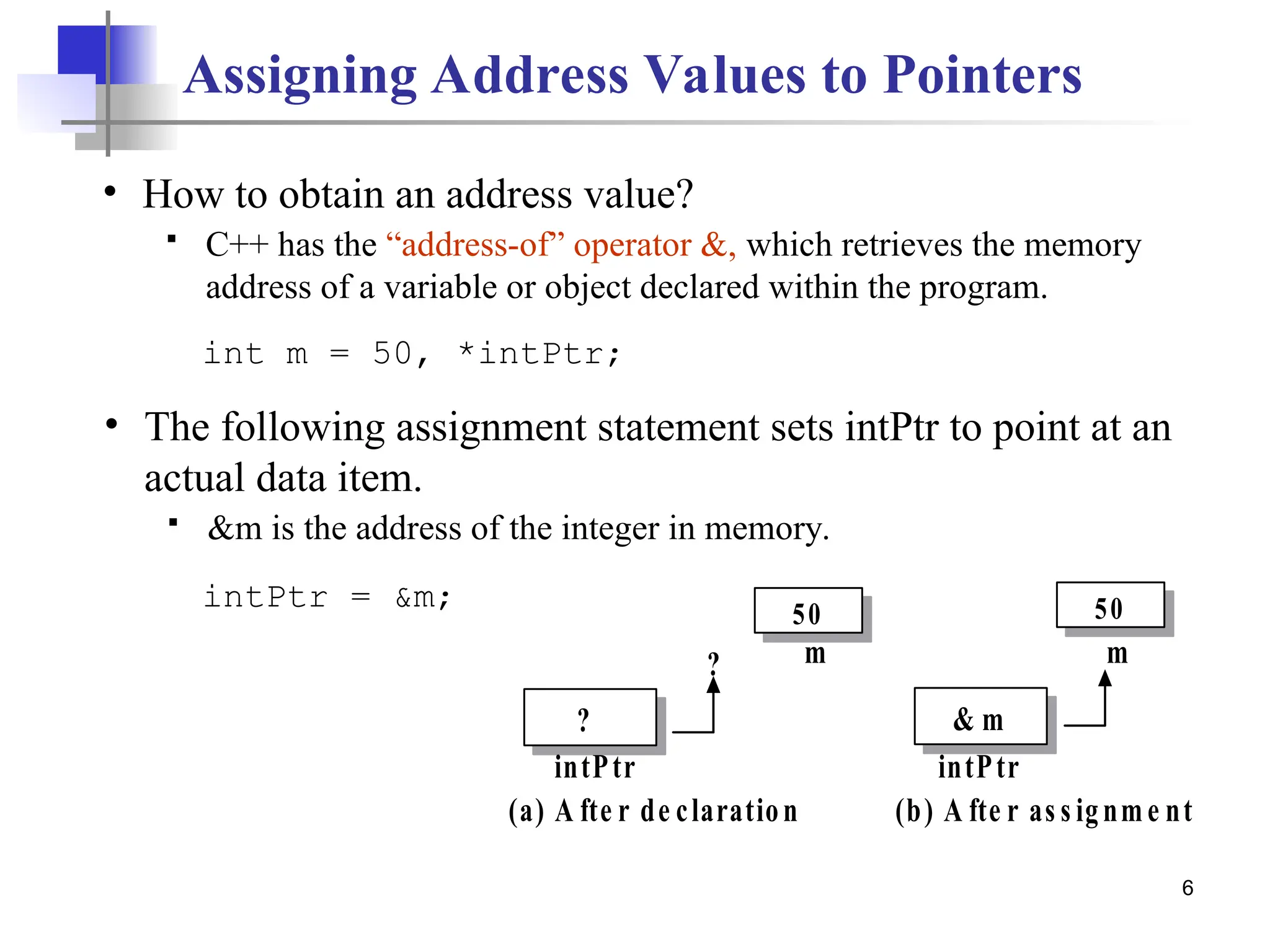

6 Assigning Address Values to Pointers • The following assignment statement sets intPtr to point at an actual data item.  &m is the address of the integer in memory. intPtr = &m; int m = 50, *intPtr; 50 m ? intPtr ? 50 m & m intPtr (a) A fte r de claration (b) A fte r as s ignme nt • How to obtain an address value?  C++ has the “address-of” operator &, which retrieves the memory address of a variable or object declared within the program.

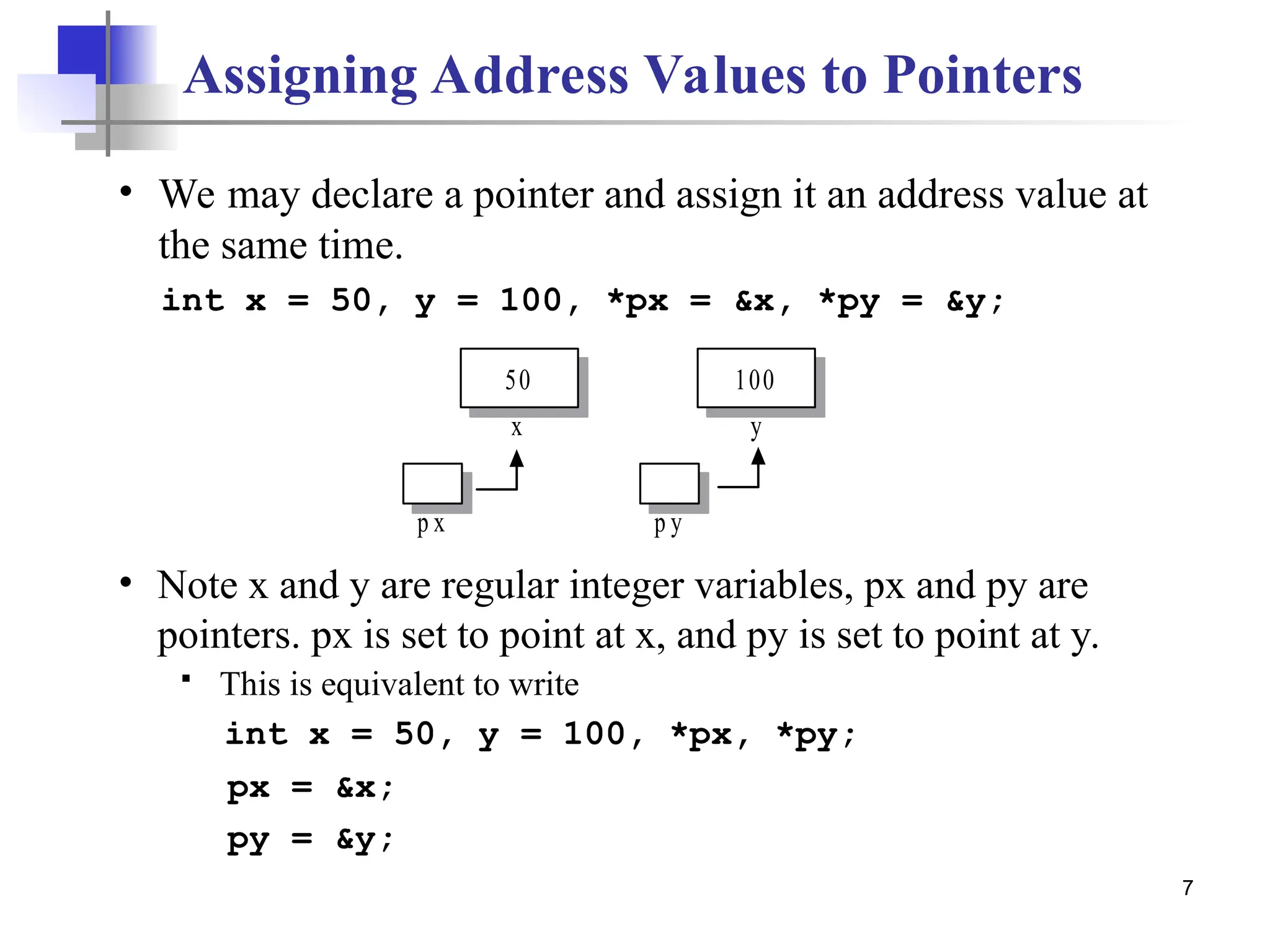

7 int x = 50, y = 100, *px = &x, *py = &y; 50 x p x 100 y p y • We may declare a pointer and assign it an address value at the same time. • Note x and y are regular integer variables, px and py are pointers. px is set to point at x, and py is set to point at y.  This is equivalent to write Assigning Address Values to Pointers int x = 50, y = 100, *px, *py; px = &x; py = &y;

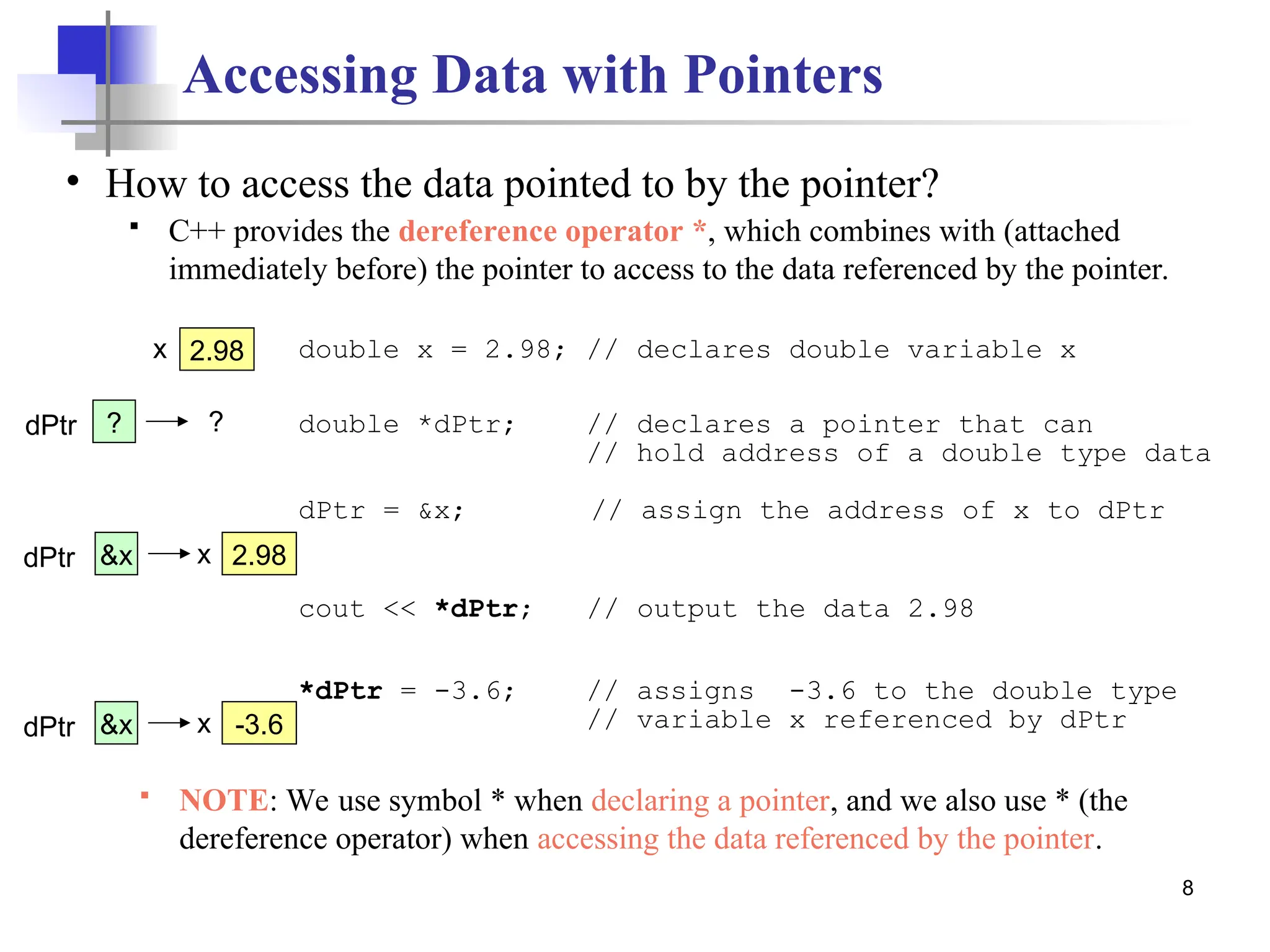

8 Accessing Data with Pointers double x = 2.98; // declares double variable x double *dPtr; // declares a pointer that can // hold address of a double type data dPtr = &x; // assign the address of x to dPtr cout << *dPtr; // output the data 2.98 *dPtr = -3.6; // assigns -3.6 to the double type // variable x referenced by dPtr • How to access the data pointed to by the pointer?  C++ provides the dereference operator *, which combines with (attached immediately before) the pointer to access to the data referenced by the pointer.  NOTE: We use symbol * when declaring a pointer, and we also use * (the dereference operator) when accessing the data referenced by the pointer. 2.98 ? dPtr x ? &x dPtr 2.98 x &x dPtr -3.6 x

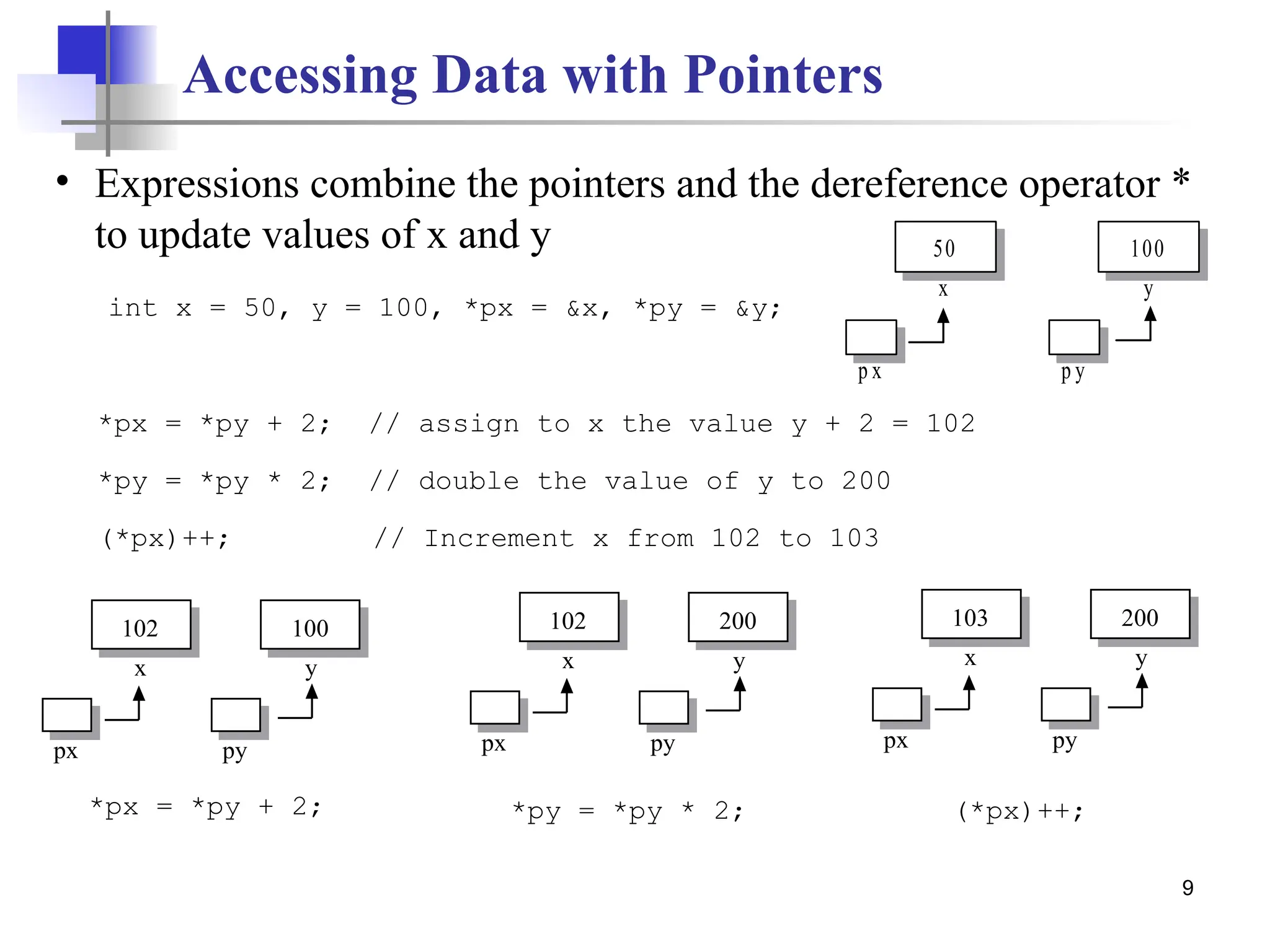

9 Accessing Data with Pointers int x = 50, y = 100, *px = &x, *py = &y; • Expressions combine the pointers and the dereference operator * to update values of x and y *px = *py + 2; // assign to x the value y + 2 = 102 *py = *py * 2; // double the value of y to 200 (*px)++; // Increment x from 102 to 103 50 x p x 100 y p y *px = *py + 2; *py = *py * 2; (*px)++; 102 x px 100 y py 102 x px 200 y py 103 x px 200 y py

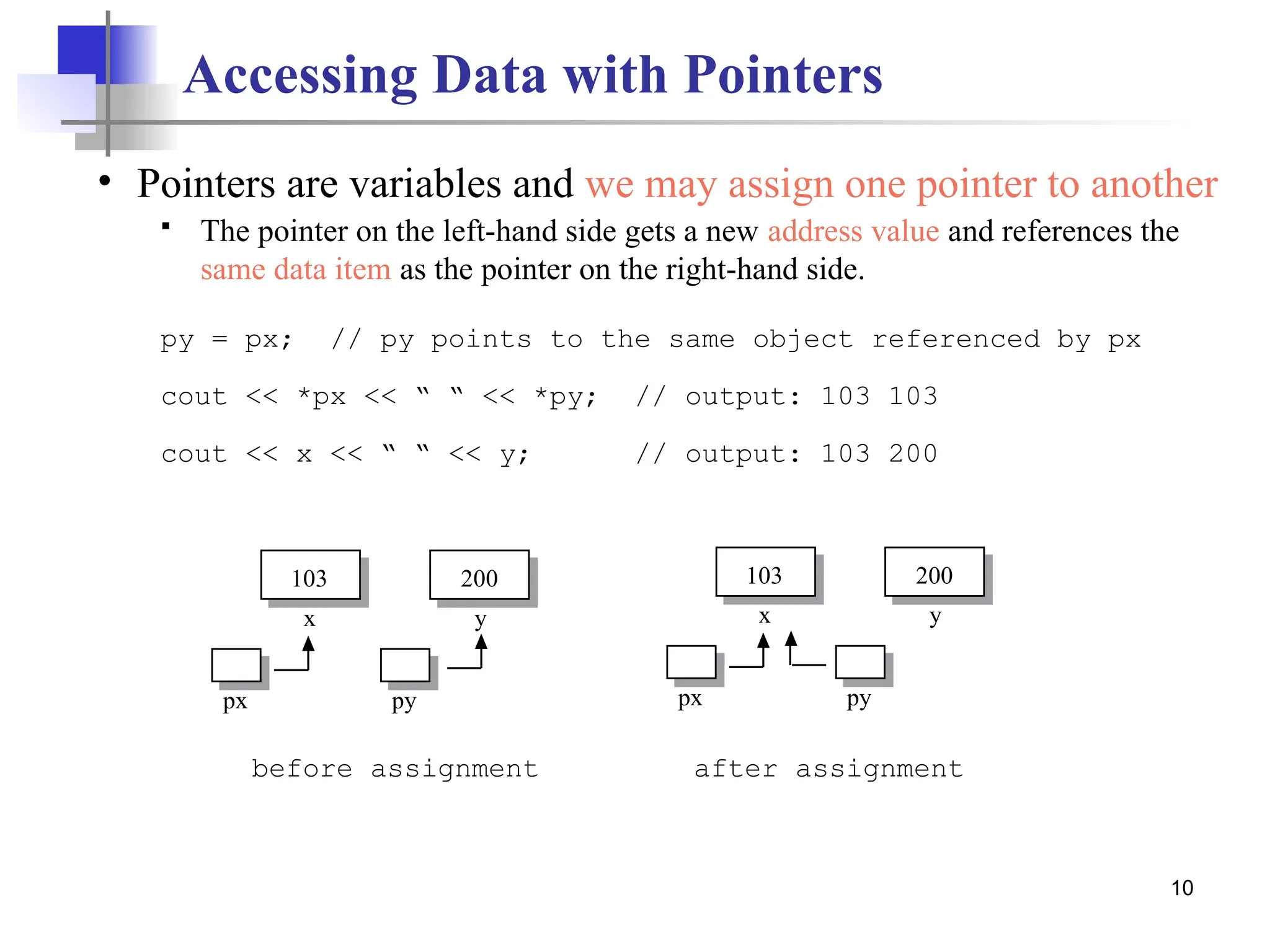

10 Accessing Data with Pointers • Pointers are variables and we may assign one pointer to another  The pointer on the left-hand side gets a new address value and references the same data item as the pointer on the right-hand side. py = px; // py points to the same object referenced by px cout << *px << “ “ << *py; // output: 103 103 cout << x << “ “ << y; // output: 103 200 before assignment after assignment 103 x px 200 y py 103 x px 200 y py

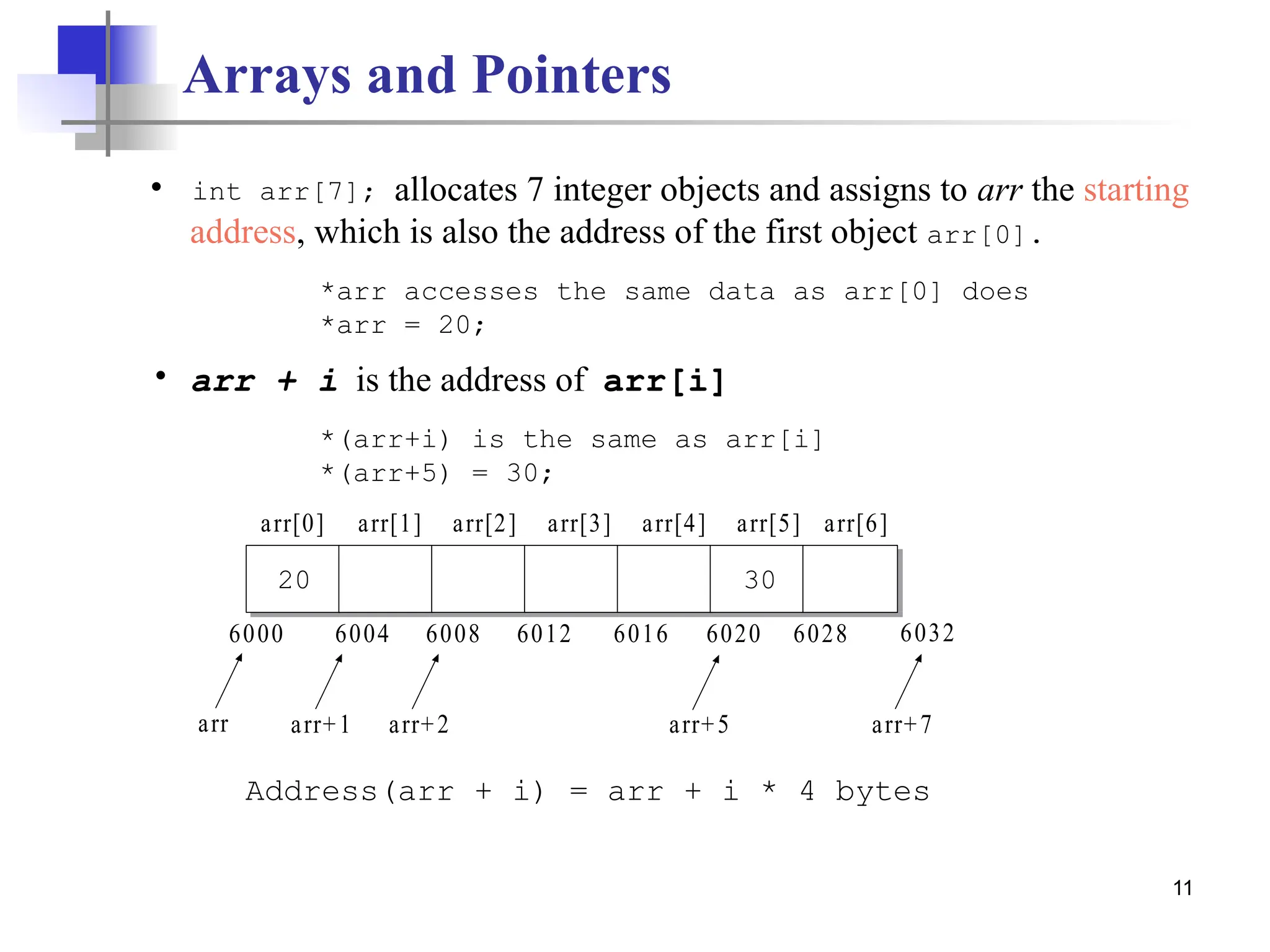

11 Arrays and Pointers arr arr[0] arr[6] arr[5] arr[4] arr[3] arr[2] arr[1] arr+7 arr+2 arr+1 6000 6028 6020 6016 6012 6008 6004 6032 arr+5 • allocates 7 integer objects and assigns to arr the starting address, which is also the address of the first object arr[0]. int arr[7]; *arr accesses the same data as arr[0] does *arr = 20; • arr + i is the address of arr[i] *(arr+i) is the same as arr[i] *(arr+5) = 30; Address(arr + i) = arr + i * 4 bytes 20 30

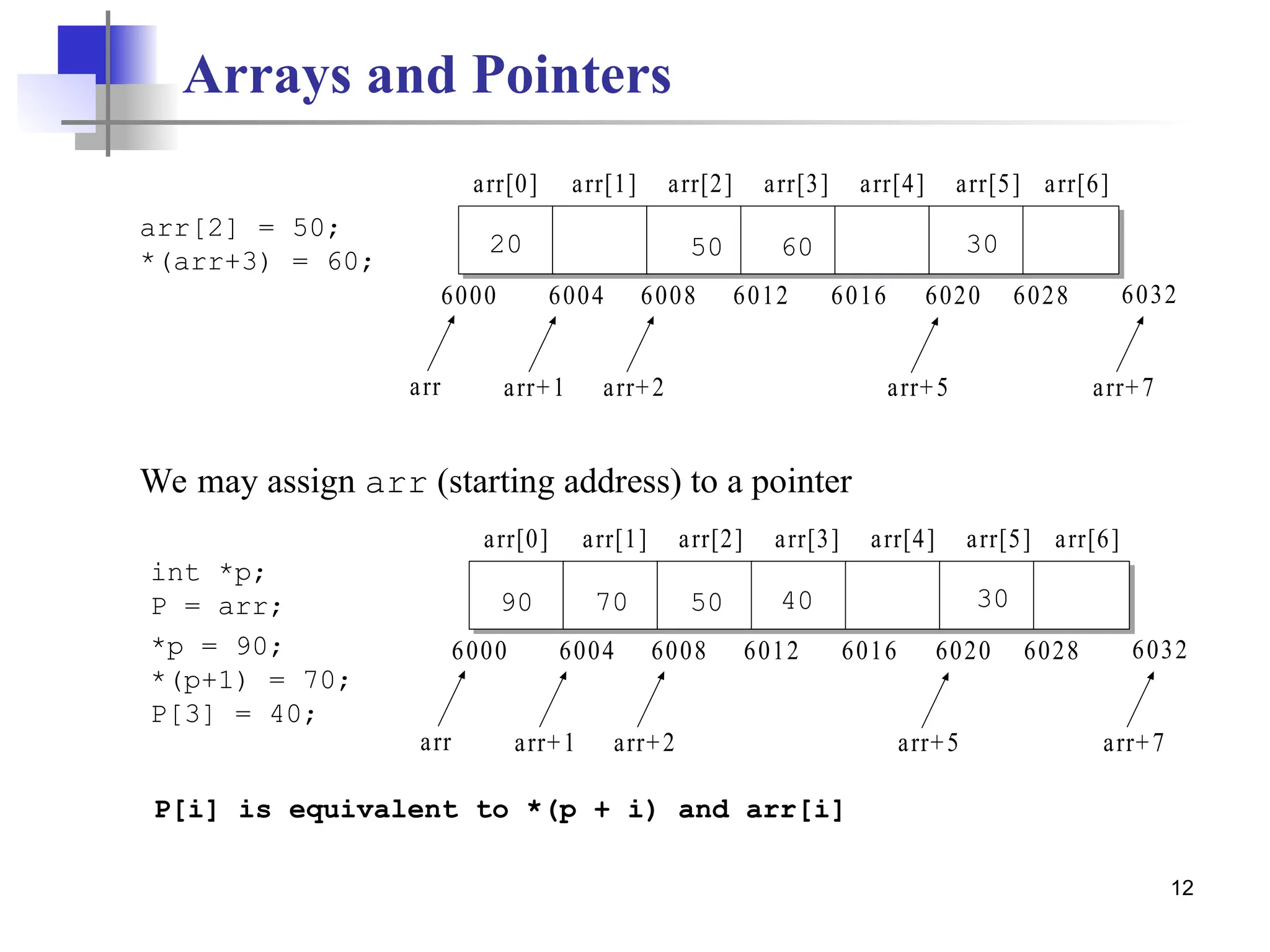

12 Arrays and Pointers arr arr[0] arr[6] arr[5] arr[4] arr[3] arr[2] arr[1] arr+7 arr+2 arr+1 6000 6028 6020 6016 6012 6008 6004 6032 arr+5 arr[2] = 50; *(arr+3) = 60; 50 60 int *p; P = arr; *p = 90; *(p+1) = 70; P[3] = 40; arr arr[0] arr[6] arr[5] arr[4] arr[3] arr[2] arr[1] arr+7 arr+2 arr+1 6000 6028 6020 6016 6012 6008 6004 6032 arr+5 50 40 90 70 P[i] is equivalent to *(p + i) and arr[i] We may assign arr (starting address) to a pointer 20 30 30

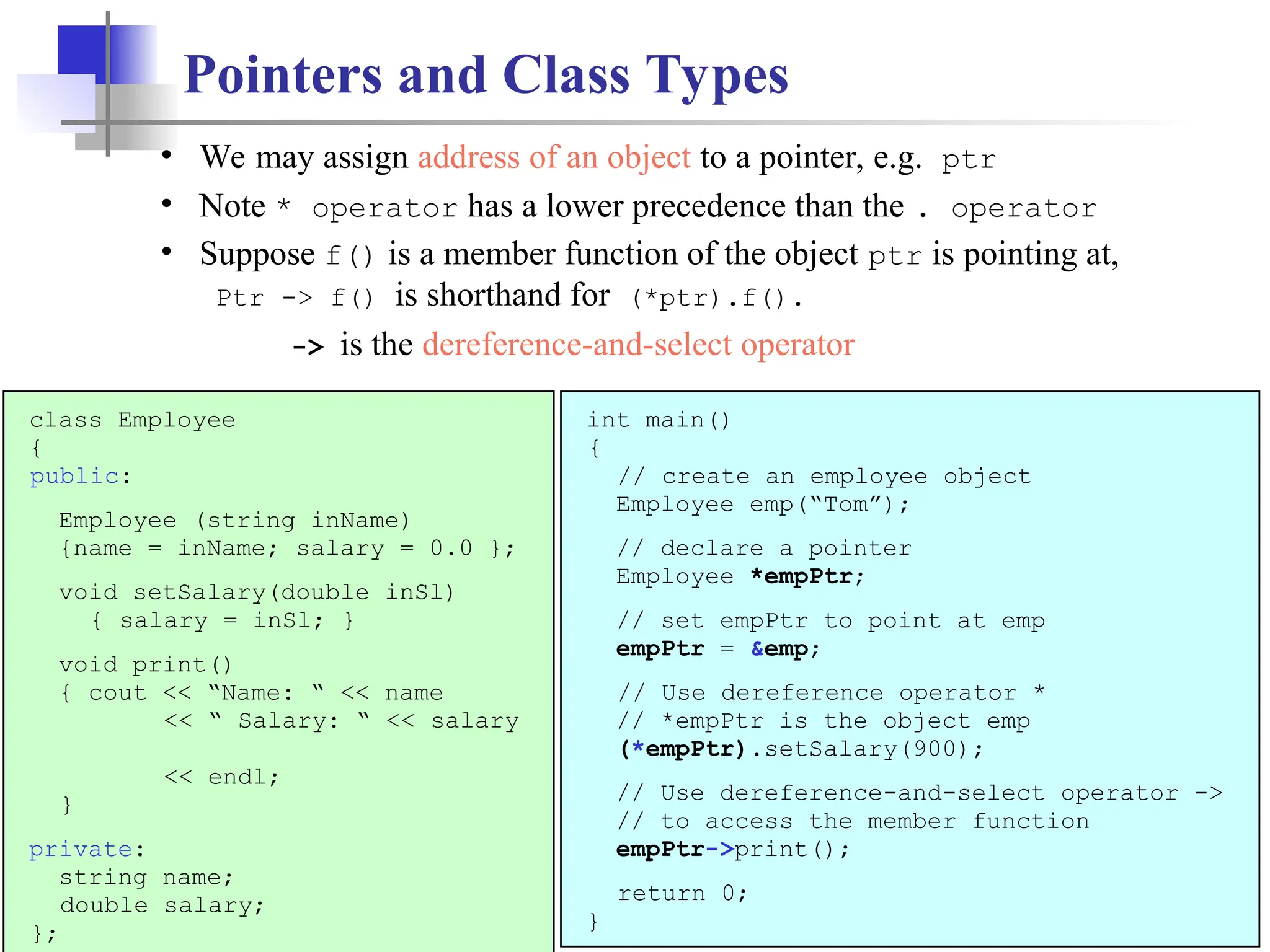

13 Pointers and Class Types class Employee { public: Employee (string inName) {name = inName; salary = 0.0 }; void setSalary(double inSl) { salary = inSl; } void print() { cout << “Name: “ << name << “ Salary: “ << salary << endl; } private: string name; double salary; }; int main() { // create an employee object Employee emp(“Tom”); // declare a pointer Employee *empPtr; // set empPtr to point at emp empPtr = &emp; // Use dereference operator * // *empPtr is the object emp (*empPtr).setSalary(900); // Use dereference-and-select operator -> // to access the member function empPtr->print(); return 0; } • We may assign address of an object to a pointer, e.g. ptr • Note * operator has a lower precedence than the . operator • Suppose f() is a member function of the object ptr is pointing at, Ptr -> f() is shorthand for (*ptr).f(). -> is the dereference-and-select operator

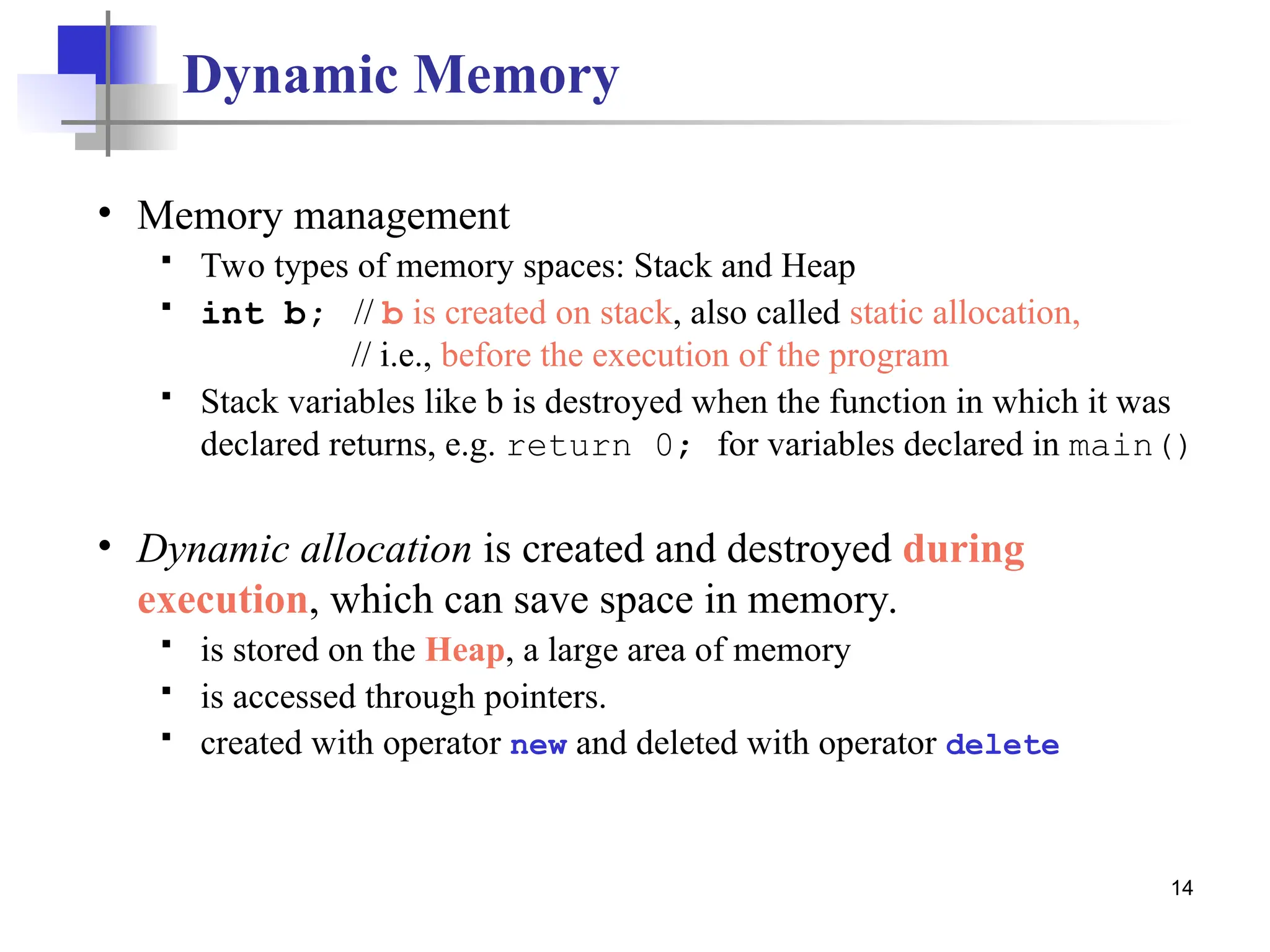

14 Dynamic Memory • Memory management  Two types of memory spaces: Stack and Heap  int b; // b is created on stack, also called static allocation, // i.e., before the execution of the program  Stack variables like b is destroyed when the function in which it was declared returns, e.g. return 0; for variables declared in main() • Dynamic allocation is created and destroyed during execution, which can save space in memory.  is stored on the Heap, a large area of memory  is accessed through pointers.  created with operator new and deleted with operator delete

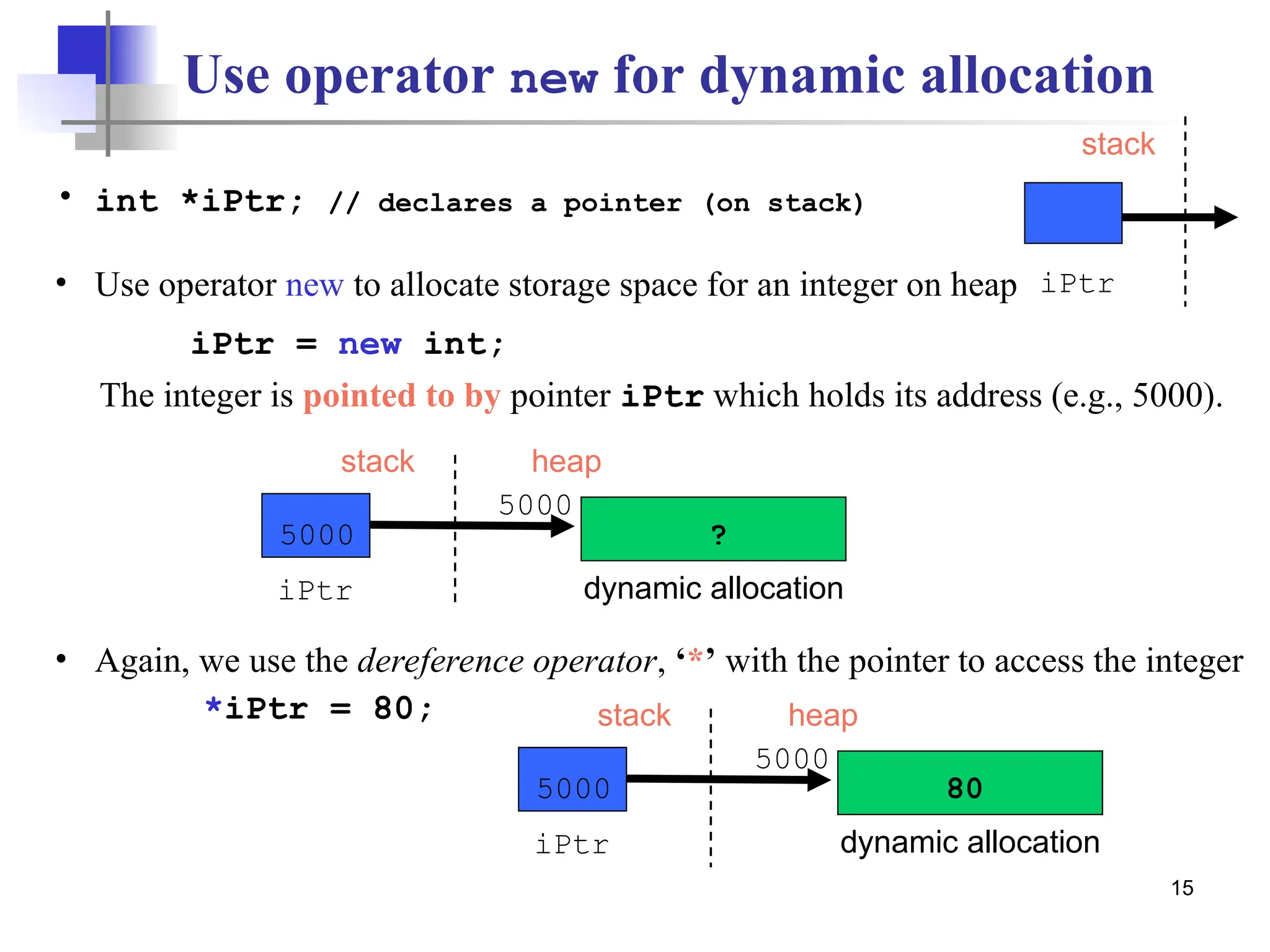

15 Use operator new for dynamic allocation • int *iPtr; // declares a pointer (on stack) iPtr stack iPtr stack heap dynamic allocation 5000 5000 ? • Again, we use the dereference operator, ‘*’ with the pointer to access the integer *iPtr = 80; iPtr stack heap dynamic allocation 5000 5000 80 • Use operator new to allocate storage space for an integer on heap iPtr = new int; The integer is pointed to by pointer iPtr which holds its address (e.g., 5000).

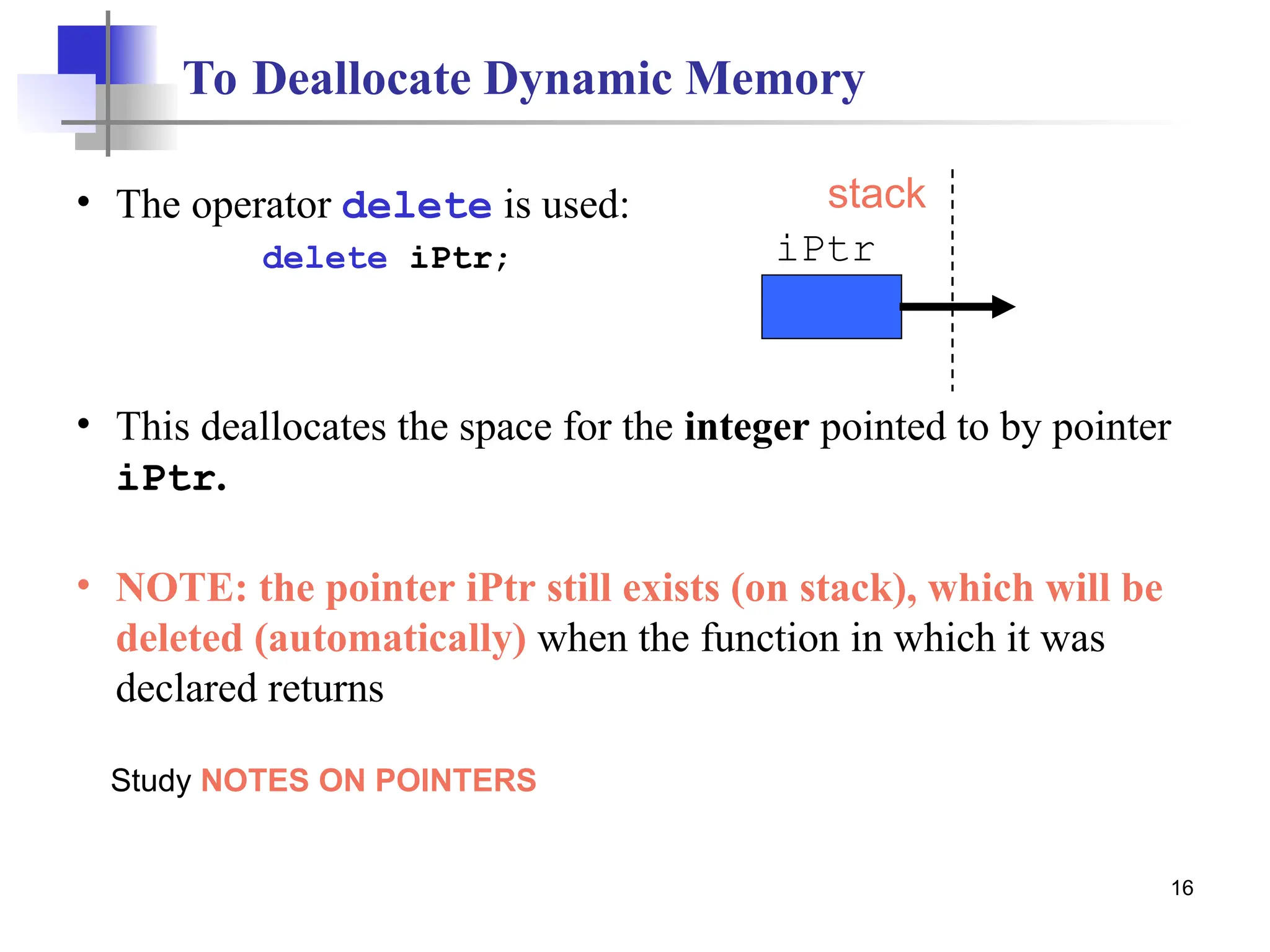

16 To Deallocate Dynamic Memory • The operator delete is used: delete iPtr; • This deallocates the space for the integer pointed to by pointer iPtr. • NOTE: the pointer iPtr still exists (on stack), which will be deleted (automatically) when the function in which it was declared returns iPtr stack Study NOTES ON POINTERS

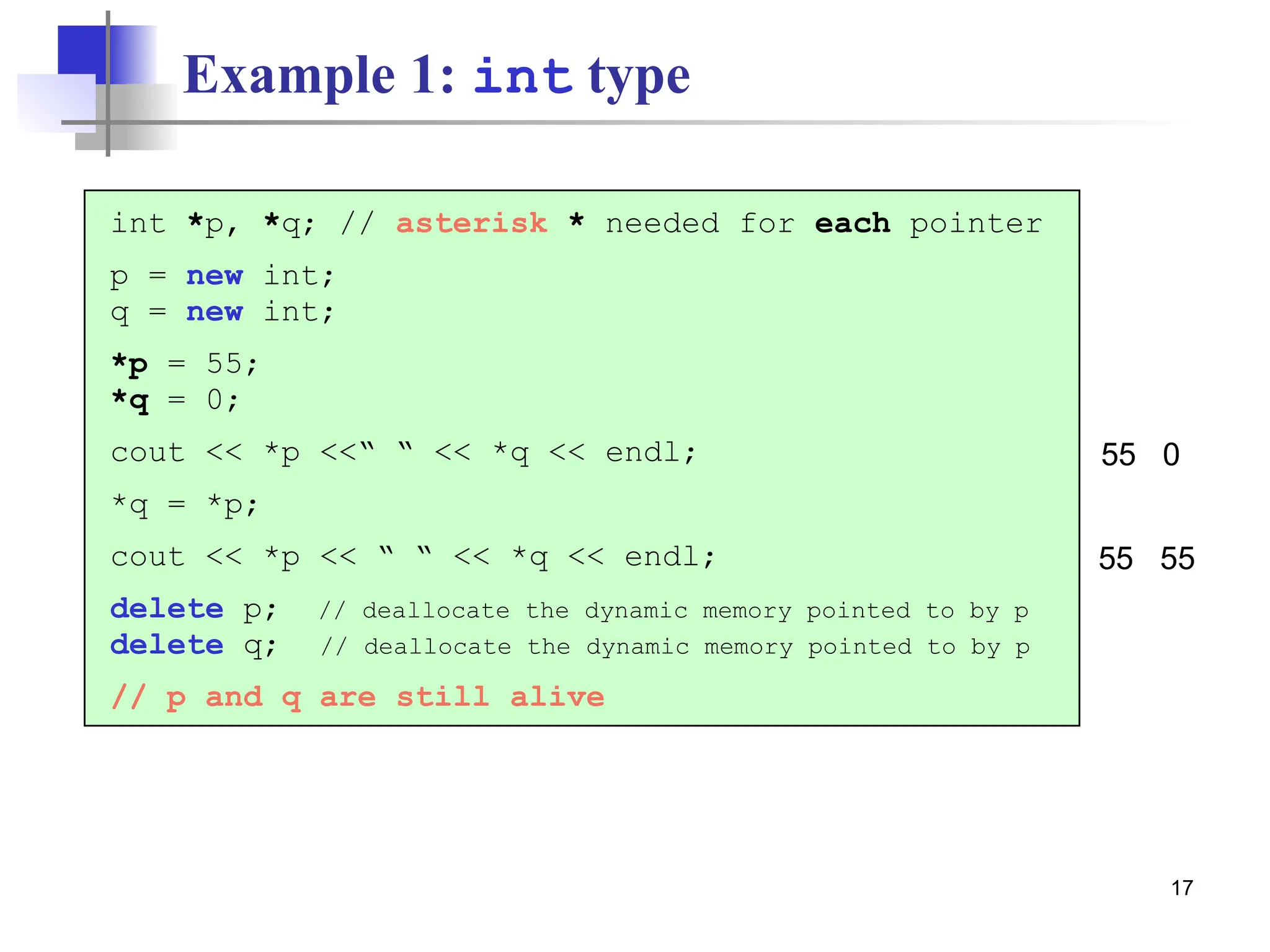

17 Example 1: int type int *p, *q; // asterisk * needed for each pointer p = new int; q = new int; *p = 55; *q = 0; cout << *p <<“ “ << *q << endl; *q = *p; cout << *p << “ “ << *q << endl; delete p; // deallocate the dynamic memory pointed to by p delete q; // deallocate the dynamic memory pointed to by p // p and q are still alive 55 0 55 55

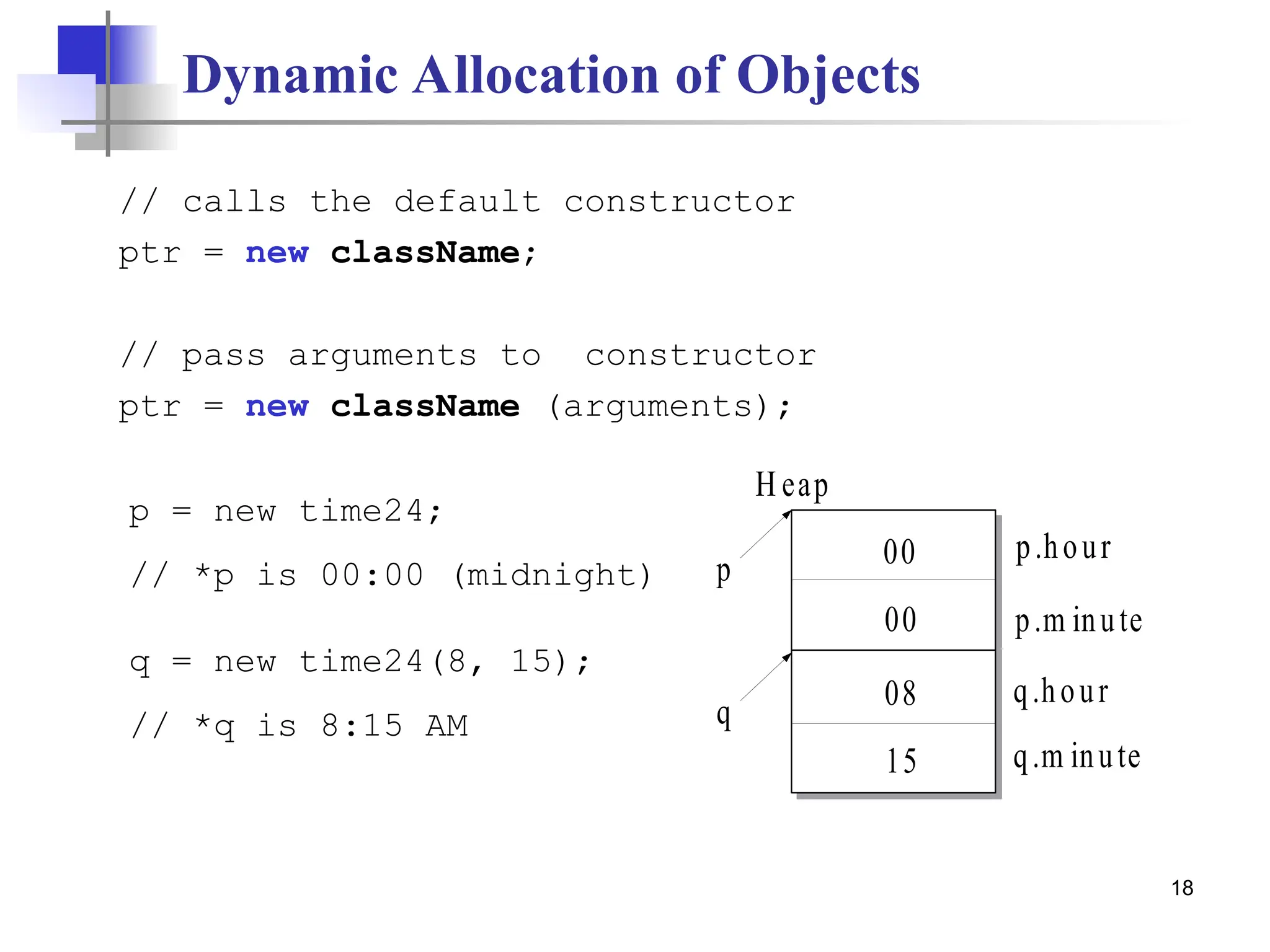

18 Dynamic Allocation of Objects p = new time24; // *p is 00:00 (midnight) q = new time24(8, 15); // *q is 8:15 AM H eap p.hour q.m inute q.hour p.m inute 00 15 08 00 p q // calls the default constructor ptr = new className; // pass arguments to constructor ptr = new className (arguments);

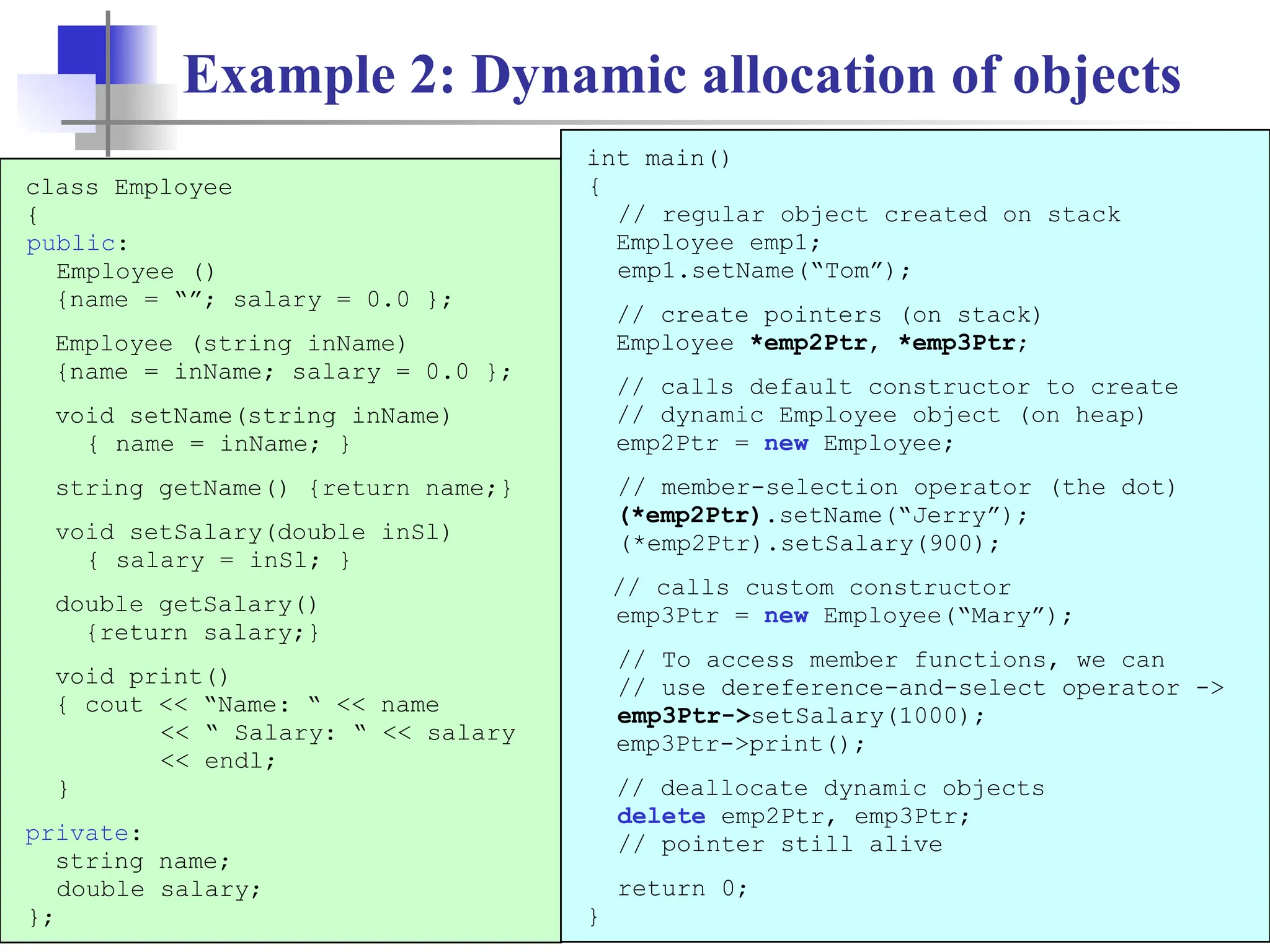

19 Example 2: Dynamic allocation of objects class Employee { public: Employee () {name = “”; salary = 0.0 }; Employee (string inName) {name = inName; salary = 0.0 }; void setName(string inName) { name = inName; } string getName() {return name;} void setSalary(double inSl) { salary = inSl; } double getSalary() {return salary;} void print() { cout << “Name: “ << name << “ Salary: “ << salary << endl; } private: string name; double salary; }; int main() { // regular object created on stack Employee emp1; emp1.setName(“Tom”); // create pointers (on stack) Employee *emp2Ptr, *emp3Ptr; // calls default constructor to create // dynamic Employee object (on heap) emp2Ptr = new Employee; // member-selection operator (the dot) (*emp2Ptr).setName(“Jerry”); (*emp2Ptr).setSalary(900); // calls custom constructor emp3Ptr = new Employee(“Mary”); // To access member functions, we can // use dereference-and-select operator -> emp3Ptr->setSalary(1000); emp3Ptr->print(); // deallocate dynamic objects delete emp2Ptr, emp3Ptr; // pointer still alive return 0; }

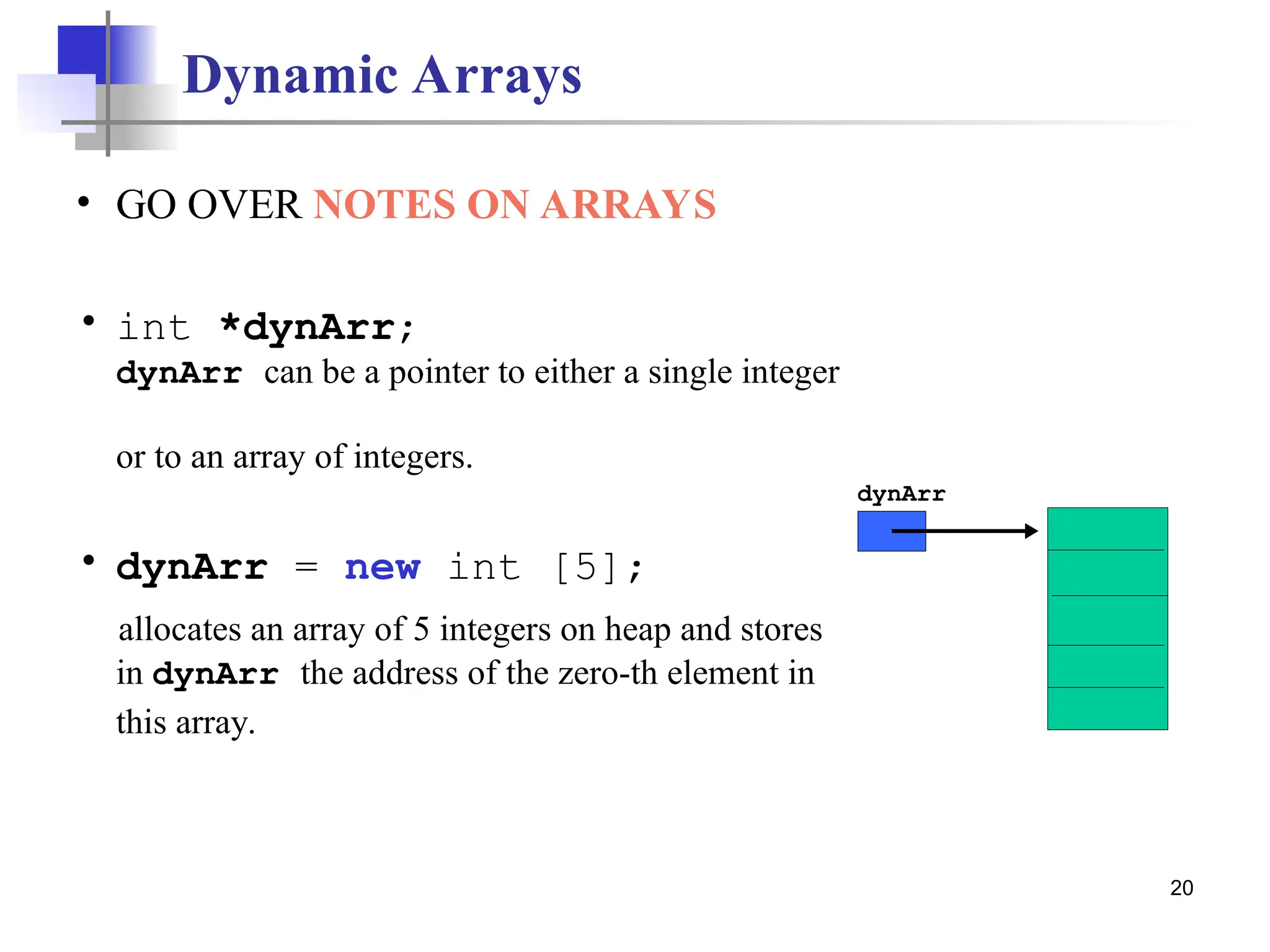

20 Dynamic Arrays • GO OVER NOTES ON ARRAYS • int *dynArr; dynArr can be a pointer to either a single integer or to an array of integers. • dynArr = new int [5]; allocates an array of 5 integers on heap and stores in dynArr the address of the zero-th element in this array. dynArr

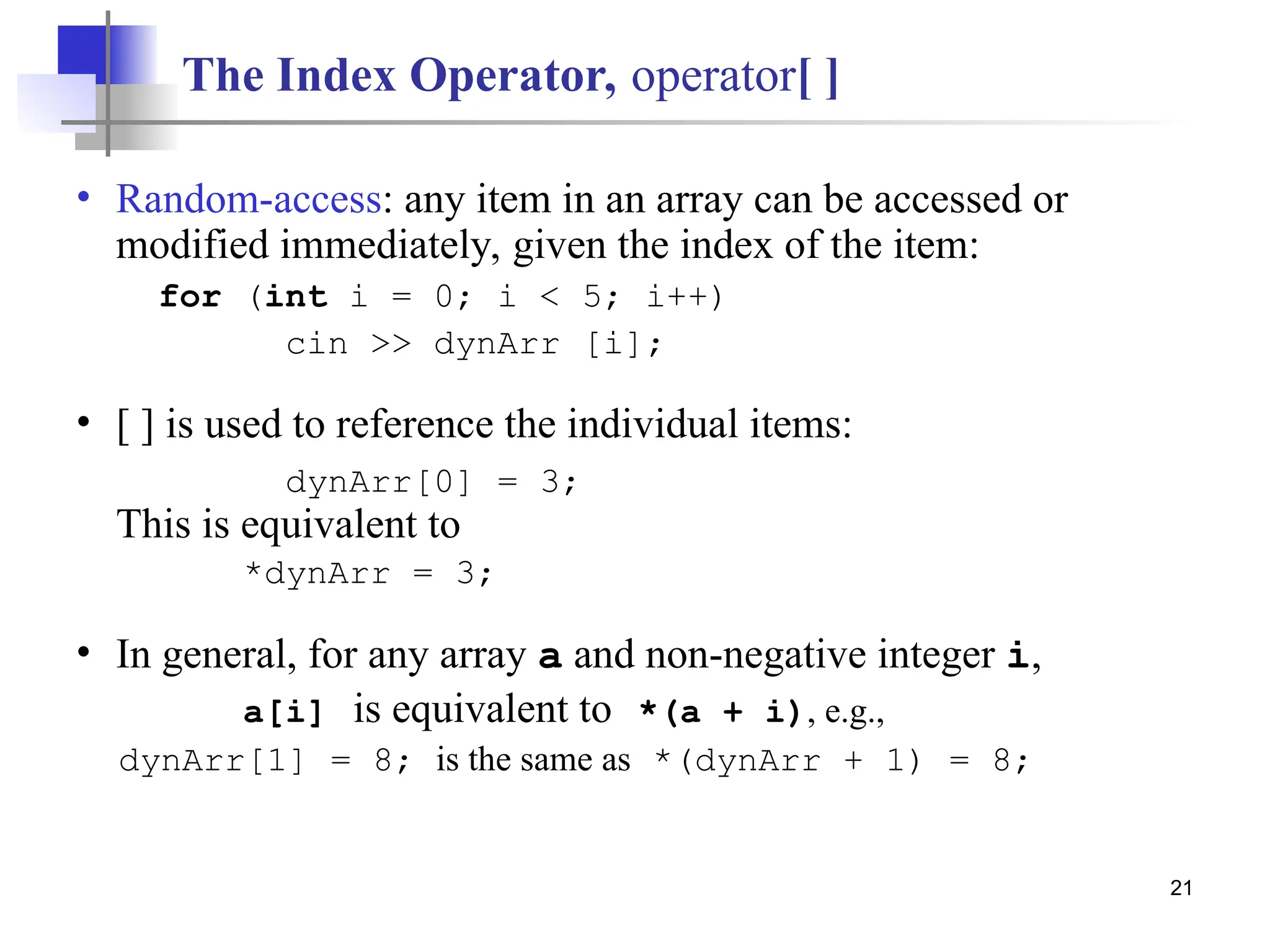

21 The Index Operator, operator[ ] • Random-access: any item in an array can be accessed or modified immediately, given the index of the item: for (int i = 0; i < 5; i++) cin >> dynArr [i]; • [ ] is used to reference the individual items: dynArr[0] = 3; This is equivalent to *dynArr = 3; • In general, for any array a and non-negative integer i, a[i] is equivalent to *(a + i), e.g., dynArr[1] = 8; is the same as *(dynArr + 1) = 8;

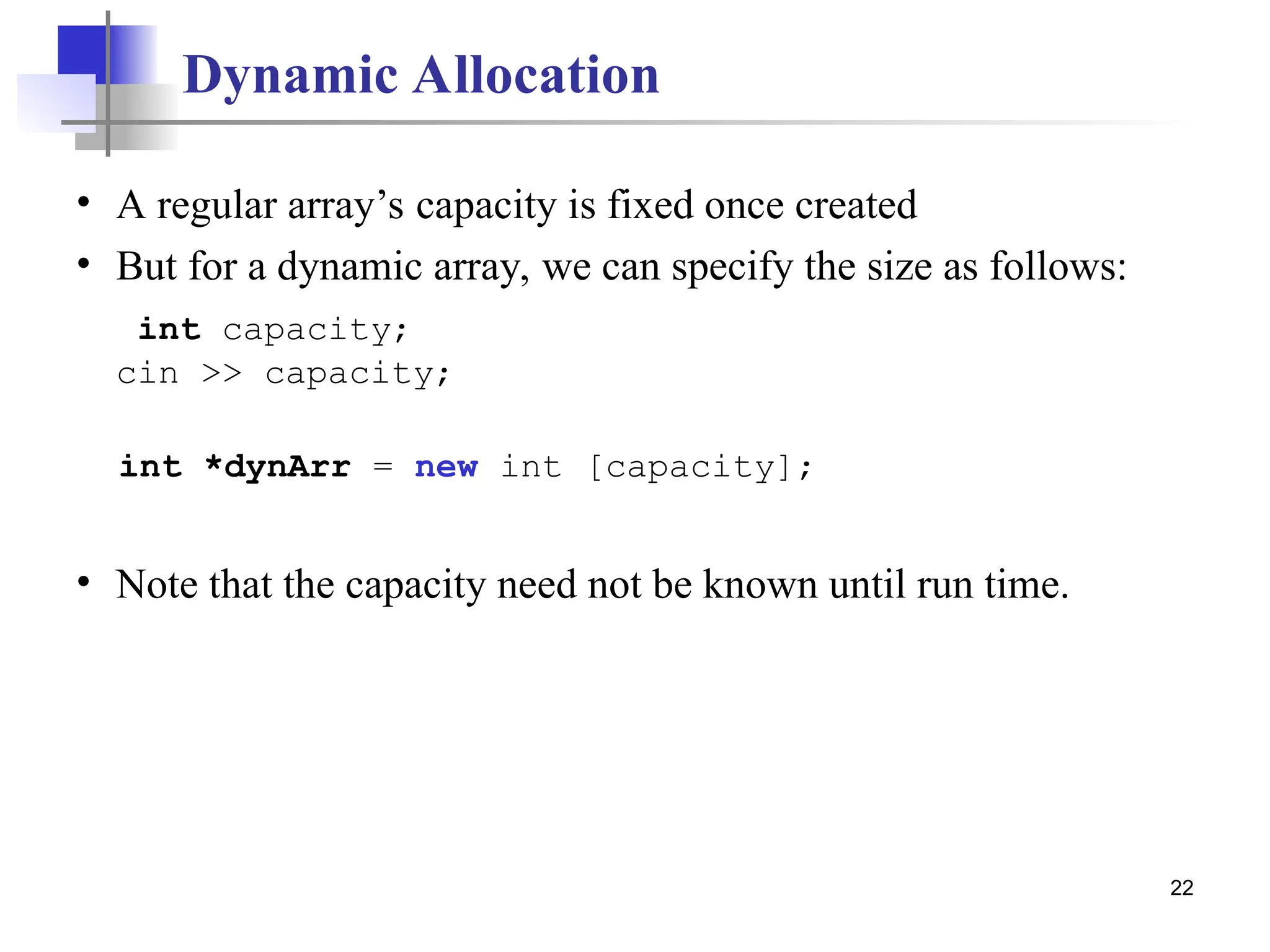

22 Dynamic Allocation • A regular array’s capacity is fixed once created • But for a dynamic array, we can specify the size as follows: int capacity; cin >> capacity; int *dynArr = new int [capacity]; • Note that the capacity need not be known until run time.

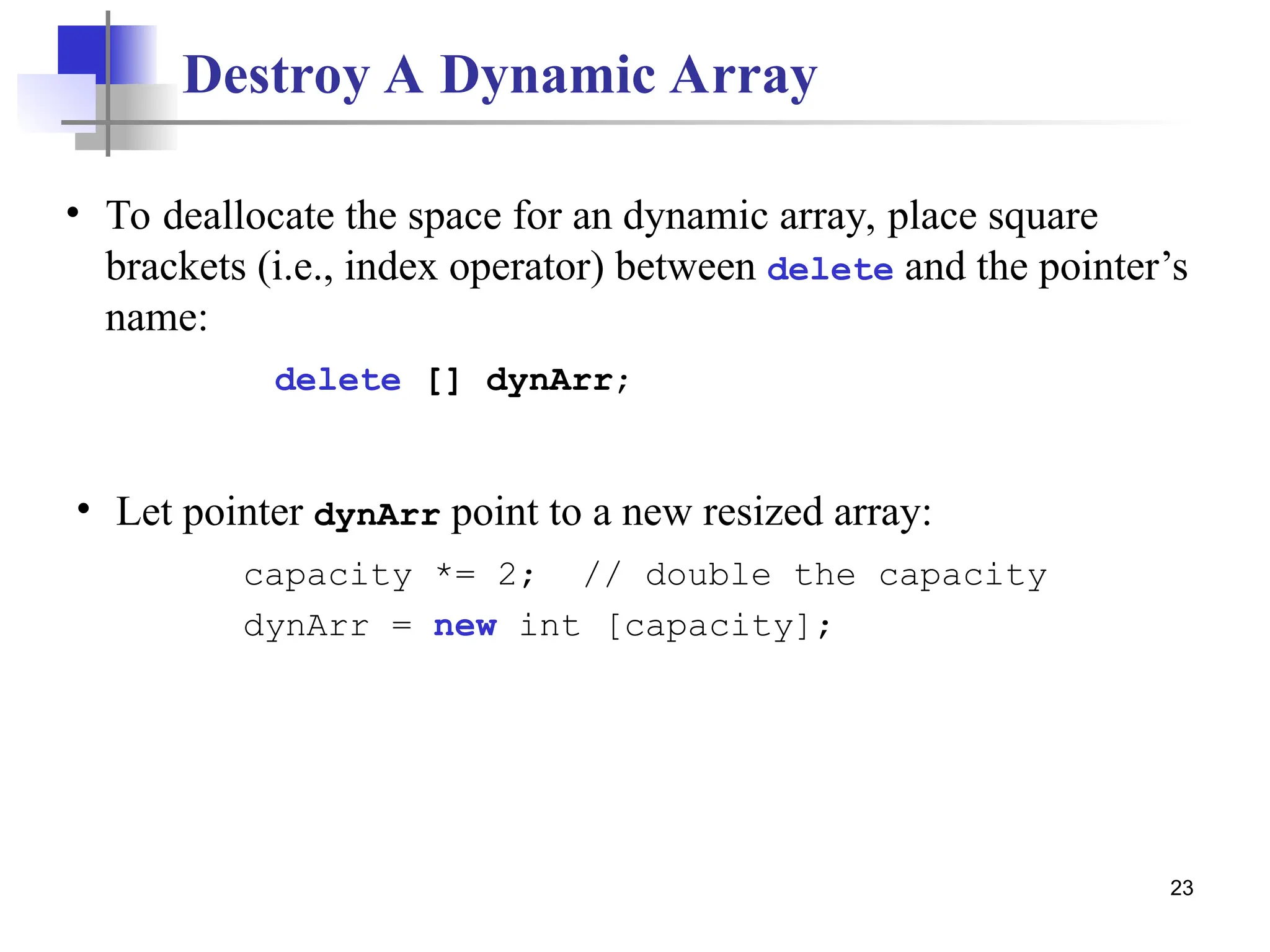

23 Destroy A Dynamic Array • Let pointer dynArr point to a new resized array: capacity *= 2; // double the capacity dynArr = new int [capacity]; • To deallocate the space for an dynamic array, place square brackets (i.e., index operator) between delete and the pointer’s name: delete [] dynArr;

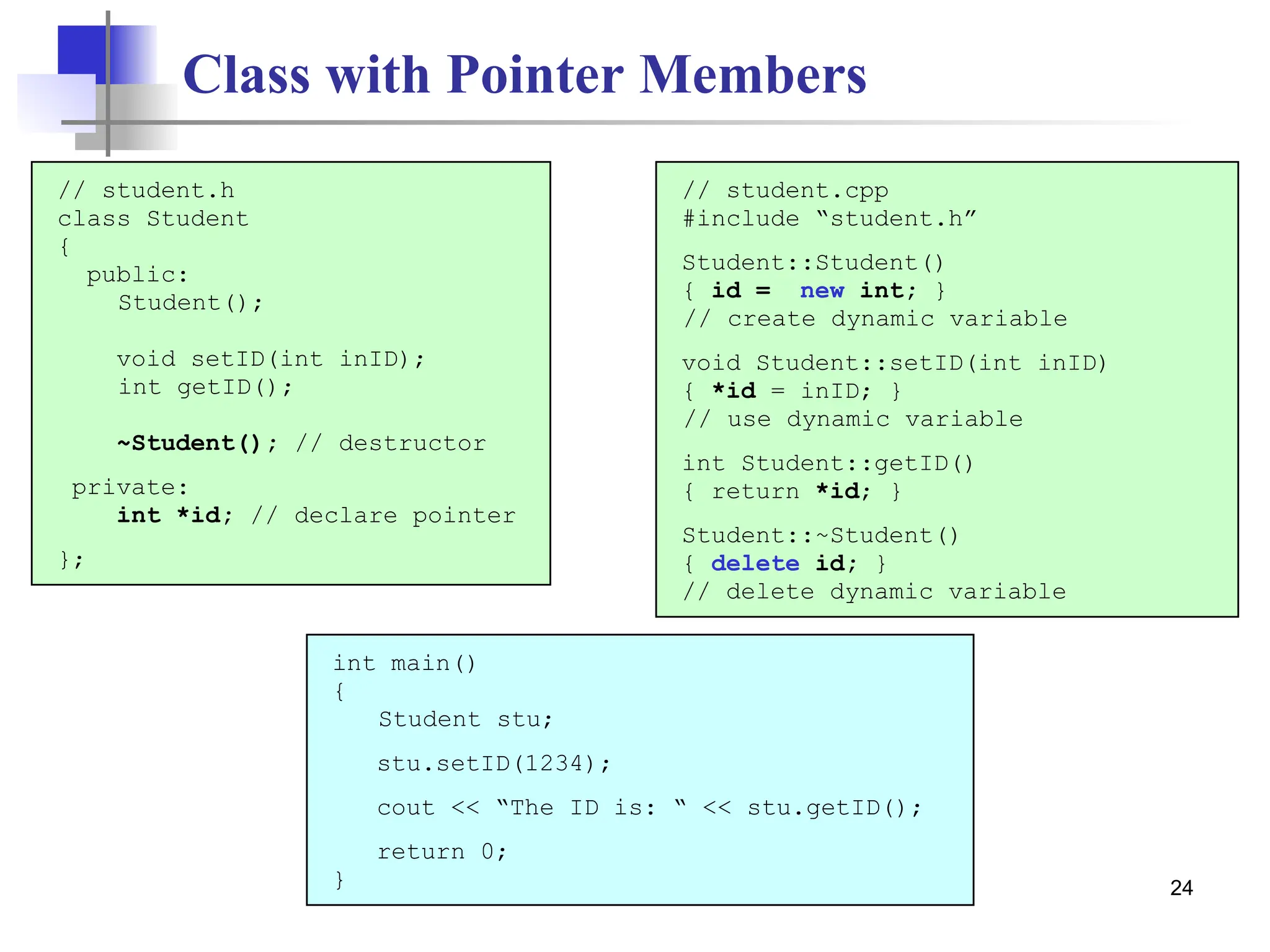

24 Class with Pointer Members // student.h class Student { public: Student(); void setID(int inID); int getID(); ~Student(); // destructor private: int *id; // declare pointer }; int main() { Student stu; stu.setID(1234); cout << “The ID is: “ << stu.getID(); return 0; } // student.cpp #include “student.h” Student::Student() { id = new int; } // create dynamic variable void Student::setID(int inID) { *id = inID; } // use dynamic variable int Student::getID() { return *id; } Student::~Student() { delete id; } // delete dynamic variable
