Data Binding in Action using MVVM pattern

The document provides a detailed overview of Android data binding utilizing the MVVM pattern, including concepts such as data binding basics, custom attributes, and two-way data binding. It showcases an example project with XML layout configurations and Java class implementations for managing match results and displaying team scores. Furthermore, it discusses the use of binding adapters and converters, highlighting their applications in creating dynamic and responsive user interfaces.

Downloaded 134 times
Android Data Binding in action using MVVM pattern Fabio Collini
2 Ego slide @fabioCollini linkedin.com/in/fabiocollini github.com/fabioCollini medium.com/@fabioCollini codingjam.it

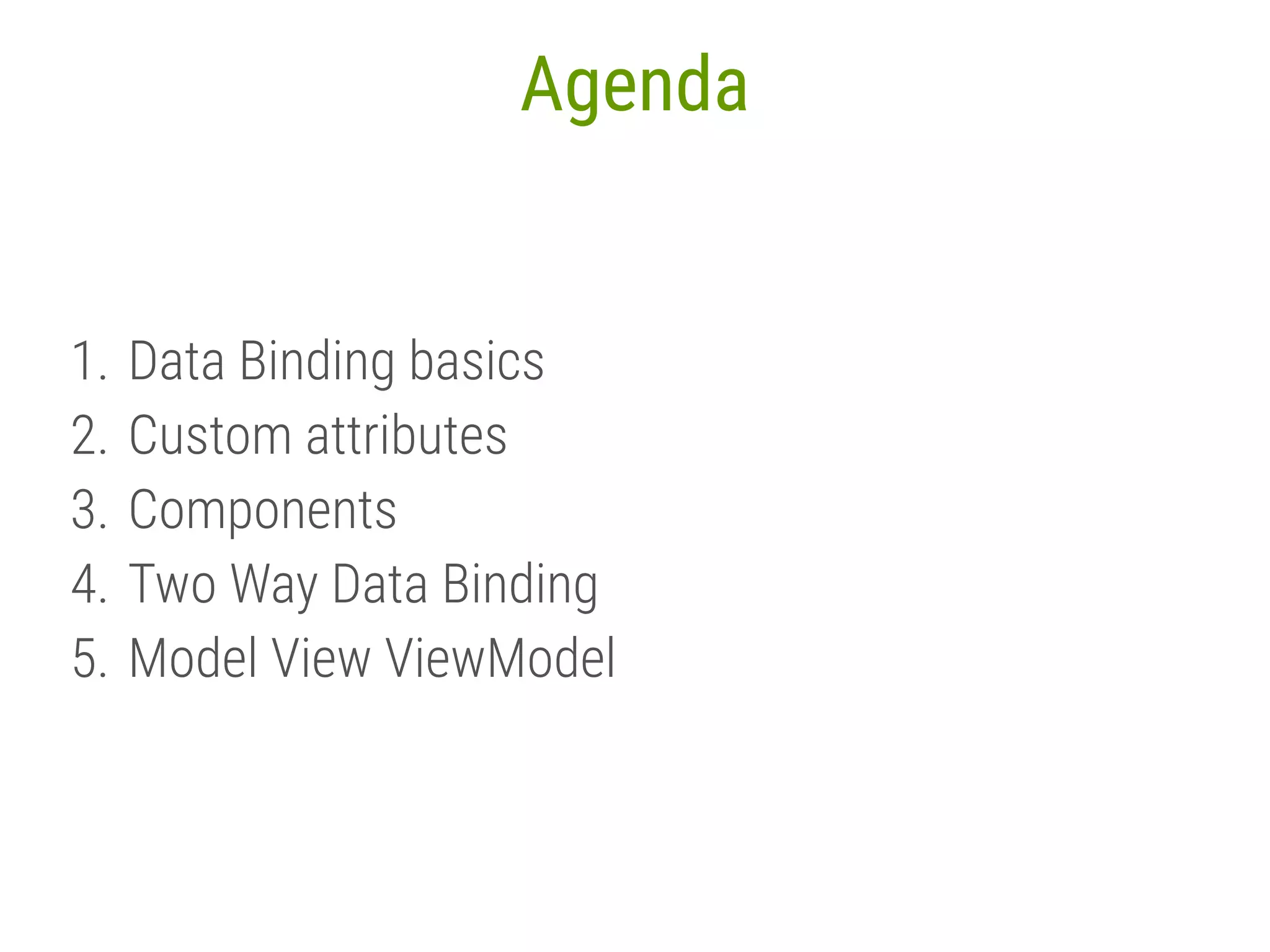

3 Agenda 1. Data Binding basics 2. Custom attributes 3. Components 4. Two Way Data Binding 5. Model View ViewModel

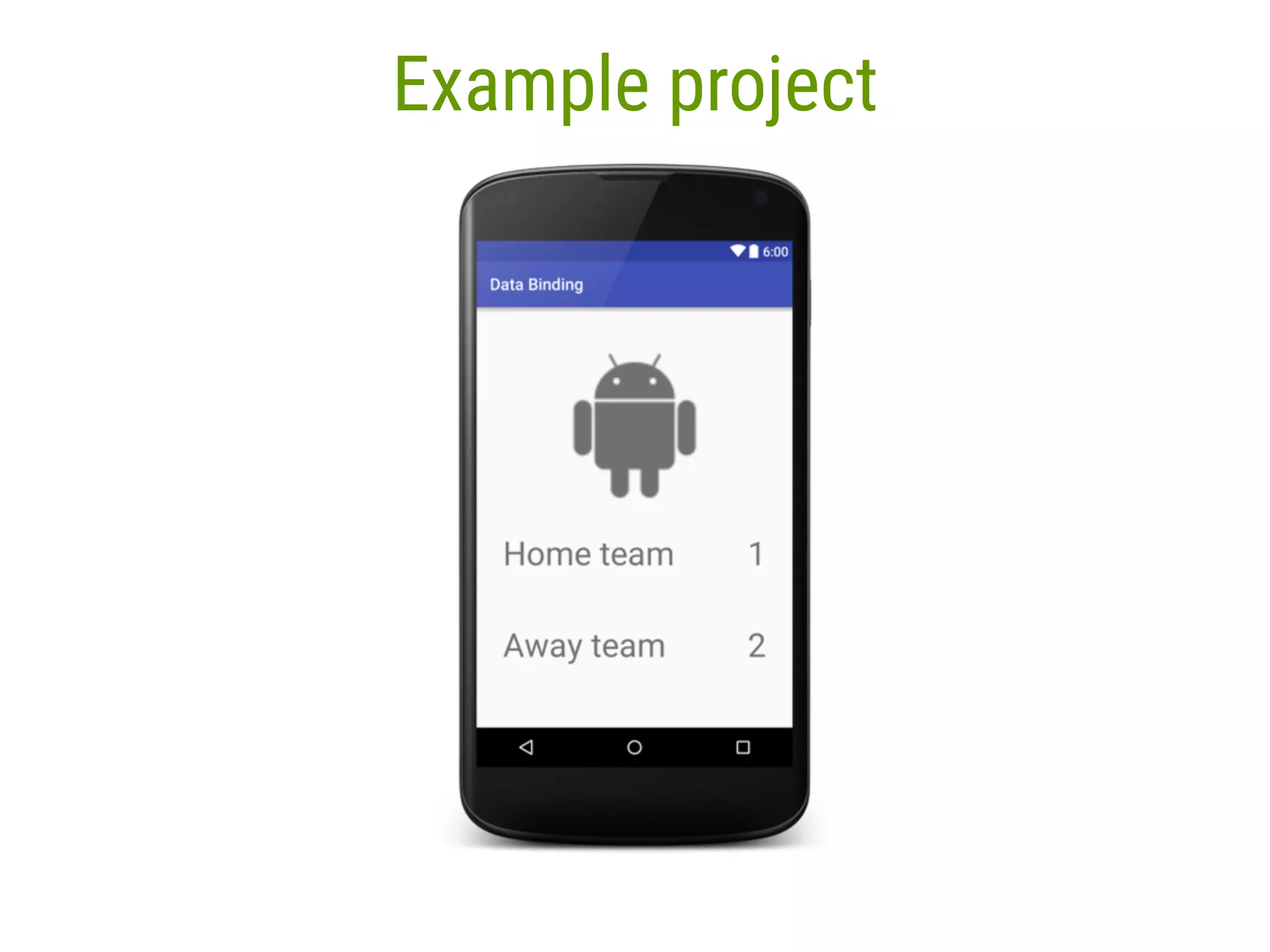

4 Example project

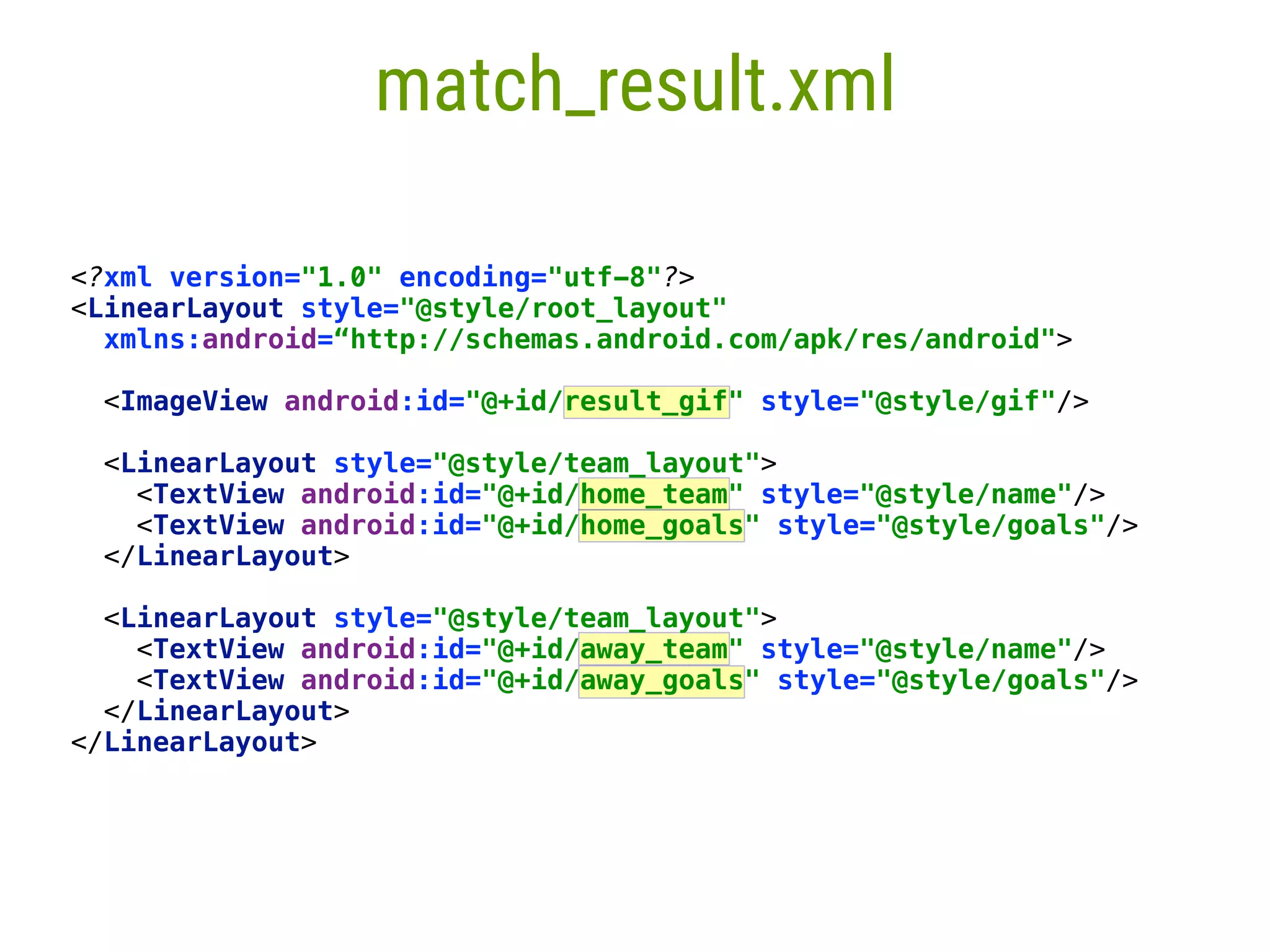

5 match_result.xml <?xml version="1.0" encoding="utf-8"?>
 <LinearLayout style="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout>

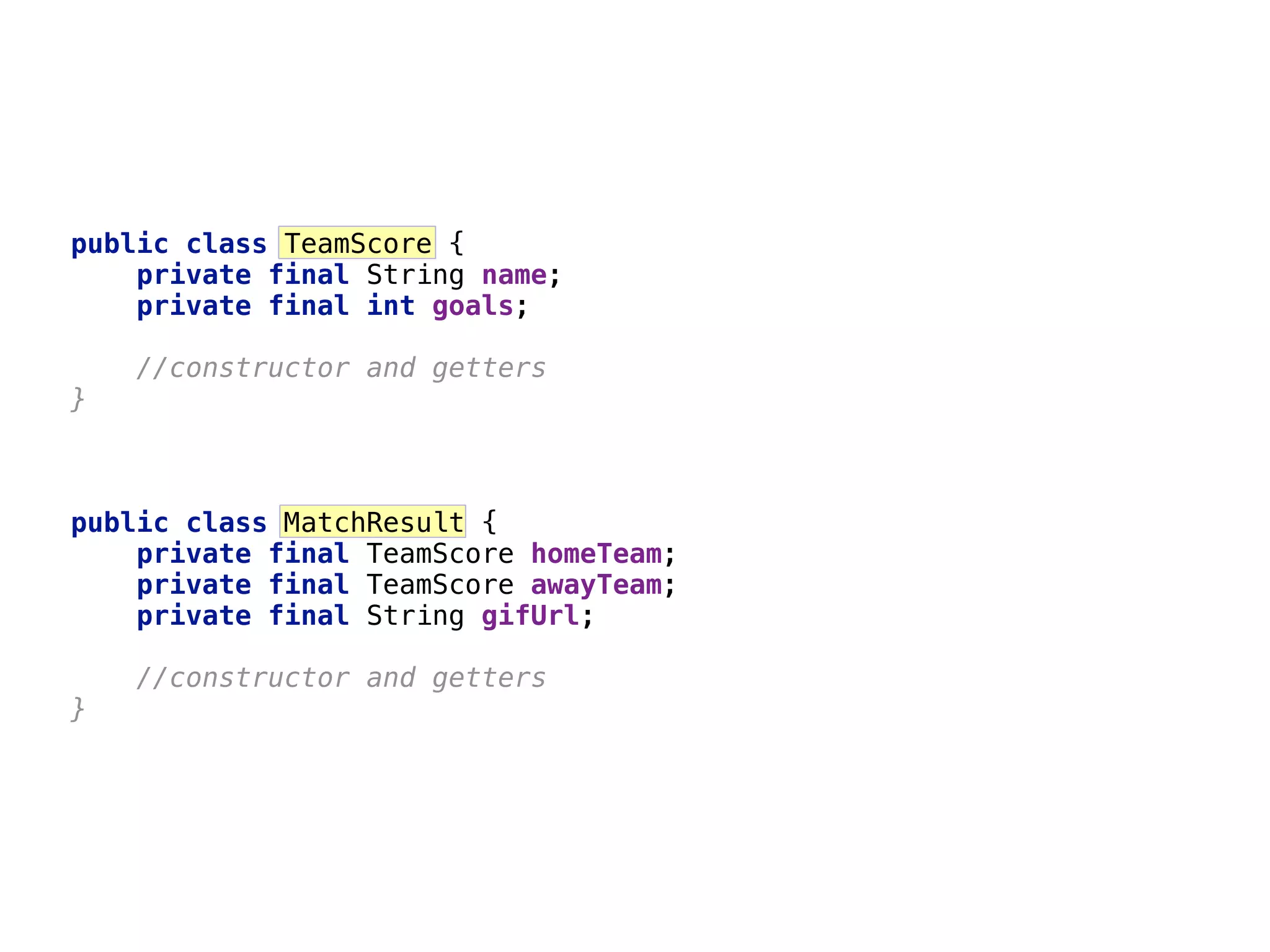

6 public class TeamScore {
 private final String name;
 private final int goals; //constructor and getters
 } public class MatchResult {
 private final TeamScore homeTeam;
 private final TeamScore awayTeam;
 private final String gifUrl; //constructor and getters
 }

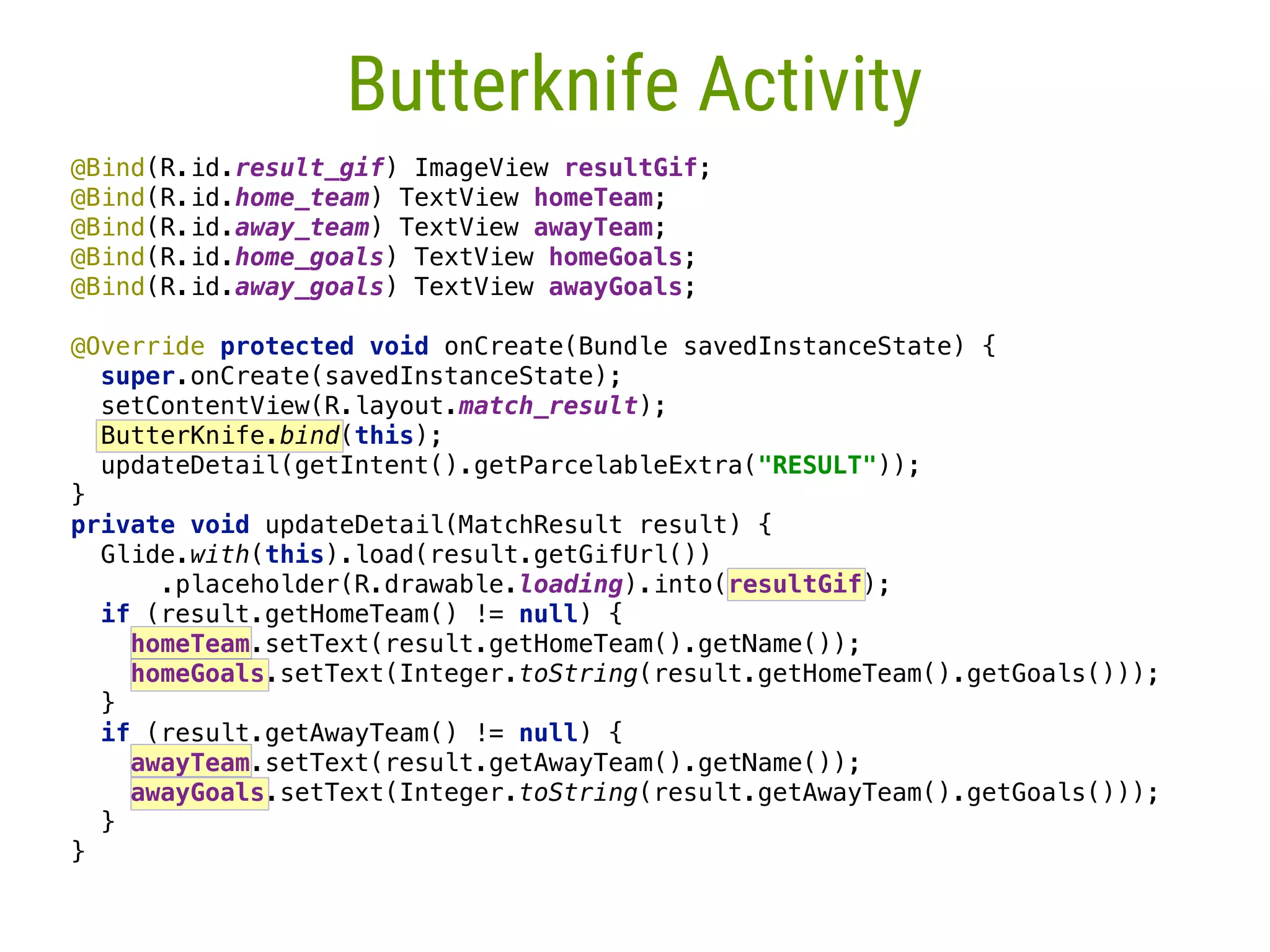

7 Butterknife Activity @Bind(R.id.result_gif) ImageView resultGif;
 @Bind(R.id.home_team) TextView homeTeam;
 @Bind(R.id.away_team) TextView awayTeam;
 @Bind(R.id.home_goals) TextView homeGoals;
 @Bind(R.id.away_goals) TextView awayGoals;

 @Override protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.match_result);
 ButterKnife.bind(this);
 updateDetail(getIntent().getParcelableExtra("RESULT"));
 }
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(resultGif);
 if (result.getHomeTeam() != null) {
 homeTeam.setText(result.getHomeTeam().getName());
 homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals()));
 }
 if (result.getAwayTeam() != null) {
 awayTeam.setText(result.getAwayTeam().getName());
 awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals()));
 }
 }
DroidCon Italy - Torino - April 2016 - @fabioCollini 8 1Data Binding basics

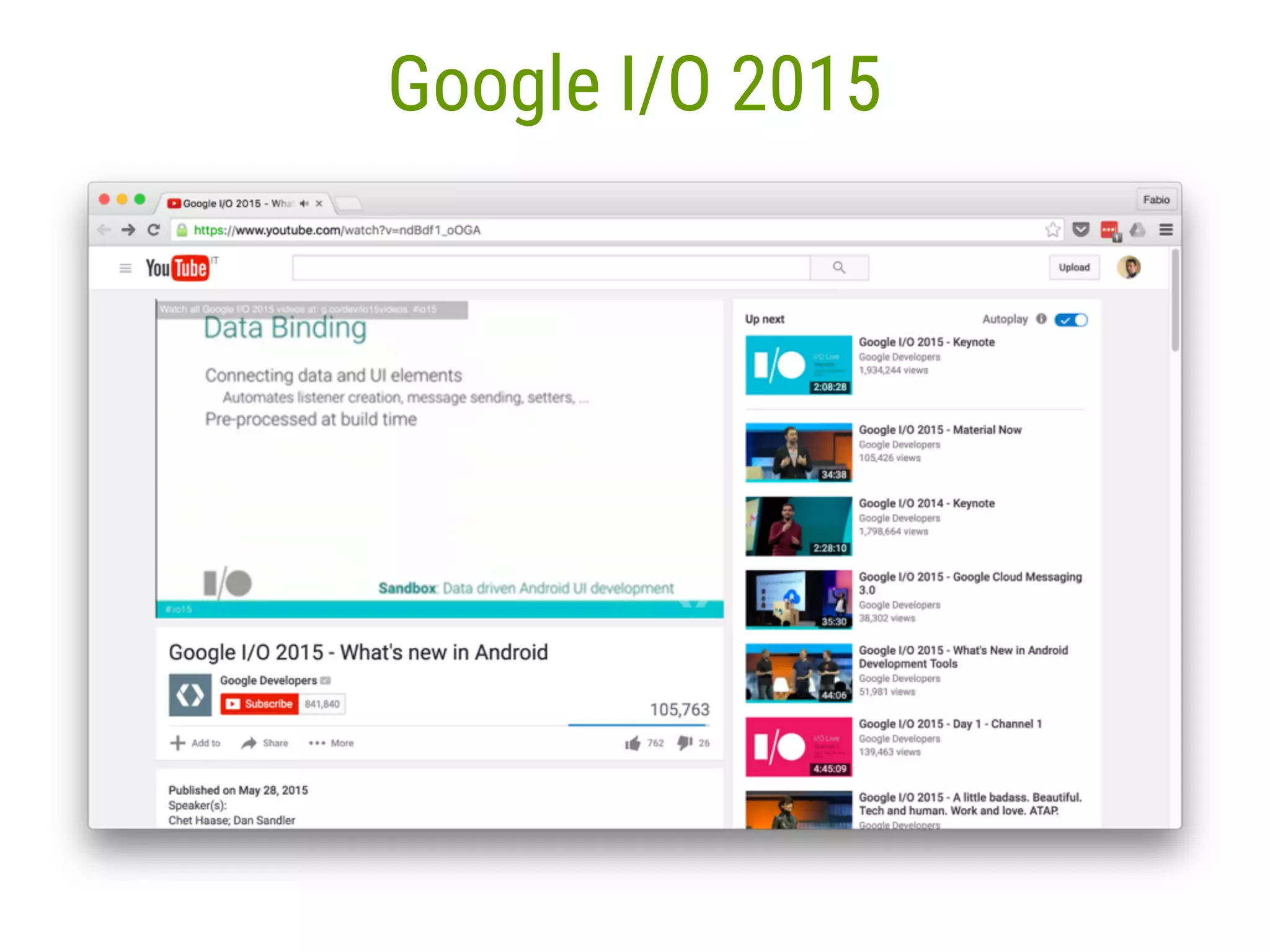

9 Google I/O 2015

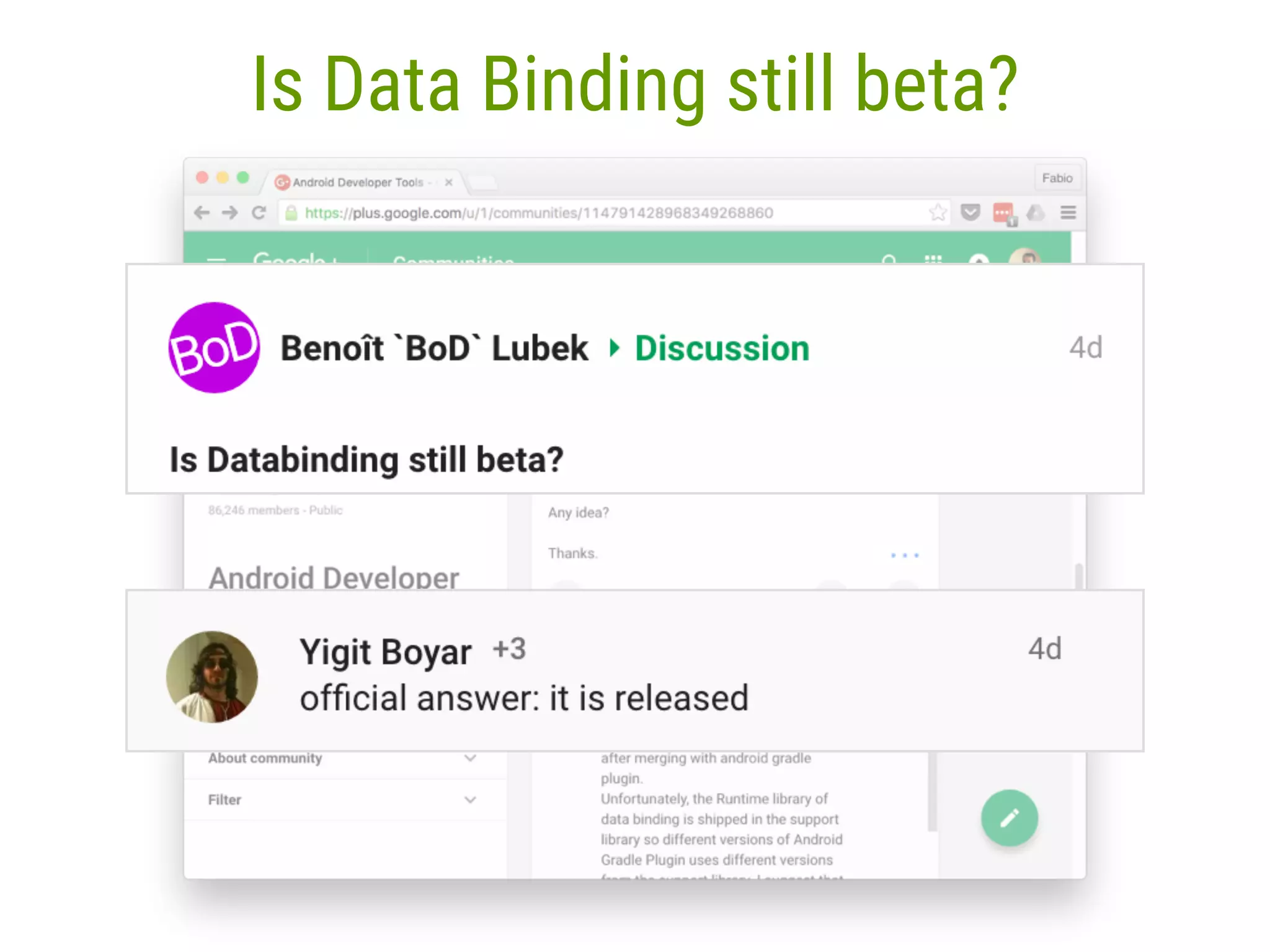

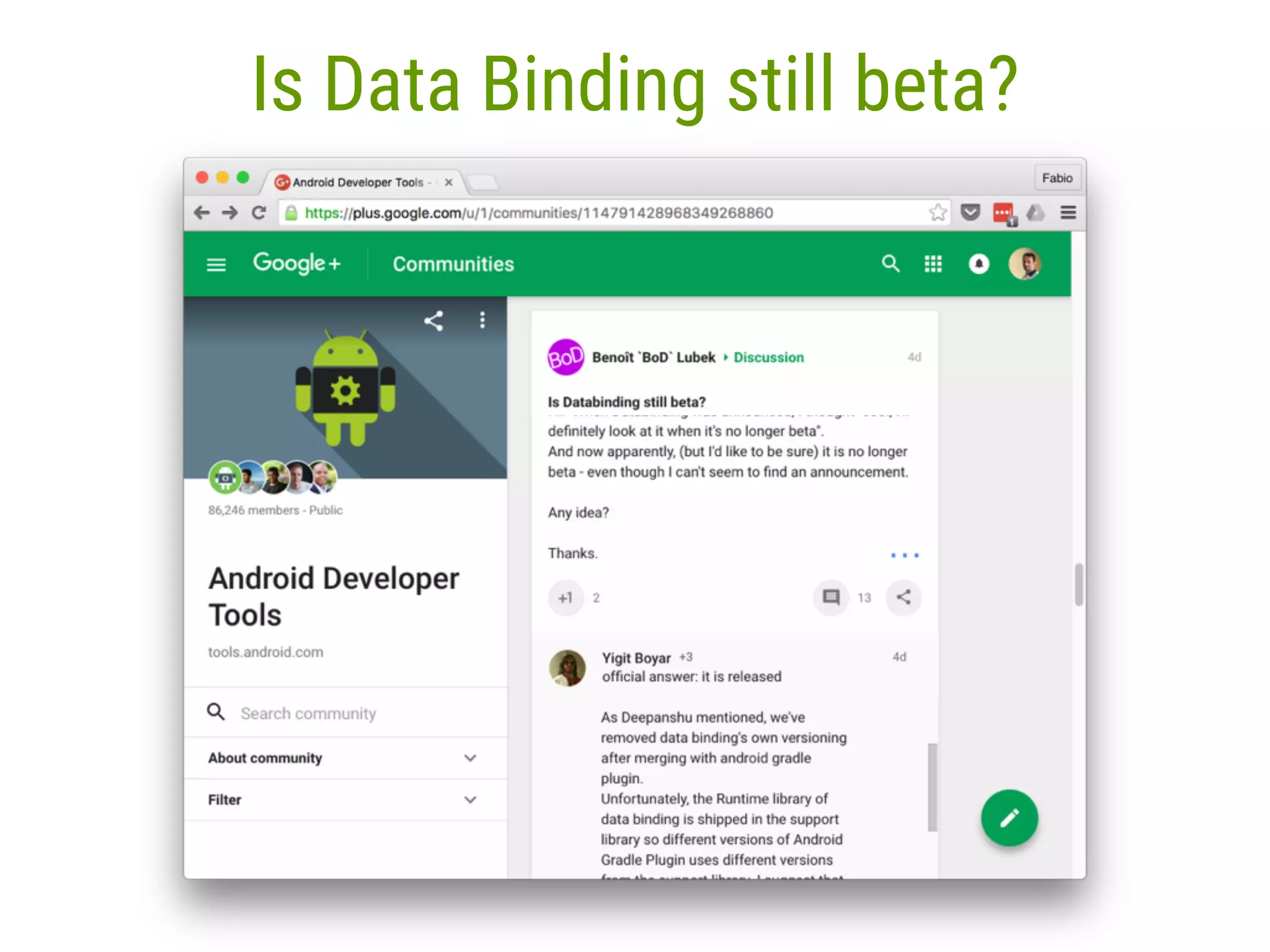

10 Is Data Binding still beta?
11 Is Data Binding still beta?
dataBinding {
 enabled = true
 }

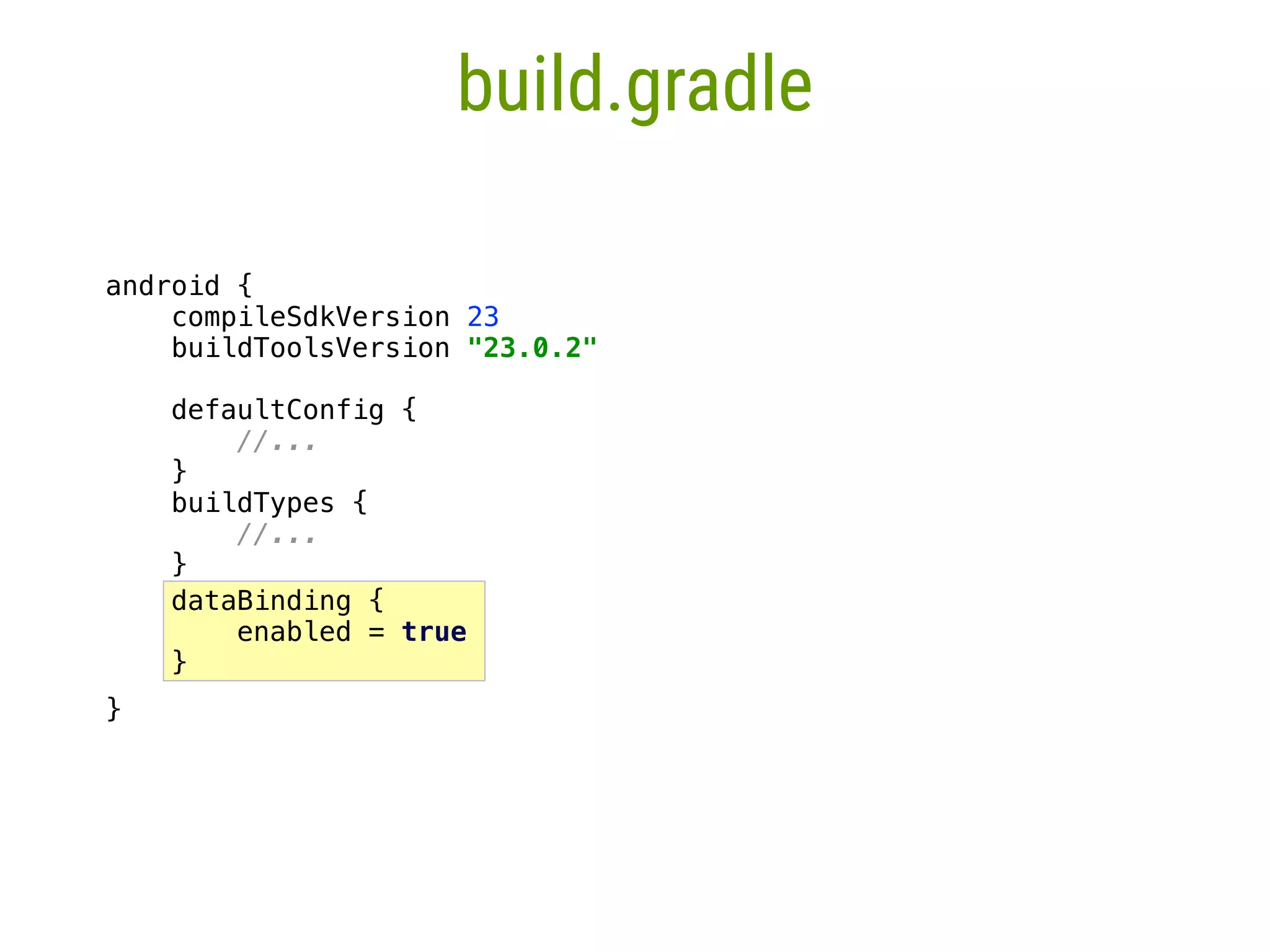

 12 build.gradle android {
 compileSdkVersion 23
 buildToolsVersion "23.0.2"

 defaultConfig {
 //...
 ____}
 buildTypes {
 //...
 ____} }
<?xml version="1.0" encoding="utf-8"?>
 <layout>
 <LinearLayout style=“@style/root_layout" xmlns:android="http://schemas.android.com/apk/res/android">

 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout>

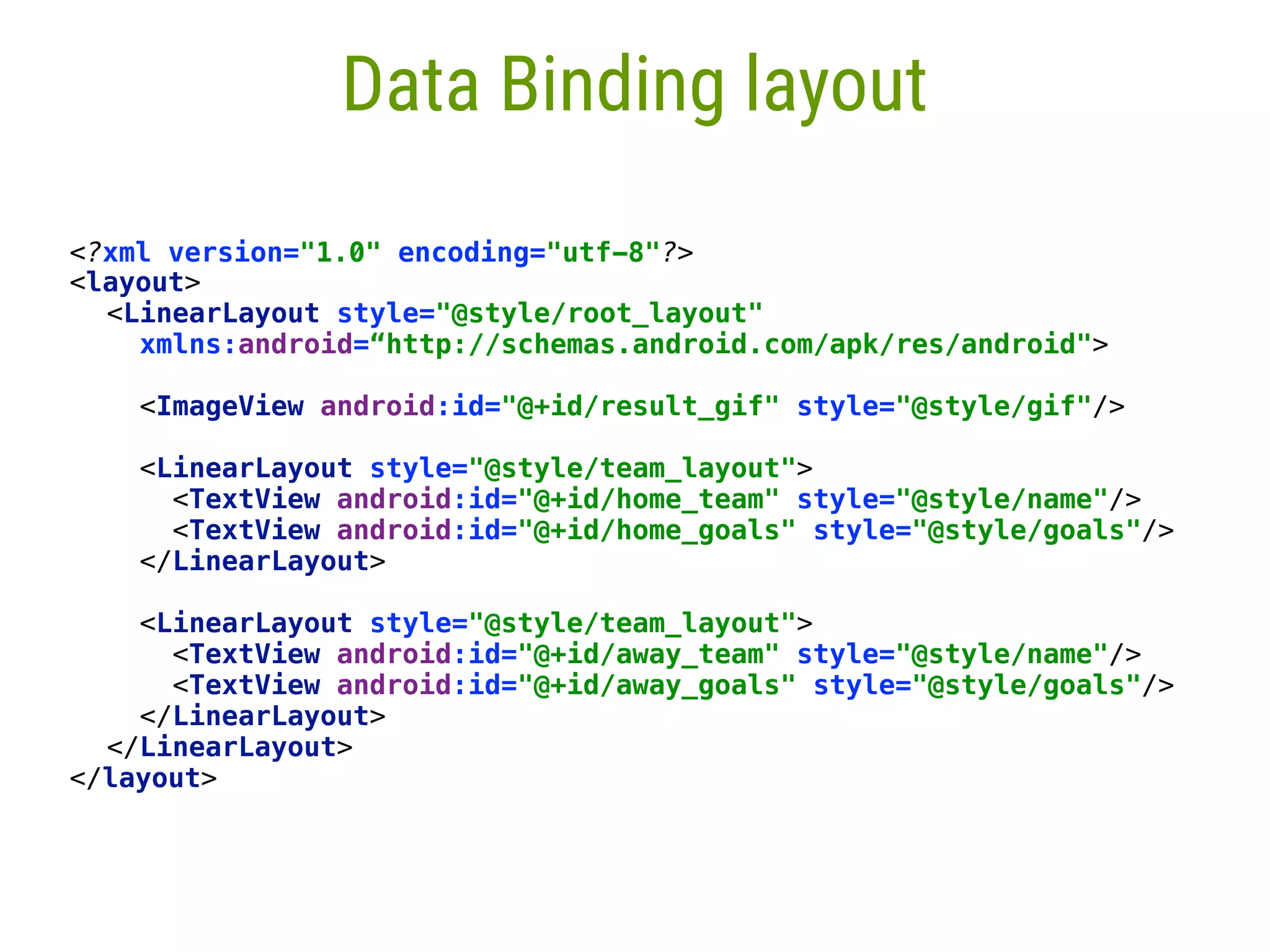

 </layout> 13 Data Binding layout <LinearLayout style="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout> <?xml version="1.0" encoding="utf-8"?> <layout> </layout>
<LinearLayout style="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>

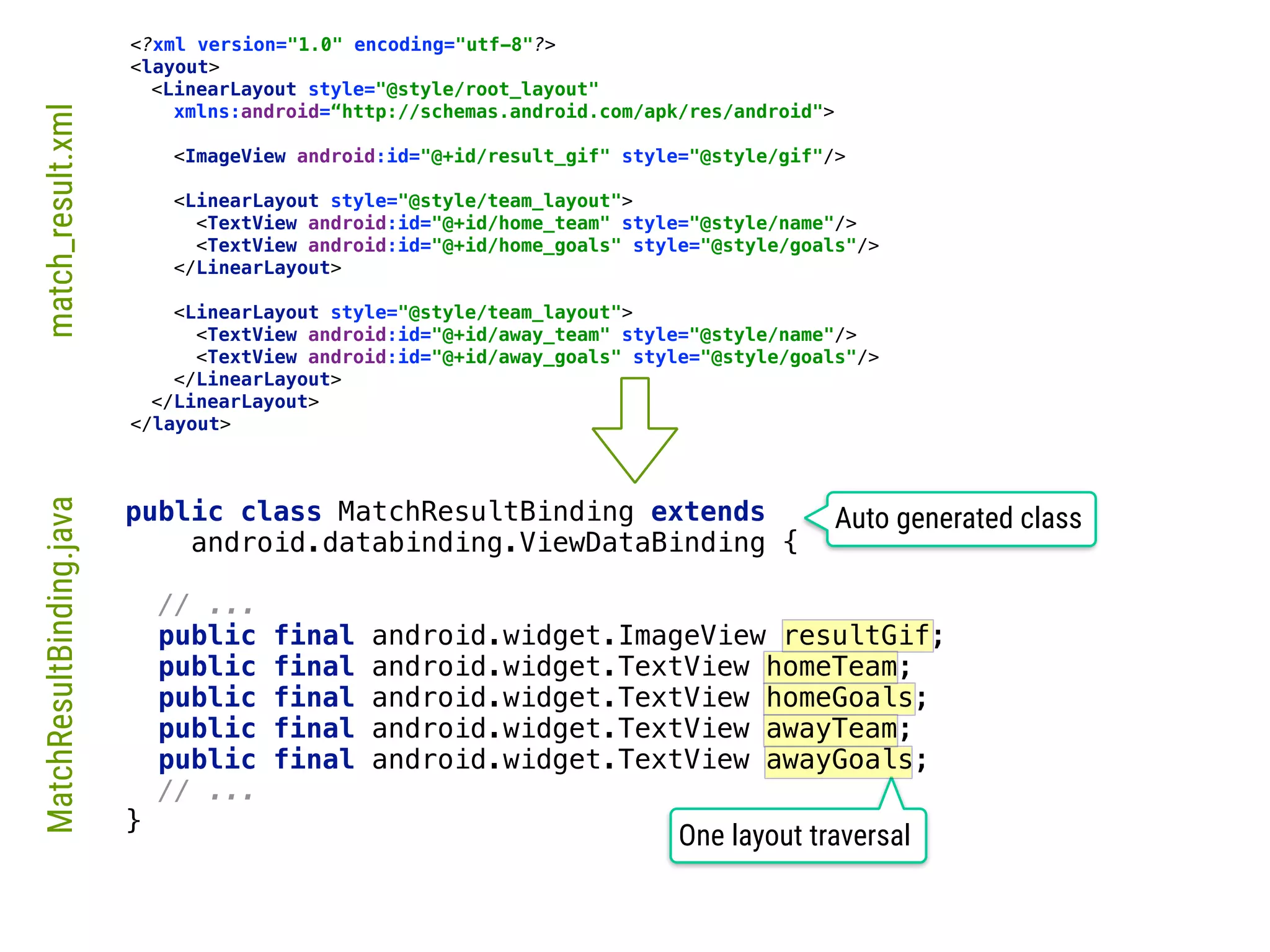

 </LinearLayout> 14 One layout traversal match_result.xmlMatchResultBinding.java Auto generated class <?xml version="1.0" encoding="utf-8"?> <layout> </layout> public class MatchResultBinding extends android.databinding.ViewDataBinding {

 // ...
 public final android.widget.ImageView resultGif;
 public final android.widget.TextView homeTeam;
 public final android.widget.TextView homeGoals;
 public final android.widget.TextView awayTeam;
 public final android.widget.TextView awayGoals;
 // ...
 }

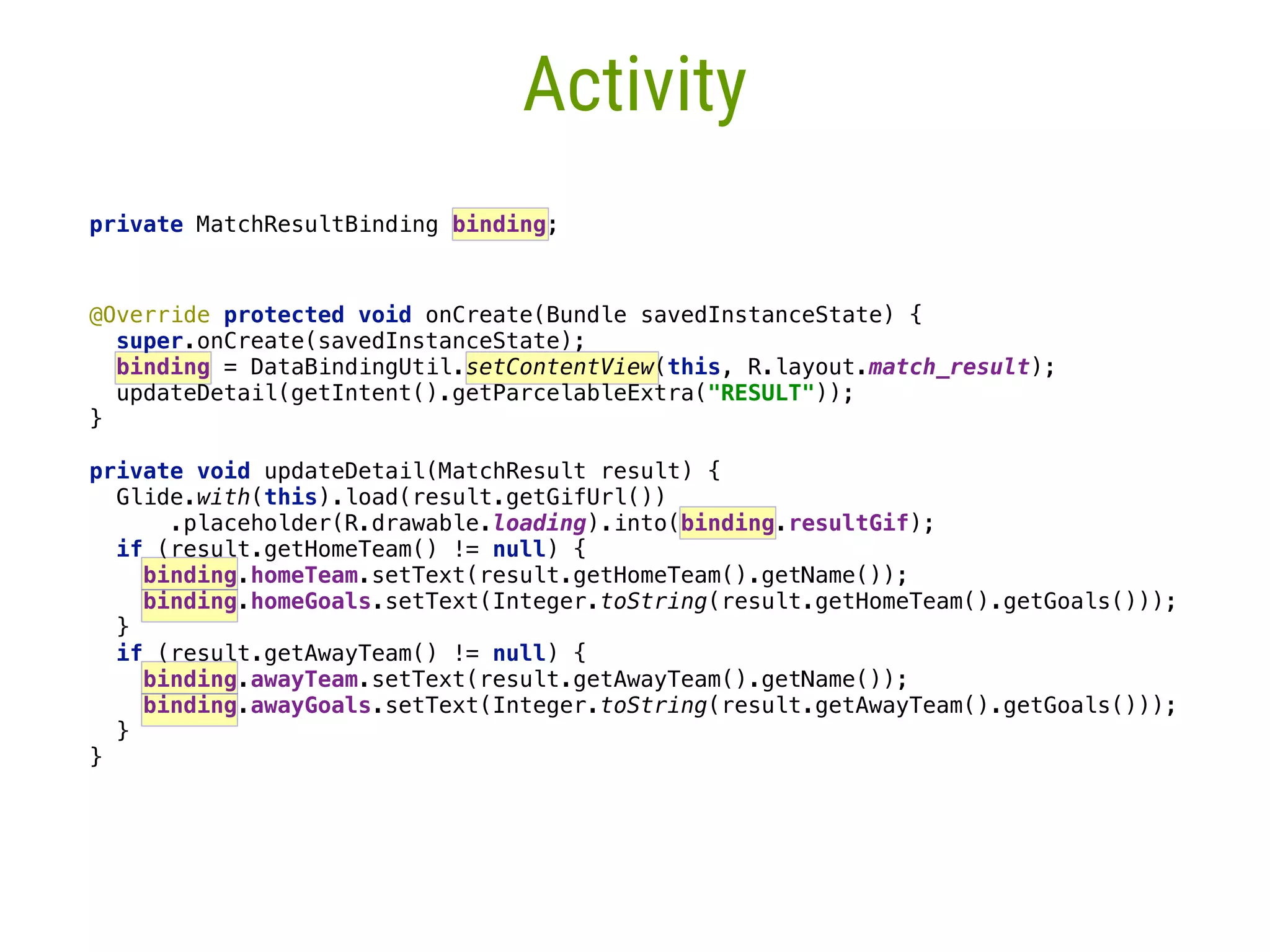

15 Activity
 @Override protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.match_result); updateDetail(getIntent().getParcelableExtra("RESULT"));
 }____
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 if (result.getHomeTeam() != null) {
 binding.homeTeam.setText(result.getHomeTeam().getName());
 binding.homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals()));
 }___
 if (result.getAwayTeam() != null) {
 binding.awayTeam.setText(result.getAwayTeam().getName());
 binding.awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals()));
 }__
 }_ private MatchResultBinding binding;__

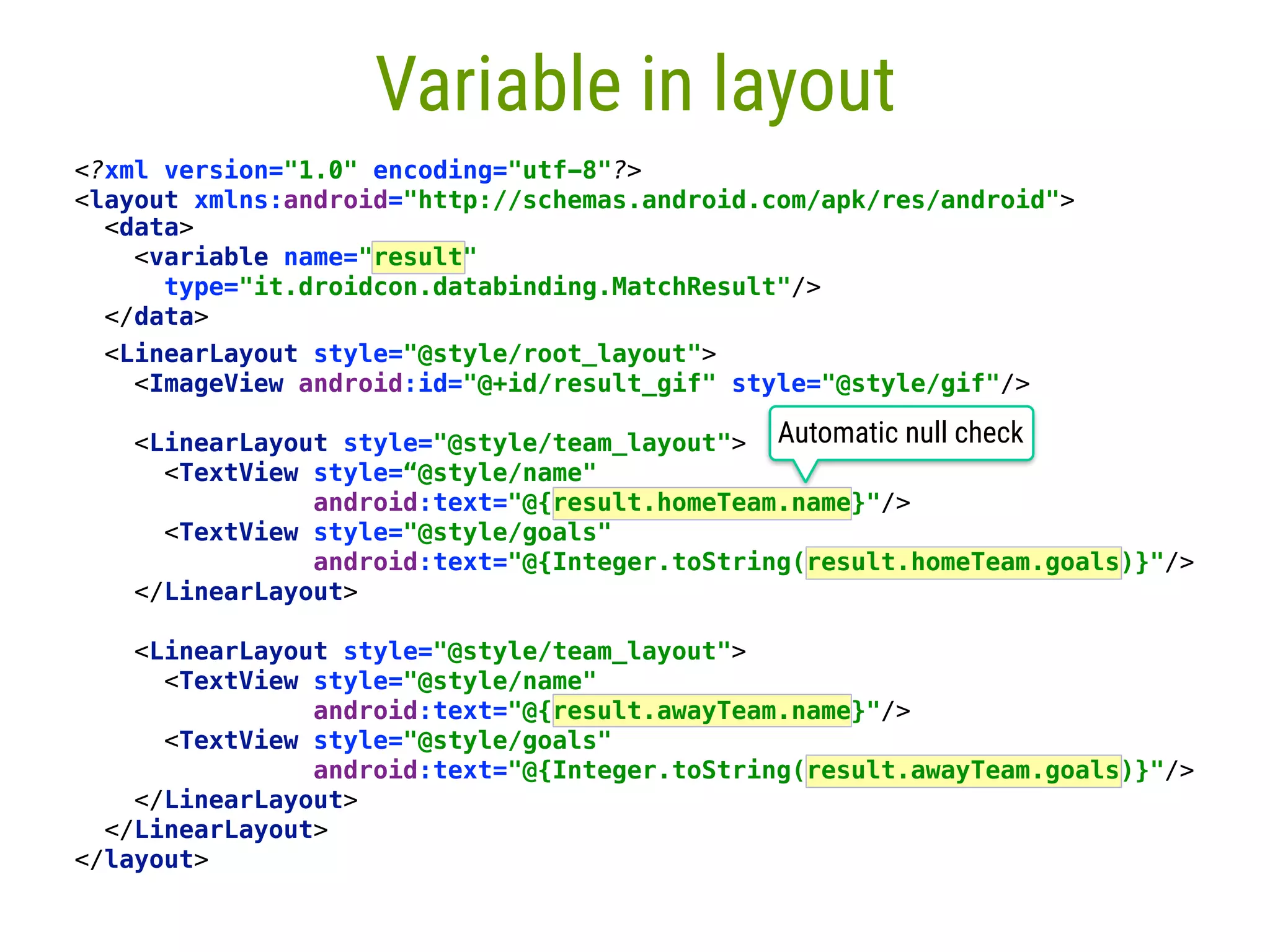

16 Variable in layout <?xml version="1.0" encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"> Automatic null check <data>
 <variable name="result" type="it.droidcon.databinding.MatchResult"/>
 </data> <LinearLayout style="@style/root_layout">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView style=“@style/name"
 android:text="@{result.homeTeam.name}"/>
 <TextView style="@style/goals"
 android:text="@{Integer.toString(result.homeTeam.goals)}"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.awayTeam.name}"/>
 <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>
 </LinearLayout>
 </LinearLayout>
 </layout>

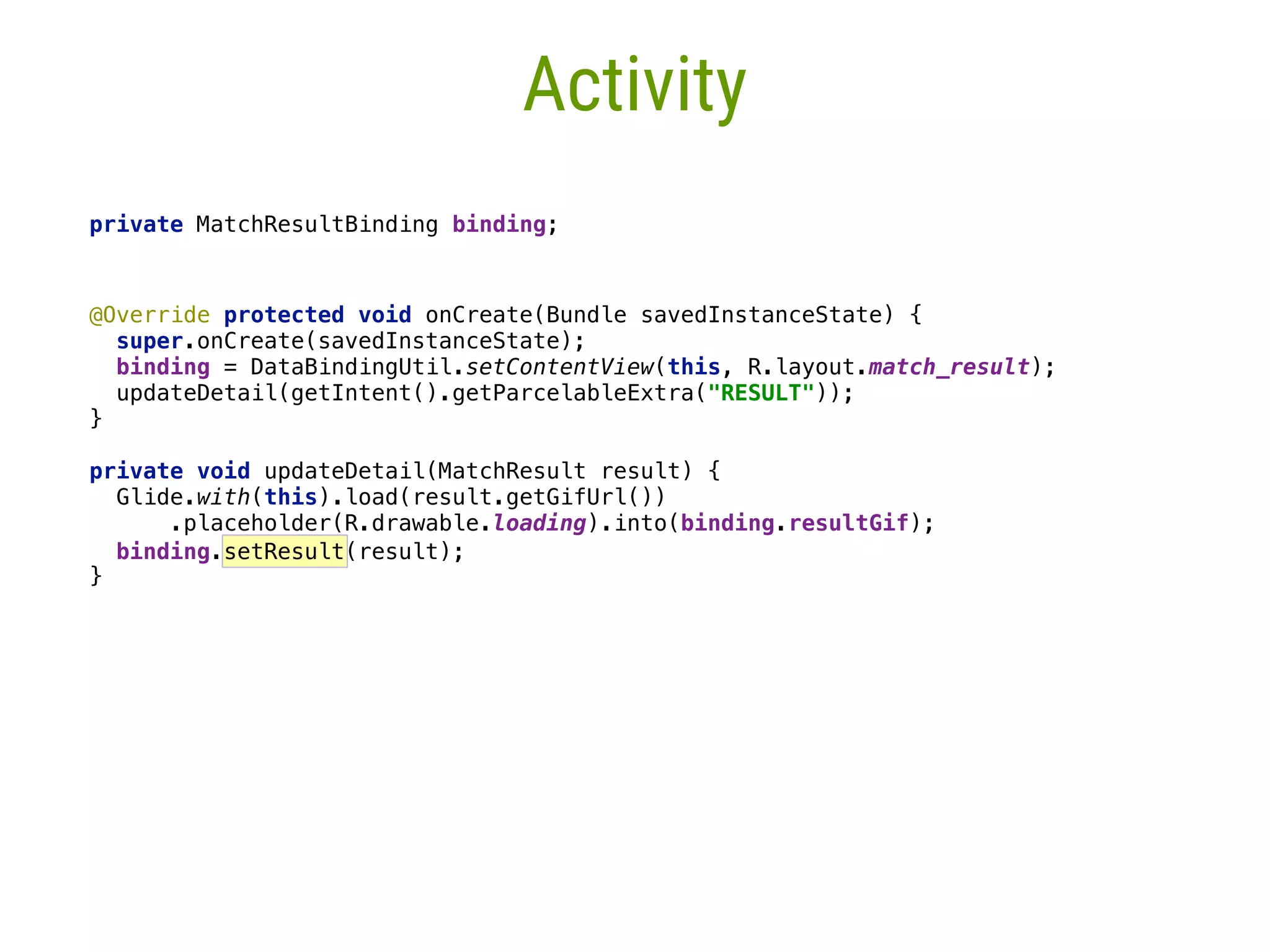

17 Activity private MatchResultBinding binding;
 @Override protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.match_result); updateDetail(getIntent().getParcelableExtra("RESULT"));
 }____
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 binding.setResult(result); }_
18 Code in XML? Are you serious?!?
19 Complex code in XML is NOT a best practice
DroidCon Italy - Torino - April 2016 - @fabioCollini 20 2Custom attributes

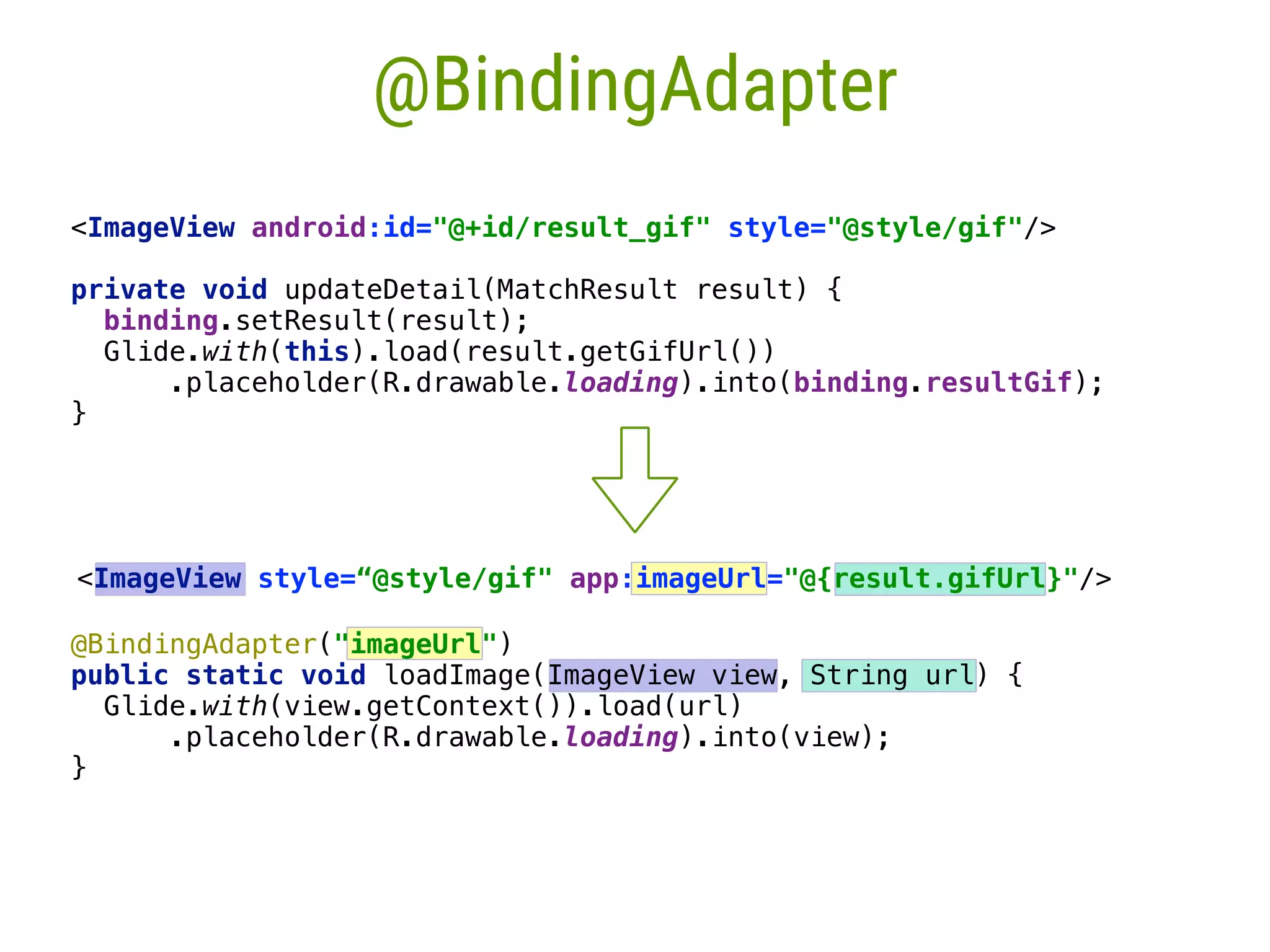

21 @BindingAdapter <ImageView android:id="@+id/result_gif" style="@style/gif"/> private void updateDetail(MatchResult result) {
 binding.setResult(result);
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 } <ImageView style=“@style/gif" app:imageUrl="@{result.gifUrl}"/> @BindingAdapter("imageUrl")
 public static void loadImage(ImageView view, String url) {
 Glide.with(view.getContext()).load(url)
 .placeholder(R.drawable.loading).into(view);
 }

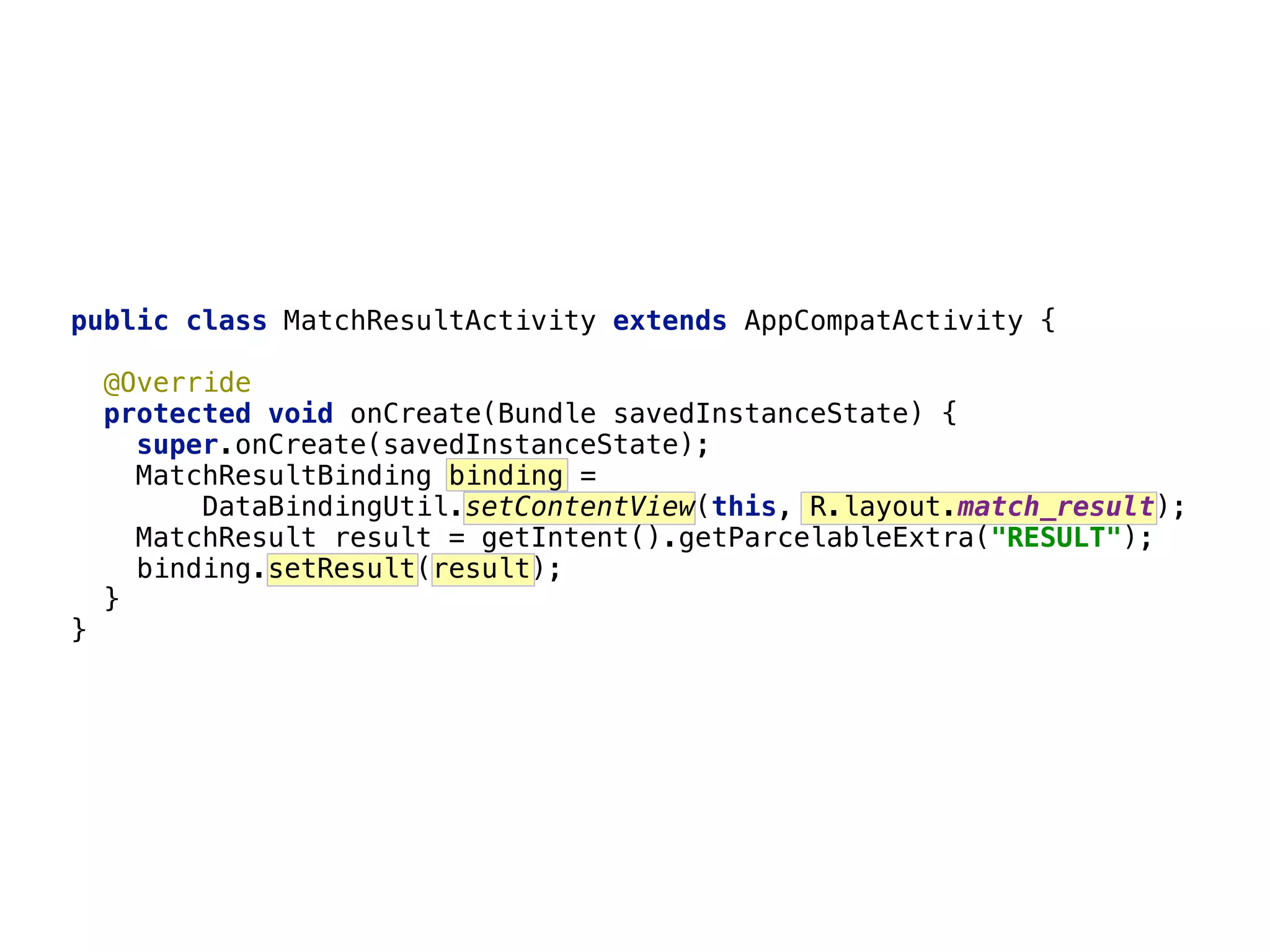

22 public class MatchResultActivity extends AppCompatActivity {

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 MatchResultBinding binding =
 DataBindingUtil.setContentView(this, R.layout.match_result);
 MatchResult result = getIntent().getParcelableExtra("RESULT");
 binding.setResult(result);
 }
 }

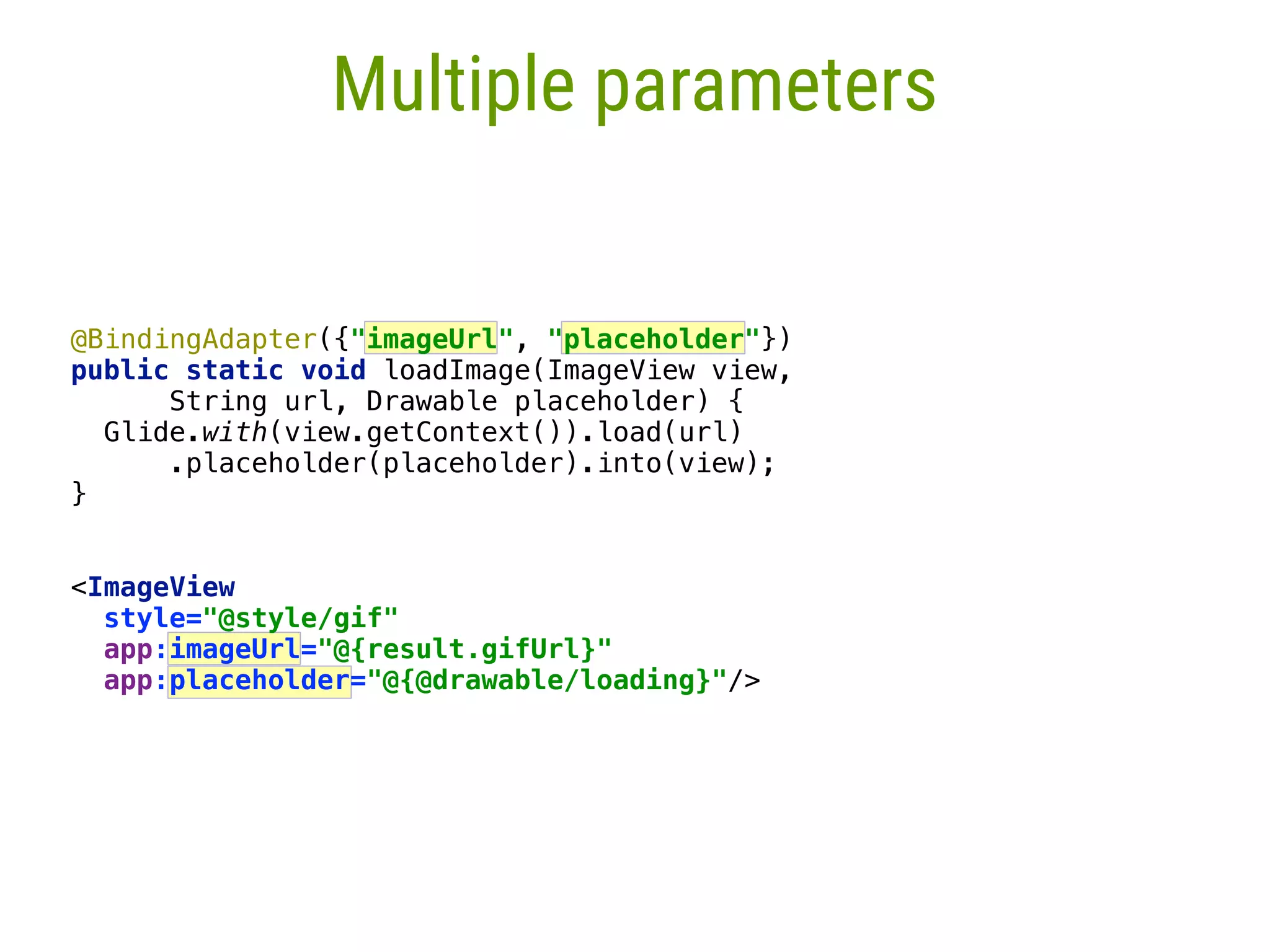

23 Multiple parameters @BindingAdapter({"imageUrl", "placeholder"})
 public static void loadImage(ImageView view, String url, Drawable placeholder) {
 Glide.with(view.getContext()).load(url)
 .placeholder(placeholder).into(view);
 }
 <ImageView style="@style/gif"
 app:imageUrl="@{result.gifUrl}" app:placeholder="@{@drawable/loading}"/>

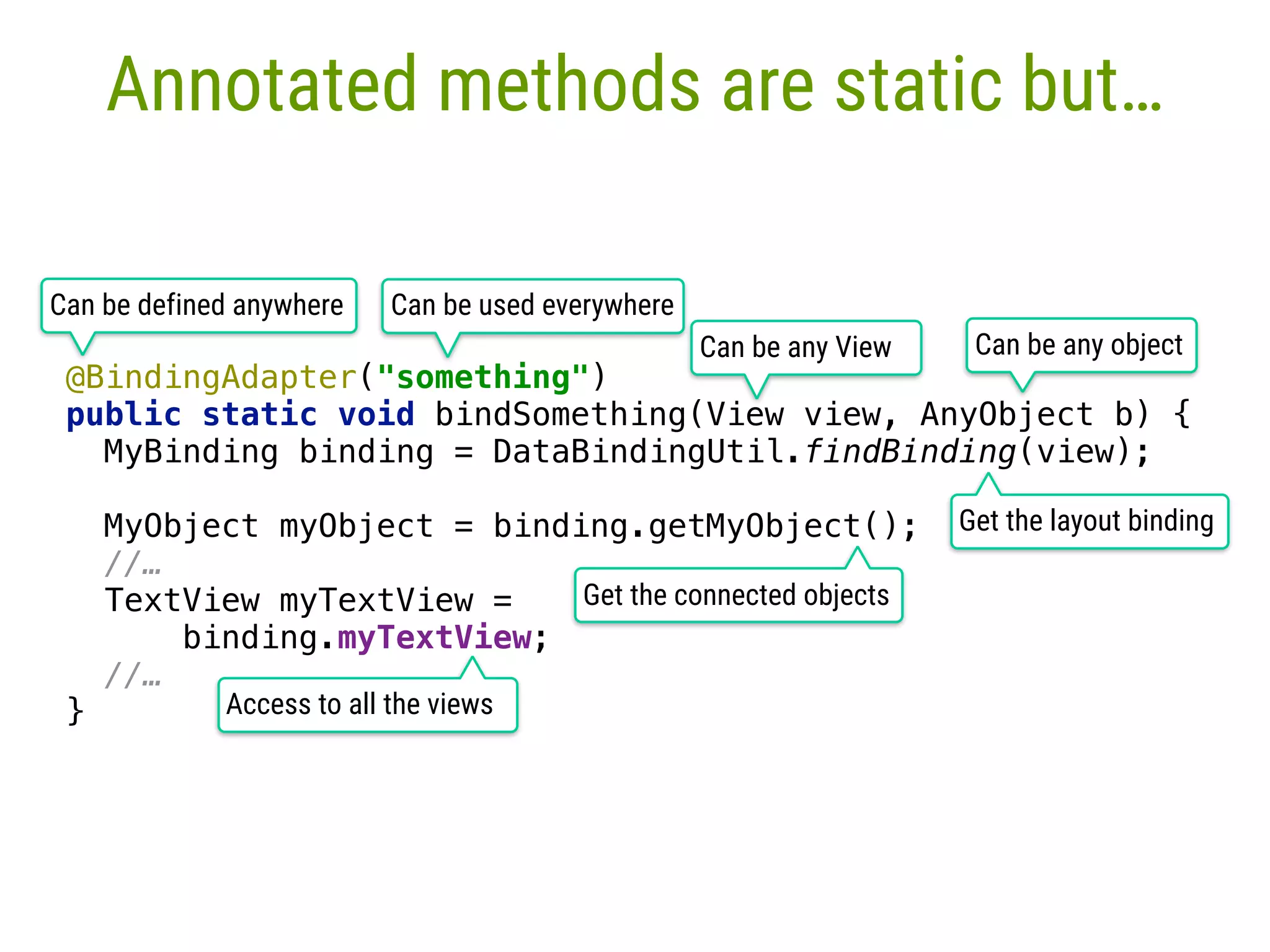

Annotated methods are static but… @BindingAdapter("something")
 public static void bindSomething(View view, AnyObject b) {
 MyBinding binding = DataBindingUtil.findBinding(view);
 MyObject myObject = binding.getMyObject();
 //… TextView myTextView =
 binding.myTextView; //… } Can be any object Get the layout binding Get the connected objects Access to all the views Can be defined anywhere Can be used everywhere Can be any View

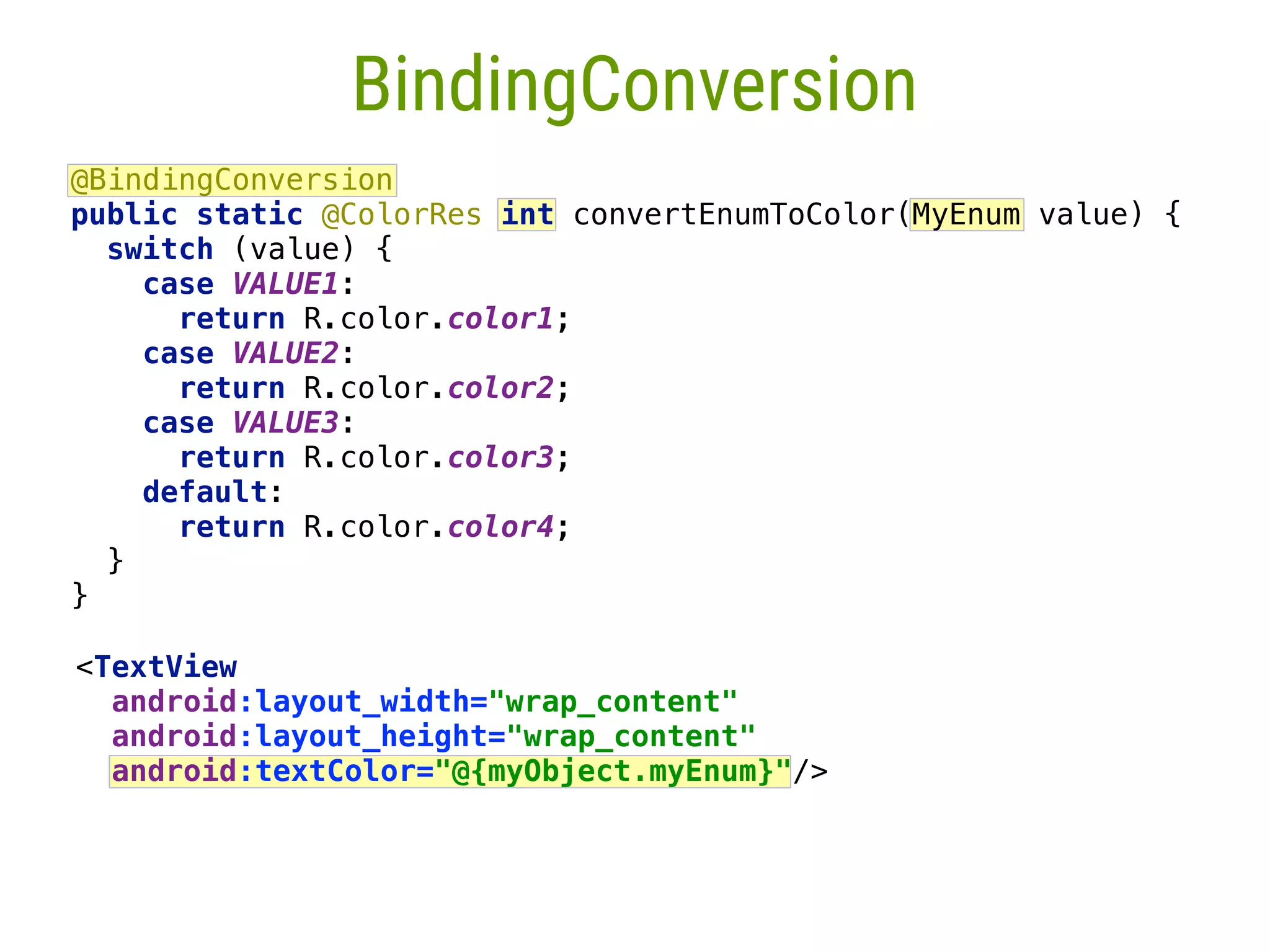

25 BindingConversion @BindingConversion
 public static @ColorRes int convertEnumToColor(MyEnum value) {
 switch (value) {
 case VALUE1:
 return R.color.color1;
 case VALUE2:
 return R.color.color2;
 case VALUE3:
 return R.color.color3;
 default:
 return R.color.color4;
 }
 } <TextView
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="@{myObject.myEnum}"/>
@BindingConversion
 public static String convertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___
 <TextView style="@style/goals” android:text="@{result.awayTeam}"/>

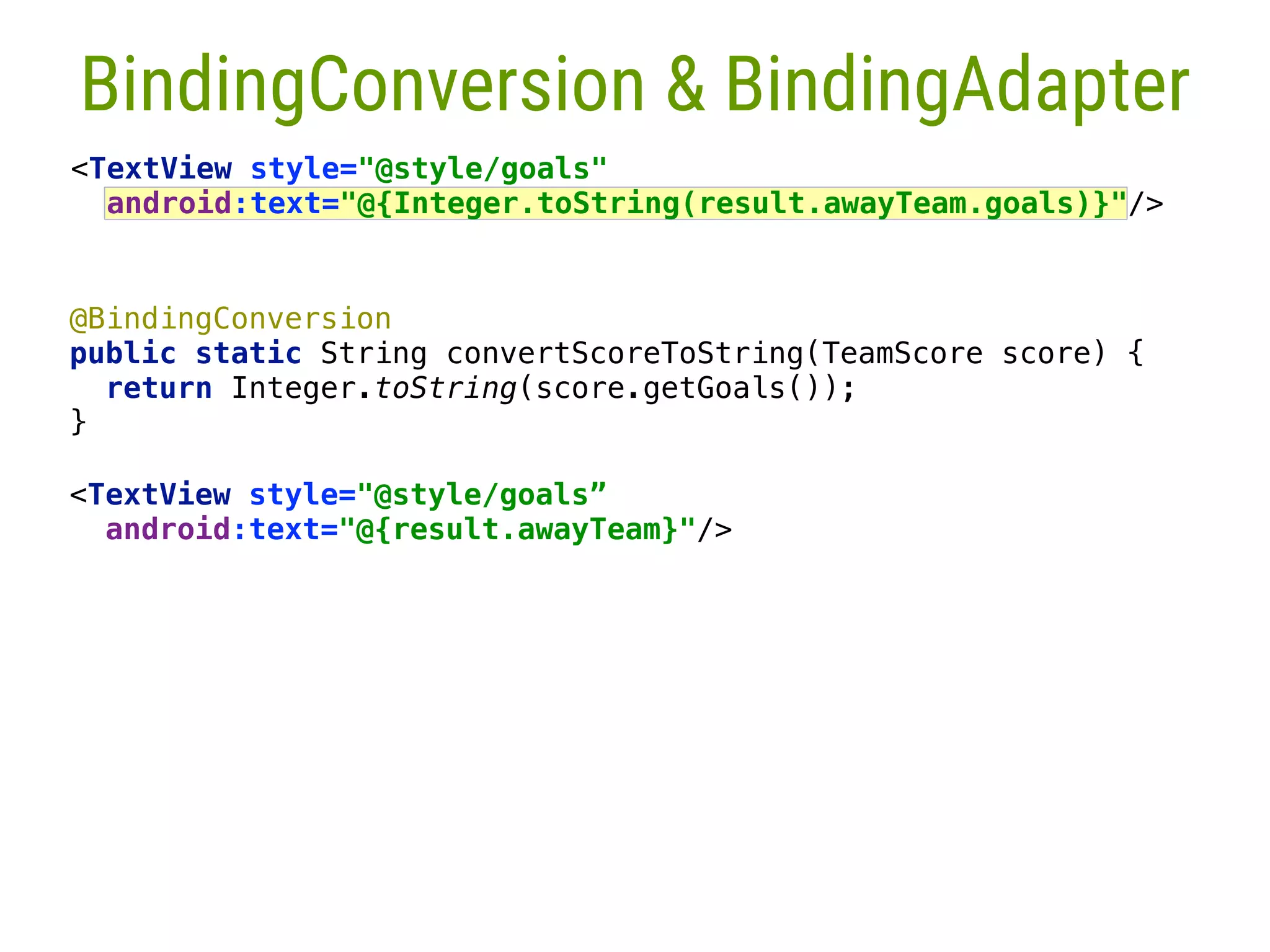

 26 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>
<TextView style="@style/goals" app:goals="@{result.awayTeam.goals}"/> @BindingAdapter("goals")
 public static void bindGoals(TextView view, int goals) {
 view.setText(Integer.toString(goals));
 }__
 @BindingConversion
 public static String convertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___

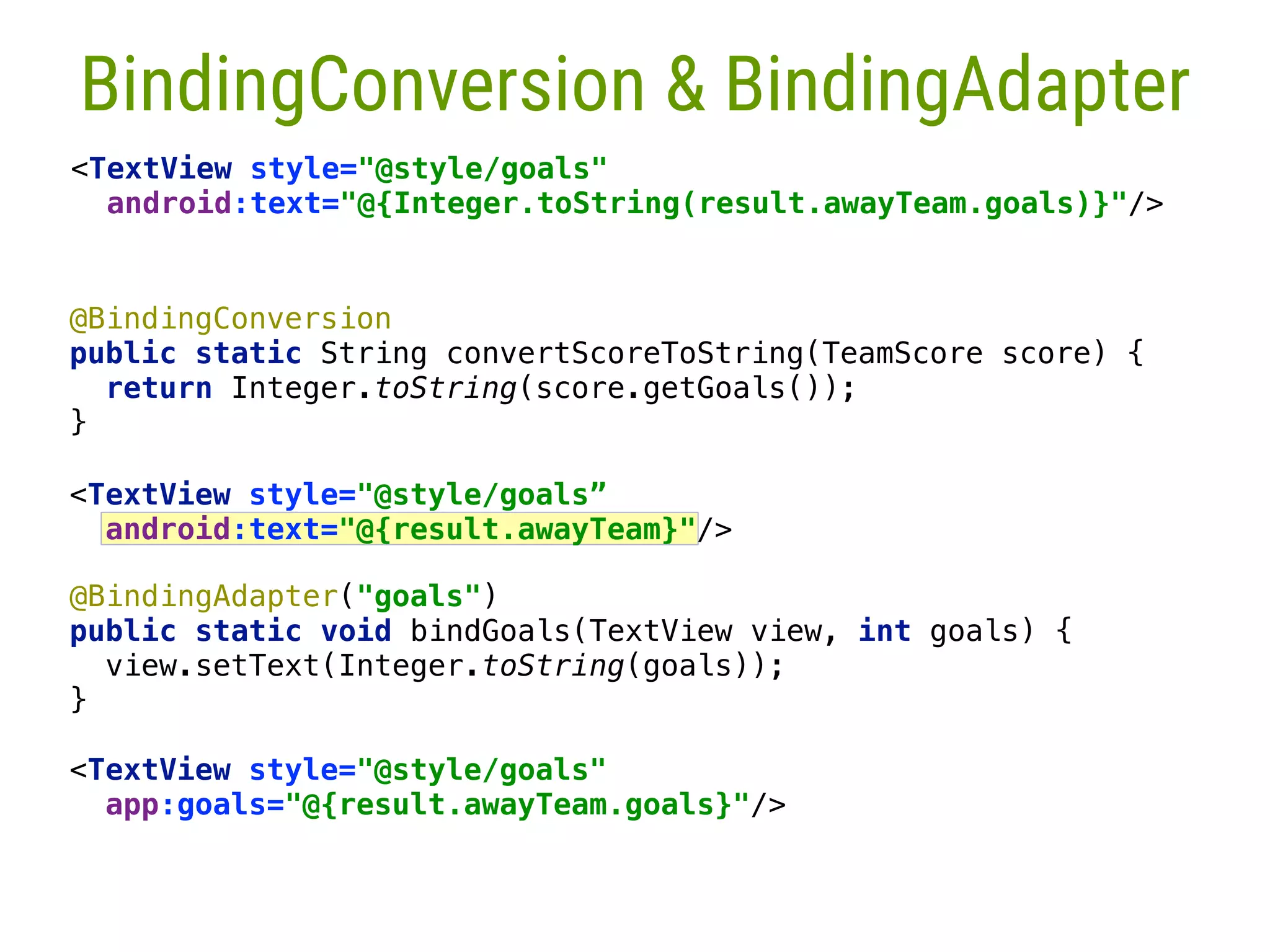

 27 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/> <TextView style="@style/goals” android:text="@{result.awayTeam}"/>

<TextView style="@style/goals" app:goals="@{result.awayTeam.goals}"/> @BindingAdapter("goals")
 public static void bindGoals(TextView view, int goals) {
 view.setText(Integer.toString(goals));
 }__
 @BindingConversion
 public static String convertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___
 <TextView style="@style/goals” android:text="@{result.awayTeam}"/>

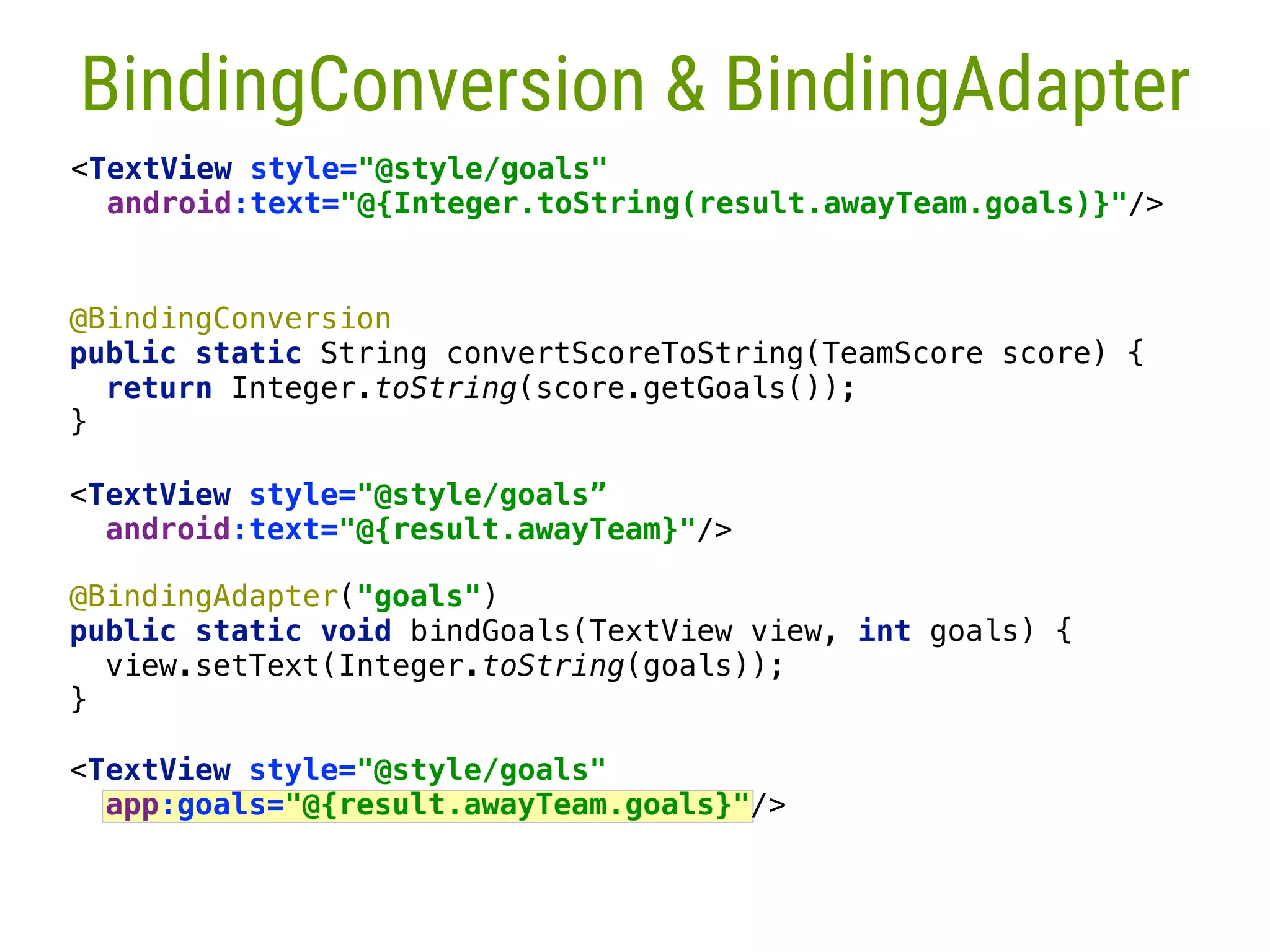

 28 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>

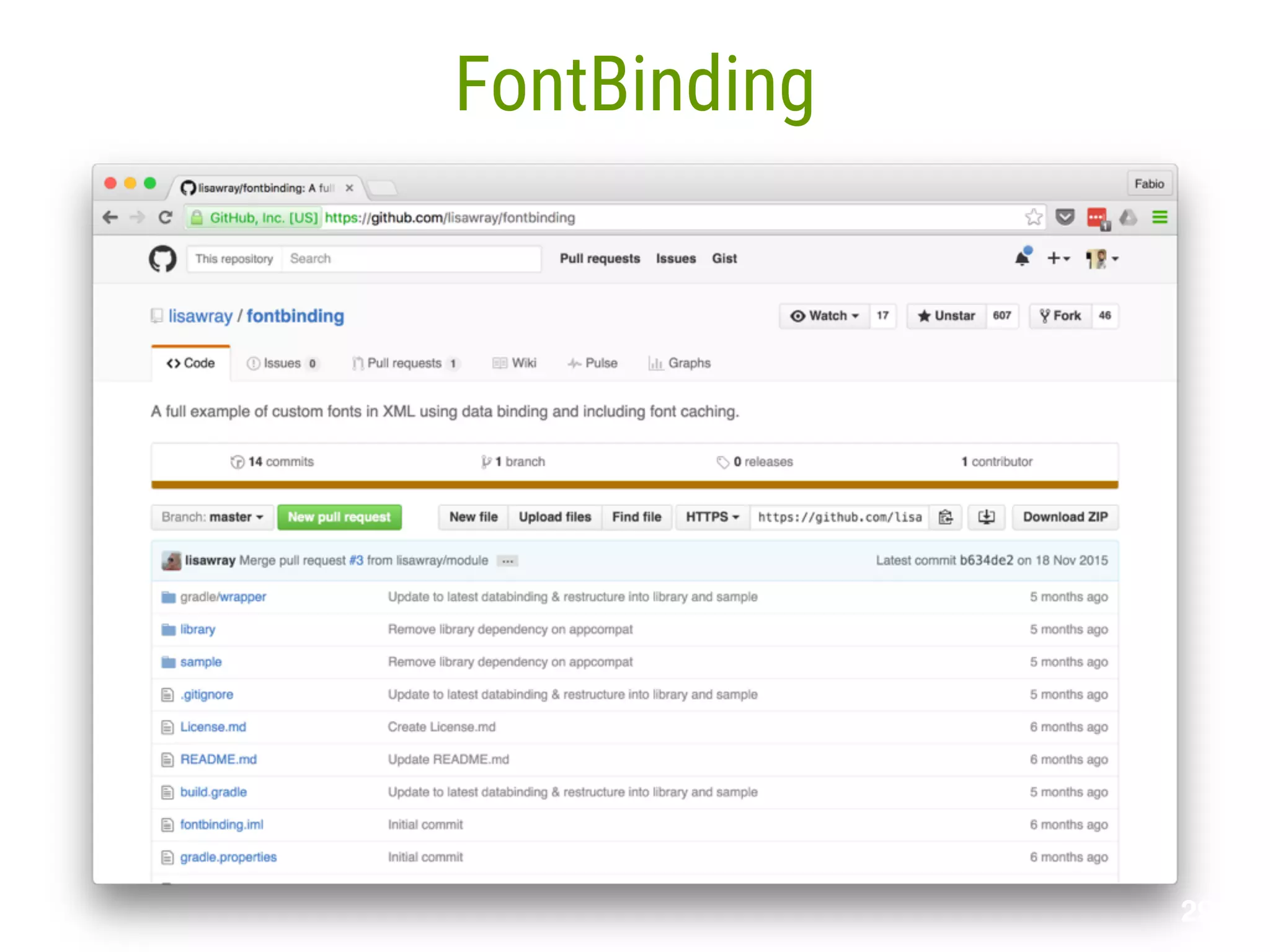

29 FontBinding
DroidCon Italy - Torino - April 2016 - @fabioCollini 30 3Components

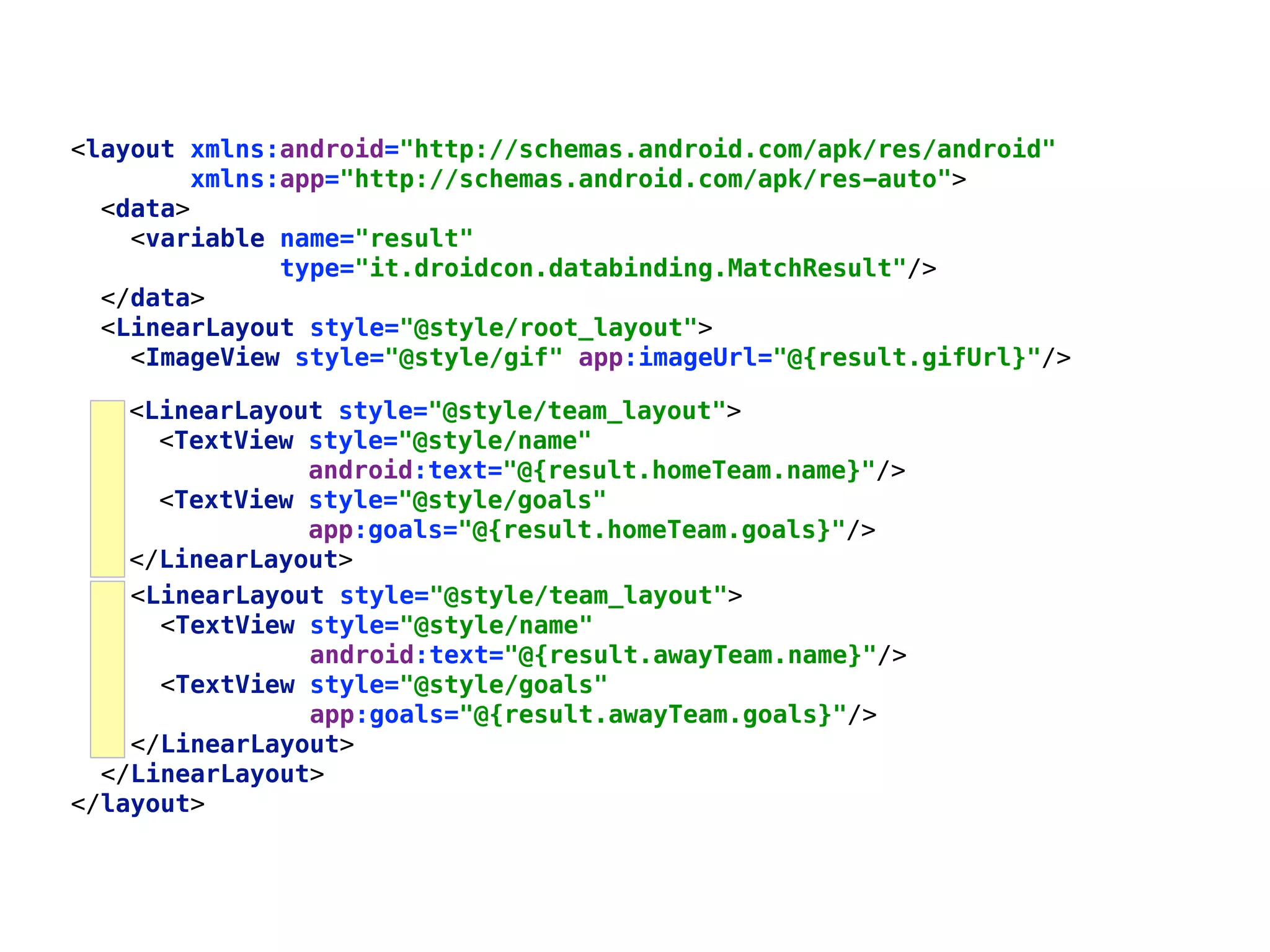

31 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 </data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/>


 <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.awayTeam.name}"/>
 <TextView style="@style/goals"
 app:goals="@{result.awayTeam.goals}"/>
 </LinearLayout>
 </LinearLayout>
 </layout> <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.homeTeam.name}"/>
 <TextView style="@style/goals"
 app:goals="@{result.homeTeam.goals}"/>
 </LinearLayout>

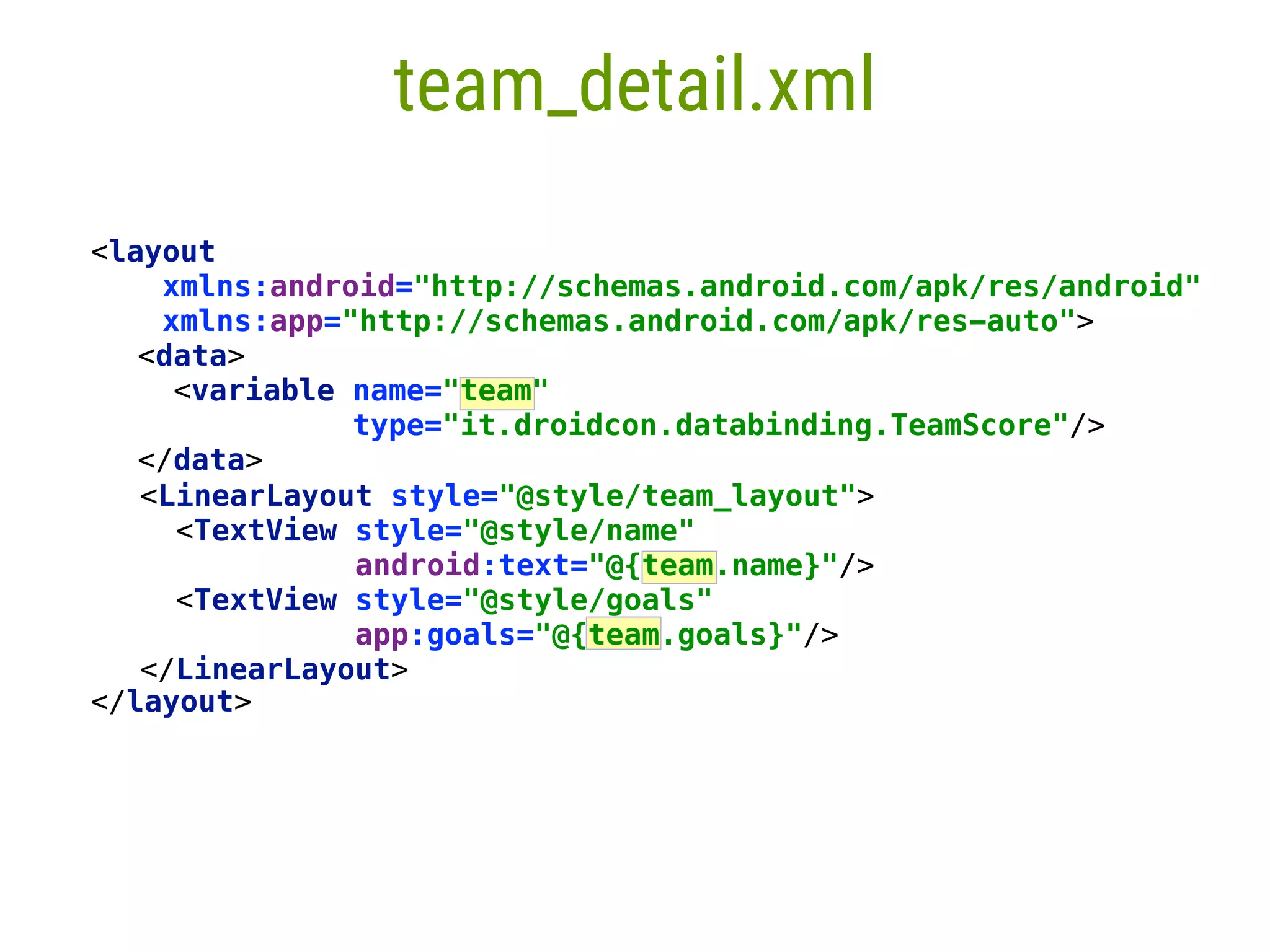

32 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto">
 </layout> team_detail.xml <data>
 <variable name="team"
 type="it.droidcon.databinding.TeamScore"/>
 </data>
 <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{team.name}"/>
 <TextView style="@style/goals"
 app:goals="@{team.goals}"/>
 </LinearLayout>
</data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/>

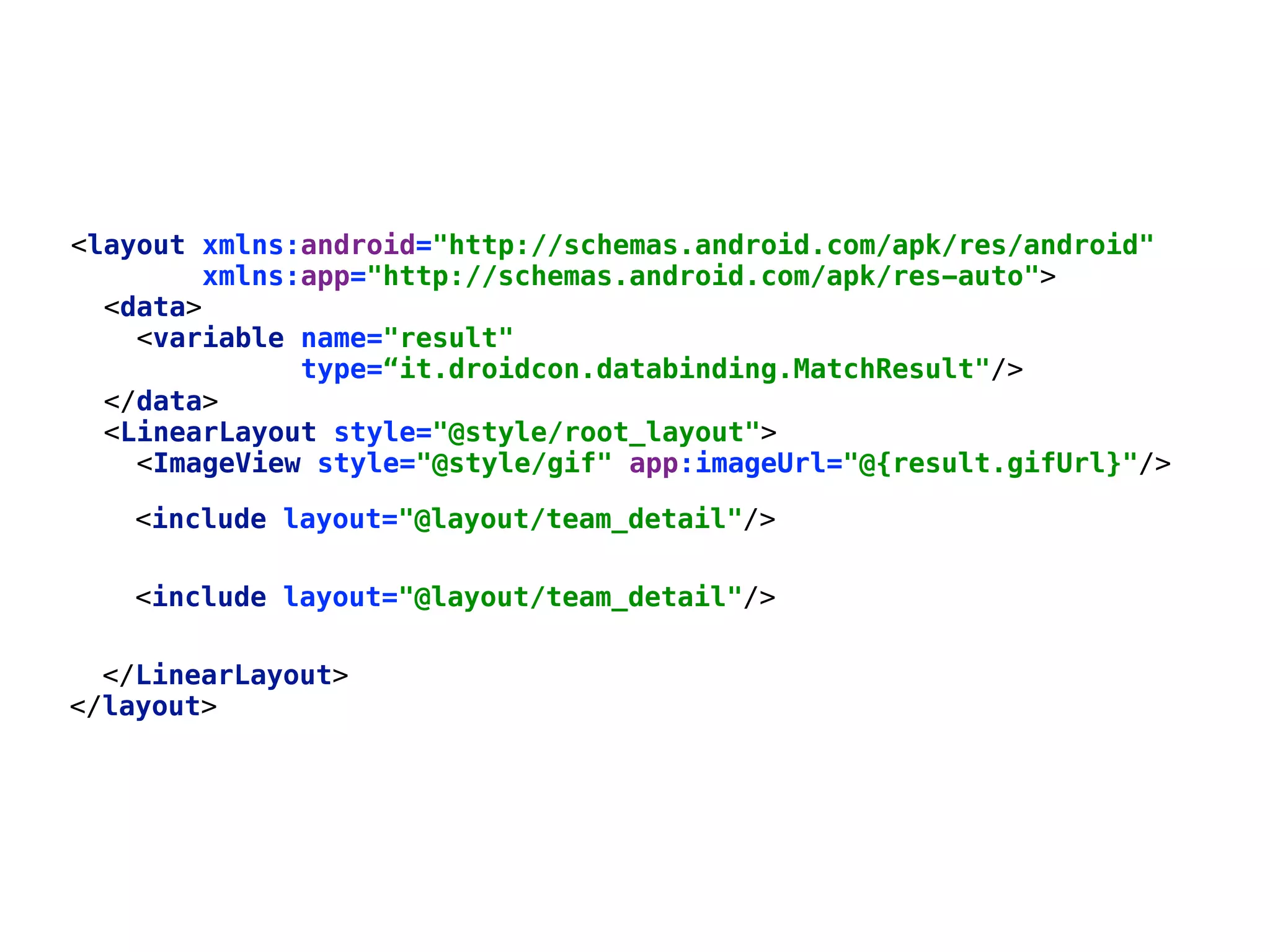

 <include layout="@layout/team_detail"/> <include layout="@layout/team_detail"/> </LinearLayout>
 </layout> <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto">
 <data>
 <variable name="result"
 type=“it.droidcon.databinding.MatchResult"/>

</data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/>

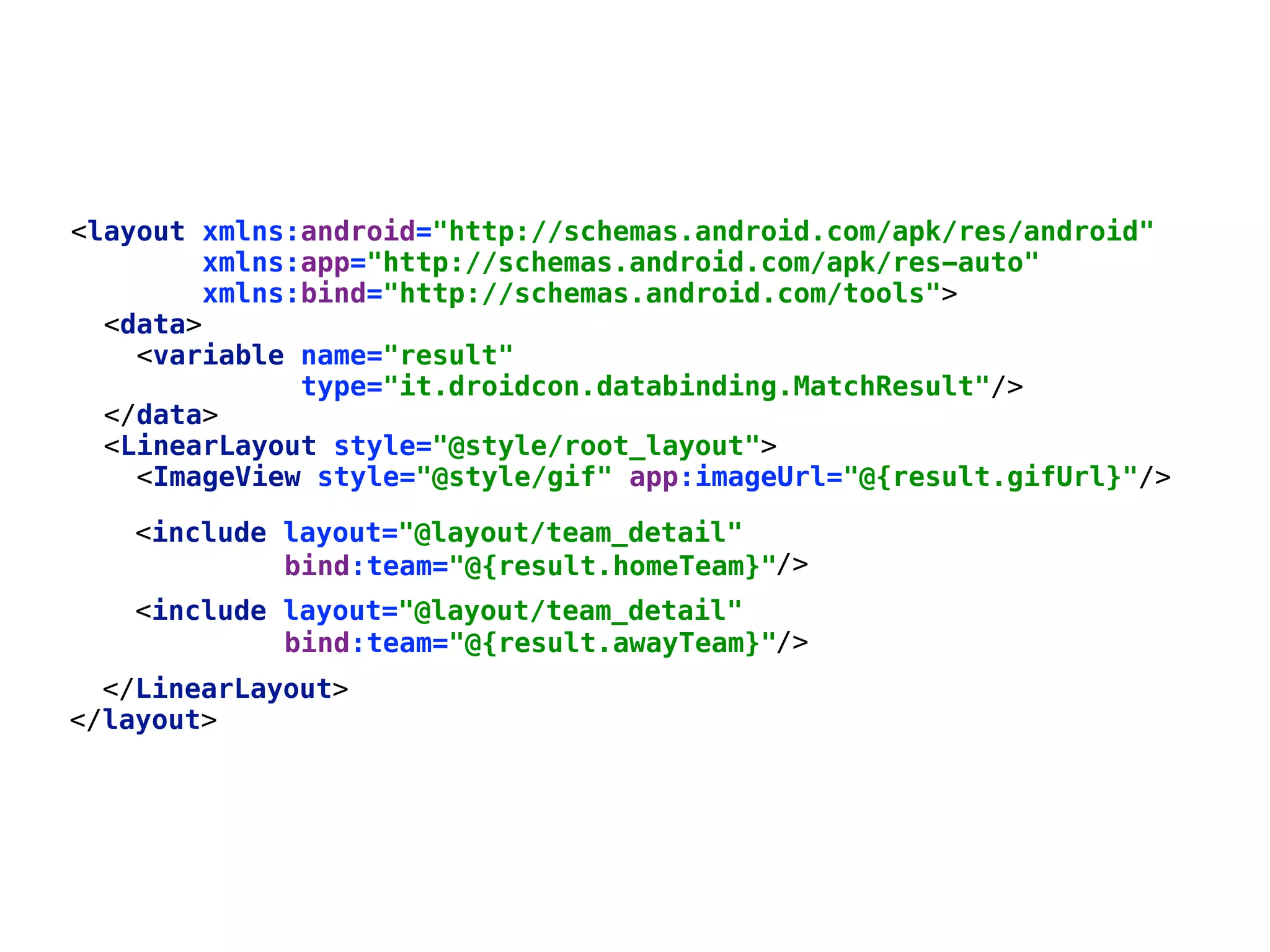

 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{result.homeTeam}" bind:team="@{result.awayTeam}"
</data>
 <LinearLayout style="@style/root_layout" >
 <ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/>

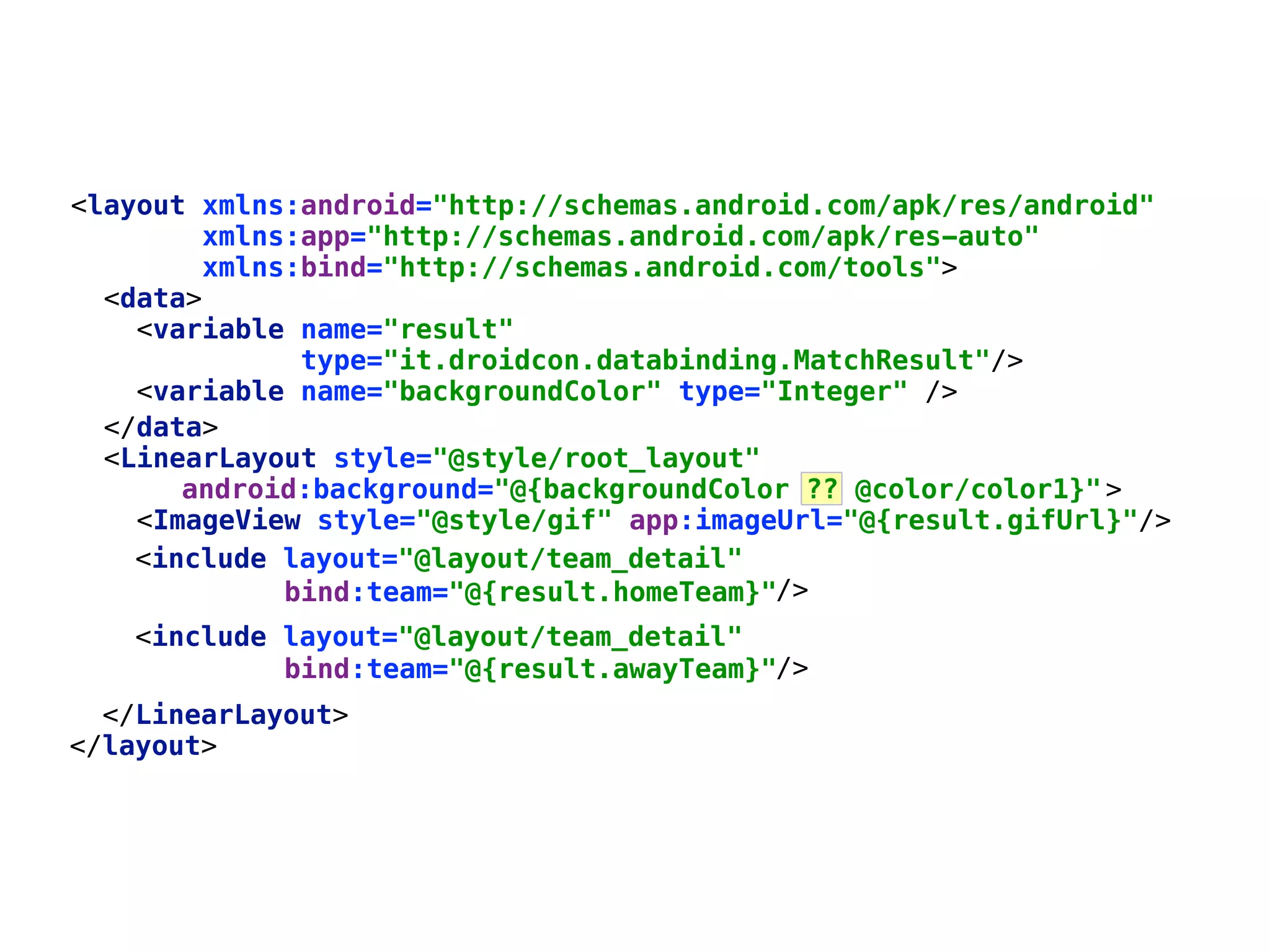

 android:background="@{backgroundColor ?? @color/color1}" <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{result.homeTeam}" bind:team="@{result.awayTeam}" <variable name="backgroundColor" type="Integer" />
DroidCon Italy - Torino - April 2016 - @fabioCollini 36 4Two Way Data Binding
37

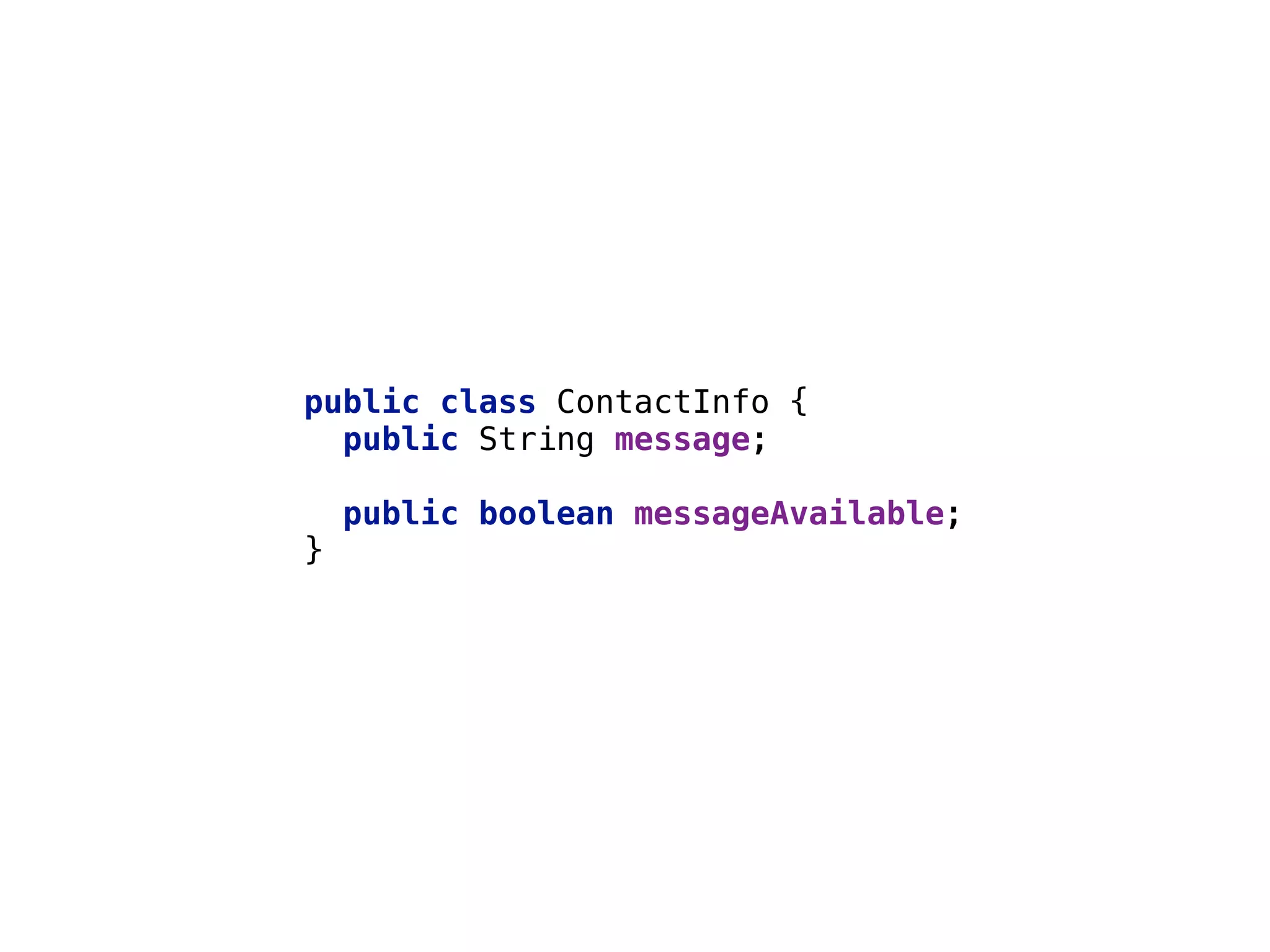

38 public class ContactInfo {
 public String message;

 public boolean messageAvailable;
 }__

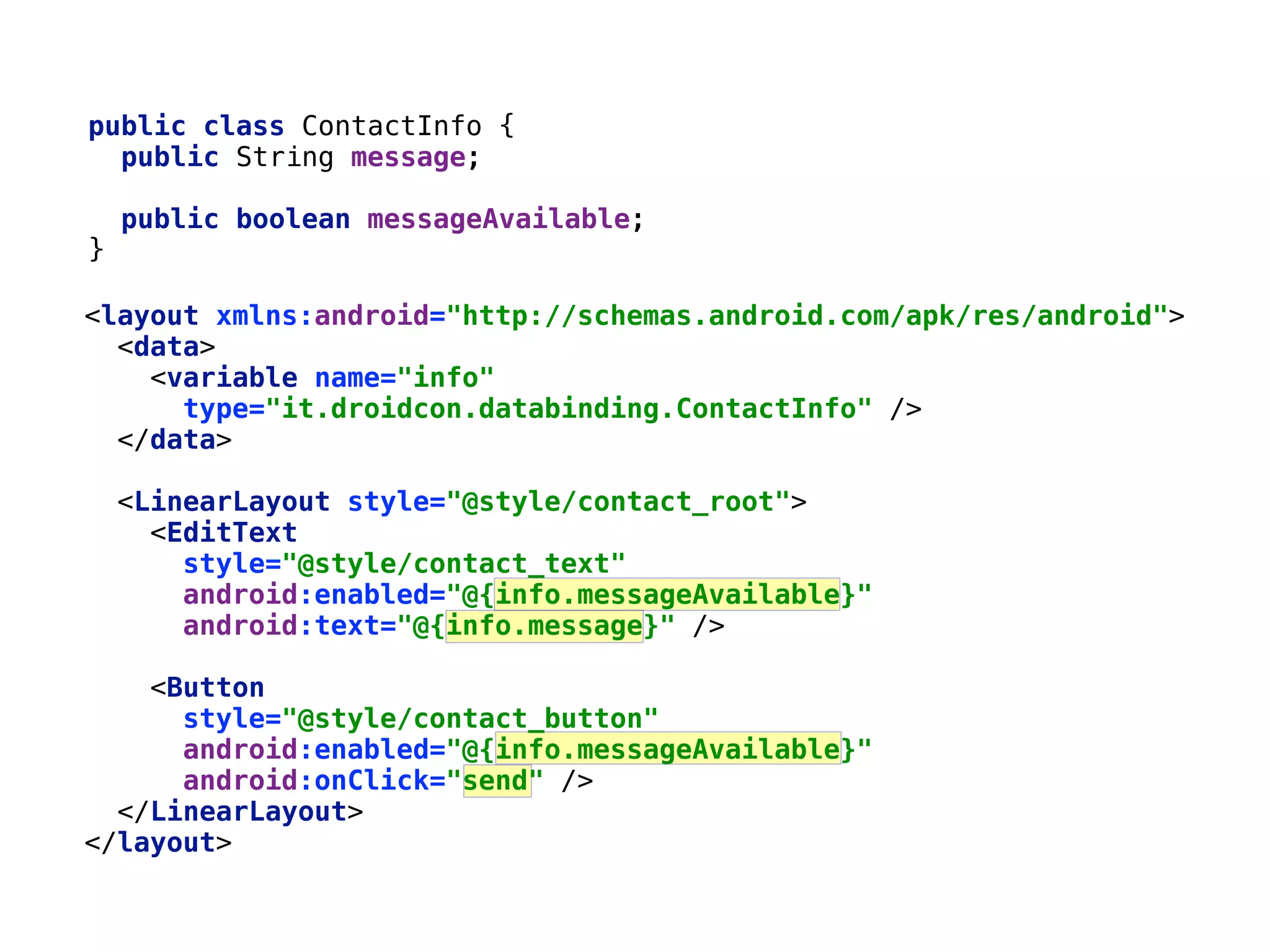

39 public class ContactInfo {
 public String message;

 public boolean messageAvailable;
 }__ <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo" />
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@{info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>
 </layout>

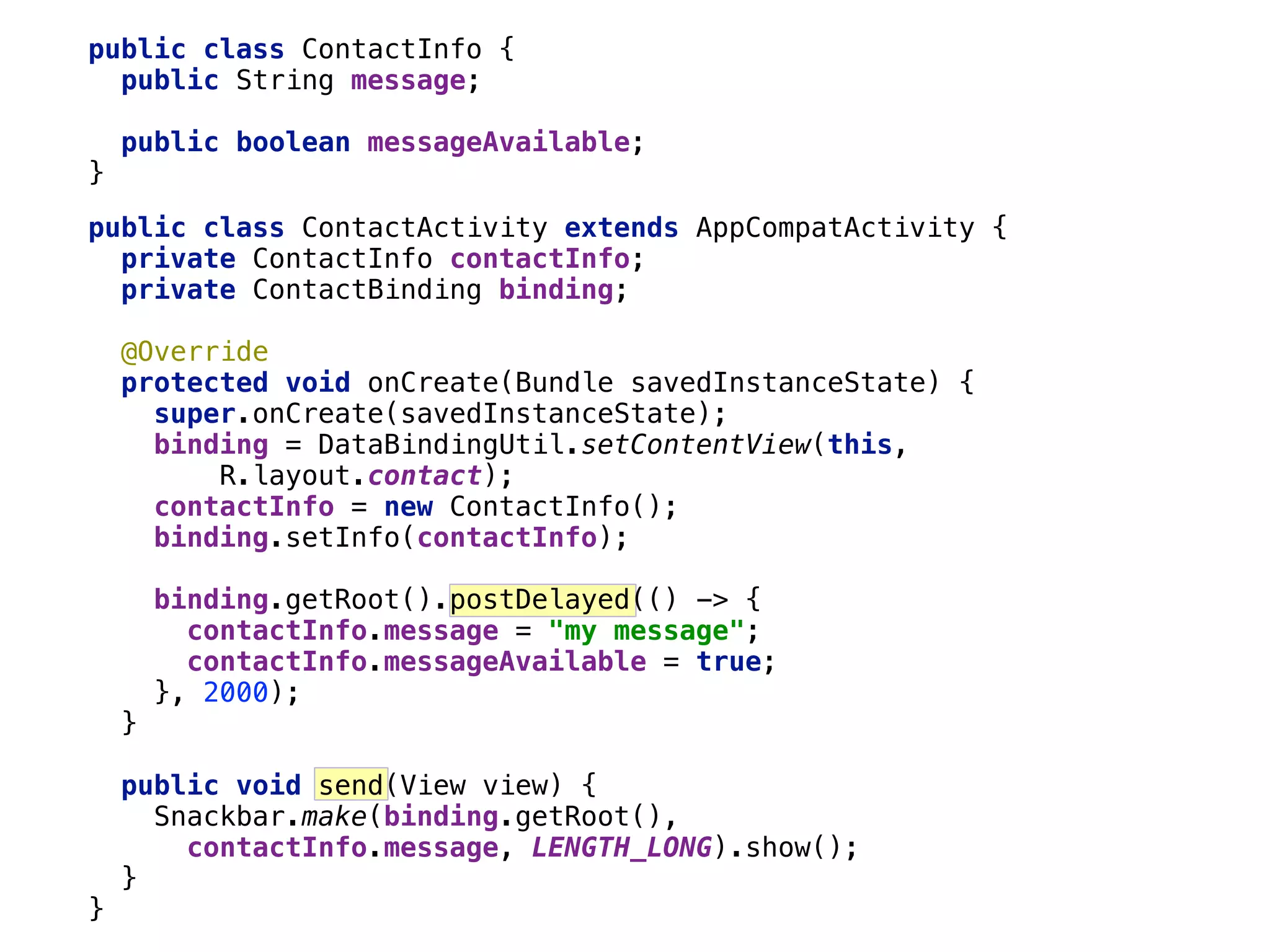

40 public class ContactInfo {
 public String message;

 public boolean messageAvailable;
 }__ public class ContactActivity extends AppCompatActivity {
 private ContactInfo contactInfo;
 private ContactBinding binding;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.contact);
 contactInfo = new ContactInfo();
 binding.setInfo(contactInfo);

 binding.getRoot().postDelayed(() -> {
 contactInfo.message = "my message";
 contactInfo.messageAvailable = true;
 }, 2000);
 }

 public void send(View view) {
 Snackbar.make(binding.getRoot(), contactInfo.message, LENGTH_LONG).show();
 }
 }
41
42 Views are not automatically updated :( package android.databinding;

 public interface Observable {

 void addOnPropertyChangedCallback( OnPropertyChangedCallback callback);

 void removeOnPropertyChangedCallback( OnPropertyChangedCallback callback);

 abstract class OnPropertyChangedCallback {
 public abstract void onPropertyChanged( Observable sender, int propertyId);
 }
 }

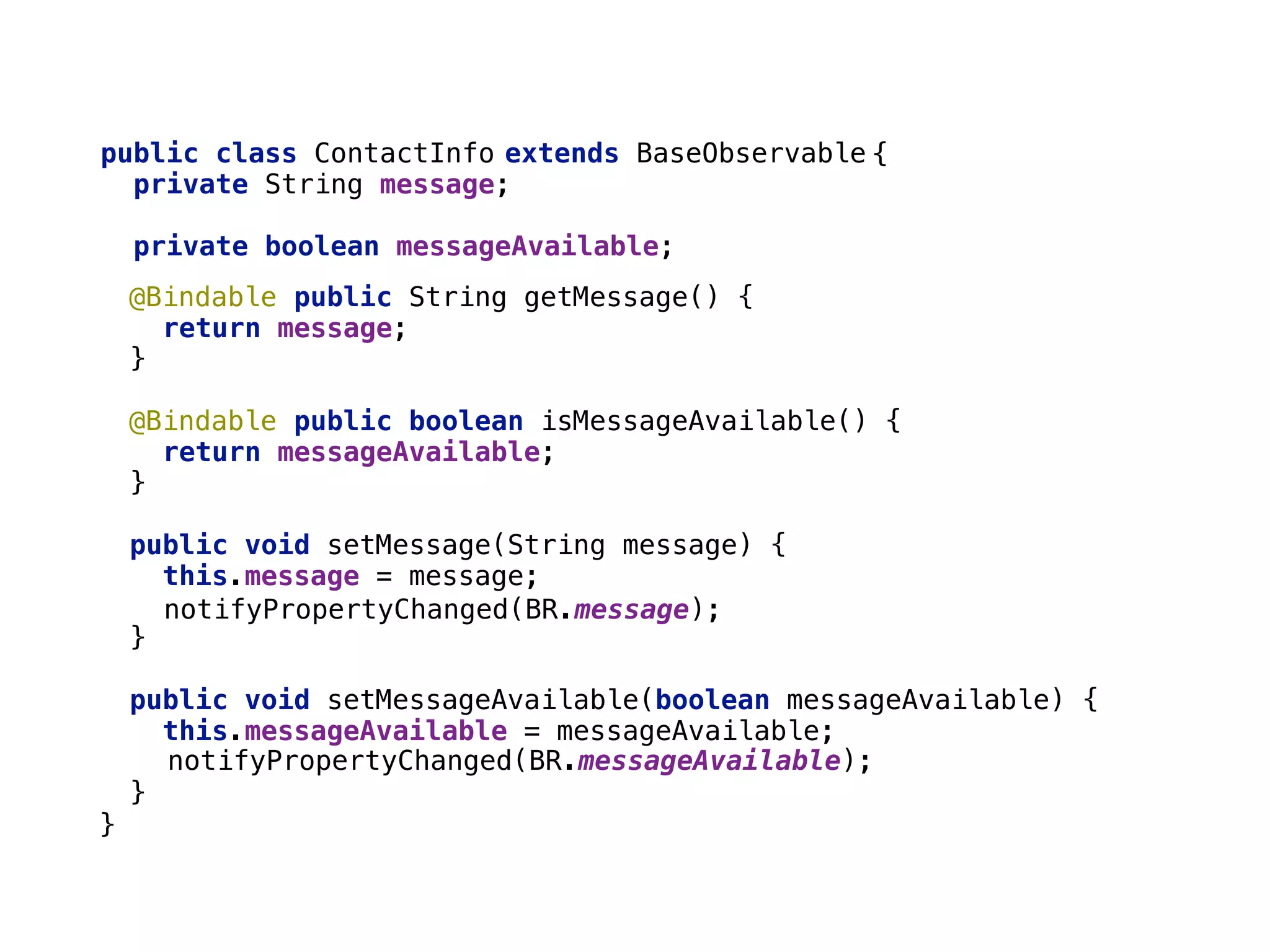

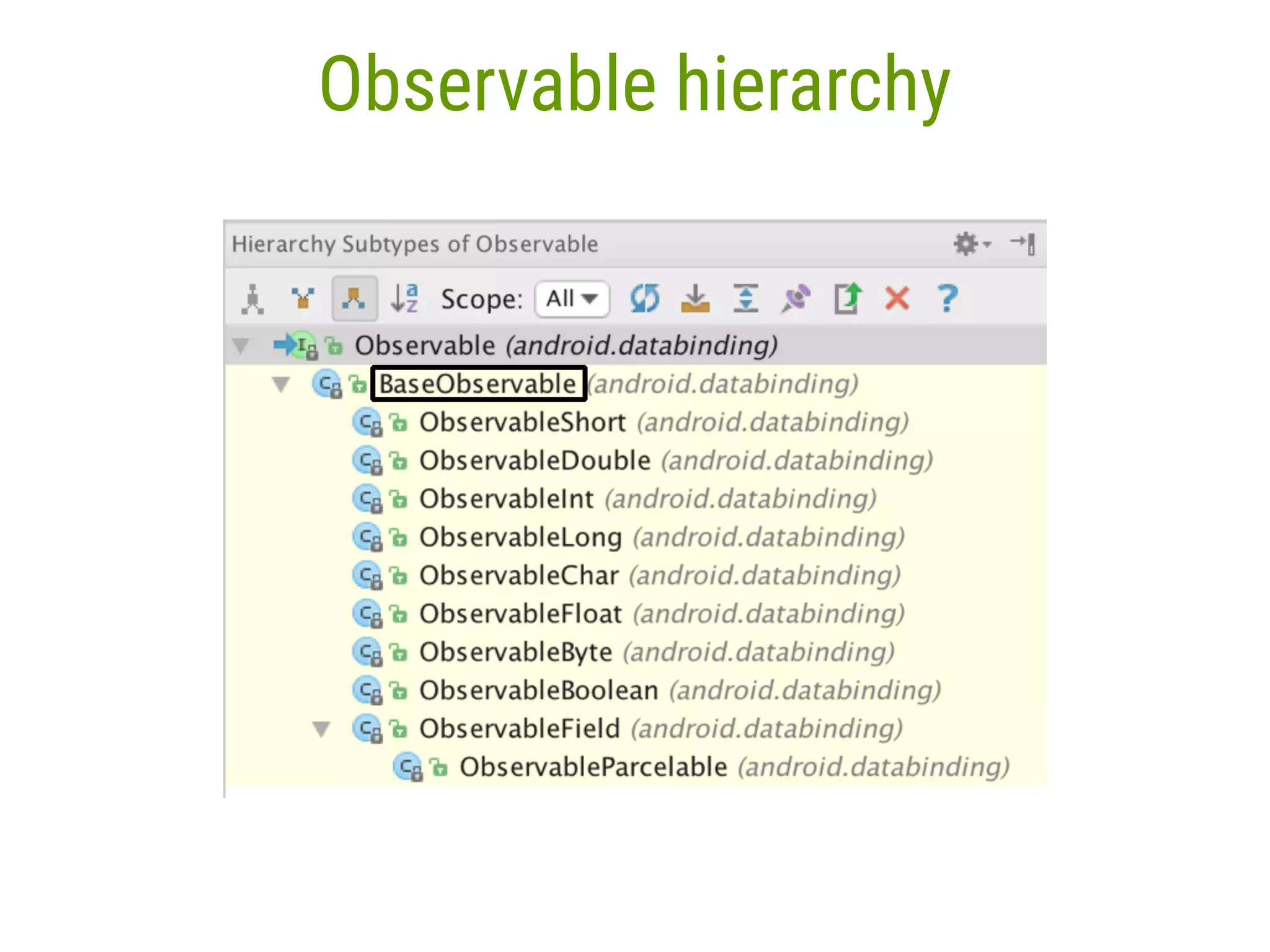

43 Observable hierarchy
public String getMessage() {
 return message;
 }____

 public boolean isMessageAvailable() {
 return messageAvailable;
 }___

 public void setMessage(String message) {
 this.message = message;

 }__

 public void setMessageAvailable(boolean messageAvailable) {
 this.messageAvailable = messageAvailable;

 }_
 public class ContactInfo
 private String message;

 private boolean messageAvailable;
 44 extends BaseObservable { } notifyPropertyChanged(BR.message); notifyPropertyChanged(BR.messageAvailable); @Bindable @Bindable

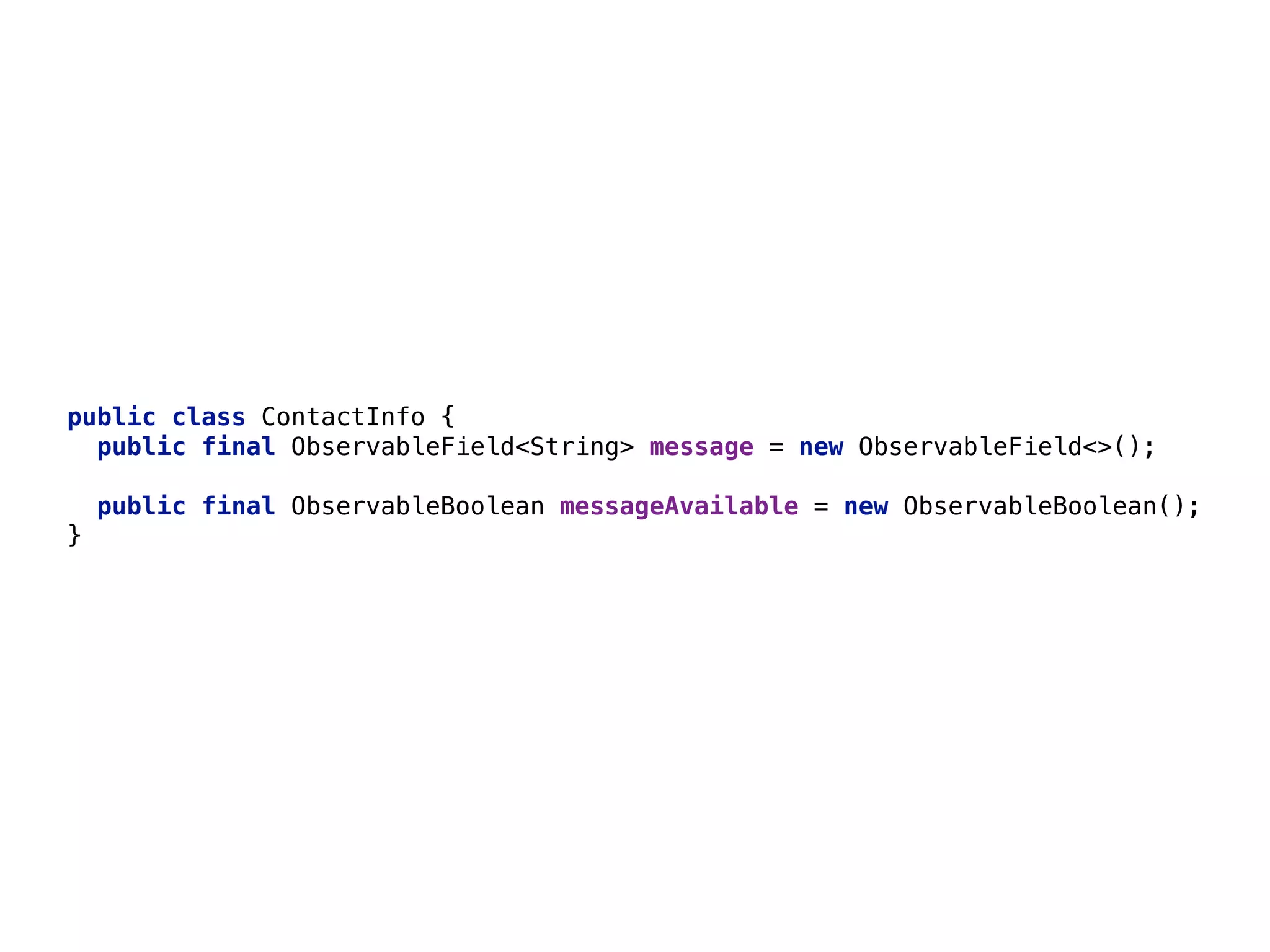

45 public class ContactInfo {
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__

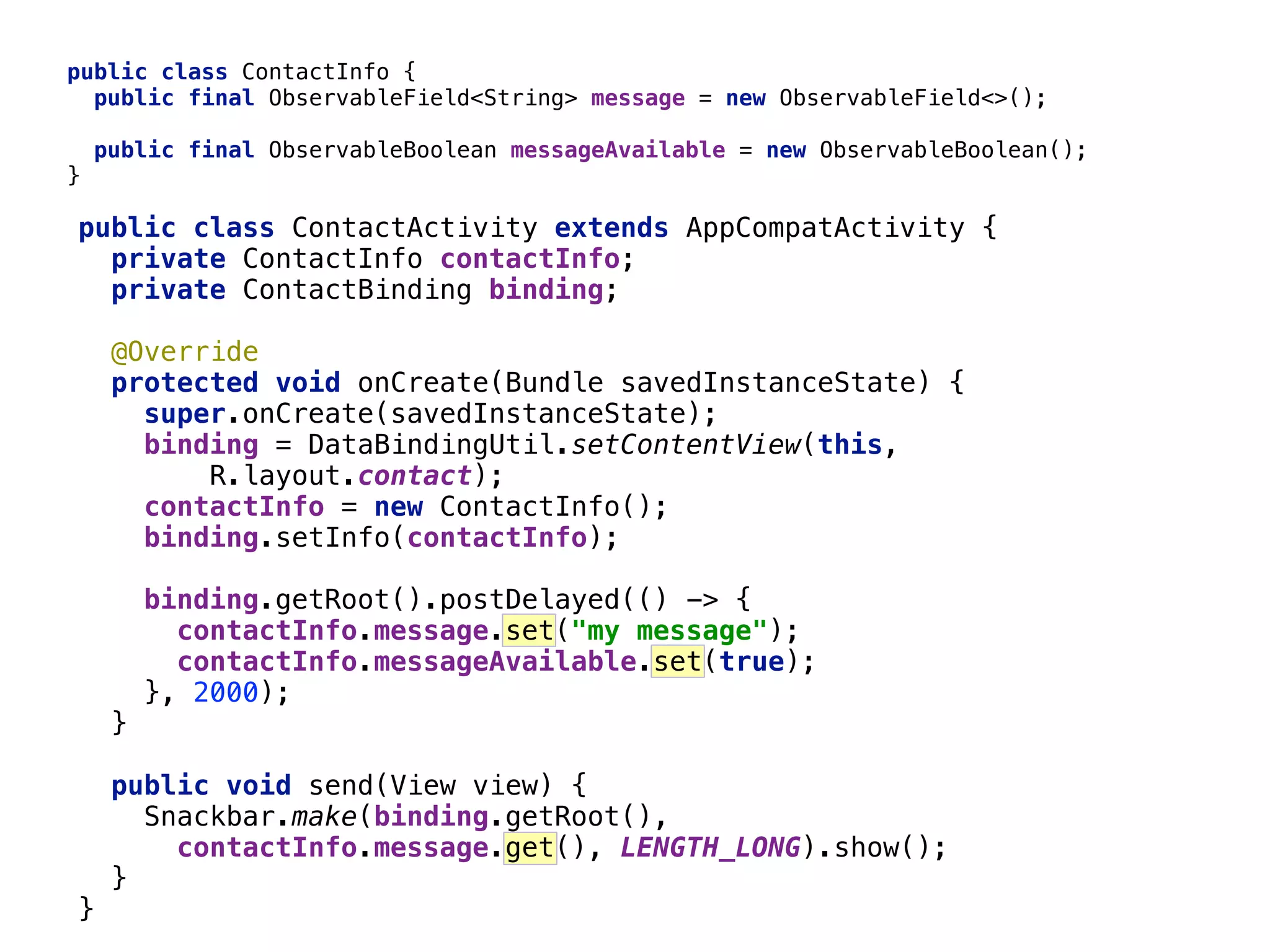

46 public class ContactInfo {
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__ public class ContactActivity extends AppCompatActivity {
 private ContactInfo contactInfo;
 private ContactBinding binding;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.contact);
 contactInfo = new ContactInfo();
 binding.setInfo(contactInfo);

 binding.getRoot().postDelayed(() -> {
 contactInfo.message.set("my message");
 contactInfo.messageAvailable.set(true);
 }, 2000); }___

 public void send(View view) {
 Snackbar.make(binding.getRoot(), contactInfo.message.get(), LENGTH_LONG).show();
 }__
 }_
<layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo" />
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@{info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>

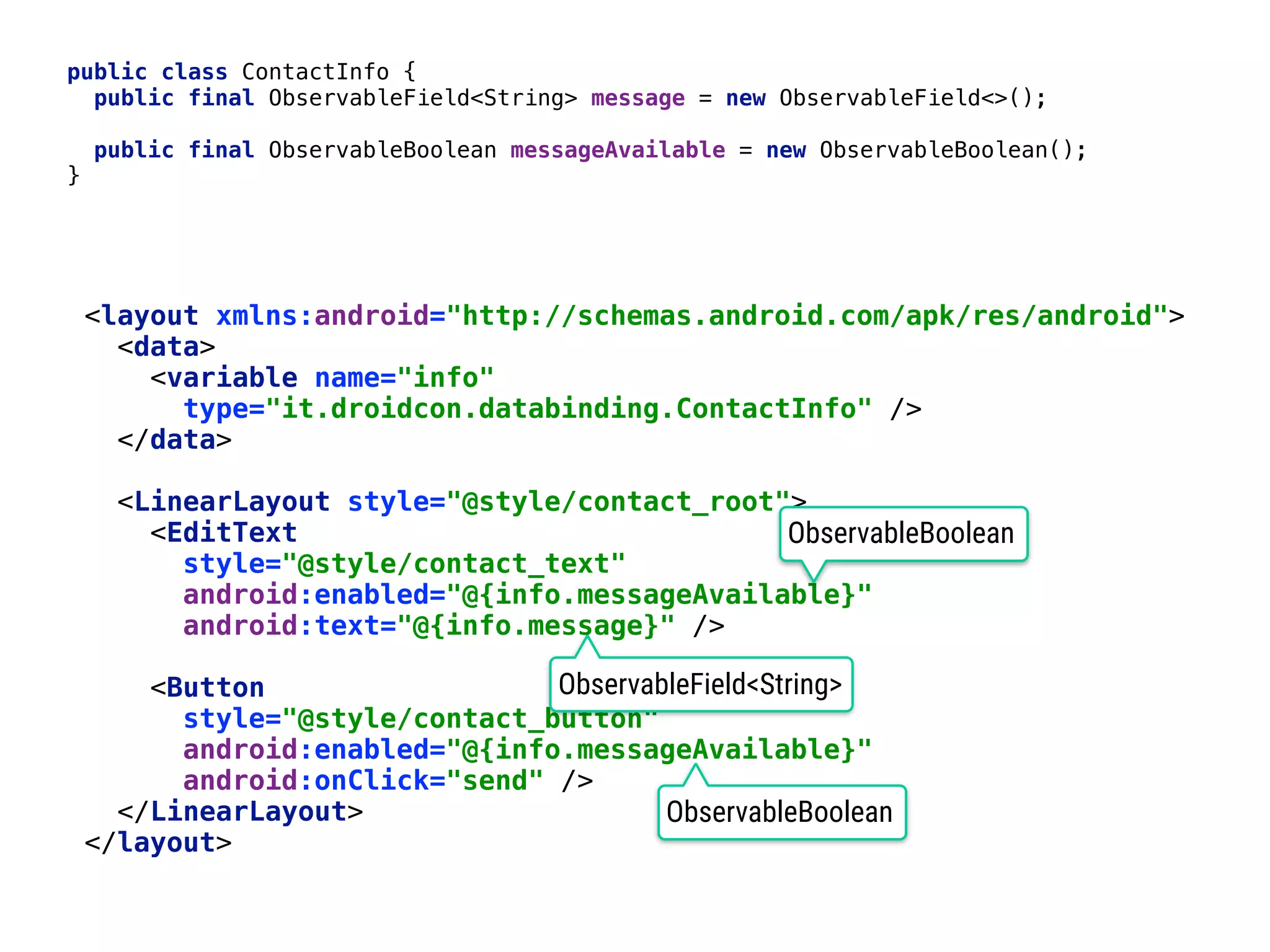

 </layout> 47 public class ContactInfo {
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__ ObservableField<String> ObservableBoolean ObservableBoolean
48

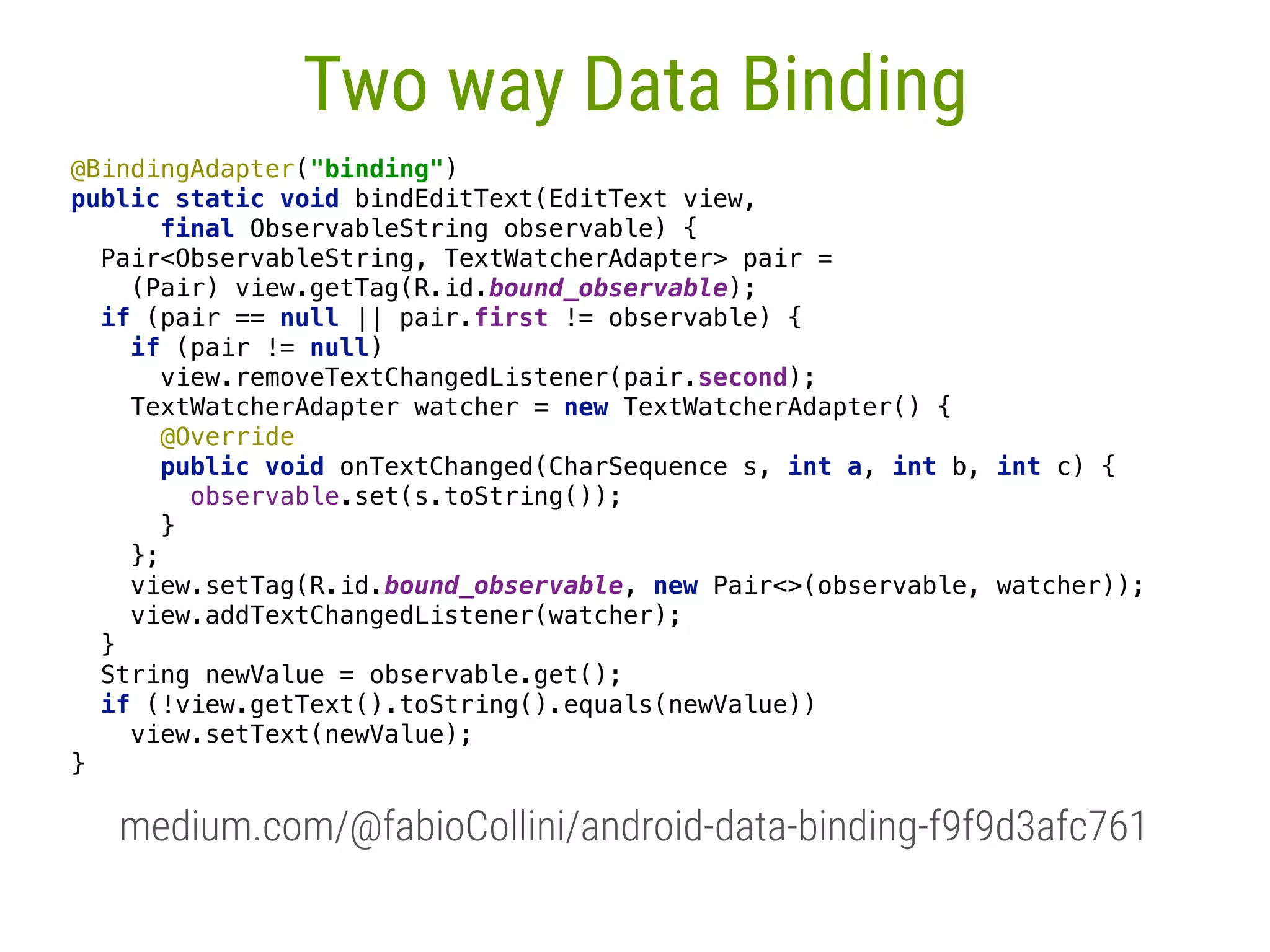

49 Two way Data Binding @BindingAdapter("binding")
 public static void bindEditText(EditText view, final ObservableString observable) {
 Pair<ObservableString, TextWatcherAdapter> pair = (Pair) view.getTag(R.id.bound_observable);
 if (pair == null || pair.first != observable) {
 if (pair != null)
 view.removeTextChangedListener(pair.second);
 TextWatcherAdapter watcher = new TextWatcherAdapter() {
 @Override public void onTextChanged(CharSequence s, int a, int b, int c) {
 observable.set(s.toString());
 }
 };
 view.setTag(R.id.bound_observable, new Pair<>(observable, watcher));
 view.addTextChangedListener(watcher);
 }
 String newValue = observable.get();
 if (!view.getText().toString().equals(newValue))
 view.setText(newValue);
 }
 medium.com/@fabioCollini/android-data-binding-f9f9d3afc761

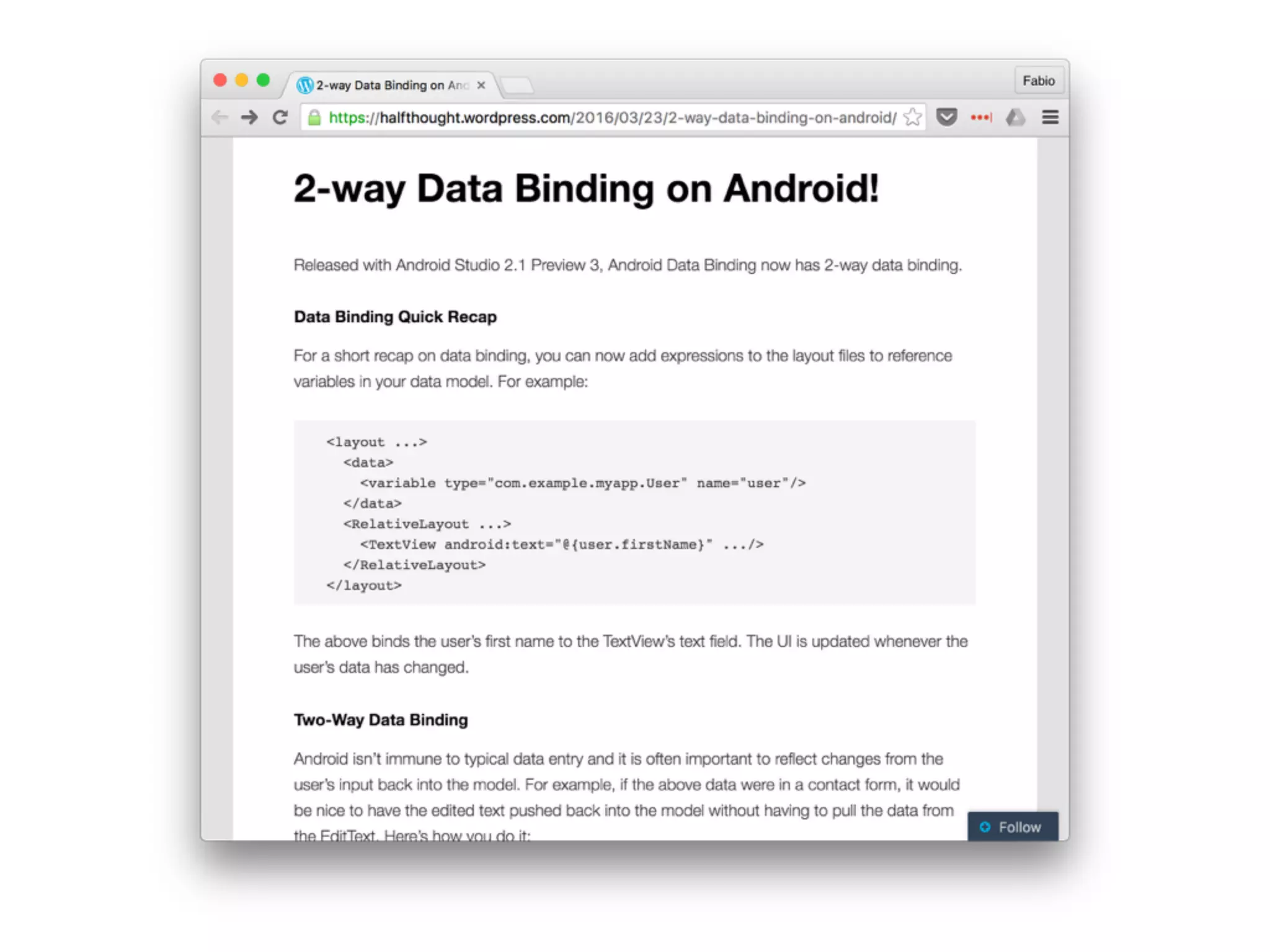

50

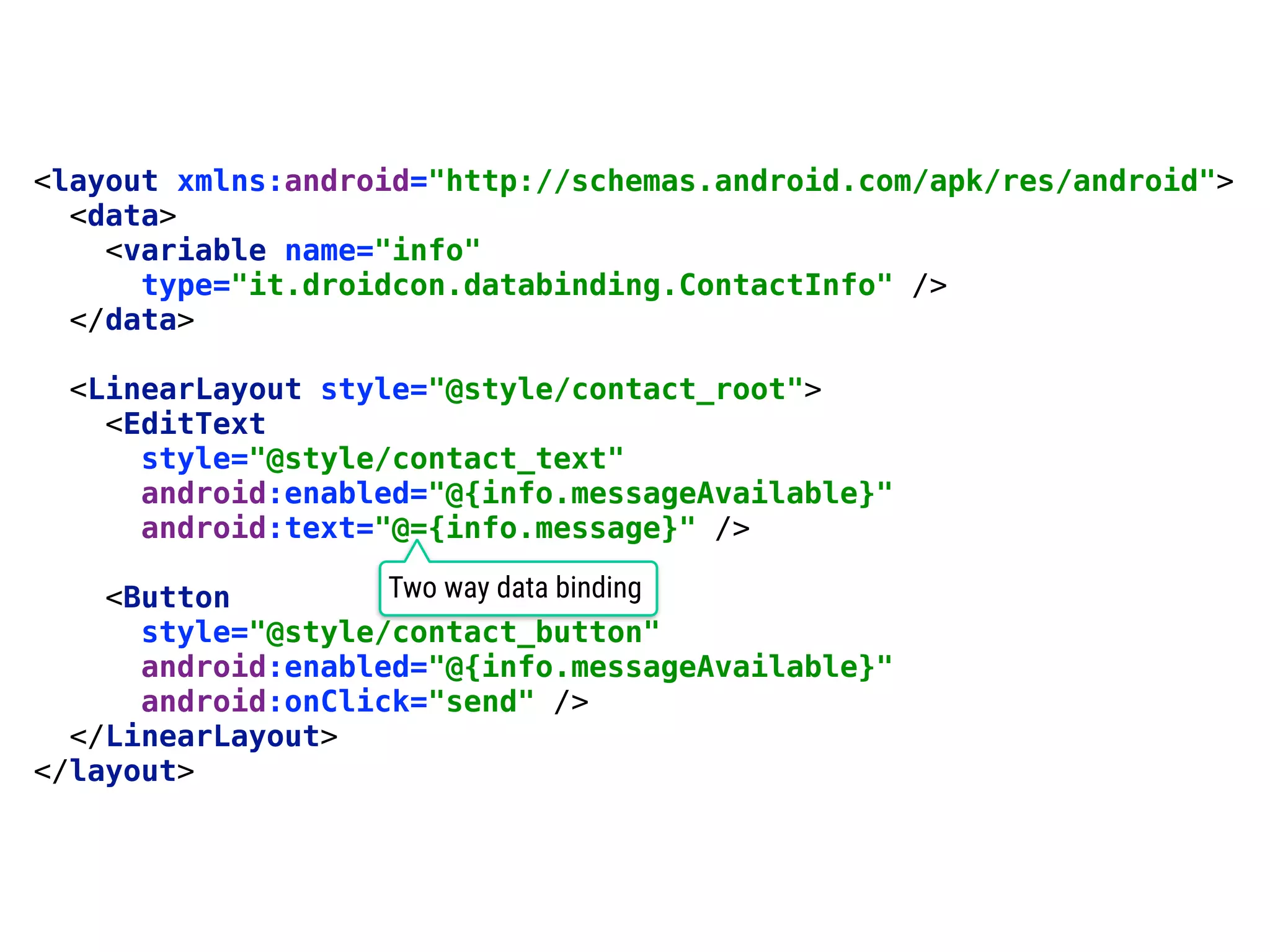

51 <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo" />
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@={info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>
 </layout> Two way data binding
52
53

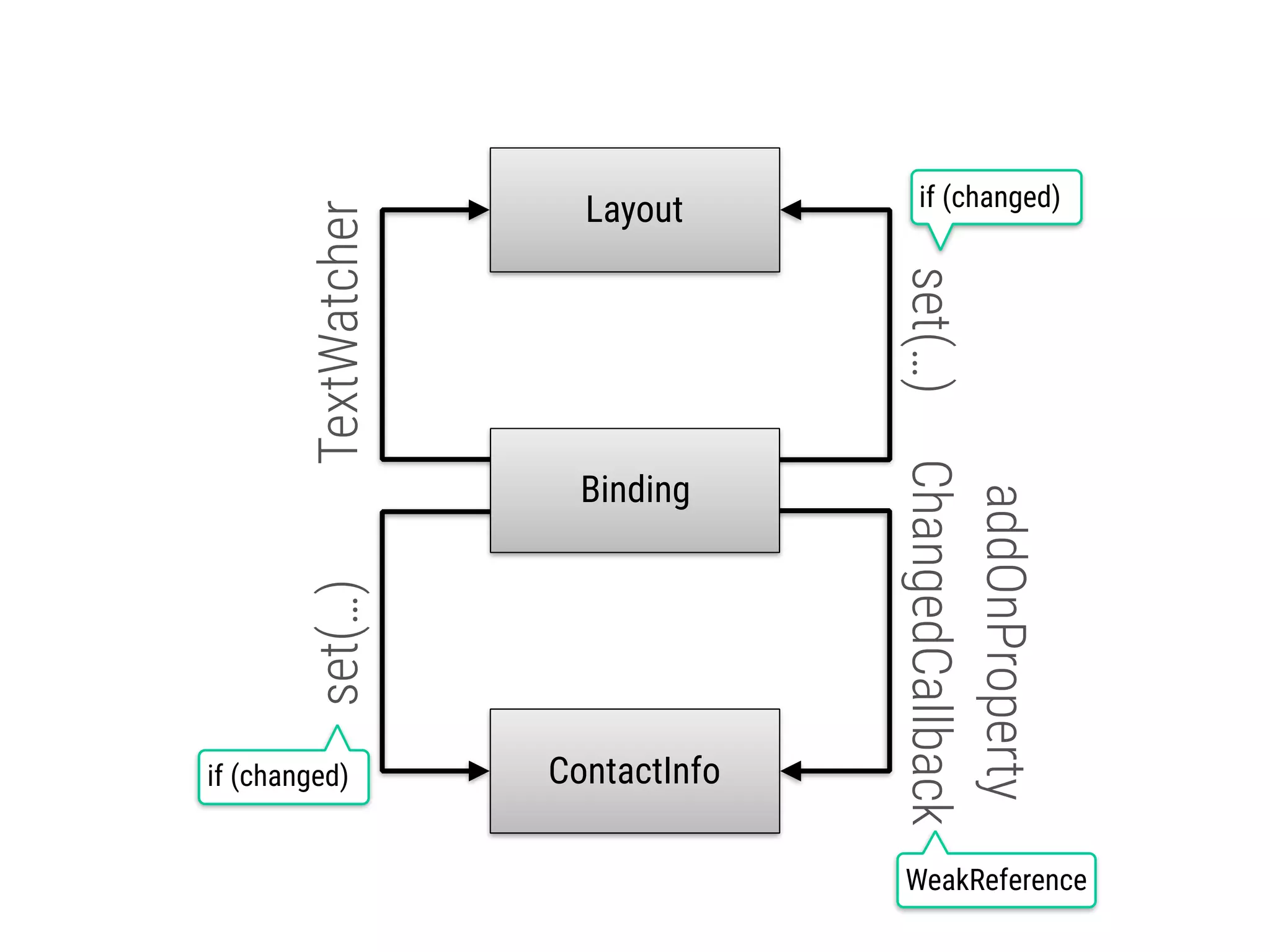

54 Layout ContactInfo Binding TextWatcherset(…) addOnProperty ChangedCallbackset(…) if (changed) WeakReference if (changed)

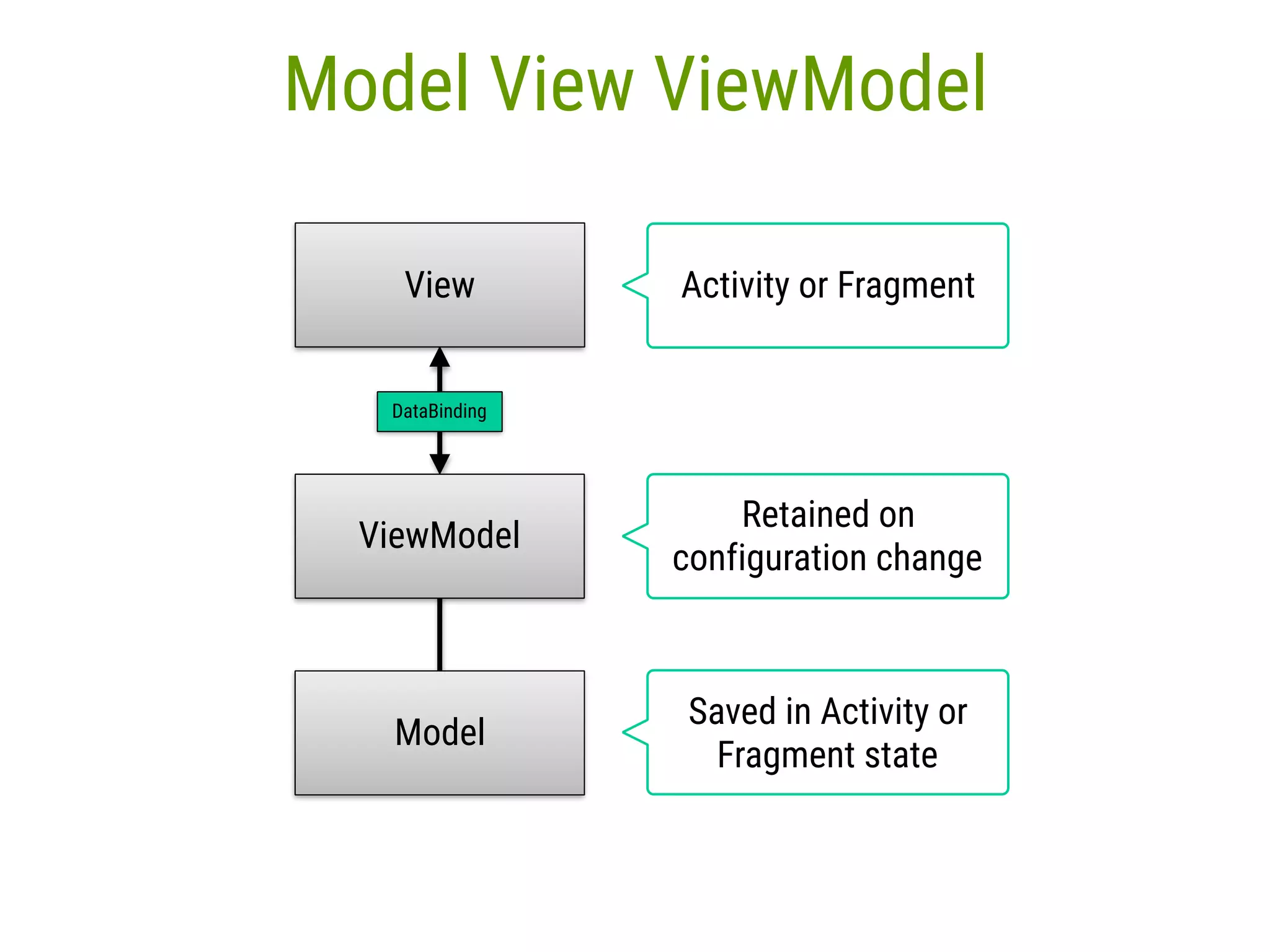

DroidCon Italy - Torino - April 2016 - @fabioCollini 55 5MVVM

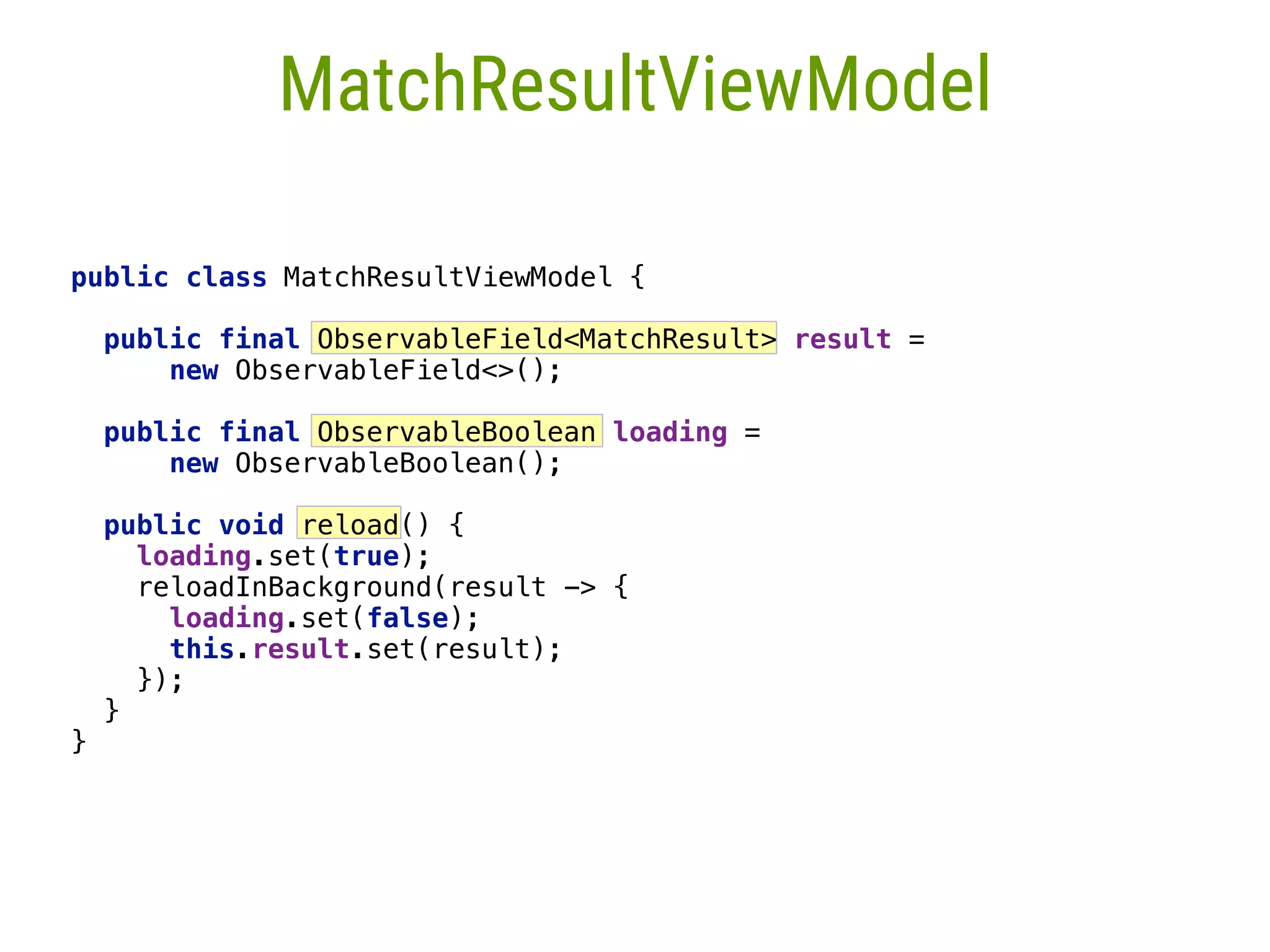

56 MatchResultViewModel public class MatchResultViewModel {
 public final ObservableField<MatchResult> result = new ObservableField<>();

 public final ObservableBoolean loading = new ObservableBoolean();

 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }
 }

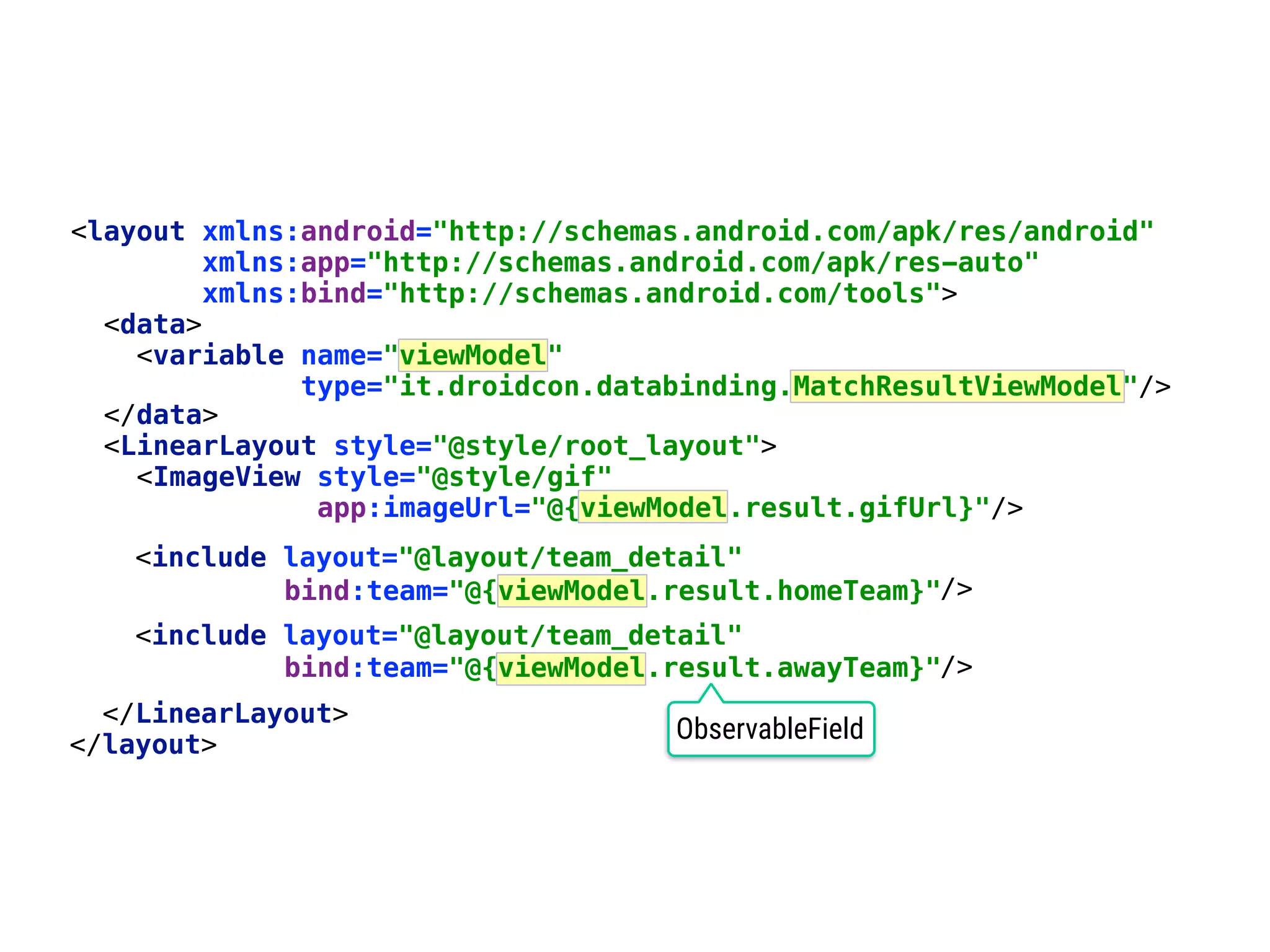

<layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="viewModel"
 type="it.droidcon.databinding.MatchResultViewModel"/>
 </data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{viewModel.result.gifUrl}"/>


 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{viewModel.result.homeTeam}" bind:team="@{viewModel.result.awayTeam}" ObservableField

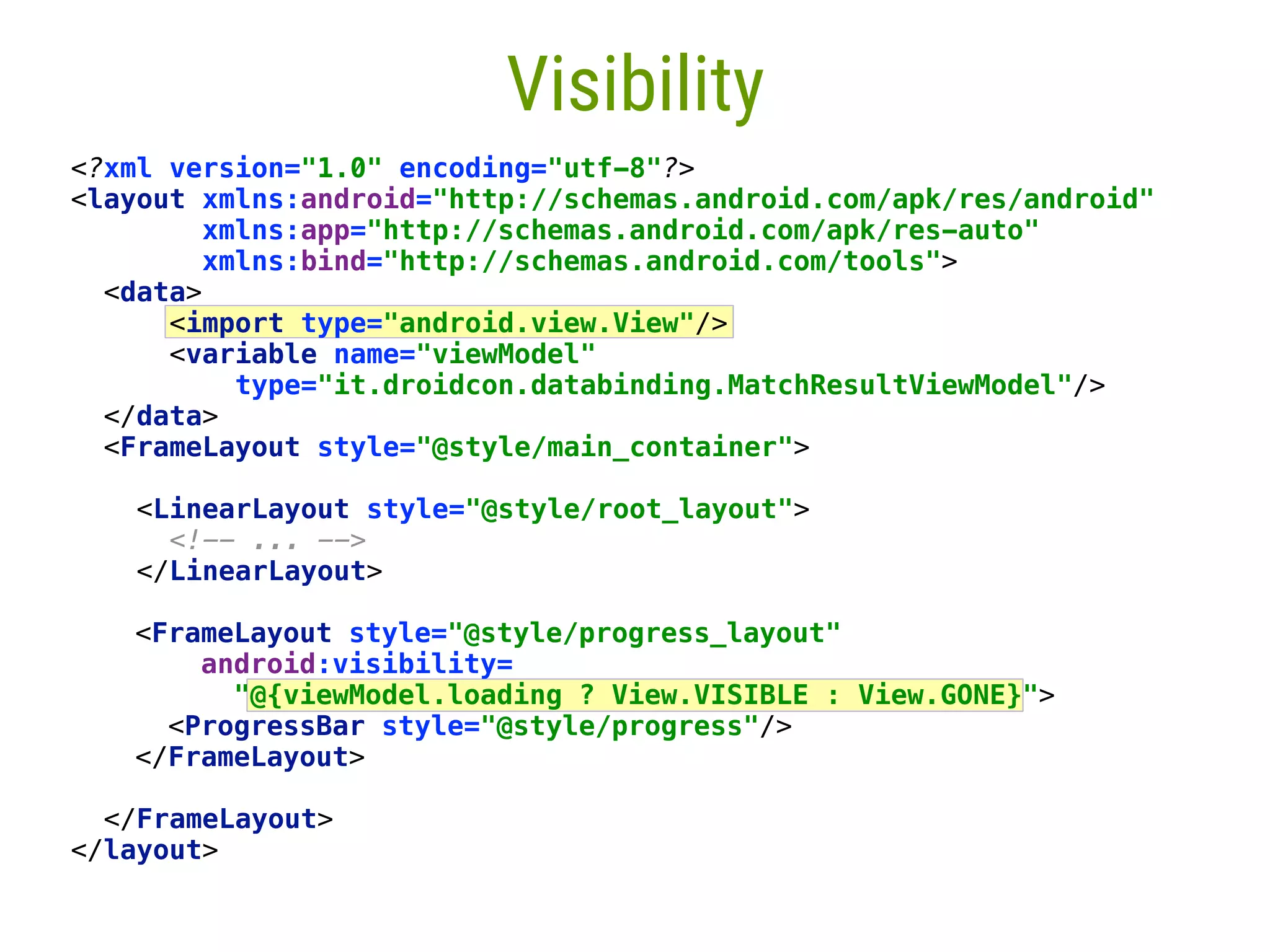

58 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility= "@{viewModel.loading ? View.VISIBLE : View.GONE}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> <?xml version="1.0" encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:bind="http://schemas.android.com/tools">
 <data> <import type="android.view.View"/>
 <variable name="viewModel"
 type="it.droidcon.databinding.MatchResultViewModel"/> </data>
 <FrameLayout style="@style/main_container">
 <LinearLayout style="@style/root_layout">
 <!-- ... -->
 </LinearLayout>


 </FrameLayout>
 </layout>

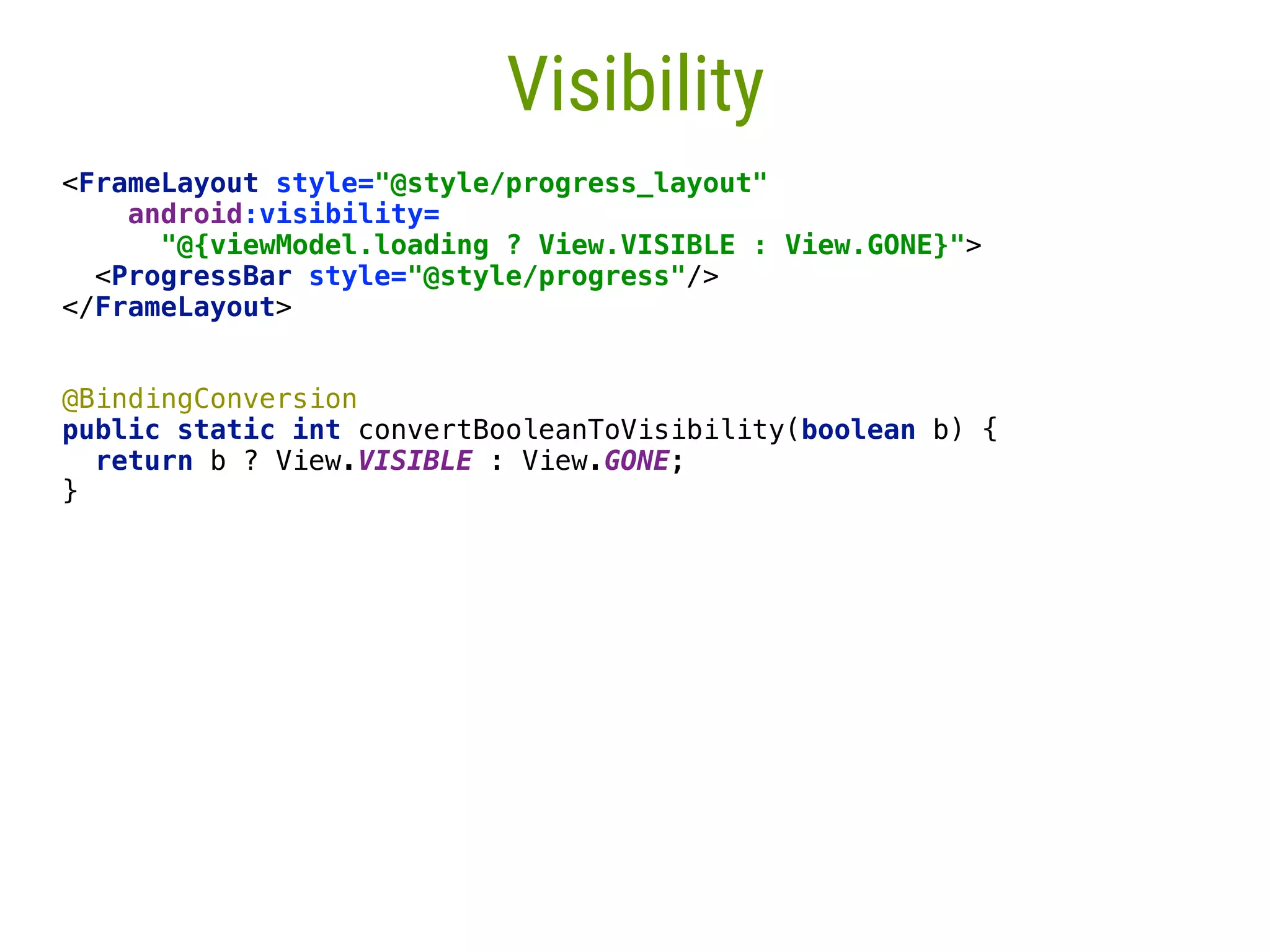

59 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility= "@{viewModel.loading ? View.VISIBLE : View.GONE}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 public static int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___

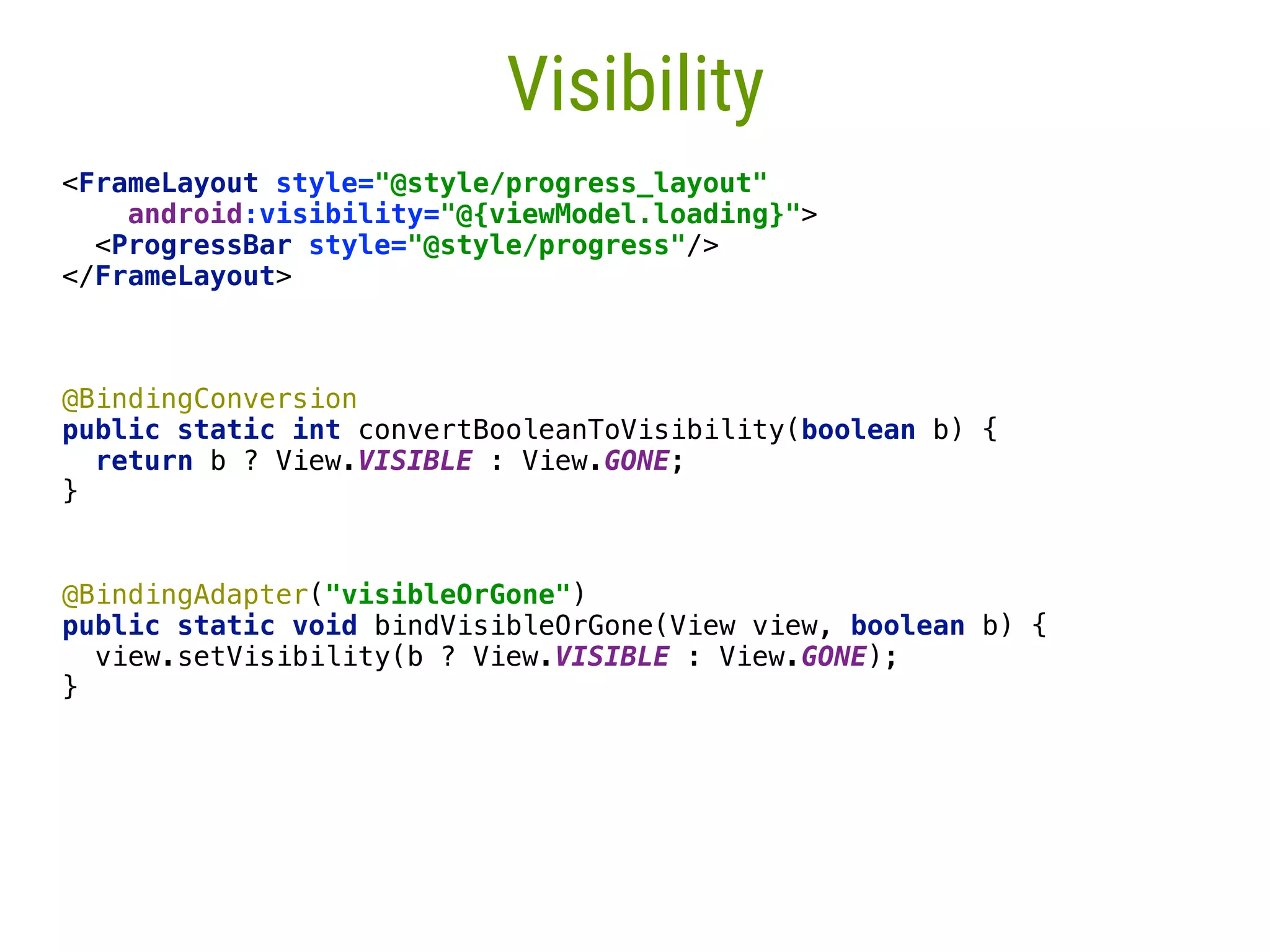

60 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 public static int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___
 @BindingAdapter("visibleOrGone")
 public static void bindVisibleOrGone(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.GONE);
 }____

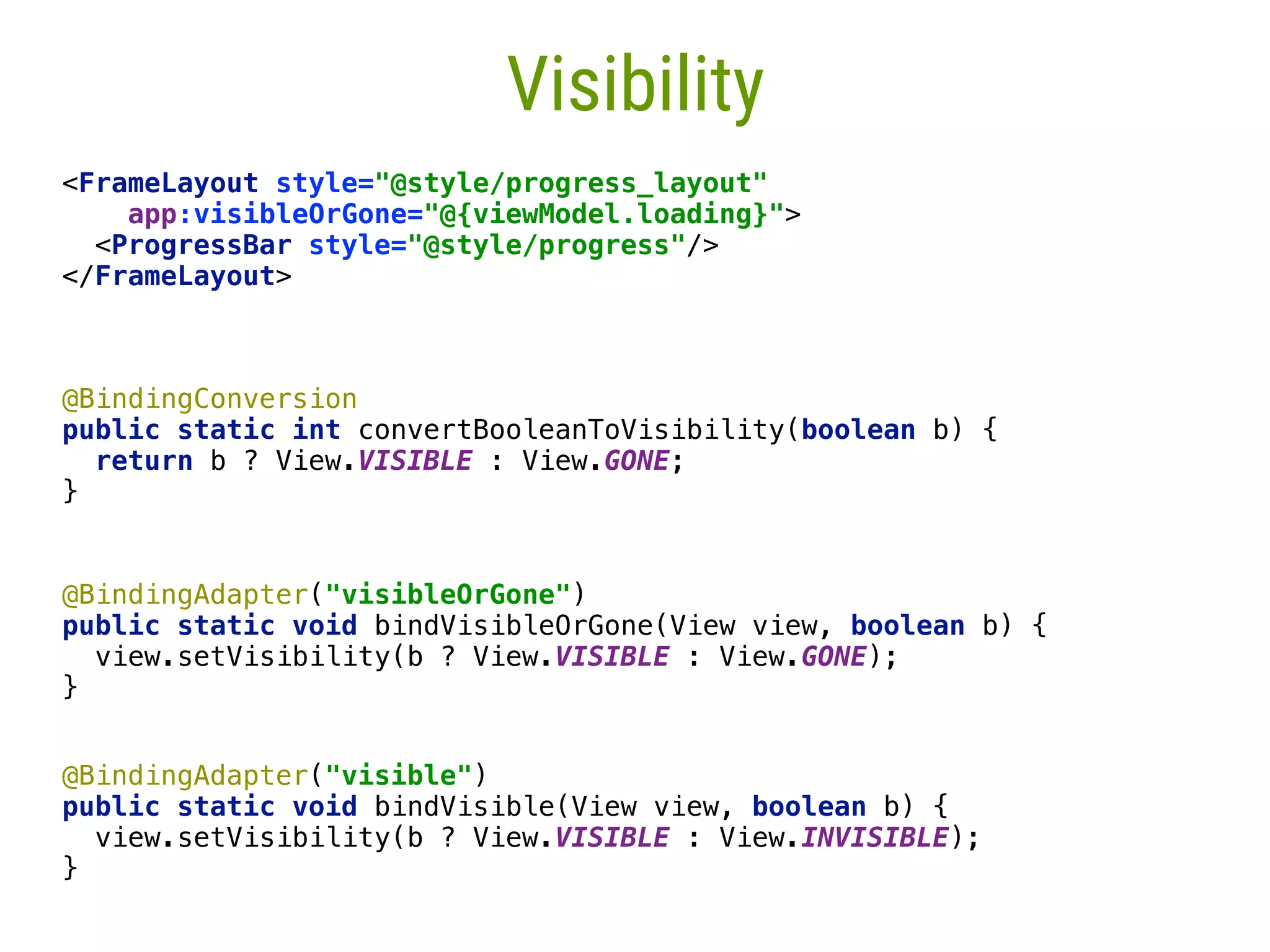

61 Visibility <FrameLayout style="@style/progress_layout"
 app:visibleOrGone="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 public static int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___
 @BindingAdapter("visibleOrGone")
 public static void bindVisibleOrGone(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.GONE);
 }____ @BindingAdapter("visible")
 public static void bindVisible(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.INVISIBLE);
 }

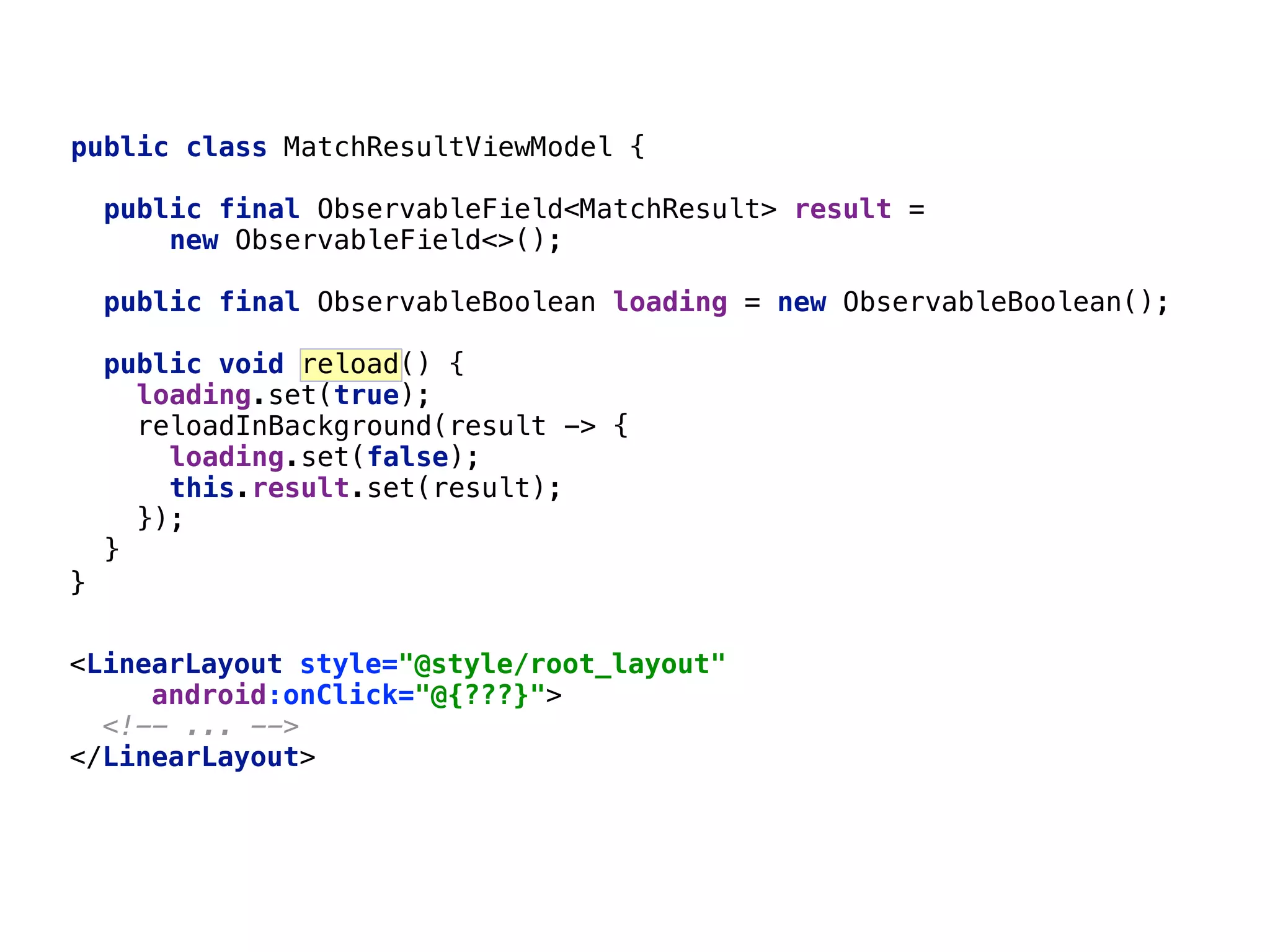

<LinearLayout style="@style/root_layout"
 android:onClick="@{???}">
 <!-- ... -->
 </LinearLayout>

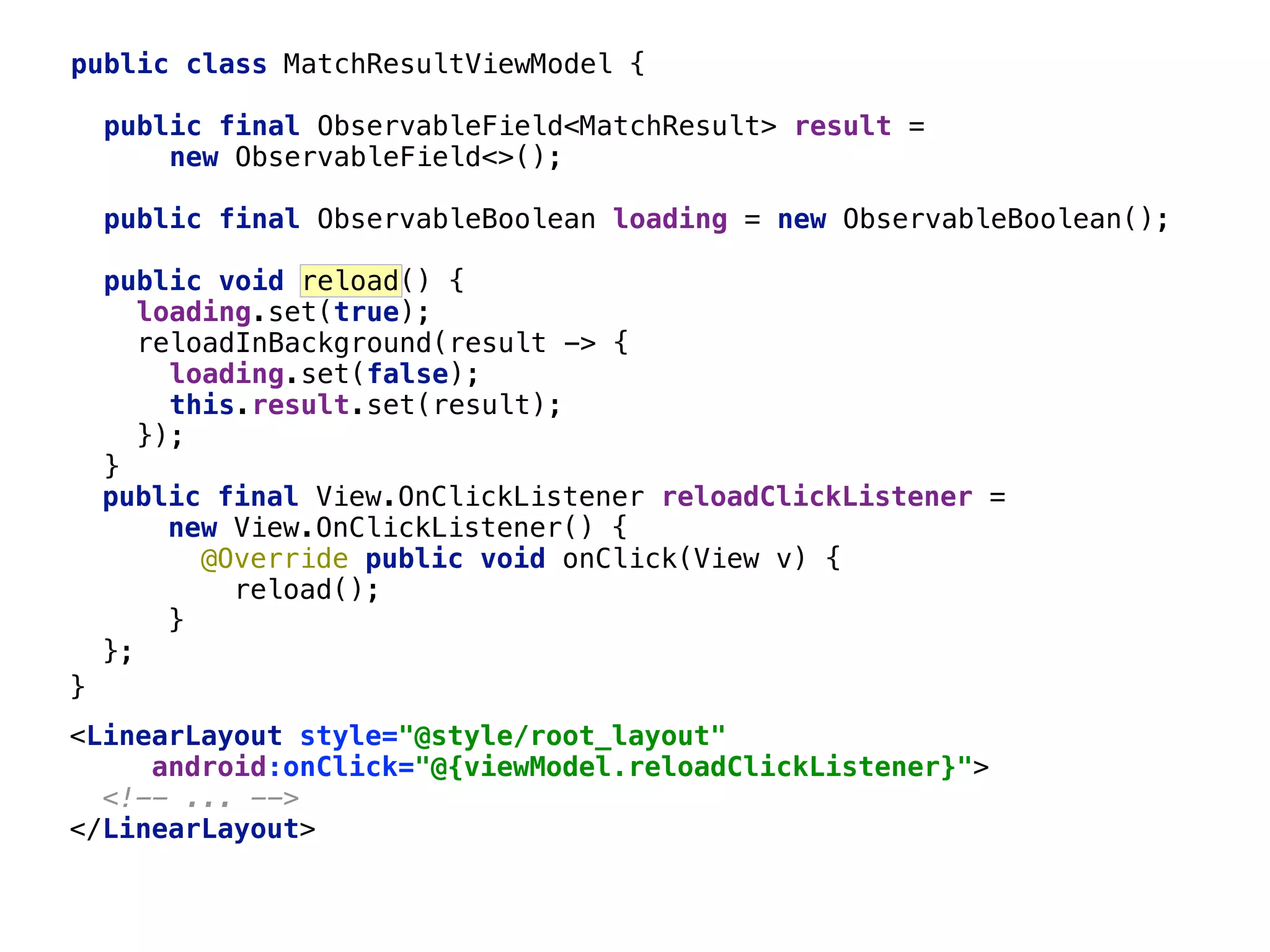

 62 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
public final_View.OnClickListener reloadClickListener = new View.OnClickListener() {
 @Override public void onClick(View v) {
 reload();
 }_
 };
 <LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel.reloadClickListener}">
 <!-- ... -->
 </LinearLayout>
 63 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
<LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel::reload}">
 <!-- ... -->
 </LinearLayout>

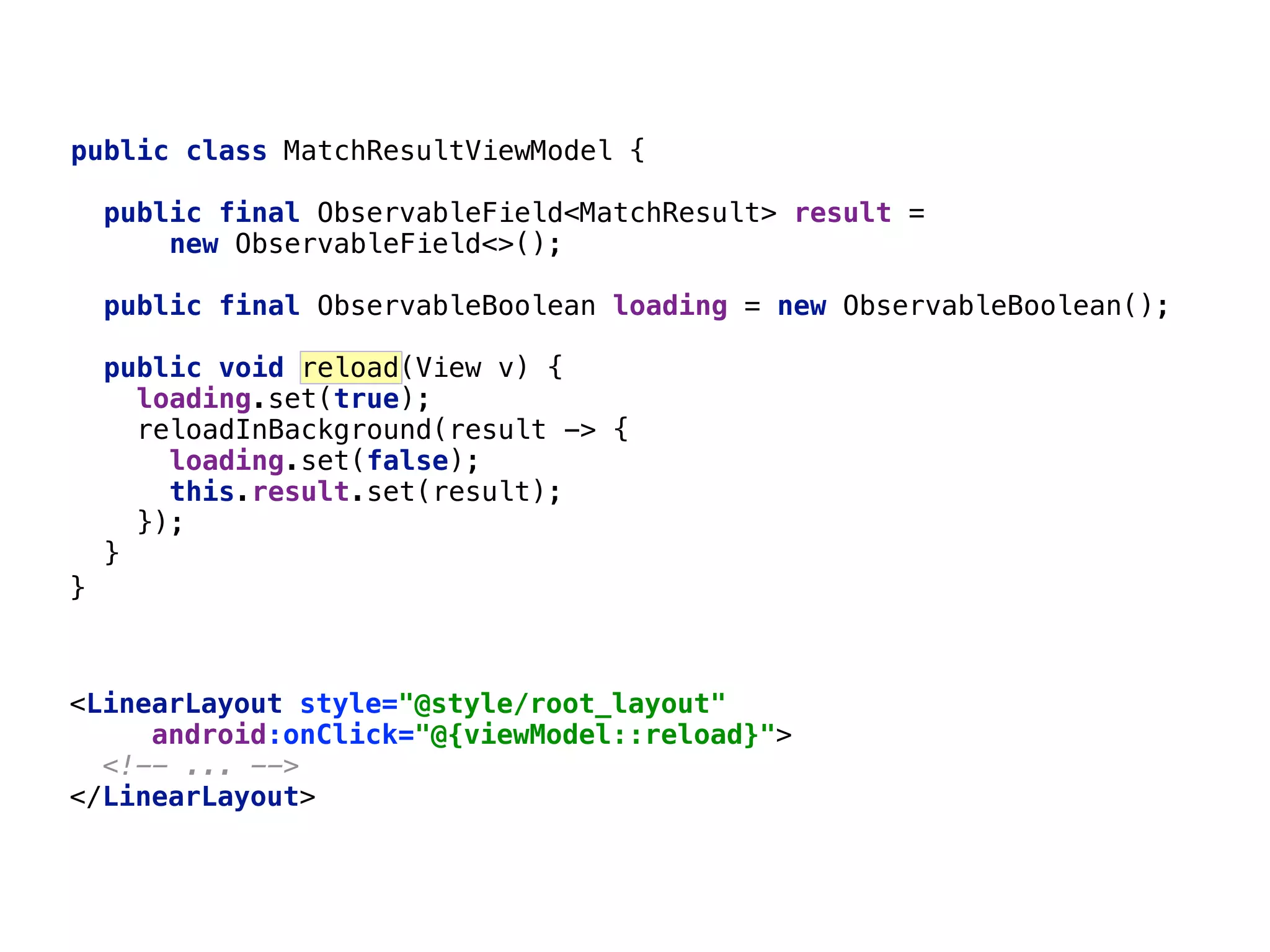

 64 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload(View v) { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
<LinearLayout style="@style/root_layout"
 android:onClick="@{v -> viewModel.reload()}">
 <!-- ... -->
 </LinearLayout>
 65 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__ 66 }___ @BindingAdapter("android:onClick")
 public static void bindOnClick(View view, final Runnable listener) {
 view.setOnClickListener(new View.OnClickListener() {
 @Override public void onClick(View v) {
 listener.run();
 }____
 });
 }___ <LinearLayout style="@style/root_layout"
 android:onClick="@{v -> viewModel.reload()}">
 <!-- ... -->
 </LinearLayout>

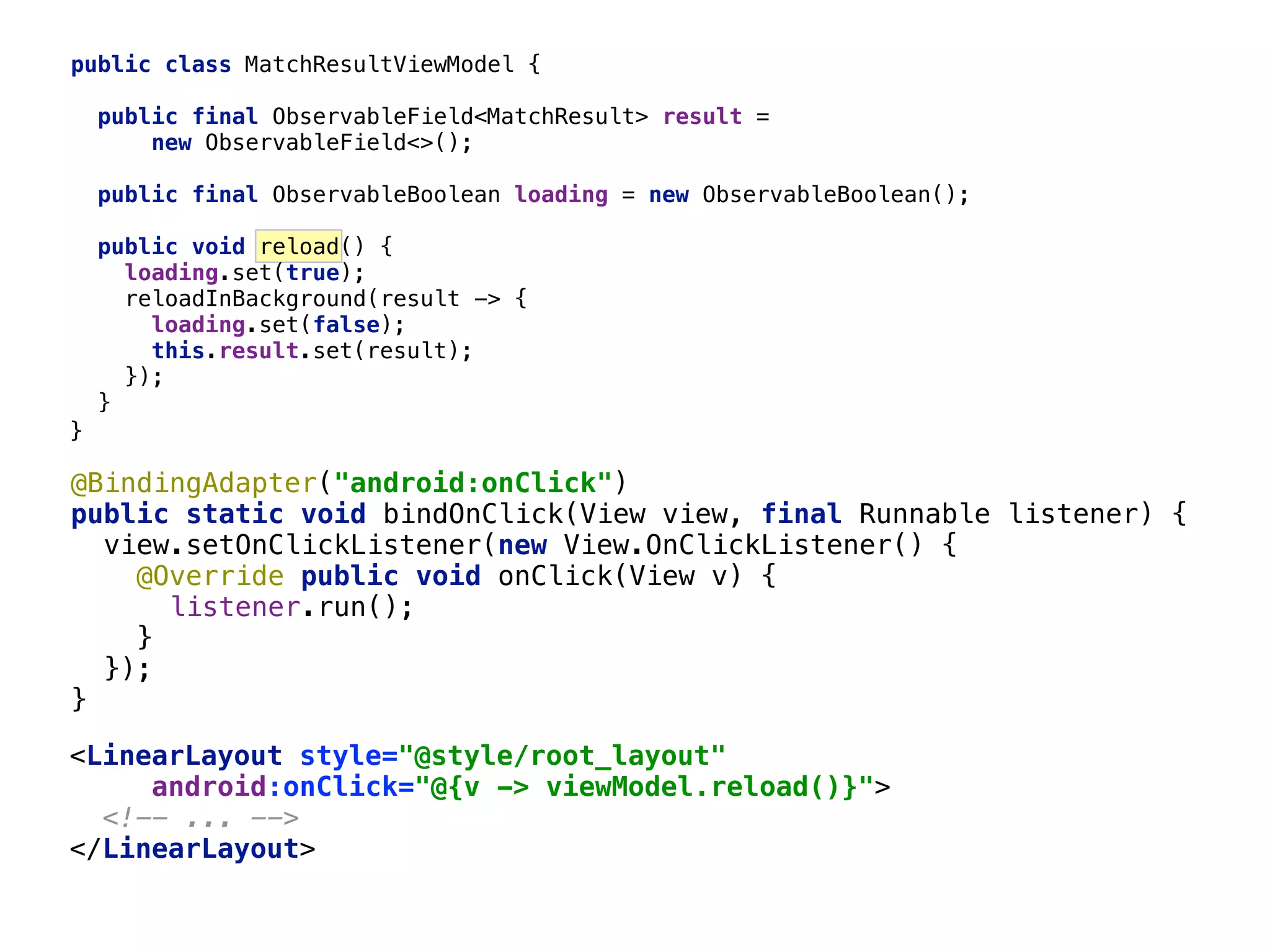

public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__ <LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel::reload}">
 <!-- ... -->
 </LinearLayout>
 67 }___ @BindingAdapter("android:onClick")
 public static void bindOnClick(View view, final Runnable listener) {
 view.setOnClickListener(new View.OnClickListener() {
 @Override public void onClick(View v) {
 listener.run();
 }____
 });
 }___

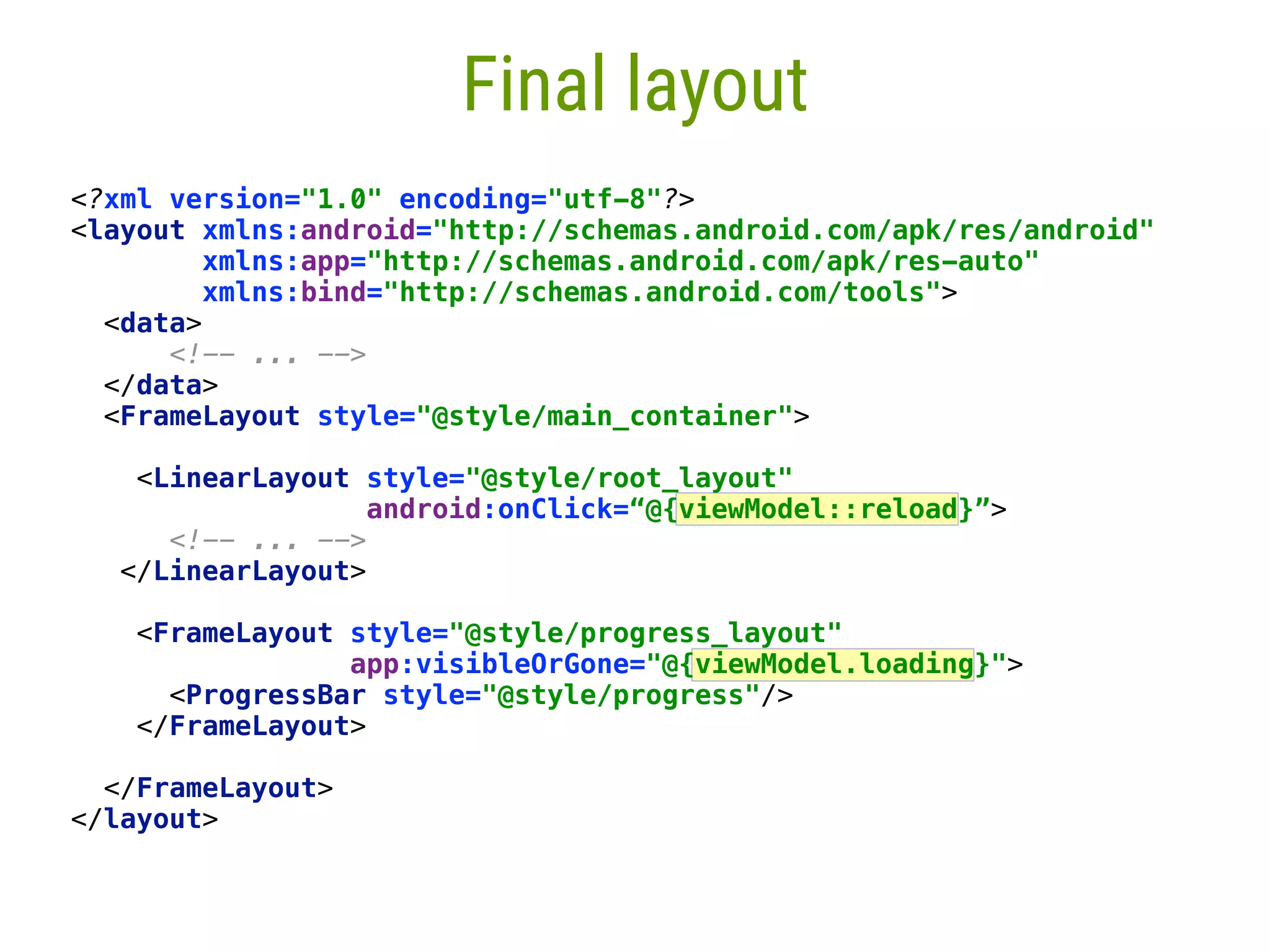

68 Final layout <?xml version="1.0" encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:bind="http://schemas.android.com/tools">
 <data>
 <!-- ... -->
 </data>
 <FrameLayout style="@style/main_container">
 <LinearLayout style="@style/root_layout"
 android:onClick=“@{viewModel::reload}”>
 <!-- ... -->
 </LinearLayout>

 <FrameLayout style="@style/progress_layout"
 app:visibleOrGone="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout>

 </FrameLayout>
 </layout>

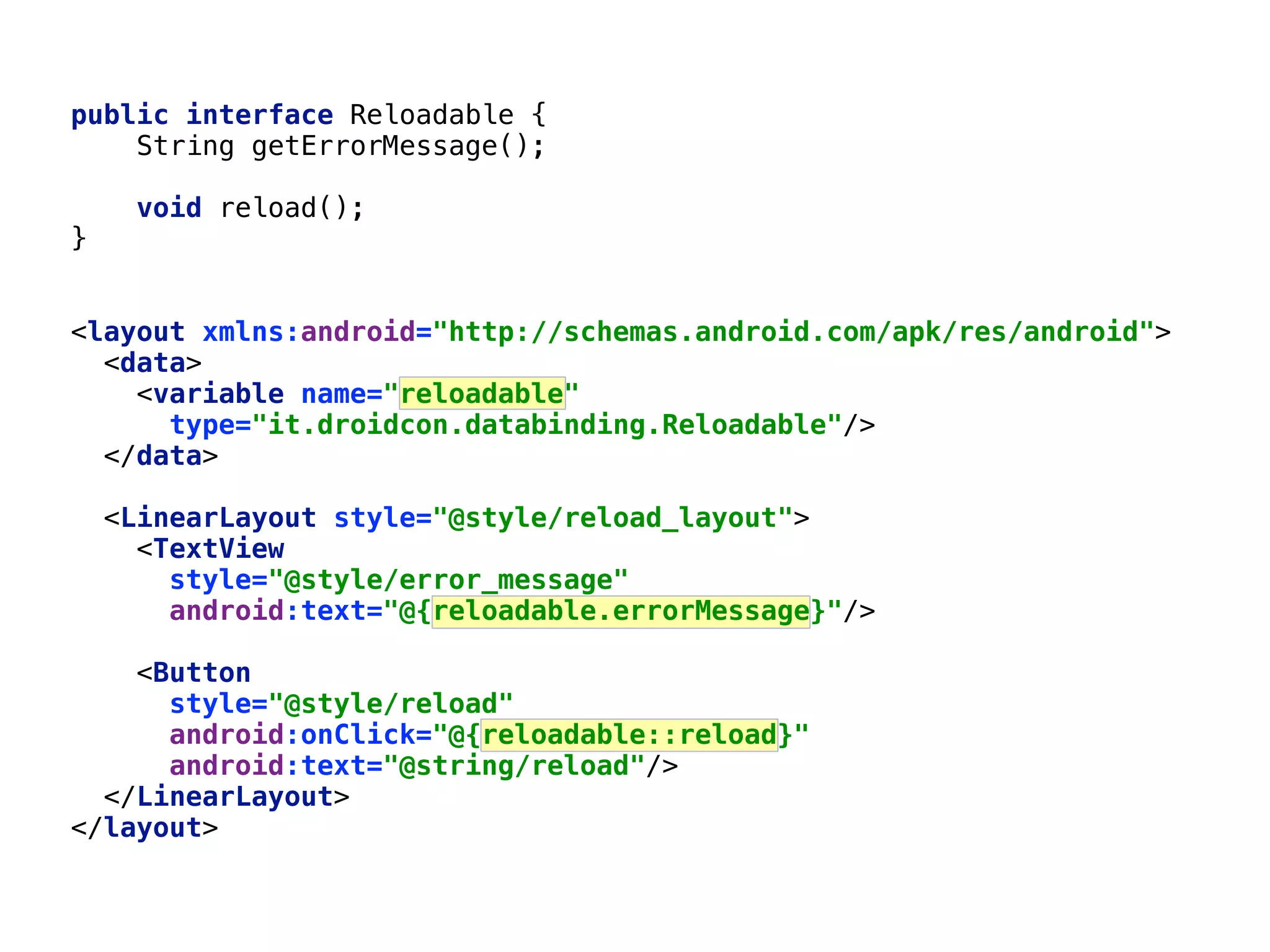

69 public interface Reloadable {
 String getErrorMessage();

 void reload();
 }
 <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="reloadable"
 type="it.droidcon.databinding.Reloadable"/>
 </data>

 <LinearLayout style="@style/reload_layout">
 <TextView
 style="@style/error_message"
 android:text="@{reloadable.errorMessage}"/>

 <Button
 style="@style/reload"
 android:onClick="@{reloadable::reload}"
 android:text="@string/reload"/>
 </LinearLayout>
 </layout>
70 Model View ViewModel View ViewModel Model DataBinding Retained on configuration change Saved in Activity or Fragment state Activity or Fragment
71 github.com/fabioCollini/mv2m Android MVVM lightweight library based on Android Data Binding

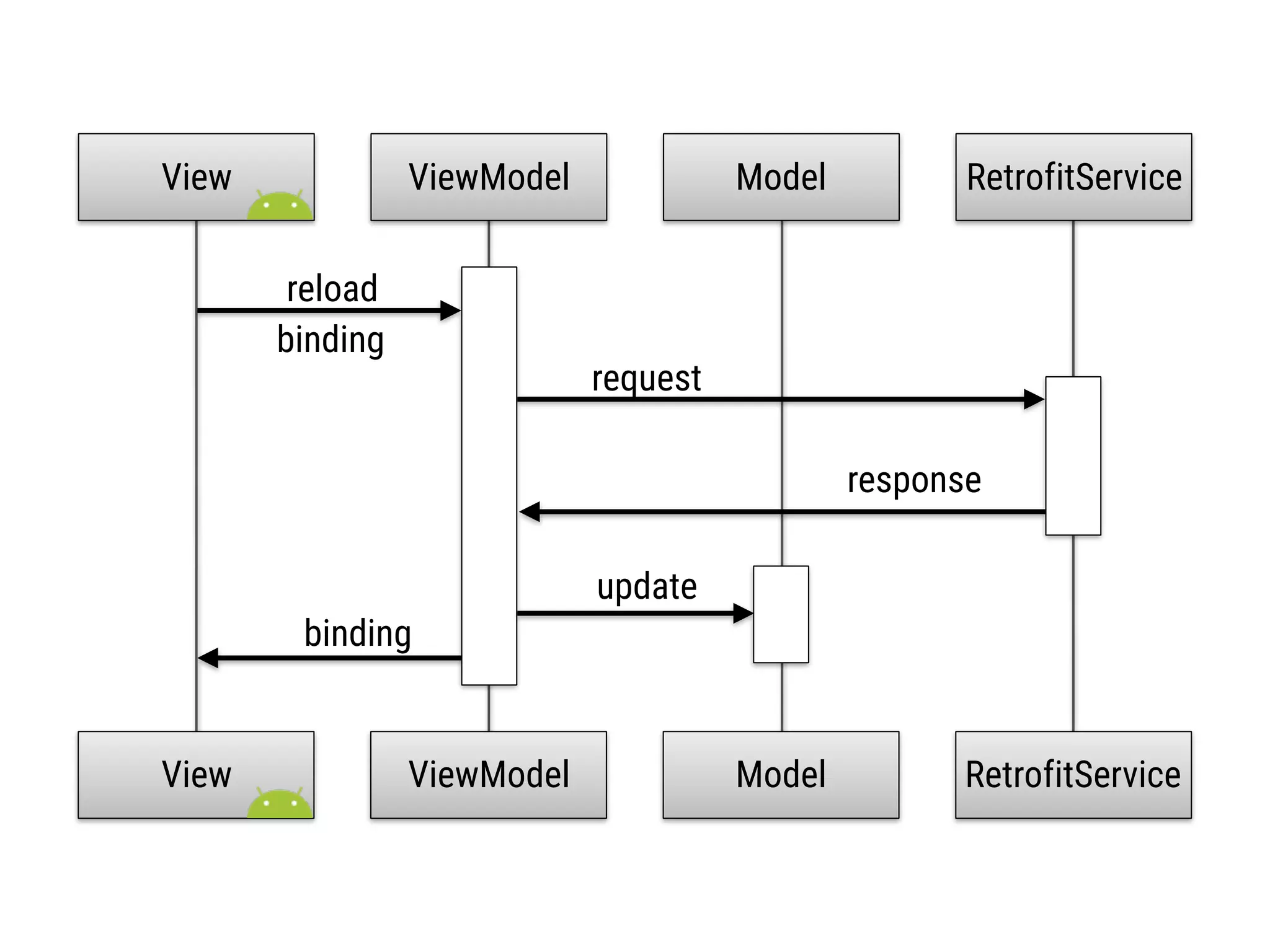

View ViewModel RetrofitService reload update binding Model View ViewModel RetrofitServiceModel request response binding
Testable code Data binding and MVVM

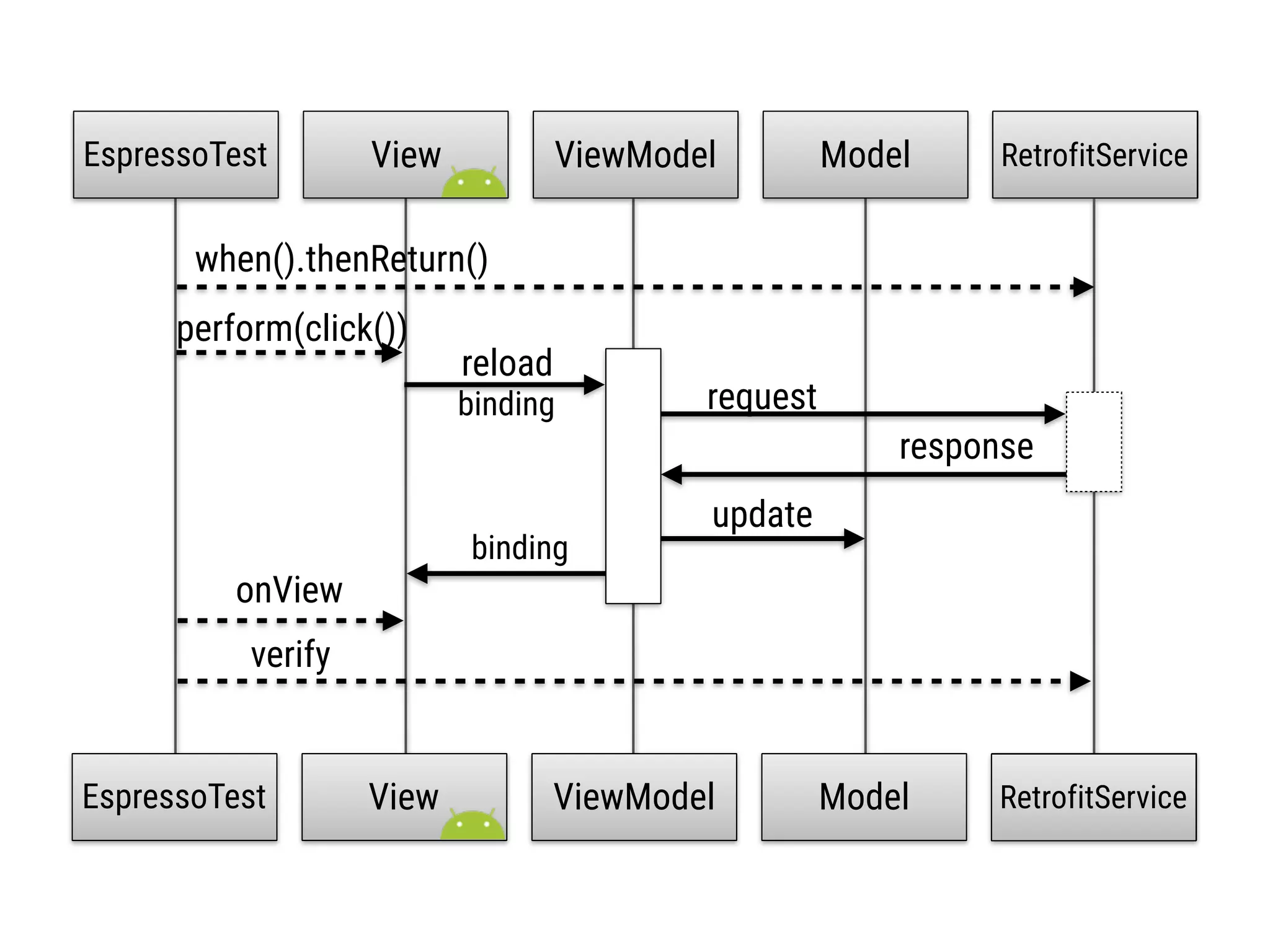

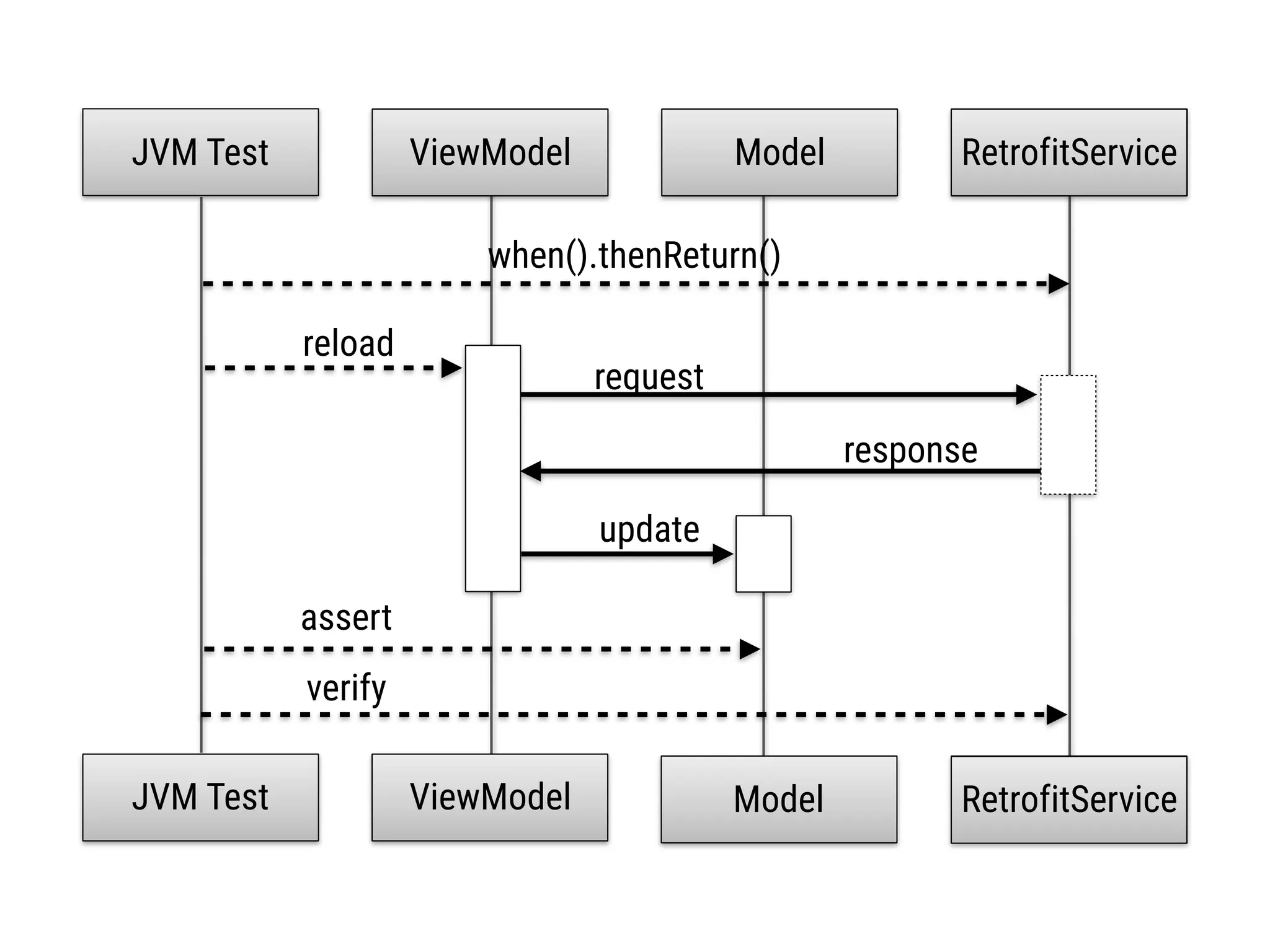

MockService MockService RetrofitService RetrofitServiceViewModel reload update Model request response JVM Test ViewModel ModelJVM Test assert when().thenReturn() verify
MockServiceRetrofitService MockServiceRetrofitService View ViewModel perform(click()) update binding Model request response EspressoTest View ViewModel ModelEspressoTest onView verify when().thenReturn() reload binding
76 Data binding You can write all your business logic in an huge xml file ———————————————————————— ————————————
Custom attributes Reusable UI code 77 Data binding You can write all your business logic in an huge xml file ———————————————————————— ———————————— Includes UI components MVVM Testable code
78 Thanks for your attention! androidavanzato.it Questions?

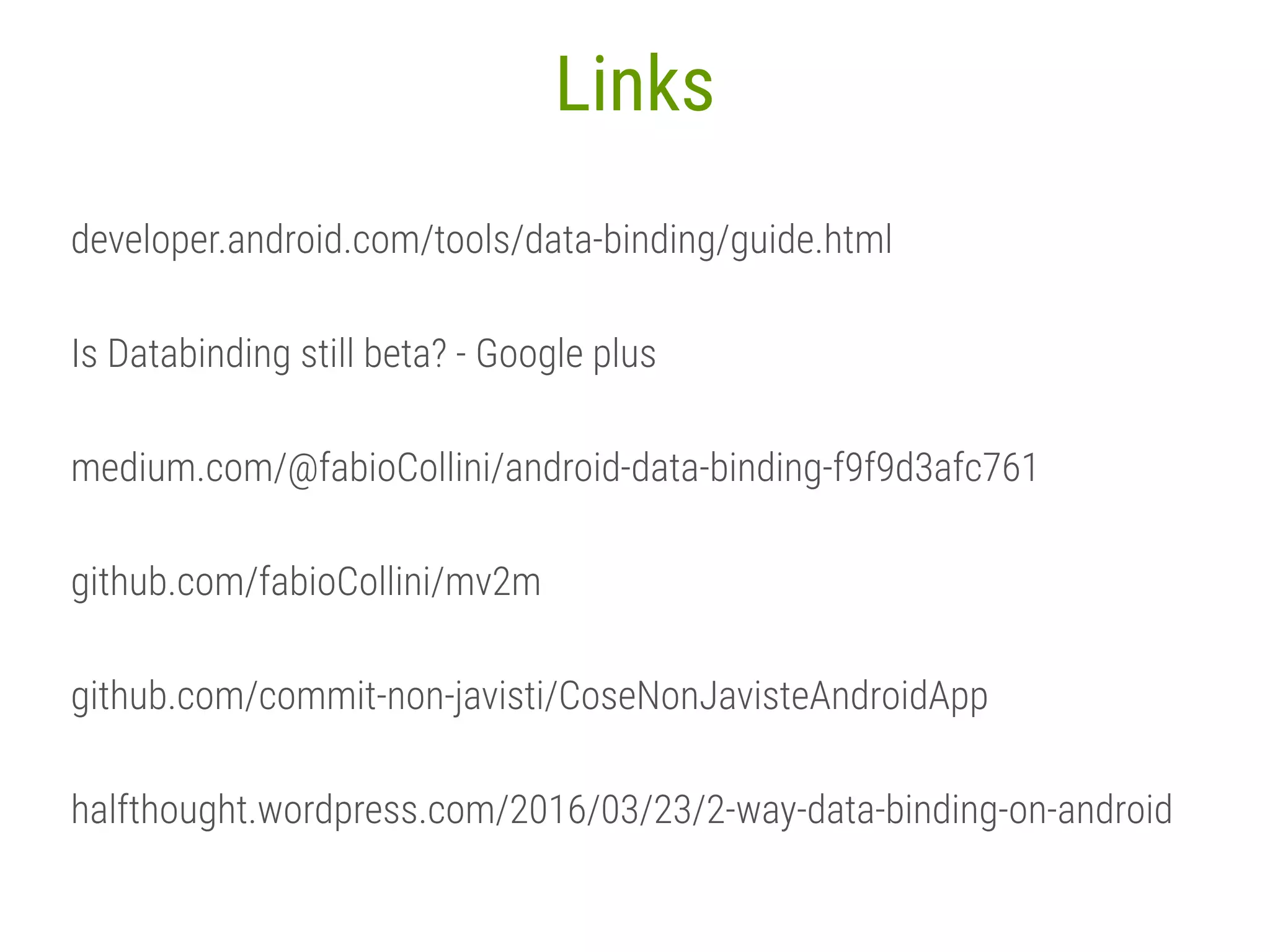

79 Links developer.android.com/tools/data-binding/guide.html Is Databinding still beta? - Google plus medium.com/@fabioCollini/android-data-binding-f9f9d3afc761 github.com/fabioCollini/mv2m github.com/commit-non-javisti/CoseNonJavisteAndroidApp halfthought.wordpress.com/2016/03/23/2-way-data-binding-on-android

More Related Content

PDF
MVVM & Data Binding Library
by10Clouds

PDF
Deep dive into Android Data Binding
byRadek Piekarz

PPTX
Android data binding
bySergi Martínez

PDF
MVVM with DataBinding on android
byRodrigo Bressan

PDF
Data binding w Androidzie
byThe Software House

PDF
Android Data Binding in action using MVVM pattern - droidconUK
byFabio Collini

PPTX
Data binding
byYonatan Levin

PDF
Vaadin 7 CN
byjojule

MVVM & Data Binding Library
by10Clouds

Deep dive into Android Data Binding
byRadek Piekarz

Android data binding
bySergi Martínez

MVVM with DataBinding on android
byRodrigo Bressan

Data binding w Androidzie
byThe Software House

Android Data Binding in action using MVVM pattern - droidconUK
byFabio Collini

Data binding
byYonatan Levin

Vaadin 7 CN
byjojule


What's hot

PDF
Data binding 入門淺談
byawonwon

PDF
Vaadin Components @ Angular U
byJoonas Lehtinen

PDF
Vaadin DevDay 2017 - DI your UI
byPeter Lehto

PDF
Vaadin Components
byJoonas Lehtinen

PDF
Vaadin DevDay 2017 - Data Binding in Vaadin 8
byPeter Lehto

PDF
Vaadin 8 with Spring Framework
byPeter Lehto

PDF
Vaadin 8 with Spring Frameworks AutoConfiguration
byPeter Lehto

PDF
Building impressive layout systems with vaadin
byPeter Lehto

PDF
Building web apps with Vaadin 8
byMarcus Hellberg

PDF
Vaadin Flow - JavaLand 2018
byPeter Lehto

PDF
Techlunch - Dependency Injection with Vaadin
byPeter Lehto

PDF
What's new in Vaadin 8, how do you upgrade, and what's next?
byMarcus Hellberg

PDF
GWT integration with Vaadin
byPeter Lehto

PDF
Infinum Android Talks #14 - Data binding to the rescue... or not (?) by Krist...
byInfinum

PDF
Vaadin 8 and 10
byPeter Lehto

PDF
Vaadin DevDay 2017 - Web Components
byPeter Lehto

PDF
當ZK遇見Front-End
by祁源 朱

PPTX
Knockoutjs
byKarthik Sathyanarayanan

PDF
Creating lightweight JS Apps w/ Web Components and lit-html
byIlia Idakiev

PDF
Binding business data to vaadin components
byPeter Lehto

Data binding 入門淺談
byawonwon

Vaadin Components @ Angular U
byJoonas Lehtinen

Vaadin DevDay 2017 - DI your UI
byPeter Lehto

Vaadin Components
byJoonas Lehtinen

Vaadin DevDay 2017 - Data Binding in Vaadin 8
byPeter Lehto

Vaadin 8 with Spring Framework
byPeter Lehto

Vaadin 8 with Spring Frameworks AutoConfiguration
byPeter Lehto

Building impressive layout systems with vaadin
byPeter Lehto

Building web apps with Vaadin 8
byMarcus Hellberg

Vaadin Flow - JavaLand 2018
byPeter Lehto

Techlunch - Dependency Injection with Vaadin
byPeter Lehto

What's new in Vaadin 8, how do you upgrade, and what's next?
byMarcus Hellberg

GWT integration with Vaadin
byPeter Lehto

Infinum Android Talks #14 - Data binding to the rescue... or not (?) by Krist...
byInfinum

Vaadin 8 and 10
byPeter Lehto

Vaadin DevDay 2017 - Web Components
byPeter Lehto

當ZK遇見Front-End
by祁源 朱

Knockoutjs
byKarthik Sathyanarayanan

Creating lightweight JS Apps w/ Web Components and lit-html
byIlia Idakiev

Binding business data to vaadin components
byPeter Lehto


Viewers also liked

PDF
Introduction to Retrofit and RxJava
byFabio Collini

PPTX
Evolving the Android Core with Aspects
byCarlo Pescio

PDF
Internal Android Library Management (DroidCon SF 2016, Droidcon Italy 2016)
byKelly Shuster

PDF
Android Wear CodeLab - GDG Firenze
byFabio Collini

PDF
Testable Android Apps DroidCon Italy 2015
byFabio Collini

PPTX
Android MVVM
byDavid Estivariz Pierola

PDF
Testable Android Apps using data binding and MVVM
byFabio Collini

PDF
World-Class Testing Development Pipeline for Android
byPedro Vicente Gómez Sánchez

PDF
Building maintainable app
byKristijan Jurković

PDF
Mastering the NDK with Android Studio 2.0 and the gradle-experimental plugin
byXavier Hallade

PPT
Beyond Android Views - Window,Surface,Special Views,and More
byrogeryi

PPTX
Android Custom Views
byBabar Sanah

PDF
Android Development - ConstraintLayout
byManuel Vicente Vivo

PDF
Clean android code - Droidcon Italiy 2014
byFabio Collini

KEY
Android Widget @ whymca 2011
byFabio Collini

KEY
Librerie su Android: come non reinventare la ruota @ whymca 2012
byFabio Collini

PPTX
Model-View-ViewModel and RxJava
byFlorina Muntenescu

PDF
Journey of an event, the android touch - Marco Cova, Facebook
byDroidConTLV

PDF
Introduction to Android Window System
byNational Cheng Kung University

PPTX
Acrhitecture deisign pattern_MVC_MVP_MVVM
byDong-Ho Lee

Introduction to Retrofit and RxJava
byFabio Collini

Evolving the Android Core with Aspects
byCarlo Pescio

Internal Android Library Management (DroidCon SF 2016, Droidcon Italy 2016)
byKelly Shuster

Android Wear CodeLab - GDG Firenze
byFabio Collini

Testable Android Apps DroidCon Italy 2015
byFabio Collini

Android MVVM
byDavid Estivariz Pierola

Testable Android Apps using data binding and MVVM
byFabio Collini

World-Class Testing Development Pipeline for Android
byPedro Vicente Gómez Sánchez

Building maintainable app
byKristijan Jurković

Mastering the NDK with Android Studio 2.0 and the gradle-experimental plugin
byXavier Hallade

Beyond Android Views - Window,Surface,Special Views,and More
byrogeryi

Android Custom Views
byBabar Sanah

Android Development - ConstraintLayout
byManuel Vicente Vivo

Clean android code - Droidcon Italiy 2014
byFabio Collini

Android Widget @ whymca 2011
byFabio Collini

Librerie su Android: come non reinventare la ruota @ whymca 2012
byFabio Collini

Model-View-ViewModel and RxJava
byFlorina Muntenescu

Journey of an event, the android touch - Marco Cova, Facebook
byDroidConTLV

Introduction to Android Window System
byNational Cheng Kung University

Acrhitecture deisign pattern_MVC_MVP_MVVM
byDong-Ho Lee


Similar to Data Binding in Action using MVVM pattern

PPTX
Data Binding - Android by Harin Trivedi
byharintrivedi

PDF
How to use data binding in android
byInnovationM

PDF
Effective Android Data Binding
byEric Maxwell

PDF
SE2016 Android Mikle Anokhin "Speed up application development with data bind...
byInhacking

PPTX
Data Binding: Is It the Next Big Thing?
byGlobalLogic Ukraine

PDF
"Android Data Binding в массы" Михаил Анохин
byFwdays

PDF
Михаил Анохин "Data binding 2.0"
byFwdays

PDF
Android data binding
byAjit Singh

PPTX
Data binding в массы! (1.2)
byYurii Kotov

Data Binding - Android by Harin Trivedi
byharintrivedi

How to use data binding in android
byInnovationM

Effective Android Data Binding
byEric Maxwell

SE2016 Android Mikle Anokhin "Speed up application development with data bind...
byInhacking

Data Binding: Is It the Next Big Thing?
byGlobalLogic Ukraine

"Android Data Binding в массы" Михаил Анохин
byFwdays

Михаил Анохин "Data binding 2.0"
byFwdays

Android data binding
byAjit Singh

Data binding в массы! (1.2)
byYurii Kotov


More from Fabio Collini

PDF
Architectures in the compose world
byFabio Collini

PDF
Using hilt in a modularized project
byFabio Collini

PDF
Managing parallelism using coroutines
byFabio Collini

PDF
Kotlin Delegates in practice - Kotlin community conf
byFabio Collini

PDF
Kotlin delegates in practice - Kotlin Everywhere Stockholm
byFabio Collini

PDF
Using Dagger in a Clean Architecture project
byFabio Collini

PDF
Solid principles in practice the clean architecture - Droidcon Italy
byFabio Collini

PDF
SOLID principles in practice: the Clean Architecture - Devfest Emila Romagna
byFabio Collini

PDF
SOLID principles in practice: the Clean Architecture
byFabio Collini

PDF
From Java to Kotlin beyond alt+shift+cmd+k - Kotlin Community Conf Milan
byFabio Collini

PDF
Async code on kotlin: rx java or/and coroutines - Kotlin Night Turin
byFabio Collini

PDF
Recap Google I/O 2018
byFabio Collini

PDF
From java to kotlin beyond alt+shift+cmd+k - Droidcon italy
byFabio Collini

PDF
From java to kotlin beyond alt+shift+cmd+k
byFabio Collini

PDF
Testing Android apps based on Dagger and RxJava Droidcon UK
byFabio Collini

PDF
Intro to Retrofit 2 and RxJava2
byFabio Collini

PDF
Testing Android apps based on Dagger and RxJava
byFabio Collini

Architectures in the compose world
byFabio Collini

Using hilt in a modularized project
byFabio Collini

Managing parallelism using coroutines
byFabio Collini

Kotlin Delegates in practice - Kotlin community conf
byFabio Collini

Kotlin delegates in practice - Kotlin Everywhere Stockholm
byFabio Collini

Using Dagger in a Clean Architecture project
byFabio Collini

Solid principles in practice the clean architecture - Droidcon Italy
byFabio Collini

SOLID principles in practice: the Clean Architecture - Devfest Emila Romagna
byFabio Collini

SOLID principles in practice: the Clean Architecture
byFabio Collini

From Java to Kotlin beyond alt+shift+cmd+k - Kotlin Community Conf Milan
byFabio Collini

Async code on kotlin: rx java or/and coroutines - Kotlin Night Turin
byFabio Collini

Recap Google I/O 2018
byFabio Collini

From java to kotlin beyond alt+shift+cmd+k - Droidcon italy
byFabio Collini

From java to kotlin beyond alt+shift+cmd+k
byFabio Collini

Testing Android apps based on Dagger and RxJava Droidcon UK
byFabio Collini

Intro to Retrofit 2 and RxJava2
byFabio Collini

Testing Android apps based on Dagger and RxJava
byFabio Collini


Data Binding in Action using MVVM pattern

  • 1.
    Android Data Bindingin action using MVVM pattern Fabio Collini
  • 2.
  • 3.
    3 Agenda 1. Data Bindingbasics 2. Custom attributes 3. Components 4. Two Way Data Binding 5. Model View ViewModel
  • 4.
  • 5.
    5 match_result.xml <?xml version="1.0" encoding="utf-8"?>
 <LinearLayoutstyle="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout>
  • 6.
    6 public class TeamScore{
 private final String name;
 private final int goals; //constructor and getters
 } public class MatchResult {
 private final TeamScore homeTeam;
 private final TeamScore awayTeam;
 private final String gifUrl; //constructor and getters
 }
  • 7.
    7 Butterknife Activity @Bind(R.id.result_gif) ImageViewresultGif;
 @Bind(R.id.home_team) TextView homeTeam;
 @Bind(R.id.away_team) TextView awayTeam;
 @Bind(R.id.home_goals) TextView homeGoals;
 @Bind(R.id.away_goals) TextView awayGoals;

 @Override protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.match_result);
 ButterKnife.bind(this);
 updateDetail(getIntent().getParcelableExtra("RESULT"));
 }
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(resultGif);
 if (result.getHomeTeam() != null) {
 homeTeam.setText(result.getHomeTeam().getName());
 homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals()));
 }
 if (result.getAwayTeam() != null) {
 awayTeam.setText(result.getAwayTeam().getName());
 awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals()));
 }
 }
  • 8.
    DroidCon Italy -Torino - April 2016 - @fabioCollini 8 1Data Binding basics
  • 9.
  • 10.
    10 Is Data Bindingstill beta?
  • 11.
    11 Is Data Bindingstill beta?
  • 12.
    dataBinding {
 enabled =true
 }
 12 build.gradle android {
 compileSdkVersion 23
 buildToolsVersion "23.0.2"

 defaultConfig {
 //...
 ____}
 buildTypes {
 //...
 ____} }
  • 13.
    <?xml version="1.0" encoding="utf-8"?>
 <layout>
 <LinearLayoutstyle=“@style/root_layout" xmlns:android="http://schemas.android.com/apk/res/android">

 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout>
 </layout> 13 Data Binding layout <LinearLayout style="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout> <?xml version="1.0" encoding="utf-8"?> <layout> </layout>
  • 14.
    <LinearLayout style="@style/root_layout"
 xmlns:android=“http://schemas.android.com/apk/res/android">
 <ImageView android:id="@+id/result_gif"style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/home_team" style="@style/name"/>
 <TextView android:id="@+id/home_goals" style="@style/goals"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView android:id="@+id/away_team" style="@style/name"/>
 <TextView android:id="@+id/away_goals" style="@style/goals"/>
 </LinearLayout>
 </LinearLayout> 14 One layout traversal match_result.xmlMatchResultBinding.java Auto generated class <?xml version="1.0" encoding="utf-8"?> <layout> </layout> public class MatchResultBinding extends android.databinding.ViewDataBinding {

 // ...
 public final android.widget.ImageView resultGif;
 public final android.widget.TextView homeTeam;
 public final android.widget.TextView homeGoals;
 public final android.widget.TextView awayTeam;
 public final android.widget.TextView awayGoals;
 // ...
 }
  • 15.
    15 Activity
 @Override protected voidonCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.match_result); updateDetail(getIntent().getParcelableExtra("RESULT"));
 }____
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 if (result.getHomeTeam() != null) {
 binding.homeTeam.setText(result.getHomeTeam().getName());
 binding.homeGoals.setText(Integer.toString(result.getHomeTeam().getGoals()));
 }___
 if (result.getAwayTeam() != null) {
 binding.awayTeam.setText(result.getAwayTeam().getName());
 binding.awayGoals.setText(Integer.toString(result.getAwayTeam().getGoals()));
 }__
 }_ private MatchResultBinding binding;__
  • 16.
    16 Variable in layout <?xmlversion="1.0" encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"> Automatic null check <data>
 <variable name="result" type="it.droidcon.databinding.MatchResult"/>
 </data> <LinearLayout style="@style/root_layout">
 <ImageView android:id="@+id/result_gif" style="@style/gif"/>

 <LinearLayout style="@style/team_layout">
 <TextView style=“@style/name"
 android:text="@{result.homeTeam.name}"/>
 <TextView style="@style/goals"
 android:text="@{Integer.toString(result.homeTeam.goals)}"/>
 </LinearLayout>

 <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.awayTeam.name}"/>
 <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>
 </LinearLayout>
 </LinearLayout>
 </layout>
  • 17.
    17 Activity private MatchResultBinding binding;
 @Overrideprotected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.match_result); updateDetail(getIntent().getParcelableExtra("RESULT"));
 }____
 private void updateDetail(MatchResult result) {
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 binding.setResult(result); }_
  • 18.
    18 Code in XML? Areyou serious?!?
  • 19.
    19 Complex code inXML is NOT a best practice
  • 20.
    DroidCon Italy -Torino - April 2016 - @fabioCollini 20 2Custom attributes
  • 21.
    21 @BindingAdapter <ImageView android:id="@+id/result_gif" style="@style/gif"/> privatevoid updateDetail(MatchResult result) {
 binding.setResult(result);
 Glide.with(this).load(result.getGifUrl())
 .placeholder(R.drawable.loading).into(binding.resultGif);
 } <ImageView style=“@style/gif" app:imageUrl="@{result.gifUrl}"/> @BindingAdapter("imageUrl")
 public static void loadImage(ImageView view, String url) {
 Glide.with(view.getContext()).load(url)
 .placeholder(R.drawable.loading).into(view);
 }
  • 22.
    22 public class MatchResultActivityextends AppCompatActivity {

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 MatchResultBinding binding =
 DataBindingUtil.setContentView(this, R.layout.match_result);
 MatchResult result = getIntent().getParcelableExtra("RESULT");
 binding.setResult(result);
 }
 }
  • 23.
    23 Multiple parameters @BindingAdapter({"imageUrl", "placeholder"})
 publicstatic void loadImage(ImageView view, String url, Drawable placeholder) {
 Glide.with(view.getContext()).load(url)
 .placeholder(placeholder).into(view);
 }
 <ImageView style="@style/gif"
 app:imageUrl="@{result.gifUrl}" app:placeholder="@{@drawable/loading}"/>
  • 24.
    Annotated methods arestatic but… @BindingAdapter("something")
 public static void bindSomething(View view, AnyObject b) {
 MyBinding binding = DataBindingUtil.findBinding(view);
 MyObject myObject = binding.getMyObject();
 //… TextView myTextView =
 binding.myTextView; //… } Can be any object Get the layout binding Get the connected objects Access to all the views Can be defined anywhere Can be used everywhere Can be any View
  • 25.
    25 BindingConversion @BindingConversion
 public static @ColorResint convertEnumToColor(MyEnum value) {
 switch (value) {
 case VALUE1:
 return R.color.color1;
 case VALUE2:
 return R.color.color2;
 case VALUE3:
 return R.color.color3;
 default:
 return R.color.color4;
 }
 } <TextView
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="@{myObject.myEnum}"/>
  • 26.
    @BindingConversion
 public static StringconvertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___
 <TextView style="@style/goals” android:text="@{result.awayTeam}"/>
 26 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>
  • 27.
    <TextView style="@style/goals" app:goals="@{result.awayTeam.goals}"/> @BindingAdapter("goals")
 public staticvoid bindGoals(TextView view, int goals) {
 view.setText(Integer.toString(goals));
 }__
 @BindingConversion
 public static String convertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___
 27 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/> <TextView style="@style/goals” android:text="@{result.awayTeam}"/>

  • 28.
    <TextView style="@style/goals" app:goals="@{result.awayTeam.goals}"/> @BindingAdapter("goals")
 public staticvoid bindGoals(TextView view, int goals) {
 view.setText(Integer.toString(goals));
 }__
 @BindingConversion
 public static String convertScoreToString(TeamScore score) {
 return Integer.toString(score.getGoals());
 }___
 <TextView style="@style/goals” android:text="@{result.awayTeam}"/>
 28 BindingConversion & BindingAdapter <TextView style="@style/goals"
 android:text="@{Integer.toString(result.awayTeam.goals)}"/>
  • 29.
  • 30.
    DroidCon Italy -Torino - April 2016 - @fabioCollini 30 3Components
  • 31.
    31 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 </data>
 <LinearLayoutstyle="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{result.gifUrl}"/>


 <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.awayTeam.name}"/>
 <TextView style="@style/goals"
 app:goals="@{result.awayTeam.goals}"/>
 </LinearLayout>
 </LinearLayout>
 </layout> <LinearLayout style="@style/team_layout">
 <TextView style="@style/name"
 android:text="@{result.homeTeam.name}"/>
 <TextView style="@style/goals"
 app:goals="@{result.homeTeam.goals}"/>
 </LinearLayout>
  • 32.
  • 33.
    </data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif"app:imageUrl="@{result.gifUrl}"/>


 <include layout="@layout/team_detail"/> <include layout="@layout/team_detail"/> </LinearLayout>
 </layout> <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto">
 <data>
 <variable name="result"
 type=“it.droidcon.databinding.MatchResult"/>

  • 34.
    </data>
 <LinearLayout style="@style/root_layout">
 <ImageView style="@style/gif"app:imageUrl="@{result.gifUrl}"/>


 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{result.homeTeam}" bind:team="@{result.awayTeam}"
  • 35.
    </data>
 <LinearLayout style="@style/root_layout" >
 <ImageView style="@style/gif"app:imageUrl="@{result.gifUrl}"/>


 android:background="@{backgroundColor ?? @color/color1}" <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="result"
 type="it.droidcon.databinding.MatchResult"/>
 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{result.homeTeam}" bind:team="@{result.awayTeam}" <variable name="backgroundColor" type="Integer" />
  • 36.
    DroidCon Italy -Torino - April 2016 - @fabioCollini 36 4Two Way Data Binding
  • 37.
  • 38.
    38 public class ContactInfo{
 public String message;

 public boolean messageAvailable;
 }__
  • 39.
    39 public class ContactInfo{
 public String message;

 public boolean messageAvailable;
 }__ <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo" />
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@{info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>
 </layout>
  • 40.
    40 public class ContactInfo{
 public String message;

 public boolean messageAvailable;
 }__ public class ContactActivity extends AppCompatActivity {
 private ContactInfo contactInfo;
 private ContactBinding binding;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.contact);
 contactInfo = new ContactInfo();
 binding.setInfo(contactInfo);

 binding.getRoot().postDelayed(() -> {
 contactInfo.message = "my message";
 contactInfo.messageAvailable = true;
 }, 2000);
 }

 public void send(View view) {
 Snackbar.make(binding.getRoot(), contactInfo.message, LENGTH_LONG).show();
 }
 }
  • 41.
  • 42.
    42 Views are notautomatically updated :( package android.databinding;

 public interface Observable {

 void addOnPropertyChangedCallback( OnPropertyChangedCallback callback);

 void removeOnPropertyChangedCallback( OnPropertyChangedCallback callback);

 abstract class OnPropertyChangedCallback {
 public abstract void onPropertyChanged( Observable sender, int propertyId);
 }
 }
  • 43.
  • 44.
    public String getMessage(){
 return message;
 }____

 public boolean isMessageAvailable() {
 return messageAvailable;
 }___

 public void setMessage(String message) {
 this.message = message;

 }__

 public void setMessageAvailable(boolean messageAvailable) {
 this.messageAvailable = messageAvailable;

 }_
 public class ContactInfo
 private String message;

 private boolean messageAvailable;
 44 extends BaseObservable { } notifyPropertyChanged(BR.message); notifyPropertyChanged(BR.messageAvailable); @Bindable @Bindable
  • 45.
    45 public class ContactInfo{
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__
  • 46.
    46 public class ContactInfo{
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__ public class ContactActivity extends AppCompatActivity {
 private ContactInfo contactInfo;
 private ContactBinding binding;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 binding = DataBindingUtil.setContentView(this, R.layout.contact);
 contactInfo = new ContactInfo();
 binding.setInfo(contactInfo);

 binding.getRoot().postDelayed(() -> {
 contactInfo.message.set("my message");
 contactInfo.messageAvailable.set(true);
 }, 2000); }___

 public void send(View view) {
 Snackbar.make(binding.getRoot(), contactInfo.message.get(), LENGTH_LONG).show();
 }__
 }_
  • 47.
    <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo"/>
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@{info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>
 </layout> 47 public class ContactInfo {
 public final ObservableField<String> message = new ObservableField<>();_

 public final ObservableBoolean messageAvailable = new ObservableBoolean();_
 }__ ObservableField<String> ObservableBoolean ObservableBoolean
  • 48.
  • 49.
    49 Two way DataBinding @BindingAdapter("binding")
 public static void bindEditText(EditText view, final ObservableString observable) {
 Pair<ObservableString, TextWatcherAdapter> pair = (Pair) view.getTag(R.id.bound_observable);
 if (pair == null || pair.first != observable) {
 if (pair != null)
 view.removeTextChangedListener(pair.second);
 TextWatcherAdapter watcher = new TextWatcherAdapter() {
 @Override public void onTextChanged(CharSequence s, int a, int b, int c) {
 observable.set(s.toString());
 }
 };
 view.setTag(R.id.bound_observable, new Pair<>(observable, watcher));
 view.addTextChangedListener(watcher);
 }
 String newValue = observable.get();
 if (!view.getText().toString().equals(newValue))
 view.setText(newValue);
 }
 medium.com/@fabioCollini/android-data-binding-f9f9d3afc761
  • 50.
  • 51.
    51 <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="info"
 type="it.droidcon.databinding.ContactInfo"/>
 </data>

 <LinearLayout style="@style/contact_root">
 <EditText
 style="@style/contact_text"
 android:enabled="@{info.messageAvailable}"
 android:text="@={info.message}" />

 <Button
 style="@style/contact_button"
 android:enabled="@{info.messageAvailable}"
 android:onClick="send" />
 </LinearLayout>
 </layout> Two way data binding
  • 52.
  • 53.
  • 54.
  • 55.
    DroidCon Italy -Torino - April 2016 - @fabioCollini 55 5MVVM
  • 56.
    56 MatchResultViewModel public class MatchResultViewModel{
 public final ObservableField<MatchResult> result = new ObservableField<>();

 public final ObservableBoolean loading = new ObservableBoolean();

 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }
 }
  • 57.
    <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:bind="http://schemas.android.com/tools">
 <data>
 <variable name="viewModel"
 type="it.droidcon.databinding.MatchResultViewModel"/>
 </data>
 <LinearLayoutstyle="@style/root_layout">
 <ImageView style="@style/gif" app:imageUrl="@{viewModel.result.gifUrl}"/>


 <include layout="@layout/team_detail"
 /> <include layout="@layout/team_detail"
 /> </LinearLayout>
 </layout> bind:team="@{viewModel.result.homeTeam}" bind:team="@{viewModel.result.awayTeam}" ObservableField
  • 58.
    58 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility= "@{viewModel.loading ?View.VISIBLE : View.GONE}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> <?xml version="1.0" encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:bind="http://schemas.android.com/tools">
 <data> <import type="android.view.View"/>
 <variable name="viewModel"
 type="it.droidcon.databinding.MatchResultViewModel"/> </data>
 <FrameLayout style="@style/main_container">
 <LinearLayout style="@style/root_layout">
 <!-- ... -->
 </LinearLayout>


 </FrameLayout>
 </layout>
  • 59.
    59 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility= "@{viewModel.loading ?View.VISIBLE : View.GONE}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 public static int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___

  • 60.
    60 Visibility <FrameLayout style="@style/progress_layout"
 android:visibility="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 publicstatic int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___
 @BindingAdapter("visibleOrGone")
 public static void bindVisibleOrGone(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.GONE);
 }____
  • 61.
    61 Visibility <FrameLayout style="@style/progress_layout"
 app:visibleOrGone="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout> @BindingConversion
 publicstatic int convertBooleanToVisibility(boolean b) {
 return b ? View.VISIBLE : View.GONE;
 }___
 @BindingAdapter("visibleOrGone")
 public static void bindVisibleOrGone(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.GONE);
 }____ @BindingAdapter("visible")
 public static void bindVisible(View view, boolean b) {
 view.setVisibility(b ? View.VISIBLE : View.INVISIBLE);
 }
  • 62.
    <LinearLayout style="@style/root_layout"
 android:onClick="@{???}">
 <!-- ...-->
 </LinearLayout>
 62 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
  • 63.
    public final_View.OnClickListener reloadClickListener= new View.OnClickListener() {
 @Override public void onClick(View v) {
 reload();
 }_
 };
 <LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel.reloadClickListener}">
 <!-- ... -->
 </LinearLayout>
 63 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
  • 64.
    <LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel::reload}">
 <!-- ...-->
 </LinearLayout>
 64 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload(View v) { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
  • 65.
    <LinearLayout style="@style/root_layout"
 android:onClick="@{v ->viewModel.reload()}">
 <!-- ... -->
 </LinearLayout>
 65 }___ public class MatchResultViewModel { public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__
  • 66.
    public class MatchResultViewModel{ public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__ 66 }___ @BindingAdapter("android:onClick")
 public static void bindOnClick(View view, final Runnable listener) {
 view.setOnClickListener(new View.OnClickListener() {
 @Override public void onClick(View v) {
 listener.run();
 }____
 });
 }___ <LinearLayout style="@style/root_layout"
 android:onClick="@{v -> viewModel.reload()}">
 <!-- ... -->
 </LinearLayout>

  • 67.
    public class MatchResultViewModel{ public final ObservableField<MatchResult> result = new ObservableField<>();
 public final ObservableBoolean loading = new ObservableBoolean();
 public void reload() { loading.set(true);
 reloadInBackground(result -> {
 loading.set(false);
 this.result.set(result);
 });
 }__ <LinearLayout style="@style/root_layout"
 android:onClick="@{viewModel::reload}">
 <!-- ... -->
 </LinearLayout>
 67 }___ @BindingAdapter("android:onClick")
 public static void bindOnClick(View view, final Runnable listener) {
 view.setOnClickListener(new View.OnClickListener() {
 @Override public void onClick(View v) {
 listener.run();
 }____
 });
 }___
  • 68.
    68 Final layout <?xml version="1.0"encoding="utf-8"?>
 <layout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:bind="http://schemas.android.com/tools">
 <data>
 <!-- ... -->
 </data>
 <FrameLayout style="@style/main_container">
 <LinearLayout style="@style/root_layout"
 android:onClick=“@{viewModel::reload}”>
 <!-- ... -->
 </LinearLayout>

 <FrameLayout style="@style/progress_layout"
 app:visibleOrGone="@{viewModel.loading}">
 <ProgressBar style="@style/progress"/>
 </FrameLayout>

 </FrameLayout>
 </layout>
  • 69.
    69 public interface Reloadable{
 String getErrorMessage();

 void reload();
 }
 <layout xmlns:android="http://schemas.android.com/apk/res/android">
 <data>
 <variable name="reloadable"
 type="it.droidcon.databinding.Reloadable"/>
 </data>

 <LinearLayout style="@style/reload_layout">
 <TextView
 style="@style/error_message"
 android:text="@{reloadable.errorMessage}"/>

 <Button
 style="@style/reload"
 android:onClick="@{reloadable::reload}"
 android:text="@string/reload"/>
 </LinearLayout>
 </layout>
  • 70.
    70 Model View ViewModel View ViewModel Model DataBinding Retainedon configuration change Saved in Activity or Fragment state Activity or Fragment
  • 71.
    71 github.com/fabioCollini/mv2m Android MVVM lightweightlibrary based on Android Data Binding
  • 72.
    View ViewModel RetrofitService reload update binding Model ViewViewModel RetrofitServiceModel request response binding
  • 73.
  • 74.
  • 75.
  • 76.
    76 Data binding You canwrite all your business logic in an huge xml file ———————————————————————— ————————————
  • 77.
    Custom attributes ReusableUI code 77 Data binding You can write all your business logic in an huge xml file ———————————————————————— ———————————— Includes UI components MVVM Testable code
  • 78.
    78 Thanks for yourattention! androidavanzato.it Questions?
  • 79.
    79 Links developer.android.com/tools/data-binding/guide.html Is Databinding stillbeta? - Google plus medium.com/@fabioCollini/android-data-binding-f9f9d3afc761 github.com/fabioCollini/mv2m github.com/commit-non-javisti/CoseNonJavisteAndroidApp halfthought.wordpress.com/2016/03/23/2-way-data-binding-on-android
