Conway’s game of life on arduino
- 1. Conway’s game oflife on ArduinoA 48x32 led matrix controlled by an Arduino able to project output from arbitrary sources (e.g. game of life)

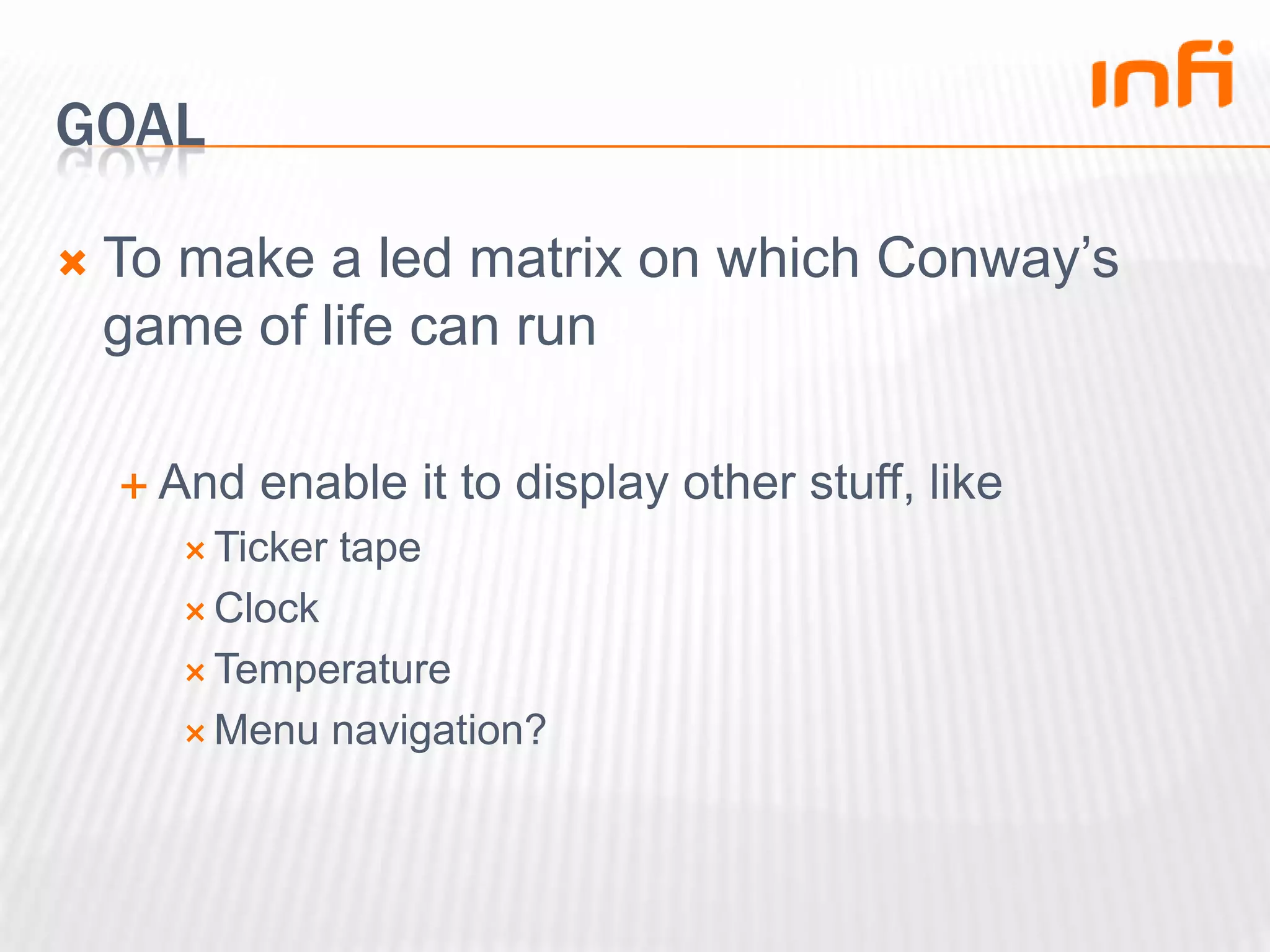

- 2. GoalTo make aled matrix on which Conway’s game of life can runAnd enable it to display other stuff, likeTicker tapeClockTemperatureMenu navigation?

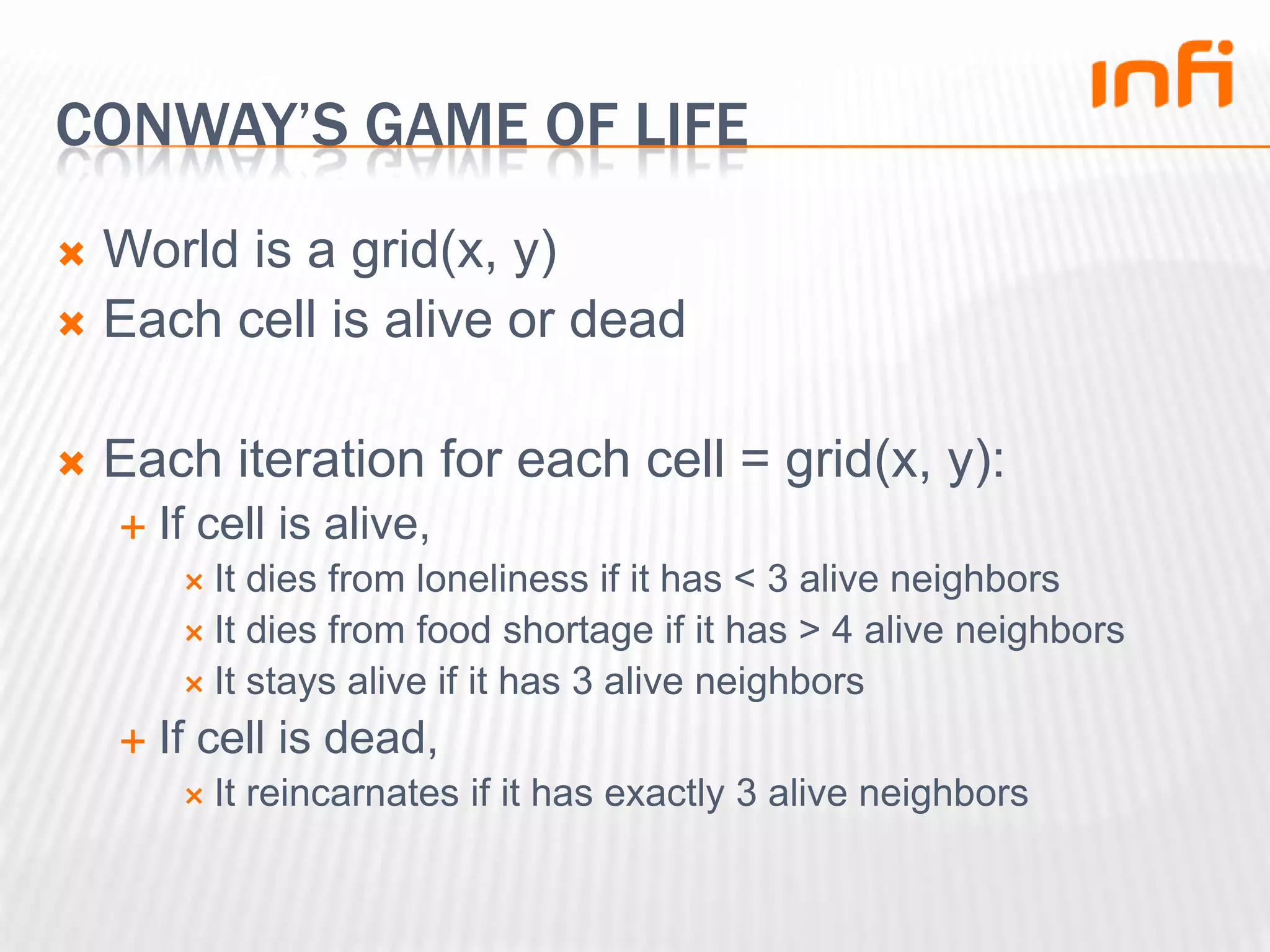

- 3. Conway’s game oflifeWorld is a grid(x, y)Each cell is alive or deadEach iteration for each cell = grid(x, y):If cell is alive,It dies from loneliness if it has < 3 alive neighborsIt dies from food shortage if it has > 4 alive neighborsIt stays alive if it has 3 alive neighborsIf cell is dead,It reincarnates if it has exactly 3 alive neighbors

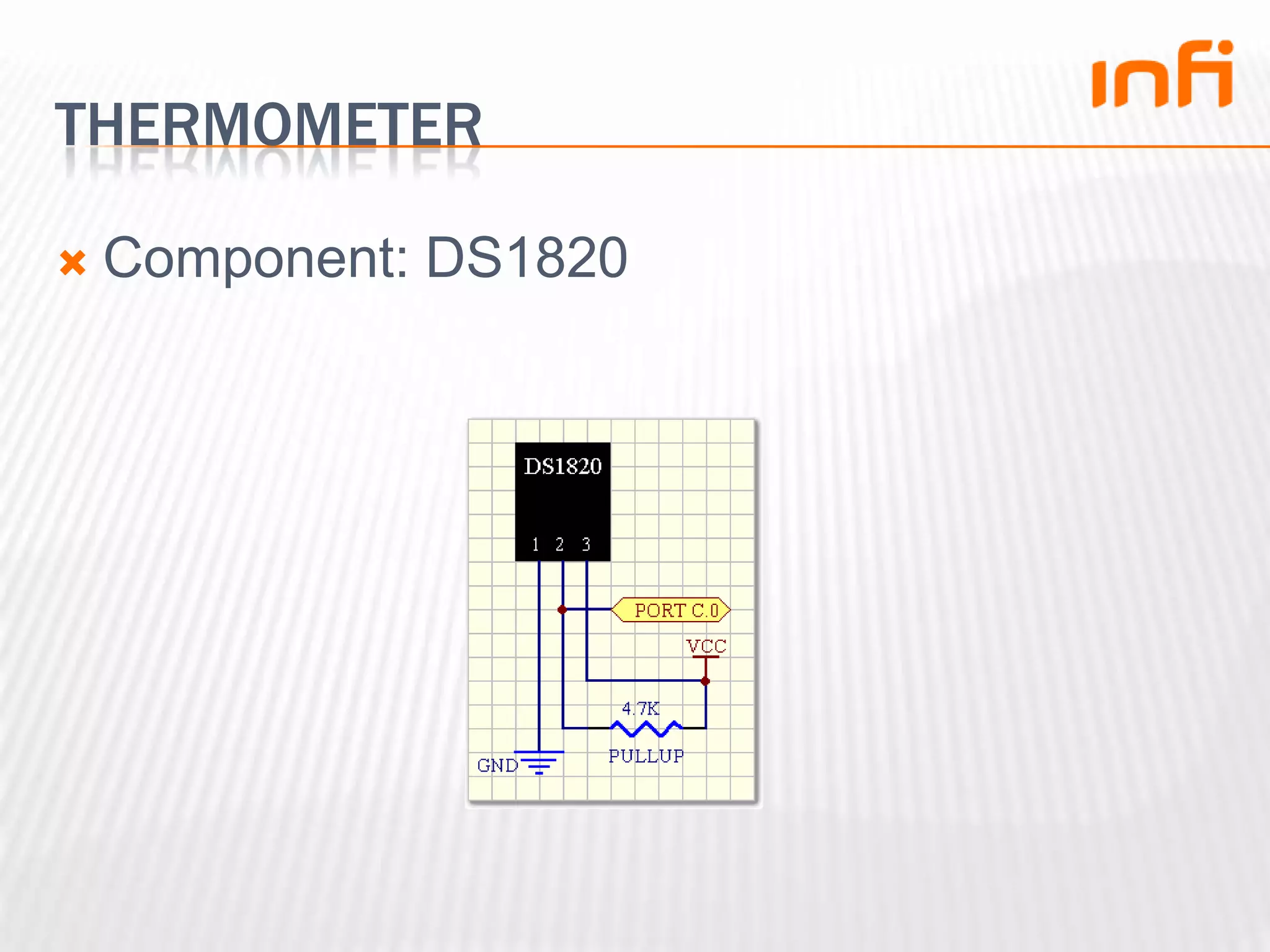

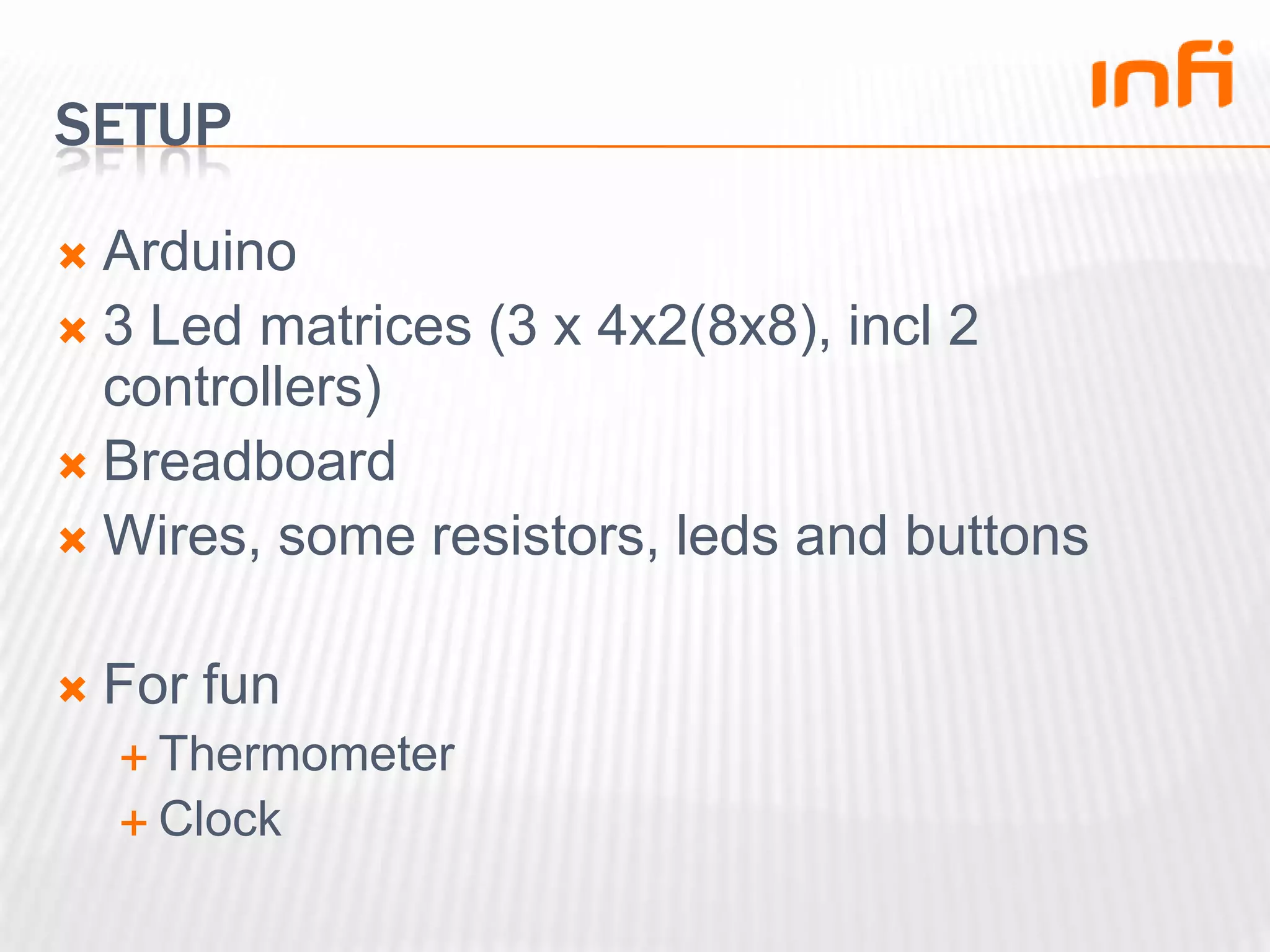

- 4. SetupArduino3 Led matrices(3 x 4x2(8x8), incl 2 controllers)BreadboardWires, some resistors, leds and buttonsFor funThermometerClock
- 5.

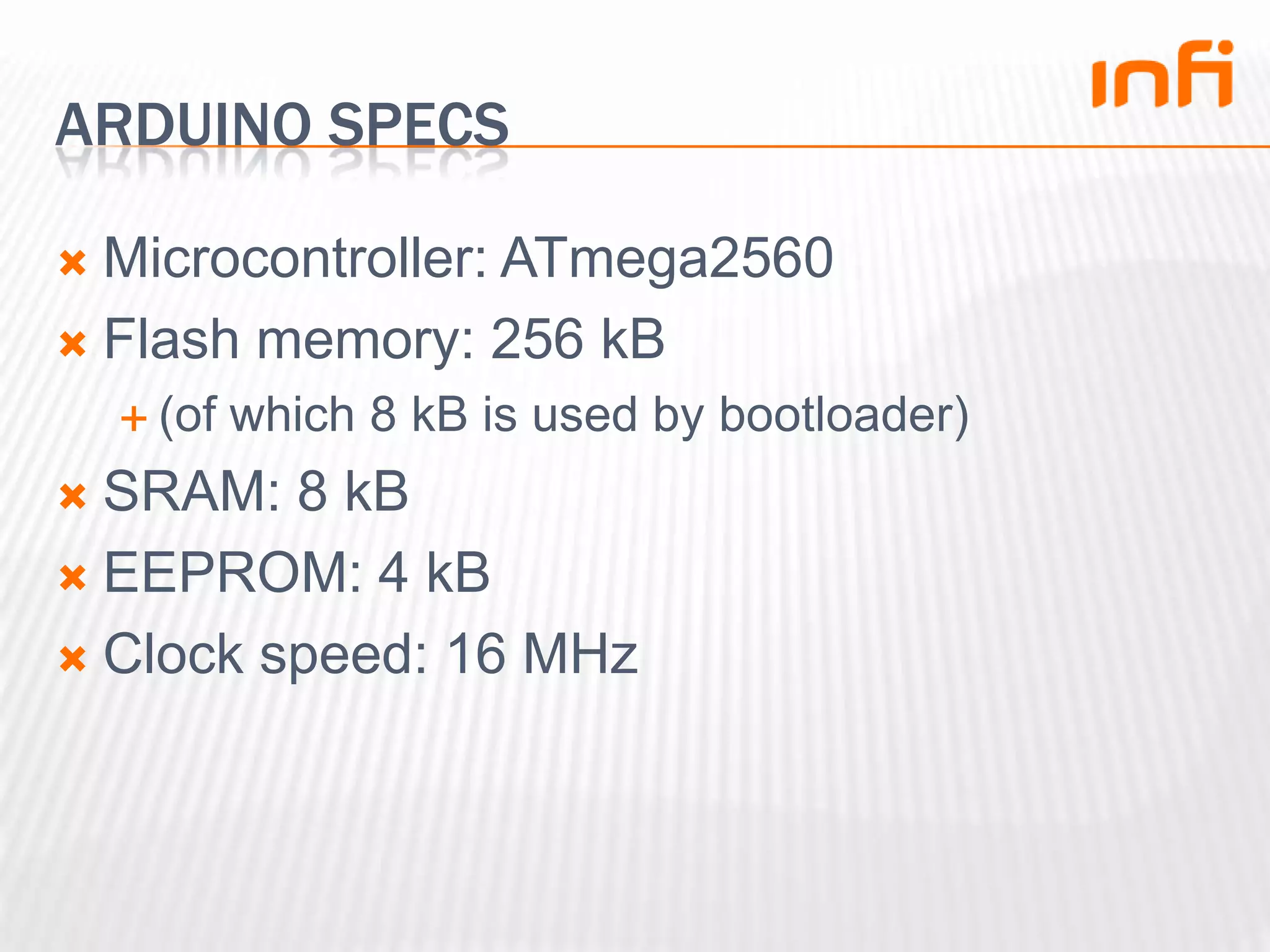

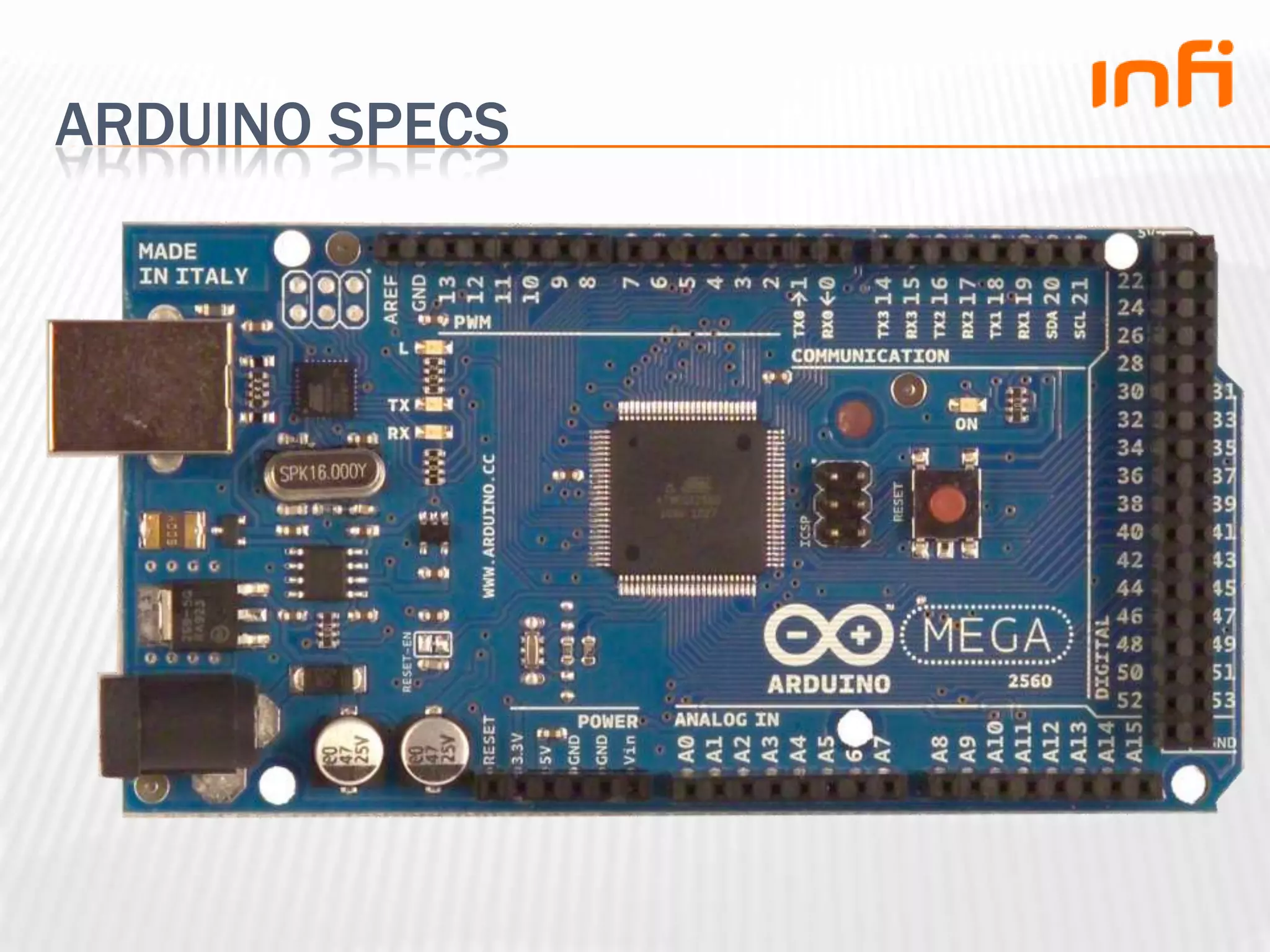

- 6. ARDUINO SPECSMicrocontroller: ATmega2560Flashmemory: 256 kB(of which 8 kB is used by bootloader)SRAM: 8 kBEEPROM: 4 kBClock speed: 16 MHz

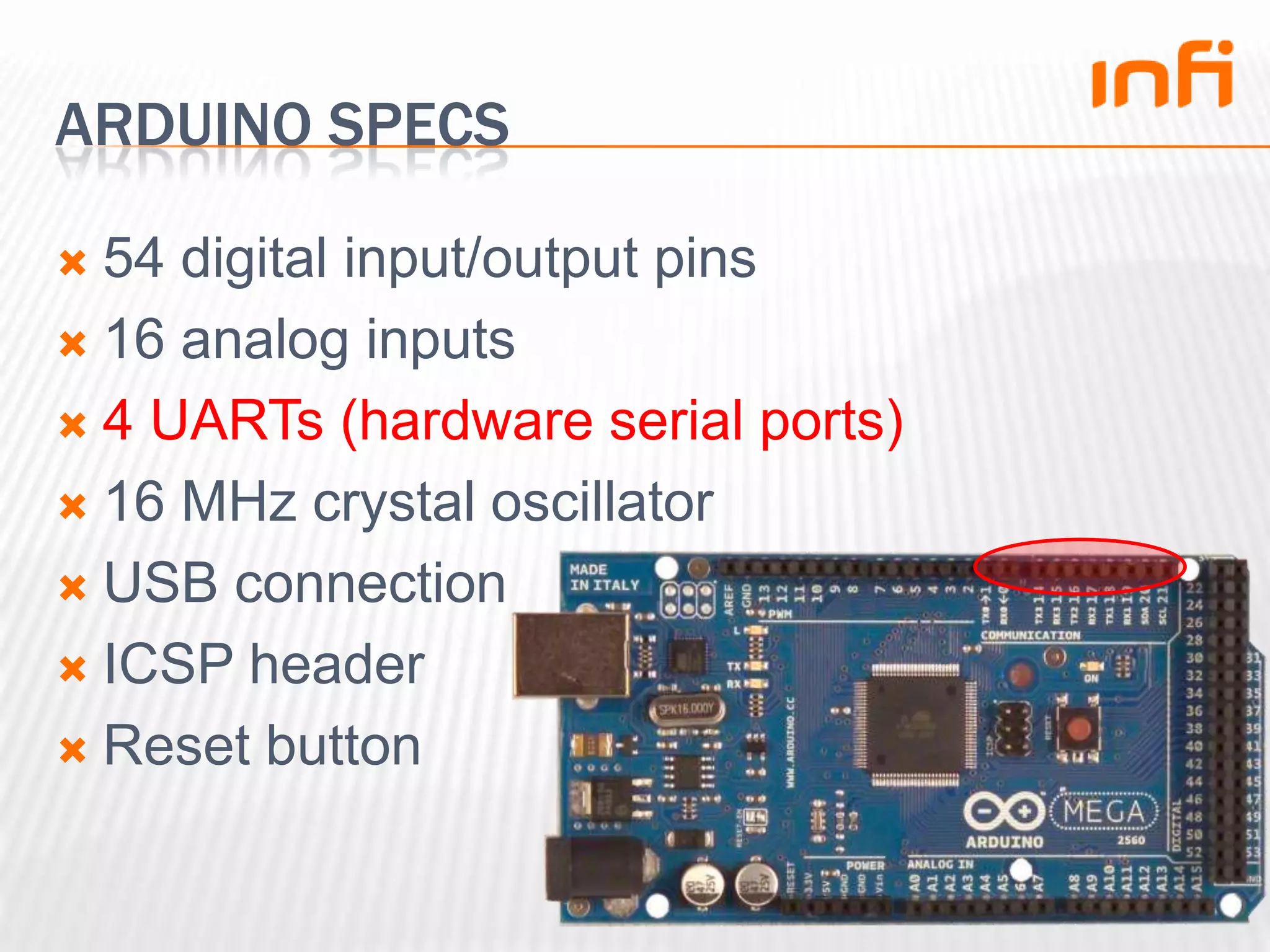

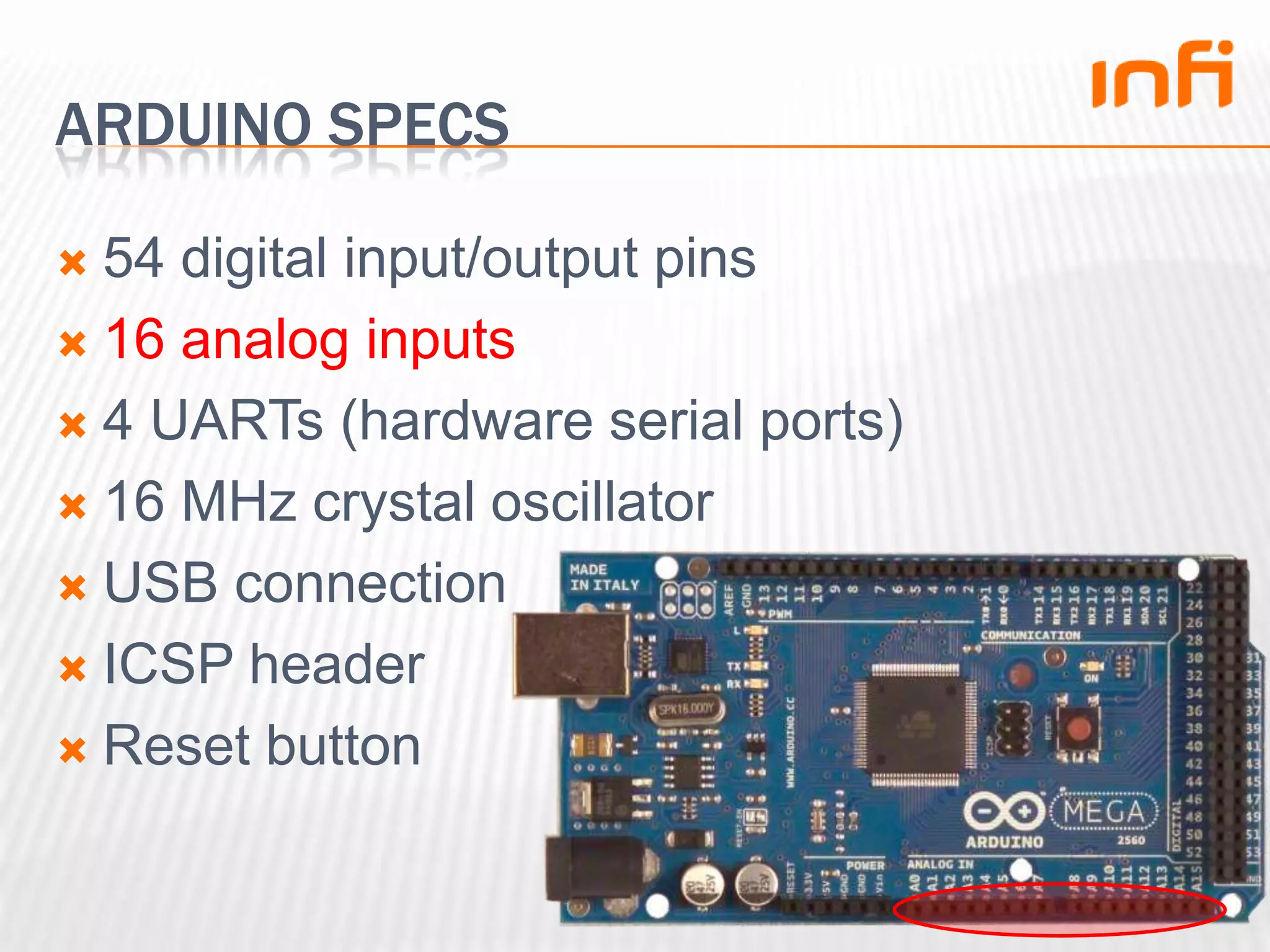

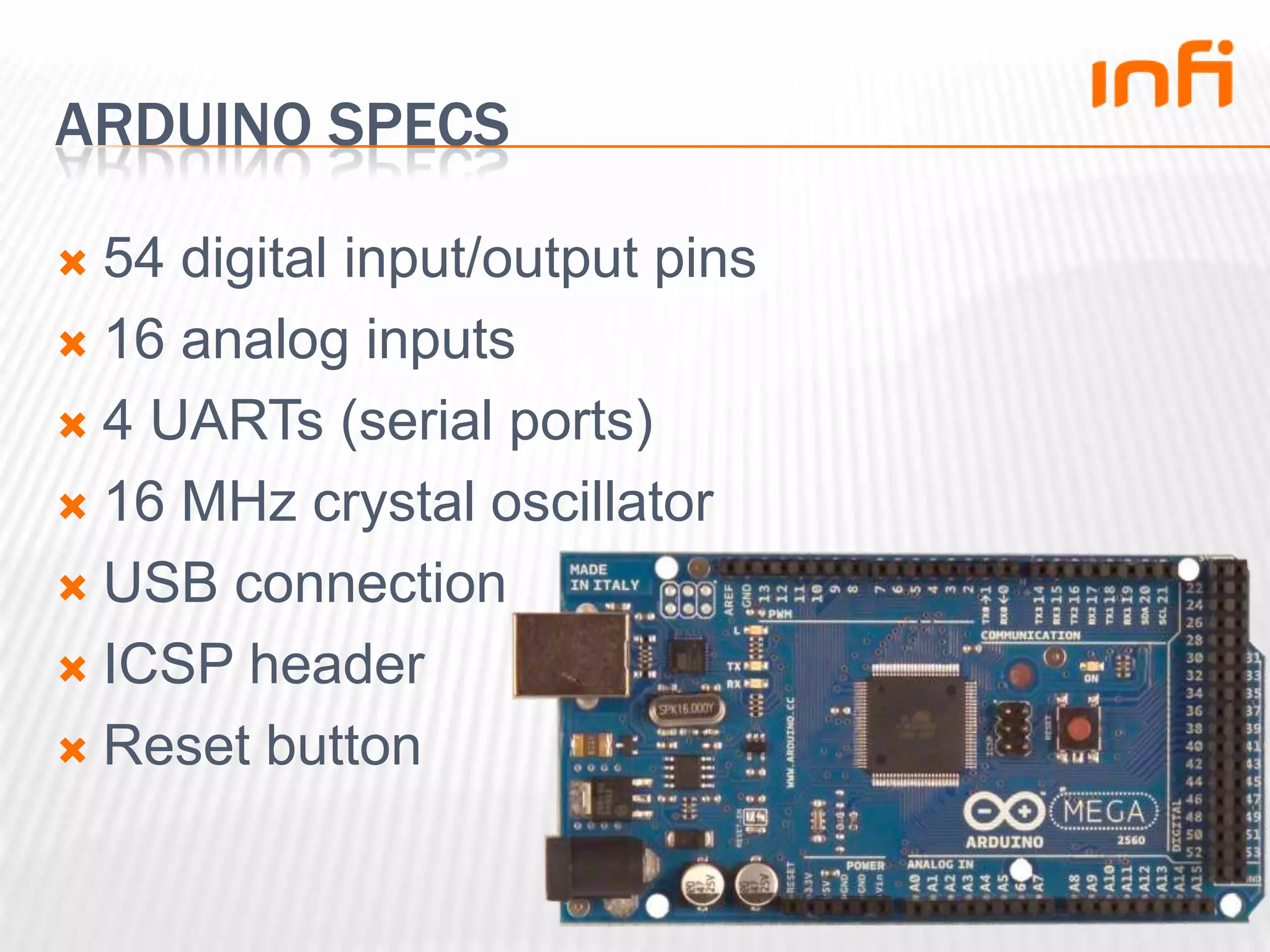

- 7. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button

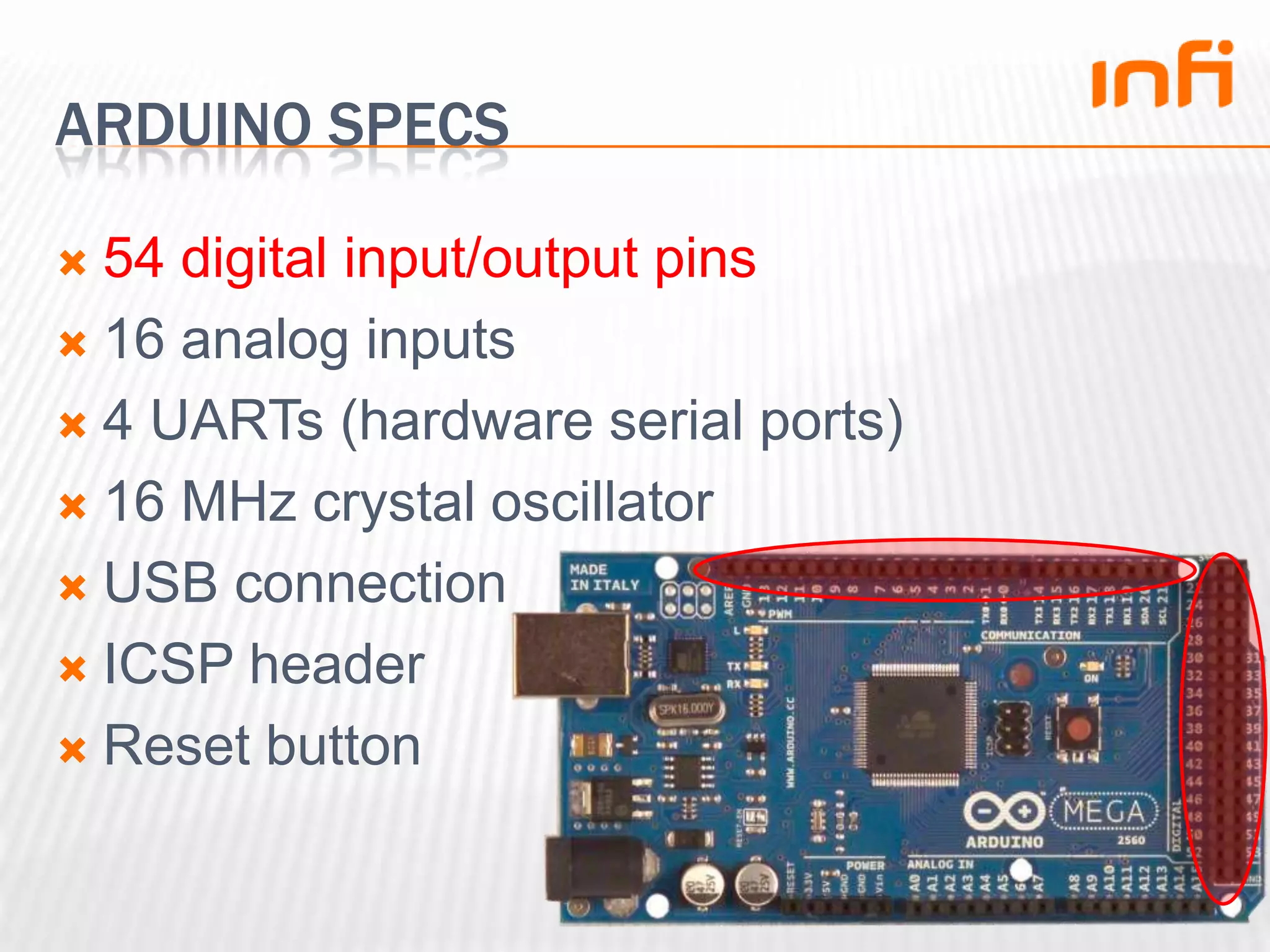

- 8. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 9. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 10. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 11. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 12. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 13. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 14. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 15. Arduino specs54 digitalinput/output pins16 analog inputs4 UARTs (hardware serial ports)16 MHz crystal oscillatorUSB connectionICSP headerReset button
- 16.
- 17.

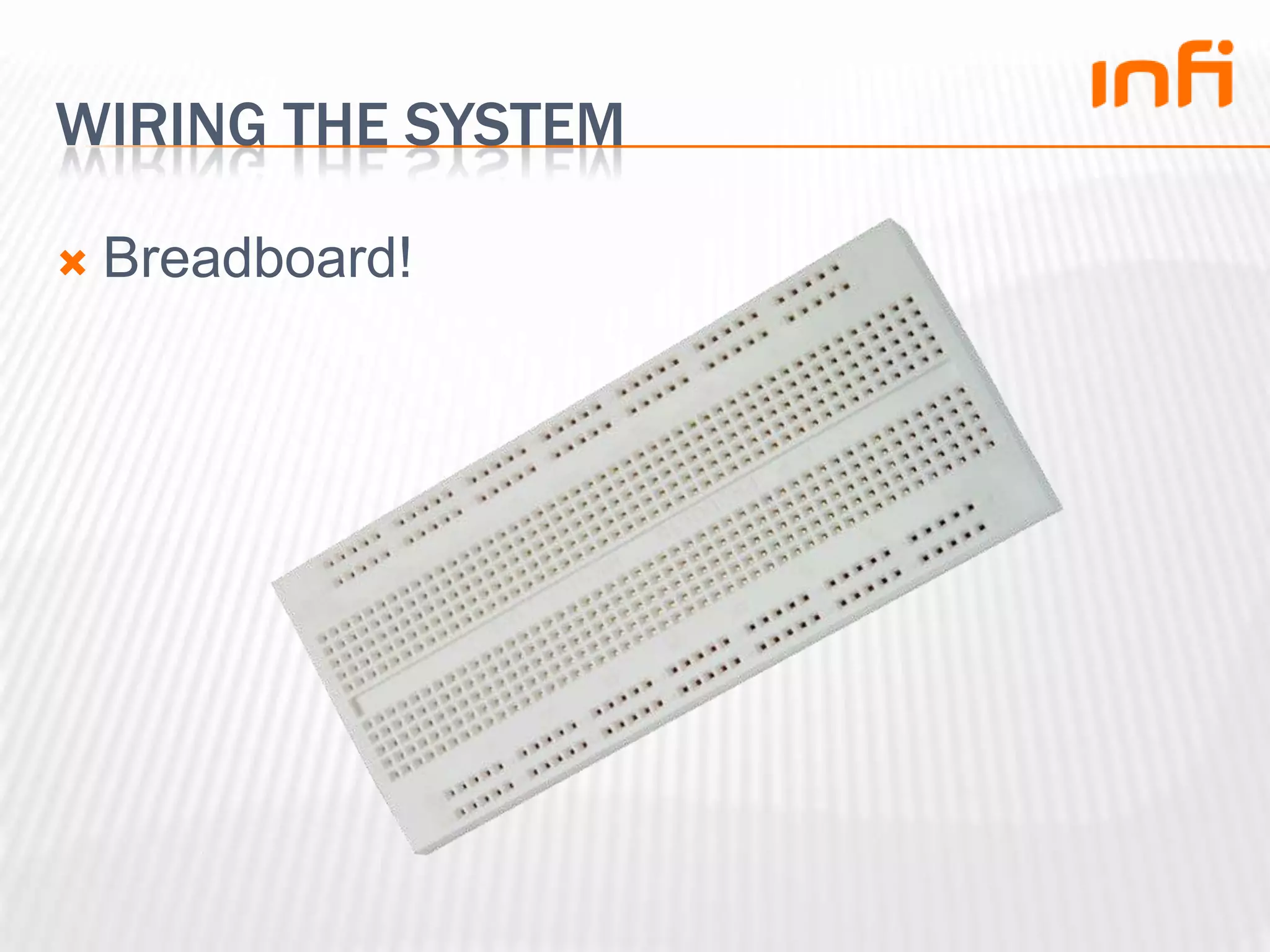

- 18.

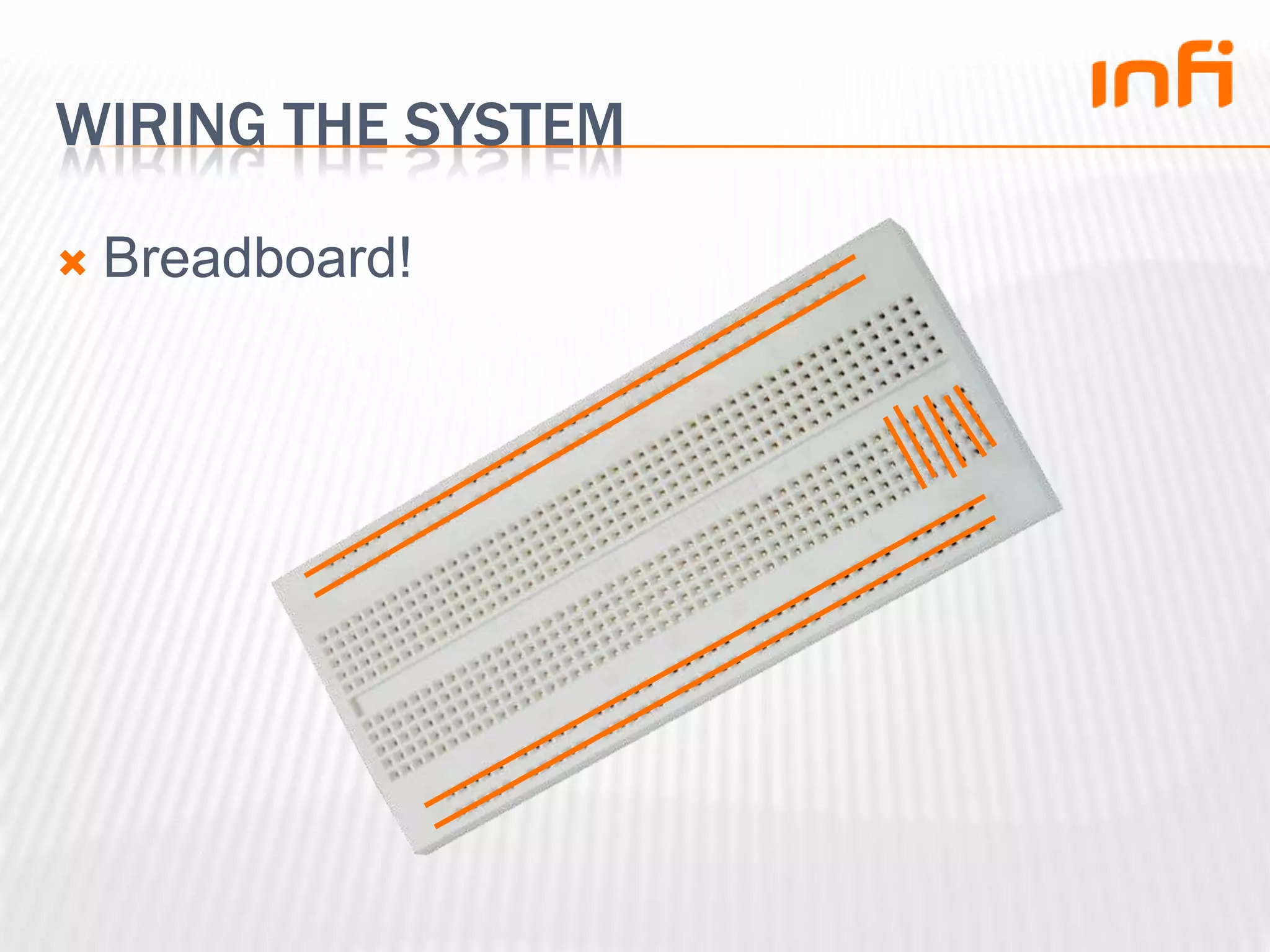

- 19.

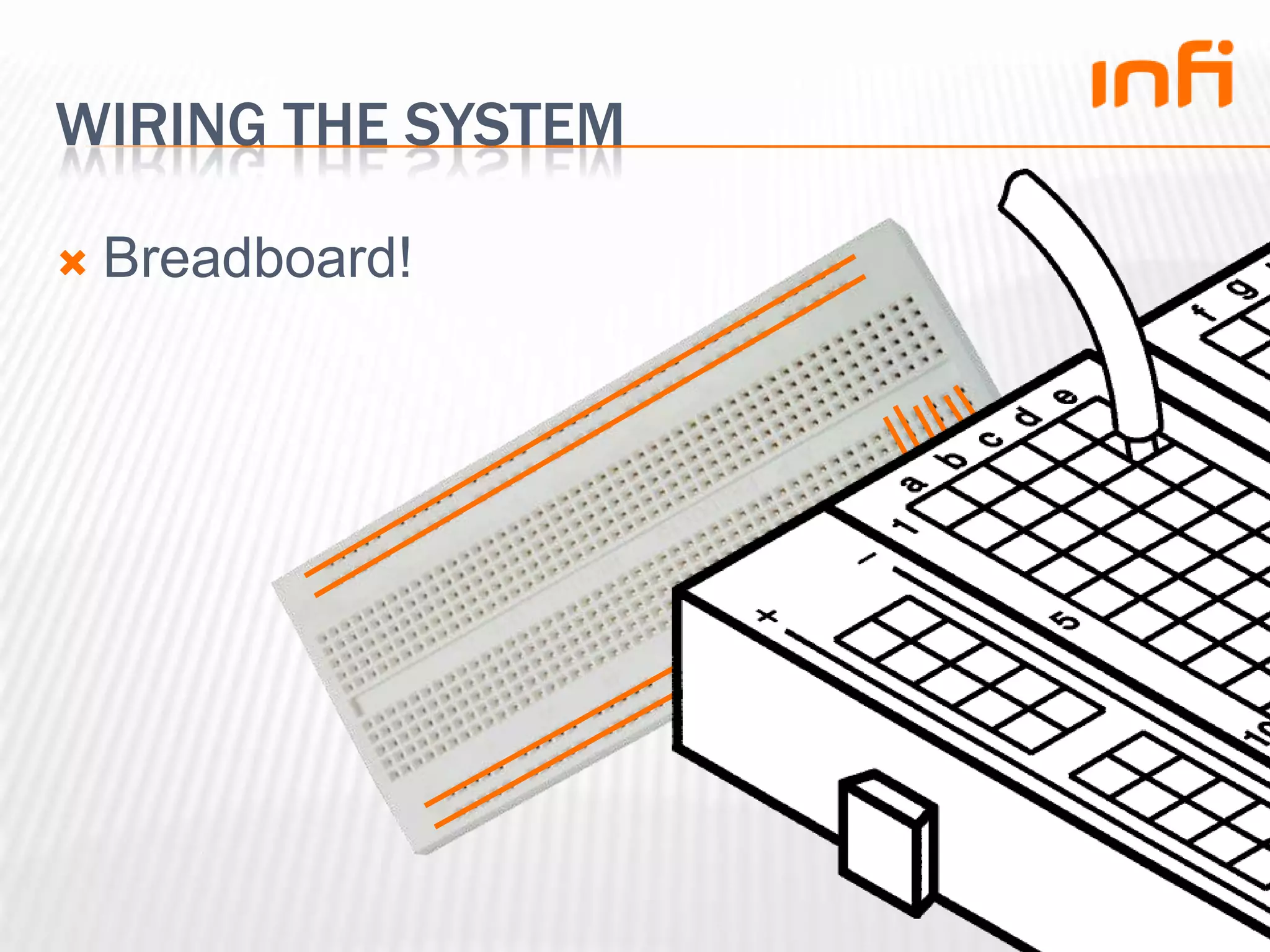

- 20.

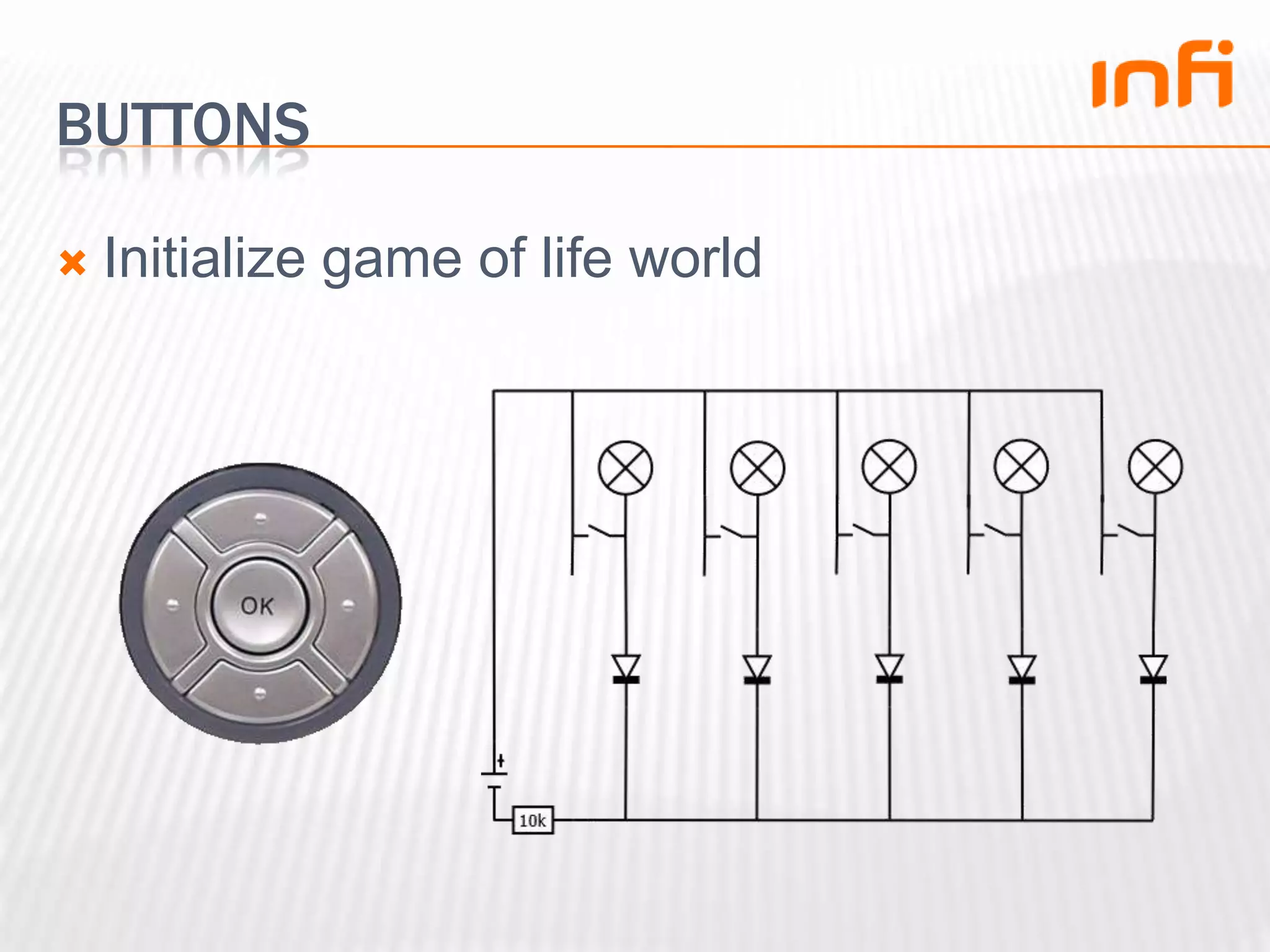

- 21. ButtonsInitialize game oflife world

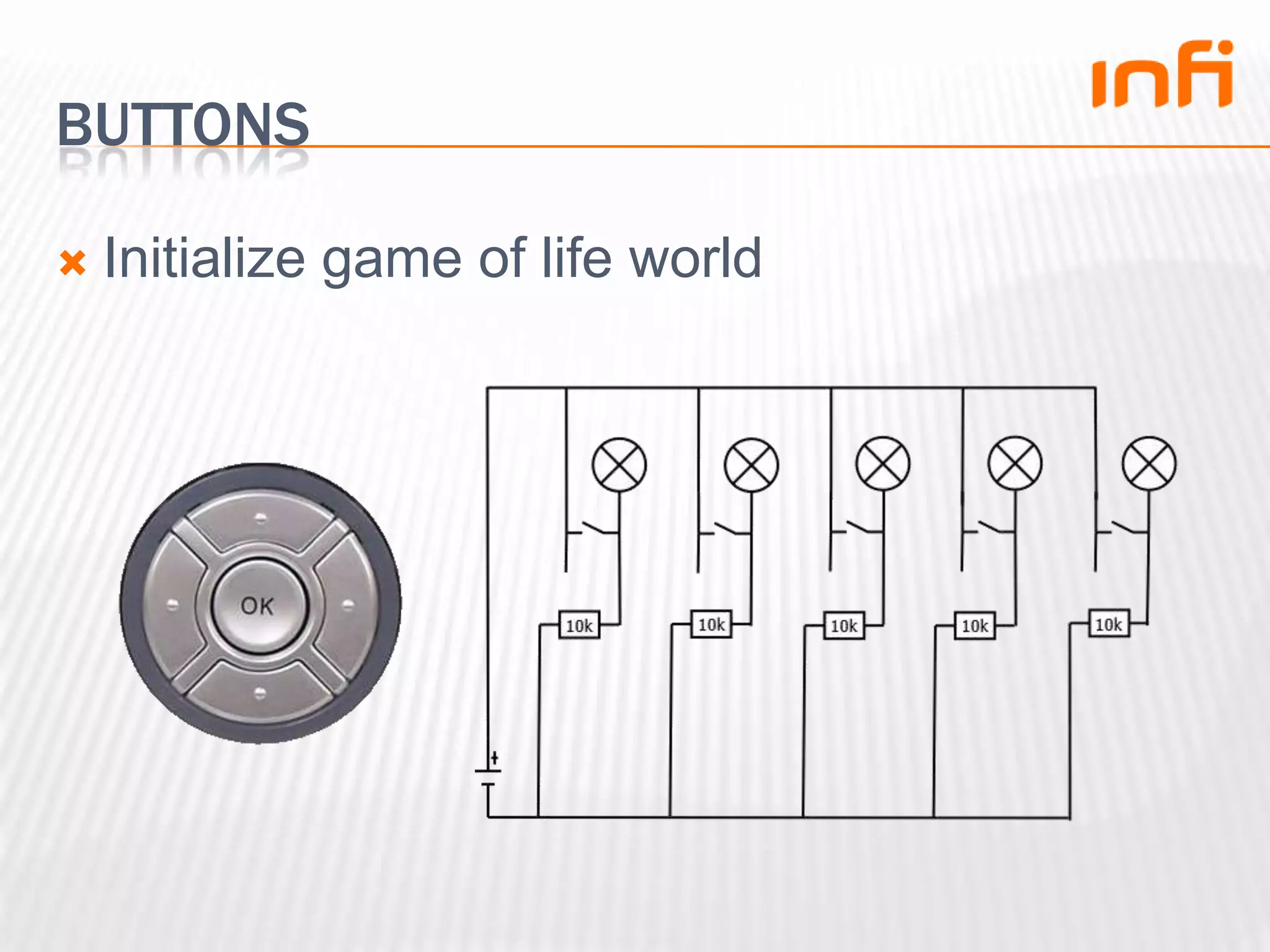

- 22. ButtonsInitialize game oflife world
- 23.

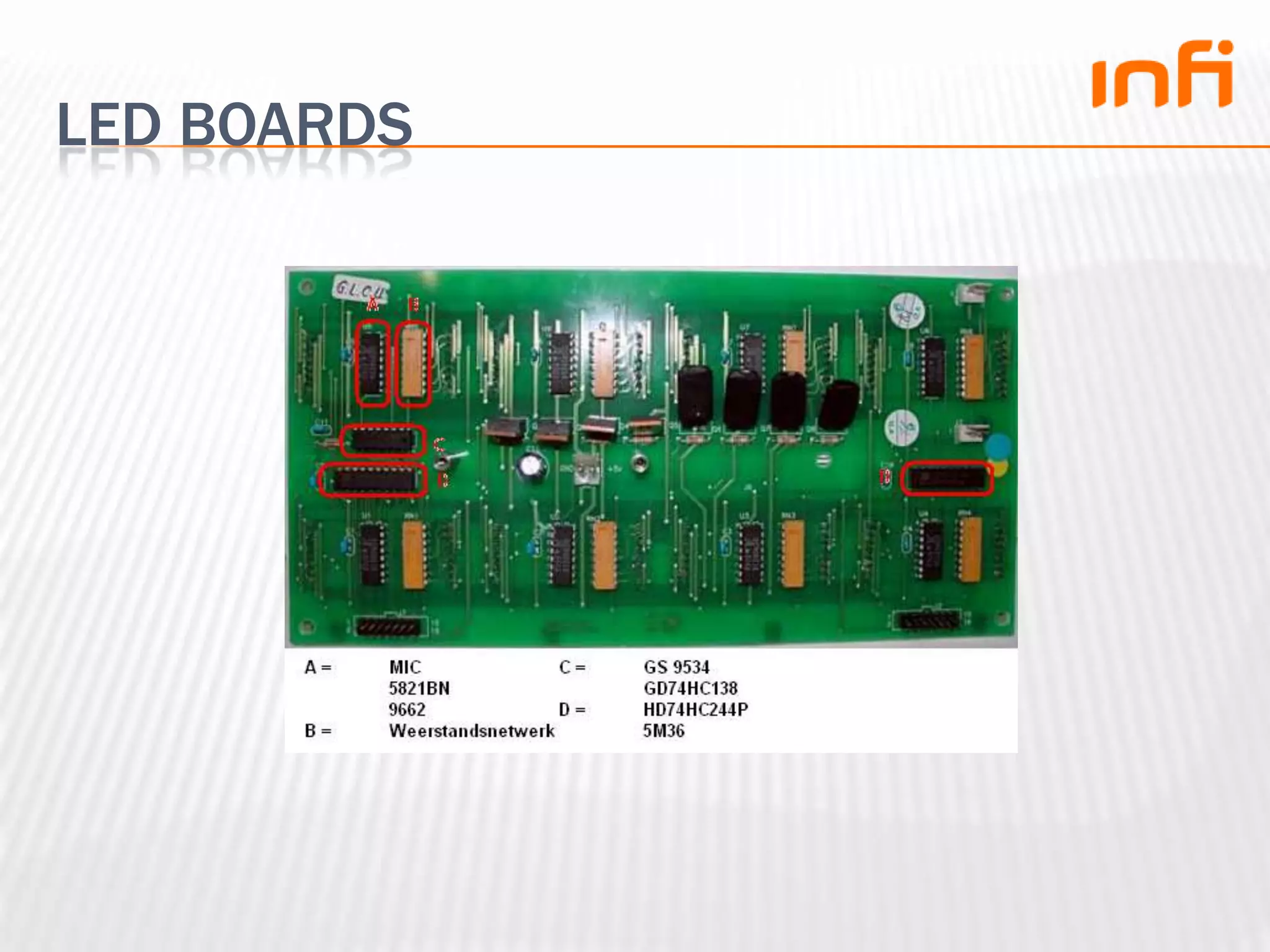

- 24.

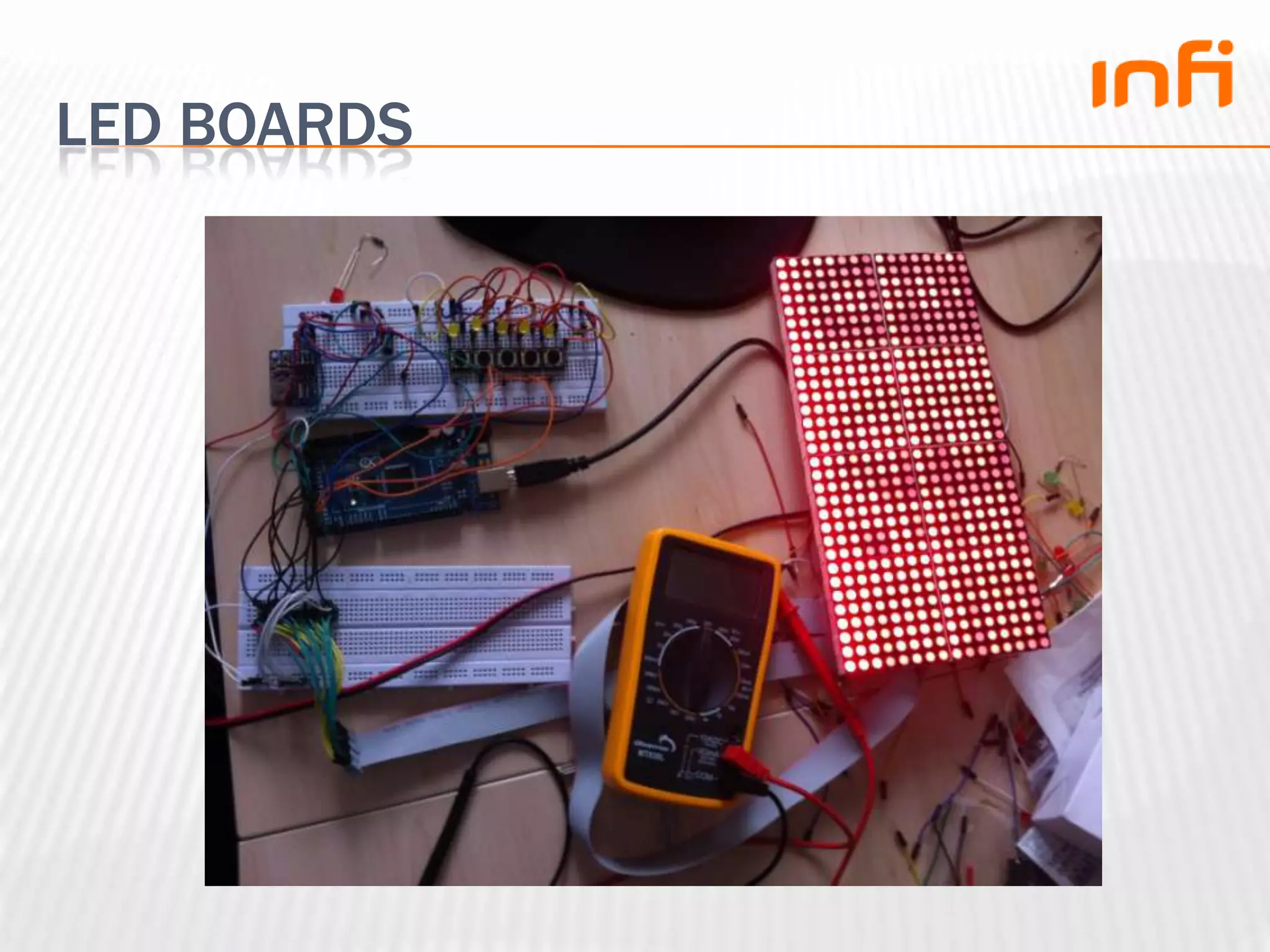

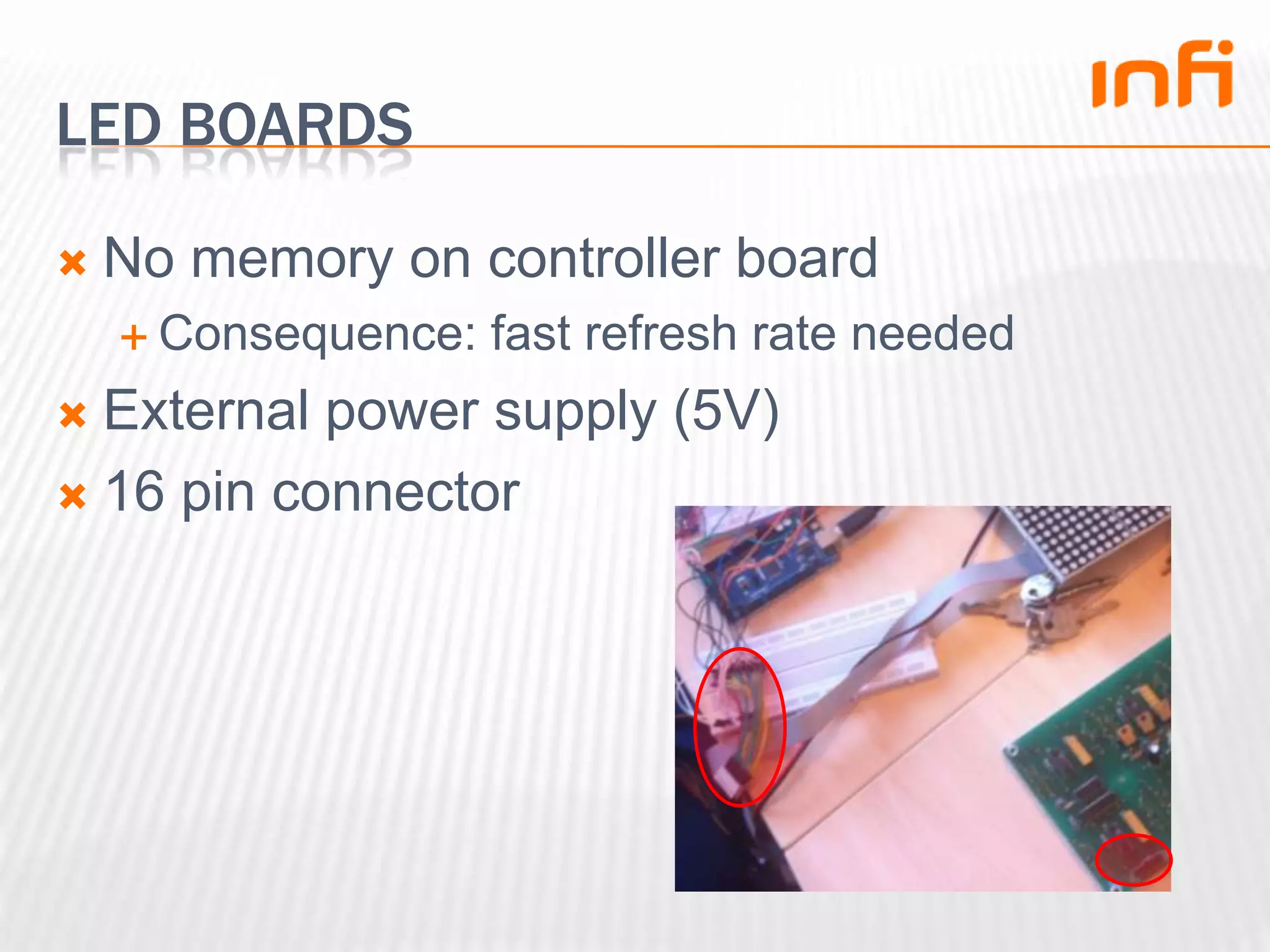

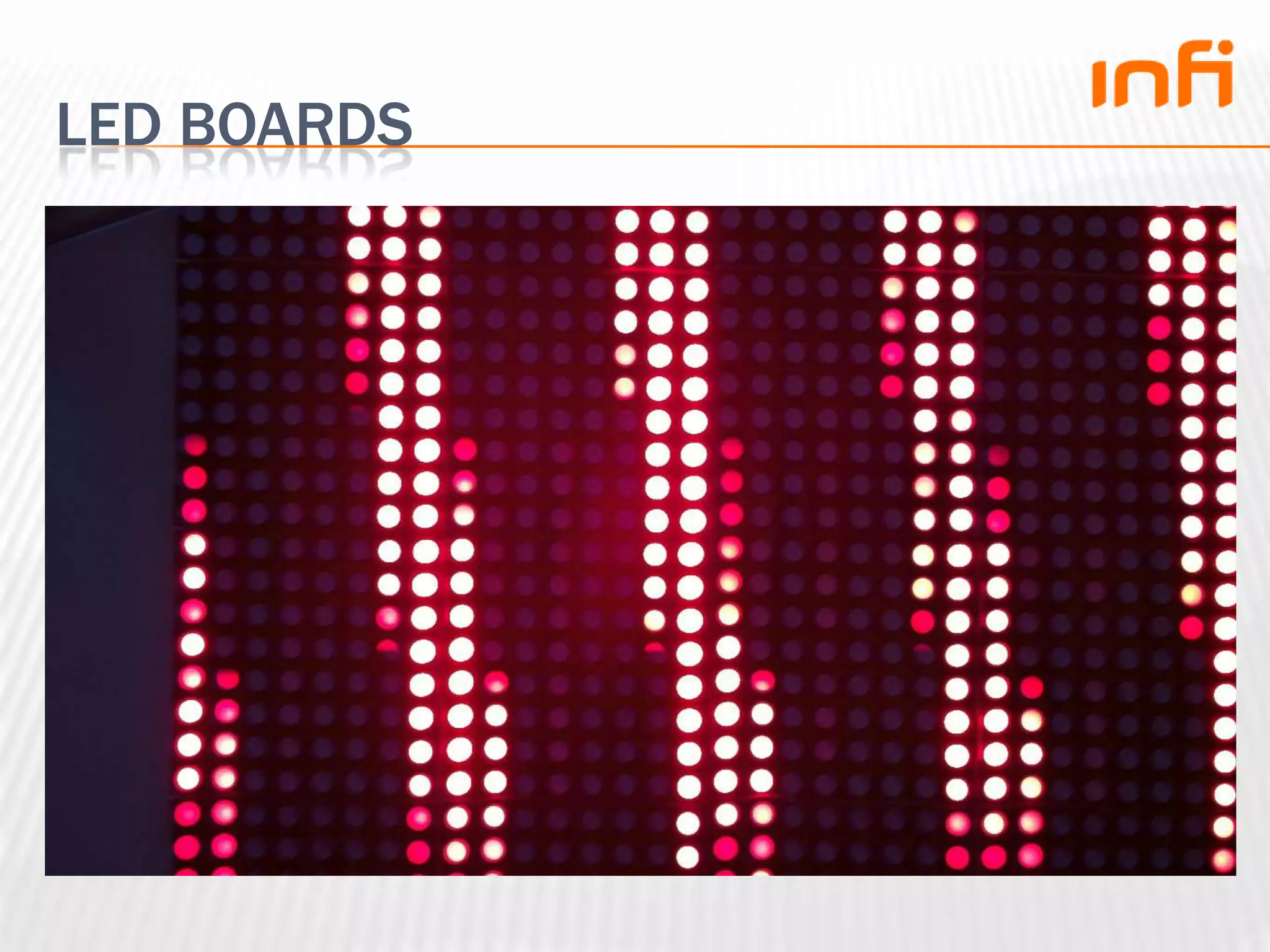

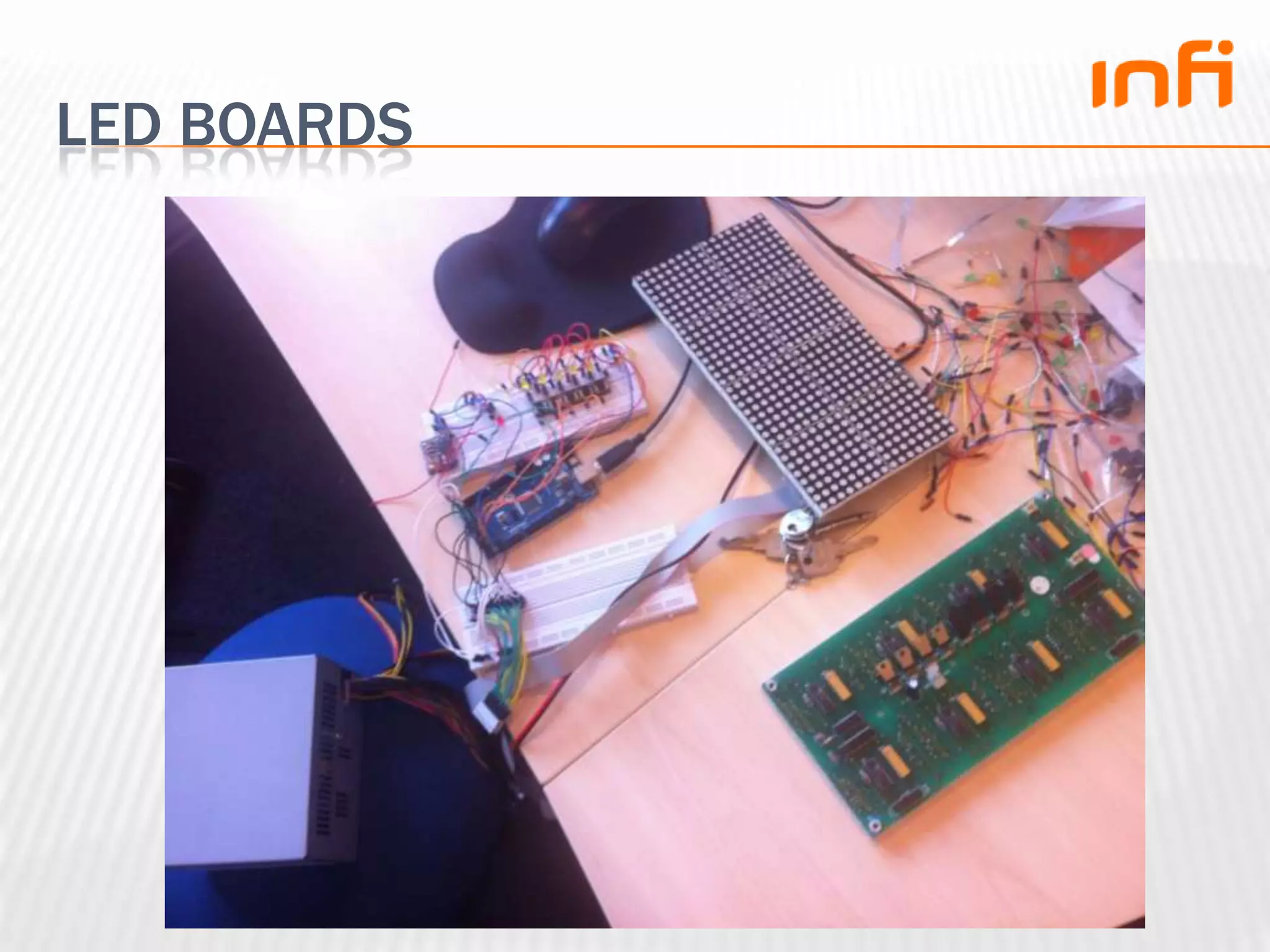

- 25. LED boardsNo memoryon controller boardConsequence: fast refresh rate neededExternal power supply (5V)16 pin connector
- 26.
- 27.

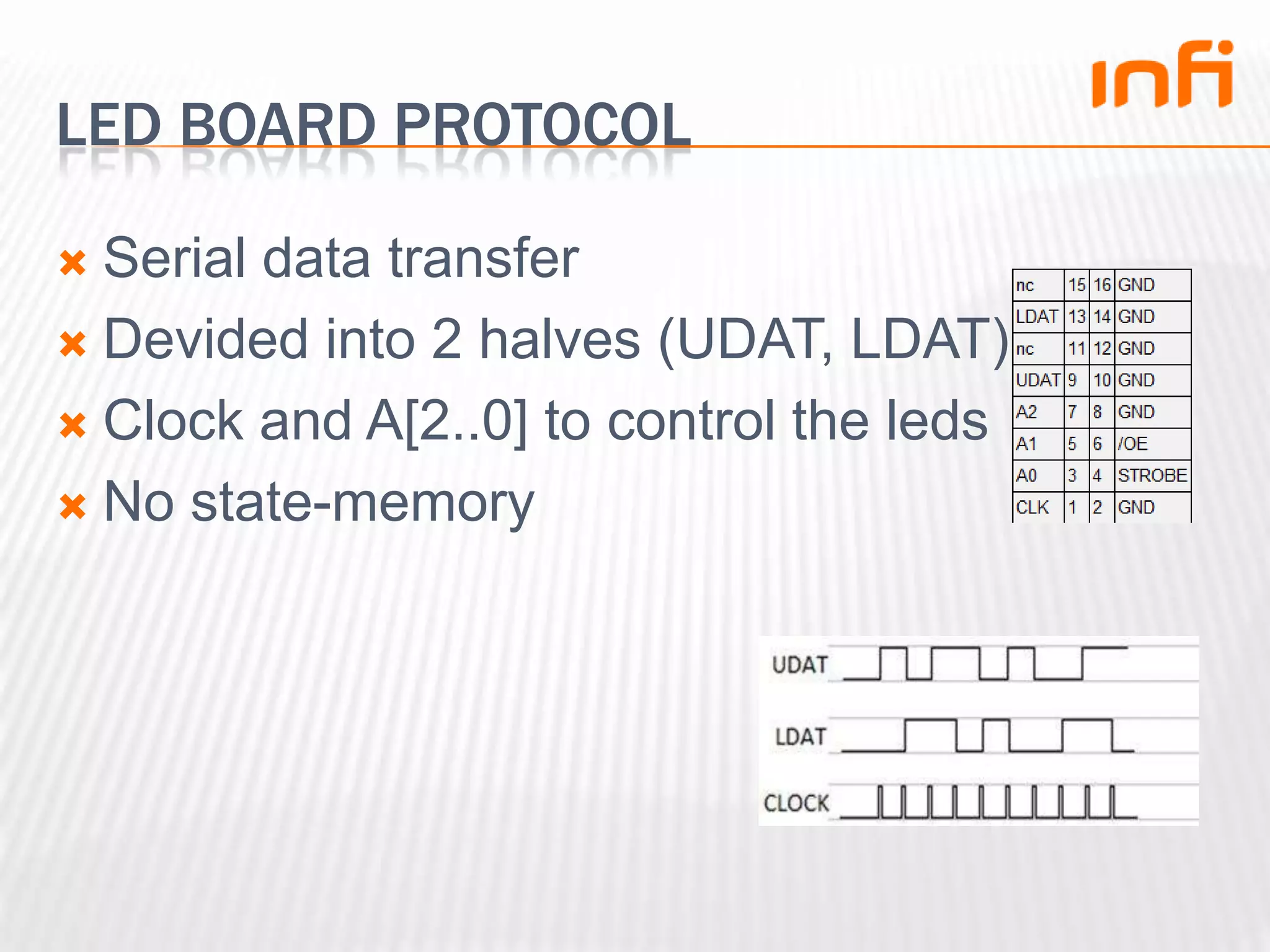

- 28. LED BOARD PROTOCOLSerialdata transferDevided into 2 halves (UDAT, LDAT)Clock and A[2..0] to control the ledsNo state-memory
- 29.

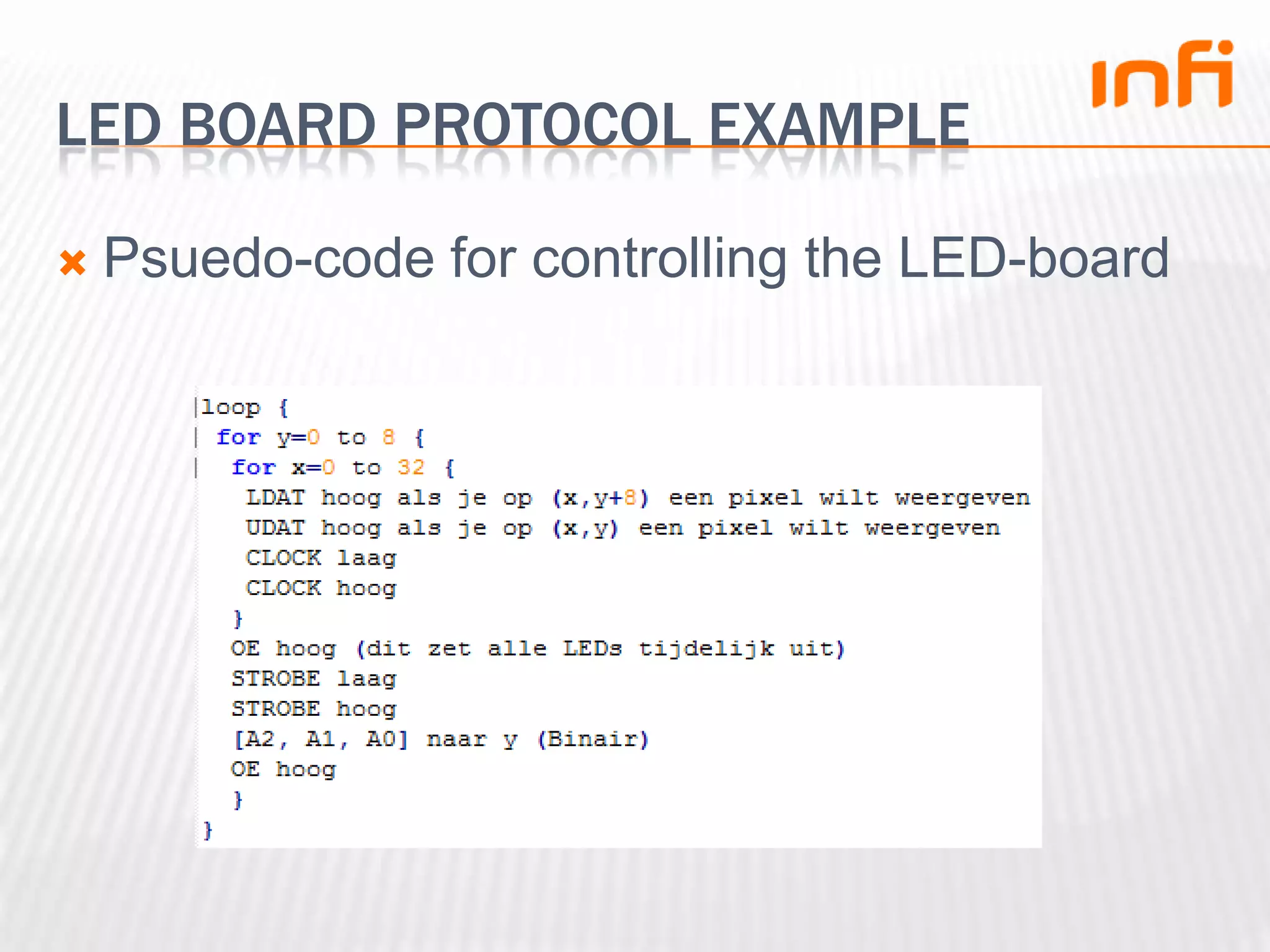

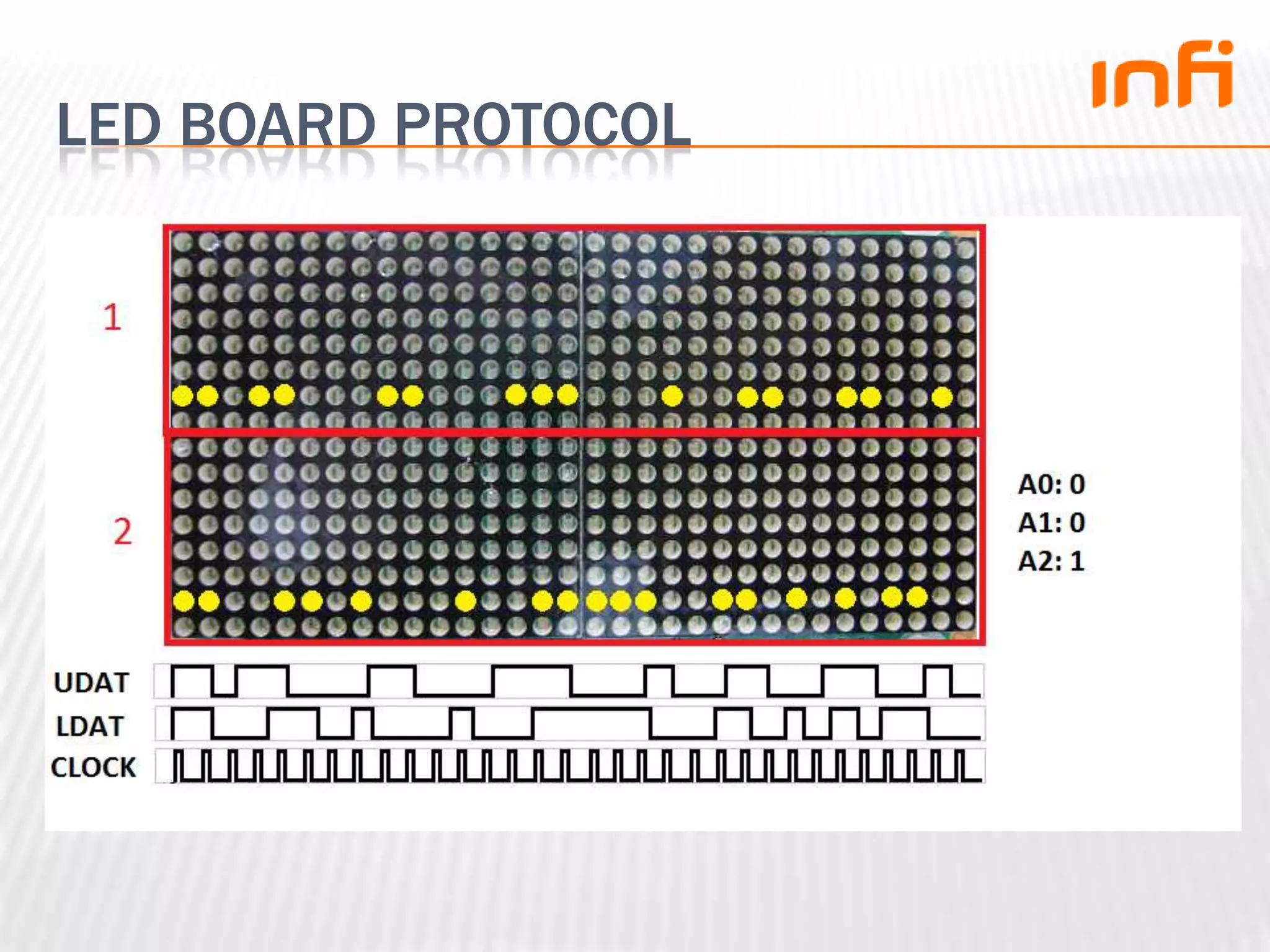

- 30. LED BOARD PROTOCOLexamplePsuedo-code for controlling the LED-board
- 31.

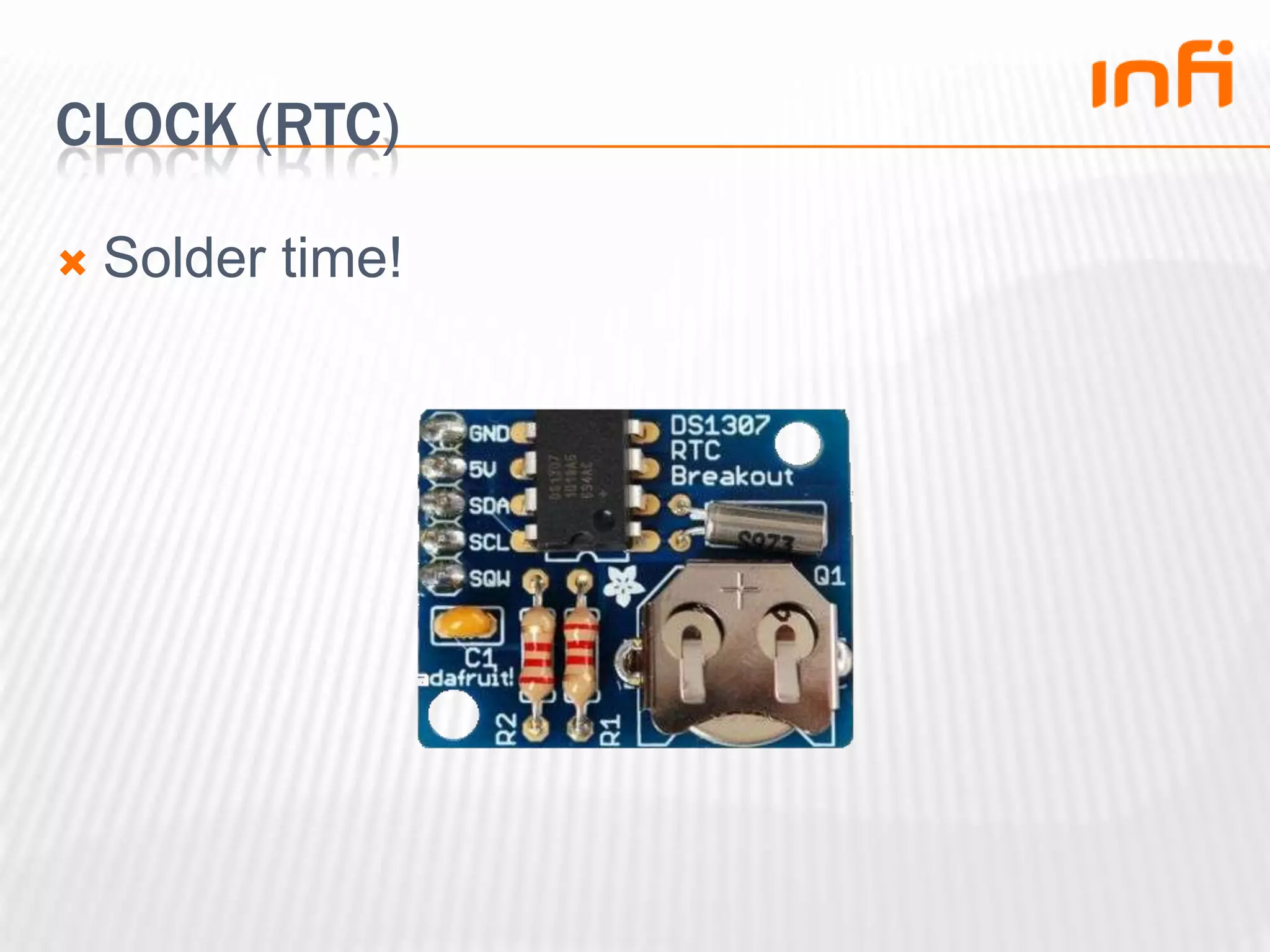

- 32.

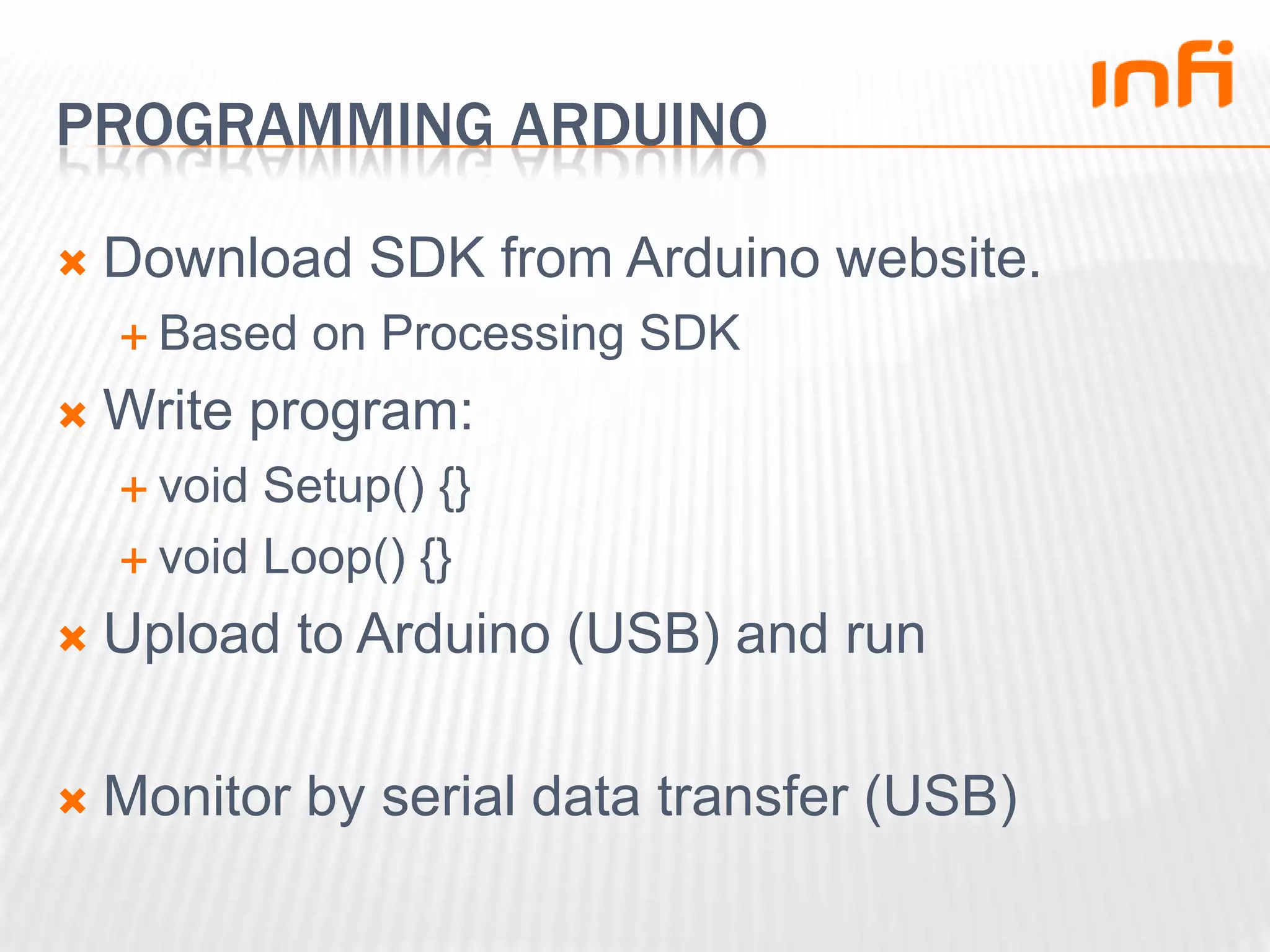

- 33. Programming arduinoDownload SDKfrom Arduino website.Based on Processing SDKWrite program:void Setup() {}void Loop() {}Upload to Arduino (USB) and runMonitor by serial data transfer (USB)

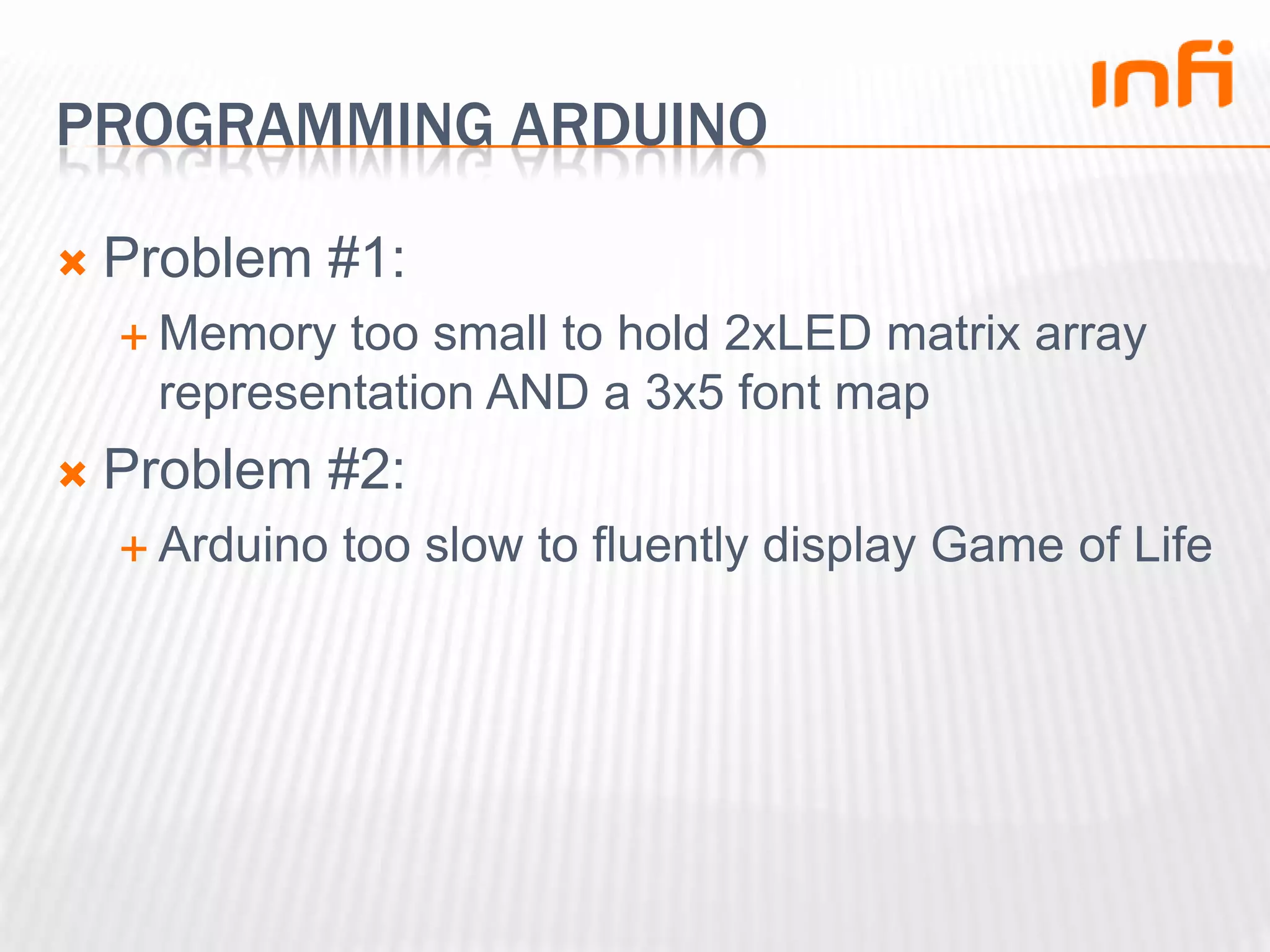

- 34. Programming arduinoProblem #1:Memorytoo small to hold 2xLED matrix array representationAND a 3x5 font mapProblem #2:Arduinotoo slow to fluently display Game of Life

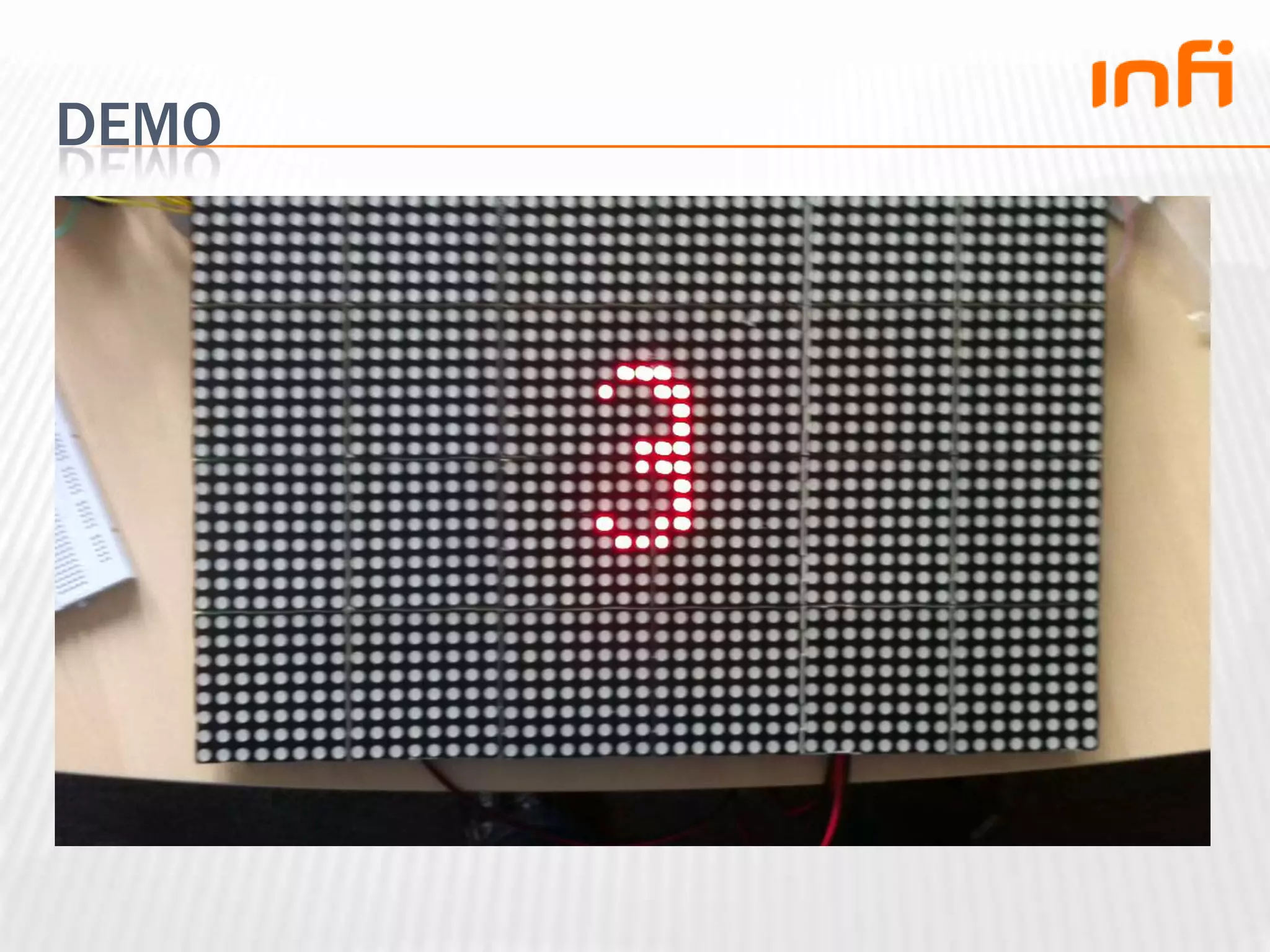

- 35.

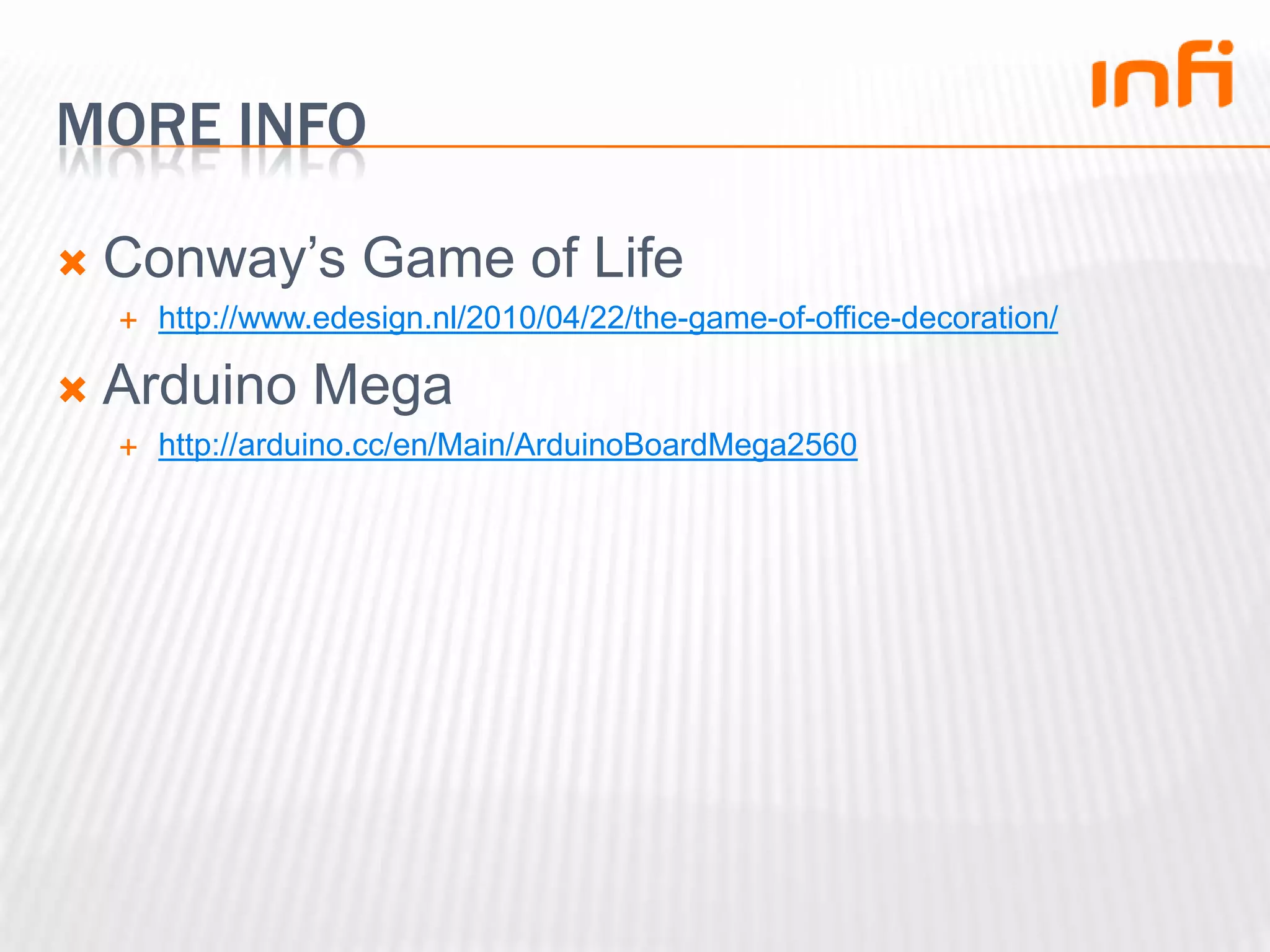

- 36. More infoConway’s Gameof Lifehttp://www.edesign.nl/2010/04/22/the-game-of-office-decoration/Arduino Megahttp://arduino.cc/en/Main/ArduinoBoardMega2560
