Continuous mobile automation in build pipeline
The document outlines a continuous mobile automation process in a build pipeline, presented by Dmitry Lemeshko at Automation Day Berlin 2018. It discusses a streamlined approach to mobile test automation, with specific focus on building APKs, running tests, and managing environments using GitLab CI. The presentation highlights the challenges faced in maintaining tests and the benefits of implementing a cloud-based testing infrastructure for improved efficiency and flexibility.
Continuous mobile automation in build pipeline
- 1. Continuous mobile automation inbuild pipeline Automation Day Berlin 2018
- 2. Hello! I am DmitryLemeshko Mobile QA Automation @ FrontierCarGroup, Berlin 6+ years in Test Automation AutomateMeNow dmle 2
- 3. Frontier Car Group ●6 markets ● 3 web apps ● mobile apps ● ~20 microservices 3
- 4. Let's start Mobile testautomation from scratch 4
- 5.

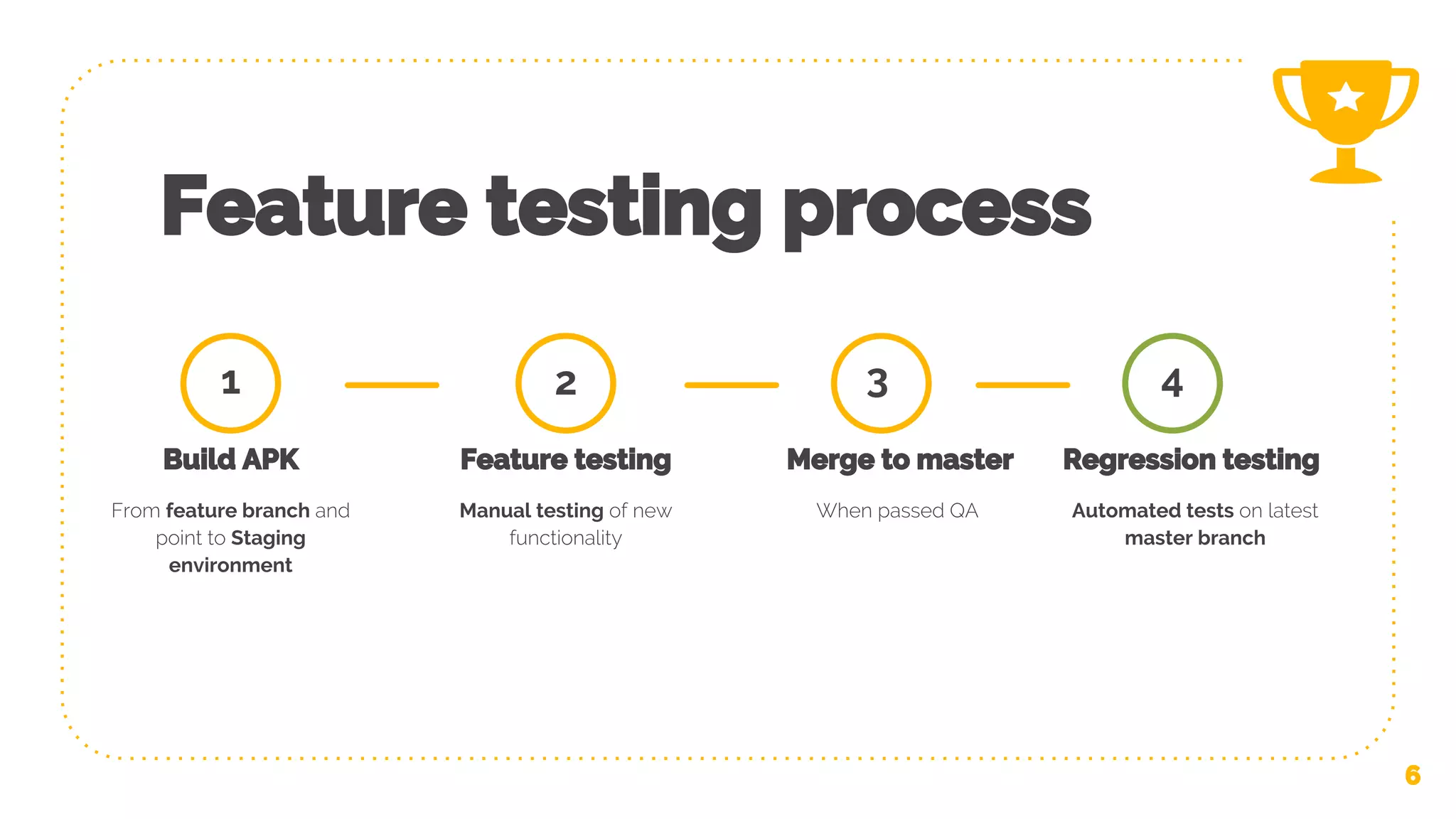

- 6. Feature testing process 6 1 BuildAPK From feature branch and point to Staging environment Feature testing Manual testing of new functionality 2 Merge to master When passed QA Automated tests on latest master branch 3 Regression testing 4

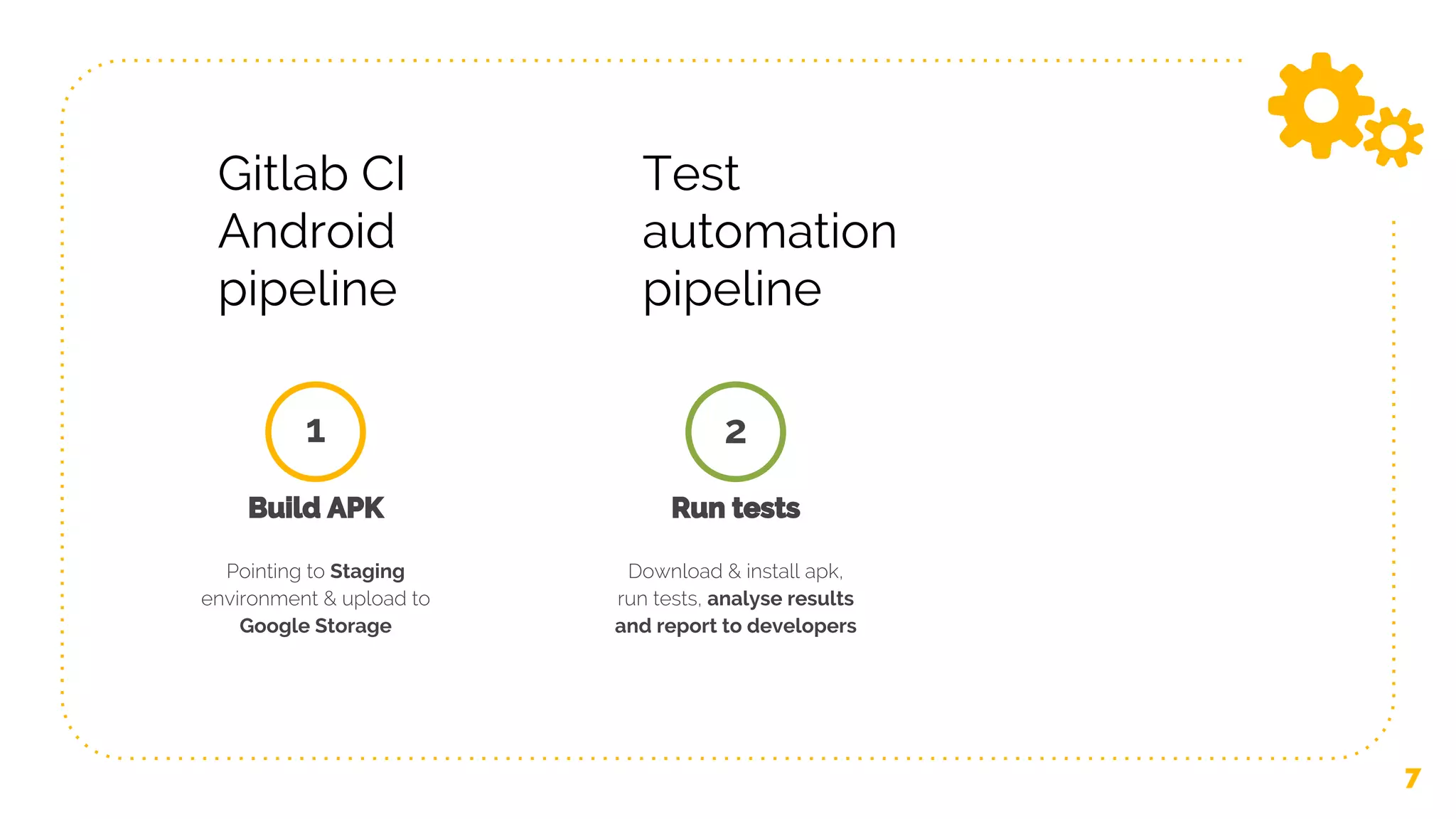

- 7. 7 1 Build APK Pointing toStaging environment & upload to Google Storage Run tests Download & install apk, run tests, analyse results and report to developers 2 Gitlab CI Android pipeline Test automation pipeline
- 8. First result ● Android/iOStests in same repo ● Regression testing on master ● Staging environment ● Local emulators 8
- 9. “ Work done. Anyissues? 9
- 10. “ Bugs are spottedlately 10
- 11. “ Hard to maintaintests 11
- 12. “ No fullcontrol over test environment 12
- 13.
- 14. “ Lack ofinterests from developers 14
- 15. Let’s think What dowe want to achieve? 15

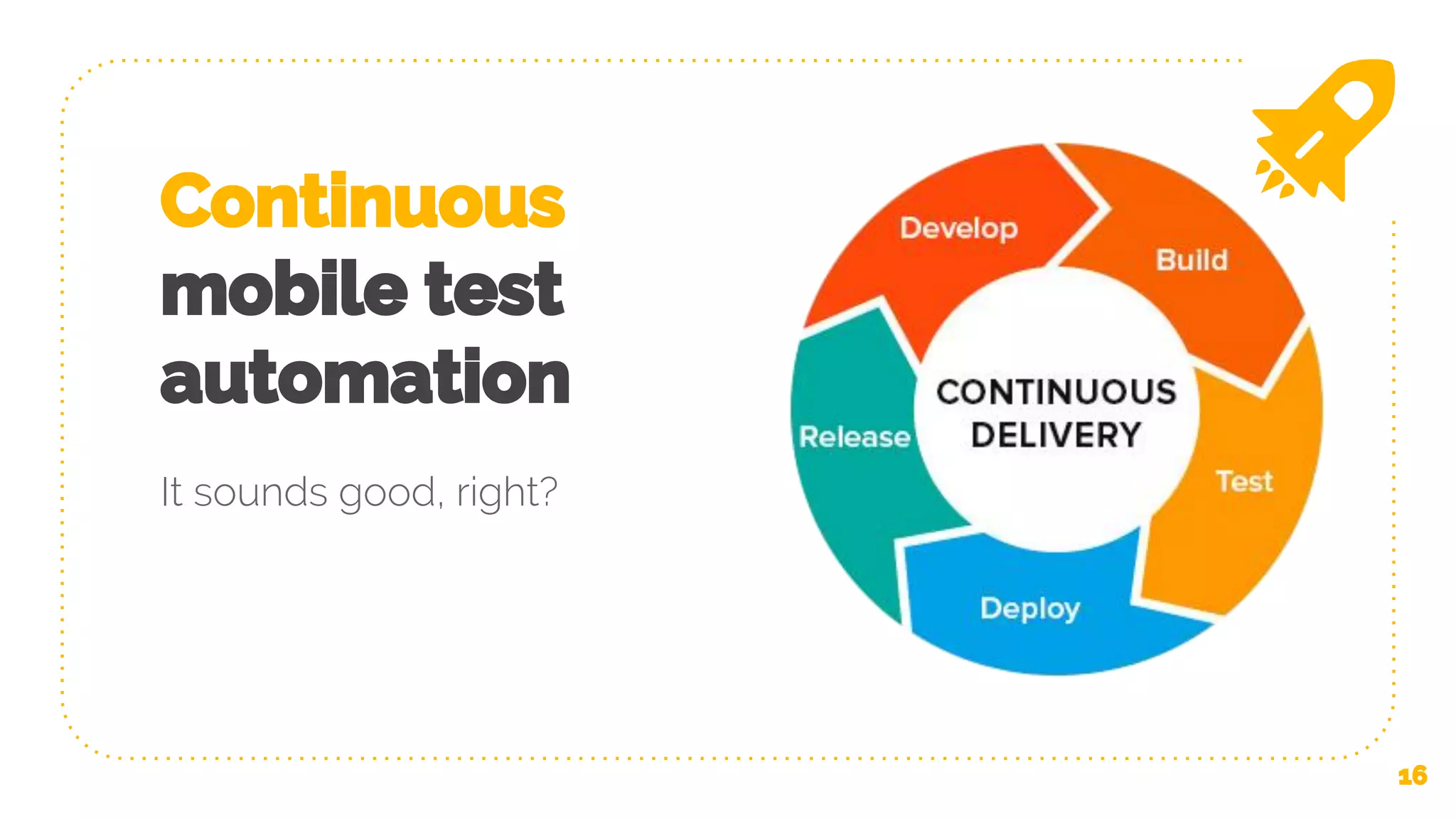

- 16. Continuous mobile test automation It soundsgood, right? 16

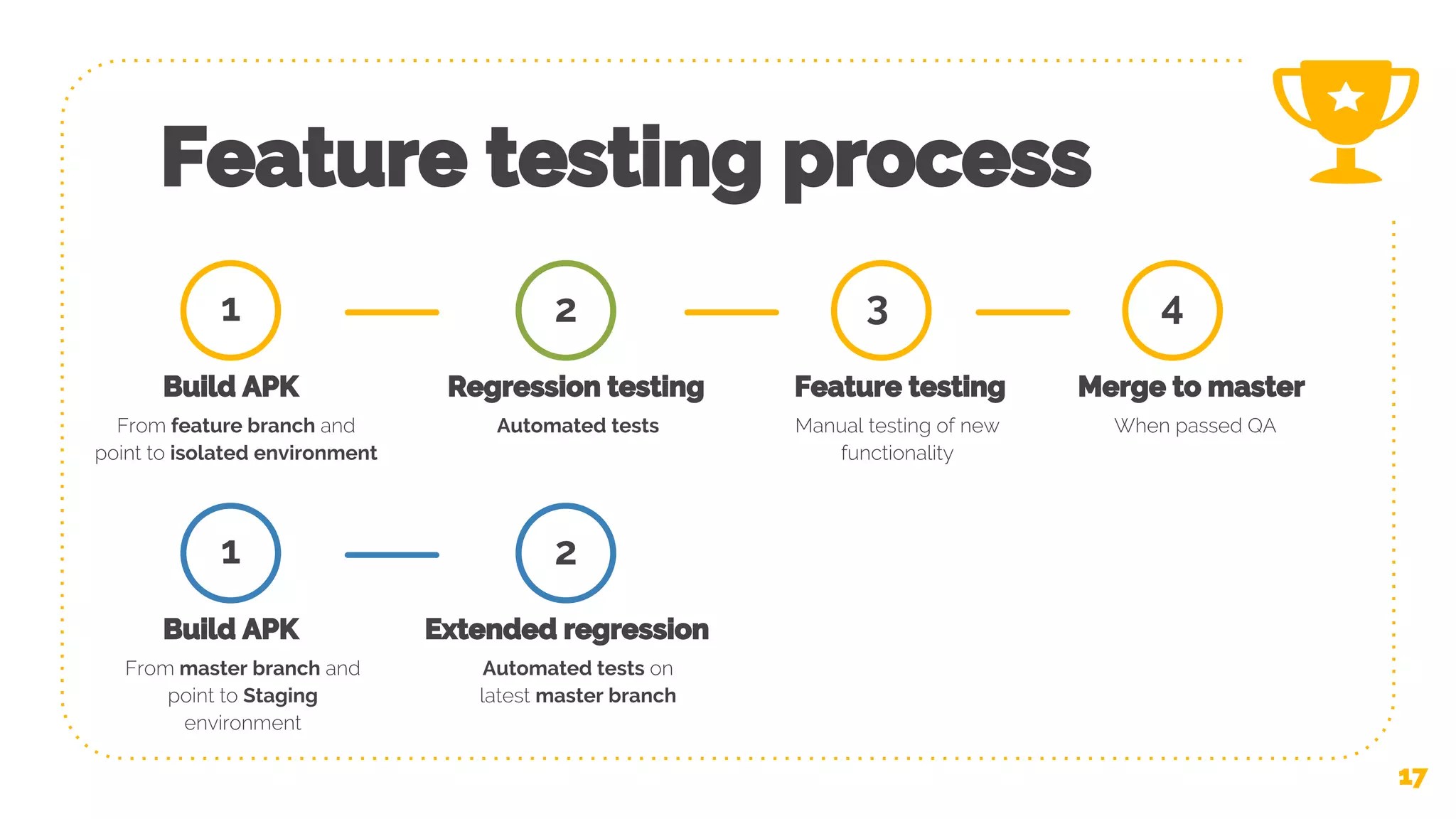

- 17. Feature testing process 17 1 BuildAPK From feature branch and point to isolated environment Regression testing Automated tests 2 Feature testing Manual testing of new functionality When passed QA 3 Merge to master 4 Build APK From master branch and point to Staging environment Extended regression Automated tests on latest master branch 1 2

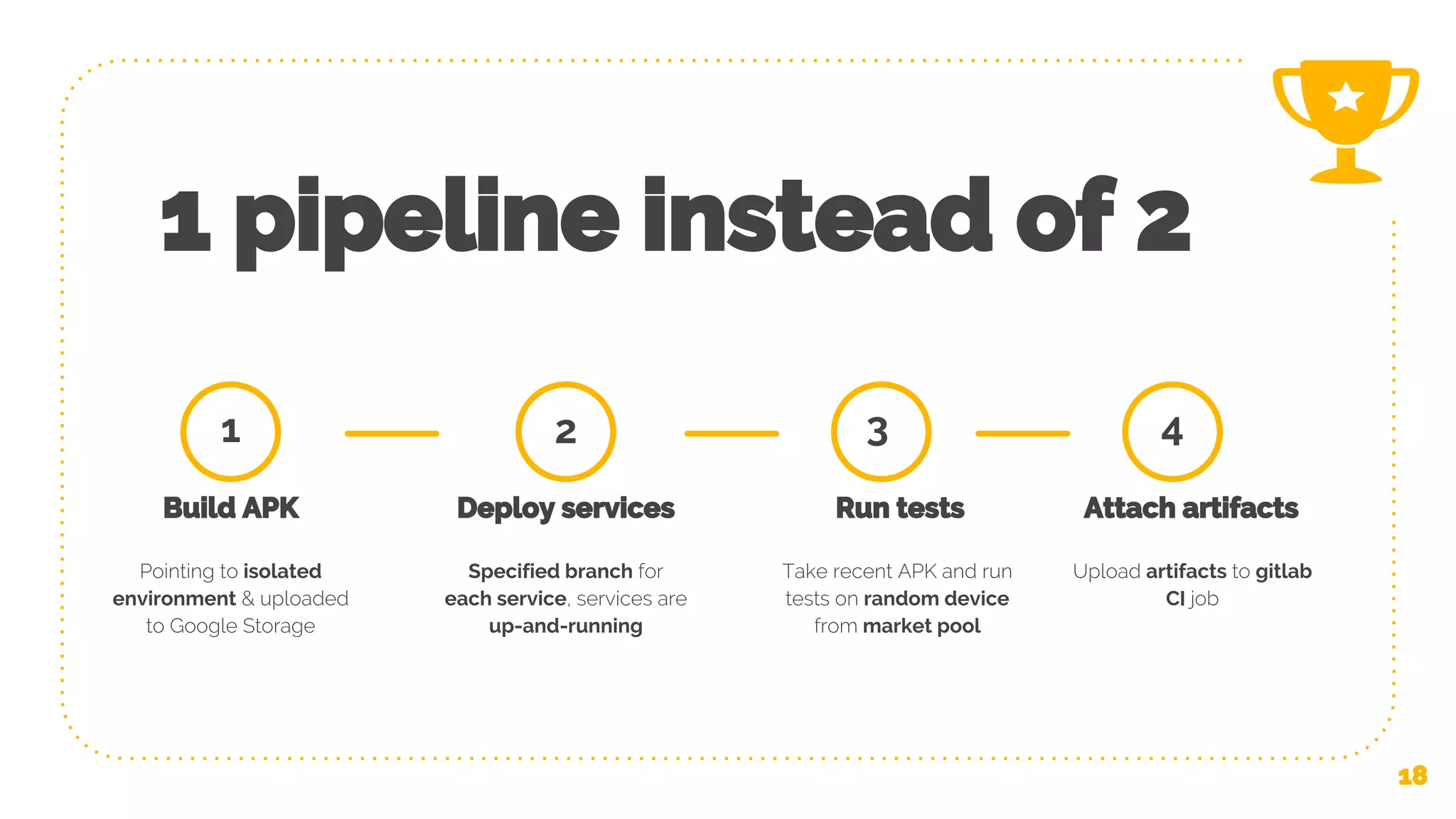

- 18. 1 pipeline insteadof 2 18 1 Build APK Pointing to isolated environment & uploaded to Google Storage Deploy services Specified branch for each service, services are up-and-running 2 Run tests Take recent APK and run tests on random device from market pool Upload artifacts to gitlab CI job 3 Attach artifacts 4

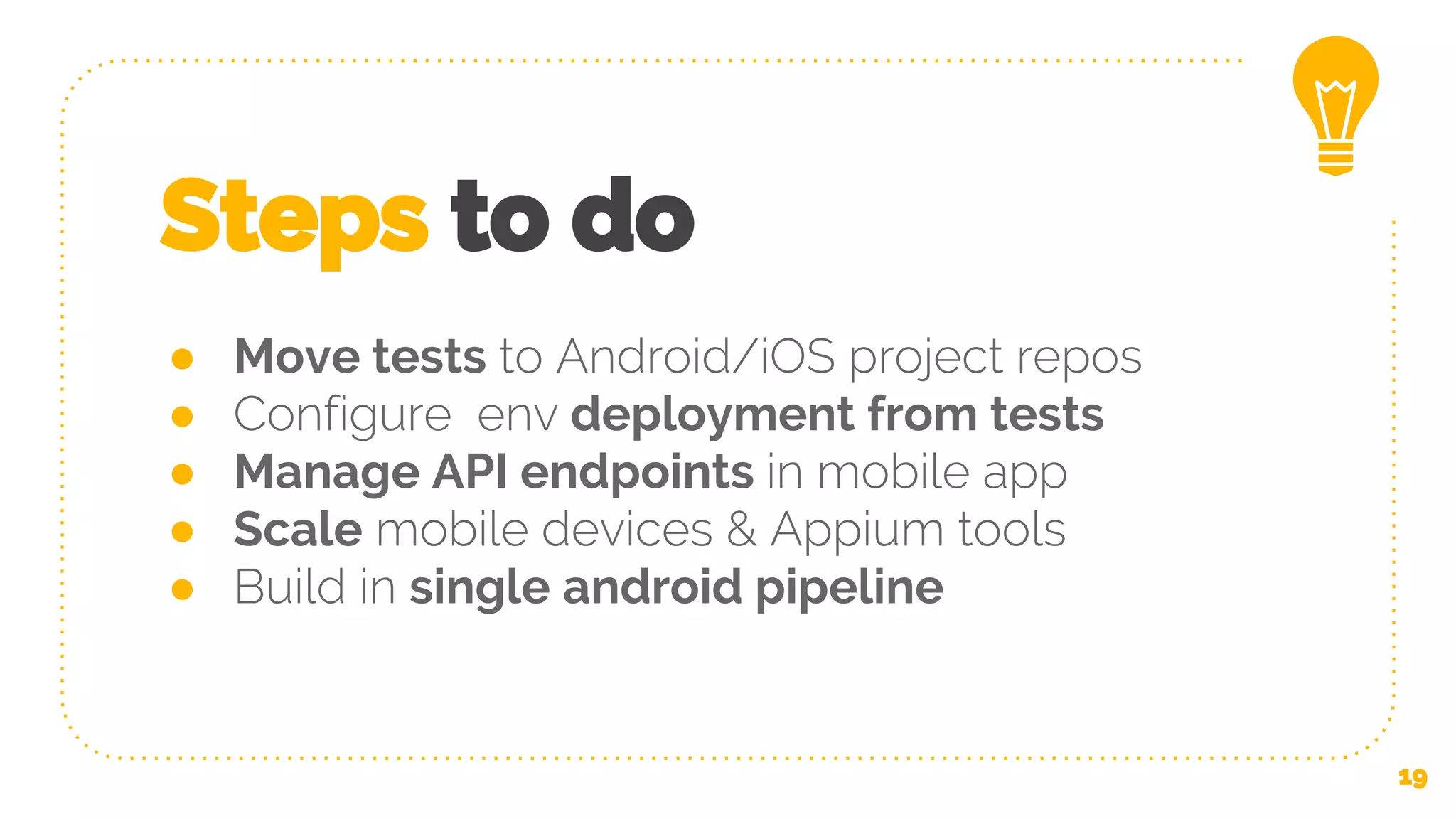

- 19. Steps to do ●Move tests to Android/iOS project repos ● Configure env deployment from tests ● Manage API endpoints in mobile app ● Scale mobile devices & Appium tools ● Build in single android pipeline 19

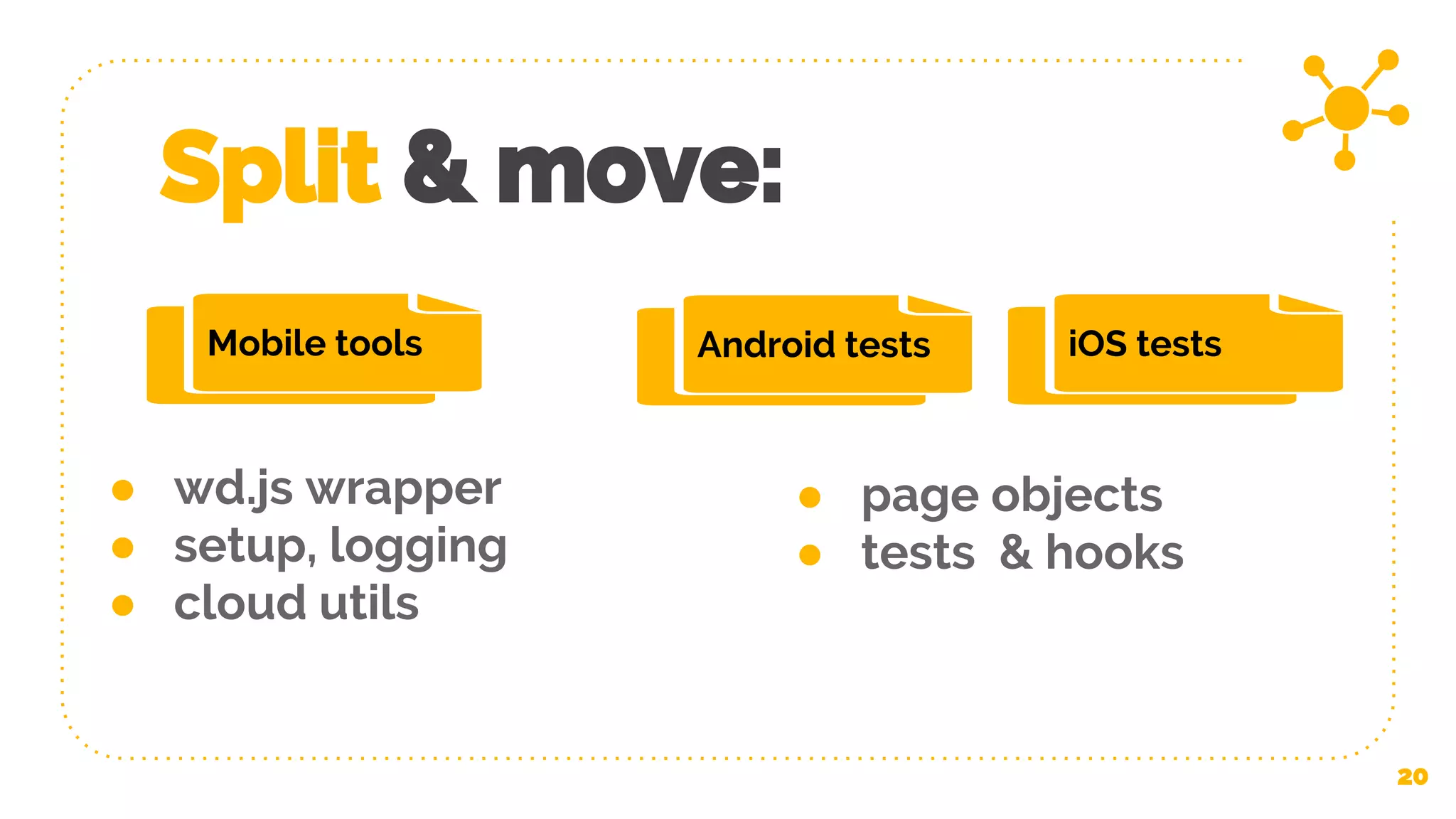

- 20. Split & move: 20 Mobiletools iOS testsAndroid tests ● page objects ● tests & hooks ● wd.js wrapper ● setup, logging ● cloud utils

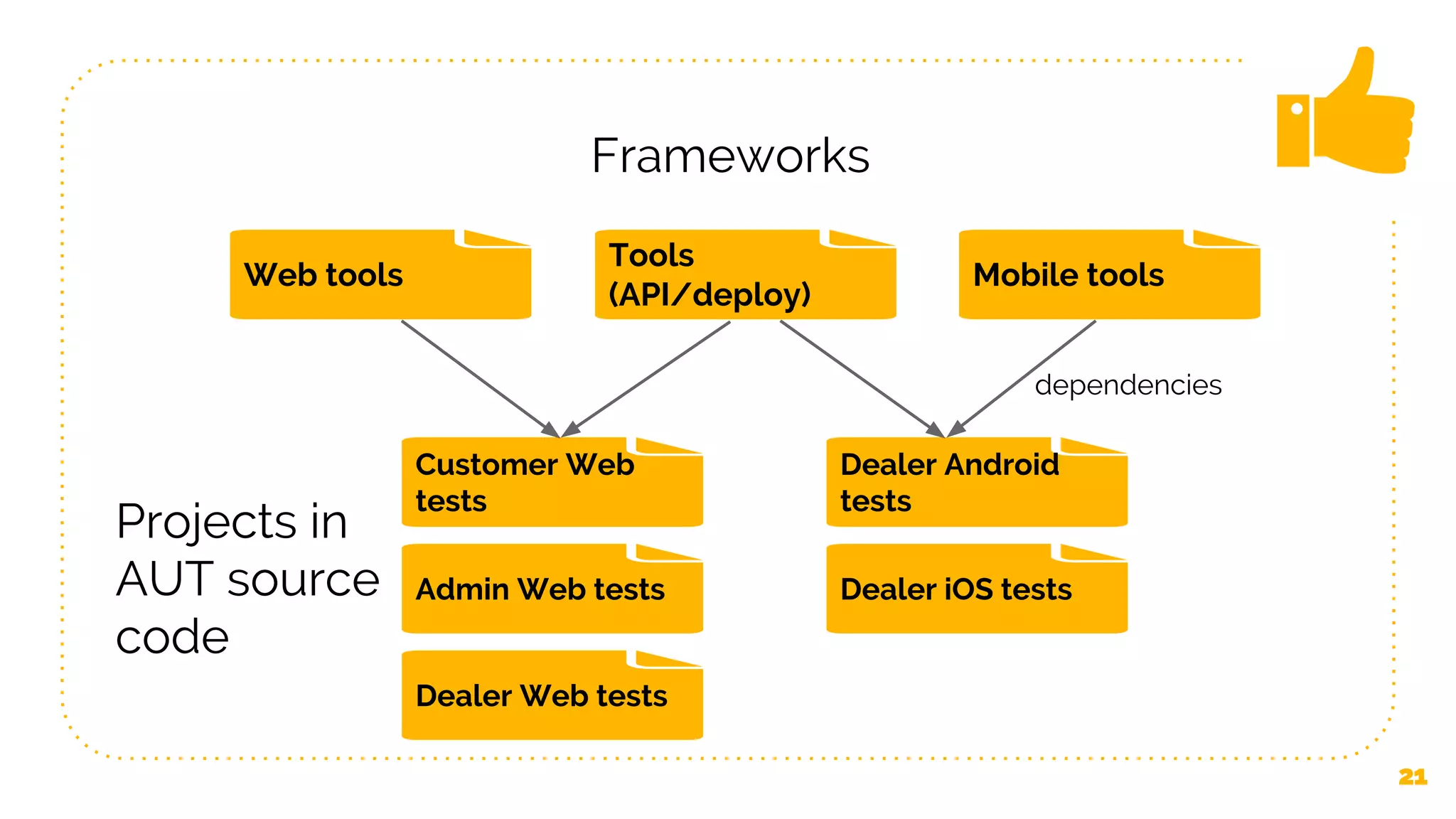

- 21. 21 Admin Web tests Projectsin AUT source code Dealer Web tests Customer Web tests Dealer iOS tests Dealer Android tests Web tools Tools (API/deploy) Mobile tools Frameworks dependencies

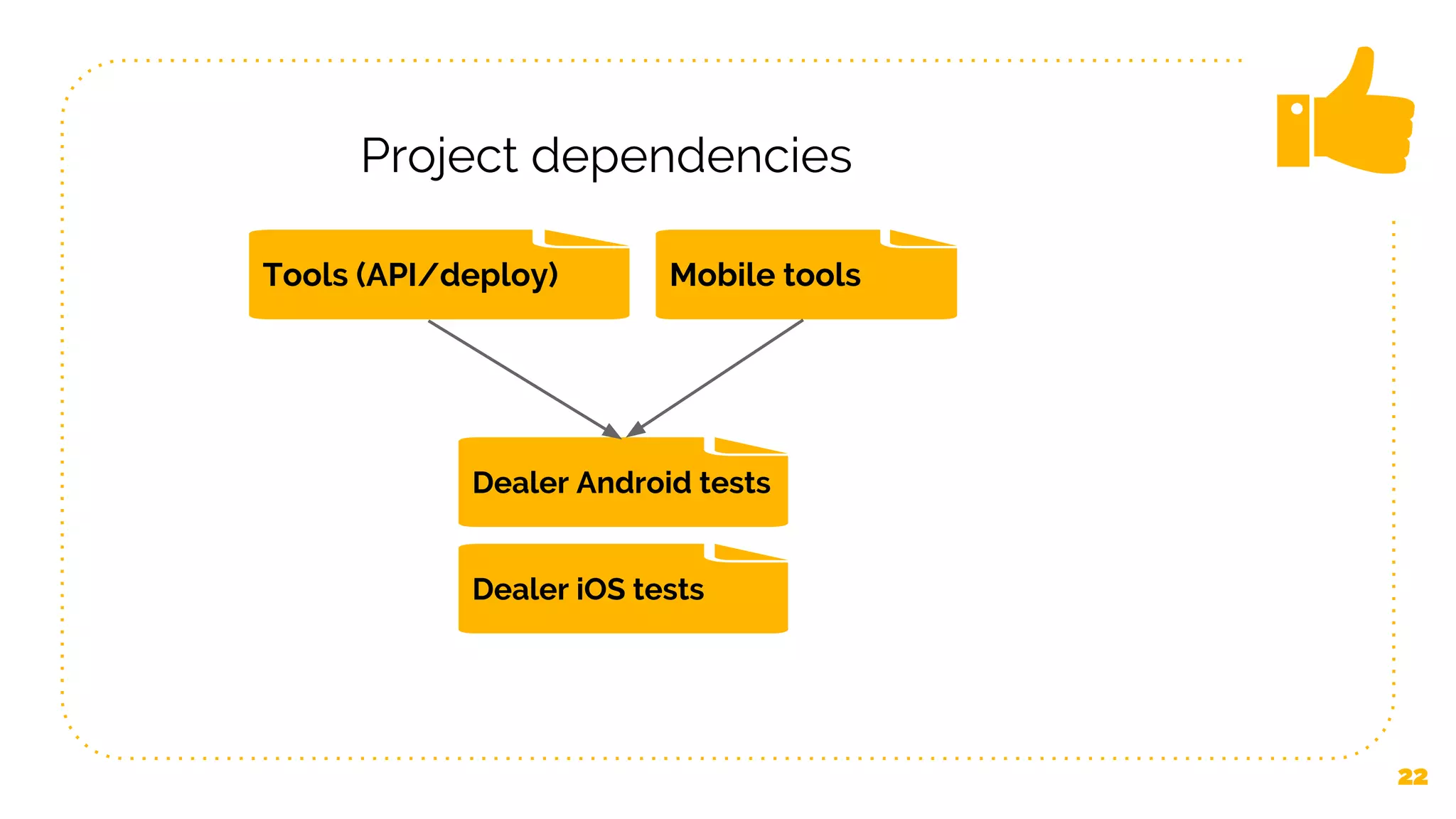

- 22. 22 Dealer iOS tests DealerAndroid tests Tools (API/deploy) Mobile tools Project dependencies

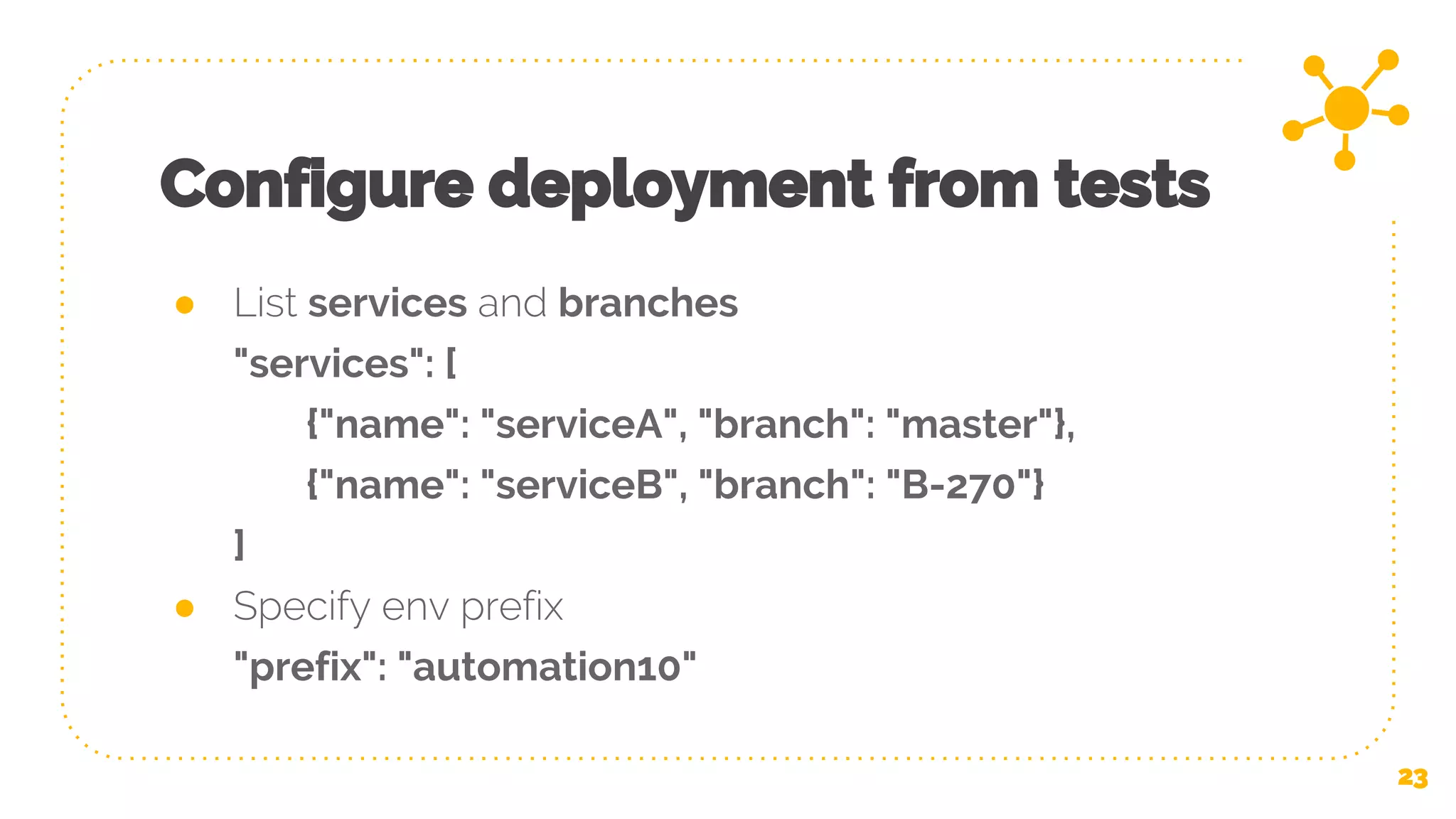

- 23. Configure deployment fromtests ● List services and branches "services": [ {"name": "serviceA", "branch": "master"}, {"name": "serviceB", "branch": "B-270"} ] ● Specify env prefix "prefix": "automation10" 23
- 24. Make custom testbuilds That point to API with prefix configured before 24

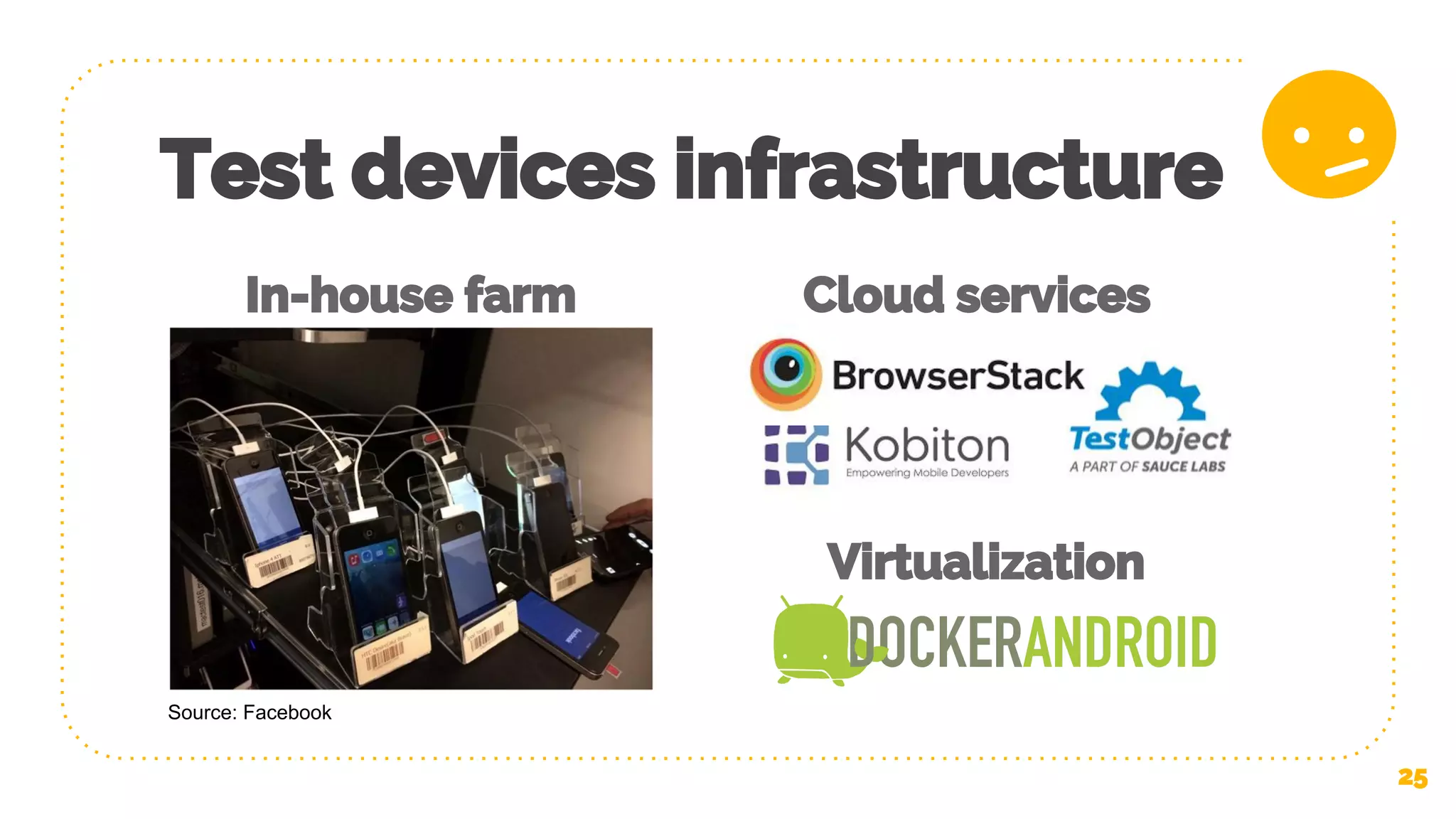

- 25. 25 Test devices infrastructure Source:Facebook In-house farm Cloud services Virtualization

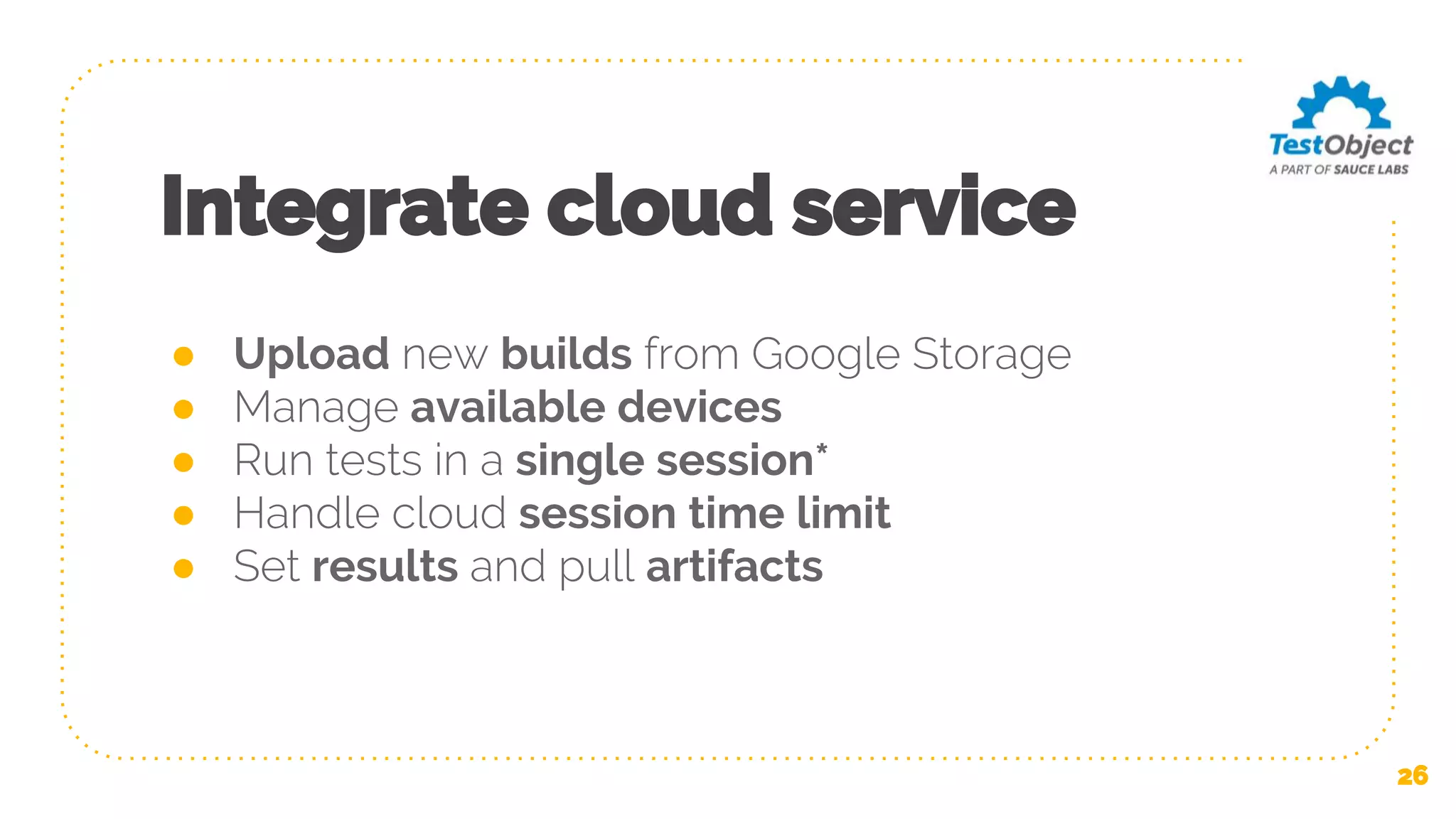

- 26. Integrate cloud service ●Upload new builds from Google Storage ● Manage available devices ● Run tests in a single session* ● Handle cloud session time limit ● Set results and pull artifacts 26

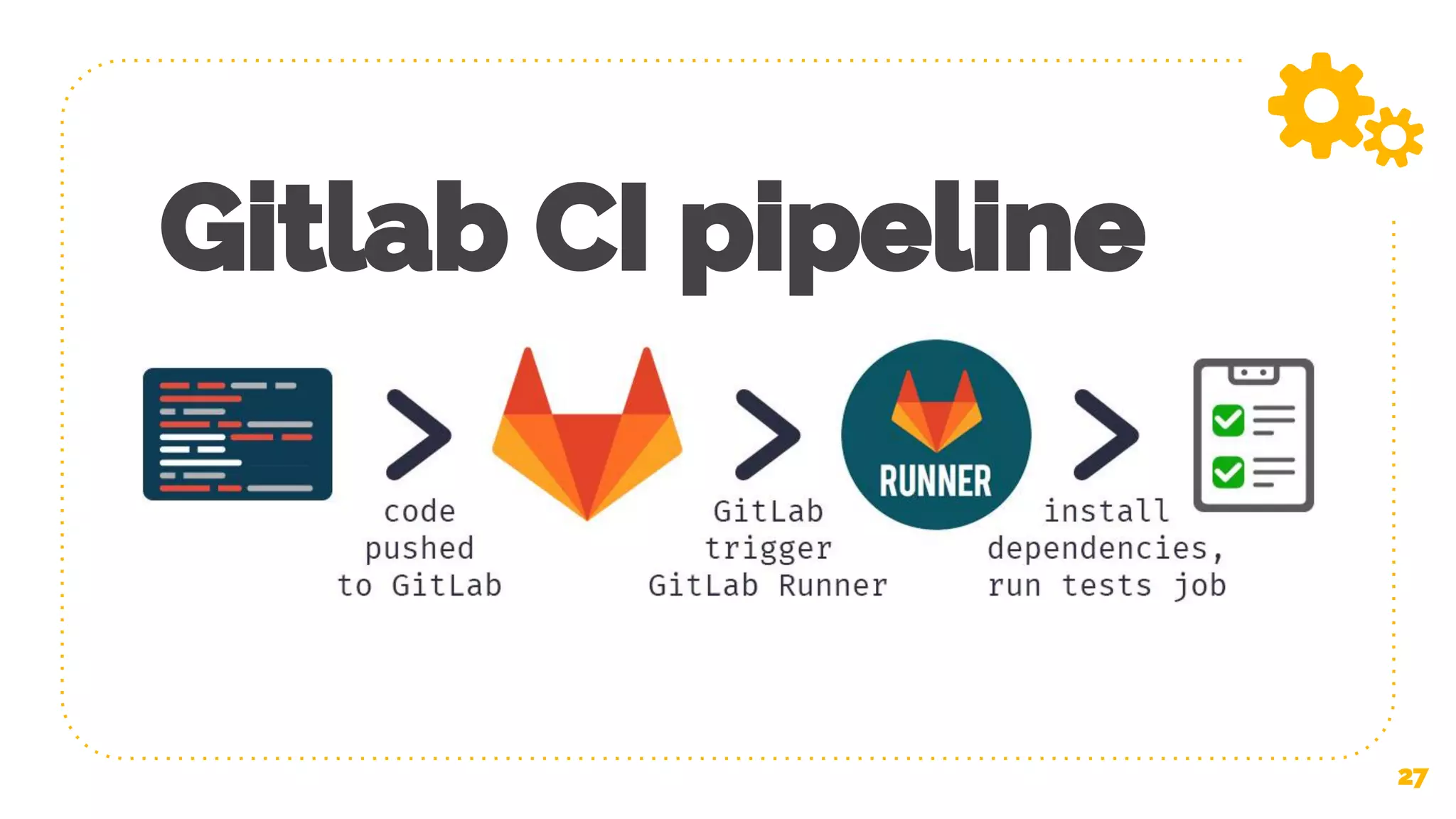

- 27.
- 28. Update pipeline ● Updateexisting docker image ● Add new gitlab CI runner ● Add new job for tests ● Configure trigger for job 28
- 29. “ How toadd a new job in Gitlab CI? 29

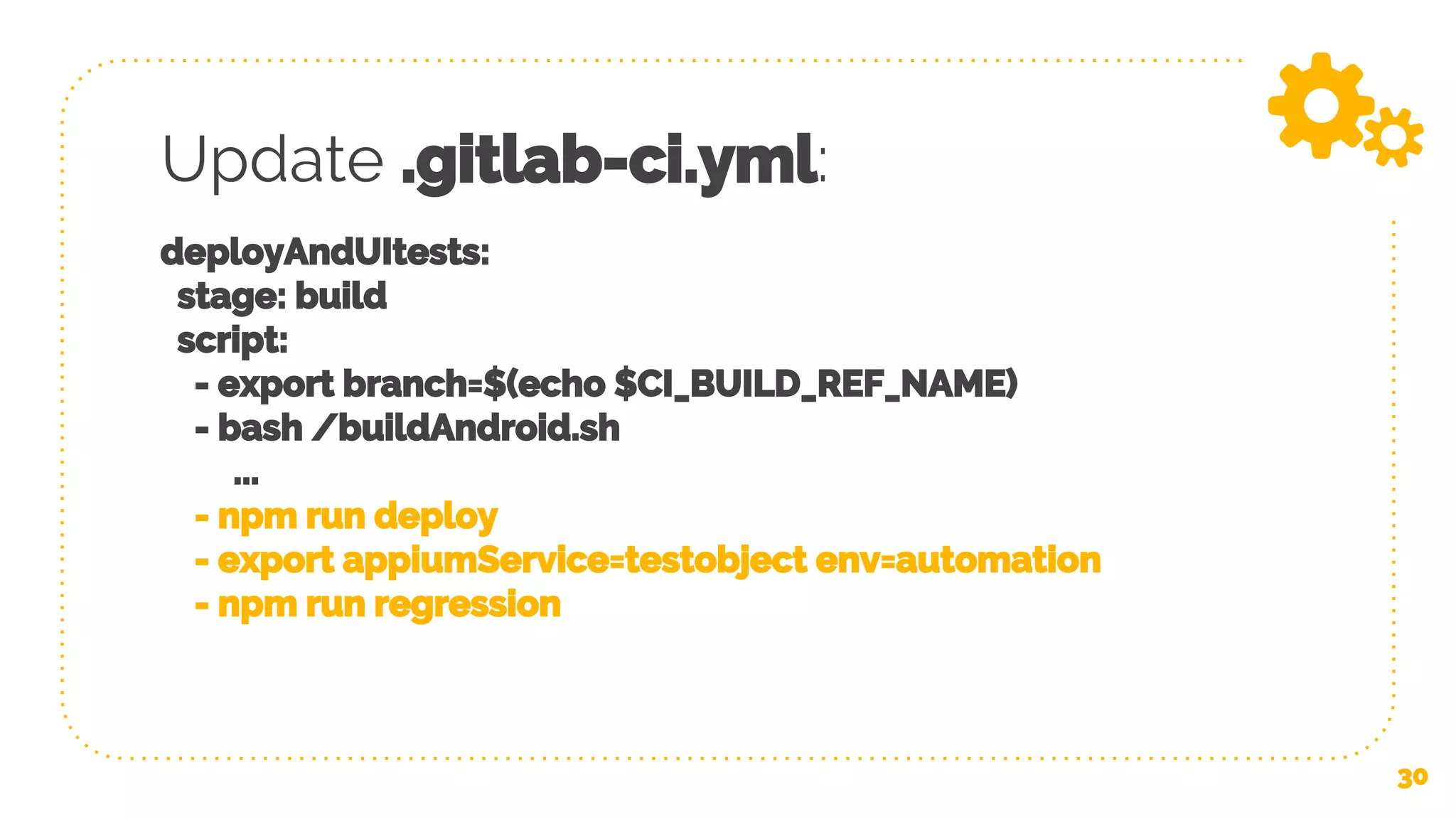

- 30. Update .gitlab-ci.yml: deployAndUItests: stage: build script: -export branch=$(echo $CI_BUILD_REF_NAME) - bash /buildAndroid.sh ... - npm run deploy - export appiumService=testobject env=automation - npm run regression 30

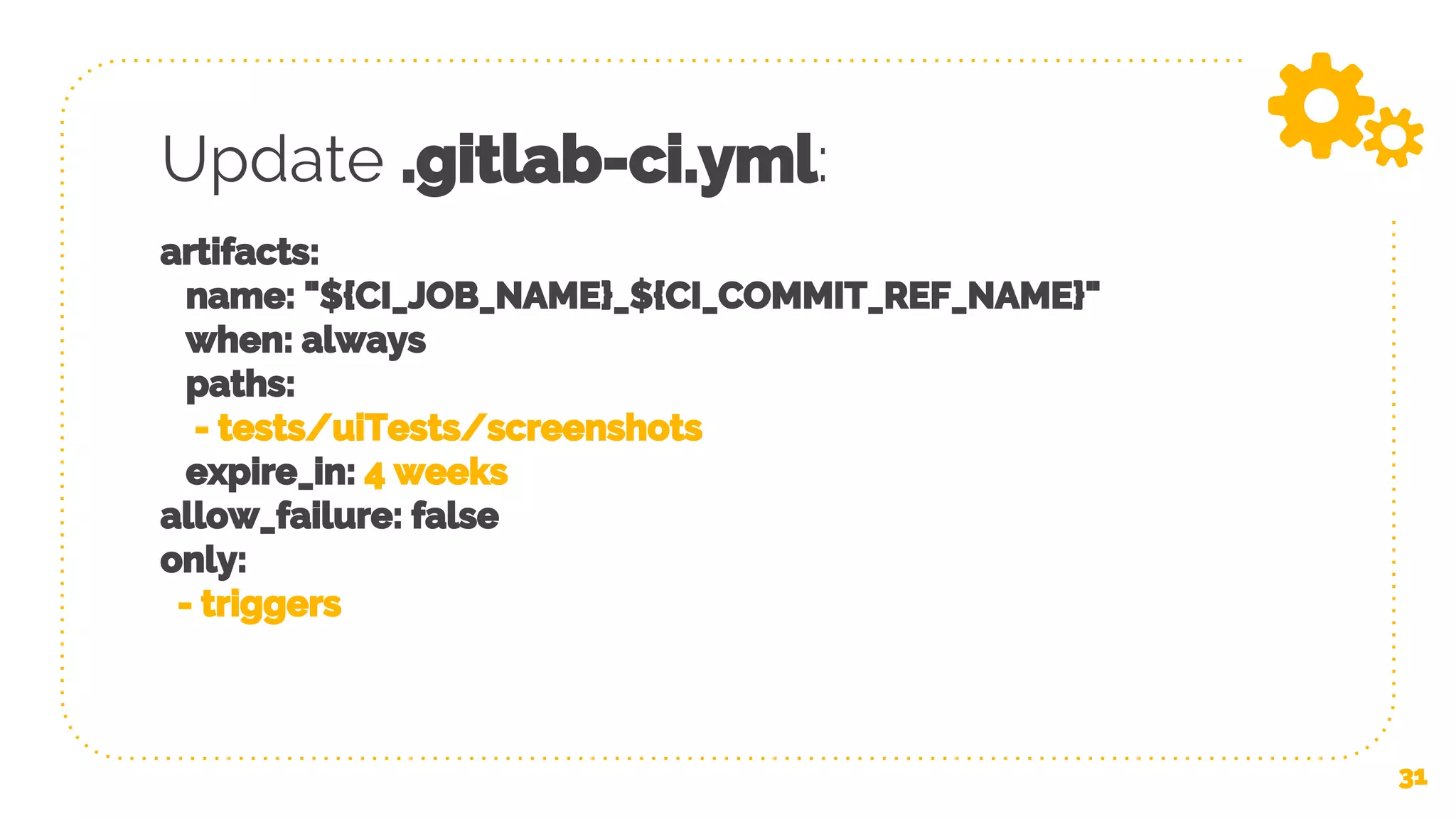

- 31. Update .gitlab-ci.yml: artifacts: name: "${CI_JOB_NAME}_${CI_COMMIT_REF_NAME}" when:always paths: - tests/uiTests/screenshots expire_in: 4 weeks allow_failure: false only: - triggers 31
- 32. Trigger conditions ● Targetbranch is master ● No WIP in title ● Marked with `Reviewed` label 32

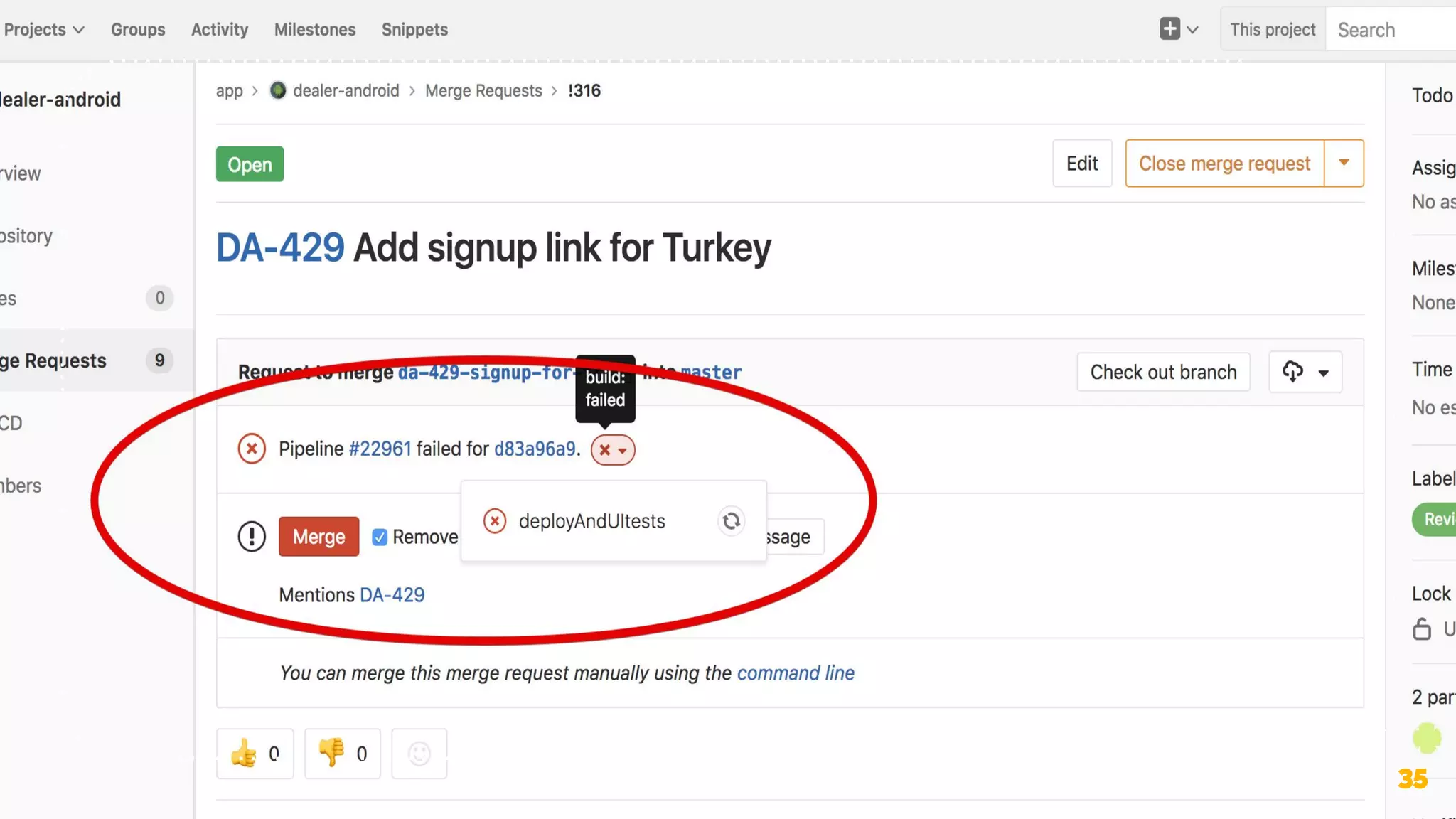

- 33. “ How does itlook in Gitlab CI? 33

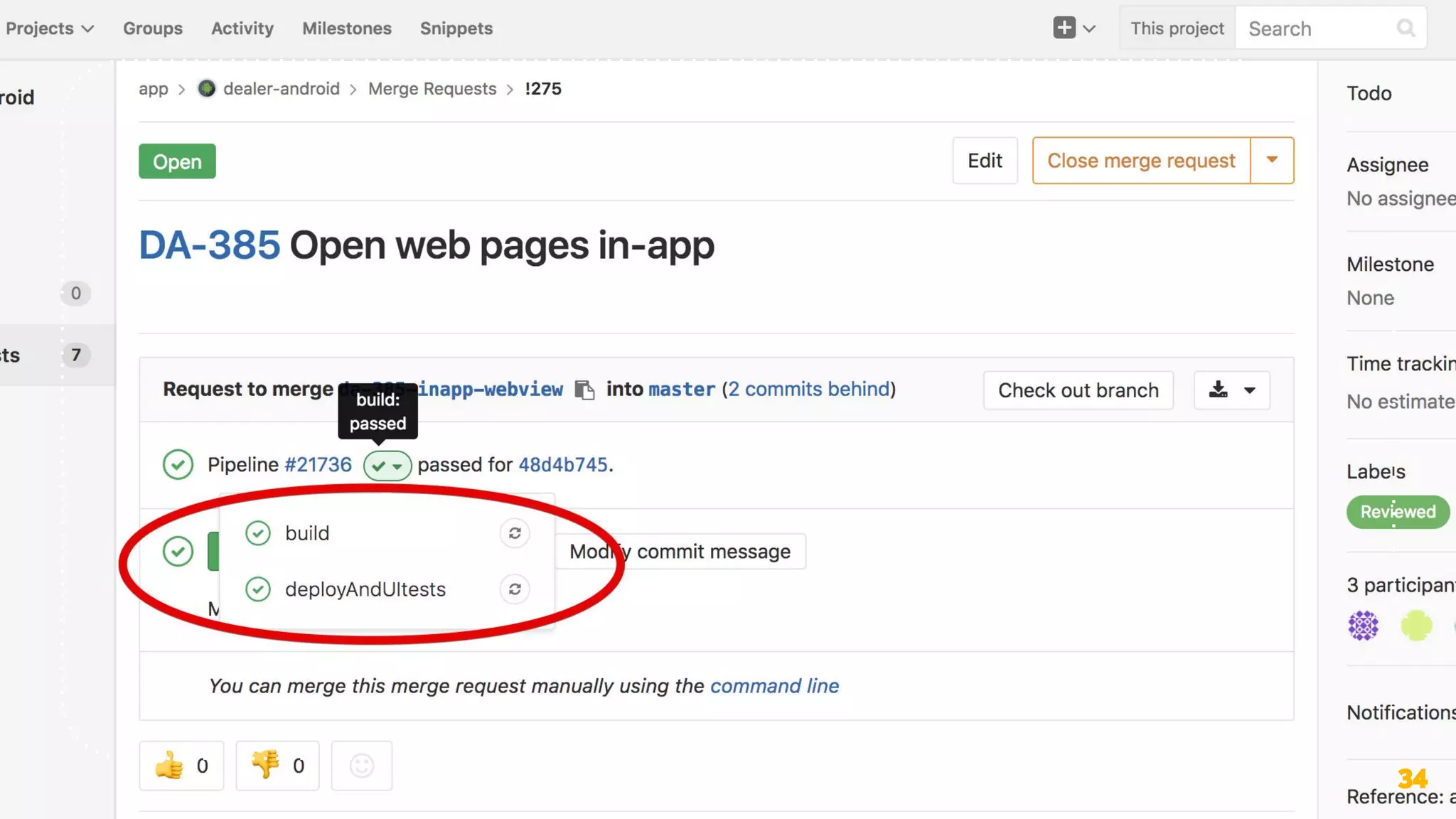

- 34.
- 35.

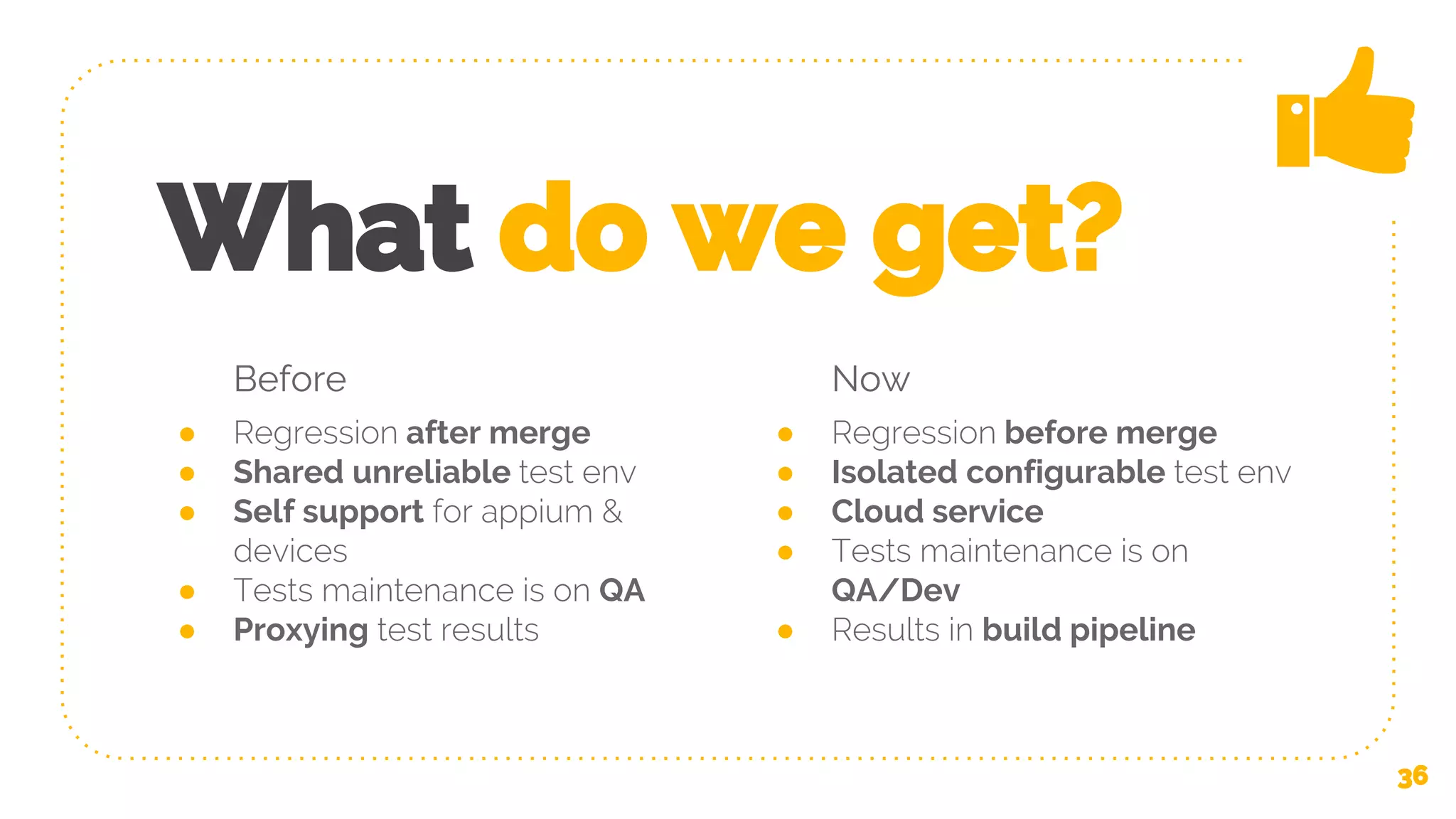

- 36. Before ● Regression aftermerge ● Shared unreliable test env ● Self support for appium & devices ● Tests maintenance is on QA ● Proxying test results What do we get? Now ● Regression before merge ● Isolated configurable test env ● Cloud service ● Tests maintenance is on QA/Dev ● Results in build pipeline 36
- 37. Flexibility Any environment, anyversion of services Shared maintenance Developers are fixing tests :) Fast feedback Developers get results faster & directly 37
- 38. 38 iOS project is inprogress...
- 39. 39 Thanks! Any questions? You canfind me at AutomateMeNow dmle
