Collect distributed application logging using Fluentd (EFK stack) Marco Pas Philips Lighting Software geek, hands on Developer/Architect/DevOps Engineer @marcopas

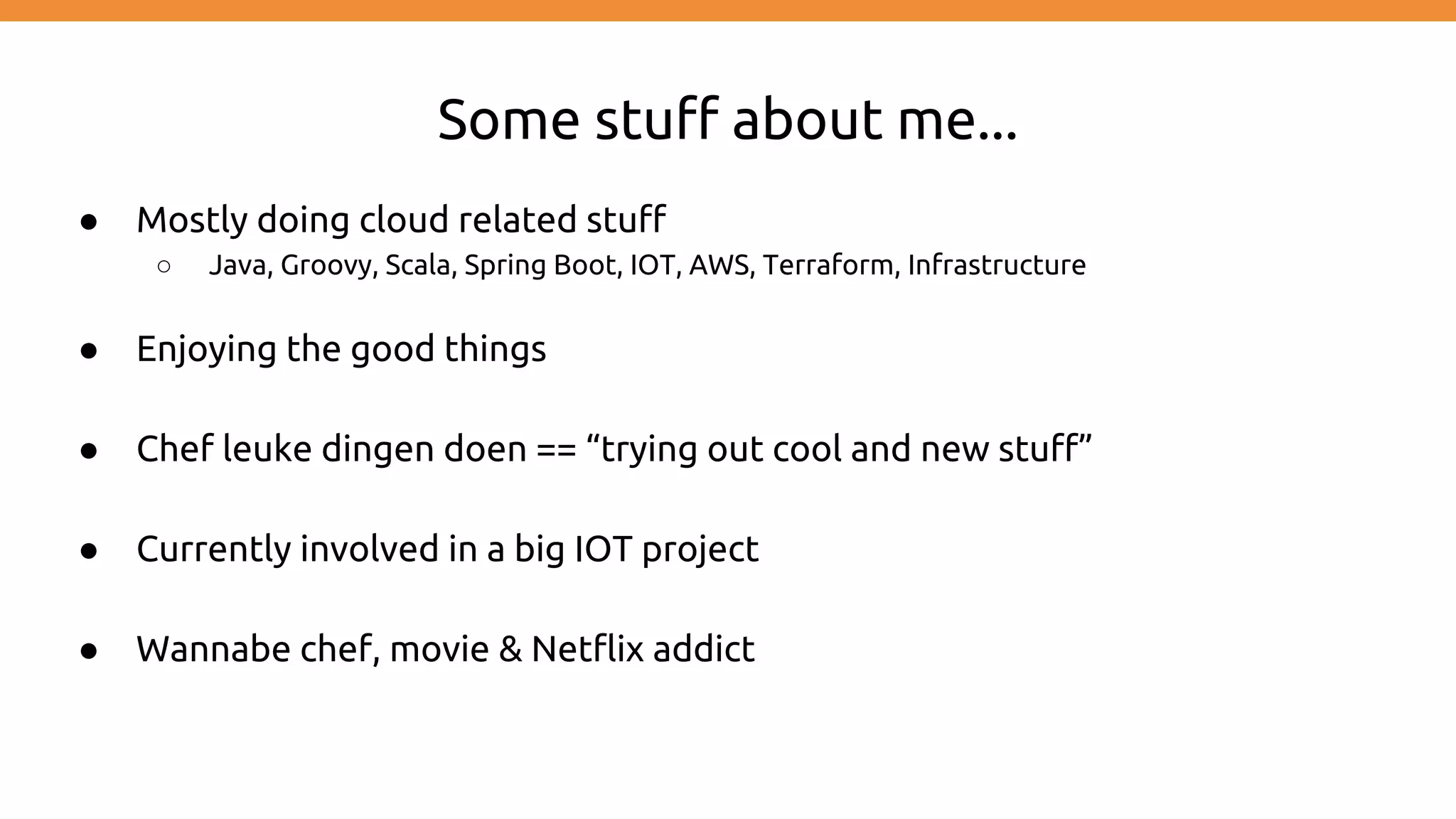

Some stuff about me... ● Mostly doing cloud related stuff ○ Java, Groovy, Scala, Spring Boot, IOT, AWS, Terraform, Infrastructure ● Enjoying the good things ● Chef leuke dingen doen == “trying out cool and new stuff” ● Currently involved in a big IOT project ● Wannabe chef, movie & Netflix addict

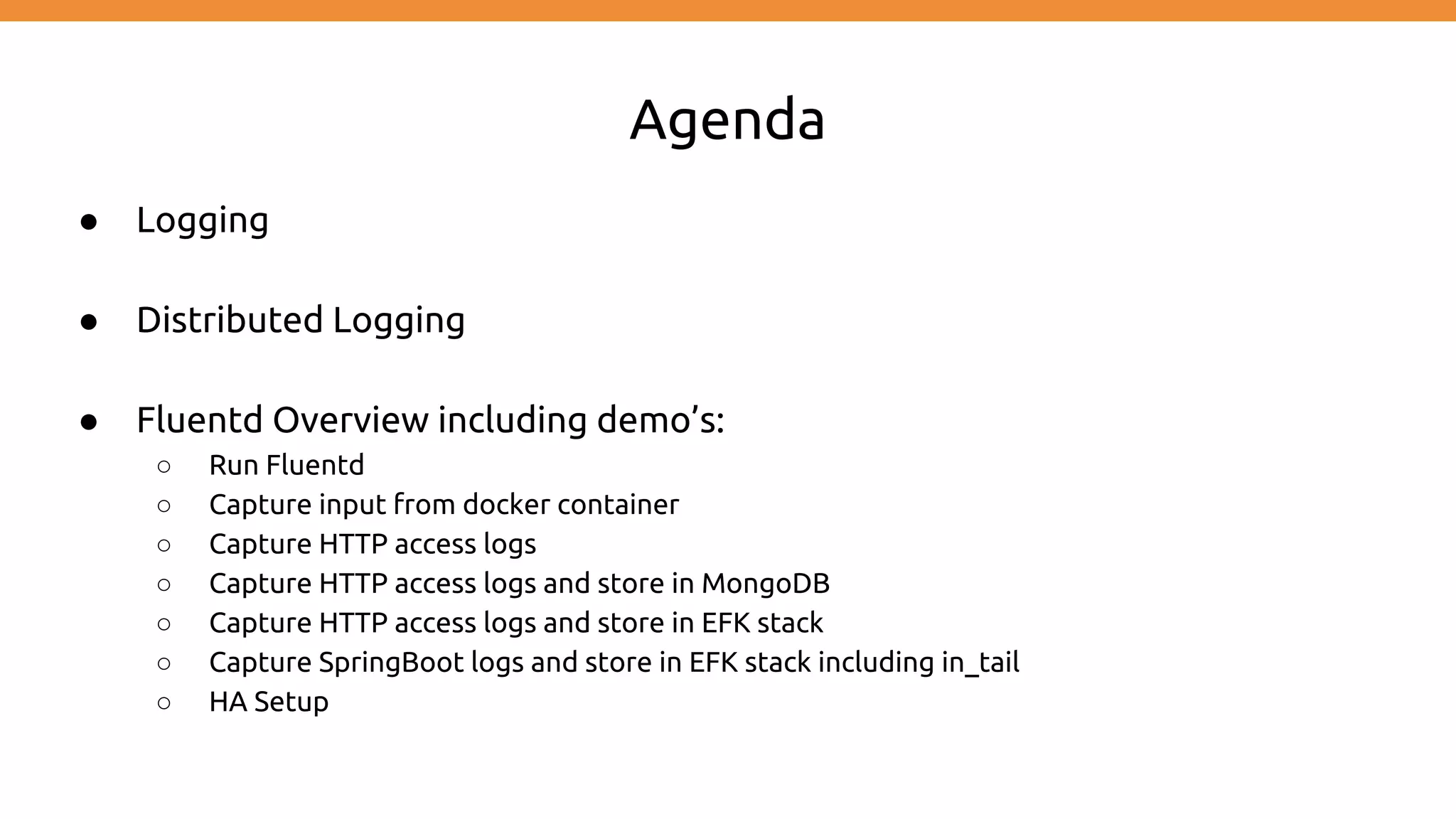

Agenda ● Logging ● Distributed Logging ● Fluentd Overview including demo’s: ○ Run Fluentd ○ Capture input from docker container ○ Capture HTTP access logs ○ Capture HTTP access logs and store in MongoDB ○ Capture HTTP access logs and store in EFK stack ○ Capture SpringBoot logs and store in EFK stack including in_tail ○ HA Setup

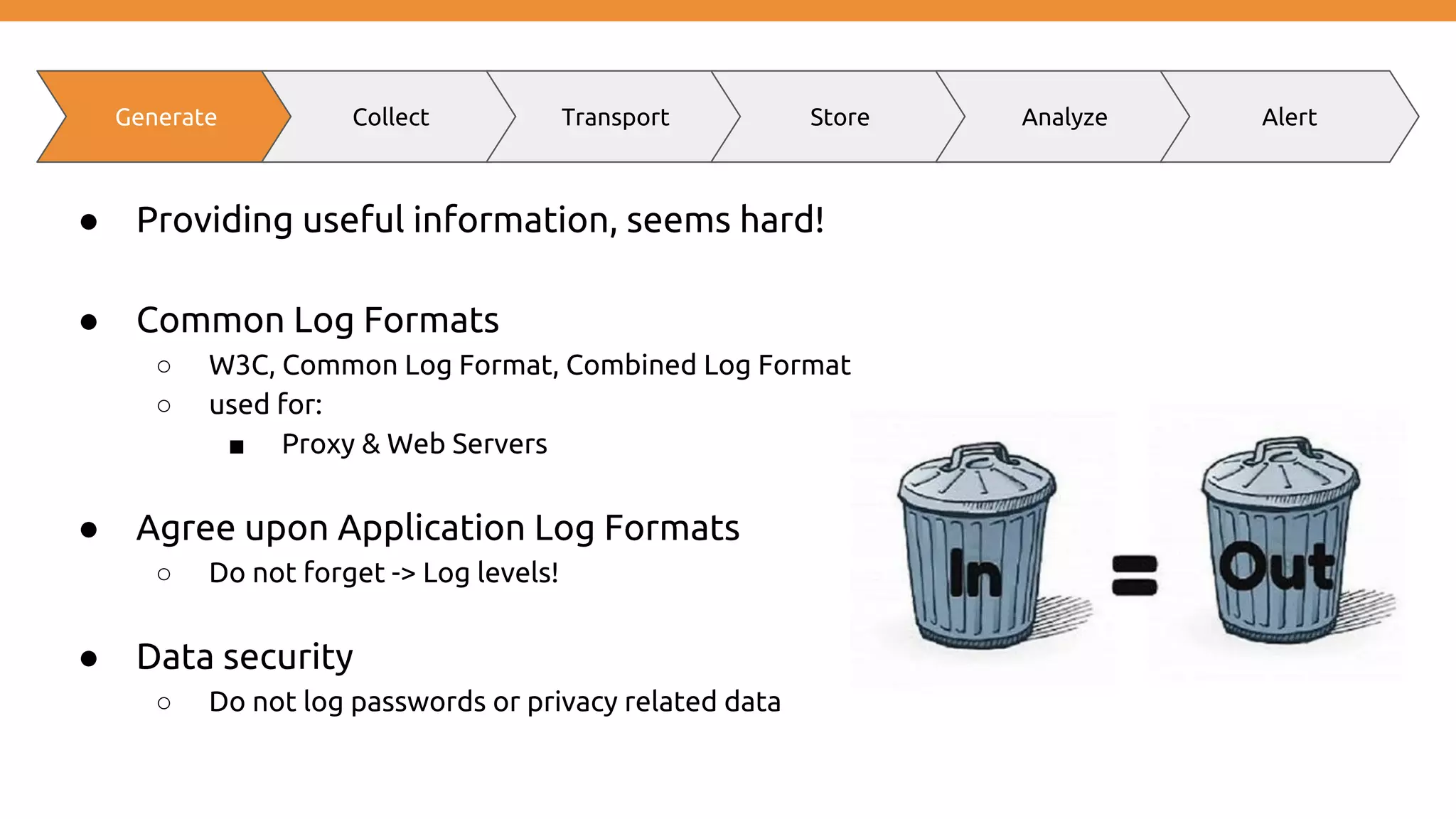

● Providing useful information, seems hard! ● Common Log Formats ○ W3C, Common Log Format, Combined Log Format ○ used for: ■ Proxy & Web Servers ● Agree upon Application Log Formats ○ Do not forget -> Log levels! ● Data security ○ Do not log passwords or privacy related data Generate Collect Transport Store Analyze Alert

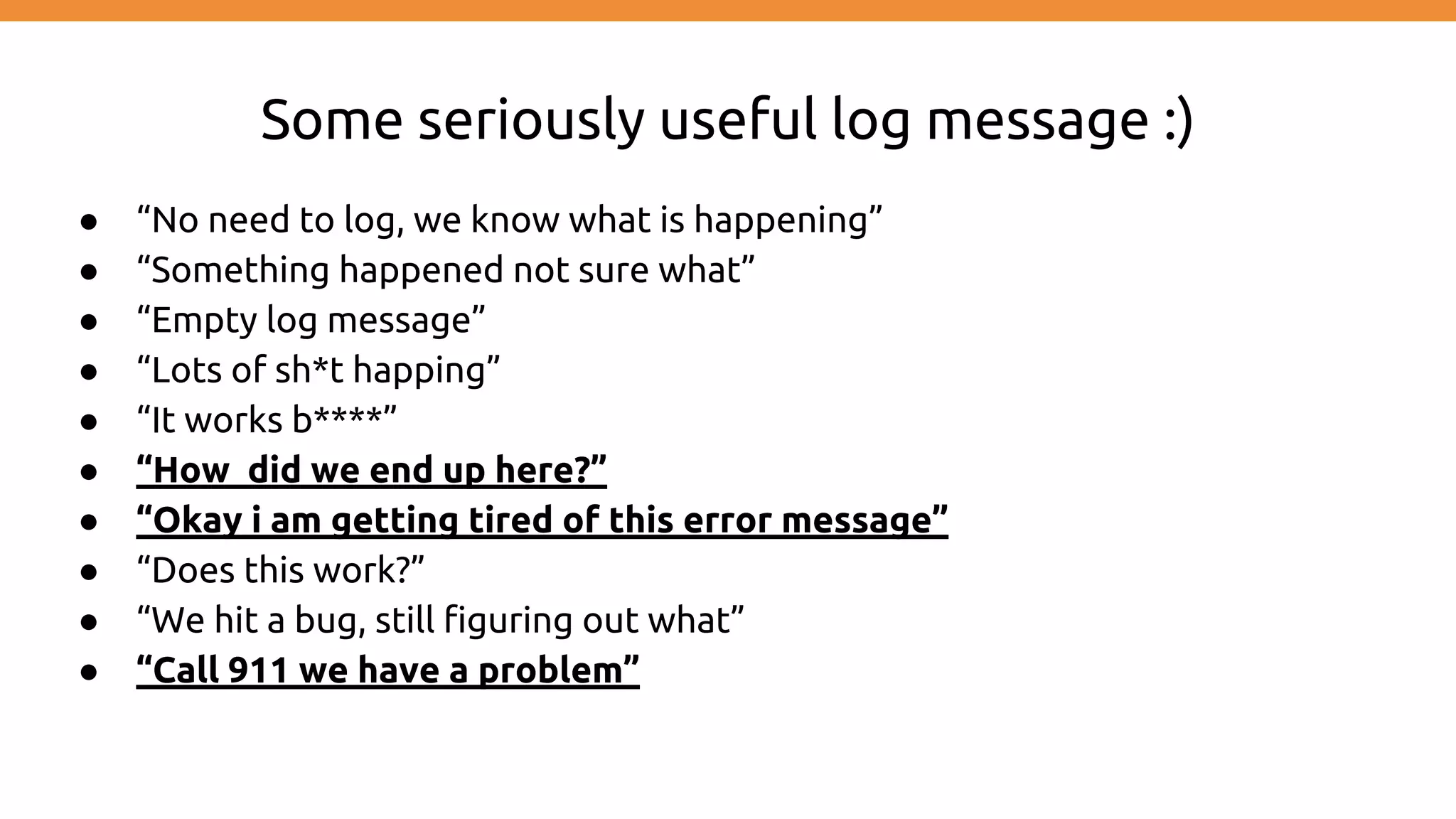

Some seriously useful log message :) ● “No need to log, we know what is happening” ● “Something happened not sure what” ● “Empty log message” ● “Lots of sh*t happing” ● “It works b****” ● “How did we end up here?” ● “Okay i am getting tired of this error message” ● “Does this work?” ● “We hit a bug, still figuring out what” ● “Call 911 we have a problem”

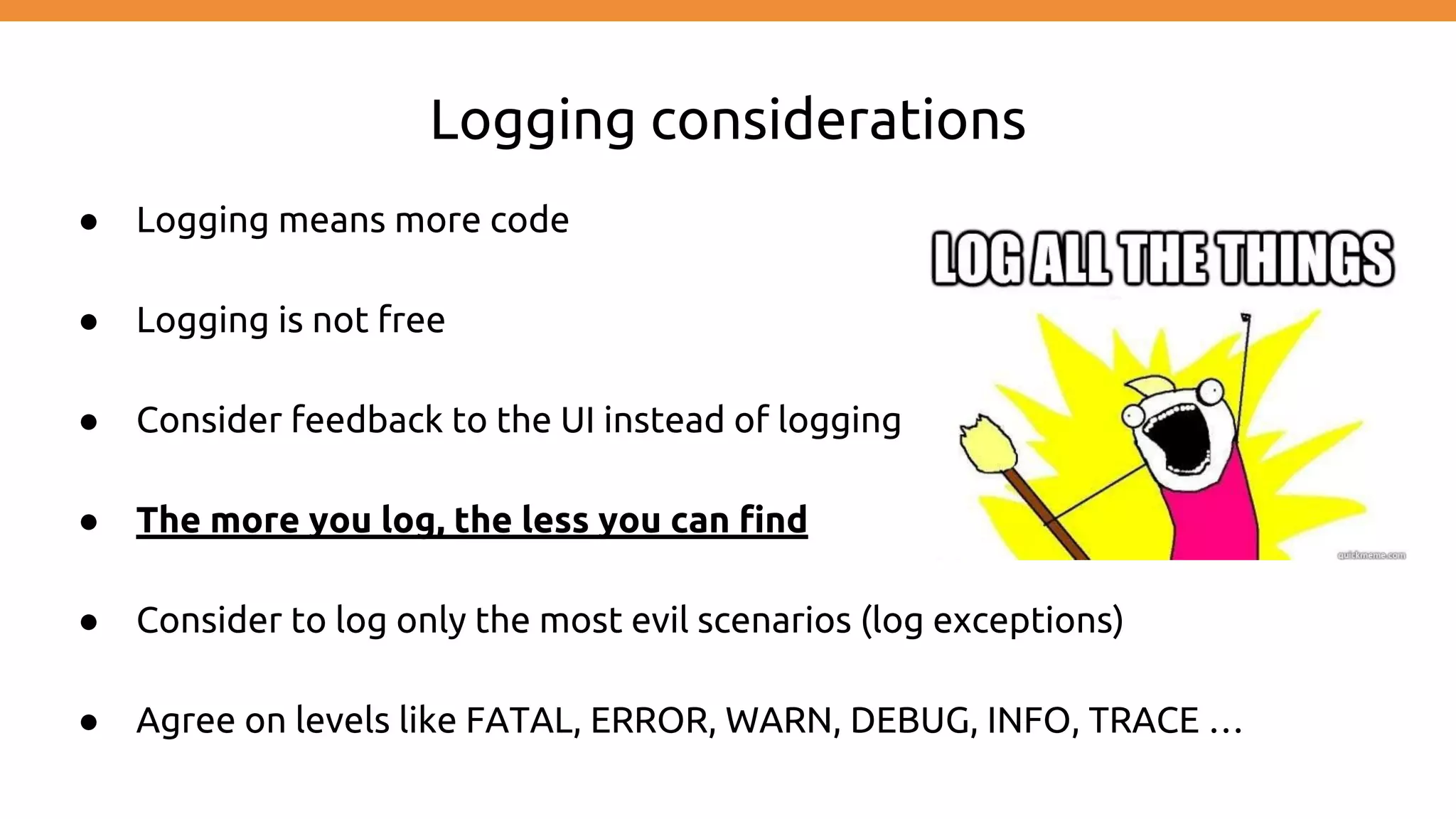

Logging considerations ● Logging means more code ● Logging is not free ● Consider feedback to the UI instead of logging ● The more you log, the less you can find ● Consider to log only the most evil scenarios (log exceptions) ● Agree on levels like FATAL, ERROR, WARN, DEBUG, INFO, TRACE …

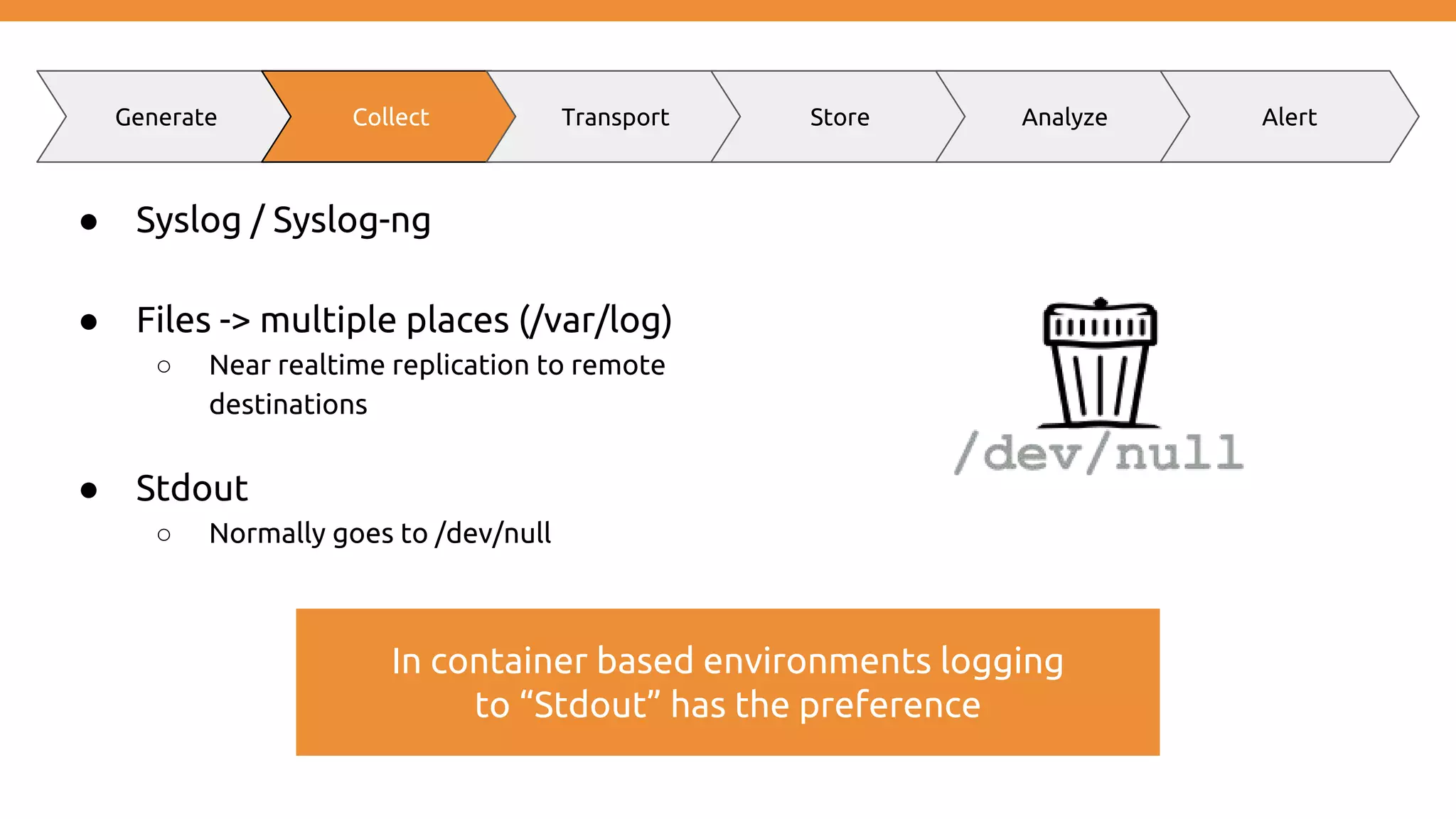

● Syslog / Syslog-ng ● Files -> multiple places (/var/log) ○ Near realtime replication to remote destinations ● Stdout ○ Normally goes to /dev/null Generate Collect Transport Store Analyze Alert In container based environments logging to “Stdout” has the preference

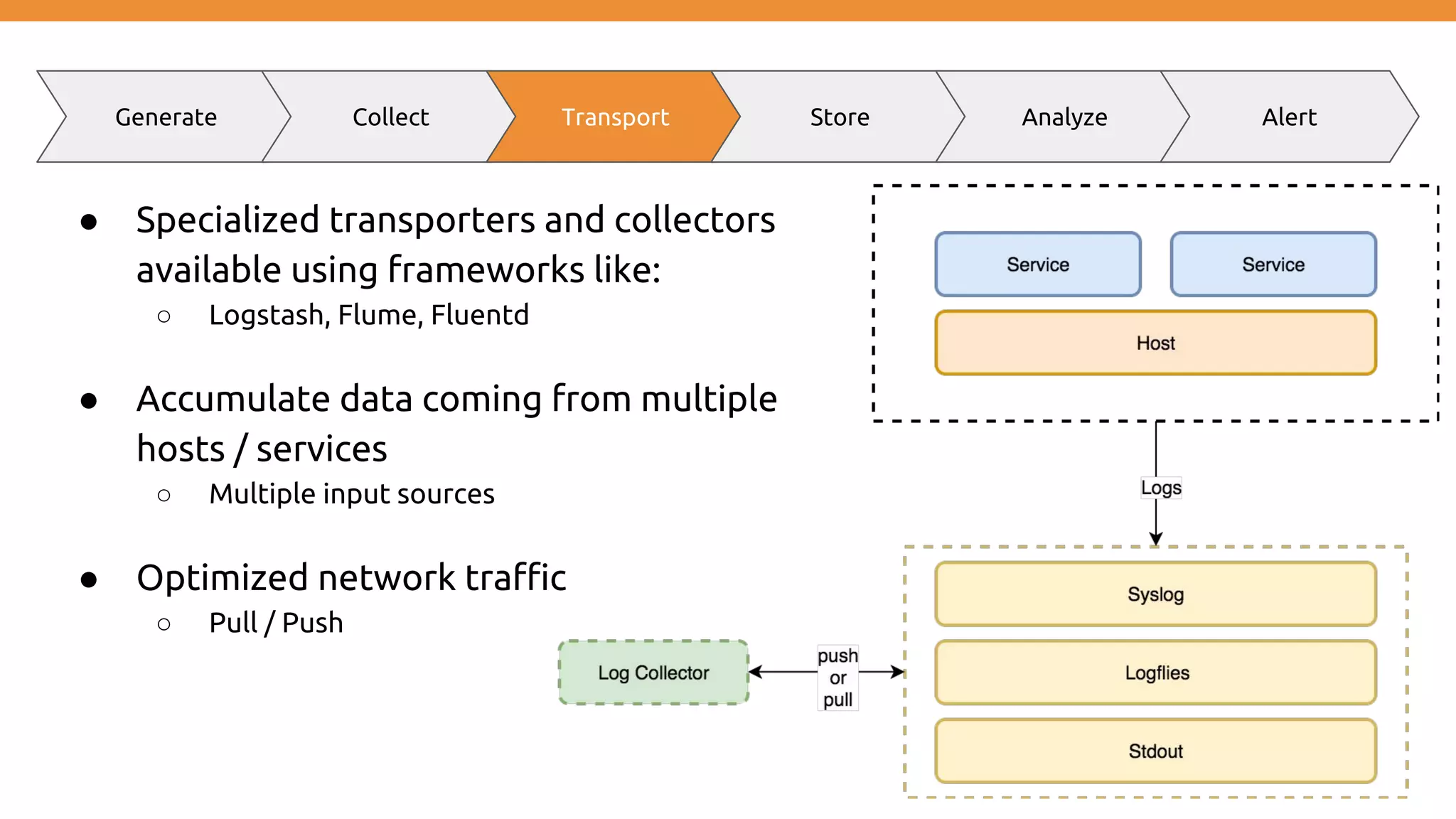

● Specialized transporters and collectors available using frameworks like: ○ Logstash, Flume, Fluentd ● Accumulate data coming from multiple hosts / services ○ Multiple input sources ● Optimized network traffic ○ Pull / Push Generate Collect Transport Store Analyze Alert

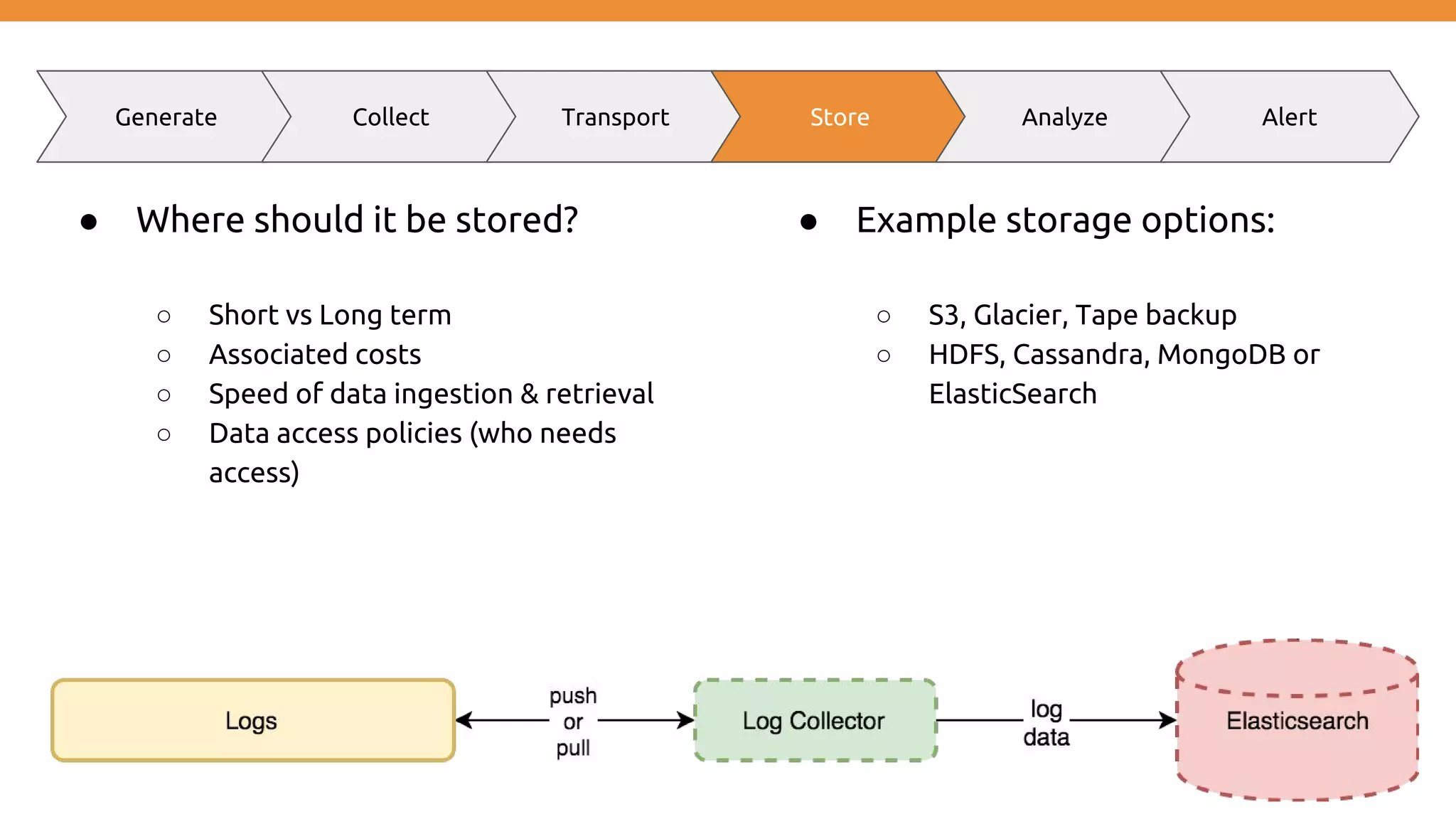

Generate Collect Transport Store Analyze Alert ● Where should it be stored? ○ Short vs Long term ○ Associated costs ○ Speed of data ingestion & retrieval ○ Data access policies (who needs access) ● Example storage options: ○ S3, Glacier, Tape backup ○ HDFS, Cassandra, MongoDB or ElasticSearch

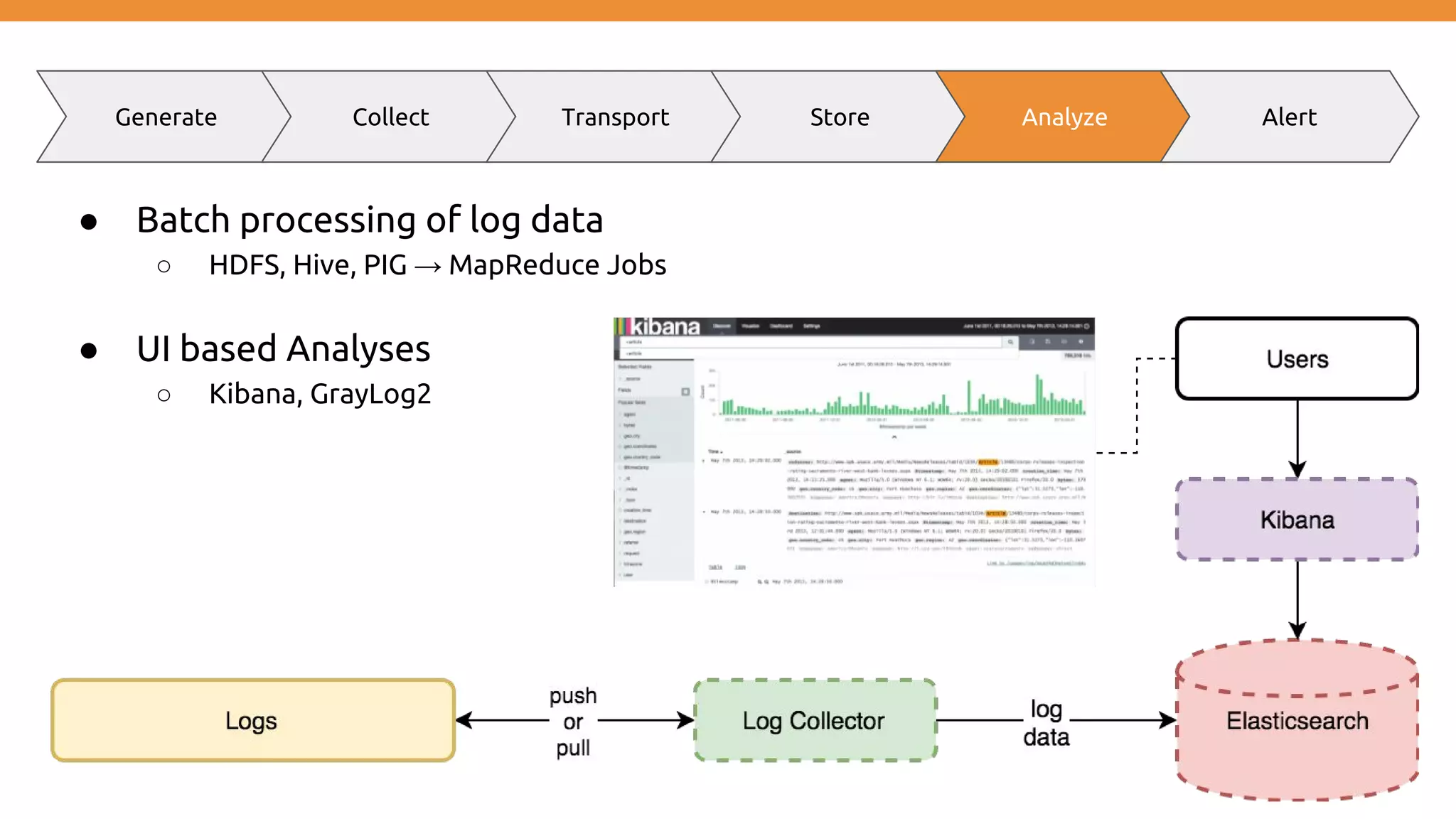

● Batch processing of log data ○ HDFS, Hive, PIG → MapReduce Jobs ● UI based Analyses ○ Kibana, GrayLog2 Generate Collect Transport Store Analyze Alert

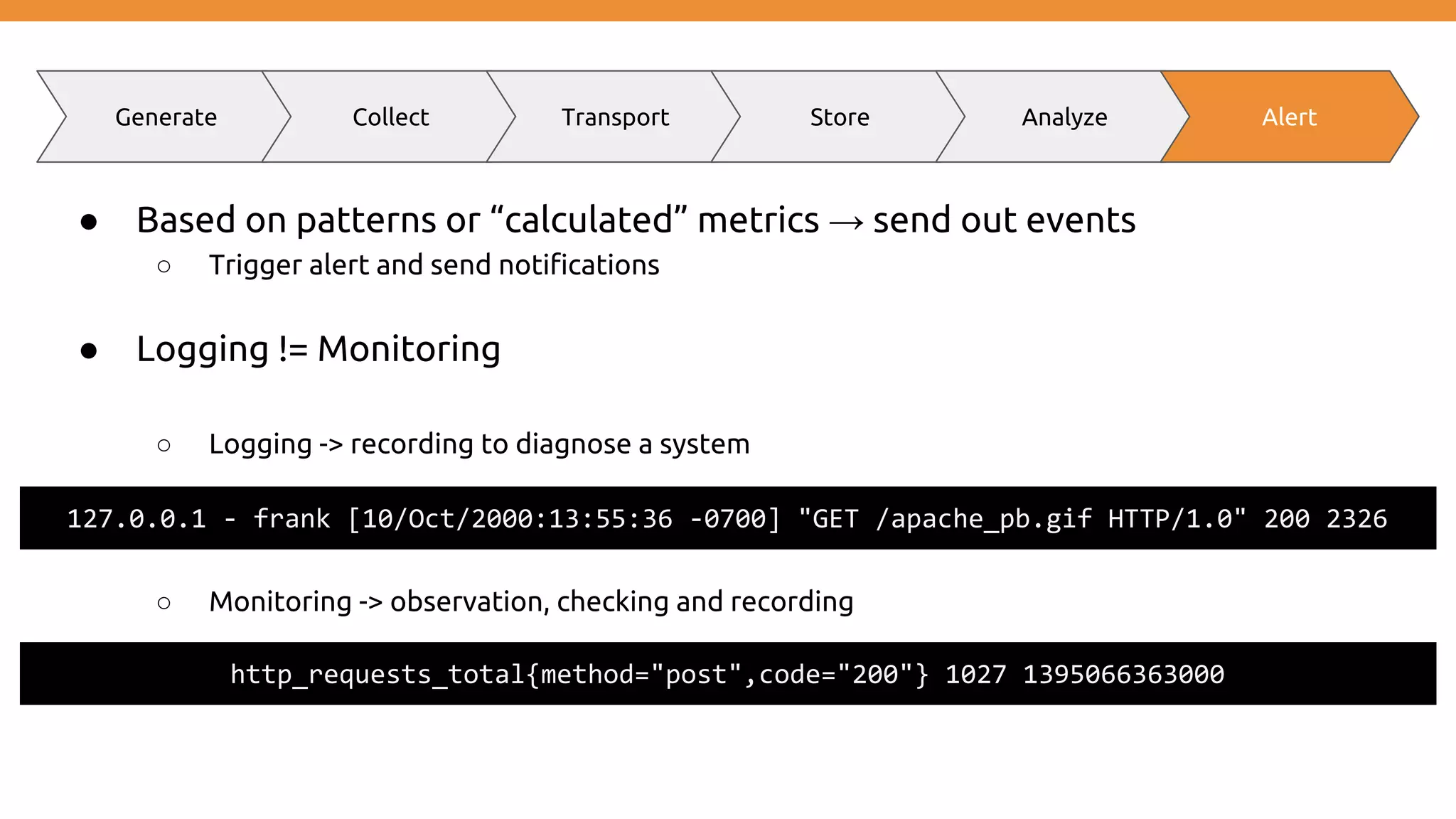

● Based on patterns or “calculated” metrics → send out events ○ Trigger alert and send notifications ● Logging != Monitoring ○ Logging -> recording to diagnose a system ○ Monitoring -> observation, checking and recording Generate Collect Transport Store Analyze Alert http_requests_total{method="post",code="200"} 1027 1395066363000 127.0.0.1 - frank [10/Oct/2000:13:55:36 -0700] "GET /apache_pb.gif HTTP/1.0" 200 2326

“In a containerized world, we must think differently about logging.” Label data at the source Push data and parse it as soon as possible

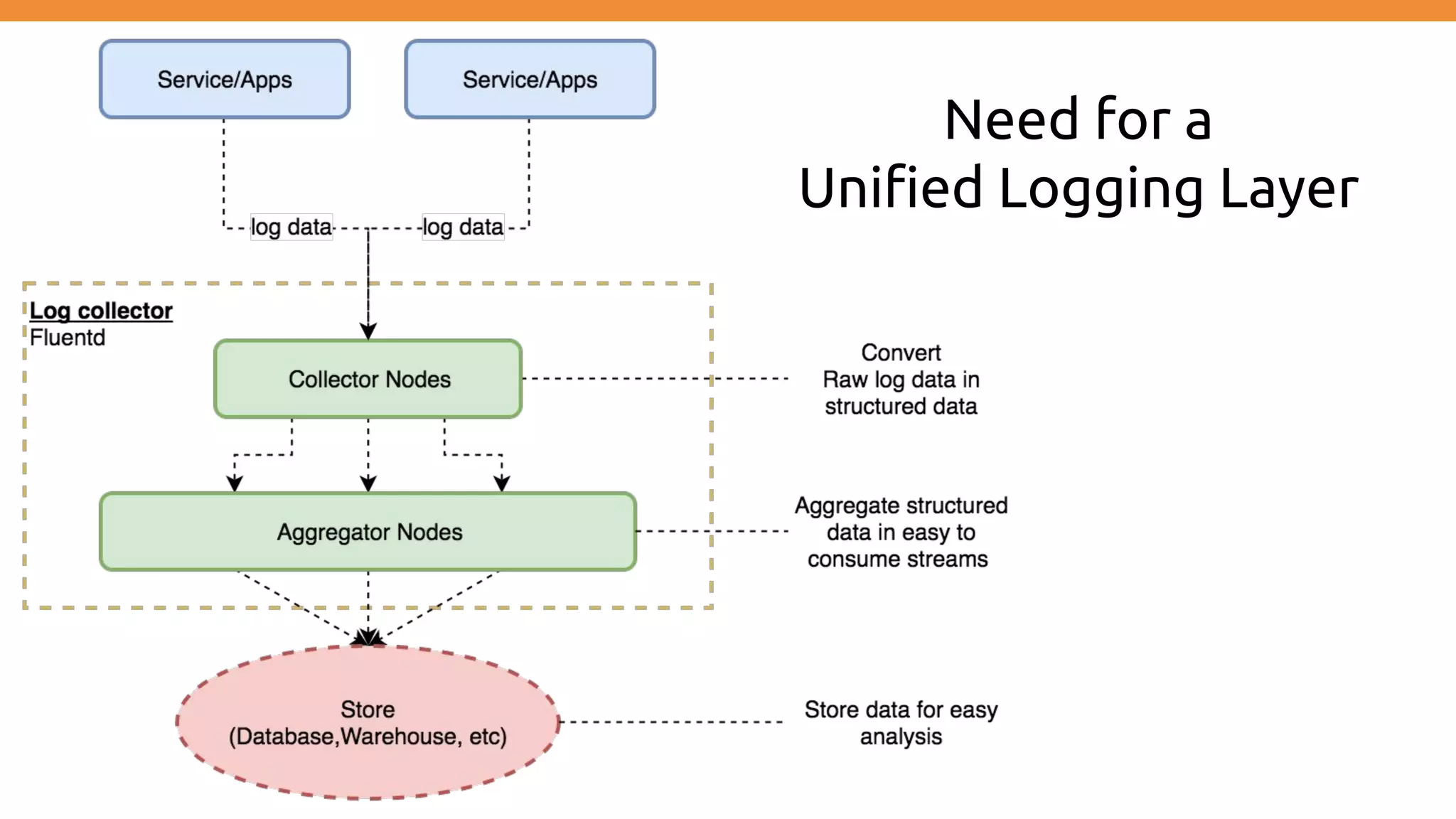

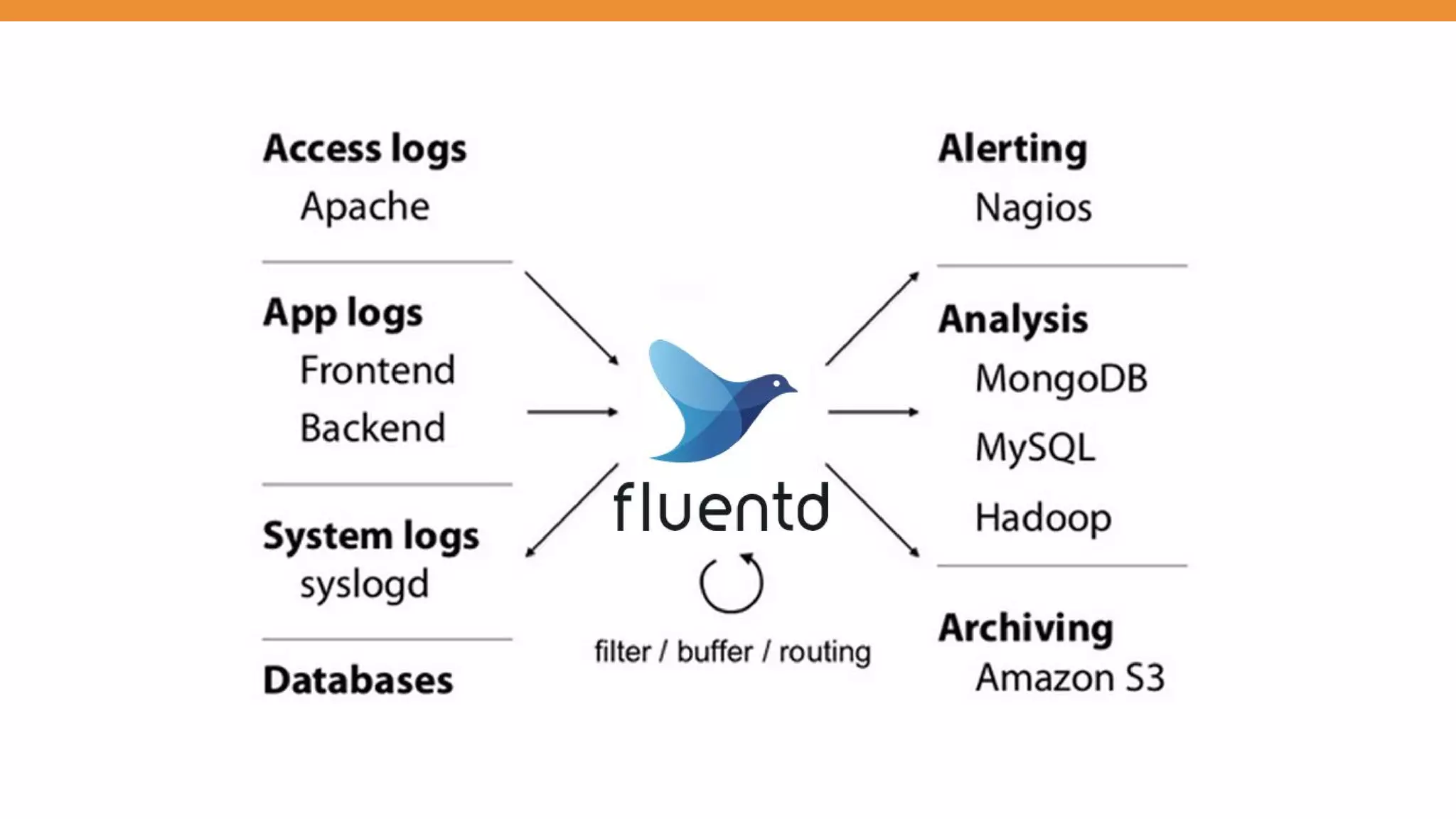

Need for a Unified Logging Layer

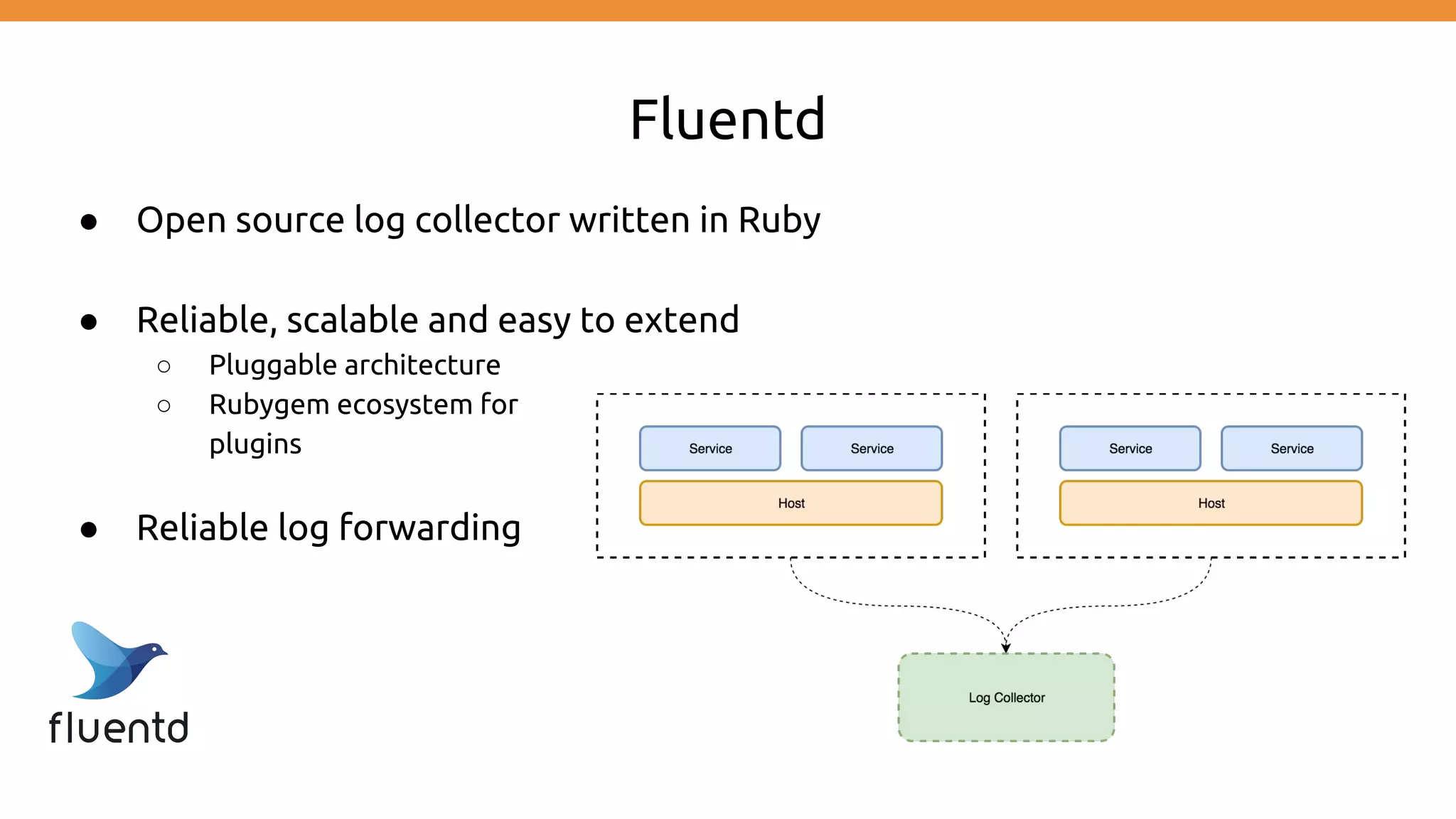

Fluentd ● Open source log collector written in Ruby ● Reliable, scalable and easy to extend ○ Pluggable architecture ○ Rubygem ecosystem for plugins ● Reliable log forwarding

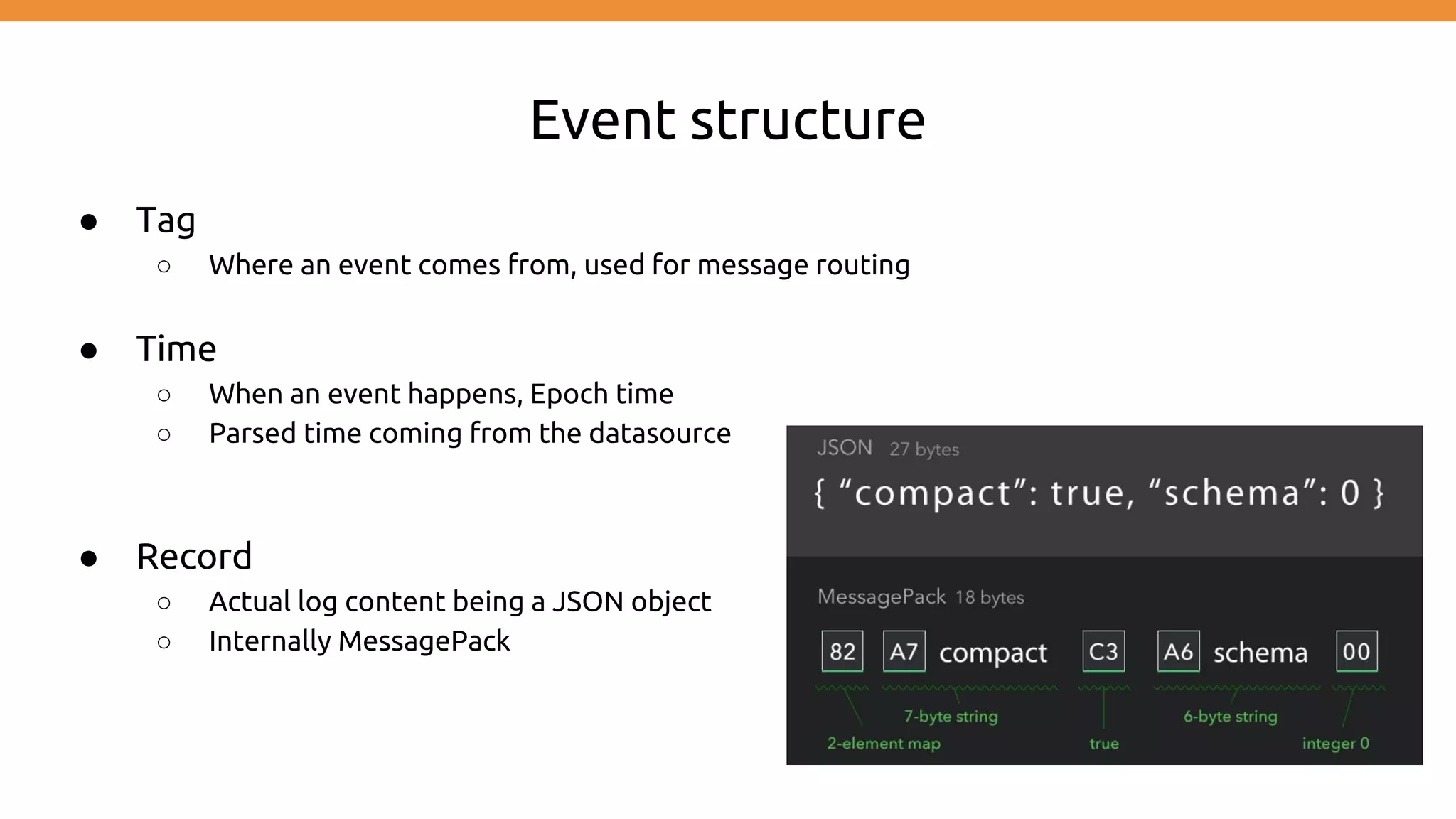

Event structure ● Tag ○ Where an event comes from, used for message routing ● Time ○ When an event happens, Epoch time ○ Parsed time coming from the datasource ● Record ○ Actual log content being a JSON object ○ Internally MessagePack

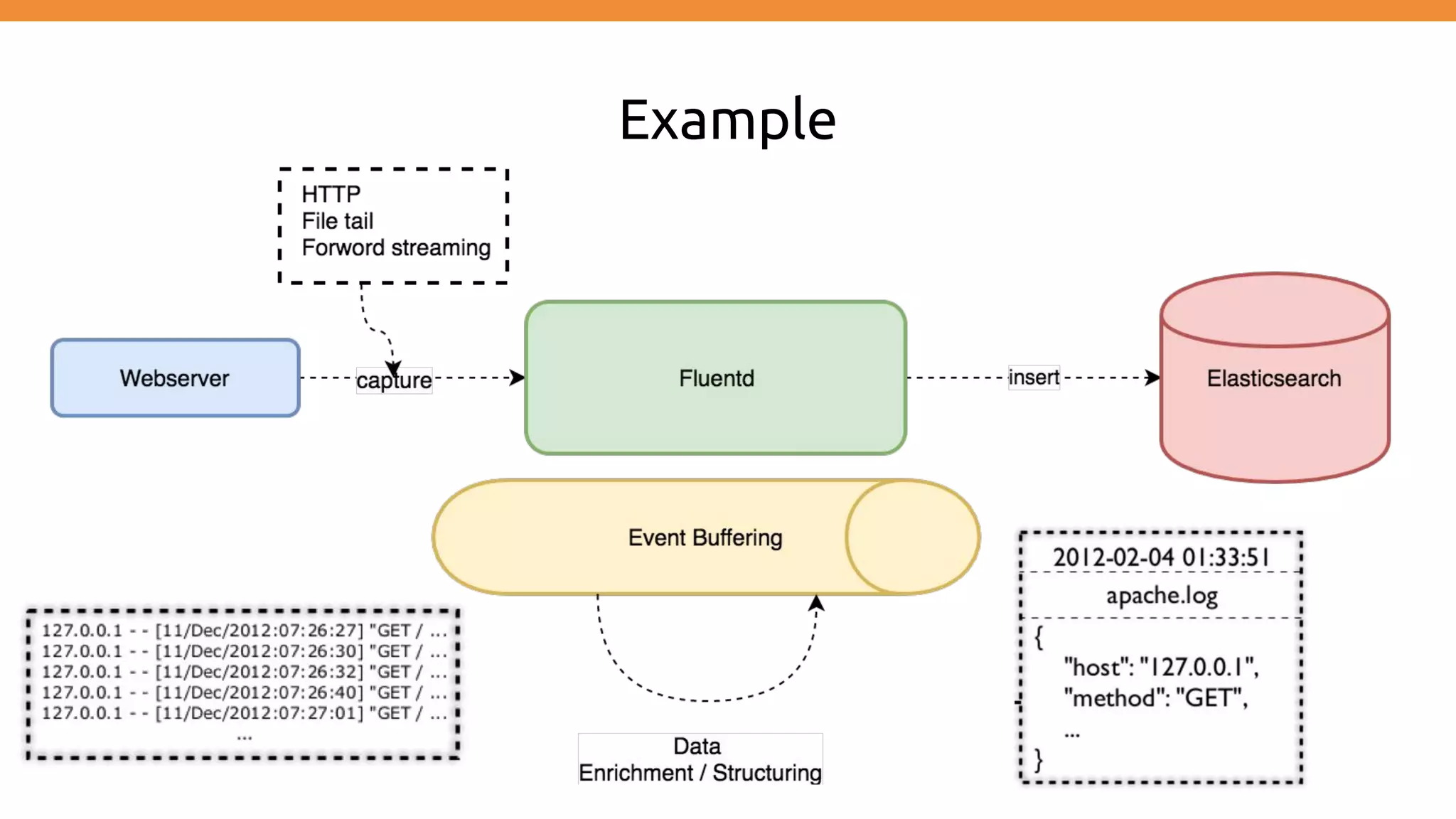

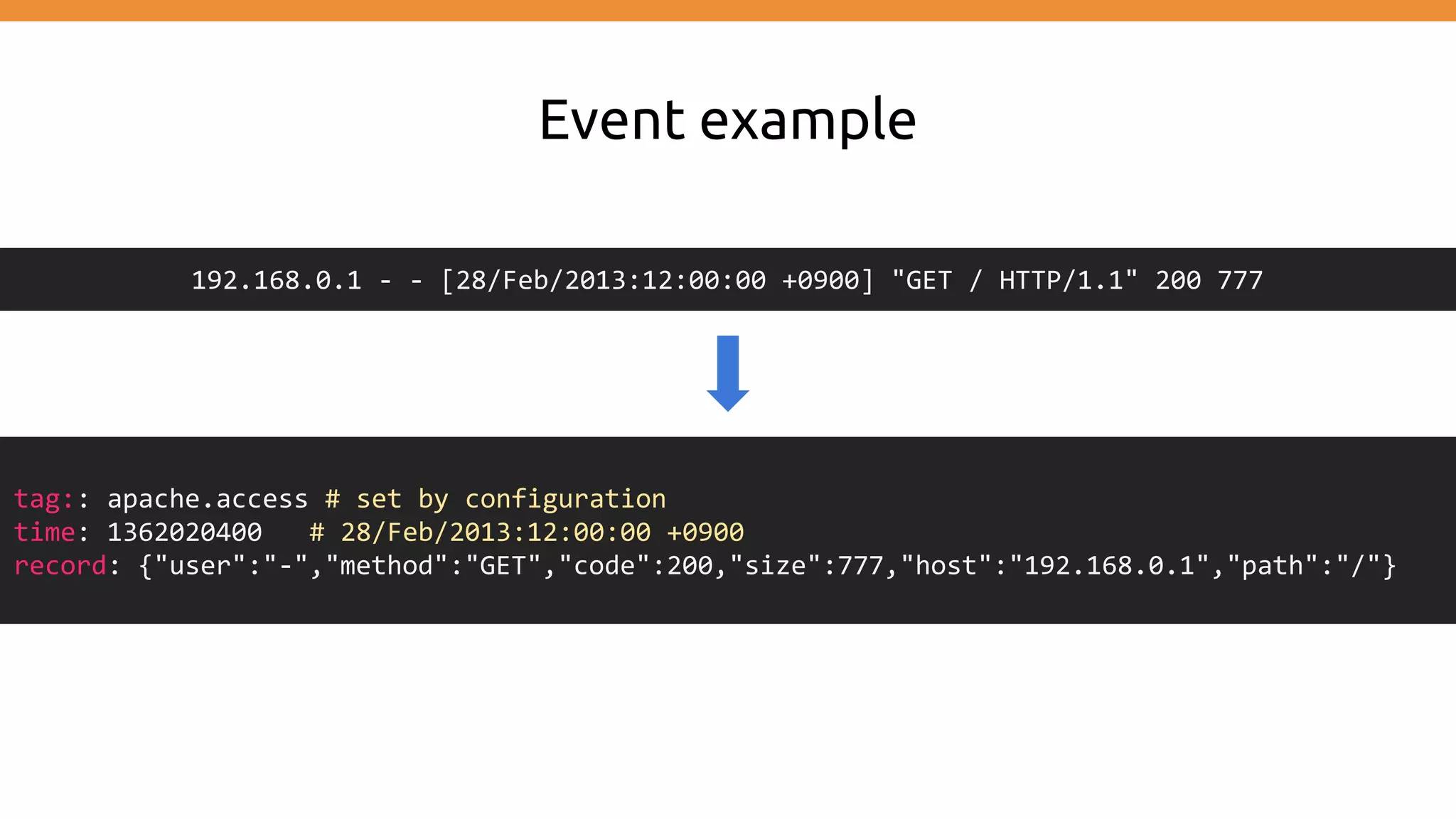

Event example 192.168.0.1 - - [28/Feb/2013:12:00:00 +0900] "GET / HTTP/1.1" 200 777 tag:: apache.access # set by configuration time: 1362020400 # 28/Feb/2013:12:00:00 +0900 record: {"user":"-","method":"GET","code":200,"size":777,"host":"192.168.0.1","path":"/"}

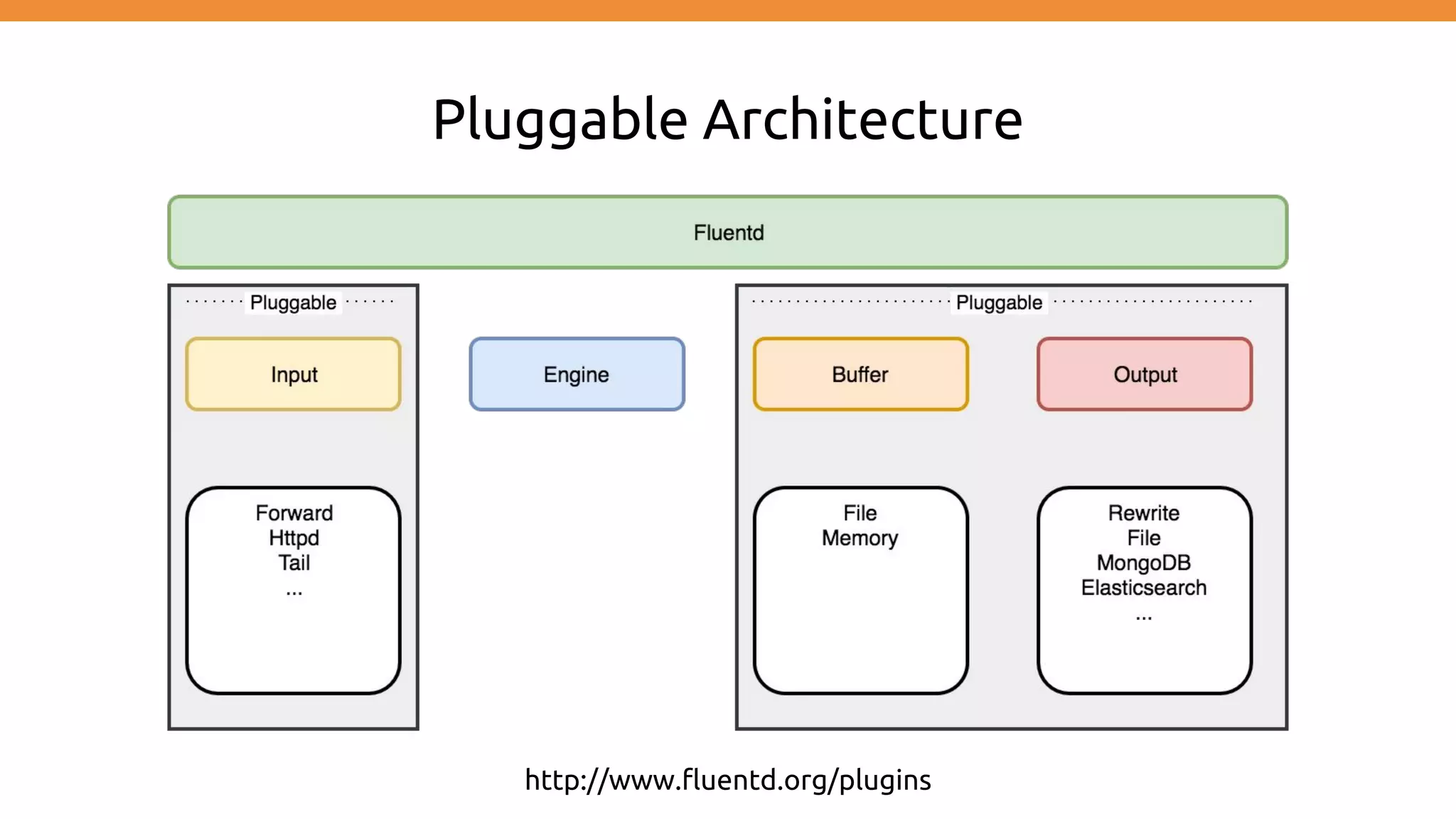

Pluggable Architecture http://www.fluentd.org/plugins

Configuration ● Driven by a simple text based configuration file ○ fluent.conf → Tell where the data comes from (input) → Tell fluentd what to do (output) → Event processing pipeline → Groups filter and output for internal routing <source><source/> <match></match> <filter></filter> source -> filter 1 -> ... -> filter N -> output <label></label>

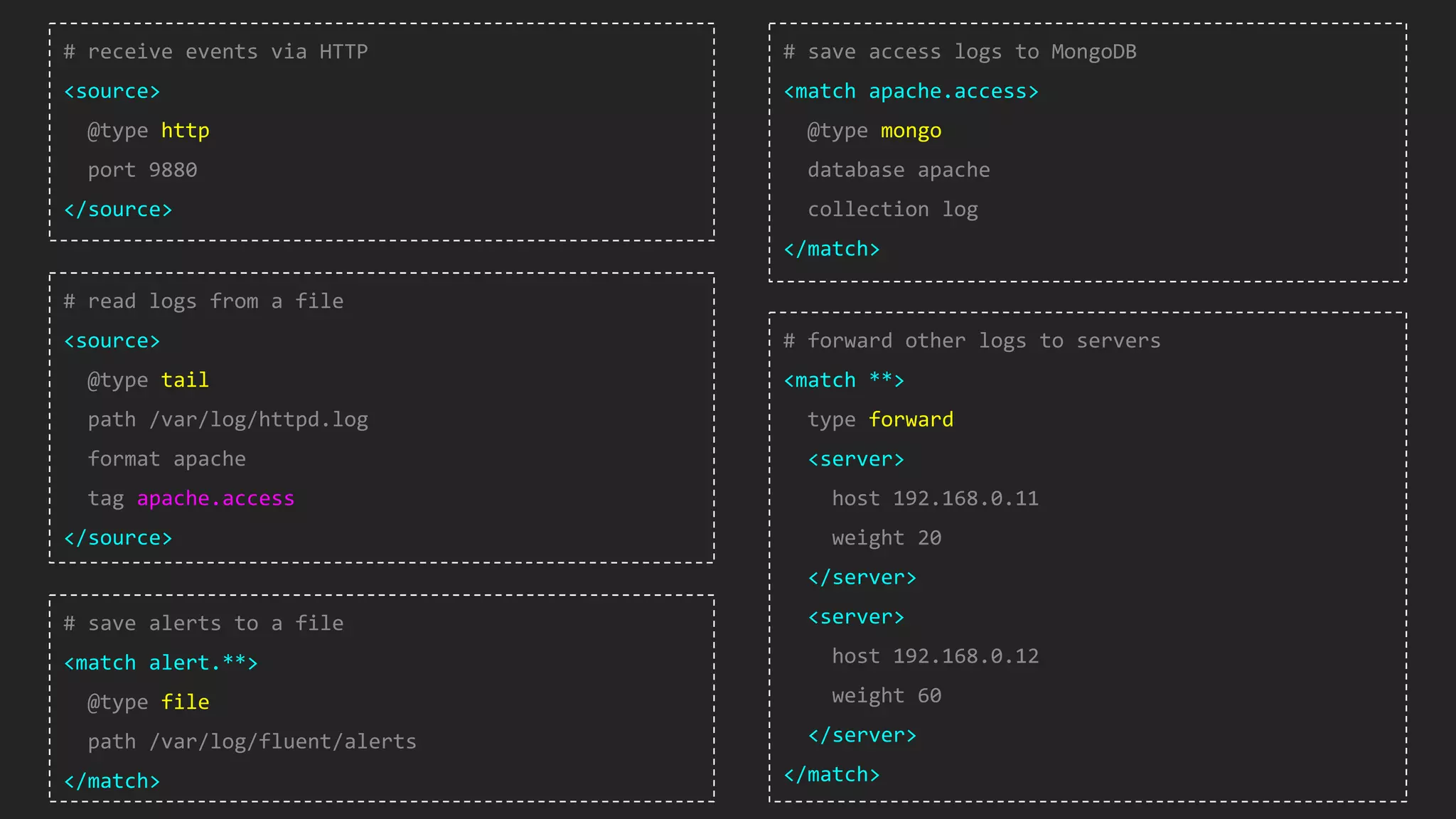

# receive events via HTTP <source> @type http port 9880 </source> # read logs from a file <source> @type tail path /var/log/httpd.log format apache tag apache.access </source> # save alerts to a file <match alert.**> @type file path /var/log/fluent/alerts </match> # save access logs to MongoDB <match apache.access> @type mongo database apache collection log </match> # forward other logs to servers <match **> type forward <server> host 192.168.0.11 weight 20 </server> <server> host 192.168.0.12 weight 60 </server> </match>

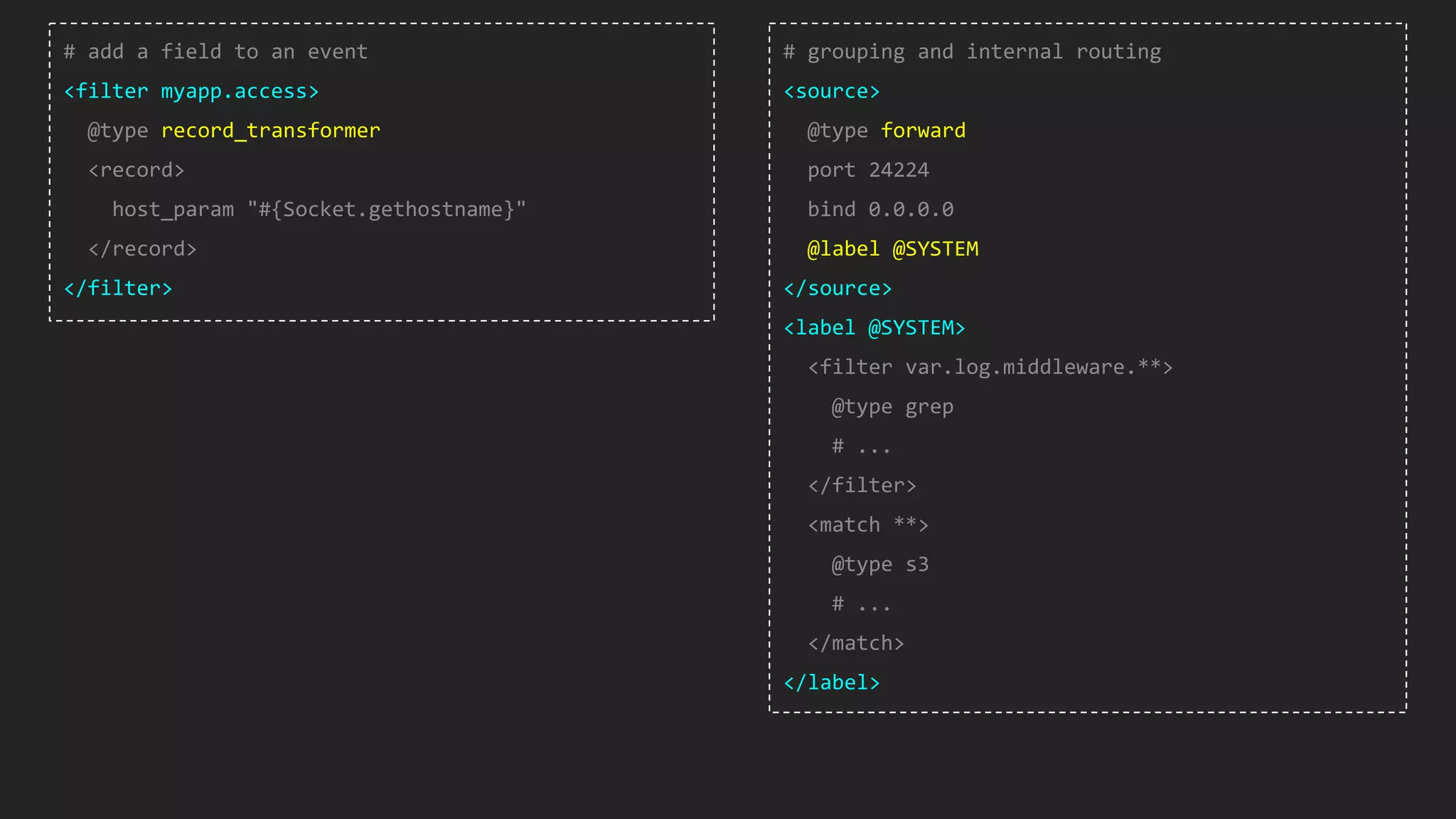

# add a field to an event <filter myapp.access> @type record_transformer <record> host_param "#{Socket.gethostname}" </record> </filter> # grouping and internal routing <source> @type forward port 24224 bind 0.0.0.0 @label @SYSTEM </source> <label @SYSTEM> <filter var.log.middleware.**> @type grep # ... </filter> <match **> @type s3 # ... </match> </label>

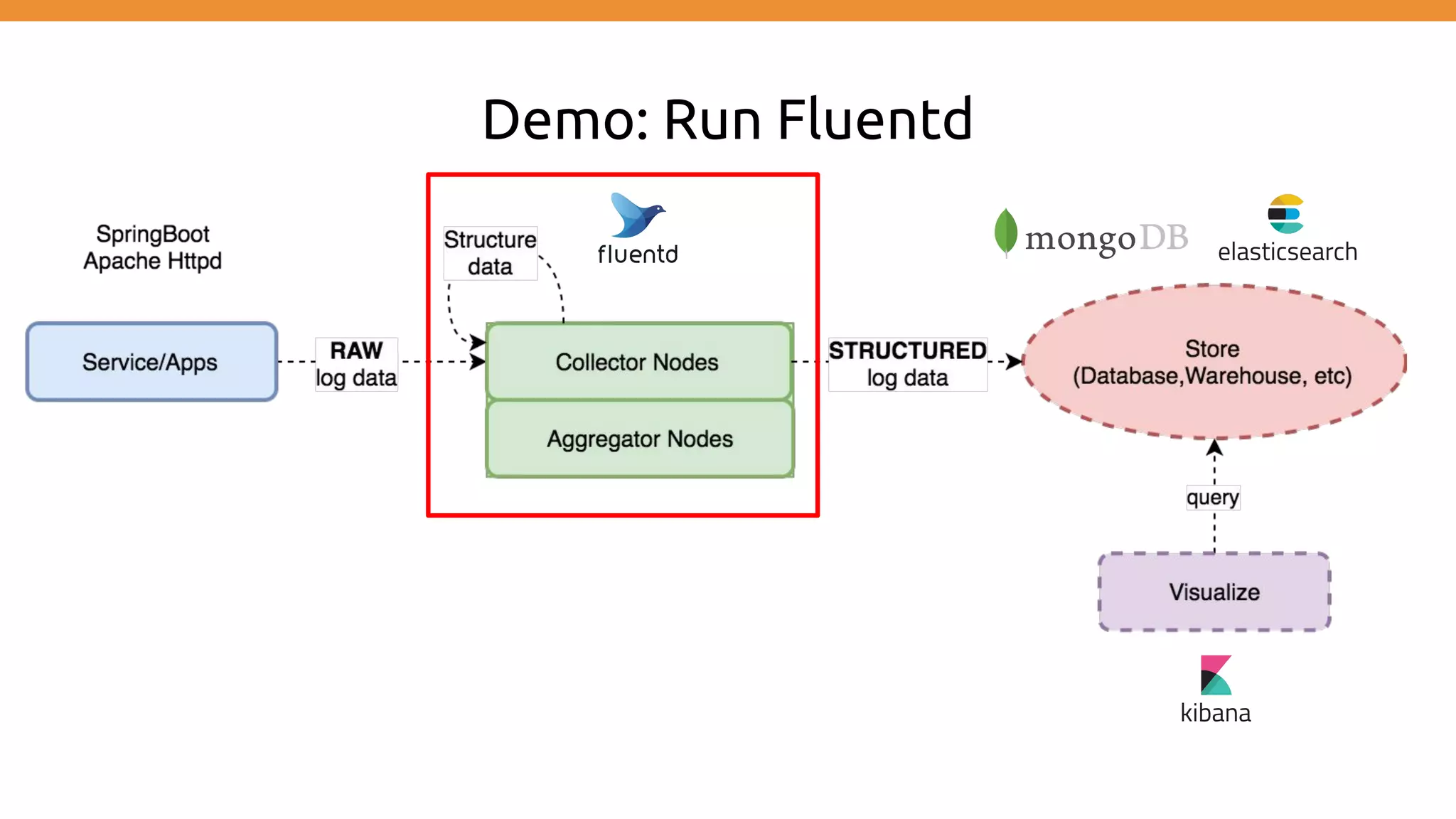

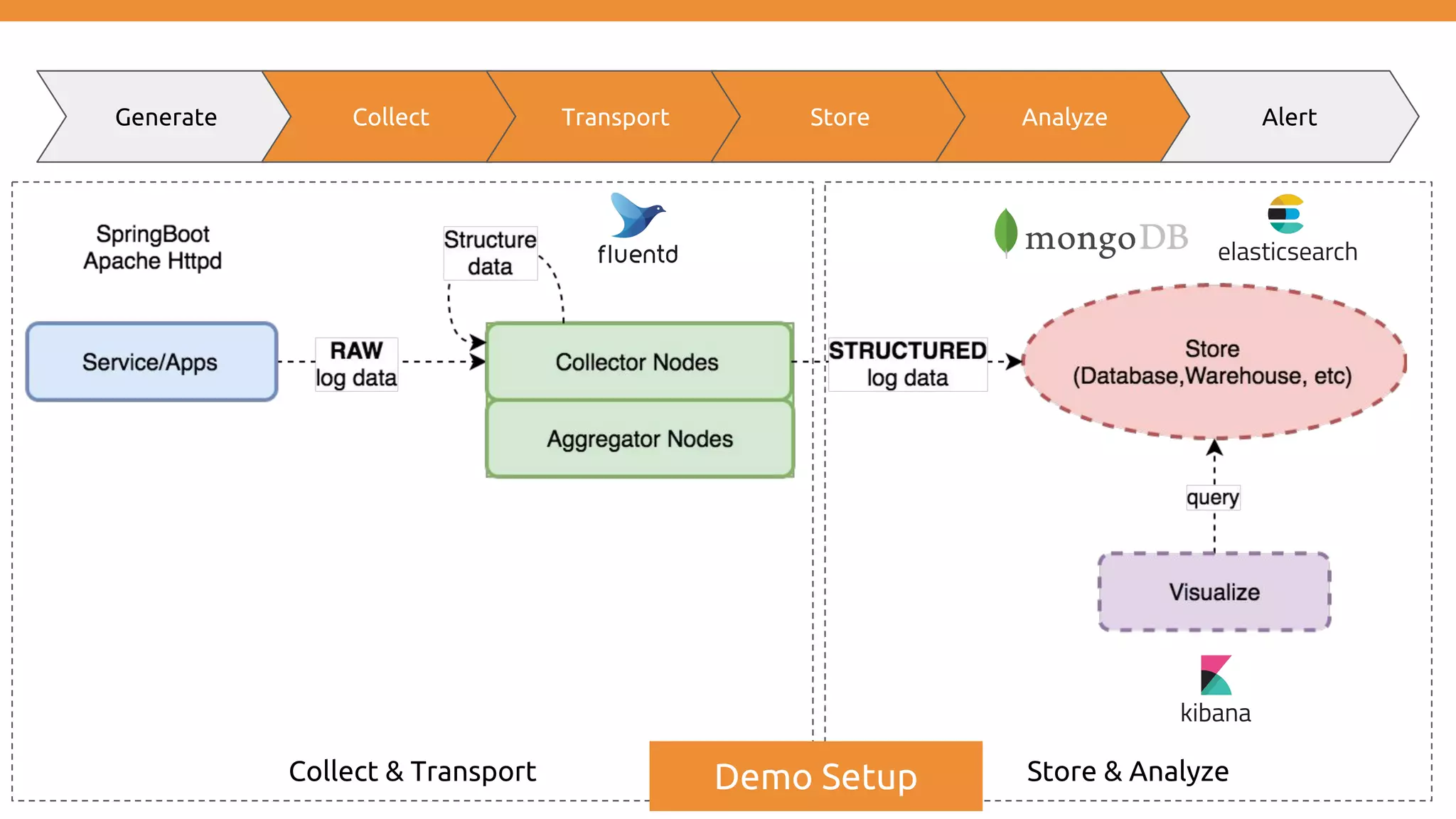

Generate Collect Transport Store Analyze Alert Collect & Transport Store & AnalyzeDemo Setup

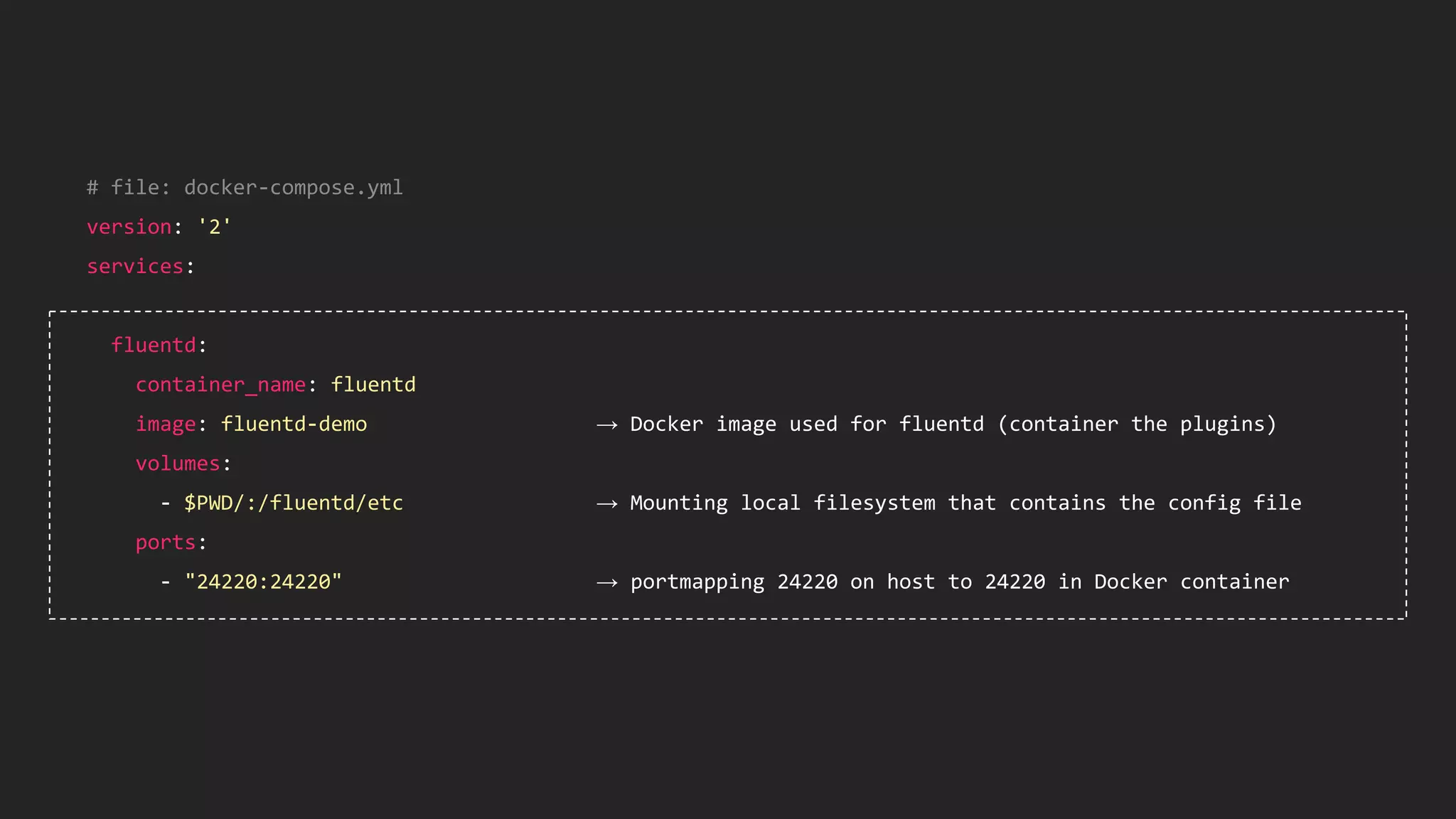

# file: docker-compose.yml version: '2' services: fluentd: container_name: fluentd image: fluentd-demo → Docker image used for fluentd (container the plugins) volumes: - $PWD/:/fluentd/etc → Mounting local filesystem that contains the config file ports: - "24220:24220" → portmapping 24220 on host to 24220 in Docker container

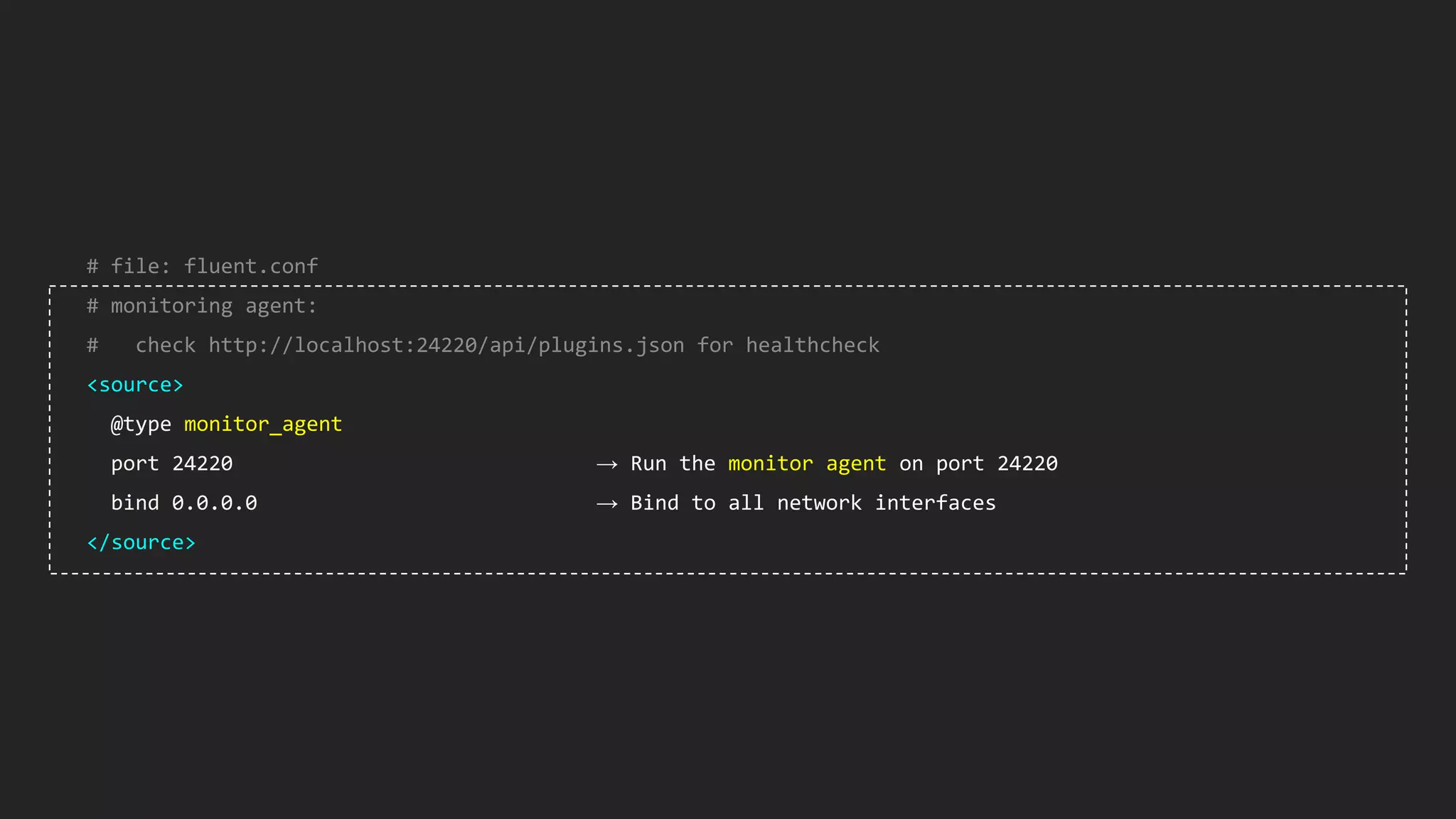

# file: fluent.conf # monitoring agent: # check http://localhost:24220/api/plugins.json for healthcheck <source> @type monitor_agent port 24220 → Run the monitor agent on port 24220 bind 0.0.0.0 → Bind to all network interfaces </source>

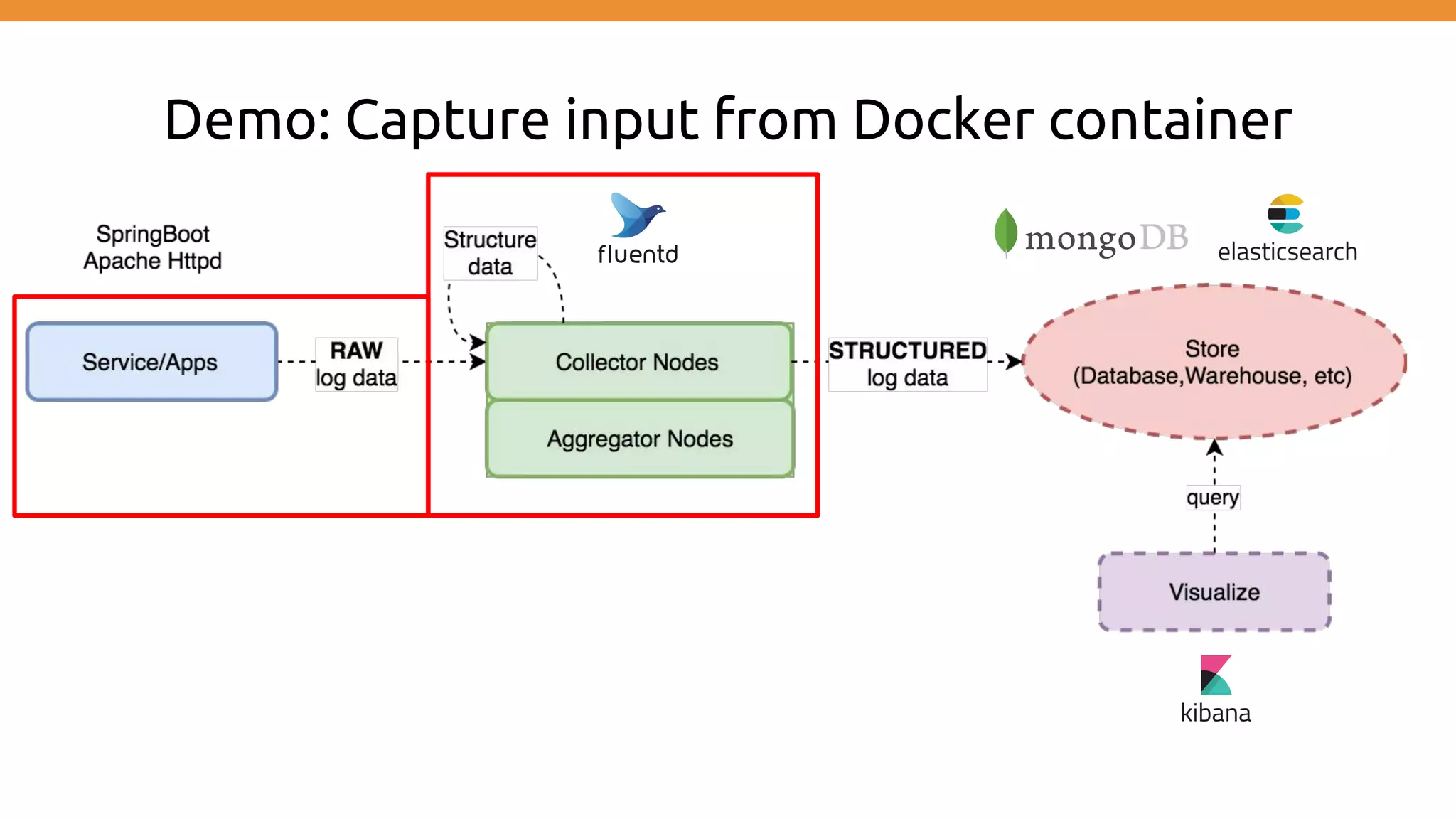

Demo: Capture input from Docker container

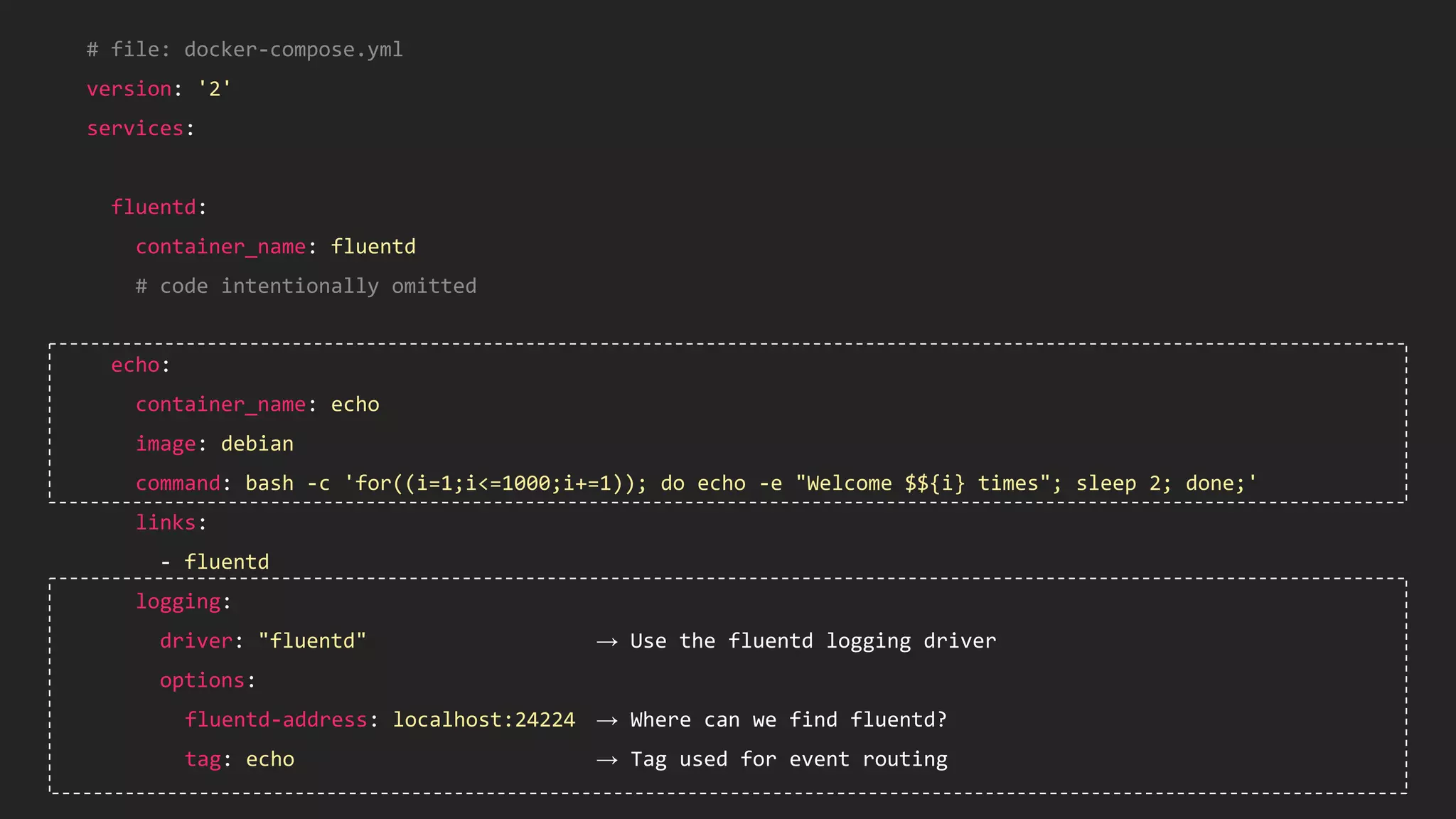

# file: docker-compose.yml version: '2' services: fluentd: container_name: fluentd # code intentionally omitted echo: container_name: echo image: debian command: bash -c 'for((i=1;i<=1000;i+=1)); do echo -e "Welcome $${i} times"; sleep 2; done;' links: - fluentd logging: driver: "fluentd" → Use the fluentd logging driver options: fluentd-address: localhost:24224 → Where can we find fluentd? tag: echo → Tag used for event routing

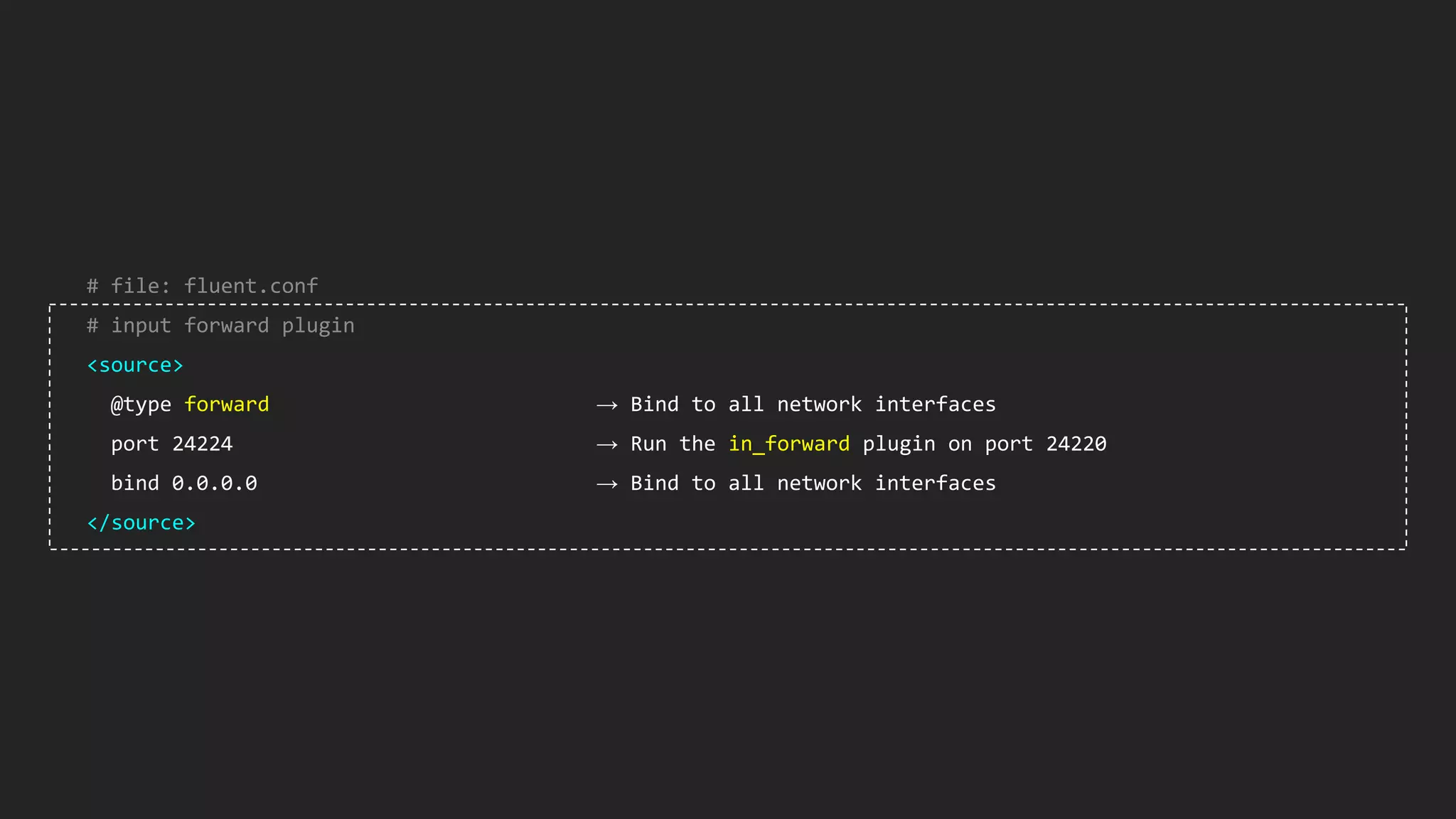

# file: fluent.conf # input forward plugin <source> @type forward → Bind to all network interfaces port 24224 → Run the in_forward plugin on port 24220 bind 0.0.0.0 → Bind to all network interfaces </source>

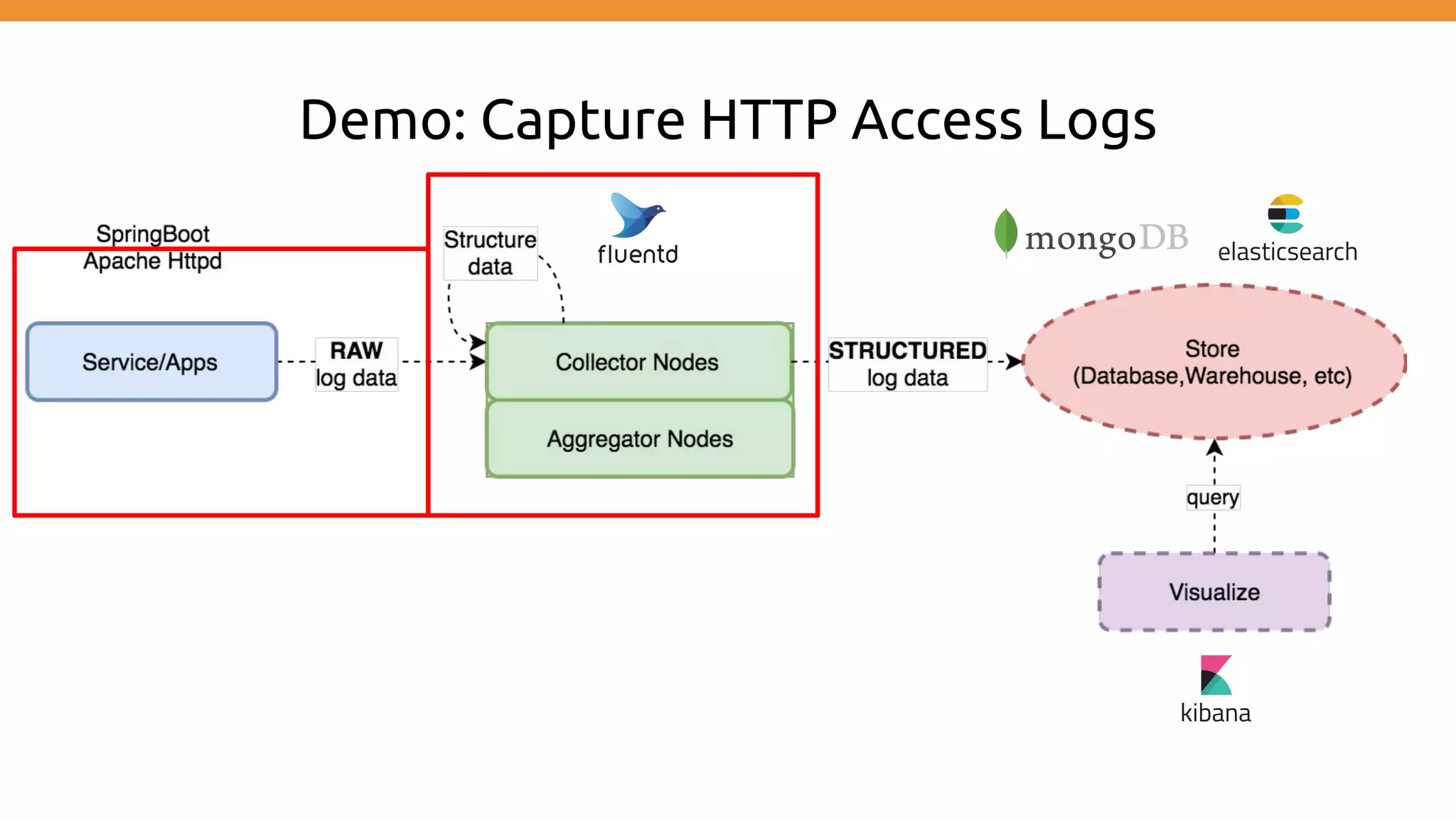

Demo: Capture HTTP Access Logs

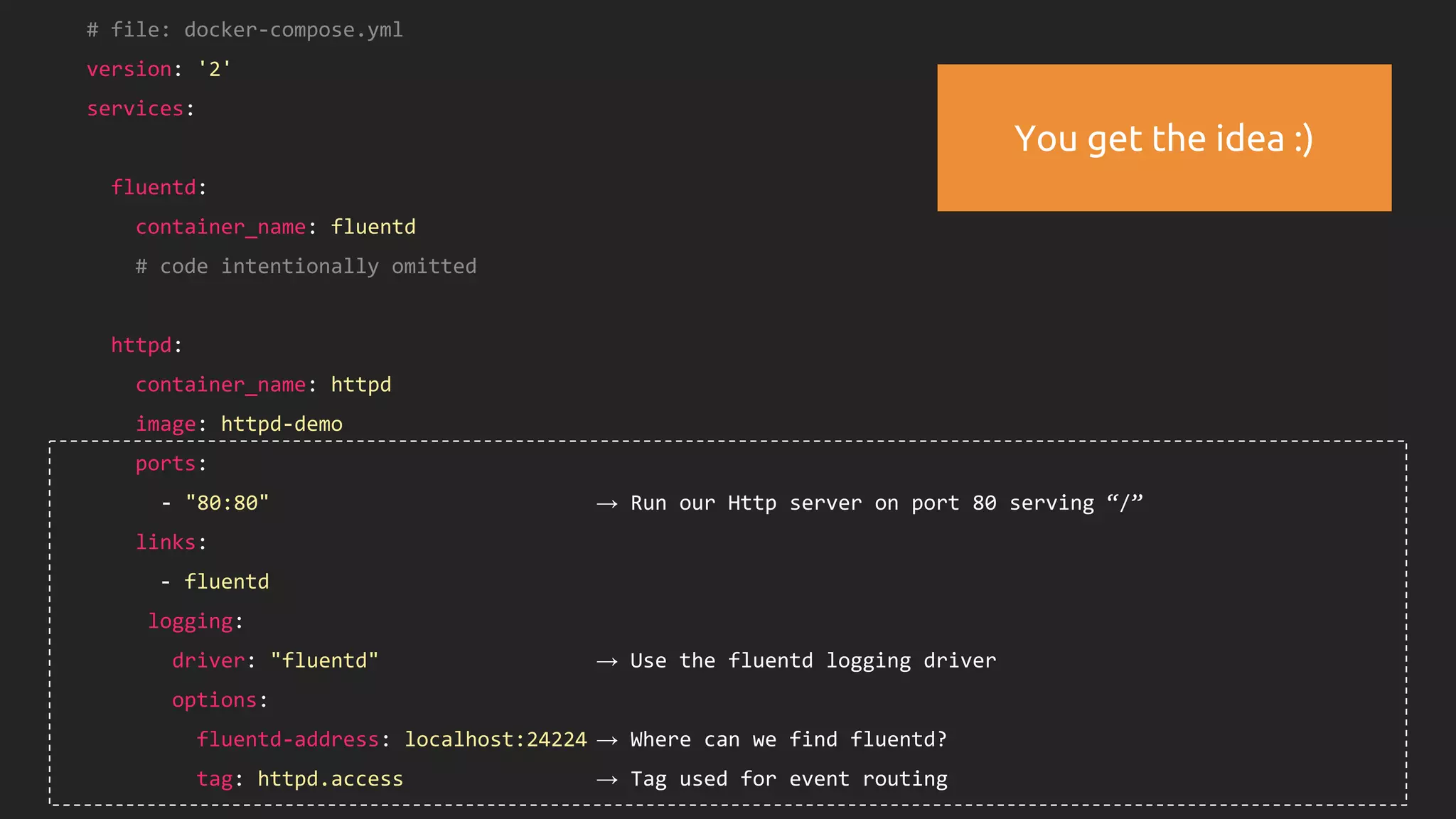

# file: docker-compose.yml version: '2' services: fluentd: container_name: fluentd # code intentionally omitted httpd: container_name: httpd image: httpd-demo ports: - "80:80" → Run our Http server on port 80 serving “/” links: - fluentd logging: driver: "fluentd" → Use the fluentd logging driver options: fluentd-address: localhost:24224 → Where can we find fluentd? tag: httpd.access → Tag used for event routing You get the idea :)

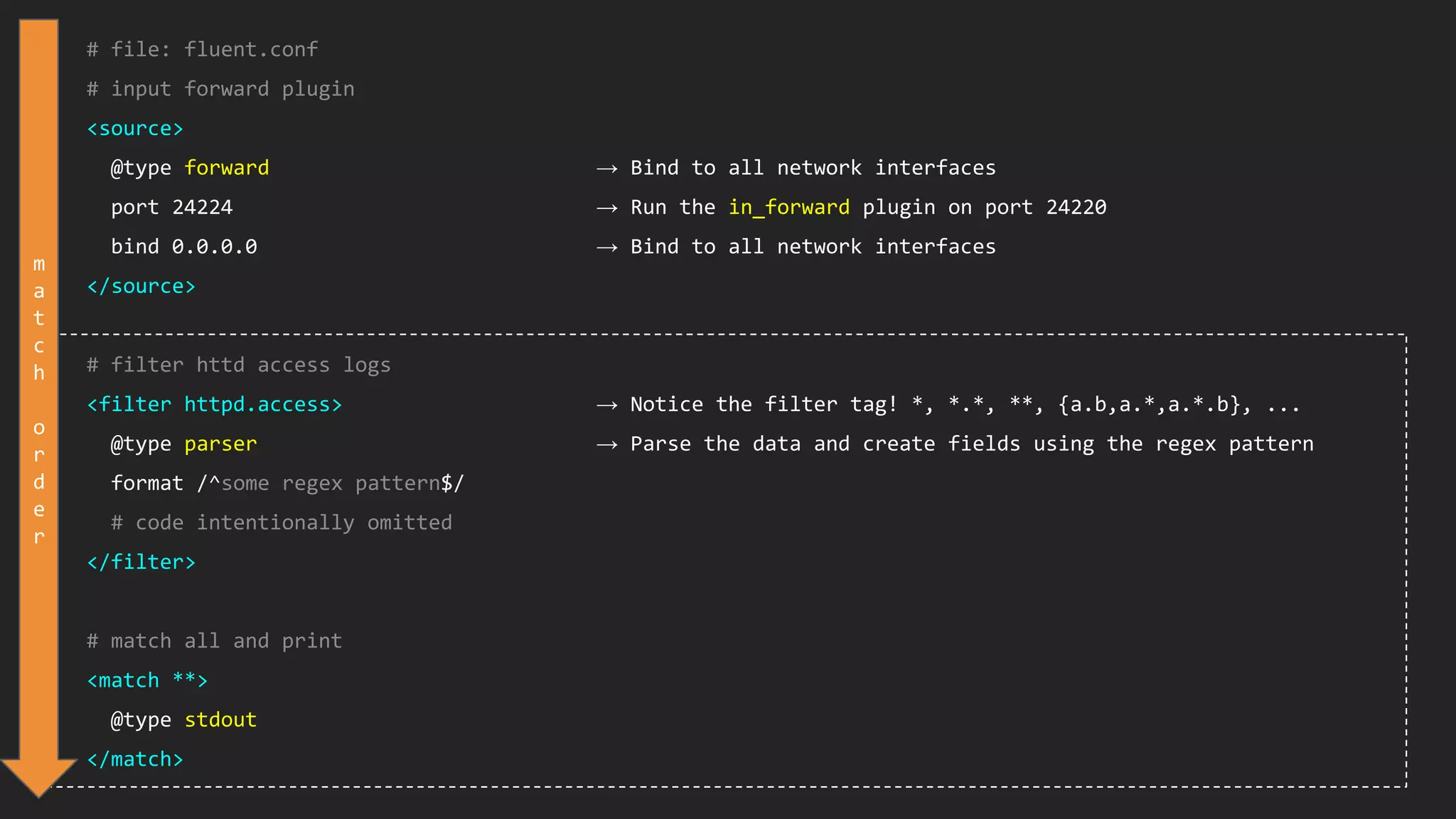

# file: fluent.conf # input forward plugin <source> @type forward → Bind to all network interfaces port 24224 → Run the in_forward plugin on port 24220 bind 0.0.0.0 → Bind to all network interfaces </source> # filter httd access logs <filter httpd.access> → Notice the filter tag! *, *.*, **, {a.b,a.*,a.*.b}, ... @type parser → Parse the data and create fields using the regex pattern format /^some regex pattern$/ # code intentionally omitted </filter> # match all and print <match **> @type stdout </match> m a t c h o r d e r

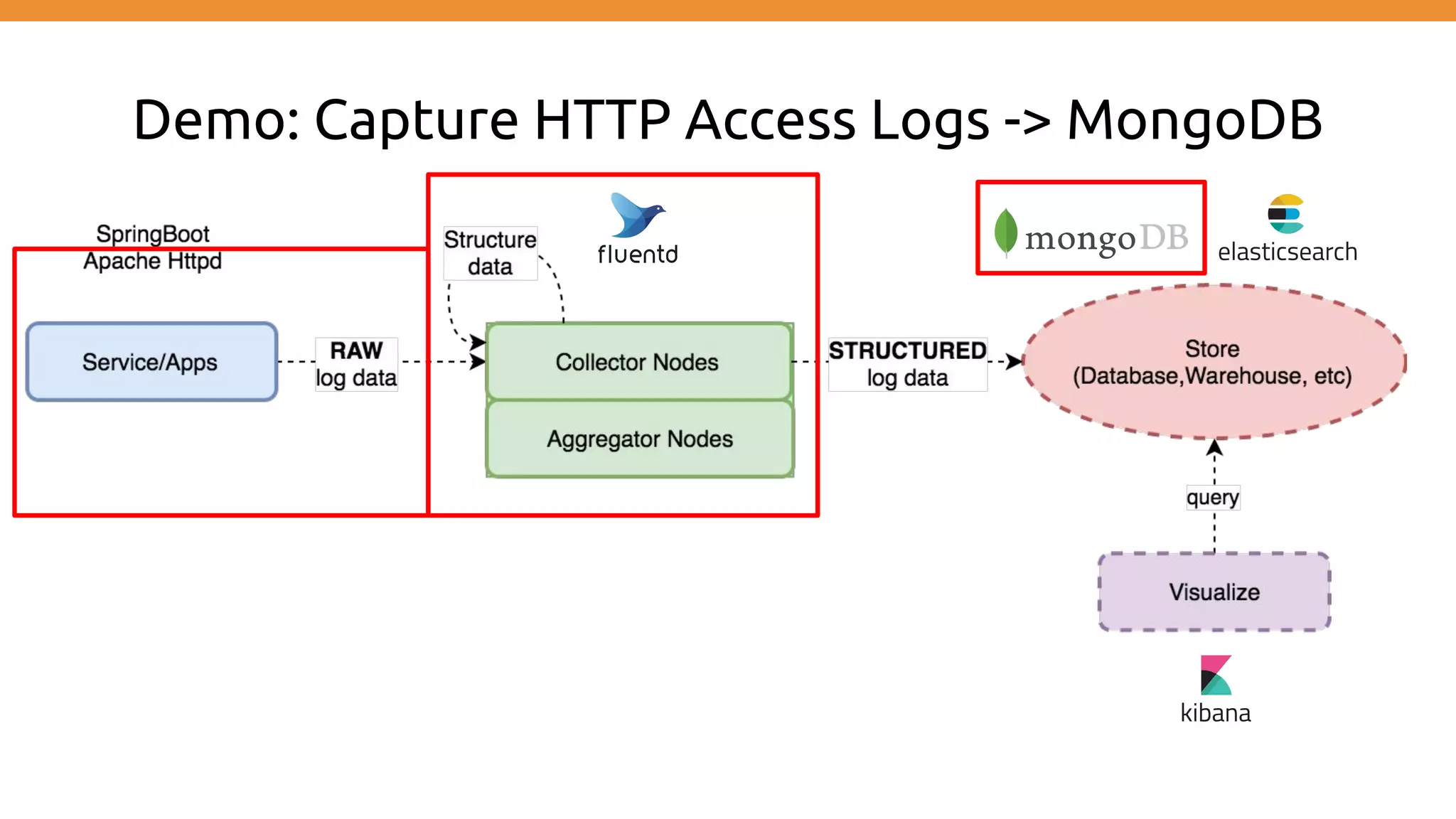

Demo: Capture HTTP Access Logs -> MongoDB

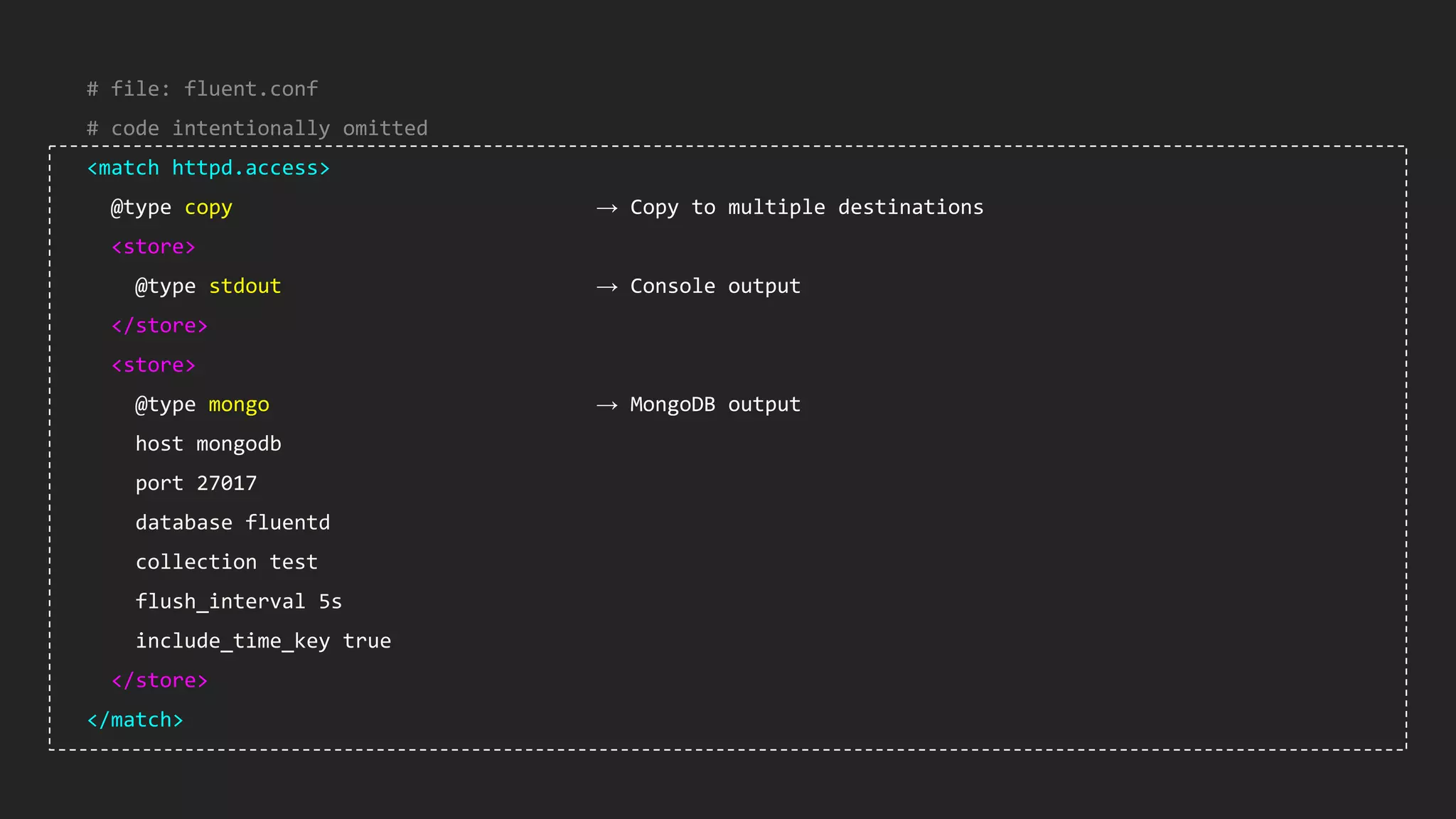

# file: fluent.conf # code intentionally omitted <match httpd.access> @type copy → Copy to multiple destinations <store> @type stdout → Console output </store> <store> @type mongo → MongoDB output host mongodb port 27017 database fluentd collection test flush_interval 5s include_time_key true </store> </match>

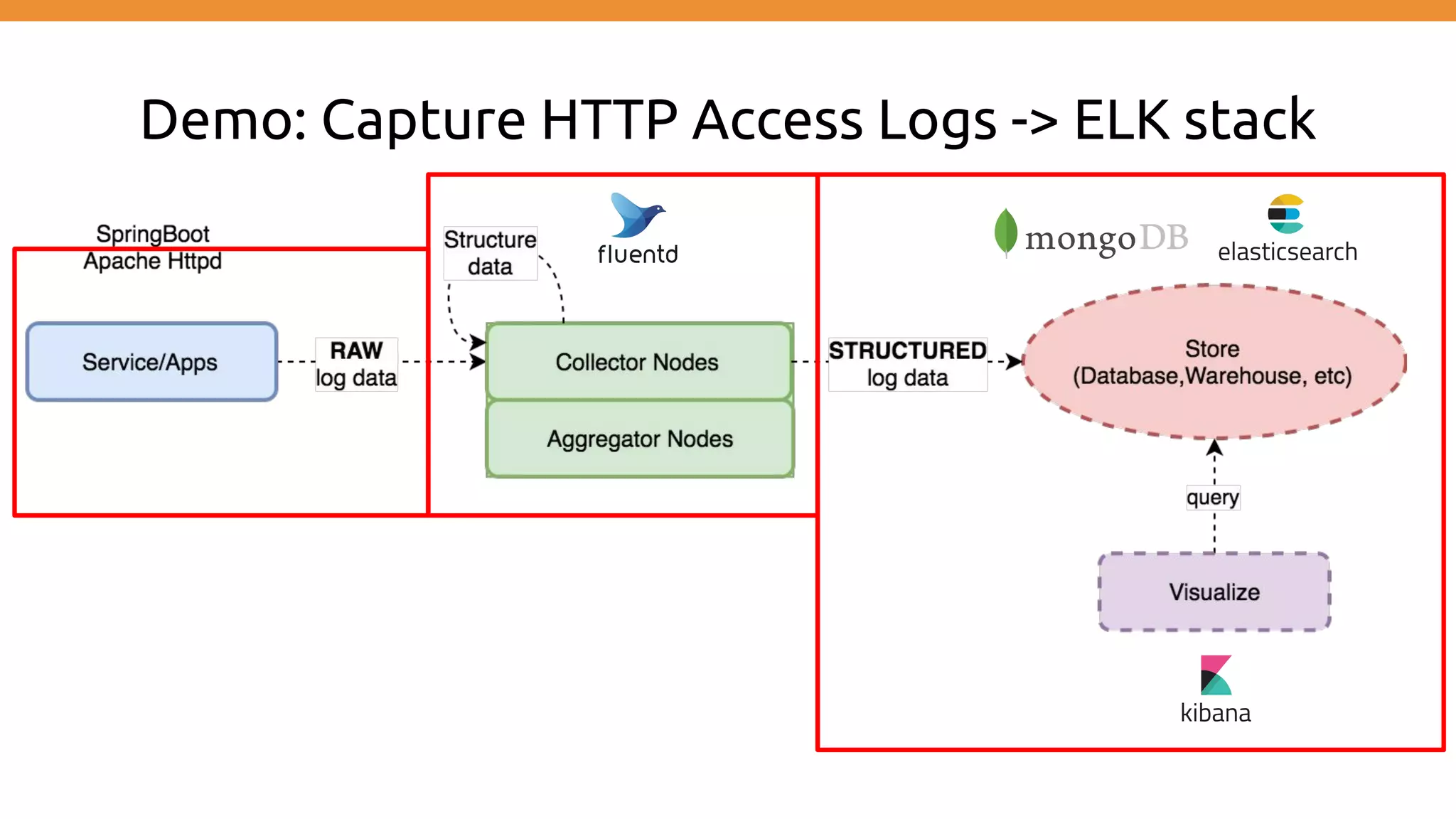

Demo: Capture HTTP Access Logs -> ELK stack

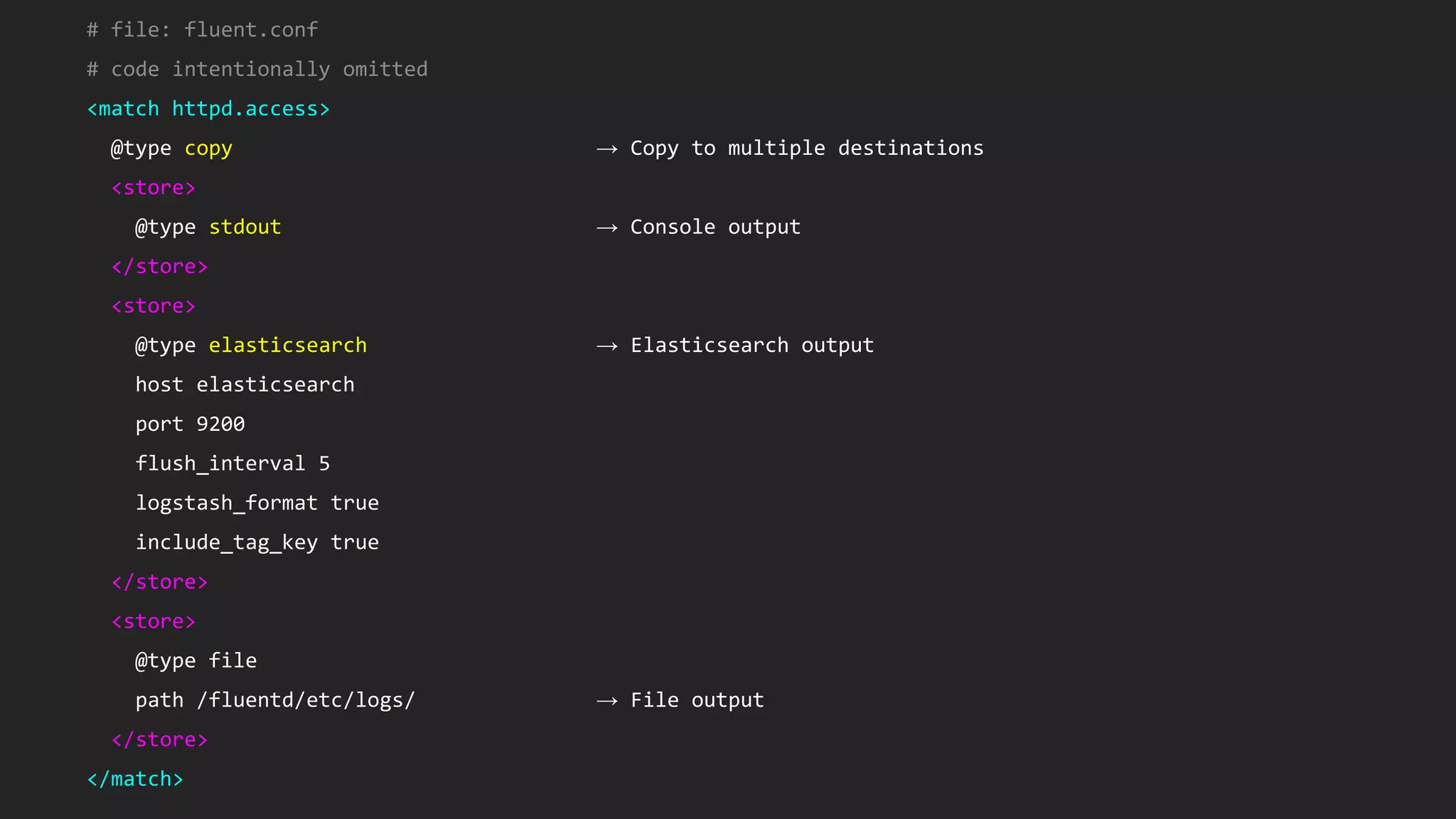

# file: fluent.conf # code intentionally omitted <match httpd.access> @type copy → Copy to multiple destinations <store> @type stdout → Console output </store> <store> @type elasticsearch → Elasticsearch output host elasticsearch port 9200 flush_interval 5 logstash_format true include_tag_key true </store> <store> @type file path /fluentd/etc/logs/ → File output </store> </match>

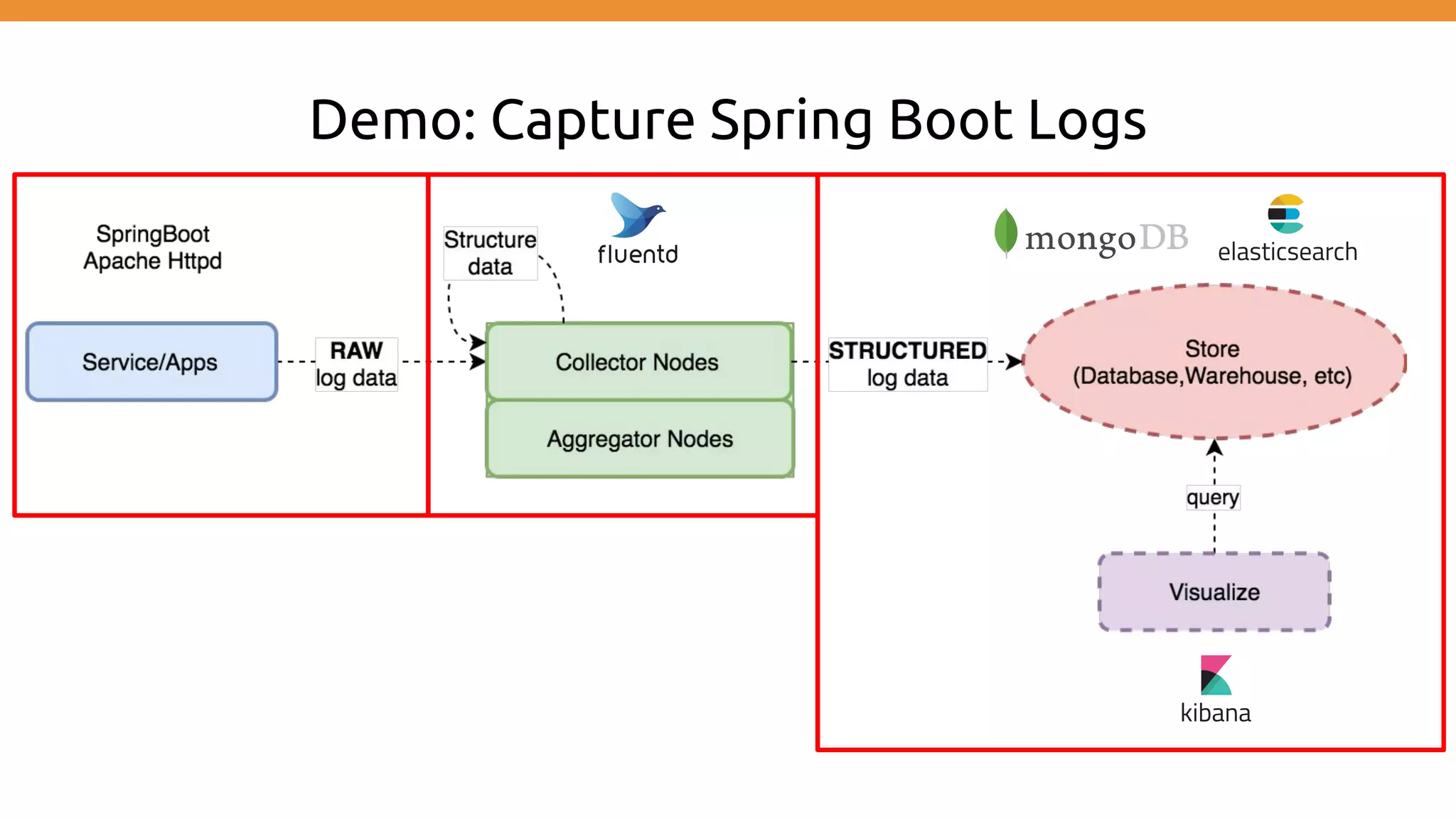

Demo: Capture Spring Boot Logs

# file: fluent.conf # code intentionally omitted <filter springboot.**> @type parser key_name log reserve_data true reserve_time true <parse> @type grok grok_failure_key grokfailure <grok> → Parsing done based on GROK Patterns pattern %{TIMESTAMP_ISO8601:time_stamp}%{SPACE}%{LOGLEVEL:log_level}...*) </grok> </parse> </filter>

That’s a wrap! Question? https://github.com/mpas/collect-distributed-application-logging-using-fluentd-efk-stack Marco Pas Philips Lighting Software geek, hands on Developer/Architect/DevOps Engineer @marcopas
