CodeFest 2014. Axel Rauschmayer — JavaScript’s variables: scopes, environments, closures
The document discusses JavaScript variables, scopes, environments, and closures. It defines variable scope as where a variable is accessible and distinguishes between static scoping based on source code and dynamic scoping based on runtime. It explains that environments are data structures for storing variables and mapping names to values, and support both fresh variables per function call and nested scopes. Closures are defined as functions that maintain a reference to outer scope variables even after outer functions have returned.
CodeFest 2014. Axel Rauschmayer — JavaScript’s variables: scopes, environments, closures
- 1. JavaScript’s variables: scopes,environments, closures Dr. Axel Rauschmayer 2ality.com 2014-03-30 CodeFest 2014
- 2.

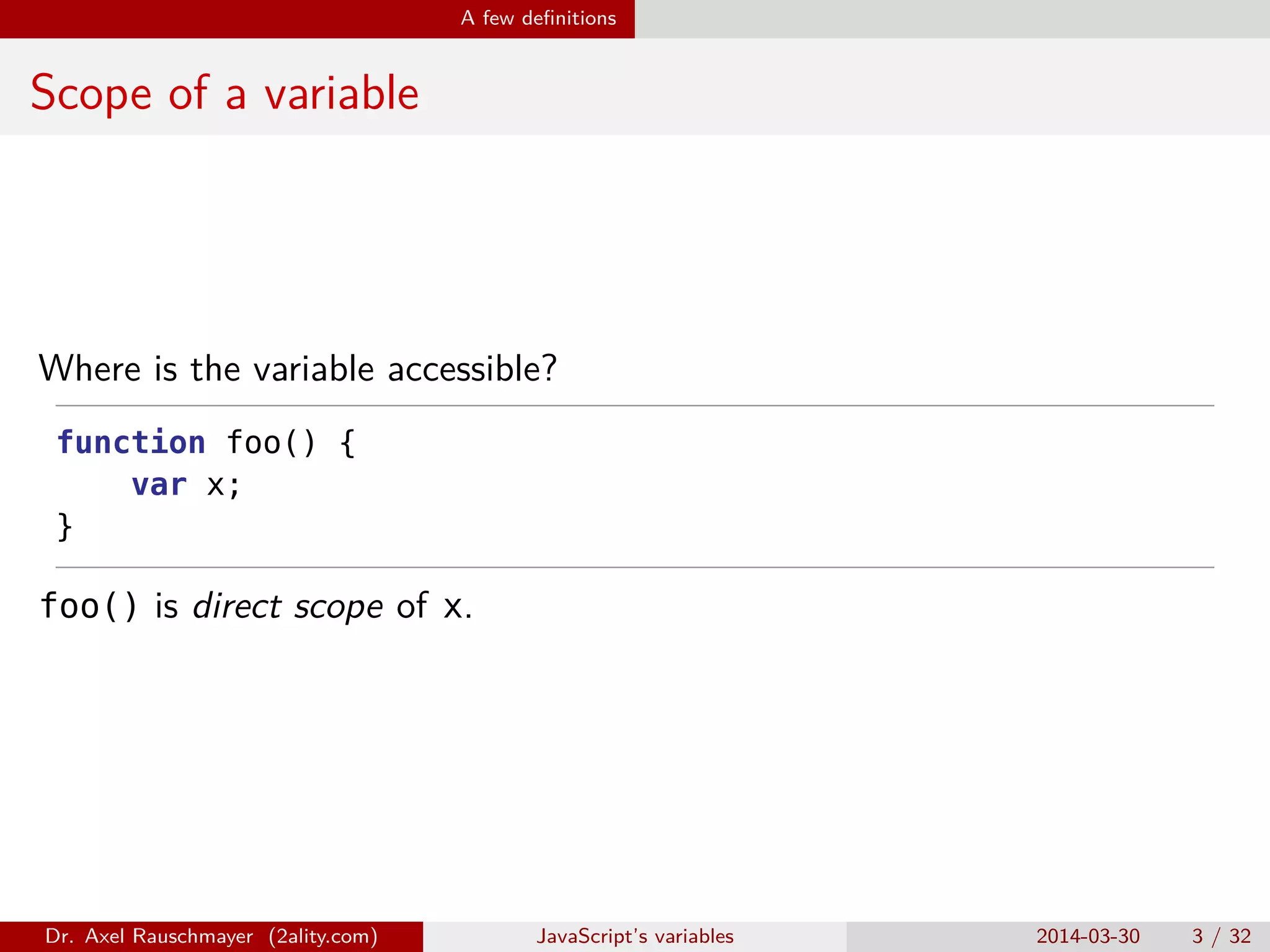

- 3. A few definitions Scopeof a variable Where is the variable accessible? function foo() { var x; } foo() is direct scope of x. Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 3 / 32

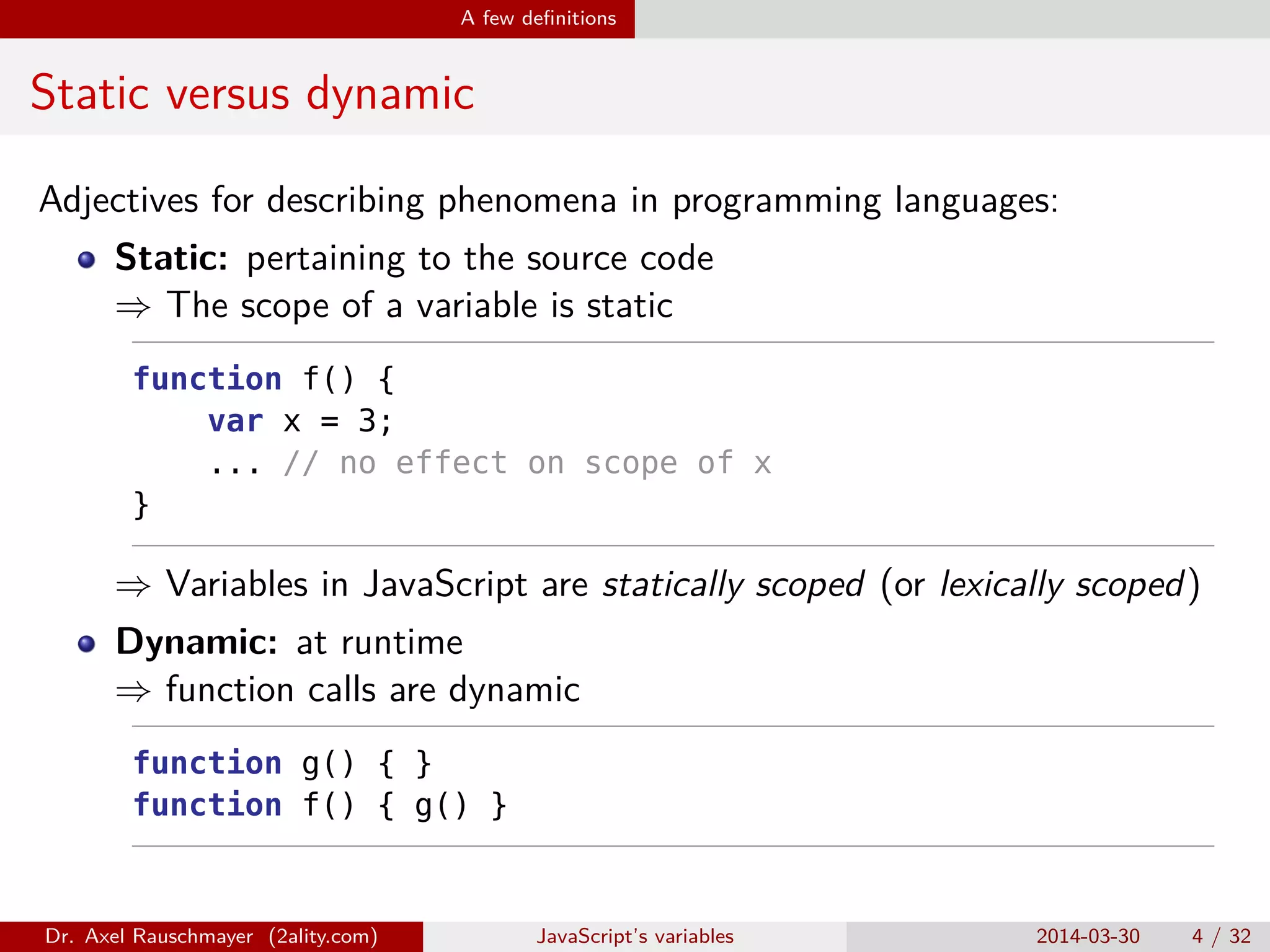

- 4. A few definitions Staticversus dynamic Adjectives for describing phenomena in programming languages: Static: pertaining to the source code ⇒ The scope of a variable is static function f() { var x = 3; ... // no effect on scope of x } ⇒ Variables in JavaScript are statically scoped (or lexically scoped) Dynamic: at runtime ⇒ function calls are dynamic function g() { } function f() { g() } Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 4 / 32

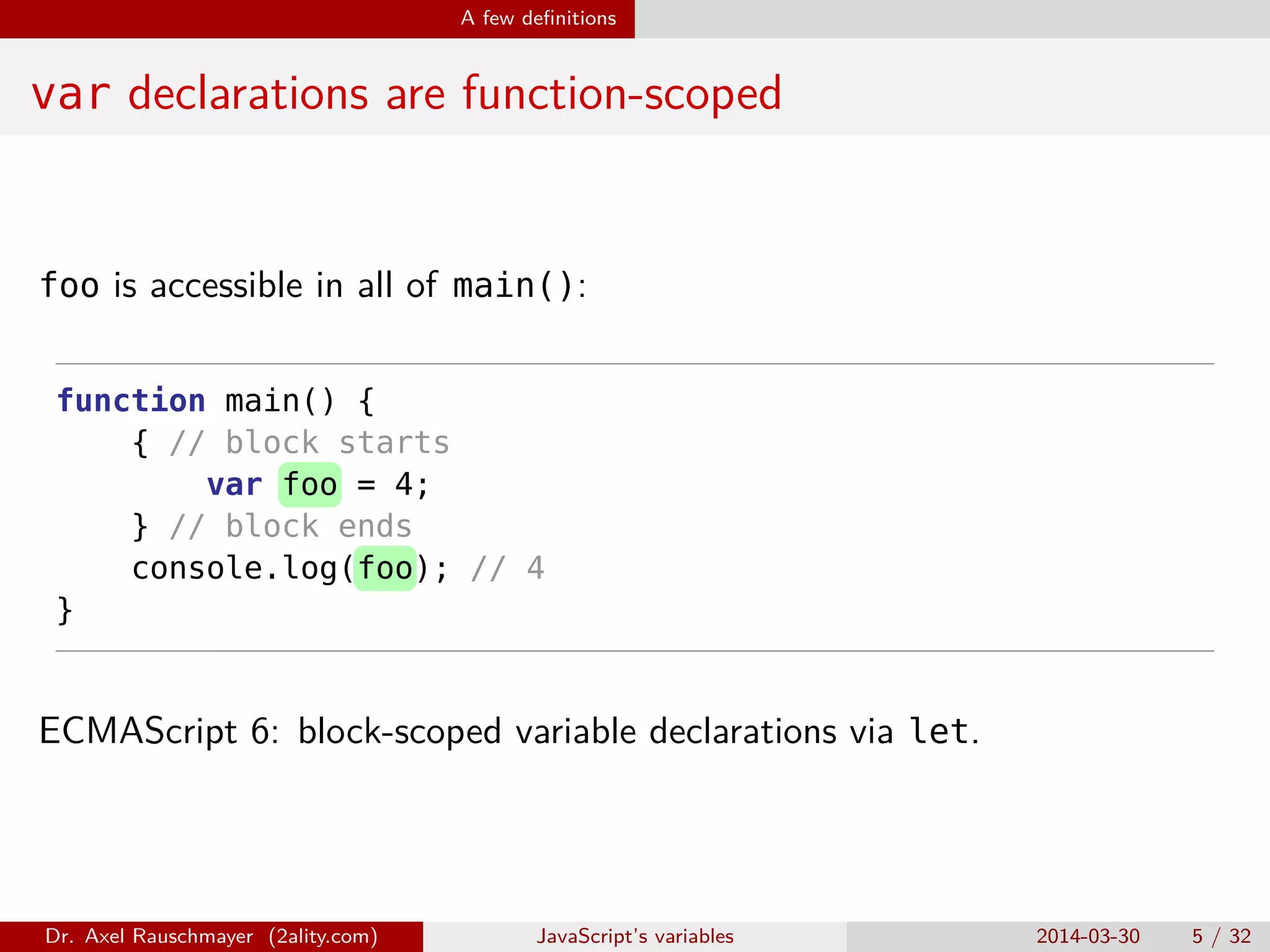

- 5. A few definitions vardeclarations are function-scoped foo is accessible in all of main(): function main() { { // block starts var foo = 4; } // block ends console.log(foo); // 4 } ECMAScript 6: block-scoped variable declarations via let. Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 5 / 32

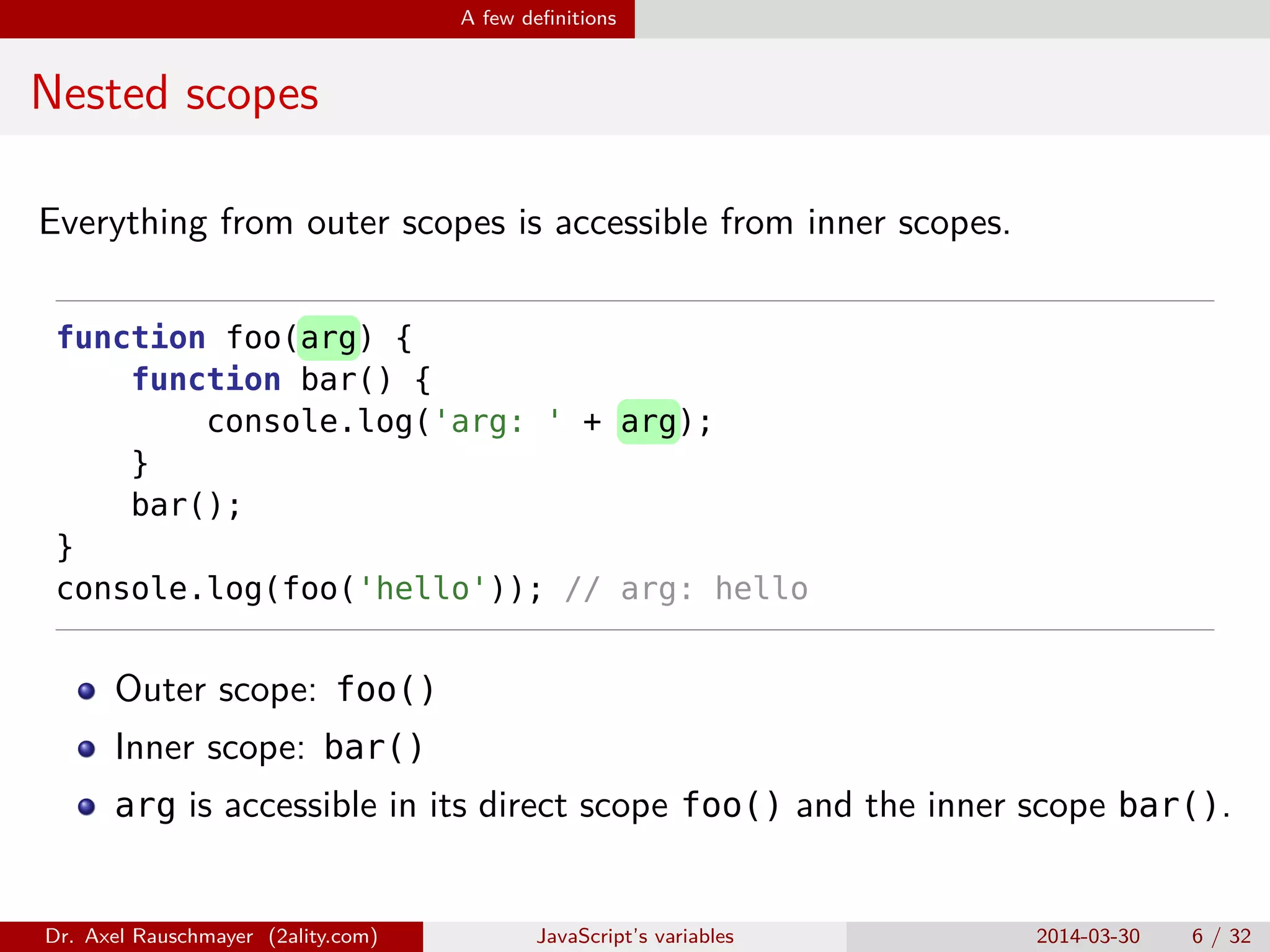

- 6. A few definitions Nestedscopes Everything from outer scopes is accessible from inner scopes. function foo(arg) { function bar() { console.log('arg: ' + arg); } bar(); } console.log(foo('hello')); // arg: hello Outer scope: foo() Inner scope: bar() arg is accessible in its direct scope foo() and the inner scope bar(). Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 6 / 32
- 7.

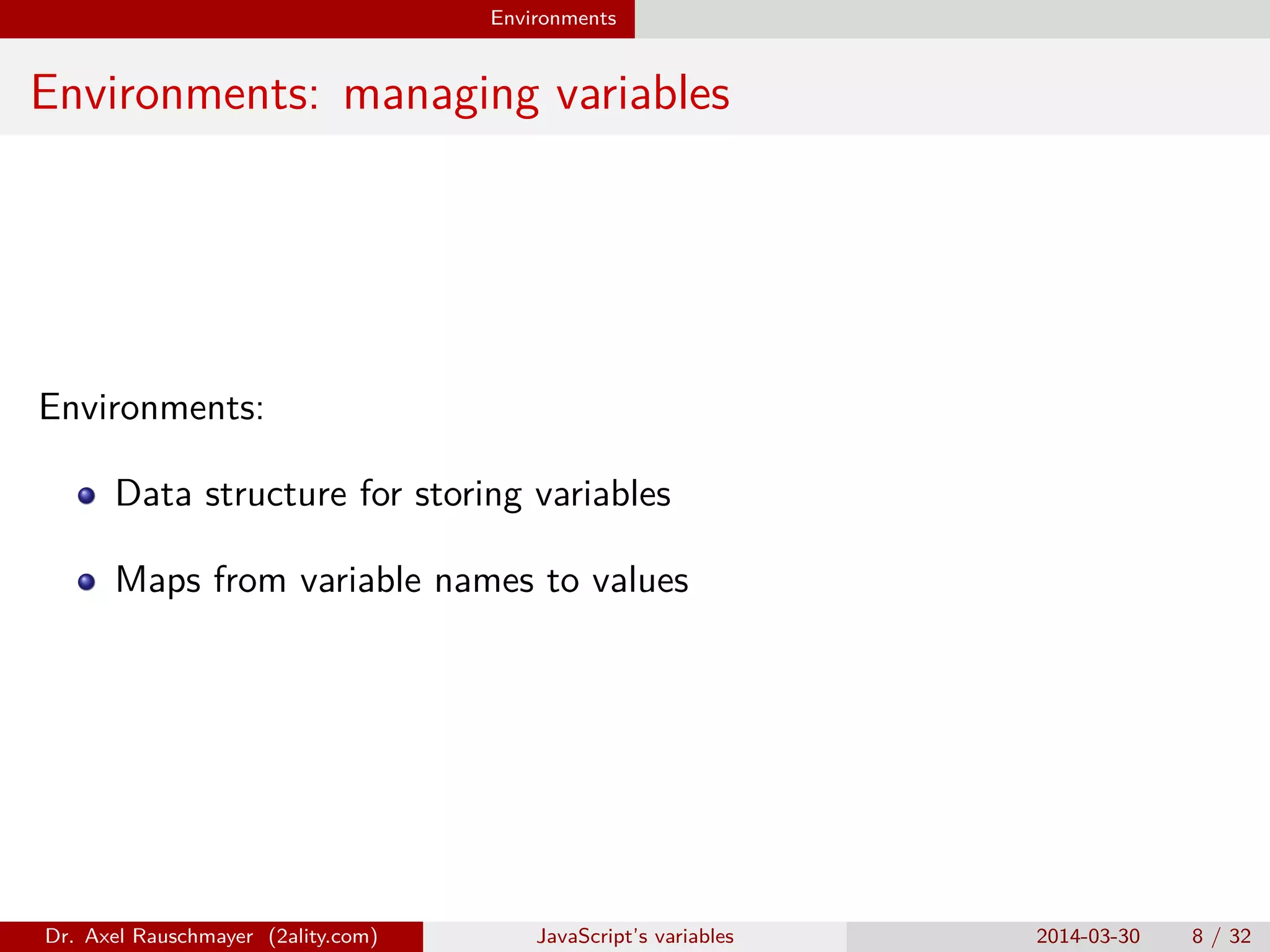

- 8. Environments Environments: managing variables Environments: Datastructure for storing variables Maps from variable names to values Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 8 / 32

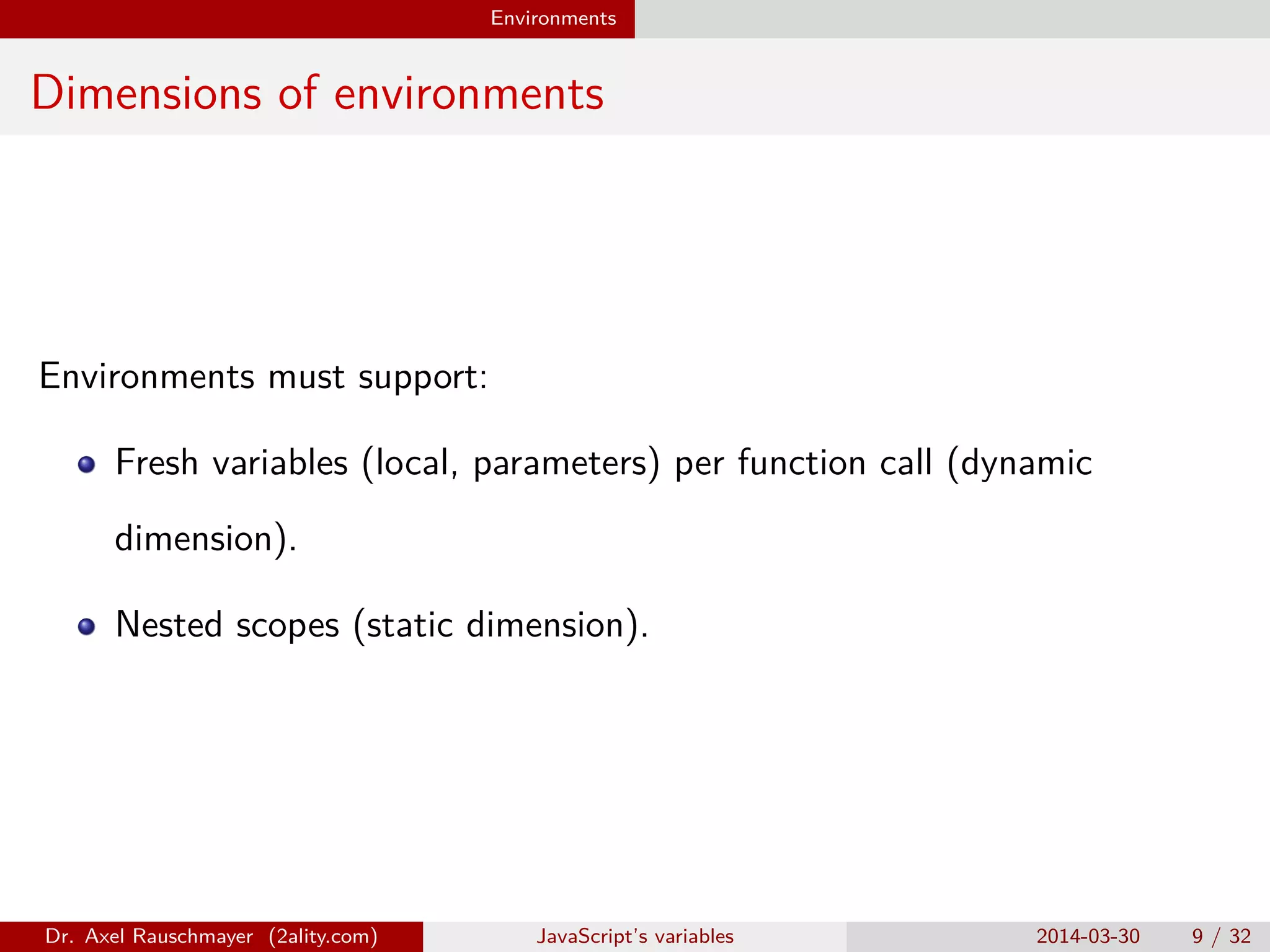

- 9. Environments Dimensions of environments Environmentsmust support: Fresh variables (local, parameters) per function call (dynamic dimension). Nested scopes (static dimension). Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 9 / 32

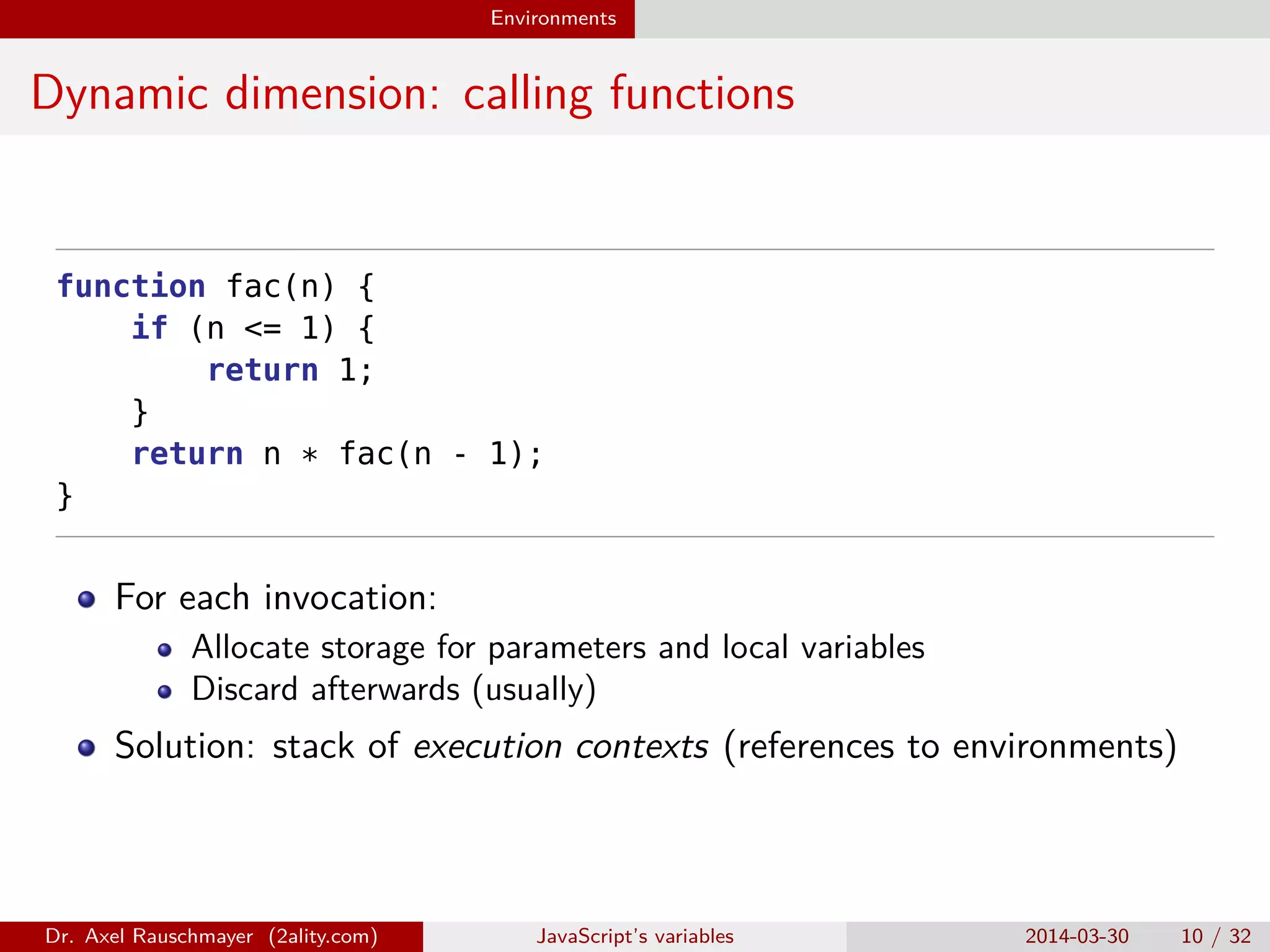

- 10. Environments Dynamic dimension: callingfunctions function fac(n) { if (n <= 1) { return 1; } return n * fac(n - 1); } For each invocation: Allocate storage for parameters and local variables Discard afterwards (usually) Solution: stack of execution contexts (references to environments) Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 10 / 32

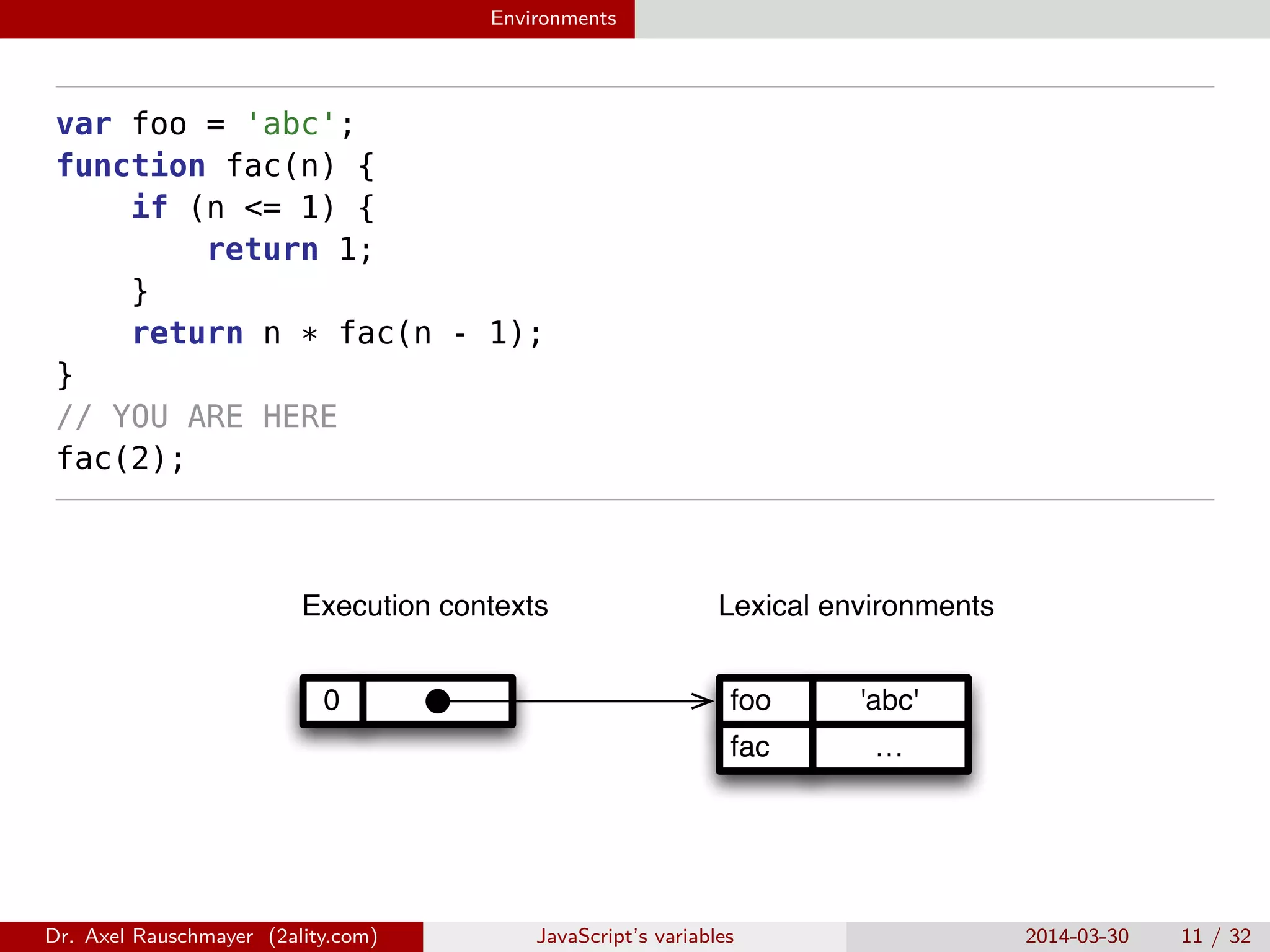

- 11. Environments var foo ='abc'; function fac(n) { if (n <= 1) { return 1; } return n * fac(n - 1); } // YOU ARE HERE fac(2); 0 …fac 'abc'foo Lexical environmentsExecution contexts Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 11 / 32

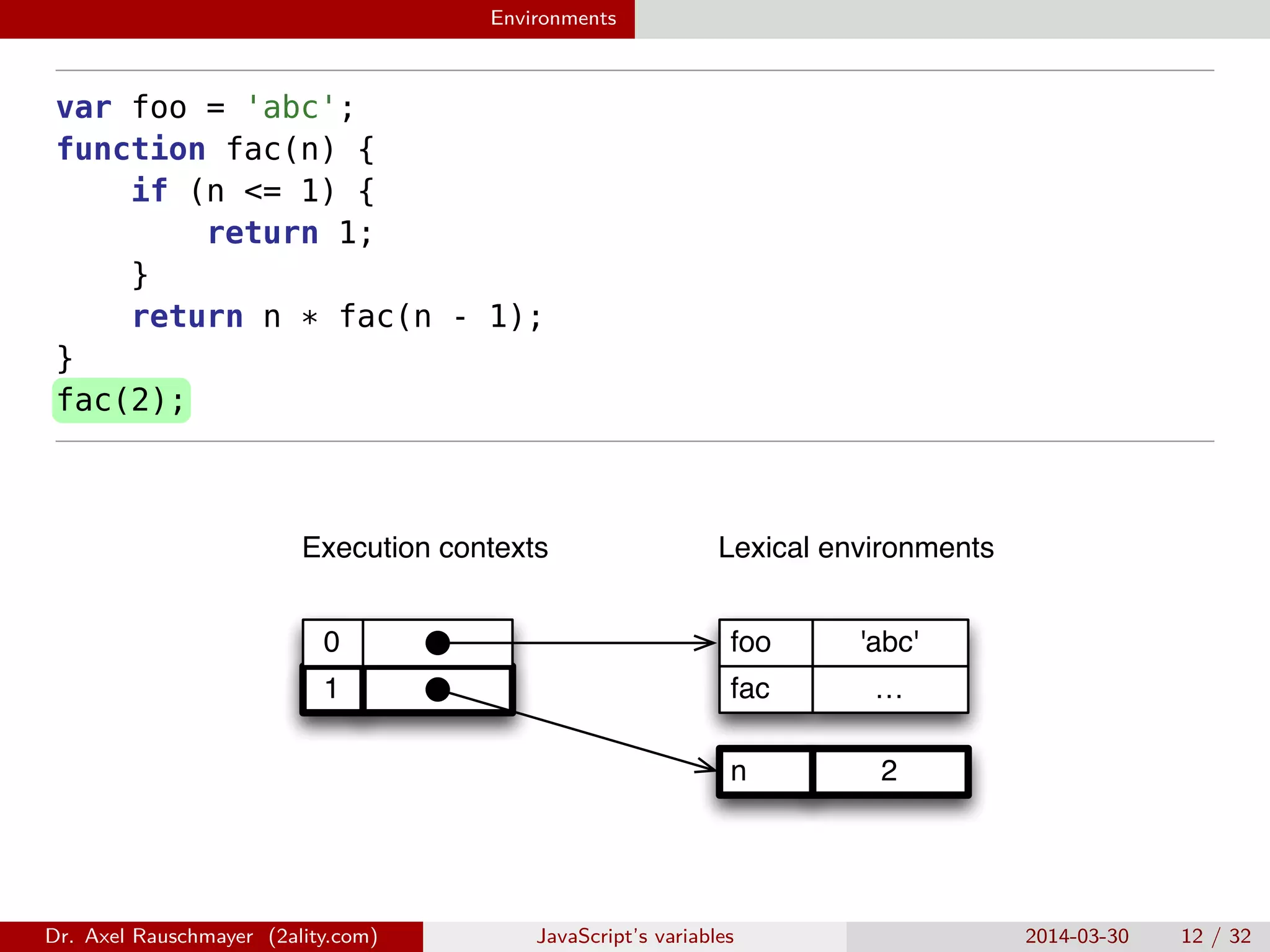

- 12. Environments var foo ='abc'; function fac(n) { if (n <= 1) { return 1; } return n * fac(n - 1); } fac(2); 1 0 …fac 'abc'foo 2n Lexical environmentsExecution contexts Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 12 / 32

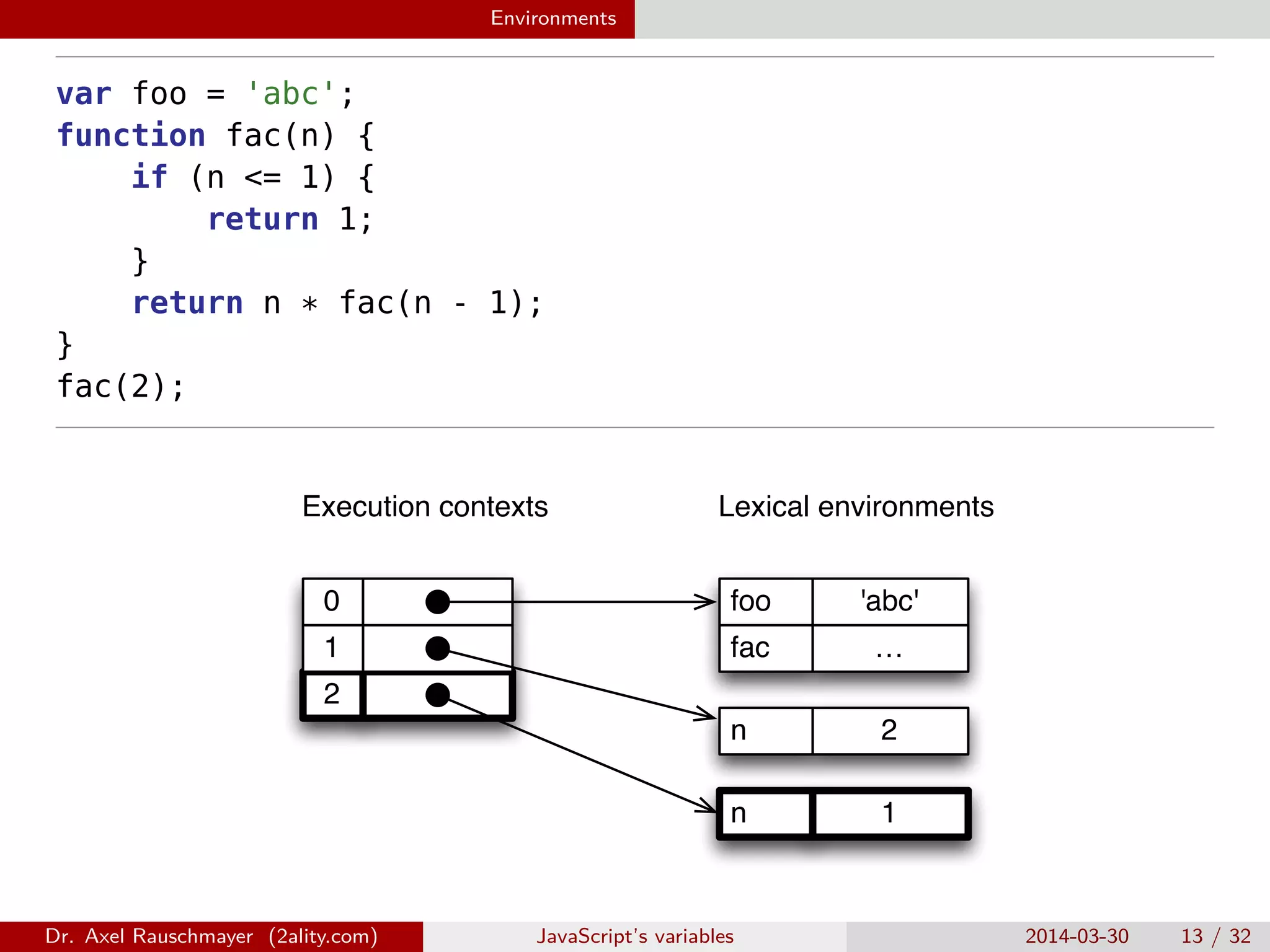

- 13. Environments var foo ='abc'; function fac(n) { if (n <= 1) { return 1; } return n * fac(n - 1); } fac(2); 2 1 0 …fac 'abc'foo 1n Lexical environmentsExecution contexts 2n Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 13 / 32

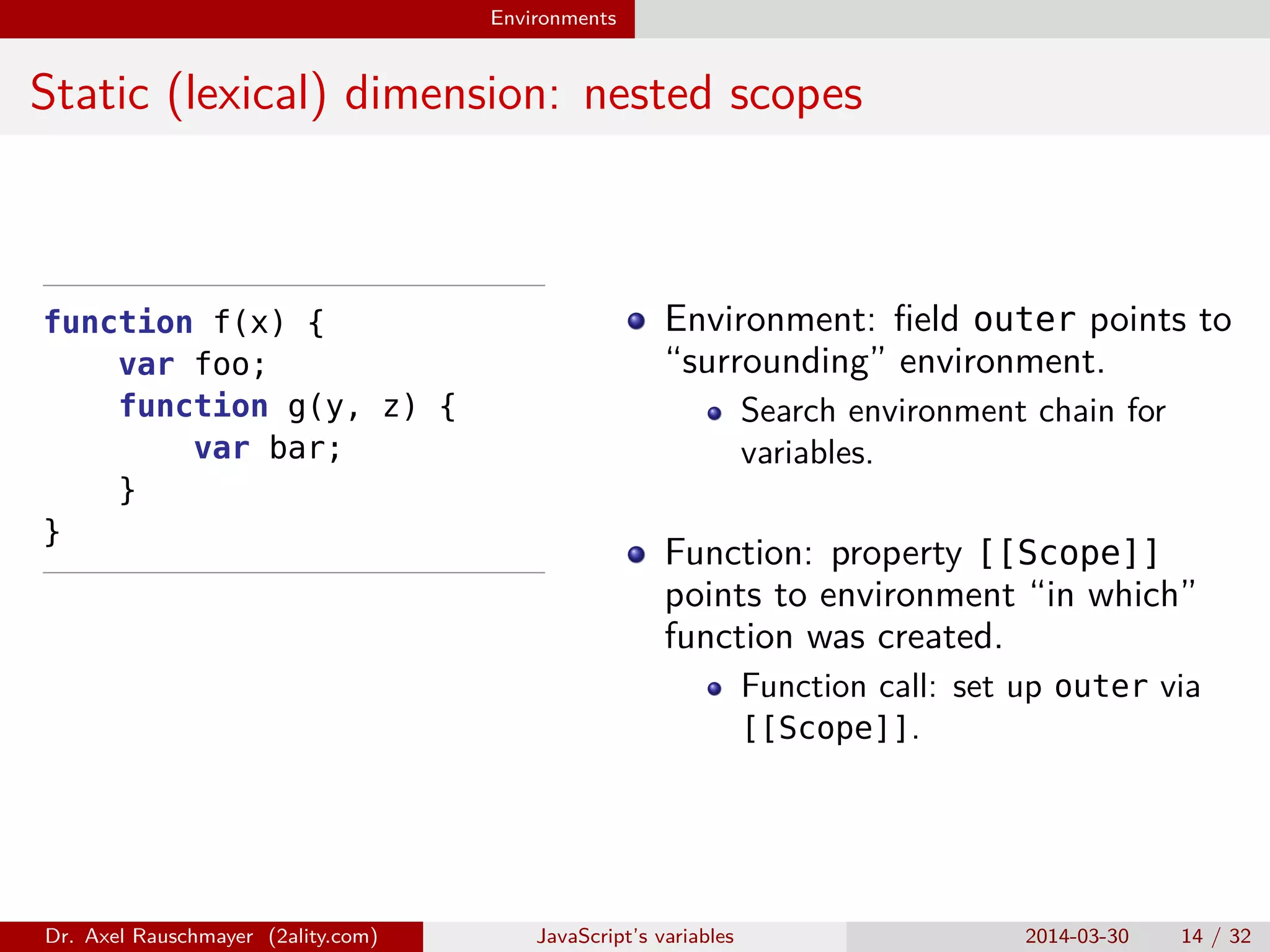

- 14. Environments Static (lexical) dimension:nested scopes function f(x) { var foo; function g(y, z) { var bar; } } Environment: field outer points to “surrounding” environment. Search environment chain for variables. Function: property [[Scope]] points to environment “in which” function was created. Function call: set up outer via [[Scope]]. Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 14 / 32

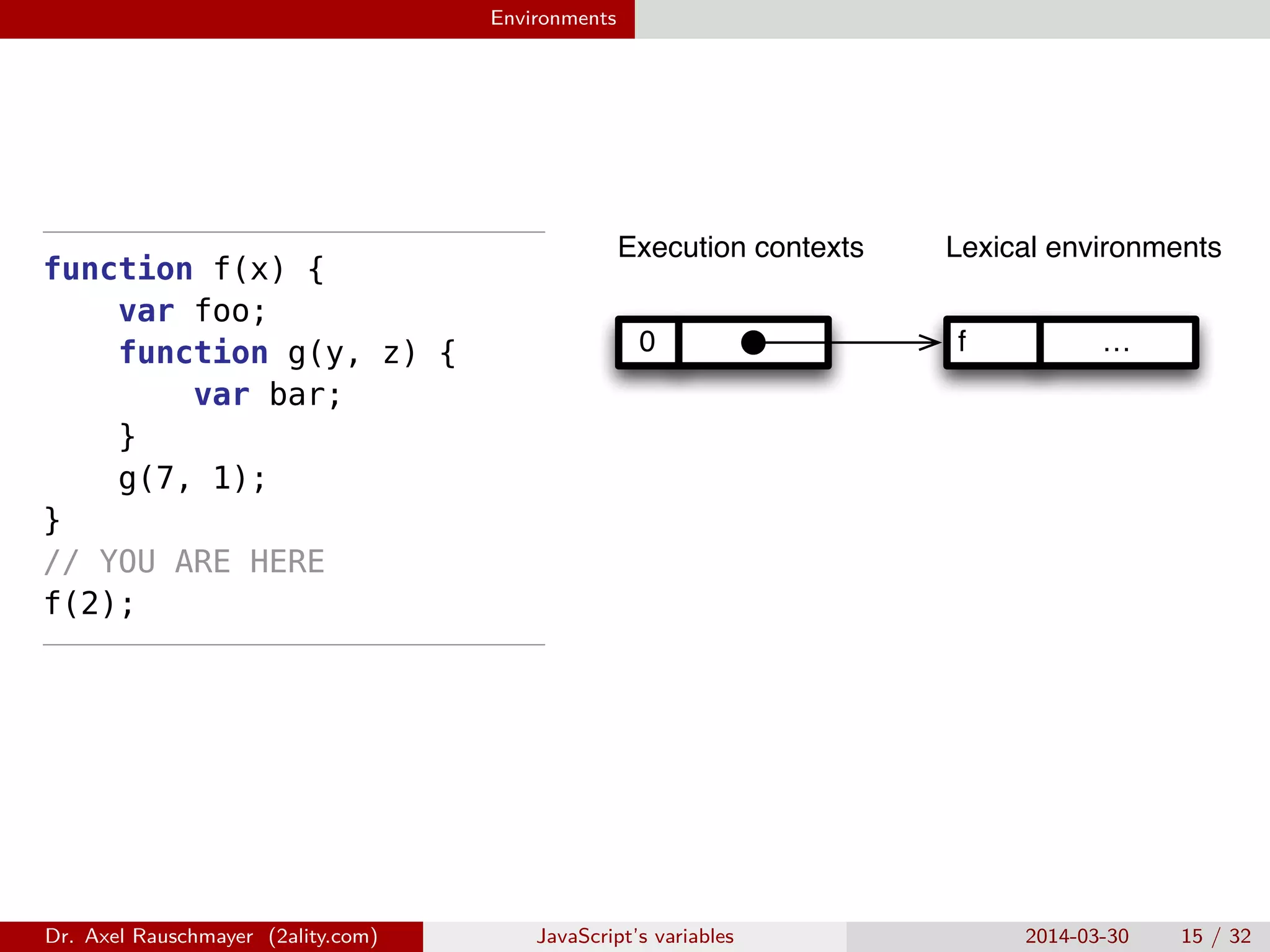

- 15. Environments function f(x) { varfoo; function g(y, z) { var bar; } g(7, 1); } // YOU ARE HERE f(2); 0 …f Lexical environmentsExecution contexts Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 15 / 32

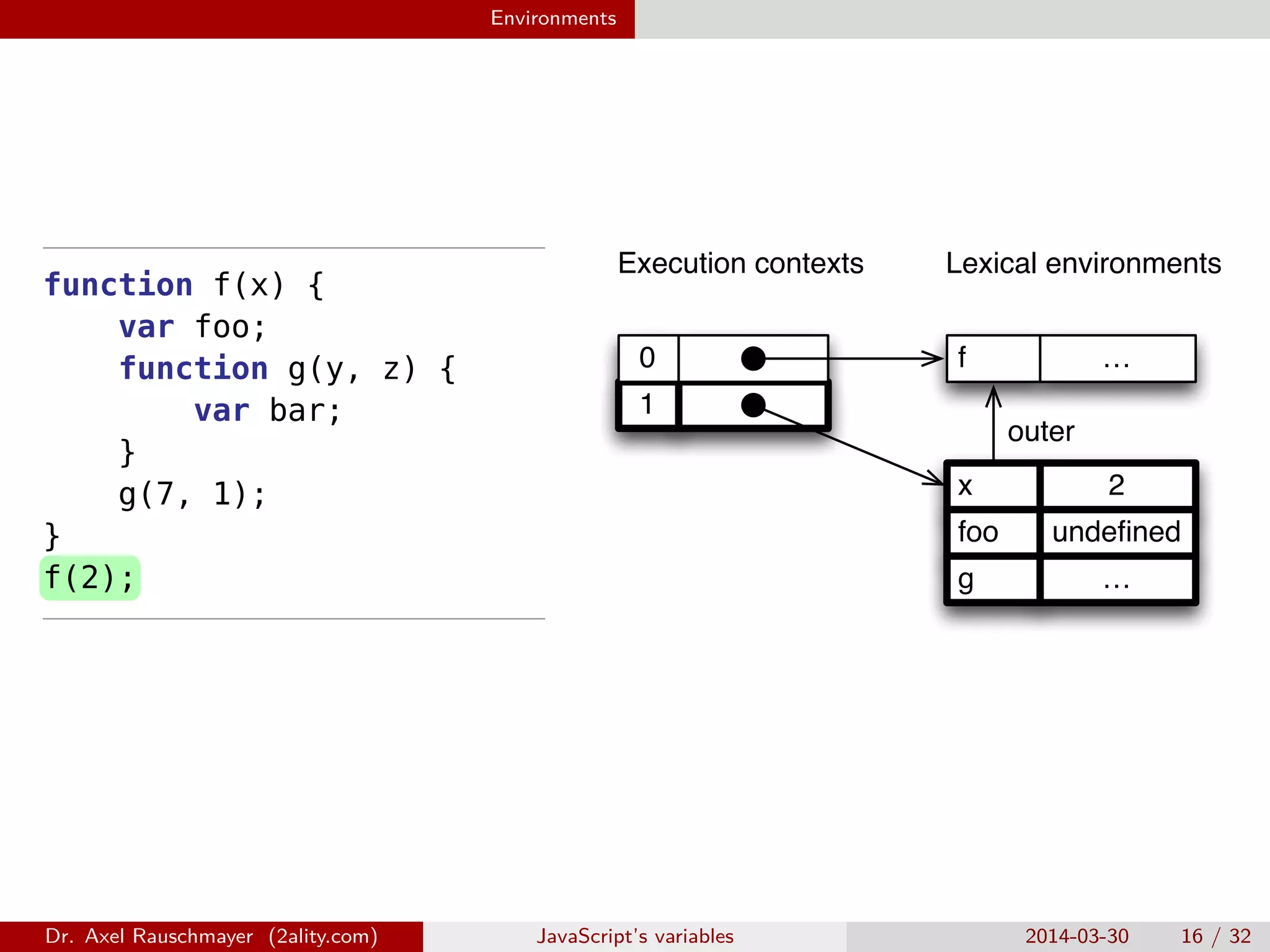

- 16. Environments function f(x) { varfoo; function g(y, z) { var bar; } g(7, 1); } f(2); 1 0 …f …g undefinedfoo 2x outer Lexical environmentsExecution contexts Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 16 / 32

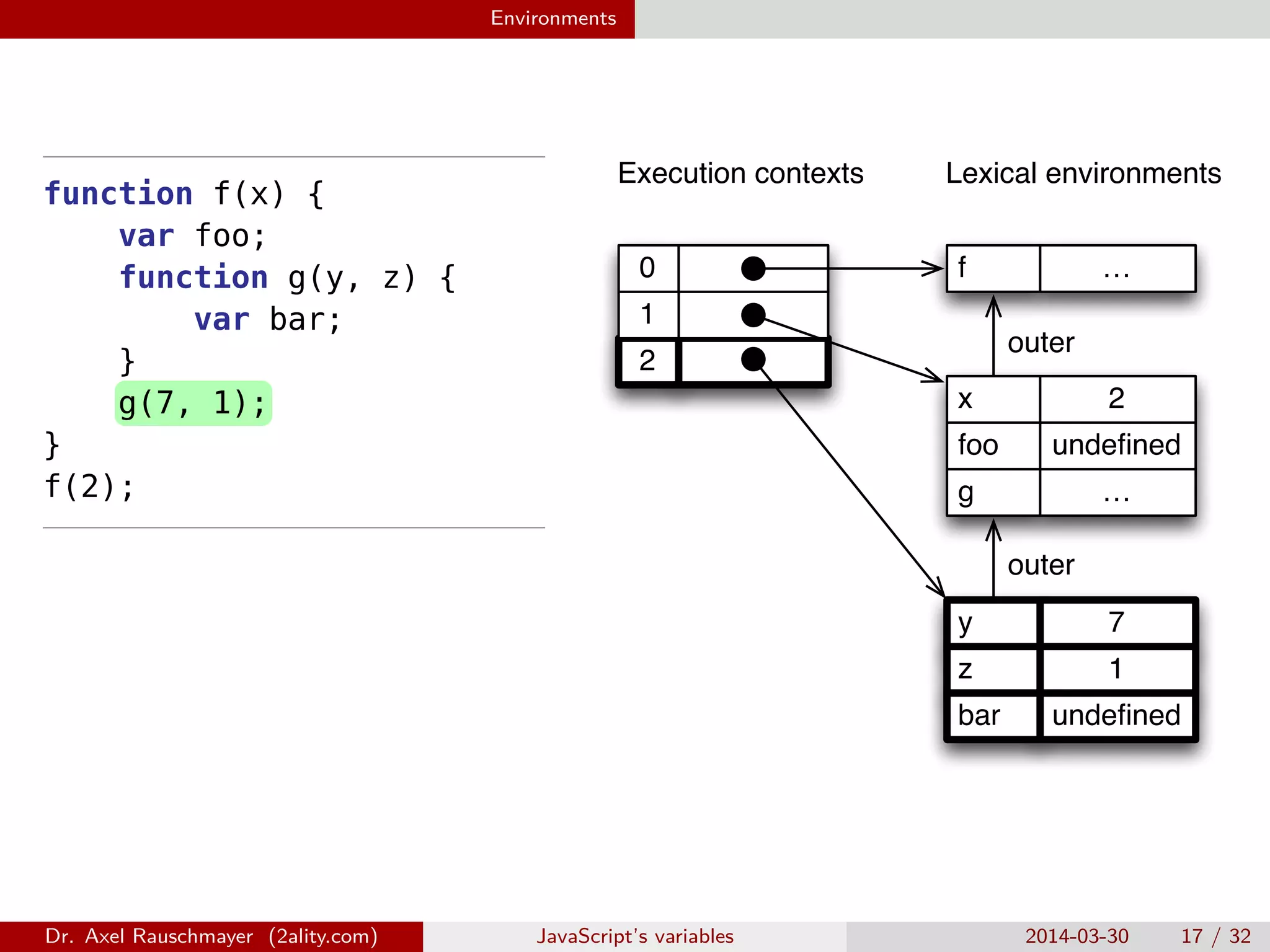

- 17. Environments function f(x) { varfoo; function g(y, z) { var bar; } g(7, 1); } f(2); 2 1 0 …f …g undefinedfoo 2x outer Lexical environmentsExecution contexts undefinedbar 1z 7y outer Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 17 / 32
- 18.

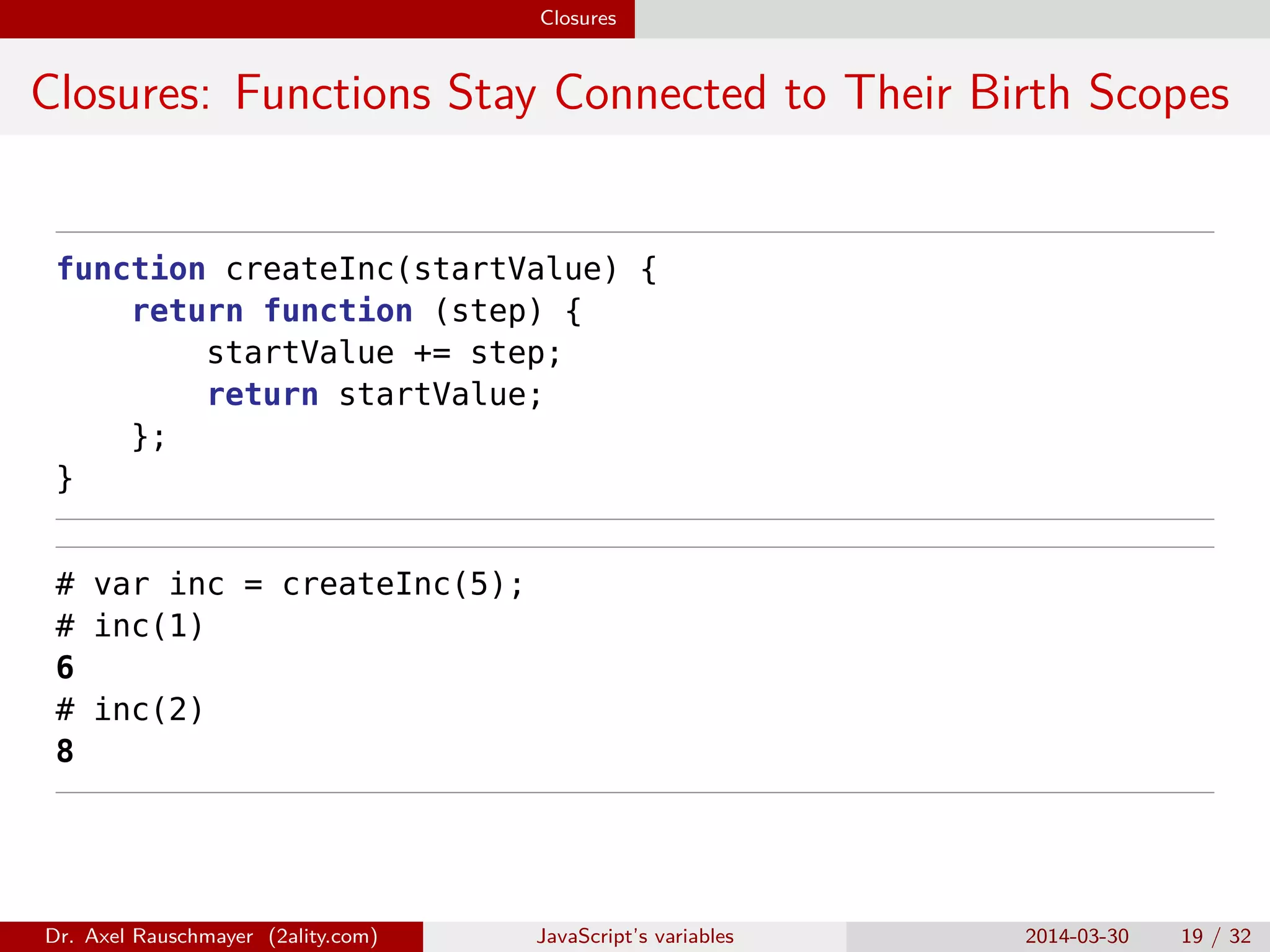

- 19. Closures Closures: Functions StayConnected to Their Birth Scopes function createInc(startValue) { return function (step) { startValue += step; return startValue; }; } # var inc = createInc(5); # inc(1) 6 # inc(2) 8 Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 19 / 32

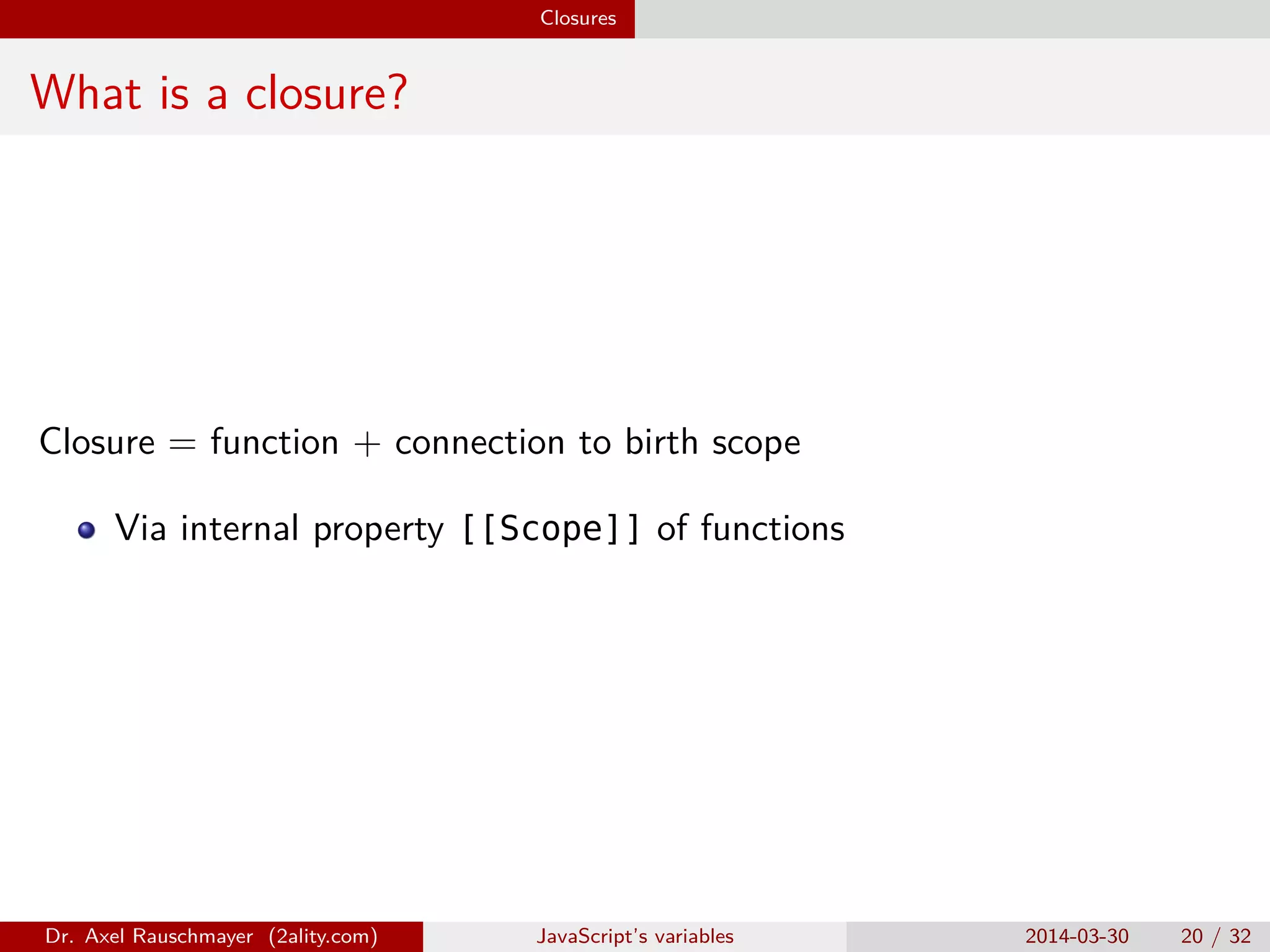

- 20. Closures What is aclosure? Closure = function + connection to birth scope Via internal property [[Scope]] of functions Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 20 / 32

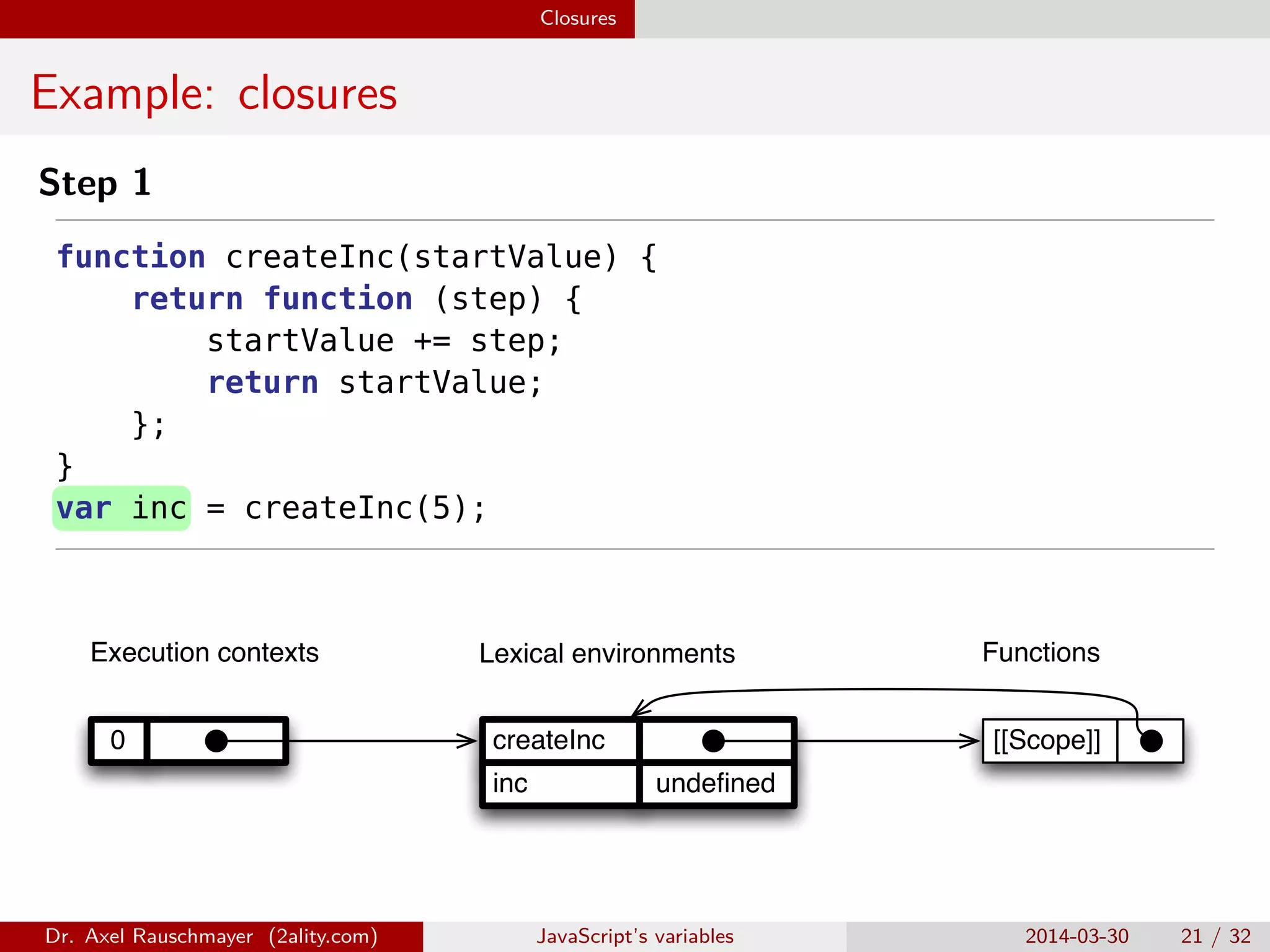

- 21. Closures Example: closures Step 1 functioncreateInc(startValue) { return function (step) { startValue += step; return startValue; }; } var inc = createInc(5); 0 undefinedinc createInc Lexical environmentsExecution contexts Functions [[Scope]] Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 21 / 32

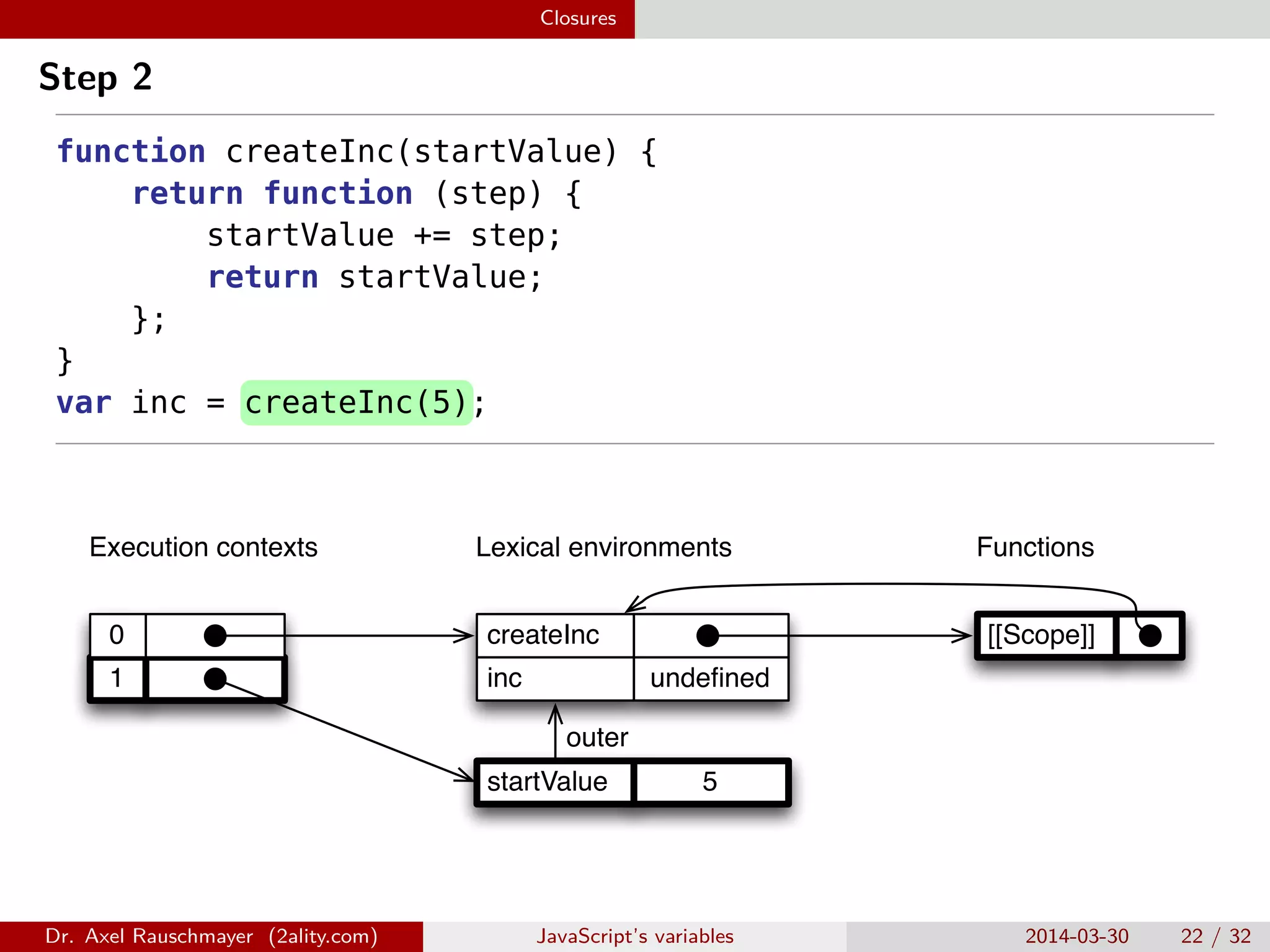

- 22. Closures Step 2 function createInc(startValue){ return function (step) { startValue += step; return startValue; }; } var inc = createInc(5); 1 0 undefinedinc createInc 5startValue outer Lexical environmentsExecution contexts Functions [[Scope]] Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 22 / 32

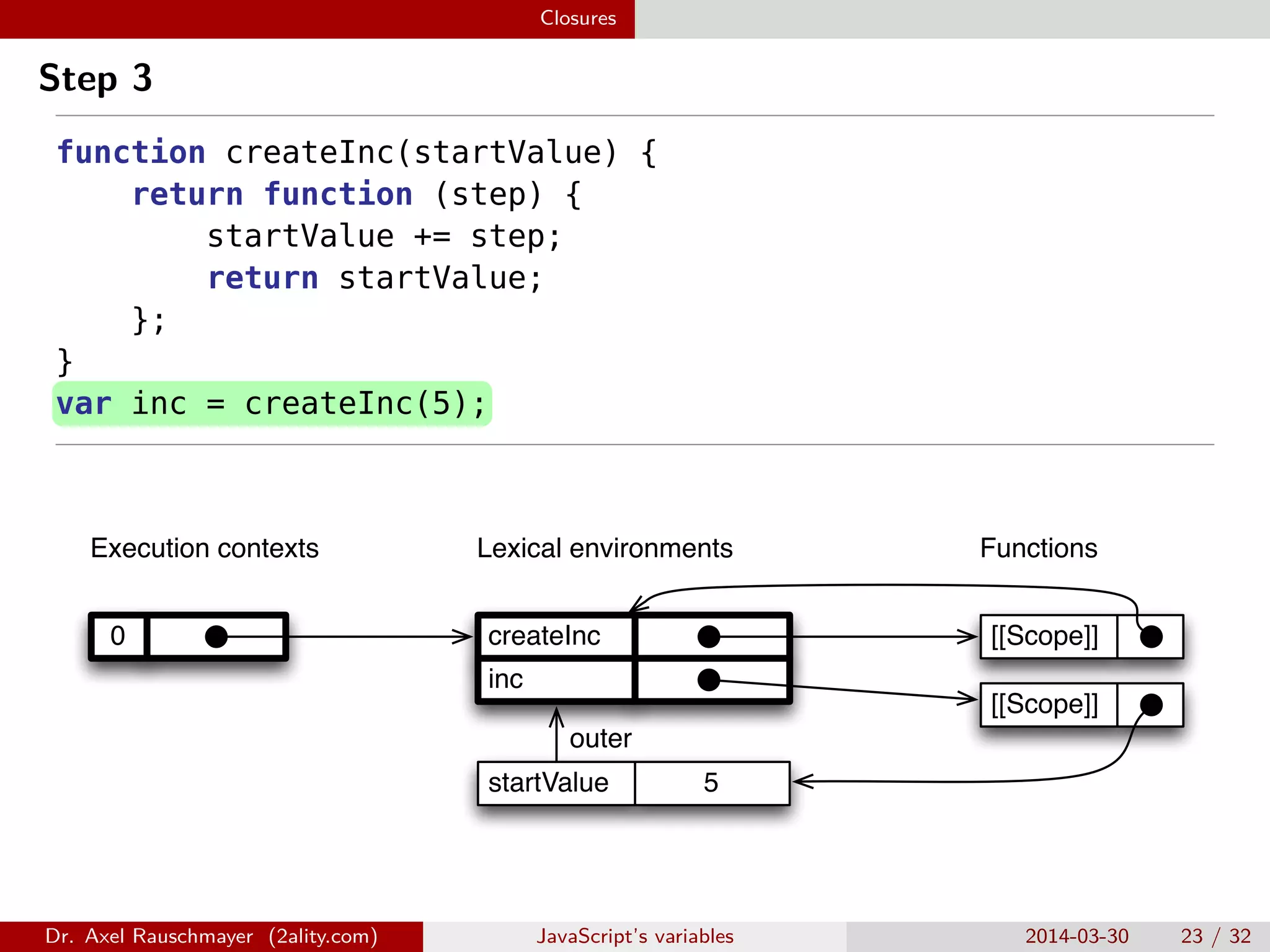

- 23. Closures Step 3 function createInc(startValue){ return function (step) { startValue += step; return startValue; }; } var inc = createInc(5); 0 inc createInc 5startValue outer [[Scope]] Lexical environmentsExecution contexts Functions [[Scope]] Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 23 / 32

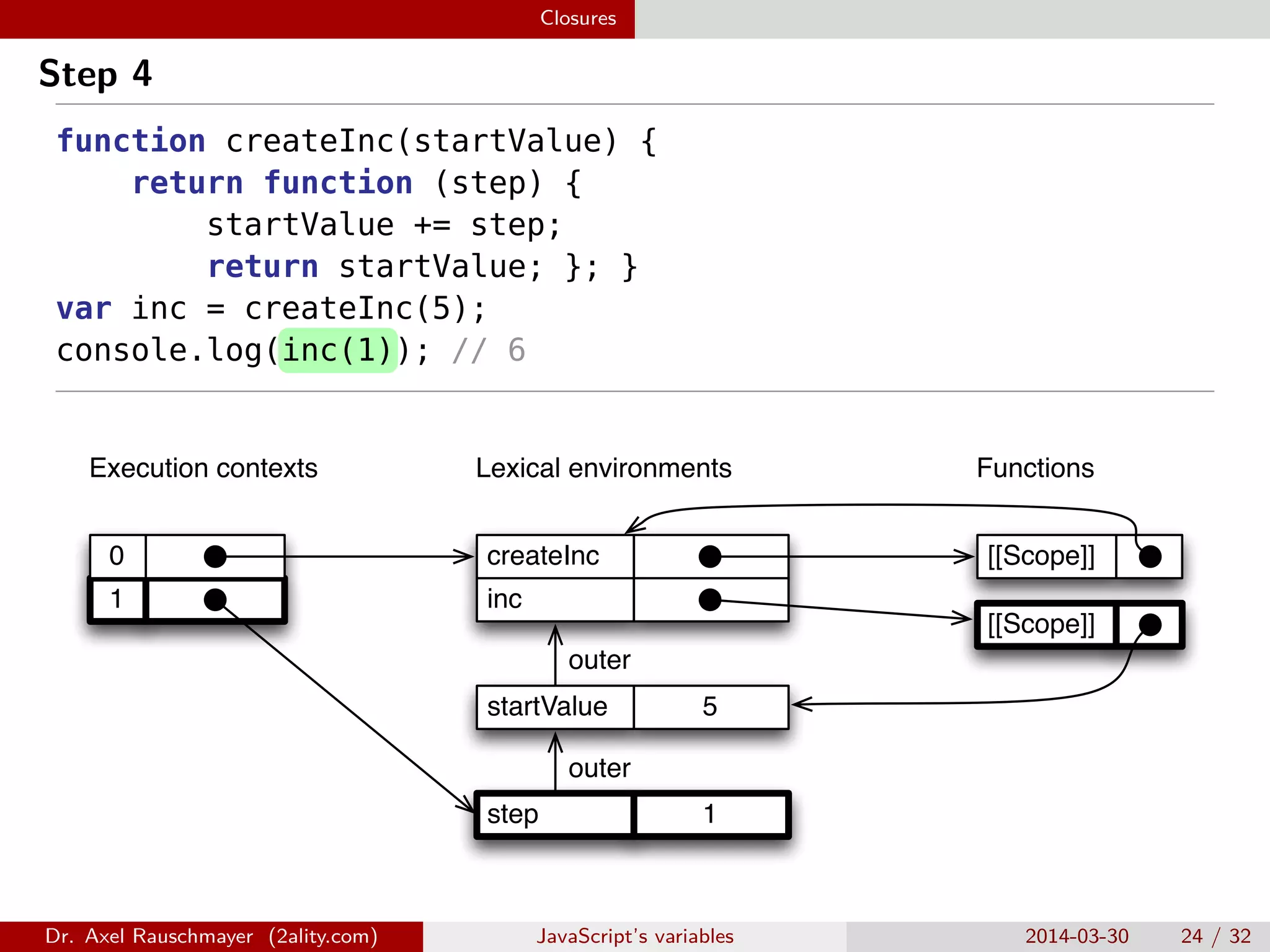

- 24. Closures Step 4 function createInc(startValue){ return function (step) { startValue += step; return startValue; }; } var inc = createInc(5); console.log(inc(1)); // 6 1 0 inc createInc 5startValue 1step outer outer [[Scope]] Lexical environmentsExecution contexts Functions [[Scope]] Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 24 / 32

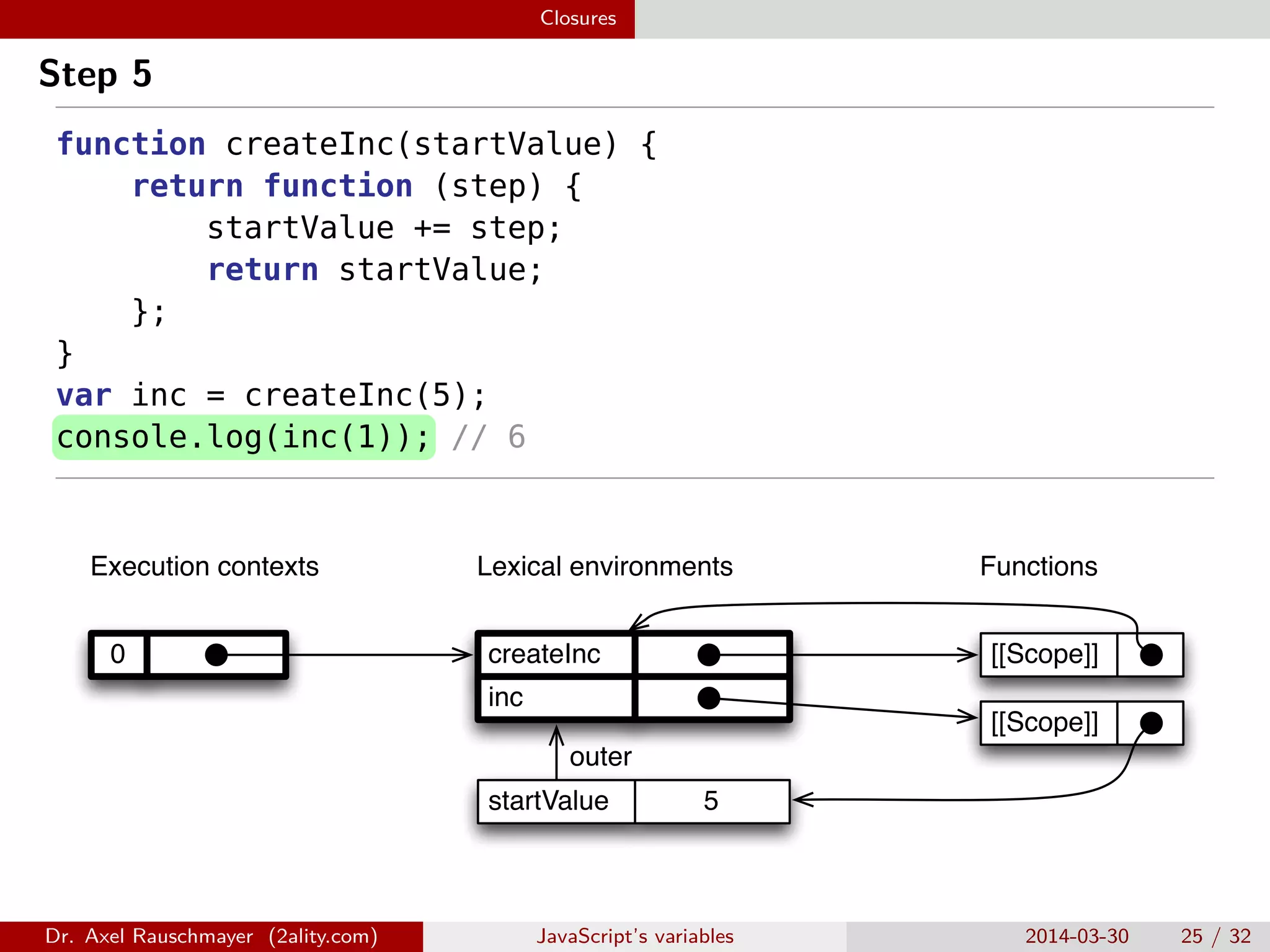

- 25. Closures Step 5 function createInc(startValue){ return function (step) { startValue += step; return startValue; }; } var inc = createInc(5); console.log(inc(1)); // 6 0 inc createInc 5startValue outer [[Scope]] Lexical environmentsExecution contexts Functions [[Scope]] Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 25 / 32
- 26. Thank you! Free online:speakingjs.com
- 27.

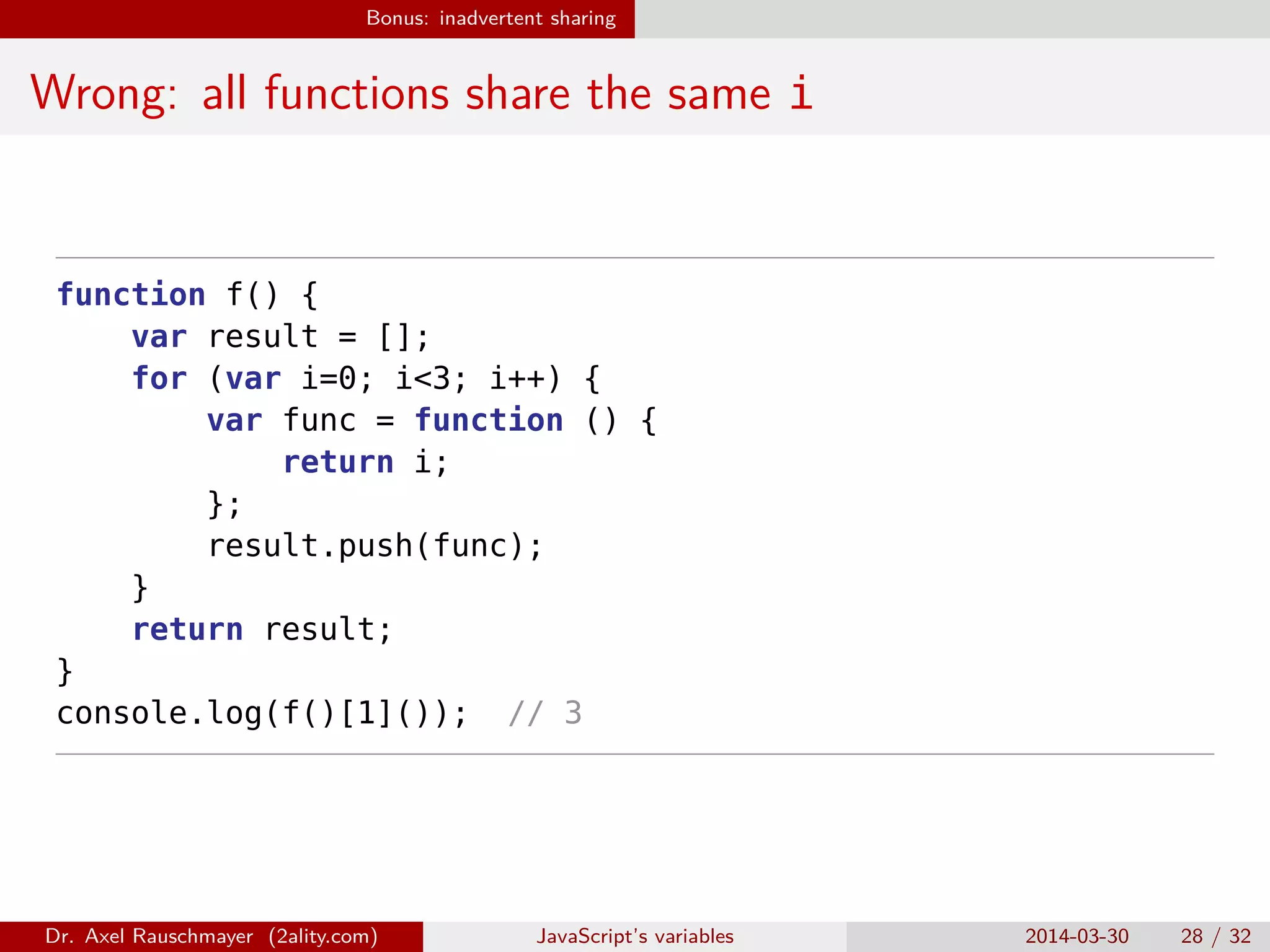

- 28. Bonus: inadvertent sharing Wrong:all functions share the same i function f() { var result = []; for (var i=0; i<3; i++) { var func = function () { return i; }; result.push(func); } return result; } console.log(f()[1]()); // 3 Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 28 / 32

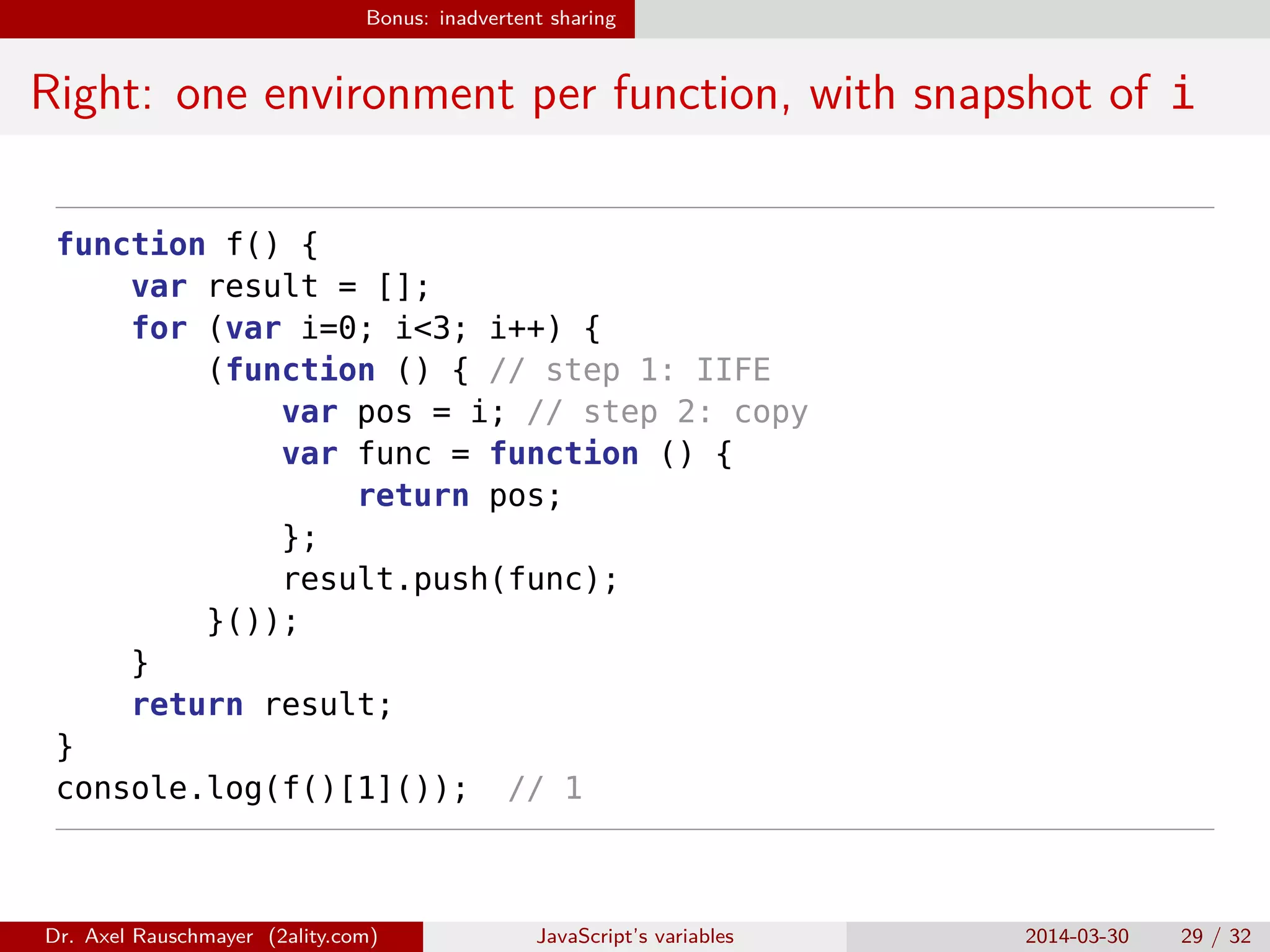

- 29. Bonus: inadvertent sharing Right:one environment per function, with snapshot of i function f() { var result = []; for (var i=0; i<3; i++) { (function () { // step 1: IIFE var pos = i; // step 2: copy var func = function () { return pos; }; result.push(func); }()); } return result; } console.log(f()[1]()); // 1 Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 29 / 32

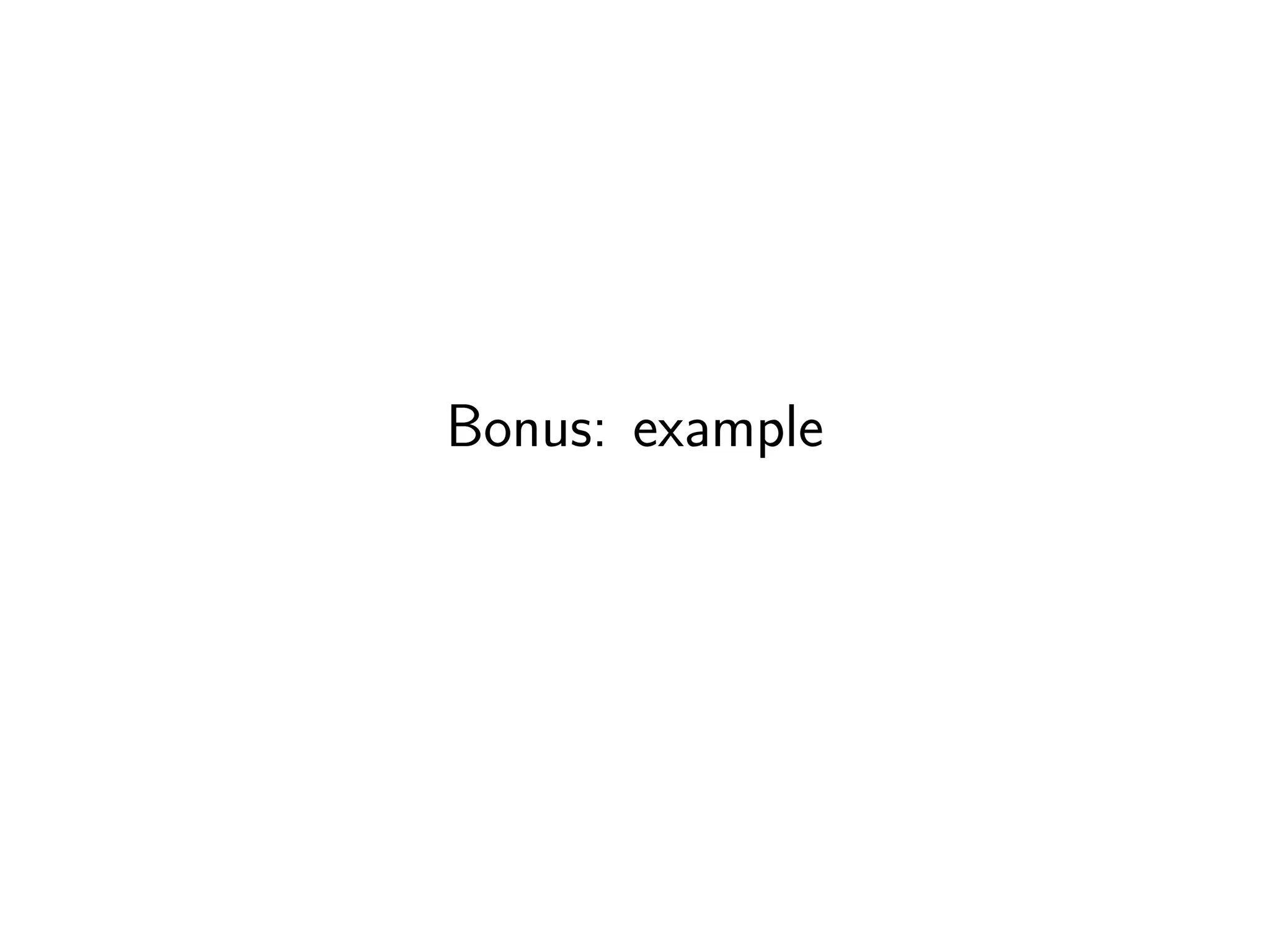

- 30.

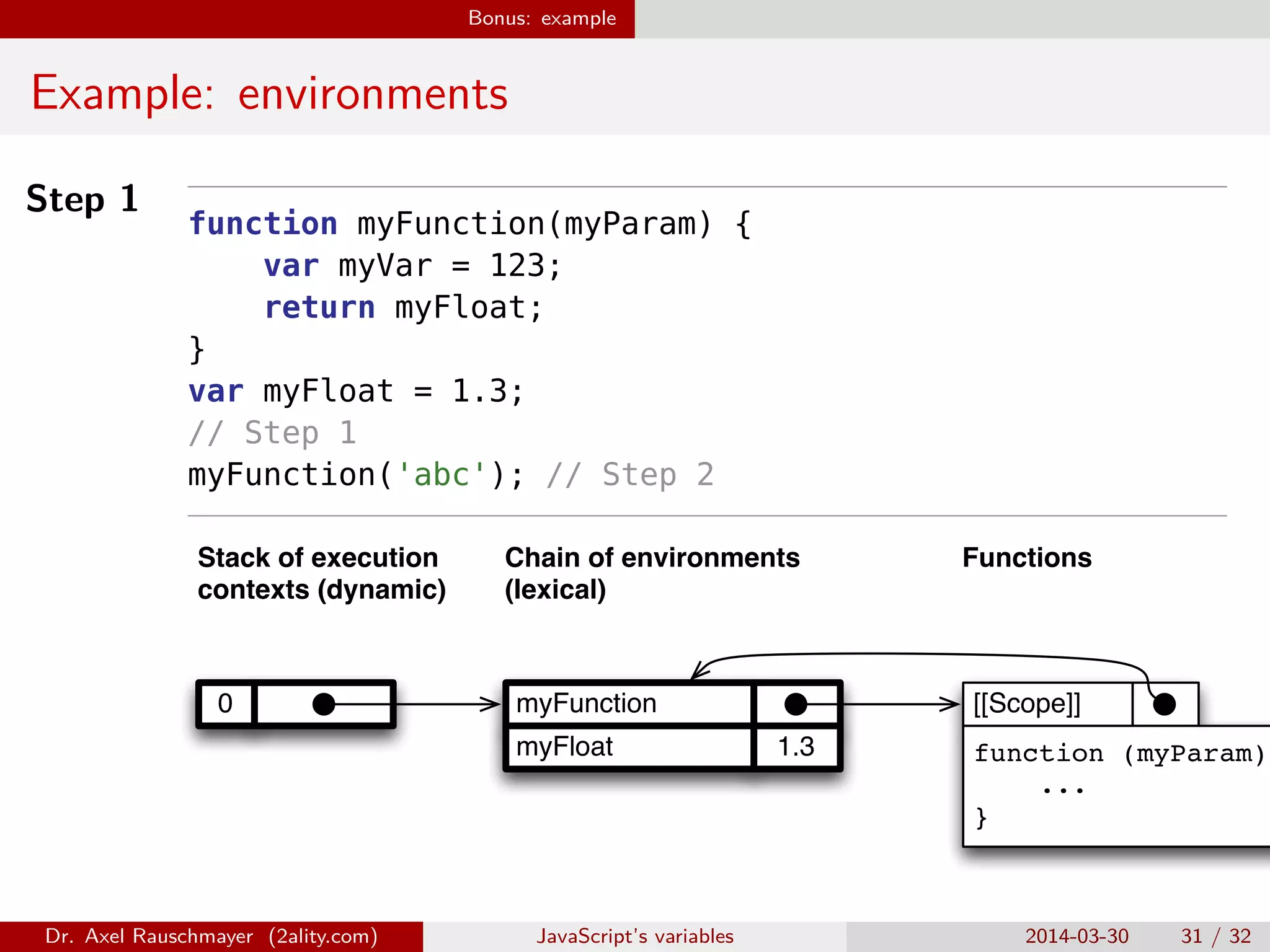

- 31. Bonus: example Example: environments Step1 function myFunction(myParam) { var myVar = 123; return myFloat; } var myFloat = 1.3; // Step 1 myFunction('abc'); // Step 2 0 1.3myFloat myFunction Chain of environments (lexical) Stack of execution contexts (dynamic) [[Scope]] function (myParam) ... } Functions Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 31 / 32

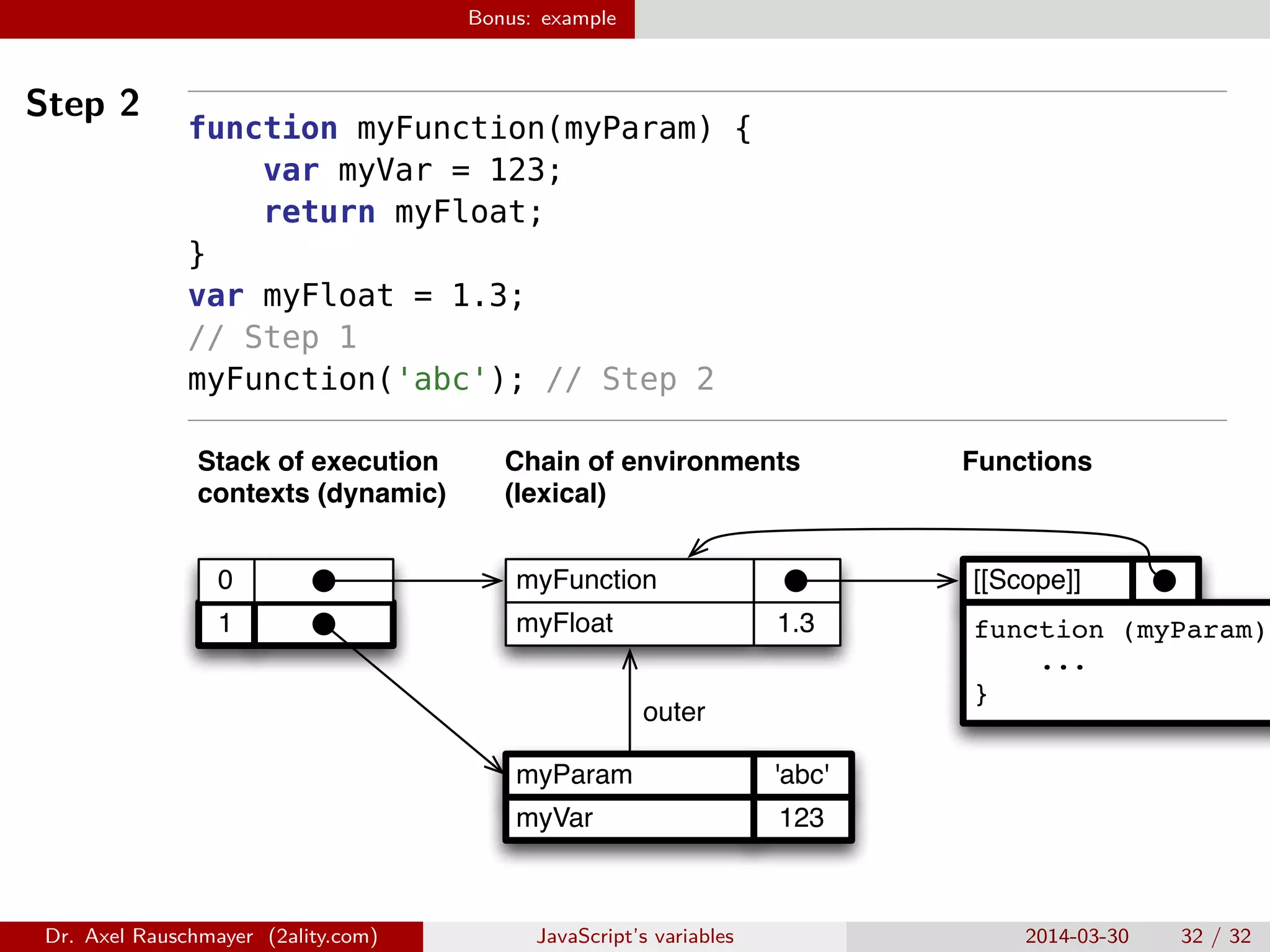

- 32. Bonus: example Step 2 functionmyFunction(myParam) { var myVar = 123; return myFloat; } var myFloat = 1.3; // Step 1 myFunction('abc'); // Step 2 [[Scope]] 1 0 1.3myFloat myFunction myVar 123 'abc'myParam outer function (myParam) ... } Chain of environments (lexical) Stack of execution contexts (dynamic) Functions Dr. Axel Rauschmayer (2ality.com) JavaScript’s variables 2014-03-30 32 / 32
