  Clake: a GNUmake-like build utility in Common Lisp 2015.8.26 Masayuki Takagi Lisp Meet Up presented by Shibuya.lisp #31
• 2.

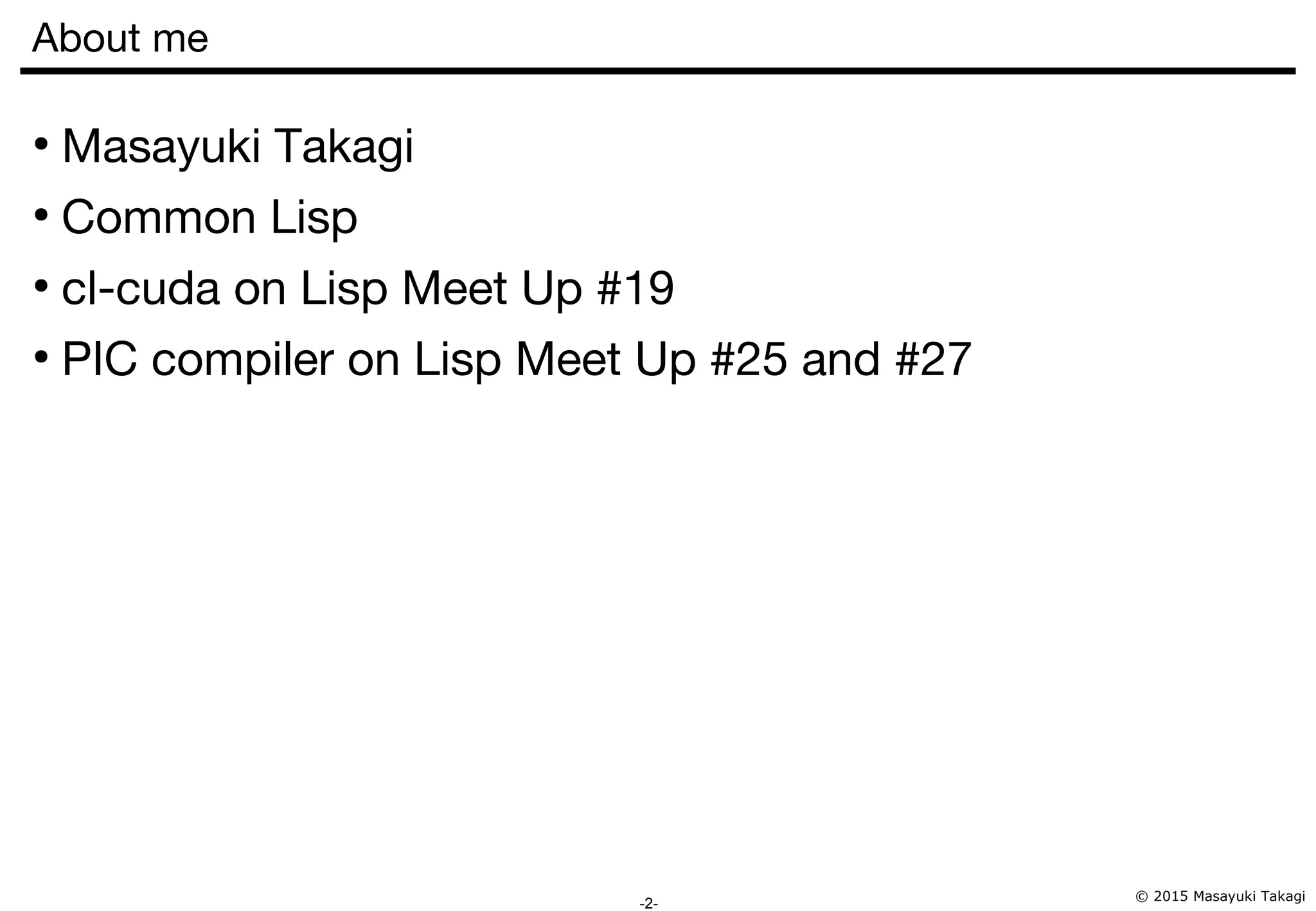

  © 2015 MasayukiTakagi -2- About me ● Masayuki Takagi ● Common Lisp ● cl-cuda on Lisp Meet Up #19 ● PIC compiler on Lisp Meet Up #25 and #27
• 3.

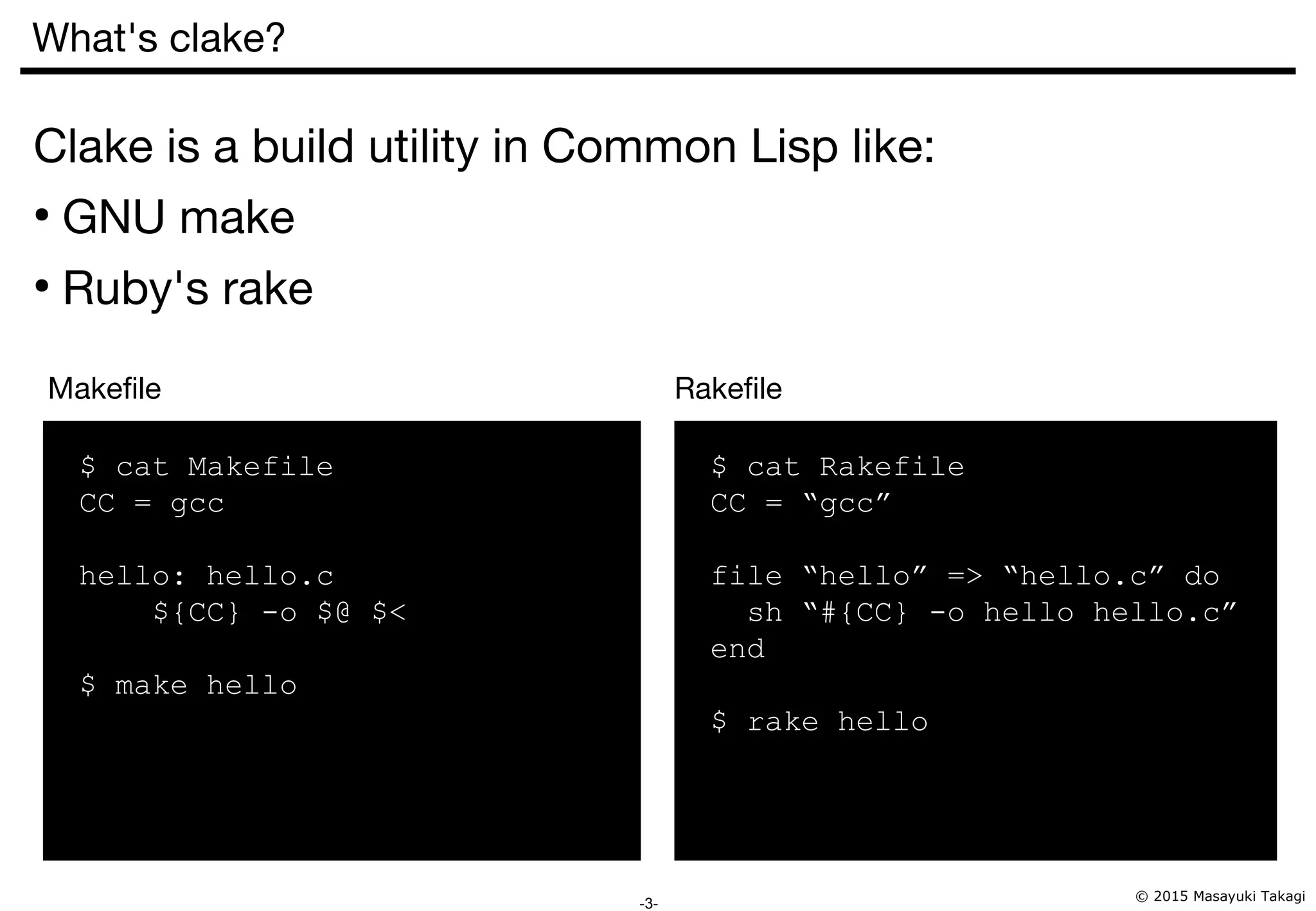

  © 2015 MasayukiTakagi -3- What's clake? Clake is a build utility in Common Lisp like: ● GNU make ● Ruby's rake $ cat Makefile CC = gcc hello: hello.c ${CC} -o $@ $< $ make hello $ cat Rakefile CC = “gcc” file “hello” => “hello.c” do sh “#{CC} -o hello hello.c” end $ rake hello Makefile Rakefile

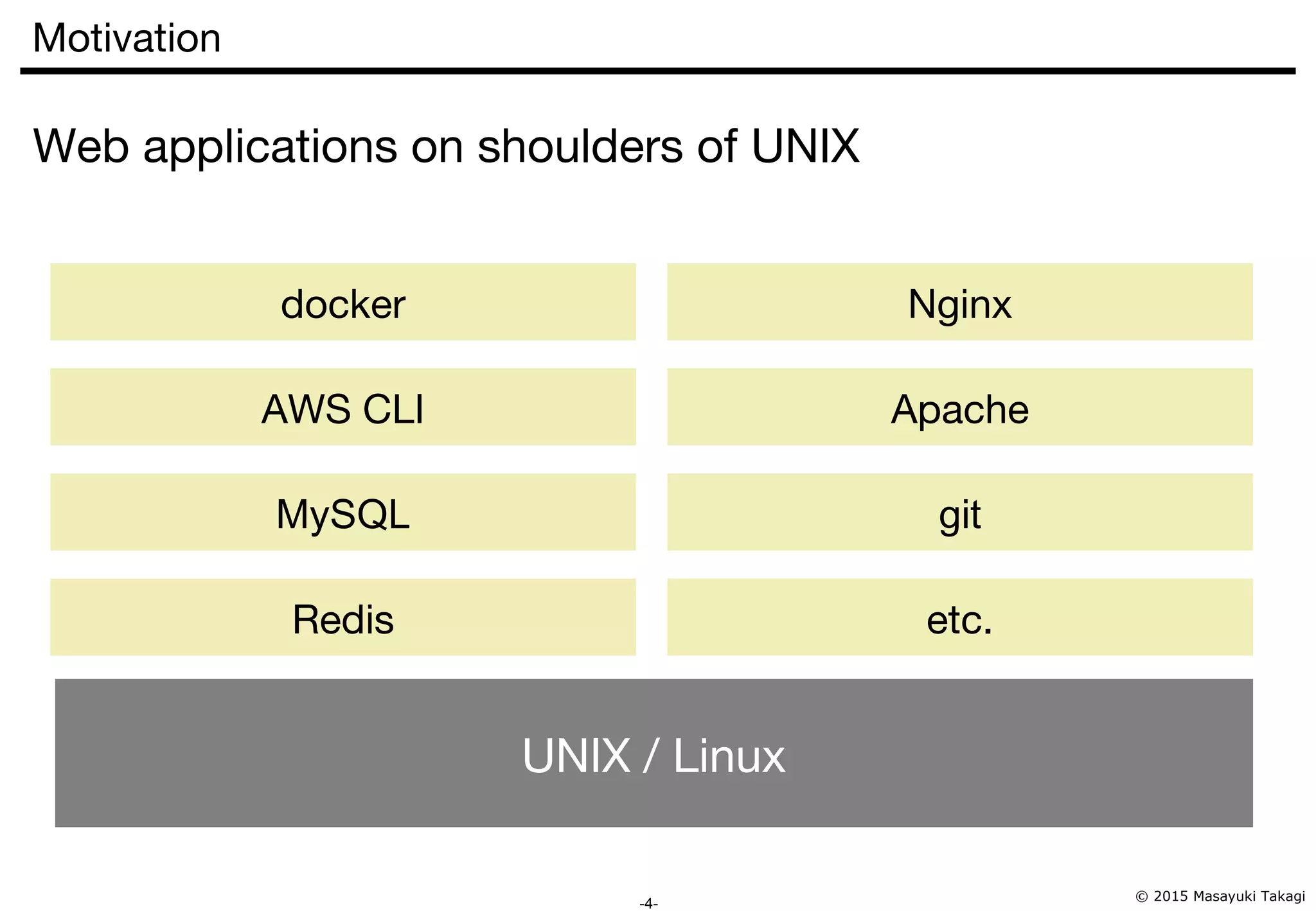

• 4.
  © 2015 MasayukiTakagi -4- Motivation Web applications on shoulders of UNIX Redis UNIX / Linux MySQL AWS CLI docker etc. git Apache Nginx

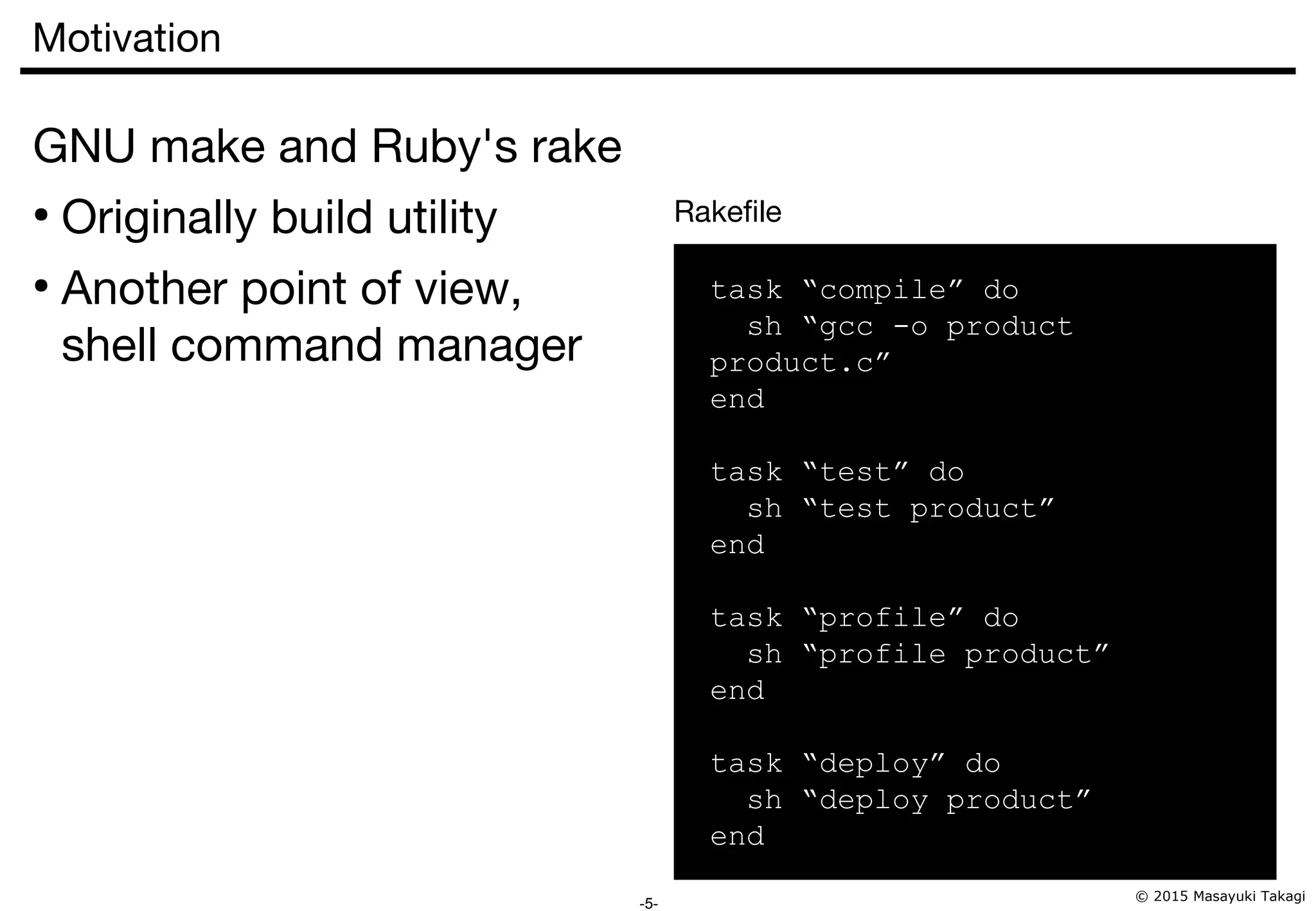

• 5.
  © 2015 MasayukiTakagi -5- Motivation GNU make and Ruby's rake ● Originally build utility ● Another point of view, shell command manager task “compile” do sh “gcc -o product product.c” end task “test” do sh “test product” end task “profile” do sh “profile product” end task “deploy” do sh “deploy product” end Rakefile

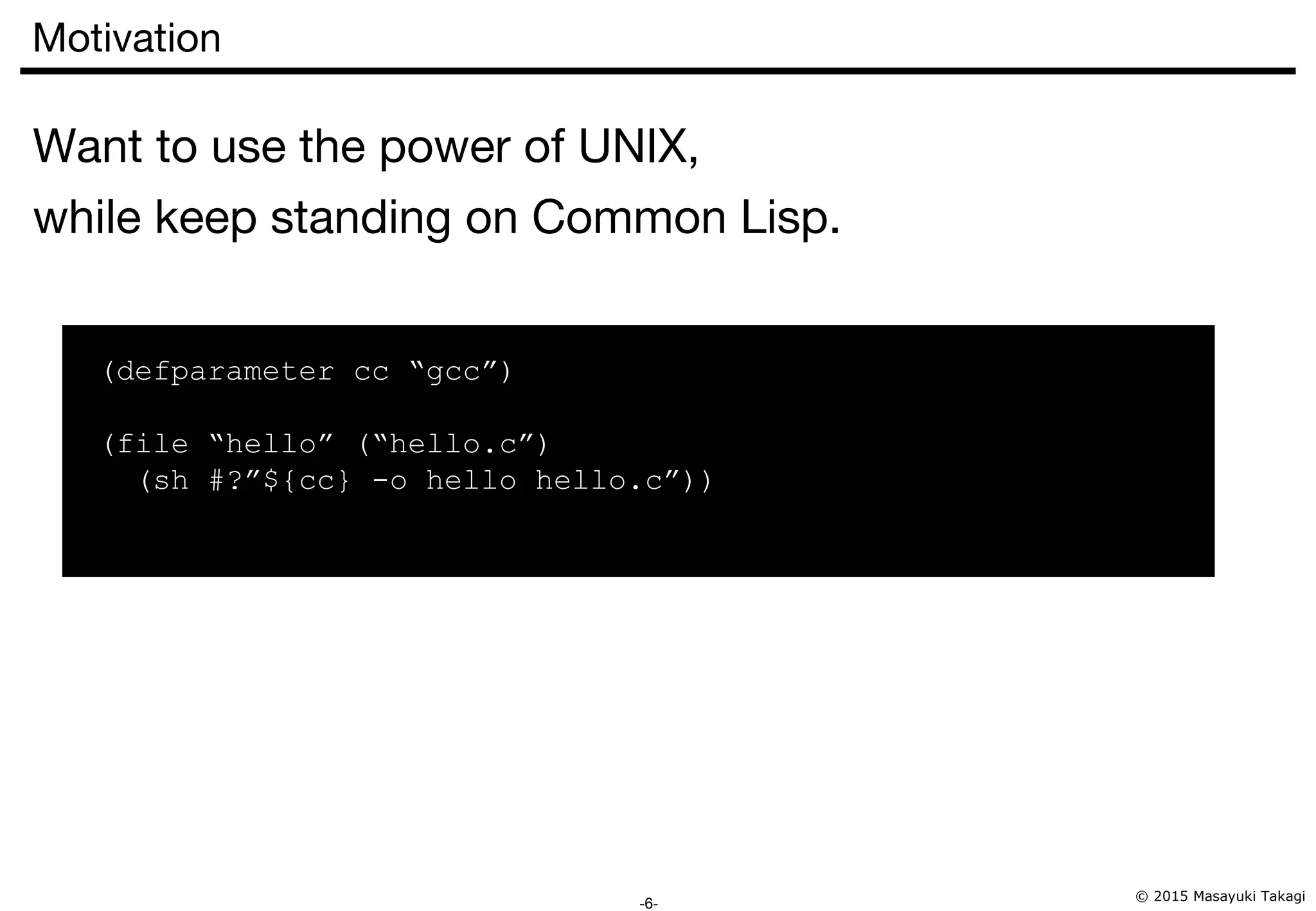

• 6.
  © 2015 MasayukiTakagi -6- Motivation Want to use the power of UNIX, while keep standing on Common Lisp. (defparameter cc “gcc”) (file “hello” (“hello.c”) (sh #?”${cc} -o hello hello.c”))
• 7.

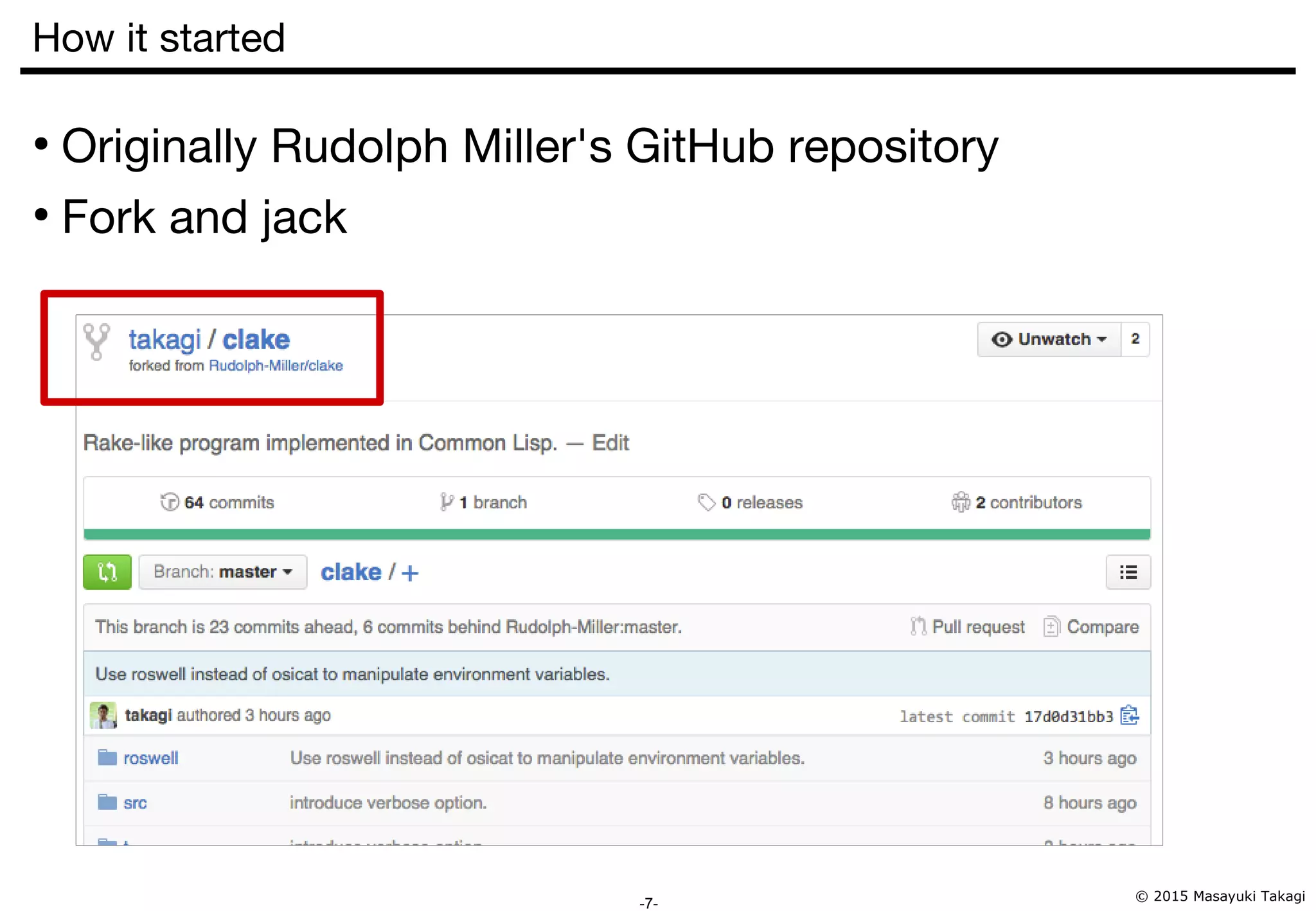

  © 2015 MasayukiTakagi -7- How it started ● Originally Rudolph Miller's GitHub repository ● Fork and jack

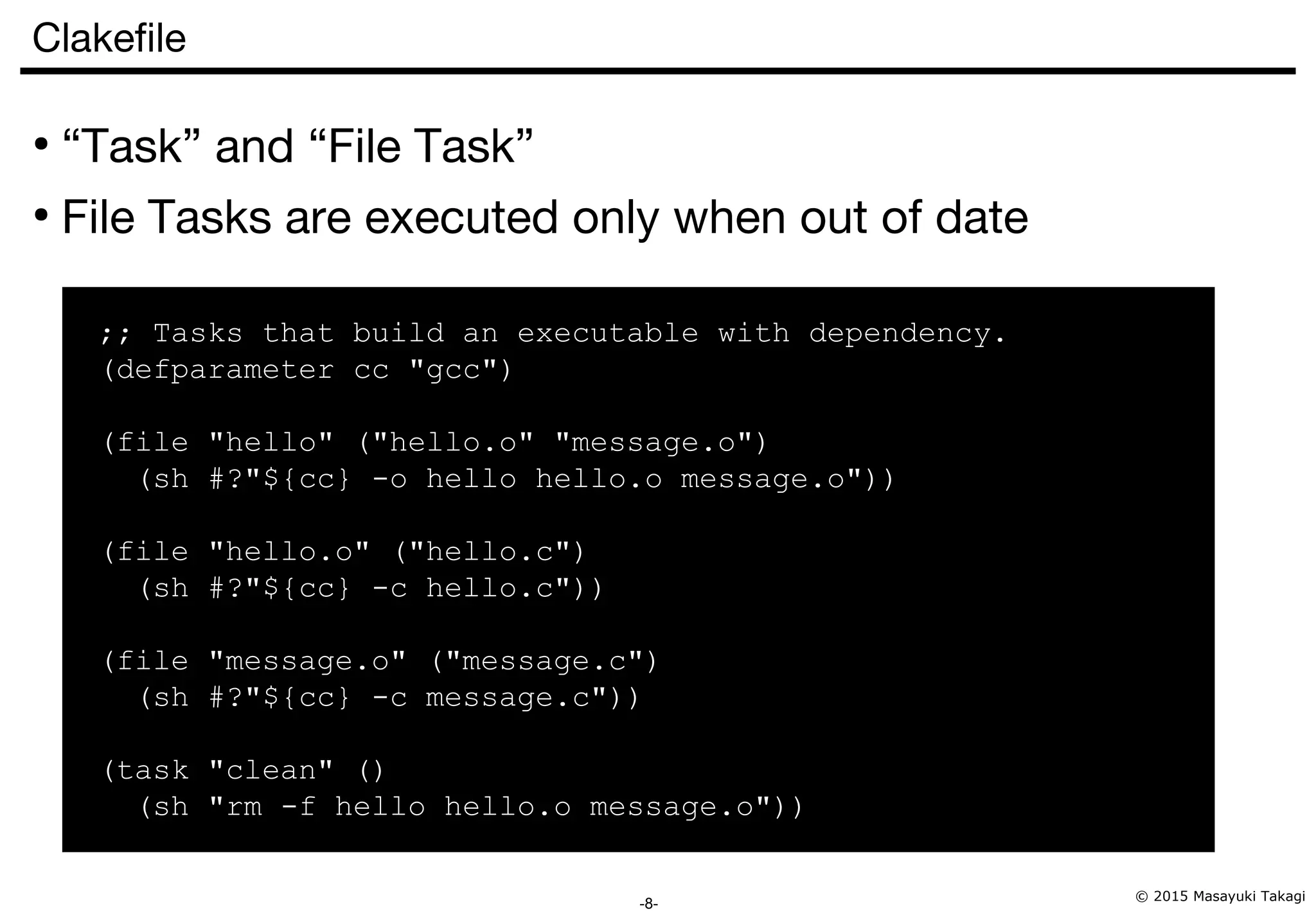

• 8.
  © 2015 MasayukiTakagi -8- Clakefile ● “Task” and “File Task” ● File Tasks are executed only when out of date ;; Tasks that build an executable with dependency. (defparameter cc "gcc") (file "hello" ("hello.o" "message.o") (sh #?"${cc} -o hello hello.o message.o")) (file "hello.o" ("hello.c") (sh #?"${cc} -c hello.c")) (file "message.o" ("message.c") (sh #?"${cc} -c message.c")) (task "clean" () (sh "rm -f hello hello.o message.o"))

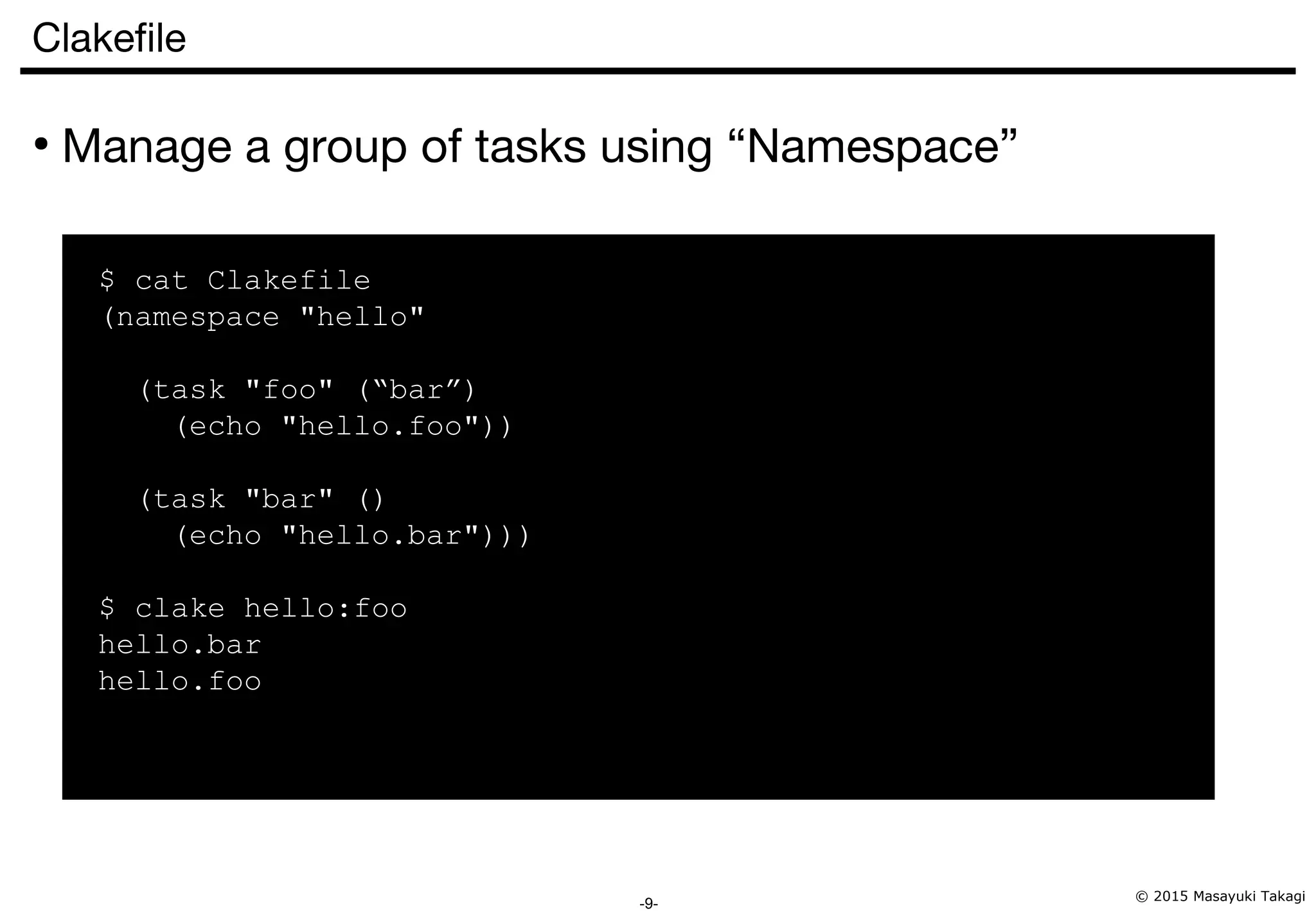

• 9.
  © 2015 MasayukiTakagi -9- Clakefile ● Manage a group of tasks using “Namespace” $ cat Clakefile (namespace "hello" (task "foo" (“bar”) (echo "hello.foo")) (task "bar" () (echo "hello.bar"))) $ clake hello:foo hello.bar hello.foo

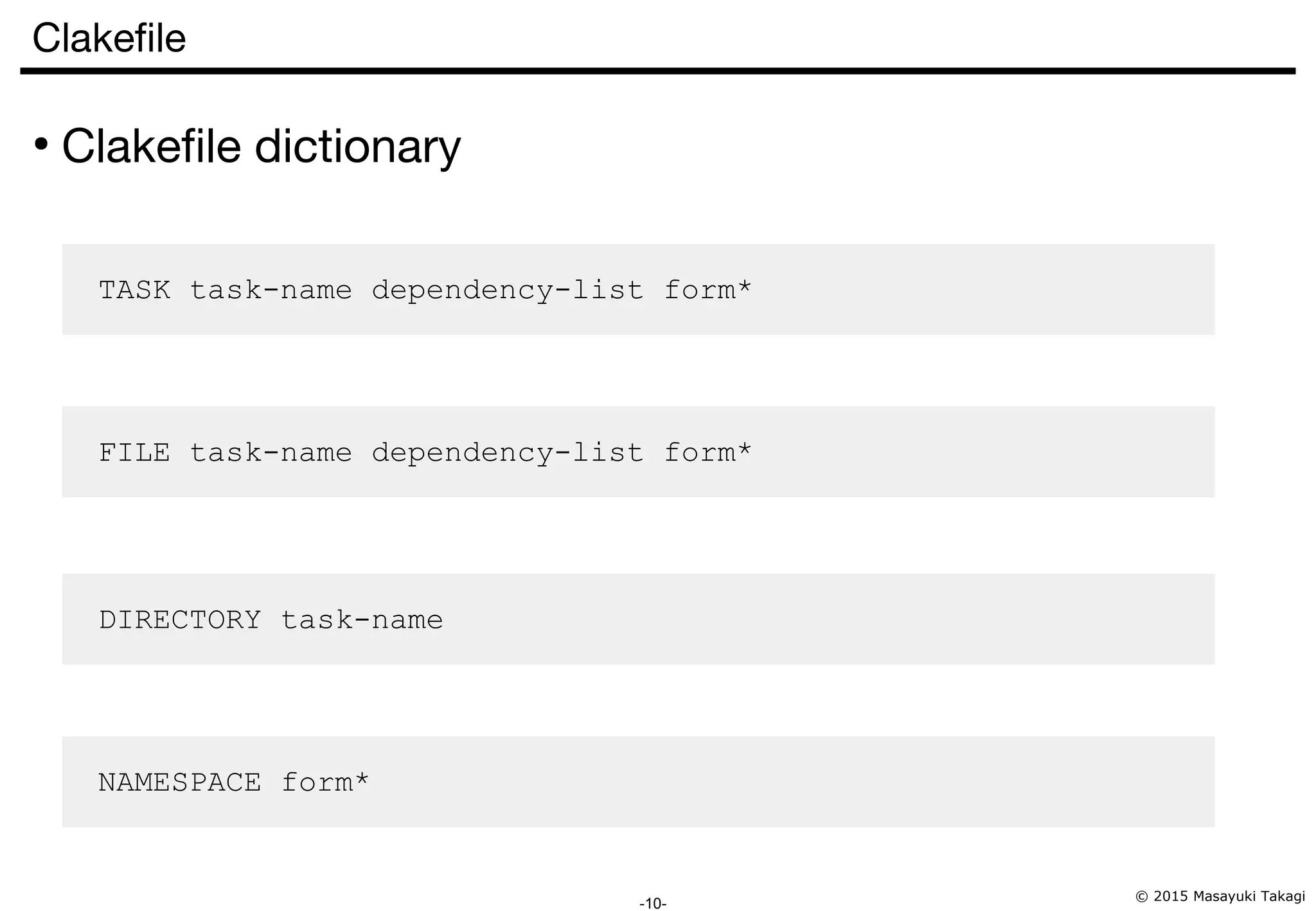

• 10.
  © 2015 MasayukiTakagi -10- Clakefile ● Clakefile dictionary TASK task-name dependency-list form* FILE task-name dependency-list form* DIRECTORY task-name NAMESPACE form*

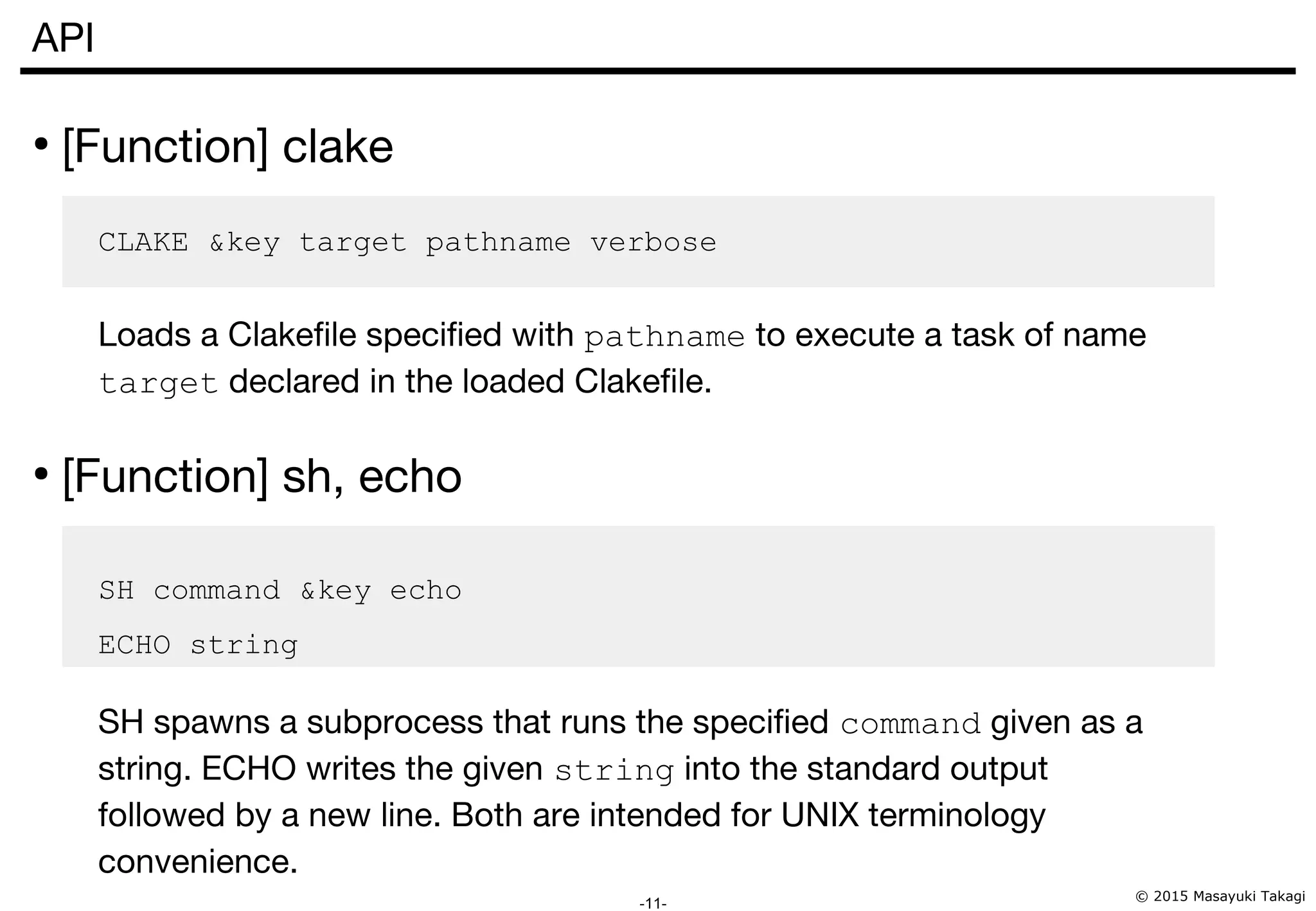

• 11.
  © 2015 MasayukiTakagi -11- API ● [Function] clake CLAKE &key target pathname verbose Loads a Clakefile specified with pathname to execute a task of name target declared in the loaded Clakefile. ● [Function] sh, echo SH command &key echo ECHO string SH spawns a subprocess that runs the specified command given as a string. ECHO writes the given string into the standard output followed by a new line. Both are intended for UNIX terminology convenience.
• 12.

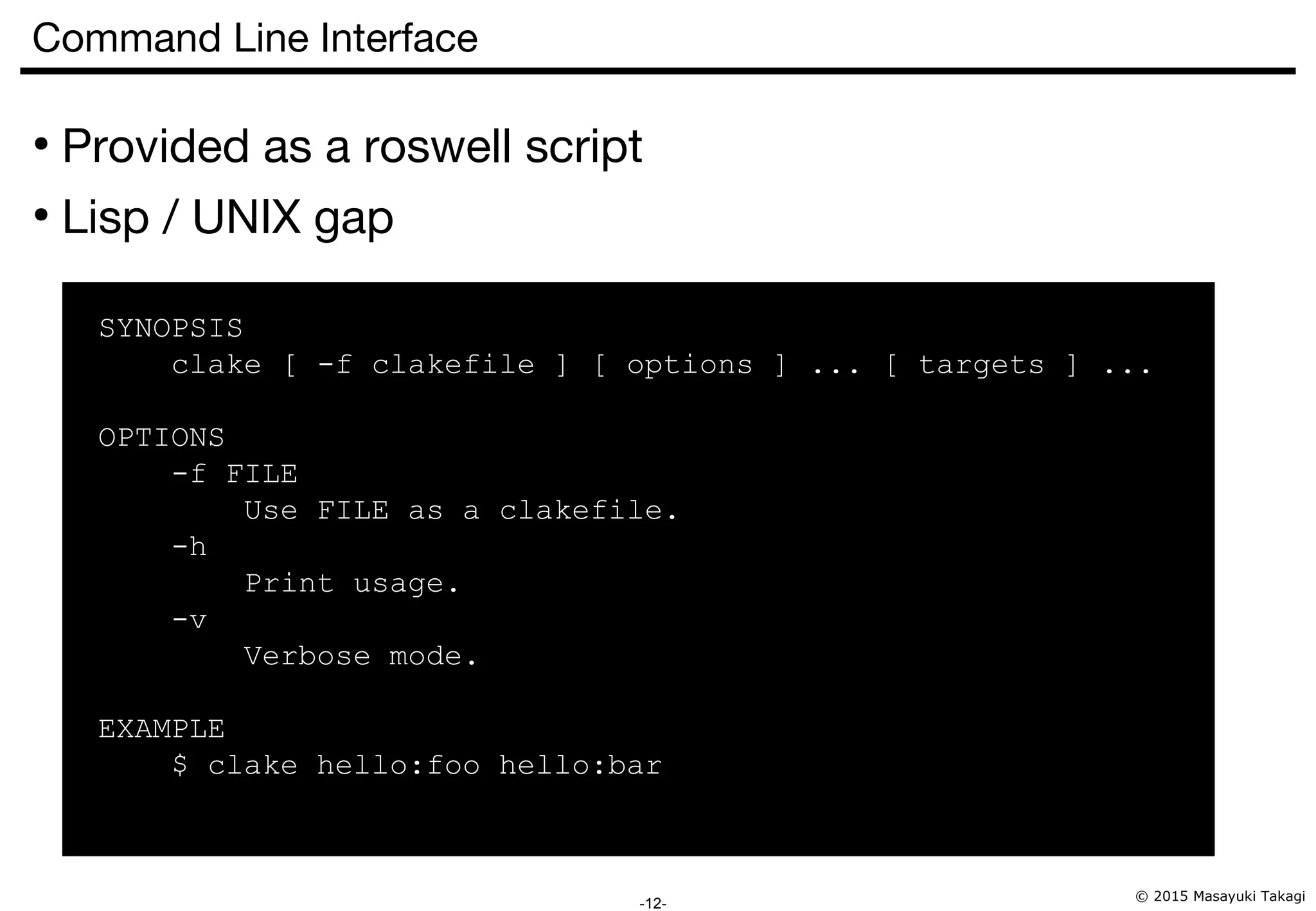

  © 2015 MasayukiTakagi -12- Command Line Interface ● Provided as a roswell script ● Lisp / UNIX gap SYNOPSIS clake [ -f clakefile ] [ options ] ... [ targets ] ... OPTIONS -f FILE Use FILE as a clakefile. -h Print usage. -v Verbose mode. EXAMPLE $ clake hello:foo hello:bar
• 13.

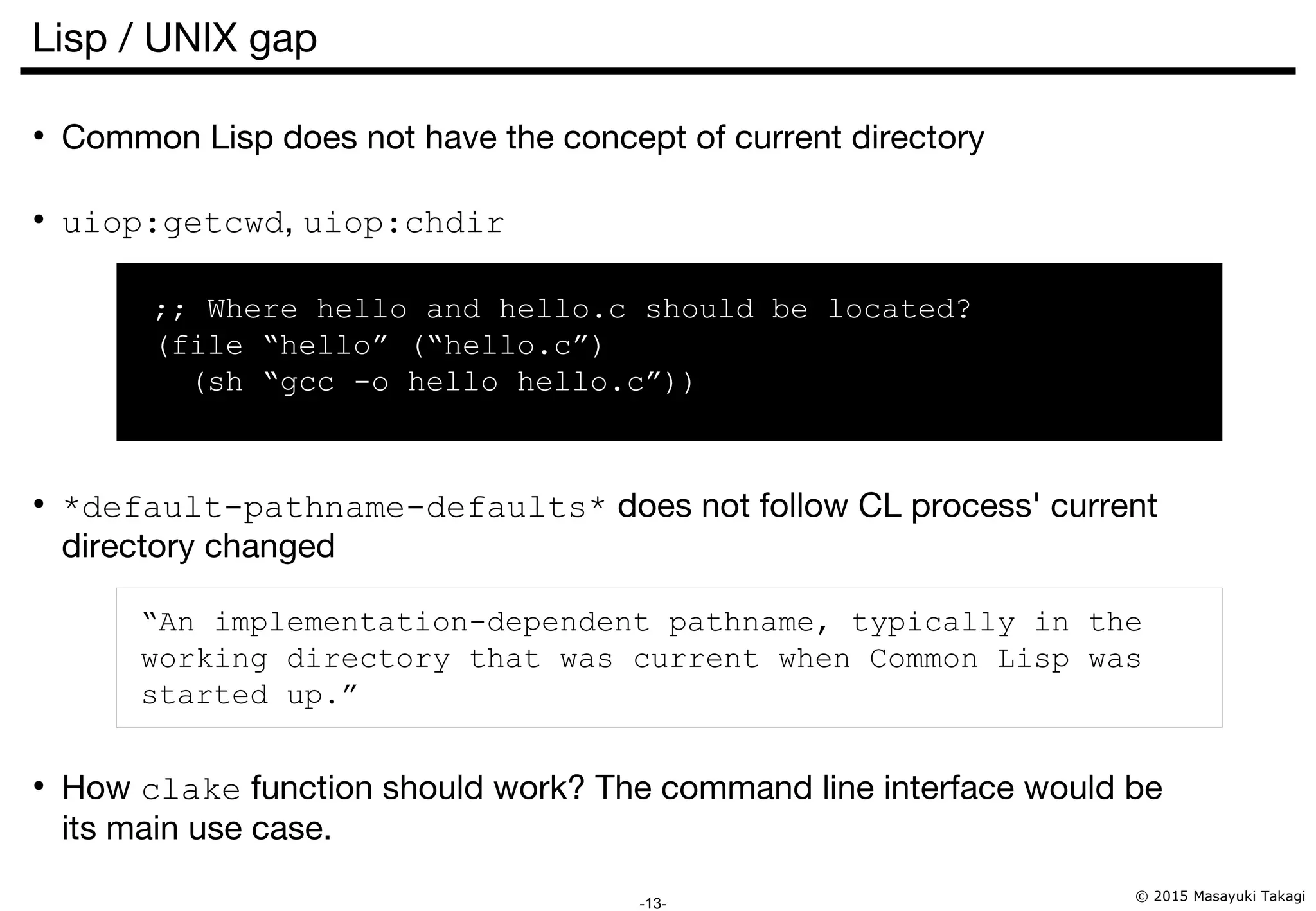

  © 2015 MasayukiTakagi -13- Lisp / UNIX gap ● Common Lisp does not have the concept of current directory ● uiop:getcwd, uiop:chdir ;; Where hello and hello.c should be located? (file “hello” (“hello.c”) (sh “gcc -o hello hello.c”)) ● *default-pathname-defaults* does not follow CL process' current directory changed “An implementation-dependent pathname, typically in the working directory that was current when Common Lisp was started up.” ● How clake function should work? The command line interface would be its main use case.
• 14.

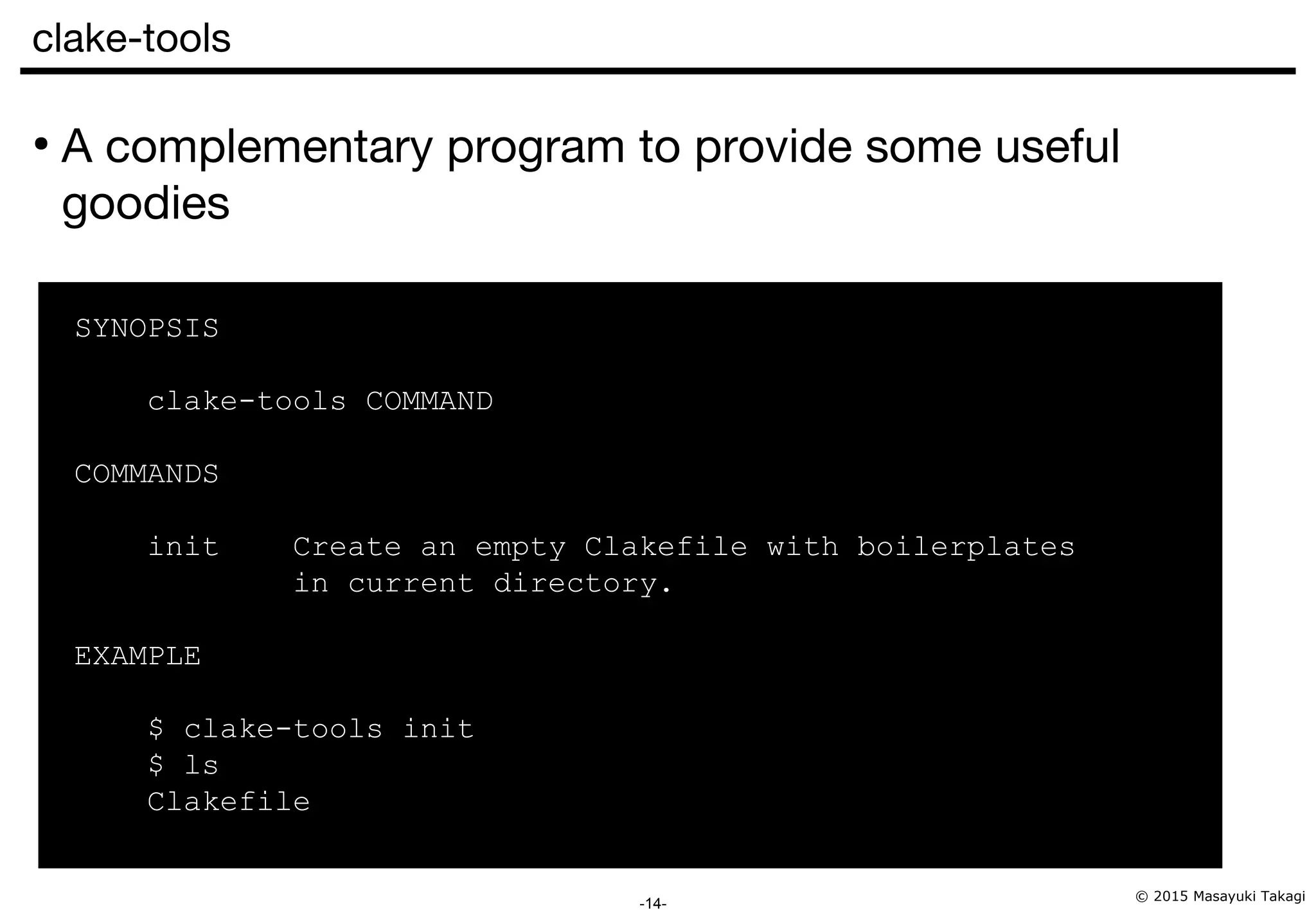

  © 2015 MasayukiTakagi -14- clake-tools ● A complementary program to provide some useful goodies SYNOPSIS clake-tools COMMAND COMMANDS init Create an empty Clakefile with boilerplates in current directory. EXAMPLE $ clake-tools init $ ls Clakefile
• 15.

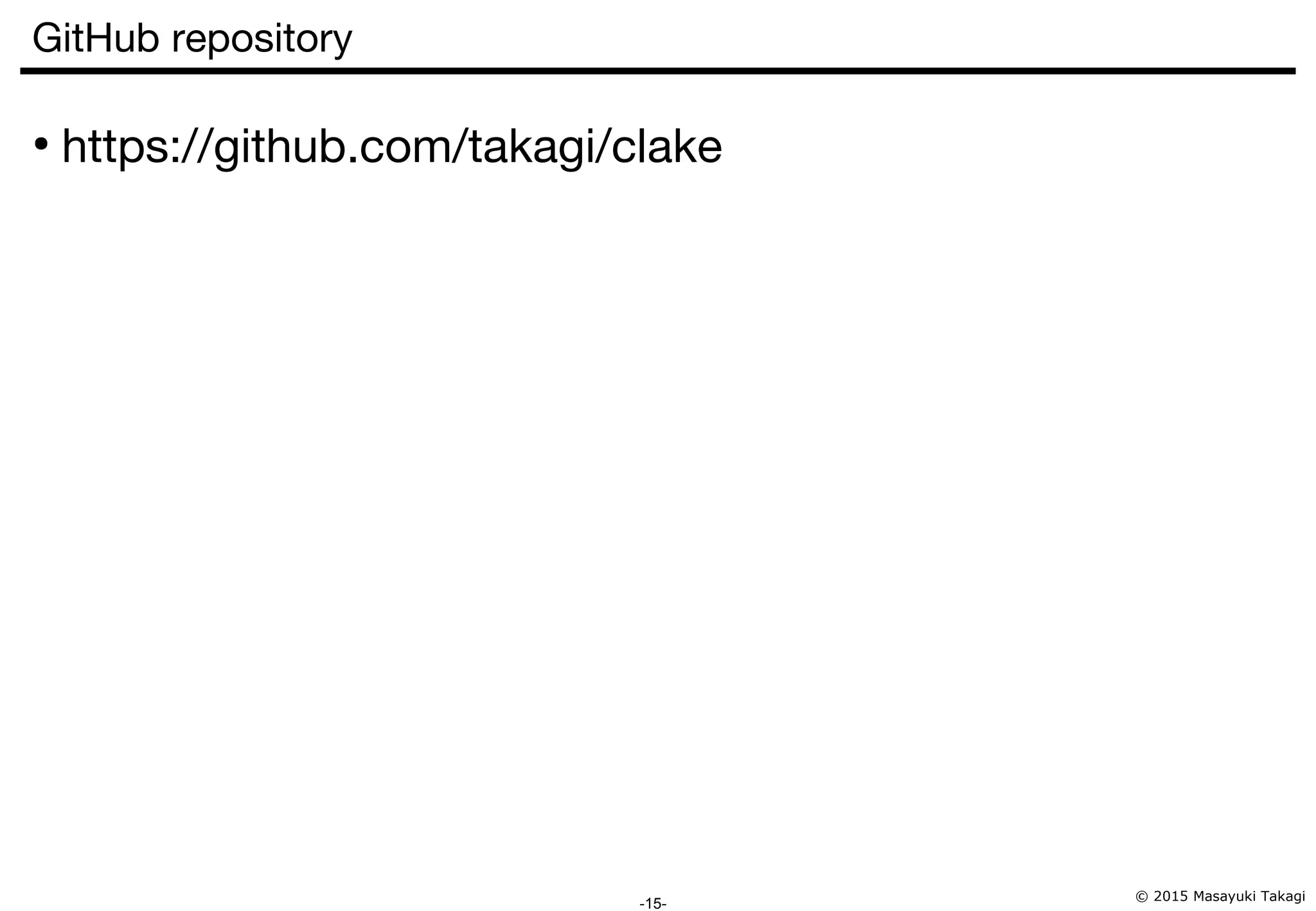

  © 2015 MasayukiTakagi -15- GitHub repository ● https://github.com/takagi/clake
• 16.

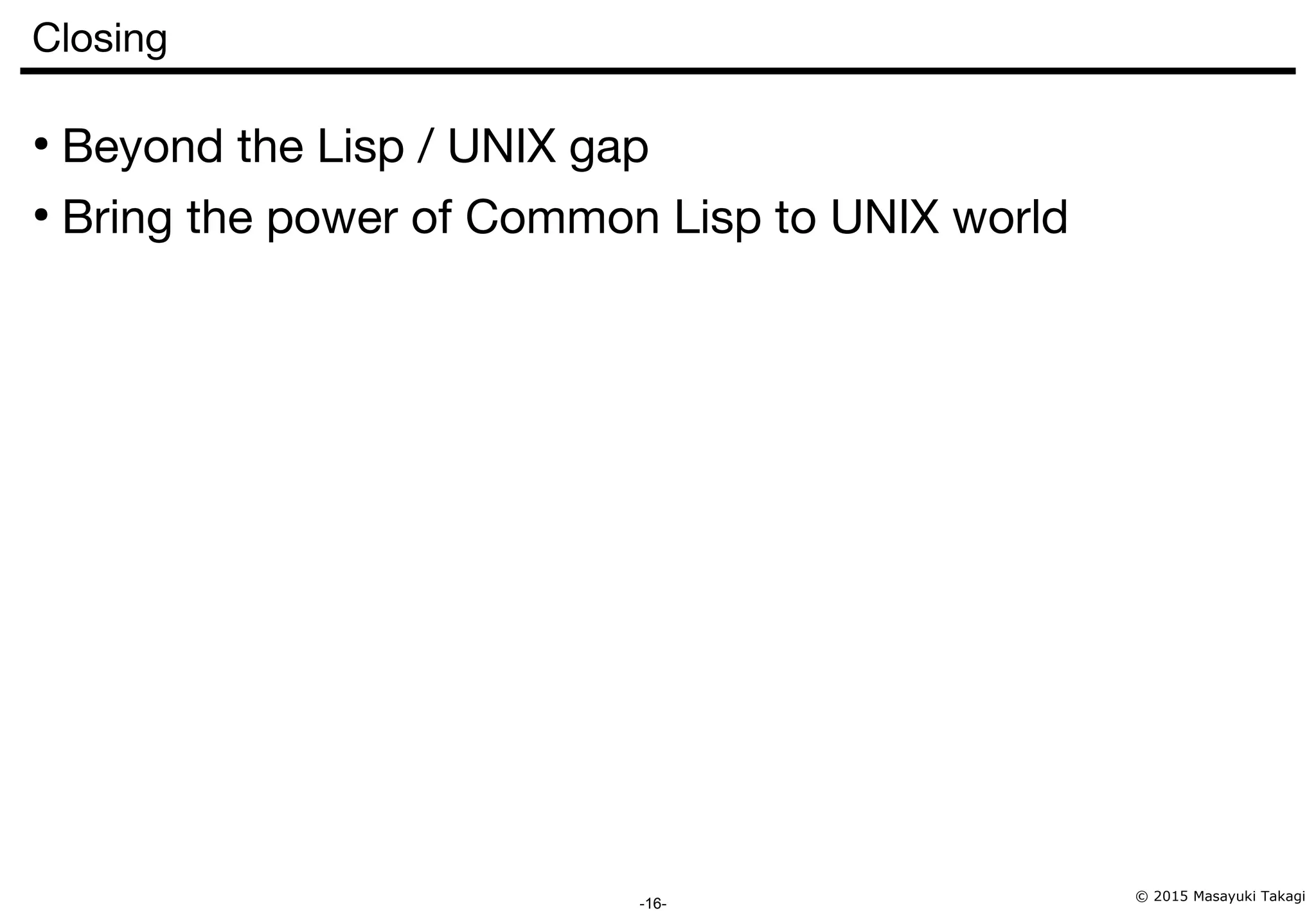

  © 2015 MasayukiTakagi -16- Closing ● Beyond the Lisp / UNIX gap ● Bring the power of Common Lisp to UNIX world
