Building notification system in NodeJS + Redis
The document discusses using Node.js and Redis to build a notification feeding system. It proposes 4 solutions: 1) A single Node.js thread with Redis publish/subscribe to send notifications to clients. 2) Multiple Node.js servers with Redis publish/subscribe. 3) Adding Redis replication to scale reads. 4) A fully replicated solution with Redis masters, slaves and Node.js servers subscribed to slaves. Redis replication allows slave servers to mirror masters non-blocking and is useful for scalability and read-only queries.
Building notification system in NodeJS + Redis
- 1. BUILDING NOTIFICATION, FEEDING SYSTEMUSE NODE.JS + REDIS Lê Việt Đức 19/04/2012

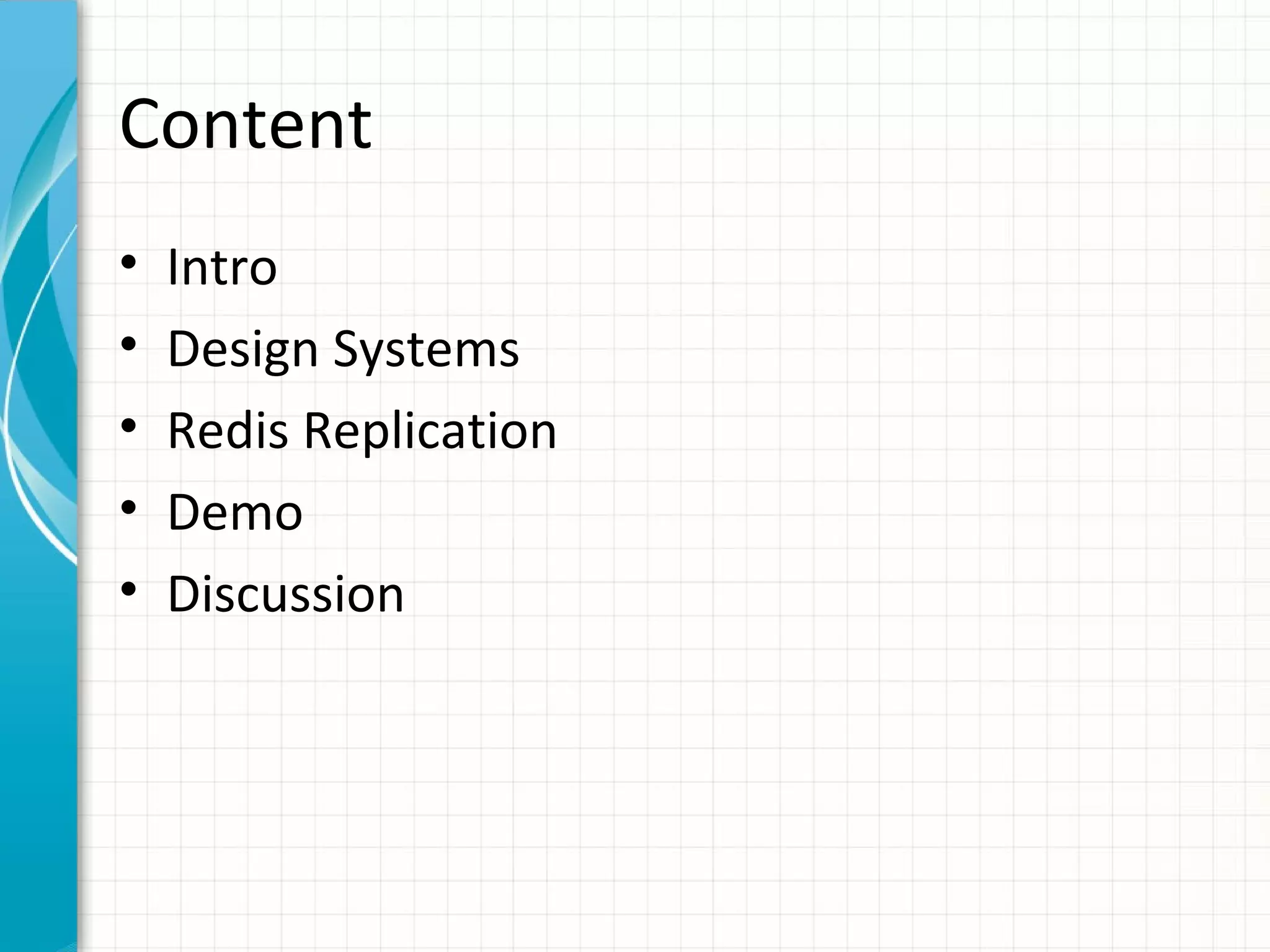

- 2. Content • Intro • Design Systems • Redis Replication • Demo • Discussion

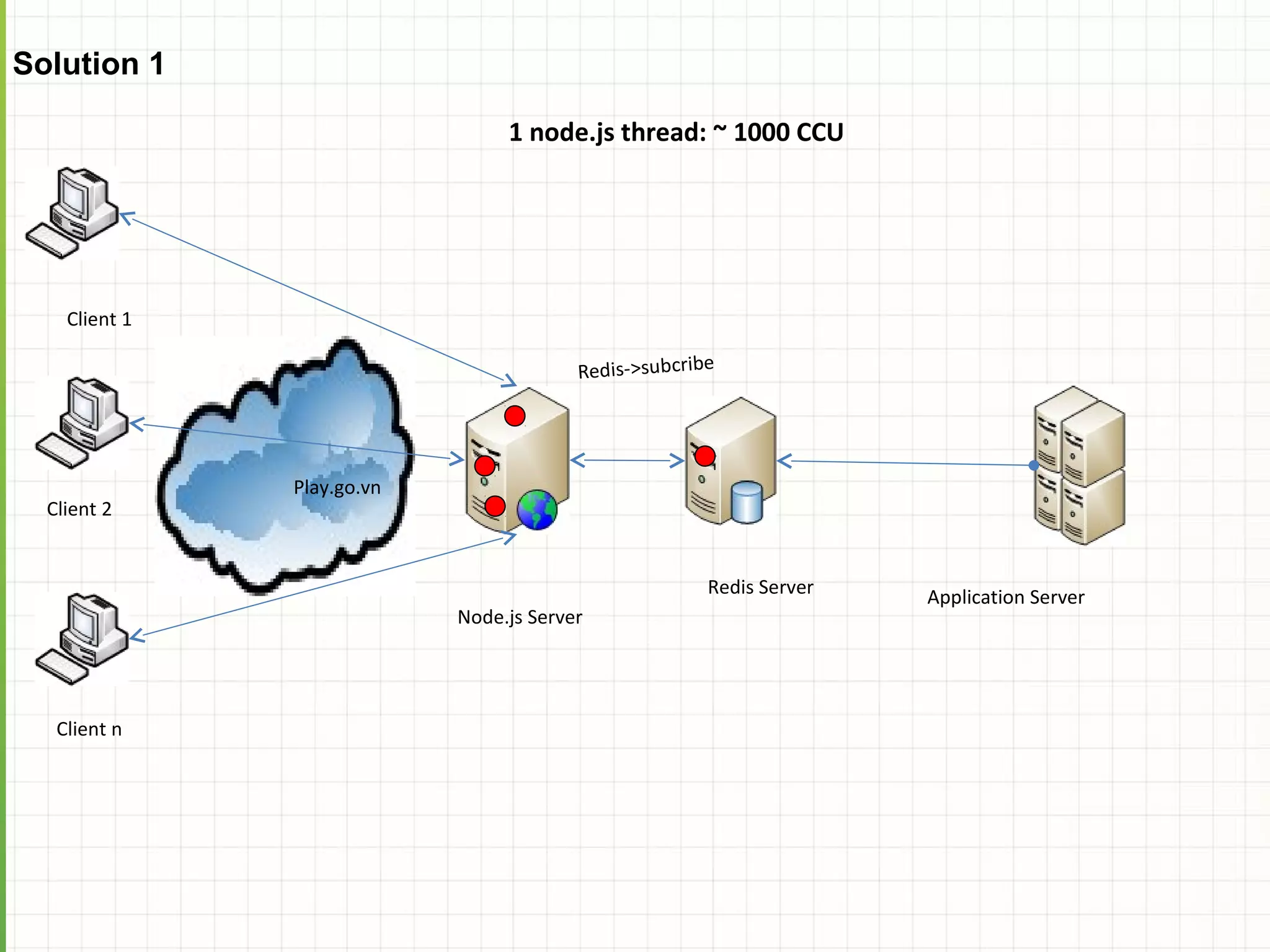

- 3. Solution 1 1 node.js thread: ~ 1000 CCU Client 1 Redis->subcribe Play.go.vn Client 2 Redis Server Application Server Node.js Server Client n

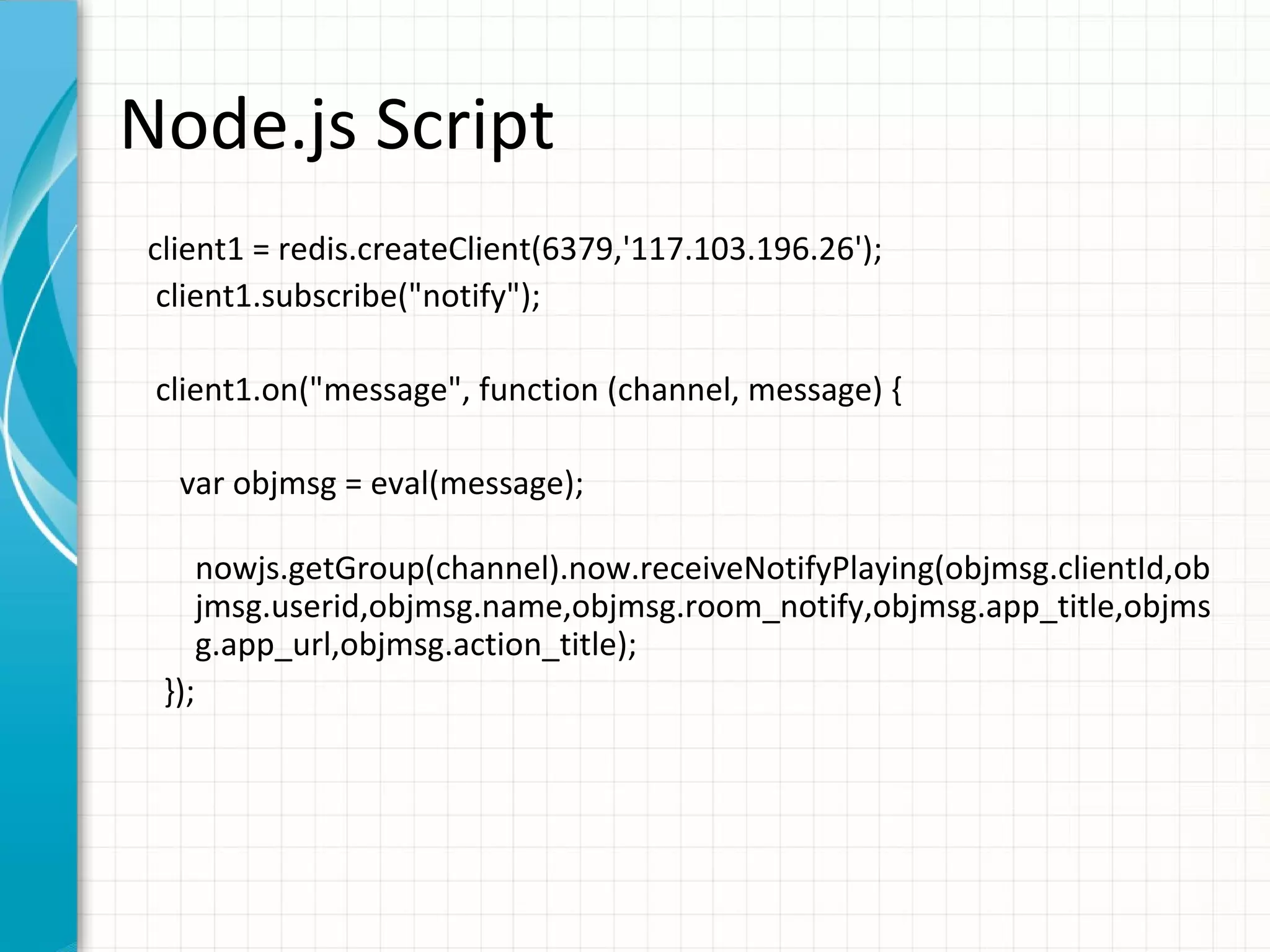

- 4. Node.js Script client1 =redis.createClient(6379,'117.103.196.26'); client1.subscribe("notify"); client1.on("message", function (channel, message) { var objmsg = eval(message); nowjs.getGroup(channel).now.receiveNotifyPlaying(objmsg.clientId,ob jmsg.userid,objmsg.name,objmsg.room_notify,objmsg.app_title,objms g.app_url,objmsg.action_title); });

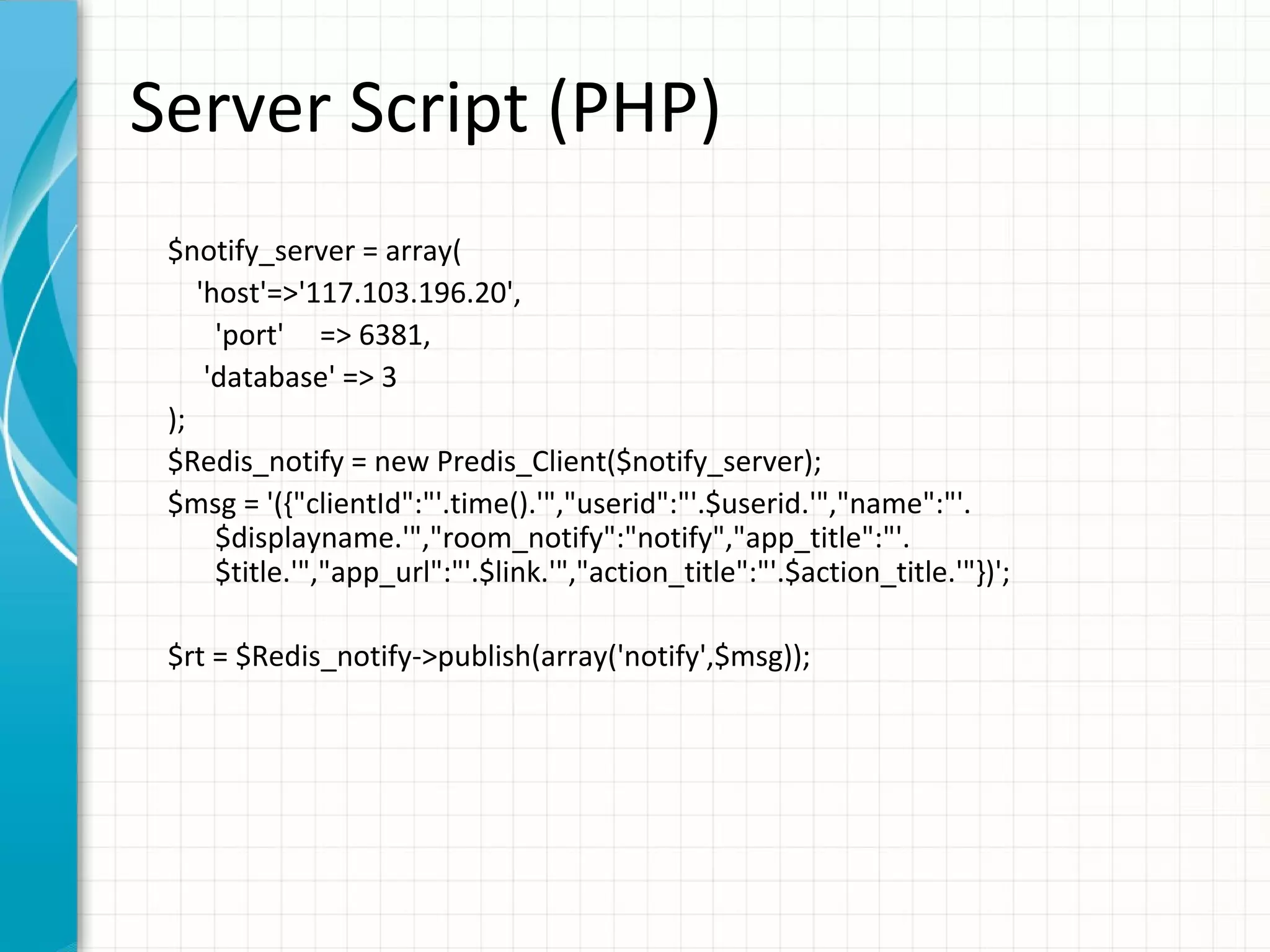

- 5. Server Script (PHP) $notify_server = array( 'host'=>'117.103.196.20', 'port' => 6381, 'database' => 3 ); $Redis_notify = new Predis_Client($notify_server); $msg = '({"clientId":"'.time().'","userid":"'.$userid.'","name":"'. $displayname.'","room_notify":"notify","app_title":"'. $title.'","app_url":"'.$link.'","action_title":"'.$action_title.'"})'; $rt = $Redis_notify->publish(array('notify',$msg));

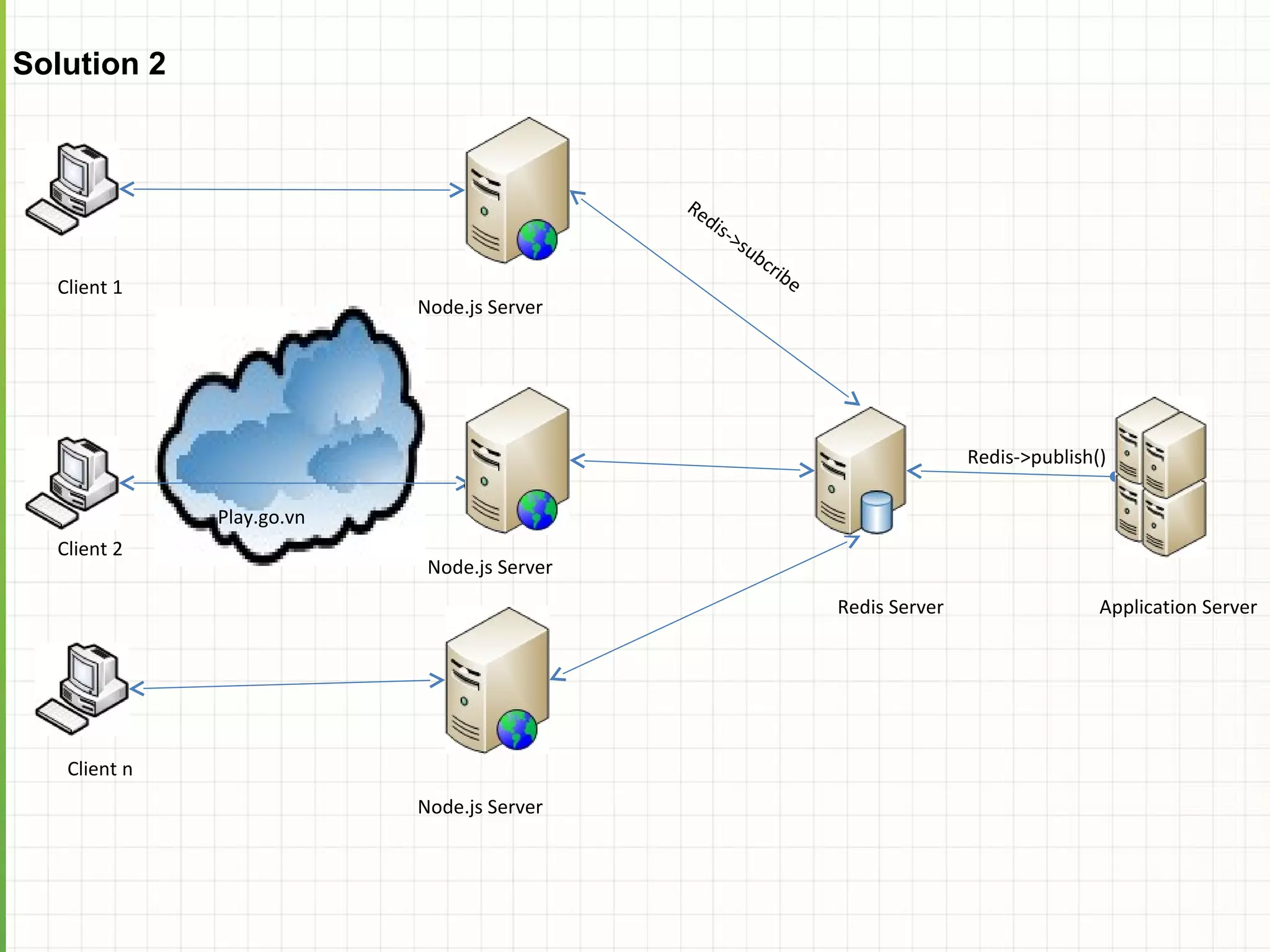

- 6. Solution 2 Re dis ->s ub cri be Client 1 Node.js Server Redis->publish() Play.go.vn Client 2 Node.js Server Redis Server Application Server Client n Node.js Server

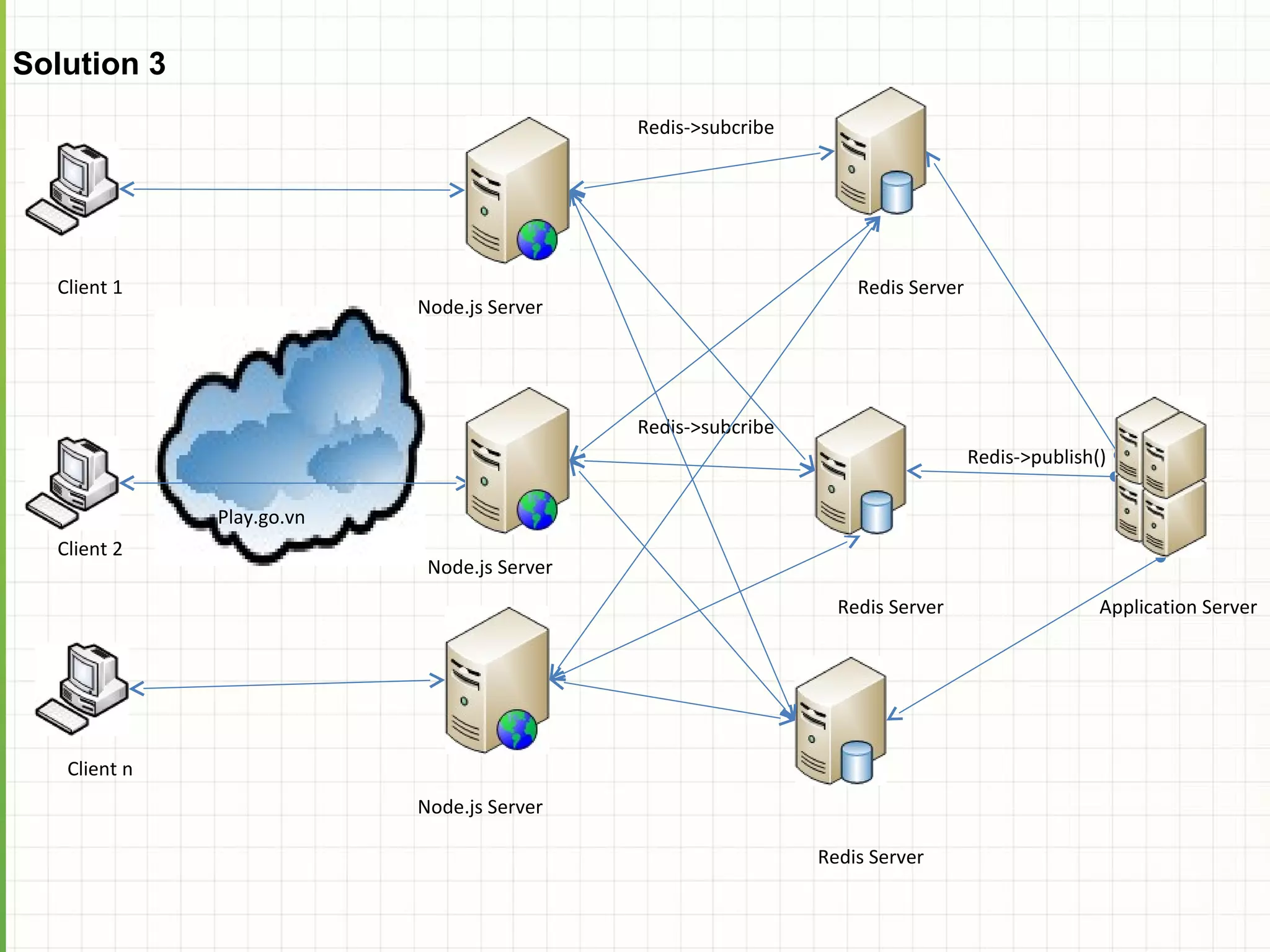

- 7. Solution 3 Redis->subcribe Client 1 Redis Server Node.js Server Redis->subcribe Redis->publish() Play.go.vn Client 2 Node.js Server Redis Server Application Server Client n Node.js Server Redis Server

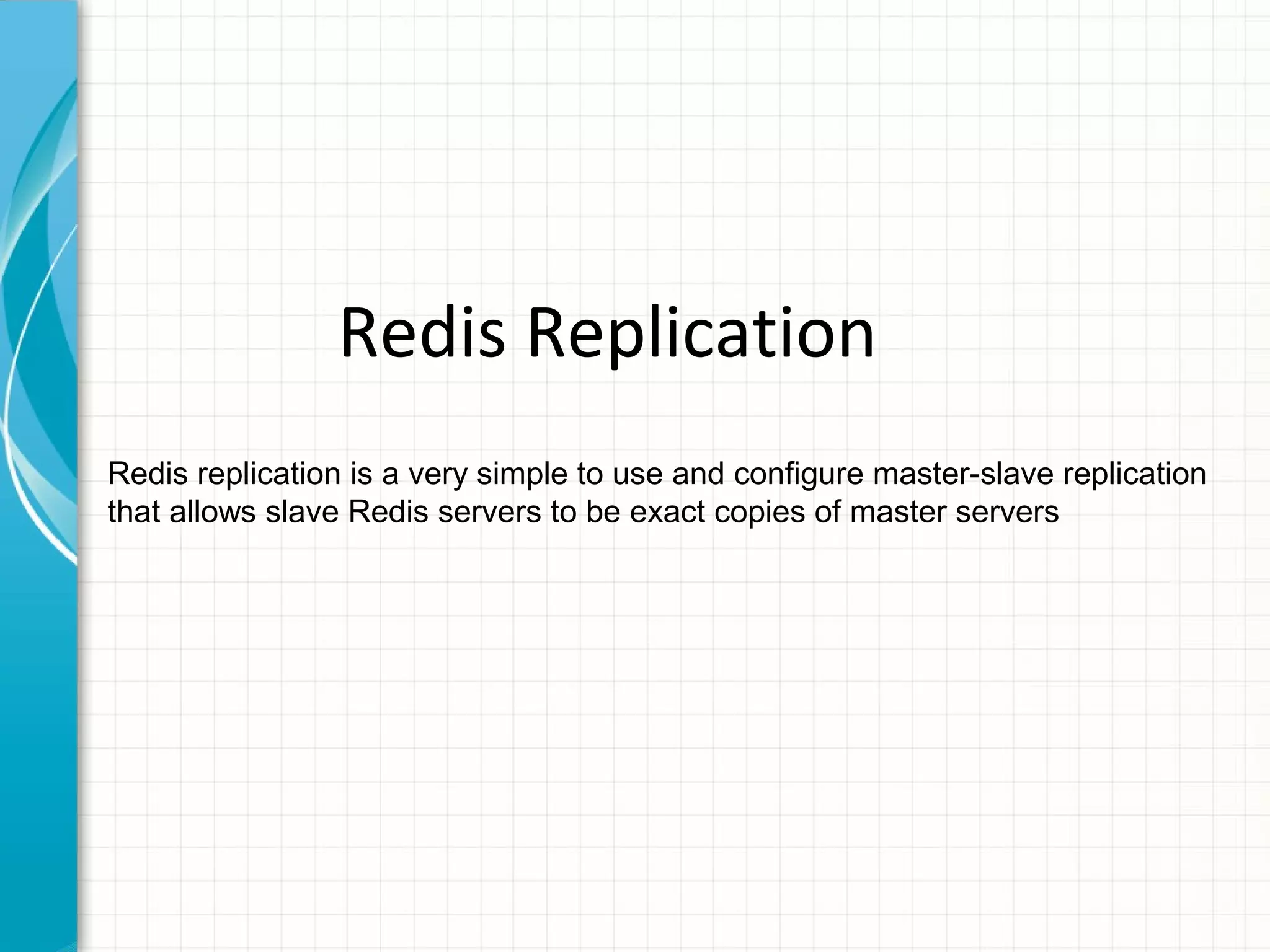

- 8. Redis Replication Redis replicationis a very simple to use and configure master-slave replication that allows slave Redis servers to be exact copies of master servers

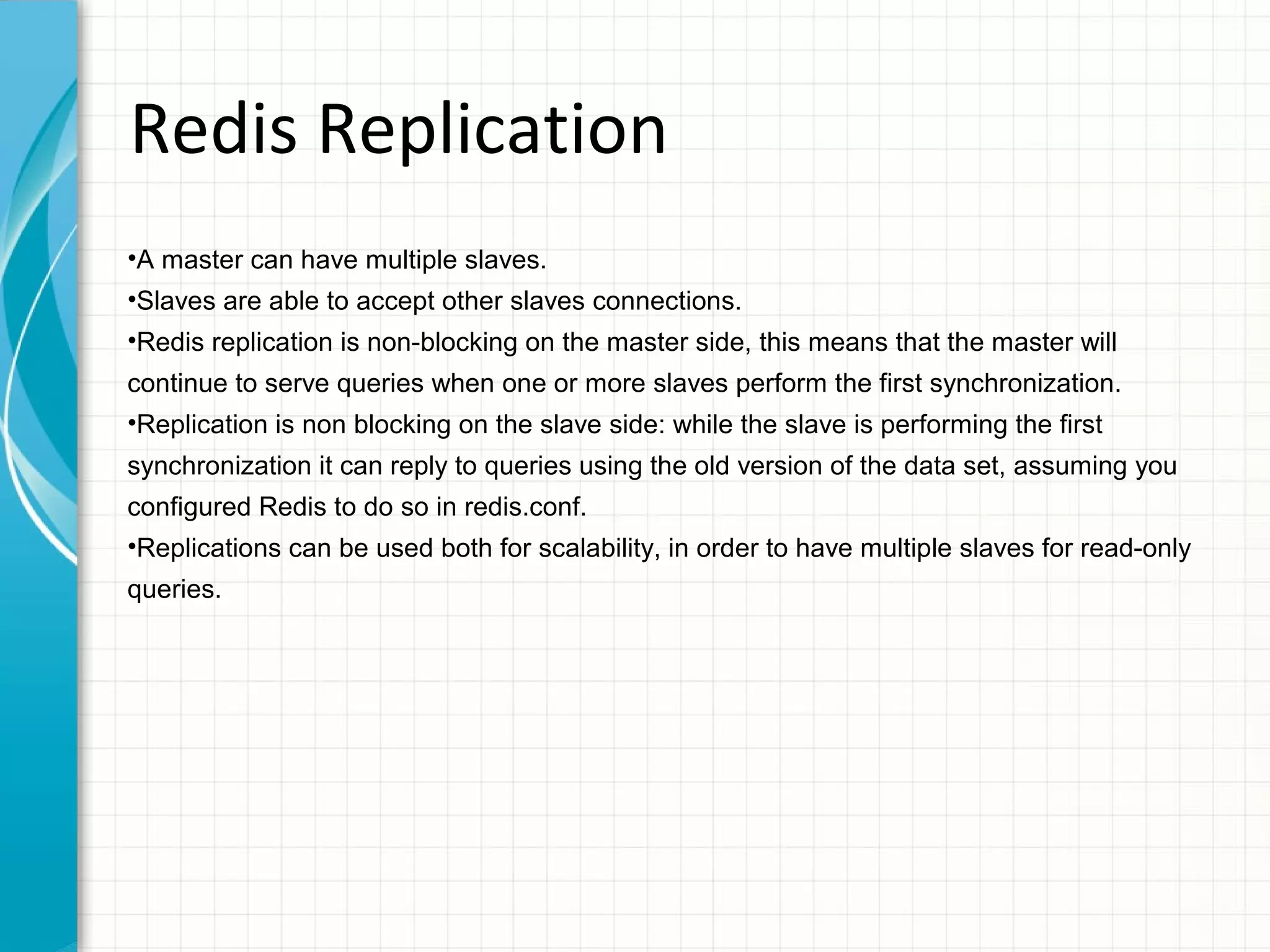

- 9. Redis Replication •A mastercan have multiple slaves. •Slaves are able to accept other slaves connections. •Redis replication is non-blocking on the master side, this means that the master will continue to serve queries when one or more slaves perform the first synchronization. •Replication is non blocking on the slave side: while the slave is performing the first synchronization it can reply to queries using the old version of the data set, assuming you configured Redis to do so in redis.conf. •Replications can be used both for scalability, in order to have multiple slaves for read-only queries.
- 10. Configuration slaveof 192.168.1.1 6379 masterauth <password>

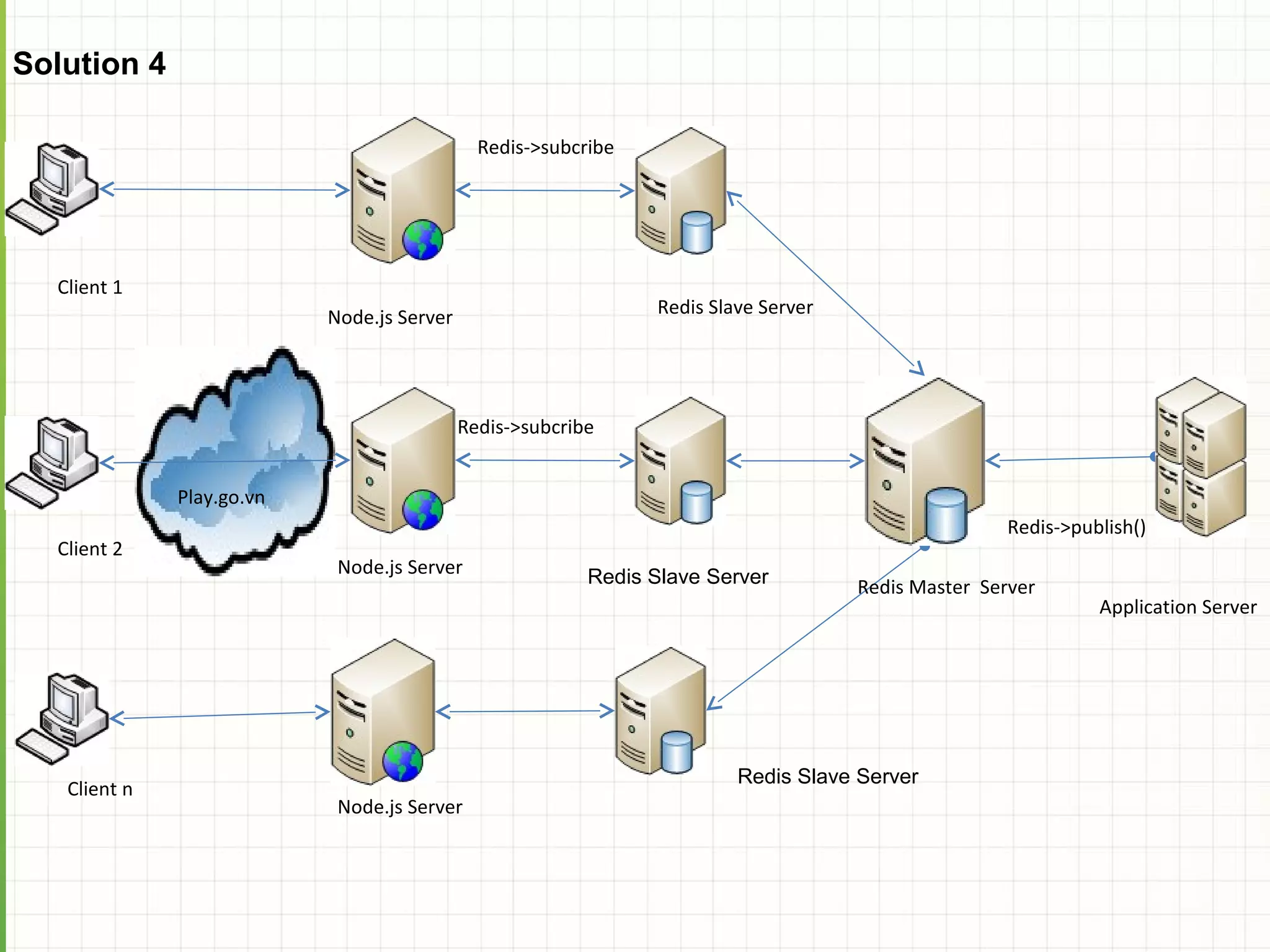

- 11. Solution 4 Redis->subcribe Client 1 Node.js Server Redis Slave Server Redis->subcribe Play.go.vn Redis->publish() Client 2 Node.js Server Redis Slave Server Redis Master Server Application Server Redis Slave Server Client n Node.js Server
- 12.
- 13.
