Apache Pulsar with MQTT for Edge Computing Timothy Spann | Developer Advocate Big Mountain Data and Dev Conference

Tim Spann Developer Advocate ● https://www.datainmotion.dev/ ● https://github.com/tspannhw/SpeakerProﬁle ● https://dev.to/tspannhw ● https://sessionize.com/tspann/ DZone Zone Leader and Big Data MVB Data DJay

Founded by the original developers of Apache Pulsar and Apache BookKeeper, StreamNative builds a cloud-native event streaming platform that enables enterprises to easily access data as real-time event streams.

Apache is an open source, cloud-native distributed messaging and streaming platform.

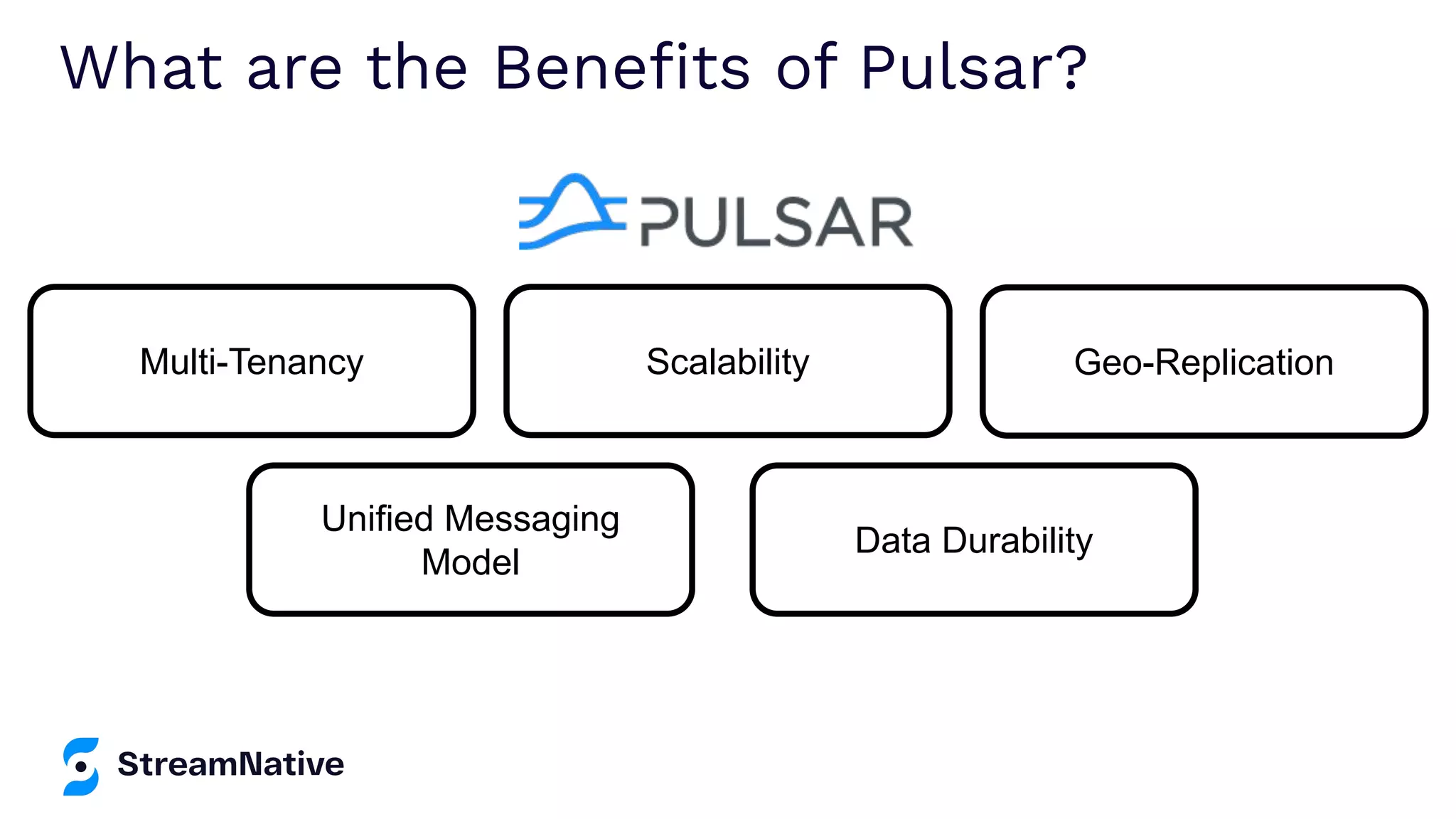

What are the Beneﬁts of Pulsar? Data Durability Scalability Geo-Replication Multi-Tenancy Unified Messaging Model

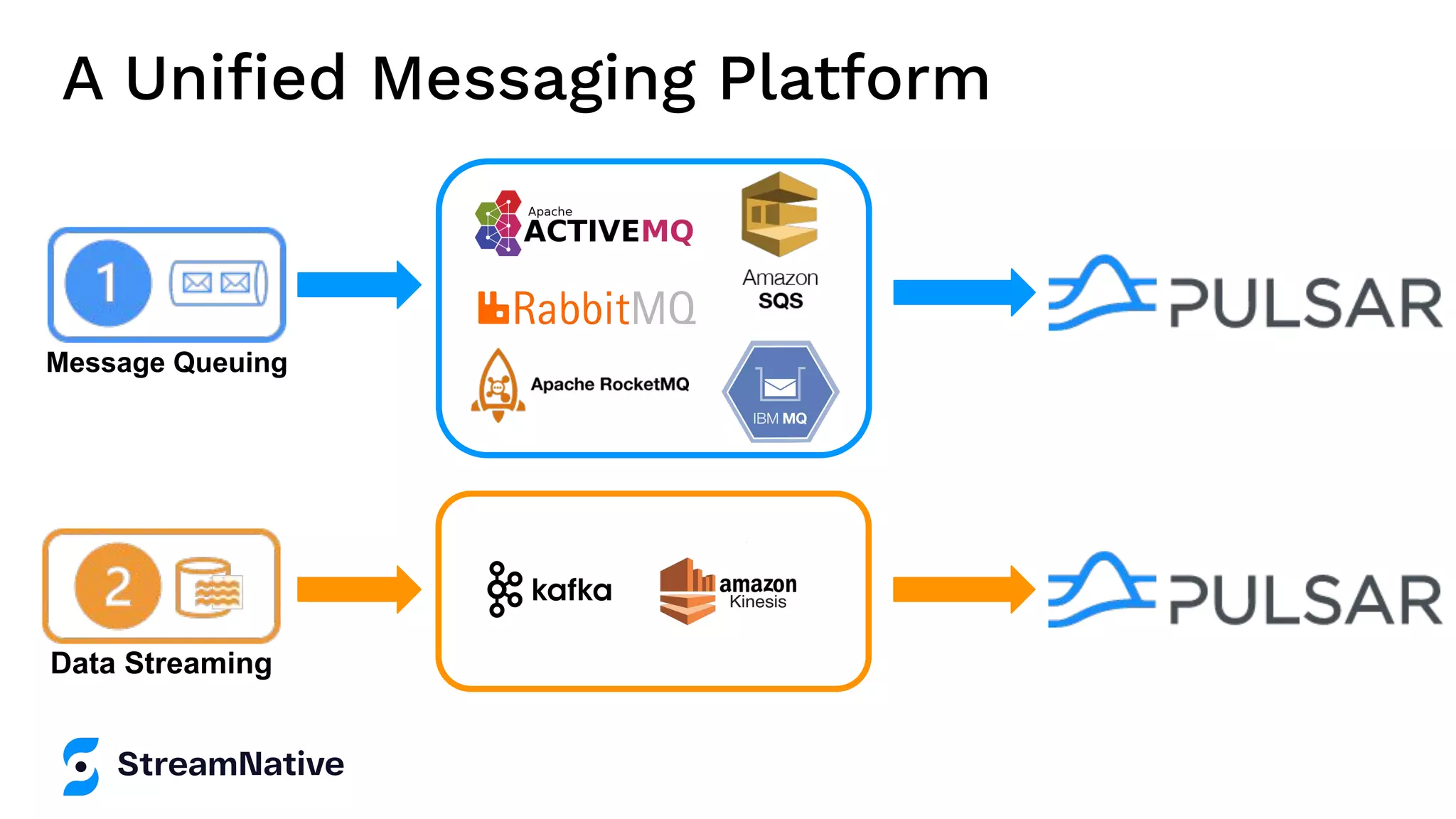

A Uniﬁed Messaging Platform Message Queuing Data Streaming

Pulsar is built for easy scale-out. *Illustrations by Jack Vanlightly

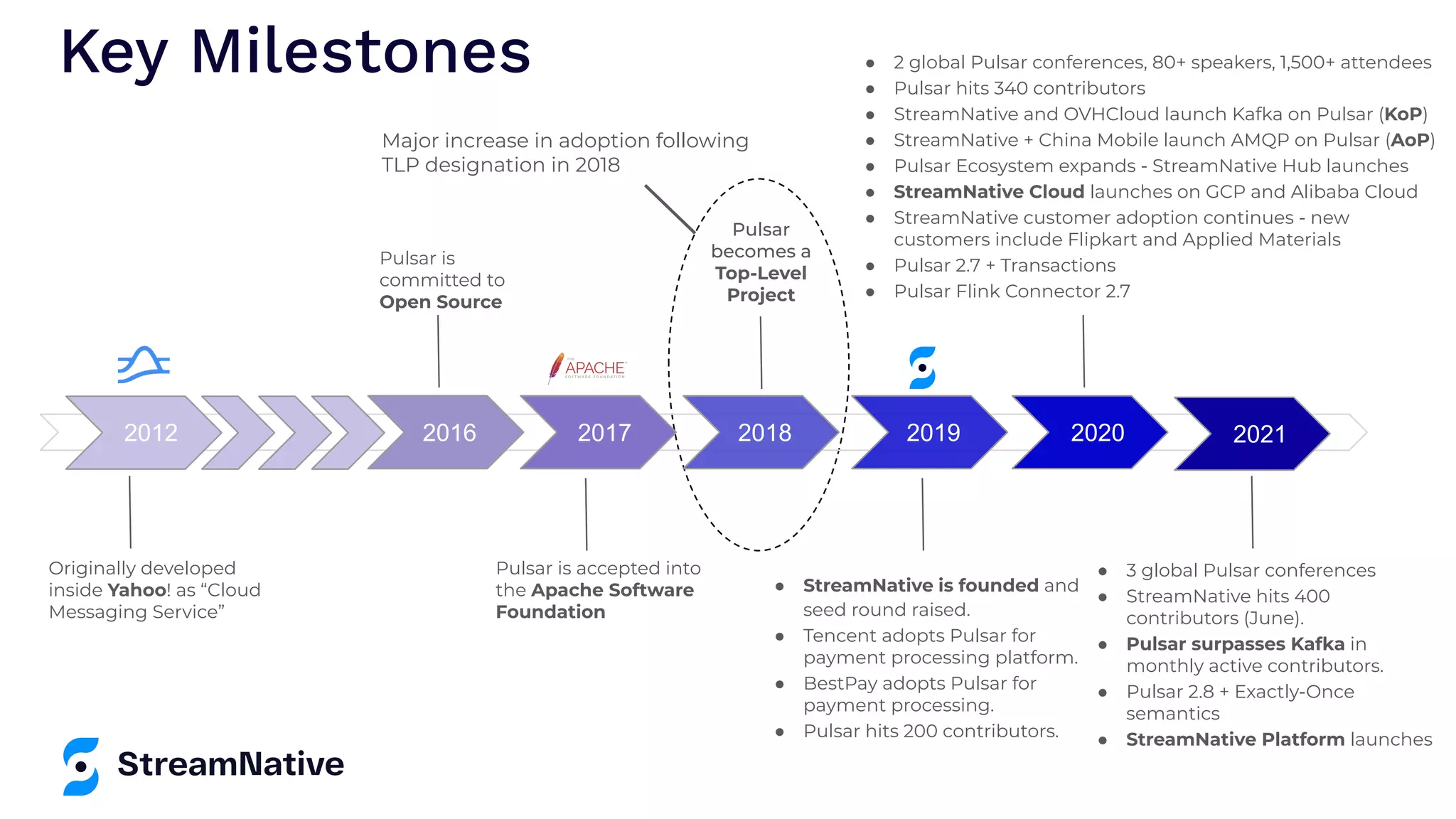

Key Milestones 2012 2016 2017 2018 2019 2020 Originally developed inside Yahoo! as “Cloud Messaging Service” Pulsar is committed to Open Source Pulsar is accepted into the Apache Software Foundation Pulsar becomes a Top-Level Project ● StreamNative is founded and seed round raised. ● Tencent adopts Pulsar for payment processing platform. ● BestPay adopts Pulsar for payment processing. ● Pulsar hits 200 contributors. ● 2 global Pulsar conferences, 80+ speakers, 1,500+ attendees ● Pulsar hits 340 contributors ● StreamNative and OVHCloud launch Kafka on Pulsar (KoP) ● StreamNative + China Mobile launch AMQP on Pulsar (AoP) ● Pulsar Ecosystem expands - StreamNative Hub launches ● StreamNative Cloud launches on GCP and Alibaba Cloud ● StreamNative customer adoption continues - new customers include Flipkart and Applied Materials ● Pulsar 2.7 + Transactions ● Pulsar Flink Connector 2.7 Major increase in adoption following TLP designation in 2018 2021 ● 3 global Pulsar conferences ● StreamNative hits 400 contributors (June). ● Pulsar surpasses Kafka in monthly active contributors. ● Pulsar 2.8 + Exactly-Once semantics ● StreamNative Platform launches

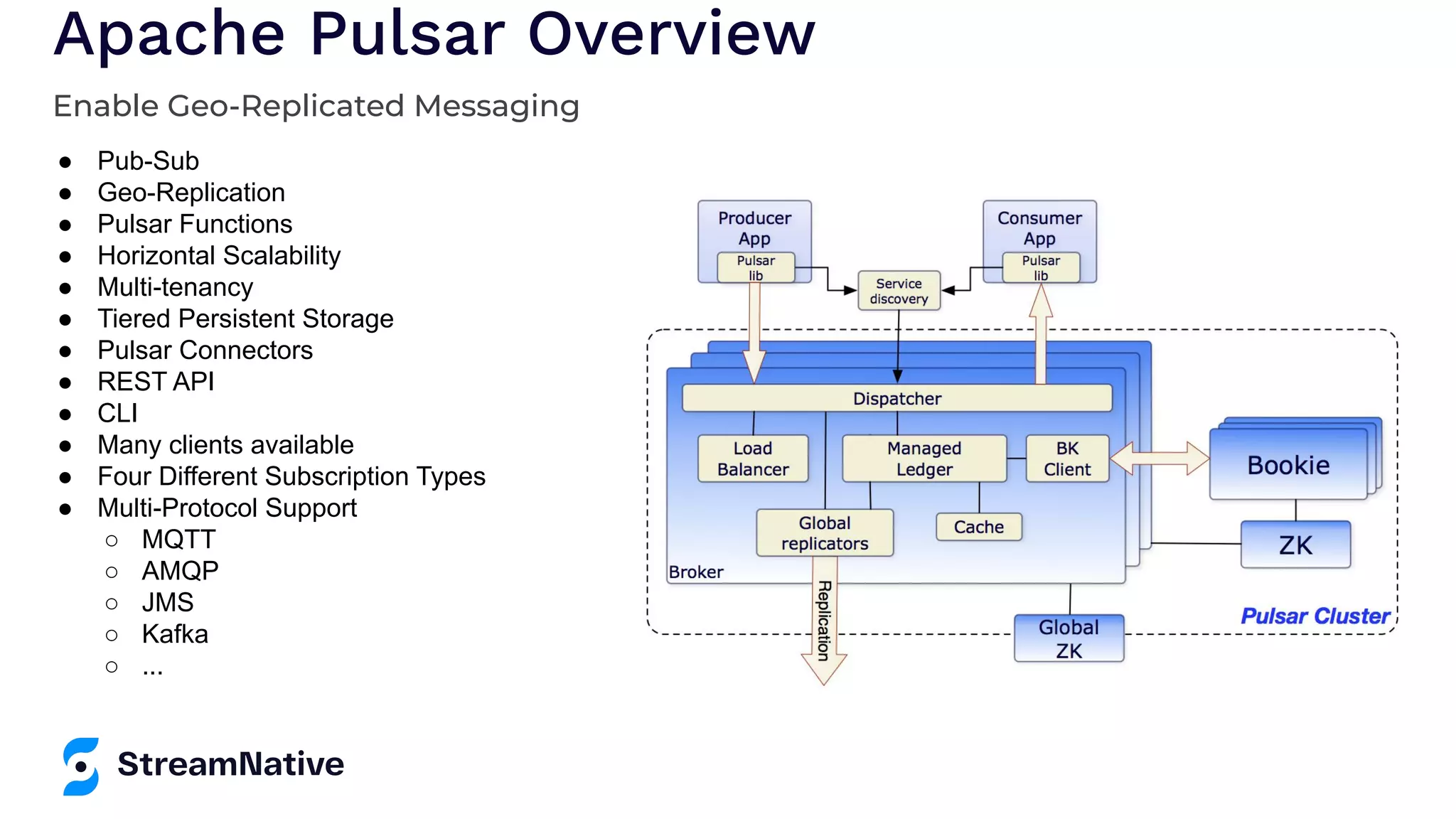

Apache Pulsar Overview Enable Geo-Replicated Messaging ● Pub-Sub ● Geo-Replication ● Pulsar Functions ● Horizontal Scalability ● Multi-tenancy ● Tiered Persistent Storage ● Pulsar Connectors ● REST API ● CLI ● Many clients available ● Four Different Subscription Types ● Multi-Protocol Support ○ MQTT ○ AMQP ○ JMS ○ Kafka ○ ...

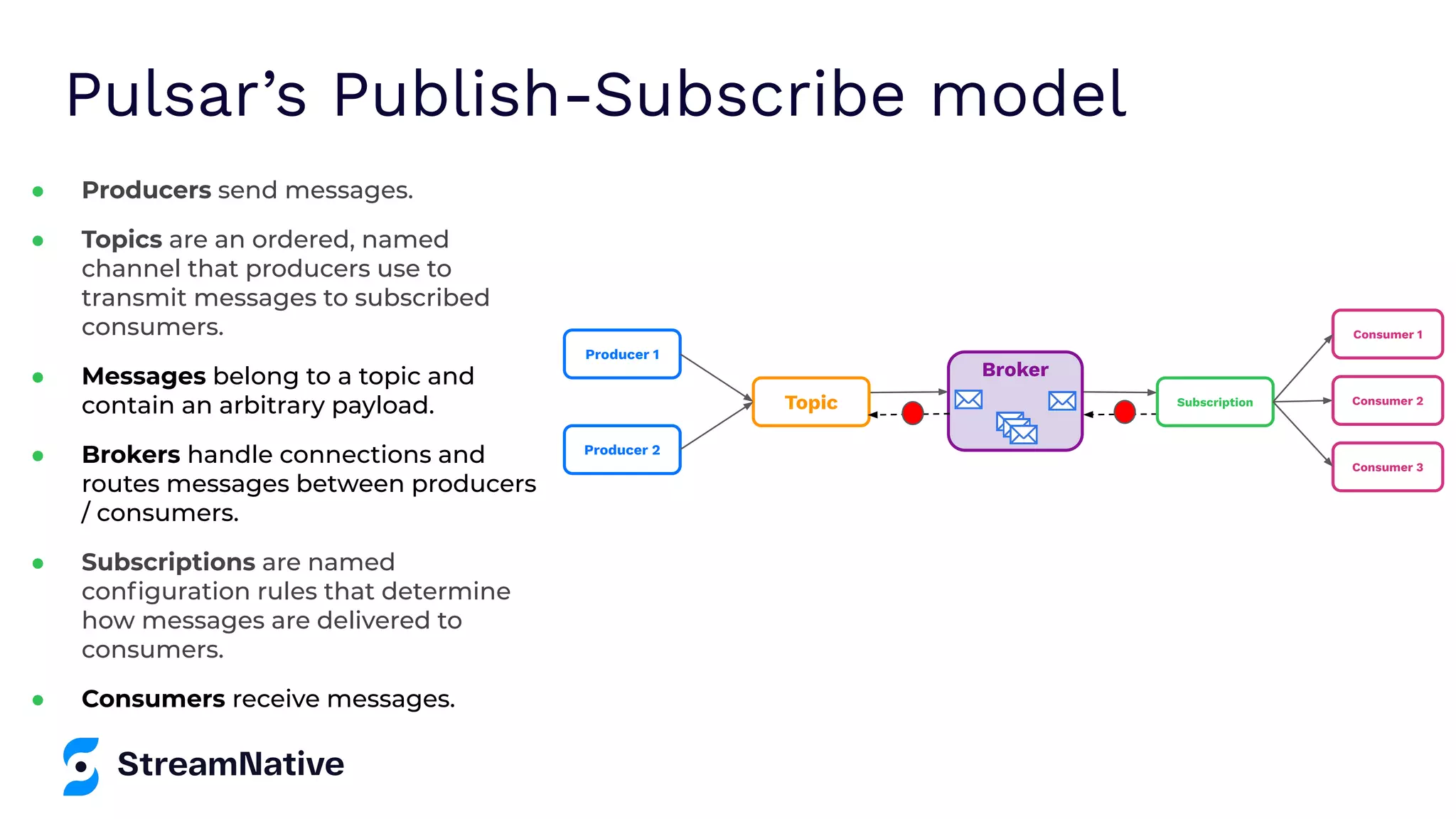

Pulsar’s Publish-Subscribe model Broker Subscription Consumer 1 Consumer 2 Consumer 3 Topic Producer 1 Producer 2 ● Producers send messages. ● Topics are an ordered, named channel that producers use to transmit messages to subscribed consumers. ● Messages belong to a topic and contain an arbitrary payload. ● Brokers handle connections and routes messages between producers / consumers. ● Subscriptions are named conﬁguration rules that determine how messages are delivered to consumers. ● Consumers receive messages.

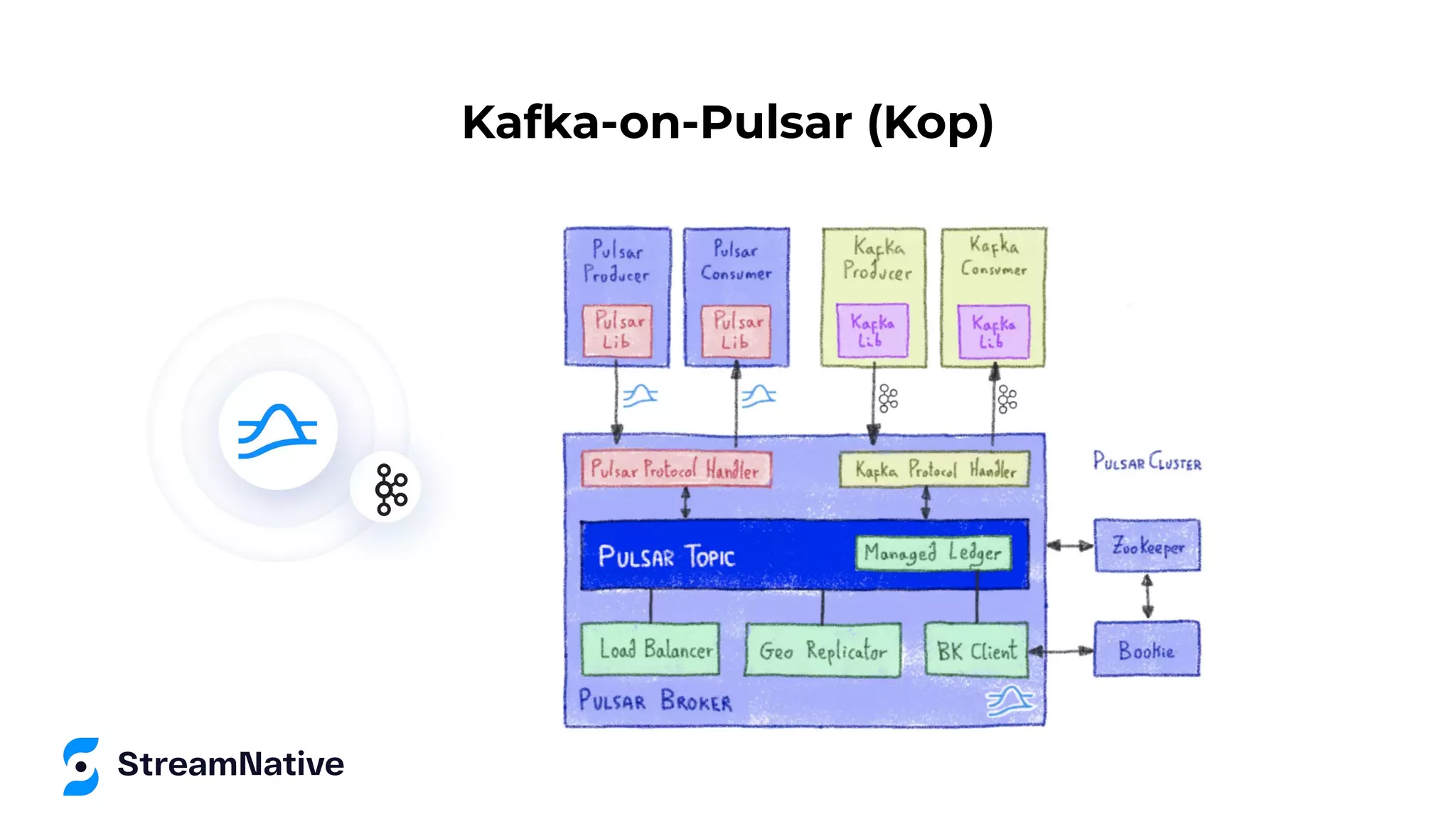

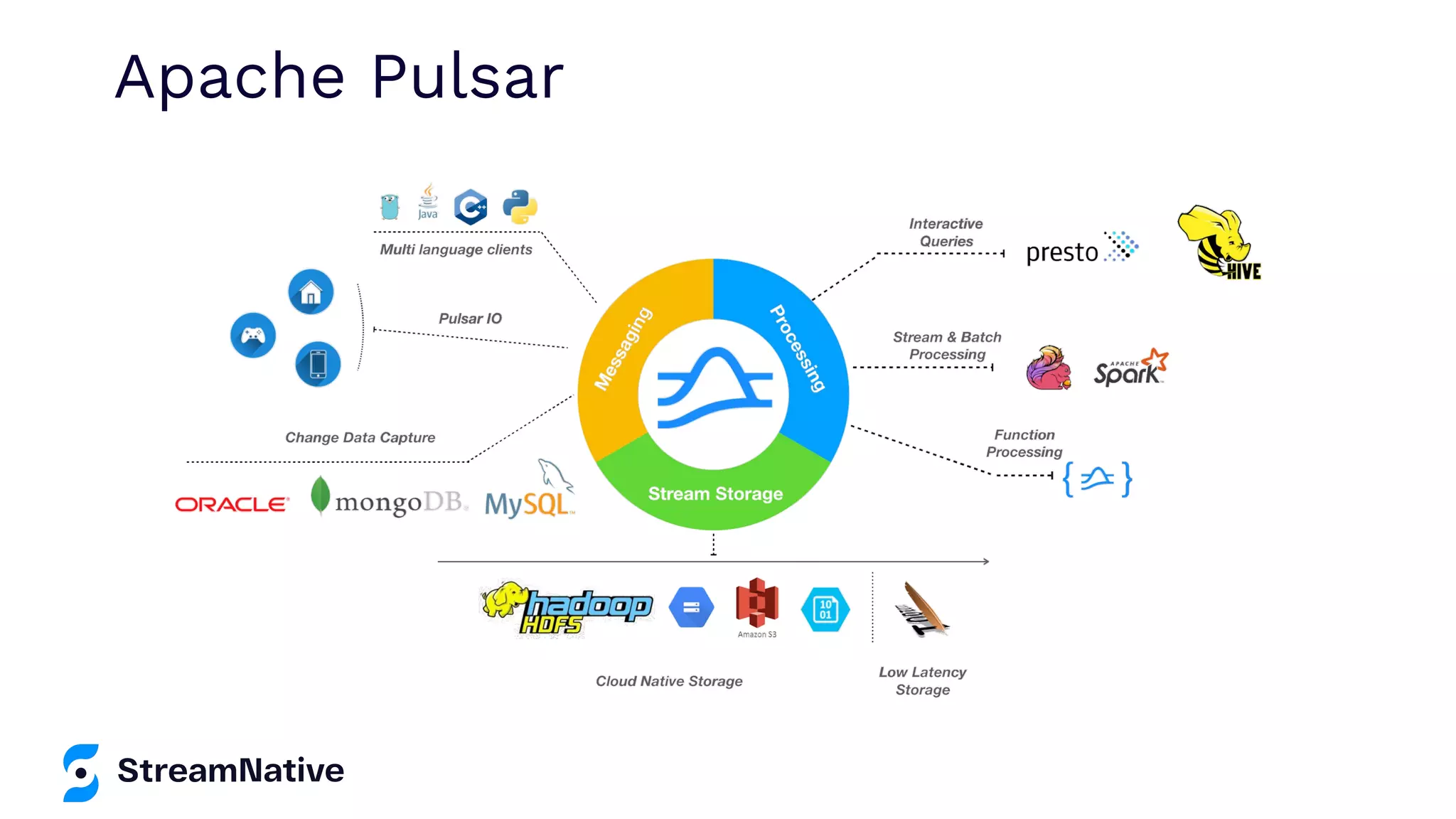

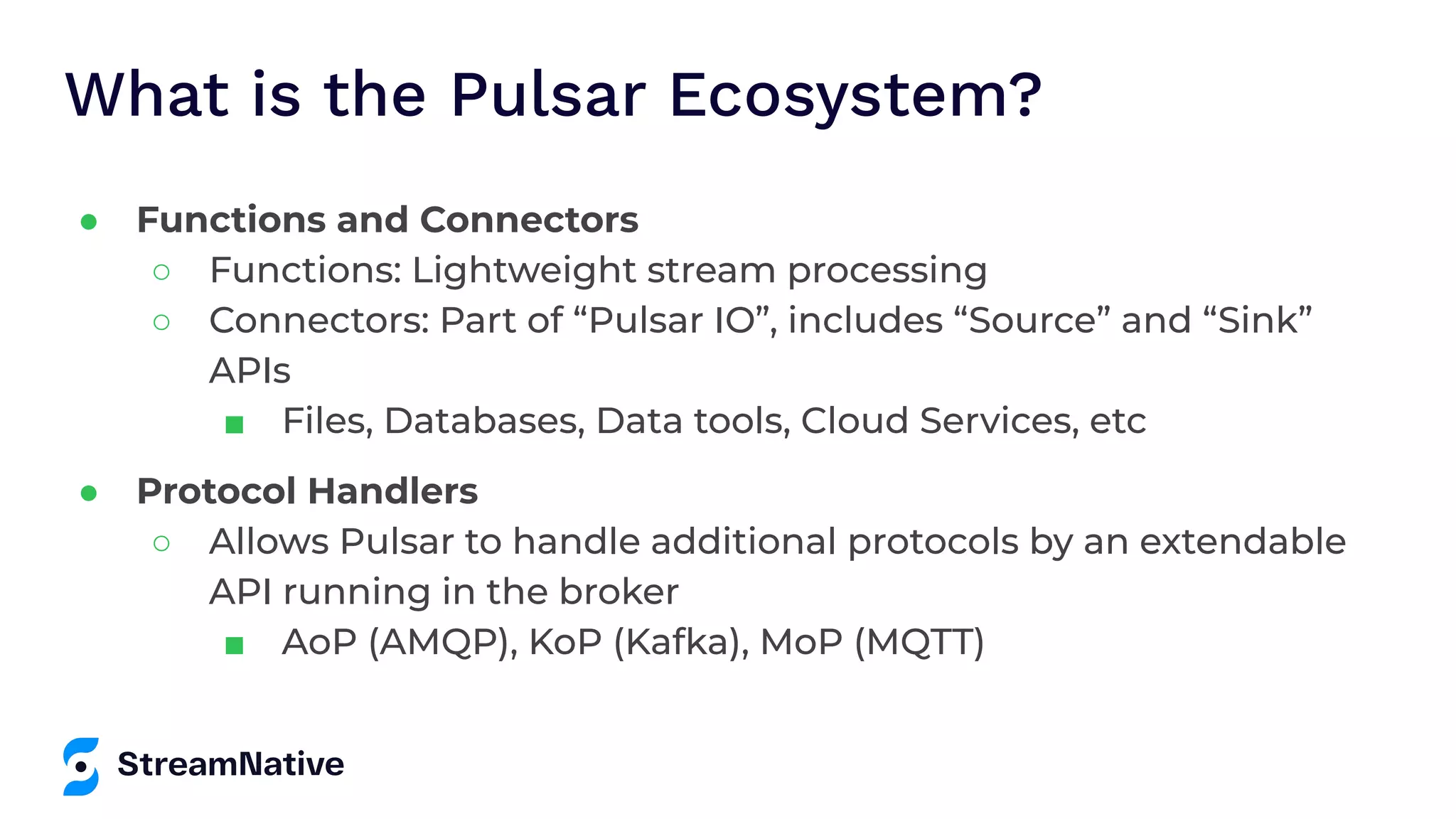

What is the Pulsar Ecosystem? ● Functions and Connectors ○ Functions: Lightweight stream processing ○ Connectors: Part of “Pulsar IO”, includes “Source” and “Sink” APIs ■ Files, Databases, Data tools, Cloud Services, etc ● Protocol Handlers ○ Allows Pulsar to handle additional protocols by an extendable API running in the broker ■ AoP (AMQP), KoP (Kafka), MoP (MQTT)

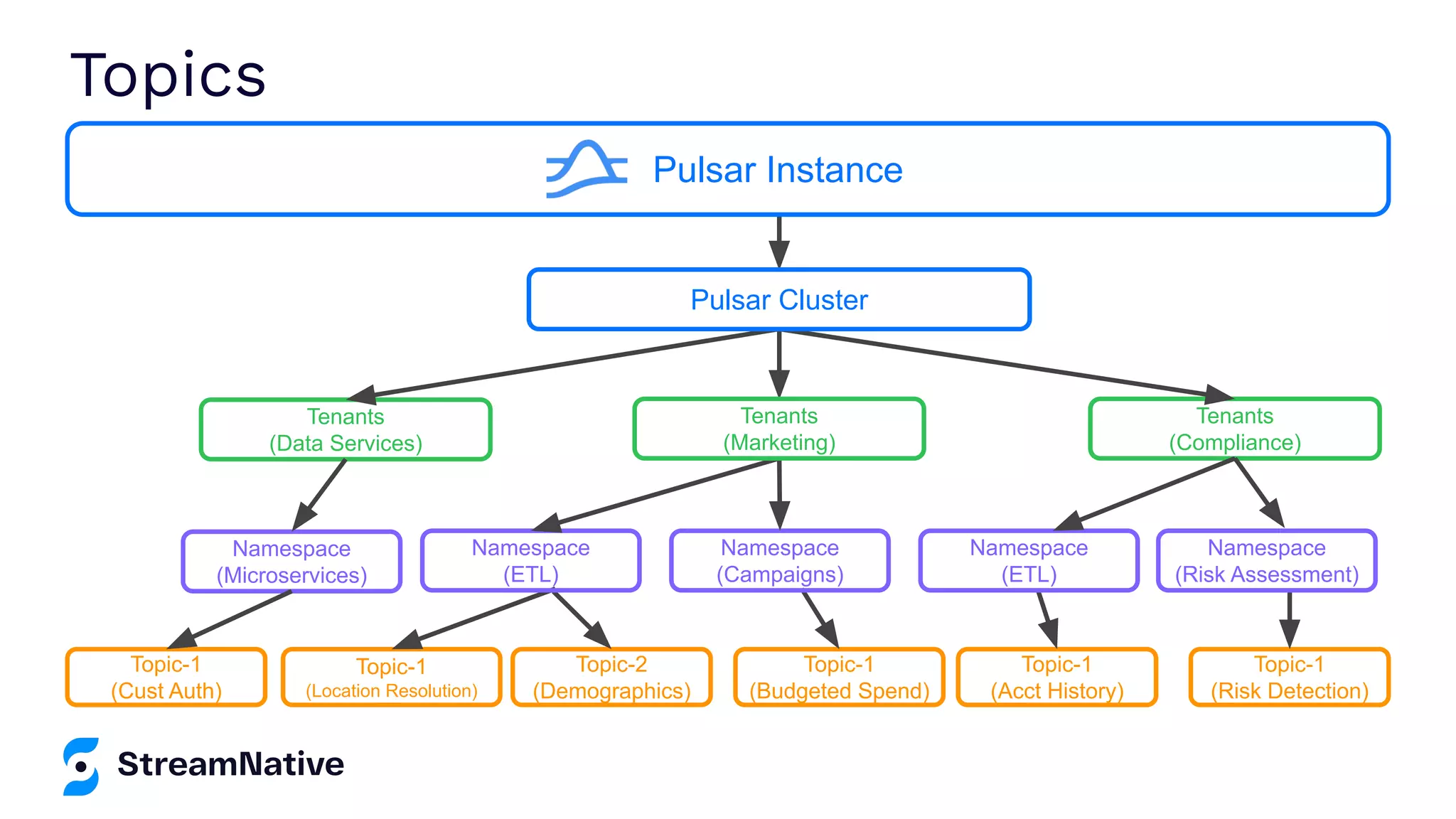

Topics Tenants (Compliance) Tenants (Data Services) Namespace (Microservices) Topic-1 (Cust Auth) Topic-1 (Location Resolution) Topic-2 (Demographics) Topic-1 (Budgeted Spend) Topic-1 (Acct History) Topic-1 (Risk Detection) Namespace (ETL) Namespace (Campaigns) Namespace (ETL) Tenants (Marketing) Namespace (Risk Assessment) Pulsar Instance Pulsar Cluster

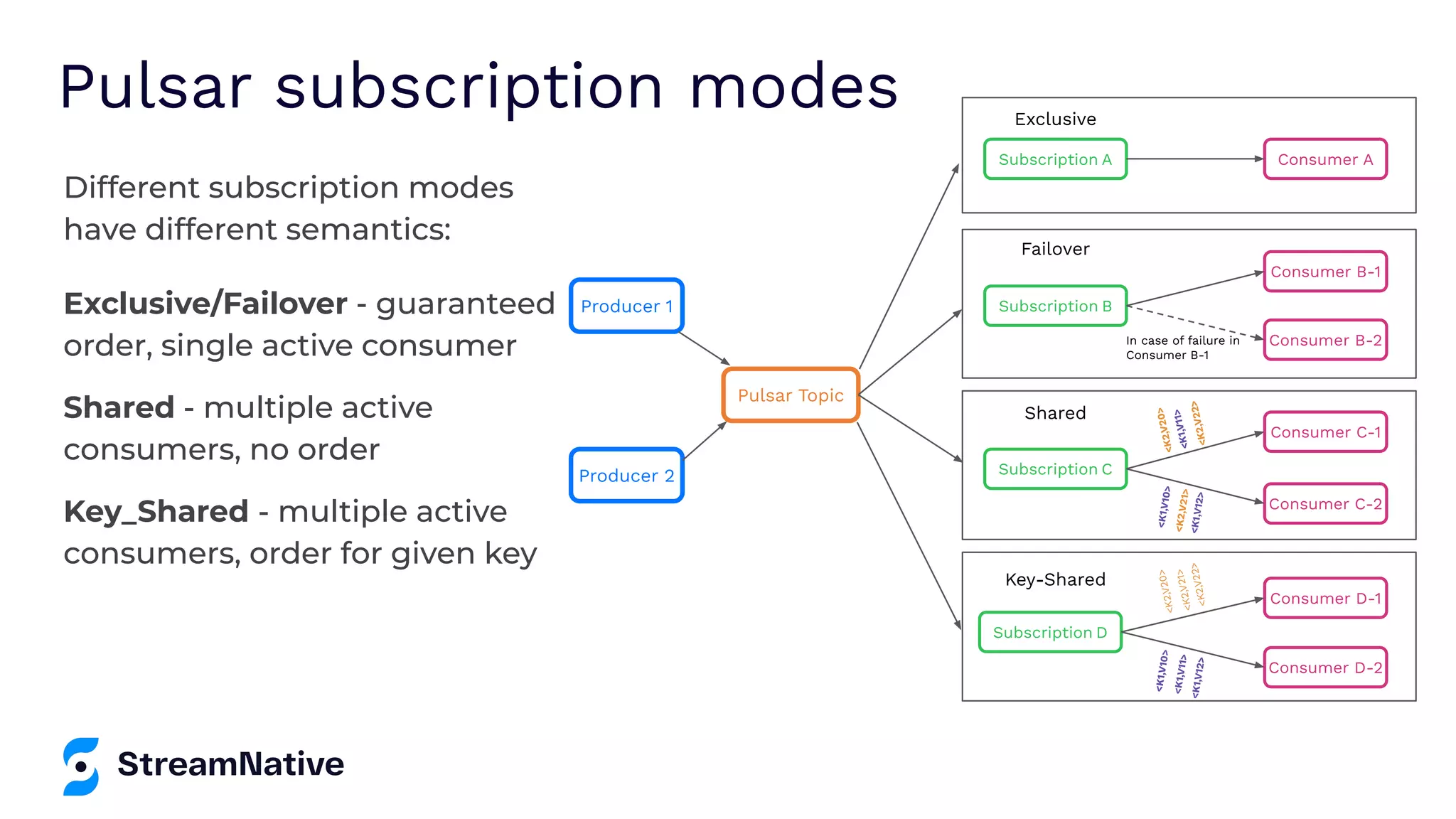

Pulsar subscription modes Different subscription modes have different semantics: Exclusive/Failover - guaranteed order, single active consumer Shared - multiple active consumers, no order Key_Shared - multiple active consumers, order for given key Producer 1 Producer 2 Pulsar Topic Subscription D Consumer D-1 Consumer D-2 Key-Shared < K 1, V 10 > < K 1, V 11 > < K 1, V 12 > < K 2 ,V 2 0 > < K 2 ,V 2 1> < K 2 ,V 2 2 > Subscription C Consumer C-1 Consumer C-2 Shared < K 1, V 10 > < K 2, V 21 > < K 1, V 12 > < K 2 ,V 2 0 > < K 1, V 11 > < K 2 ,V 2 2 > Subscription A Consumer A Exclusive Subscription B Consumer B-1 Consumer B-2 In case of failure in Consumer B-1 Failover

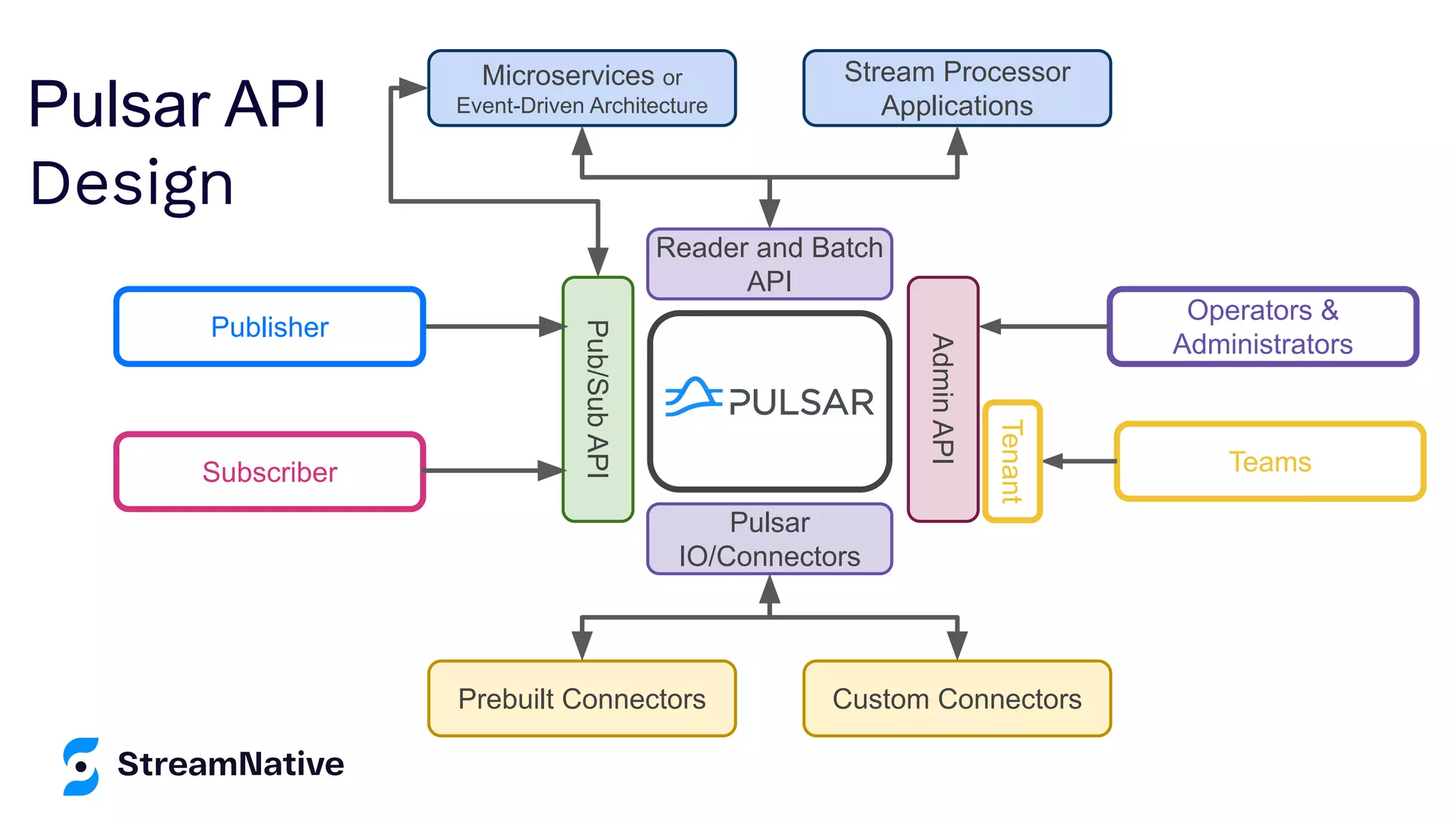

Reader and Batch API Pulsar IO/Connectors Stream Processor Applications Prebuilt Connectors Custom Connectors Microservices or Event-Driven Architecture Pub/Sub API Publisher Subscriber Admin API Operators & Administrators Teams Tenant Pulsar API Design

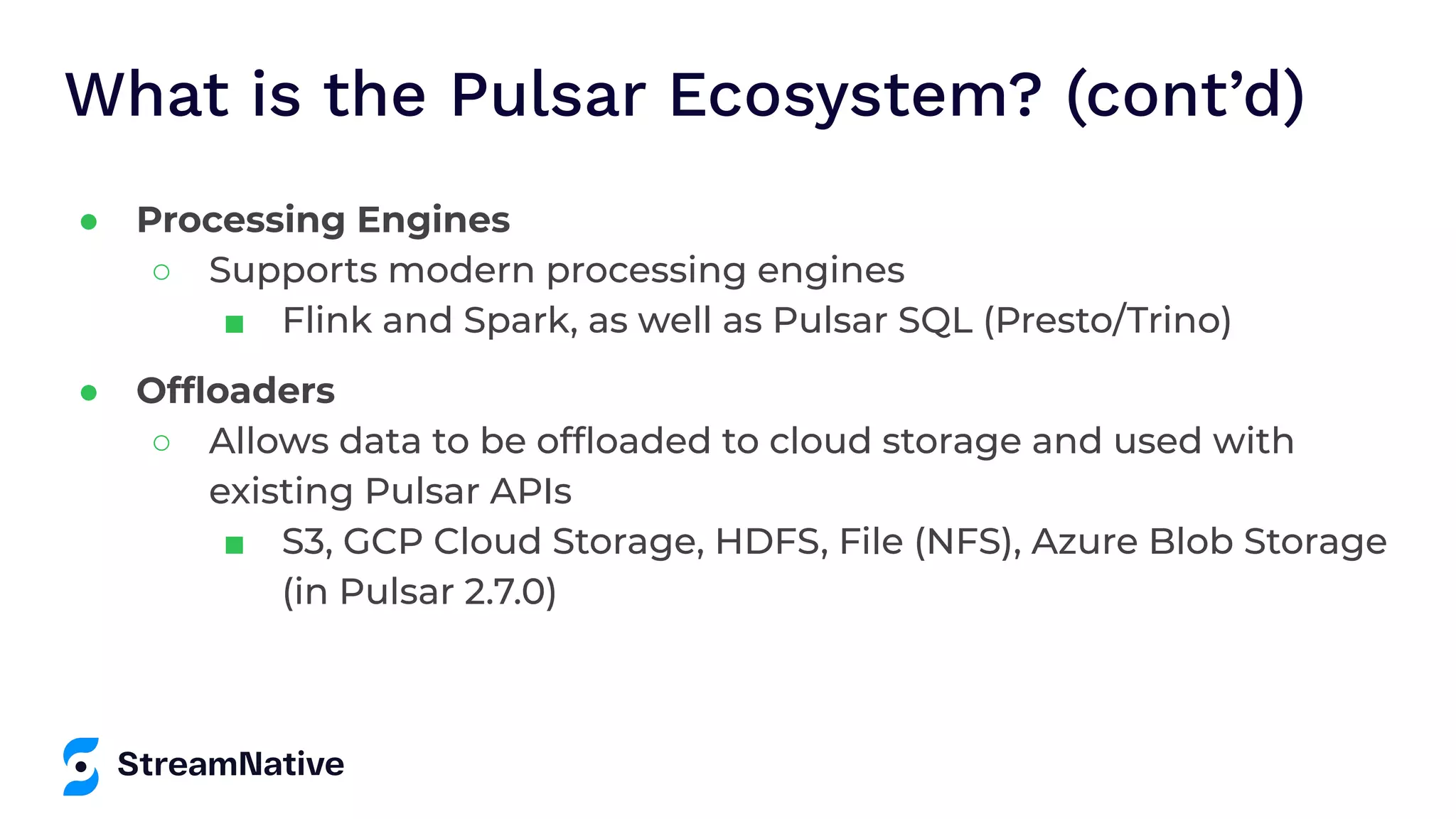

What is the Pulsar Ecosystem? (cont’d) ● Processing Engines ○ Supports modern processing engines ■ Flink and Spark, as well as Pulsar SQL (Presto/Trino) ● Ofﬂoaders ○ Allows data to be ofﬂoaded to cloud storage and used with existing Pulsar APIs ■ S3, GCP Cloud Storage, HDFS, File (NFS), Azure Blob Storage (in Pulsar 2.7.0)

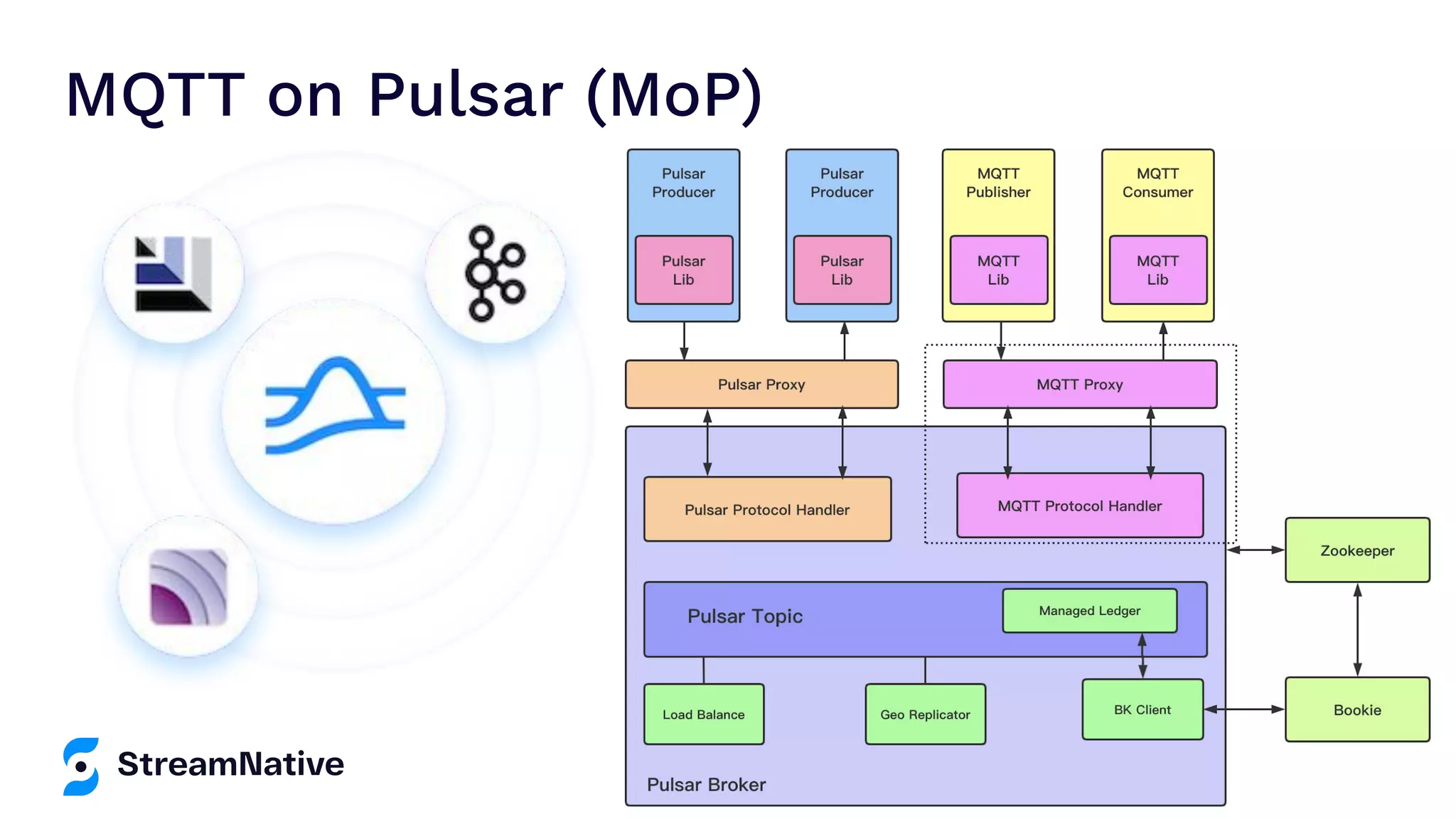

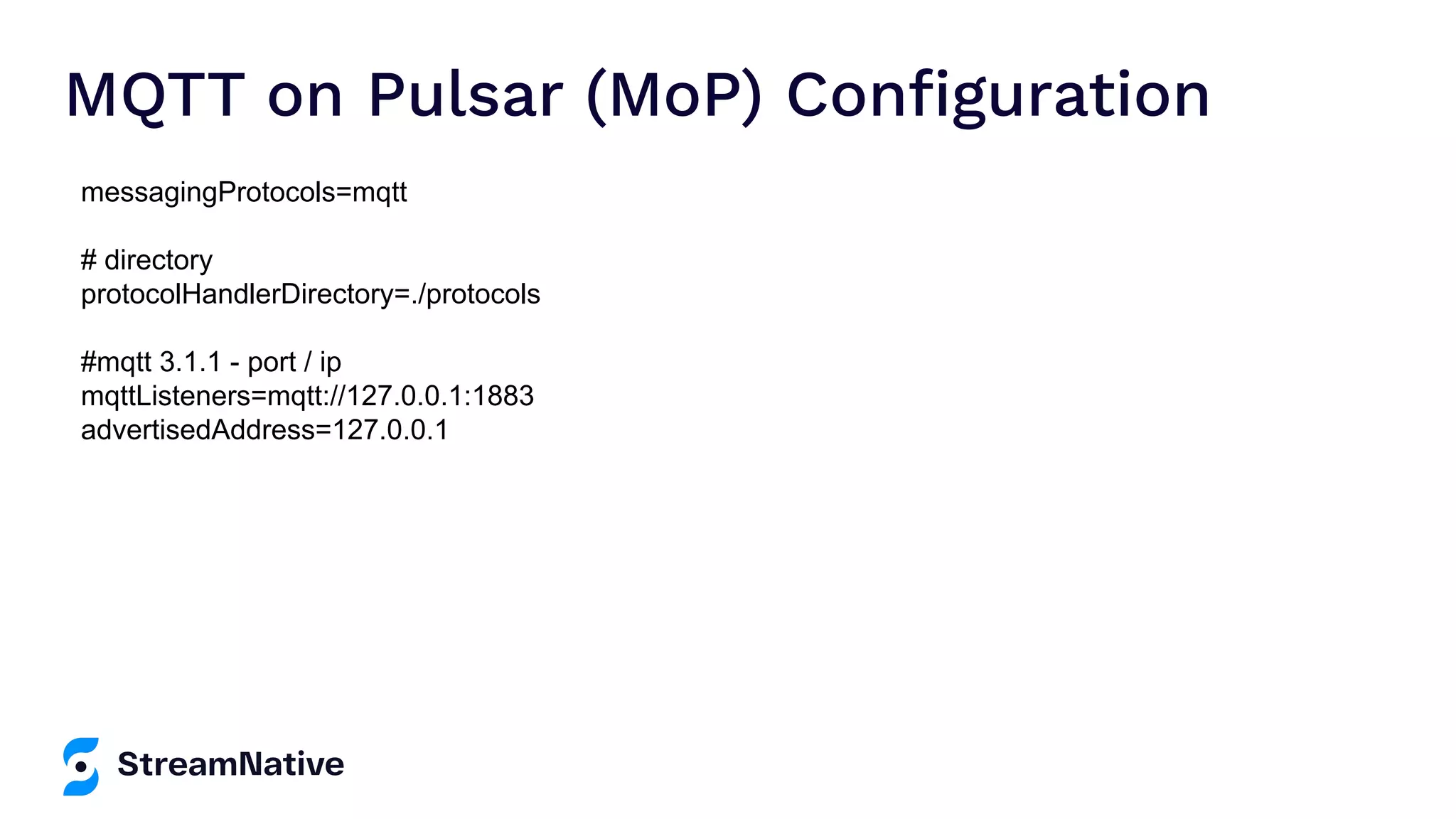

MQTT on Pulsar (MoP) Conﬁguration messagingProtocols=mqtt # directory protocolHandlerDirectory=./protocols #mqtt 3.1.1 - port / ip mqttListeners=mqtt://127.0.0.1:1883 advertisedAddress=127.0.0.1

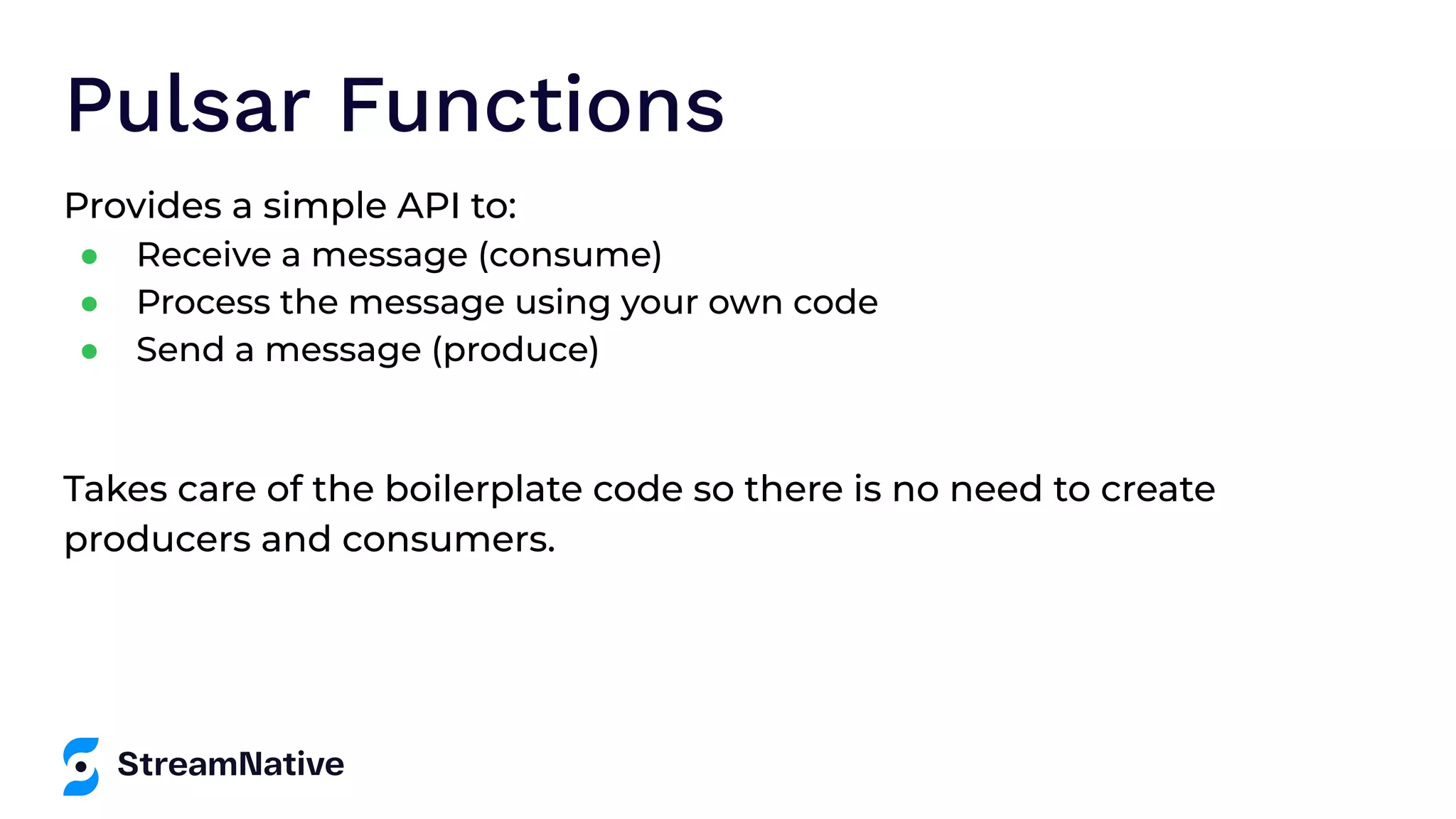

Pulsar Functions Provides a simple API to: ● Receive a message (consume) ● Process the message using your own code ● Send a message (produce) Takes care of the boilerplate code so there is no need to create producers and consumers.

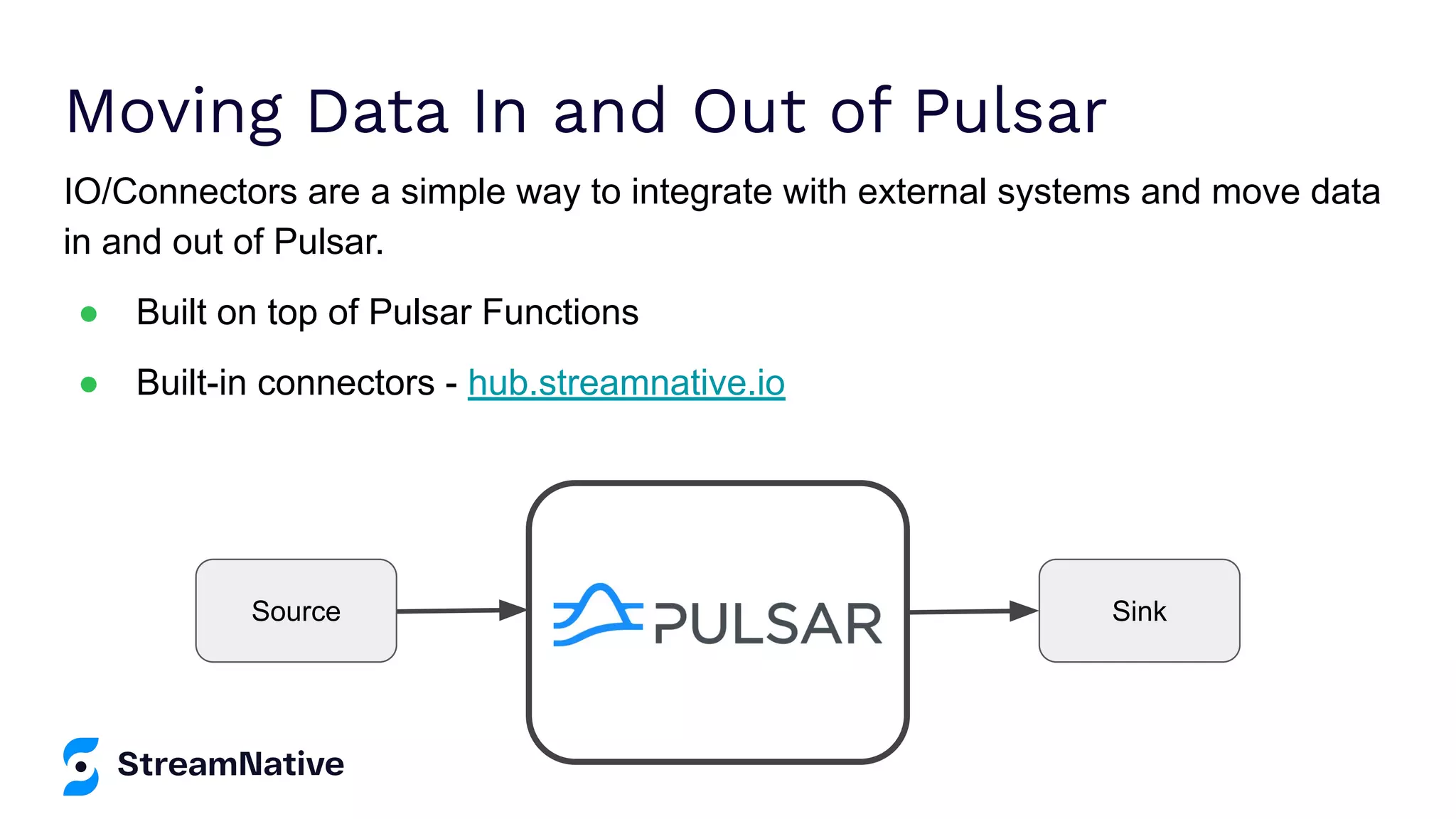

Moving Data In and Out of Pulsar IO/Connectors are a simple way to integrate with external systems and move data in and out of Pulsar. ● Built on top of Pulsar Functions ● Built-in connectors - hub.streamnative.io Source Sink

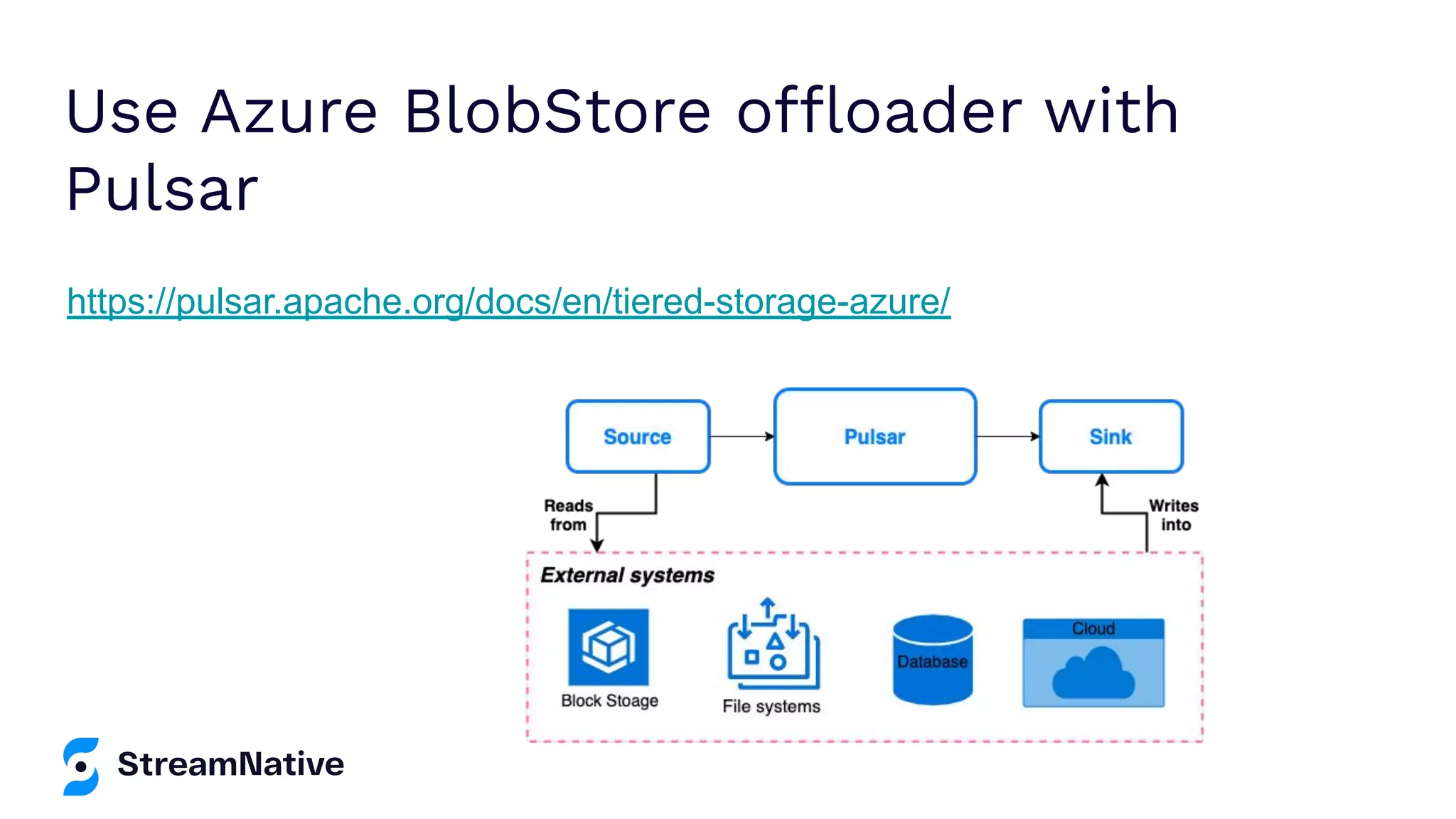

Use Azure BlobStore offloader with Pulsar https://pulsar.apache.org/docs/en/tiered-storage-azure/

24 streamnative.io Apache Pulsar - Other Sinks https://hub.streamnative.io/connectors/cloud-storage-sink/2.5.1/ mongoDB AWS Lambda redis AWS S3 GCS

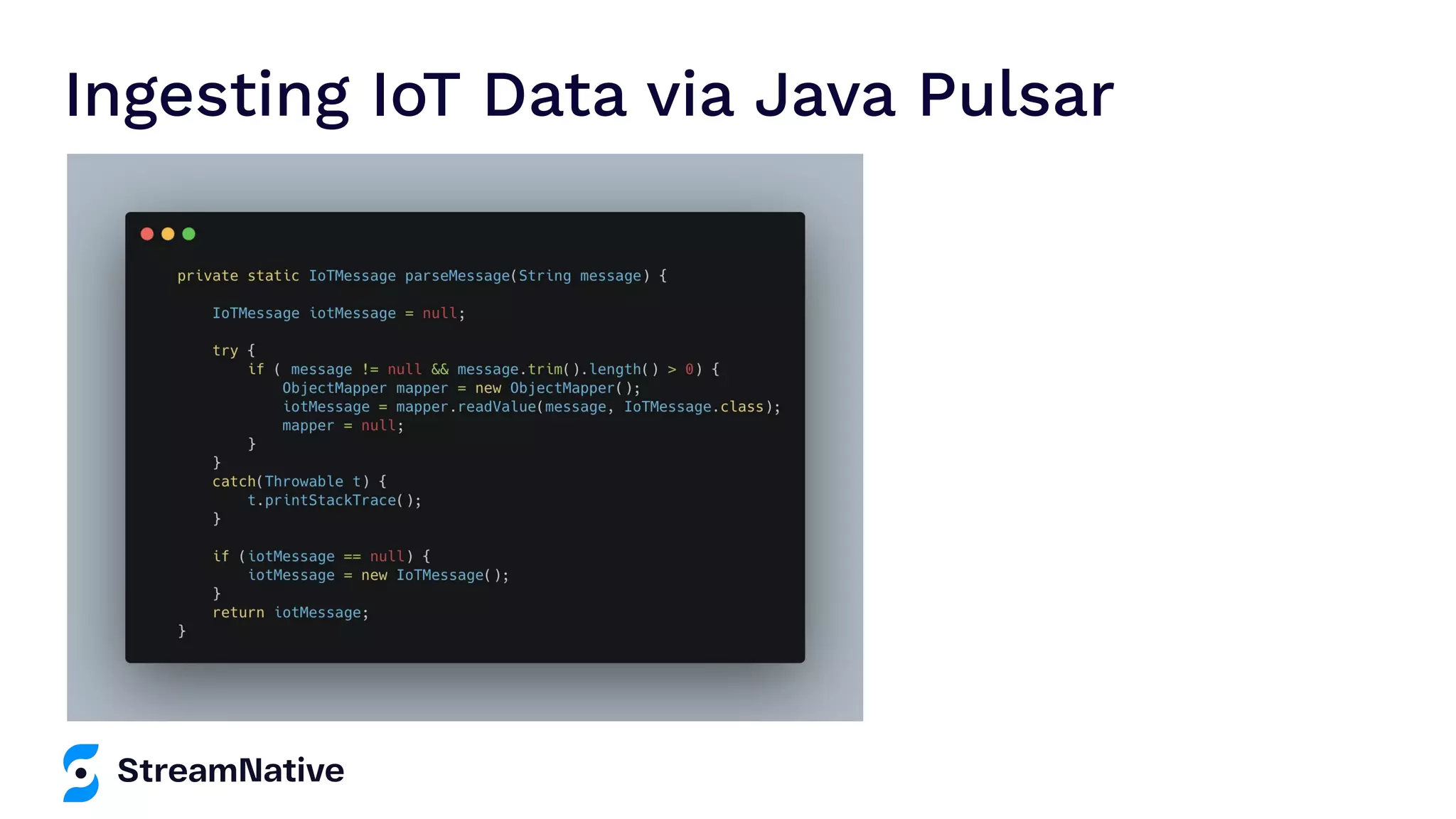

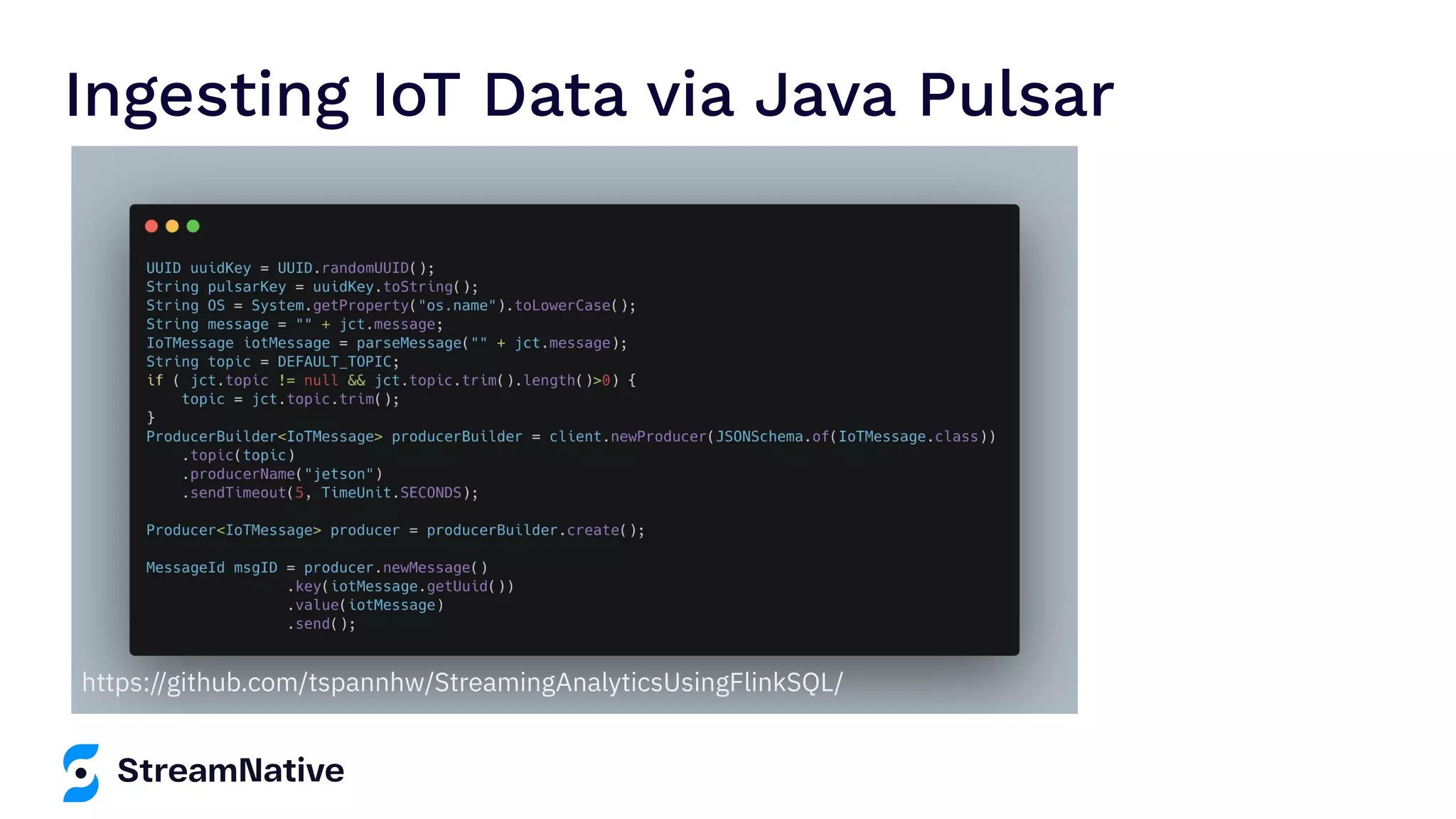

Ingesting IoT Data via Java Pulsar https://github.com/tspannhw/StreamingAnalyticsUsingFlinkSQL/

Ingesting IoT Data via Java Pulsar

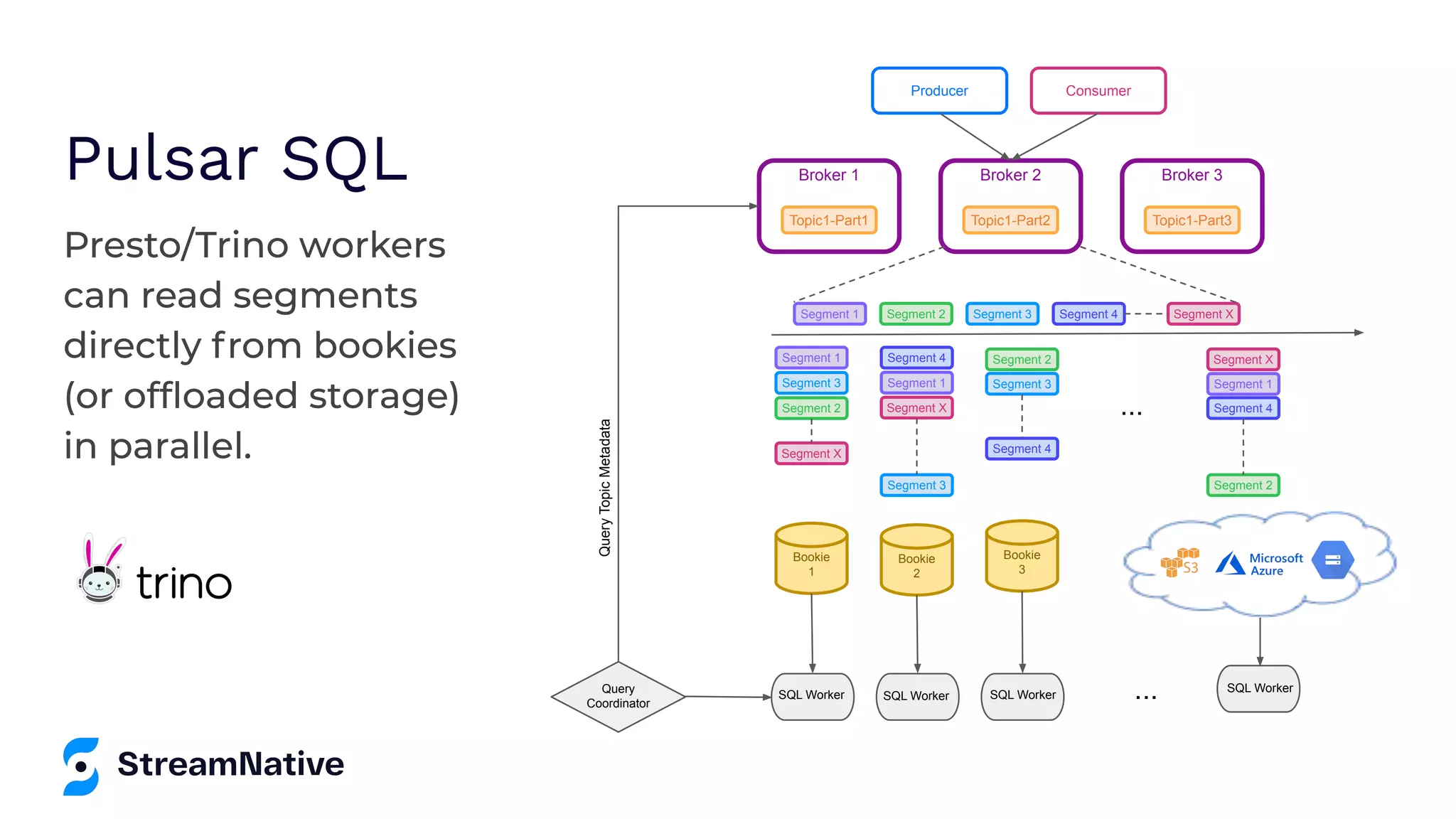

Pulsar SQL Presto/Trino workers can read segments directly from bookies (or ofﬂoaded storage) in parallel. Bookie 1 Segment 1 Producer Consumer Broker 1 Topic1-Part1 Broker 2 Topic1-Part2 Broker 3 Topic1-Part3 Segment 2 Segment 3 Segment 4 Segment X Segment 1 Segment 1 Segment 1 Segment 3 Segment 3 Segment 3 Segment 2 Segment 2 Segment 2 Segment 4 Segment 4 Segment 4 Segment X Segment X Segment X Bookie 2 Bookie 3 Query Coordinator ... ... SQL Worker SQL Worker SQL Worker SQL Worker Query Topic Metadata

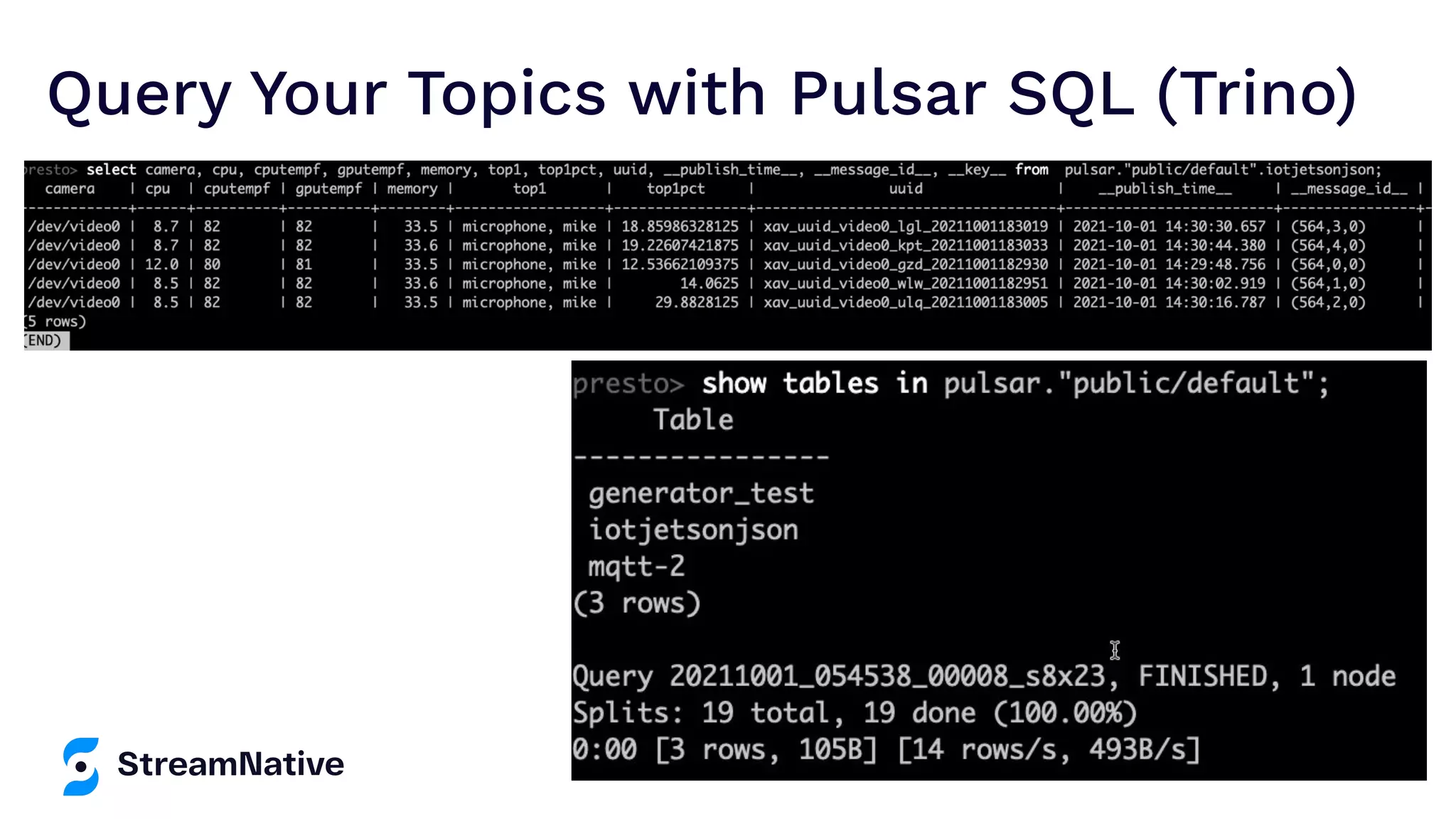

Query Your Topics with Pulsar SQL (Trino)

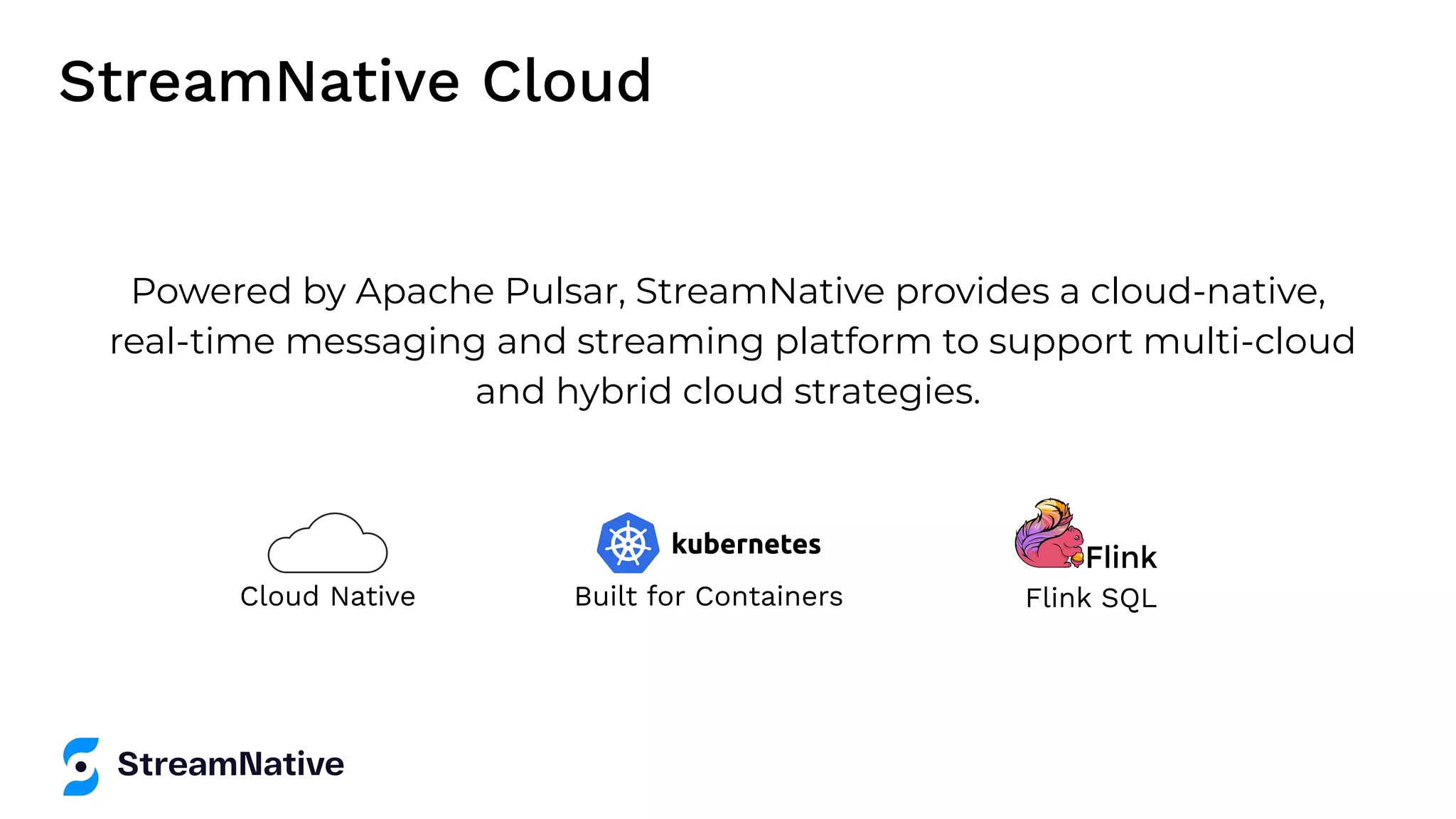

Powered by Apache Pulsar, StreamNative provides a cloud-native, real-time messaging and streaming platform to support multi-cloud and hybrid cloud strategies. Built for Containers Cloud Native StreamNative Cloud Flink SQL

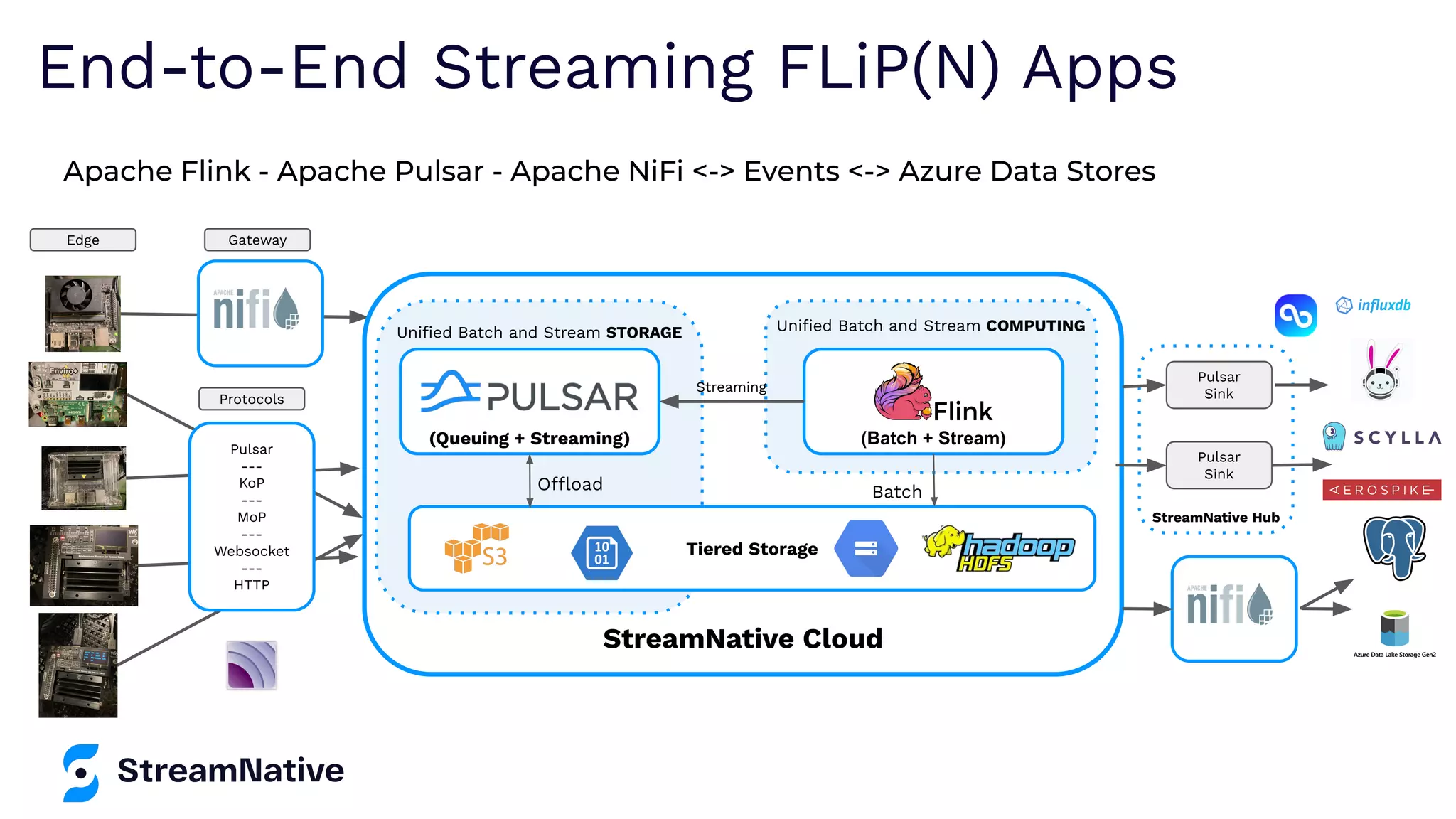

StreamNative Hub StreamNative Cloud Uniﬁed Batch and Stream COMPUTING Batch (Batch + Stream) Uniﬁed Batch and Stream STORAGE Offload (Queuing + Streaming) Apache Flink - Apache Pulsar - Apache NiFi <-> Events <-> Azure Data Stores Tiered Storage Pulsar --- KoP --- MoP --- Websocket --- HTTP Pulsar Sink Pulsar Sink Streaming Edge Gateway Protocols End-to-End Streaming FLiP(N) Apps

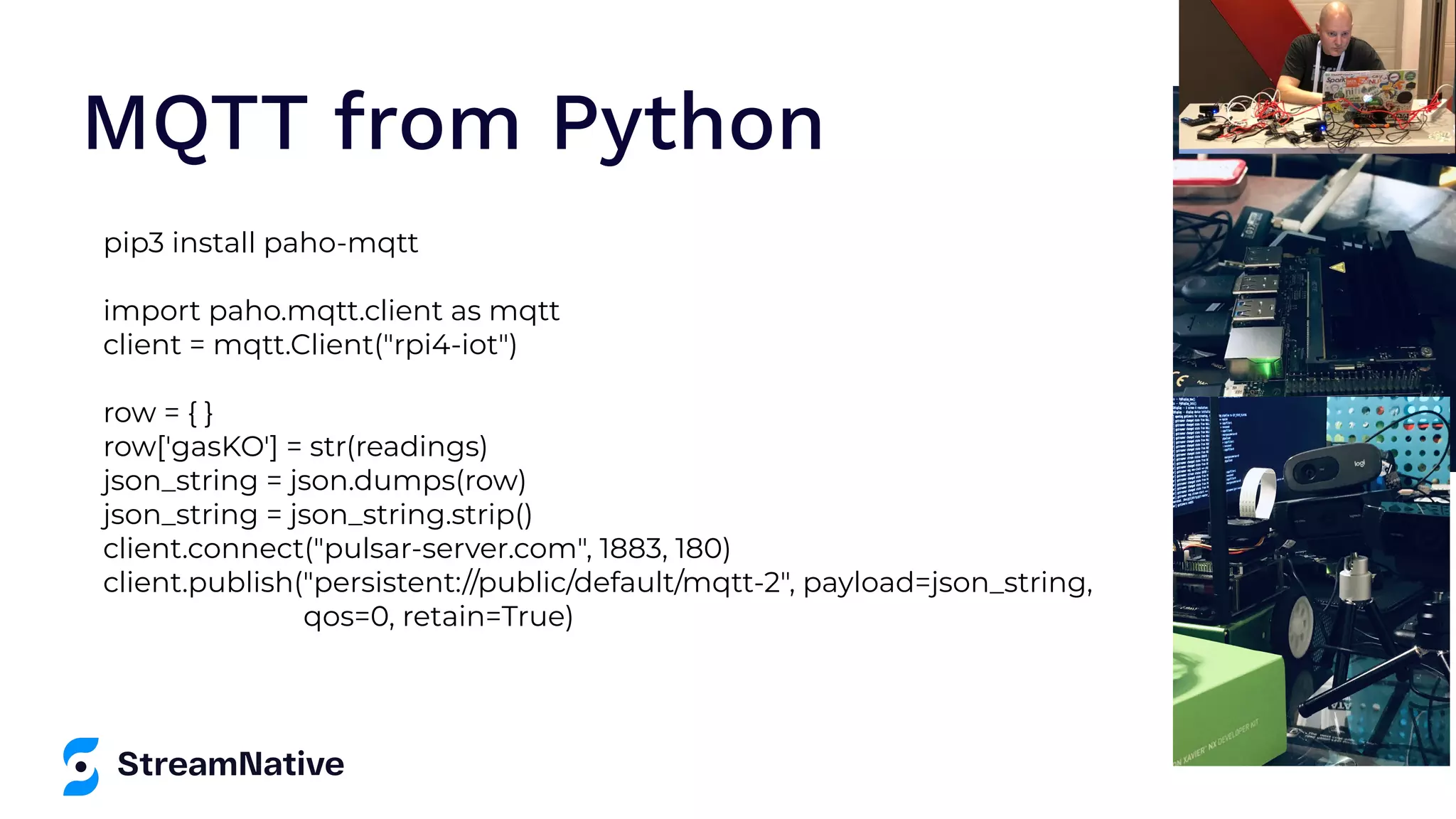

MQTT from Python pip3 install paho-mqtt import paho.mqtt.client as mqtt client = mqtt.Client("rpi4-iot") row = { } row['gasKO'] = str(readings) json_string = json.dumps(row) json_string = json_string.strip() client.connect("pulsar-server.com", 1883, 180) client.publish("persistent://public/default/mqtt-2", payload=json_string, qos=0, retain=True)

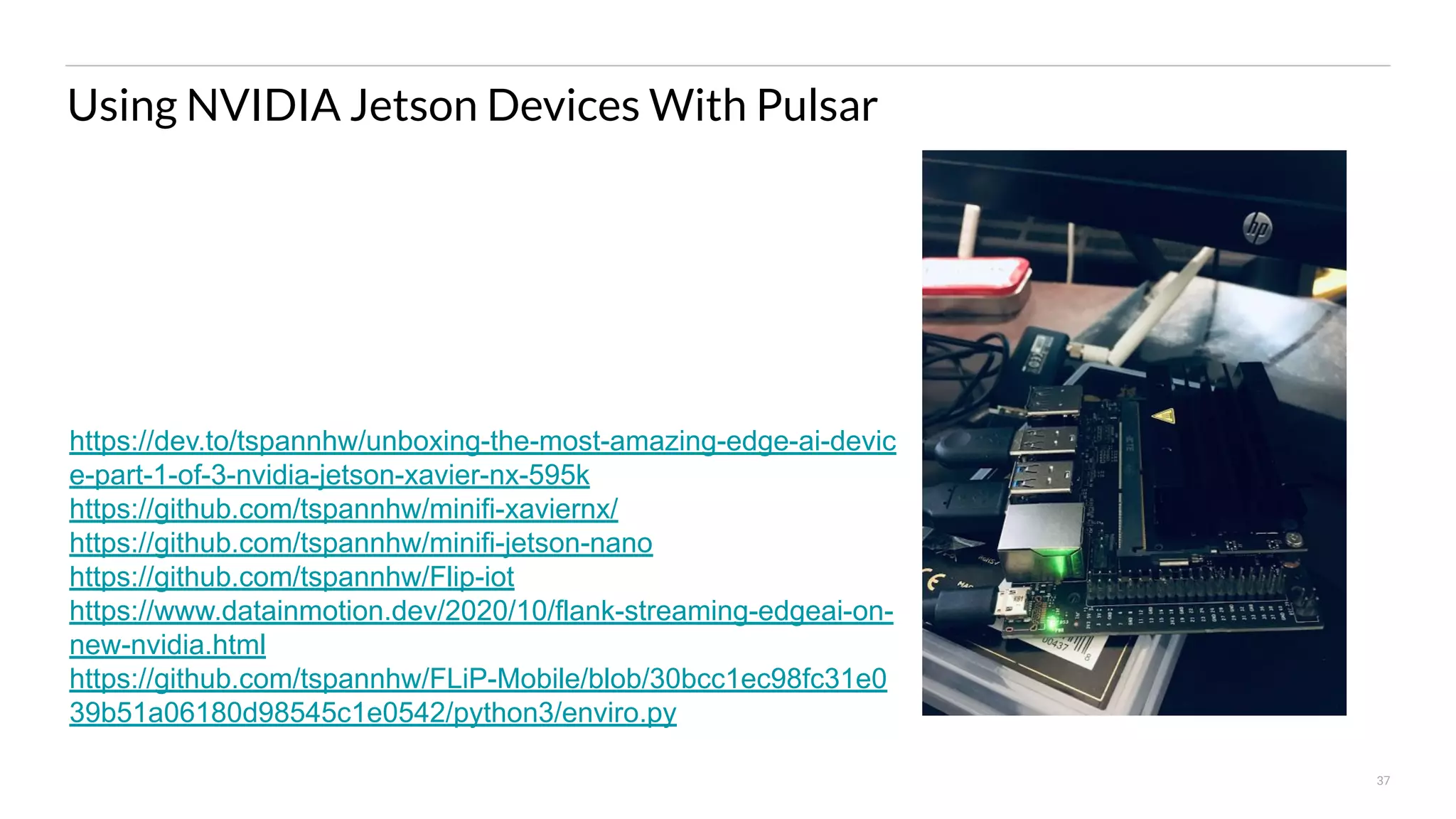

37 Using NVIDIA Jetson Devices With Pulsar https://dev.to/tspannhw/unboxing-the-most-amazing-edge-ai-devic e-part-1-of-3-nvidia-jetson-xavier-nx-595k https://github.com/tspannhw/minifi-xaviernx/ https://github.com/tspannhw/minifi-jetson-nano https://github.com/tspannhw/Flip-iot https://www.datainmotion.dev/2020/10/flank-streaming-edgeai-on- new-nvidia.html https://github.com/tspannhw/FLiP-Mobile/blob/30bcc1ec98fc31e0 39b51a06180d98545c1e0542/python3/enviro.py

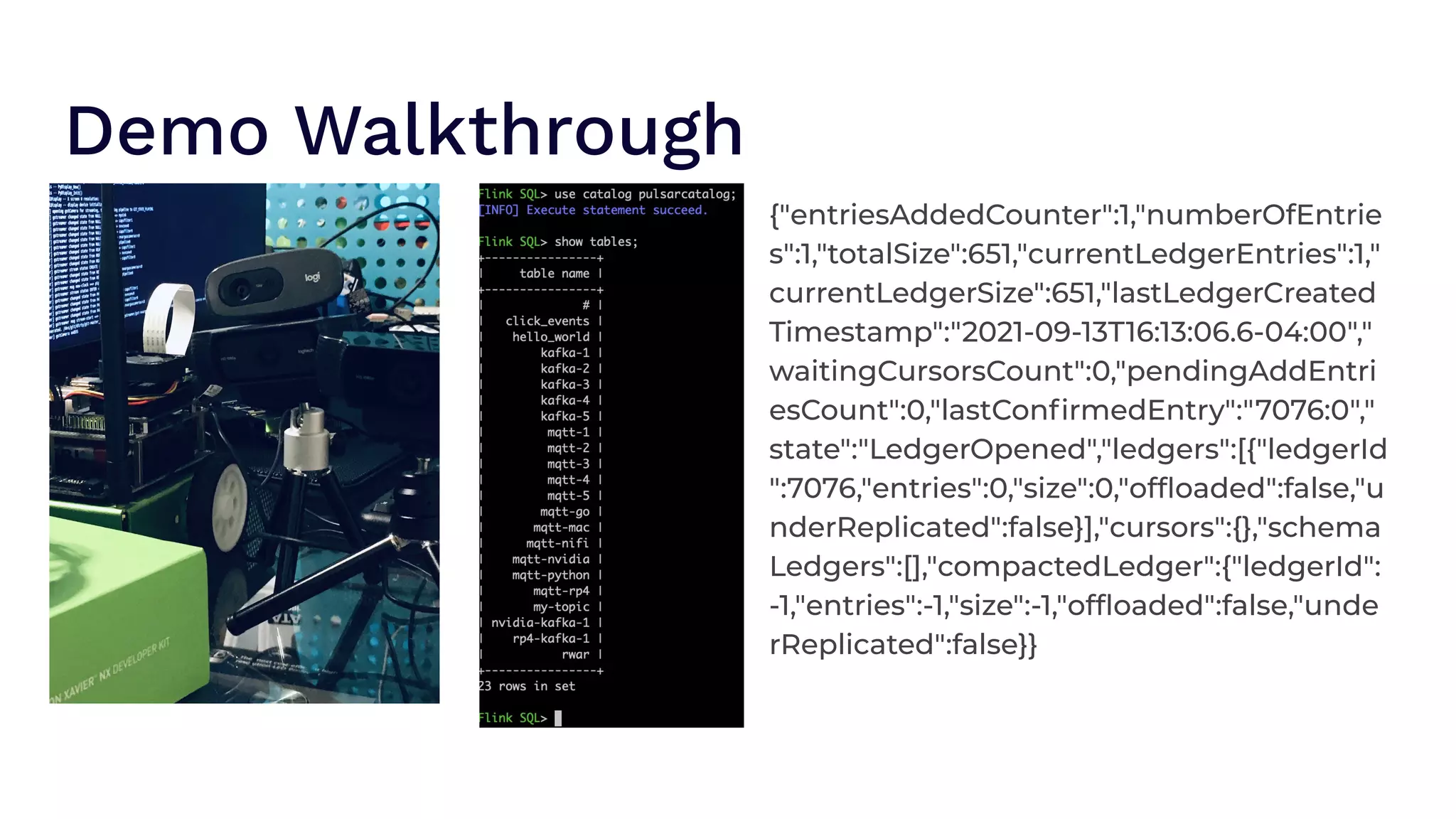

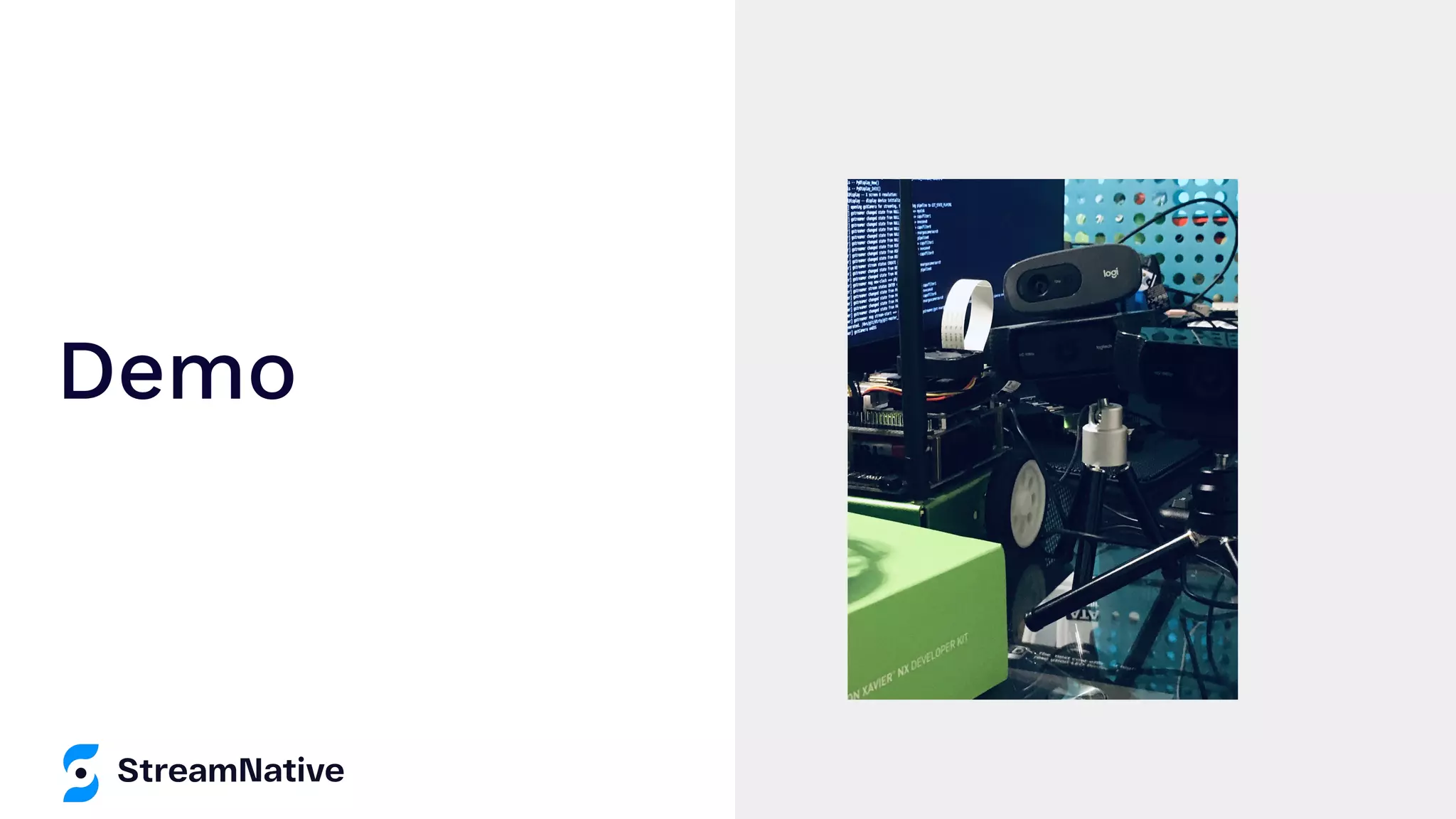

Demo Walkthrough {"entriesAddedCounter":1,"numberOfEntrie s":1,"totalSize":651,"currentLedgerEntries":1," currentLedgerSize":651,"lastLedgerCreated Timestamp":"2021-09-13T16:13:06.6-04:00"," waitingCursorsCount":0,"pendingAddEntri esCount":0,"lastConfirmedEntry":"7076:0"," state":"LedgerOpened","ledgers":[{"ledgerId ":7076,"entries":0,"size":0,"offloaded":false,"u nderReplicated":false}],"cursors":{},"schema Ledgers":[],"compactedLedger":{"ledgerId": -1,"entries":-1,"size":-1,"offloaded":false,"unde rReplicated":false}}

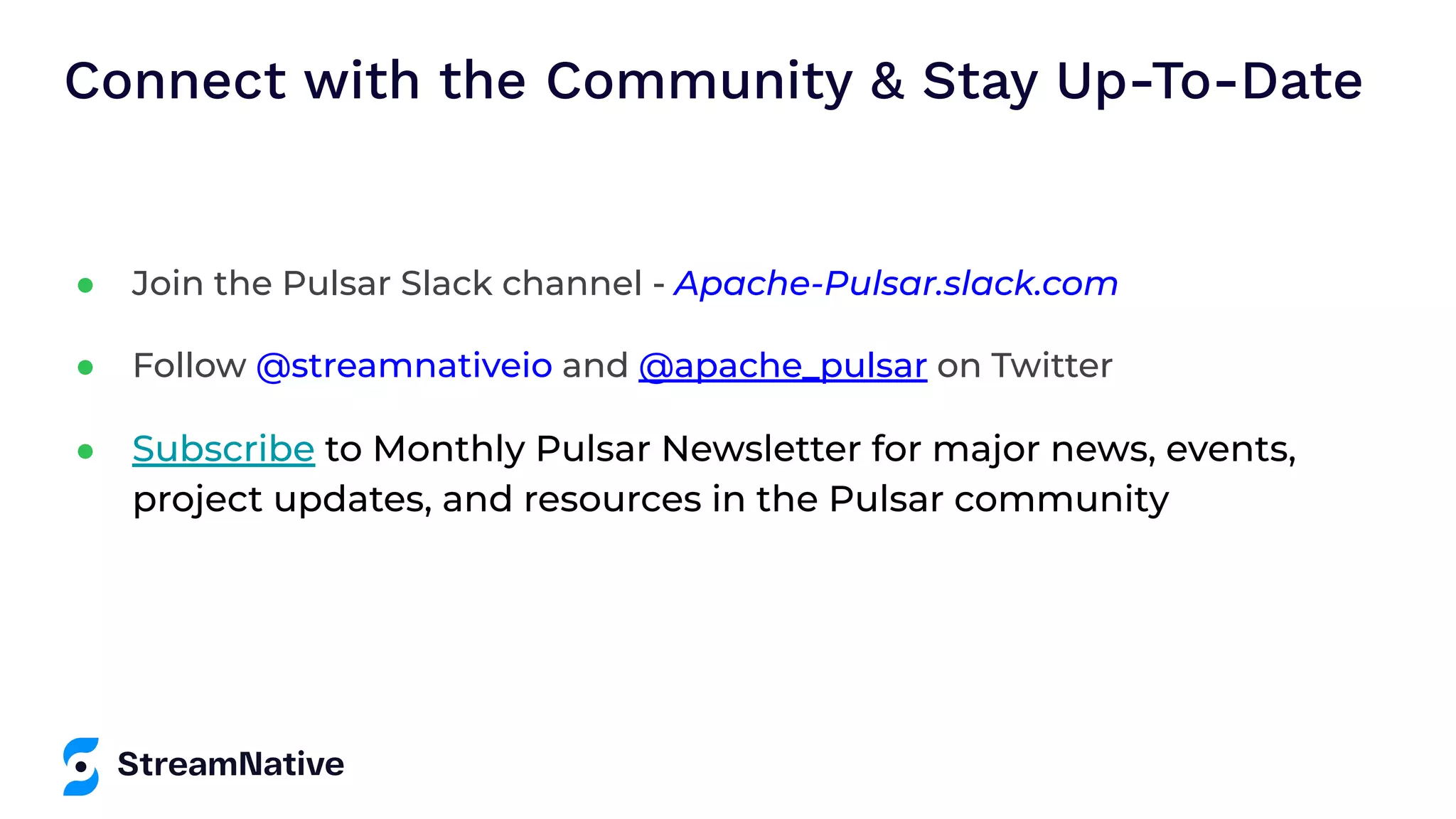

Connect with the Community & Stay Up-To-Date ● Join the Pulsar Slack channel - Apache-Pulsar.slack.com ● Follow @streamnativeio and @apache_pulsar on Twitter ● Subscribe to Monthly Pulsar Newsletter for major news, events, project updates, and resources in the Pulsar community

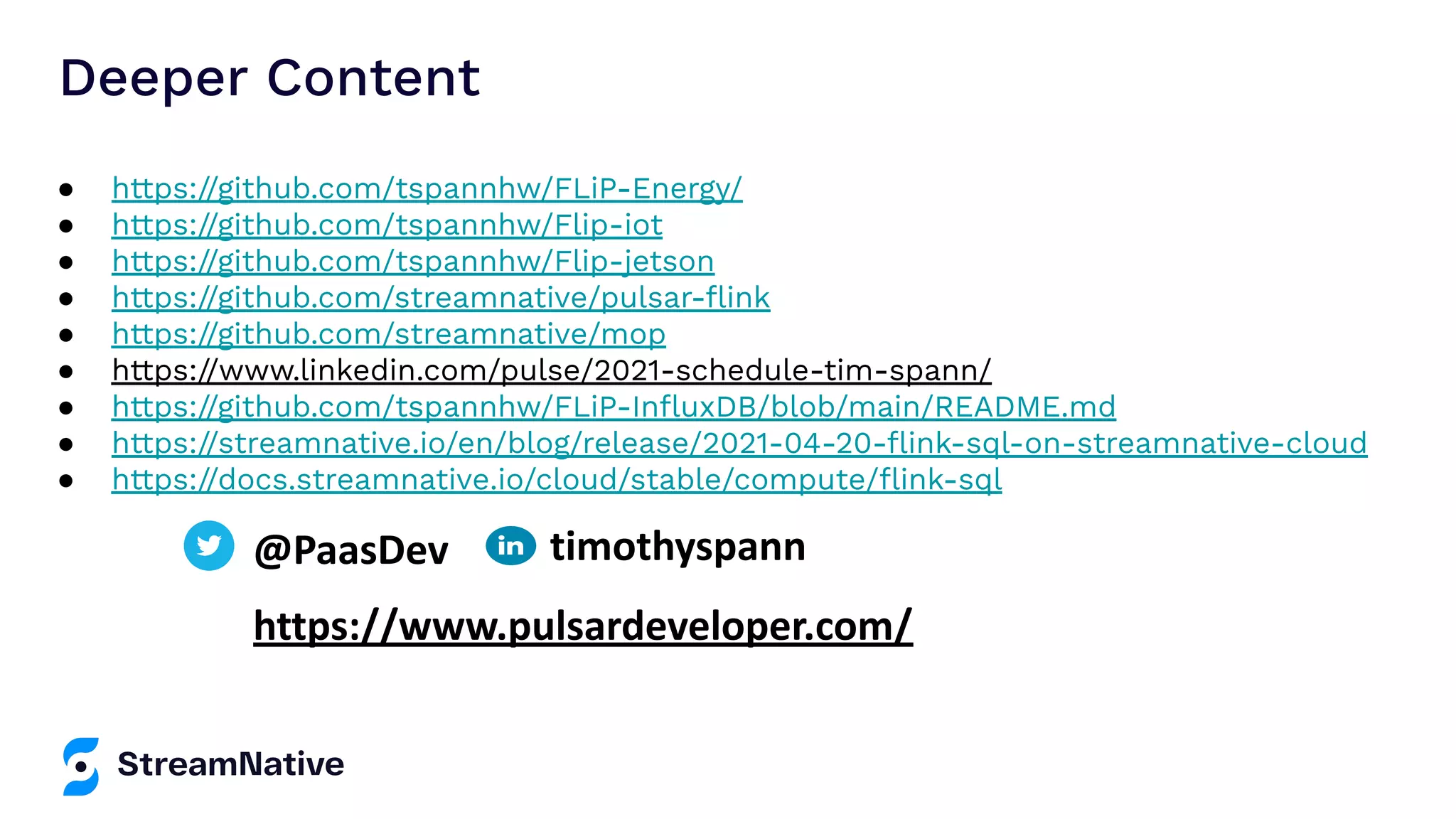

● https://github.com/tspannhw/FLiP-Energy/ ● https://github.com/tspannhw/Flip-iot ● https://github.com/tspannhw/Flip-jetson ● https://github.com/streamnative/pulsar-flink ● https://github.com/streamnative/mop ● https://www.linkedin.com/pulse/2021-schedule-tim-spann/ ● https://github.com/tspannhw/FLiP-InfluxDB/blob/main/README.md ● https://streamnative.io/en/blog/release/2021-04-20-flink-sql-on-streamnative-cloud ● https://docs.streamnative.io/cloud/stable/compute/flink-sql Deeper Content @PaasDev https://www.pulsardeveloper.com/ timothyspann

Interested In Learning More? Flink SQL Cookbook The Github Source for Flink SQL Demo The GitHub Source for Demo Manning's Apache Pulsar in Action O’Reilly Book [10/21] Trino Summit Resources Free eBooks Upcoming Events

43 Pulsar Summit Asia November 20-21, 2021 Contact us at partners@pulsar-summit.org to become a sponsor or partner

Let’s Keep in Touch! Speaker Name Speaker title @PassDev https://www.linkedin.com/in/timothyspann https://github.com/tspannhw

Event Partners Thank you to our Sponsors Premier Sponsors
