Apache Hive 2.0: SQL, Speed, Scale
This document discusses new features in Apache Hive 2.0, including: 1) Adding procedural SQL capabilities through HPLSQL for writing stored procedures. 2) Improving query performance through LLAP which uses persistent daemons and in-memory caching to enable sub-second queries. 3) Speeding up query planning by using HBase as the metastore instead of a relational database. 4) Enhancements to Hive on Spark such as dynamic partition pruning and vectorized operations. 5) Default use of the cost-based optimizer and continued improvements to statistics collection and estimation.
Apache Hive 2.0: SQL, Speed, Scale
- 1. Apache Hive 2.0: SQL,Speed, Scale Alan Gates Co-founder Hortonworks April 2016
- 2. 2 © HortonworksInc. 2011 – 2016. All Rights Reserved Acknowledgements The Apache Hive community for building all this awesome tech Content of some of these slides based on earlier presentations by Sergey Shelukhin and Siddarth Seth alias Hive=‘Apache Hive’ alias Hadoop=‘Apache Hadoop’ alias Spark=‘Apache Spark’ alias Tez=‘Apache Tez’ alias Parquet=‘Apache Parquet’ alias ORC=‘Apache ORC’ alias Omid=‘Apache Omid (incubating)’ alias Calcite=‘Apache Calcite’

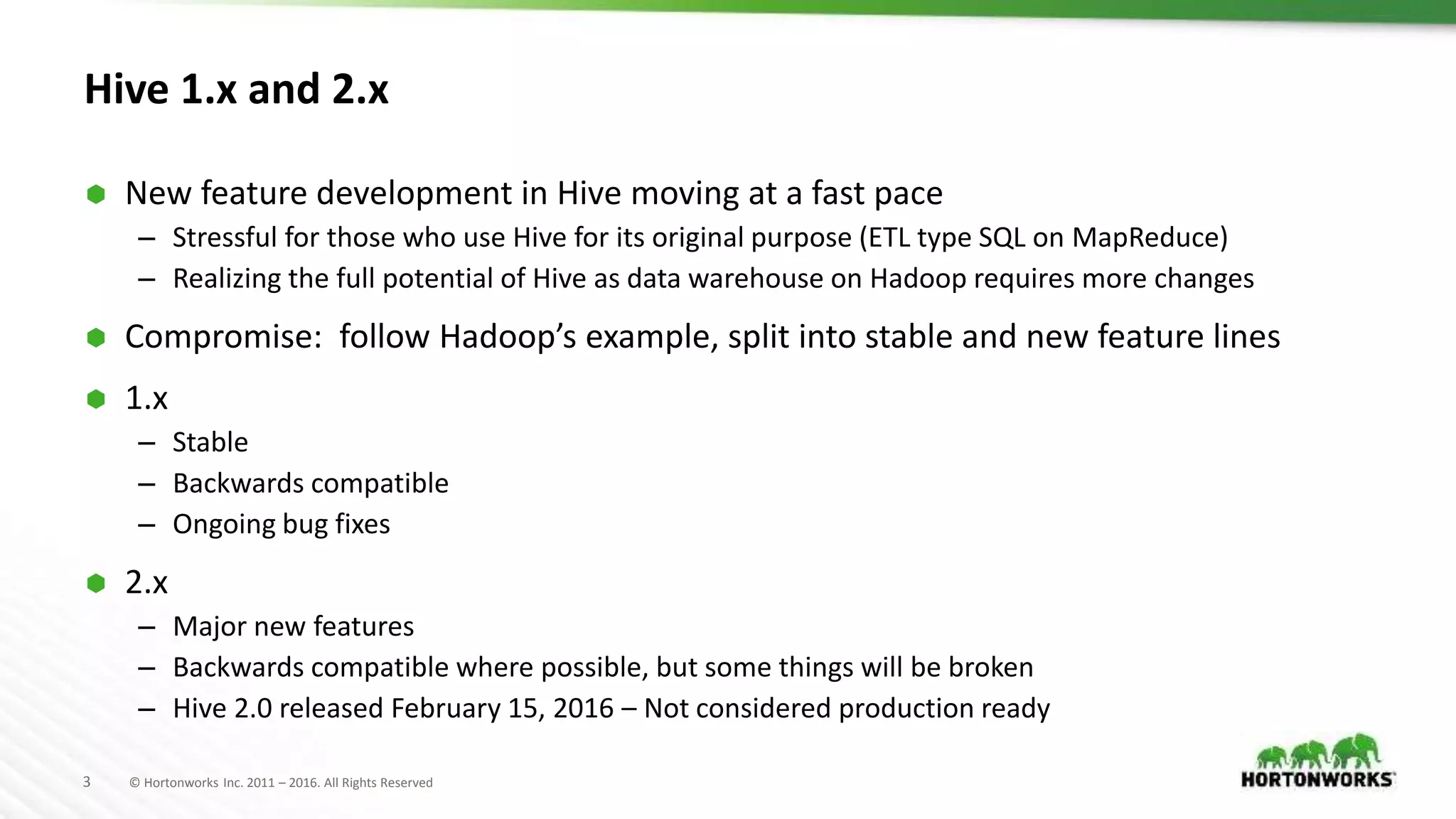

- 3. 3 © HortonworksInc. 2011 – 2016. All Rights Reserved Hive 1.x and 2.x New feature development in Hive moving at a fast pace – Stressful for those who use Hive for its original purpose (ETL type SQL on MapReduce) – Realizing the full potential of Hive as data warehouse on Hadoop requires more changes Compromise: follow Hadoop’s example, split into stable and new feature lines 1.x – Stable – Backwards compatible – Ongoing bug fixes 2.x – Major new features – Backwards compatible where possible, but some things will be broken – Hive 2.0 released February 15, 2016 – Not considered production ready

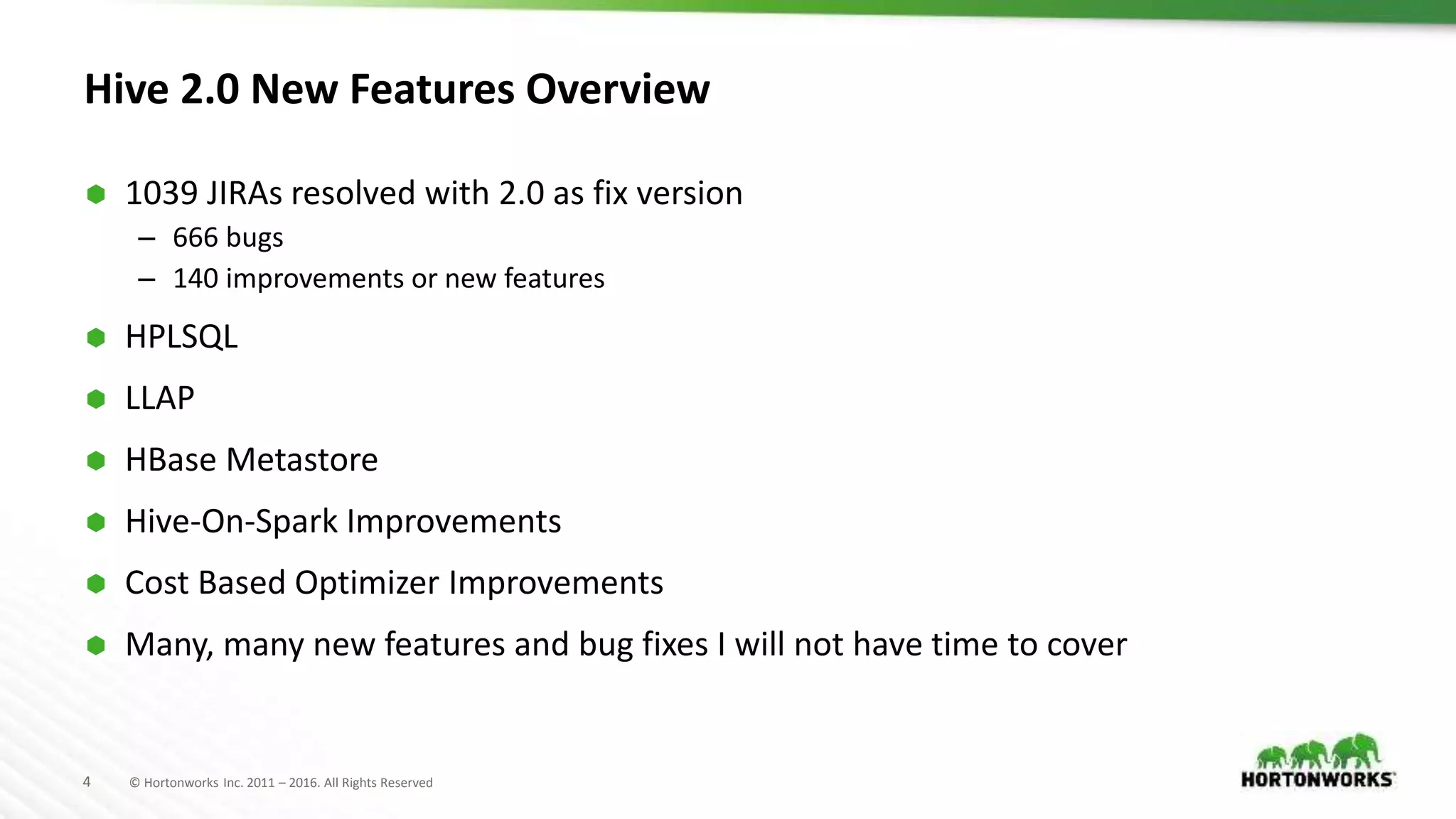

- 4. 4 © HortonworksInc. 2011 – 2016. All Rights Reserved Hive 2.0 New Features Overview 1039 JIRAs resolved with 2.0 as fix version – 666 bugs – 140 improvements or new features HPLSQL LLAP HBase Metastore Hive-On-Spark Improvements Cost Based Optimizer Improvements Many, many new features and bug fixes I will not have time to cover

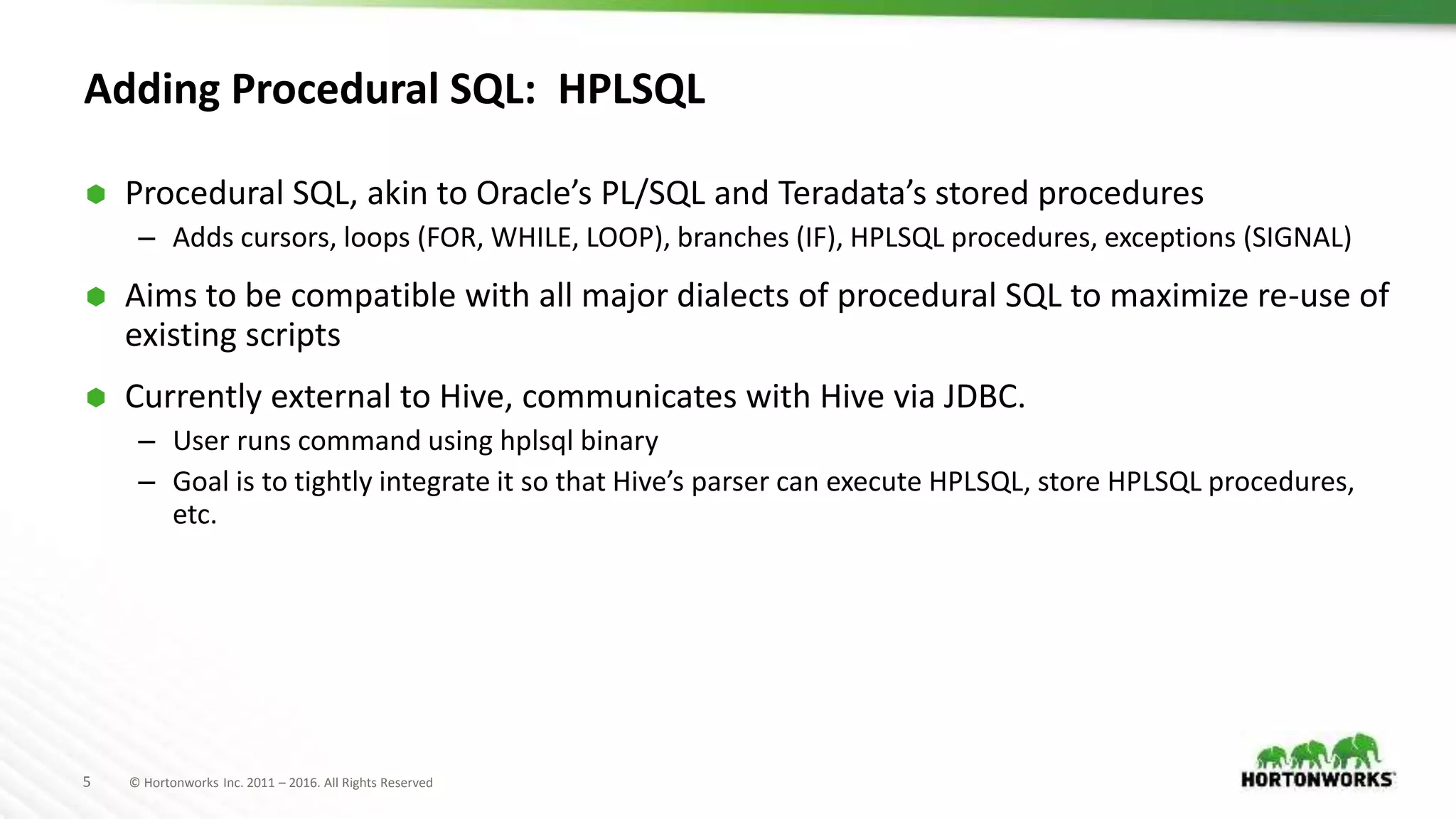

- 5. 5 © HortonworksInc. 2011 – 2016. All Rights Reserved Adding Procedural SQL: HPLSQL Procedural SQL, akin to Oracle’s PL/SQL and Teradata’s stored procedures – Adds cursors, loops (FOR, WHILE, LOOP), branches (IF), HPLSQL procedures, exceptions (SIGNAL) Aims to be compatible with all major dialects of procedural SQL to maximize re-use of existing scripts Currently external to Hive, communicates with Hive via JDBC. – User runs command using hplsql binary – Goal is to tightly integrate it so that Hive’s parser can execute HPLSQL, store HPLSQL procedures, etc.

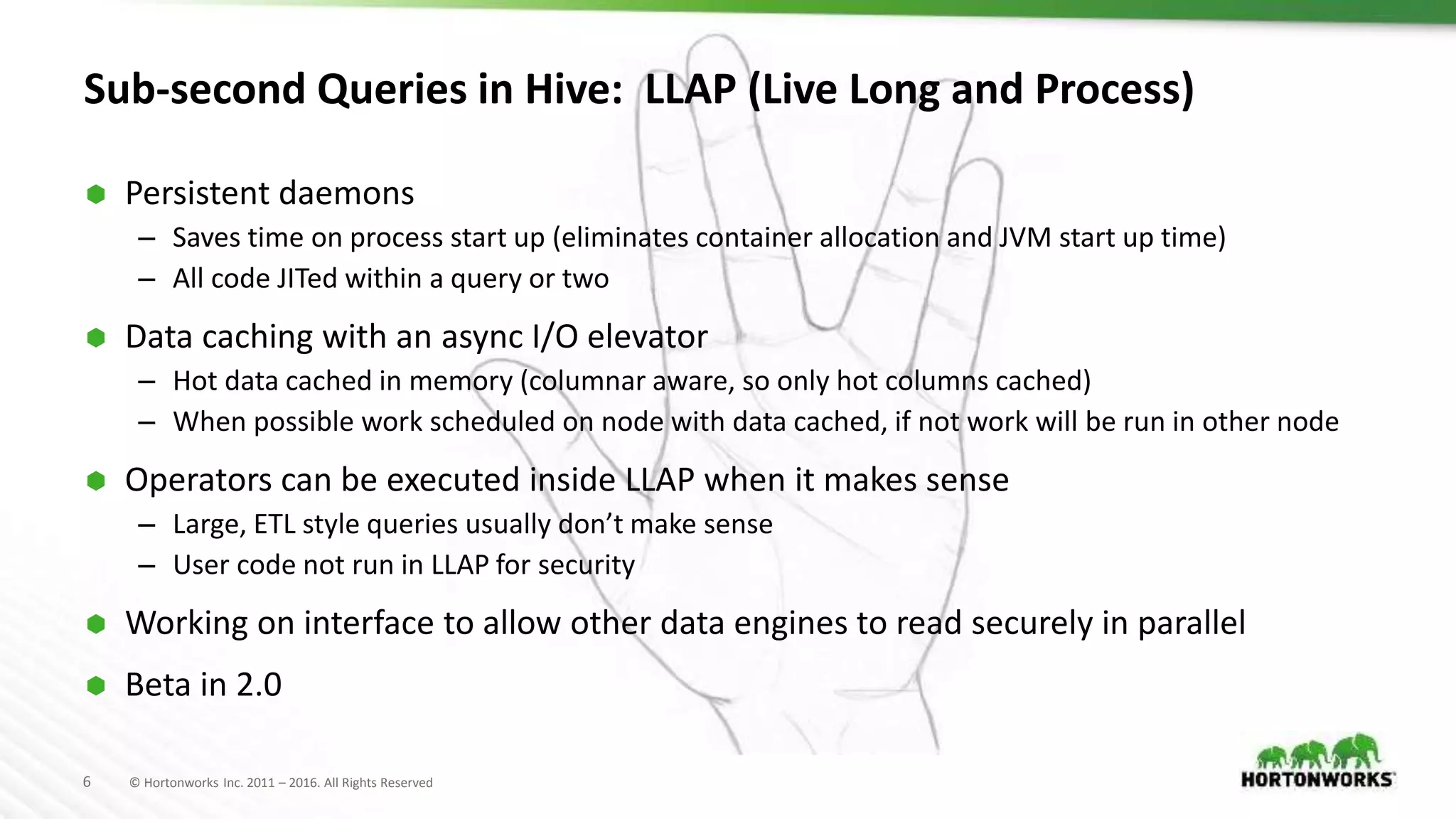

- 6. 6 © HortonworksInc. 2011 – 2016. All Rights Reserved Sub-second Queries in Hive: LLAP (Live Long and Process) Persistent daemons – Saves time on process start up (eliminates container allocation and JVM start up time) – All code JITed within a query or two Data caching with an async I/O elevator – Hot data cached in memory (columnar aware, so only hot columns cached) – When possible work scheduled on node with data cached, if not work will be run in other node Operators can be executed inside LLAP when it makes sense – Large, ETL style queries usually don’t make sense – User code not run in LLAP for security Working on interface to allow other data engines to read securely in parallel Beta in 2.0

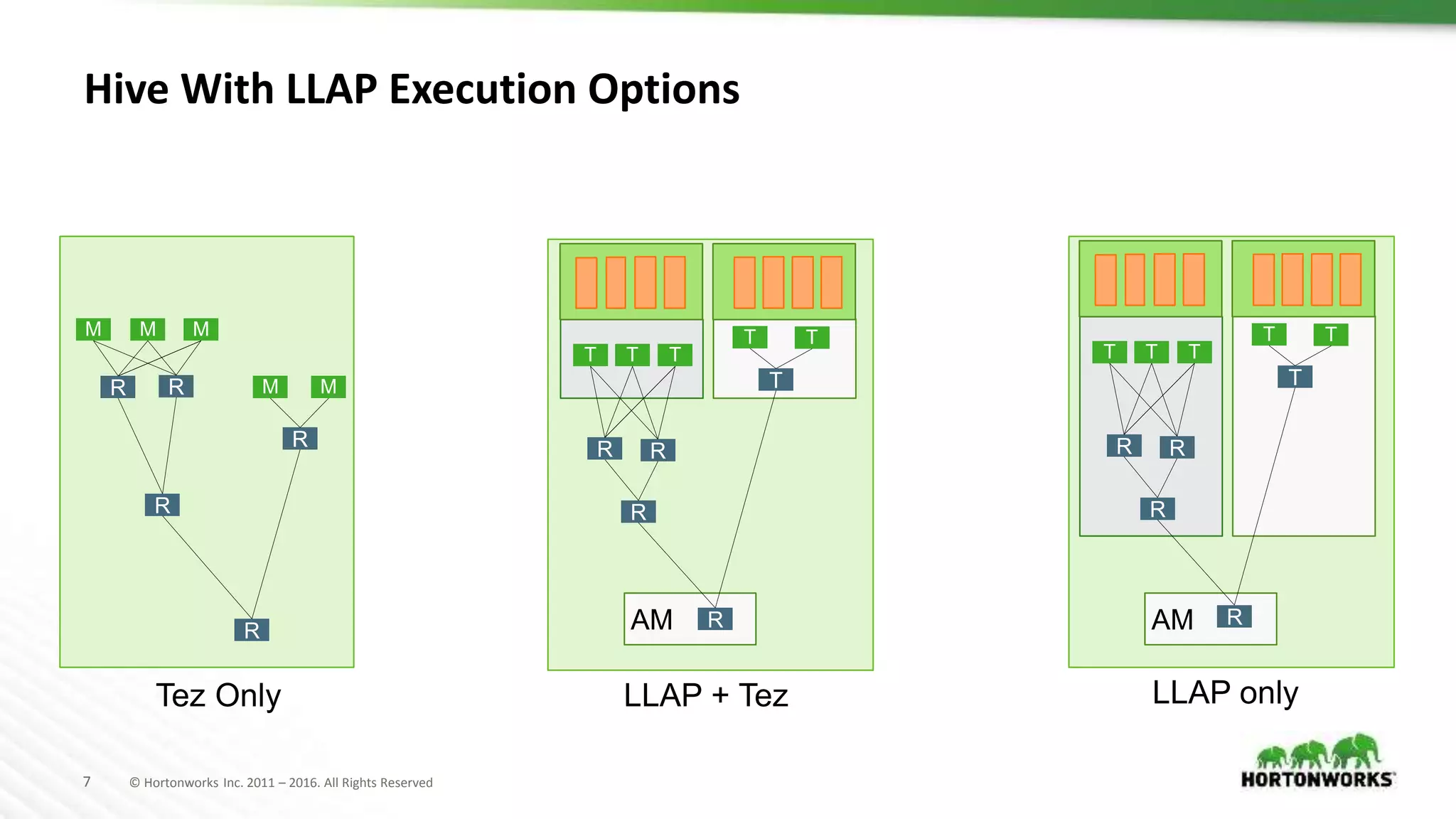

- 7. 7 © HortonworksInc. 2011 – 2016. All Rights Reserved Hive With LLAP Execution Options AM AM T T T R R R T T T R M M M R R R M M R R Tez Only LLAP + Tez T T T R R R T T T R LLAP only

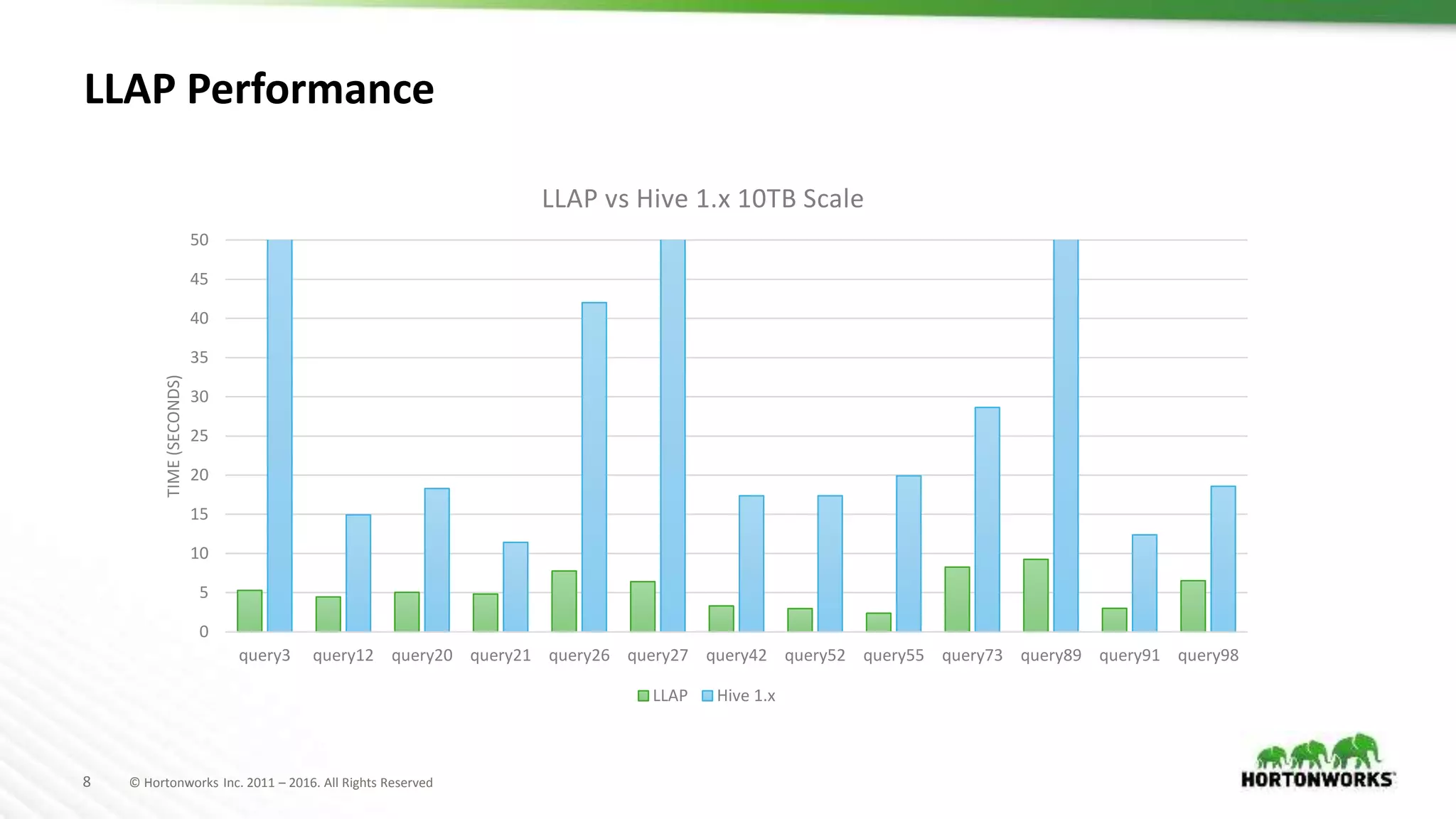

- 8. 8 © HortonworksInc. 2011 – 2016. All Rights Reserved LLAP Performance 0 5 10 15 20 25 30 35 40 45 50 query3 query12 query20 query21 query26 query27 query42 query52 query55 query73 query89 query91 query98 TIME(SECONDS) LLAP vs Hive 1.x 10TB Scale LLAP Hive 1.x

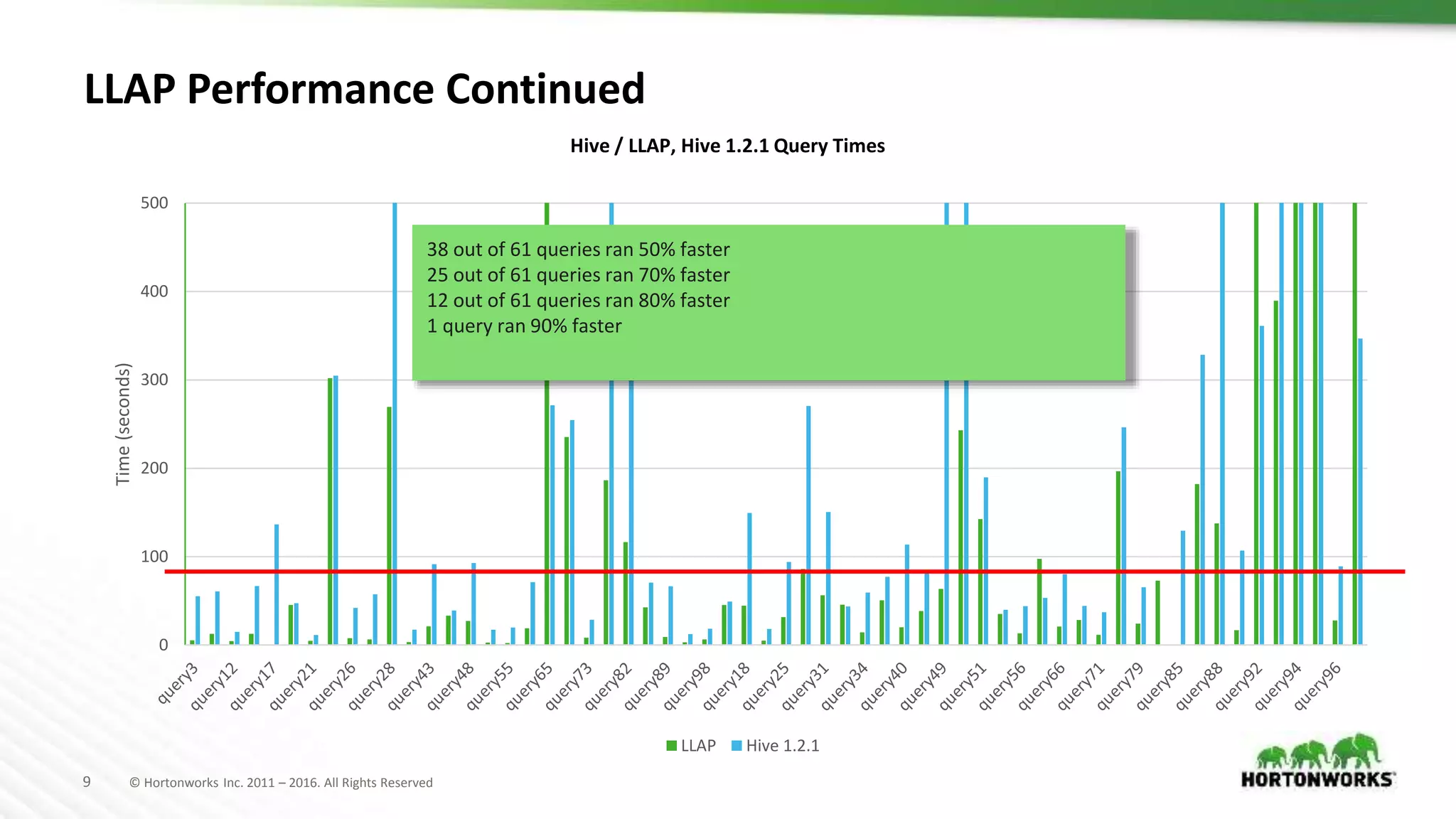

- 9. 9 © HortonworksInc. 2011 – 2016. All Rights Reserved LLAP Performance Continued 0 100 200 300 400 500 Time(seconds) LLAP Hive 1.2.1 Hive / LLAP, Hive 1.2.1 Query Times 38 out of 61 queries ran 50% faster 25 out of 61 queries ran 70% faster 12 out of 61 queries ran 80% faster 1 query ran 90% faster

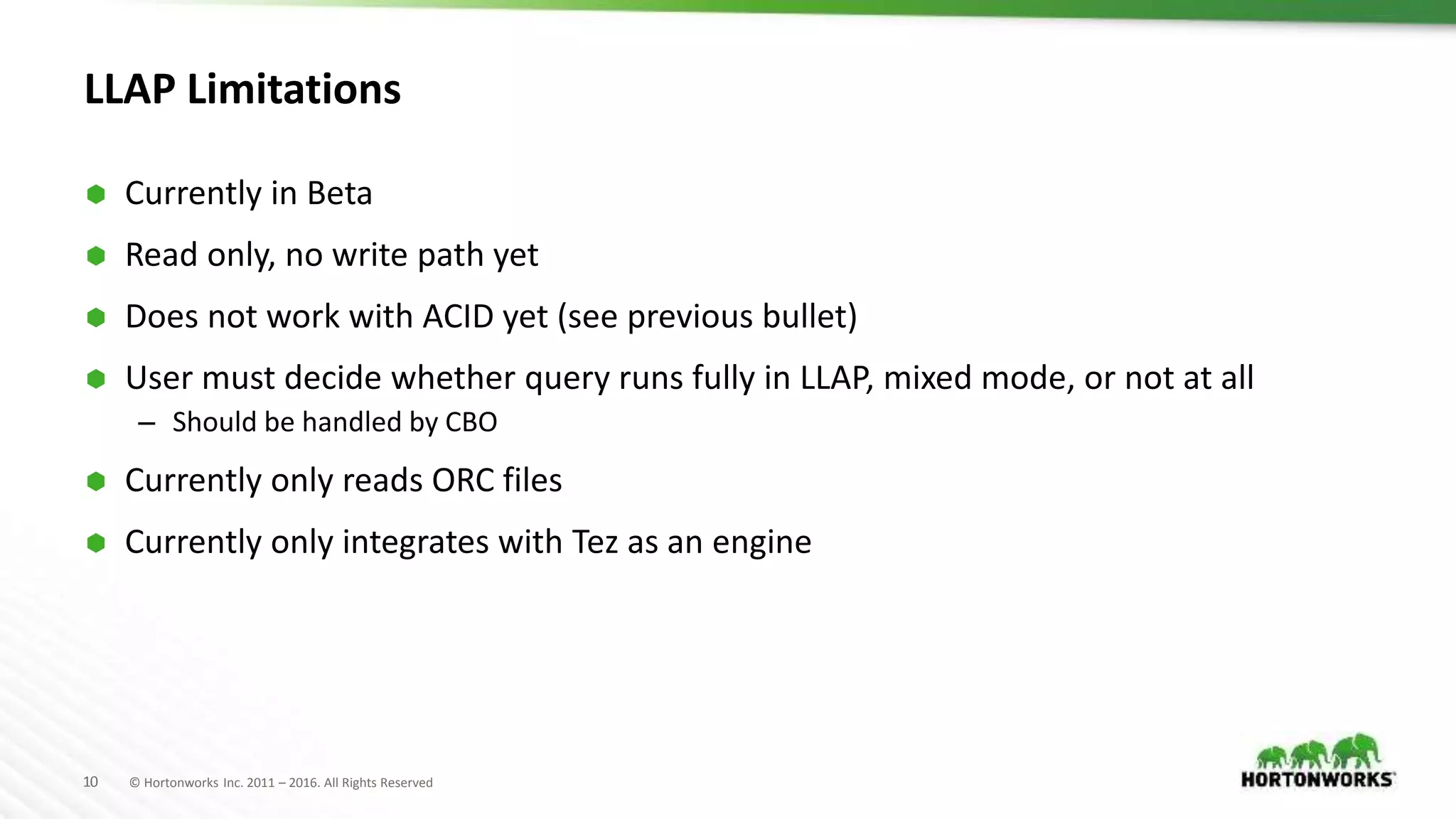

- 10. 10 © HortonworksInc. 2011 – 2016. All Rights Reserved LLAP Limitations Currently in Beta Read only, no write path yet Does not work with ACID yet (see previous bullet) User must decide whether query runs fully in LLAP, mixed mode, or not at all – Should be handled by CBO Currently only reads ORC files Currently only integrates with Tez as an engine

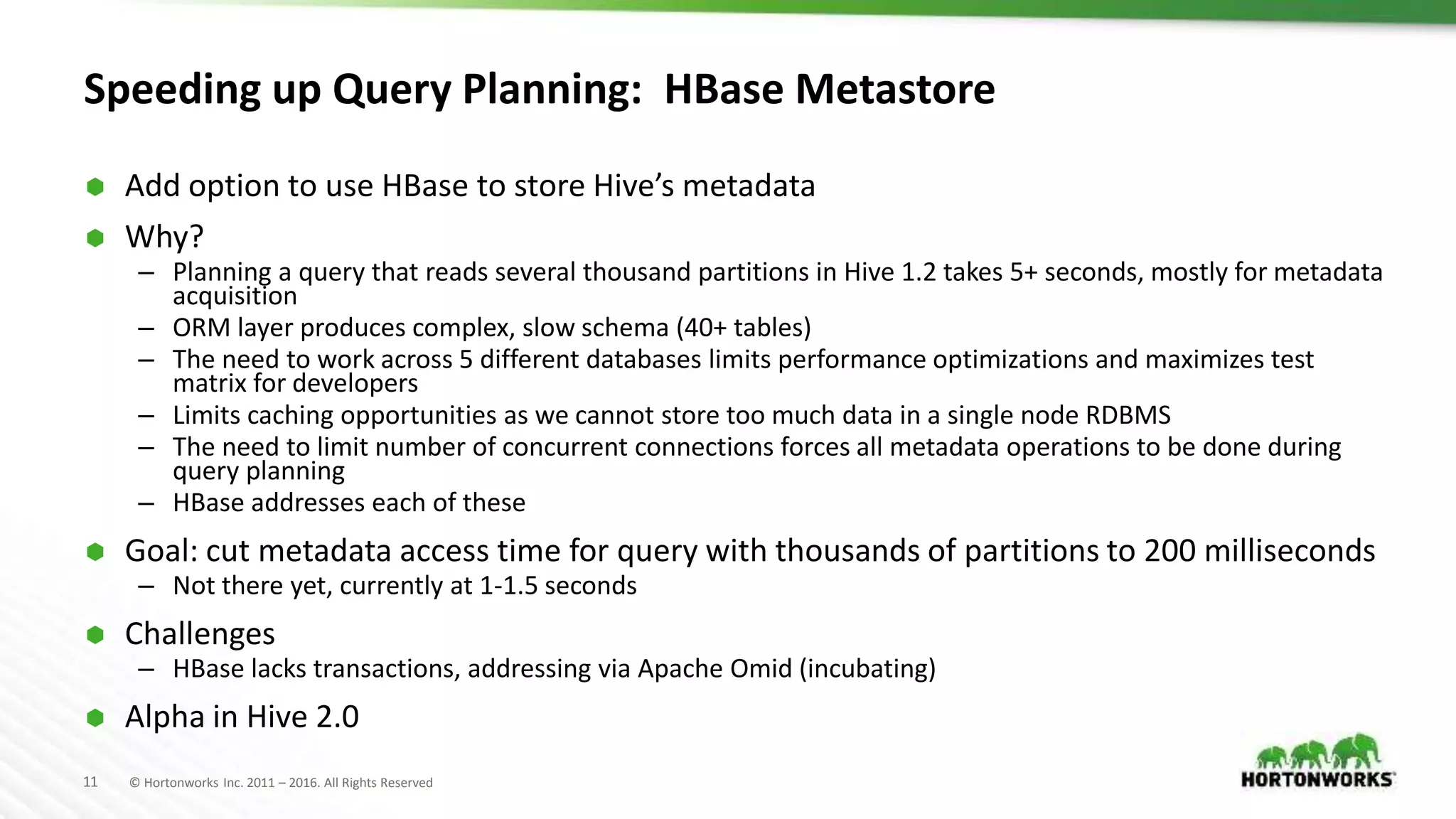

- 11. 11 © HortonworksInc. 2011 – 2016. All Rights Reserved Speeding up Query Planning: HBase Metastore Add option to use HBase to store Hive’s metadata Why? – Planning a query that reads several thousand partitions in Hive 1.2 takes 5+ seconds, mostly for metadata acquisition – ORM layer produces complex, slow schema (40+ tables) – The need to work across 5 different databases limits performance optimizations and maximizes test matrix for developers – Limits caching opportunities as we cannot store too much data in a single node RDBMS – The need to limit number of concurrent connections forces all metadata operations to be done during query planning – HBase addresses each of these Goal: cut metadata access time for query with thousands of partitions to 200 milliseconds – Not there yet, currently at 1-1.5 seconds Challenges – HBase lacks transactions, addressing via Apache Omid (incubating) Alpha in Hive 2.0

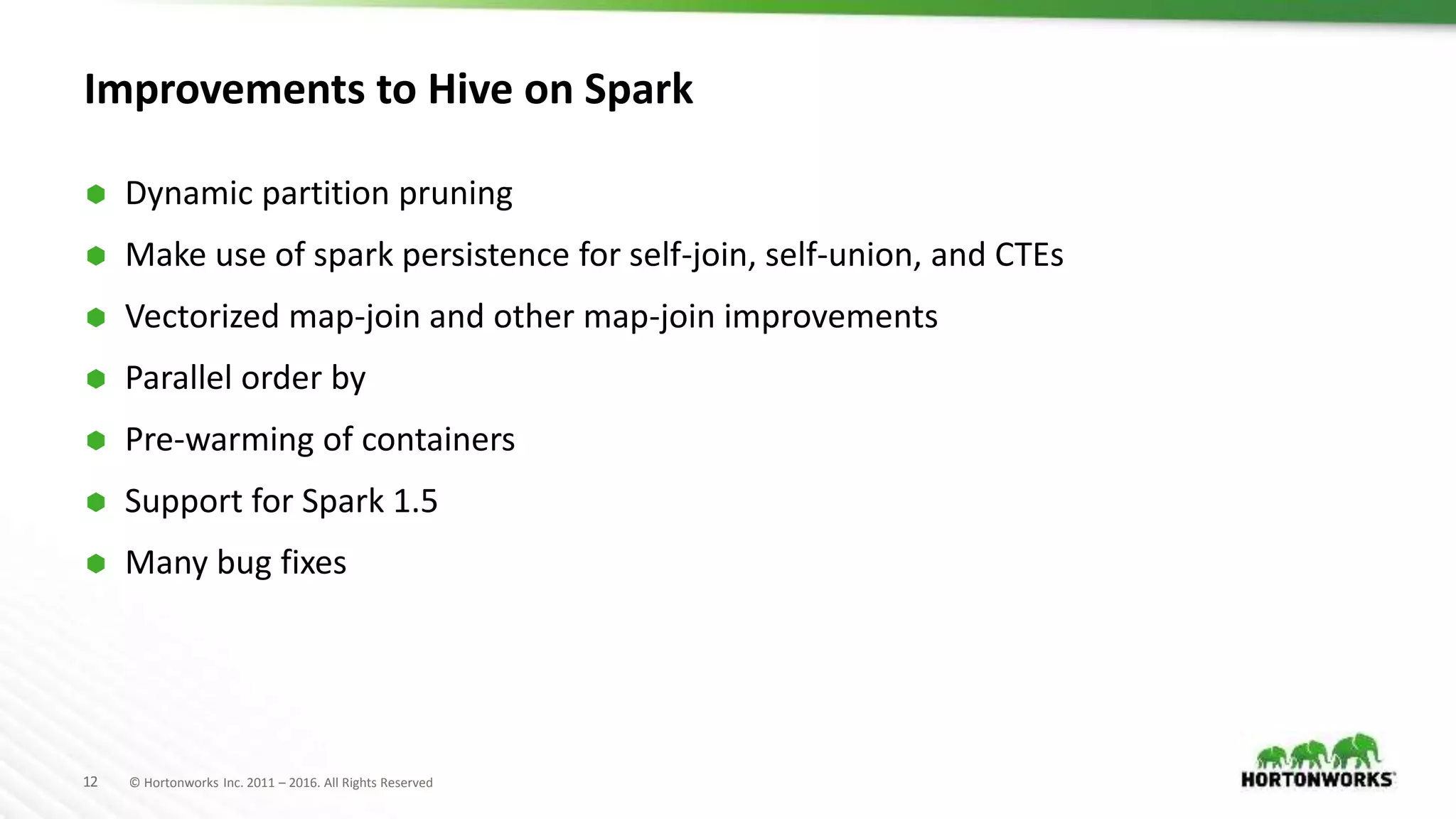

- 12. 12 © HortonworksInc. 2011 – 2016. All Rights Reserved Improvements to Hive on Spark Dynamic partition pruning Make use of spark persistence for self-join, self-union, and CTEs Vectorized map-join and other map-join improvements Parallel order by Pre-warming of containers Support for Spark 1.5 Many bug fixes

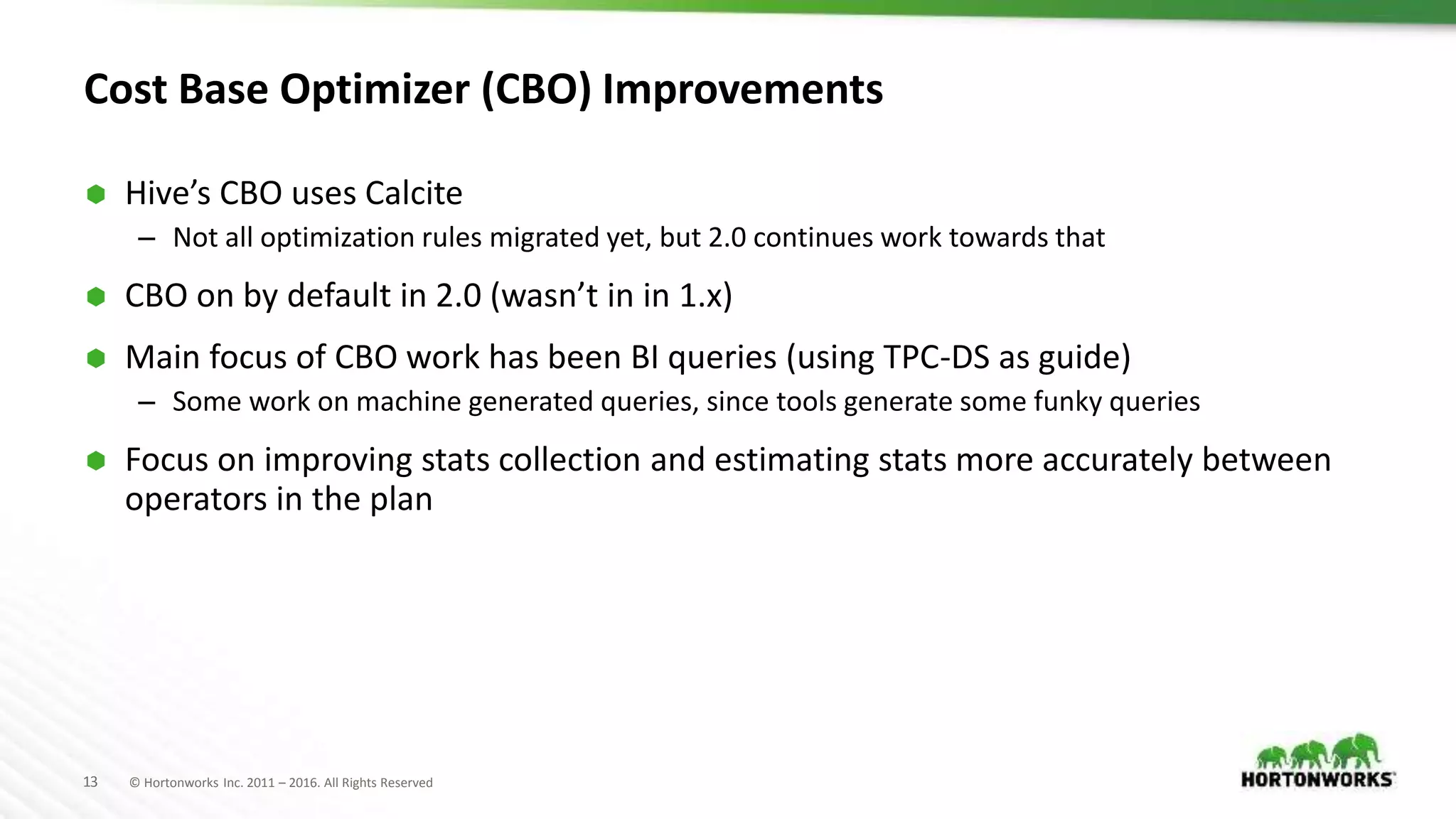

- 13. 13 © HortonworksInc. 2011 – 2016. All Rights Reserved Cost Base Optimizer (CBO) Improvements Hive’s CBO uses Calcite – Not all optimization rules migrated yet, but 2.0 continues work towards that CBO on by default in 2.0 (wasn’t in in 1.x) Main focus of CBO work has been BI queries (using TPC-DS as guide) – Some work on machine generated queries, since tools generate some funky queries Focus on improving stats collection and estimating stats more accurately between operators in the plan

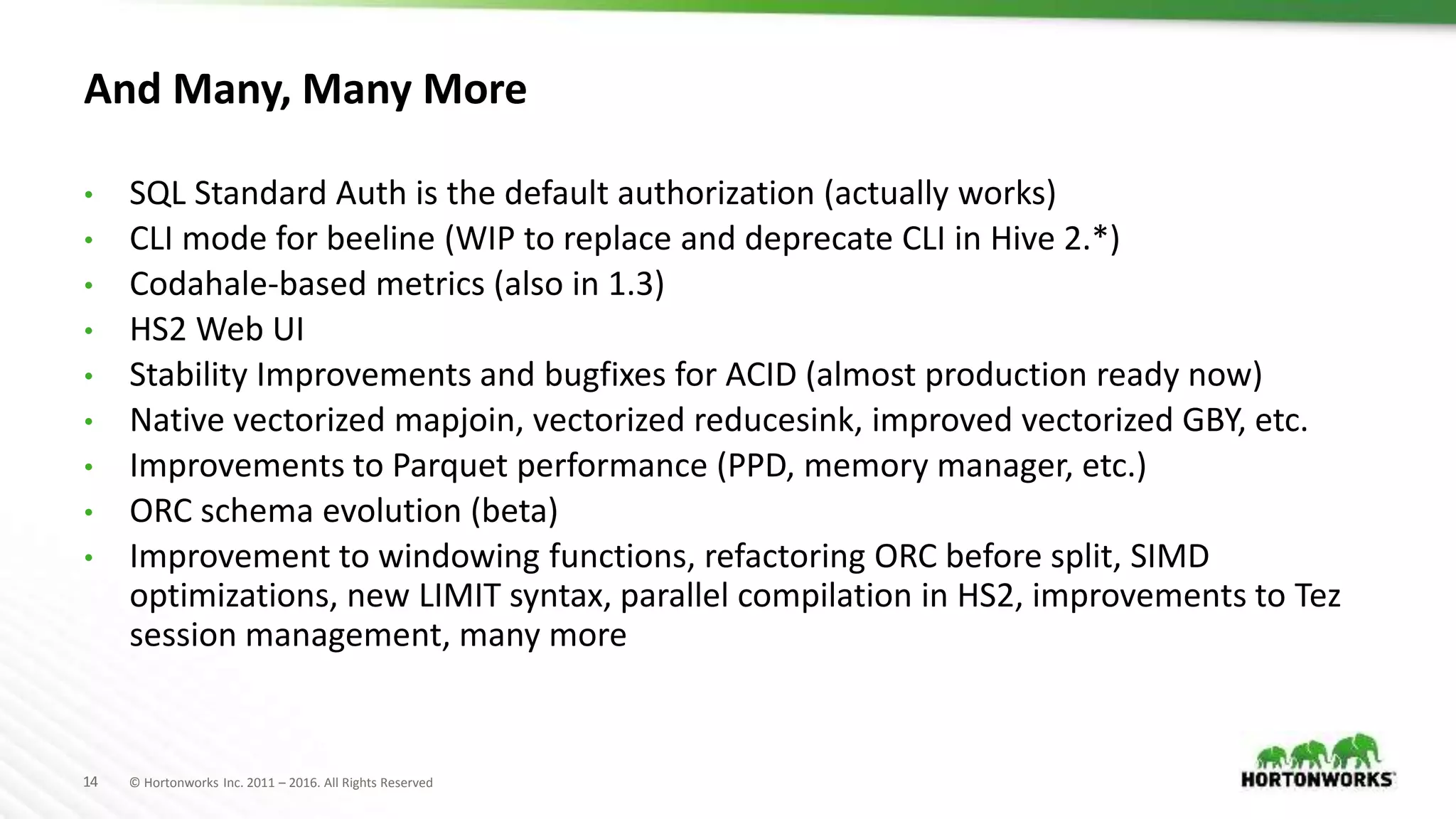

- 14. 14 © HortonworksInc. 2011 – 2016. All Rights Reserved And Many, Many More • SQL Standard Auth is the default authorization (actually works) • CLI mode for beeline (WIP to replace and deprecate CLI in Hive 2.*) • Codahale-based metrics (also in 1.3) • HS2 Web UI • Stability Improvements and bugfixes for ACID (almost production ready now) • Native vectorized mapjoin, vectorized reducesink, improved vectorized GBY, etc. • Improvements to Parquet performance (PPD, memory manager, etc.) • ORC schema evolution (beta) • Improvement to windowing functions, refactoring ORC before split, SIMD optimizations, new LIMIT syntax, parallel compilation in HS2, improvements to Tez session management, many more

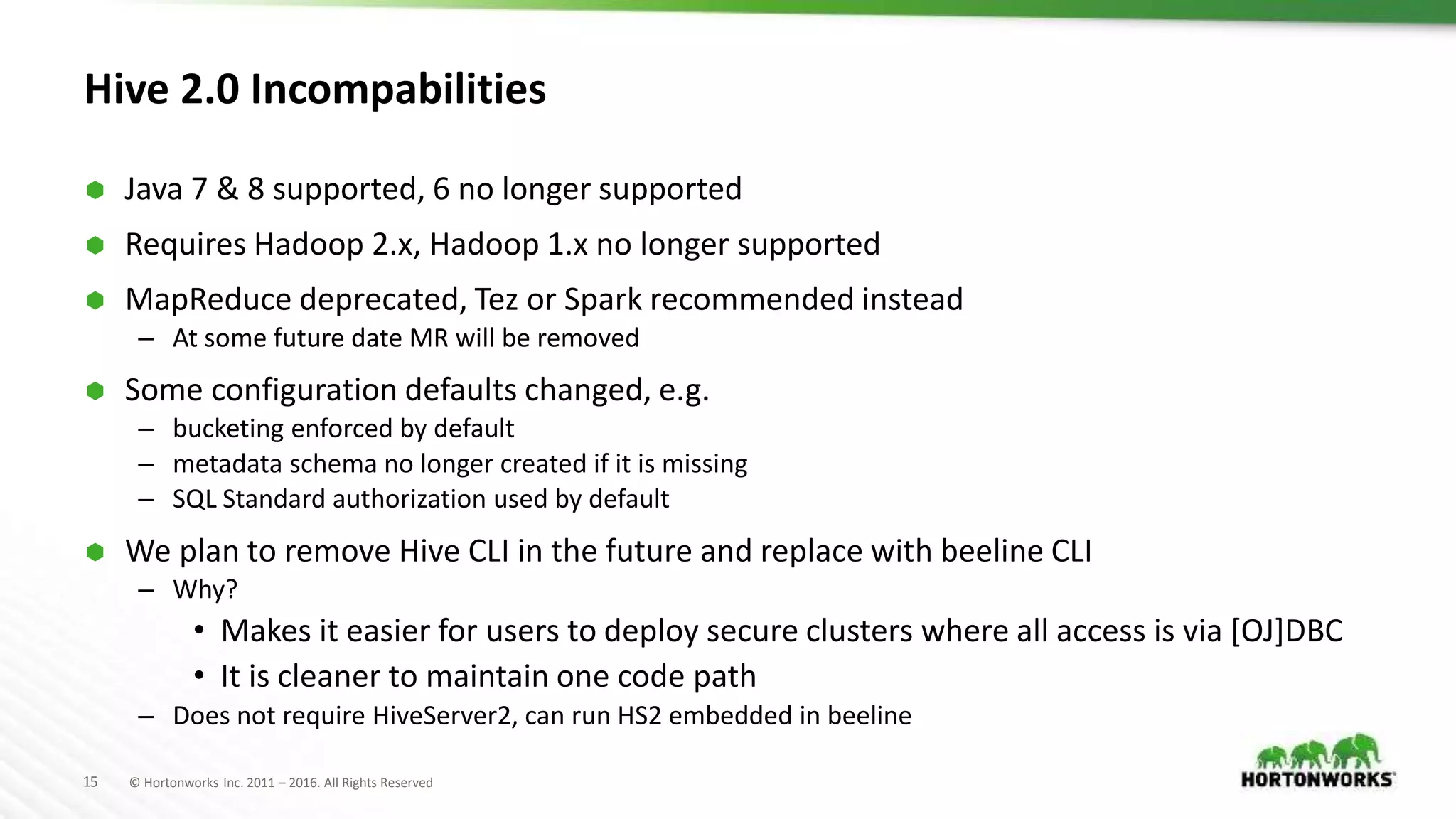

- 15. 15 © HortonworksInc. 2011 – 2016. All Rights Reserved Hive 2.0 Incompabilities Java 7 & 8 supported, 6 no longer supported Requires Hadoop 2.x, Hadoop 1.x no longer supported MapReduce deprecated, Tez or Spark recommended instead – At some future date MR will be removed Some configuration defaults changed, e.g. – bucketing enforced by default – metadata schema no longer created if it is missing – SQL Standard authorization used by default We plan to remove Hive CLI in the future and replace with beeline CLI – Why? • Makes it easier for users to deploy secure clusters where all access is via [OJ]DBC • It is cleaner to maintain one code path – Does not require HiveServer2, can run HS2 embedded in beeline
- 16. 16 © HortonworksInc. 2011 – 2016. All Rights Reserved Thank You
Editor's Notes
- #9 10 compute nodes, with 512GB RAM per node, running HDP 2.3 Scale 10K (10TB), interactive queries Single query runs – via Hive CLI Concurrency runs – via HiveServer2 and jmeter Hive1: Hive 1.2 + Tez 0.7 Pre-warm and container reuse enabled LLAP: Close to the 2.0 Hive branch, Tez close to the current master branch Caching Enabled (as of November 2015)
- #13 1. DPP: Implemented in two sequential jobs. The first one processes the pruning part, saving the dynamic values on HDFS. The second job uses these values to filter out unwanted partitoins. Not fully tested yet. 2. Spark RDD persistence is used to store the temporary results from repeated subqueires to avoid re-computation. This is similar to materialized view and happens automatically. This is especially useful for cases of self-join, self-union, and CTE. 3. Vectorized map-join, optimized hashtable for mapjoin. These are very similar to tez. 4. Use parallel order by provided by Spark to do global sorting without limiting to one reducer. Internally, however, spark does the sampling. 5. Wait for a few seconds after SparkContext is created before submitting the job to make sure that enough number of executors are launched. SparkContext allows a job to be submitted right way, even if the executors are still starting up. Parallelism at reducer is partially determined by the number of available executors at the time when the job is submitted. This is useful for short-lived sessions, such as those launched by Oozie.
