Agile Intro and 2014 trends for AgileSparks open day at John-Bryce - March 2014

About Me •  Senior Kanban/Agile Consultant / CTO @ www.AgileSparks.com •  Blogging at http://YuvalYeret.com •  Author of Holy Land Kanban https://leanpub.com/holylandkanbanbestof •  Speaking soon at:

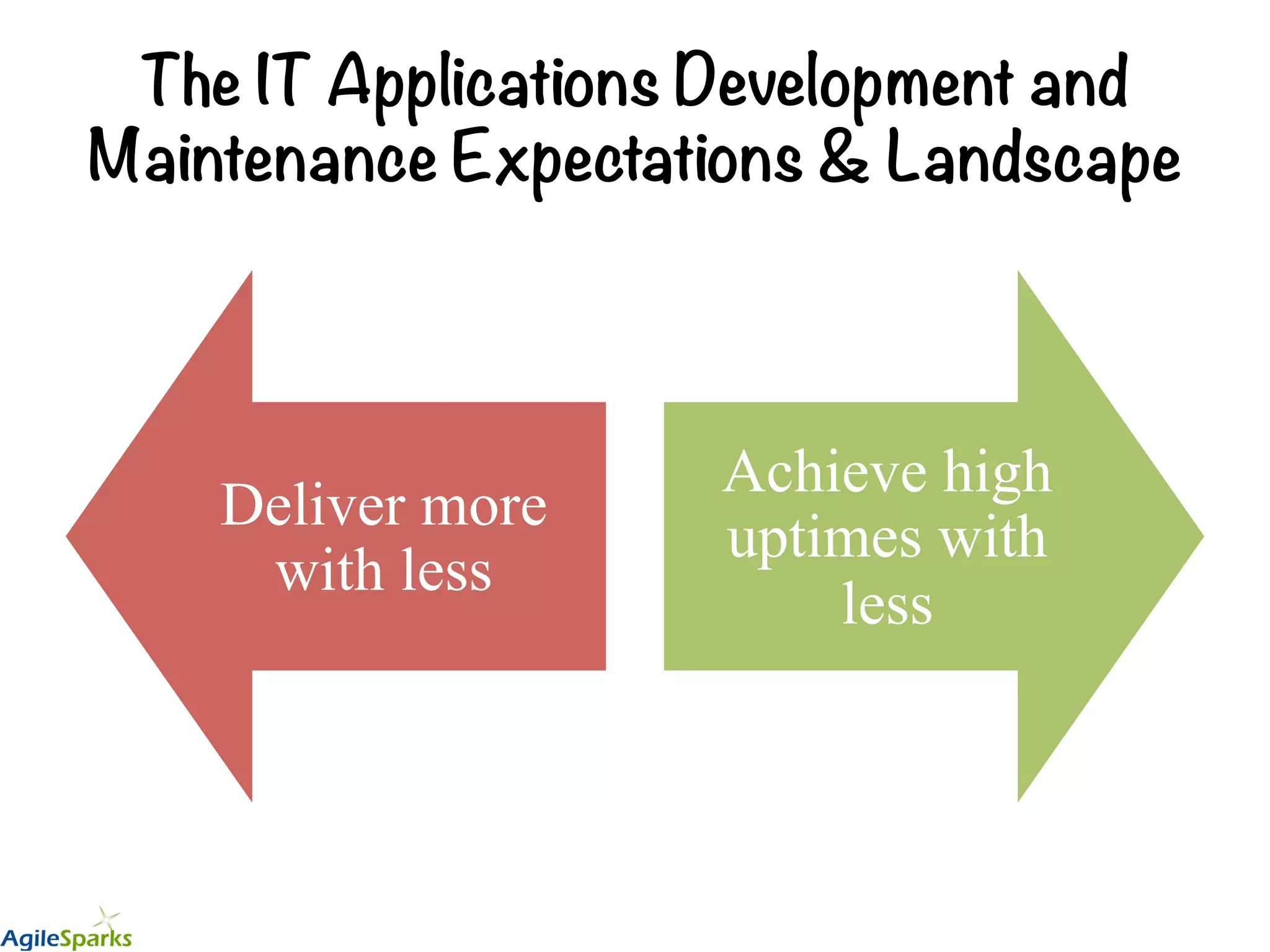

The IT Applications Development and Maintenance Expectations & Landscape Deliver more with less Achieve high uptimes with less

Lucy & the Chocolate Factory http://www.youtube.com/watch?v=FGfplQ1FUFs

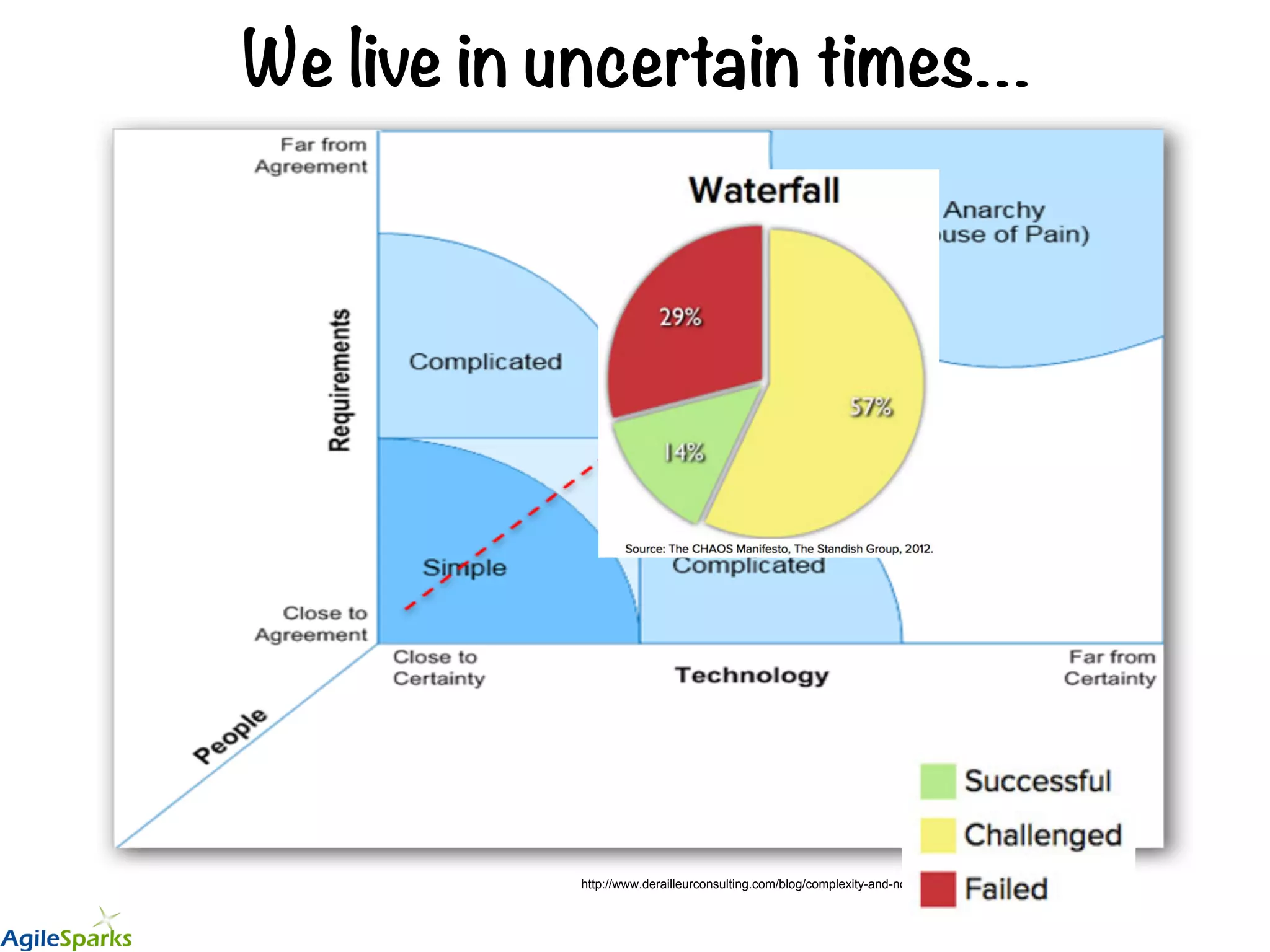

We live in uncertain times… Where are your projects ? http://www.derailleurconsulting.com/blog/complexity-and-noise-in-systems-development-projects

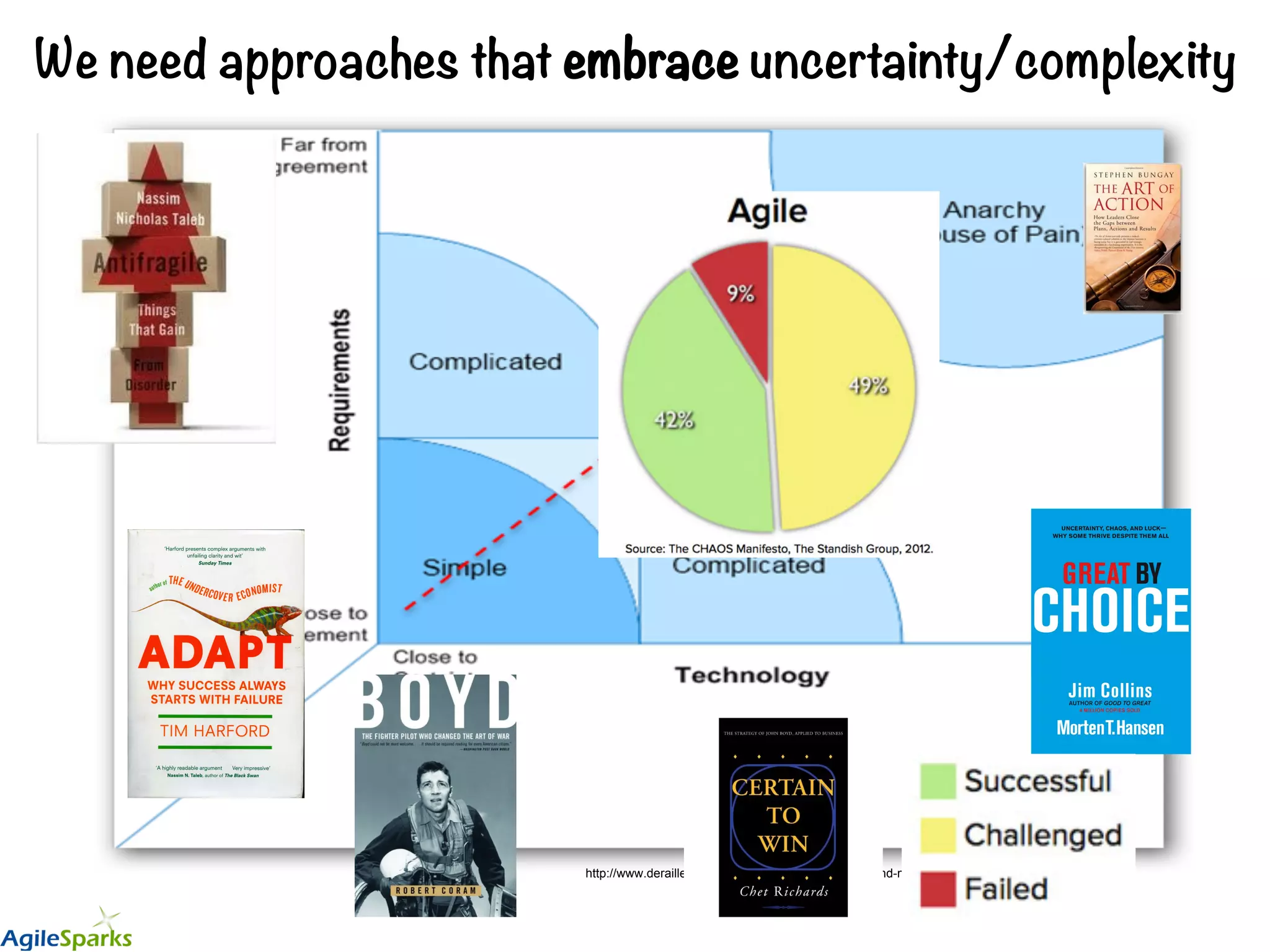

We need approaches that embrace uncertainty/complexity http://www.derailleurconsulting.com/blog/complexity-and-noise-in-systems-development-projects

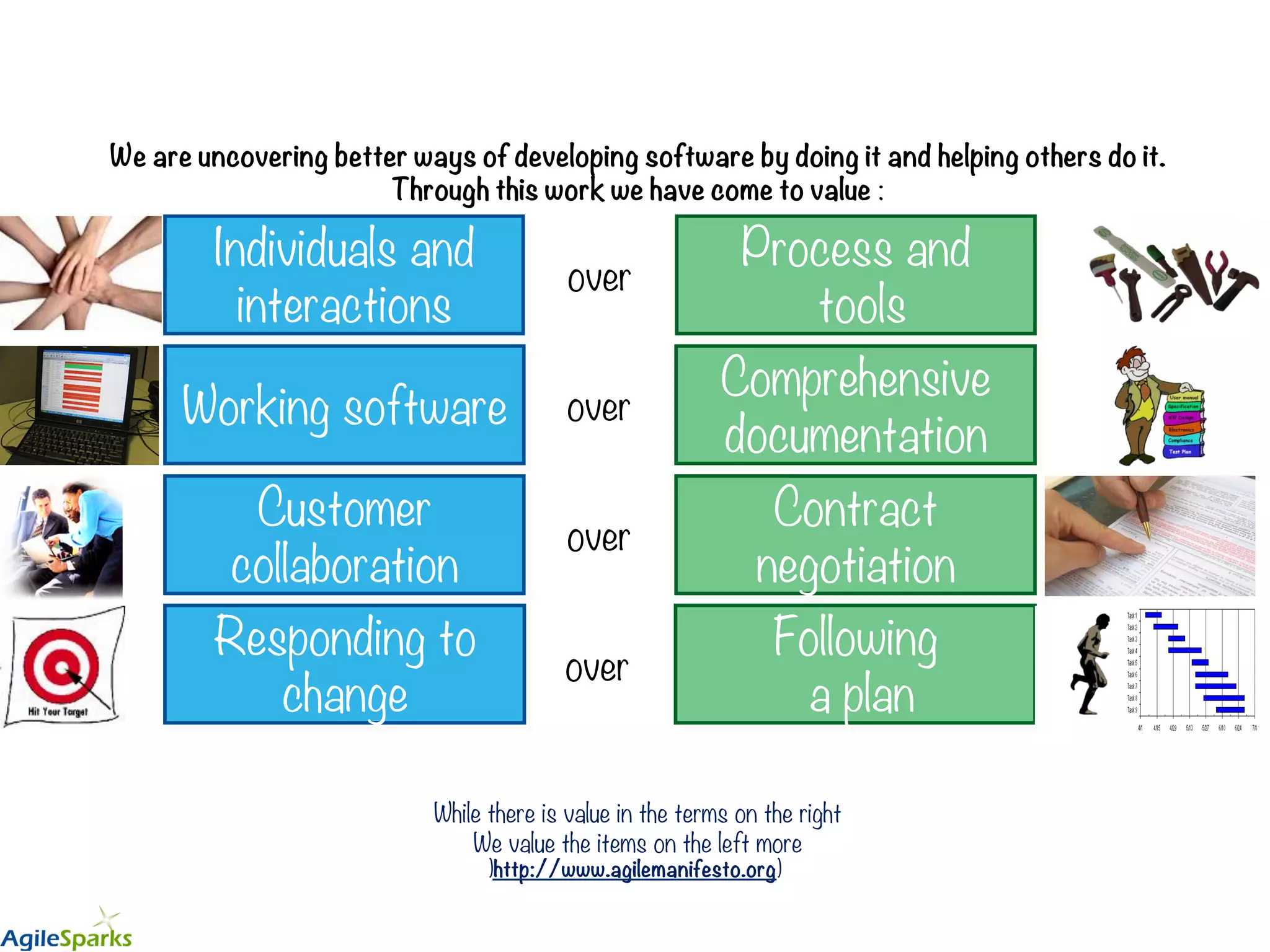

We are uncovering better ways of developing software by doing it and helping others do it. Through this work we have come to value : While there is value in the terms on the right We value the items on the left more )http://www.agilemanifesto.org) Process and tools Individuals and interactions over Comprehensive documentation Working software over Following a plan Responding to change over Contract negotiation Customer collaboration over

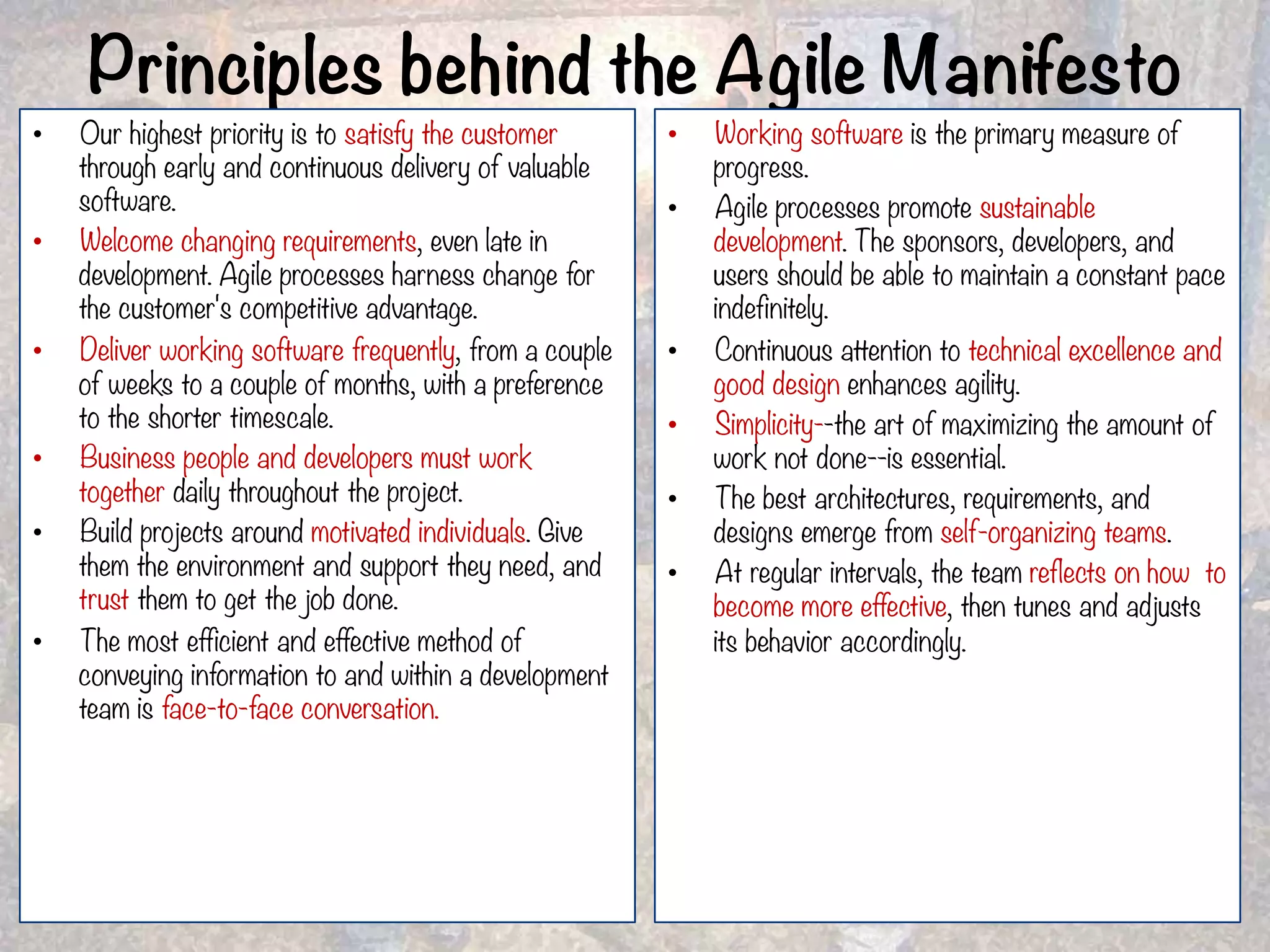

Principles behind the Agile Manifesto •  Our highest priority is to satisfy the customer through early and continuous delivery of valuable software. •  Welcome changing requirements, even late in development. Agile processes harness change for the customer's competitive advantage. •  Deliver working software frequently, from a couple of weeks to a couple of months, with a preference to the shorter timescale. •  Business people and developers must work together daily throughout the project. •  Build projects around motivated individuals. Give them the environment and support they need, and trust them to get the job done. •  The most efficient and effective method of conveying information to and within a development team is face-to-face conversation. •  Working software is the primary measure of progress. •  Agile processes promote sustainable development. The sponsors, developers, and users should be able to maintain a constant pace indefinitely. •  Continuous attention to technical excellence and good design enhances agility. •  Simplicity--the art of maximizing the amount of work not done--is essential. •  The best architectures, requirements, and designs emerge from self-organizing teams. •  At regular intervals, the team reflects on how to become more effective, then tunes and adjusts its behavior accordingly.

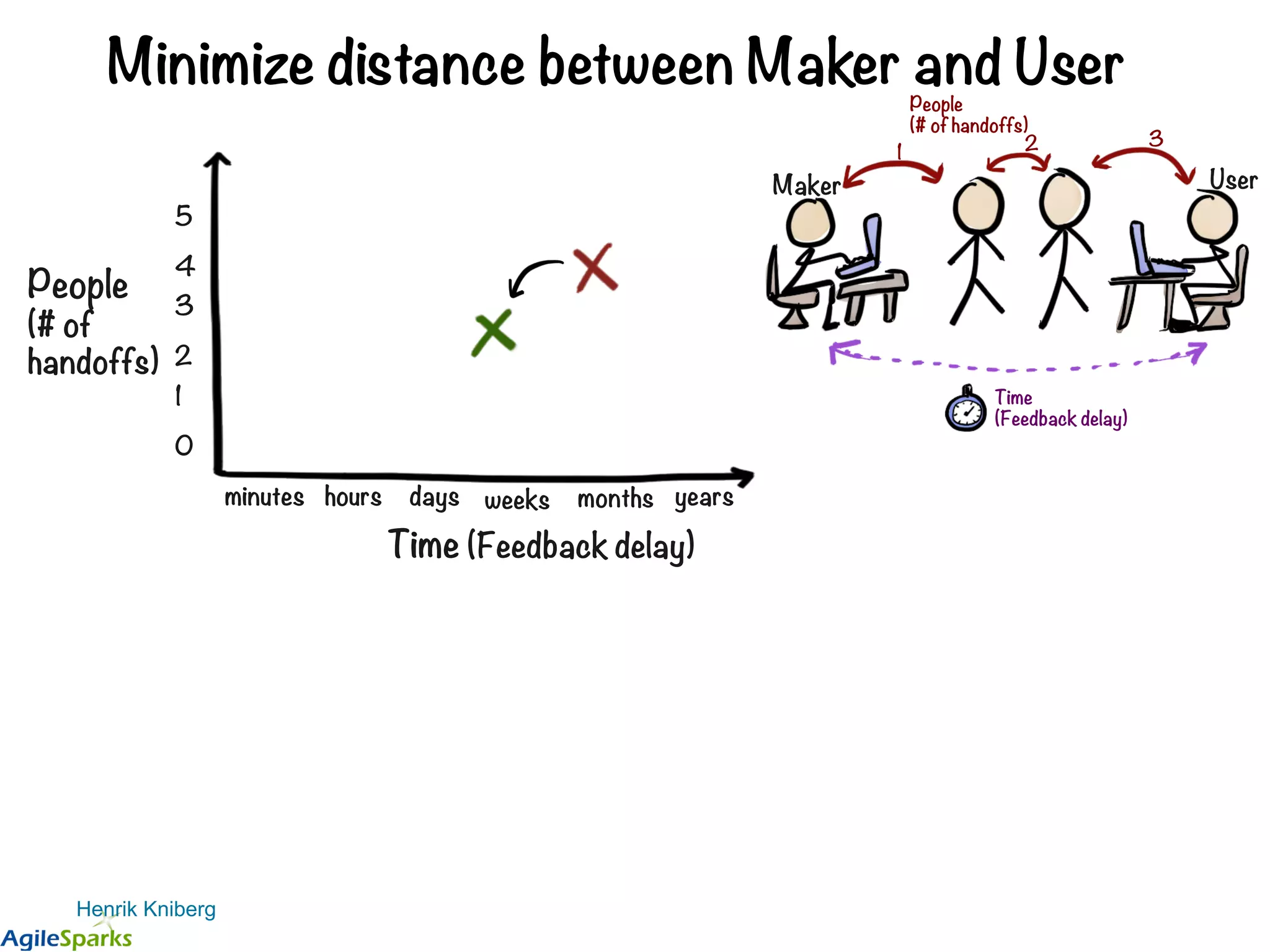

Minimize distance between Maker and User Henrik Kniberg People (# of handoffs) 0 1 2 3 4 5 Time (Feedback delay) minutes hours days weeks months years Maker User 1 2 3 People (# of handoffs) Time (Feedback delay) 2:001:591:581:571:561:551:541:531:521:511:501:491:481:471:461:451:441:431:421:411:401:391:381:371:361:351:341:331:321:311:301:291:281:271:261:251:241:231:221:211:201:191:181:171:161:151:141:131:121:111:101:091:081:071:061:051:041:031:021:011:000:590:580:570:560:550:540:530:520:510:500:490:480:470:460:450:440:430:420:410:400:390:380:370:360:350:340:330:320:310:300:290:280:270:260:250:240:230:220:210:200:190:180:170:160:150:140:130:120:110:100:090:080:070:060:050:040:030:020:01Done

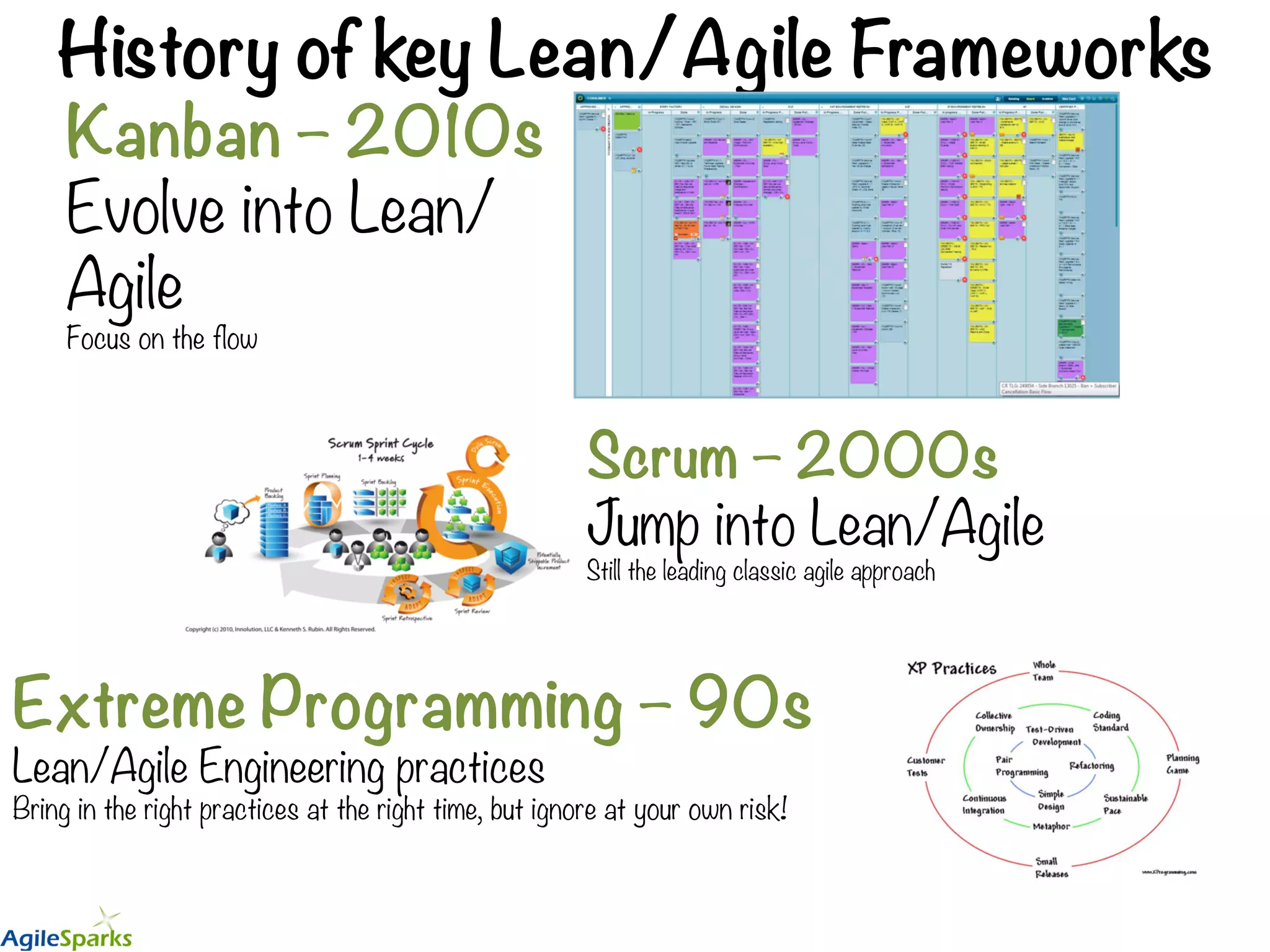

History of key Lean/Agile Frameworks Kanban – 2010s Evolve into Lean/ Agile Focus on the flow Scrum – 2000s Jump into Lean/Agile Still the leading classic agile approach Extreme Programming – 90s Lean/Agile Engineering practices Bring in the right practices at the right time, but ignore at your own risk!

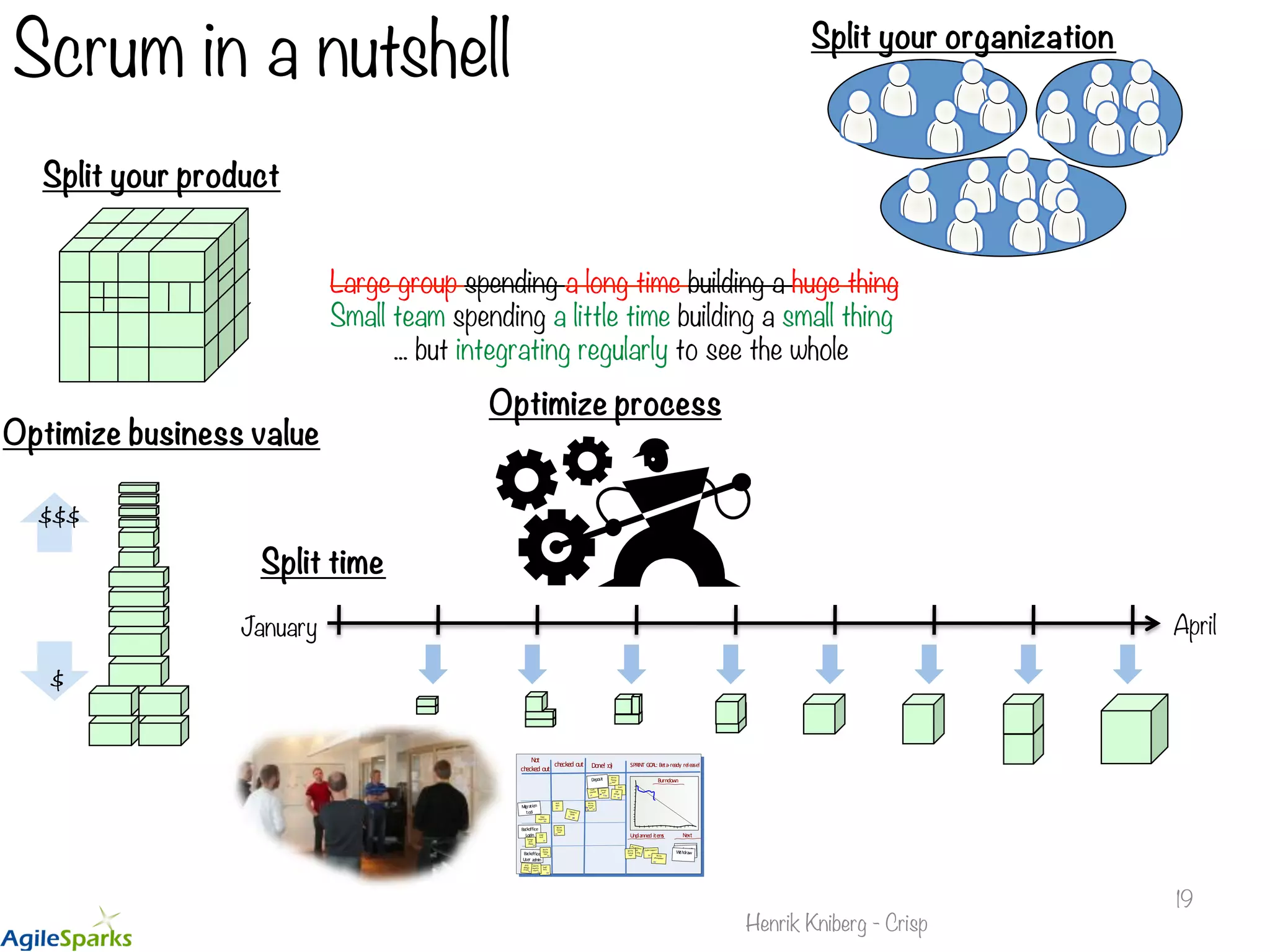

Scrum in a nutshell Henrik Kniberg - Crisp 19 January April Split your organization Split your product Split time Optimize business value Optimize process $ $$$ Burndown Unplanned items Not checked out Done! :o) Write failing test DAO DB design Integr test Migration tool Write failing test GUI spec Tapes try spike Impl. migration 2d Code cleanu p Deposit 2d1d 0.5d 1d 2d 8d 1d 2d 2d Backoffice Login Backoffice User admin Write failing test 3d 2d 1d 2d Impl GUI 1dIntegr. with JBoss 2d Write failing test 3d Impl GUI 6d Clarify requirements 2d GUI design (CSS) 1d Fix memo ry leak (JIRA 125)2d Sales support 3d Write whitepaper 4d SPRINT GOAL: Beta-‐ready release! Next WithdrawPerf testWithdraw checked out Write failing test Large group spending a long time building a huge thing Small team spending a little time building a small thing ... but integrating regularly to see the whole

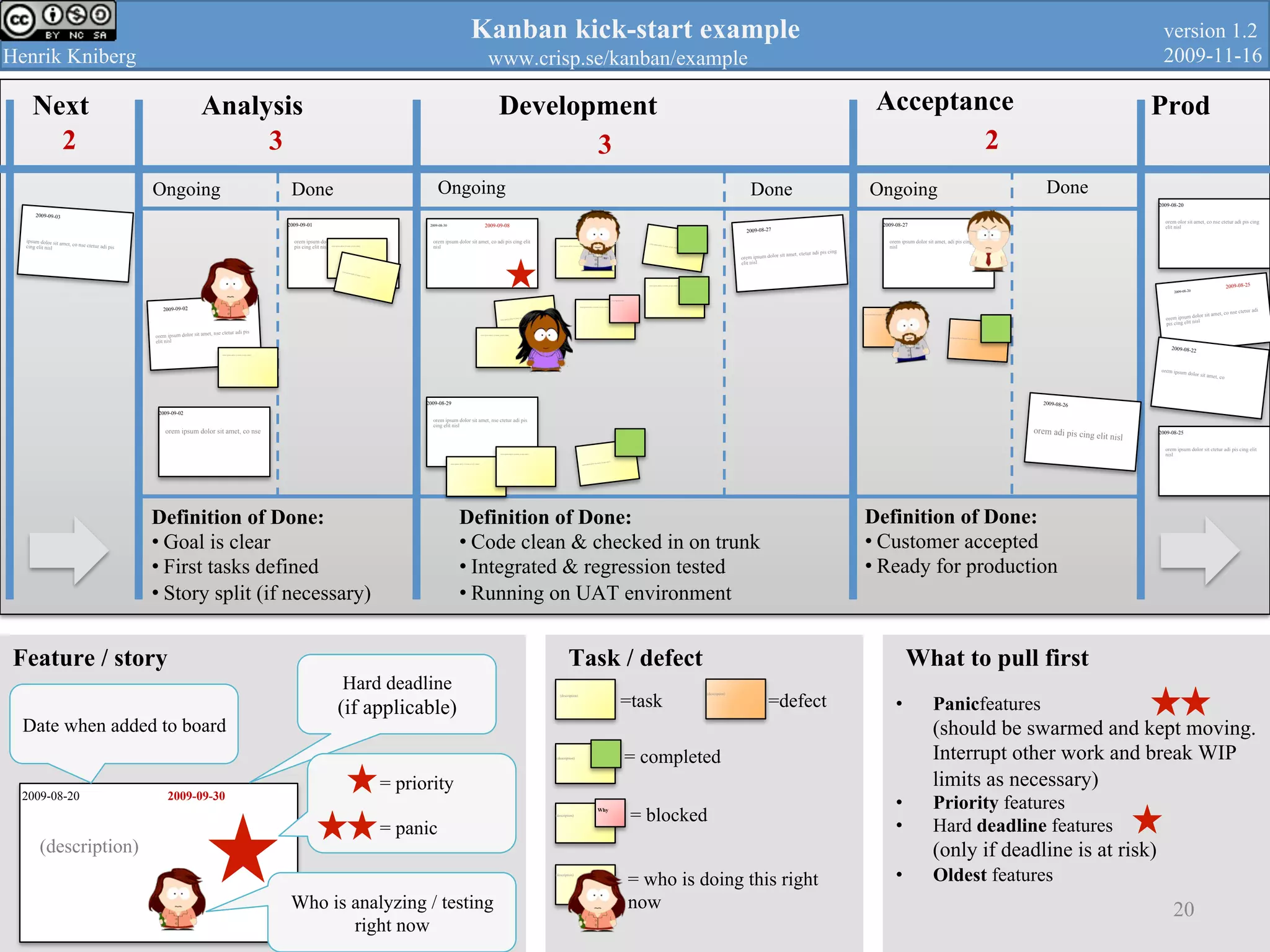

2009-08-29 orem ipsum dolor sit amet, nse ctetur adi pis cing elit nisl 2009-09-01 orem ipsum dolor sit amet, co nse ctetur adi pis cing elit nisl 2009-09-02 orem ipsum dolor sit amet, nse ctetur adi pis elit nisl Analysis Development Acceptance ProdNext Definition of Done: • Customer accepted • Ready for production Ongoing Done Definition of Done: • Code clean & checked in on trunk • Integrated & regression tested • Running on UAT environment Ongoing DoneOngoing Done Definition of Done: • Goal is clear • First tasks defined • Story split (if necessary) 2 3 3 2 Feature / story = completed = blocked = who is doing this right now 2009-08-20 2009-09-30 (description) •  Panicfeatures (should be swarmed and kept moving. Interrupt other work and break WIP limits as necessary) •  Priority features •  Hard deadline features (only if deadline is at risk) •  Oldest features 2009-09-03 ipsum dolor sit amet, co nse ctetur adi piscing elit nisl 2009-09-02 orem ipsum dolor sit amet, co nse 2009-08-27 orem ipsum dolor sit amet, ctetur adi pis cing elit nisl 2009-08-27 orem ipsum dolor sit amet, adi pis cing elit nisl 2009-08-20 orem olor sit amet, co nse ctetur adi pis cing elit nisl2009-08-30 orem ipsum dolor sit amet, co adi pis cing elit nisl 2009-09-08 2009-08-20 orem ipsum dolor sit amet, co nse ctetur adi pis cing elit nisl 2009-08-25 2009-08-22 orem ipsum dolor sit amet, co 2009-08-25 orem ipsum dolor sit ctetur adi pis cing elit nisl Task / defect Hard deadline (if applicable) Date when added to board orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur orem ipsum dolor sit amet, co nse ctetur (description) (description) (description) Why (description) Who is analyzing / testing right now = priority = panic What to pull first xxxx kjd dj d xxx Kanban kick-start example Henrik Kniberg www.crisp.se/kanban/example version 1.2 2009-11-16 (description) orem ipsum dolor sit amet, co nse ctetur 2009-08-26 orem adi pis cing elit nisl orem ipsum dolor sit amet, co nse ctetur =task =defect 20

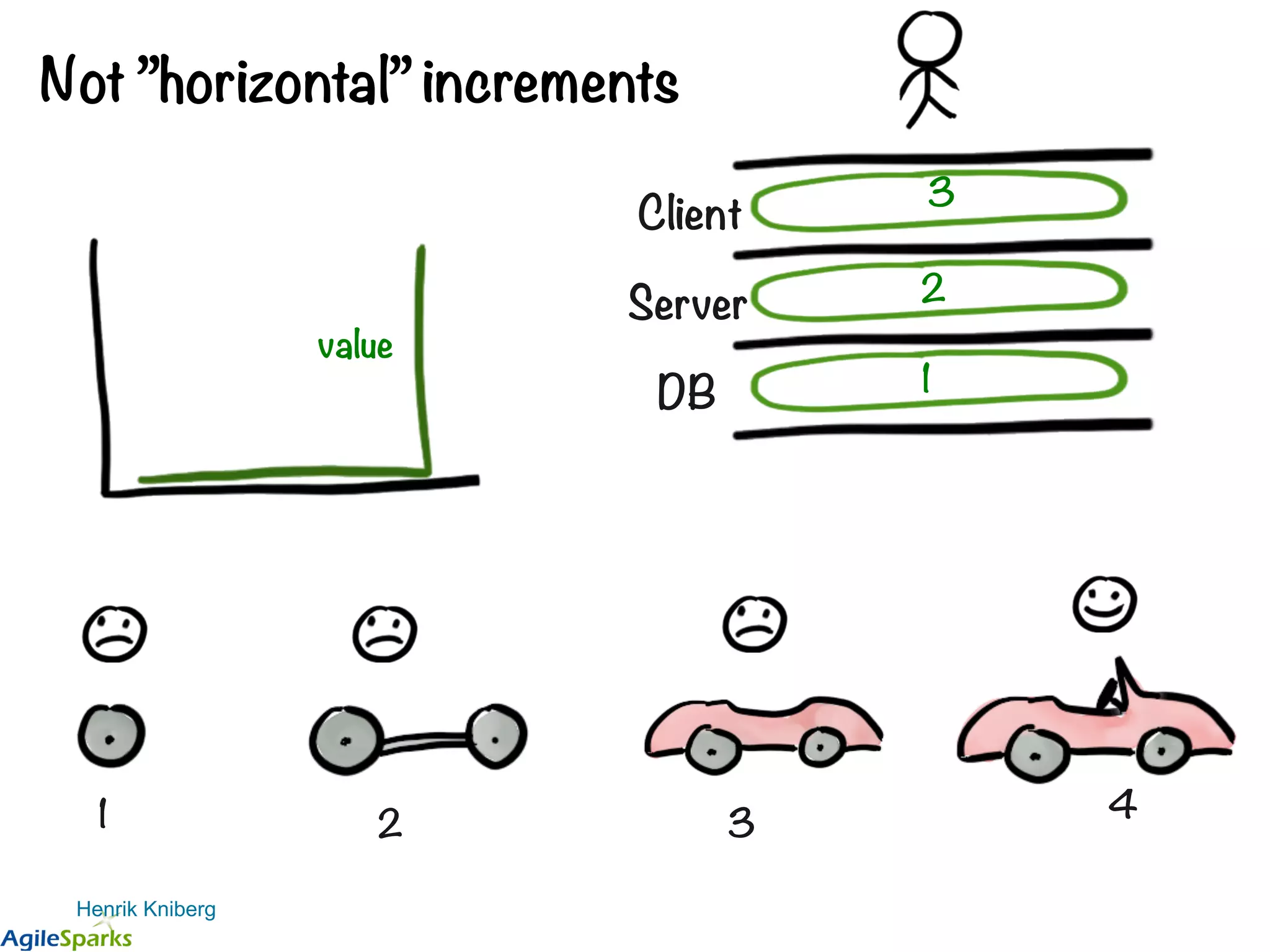

Not ”horizontal” increments Henrik Kniberg DB Server Client 1 2 3 1 2 3 4 value

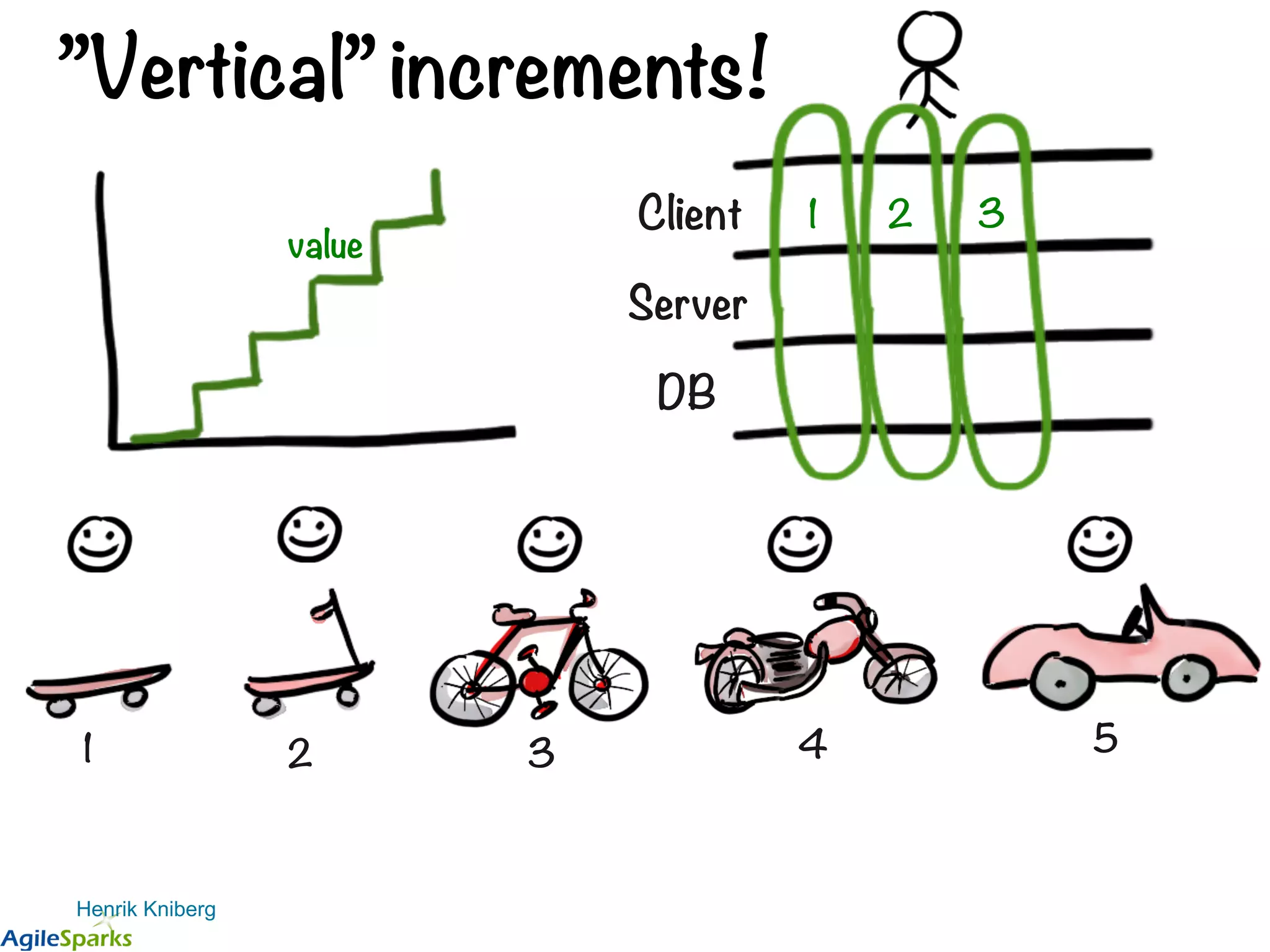

”Vertical” increments! Henrik Kniberg DB Server Client 1 5 2 3 1 4 3 2 value

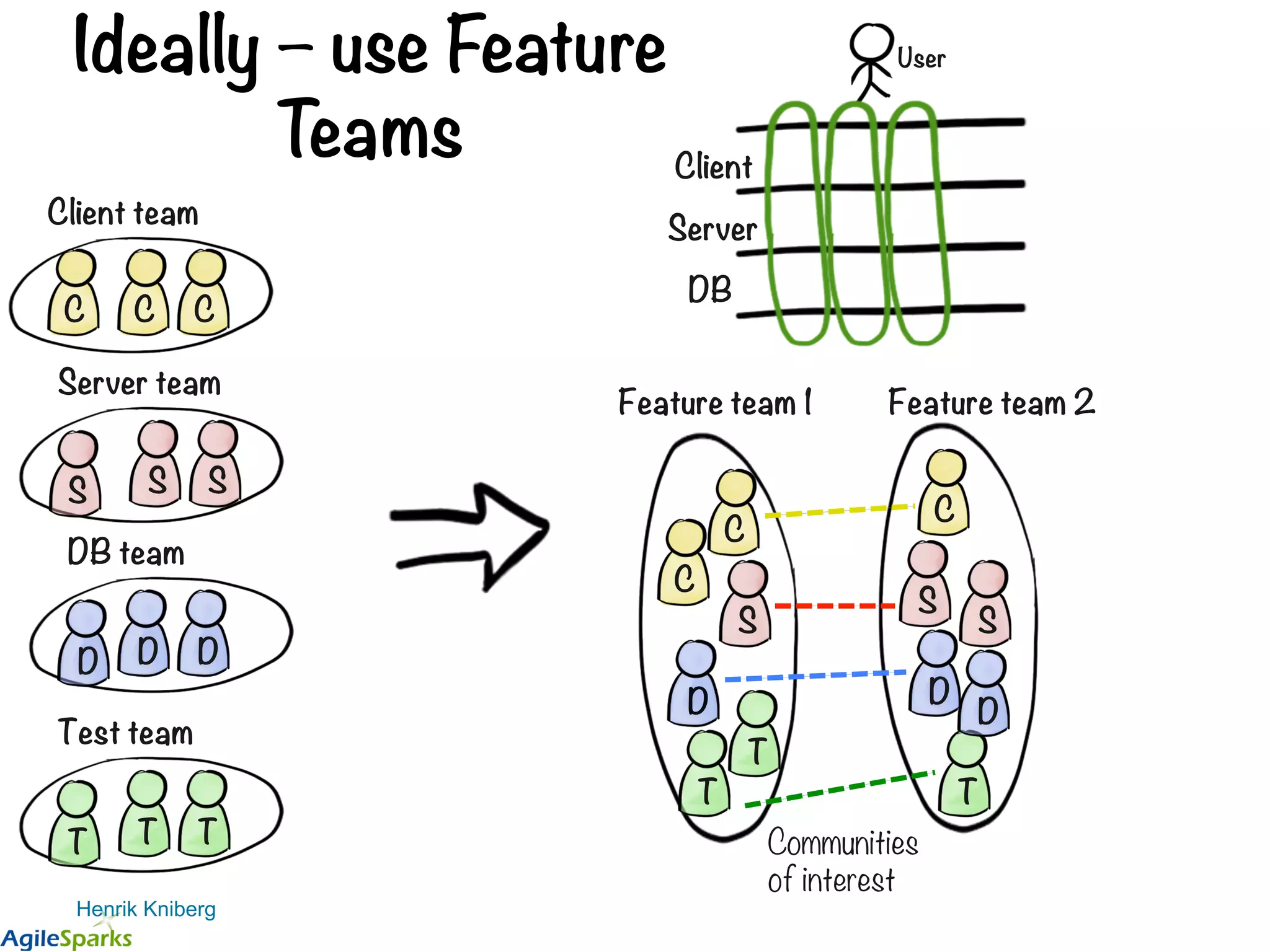

Ideally – use Feature Teams Henrik Kniberg Client team C C C Test team T T T DB team D D D Server team S S S Feature team 1 C C S D T T C S D T Feature team 2 D S DB Server Client User Communities of interest

At regular intervals, the team reflects on how to become more effective, then tunes and adjusts its behavior accordingly.” Agile Manifesto principle

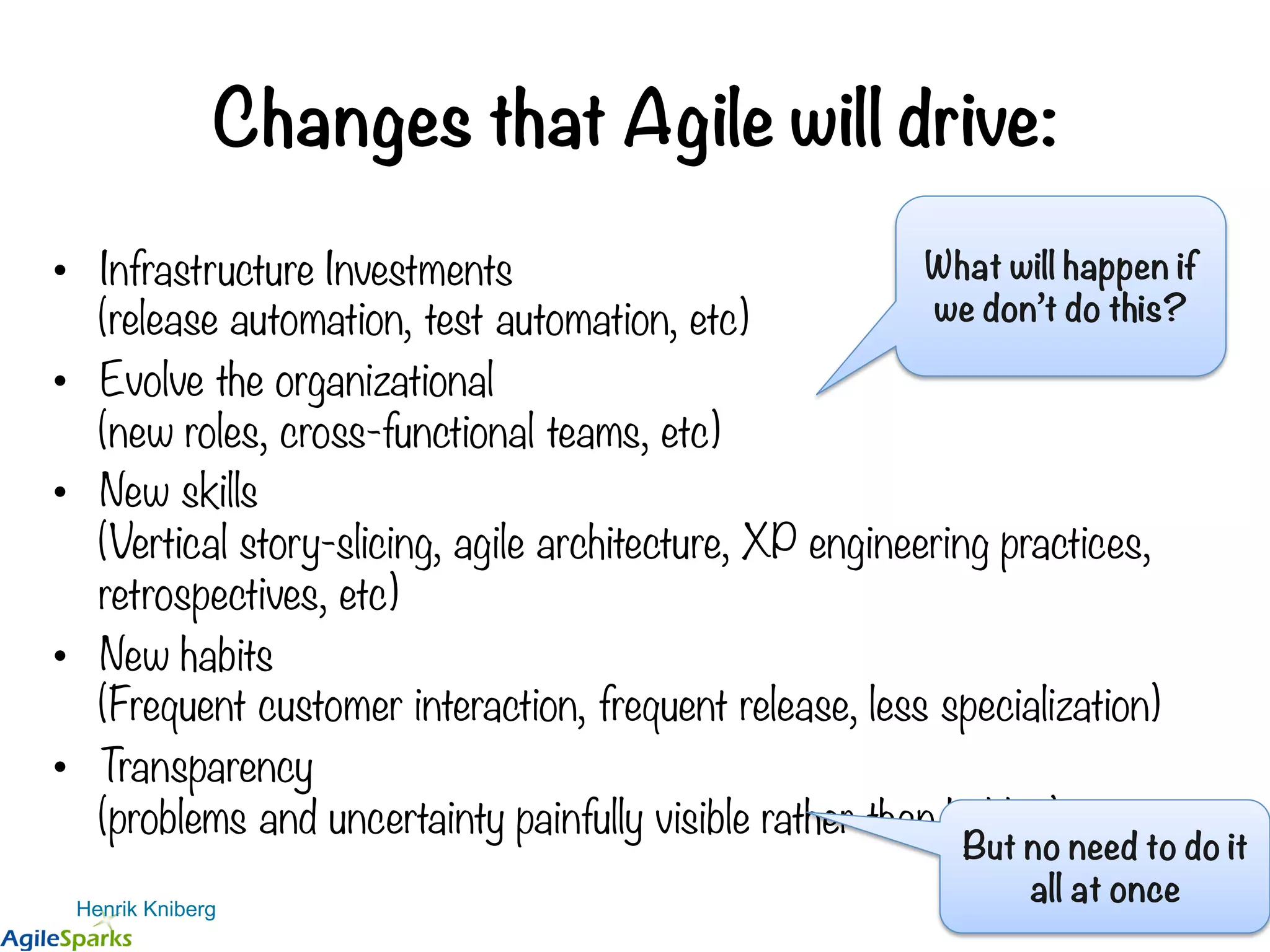

Changes that Agile will drive: •  Infrastructure Investments (release automation, test automation, etc) •  Evolve the organizational (new roles, cross-functional teams, etc) •  New skills (Vertical story-slicing, agile architecture, XP engineering practices, retrospectives, etc) •  New habits (Frequent customer interaction, frequent release, less specialization) •  Transparency (problems and uncertainty painfully visible rather than hidden) Henrik Kniberg What will happen if we don’t do this? But no need to do it all at once

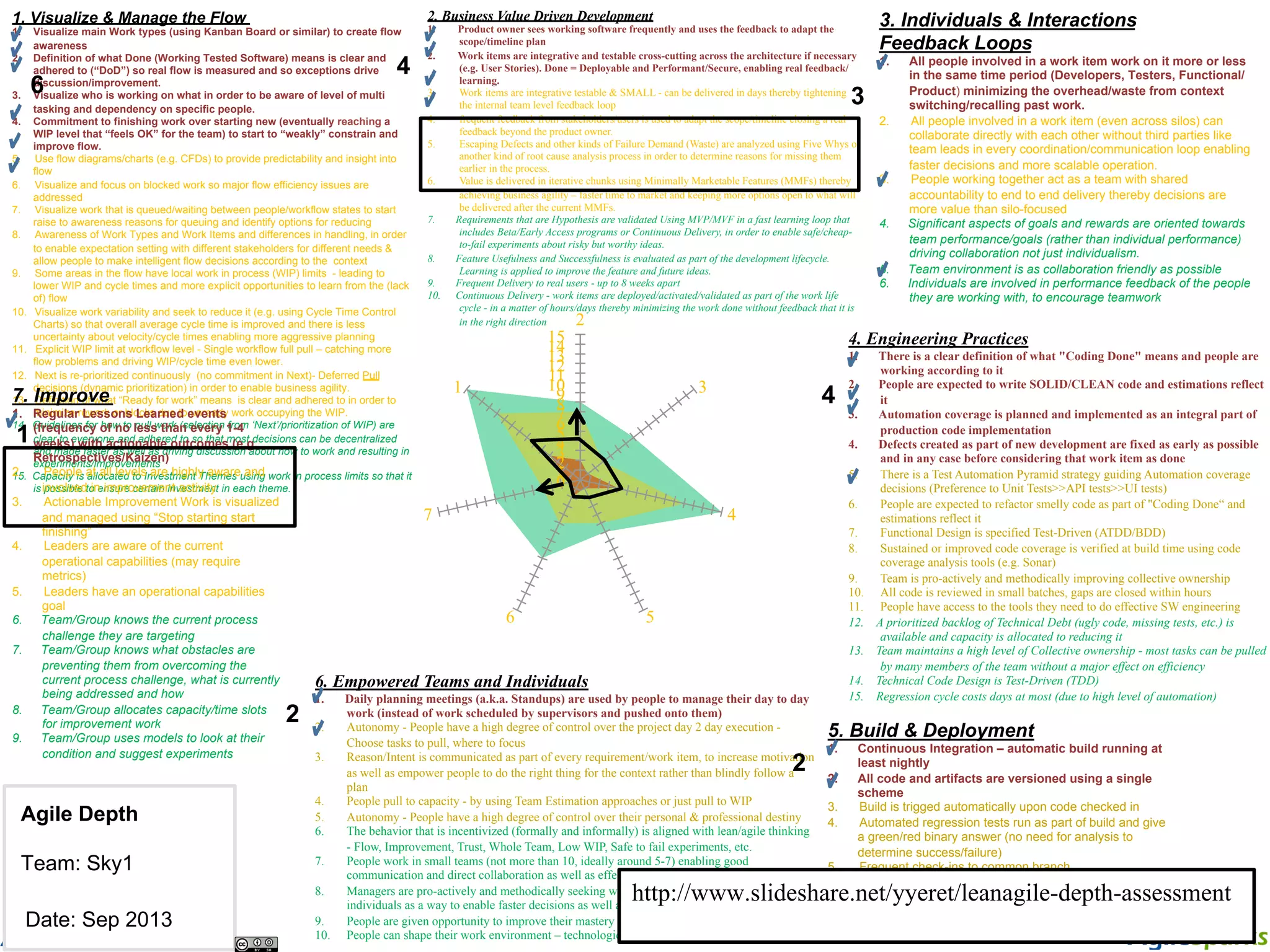

5. Build & Deployment 1.  Continuous Integration – automatic build running at least nightly 2.  All code and artifacts are versioned using a single scheme 3.  Build is trigged automatically upon code checked in 4.  Automated regression tests run as part of build and give a green/red binary answer (no need for analysis to determine success/failure) 5.  Frequent check-ins to common branch 6.  Build failures are addressed immediately. Repeated build failures trigger a stop the line event 3. Individuals & Interactions Feedback Loops 1.  All people involved in a work item work on it more or less in the same time period (Developers, Testers, Functional/ Product) minimizing the overhead/waste from context switching/recalling past work. 2.  All people involved in a work item (even across silos) can collaborate directly with each other without third parties like team leads in every coordination/communication loop enabling faster decisions and more scalable operation. 3.  People working together act as a team with shared accountability to end to end delivery thereby decisions are more value than silo-focused 4.  Significant aspects of goals and rewards are oriented towards team performance/goals (rather than individual performance) driving collaboration not just individualism. 5.  Team environment is as collaboration friendly as possible 6.  Individuals are involved in performance feedback of the people they are working with, to encourage teamwork 4. Engineering Practices 1.  There is a clear definition of what "Coding Done" means and people are working according to it 2.  People are expected to write SOLID/CLEAN code and estimations reflect it 3.  Automation coverage is planned and implemented as an integral part of production code implementation 4.  Defects created as part of new development are fixed as early as possible and in any case before considering that work item as done 5.  There is a Test Automation Pyramid strategy guiding Automation coverage decisions (Preference to Unit Tests>>API tests>>UI tests) 6.  People are expected to refactor smelly code as part of "Coding Done“ and estimations reflect it 7.  Functional Design is specified Test-Driven (ATDD/BDD) 8.  Sustained or improved code coverage is verified at build time using code coverage analysis tools (e.g. Sonar) 9.  Team is pro-actively and methodically improving collective ownership 10.  All code is reviewed in small batches, gaps are closed within hours 11.  People have access to the tools they need to do effective SW engineering 12.  A prioritized backlog of Technical Debt (ugly code, missing tests, etc.) is available and capacity is allocated to reducing it 13.  Team maintains a high level of Collective ownership - most tasks can be pulled by many members of the team without a major effect on efficiency 14.  Technical Code Design is Test-Driven (TDD) 15.  Regression cycle costs days at most (due to high level of automation) 6. Empowered Teams and Individuals 1.  Daily planning meetings (a.k.a. Standups) are used by people to manage their day to day work (instead of work scheduled by supervisors and pushed onto them) 2.  Autonomy - People have a high degree of control over the project day 2 day execution - Choose tasks to pull, where to focus 3.  Reason/Intent is communicated as part of every requirement/work item, to increase motivation as well as empower people to do the right thing for the context rather than blindly follow a plan 4.  People pull to capacity - by using Team Estimation approaches or just pull to WIP 5.  Autonomy - People have a high degree of control over their personal & professional destiny 6.  The behavior that is incentivized (formally and informally) is aligned with lean/agile thinking - Flow, Improvement, Trust, Whole Team, Low WIP, Safe to fail experiments, etc. 7.  People work in small teams (not more than 10, ideally around 5-7) enabling good communication and direct collaboration as well as effective meetings and interaction 8.  Managers are pro-actively and methodically seeking ways to improve autonomy of teams and individuals as a way to enable faster decisions as well as higher engagement/motivation 9.  People are given opportunity to improve their mastery of areas which interest them 10.  People can shape their work environment – technologies, facilities, etc. 2. Business Value Driven Development 1.  Product owner sees working software frequently and uses the feedback to adapt the scope/timeline plan 2.  Work items are integrative and testable cross-cutting across the architecture if necessary (e.g. User Stories). Done = Deployable and Performant/Secure, enabling real feedback/ learning. 3.  Work items are integrative testable & SMALL - can be delivered in days thereby tightening the internal team level feedback loop 4.  frequent feedback from stakeholders/users is used to adapt the scope/timeline closing a real feedback beyond the product owner. 5.  Escaping Defects and other kinds of Failure Demand (Waste) are analyzed using Five Whys or another kind of root cause analysis process in order to determine reasons for missing them earlier in the process. 6.  Value is delivered in iterative chunks using Minimally Marketable Features (MMFs) thereby achieving business agility – faster time to market and keeping more options open to what will be delivered after the current MMFs. 7.  Requirements that are Hypothesis are validated Using MVP/MVF in a fast learning loop that includes Beta/Early Access programs or Continuous Delivery, in order to enable safe/cheap- to-fail experiments about risky but worthy ideas. 8.  Feature Usefulness and Successfulness is evaluated as part of the development lifecycle. Learning is applied to improve the feature and future ideas. 9.  Frequent Delivery to real users - up to 8 weeks apart 10.  Continuous Delivery - work items are deployed/activated/validated as part of the work life cycle - in a matter of hours/days thereby minimizing the work done without feedback that it is in the right direction 1. Visualize & Manage the Flow 1.  Visualize main Work types (using Kanban Board or similar) to create flow awareness 2.  Definition of what Done (Working Tested Software) means is clear and adhered to (“DoD”) so real flow is measured and so exceptions drive discussion/improvement. 3.  Visualize who is working on what in order to be aware of level of multi tasking and dependency on specific people. 4.  Commitment to finishing work over starting new (eventually reaching a WIP level that “feels OK” for the team) to start to “weakly” constrain and improve flow. 5.  Use flow diagrams/charts (e.g. CFDs) to provide predictability and insight into flow 6.  Visualize and focus on blocked work so major flow efficiency issues are addressed 7.  Visualize work that is queued/waiting between people/workflow states to start raise to awareness reasons for queuing and identify options for reducing 8.  Awareness of Work Types and Work Items and differences in handling, in order to enable expectation setting with different stakeholders for different needs & allow people to make intelligent flow decisions according to the context 9.  Some areas in the flow have local work in process (WIP) limits - leading to lower WIP and cycle times and more explicit opportunities to learn from the (lack of) flow 10.  Visualize work variability and seek to reduce it (e.g. using Cycle Time Control Charts) so that overall average cycle time is improved and there is less uncertainty about velocity/cycle times enabling more aggressive planning 11.  Explicit WIP limit at workflow level - Single workflow full pull – catching more flow problems and driving WIP/cycle time even lower. 12.  Next is re-prioritized continuously (no commitment in Next)- Deferred Pull decisions (dynamic prioritization) in order to enable business agility. 13.  Definition of what “Ready for work” means is clear and adhered to in order to minimize rework or blocks due to unready work occupying the WIP. 14.  Guidelines for how to pull work (selection from ‘Next’/prioritization of WIP) are clear to everyone and adhered to so that most decisions can be decentralized and made faster as well as driving discussion about how to work and resulting in experiments/improvements 15.  Capacity is allocated to Investment Themes using work in process limits so that it is possible to ensure certain investment in each theme. 7. Improve 1.  Regular Lessons Learned events (frequency of no less than every 1-4 weeks) with actionable outcomes (e.g. Retrospectives/Kaizen) 2.  People at all levels are highly aware and involved in improvement activity 3.  Actionable Improvement Work is visualized and managed using “Stop starting start finishing” 4.  Leaders are aware of the current operational capabilities (may require metrics) 5.  Leaders have an operational capabilities goal 6.  Team/Group knows the current process challenge they are targeting 7.  Team/Group knows what obstacles are preventing them from overcoming the current process challenge, what is currently being addressed and how 8.  Team/Group allocates capacity/time slots for improvement work 9.  Team/Group uses models to look at their condition and suggest experiments Agile Depth Team: Sky1 Date: Sep 2013 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 56 7 1 6 4 3 4 2 2 1 http://www.slideshare.net/yyeret/leanagile-depth-assessment

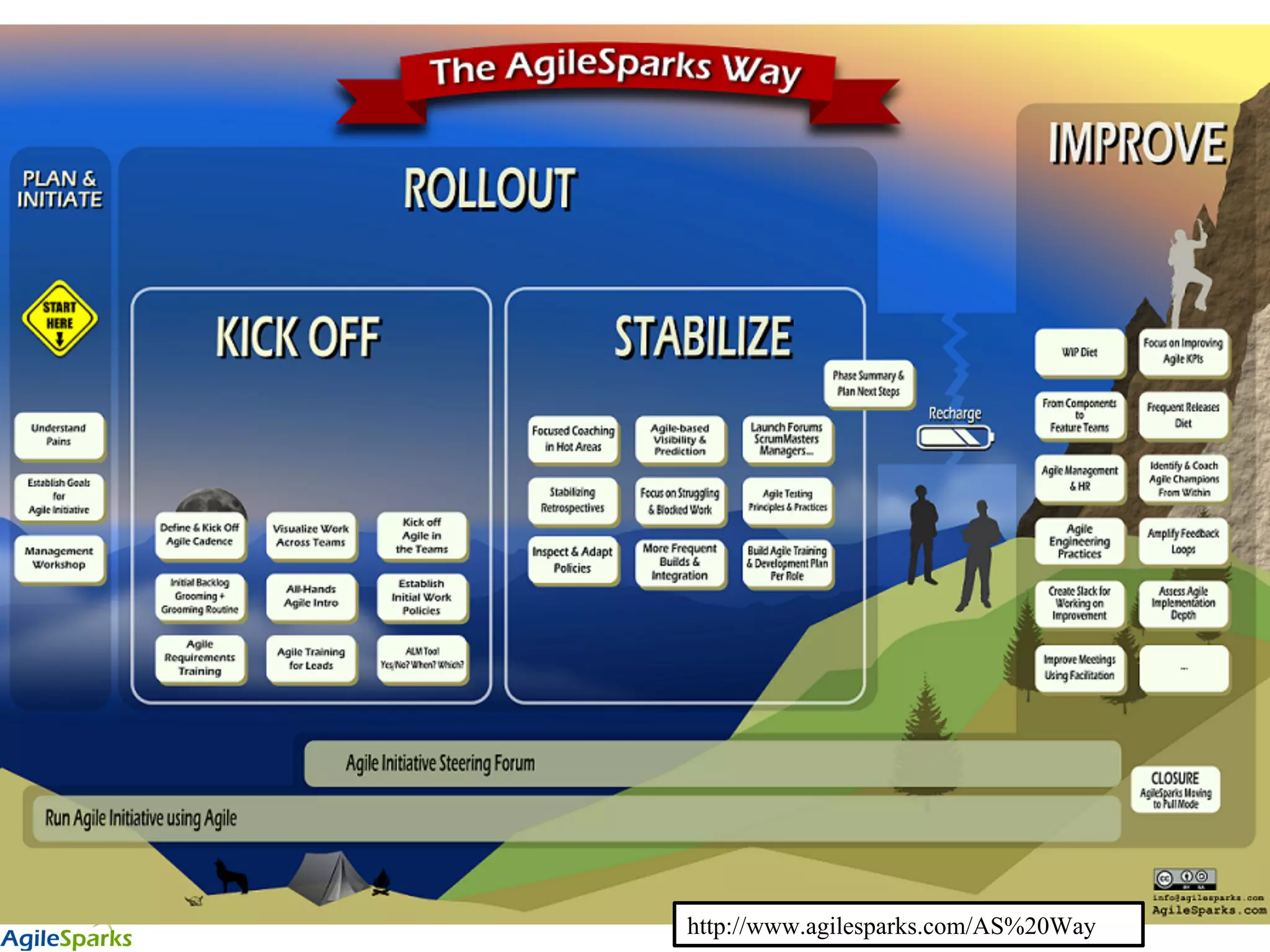

http://www.agilesparks.com/AS%20Way

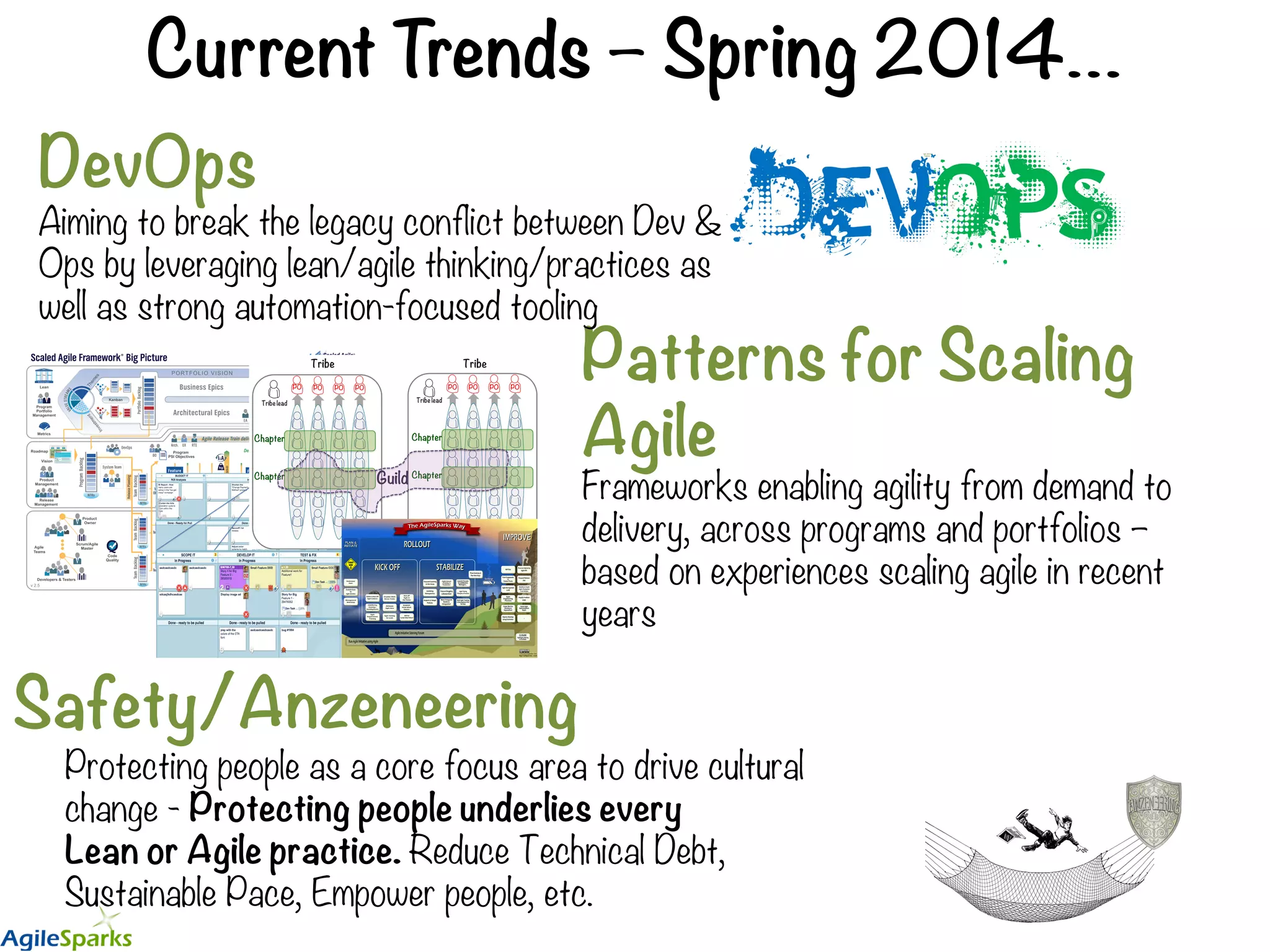

Current Trends – Spring 2014… Patterns for Scaling Agile DevOps Aiming to break the legacy conflict between Dev & Ops by leveraging lean/agile thinking/practices as well as strong automation-focused tooling Safety/Anzeneering Protecting people as a core focus area to drive cultural change - Protecting people underlies every Lean or Agile practice. Reduce Technical Debt, Sustainable Pace, Empower people, etc. Frameworks enabling agility from demand to delivery, across programs and portfolios – based on experiences scaling agile in recent years

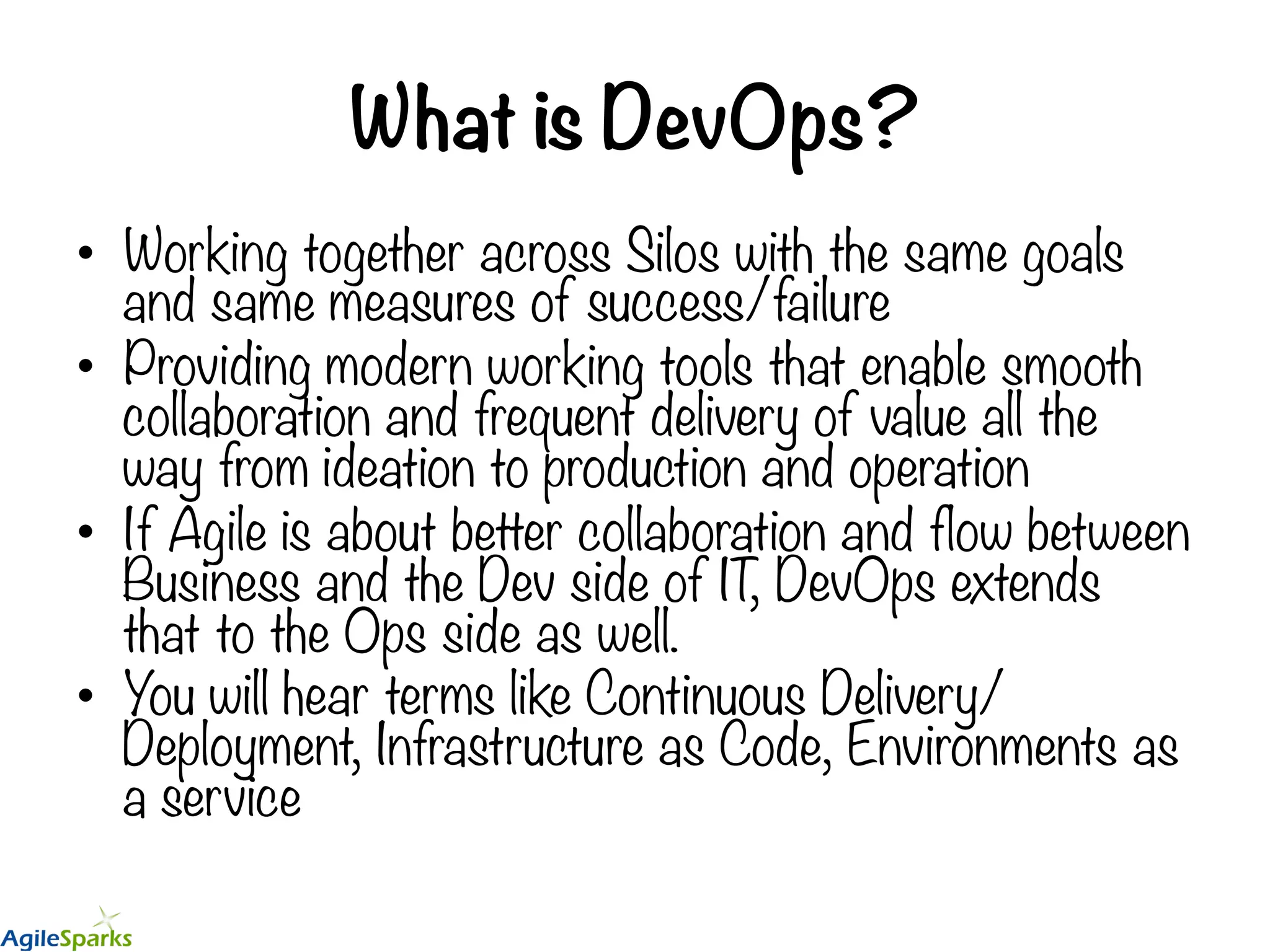

What is DevOps? •  Working together across Silos with the same goals and same measures of success/failure •  Providing modern working tools that enable smooth collaboration and frequent delivery of value all the way from ideation to production and operation •  If Agile is about better collaboration and flow between Business and the Dev side of IT, DevOps extends that to the Ops side as well. •  You will hear terms like Continuous Delivery/ Deployment, Infrastructure as Code, Environments as a service

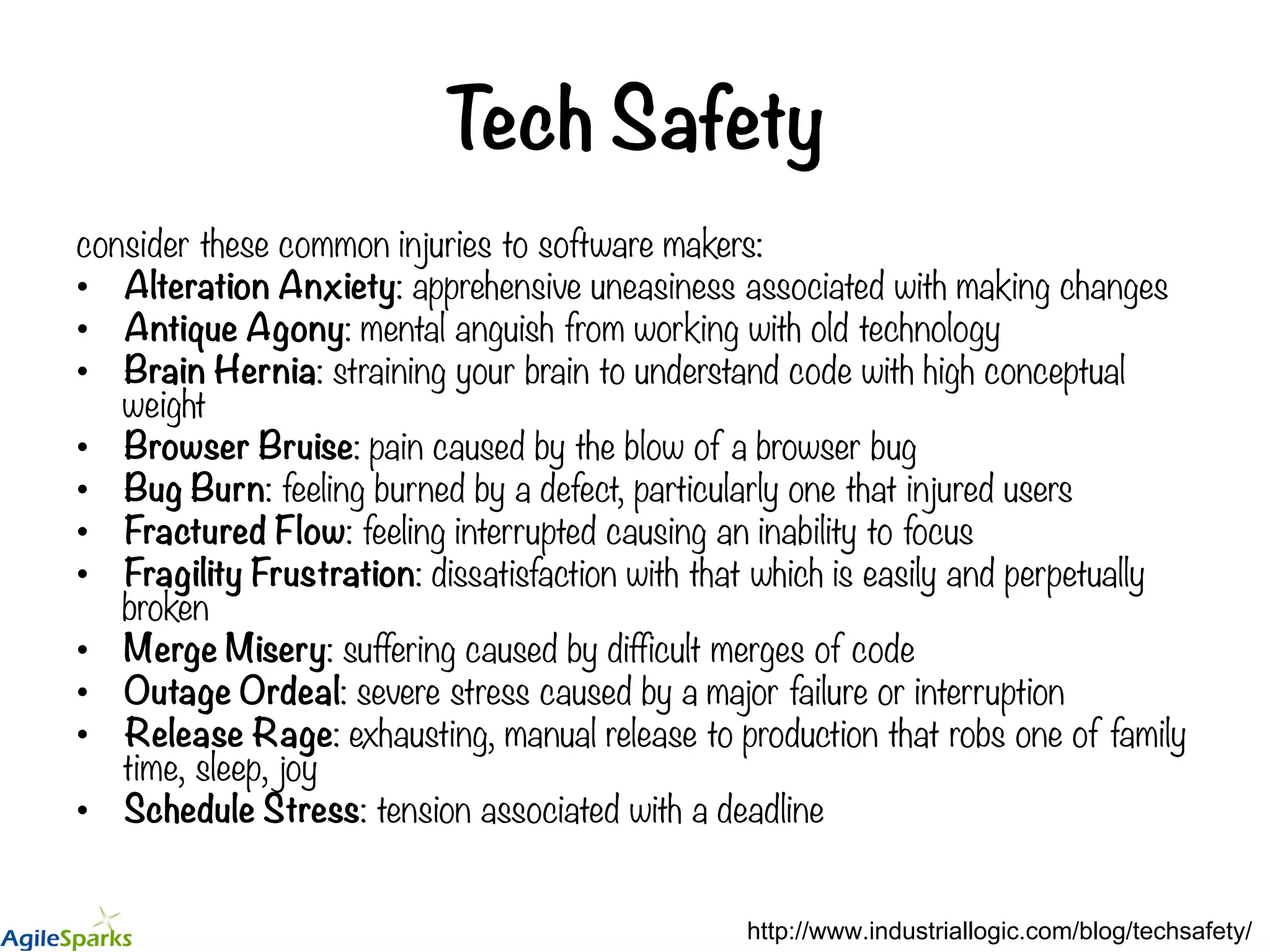

Tech Safety consider these common injuries to software makers: •  Alteration Anxiety: apprehensive uneasiness associated with making changes •  Antique Agony: mental anguish from working with old technology •  Brain Hernia: straining your brain to understand code with high conceptual weight •  Browser Bruise: pain caused by the blow of a browser bug •  Bug Burn: feeling burned by a defect, particularly one that injured users •  Fractured Flow: feeling interrupted causing an inability to focus •  Fragility Frustration: dissatisfaction with that which is easily and perpetually broken •  Merge Misery: suffering caused by difficult merges of code •  Outage Ordeal: severe stress caused by a major failure or interruption •  Release Rage: exhausting, manual release to production that robs one of family time, sleep, joy •  Schedule Stress: tension associated with a deadline http://www.industriallogic.com/blog/techsafety/

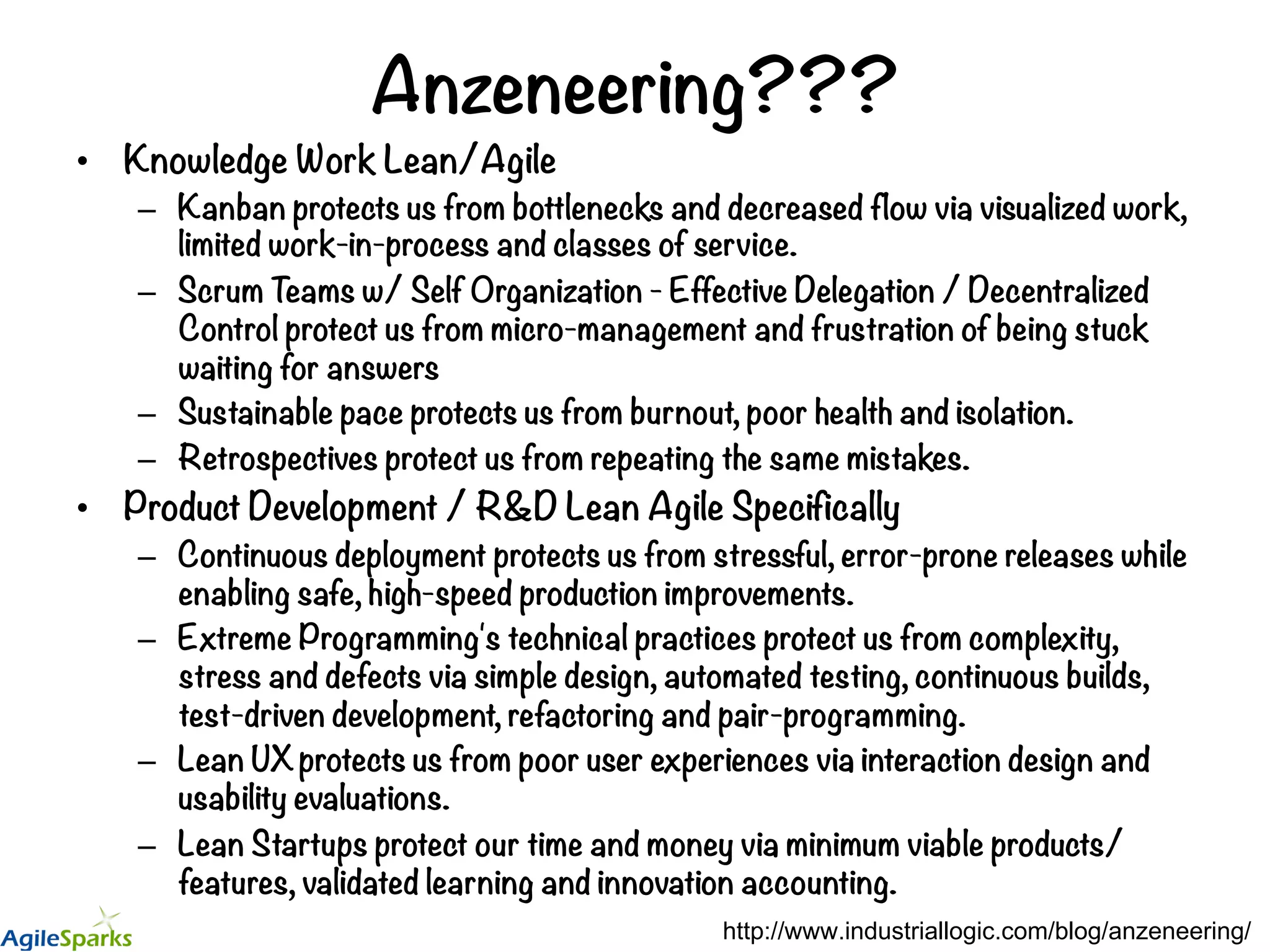

Anzeneering??? •  Knowledge Work Lean/Agile –  Kanban protects us from bottlenecks and decreased flow via visualized work, limited work-in-process and classes of service. –  Scrum Teams w/ Self Organization - Effective Delegation / Decentralized Control protect us from micro-management and frustration of being stuck waiting for answers –  Sustainable pace protects us from burnout, poor health and isolation. –  Retrospectives protect us from repeating the same mistakes. •  Product Development / R&D Lean Agile Specifically –  Continuous deployment protects us from stressful, error-prone releases while enabling safe, high-speed production improvements. –  Extreme Programming's technical practices protect us from complexity, stress and defects via simple design, automated testing, continuous builds, test-driven development, refactoring and pair-programming. –  Lean UX protects us from poor user experiences via interaction design and usability evaluations. –  Lean Startups protect our time and money via minimum viable products/ features, validated learning and innovation accounting. http://www.industriallogic.com/blog/anzeneering/

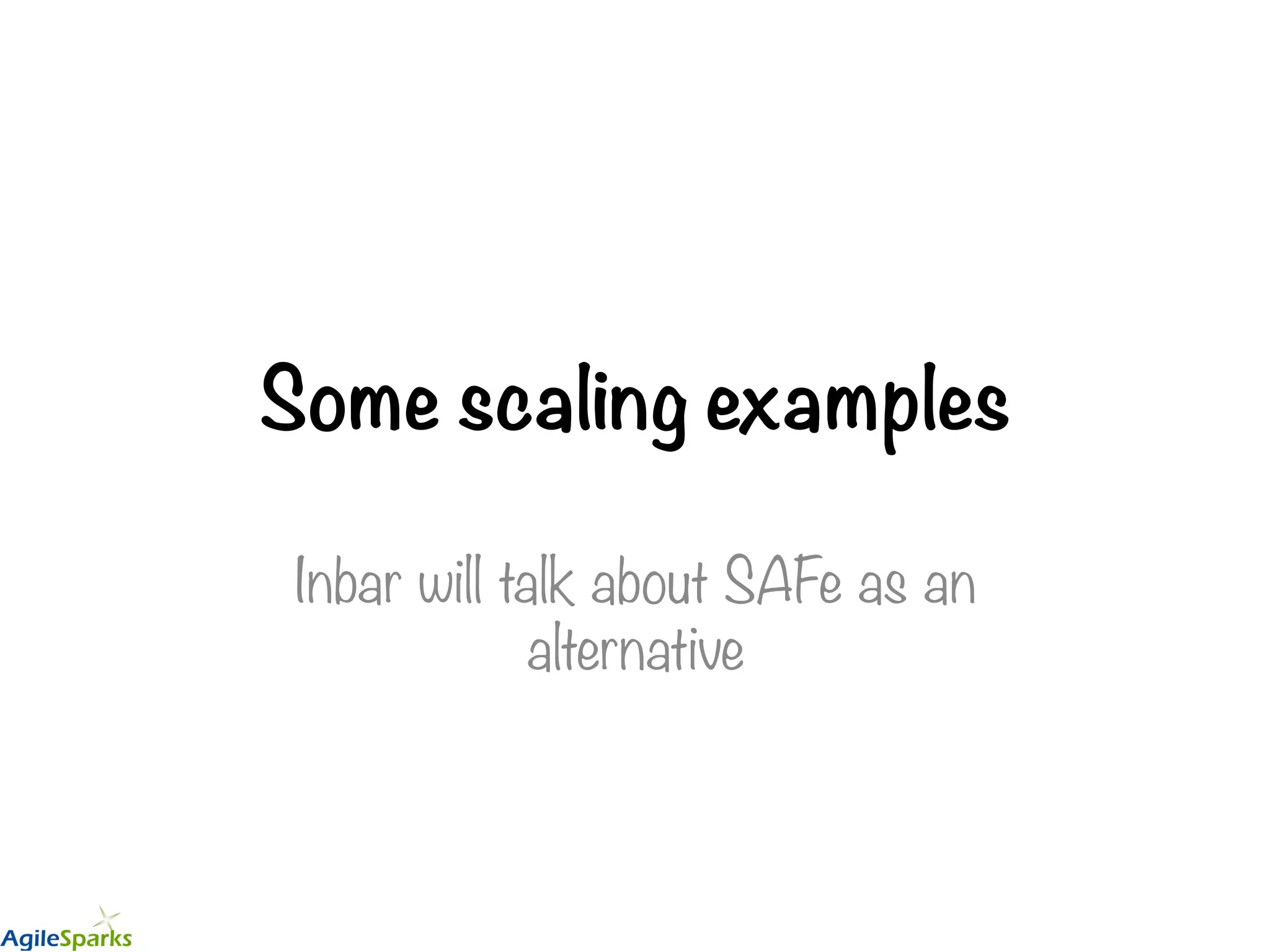

Some scaling examples Inbar will talk about SAFe as an alternative

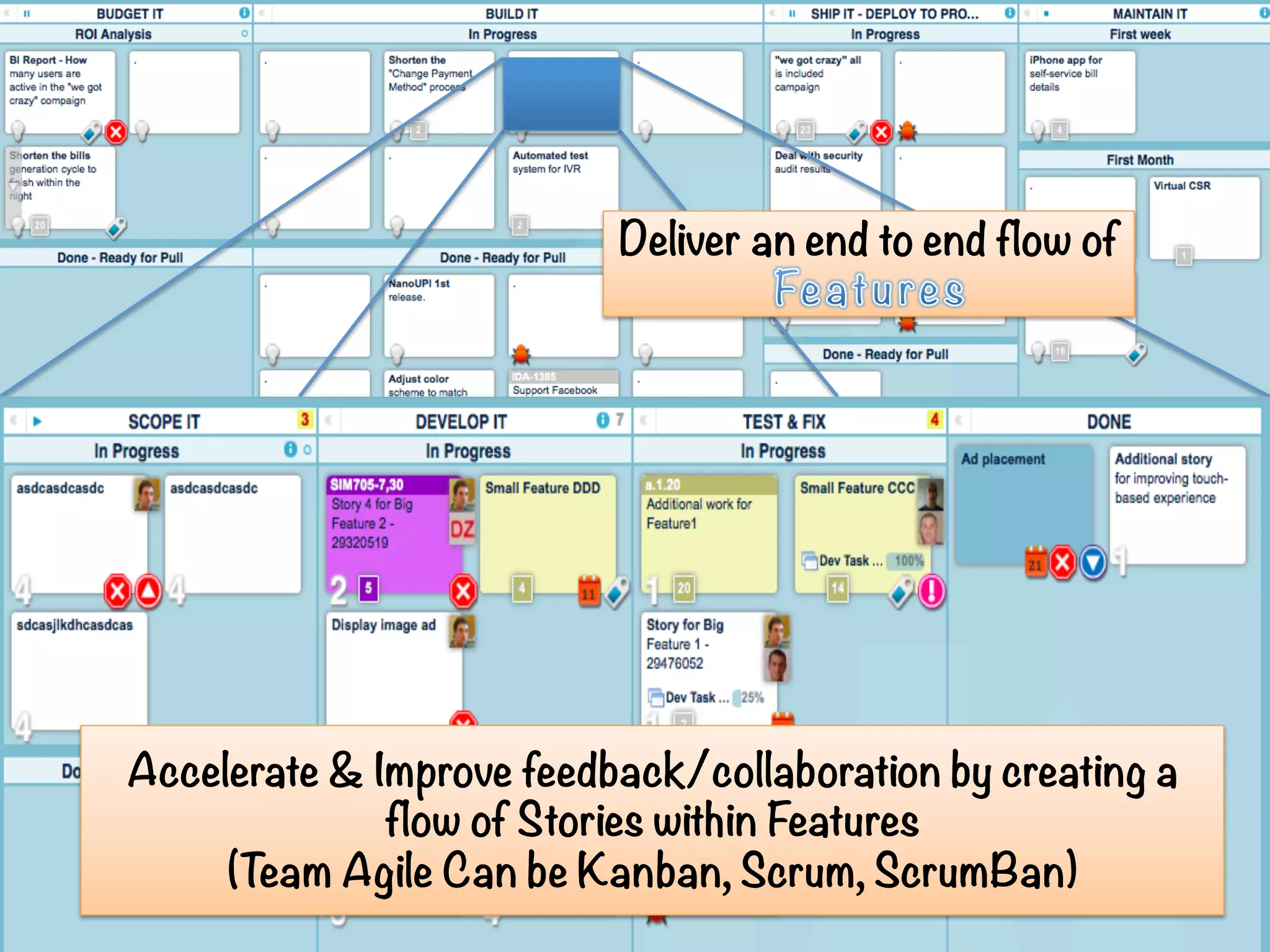

MMF Board Accelerate & Improve feedback/collaboration by creating a flow of Stories within Features (Team Agile Can be Kanban, Scrum, ScrumBan) Deliver an end to end flow of

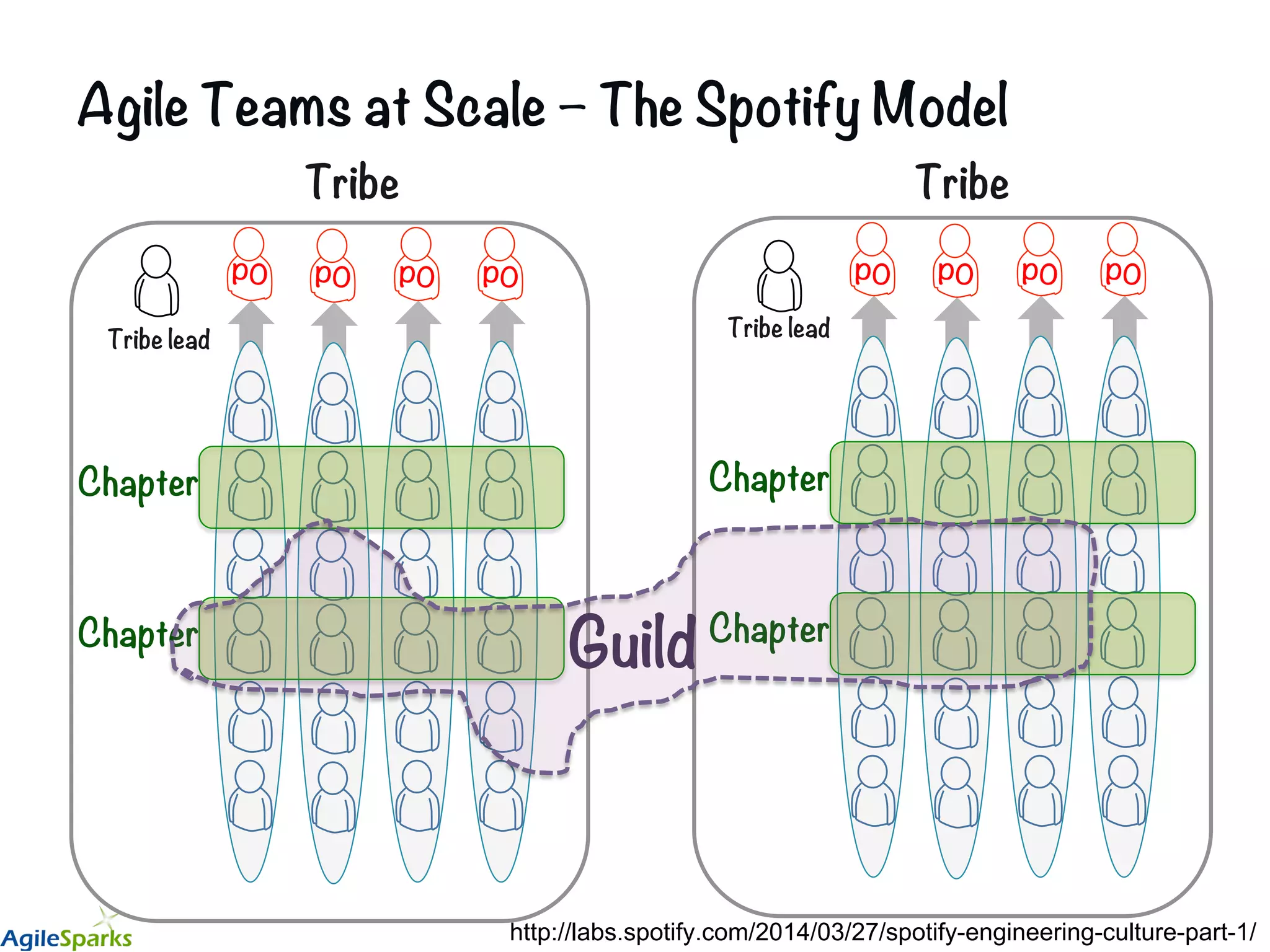

PO PO PO Tribe Tribe lead PO PO PO PO Tribe Chapter Chapter Tribe lead PO Chapter Chapter Guild Agile Teams at Scale – The Spotify Model http://labs.spotify.com/2014/03/27/spotify-engineering-culture-part-1/

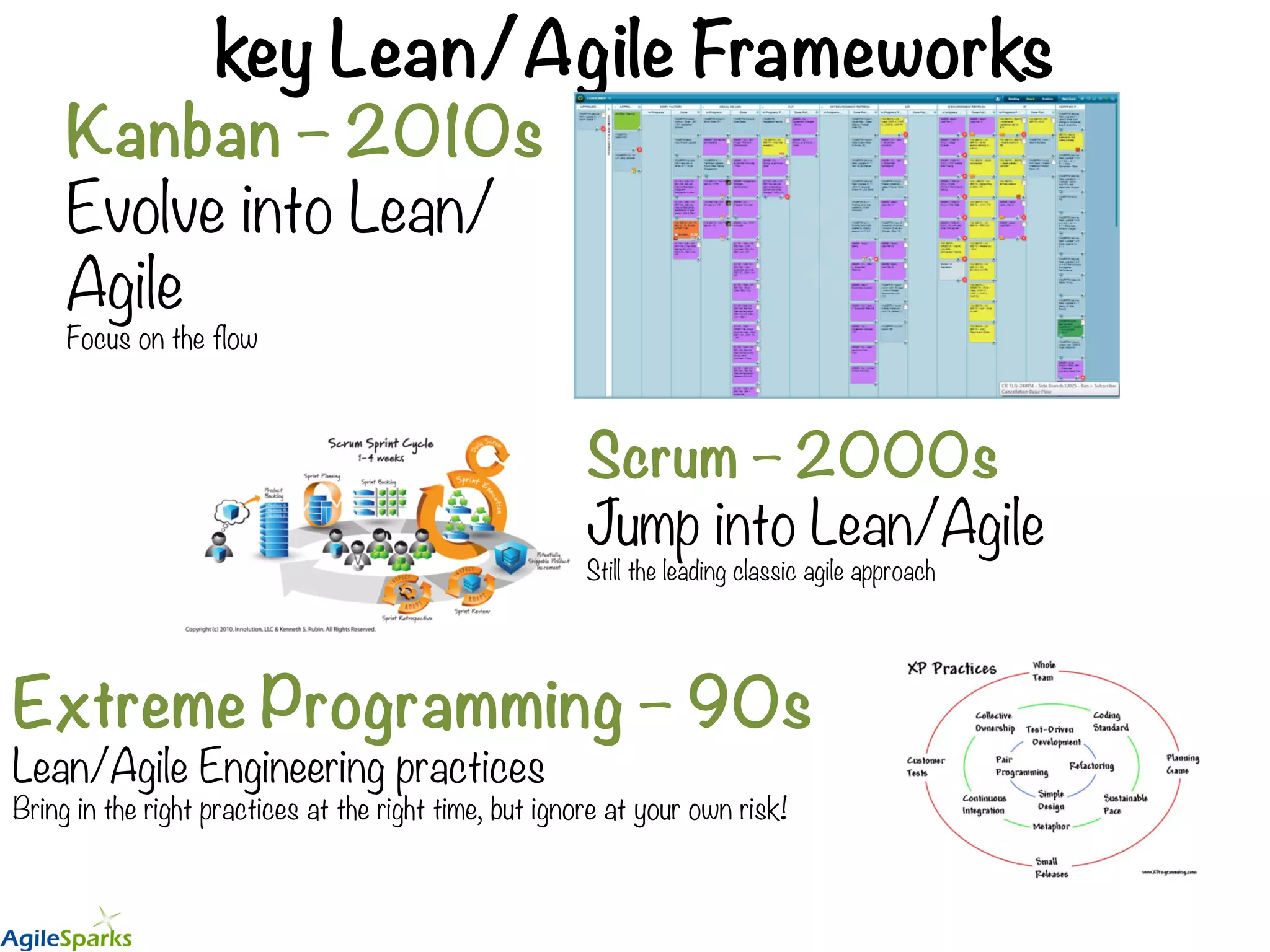

key Lean/Agile Frameworks Kanban – 2010s Evolve into Lean/ Agile Focus on the flow Scrum – 2000s Jump into Lean/Agile Still the leading classic agile approach Extreme Programming – 90s Lean/Agile Engineering practices Bring in the right practices at the right time, but ignore at your own risk!

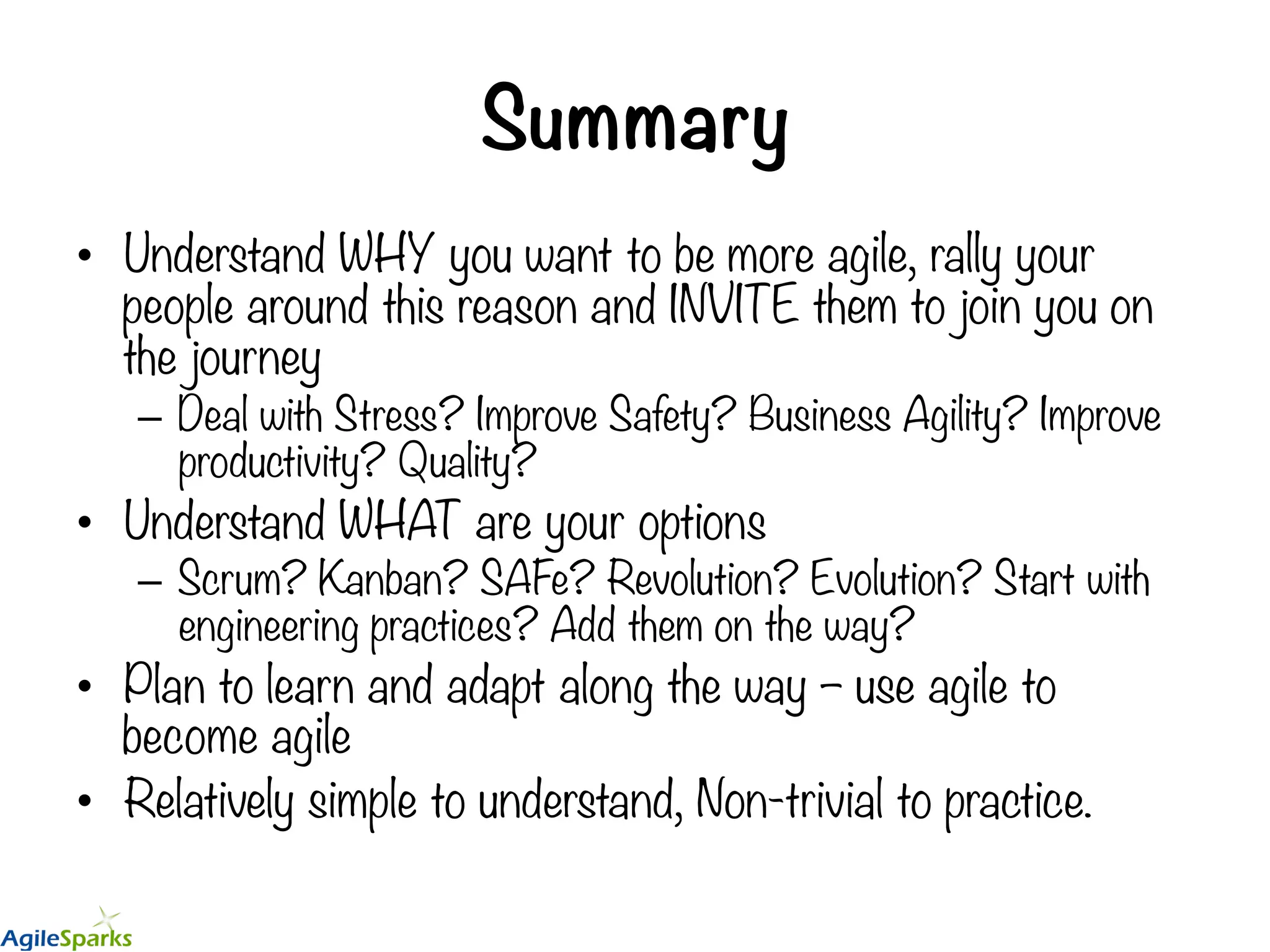

Summary •  Understand WHY you want to be more agile, rally your people around this reason and INVITE them to join you on the journey –  Deal with Stress? Improve Safety? Business Agility? Improve productivity? Quality? •  Understand WHAT are your options –  Scrum? Kanban? SAFe? Revolution? Evolution? Start with engineering practices? Add them on the way? •  Plan to learn and adapt along the way – use agile to become agile •  Relatively simple to understand, Non-trivial to practice.

AgileSparks •  Sparking Sustainable Delivery and Improvement Approaches that help organizations deliver more value while enjoying the journey •  Inspire others to improve their way of working by helping them invite new exciting relevant and useful ways of thinking and doing into their context in a way that focuses on value and is sticky and sustainable •  Public Training – Exposing the community to exciting new ways to improve work and creating the practitioner community to support introduction and usage of those approaches inside organizations •  Planning, Training, On the job coaching and supporting improvement programs •  Contact us at www.agilesparks.com or info@agilesparks.com
