Adventure Time with JavaScript & Single Page Apps Carl Bergenhem - Web Unleashed 2013 - @carlbergenhem

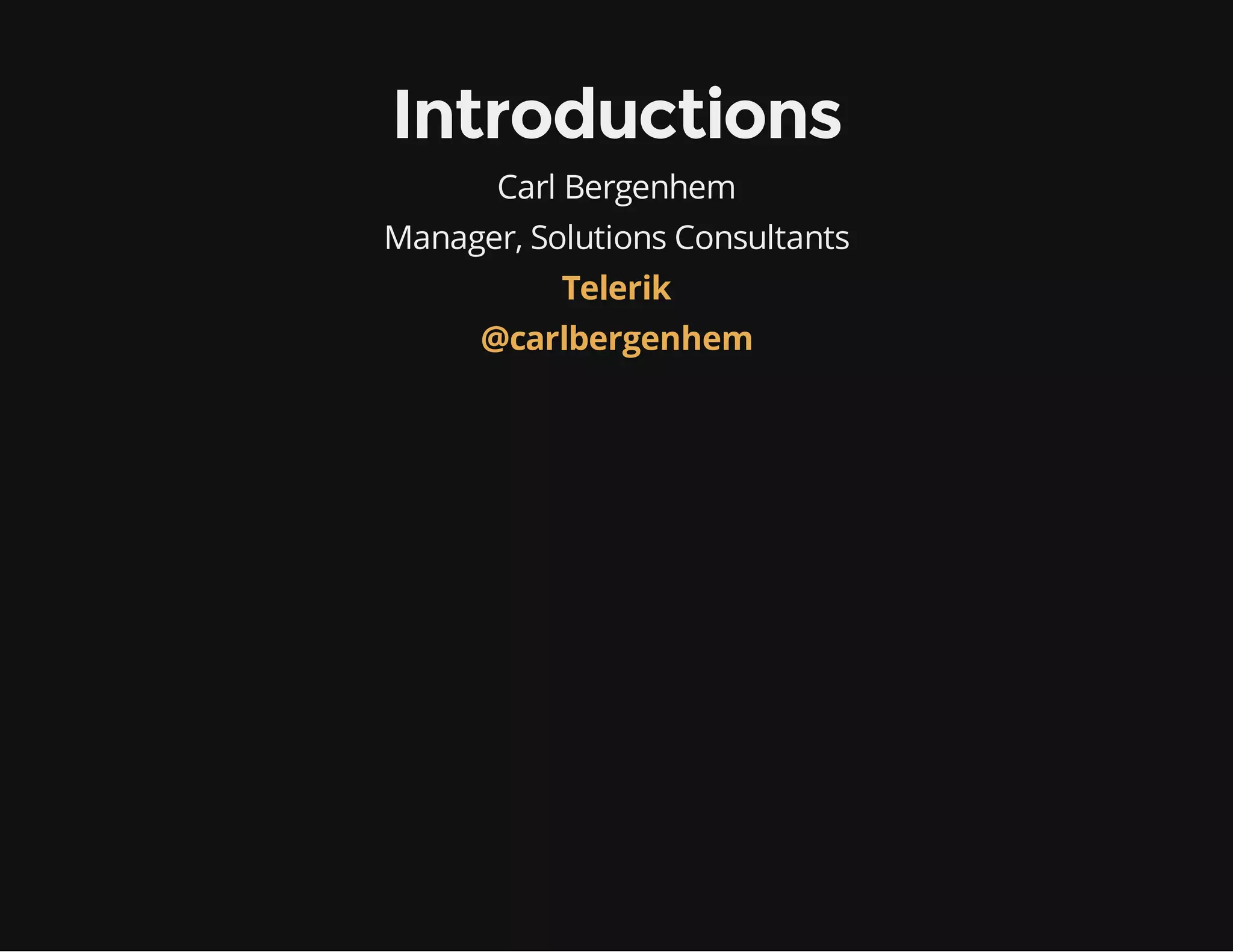

Introductions Carl Bergenhem Manager, Solutions Consultants Telerik @carlbergenhem

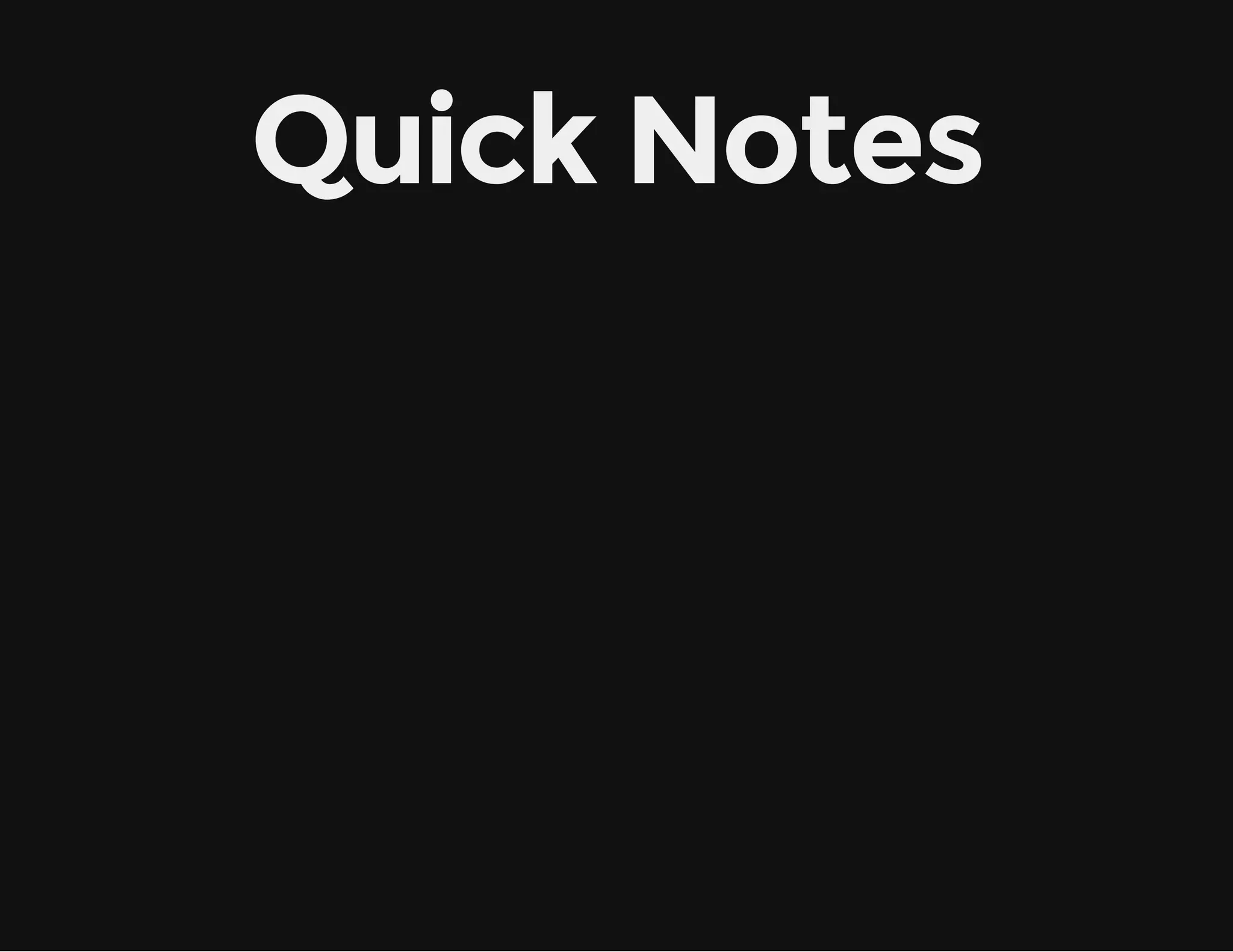

Quick Notes

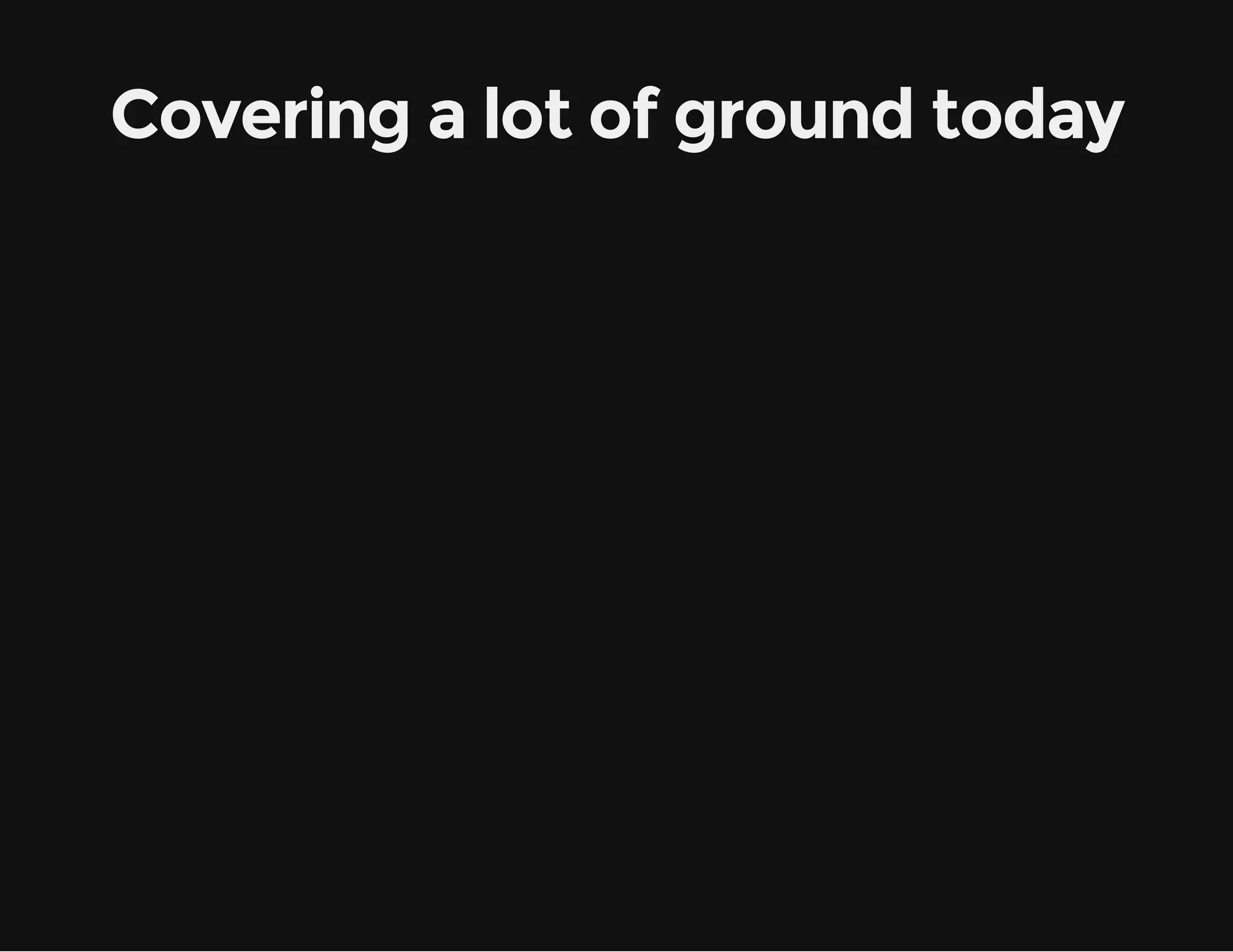

Covering a lot of ground today

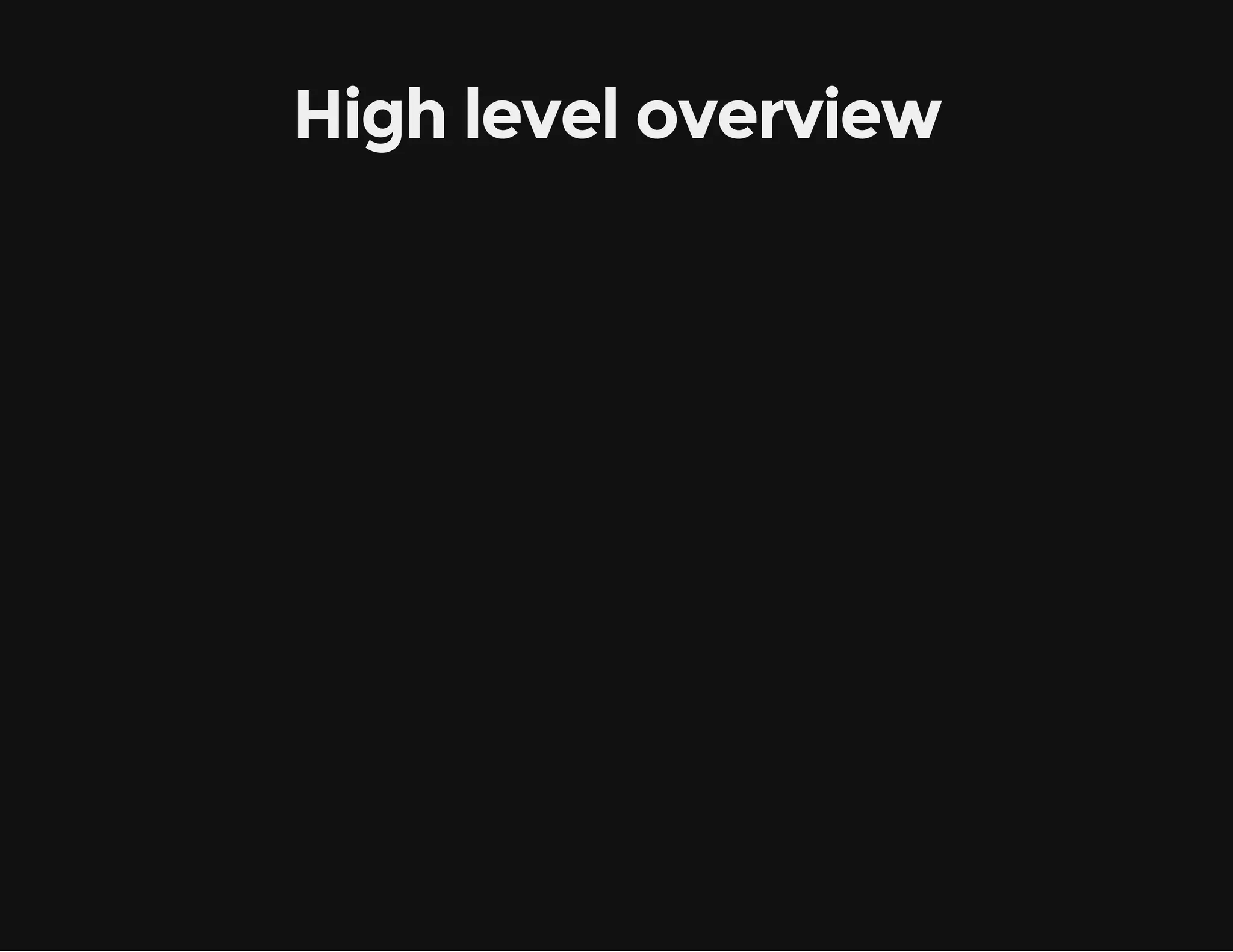

High level overview

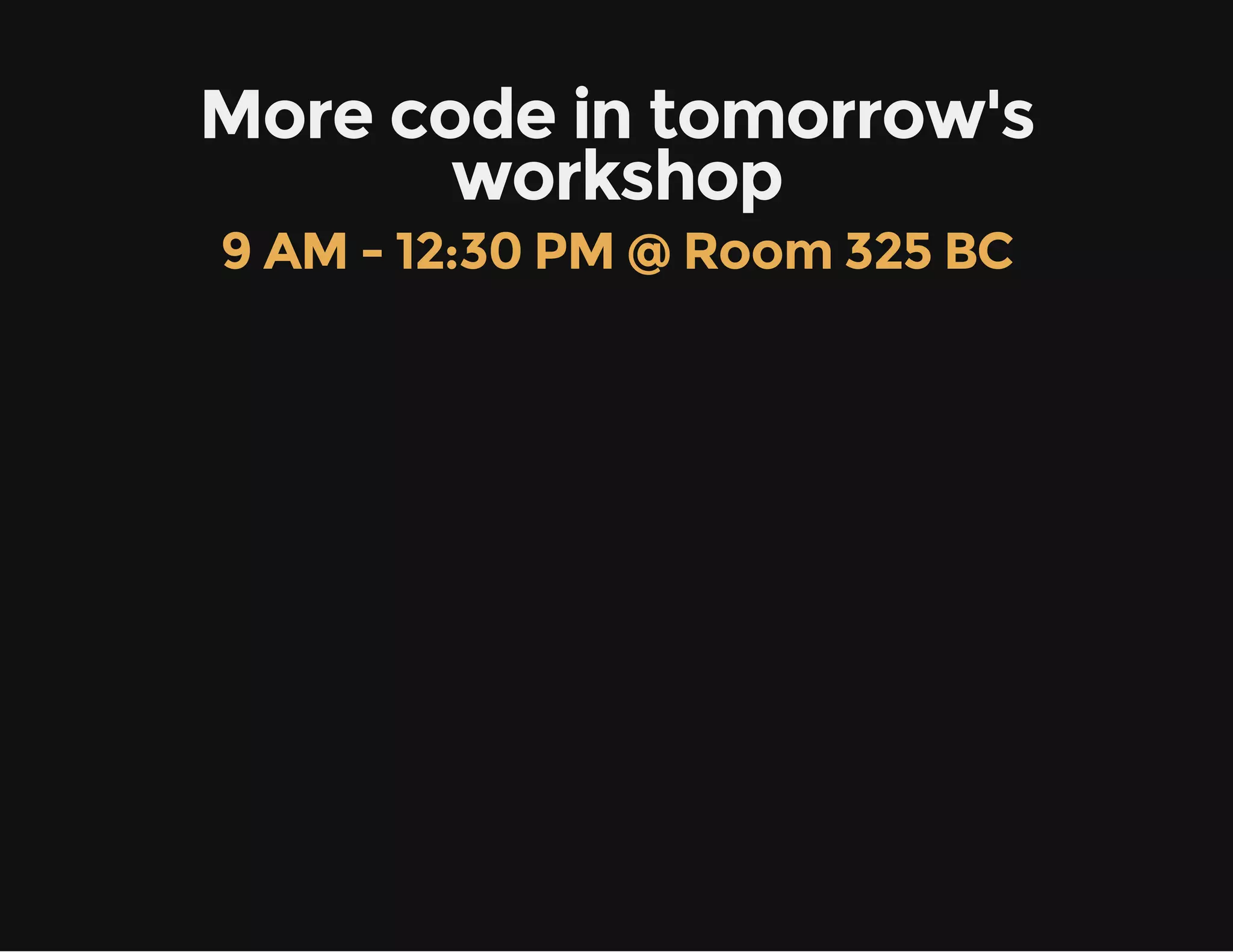

More code in tomorrow's workshop 9 AM - 12:30 PM @ Room 325 BC

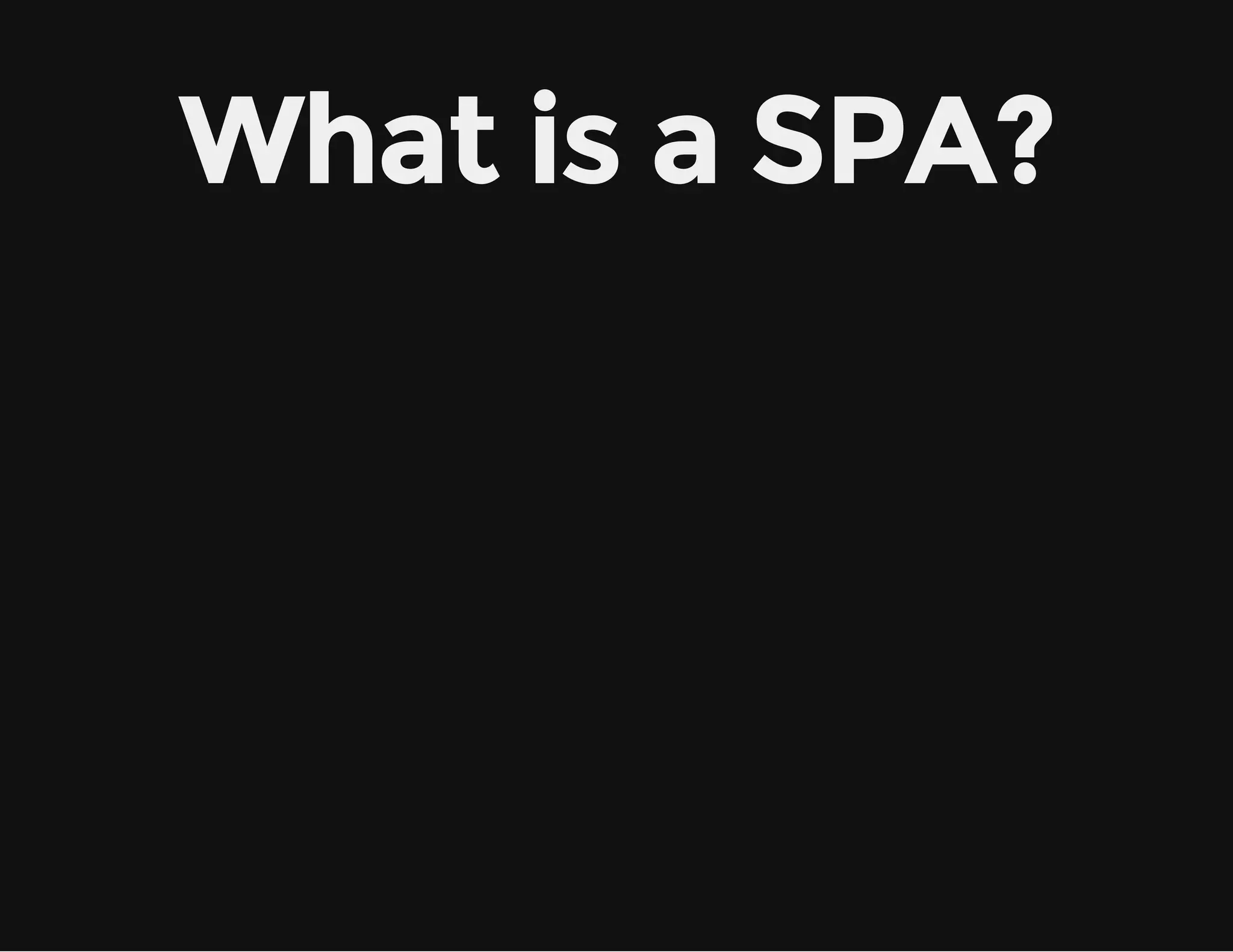

What is a SPA?

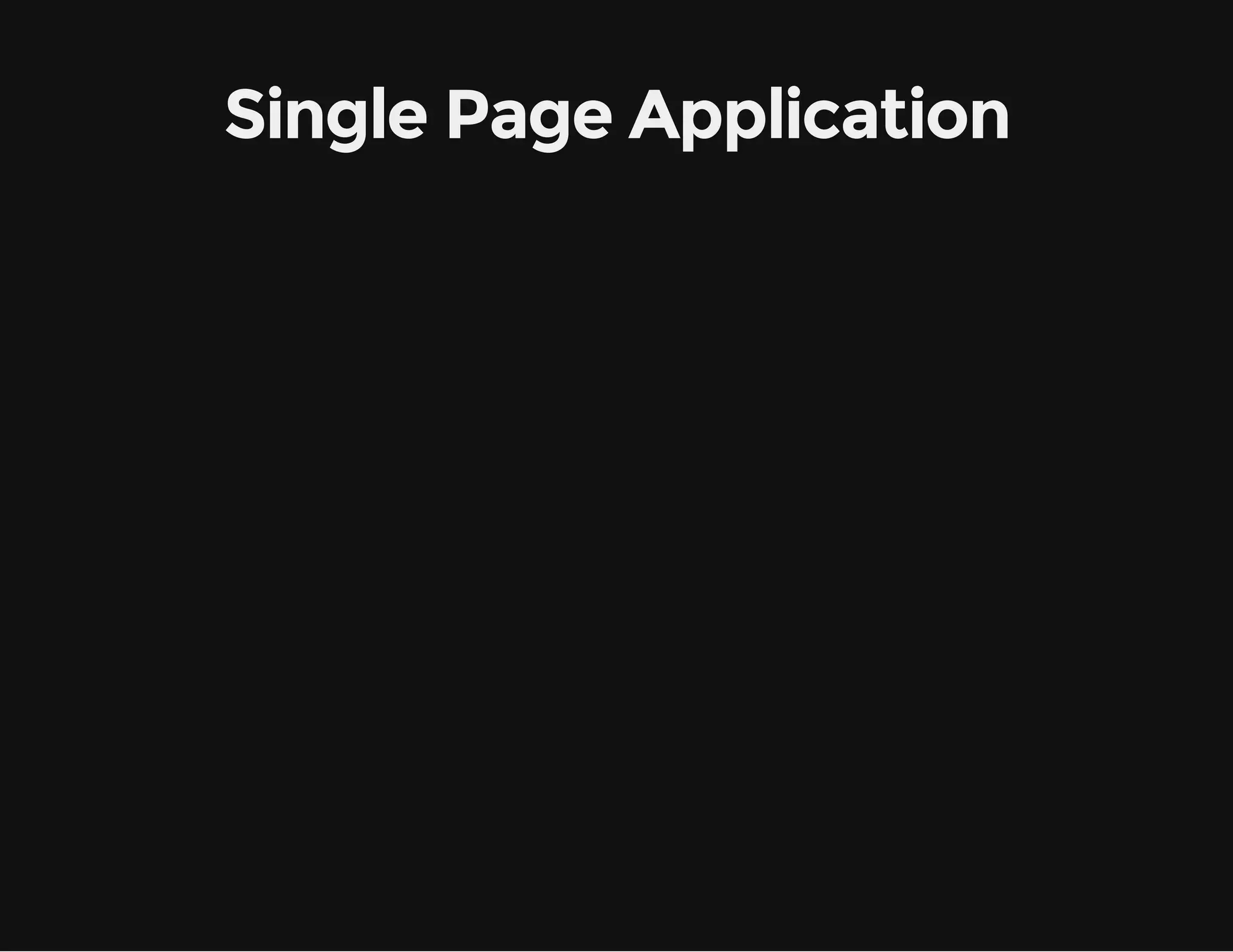

Single Page Application

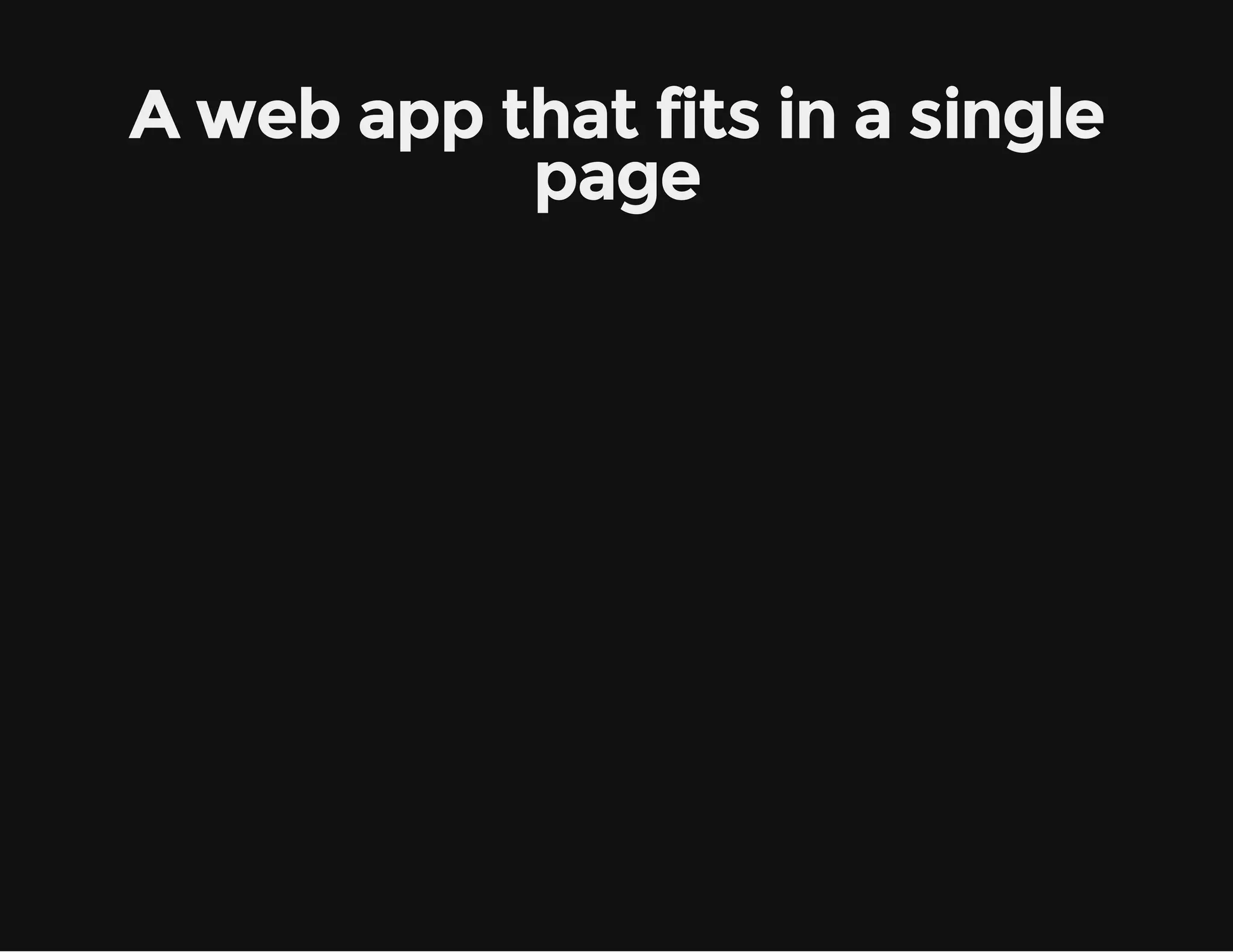

A web app that fits in a single page

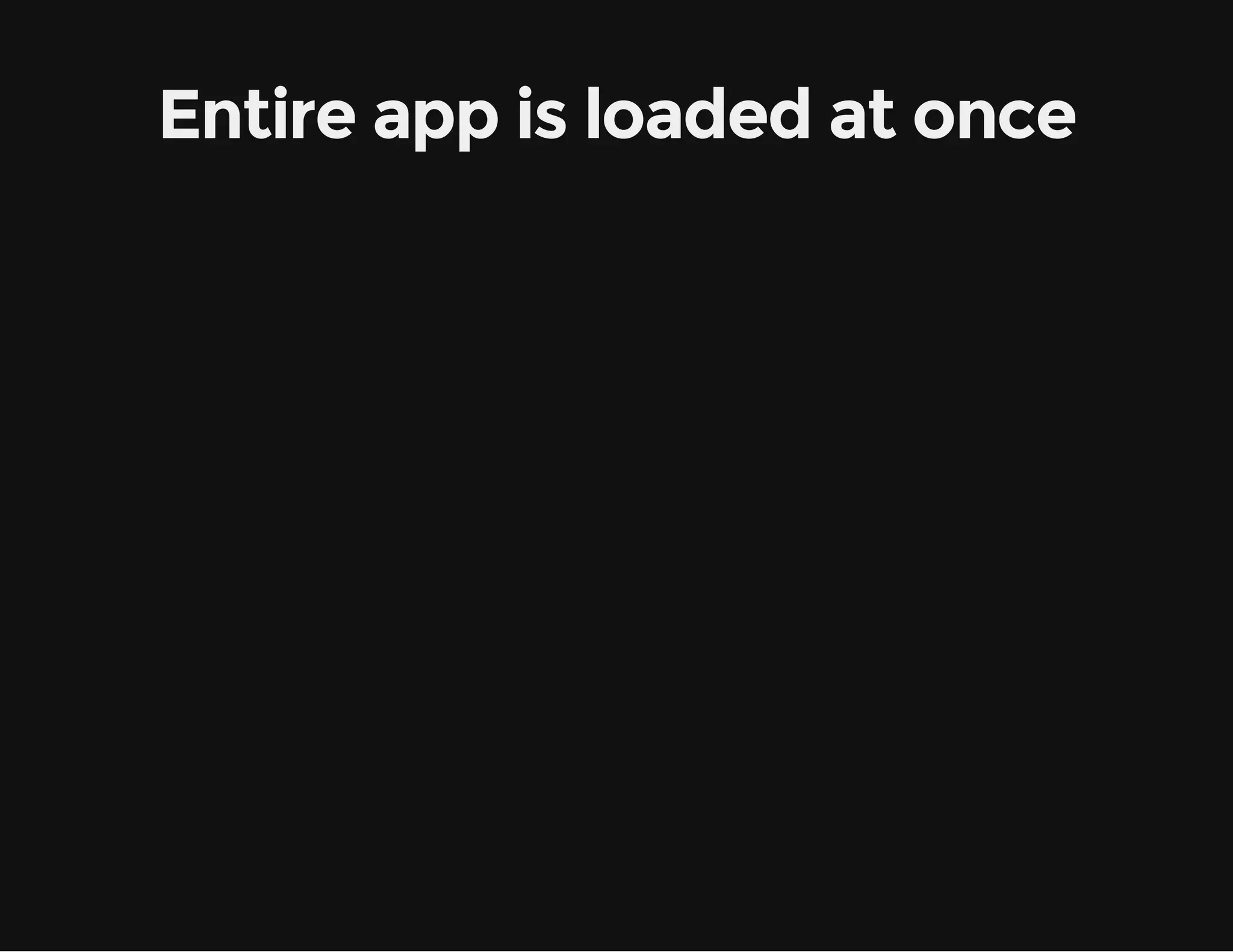

Entire app is loaded at once
Built with a MV* Framework

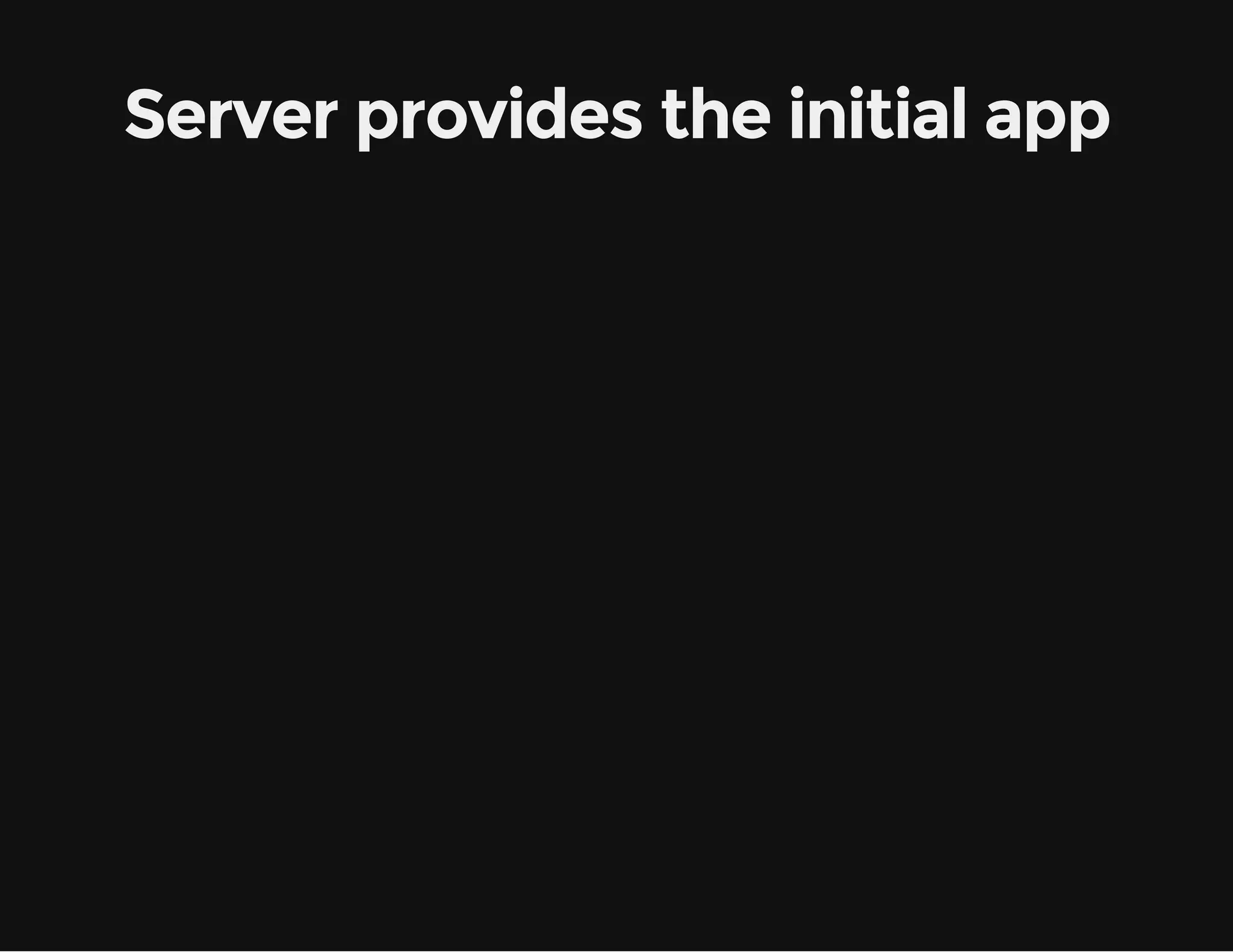

Server provides the initial app
Section our HTML page in views
Get data via RESTful requests
Bind the data to our UI
Business logic in our MV* framework

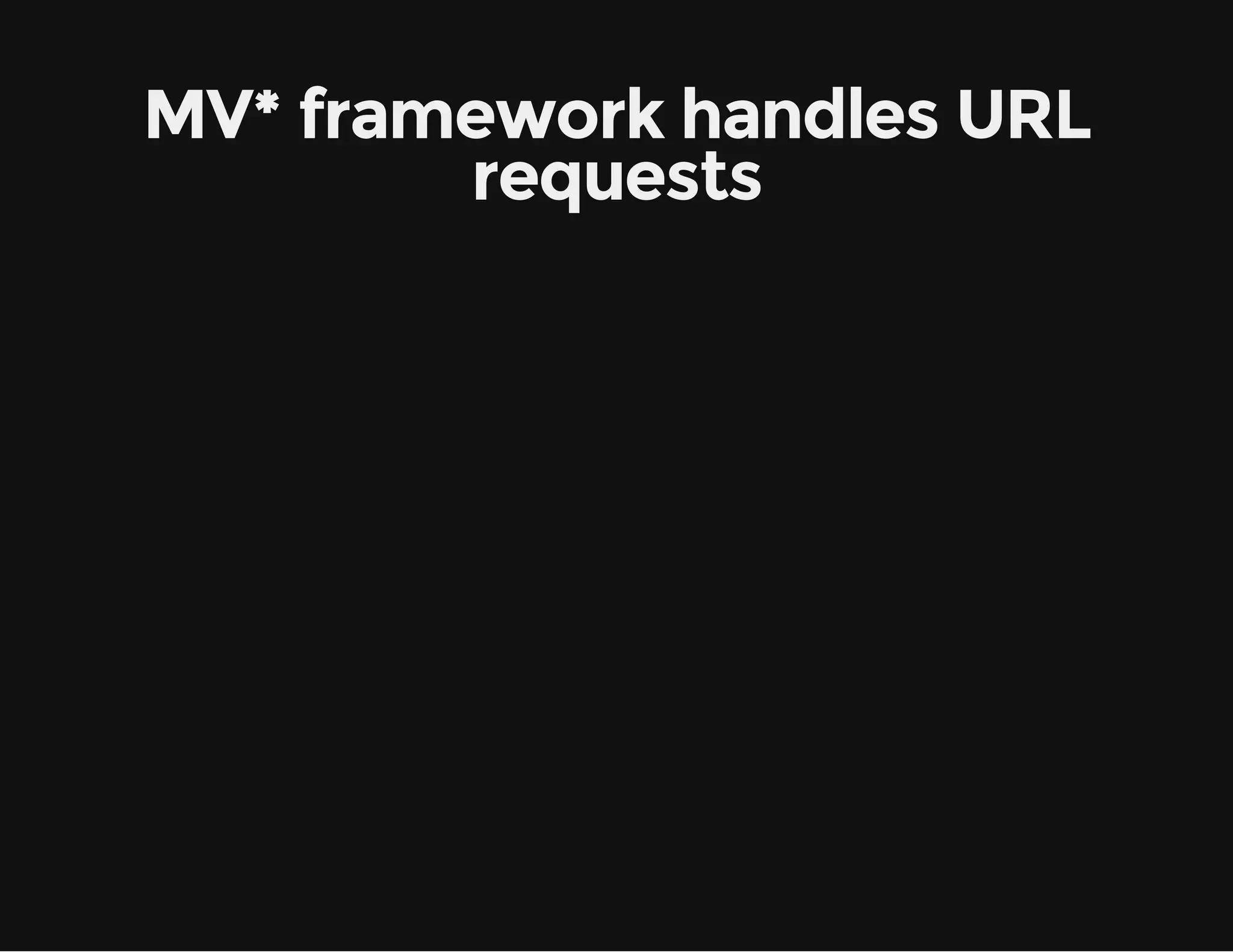

MV* framework handles URL requests
Why SPA?

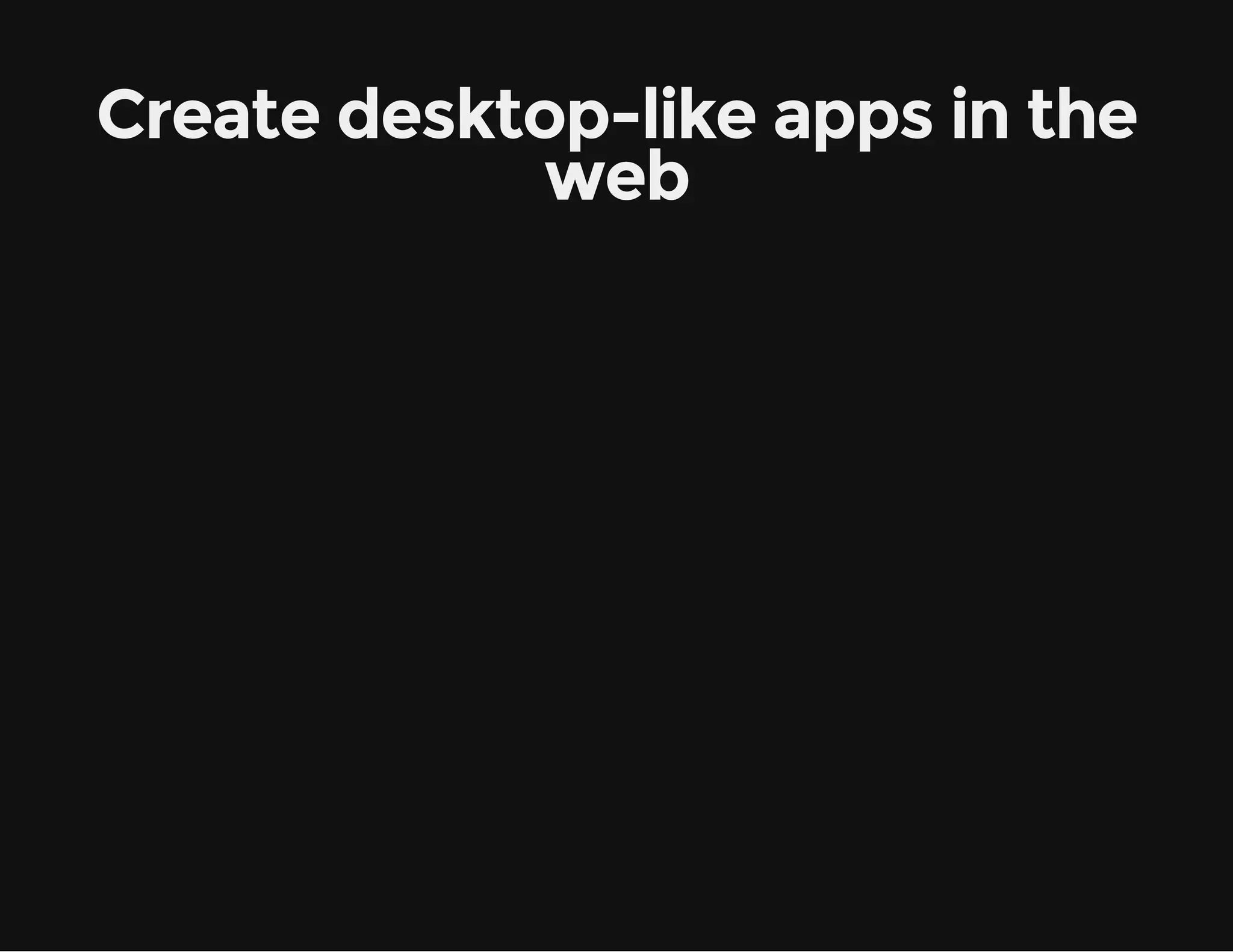

Create desktop-like apps in the web
Increase responsiveness

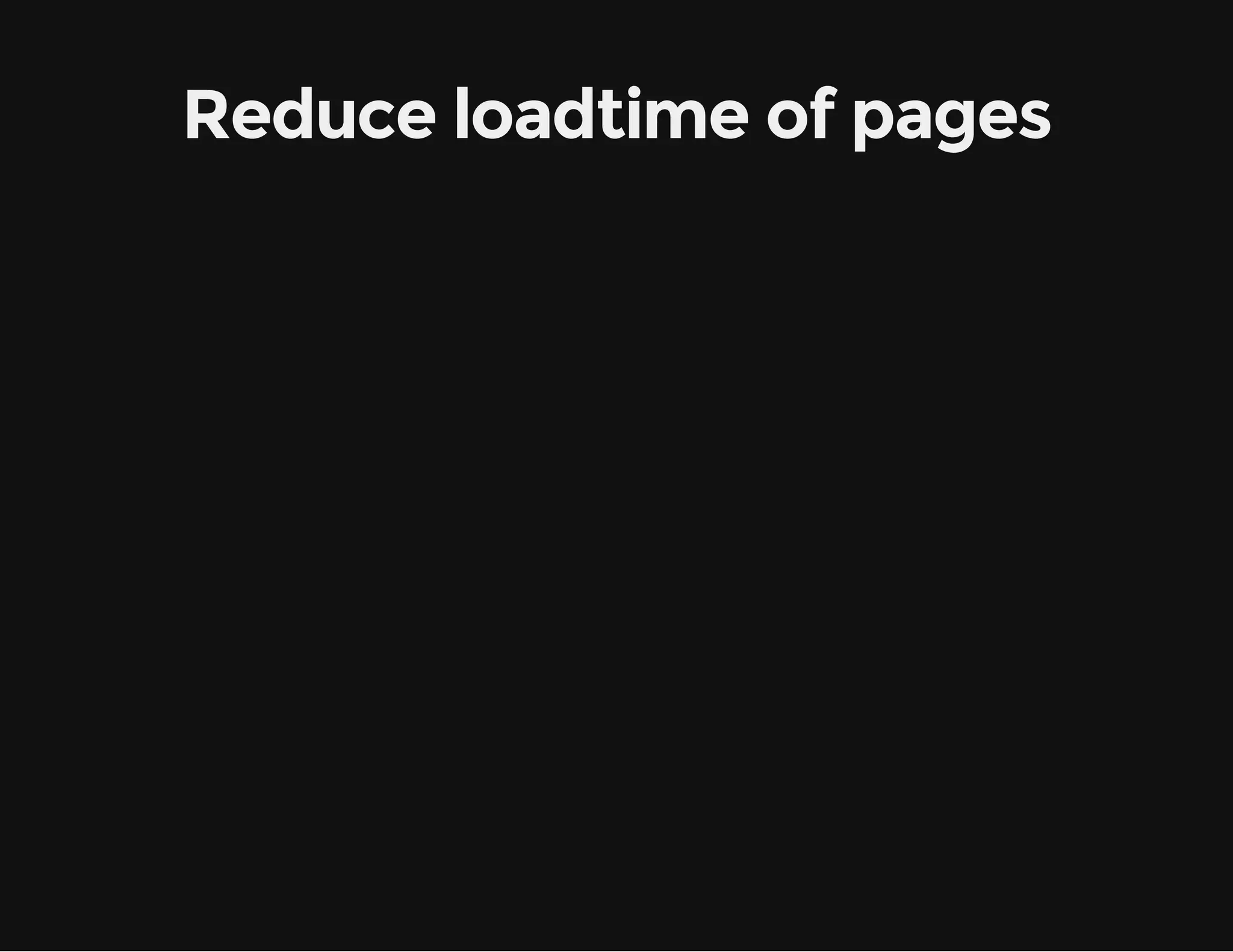

Reduce loadtime of pages
Less time spent on the server
Control user interactions on the client

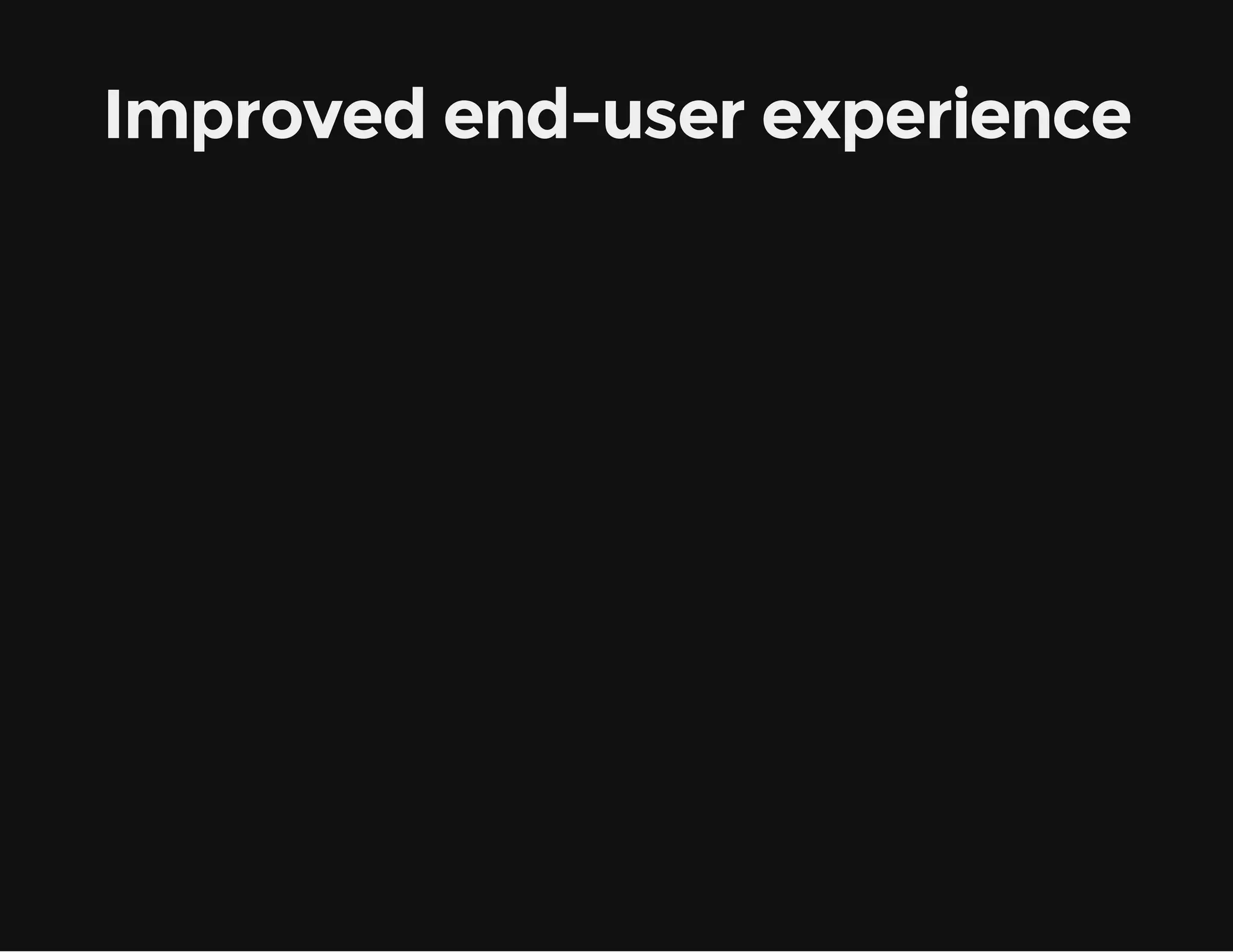

Improved end-user experience
History

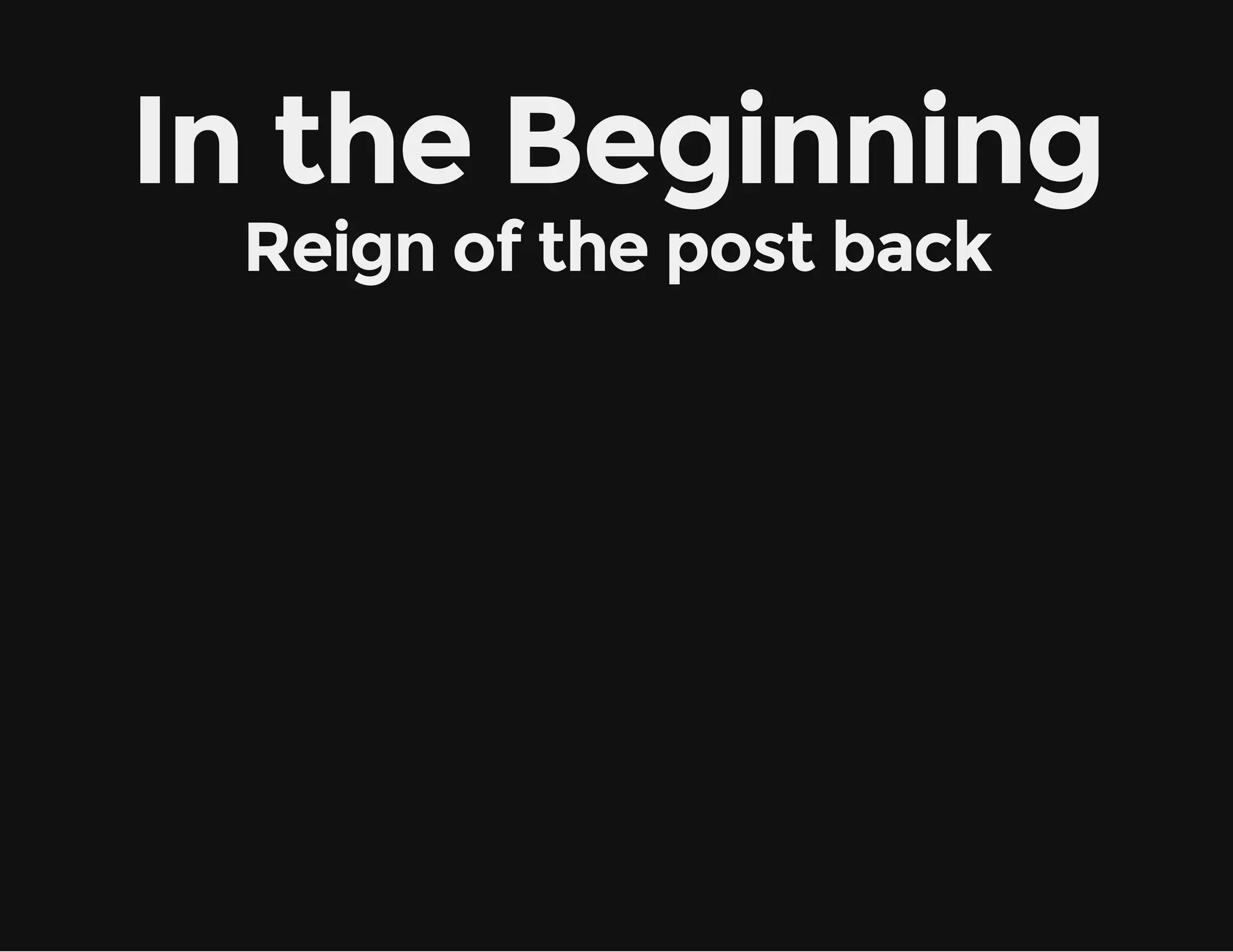

In the Beginning Reign of the post back

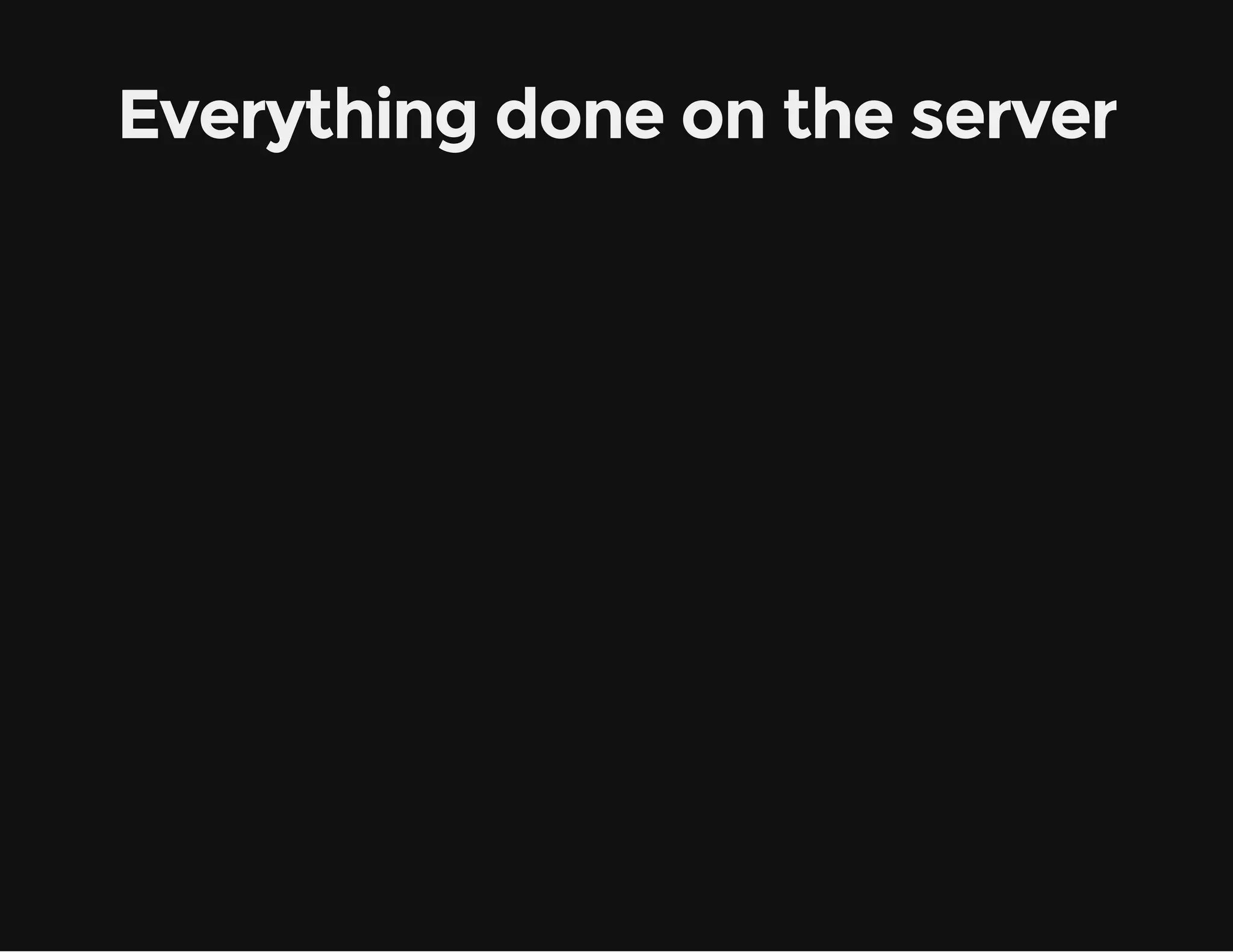

Everything done on the server
Full page refreshes
We got wiser Ajax & XHR Requests
Serve some content via server
Do asynchronous calls to server
Partial page refreshes
Focus on responsiveness Introduce the SPA concept
Move all items over to the client
What makes up a SPA?
MV* Framework
Basic pieces of a MV* Model View *
A full SPA framework also has Routing

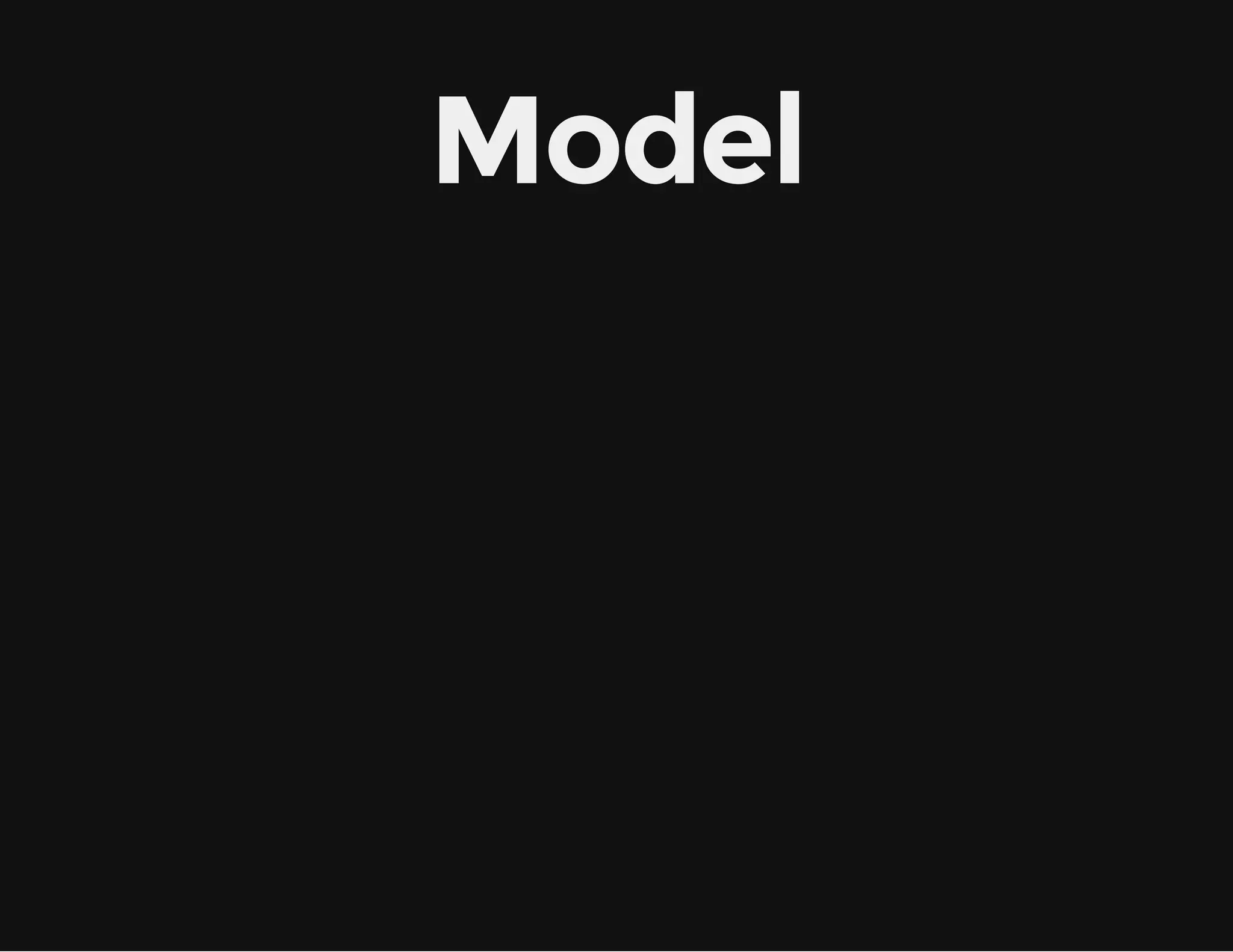

Model
In charge of holding data
Communication with server
Work with server end-points
Define what data should be used
Controller
Control applications' State Logic Behavior
Custom business logic
Communicate between the View and Model

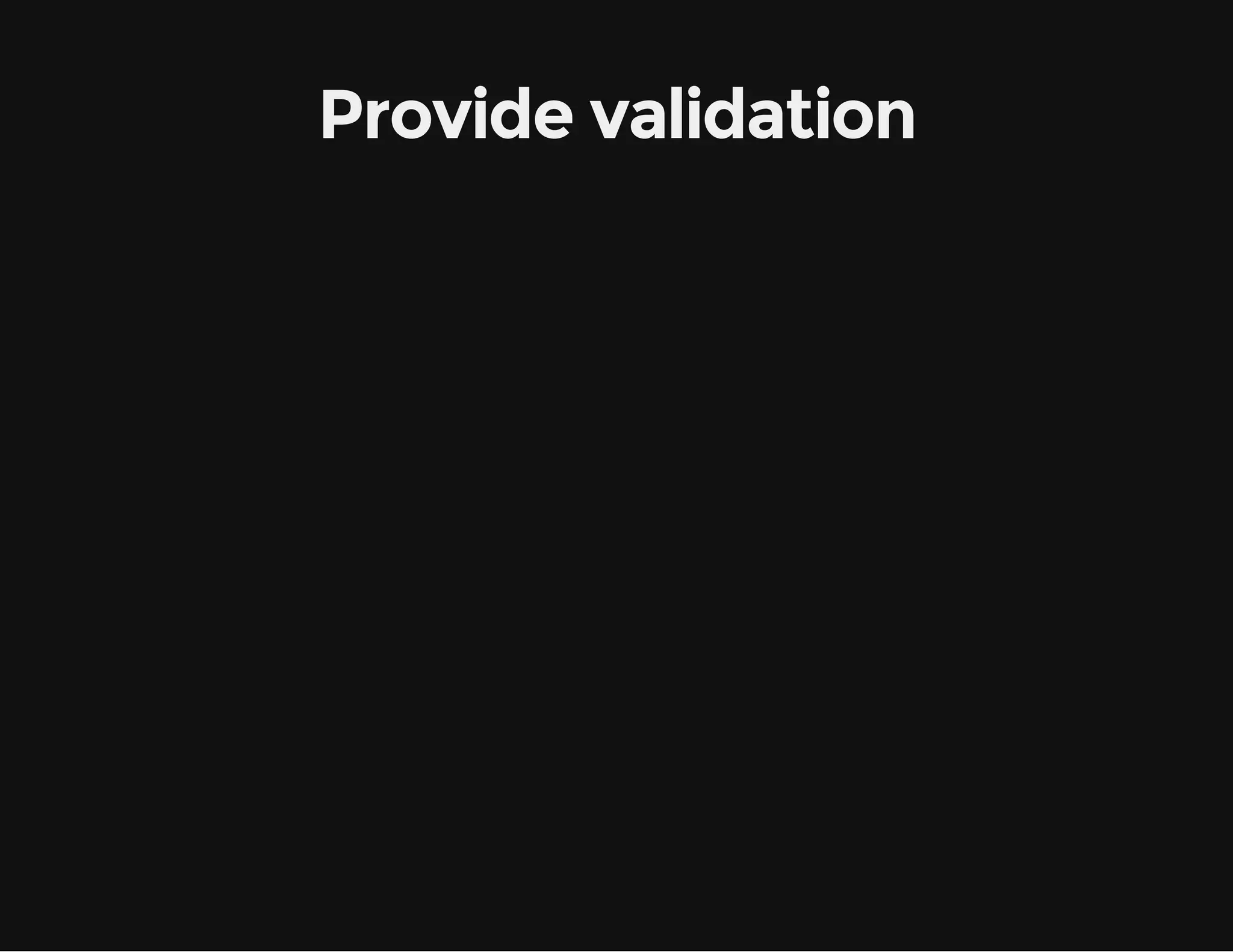

Provide validation
Bind data to our Views (UI)
View
Responsible for the UI of our app
Modifies and interacts with our DOM

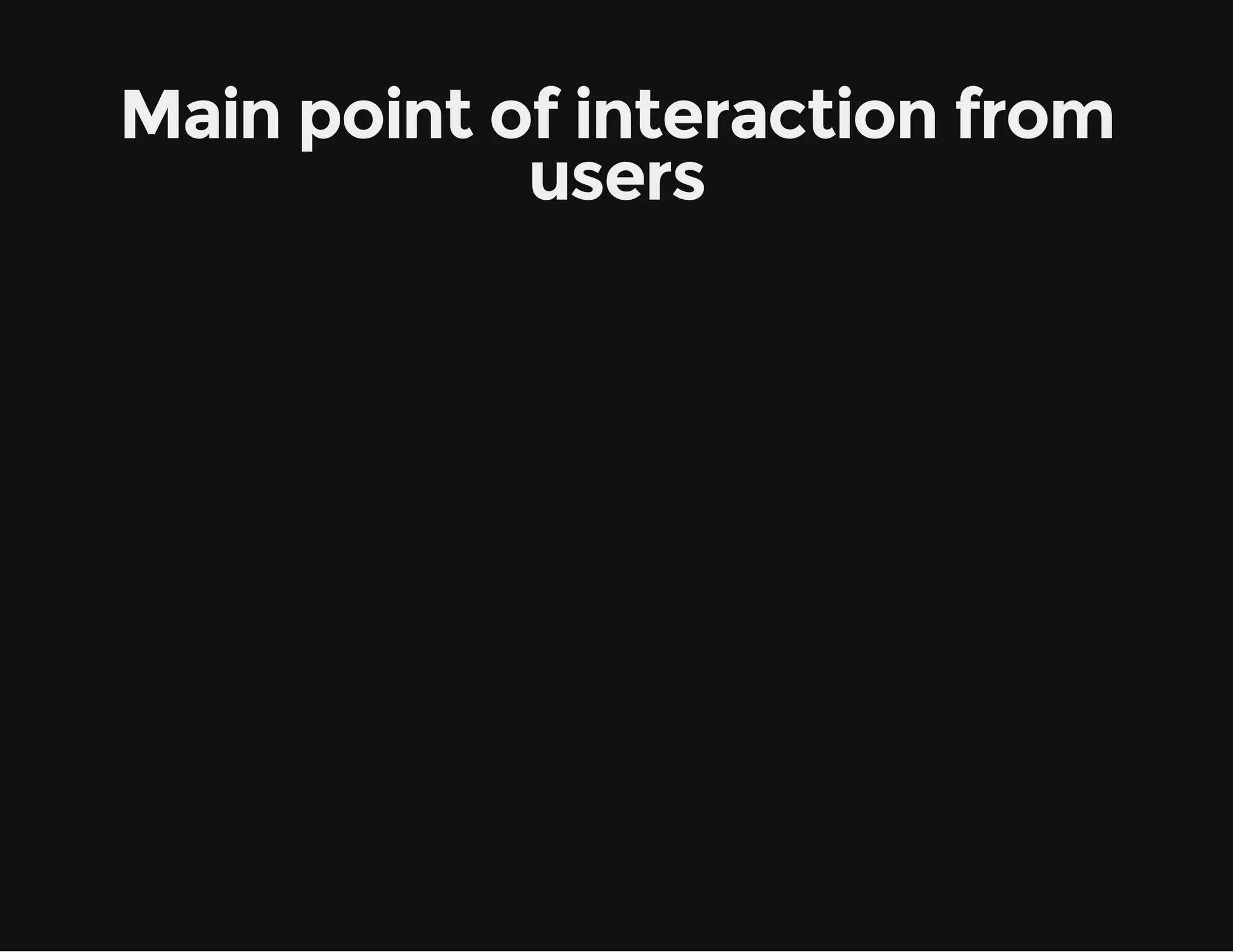

Main point of interaction from users
Bound to the controller for data and events
Often works with a template engine
Router

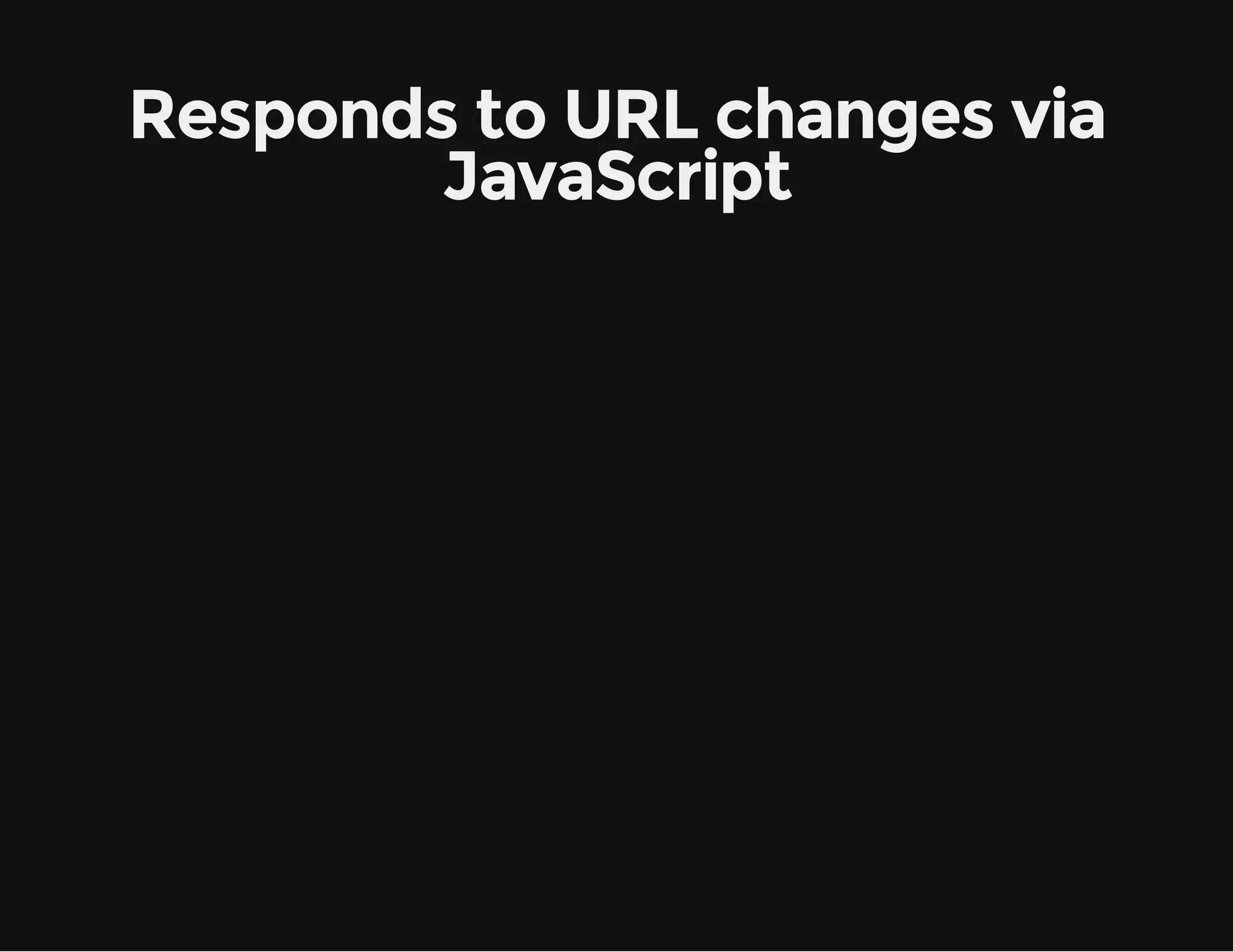

Responds to URL changes via JavaScript

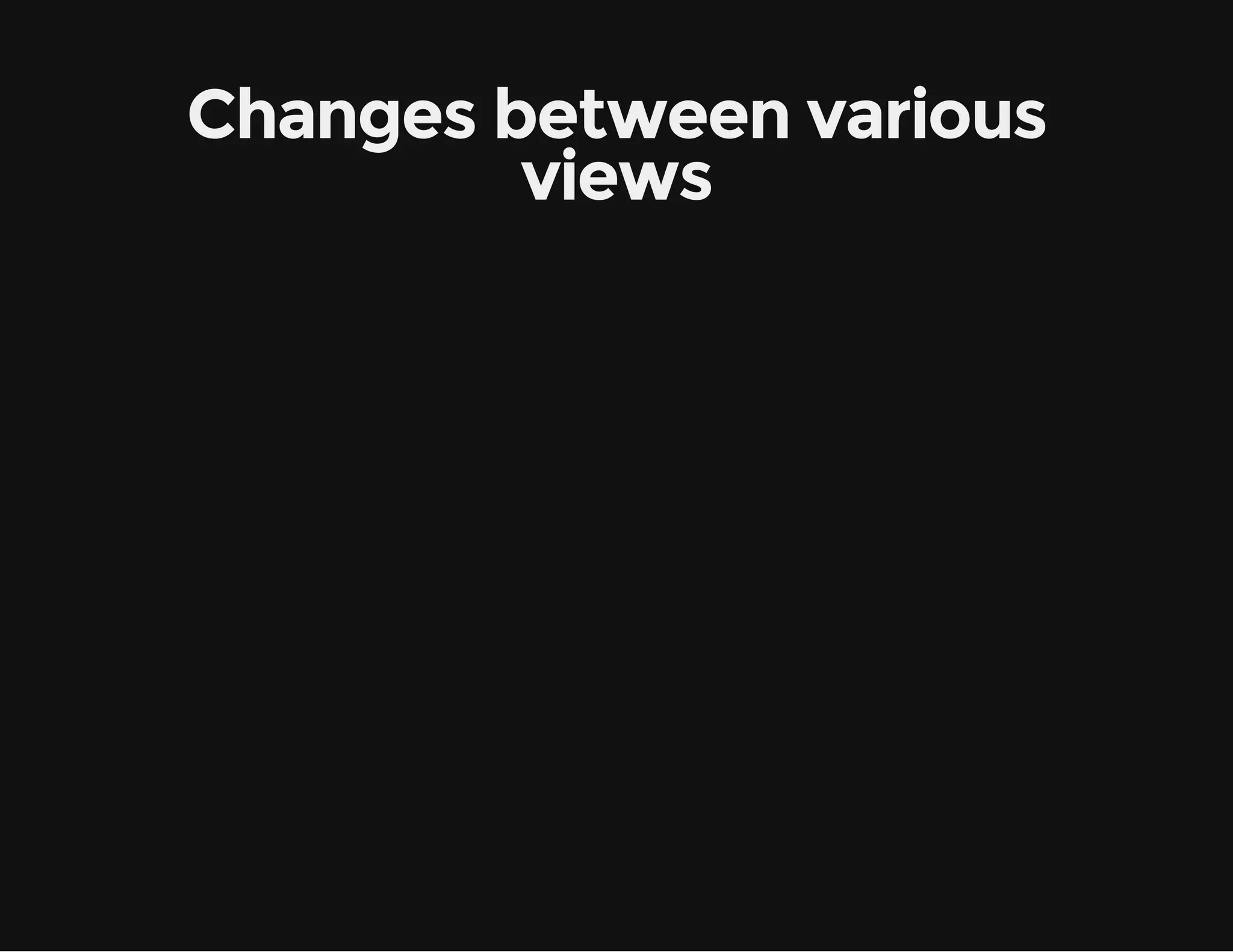

Changes between various views
Browser initiated routes Type in a URL Hyperlink
Client initiated routes
Change from one page or a view to another

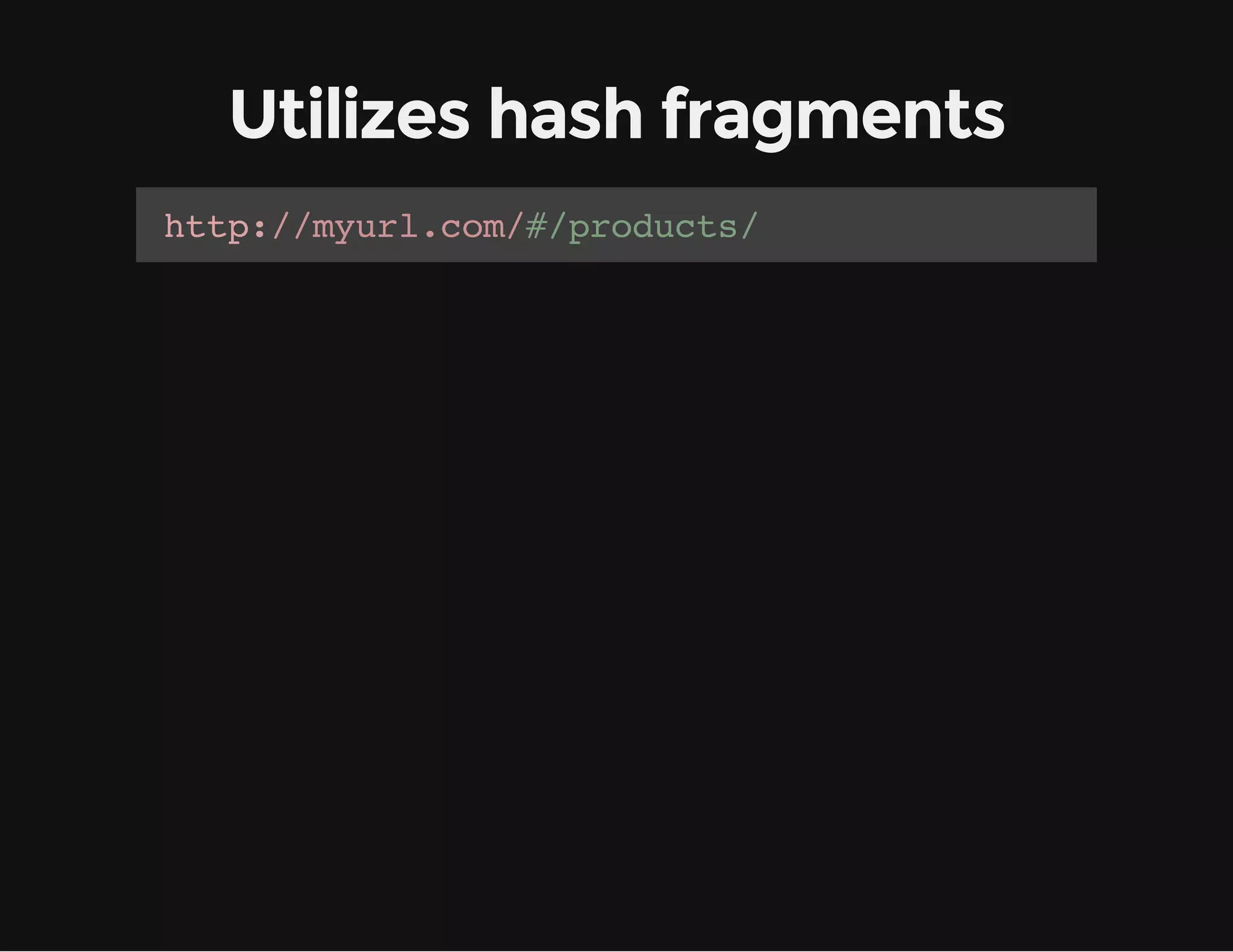

Utilizes hash fragments ht:/yr.o//rdcs tp/mulcm#pout/

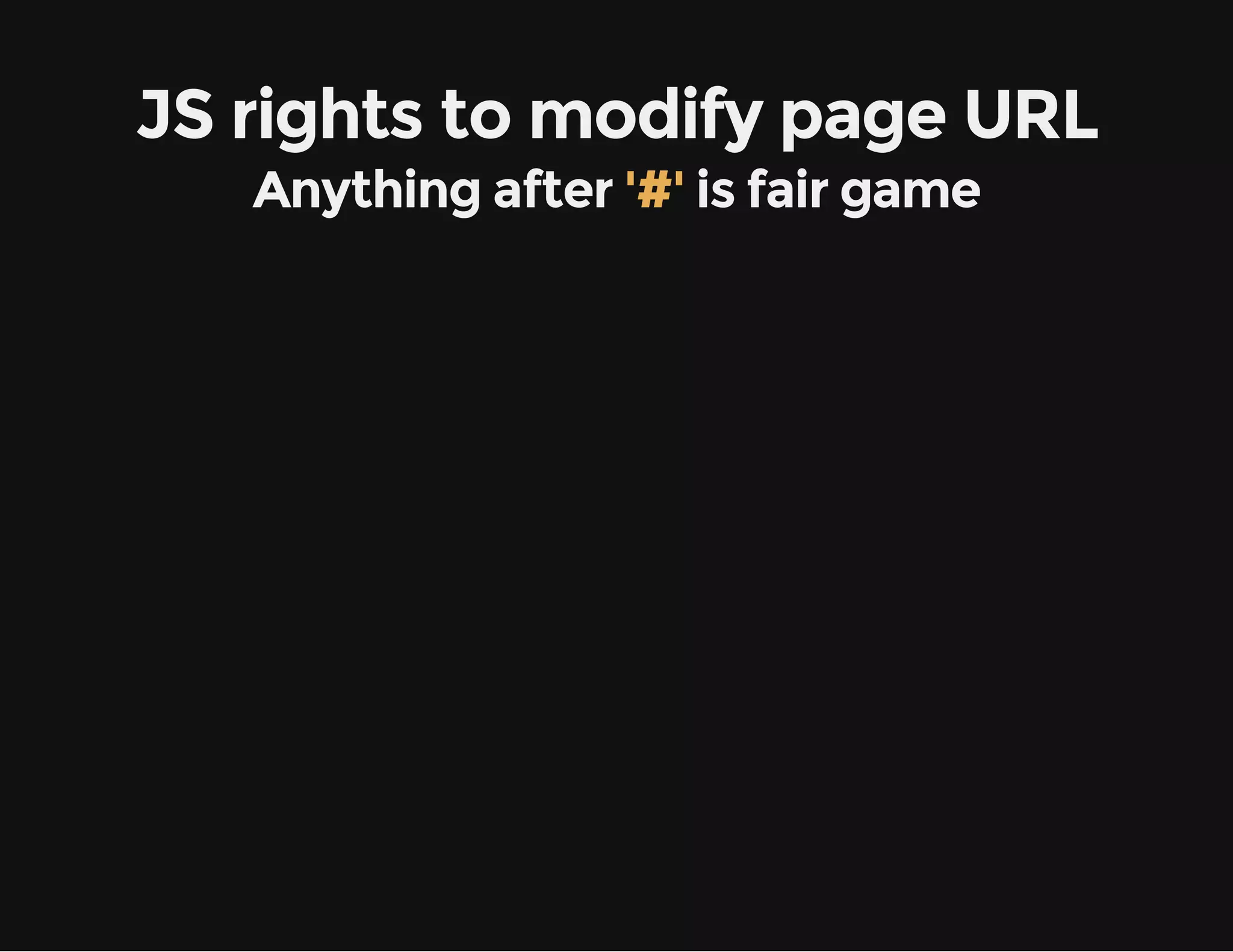

JS rights to modify page URL Anything after '#' is fair game
Just like the anchor tag
Examples
Wild SPA Apps Gmail Facebok Twitter Trello Asana

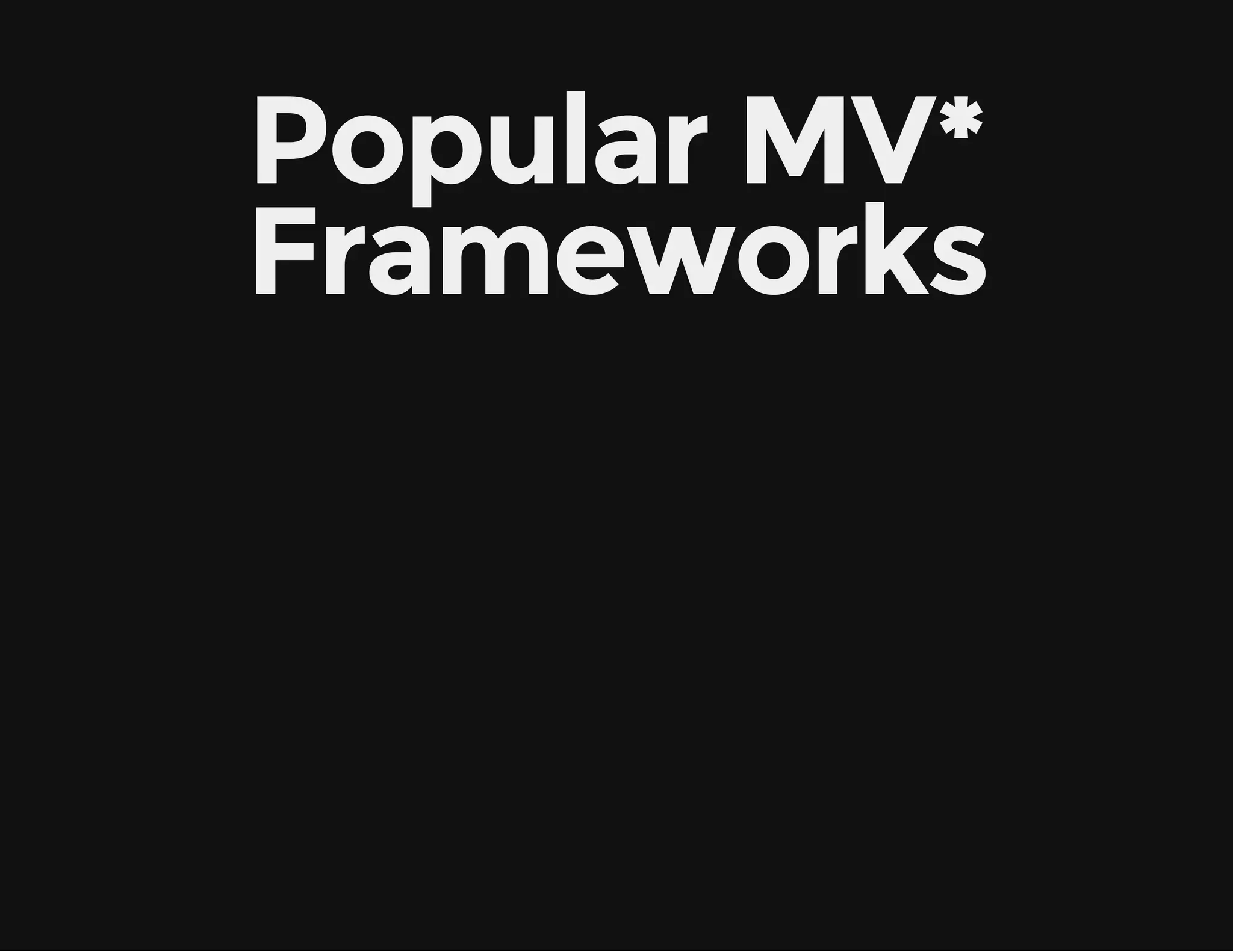

Popular MV* Frameworks
Backbone Angular Kendo UI Ember Durandal Meteor

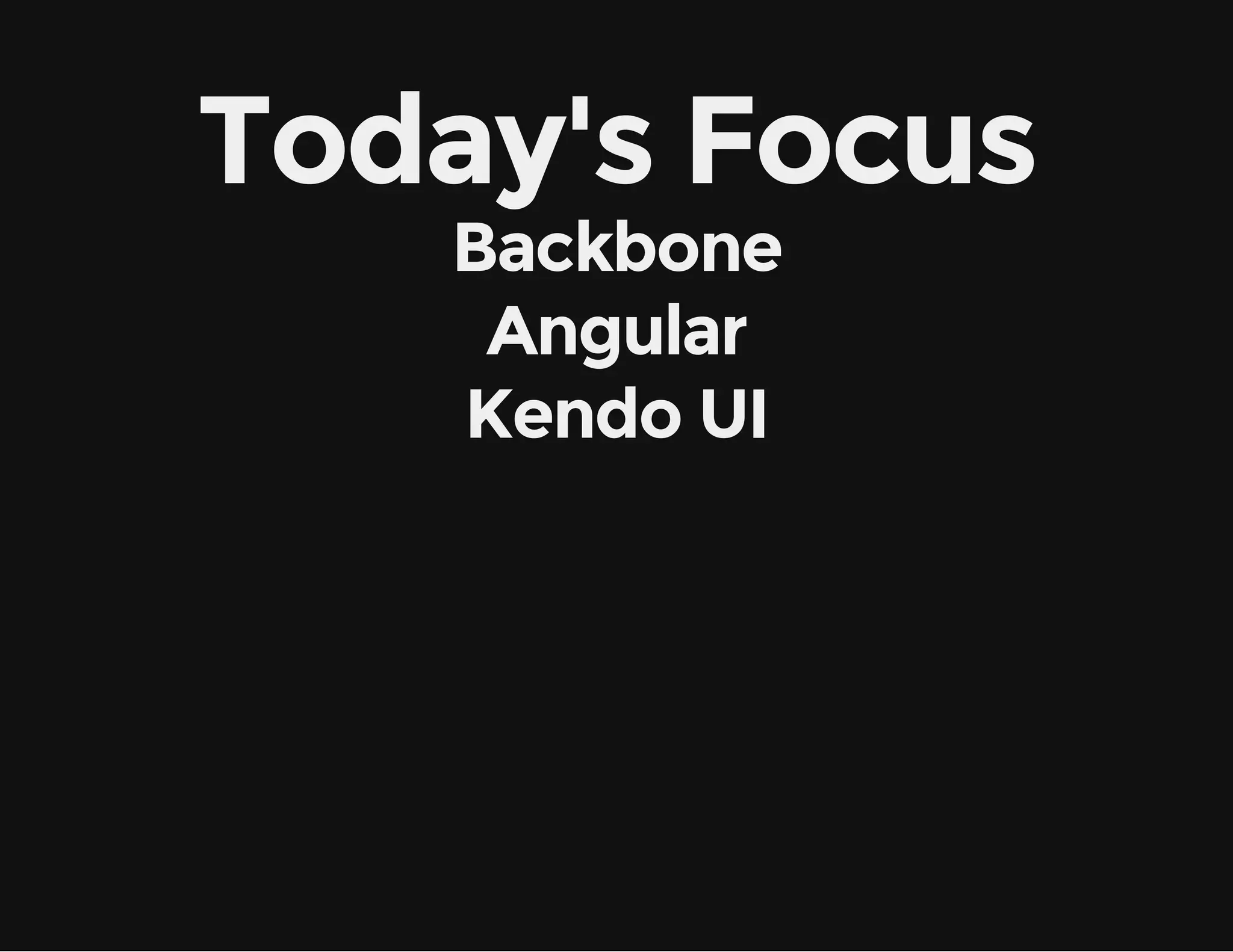

Today's Focus Backbone Angular Kendo UI

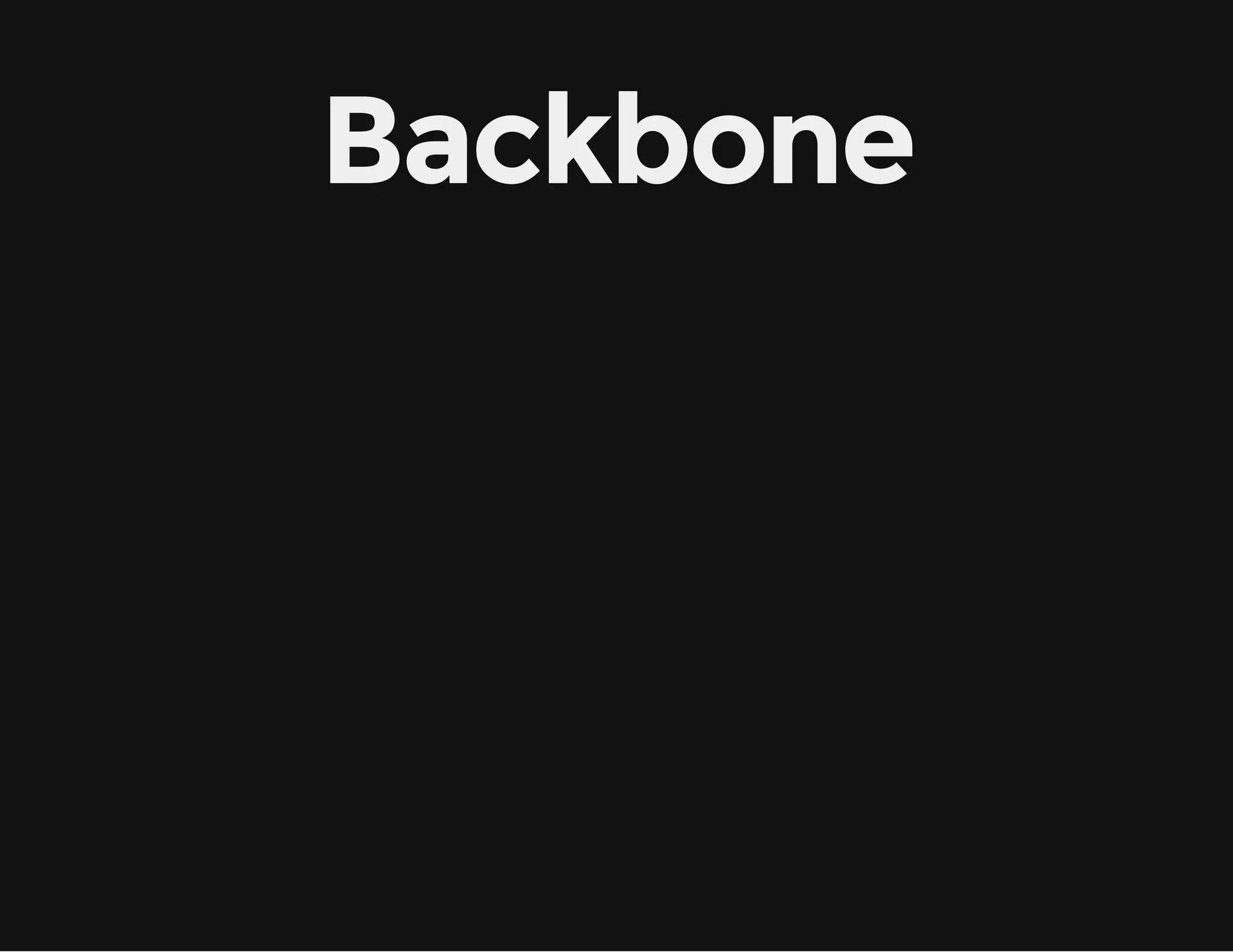

Backbone

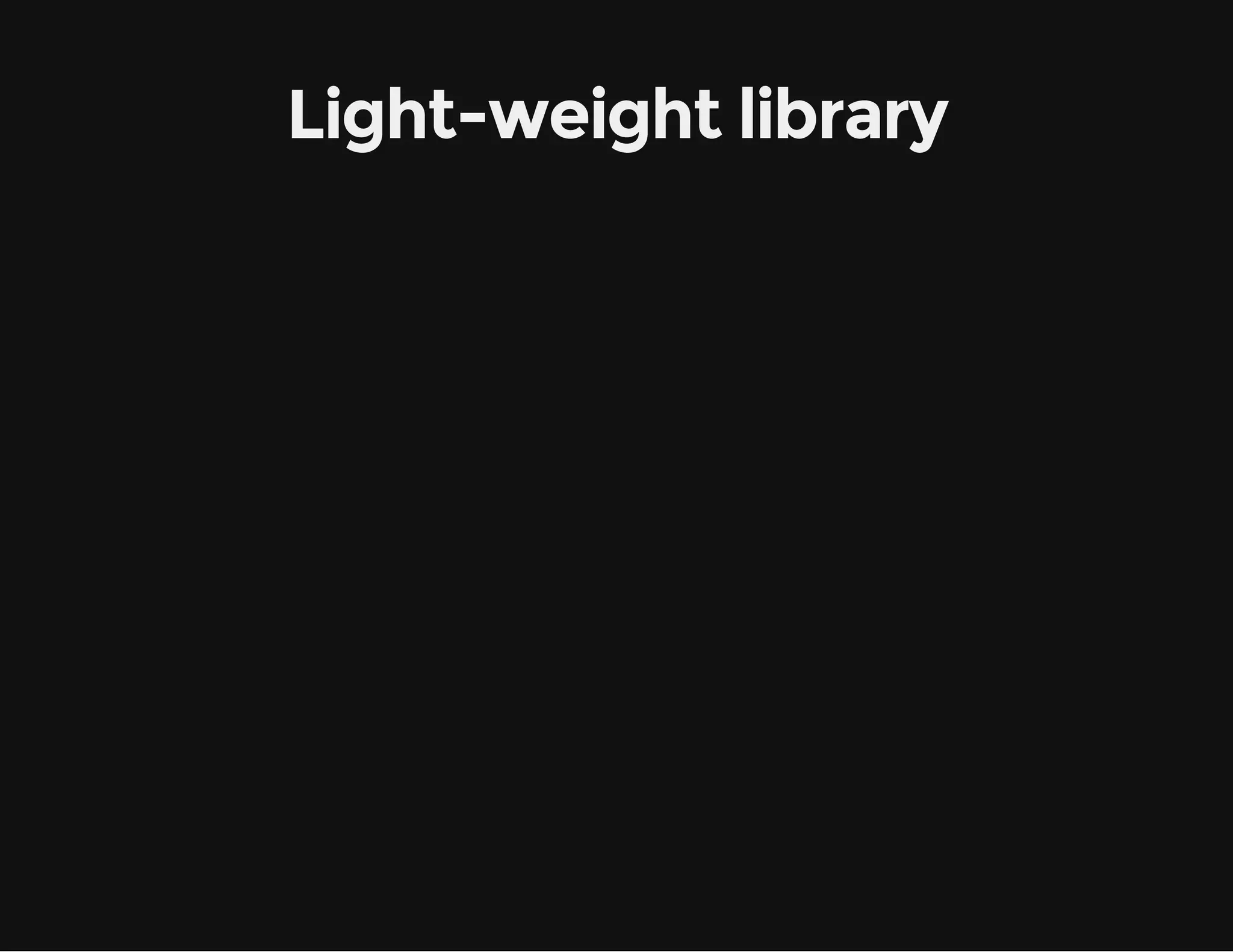

Light-weight library

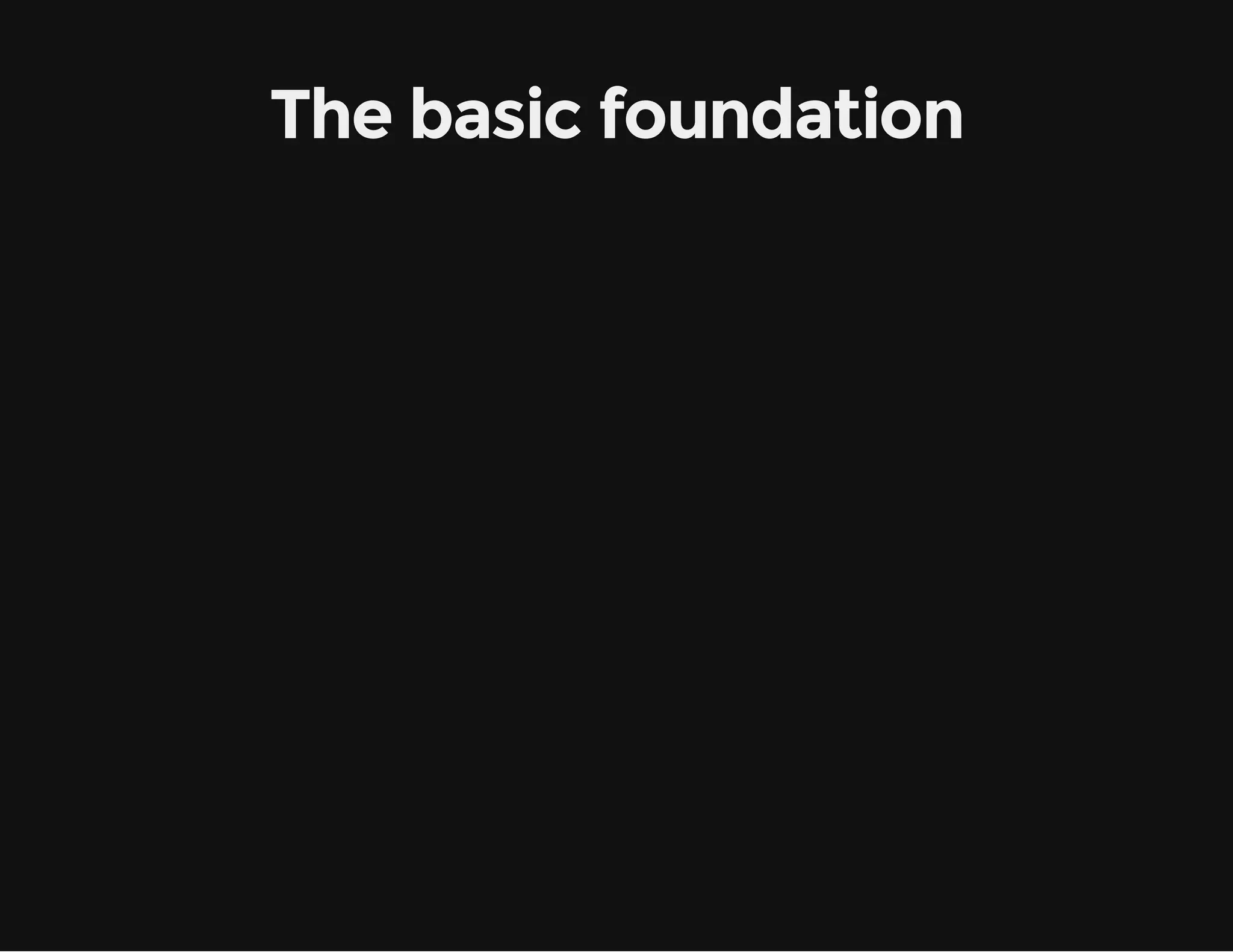

The basic foundation
Not a ton of extra frills
Heavy lifting is up to you
Huge community for tooling
Offers a set of helpful classes
Each one can - and will be extended
Backbone main classes Model Collection View Router
Model
Deals with all of our data
Bound to a view

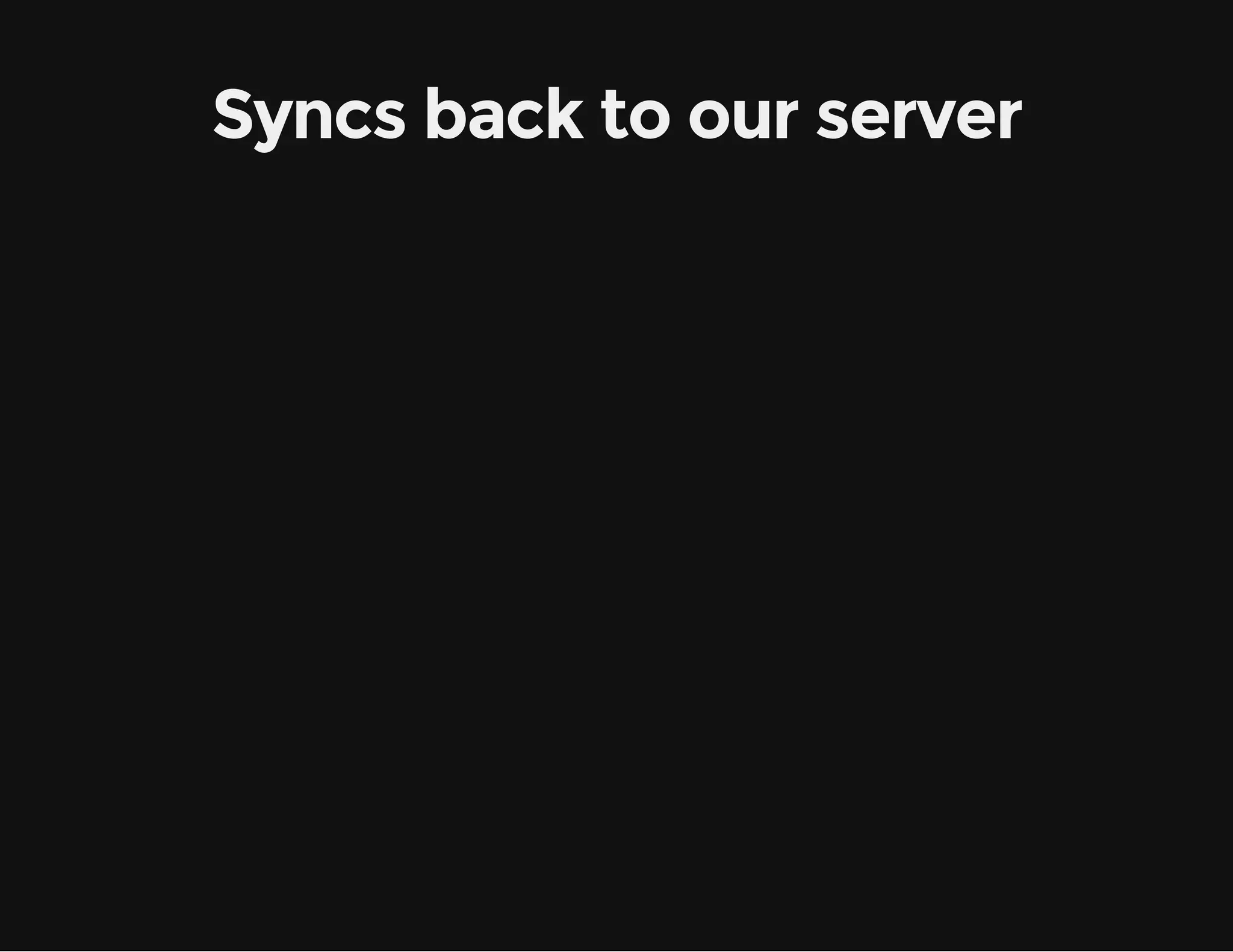

Syncs back to our server

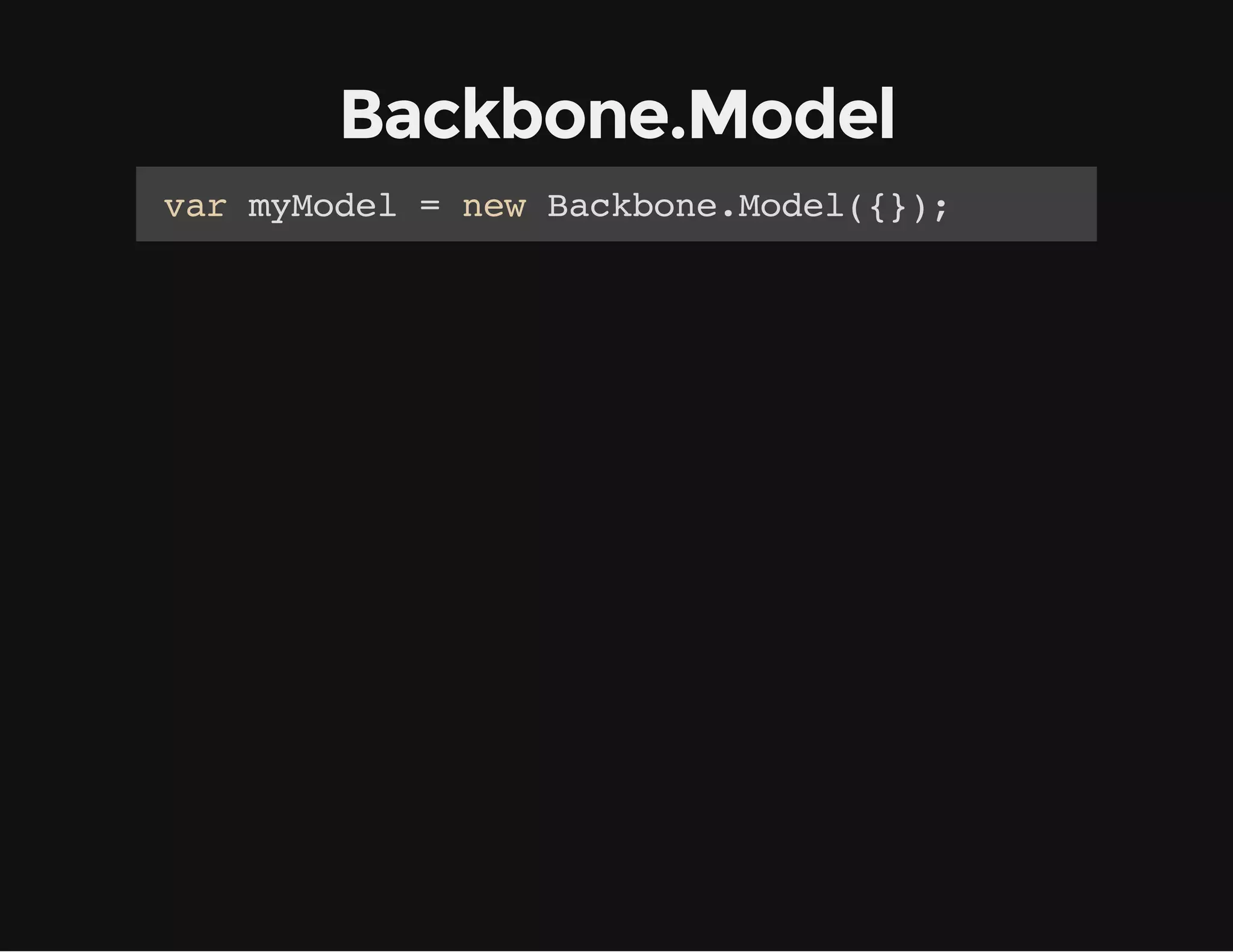

Backbone.Model vrmMdl=nwBcbn.oe(}; a yoe e akoeMdl{)
Extend Method vrCaatr=Bcbn.oe.xed{ a hrce akoeMdletn( dfut:{ eals nm:'lns, ae Bak' seis 'ua' pce: Hmn, dsrpin 'odsrpinyt' ecito: N ecito e. } , iiilz:fnto( { ntaie ucin) cnoelg'e caatrcetd) osl.o(Nw hrce rae'; } }; ) vrjk =nwCaatr{ a ae e hrce( nm:'aeteDg, ae Jk h o' seis 'o' pce: Dg, dsrpin ' mgcldg Bs fin,adbohr wt Fn. ecito: A aia o. et red n rte, ih in' }; )

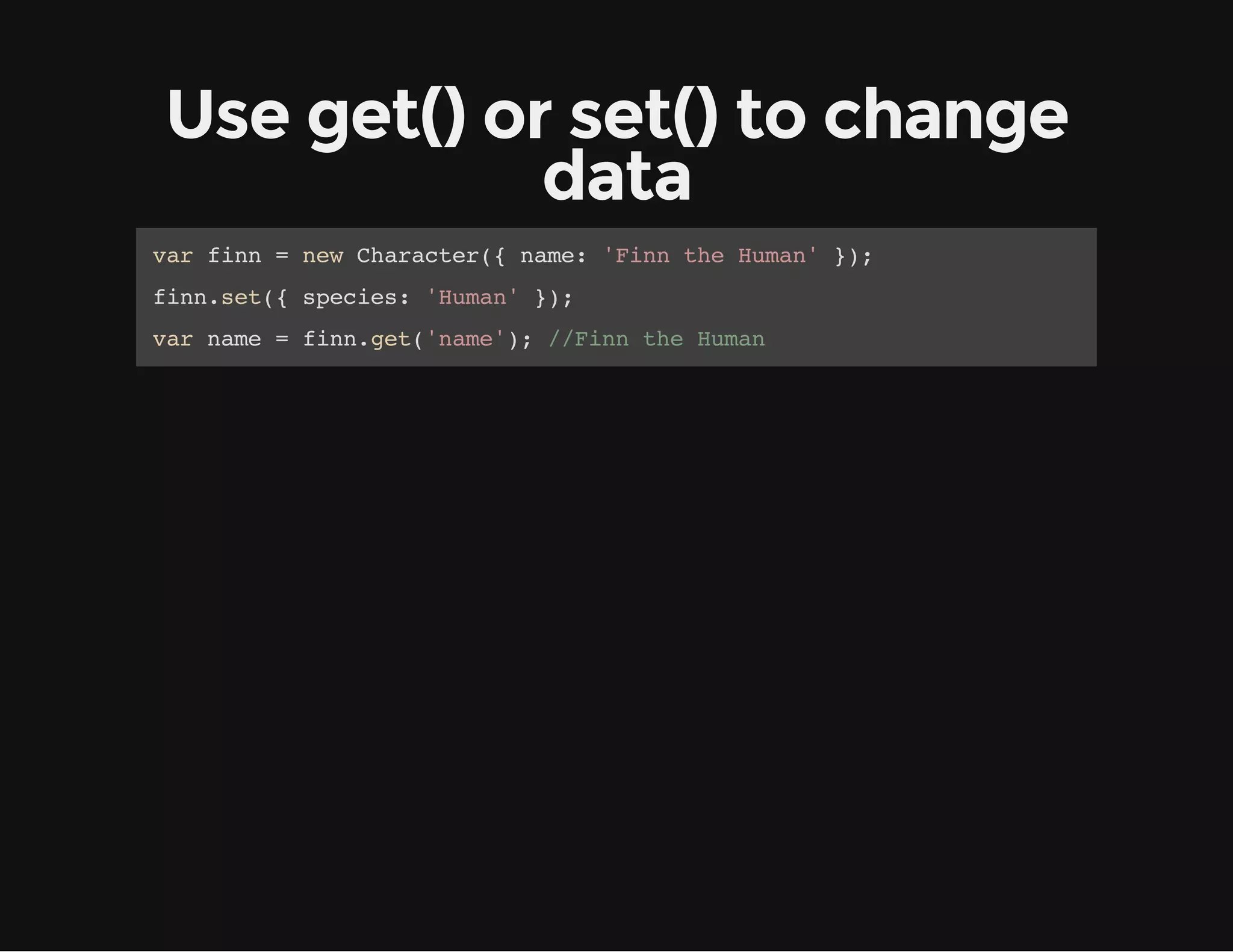

Use get() or set() to change data vrfn =nwCaatr{nm:'inteHmn }; a in e hrce( ae Fn h ua' ) fn.e( seis 'ua'}; inst{ pce: Hmn ) vrnm =fn.e(nm';/Fn teHmn a ae ingt'ae) /in h ua
Collections
Group related models together
Methods for adding/removing models

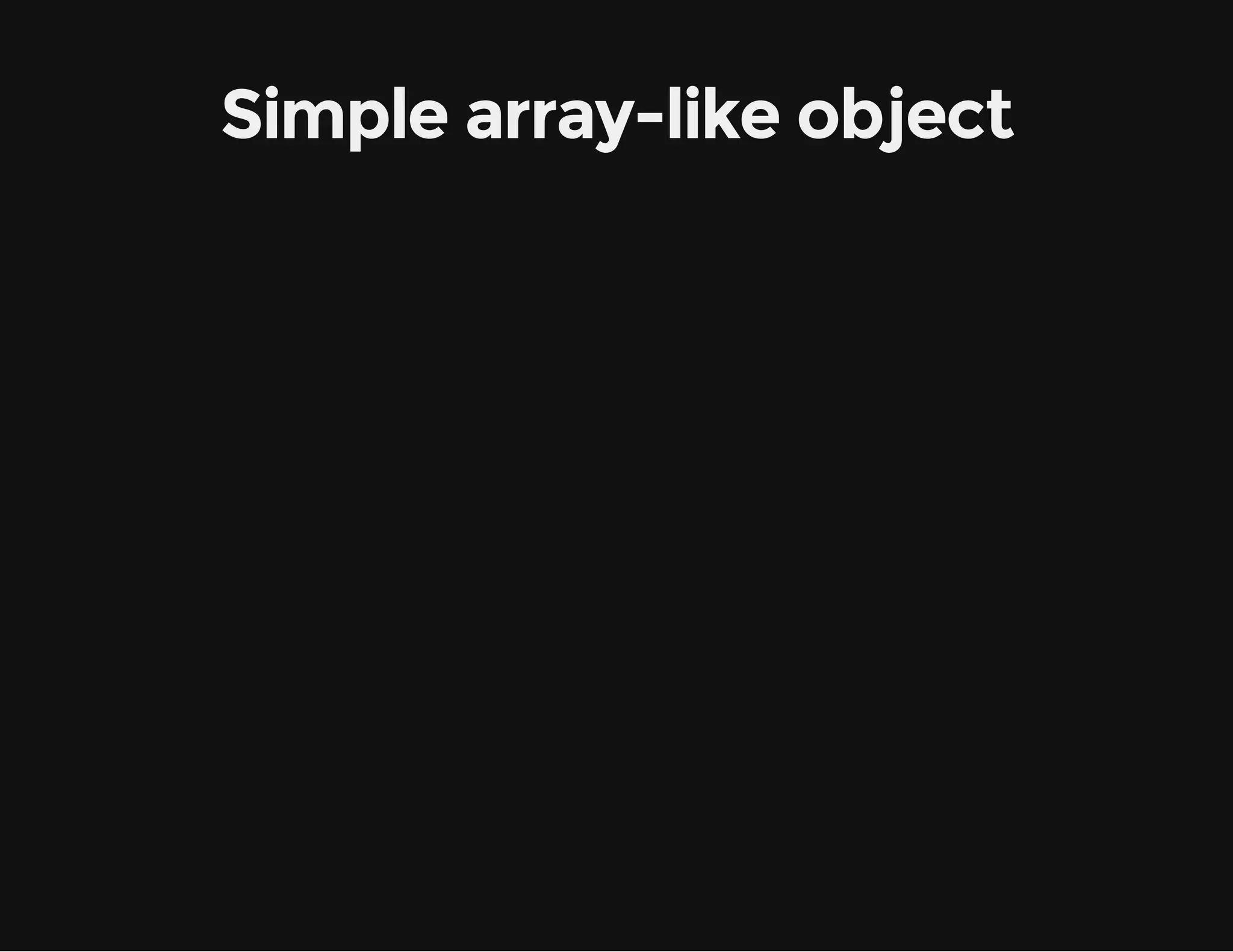

Simple array-like object
Backbone.Collection vrCaatr=Bcbn.oe.xed{ a hrce akoeMdletn( dfut:{ eals nm:'lns, ae Bak' seis 'ua' pce: Hmn, dsrpin 'odsrpinyt' ecito: N ecito e. } , iiilz:fnto( { ntaie ucin) cnoelg'e caatrcetd) osl.o(Nw hrce rae'; } }; ) vrCs =Bcbn.olcinetn( a at akoeCleto.xed{ mdl Caatr oe: hrce }; ) vrjk =nwCaatr{ a ae e hrce( nm:'aeteDg, ae Jk h o' seis 'o' pce: Dg, dsrpin ' mgcldg Bs fin,adbohr wt Fn. ecito: A aia o. et red n rte, ih in' }; ) vrfn =nwCaatr{ a in e hrce( nm:'inteHmn, ae Fn h ua' seis 'ua' pce: Hmn, dsrpin 'h ls hmni teLn o Oo Hnsotwt Jk. ecito: Te at ua n h ad f o. ag u ih ae' }; ) vrcsLs =nwCs( jk,fn ]; a atit e at[ ae in ) cnoelgcsLs.oes; osl.o(atitmdl)
View

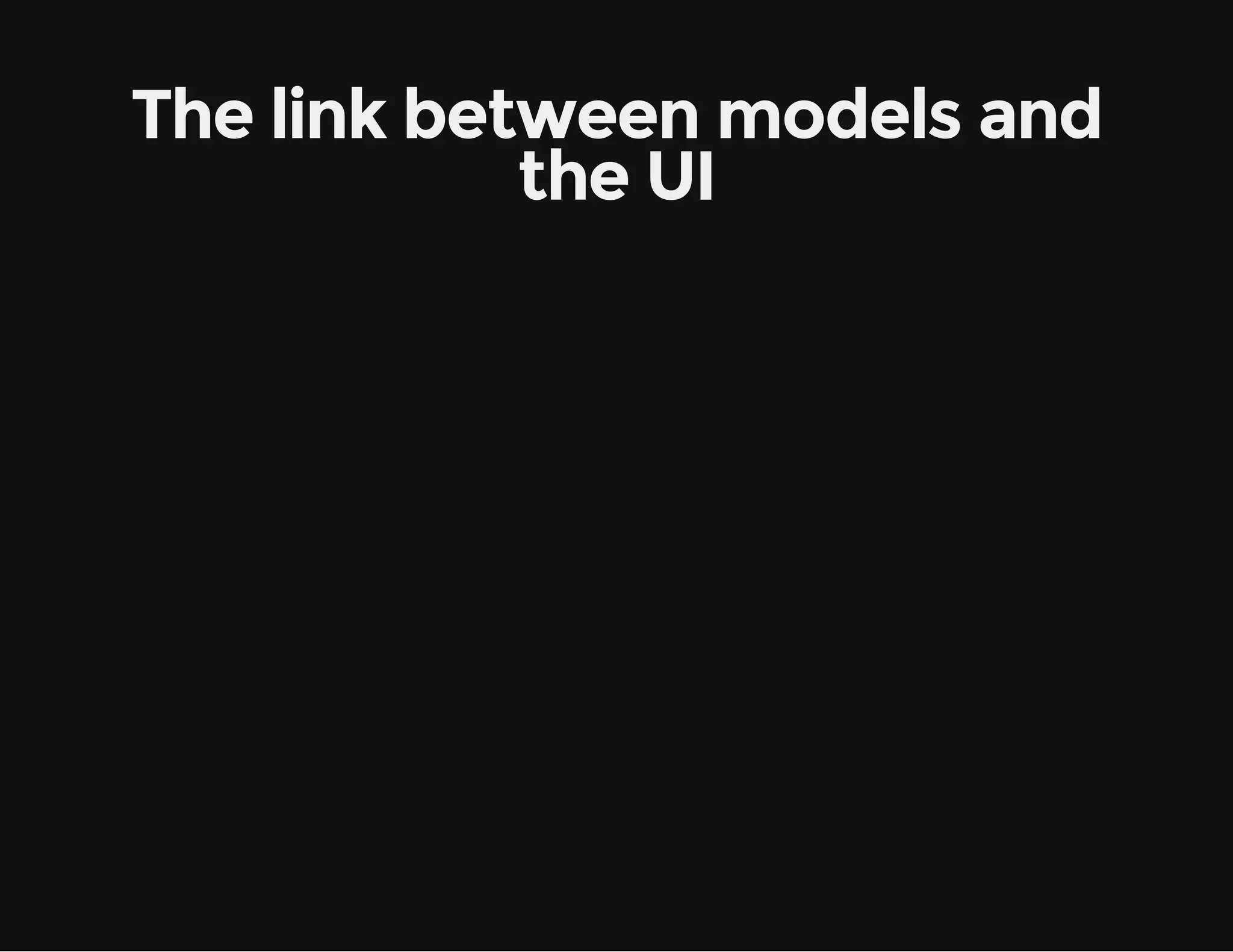

The link between models and the UI
Renders the models and their data
Views are bound to models or collections

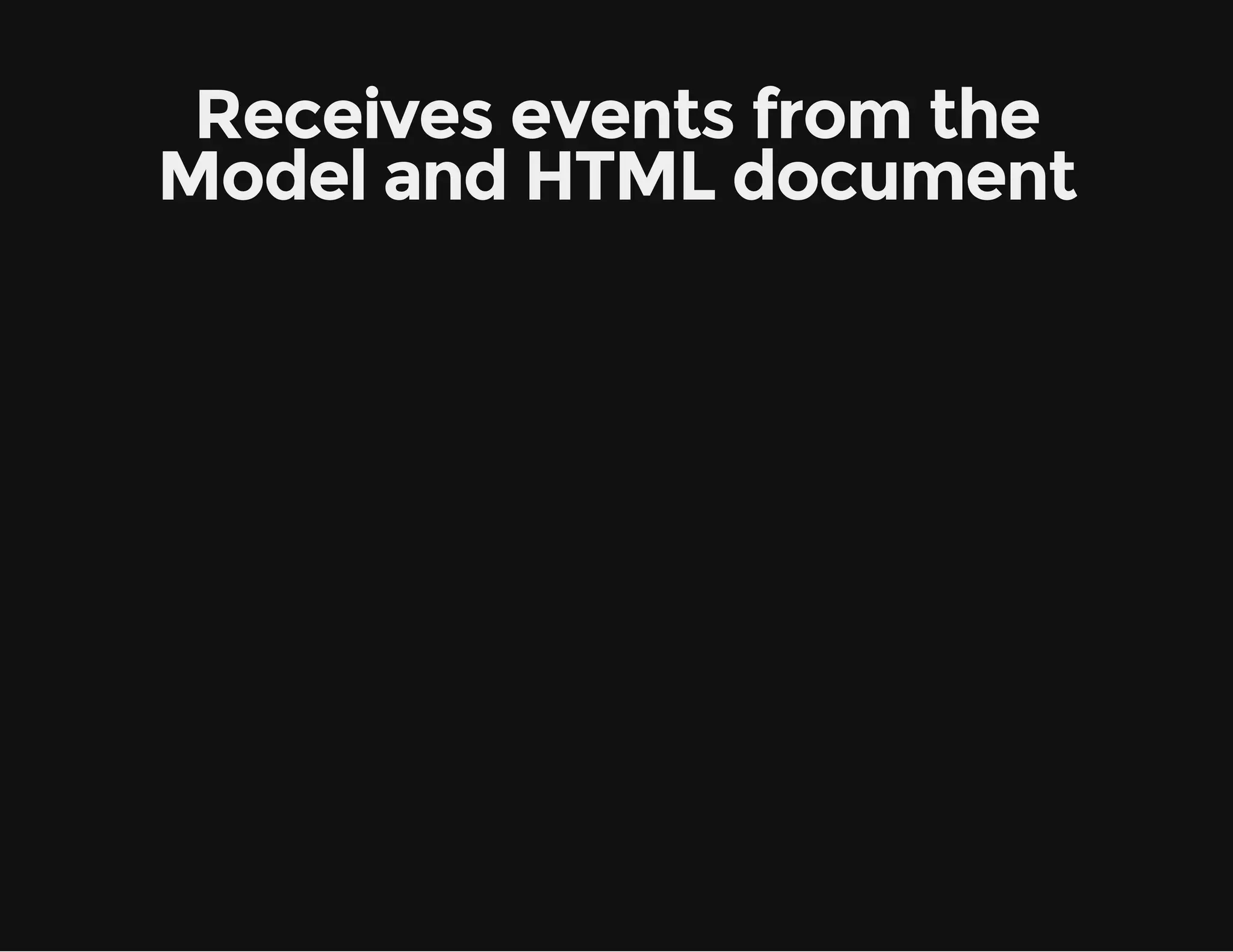

Receives events from the Model and HTML document
The 'el' property Every view has an 'el' property If not defined, a blank div is created References the view's DOM object Pass in a HTML element to modify it Can be a jQuery object via $el
Backbone.View vrFnVe =Bcbn.iwetn( a iniw akoeVe.xed{ tgae 'i' aNm: dv, i:'ini' d fnDv, casae 'inls' lsNm: fnCas, atiue:{ trbts 'aacso' 135 dt-utm: 24 } }; ) vrqikiw=nwFnVe(; a ucVe e iniw) $'paeodr)peedqikiwe) (#lchle'.rpn(ucVe.l;
Resulting HTML <i dt-utm"24"i=smlDv cas"apels"<dv dv aacso=135 d"apei" ls=smlCas>/i>
Default templates by Underscore jsBin.com/IWewESE/8/

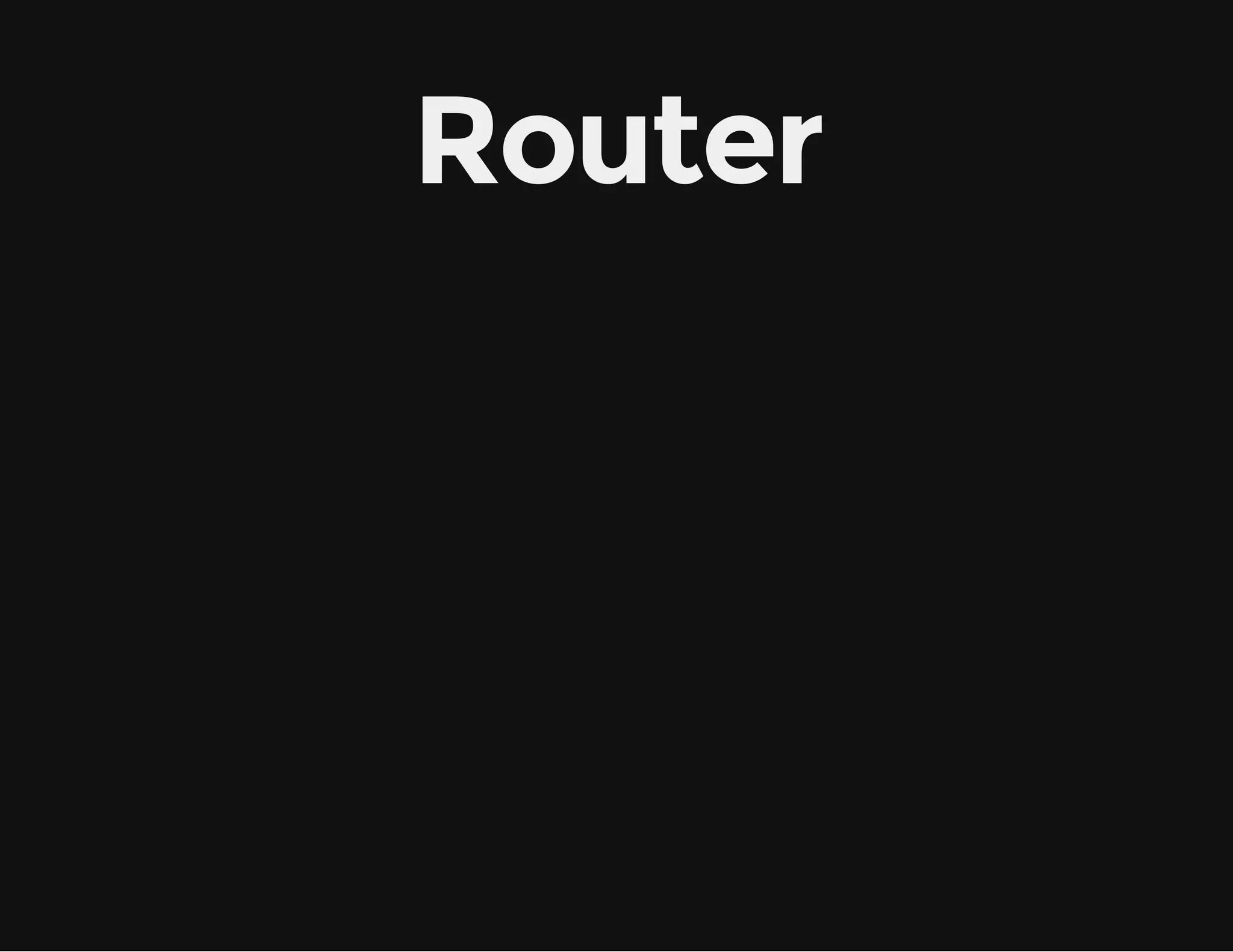

Router

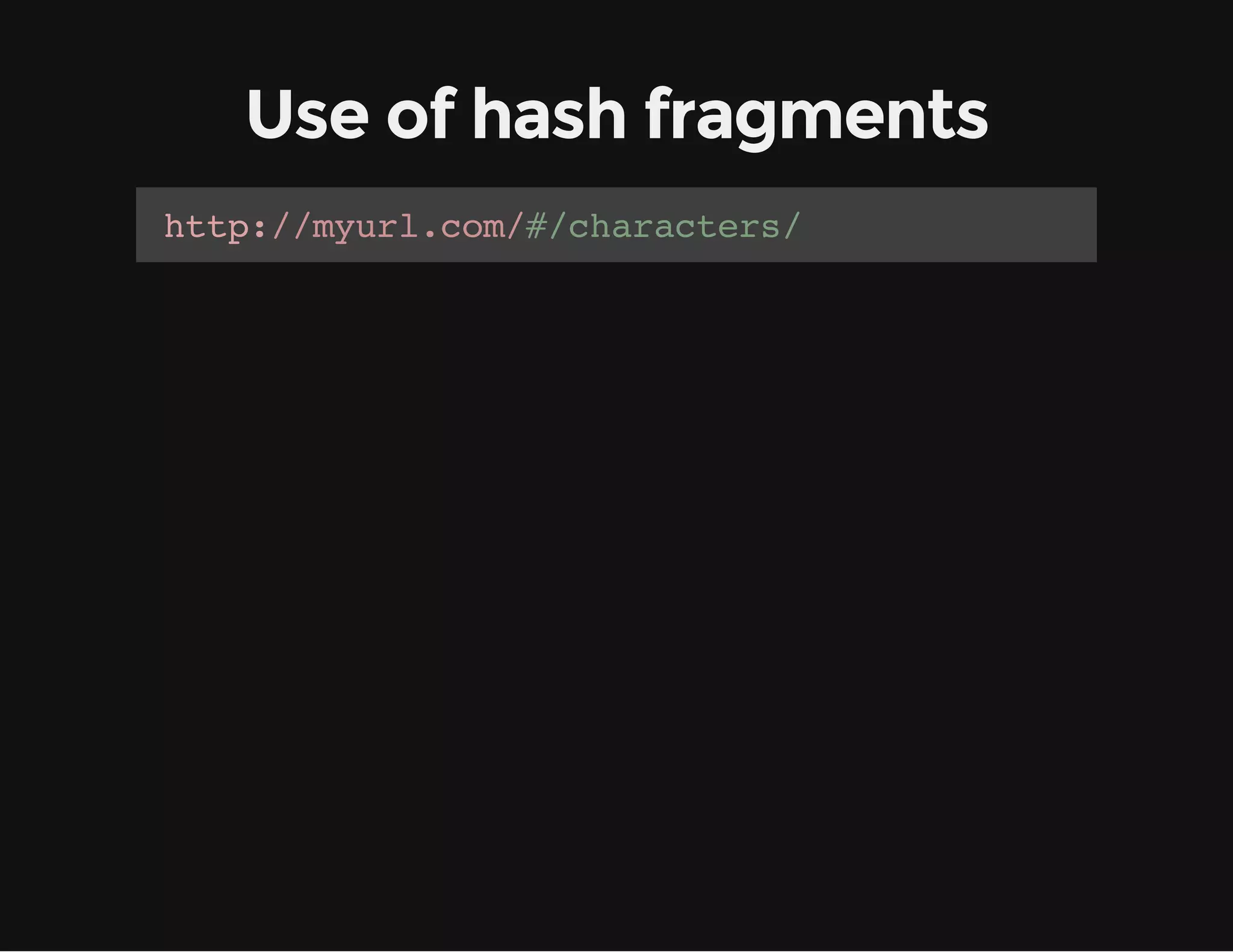

Use of hash fragments ht:/yr.o//hrces tp/mulcm#caatr/
Parses URL and finds appropriate function
Uses HTML5 History API if possible
Backbone.Router vrSmlRue =Bcbn.otretn( a apeotr akoeRue.xed{ rue:{ ots 'hrce/nm' 'hrce'/ruepten:hnlrnm caatr:ae: caatr /ot atr ade ae } , caatr fnto(ae {/hnlr hrce: ucinnm) /ade /.. /. } }; )

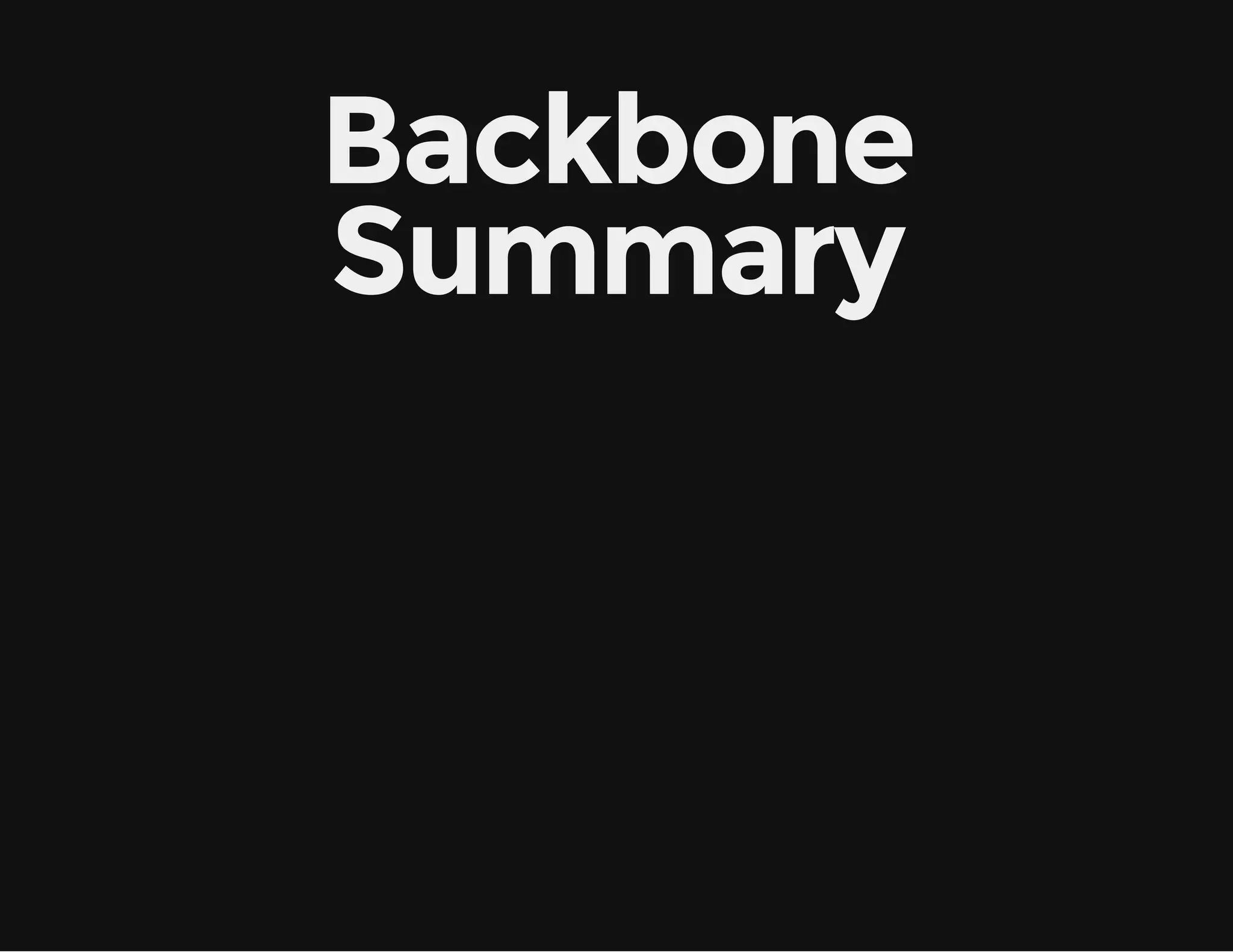

Backbone Summary

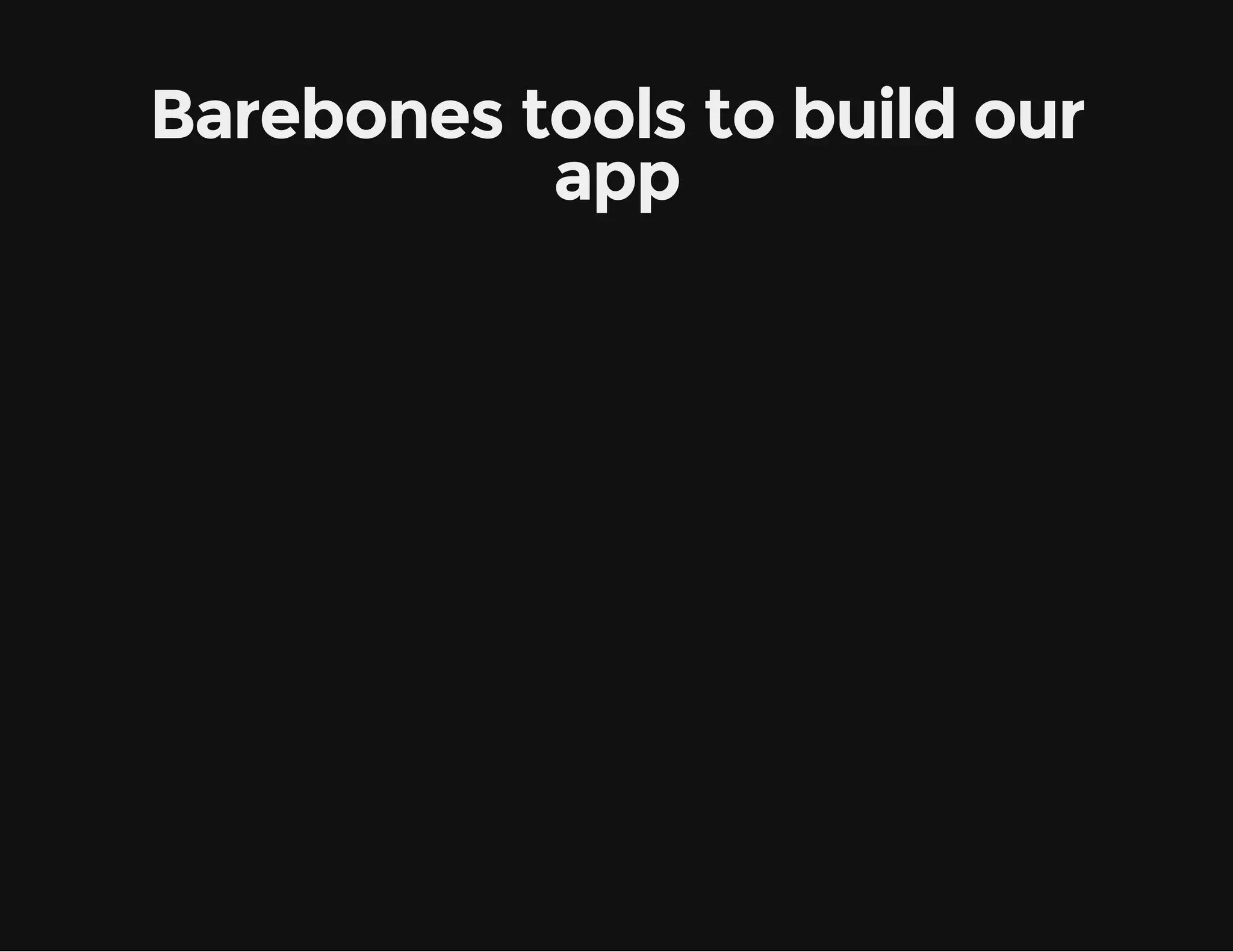

Barebones tools to build our app
Emphasis on data and Models
Not a ton of tools for the View
.extend({}) everything
Backbone main classes Model Collection View Router

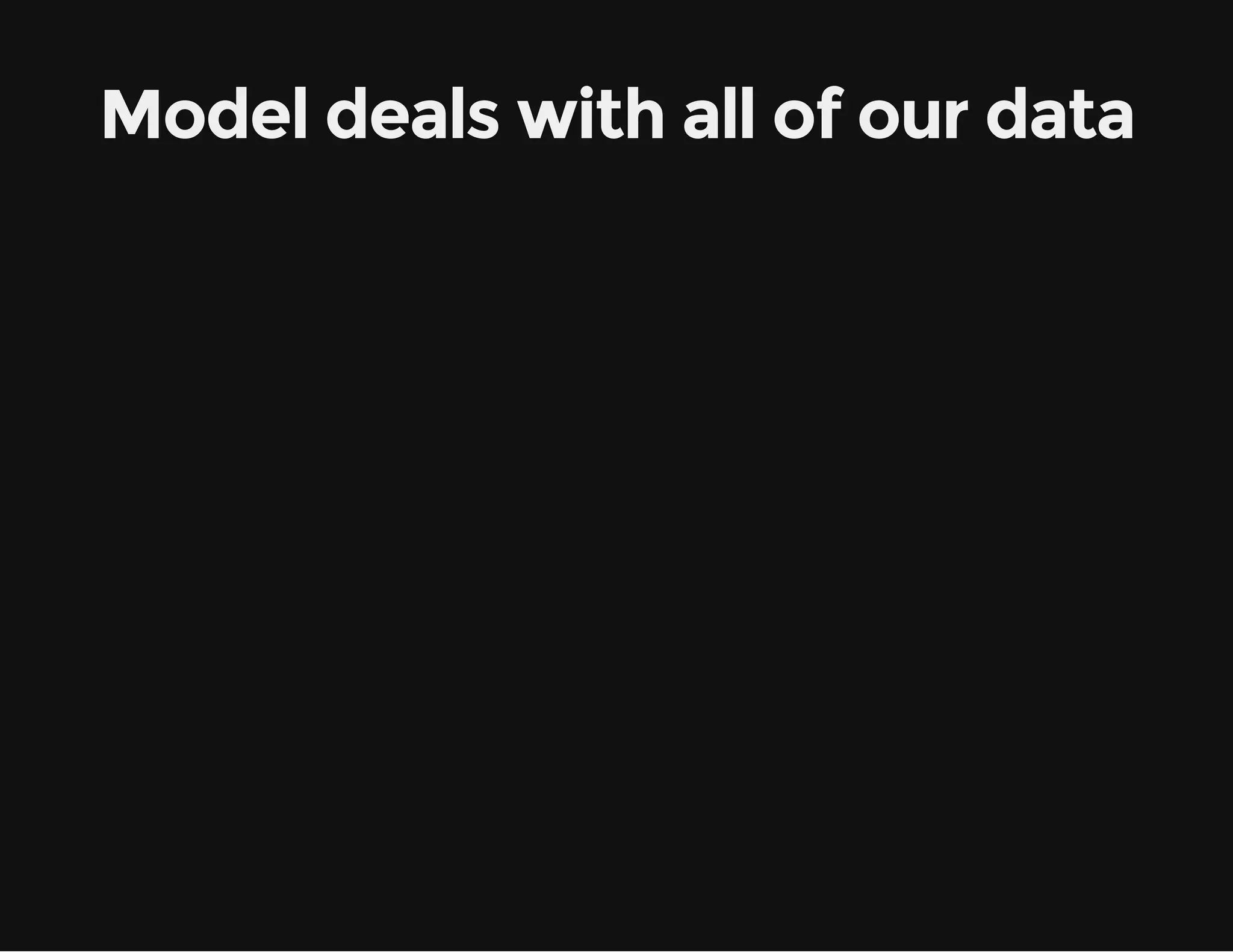

Model deals with all of our data

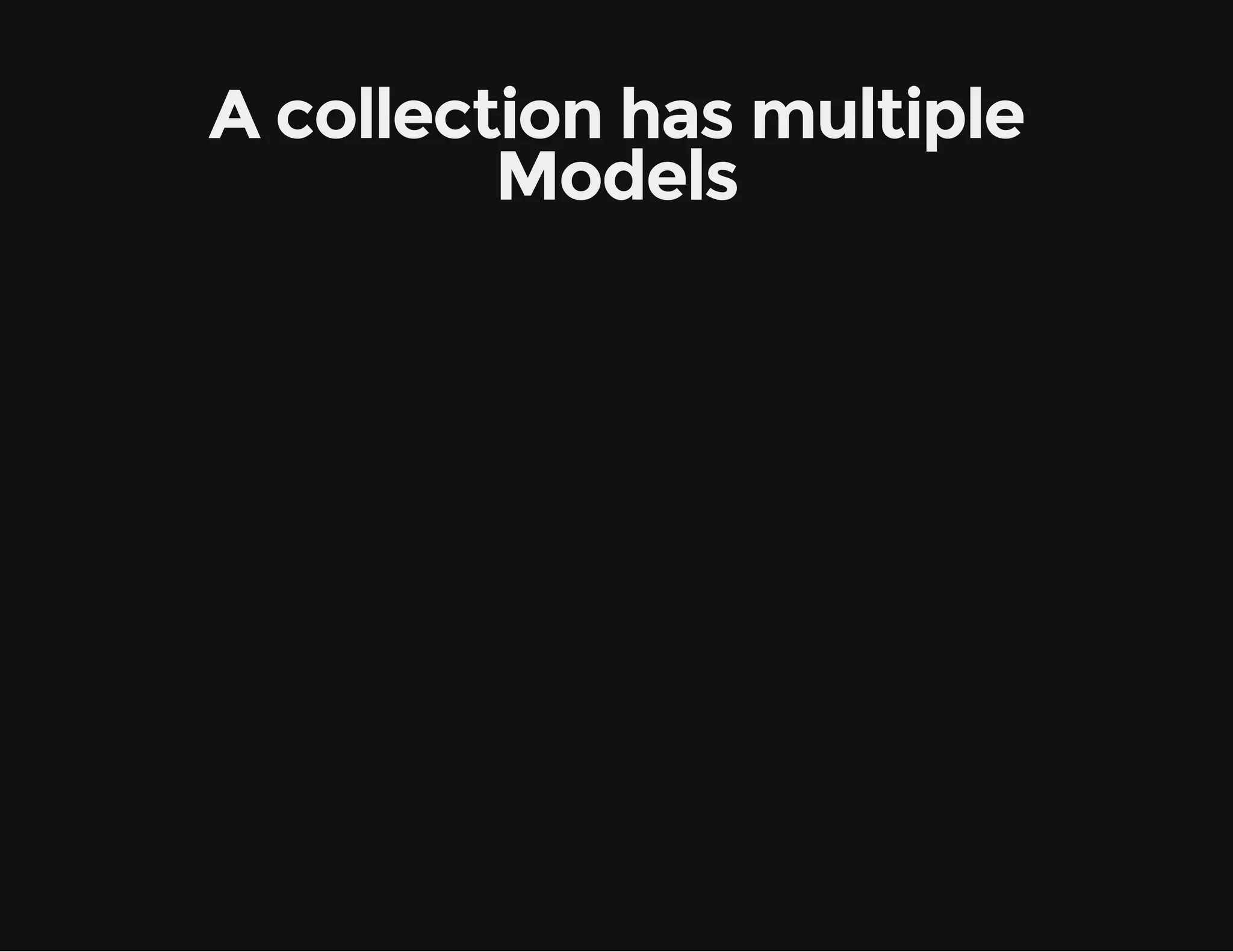

A collection has multiple Models
View needs a Model Works with Model and DOM
Router works with URL to serve correct View
Angular
Created by Google
Believes HTML can be more powerful

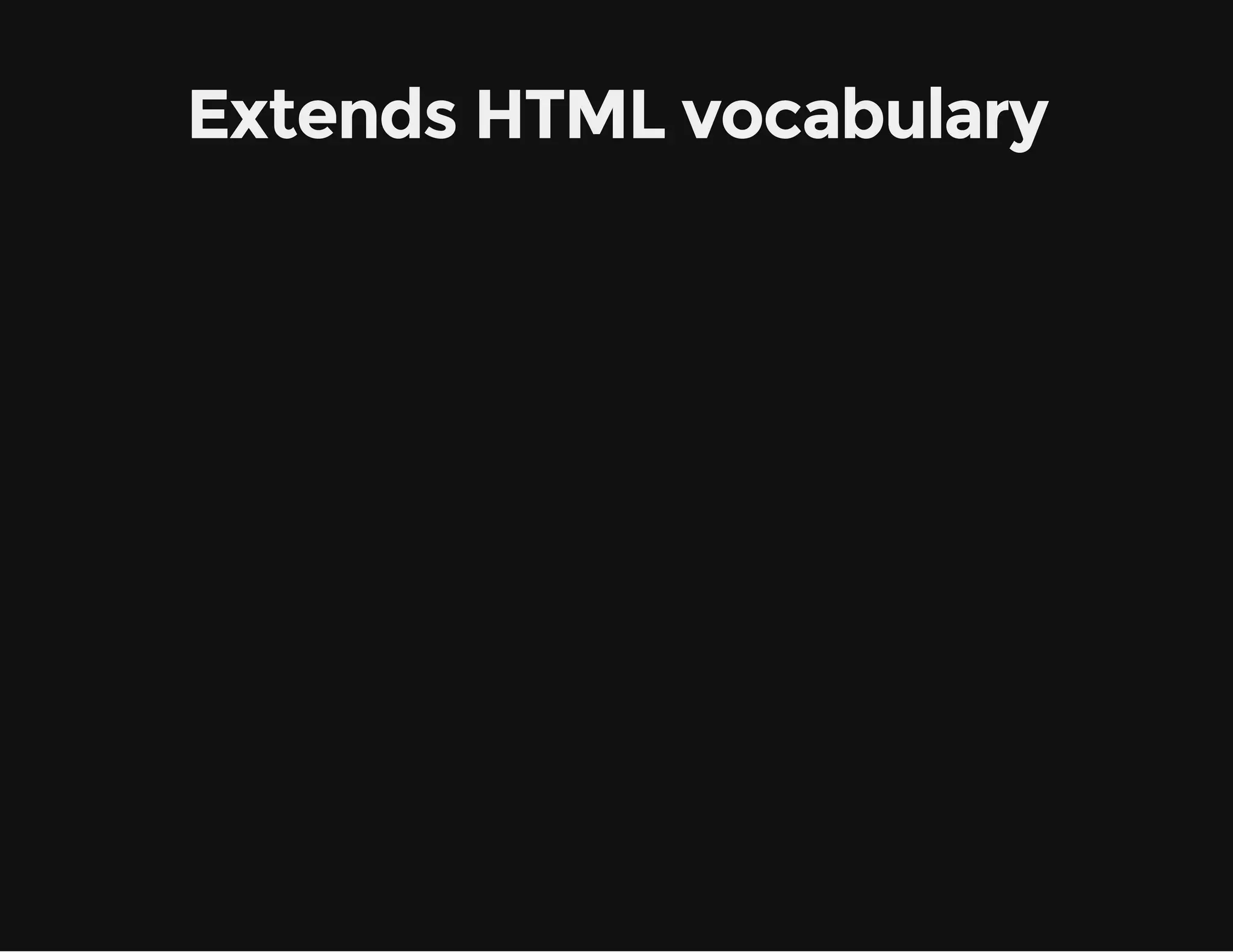

Extends HTML vocabulary
Tries to follow a pure HTML path
Angular components Expressions Controllers Directives Routing
Expressions
Allows us to bring data to the view
Uses a simple syntax {{ model.FieldName }}
One-way binding <i n-otolr"apeotolr> dv gcnrle=SmlCnrle" <pn{ caatrnm }<sa> sa>{ hrce.ae }/pn <dv /i>
Two-way binding <eetn-oe=slceCaatr> slc gmdl"eetdhrce" <pinvle""Fn<oto> oto au=0>in/pin <pinvle""Jk<oto> oto au=1>ae/pin <pinvle""BO/pin oto au=2>M<oto> <slc> /eet

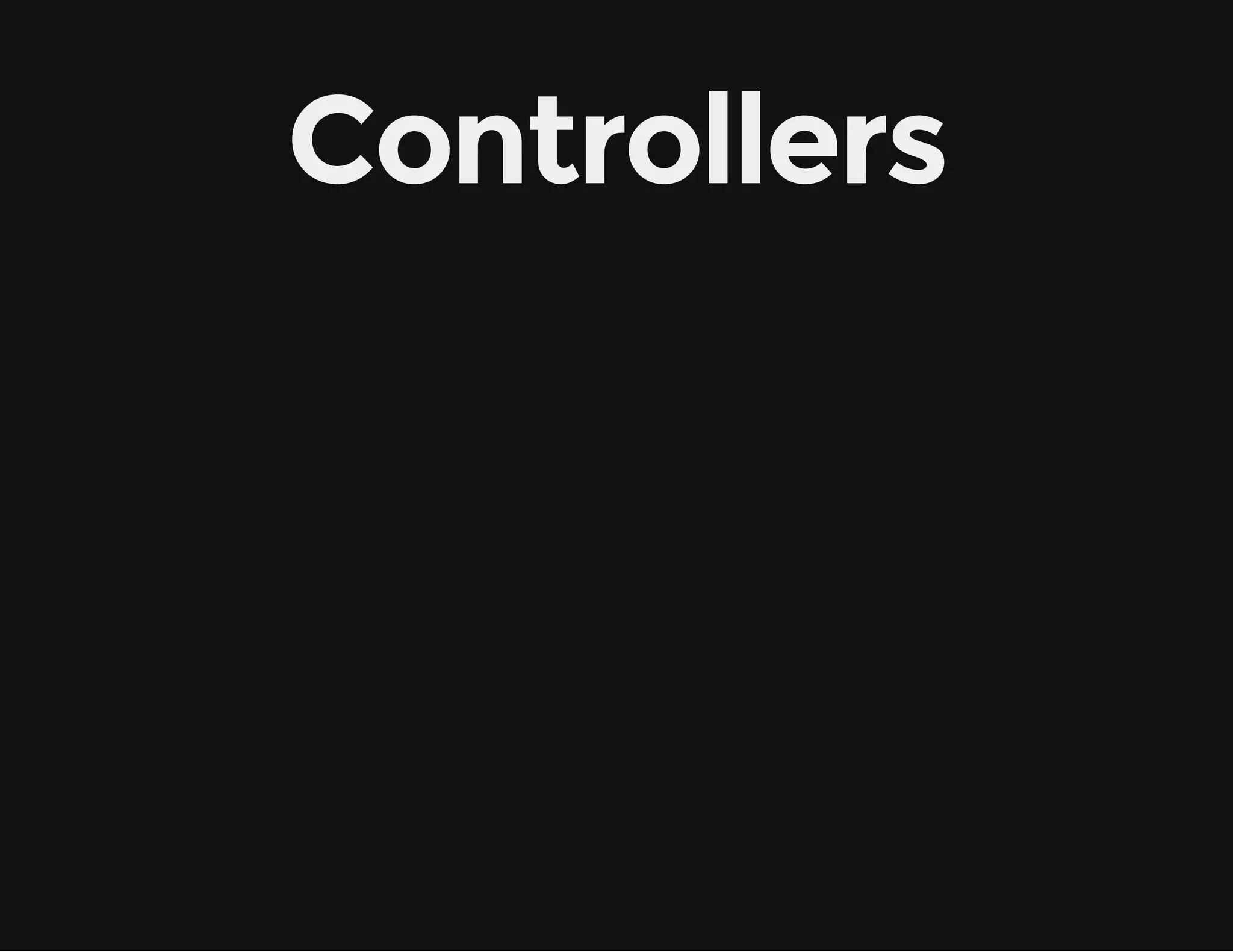

Controllers

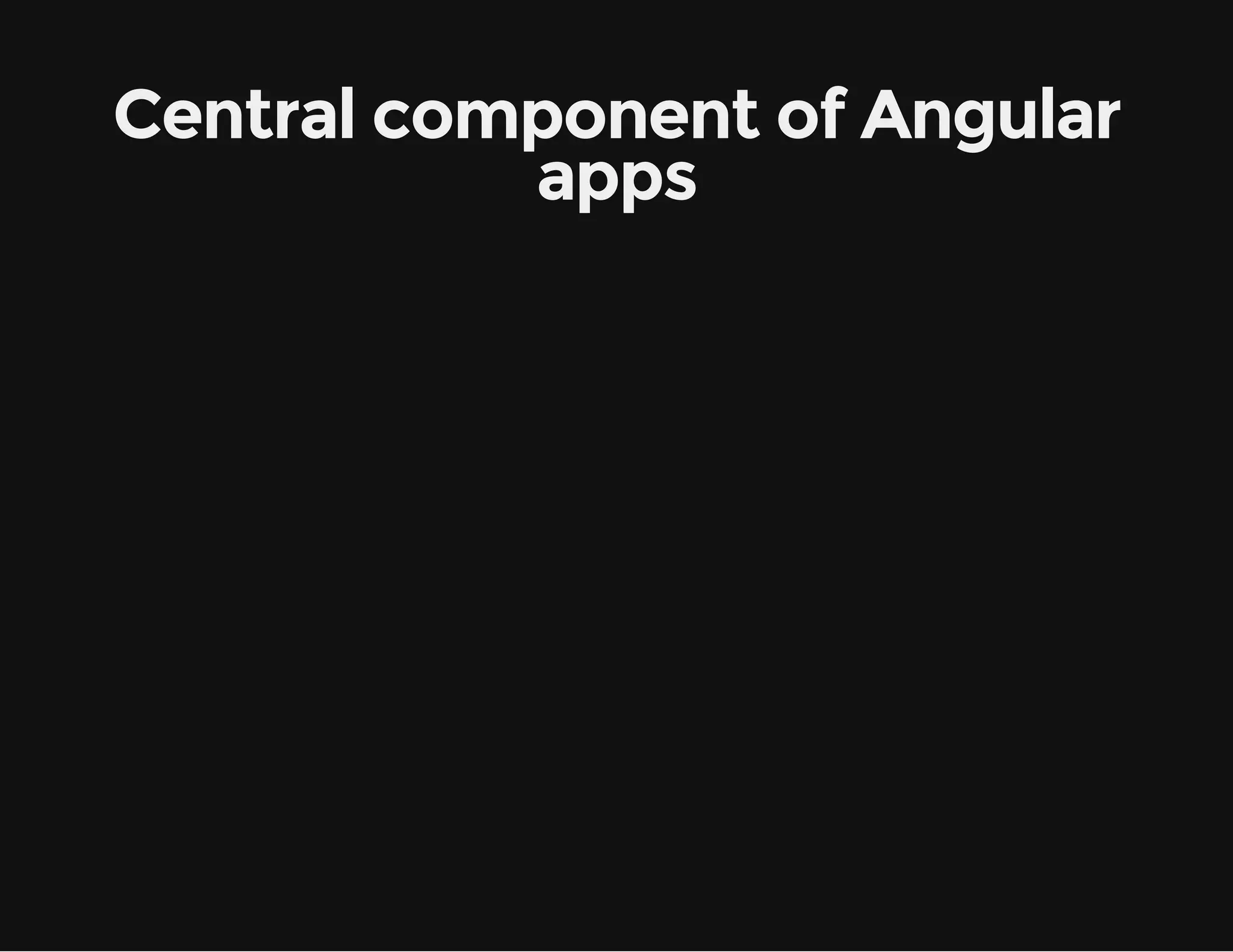

Central component of Angular apps
Contains data, logic, and states
Creates a scope for the HTML element $scope variable
Sample Controller vrsmlApotolr =aglrmdl(smlApotolr' [) a apepCnrles nua.oue'apepCnrles, ]; smlApotolr.otolr'hwotolr,[$cp' apepCnrlescnrle(SoCnrle' 'soe, fnto SoCnrle(soe { ucin hwotolr$cp) $cp.apeaibe=1 soesmlVral ; $cp.apera =[ soesmlAry { fedn:0 ilOe , fedw:"et ilTo Ts" } , { fedn:1 ilOe , fedw:"ape ilTo Sml" } ] $cp.apeucin fnto( { soesmlFnto: ucin) /Fnto lgc /ucin oi } }) ];
$scope only available within the HTML element it is defined in
Directives
HTML-like attributes

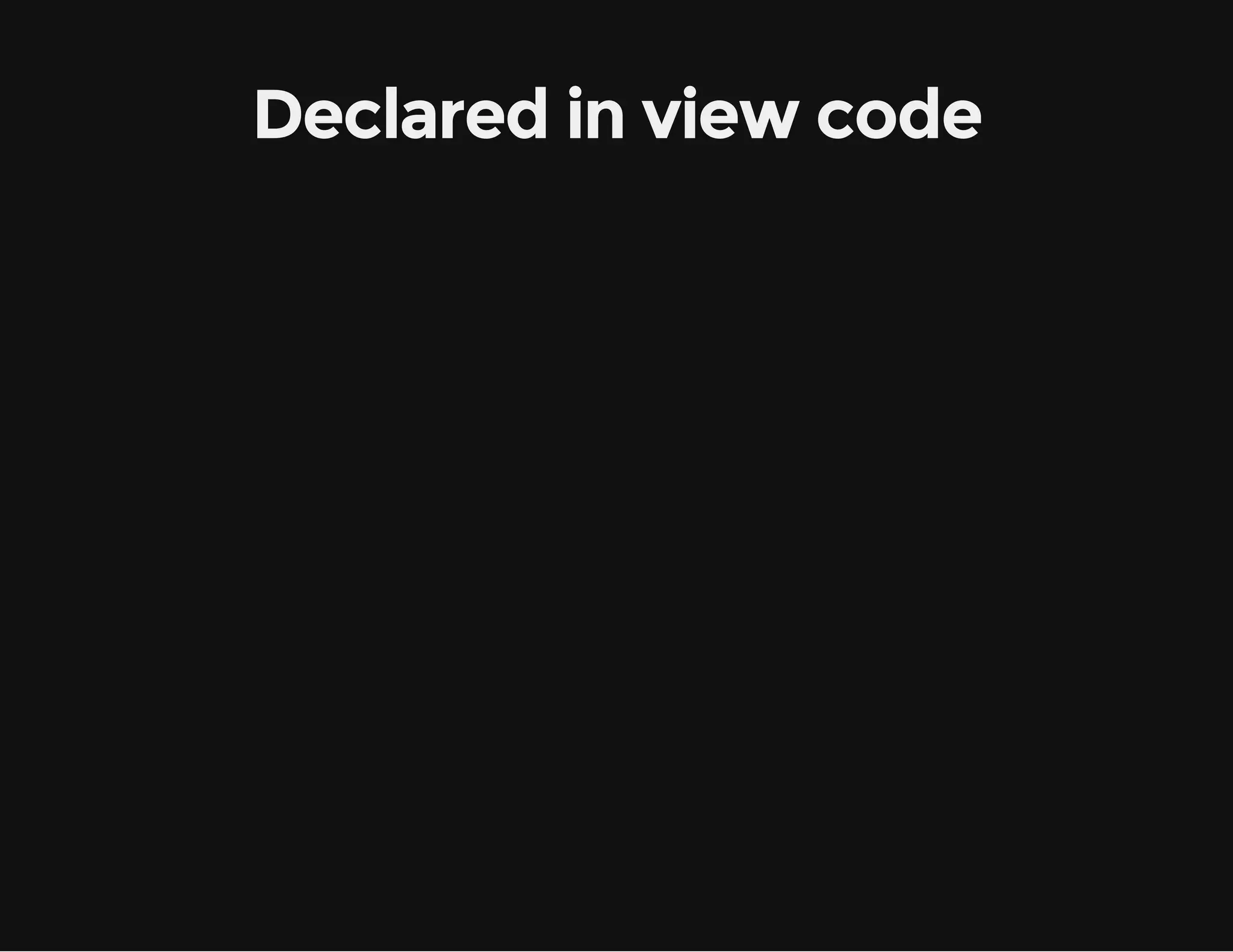

Declared in view code

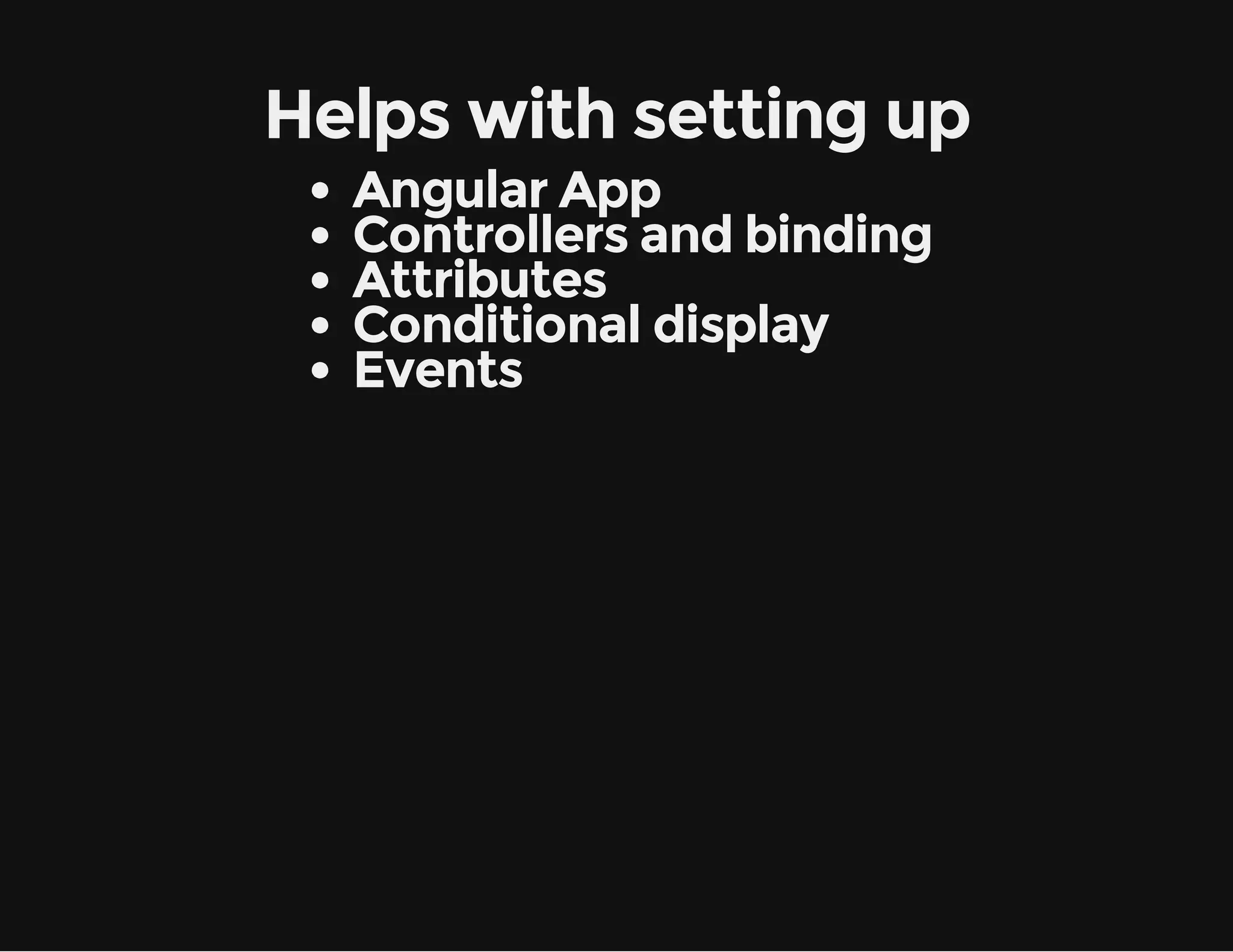

Helps with setting up Angular App Controllers and binding Attributes Conditional display Events
Sample Directives ng-app="appName" ng-controller="SampleCtrl" ng-model="ScopeVar" ng-src="{{scopeUrlVar}}" ng-click="eventHandler()"
Routing

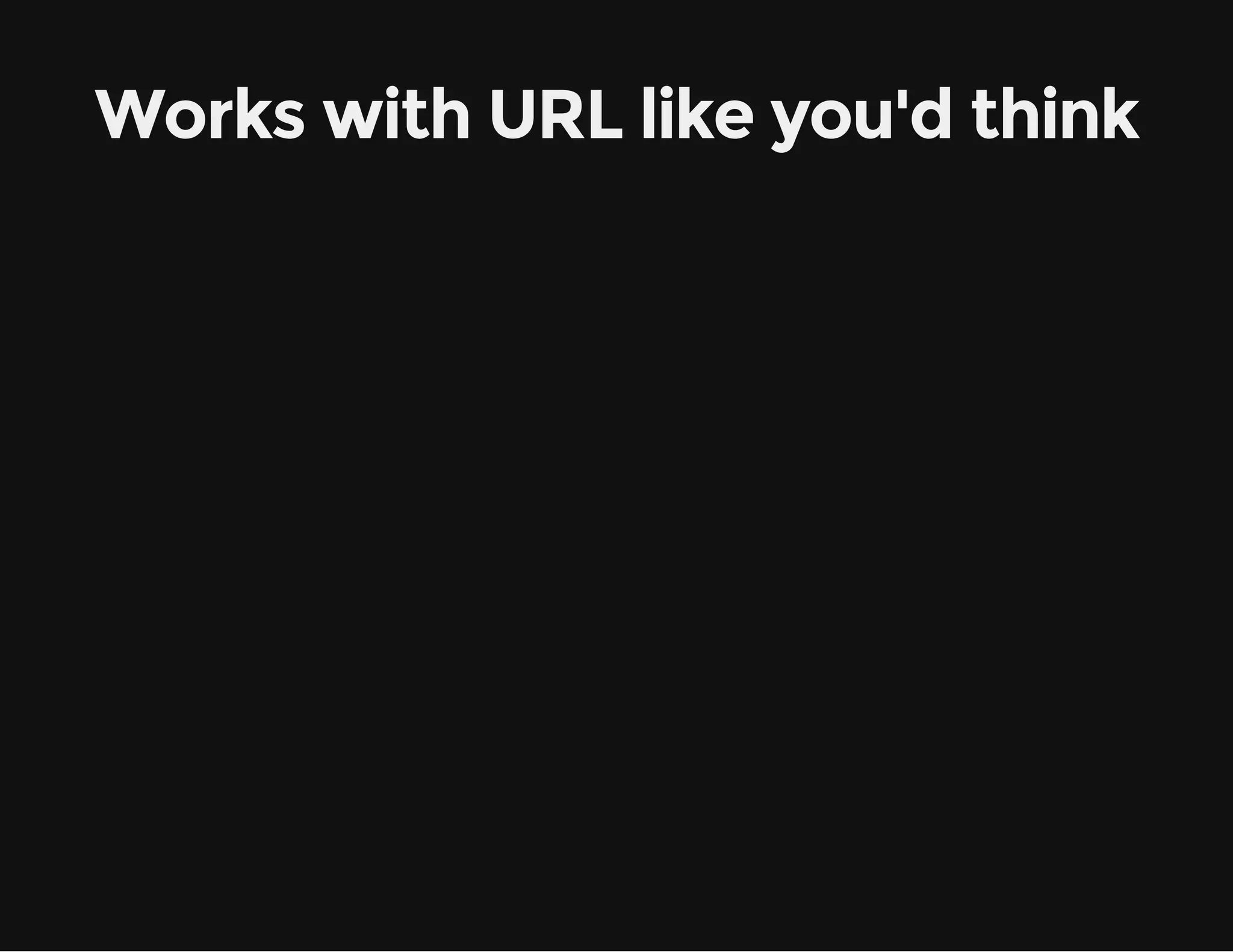

Works with URL like you'd think
Single main view Placeholder element for content
Load other views via partials Just HTML pages
Simple structure for routing vrsmlAp=aglrmdl(smlAp,[ a apep nua.oue'apep' 'got' nRue, 'yotolr' mCnrles ]; ); smlApcni('ruervdr, apep.ofg[$otPoie' fnto(ruervdr { ucin$otPoie) $otPoie.hn'ts' {tmltUl 'atasts.tl,cnr ruervdrwe(/et, epaer: pril/ethm' oto $otPoie.hn'sml:d,{tmltUl 'atassml.tl, ruervdrwe(/apei' epaer: pril/apehm' $otPoie.tews( rdrcT:''}; ruervdrohrie{ eieto / ) }) ];
Angular Summary
Extension of HTML
Empowering your regular HTML code
Controllers rule all

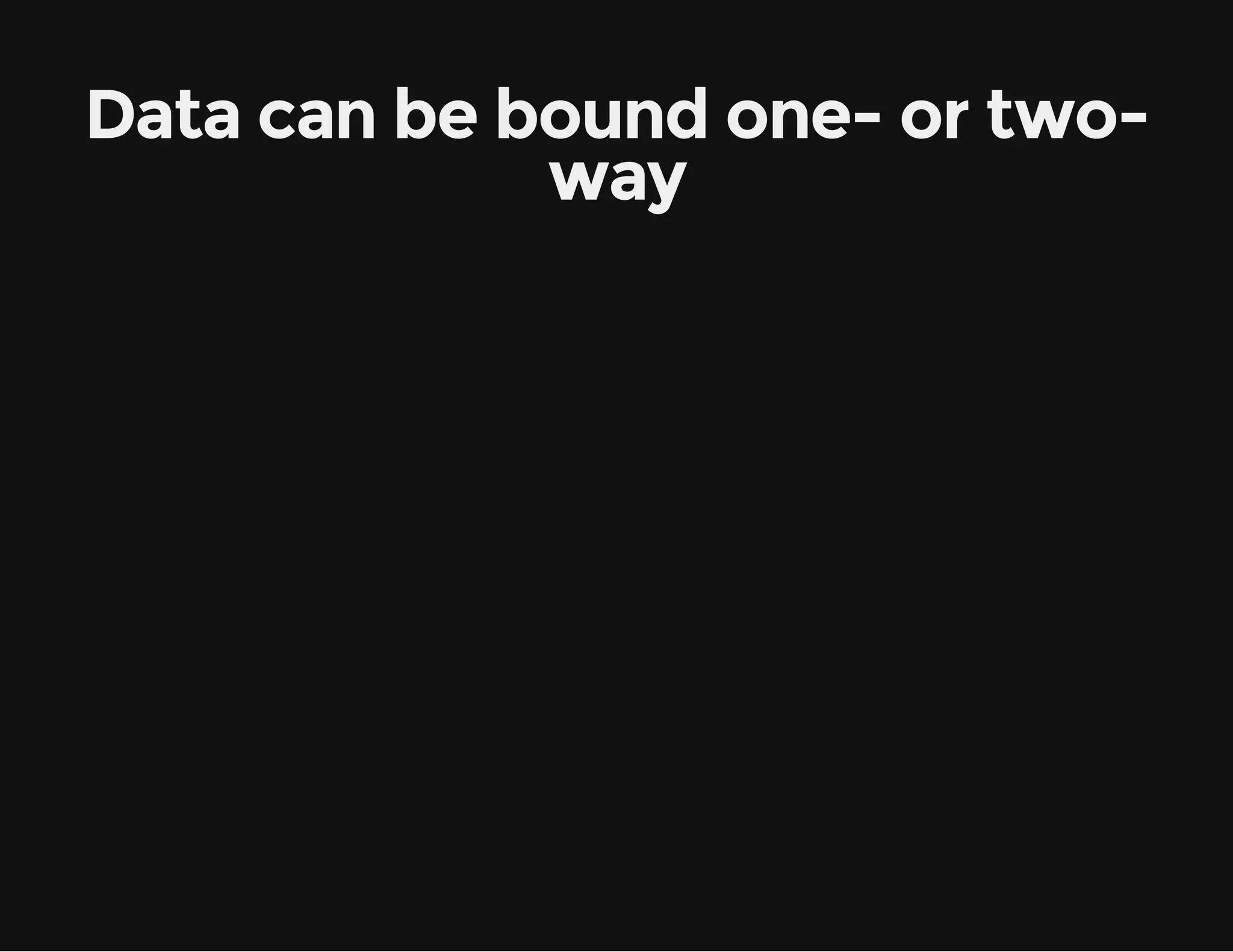

Data can be bound one- or twoway
DOM manipulation via controller Drop that jQuery ;)

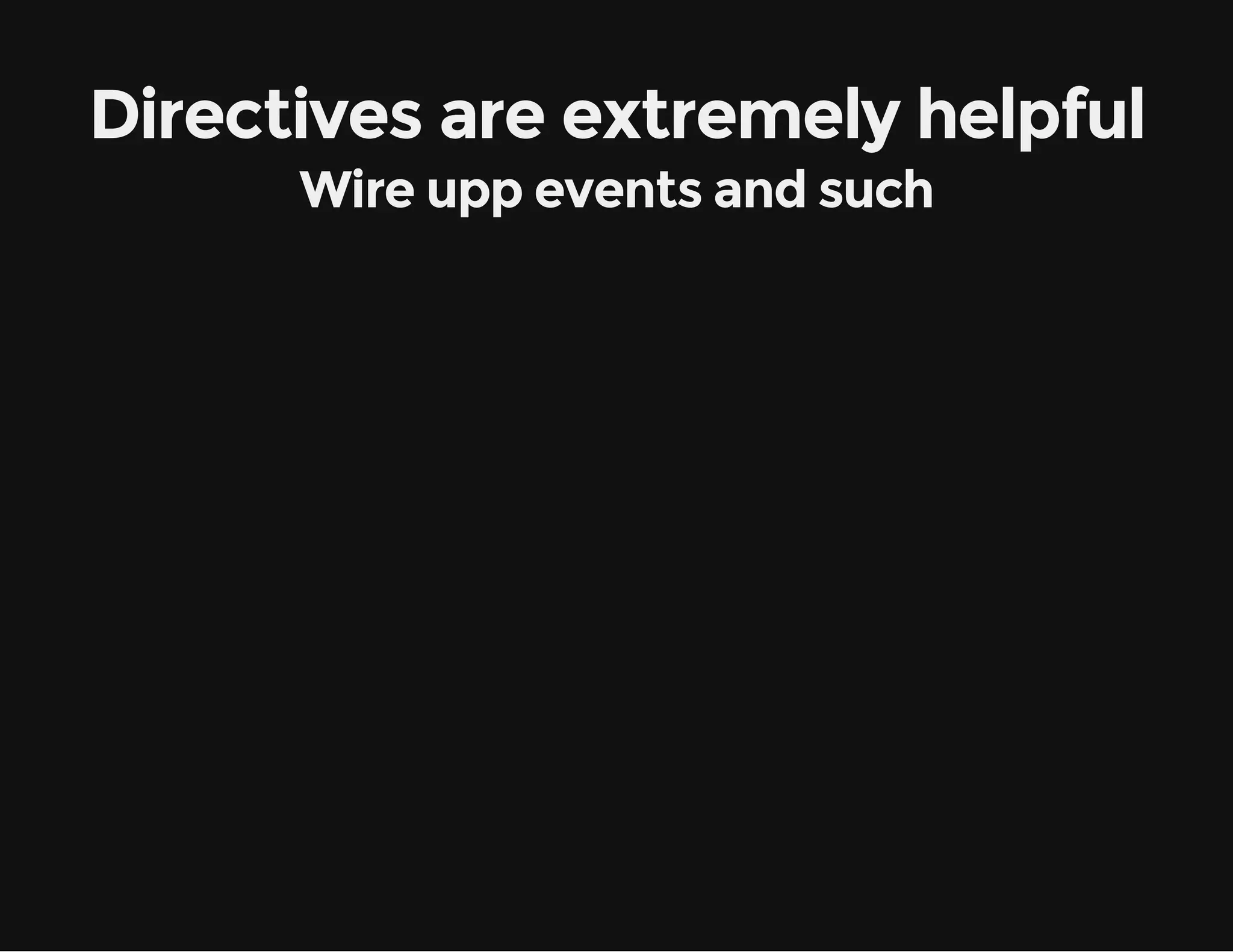

Directives are extremely helpful Wire upp events and such
Routers use partials of HTML

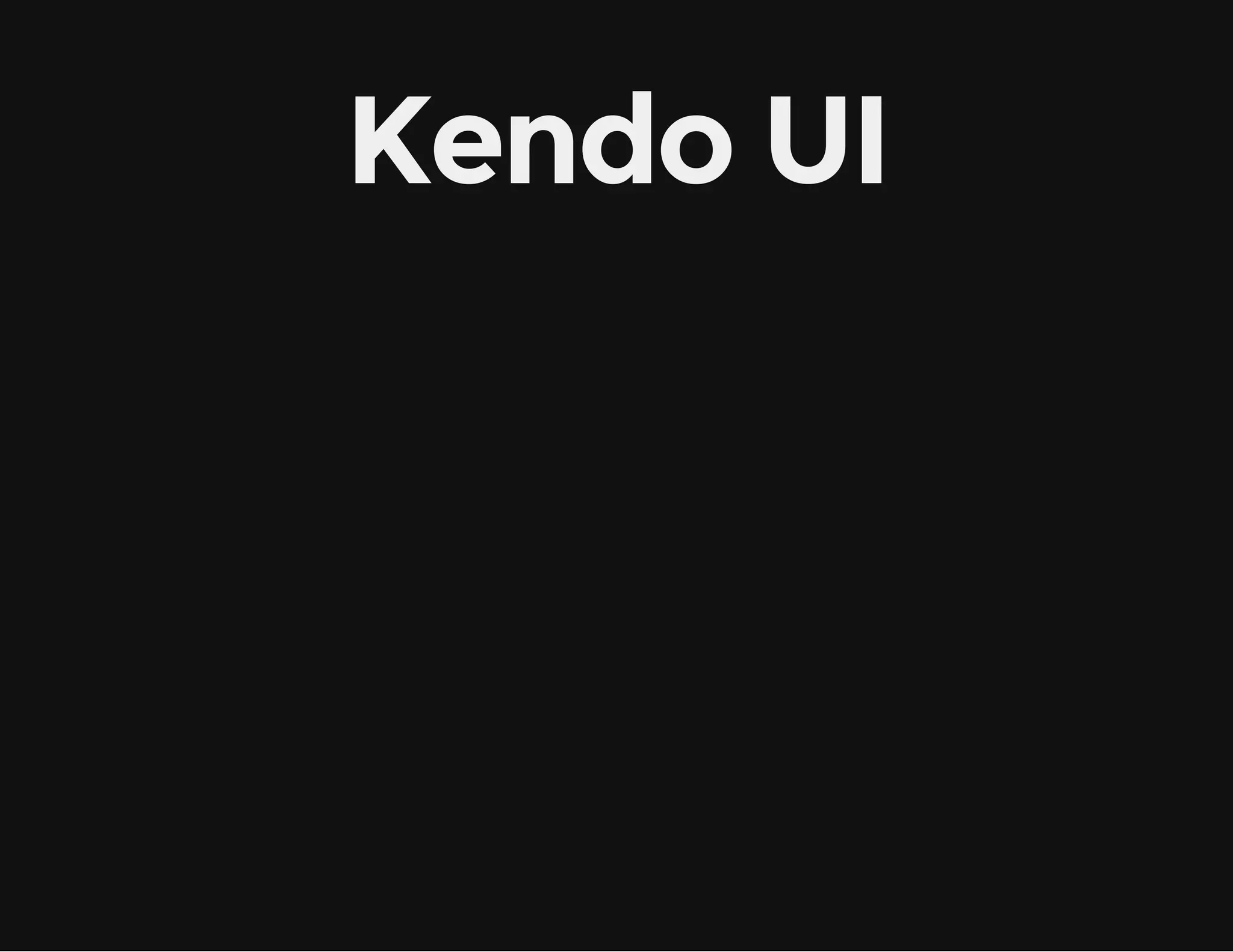

Kendo UI

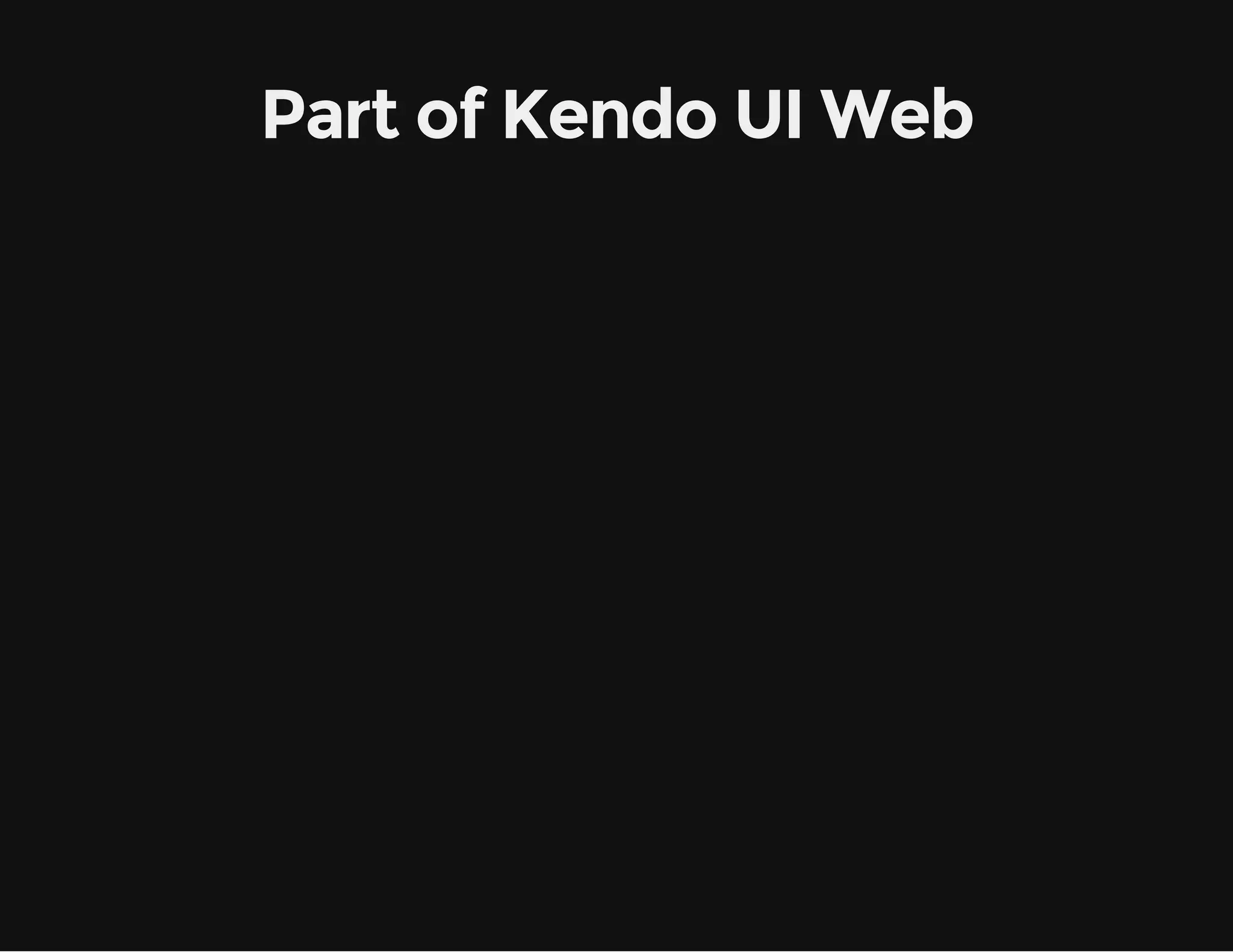

Part of Kendo UI Web
Combine SPA and MVVM Frameworks
Additional helpful items Template engine Effects and animations UI widgets Charts and gauges
Tooling across all parts of your SPA

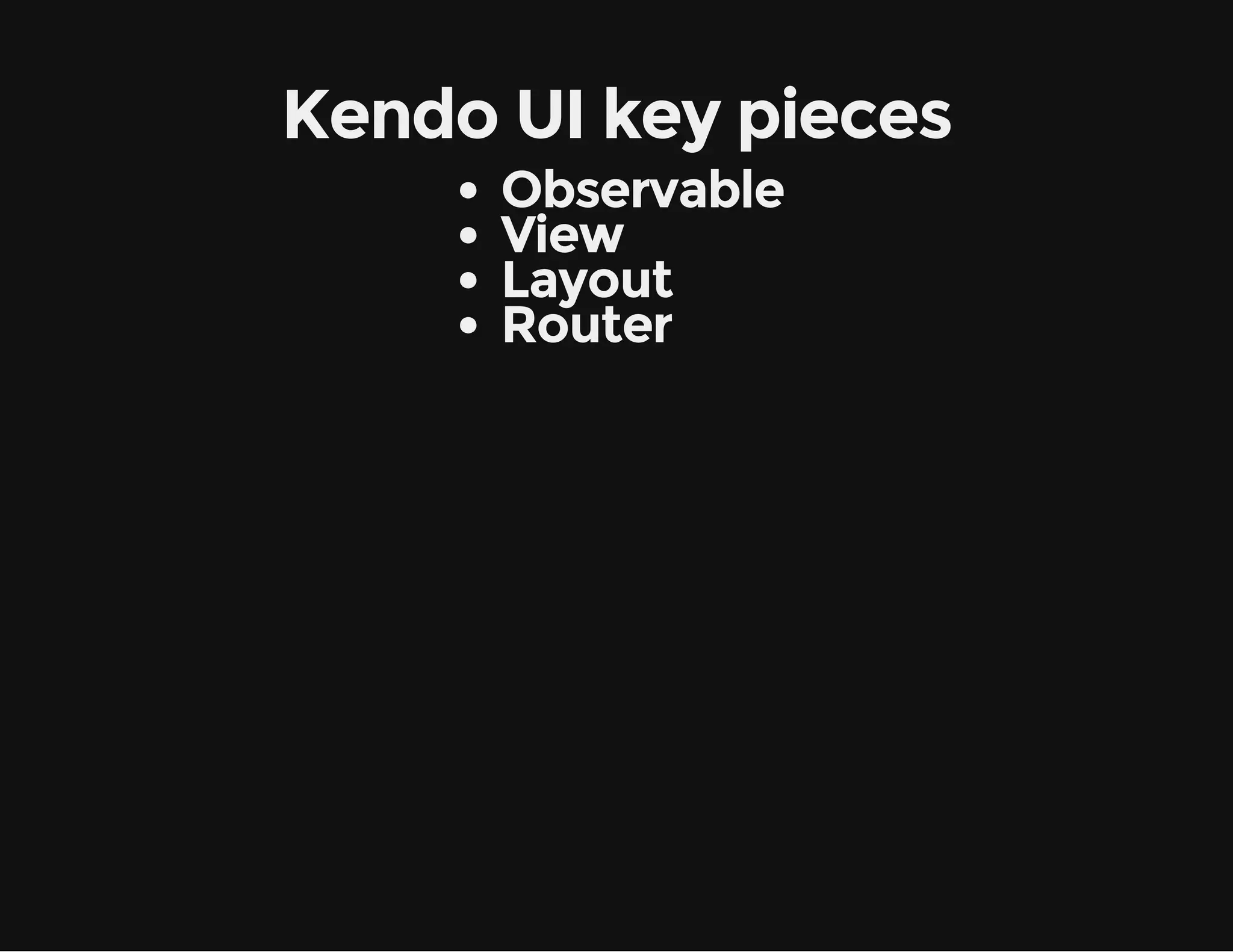

Kendo UI key pieces Observable View Layout Router
Observable
Part of the Kendo UI MVVM framework
All fields are observable
All changes will propogate
kendo.observable vrfnMdl=knoosral( a inoe ed.bevbe{ nm:'inteHmn, ae Fn h ua' seis 'ua' pce: Hmn, dsrpin 'h ls hmni teLn o Oo Hnsotwt Jk. ecito: Te at ua n h ad f o. ag u ih ae' }; )
Use get() or set() with fields vrfnMdl=knoosral( a inoe ed.bevbe{ nm:'inteHmn, ae Fn h ua' seis 'o' pce: Dg, dsrpin 'h ls hmni teLn o Oo Hnsotwt Jk. ecito: Te at ua n h ad f o. ag u ih ae' }; ) fnMdlst'pce' 'ua'; inoe.e(seis, Hmn) vrseis=fnMdlgt'pce';/Hmn a pce inoe.e(seis) /ua
View
Can be defined with simple HTML string

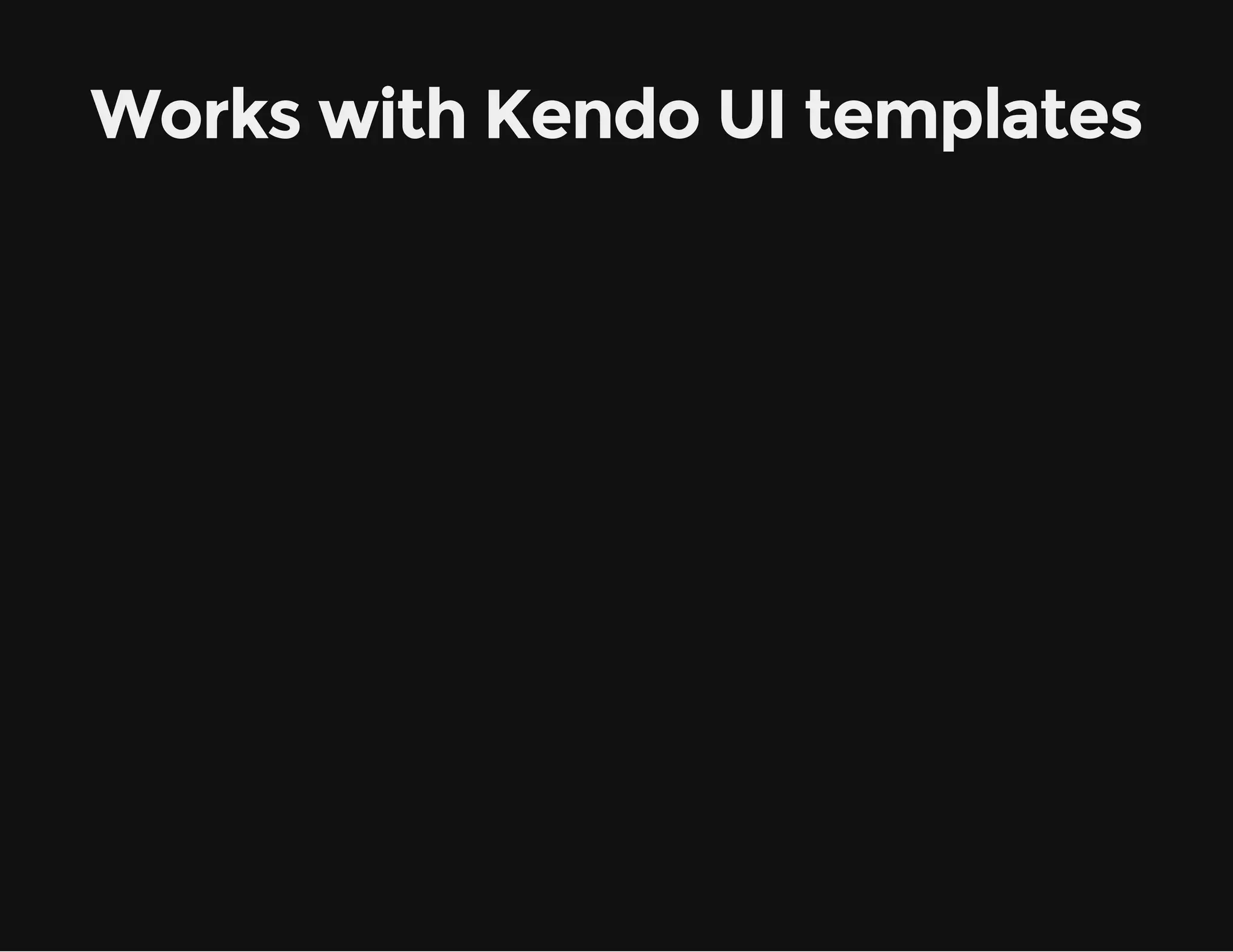

Works with Kendo UI templates

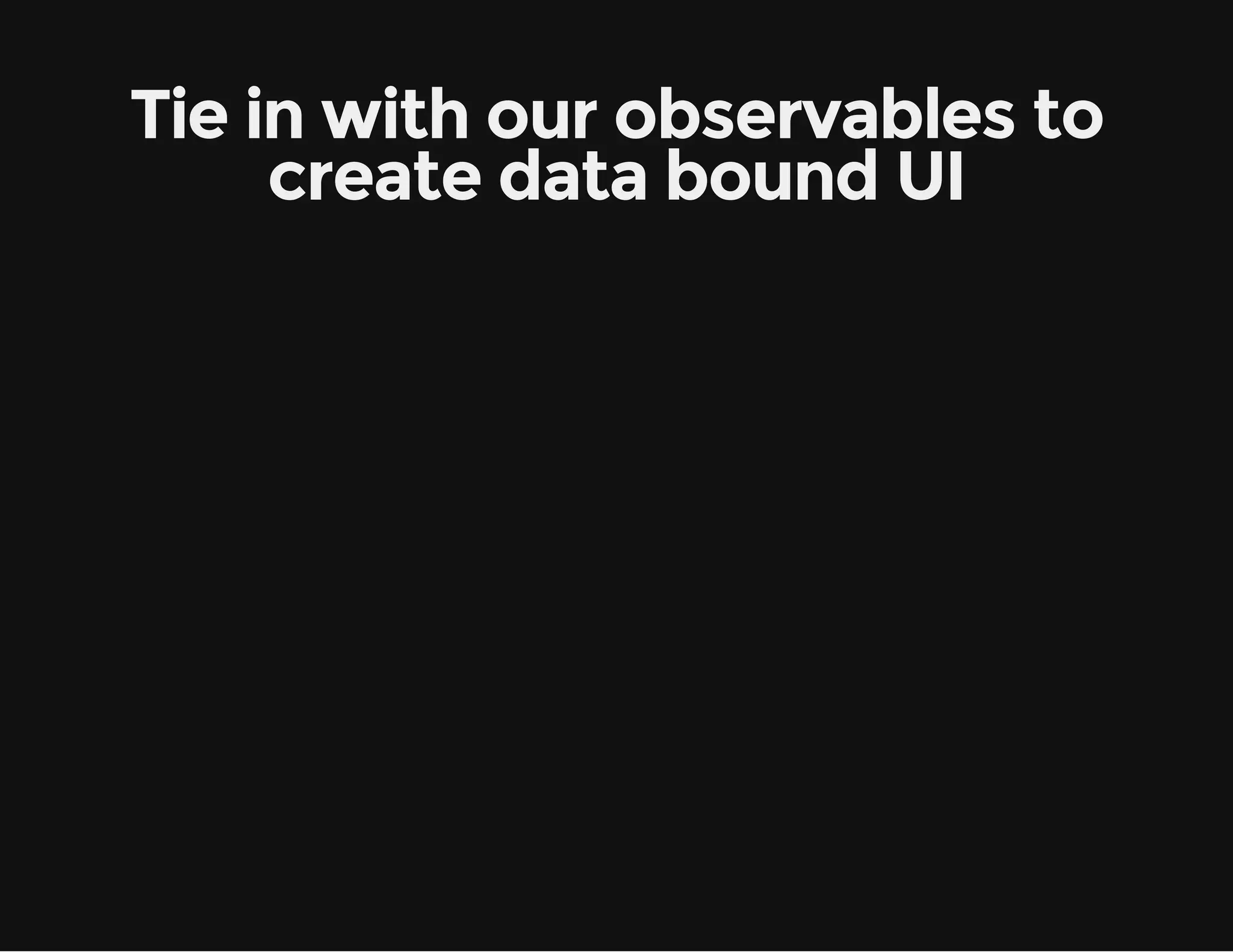

Tie in with our observables to create data bound UI
kendo.View() vridx=nwknoVe(<pnAvnueTm!/pn'; a ne e ed.iw'sa>detr ie<sa>) idxrne(#lchle'; ne.edr'paeodr)
With Kendo UI Templates and Observables jsbin.com/imAnimo/5/
Layout
Provides a layout for views to adhere to
MasterPages for you .NET folks
Easily display views in content section
Can also be nested
kendo.Layout vrve =nwKnoVe(<pnFn teHmn/pn'; a iw e ed.iw'sa>in h ua<sa>) vrlyu =nwknoLyu(<edrHae<hae>dvi=cnet>/i>foe>otr/otr'; a aot e ed.aot'hae>edr/edr<i d"otn"<dv<otrFoe<foe>) lyu.edr$'ap); aotrne((#p') lyu.hwn'cnet,ve) aotsoI(#otn' iw;
Router
Responsible for application state
Navigate between views
Use of hash fragments ht:/yr.o//hrces tp/mulcm#caatr/
Can programmatically navigate

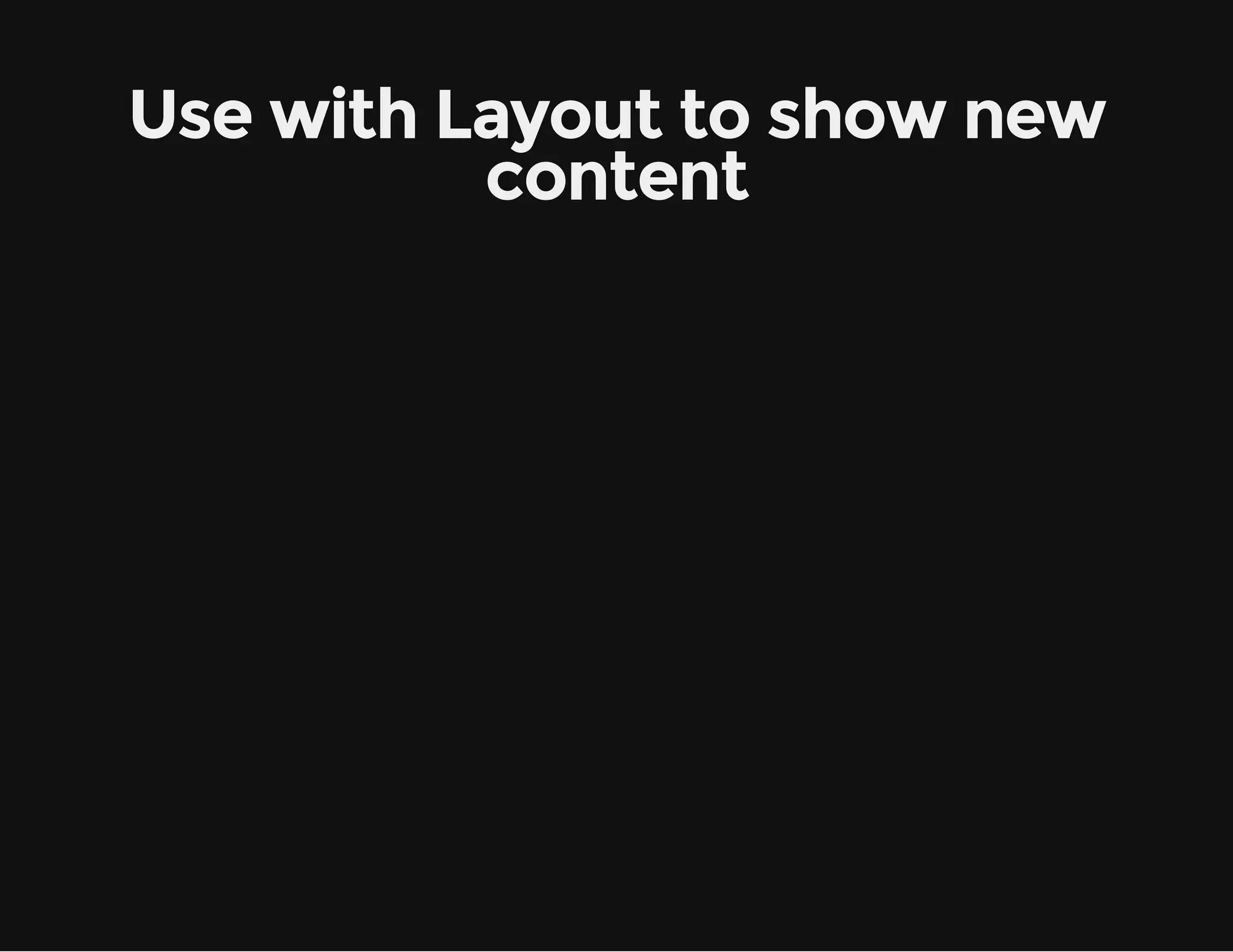

Use with Layout to show new content
kendo.Router() vrrue =nwknoRue(; a otr e ed.otr) rue.ot(/,fnto ( { otrrue'' ucin ) lyu.hwn'cnet,hmVe) aotsoI(#otn' oeiw; }; ) rue.ot(/hrce' fnto ( { otrrue'caatr, ucin ) lyu.hwn'cnet,caatriw; aotsoI(#otn' hrceVe) }; ) $fnto( { (ucin) rue.tr(;/vr iprat otrsat) /ey motn }; ) rue.aiae'caatr) otrnvgt(/hrce';
Kendo UI Summary

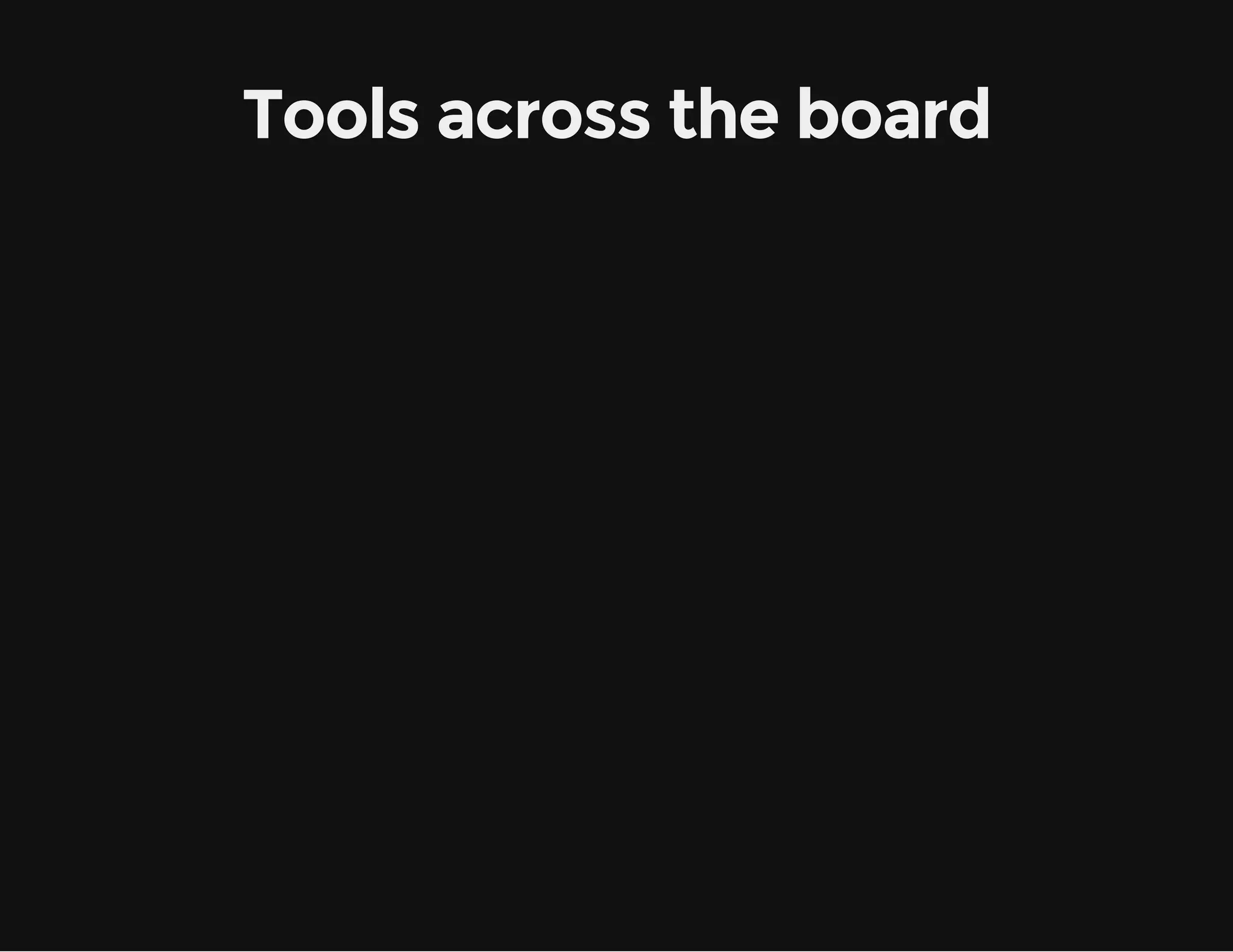

Tools across the board
Classes for dealing with data

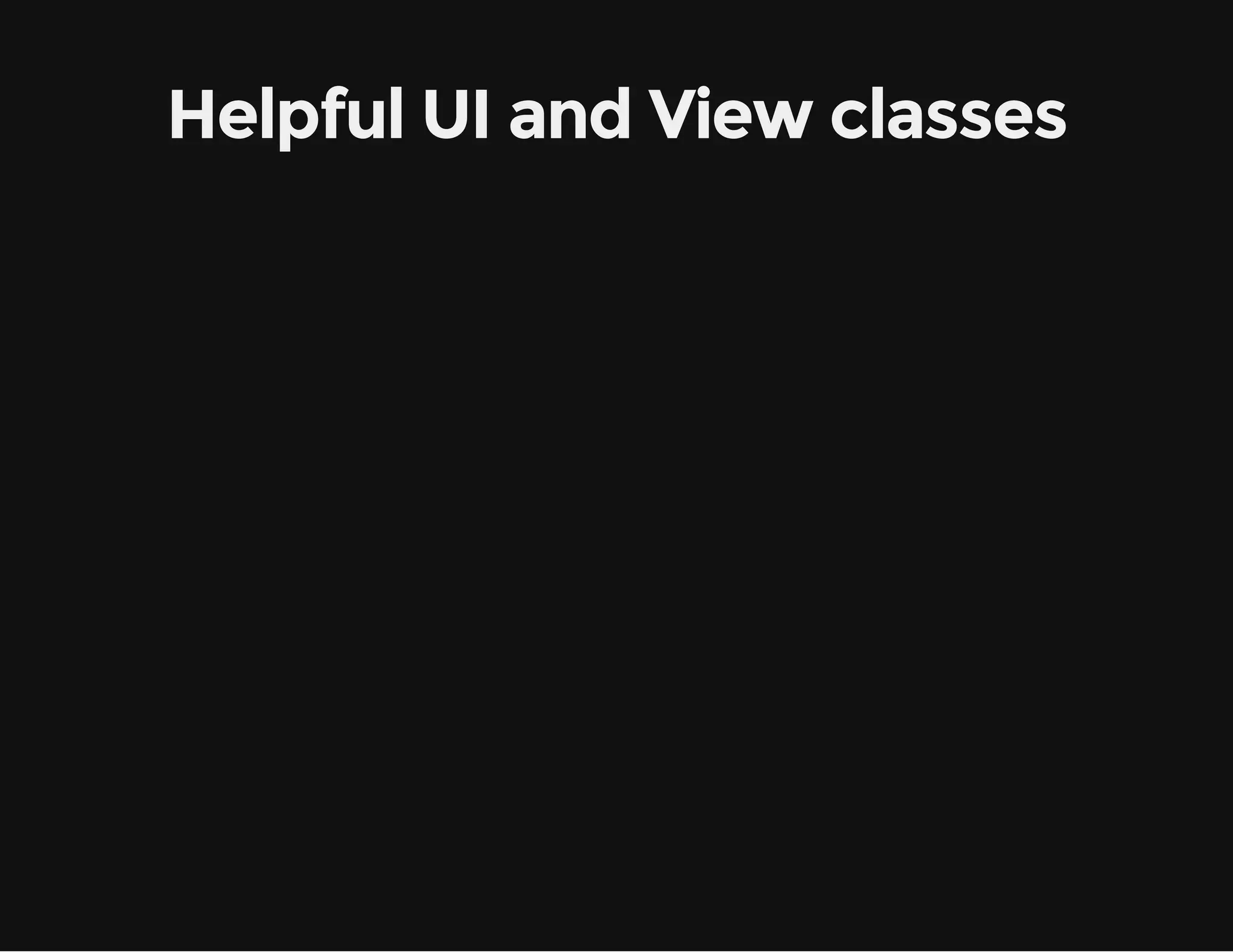

Helpful UI and View classes
Large set of UI widgets
Kendo UI SPA key items Observable View Layout Router
The End Thanks for attending! @carlbergenhem github.com/bergenhem/talks

Adventure Time with JavaScript & Single Page Applications
