- 1. Ido Flatow Senior Architect MicrosoftMVP SELA Group ASP.NET Web API and HTTP Fundamentals @idoFLATOW http://bit.ly/flatow-blog This presentation: http://sdrv.ms/1eKAsRd http://www.asp.net/web- api/overview/getting-started-with- aspnet-web-api/tutorial-your-first-web- api

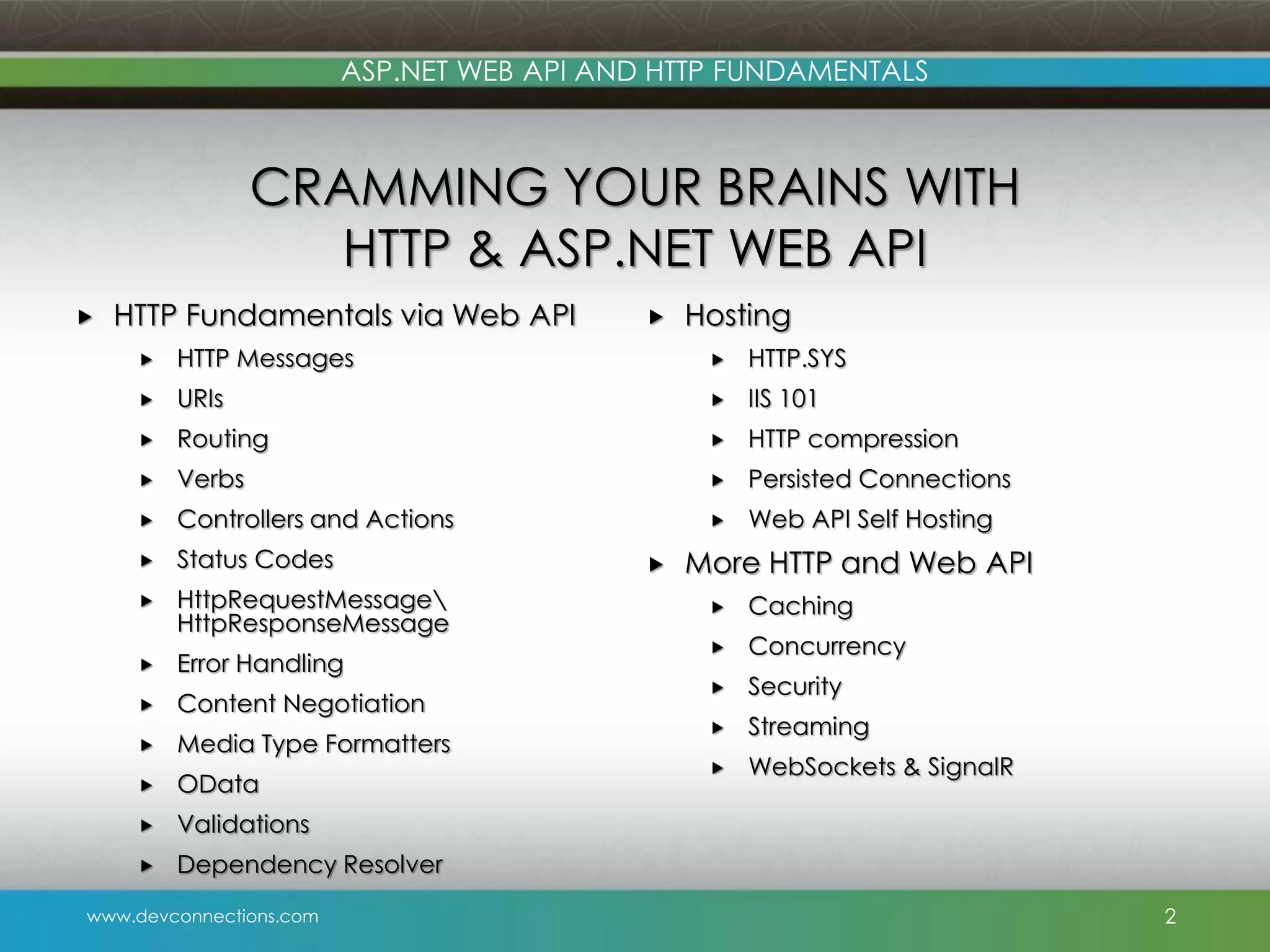

- 2. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CRAMMING YOUR BRAINS WITH HTTP & ASP.NET WEB API HTTP Fundamentals via Web API HTTP Messages URIs Routing Verbs Controllers and Actions Status Codes HttpRequestMessage HttpResponseMessage Error Handling Content Negotiation Media Type Formatters OData Validations Dependency Resolver Hosting HTTP.SYS IIS 101 HTTP compression Persisted Connections Web API Self Hosting More HTTP and Web API Caching Concurrency Security Streaming WebSockets & SignalR 2

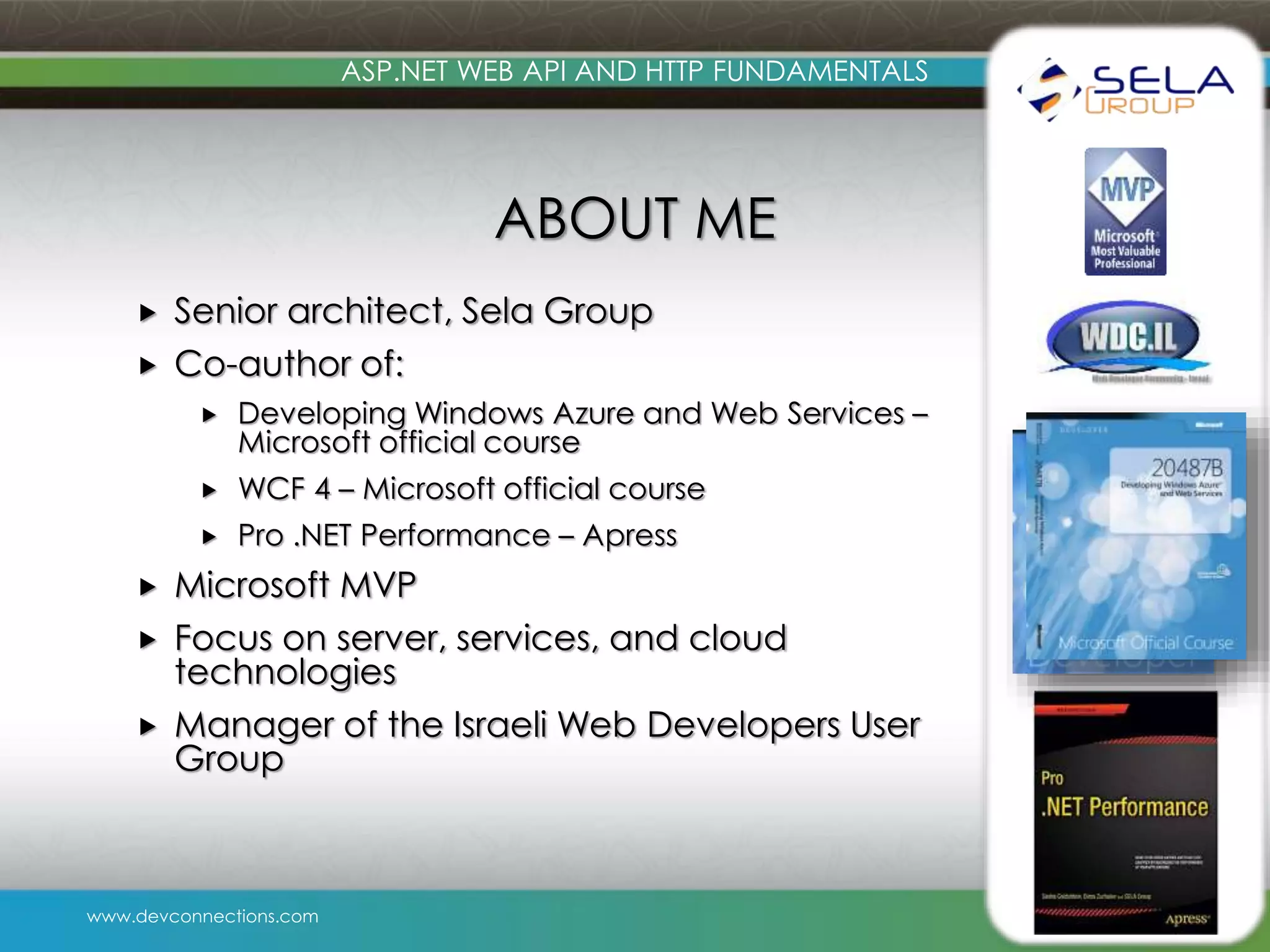

- 3. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ABOUT ME Senior architect, Sela Group Co-author of: Developing Windows Azure and Web Services – Microsoft official course WCF 4 – Microsoft official course Pro .NET Performance – Apress Microsoft MVP Focus on server, services, and cloud technologies Manager of the Israeli Web Developers User Group

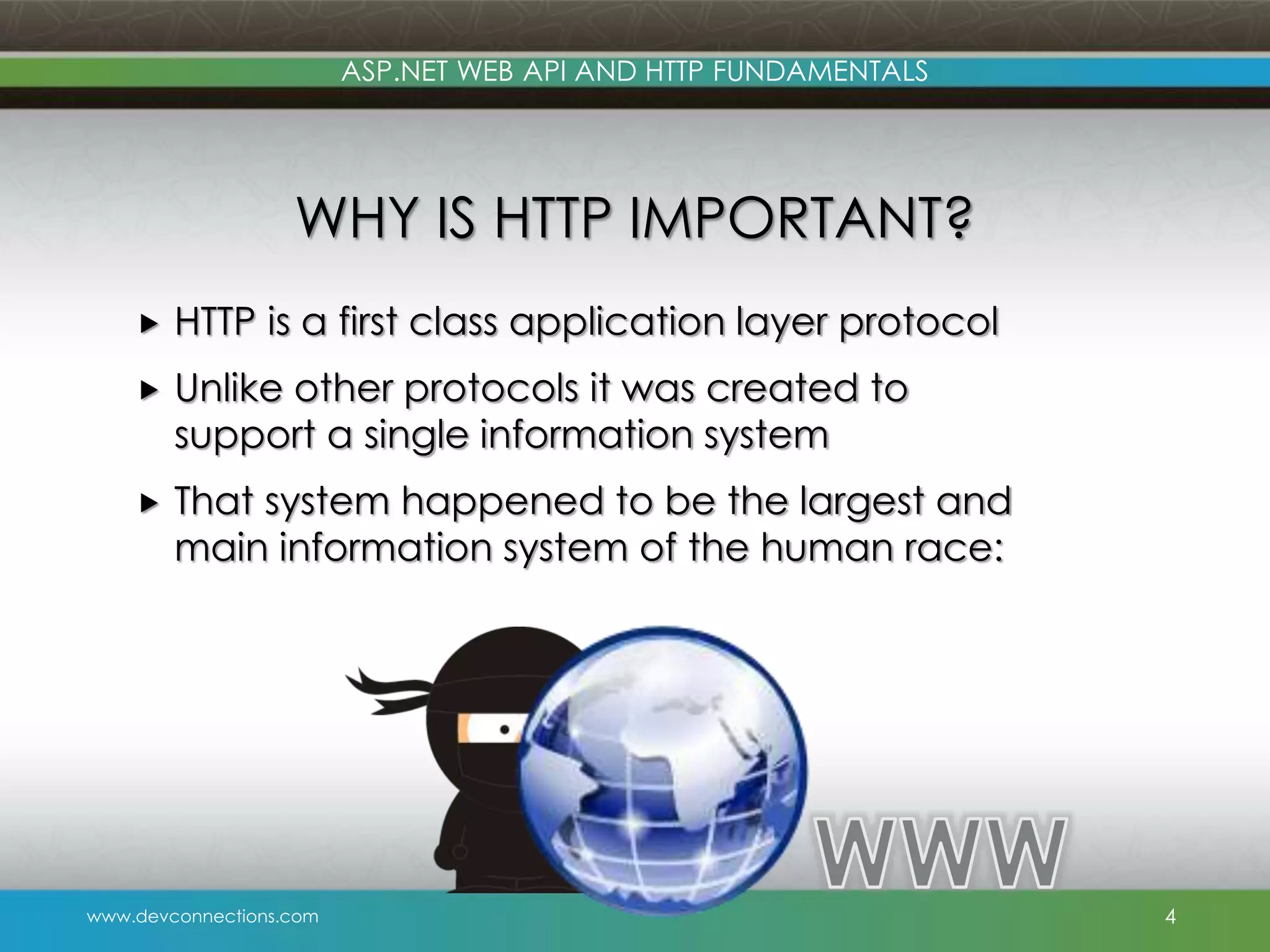

- 4. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS WHY IS HTTP IMPORTANT? HTTP is a first class application layer protocol Unlike other protocols it was created to support a single information system That system happened to be the largest and main information system of the human race: 4

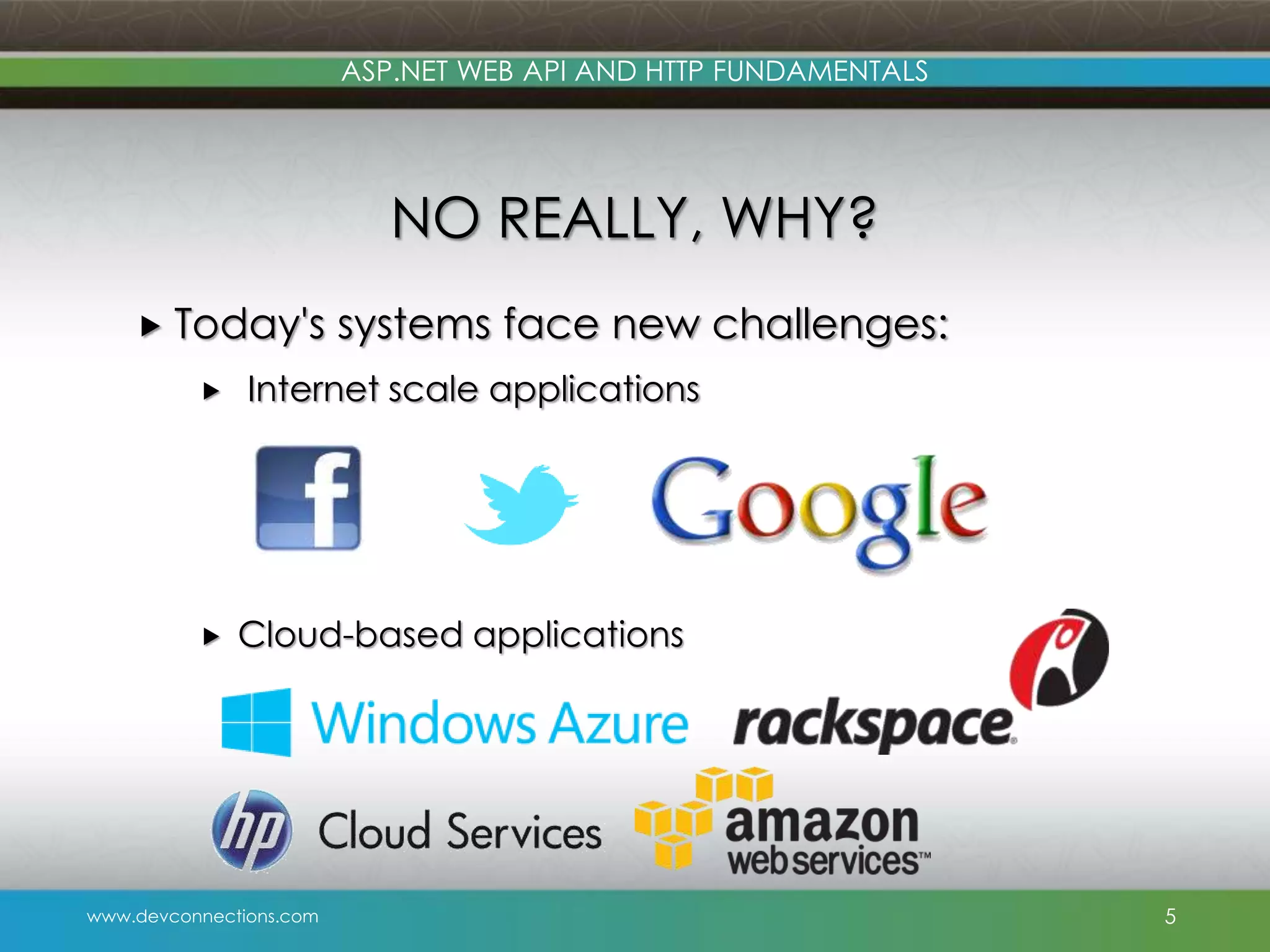

- 5. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS NO REALLY, WHY? Today's systems face new challenges: Internet scale applications Cloud-based applications 5

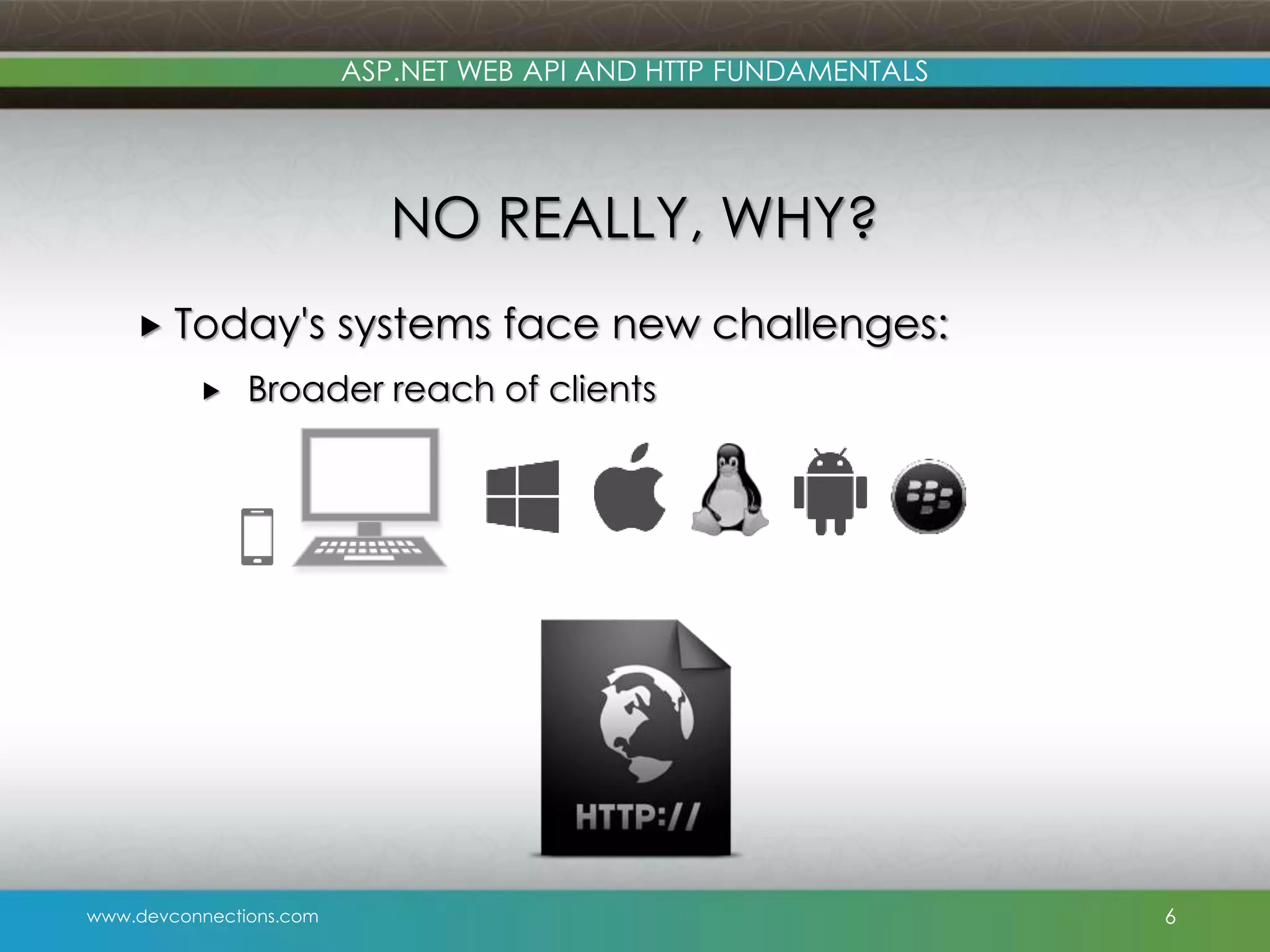

- 6. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS NO REALLY, WHY? Today's systems face new challenges: Broader reach of clients 6

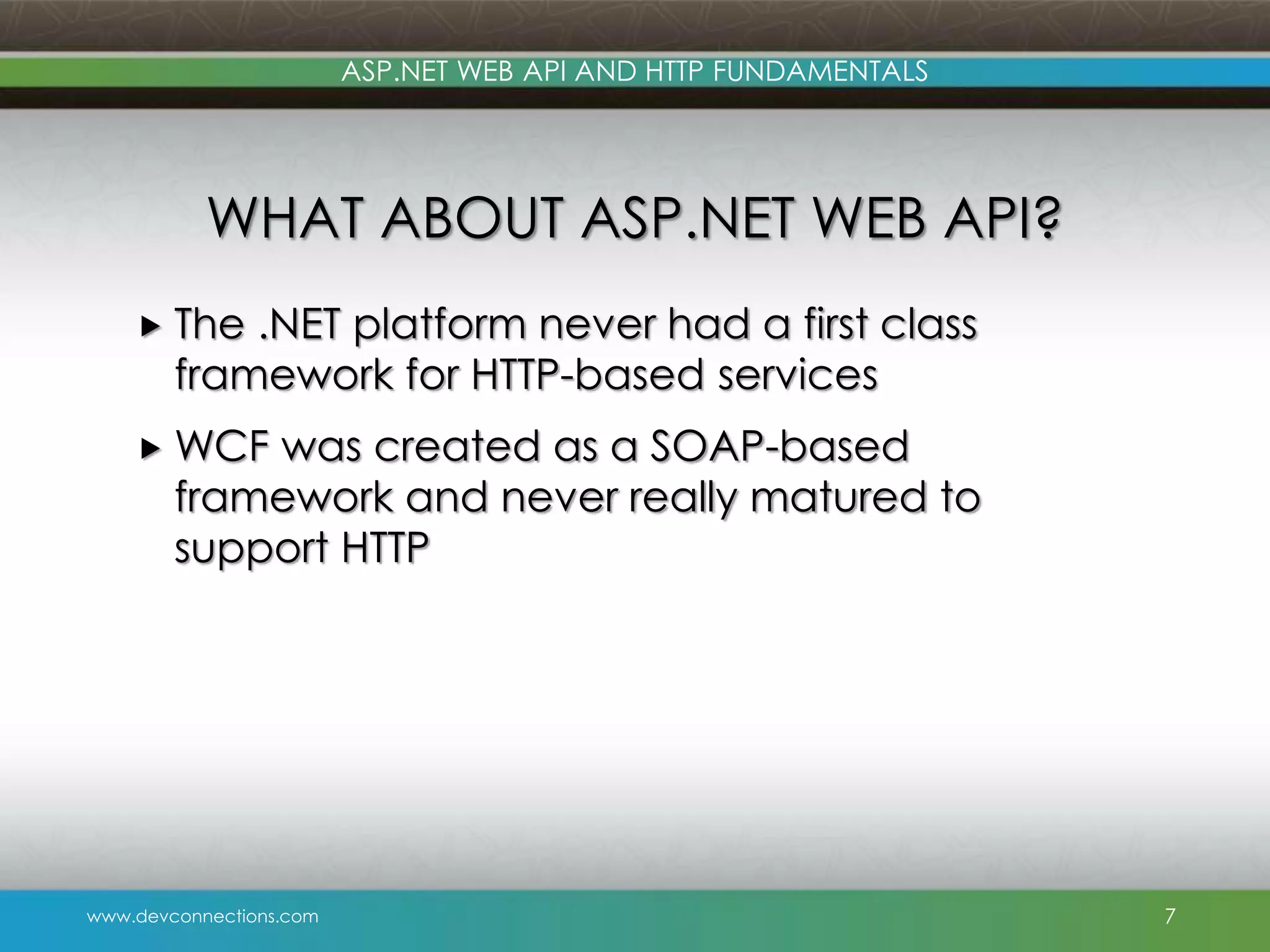

- 7. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS WHAT ABOUT ASP.NET WEB API? The .NET platform never had a first class framework for HTTP-based services WCF was created as a SOAP-based framework and never really matured to support HTTP 7

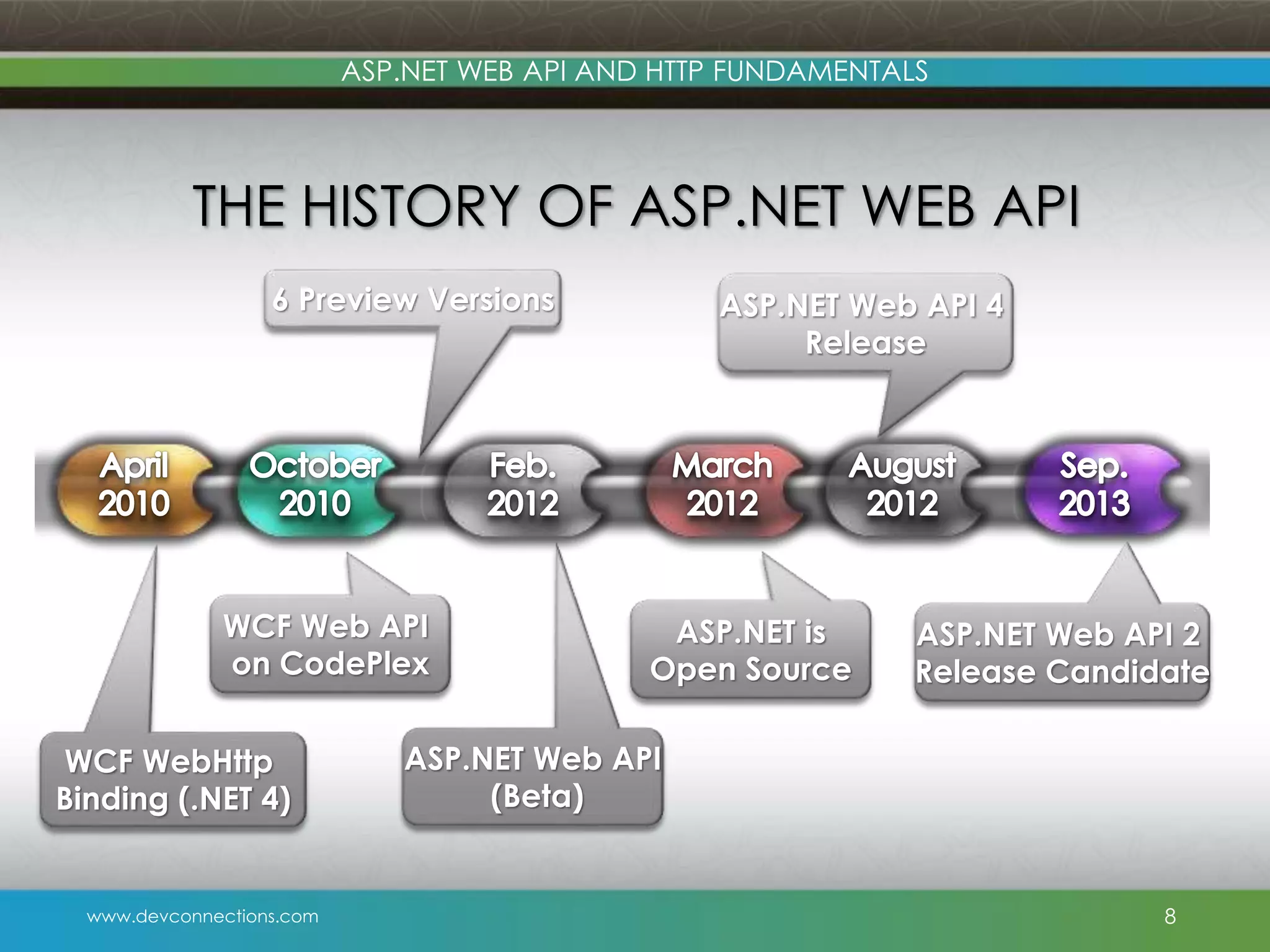

- 8. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS THE HISTORY OF ASP.NET WEB API 8 ASP.NET is Open Source ASP.NET Web API (Beta) WCF Web API on CodePlex 6 Preview Versions WCF WebHttp Binding (.NET 4) ASP.NET Web API 4 Release ASP.NET Web API 2 Release Candidate

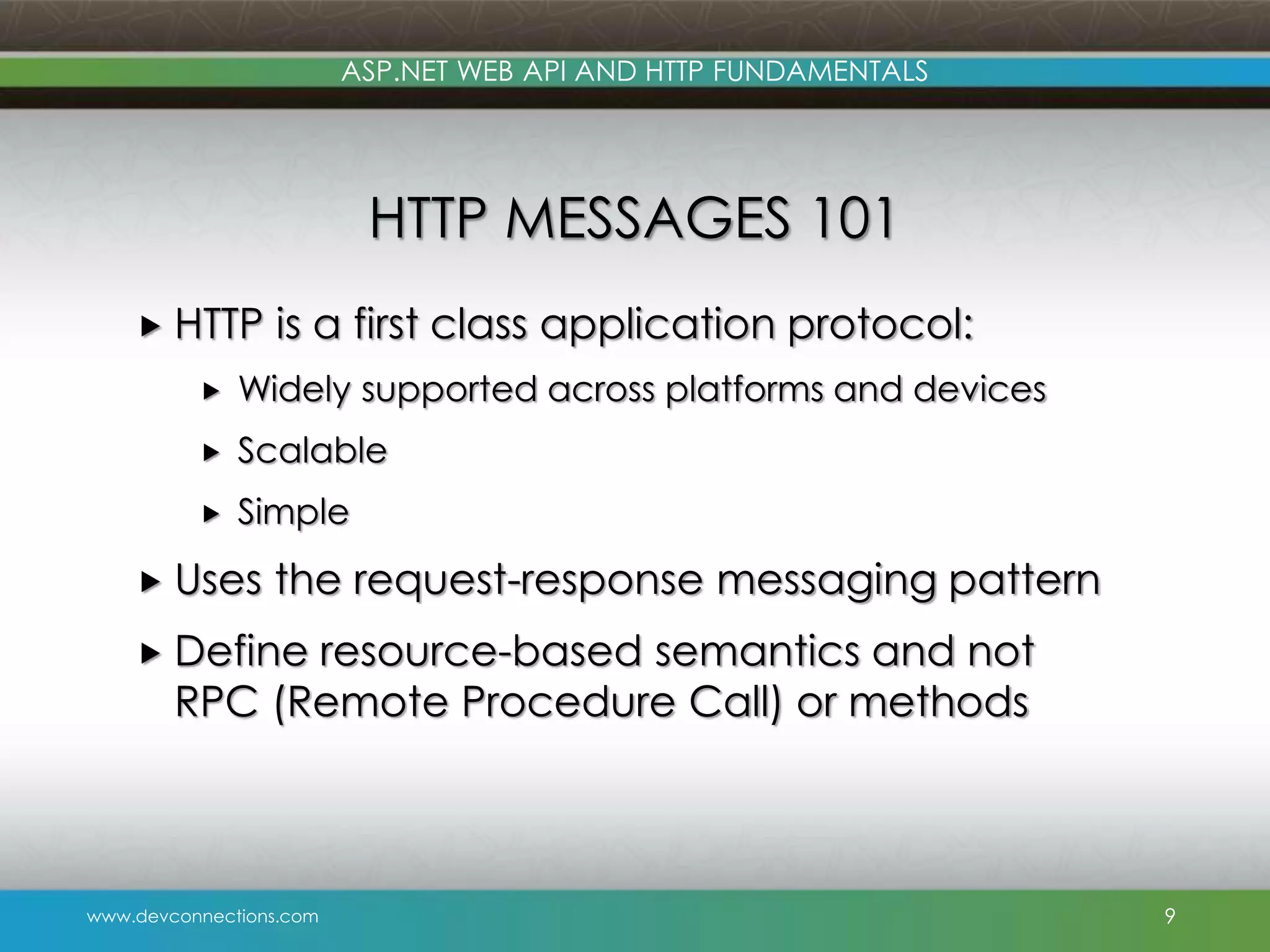

- 9. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP MESSAGES 101 HTTP is a first class application protocol: Widely supported across platforms and devices Scalable Simple Uses the request-response messaging pattern Define resource-based semantics and not RPC (Remote Procedure Call) or methods 9

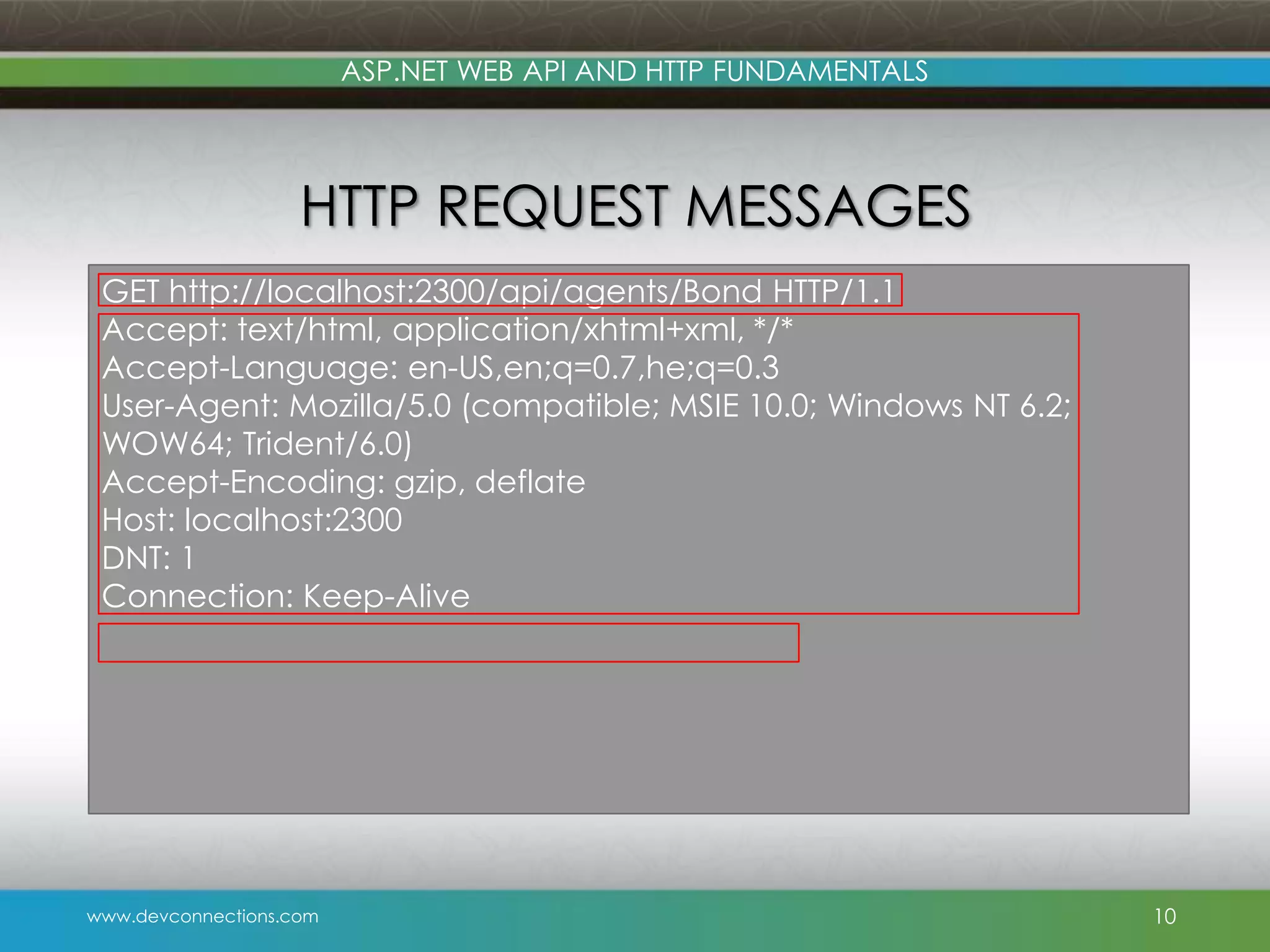

- 10. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP REQUEST MESSAGES 10 GET http://localhost:2300/api/agents/Bond HTTP/1.1 Accept: text/html, application/xhtml+xml, */* Accept-Language: en-US,en;q=0.7,he;q=0.3 User-Agent: Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.2; WOW64; Trident/6.0) Accept-Encoding: gzip, deflate Host: localhost:2300 DNT: 1 Connection: Keep-Alive

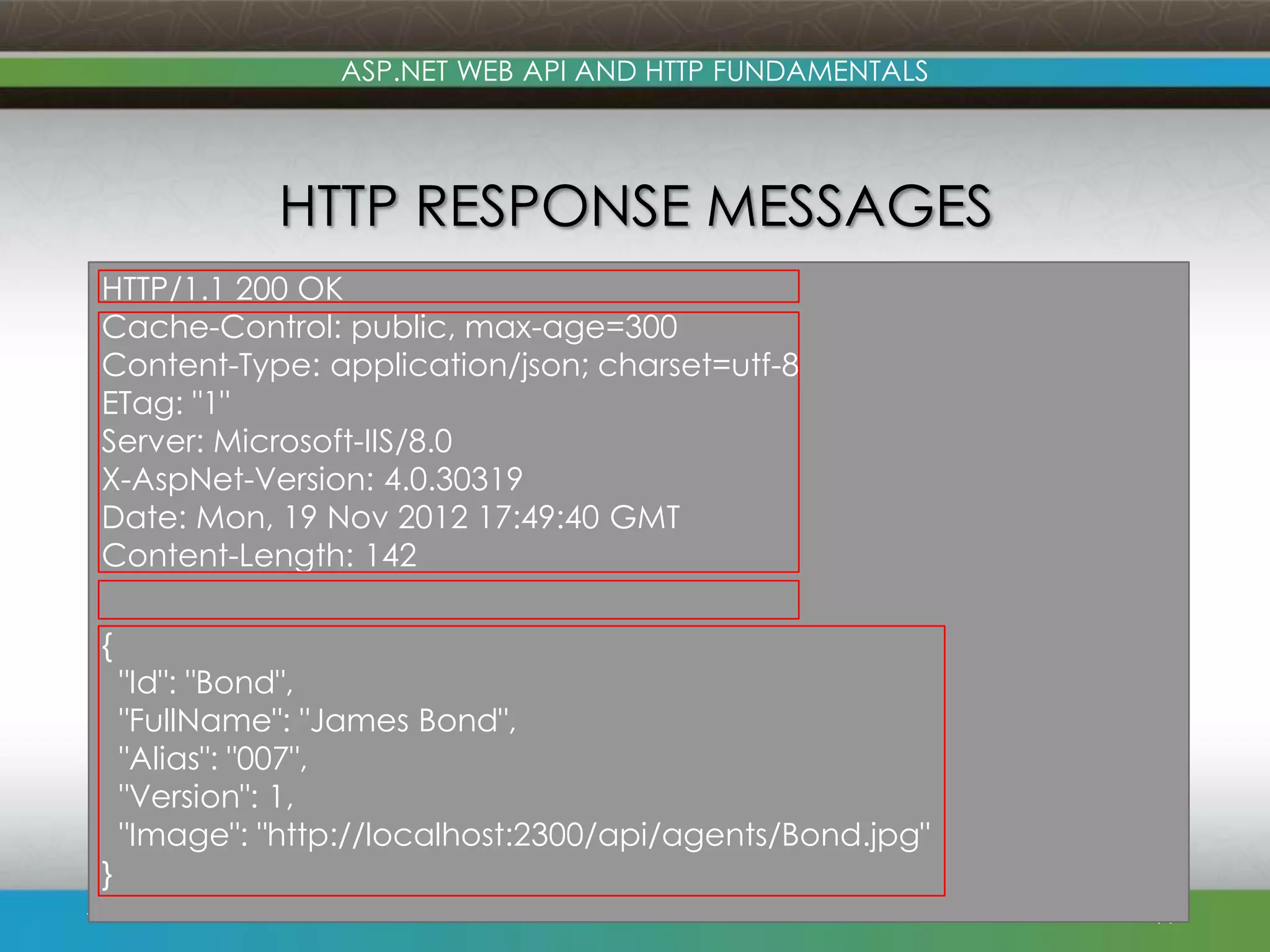

- 11. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP RESPONSE MESSAGES 11 HTTP/1.1 200 OK Cache-Control: public, max-age=300 Content-Type: application/json; charset=utf-8 ETag: "1" Server: Microsoft-IIS/8.0 X-AspNet-Version: 4.0.30319 Date: Mon, 19 Nov 2012 17:49:40 GMT Content-Length: 142 { "Id": "Bond", "FullName": "James Bond", "Alias": "007", "Version": 1, "Image": "http://localhost:2300/api/agents/Bond.jpg" }

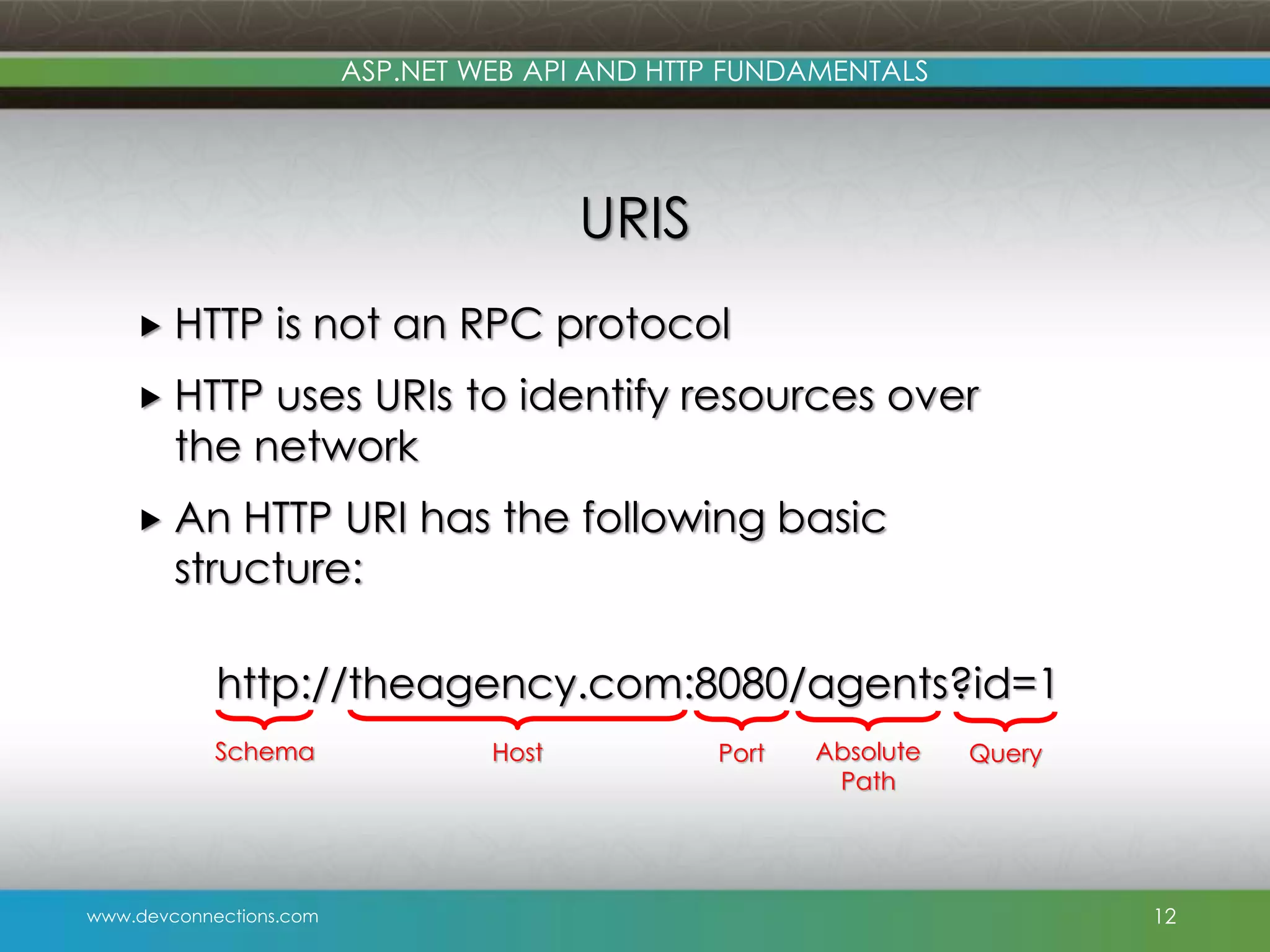

- 12. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS URIS HTTP is not an RPC protocol HTTP uses URIs to identify resources over the network An HTTP URI has the following basic structure: 12 Schema Host Port Absolute Path Query http://theagency.com:8080/agents?id=1

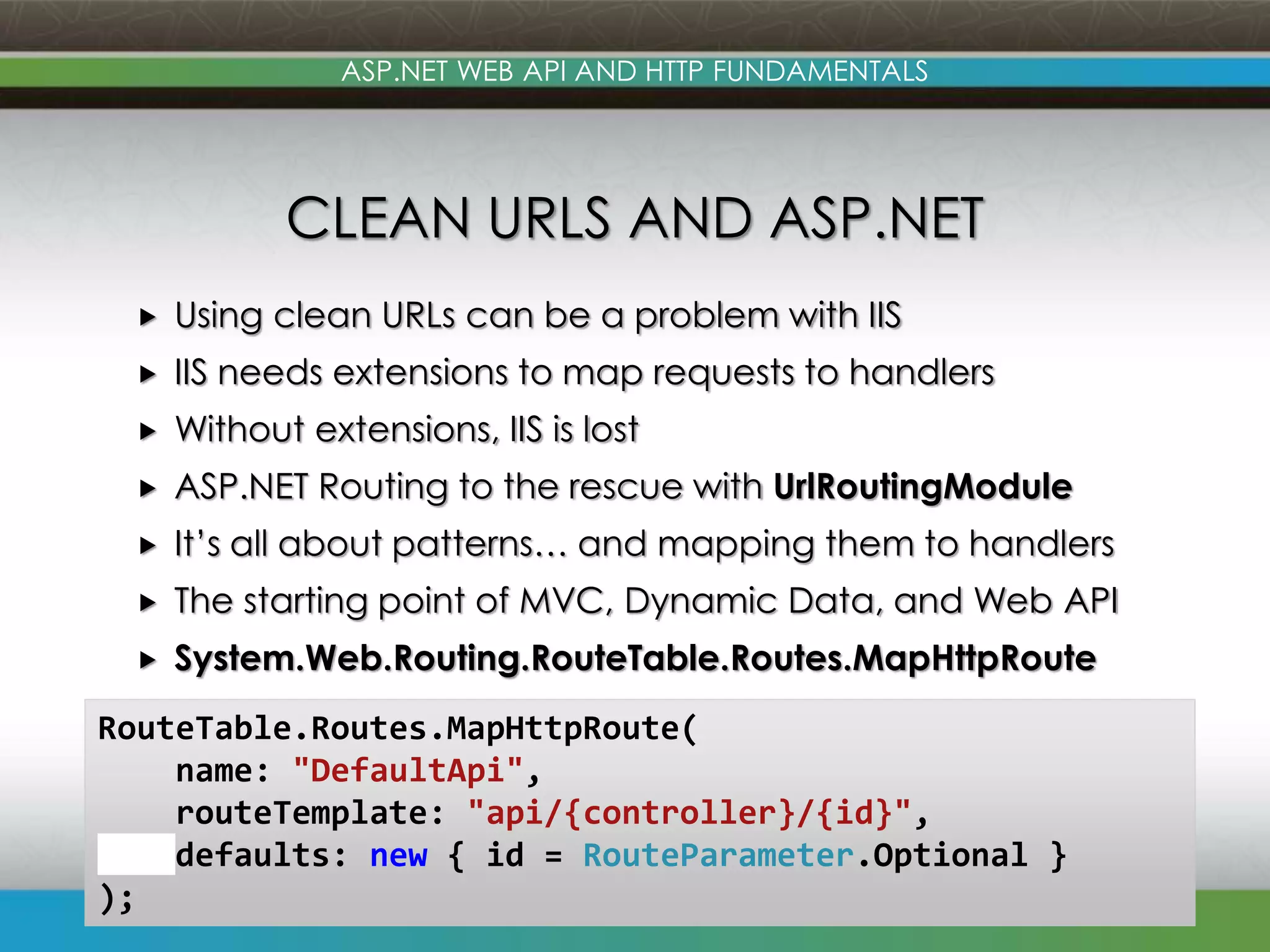

- 13. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CLEAN URLS AND ASP.NET Using clean URLs can be a problem with IIS IIS needs extensions to map requests to handlers Without extensions, IIS is lost ASP.NET Routing to the rescue with UrlRoutingModule It’s all about patterns… and mapping them to handlers The starting point of MVC, Dynamic Data, and Web API System.Web.Routing.RouteTable.Routes.MapHttpRoute 13 RouteTable.Routes.MapHttpRoute( name: "DefaultApi", routeTemplate: "api/{controller}/{id}", defaults: new { id = RouteParameter.Optional } );

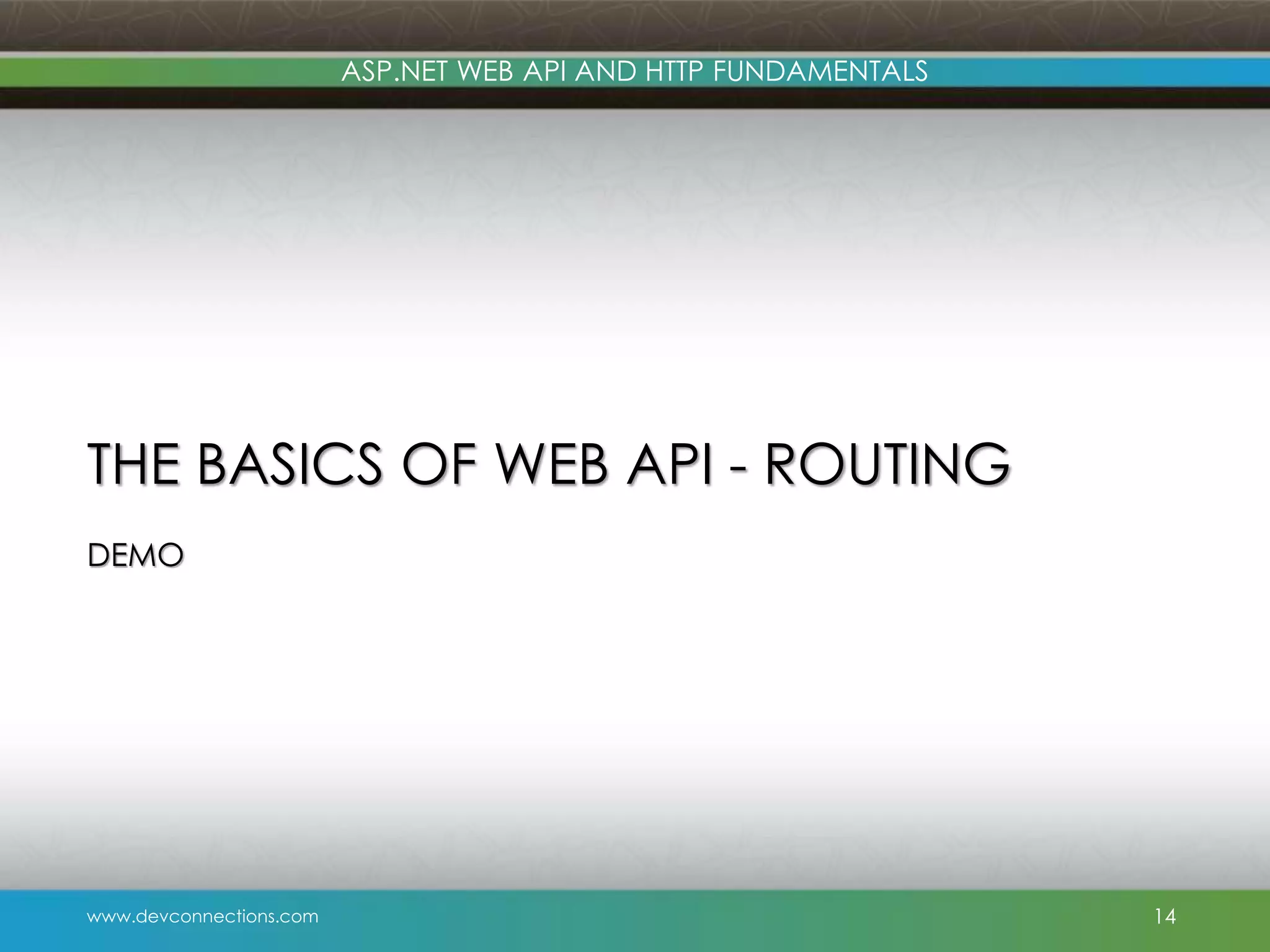

- 14. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS THE BASICS OF WEB API - ROUTING DEMO 14

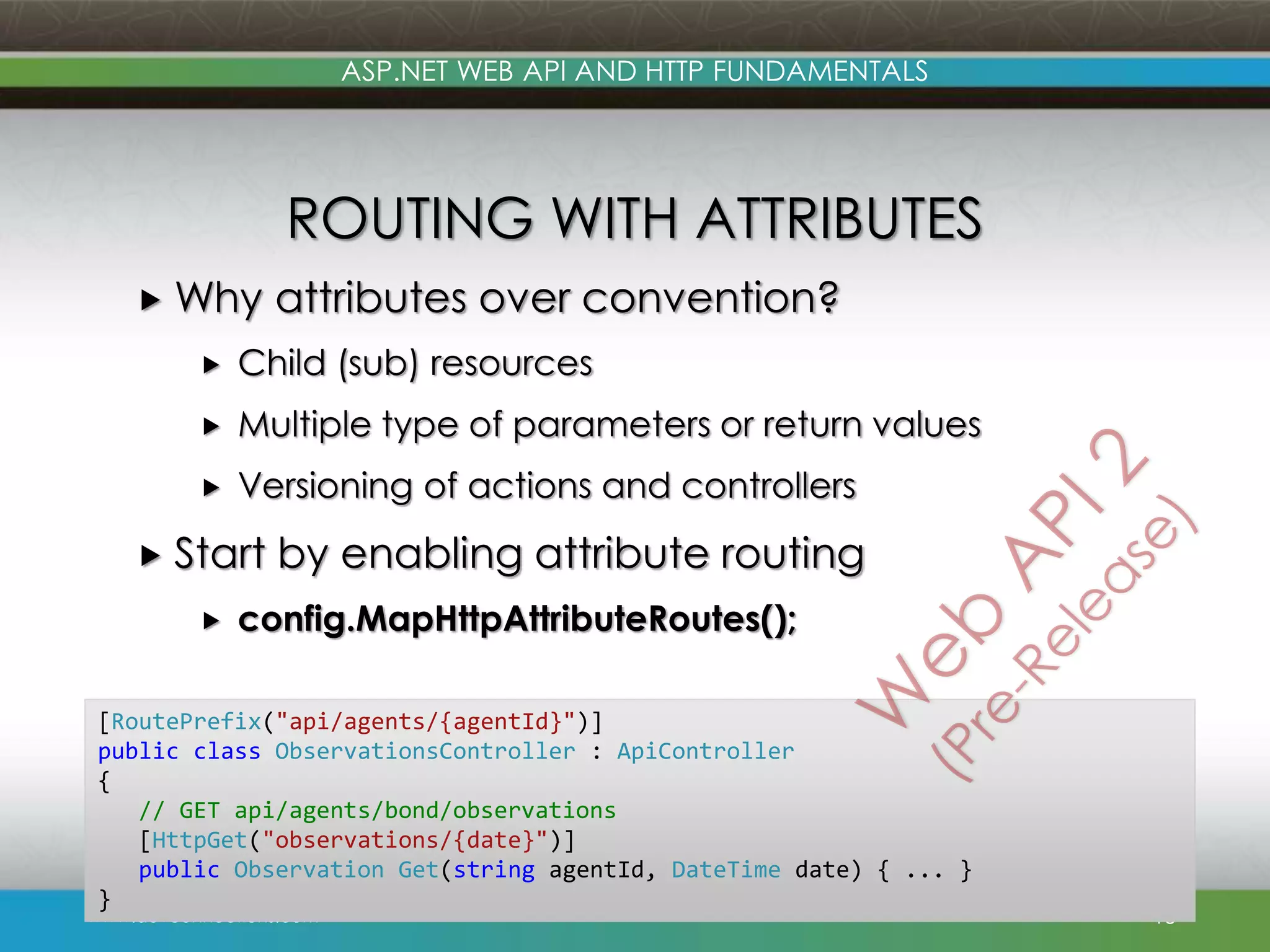

- 15. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ROUTING WITH ATTRIBUTES Why attributes over convention? Child (sub) resources Multiple type of parameters or return values Versioning of actions and controllers Start by enabling attribute routing config.MapHttpAttributeRoutes(); 15 [RoutePrefix("api/agents/{agentId}")] public class ObservationsController : ApiController { // GET api/agents/bond/observations [HttpGet("observations/{date}")] public Observation Get(string agentId, DateTime date) { ... } }

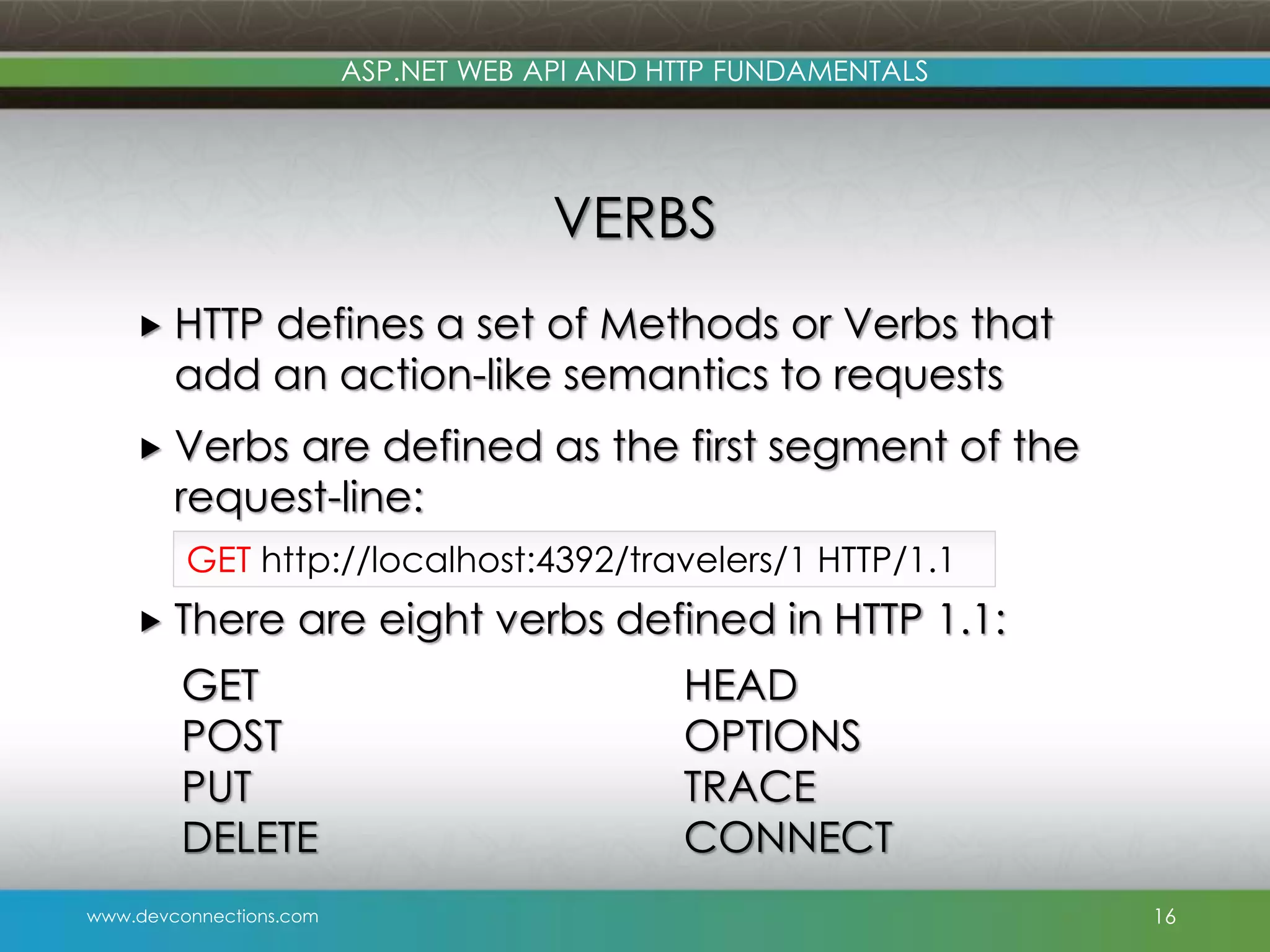

- 16. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS VERBS HTTP defines a set of Methods or Verbs that add an action-like semantics to requests Verbs are defined as the first segment of the request-line: There are eight verbs defined in HTTP 1.1: 16 GET http://localhost:4392/travelers/1 HTTP/1.1 GET POST PUT DELETE HEAD OPTIONS TRACE CONNECT

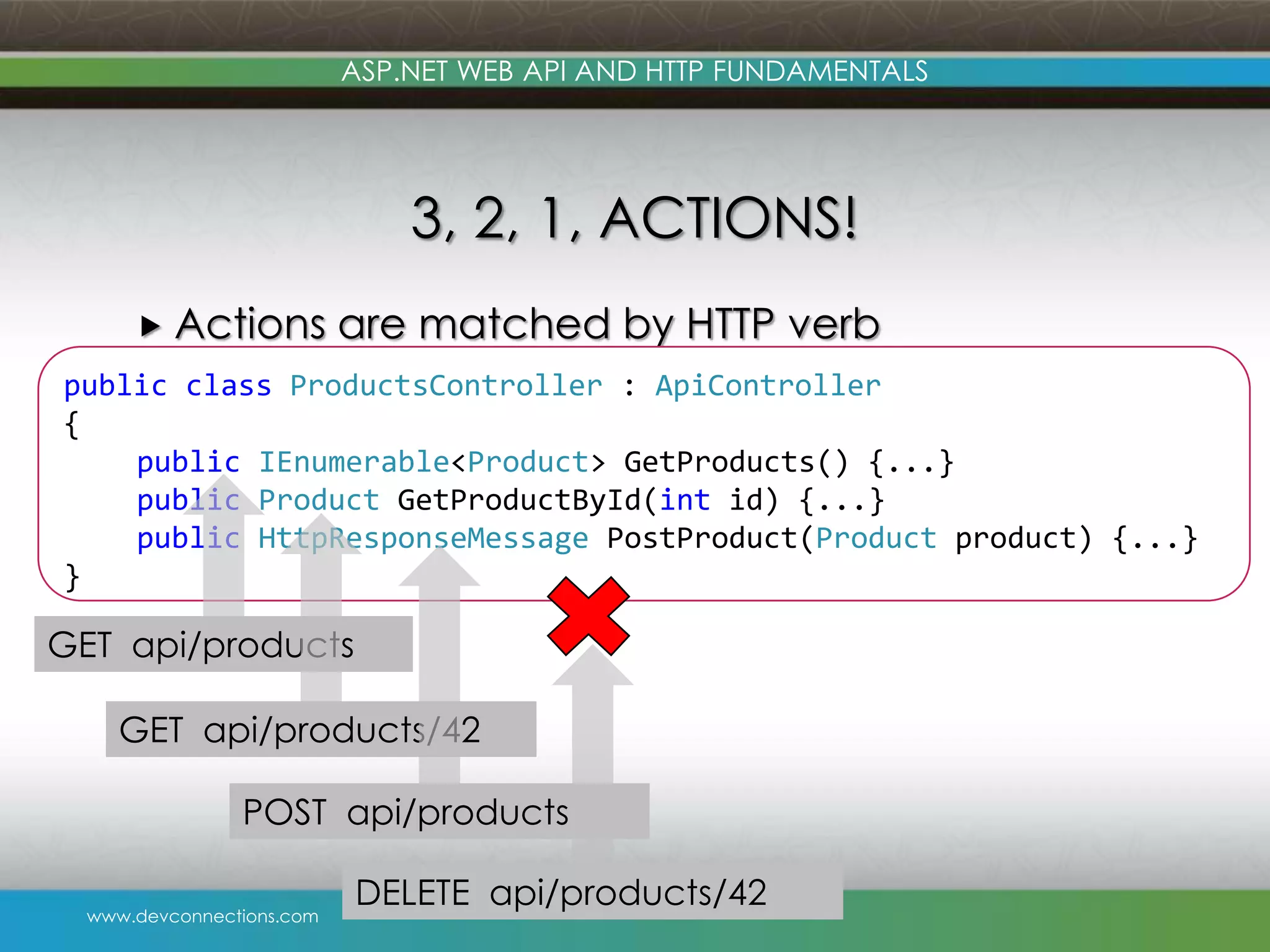

- 17. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS 3, 2, 1, ACTIONS! Actions are matched by HTTP verb names and the existence of parameterspublic class ProductsController : ApiController { public IEnumerable<Product> GetProducts() {...} public Product GetProductById(int id) {...} public HttpResponseMessage PostProduct(Product product) {...} } DELETE api/products/42 GET api/products GET api/products/42 POST api/products

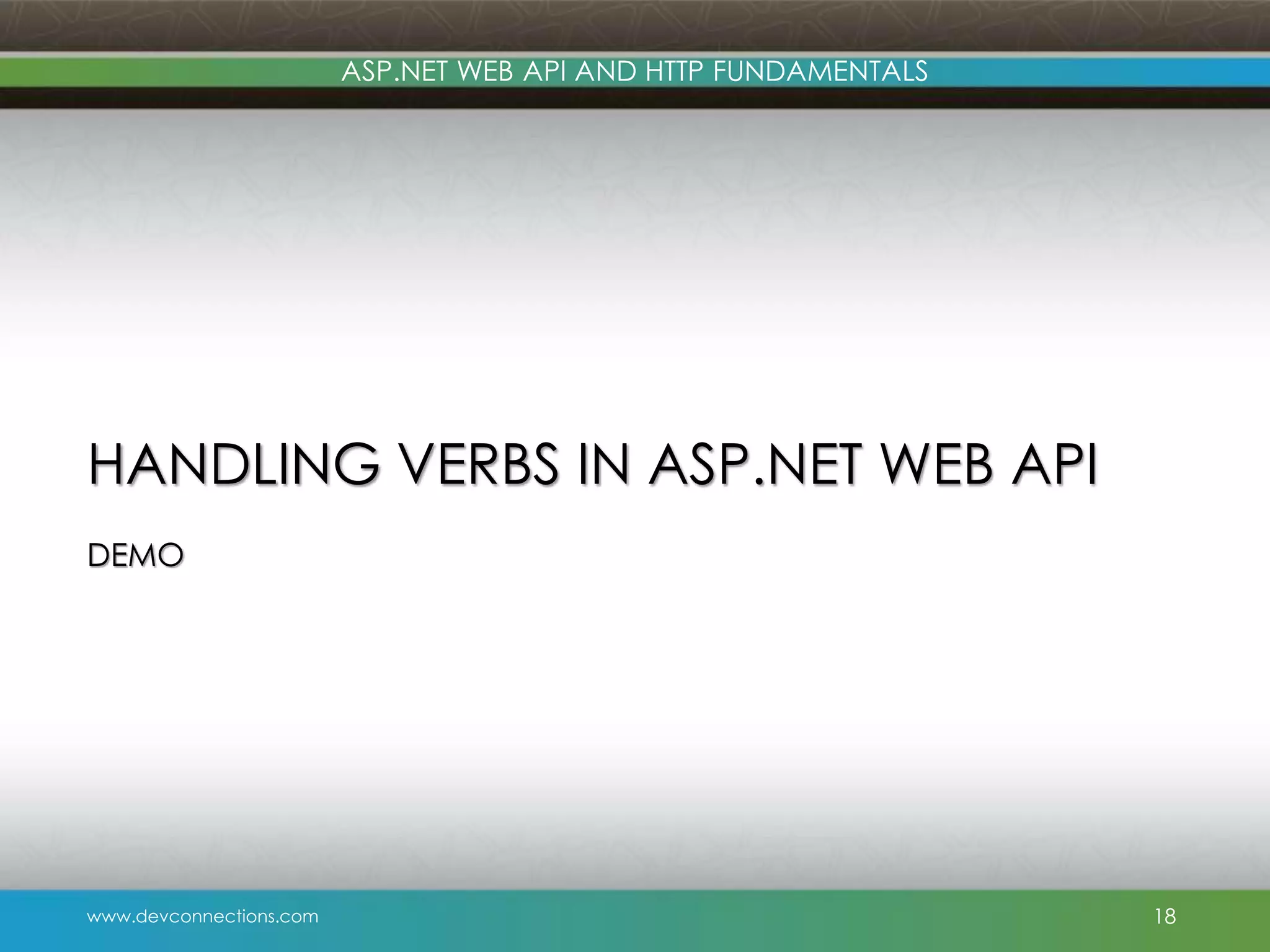

- 18. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HANDLING VERBS IN ASP.NET WEB API DEMO 18

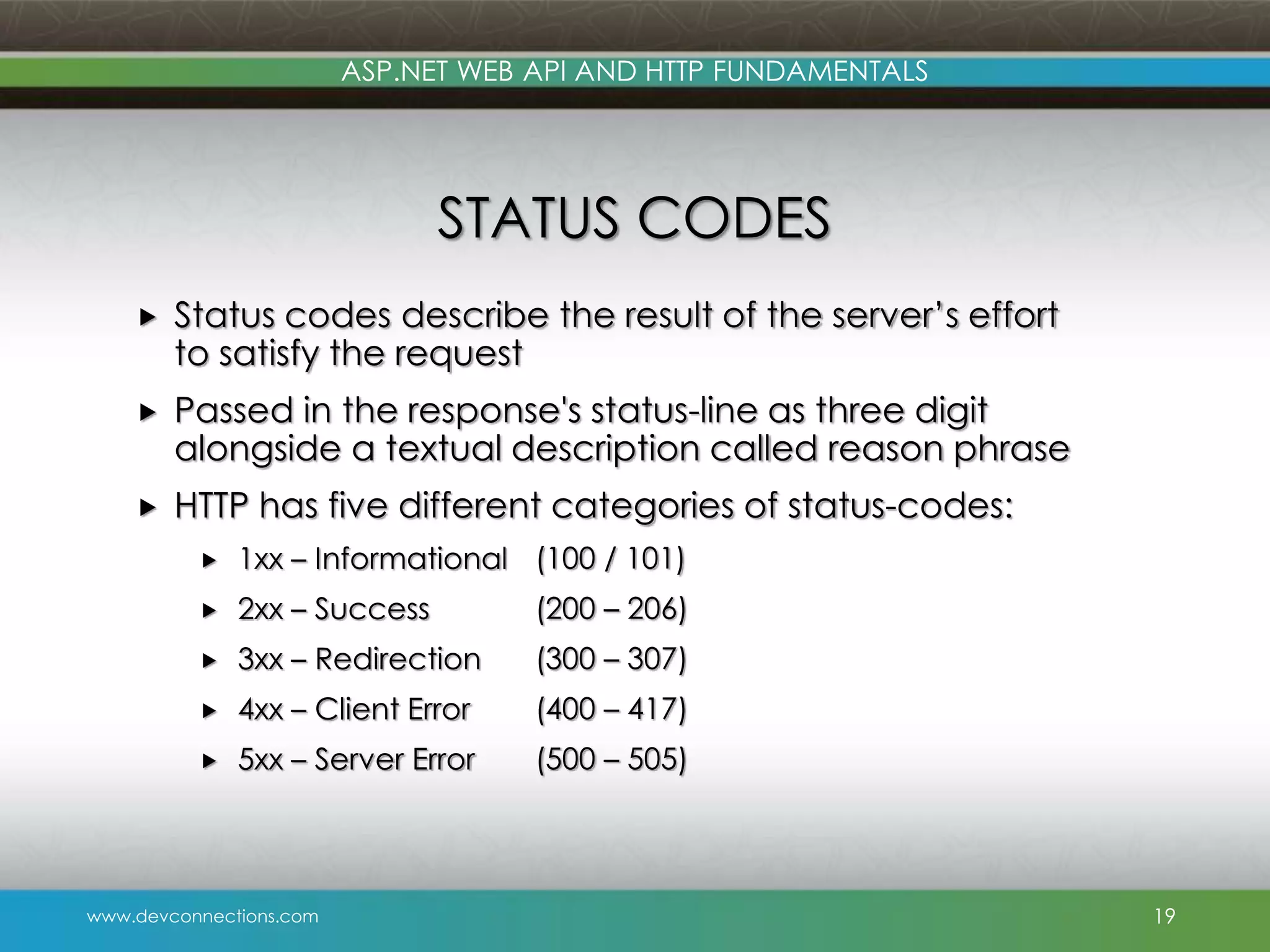

- 19. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS STATUS CODES Status codes describe the result of the server’s effort to satisfy the request Passed in the response's status-line as three digit alongside a textual description called reason phrase HTTP has five different categories of status-codes: 1xx – Informational 2xx – Success 3xx – Redirection 4xx – Client Error 5xx – Server Error 19 (100 / 101) (200 – 206) (300 – 307) (400 – 417) (500 – 505)

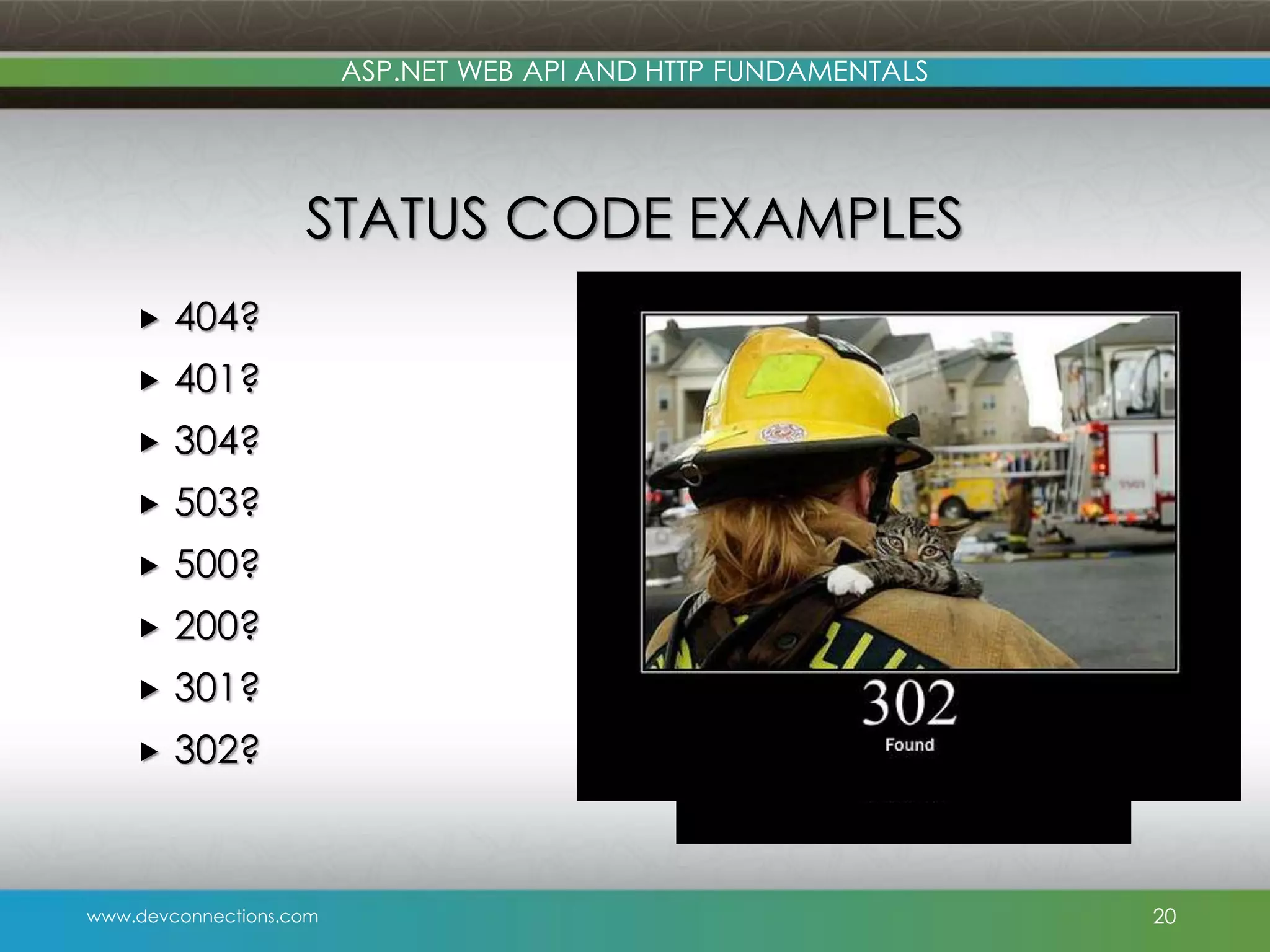

- 20. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS STATUS CODE EXAMPLES 20 404? 401? 304? 503? 500? 200? 301? 302?

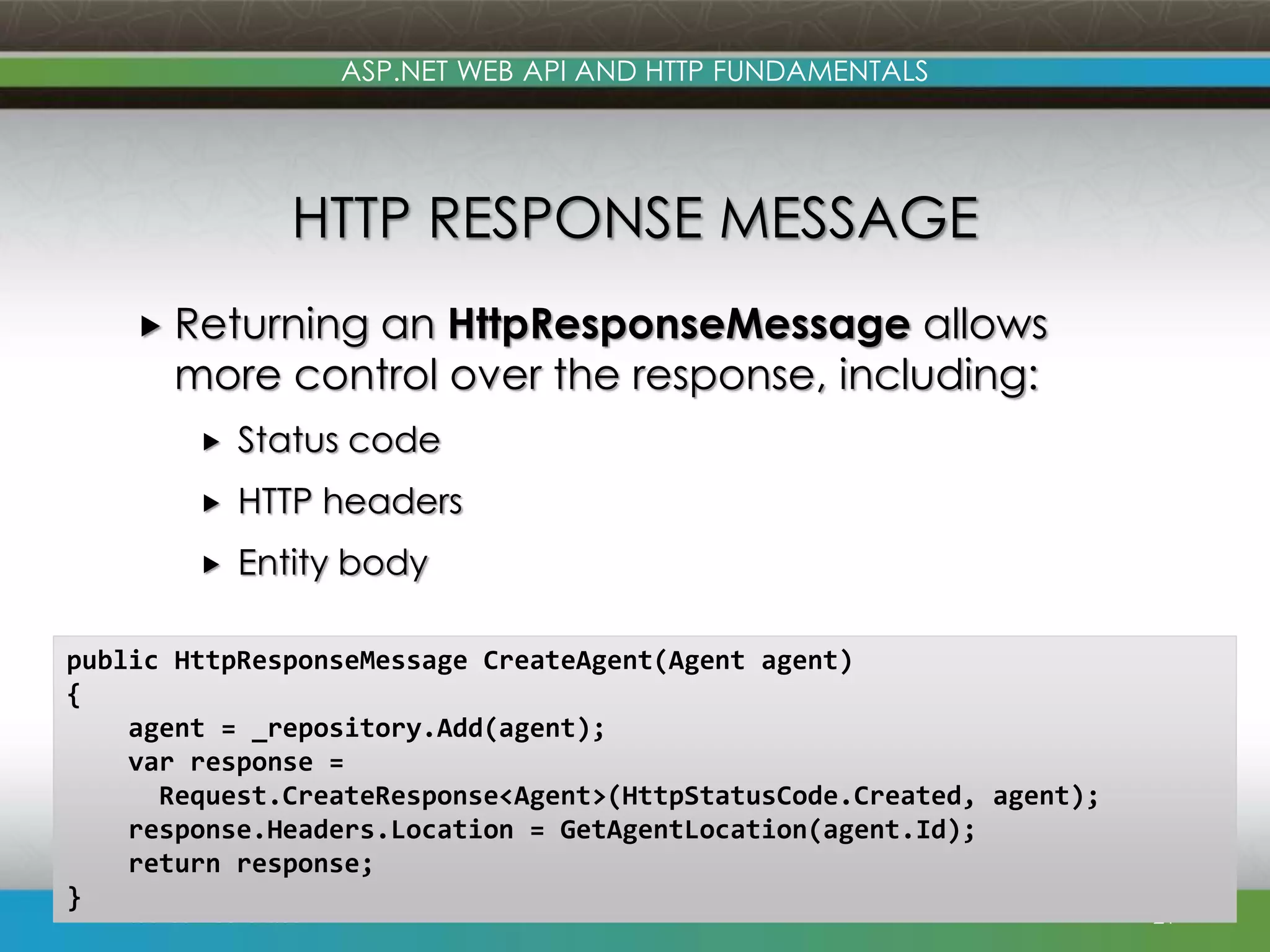

- 21. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP RESPONSE MESSAGE Returning an HttpResponseMessage allows more control over the response, including: Status code HTTP headers Entity body 21 public HttpResponseMessage CreateAgent(Agent agent) { agent = _repository.Add(agent); var response = Request.CreateResponse<Agent>(HttpStatusCode.Created, agent); response.Headers.Location = GetAgentLocation(agent.Id); return response; }

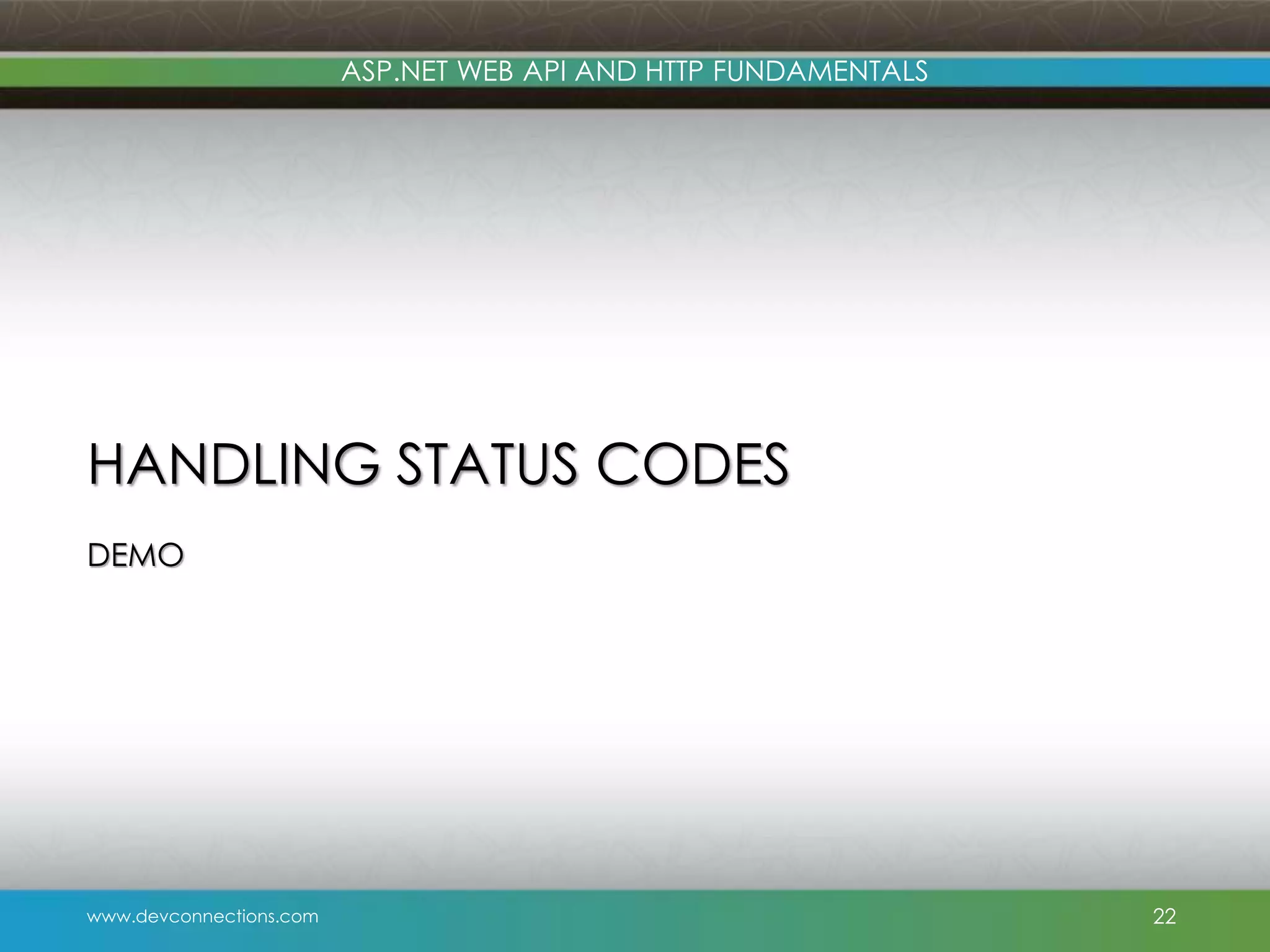

- 22. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HANDLING STATUS CODES DEMO 22

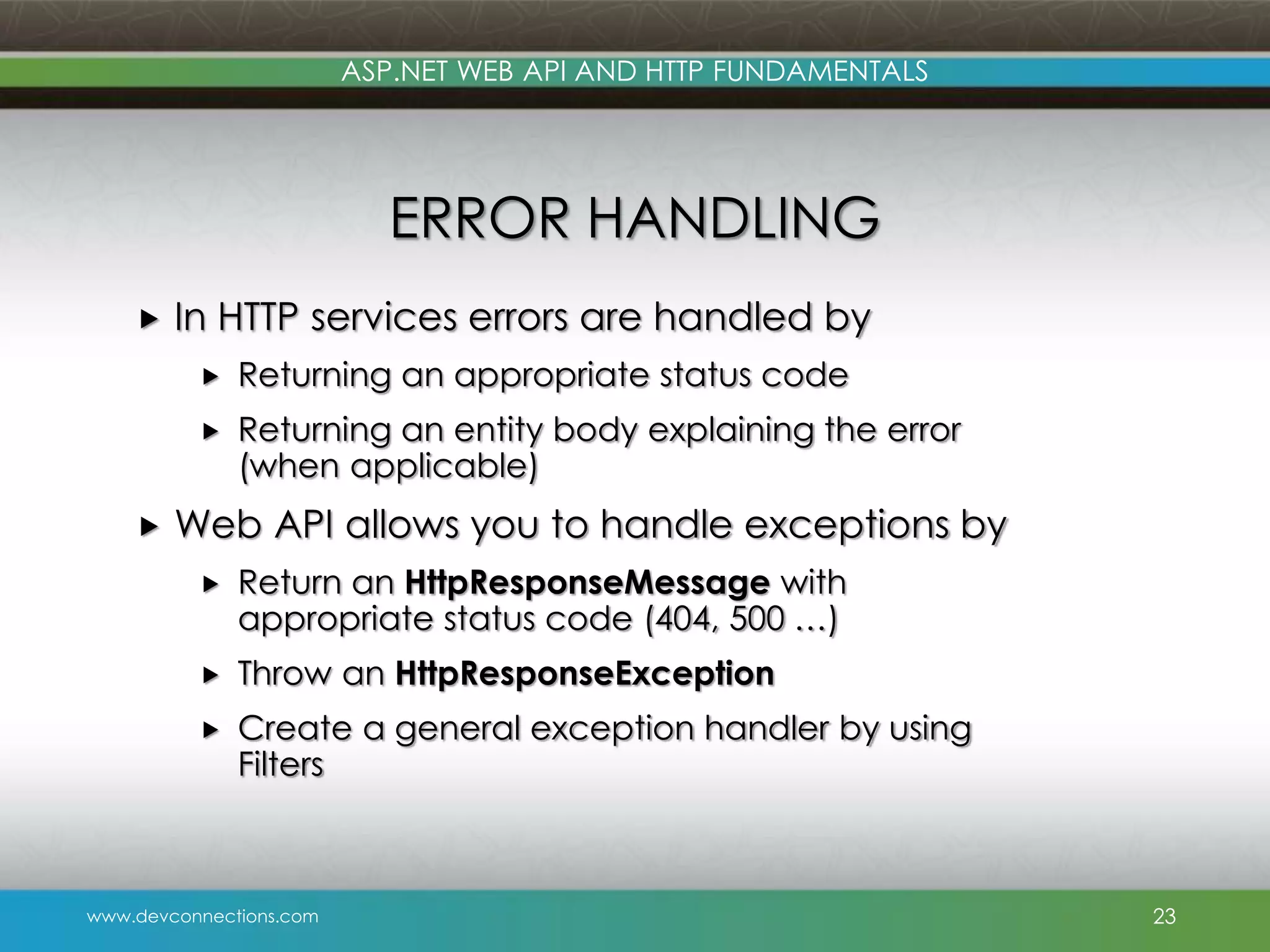

- 23. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ERROR HANDLING In HTTP services errors are handled by Returning an appropriate status code Returning an entity body explaining the error (when applicable) Web API allows you to handle exceptions by Return an HttpResponseMessage with appropriate status code (404, 500 …) Throw an HttpResponseException Create a general exception handler by using Filters 23

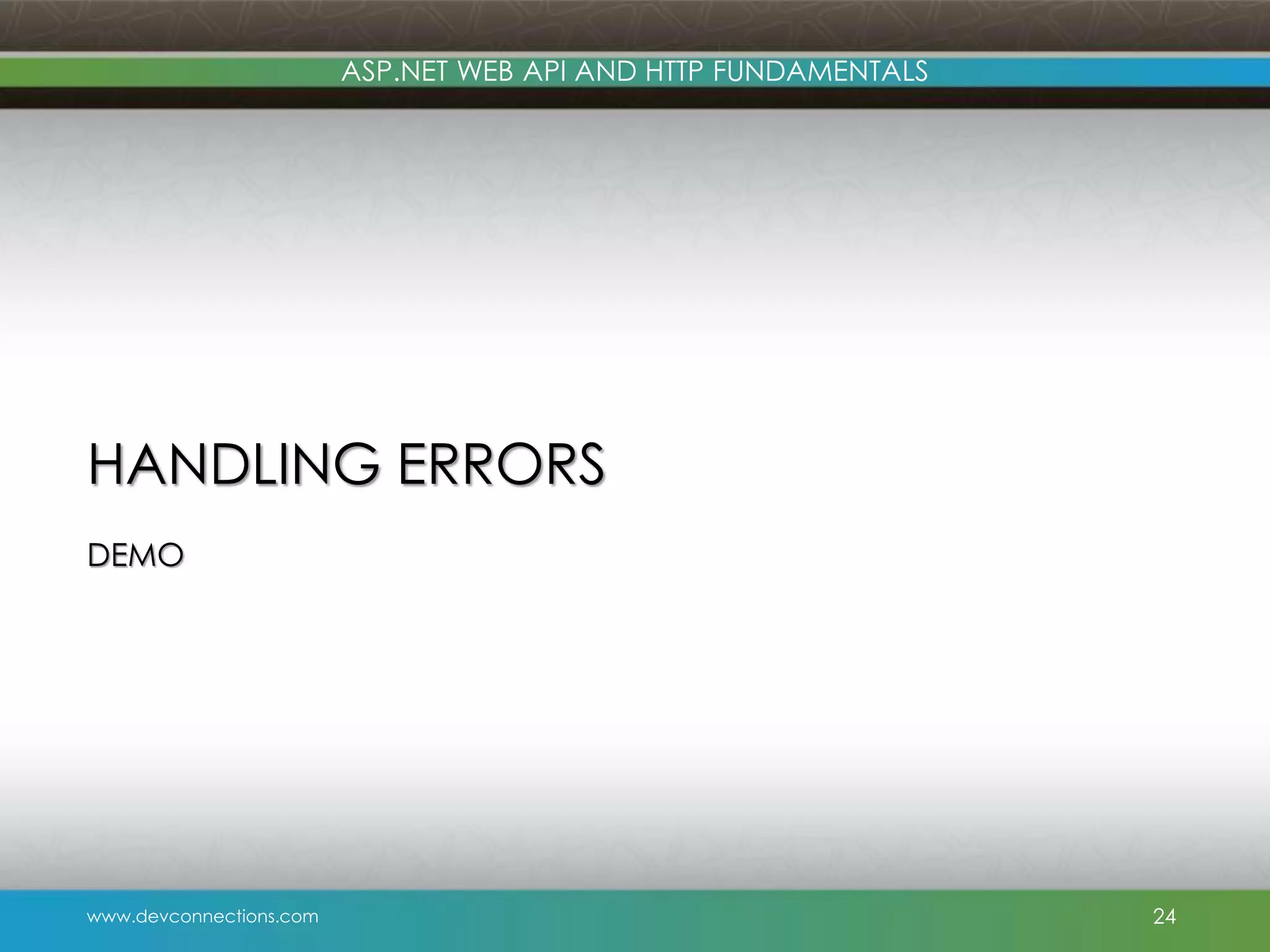

- 24. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HANDLING ERRORS DEMO 24

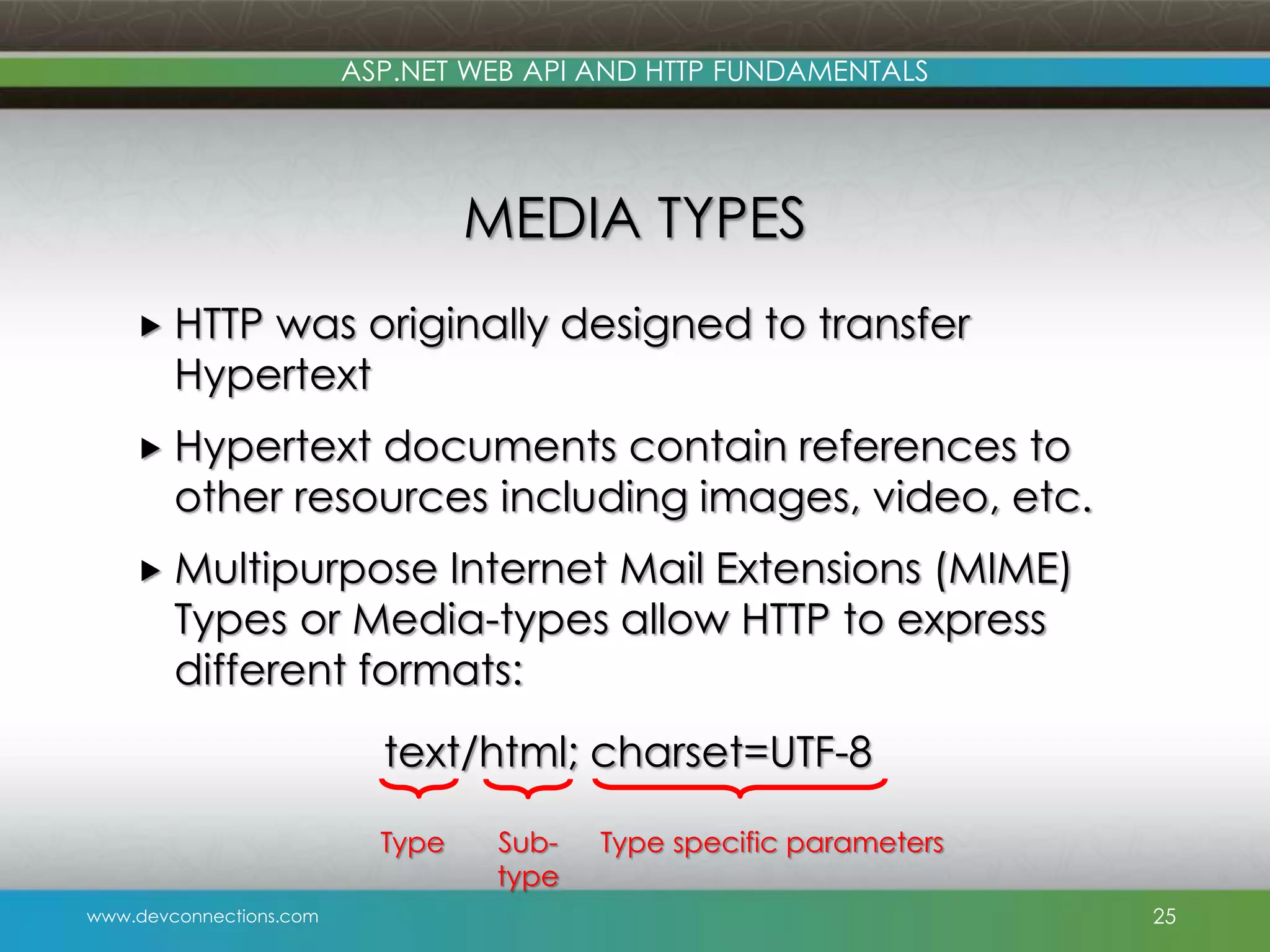

- 25. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS MEDIA TYPES HTTP was originally designed to transfer Hypertext Hypertext documents contain references to other resources including images, video, etc. Multipurpose Internet Mail Extensions (MIME) Types or Media-types allow HTTP to express different formats: 25 Type Sub- type Type specific parameters text/html; charset=UTF-8

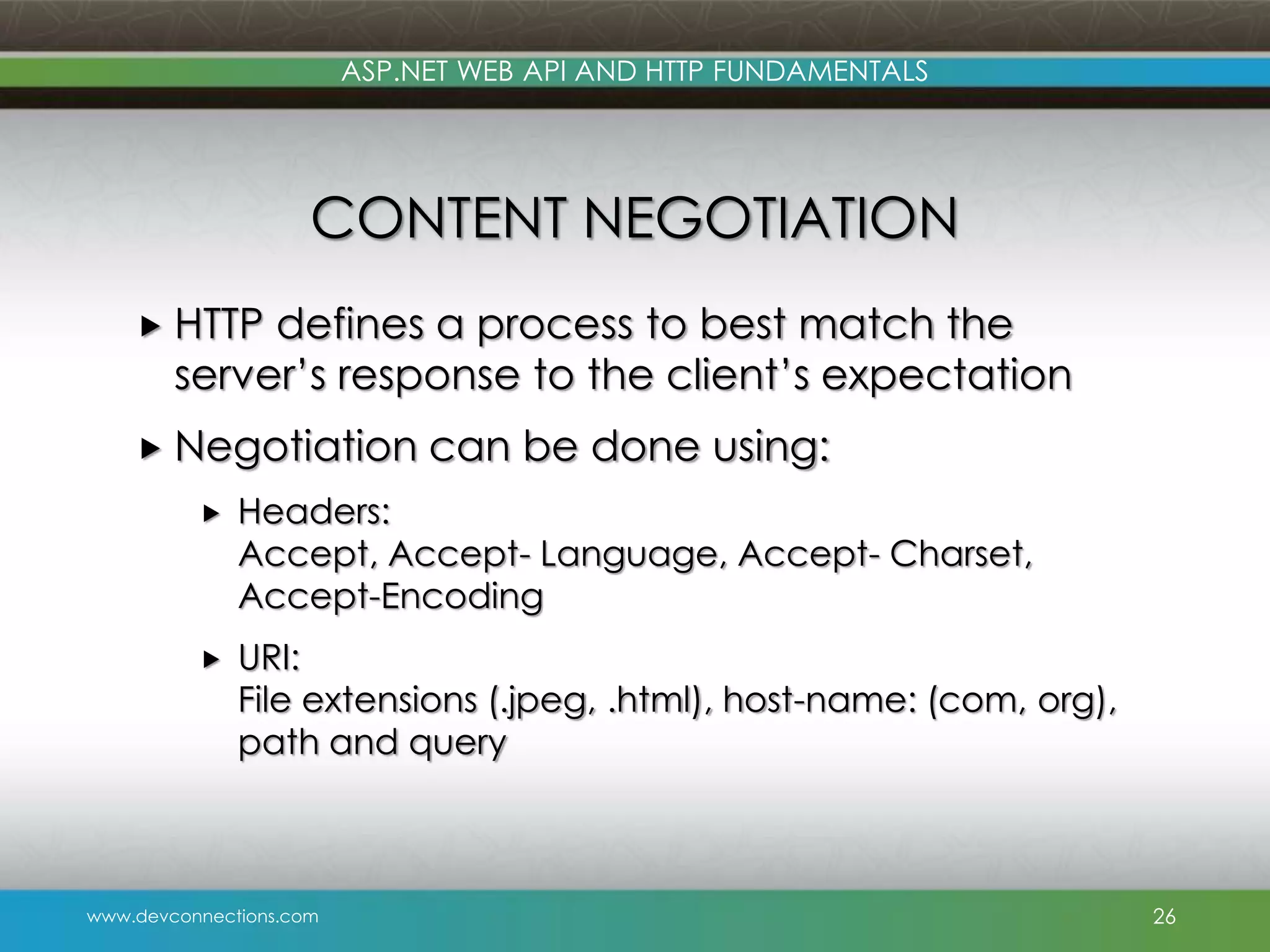

- 26. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CONTENT NEGOTIATION HTTP defines a process to best match the server’s response to the client’s expectation Negotiation can be done using: Headers: Accept, Accept- Language, Accept- Charset, Accept-Encoding URI: File extensions (.jpeg, .html), host-name: (com, org), path and query 26

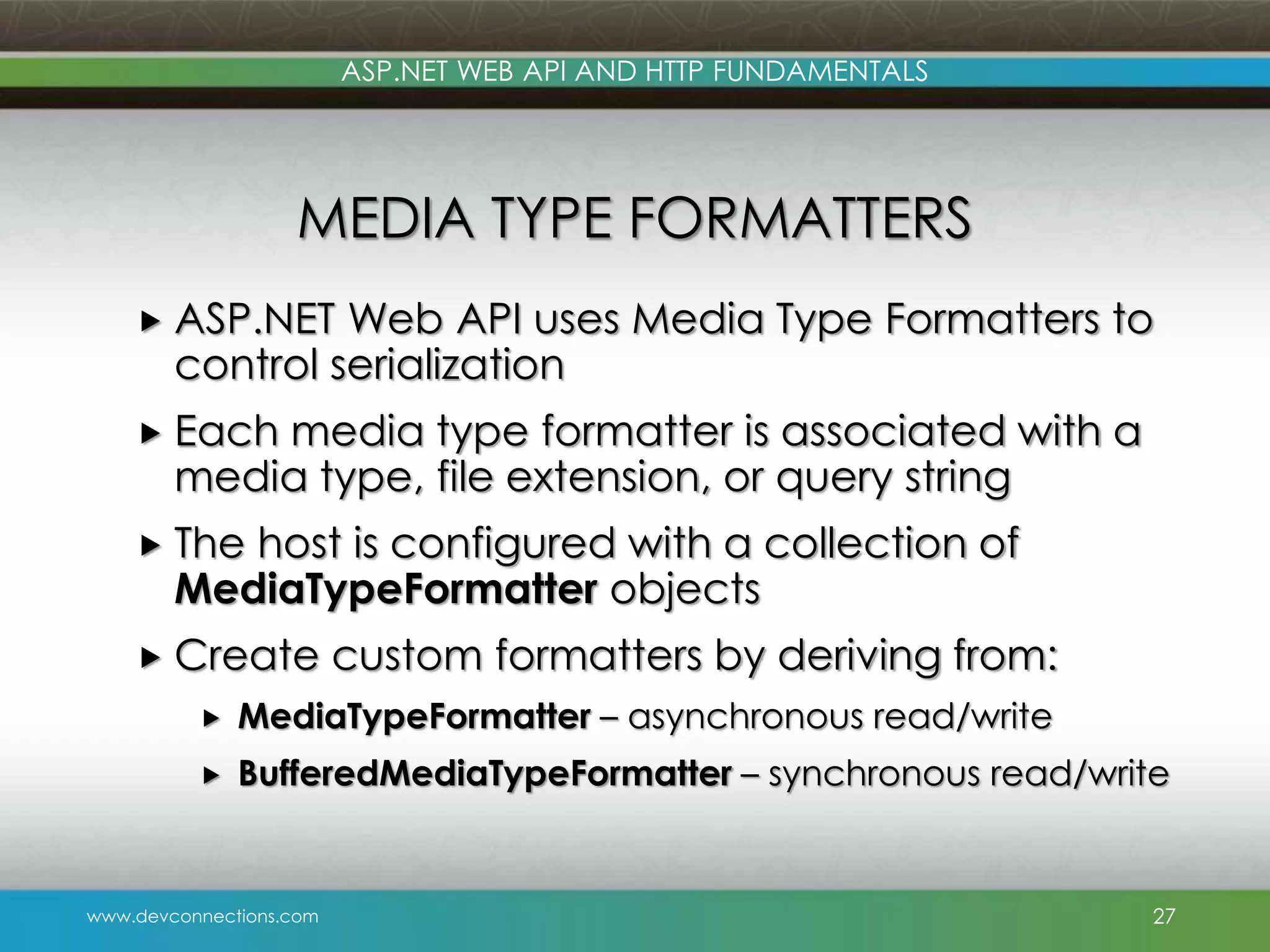

- 27. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS MEDIA TYPE FORMATTERS ASP.NET Web API uses Media Type Formatters to control serialization Each media type formatter is associated with a media type, file extension, or query string The host is configured with a collection of MediaTypeFormatter objects Create custom formatters by deriving from: MediaTypeFormatter – asynchronous read/write BufferedMediaTypeFormatter – synchronous read/write 27

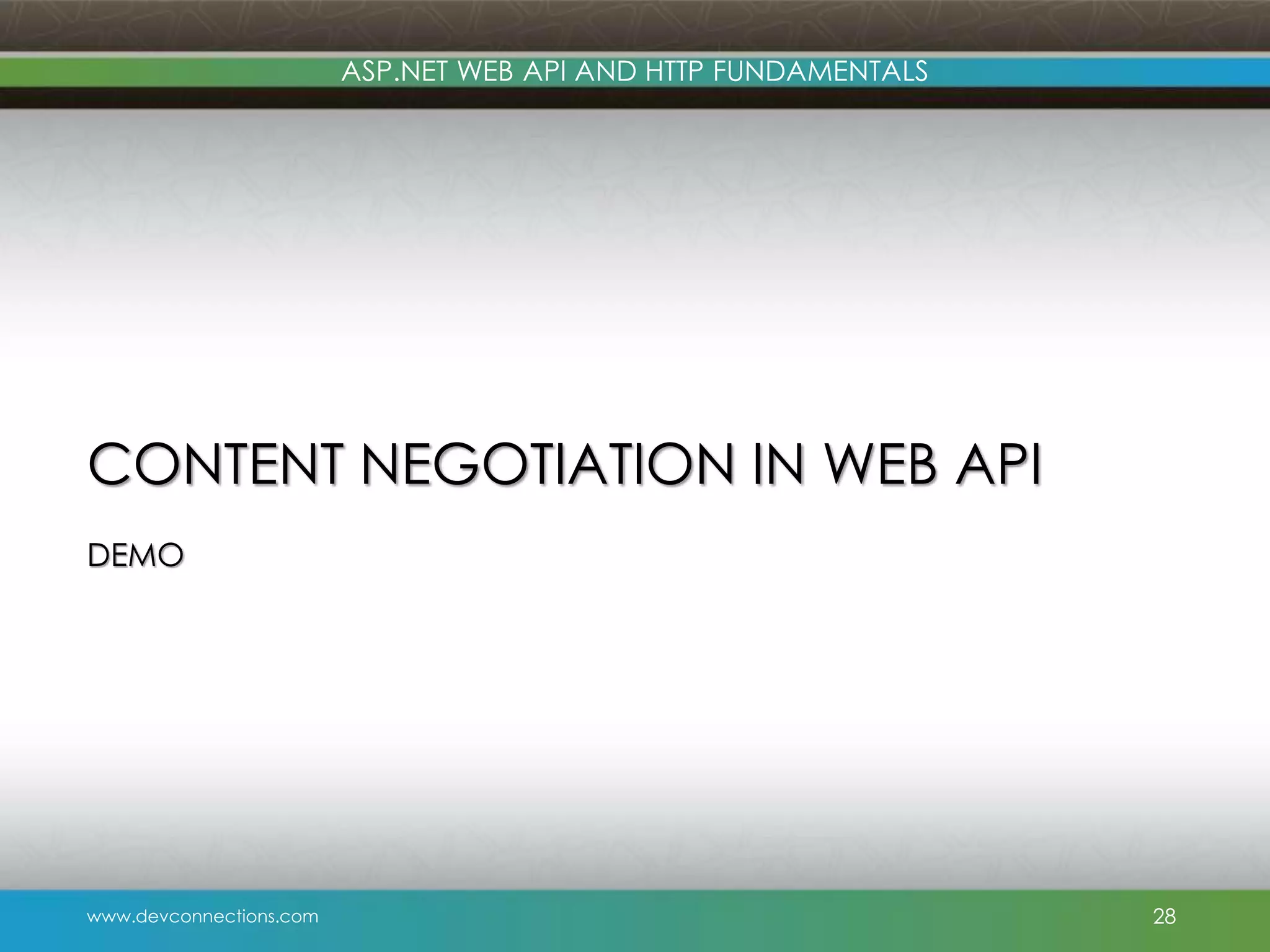

- 28. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CONTENT NEGOTIATION IN WEB API DEMO 28

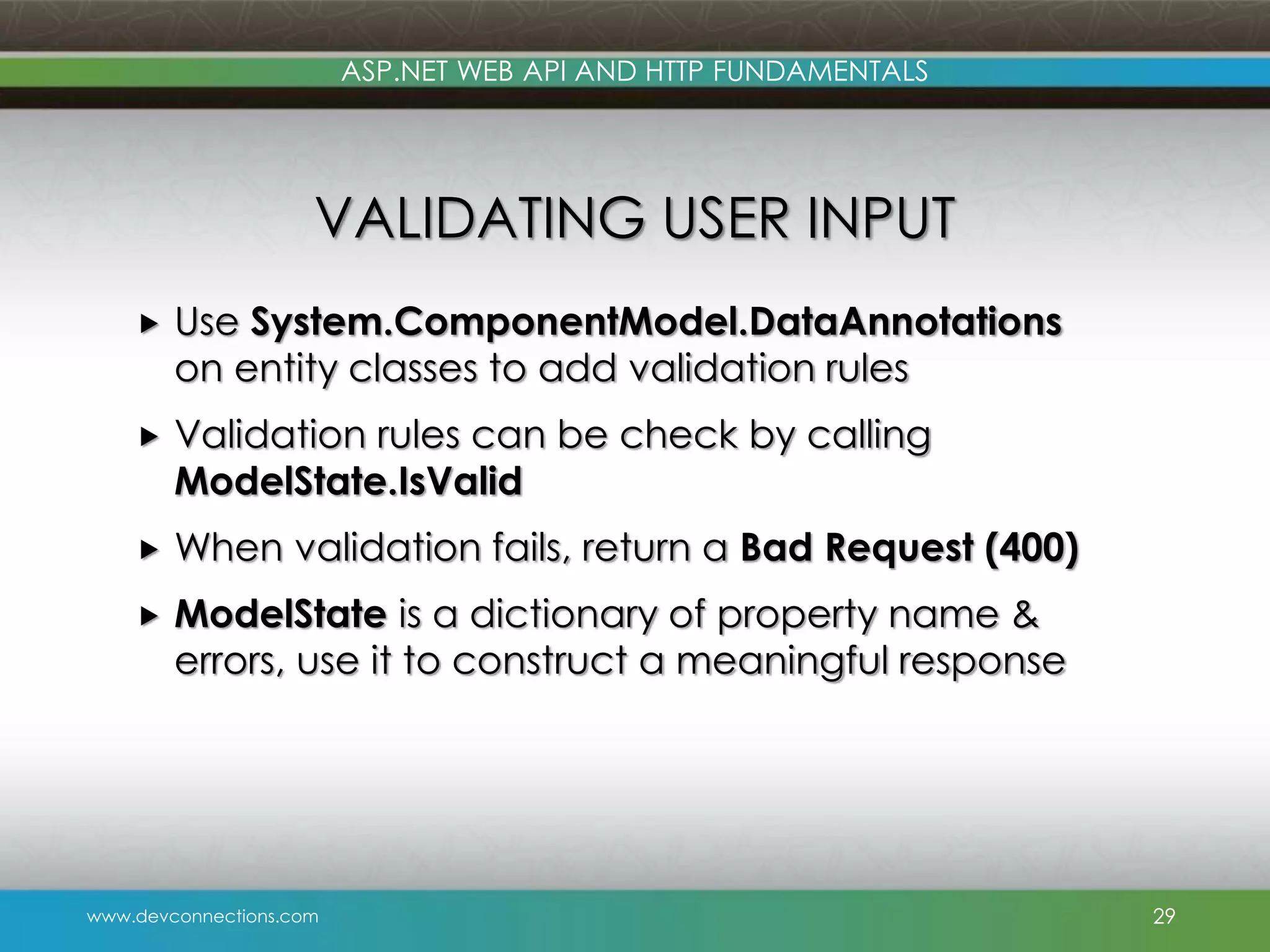

- 29. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS VALIDATING USER INPUT Use System.ComponentModel.DataAnnotations on entity classes to add validation rules Validation rules can be check by calling ModelState.IsValid When validation fails, return a Bad Request (400) ModelState is a dictionary of property name & errors, use it to construct a meaningful response 29

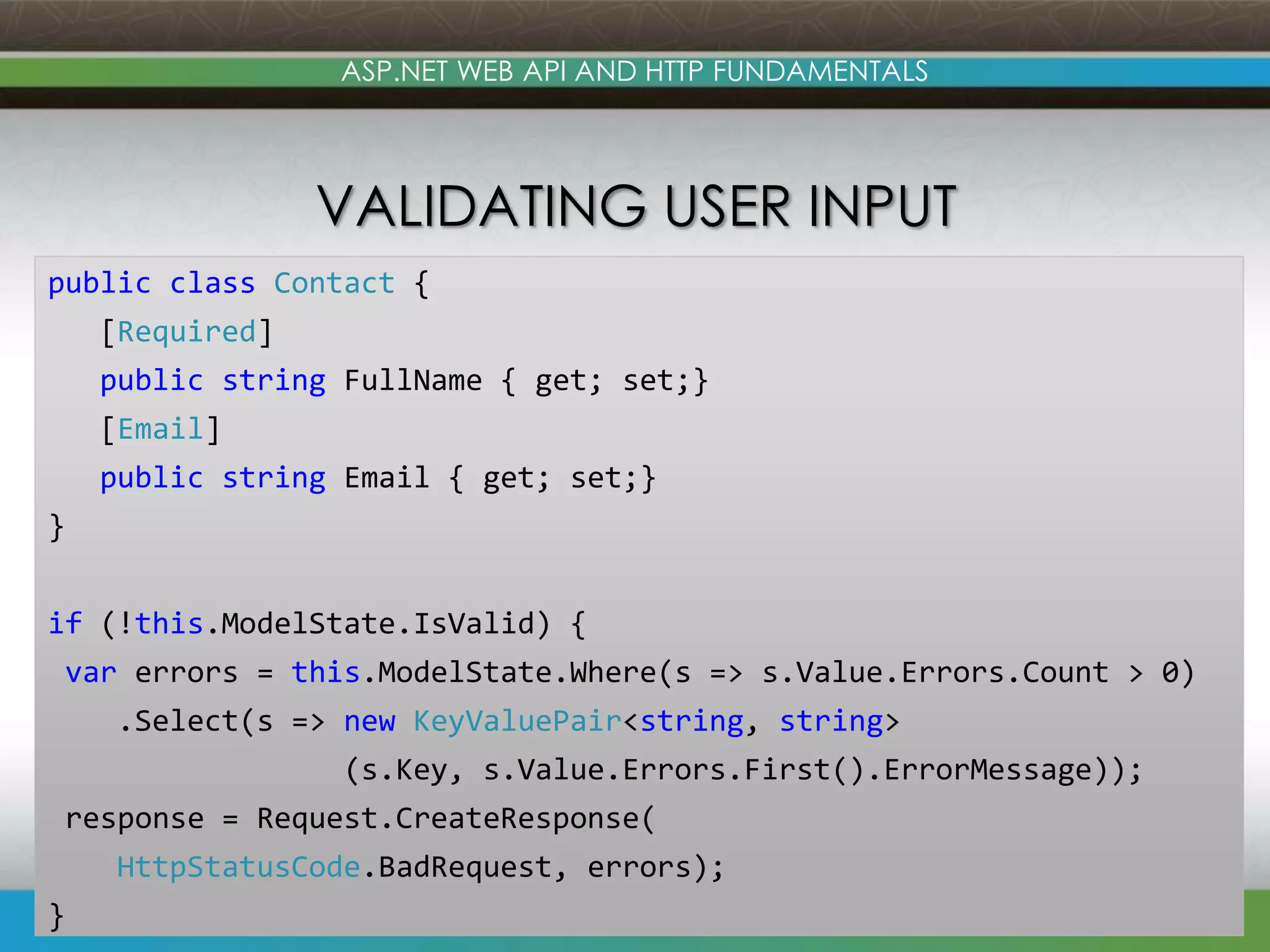

- 30. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS VALIDATING USER INPUT 30 public class Contact { [Required] public string FullName { get; set;} [Email] public string Email { get; set;} } if (!this.ModelState.IsValid) { var errors = this.ModelState.Where(s => s.Value.Errors.Count > 0) .Select(s => new KeyValuePair<string, string> (s.Key, s.Value.Errors.First().ErrorMessage)); response = Request.CreateResponse( HttpStatusCode.BadRequest, errors); }

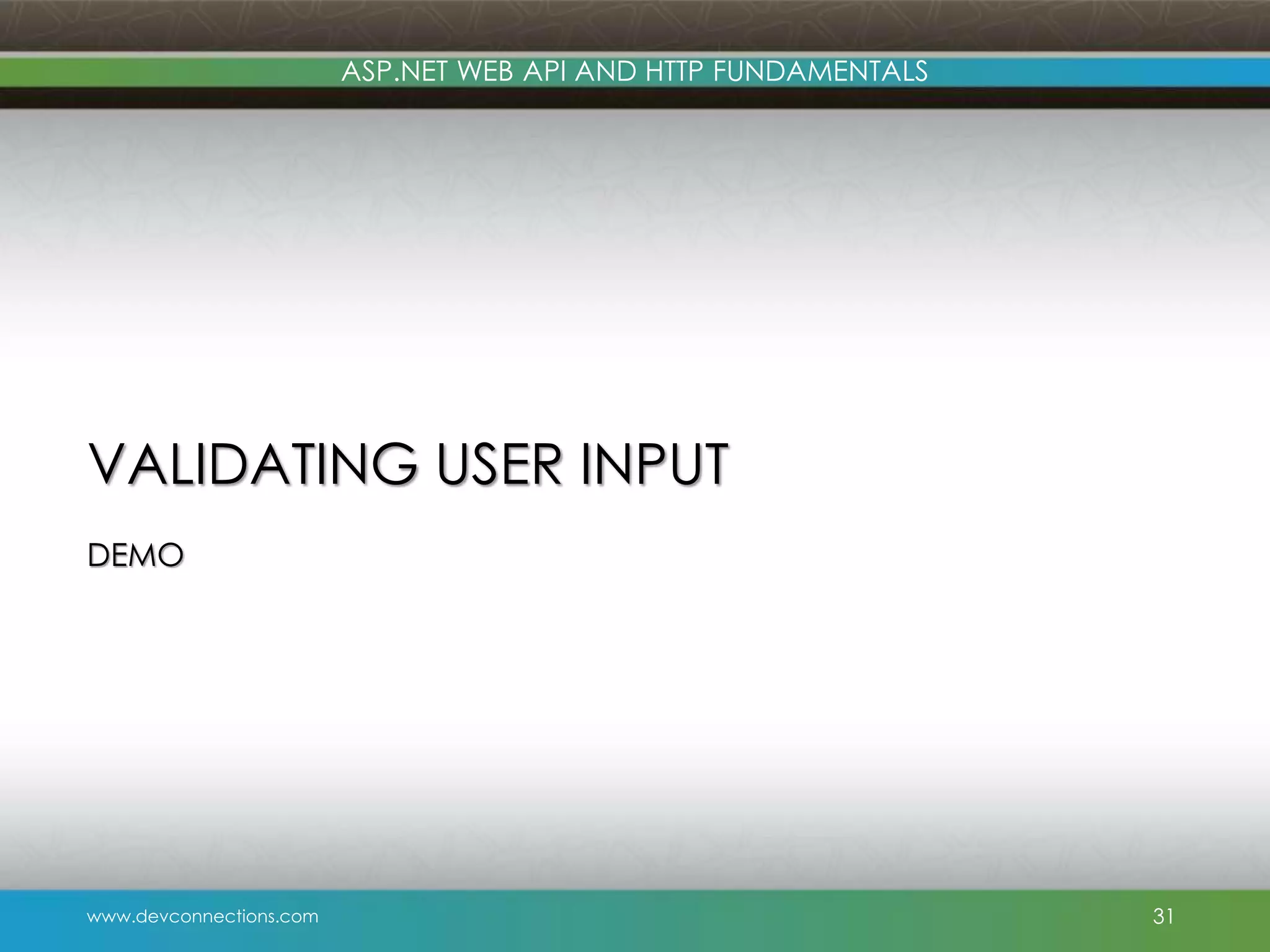

- 31. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS VALIDATING USER INPUT DEMO 31

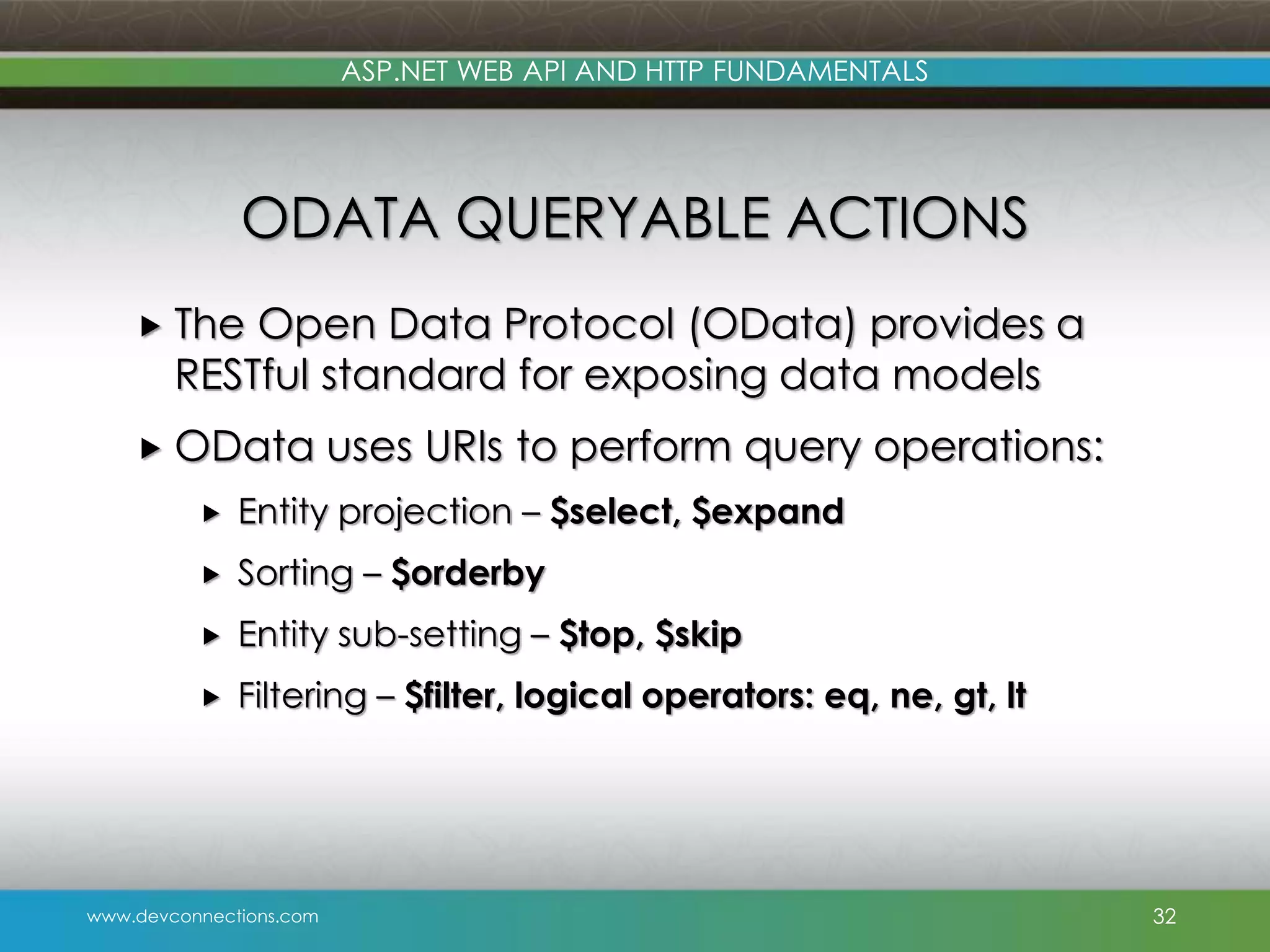

- 32. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ODATA QUERYABLE ACTIONS The Open Data Protocol (OData) provides a RESTful standard for exposing data models OData uses URIs to perform query operations: Entity projection – $select, $expand Sorting – $orderby Entity sub-setting – $top, $skip Filtering – $filter, logical operators: eq, ne, gt, lt 32

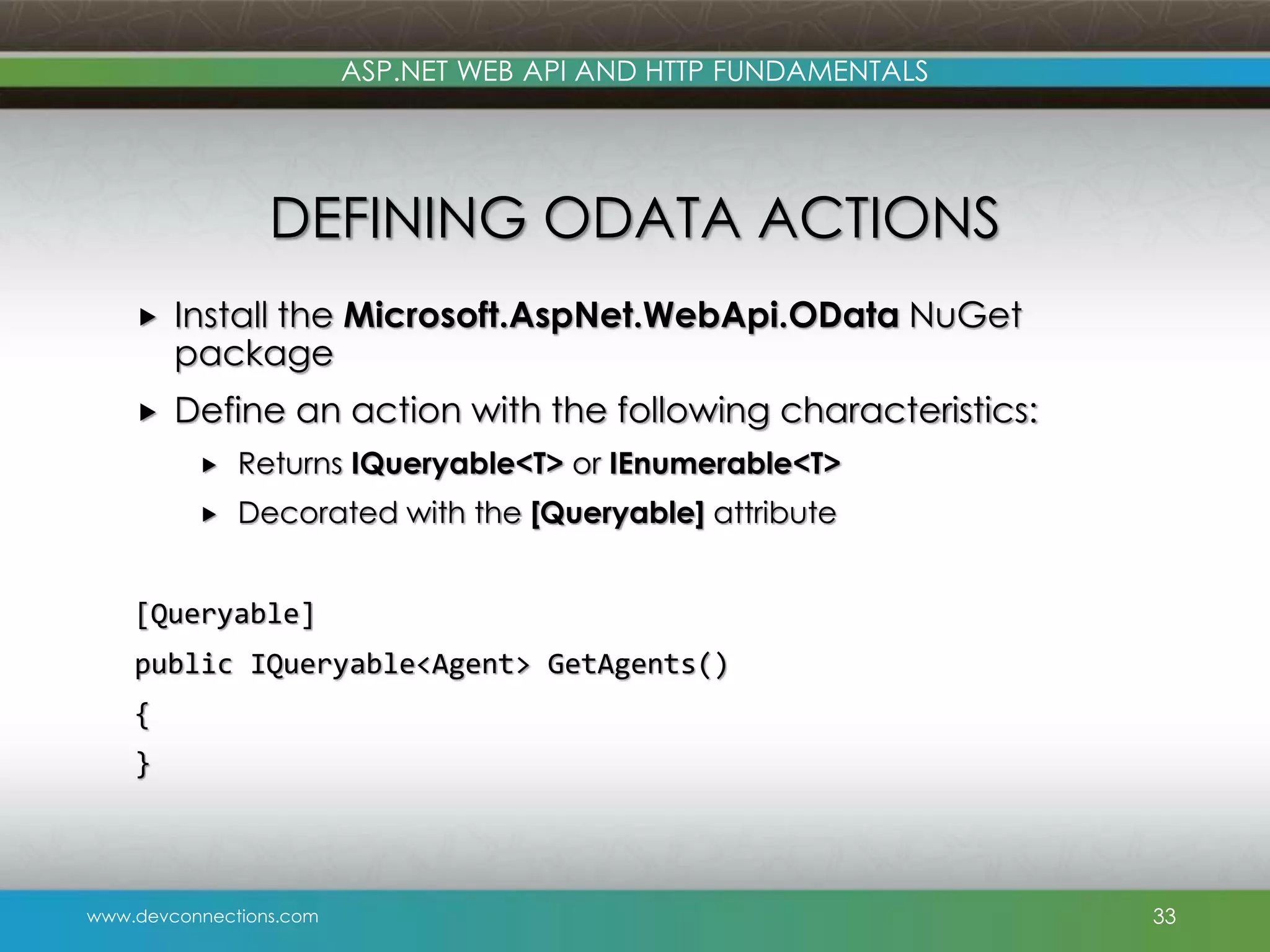

- 33. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS DEFINING ODATA ACTIONS Install the Microsoft.AspNet.WebApi.OData NuGet package Define an action with the following characteristics: Returns IQueryable<T> or IEnumerable<T> Decorated with the [Queryable] attribute [Queryable] public IQueryable<Agent> GetAgents() { } 33

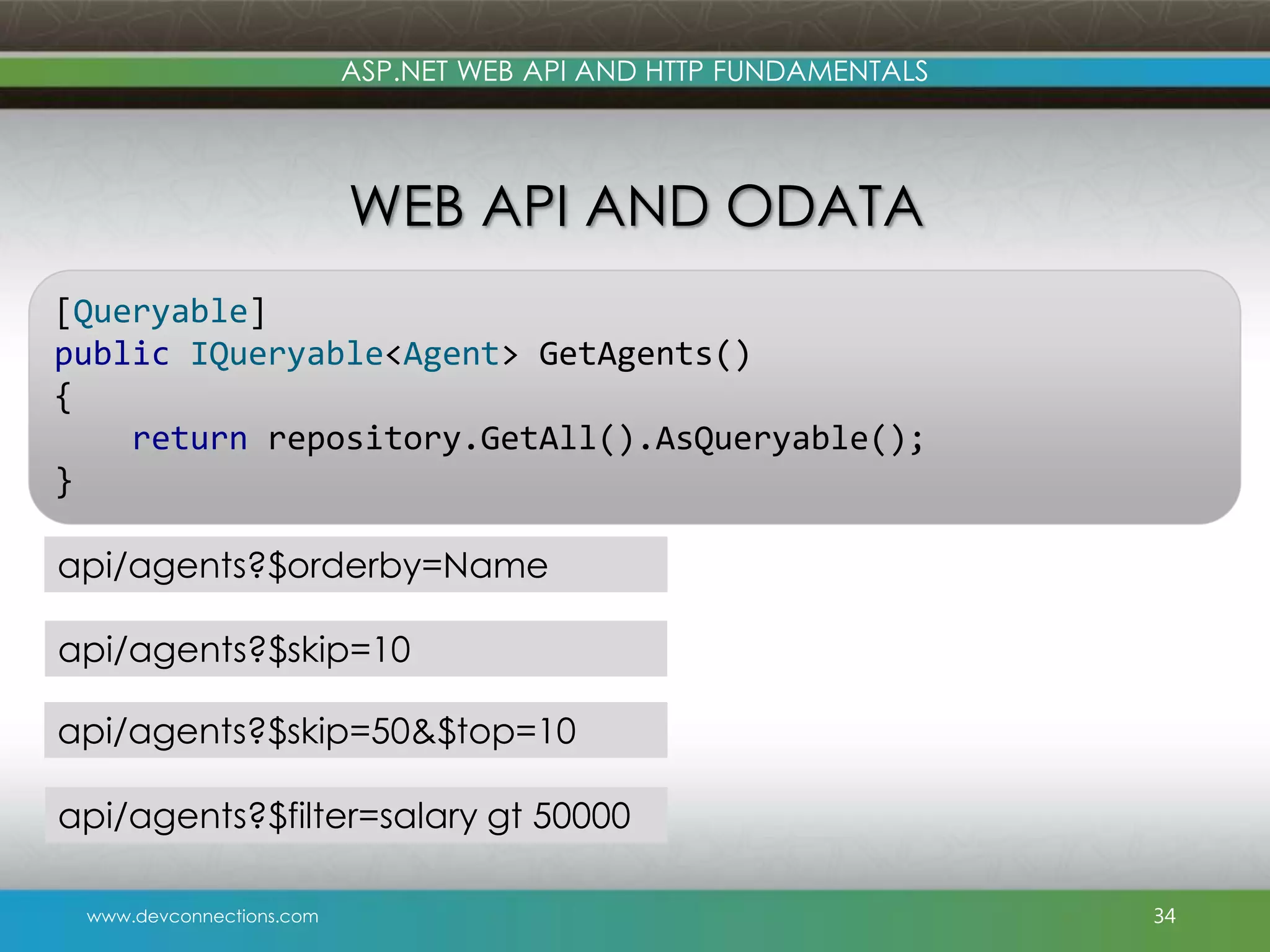

- 34. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS WEB API AND ODATA 34 [Queryable] public IQueryable<Agent> GetAgents() { return repository.GetAll().AsQueryable(); } api/agents?$orderby=Name api/agents?$filter=salary gt 50000 api/agents?$skip=10 api/agents?$skip=50&$top=10

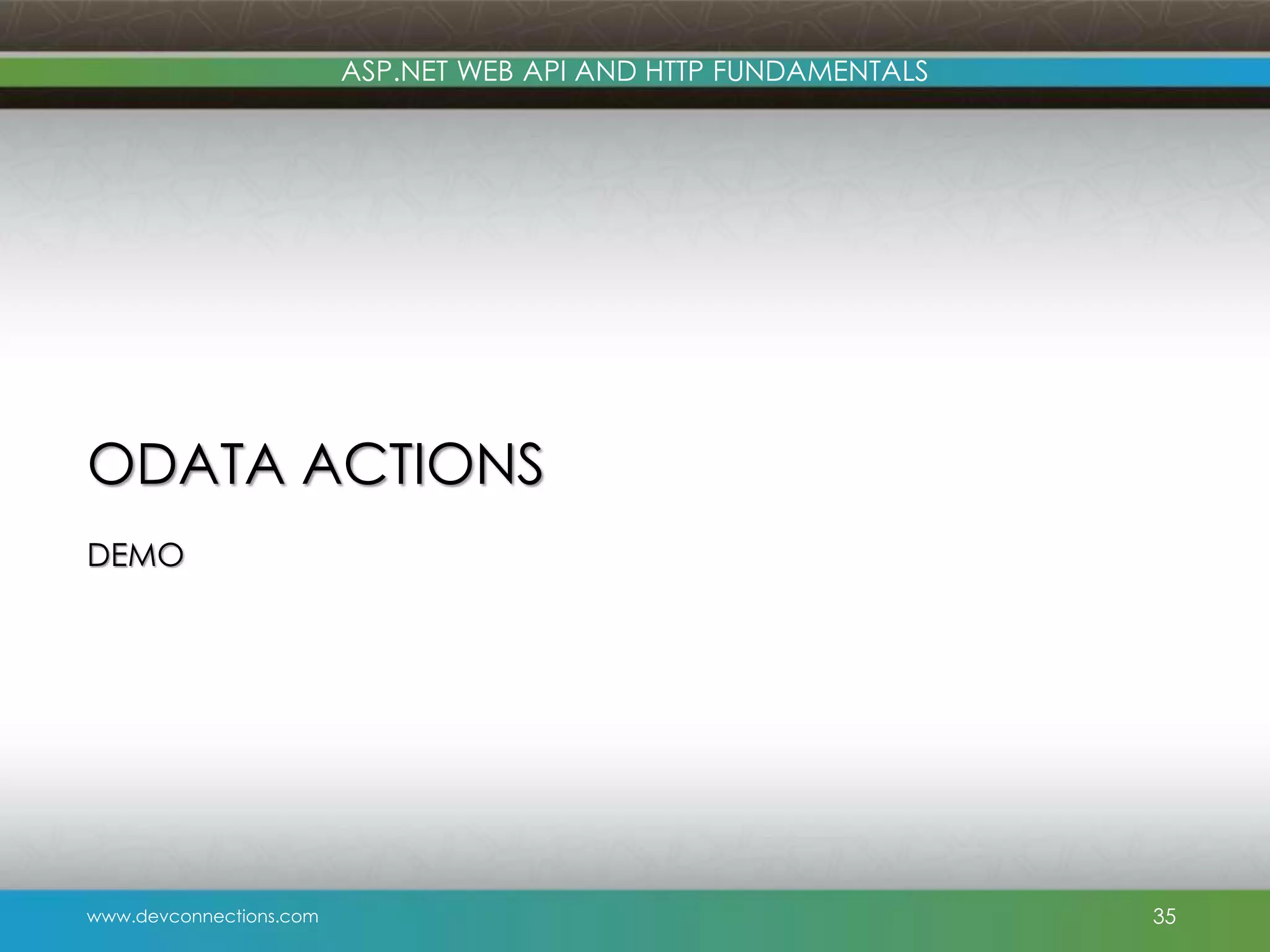

- 35. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ODATA ACTIONS DEMO 35

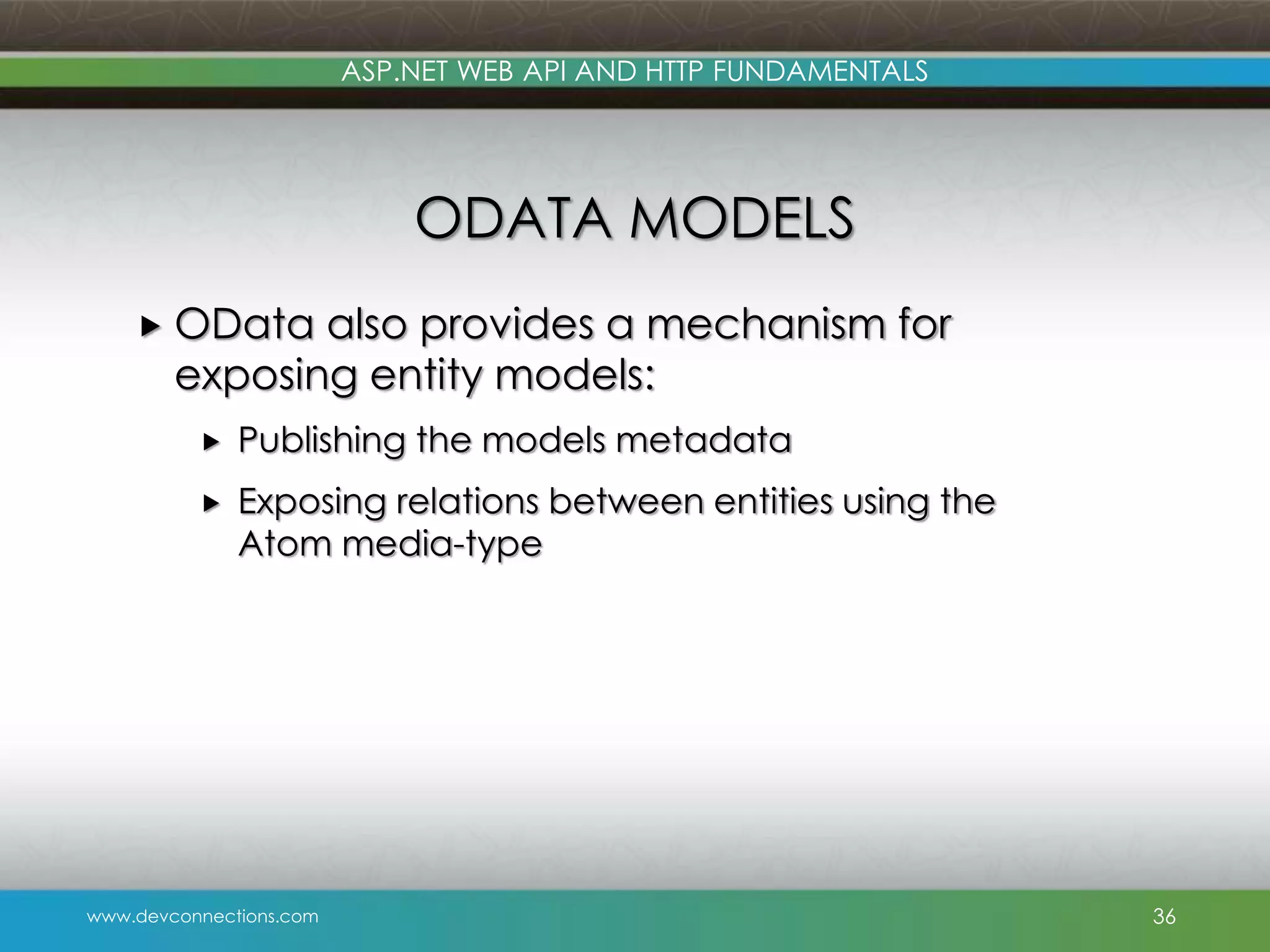

- 36. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ODATA MODELS OData also provides a mechanism for exposing entity models: Publishing the models metadata Exposing relations between entities using the Atom media-type 36

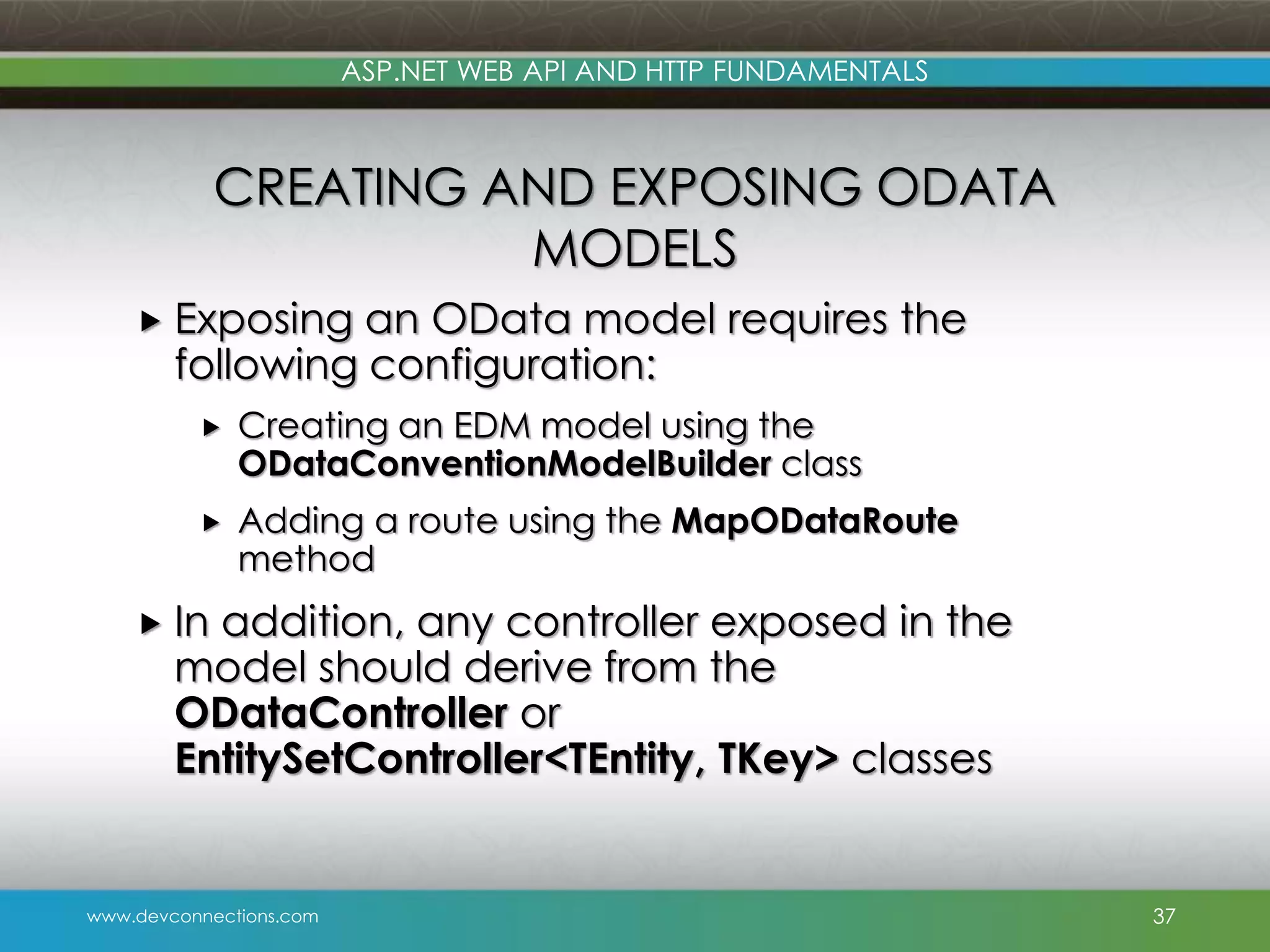

- 37. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CREATING AND EXPOSING ODATA MODELS Exposing an OData model requires the following configuration: Creating an EDM model using the ODataConventionModelBuilder class Adding a route using the MapODataRoute method In addition, any controller exposed in the model should derive from the ODataController or EntitySetController<TEntity, TKey> classes 37

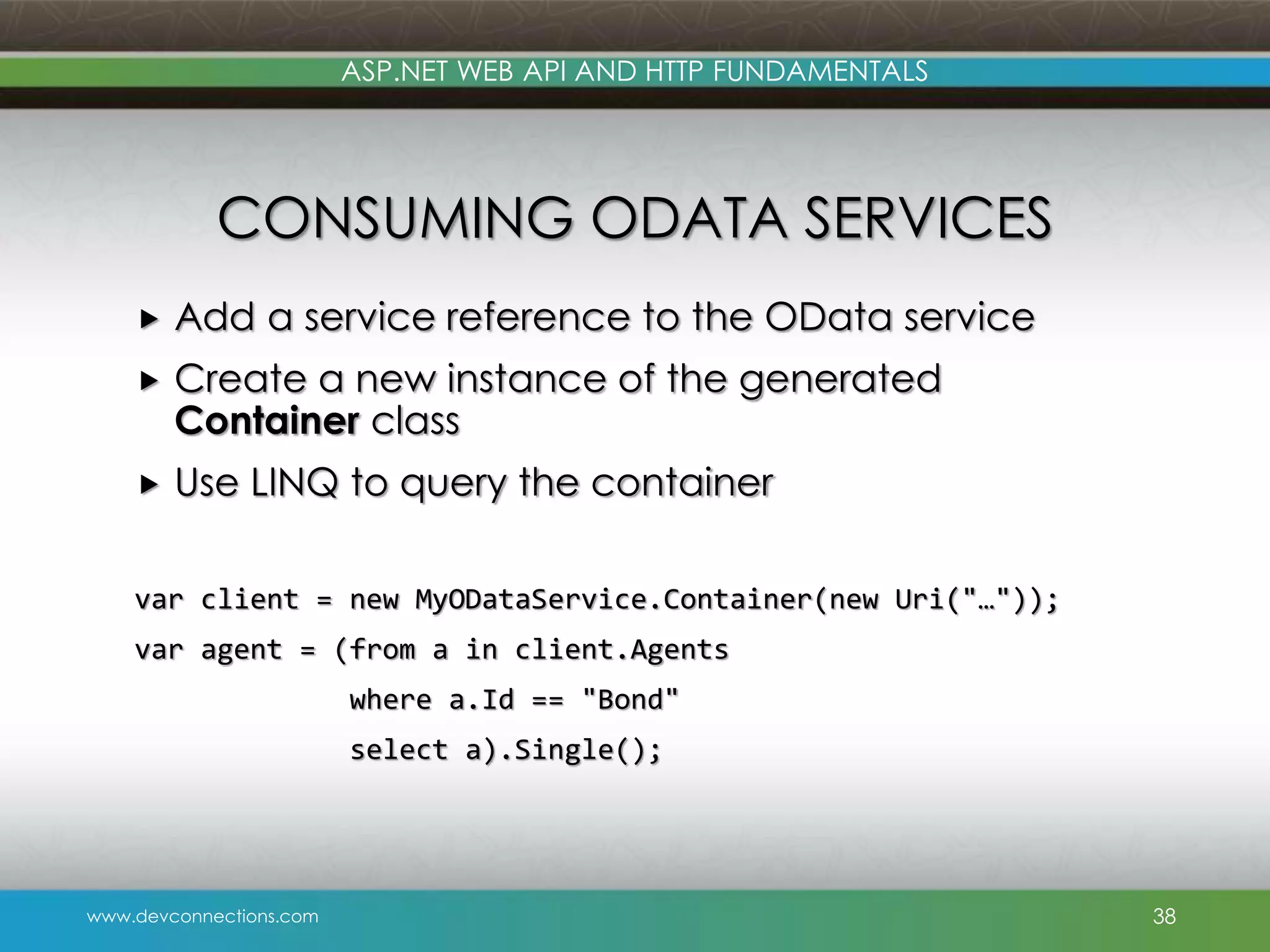

- 38. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CONSUMING ODATA SERVICES Add a service reference to the OData service Create a new instance of the generated Container class Use LINQ to query the container var client = new MyODataService.Container(new Uri("…")); var agent = (from a in client.Agents where a.Id == "Bond" select a).Single(); 38

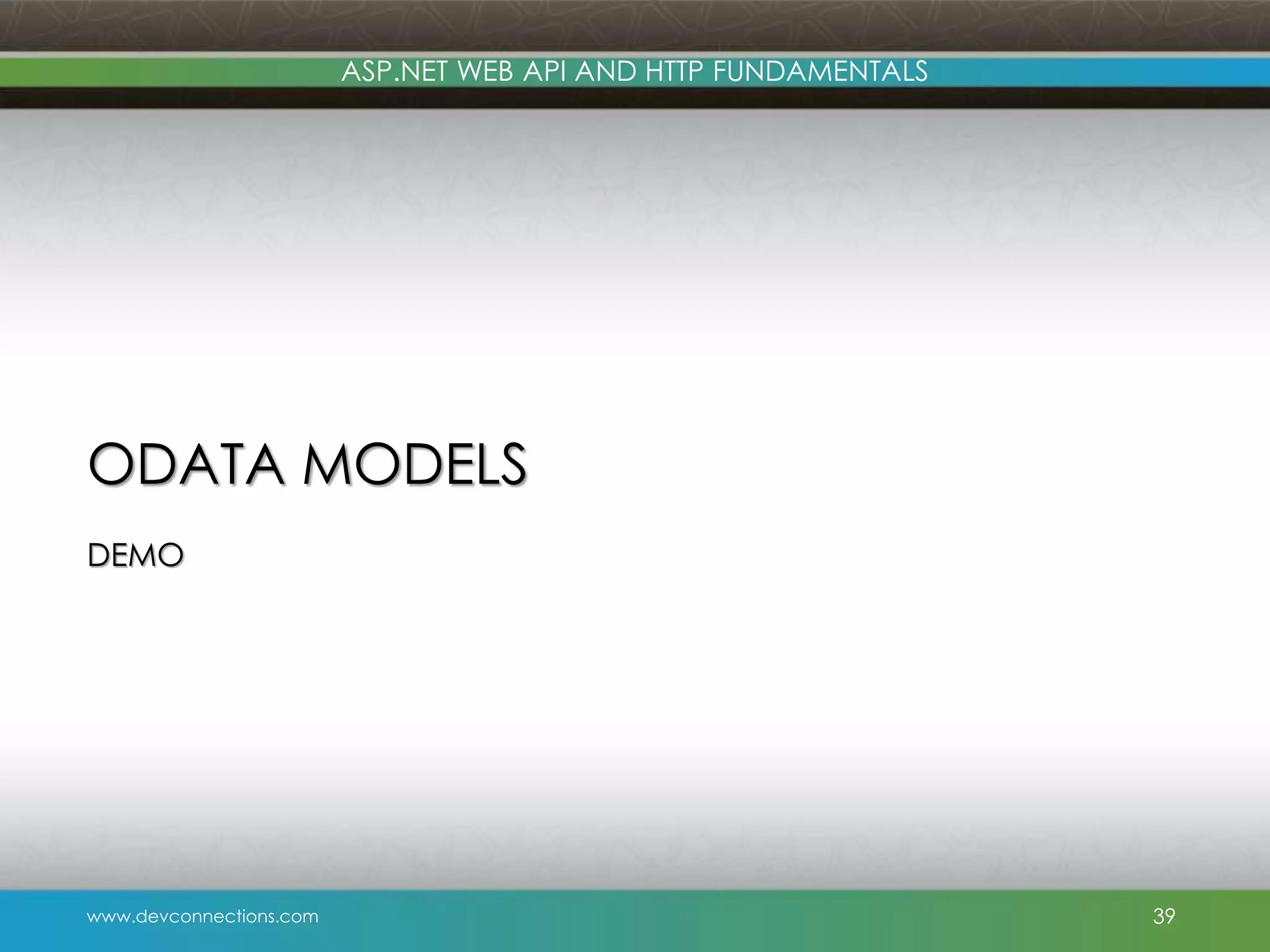

- 39. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ODATA MODELS DEMO 39

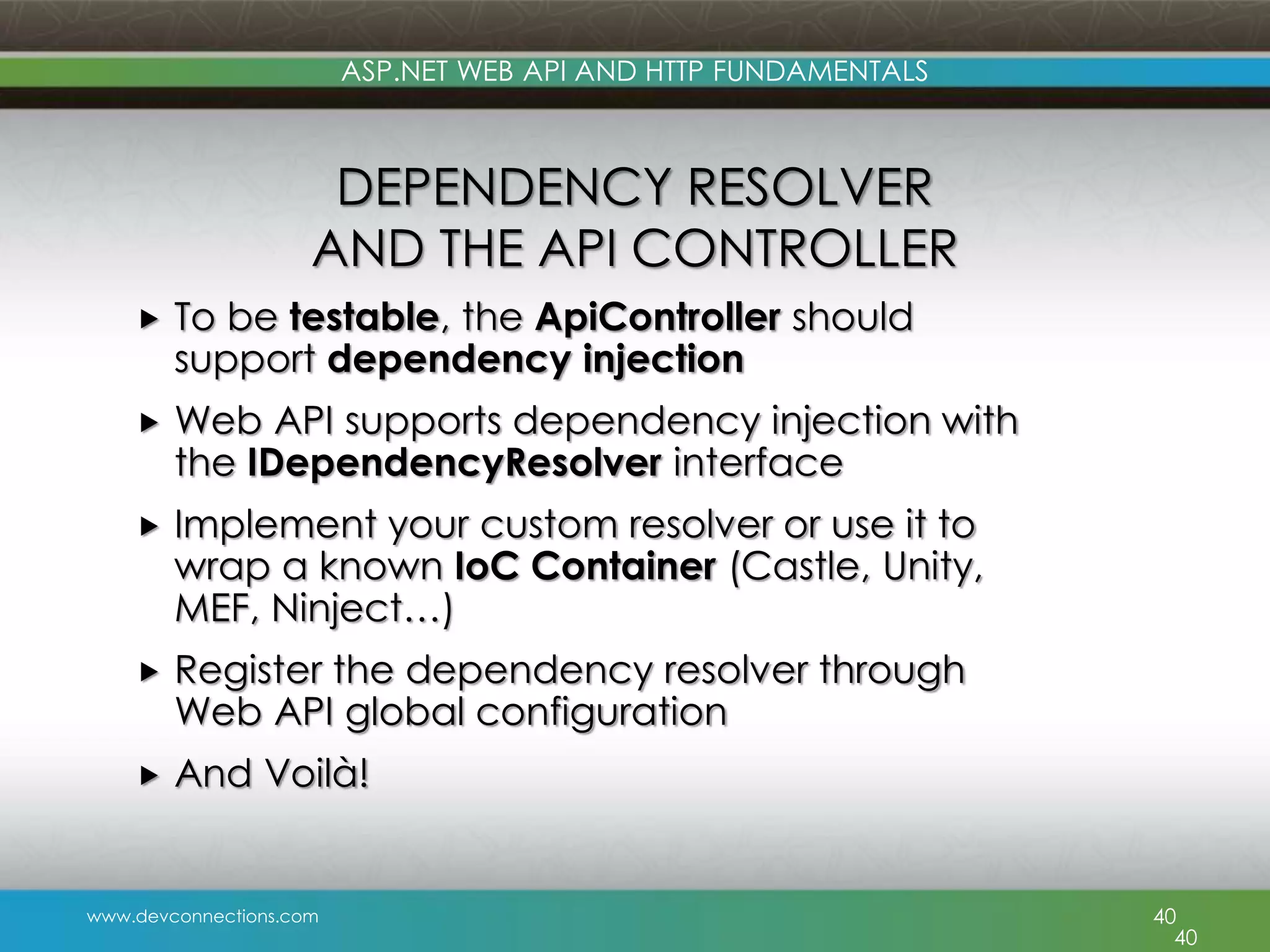

- 40. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS DEPENDENCY RESOLVER AND THE API CONTROLLER To be testable, the ApiController should support dependency injection Web API supports dependency injection with the IDependencyResolver interface Implement your custom resolver or use it to wrap a known IoC Container (Castle, Unity, MEF, Ninject…) Register the dependency resolver through Web API global configuration And Voilà! 40 40

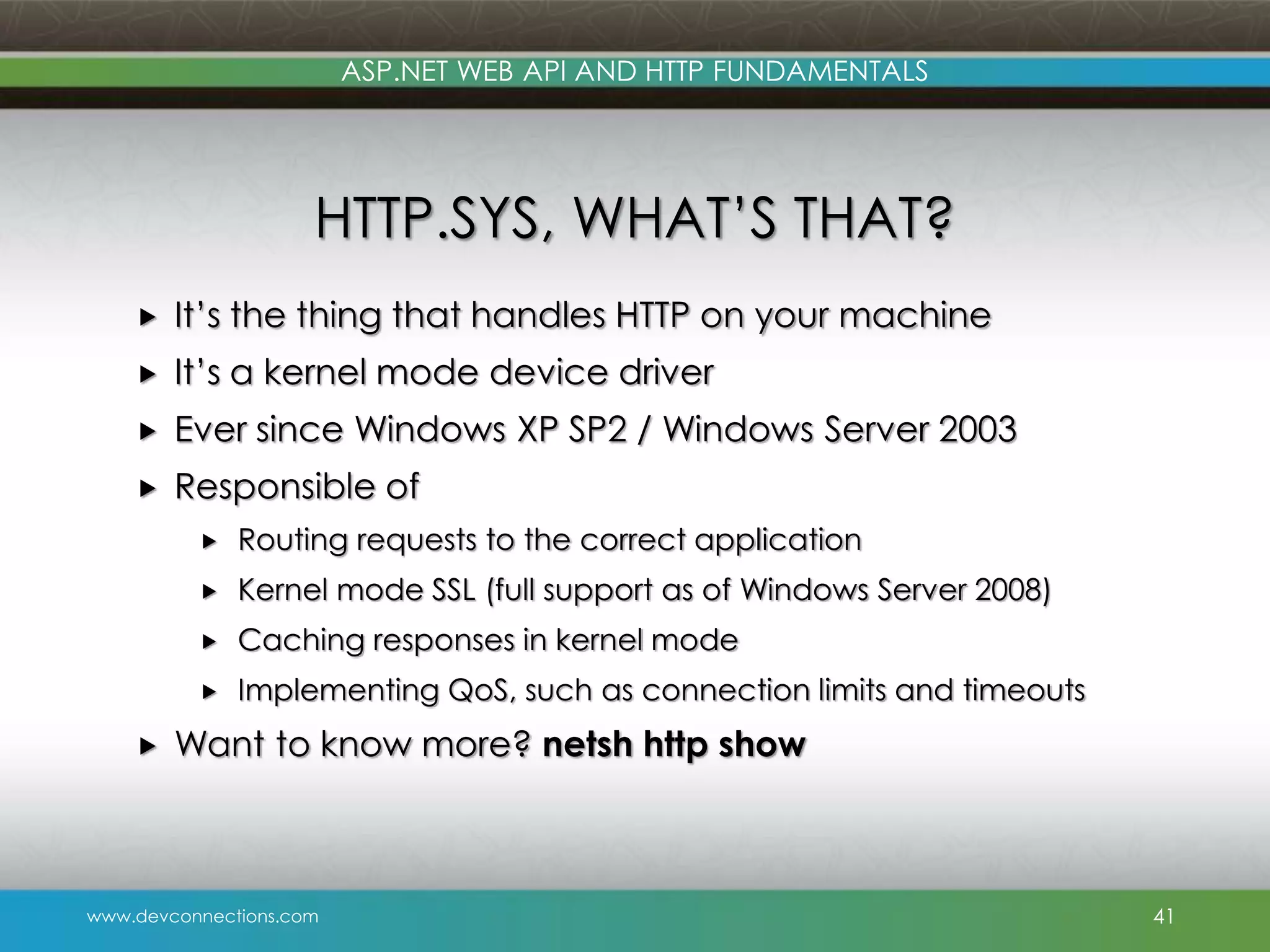

- 41. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP.SYS, WHAT’S THAT? It’s the thing that handles HTTP on your machine It’s a kernel mode device driver Ever since Windows XP SP2 / Windows Server 2003 Responsible of Routing requests to the correct application Kernel mode SSL (full support as of Windows Server 2008) Caching responses in kernel mode Implementing QoS, such as connection limits and timeouts Want to know more? netsh http show 41

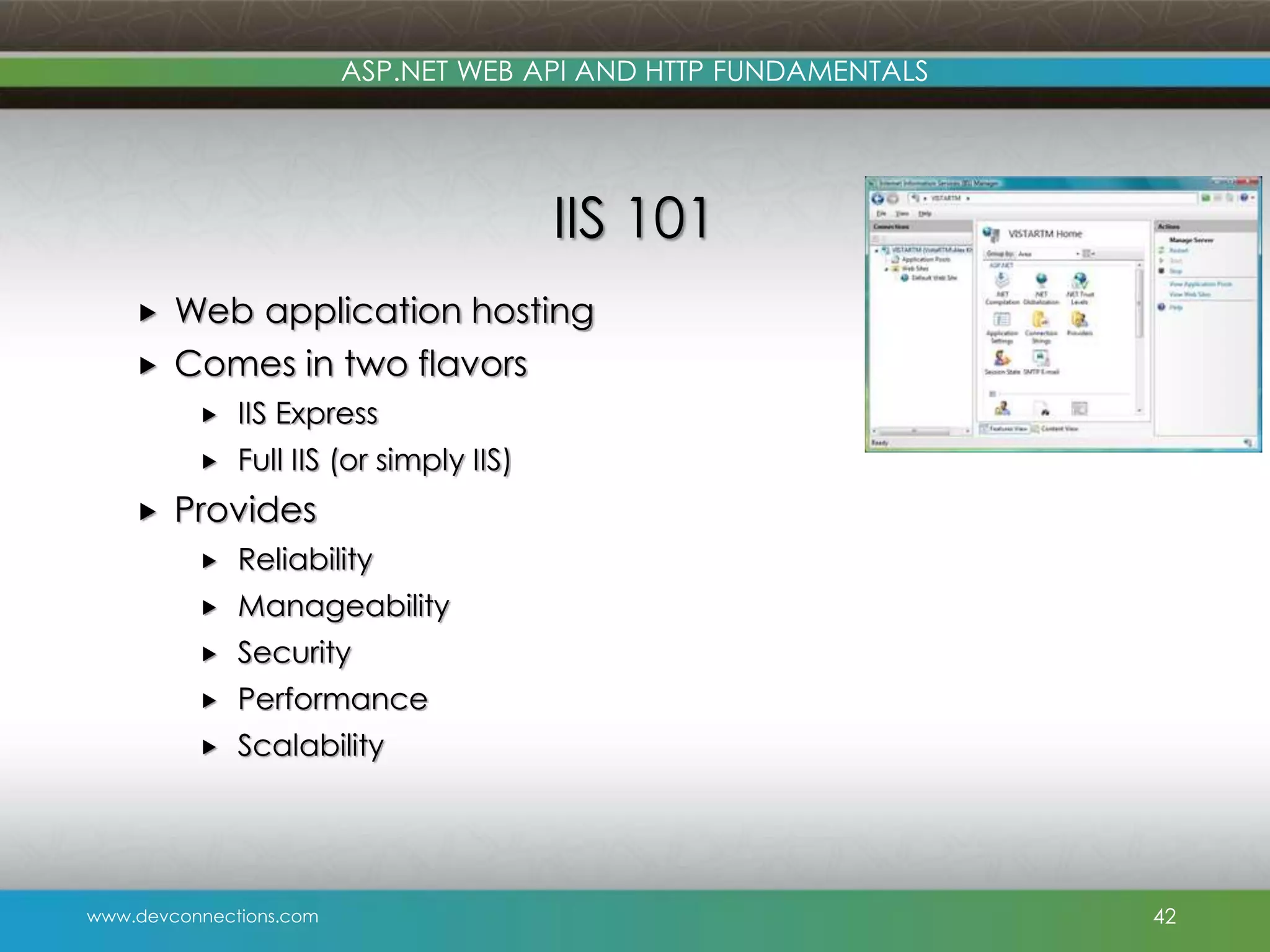

- 42. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS IIS 101 Web application hosting Comes in two flavors IIS Express Full IIS (or simply IIS) Provides Reliability Manageability Security Performance Scalability 42
- 43. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ENABLING COMPRESSION WITH IIS Compression is something the client needs to request Requests are not normally compressed Accept-Encoding: gzip,deflate Server is not obligated to compress the response Content-Encoding: gzip / deflate 43 IIS Compression Modes Scenarios Considerations Dynamic Compression Small number of requests Limited network bandwidth Uses CPU and memory Not cached Static Compression Improve transmission times Graphic-heavy sites Can be cached Uses some CPU

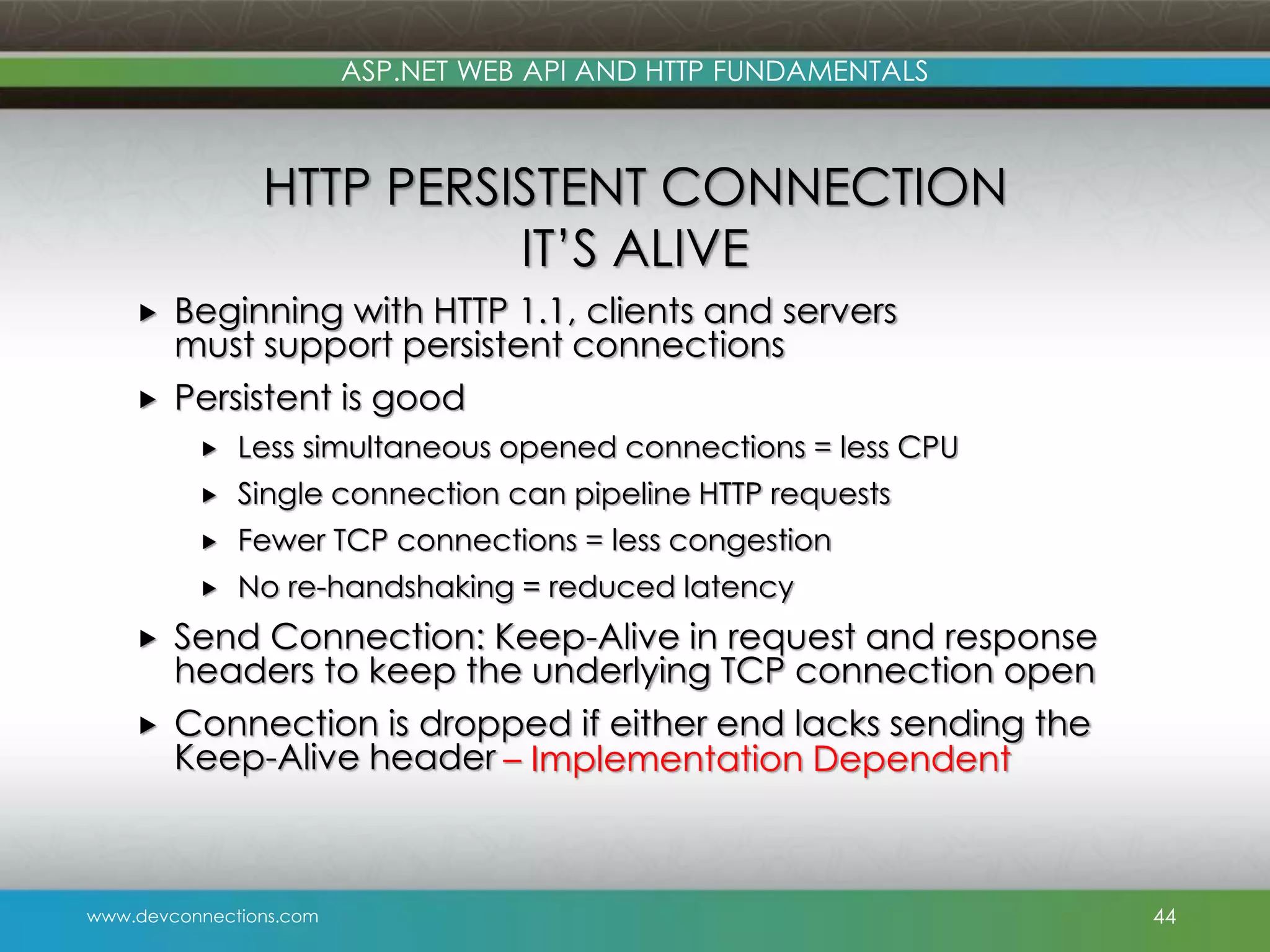

- 44. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP PERSISTENT CONNECTION IT’S ALIVE Beginning with HTTP 1.1, clients and servers must support persistent connections Persistent is good Less simultaneous opened connections = less CPU Single connection can pipeline HTTP requests Fewer TCP connections = less congestion No re-handshaking = reduced latency Send Connection: Keep-Alive in request and response headers to keep the underlying TCP connection open Connection is dropped if either end lacks sending the Keep-Alive header 44 – Implementation Dependent

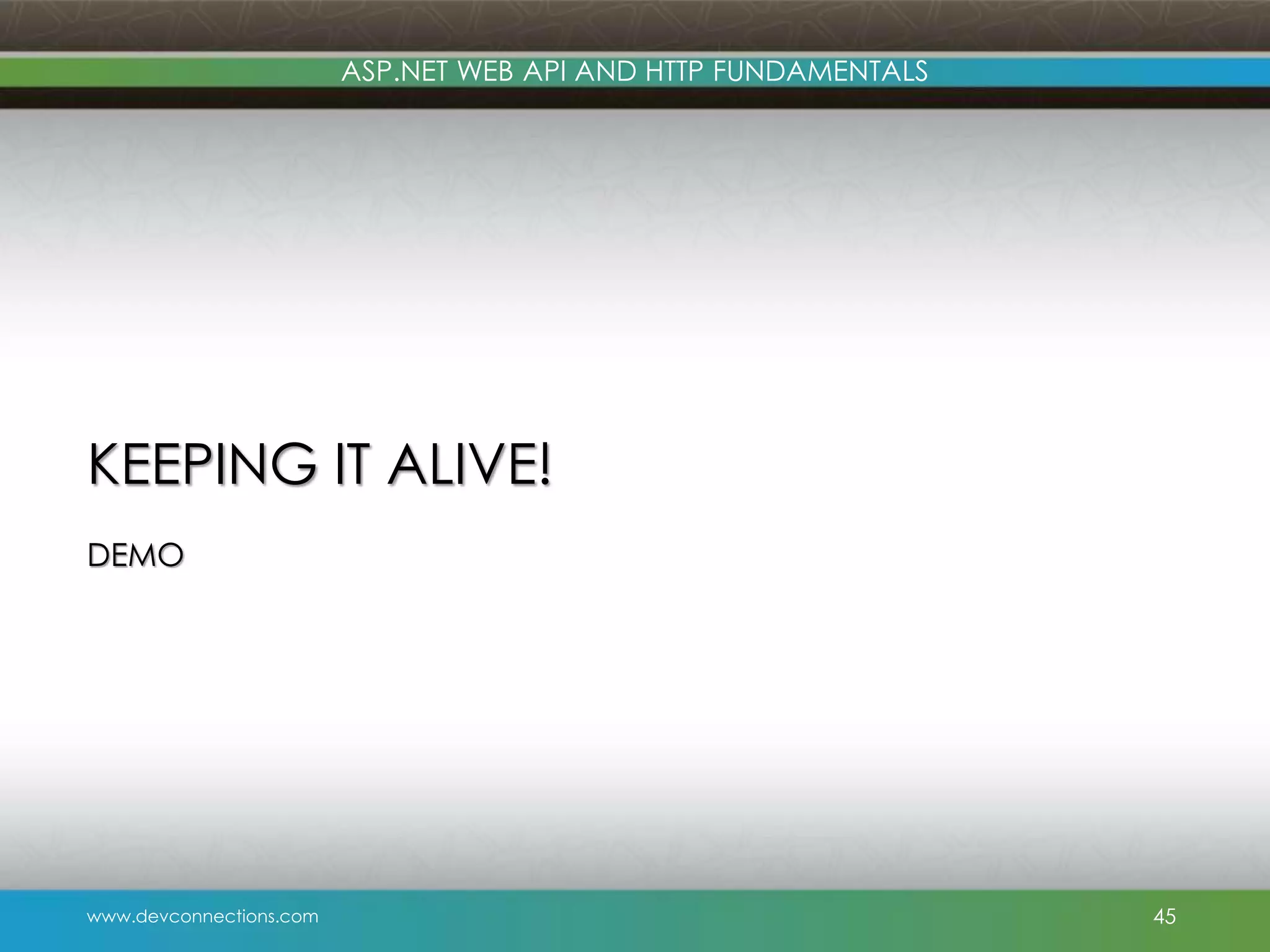

- 45. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS KEEPING IT ALIVE! DEMO 45

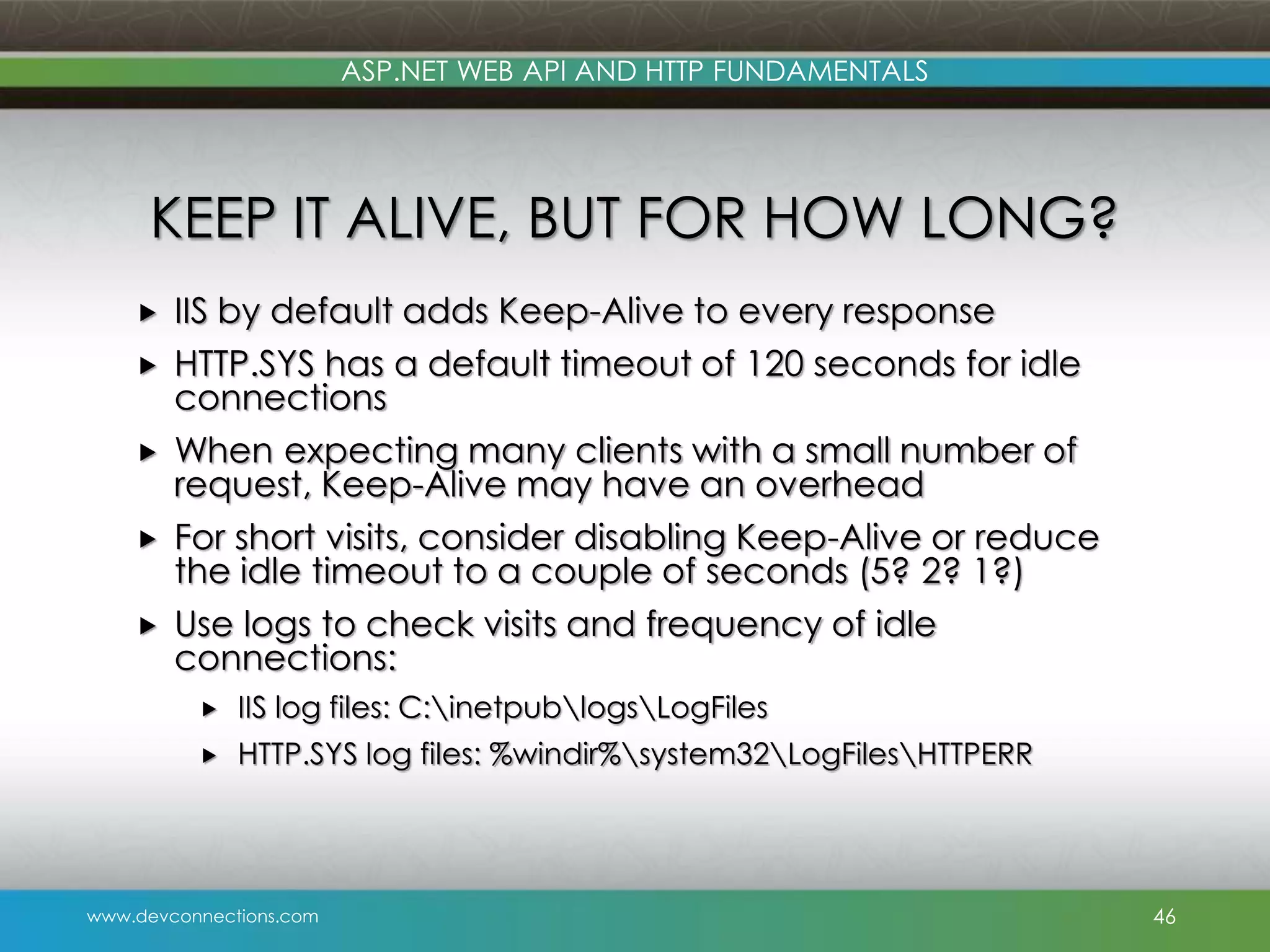

- 46. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS KEEP IT ALIVE, BUT FOR HOW LONG? IIS by default adds Keep-Alive to every response HTTP.SYS has a default timeout of 120 seconds for idle connections When expecting many clients with a small number of request, Keep-Alive may have an overhead For short visits, consider disabling Keep-Alive or reduce the idle timeout to a couple of seconds (5? 2? 1?) Use logs to check visits and frequency of idle connections: IIS log files: C:inetpublogsLogFiles HTTP.SYS log files: %windir%system32LogFilesHTTPERR 46

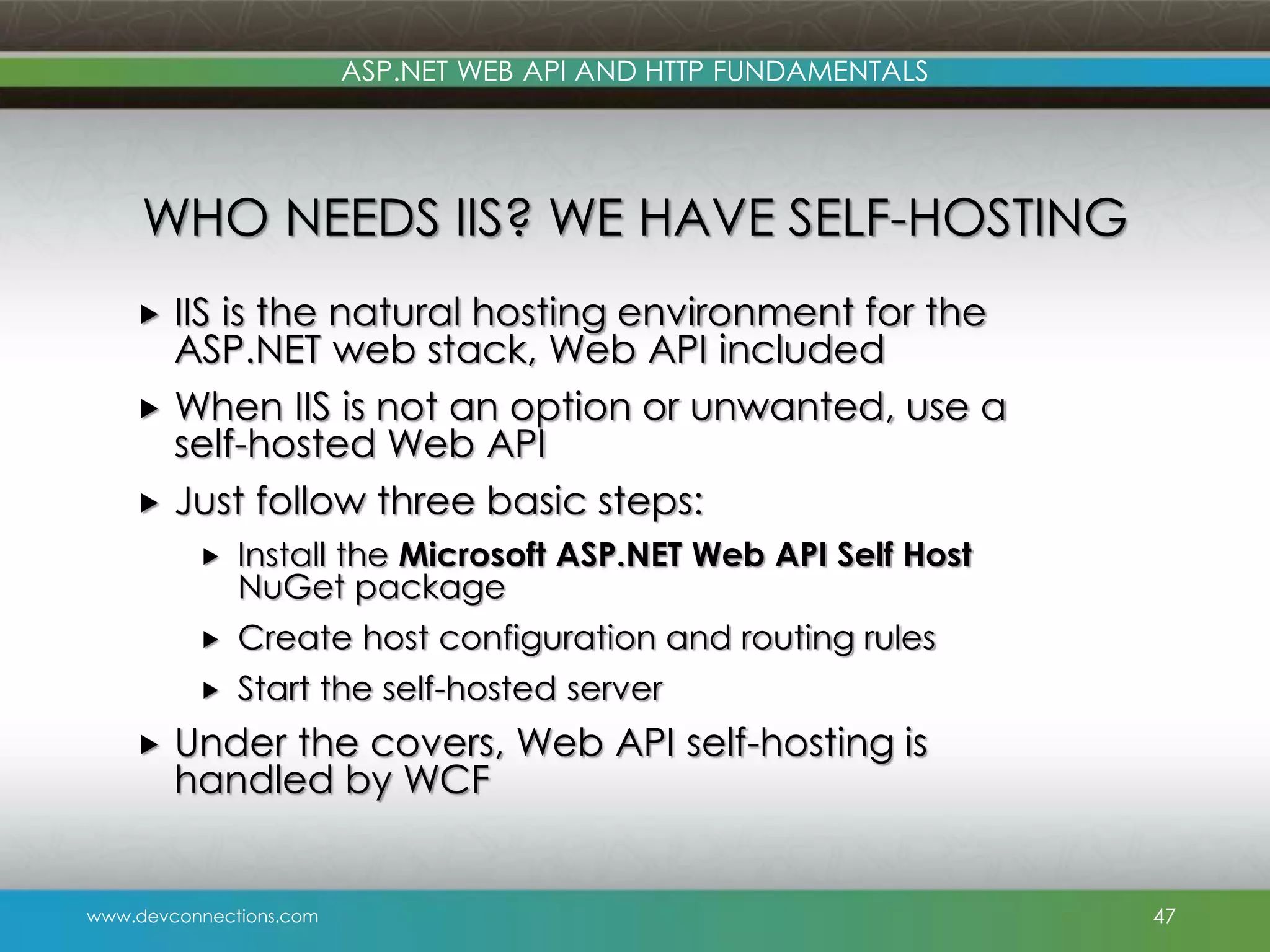

- 47. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS WHO NEEDS IIS? WE HAVE SELF-HOSTING IIS is the natural hosting environment for the ASP.NET web stack, Web API included When IIS is not an option or unwanted, use a self-hosted Web API Just follow three basic steps: Install the Microsoft ASP.NET Web API Self Host NuGet package Create host configuration and routing rules Start the self-hosted server Under the covers, Web API self-hosting is handled by WCF 47

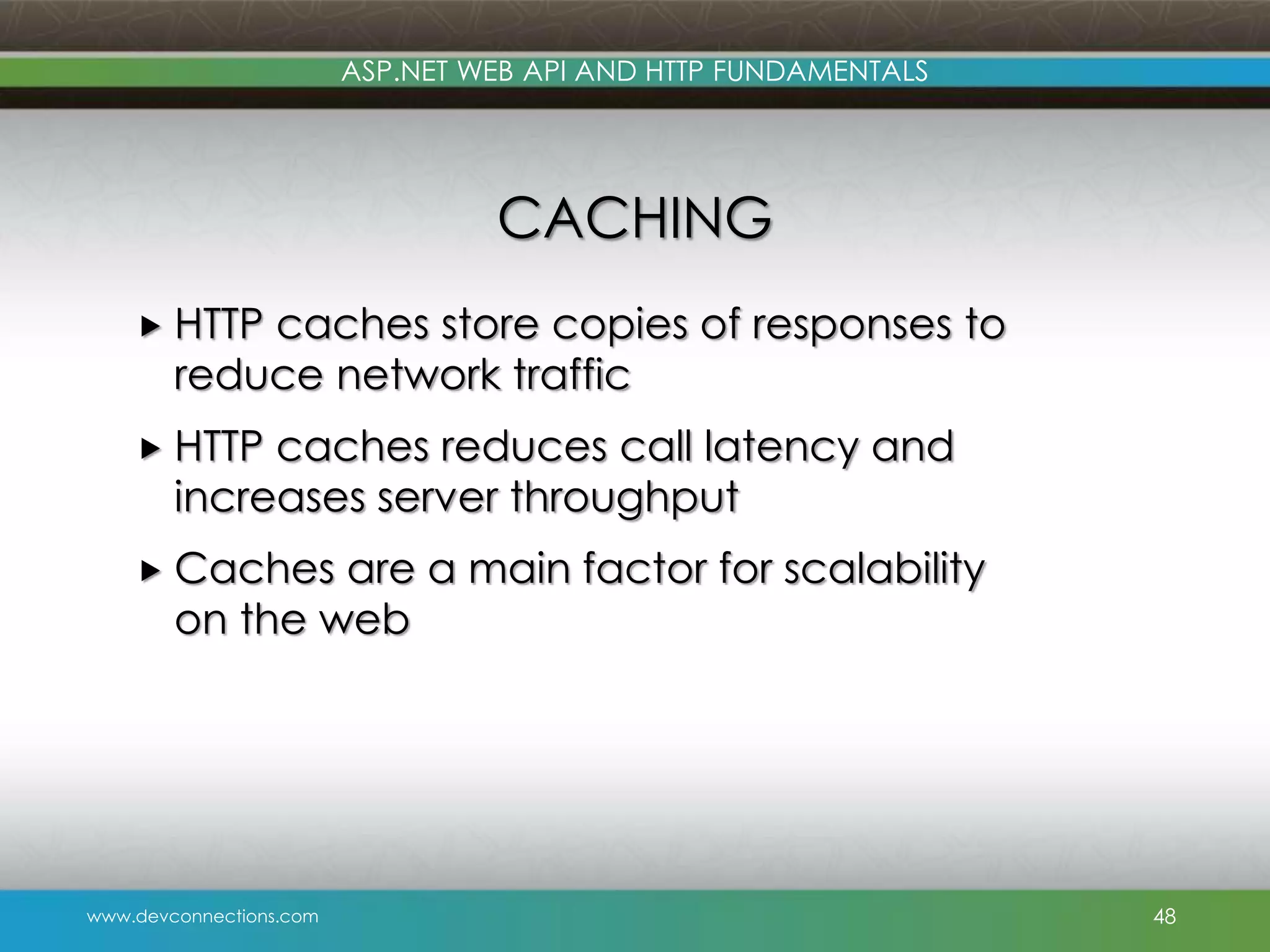

- 48. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CACHING HTTP caches store copies of responses to reduce network traffic HTTP caches reduces call latency and increases server throughput Caches are a main factor for scalability on the web 48

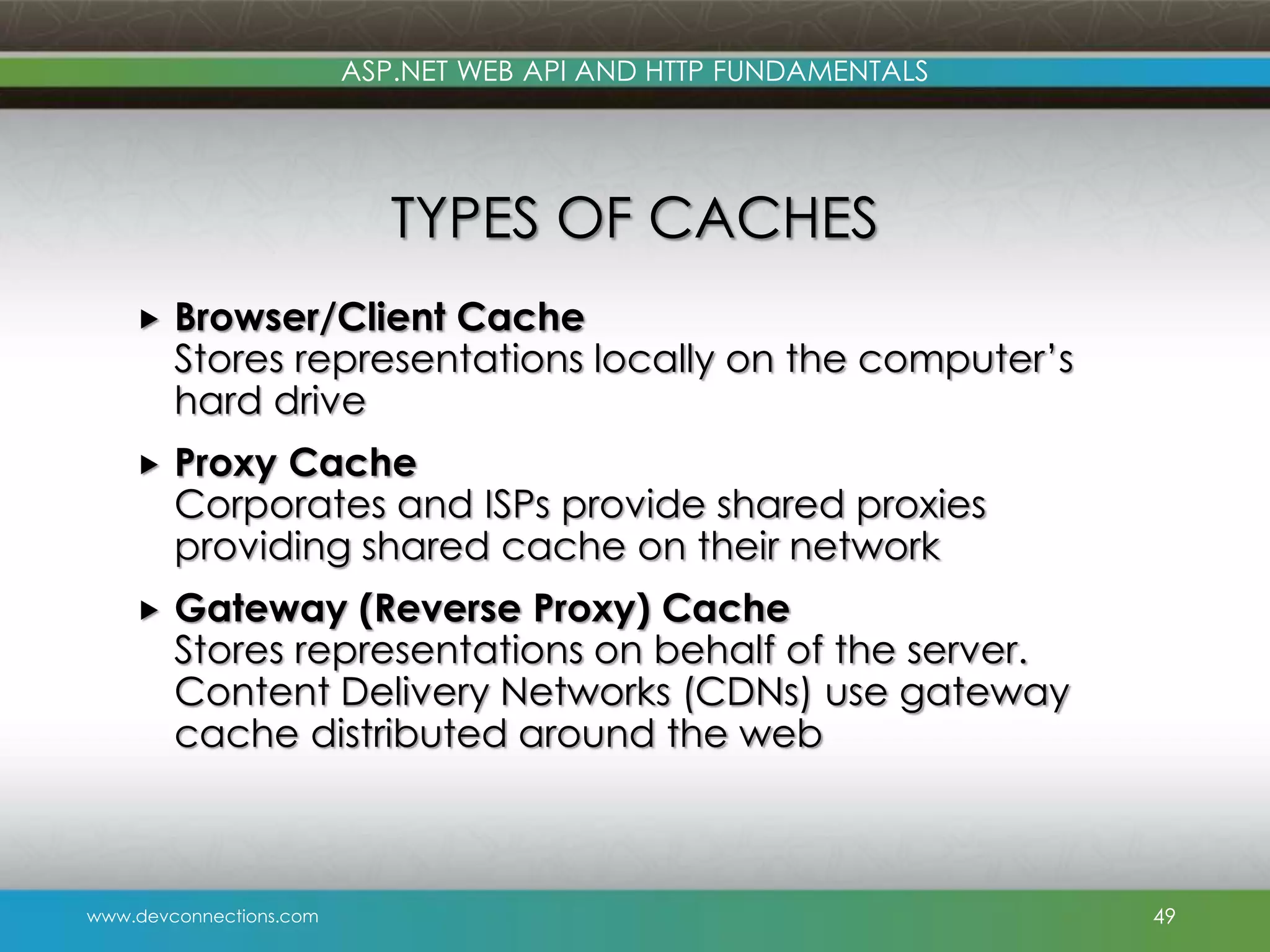

- 49. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS TYPES OF CACHES Browser/Client Cache Stores representations locally on the computer’s hard drive Proxy Cache Corporates and ISPs provide shared proxies providing shared cache on their network Gateway (Reverse Proxy) Cache Stores representations on behalf of the server. Content Delivery Networks (CDNs) use gateway cache distributed around the web 49

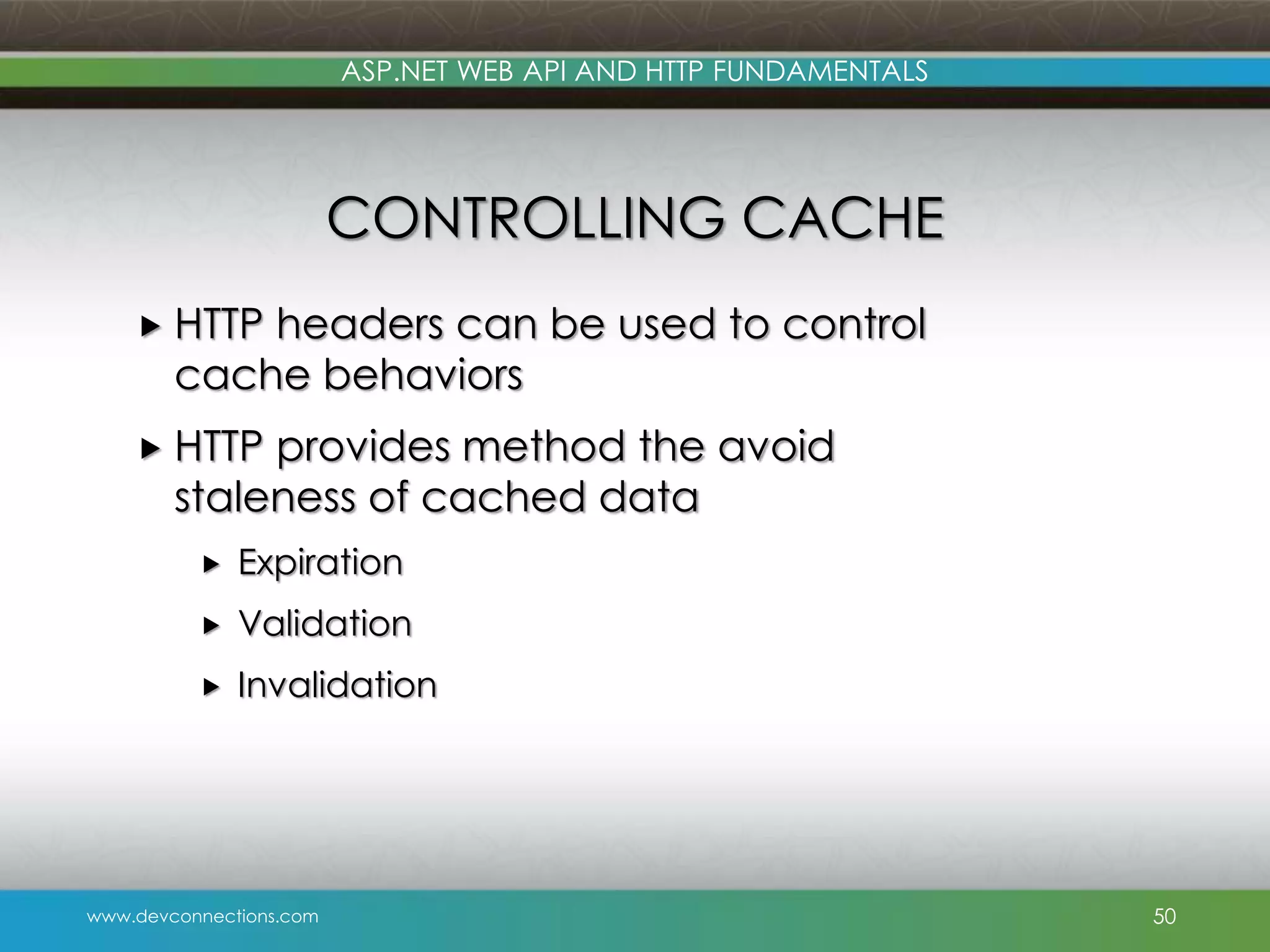

- 50. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CONTROLLING CACHE HTTP headers can be used to control cache behaviors HTTP provides method the avoid staleness of cached data Expiration Validation Invalidation 50

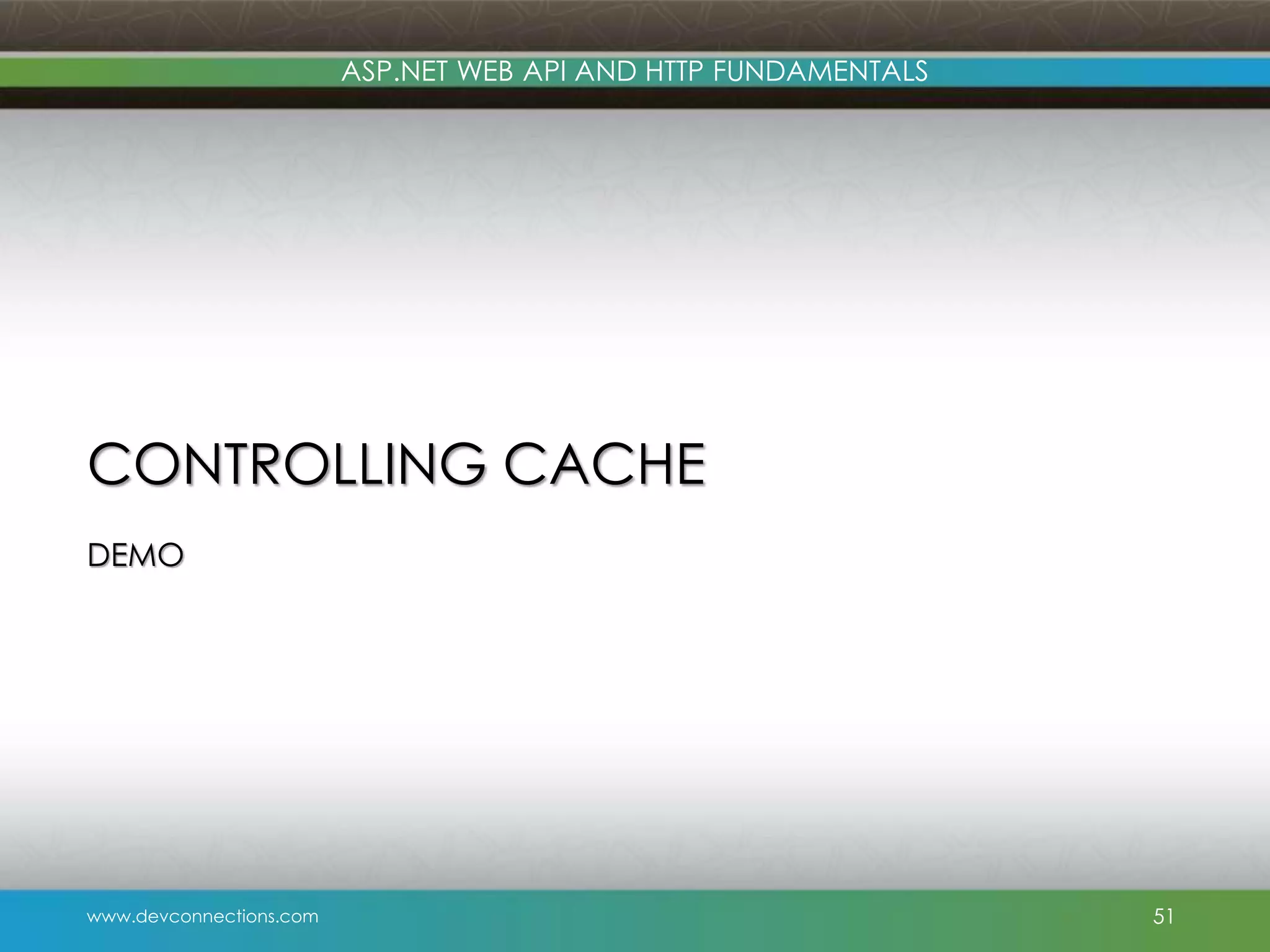

- 51. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CONTROLLING CACHE DEMO 51

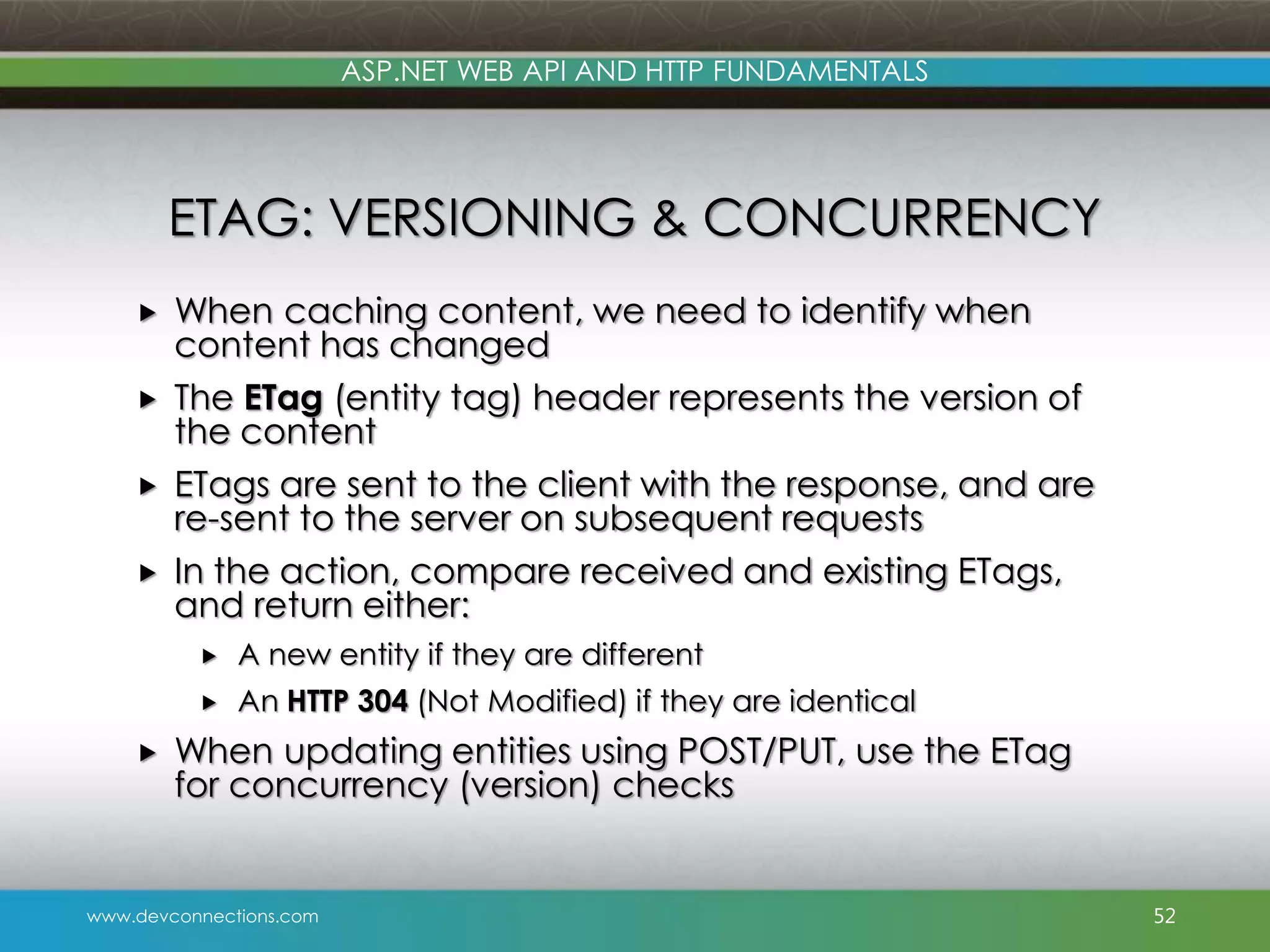

- 52. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ETAG: VERSIONING & CONCURRENCY When caching content, we need to identify when content has changed The ETag (entity tag) header represents the version of the content ETags are sent to the client with the response, and are re-sent to the server on subsequent requests In the action, compare received and existing ETags, and return either: A new entity if they are different An HTTP 304 (Not Modified) if they are identical When updating entities using POST/PUT, use the ETag for concurrency (version) checks 52

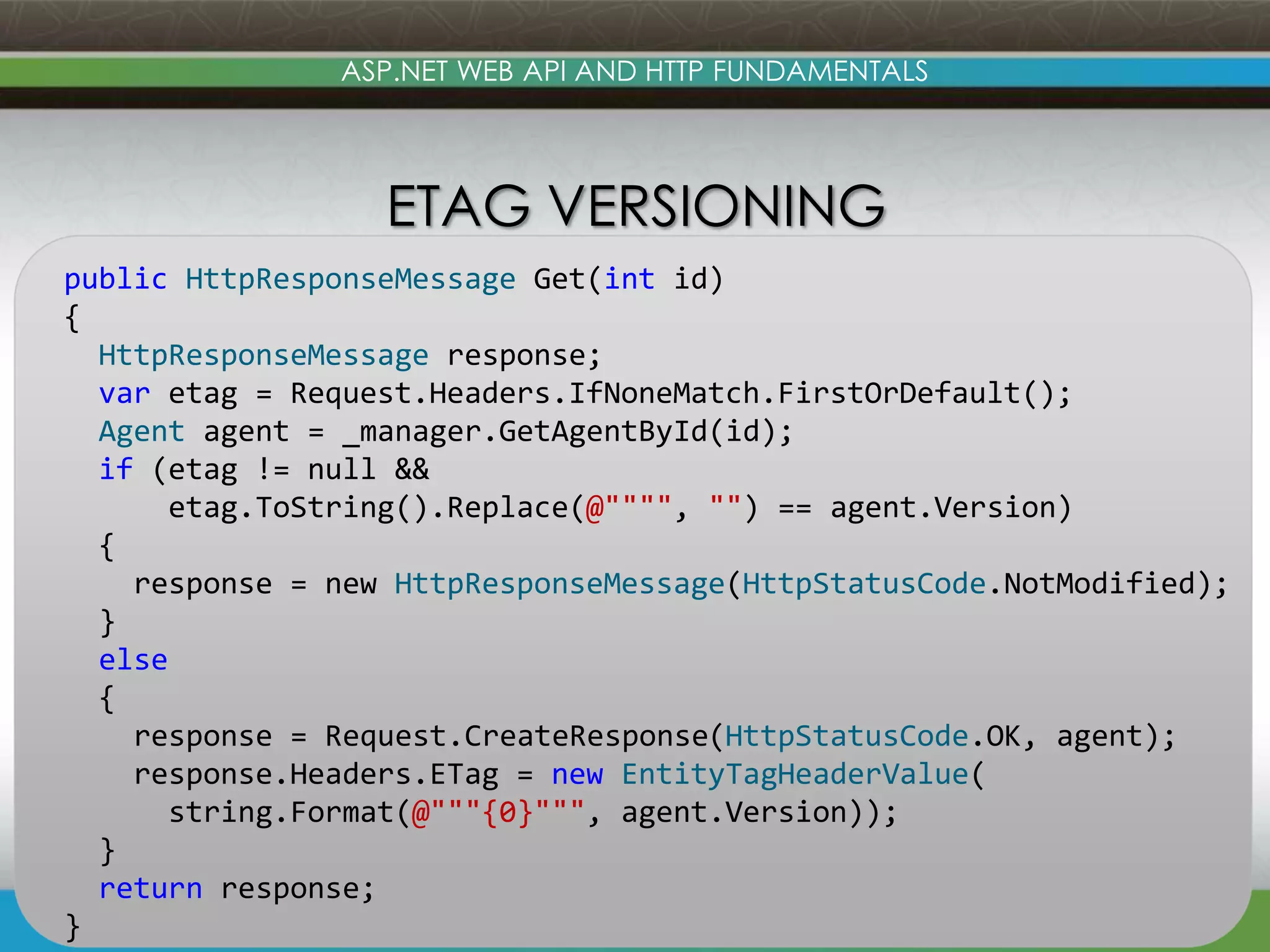

- 53. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ETAG VERSIONING 53 public HttpResponseMessage Get(int id) { HttpResponseMessage response; var etag = Request.Headers.IfNoneMatch.FirstOrDefault(); Agent agent = _manager.GetAgentById(id); if (etag != null && etag.ToString().Replace(@"""", "") == agent.Version) { response = new HttpResponseMessage(HttpStatusCode.NotModified); } else { response = Request.CreateResponse(HttpStatusCode.OK, agent); response.Headers.ETag = new EntityTagHeaderValue( string.Format(@"""{0}""", agent.Version)); } return response; }

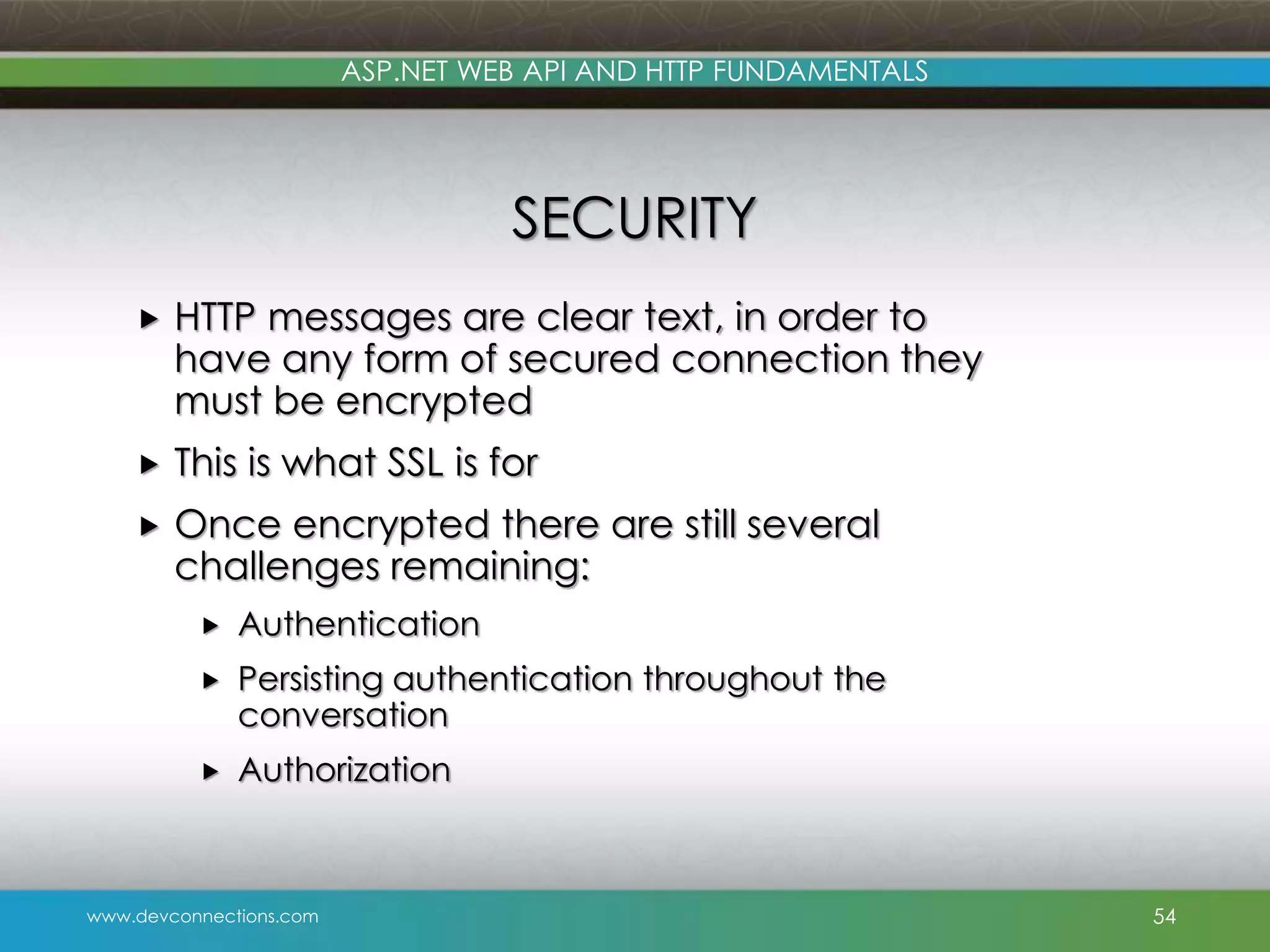

- 54. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS SECURITY HTTP messages are clear text, in order to have any form of secured connection they must be encrypted This is what SSL is for Once encrypted there are still several challenges remaining: Authentication Persisting authentication throughout the conversation Authorization 54

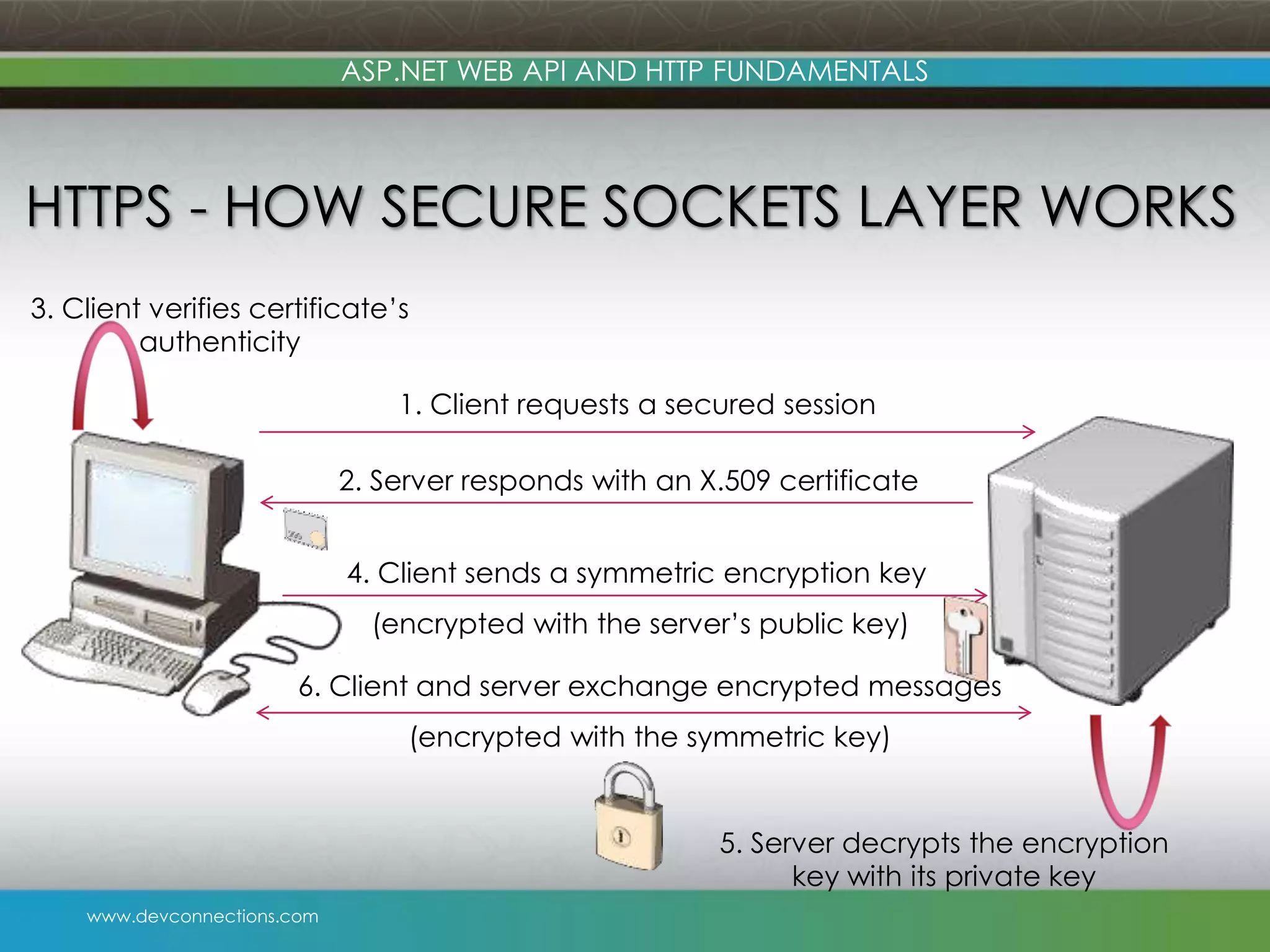

- 55. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS 1. Client requests a secured session 2. Server responds with an X.509 certificate 3. Client verifies certificate’s authenticity 4. Client sends a symmetric encryption key (encrypted with the server’s public key) 6. Client and server exchange encrypted messages (encrypted with the symmetric key) 5. Server decrypts the encryption key with its private key HTTPS - HOW SECURE SOCKETS LAYER WORKS

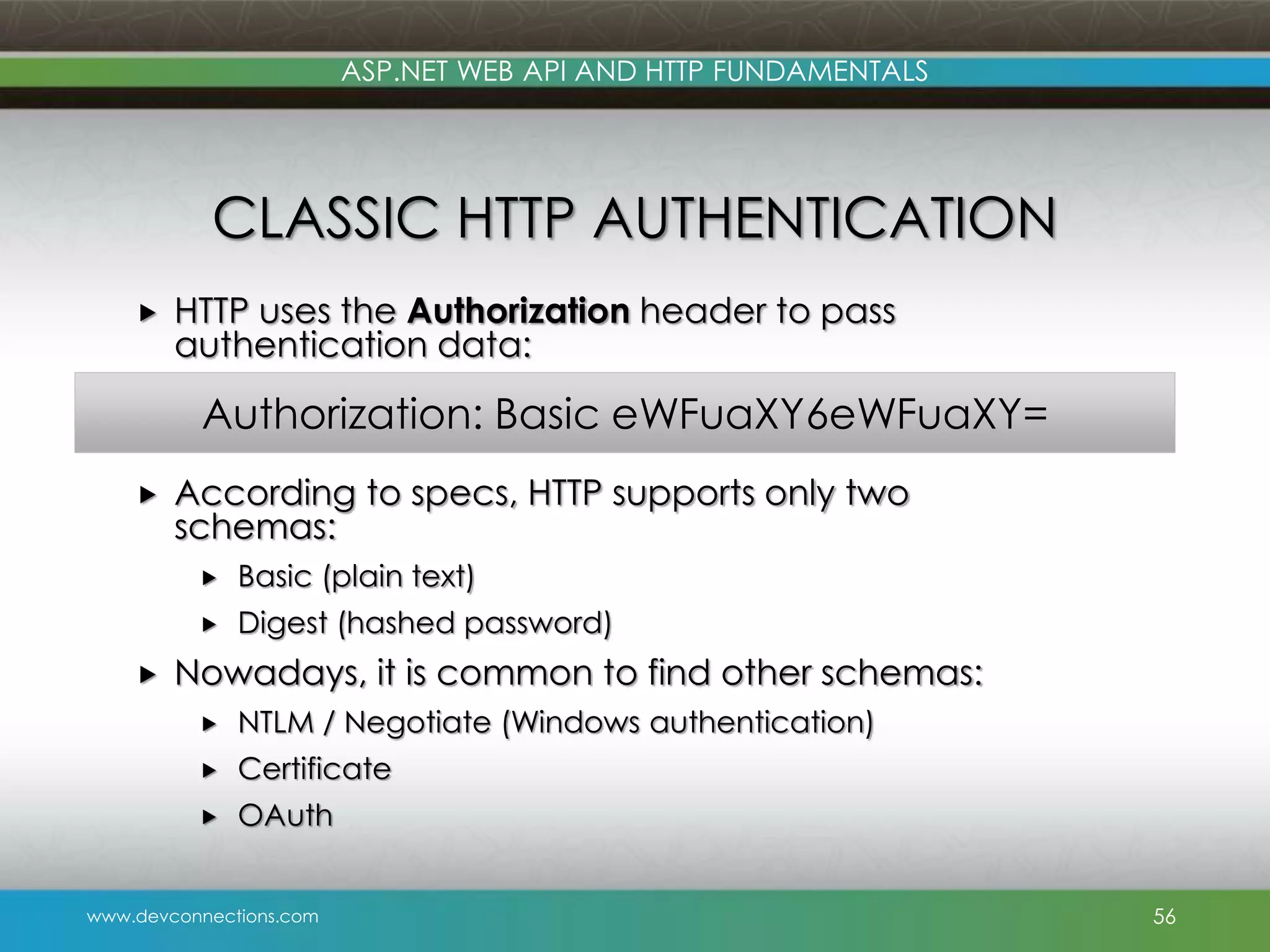

- 56. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS CLASSIC HTTP AUTHENTICATION HTTP uses the Authorization header to pass authentication data: According to specs, HTTP supports only two schemas: Basic (plain text) Digest (hashed password) Nowadays, it is common to find other schemas: NTLM / Negotiate (Windows authentication) Certificate OAuth 56 Authorization: Basic eWFuaXY6eWFuaXY=

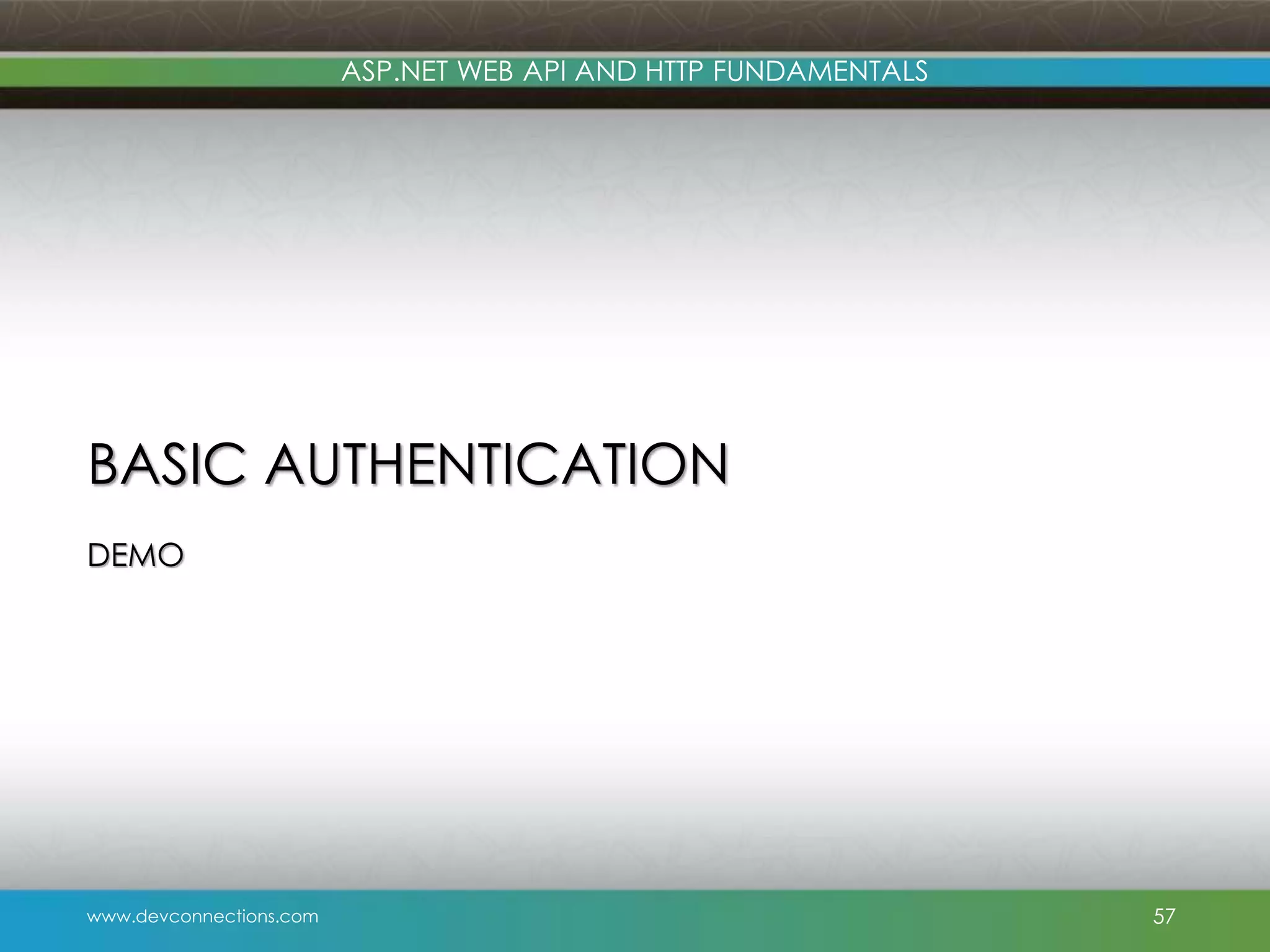

- 57. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS BASIC AUTHENTICATION DEMO 57

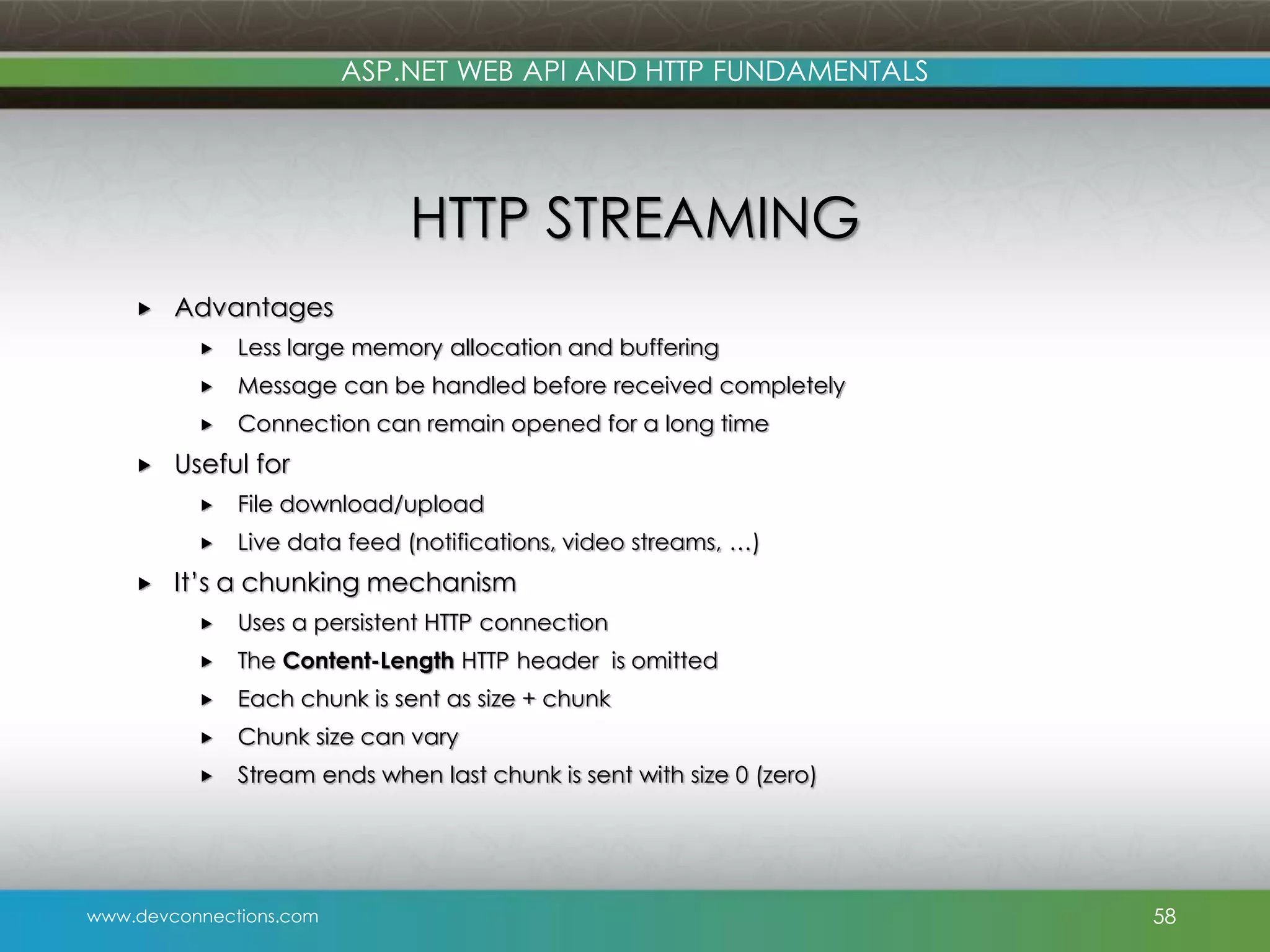

- 58. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP STREAMING Advantages Less large memory allocation and buffering Message can be handled before received completely Connection can remain opened for a long time Useful for File download/upload Live data feed (notifications, video streams, …) It’s a chunking mechanism Uses a persistent HTTP connection The Content-Length HTTP header is omitted Each chunk is sent as size + chunk Chunk size can vary Stream ends when last chunk is sent with size 0 (zero) 58

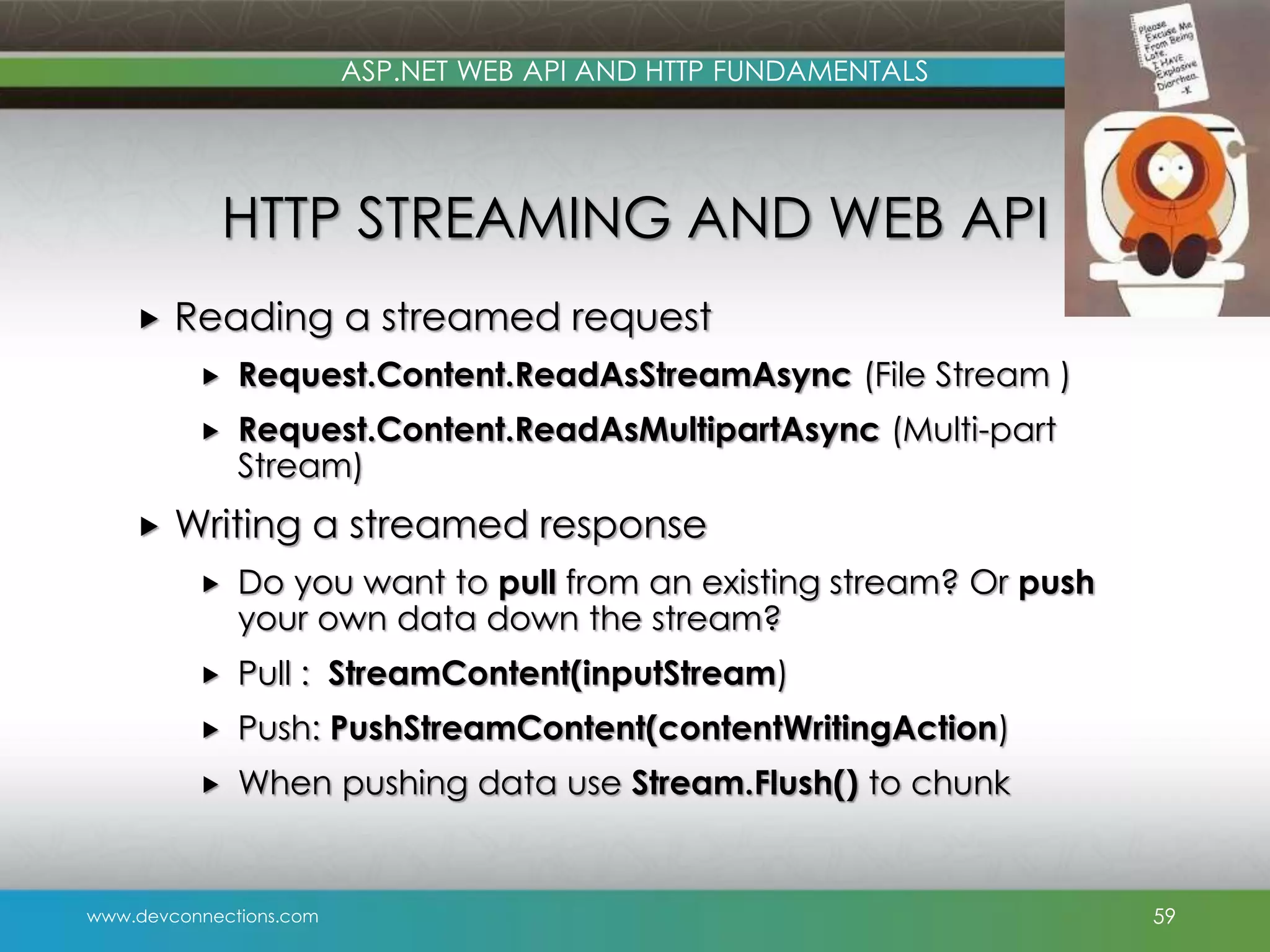

- 59. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP STREAMING AND WEB API Reading a streamed request Request.Content.ReadAsStreamAsync (File Stream ) Request.Content.ReadAsMultipartAsync (Multi-part Stream) Writing a streamed response Do you want to pull from an existing stream? Or push your own data down the stream? Pull : StreamContent(inputStream) Push: PushStreamContent(contentWritingAction) When pushing data use Stream.Flush() to chunk 59

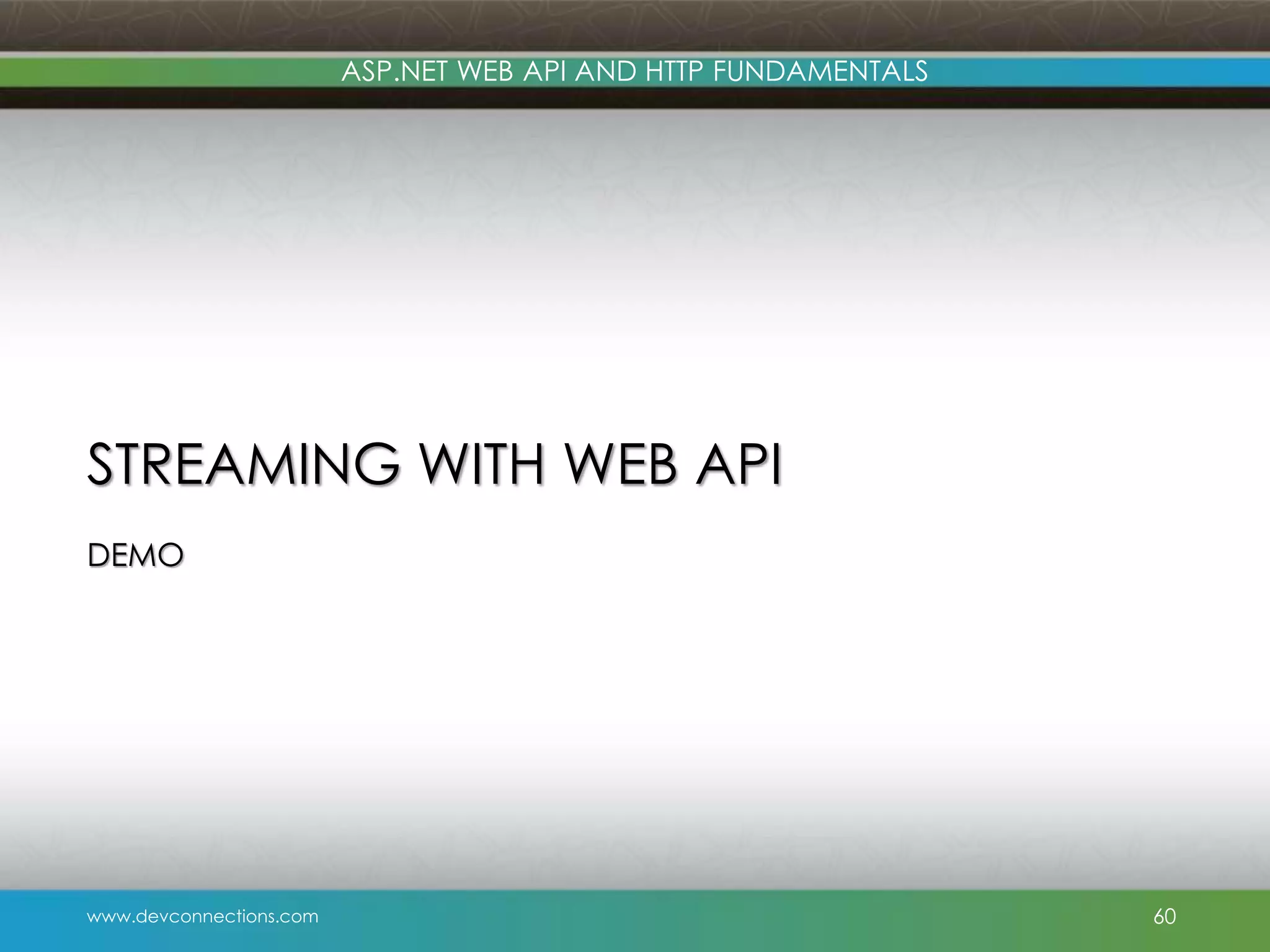

- 60. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS STREAMING WITH WEB API DEMO 60

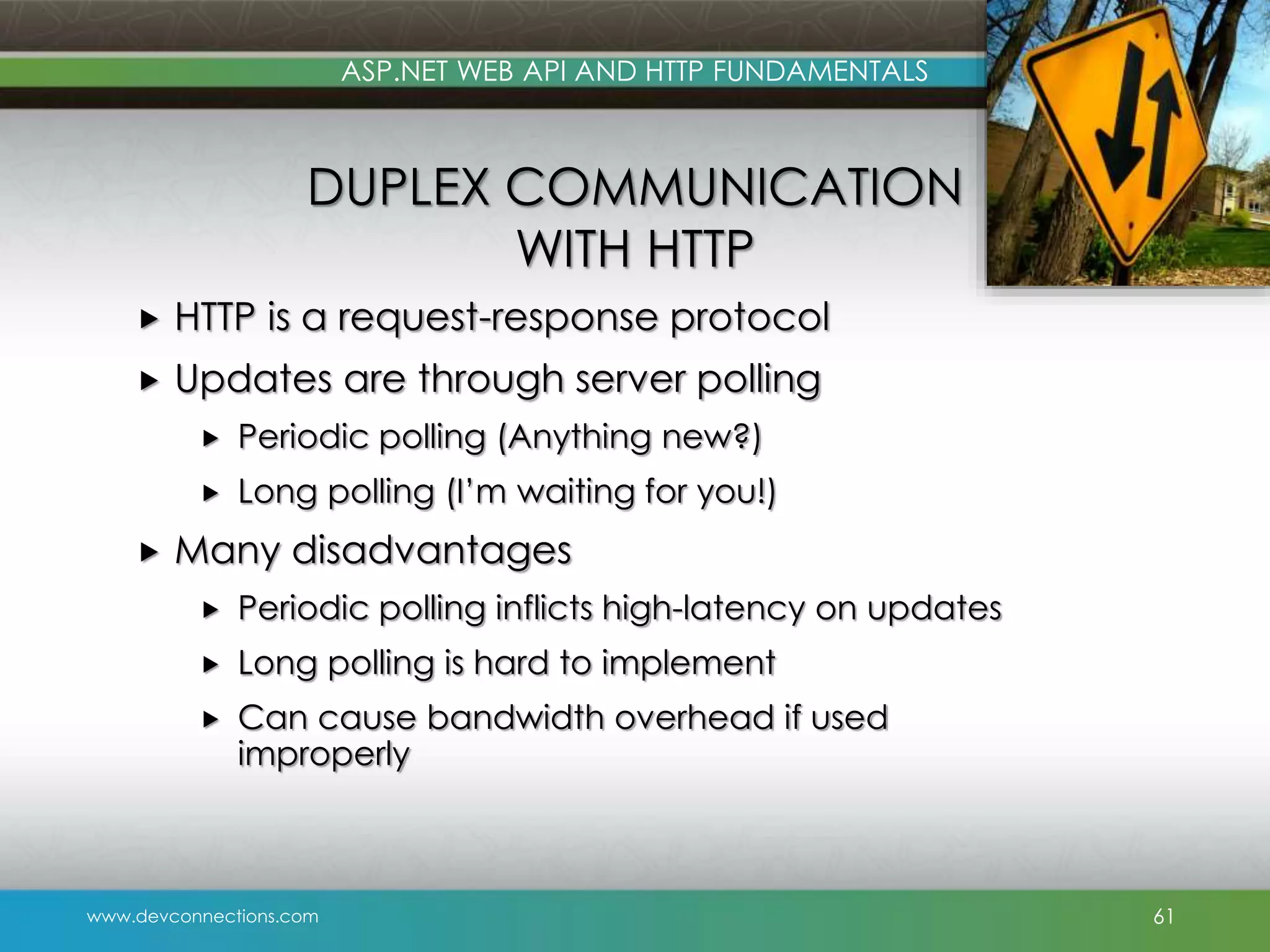

- 61. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS DUPLEX COMMUNICATION WITH HTTP HTTP is a request-response protocol Updates are through server polling Periodic polling (Anything new?) Long polling (I’m waiting for you!) Many disadvantages Periodic polling inflicts high-latency on updates Long polling is hard to implement Can cause bandwidth overhead if used improperly 61

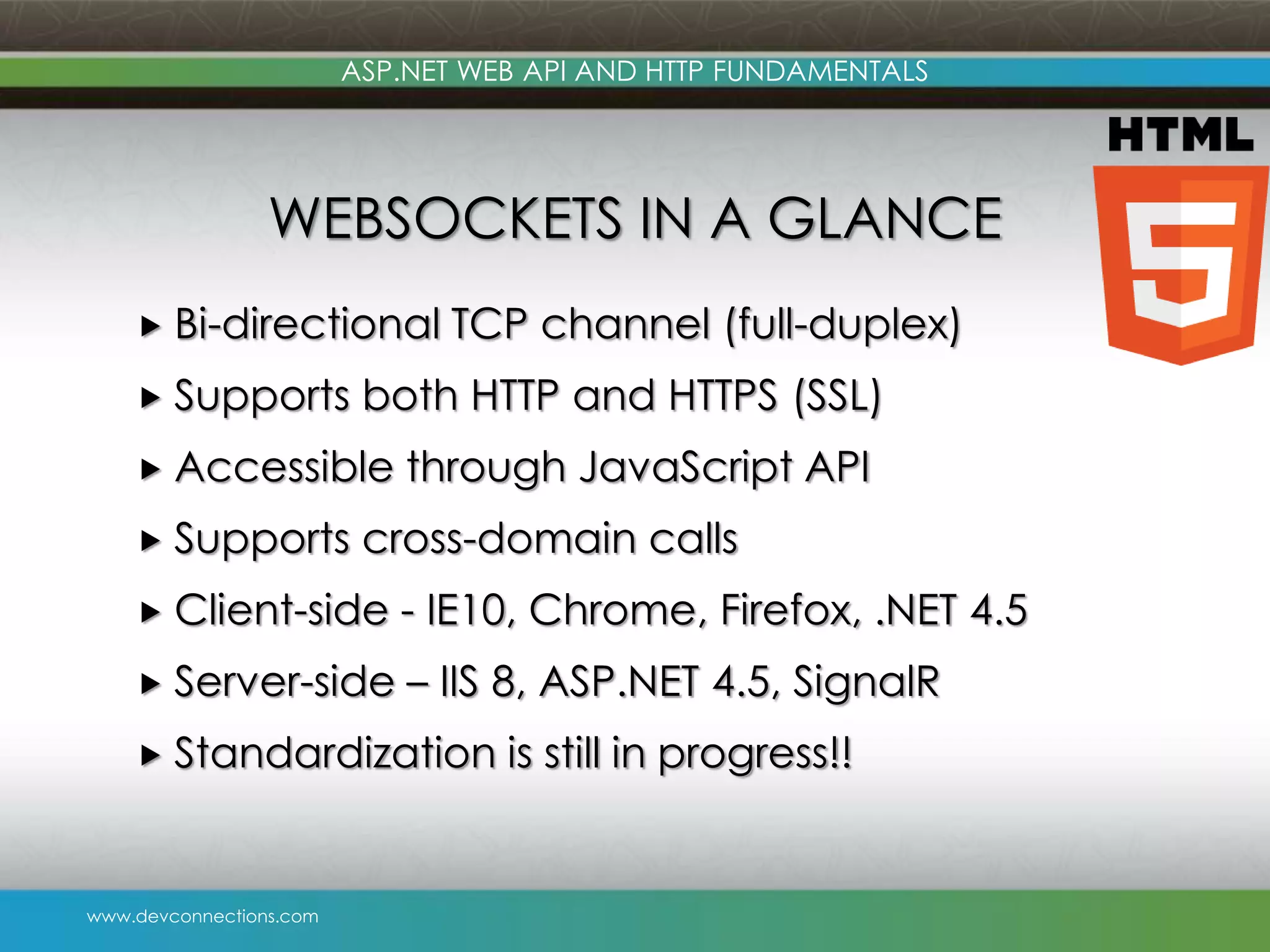

- 62. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS WEBSOCKETS IN A GLANCE Bi-directional TCP channel (full-duplex) Supports both HTTP and HTTPS (SSL) Accessible through JavaScript API Supports cross-domain calls Client-side - IE10, Chrome, Firefox, .NET 4.5 Server-side – IIS 8, ASP.NET 4.5, SignalR Standardization is still in progress!!

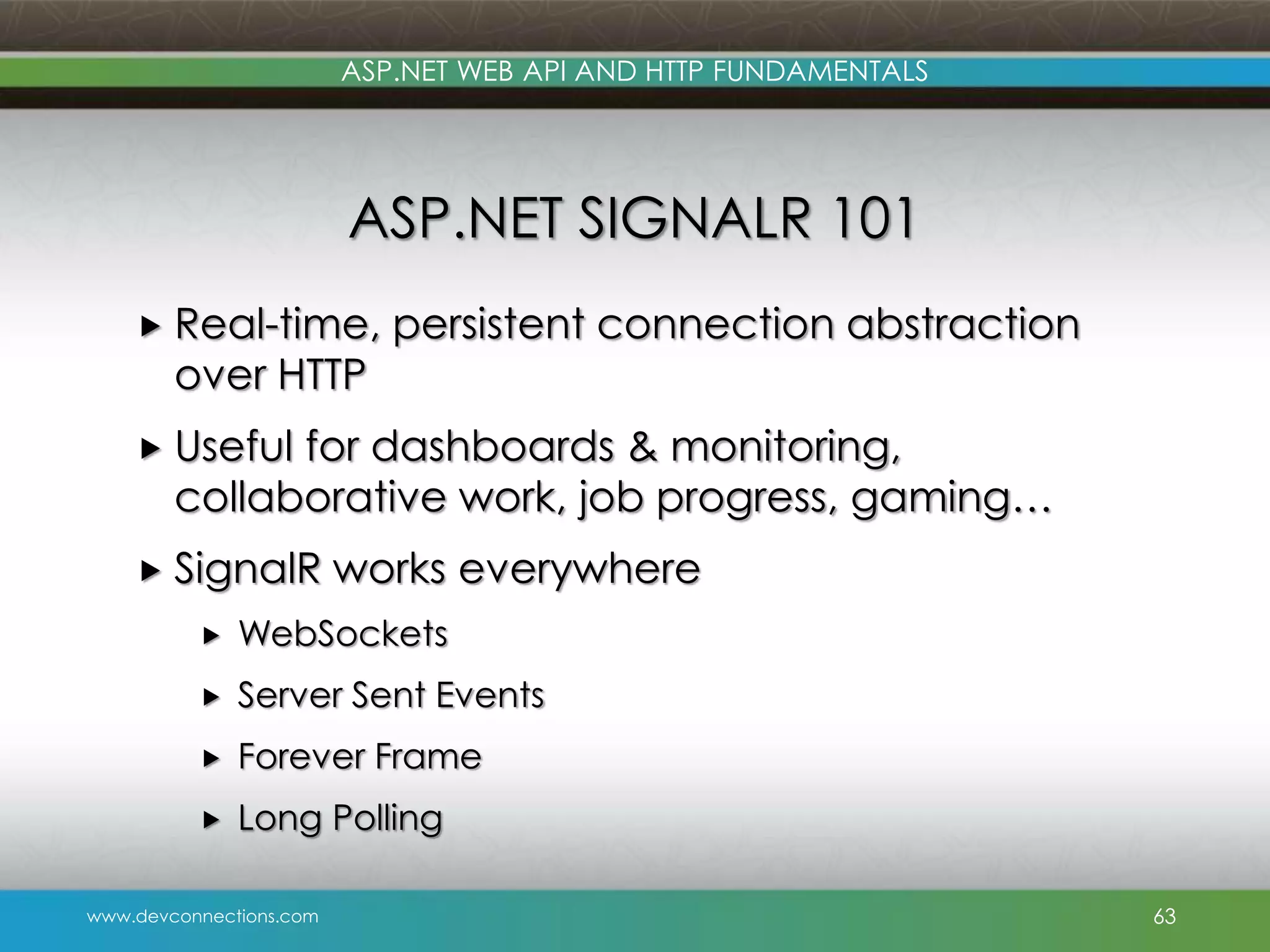

- 63. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ASP.NET SIGNALR 101 Real-time, persistent connection abstraction over HTTP Useful for dashboards & monitoring, collaborative work, job progress, gaming… SignalR works everywhere WebSockets Server Sent Events Forever Frame Long Polling 63

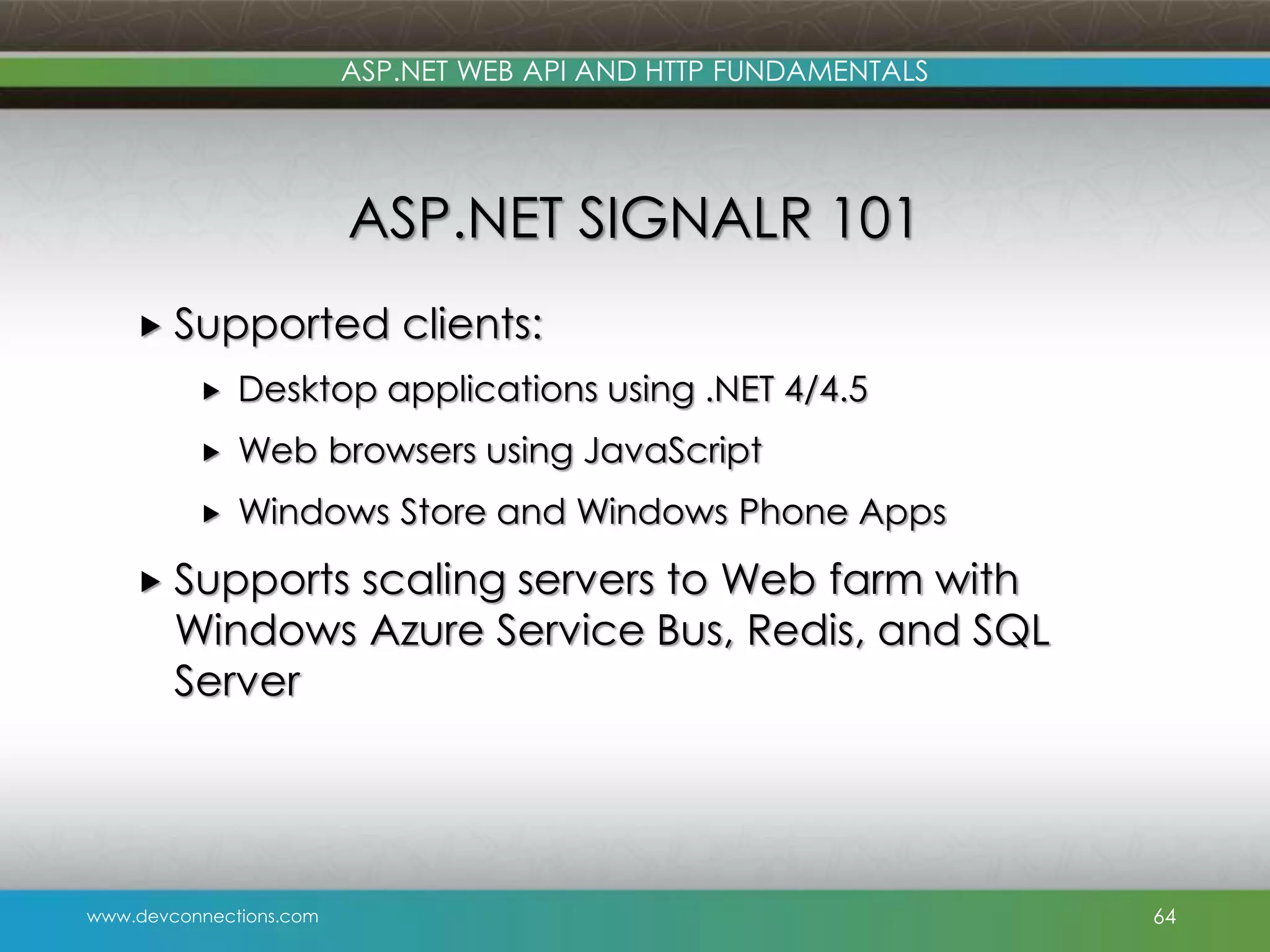

- 64. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ASP.NET SIGNALR 101 Supported clients: Desktop applications using .NET 4/4.5 Web browsers using JavaScript Windows Store and Windows Phone Apps Supports scaling servers to Web farm with Windows Azure Service Bus, Redis, and SQL Server 64

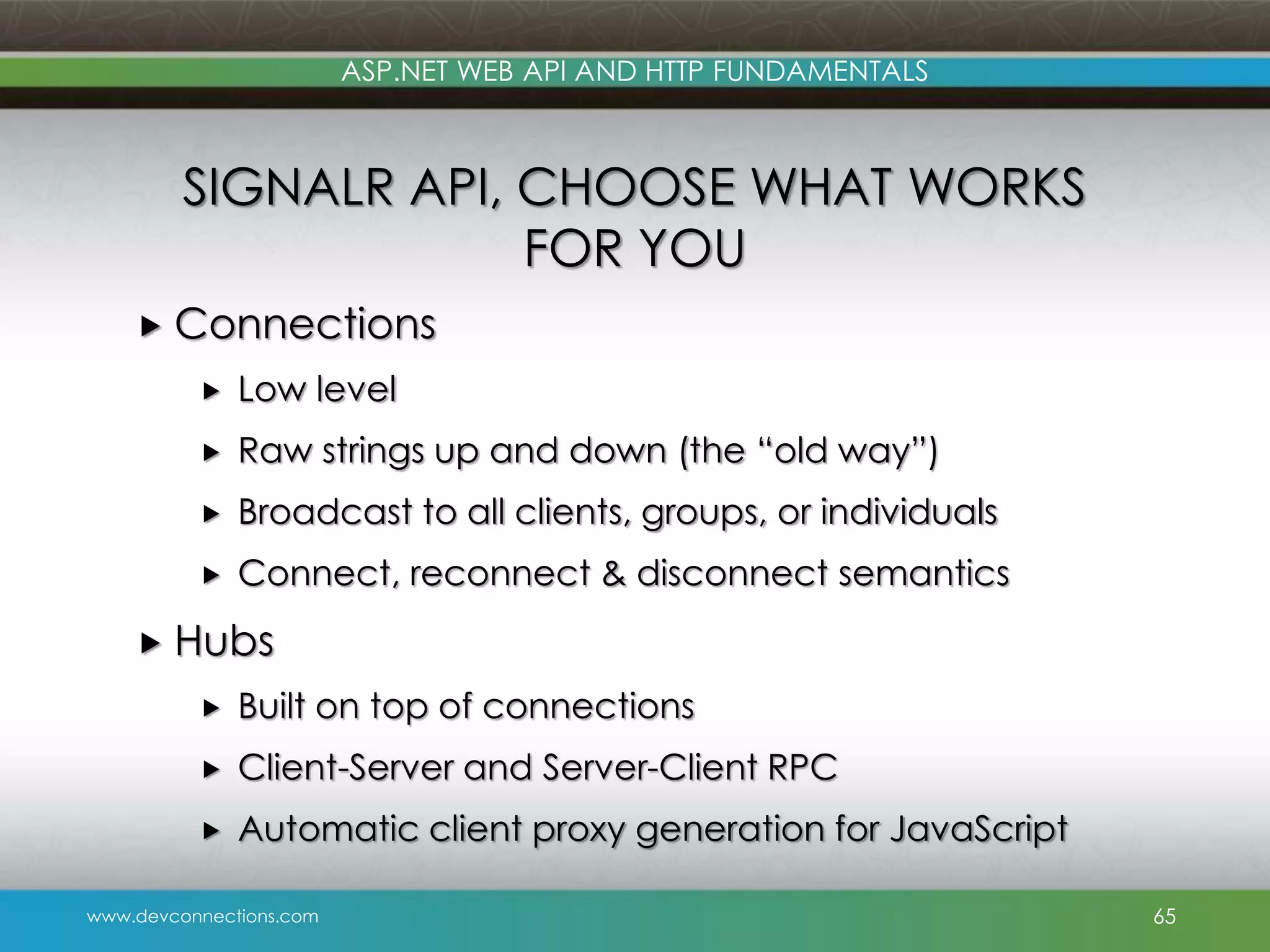

- 65. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS SIGNALR API, CHOOSE WHAT WORKS FOR YOU Connections Low level Raw strings up and down (the “old way”) Broadcast to all clients, groups, or individuals Connect, reconnect & disconnect semantics Hubs Built on top of connections Client-Server and Server-Client RPC Automatic client proxy generation for JavaScript 65

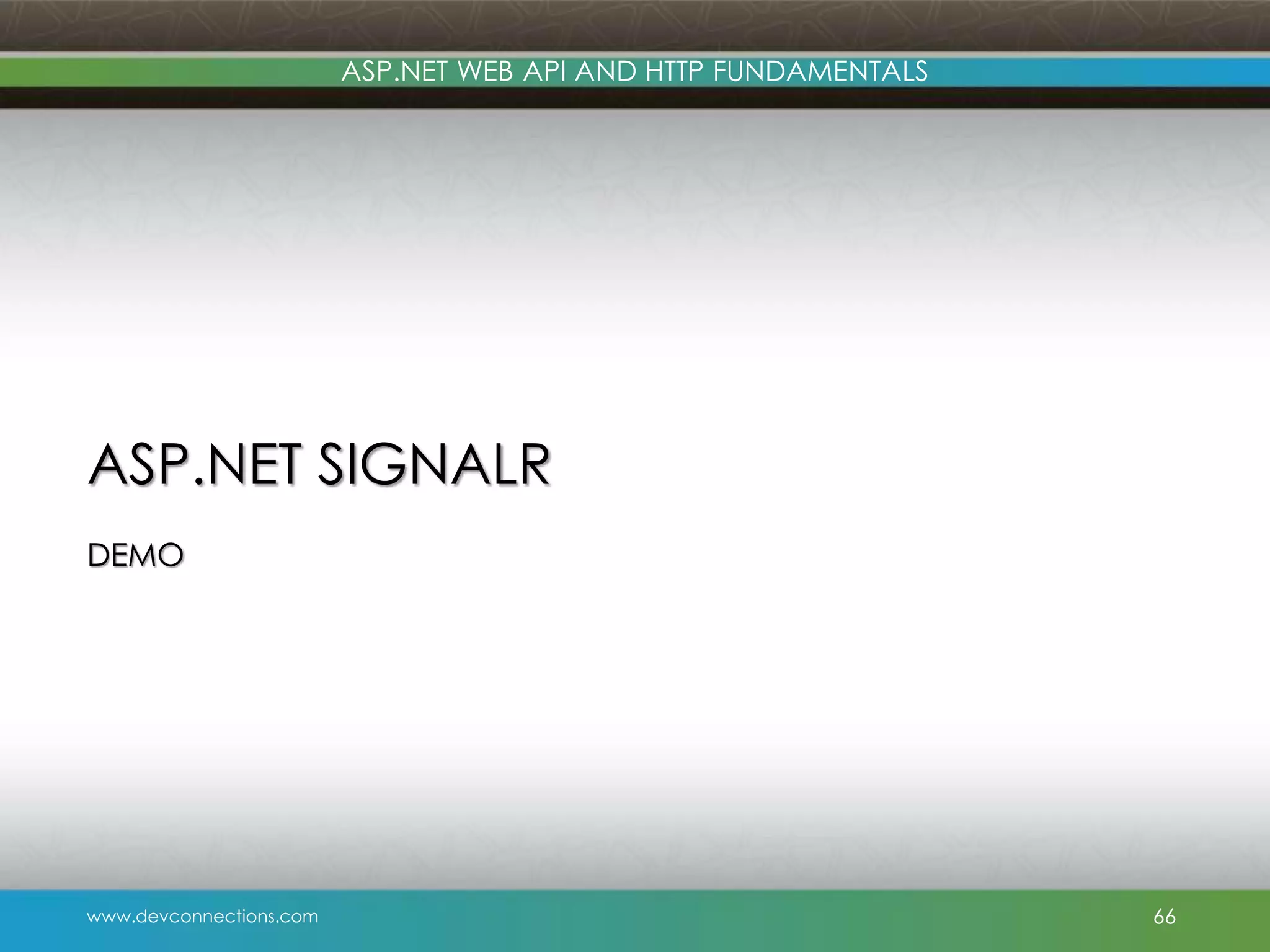

- 66. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS ASP.NET SIGNALR DEMO 66
- 67. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS HTTP Fundamentals via Web API HTTP Messages URIs Routing Verbs Controllers and Actions Status Codes HttpRequestMessage HttpResponseMessage Error Handling Content Negotiation Media Type Formatters OData Validations Dependency Resolver Hosting HTTP.SYS IIS 101 HTTP compression Persisted Connections Web API Self Hosting More HTTP and Web API Caching Concurrency Security Streaming WebSockets & SignalR SO WHAT DID WE LEARN TODAY? 67 You are now an HTTP ninja Rank 1. Just 4 more ranks to go!!

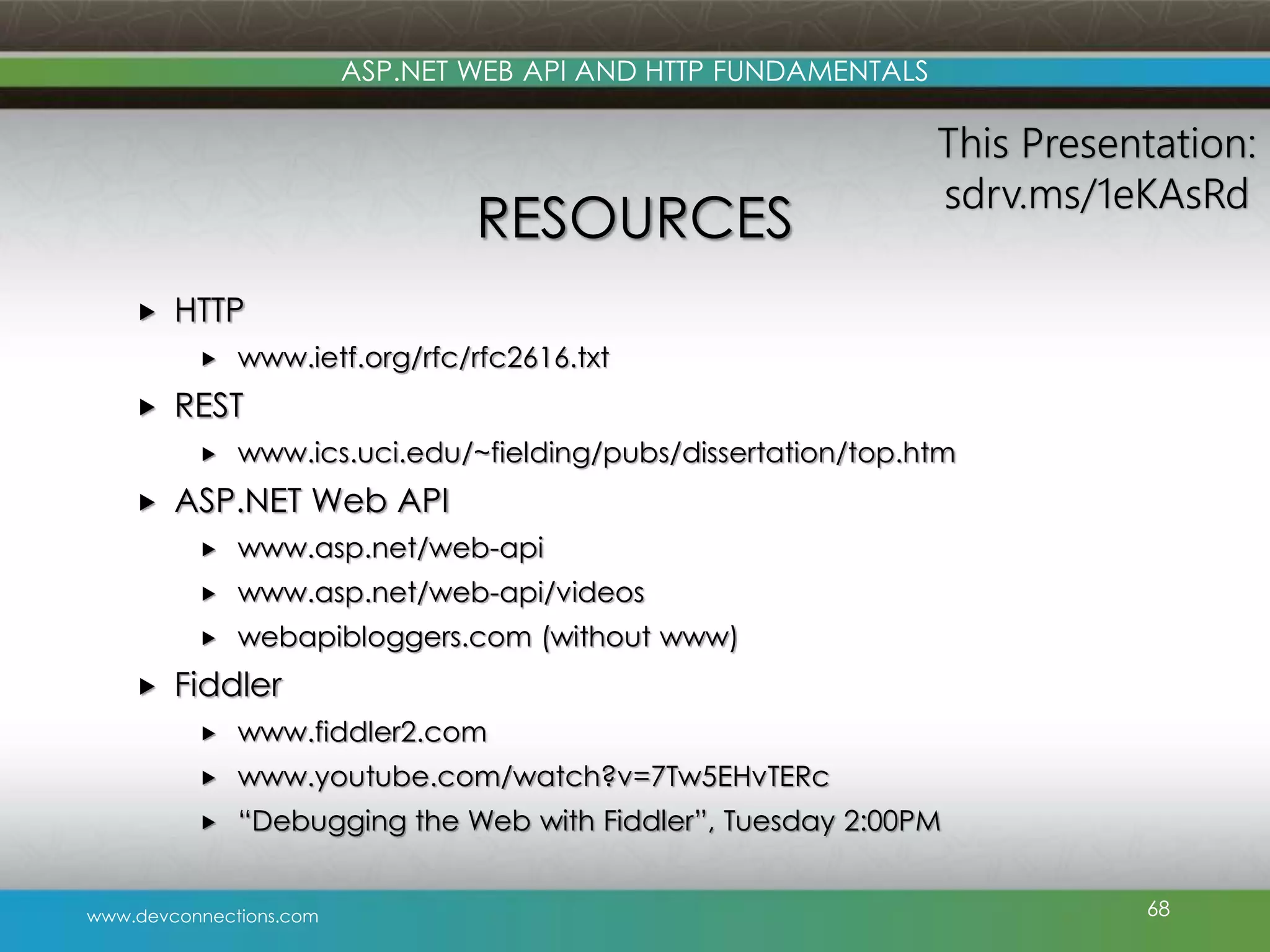

- 68. www.devconnections.com ASP.NET WEB APIAND HTTP FUNDAMENTALS RESOURCES HTTP www.ietf.org/rfc/rfc2616.txt REST www.ics.uci.edu/~fielding/pubs/dissertation/top.htm ASP.NET Web API www.asp.net/web-api www.asp.net/web-api/videos webapibloggers.com (without www) Fiddler www.fiddler2.com www.youtube.com/watch?v=7Tw5EHvTERc “Debugging the Web with Fiddler”, Tuesday 2:00PM 68 This Presentation: sdrv.ms/1eKAsRd
