10 Key MongoDB Performance Indicators
- 1. It Ain't Tasseography 10 Key Performance Indicators for MongoDB
- 3.
- 4.
- 5.

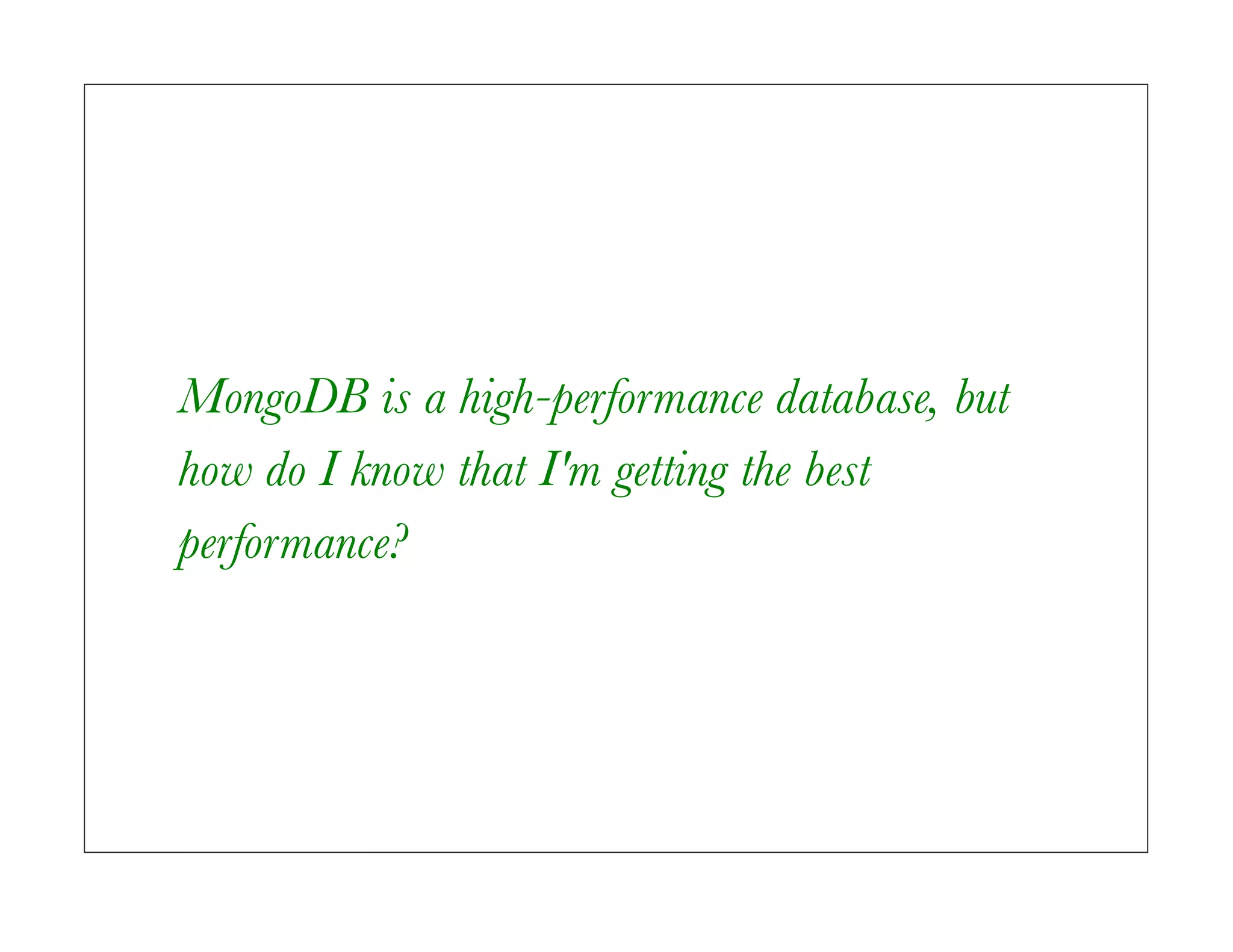

- 6. MongoDB is ahigh-performance database, but how do I know that I'm getting the best performance?
- 7.
- 8.
- 9.
- 11.

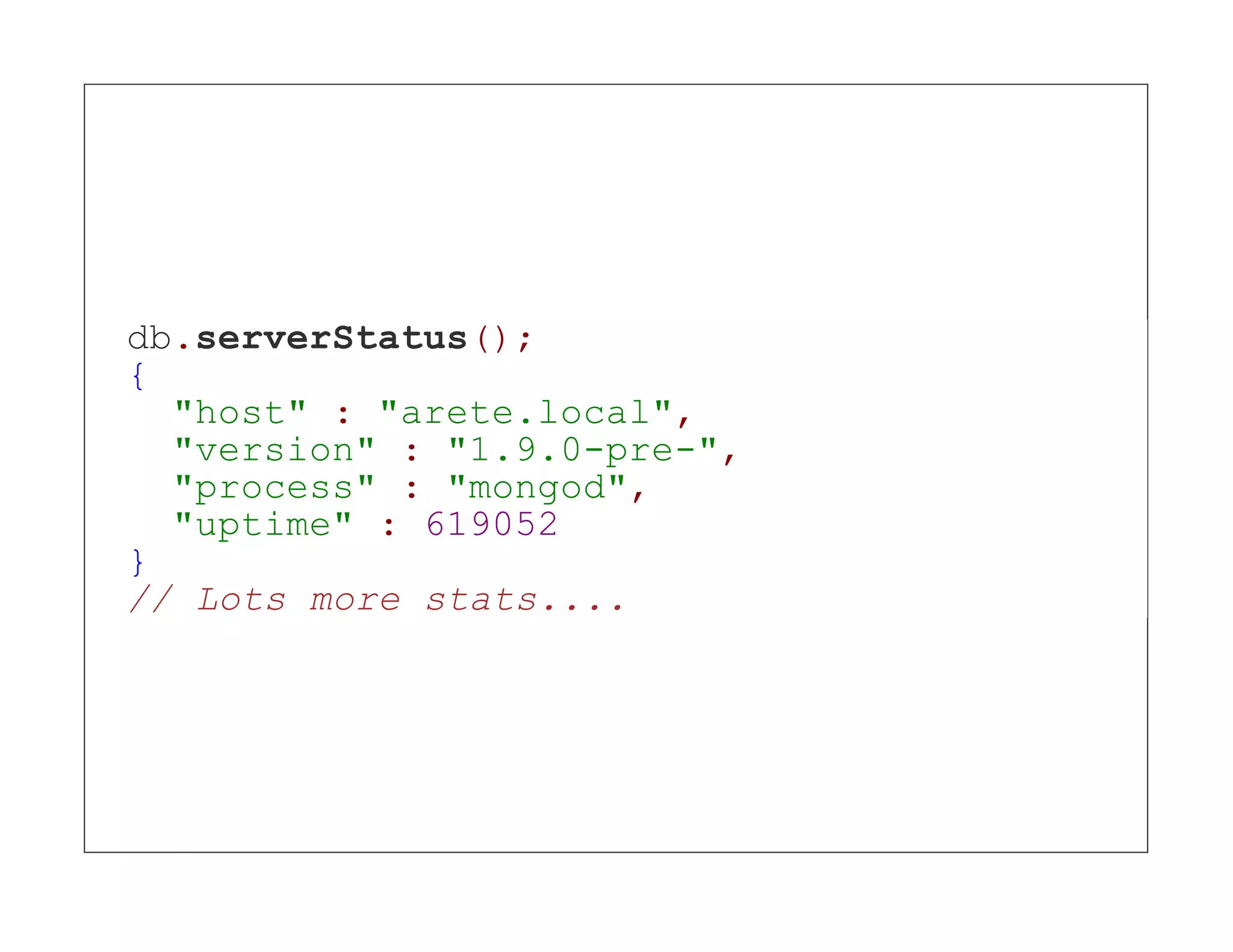

- 12. db.serverStatus(); { "host": "arete.local", "version" : "1.9.0-pre-", "process" : "mongod", "uptime" : 619052 } // Lots more stats....
- 13.

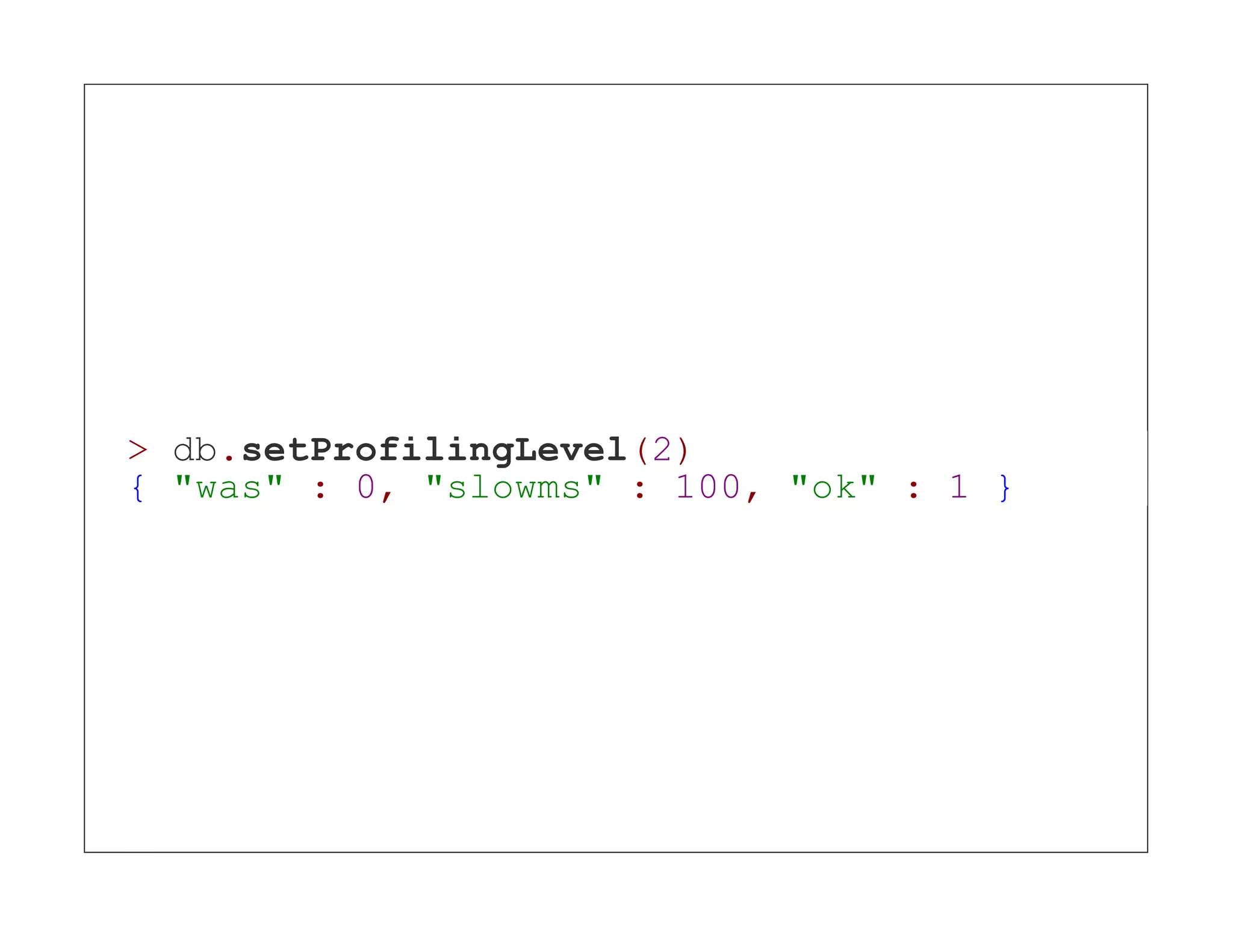

- 14. > db.setProfilingLevel(2) { "was": 0, "slowms" : 100, "ok" : 1 }

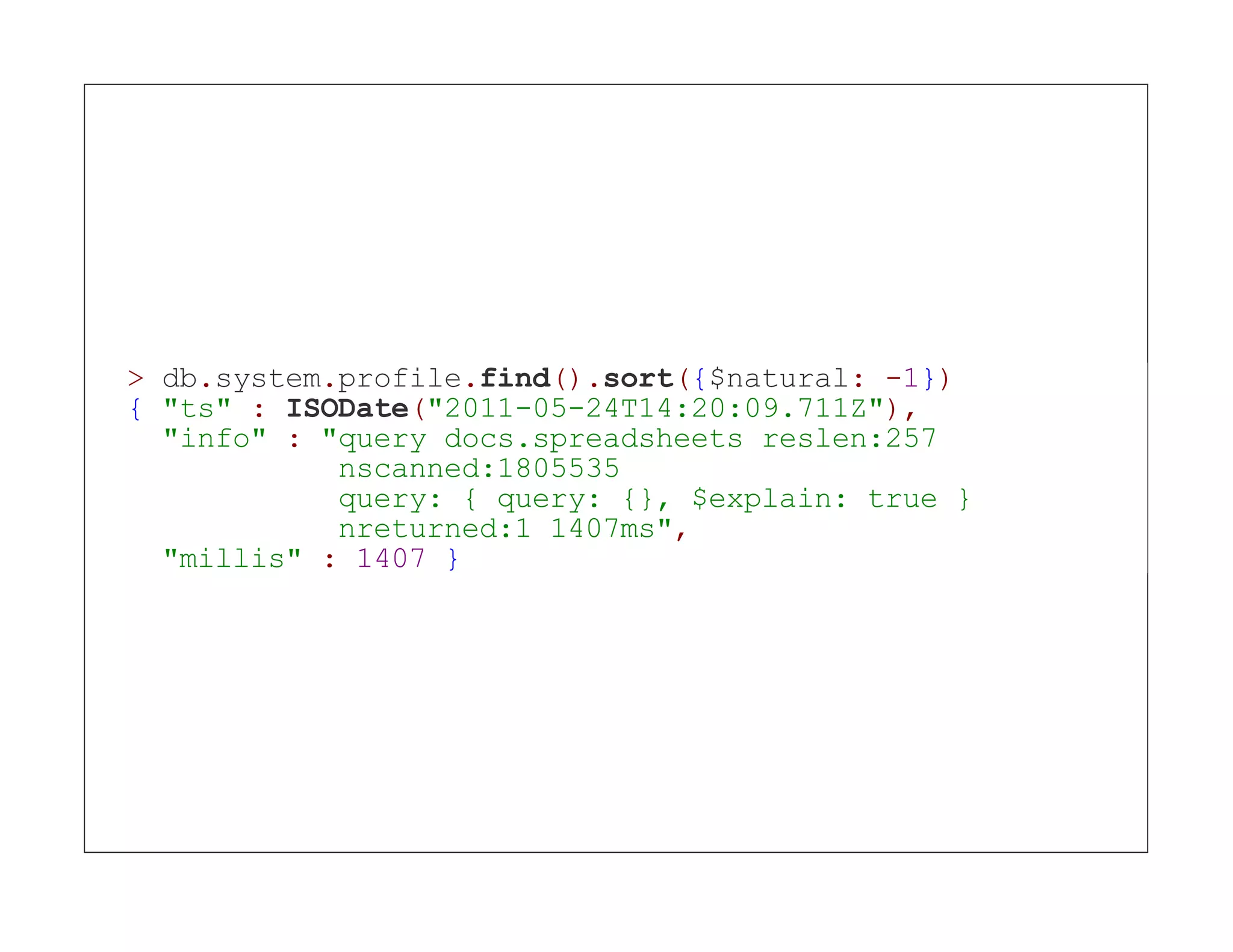

- 15. > db.system.profile.find().sort({$natural: -1}) {"ts" : ISODate("2011-05-24T14:20:09.711Z"), "info" : "query docs.spreadsheets reslen:257 nscanned:1805535 query: { query: {}, $explain: true } nreturned:1 1407ms", "millis" : 1407 }
- 16.
- 17.
- 18.

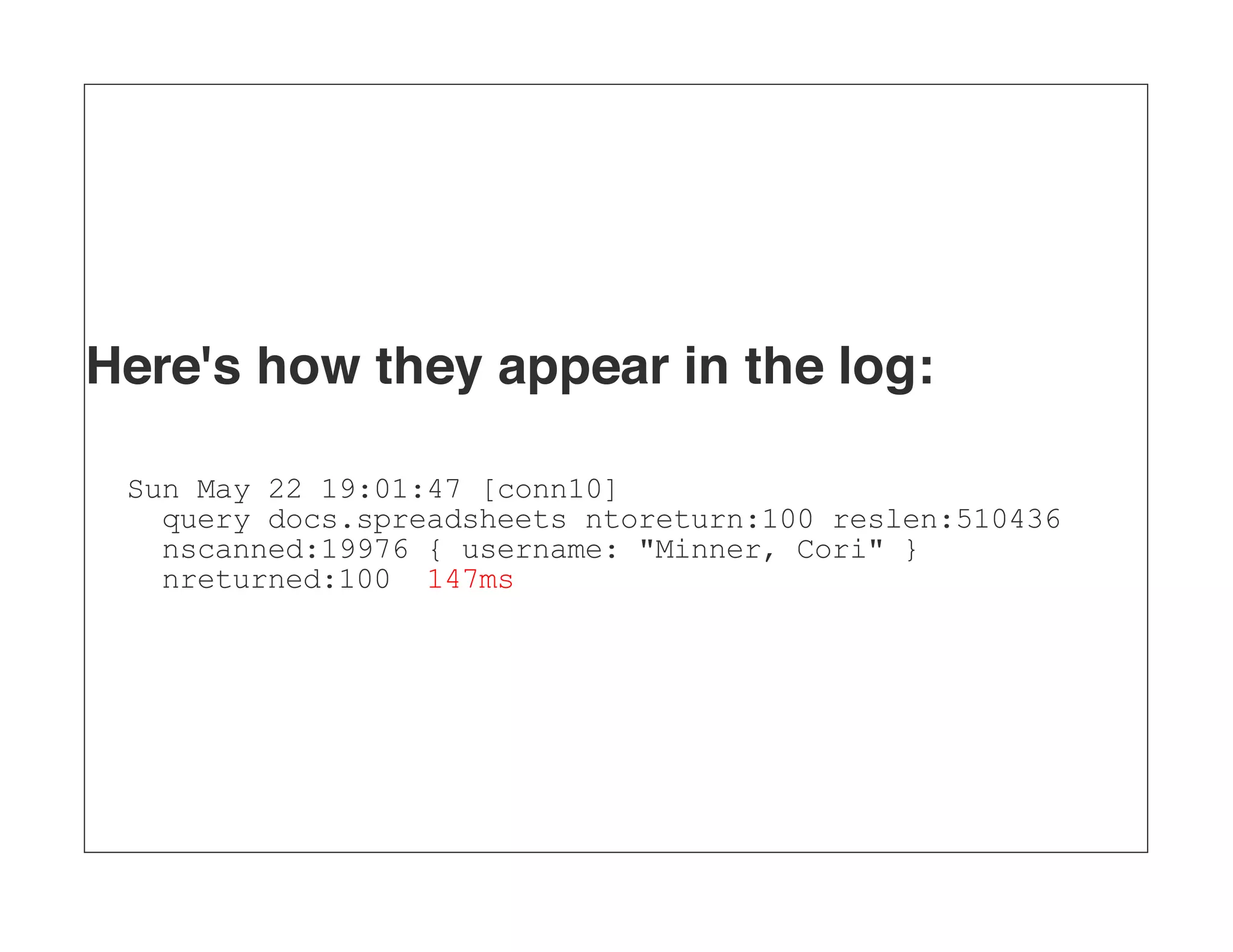

- 19. Here's how theyappear in the log: Sun May 22 19:01:47 [conn10] query docs.spreadsheets ntoreturn:100 reslen:510436 nscanned:19976 { username: "Minner, Cori" } nreturned:100 147ms
- 20.

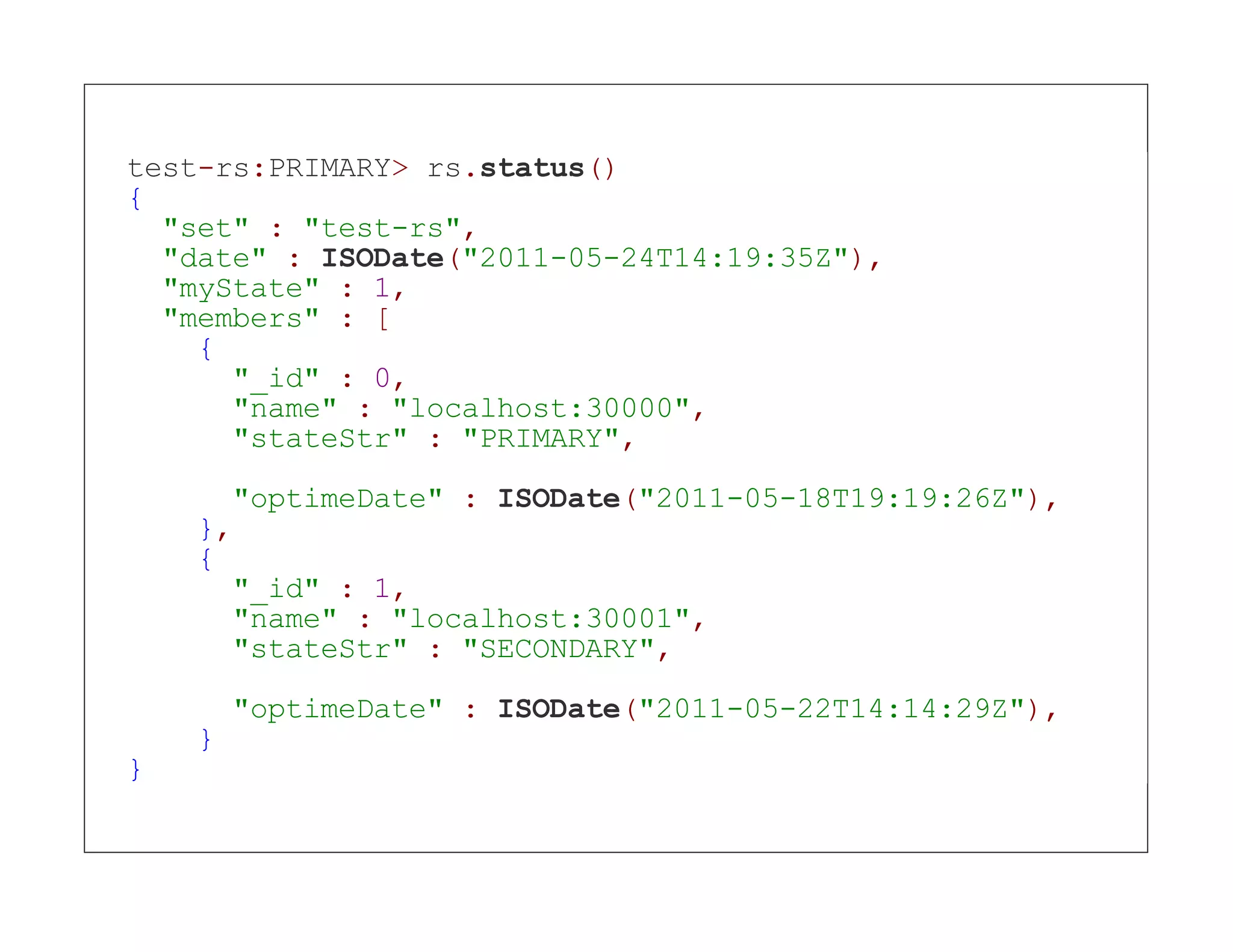

- 21. test-rs:PRIMARY> rs.status() { "set" : "test-rs", "date" : ISODate("2011-05-24T14:19:35Z"), "myState" : 1, "members" : [ { "_id" : 0, "name" : "localhost:30000", "stateStr" : "PRIMARY", "optimeDate" : ISODate("2011-05-18T19:19:26Z"), }, { "_id" : 1, "name" : "localhost:30001", "stateStr" : "SECONDARY", "optimeDate" : ISODate("2011-05-22T14:14:29Z"), } }
- 22. 3. Resident memory

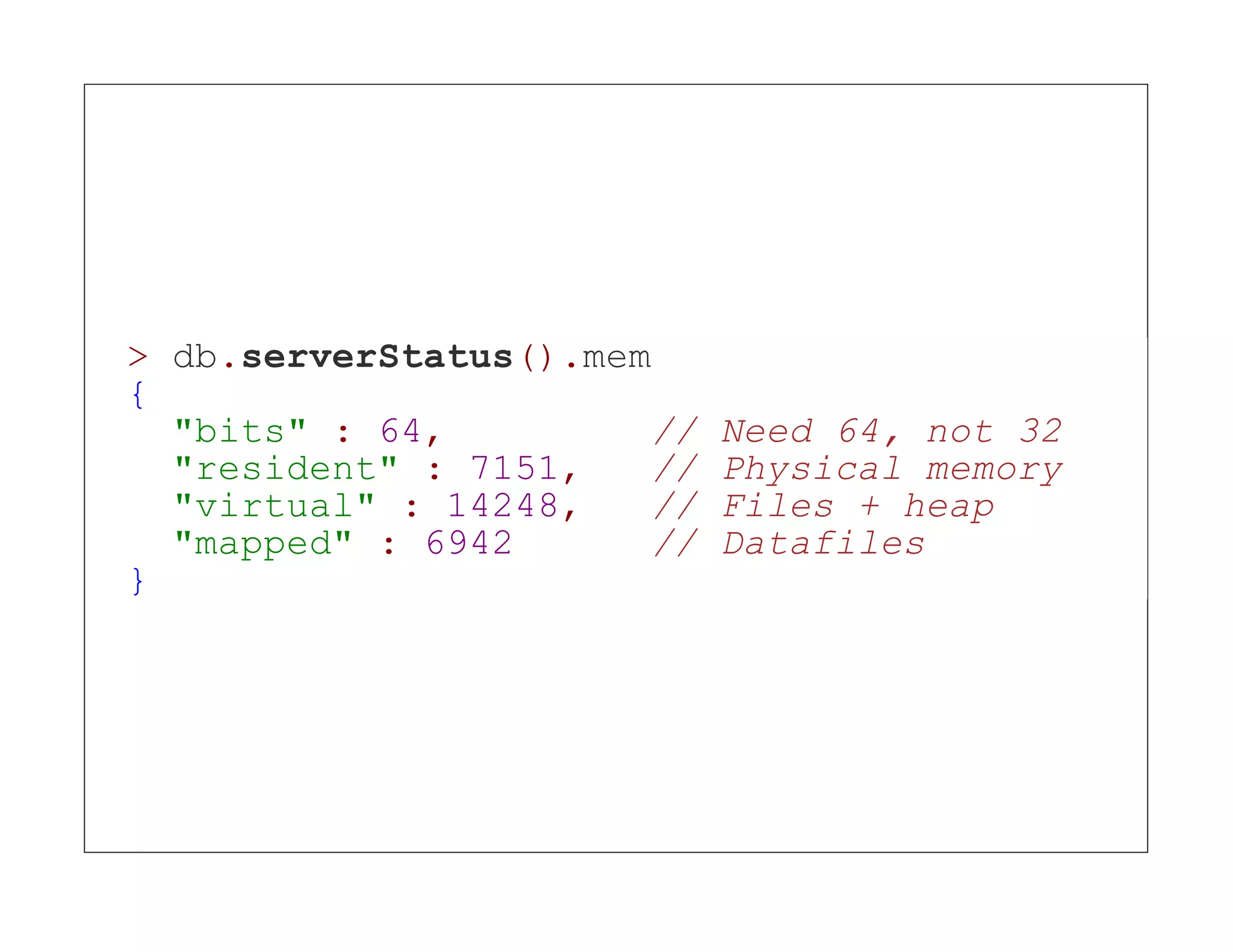

- 23. > db.serverStatus().mem { "bits" : 64, // Need 64, not 32 "resident" : 7151, // Physical memory "virtual" : 14248, // Files + heap "mapped" : 6942 // Datafiles }

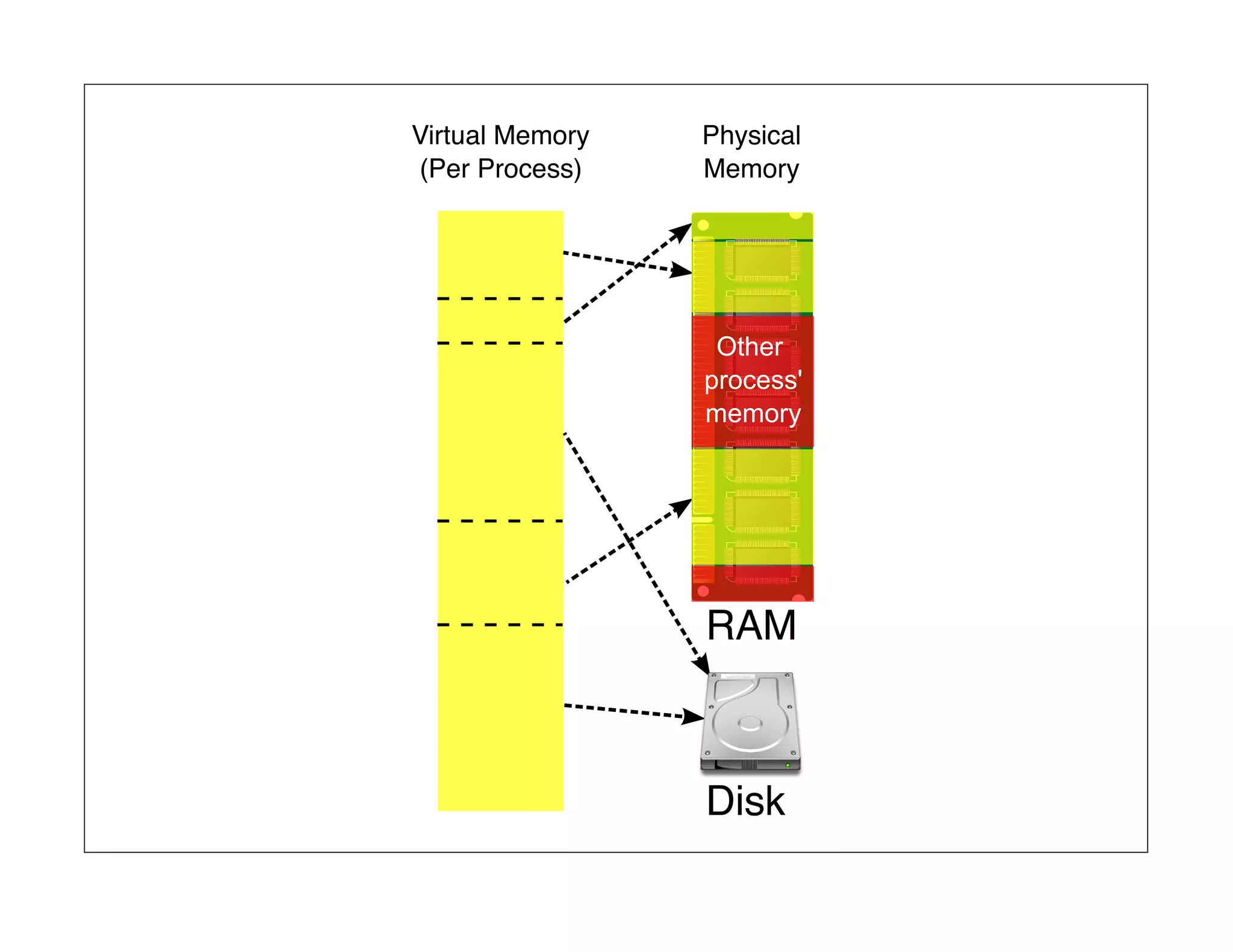

- 24. Virtual Memory Physical (Per Process) Memory RAM Disk

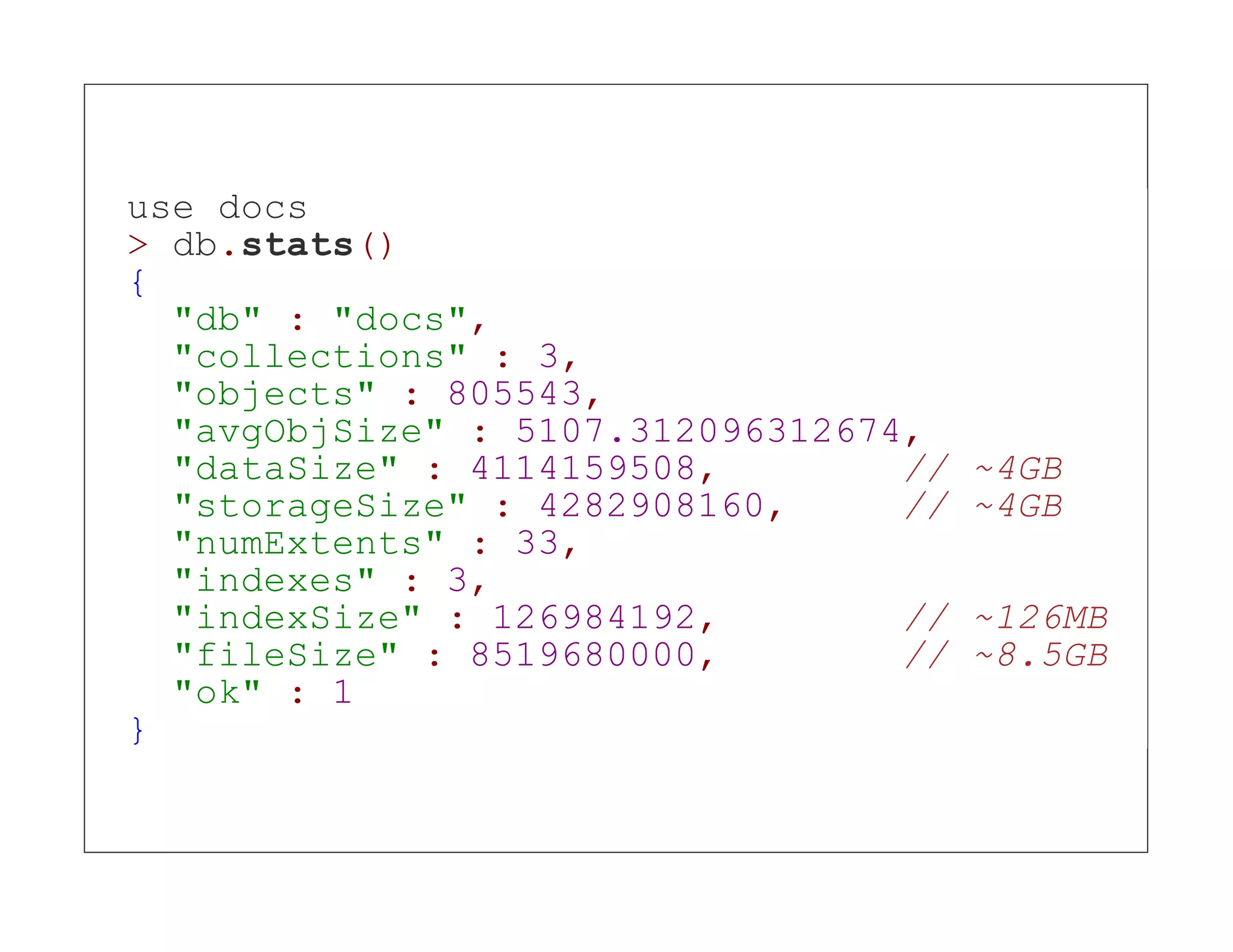

- 25. use docs > db.stats() { "db" : "docs", "collections" : 3, "objects" : 805543, "avgObjSize" : 5107.312096312674, "dataSize" : 4114159508, // ~4GB "storageSize" : 4282908160, // ~4GB "numExtents" : 33, "indexes" : 3, "indexSize" : 126984192, // ~126MB "fileSize" : 8519680000, // ~8.5GB "ok" : 1 }

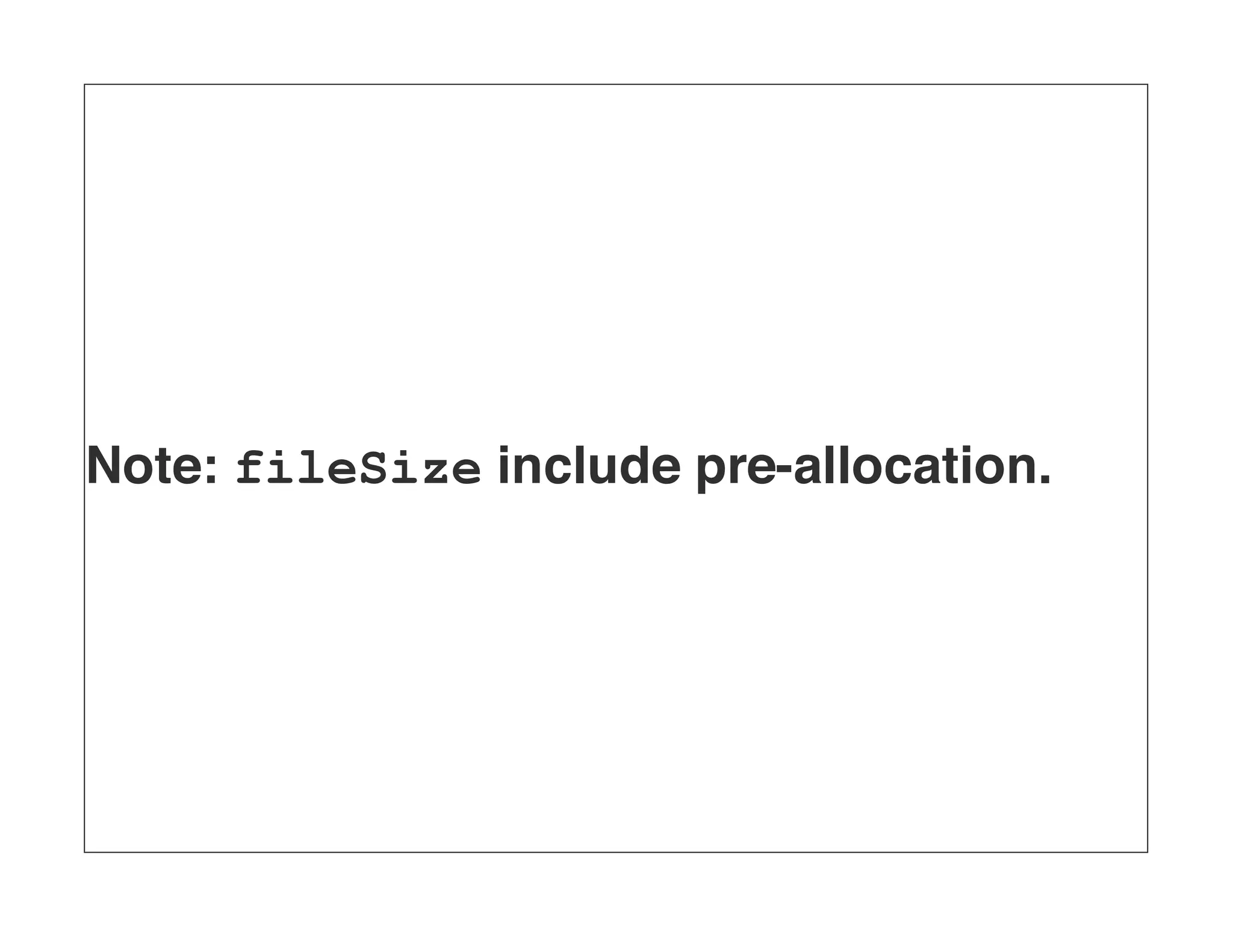

- 26. Note: fileSize includepre-allocation.

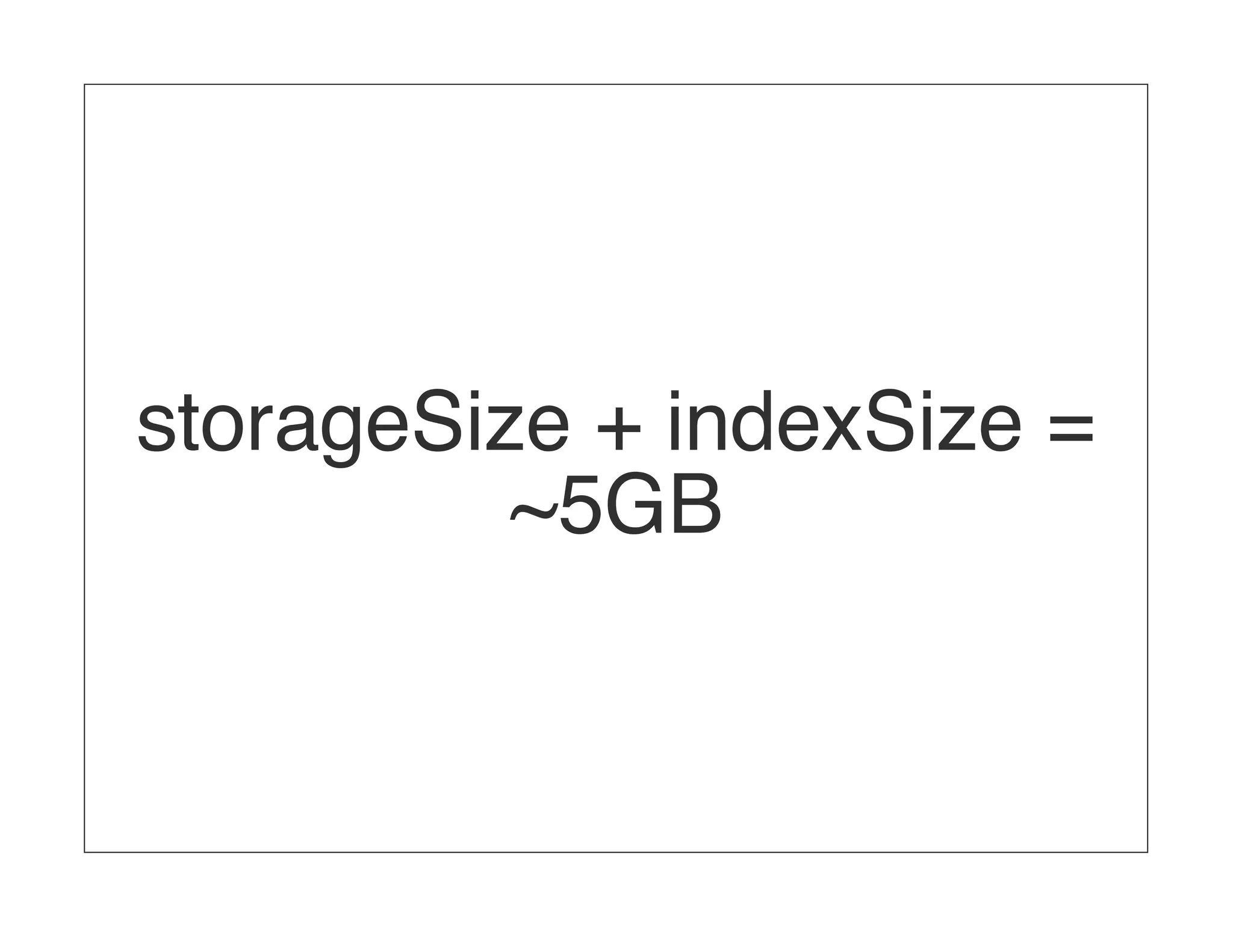

- 27. storageSize + indexSize= ~5GB
- 28.

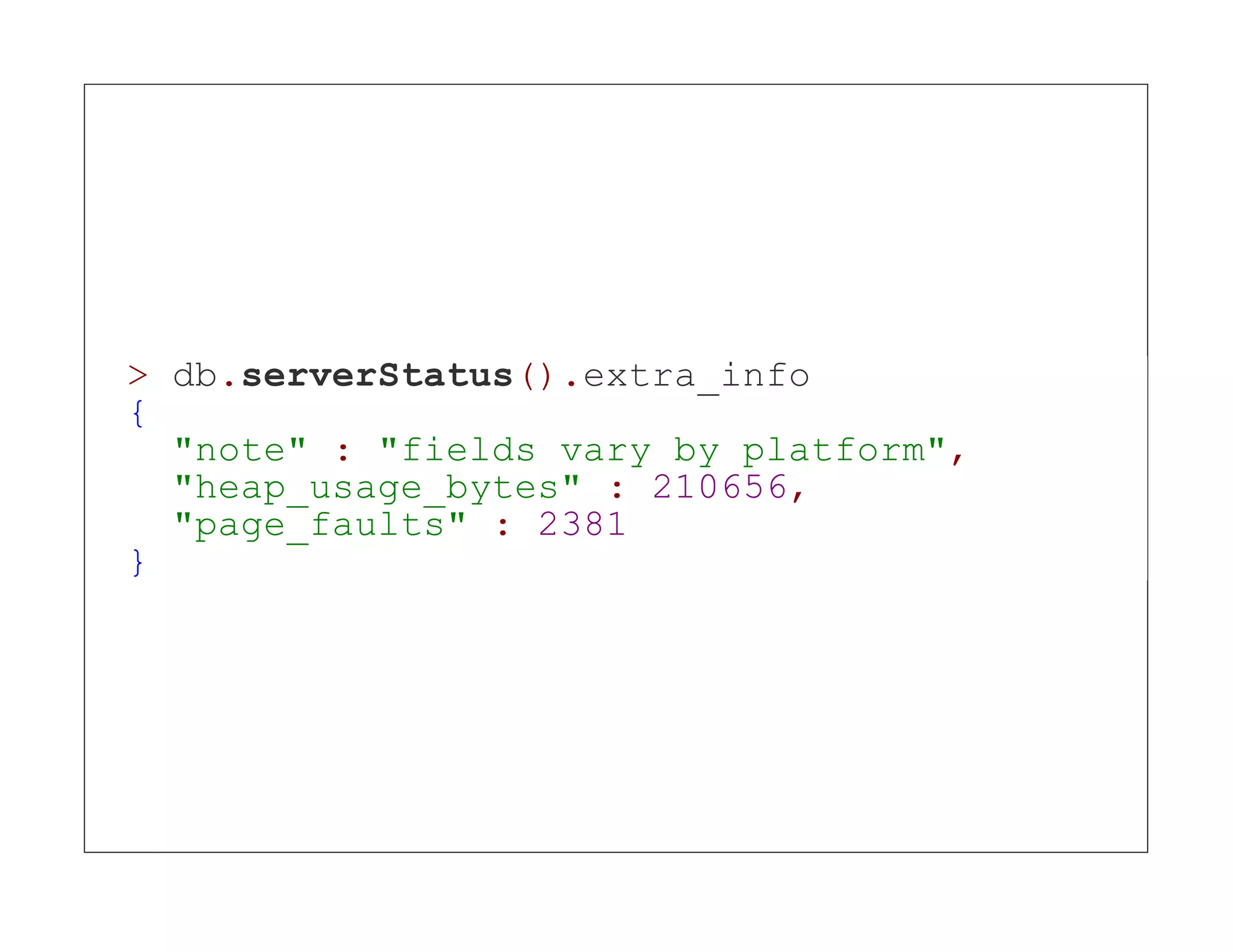

- 29. > db.serverStatus().extra_info { "note" : "fields vary by platform", "heap_usage_bytes" : 210656, "page_faults" : 2381 }
- 30.

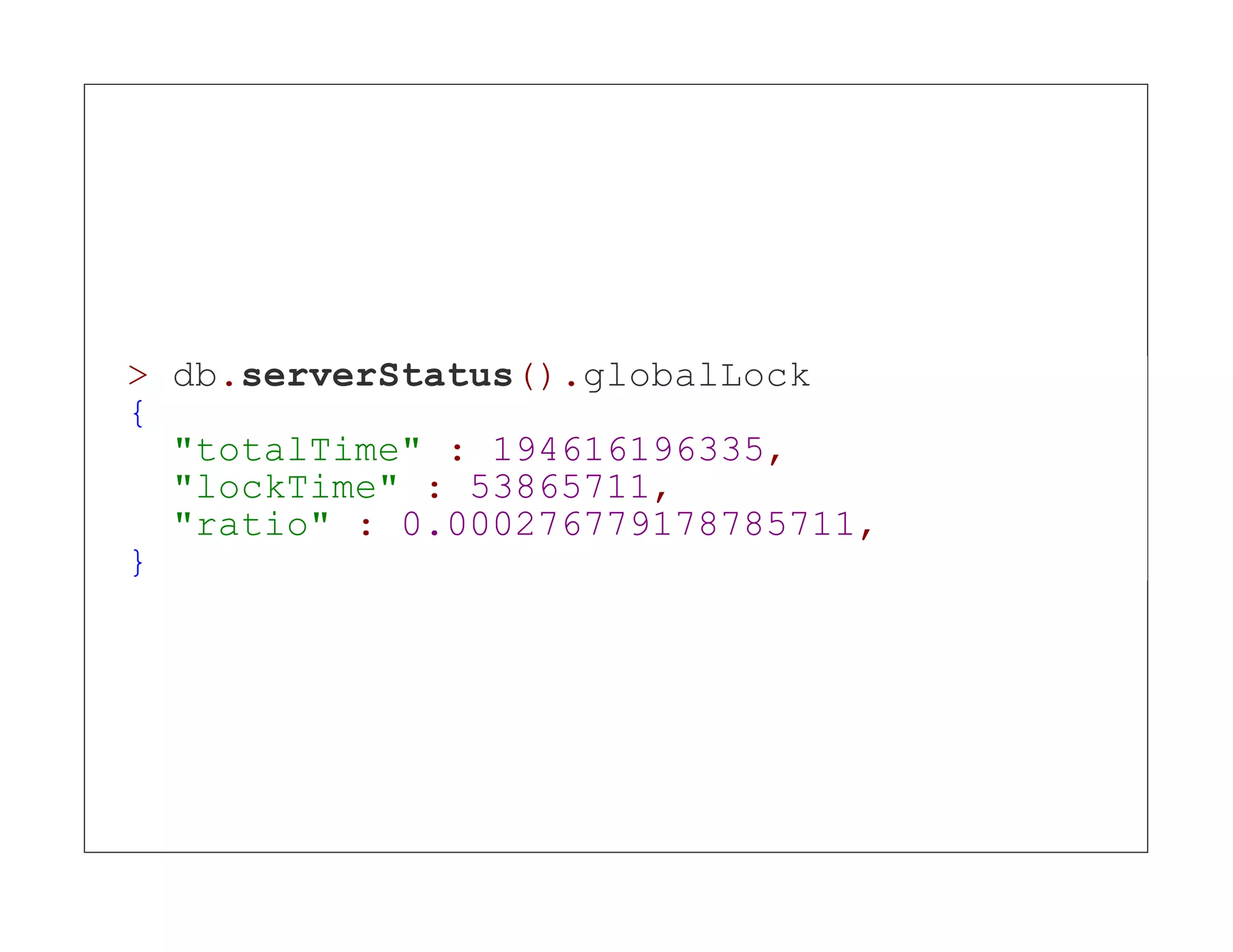

- 31. > db.serverStatus().globalLock { "totalTime" : 194616196335, "lockTime" : 53865711, "ratio" : 0.000276779178785711, }

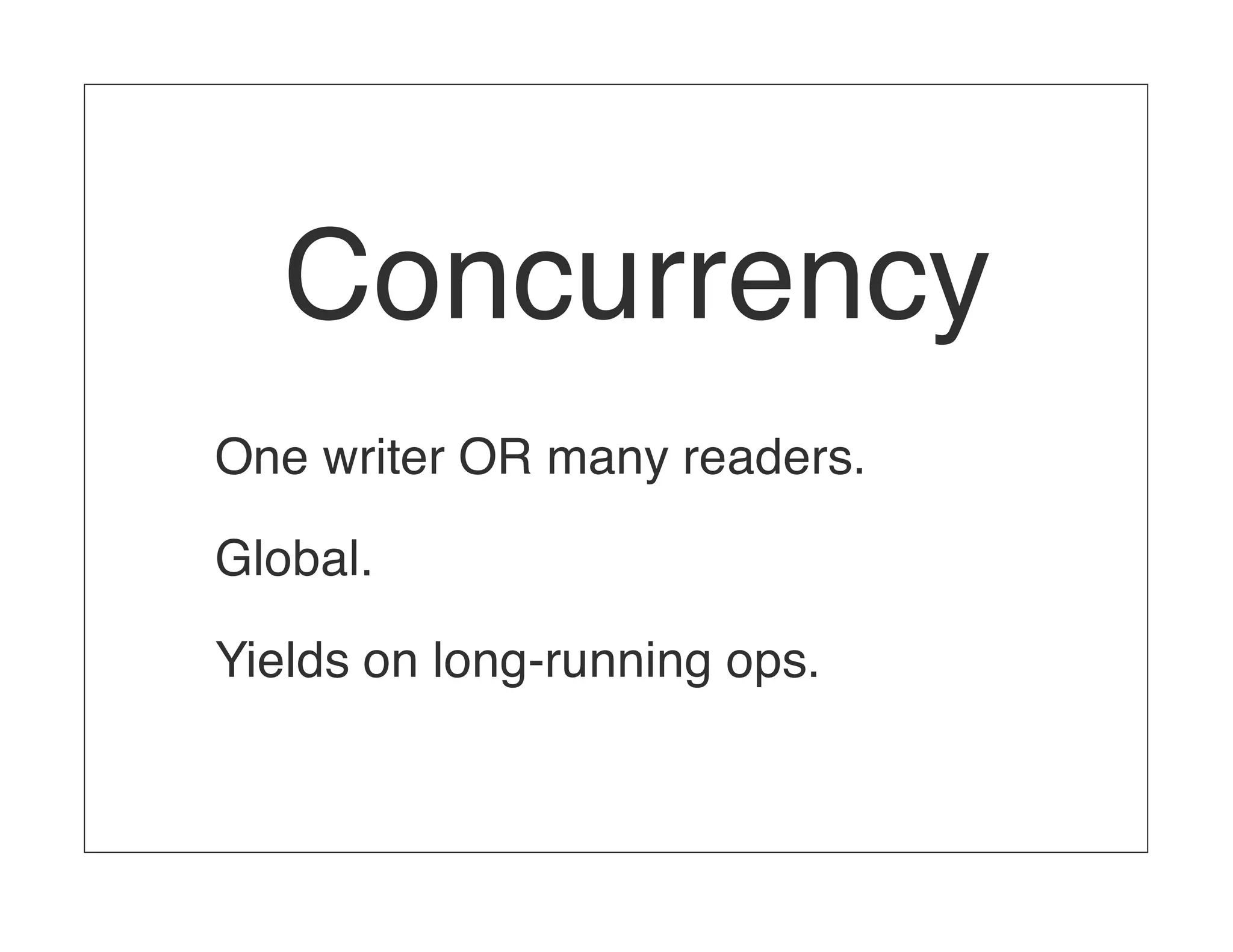

- 32. Concurrency One writer ORmany readers. Global. Yields on long-running ops.
- 33.
- 34.
- 35.
- 36.
- 37. 6. Reader- and writer-queues

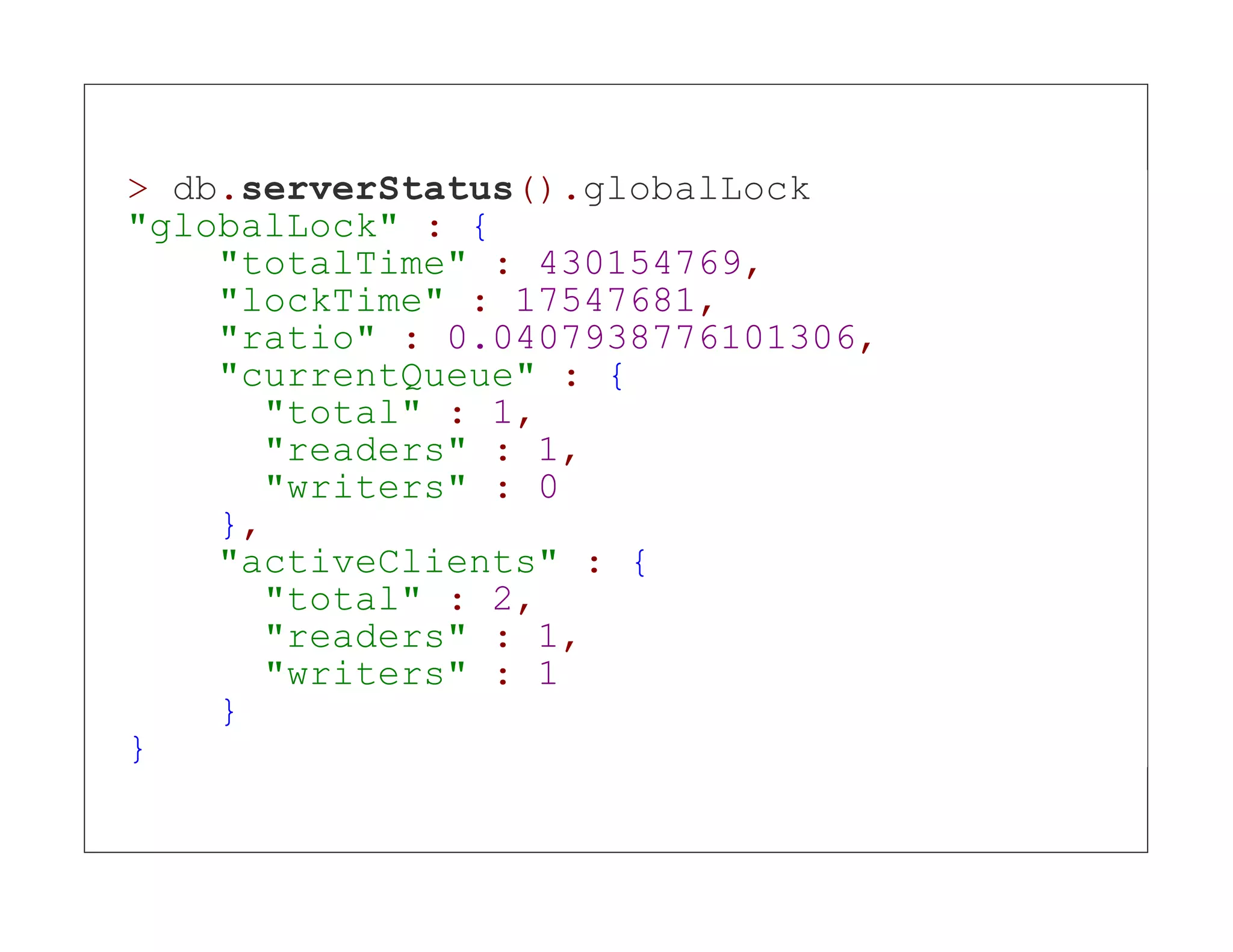

- 38. > db.serverStatus().globalLock "globalLock" :{ "totalTime" : 430154769, "lockTime" : 17547681, "ratio" : 0.0407938776101306, "currentQueue" : { "total" : 1, "readers" : 1, "writers" : 0 }, "activeClients" : { "total" : 2, "readers" : 1, "writers" : 1 } }

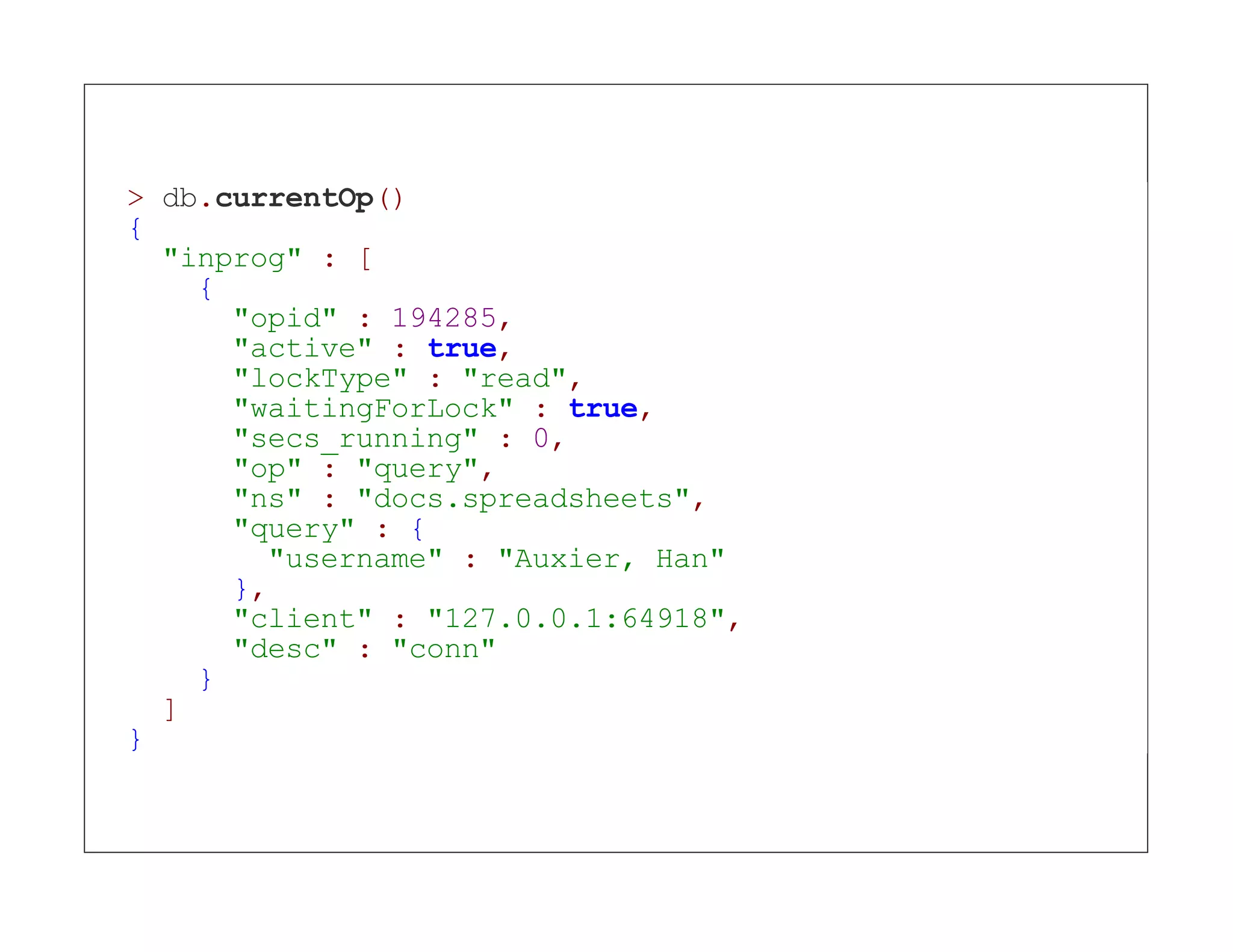

- 39. > db.currentOp() { "inprog" : [ { "opid" : 194285, "active" : true, "lockType" : "read", "waitingForLock" : true, "secs_running" : 0, "op" : "query", "ns" : "docs.spreadsheets", "query" : { "username" : "Auxier, Han" }, "client" : "127.0.0.1:64918", "desc" : "conn" } ] }
- 40. If you havedozens of ops waiting for locks, you've got a problem.
- 41. 7. Background flushing

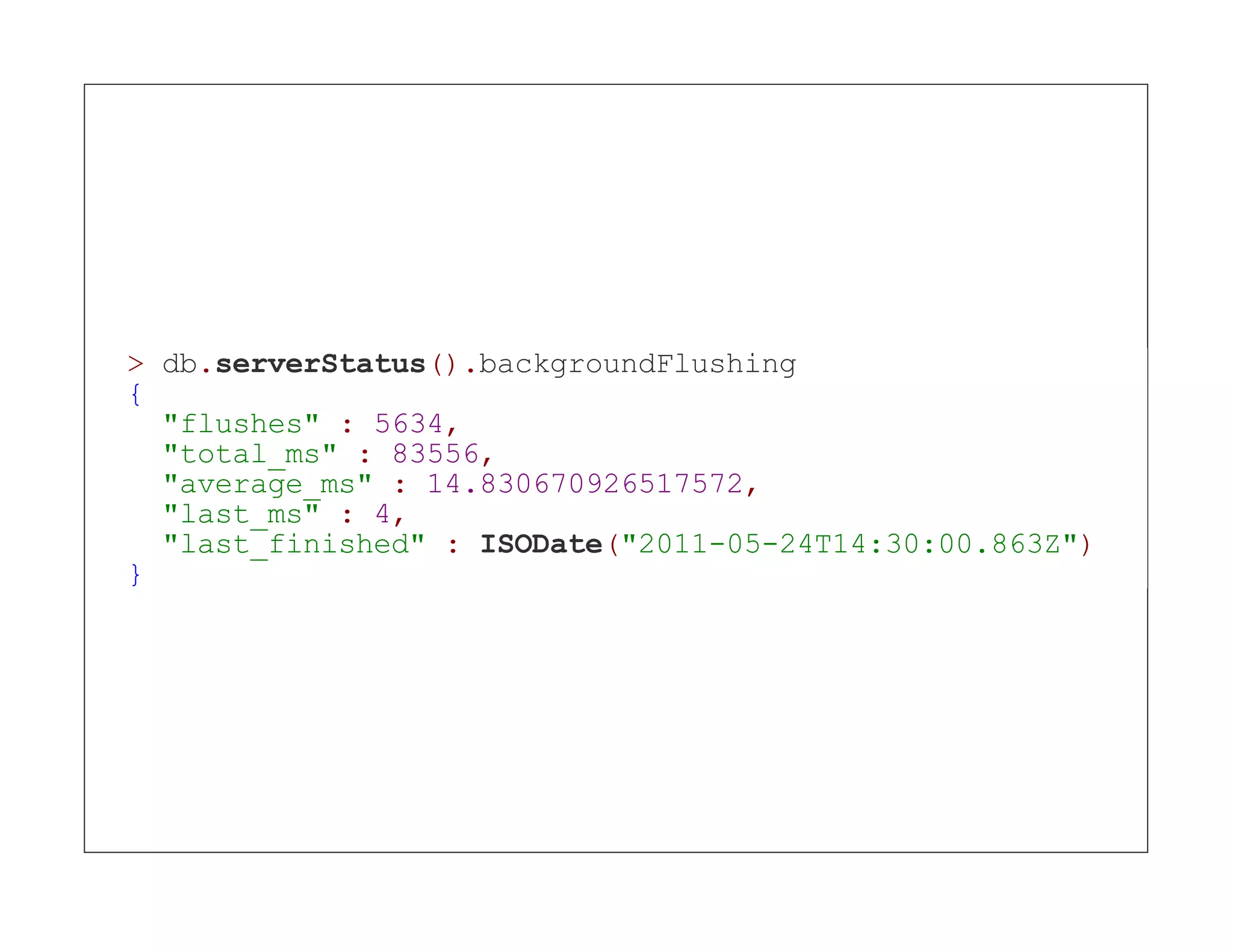

- 42. > db.serverStatus().backgroundFlushing { "flushes" : 5634, "total_ms" : 83556, "average_ms" : 14.830670926517572, "last_ms" : 4, "last_finished" : ISODate("2011-05-24T14:30:00.863Z") }
- 44.
- 45.

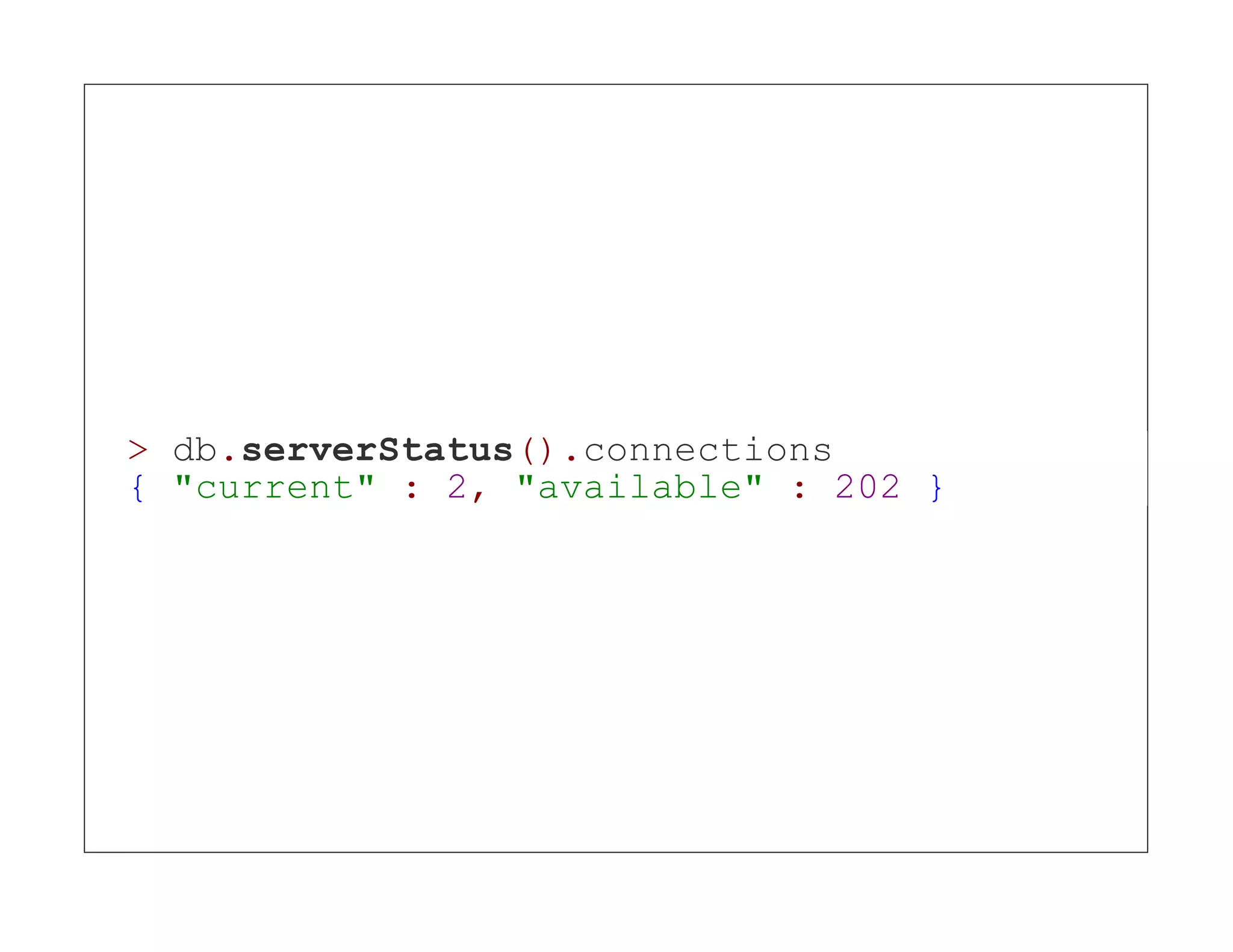

- 46. > db.serverStatus().connections { "current": 2, "available" : 202 }

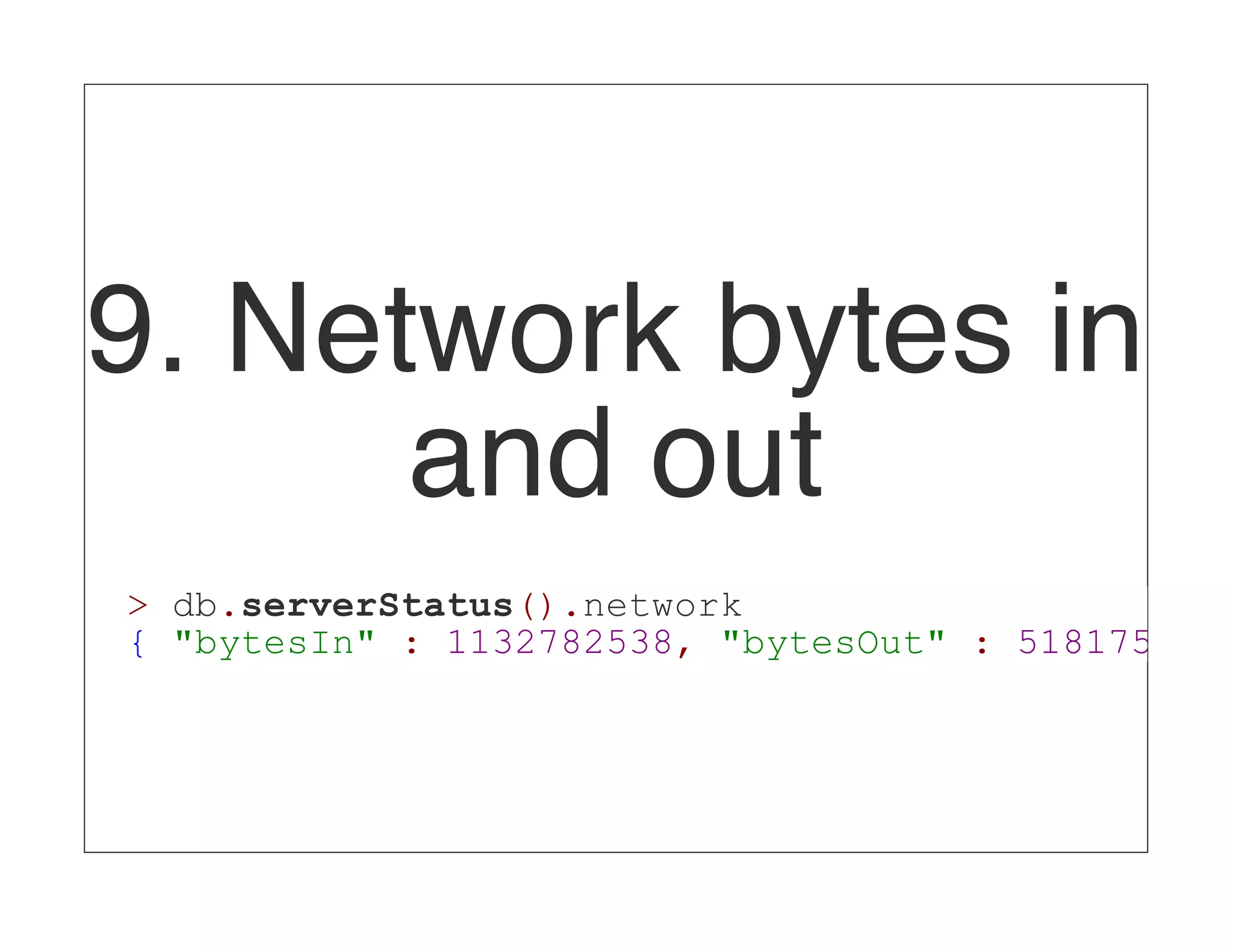

- 47. 9. Network bytesin and out > db.serverStatus().network { "bytesIn" : 1132782538, "bytesOut" : 5181752122
- 48.

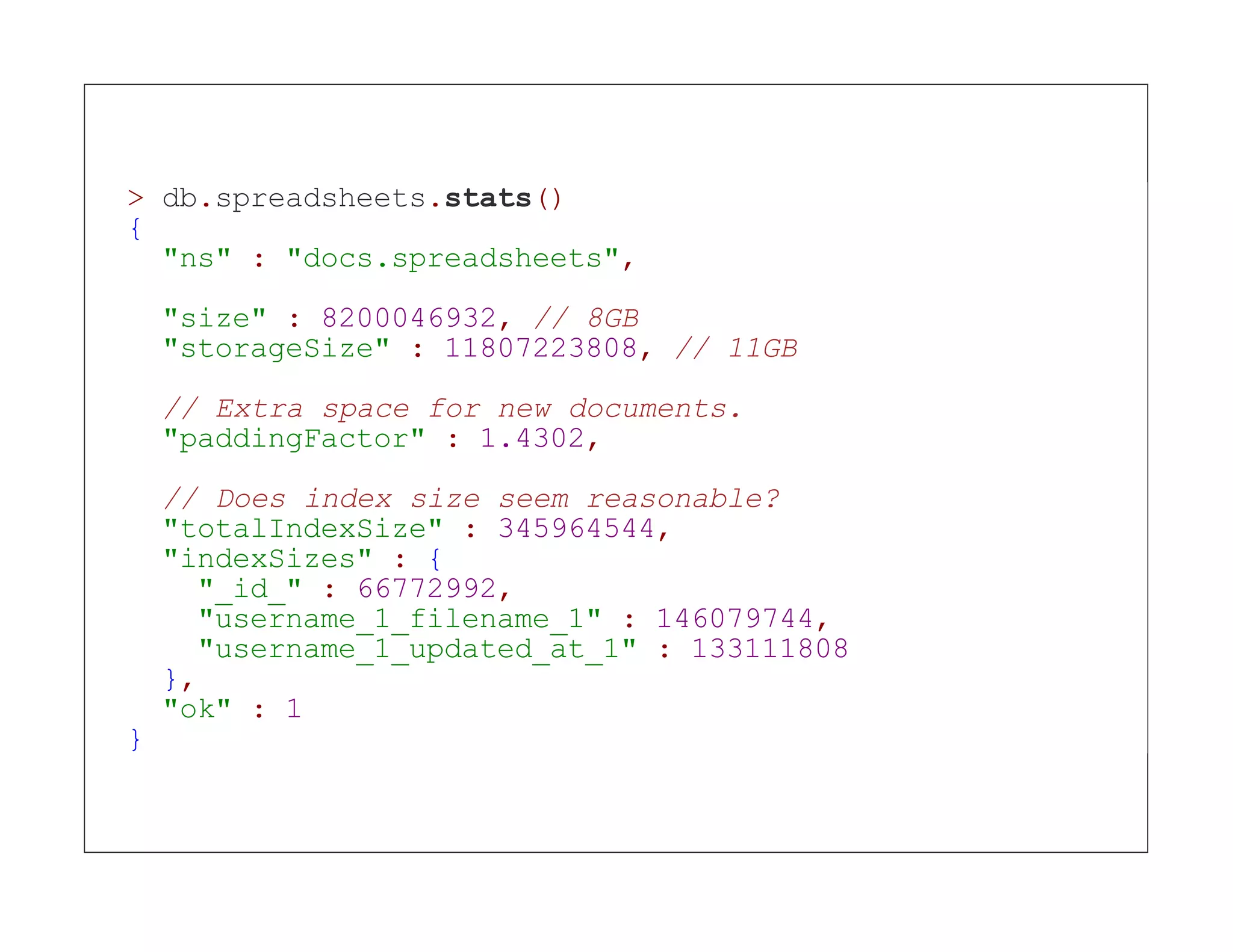

- 49. > db.spreadsheets.stats() { "ns" : "docs.spreadsheets", "size" : 8200046932, // 8GB "storageSize" : 11807223808, // 11GB // Extra space for new documents. "paddingFactor" : 1.4302, // Does index size seem reasonable? "totalIndexSize" : 345964544, "indexSizes" : { "_id_" : 66772992, "username_1_filename_1" : 146079744, "username_1_updated_at_1" : 133111808 }, "ok" : 1 }

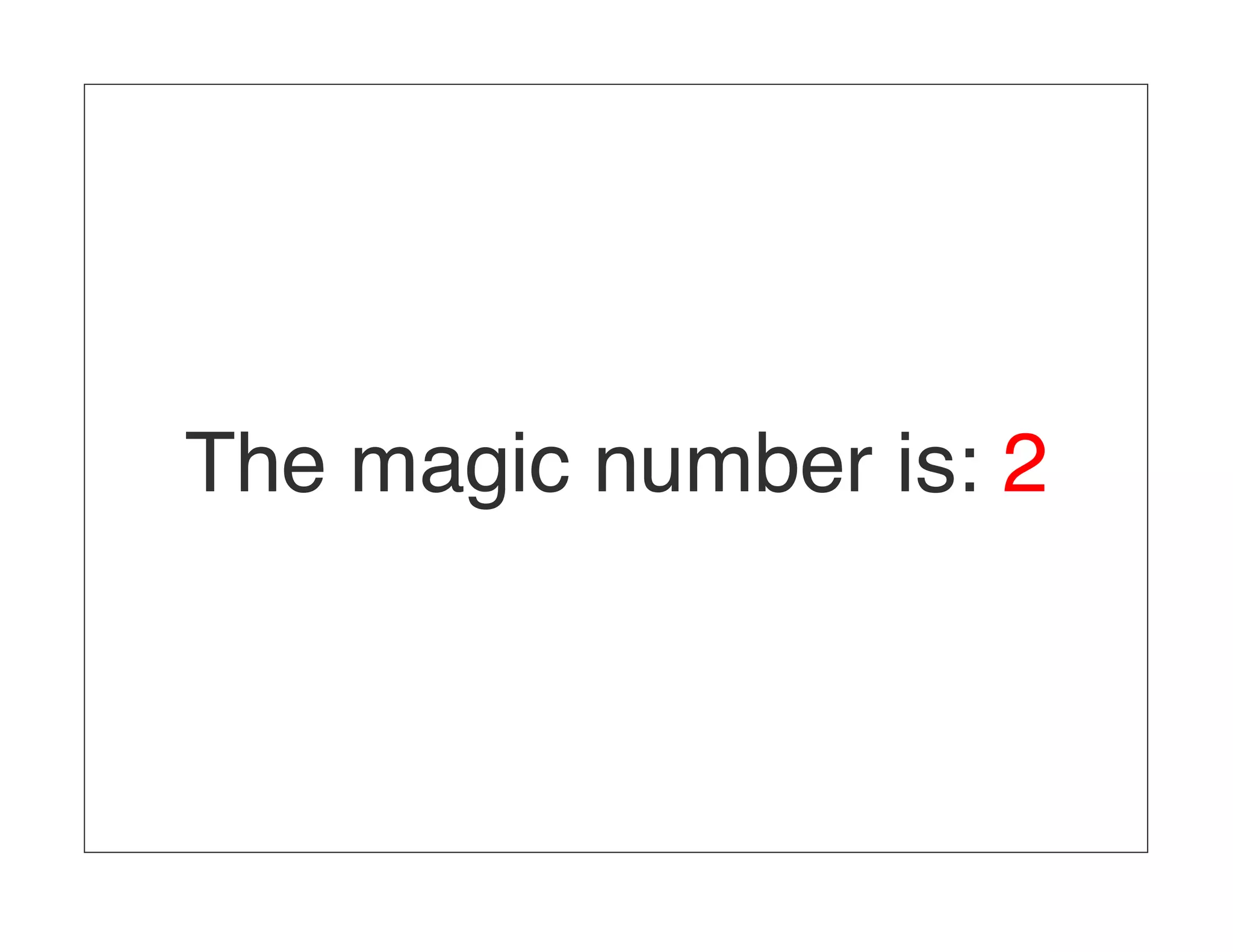

- 50. The magic numberis: 2
- 51.

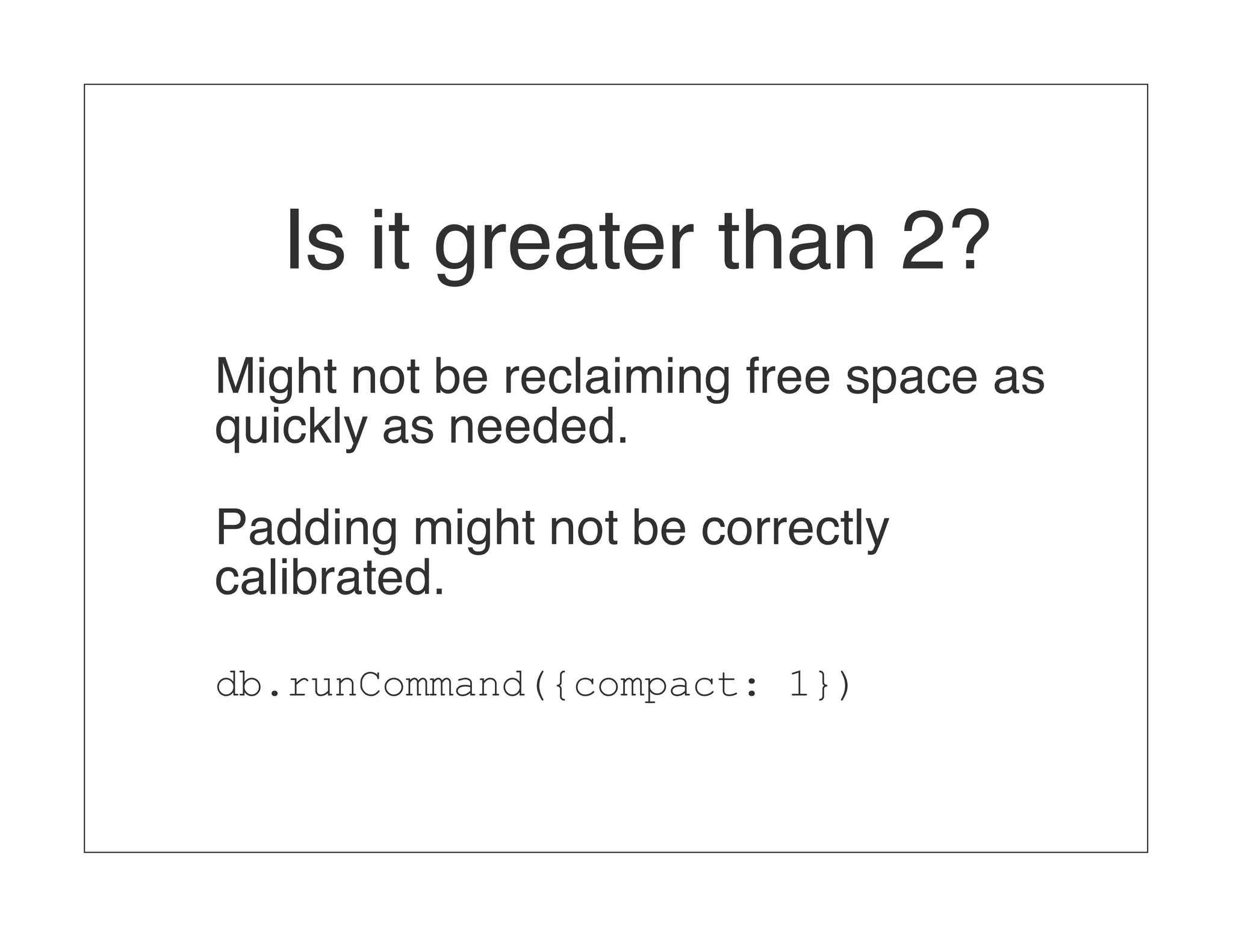

- 52. Is it greaterthan 2? Might not be reclaiming free space as quickly as needed. Padding might not be correctly calibrated. db.runCommand({compact: 1})
- 53.

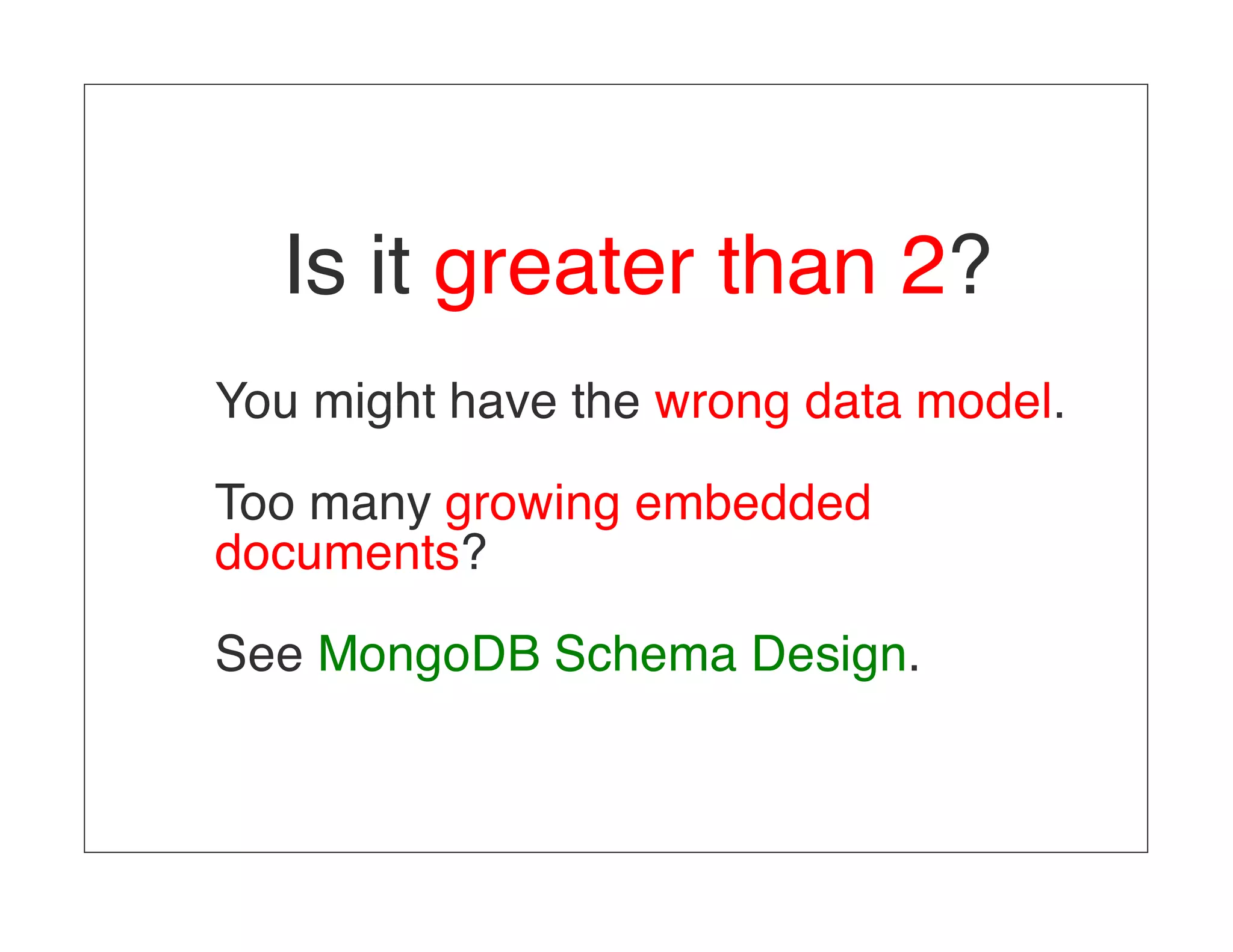

- 54. Is it greaterthan 2? You might have the wrong data model. Too many growing embedded documents? See MongoDB Schema Design.

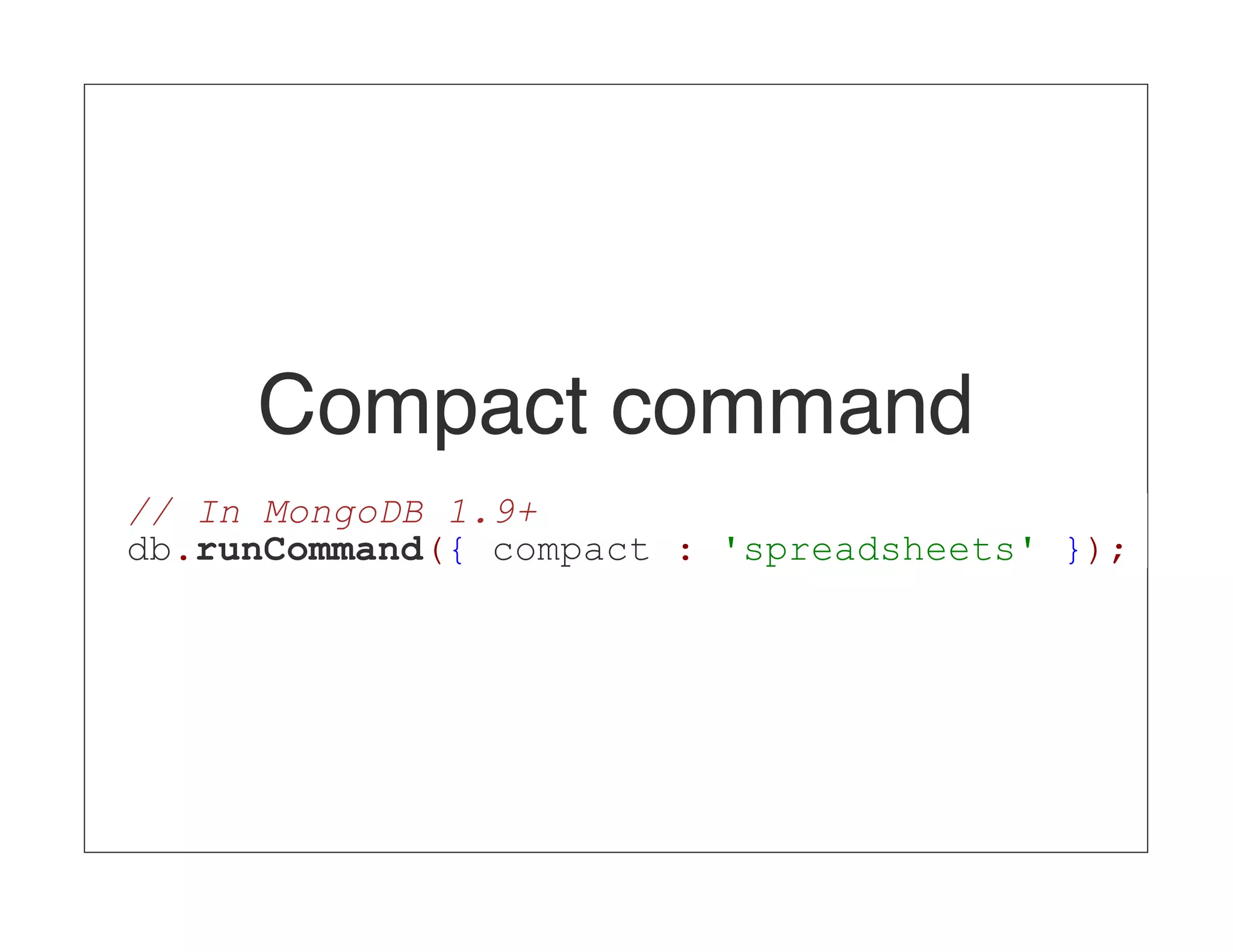

- 55. Compact command // InMongoDB 1.9+ db.runCommand({ compact : 'spreadsheets' });
