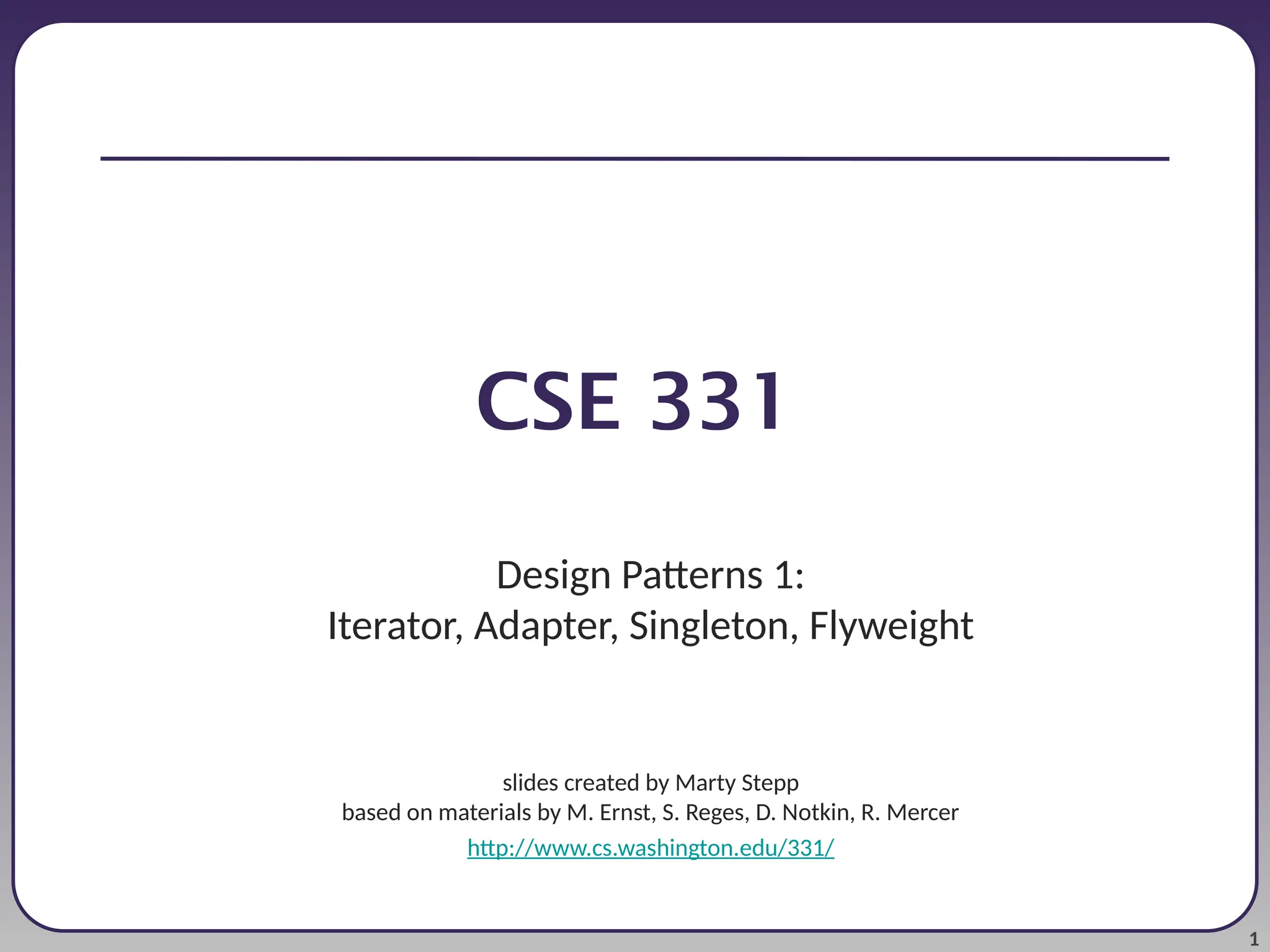

1 CSE 331 Design Patterns 1: Iterator, Adapter, Singleton, Flyweight slides created by Marty Stepp based on materials by M. Ernst, S. Reges, D. Notkin, R. Mercer http://www.cs.washington.edu/331/

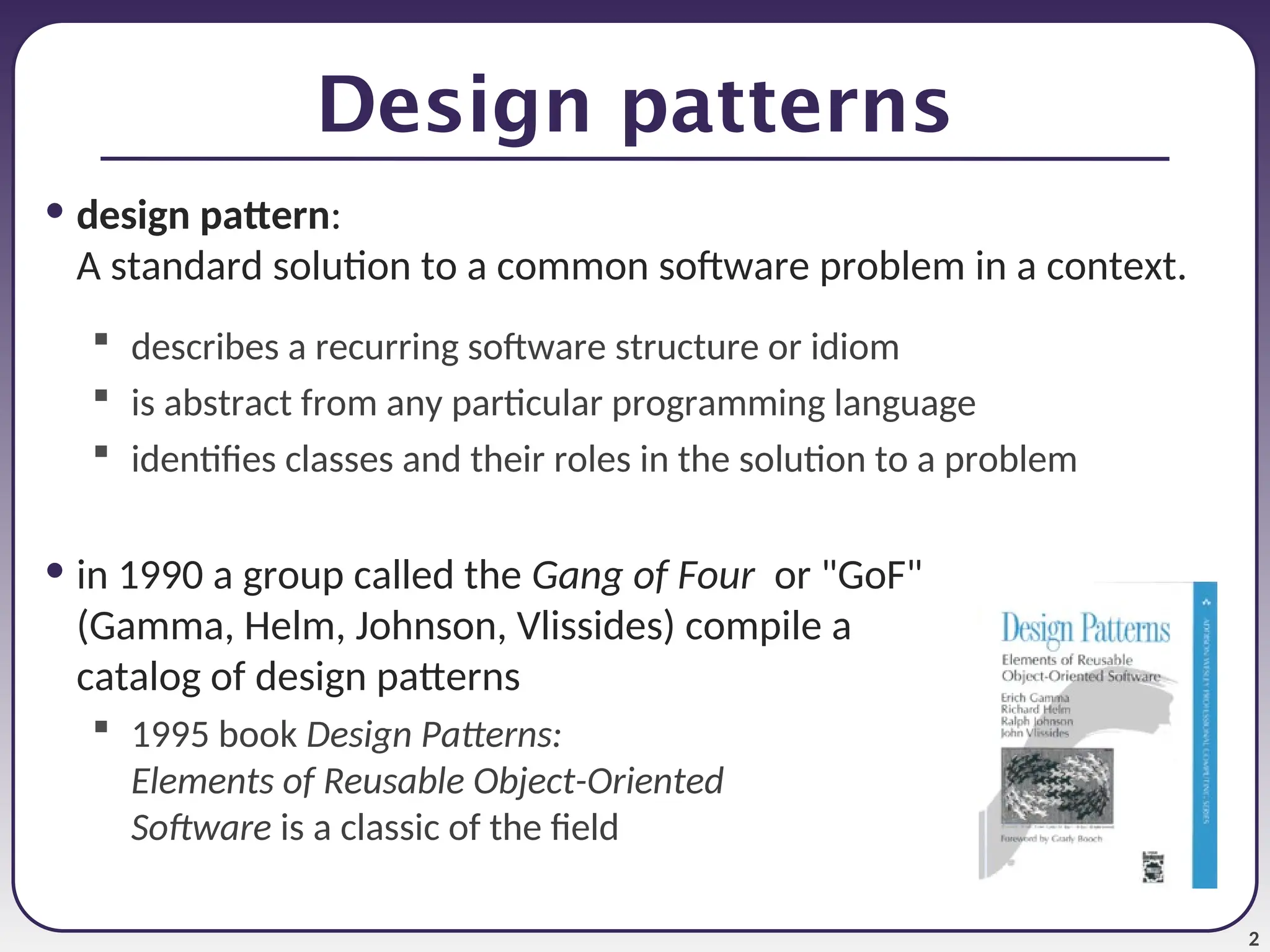

2 Design patterns • design pattern: A standard solution to a common software problem in a context.  describes a recurring software structure or idiom  is abstract from any particular programming language  identifies classes and their roles in the solution to a problem • in 1990 a group called the Gang of Four or "GoF" (Gamma, Helm, Johnson, Vlissides) compile a catalog of design patterns  1995 book Design Patterns: Elements of Reusable Object-Oriented Software is a classic of the field

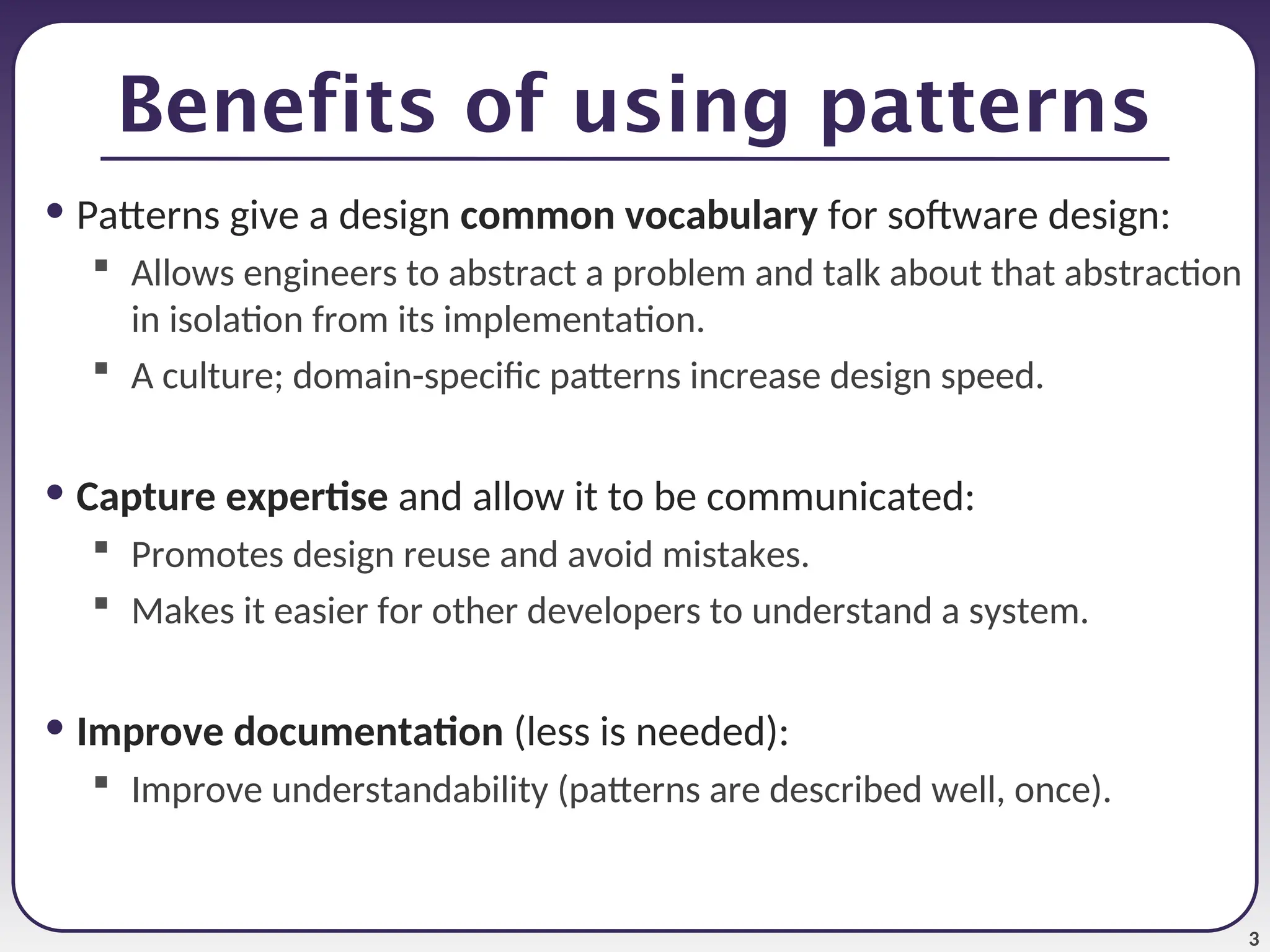

3 Benefits of using patterns • Patterns give a design common vocabulary for software design:  Allows engineers to abstract a problem and talk about that abstraction in isolation from its implementation.  A culture; domain-specific patterns increase design speed. • Capture expertise and allow it to be communicated:  Promotes design reuse and avoid mistakes.  Makes it easier for other developers to understand a system. • Improve documentation (less is needed):  Improve understandability (patterns are described well, once).

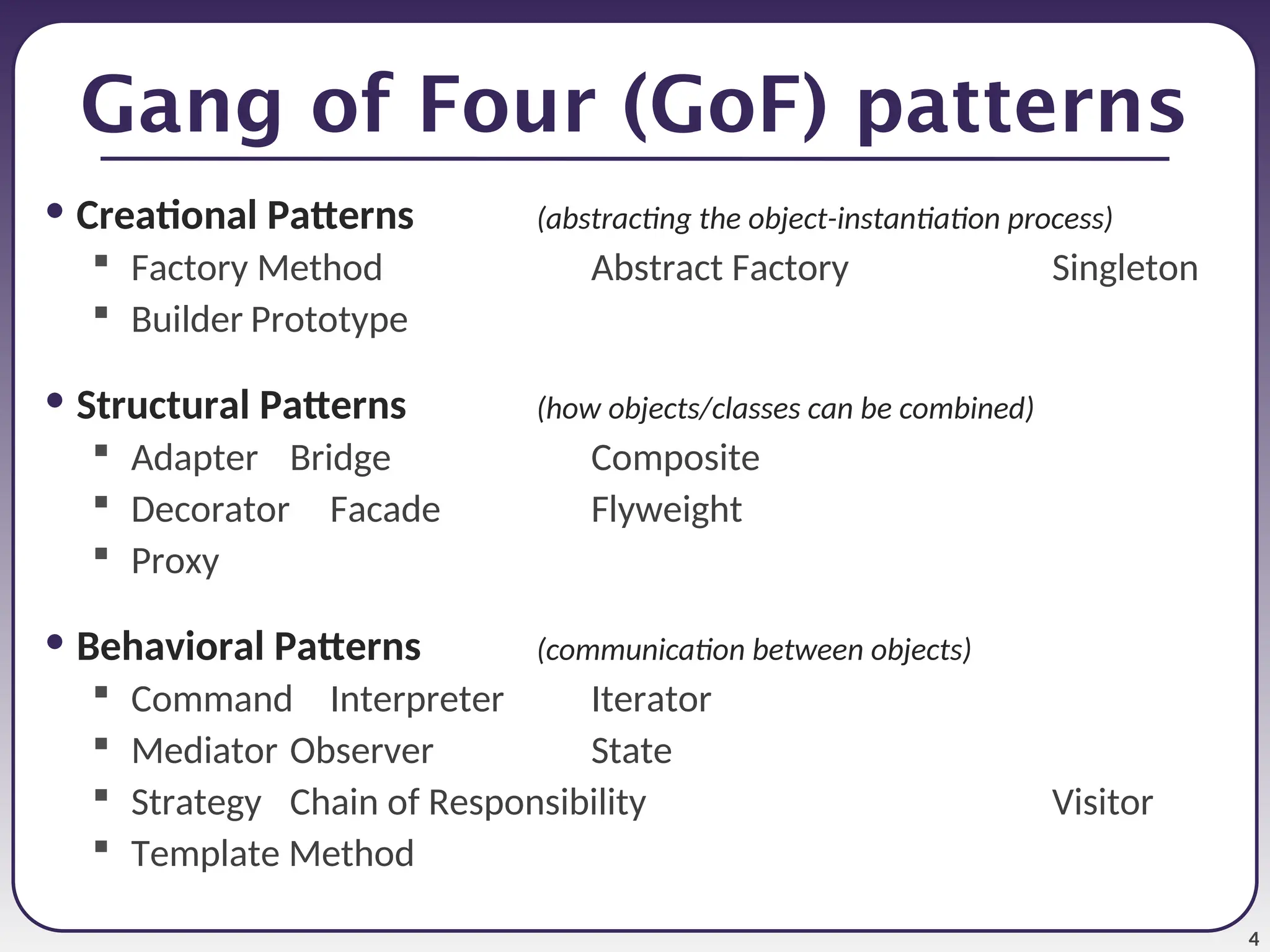

4 Gang of Four (GoF) patterns • Creational Patterns (abstracting the object-instantiation process)  Factory Method Abstract Factory Singleton  Builder Prototype • Structural Patterns (how objects/classes can be combined)  Adapter Bridge Composite  Decorator Facade Flyweight  Proxy • Behavioral Patterns (communication between objects)  Command Interpreter Iterator  Mediator Observer State  Strategy Chain of Responsibility Visitor  Template Method

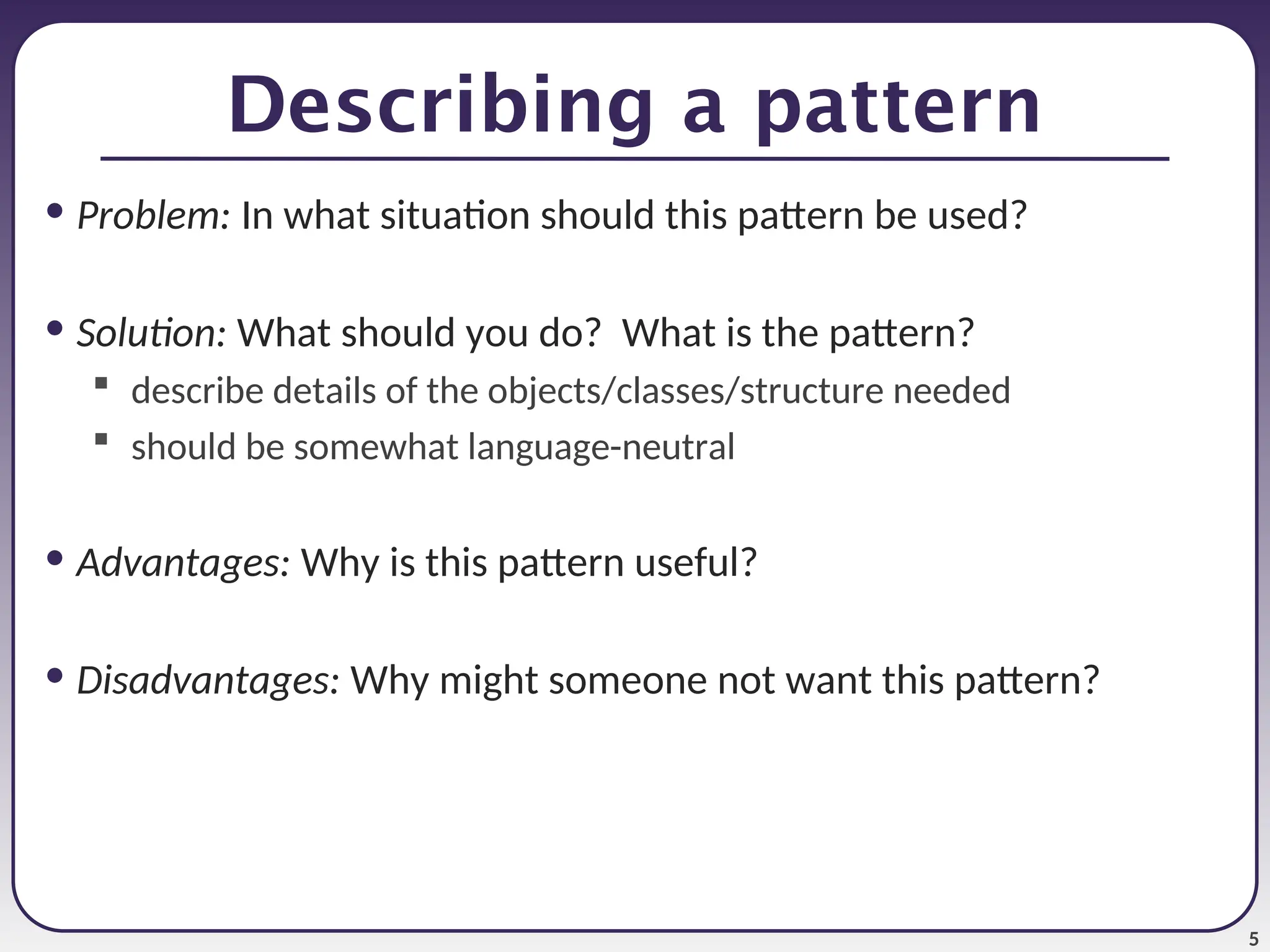

5 Describing a pattern • Problem: In what situation should this pattern be used? • Solution: What should you do? What is the pattern?  describe details of the objects/classes/structure needed  should be somewhat language-neutral • Advantages: Why is this pattern useful? • Disadvantages: Why might someone not want this pattern?

6 Pattern: Iterator objects that traverse collections

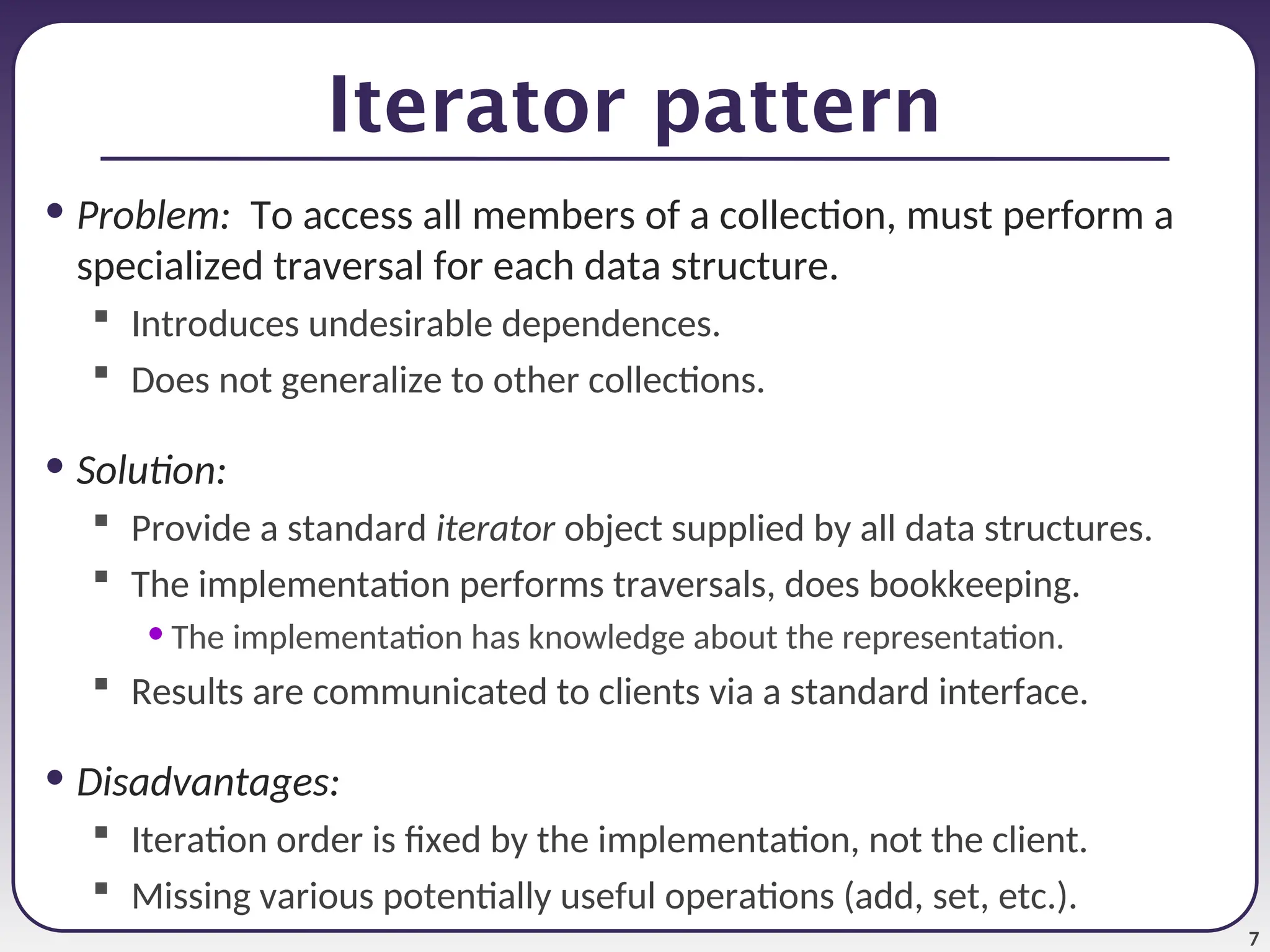

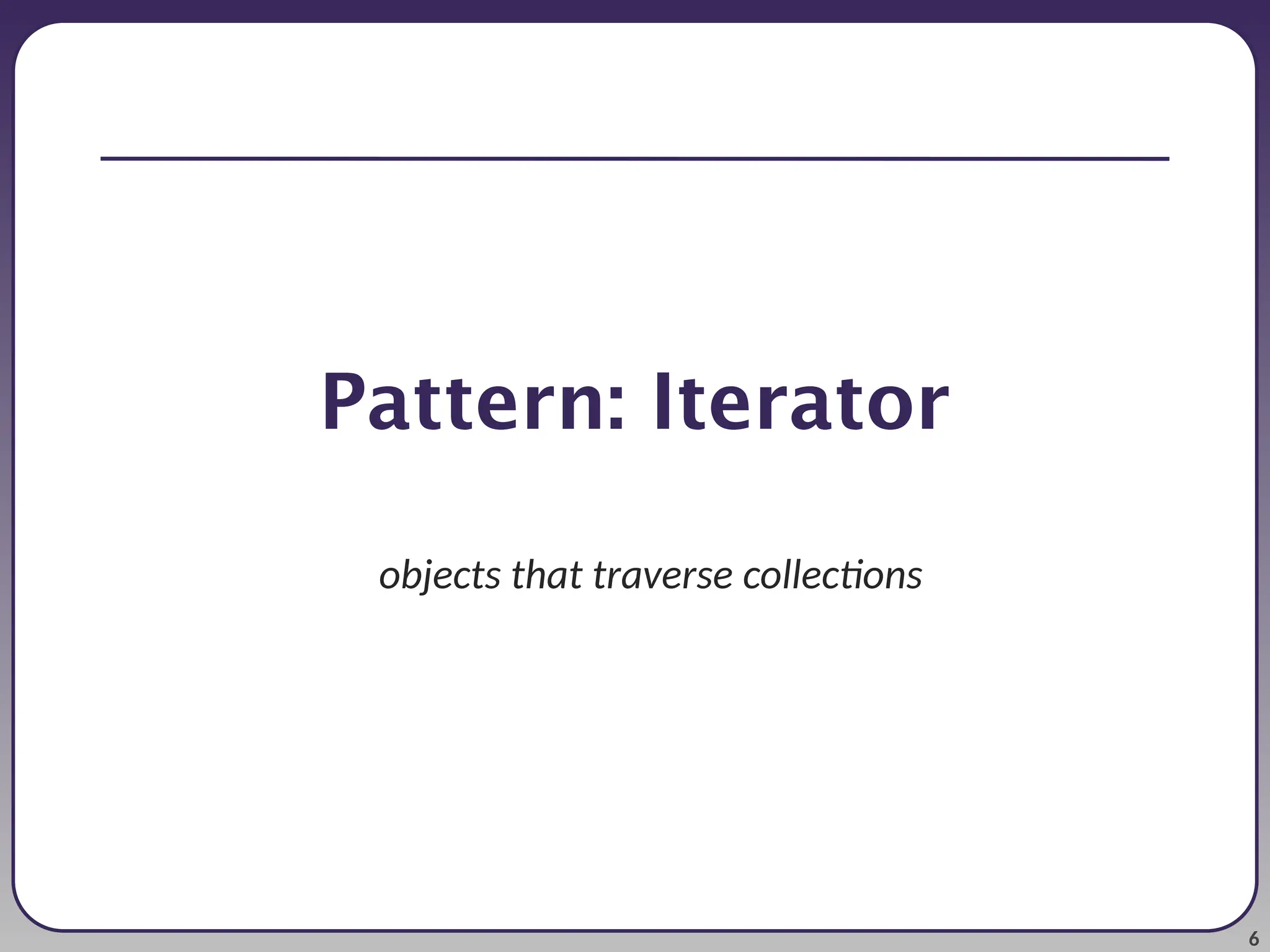

7 Iterator pattern • Problem: To access all members of a collection, must perform a specialized traversal for each data structure.  Introduces undesirable dependences.  Does not generalize to other collections. • Solution:  Provide a standard iterator object supplied by all data structures.  The implementation performs traversals, does bookkeeping. • The implementation has knowledge about the representation.  Results are communicated to clients via a standard interface. • Disadvantages:  Iteration order is fixed by the implementation, not the client.  Missing various potentially useful operations (add, set, etc.).

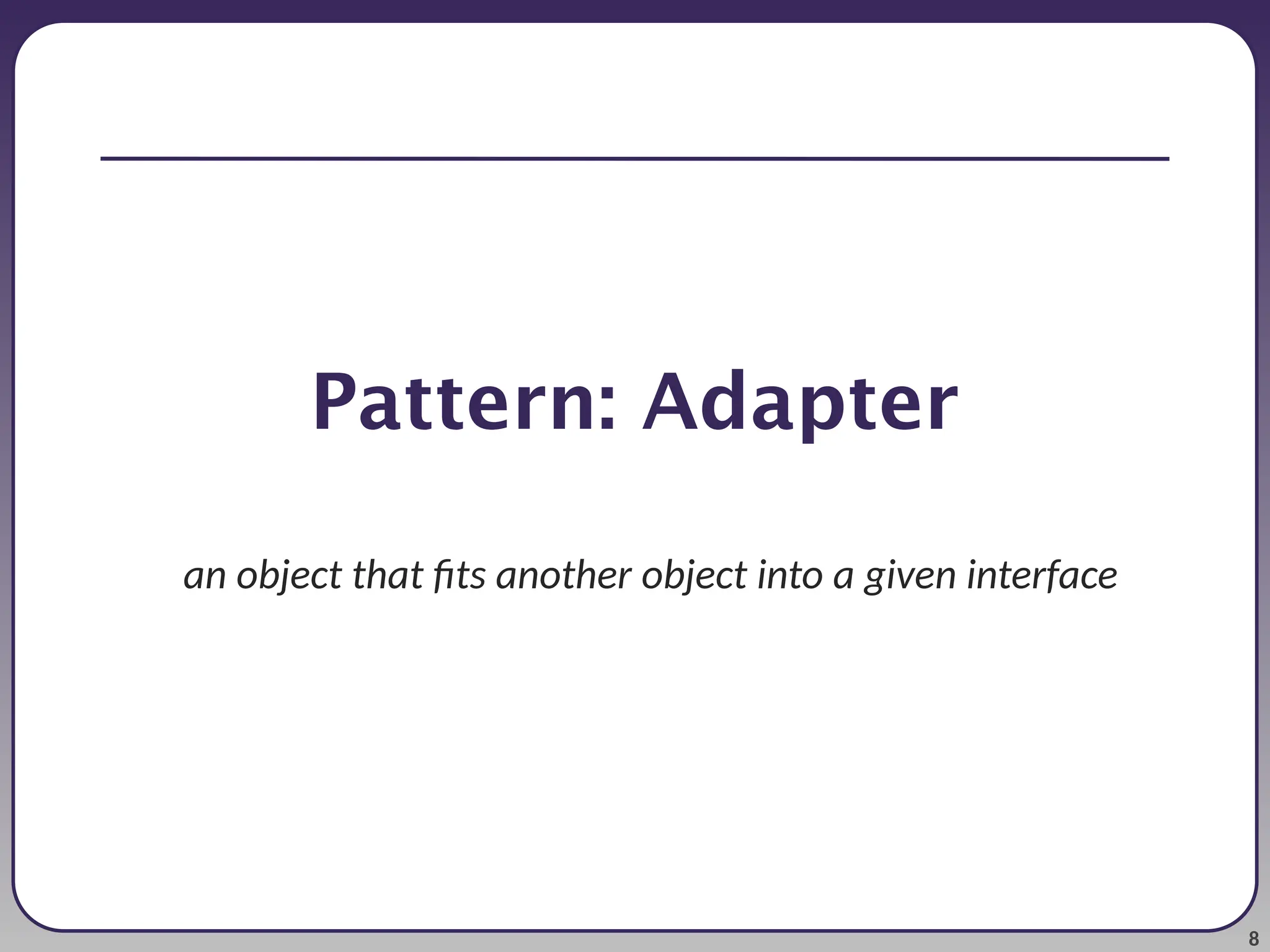

8 Pattern: Adapter an object that fits another object into a given interface

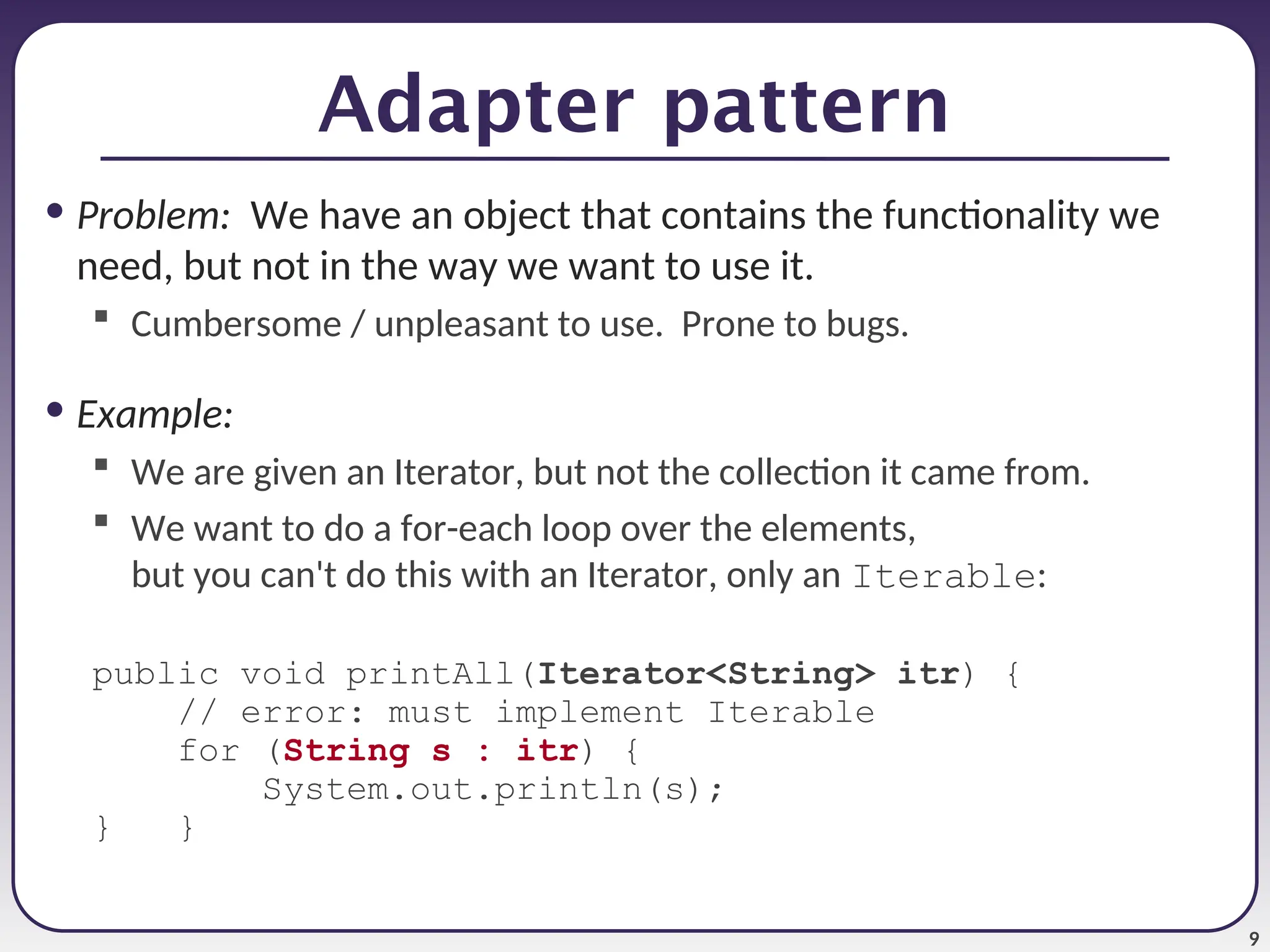

9 Adapter pattern • Problem: We have an object that contains the functionality we need, but not in the way we want to use it.  Cumbersome / unpleasant to use. Prone to bugs. • Example:  We are given an Iterator, but not the collection it came from.  We want to do a for-each loop over the elements, but you can't do this with an Iterator, only an Iterable: public void printAll(Iterator<String> itr) { // error: must implement Iterable for (String s : itr) { System.out.println(s); } }

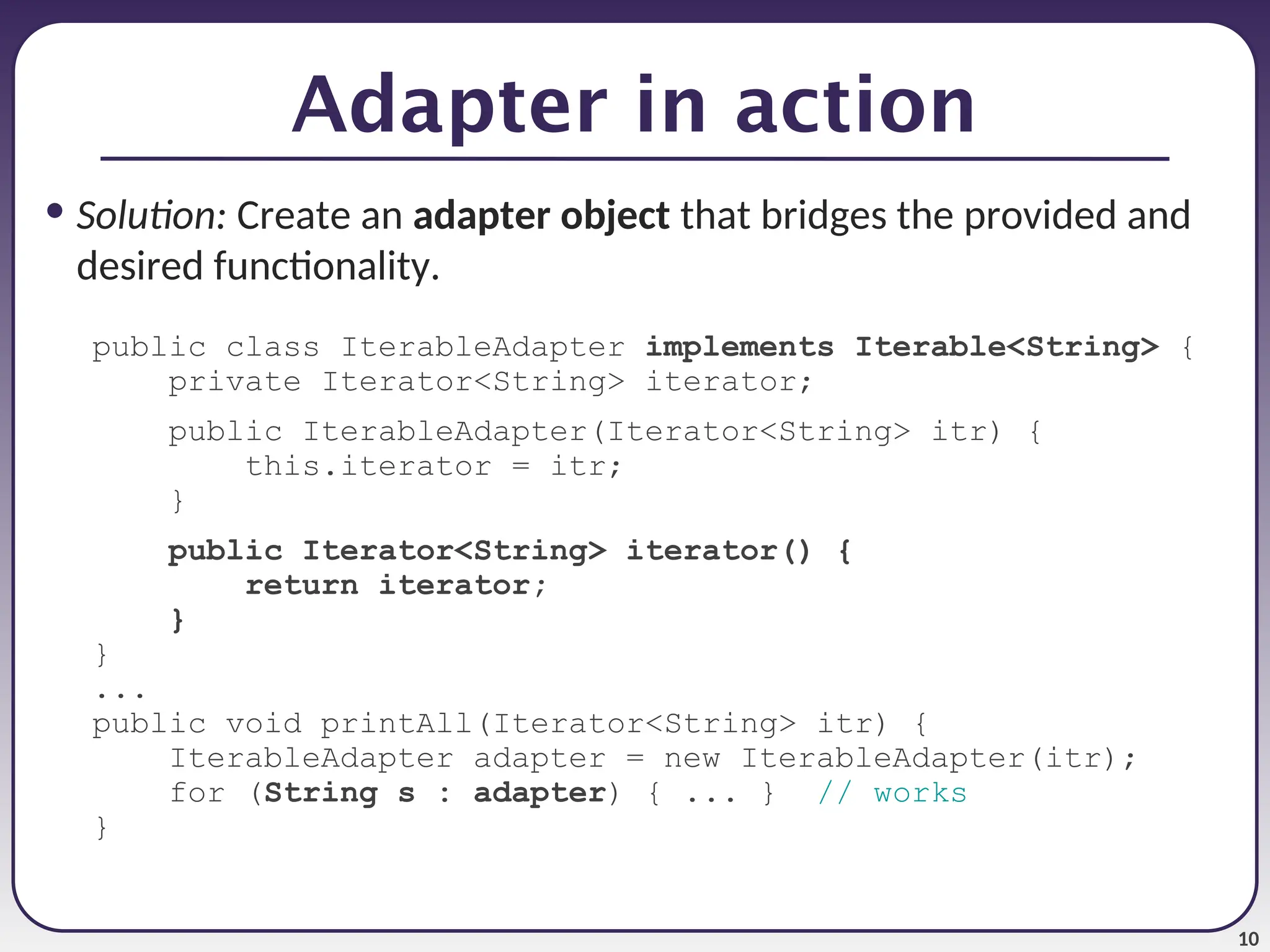

10 Adapter in action • Solution: Create an adapter object that bridges the provided and desired functionality. public class IterableAdapter implements Iterable<String> { private Iterator<String> iterator; public IterableAdapter(Iterator<String> itr) { this.iterator = itr; } public Iterator<String> iterator() { return iterator; } } ... public void printAll(Iterator<String> itr) { IterableAdapter adapter = new IterableAdapter(itr); for (String s : adapter) { ... } // works }

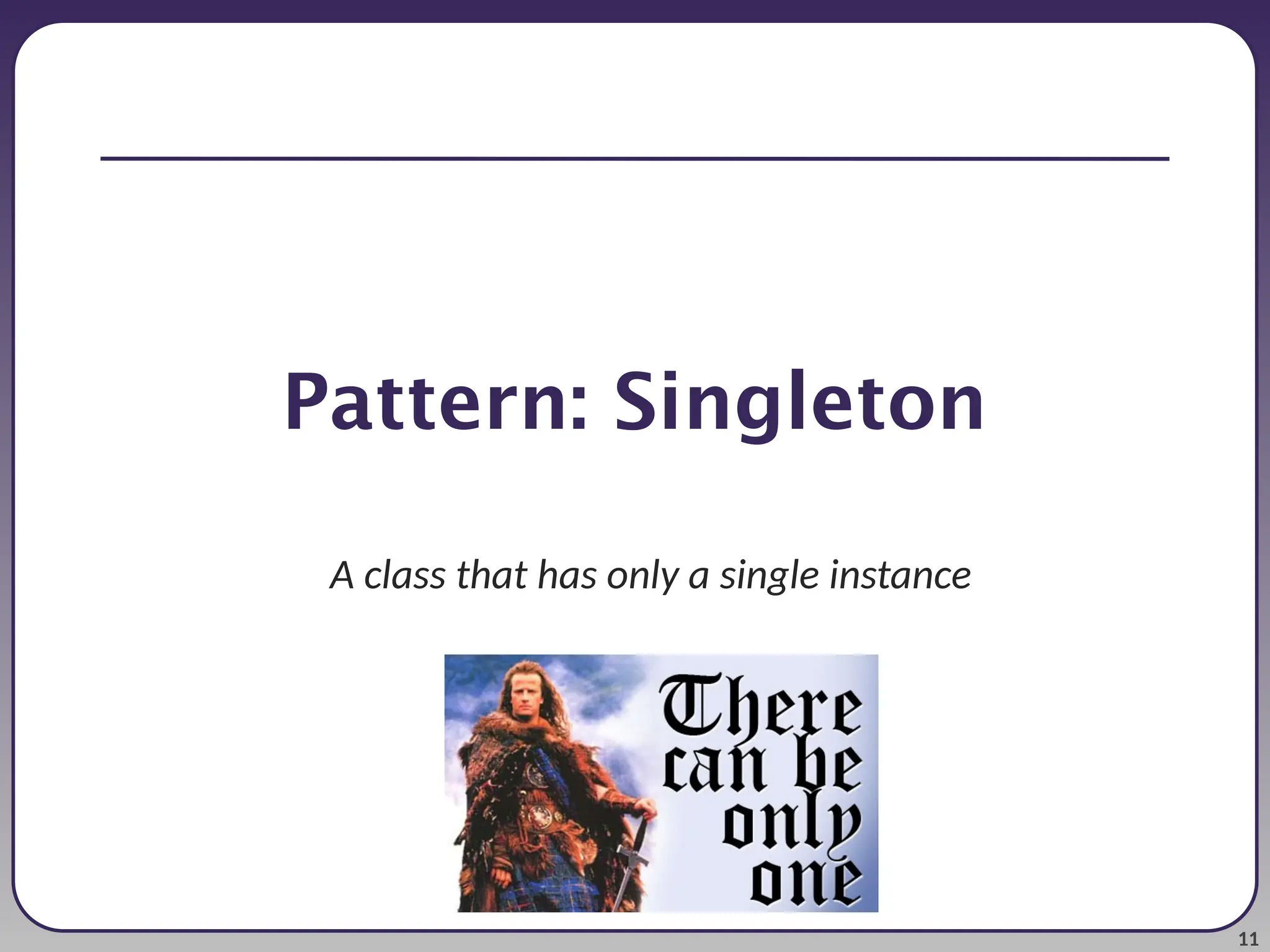

11 Pattern: Singleton A class that has only a single instance

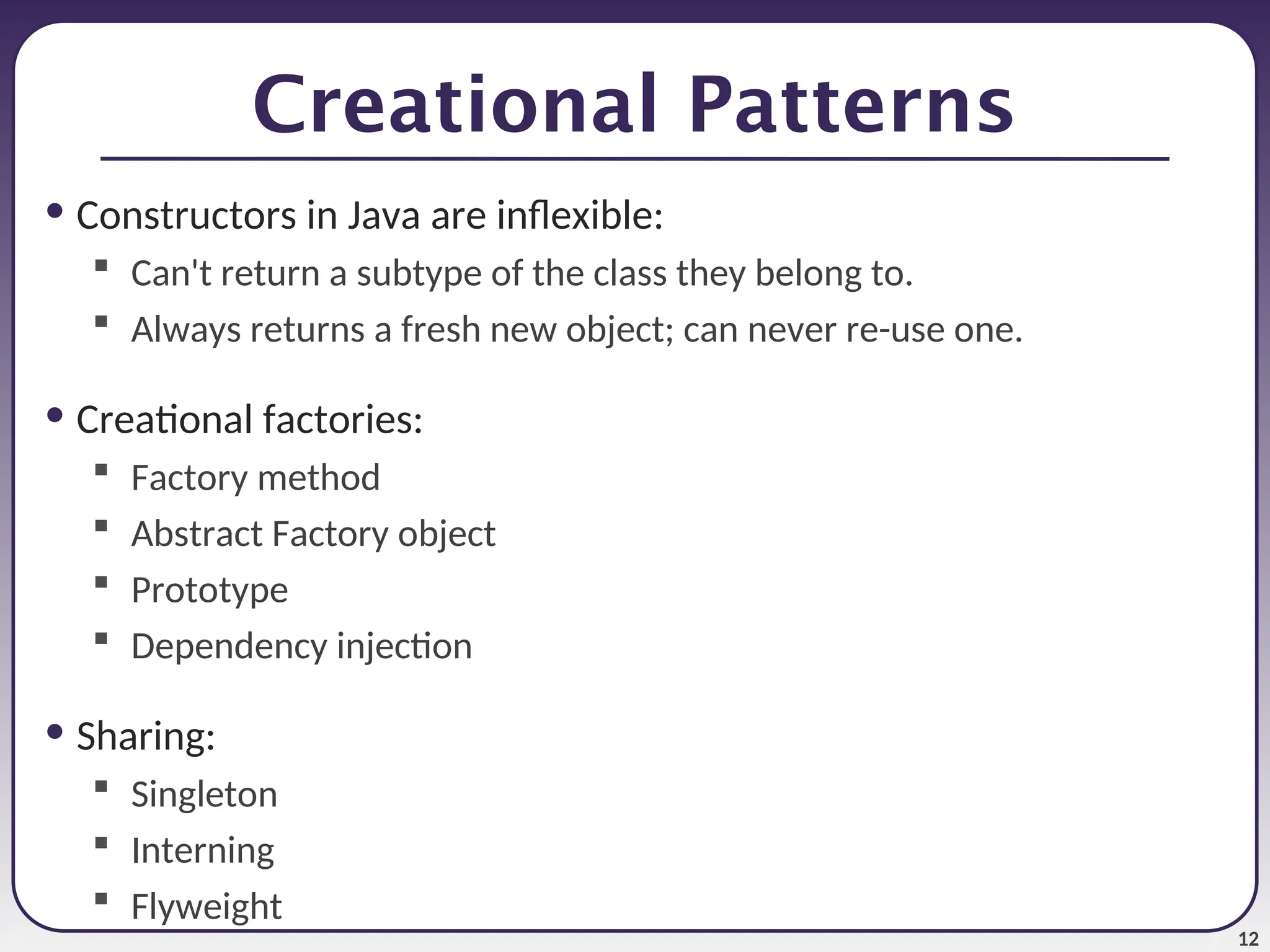

12 Creational Patterns • Constructors in Java are inflexible:  Can't return a subtype of the class they belong to.  Always returns a fresh new object; can never re-use one. • Creational factories:  Factory method  Abstract Factory object  Prototype  Dependency injection • Sharing:  Singleton  Interning  Flyweight

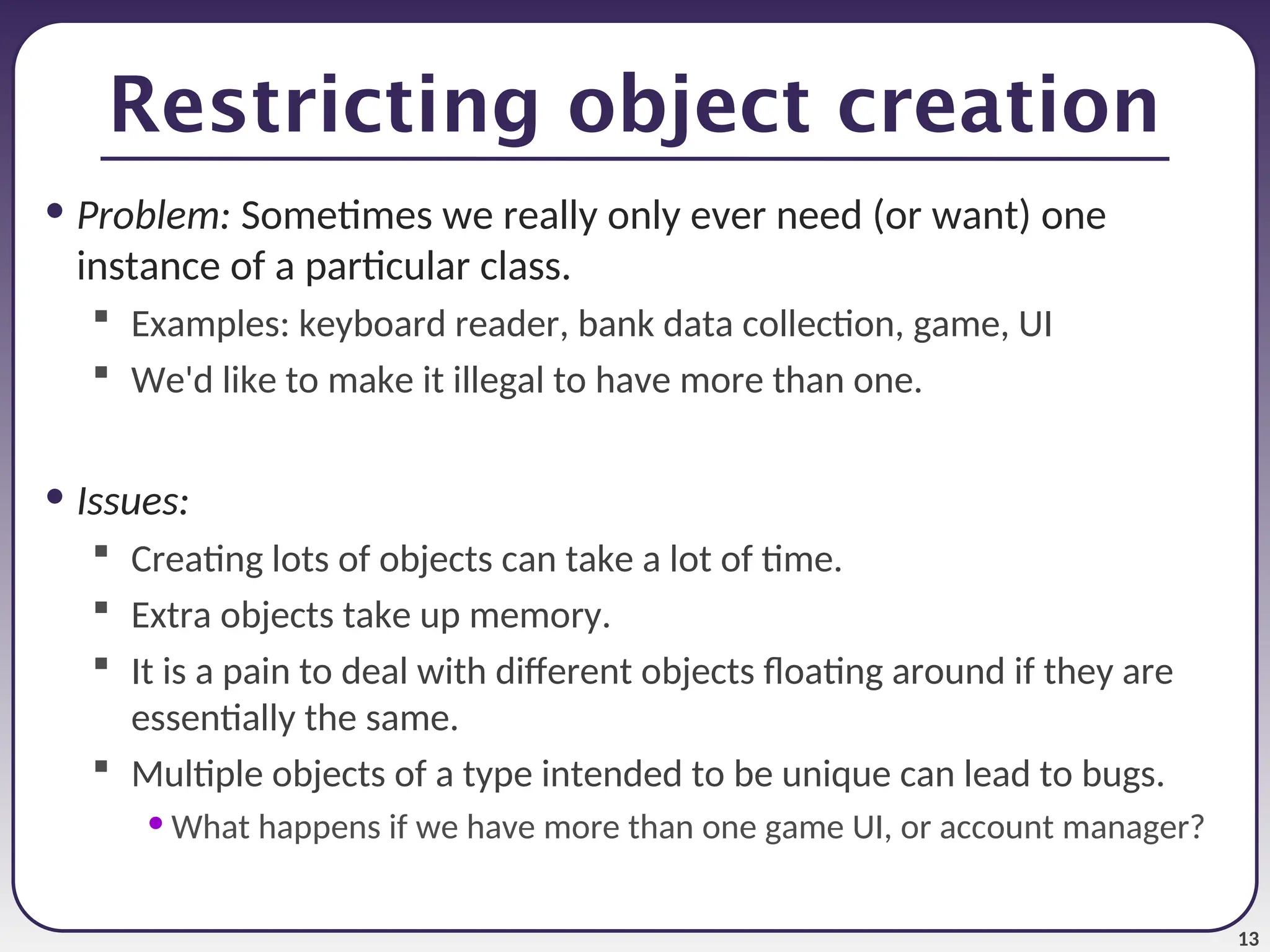

13 Restricting object creation • Problem: Sometimes we really only ever need (or want) one instance of a particular class.  Examples: keyboard reader, bank data collection, game, UI  We'd like to make it illegal to have more than one. • Issues:  Creating lots of objects can take a lot of time.  Extra objects take up memory.  It is a pain to deal with different objects floating around if they are essentially the same.  Multiple objects of a type intended to be unique can lead to bugs. • What happens if we have more than one game UI, or account manager?

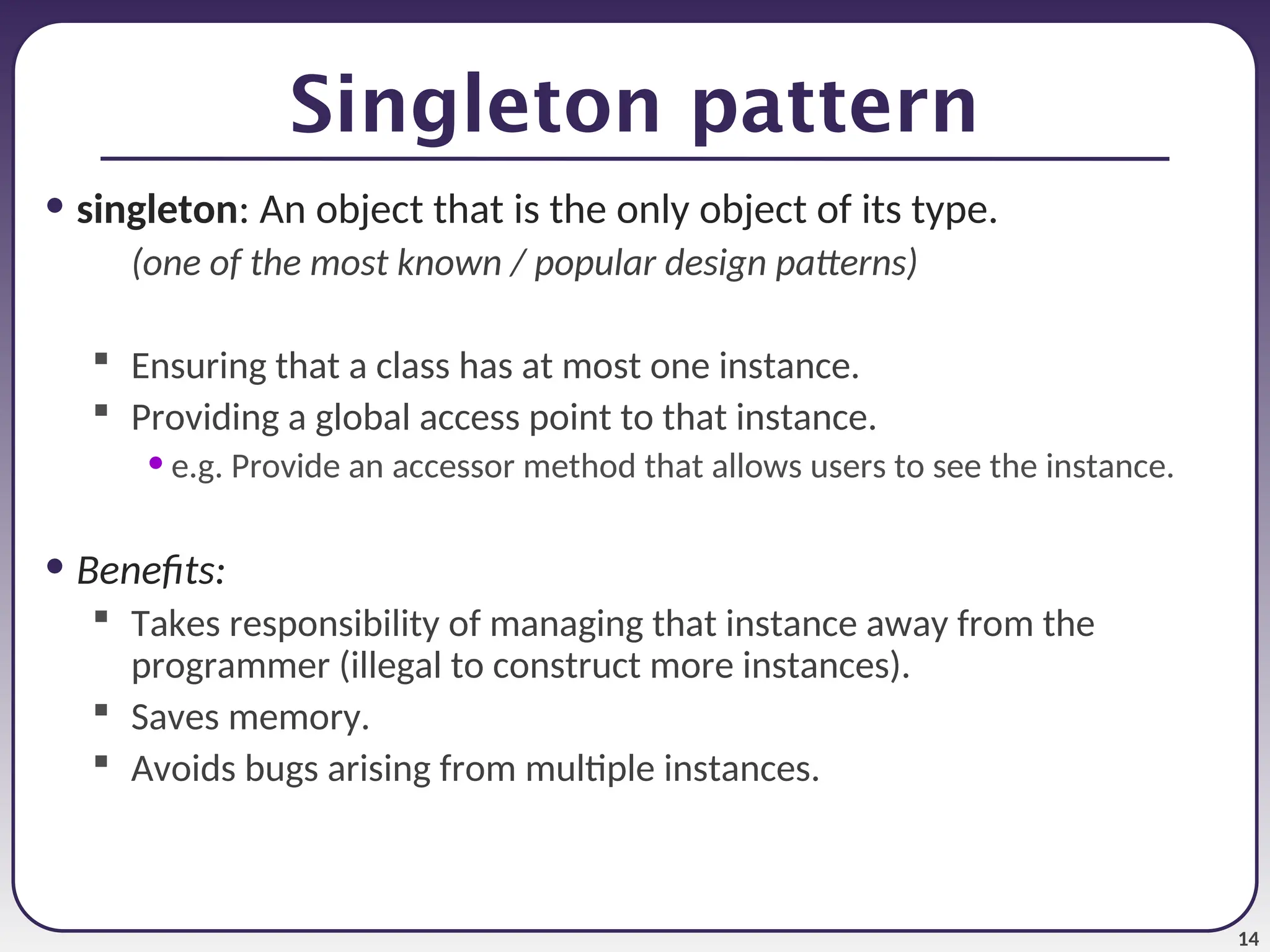

14 Singleton pattern • singleton: An object that is the only object of its type. (one of the most known / popular design patterns)  Ensuring that a class has at most one instance.  Providing a global access point to that instance. • e.g. Provide an accessor method that allows users to see the instance. • Benefits:  Takes responsibility of managing that instance away from the programmer (illegal to construct more instances).  Saves memory.  Avoids bugs arising from multiple instances.

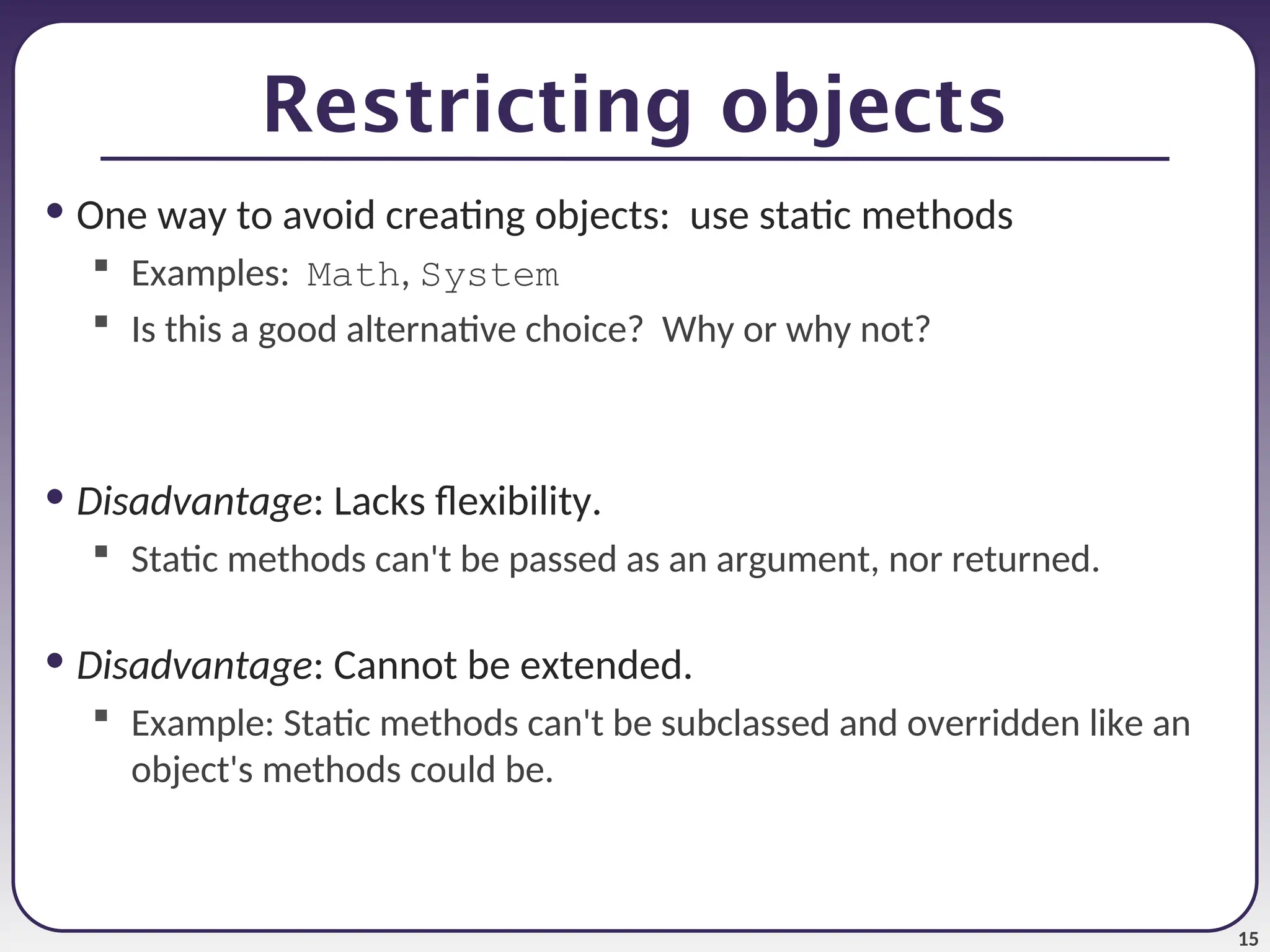

15 Restricting objects • One way to avoid creating objects: use static methods  Examples: Math, System  Is this a good alternative choice? Why or why not? • Disadvantage: Lacks flexibility.  Static methods can't be passed as an argument, nor returned. • Disadvantage: Cannot be extended.  Example: Static methods can't be subclassed and overridden like an object's methods could be.

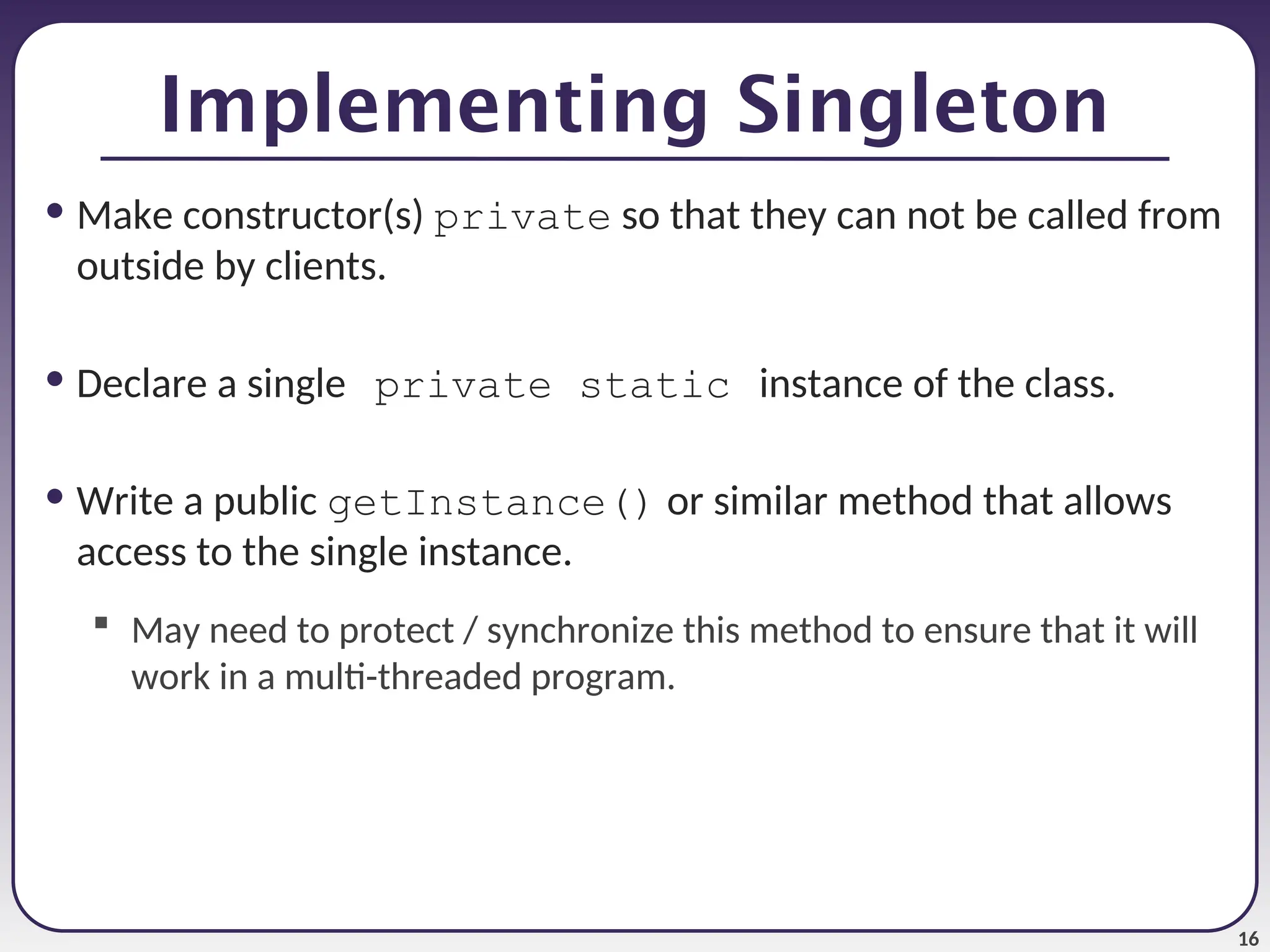

16 • Make constructor(s) private so that they can not be called from outside by clients. • Declare a single private static instance of the class. • Write a public getInstance() or similar method that allows access to the single instance.  May need to protect / synchronize this method to ensure that it will work in a multi-threaded program. Implementing Singleton

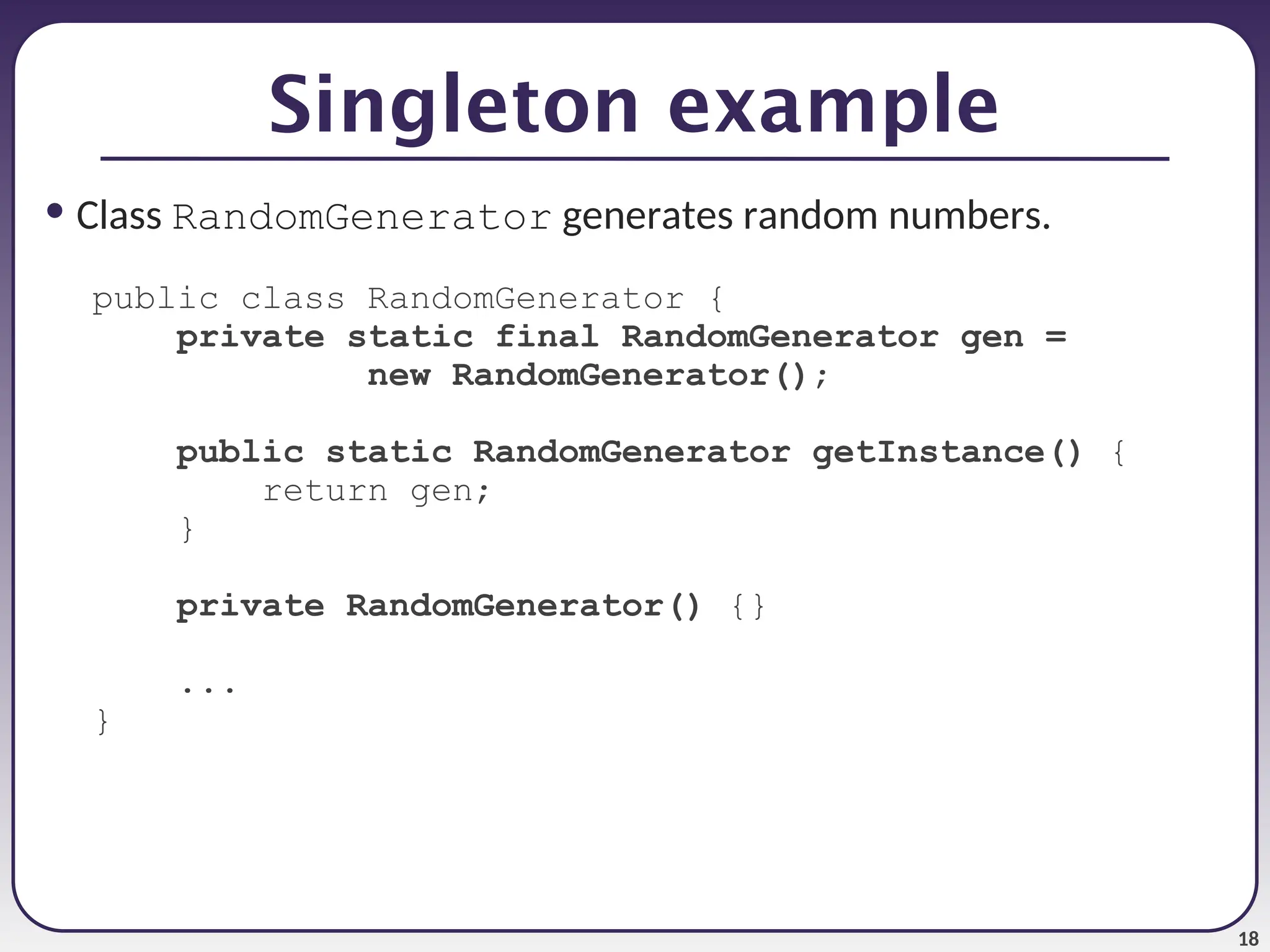

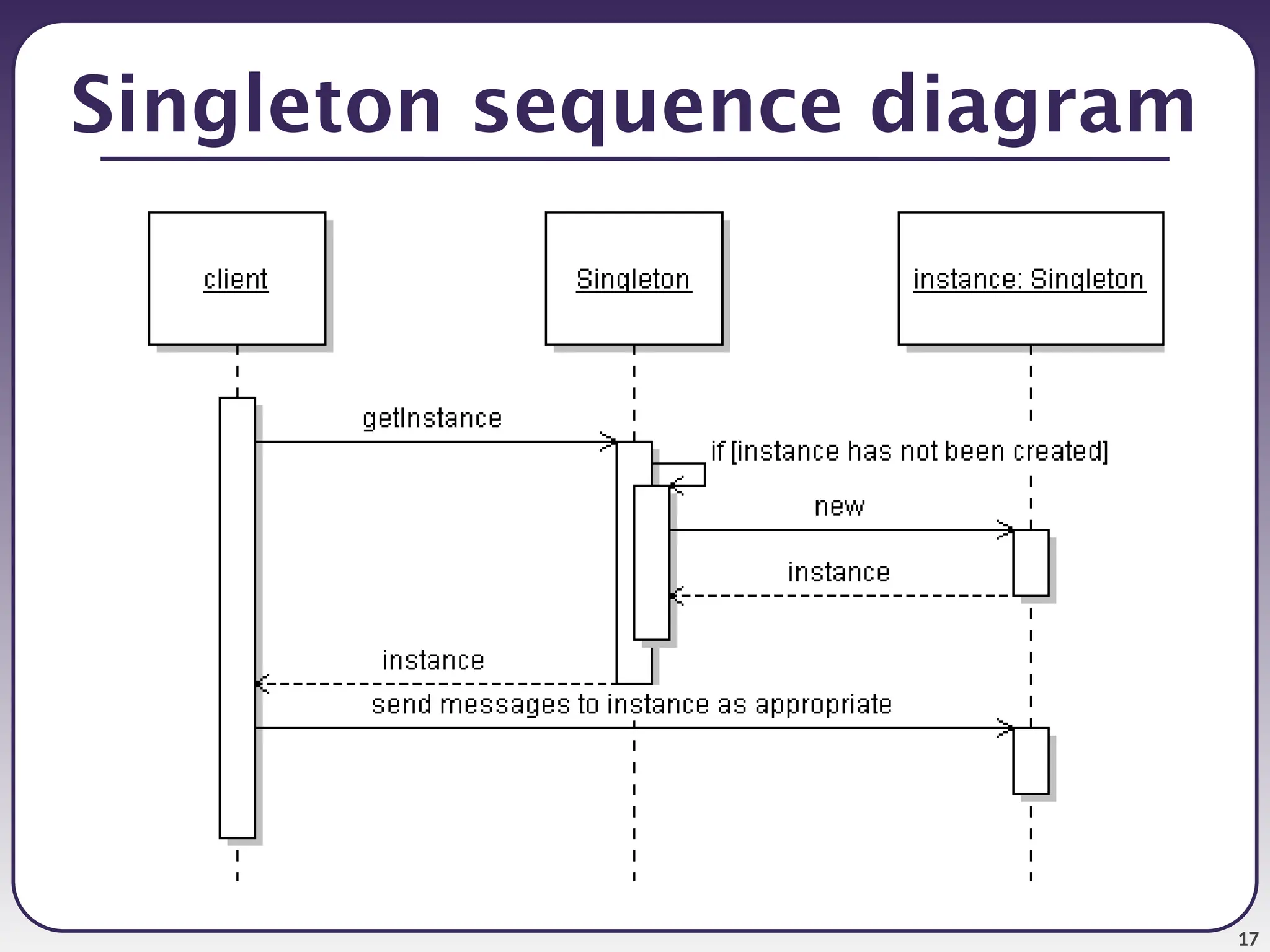

18 • Class RandomGenerator generates random numbers. public class RandomGenerator { private static final RandomGenerator gen = new RandomGenerator(); public static RandomGenerator getInstance() { return gen; } private RandomGenerator() {} ... } Singleton example

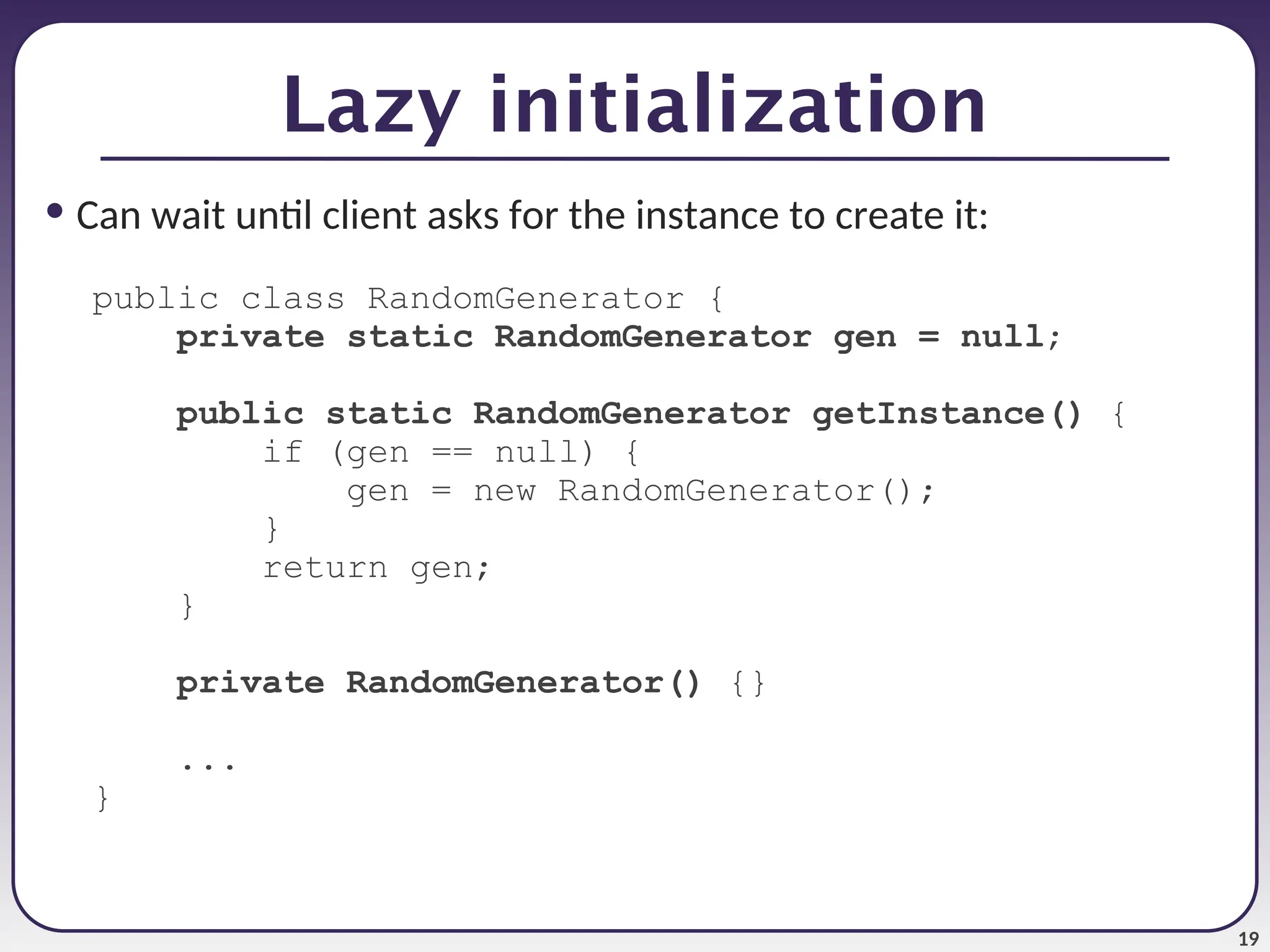

19 • Can wait until client asks for the instance to create it: public class RandomGenerator { private static RandomGenerator gen = null; public static RandomGenerator getInstance() { if (gen == null) { gen = new RandomGenerator(); } return gen; } private RandomGenerator() {} ... } Lazy initialization

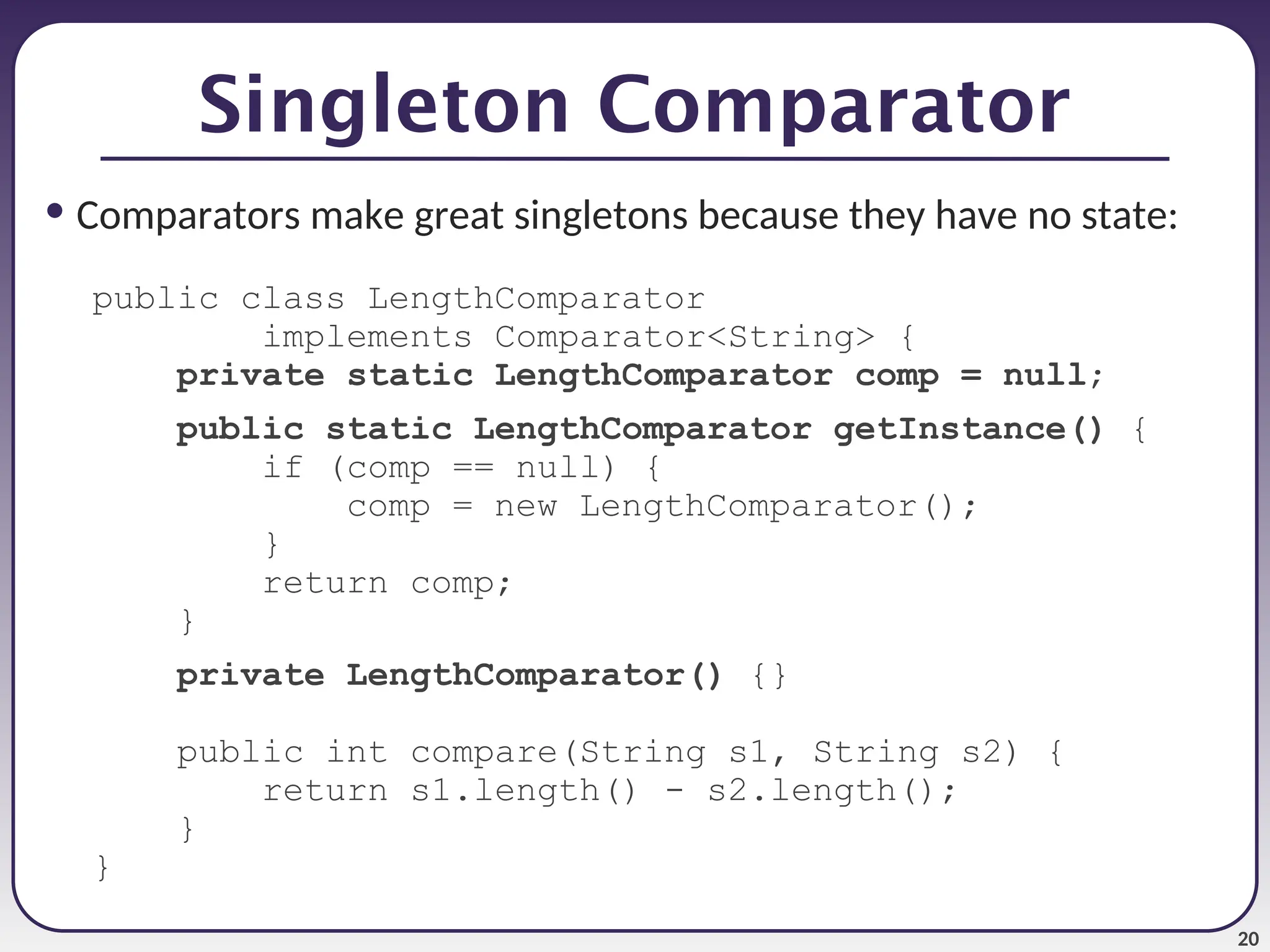

20 • Comparators make great singletons because they have no state: public class LengthComparator implements Comparator<String> { private static LengthComparator comp = null; public static LengthComparator getInstance() { if (comp == null) { comp = new LengthComparator(); } return comp; } private LengthComparator() {} public int compare(String s1, String s2) { return s1.length() - s2.length(); } } Singleton Comparator

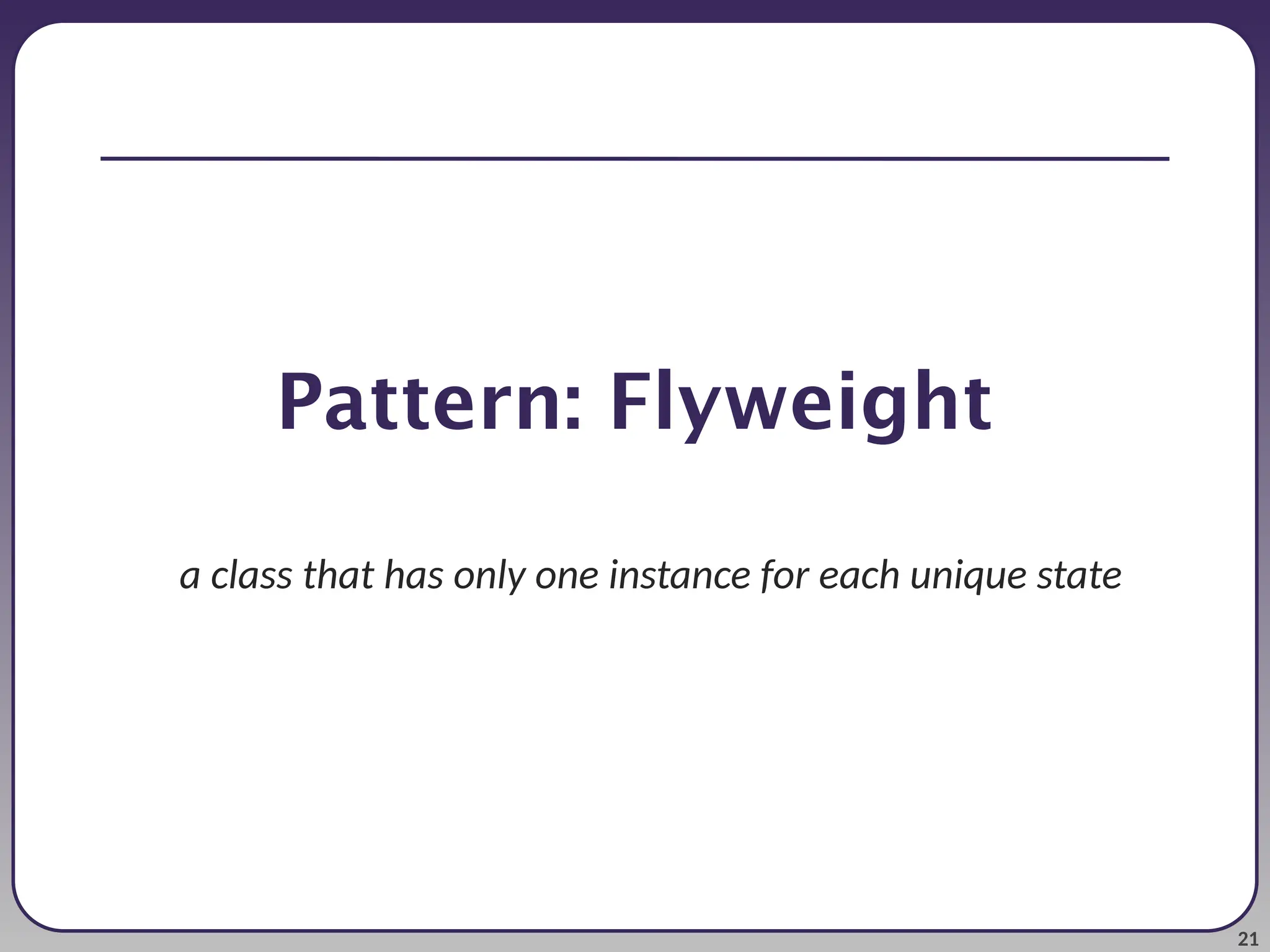

21 Pattern: Flyweight a class that has only one instance for each unique state

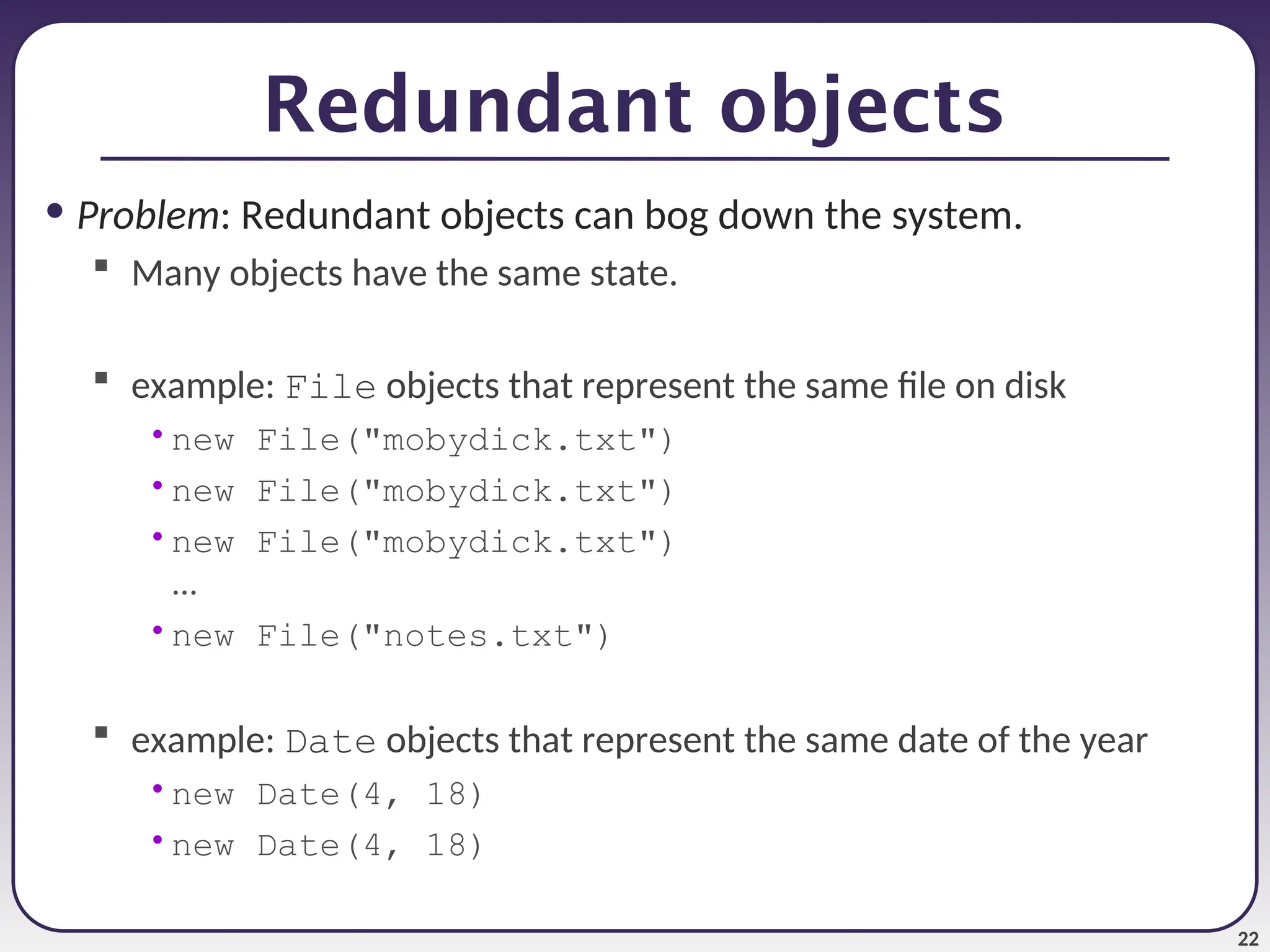

22 Redundant objects • Problem: Redundant objects can bog down the system.  Many objects have the same state.  example: File objects that represent the same file on disk •new File("mobydick.txt") •new File("mobydick.txt") •new File("mobydick.txt") ... •new File("notes.txt")  example: Date objects that represent the same date of the year •new Date(4, 18) •new Date(4, 18)

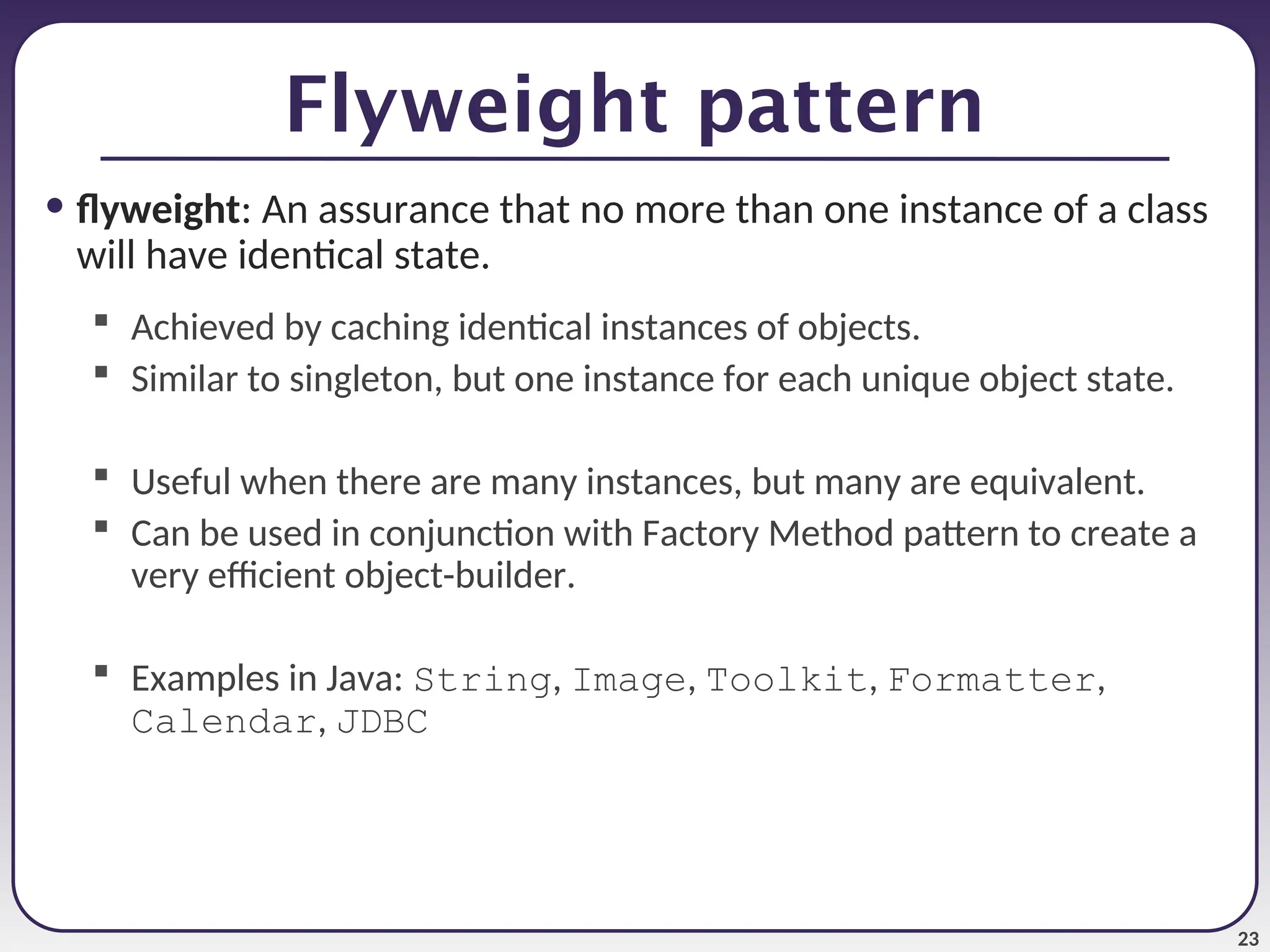

23 Flyweight pattern • flyweight: An assurance that no more than one instance of a class will have identical state.  Achieved by caching identical instances of objects.  Similar to singleton, but one instance for each unique object state.  Useful when there are many instances, but many are equivalent.  Can be used in conjunction with Factory Method pattern to create a very efficient object-builder.  Examples in Java: String, Image, Toolkit, Formatter, Calendar, JDBC

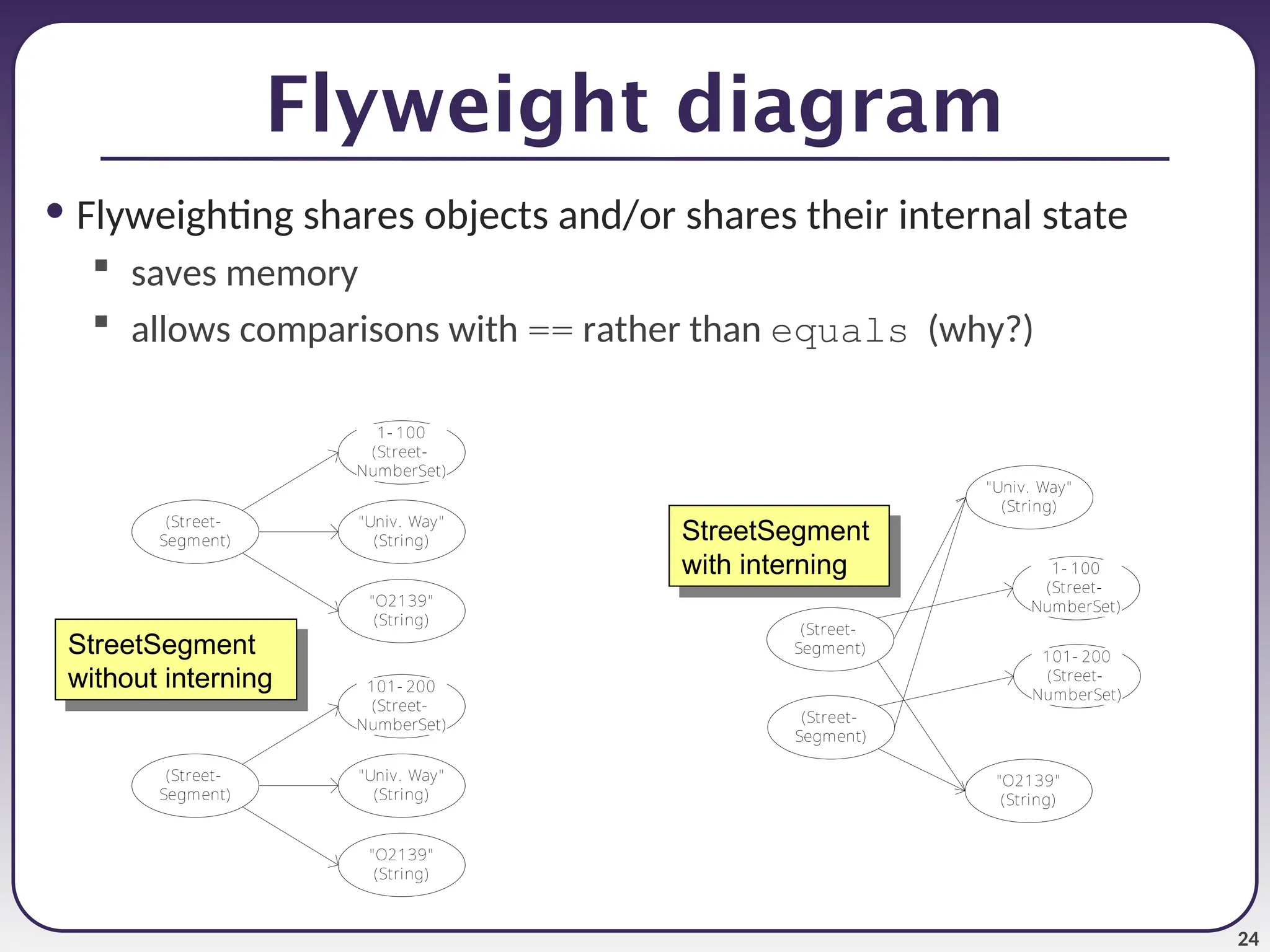

24 Flyweight diagram • Flyweighting shares objects and/or shares their internal state  saves memory  allows comparisons with == rather than equals (why?) (Street- Segment) "Univ. Way" (String) "O2139" (String) 101- 200 (Street- NumberSet) (Street- Segment) "Univ. Way" (String) "O2139" (String) 1- 100 (Street- NumberSet) (Street- Segment) 101- 200 (Street- NumberSet) (Street- Segment) 1- 100 (Street- NumberSet) "Univ. Way" (String) "O2139" (String) StreetSegment without interning StreetSegment with interning

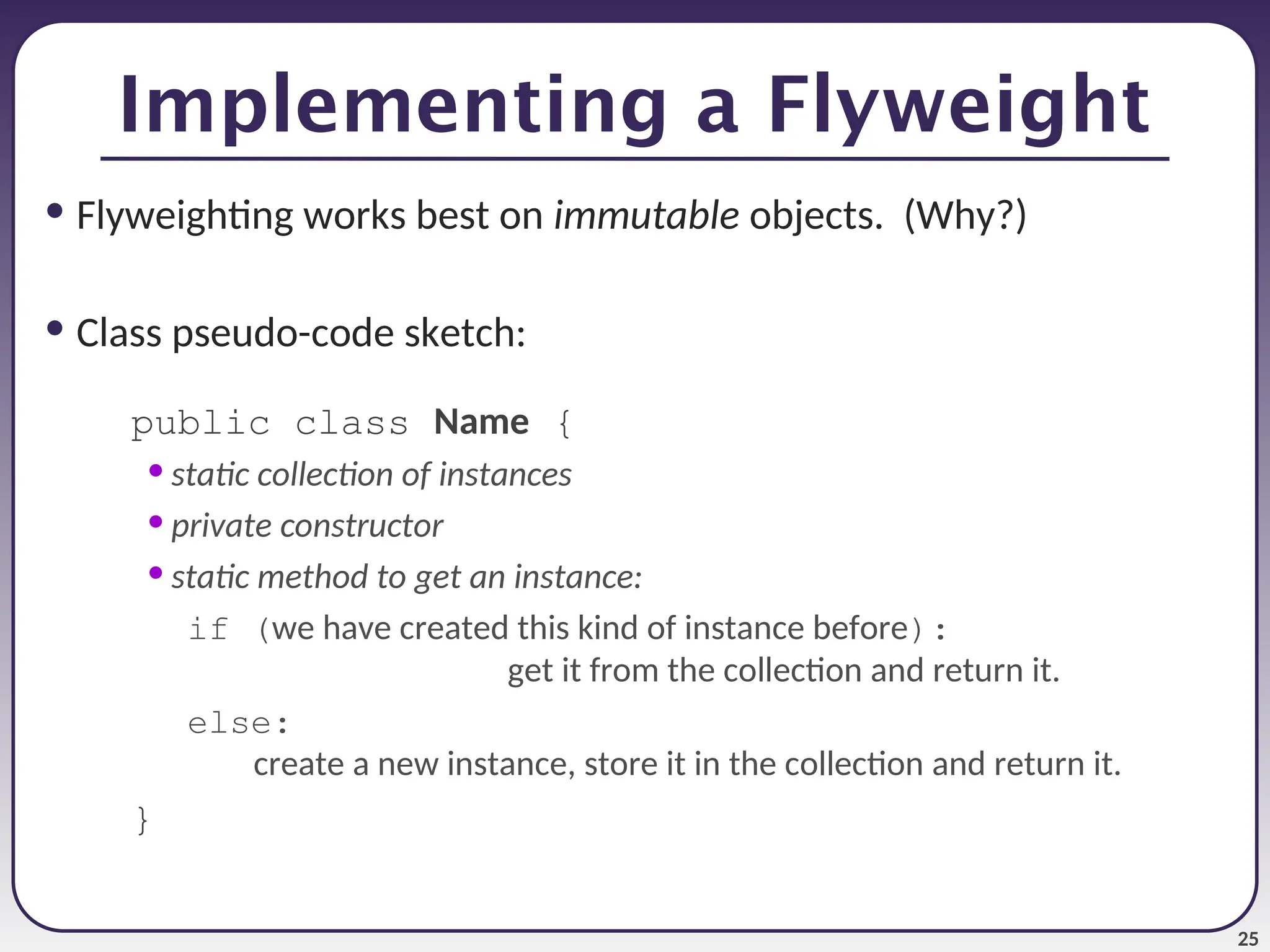

25 Implementing a Flyweight • Flyweighting works best on immutable objects. (Why?) • Class pseudo-code sketch: public class Name { • static collection of instances • private constructor • static method to get an instance: if (we have created this kind of instance before): get it from the collection and return it. else: create a new instance, store it in the collection and return it. }

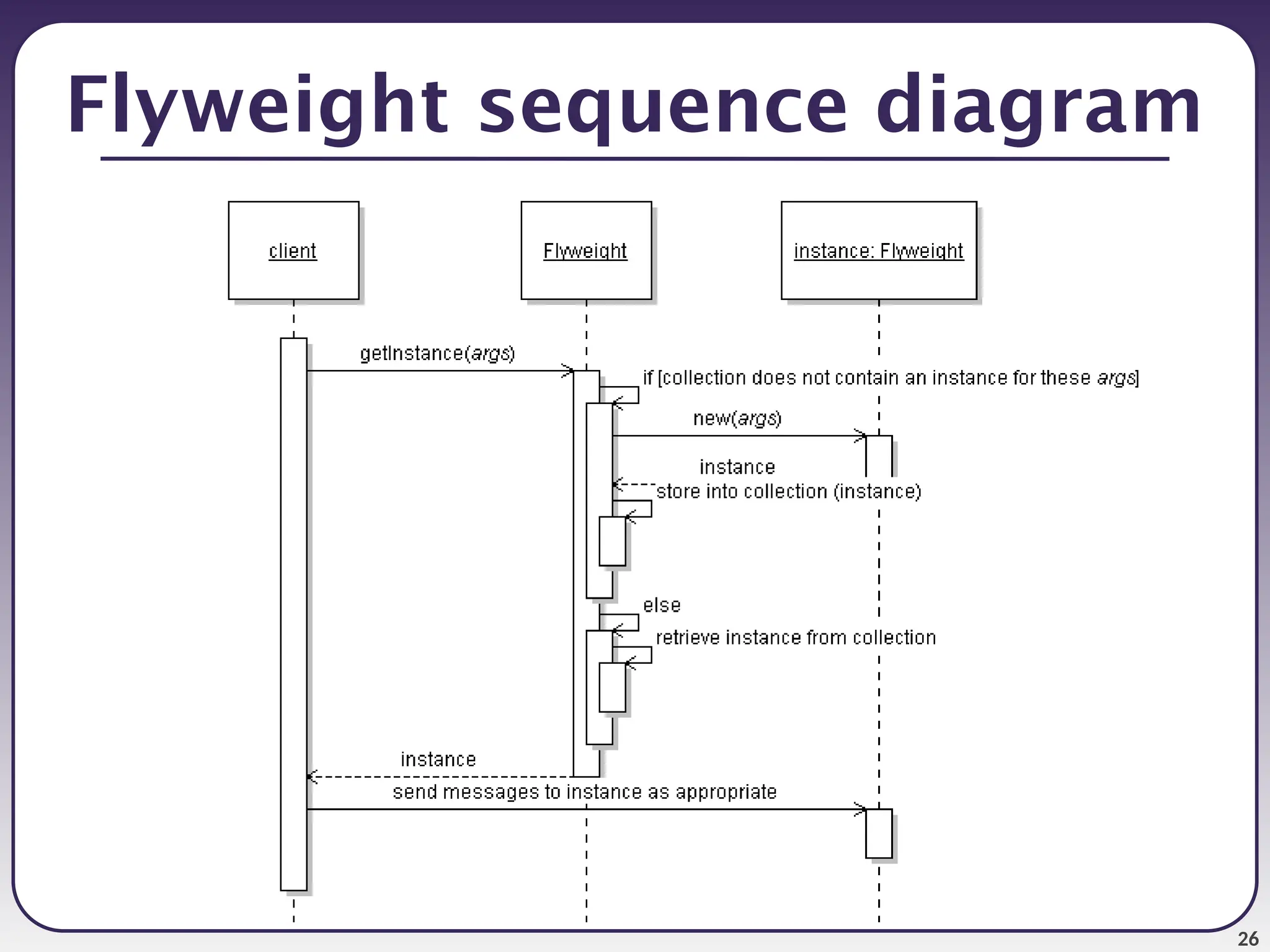

27 Implementing a Flyweight public class Flyweighted { private static Map<KeyType, Flyweighted> instances = new HashMap<KeyType, Flyweighted>(); private Flyweighted(...) { ... } public static Flyweighted getInstance(KeyType key) { if (!instances.contains(key)) { instances.put(key, new Flyweighted(key)); } return instances.get(key); } }

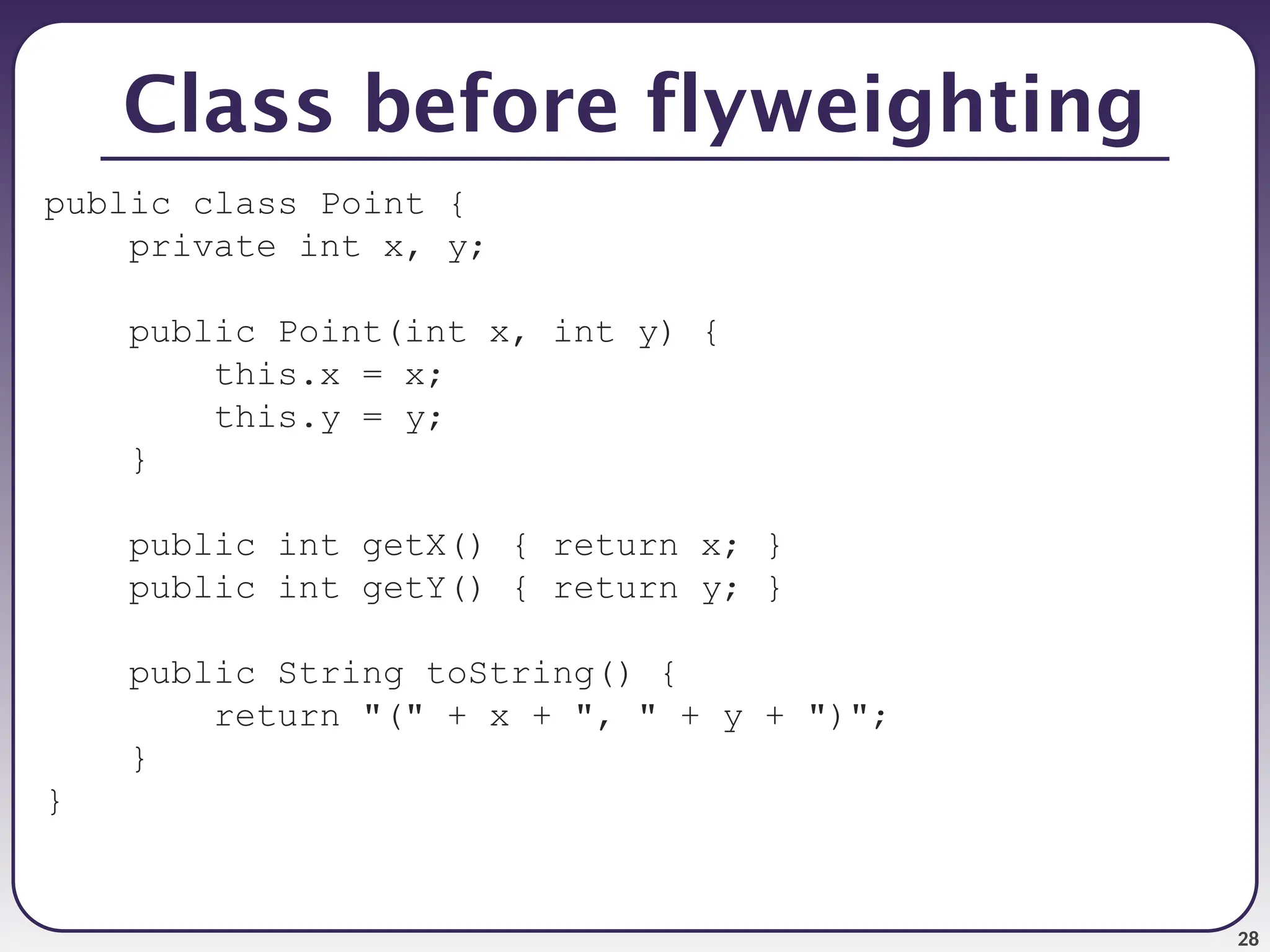

28 Class before flyweighting public class Point { private int x, y; public Point(int x, int y) { this.x = x; this.y = y; } public int getX() { return x; } public int getY() { return y; } public String toString() { return "(" + x + ", " + y + ")"; } }

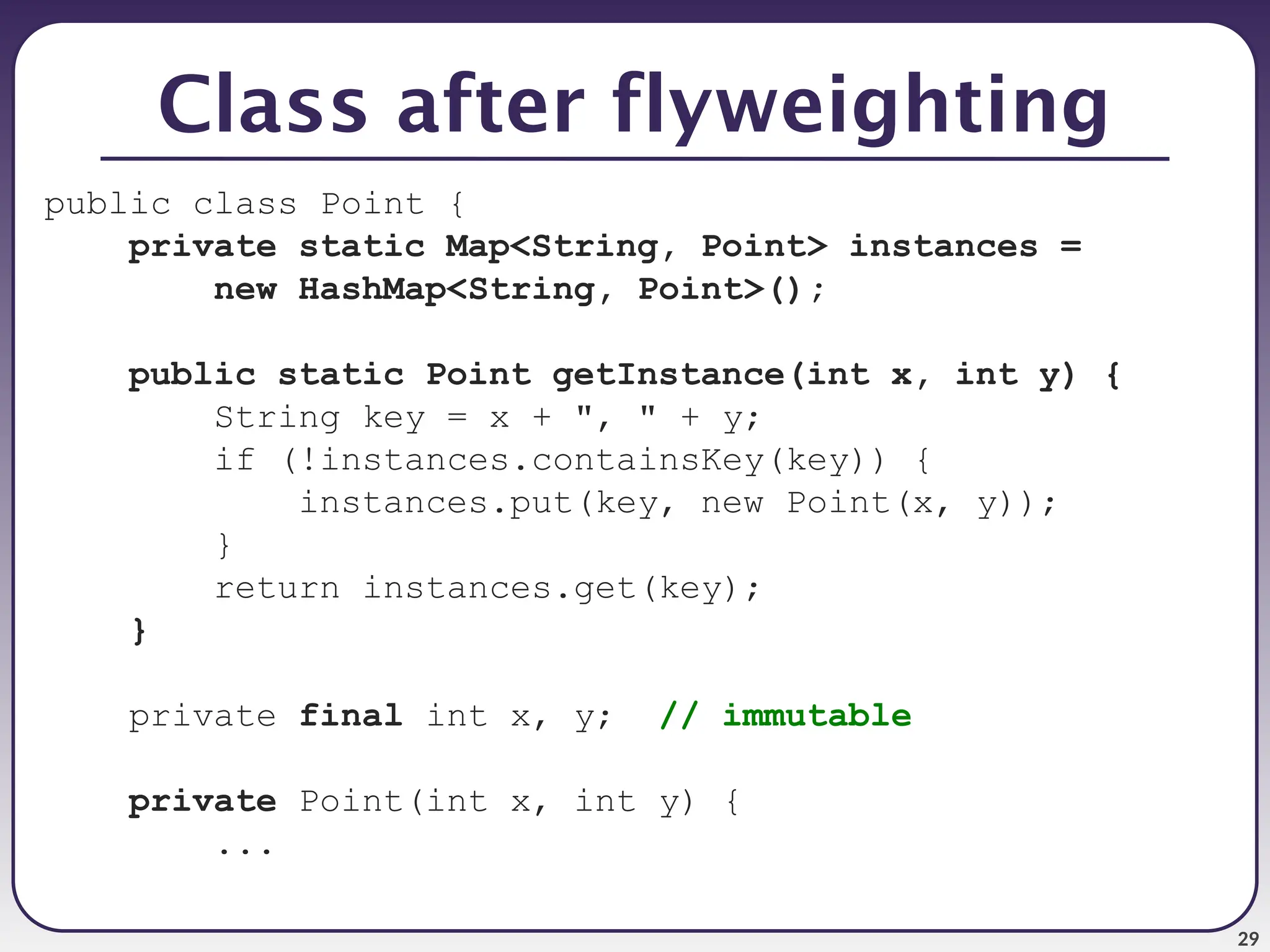

29 Class after flyweighting public class Point { private static Map<String, Point> instances = new HashMap<String, Point>(); public static Point getInstance(int x, int y) { String key = x + ", " + y; if (!instances.containsKey(key)) { instances.put(key, new Point(x, y)); } return instances.get(key); } private final int x, y; // immutable private Point(int x, int y) { ...

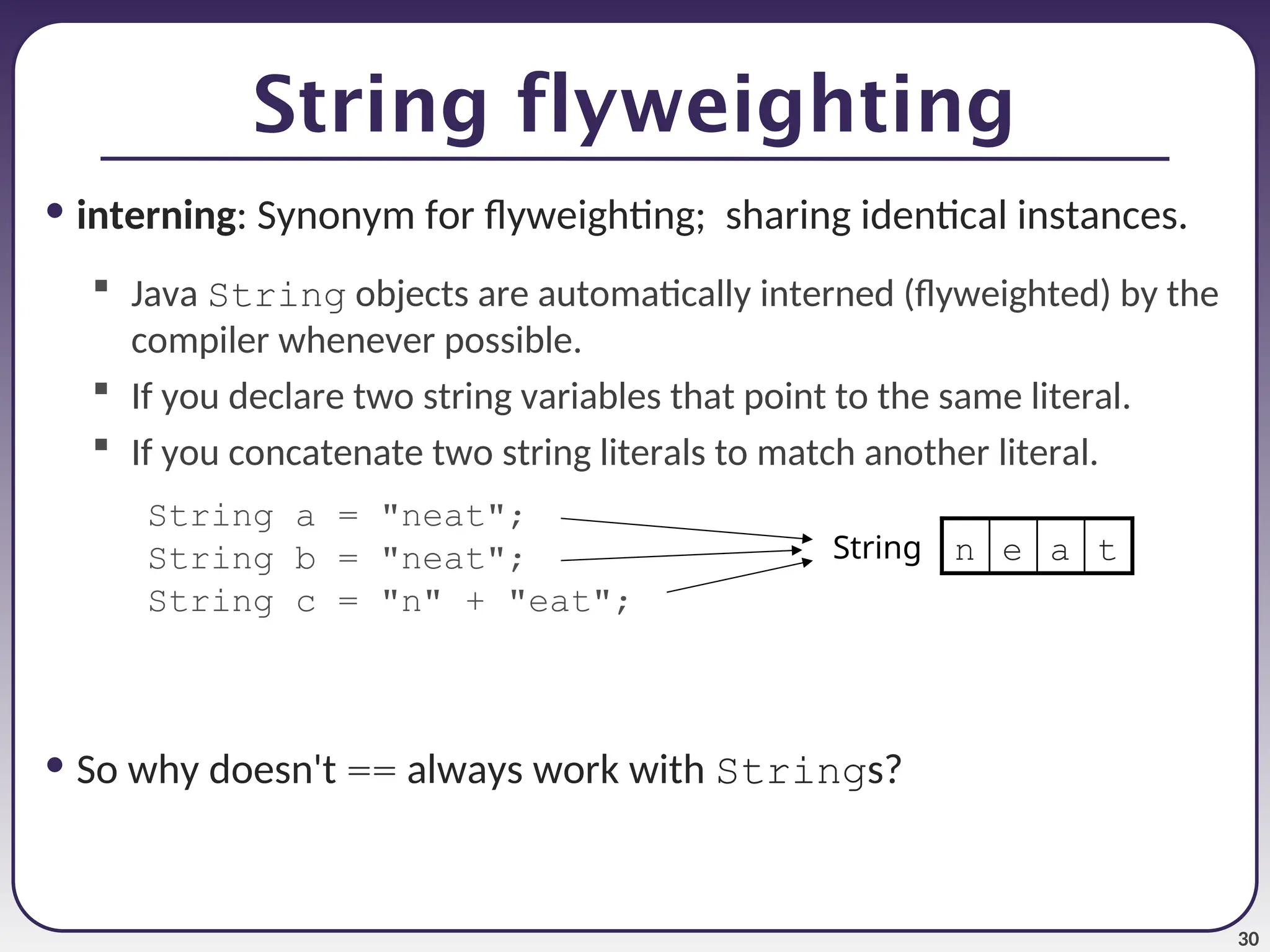

30 String flyweighting • interning: Synonym for flyweighting; sharing identical instances.  Java String objects are automatically interned (flyweighted) by the compiler whenever possible.  If you declare two string variables that point to the same literal.  If you concatenate two string literals to match another literal. String a = "neat"; String b = "neat"; String c = "n" + "eat"; • So why doesn't == always work with Strings? t a e n String

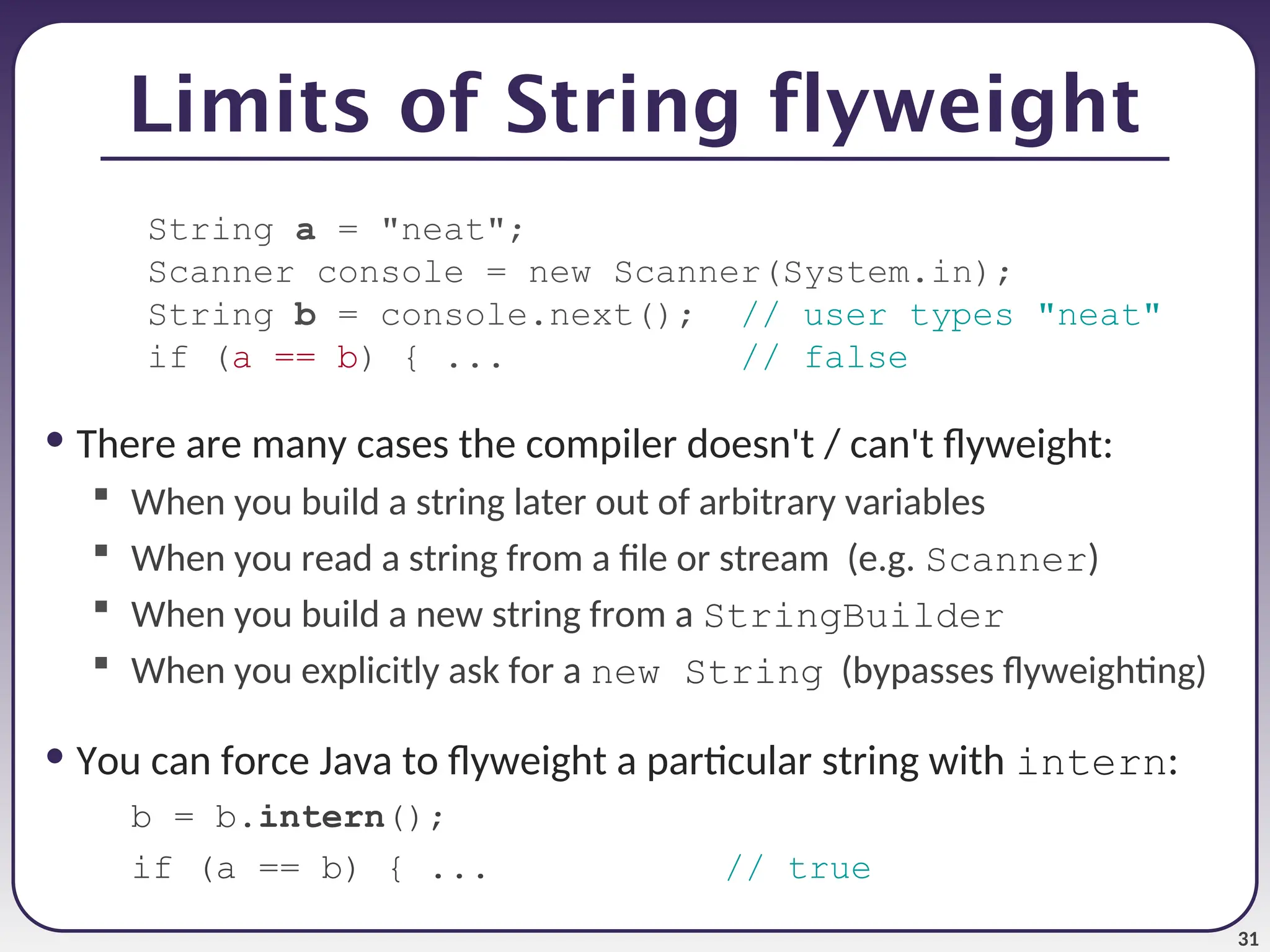

31 Limits of String flyweight String a = "neat"; Scanner console = new Scanner(System.in); String b = console.next(); // user types "neat" if (a == b) { ... // false • There are many cases the compiler doesn't / can't flyweight:  When you build a string later out of arbitrary variables  When you read a string from a file or stream (e.g. Scanner)  When you build a new string from a StringBuilder  When you explicitly ask for a new String (bypasses flyweighting) • You can force Java to flyweight a particular string with intern: b = b.intern(); if (a == b) { ... // true

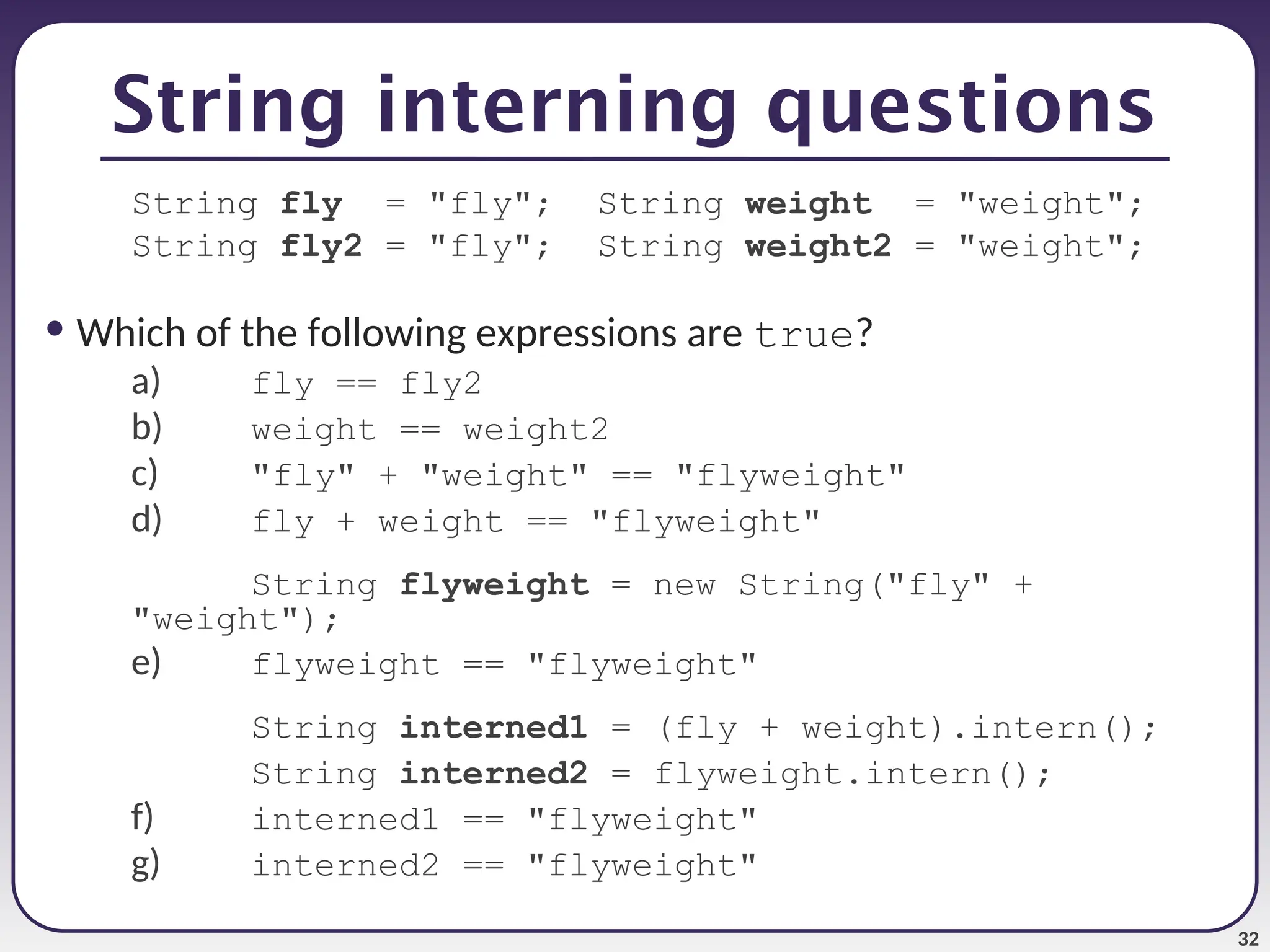

32 String interning questions String fly = "fly"; String weight = "weight"; String fly2 = "fly"; String weight2 = "weight"; • Which of the following expressions are true? a) fly == fly2 b) weight == weight2 c) "fly" + "weight" == "flyweight" d) fly + weight == "flyweight" String flyweight = new String("fly" + "weight"); e) flyweight == "flyweight" String interned1 = (fly + weight).intern(); String interned2 = flyweight.intern(); f) interned1 == "flyweight" g) interned2 == "flyweight"
