In this Spring Security tutorial, we will learn how to use Spring Security provided built-in Form-Based Authentication.

Spring Security provides support for username and password is provided through an HTML form.

Form-Based Authentication Overview

Form-based authentication uses standard HTML form (Login Form) fields to pass the username and password values to the server via a POST request.

In Form-based authentication, the server validates the credentials provided and creates a “session” tied to a unique token stored in a cookie and passed between the client and the server on each HTTP request. If the cookie is invalid or the user is logged out, the server then usually redirects to a login page.

Maven Dependencies

In order to implement Spring Security provided built-in Form-Based Authentication, we need to add below two Maven dependencies:

<dependency>	<groupId>org.springframework.boot</groupId>	<artifactId>spring-boot-starter-security</artifactId>	</dependency>	<dependency>	<groupId>org.springframework.boot</groupId>	<artifactId>spring-boot-starter-thymeleaf</artifactId>	</dependency>

Note that we are using Thymeleaf to create a simple template welcome.html that we return that template after login success.

Spring Security Configuration

By default, Spring Security form login is enabled. However, as soon as any servlet-based configuration is provided, form-based login must be explicitly provided.

The below configuration shows a minimal, explicit Java configuration:

 @Bean SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception { http.csrf().disable() .authorizeHttpRequests((authorize) -> { authorize.anyRequest().authenticated(); }).formLogin(Customizer.withDefaults()); return http.build(); }

In order to test the form-based authentication, let's create a couple of in-memory objects. In the below InMemoryUserDetailsManager Java Configuration, we have created two users and stored them in the InMemoryUserDetailsManager class object.

 @Bean public UserDetailsService userDetailsService(){ UserDetails ramesh = User.builder() .username("ramesh") .password(passwordEncoder().encode("password")) .roles("USER") .build(); UserDetails admin = User.builder() .username("admin") .password(passwordEncoder().encode("admin")) .roles("ADMIN") .build(); return new InMemoryUserDetailsManager(ramesh, admin); }

We are using BCryptPasswordEncoder class which implements the PasswordEncoder interface. The BCryptPasswordEncoder class implementation uses the widely supported bcrypt algorithm to hash the passwords.

 @Bean public static PasswordEncoder passwordEncoder(){ return new BCryptPasswordEncoder(); }

 .password(passwordEncoder().encode("password"))

Here is the complete Spring Security configuration code:

import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.security.config.Customizer; import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity; import org.springframework.security.config.annotation.web.builders.HttpSecurity; import org.springframework.security.core.userdetails.User; import org.springframework.security.core.userdetails.UserDetails; import org.springframework.security.core.userdetails.UserDetailsService; import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder; import org.springframework.security.crypto.password.PasswordEncoder; import org.springframework.security.provisioning.InMemoryUserDetailsManager; import org.springframework.security.web.SecurityFilterChain; @Configuration public class SpringSecurityConfig { @Bean public static PasswordEncoder passwordEncoder(){ return new BCryptPasswordEncoder(); } @Bean SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception { http.csrf().disable() .authorizeHttpRequests((authorize) -> { authorize.anyRequest().authenticated(); }).formLogin(Customizer.withDefaults()); return http.build(); } @Bean public UserDetailsService userDetailsService(){ UserDetails ramesh = User.builder() .username("ramesh") .password(passwordEncoder().encode("password")) .roles("USER") .build(); UserDetails admin = User.builder() .username("admin") .password(passwordEncoder().encode("admin")) .roles("ADMIN") .build(); return new InMemoryUserDetailsManager(ramesh, admin); } }

Create WelcomeController and Thymeleaf Template

WelcomeController

import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.GetMapping; @Controller public class WelComeController { @GetMapping("/") public String greeting() { return "welcome"; } }

Thymeleaf Template - welcome.html

Under /resources/templates folder, create a welcome.html file and add the following content:

<html> <body> <h1> Welcome to Spring Security world!</h1> </body> </html>

Use Spring Security's Default Login Page

By default, Spring Security provides a built-in Login form to secure the web application:

Test using Browser

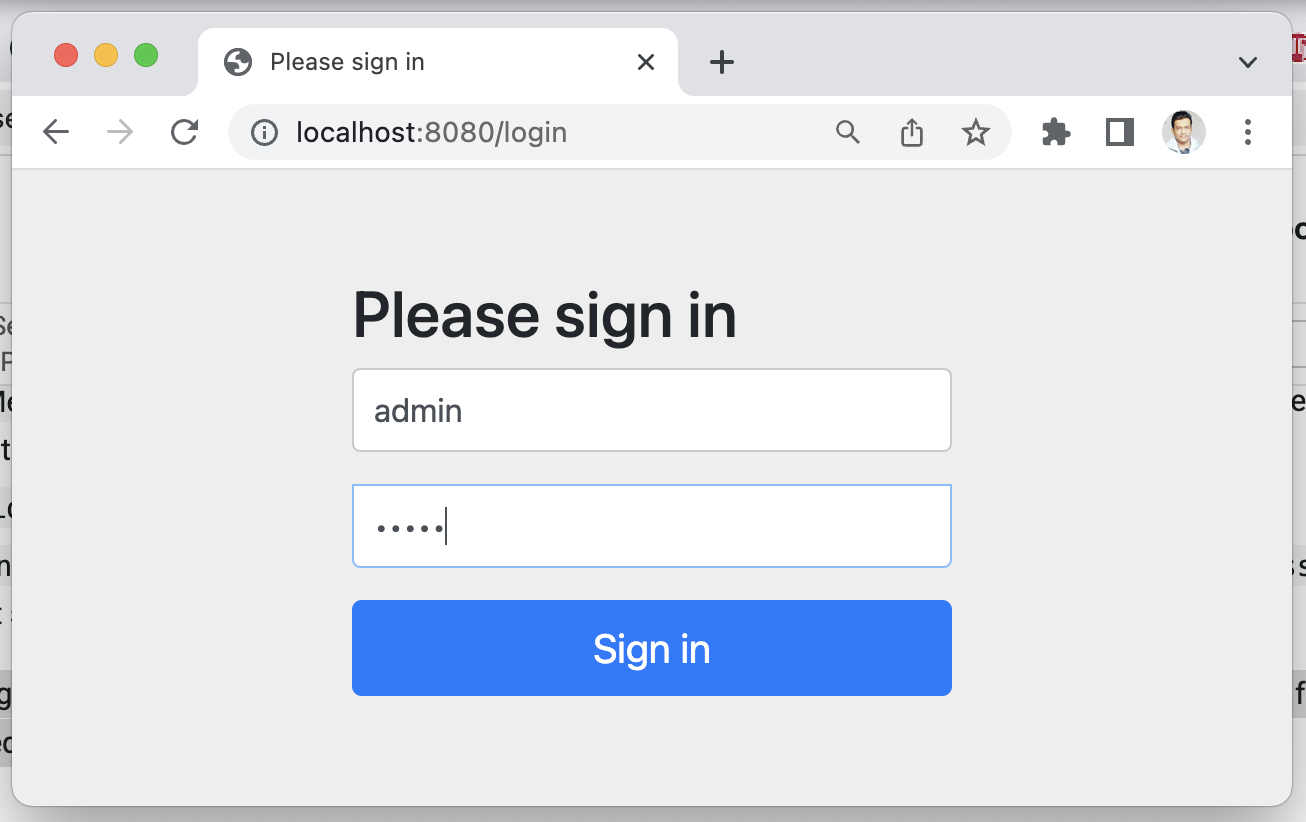

Enter http://localhost:8080 URL in the browser and it will navigate to the login page. Next, enter a username as admin, password as admin, and click on the Sign-in button:

After successful login, you will see the below web page:

Built-In Logout Feature

Spring Security provided a built-in logout feature as well. Just enter http://localhost:8080/logout URL in the browser to logout from the application:

Conclusion

In this tutorial, we have seen how to configure Spring Security's built-in form-based authentication to secure a simple web page.
