在Springboot封装一个自定义的Starter的一个Demo，从创建一个模块->封装starter->使用。 @pdai
- 1 - 创建一个Demo Project，模拟一个需要被封装的DemoModule模块，其中核心方法为exeModuleMethod
- 2 - 通过starter封装可以直接初始化DemoModule的实例到Spring容器
- 3 - 在Maven中引入starter，且在yml中配置相应到参数即可直接初始化DemoModule的实例
- 4 - 在应用中注入DemoModule即可使用其exeModuleMethod方法
pom.xml

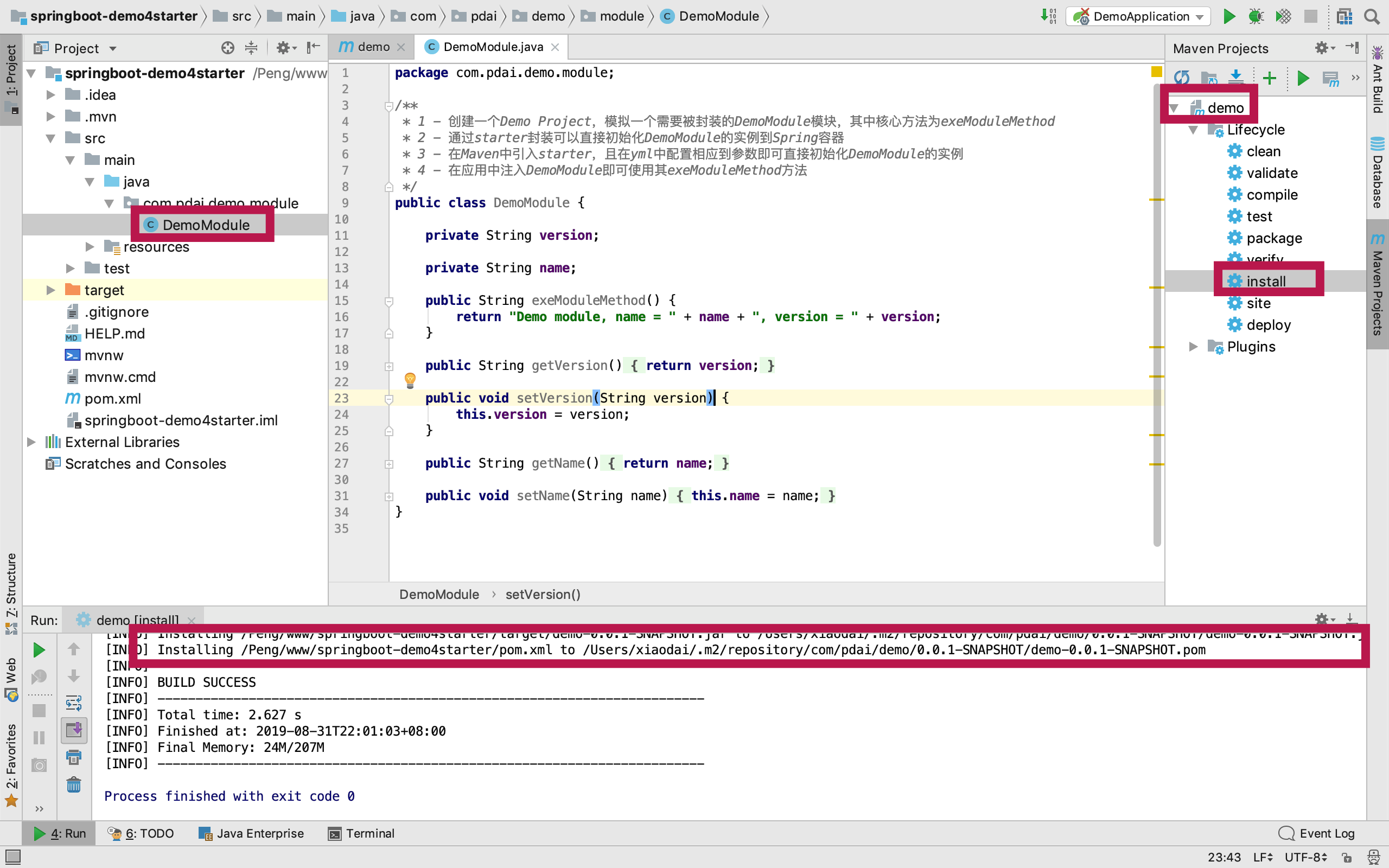

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.1.7.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.pdai</groupId> <artifactId>demo</artifactId> <version>0.0.1-SNAPSHOT</version> <name>demo</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <!-- 注意不要引入Springboot模块--> </dependencies> <build> </build> </project>创建一个测试模块
package com.pdai.demo.module; /** * */ public class DemoModule { private String version; private String name; public String exeModuleMethod() { return "Demo module, name = " name ", version = " version; } public String getVersion() { return version; } public void setVersion(String version) { this.version = version; } public String getName() { return name; } public void setName(String name) { this.name = name; } }install
创建项目 - pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.1.7.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.pdai</groupId> <artifactId>demo-springboot-starter</artifactId> <version>0.0.1-SNAPSHOT</version> <name>demo-springboot-starter</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-autoconfigure</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>com.pdai</groupId> <artifactId>demo</artifactId> <version>0.0.1-SNAPSHOT</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> </project>Properties
package com.pdai.demospringbootstarter; import org.springframework.boot.context.properties.ConfigurationProperties; @ConfigurationProperties(prefix = "com.pdai") public class DemoProperties { private String version; private String name; public String getVersion() { return version; } public void setVersion(String version) { this.version = version; } public String getName() { return name; } public void setName(String name) { this.name = name; } }AutoConfiguration
package com.pdai.demospringbootstarter; import org.springframework.boot.context.properties.EnableConfigurationProperties; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; @Configuration @EnableConfigurationProperties(DemoProperties.class) public class DemoAutoConfiguration { @Bean public com.pdai.demo.module.DemoModule demoModule(DemoProperties properties){ com.pdai.demo.module.DemoModule demoModule = new com.pdai.demo.module.DemoModule(); demoModule.setName(properties.getName()); demoModule.setVersion(properties.getVersion()); return demoModule; } }spring.factory
在META-INF下创建spring.factory文件

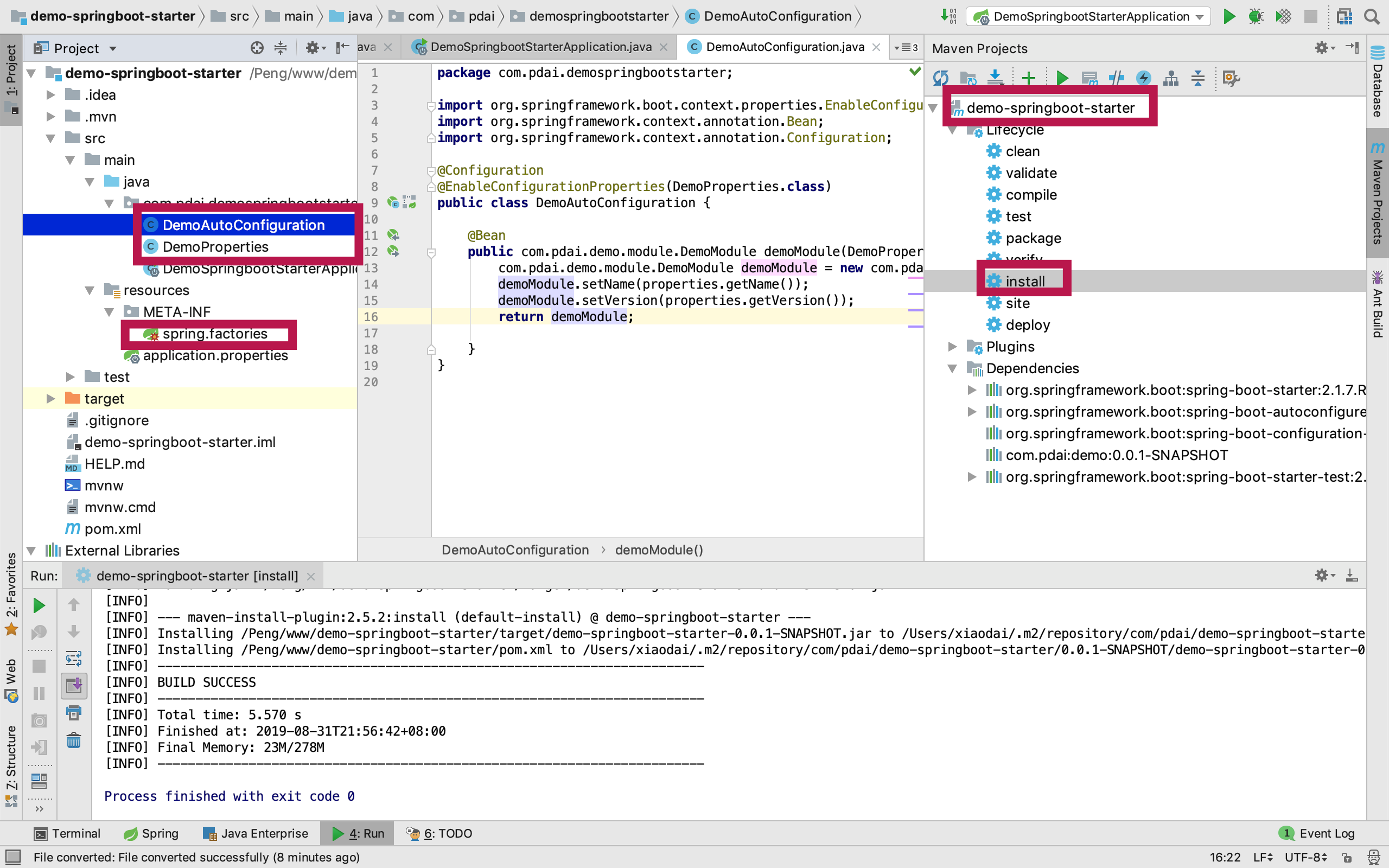

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\ com.pdai.demospringbootstarter.DemoAutoConfigurationinstall
只需要在application.yml中
application.yml
com: pdai: name: DEMO version: v1pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.1.7.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.pdai</groupId> <artifactId>demo-usage</artifactId> <version>0.0.1-SNAPSHOT</version> <name>demo-usage</name> <description>Demo starter usage</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>com.pdai</groupId> <artifactId>demo-springboot-starter</artifactId> <version>0.0.1-SNAPSHOT</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>app
package com.pdai.demo.usage; import com.pdai.demo.module.DemoModule; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RestController; @SpringBootApplication @RestController public class DemoUsageApplication { public static void main(String[] args) { SpringApplication.run(DemoUsageApplication.class, args); } @Autowired private DemoModule demoModule; @GetMapping("demo") public String demo(){ return demoModule.exeModuleMethod(); } }输出
Demo module, name = DEMO, version = v1@see https://github.com/realpdai/springboot-starter-demo
更多内容请访问，Java全栈知识体系
