Nginx module
Stack
Refer to the Elastic Integrations documentation.
Learn more
Elastic Agent is a single, unified way to add monitoring for logs, metrics, and other types of data to a host. It can also protect hosts from security threats, query data from operating systems, forward data from remote services or hardware, and more. Refer to the documentation for a detailed comparison of Beats and Elastic Agent.
This module periodically fetches metrics from Nginx servers.
The default metricset is stubstatus.
The Nginx metricsets were tested with Nginx 1.23.2 and are expected to work with all version >= 1.9.

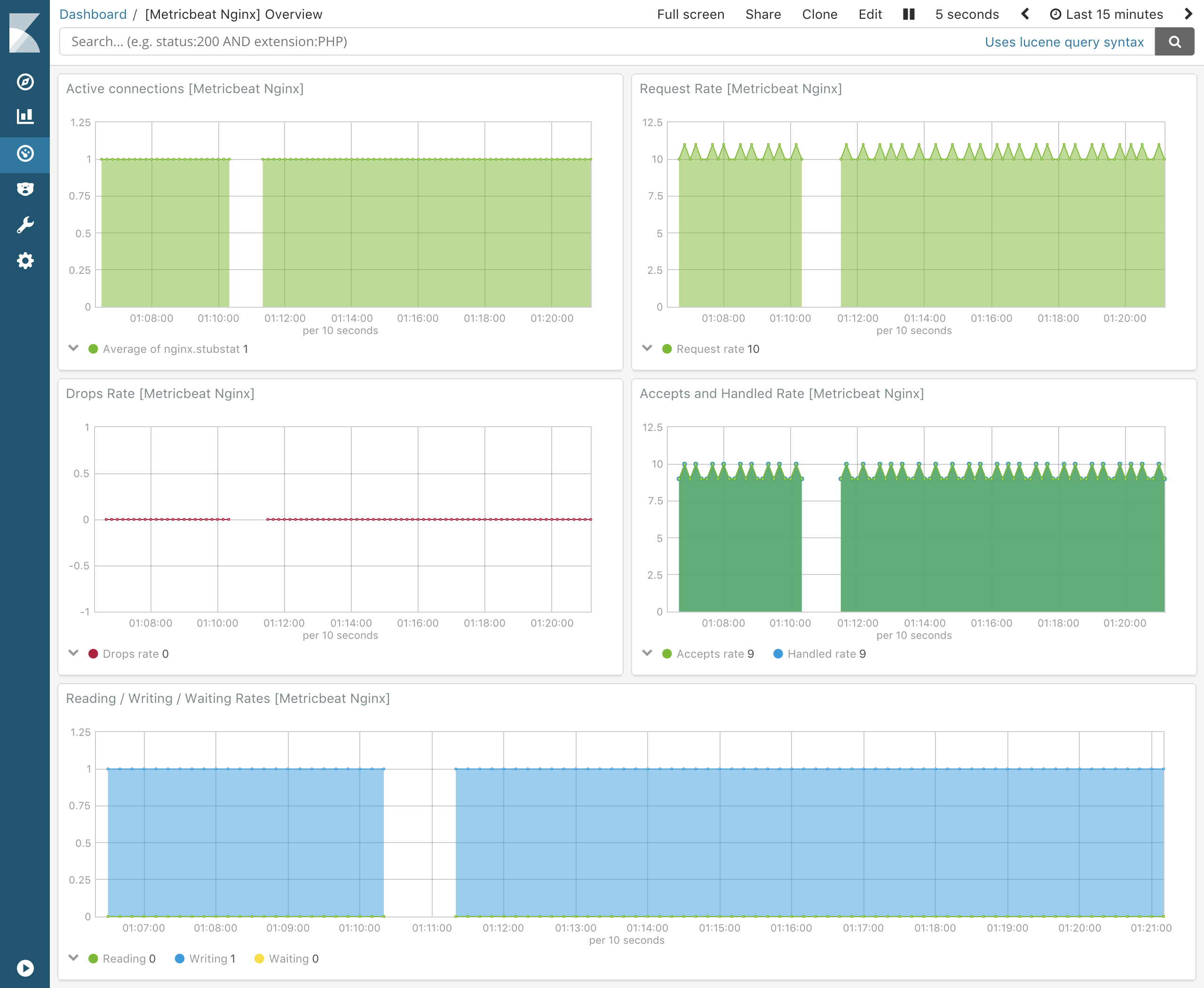

The nginx module comes with a predefined dashboard. For example:
The Nginx module supports the standard configuration options that are described in Modules. Here is an example configuration:
metricbeat.modules: - module: nginx metricsets: ["stubstatus"] enabled: true period: 10s # Nginx hosts hosts: ["http://127.0.0.1"] # Path to server status. Default nginx_status server_status_path: "nginx_status" This module supports TLS connections when using ssl config field, as described in SSL. It also supports the options described in Standard HTTP config options.
The following metricsets are available:
