Vector Quantization Vs Scalar Quantization

Vector Quantization Vs Scalar Quantization

• 1.
  DATA COMPRESSION ADVANTAGES OFVECTOR QUANTIZATION OVER SCALAR QUANTIZATION UNIT : 5
• 2.
  Introduction To Quantization 1)The process of representing a large - possibly infinite - set of values with a much smaller set is called as quantization. 2) A simple quantization scheme would be used to represent each output of the source with the integer value closest to it. 3) Eg: Consider a source that generates numbers between -10.0 - 10.0. Then, If a source output is 2.47, w would represent it as 3, and of the source output is 3.1415926, we would represent it as 3.
• 3.

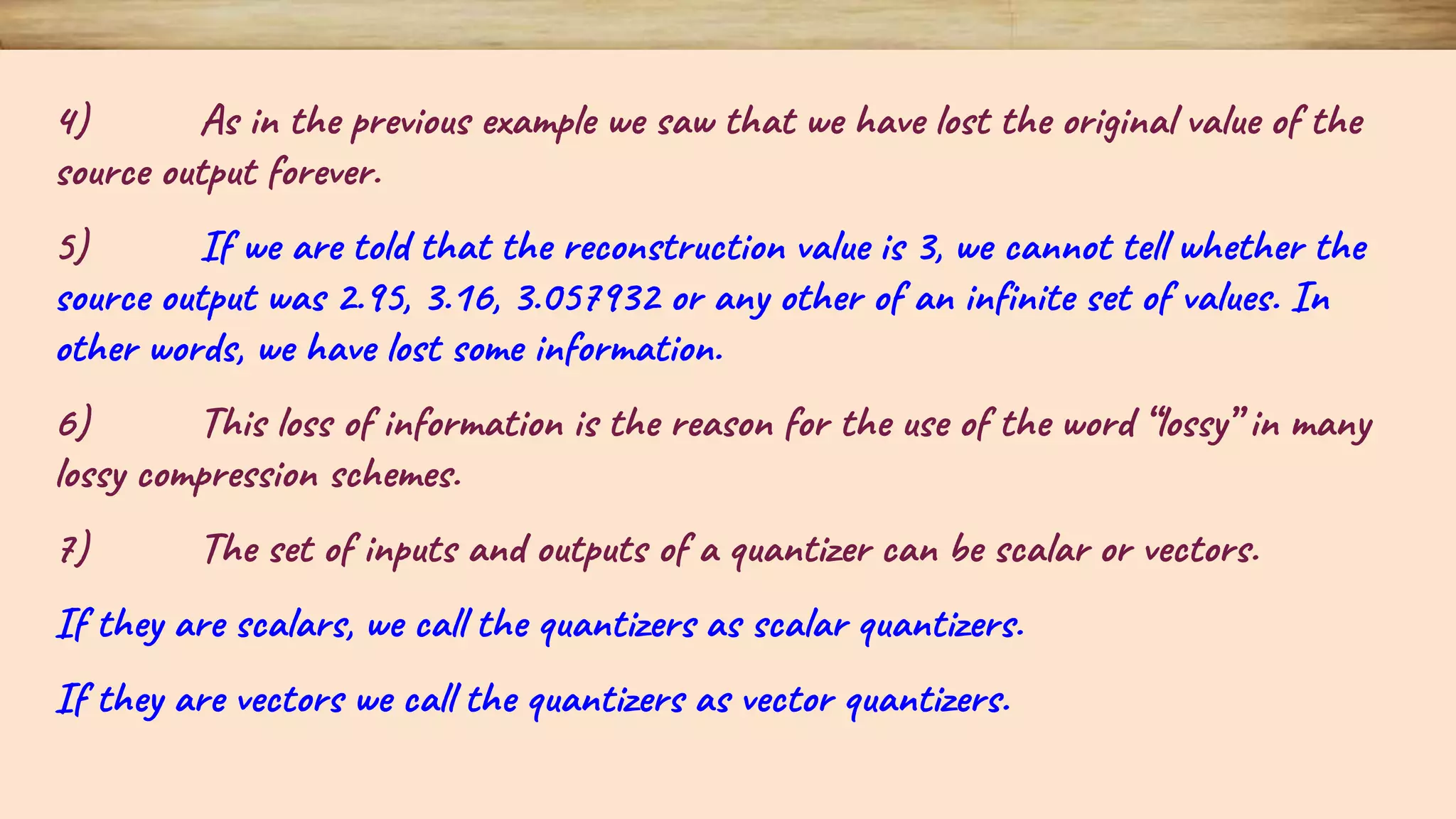

  4) As inthe previous example we saw that we have lost the original value of the source output forever. 5) If we are told that the reconstruction value is 3, we cannot tell whether the source output was 2.95, 3.16, 3.057932 or any other of an infinite set of values. In other words, we have lost some information. 6) This loss of information is the reason for the use of the word “lossy” in many lossy compression schemes. 7) The set of inputs and outputs of a quantizer can be scalar or vectors. If they are scalars, we call the quantizers as scalar quantizers. If they are vectors we call the quantizers as vector quantizers.
• 4.

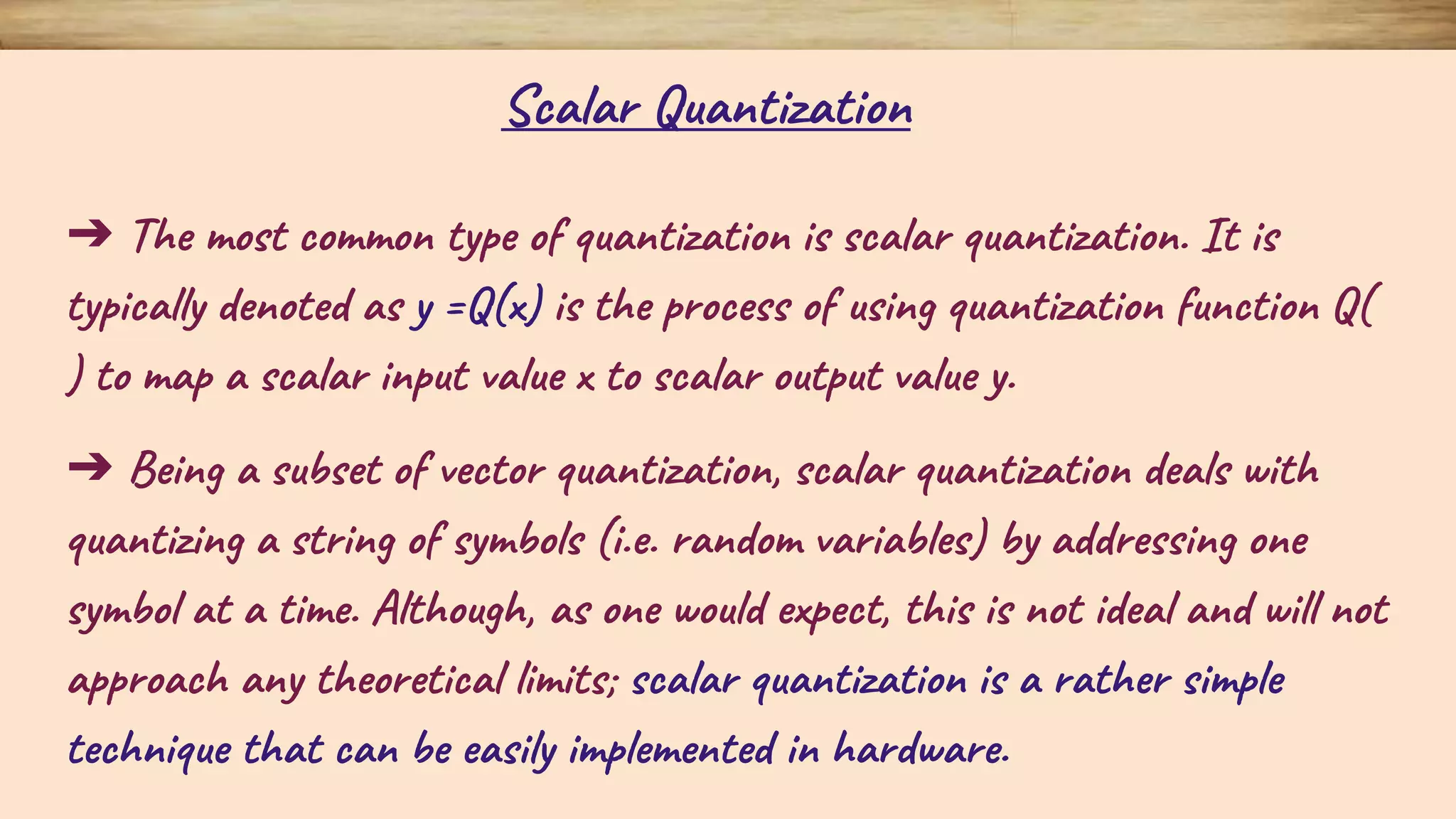

  ➔ The mostcommon type of quantization is scalar quantization. It is typically denoted as y =Q(x) is the process of using quantization function Q( ) to map a scalar input value x to scalar output value y. ➔ Being a subset of vector quantization, scalar quantization deals with quantizing a string of symbols (i.e. random variables) by addressing one symbol at a time. Although, as one would expect, this is not ideal and will not approach any theoretical limits; scalar quantization is a rather simple technique that can be easily implemented in hardware. Scalar Quantization
• 5.

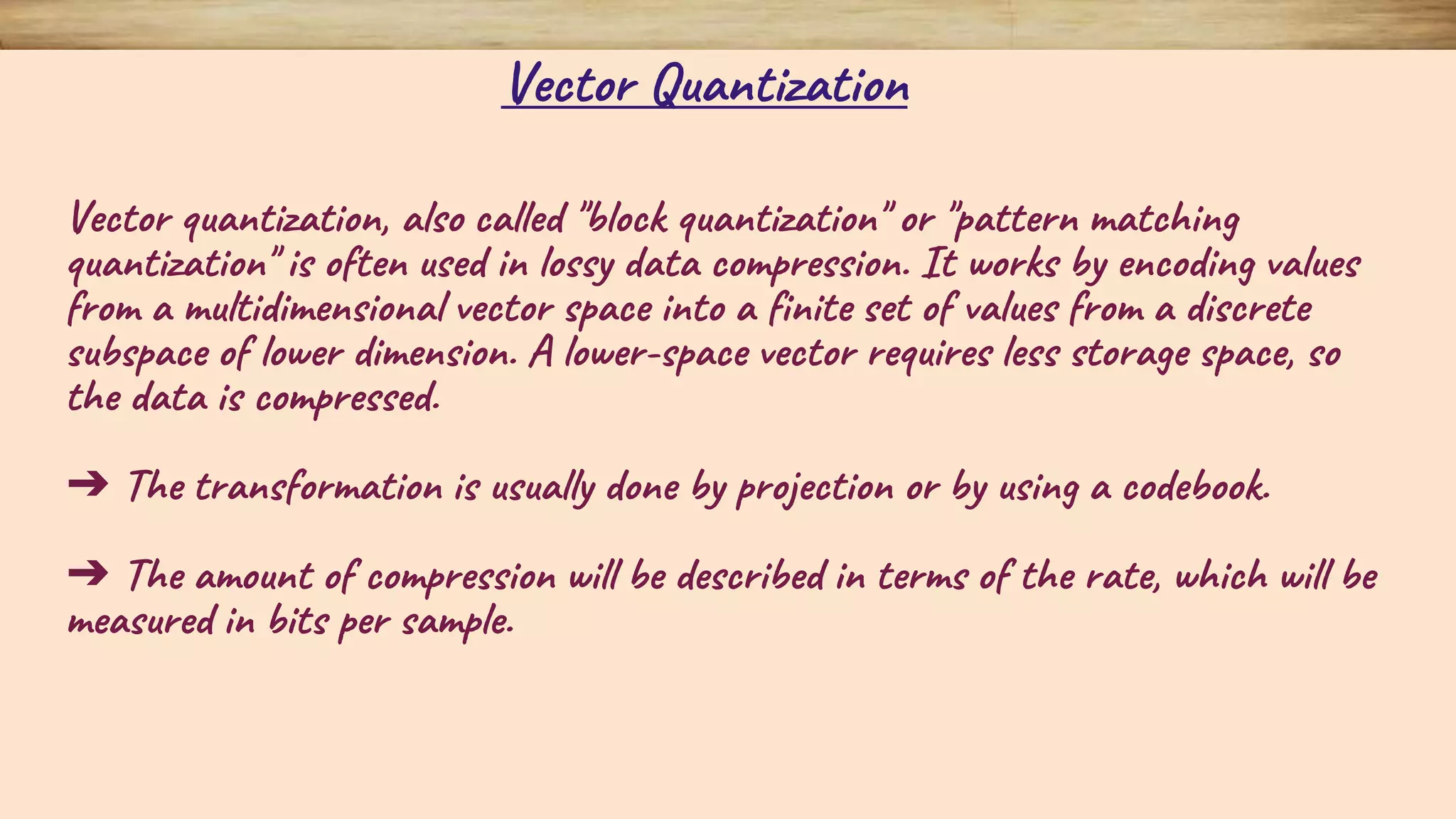

  Vector quantization, alsocalled "block quantization" or "pattern matching quantization" is often used in lossy data compression. It works by encoding values from a multidimensional vector space into a finite set of values from a discrete subspace of lower dimension. A lower-space vector requires less storage space, so the data is compressed. ➔ The transformation is usually done by projection or by using a codebook. ➔ The amount of compression will be described in terms of the rate, which will be measured in bits per sample. Vector Quantization
• 6.

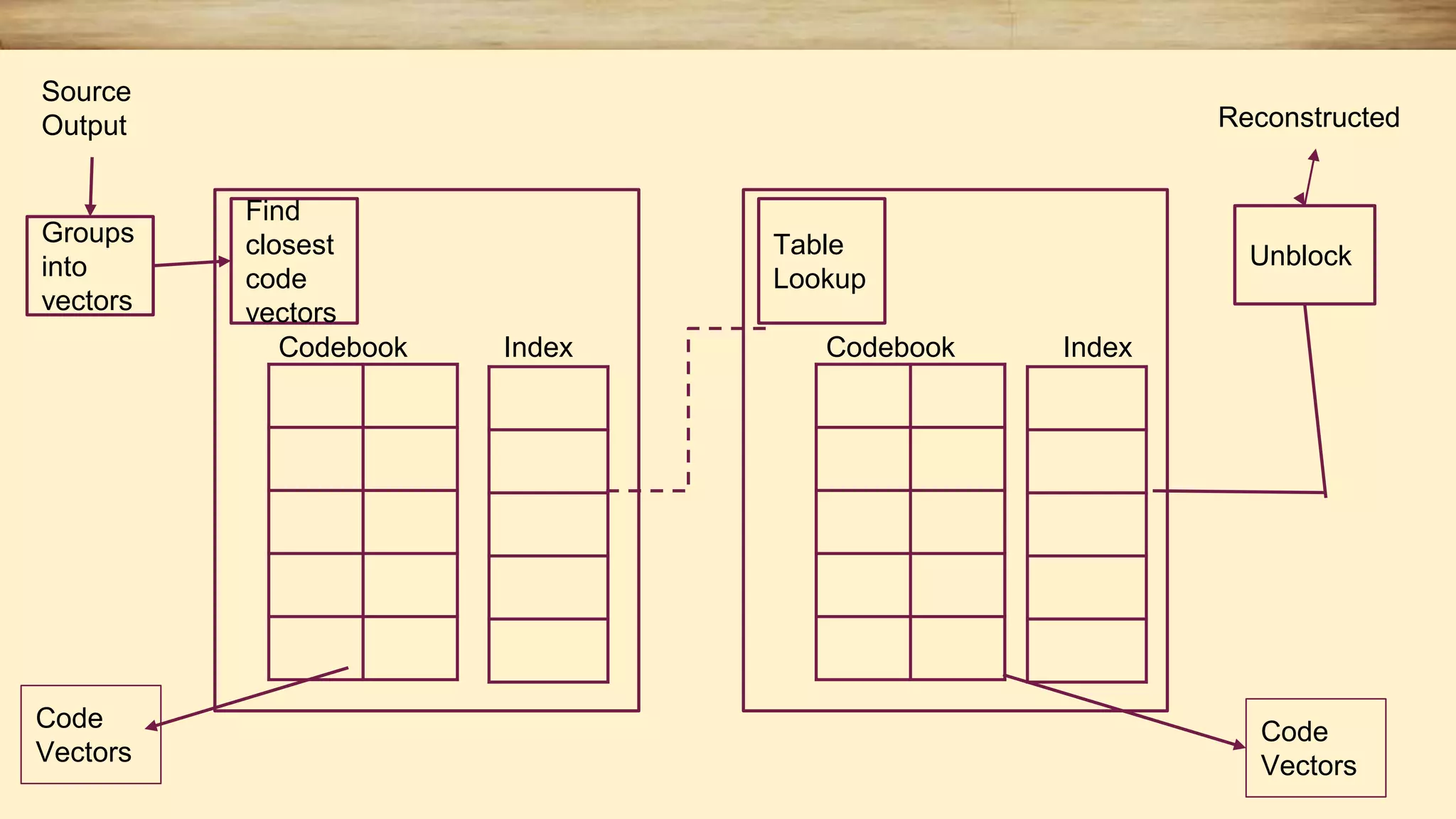

  Find closest code vectors Table Lookup Unblock Groups into vectors Codebook Codebook Index Index Source OutputReconstructed Code Vectors Code Vectors
• 7.

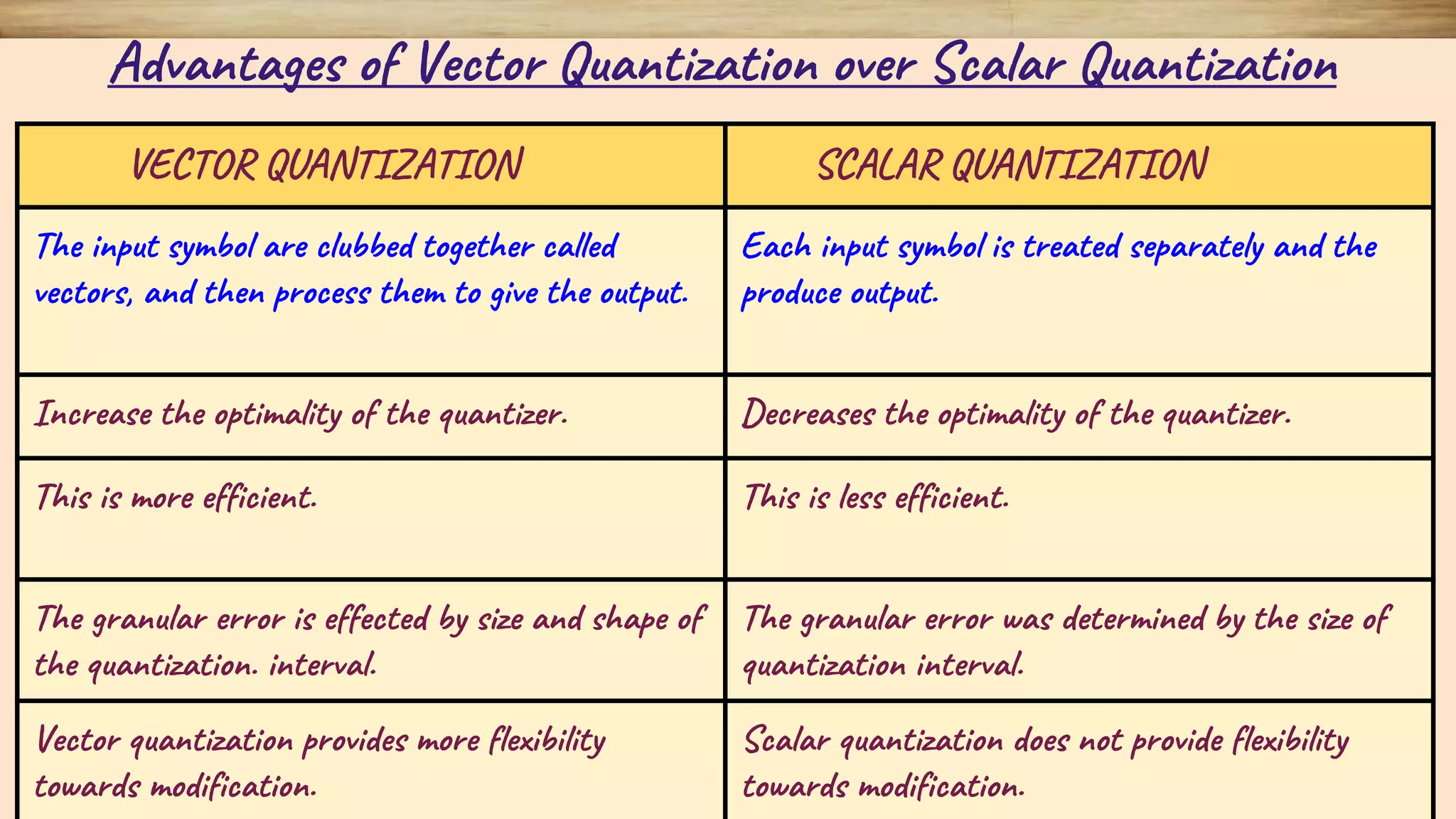

  Advantages of VectorQuantization over Scalar Quantization VECTOR QUANTIZATION SCALAR QUANTIZATION The input symbol are clubbed together called vectors, and then process them to give the output. Each input symbol is treated separately and the produce output. Increase the optimality of the quantizer. Decreases the optimality of the quantizer. This is more efficient. This is less efficient. The granular error is effected by size and shape of the quantization. interval. The granular error was determined by the size of quantization interval. Vector quantization provides more flexibility towards modification. Scalar quantization does not provide flexibility towards modification.
• 8.

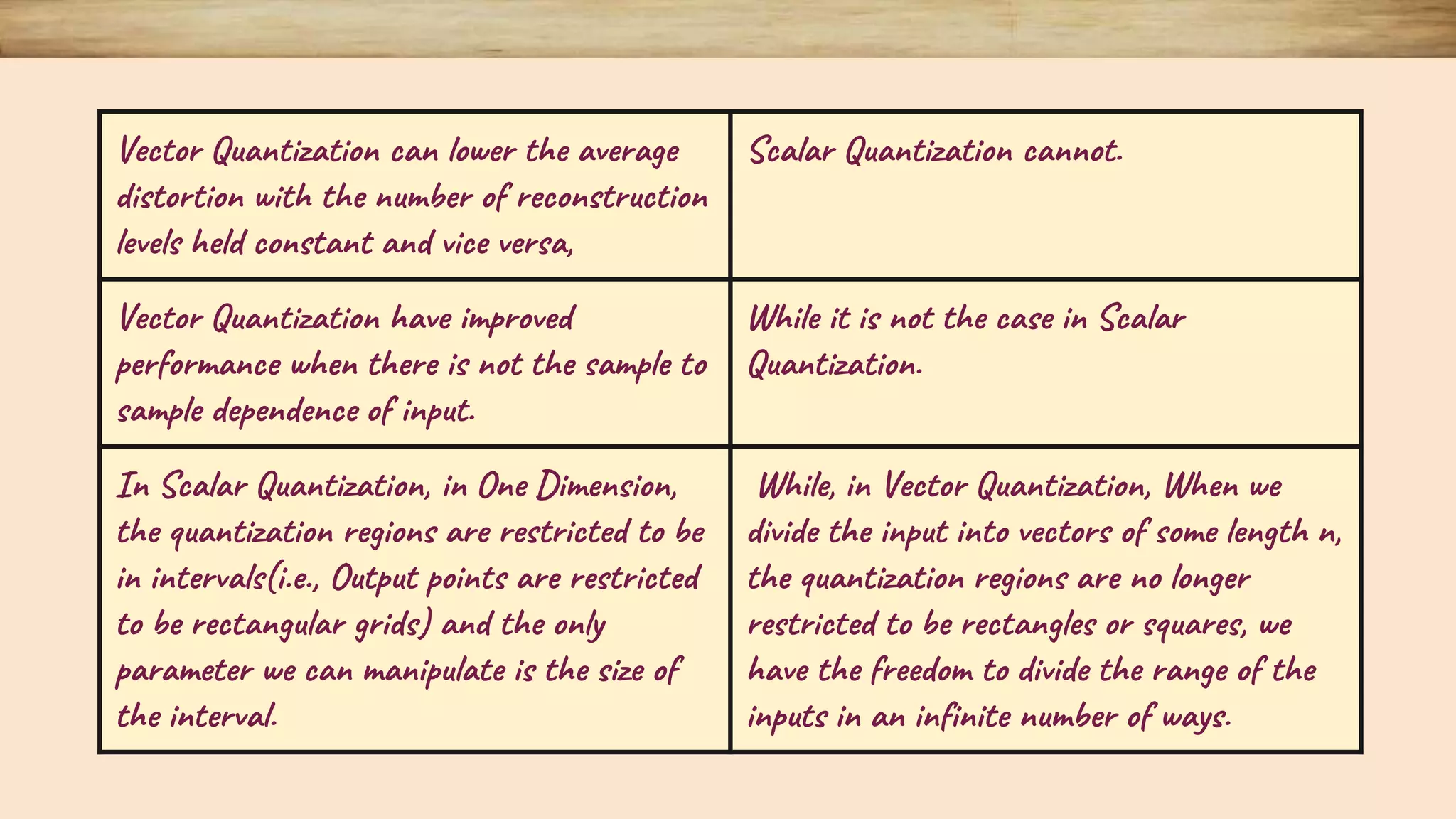

  Vector Quantization canlower the average distortion with the number of reconstruction levels held constant and vice versa, Scalar Quantization cannot. Vector Quantization have improved performance when there is not the sample to sample dependence of input. While it is not the case in Scalar Quantization. In Scalar Quantization, in One Dimension, the quantization regions are restricted to be in intervals(i.e., Output points are restricted to be rectangular grids) and the only parameter we can manipulate is the size of the interval. While, in Vector Quantization, When we divide the input into vectors of some length n, the quantization regions are no longer restricted to be rectangles or squares, we have the freedom to divide the range of the inputs in an infinite number of ways.
