• 1.
  Unit 4 SLOWLYCHANGIN DIMENSION 2 – Exercise -1 Solution (SCD2) https://www.oercommons.org/authoring/28550-etl-using-pentaho-spoon https://www.oercommons.org/authoring/28693-etl-using-pentaho-spoon-lecture-notes-ppt-exercise Dr. Girija Narasimhan 1
• 2.

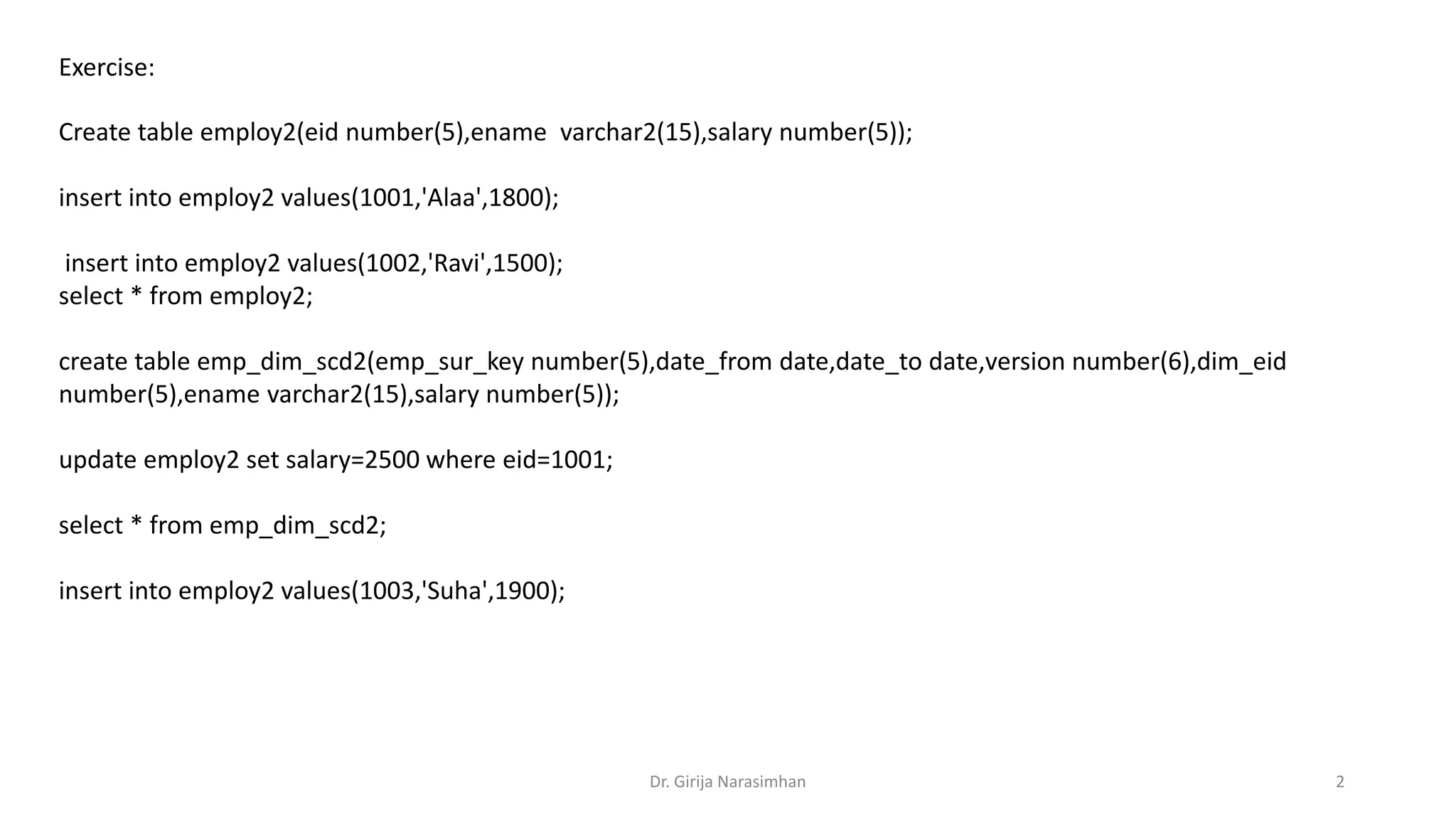

  Exercise: Create table employ2(eidnumber(5),ename varchar2(15),salary number(5)); insert into employ2 values(1001,'Alaa',1800); insert into employ2 values(1002,'Ravi',1500); select * from employ2; create table emp_dim_scd2(emp_sur_key number(5),date_from date,date_to date,version number(6),dim_eid number(5),ename varchar2(15),salary number(5)); update employ2 set salary=2500 where eid=1001; select * from emp_dim_scd2; insert into employ2 values(1003,'Suha',1900); Dr. Girija Narasimhan 2
• 3.

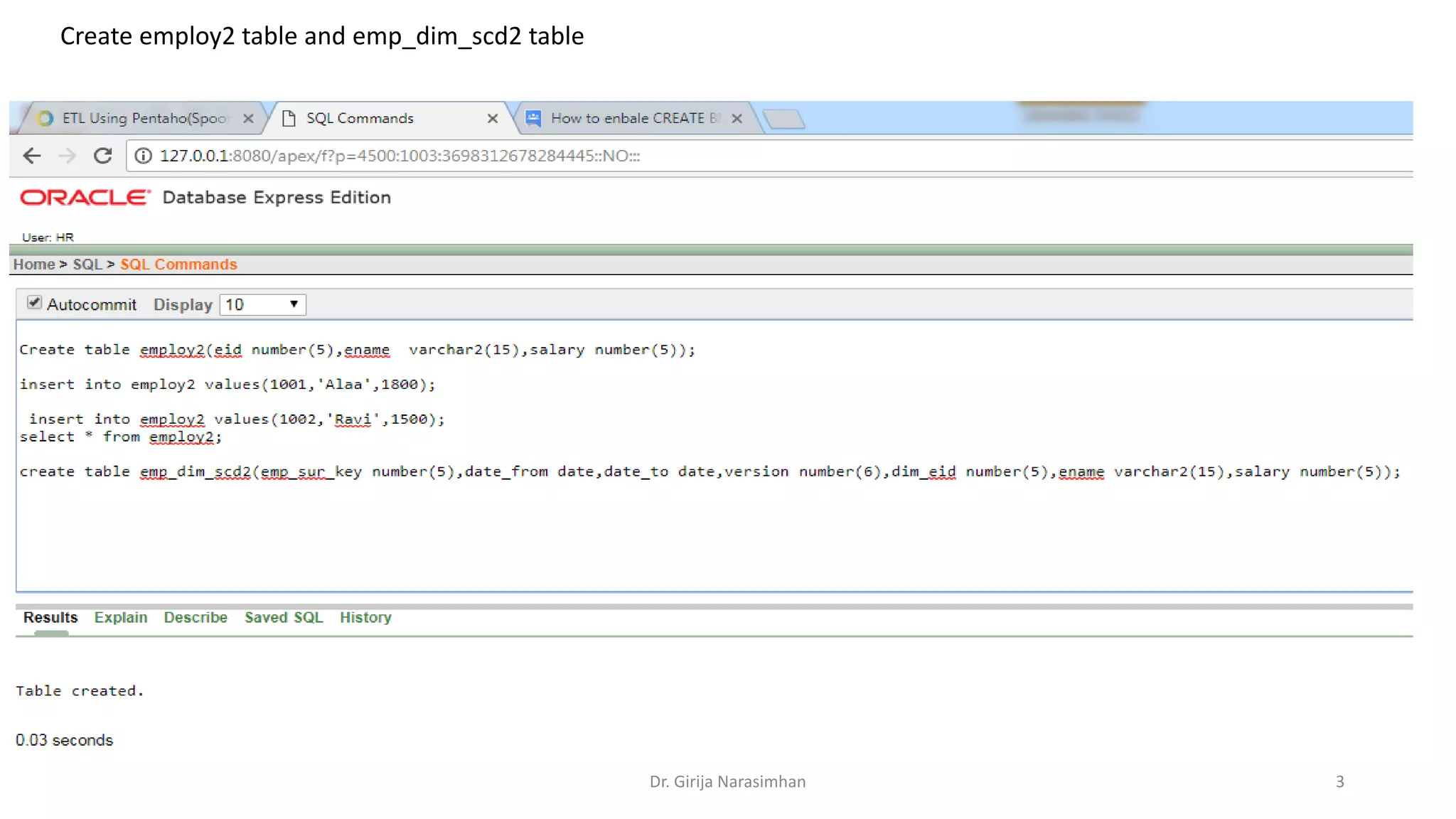

  Dr. Girija Narasimhan3 Create employ2 table and emp_dim_scd2 table
• 4.

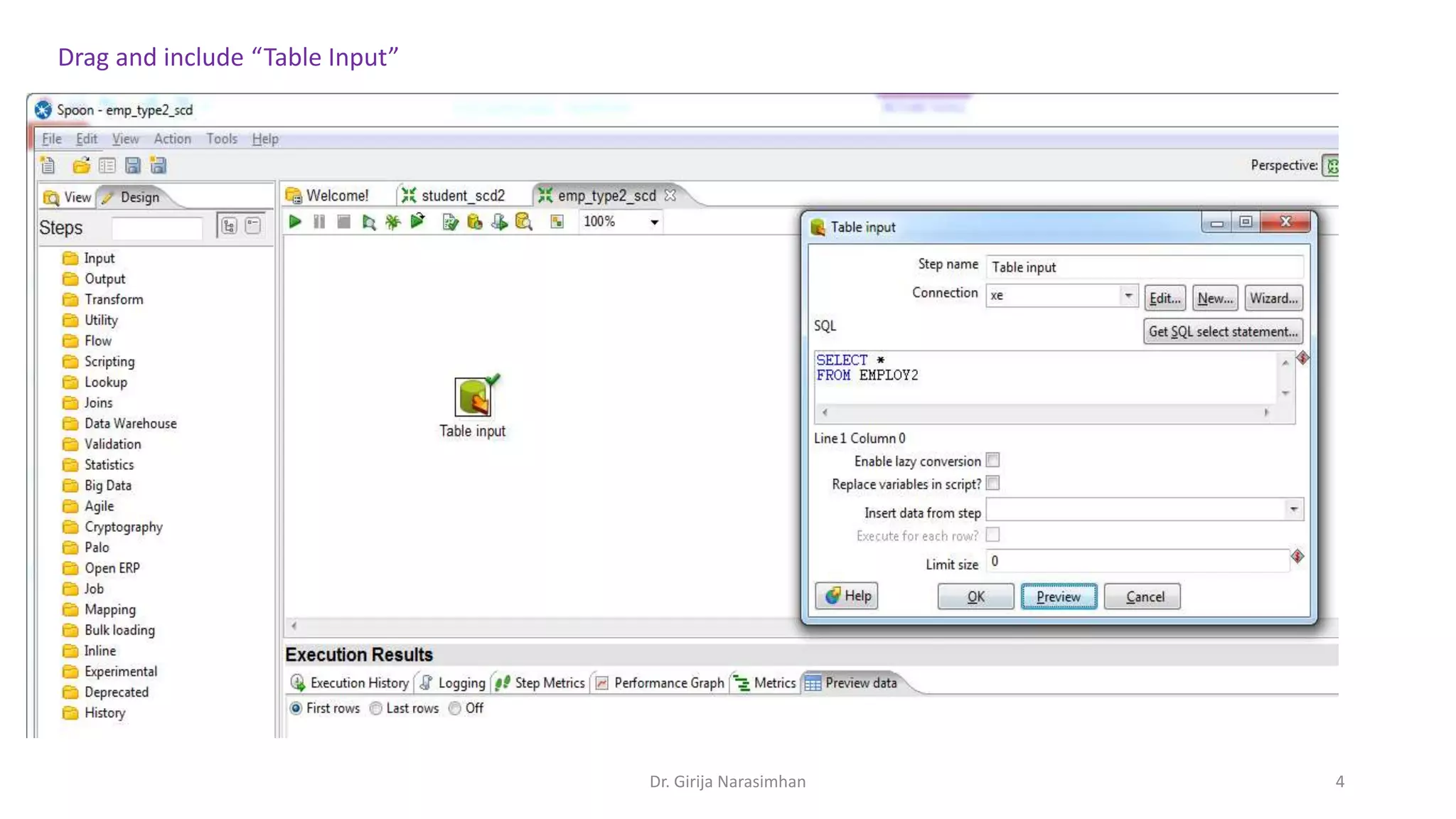

  Dr. Girija Narasimhan4 Drag and include “Table Input”
• 5.

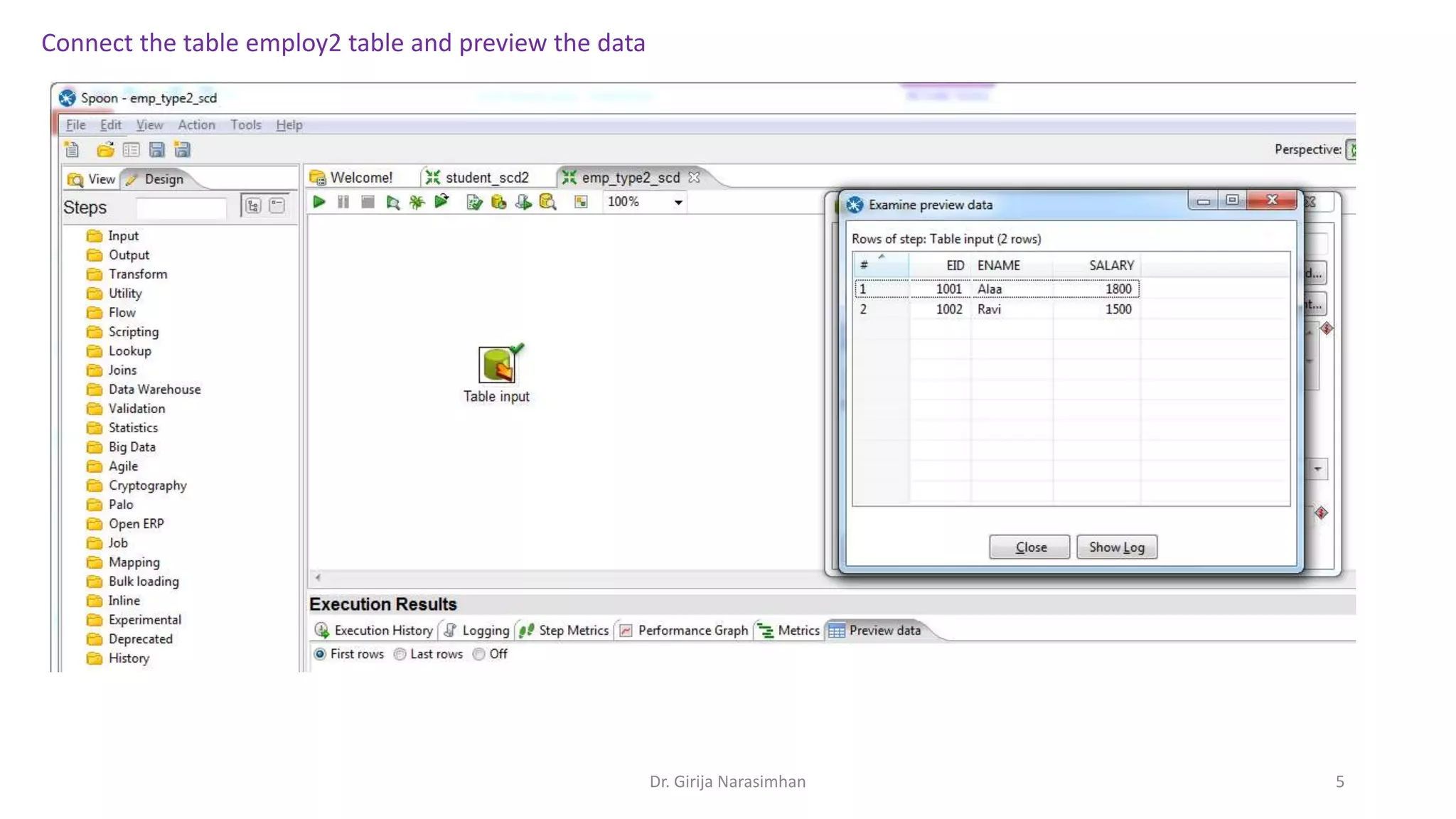

  Connect the tableemploy2 table and preview the data Dr. Girija Narasimhan 5
• 6.

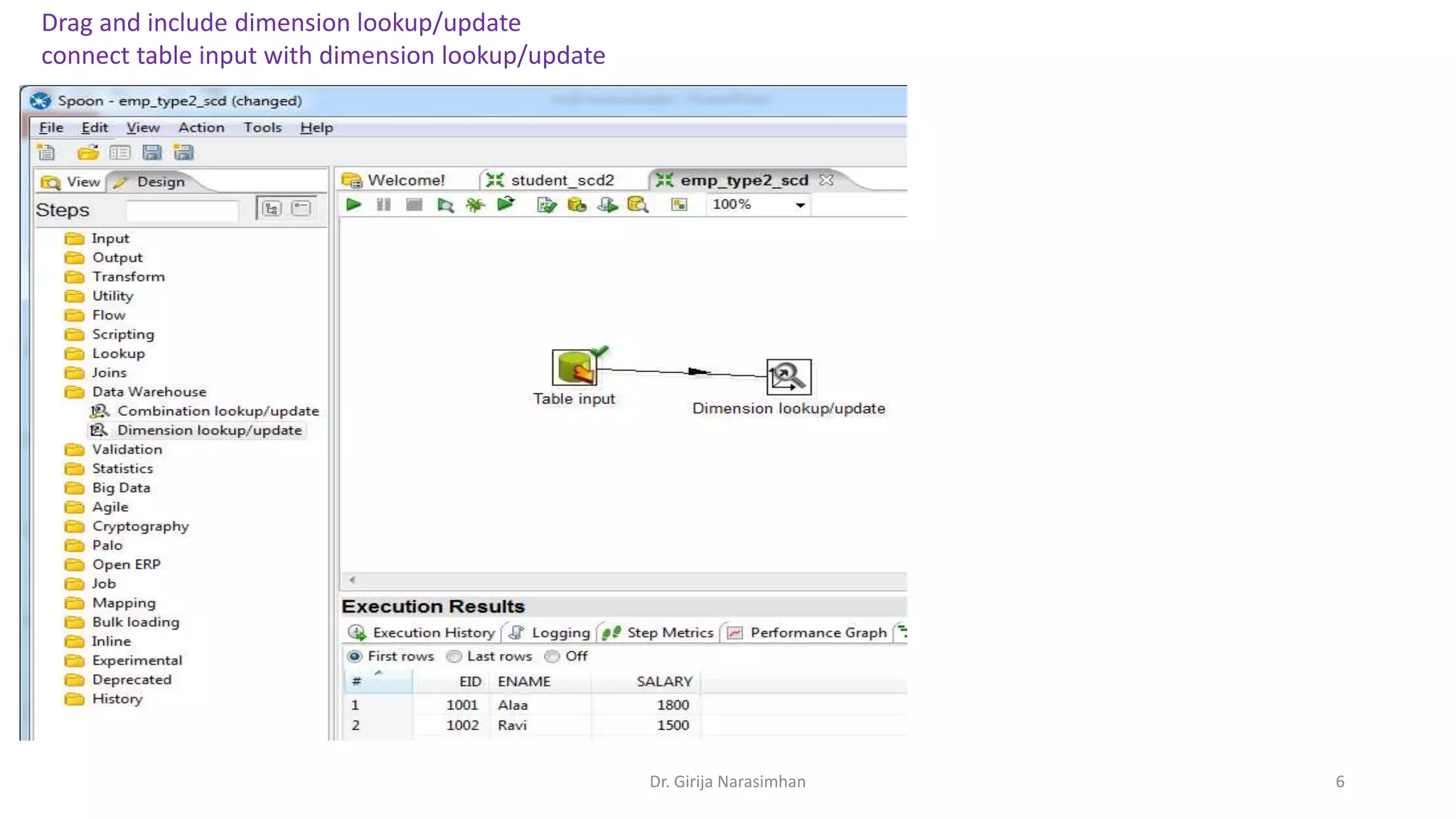

  Drag and includedimension lookup/update connect table input with dimension lookup/update Dr. Girija Narasimhan 6
• 7.

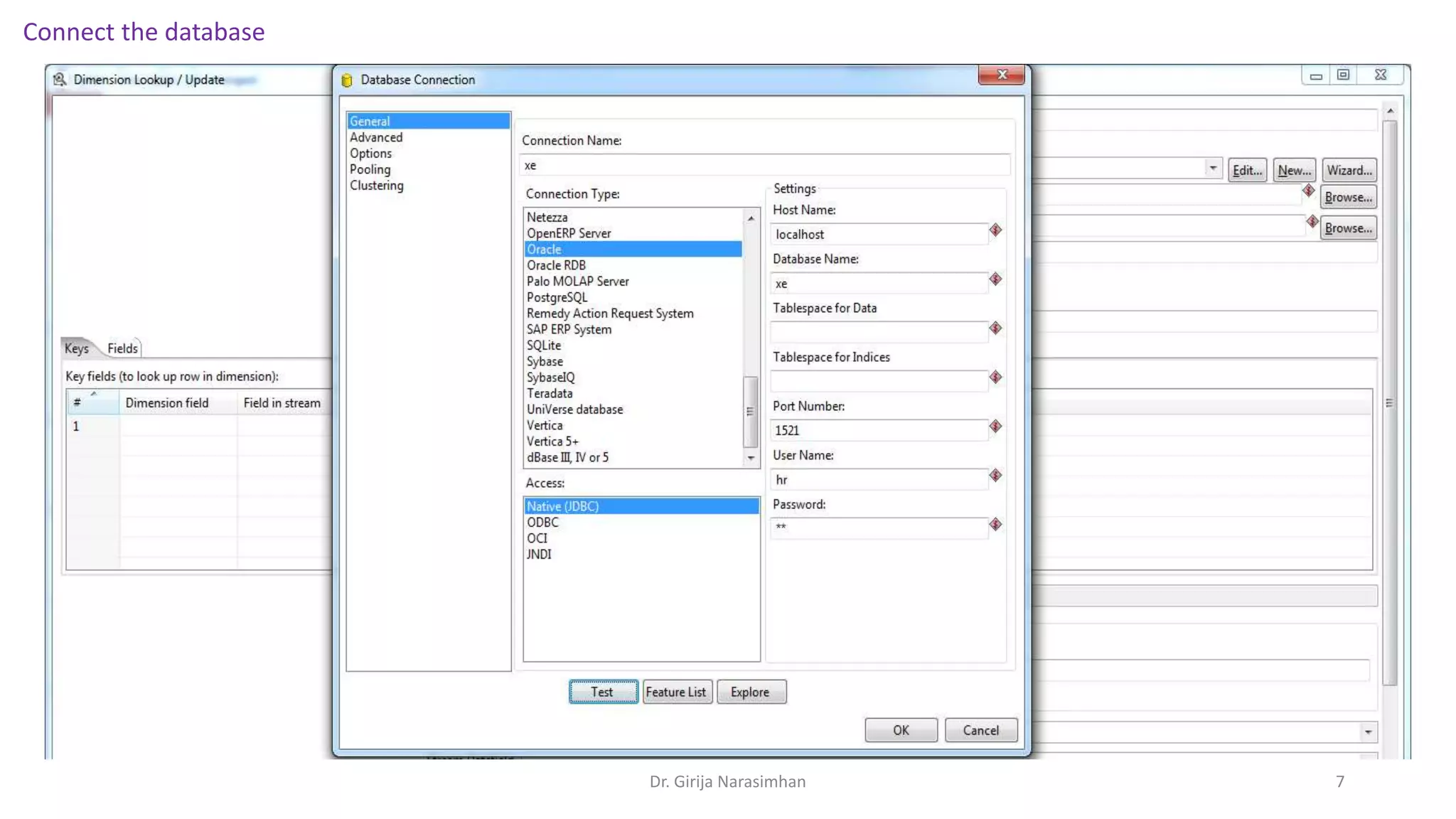

  Connect the database Dr.Girija Narasimhan 7
• 8.

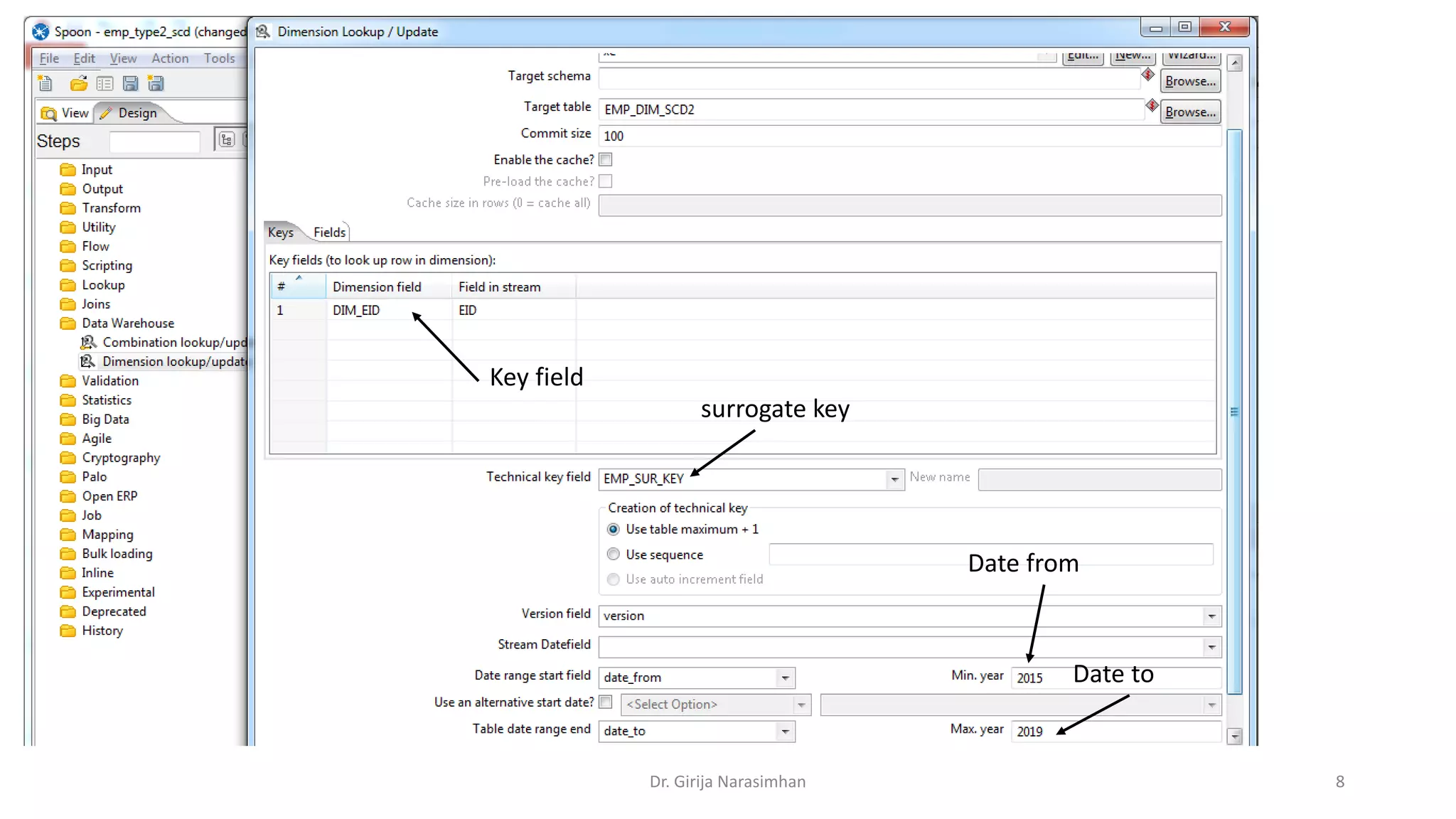

  Dr. Girija Narasimhan8 Key field surrogate key Date from Date to
• 9.

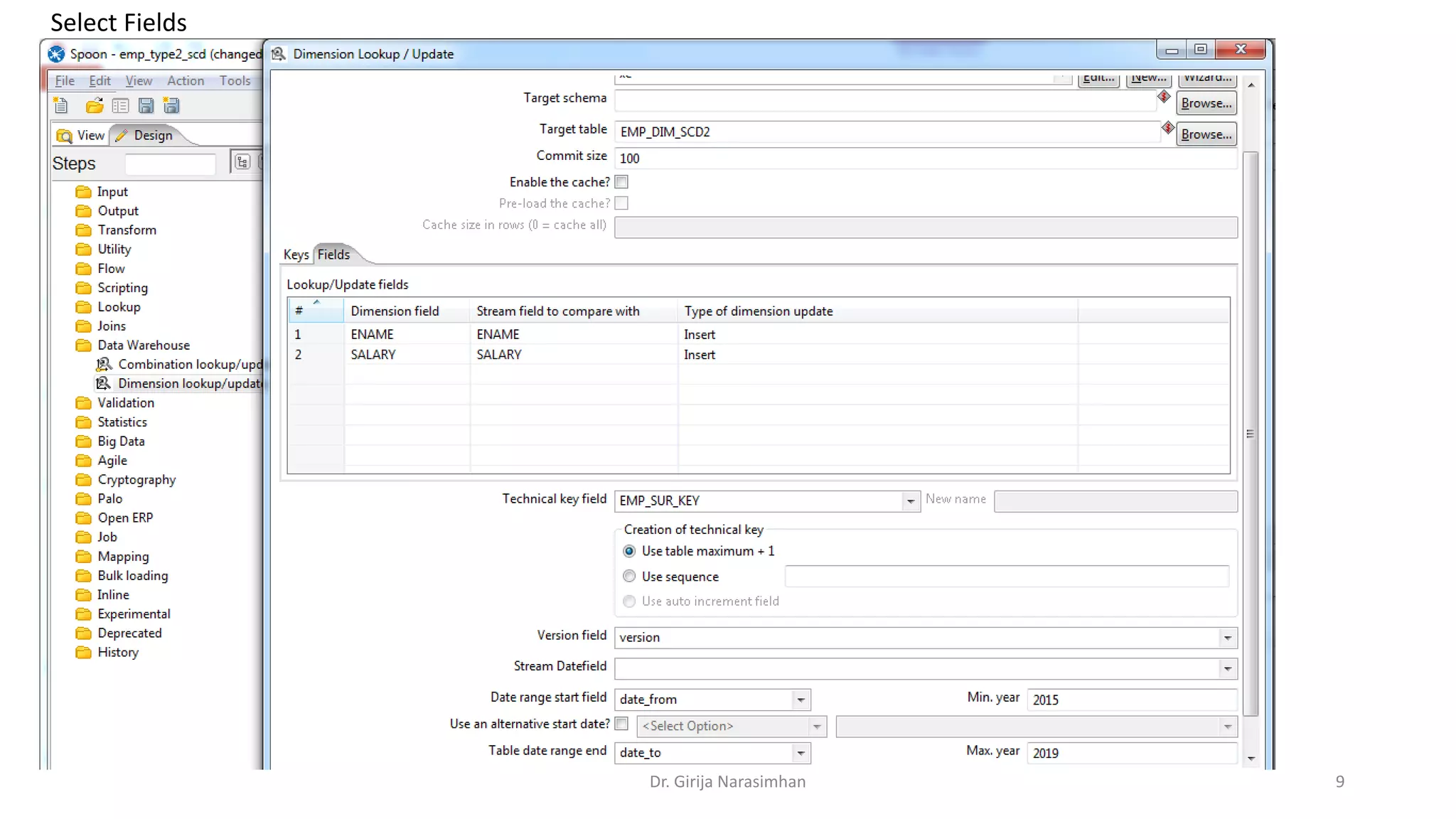

  Select Fields Dr. GirijaNarasimhan 9
• 10.

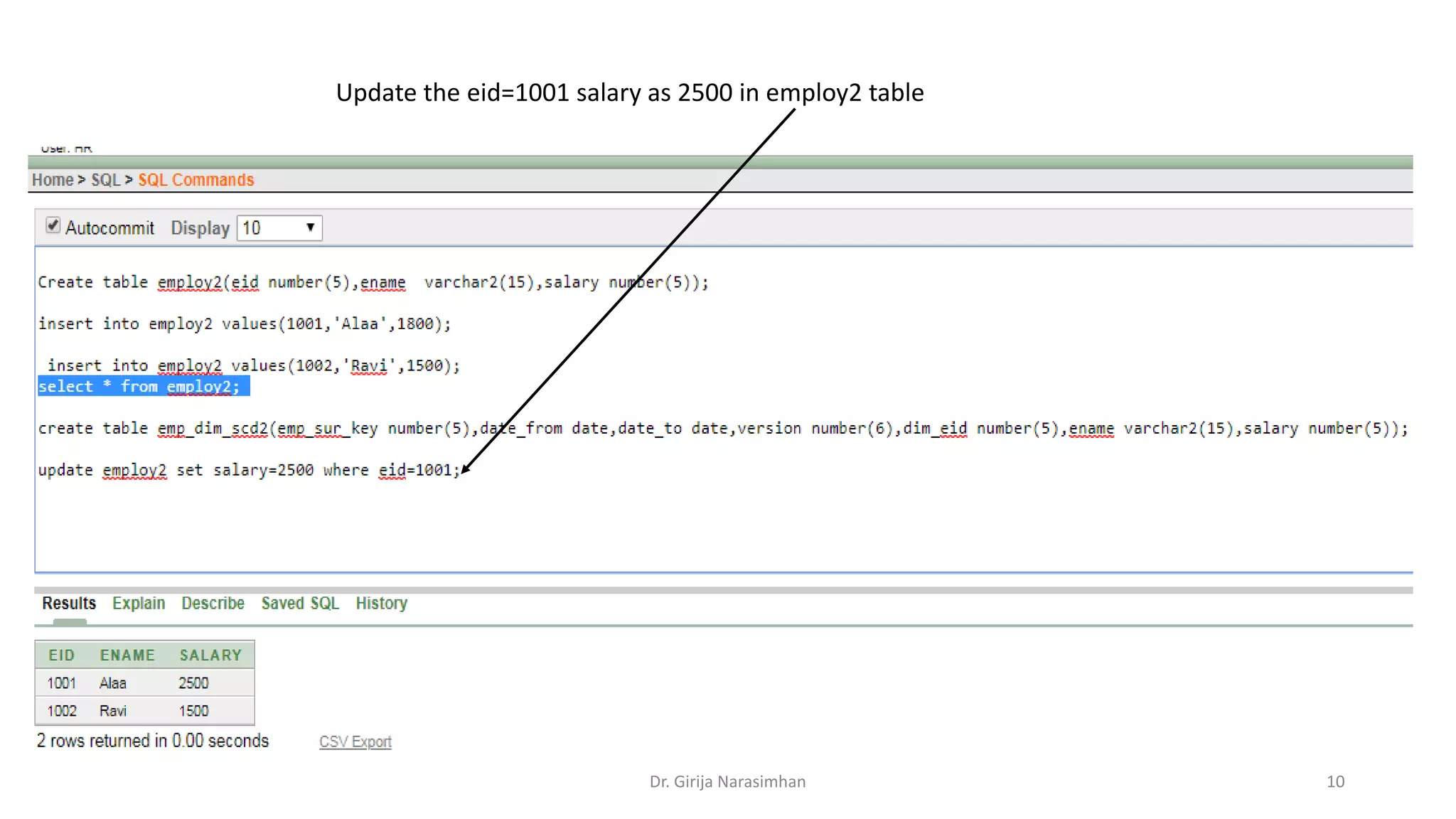

  Update the eid=1001salary as 2500 in employ2 table Dr. Girija Narasimhan 10
• 11.

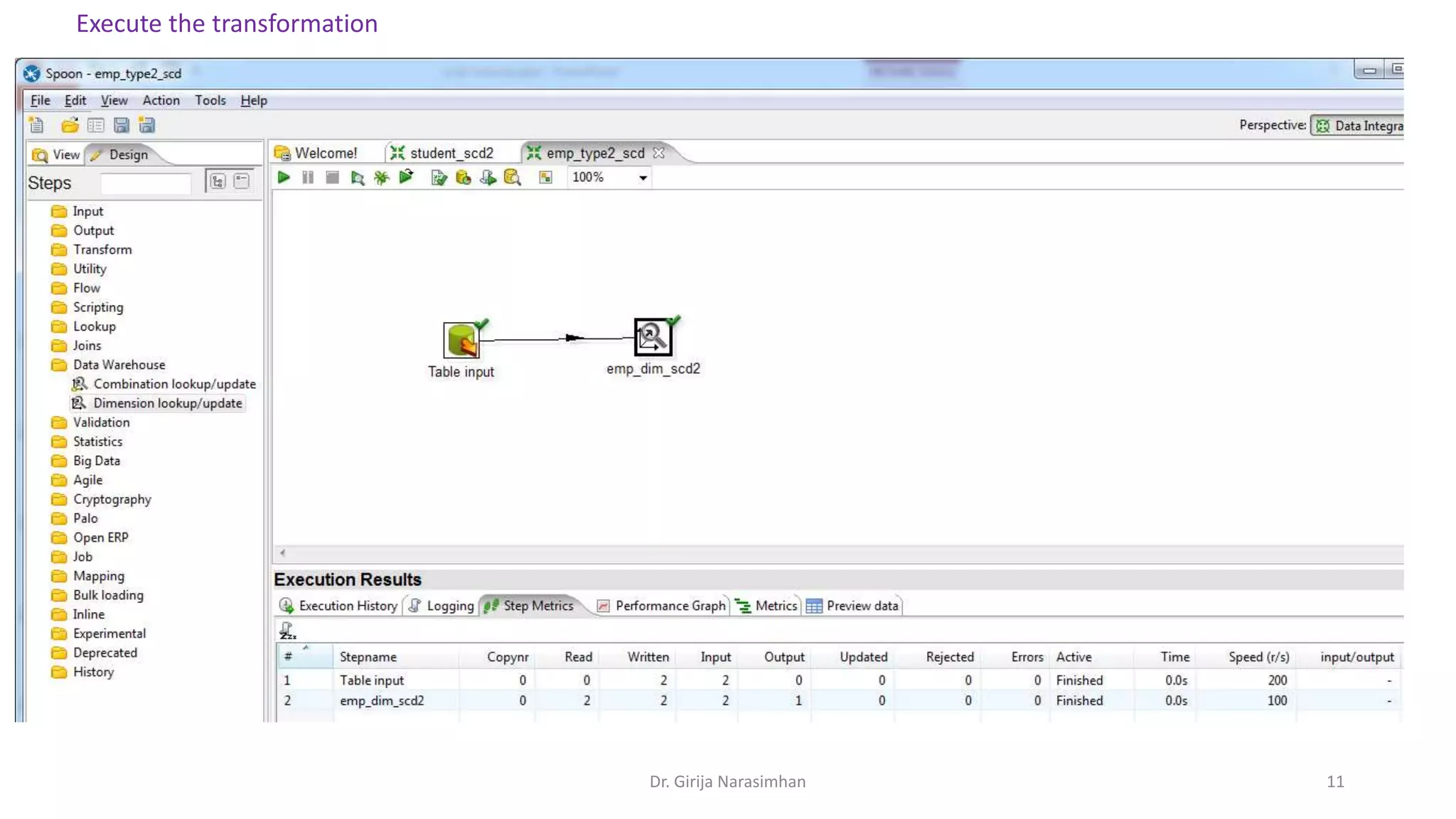

  Execute the transformation Dr.Girija Narasimhan 11
• 12.

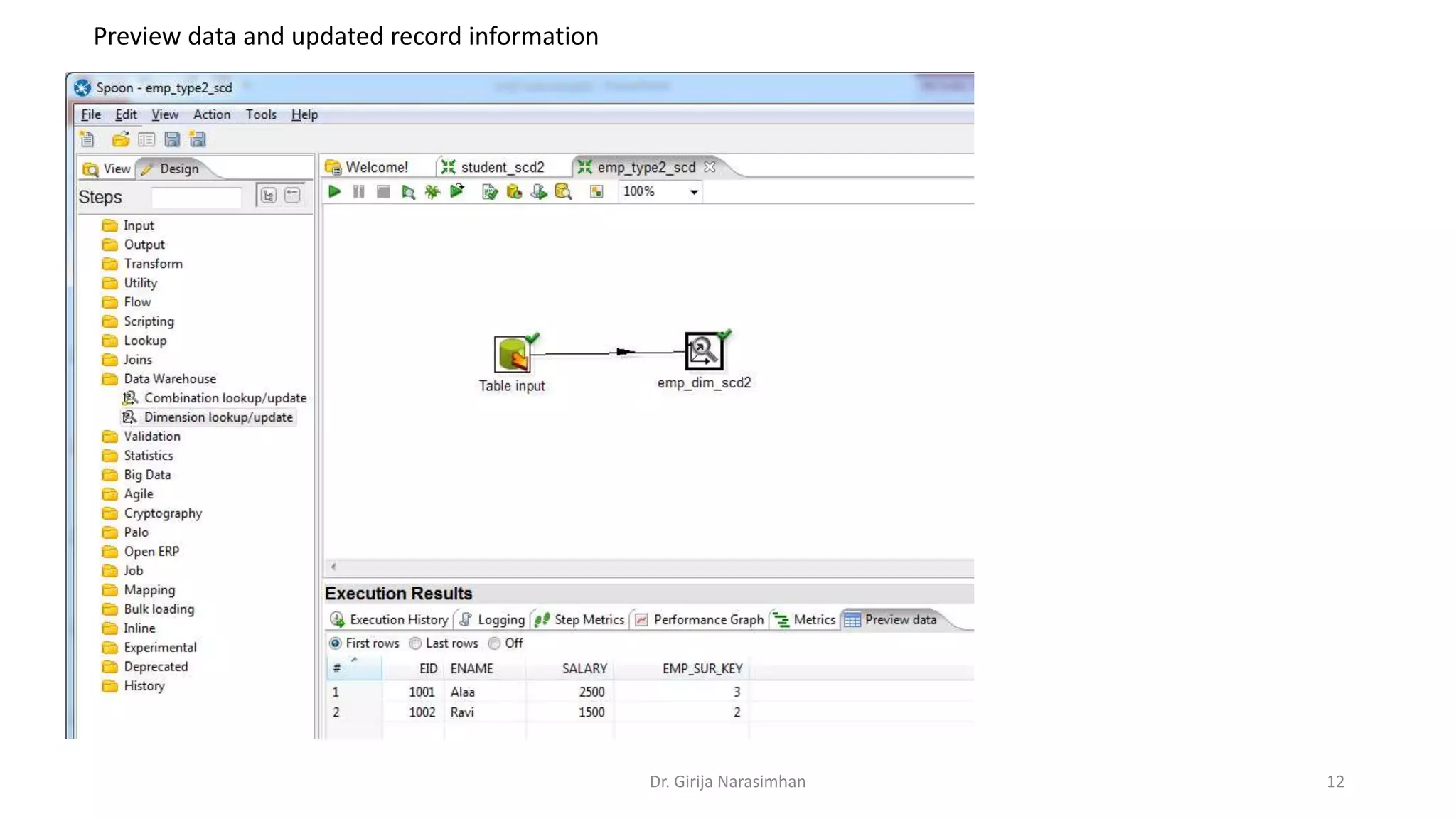

  Preview data andupdated record information Dr. Girija Narasimhan 12
• 13.

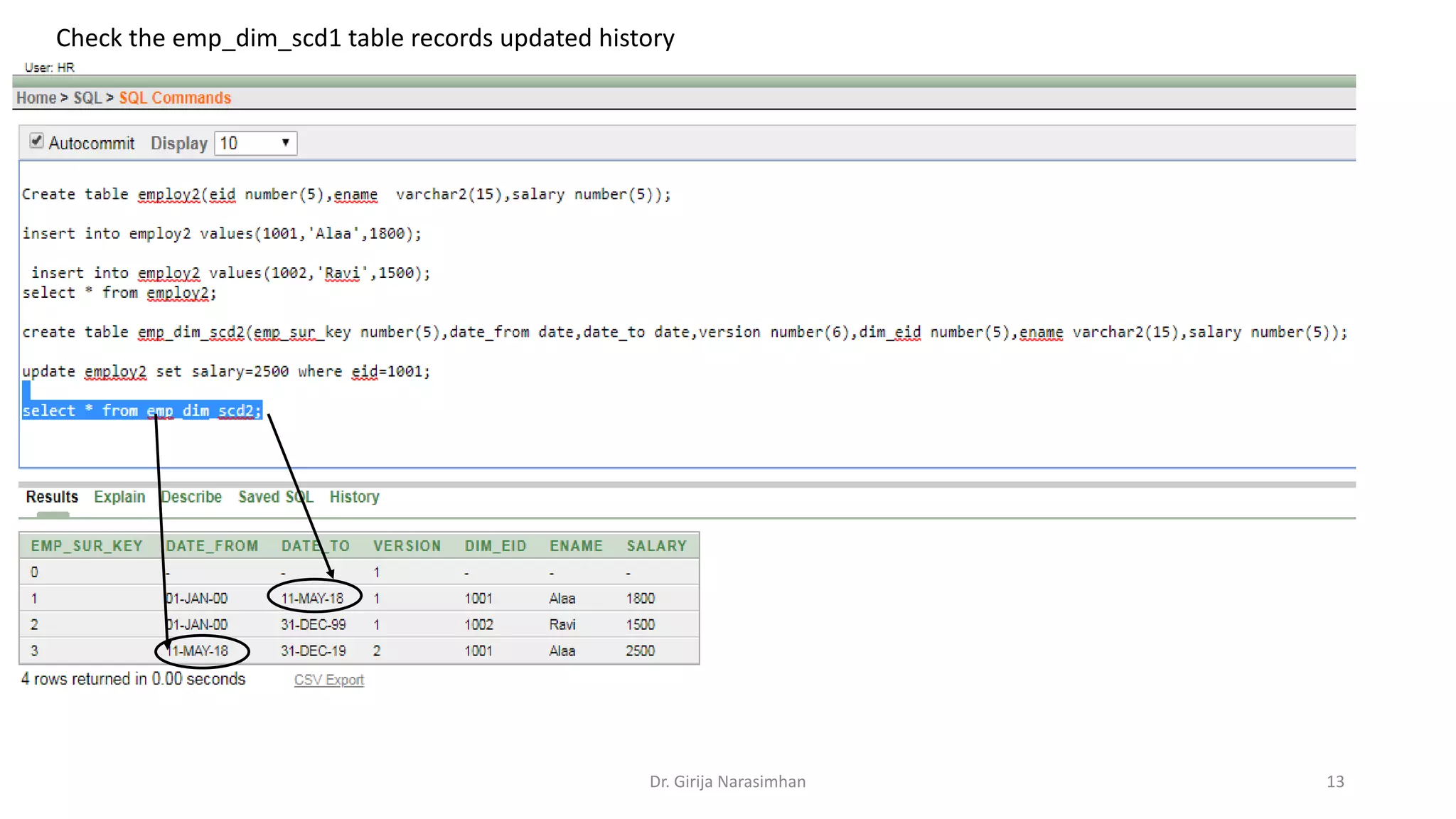

  Check the emp_dim_scd1table records updated history Dr. Girija Narasimhan 13
• 14.

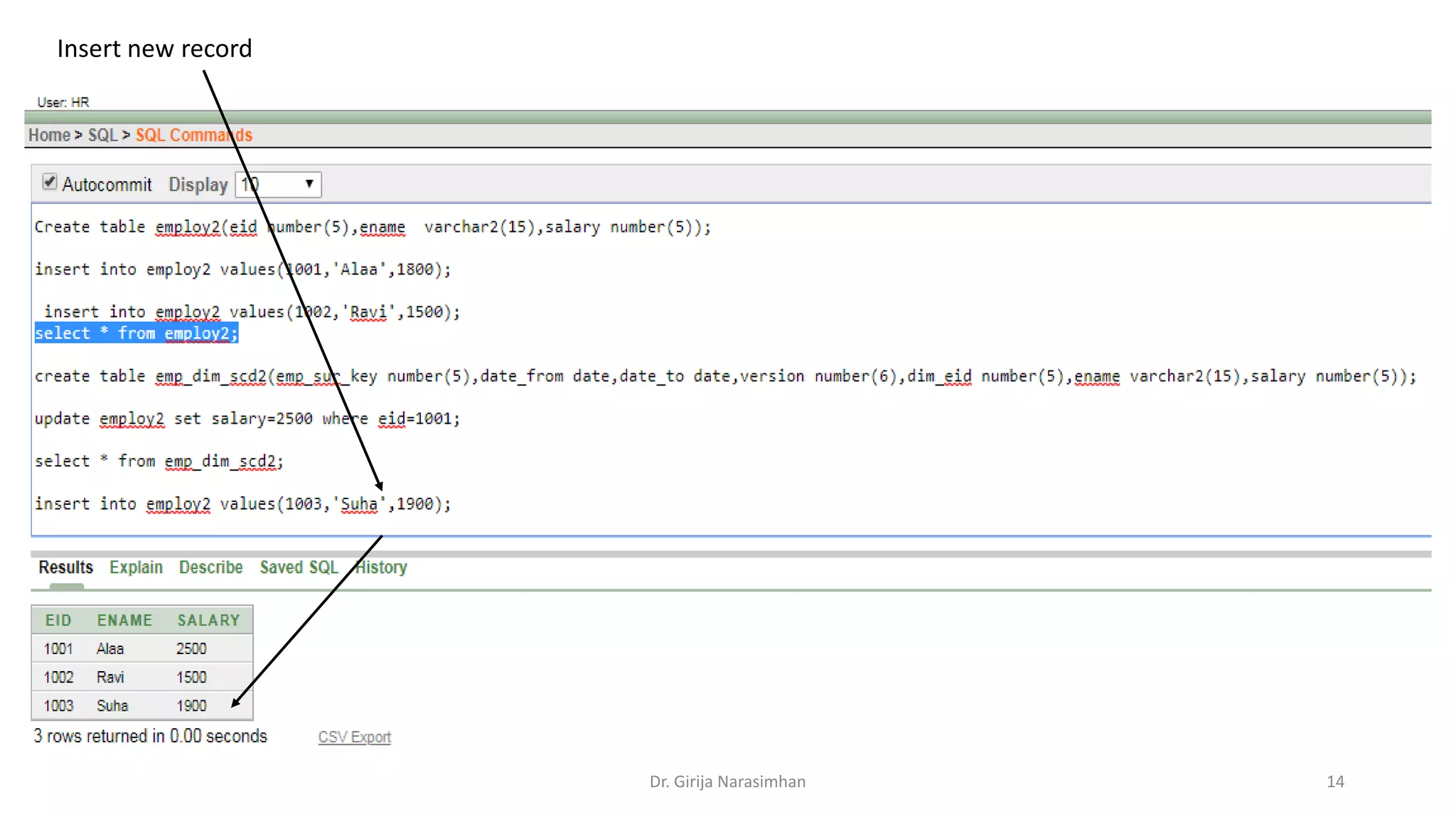

  Insert new record Dr.Girija Narasimhan 14
• 15.

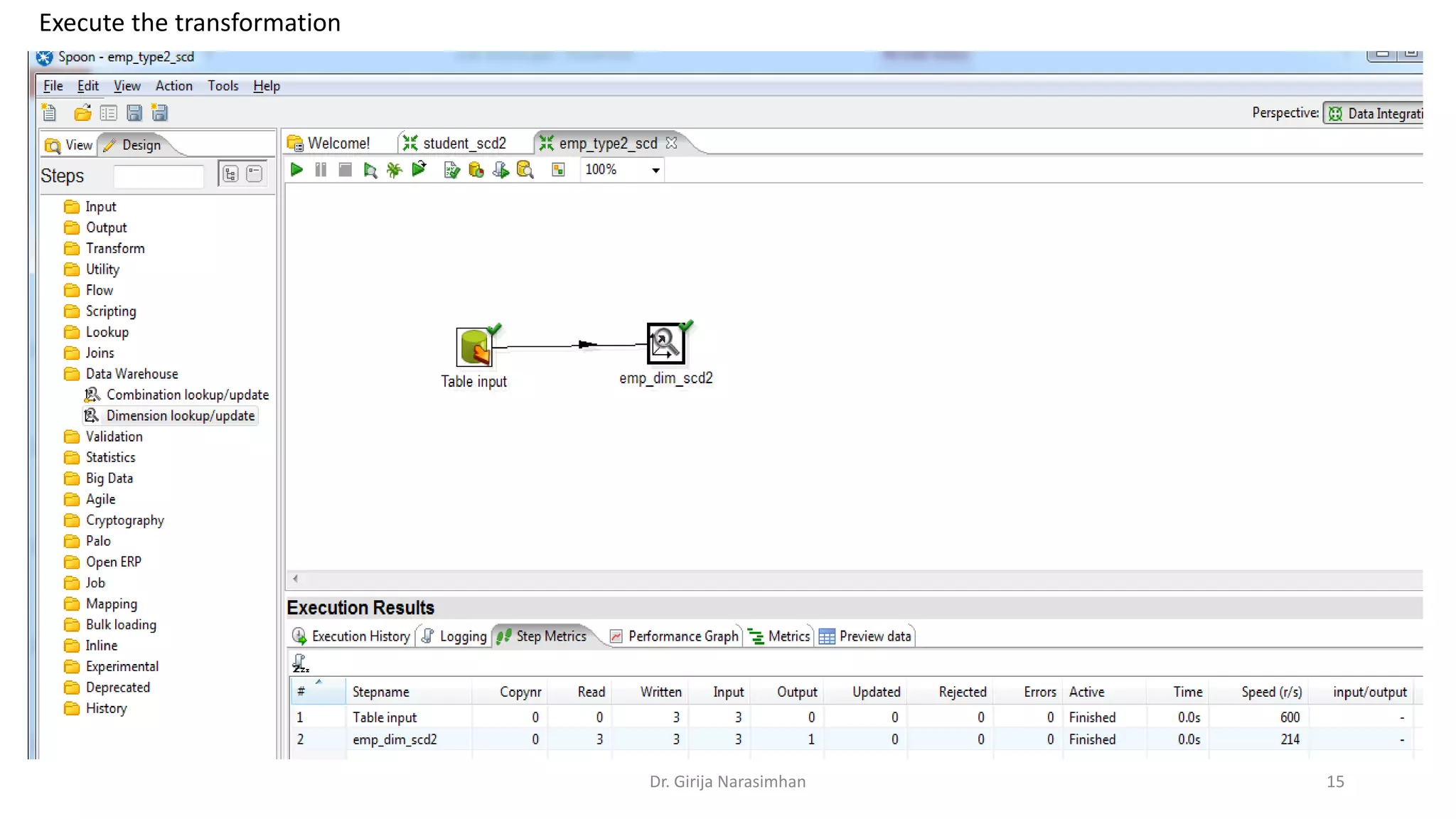

  Execute the transformation Dr.Girija Narasimhan 15
• 16.

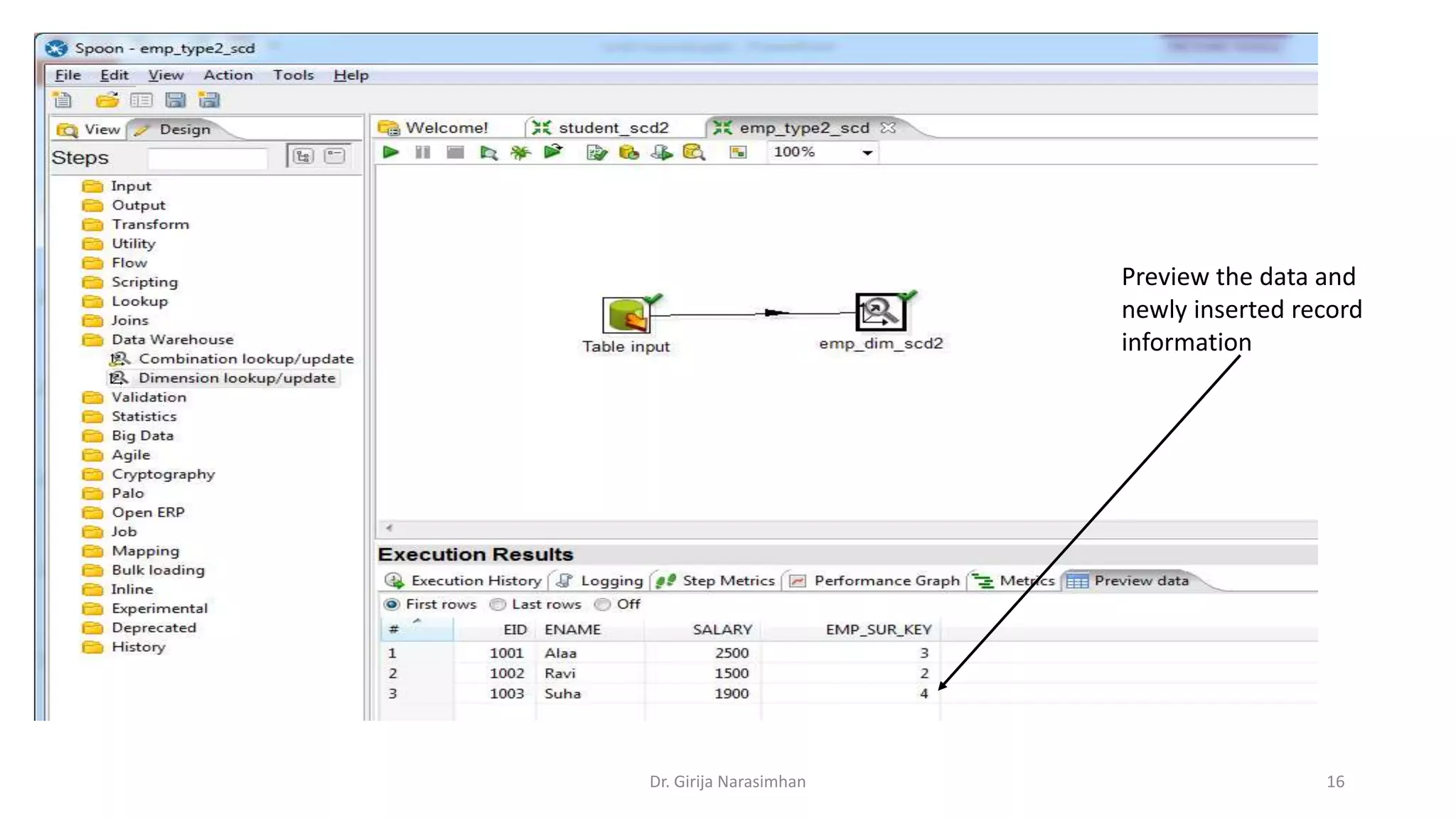

  Dr. Girija Narasimhan16 Preview the data and newly inserted record information
• 17.

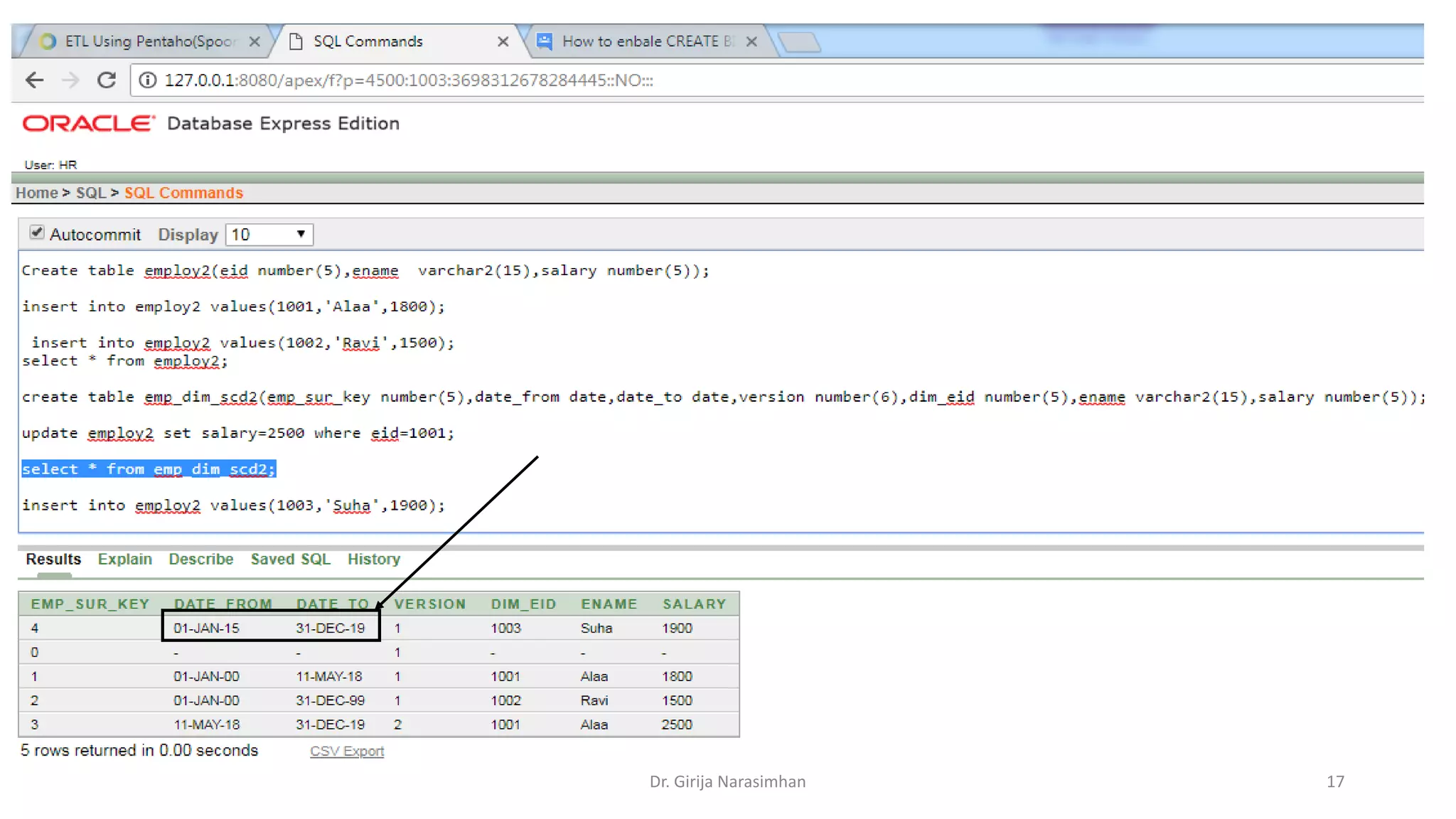

  Dr. Girija Narasimhan17
