Introduction to Computer Programming

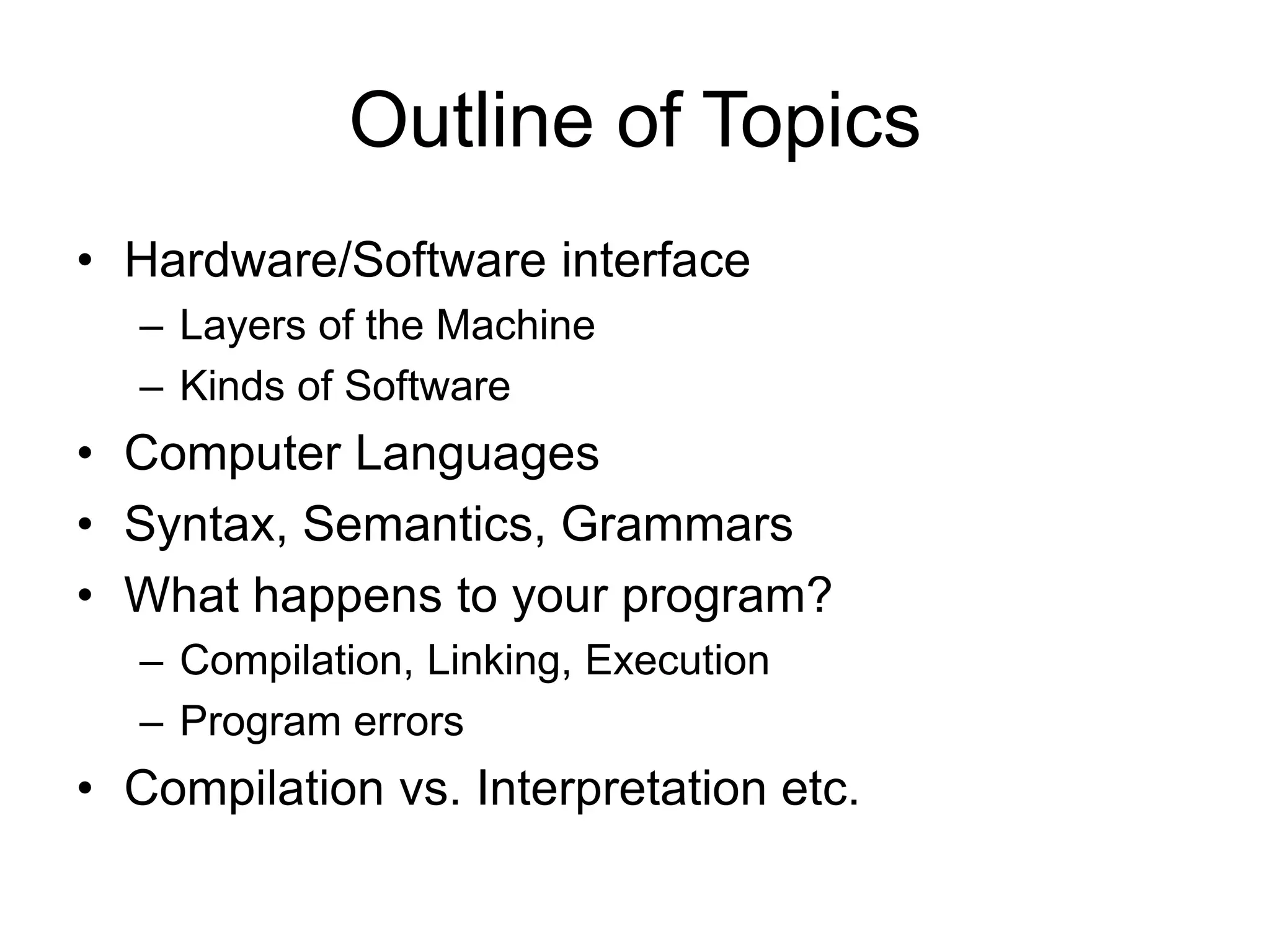

Outline of Topics • Hardware/Software interface – Layers of the Machine – Kinds of Software • Computer Languages • Syntax, Semantics, Grammars • What happens to your program? – Compilation, Linking, Execution – Program errors • Compilation vs. Interpretation etc.

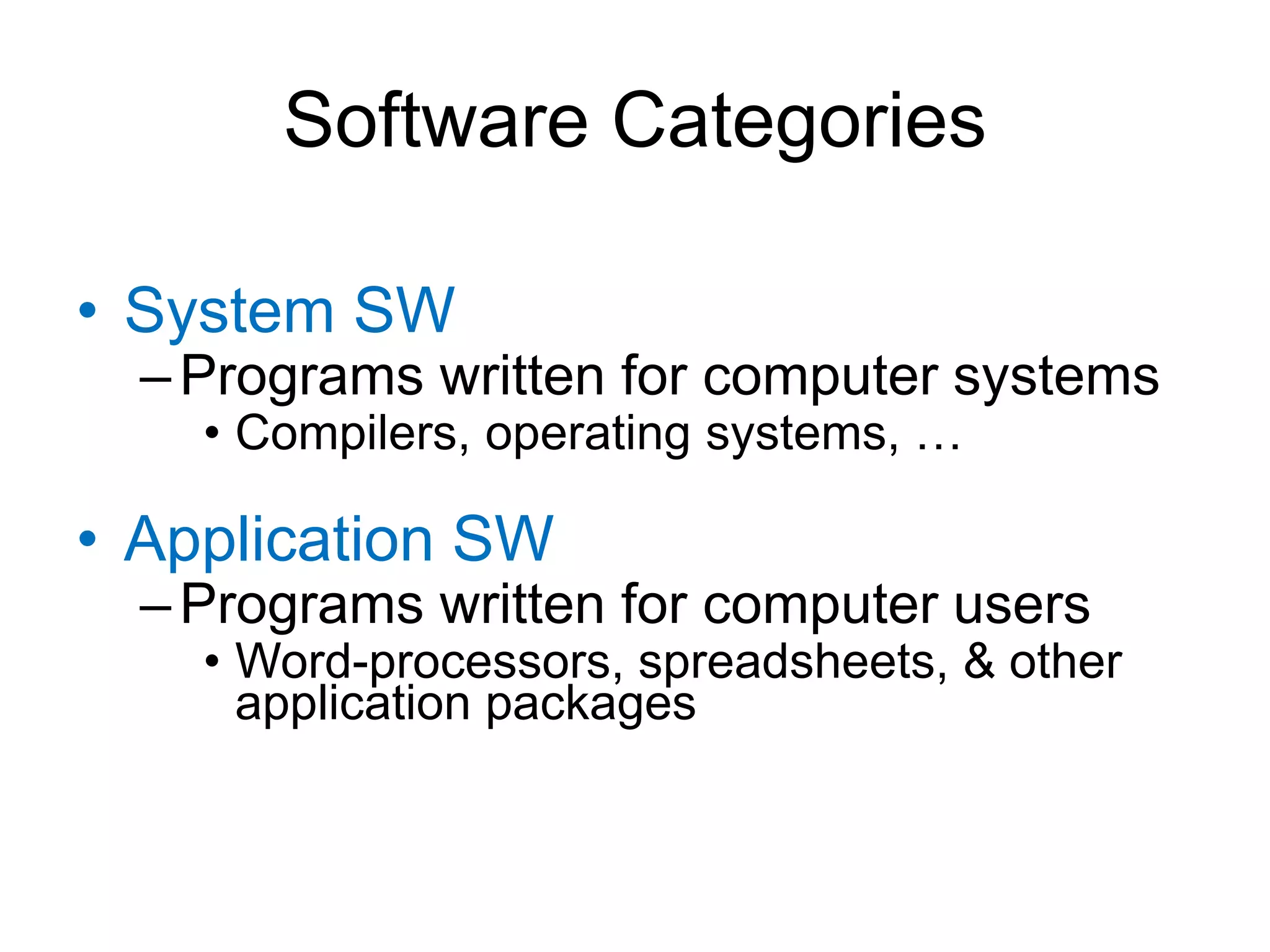

Software Categories • System SW –Programs written for computer systems • Compilers, operating systems, … • Application SW –Programs written for computer users • Word-processors, spreadsheets, & other application packages

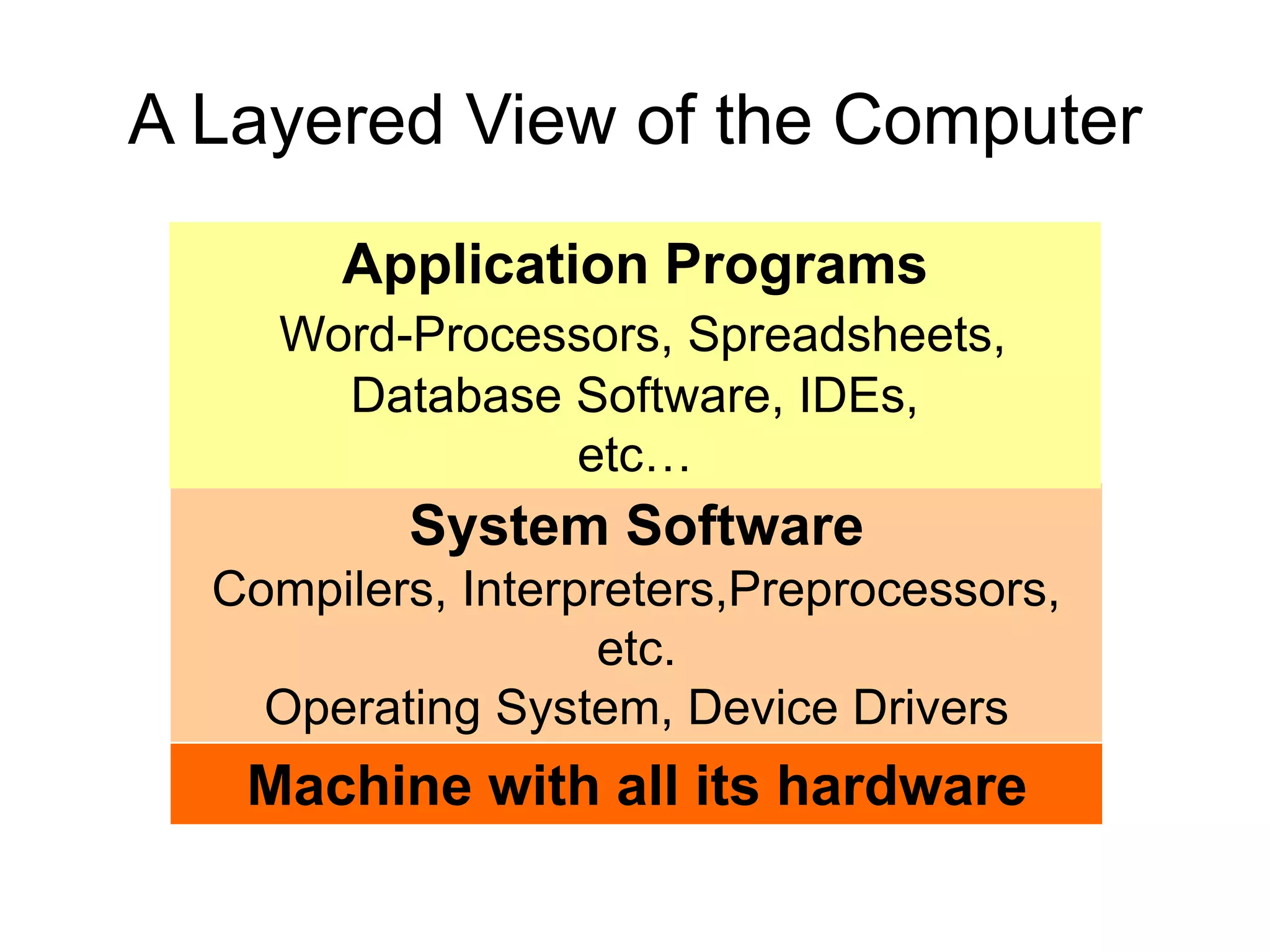

A Layered View of the Computer Machine with all its hardware System Software Compilers, Interpreters,Preprocessors, etc. Operating System, Device Drivers Application Programs Word-Processors, Spreadsheets, Database Software, IDEs, etc…

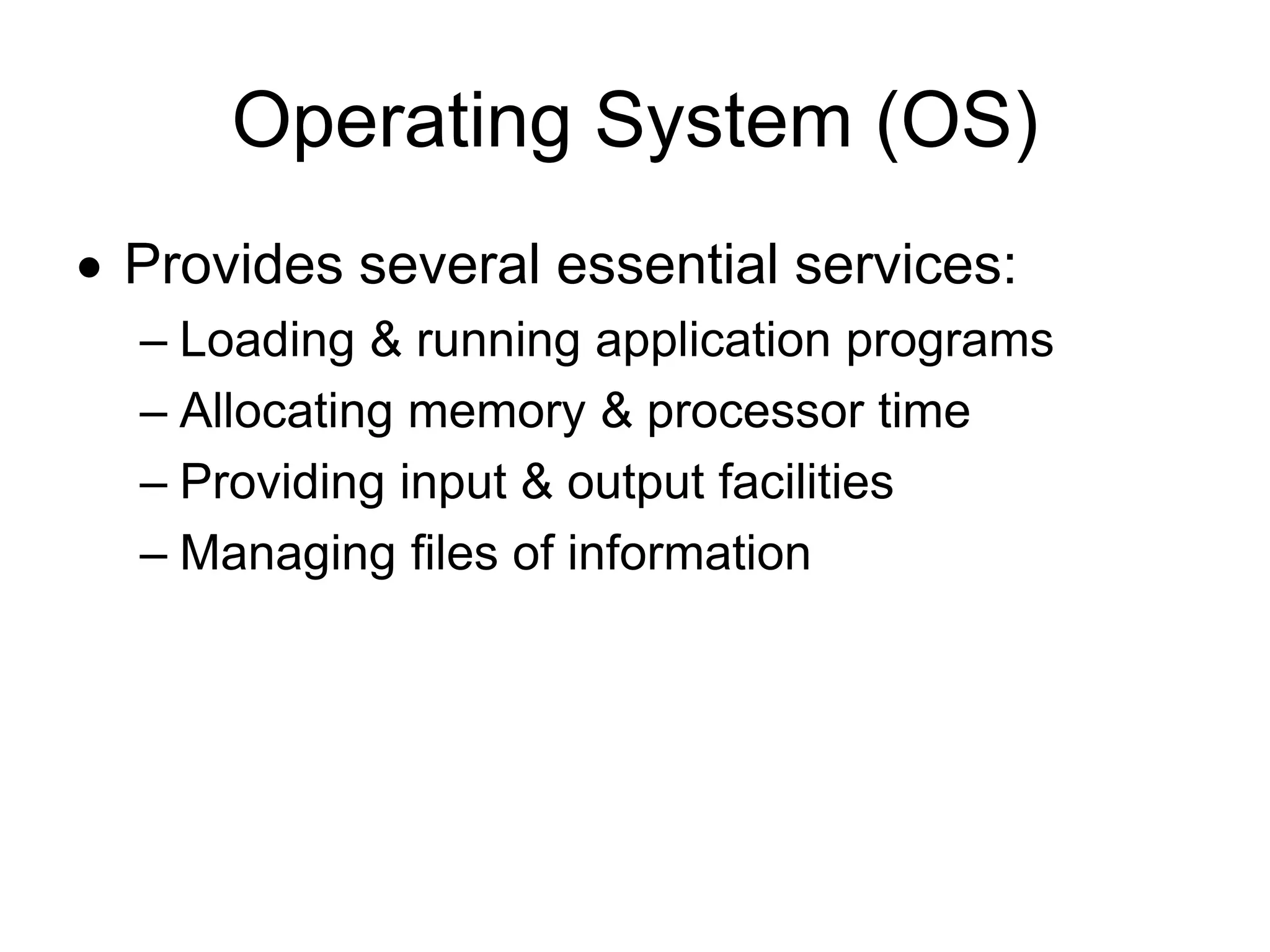

Operating System (OS)  Provides several essential services: – Loading & running application programs – Allocating memory & processor time – Providing input & output facilities – Managing files of information

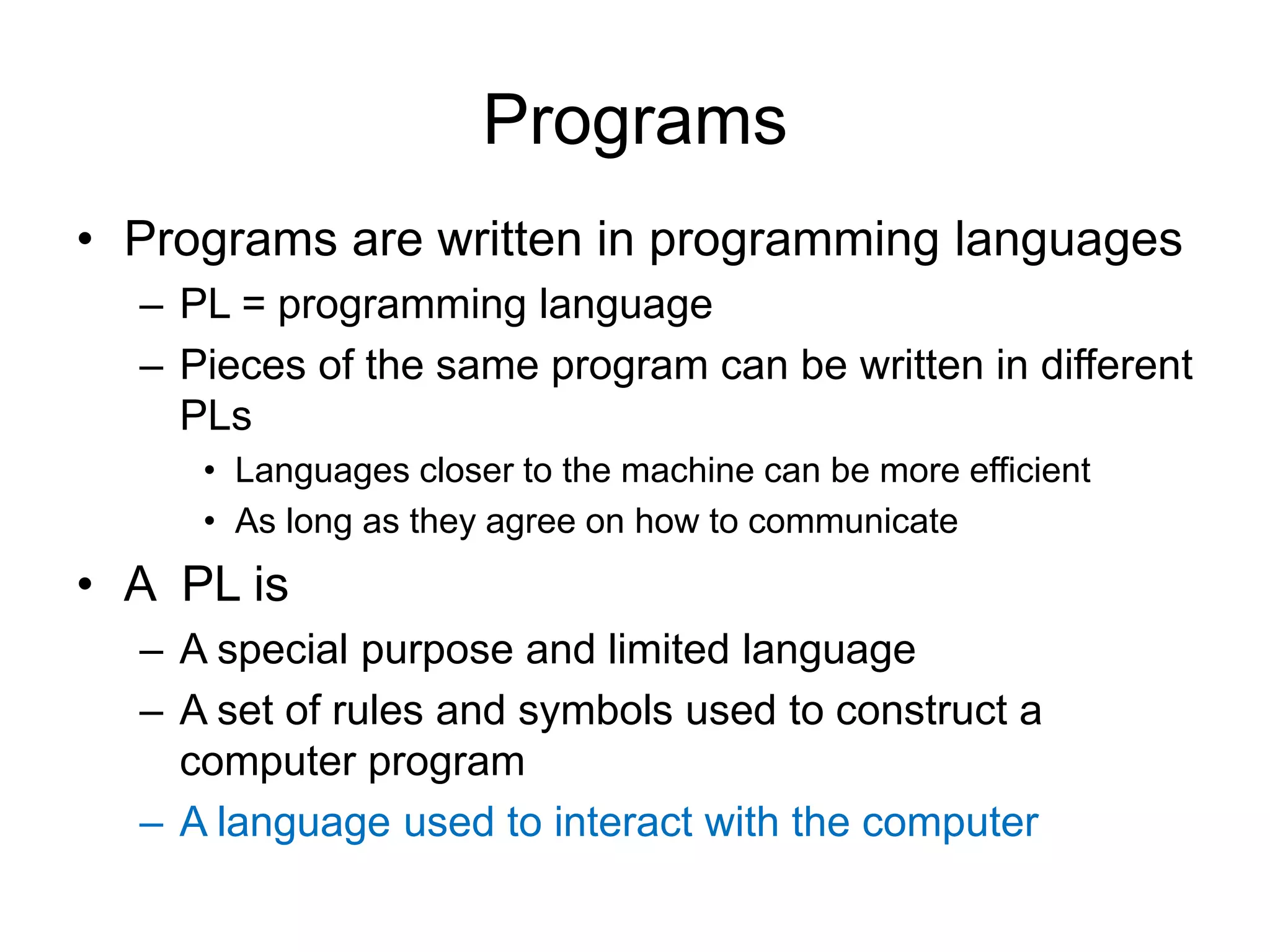

Programs • Programs are written in programming languages – PL = programming language – Pieces of the same program can be written in different PLs • Languages closer to the machine can be more efficient • As long as they agree on how to communicate • A PL is – A special purpose and limited language – A set of rules and symbols used to construct a computer program – A language used to interact with the computer

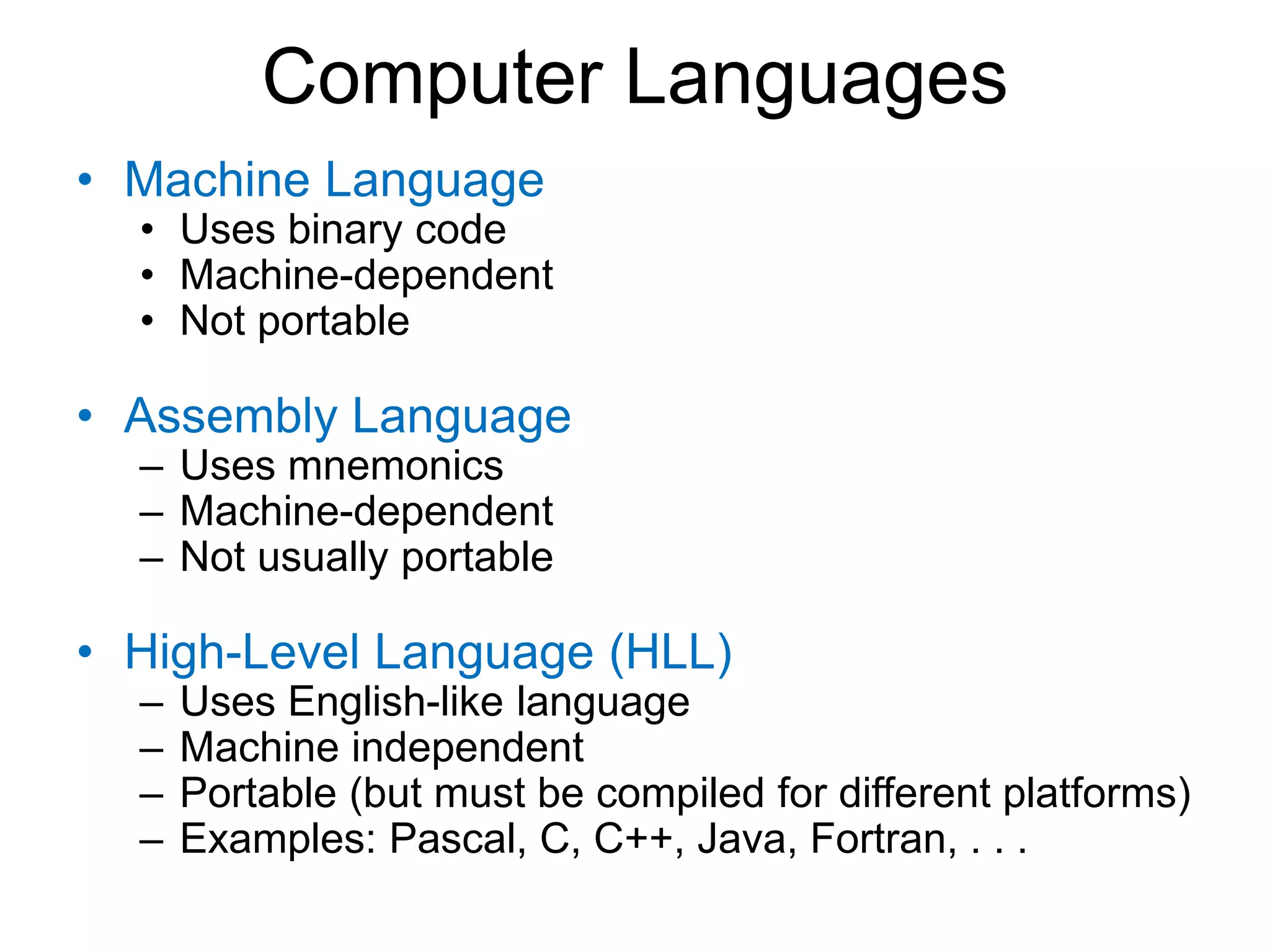

Computer Languages • Machine Language • Uses binary code • Machine-dependent • Not portable • Assembly Language – Uses mnemonics – Machine-dependent – Not usually portable • High-Level Language (HLL) – Uses English-like language – Machine independent – Portable (but must be compiled for different platforms) – Examples: Pascal, C, C++, Java, Fortran, . . .

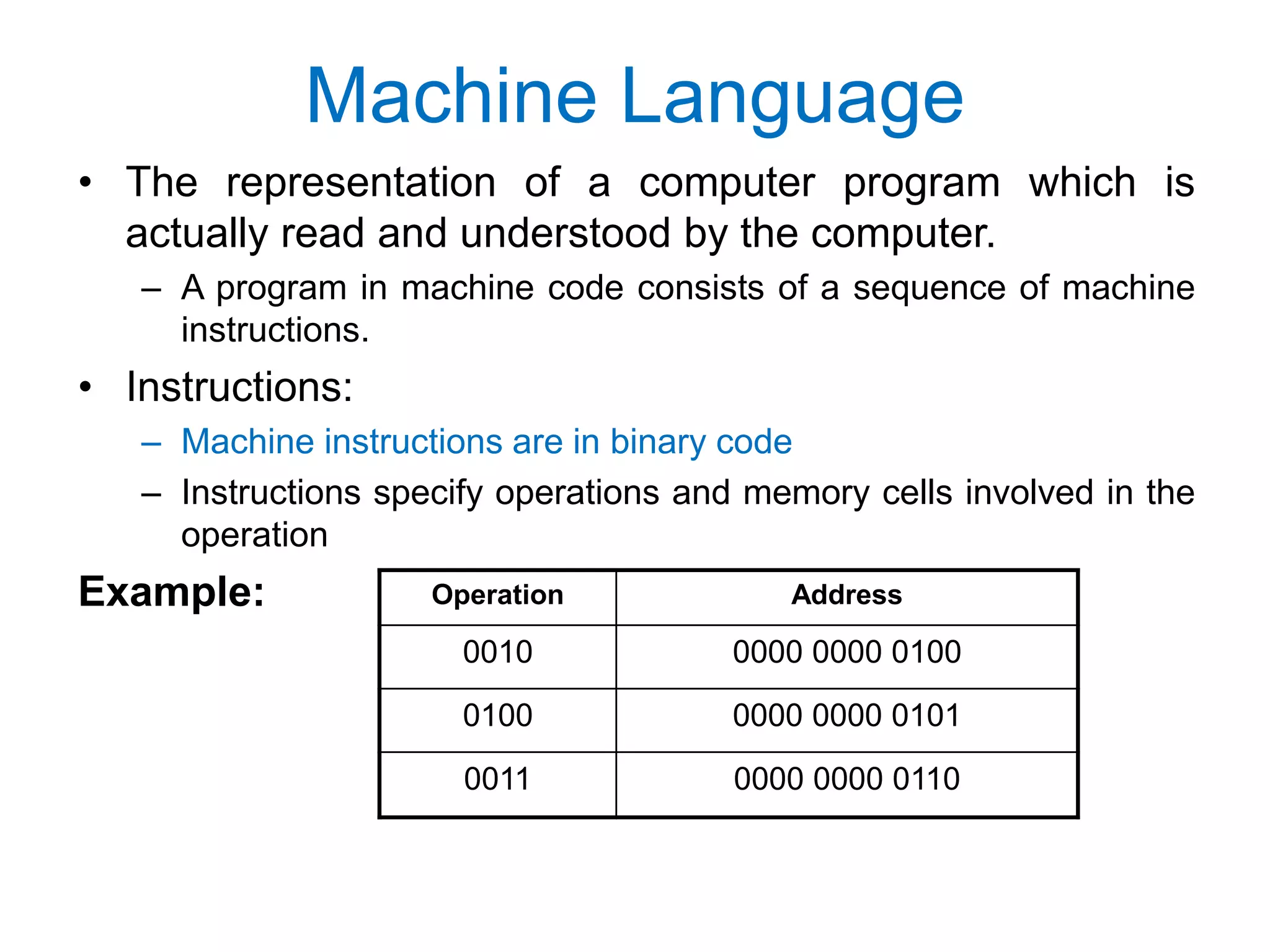

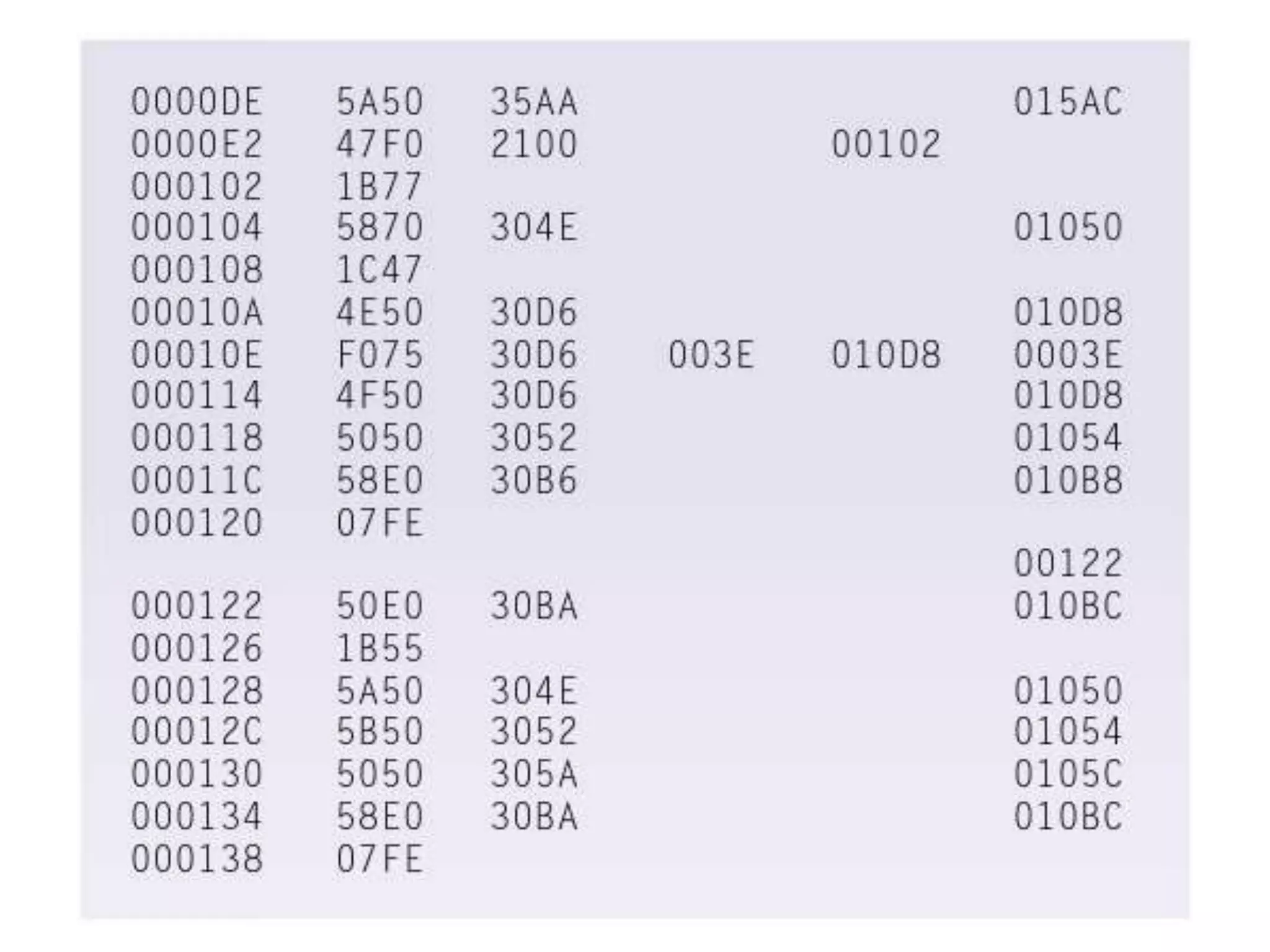

Machine Language • The representation of a computer program which is actually read and understood by the computer. – A program in machine code consists of a sequence of machine instructions. • Instructions: – Machine instructions are in binary code – Instructions specify operations and memory cells involved in the operation Example: Operation Address 0010 0000 0000 0100 0100 0000 0000 0101 0011 0000 0000 0110

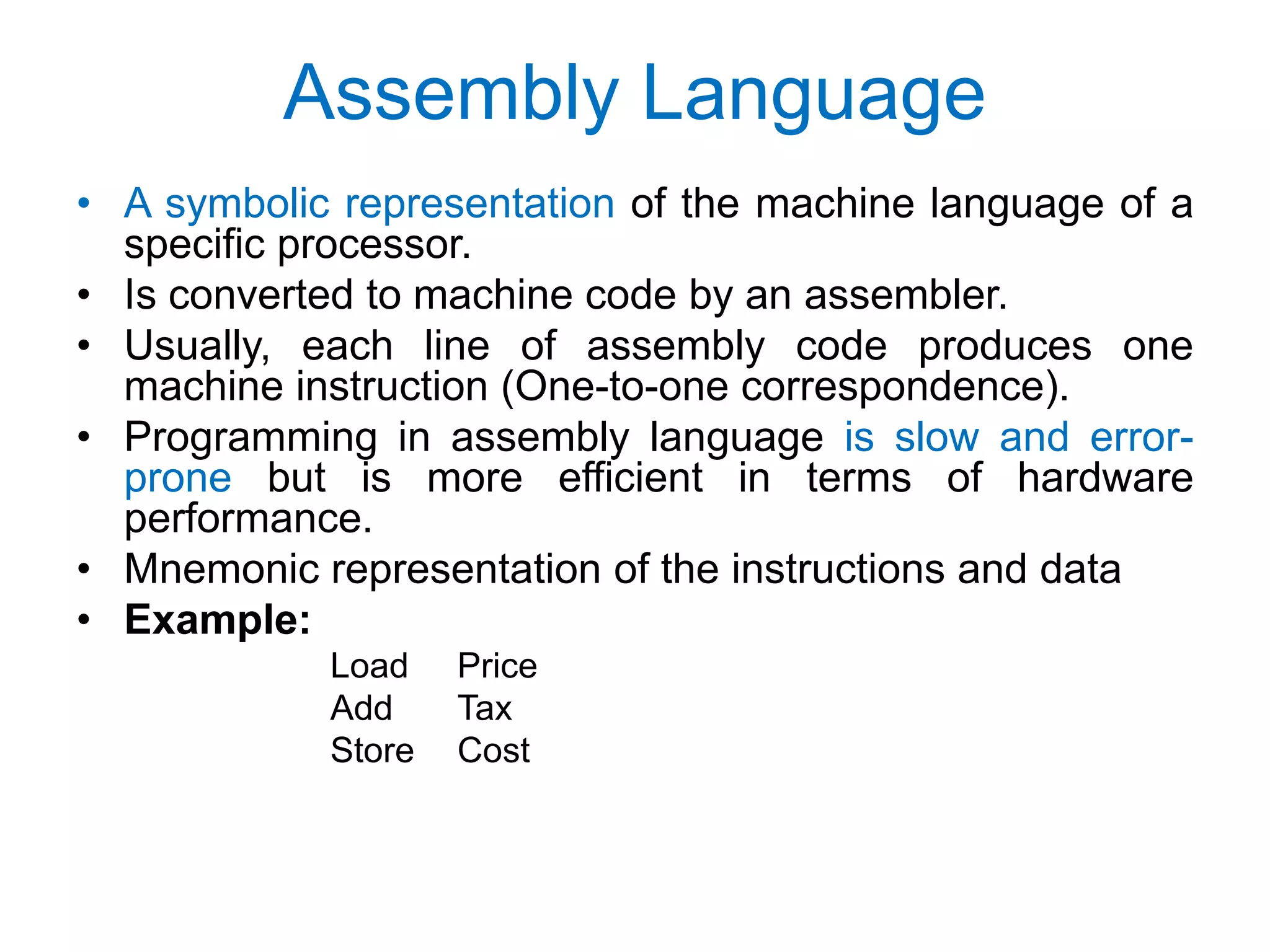

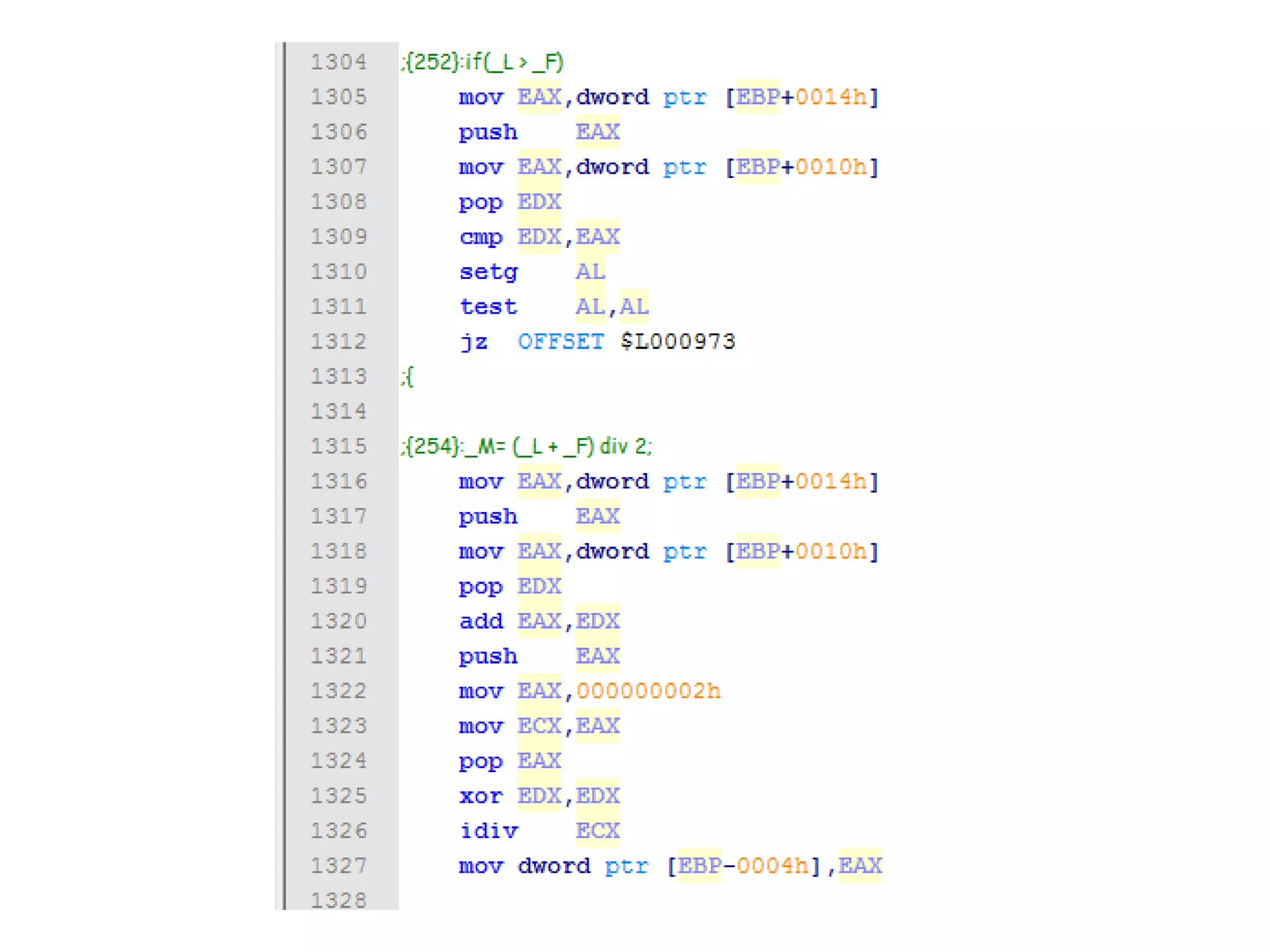

Assembly Language • A symbolic representation of the machine language of a specific processor. • Is converted to machine code by an assembler. • Usually, each line of assembly code produces one machine instruction (One-to-one correspondence). • Programming in assembly language is slow and error- prone but is more efficient in terms of hardware performance. • Mnemonic representation of the instructions and data • Example: Load Price Add Tax Store Cost

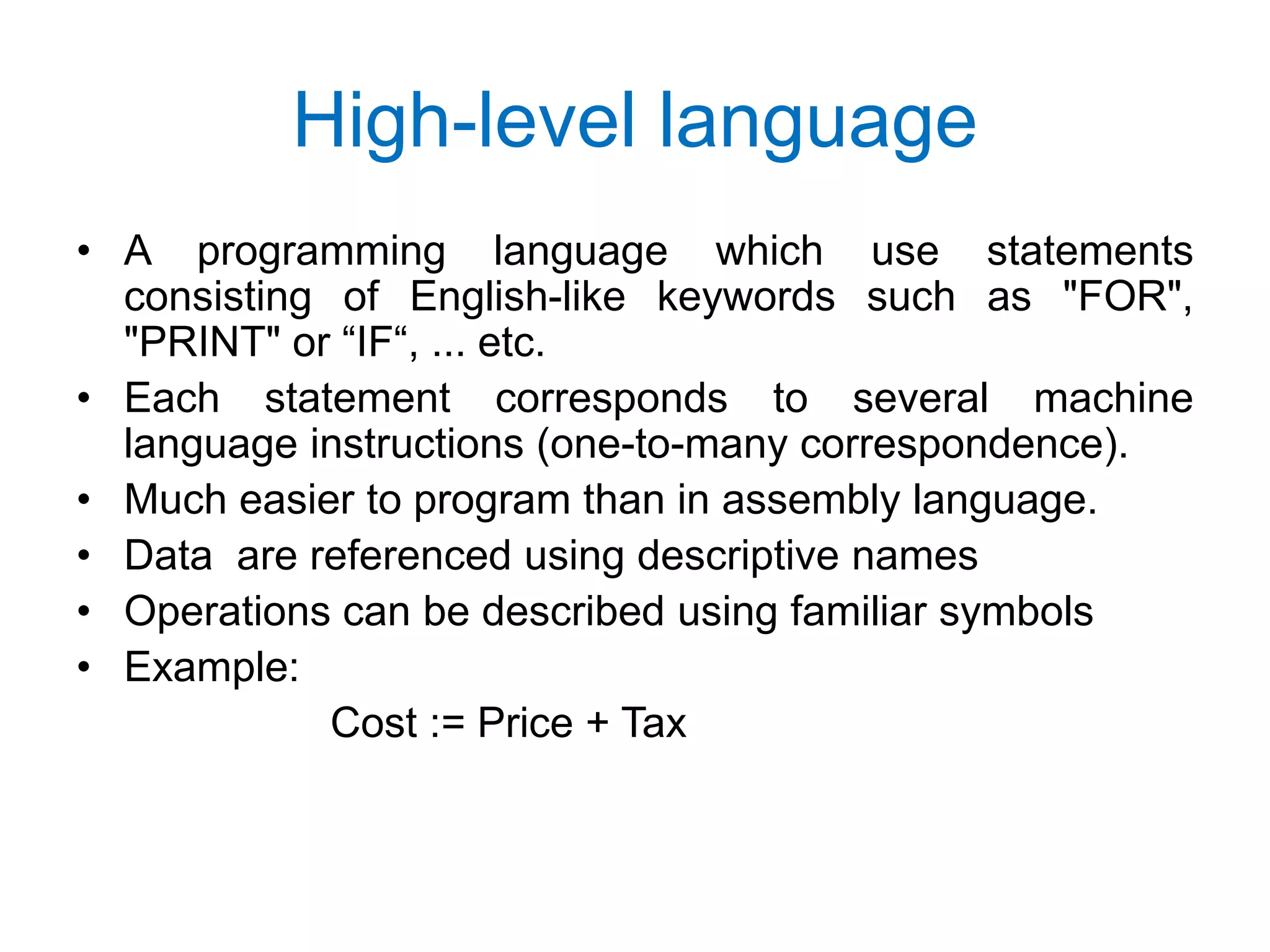

High-level language • A programming language which use statements consisting of English-like keywords such as "FOR", "PRINT" or “IF“, ... etc. • Each statement corresponds to several machine language instructions (one-to-many correspondence). • Much easier to program than in assembly language. • Data are referenced using descriptive names • Operations can be described using familiar symbols • Example: Cost := Price + Tax

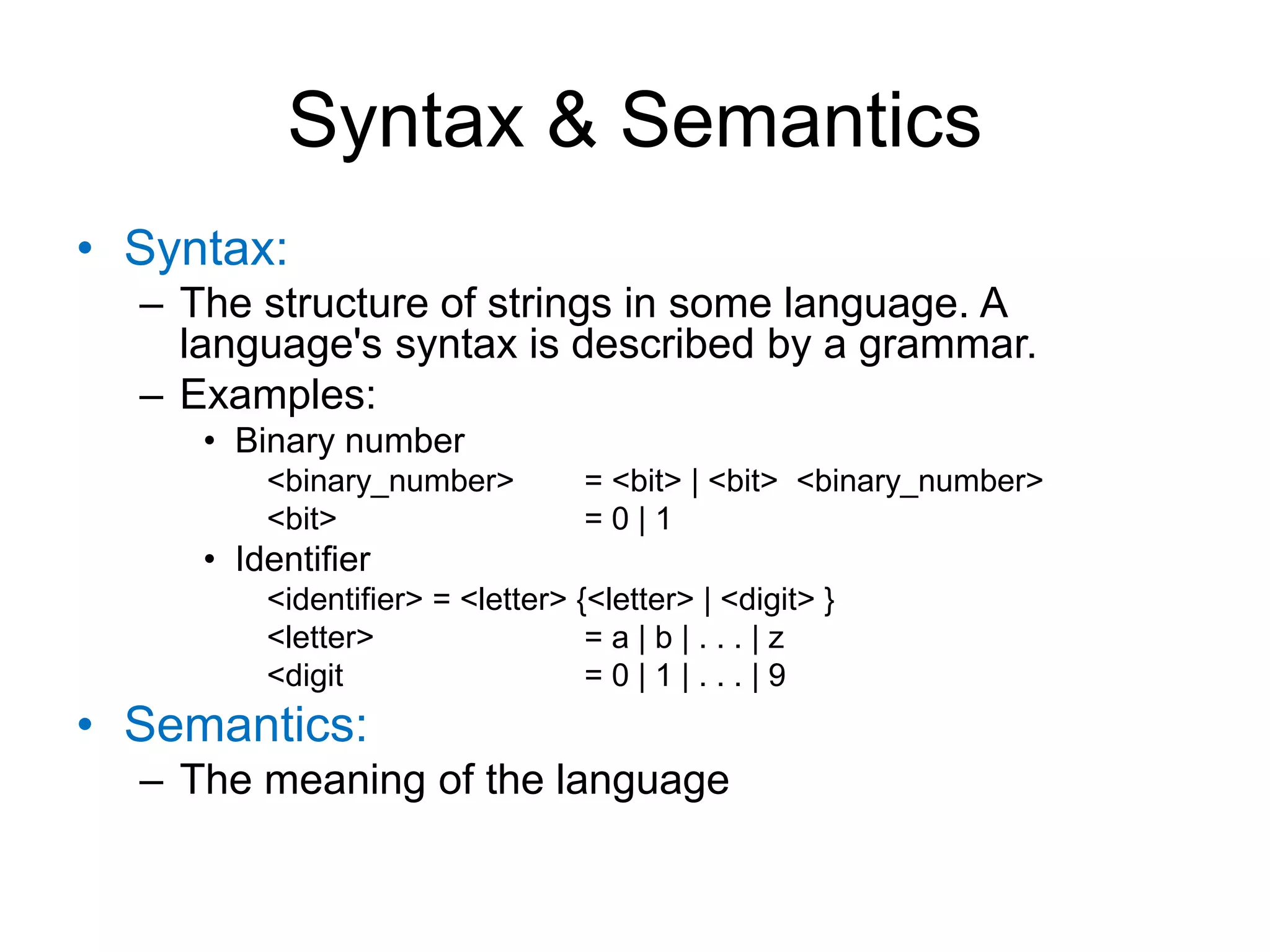

Syntax & Semantics • Syntax: – The structure of strings in some language. A language's syntax is described by a grammar. – Examples: • Binary number <binary_number> = <bit> | <bit> <binary_number> <bit> = 0 | 1 • Identifier <identifier> = <letter> {<letter> | <digit> } <letter> = a | b | . . . | z <digit = 0 | 1 | . . . | 9 • Semantics: – The meaning of the language

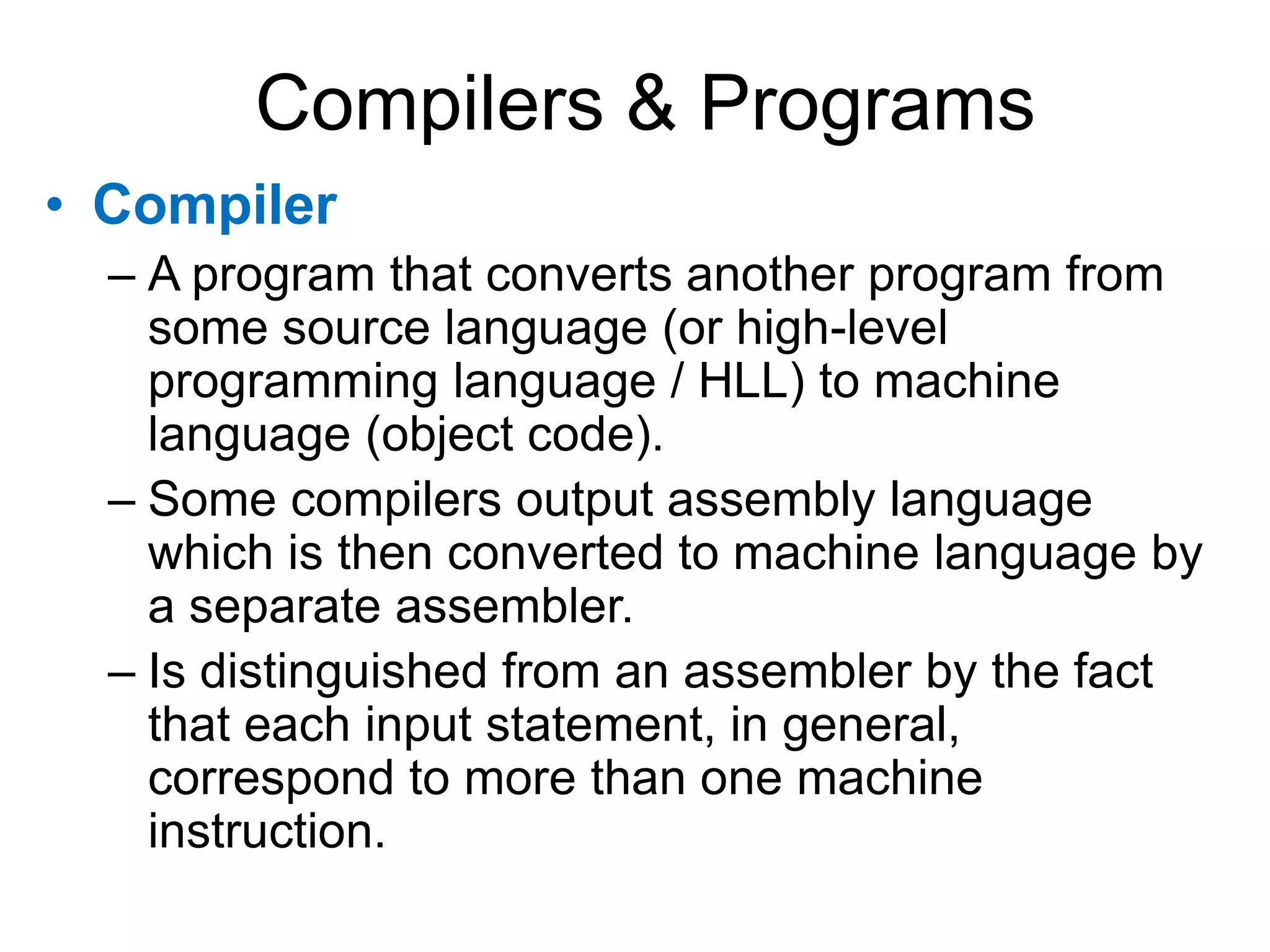

Compilers & Programs • Compiler – A program that converts another program from some source language (or high-level programming language / HLL) to machine language (object code). – Some compilers output assembly language which is then converted to machine language by a separate assembler. – Is distinguished from an assembler by the fact that each input statement, in general, correspond to more than one machine instruction.

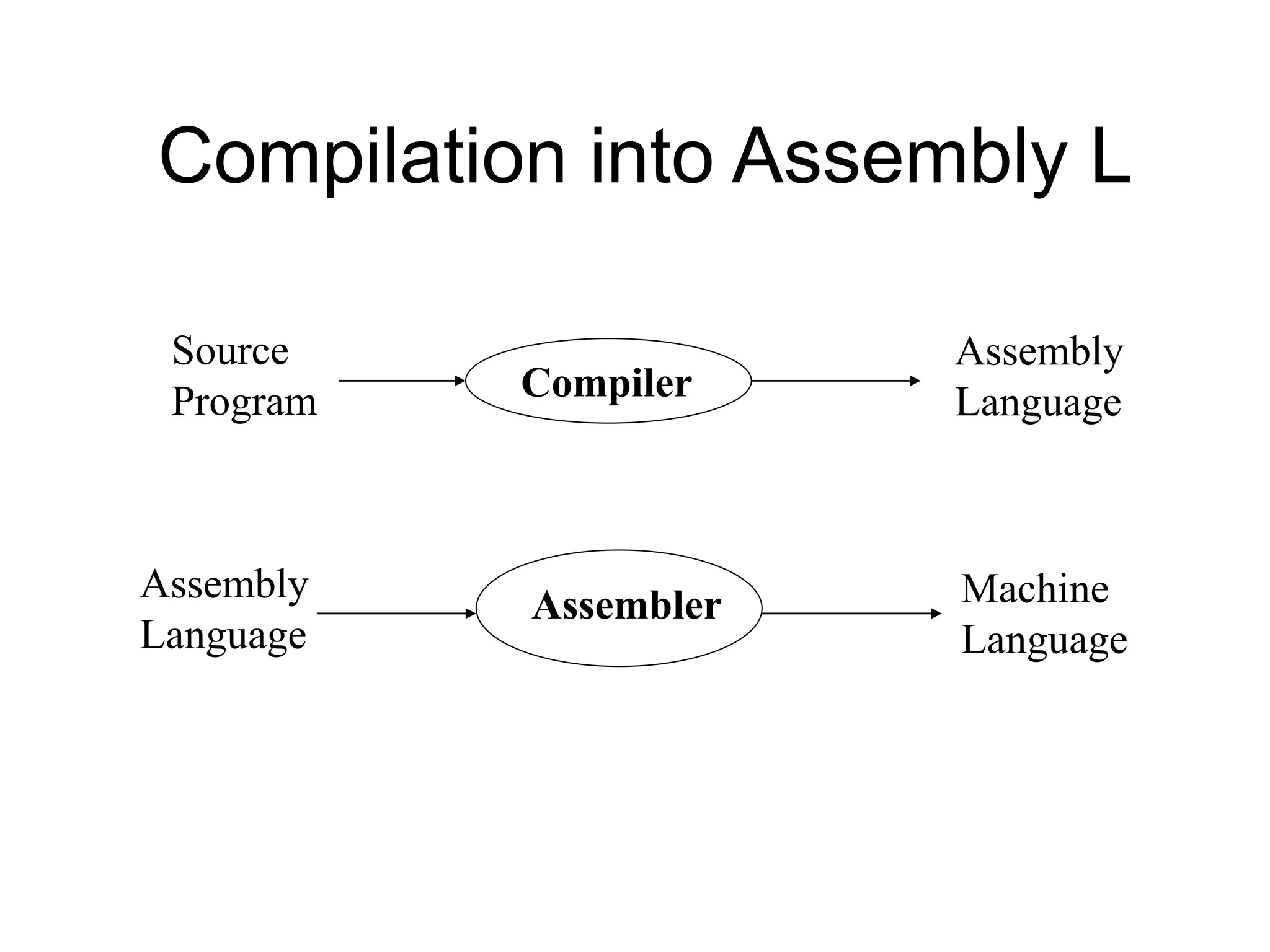

Compilation into Assembly L Compiler Assembler Source Program Assembly Language Assembly Language Machine Language

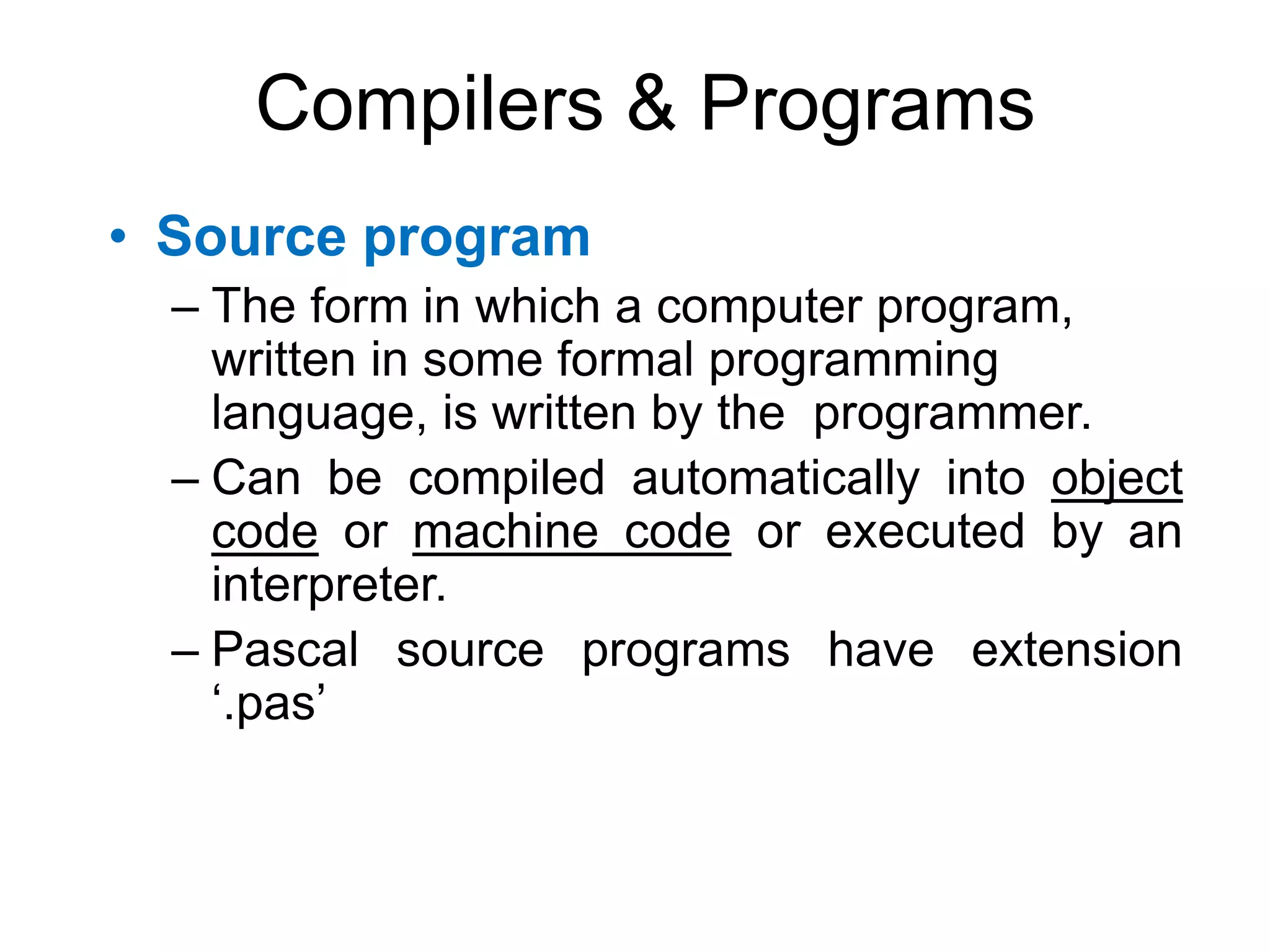

Compilers & Programs • Source program – The form in which a computer program, written in some formal programming language, is written by the programmer. – Can be compiled automatically into object code or machine code or executed by an interpreter. – Pascal source programs have extension ‘.pas’

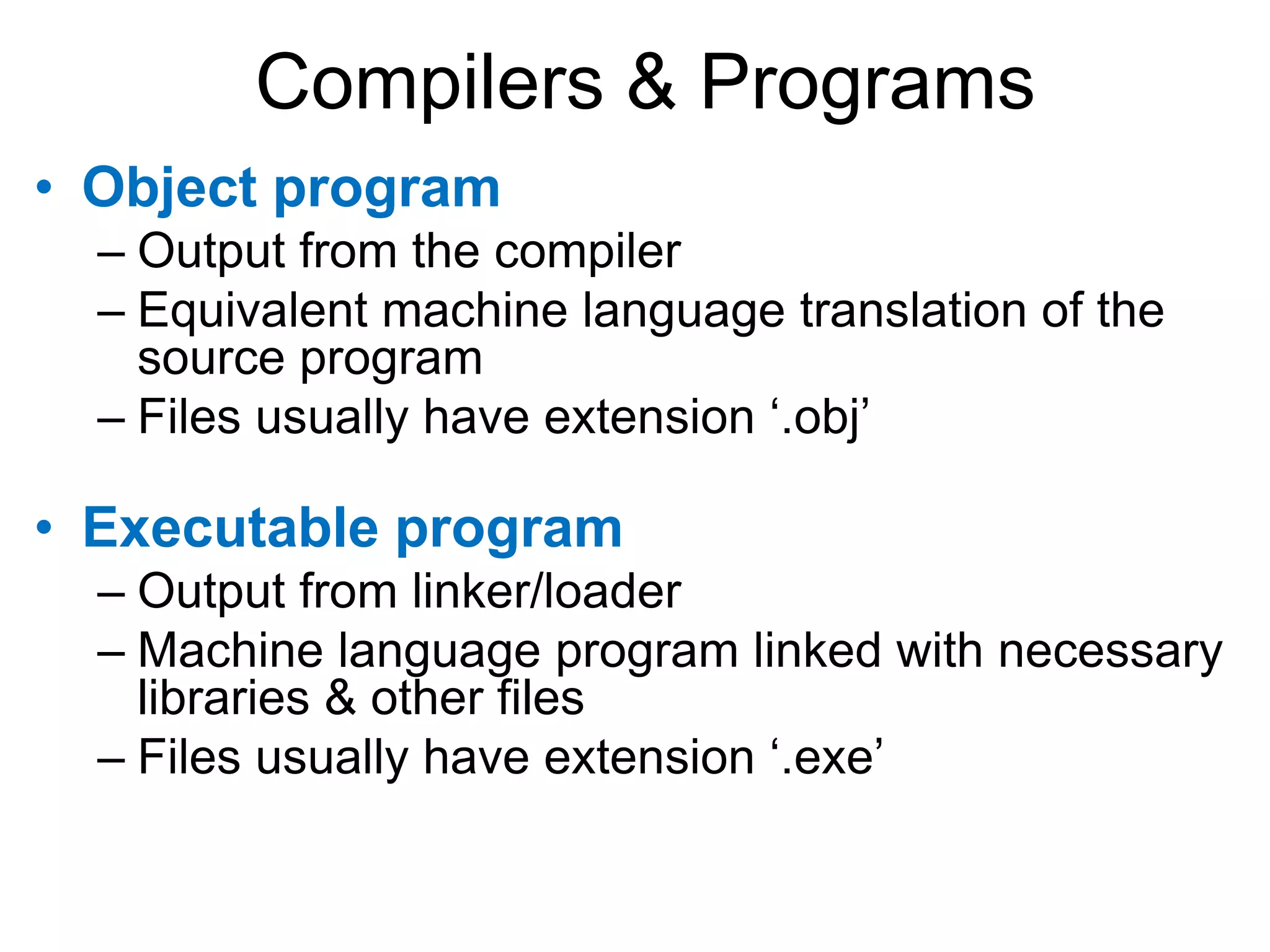

Compilers & Programs • Object program – Output from the compiler – Equivalent machine language translation of the source program – Files usually have extension ‘.obj’ • Executable program – Output from linker/loader – Machine language program linked with necessary libraries & other files – Files usually have extension ‘.exe’

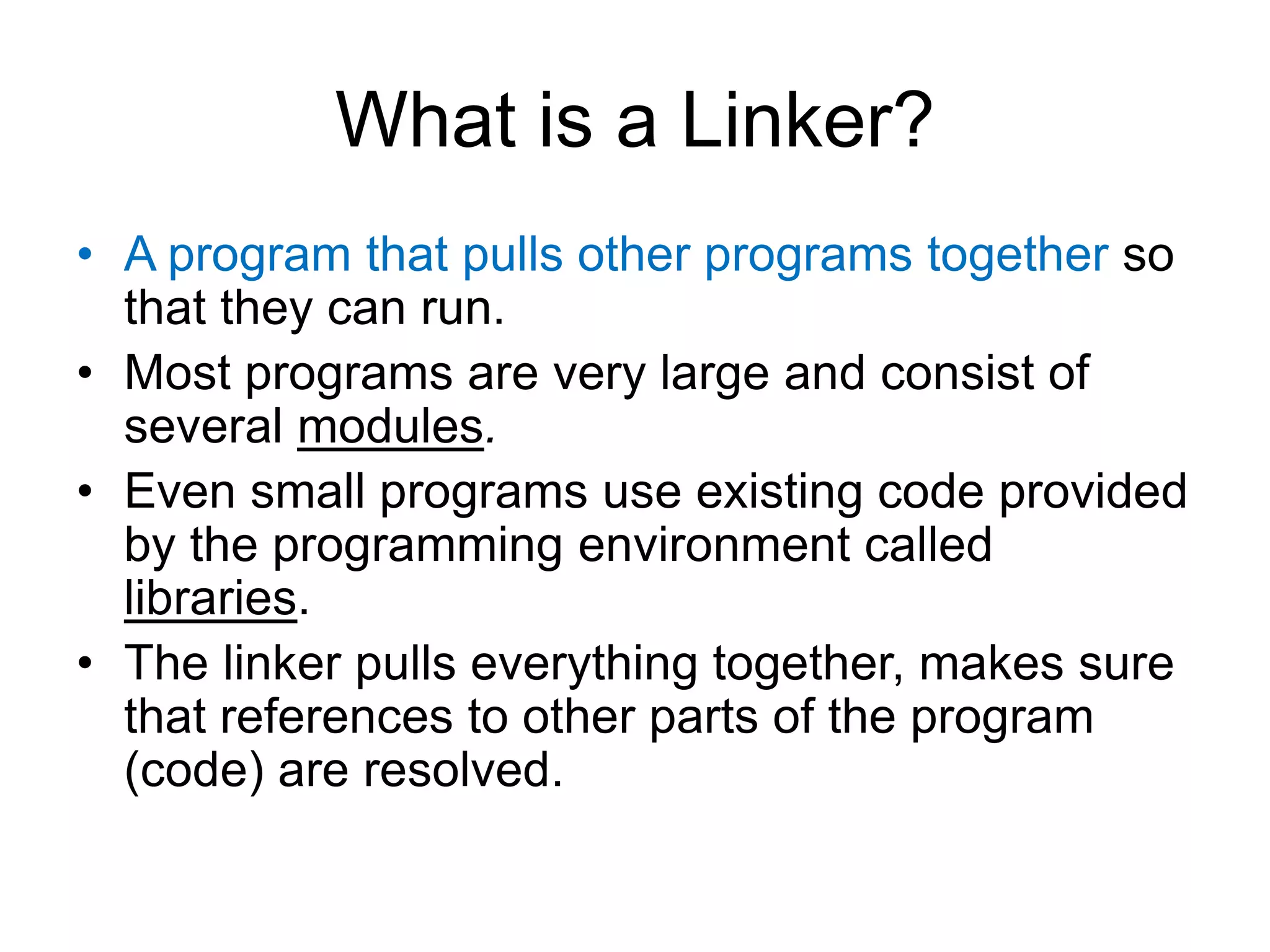

What is a Linker? • A program that pulls other programs together so that they can run. • Most programs are very large and consist of several modules. • Even small programs use existing code provided by the programming environment called libraries. • The linker pulls everything together, makes sure that references to other parts of the program (code) are resolved.

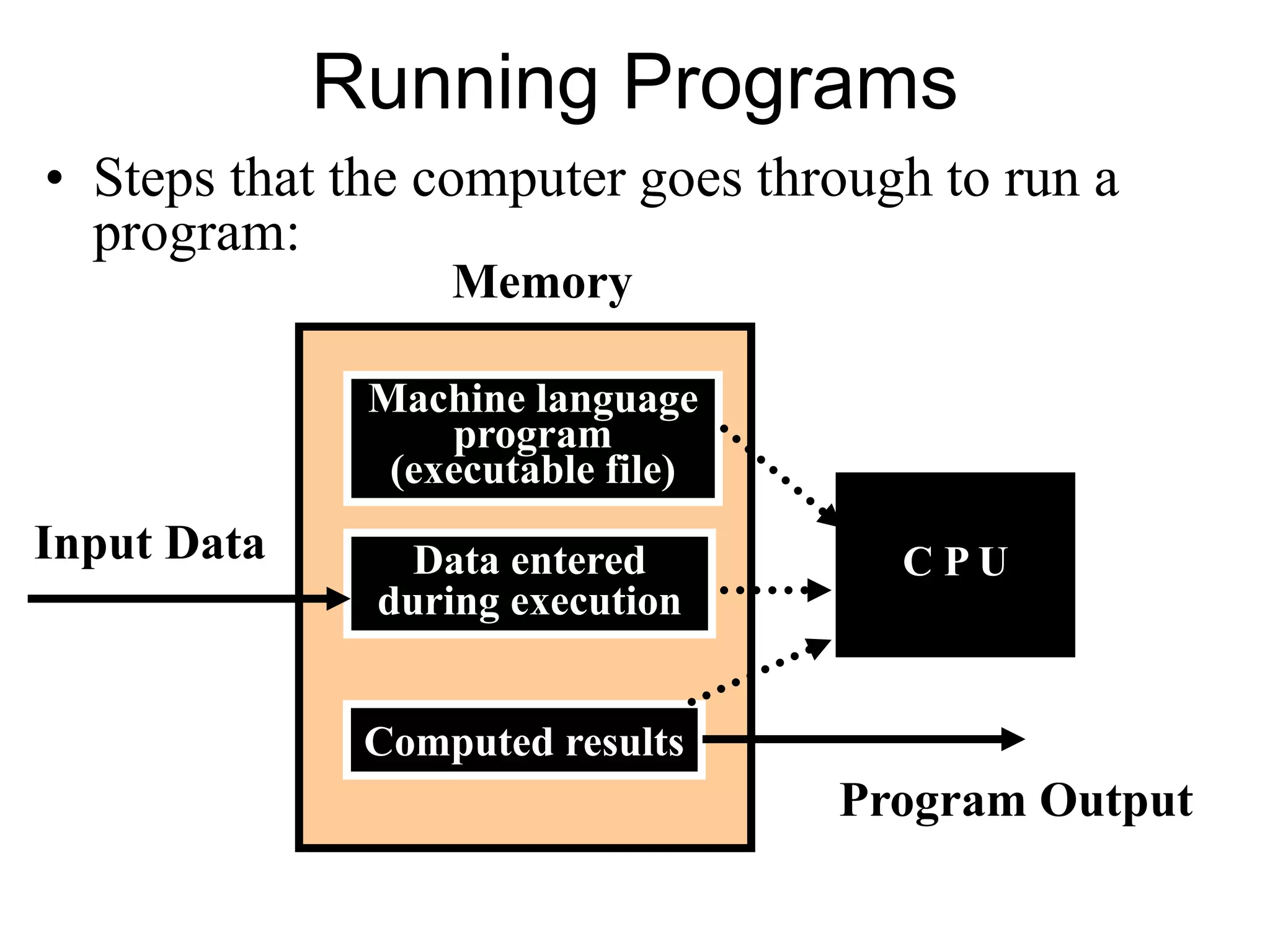

Running Programs Memory Input Data Program Output Machine language program (executable file) Data entered during execution Computed results C P U • Steps that the computer goes through to run a program:

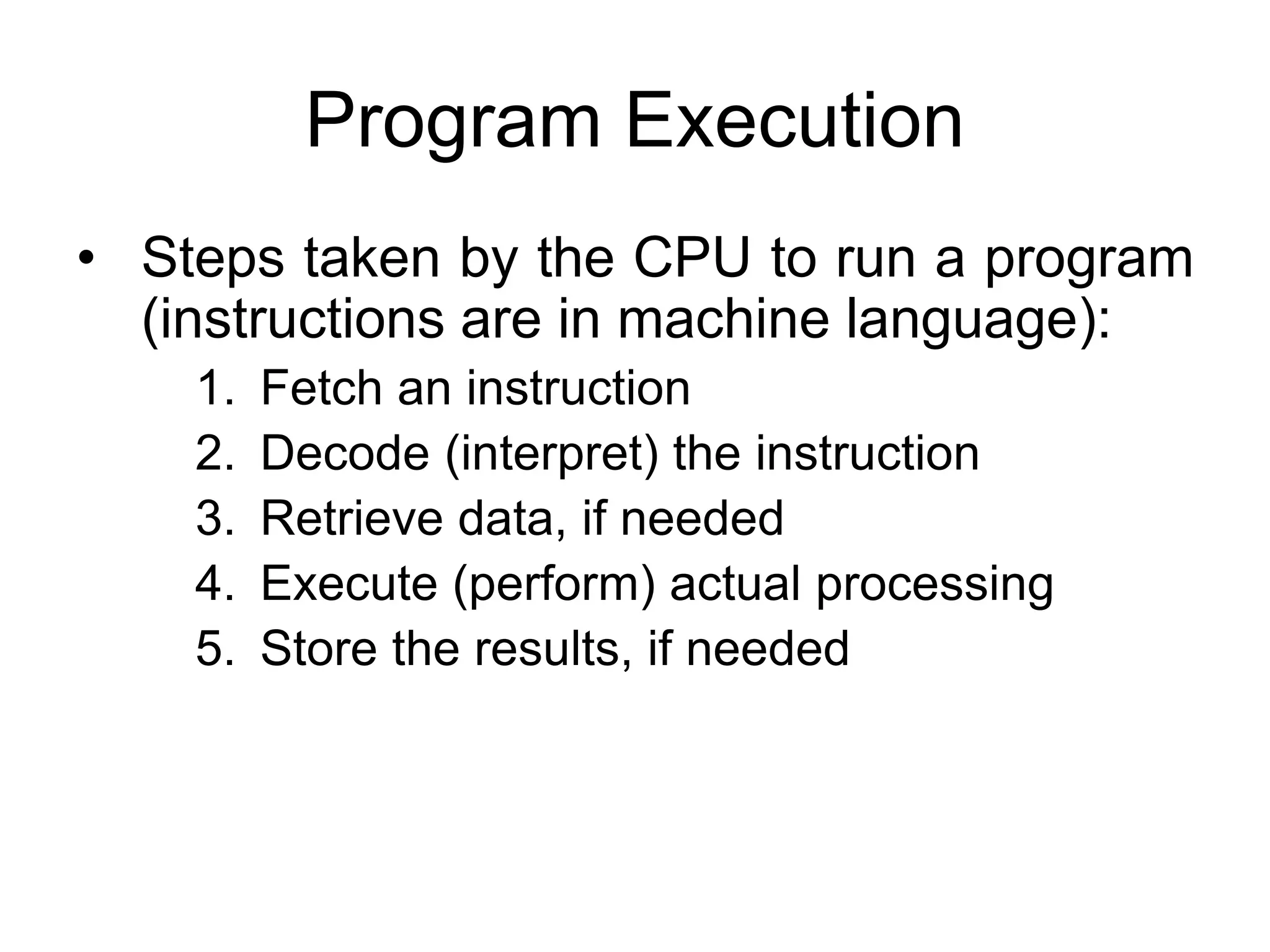

Program Execution • Steps taken by the CPU to run a program (instructions are in machine language): 1. Fetch an instruction 2. Decode (interpret) the instruction 3. Retrieve data, if needed 4. Execute (perform) actual processing 5. Store the results, if needed

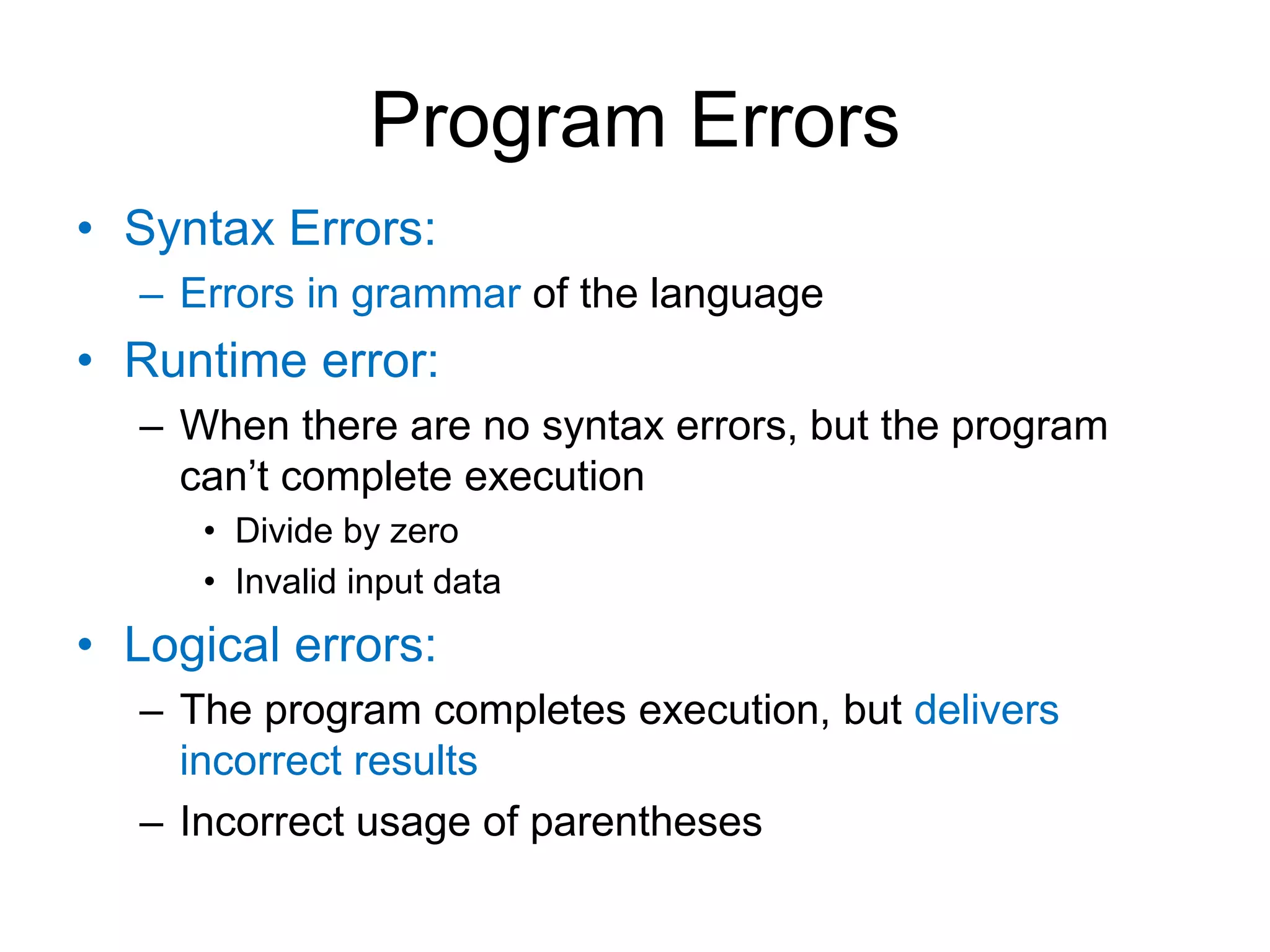

Program Errors • Syntax Errors: – Errors in grammar of the language • Runtime error: – When there are no syntax errors, but the program can’t complete execution • Divide by zero • Invalid input data • Logical errors: – The program completes execution, but delivers incorrect results – Incorrect usage of parentheses

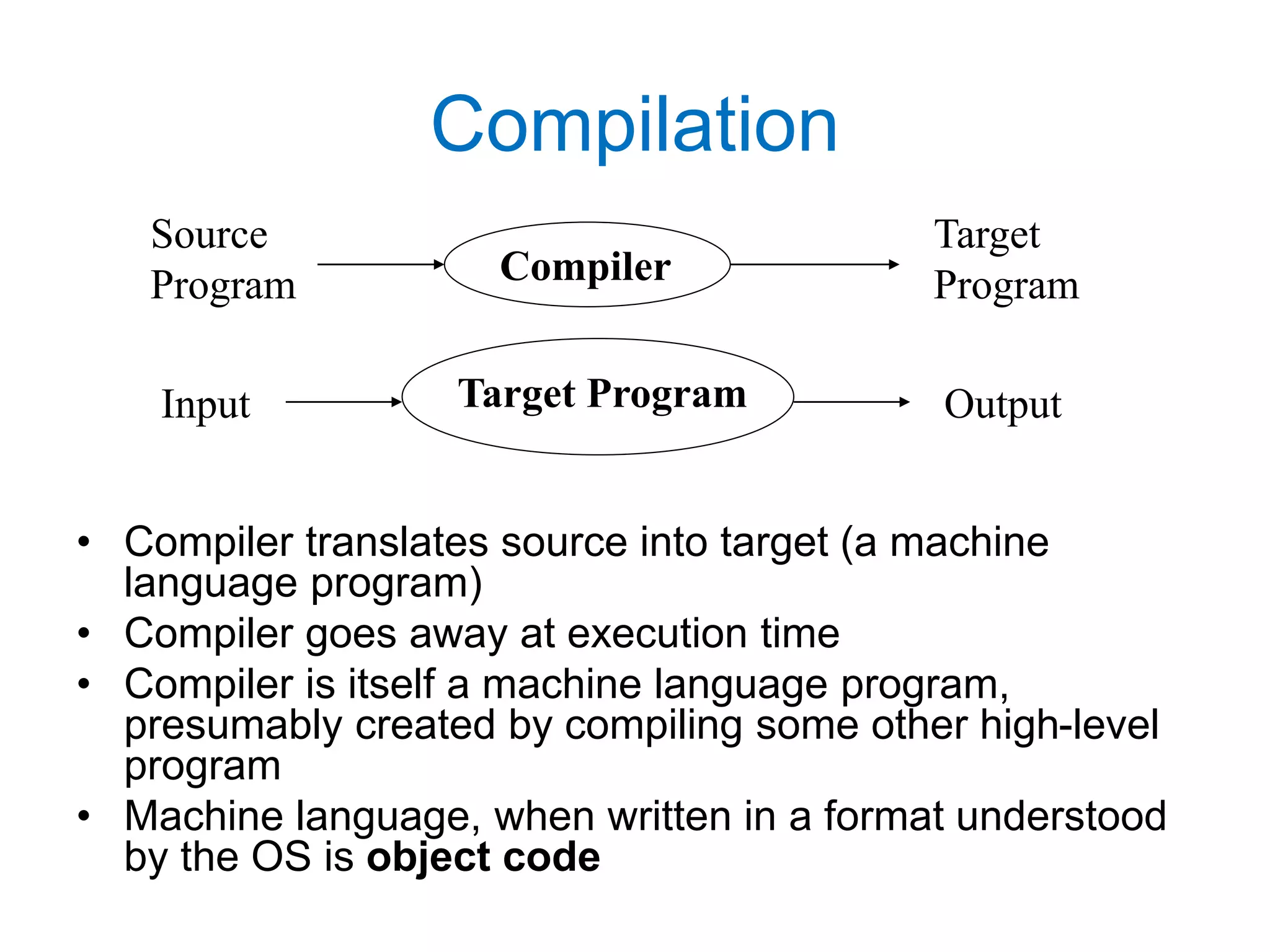

Compilation Compiler Target Program Source Program Target Program Input Output • Compiler translates source into target (a machine language program) • Compiler goes away at execution time • Compiler is itself a machine language program, presumably created by compiling some other high-level program • Machine language, when written in a format understood by the OS is object code

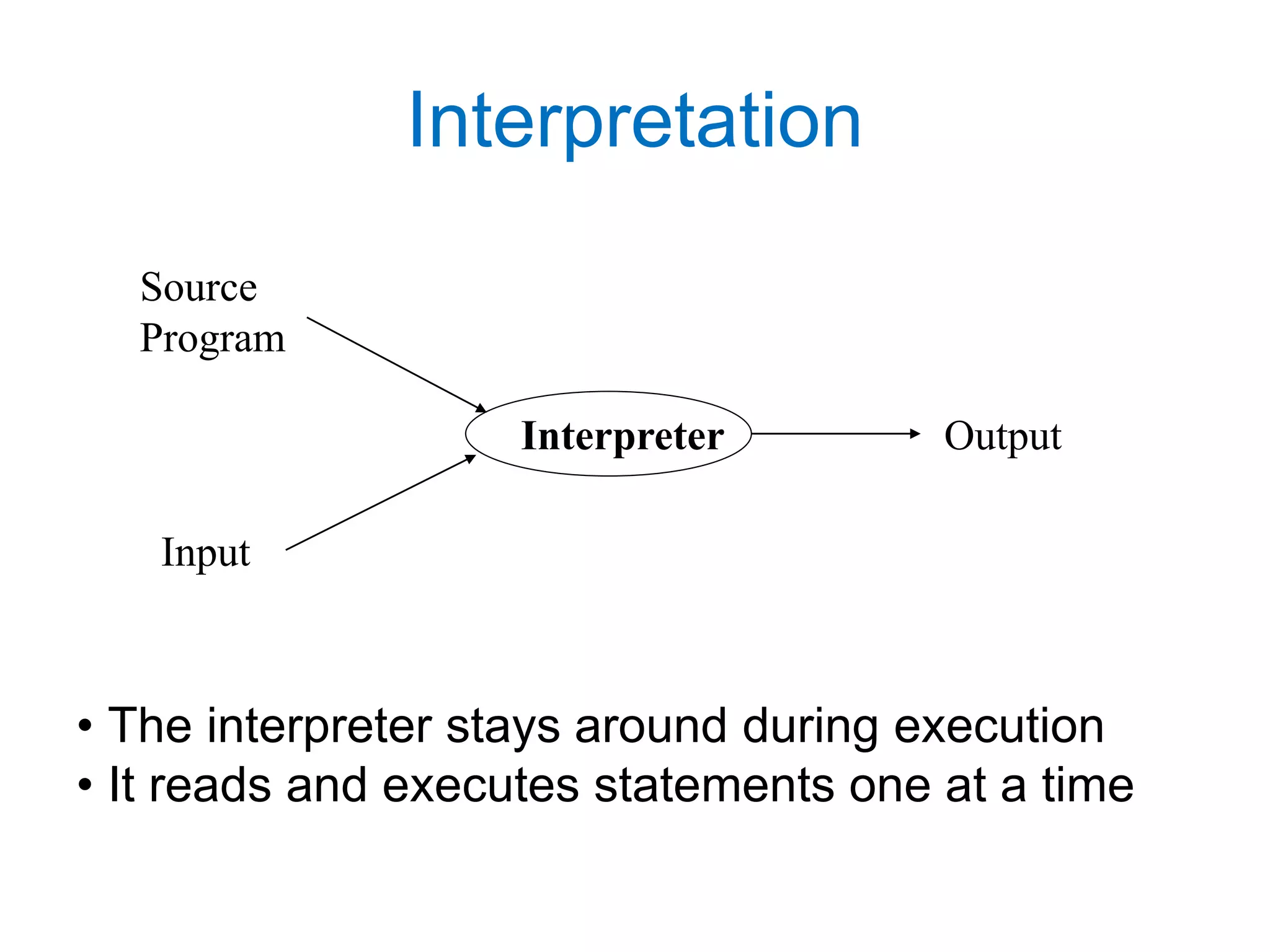

Interpretation Interpreter Source Program Input Output • The interpreter stays around during execution • It reads and executes statements one at a time

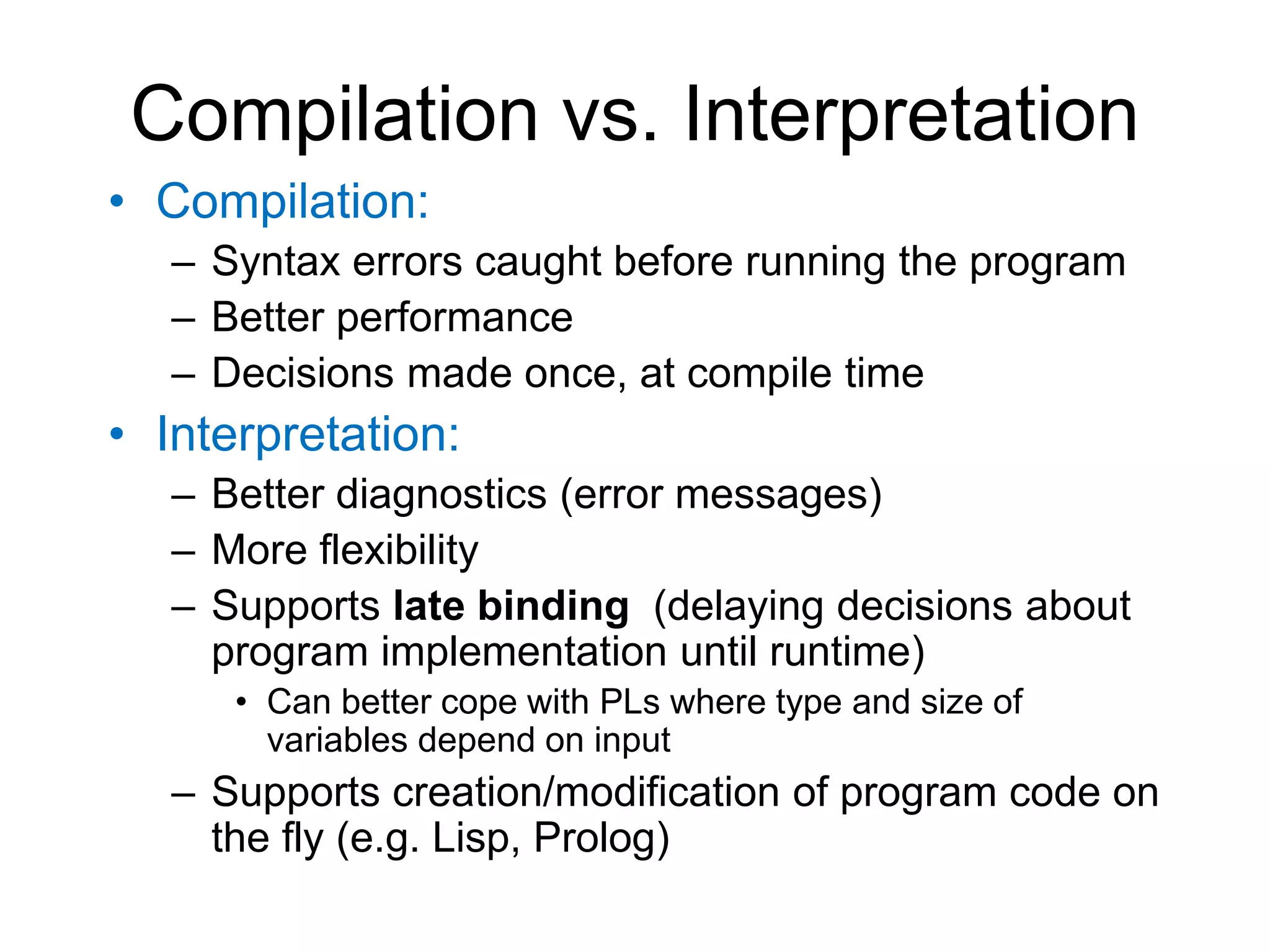

Compilation vs. Interpretation • Compilation: – Syntax errors caught before running the program – Better performance – Decisions made once, at compile time • Interpretation: – Better diagnostics (error messages) – More flexibility – Supports late binding (delaying decisions about program implementation until runtime) • Can better cope with PLs where type and size of variables depend on input – Supports creation/modification of program code on the fly (e.g. Lisp, Prolog)

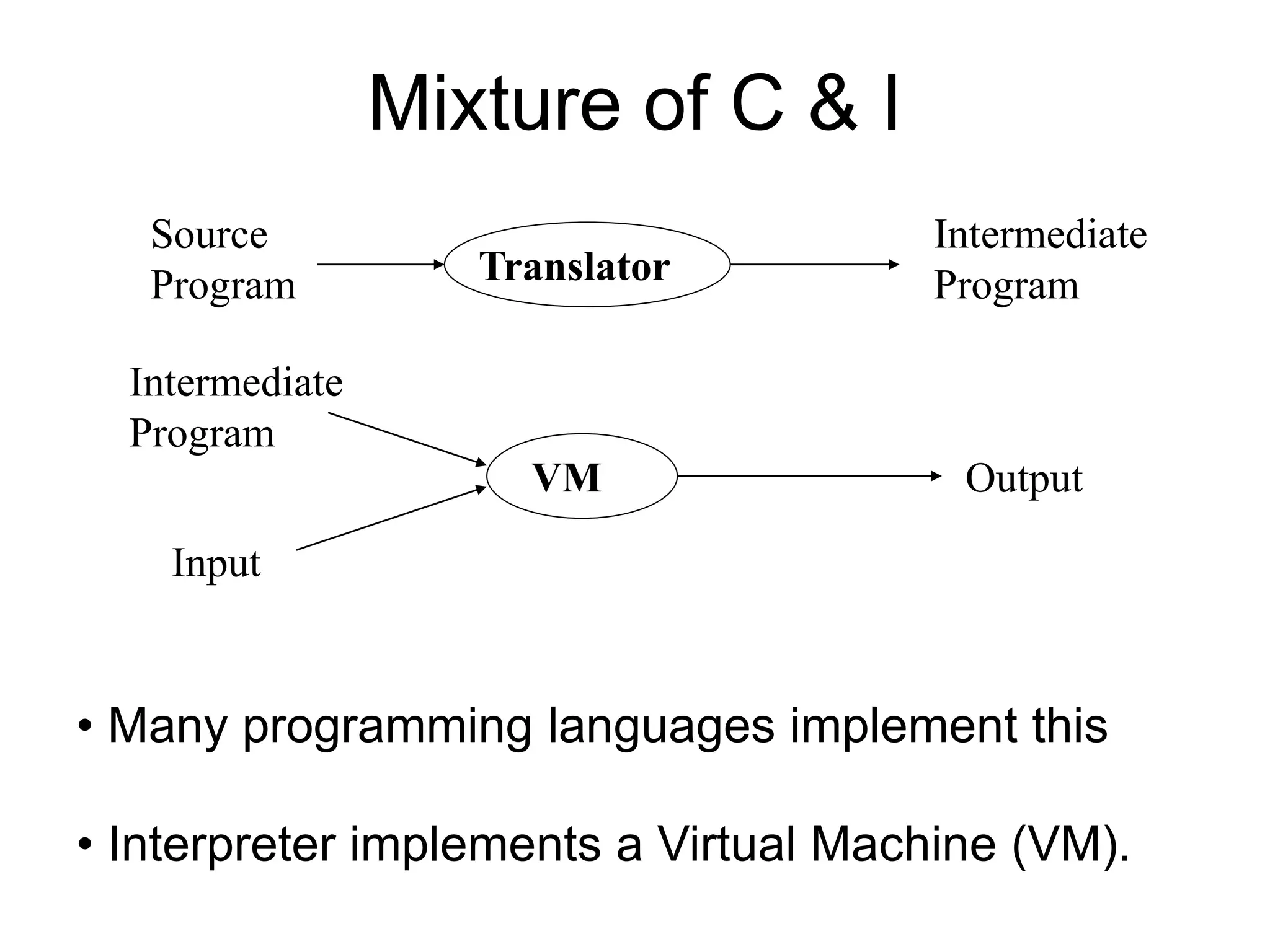

Mixture of C & I Translator Source Program Intermediate Program VM Intermediate Program Input Output • Many programming languages implement this • Interpreter implements a Virtual Machine (VM).

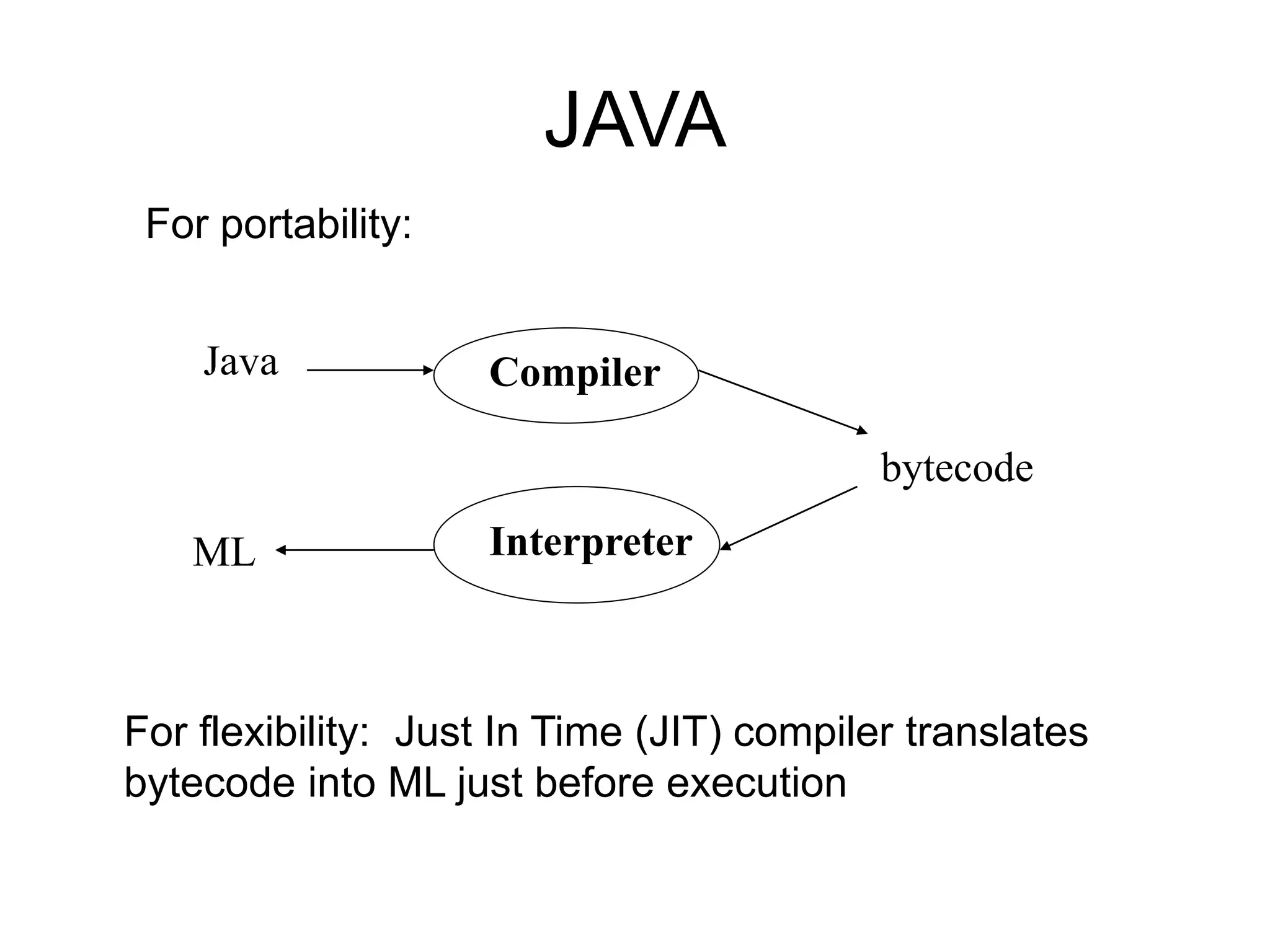

JAVA Compiler Interpreter Java bytecode ML For flexibility: Just In Time (JIT) compiler translates bytecode into ML just before execution For portability:

M. Shafraz Senior Lecturer School of Computing , NSBM shafraz@nsbm.lk
