  Continuous Integration For Real:The Perforce Java Platform Hamish Reid Perforce Software Inc.
• 2.

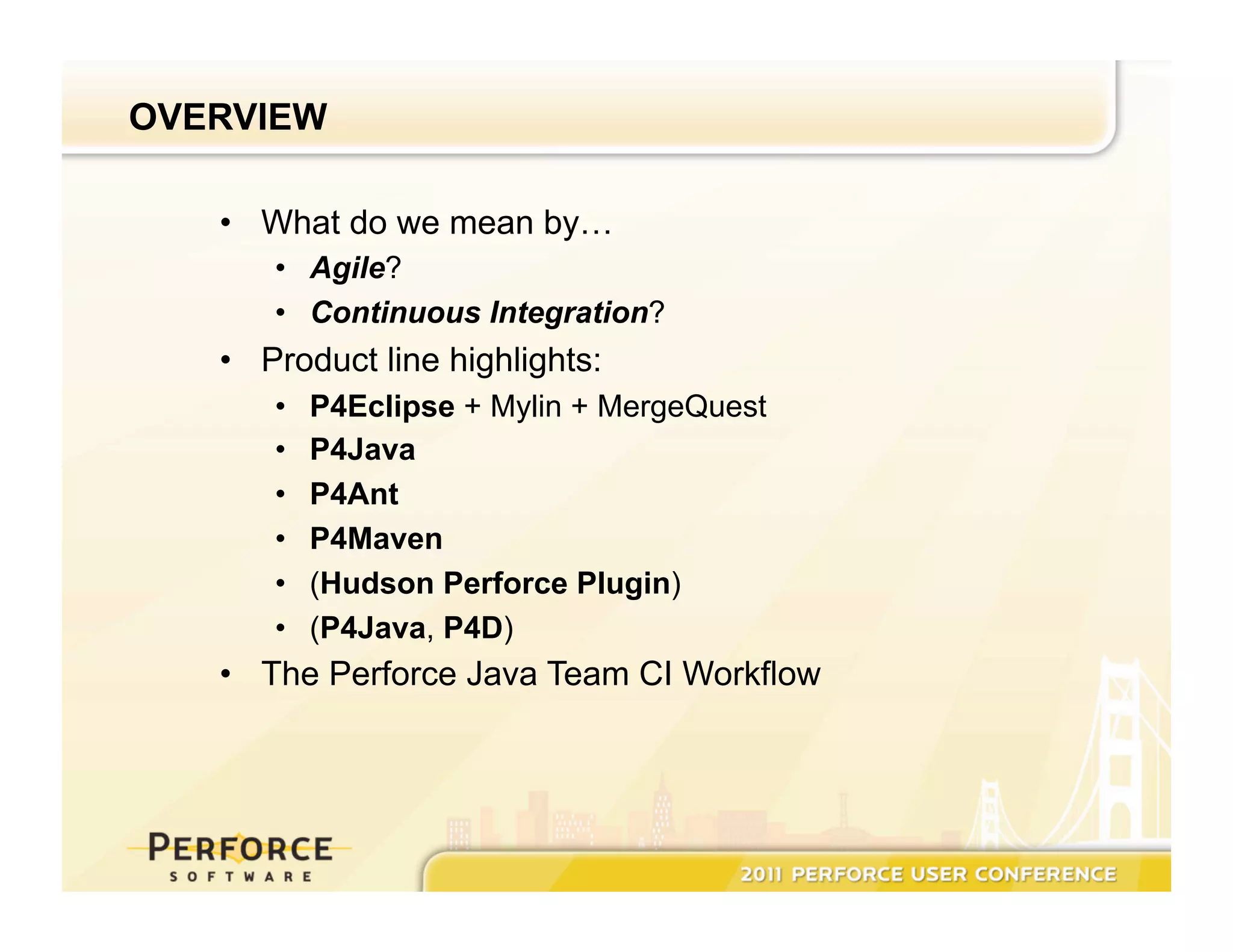

  OVERVIEW •  What do we mean by… •  Agile? •  Continuous Integration? •  Product line highlights: •  P4Eclipse + Mylin + MergeQuest •  P4Java •  P4Ant •  P4Maven •  (Hudson Perforce Plugin) •  (P4Java, P4D) •  The Perforce Java Team CI Workflow
• 3.

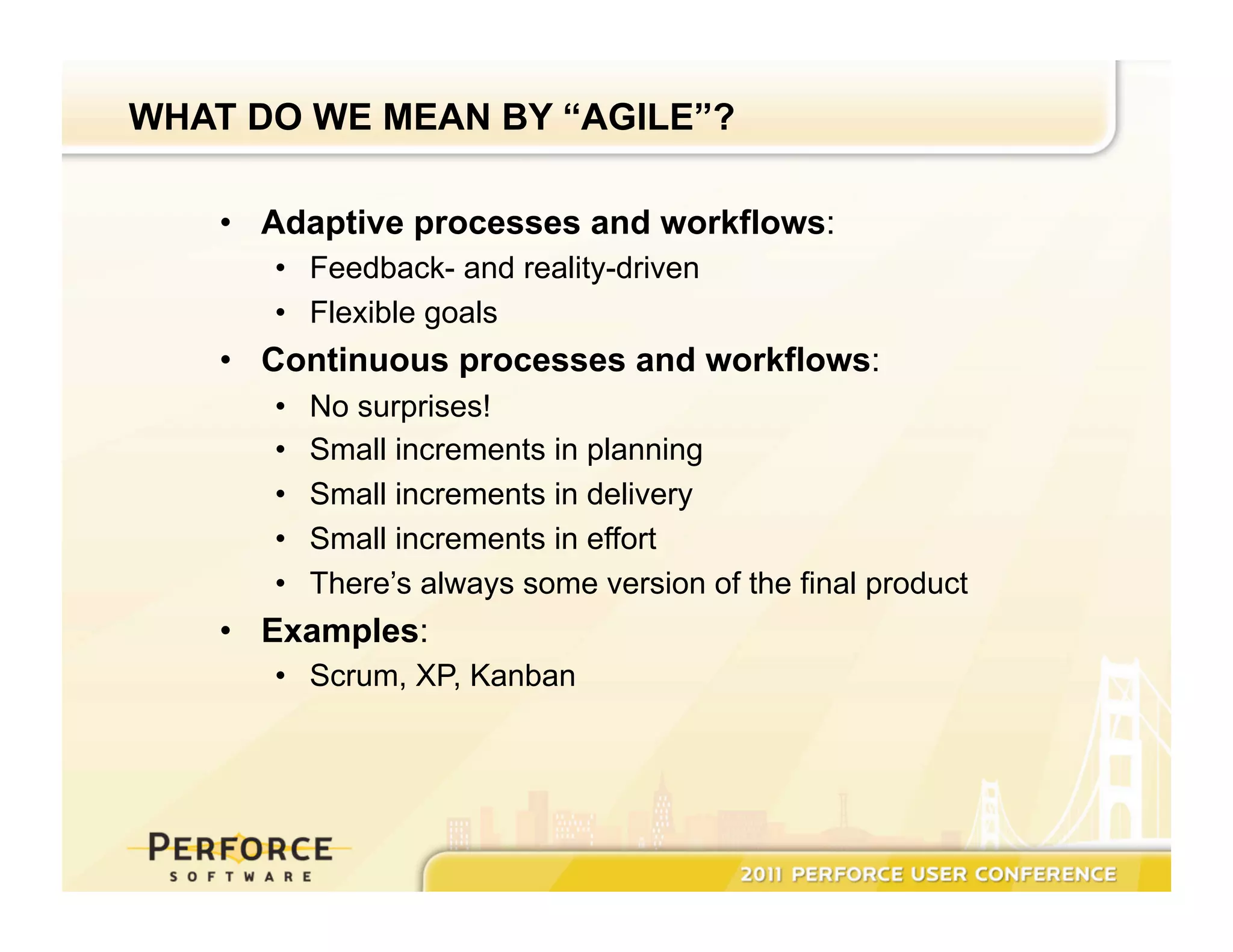

  WHAT DO WEMEAN BY “AGILE”? •  Adaptive processes and workflows: •  Feedback- and reality-driven •  Flexible goals •  Continuous processes and workflows: •  No surprises! •  Small increments in planning •  Small increments in delivery •  Small increments in effort •  There’s always some version of the final product •  Examples: •  Scrum, XP, Kanban
• 4.

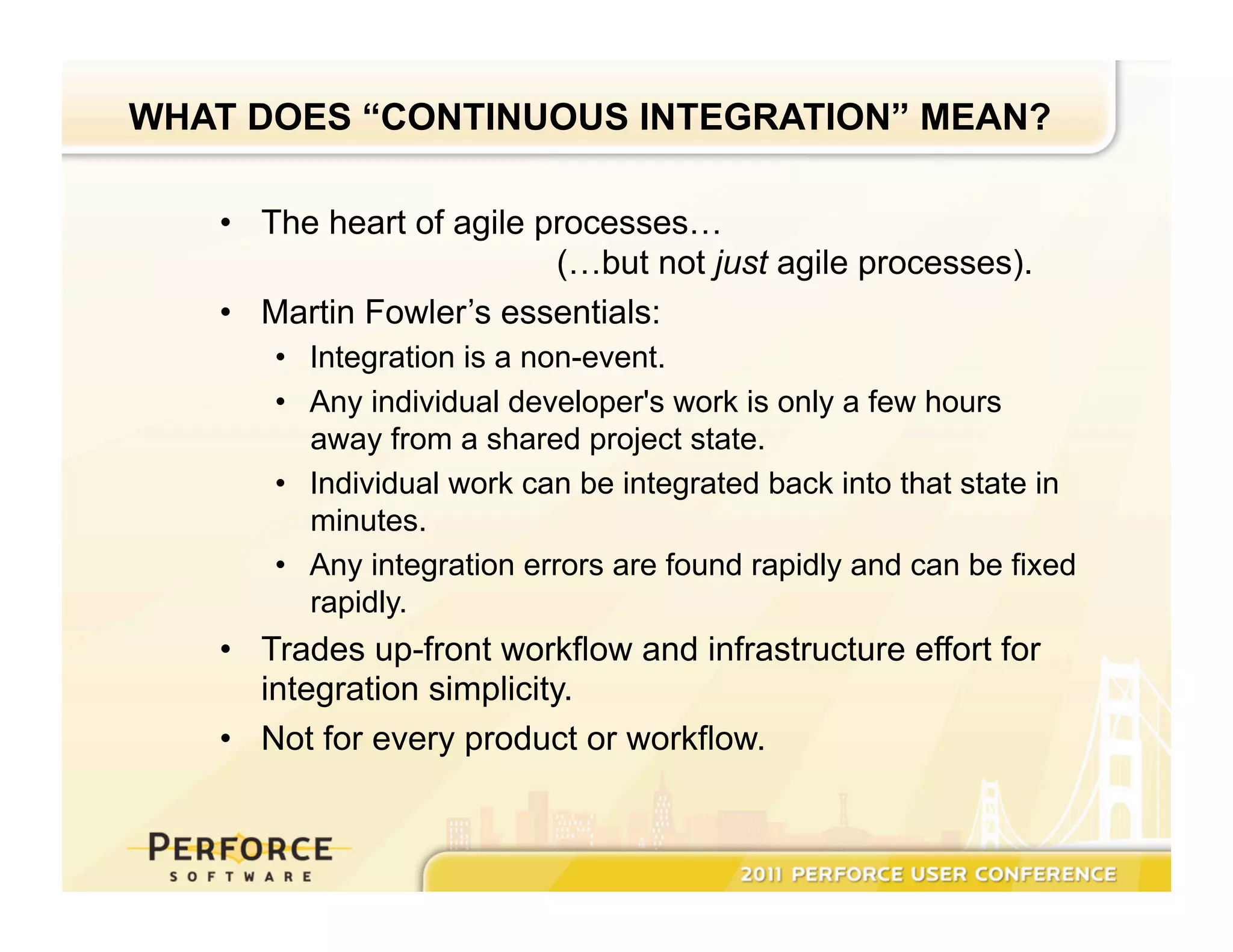

  WHAT DOES “CONTINUOUSINTEGRATION” MEAN? •  The heart of agile processes… (…but not just agile processes). •  Martin Fowler’s essentials: •  Integration is a non-event. •  Any individual developer's work is only a few hours away from a shared project state. •  Individual work can be integrated back into that state in minutes. •  Any integration errors are found rapidly and can be fixed rapidly. •  Trades up-front workflow and infrastructure effort for integration simplicity. •  Not for every product or workflow.
• 5.

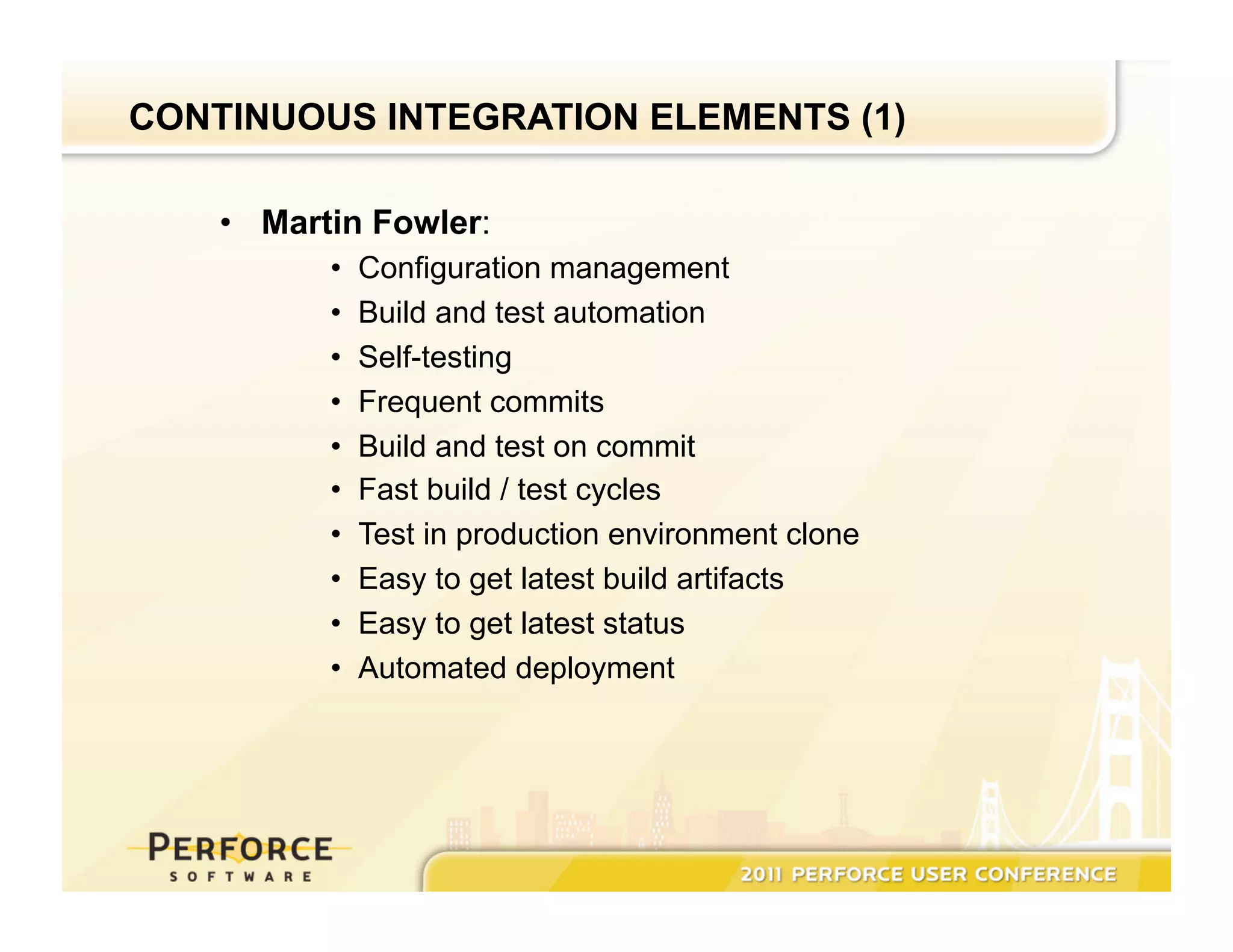

  CONTINUOUS INTEGRATION ELEMENTS(1) •  Martin Fowler: •  Configuration management •  Build and test automation •  Self-testing •  Frequent commits •  Build and test on commit •  Fast build / test cycles •  Test in production environment clone •  Easy to get latest build artifacts •  Easy to get latest status •  Automated deployment
• 6.

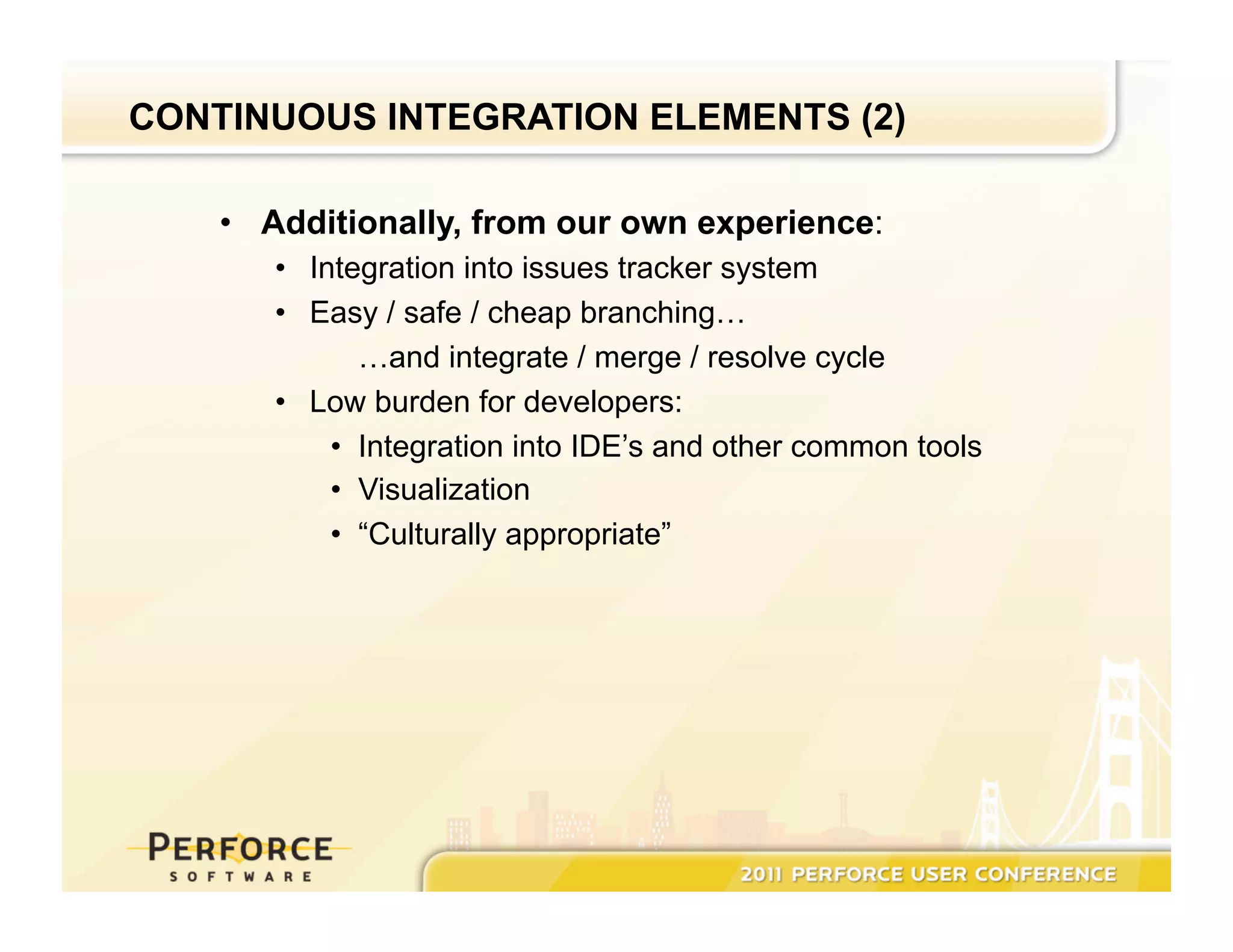

  CONTINUOUS INTEGRATION ELEMENTS(2) •  Additionally, from our own experience: •  Integration into issues tracker system •  Easy / safe / cheap branching… …and integrate / merge / resolve cycle •  Low burden for developers: •  Integration into IDE’s and other common tools •  Visualization •  “Culturally appropriate”
• 7.

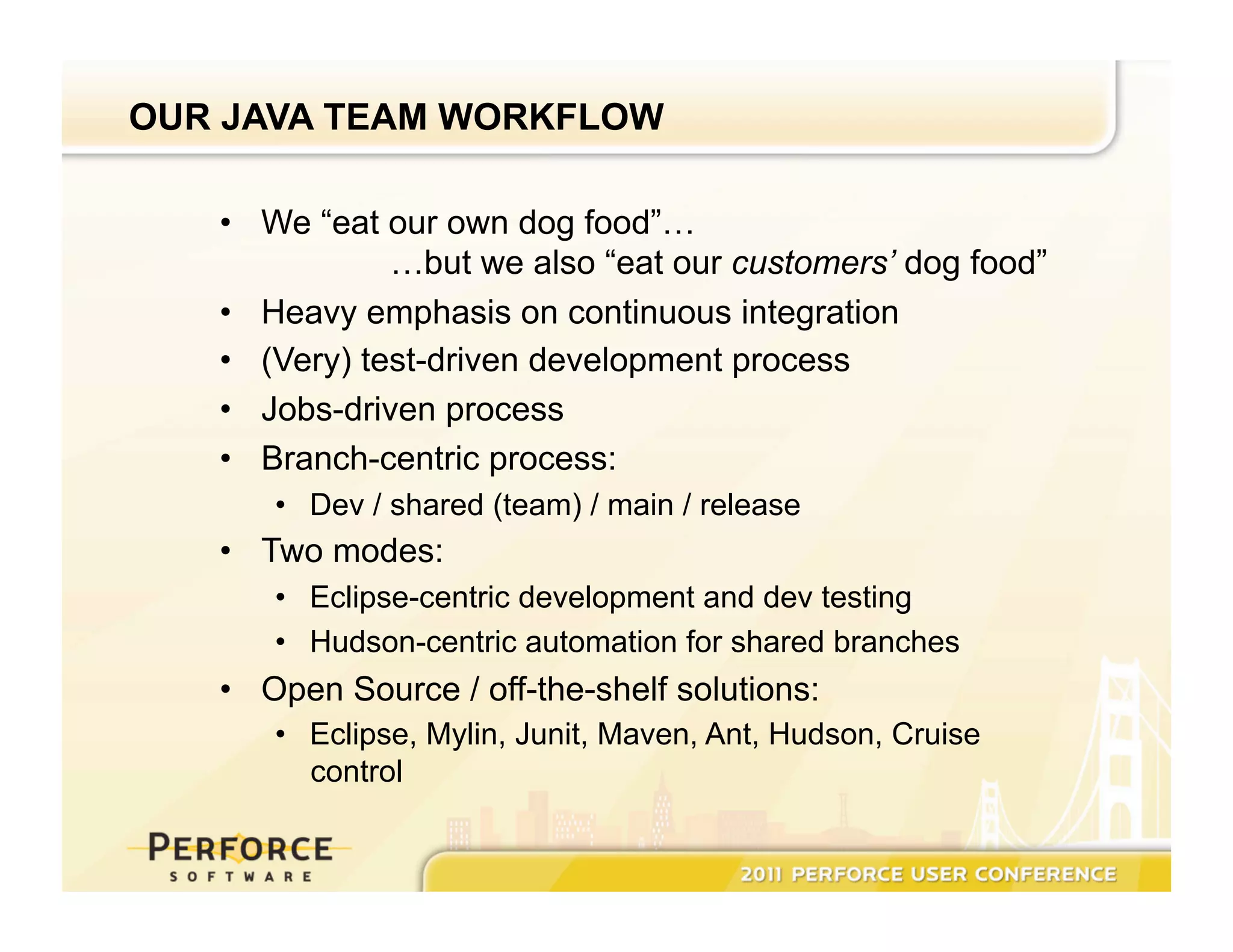

  OUR JAVA TEAMWORKFLOW •  We “eat our own dog food”… …but we also “eat our customers’ dog food” •  Heavy emphasis on continuous integration •  (Very) test-driven development process •  Jobs-driven process •  Branch-centric process: •  Dev / shared (team) / main / release •  Two modes: •  Eclipse-centric development and dev testing •  Hudson-centric automation for shared branches •  Open Source / off-the-shelf solutions: •  Eclipse, Mylin, Junit, Maven, Ant, Hudson, Cruise control
• 8.

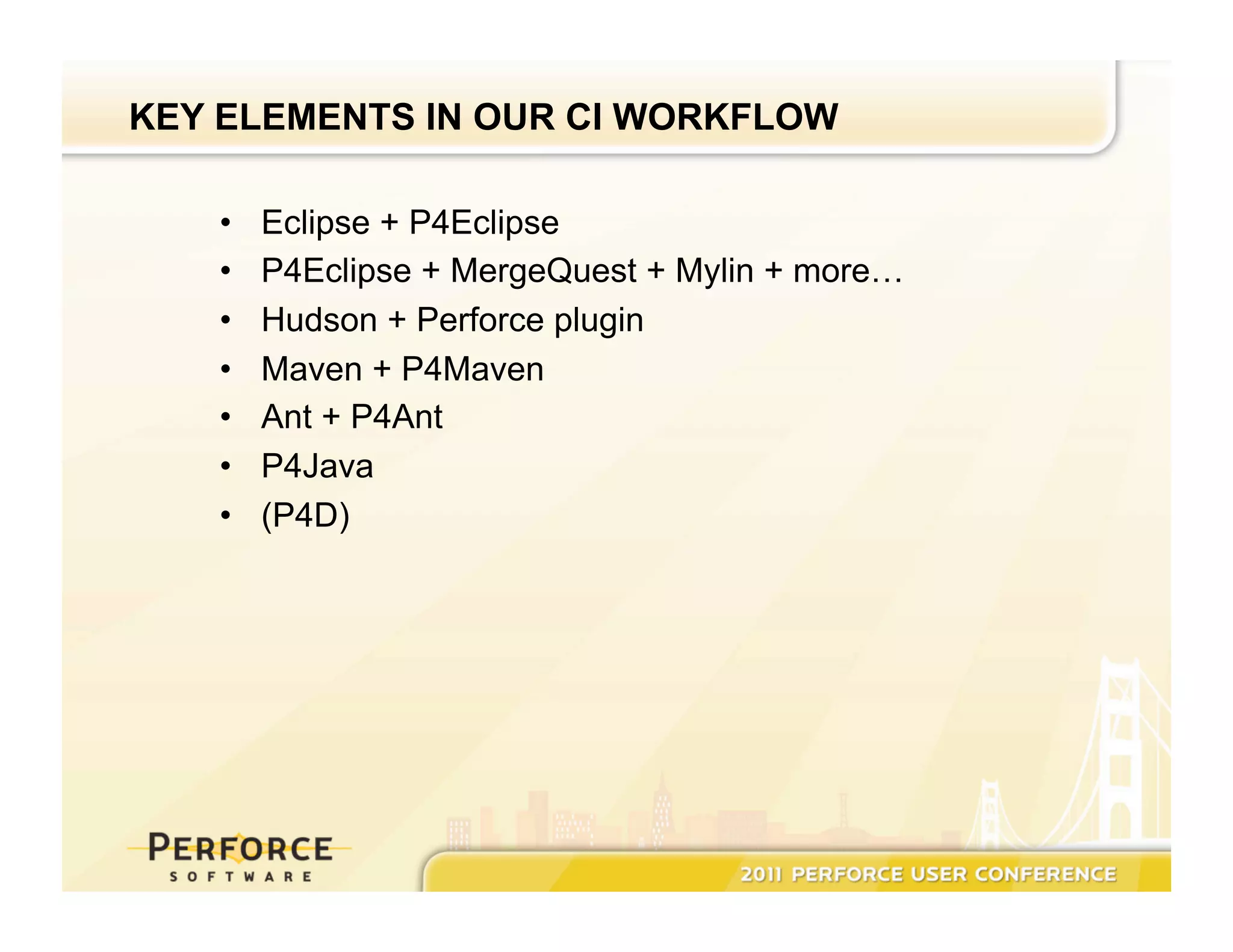

  KEY ELEMENTS INOUR CI WORKFLOW •  Eclipse + P4Eclipse •  P4Eclipse + MergeQuest + Mylin + more… •  Hudson + Perforce plugin •  Maven + P4Maven •  Ant + P4Ant •  P4Java •  (P4D)
• 9.

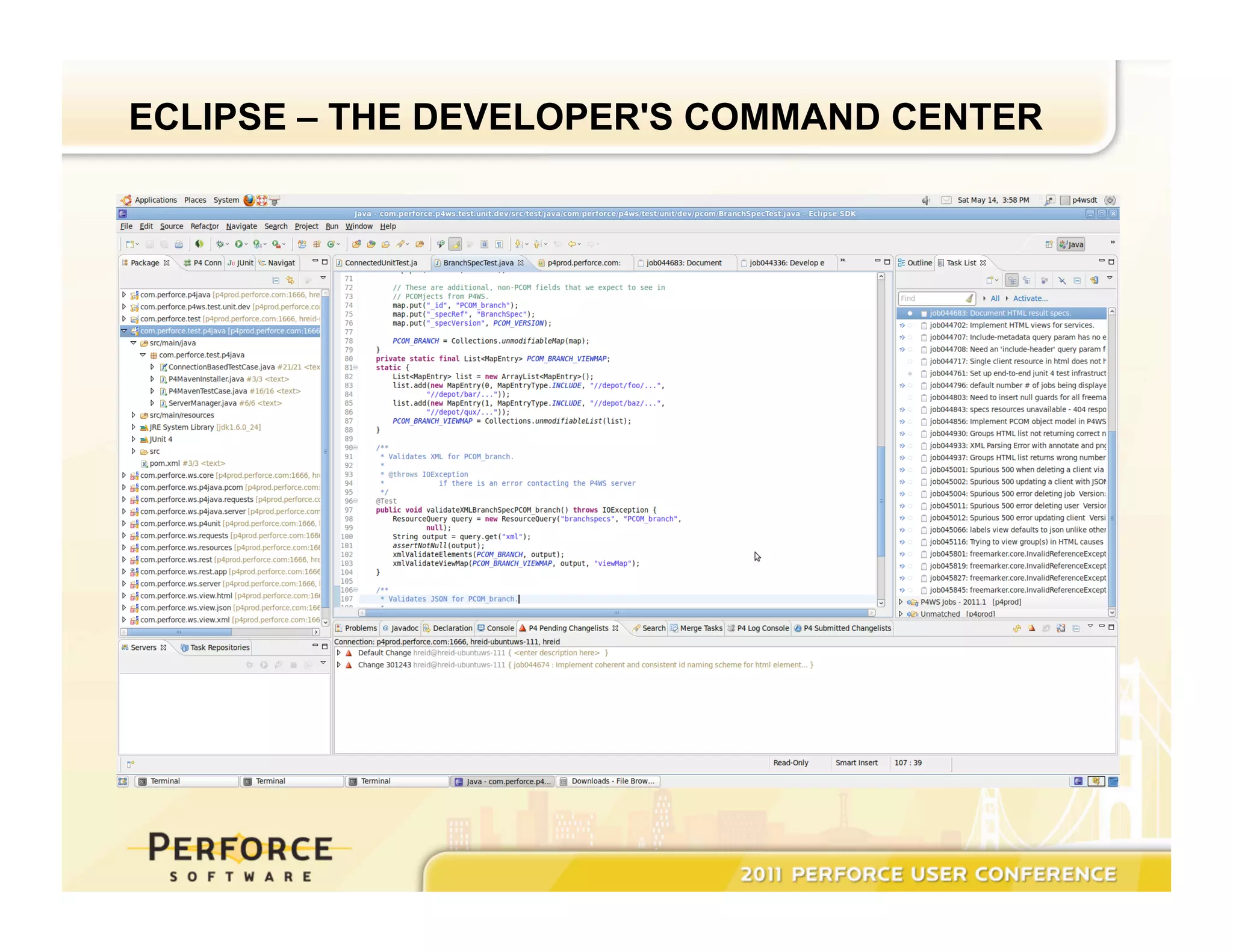

  ECLIPSE – THEDEVELOPER'S COMMAND CENTER
• 10.

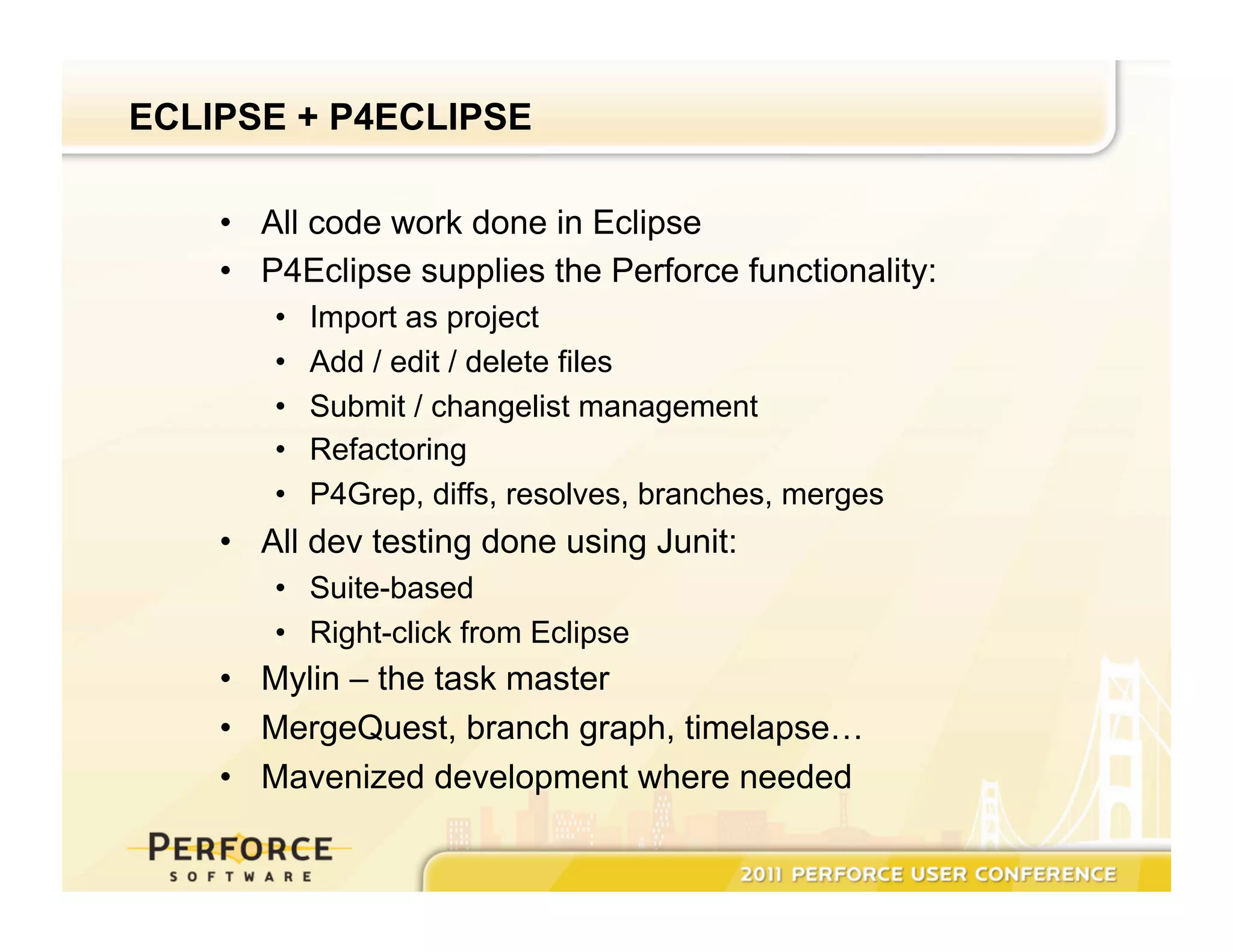

  ECLIPSE + P4ECLIPSE •  All code work done in Eclipse •  P4Eclipse supplies the Perforce functionality: •  Import as project •  Add / edit / delete files •  Submit / changelist management •  Refactoring •  P4Grep, diffs, resolves, branches, merges •  All dev testing done using Junit: •  Suite-based •  Right-click from Eclipse •  Mylin – the task master •  MergeQuest, branch graph, timelapse… •  Mavenized development where needed
• 11.

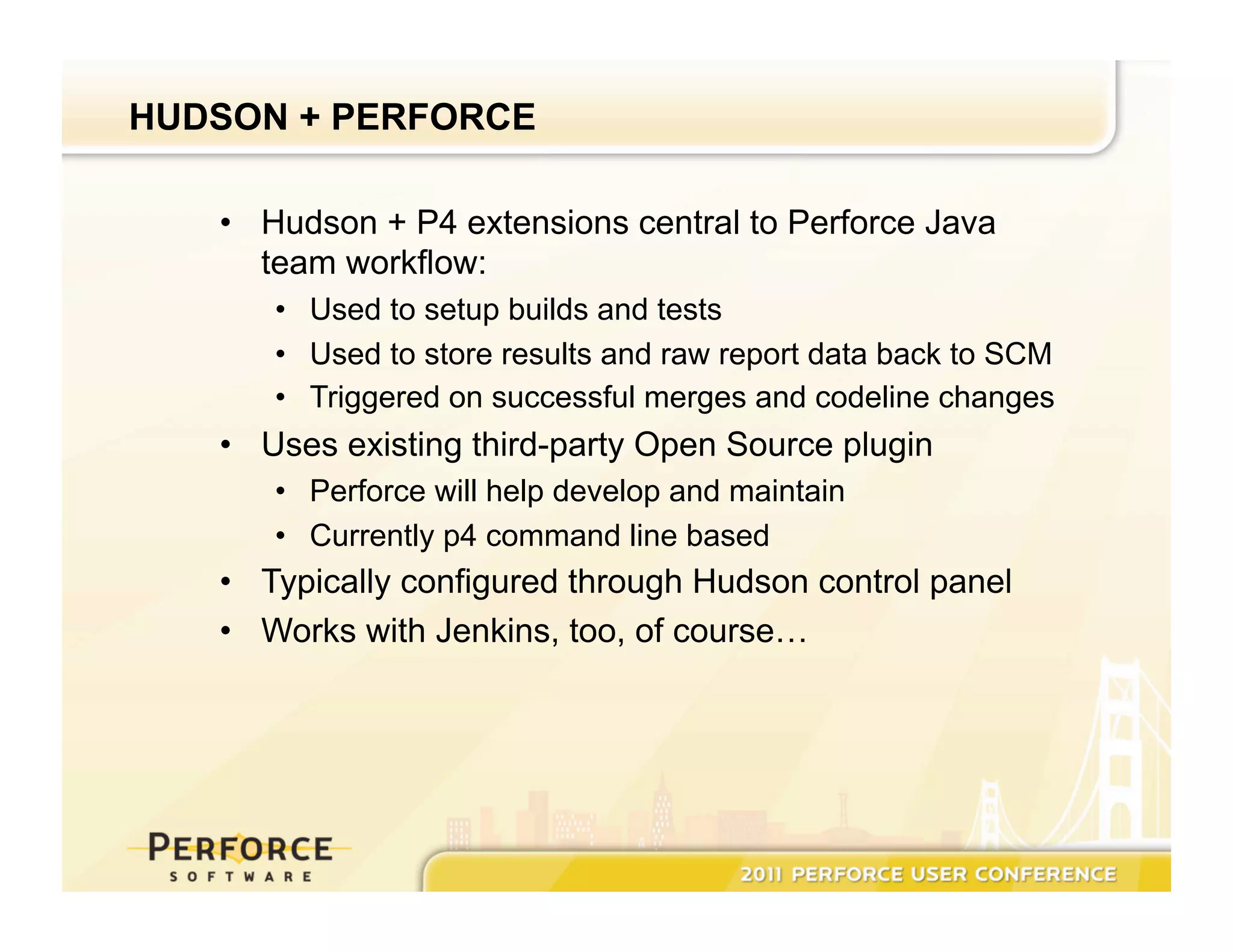

  HUDSON + PERFORCE •  Hudson + P4 extensions central to Perforce Java team workflow: •  Used to setup builds and tests •  Used to store results and raw report data back to SCM •  Triggered on successful merges and codeline changes •  Uses existing third-party Open Source plugin •  Perforce will help develop and maintain •  Currently p4 command line based •  Typically configured through Hudson control panel •  Works with Jenkins, too, of course…
• 12.

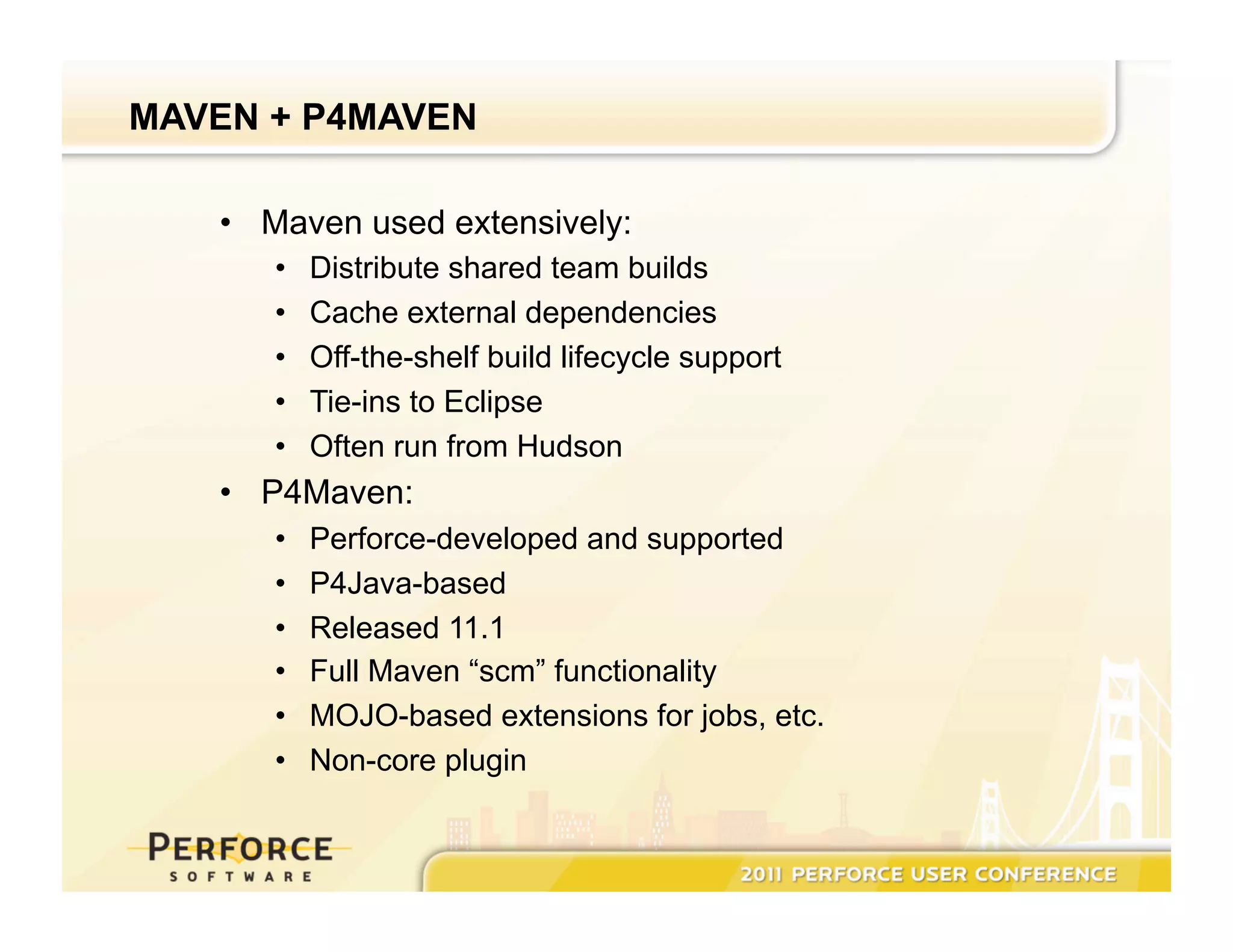

  MAVEN + P4MAVEN •  Maven used extensively: •  Distribute shared team builds •  Cache external dependencies •  Off-the-shelf build lifecycle support •  Tie-ins to Eclipse •  Often run from Hudson •  P4Maven: •  Perforce-developed and supported •  P4Java-based •  Released 11.1 •  Full Maven “scm” functionality •  MOJO-based extensions for jobs, etc. •  Non-core plugin
• 13.

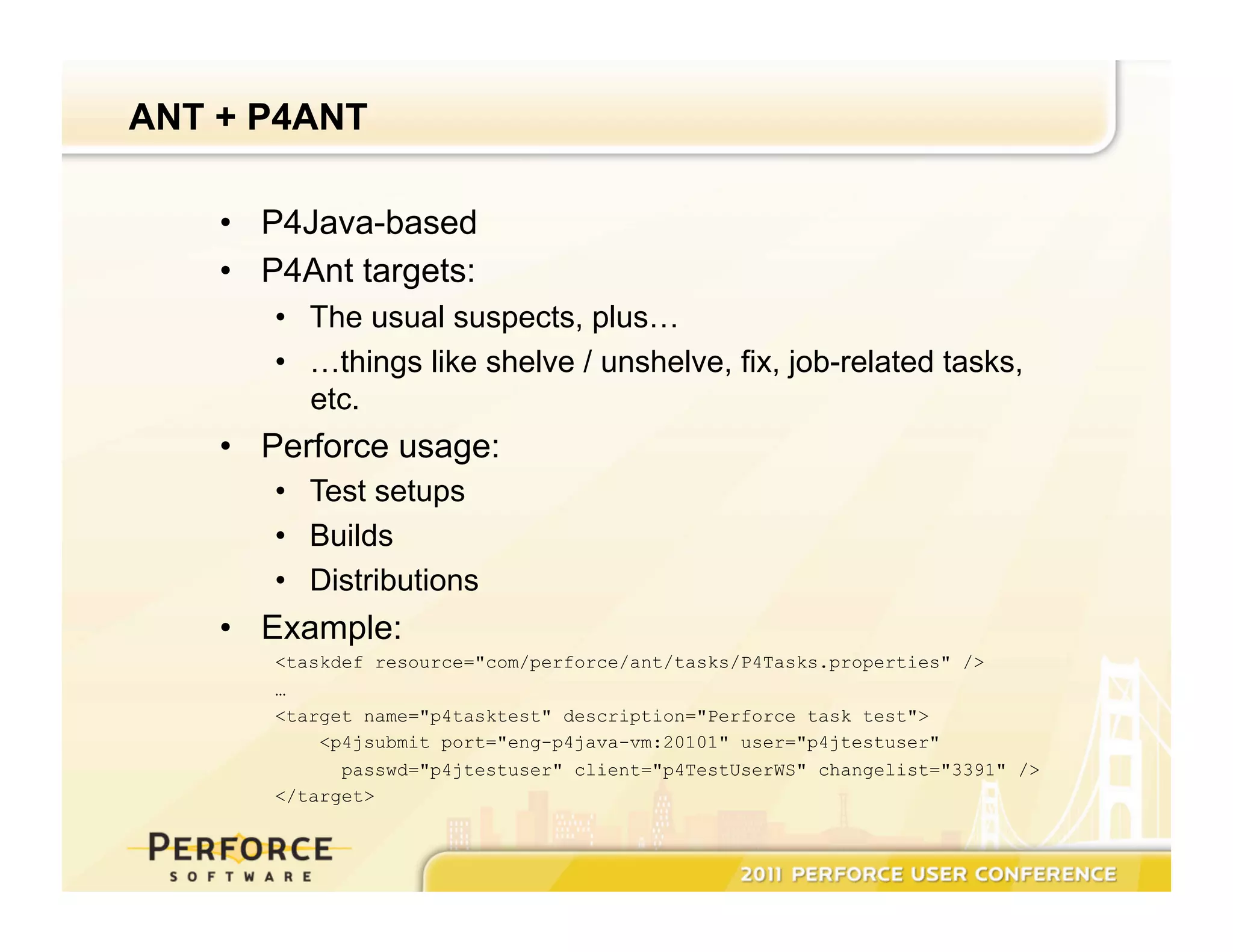

  ANT + P4ANT •  P4Java-based •  P4Ant targets: •  The usual suspects, plus… •  …things like shelve / unshelve, fix, job-related tasks, etc. •  Perforce usage: •  Test setups •  Builds •  Distributions •  Example: <taskdef resource="com/perforce/ant/tasks/P4Tasks.properties" /> … <target name="p4tasktest" description="Perforce task test"> <p4jsubmit port="eng-p4java-vm:20101" user="p4jtestuser" passwd="p4jtestuser" client="p4TestUserWS" changelist="3391" /> </target>
• 14.

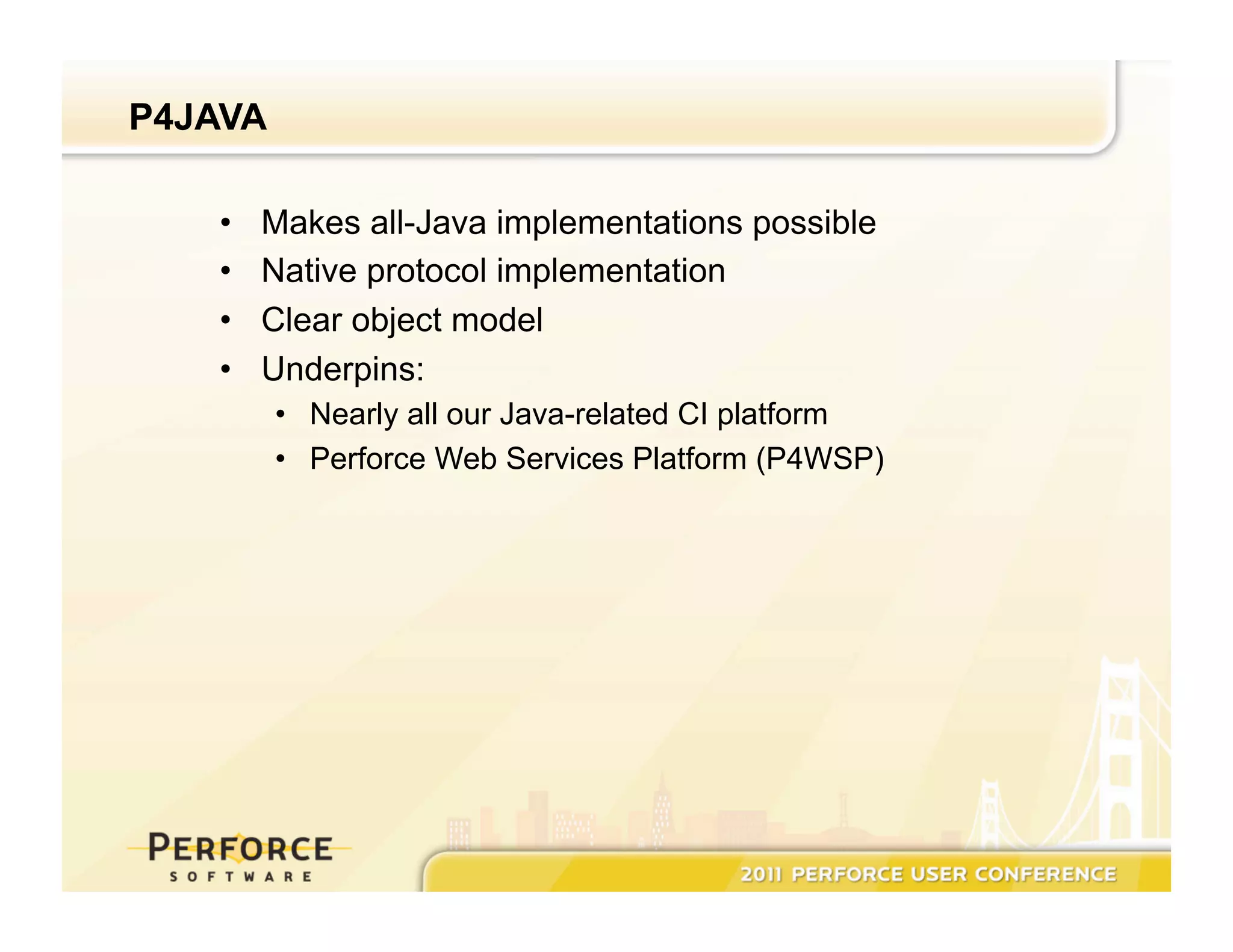

  P4JAVA •  Makes all-Java implementations possible •  Native protocol implementation •  Clear object model •  Underpins: •  Nearly all our Java-related CI platform •  Perforce Web Services Platform (P4WSP)
• 15.

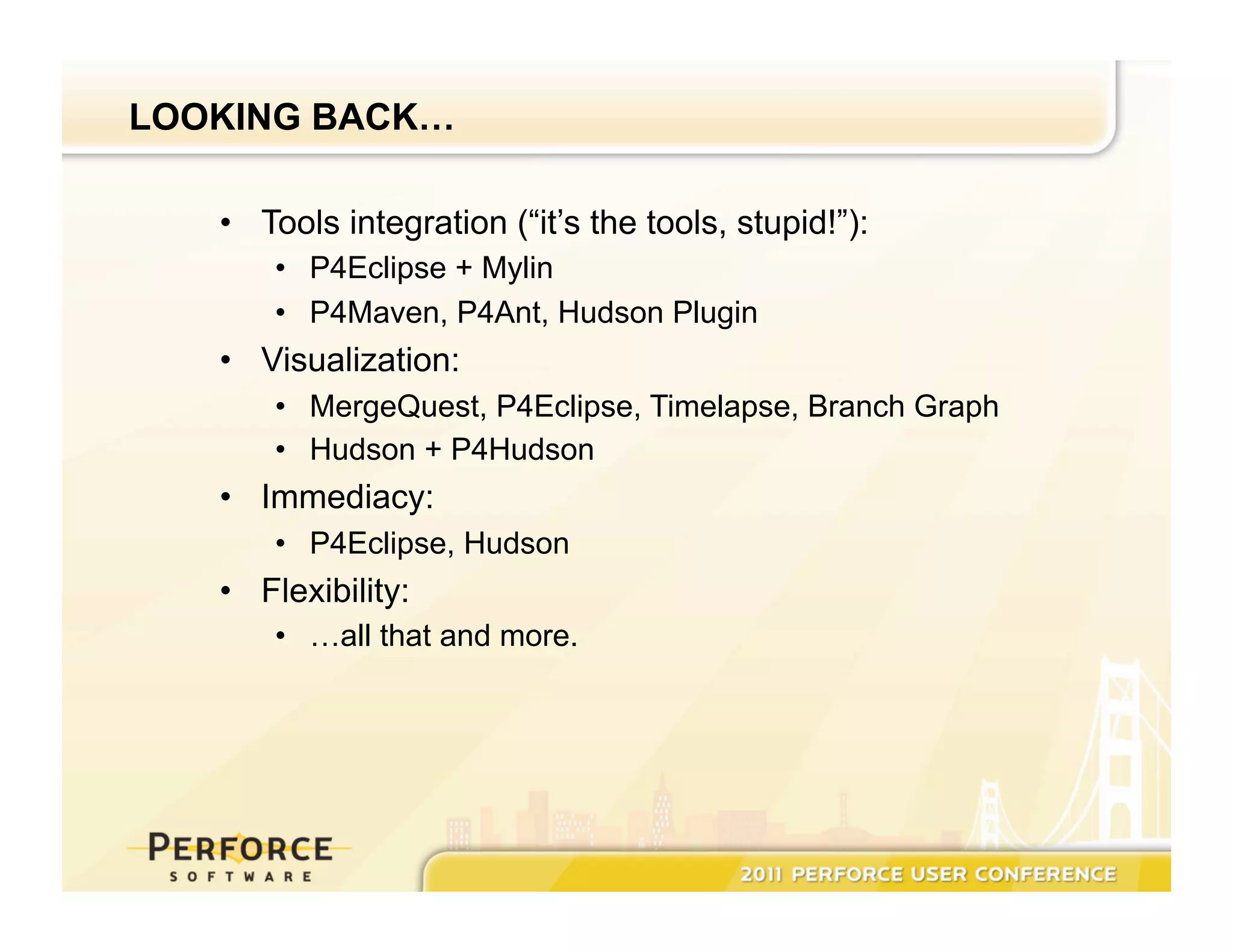

  LOOKING BACK… •  Tools integration (“it’s the tools, stupid!”): •  P4Eclipse + Mylin •  P4Maven, P4Ant, Hudson Plugin •  Visualization: •  MergeQuest, P4Eclipse, Timelapse, Branch Graph •  Hudson + P4Hudson •  Immediacy: •  P4Eclipse, Hudson •  Flexibility: •  …all that and more.
• 16.

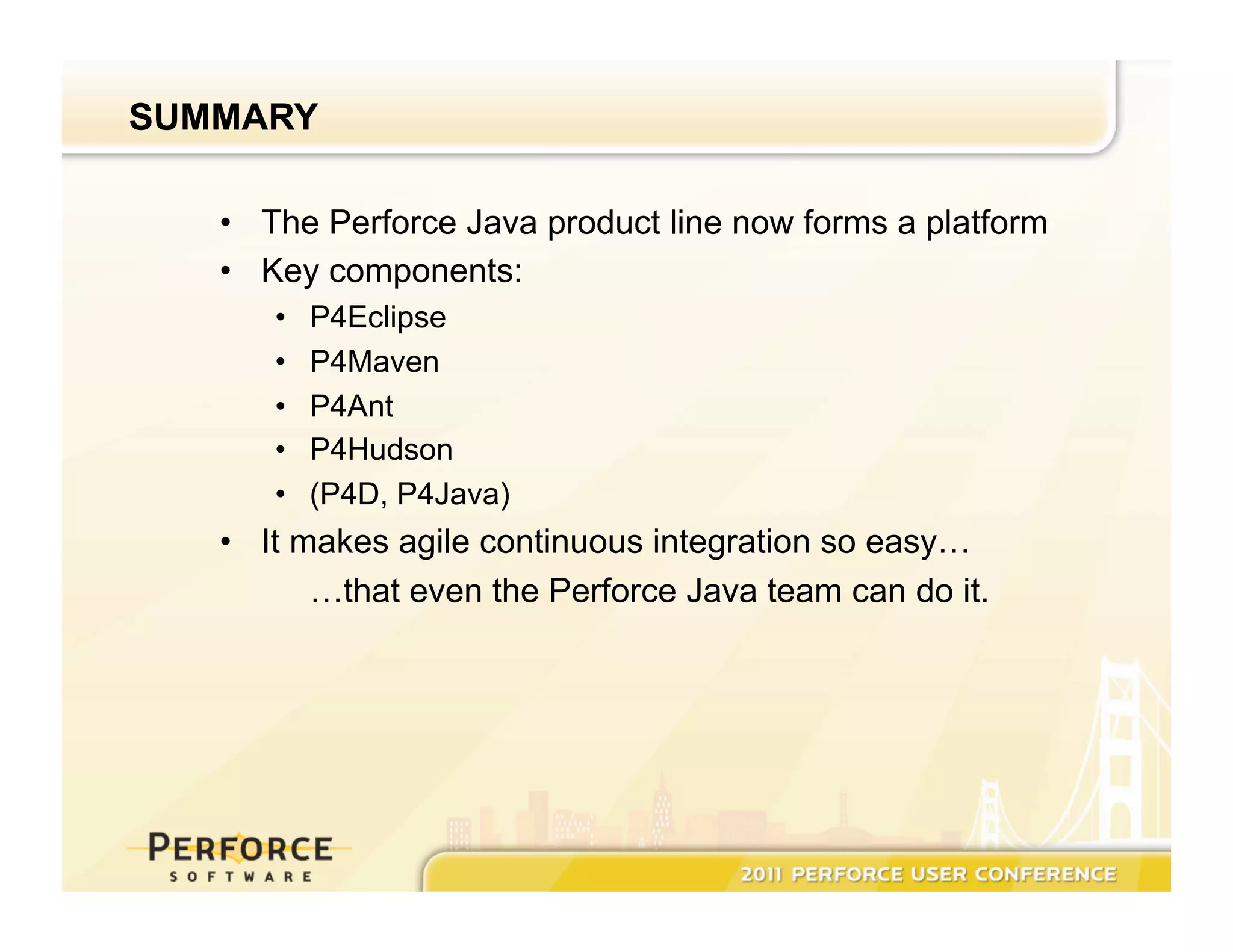

  SUMMARY •  The Perforce Java product line now forms a platform •  Key components: •  P4Eclipse •  P4Maven •  P4Ant •  P4Hudson •  (P4D, P4Java) •  It makes agile continuous integration so easy… …that even the Perforce Java team can do it.
