Overview of Wireless Sensor Networks

© Copyright Connect2 Systems Limited 2015 Current state of the art commercial WSNs and their future development Wireless Sensors Network in Urban Living and Health Workshop Duncan Purves Connect2 Systems duncan@connect2.io

© Copyright Connect2 Systems Limited 2015 The IoT landscape - One size doesn’t fit all Source: Goldman Sachs, IoT Primer, September 3, 2014; ‘Internet of Things: Making sense of the next mega-trend’ Broad variety of wireless standards, industry bodies, technologies for different types of networks: §  Body Area Network (BAN) §  Body Sensor Network (BSN) §  Medical Body Area Network (MBAN) §  Personal Area Network (PAN) §  Home Area Network (HAN) §  Nearby Area Network (NAN) §  Local Area Network (LAN) §  Wide Area Network (WAN) §  Global Area Network (GAN)

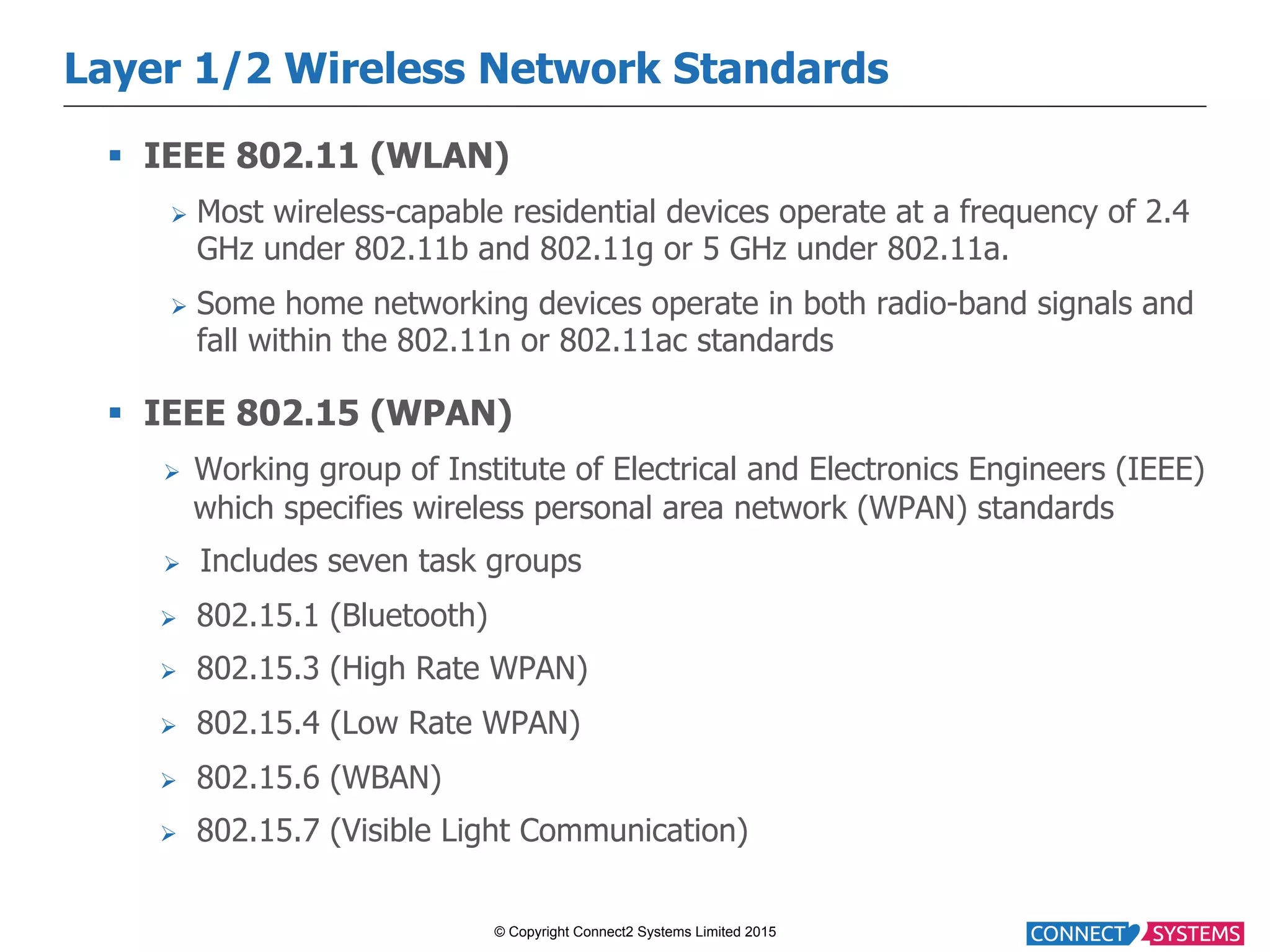

© Copyright Connect2 Systems Limited 2015 Layer 1/2 Wireless Network Standards §  IEEE 802.11 (WLAN) Ø  Most wireless-capable residential devices operate at a frequency of 2.4 GHz under 802.11b and 802.11g or 5 GHz under 802.11a. Ø  Some home networking devices operate in both radio-band signals and fall within the 802.11n or 802.11ac standards §  IEEE 802.15 (WPAN) Ø  Working group of Institute of Electrical and Electronics Engineers (IEEE) which specifies wireless personal area network (WPAN) standards Ø  Includes seven task groups Ø  802.15.1 (Bluetooth) Ø  802.15.3 (High Rate WPAN) Ø  802.15.4 (Low Rate WPAN) Ø  802.15.6 (WBAN) Ø  802.15.7 (Visible Light Communication)

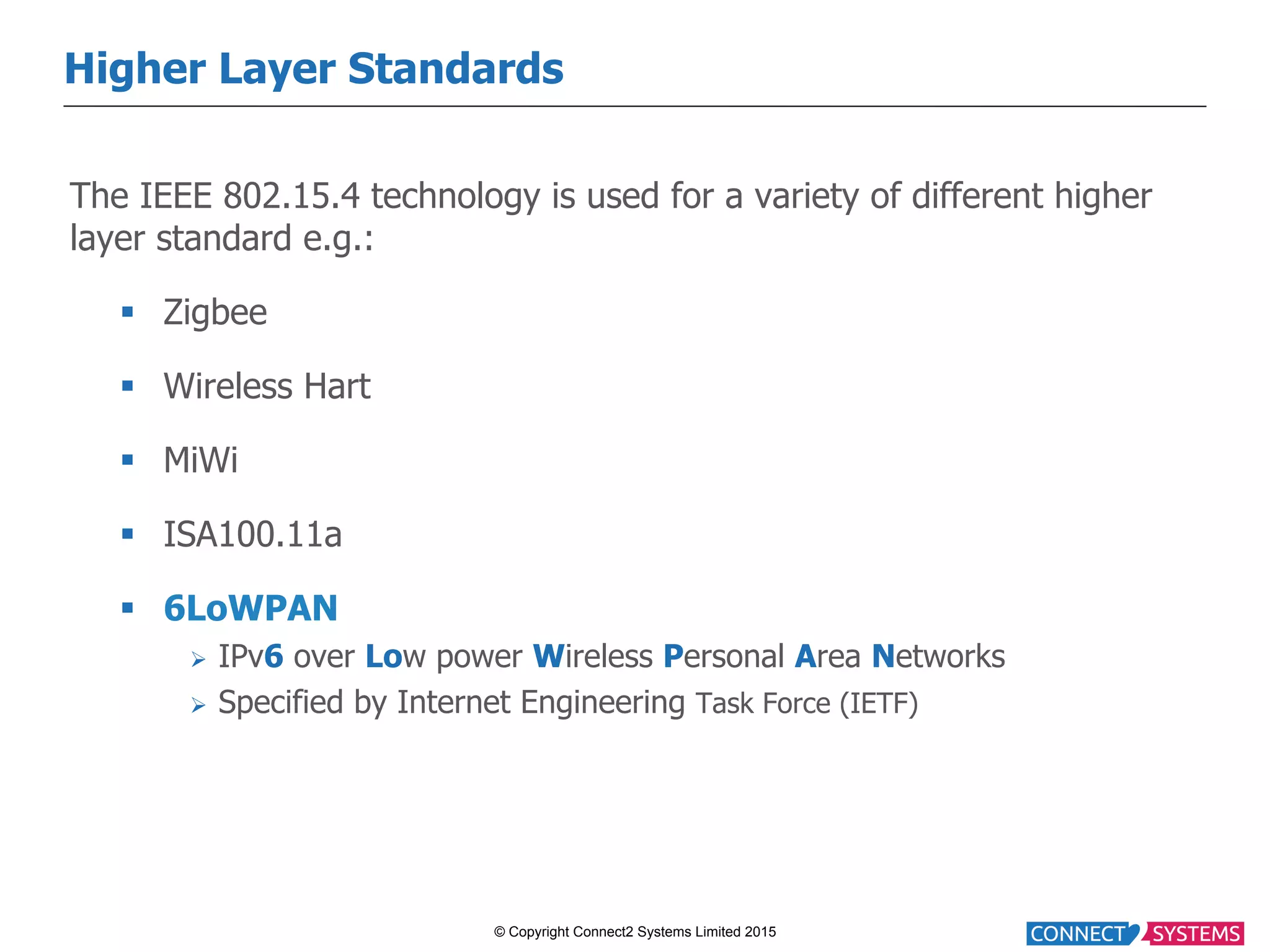

© Copyright Connect2 Systems Limited 2015 Higher Layer Standards The IEEE 802.15.4 technology is used for a variety of different higher layer standard e.g.: §  Zigbee §  Wireless Hart §  MiWi §  ISA100.11a §  6LoWPAN Ø  IPv6 over Low power Wireless Personal Area Networks Ø  Specified by Internet Engineering Task Force (IETF)

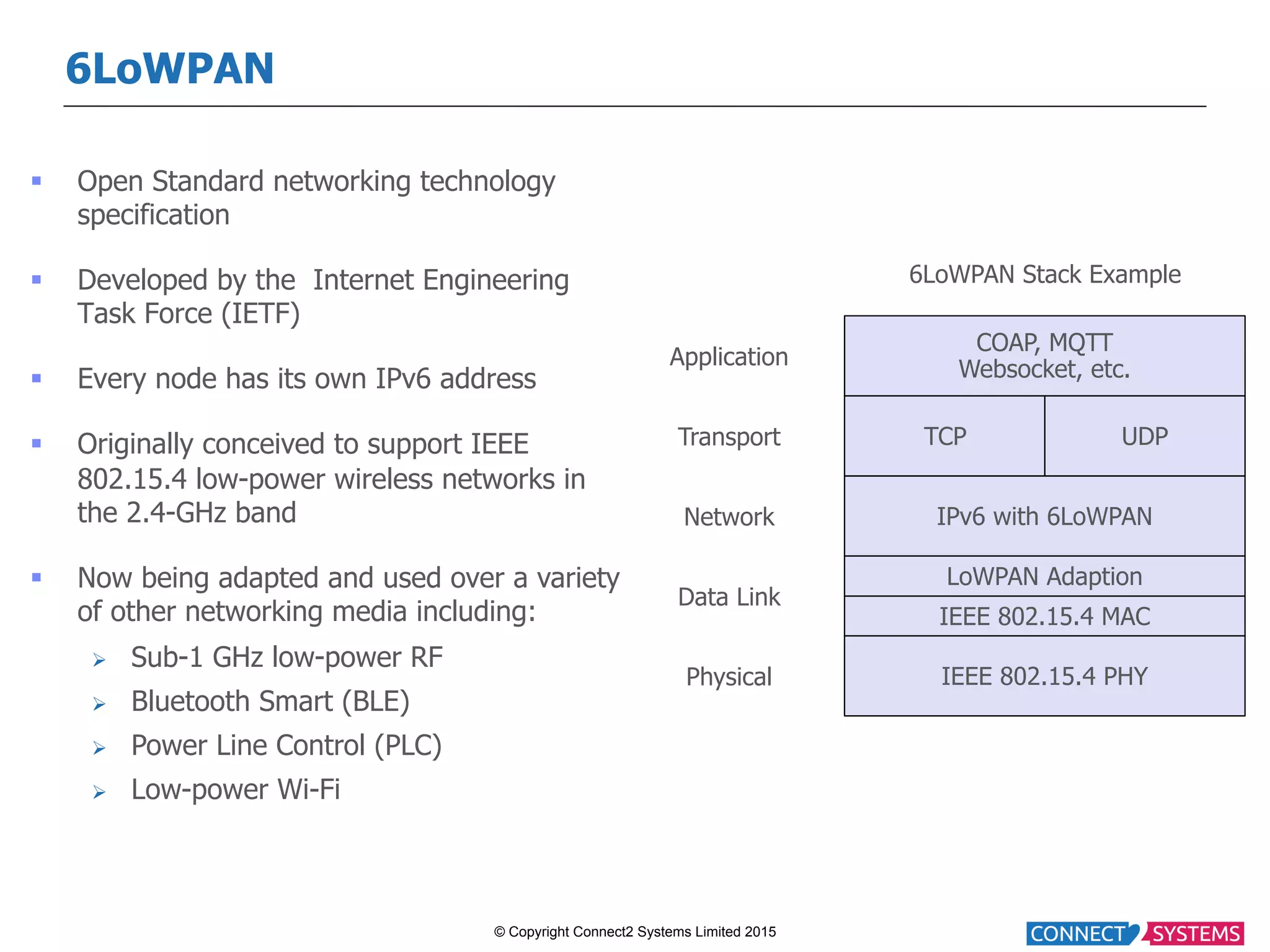

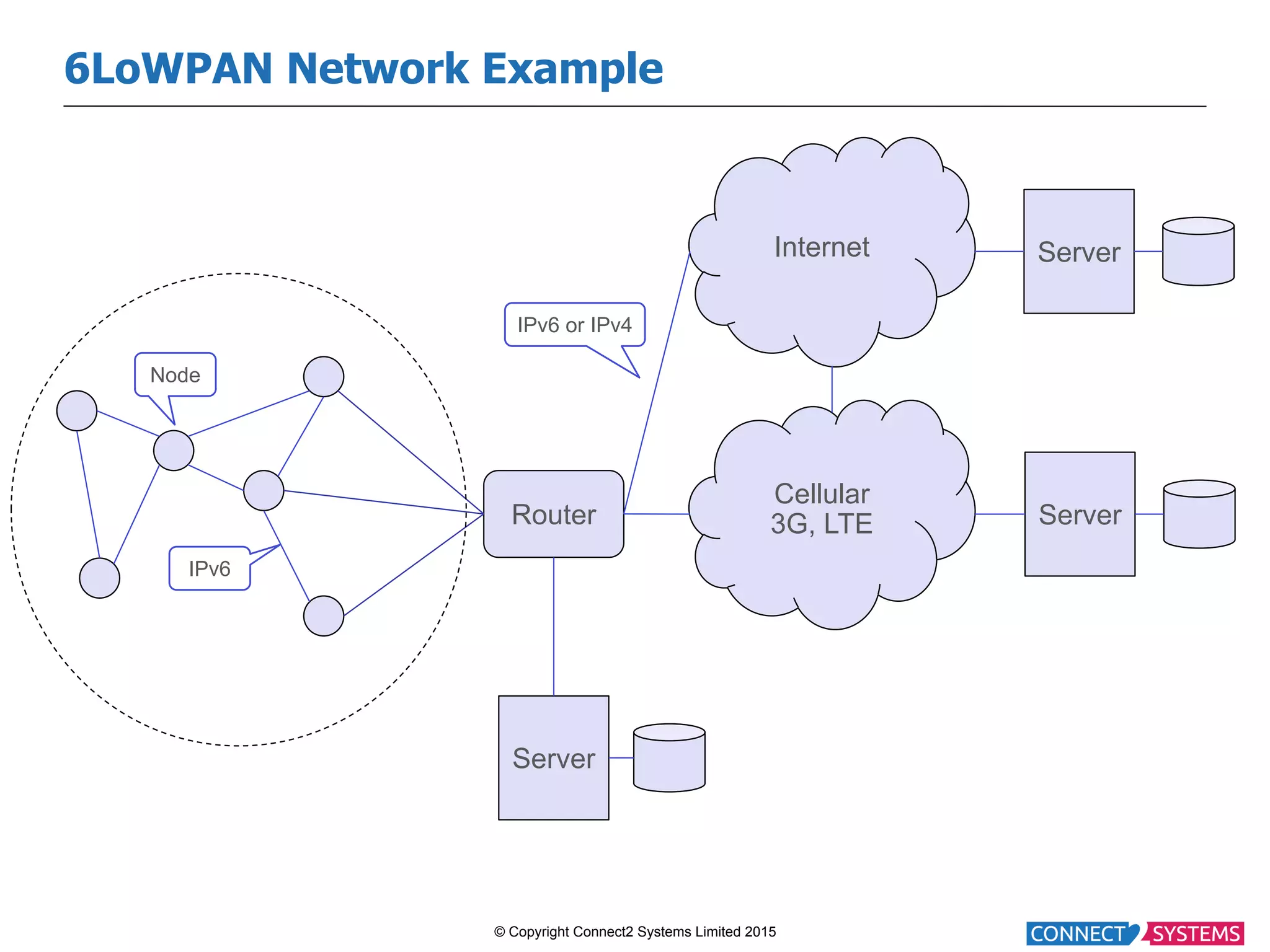

© Copyright Connect2 Systems Limited 2015 6LoWPAN §  Open Standard networking technology specification §  Developed by the Internet Engineering Task Force (IETF) §  Every node has its own IPv6 address §  Originally conceived to support IEEE 802.15.4 low-power wireless networks in the 2.4-GHz band §  Now being adapted and used over a variety of other networking media including: Ø  Sub-1 GHz low-power RF Ø  Bluetooth Smart (BLE) Ø  Power Line Control (PLC) Ø  Low-power Wi-Fi COAP, MQTT Websocket, etc. IPv6 with 6LoWPAN IEEE 802.15.4 MAC IEEE 802.15.4 PHY LoWPAN Adaption TCP UDP Application Transport Network Data Link Physical 6LoWPAN Stack Example

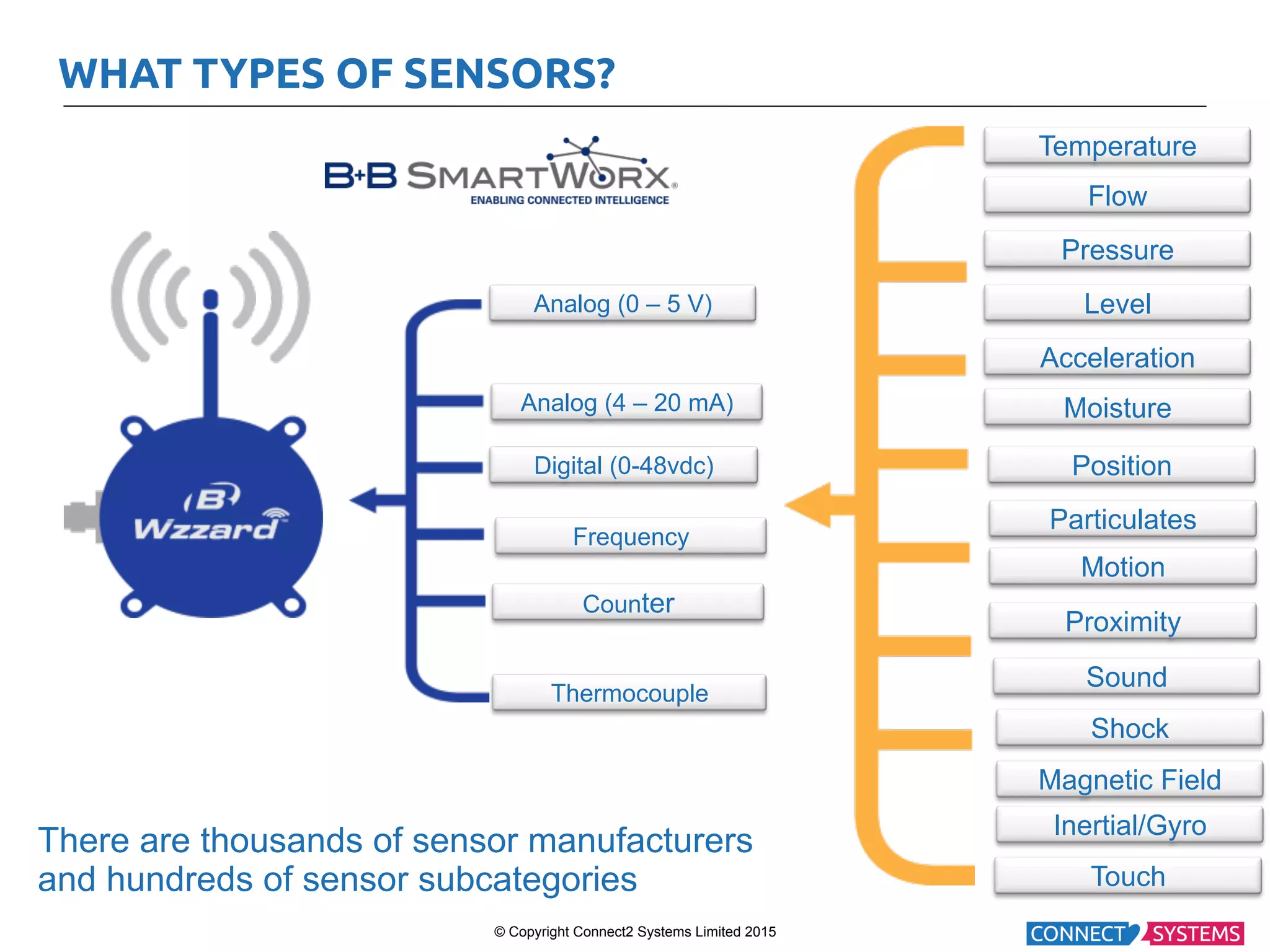

© Copyright Connect2 Systems Limited 2015 Thermocouple Counter Frequency Analog (0 – 5 V) Analog (4 – 20 mA) Digital (0-48vdc) Flow Temperature Pressure Level Acceleration Moisture Position Particulates Motion Proximity Sound Shock Magnetic Field Inertial/Gyro Touch There are thousands of sensor manufacturers and hundreds of sensor subcategories WHAT TYPES OF SENSORS?

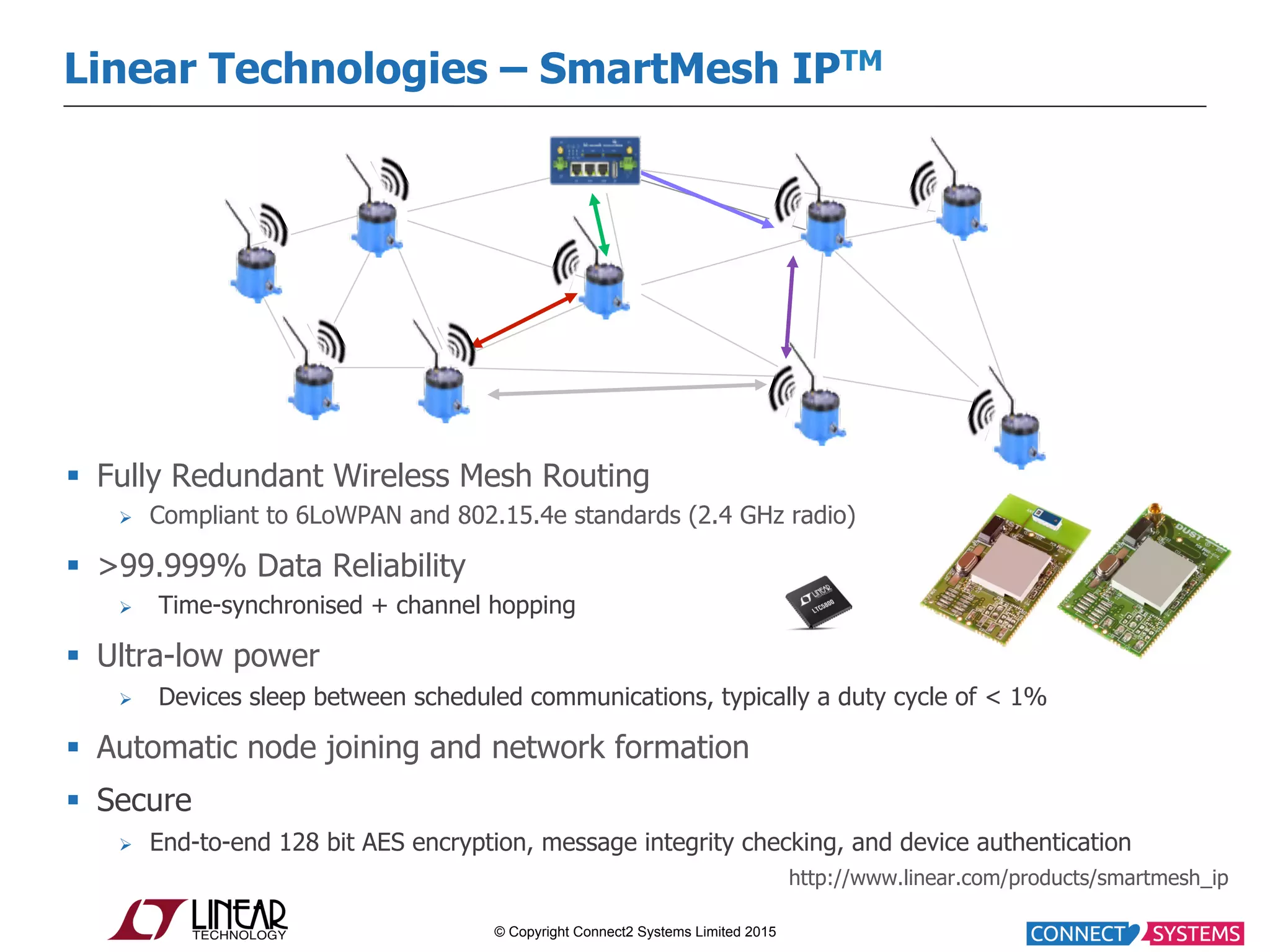

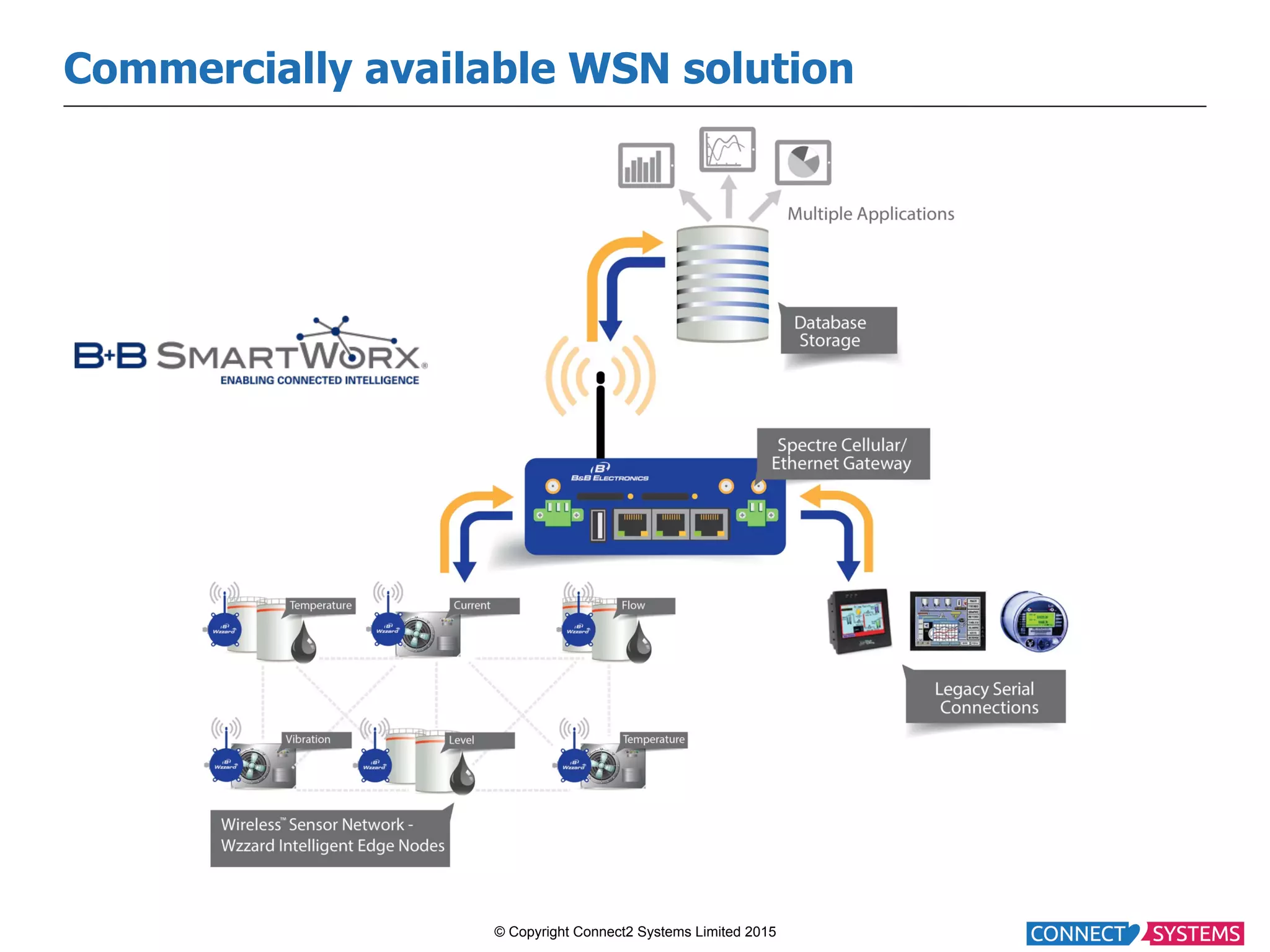

© Copyright Connect2 Systems Limited 2015 Linear Technologies – SmartMesh IPTM §  Fully Redundant Wireless Mesh Routing Ø  Compliant to 6LoWPAN and 802.15.4e standards (2.4 GHz radio) §  >99.999% Data Reliability Ø  Time-synchronised + channel hopping §  Ultra-low power Ø  Devices sleep between scheduled communications, typically a duty cycle of < 1% §  Automatic node joining and network formation §  Secure Ø  End-to-end 128 bit AES encryption, message integrity checking, and device authentication http://www.linear.com/products/smartmesh_ip

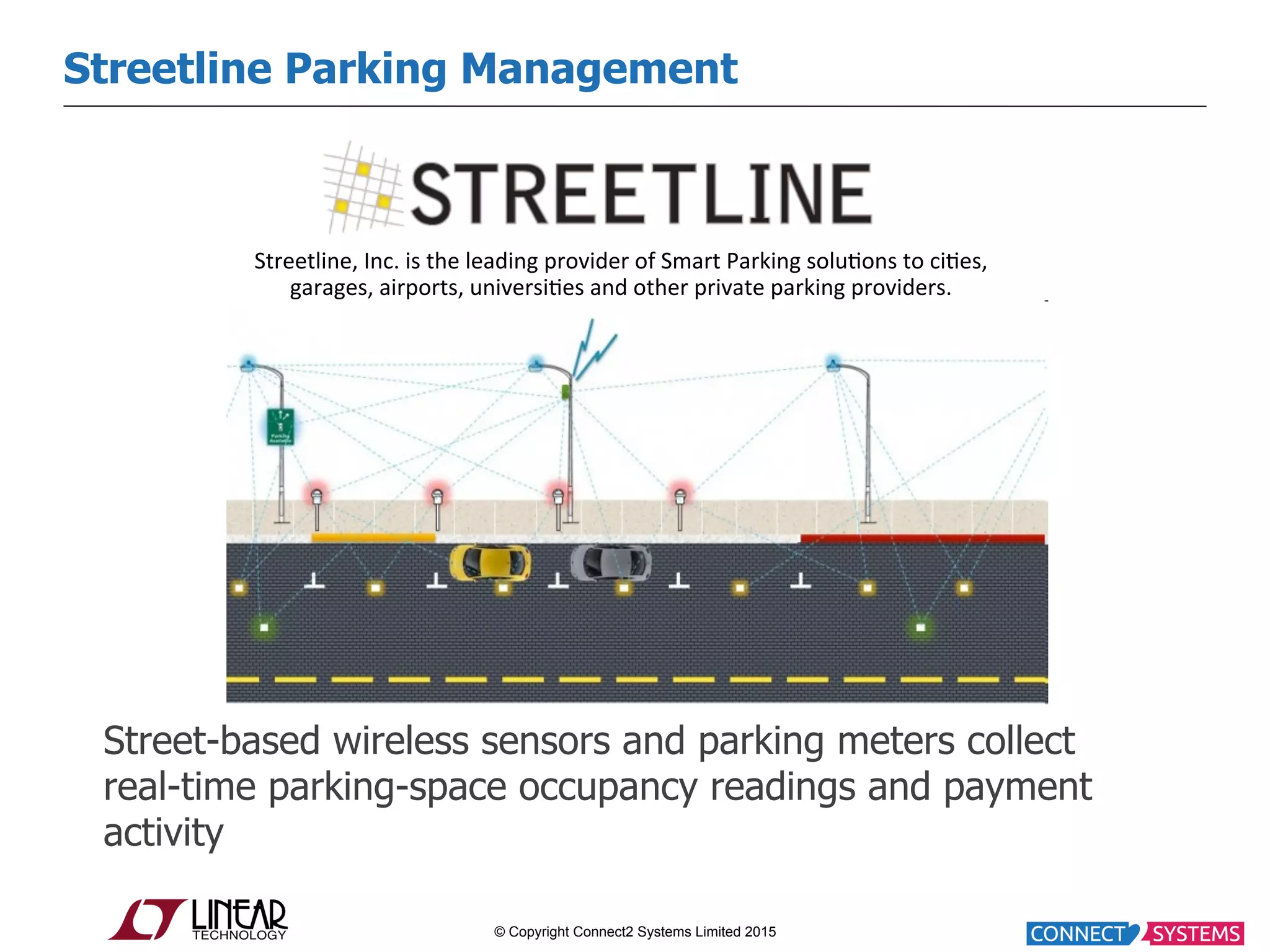

© Copyright Connect2 Systems Limited 2015 Street-based wireless sensors and parking meters collect real-time parking-space occupancy readings and payment activity Streetline Parking Management Streetline, Inc. is the leading provider of Smart Parking solu:ons to ci:es, garages, airports, universi:es and other private parking providers.

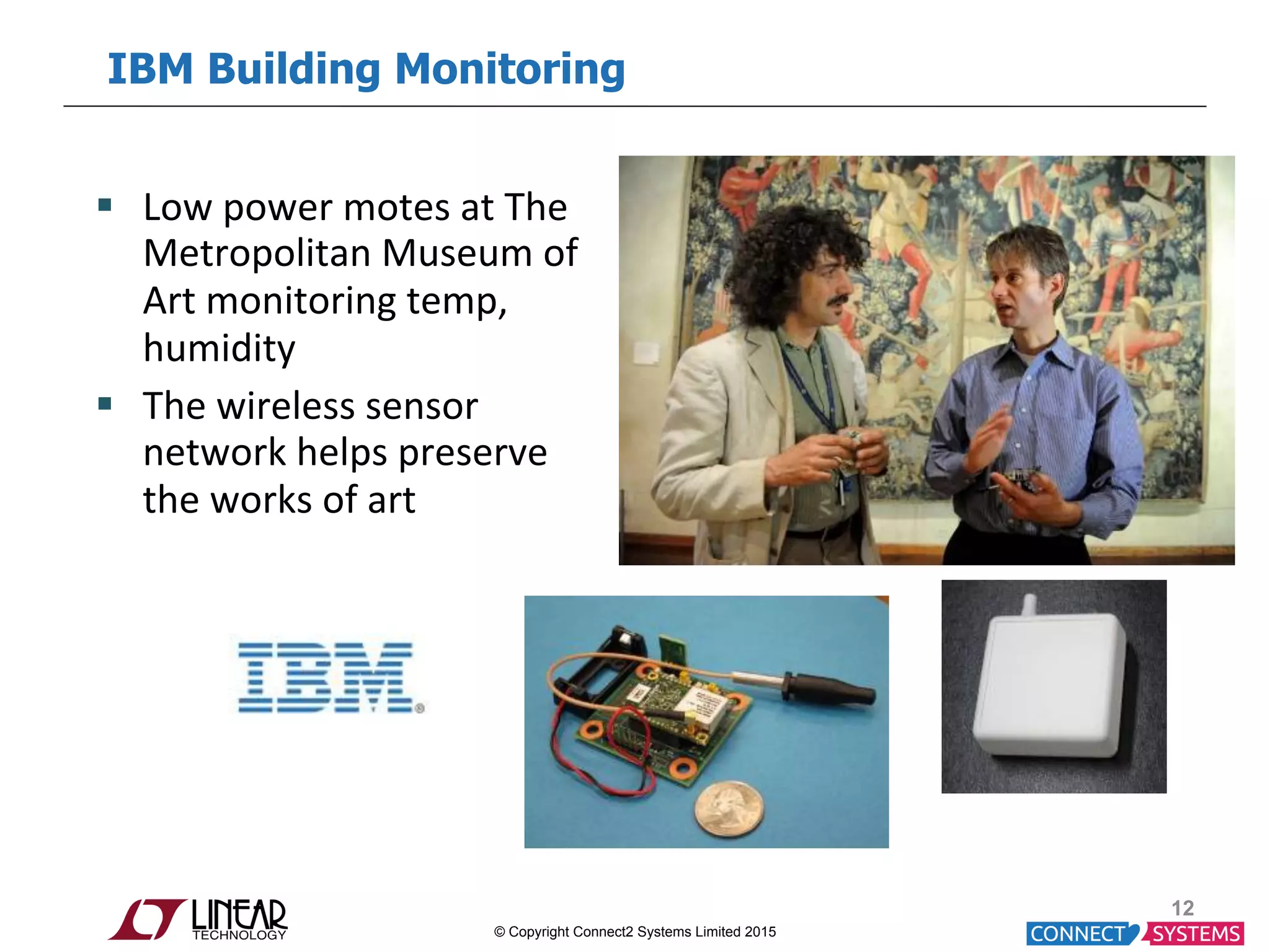

© Copyright Connect2 Systems Limited 2015 IBM Building Monitoring 12 §  Low power motes at The Metropolitan Museum of Art monitoring temp, humidity §  The wireless sensor network helps preserve the works of art

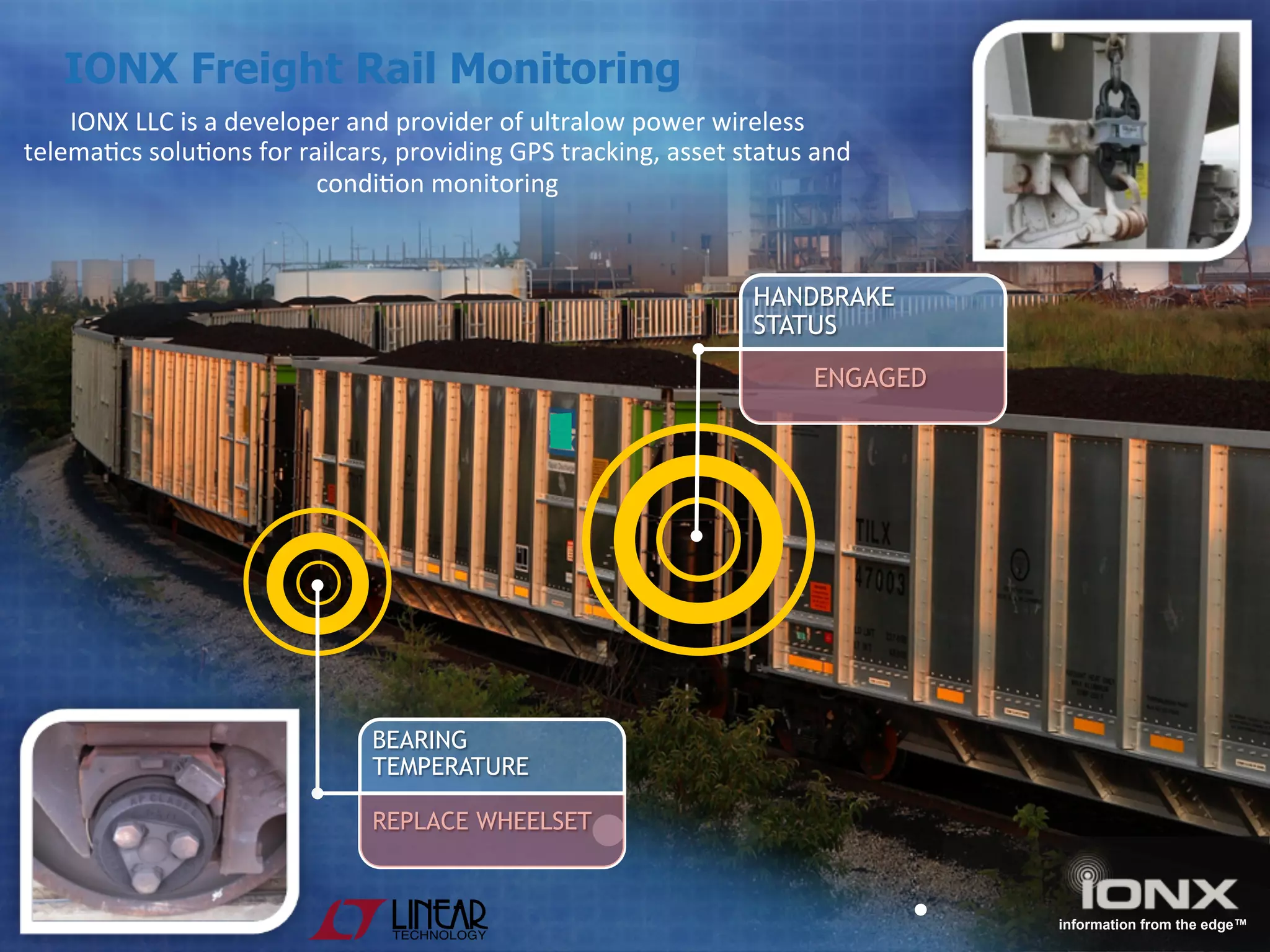

© Copyright Connect2 Systems Limited 2015 HANDBRAKE STATUS ENGAGED BEARING TEMPERATURE REPLACE WHEELSET information from the edge™ IONX Freight Rail Monitoring IONX LLC is a developer and provider of ultralow power wireless telema:cs solu:ons for railcars, providing GPS tracking, asset status and condi:on monitoring

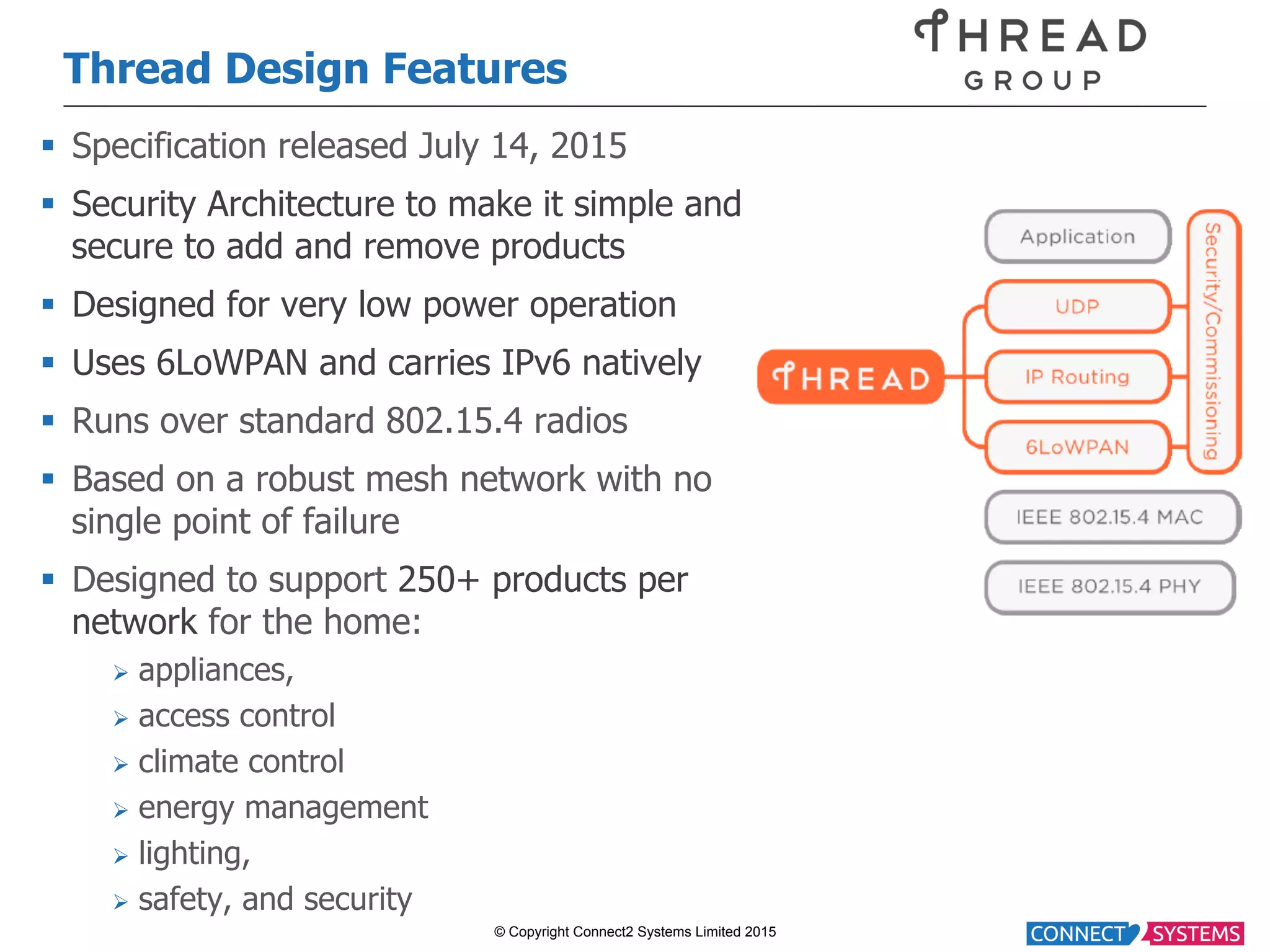

© Copyright Connect2 Systems Limited 2015 Thread Design Features §  Specification released July 14, 2015 §  Security Architecture to make it simple and secure to add and remove products §  Designed for very low power operation §  Uses 6LoWPAN and carries IPv6 natively §  Runs over standard 802.15.4 radios §  Based on a robust mesh network with no single point of failure §  Designed to support 250+ products per network for the home: Ø  appliances, Ø  access control Ø  climate control Ø  energy management Ø  lighting, Ø  safety, and security

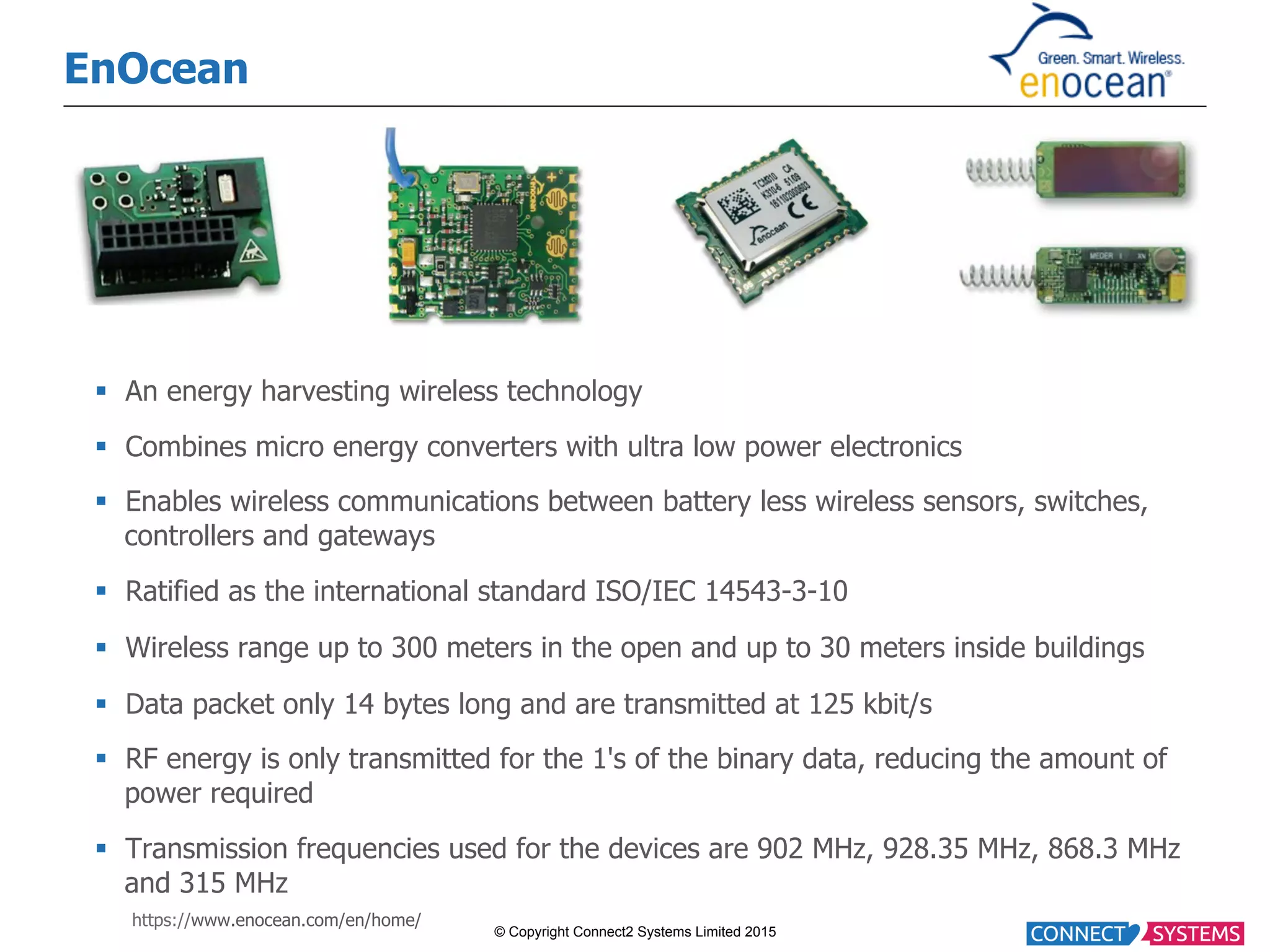

© Copyright Connect2 Systems Limited 2015 EnOcean §  An energy harvesting wireless technology §  Combines micro energy converters with ultra low power electronics §  Enables wireless communications between battery less wireless sensors, switches, controllers and gateways §  Ratified as the international standard ISO/IEC 14543-3-10 §  Wireless range up to 300 meters in the open and up to 30 meters inside buildings §  Data packet only 14 bytes long and are transmitted at 125 kbit/s §  RF energy is only transmitted for the 1's of the binary data, reducing the amount of power required §  Transmission frequencies used for the devices are 902 MHz, 928.35 MHz, 868.3 MHz and 315 MHz https://www.enocean.com/en/home/

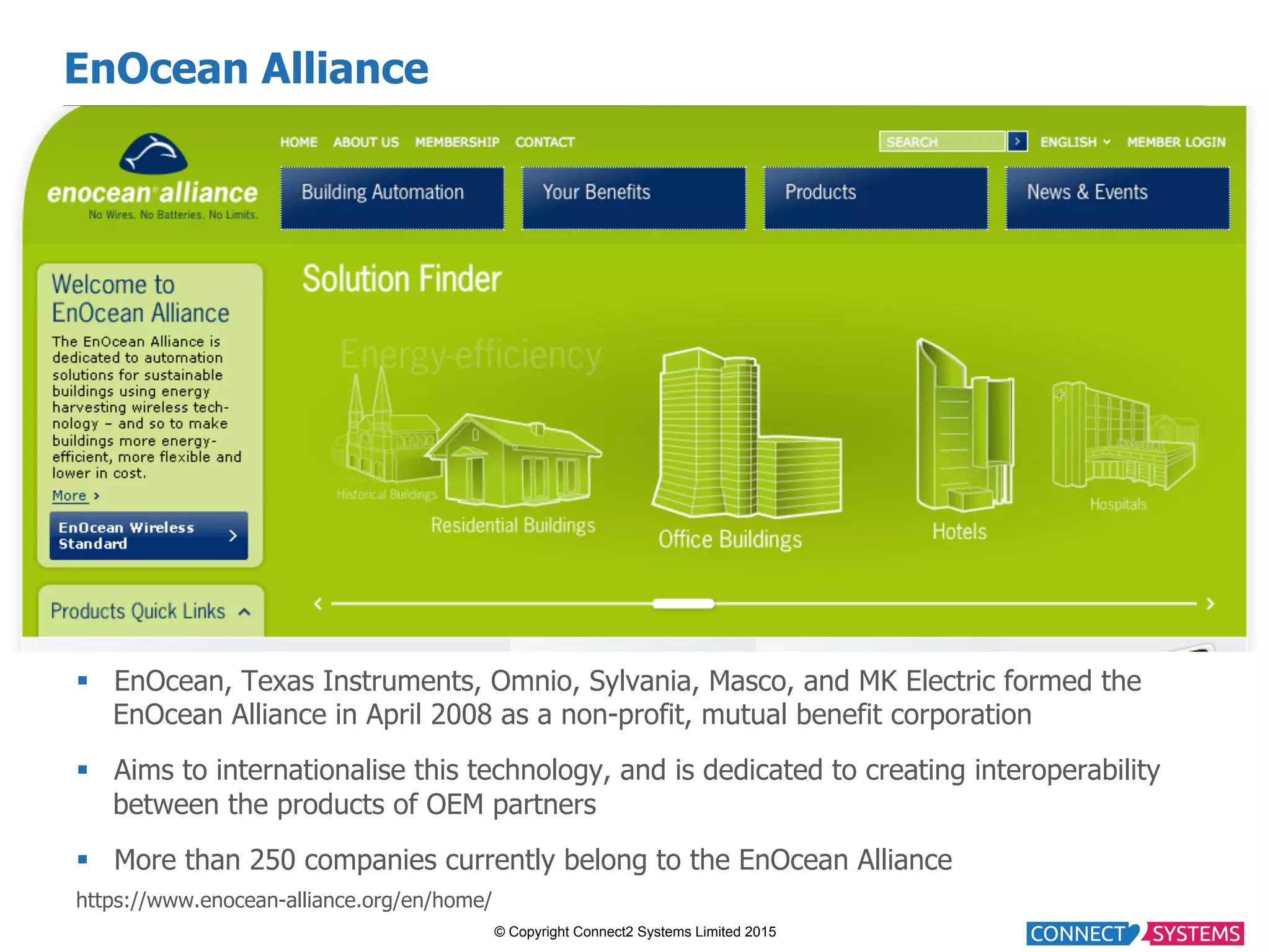

© Copyright Connect2 Systems Limited 2015 EnOcean Alliance §  EnOcean, Texas Instruments, Omnio, Sylvania, Masco, and MK Electric formed the EnOcean Alliance in April 2008 as a non-profit, mutual benefit corporation §  Aims to internationalise this technology, and is dedicated to creating interoperability between the products of OEM partners §  More than 250 companies currently belong to the EnOcean Alliance https://www.enocean-alliance.org/en/home/

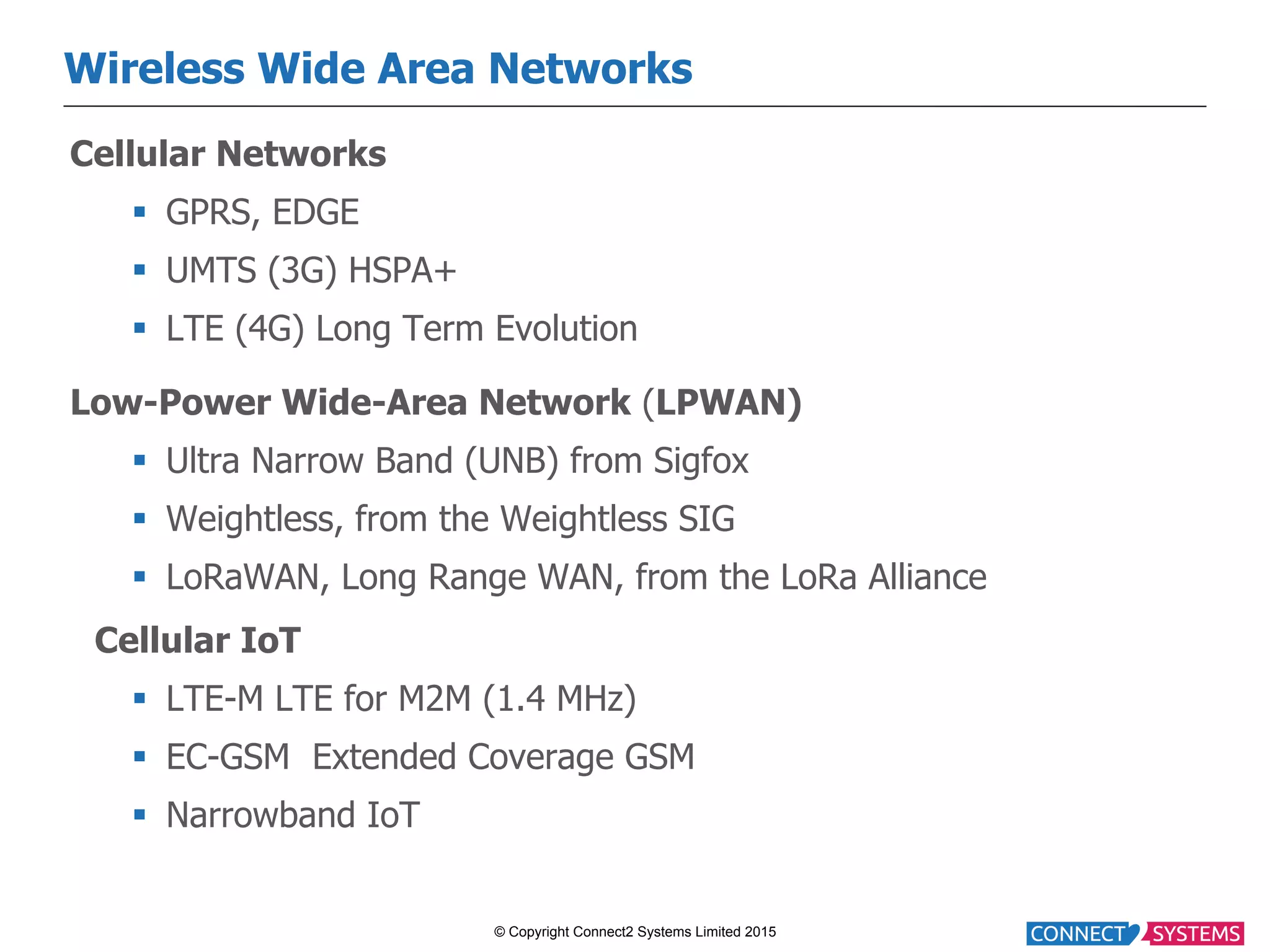

© Copyright Connect2 Systems Limited 2015 Wireless Wide Area Networks Cellular Networks §  GPRS, EDGE §  UMTS (3G) HSPA+ §  LTE (4G) Long Term Evolution Low-Power Wide-Area Network (LPWAN) §  Ultra Narrow Band (UNB) from Sigfox §  Weightless, from the Weightless SIG §  LoRaWAN, Long Range WAN, from the LoRa Alliance Cellular IoT §  LTE-M LTE for M2M (1.4 MHz) §  EC-GSM Extended Coverage GSM §  Narrowband IoT

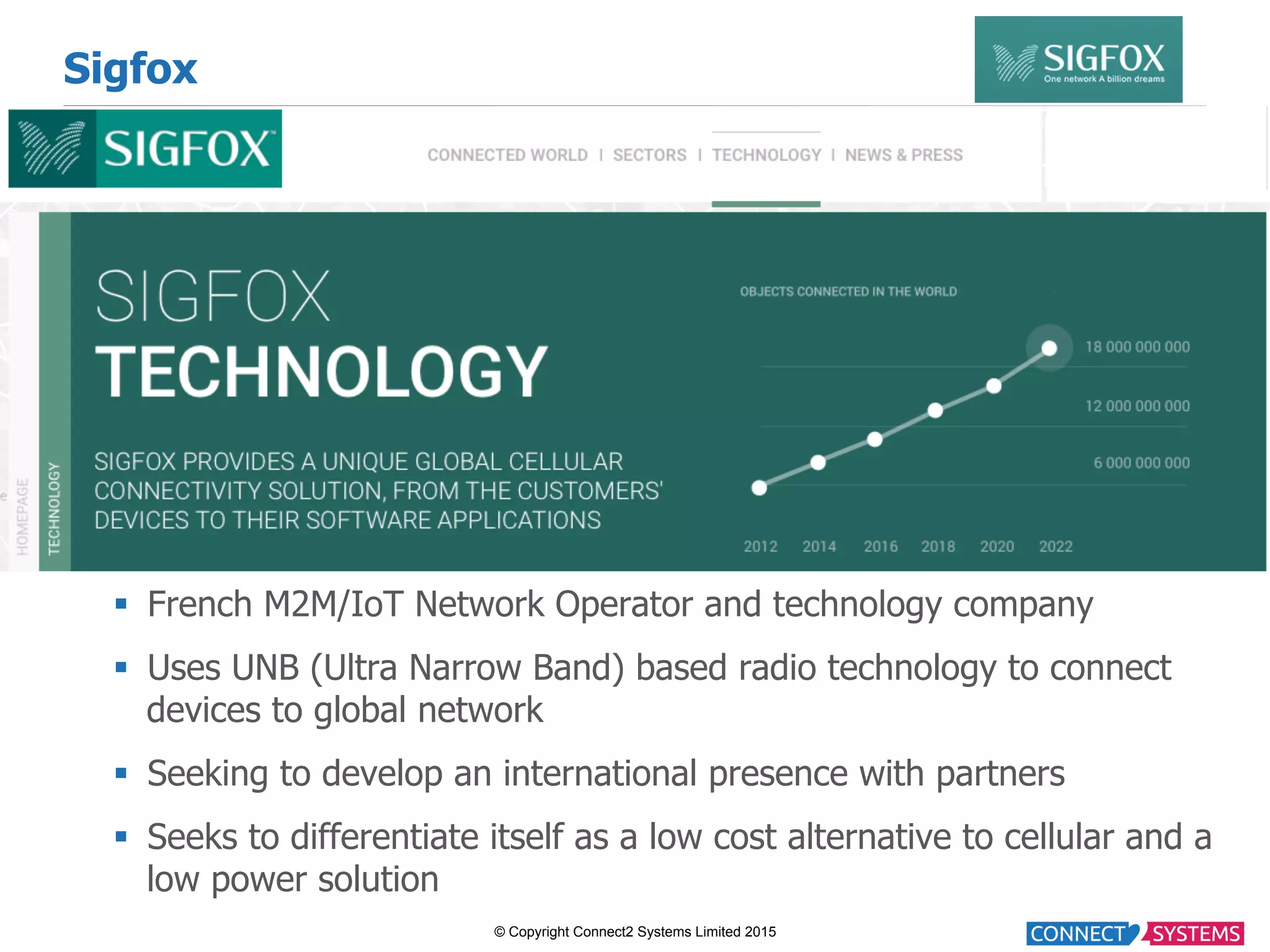

© Copyright Connect2 Systems Limited 2015 Sigfox §  French M2M/IoT Network Operator and technology company §  Uses UNB (Ultra Narrow Band) based radio technology to connect devices to global network §  Seeking to develop an international presence with partners §  Seeks to differentiate itself as a low cost alternative to cellular and a low power solution

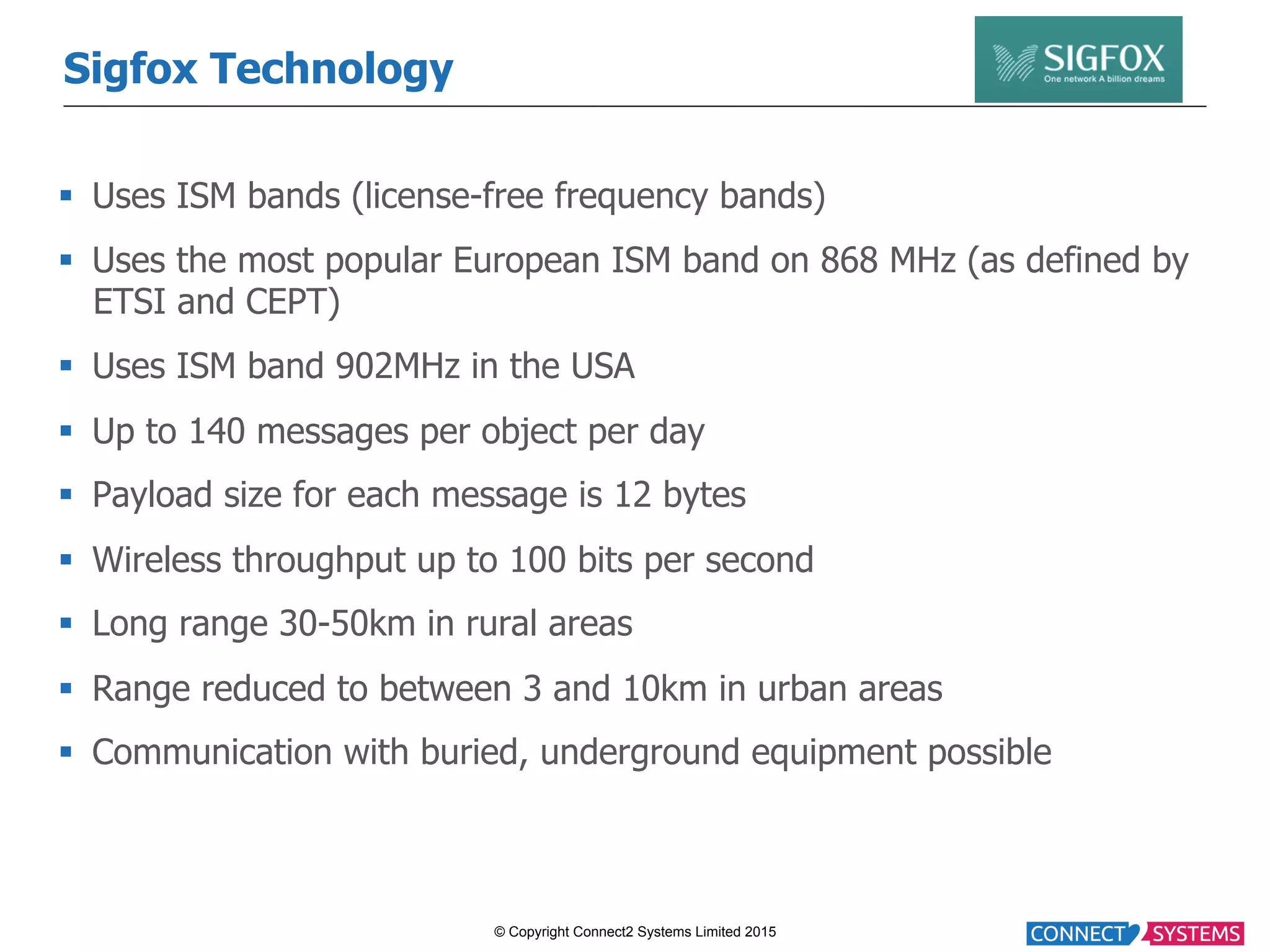

© Copyright Connect2 Systems Limited 2015 Sigfox Technology §  Uses ISM bands (license-free frequency bands) §  Uses the most popular European ISM band on 868 MHz (as defined by ETSI and CEPT) §  Uses ISM band 902MHz in the USA §  Up to 140 messages per object per day §  Payload size for each message is 12 bytes §  Wireless throughput up to 100 bits per second §  Long range 30-50km in rural areas §  Range reduced to between 3 and 10km in urban areas §  Communication with buried, underground equipment possible

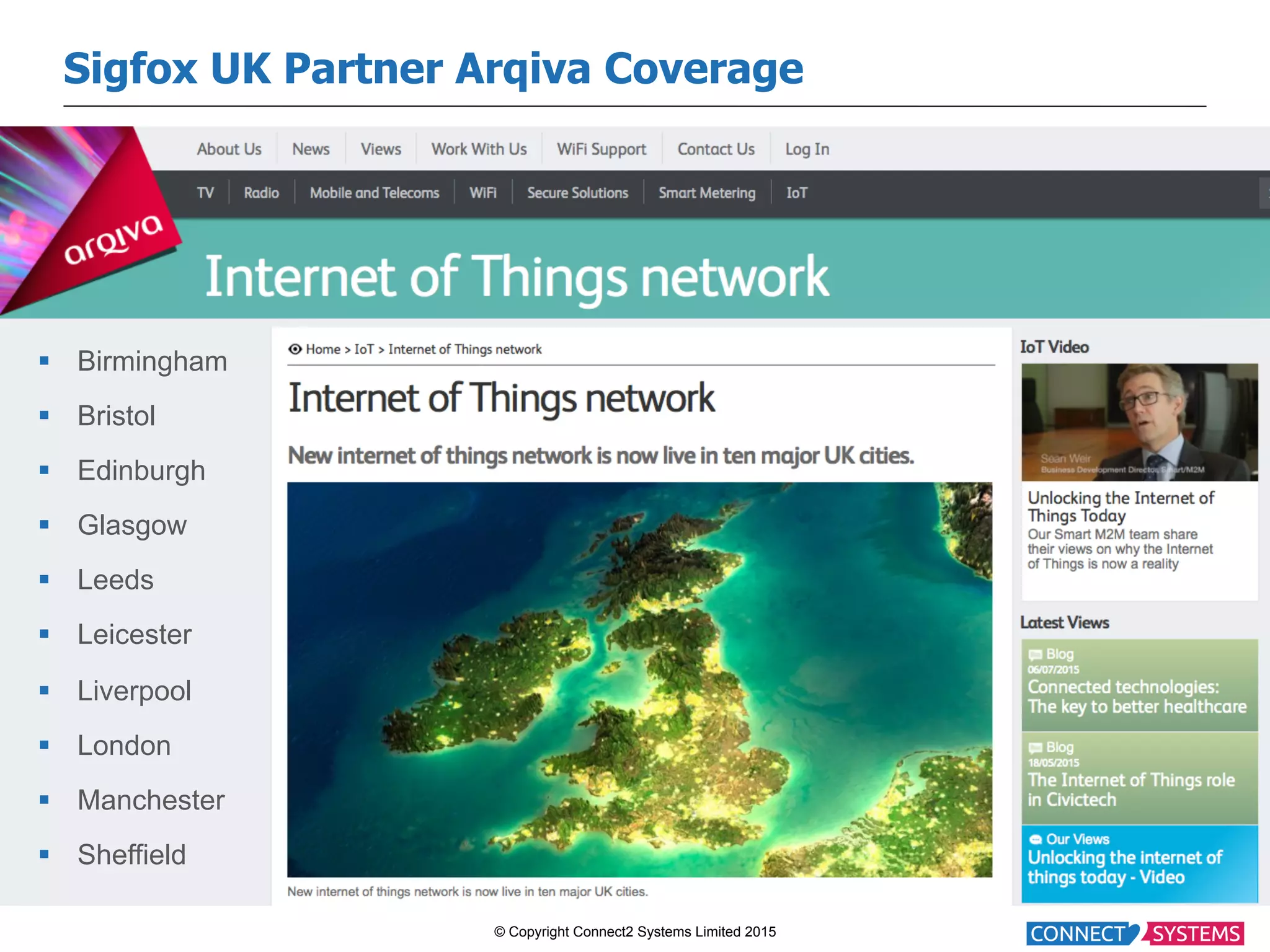

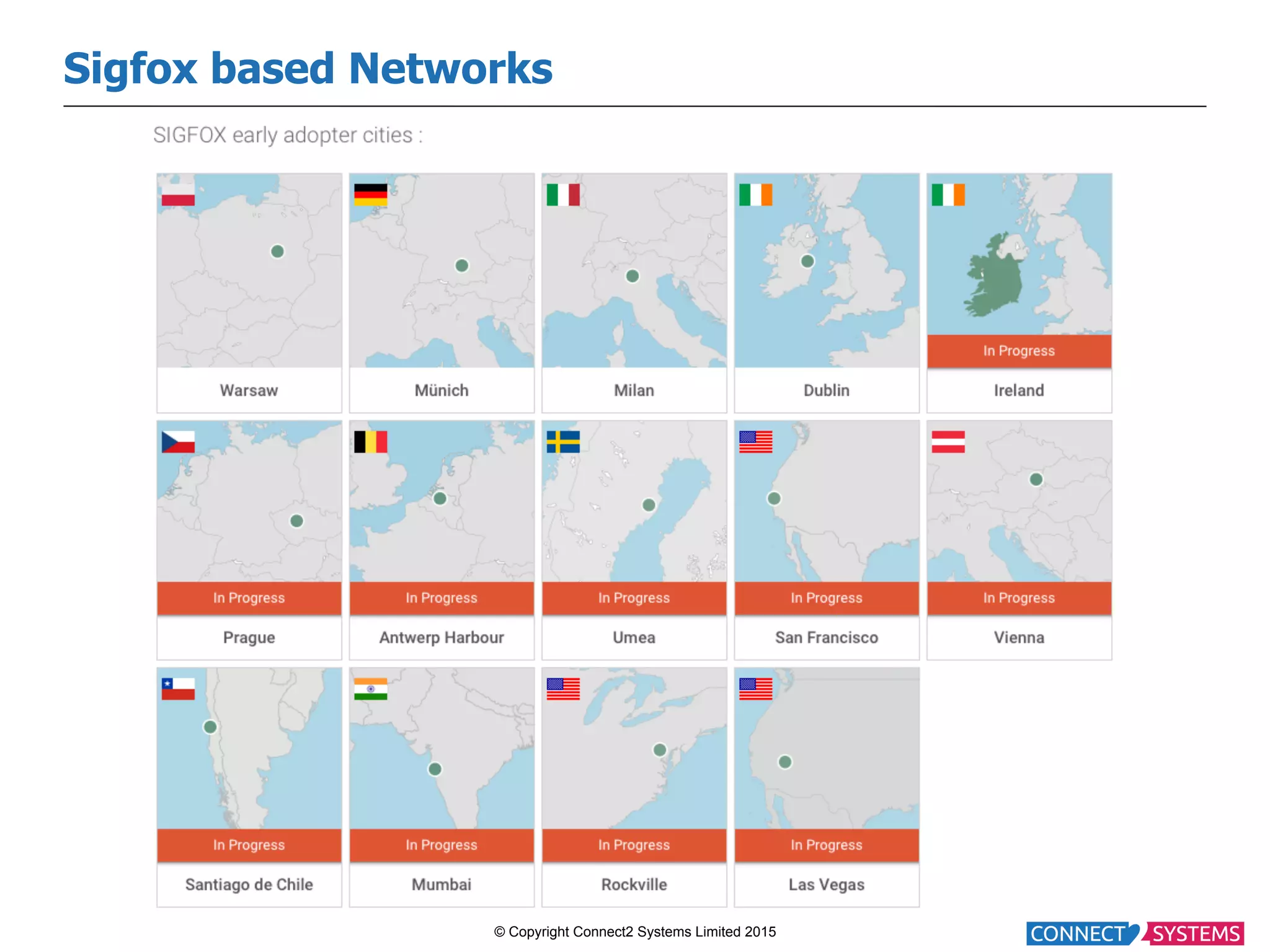

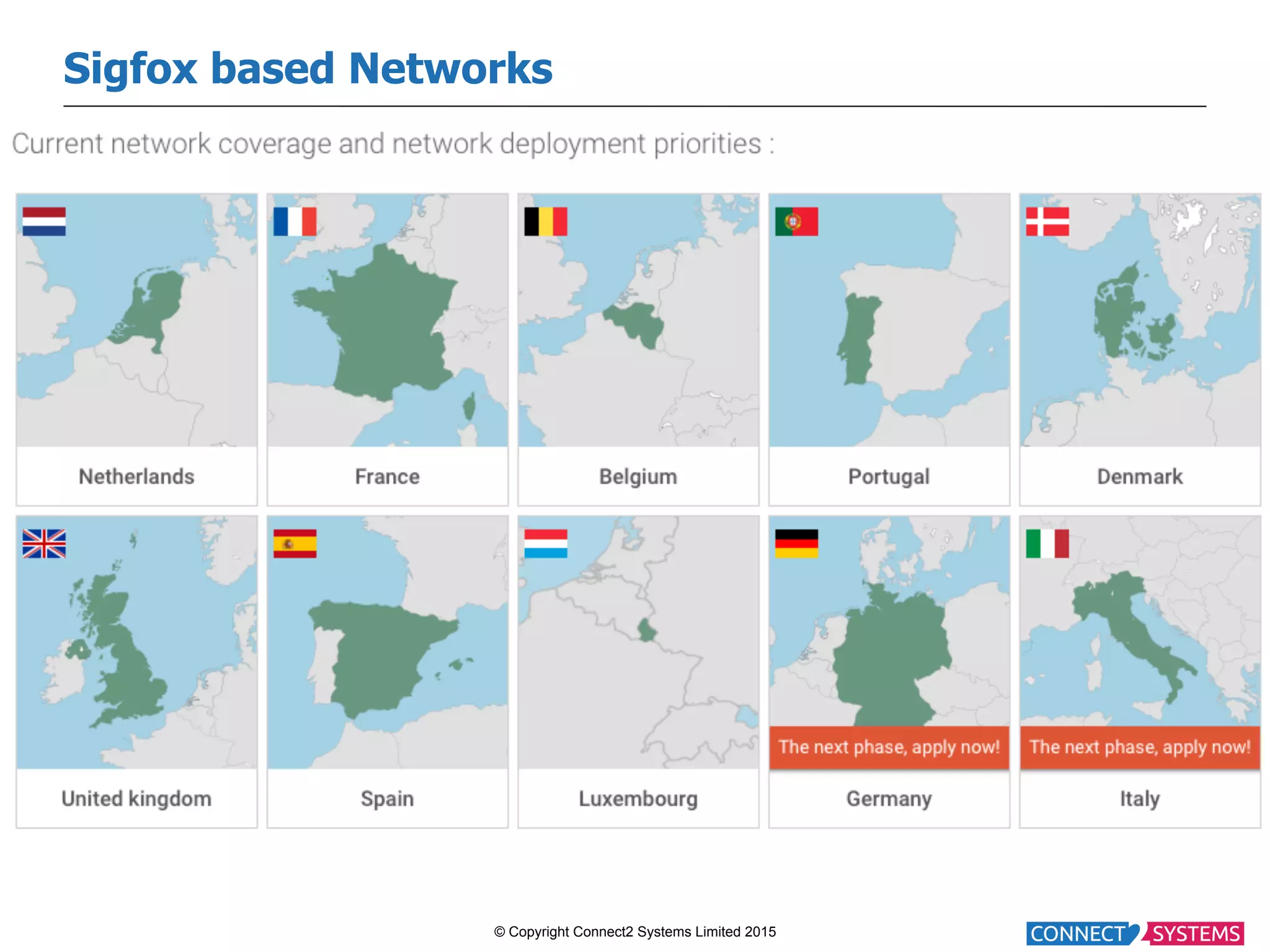

© Copyright Connect2 Systems Limited 2015 Sigfox UK Partner Arqiva Coverage §  Birmingham §  Bristol §  Edinburgh §  Glasgow §  Leeds §  Leicester §  Liverpool §  London §  Manchester §  Sheffield

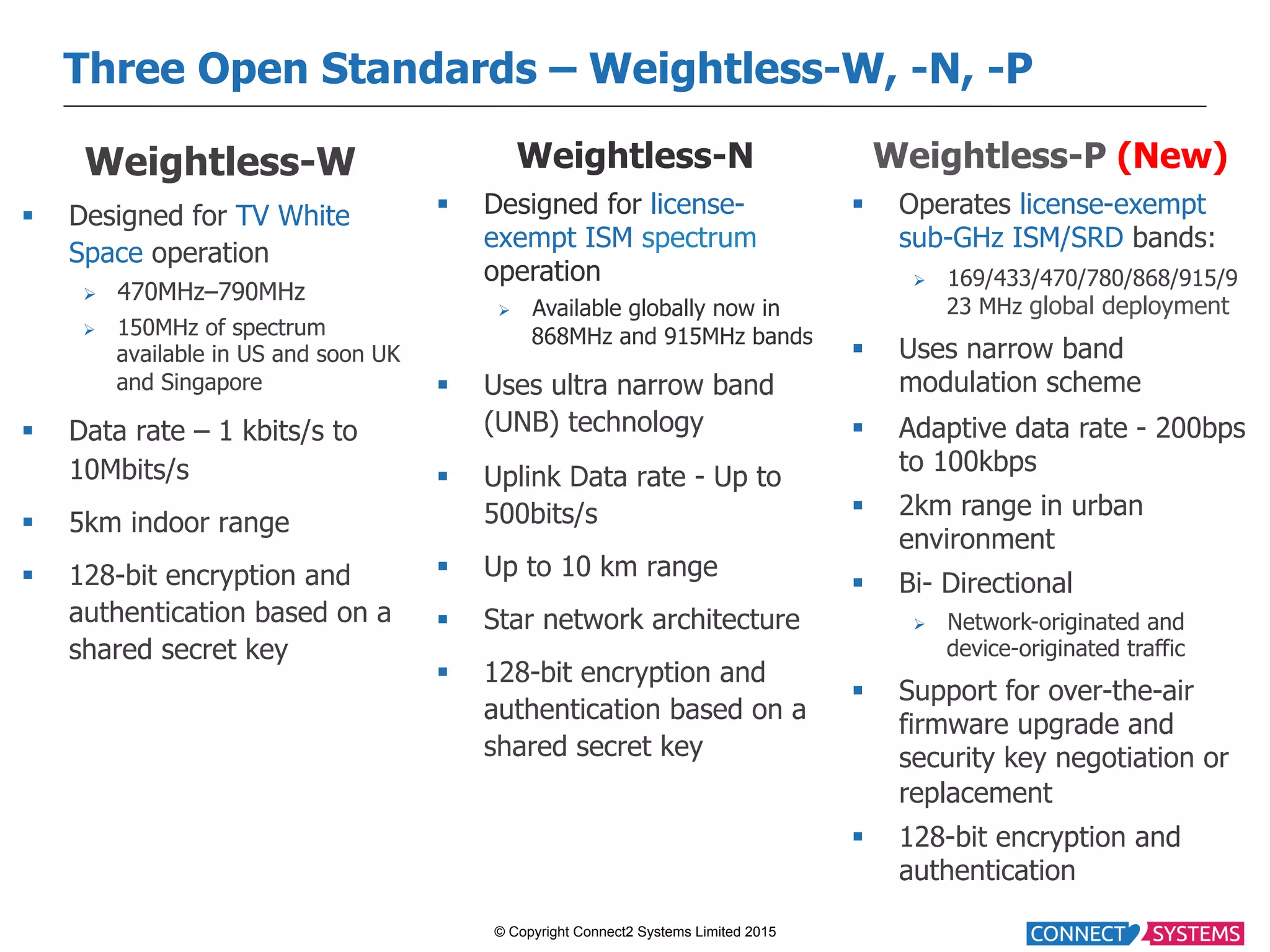

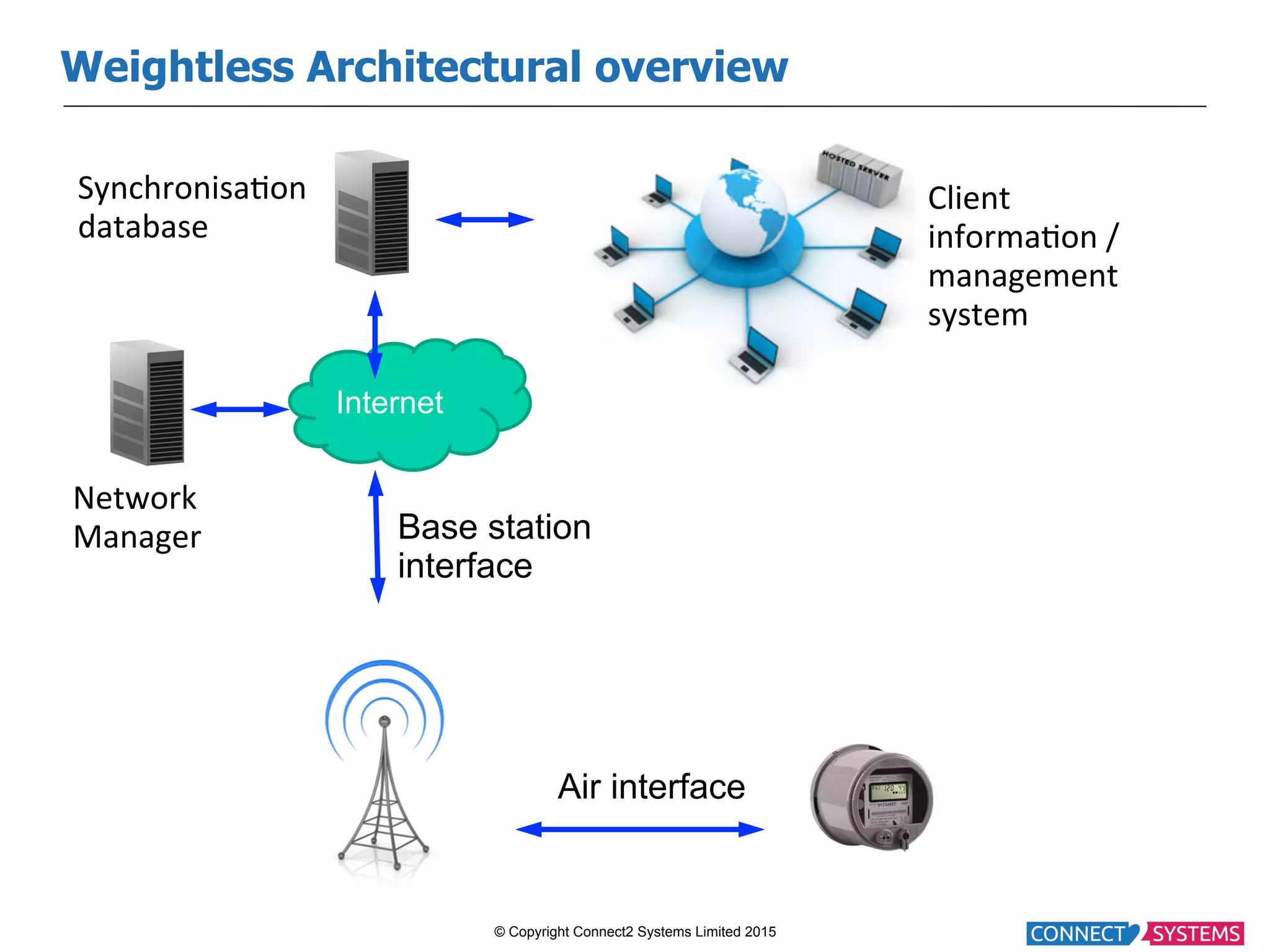

© Copyright Connect2 Systems Limited 2015 Three Open Standards – Weightless-W, -N, -P Weightless-W §  Designed for TV White Space operation Ø  470MHz–790MHz Ø  150MHz of spectrum available in US and soon UK and Singapore §  Data rate – 1 kbits/s to 10Mbits/s §  5km indoor range §  128-bit encryption and authentication based on a shared secret key Weightless-N §  Designed for license- exempt ISM spectrum operation Ø  Available globally now in 868MHz and 915MHz bands §  Uses ultra narrow band (UNB) technology §  Uplink Data rate - Up to 500bits/s §  Up to 10 km range §  Star network architecture §  128-bit encryption and authentication based on a shared secret key 26 Weightless-P (New) §  Operates license-exempt sub-GHz ISM/SRD bands: Ø  169/433/470/780/868/915/9 23 MHz global deployment §  Uses narrow band modulation scheme §  Adaptive data rate - 200bps to 100kbps §  2km range in urban environment §  Bi- Directional Ø  Network-originated and device-originated traffic §  Support for over-the-air firmware upgrade and security key negotiation or replacement §  128-bit encryption and authentication

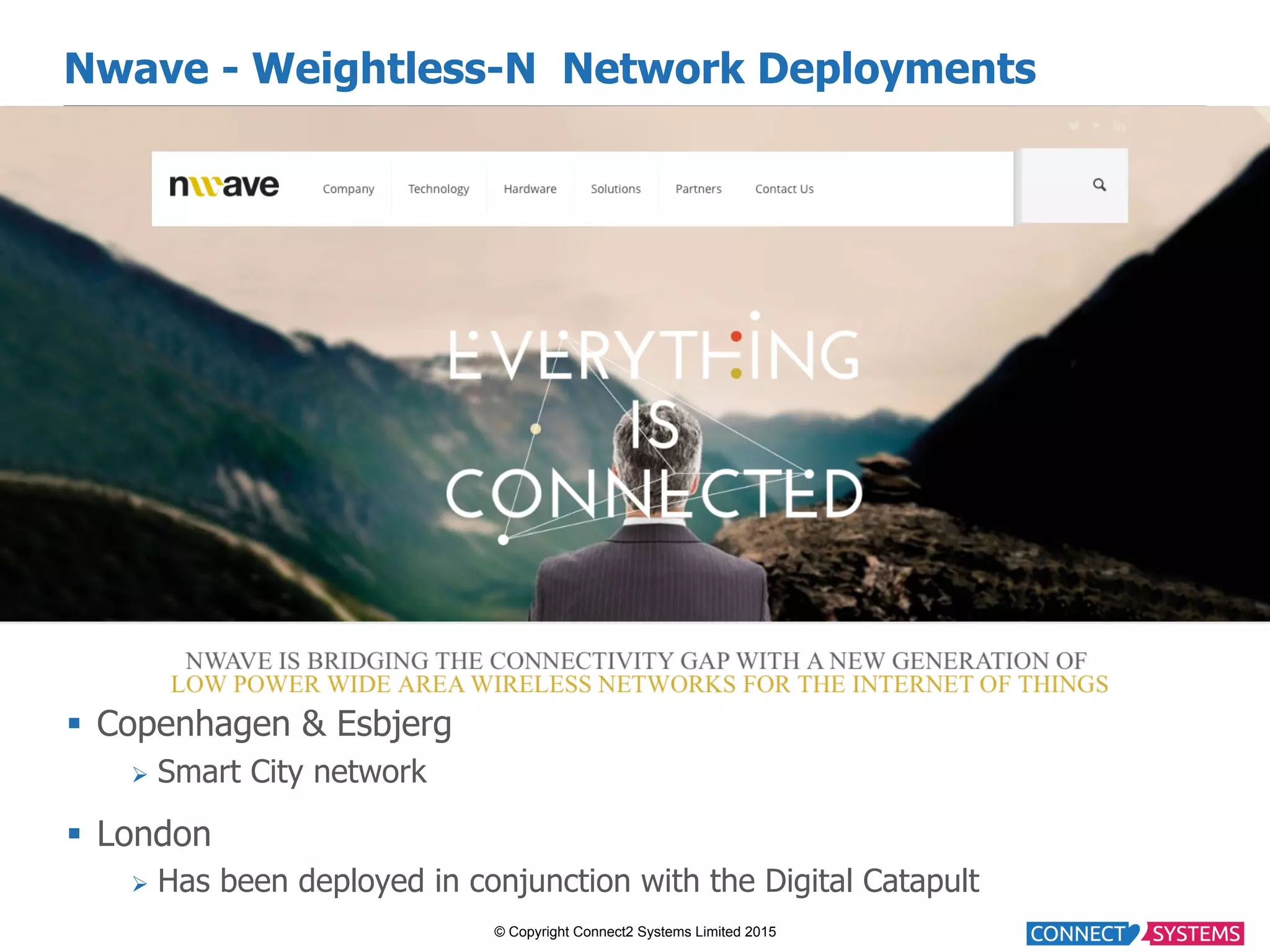

© Copyright Connect2 Systems Limited 2015 Nwave - Weightless-N Network Deployments §  Copenhagen & Esbjerg Ø  Smart City network §  London Ø  Has been deployed in conjunction with the Digital Catapult

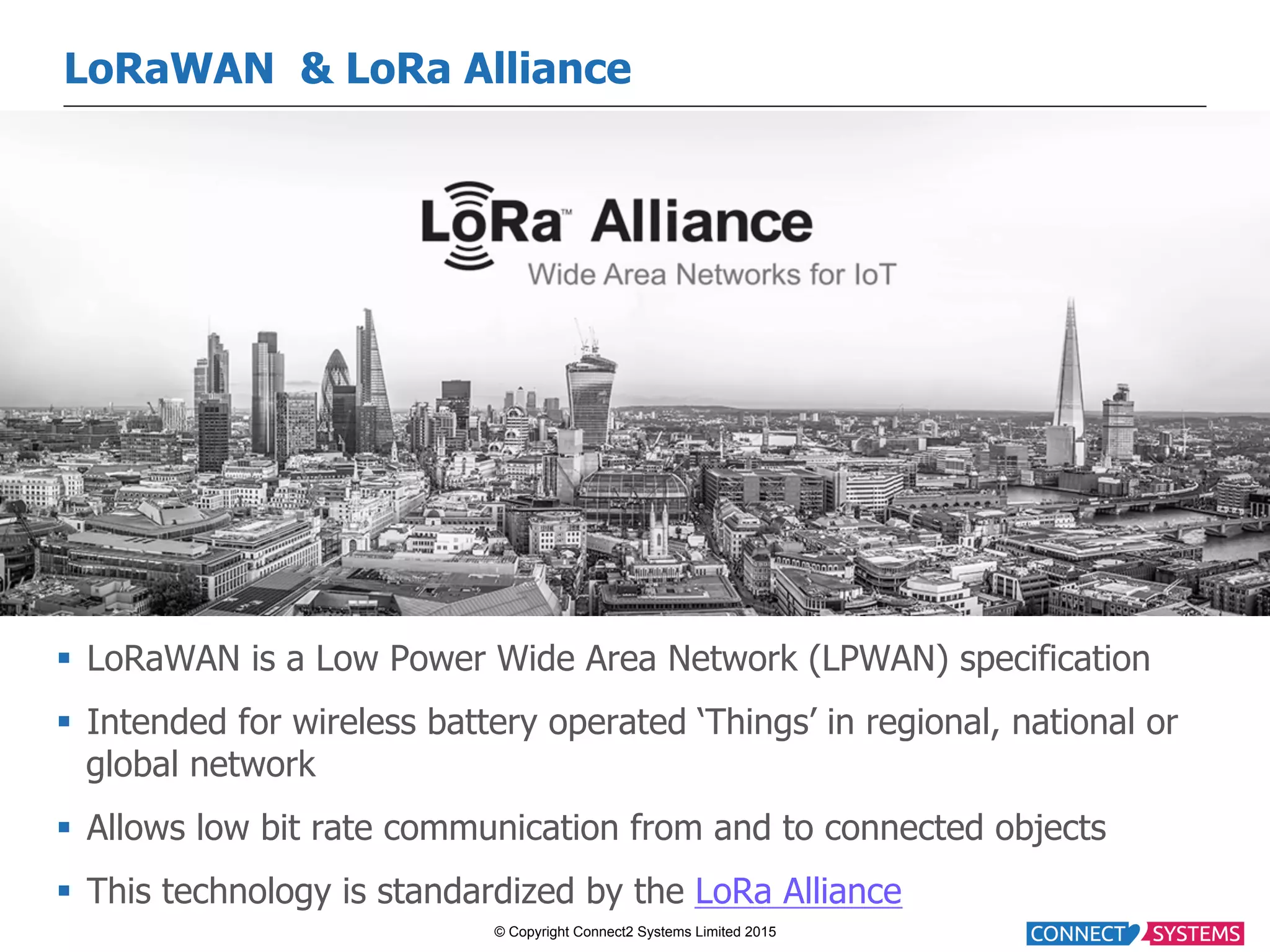

© Copyright Connect2 Systems Limited 2015 LoRaWAN & LoRa Alliance §  LoRaWAN is a Low Power Wide Area Network (LPWAN) specification §  Intended for wireless battery operated ‘Things’ in regional, national or global network §  Allows low bit rate communication from and to connected objects §  This technology is standardized by the LoRa Alliance

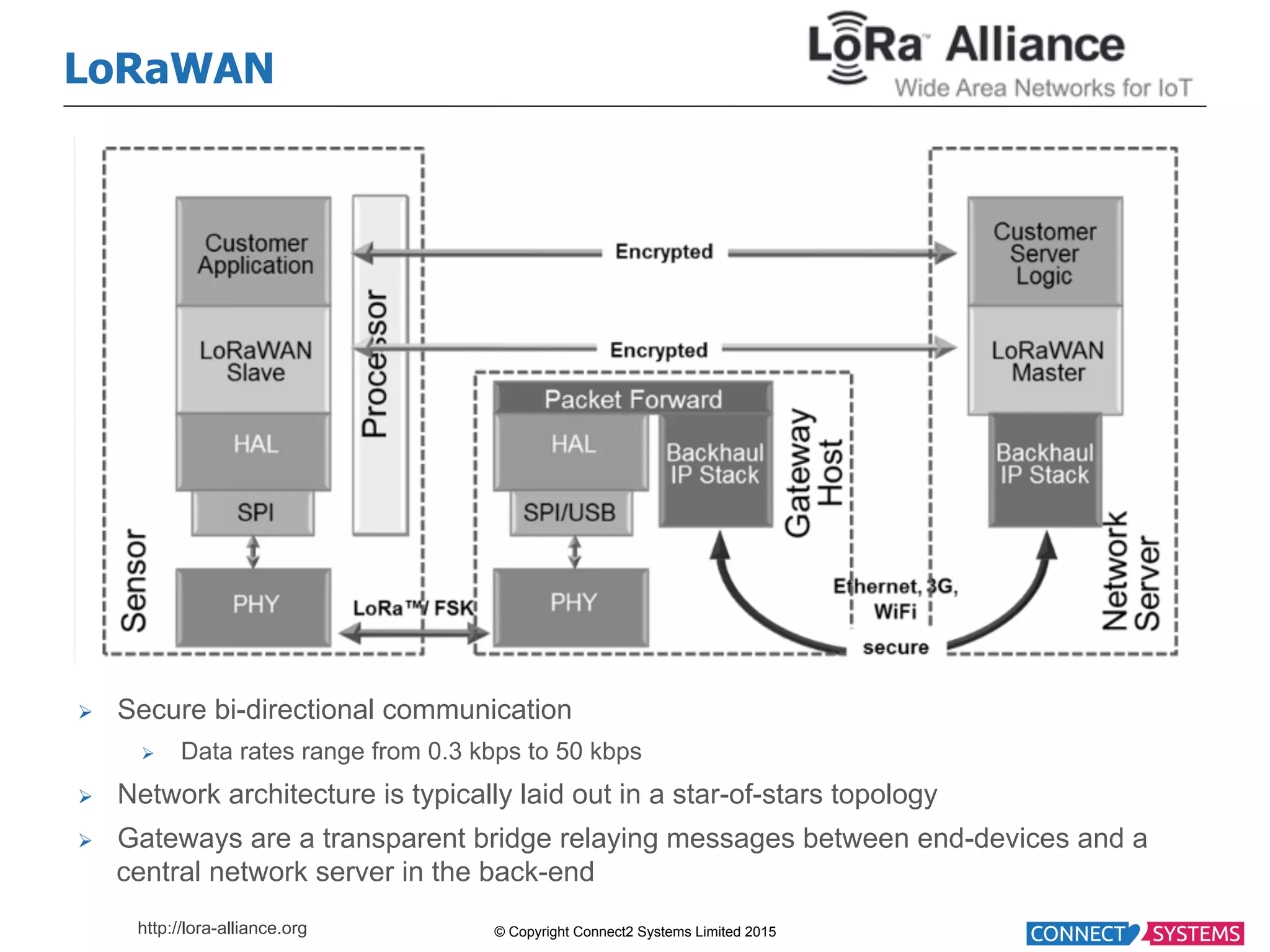

© Copyright Connect2 Systems Limited 2015 LoRaWAN Ø  Secure bi-directional communication Ø  Data rates range from 0.3 kbps to 50 kbps Ø  Network architecture is typically laid out in a star-of-stars topology Ø  Gateways are a transparent bridge relaying messages between end-devices and a central network server in the back-end http://lora-alliance.org

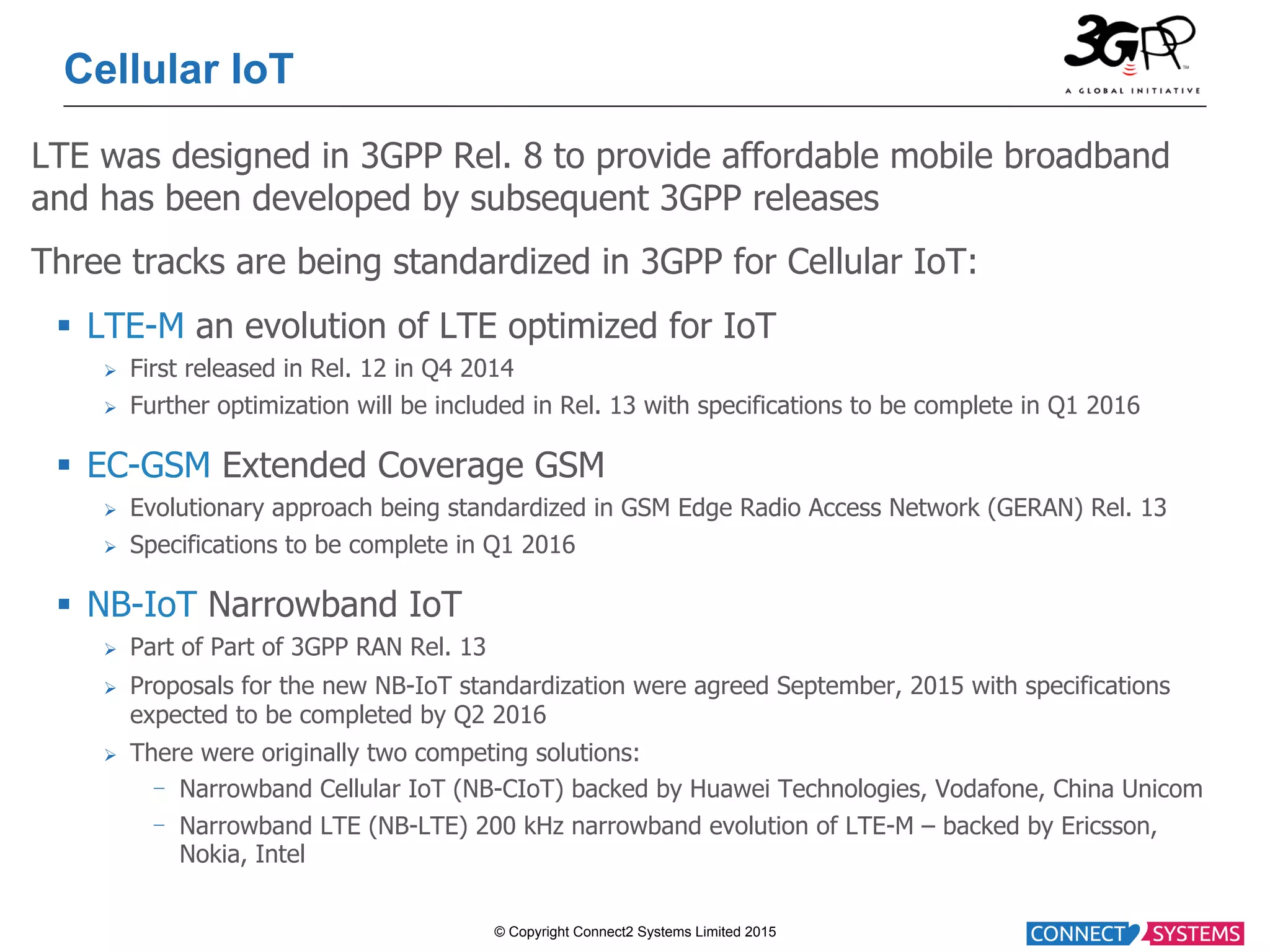

© Copyright Connect2 Systems Limited 2015 Cellular IoT LTE was designed in 3GPP Rel. 8 to provide affordable mobile broadband and has been developed by subsequent 3GPP releases Three tracks are being standardized in 3GPP for Cellular IoT: §  LTE-M an evolution of LTE optimized for IoT Ø  First released in Rel. 12 in Q4 2014 Ø  Further optimization will be included in Rel. 13 with specifications to be complete in Q1 2016 §  EC-GSM Extended Coverage GSM Ø  Evolutionary approach being standardized in GSM Edge Radio Access Network (GERAN) Rel. 13 Ø  Specifications to be complete in Q1 2016 §  NB-IoT Narrowband IoT Ø  Part of Part of 3GPP RAN Rel. 13 Ø  Proposals for the new NB-IoT standardization were agreed September, 2015 with specifications expected to be completed by Q2 2016 Ø  There were originally two competing solutions: -  Narrowband Cellular IoT (NB-CIoT) backed by Huawei Technologies, Vodafone, China Unicom -  Narrowband LTE (NB-LTE) 200 kHz narrowband evolution of LTE-M – backed by Ericsson, Nokia, Intel

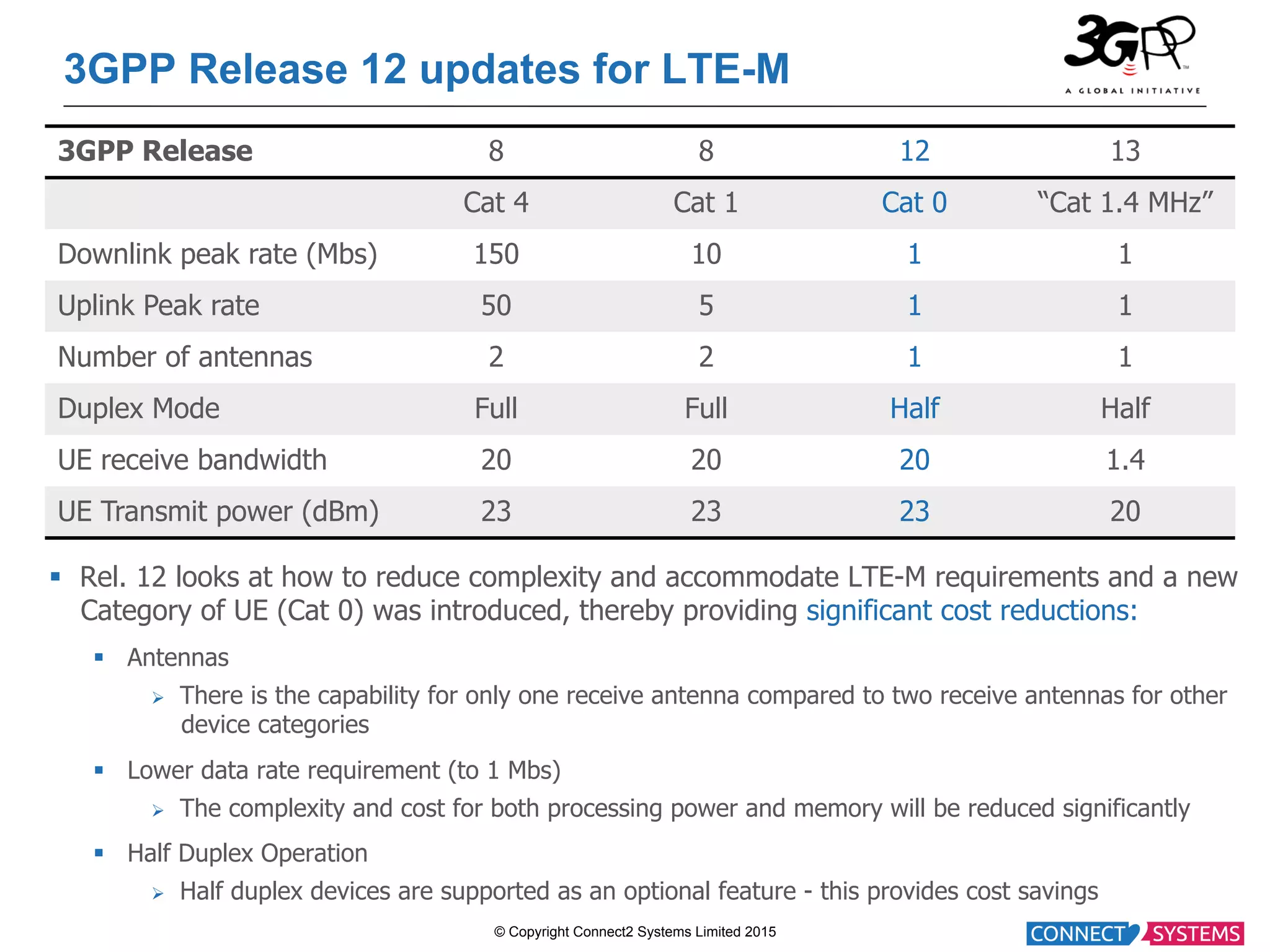

© Copyright Connect2 Systems Limited 2015 3GPP Release 12 updates for LTE-M §  Rel. 12 looks at how to reduce complexity and accommodate LTE-M requirements and a new Category of UE (Cat 0) was introduced, thereby providing significant cost reductions: §  Antennas Ø  There is the capability for only one receive antenna compared to two receive antennas for other device categories §  Lower data rate requirement (to 1 Mbs) Ø  The complexity and cost for both processing power and memory will be reduced significantly §  Half Duplex Operation Ø  Half duplex devices are supported as an optional feature - this provides cost savings 3GPP Release 8 8 12 13 Cat 4 Cat 1 Cat 0 “Cat 1.4 MHz” Downlink peak rate (Mbs) 150 10 1 1 Uplink Peak rate 50 5 1 1 Number of antennas 2 2 1 1 Duplex Mode Full Full Half Half UE receive bandwidth 20 20 20 1.4 UE Transmit power (dBm) 23 23 23 20

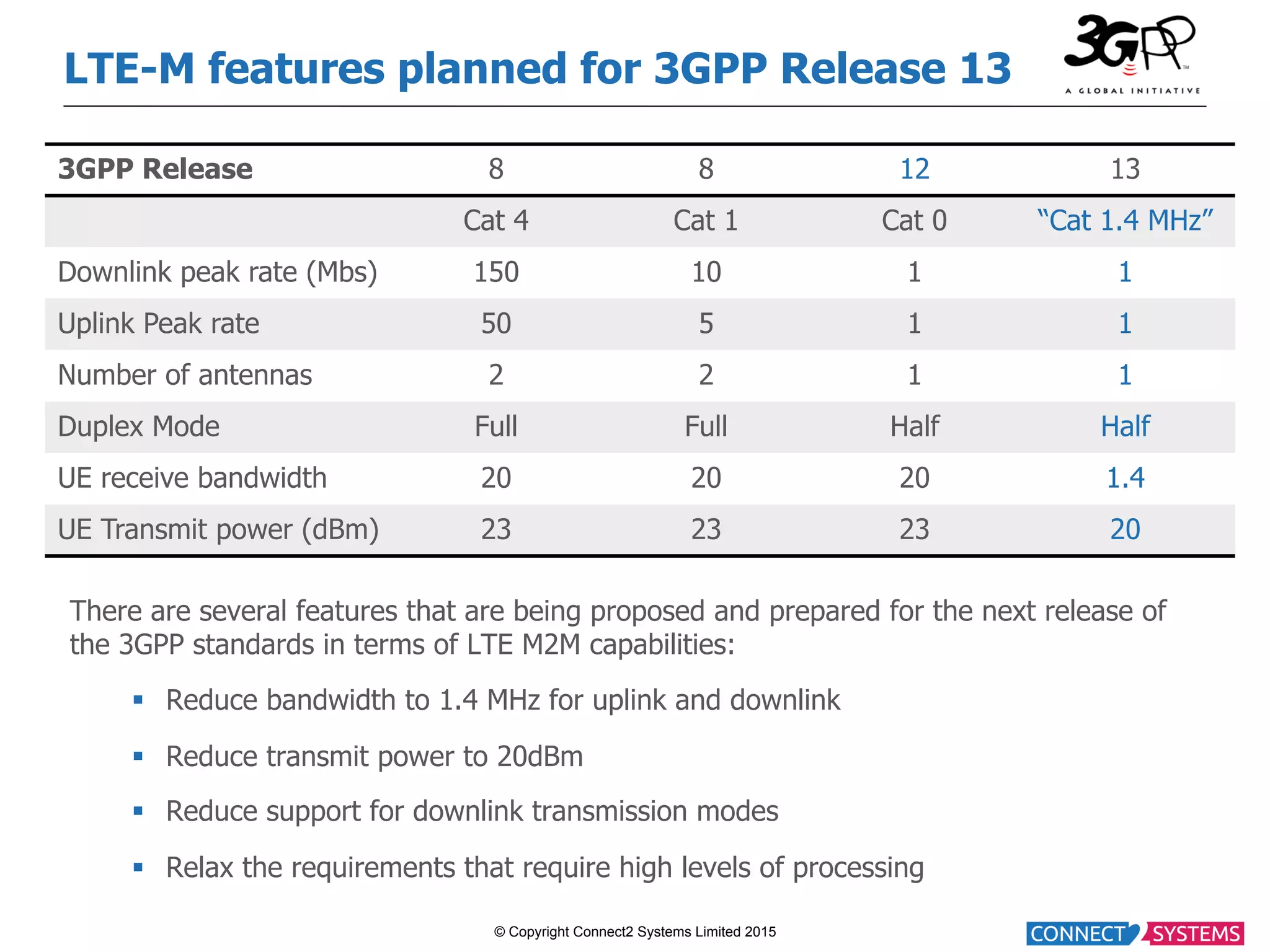

© Copyright Connect2 Systems Limited 2015 LTE-M features planned for 3GPP Release 13 There are several features that are being proposed and prepared for the next release of the 3GPP standards in terms of LTE M2M capabilities: §  Reduce bandwidth to 1.4 MHz for uplink and downlink §  Reduce transmit power to 20dBm §  Reduce support for downlink transmission modes §  Relax the requirements that require high levels of processing 3GPP Release 8 8 12 13 Cat 4 Cat 1 Cat 0 “Cat 1.4 MHz” Downlink peak rate (Mbs) 150 10 1 1 Uplink Peak rate 50 5 1 1 Number of antennas 2 2 1 1 Duplex Mode Full Full Half Half UE receive bandwidth 20 20 20 1.4 UE Transmit power (dBm) 23 23 23 20

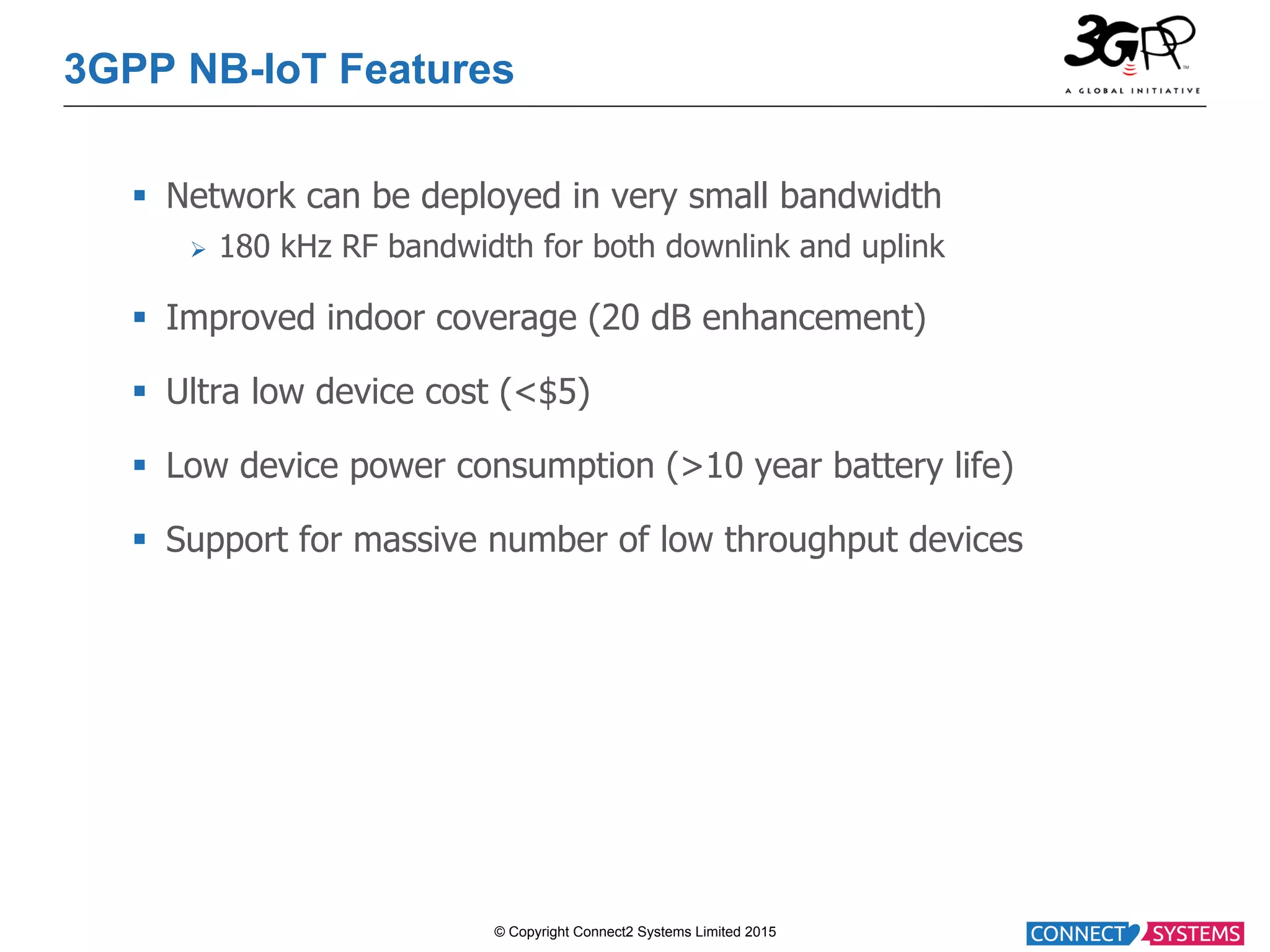

© Copyright Connect2 Systems Limited 2015 3GPP NB-IoT Features §  Network can be deployed in very small bandwidth Ø  180 kHz RF bandwidth for both downlink and uplink §  Improved indoor coverage (20 dB enhancement) §  Ultra low device cost (<$5) §  Low device power consumption (>10 year battery life) §  Support for massive number of low throughput devices

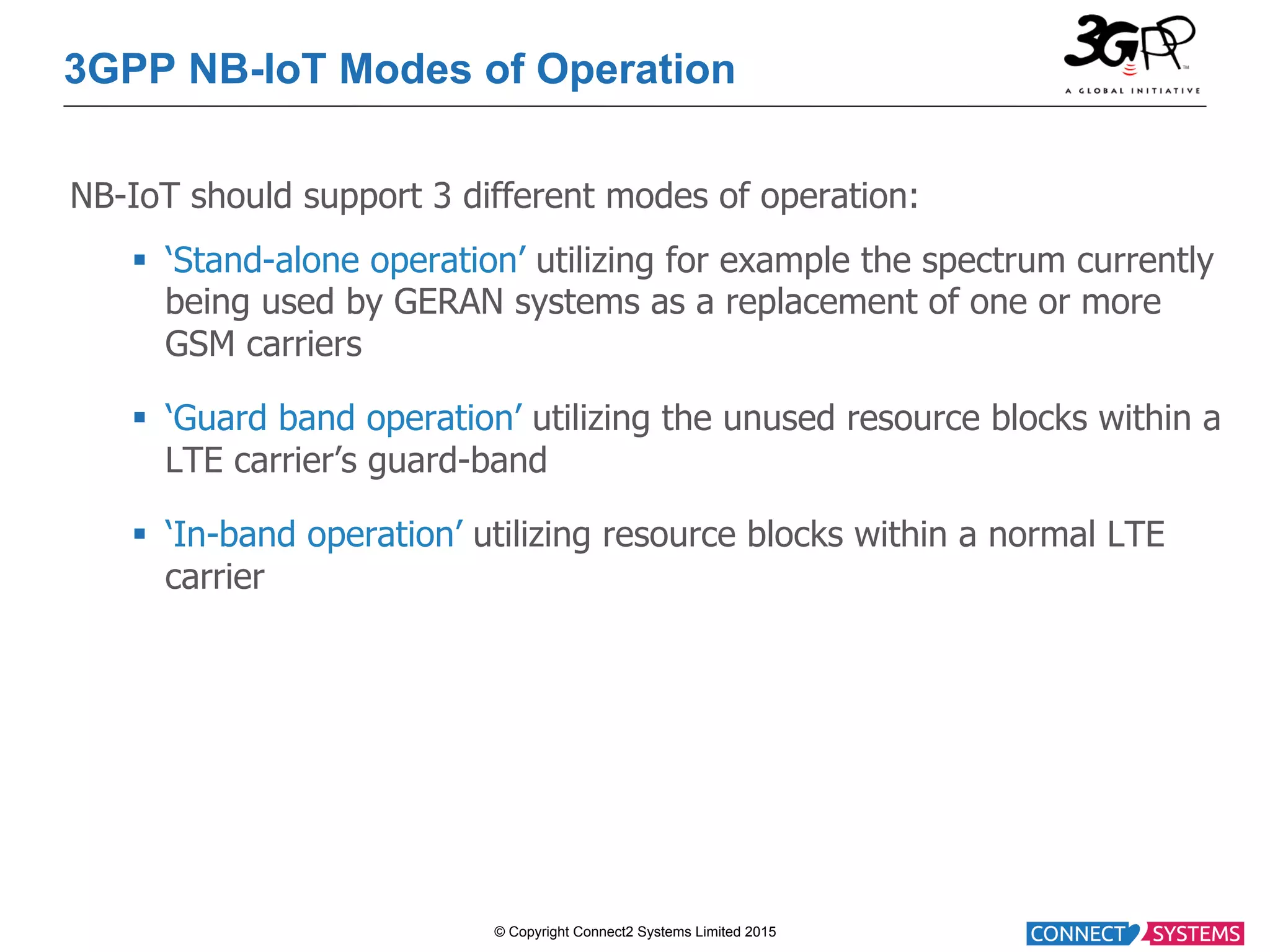

© Copyright Connect2 Systems Limited 2015 3GPP NB-IoT Modes of Operation NB-IoT should support 3 different modes of operation: §  ‘Stand-alone operation’ utilizing for example the spectrum currently being used by GERAN systems as a replacement of one or more GSM carriers §  ‘Guard band operation’ utilizing the unused resource blocks within a LTE carrier’s guard-band §  ‘In-band operation’ utilizing resource blocks within a normal LTE carrier

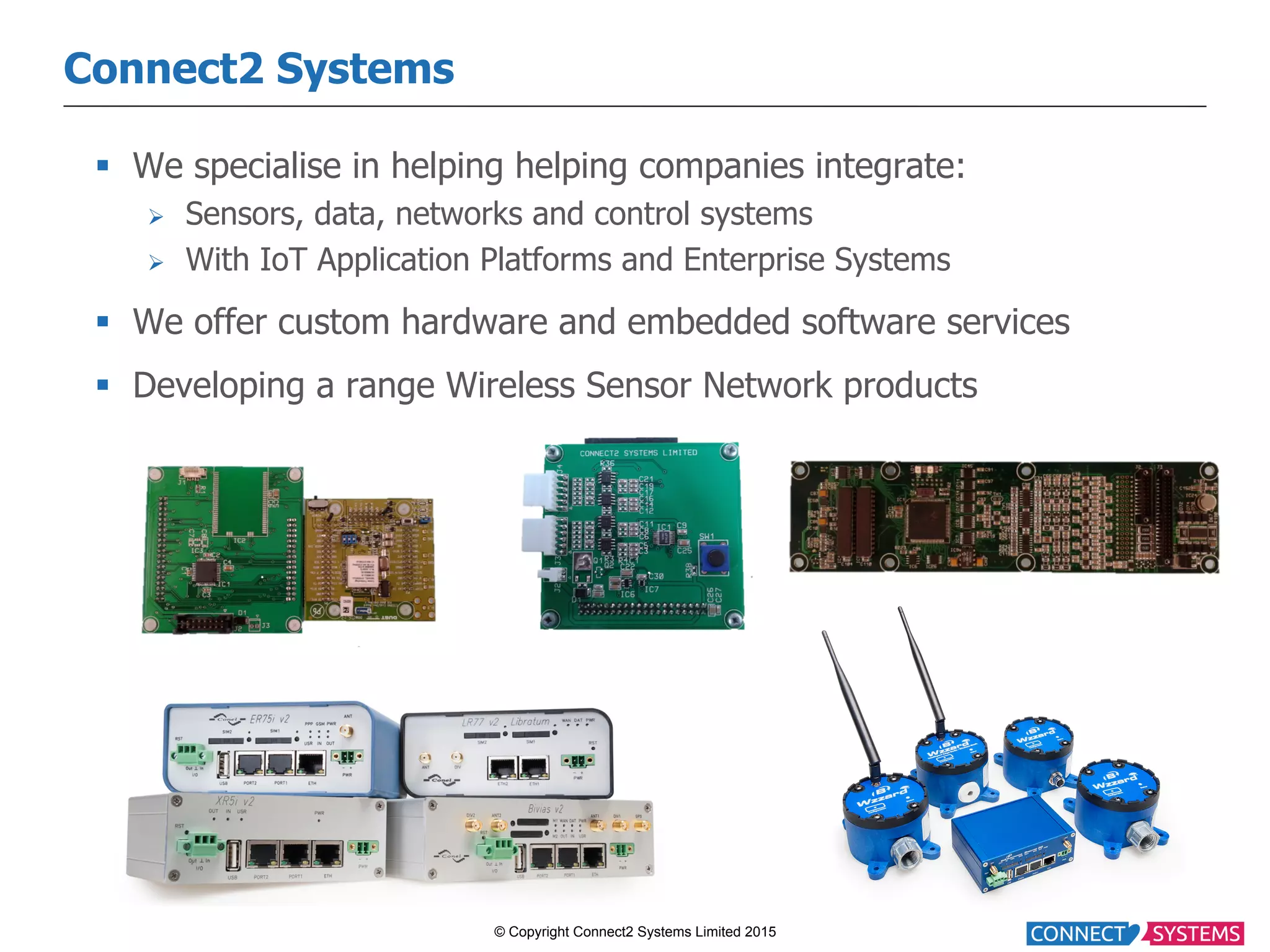

© Copyright Connect2 Systems Limited 2015 Connect2 Systems §  We specialise in helping helping companies integrate: Ø  Sensors, data, networks and control systems Ø  With IoT Application Platforms and Enterprise Systems §  We offer custom hardware and embedded software services §  Developing a range Wireless Sensor Network products
