One library for all Java encryption
- 1.

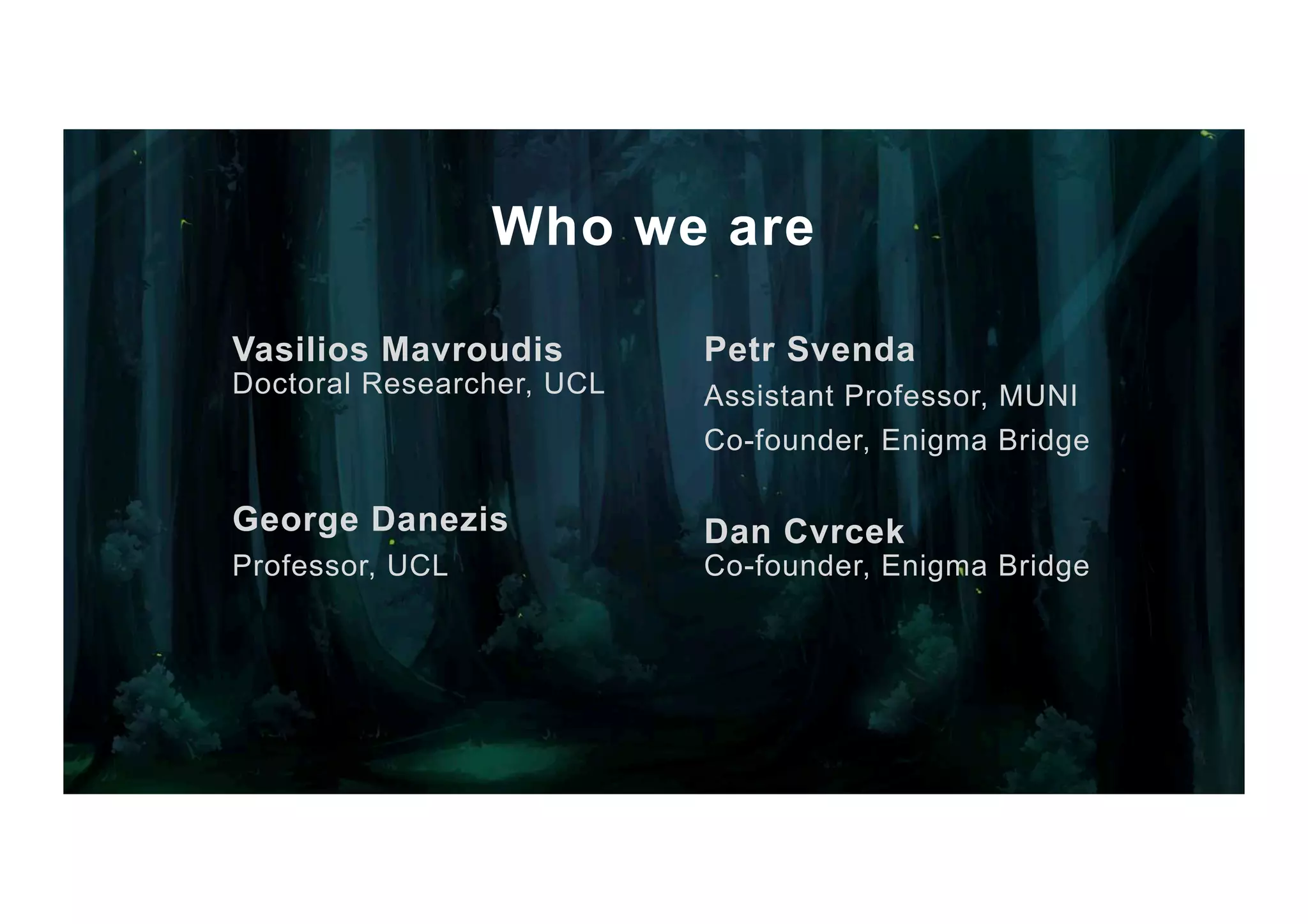

- 2. Who we are VasiliosMavroudis Doctoral Researcher, UCL George Danezis Professor, UCL Petr Svenda Assistant Professor, MUNI Co-founder, Enigma Bridge Dan Cvrcek Co-founder, Enigma Bridge

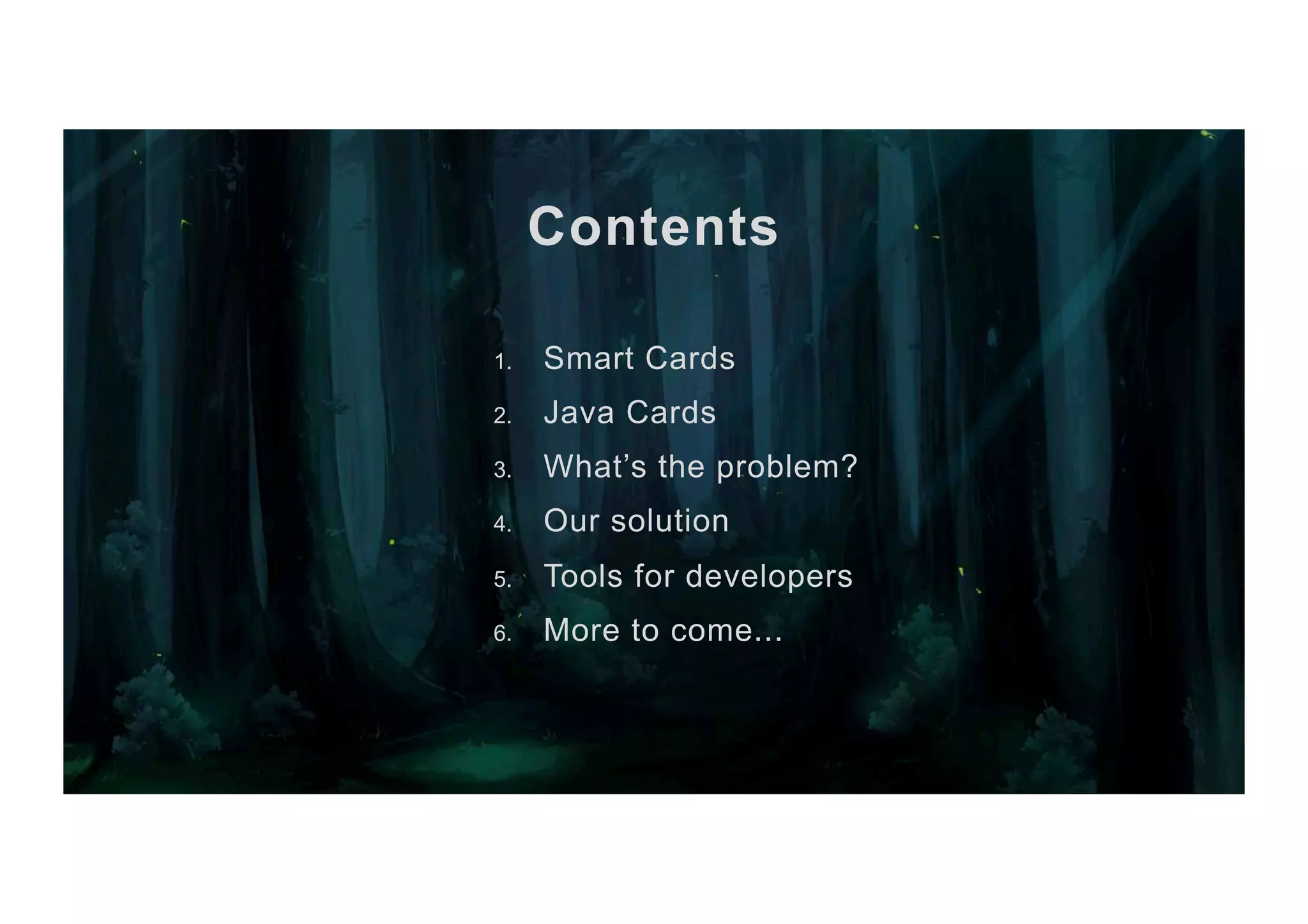

- 3. Contents 1. Smart Cards 2. Java Cards 3. What’s the problem? 4. Our solution 5. Tools for developers 6. More to come...

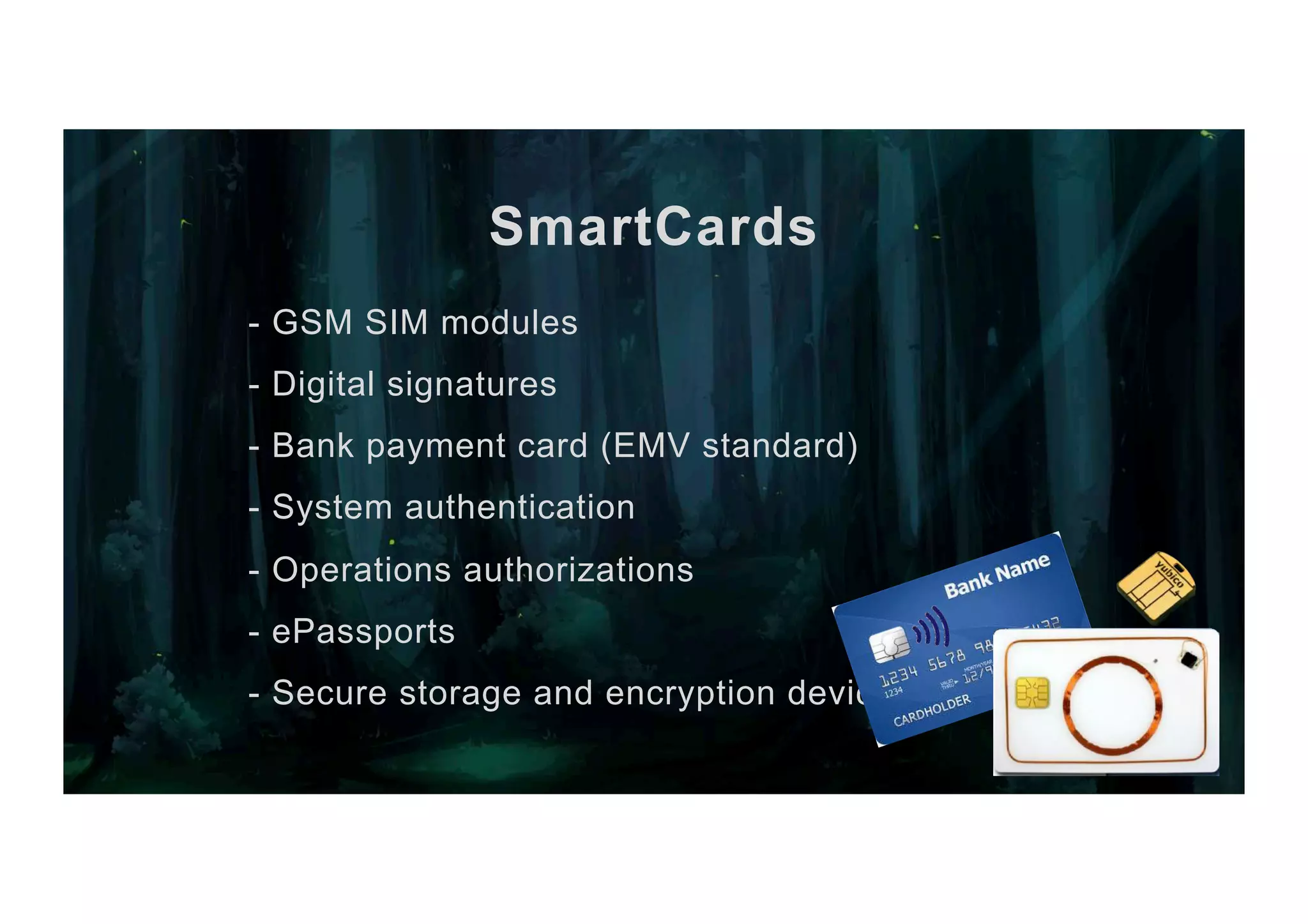

- 4. SmartCards - GSM SIMmodules - Digital signatures - Bank payment card (EMV standard) - System authentication - Operations authorizations - ePassports - Secure storage and encryption device

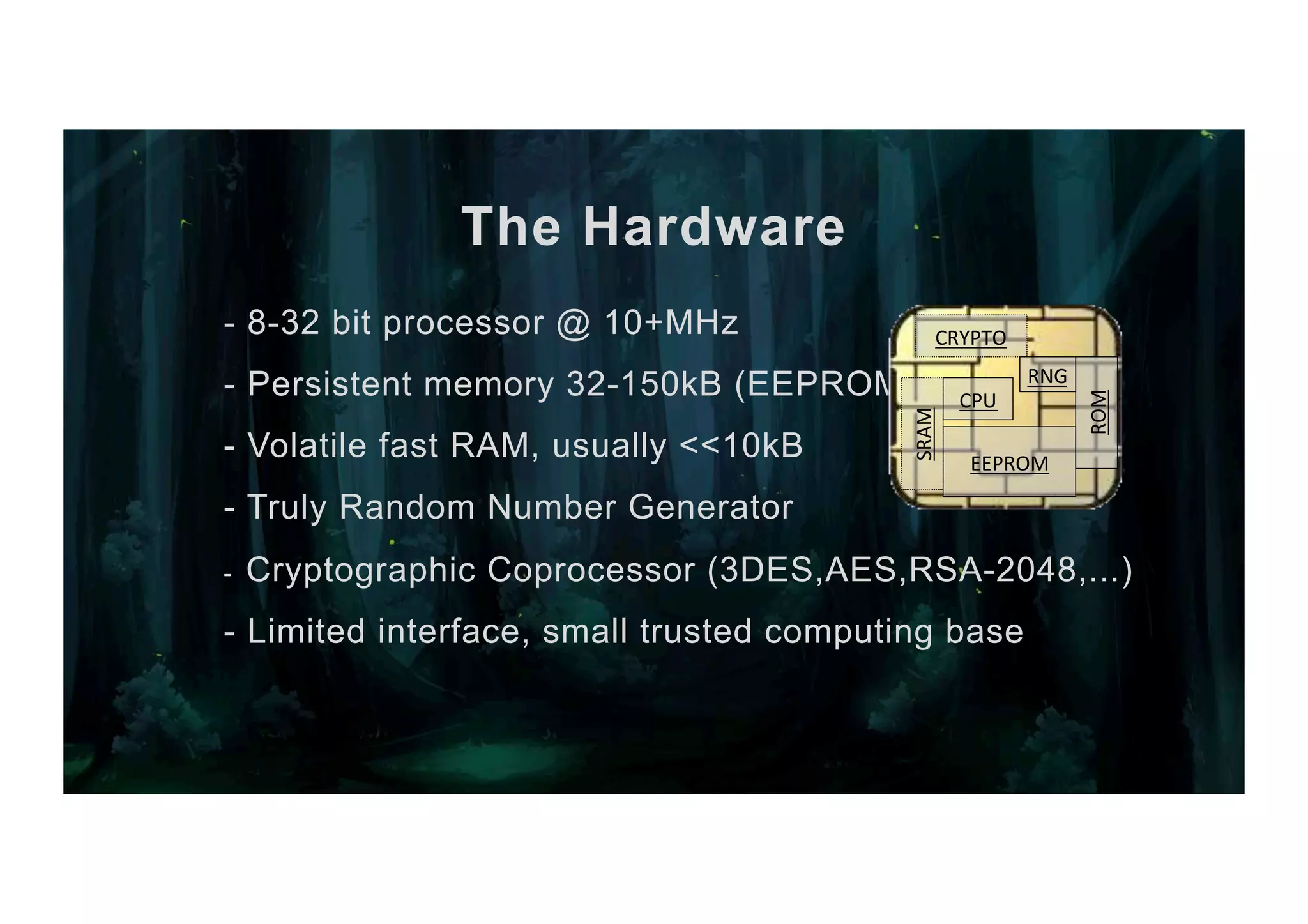

- 5. The Hardware - 8-32bit processor @ 10+MHz - Persistent memory 32-150kB (EEPROM) - Volatile fast RAM, usually <<10kB - Truly Random Number Generator - Cryptographic Coprocessor (3DES,AES,RSA-2048,...) - Limited interface, small trusted computing base EEPROM CPU CRYPTO SRAM ROM RNG

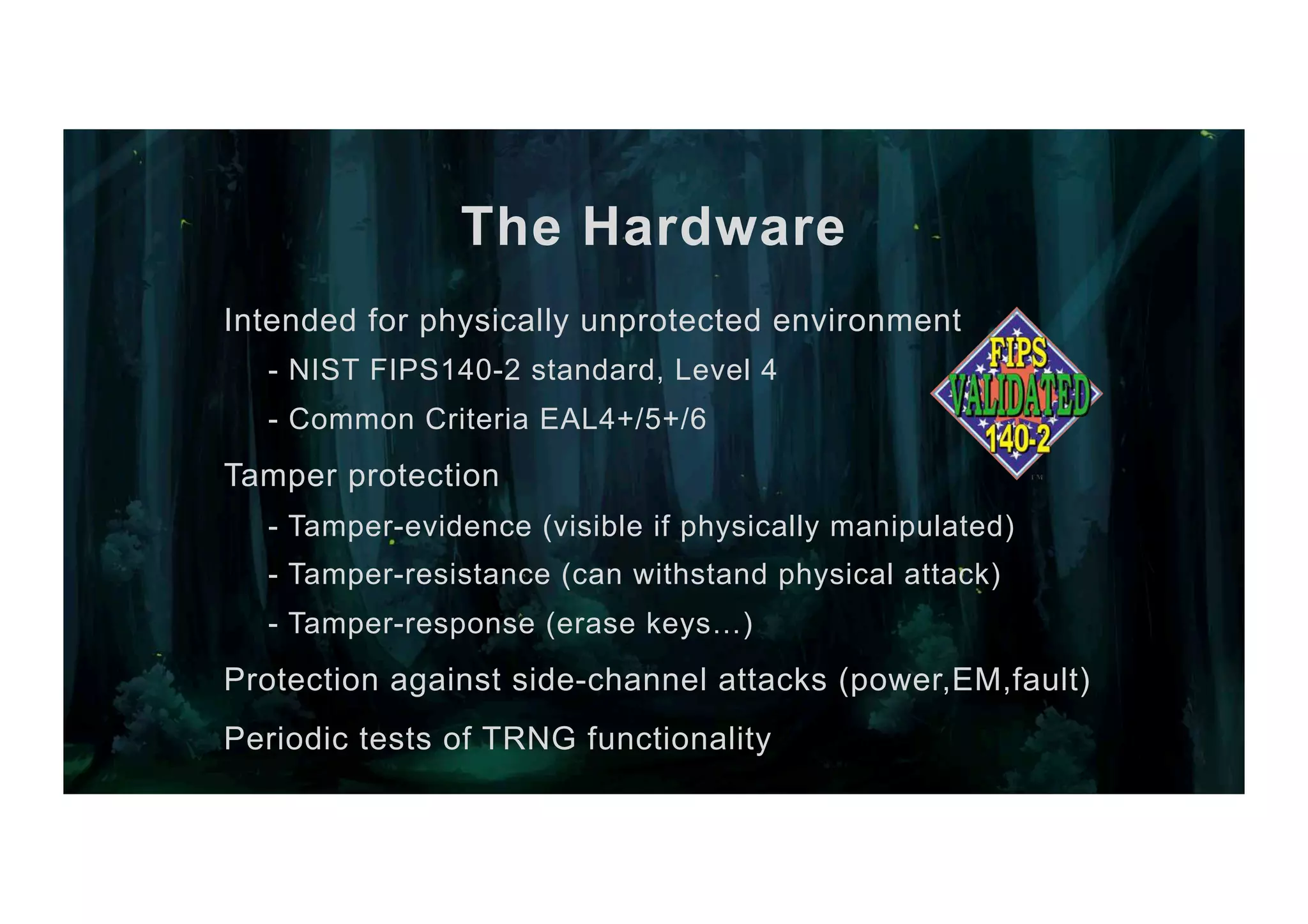

- 6. The Hardware Intended forphysically unprotected environment - NIST FIPS140-2 standard, Level 4 - Common Criteria EAL4+/5+/6 Tamper protection - Tamper-evidence (visible if physically manipulated) - Tamper-resistance (can withstand physical attack) - Tamper-response (erase keys…) Protection against side-channel attacks (power,EM,fault) Periodic tests of TRNG functionality

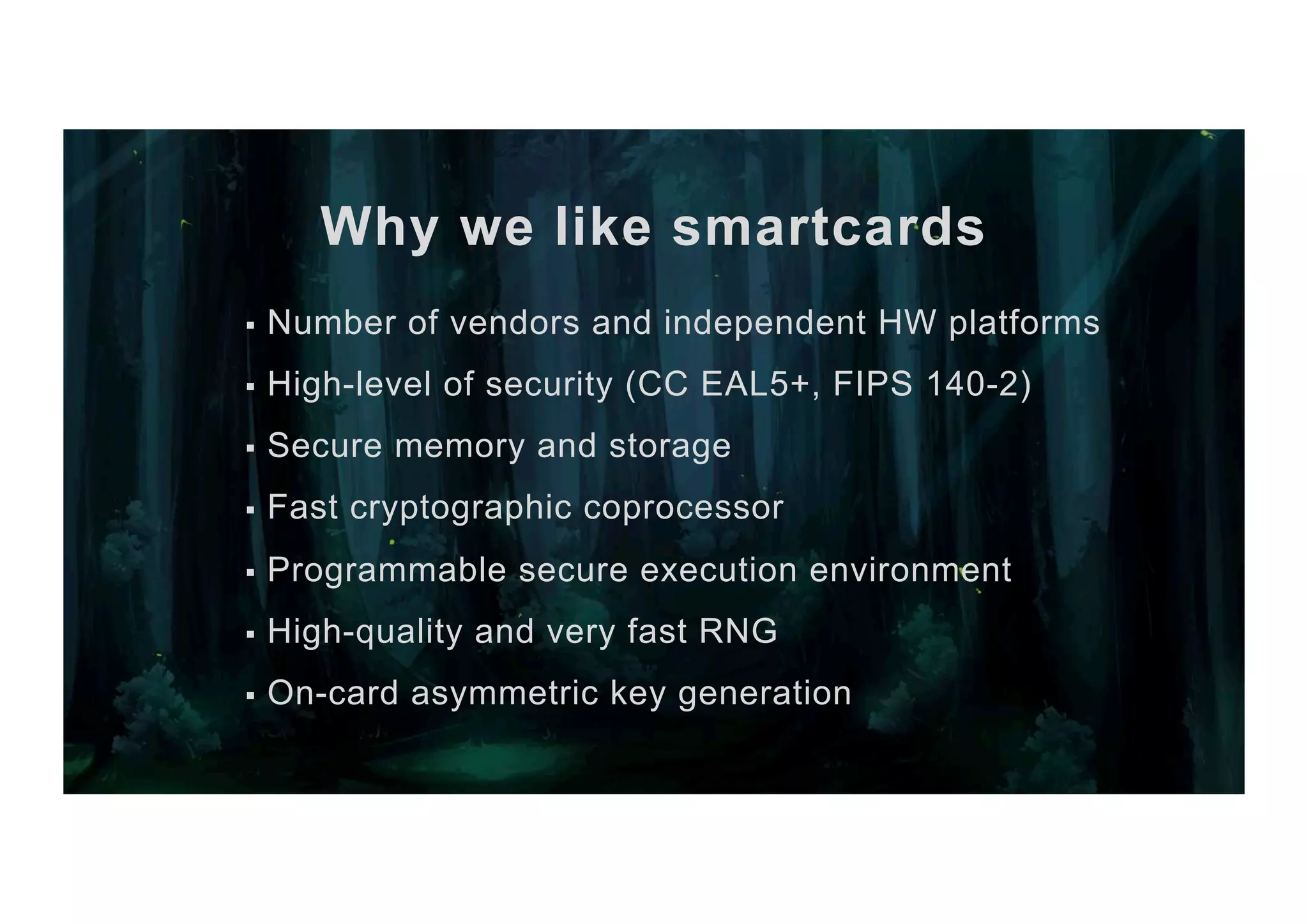

- 7. Why we likesmartcards § Number of vendors and independent HW platforms § High-level of security (CC EAL5+, FIPS 140-2) § Secure memory and storage § Fast cryptographic coprocessor § Programmable secure execution environment § High-quality and very fast RNG § On-card asymmetric key generation

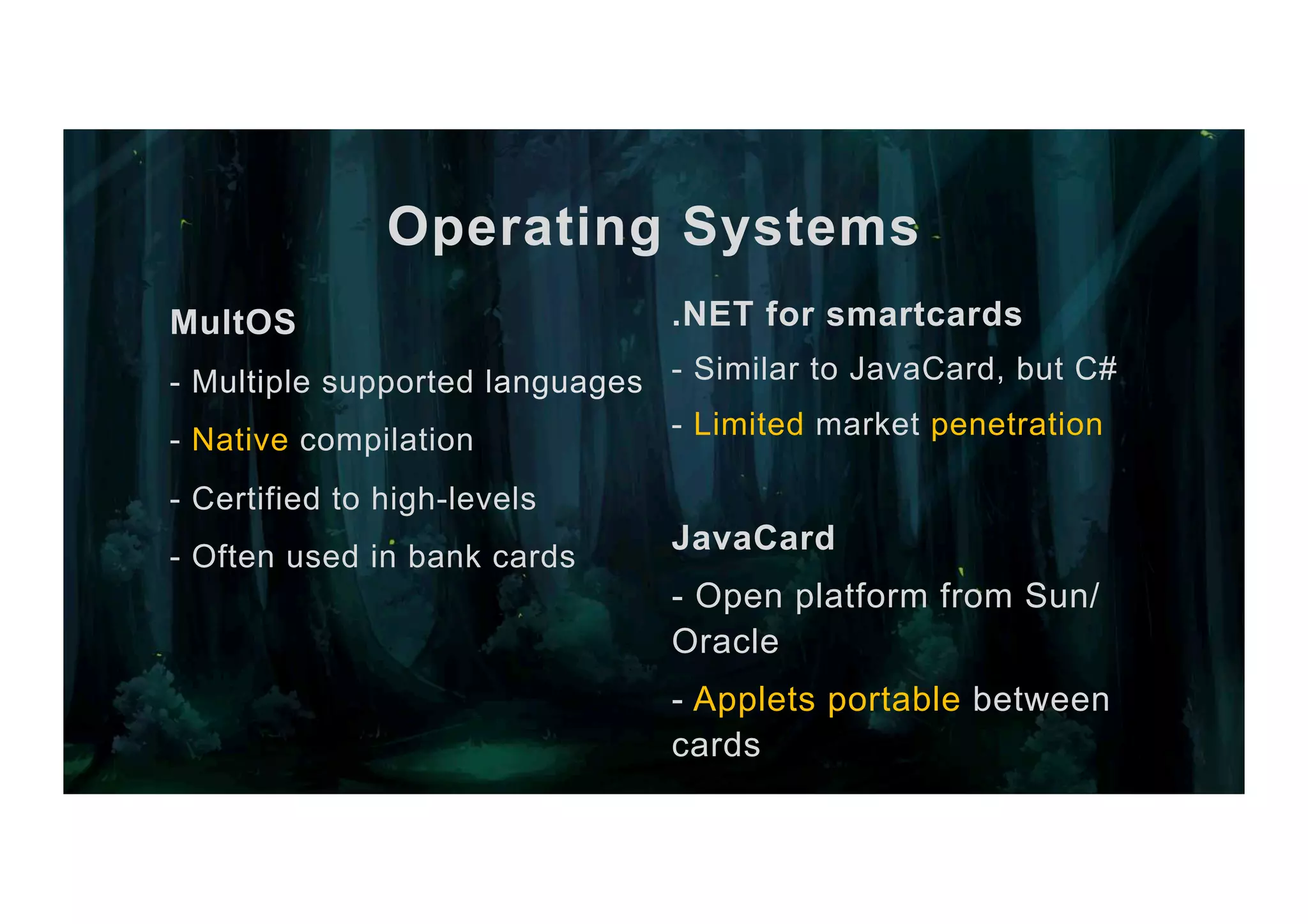

- 8. Operating Systems .NET forsmartcards - Similar to JavaCard, but C# - Limited market penetration JavaCard - Open platform from Sun/ Oracle - Applets portable between cards MultOS - Multiple supported languages - Native compilation - Certified to high-levels - Often used in bank cards
- 9.

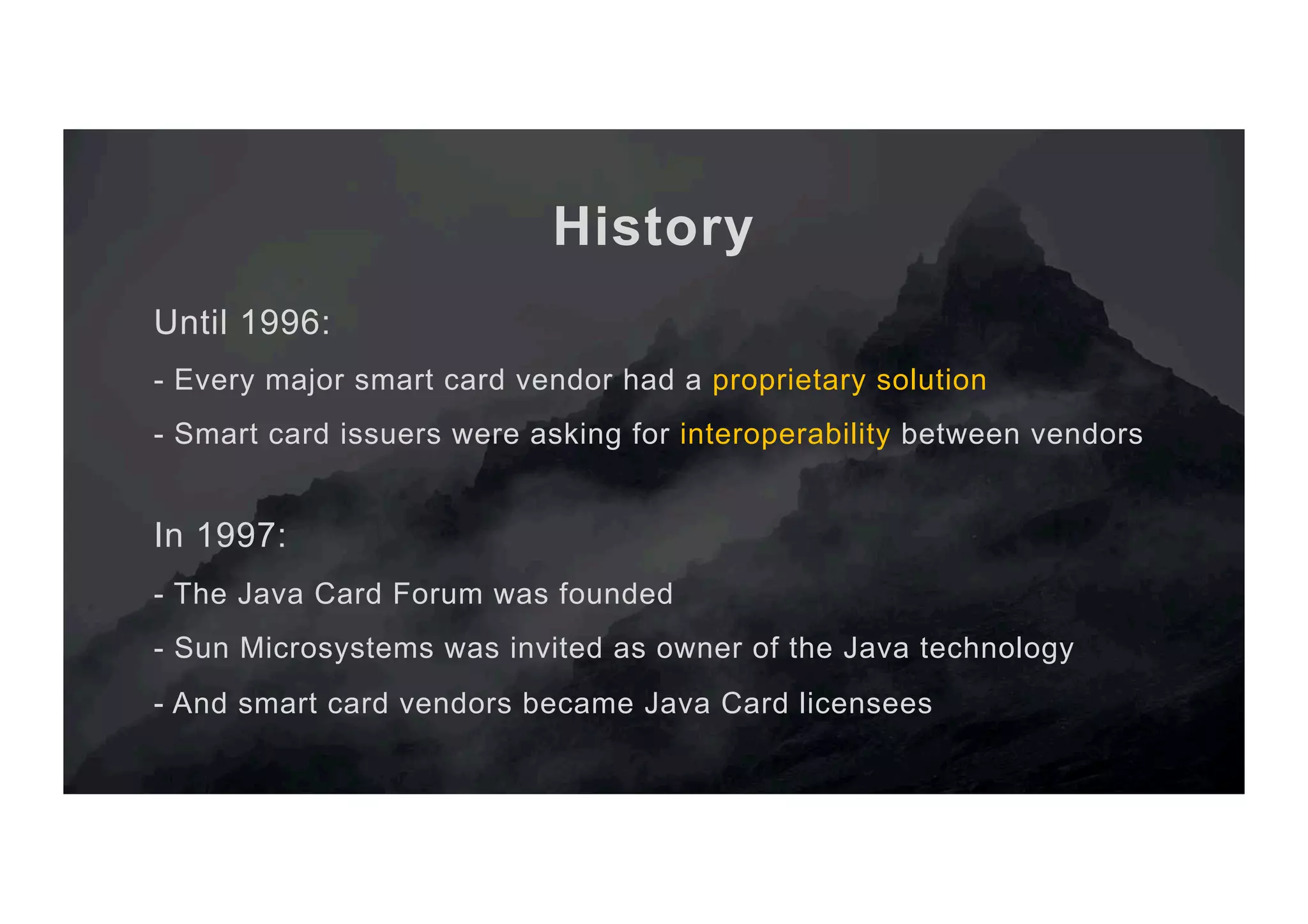

- 10. History Until 1996: - Everymajor smart card vendor had a proprietary solution - Smart card issuers were asking for interoperability between vendors In 1997: - The Java Card Forum was founded - Sun Microsystems was invited as owner of the Java technology - And smart card vendors became Java Card licensees

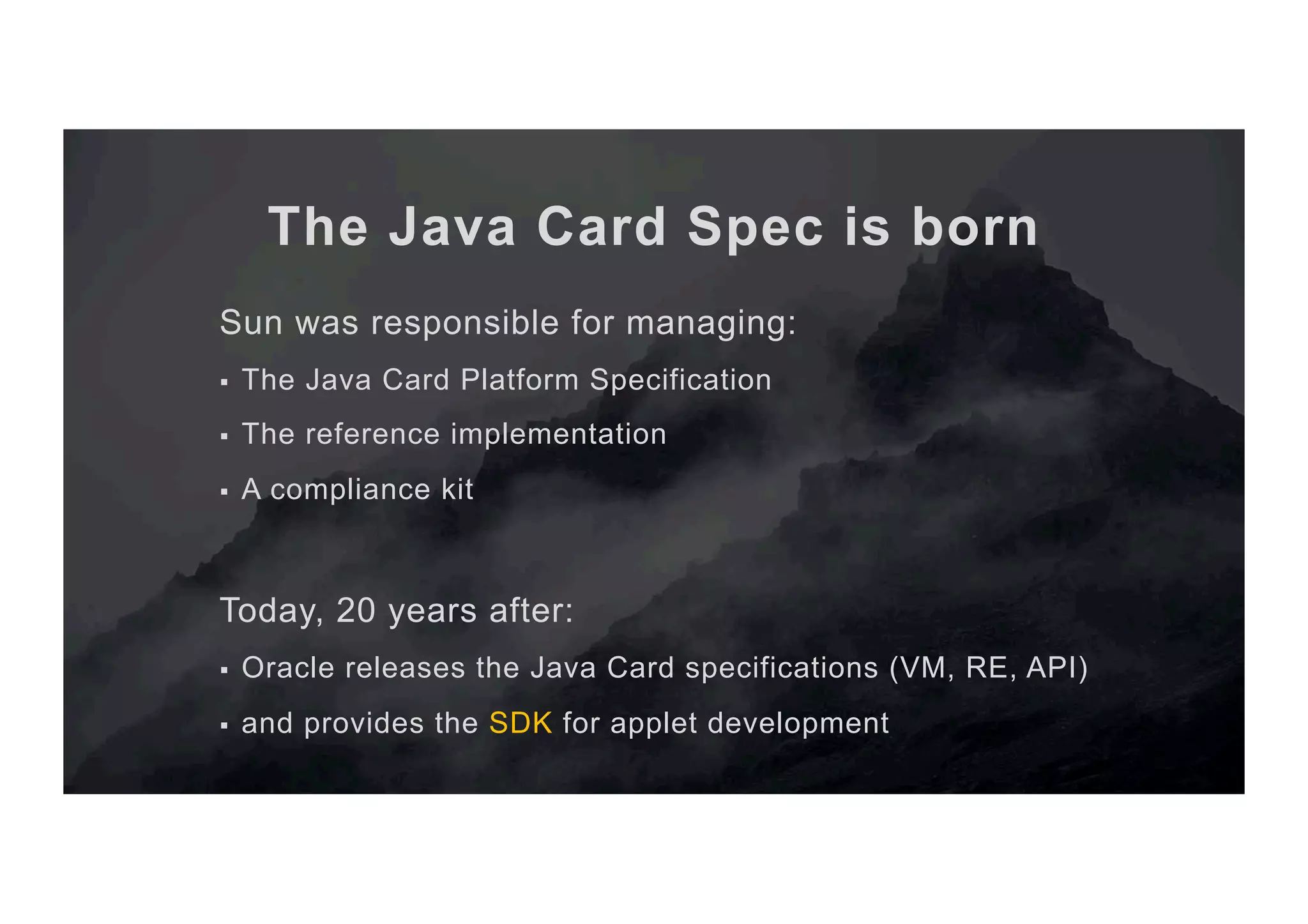

- 11. The Java CardSpec is born Sun was responsible for managing: § The Java Card Platform Specification § The reference implementation § A compliance kit Today, 20 years after: § Oracle releases the Java Card specifications (VM, RE, API) § and provides the SDK for applet development

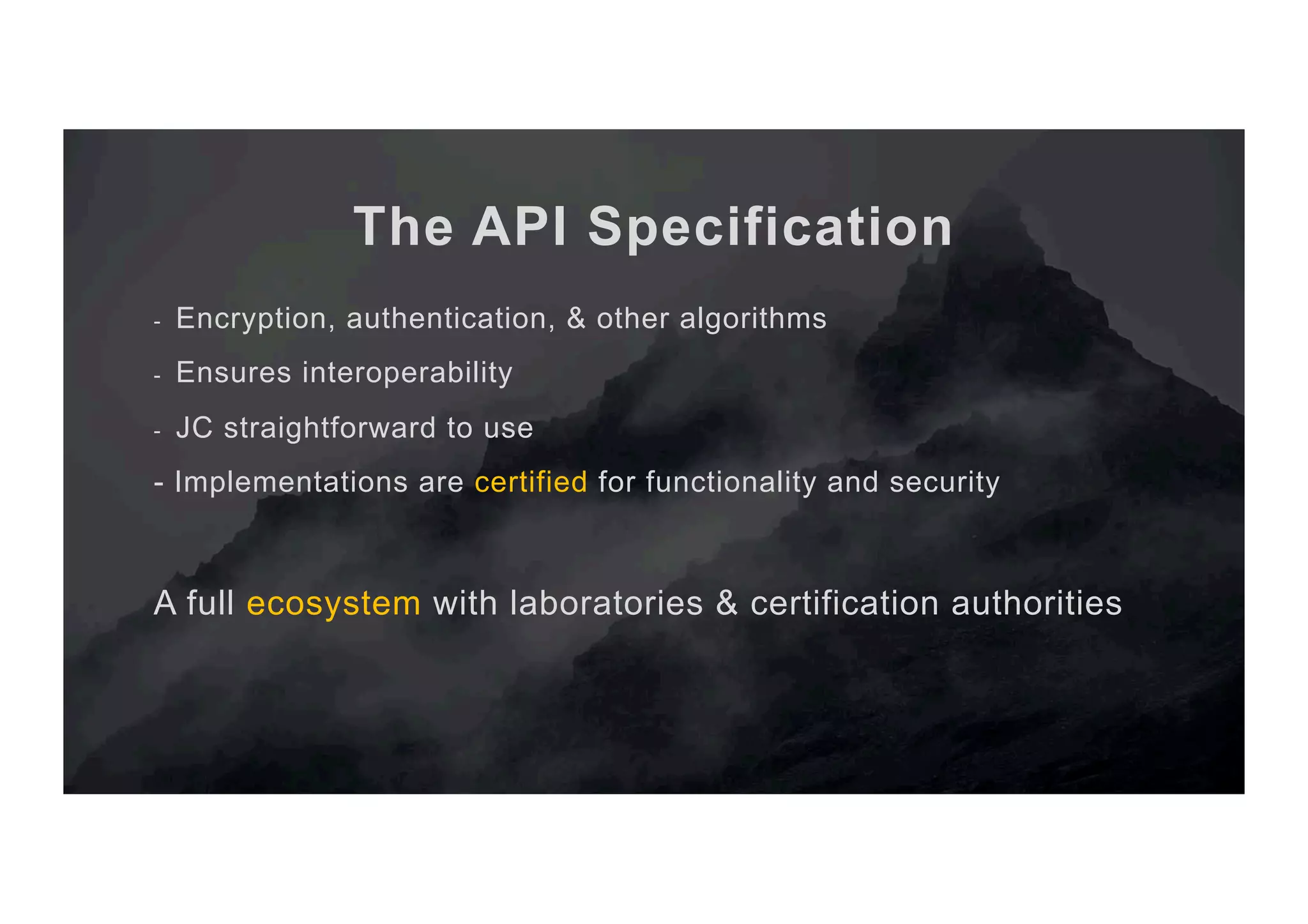

- 12. The API Specification - Encryption, authentication, & other algorithms - Ensures interoperability - JC straightforward to use - Implementations are certified for functionality and security A full ecosystem with laboratories & certification authorities

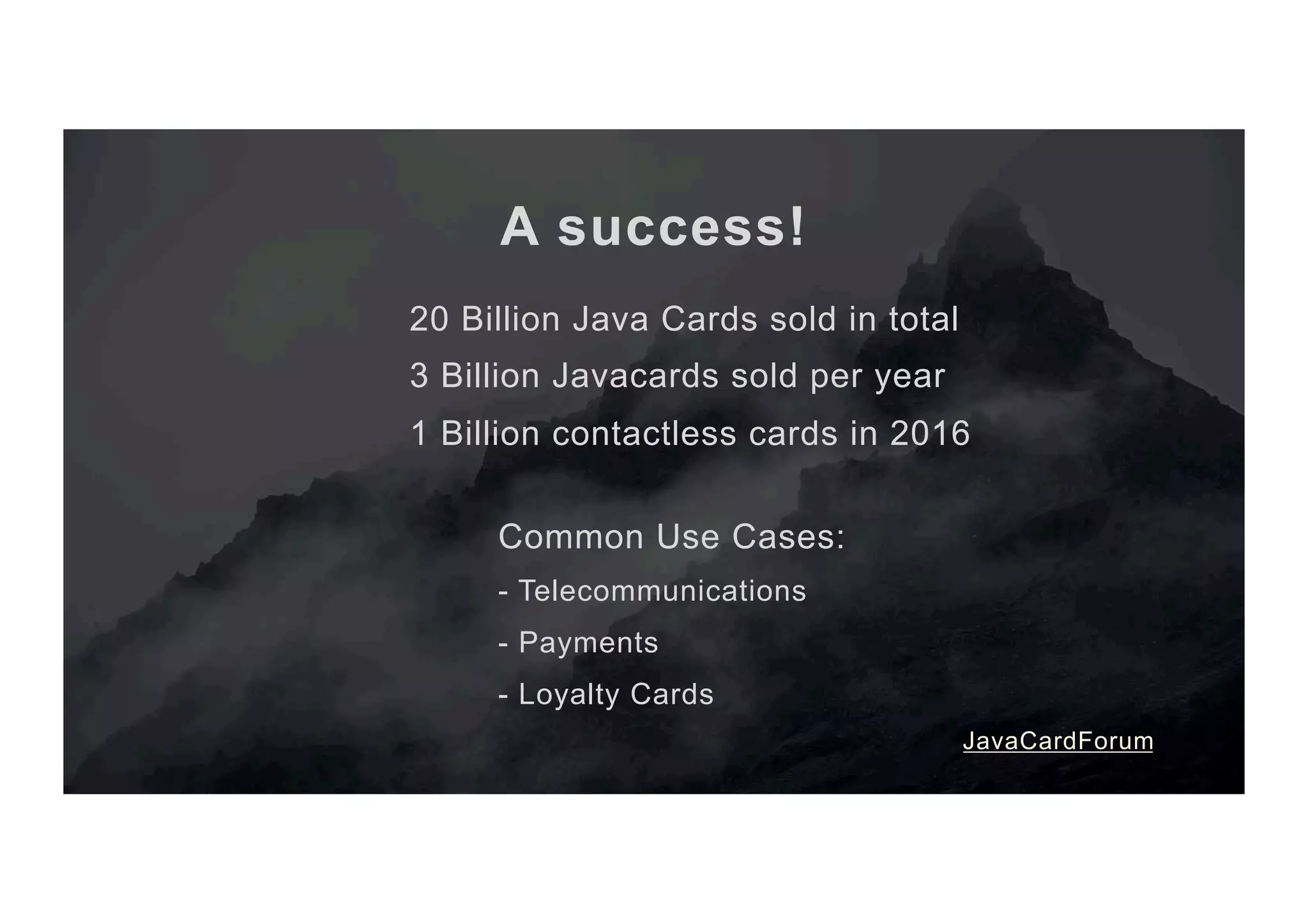

- 13. A success! 20 BillionJava Cards sold in total 3 Billion Javacards sold per year 1 Billion contactless cards in 2016 Common Use Cases: - Telecommunications - Payments - Loyalty Cards JavaCardForum

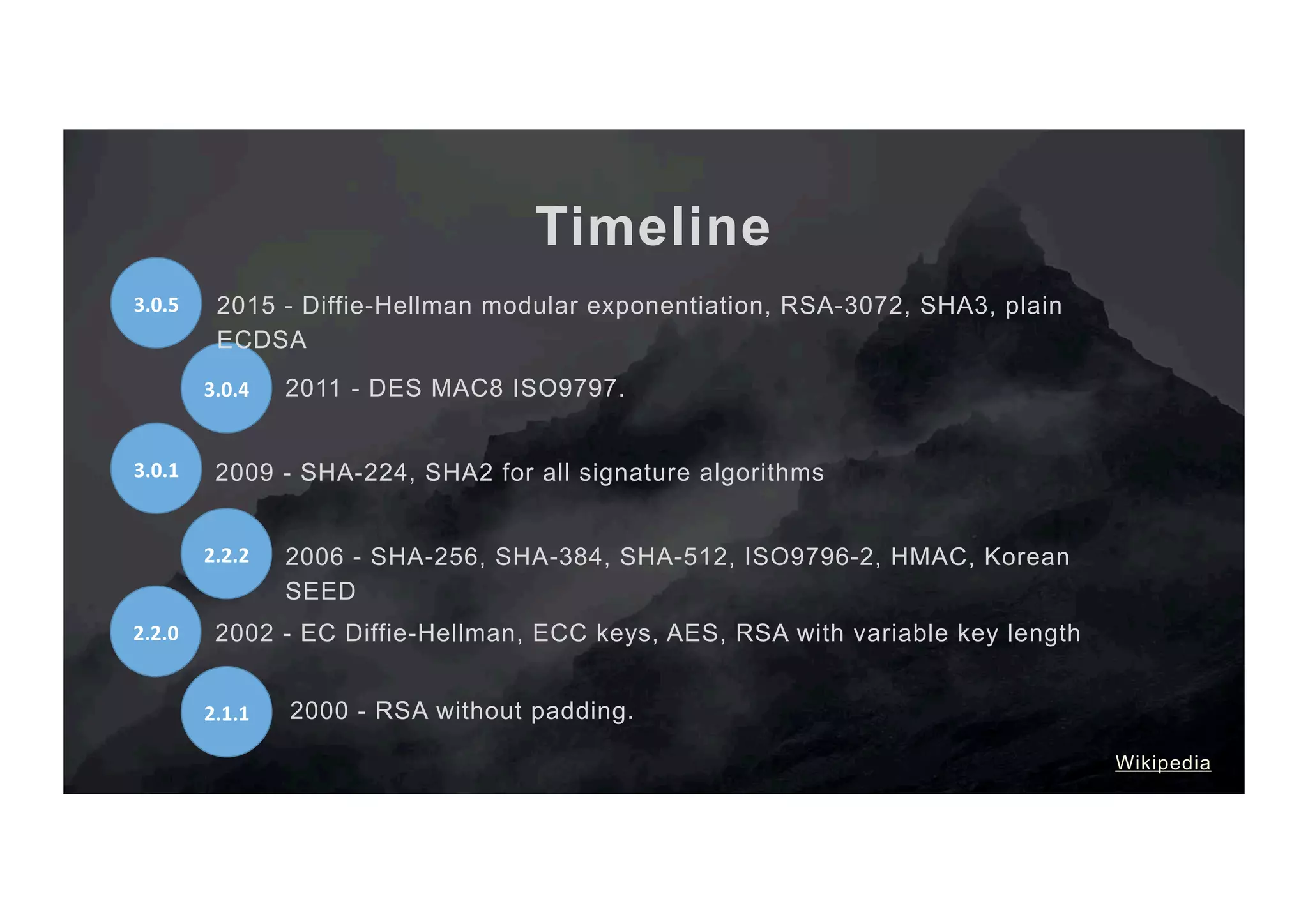

- 14. Timeline 3.0.5 3.0.4 3.0.1 2.2.2 2.2.0 2.1.1 2015 - Diffie-Hellmanmodular exponentiation, RSA-3072, SHA3, plain ECDSA 2011 - DES MAC8 ISO9797. Wikipedia 2009 - SHA-224, SHA2 for all signature algorithms 2006 - SHA-256, SHA-384, SHA-512, ISO9796-2, HMAC, Korean SEED 2002 - EC Diffie-Hellman, ECC keys, AES, RSA with variable key length 2000 - RSA without padding.

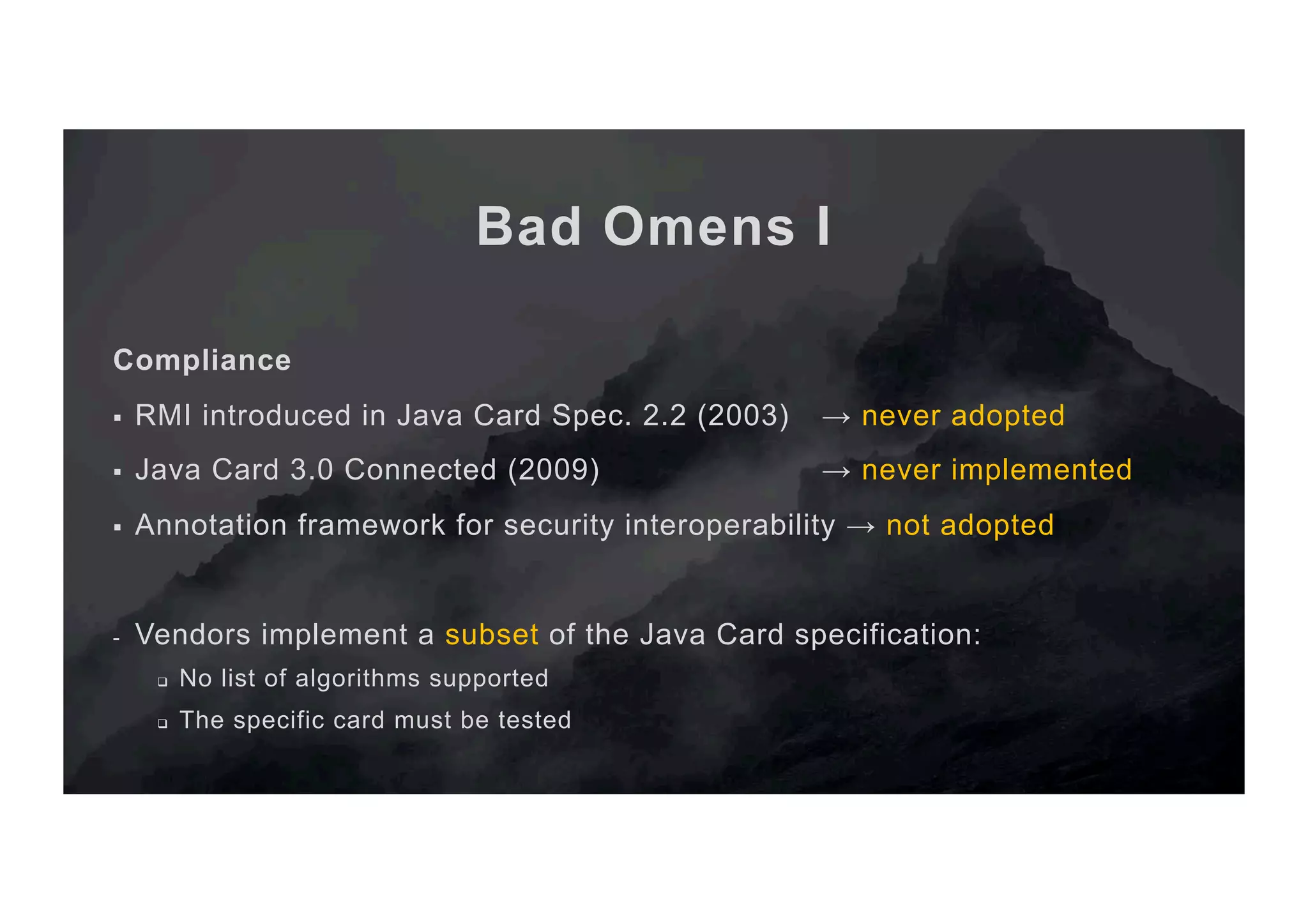

- 15. Bad Omens I Compliance § RMI introduced in Java Card Spec. 2.2 (2003) → never adopted § Java Card 3.0 Connected (2009) → never implemented § Annotation framework for security interoperability → not adopted - Vendors implement a subset of the Java Card specification: q No list of algorithms supported q The specific card must be tested

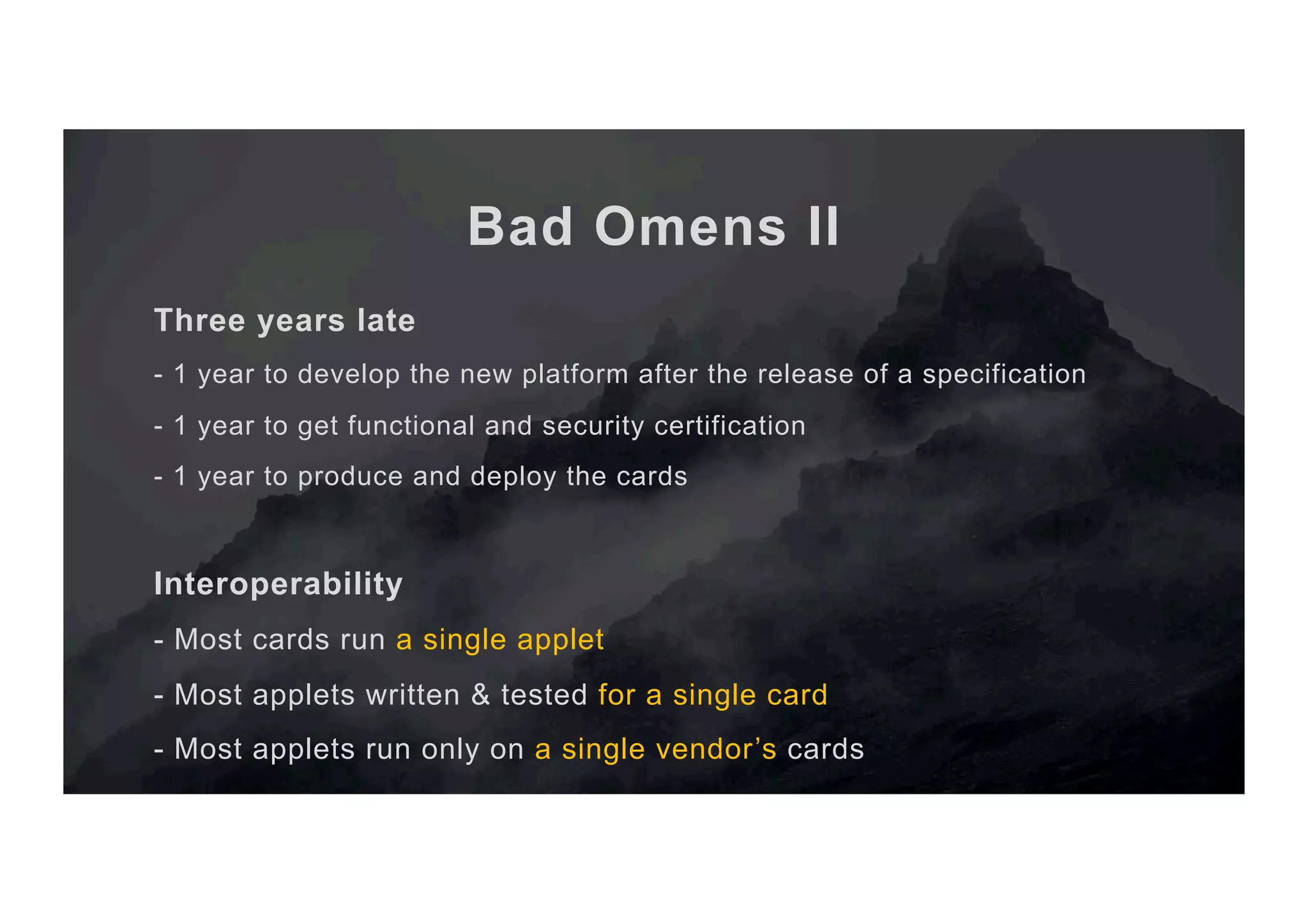

- 16. Bad Omens II Threeyears late - 1 year to develop the new platform after the release of a specification - 1 year to get functional and security certification - 1 year to produce and deploy the cards Interoperability - Most cards run a single applet - Most applets written & tested for a single card - Most applets run only on a single vendor’s cards

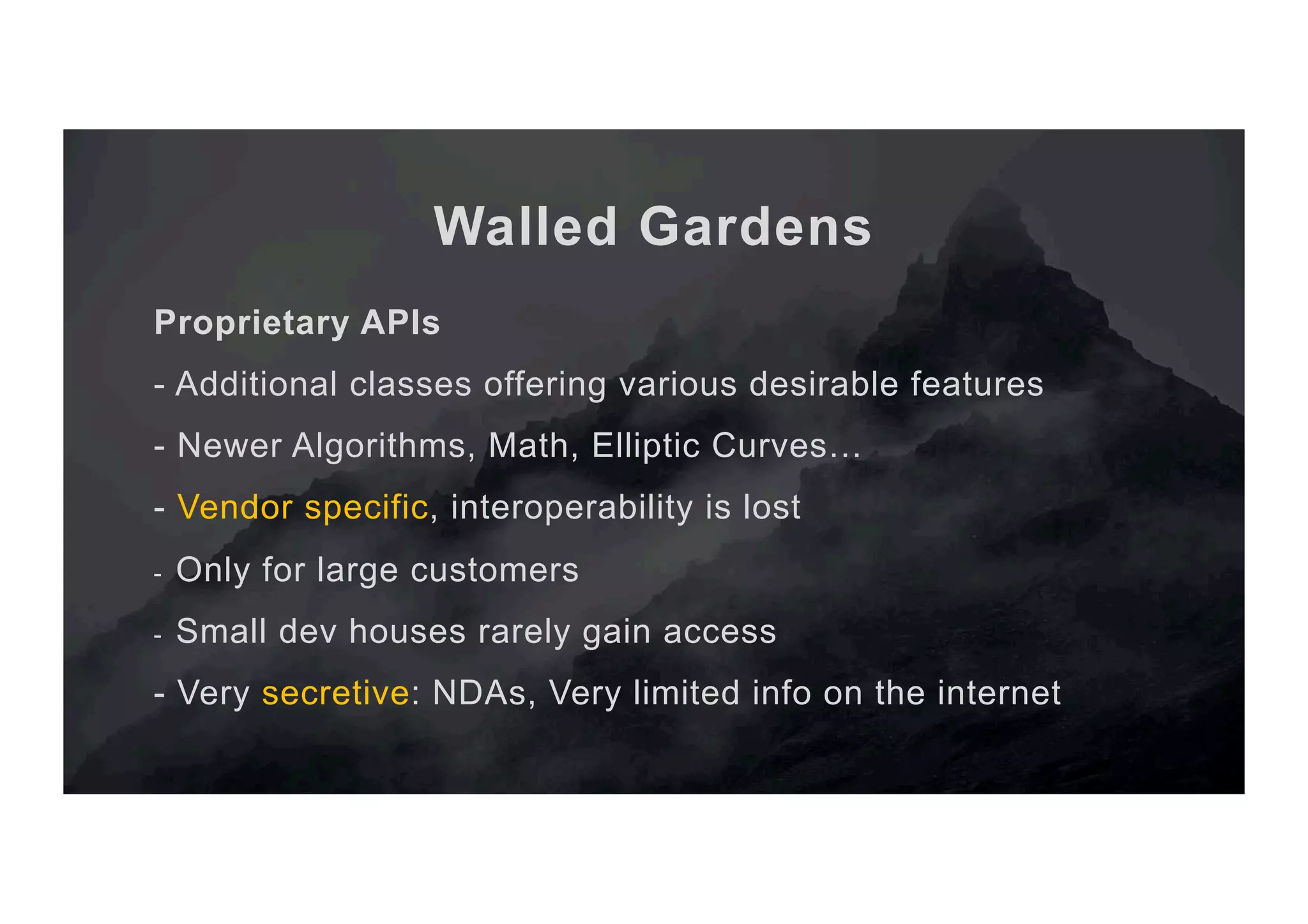

- 17. Walled Gardens Proprietary APIs -Additional classes offering various desirable features - Newer Algorithms, Math, Elliptic Curves… - Vendor specific, interoperability is lost - Only for large customers - Small dev houses rarely gain access - Very secretive: NDAs, Very limited info on the internet
- 18.

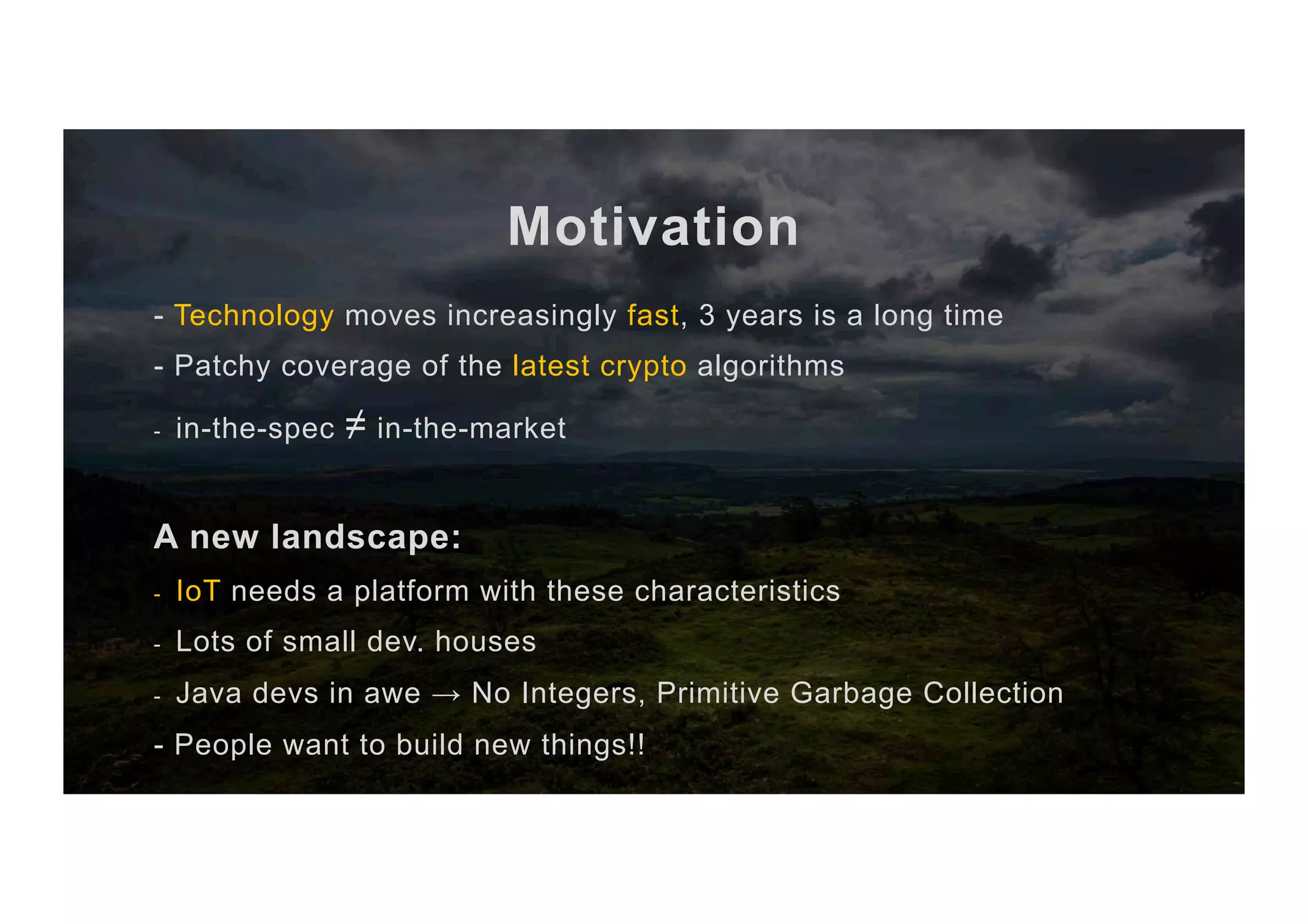

- 19. Motivation - Technology movesincreasingly fast, 3 years is a long time - Patchy coverage of the latest crypto algorithms - in-the-spec ≠ in-the-market A new landscape: - IoT needs a platform with these characteristics - Lots of small dev. houses - Java devs in awe → No Integers, Primitive Garbage Collection - People want to build new things!!

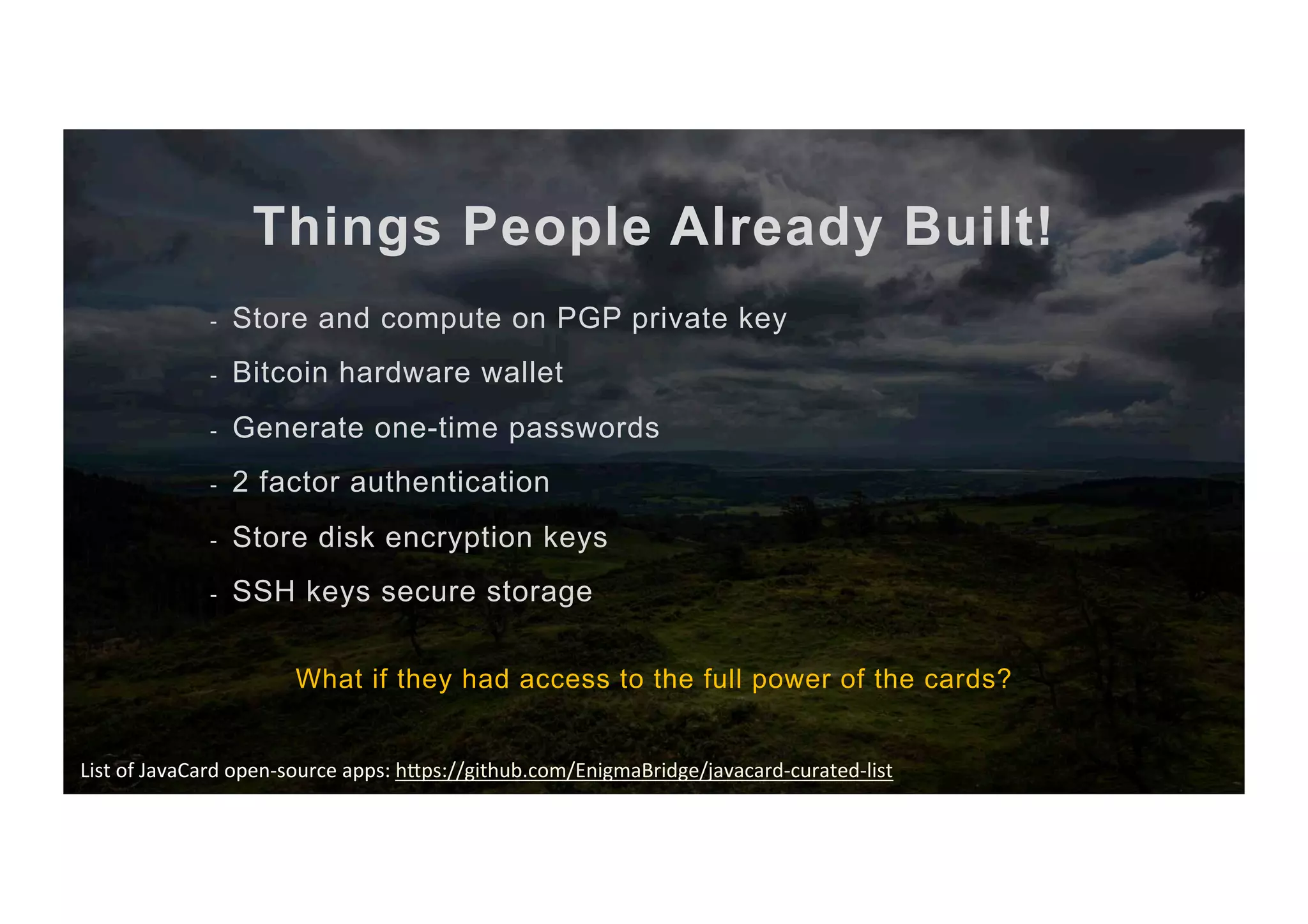

- 20. Things People AlreadyBuilt! - Store and compute on PGP private key - Bitcoin hardware wallet - Generate one-time passwords - 2 factor authentication - Store disk encryption keys - SSH keys secure storage What if they had access to the full power of the cards? List of JavaCard open-source apps: hBps://github.com/EnigmaBridge/javacard-curated-list

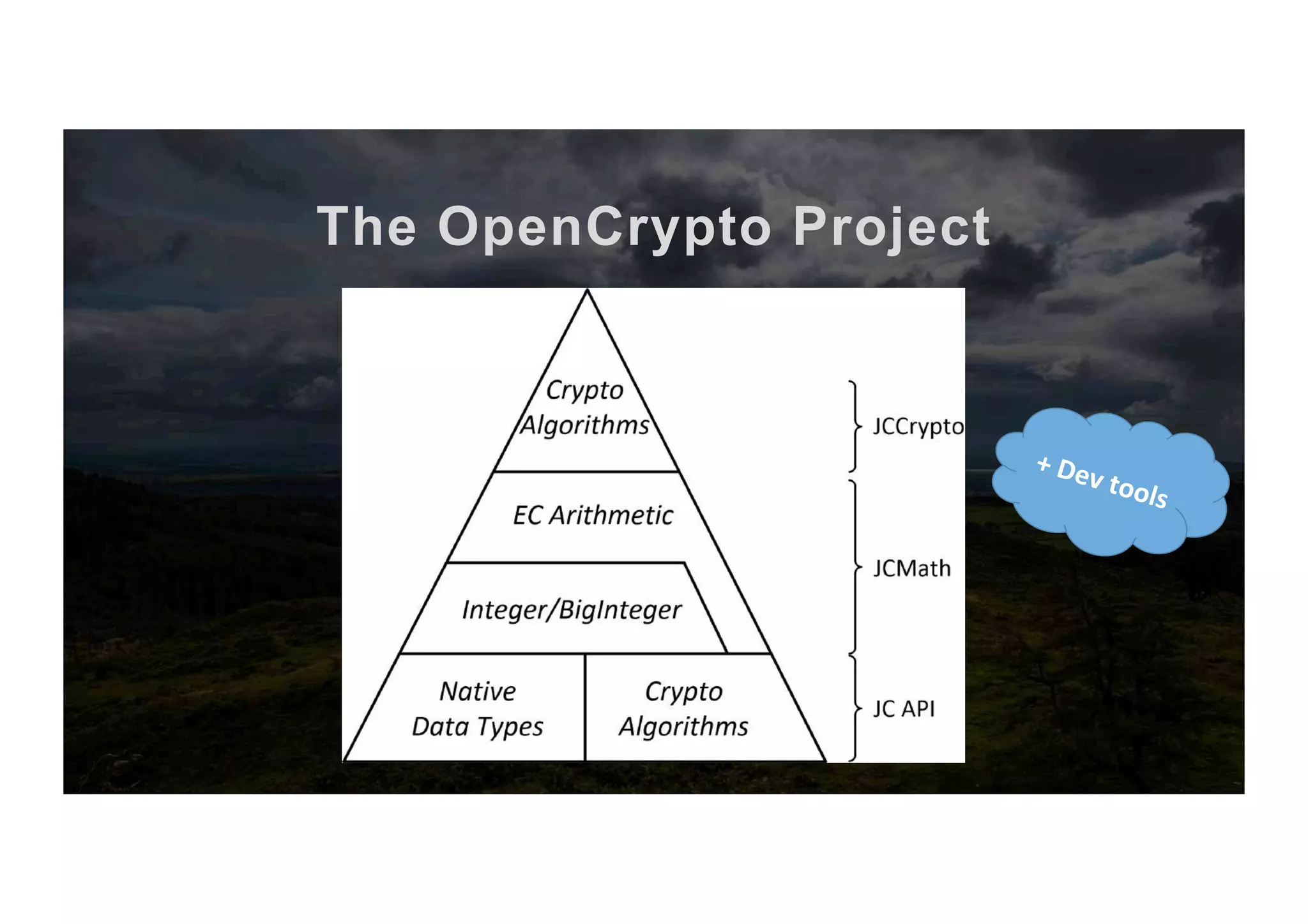

- 21.

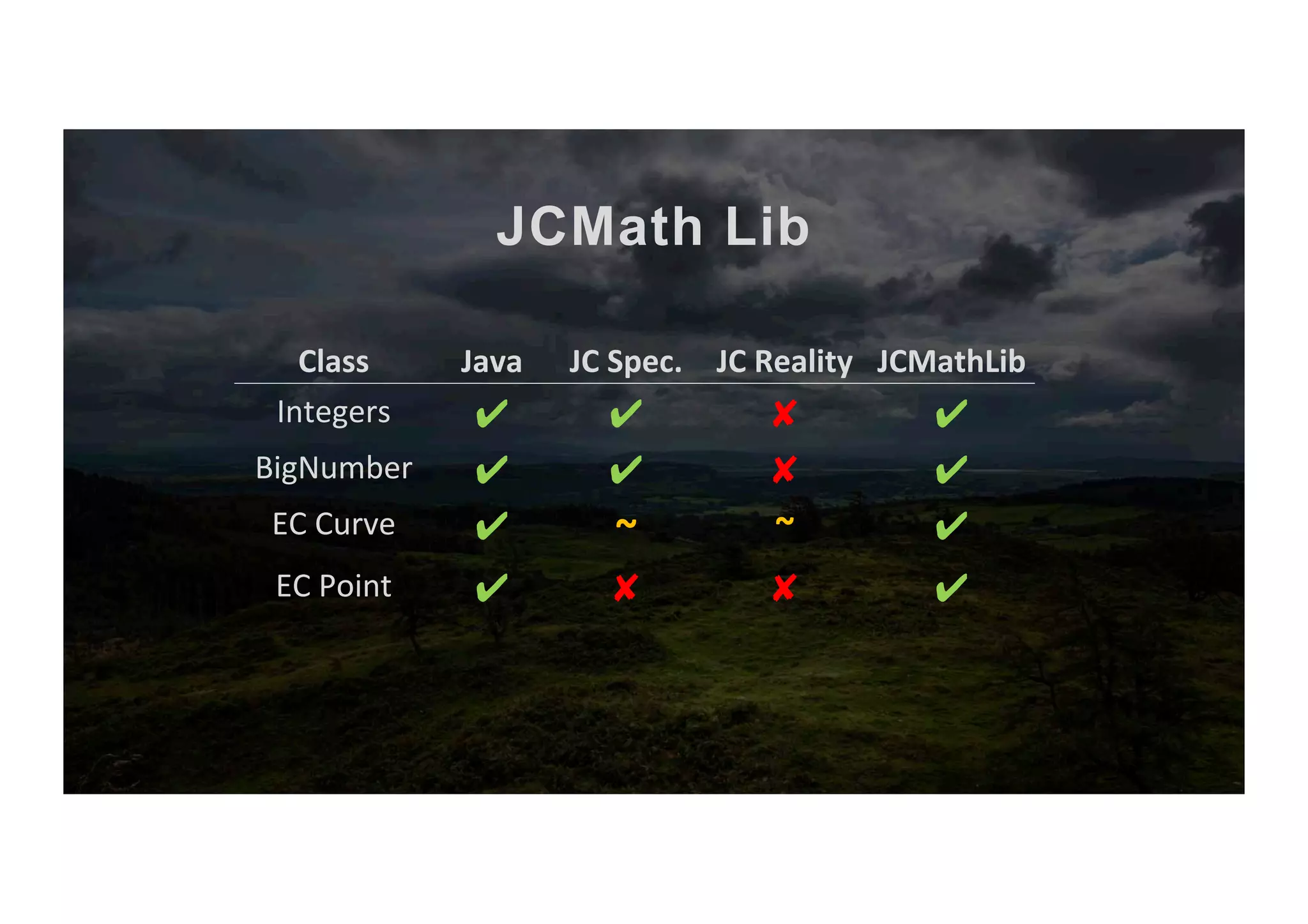

- 22. JCMath Lib Class JavaJC Spec. JC Reality JCMathLib Integers ✔ ✔ ✘ ✔ BigNumber ✔ ✔ ✘ ✔ EC Curve ✔ ~ ~ ✔ EC Point ✔ ✘ ✘ ✔

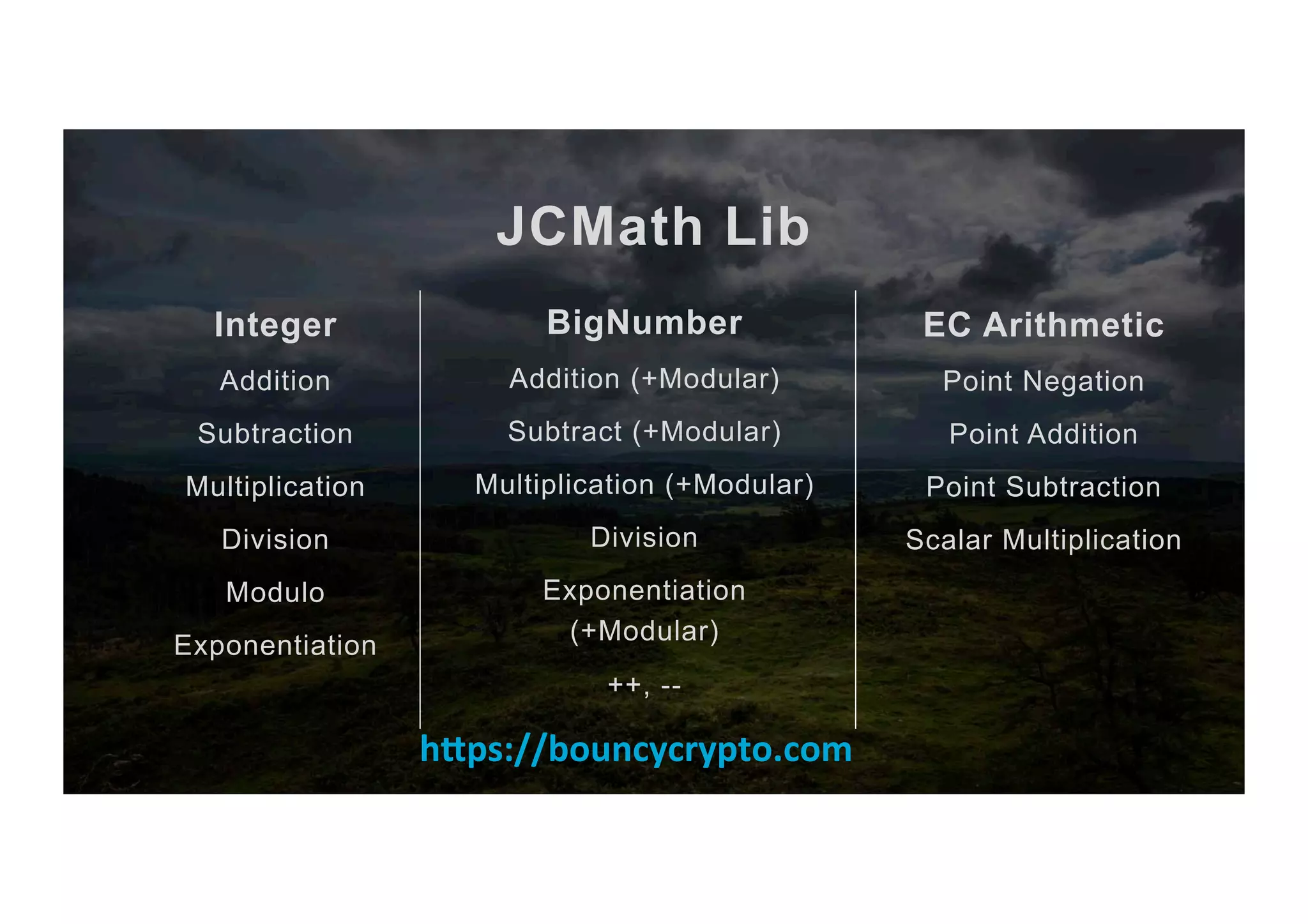

- 23. JCMath Lib Integer Addition Subtraction Multiplication Division Modulo Exponentiation BigNumber Addition (+Modular) Subtract(+Modular) Multiplication (+Modular) Division Exponentiation (+Modular) ++, -- EC Arithmetic Point Negation Point Addition Point Subtraction Scalar Multiplication h?ps://bouncycrypto.com

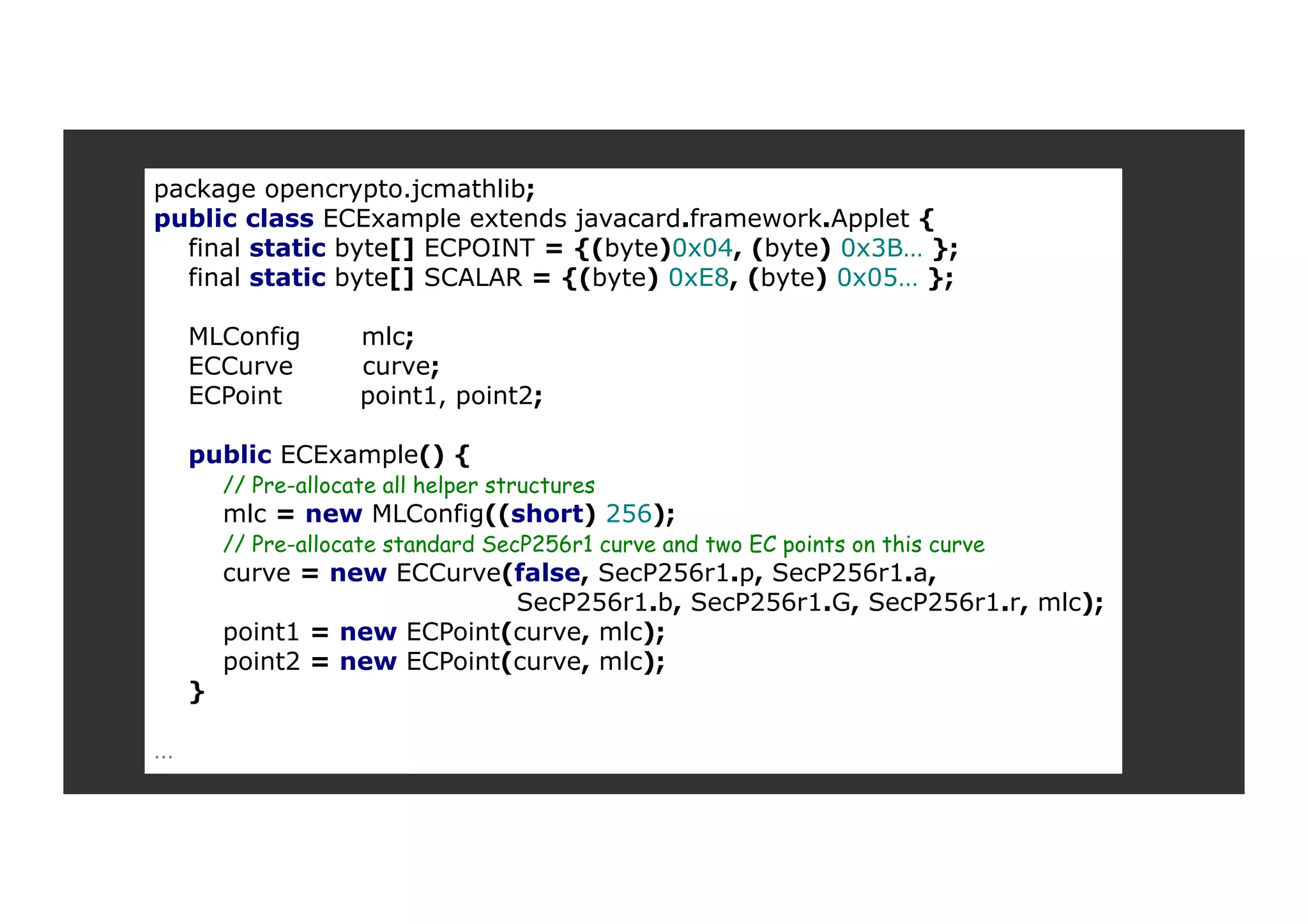

- 24. package opencrypto.jcmathlib; public classECExample extends javacard.framework.Applet { final static byte[] ECPOINT = {(byte)0x04, (byte) 0x3B… }; final static byte[] SCALAR = {(byte) 0xE8, (byte) 0x05… }; MLConfig mlc; ECCurve curve; ECPoint point1, point2; public ECExample() { // Pre-allocate all helper structures mlc = new MLConfig((short) 256); // Pre-allocate standard SecP256r1 curve and two EC points on this curve curve = new ECCurve(false, SecP256r1.p, SecP256r1.a, SecP256r1.b, SecP256r1.G, SecP256r1.r, mlc); point1 = new ECPoint(curve, mlc); point2 = new ECPoint(curve, mlc); } …

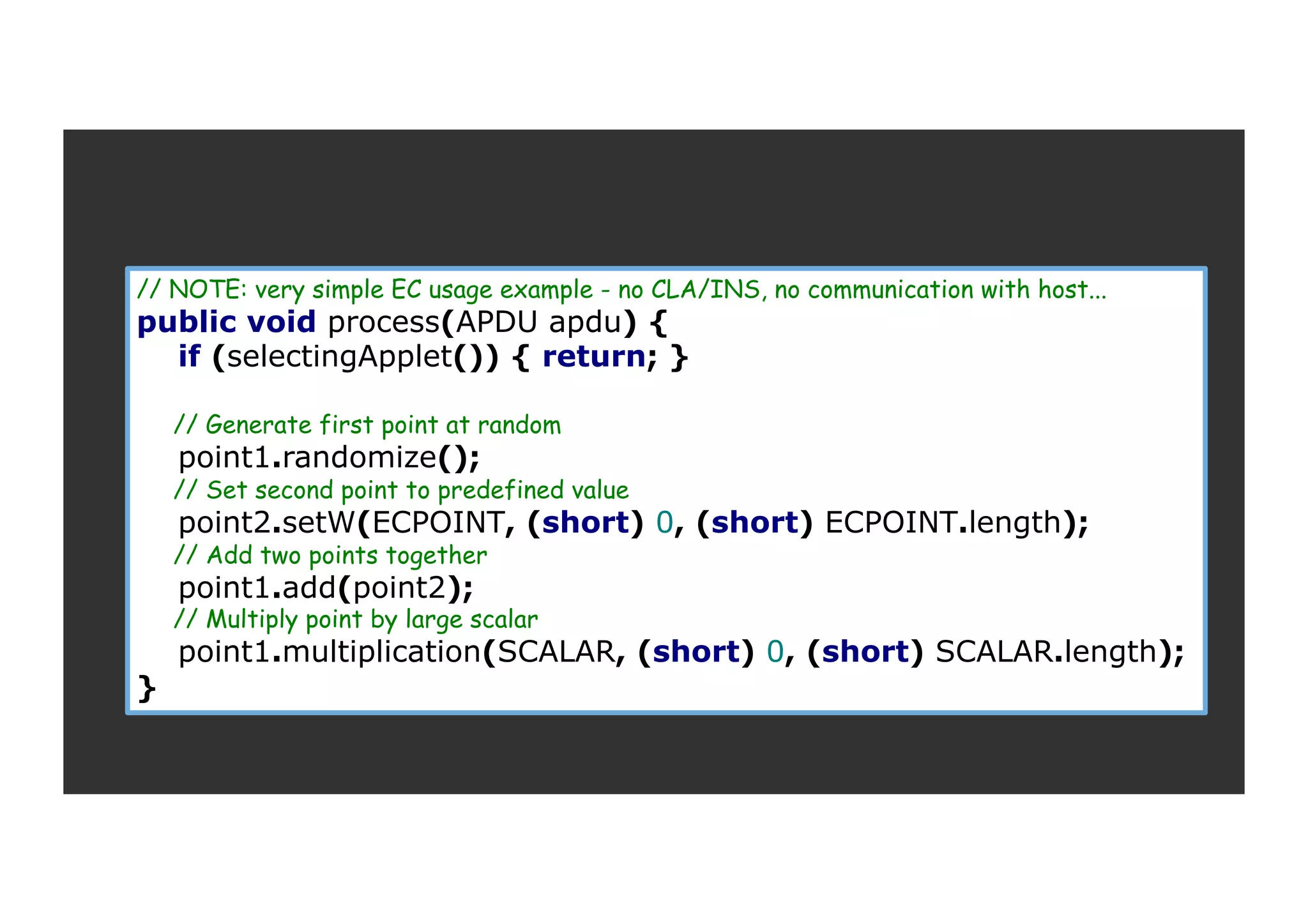

- 25. // NOTE: verysimple EC usage example - no CLA/INS, no communication with host... public void process(APDU apdu) { if (selectingApplet()) { return; } // Generate first point at random point1.randomize(); // Set second point to predefined value point2.setW(ECPOINT, (short) 0, (short) ECPOINT.length); // Add two points together point1.add(point2); // Multiply point by large scalar point1.multiplication(SCALAR, (short) 0, (short) SCALAR.length); }

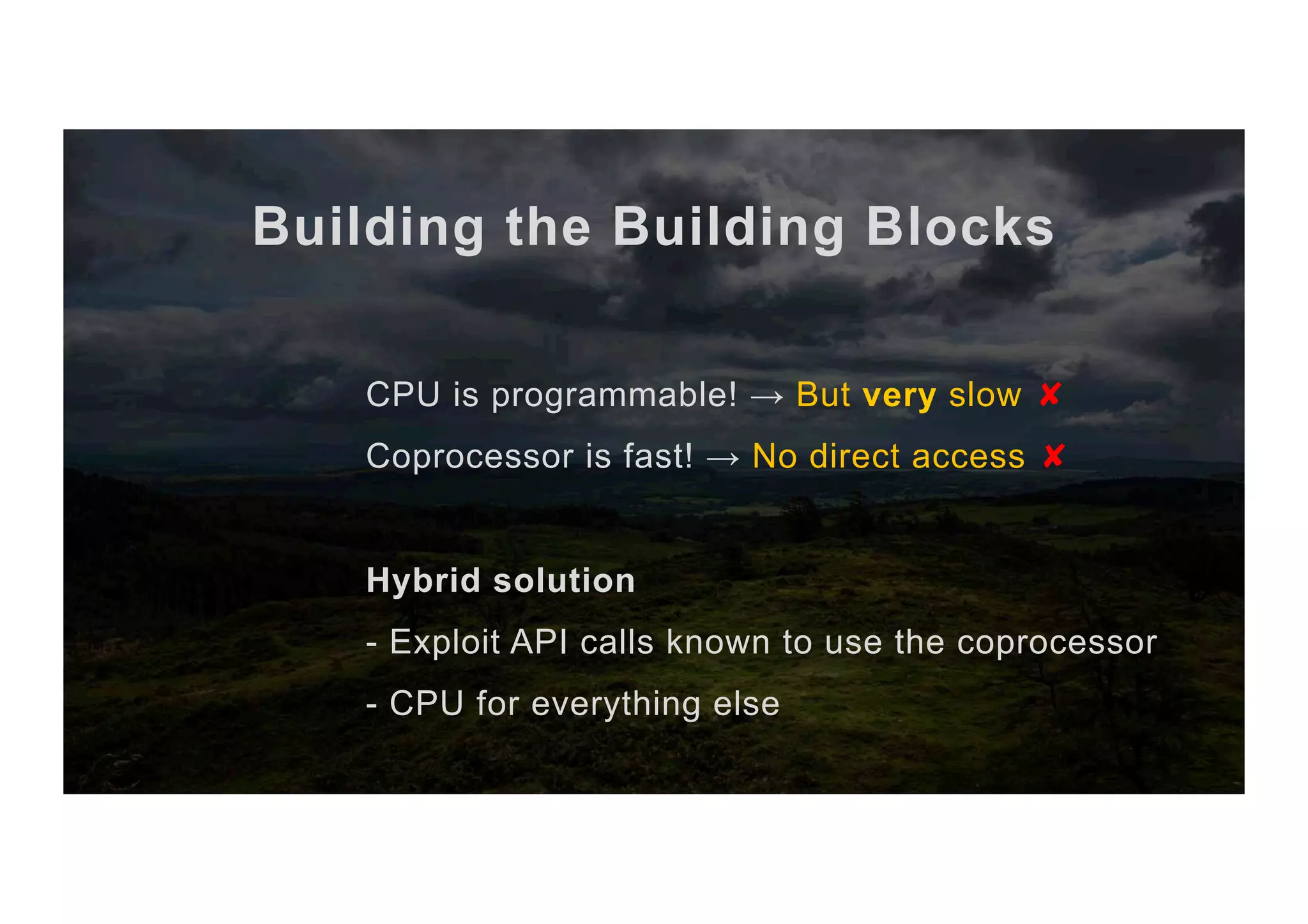

- 26. Building the BuildingBlocks CPU is programmable! → But very slow ✘ Coprocessor is fast! → No direct access ✘ Hybrid solution - Exploit API calls known to use the coprocessor - CPU for everything else

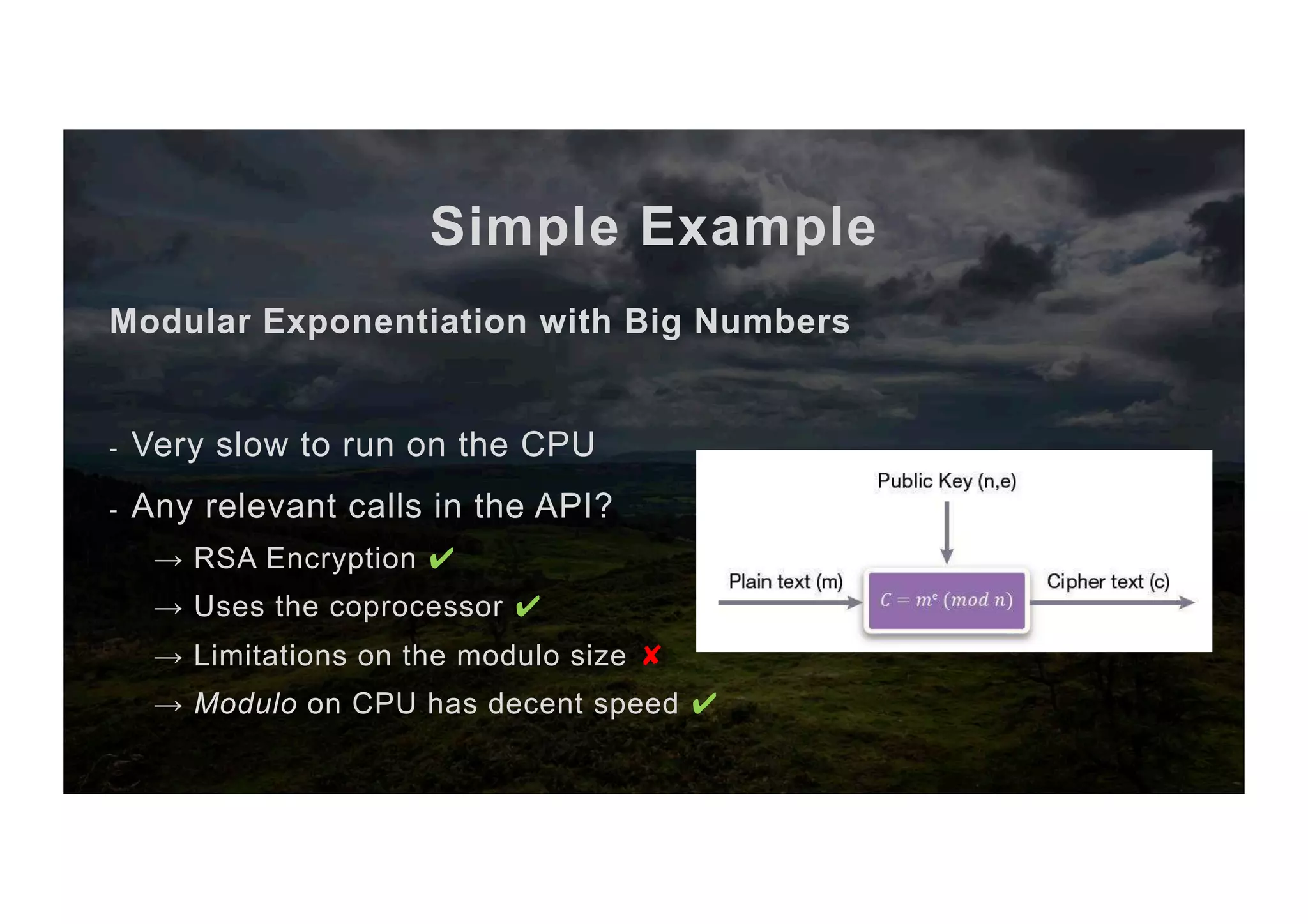

- 27. Simple Example Modular Exponentiationwith Big Numbers - Very slow to run on the CPU - Any relevant calls in the API? → RSA Encryption ✔ → Uses the coprocessor ✔ → Limitations on the modulo size ✘ → Modulo on CPU has decent speed ✔

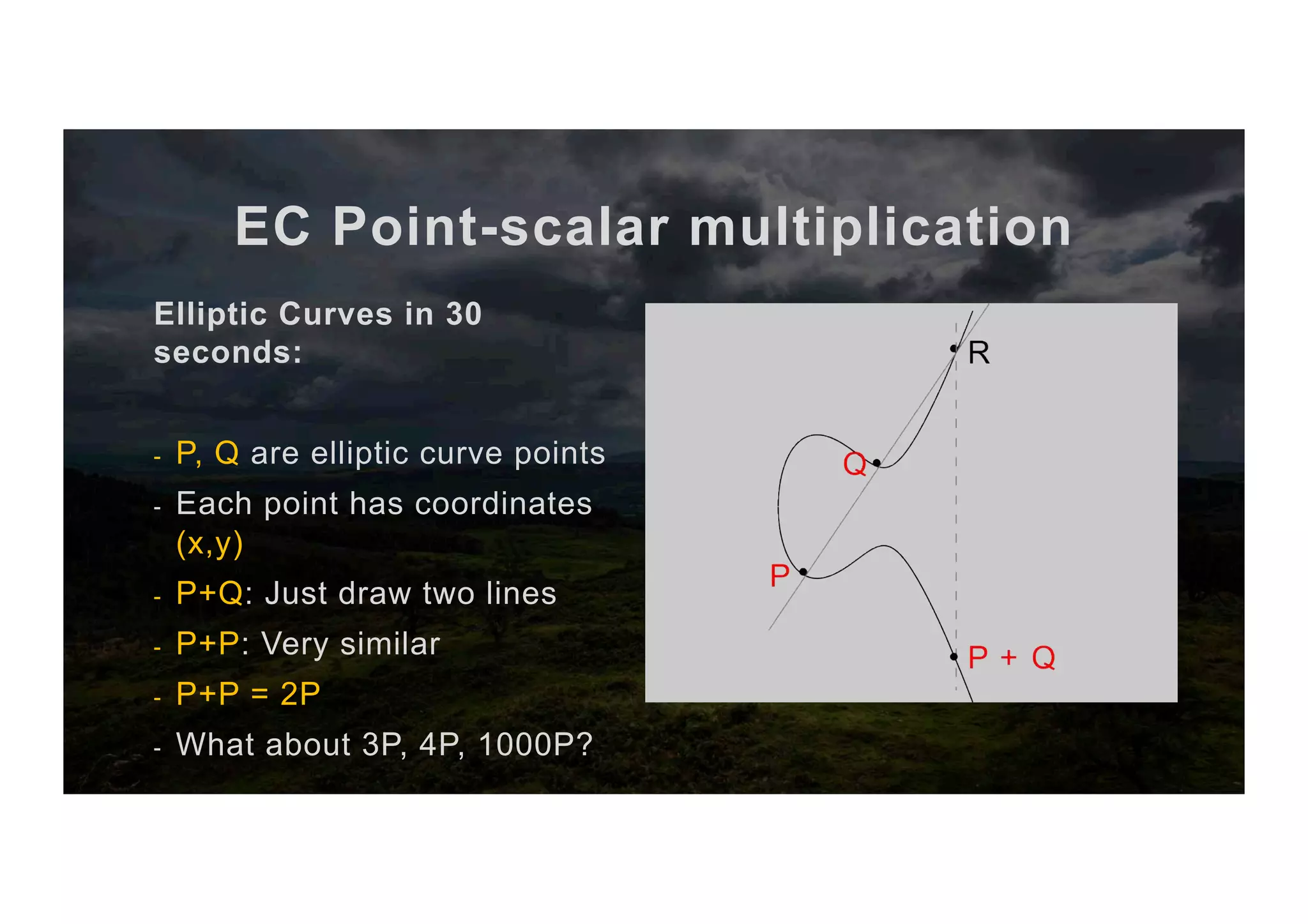

- 28. EC Point-scalar multiplication EllipticCurves in 30 seconds: - P, Q are elliptic curve points - Each point has coordinates (x,y) - P+Q: Just draw two lines - P+P: Very similar - P+P = 2P - What about 3P, 4P, 1000P?

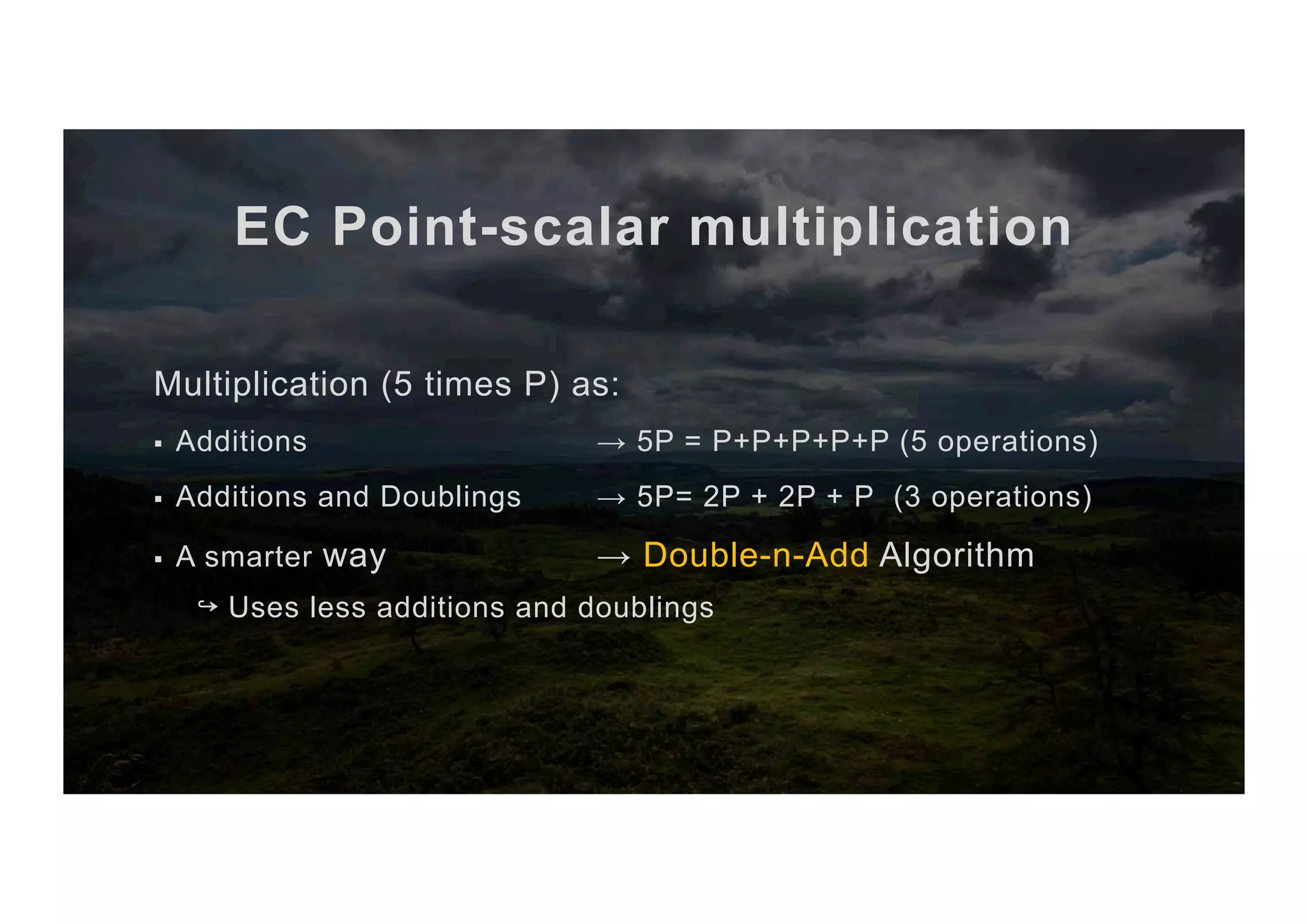

- 29. EC Point-scalar multiplication Multiplication(5 times P) as: § Additions → 5P = P+P+P+P+P (5 operations) § Additions and Doublings → 5P= 2P + 2P + P (3 operations) § A smarter way → Double-n-Add Algorithm ↪ Uses less additions and doublings

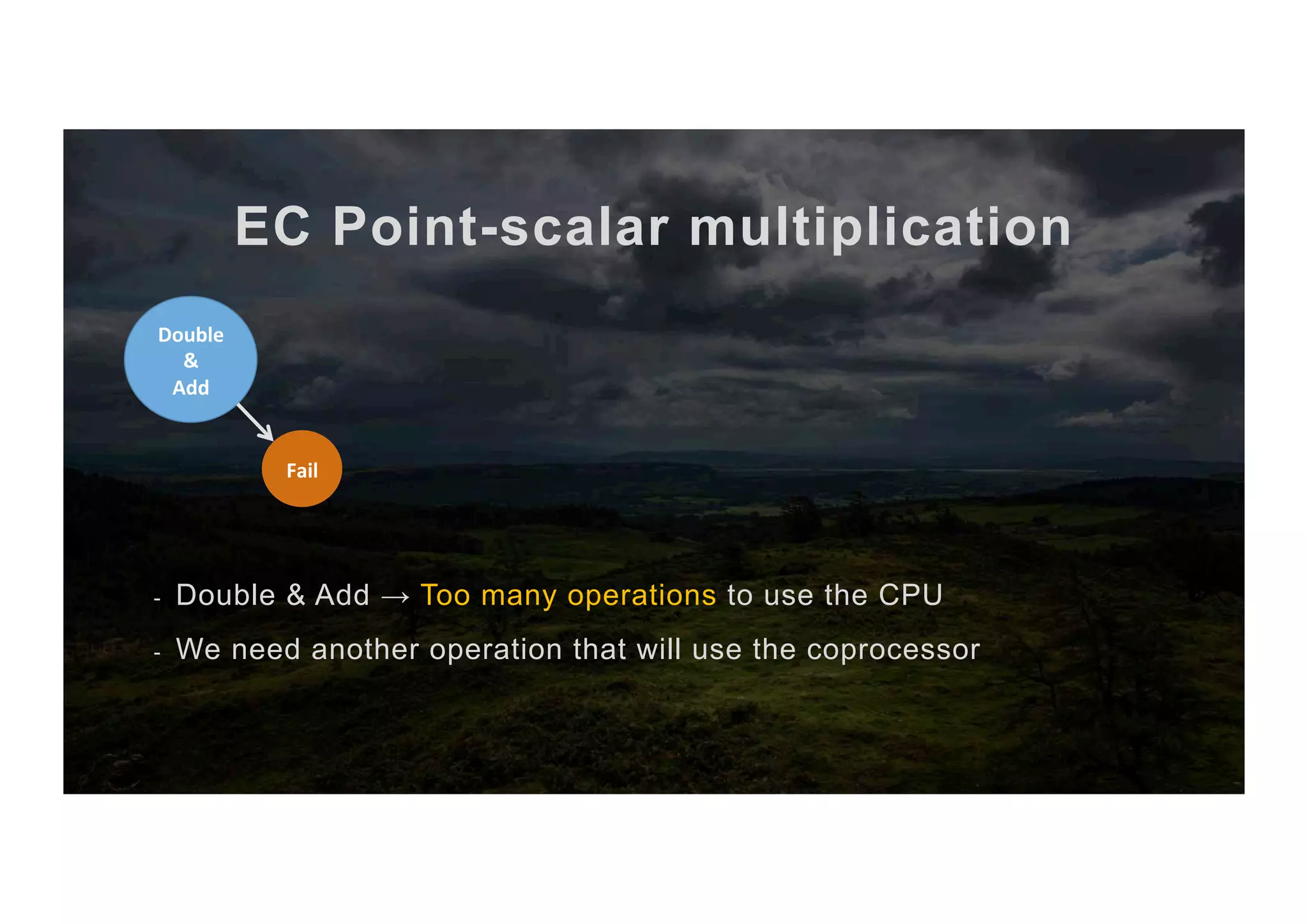

- 30. EC Point-scalar multiplication - Double & Add → Too many operations to use the CPU - We need another operation that will use the coprocessor Fail Double & Add

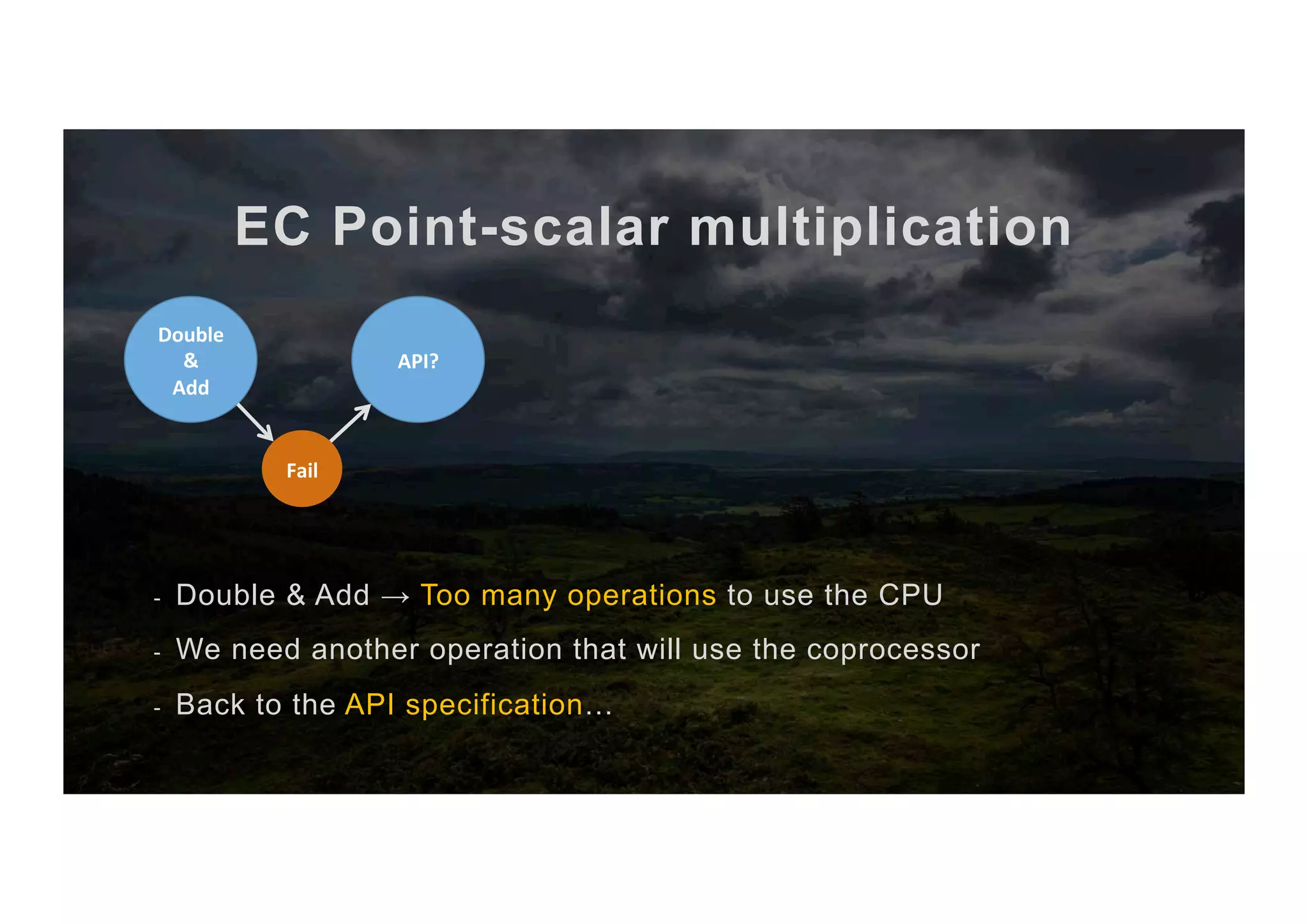

- 31. EC Point-scalar multiplication - Double & Add → Too many operations to use the CPU - We need another operation that will use the coprocessor - Back to the API specification… API? Fail Double & Add
- 32. EC Point-scalar multiplication - Key agreement using ECDH *is* scalar multiplication! - API Method: ALG_EC_DH_PLAIN - Description: Diffie-Hellman (DH) secret value derivation primitive as per NIST Special Publication 800-56Ar2. API? ECDH Fail Double & Add

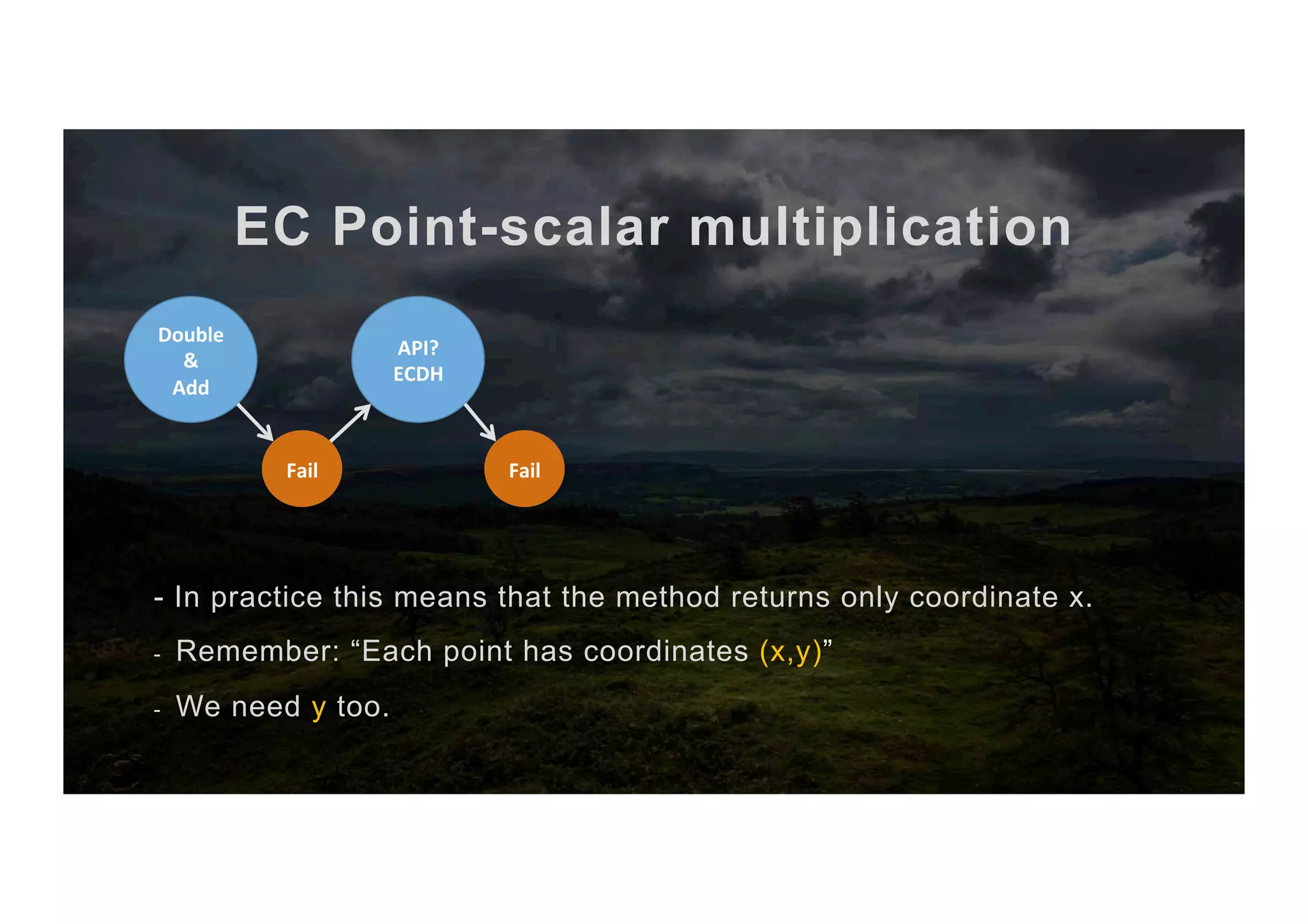

- 33. EC Point-scalar multiplication -In practice this means that the method returns only coordinate x. - Remember: “Each point has coordinates (x,y)” - We need y too. API? ECDH Fail Double & Add Fail

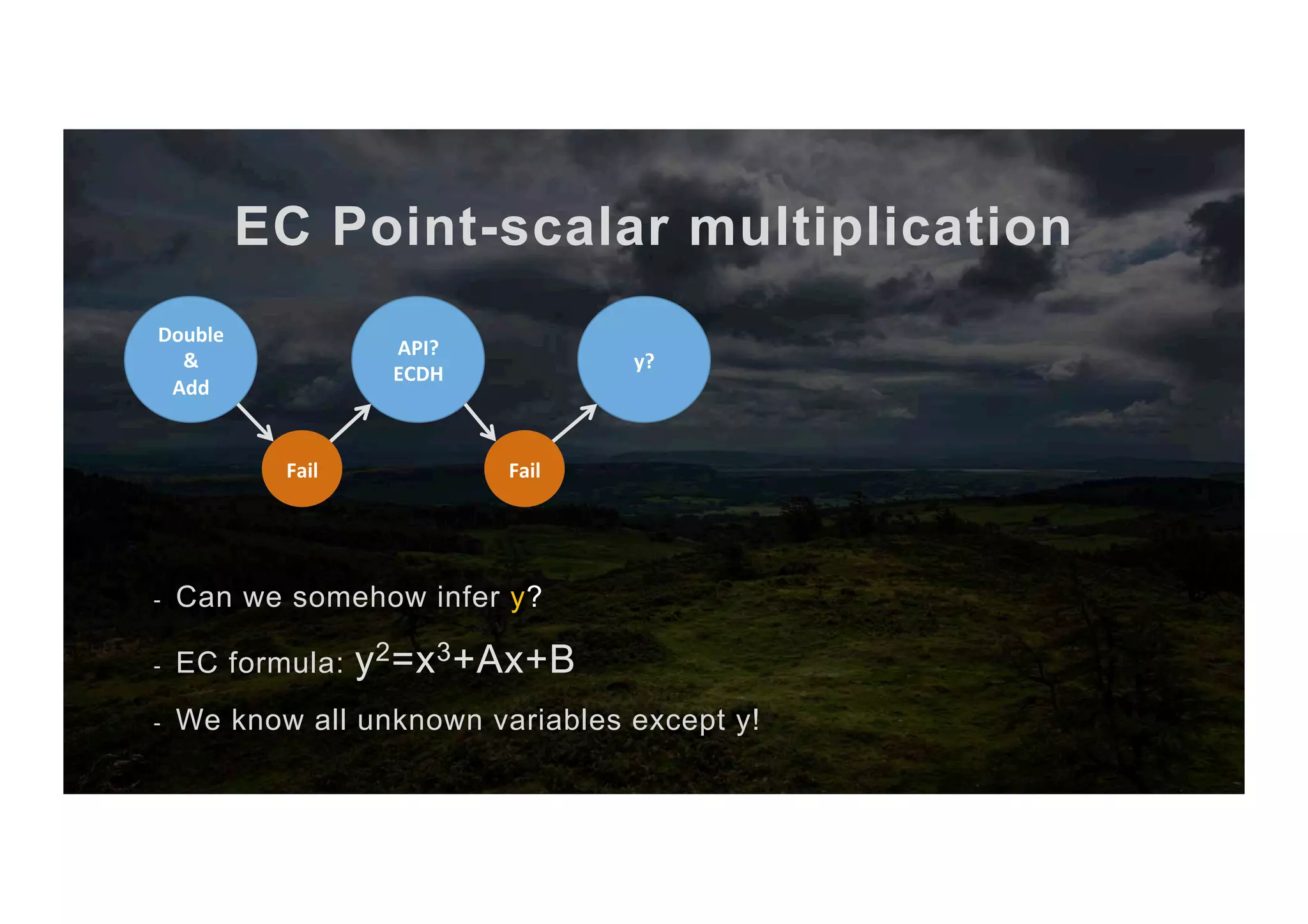

- 34. EC Point-scalar multiplication - Can we somehow infer y? - EC formula: y2=x3+Ax+B - We know all unknown variables except y! API? ECDH Fail Double & Add Fail y?

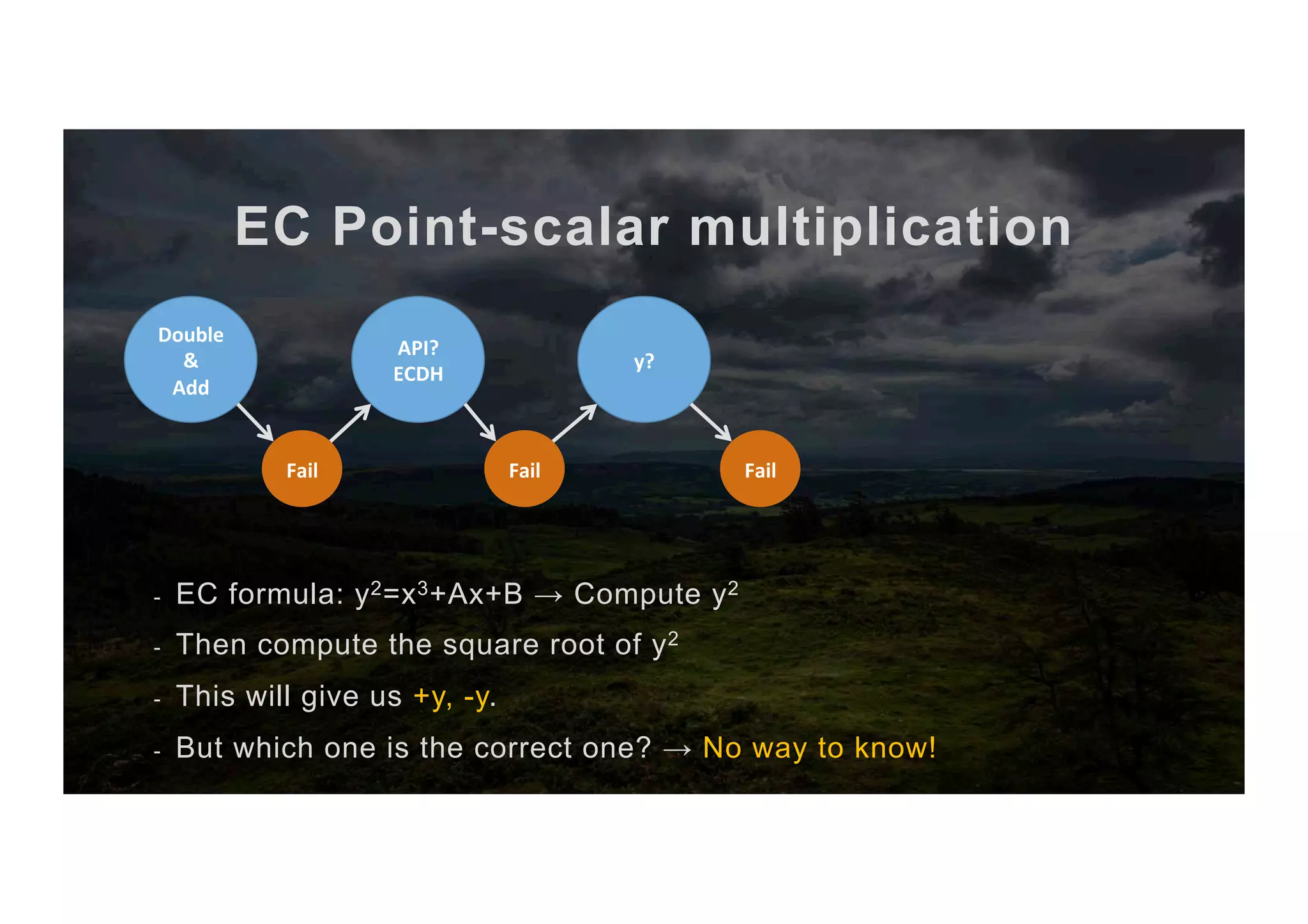

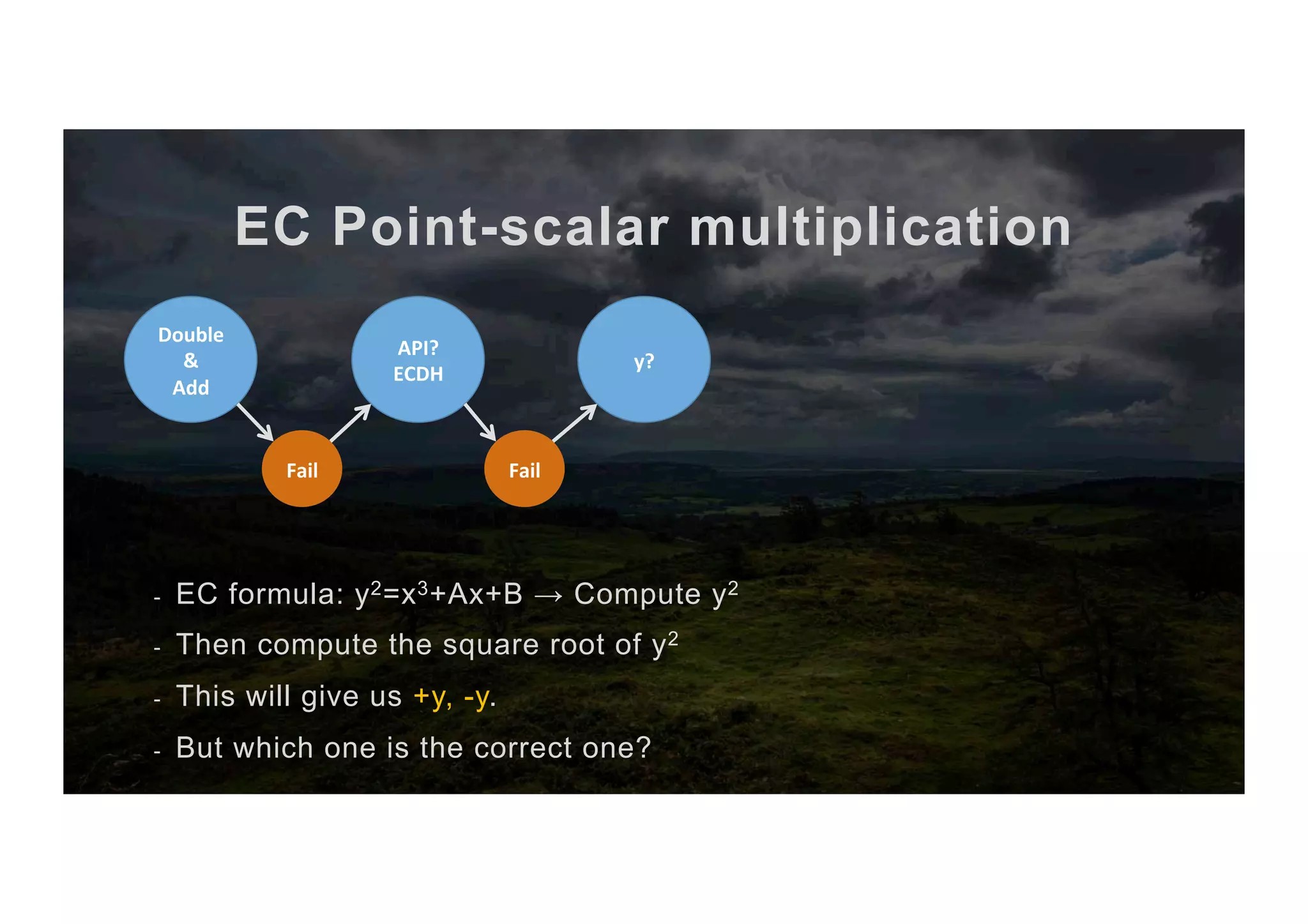

- 35. EC Point-scalar multiplication - EC formula: y2=x3+Ax+B → Compute y2 - Then compute the square root of y2 - This will give us +y, -y. - But which one is the correct one? API? ECDH Fail Double & Add Fail y?
- 36. EC Point-scalar multiplication - EC formula: y2=x3+Ax+B → Compute y2 - Then compute the square root of y2 - This will give us +y, -y. - But which one is the correct one? → No way to know! API? ECDH Fail Double & Add Fail y? Fail

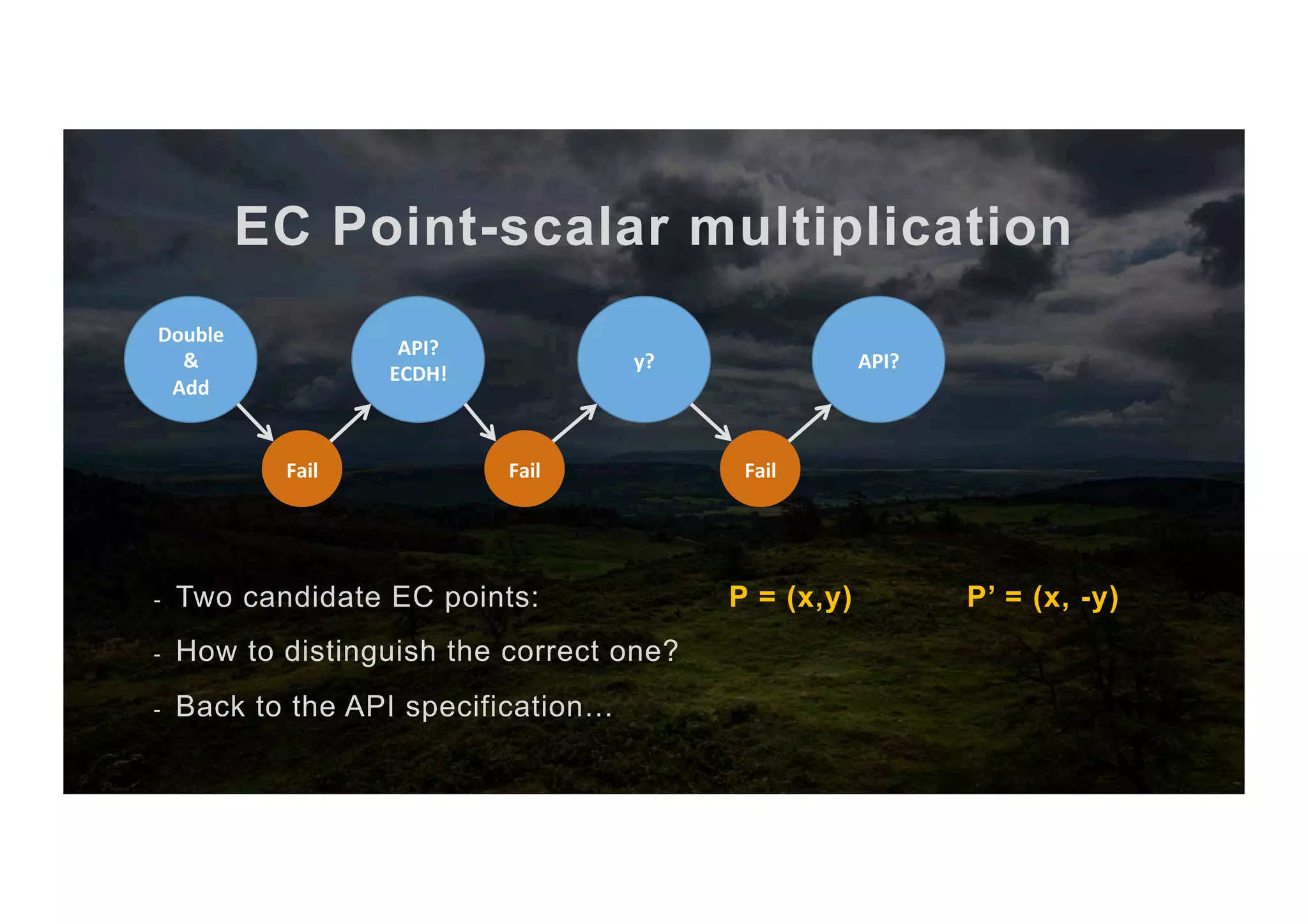

- 37. EC Point-scalar multiplication - Two candidate EC points: P = (x,y) P’ = (x, -y) - How to distinguish the correct one? - Back to the API specification… API? ECDH! Fail Double & Add Fail y? Fail API?

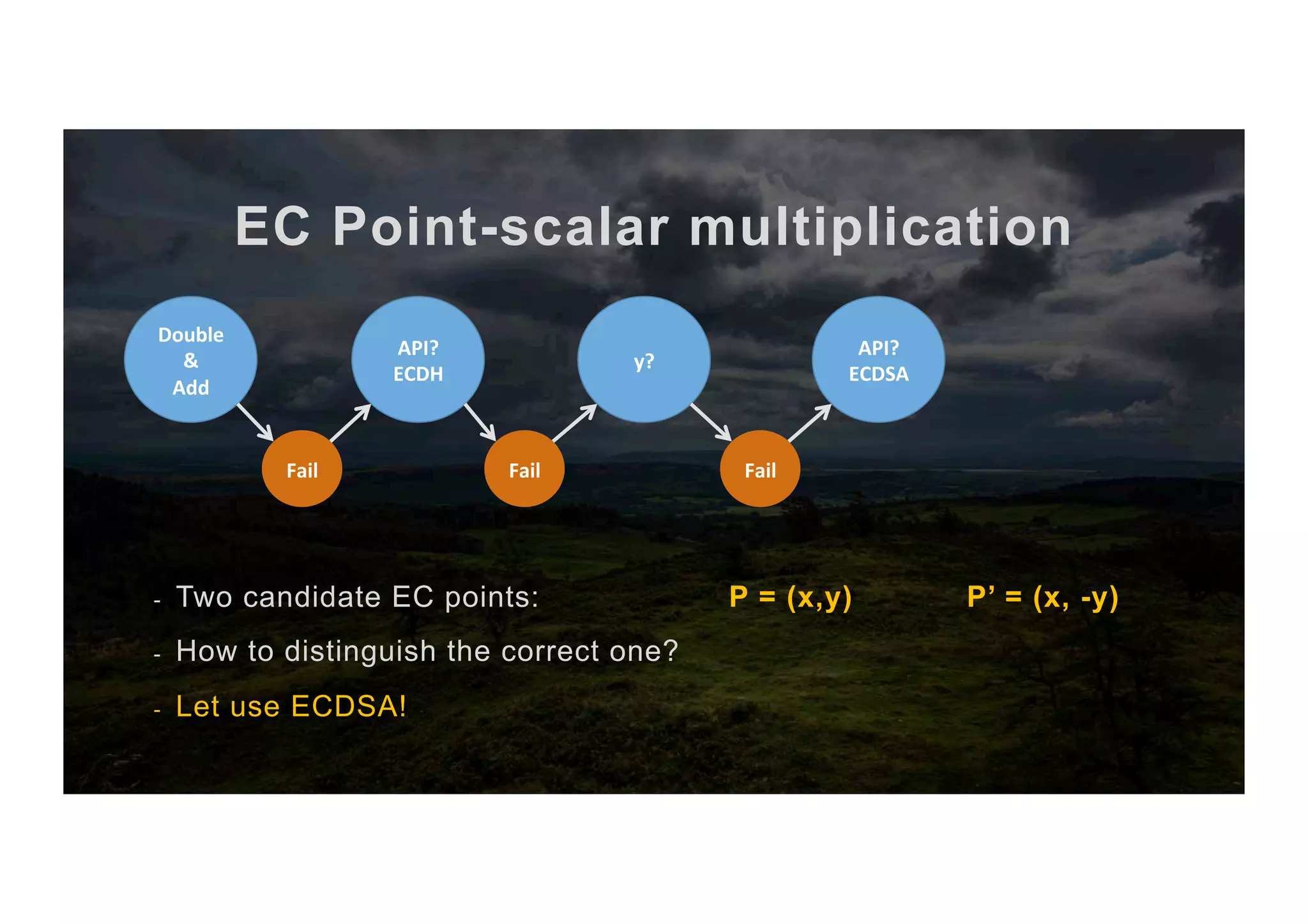

- 38. EC Point-scalar multiplication - Two candidate EC points: P = (x,y) P’ = (x, -y) - How to distinguish the correct one? - Let use ECDSA! API? ECDH Fail Double & Add Fail y? Fail API? ECDSA

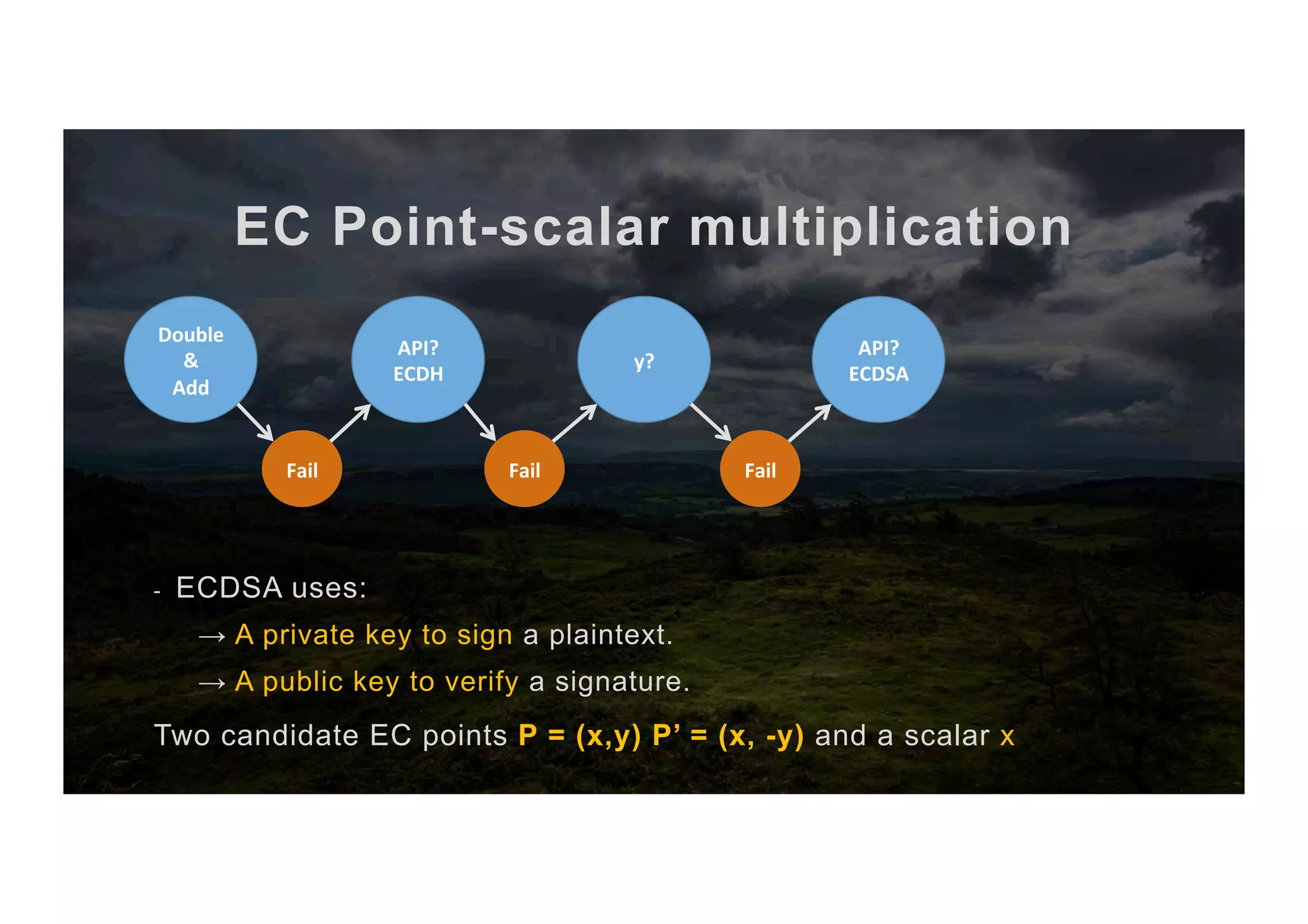

- 39. EC Point-scalar multiplication - ECDSA uses: → A private key to sign a plaintext. → A public key to verify a signature. Two candidate EC points P = (x,y) P’ = (x, -y) and a scalar x API? ECDH Fail Double & Add Fail y? Fail API? ECDSA

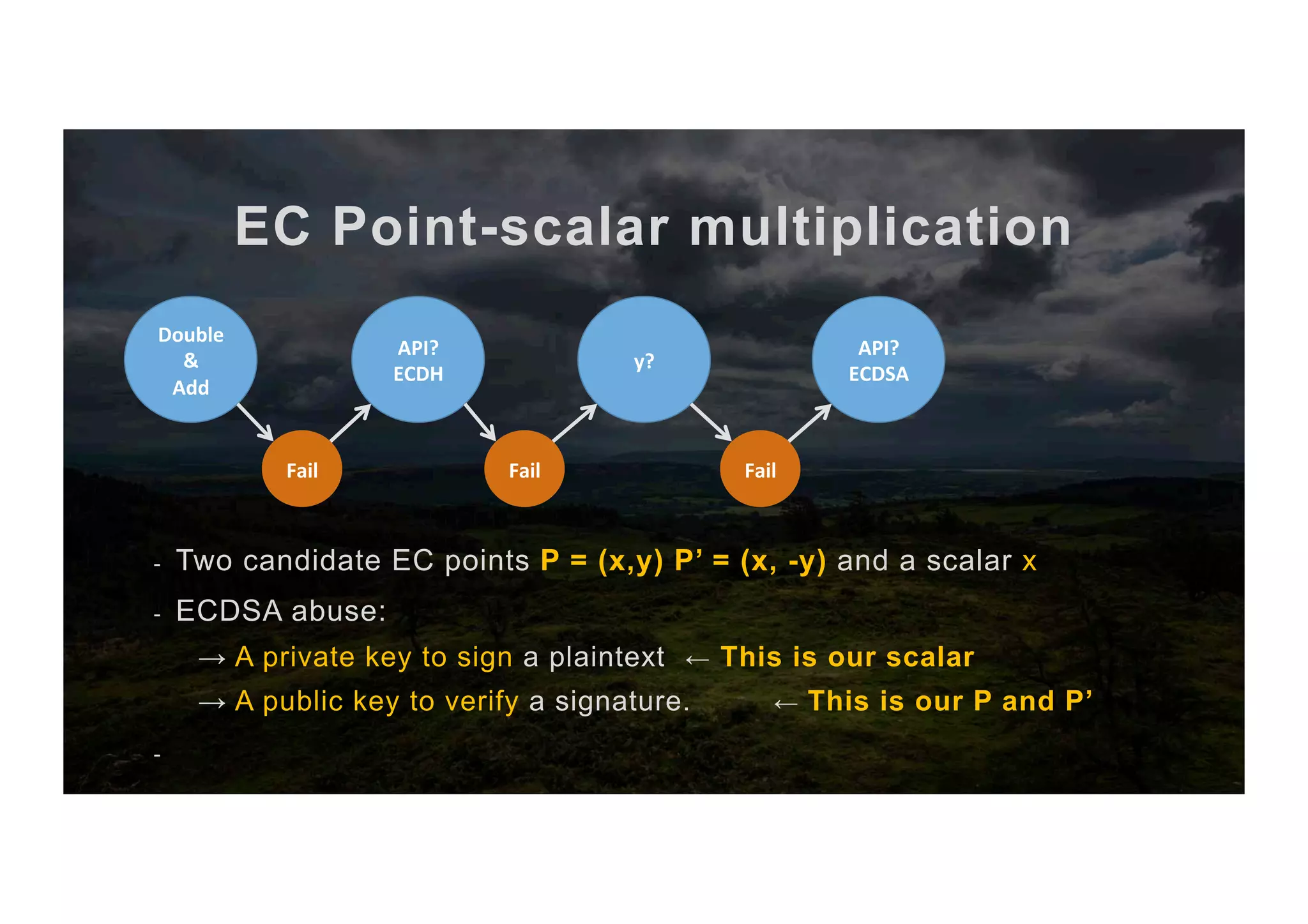

- 40. EC Point-scalar multiplication - Two candidate EC points P = (x,y) P’ = (x, -y) and a scalar x - ECDSA abuse: → A private key to sign a plaintext ← This is our scalar → A public key to verify a signature. ← This is our P and P’ - API? ECDH Fail Double & Add Fail y? Fail API? ECDSA

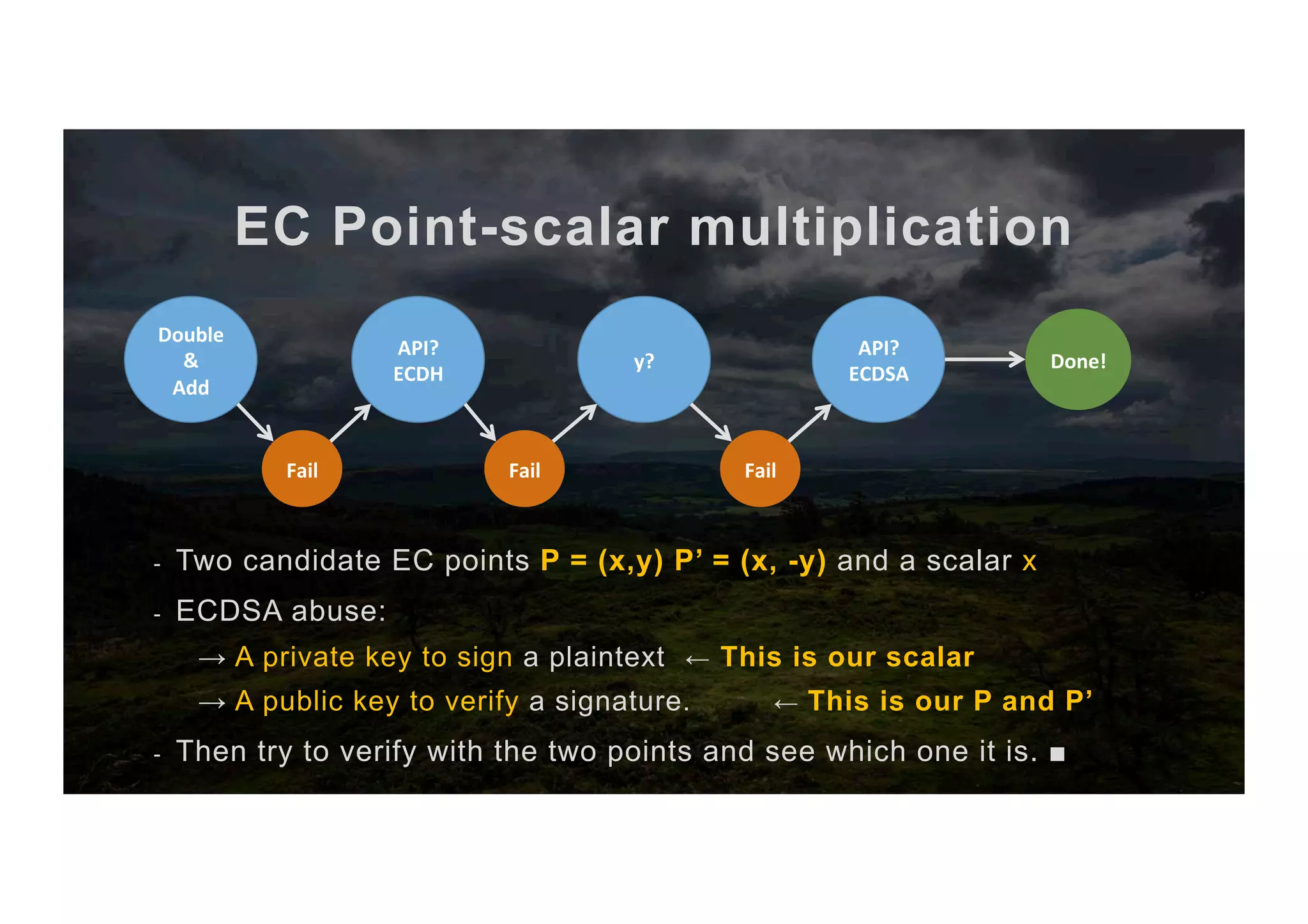

- 41. EC Point-scalar multiplication - Two candidate EC points P = (x,y) P’ = (x, -y) and a scalar x - ECDSA abuse: → A private key to sign a plaintext ← This is our scalar → A public key to verify a signature. ← This is our P and P’ - Then try to verify with the two points and see which one it is. ■ API? ECDH Fail Double & Add Fail y? Fail API? ECDSA Done!

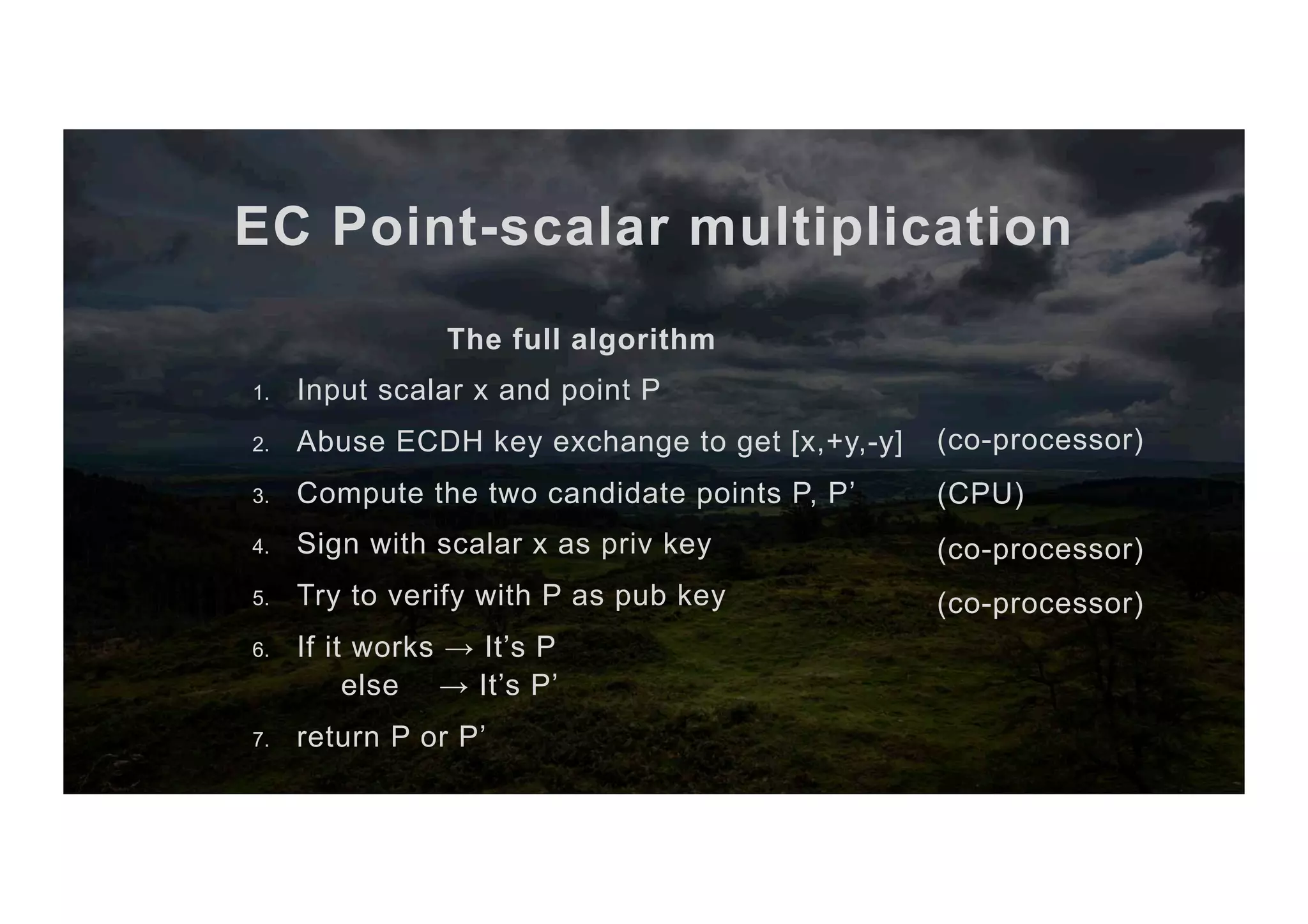

- 42. EC Point-scalar multiplication Thefull algorithm 1. Input scalar x and point P 2. Abuse ECDH key exchange to get [x,+y,-y] 3. Compute the two candidate points P, P’ 4. Sign with scalar x as priv key 5. Try to verify with P as pub key 6. If it works → It’s P else → It’s P’ 7. return P or P’ (co-processor) (CPU) (co-processor) (co-processor)

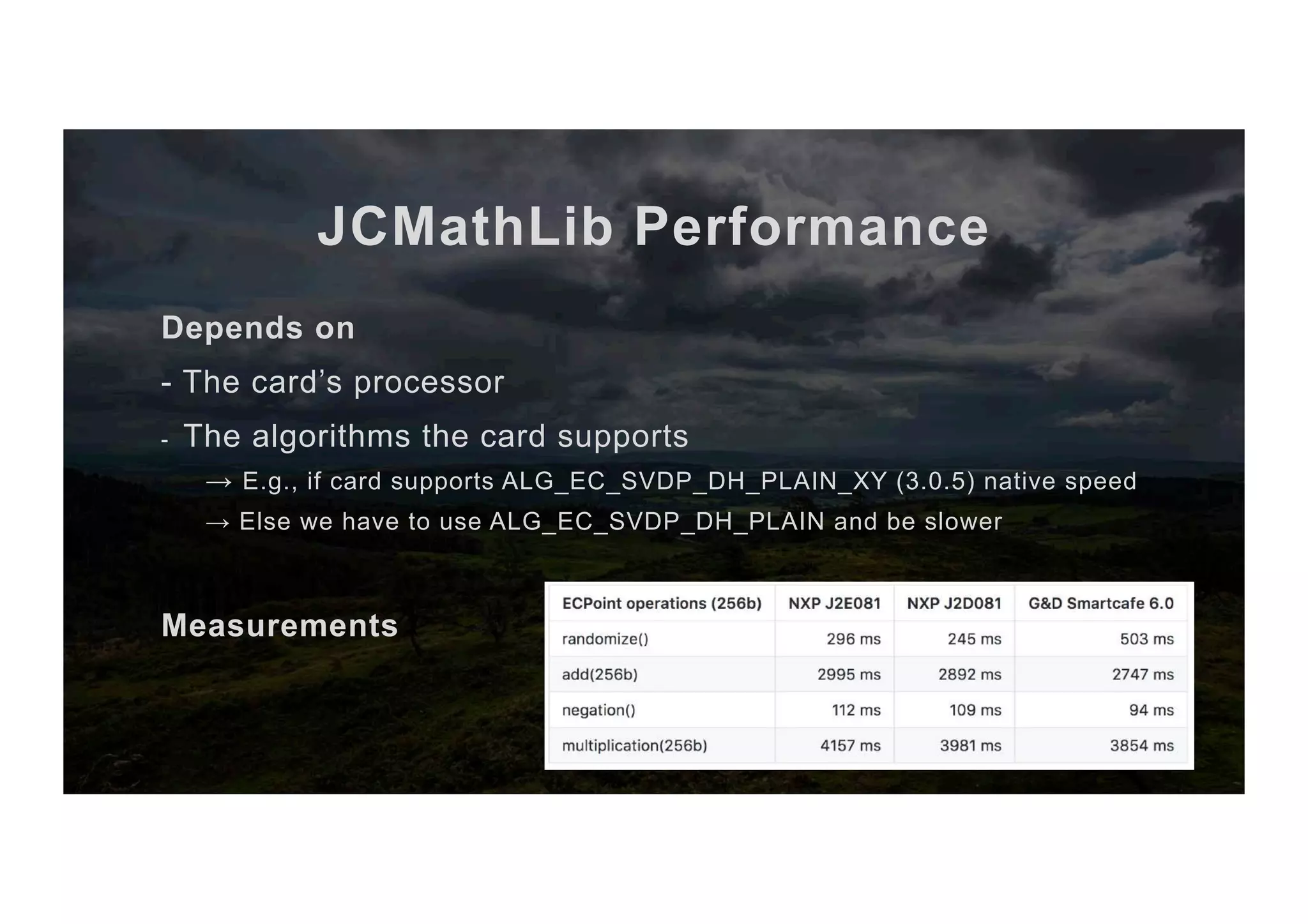

- 43. JCMathLib Performance Depends on -The card’s processor - The algorithms the card supports → E.g., if card supports ALG_EC_SVDP_DH_PLAIN_XY (3.0.5) native speed → Else we have to use ALG_EC_SVDP_DH_PLAIN and be slower Measurements

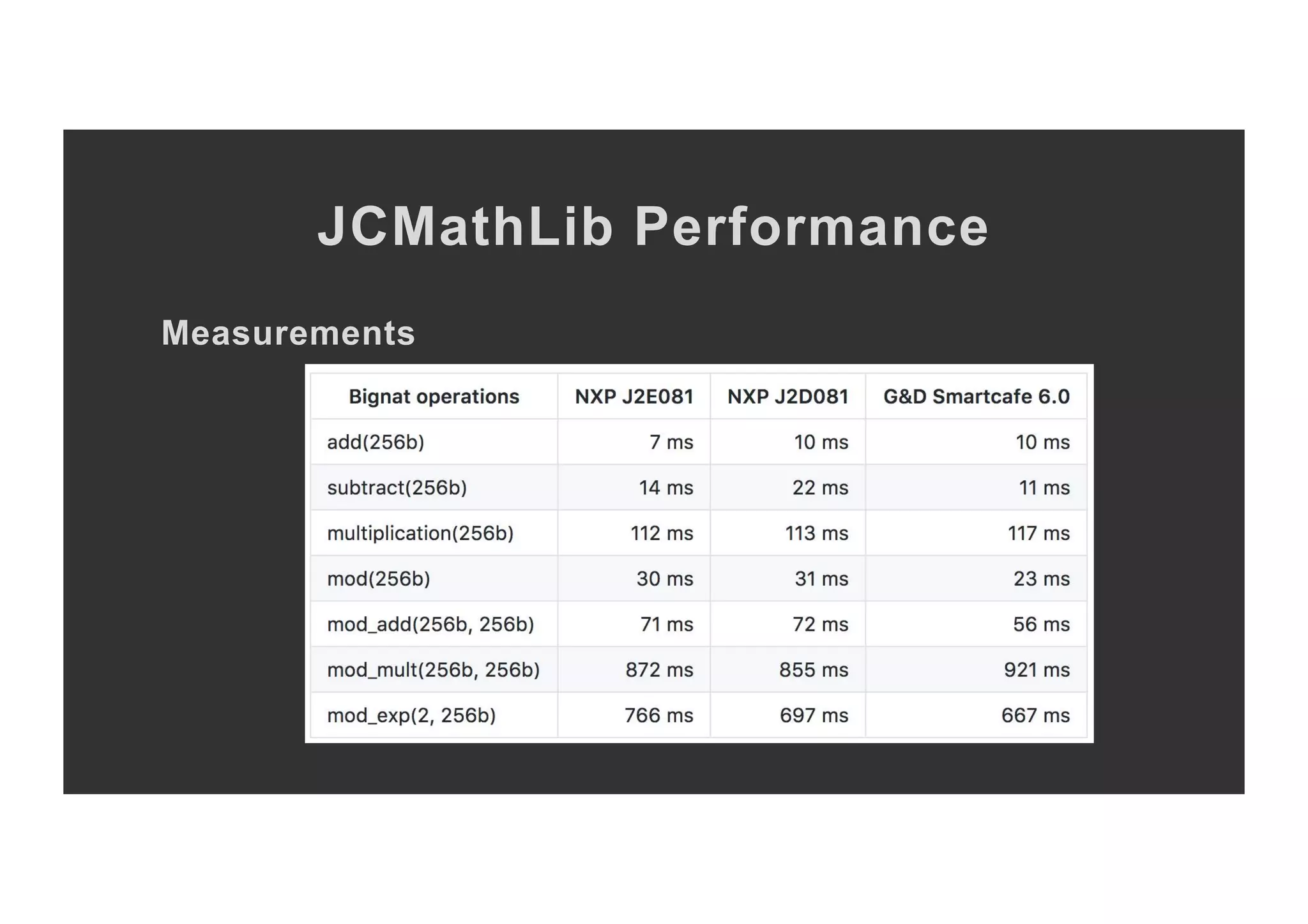

- 44.

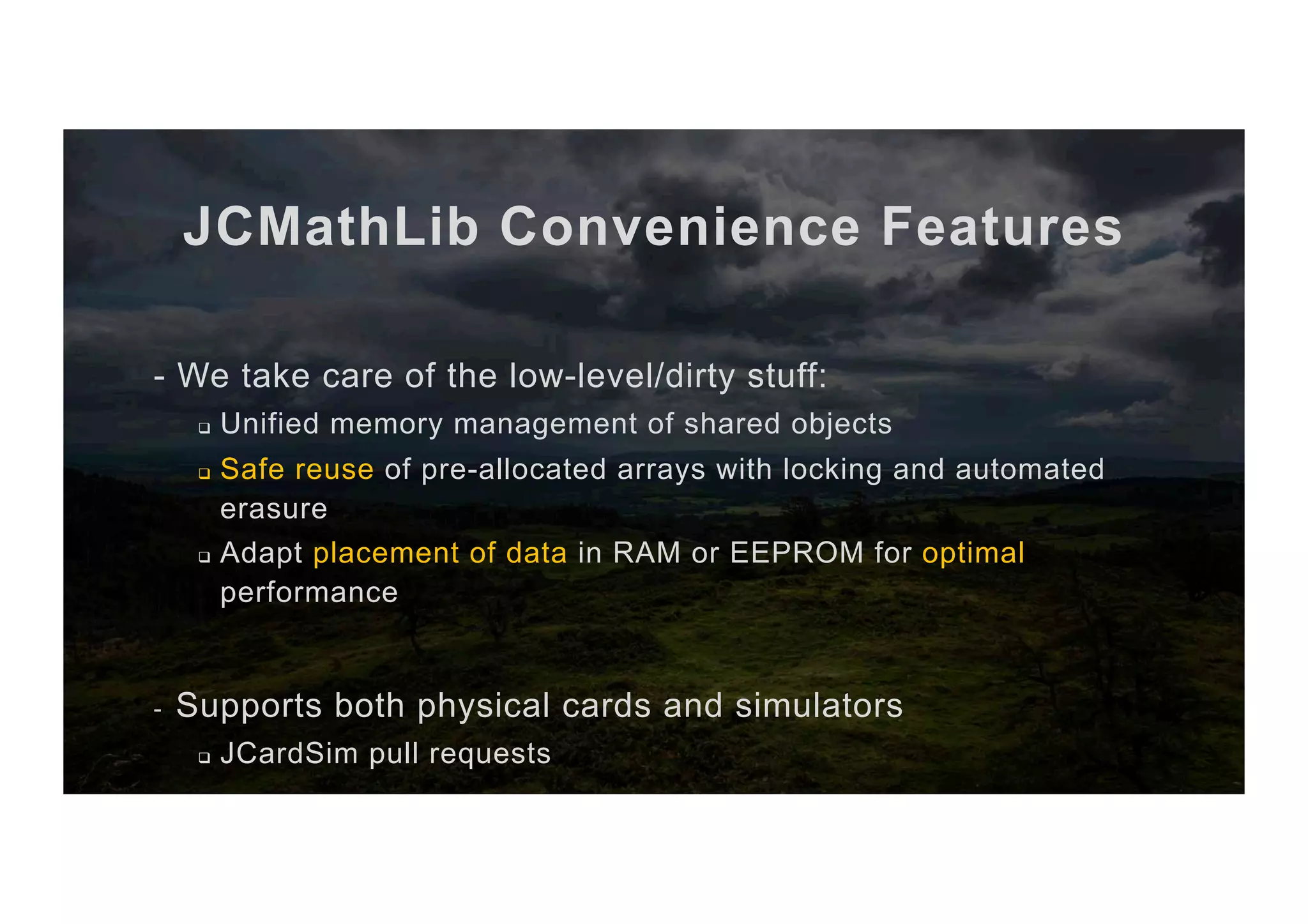

- 45. JCMathLib Convenience Features -We take care of the low-level/dirty stuff: q Unified memory management of shared objects q Safe reuse of pre-allocated arrays with locking and automated erasure q Adapt placement of data in RAM or EEPROM for optimal performance - Supports both physical cards and simulators q JCardSim pull requests

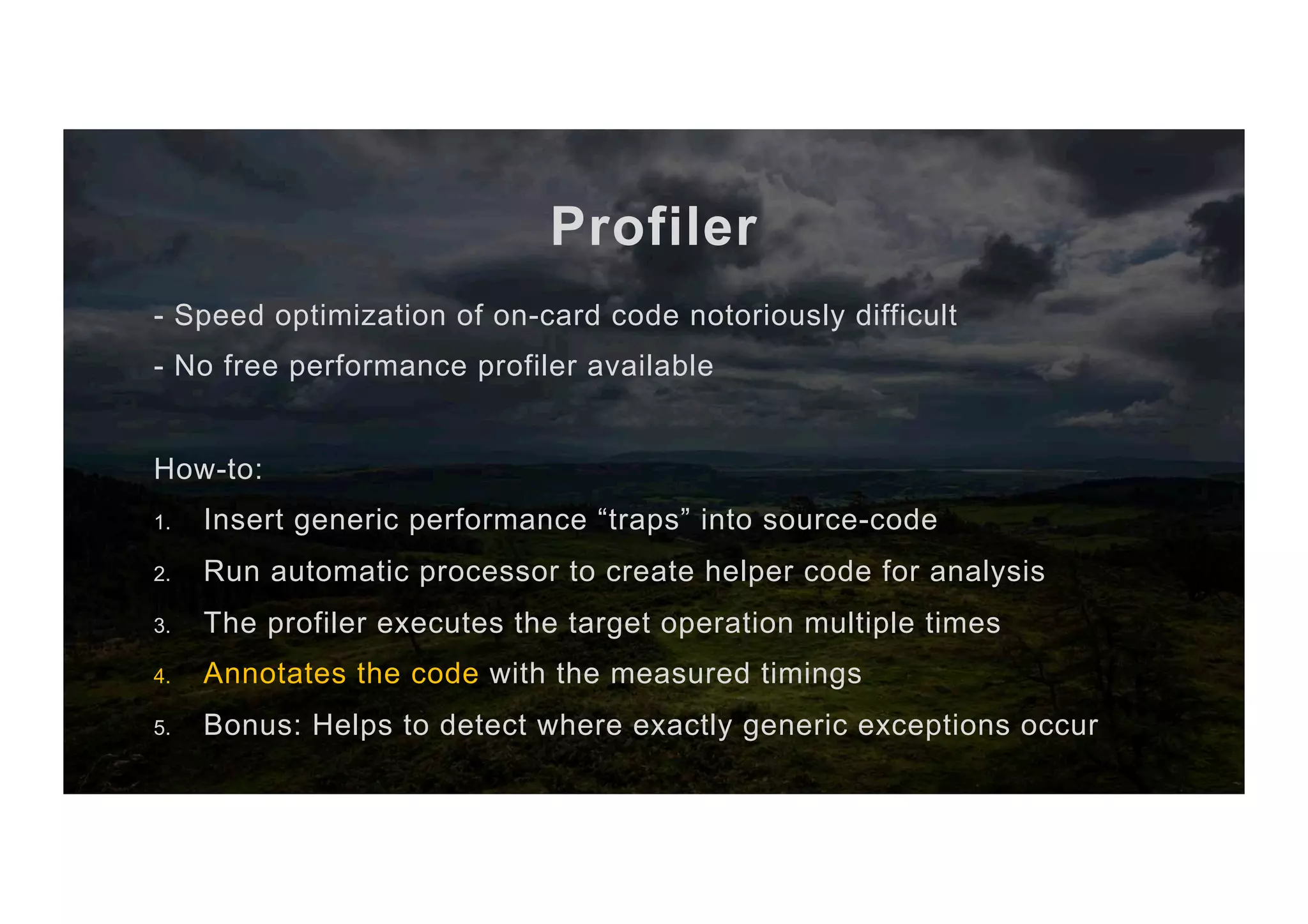

- 46. Profiler - Speed optimizationof on-card code notoriously difficult - No free performance profiler available How-to: 1. Insert generic performance “traps” into source-code 2. Run automatic processor to create helper code for analysis 3. The profiler executes the target operation multiple times 4. Annotates the code with the measured timings 5. Bonus: Helps to detect where exactly generic exceptions occur

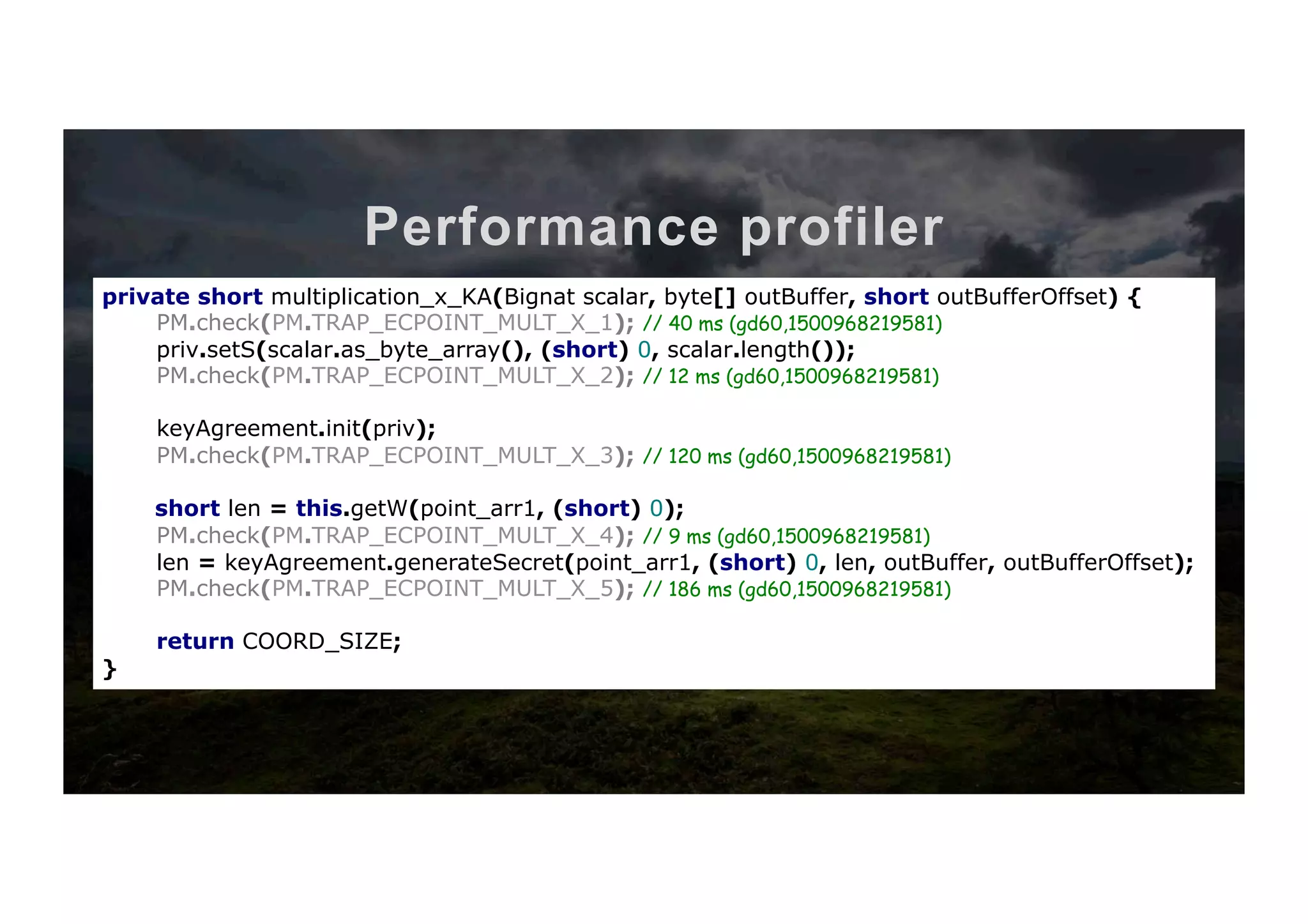

- 47. Performance profiler private shortmultiplication_x_KA(Bignat scalar, byte[] outBuffer, short outBufferOffset) { priv.setS(scalar.as_byte_array(), (short) 0, scalar.length()); keyAgreement.init(priv); short len = this.getW(point_arr1, (short) 0); len = keyAgreement.generateSecret(point_arr1, (short) 0, len, outBuffer, outBufferOffset); return COORD_SIZE; } private short multiplication_x_KA(Bignat scalar, byte[] outBuffer, short outBufferOffset) { PM.check(PM.TRAP_ECPOINT_MULT_X_0); priv.setS(scalar.as_byte_array(), (short) 0, scalar.length()); PM.check(PM.TRAP_ECPOINT_MULT_X_0); keyAgreement.init(priv); PM.check(PM.TRAP_ECPOINT_MULT_X_0); short len = this.getW(point_arr1, (short) 0); PM.check(PM.TRAP_ECPOINT_MULT_X_0); len = keyAgreement.generateSecret(point_arr1, (short) 0, len, outBuffer, outBufferOffset); PM.check(PM.TRAP_ECPOINT_MULT_X_0); return COORD_SIZE; } private short multiplication_x_KA(Bignat scalar, byte[] outBuffer, short outBufferOffset) { PM.check(PM.TRAP_ECPOINT_MULT_X_1); priv.setS(scalar.as_byte_array(), (short) 0, scalar.length()); PM.check(PM.TRAP_ECPOINT_MULT_X_2); keyAgreement.init(priv); PM.check(PM.TRAP_ECPOINT_MULT_X_3); short len = this.getW(point_arr1, (short) 0); PM.check(PM.TRAP_ECPOINT_MULT_X_4); len = keyAgreement.generateSecret(point_arr1, (short) 0, len, outBuffer, outBufferOffset); PM.check(PM.TRAP_ECPOINT_MULT_X_5); return COORD_SIZE; } Client-side tesQng code private short multiplication_x_KA(Bignat scalar, byte[] outBuffer, short outBufferOffset) { PM.check(PM.TRAP_ECPOINT_MULT_X_1); // 40 ms (gd60,1500968219581) priv.setS(scalar.as_byte_array(), (short) 0, scalar.length()); PM.check(PM.TRAP_ECPOINT_MULT_X_2); // 12 ms (gd60,1500968219581) keyAgreement.init(priv); PM.check(PM.TRAP_ECPOINT_MULT_X_3); // 120 ms (gd60,1500968219581) short len = this.getW(point_arr1, (short) 0); PM.check(PM.TRAP_ECPOINT_MULT_X_4); // 9 ms (gd60,1500968219581) len = keyAgreement.generateSecret(point_arr1, (short) 0, len, outBuffer, outBufferOffset); PM.check(PM.TRAP_ECPOINT_MULT_X_5); // 186 ms (gd60,1500968219581) return COORD_SIZE; }

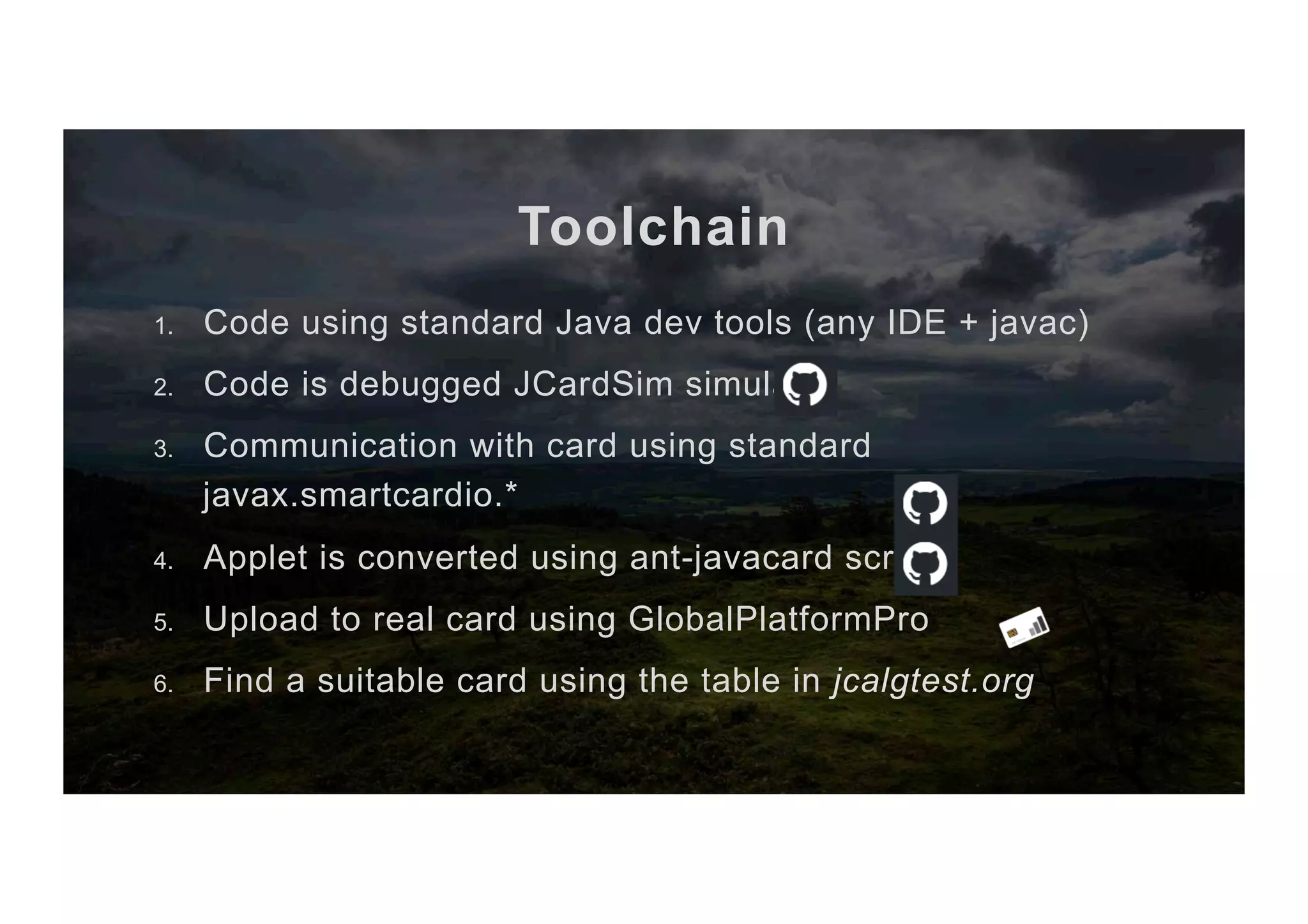

- 48. Toolchain 1. Code usingstandard Java dev tools (any IDE + javac) 2. Code is debugged JCardSim simulator 3. Communication with card using standard javax.smartcardio.* 4. Applet is converted using ant-javacard scripts 5. Upload to real card using GlobalPlatformPro 6. Find a suitable card using the table in jcalgtest.org

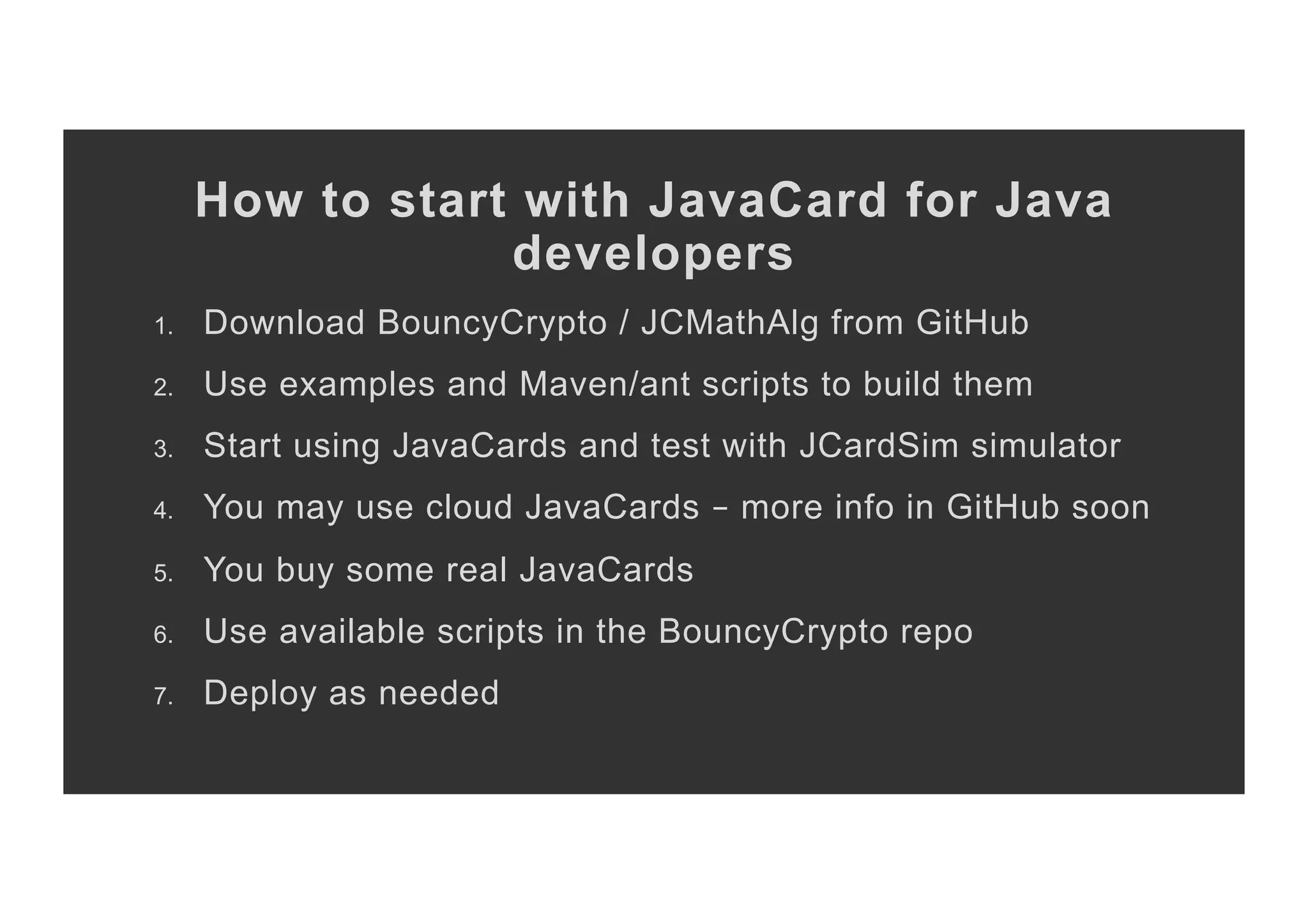

- 49. How to startwith JavaCard for Java developers 1. Download BouncyCrypto / JCMathAlg from GitHub 2. Use examples and Maven/ant scripts to build them 3. Start using JavaCards and test with JCardSim simulator 4. You may use cloud JavaCards – more info in GitHub soon 5. You buy some real JavaCards 6. Use available scripts in the BouncyCrypto repo 7. Deploy as needed

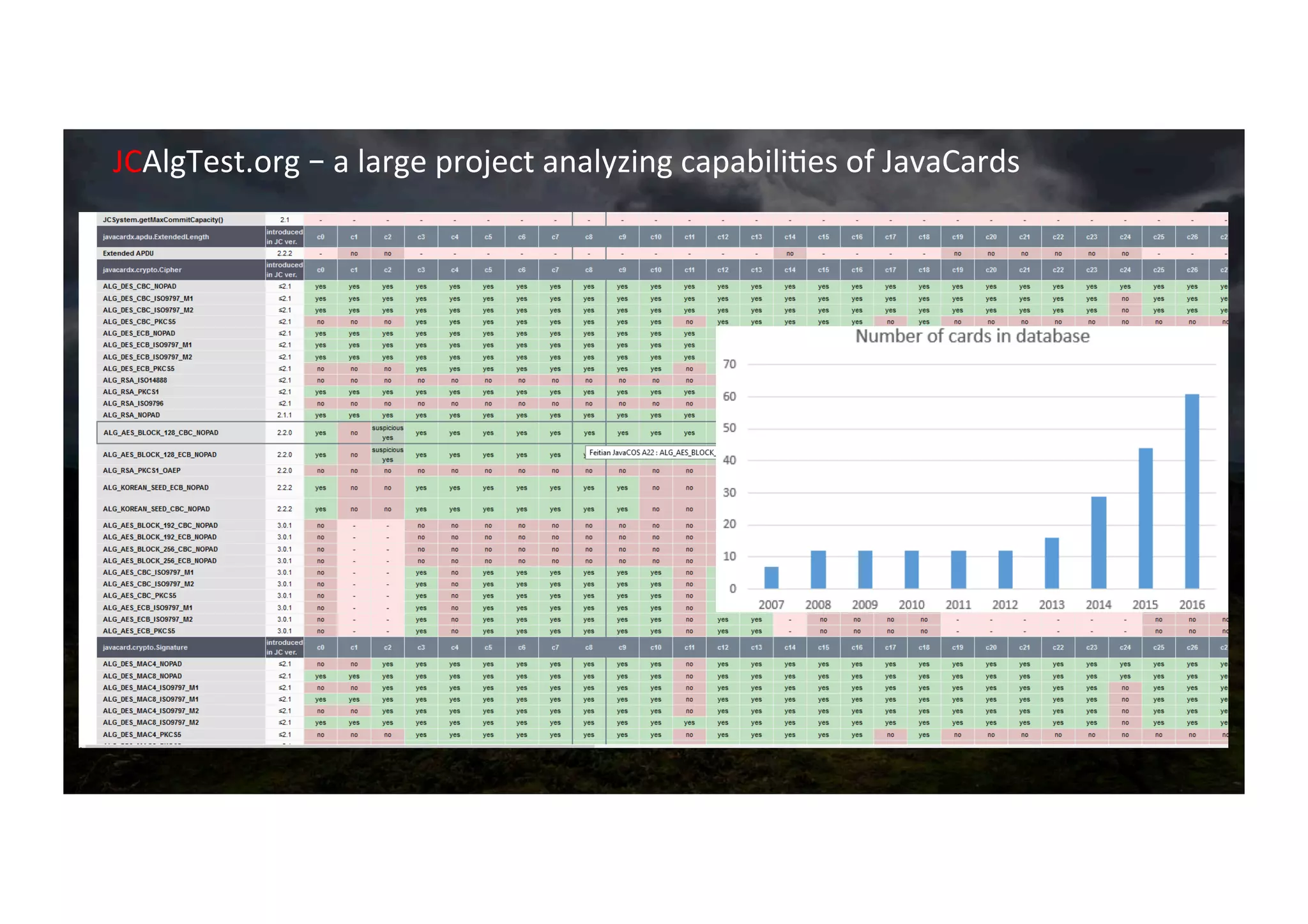

- 50.

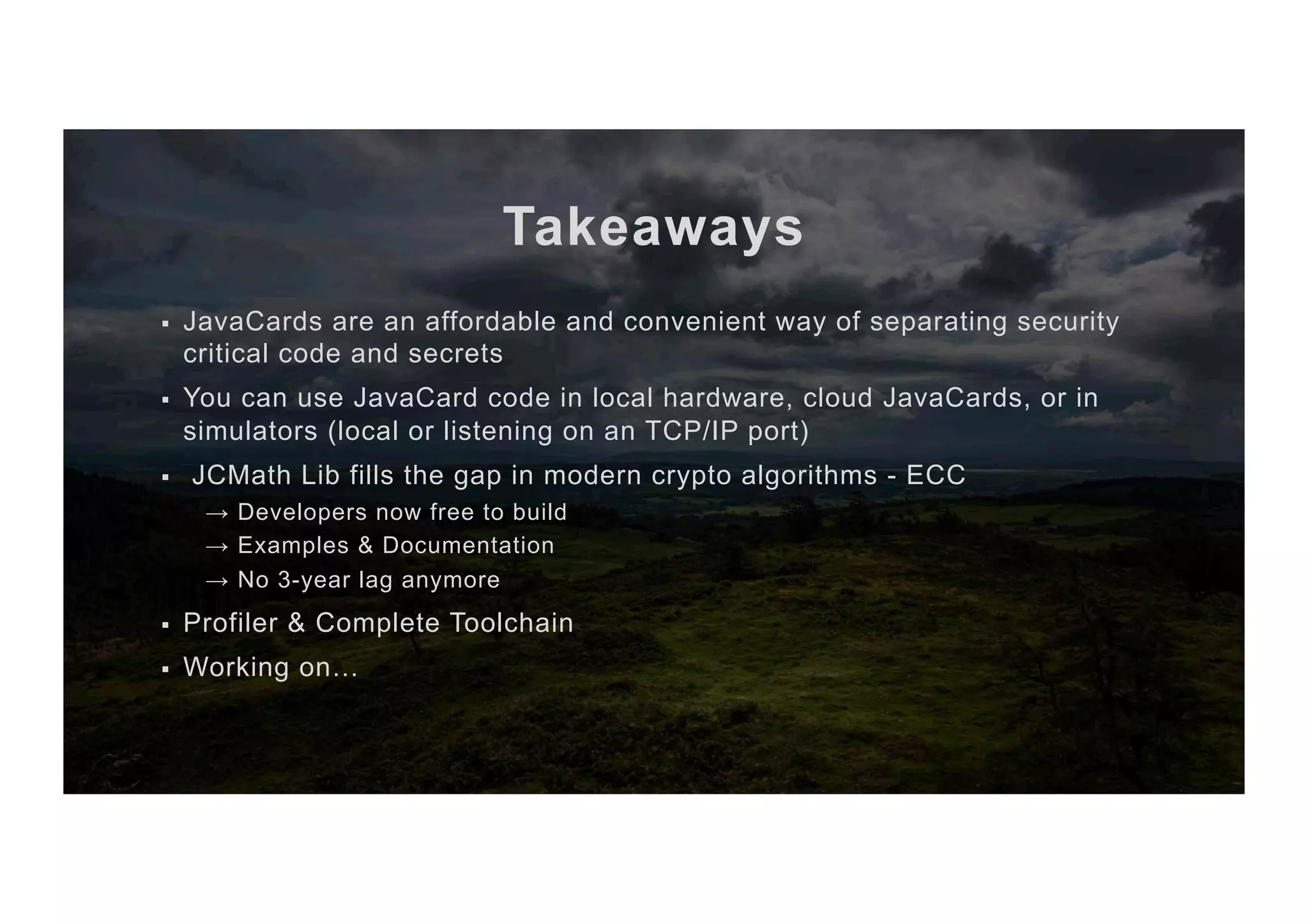

- 51. Takeaways § JavaCards arean affordable and convenient way of separating security critical code and secrets § You can use JavaCard code in local hardware, cloud JavaCards, or in simulators (local or listening on an TCP/IP port) § JCMath Lib fills the gap in modern crypto algorithms - ECC → Developers now free to build → Examples & Documentation → No 3-year lag anymore § Profiler & Complete Toolchain § Working on…

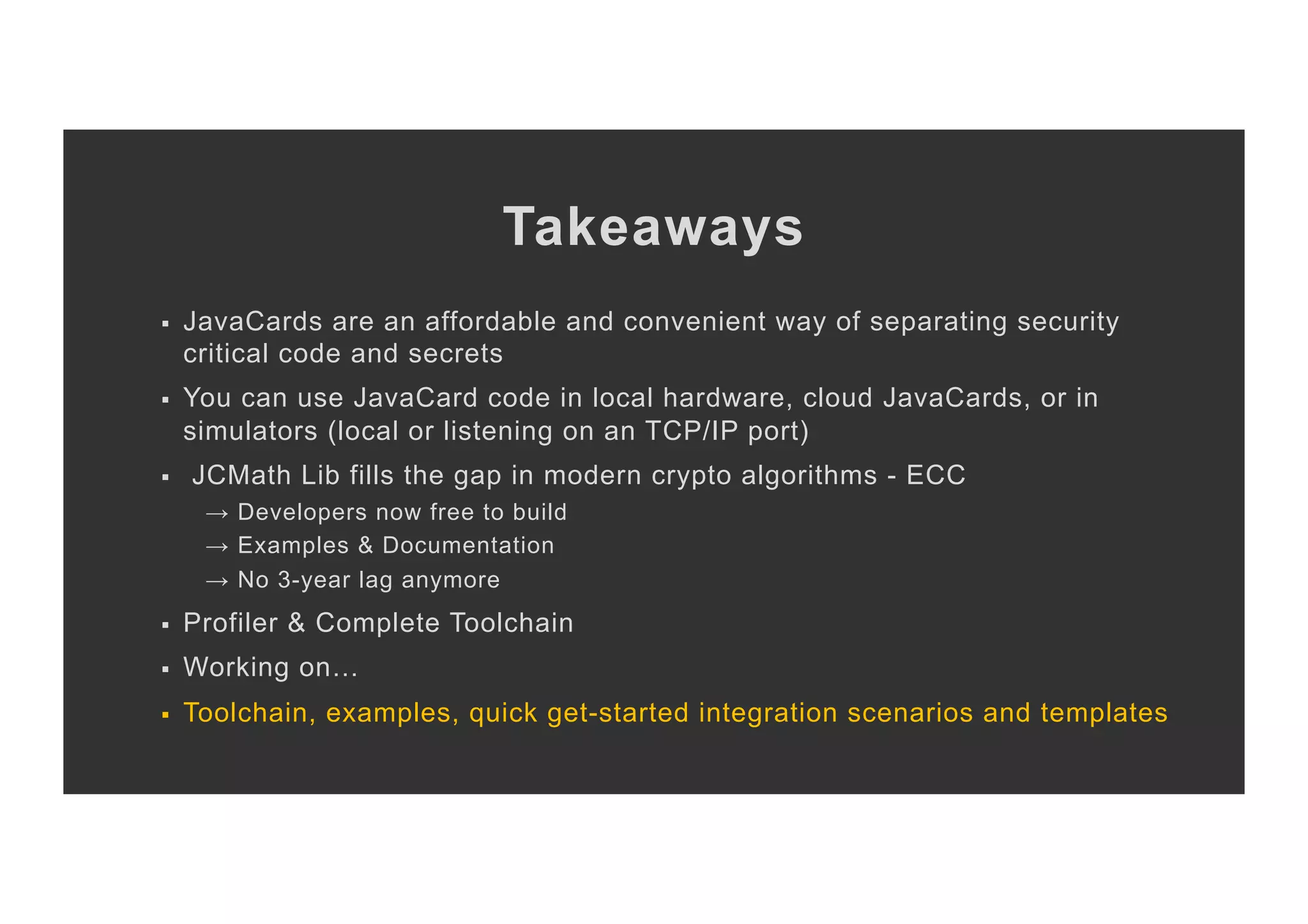

- 52. Takeaways § JavaCards arean affordable and convenient way of separating security critical code and secrets § You can use JavaCard code in local hardware, cloud JavaCards, or in simulators (local or listening on an TCP/IP port) § JCMath Lib fills the gap in modern crypto algorithms - ECC → Developers now free to build → Examples & Documentation → No 3-year lag anymore § Profiler & Complete Toolchain § Working on… § Toolchain, examples, quick get-started integration scenarios and templates
- 53.
- 54.

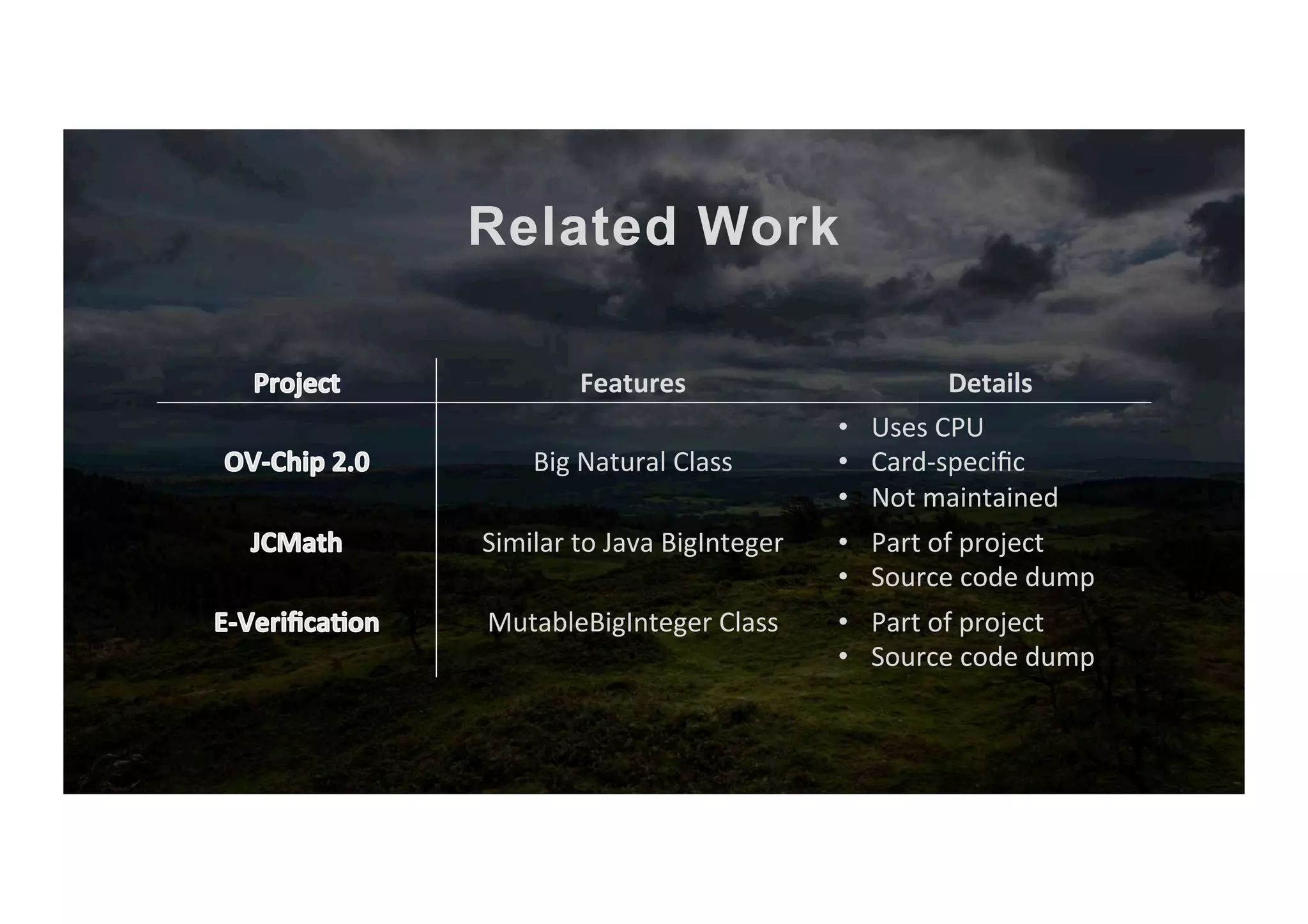

- 55. Related Work Features Details Big Natural Class • Uses CPU • Card-specific • Not maintained Similar to Java BigInteger • Part of project • Source code dump MutableBigInteger Class • Part of project • Source code dump
