Move into Drupal using the Migrate Module NYC Camp 2012 Ashok Modi (BTMash)

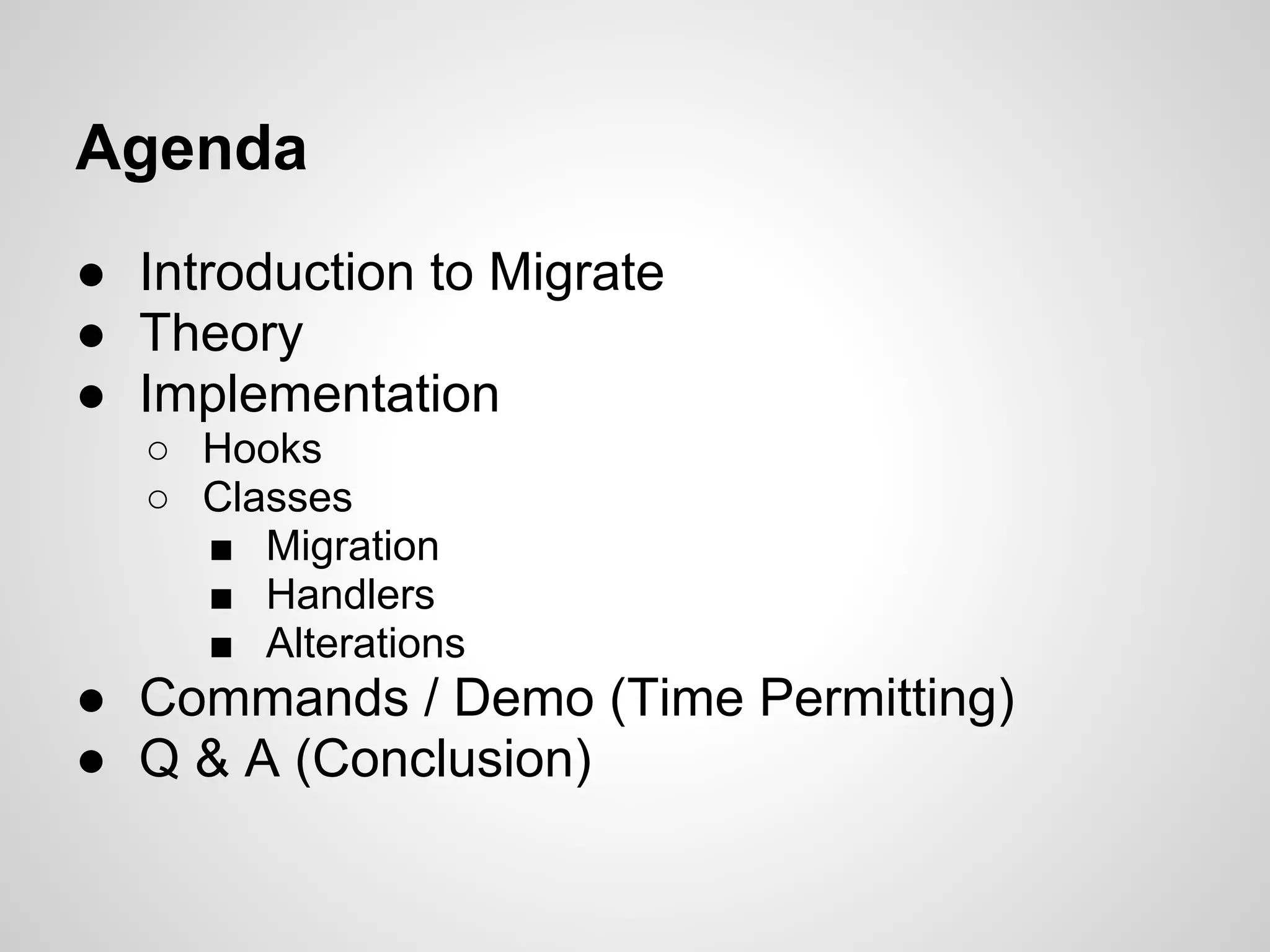

Agenda ● Introduction to Migrate ● Theory ● Implementation ○ Hooks ○ Classes ■ Migration ■ Handlers ■ Alterations ● Commands / Demo (Time Permitting) ● Q & A (Conclusion)

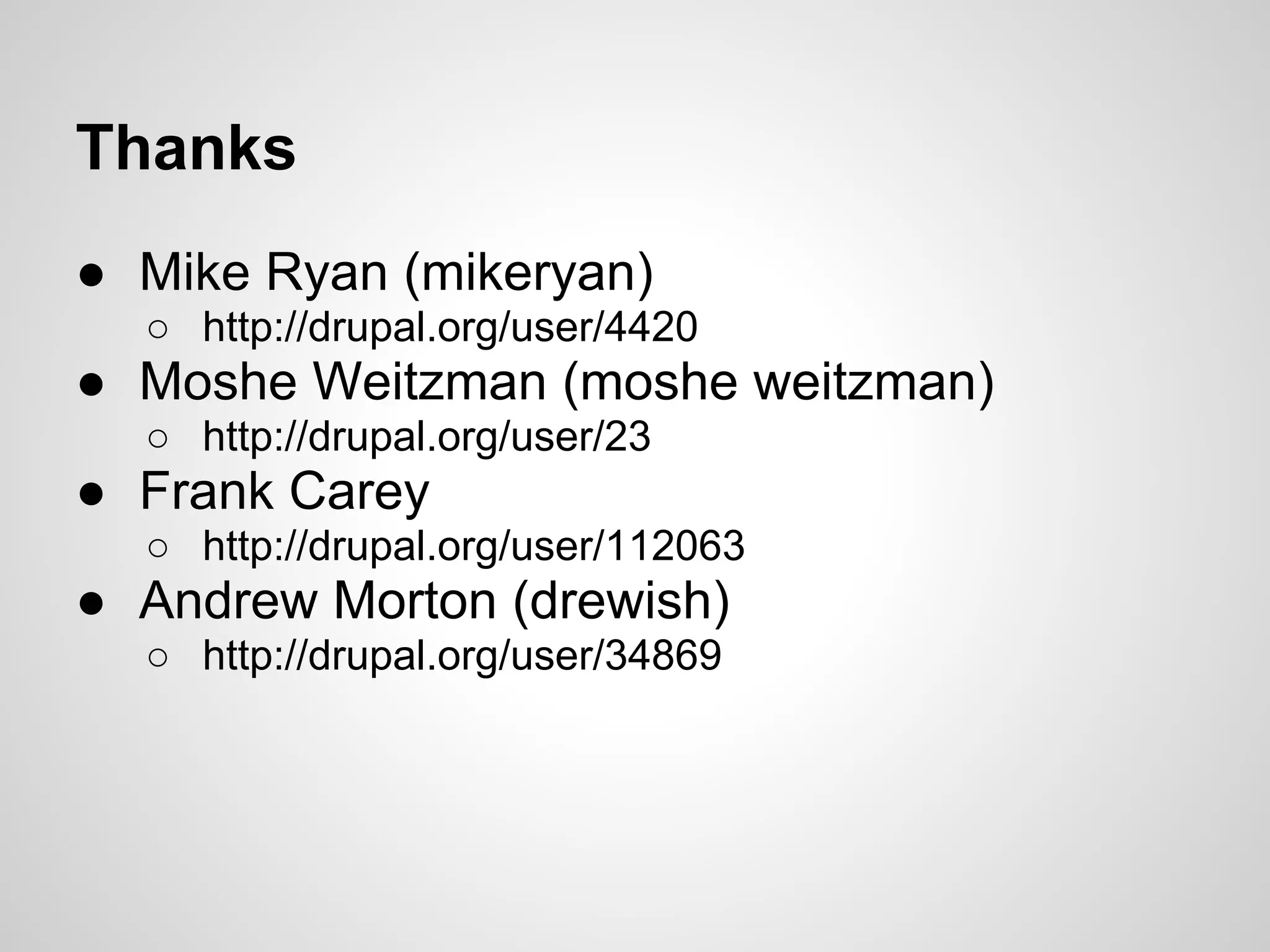

Thanks ● Mike Ryan (mikeryan) ○ http://drupal.org/user/4420 ● Moshe Weitzman (moshe weitzman) ○ http://drupal.org/user/23 ● Frank Carey ○ http://drupal.org/user/112063 ● Andrew Morton (drewish) ○ http://drupal.org/user/34869

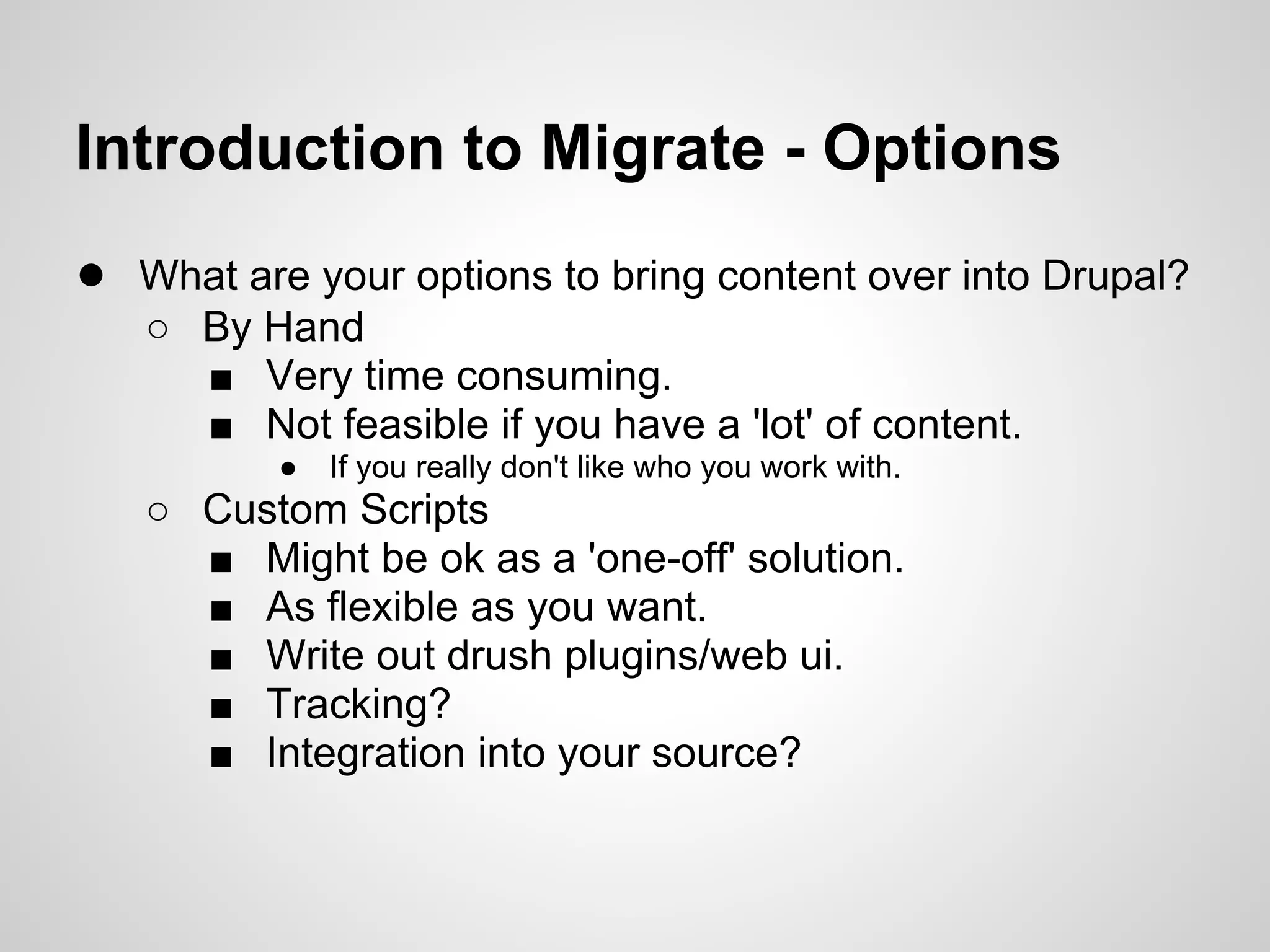

Introduction to Migrate - Options ● What are your options to bring content over into Drupal? ○ By Hand ■ Very time consuming. ■ Not feasible if you have a 'lot' of content. ● If you really don't like who you work with. ○ Custom Scripts ■ Might be ok as a 'one-off' solution. ■ As flexible as you want. ■ Write out drush plugins/web ui. ■ Tracking? ■ Integration into your source?

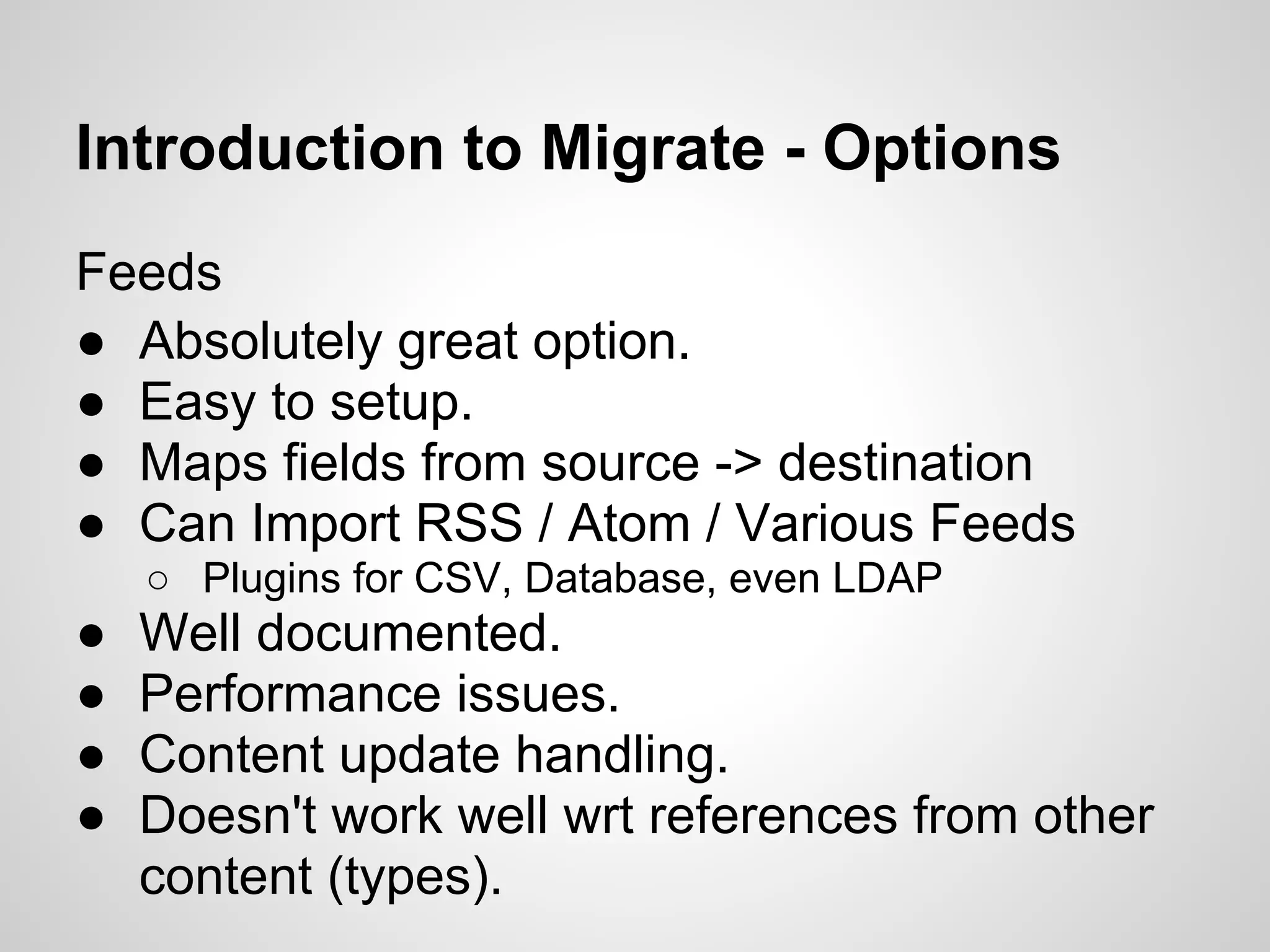

Introduction to Migrate - Options Feeds ● Absolutely great option. ● Easy to setup. ● Maps fields from source -> destination ● Can Import RSS / Atom / Various Feeds ○ Plugins for CSV, Database, even LDAP ● Well documented. ● Performance issues. ● Content update handling. ● Doesn't work well wrt references from other content (types).

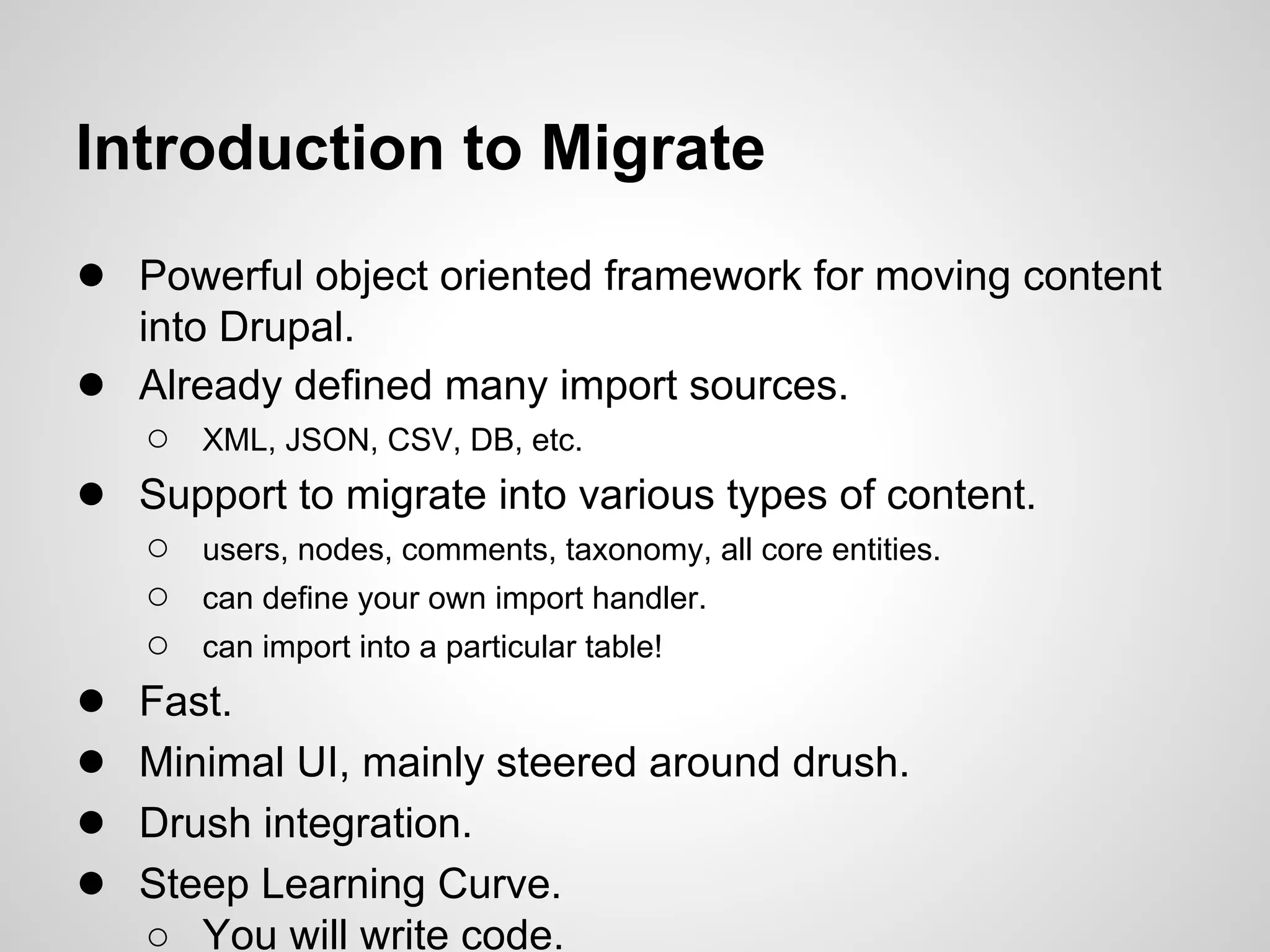

Introduction to Migrate ● Powerful object oriented framework for moving content into Drupal. ● Already defined many import sources. ○ XML, JSON, CSV, DB, etc. ● Support to migrate into various types of content. ○ users, nodes, comments, taxonomy, all core entities. ○ can define your own import handler. ○ can import into a particular table! ● Fast. ● Minimal UI, mainly steered around drush. ● Drush integration. ● Steep Learning Curve. ○ You will write code.

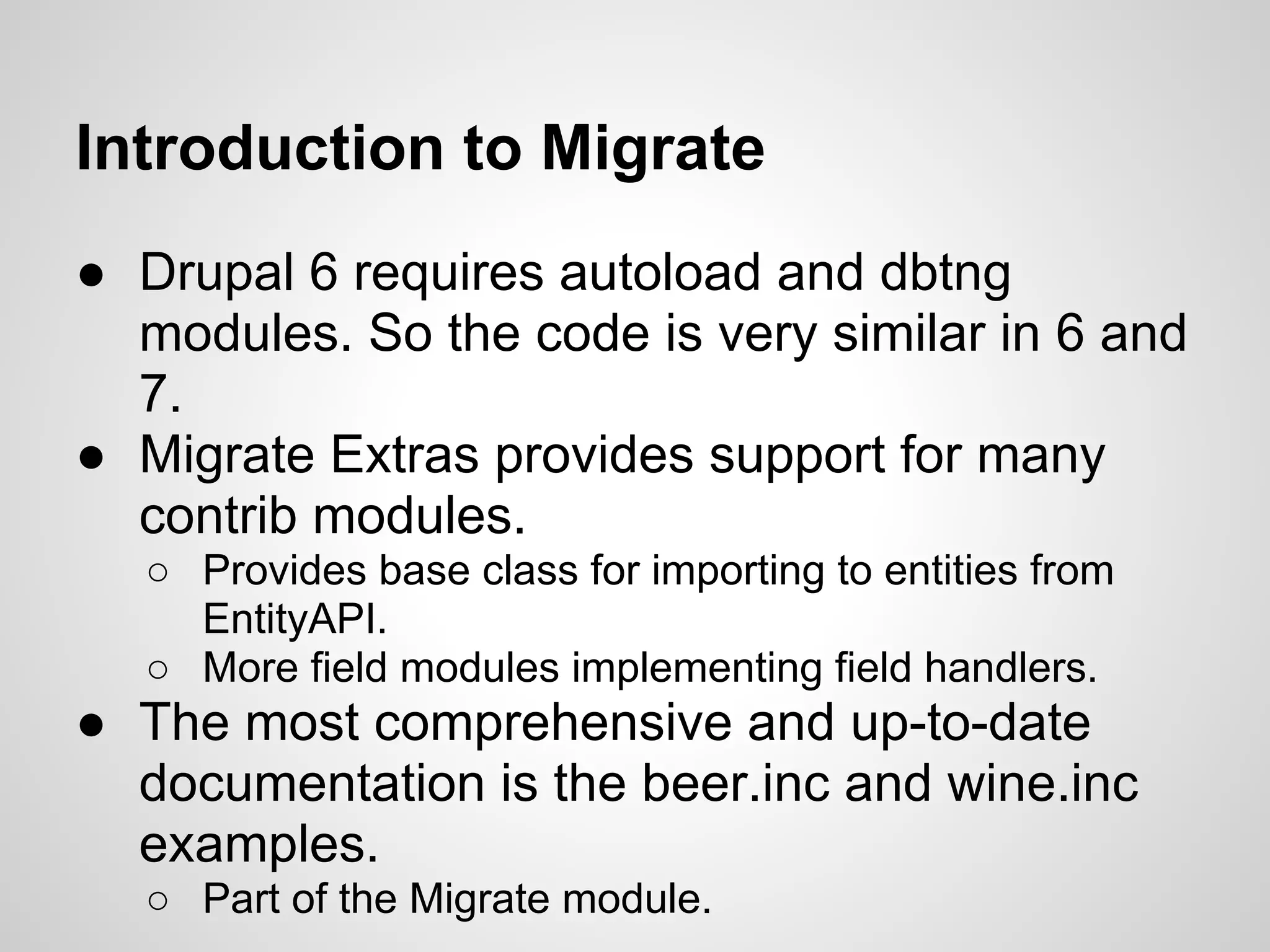

Introduction to Migrate ● Drupal 6 requires autoload and dbtng modules. So the code is very similar in 6 and 7. ● Migrate Extras provides support for many contrib modules. ○ Provides base class for importing to entities from EntityAPI. ○ More field modules implementing field handlers. ● The most comprehensive and up-to-date documentation is the beer.inc and wine.inc examples. ○ Part of the Migrate module.

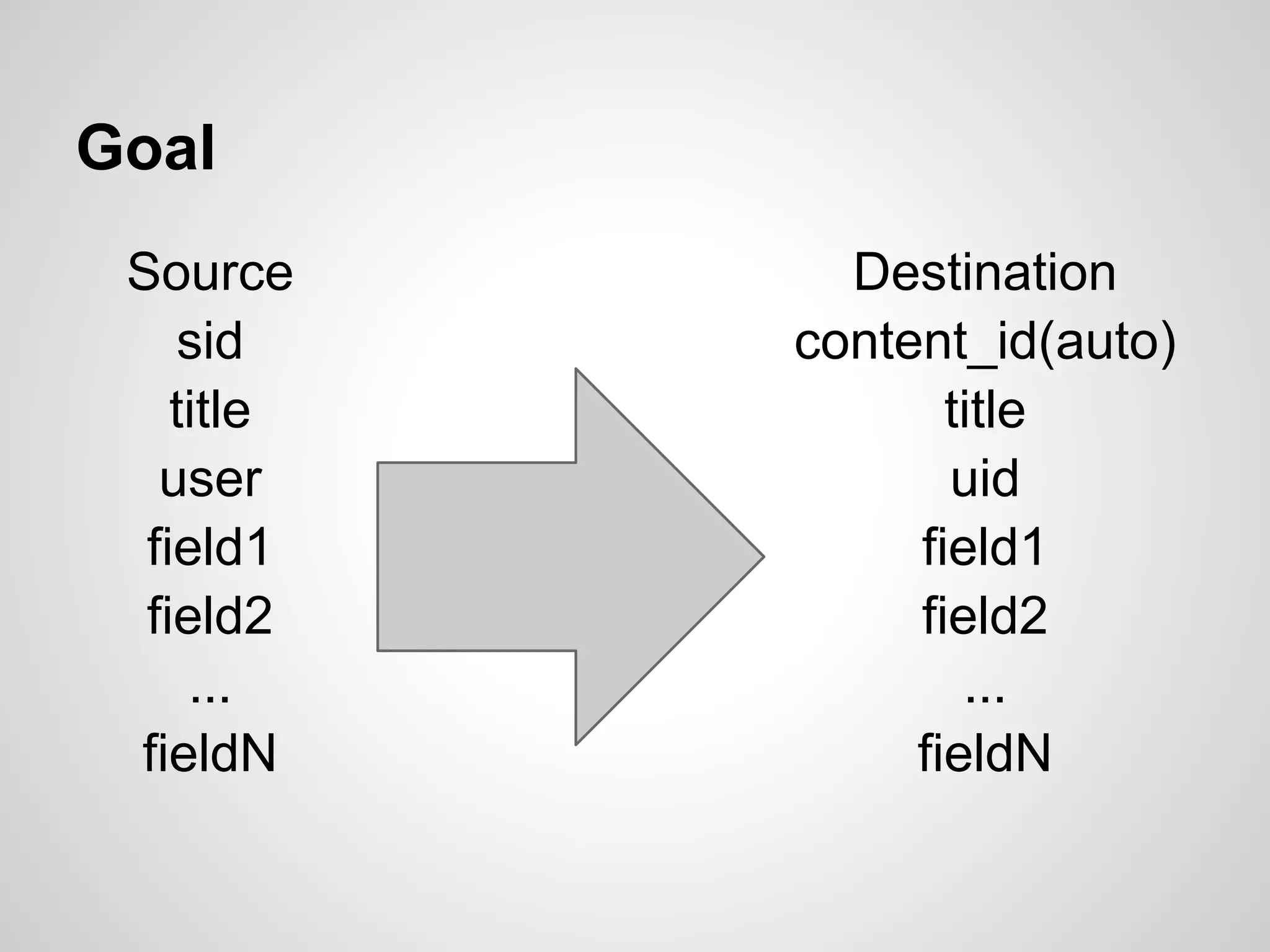

Goal Source Destination sid content_id(auto) title title user uid field1 field1 field2 field2 ... ... fieldN fieldN

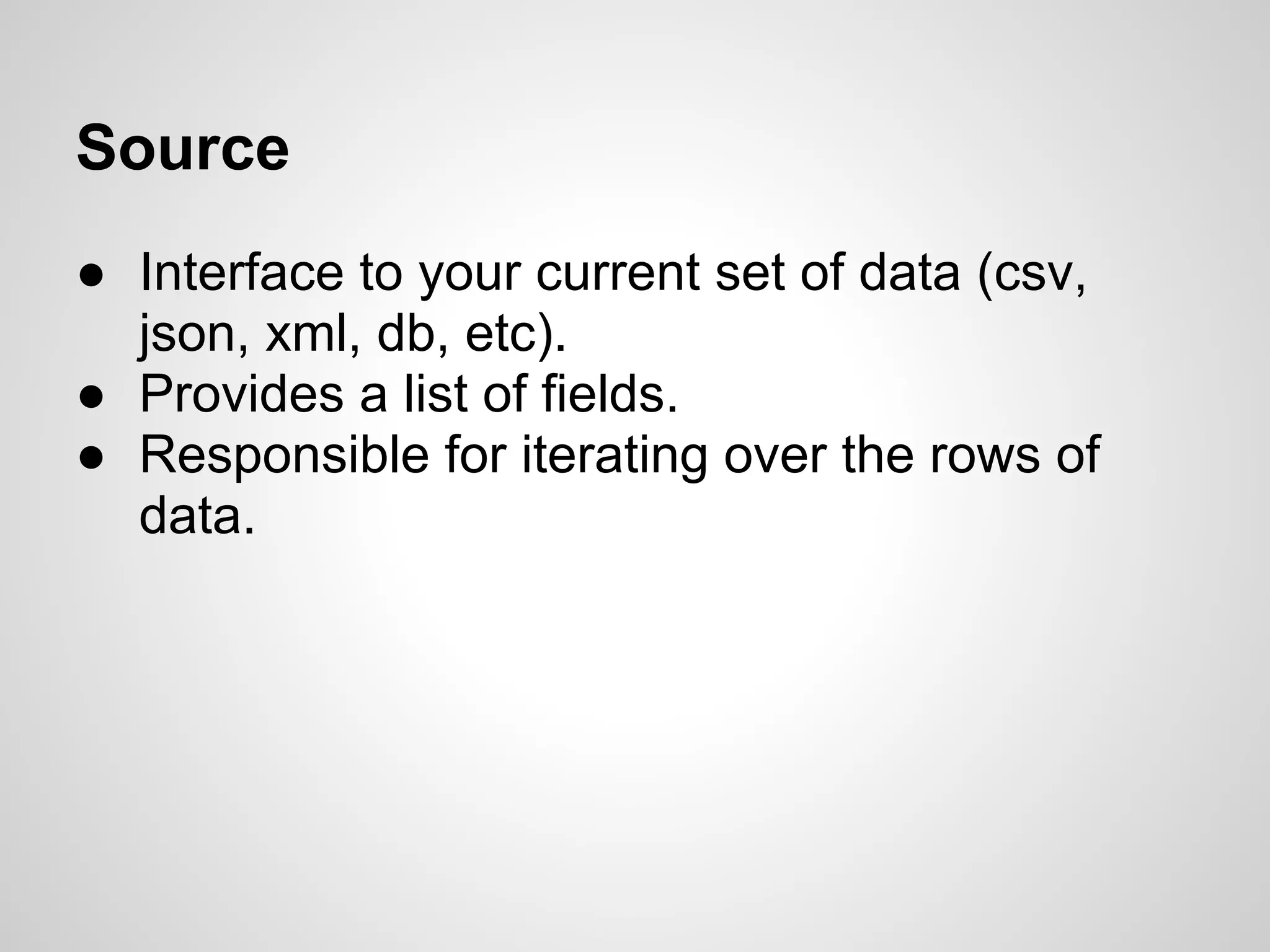

Source ● Interface to your current set of data (csv, json, xml, db, etc). ● Provides a list of fields. ● Responsible for iterating over the rows of data.

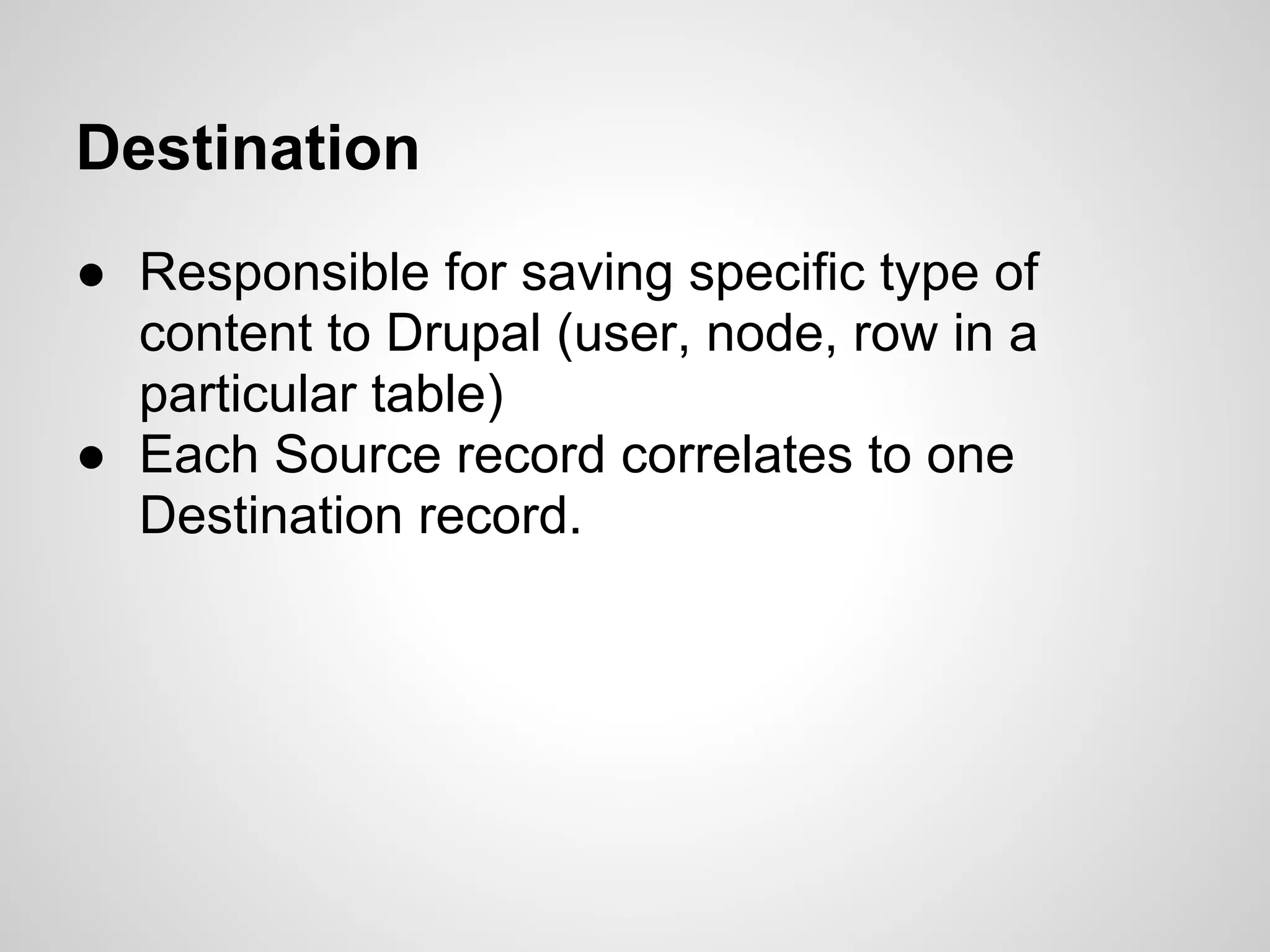

Destination ● Responsible for saving specific type of content to Drupal (user, node, row in a particular table) ● Each Source record correlates to one Destination record.

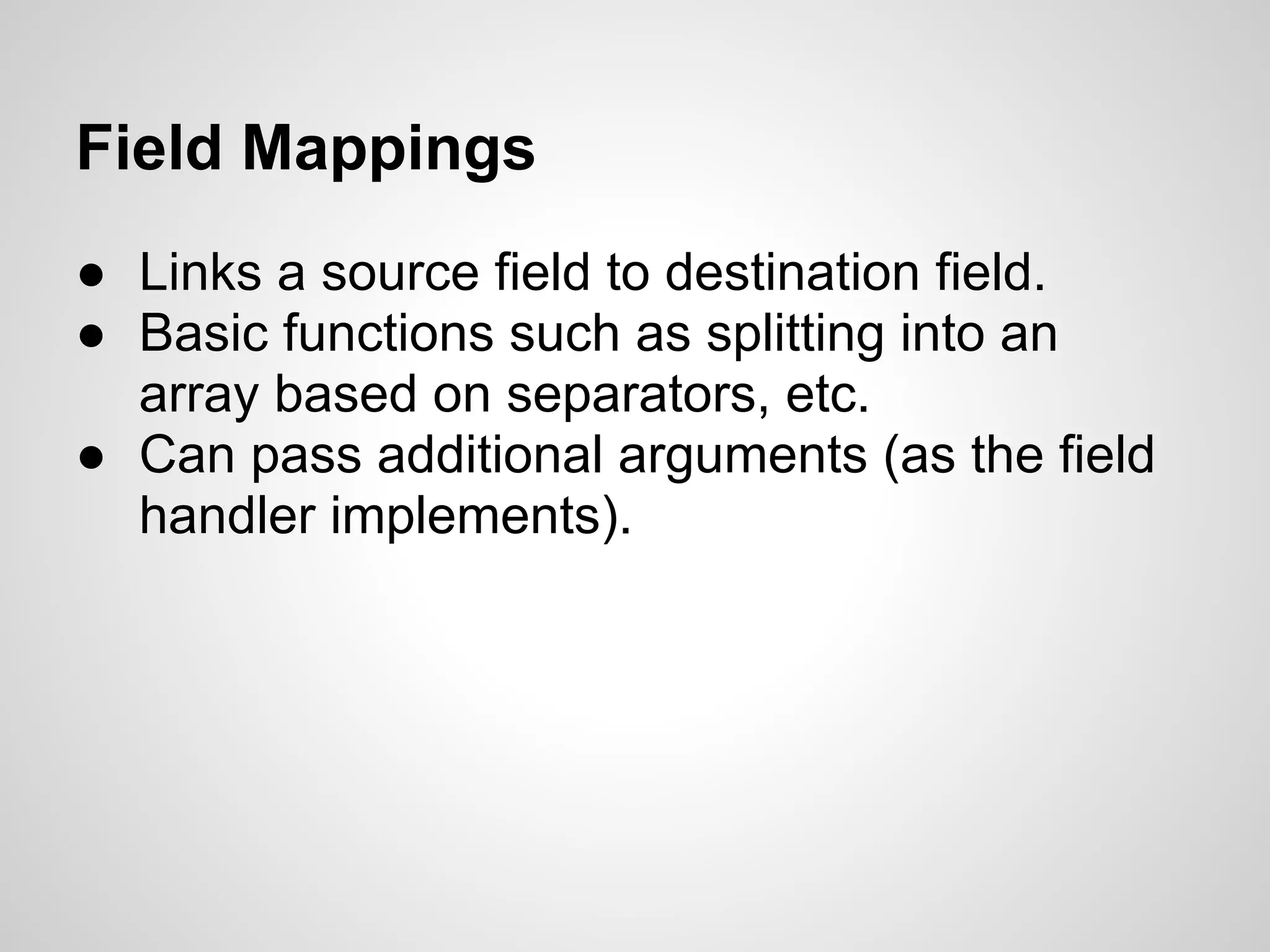

Field Mappings ● Links a source field to destination field. ● Basic functions such as splitting into an array based on separators, etc. ● Can pass additional arguments (as the field handler implements).

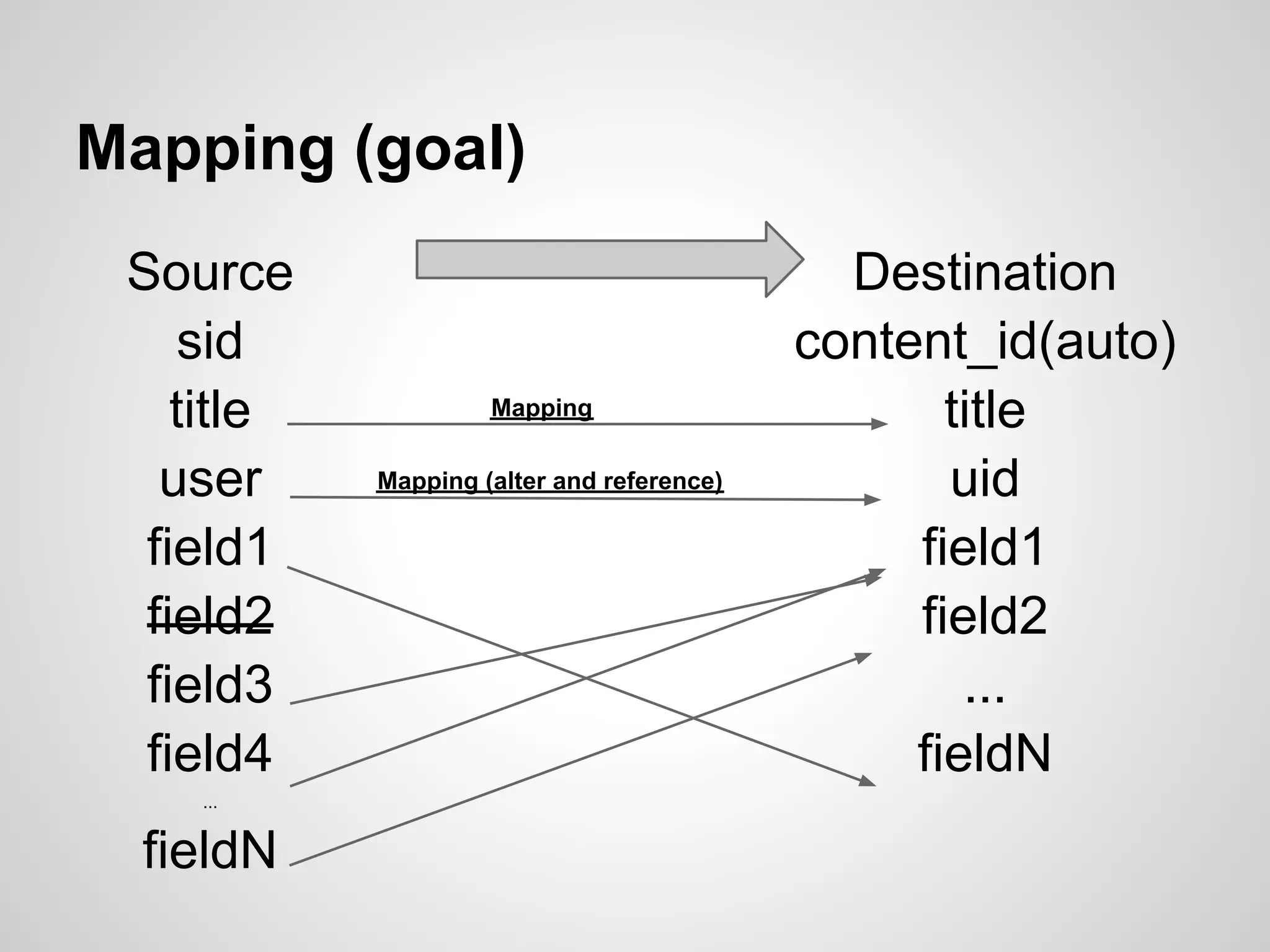

Mapping (goal) Source Destination sid content_id(auto) title Mapping title user Mapping (alter and reference) uid field1 field1 field2 field2 field3 ... field4 fieldN ... fieldN

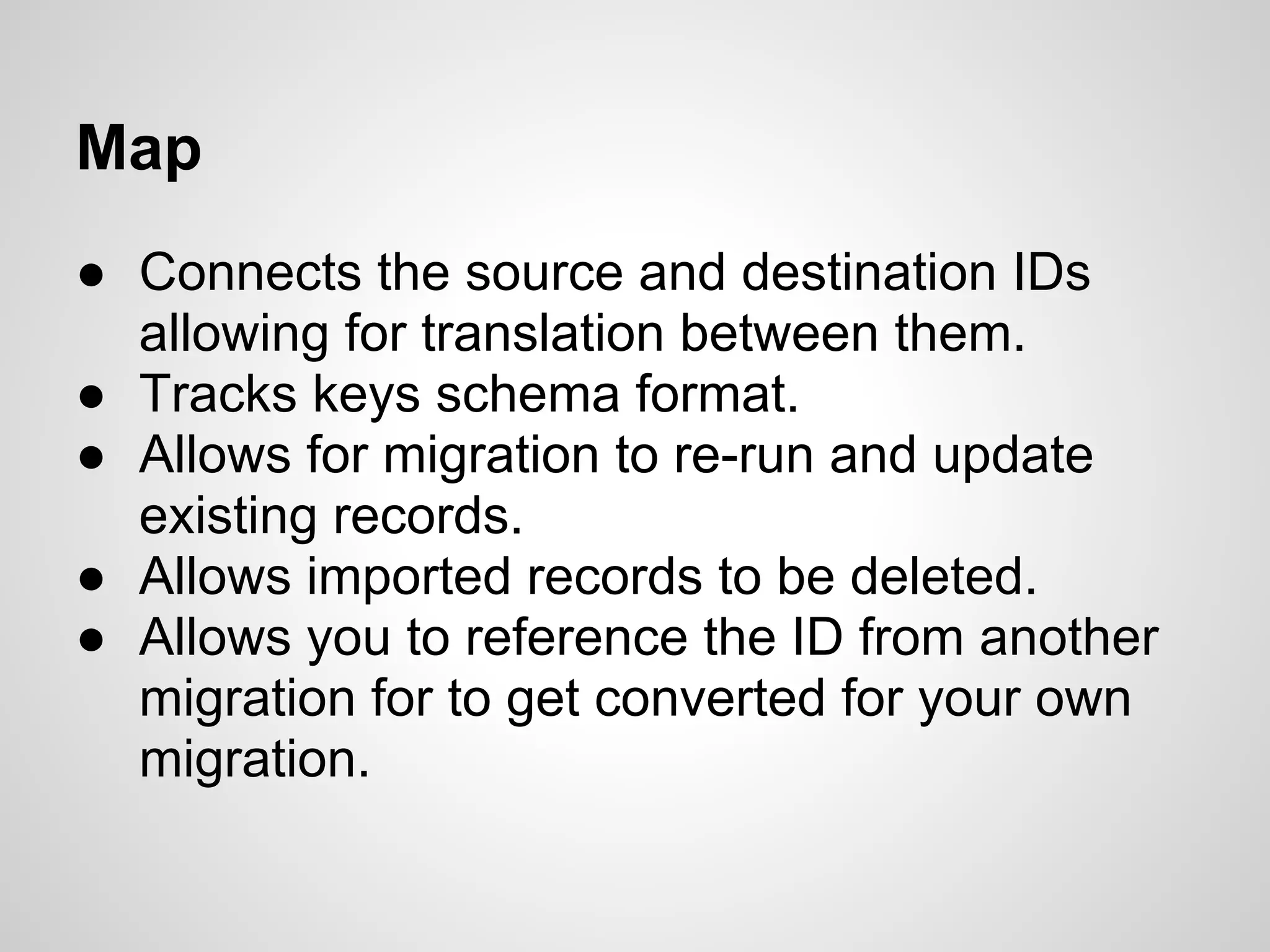

Map ● Connects the source and destination IDs allowing for translation between them. ● Tracks keys schema format. ● Allows for migration to re-run and update existing records. ● Allows imported records to be deleted. ● Allows you to reference the ID from another migration for to get converted for your own migration.

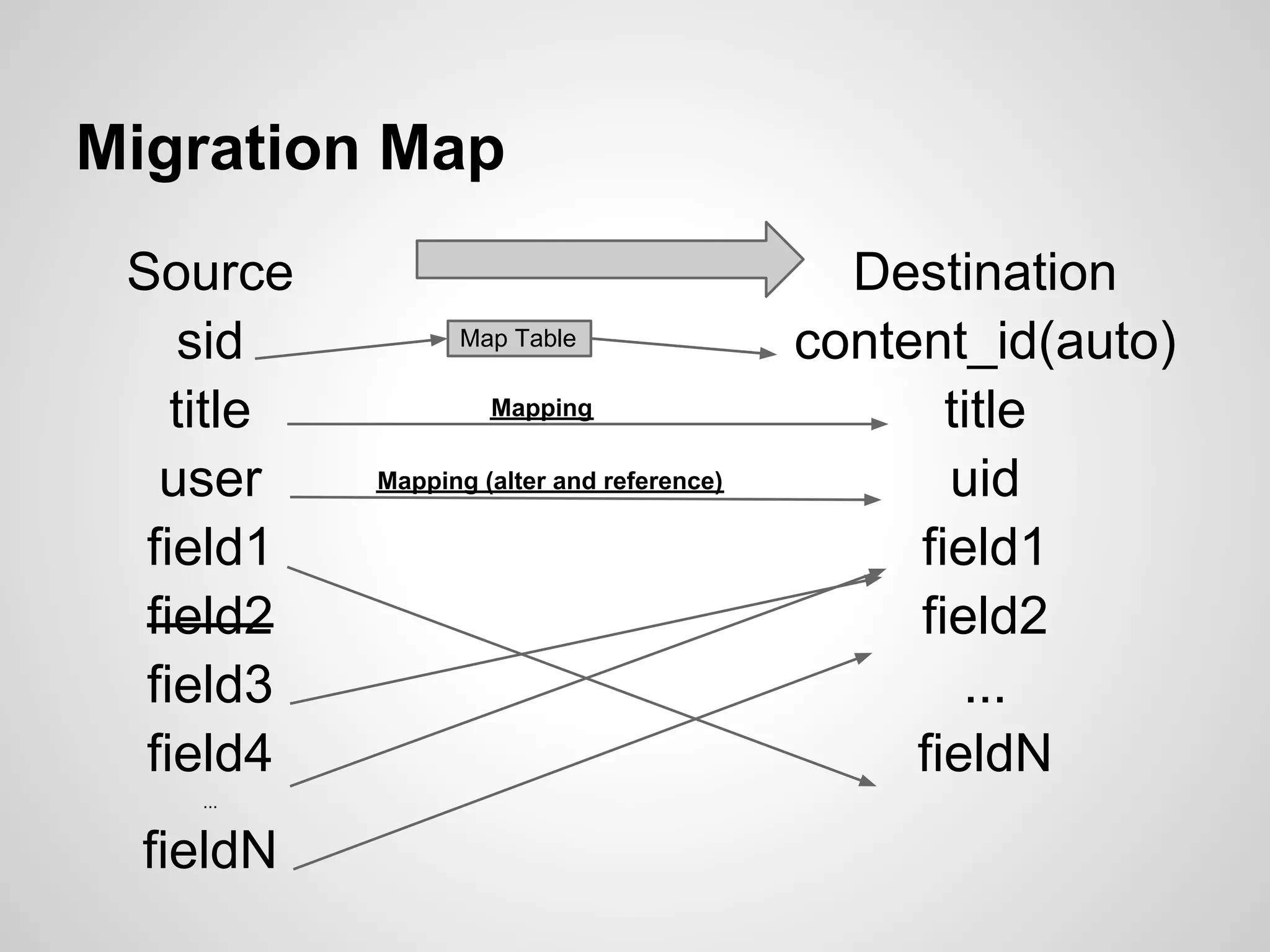

Migration Map Source Destination sid Map Table content_id(auto) title Mapping title user Mapping (alter and reference) uid field1 field1 field2 field2 field3 ... field4 fieldN ... fieldN

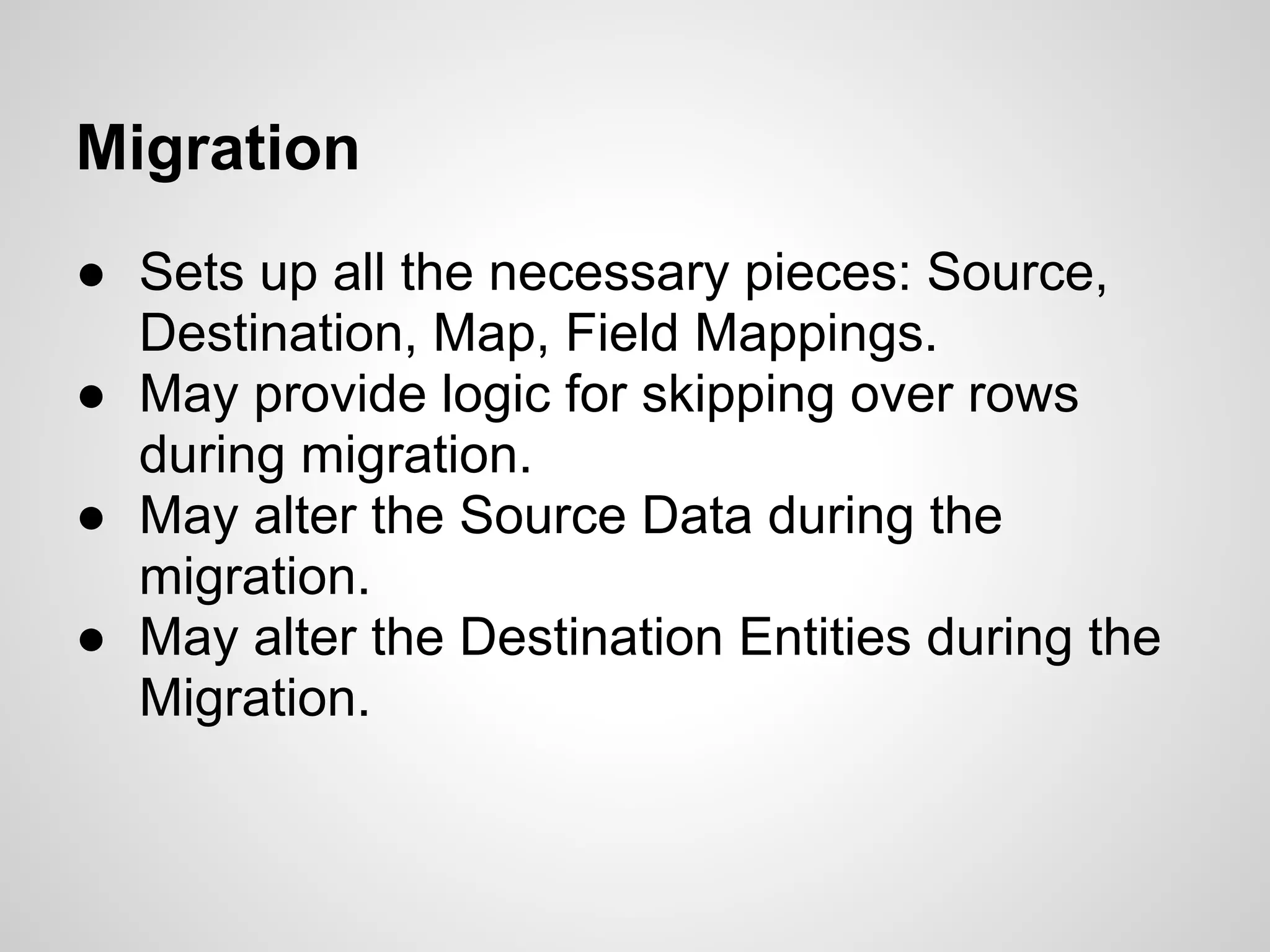

Migration ● Sets up all the necessary pieces: Source, Destination, Map, Field Mappings. ● May provide logic for skipping over rows during migration. ● May alter the Source Data during the migration. ● May alter the Destination Entities during the Migration.

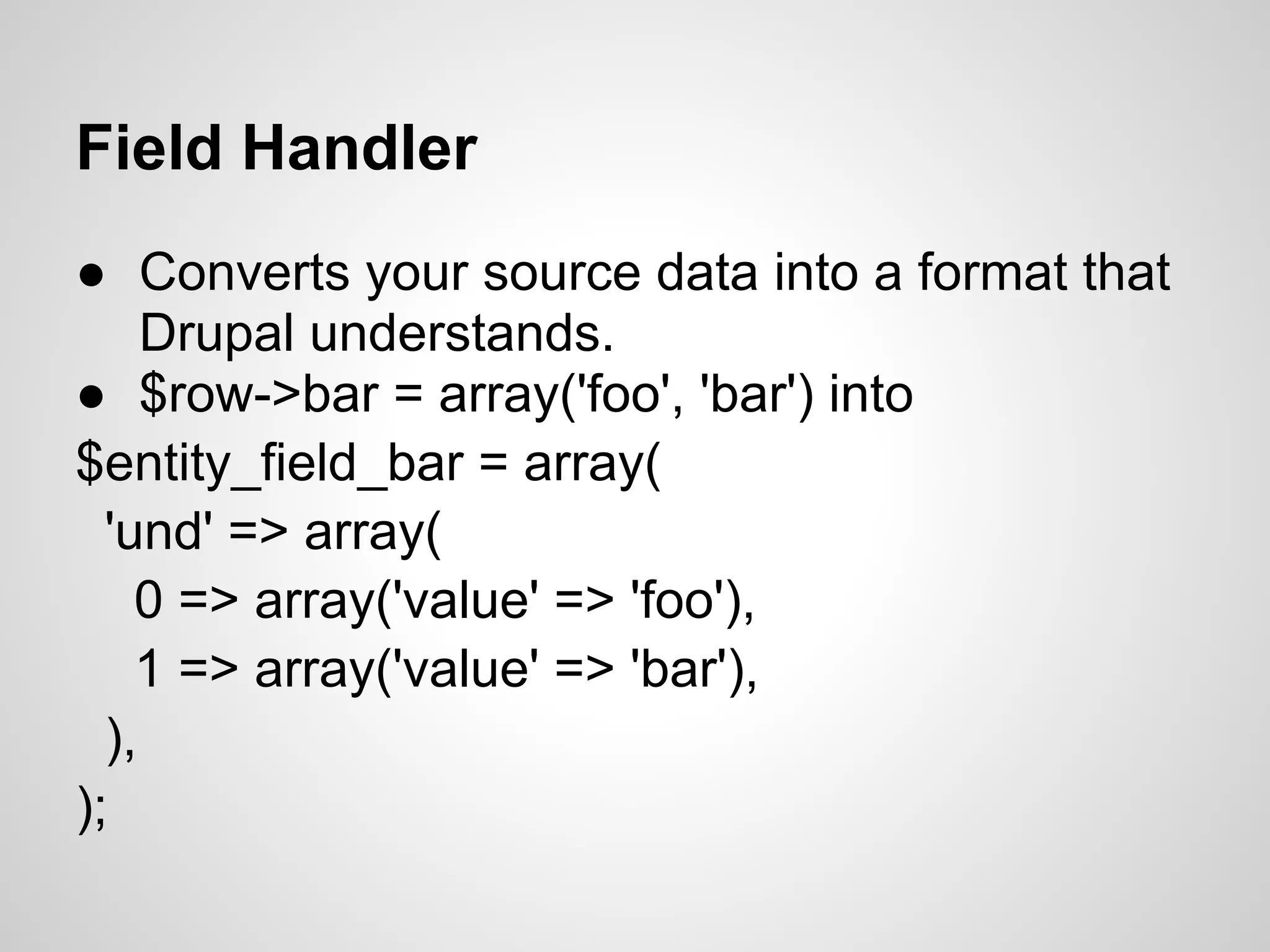

Field Handler ● Converts your source data into a format that Drupal understands. ● $row->bar = array('foo', 'bar') into $entity_field_bar = array( 'und' => array( 0 => array('value' => 'foo'), 1 => array('value' => 'bar'), ), );

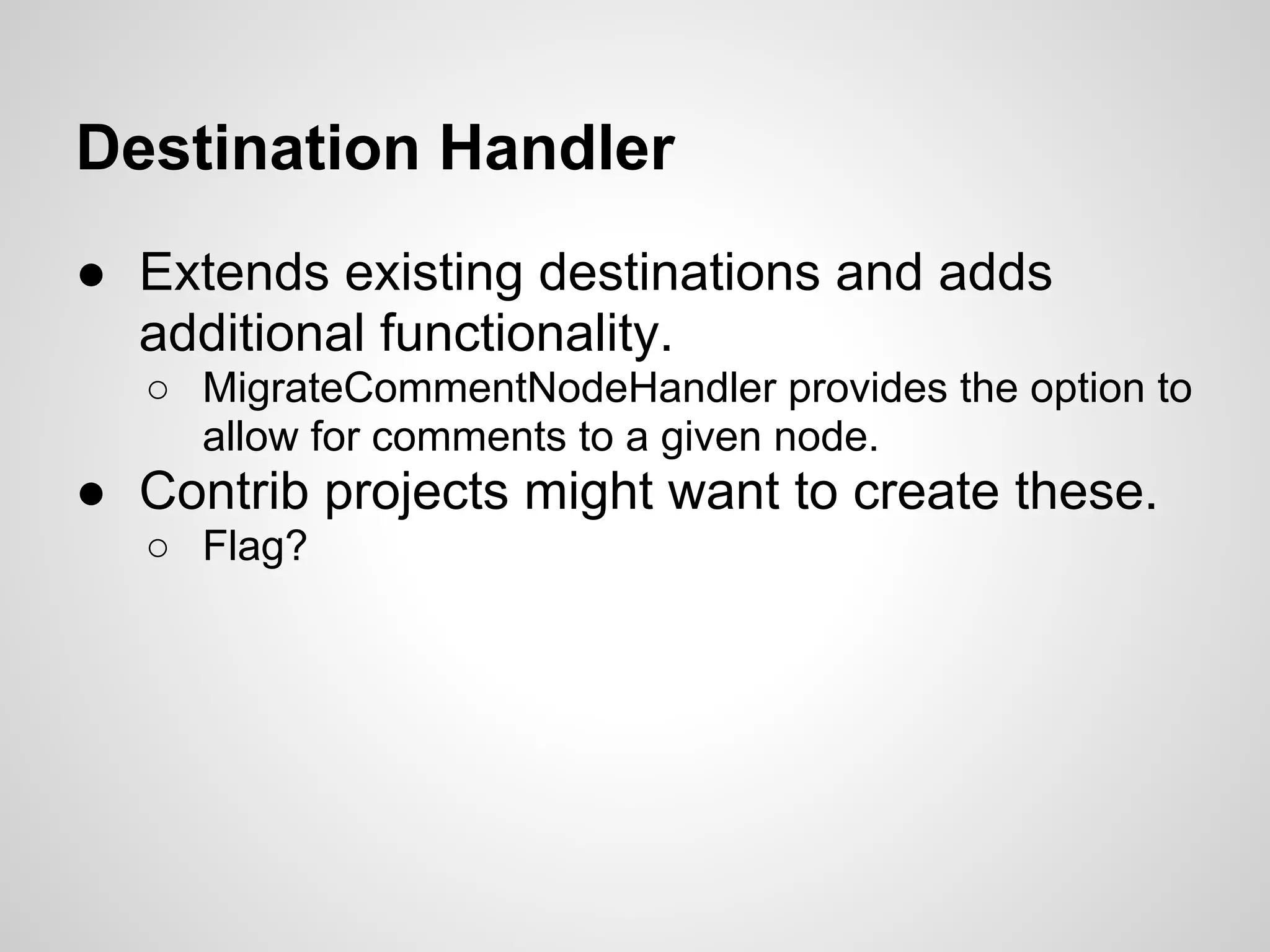

Destination Handler ● Extends existing destinations and adds additional functionality. ○ MigrateCommentNodeHandler provides the option to allow for comments to a given node. ● Contrib projects might want to create these. ○ Flag?

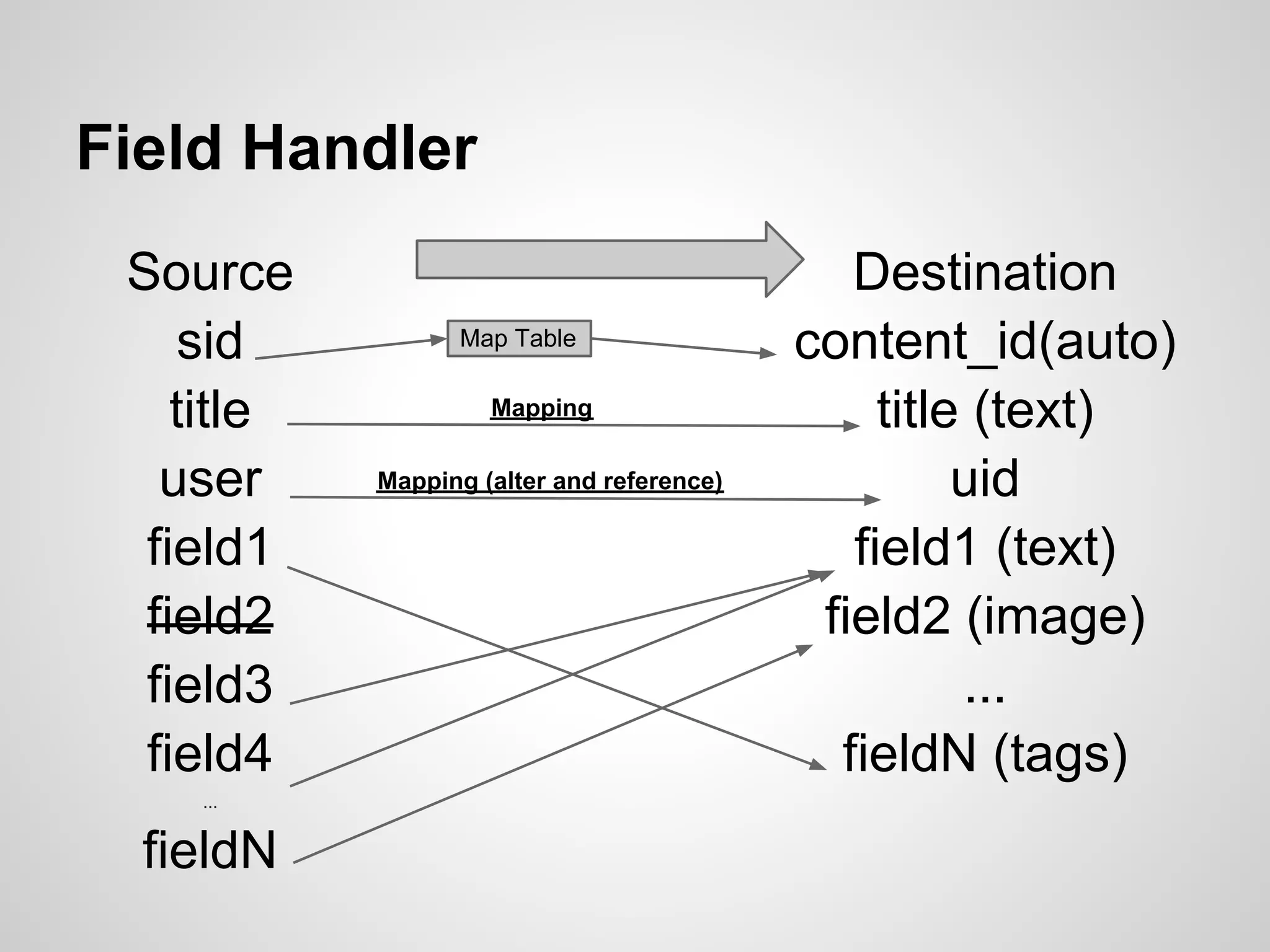

Field Handler Source Destination sid Map Table content_id(auto) title Mapping title (text) user Mapping (alter and reference) uid field1 field1 (text) field2 field2 (image) field3 ... field4 fieldN (tags) ... fieldN

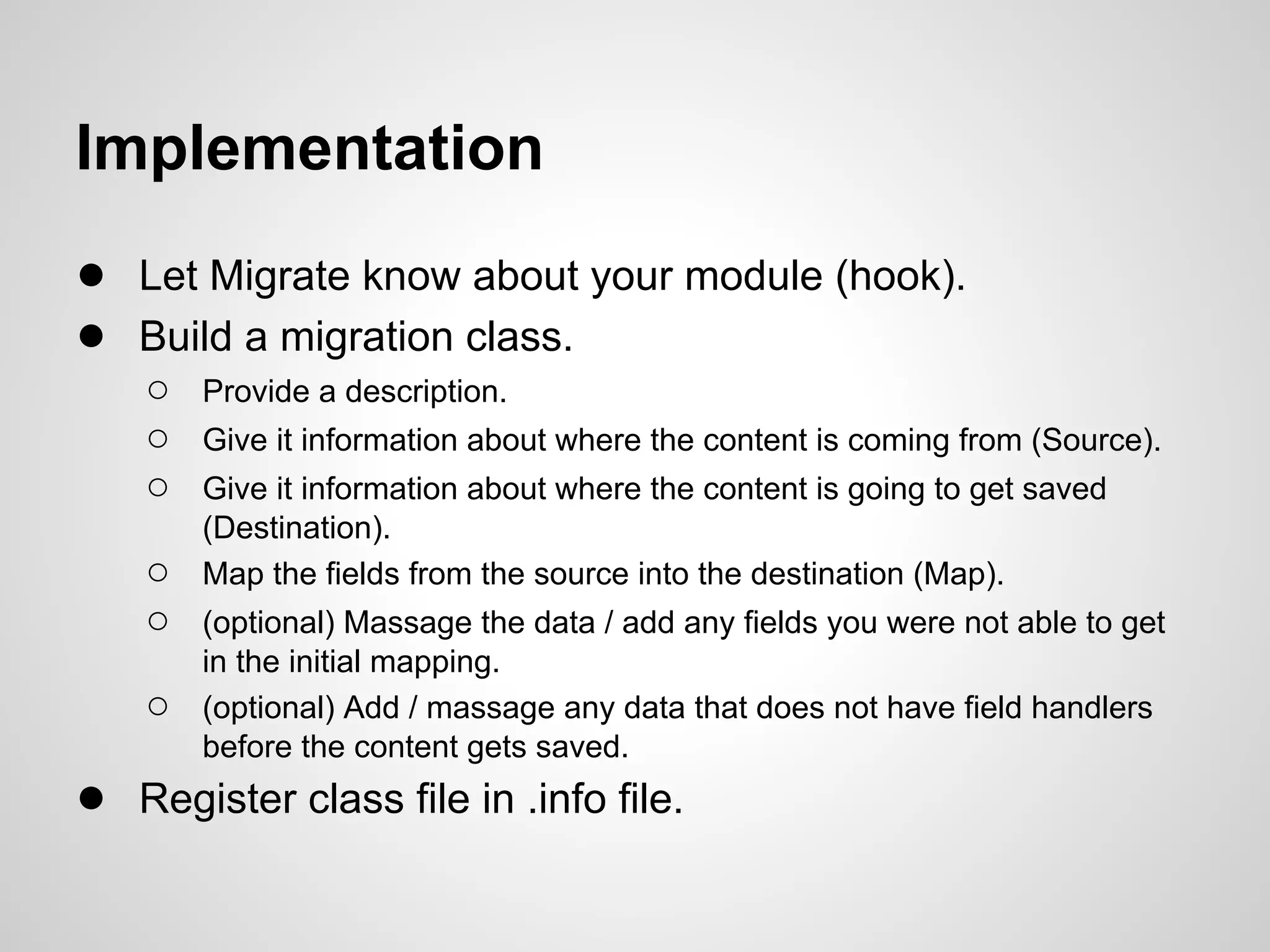

Implementation ● Let Migrate know about your module (hook). ● Build a migration class. ○ Provide a description. ○ Give it information about where the content is coming from (Source). ○ Give it information about where the content is going to get saved (Destination). ○ Map the fields from the source into the destination (Map). ○ (optional) Massage the data / add any fields you were not able to get in the initial mapping. ○ (optional) Add / massage any data that does not have field handlers before the content gets saved. ● Register class file in .info file.

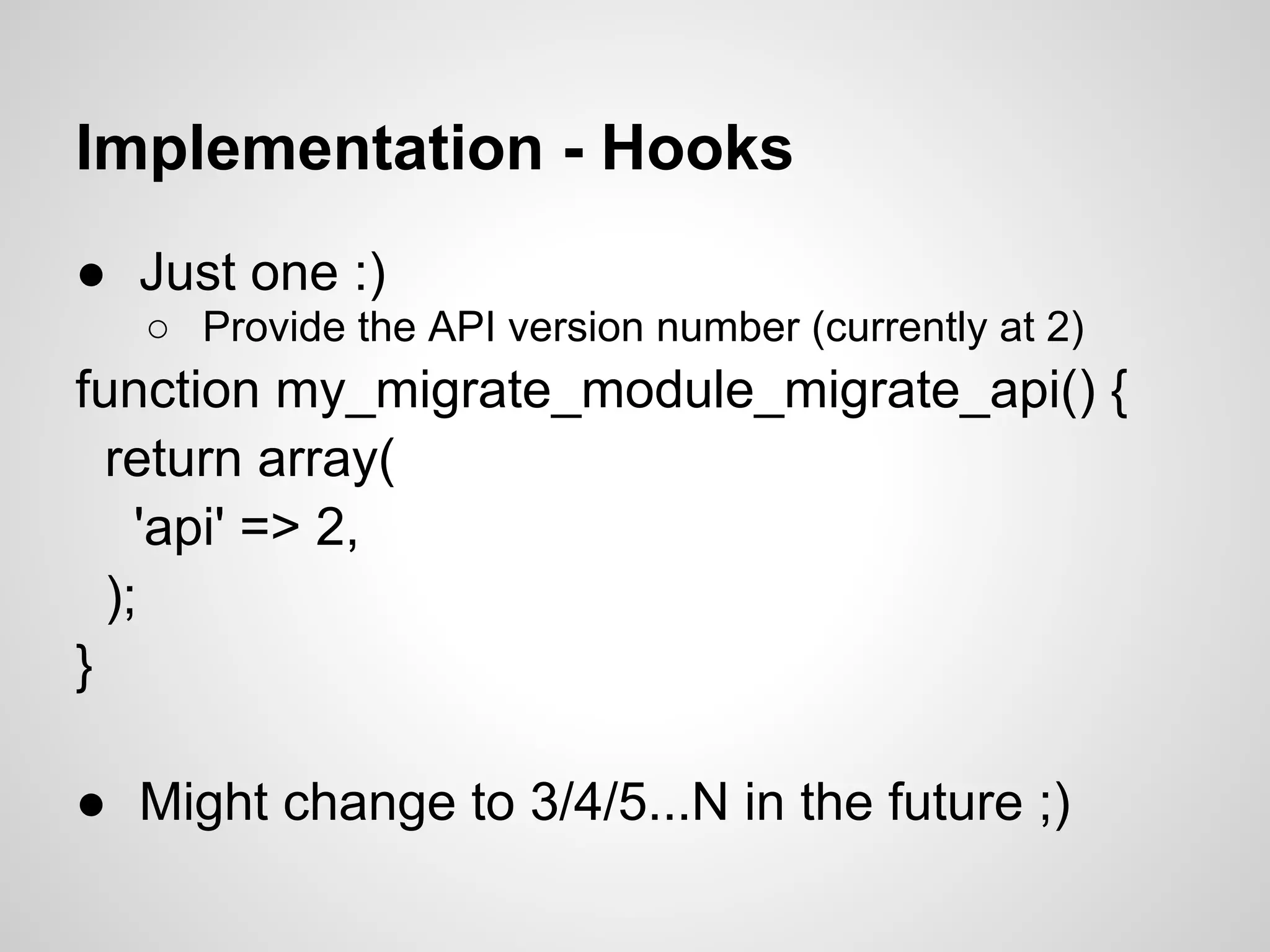

Implementation - Hooks ● Just one :) ○ Provide the API version number (currently at 2) function my_migrate_module_migrate_api() { return array( 'api' => 2, ); } ● Might change to 3/4/5...N in the future ;)

Implementation - Class ● Consists of at least 1 function and 3 optional functions. class MYBundleMigration extends Migration { public function __construct() { ... } # REQ'D. public function prepareRow($row) public function prepare($entity, $row) public function complete($entity, $row) }

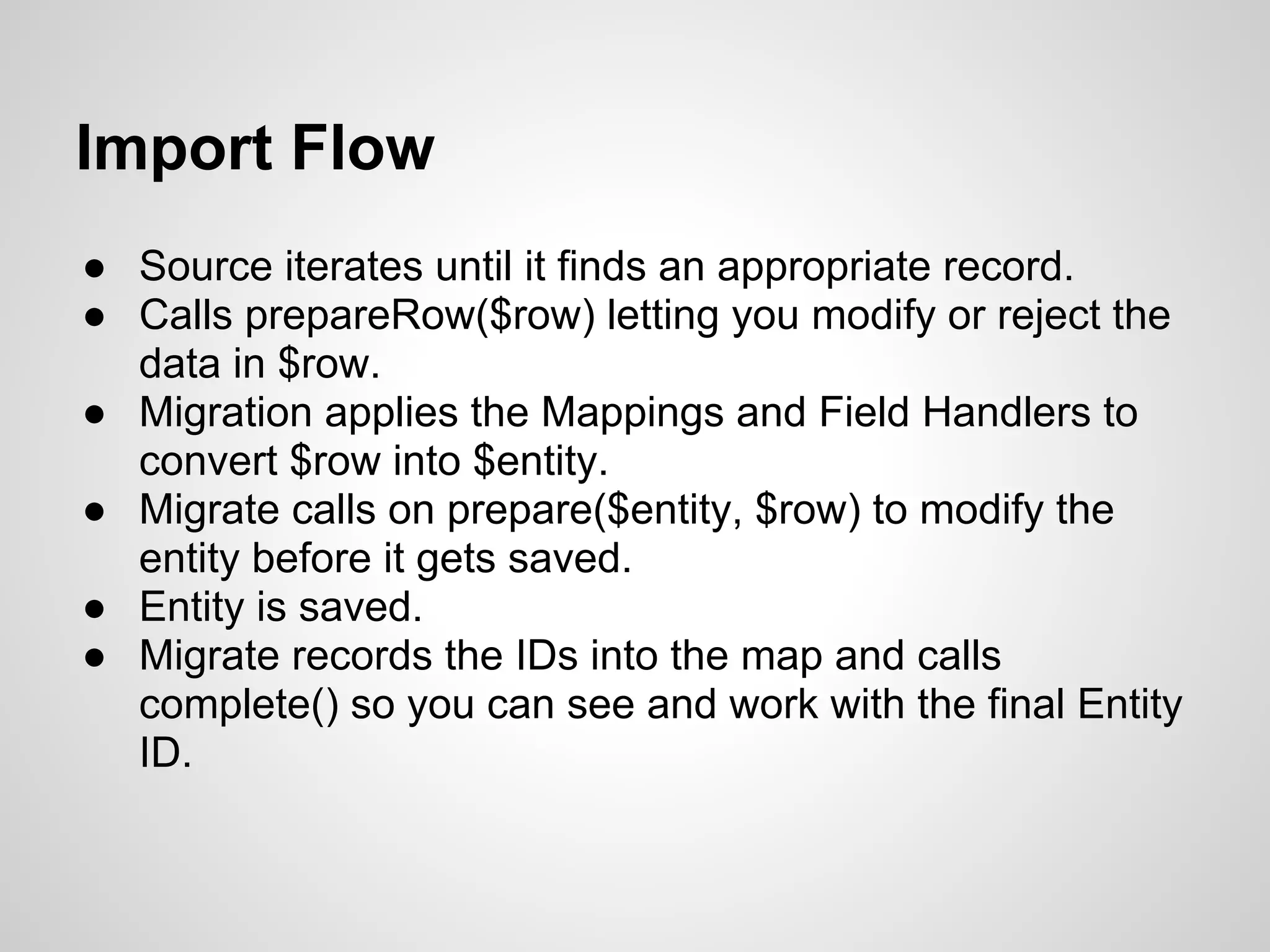

Import Flow ● Source iterates until it finds an appropriate record. ● Calls prepareRow($row) letting you modify or reject the data in $row. ● Migration applies the Mappings and Field Handlers to convert $row into $entity. ● Migrate calls on prepare($entity, $row) to modify the entity before it gets saved. ● Entity is saved. ● Migrate records the IDs into the map and calls complete() so you can see and work with the final Entity ID.

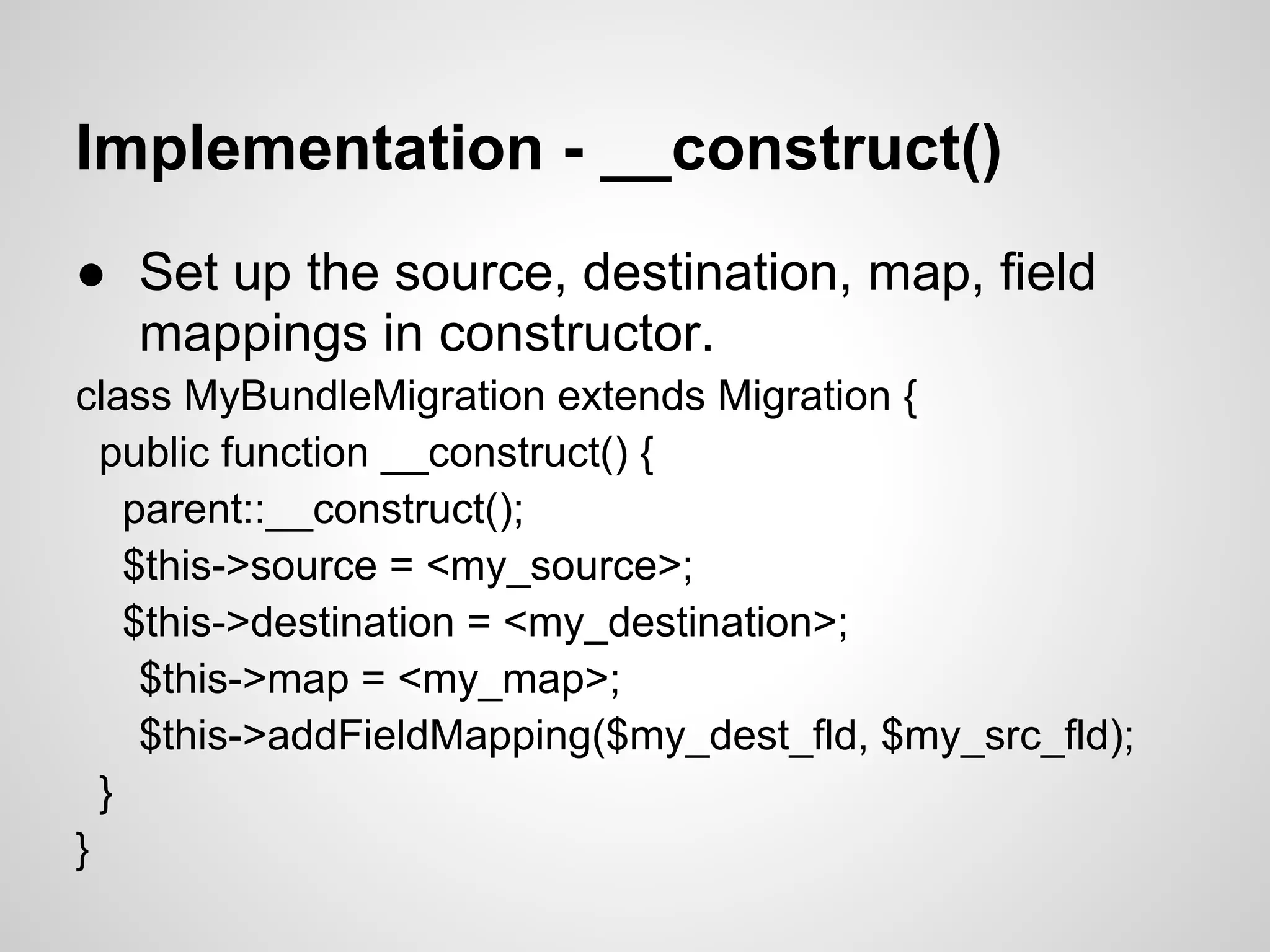

Implementation - __construct() ● Set up the source, destination, map, field mappings in constructor. class MyBundleMigration extends Migration { public function __construct() { parent::__construct(); $this->source = <my_source>; $this->destination = <my_destination>; $this->map = <my_map>; $this->addFieldMapping($my_dest_fld, $my_src_fld); } }

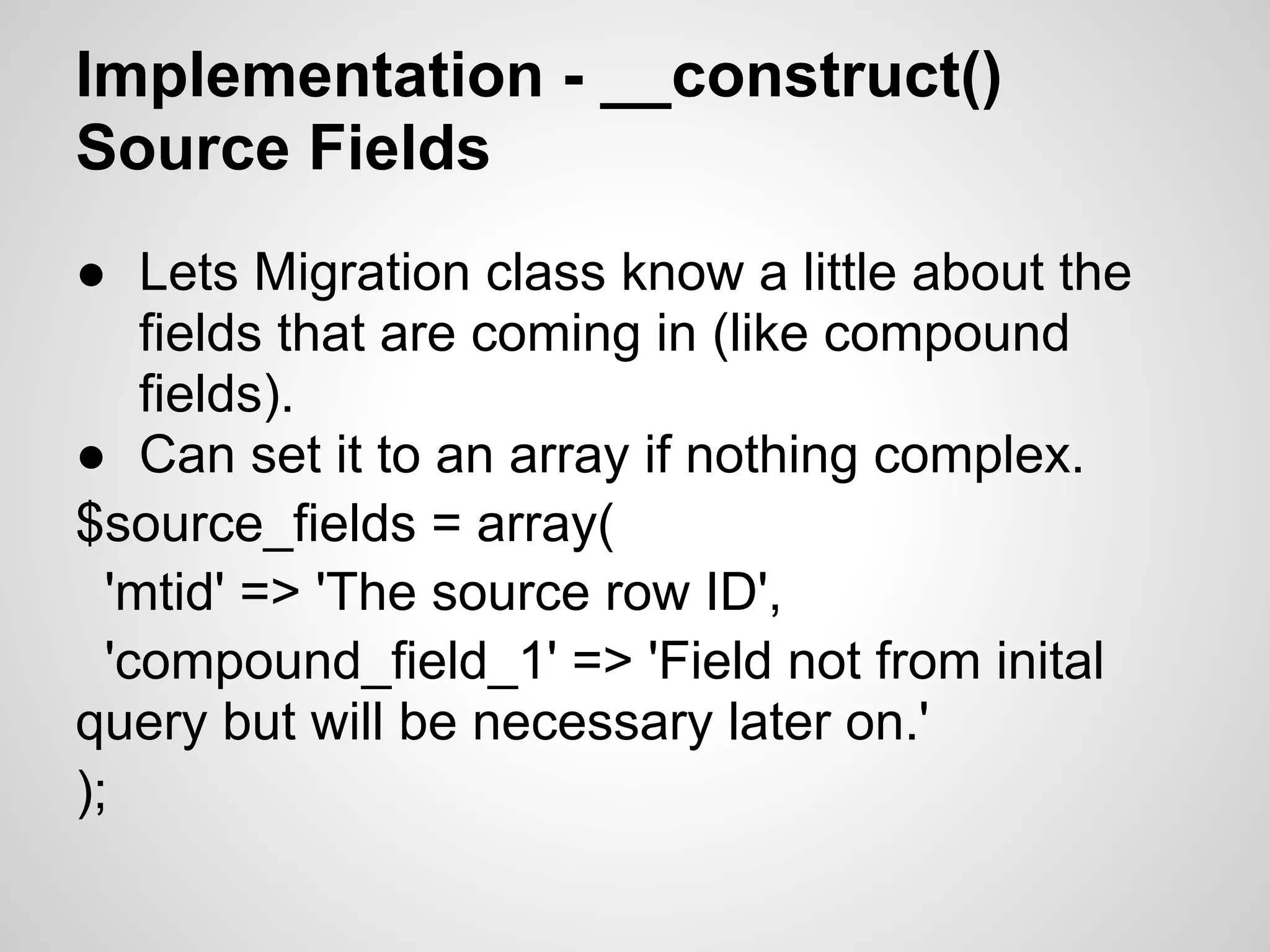

Implementation - __construct() Source Fields ● Lets Migration class know a little about the fields that are coming in (like compound fields). ● Can set it to an array if nothing complex. $source_fields = array( 'mtid' => 'The source row ID', 'compound_field_1' => 'Field not from inital query but will be necessary later on.' );

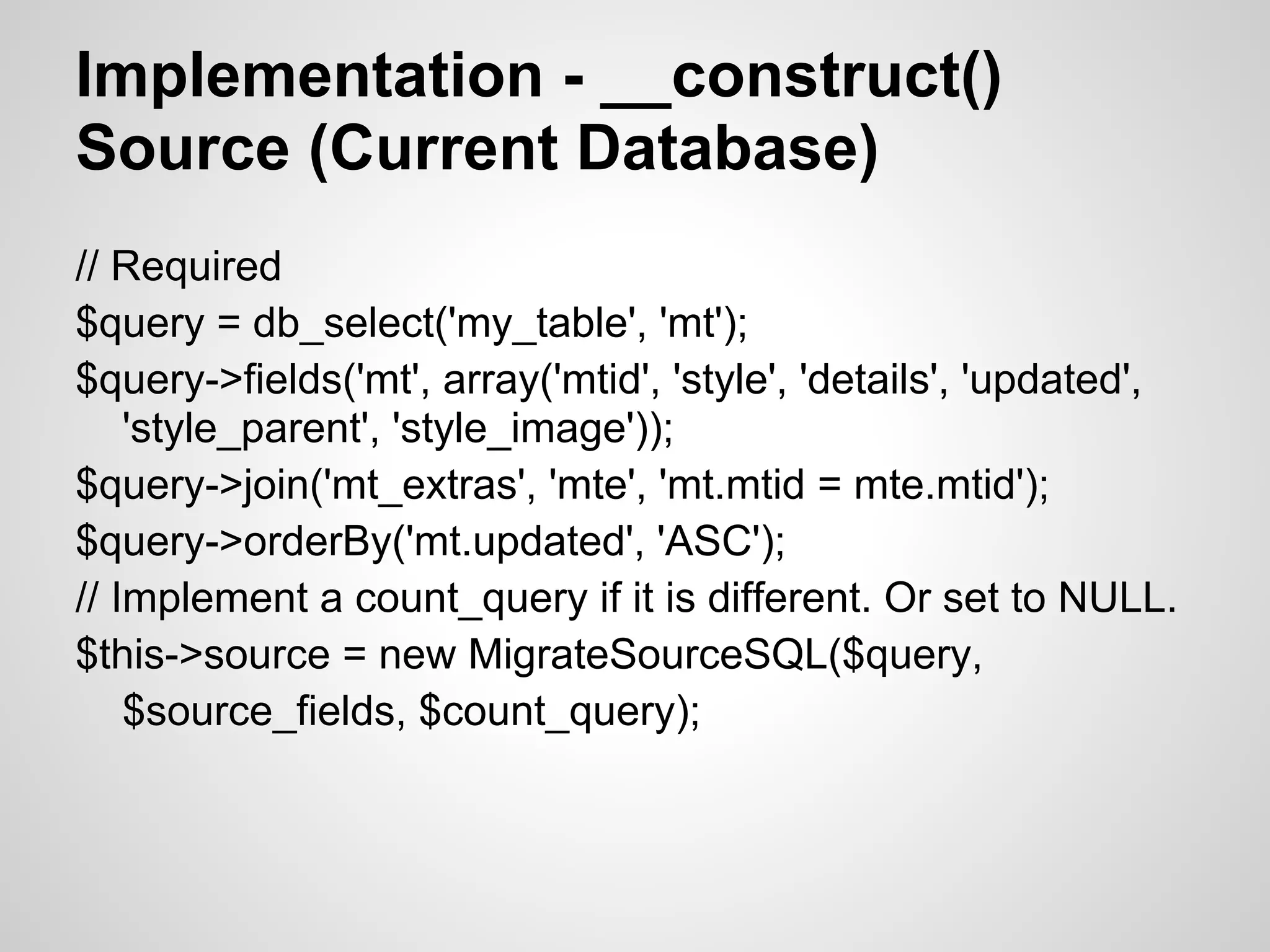

Implementation - __construct() Source (Current Database) // Required $query = db_select('my_table', 'mt'); $query->fields('mt', array('mtid', 'style', 'details', 'updated', 'style_parent', 'style_image')); $query->join('mt_extras', 'mte', 'mt.mtid = mte.mtid'); $query->orderBy('mt.updated', 'ASC'); // Implement a count_query if it is different. Or set to NULL. $this->source = new MigrateSourceSQL($query, $source_fields, $count_query);

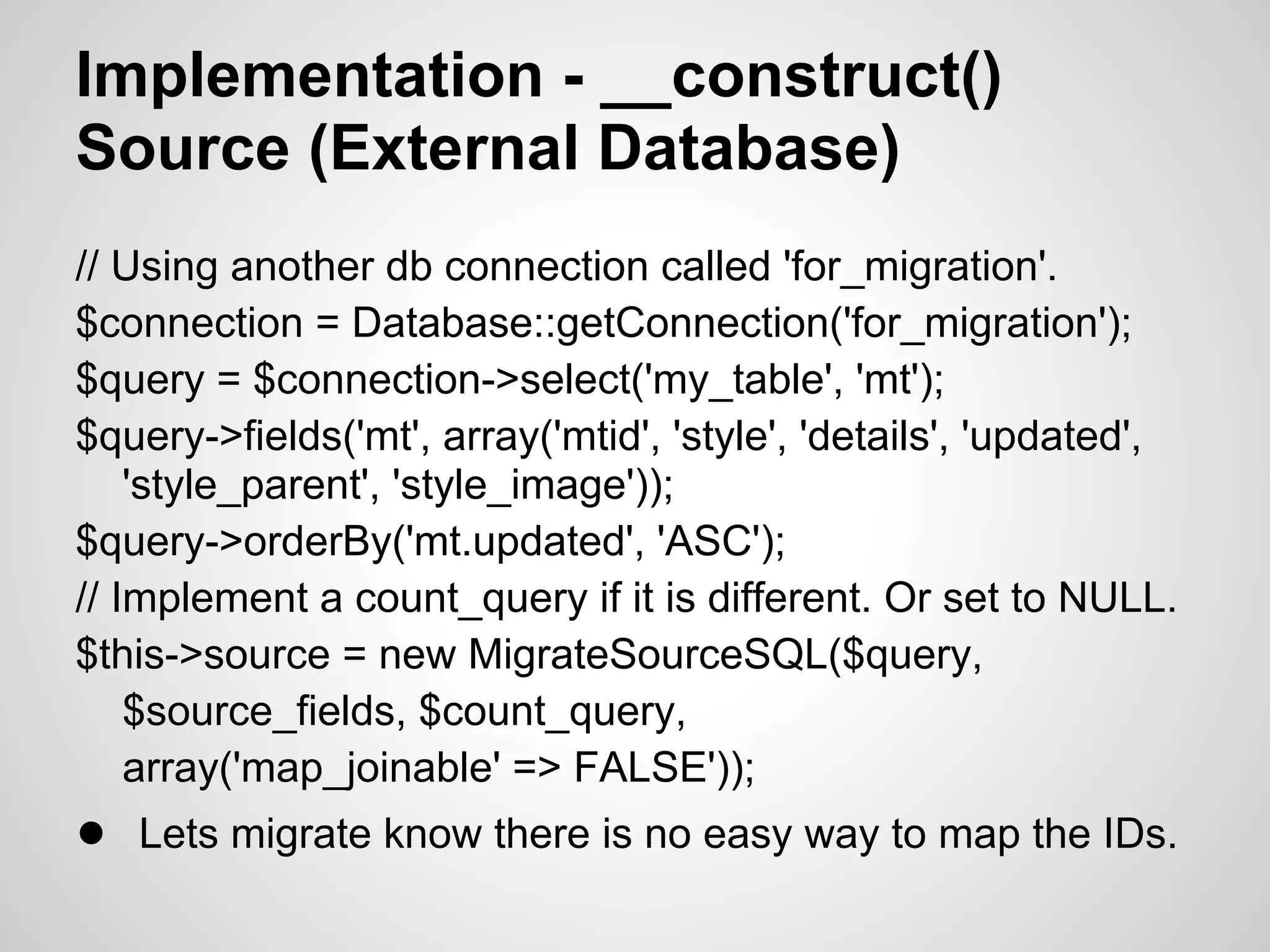

Implementation - __construct() Source (External Database) // Using another db connection called 'for_migration'. $connection = Database::getConnection('for_migration'); $query = $connection->select('my_table', 'mt'); $query->fields('mt', array('mtid', 'style', 'details', 'updated', 'style_parent', 'style_image')); $query->orderBy('mt.updated', 'ASC'); // Implement a count_query if it is different. Or set to NULL. $this->source = new MigrateSourceSQL($query, $source_fields, $count_query, array('map_joinable' => FALSE')); ● Lets migrate know there is no easy way to map the IDs.

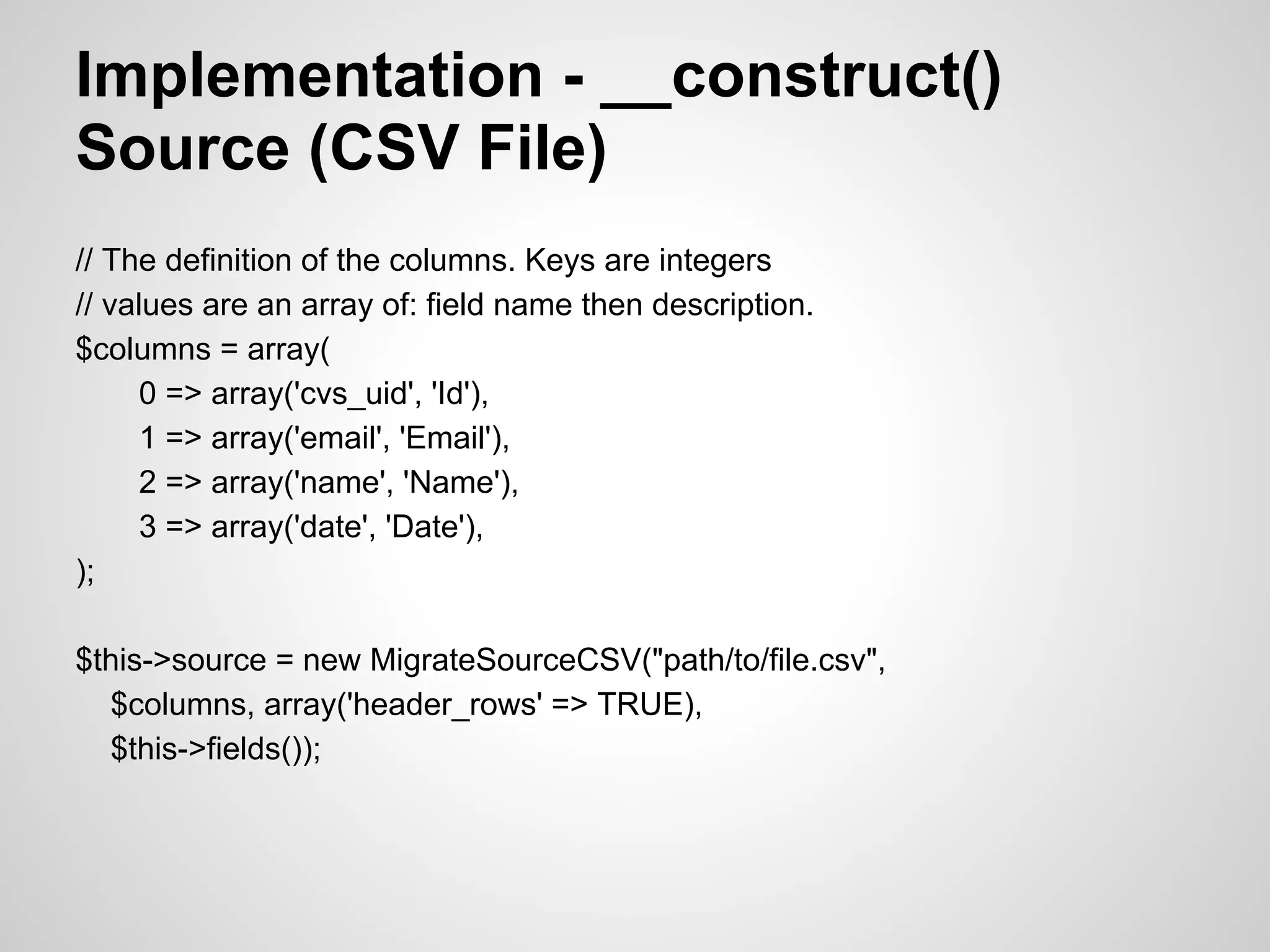

Implementation - __construct() Source (CSV File) // The definition of the columns. Keys are integers // values are an array of: field name then description. $columns = array( 0 => array('cvs_uid', 'Id'), 1 => array('email', 'Email'), 2 => array('name', 'Name'), 3 => array('date', 'Date'), ); $this->source = new MigrateSourceCSV("path/to/file.csv", $columns, array('header_rows' => TRUE), $this->fields());

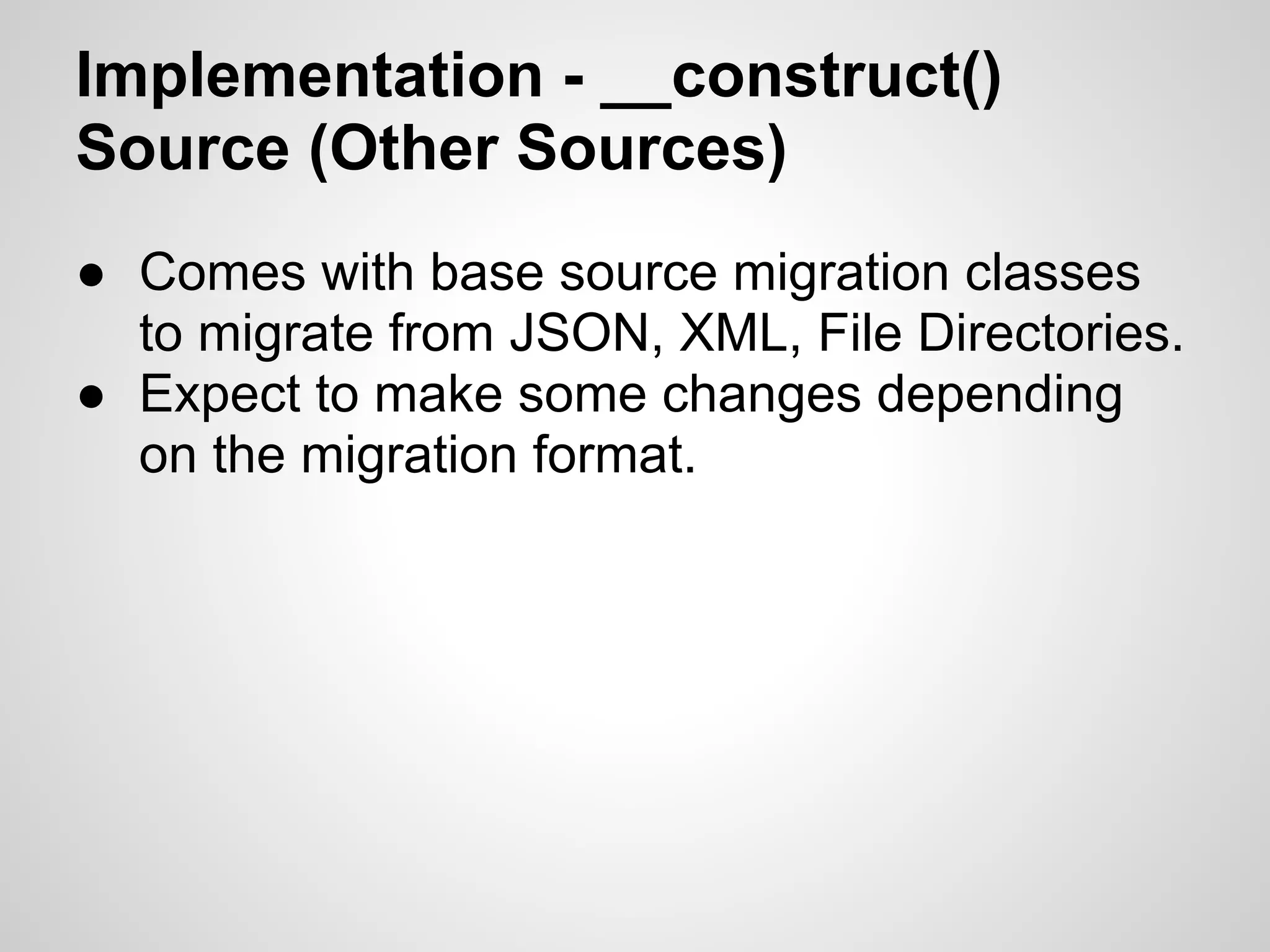

Implementation - __construct() Source (Other Sources) ● Comes with base source migration classes to migrate from JSON, XML, File Directories. ● Expect to make some changes depending on the migration format.

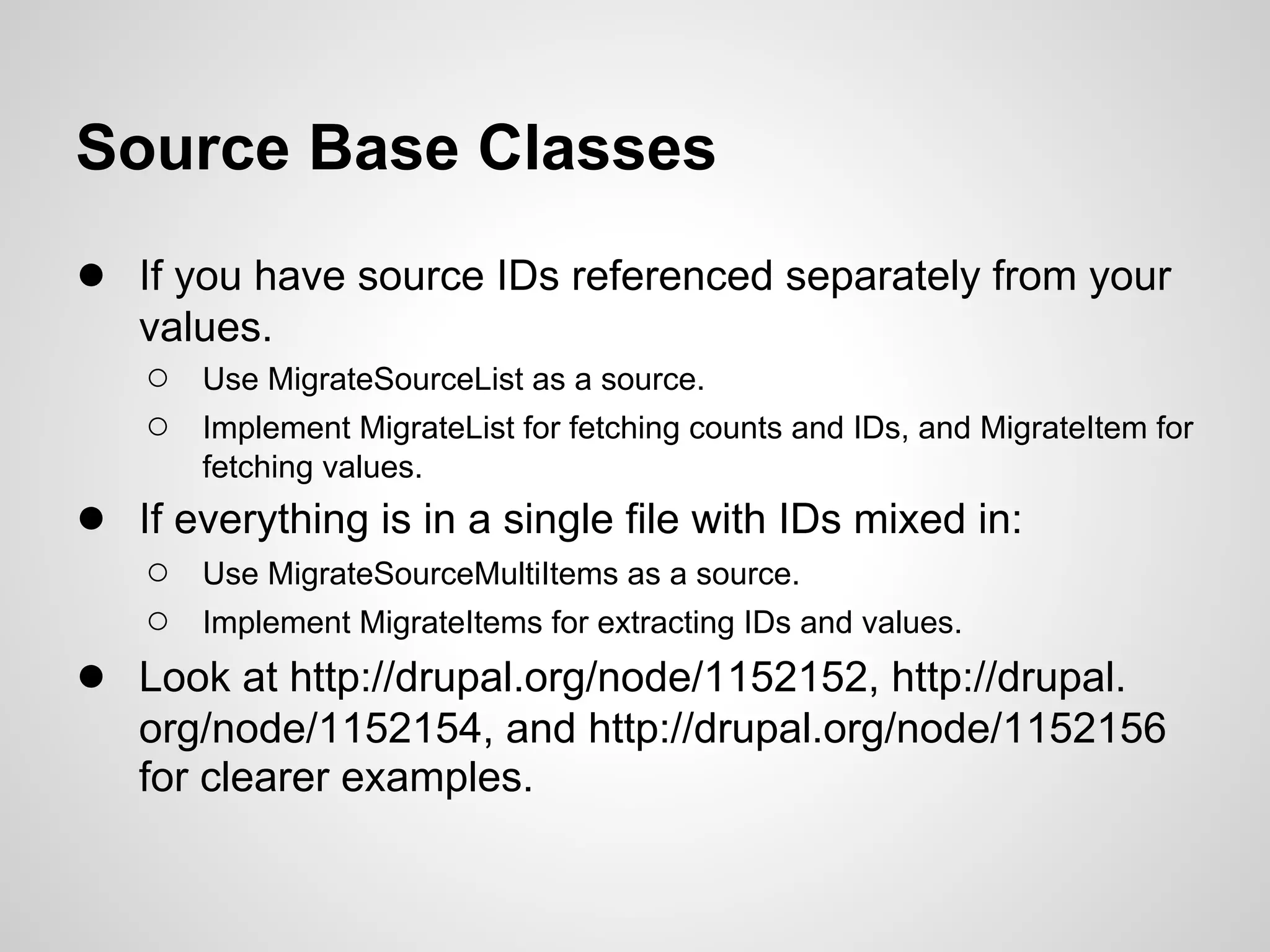

Source Base Classes ● If you have source IDs referenced separately from your values. ○ Use MigrateSourceList as a source. ○ Implement MigrateList for fetching counts and IDs, and MigrateItem for fetching values. ● If everything is in a single file with IDs mixed in: ○ Use MigrateSourceMultiItems as a source. ○ Implement MigrateItems for extracting IDs and values. ● Look at http://drupal.org/node/1152152, http://drupal. org/node/1152154, and http://drupal.org/node/1152156 for clearer examples.

Implementation - __construct() Migration Map $this->map = new MigrateSQLMap($this->machineName, // Describe your primary ID schema array( 'mtid' => array( 'type' => 'integer', 'unsigned' => TRUE, 'not null' => TRUE, 'alias' => 'mt' ), ), MigrateDestinationNode::getKeySchema() );

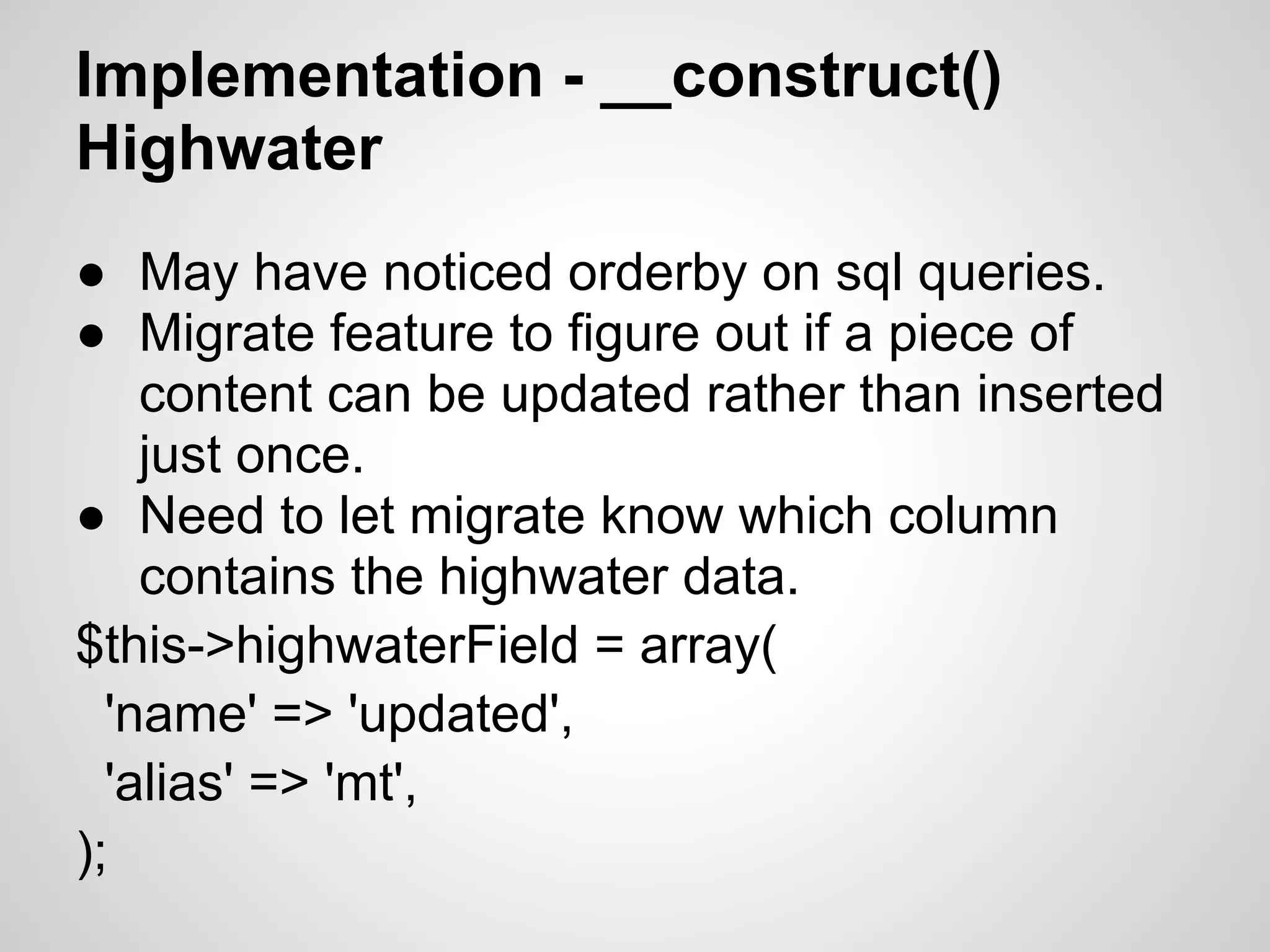

Implementation - __construct() Highwater ● May have noticed orderby on sql queries. ● Migrate feature to figure out if a piece of content can be updated rather than inserted just once. ● Need to let migrate know which column contains the highwater data. $this->highwaterField = array( 'name' => 'updated', 'alias' => 'mt', );

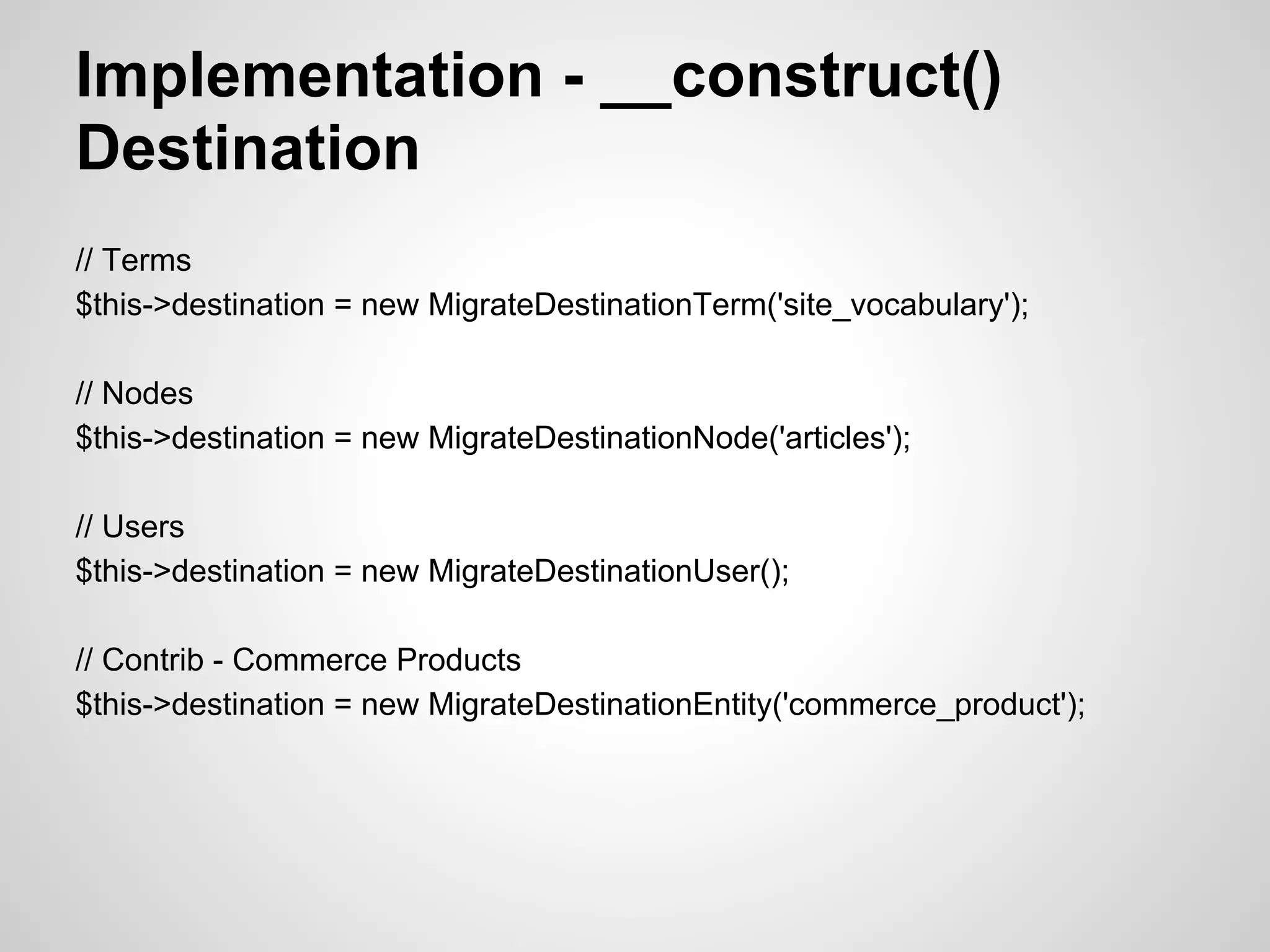

Implementation - __construct() Destination // Terms $this->destination = new MigrateDestinationTerm('site_vocabulary'); // Nodes $this->destination = new MigrateDestinationNode('articles'); // Users $this->destination = new MigrateDestinationUser(); // Contrib - Commerce Products $this->destination = new MigrateDestinationEntity('commerce_product');

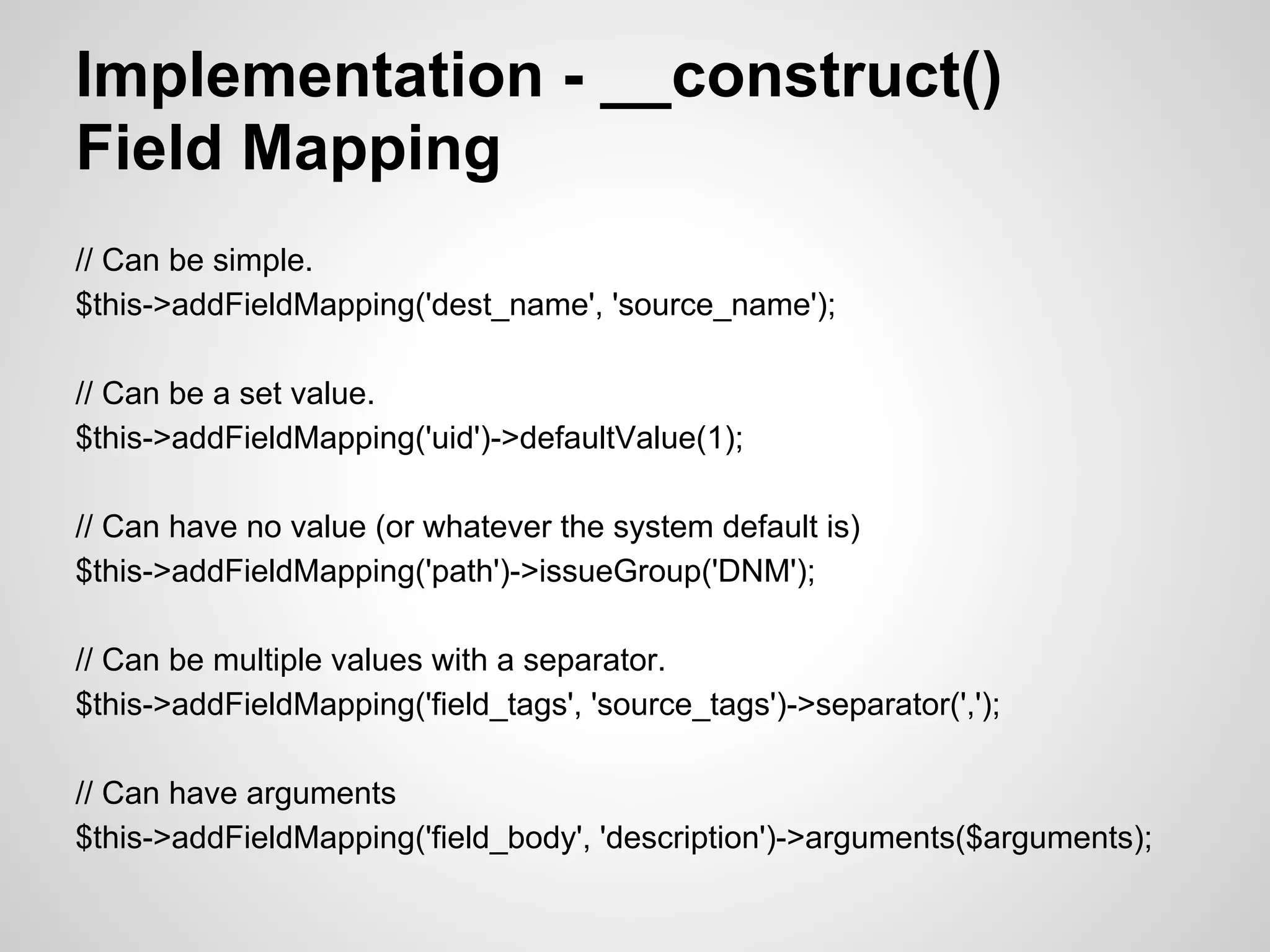

Implementation - __construct() Field Mapping // Can be simple. $this->addFieldMapping('dest_name', 'source_name'); // Can be a set value. $this->addFieldMapping('uid')->defaultValue(1); // Can have no value (or whatever the system default is) $this->addFieldMapping('path')->issueGroup('DNM'); // Can be multiple values with a separator. $this->addFieldMapping('field_tags', 'source_tags')->separator(','); // Can have arguments $this->addFieldMapping('field_body', 'description')->arguments($arguments);

Implementation - __construct() Field Mapping (cont'd) ● Most meta settings for fields now also field mappings. ○ $this->addFieldMapping('field_body:teaser', 'teaser_source_field'); ○ Implemented for field handlers via the fields() function in 2.4. ○ Just provide scalar or array! ● 'More' Mapping. ○ Simpler to understand. ● Still some magic. ○ Files mappings still strange. ○ http://drupal.org/node/1540106 ○ Create a destination dir for files as tokens are iffy. Or migrate via file IDs (easier)

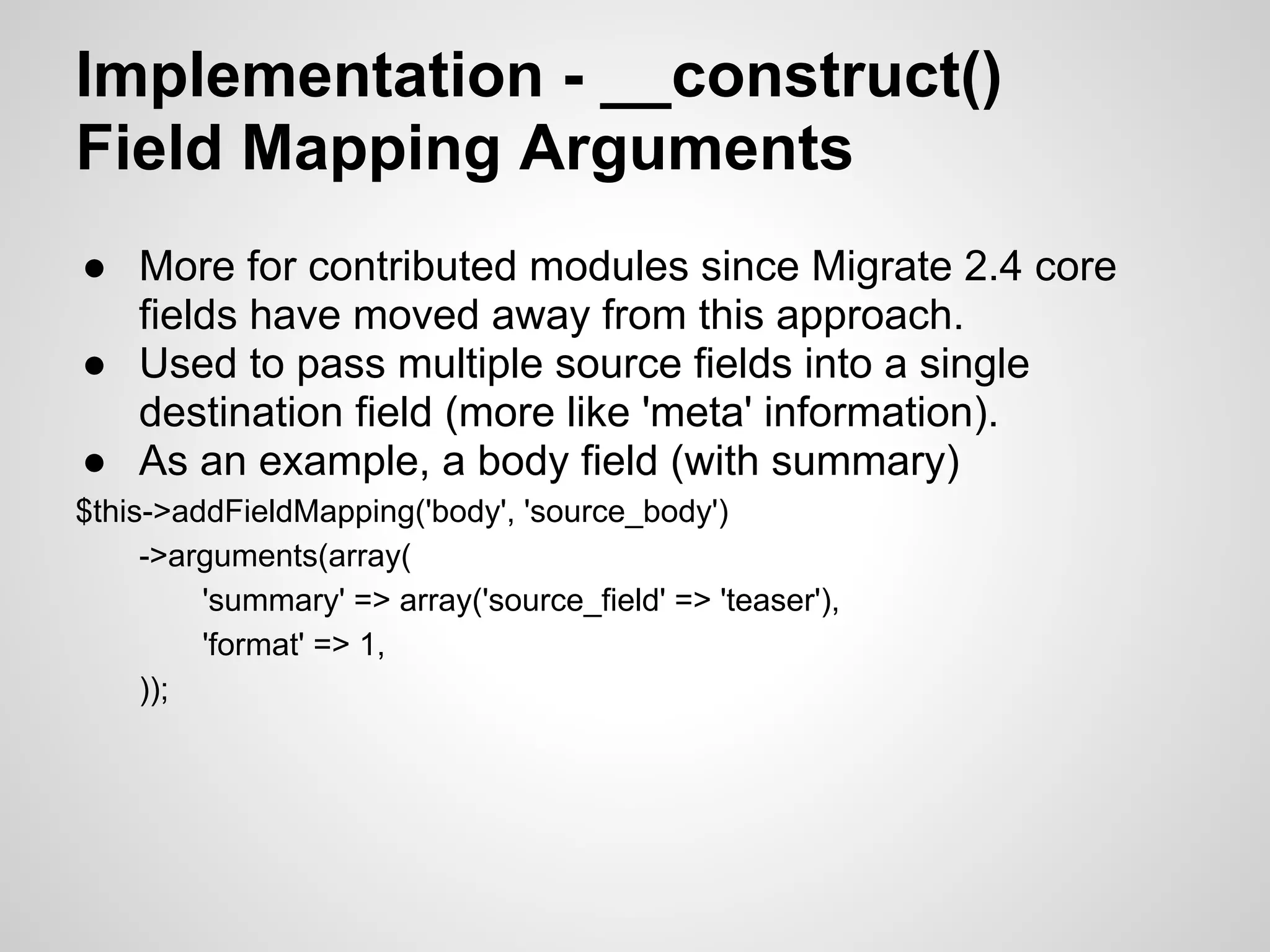

Implementation - __construct() Field Mapping Arguments ● More for contributed modules since Migrate 2.4 core fields have moved away from this approach. ● Used to pass multiple source fields into a single destination field (more like 'meta' information). ● As an example, a body field (with summary) $this->addFieldMapping('body', 'source_body') ->arguments(array( 'summary' => array('source_field' => 'teaser'), 'format' => 1, ));

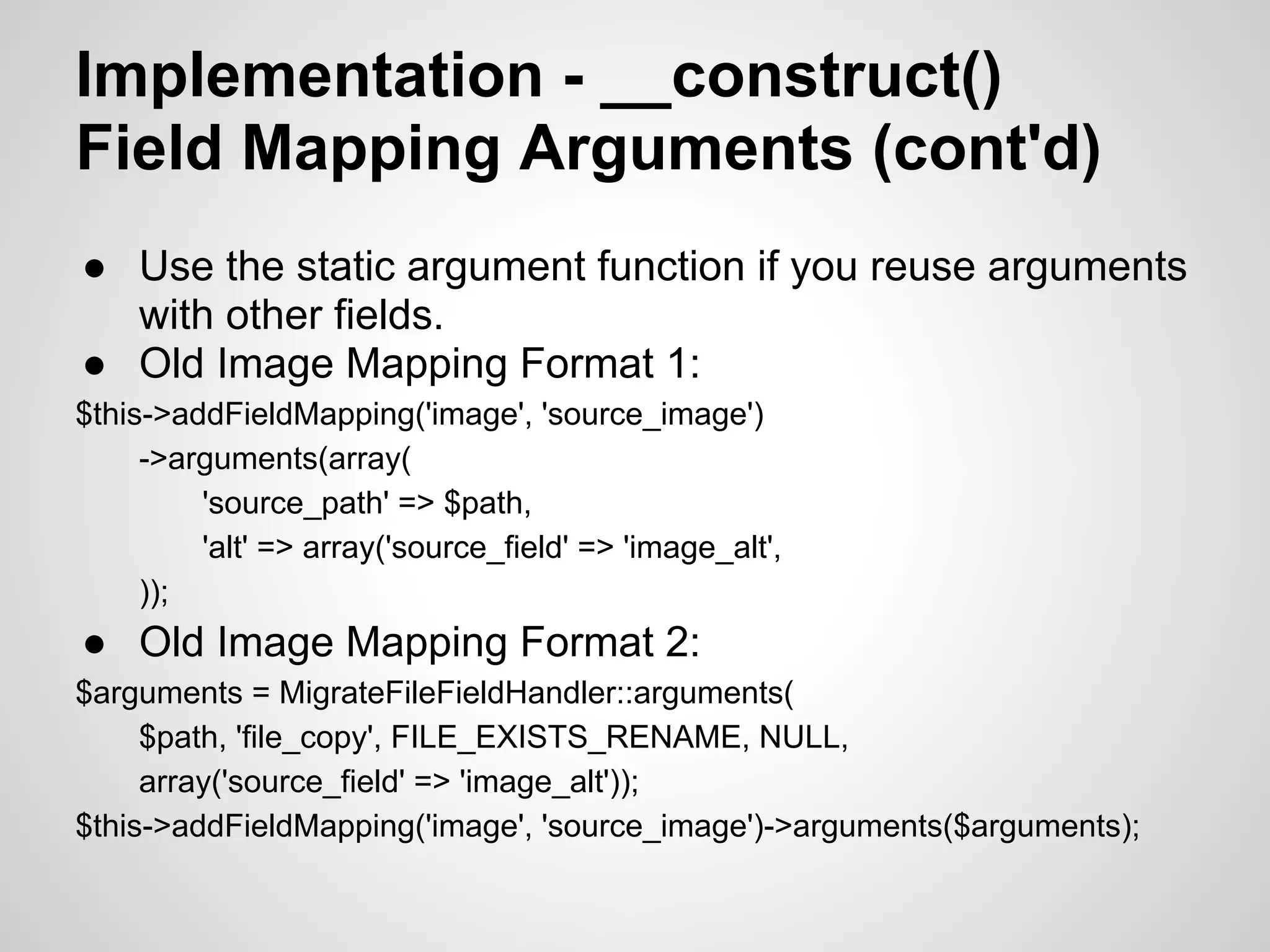

Implementation - __construct() Field Mapping Arguments (cont'd) ● Use the static argument function if you reuse arguments with other fields. ● Old Image Mapping Format 1: $this->addFieldMapping('image', 'source_image') ->arguments(array( 'source_path' => $path, 'alt' => array('source_field' => 'image_alt', )); ● Old Image Mapping Format 2: $arguments = MigrateFileFieldHandler::arguments( $path, 'file_copy', FILE_EXISTS_RENAME, NULL, array('source_field' => 'image_alt')); $this->addFieldMapping('image', 'source_image')->arguments($arguments);

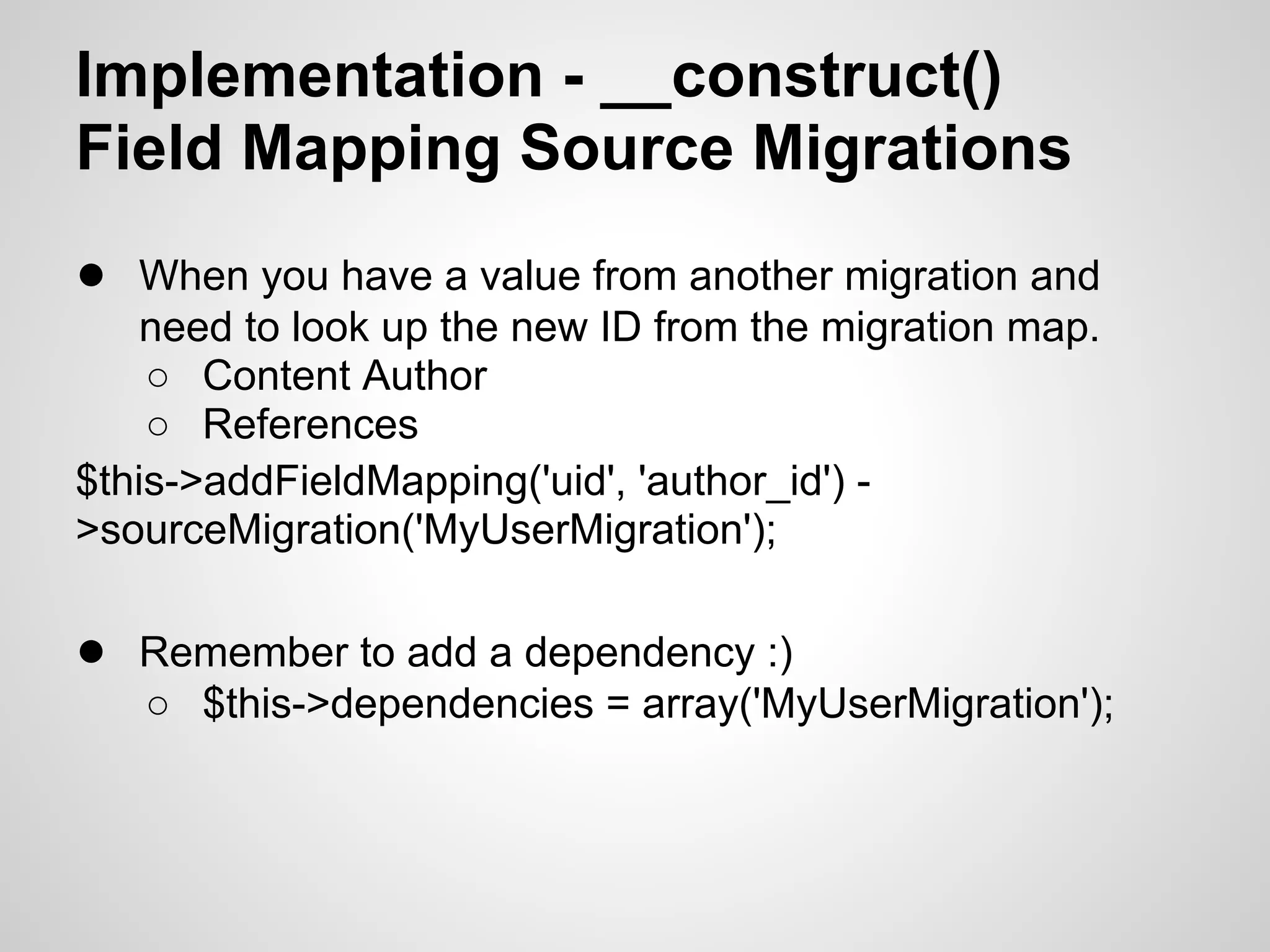

Implementation - __construct() Field Mapping Source Migrations ● When you have a value from another migration and need to look up the new ID from the migration map. ○ Content Author ○ References $this->addFieldMapping('uid', 'author_id') - >sourceMigration('MyUserMigration'); ● Remember to add a dependency :) ○ $this->dependencies = array('MyUserMigration');

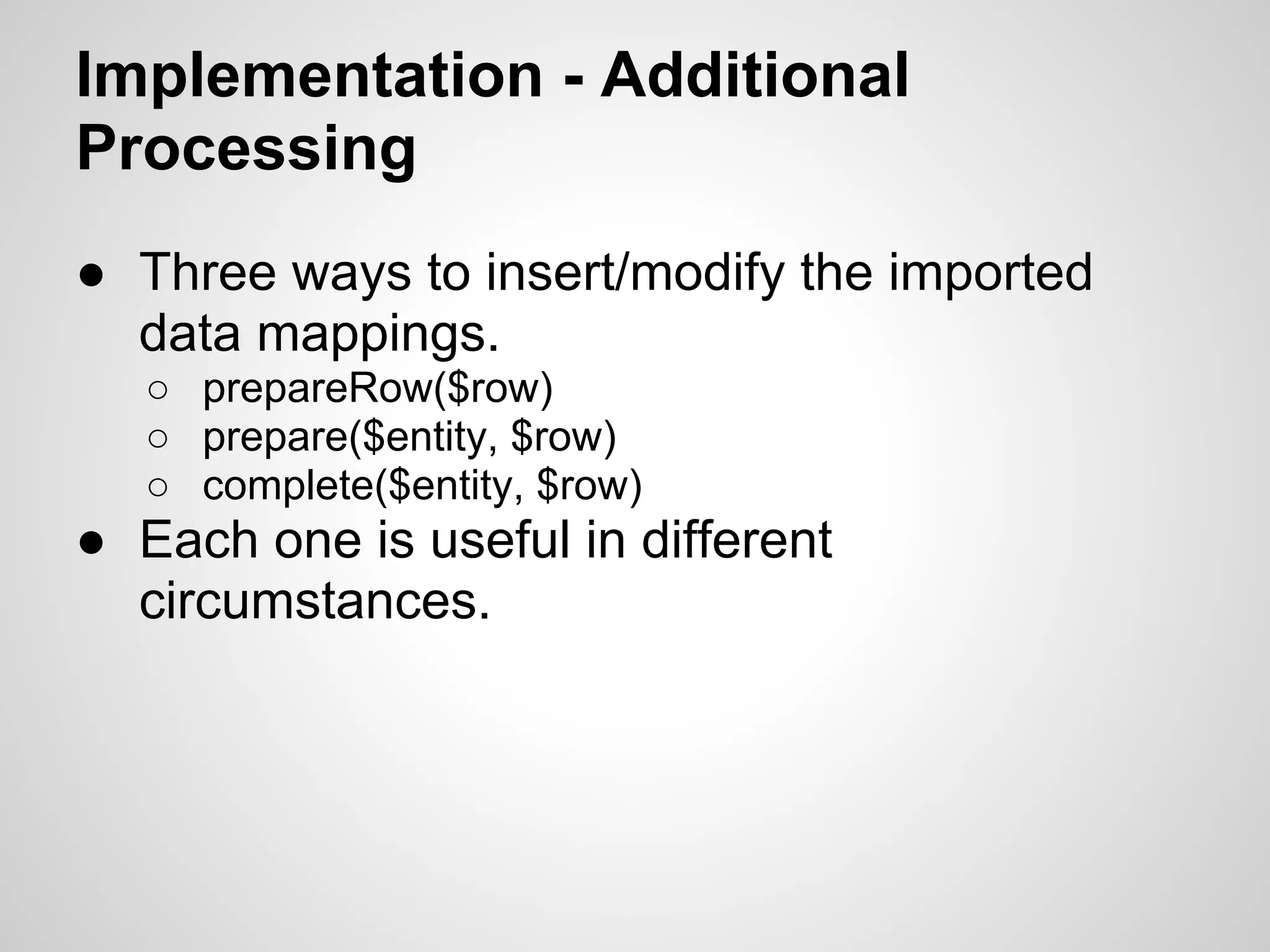

Implementation - Additional Processing ● Three ways to insert/modify the imported data mappings. ○ prepareRow($row) ○ prepare($entity, $row) ○ complete($entity, $row) ● Each one is useful in different circumstances.

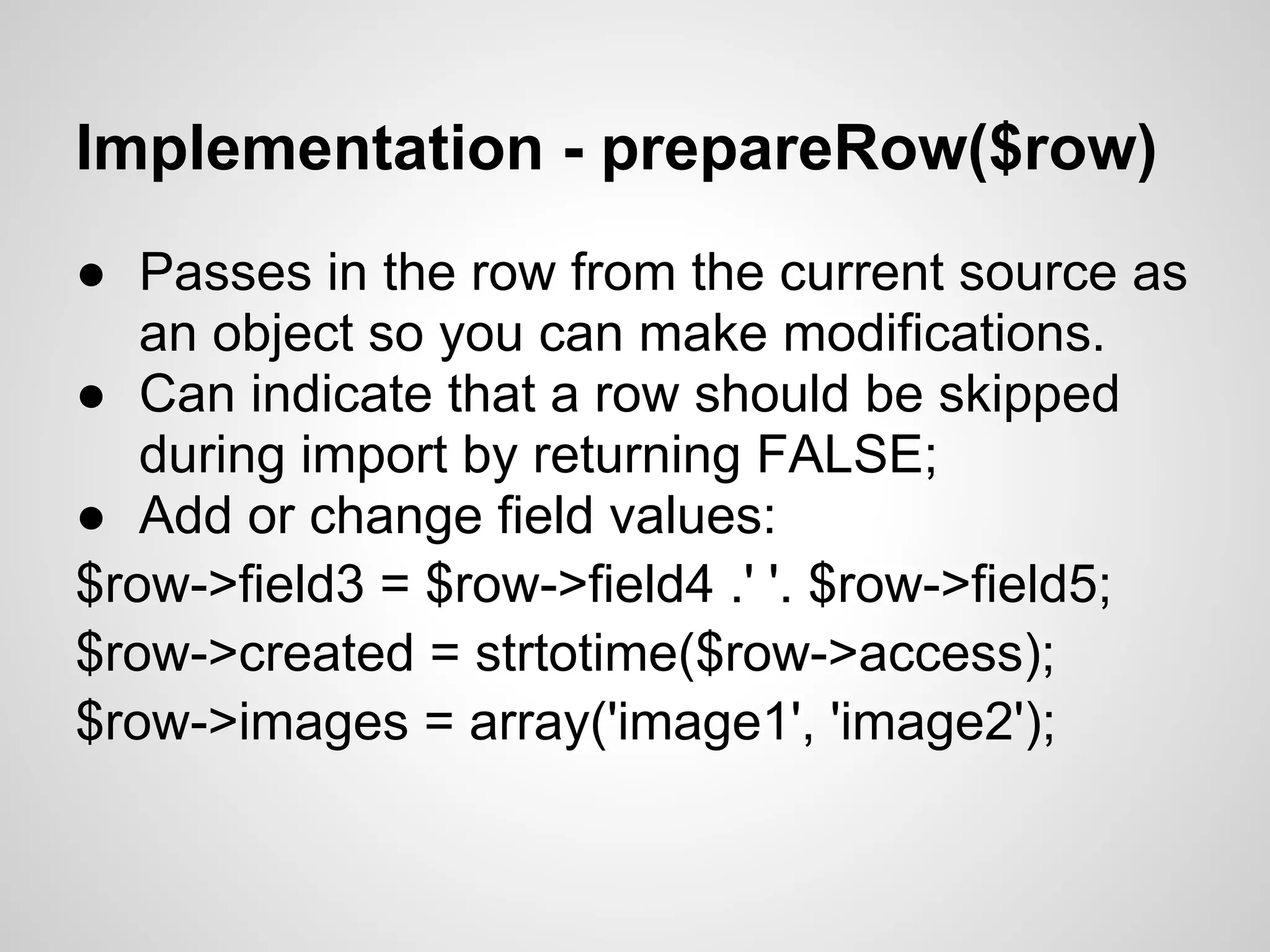

Implementation - prepareRow($row) ● Passes in the row from the current source as an object so you can make modifications. ● Can indicate that a row should be skipped during import by returning FALSE; ● Add or change field values: $row->field3 = $row->field4 .' '. $row->field5; $row->created = strtotime($row->access); $row->images = array('image1', 'image2');

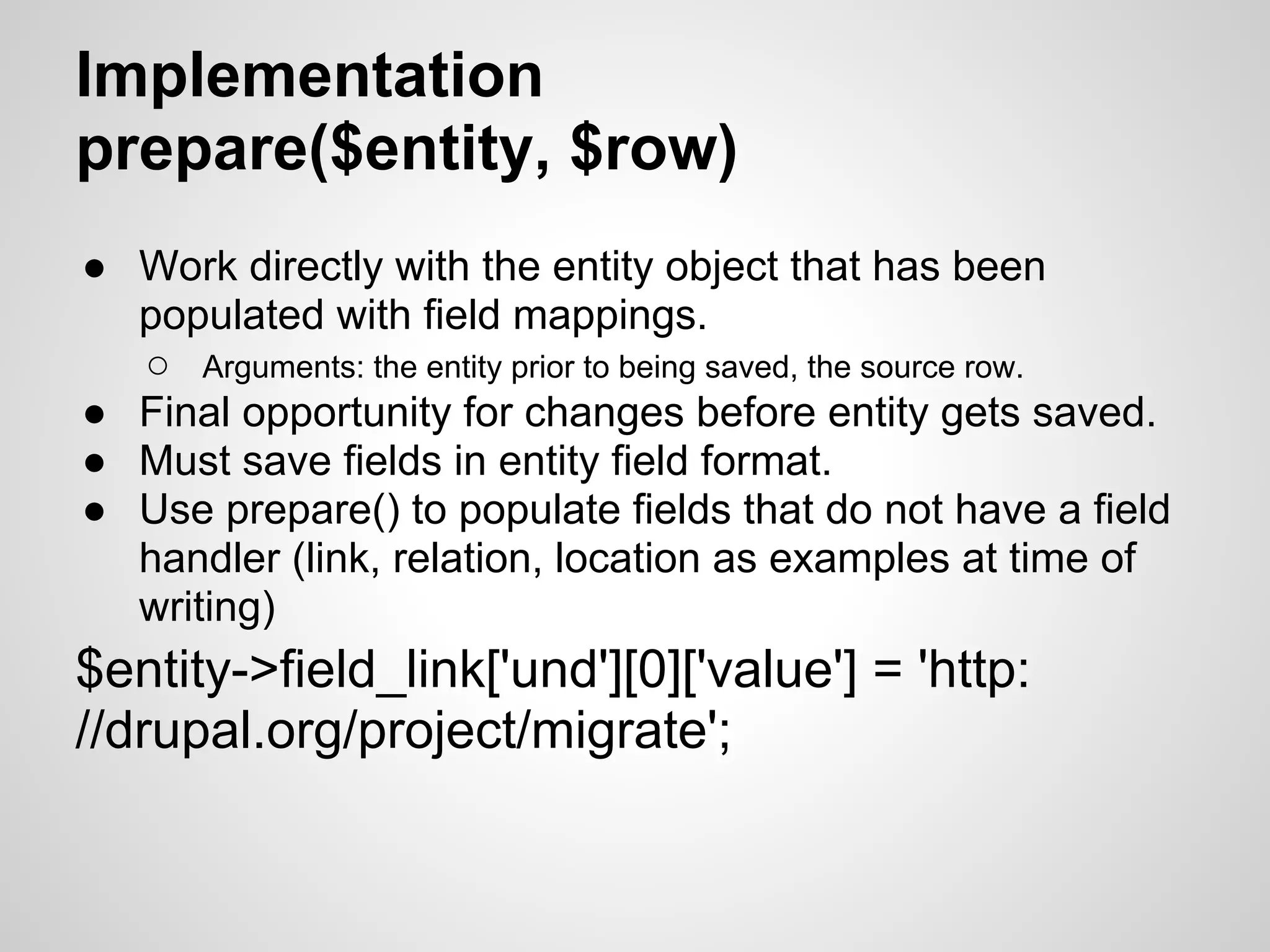

Implementation prepare($entity, $row) ● Work directly with the entity object that has been populated with field mappings. ○ Arguments: the entity prior to being saved, the source row. ● Final opportunity for changes before entity gets saved. ● Must save fields in entity field format. ● Use prepare() to populate fields that do not have a field handler (link, relation, location as examples at time of writing) $entity->field_link['und'][0]['value'] = 'http: //drupal.org/project/migrate';

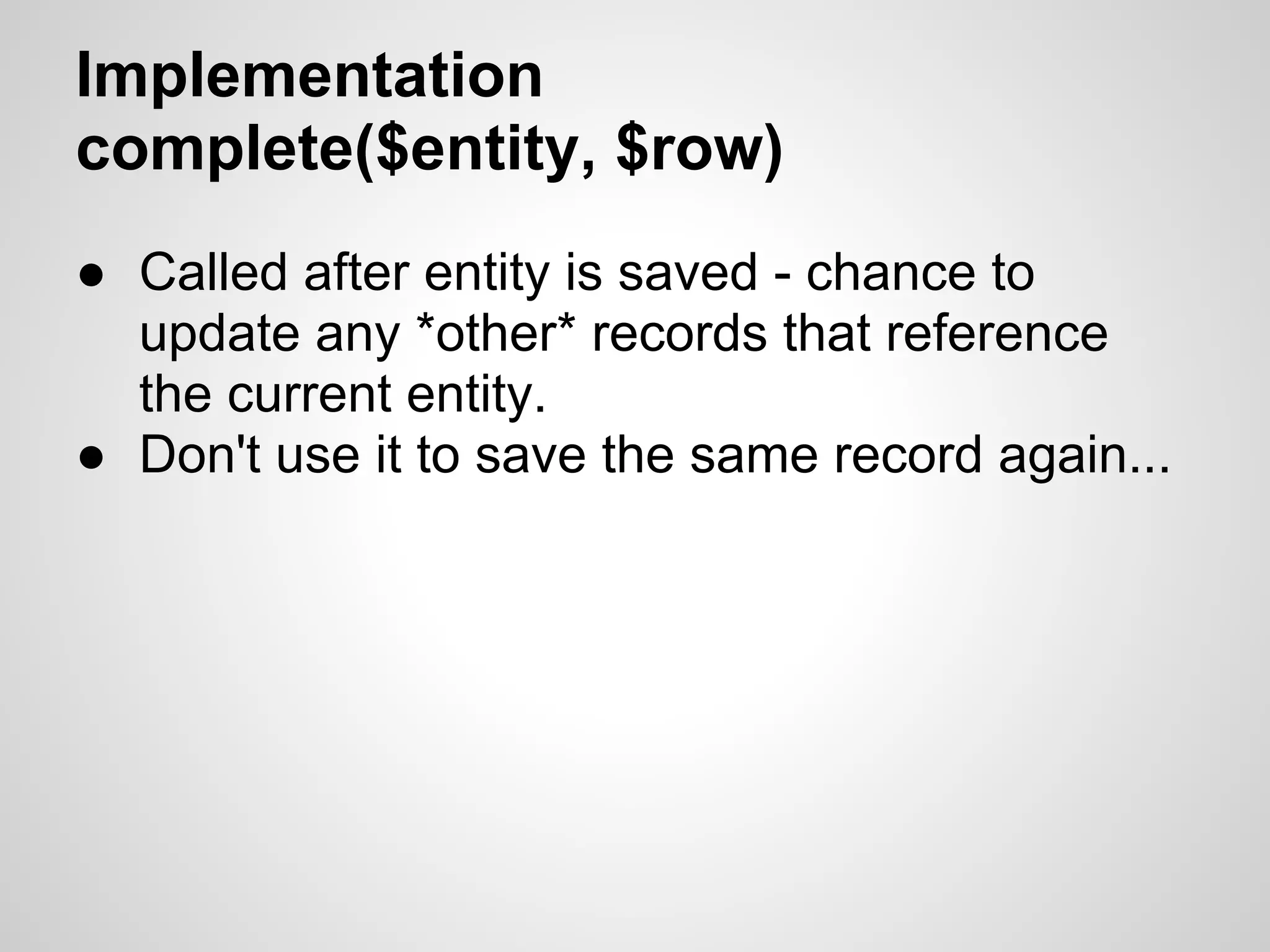

Implementation complete($entity, $row) ● Called after entity is saved - chance to update any *other* records that reference the current entity. ● Don't use it to save the same record again...

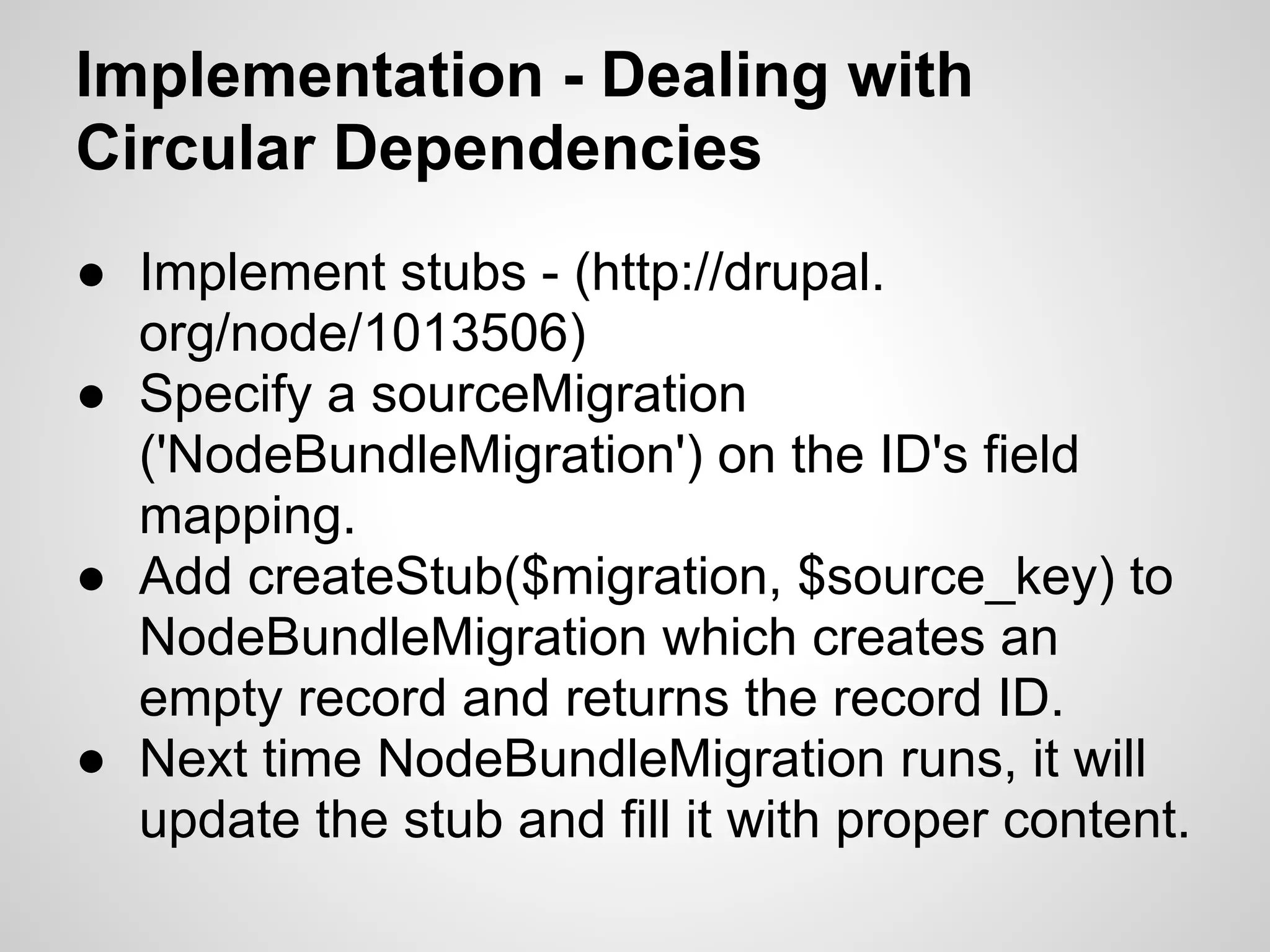

Implementation - Dealing with Circular Dependencies ● Implement stubs - (http://drupal. org/node/1013506) ● Specify a sourceMigration ('NodeBundleMigration') on the ID's field mapping. ● Add createStub($migration, $source_key) to NodeBundleMigration which creates an empty record and returns the record ID. ● Next time NodeBundleMigration runs, it will update the stub and fill it with proper content.

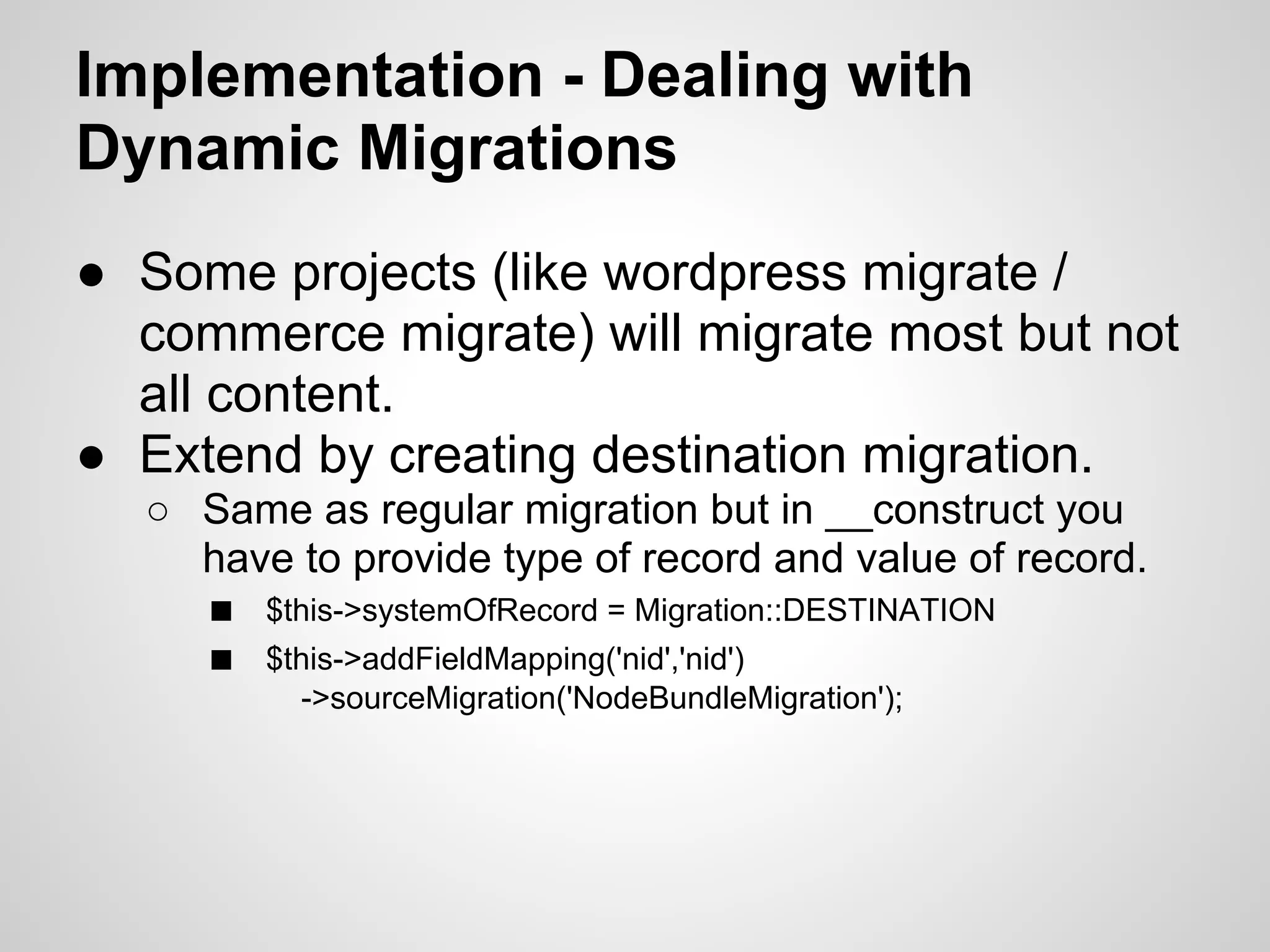

Implementation - Dealing with Dynamic Migrations ● Some projects (like wordpress migrate / commerce migrate) will migrate most but not all content. ● Extend by creating destination migration. ○ Same as regular migration but in __construct you have to provide type of record and value of record. ■ $this->systemOfRecord = Migration::DESTINATION ■ $this->addFieldMapping('nid','nid') ->sourceMigration('NodeBundleMigration');

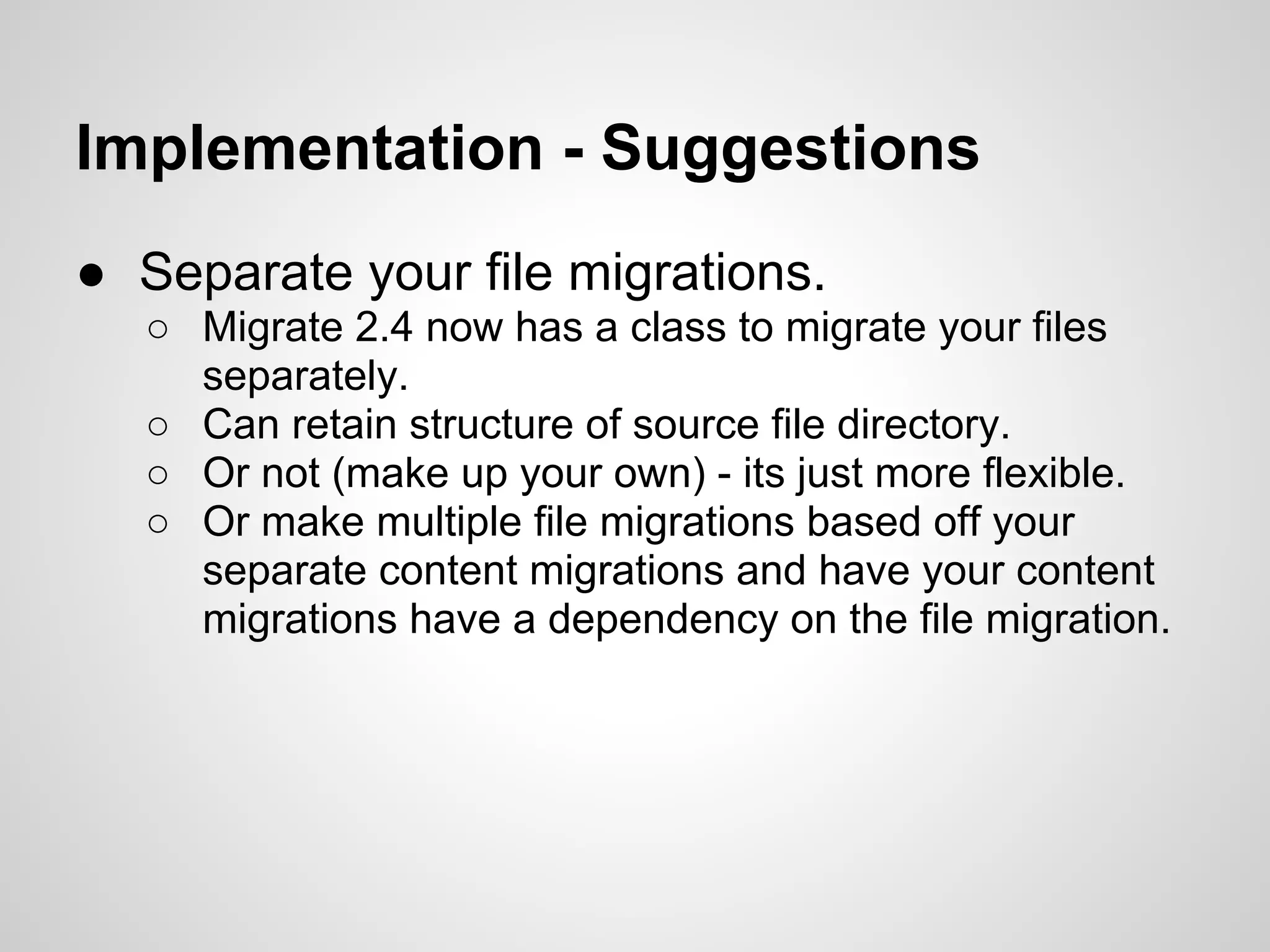

Implementation - Suggestions ● Separate your file migrations. ○ Migrate 2.4 now has a class to migrate your files separately. ○ Can retain structure of source file directory. ○ Or not (make up your own) - its just more flexible. ○ Or make multiple file migrations based off your separate content migrations and have your content migrations have a dependency on the file migration.

Migrate in other contributed modules ● Creating new types of objects? ○ Write a destination handler. ○ Hopefully, you can implement your object using the entityapi and extend on the MigrateDestinationEntityAPI class. ● Create new types of fields? ○ Write a field handler.

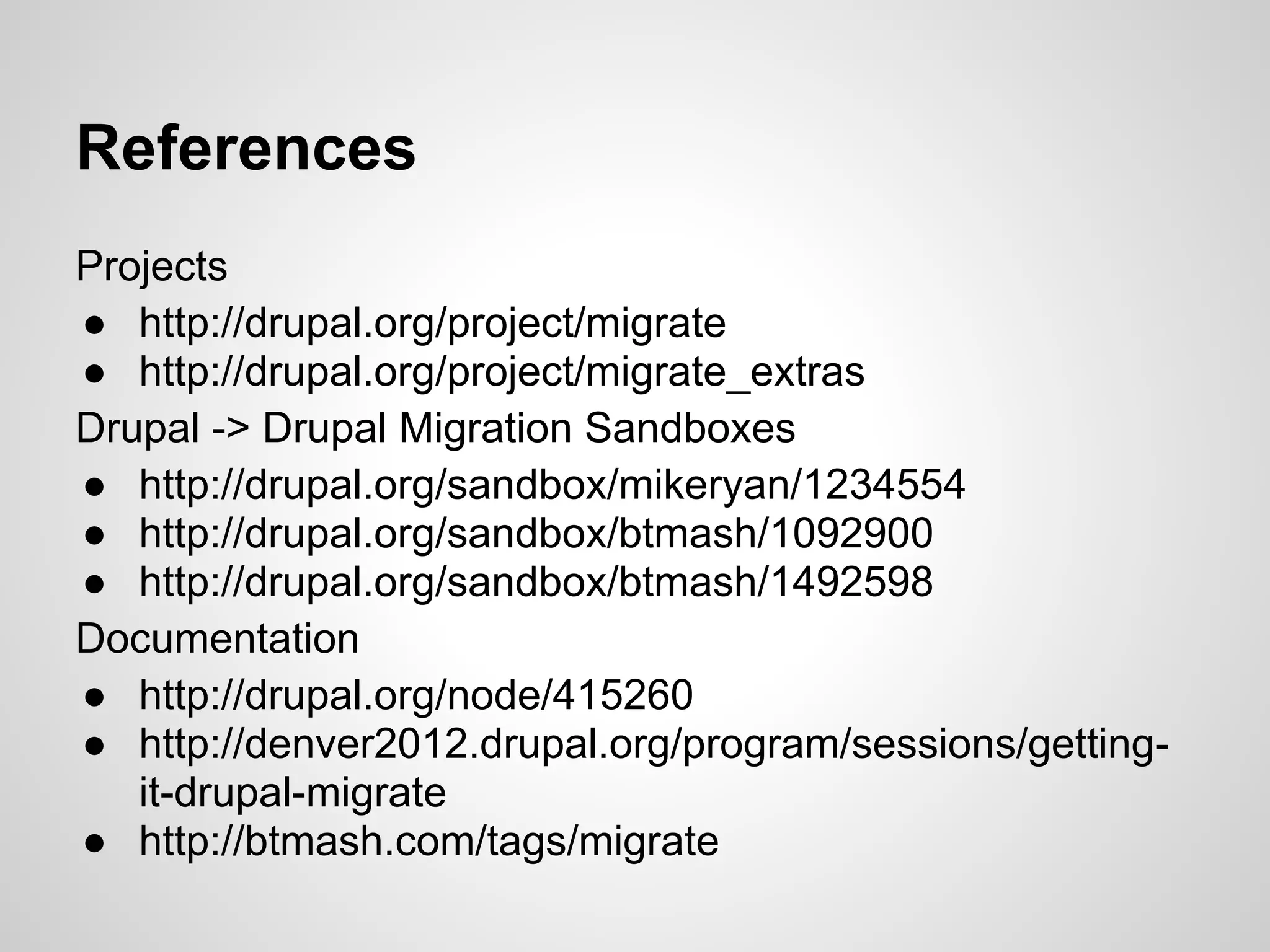

References Projects ● http://drupal.org/project/migrate ● http://drupal.org/project/migrate_extras Drupal -> Drupal Migration Sandboxes ● http://drupal.org/sandbox/mikeryan/1234554 ● http://drupal.org/sandbox/btmash/1092900 ● http://drupal.org/sandbox/btmash/1492598 Documentation ● http://drupal.org/node/415260 ● http://denver2012.drupal.org/program/sessions/getting- it-drupal-migrate ● http://btmash.com/tags/migrate
