Control Statement in C www.eshikshak.co.in

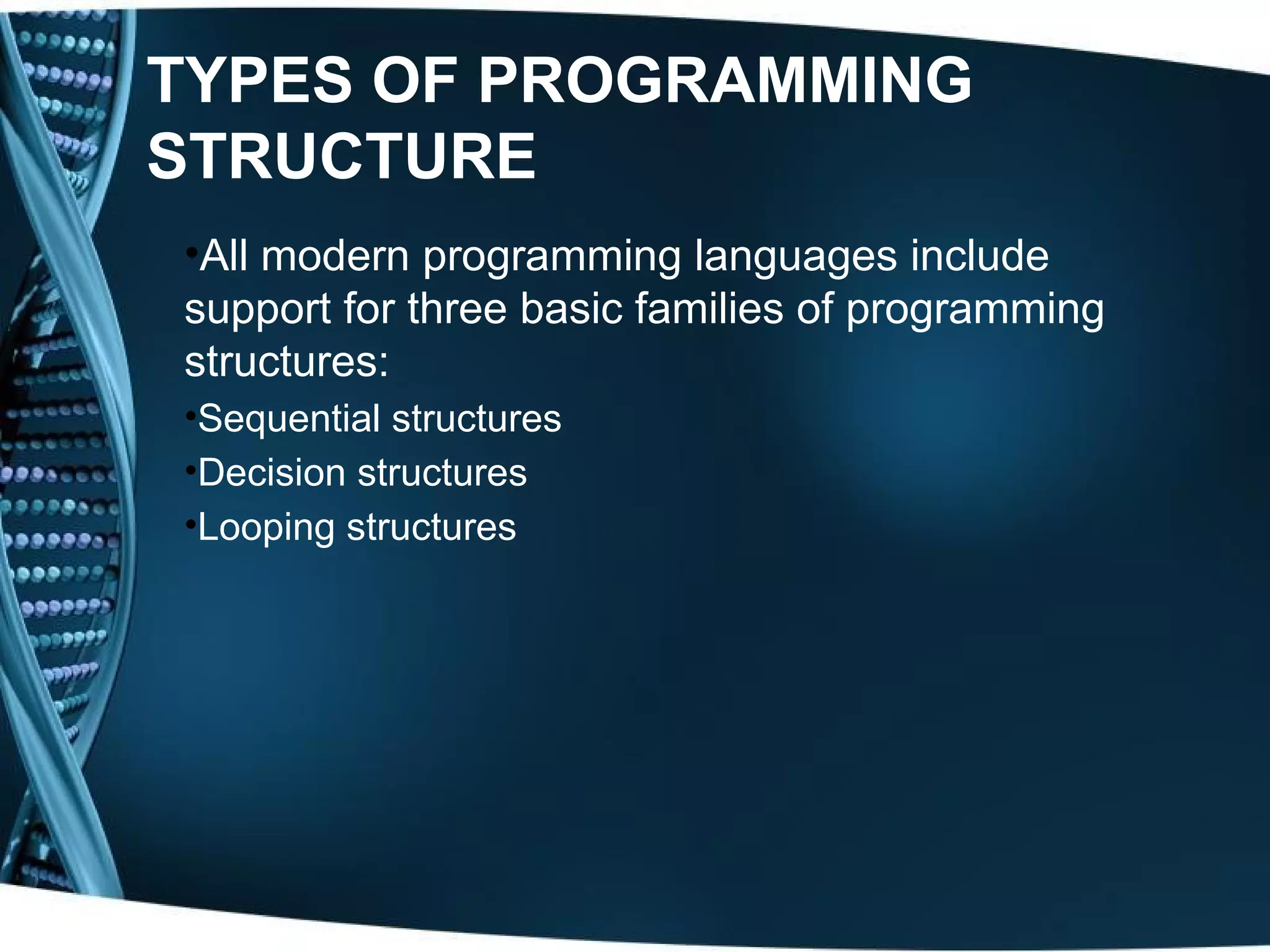

TYPES OF PROGRAMMING STRUCTURE •All modern programming languages include support for three basic families of programming structures: •Sequential structures •Decision structures •Looping structures

WHAT IS A DECISION STRUCTURE? •Decision structures consist of: •Some type of T/F test •One or more executable blocks of code •Which block of code executes depends on the result of the T/F test (“the condition”).

CONTROL STATEMENT •All the statements written in ‘C’ program executes from top to bottom one by one •Control statements are used to execute or transfer the execution control from one part of the program to another part based on a conditions, Such statements are known as Conditional Statements

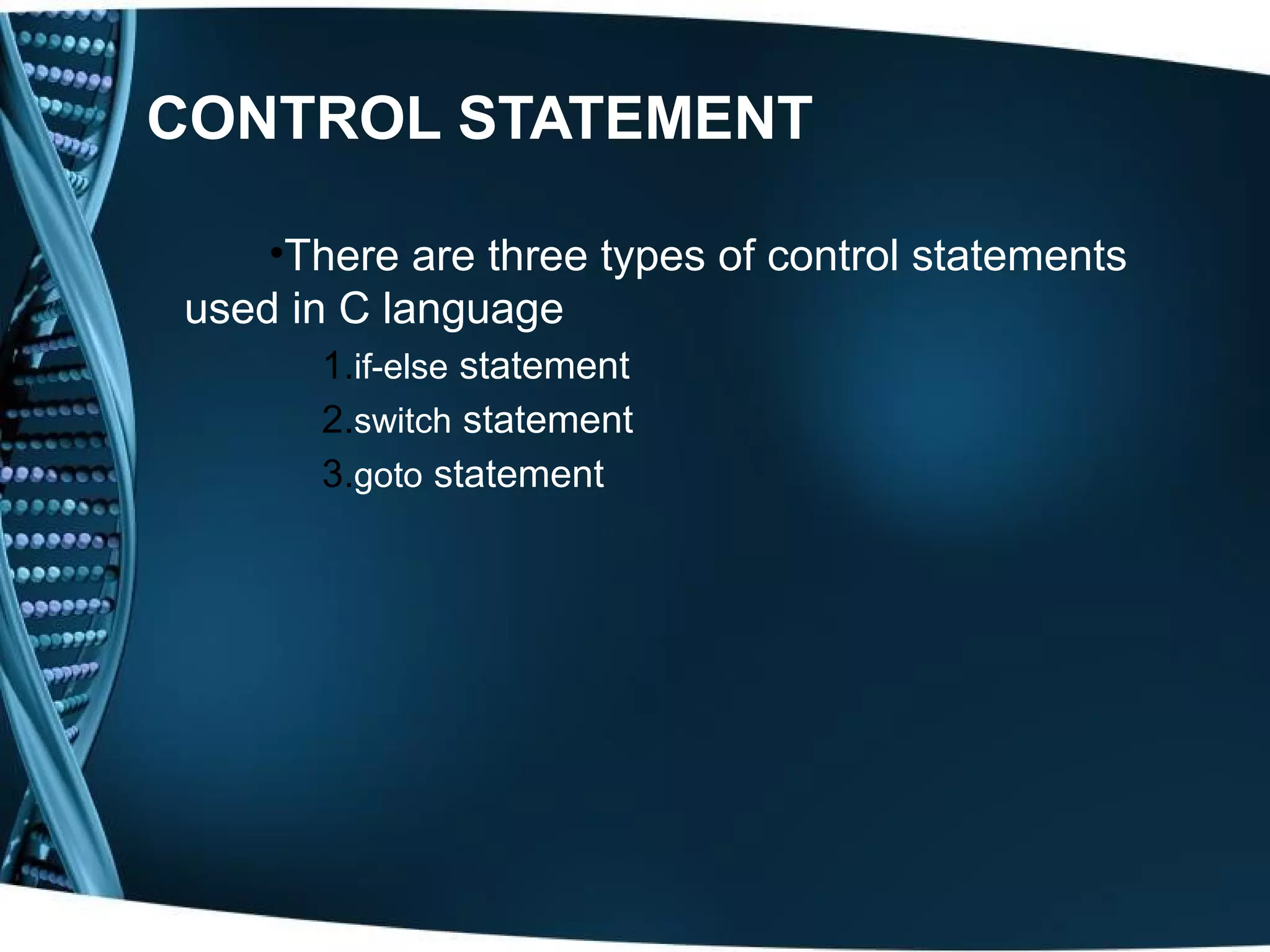

CONTROL STATEMENT •There are three types of control statements used in C language 1.if-else statement 2.switch statement 3.goto statement

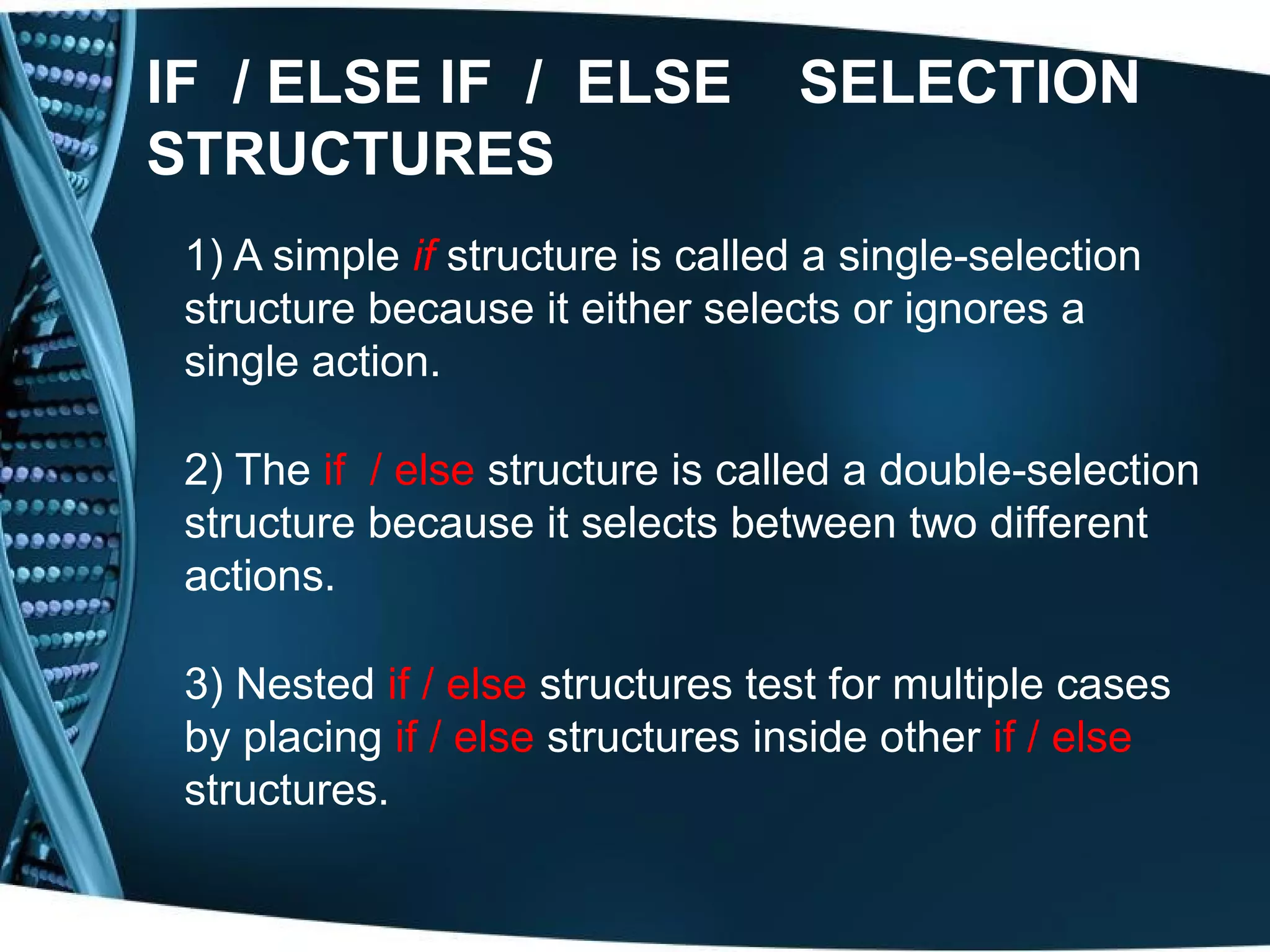

IF / ELSE IF / ELSE SELECTION STRUCTURES 1) A simple if structure is called a single-selection structure because it either selects or ignores a single action. 2) The if / else structure is called a double-selection structure because it selects between two different actions. 3) Nested if / else structures test for multiple cases by placing if / else structures inside other if / else structures.

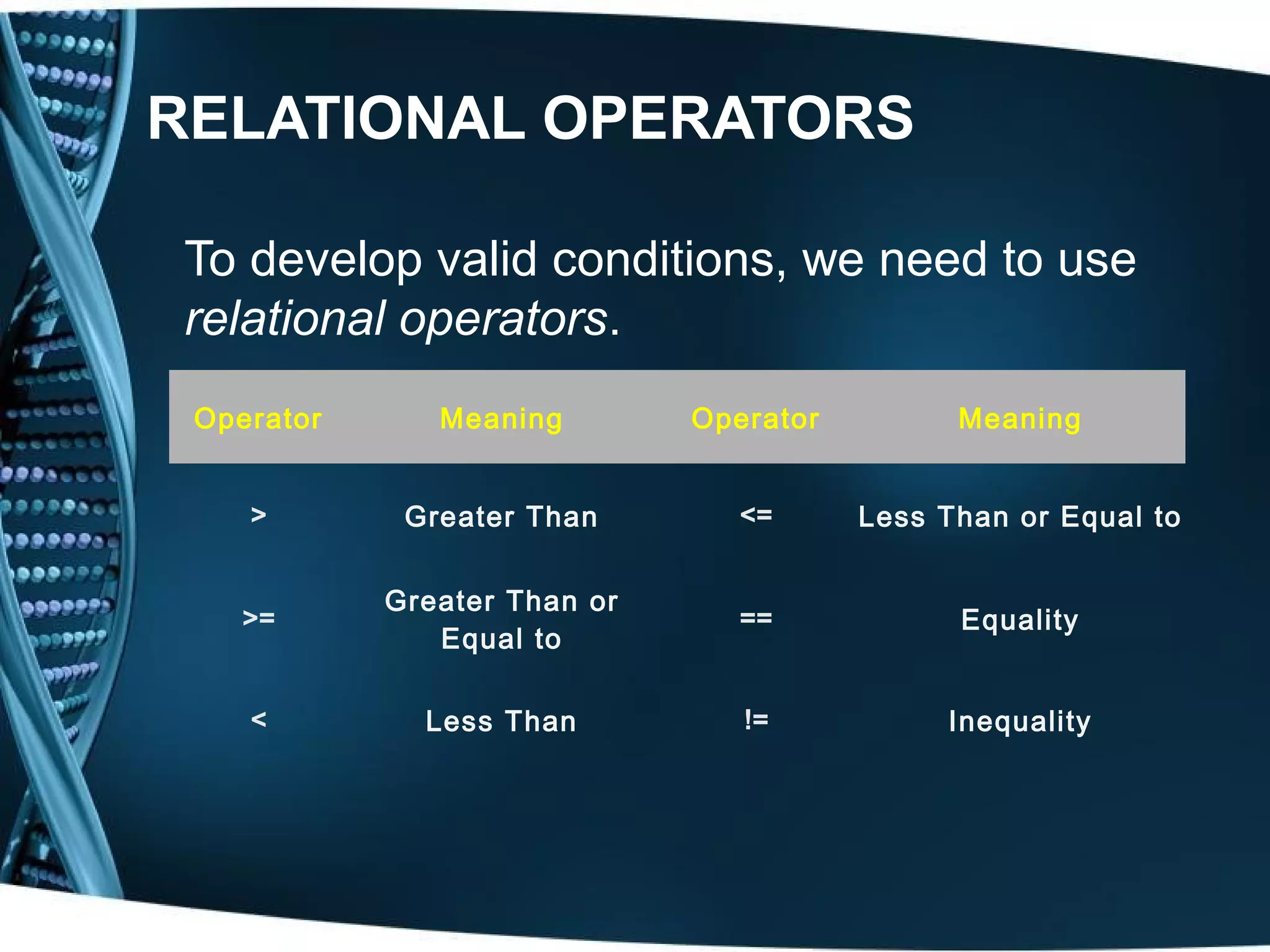

RELATIONAL OPERATORS To develop valid conditions, we need to use relational operators. Operator Meaning Operator Meaning > Greater Than <= Less Than or Equal to Greater Than or >= == Equality Equal to < Less Than != Inequality

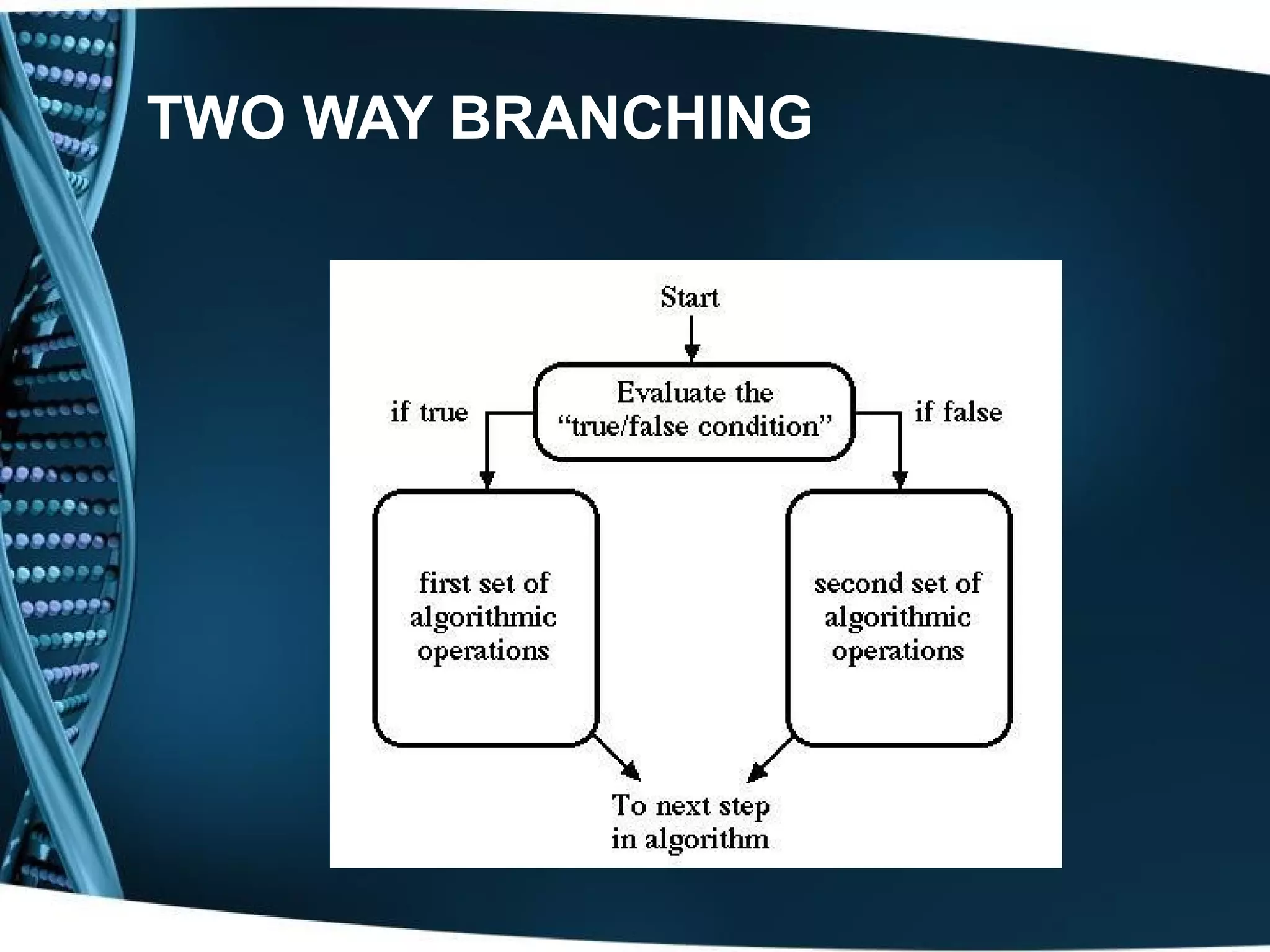

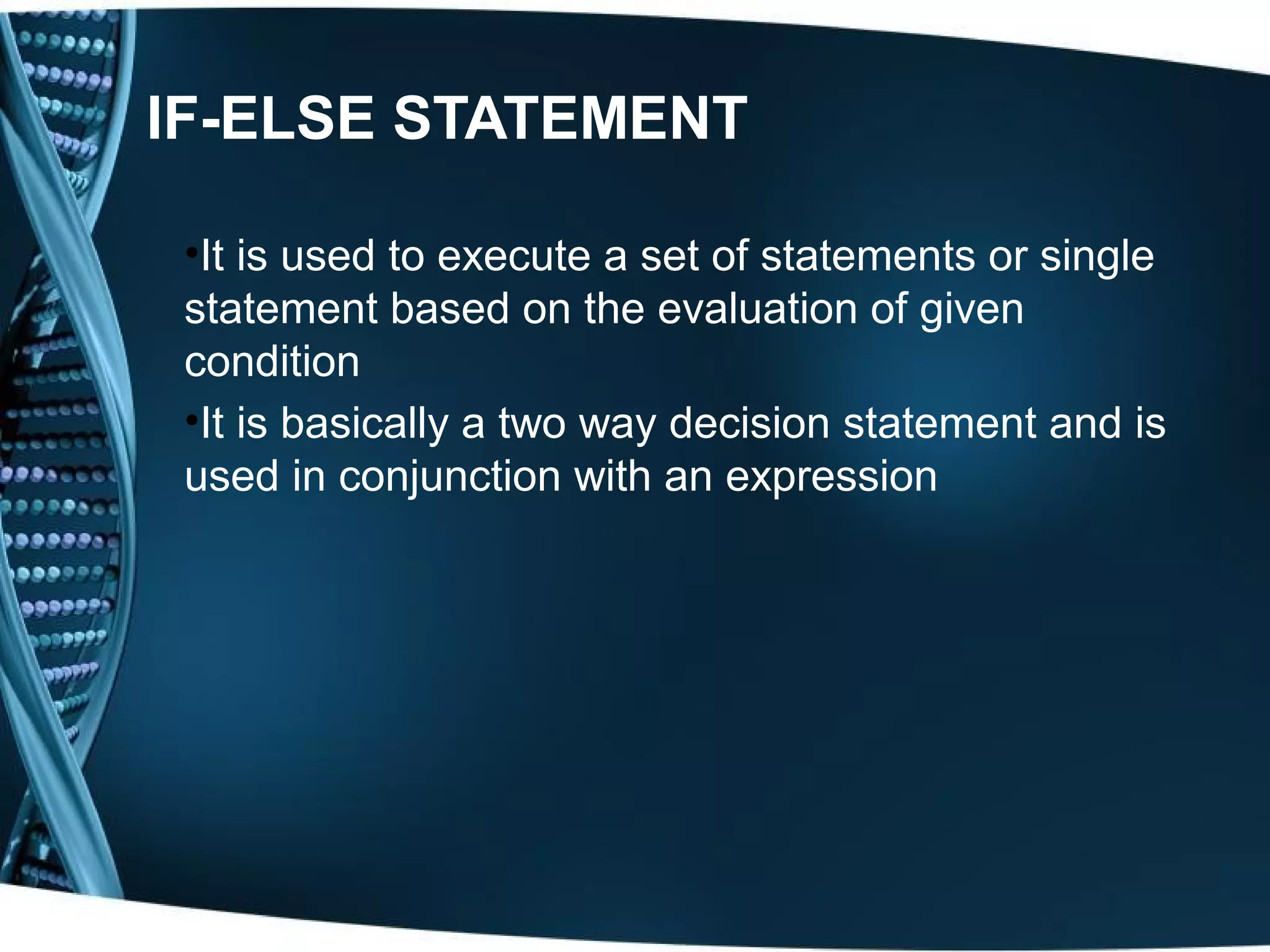

IF-ELSE STATEMENT •It is used to execute a set of statements or single statement based on the evaluation of given condition •It is basically a two way decision statement and is used in conjunction with an expression

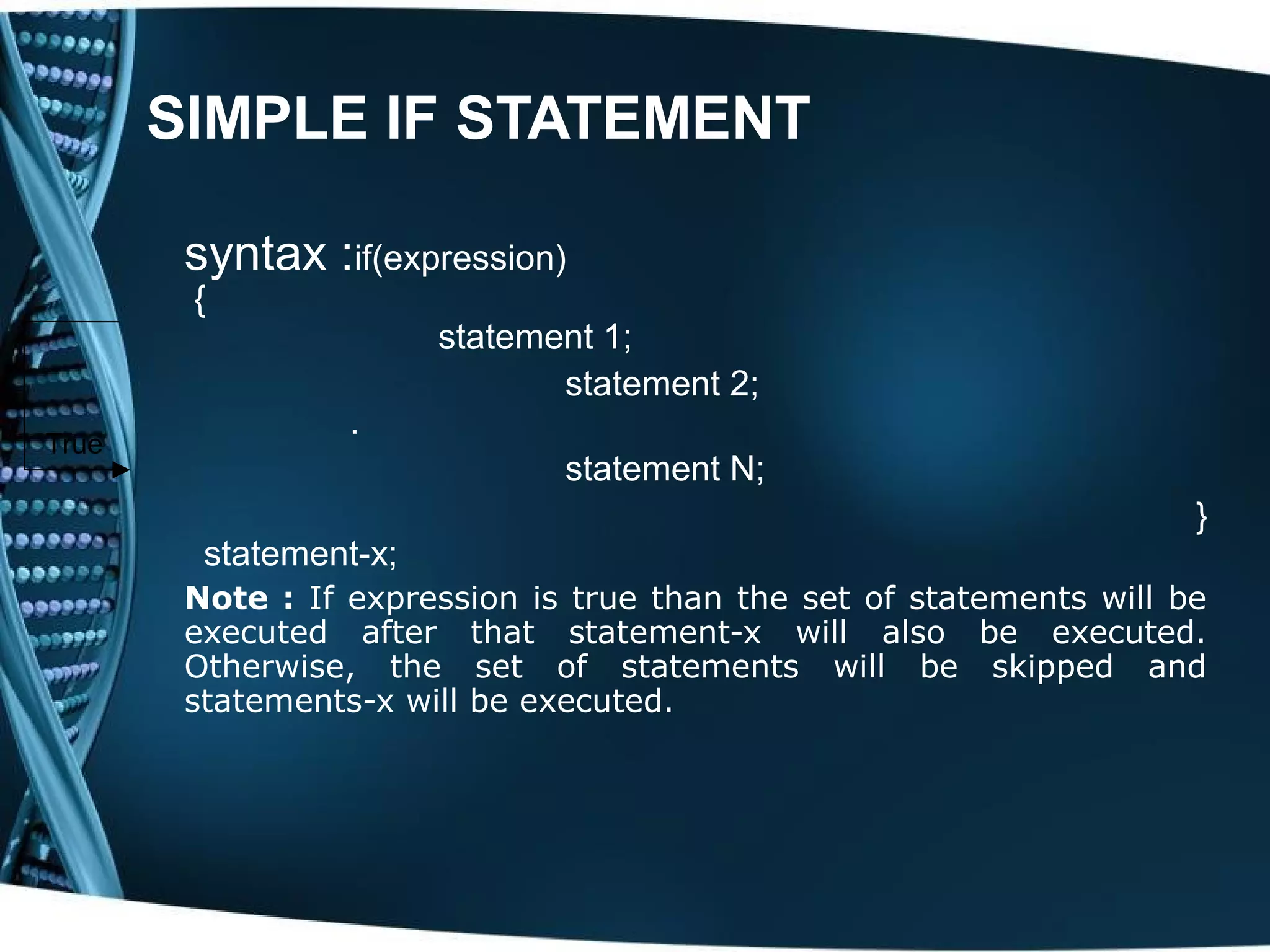

SIMPLE IF STATEMENT syntax :if(expression) { statement 1; statement 2; . True statement N; } statement-x; Note : If expression is true than the set of statements will be executed after that statement-x will also be executed. Otherwise, the set of statements will be skipped and statements-x will be executed.

Result of expression •Based on the True Non-Zero evaluation of the conditional expression the result will be as follow False Zero

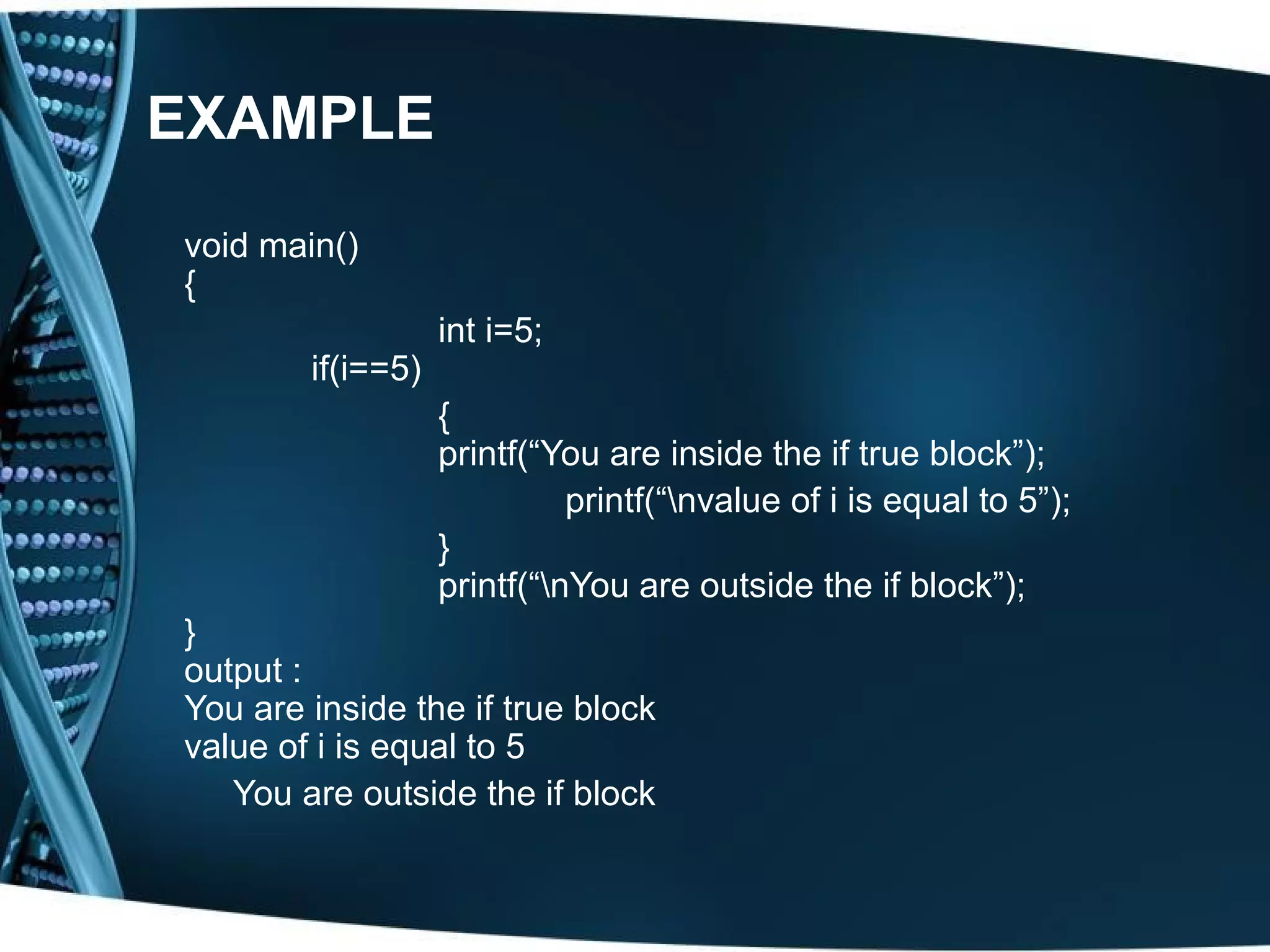

EXAMPLE void main() { int i=5; if(i==5) { printf(“You are inside the if true block”); printf(“nvalue of i is equal to 5”); } printf(“nYou are outside the if block”); } output : You are inside the if true block value of i is equal to 5 You are outside the if block

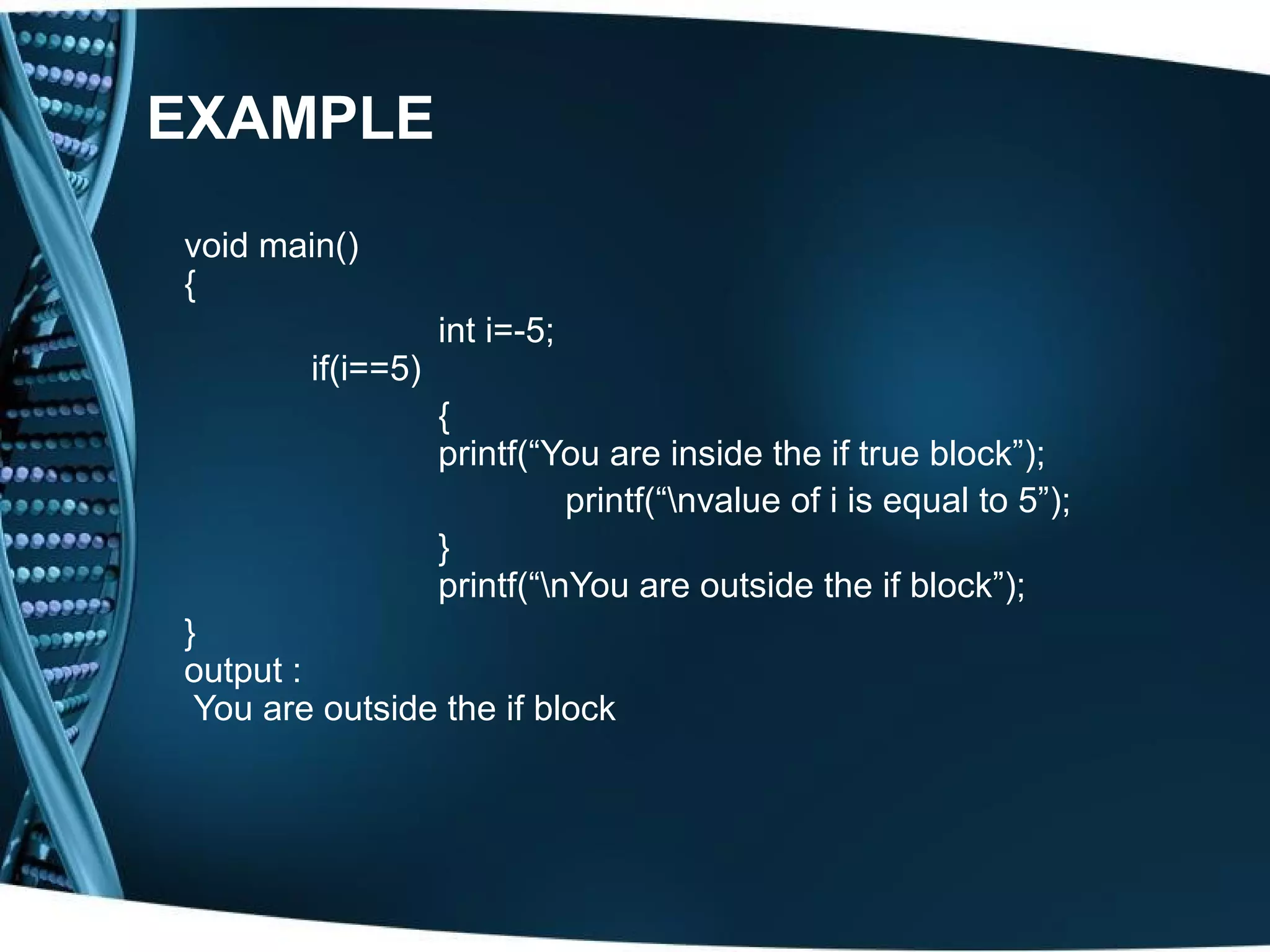

EXAMPLE void main() { int i=-5; if(i==5) { printf(“You are inside the if true block”); printf(“nvalue of i is equal to 5”); } printf(“nYou are outside the if block”); } output : You are outside the if block

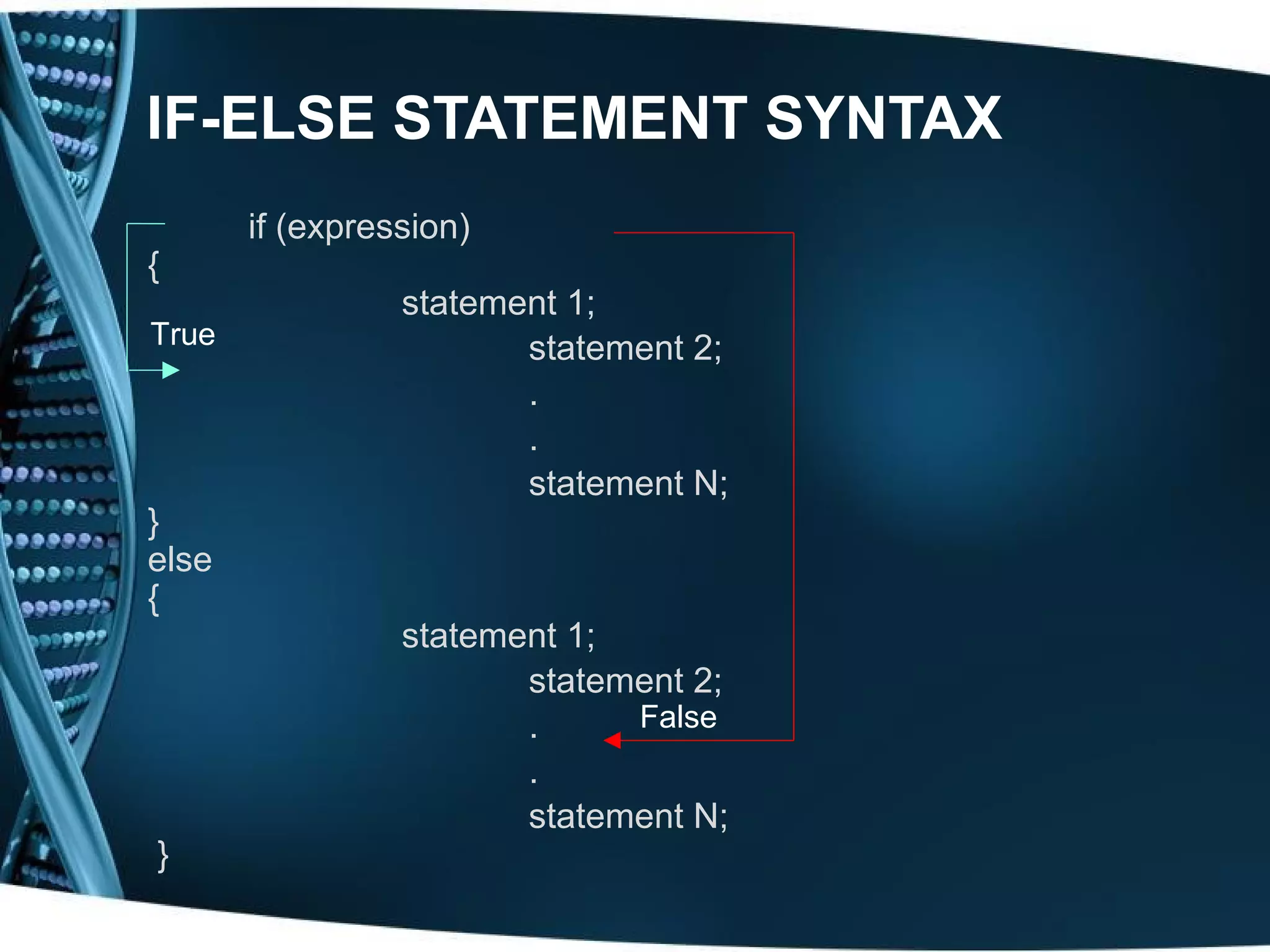

IF-ELSE STATEMENT SYNTAX if (expression) { statement 1; True statement 2; . . statement N; } else { statement 1; statement 2; . False . statement N; }

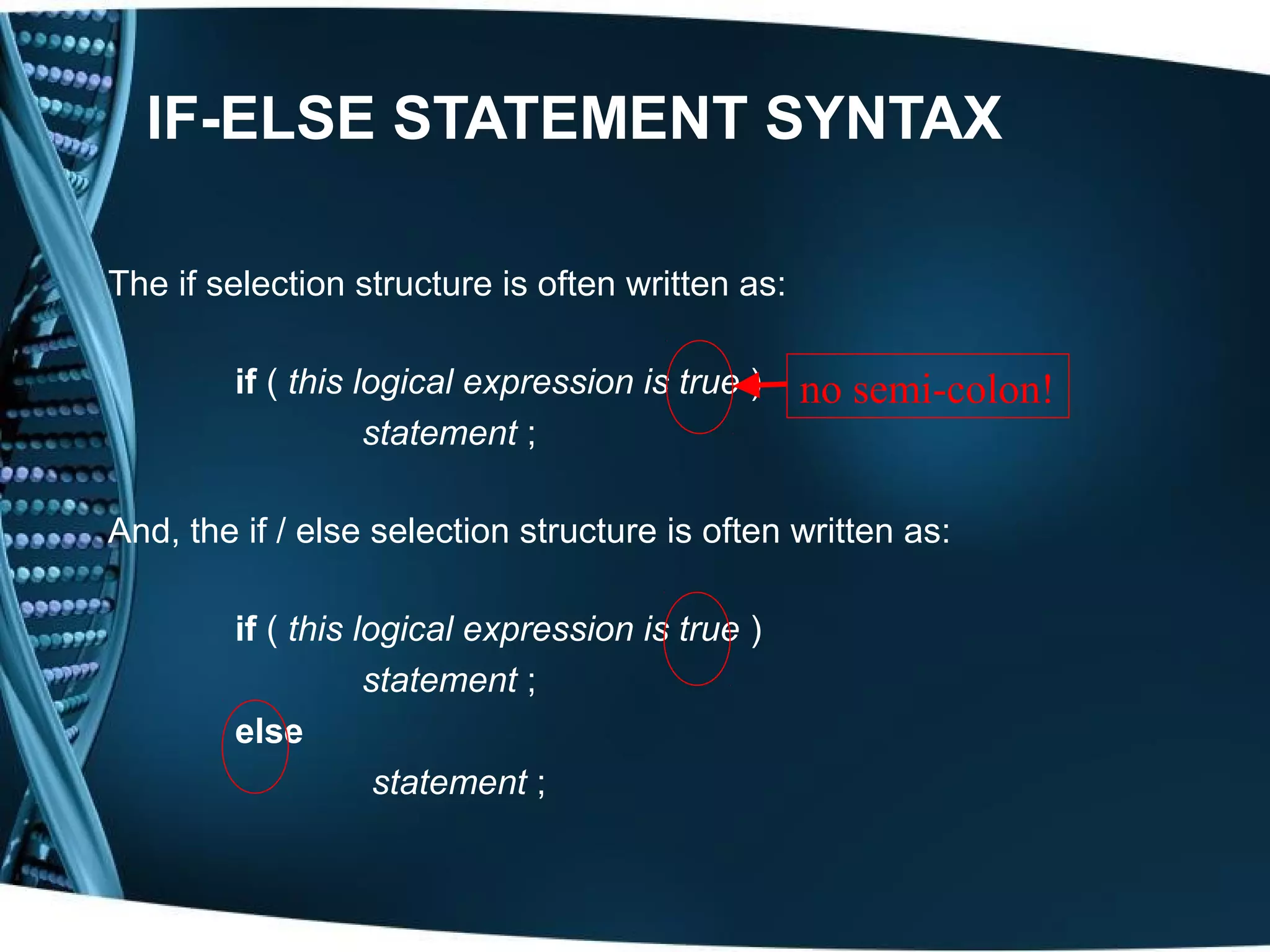

IF-ELSE STATEMENT SYNTAX The if selection structure is often written as: if ( this logical expression is true ) no semi-colon! statement ; And, the if / else selection structure is often written as: if ( this logical expression is true ) statement ; else statement ;

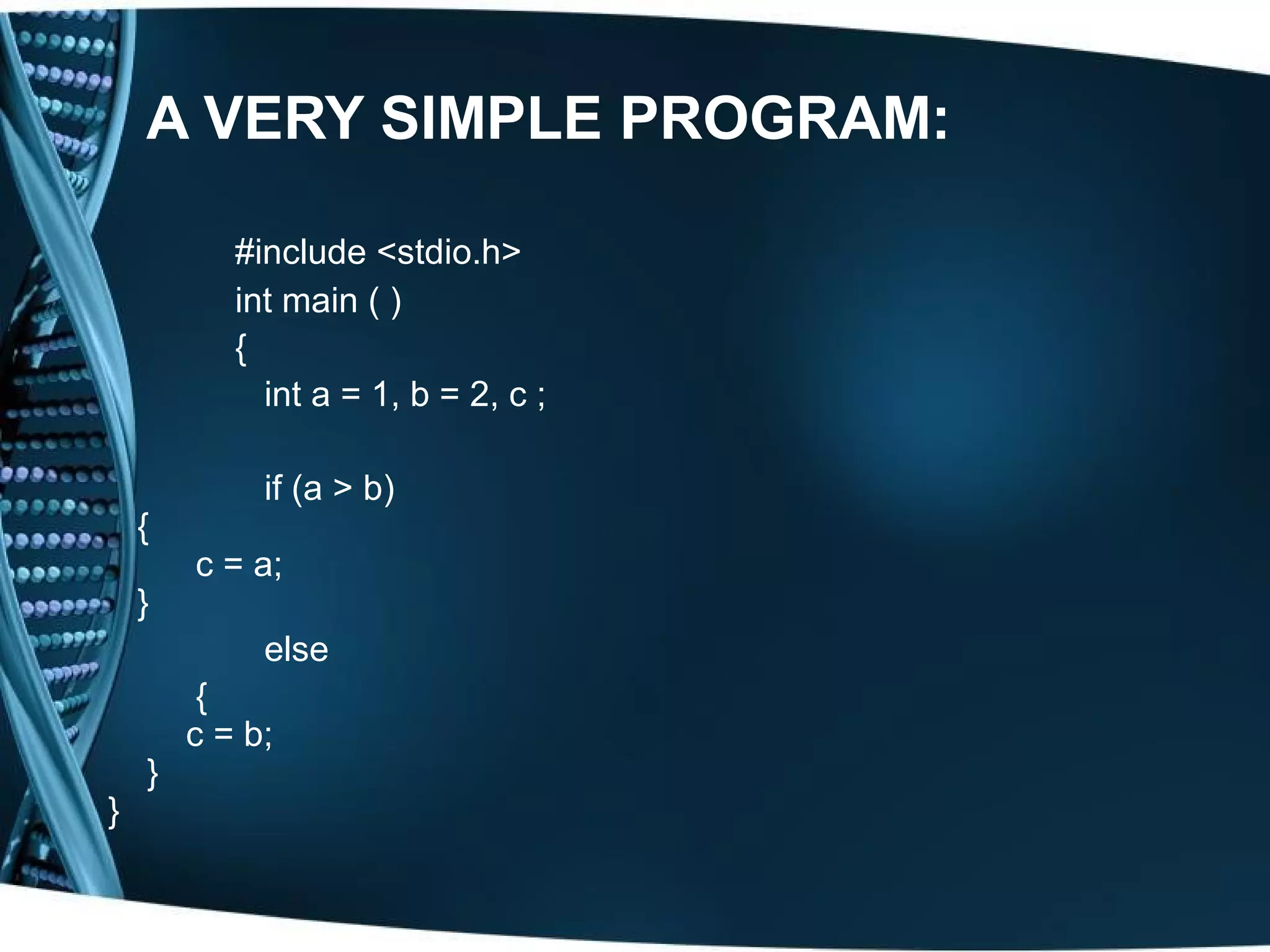

A VERY SIMPLE PROGRAM: #include <stdio.h> int main ( ) { int a = 1, b = 2, c ; if (a > b) { c = a; } else { c = b; } }

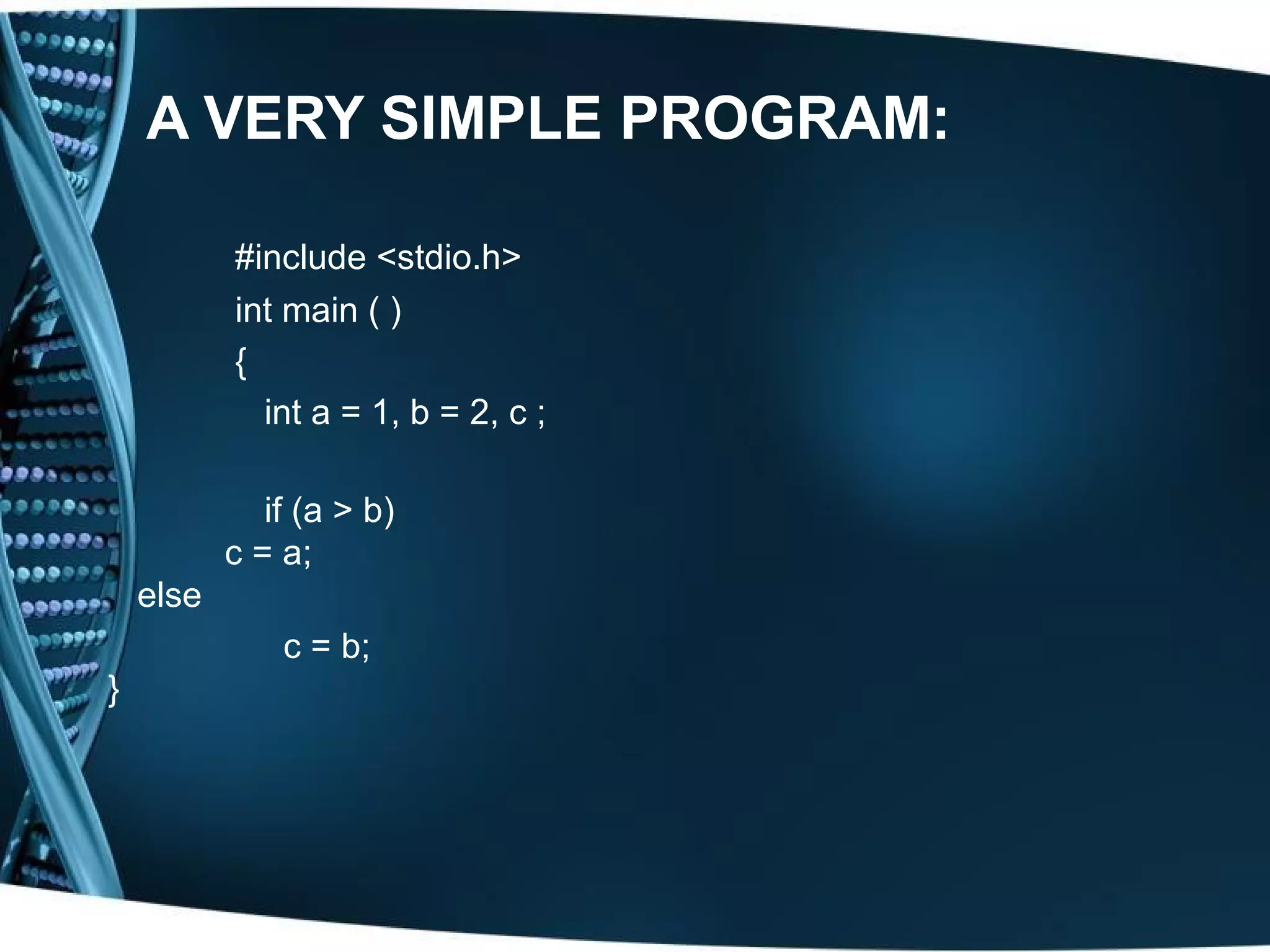

A VERY SIMPLE PROGRAM: #include <stdio.h> int main ( ) { int a = 1, b = 2, c ; if (a > b) c = a; else c = b; }

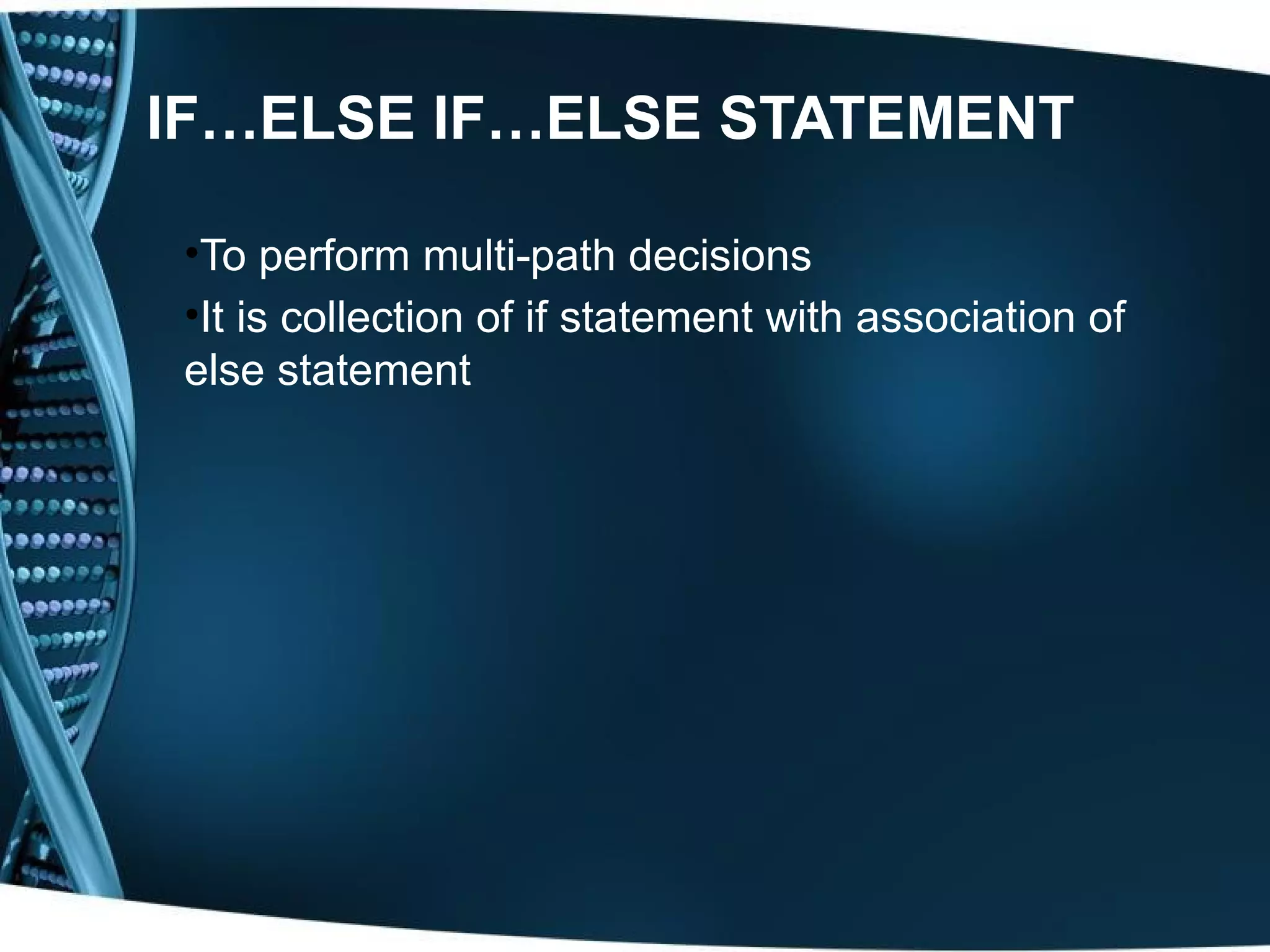

IF…ELSE IF…ELSE STATEMENT •To perform multi-path decisions •It is collection of if statement with association of else statement

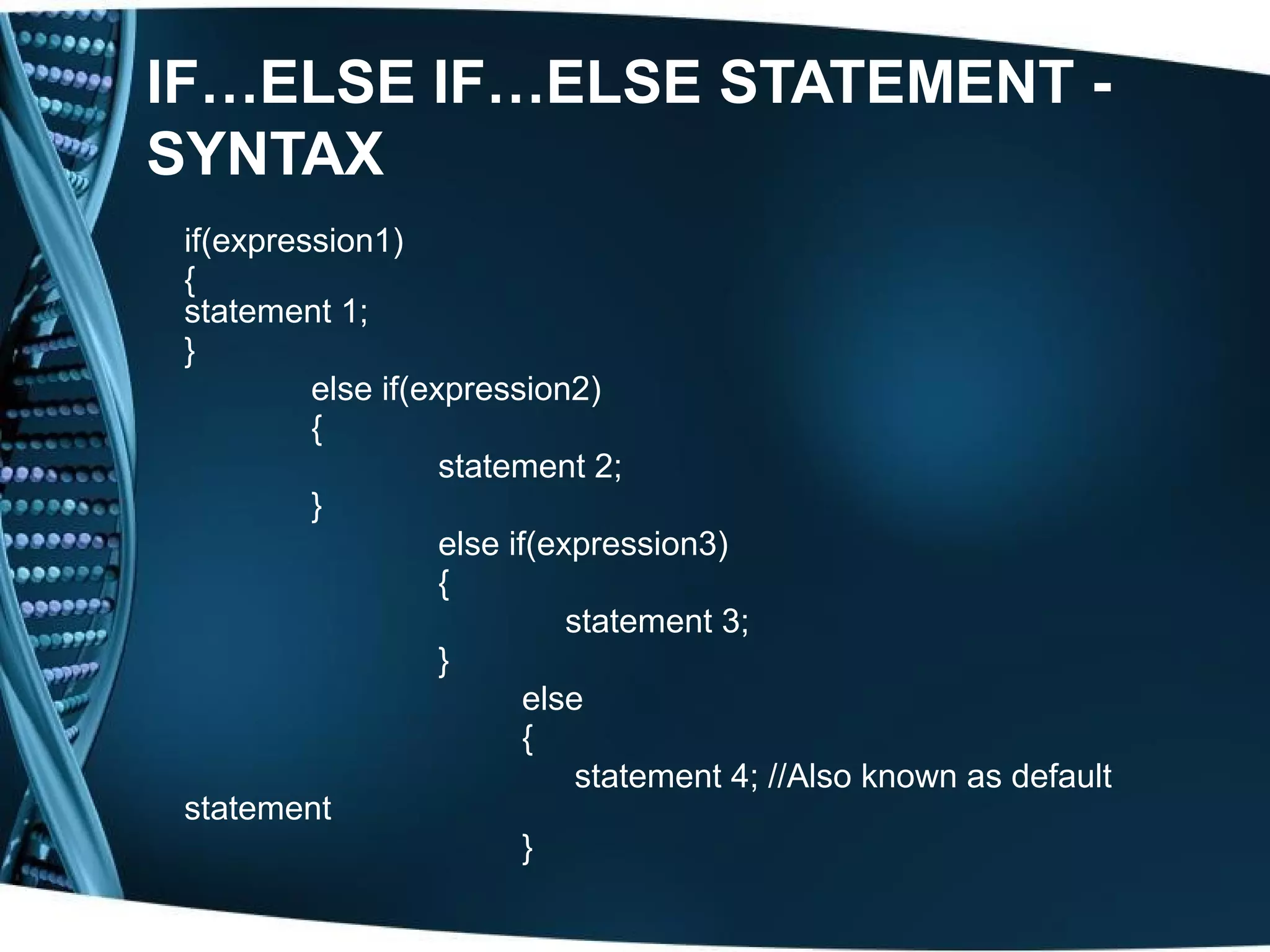

IF…ELSE IF…ELSE STATEMENT - SYNTAX if(expression1) { statement 1; } else if(expression2) { statement 2; } else if(expression3) { statement 3; } else { statement 4; //Also known as default statement }

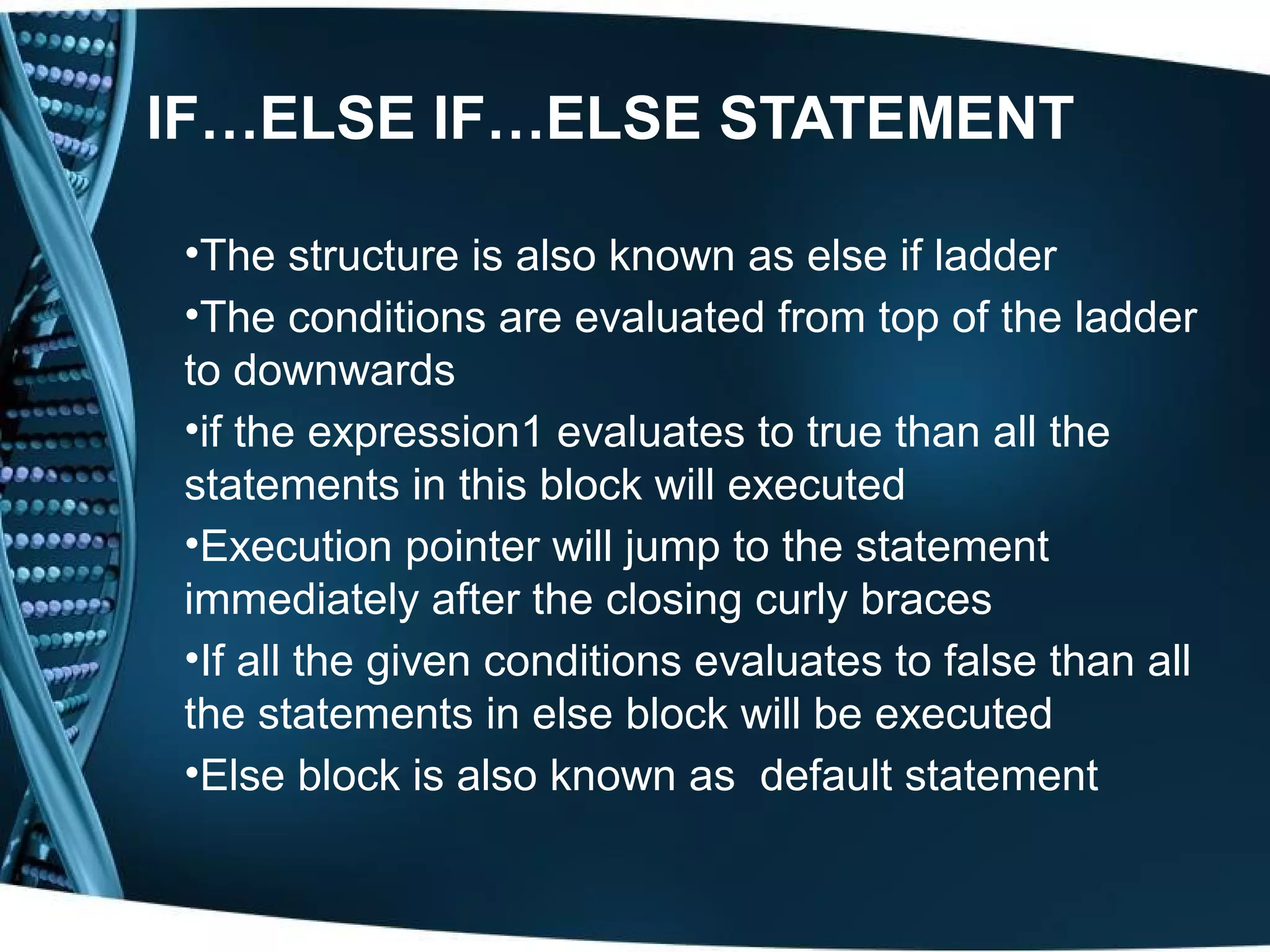

IF…ELSE IF…ELSE STATEMENT •The structure is also known as else if ladder •The conditions are evaluated from top of the ladder to downwards •if the expression1 evaluates to true than all the statements in this block will executed •Execution pointer will jump to the statement immediately after the closing curly braces •If all the given conditions evaluates to false than all the statements in else block will be executed •Else block is also known as default statement

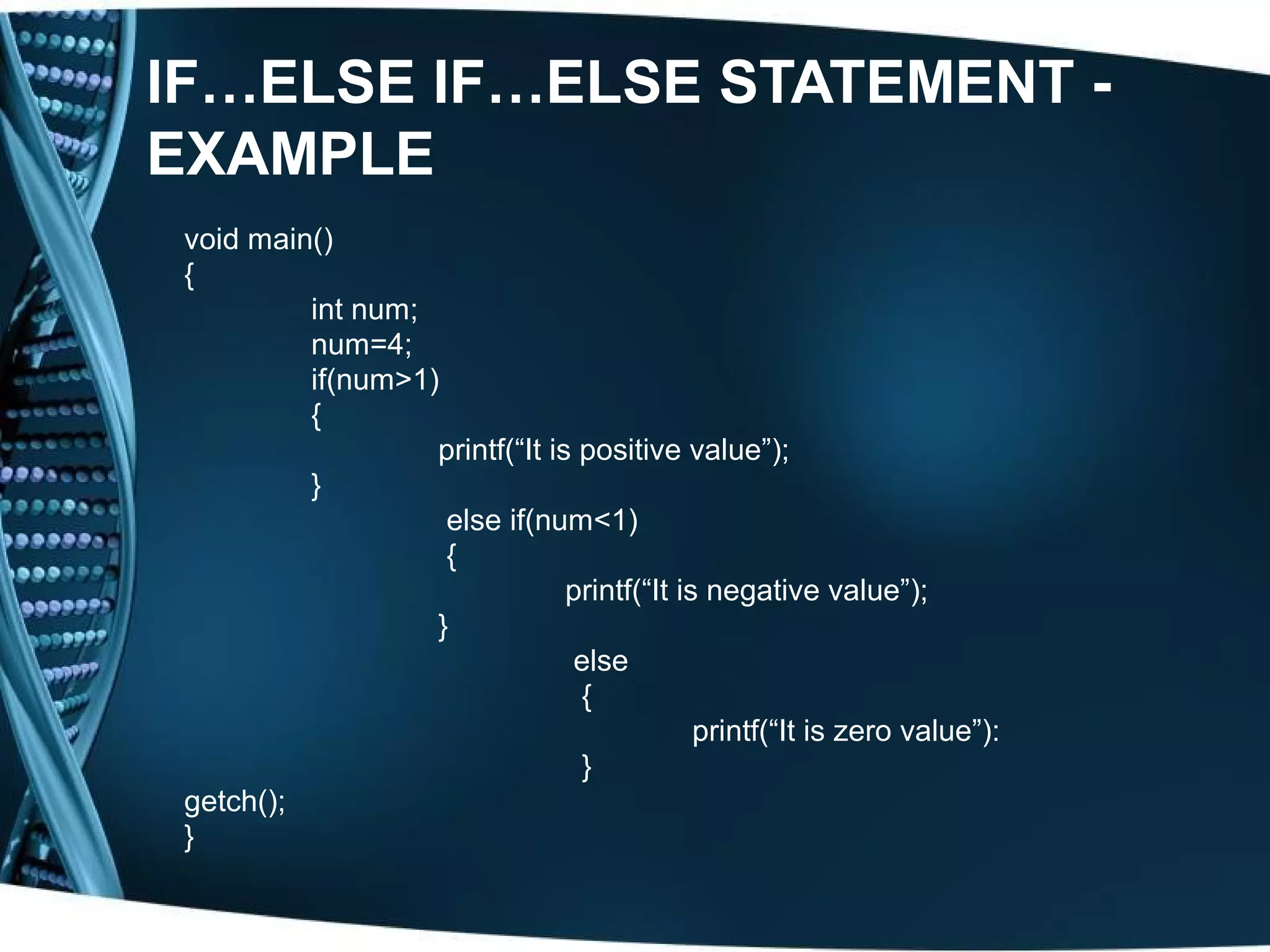

IF…ELSE IF…ELSE STATEMENT - EXAMPLE void main() { int num; num=4; if(num>1) { printf(“It is positive value”); } else if(num<1) { printf(“It is negative value”); } else { printf(“It is zero value”): } getch(); }

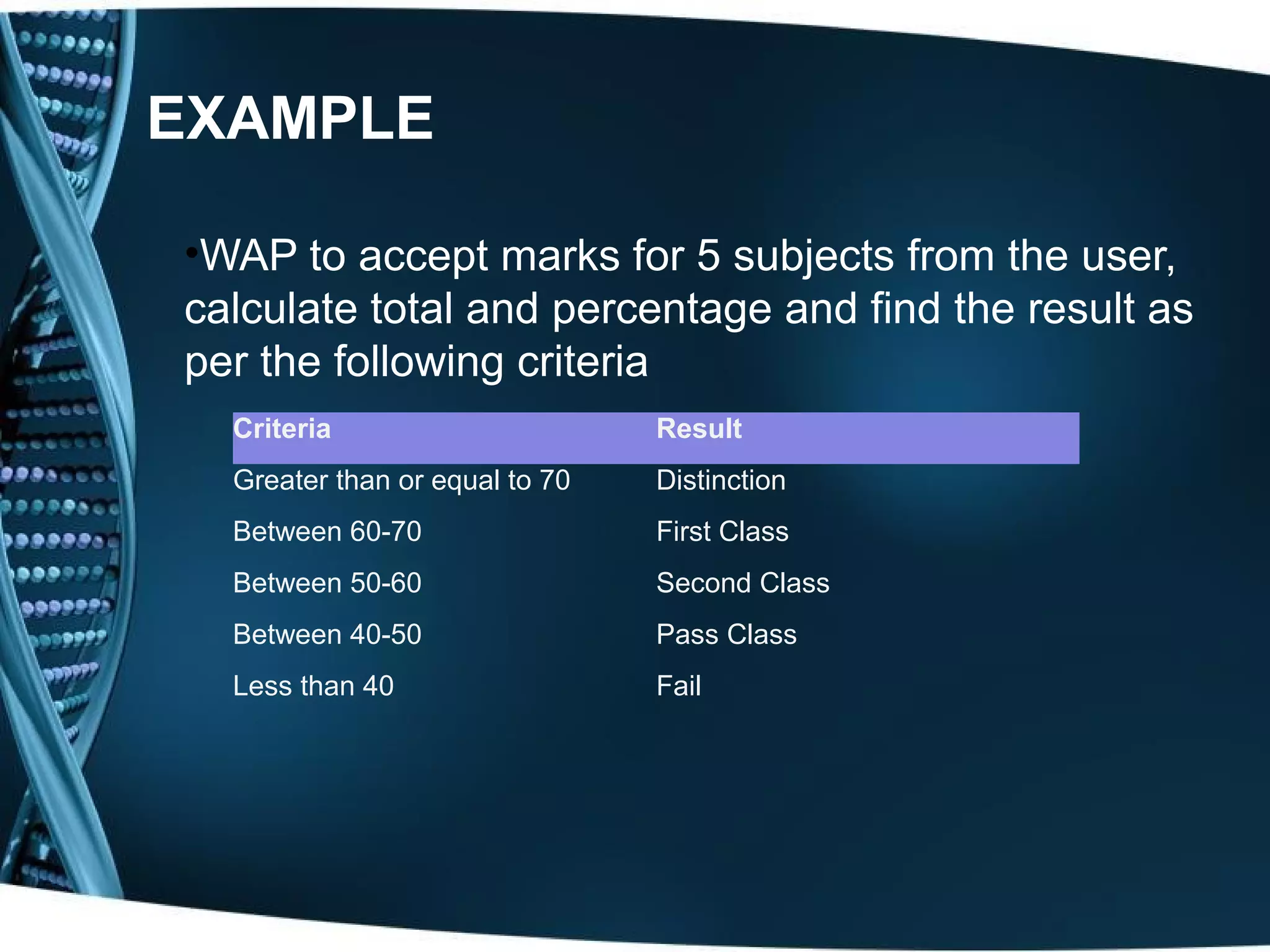

EXAMPLE •WAP to accept marks for 5 subjects from the user, calculate total and percentage and find the result as per the following criteria Criteria Result Greater than or equal to 70 Distinction Between 60-70 First Class Between 50-60 Second Class Between 40-50 Pass Class Less than 40 Fail

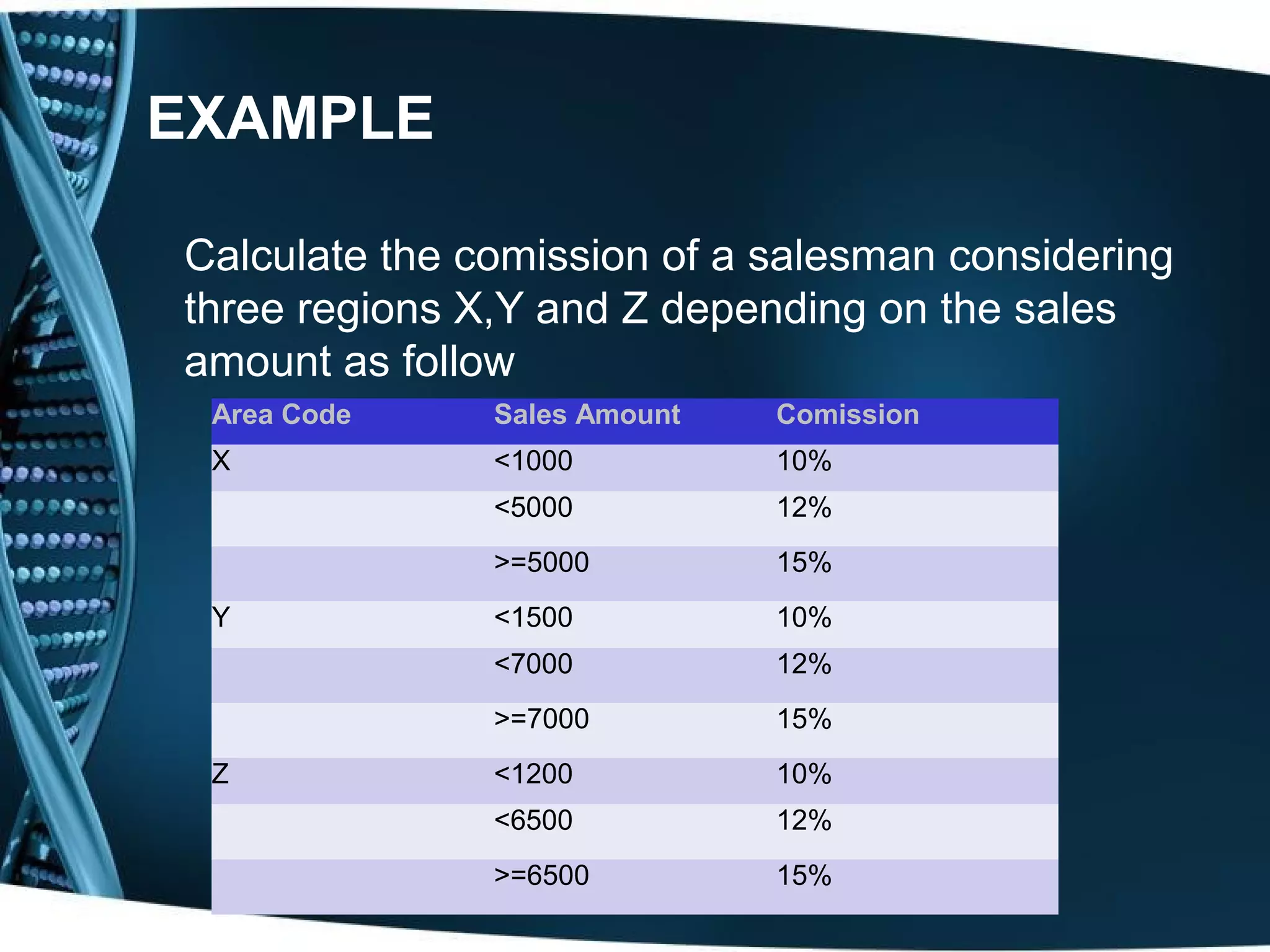

EXAMPLE Calculate the comission of a salesman considering three regions X,Y and Z depending on the sales amount as follow Area Code Sales Amount Comission X <1000 10% <5000 12% >=5000 15% Y <1500 10% <7000 12% >=7000 15% Z <1200 10% <6500 12% >=6500 15%

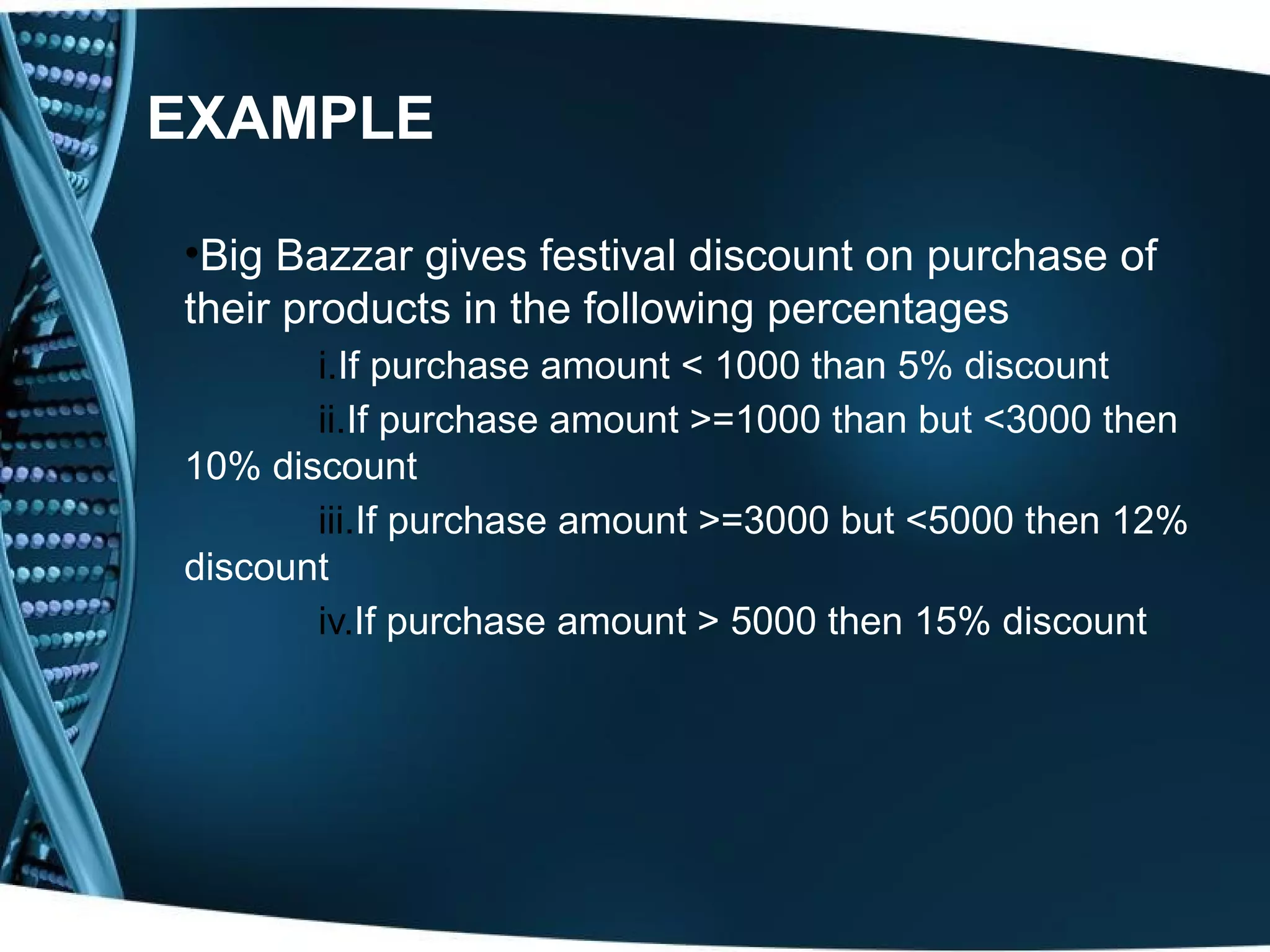

EXAMPLE •Big Bazzar gives festival discount on purchase of their products in the following percentages i.If purchase amount < 1000 than 5% discount ii.If purchase amount >=1000 than but <3000 then 10% discount iii.If purchase amount >=3000 but <5000 then 12% discount iv.If purchase amount > 5000 then 15% discount
