Maximizing performance via tuning and optimization
- 1. Maximizing Performance via Tuning and Optimization Gettingthe most from MariaDB Server
- 2. Agenda • GeneralBest Practices • Server, Storage, Network and O/S • Connections & Pooling • MariaDB Config Settings • Query Tuning • Q&A
- 3. MariaDB Server +InnoDB
- 4. General Best Practices Maybeobvious, but worth repeating

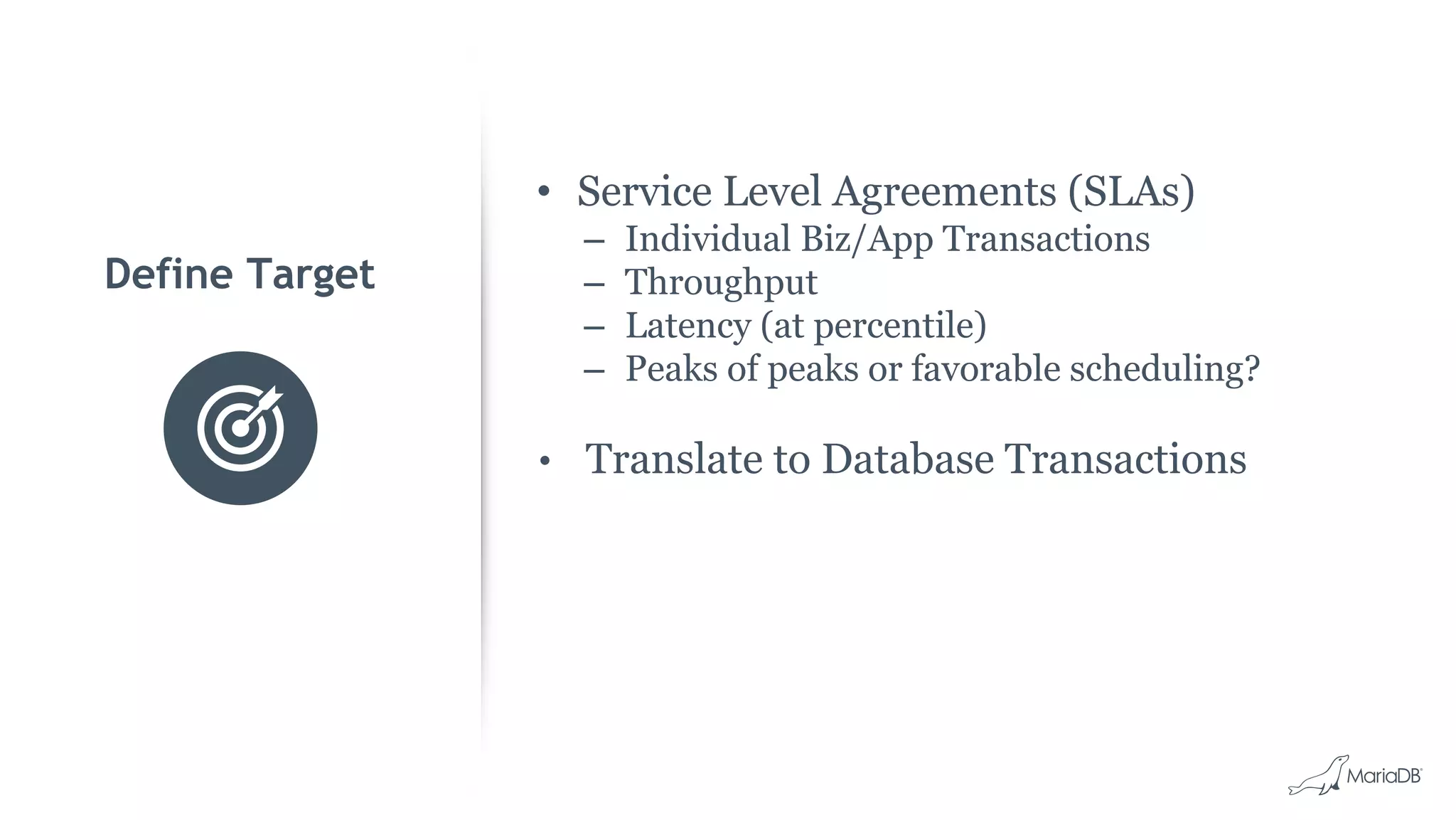

- 5. • Service LevelAgreements (SLAs) – Individual Biz/App Transactions – Throughput – Latency (at percentile) – Peaks of peaks or favorable scheduling? • Translate to Database Transactions Define Target

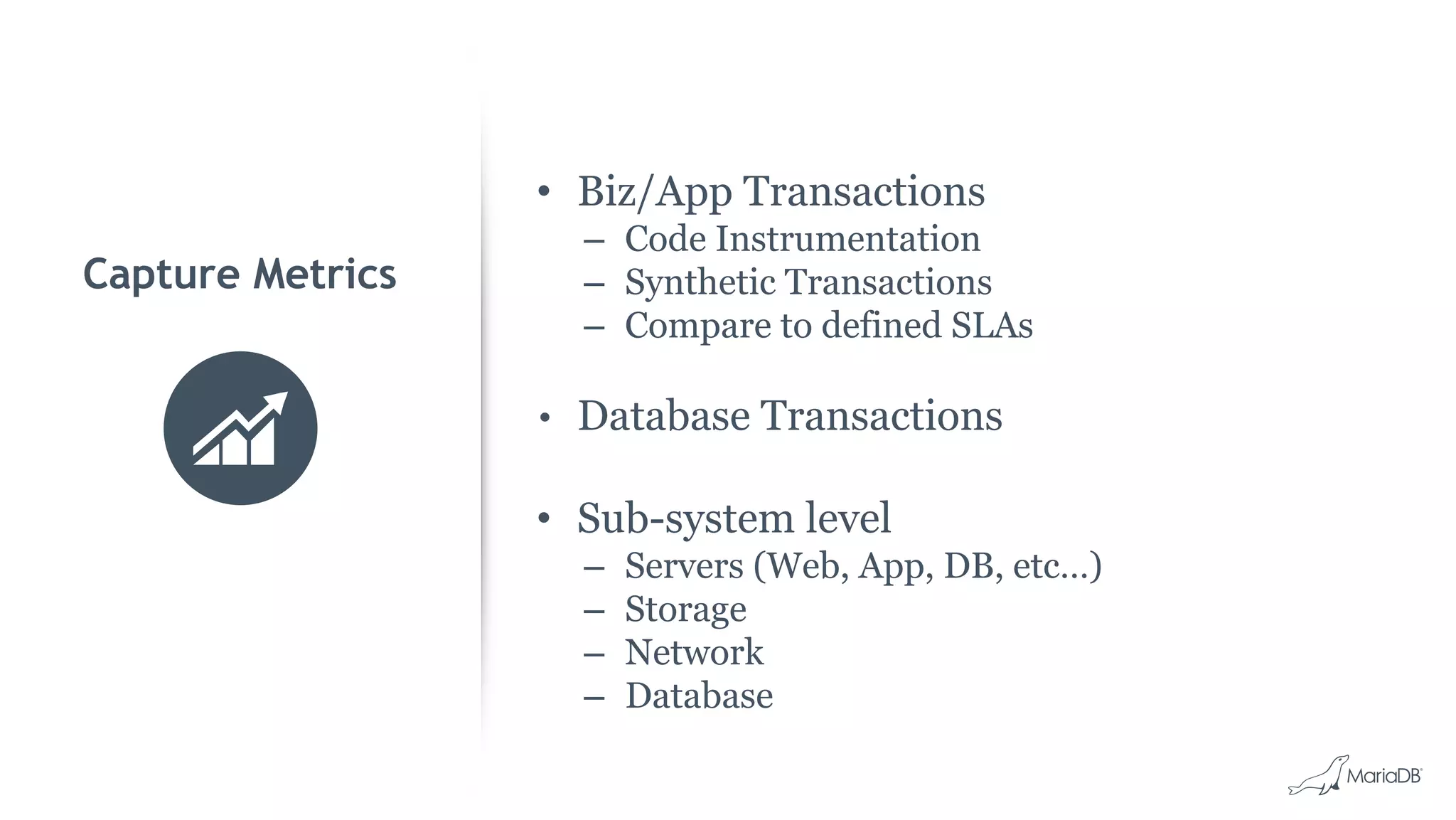

- 6. Capture Metrics • Biz/AppTransactions – Code Instrumentation – Synthetic Transactions – Compare to defined SLAs • Database Transactions • Sub-system level – Servers (Web, App, DB, etc…) – Storage – Network – Database
- 7.

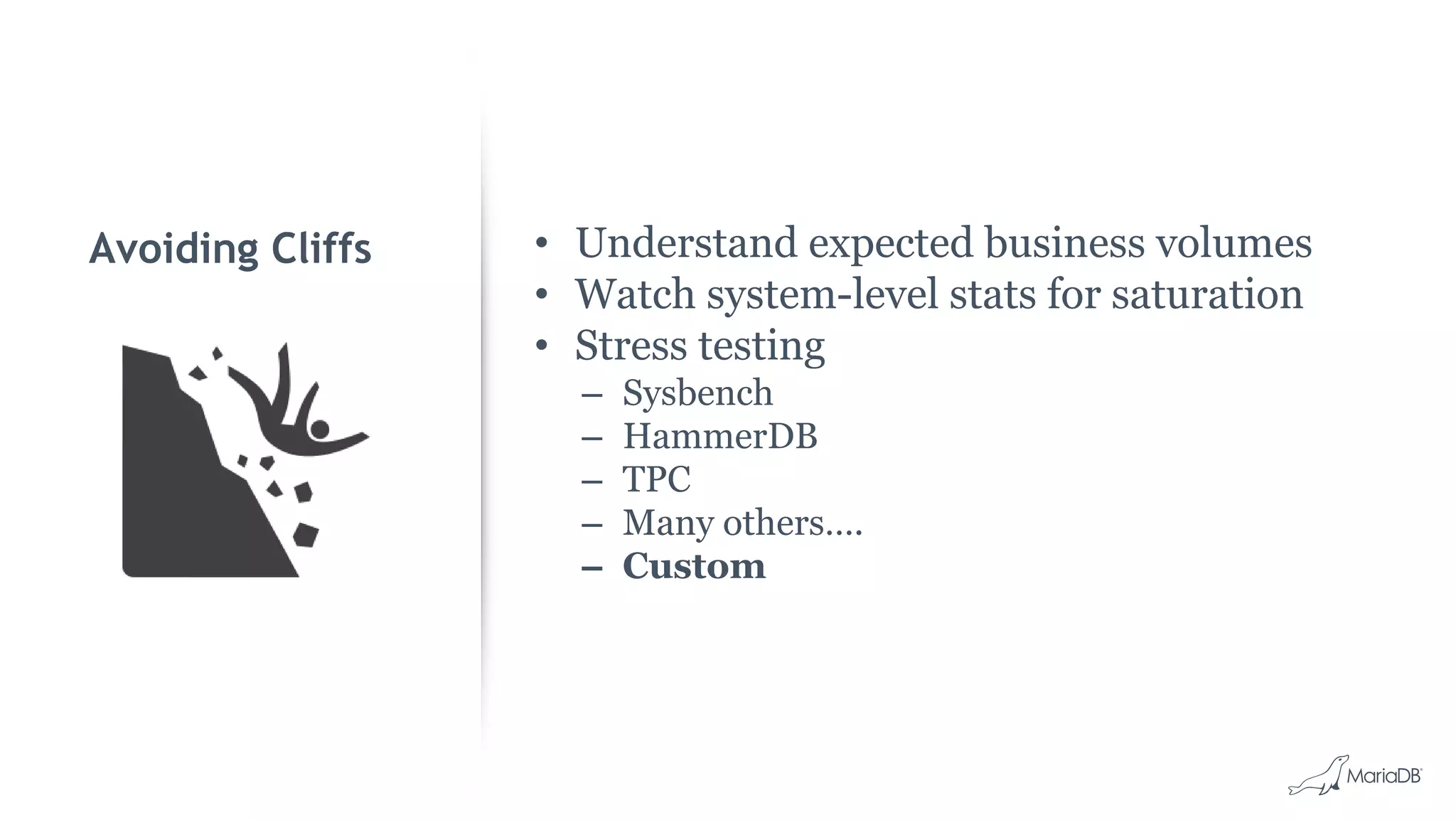

- 8. Avoiding Cliffs •Understand expected business volumes • Watch system-level stats for saturation • Stress testing – Sysbench – HammerDB – TPC – Many others…. – Custom
- 9. Server, Storage, Networkand O/S Core Infrastructure

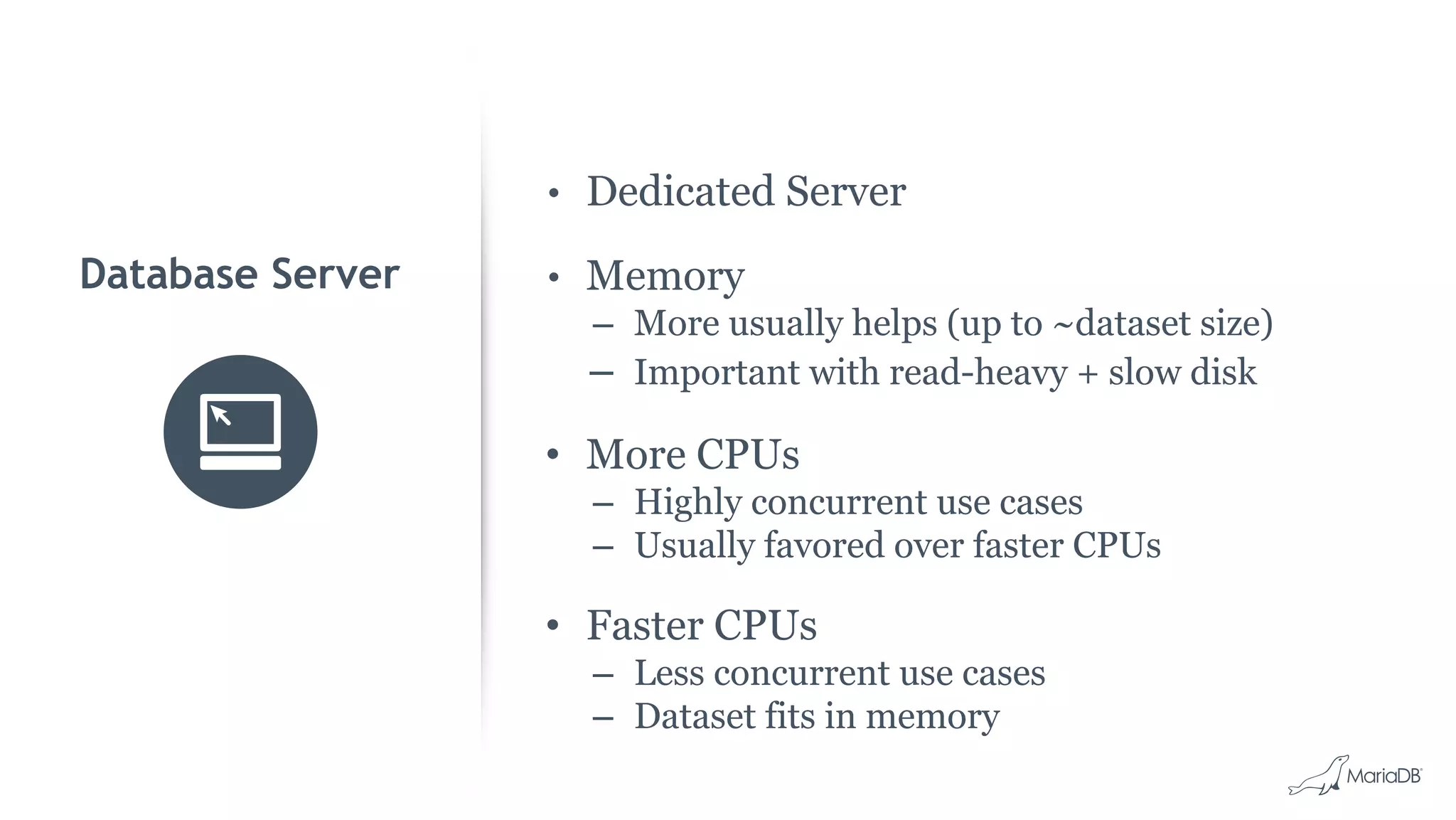

- 10. • Dedicated Server •Memory – More usually helps (up to ~dataset size) – Important with read-heavy + slow disk • More CPUs – Highly concurrent use cases – Usually favored over faster CPUs • Faster CPUs – Less concurrent use cases – Dataset fits in memory Database Server

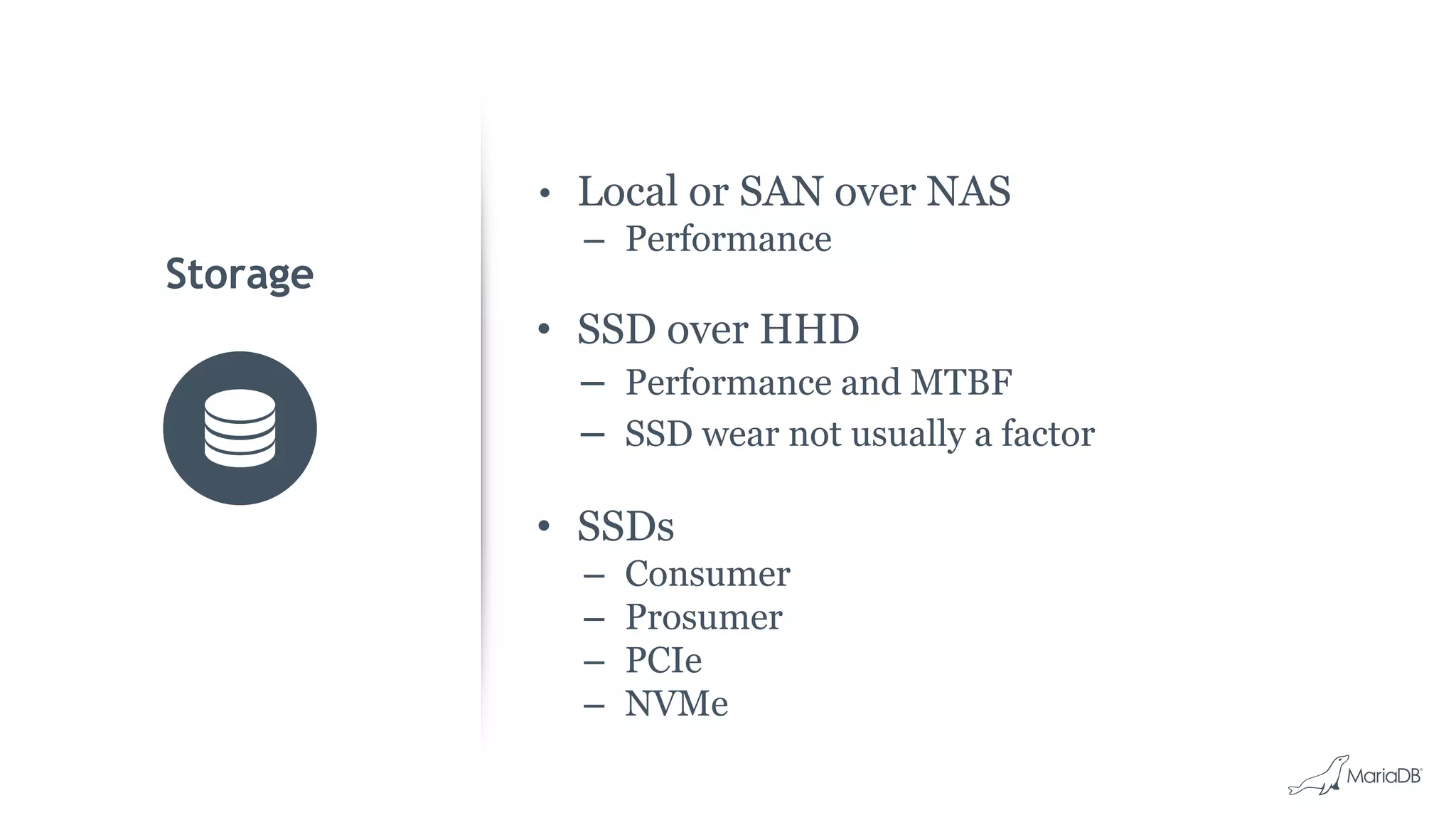

- 11. • Local orSAN over NAS – Performance • SSD over HHD – Performance and MTBF – SSD wear not usually a factor • SSDs – Consumer – Prosumer – PCIe – NVMe Storage

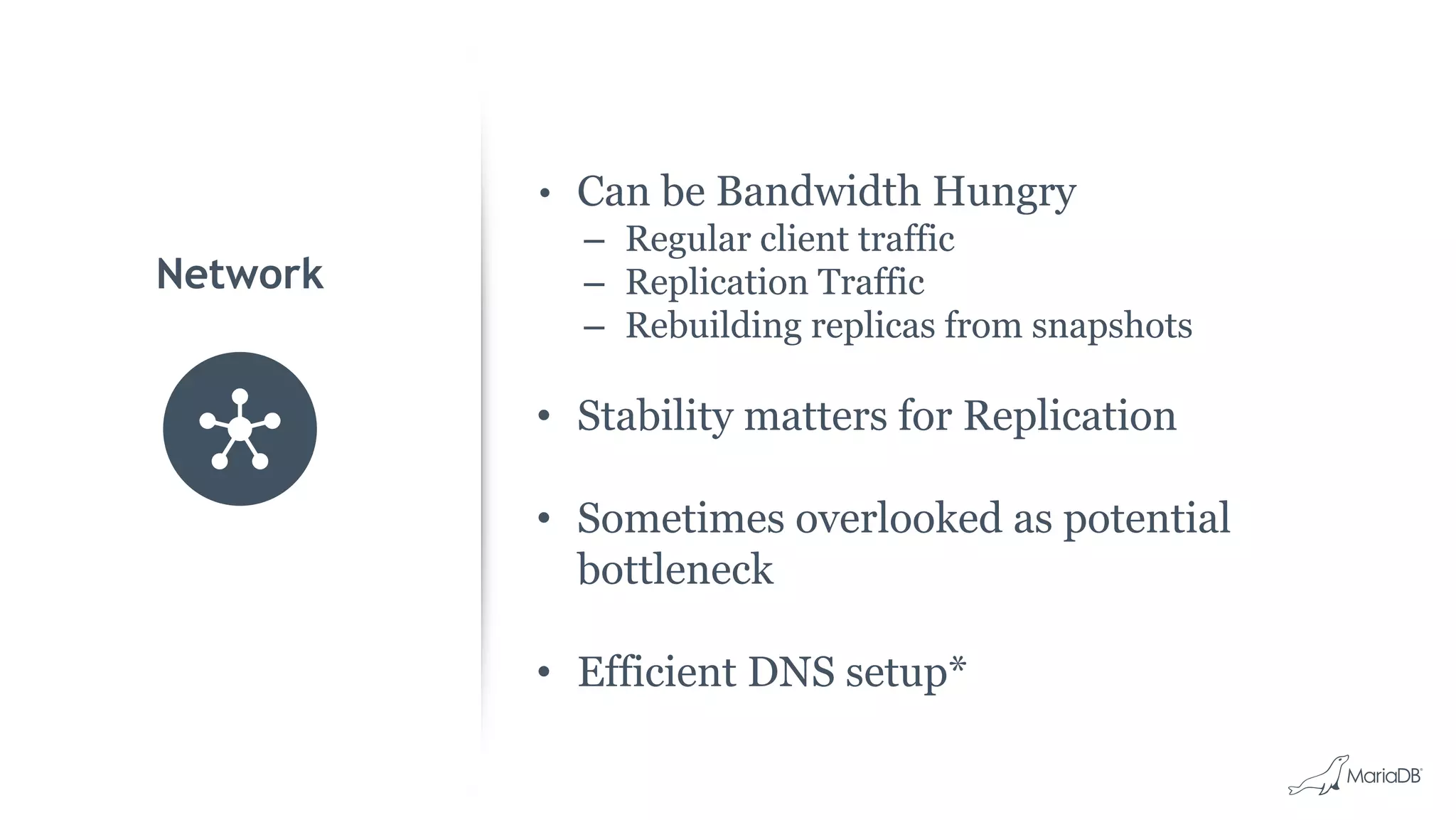

- 12. • Can beBandwidth Hungry – Regular client traffic – Replication Traffic – Rebuilding replicas from snapshots • Stability matters for Replication • Sometimes overlooked as potential bottleneck • Efficient DNS setup* Network

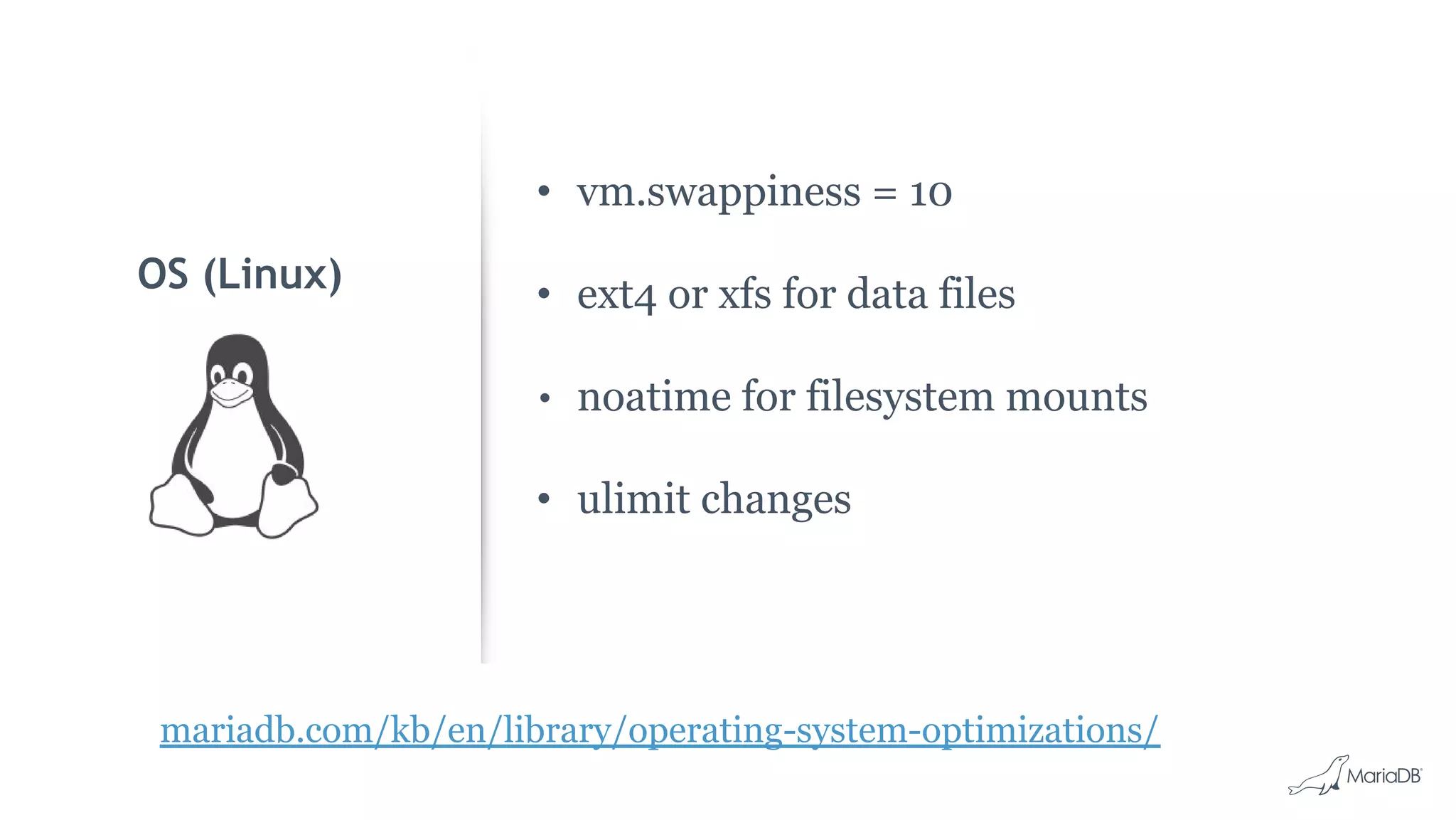

- 13. • vm.swappiness =10 • ext4 or xfs for data files • noatime for filesystem mounts • ulimit changes OS (Linux) mariadb.com/kb/en/library/operating-system-optimizations/
- 14. Connections & Pooling ApplyingBack Pressure

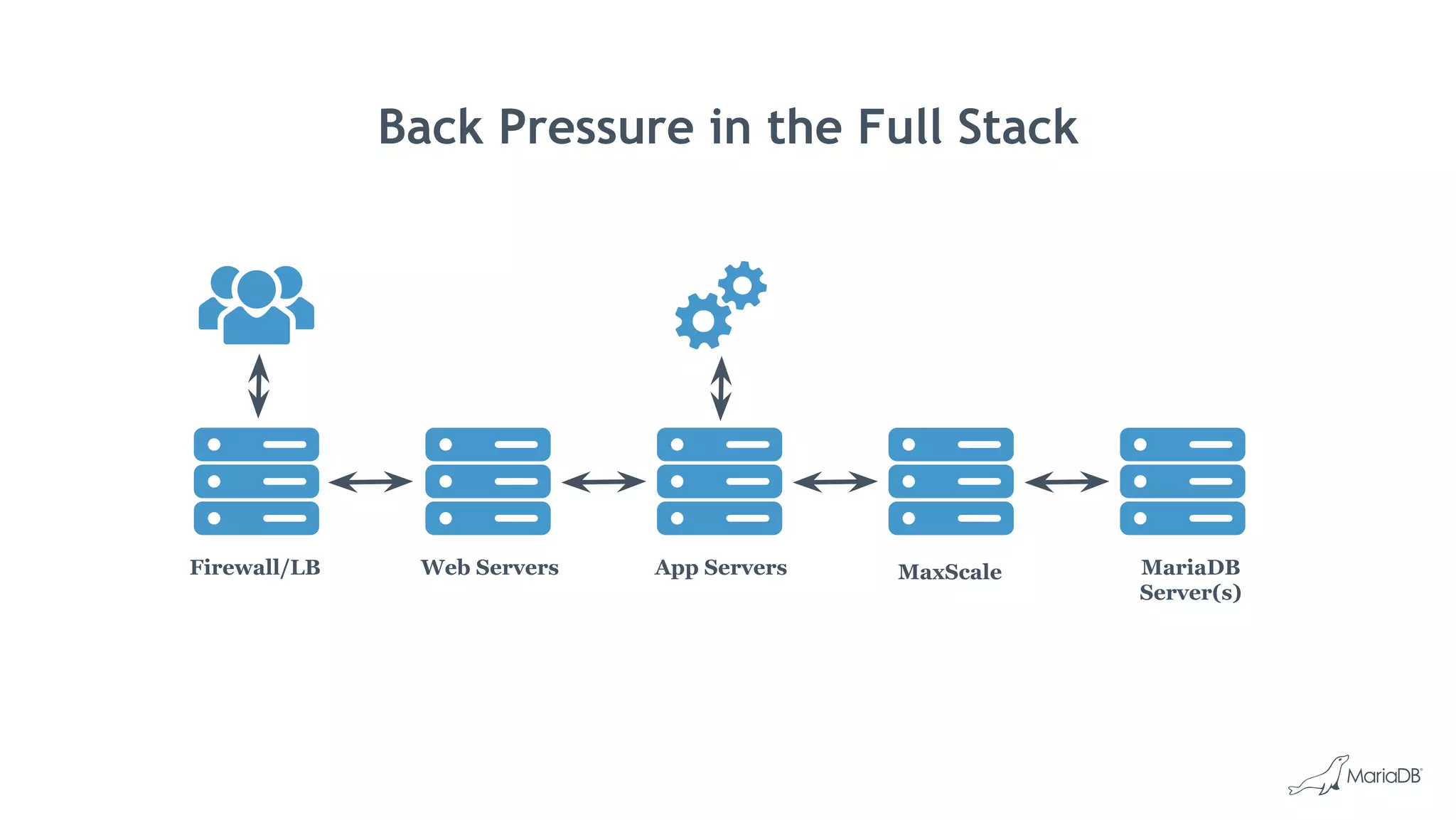

- 15. Back Pressure inthe Full Stack Firewall/LB Web Servers App Servers MaxScale MariaDB Server(s)

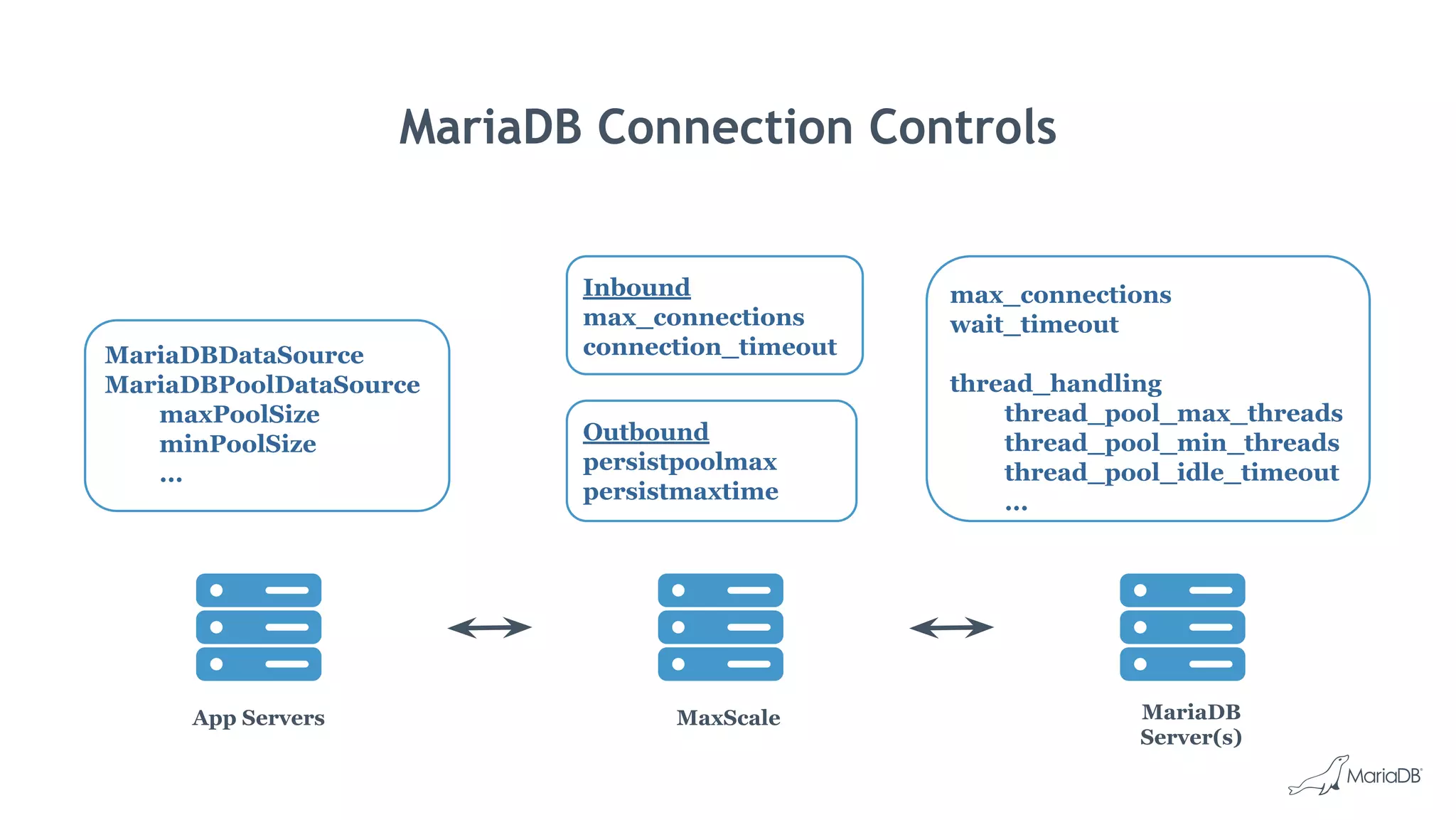

- 16. MariaDB Connection Controls AppServers MaxScale MariaDB Server(s) max_connections wait_timeout thread_handling thread_pool_max_threads thread_pool_min_threads thread_pool_idle_timeout ... MariaDBDataSource MariaDBPoolDataSource maxPoolSize minPoolSize ... Outbound persistpoolmax persistmaxtime Inbound max_connections connection_timeout

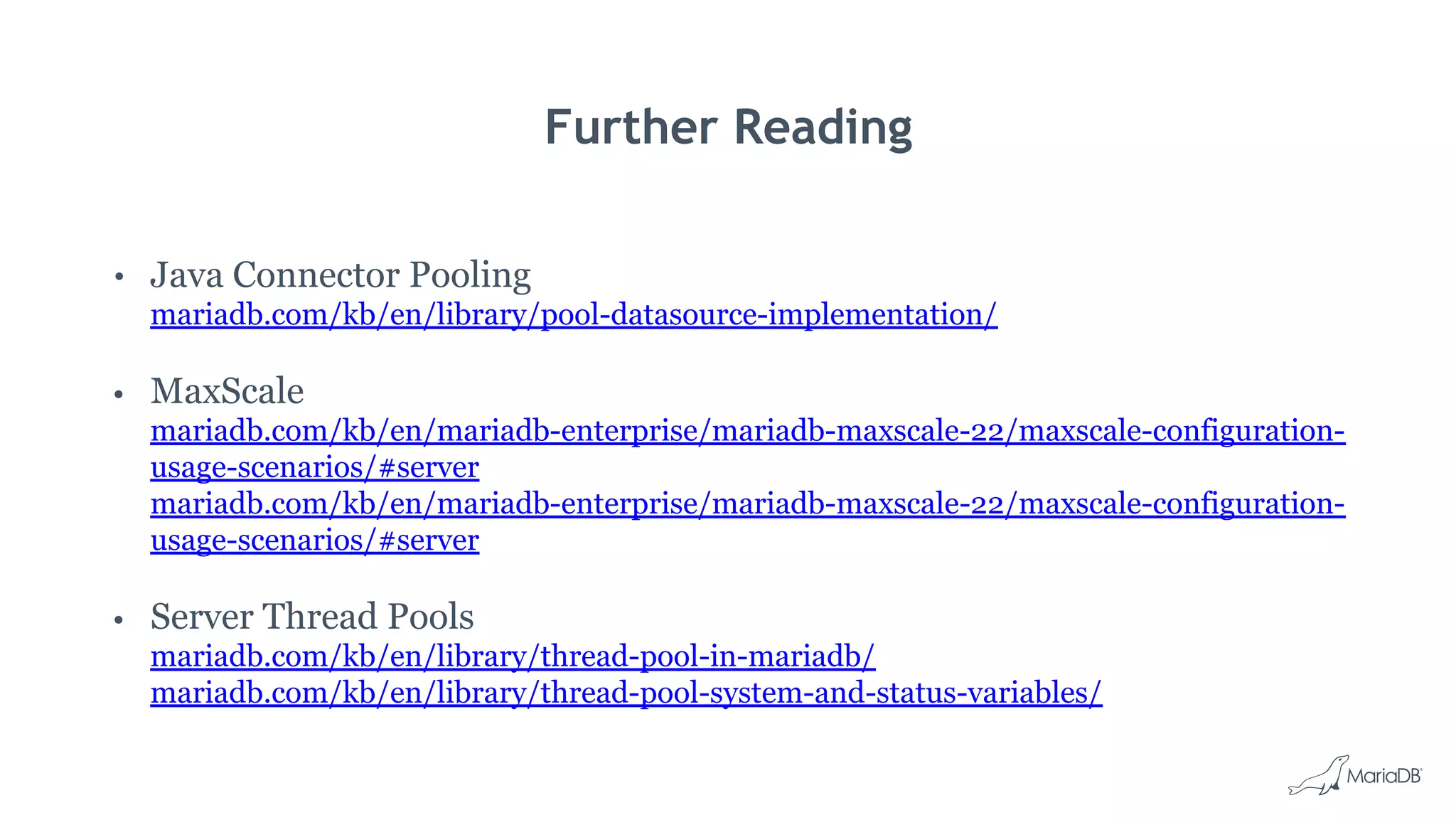

- 17. Further Reading • JavaConnector Pooling mariadb.com/kb/en/library/pool-datasource-implementation/ • MaxScale mariadb.com/kb/en/mariadb-enterprise/mariadb-maxscale-22/maxscale-configuration- usage-scenarios/#server mariadb.com/kb/en/mariadb-enterprise/mariadb-maxscale-22/maxscale-configuration- usage-scenarios/#server • Server Thread Pools mariadb.com/kb/en/library/thread-pool-in-mariadb/ mariadb.com/kb/en/library/thread-pool-system-and-status-variables/
- 18. Configuration Settings Common Settingswith Performance Impact

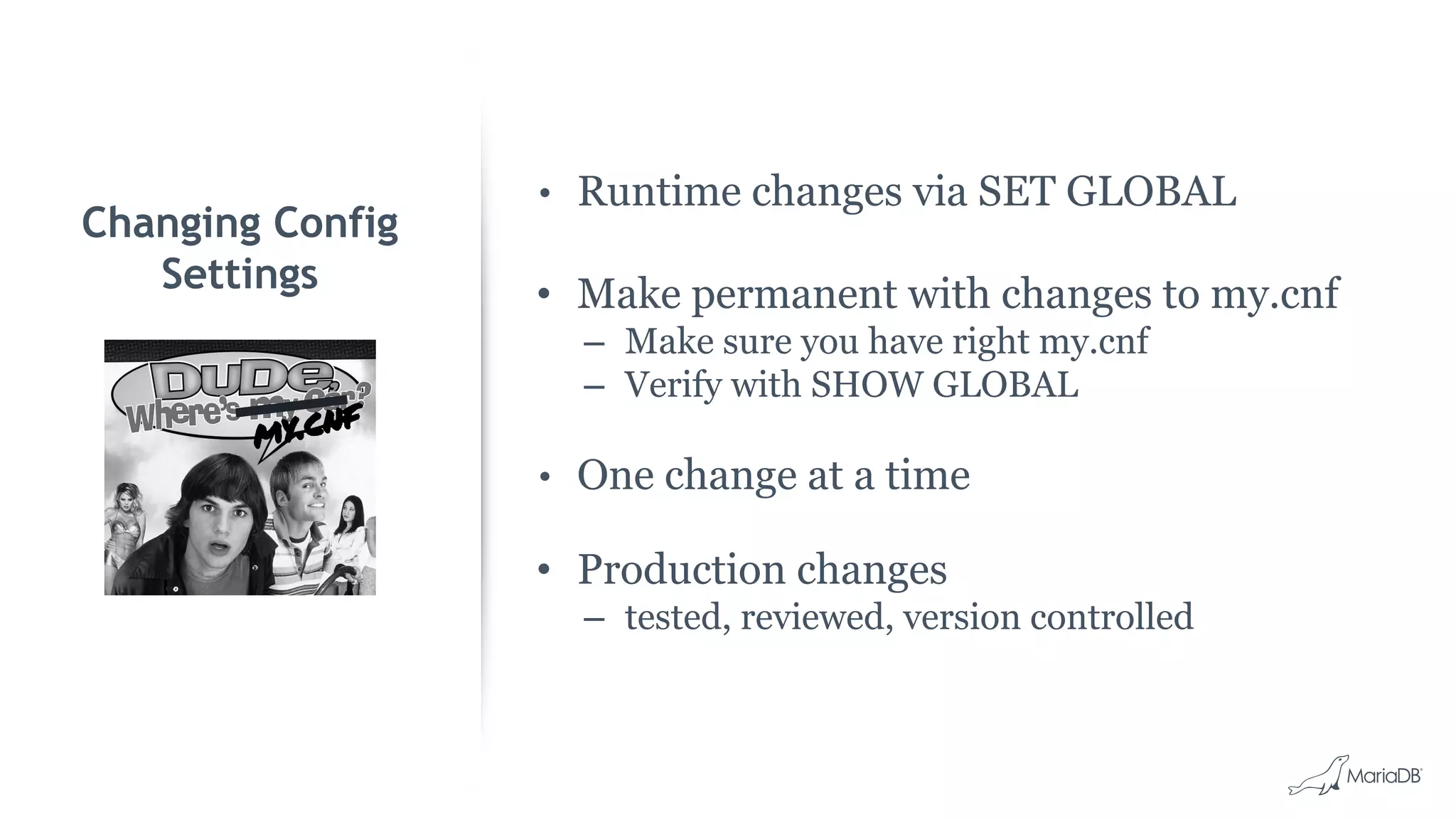

- 19. • Runtime changesvia SET GLOBAL • Make permanent with changes to my.cnf – Make sure you have right my.cnf – Verify with SHOW GLOBAL • One change at a time • Production changes – tested, reviewed, version controlled Changing Config Settings my.cnf

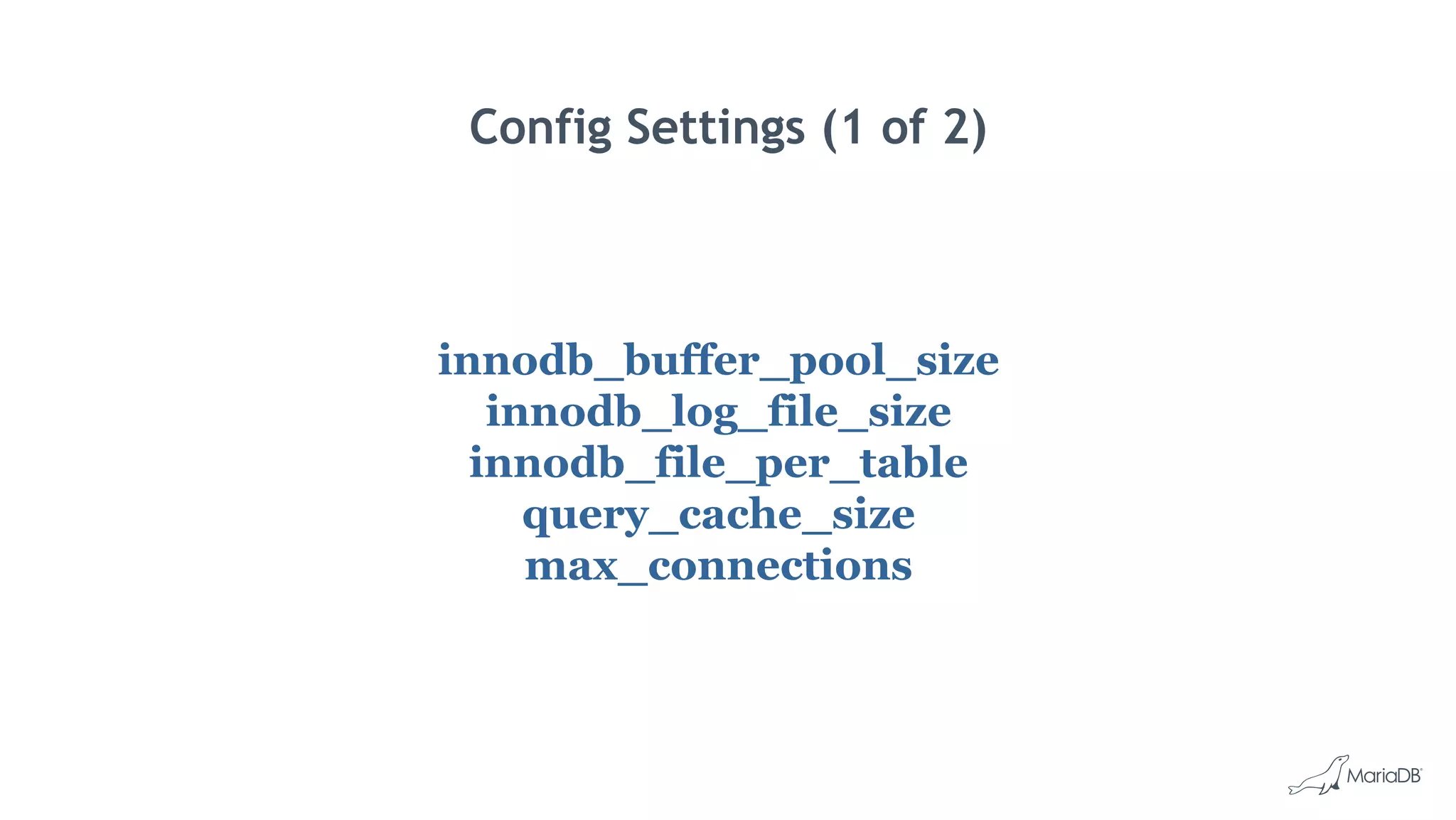

- 20. Config Settings (1of 2) innodb_buffer_pool_size innodb_log_file_size innodb_file_per_table query_cache_size max_connections

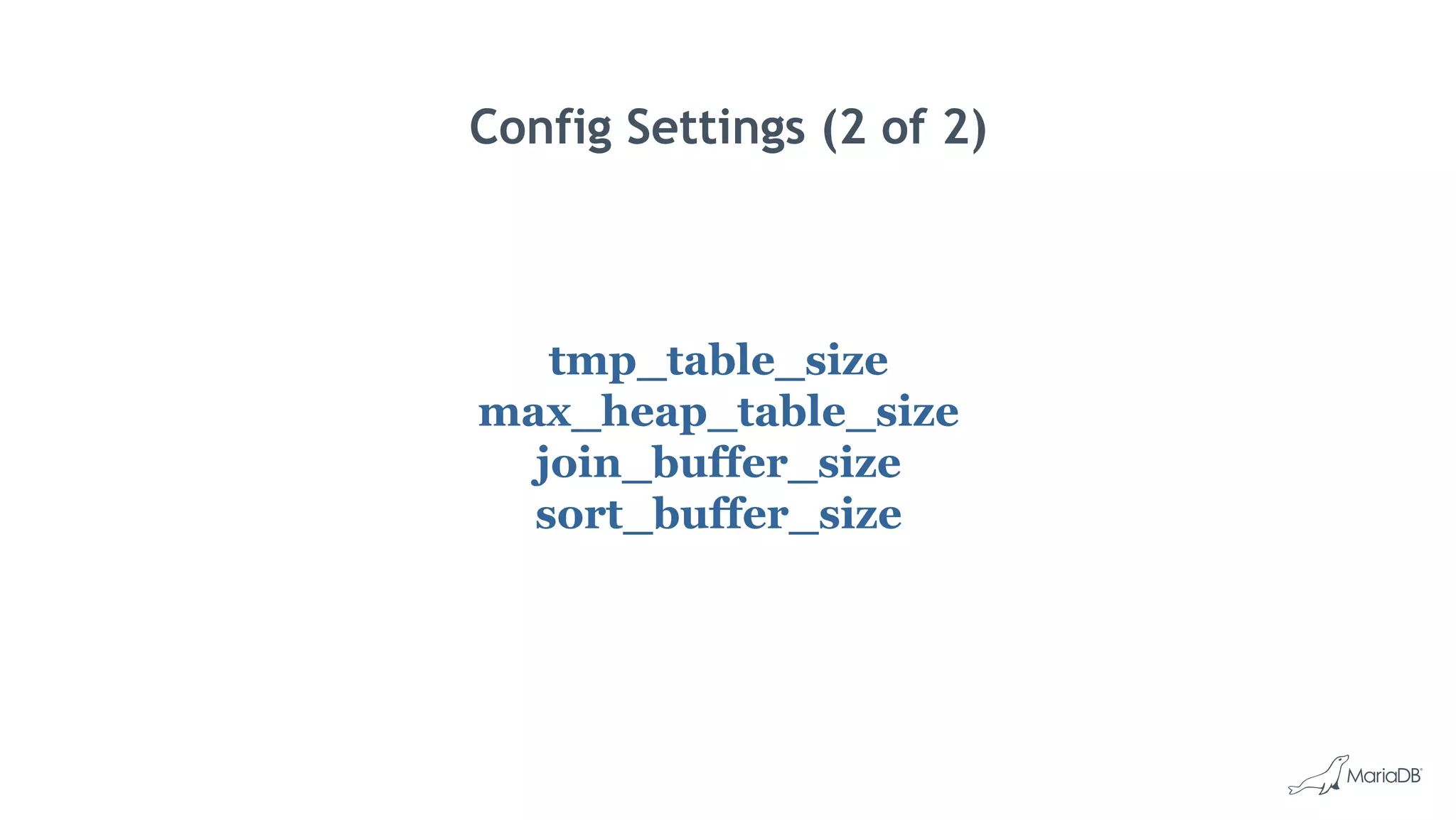

- 21. Config Settings (2of 2) tmp_table_size max_heap_table_size join_buffer_size sort_buffer_size
- 22. Query Tuning There arealways more queries to tune

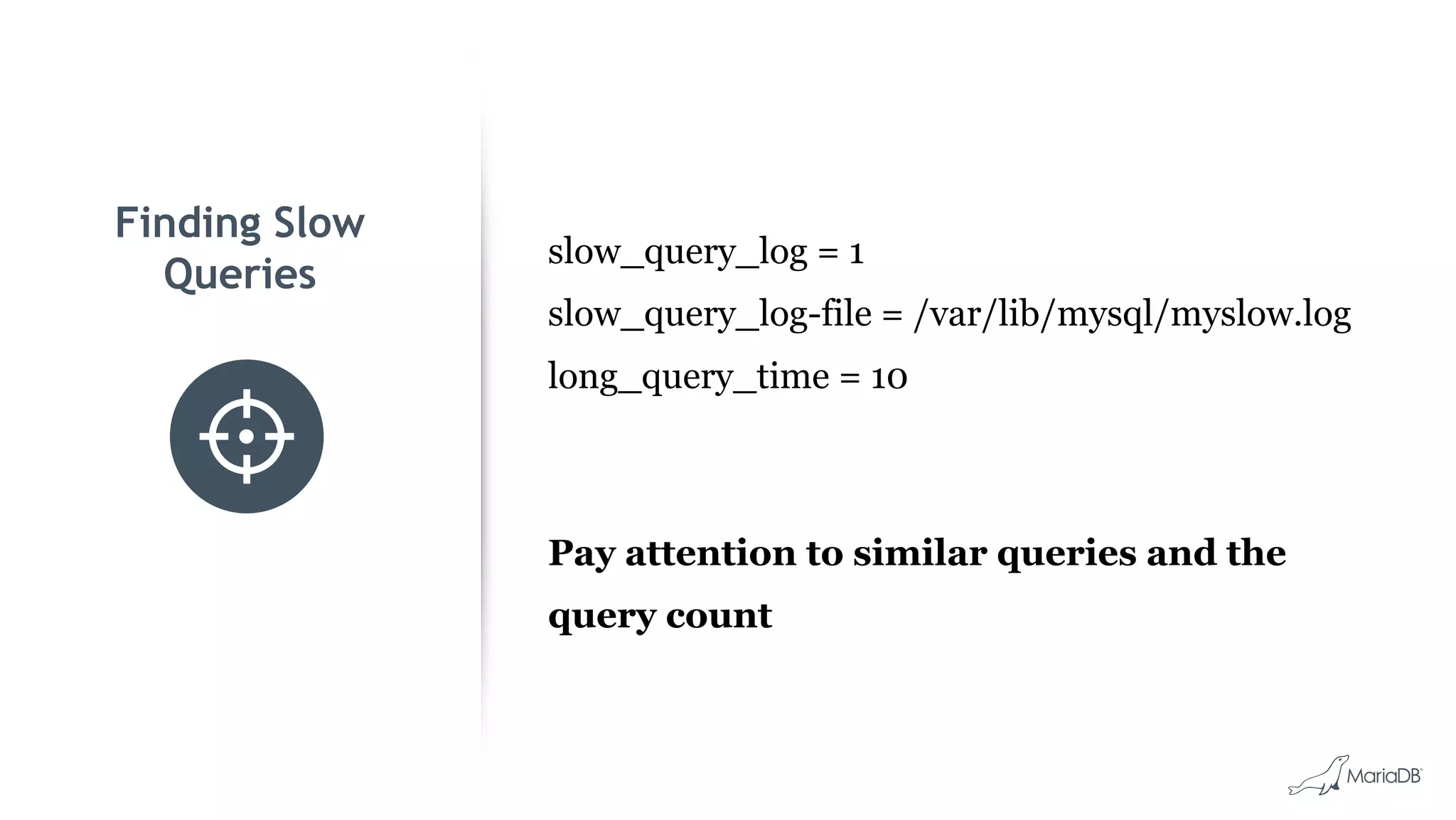

- 23. Finding Slow Queries slow_query_log =1 slow_query_log-file = /var/lib/mysql/myslow.log long_query_time = 10 Pay attention to similar queries and the query count

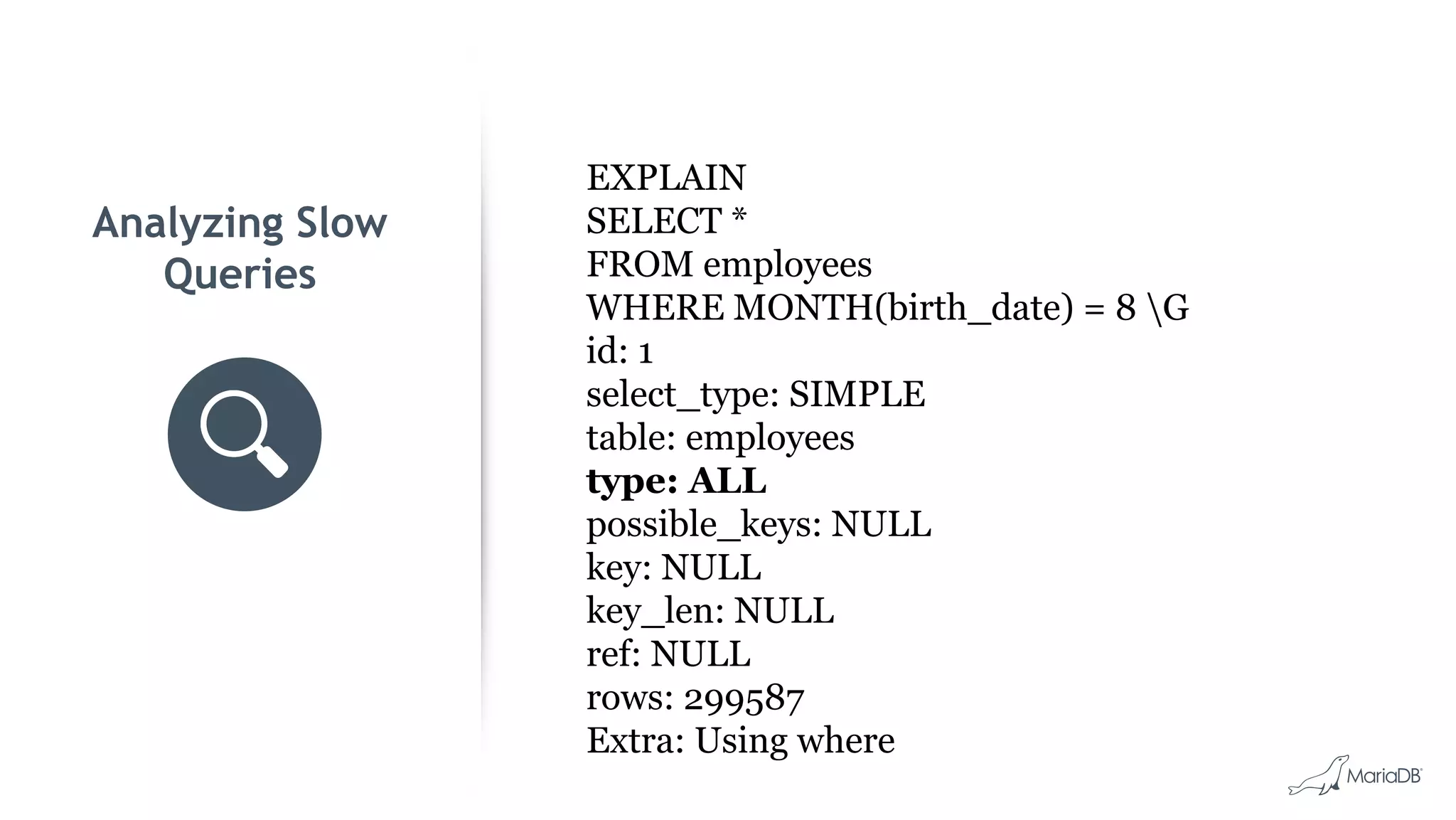

- 24. Analyzing Slow Queries EXPLAIN SELECT * FROMemployees WHERE MONTH(birth_date) = 8 G id: 1 select_type: SIMPLE table: employees type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 299587 Extra: Using where

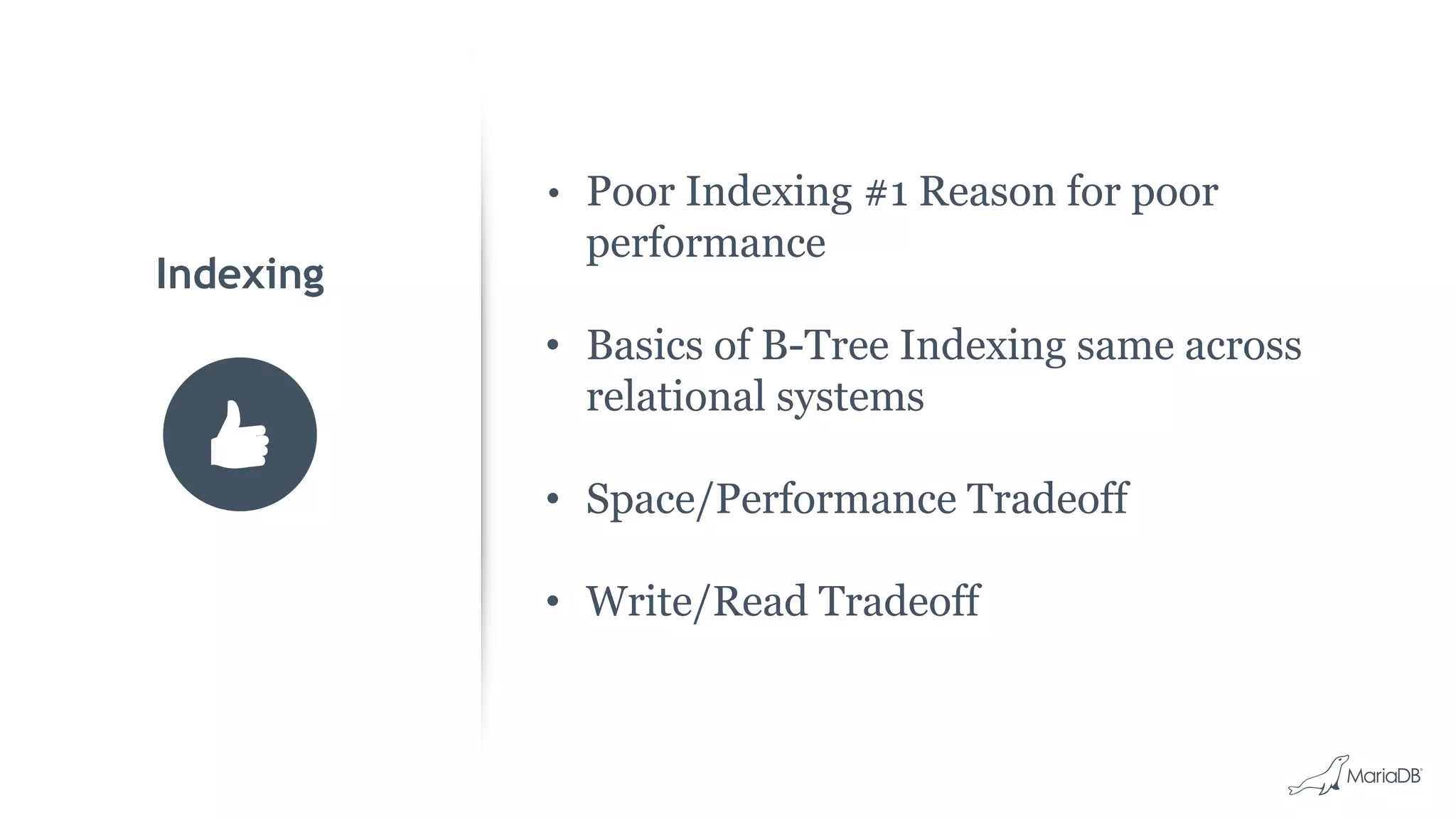

- 25. • Poor Indexing#1 Reason for poor performance • Basics of B-Tree Indexing same across relational systems • Space/Performance Tradeoff • Write/Read Tradeoff Indexing

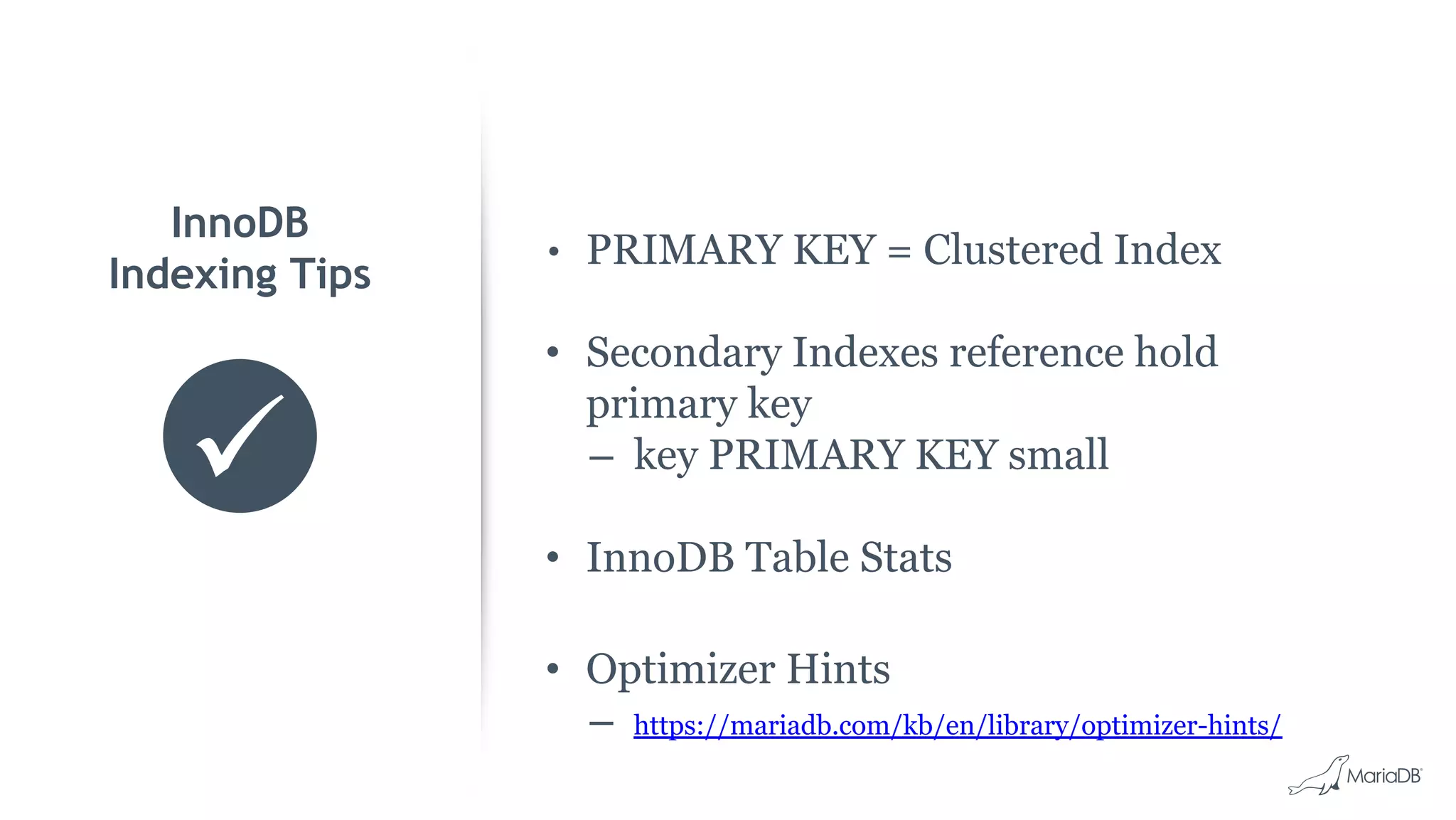

- 26. • PRIMARY KEY= Clustered Index • Secondary Indexes reference hold primary key – key PRIMARY KEY small • InnoDB Table Stats • Optimizer Hints – https://mariadb.com/kb/en/library/optimizer-hints/ InnoDB Indexing Tips

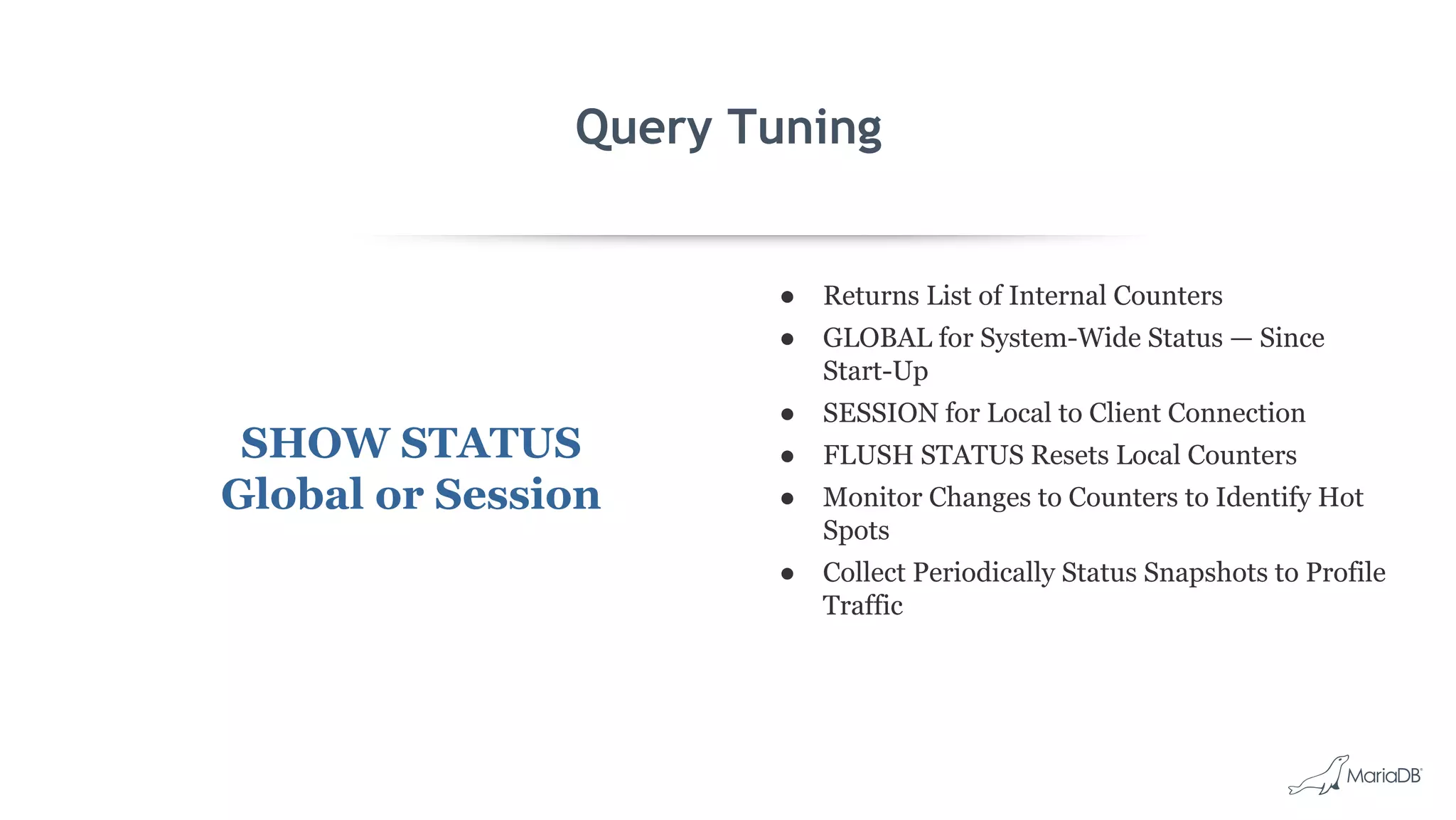

- 27. Query Tuning SHOW STATUS Globalor Session ● Returns List of Internal Counters ● GLOBAL for System-Wide Status — Since Start-Up ● SESSION for Local to Client Connection ● FLUSH STATUS Resets Local Counters ● Monitor Changes to Counters to Identify Hot Spots ● Collect Periodically Status Snapshots to Profile Traffic

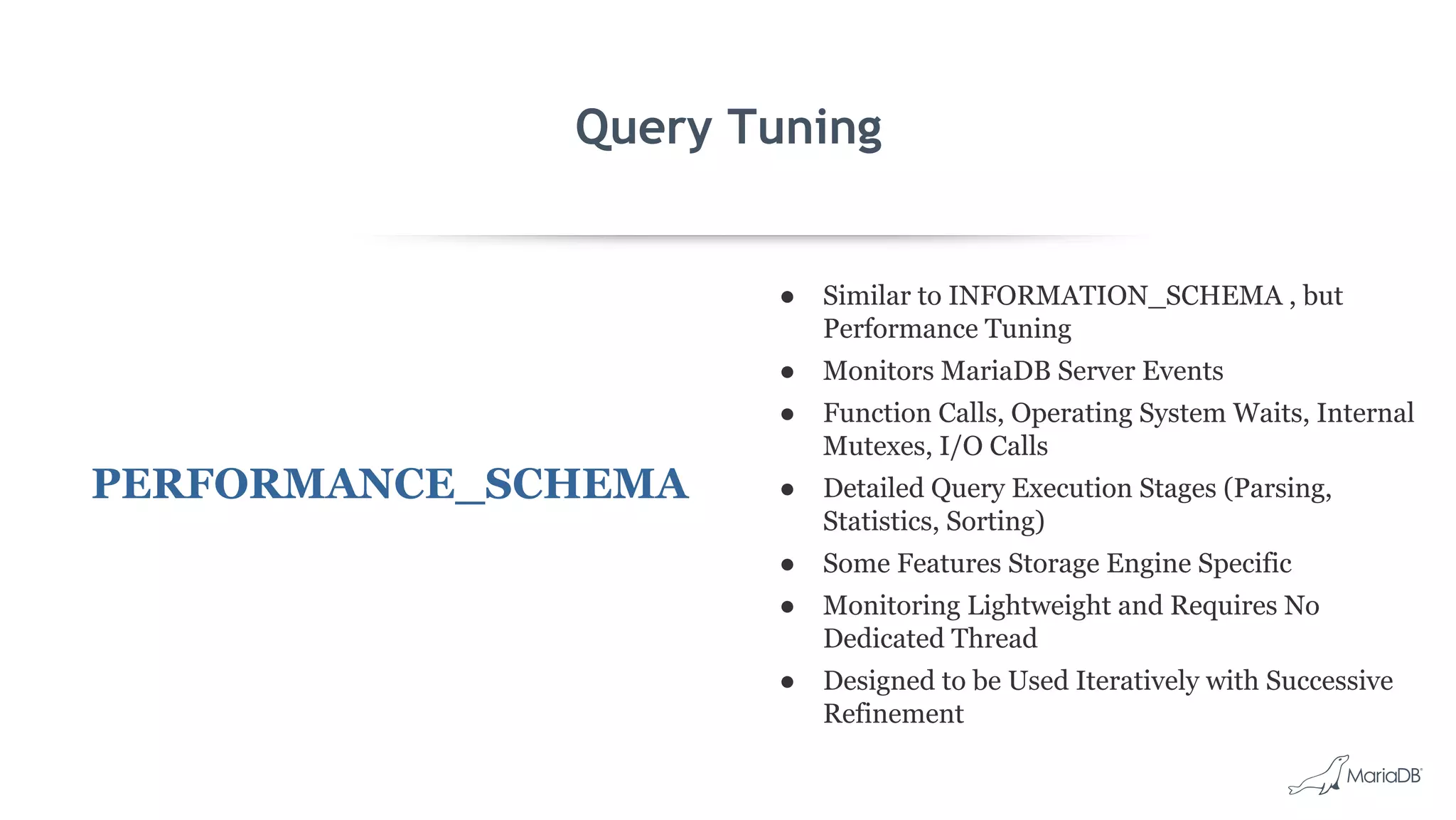

- 28. Query Tuning PERFORMANCE_SCHEMA ● Similarto INFORMATION_SCHEMA , but Performance Tuning ● Monitors MariaDB Server Events ● Function Calls, Operating System Waits, Internal Mutexes, I/O Calls ● Detailed Query Execution Stages (Parsing, Statistics, Sorting) ● Some Features Storage Engine Specific ● Monitoring Lightweight and Requires No Dedicated Thread ● Designed to be Used Iteratively with Successive Refinement
- 29.
- 30.
- 31.
