Making Sense of Apache Flink: A Fearless Introduction
The document provides an introduction to Apache Flink, detailing its capabilities in real-time data processing, event-driven applications, and continuous data analytics. It emphasizes Flink's scalability, performance, and support for various programming languages, along with its fault tolerance and exactly-once guarantees. Additionally, it outlines key concepts such as streaming, stateful processing, watermarks, and checkpointing essential for efficient stream processing.
Making Sense of Apache Flink: A Fearless Introduction
- 1. Making Sense ofApache Flink: A Fearless Introduction David Anderson Software Practice Lead, Confluent Apache Flink Committer

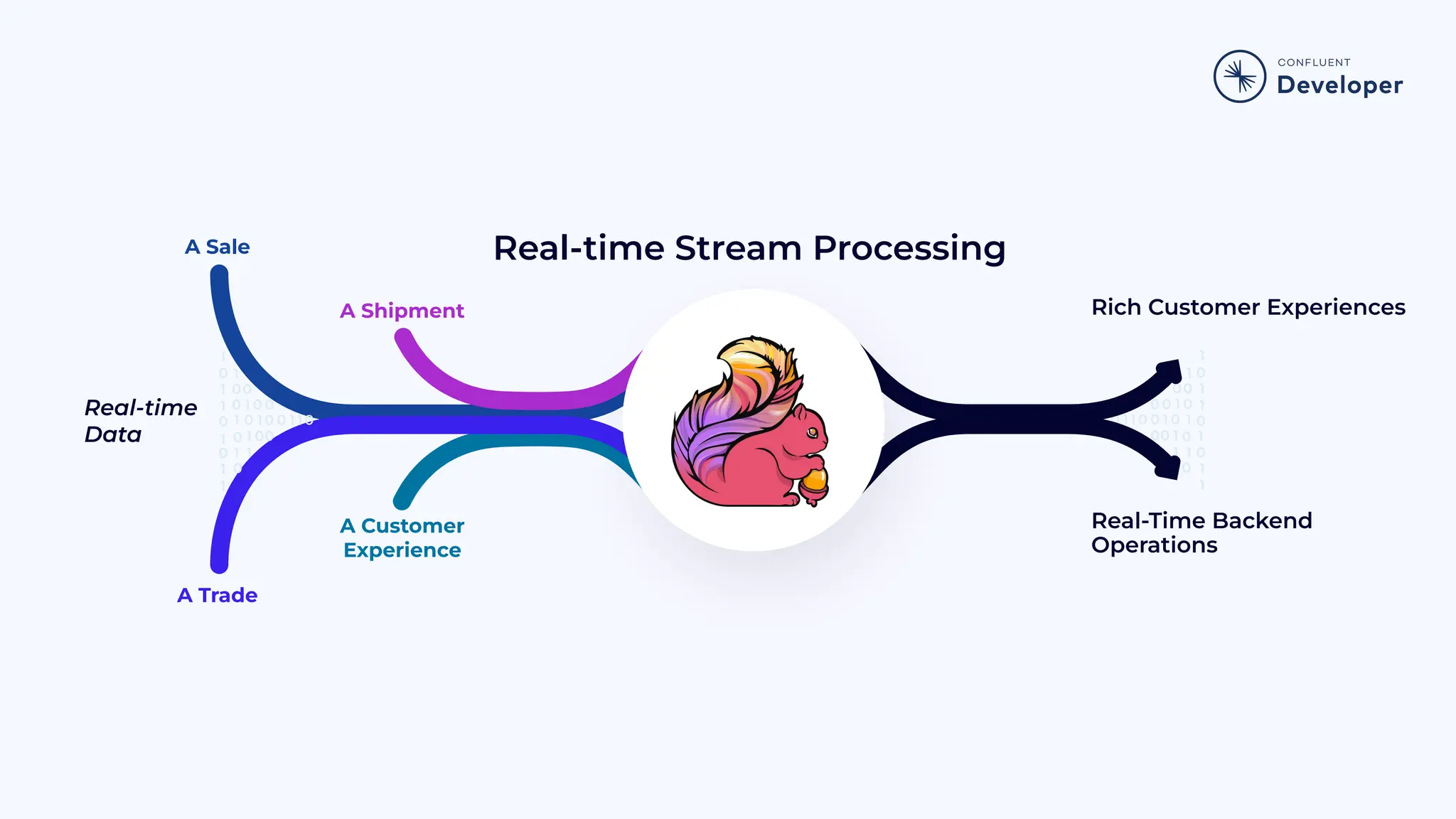

- 2. Real-time Data A Sale A Shipment ATrade Rich Customer Experiences A Customer Experience Real-Time Backend Operations Real-time Stream Processing
- 3. Innovative companies haveadopted both Kafka & Flink
- 4. Digital natives leverageKafka and Flink to disrupt markets and gain competitive advantage UBER: Real-time Pricing NETFLIX: Personalized Recs STRIPE: Real-time Fraud Detection
- 5. Driving business valuewith Apache Flink Real-time analytics Event-driven applications Streaming data pipelines Continuously produce and update results which are displayed and delivered to users as real-time data streams are consumed ● Ad/campaign performance ● Content performance ● Quality monitoring of Telco networks ● Usage metering and billing Recognize patterns and react to incoming events by triggering computations, state updates, or external actions ● Fraud detection ● Anomaly detection ● Business process monitoring ● Geo-fencing Real-time data pipelines that continuously ingest, enrich, and transform data streams, loading them into destination systems for timely action (vs. batch processing) ● Continuous ETL ● Real-time search index building ● ML pipelines ● Data lake ingestion
- 6. Developers are choosingFlink because of Its performance and rich feature set Scalability & high performance Flink supports stream processing workloads at tremendous scale Flink supports Java, Python, & SQL, enabling developers to work in their language of choice Flink supports stream processing, batch processing, and ad-hoc analytics through one technology Unified processing Flink's checkpointing mechanism provides exactly-once guarantees automatically Fault tolerance & high availability Language flexibility Flink is a top 5 Apache project and has a very active community

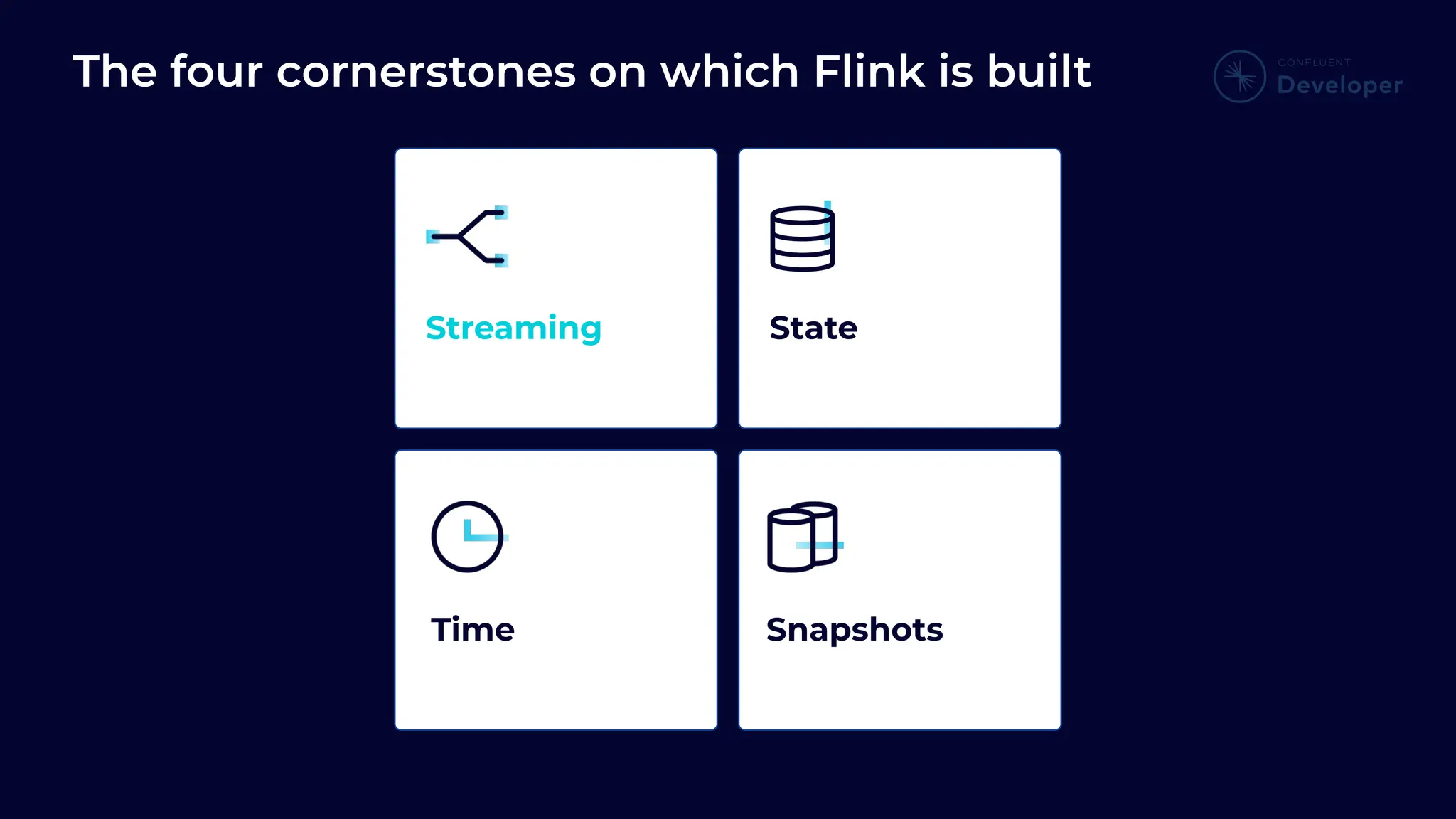

- 7. @yourtwitterhandle | developer.confluent.io Streaming Thefour cornerstones on which Flink is built State Time Snapshots

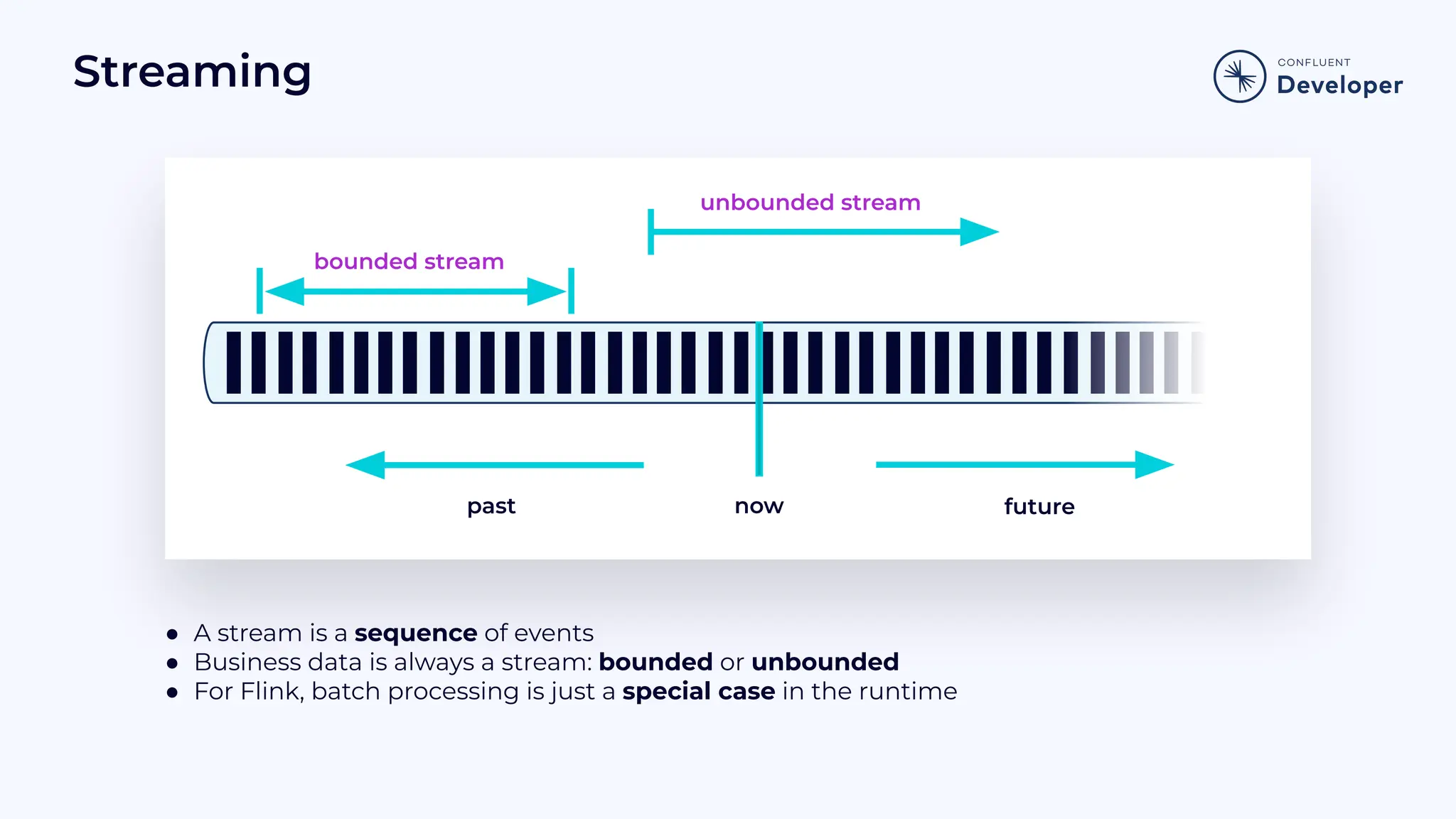

- 8. ● A streamis a sequence of events ● Business data is always a stream: bounded or unbounded ● For Flink, batch processing is just a special case in the runtime now past future bounded stream unbounded stream Streaming
- 9.

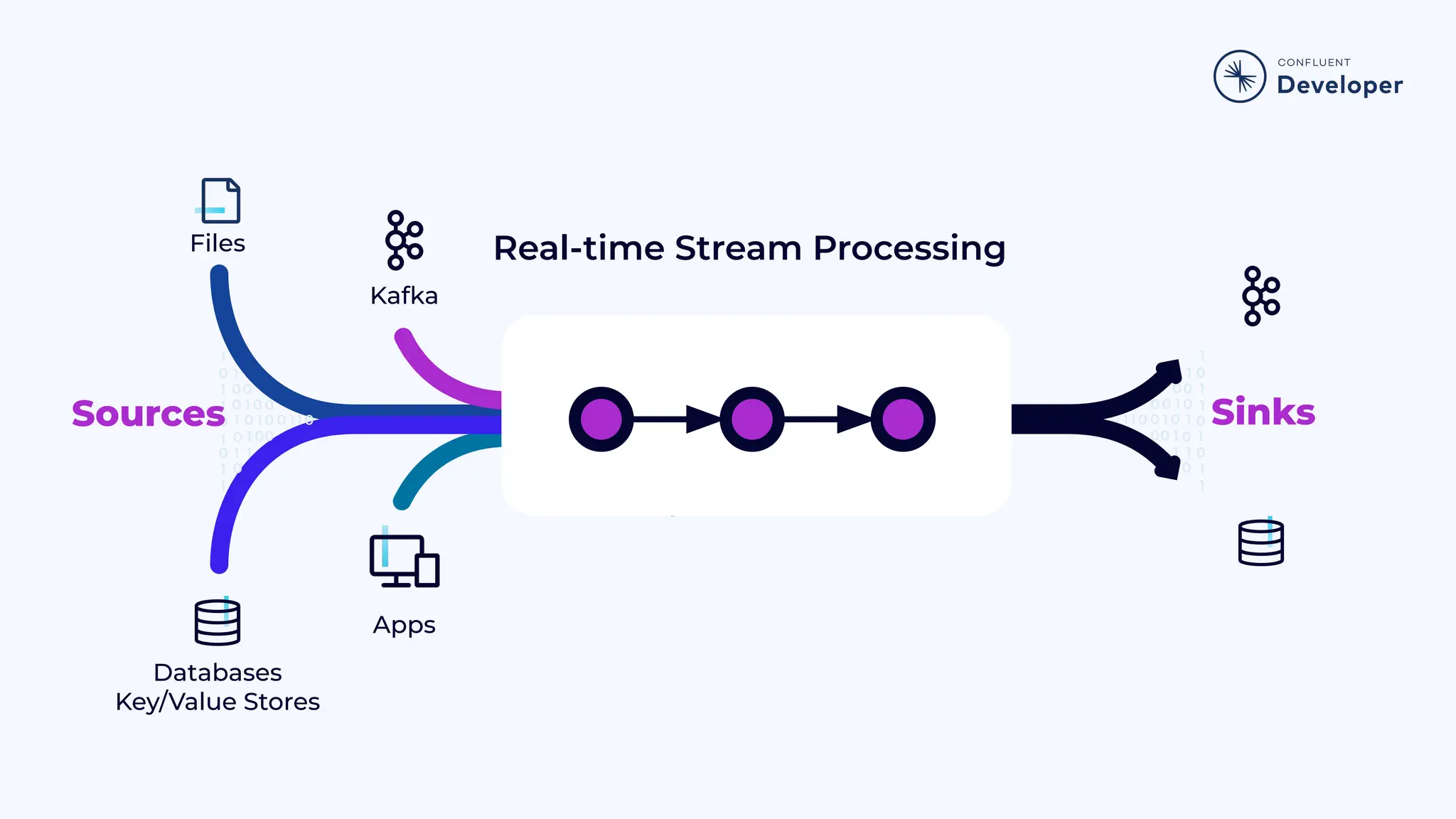

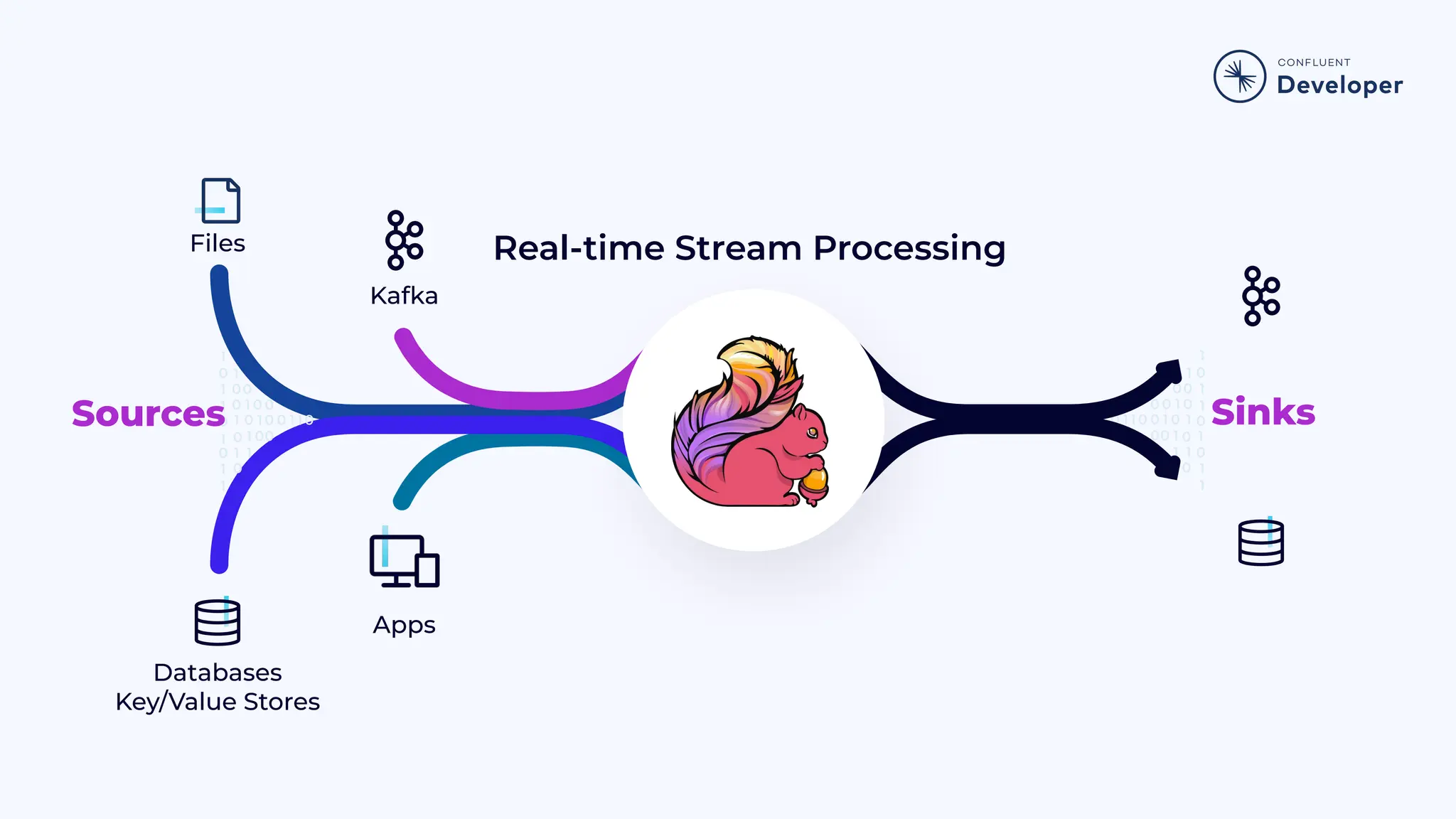

- 10. Real-time Stream Processing Kafka Databases Key/ValueStores Files Apps Sources Sinks

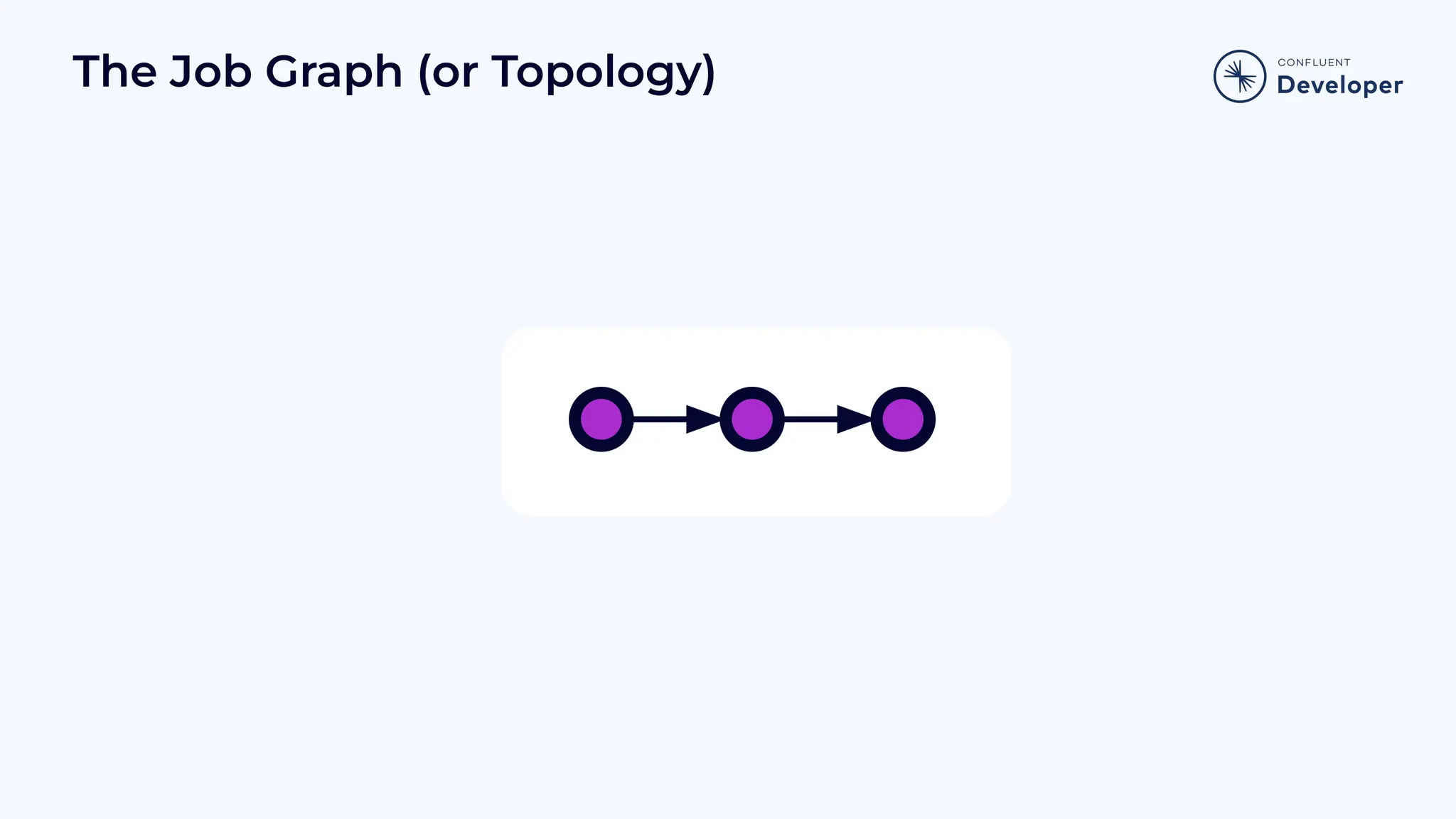

- 11. The Job Graph(or Topology)

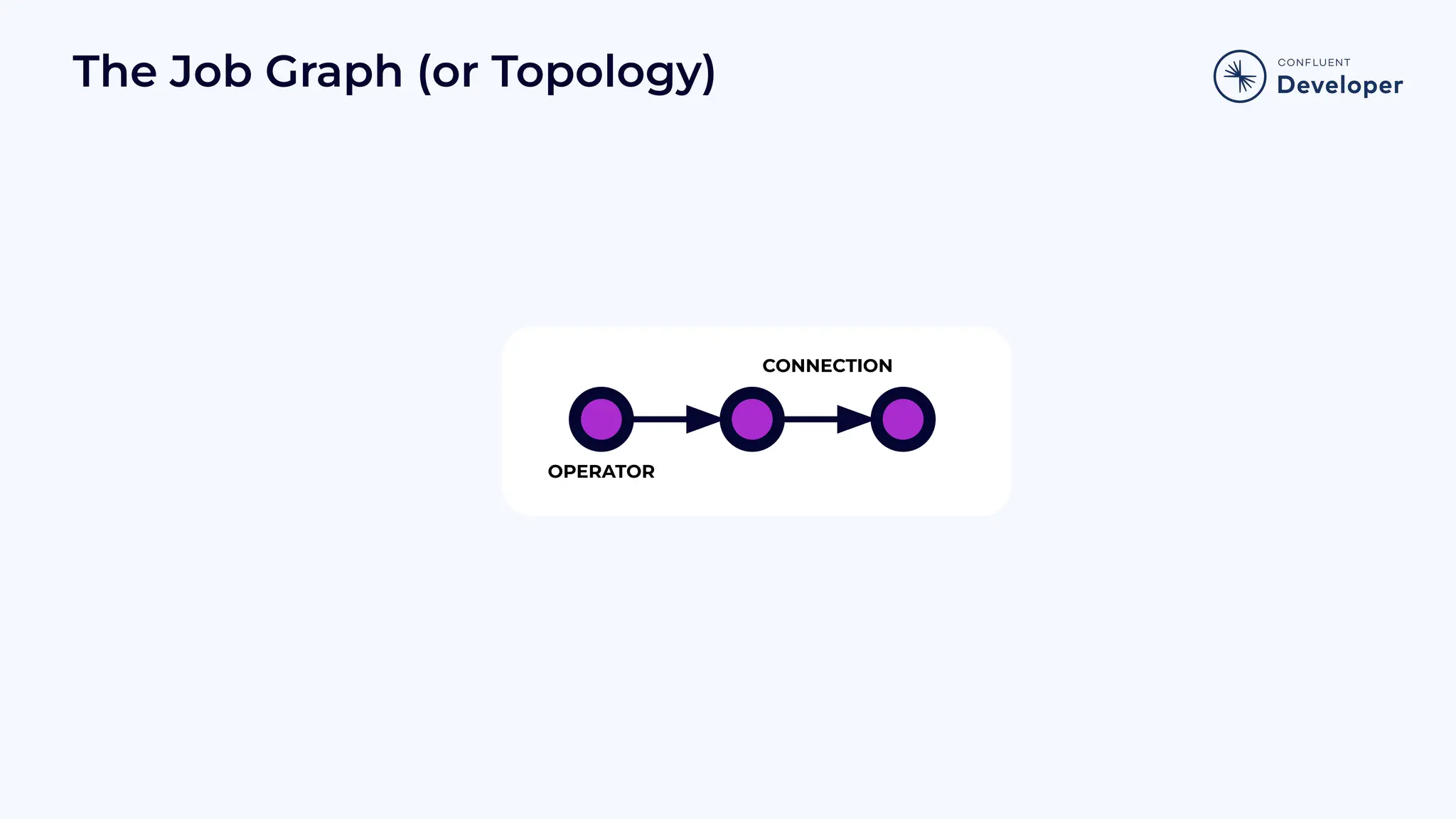

- 12. The Job Graph(or Topology) OPERATOR CONNECTION

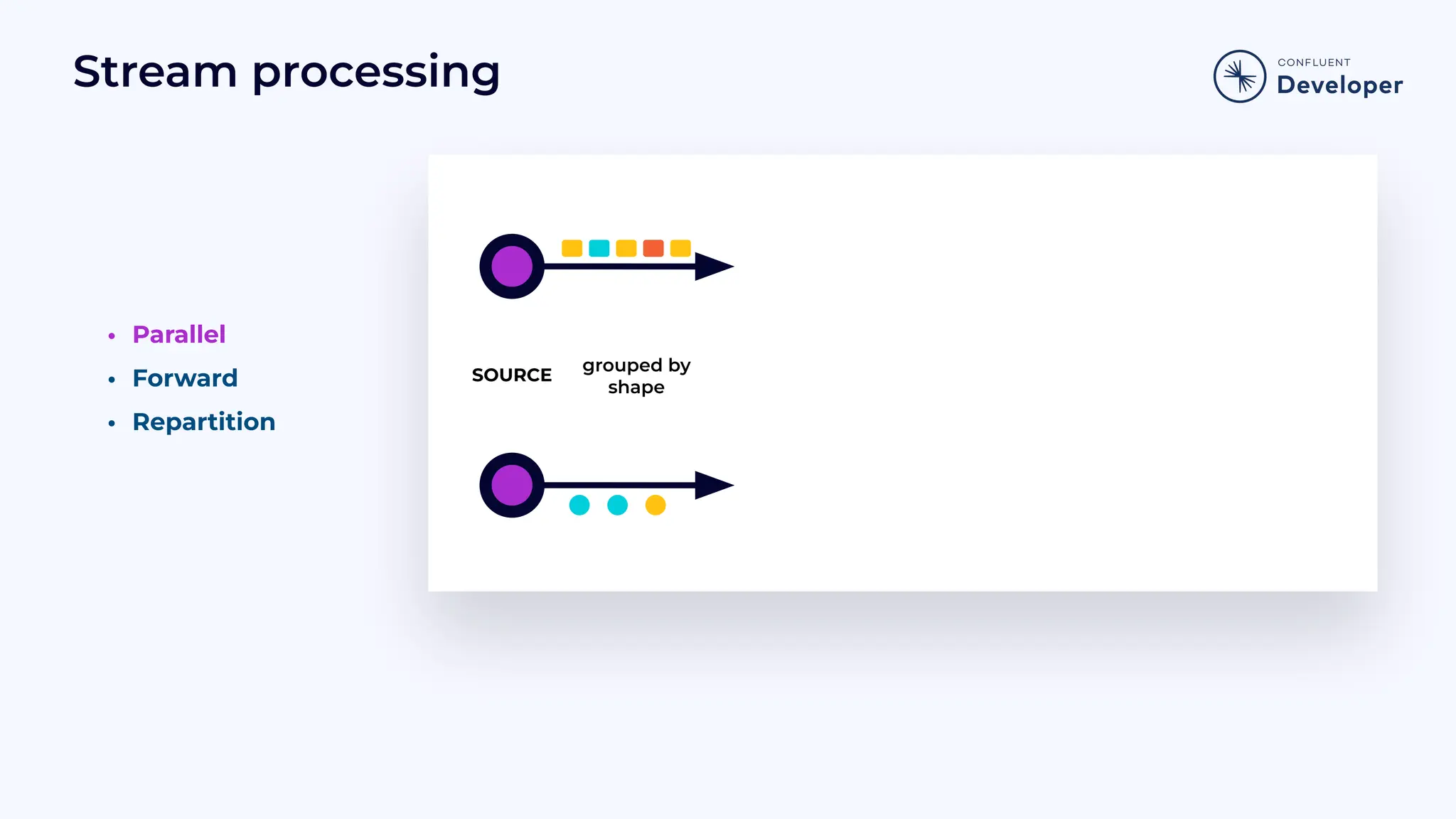

- 13. Stream processing • Parallel •Forward • Repartition grouped by shape SOURCE

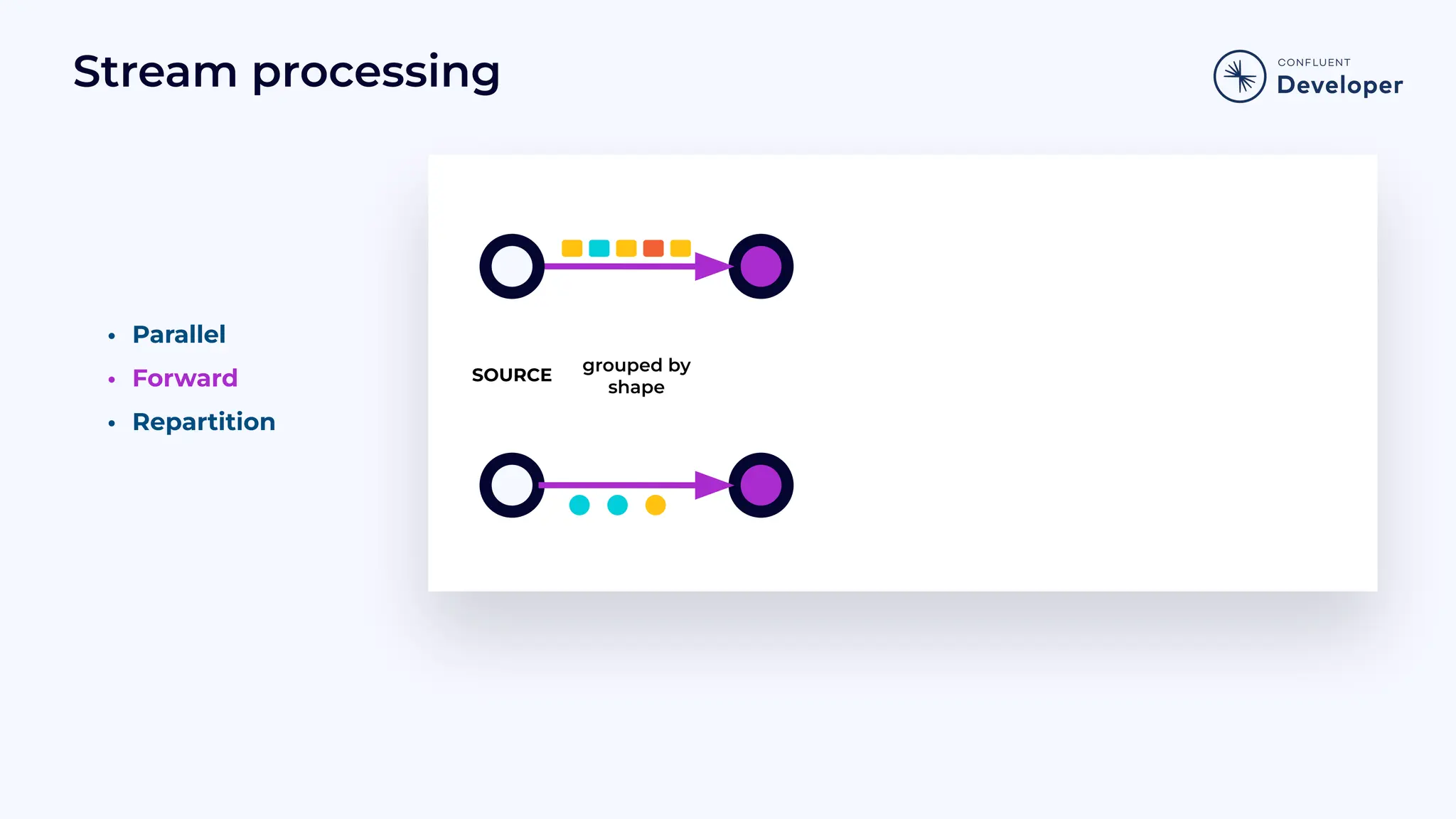

- 14. Stream processing • Parallel •Forward • Repartition grouped by shape SOURCE

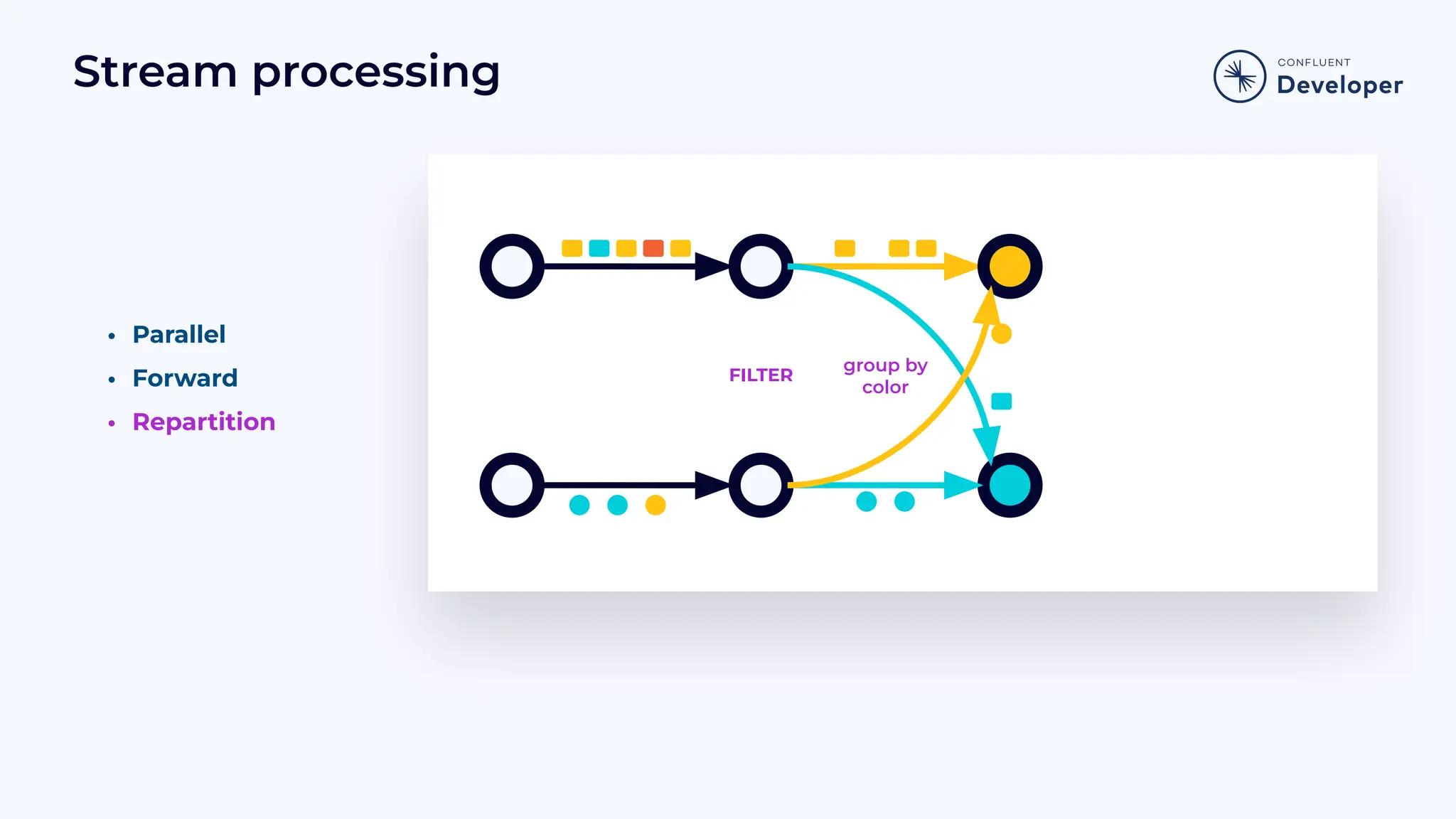

- 15. Stream processing • Parallel •Forward • Repartition group by color FILTER

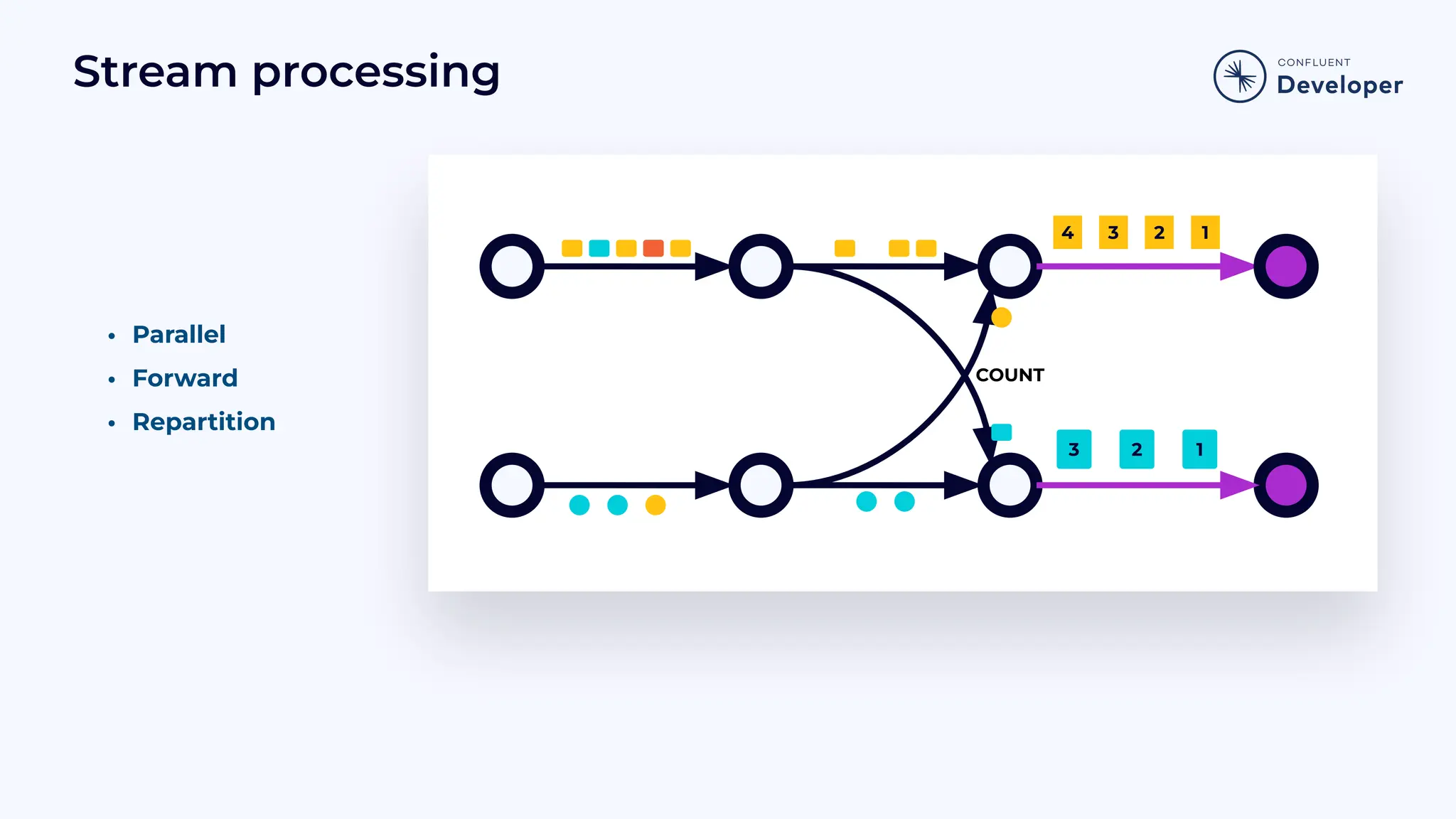

- 16. Stream processing • Parallel •Forward • Repartition COUNT 1 2 3 1 2 3 4

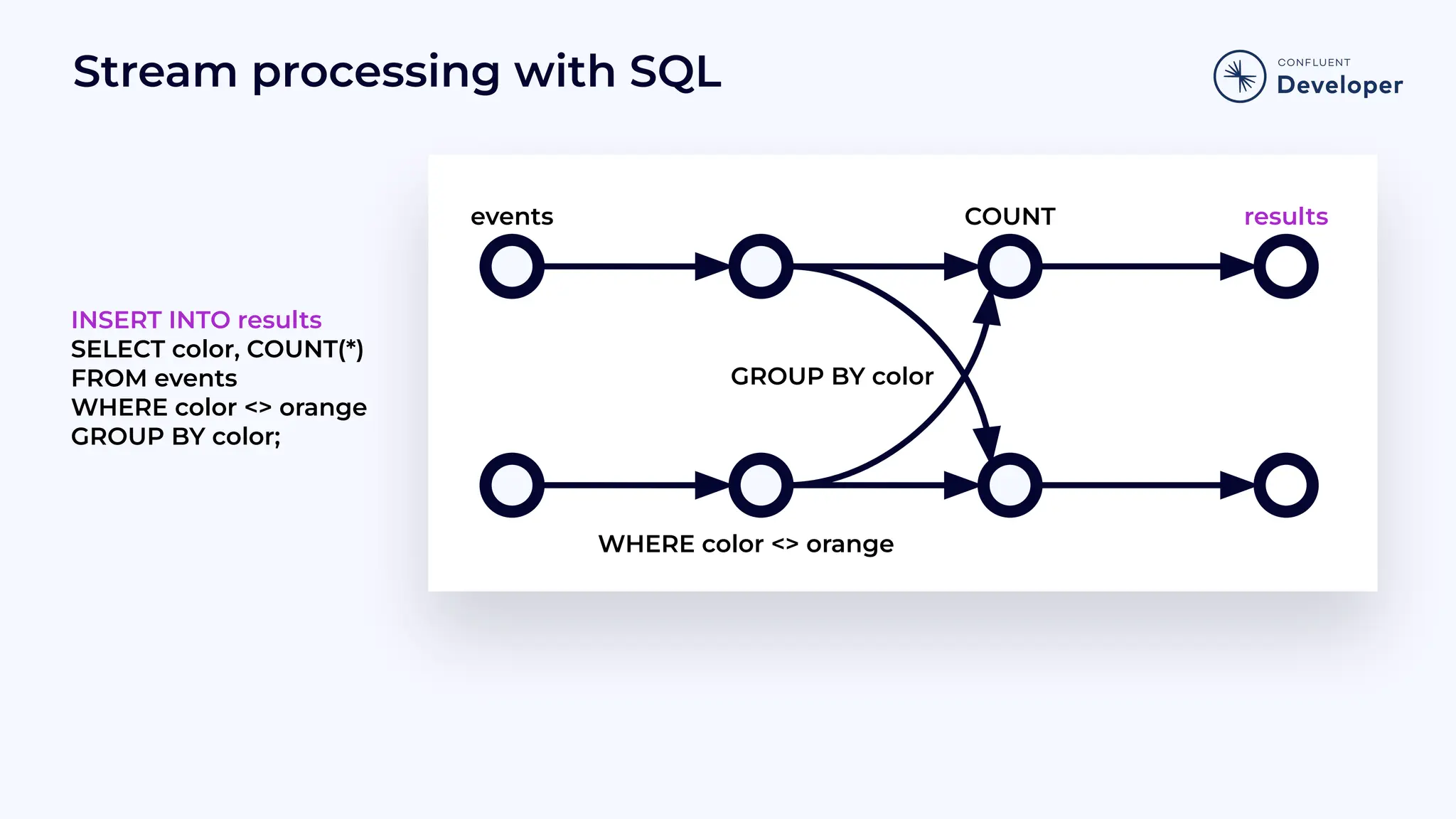

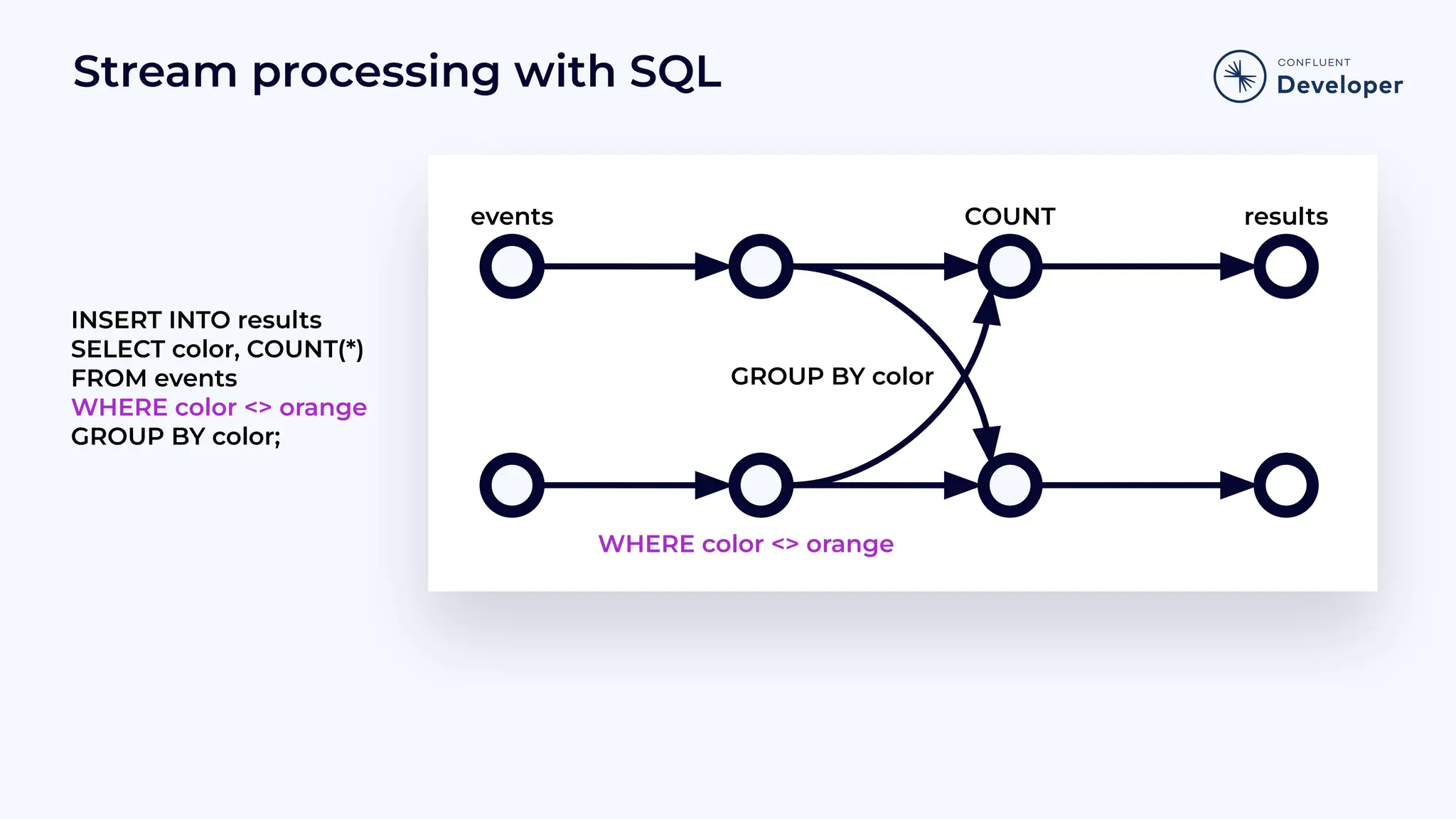

- 17. Stream processing withSQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events
- 18. Stream processing withSQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events

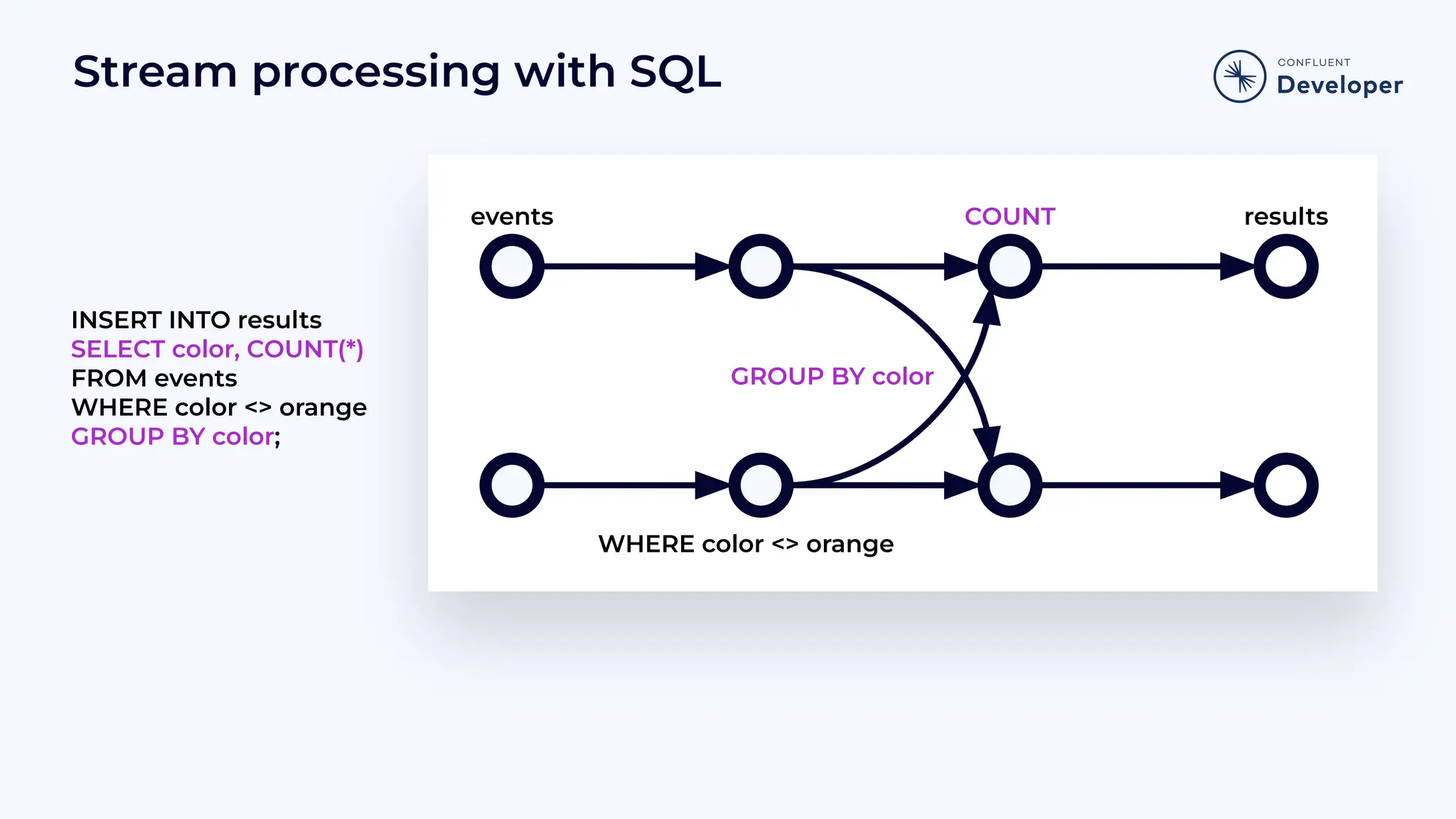

- 19. Stream processing withSQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events
- 20. Stream processing withSQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events
- 21. Stream processing withSQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events

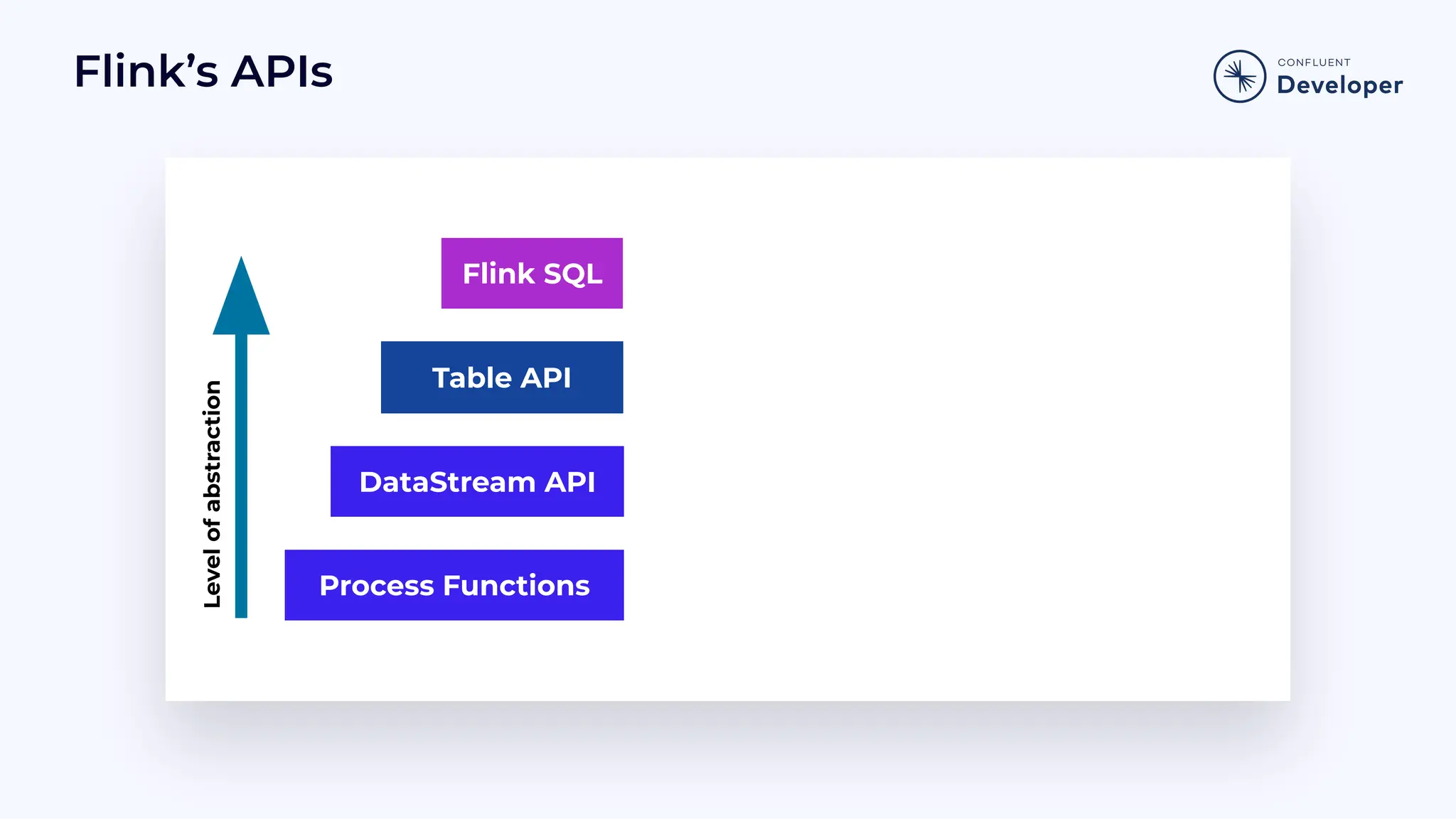

- 22. Flink’s APIs Process Functions DataStreamAPI Flink SQL Table API Level of abstraction

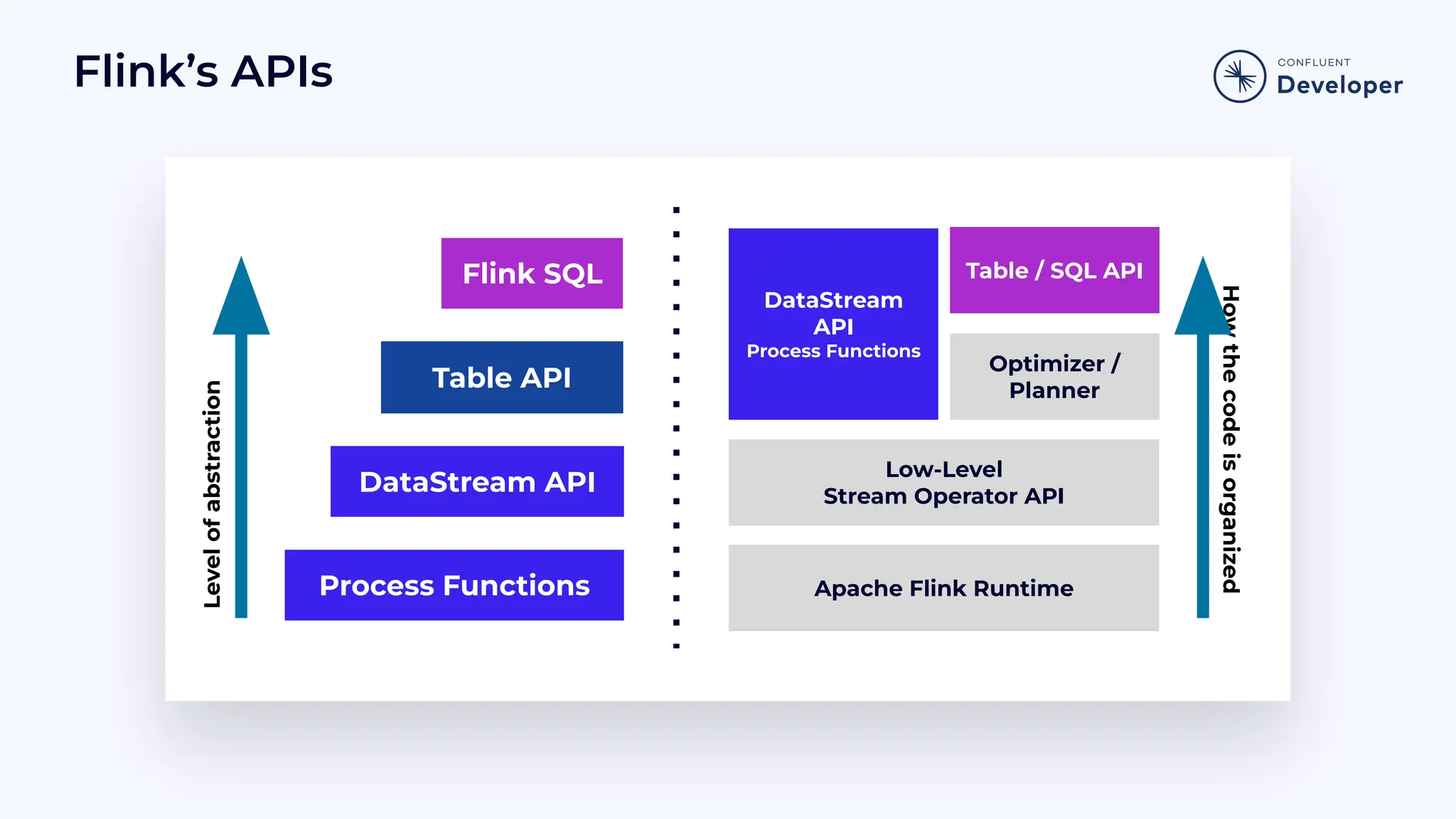

- 23. Flink’s APIs Apache FlinkRuntime Low-Level Stream Operator API Optimizer / Planner Table / SQL API DataStream API Process Functions Process Functions DataStream API Flink SQL Table API Level of abstraction How the code is organized
- 24.
- 25.

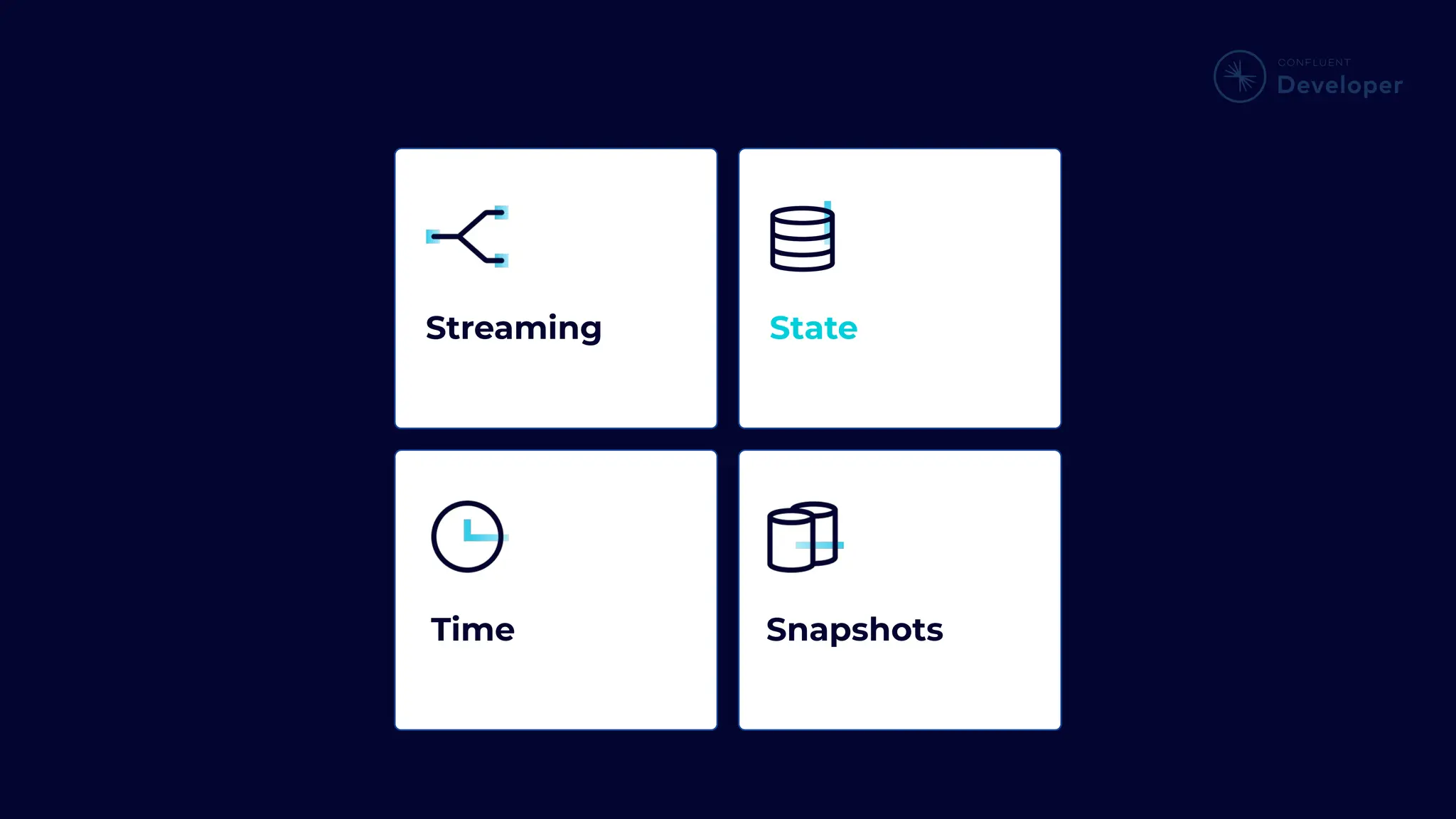

- 26. @yourtwitterhandle | developer.confluent.io StreamingState Time Snapshots

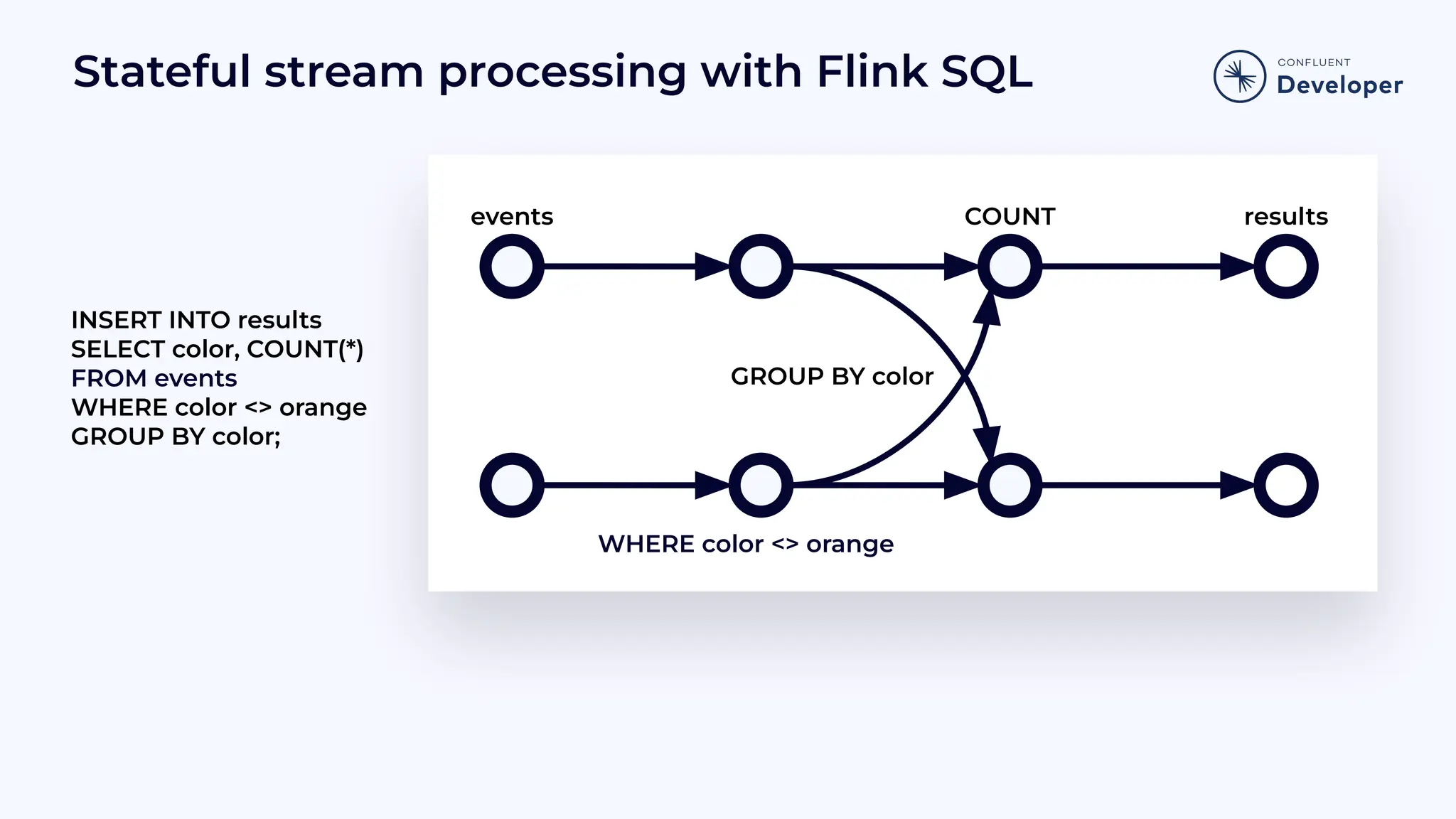

- 27. Stateful stream processingwith Flink SQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events

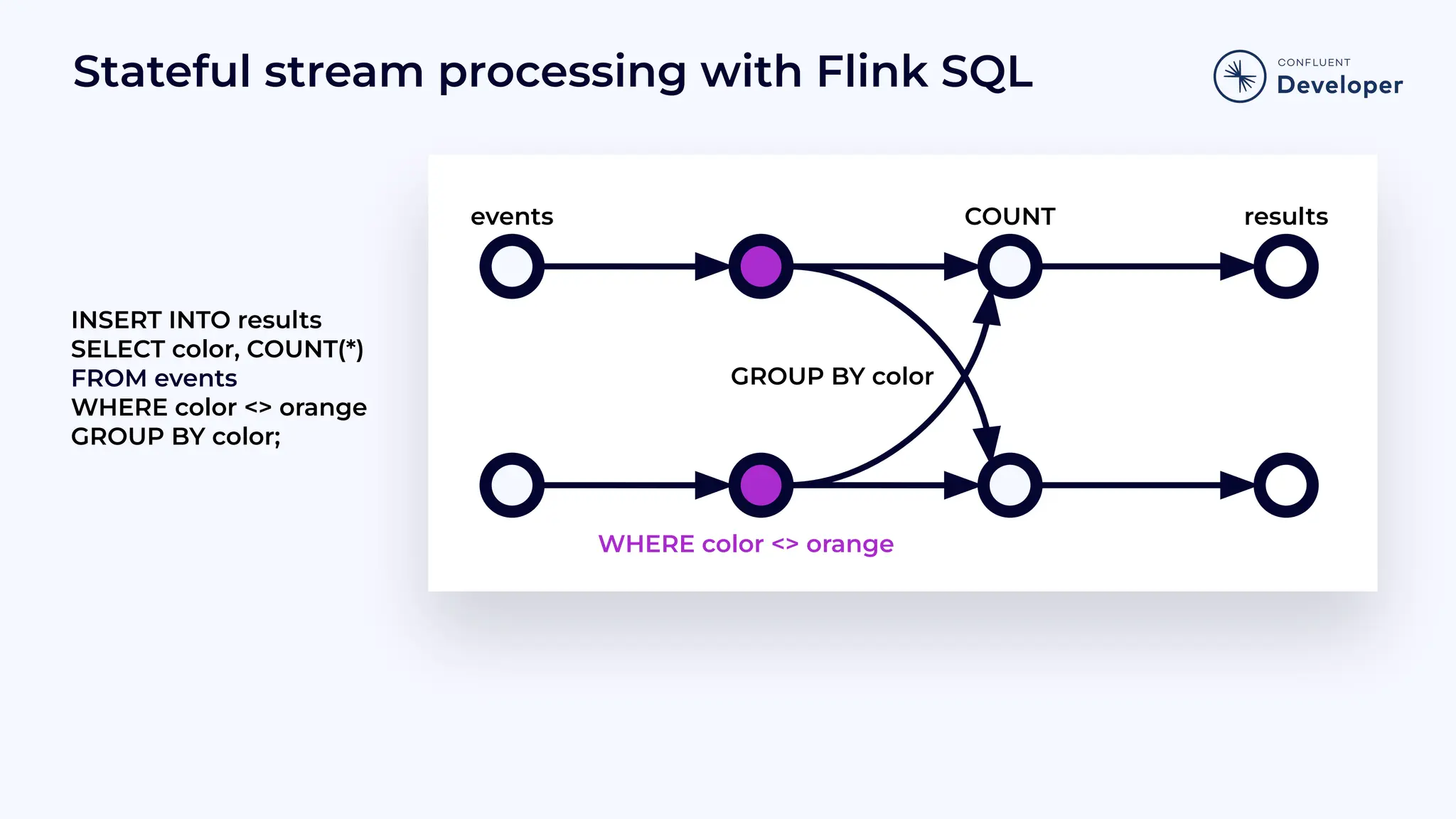

- 28. Stateful stream processingwith Flink SQL INSERT INTO results SELECT color, COUNT(*) FROM events WHERE color <> orange GROUP BY color; GROUP BY color results COUNT WHERE color <> orange events

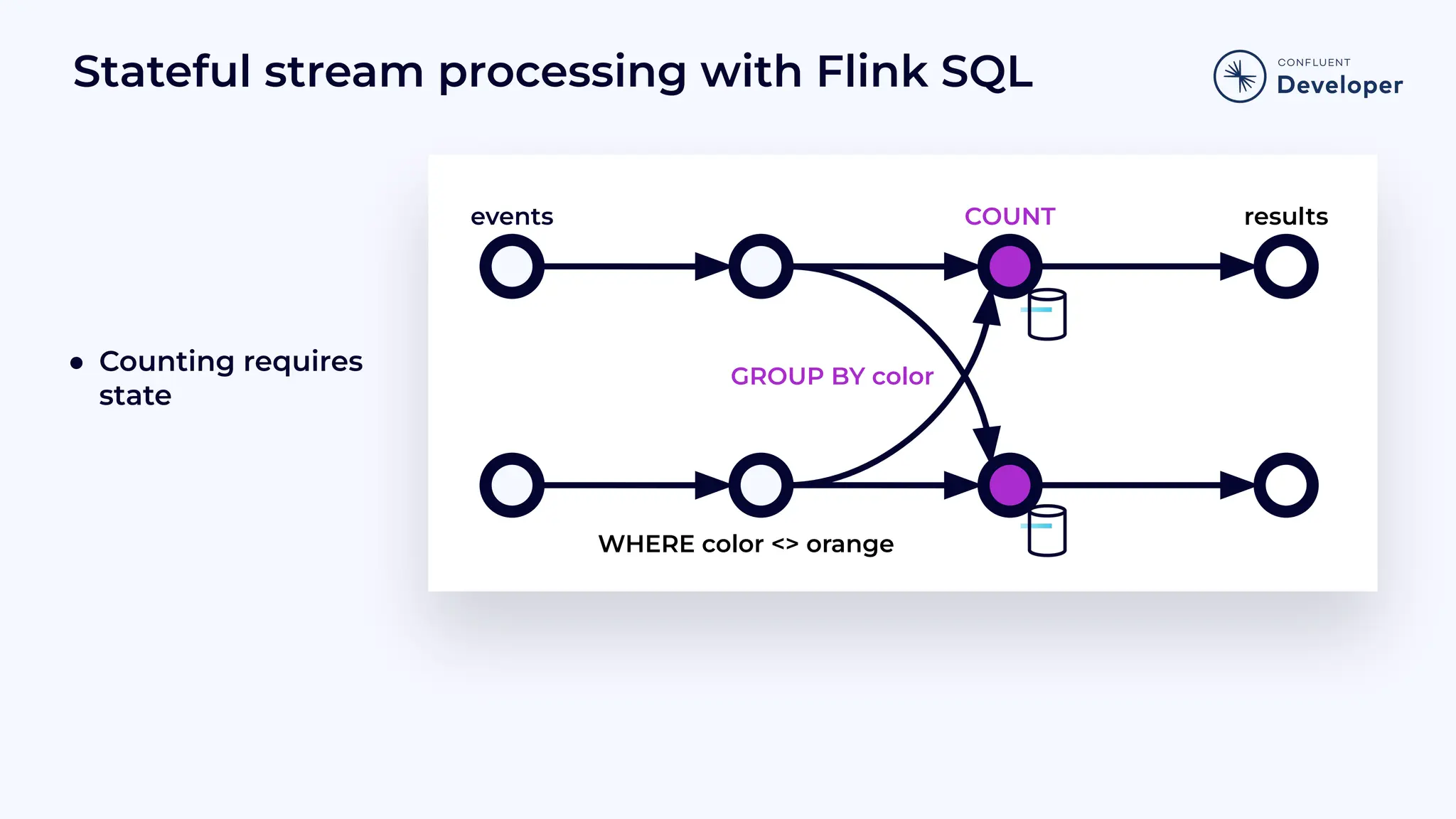

- 29. Stateful stream processingwith Flink SQL ● Counting requires state GROUP BY color events COUNT WHERE color <> orange results

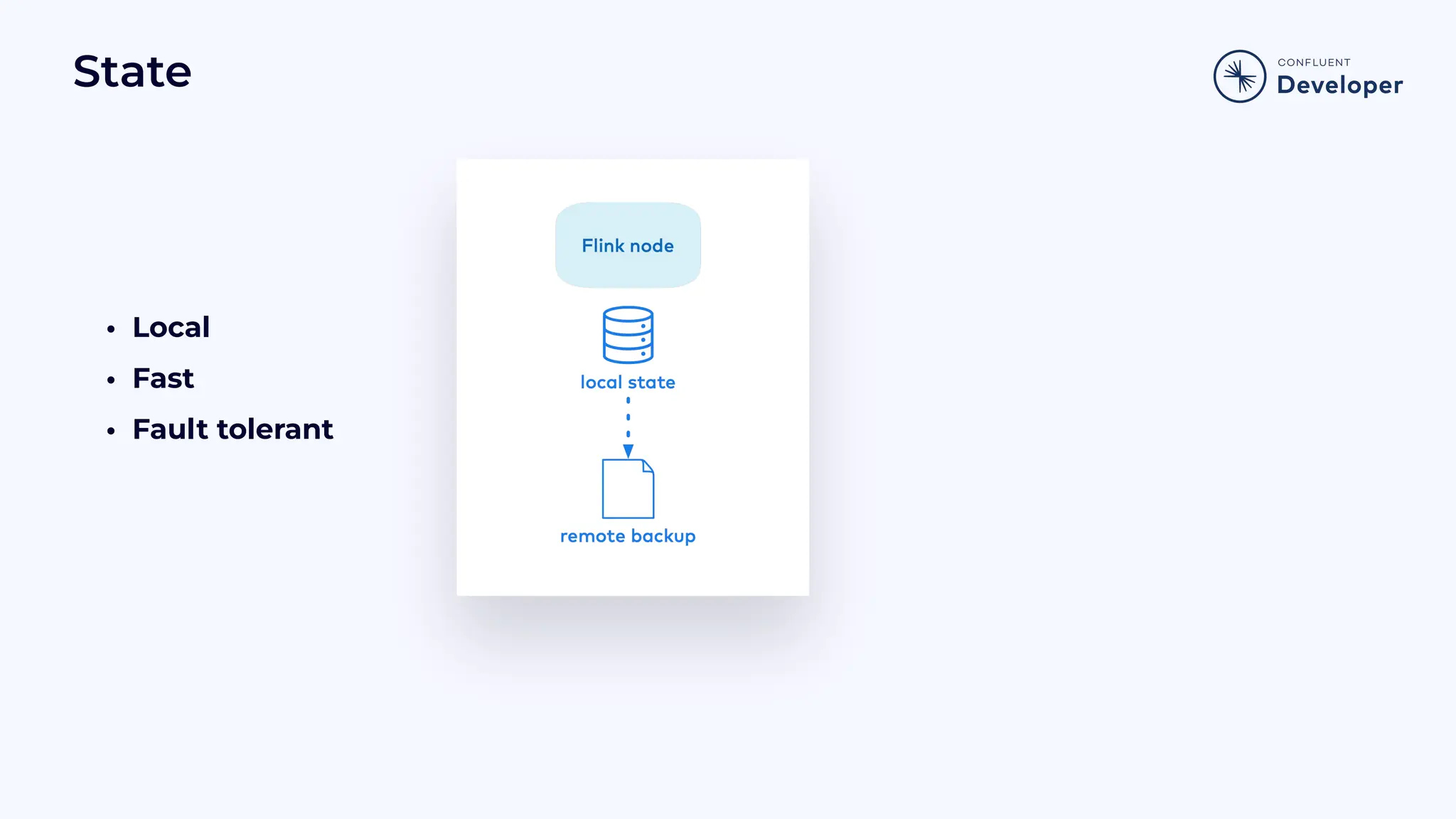

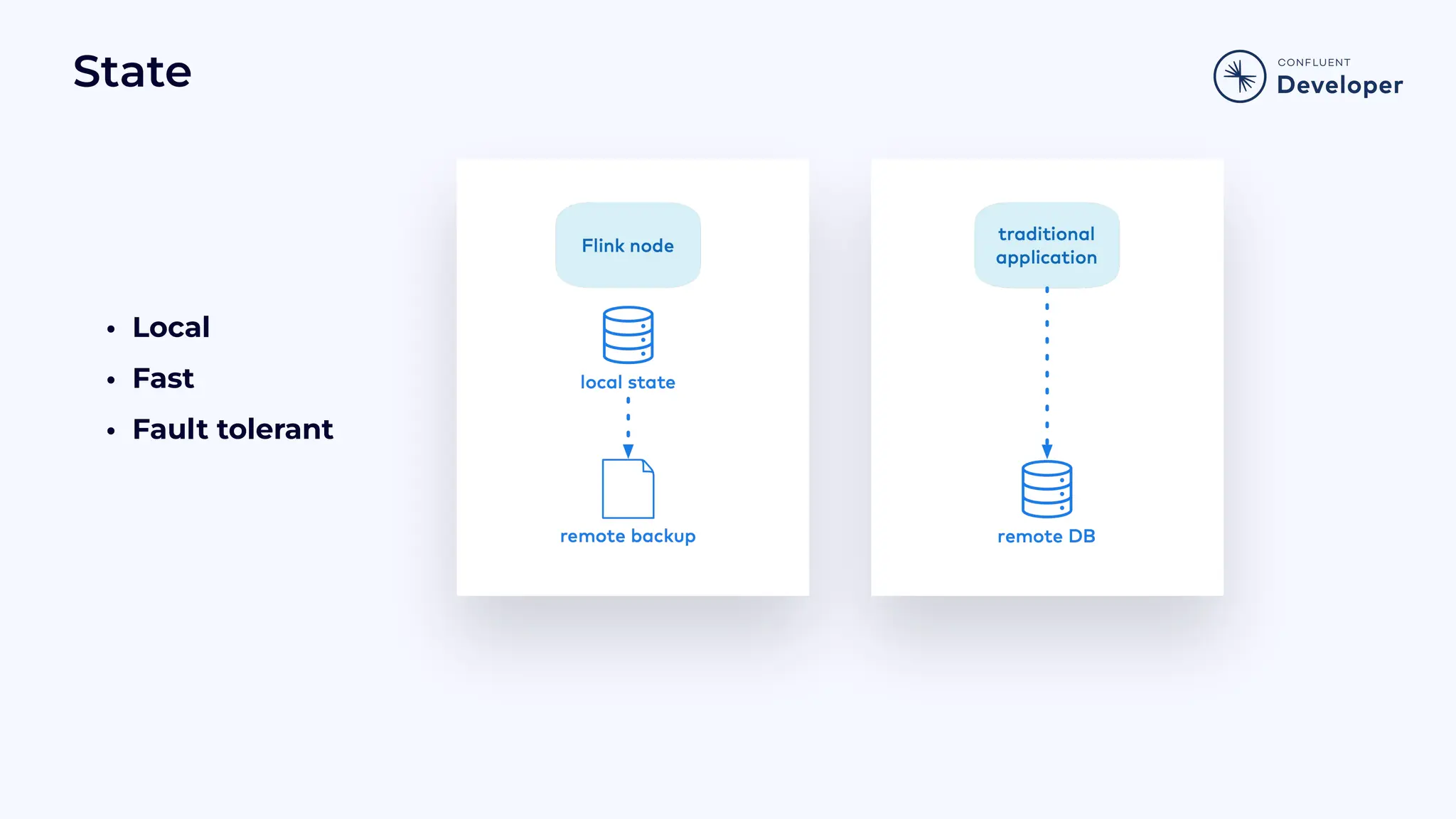

- 30. State • Local • Fast •Fault tolerant
- 31. State • Local • Fast •Fault tolerant
- 32. @yourtwitterhandle | developer.confluent.io StreamingState Time Snapshots

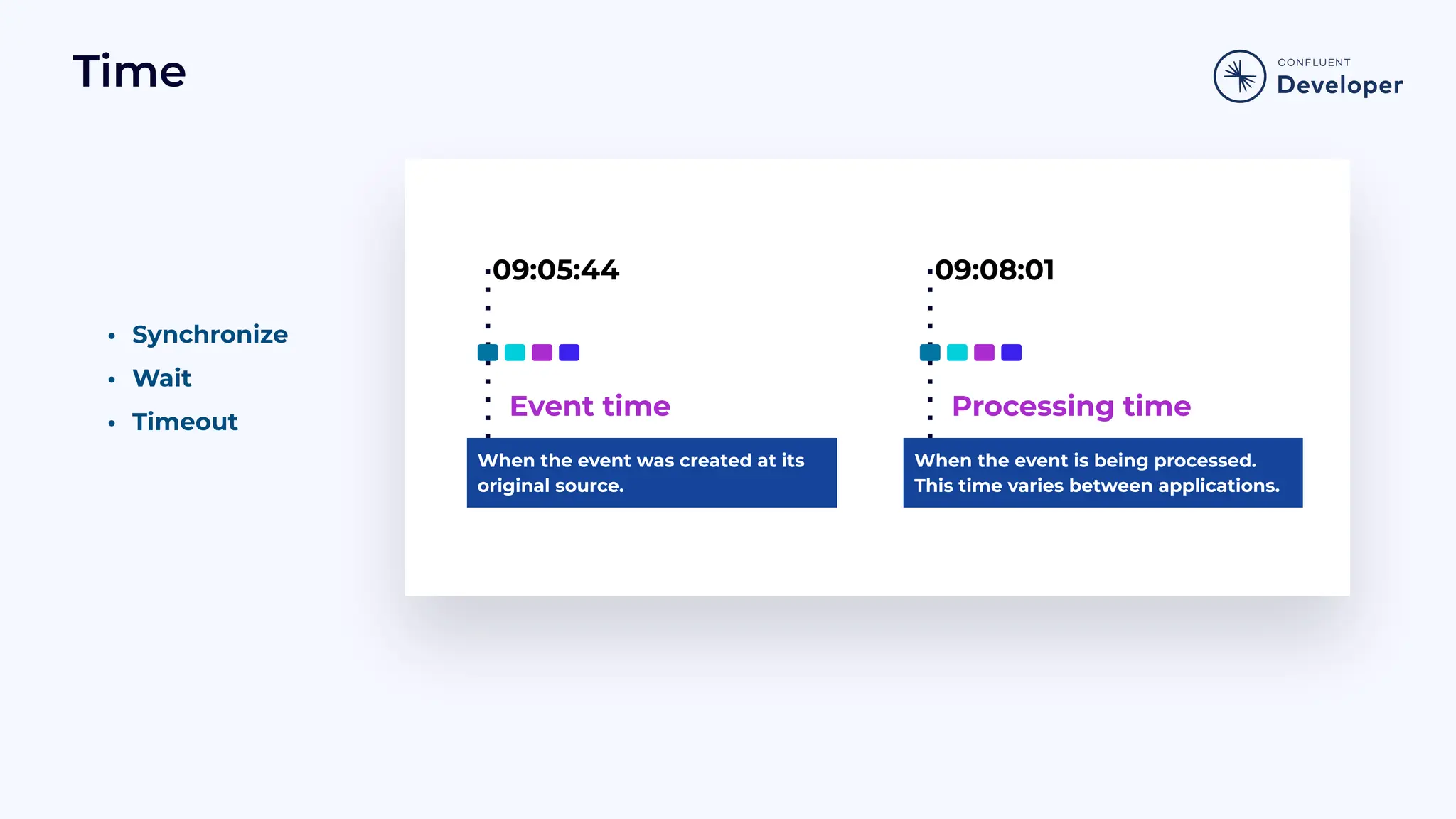

- 33. Time • Synchronize • Wait •Timeout 09:05:44 When the event was created at its original source. Event time 09:08:01 When the event is being processed. This time varies between applications. Processing time

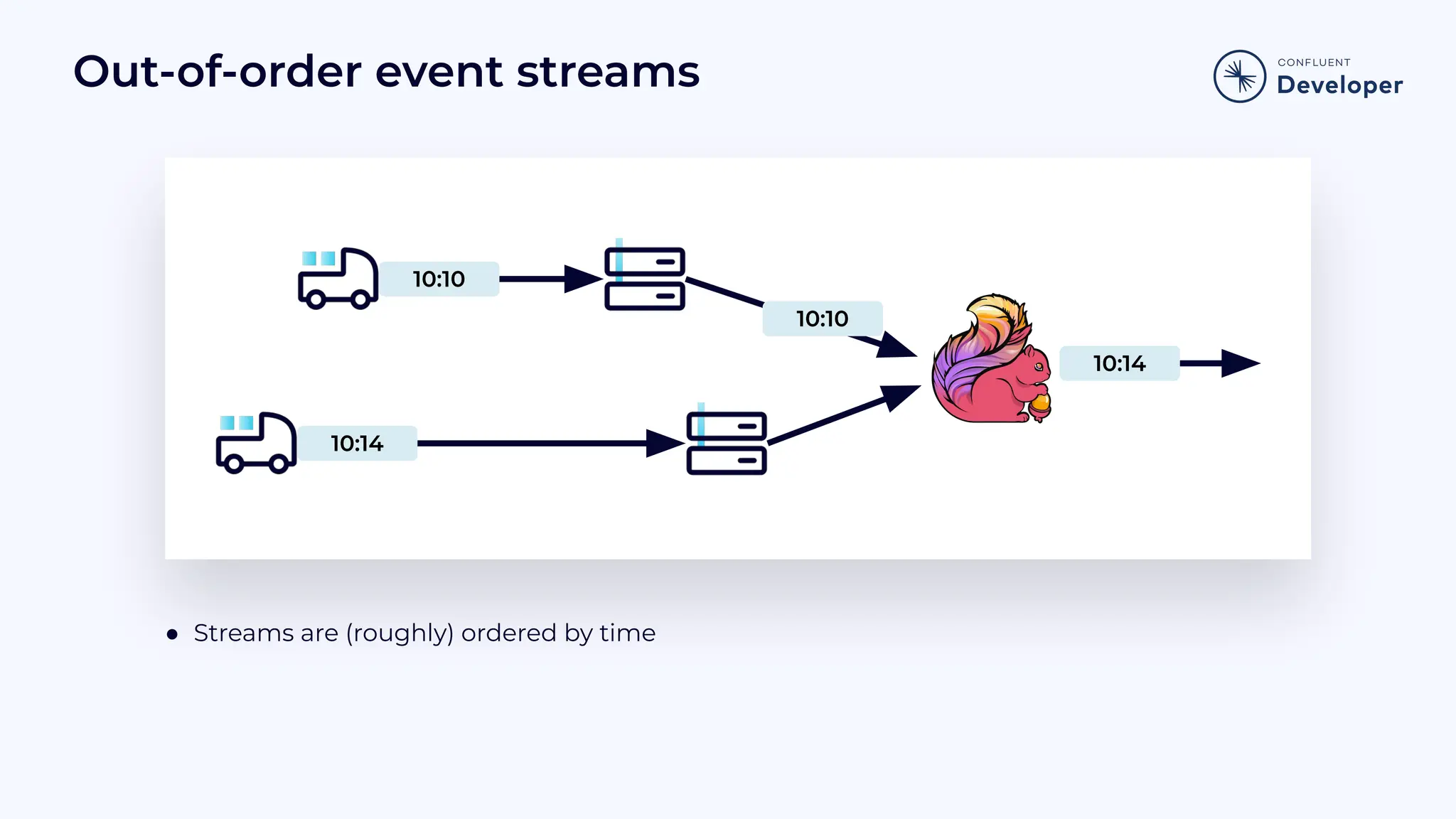

- 34. ● Streams are(roughly) ordered by time Out-of-order event streams 10:10 10:14 10:10 10:14

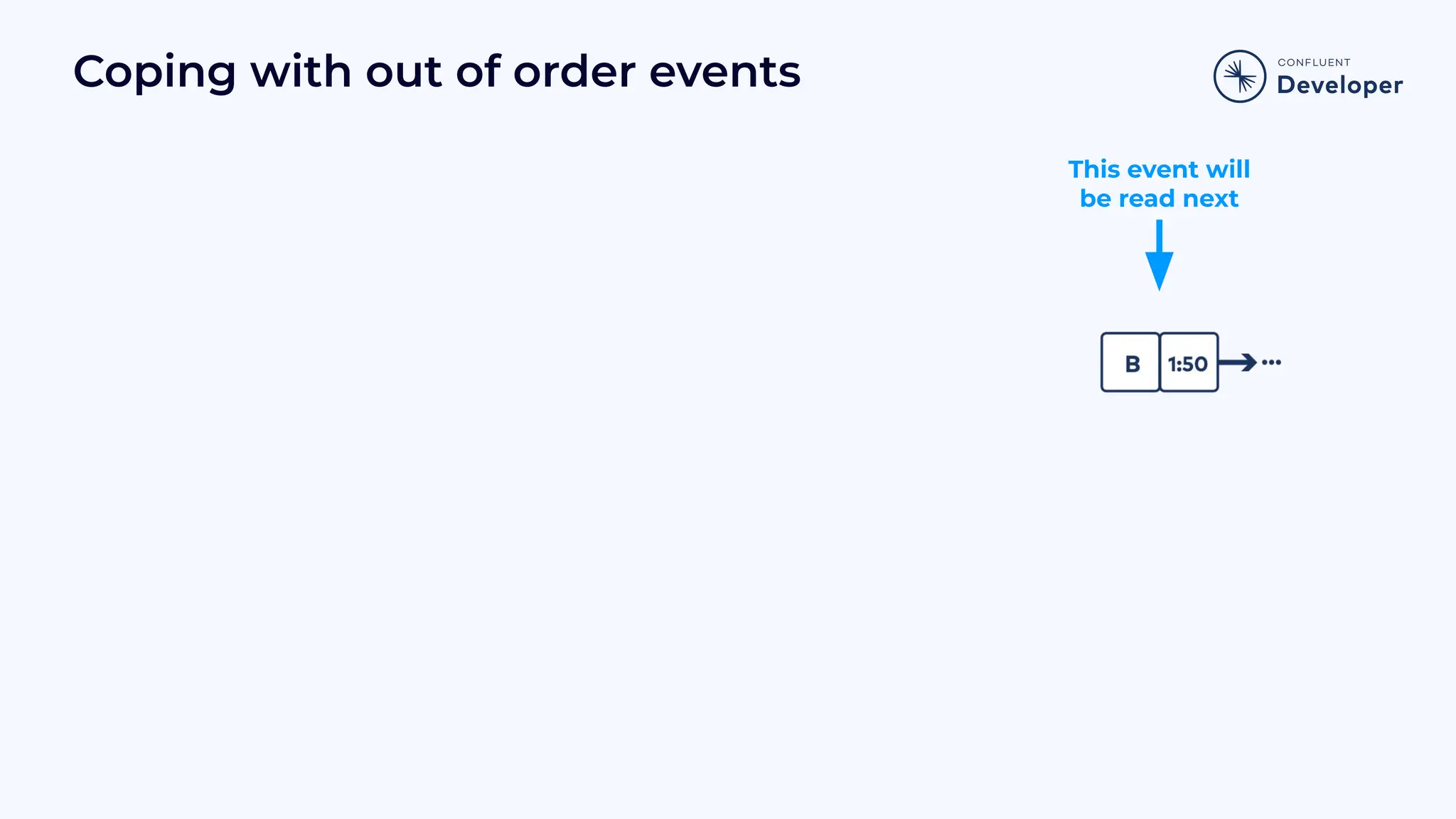

- 35. Coping with outof order events This event will be read next

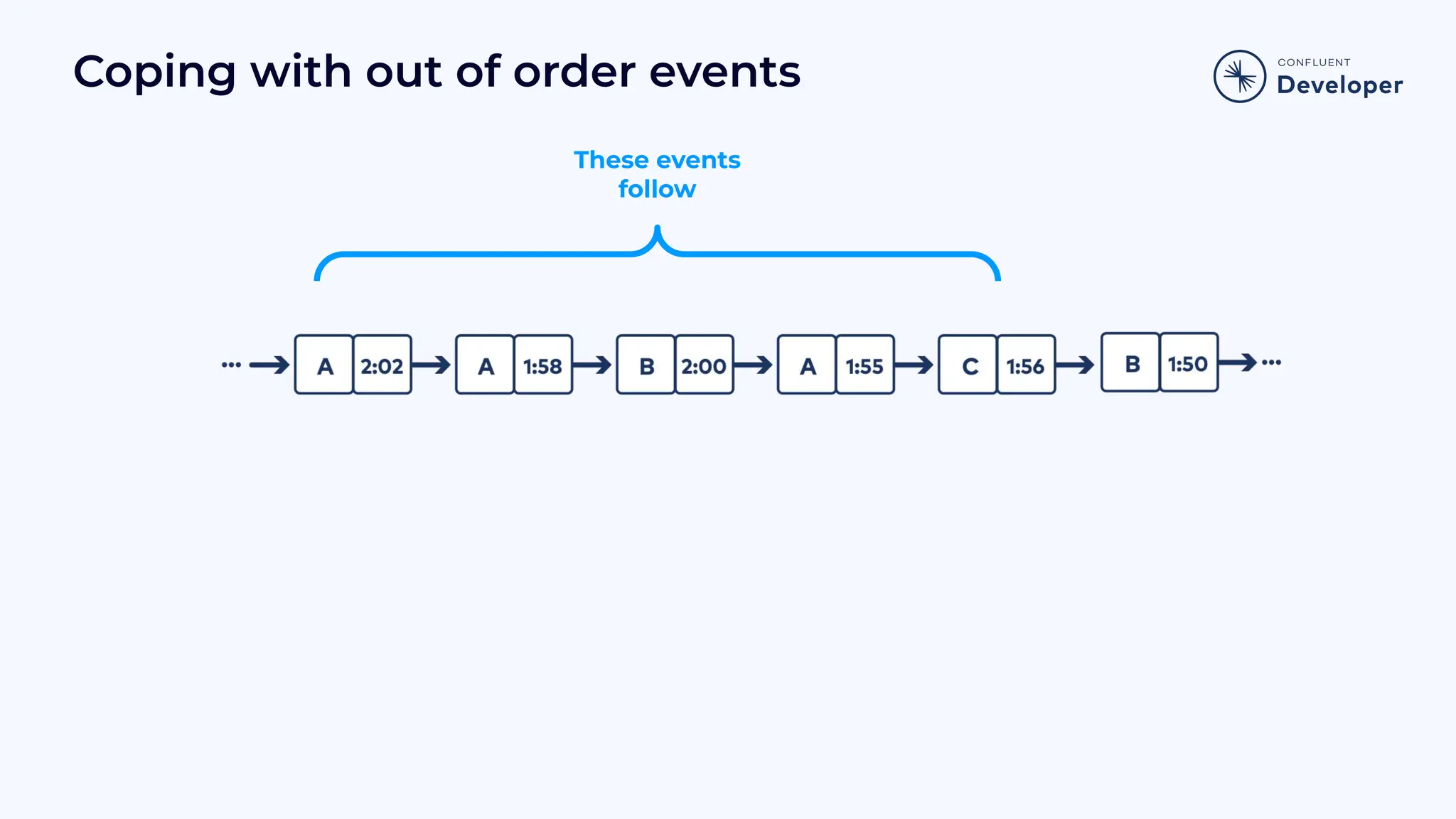

- 36. Coping with outof order events These events follow

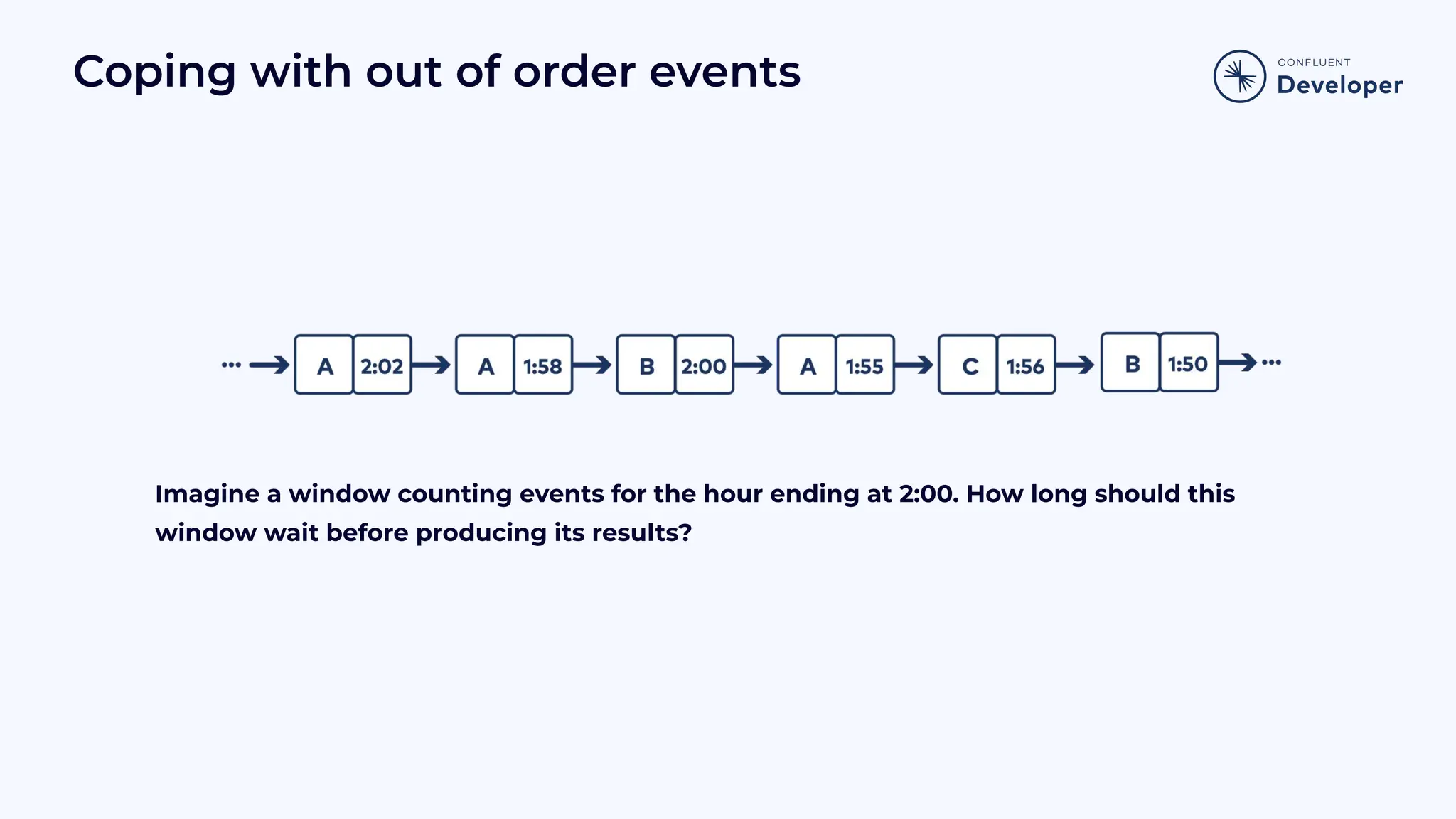

- 37. Coping with outof order events Imagine a window counting events for the hour ending at 2:00. How long should this window wait before producing its results?

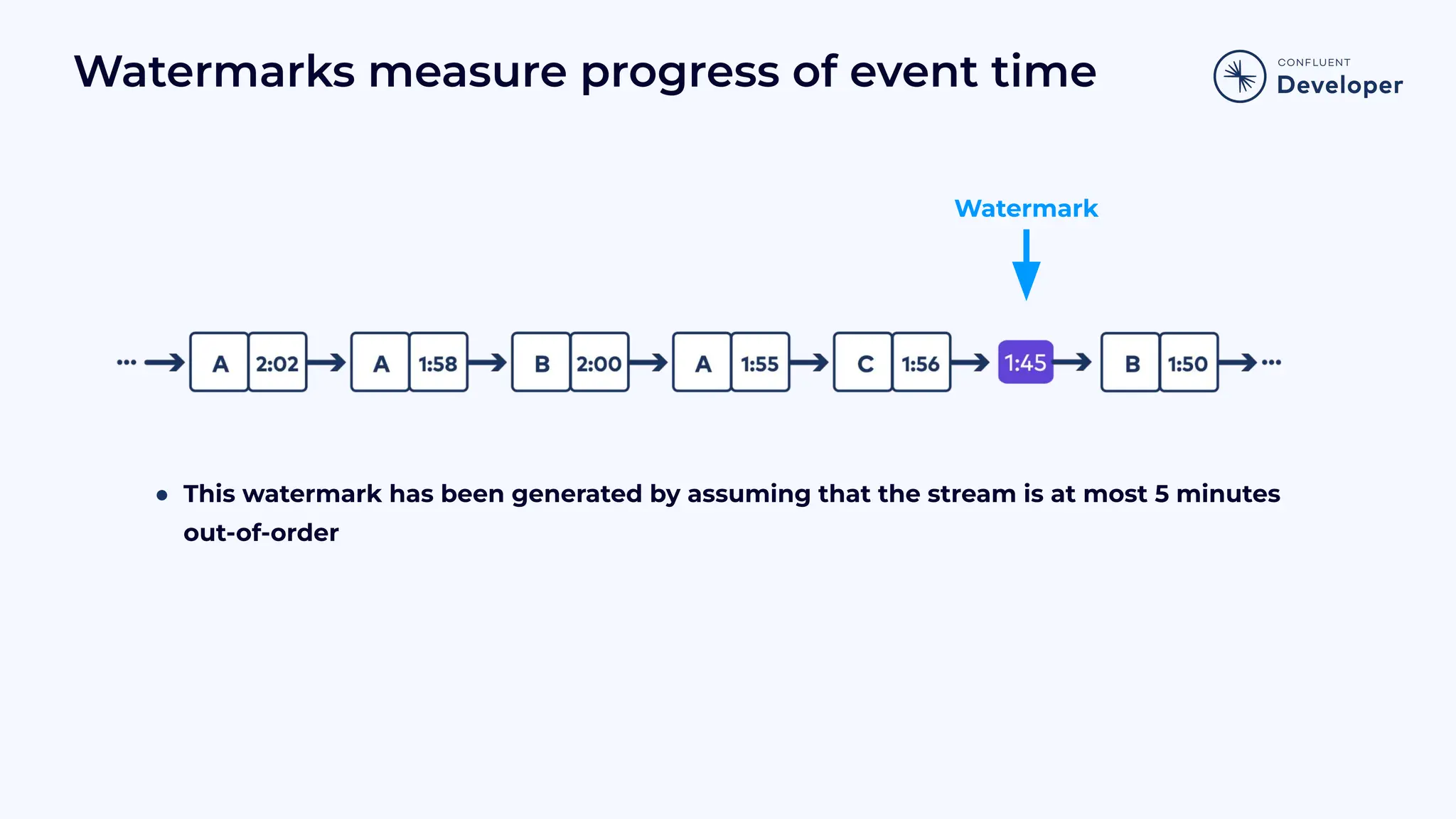

- 38. Watermarks measure progressof event time Watermark ● This watermark has been generated by assuming that the stream is at most 5 minutes out-of-order

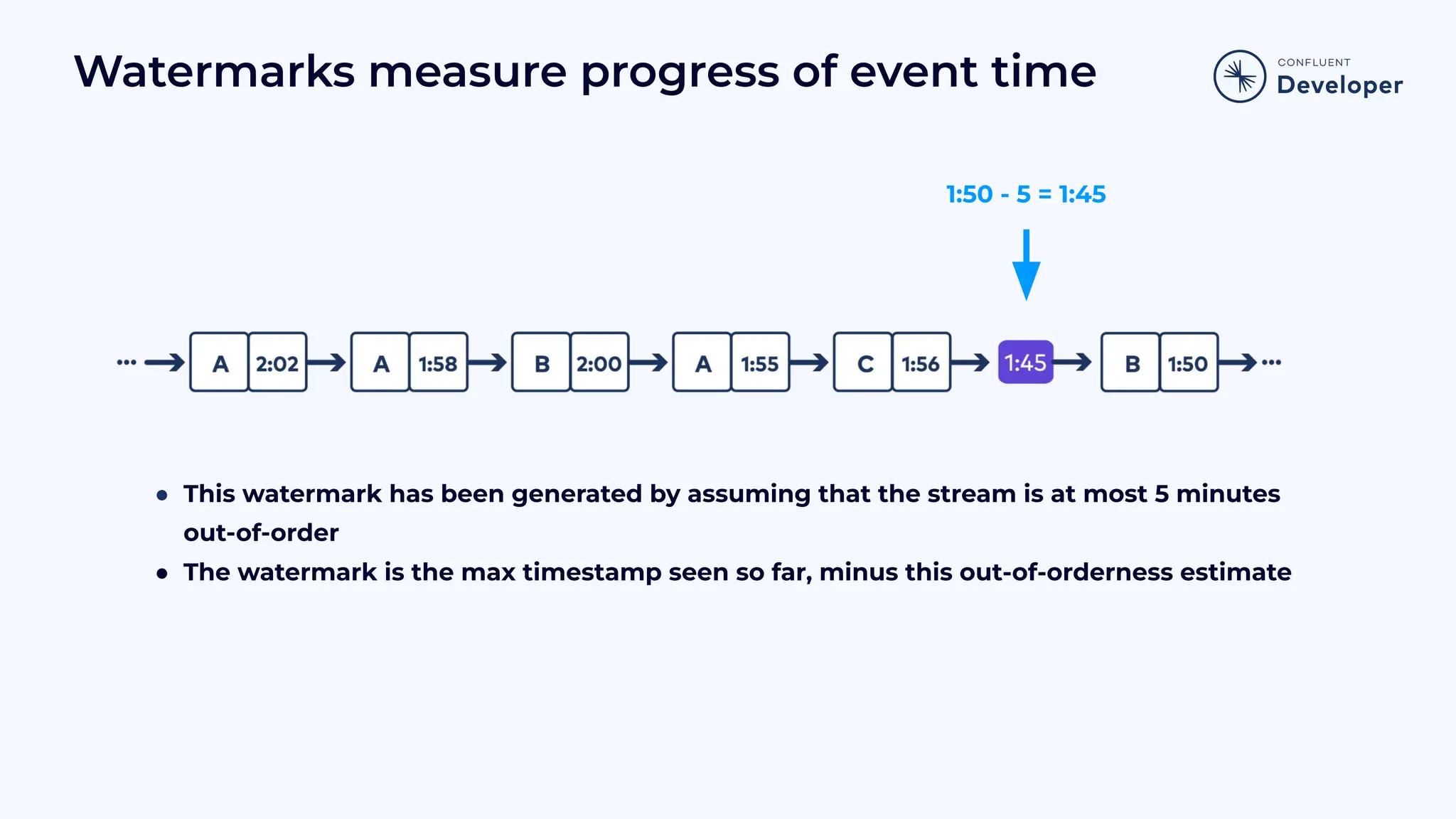

- 39. Watermarks measure progressof event time ● This watermark has been generated by assuming that the stream is at most 5 minutes out-of-order ● The watermark is the max timestamp seen so far, minus this out-of-orderness estimate 1:50 - 5 = 1:45

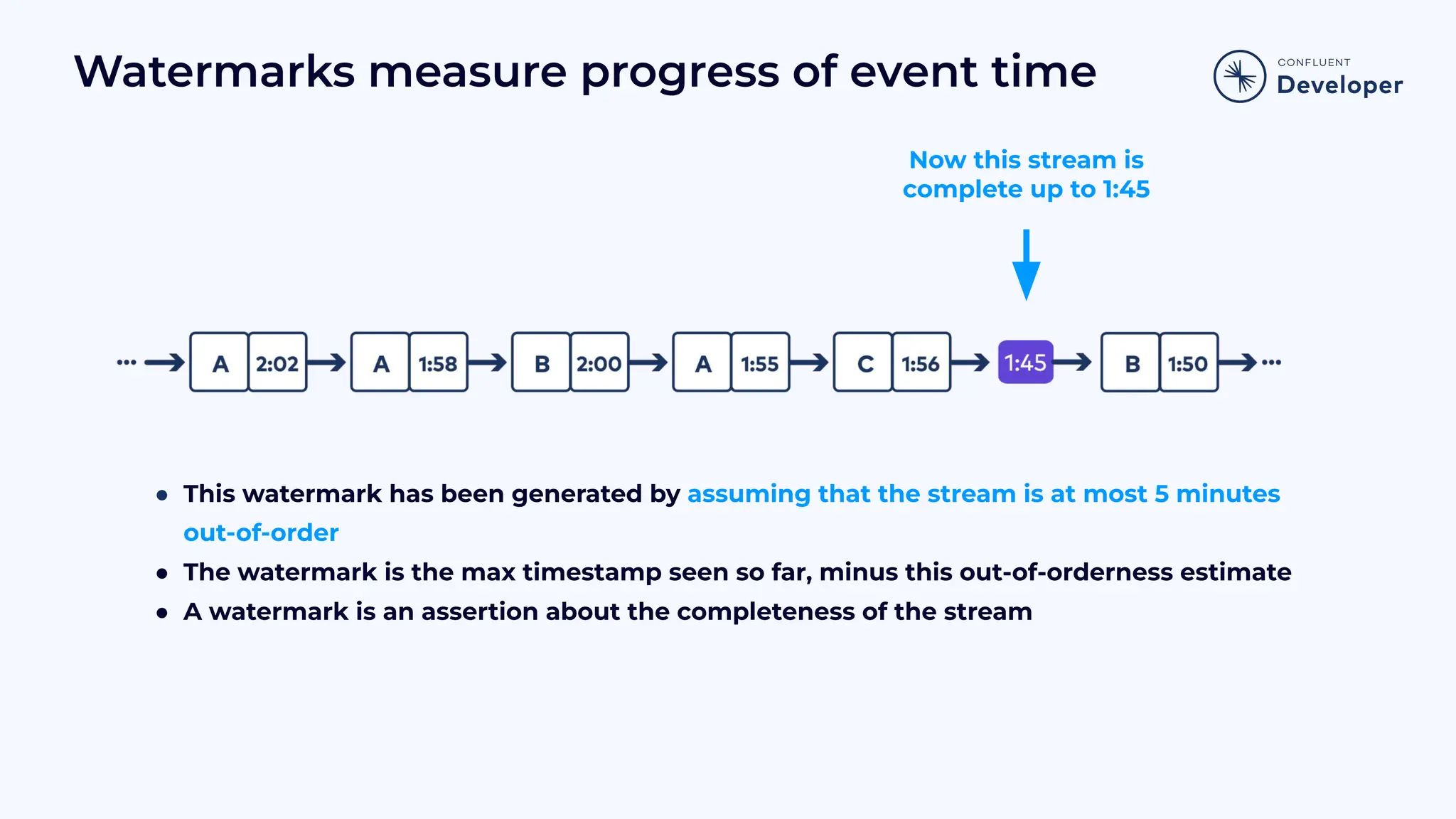

- 40. Watermarks measure progressof event time ● This watermark has been generated by assuming that the stream is at most 5 minutes out-of-order ● The watermark is the max timestamp seen so far, minus this out-of-orderness estimate ● A watermark is an assertion about the completeness of the stream Now this stream is complete up to 1:45

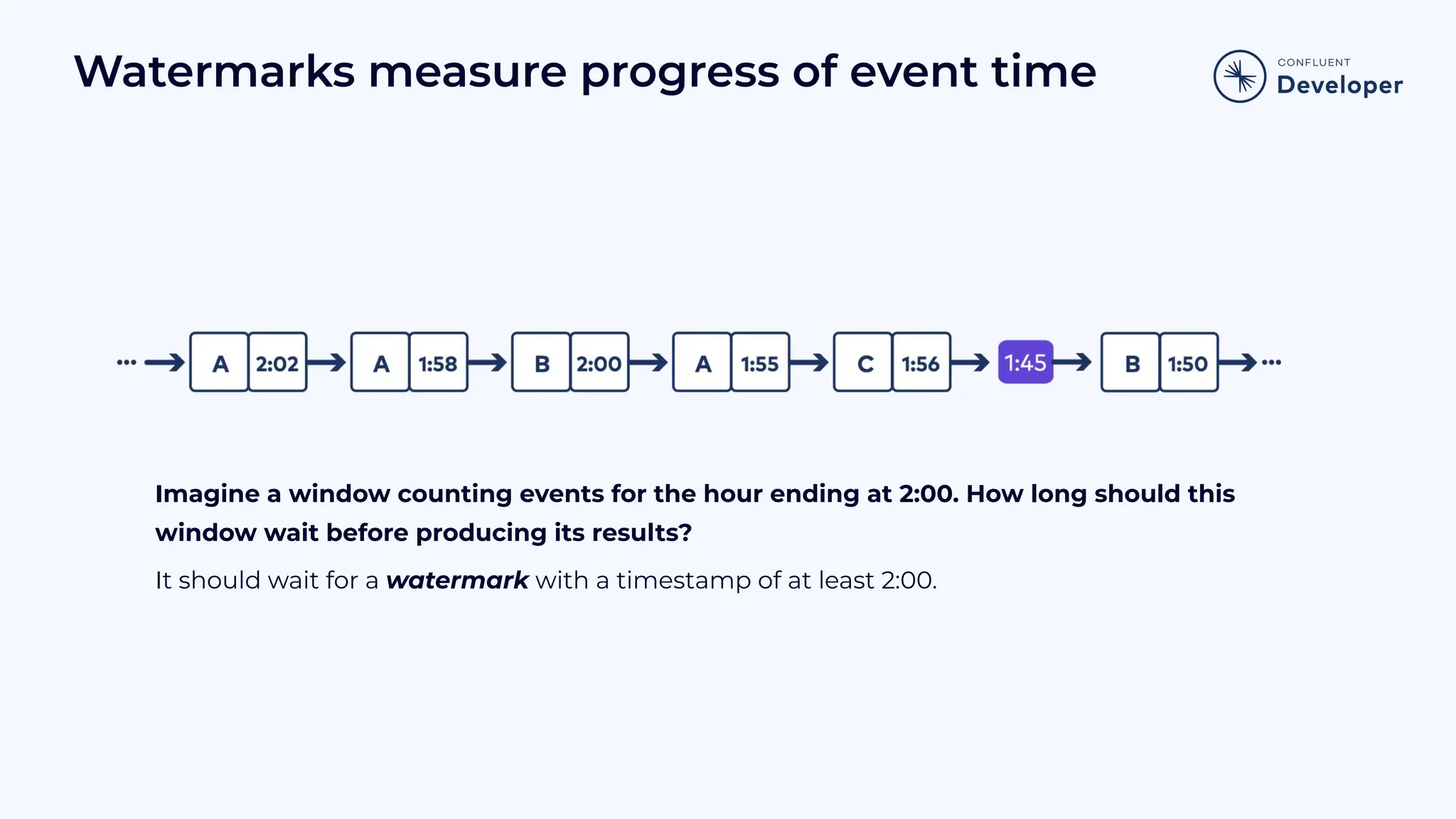

- 41. Watermarks measure progressof event time Imagine a window counting events for the hour ending at 2:00. How long should this window wait before producing its results? It should wait for a watermark with a timestamp of at least 2:00.
- 42. What are watermarks for? Theymake things happen when the time is right.
- 43. Why isn’t my Flinkjob producing any results? There’s probably something wrong with the watermarking.
- 44. The idle stream problem ●Streams that are idle do not advance the watermark ● This prevents windows from producing results
- 45. The idle stream problem ●Streams that are idle do not advance the watermark ● This prevents windows from producing results Solutions ● Balance the partitions so none are empty or idle, or ● Send keep-alive events, or ● Configure the watermarking to use idleness detection
- 47. @yourtwitterhandle | developer.confluent.io StreamingState Time Snapshots
- 48. A checkpoint isan automatic snapshot created by Flink, for the purpose of failure recovery
- 49. A checkpoint isan automatic snapshot created by Flink, for the purpose of failure recovery A savepoint is a manual snapshot created for some operational purpose (e.g., an upgrade)

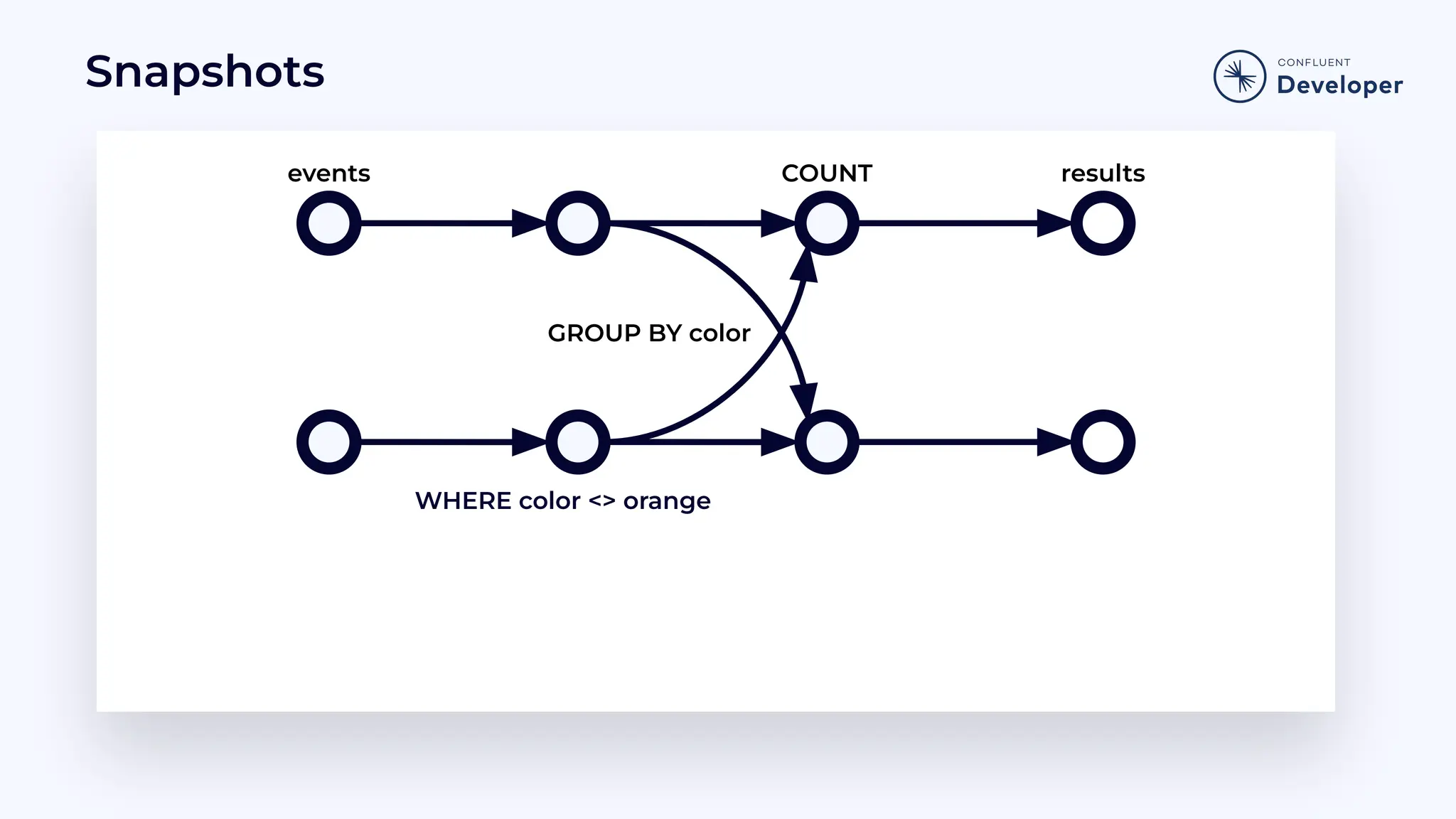

- 50. Snapshots GROUP BY color results COUNT WHEREcolor <> orange events

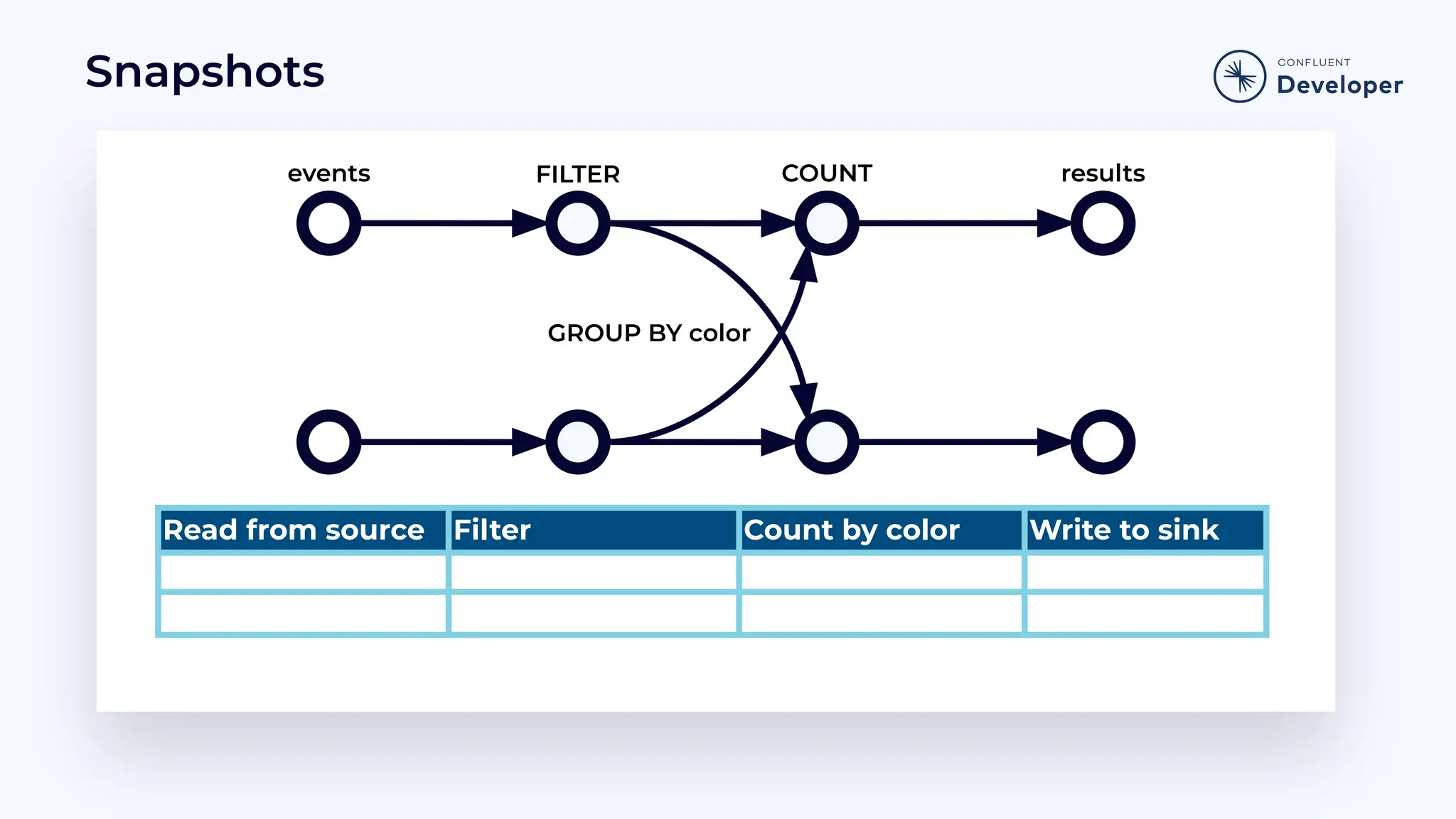

- 51. Snapshots GROUP BY color results COUNT eventsFILTER Read from source Filter Count by color Write to sink

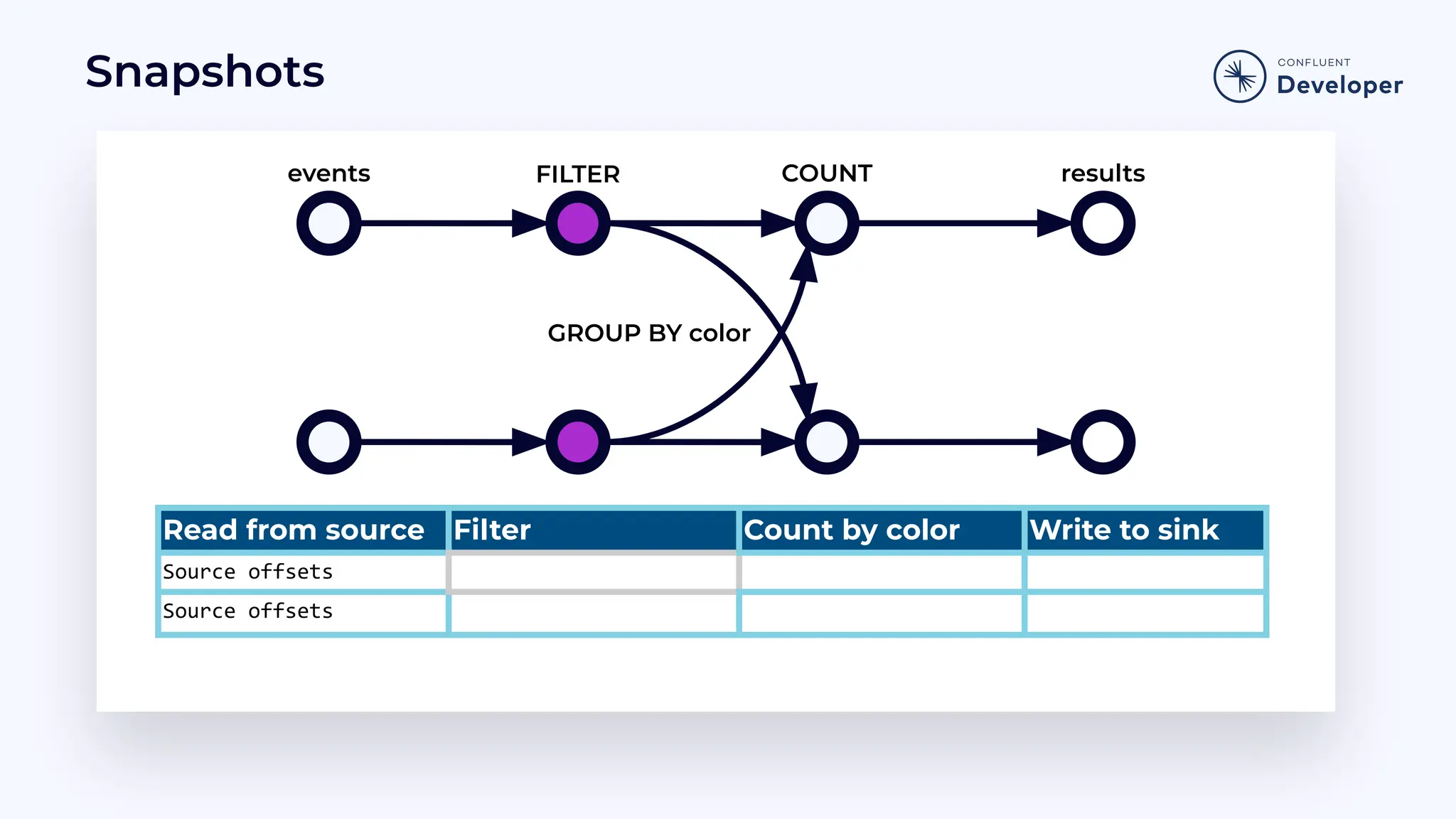

- 52. Snapshots Read from sourceFilter Count by color Write to sink Source offsets Source offsets GROUP BY color results COUNT events FILTER
- 53. Snapshots Read from sourceFilter Count by color Write to sink Source offsets Source offsets GROUP BY color results COUNT events FILTER

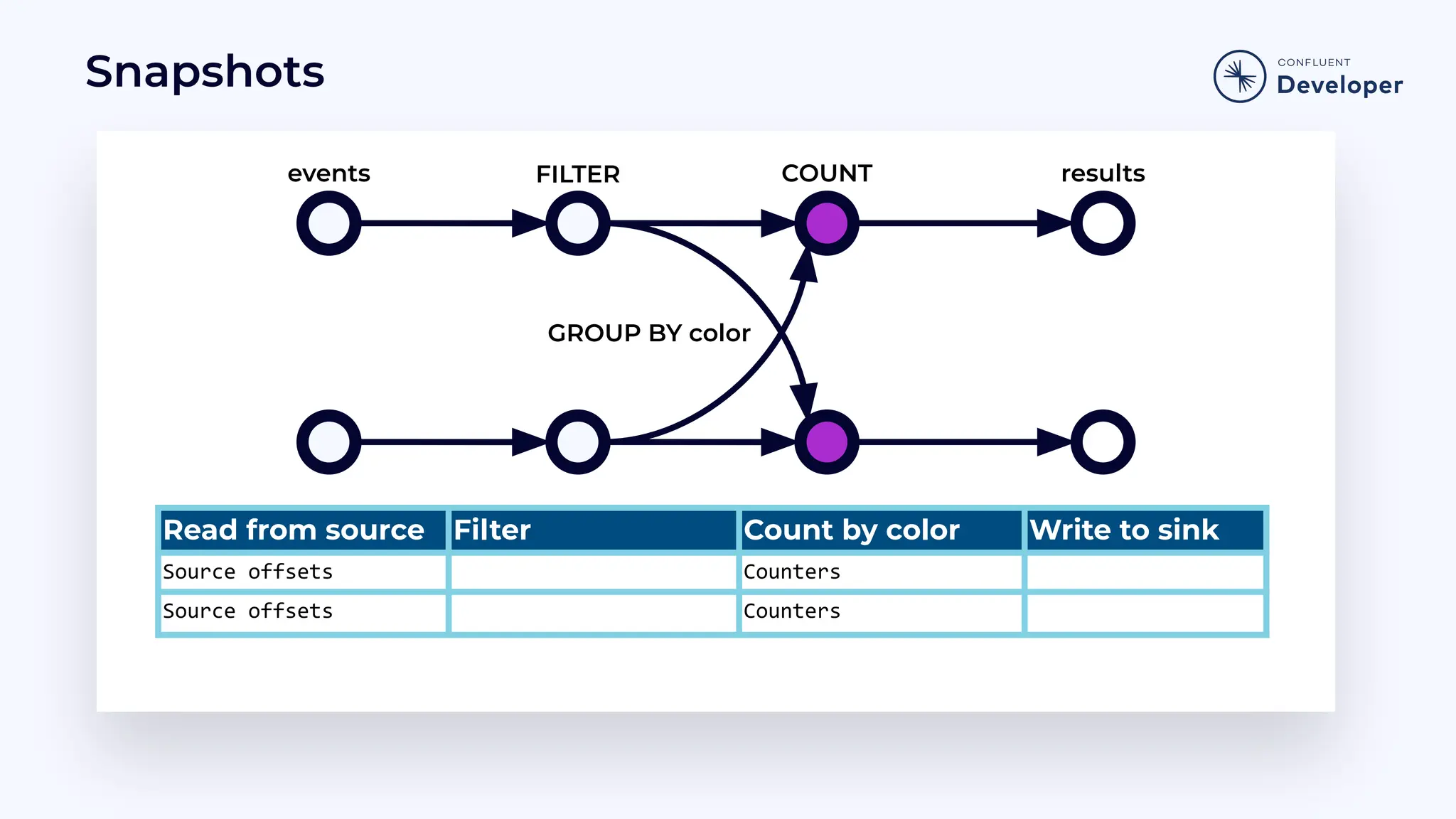

- 54. Snapshots Read from sourceFilter Count by color Write to sink Source offsets Counters Source offsets Counters GROUP BY color results COUNT events FILTER

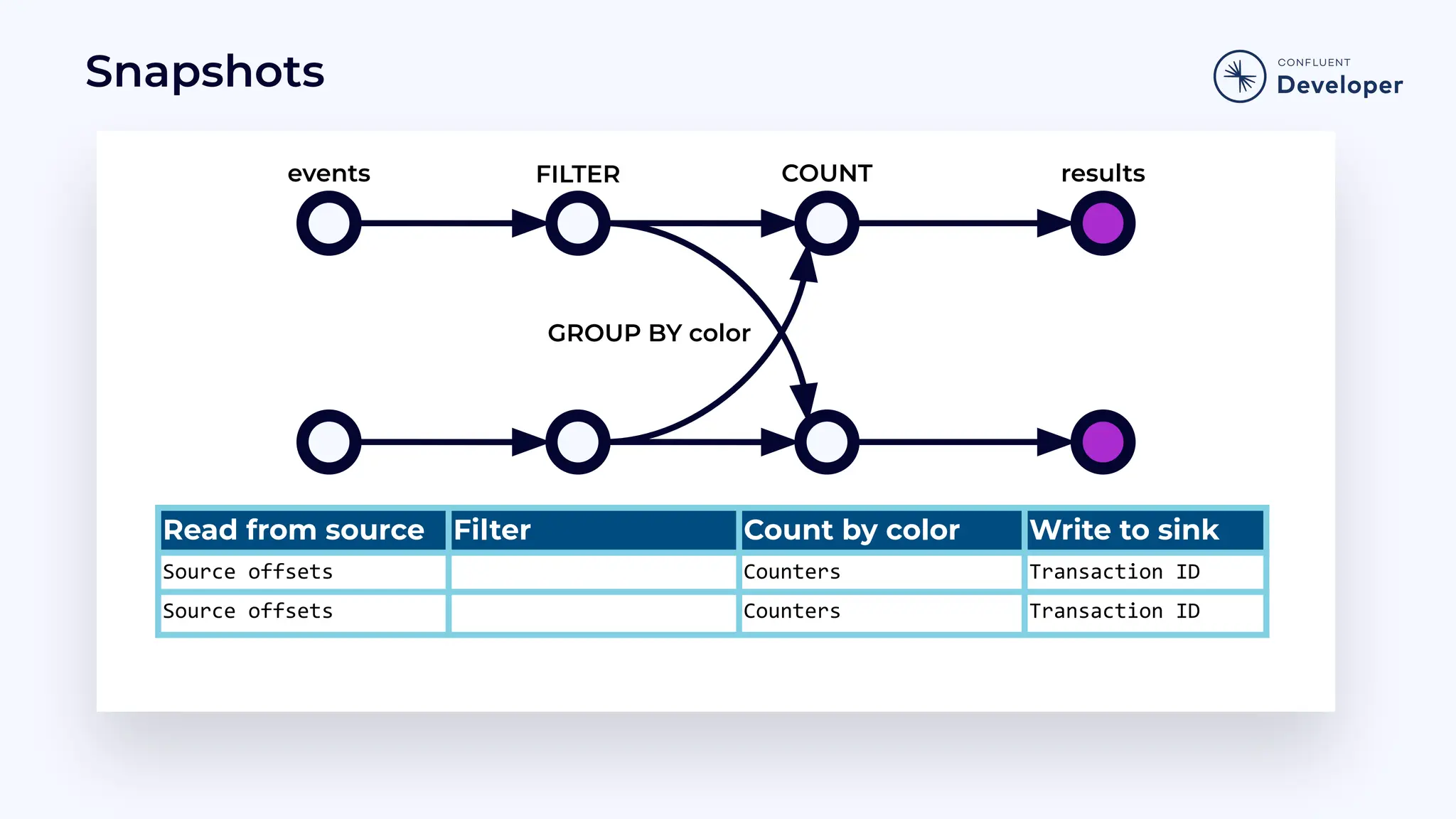

- 55. Snapshots Read from sourceFilter Count by color Write to sink Source offsets Counters Transaction ID Source offsets Counters Transaction ID GROUP BY color results COUNT events FILTER

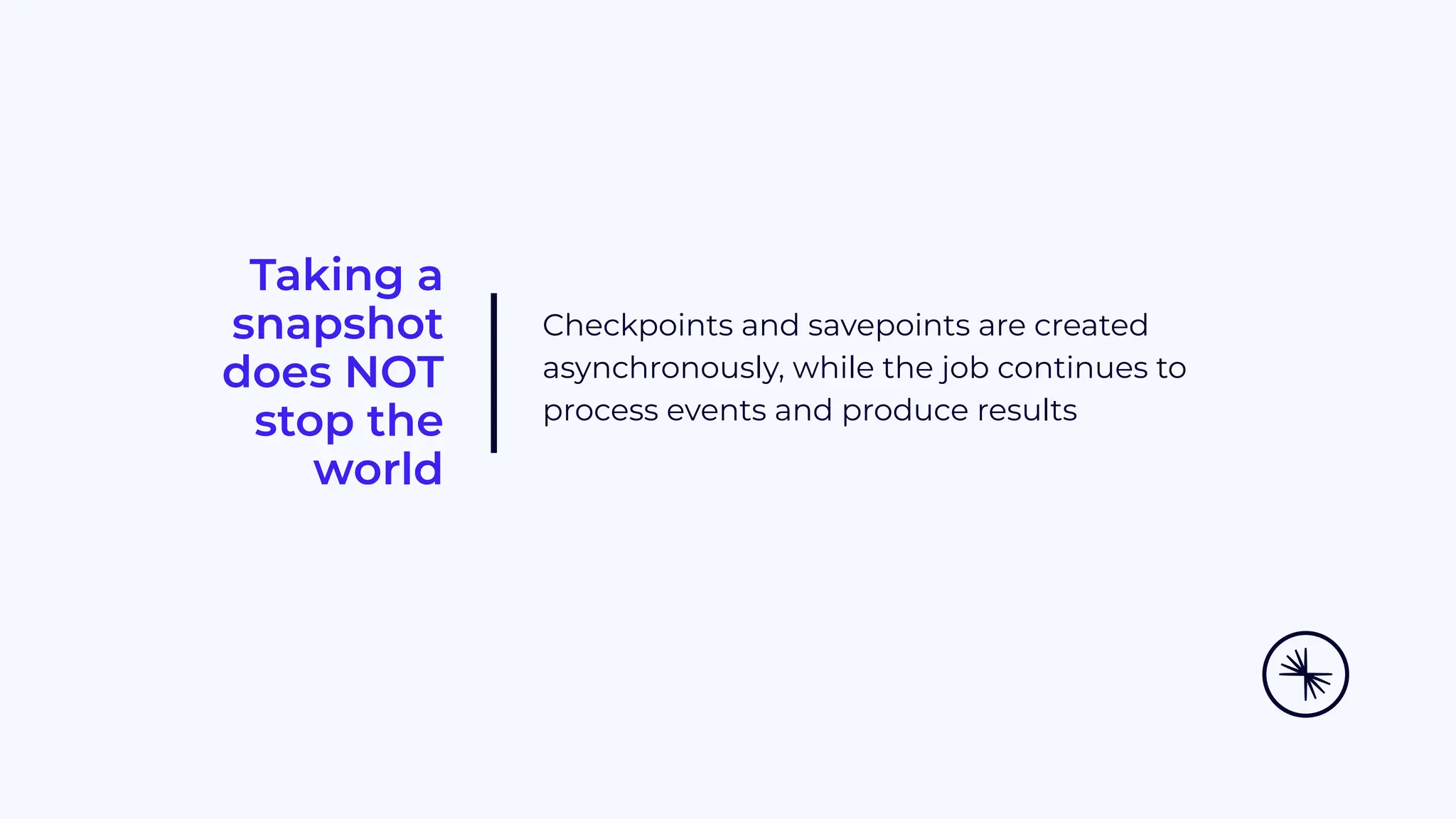

- 56. Taking a snapshot does NOT stopthe world Checkpoints and savepoints are created asynchronously, while the job continues to process events and produce results
- 57. Because these are self-consistent, global snapshots ● Flinkprovides (effectively) exactly-once guarantees ● Recovery involves restarting the entire job from the most recent checkpoint Recovery
- 59.
- 60. 61 Streaming Unfamiliar to many developers,but ultimately straightforward

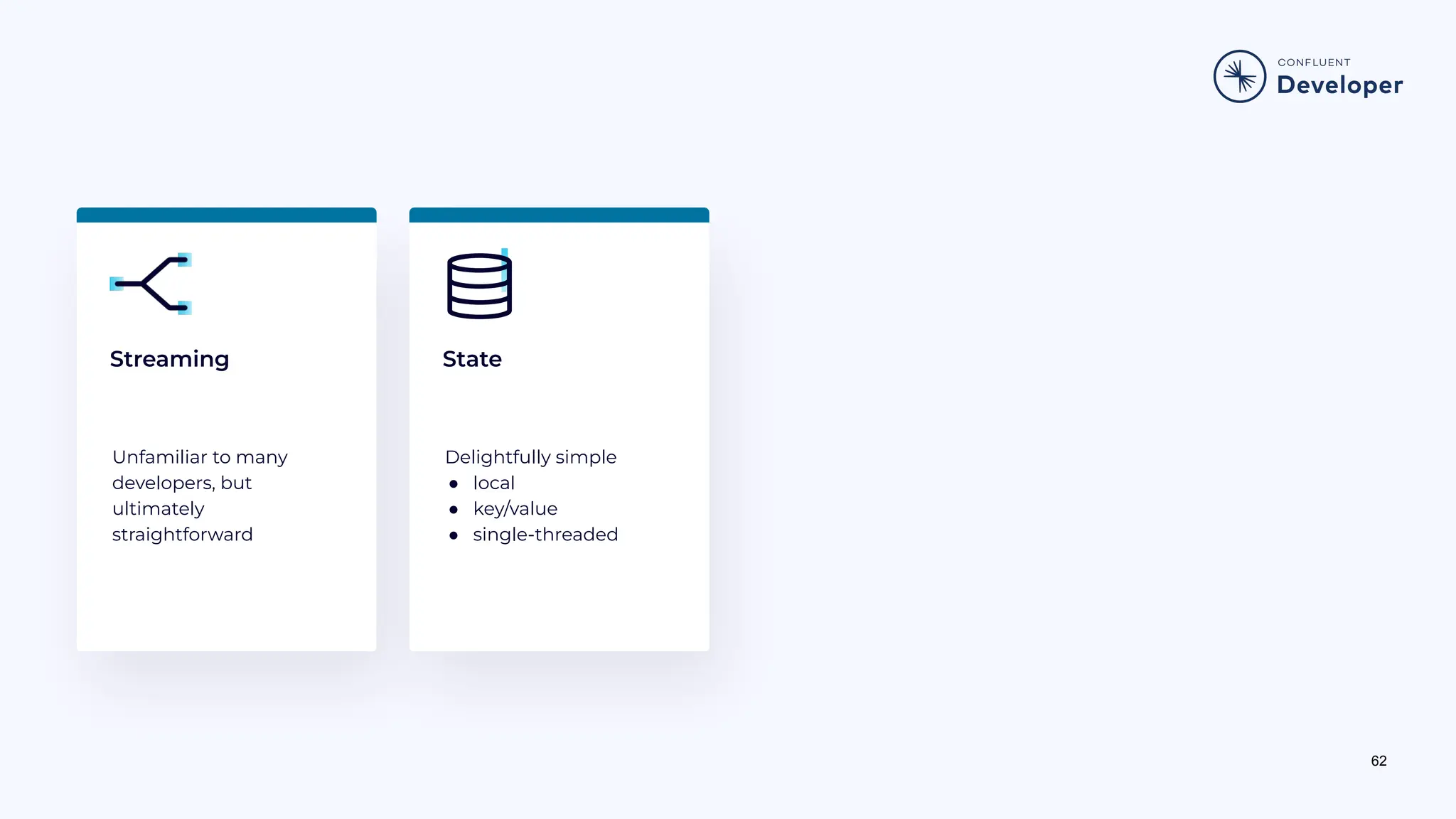

- 61. 62 Streaming Unfamiliar to many developers,but ultimately straightforward Delightfully simple ● local ● key/value ● single-threaded State

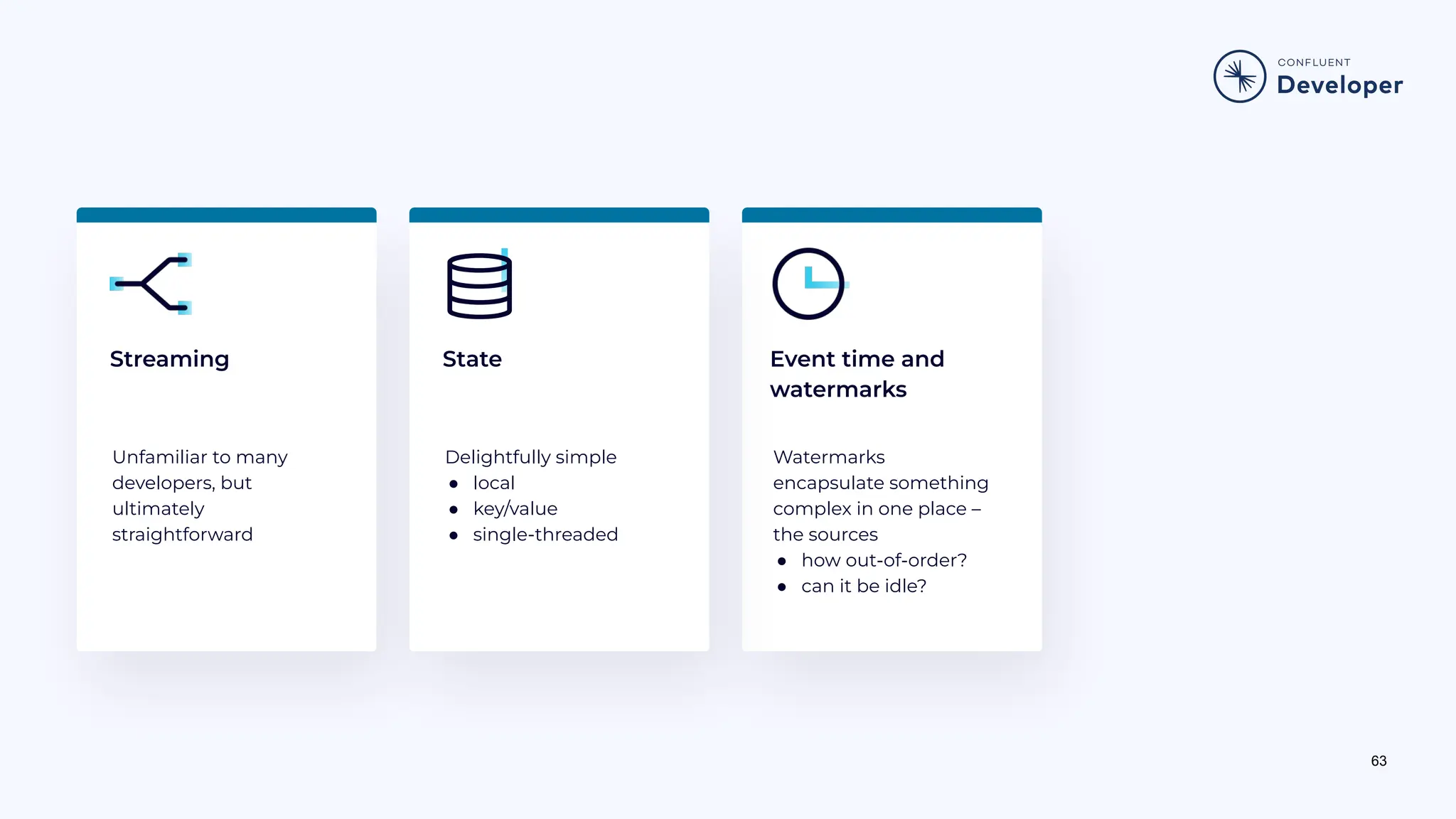

- 62. 63 Streaming Unfamiliar to many developers,but ultimately straightforward Watermarks encapsulate something complex in one place – the sources ● how out-of-order? ● can it be idle? Delightfully simple ● local ● key/value ● single-threaded State Event time and watermarks

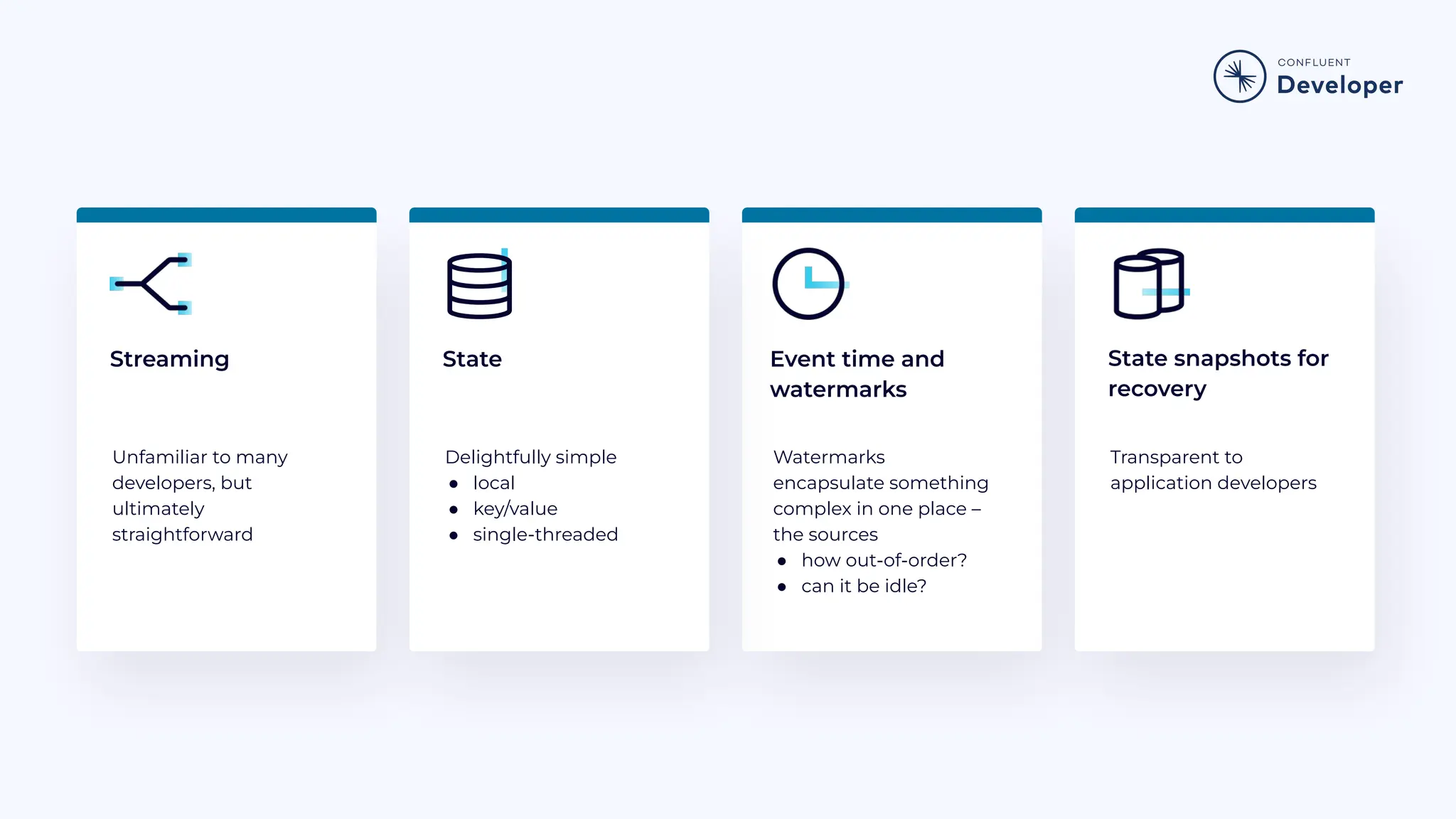

- 63. Streaming Unfamiliar to many developers,but ultimately straightforward Watermarks encapsulate something complex in one place – the sources ● how out-of-order? ● can it be idle? Transparent to application developers State snapshots for recovery Delightfully simple ● local ● key/value ● single-threaded State Event time and watermarks

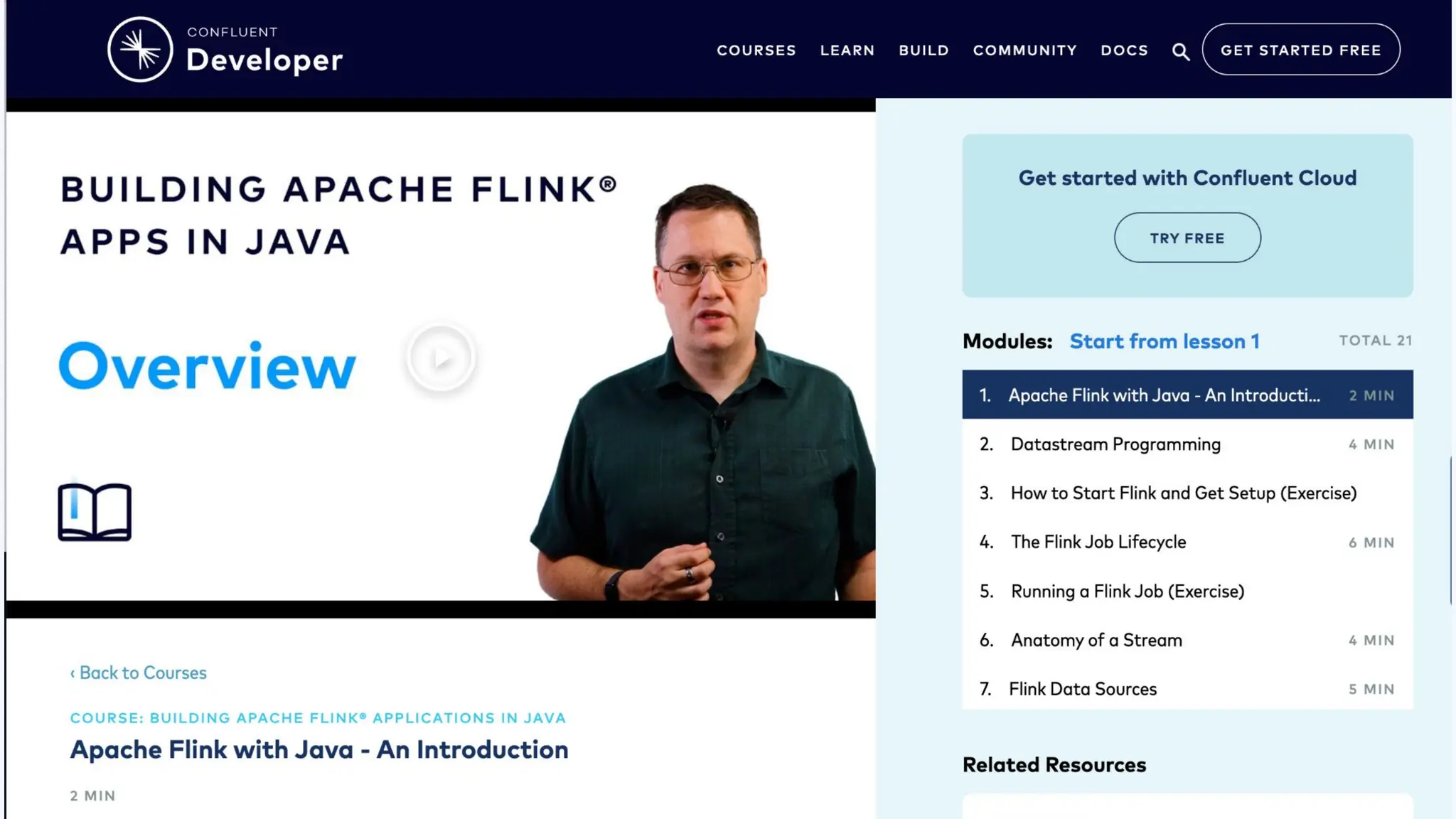

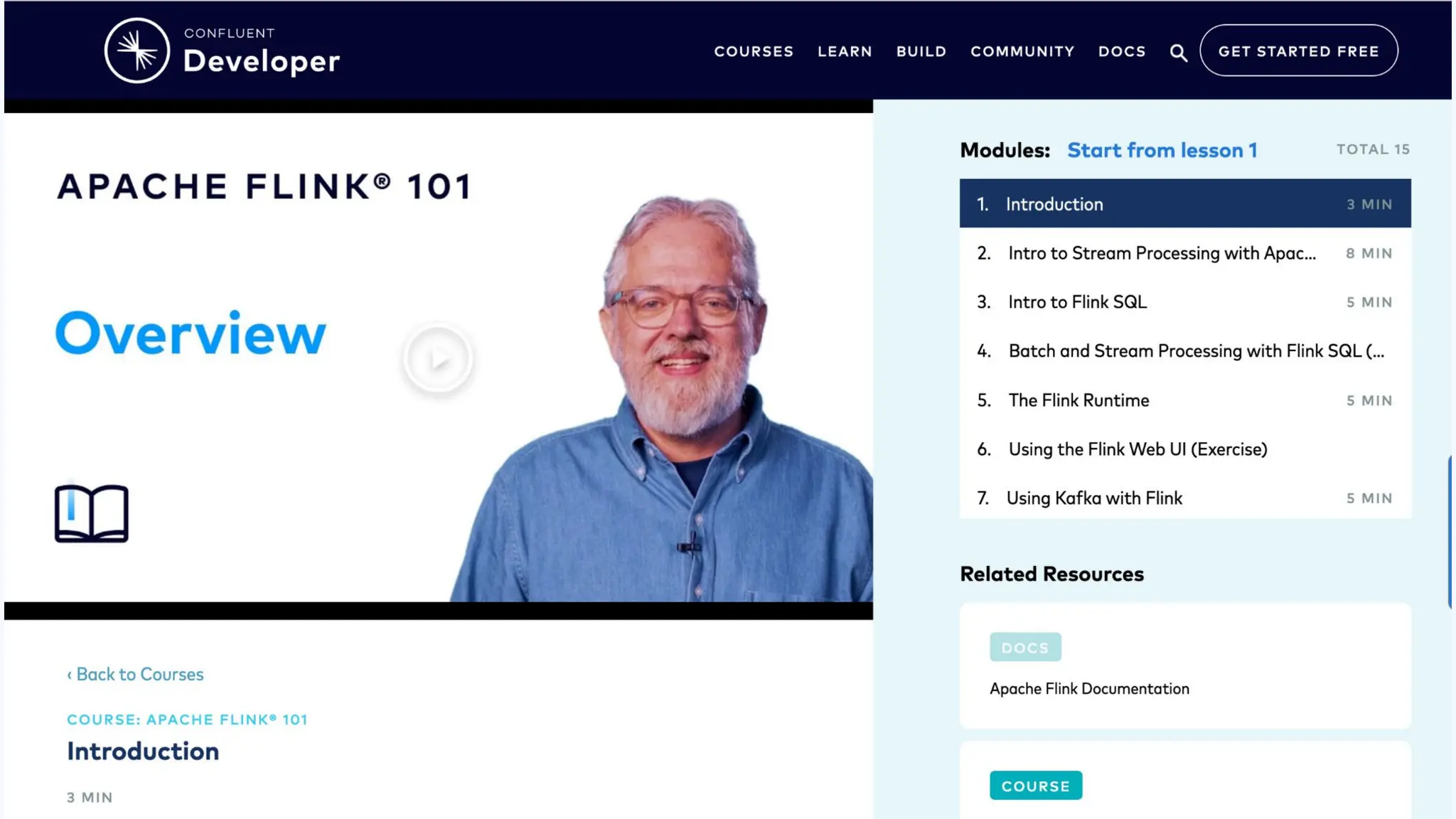

- 66. Your Apache Flink® journeybegins here developer.confluent.io
