  Introducing to AS3Programming ENGR. SOLIEL G. MUTYA DLS-CSB MAY 2016
• 2.
  ACTIONSCRIPT 3.0 DATATYPES • AS3 is a structured language as well as an object-oriented language. • It is a structured because it is built around functions. • It is an OOP because it is built around classes and objects. Data identified for I-P-O will need to be stored as data objects.
• 3.

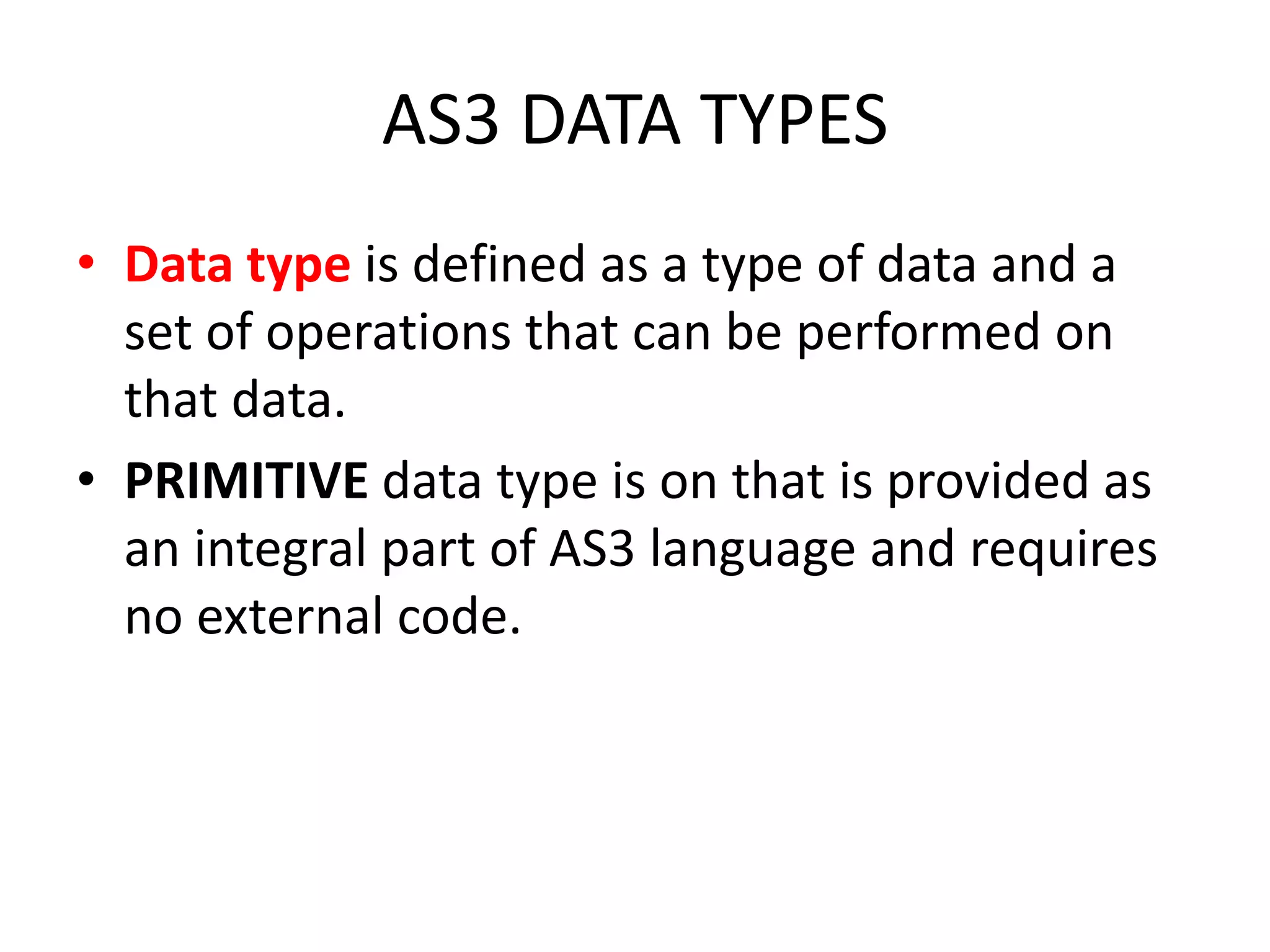

  AS3 DATA TYPES •Data type is defined as a type of data and a set of operations that can be performed on that data. • PRIMITIVE data type is on that is provided as an integral part of AS3 language and requires no external code.
• 4.

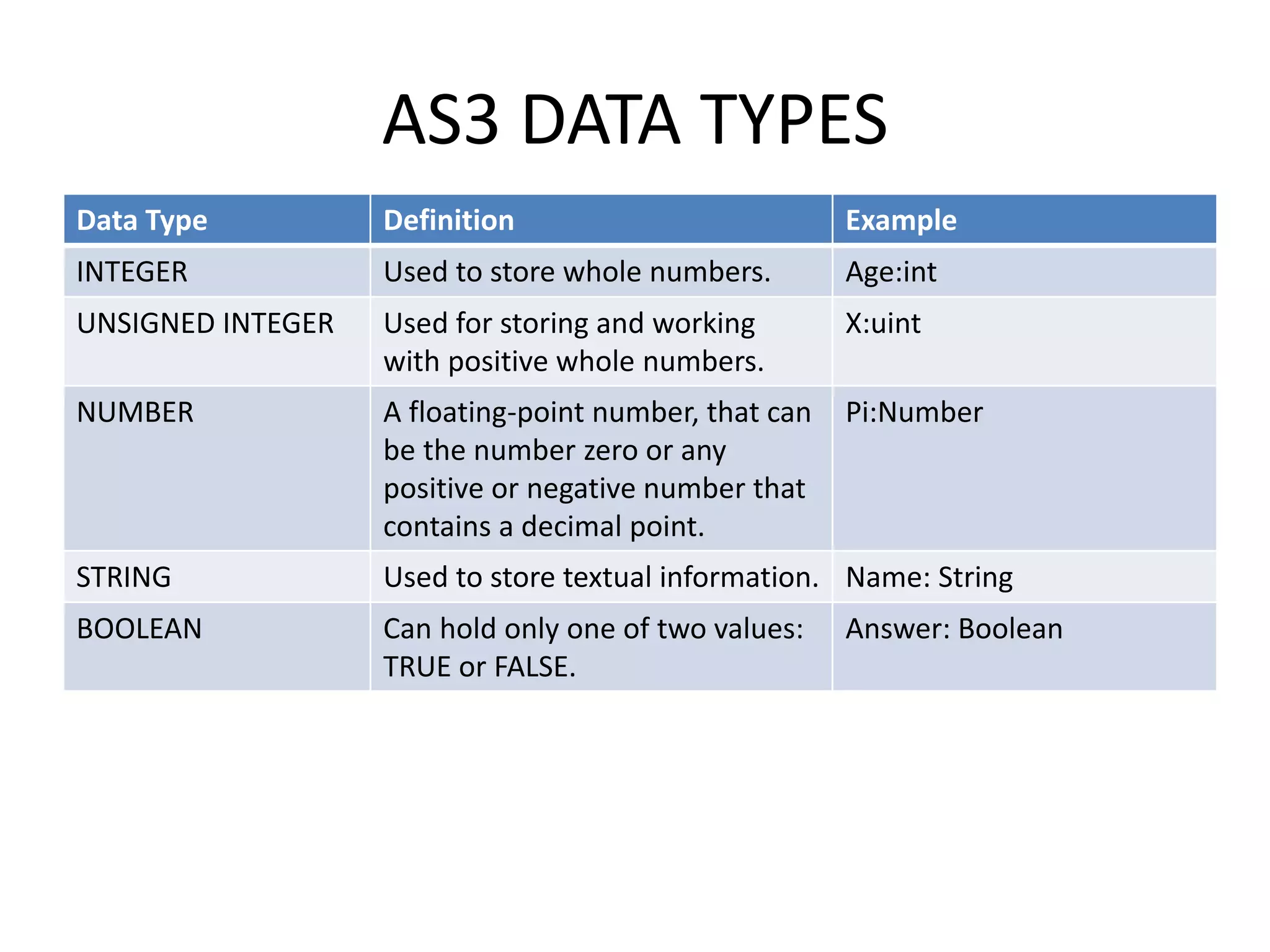

  AS3 DATA TYPES DataType Definition Example INTEGER Used to store whole numbers. Age:int UNSIGNED INTEGER Used for storing and working with positive whole numbers. X:uint NUMBER A floating-point number, that can be the number zero or any positive or negative number that contains a decimal point. Pi:Number STRING Used to store textual information. Name: String BOOLEAN Can hold only one of two values: TRUE or FALSE. Answer: Boolean
• 5.

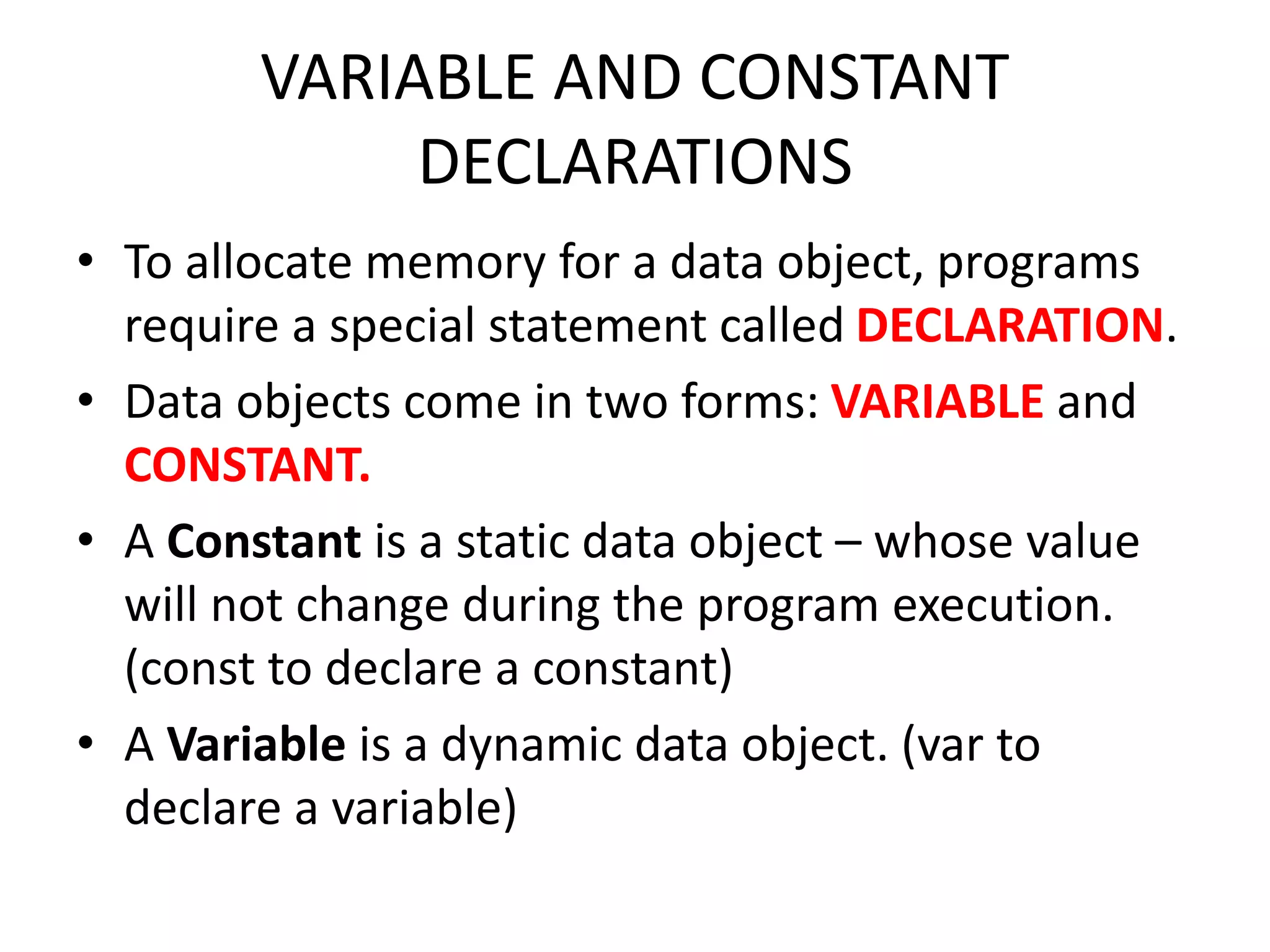

  VARIABLE AND CONSTANT DECLARATIONS •To allocate memory for a data object, programs require a special statement called DECLARATION. • Data objects come in two forms: VARIABLE and CONSTANT. • A Constant is a static data object – whose value will not change during the program execution. (const to declare a constant) • A Variable is a dynamic data object. (var to declare a variable)
• 6.

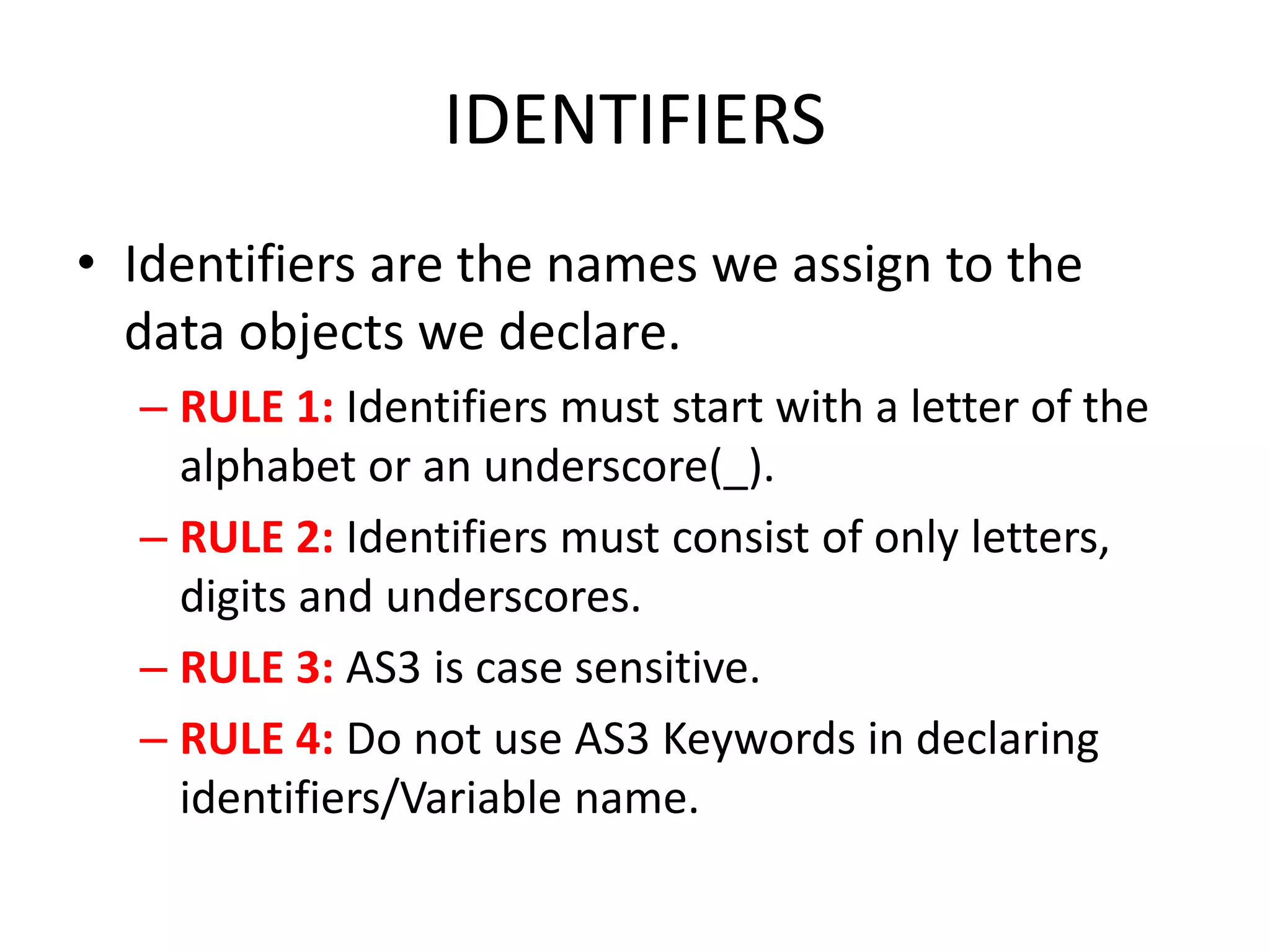

  IDENTIFIERS • Identifiers arethe names we assign to the data objects we declare. – RULE 1: Identifiers must start with a letter of the alphabet or an underscore(_). – RULE 2: Identifiers must consist of only letters, digits and underscores. – RULE 3: AS3 is case sensitive. – RULE 4: Do not use AS3 Keywords in declaring identifiers/Variable name.
• 7.

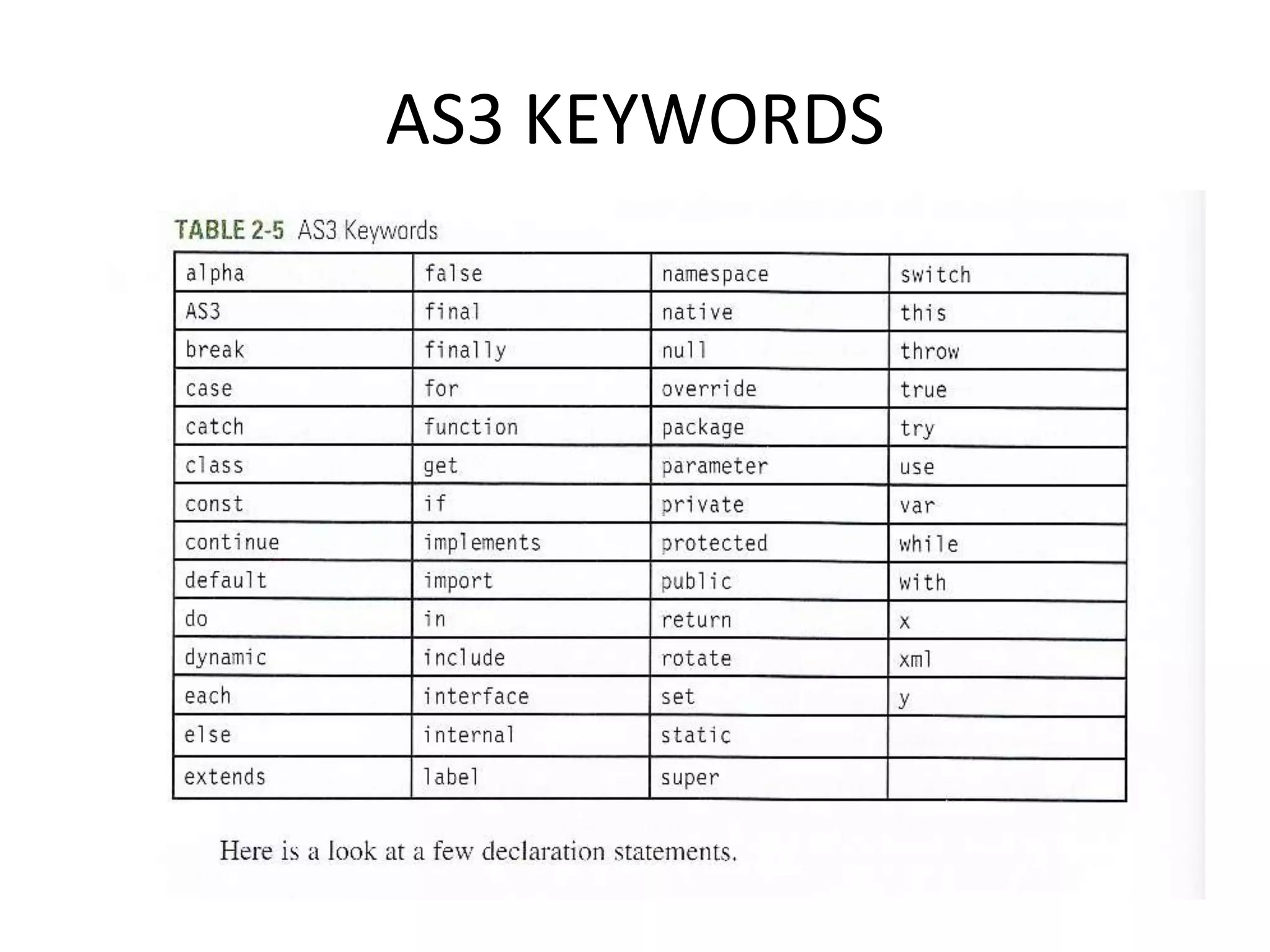

  AS3 KEYWORDS
• 8.

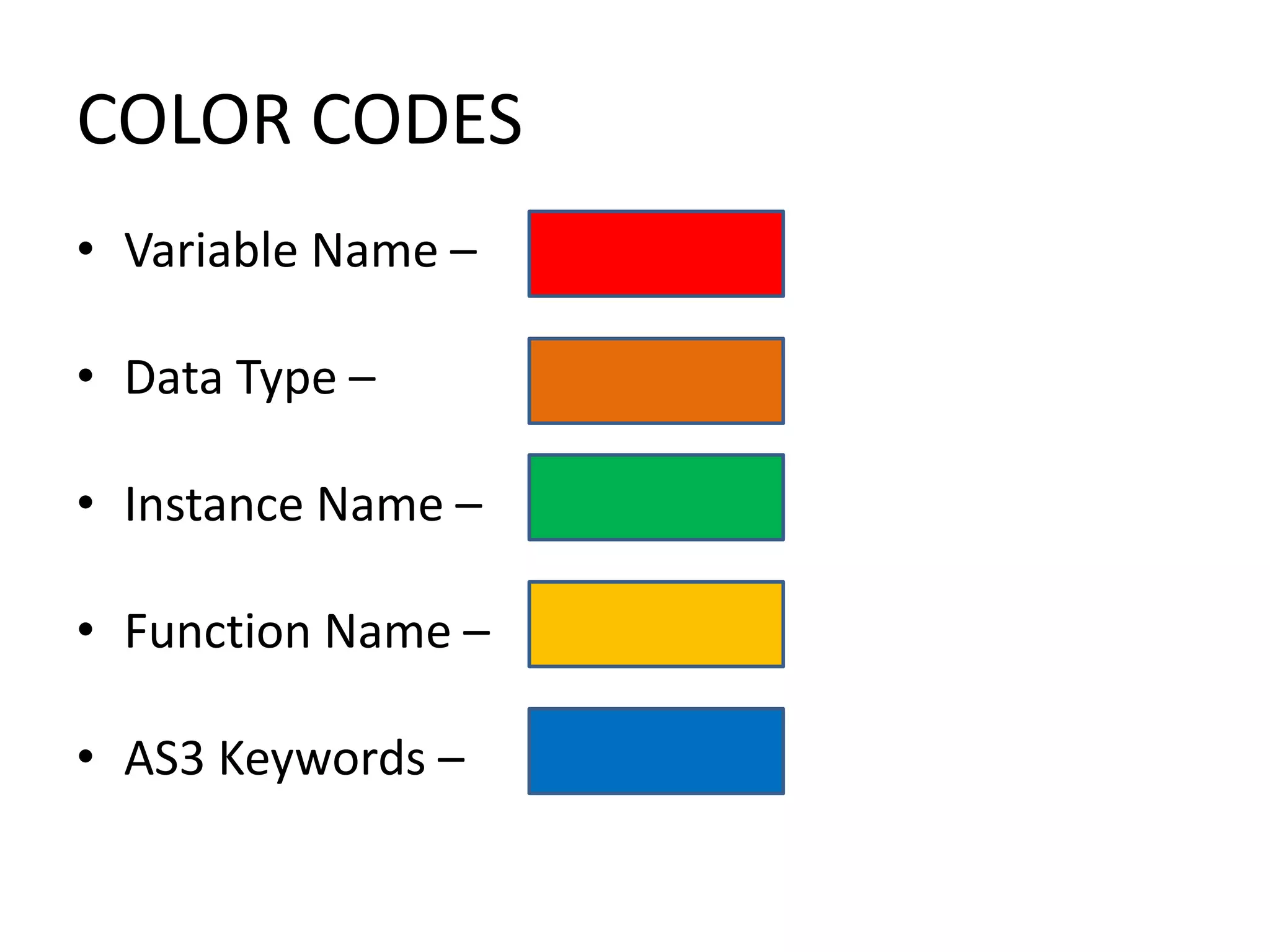

  COLOR CODES • VariableName – • Data Type – • Instance Name – • Function Name – • AS3 Keywords –
• 9.

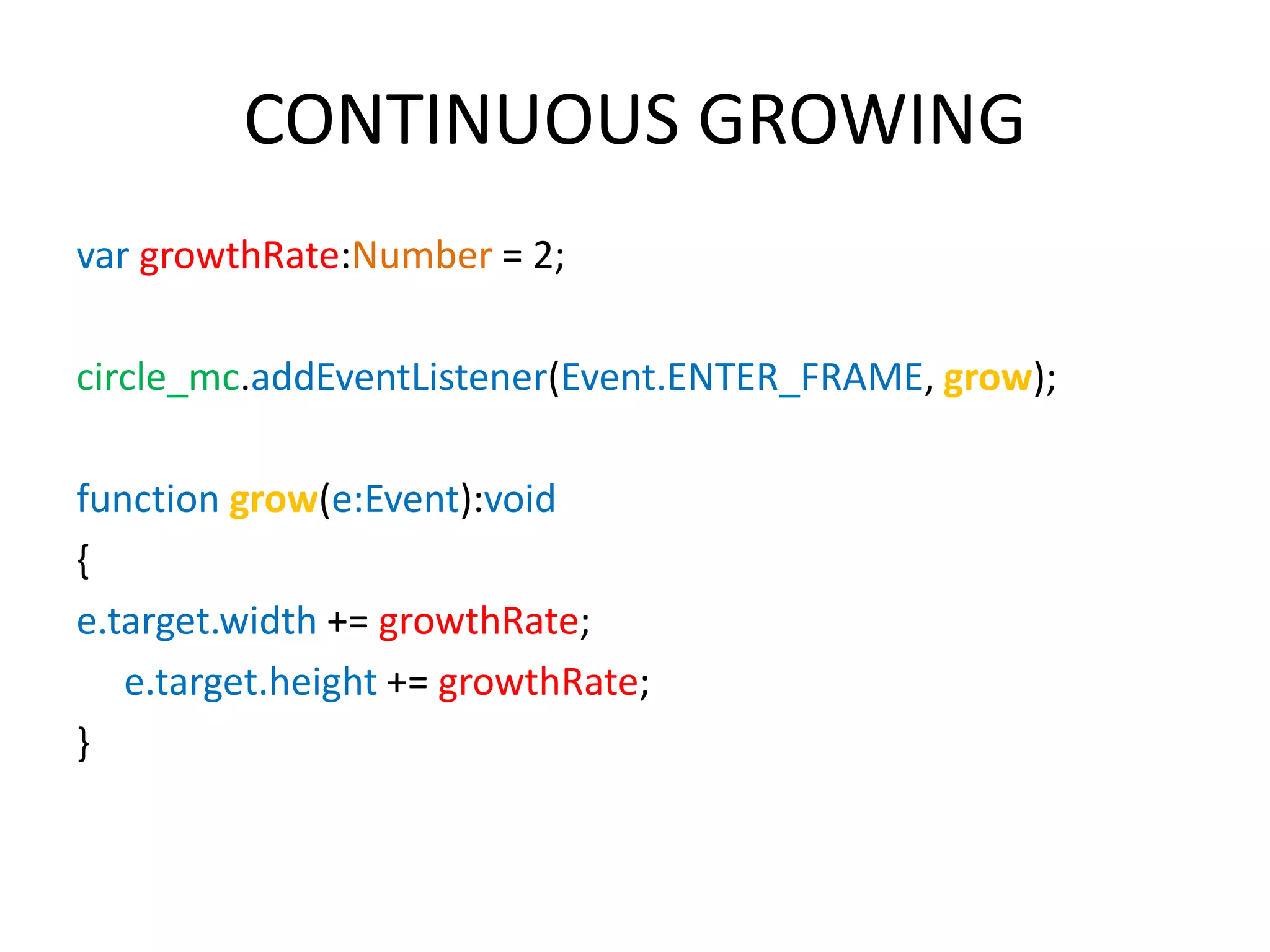

  CONTINUOUS GROWING var growthRate:Number= 2; circle_mc.addEventListener(Event.ENTER_FRAME, grow); function grow(e:Event):void { e.target.width += growthRate; e.target.height += growthRate; }
• 10.

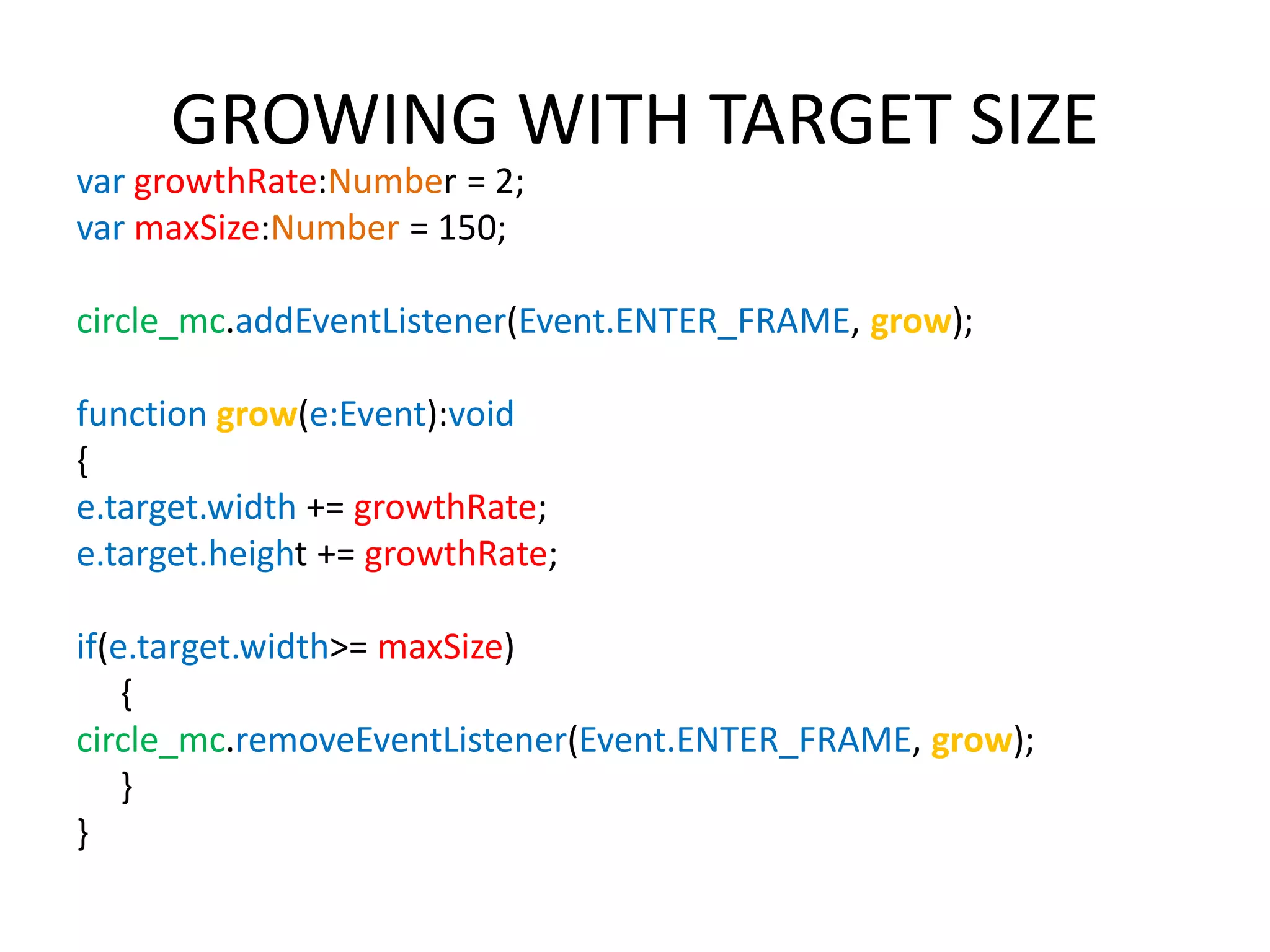

  GROWING WITH TARGETSIZE var growthRate:Number = 2; var maxSize:Number = 150; circle_mc.addEventListener(Event.ENTER_FRAME, grow); function grow(e:Event):void { e.target.width += growthRate; e.target.height += growthRate; if(e.target.width>= maxSize) { circle_mc.removeEventListener(Event.ENTER_FRAME, grow); } }
• 11.

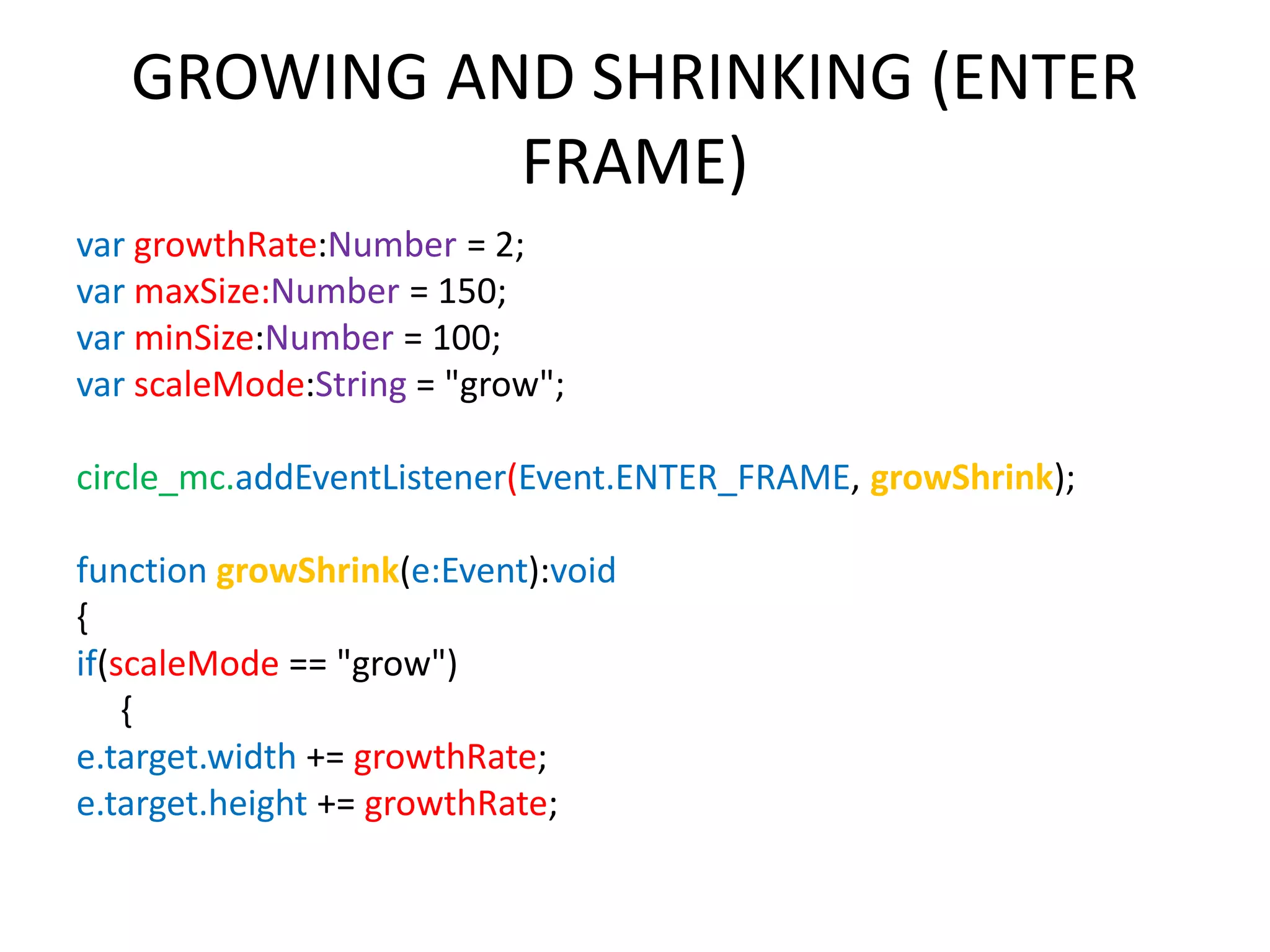

  GROWING AND SHRINKING(ENTER FRAME) var growthRate:Number = 2; var maxSize:Number = 150; var minSize:Number = 100; var scaleMode:String = "grow"; circle_mc.addEventListener(Event.ENTER_FRAME, growShrink); function growShrink(e:Event):void { if(scaleMode == "grow") { e.target.width += growthRate; e.target.height += growthRate;
• 12.

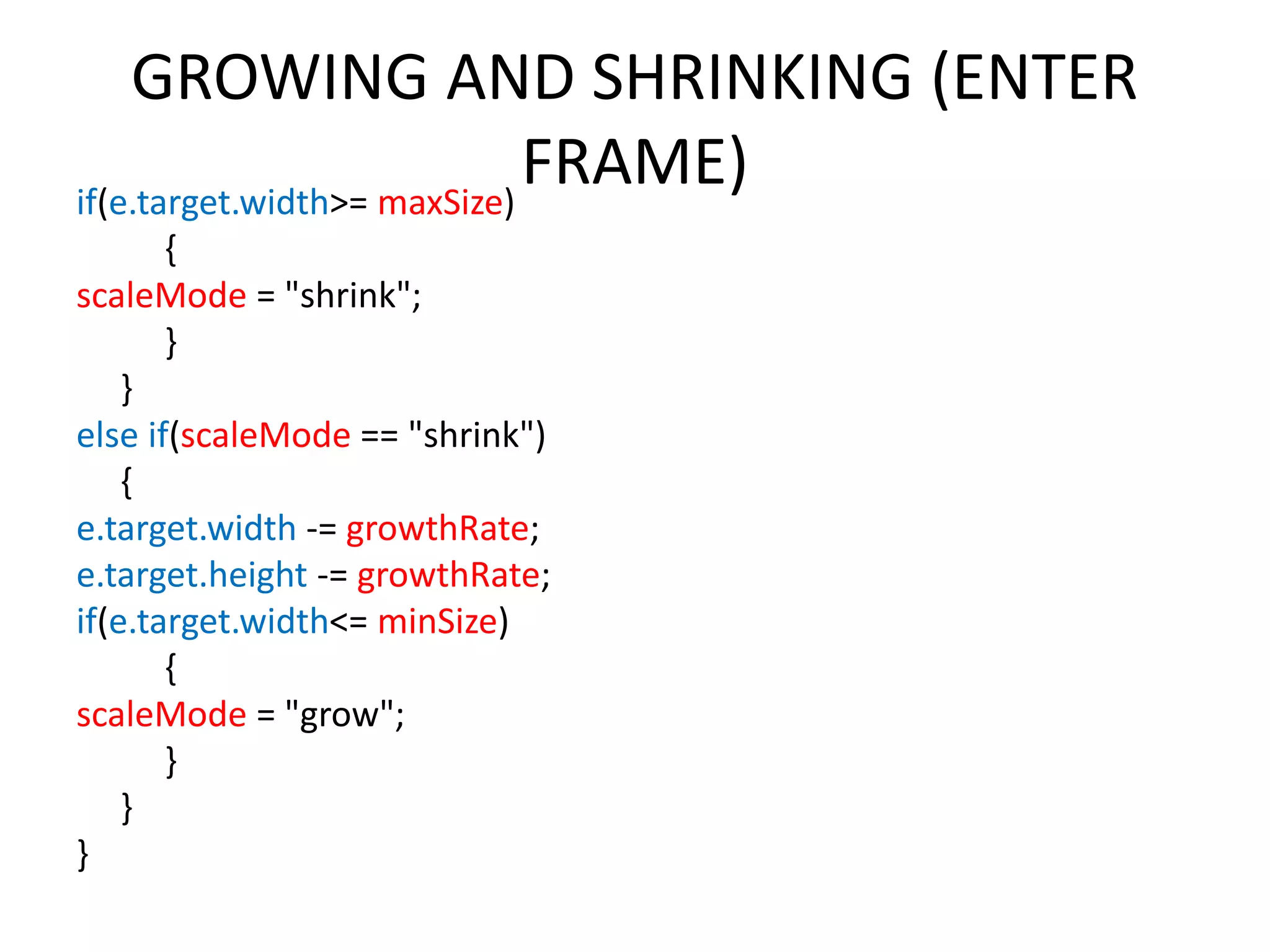

  GROWING AND SHRINKING(ENTER FRAME)if(e.target.width>= maxSize) { scaleMode = "shrink"; } } else if(scaleMode == "shrink") { e.target.width -= growthRate; e.target.height -= growthRate; if(e.target.width<= minSize) { scaleMode = "grow"; } } }
• 13.

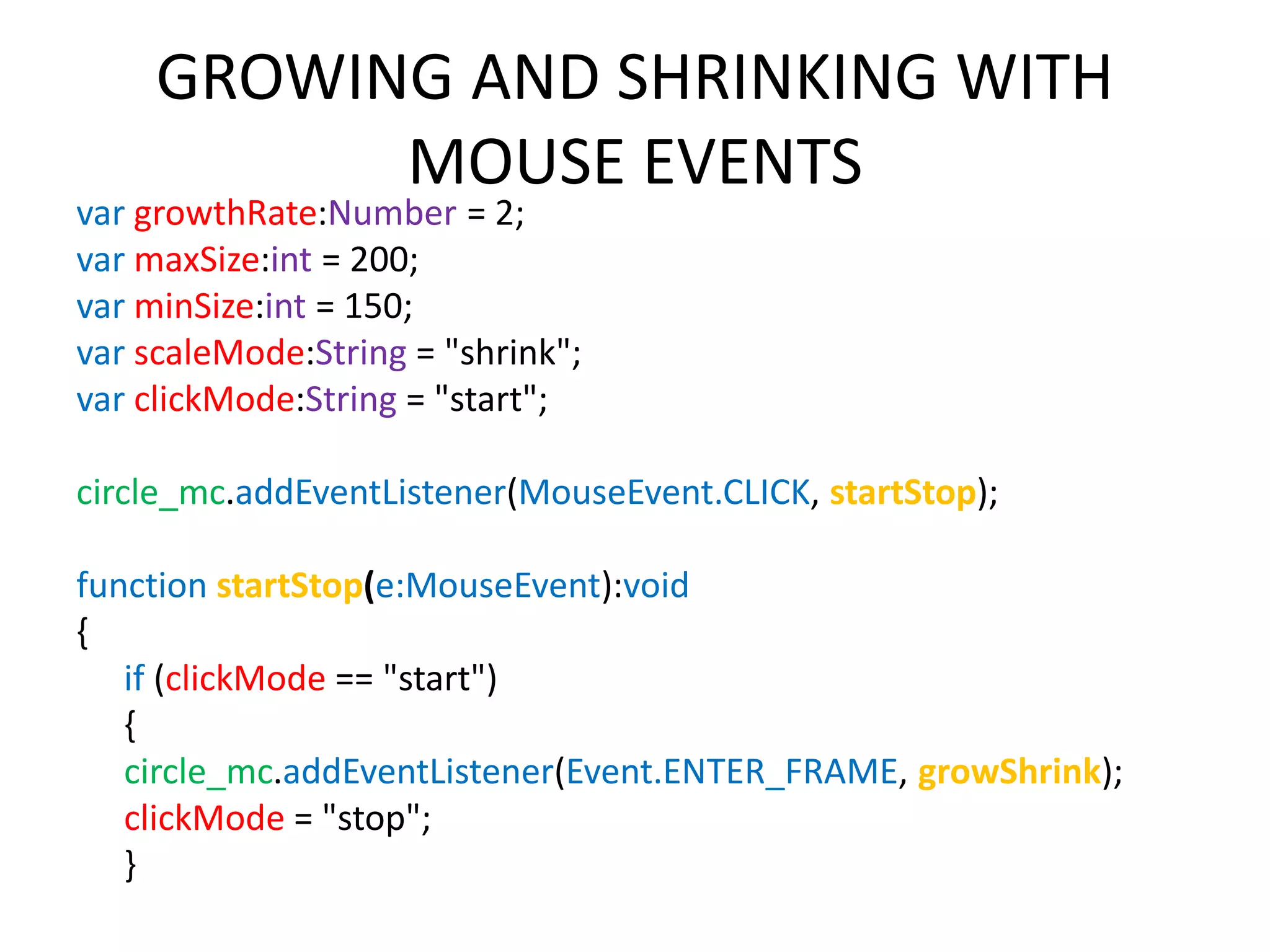

  GROWING AND SHRINKINGWITH MOUSE EVENTS var growthRate:Number = 2; var maxSize:int = 200; var minSize:int = 150; var scaleMode:String = "shrink"; var clickMode:String = "start"; circle_mc.addEventListener(MouseEvent.CLICK, startStop); function startStop(e:MouseEvent):void { if (clickMode == "start") { circle_mc.addEventListener(Event.ENTER_FRAME, growShrink); clickMode = "stop"; }
• 14.

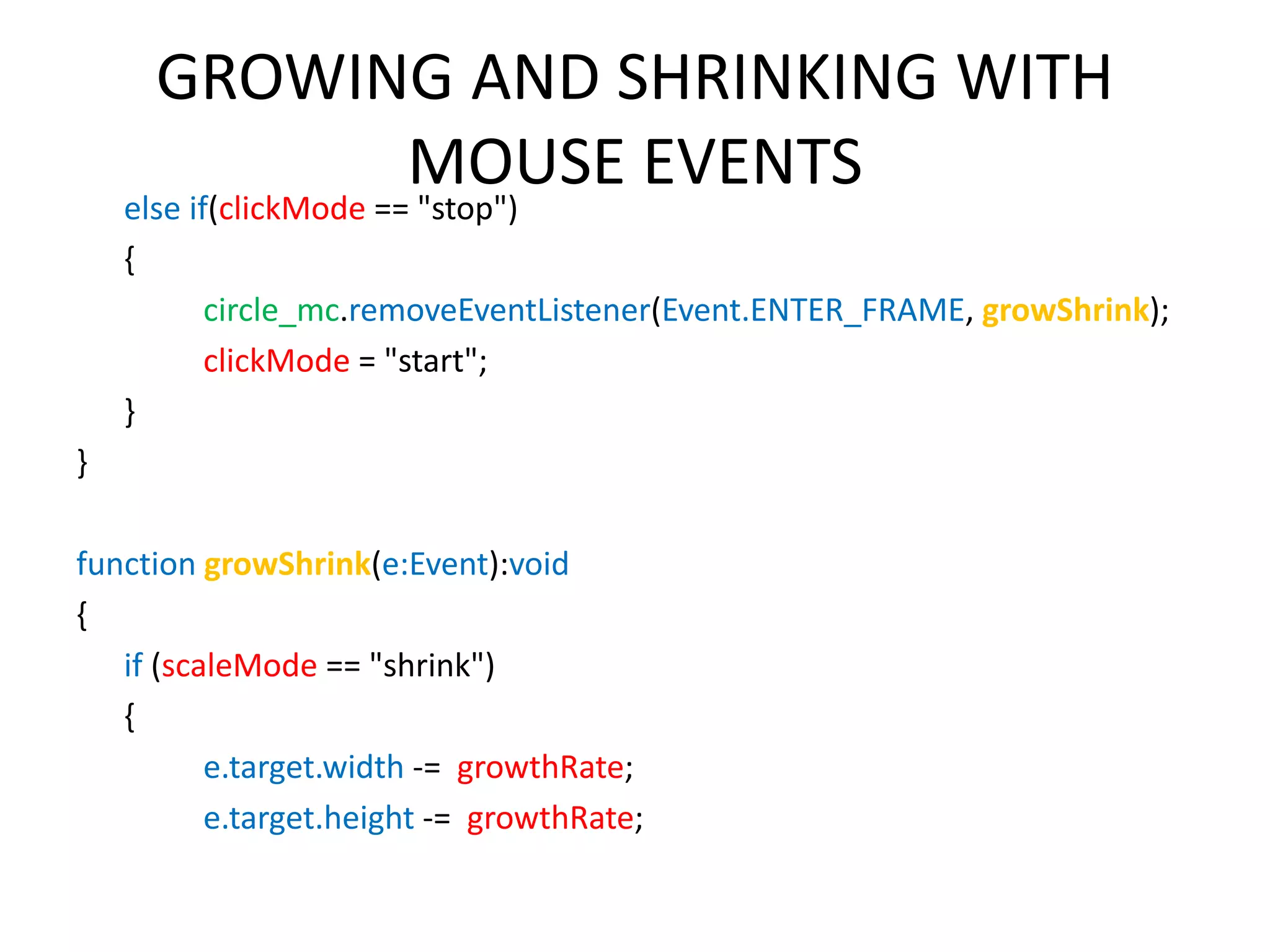

  GROWING AND SHRINKINGWITH MOUSE EVENTS else if(clickMode == "stop") { circle_mc.removeEventListener(Event.ENTER_FRAME, growShrink); clickMode = "start"; } } function growShrink(e:Event):void { if (scaleMode == "shrink") { e.target.width -= growthRate; e.target.height -= growthRate;
• 15.

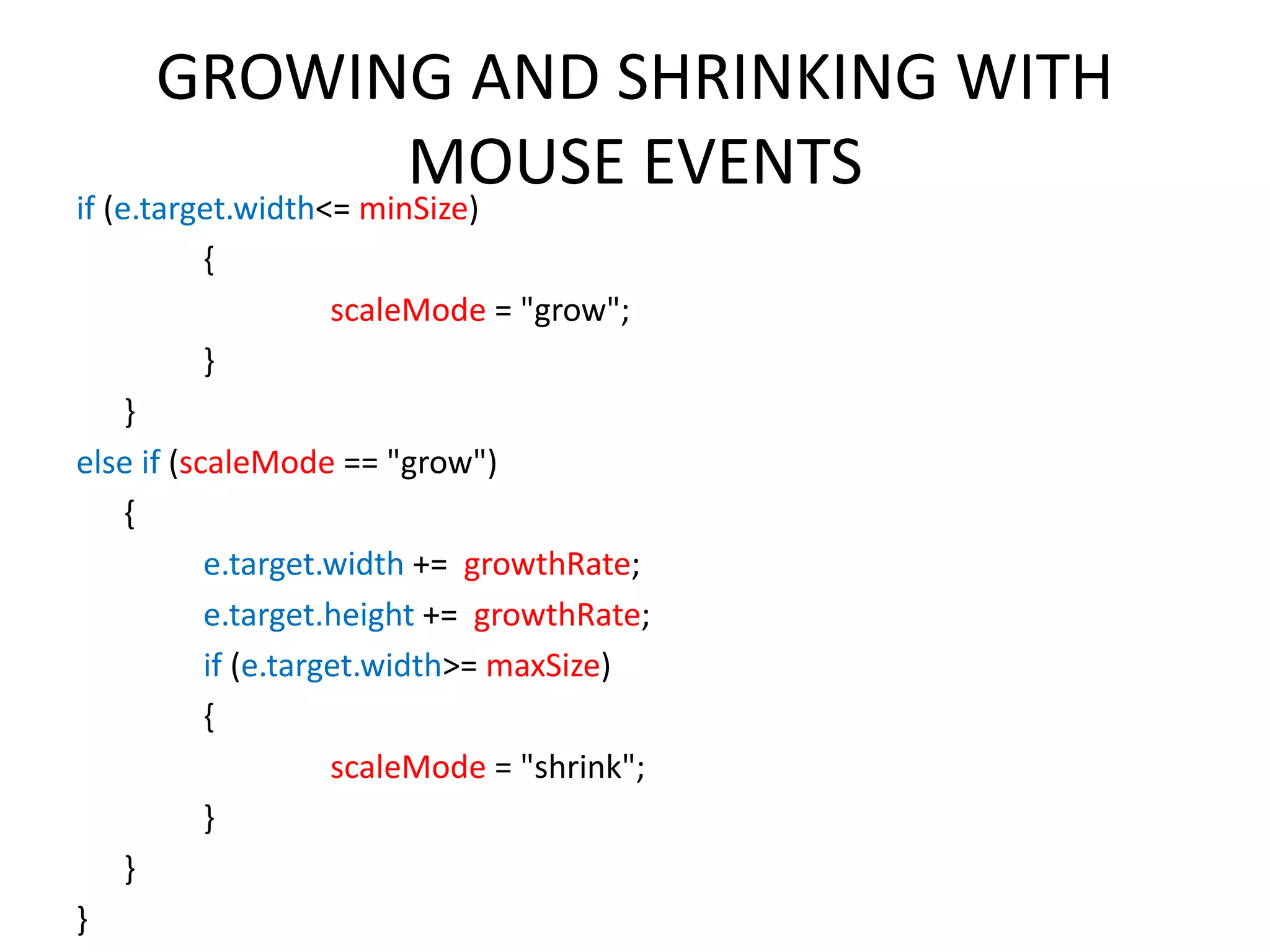

  GROWING AND SHRINKINGWITH MOUSE EVENTS if (e.target.width<= minSize) { scaleMode = "grow"; } } else if (scaleMode == "grow") { e.target.width += growthRate; e.target.height += growthRate; if (e.target.width>= maxSize) { scaleMode = "shrink"; } } }
• 16.

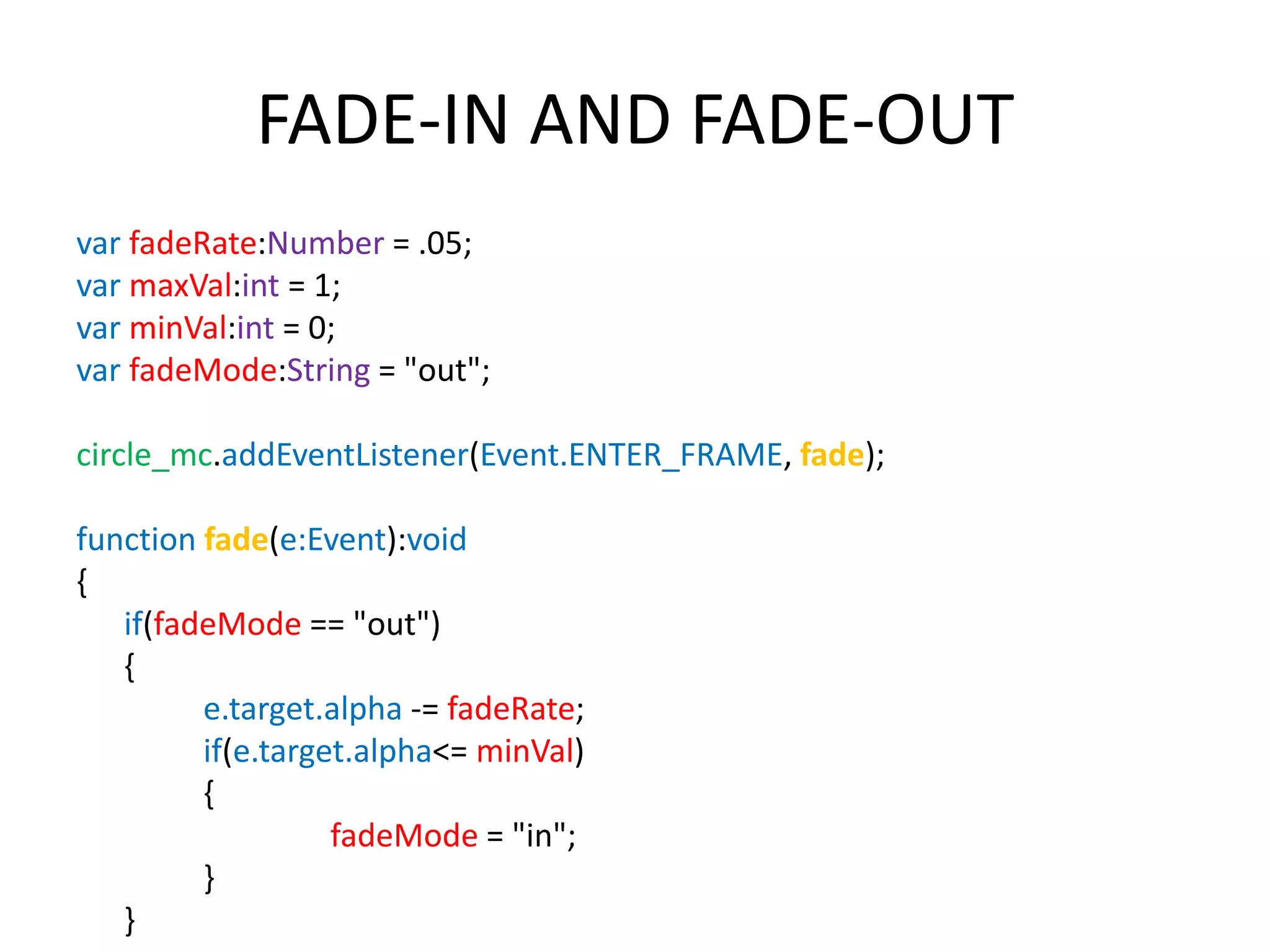

  FADE-IN AND FADE-OUT varfadeRate:Number = .05; var maxVal:int = 1; var minVal:int = 0; var fadeMode:String = "out"; circle_mc.addEventListener(Event.ENTER_FRAME, fade); function fade(e:Event):void { if(fadeMode == "out") { e.target.alpha -= fadeRate; if(e.target.alpha<= minVal) { fadeMode = "in"; } }
• 17.

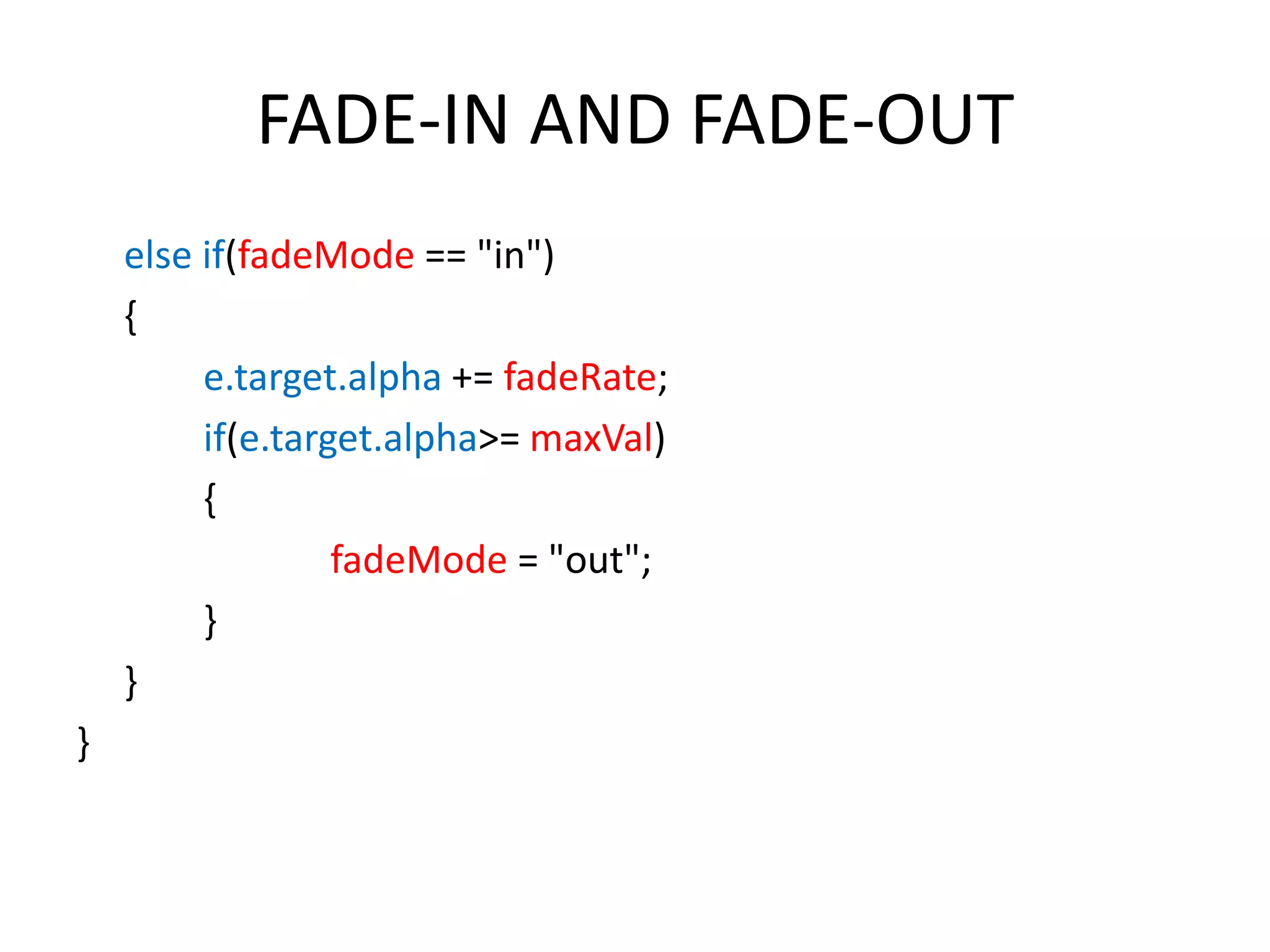

  FADE-IN AND FADE-OUT elseif(fadeMode == "in") { e.target.alpha += fadeRate; if(e.target.alpha>= maxVal) { fadeMode = "out"; } } }
• 18.

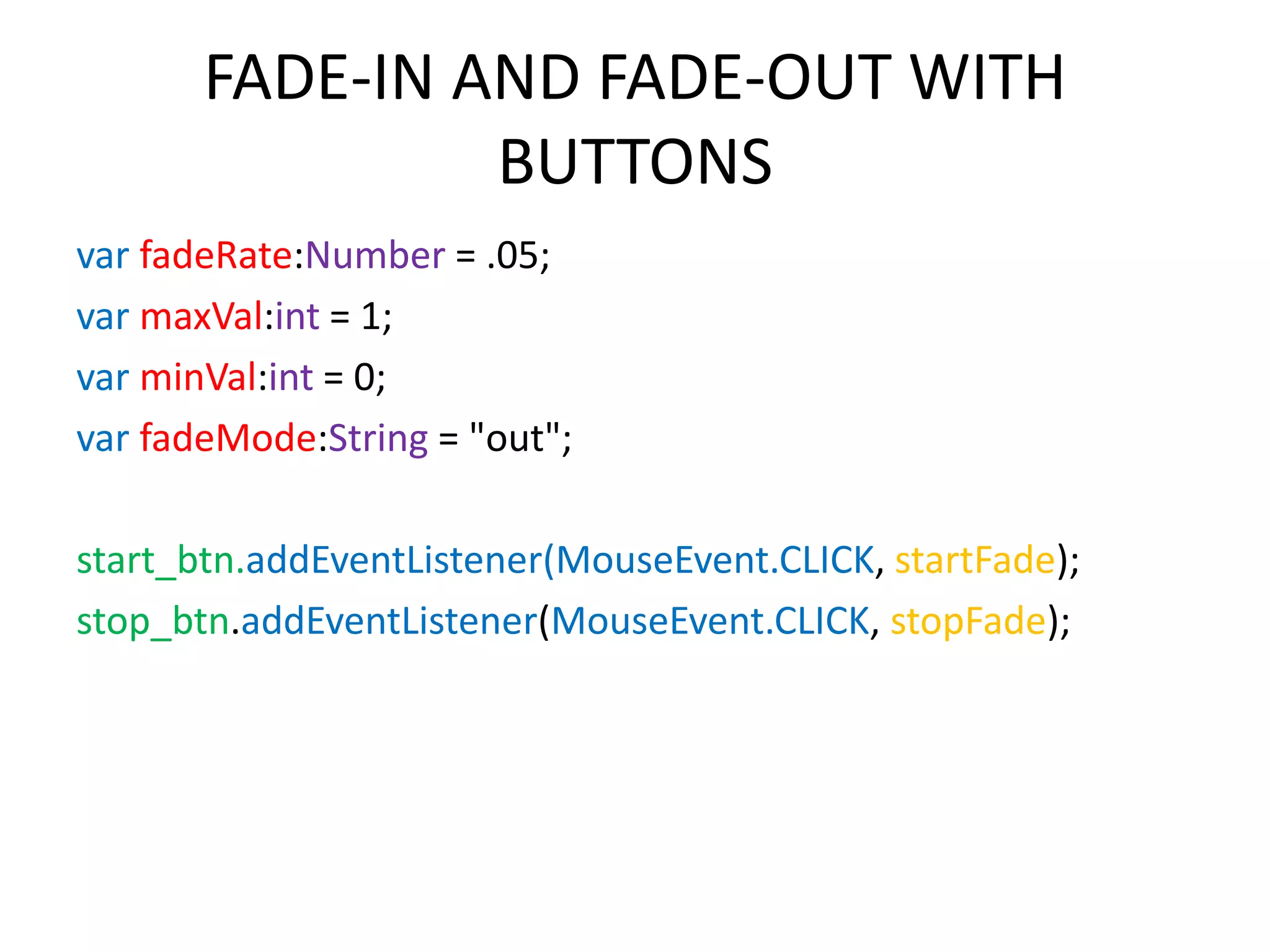

  FADE-IN AND FADE-OUTWITH BUTTONS var fadeRate:Number = .05; var maxVal:int = 1; var minVal:int = 0; var fadeMode:String = "out"; start_btn.addEventListener(MouseEvent.CLICK, startFade); stop_btn.addEventListener(MouseEvent.CLICK, stopFade);
• 19.

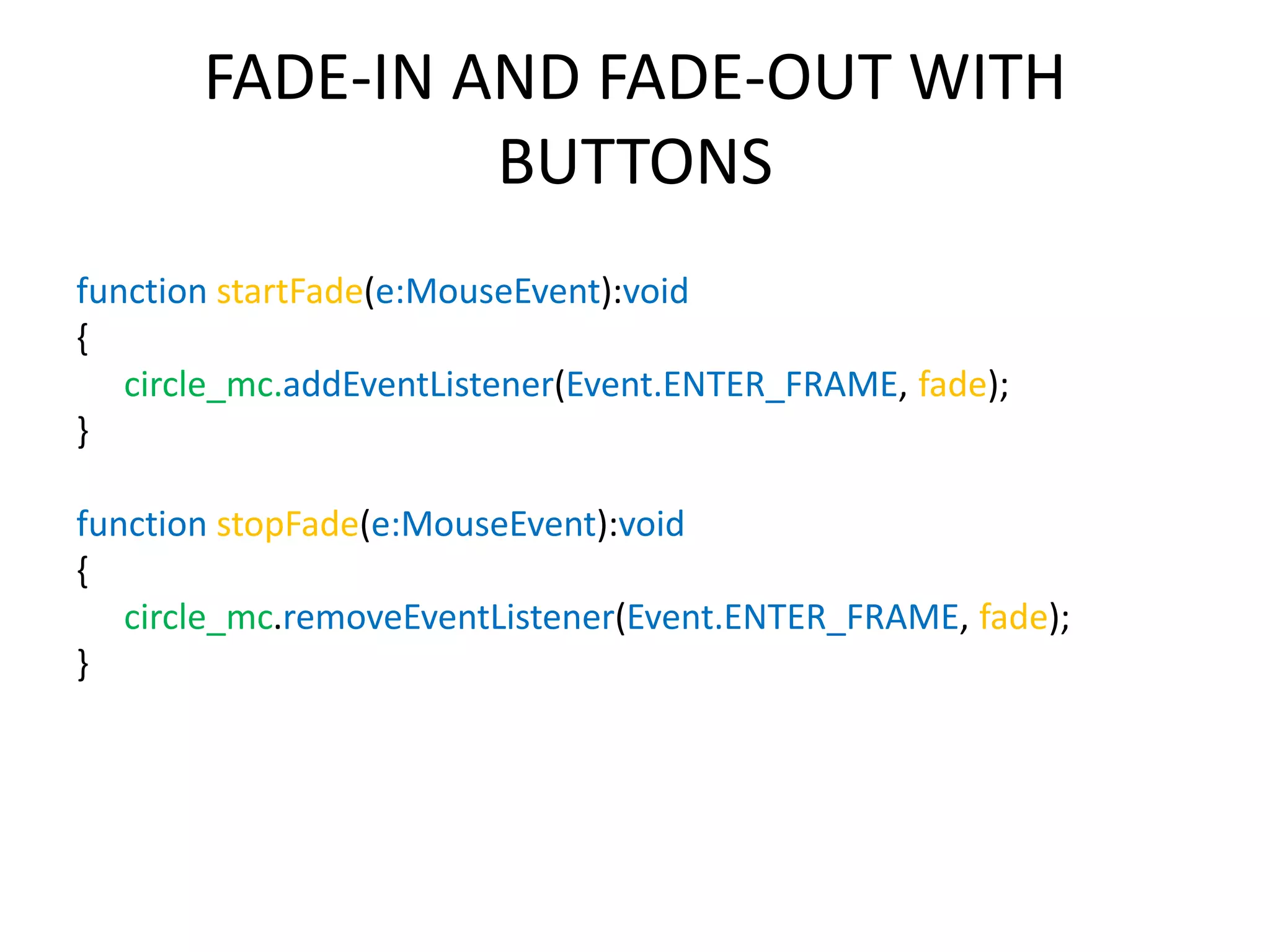

  FADE-IN AND FADE-OUTWITH BUTTONS function startFade(e:MouseEvent):void { circle_mc.addEventListener(Event.ENTER_FRAME, fade); } function stopFade(e:MouseEvent):void { circle_mc.removeEventListener(Event.ENTER_FRAME, fade); }
• 20.

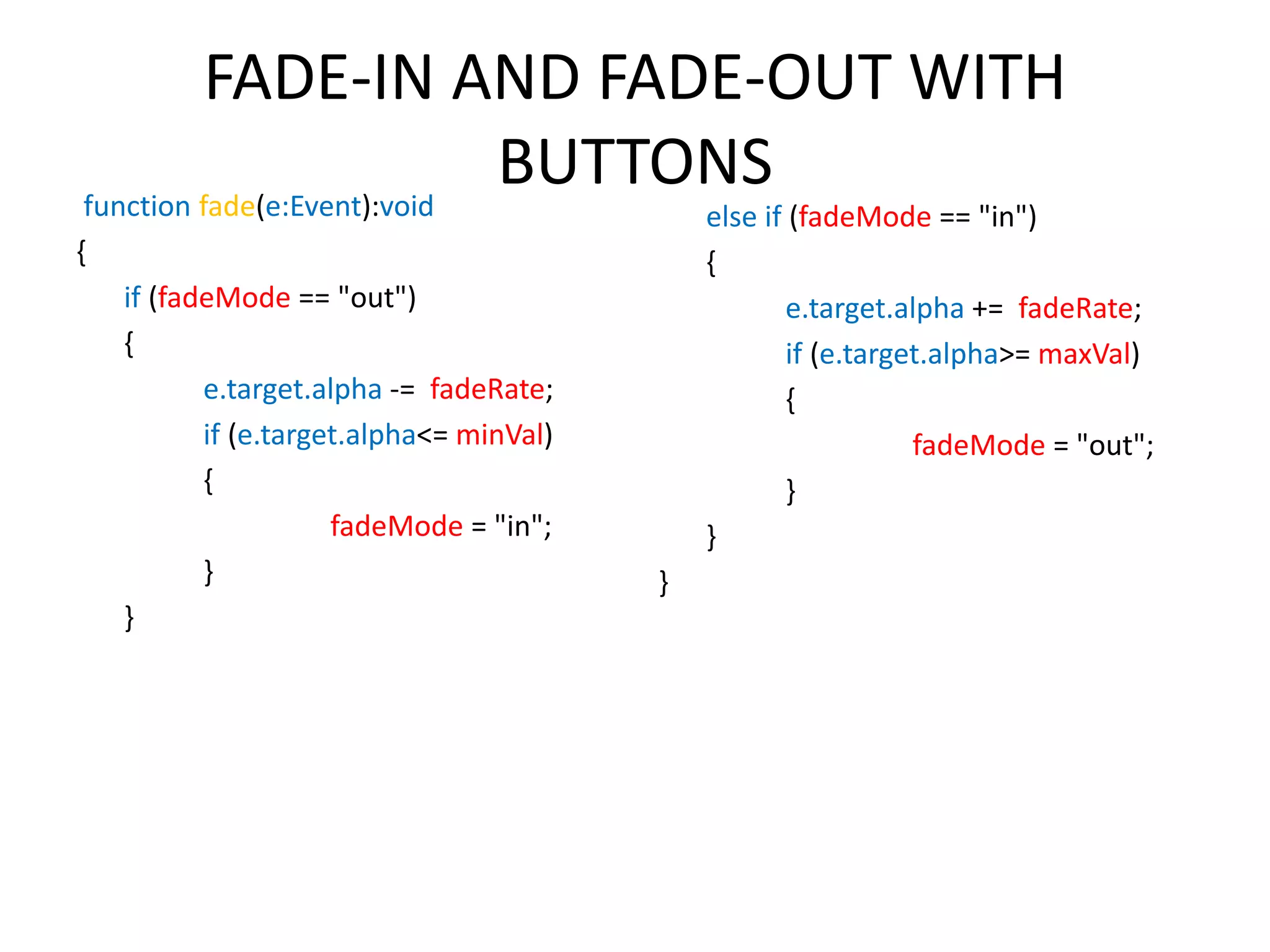

  FADE-IN AND FADE-OUTWITH BUTTONSfunction fade(e:Event):void { if (fadeMode == "out") { e.target.alpha -= fadeRate; if (e.target.alpha<= minVal) { fadeMode = "in"; } } else if (fadeMode == "in") { e.target.alpha += fadeRate; if (e.target.alpha>= maxVal) { fadeMode = "out"; } } }
• 21.

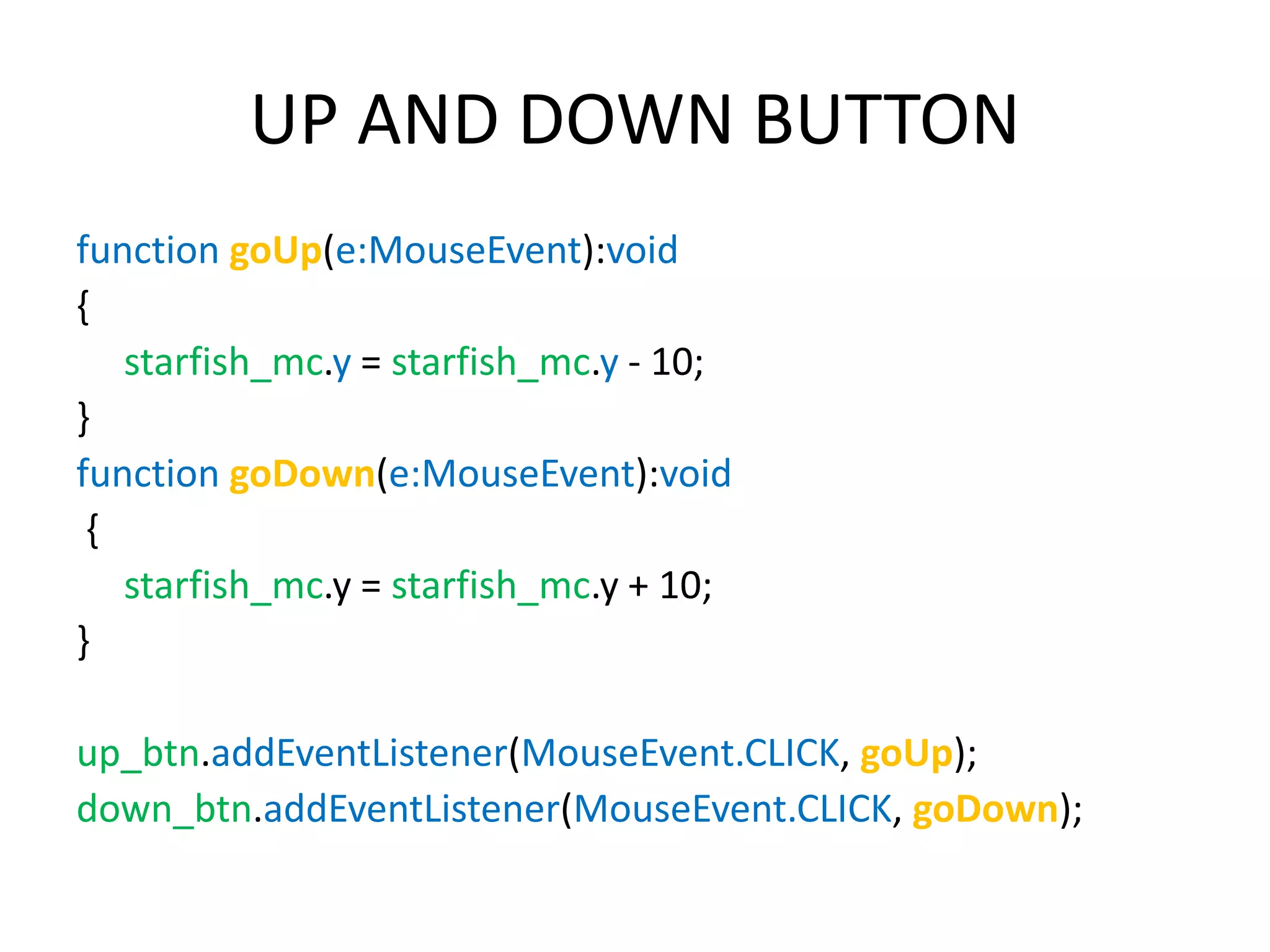

  UP AND DOWNBUTTON function goUp(e:MouseEvent):void { starfish_mc.y = starfish_mc.y - 10; } function goDown(e:MouseEvent):void { starfish_mc.y = starfish_mc.y + 10; } up_btn.addEventListener(MouseEvent.CLICK, goUp); down_btn.addEventListener(MouseEvent.CLICK, goDown);
• 22.

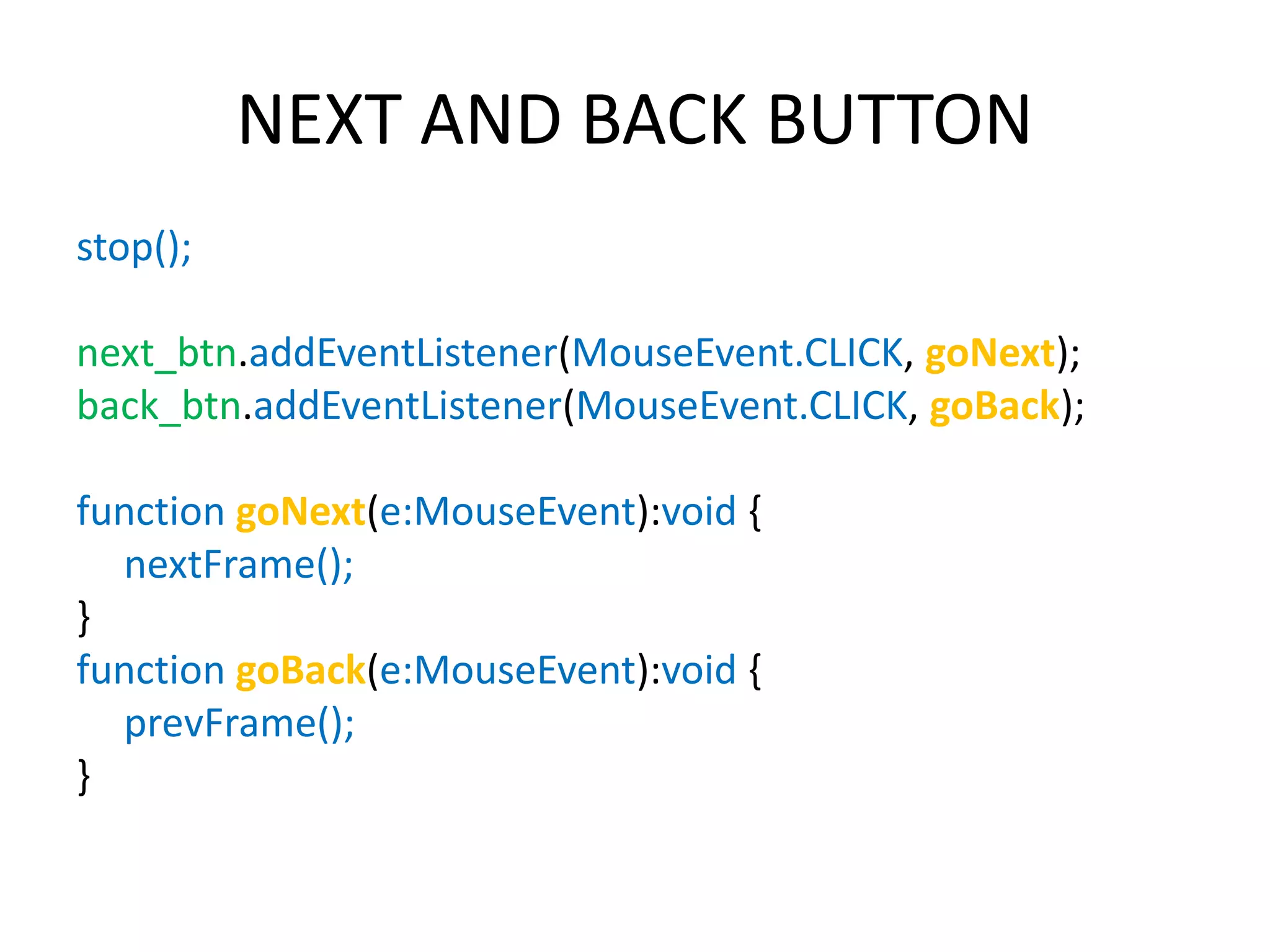

  NEXT AND BACKBUTTON stop(); next_btn.addEventListener(MouseEvent.CLICK, goNext); back_btn.addEventListener(MouseEvent.CLICK, goBack); function goNext(e:MouseEvent):void { nextFrame(); } function goBack(e:MouseEvent):void { prevFrame(); }
• 23.

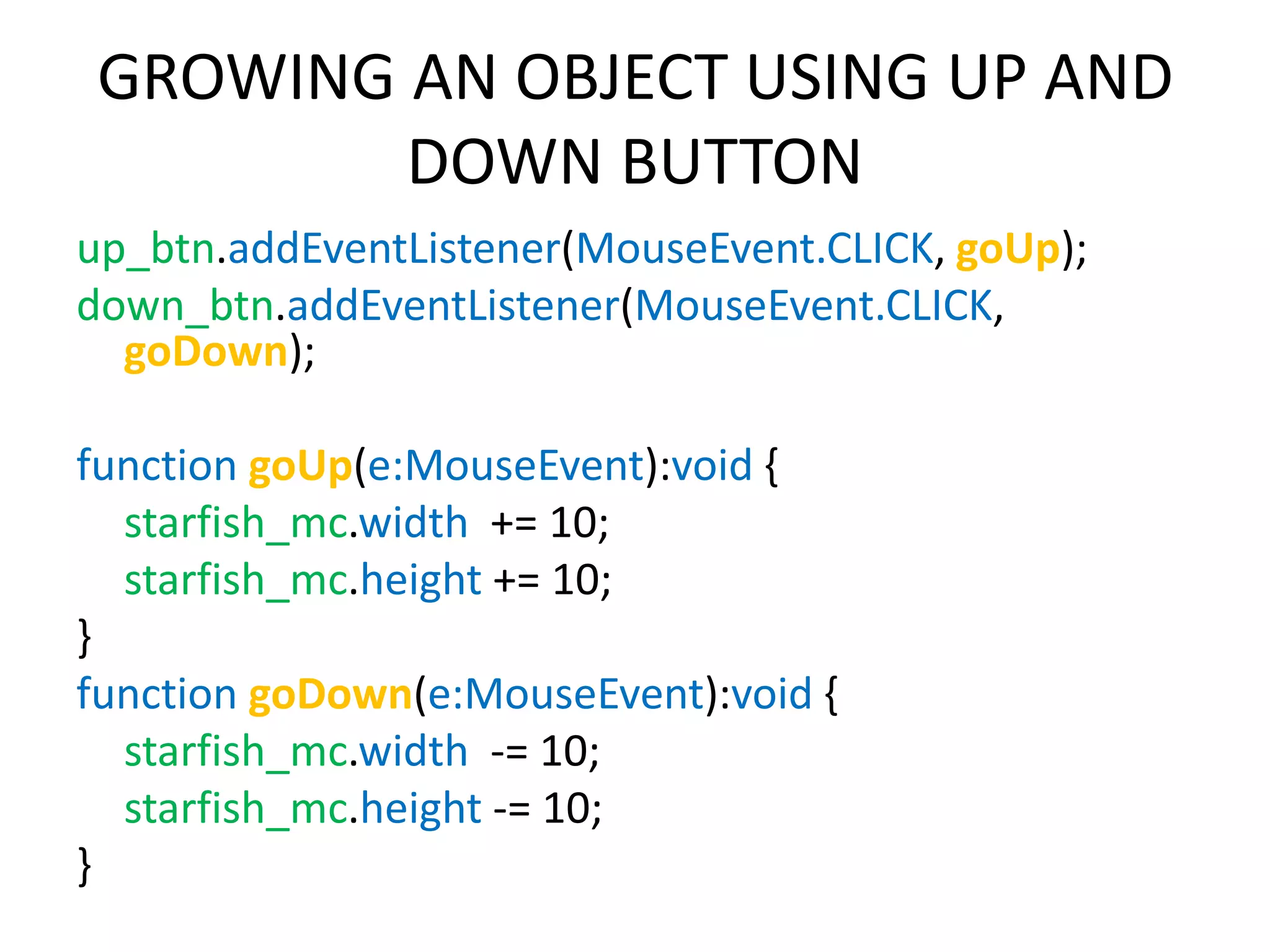

  GROWING AN OBJECTUSING UP AND DOWN BUTTON up_btn.addEventListener(MouseEvent.CLICK, goUp); down_btn.addEventListener(MouseEvent.CLICK, goDown); function goUp(e:MouseEvent):void { starfish_mc.width += 10; starfish_mc.height += 10; } function goDown(e:MouseEvent):void { starfish_mc.width -= 10; starfish_mc.height -= 10; }
